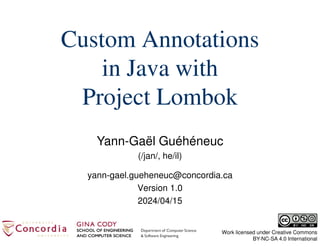

Custom Annotations in Java with Project Lombok

Yann-Gaël Guéhéneuc
(/jan/, he/il)
Work licensed under Creative Commons
BY-NC-SA 4.0 International
Custom Annotations
in Java with
Project Lombok
yann-gael.gueheneuc@concordia.ca
Version 1.0
2024/04/15

2/60

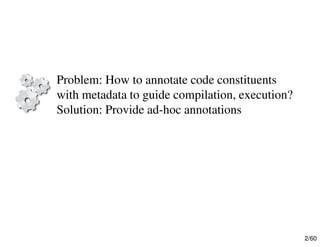

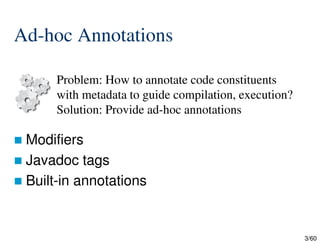

Problem: How to annotate code constituents
with metadata to guide compilation, execution?
Solution: Provide ad-hoc annotations

3/60
Ad-hoc Annotations
 Modifiers
 Javadoc tags
 Built-in annotations

4/60

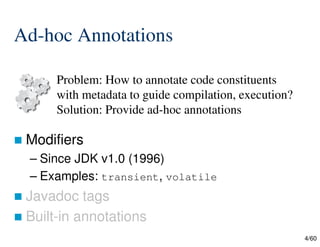

Ad-hoc Annotations
 Modifiers
– Since JDK v1.0 (1996)
– Examples: transient, volatile
 Javadoc tags

5/60

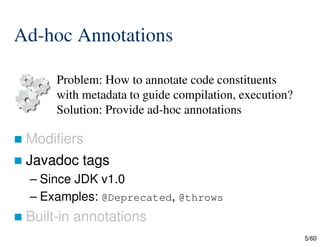

Ad-hoc Annotations
 Modifiers
 Javadoc tags
– Since JDK v1.0
– Examples: @Deprecated, @throws

6/60

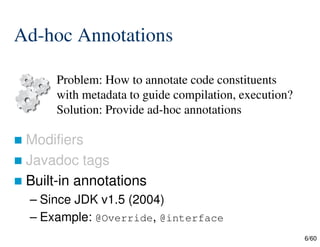

Ad-hoc Annotations
 Modifiers
 Javadoc tags
– Since JDK v1.5 (2004)
– Example: @Override, @interface

7/60

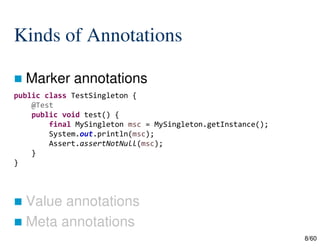

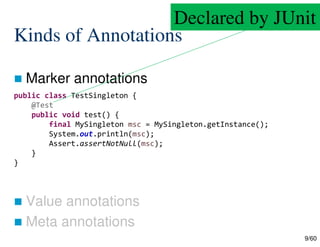

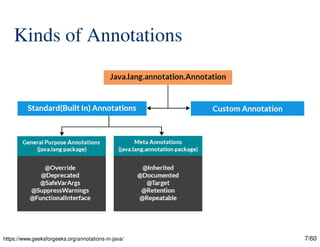

Kinds of Annotations
https://www.geeksforgeeks.org/annotations-in-java/

8/60

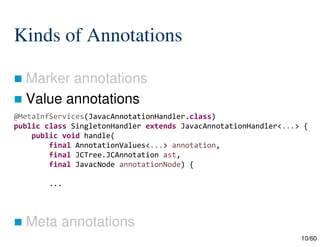

 Marker annotations
 Value annotations
 Meta annotations
public class TestSingleton {
@Test
public void test() {
final MySingleton msc = MySingleton.getInstance();
System.out.println(msc);
Assert.assertNotNull(msc);
}
}

9/60
@Test
}
}
Declared by JUnit

10/60

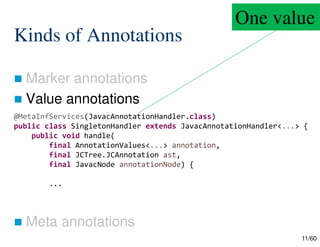

@MetaInfServices(JavacAnnotationHandler.class)
public class SingletonHandler extends JavacAnnotationHandler<...> {
public void handle(
final AnnotationValues<...> annotation,
final JCTree.JCAnnotation ast,
final JavacNode annotationNode) {
...

11/60
@MetaInfServices(JavacAnnotationHandler.class)
public class SingletonHandler extends JavacAnnotationHandler<...> {
public void handle(
final AnnotationValues<...> annotation,
final JCTree.JCAnnotation ast,
final JavacNode annotationNode) {
...
One value

12/60

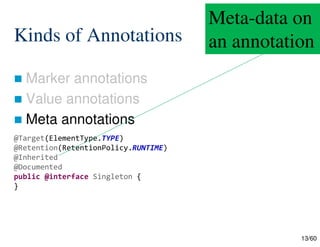

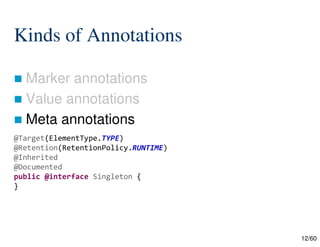

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
public @interface Singleton {
}

13/60
@Inherited
@Documented
}
Meta-data on
an annotation

14/60

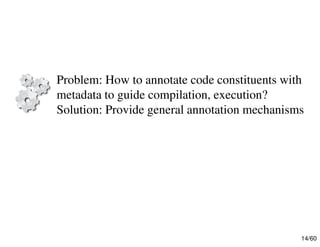

Problem: How to annotate code constituents with
metadata to guide compilation, execution?
Solution: Provide general annotation mechanisms

15/60

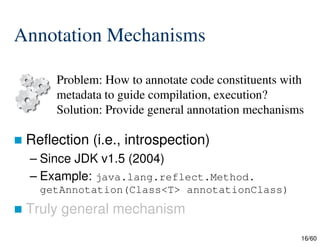

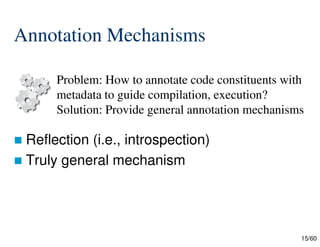

Annotation Mechanisms
 Reflection (i.e., introspection)
 Truly general mechanism

16/60
– Since JDK v1.5 (2004)
– Example: java.lang.reflect.Method.
getAnnotation(Class<T> annotationClass)

17/60

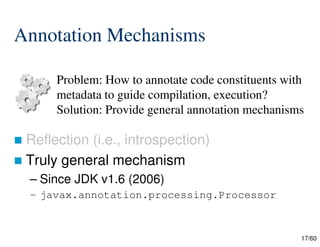

– Since JDK v1.6 (2006)
– javax.annotation.processing.Processor

18/60

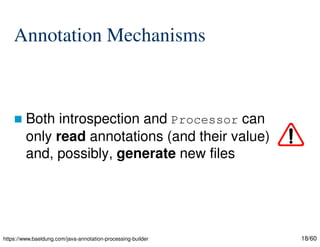

 Both introspection and Processor can
only read annotations (and their value)
and, possibly, generate new files
https://www.baeldung.com/java-annotation-processing-builder

19/60

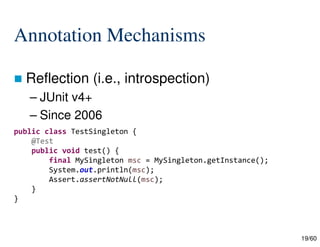

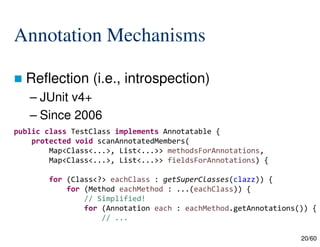

– JUnit v4+
– Since 2006
@Test
}
}

20/60
– JUnit v4+
– Since 2006
public class TestClass implements Annotatable {
protected void scanAnnotatedMembers(
Map<Class<...>, List<...>> methodsForAnnotations,
Map<Class<...>, List<...>> fieldsForAnnotations) {
for (Class<?> eachClass : getSuperClasses(clazz)) {
for (Method eachMethod : ...(eachClass)) {
// Simplified!
for (Annotation each : eachMethod.getAnnotations()) {
// ...

21/60

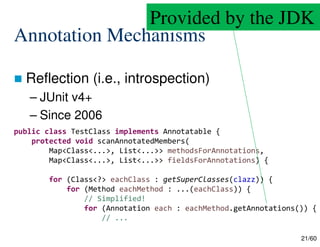

– JUnit v4+
– Since 2006
public class TestClass implements Annotatable {
protected void scanAnnotatedMembers(
Map<Class<...>, List<...>> methodsForAnnotations,
Map<Class<...>, List<...>> fieldsForAnnotations) {
for (Class<?> eachClass : getSuperClasses(clazz)) {
for (Method eachMethod : ...(eachClass)) {
// Simplified!
for (Annotation each : eachMethod.getAnnotations()) {
// ...
Provided by the JDK

22/60

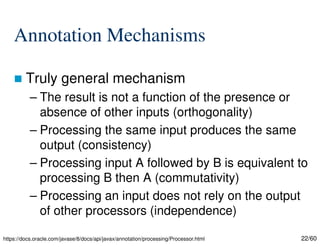

– The result is not a function of the presence or
absence of other inputs (orthogonality)
– Processing the same input produces the same
output (consistency)
– Processing input A followed by B is equivalent to
processing B then A (commutativity)
– Processing an input does not rely on the output
of other processors (independence)
https://docs.oracle.com/javase/8/docs/api/javax/annotation/processing/Processor.html

23/60

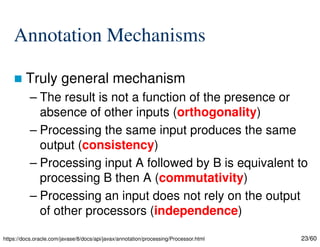

– The result is not a function of the presence or
absence of other inputs (orthogonality)
– Processing the same input produces the same
output (consistency)
– Processing input A followed by B is equivalent to
processing B then A (commutativity)
– Processing an input does not rely on the output
of other processors (independence)
https://docs.oracle.com/javase/8/docs/api/javax/annotation/processing/Processor.html

24/60

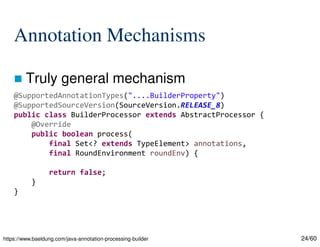

@SupportedAnnotationTypes("....BuilderProperty")
@SupportedSourceVersion(SourceVersion.RELEASE_8)
public class BuilderProcessor extends AbstractProcessor {
@Override
public boolean process(
final Set<? extends TypeElement> annotations,
final RoundEnvironment roundEnv) {
return false;
}
}

25/60
@SupportedAnnotationTypes("....BuilderProperty")
@SupportedSourceVersion(SourceVersion.RELEASE_8)
public class BuilderProcessor extends AbstractProcessor {
@Override
public boolean process(
final Set<? extends TypeElement> annotations,
final RoundEnvironment roundEnv) {
return false;
}
}
Provided by the JDK,
implements Processor

26/60

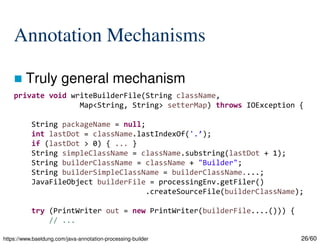

private void writeBuilderFile(String className,
Map<String, String> setterMap) throws IOException {
String packageName = null;
int lastDot = className.lastIndexOf('.’);
if (lastDot > 0) { ... }
String simpleClassName = className.substring(lastDot + 1);
String builderClassName = className + "Builder";
String builderSimpleClassName = builderClassName....;
JavaFileObject builderFile = processingEnv.getFiler()
.createSourceFile(builderClassName);
try (PrintWriter out = new PrintWriter(builderFile....())) {
// ...

27/60

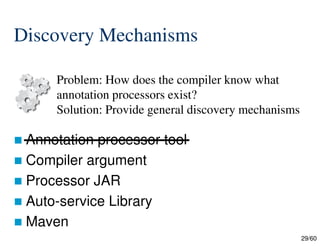

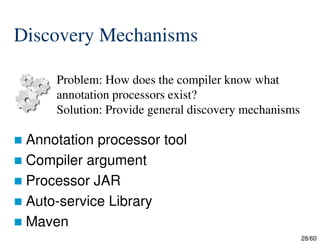

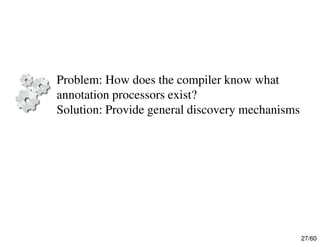

Problem: How does the compiler know what
annotation processors exist?
Solution: Provide general discovery mechanisms

28/60
 Annotation processor tool
 Compiler argument
 Processor JAR
 Auto-service Library
 Maven
Discovery Mechanisms

29/60
 Annotation processor tool
 Processor JAR
 Maven

30/60

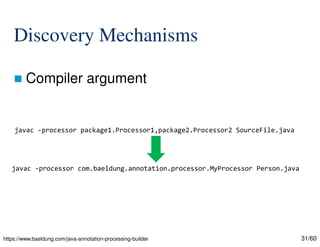

javac -processor package1.Processor1,package2.Processor2 SourceFile.java

31/60
javac -processor package1.Processor1,package2.Processor2 SourceFile.java
javac -processor com.baeldung.annotation.processor.MyProcessor Person.java

32/60

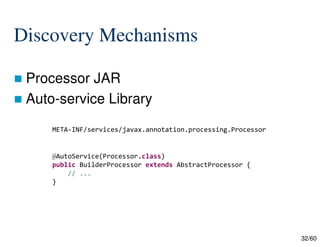

 Processor JAR
META-INF/services/javax.annotation.processing.Processor
@AutoService(Processor.class)
public BuilderProcessor extends AbstractProcessor {
// ...
}

33/60
 Processor JAR
// ...
}

34/60

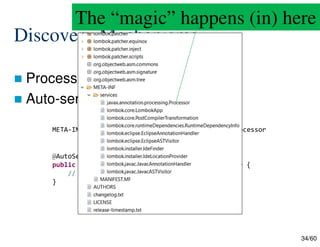

 Processor JAR
// ...
}
The “magic” happens (in) here

35/60
Problem: How to modify code constituents using
annotation during compilation?
Solution: Hook into the compiler and hack its AST

36/60
https://www.southernexposure.com/products/lombok-chile-lombak-hot-pepper/

37/60

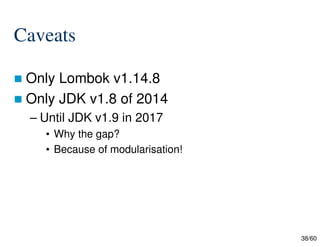

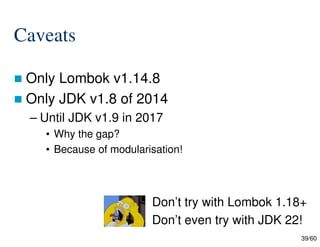

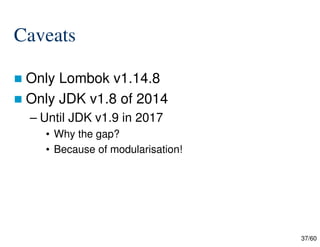

Caveats
 Only Lombok v1.14.8
 Only JDK v1.8 of 2014
– Until JDK v1.9 in 2017
• Why the gap?
• Because of modularisation!

38/60
Caveats
• Why the gap?

39/60
Caveats
• Why the gap?
Don’t try with Lombok 1.18+
Don’t even try with JDK 22!

40/60

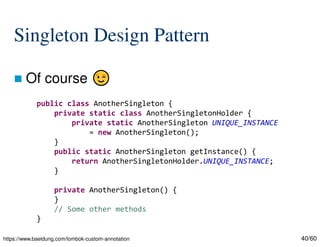

Singleton Design Pattern
 Of course
public class AnotherSingleton {
private static class AnotherSingletonHolder {
private static AnotherSingleton UNIQUE_INSTANCE
= new AnotherSingleton();
}
public static AnotherSingleton getInstance() {
return AnotherSingletonHolder.UNIQUE_INSTANCE;
}
private AnotherSingleton() {
}
// Some other methods
}
https://www.baeldung.com/lombok-custom-annotation

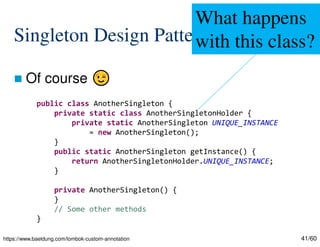

41/60
 Of course
public class AnotherSingleton {
private static class AnotherSingletonHolder {
private static AnotherSingleton UNIQUE_INSTANCE
= new AnotherSingleton();
}
public static AnotherSingleton getInstance() {
return AnotherSingletonHolder.UNIQUE_INSTANCE;
}
private AnotherSingleton() {
}
}
What happens
with this class?
https://www.baeldung.com/lombok-custom-annotation

42/60

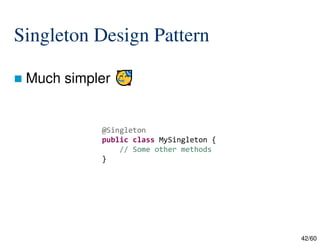

 Much simpler
@Singleton
public class MySingleton {
}

43/60

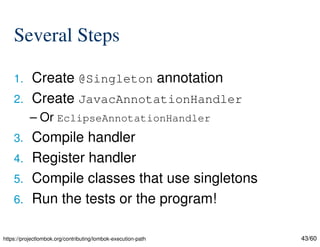

Several Steps
1. Create @Singleton annotation
2. Create JavacAnnotationHandler
– Or EclipseAnnotationHandler
3. Compile handler
4. Register handler
5. Compile classes that use singletons
6. Run the tests or the program!
https://projectlombok.org/contributing/lombok-execution-path

44/60

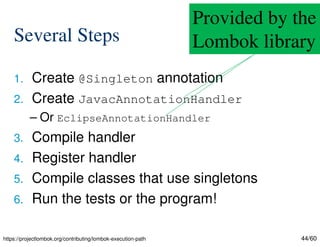

Several Steps
1. Create @Singleton annotation
2. Create JavacAnnotationHandler
– Or EclipseAnnotationHandler
3. Compile handler
4. Register handler
5. Compile classes that use singletons
6. Run the tests or the program!
Provided by the
Lombok library
https://projectlombok.org/contributing/lombok-execution-path

45/60
Step 1
@Inherited
@Documented
}
@Singleton
}
@Test
}
}

46/60

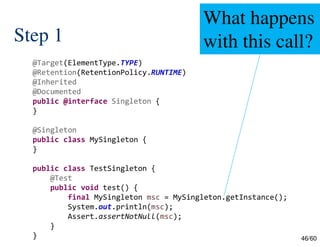

Step 1
@Inherited
@Documented
}
@Singleton
}
@Test
}
}
What happens
with this call?

47/60

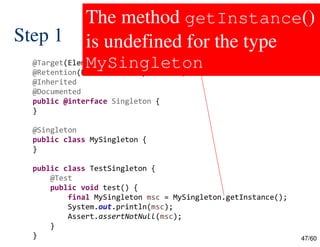

Step 1
@Inherited
@Documented
}
@Singleton
}
@Test
}
}
The method getInstance()
is undefined for the type
MySingleton

49/60

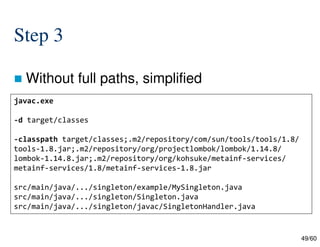

Step 3
 Without full paths, simplified
javac.exe
-d target/classes
-classpath target/classes;.m2/repository/com/sun/tools/tools/1.8/
tools-1.8.jar;.m2/repository/org/projectlombok/lombok/1.14.8/
lombok-1.14.8.jar;.m2/repository/org/kohsuke/metainf-services/
metainf-services/1.8/metainf-services-1.8.jar
src/main/java/.../singleton/example/MySingleton.java
src/main/java/.../singleton/Singleton.java
src/main/java/.../singleton/javac/SingletonHandler.java

51/60

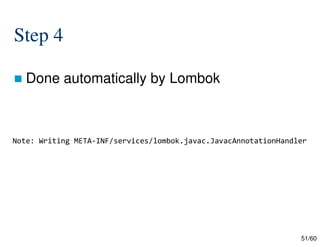

Step 4
 Done automatically by Lombok
Note: Writing META-INF/services/lombok.javac.JavacAnnotationHandler

52/60

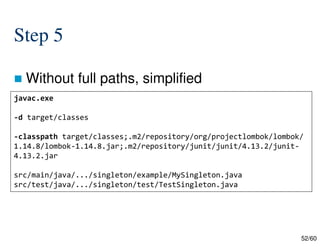

Step 5
javac.exe
-d target/classes
-classpath target/classes;.m2/repository/org/projectlombok/lombok/
1.14.8/lombok-1.14.8.jar;.m2/repository/junit/junit/4.13.2/junit-
4.13.2.jar
src/main/java/.../singleton/example/MySingleton.java
src/test/java/.../singleton/test/TestSingleton.java

54/60

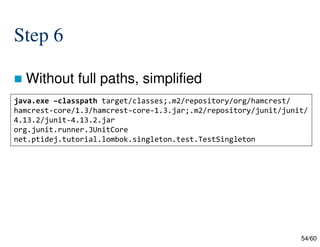

Step 6
java.exe –classpath target/classes;.m2/repository/org/hamcrest/
hamcrest-core/1.3/hamcrest-core-1.3.jar;.m2/repository/junit/junit/
4.13.2/junit-4.13.2.jar
org.junit.runner.JUnitCore
net.ptidej.tutorial.lombok.singleton.test.TestSingleton

55/60

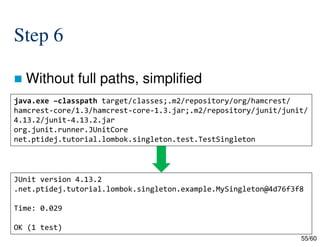

Step 6
java.exe –classpath target/classes;.m2/repository/org/hamcrest/
hamcrest-core/1.3/hamcrest-core-1.3.jar;.m2/repository/junit/junit/
4.13.2/junit-4.13.2.jar
org.junit.runner.JUnitCore
net.ptidej.tutorial.lombok.singleton.test.TestSingleton
JUnit version 4.13.2
.net.ptidej.tutorial.lombok.singleton.example.MySingleton@4d76f3f8
Time: 0.029
OK (1 test)

56/60

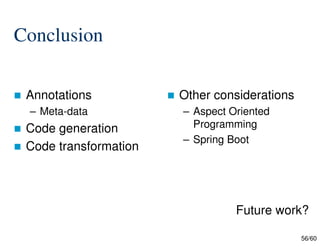

Conclusion
 Annotations
– Meta-data
 Code generation
 Code transformation
 Other considerations
– Aspect Oriented
Programming
– Spring Boot
Future work?

57/60
Conclusion
 Annotations
– Meta-data
 Code generation
– Aspect Oriented
Programming
– Spring Boot

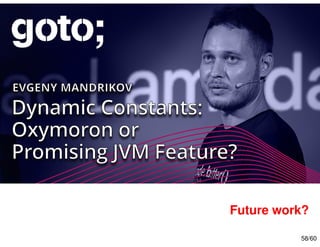

Future work?

58/60
Conclusion
 Annotations
– Meta-data
 Code generation
– Aspect Oriented
Programming
– Spring Boot
Future work?

60/60

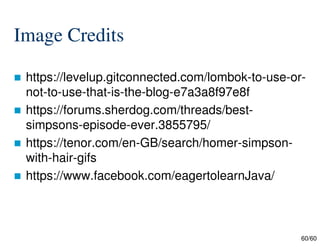

Image Credits
