The Art of Metaprogramming in Java

The Art of Metaprogramming
in Java

Abdelmonaim Remani
@PolymathicCoder

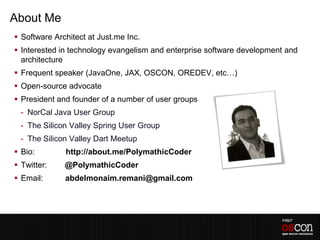

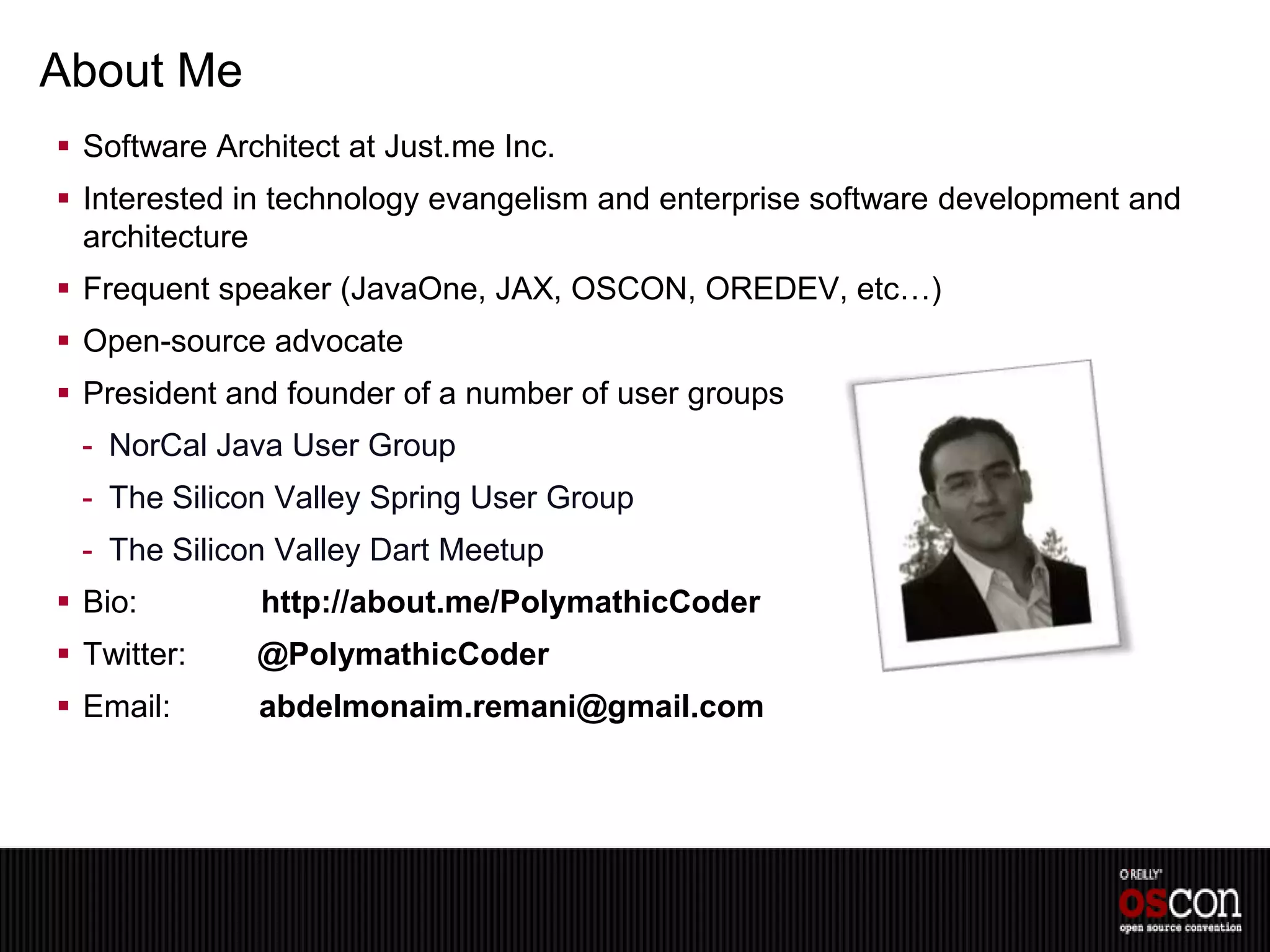

About Me
 Software Architect at Just.me Inc.
 Interested in technology evangelism and enterprise software development and
architecture
 Frequent speaker (JavaOne, JAX, OSCON, OREDEV, etc…)
 Open-source advocate
 President and founder of a number of user groups
- NorCal Java User Group
- The Silicon Valley Spring User Group
- The Silicon Valley Dart Meetup
 Bio: http://about.me/PolymathicCoder
 Twitter: @PolymathicCoder
 Email: abdelmonaim.remani@gmail.com

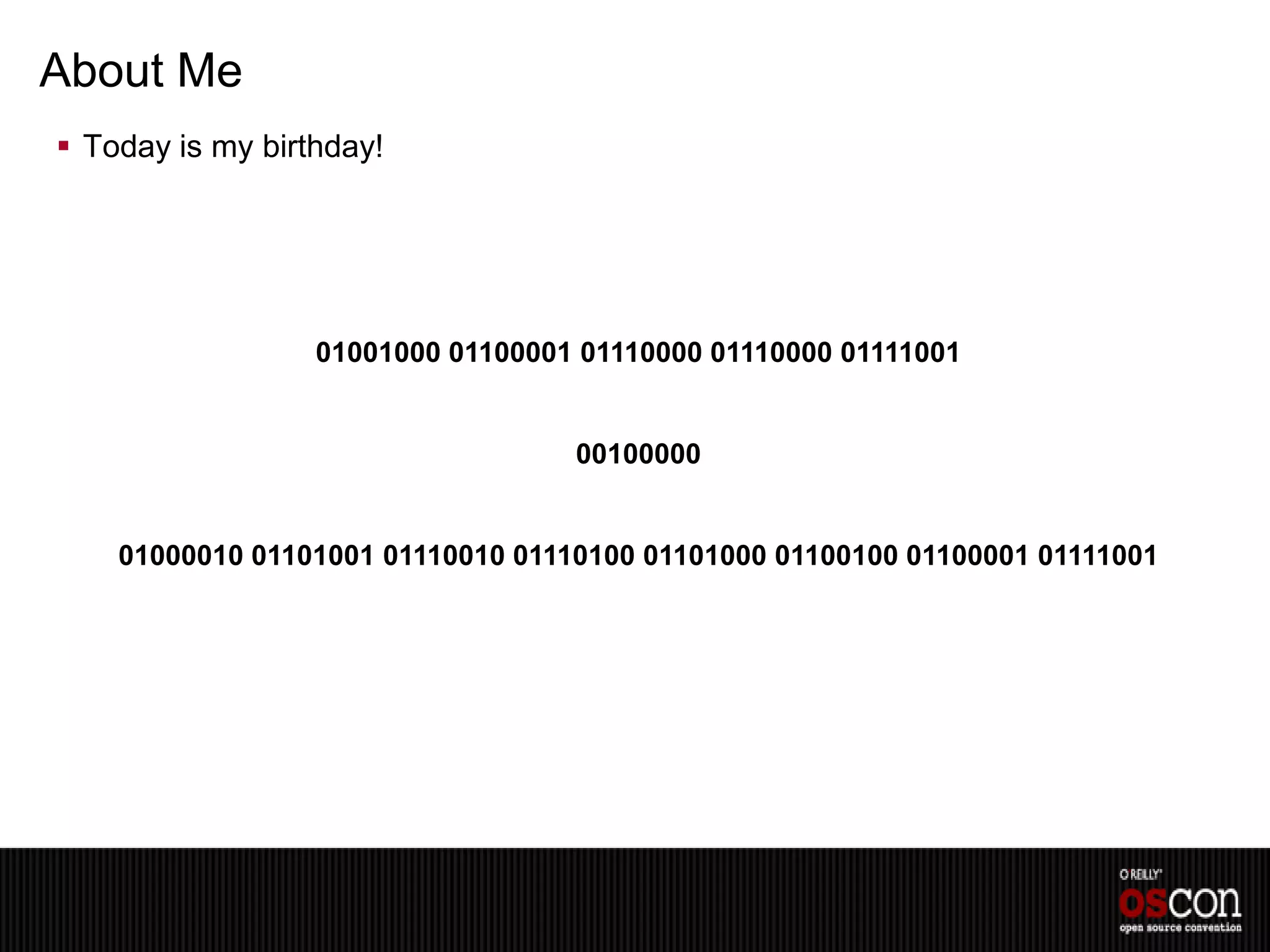

About Me
 Today is my birthday!

01001000 01100001 01110000 01110000 01111001

00100000

01000010 01101001 01110010 01110100 01101000 01100100 01100001 01111001

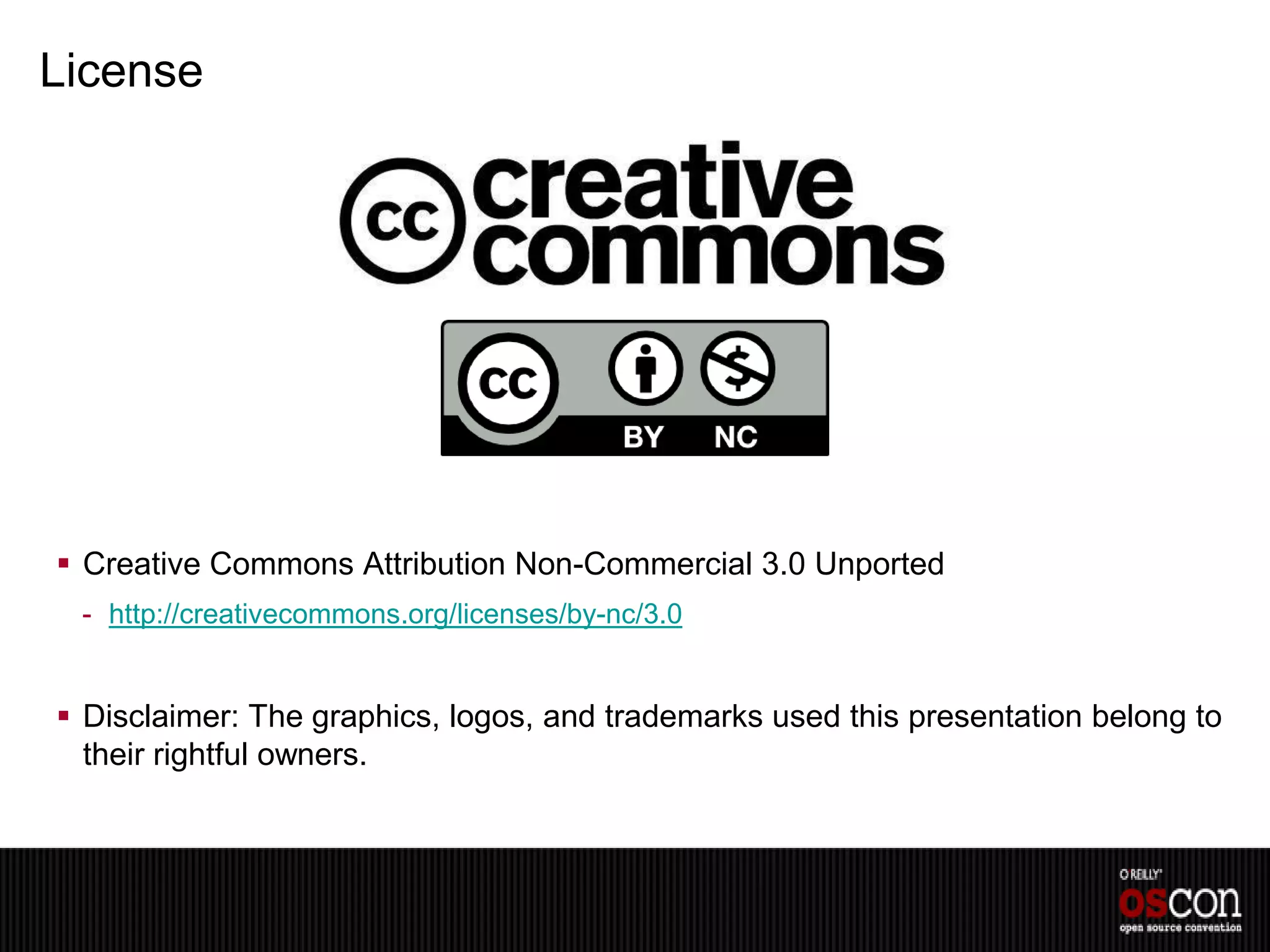

License

 Creative Commons Attribution Non-Commercial 3.0 Unported
- http://creativecommons.org/licenses/by-nc/3.0

 Disclaimer: The graphics, logos, and trademarks used this presentation belong to
their rightful owners.

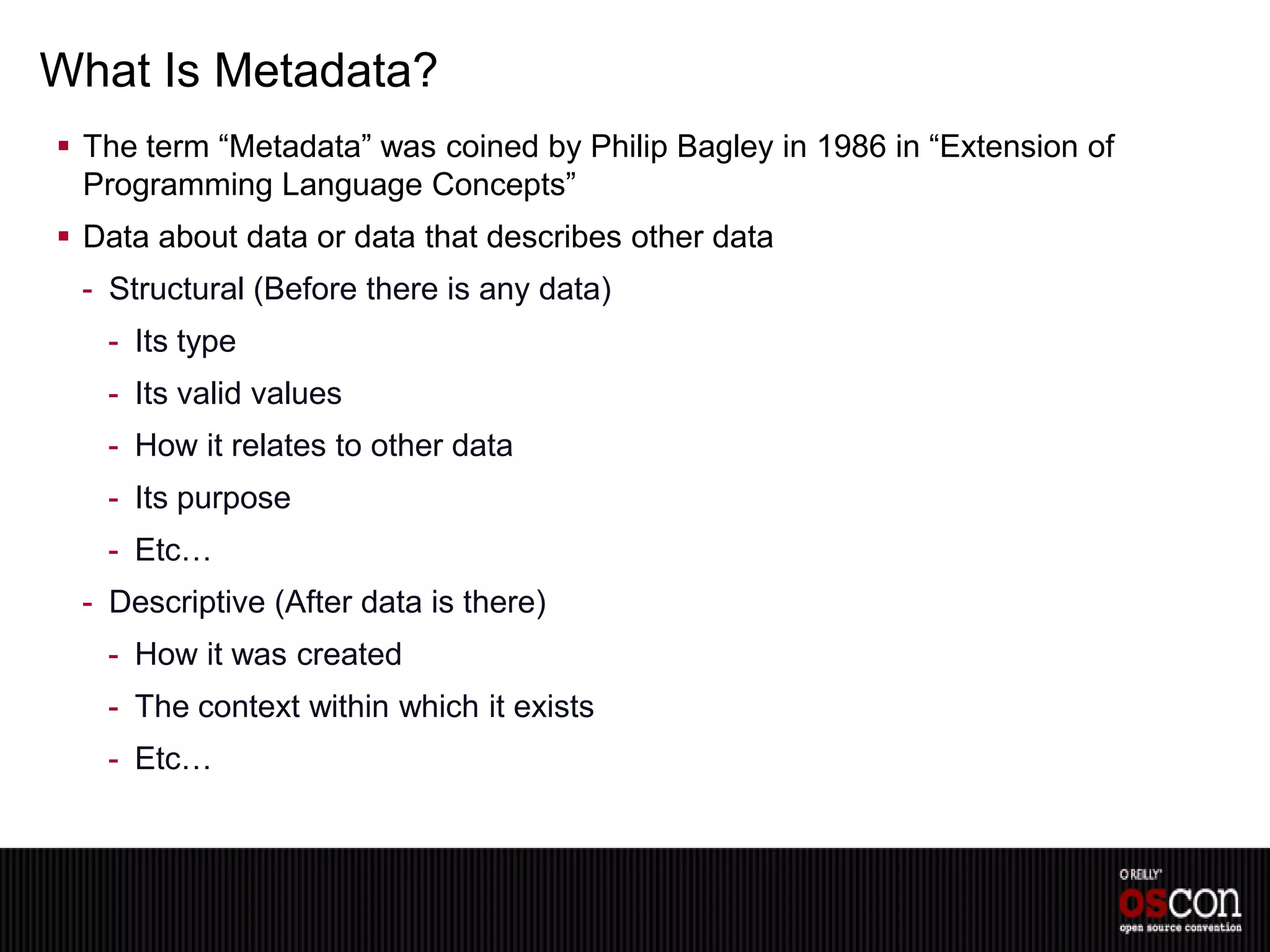

What Is Metadata?
 The term “Metadata” was coined by Philip Bagley in 1986 in “Extension of
Programming Language Concepts”
 Data about data or data that describes other data
- Structural (Before there is any data)
- Its type
- Its valid values
- How it relates to other data
- Its purpose
- Etc…
- Descriptive (After data is there)
- How it was created
- The context within which it exists
- Etc…

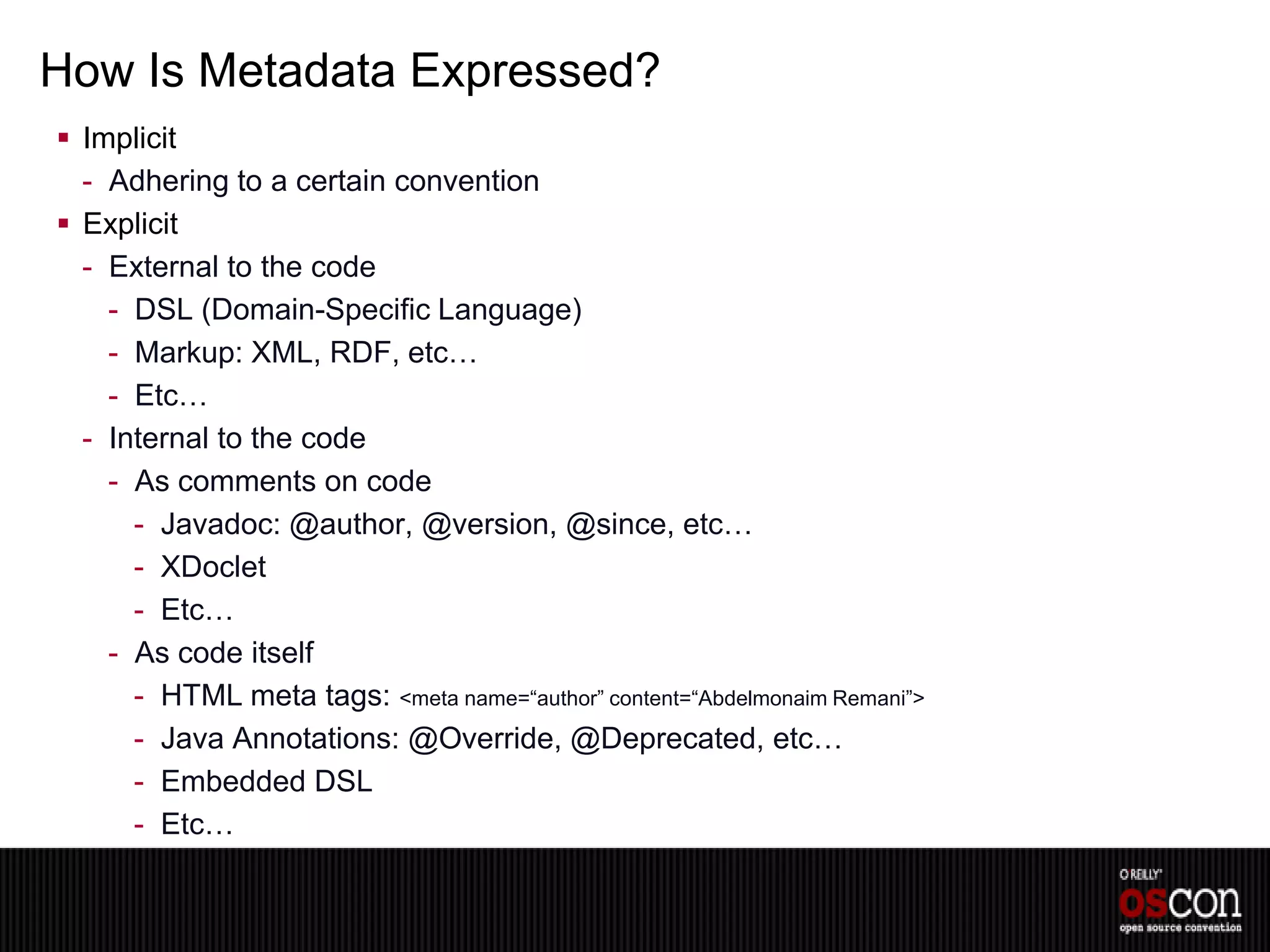

How Is Metadata Expressed?
 Implicit
- Adhering to a certain convention
 Explicit
- External to the code
- DSL (Domain-Specific Language)
- Markup: XML, RDF, etc…
- Etc…
- Internal to the code
- As comments on code
- Javadoc: @author, @version, @since, etc…
- XDoclet
- Etc…
- As code itself
- HTML meta tags: <meta name=“author” content=“Abdelmonaim Remani”>
- Java Annotations: @Override, @Deprecated, etc…
- Embedded DSL
- Etc…

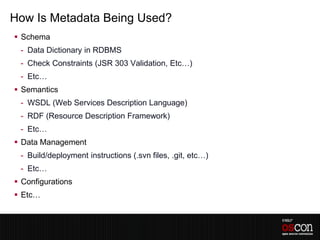

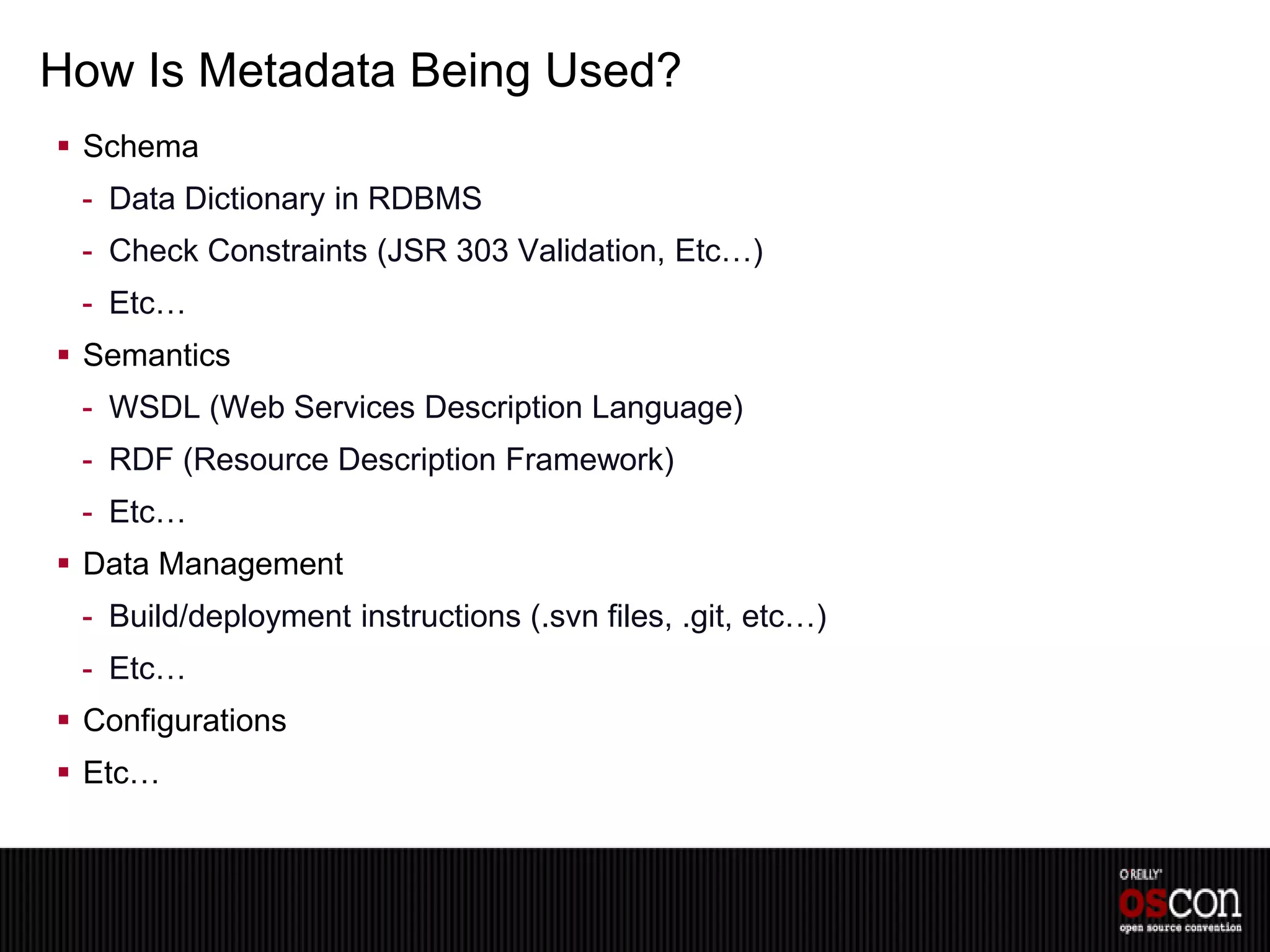

How Is Metadata Being Used?
 Schema
- Data Dictionary in RDBMS
- Check Constraints (JSR 303 Validation, Etc…)
- Etc…
 Semantics
- WSDL (Web Services Description Language)
- RDF (Resource Description Framework)
- Etc…
 Data Management
- Build/deployment instructions (.svn files, .git, etc…)
- Etc…
 Configurations
 Etc…

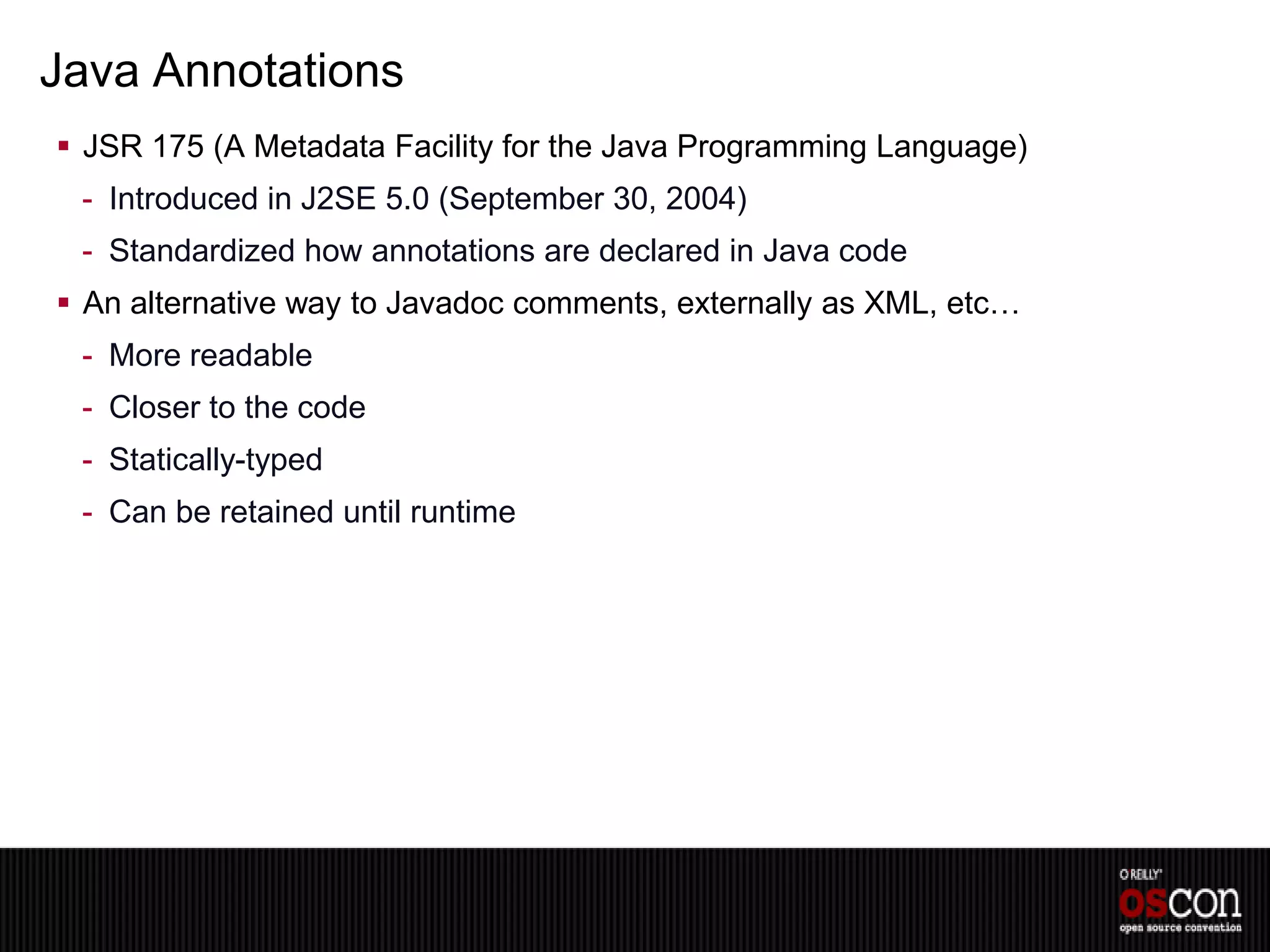

Java Annotations
 JSR 175 (A Metadata Facility for the Java Programming Language)
- Introduced in J2SE 5.0 (September 30, 2004)
- Standardized how annotations are declared in Java code
 An alternative way to Javadoc comments, externally as XML, etc…
- More readable
- Closer to the code
- Statically-typed
- Can be retained until runtime

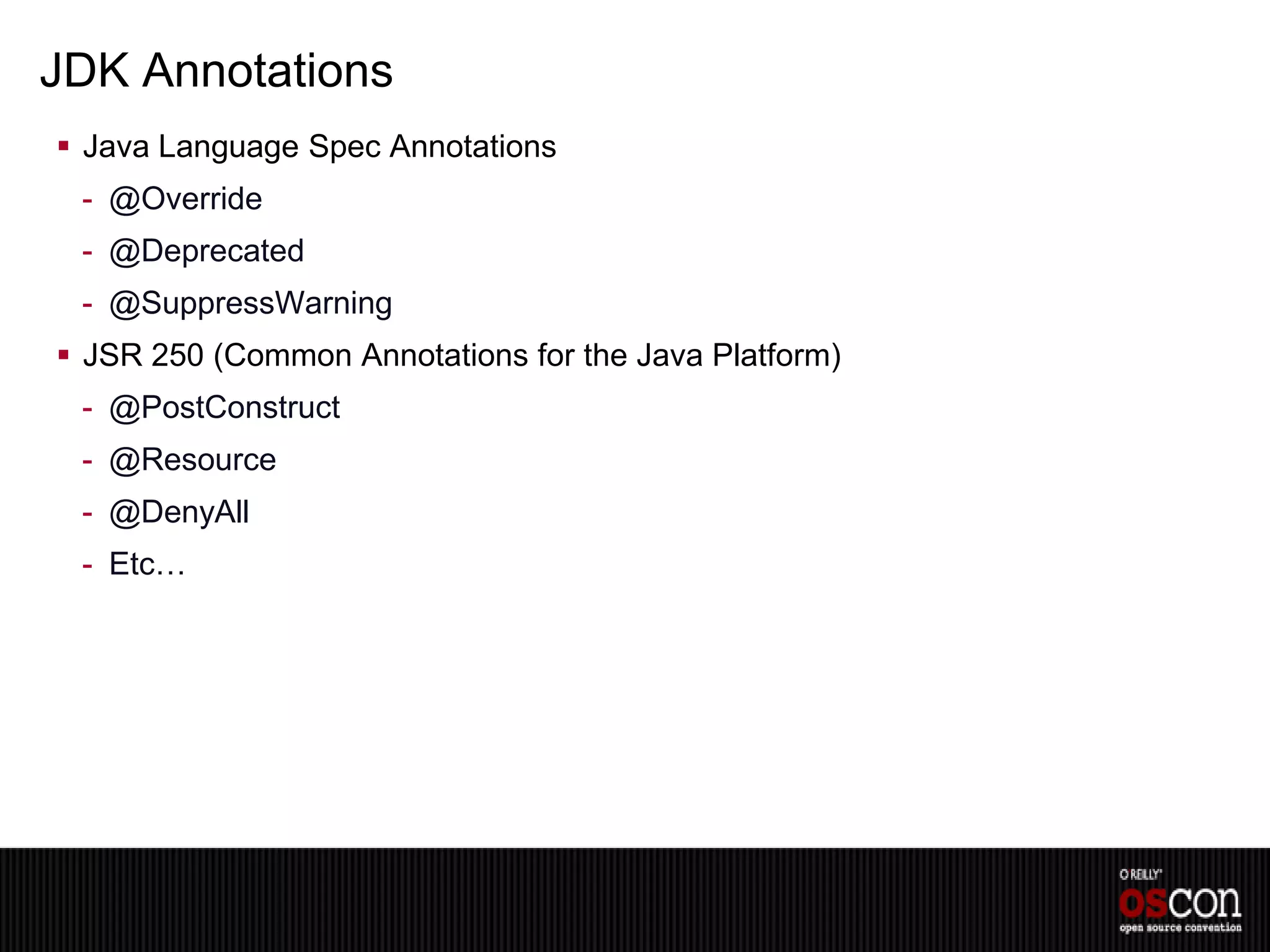

JDK Annotations
 Java Language Spec Annotations
- @Override
- @Deprecated
- @SuppressWarning
 JSR 250 (Common Annotations for the Java Platform)
- @PostConstruct
- @Resource
- @DenyAll
- Etc…

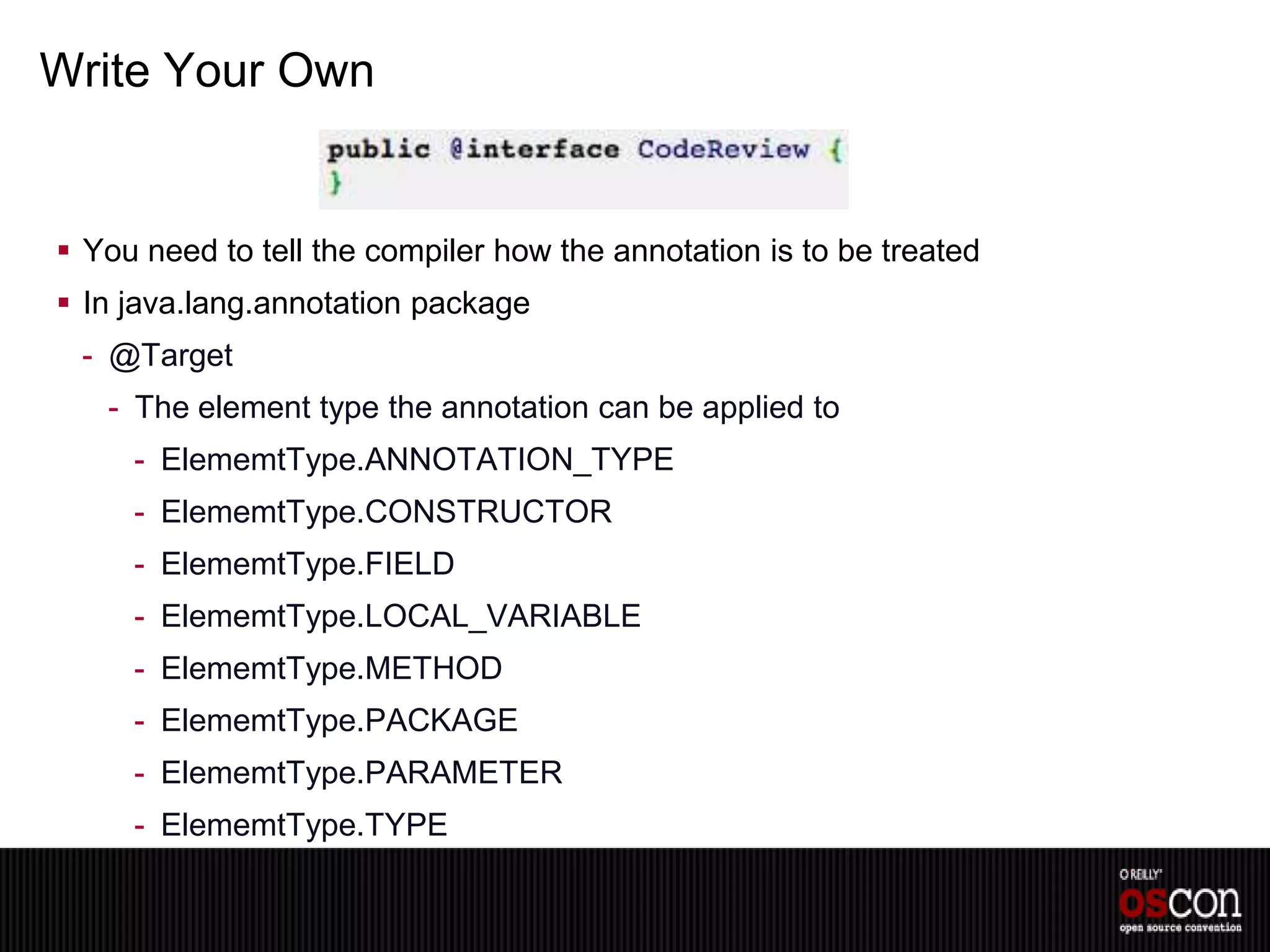

Write Your Own

 You need to tell the compiler how the annotation is to be treated
 In java.lang.annotation package
- @Target
- The element type the annotation can be applied to
- ElememtType.ANNOTATION_TYPE
- ElememtType.CONSTRUCTOR
- ElememtType.FIELD
- ElememtType.LOCAL_VARIABLE
- ElememtType.METHOD
- ElememtType.PACKAGE
- ElememtType.PARAMETER
- ElememtType.TYPE

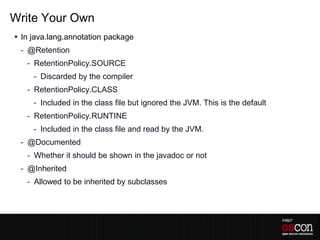

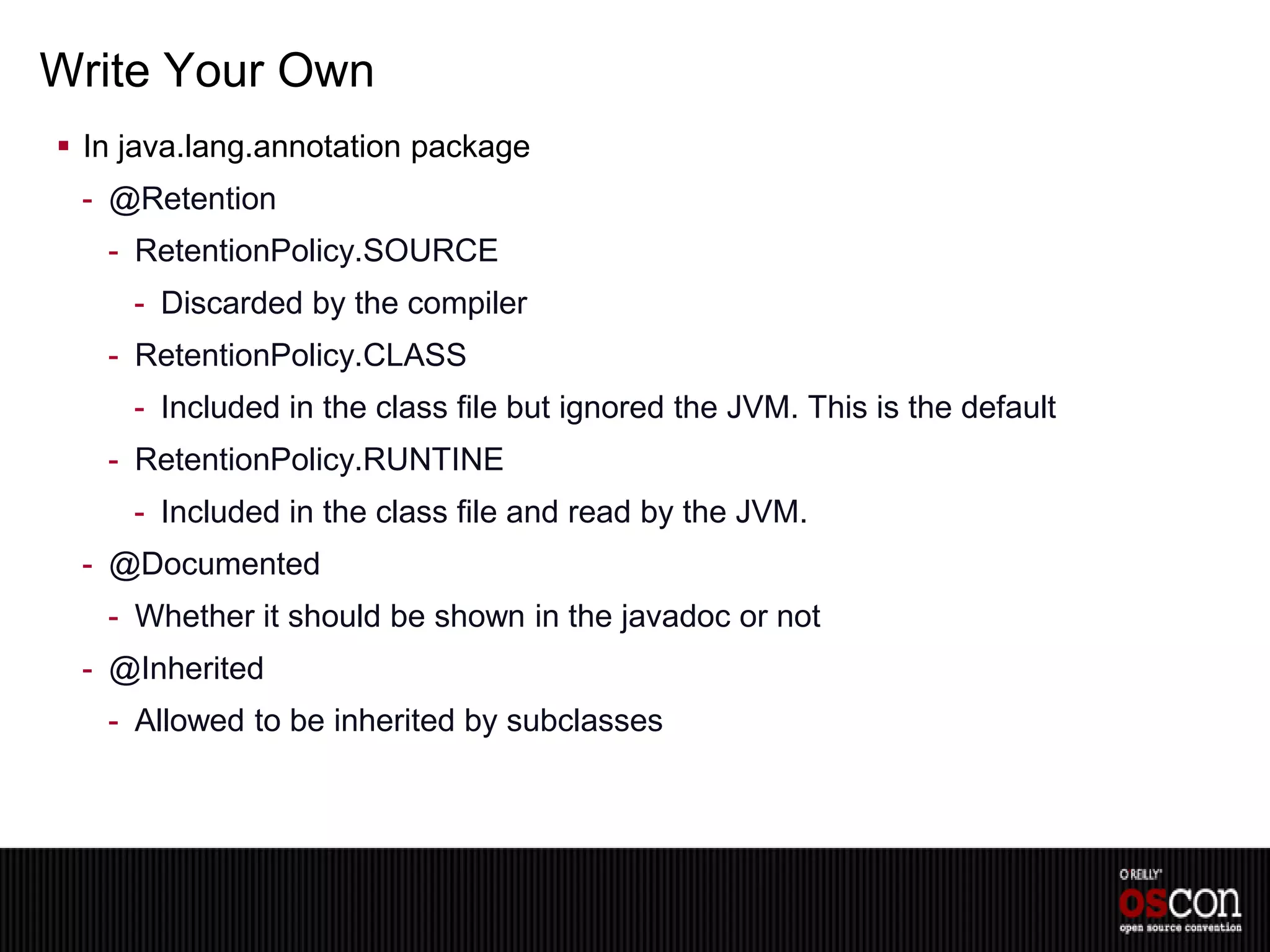

Write Your Own
 In java.lang.annotation package
- @Retention
- RetentionPolicy.SOURCE
- Discarded by the compiler
- RetentionPolicy.CLASS
- Included in the class file but ignored the JVM. This is the default
- RetentionPolicy.RUNTINE
- Included in the class file and read by the JVM.
- @Documented
- Whether it should be shown in the javadoc or not
- @Inherited
- Allowed to be inherited by subclasses

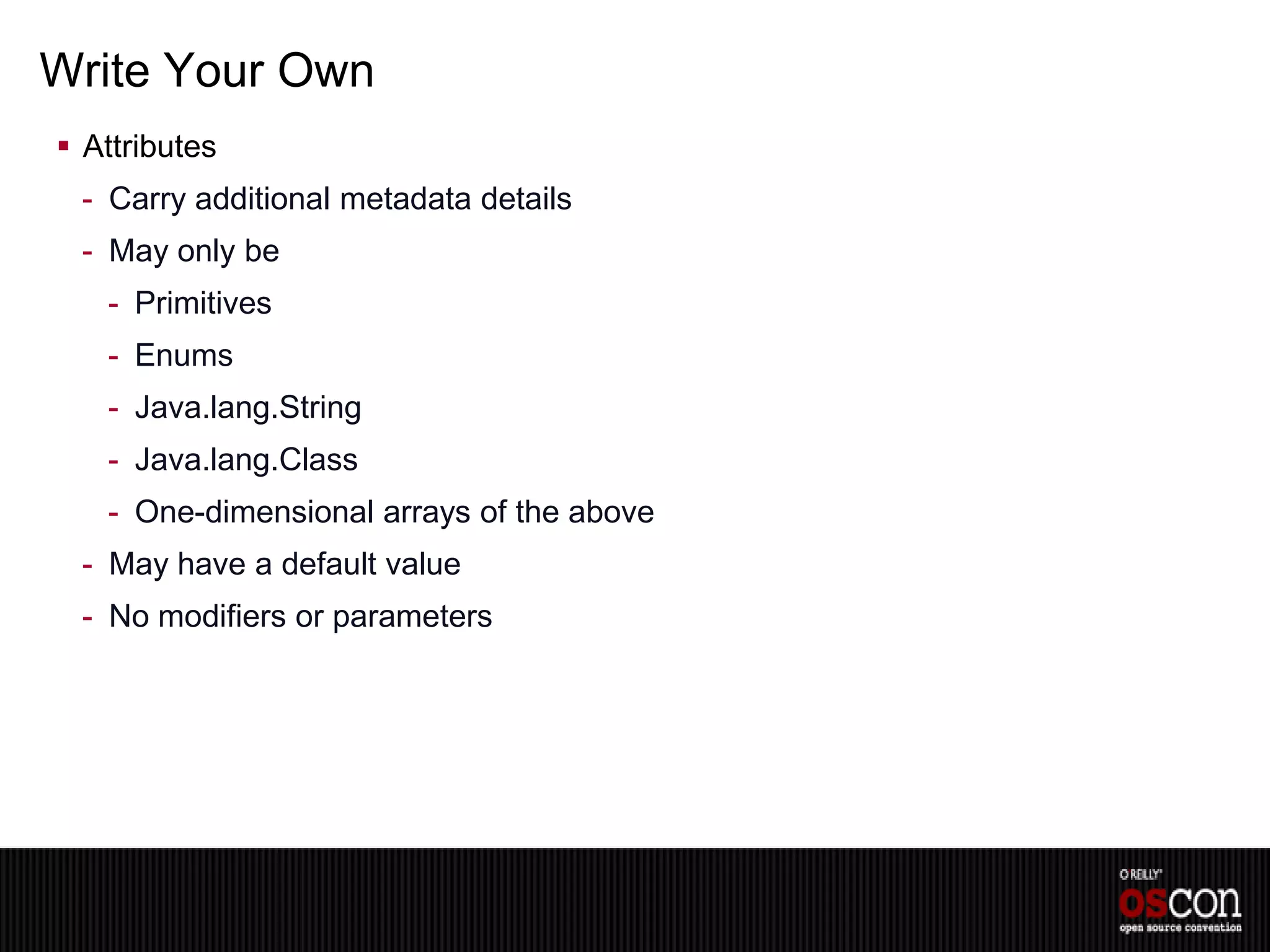

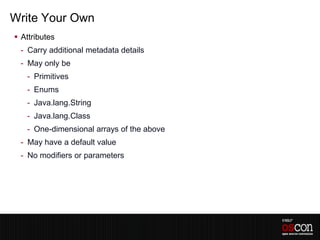

Write Your Own
 Attributes
- Carry additional metadata details
- May only be
- Primitives
- Enums
- Java.lang.String
- Java.lang.Class
- One-dimensional arrays of the above
- May have a default value
- No modifiers or parameters

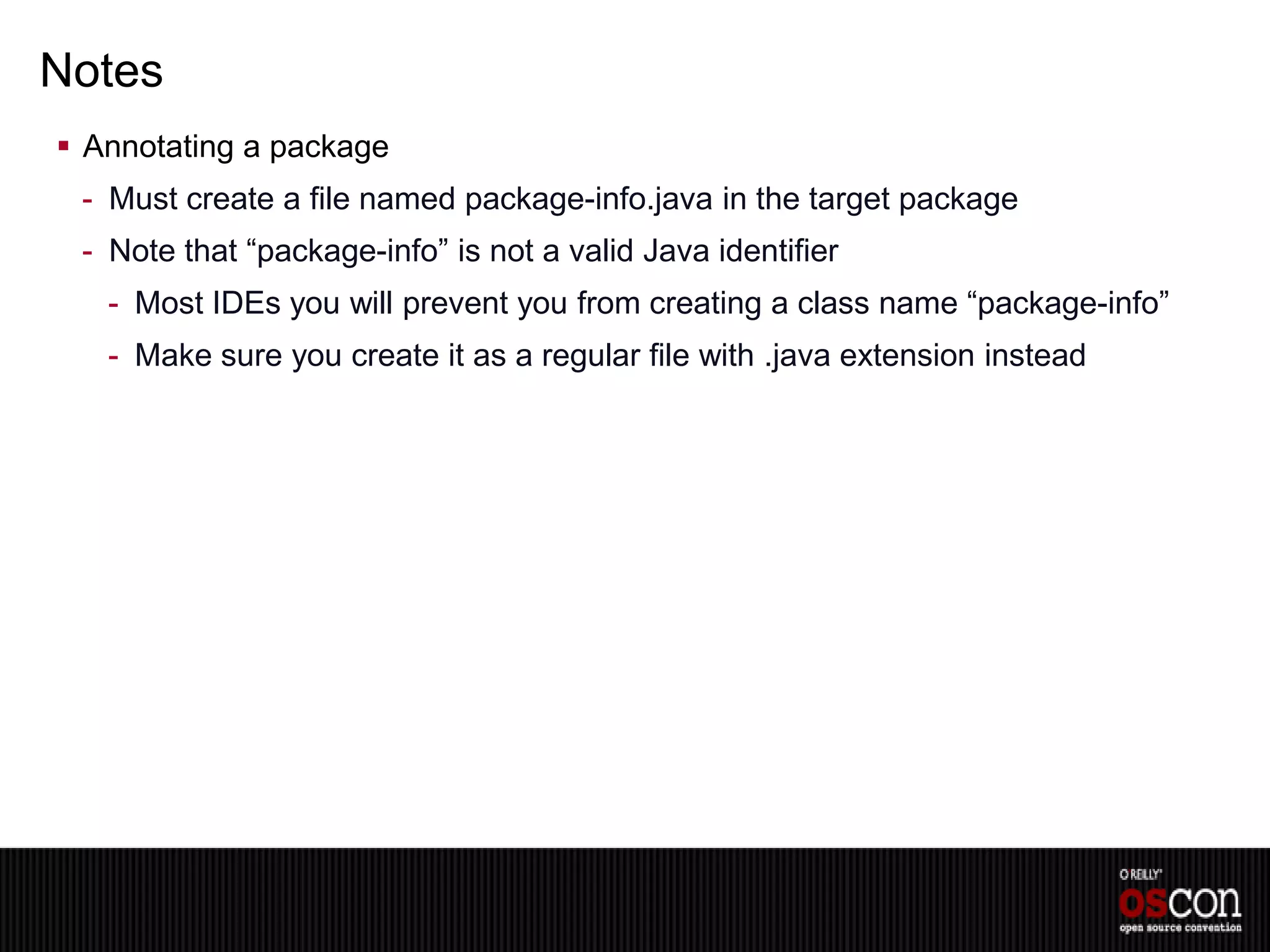

Notes
 Annotating a package
- Must create a file named package-info.java in the target package
- Note that “package-info” is not a valid Java identifier
- Most IDEs you will prevent you from creating a class name “package-info”
- Make sure you create it as a regular file with .java extension instead

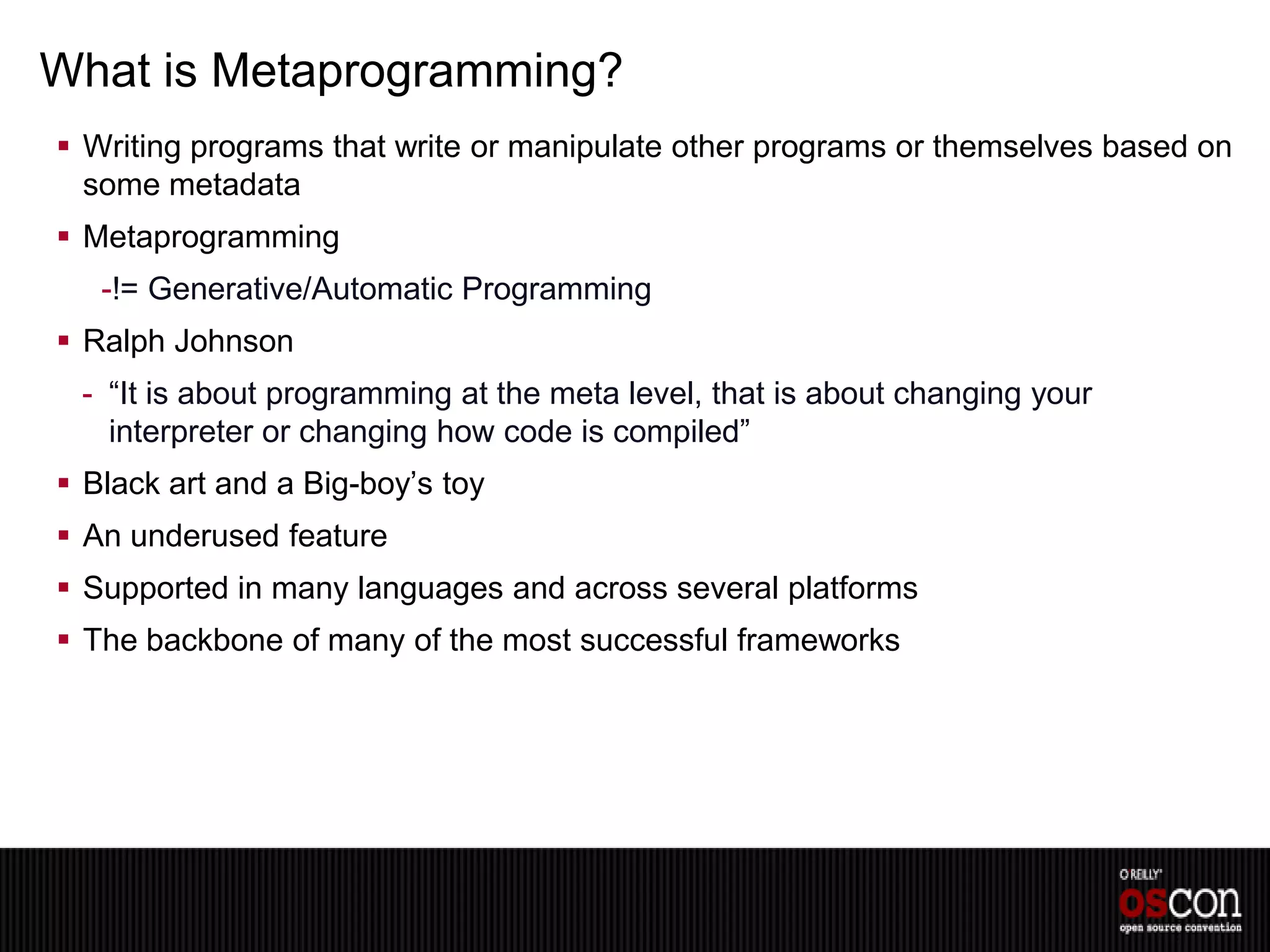

What is Metaprogramming?
 Writing programs that write or manipulate other programs or themselves based on
some metadata
 Metaprogramming
-!= Generative/Automatic Programming
 Ralph Johnson
- “It is about programming at the meta level, that is about changing your
interpreter or changing how code is compiled”
 Black art and a Big-boy’s toy
 An underused feature
 Supported in many languages and across several platforms
 The backbone of many of the most successful frameworks

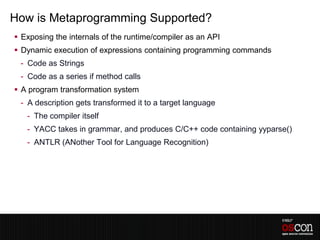

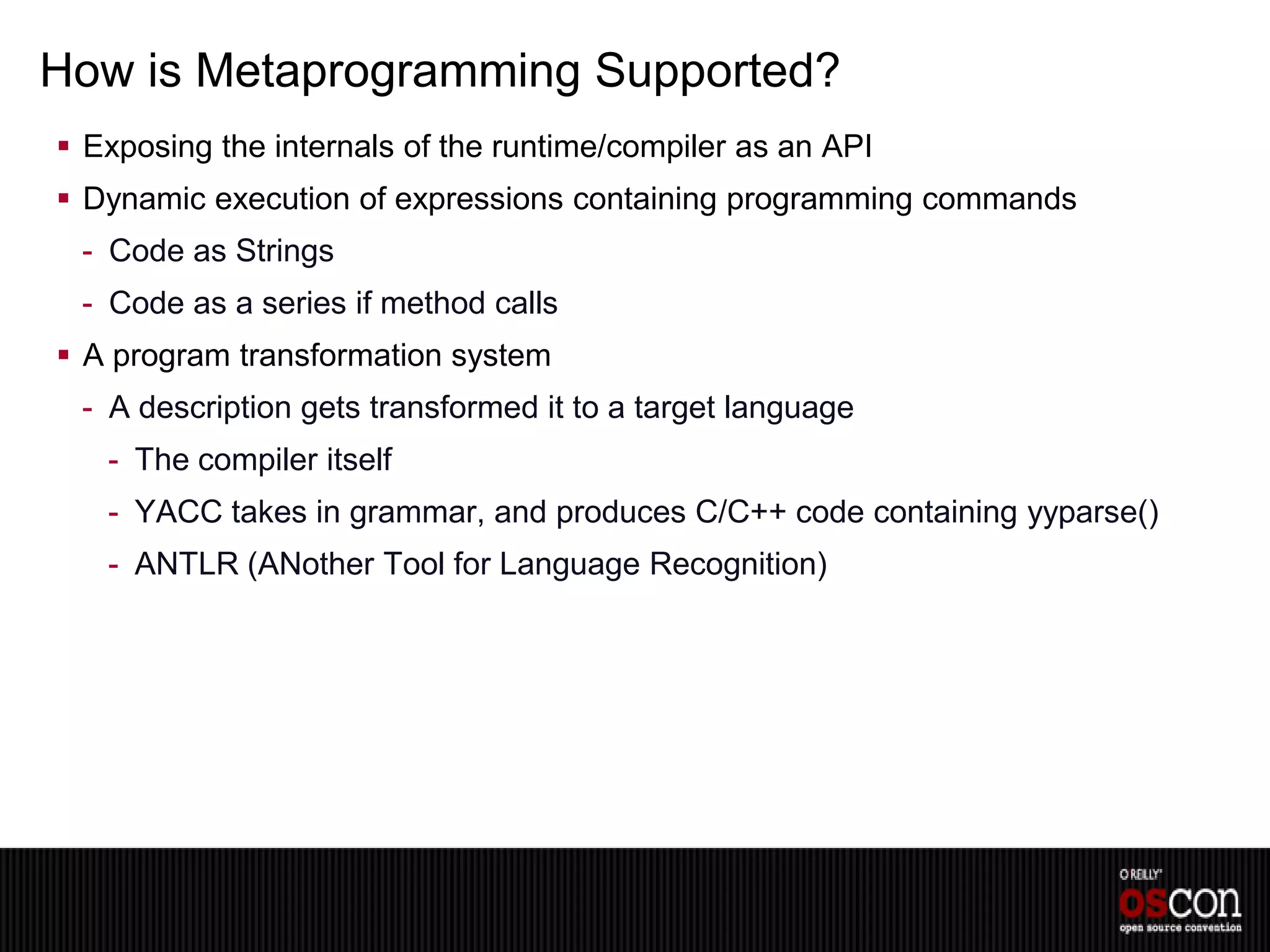

How is Metaprogramming Supported?
 Exposing the internals of the runtime/compiler as an API
 Dynamic execution of expressions containing programming commands
- Code as Strings
- Code as a series if method calls
 A program transformation system
- A description gets transformed it to a target language
- The compiler itself
- YACC takes in grammar, and produces C/C++ code containing yyparse()
- ANTLR (ANother Tool for Language Recognition)

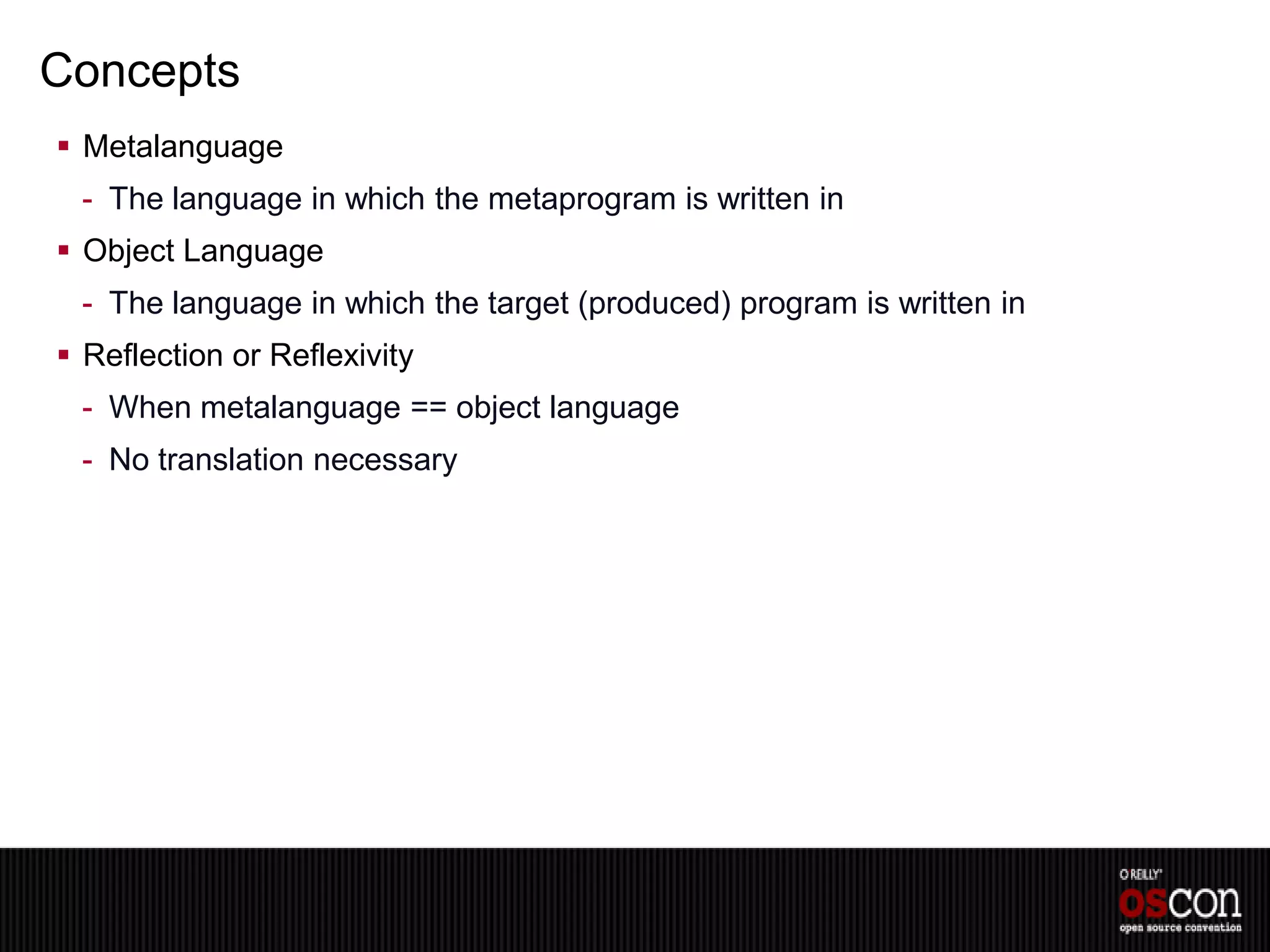

Concepts
 Metalanguage
- The language in which the metaprogram is written in
 Object Language
- The language in which the target (produced) program is written in
 Reflection or Reflexivity
- When metalanguage == object language
- No translation necessary

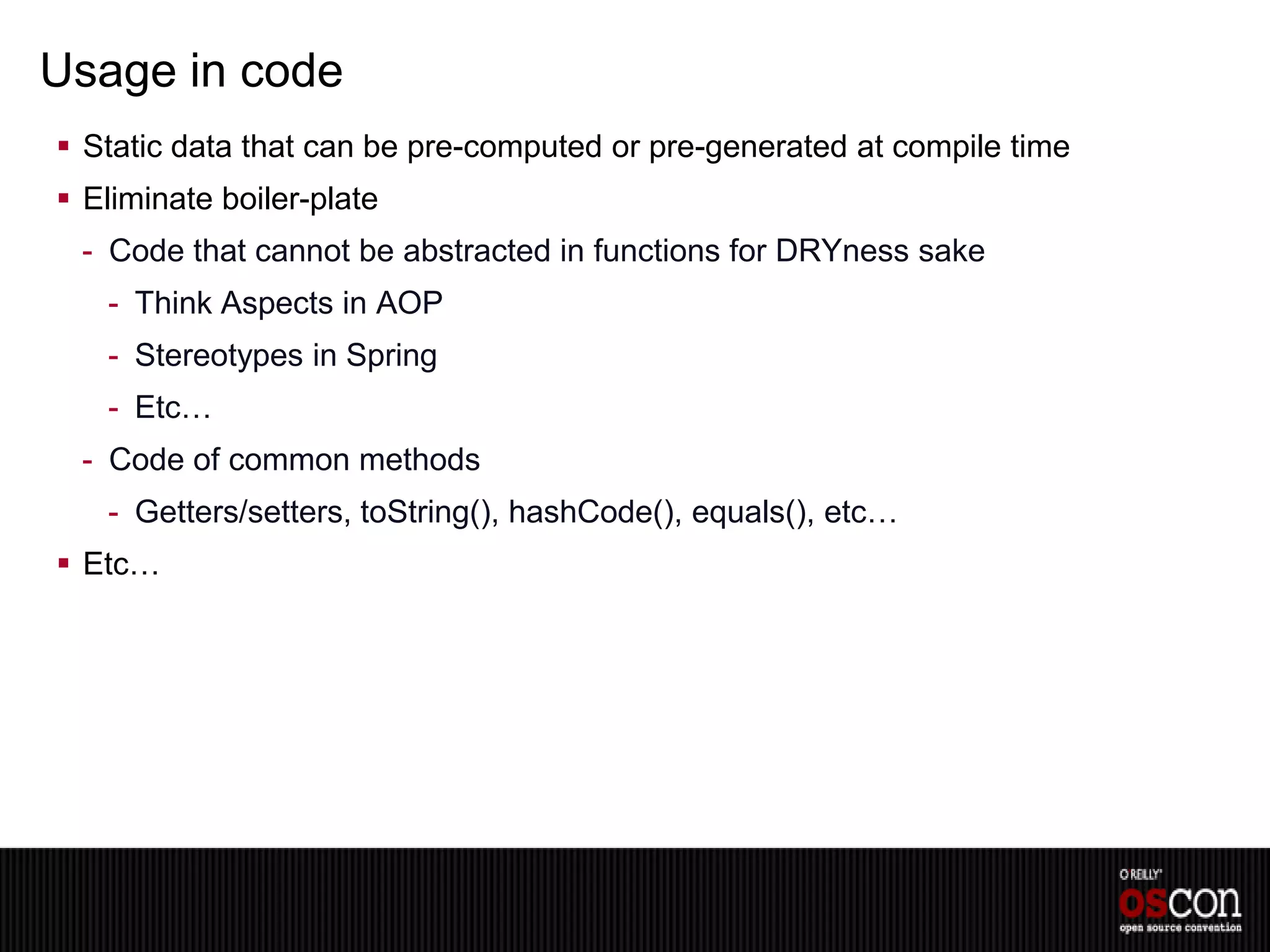

Usage in code
 Static data that can be pre-computed or pre-generated at compile time
 Eliminate boiler-plate
- Code that cannot be abstracted in functions for DRYness sake
- Think Aspects in AOP
- Stereotypes in Spring
- Etc…
- Code of common methods
- Getters/setters, toString(), hashCode(), equals(), etc…
 Etc…

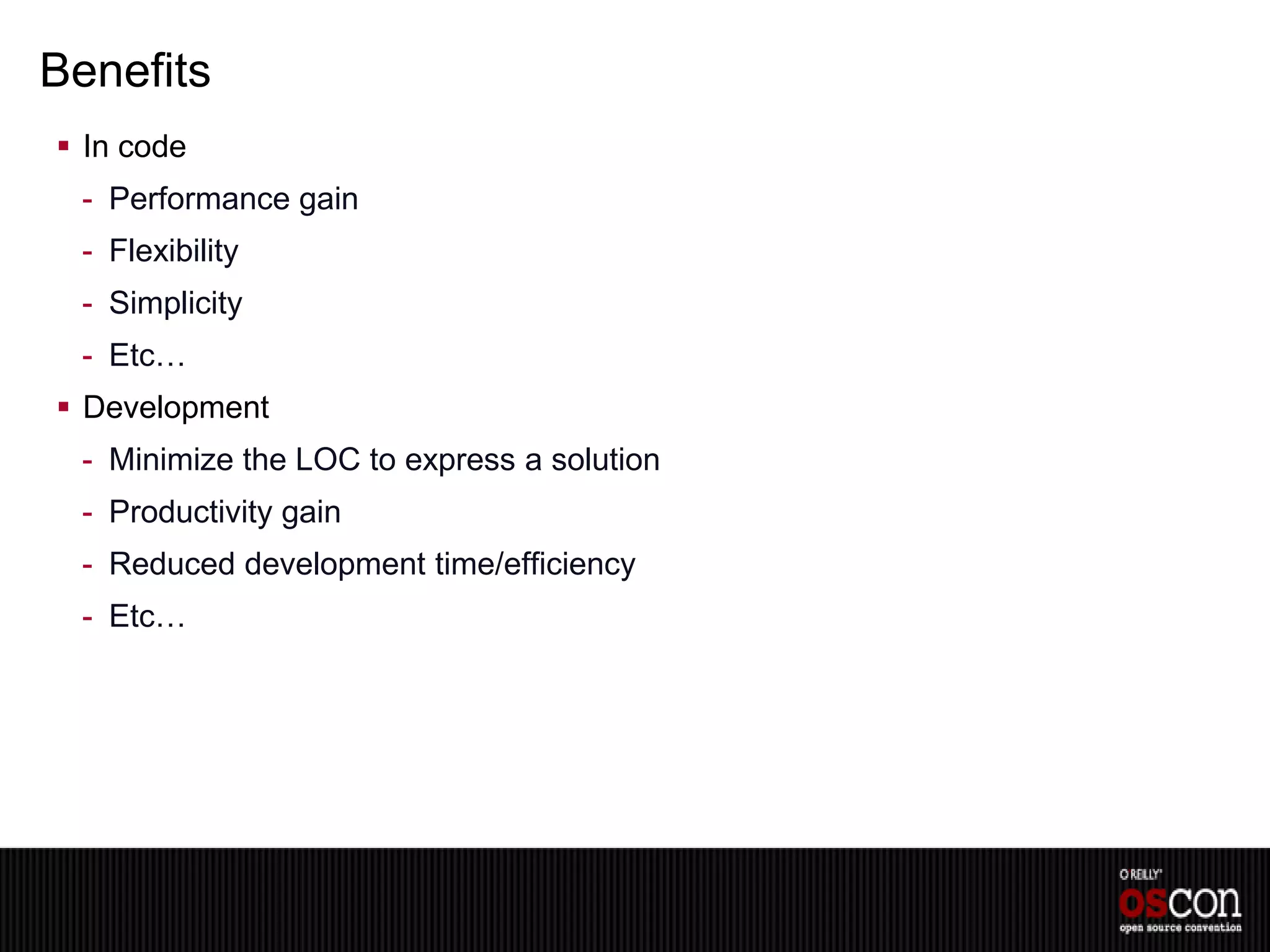

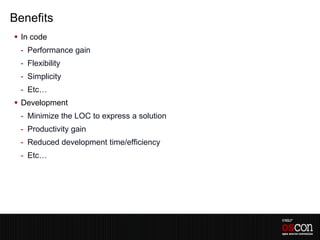

Benefits
 In code
- Performance gain
- Flexibility
- Simplicity
- Etc…
 Development
- Minimize the LOC to express a solution
- Productivity gain
- Reduced development time/efficiency
- Etc…

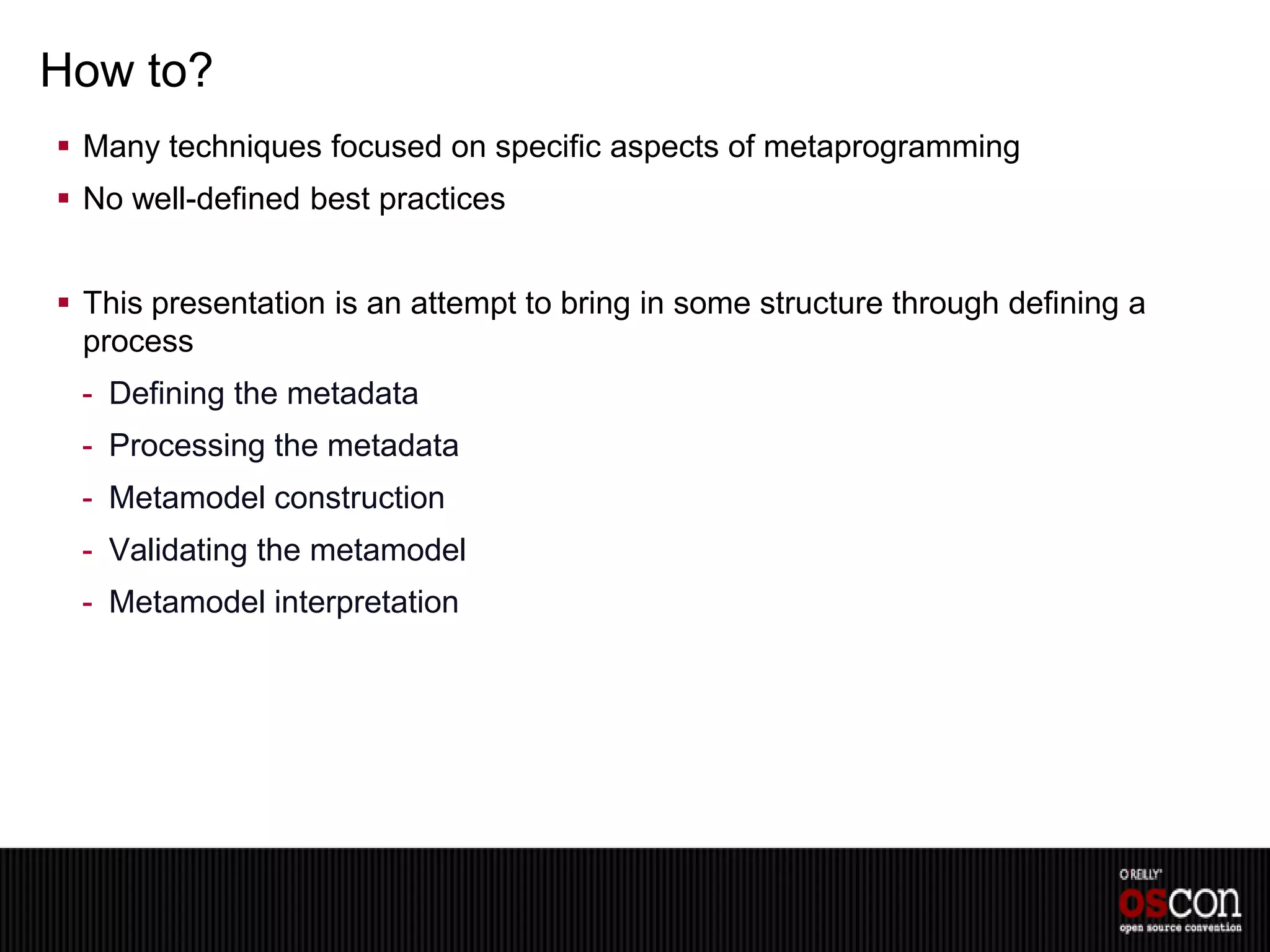

How to?
 Many techniques focused on specific aspects of metaprogramming
 No well-defined best practices

 This presentation is an attempt to bring in some structure through defining a
process
- Defining the metadata
- Processing the metadata
- Metamodel construction
- Validating the metamodel
- Metamodel interpretation

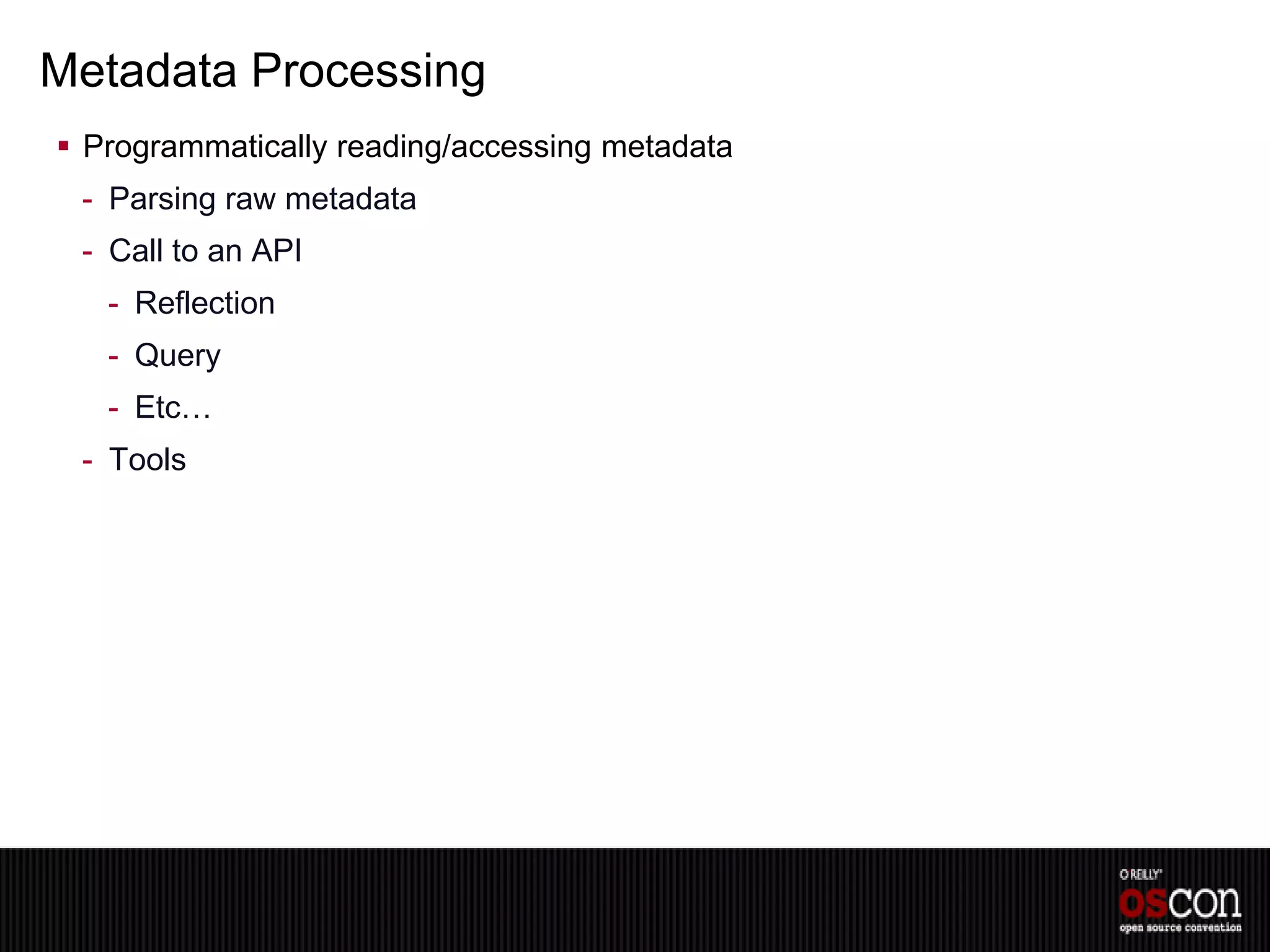

Metadata Processing
 Programmatically reading/accessing metadata
- Parsing raw metadata
- Call to an API
- Reflection
- Query
- Etc…
- Tools

Metadata Processing in Java: Annotation Processing

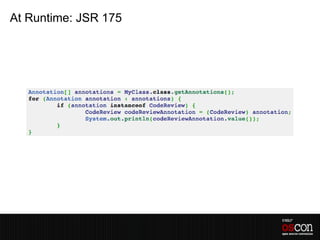

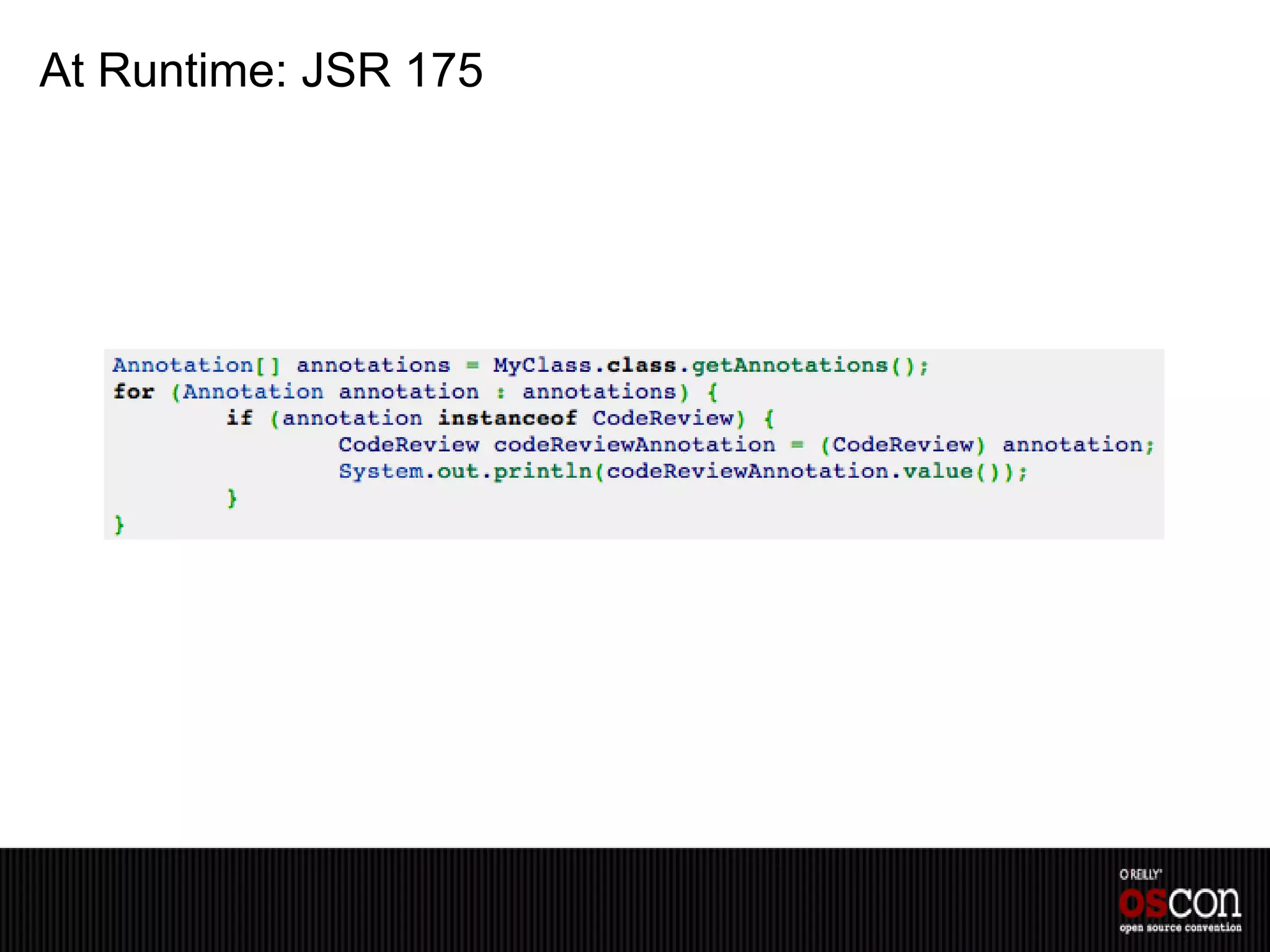

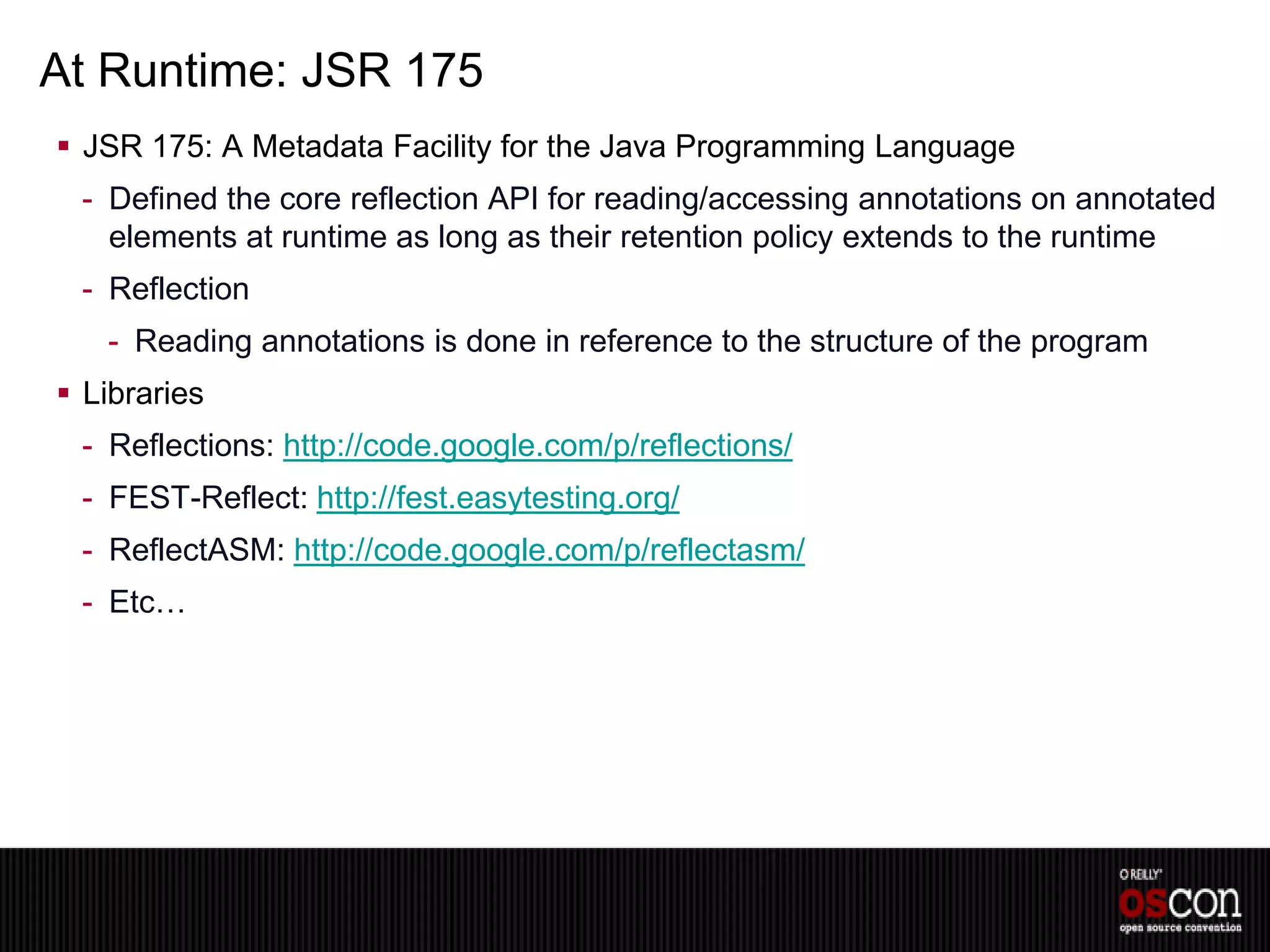

At Runtime: JSR 175
 JSR 175: A Metadata Facility for the Java Programming Language
- Defined the core reflection API for reading/accessing annotations on annotated
elements at runtime as long as their retention policy extends to the runtime
- Reflection
- Reading annotations is done in reference to the structure of the program
 Libraries
- Reflections: http://code.google.com/p/reflections/
- FEST-Reflect: http://fest.easytesting.org/
- ReflectASM: http://code.google.com/p/reflectasm/
- Etc…

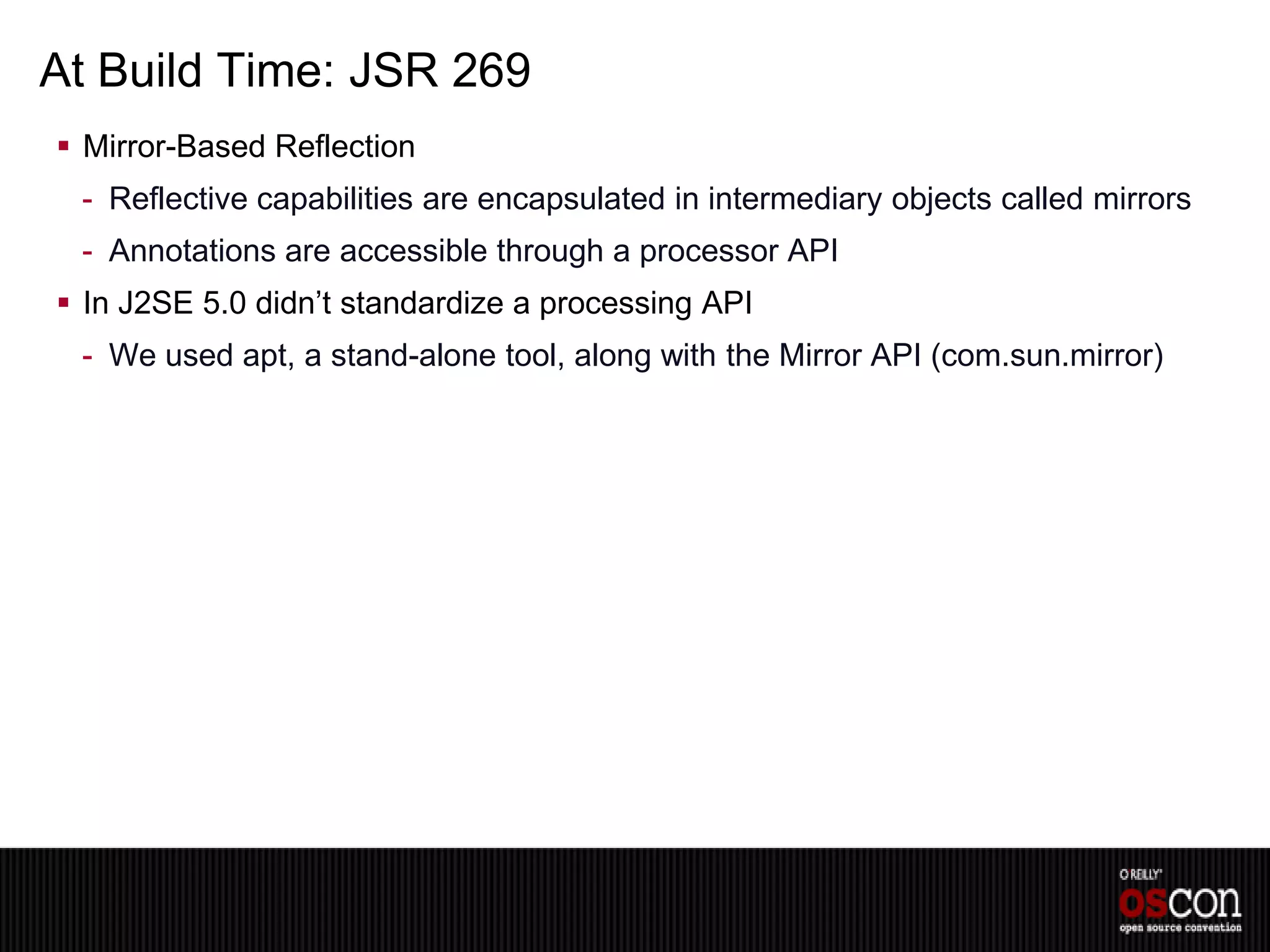

At Build Time: JSR 269
 Mirror-Based Reflection
- Reflective capabilities are encapsulated in intermediary objects called mirrors
- Annotations are accessible through a processor API
 In J2SE 5.0 didn’t standardize a processing API
- We used apt, a stand-alone tool, along with the Mirror API (com.sun.mirror)

 In Java SE 6 (December 11, 2006)
- JSR 269: Pluggable Annotation Processing API
-http://docs.oracle.com/javase/6/docs/technotes/guides/javac/index.htm

- Leverages JSR 199 (Java Compiler API)
- Javax.tools
- Programmatically invoke javac
- Implements ServiceLoader interface of SPI (JSR 24 - ServiceProvider API))
- Provides the DiagnosticListener interface to allow listening for warnings and
error by the compiler
- Extends javac as a plug-in allowing to write custom annotation processors
- Seamless integration with javac
- Finds if there is an annotation registered to process a particular annotation
- Plugs it into the compiler

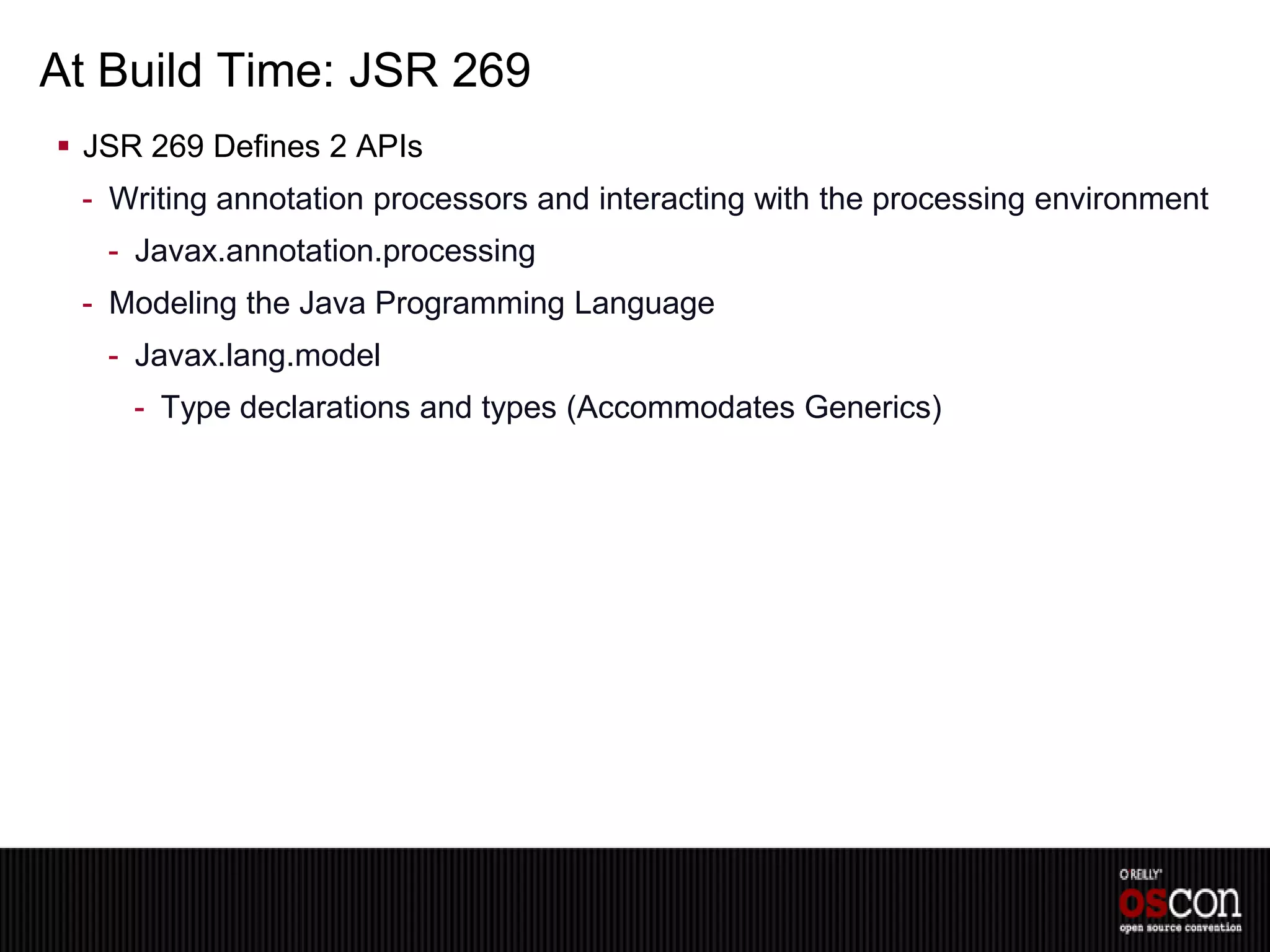

 JSR 269 Defines 2 APIs
- Writing annotation processors and interacting with the processing environment
- Javax.annotation.processing
- Modeling the Java Programming Language
- Javax.lang.model
- Type declarations and types (Accommodates Generics)

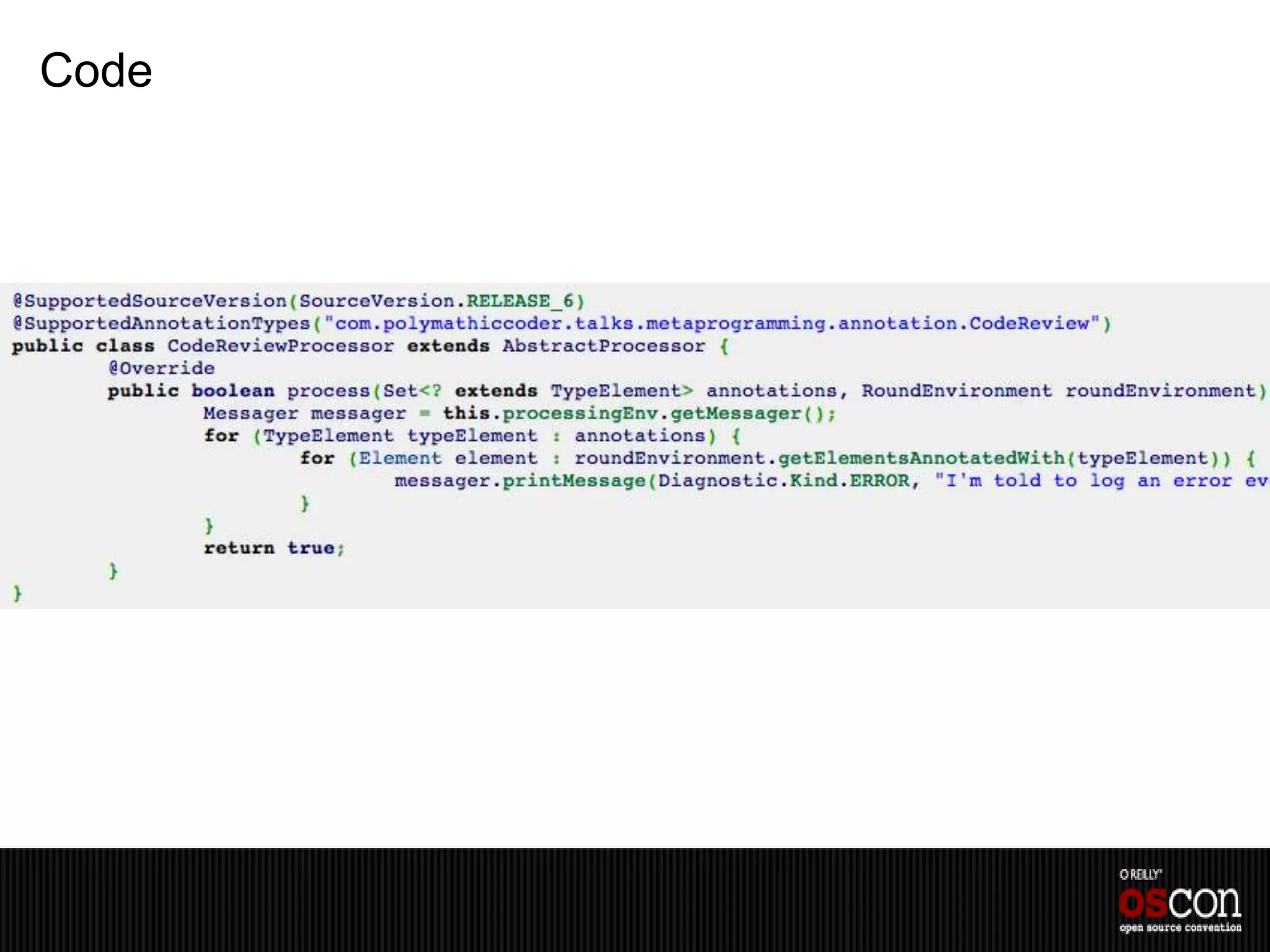

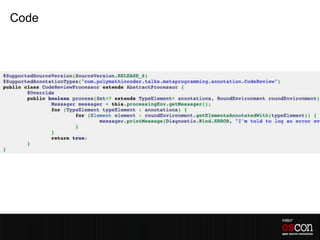

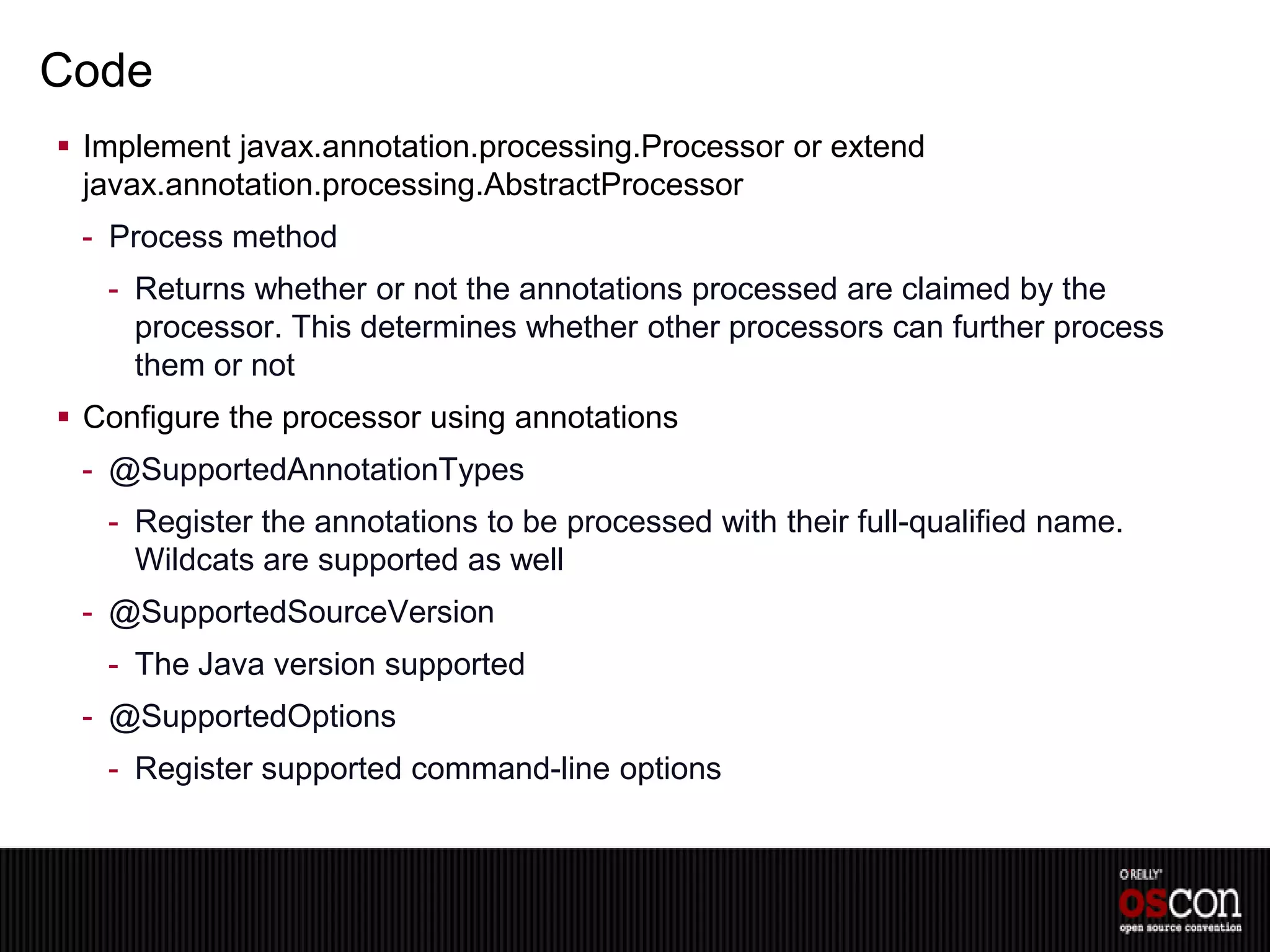

Code
 Implement javax.annotation.processing.Processor or extend
javax.annotation.processing.AbstractProcessor
- Process method
- Returns whether or not the annotations processed are claimed by the
processor. This determines whether other processors can further process
them or not
 Configure the processor using annotations
- @SupportedAnnotationTypes
- Register the annotations to be processed with their full-qualified name.
Wildcats are supported as well
- @SupportedSourceVersion
- The Java version supported
- @SupportedOptions
- Register supported command-line options

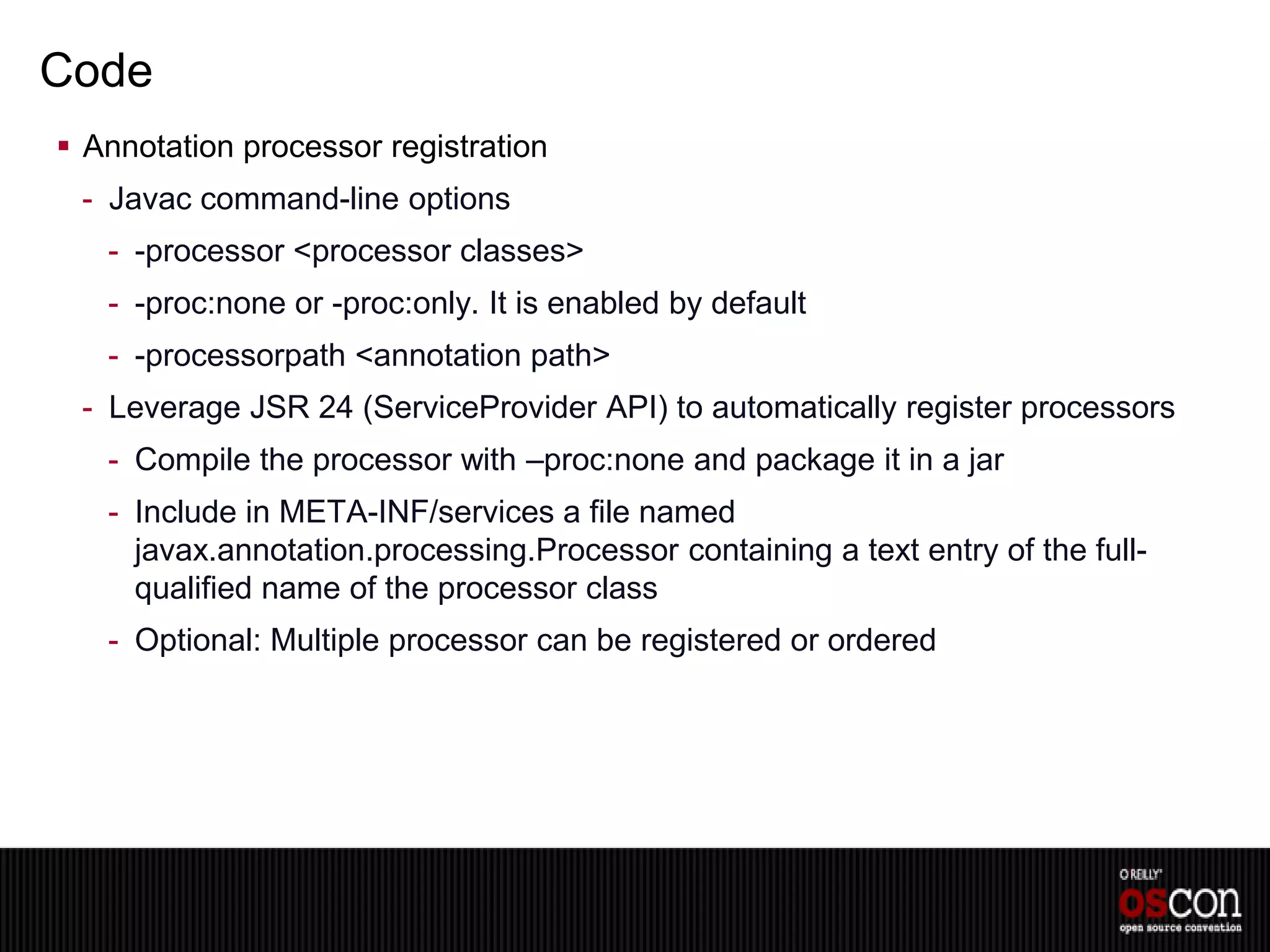

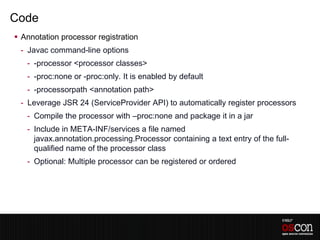

Code
 Annotation processor registration
- Javac command-line options
- -processor <processor classes>
- -proc:none or -proc:only. It is enabled by default
- -processorpath <annotation path>
- Leverage JSR 24 (ServiceProvider API) to automatically register processors
- Compile the processor with –proc:none and package it in a jar
- Include in META-INF/services a file named
javax.annotation.processing.Processor containing a text entry of the full-
qualified name of the processor class
- Optional: Multiple processor can be registered or ordered

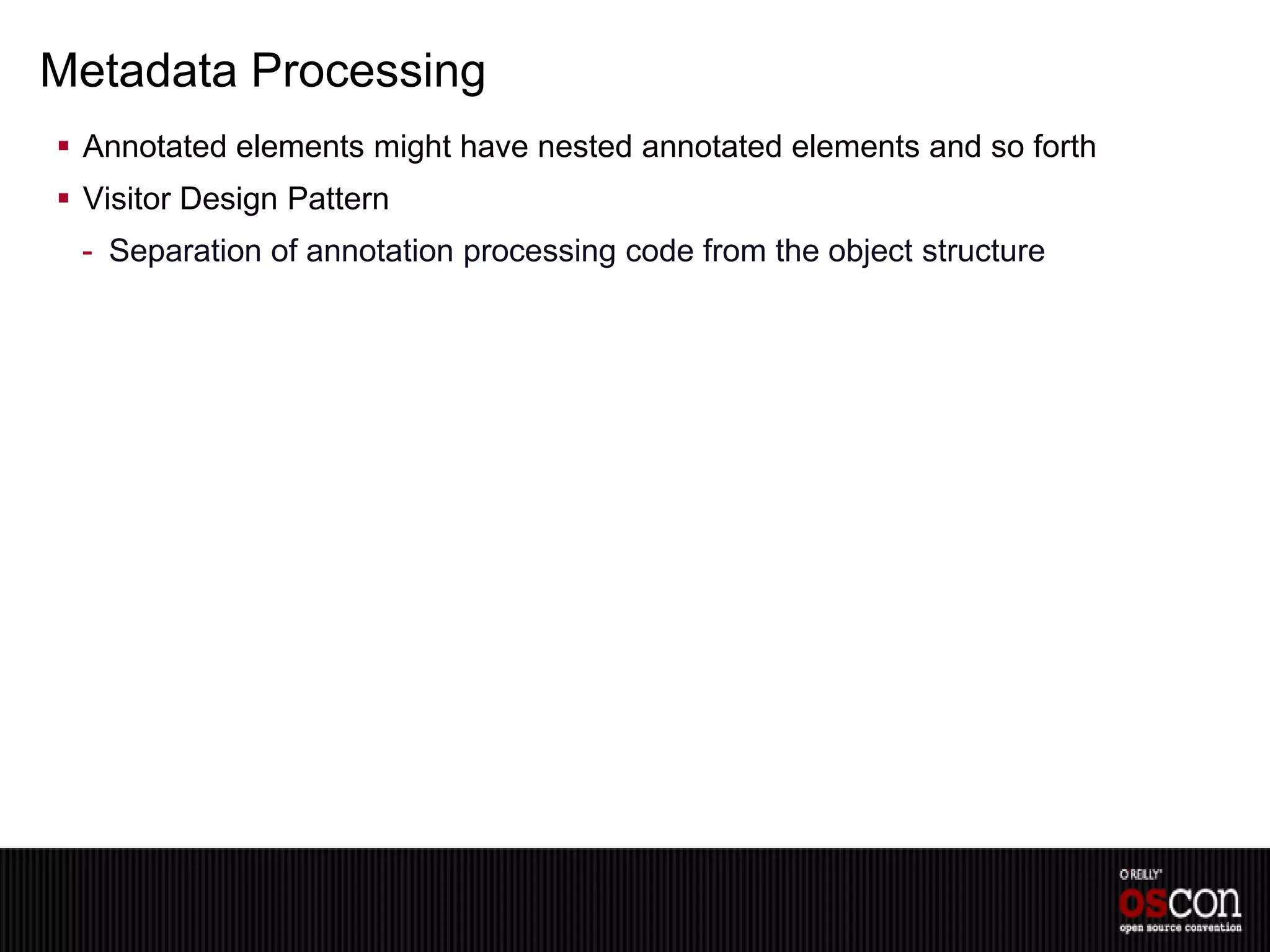

Metadata Processing
 Annotated elements might have nested annotated elements and so forth
 Visitor Design Pattern
- Separation of annotation processing code from the object structure

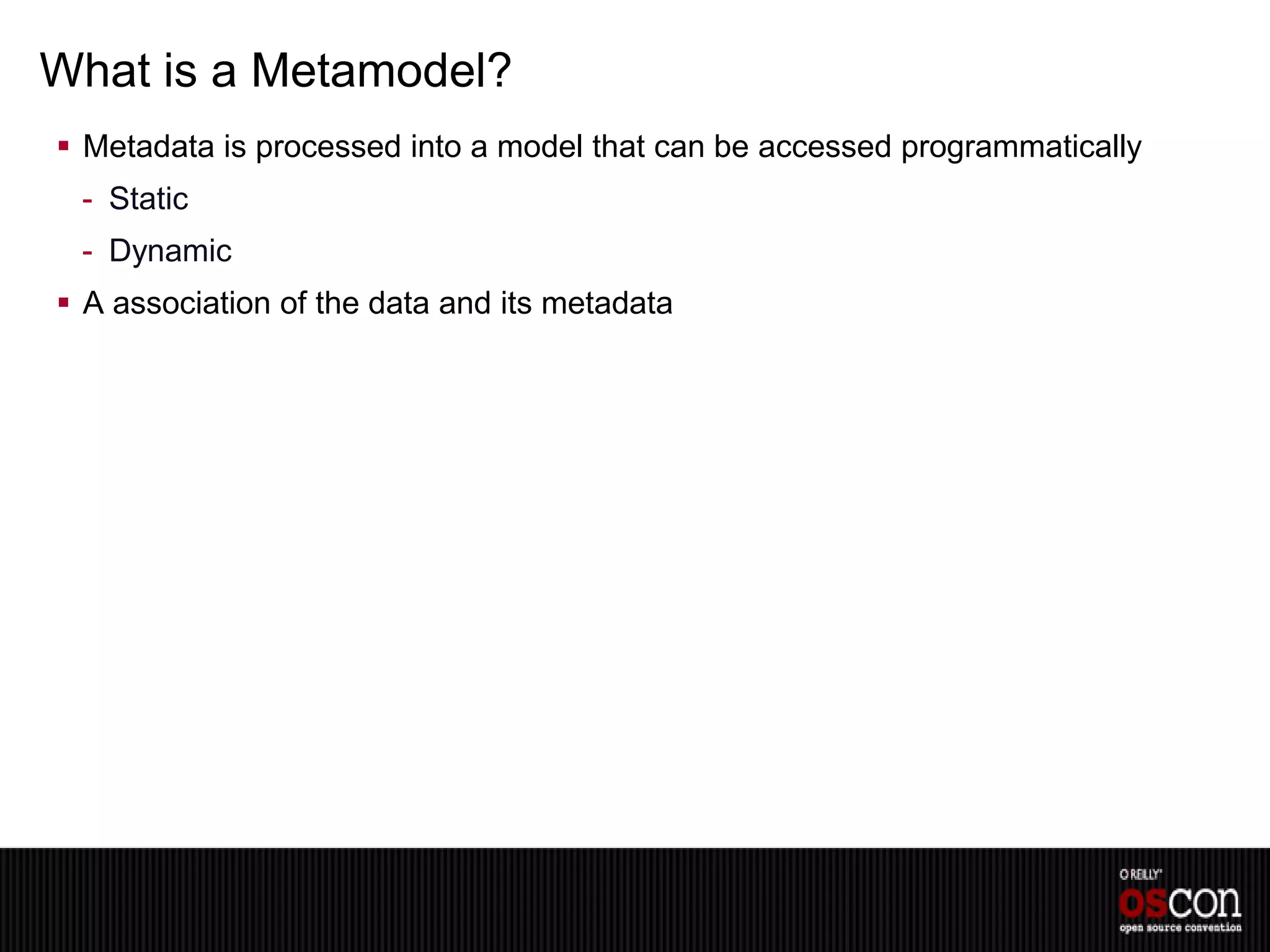

What is a Metamodel?
 Metadata is processed into a model that can be accessed programmatically
- Static
- Dynamic
 A association of the data and its metadata

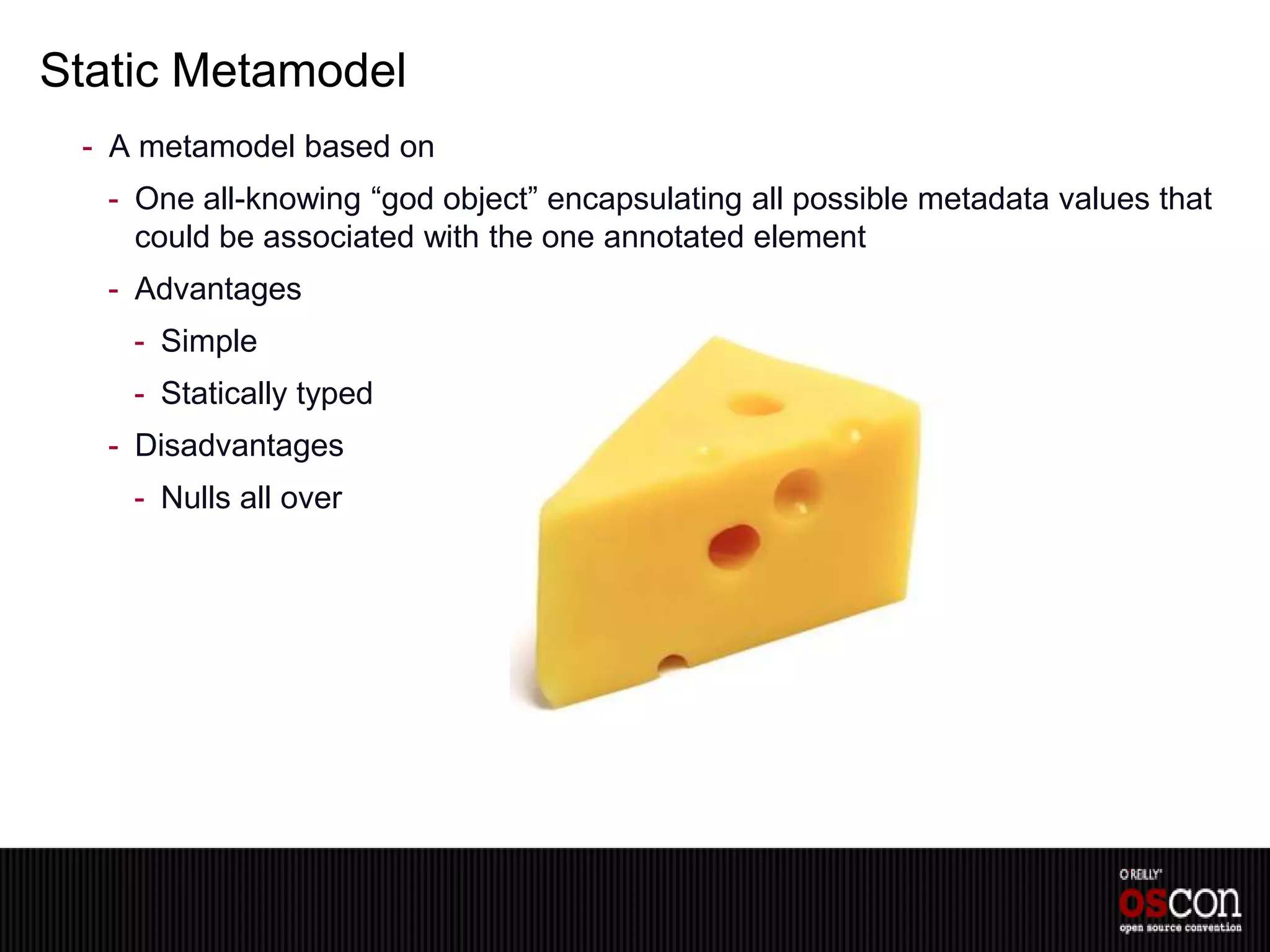

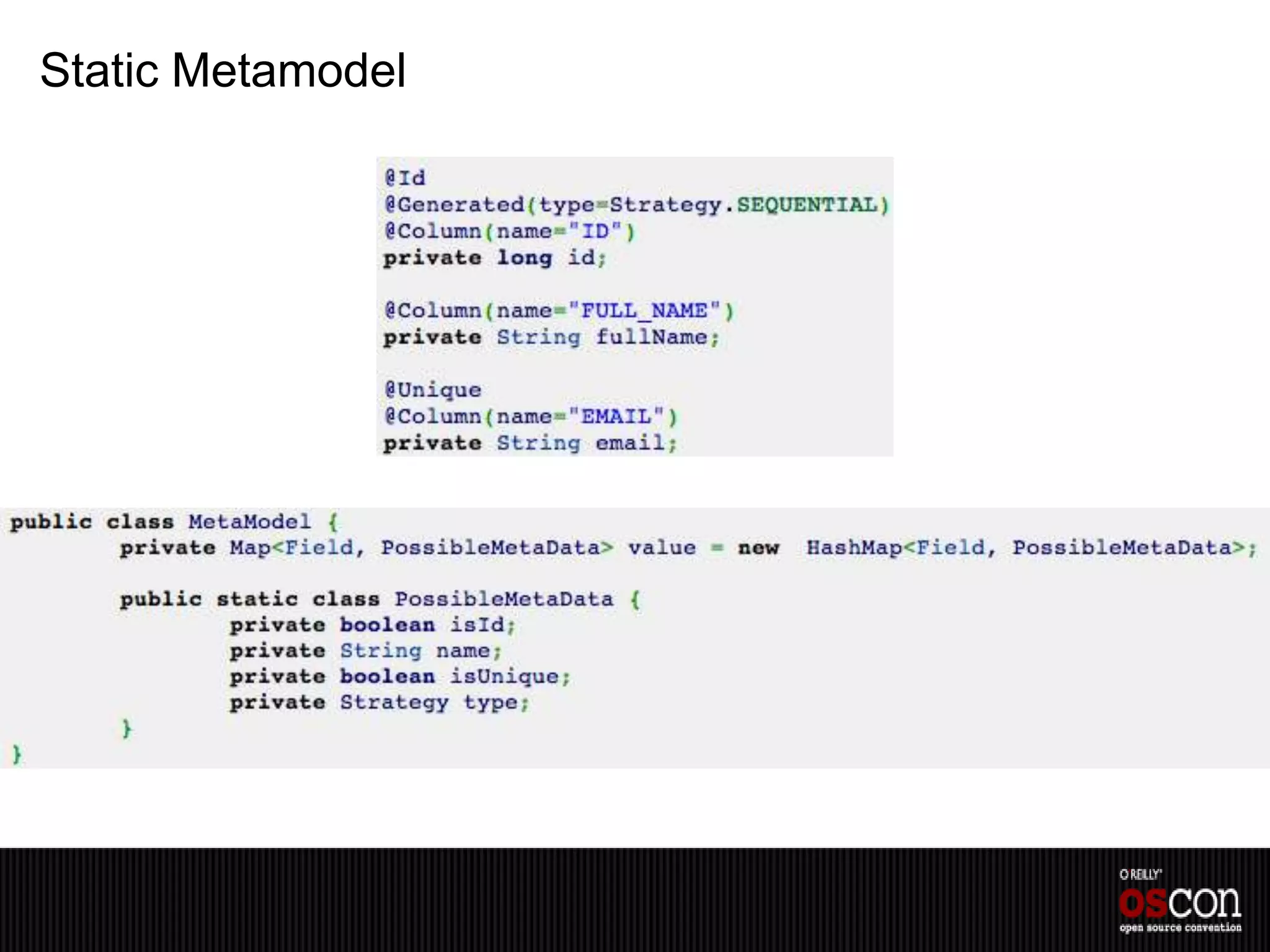

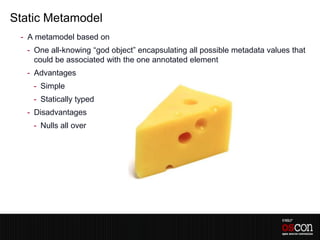

Static Metamodel
- A metamodel based on
- One all-knowing “god object” encapsulating all possible metadata values that
could be associated with the one annotated element
- Advantages
- Simple
- Statically typed
- Disadvantages
- Nulls all over

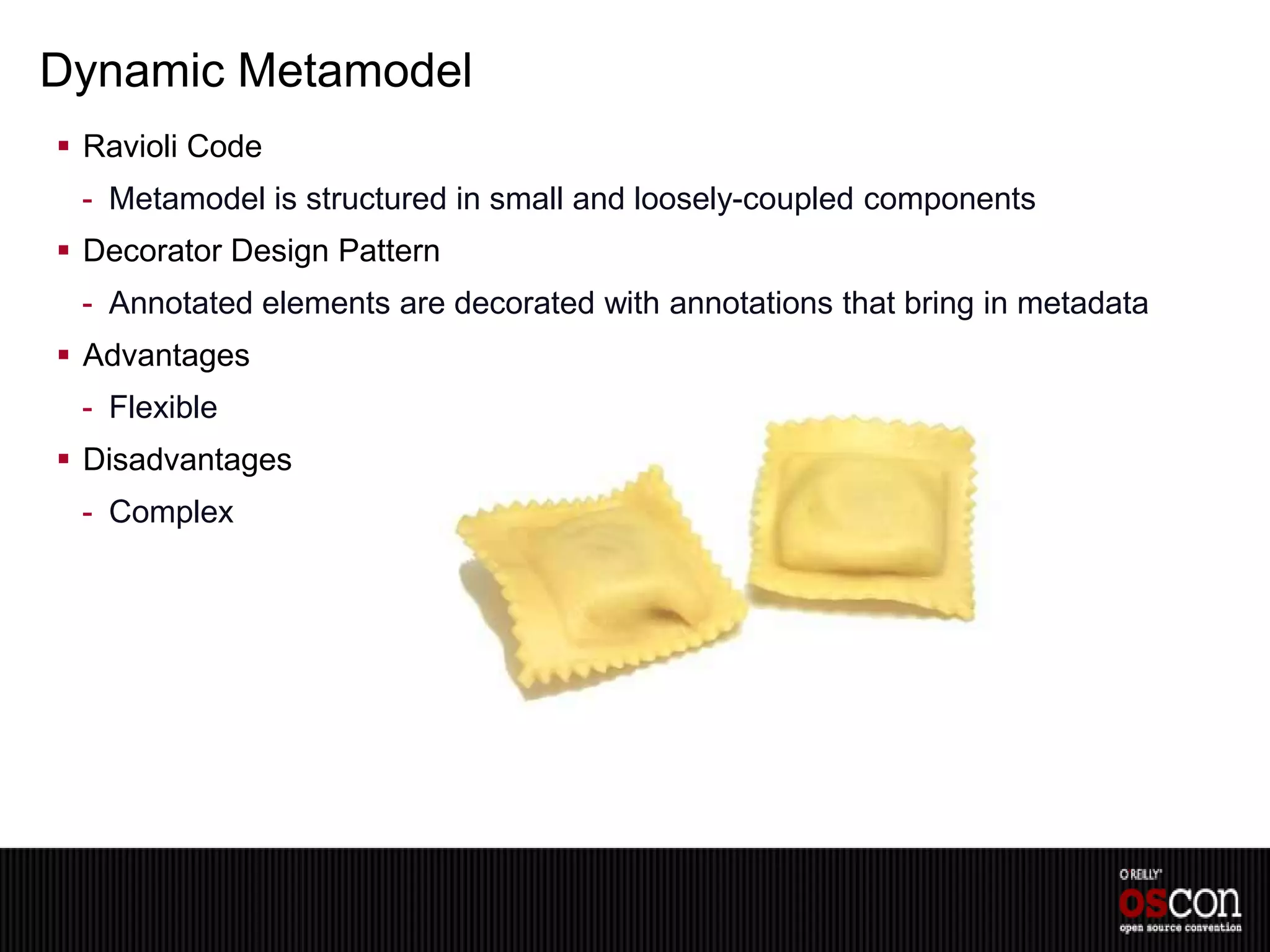

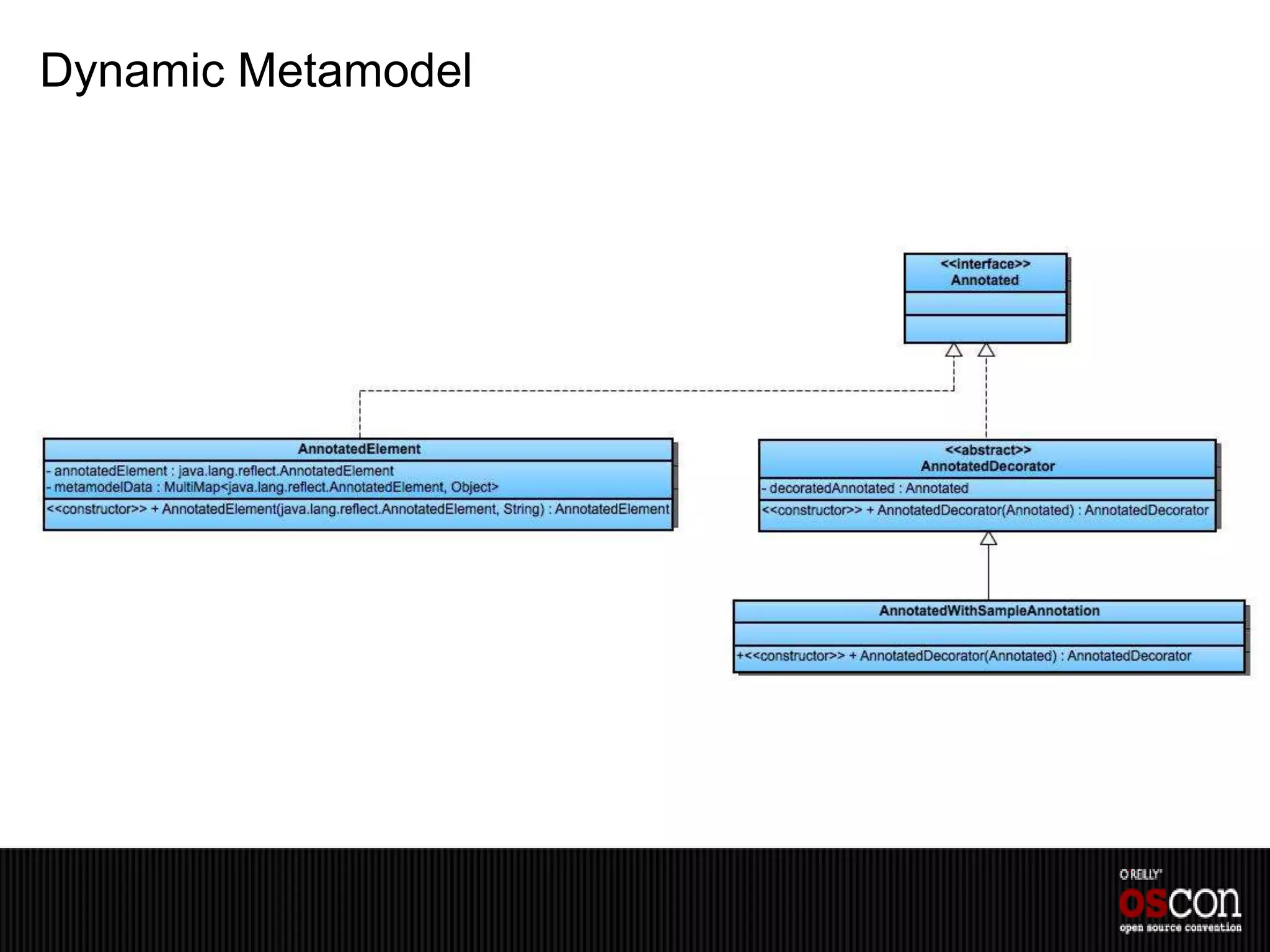

Dynamic Metamodel
 Ravioli Code
- Metamodel is structured in small and loosely-coupled components
 Decorator Design Pattern
- Annotated elements are decorated with annotations that bring in metadata
 Advantages
- Flexible
 Disadvantages
- Complex

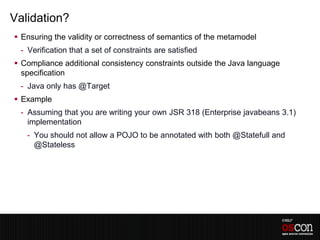

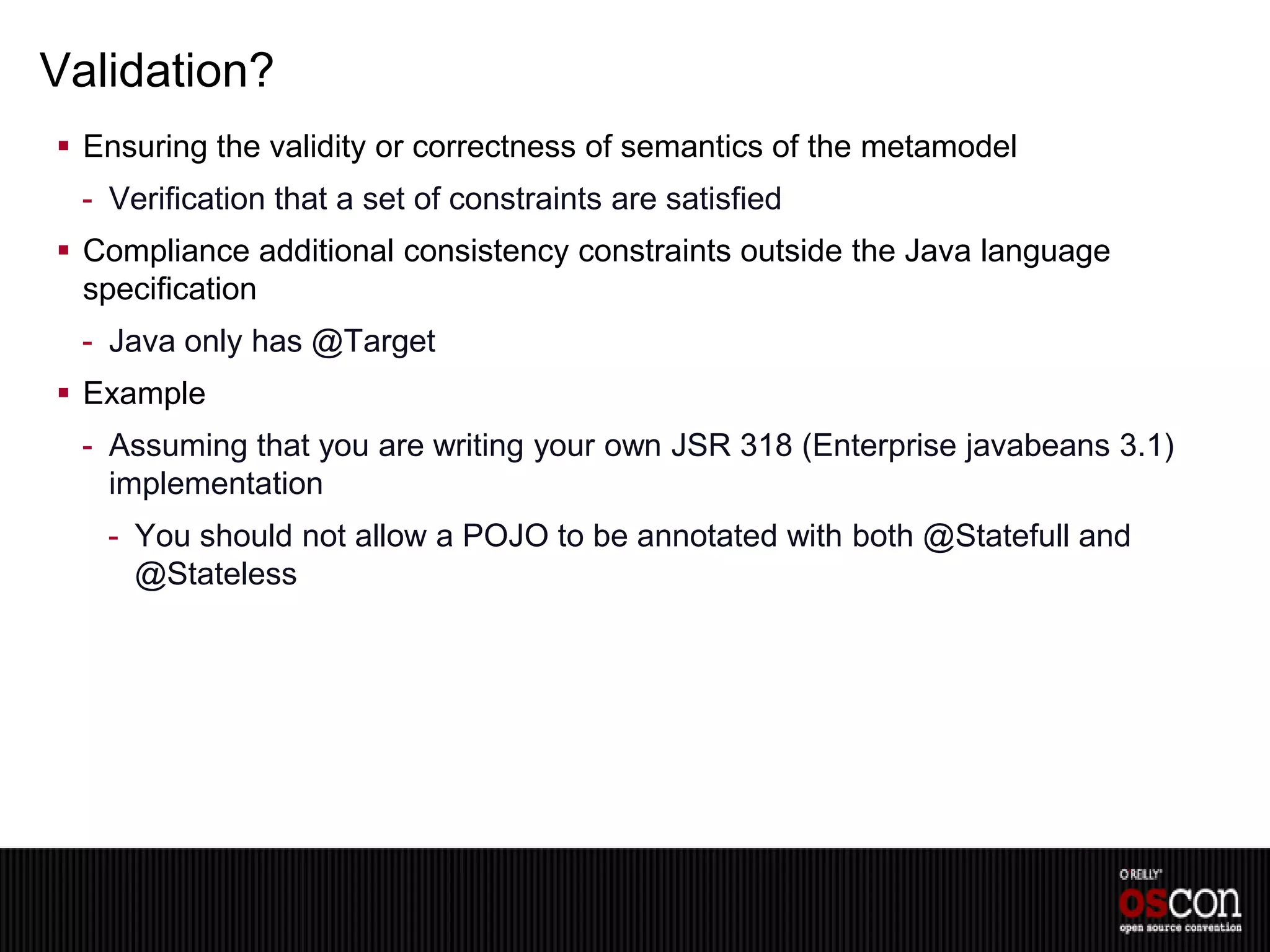

Validation?
 Ensuring the validity or correctness of semantics of the metamodel
- Verification that a set of constraints are satisfied
 Compliance additional consistency constraints outside the Java language
specification
- Java only has @Target
 Example
- Assuming that you are writing your own JSR 318 (Enterprise javabeans 3.1)
implementation
- You should not allow a POJO to be annotated with both @Statefull and
@Stateless

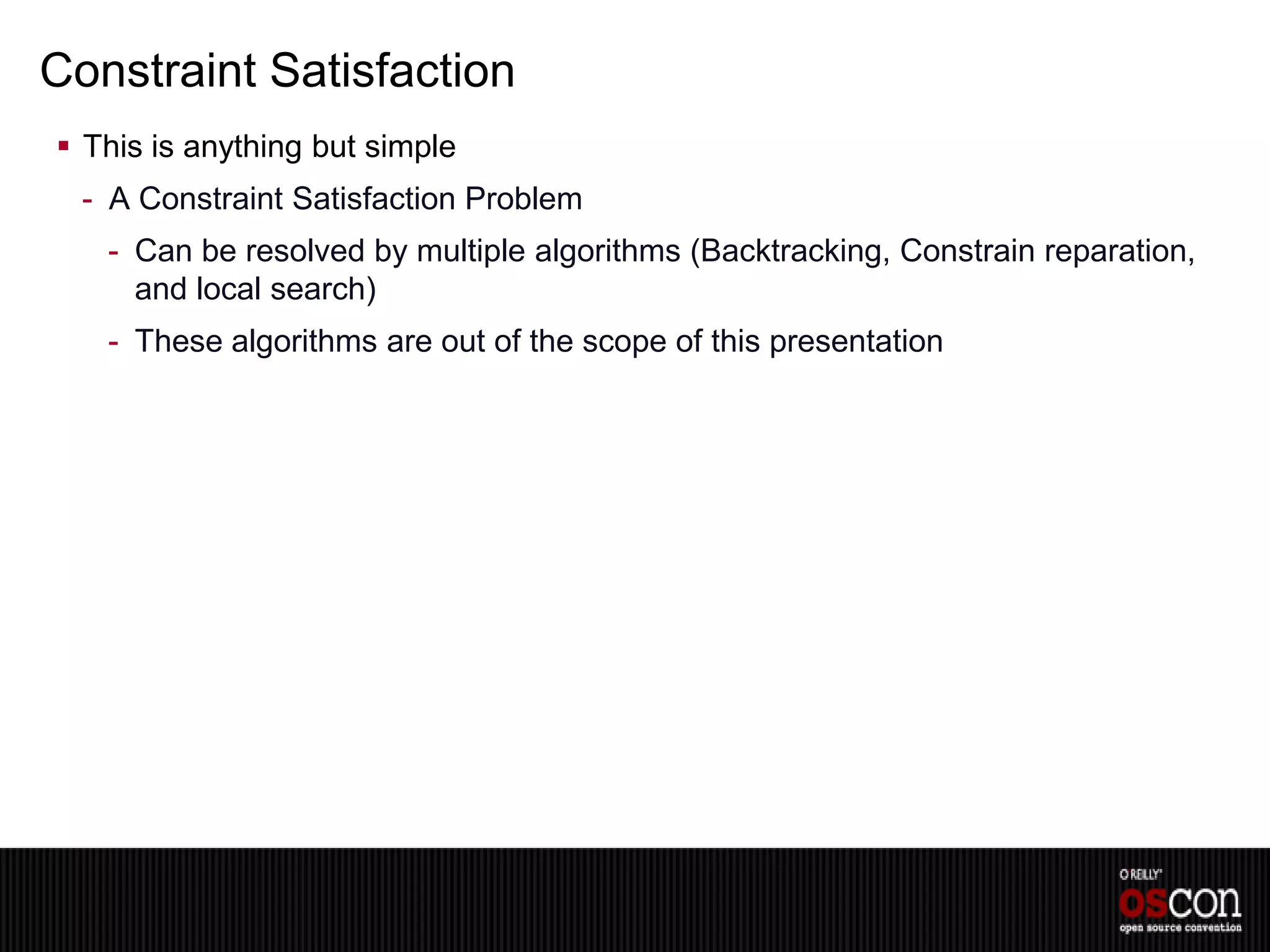

Constraint Satisfaction
 This is anything but simple
- A Constraint Satisfaction Problem
- Can be resolved by multiple algorithms (Backtracking, Constrain reparation,
and local search)
- These algorithms are out of the scope of this presentation

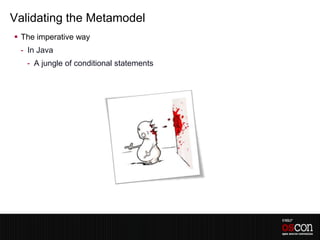

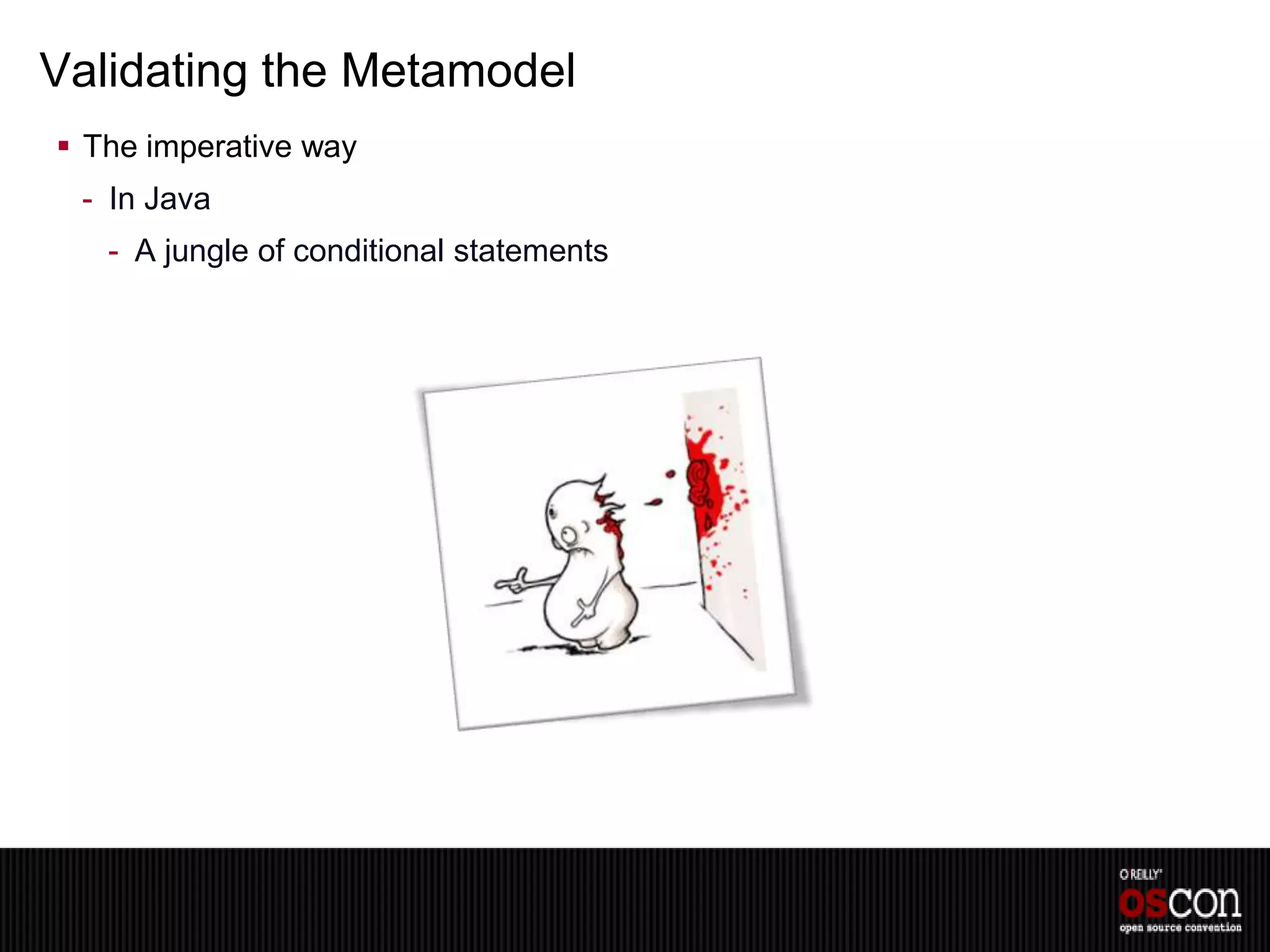

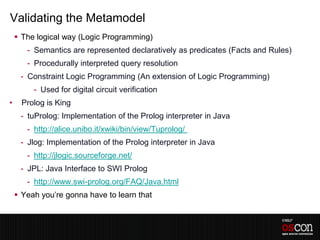

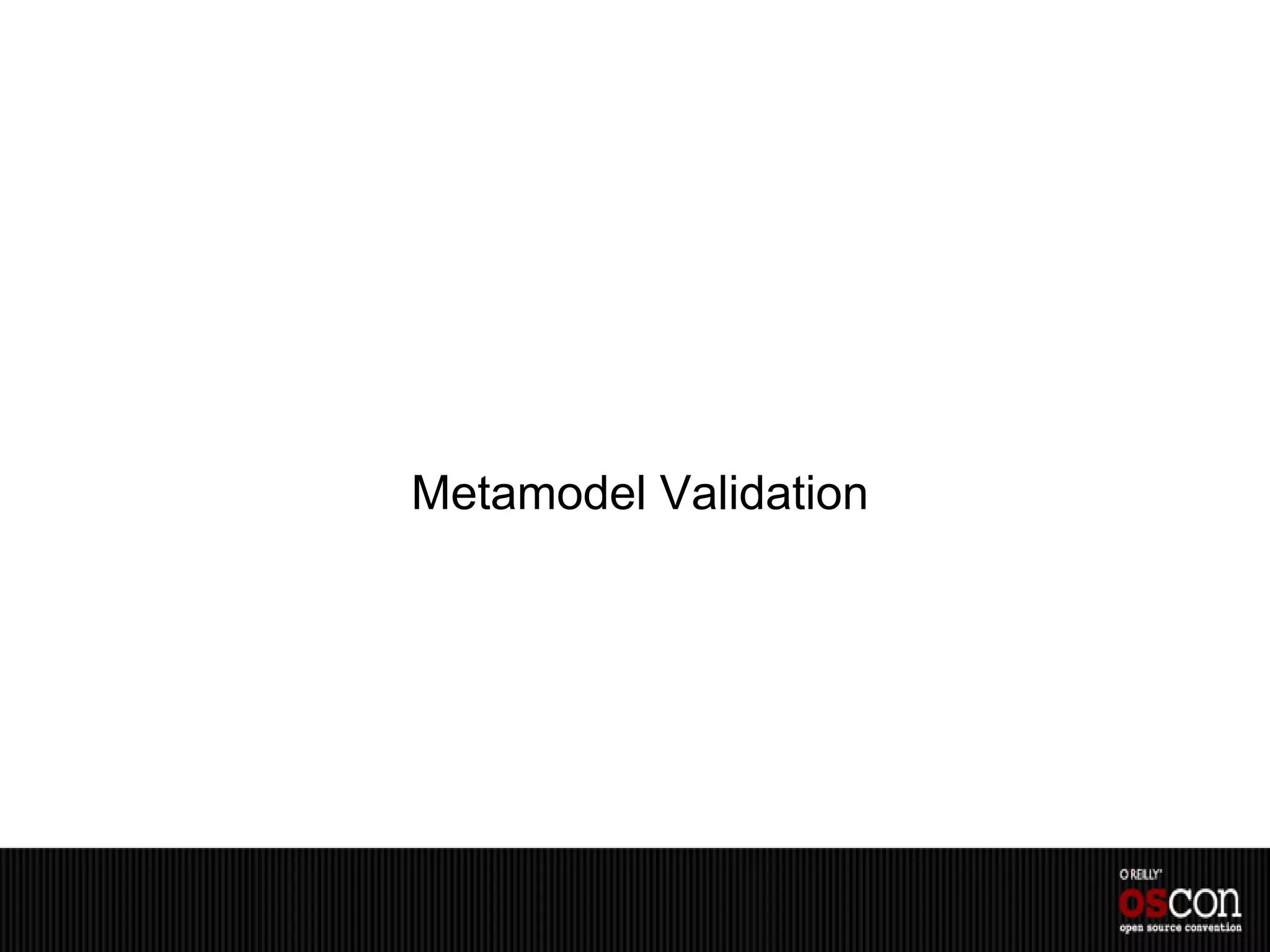

Validating the Metamodel
 The imperative way
- In Java
- A jungle of conditional statements

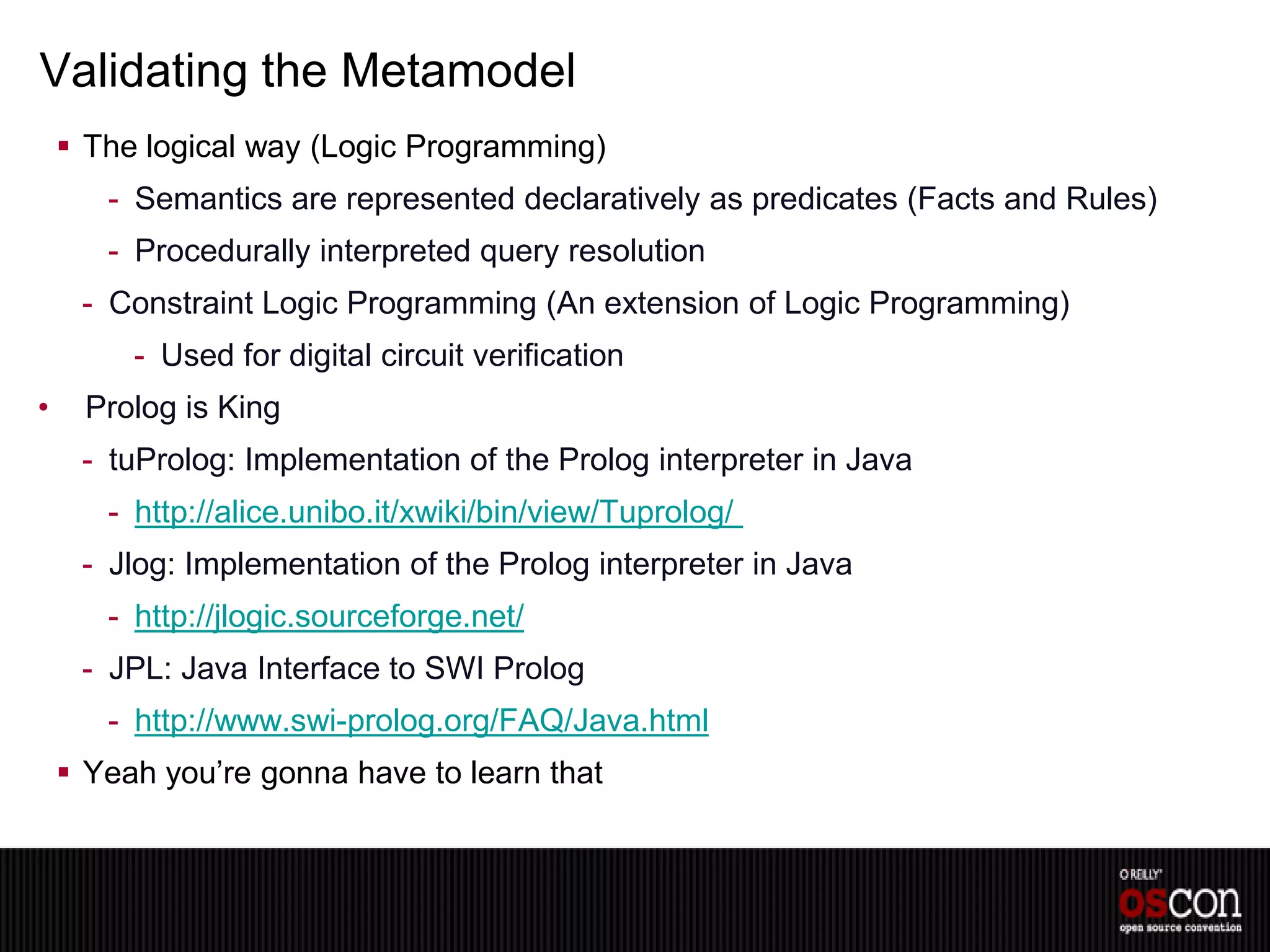

 The logical way (Logic Programming)
- Semantics are represented declaratively as predicates (Facts and Rules)
- Procedurally interpreted query resolution
- Constraint Logic Programming (An extension of Logic Programming)
- Used for digital circuit verification
• Prolog is King
- tuProlog: Implementation of the Prolog interpreter in Java
- http://alice.unibo.it/xwiki/bin/view/Tuprolog/
- Jlog: Implementation of the Prolog interpreter in Java
- http://jlogic.sourceforge.net/
- JPL: Java Interface to SWI Prolog
- http://www.swi-prolog.org/FAQ/Java.html
 Yeah you’re gonna have to learn that

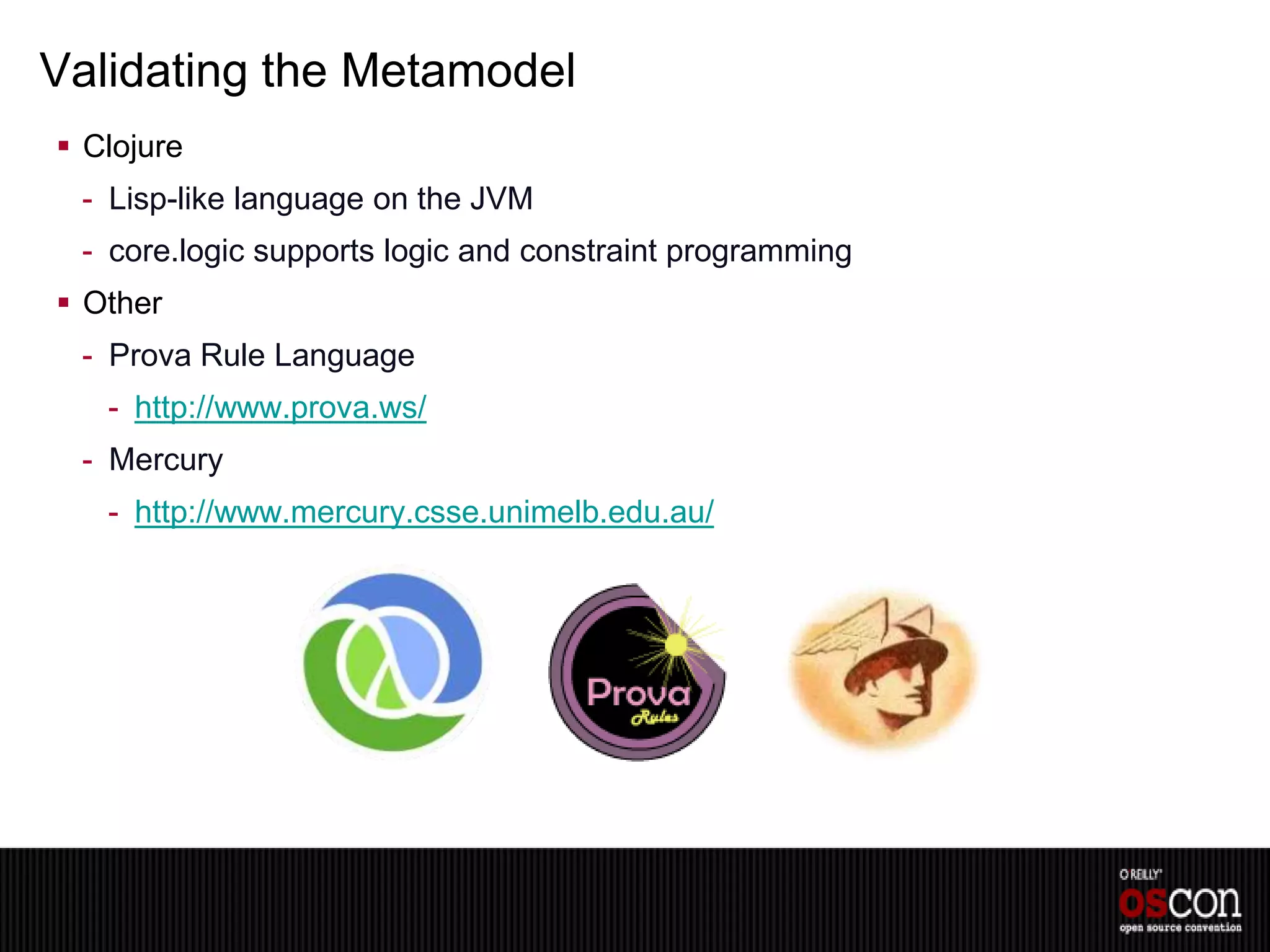

 Clojure
- Lisp-like language on the JVM
- core.logic supports logic and constraint programming
 Other
- Prova Rule Language
- http://www.prova.ws/
- Mercury
- http://www.mercury.csse.unimelb.edu.au/

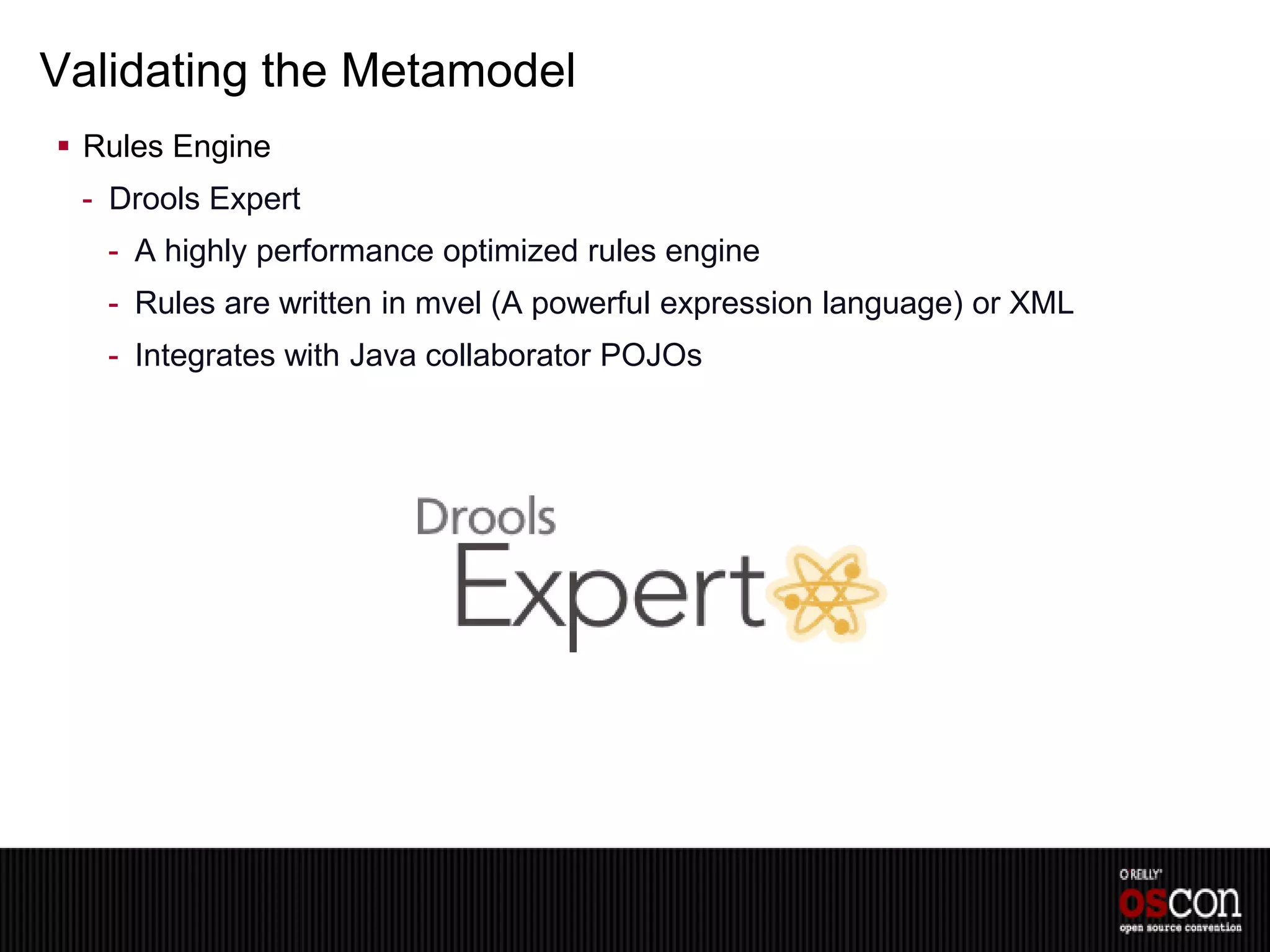

 Rules Engine
- Drools Expert
- A highly performance optimized rules engine
- Rules are written in mvel (A powerful expression language) or XML
- Integrates with Java collaborator POJOs

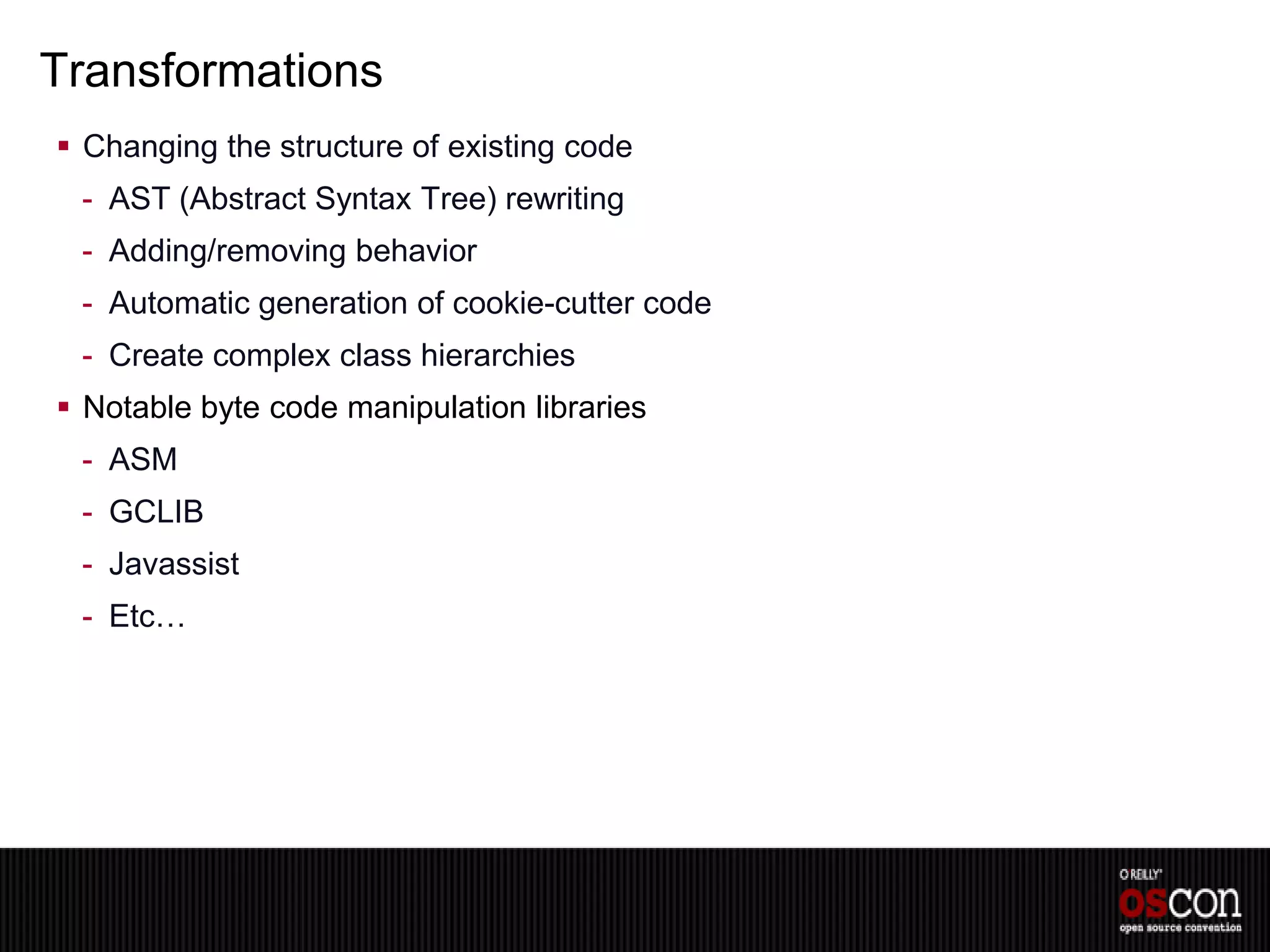

Transformations
 Changing the structure of existing code
- AST (Abstract Syntax Tree) rewriting
- Adding/removing behavior
- Automatic generation of cookie-cutter code
- Create complex class hierarchies
 Notable byte code manipulation libraries
- ASM
- GCLIB
- Javassist
- Etc…

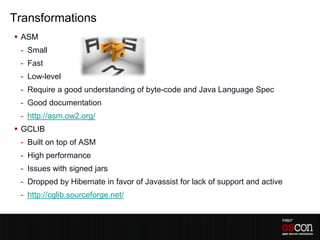

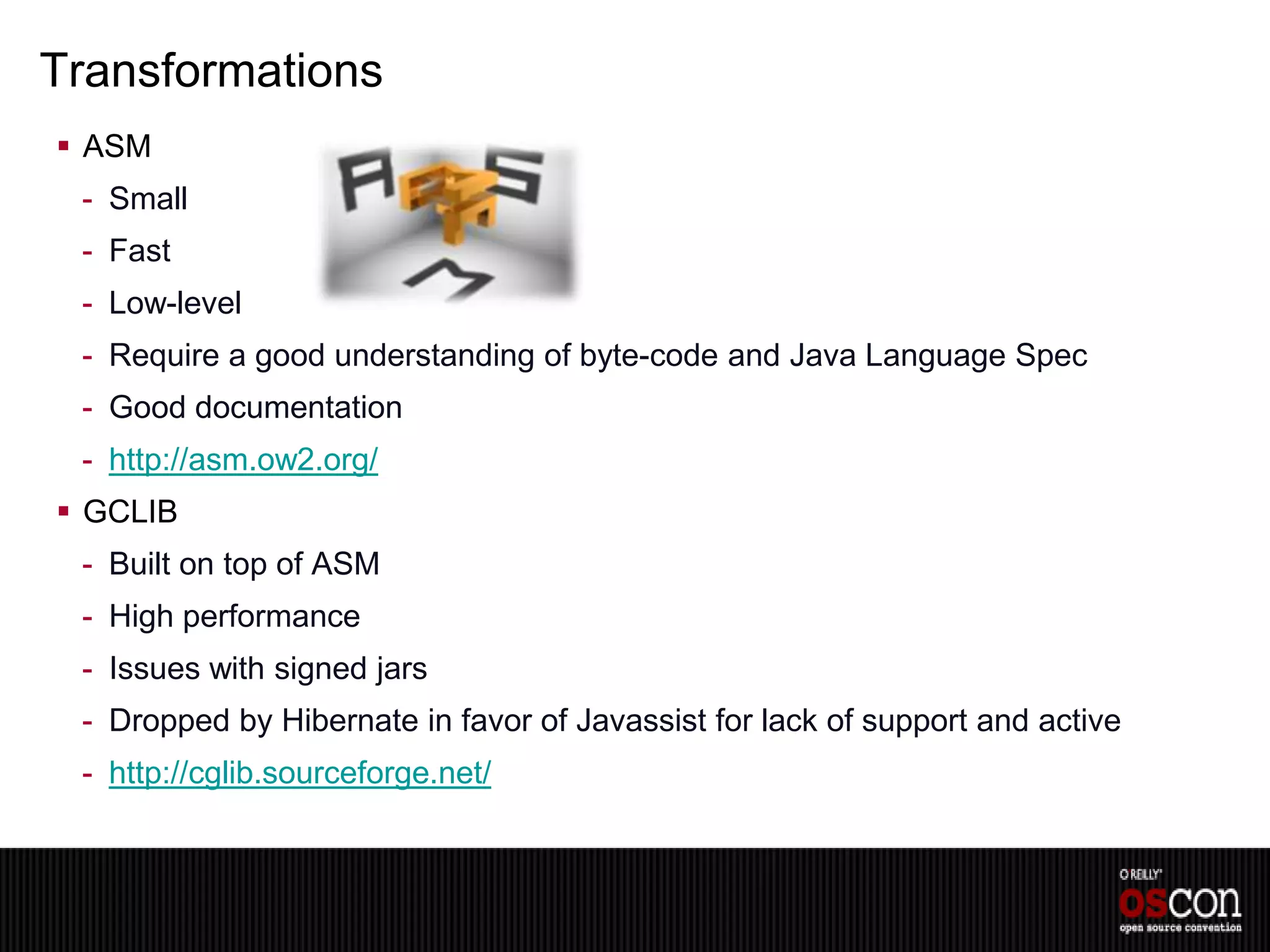

Transformations
 ASM
- Small
- Fast
- Low-level
- Require a good understanding of byte-code and Java Language Spec
- Good documentation
- http://asm.ow2.org/
 GCLIB
- Built on top of ASM
- High performance
- Issues with signed jars
- Dropped by Hibernate in favor of Javassist for lack of support and active
- http://cglib.sourceforge.net/

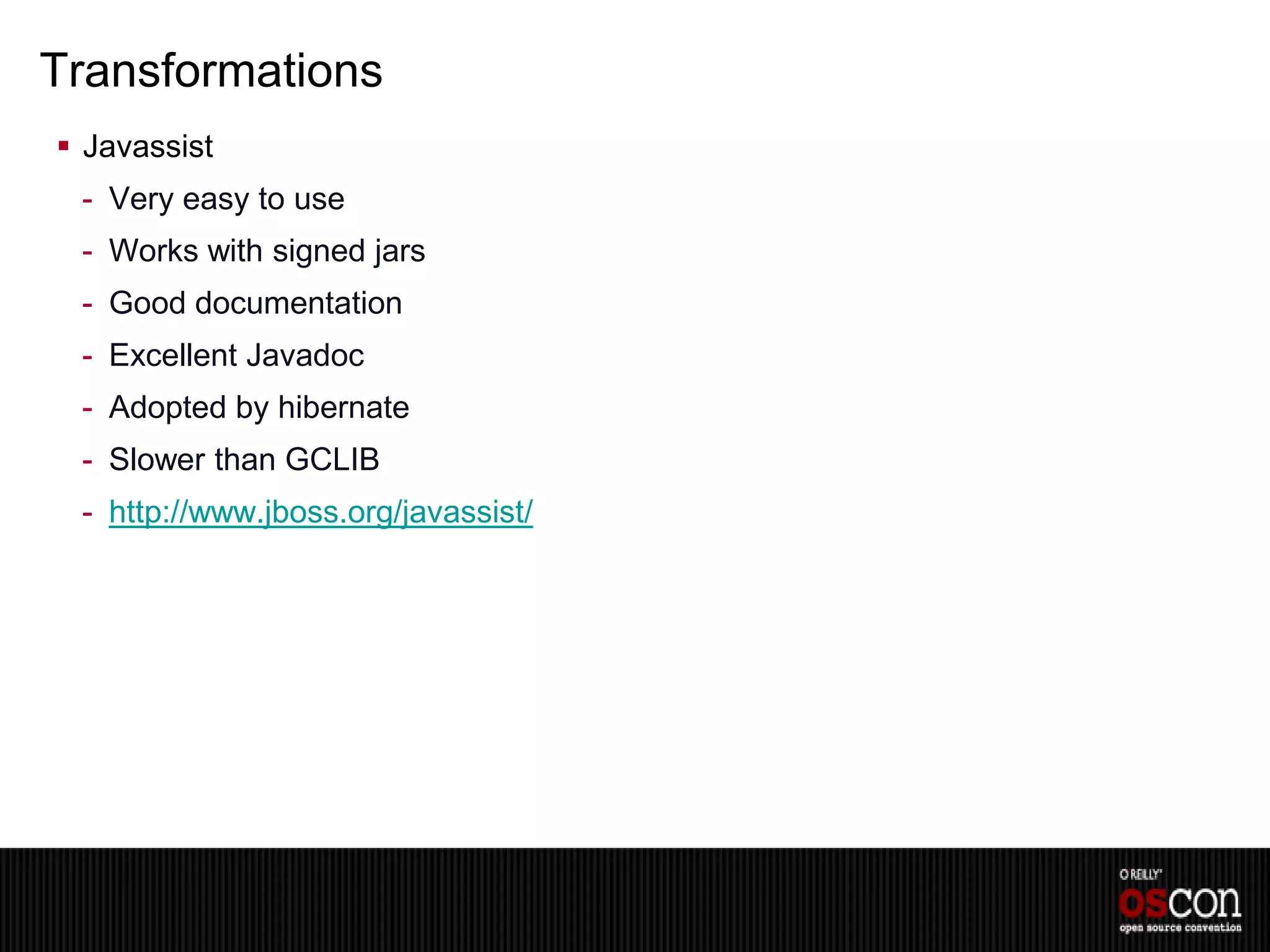

Transformations
 Javassist
- Very easy to use
- Works with signed jars
- Good documentation
- Excellent Javadoc
- Adopted by hibernate
- Slower than GCLIB
- http://www.jboss.org/javassist/

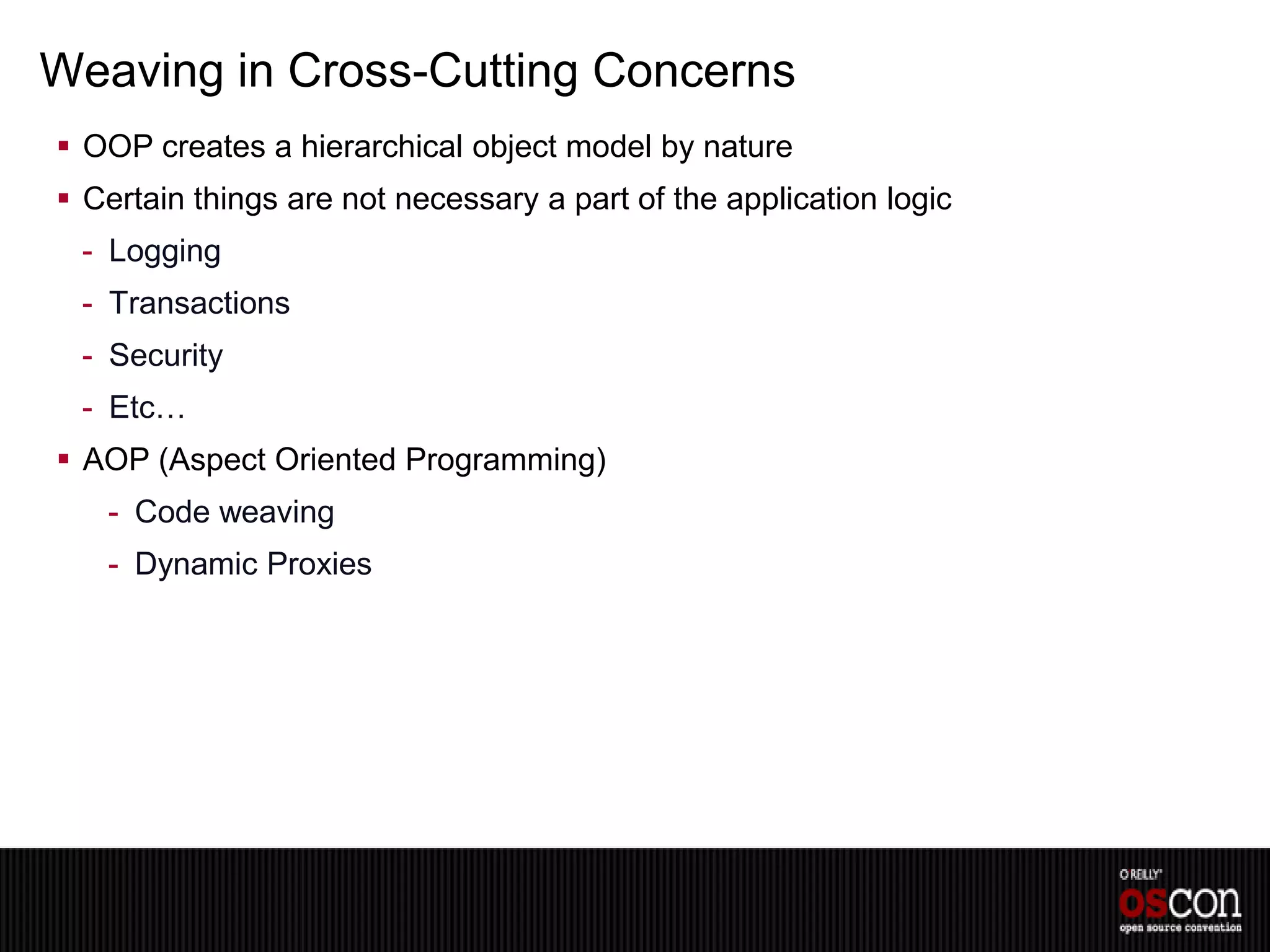

Weaving in Cross-Cutting Concerns
 OOP creates a hierarchical object model by nature
 Certain things are not necessary a part of the application logic
- Logging
- Transactions
- Security
- Etc…
 AOP (Aspect Oriented Programming)
- Code weaving
- Dynamic Proxies

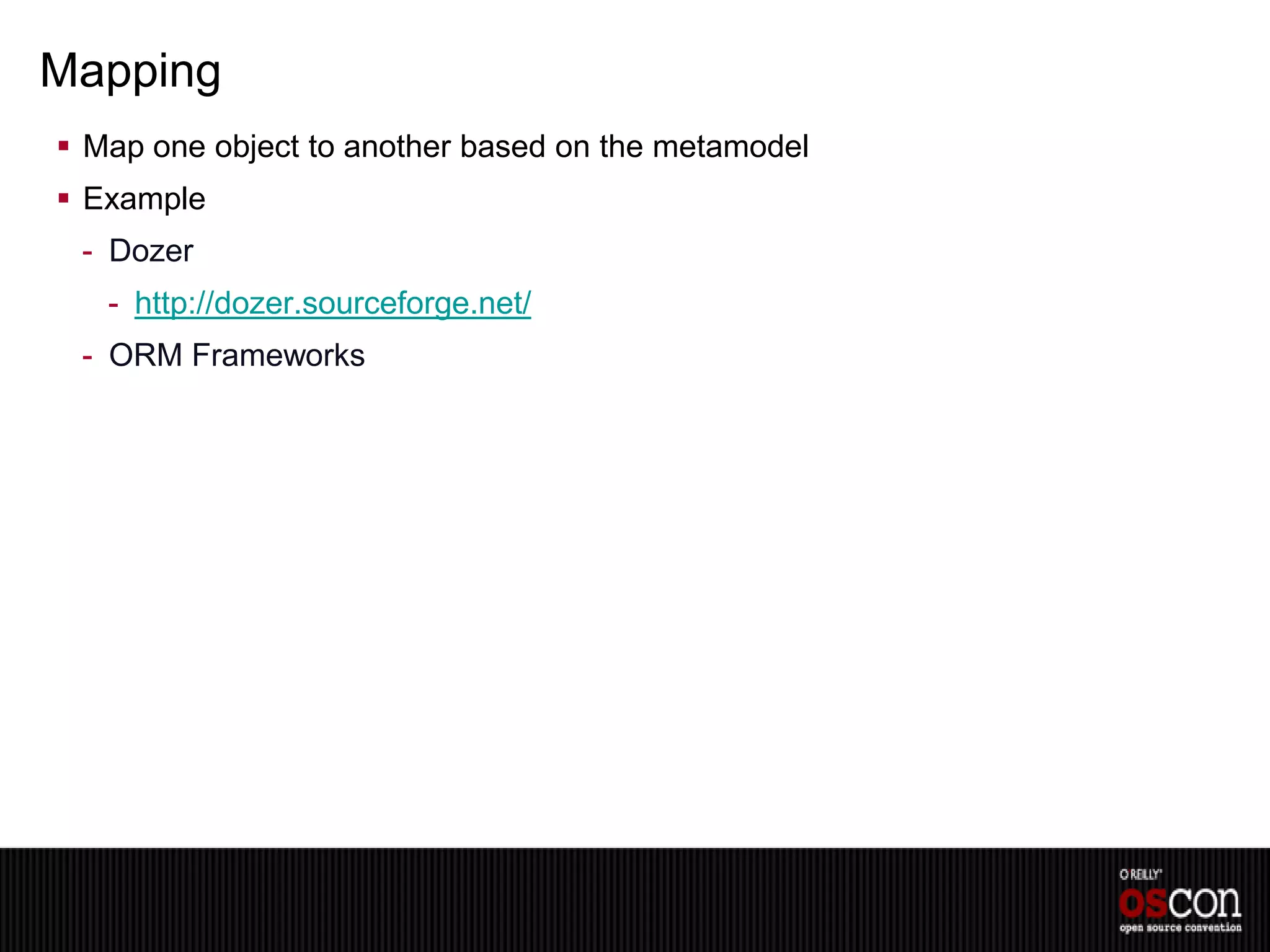

Mapping
 Map one object to another based on the metamodel
 Example
- Dozer
- http://dozer.sourceforge.net/
- ORM Frameworks

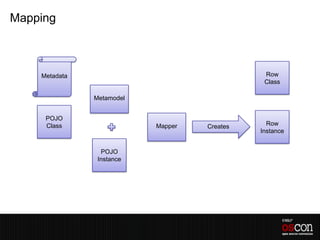

Mapping

Metadata Row
Class

Metamodel

POJO
Class Mapper Creates Row
Instance

POJO
Instance

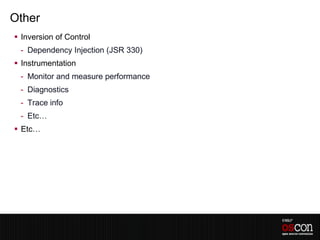

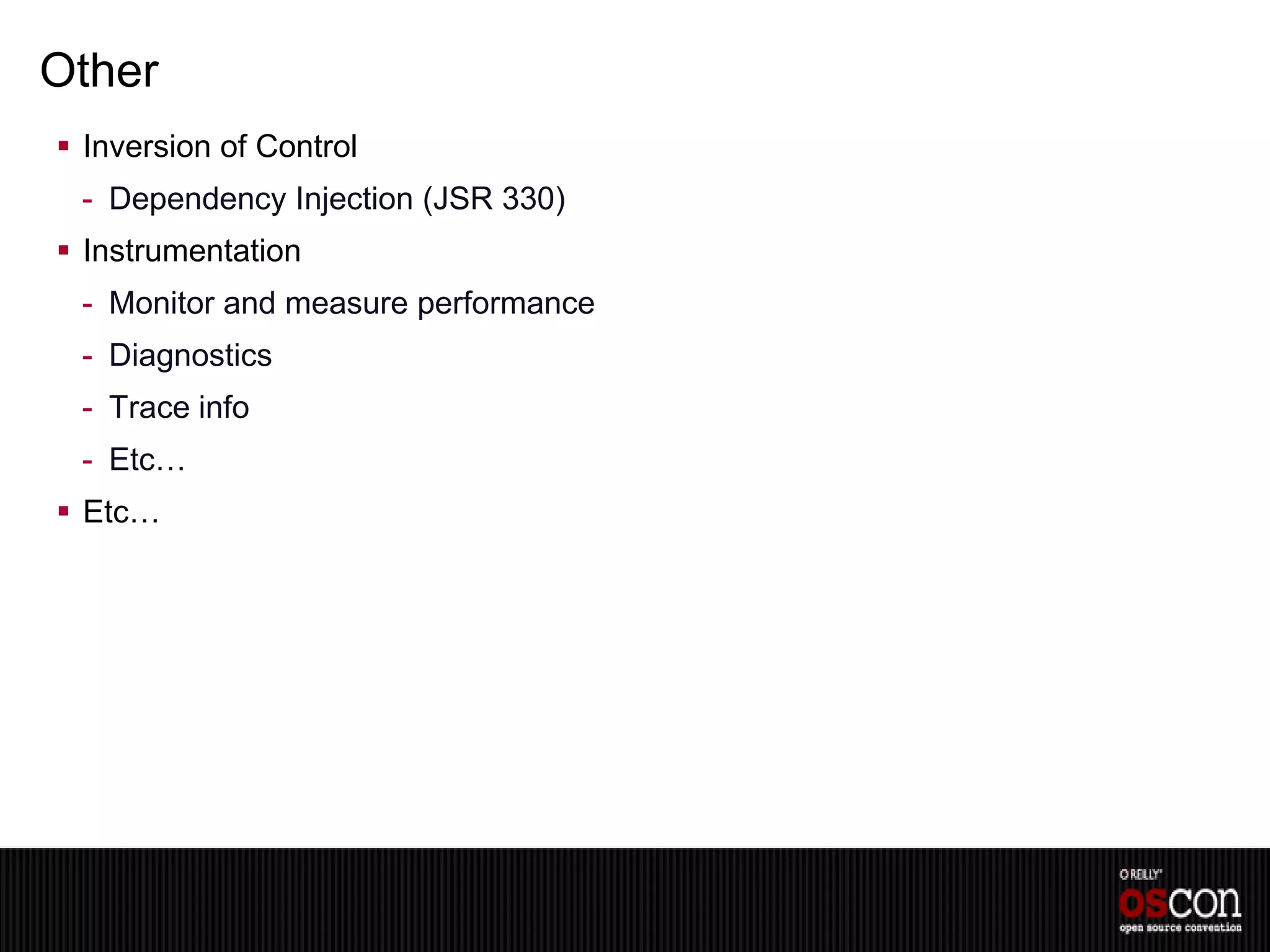

Other
 Inversion of Control
- Dependency Injection (JSR 330)
 Instrumentation
- Monitor and measure performance
- Diagnostics
- Trace info
- Etc…
 Etc…

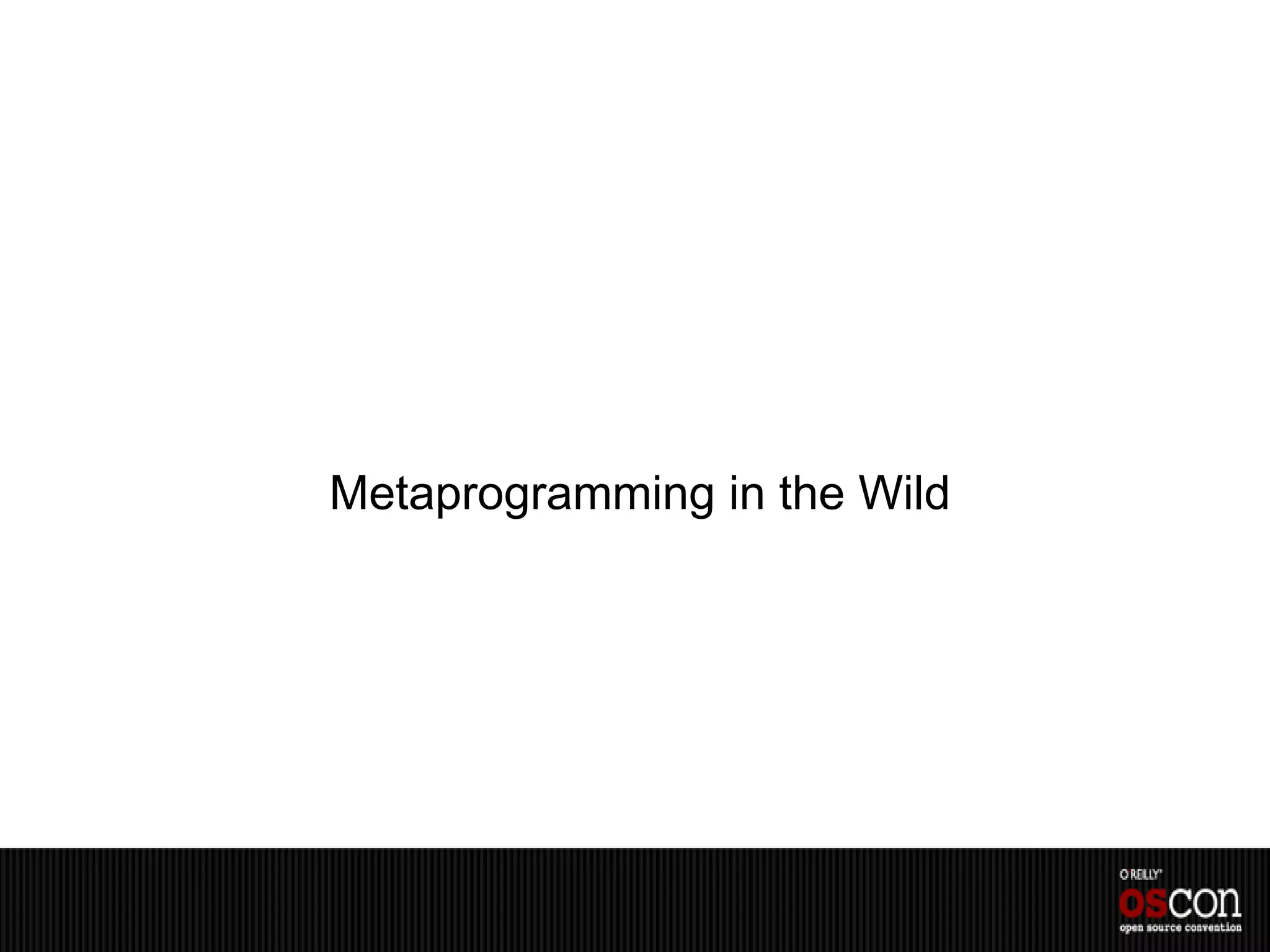

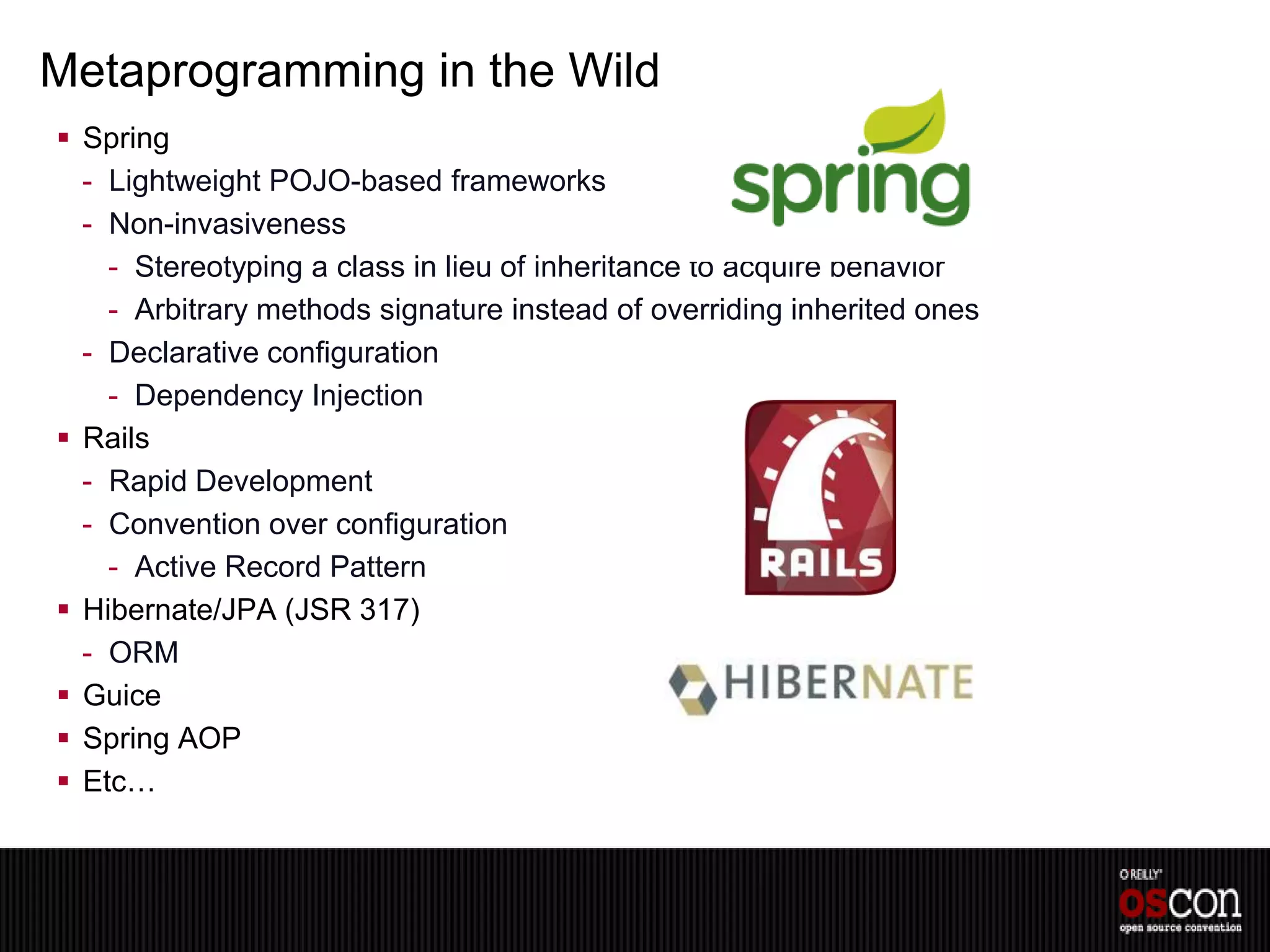

Metaprogramming in the Wild
 Spring
- Lightweight POJO-based frameworks
- Non-invasiveness
- Stereotyping a class in lieu of inheritance to acquire behavior
- Arbitrary methods signature instead of overriding inherited ones
- Declarative configuration
- Dependency Injection
 Rails
- Rapid Development
- Convention over configuration
- Active Record Pattern
 Hibernate/JPA (JSR 317)
- ORM
 Guice
 Spring AOP
 Etc…

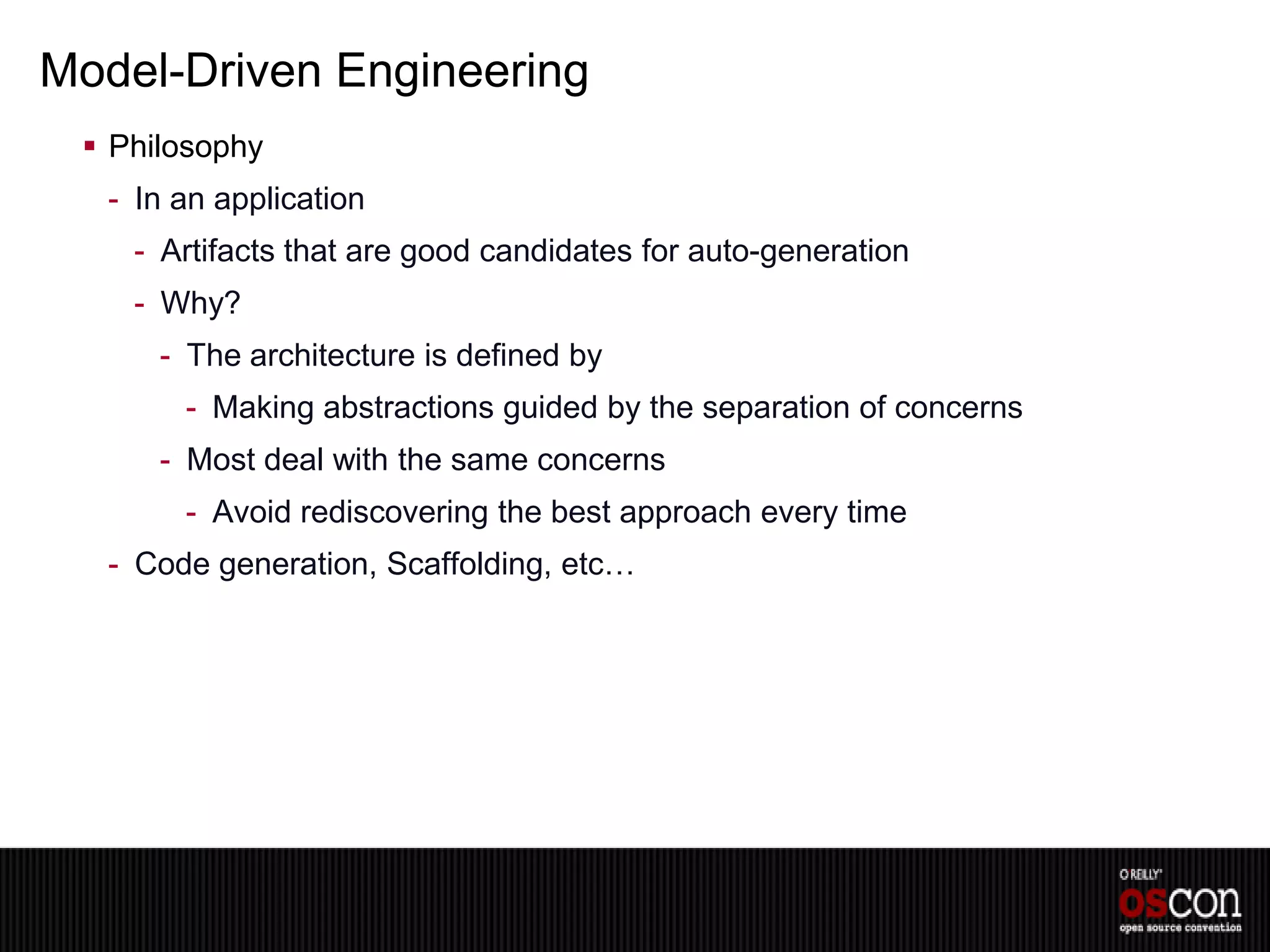

Model-Driven Engineering
 Philosophy
- In an application
- Artifacts that are good candidates for auto-generation
- Why?
- The architecture is defined by
- Making abstractions guided by the separation of concerns
- Most deal with the same concerns
- Avoid rediscovering the best approach every time
- Code generation, Scaffolding, etc…

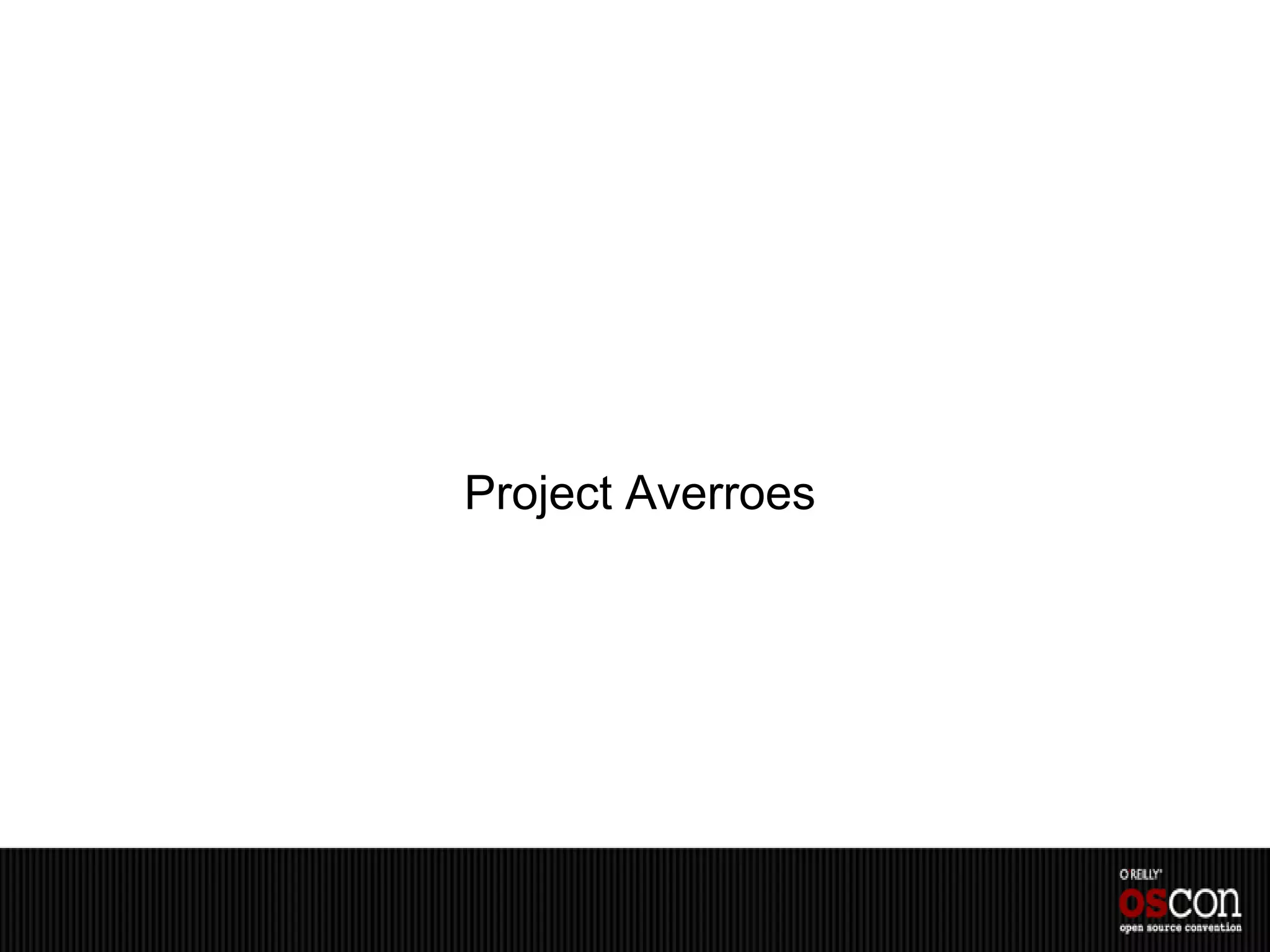

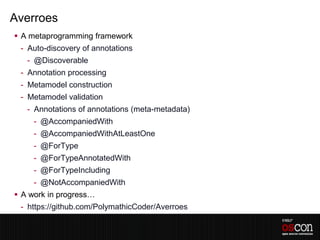

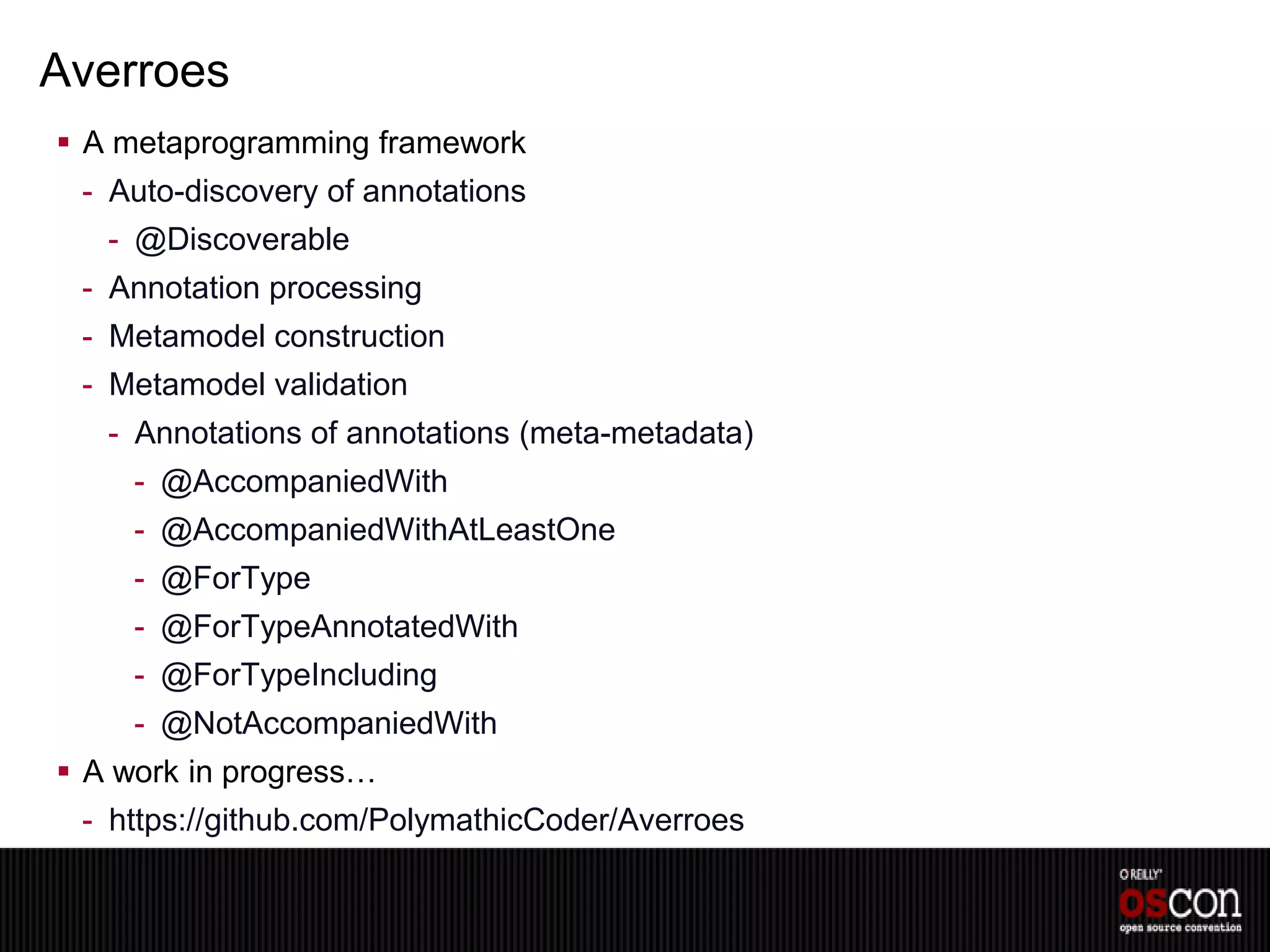

Averroes
 A metaprogramming framework
- Auto-discovery of annotations
- @Discoverable
- Annotation processing
- Metamodel construction
- Metamodel validation
- Annotations of annotations (meta-metadata)
- @AccompaniedWith
- @AccompaniedWithAtLeastOne
- @ForType
- @ForTypeAnnotatedWith
- @ForTypeIncluding
- @NotAccompaniedWith
 A work in progress…
- https://github.com/PolymathicCoder/Averroes

The Art of Metaprogramming in Java

More Related Content

What's hot

Viewers also liked

Similar to The Art of Metaprogramming in Java

Recently uploaded

In this document

The Art of Metaprogramming in Java
