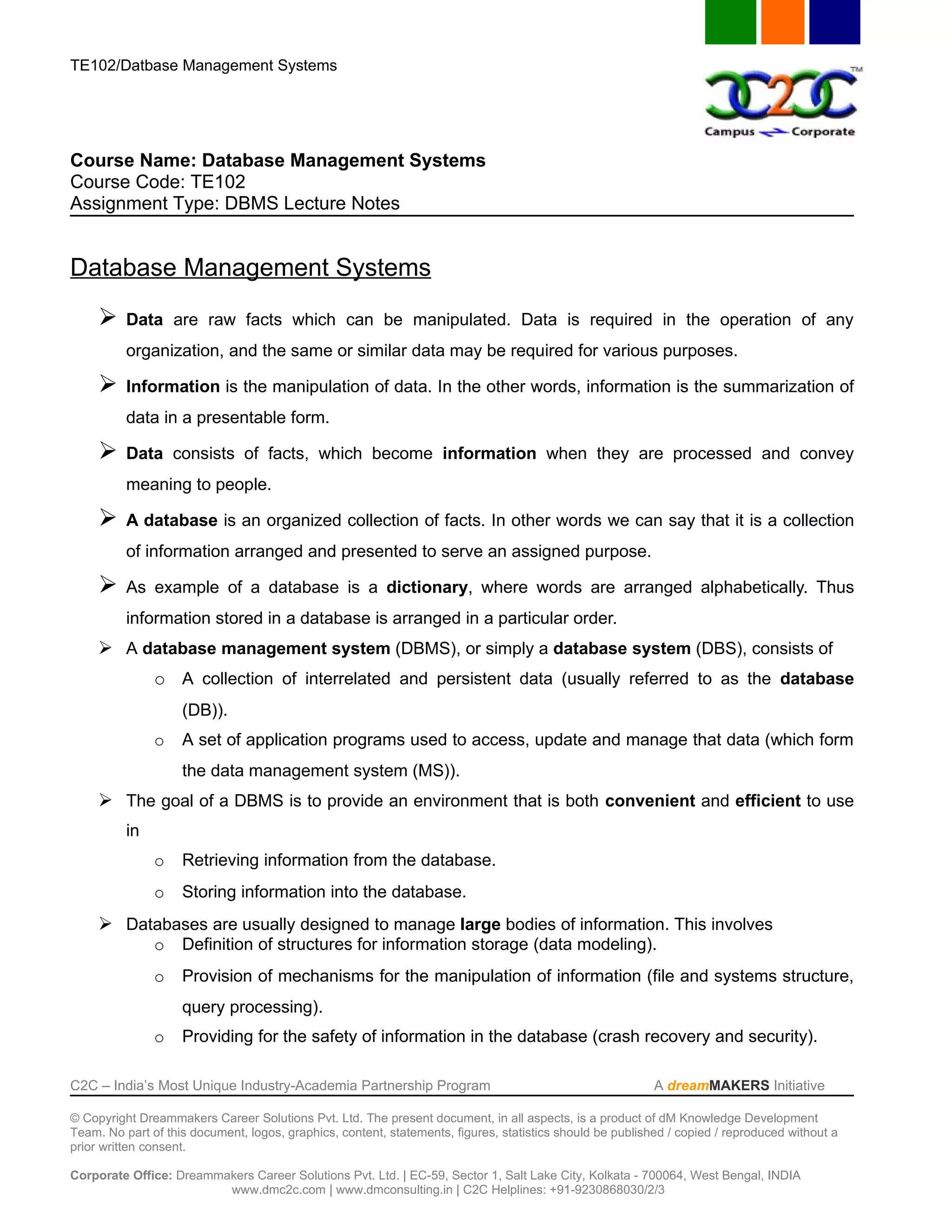

Dbms Lecture Notes

TE102/Datbase Management Systems

Course Name: Database Management Systems
Course Code: TE102
Assignment Type: DBMS Lecture Notes

Database Management Systems
 Data are raw facts which can be manipulated. Data is required in the operation of any
organization, and the same or similar data may be required for various purposes.

 Information is the manipulation of data. In the other words, information is the summarization of
data in a presentable form.

 Data consists of facts, which become information when they are processed and convey
meaning to people.

 A database is an organized collection of facts. In other words we can say that it is a collection
of information arranged and presented to serve an assigned purpose.

 As example of a database is a dictionary, where words are arranged alphabetically. Thus
information stored in a database is arranged in a particular order.
 A database management system (DBMS), or simply a database system (DBS), consists of
o A collection of interrelated and persistent data (usually referred to as the database
(DB)).
o A set of application programs used to access, update and manage that data (which form
the data management system (MS)).
 The goal of a DBMS is to provide an environment that is both convenient and efficient to use
in
o Retrieving information from the database.
o Storing information into the database.
 Databases are usually designed to manage large bodies of information. This involves
o Definition of structures for information storage (data modeling).
o Provision of mechanisms for the manipulation of information (file and systems structure,
query processing).
o Providing for the safety of information in the database (crash recovery and security).

C2C – India’s Most Unique Industry-Academia Partnership Program A dreamMAKERS Initiative

© Copyright Dreammakers Career Solutions Pvt. Ltd. The present document, in all aspects, is a product of dM Knowledge Development
Team. No part of this document, logos, graphics, content, statements, figures, statistics should be published / copied / reproduced without a
prior written consent.

Corporate Office: Dreammakers Career Solutions Pvt. Ltd. | EC-59, Sector 1, Salt Lake City, Kolkata - 700064, West Bengal, INDIA
www.dmc2c.com | www.dmconsulting.in | C2C Helplines: +91-9230868030/2/3

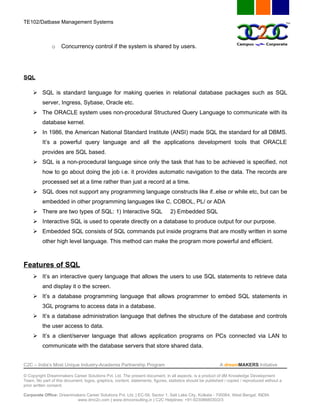

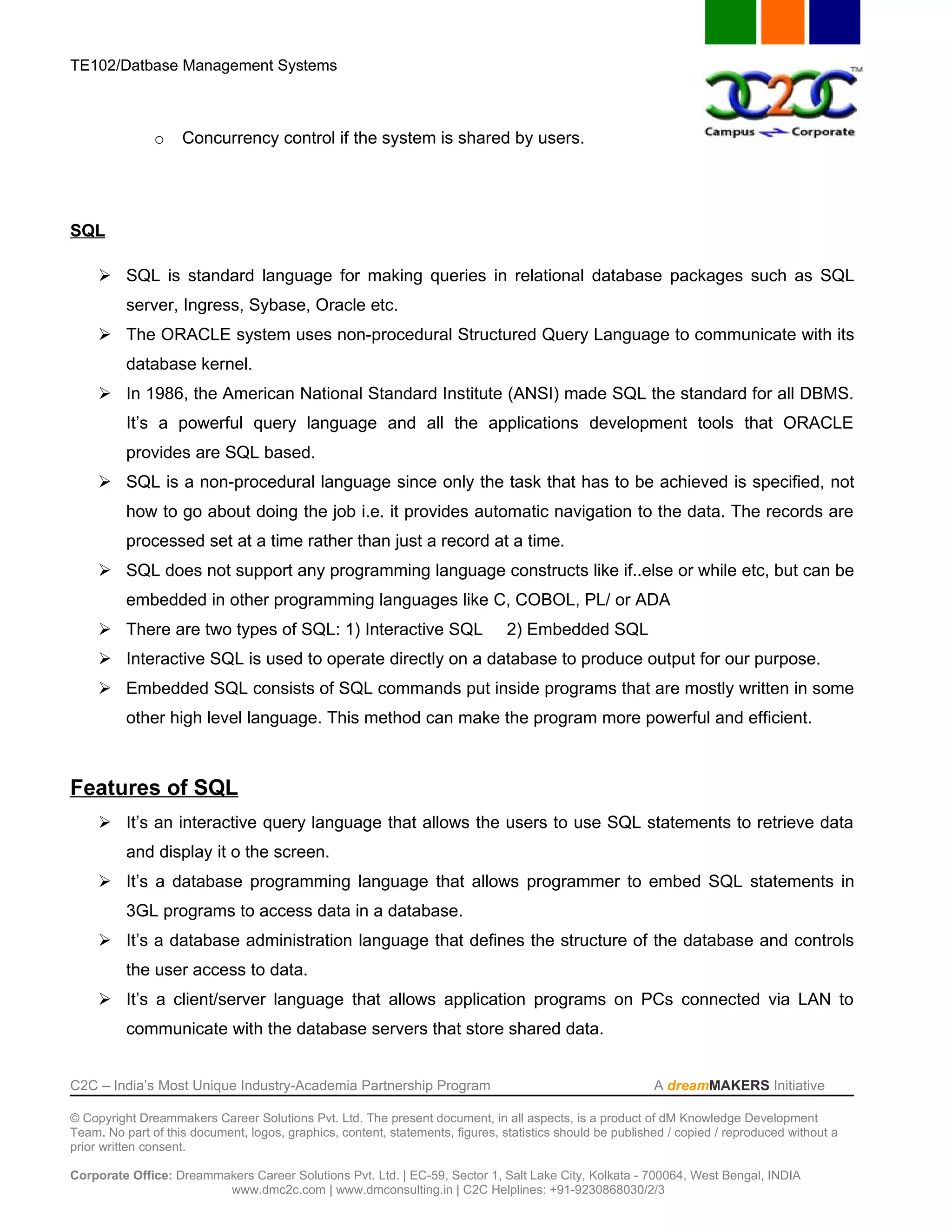

o Concurrency control if the system is shared by users.

SQL

 SQL is standard language for making queries in relational database packages such as SQL
server, Ingress, Sybase, Oracle etc.
 The ORACLE system uses non-procedural Structured Query Language to communicate with its
database kernel.
 In 1986, the American National Standard Institute (ANSI) made SQL the standard for all DBMS.
It’s a powerful query language and all the applications development tools that ORACLE
provides are SQL based.
 SQL is a non-procedural language since only the task that has to be achieved is specified, not
how to go about doing the job i.e. it provides automatic navigation to the data. The records are
processed set at a time rather than just a record at a time.
 SQL does not support any programming language constructs like if..else or while etc, but can be
embedded in other programming languages like C, COBOL, PL/ or ADA
 There are two types of SQL: 1) Interactive SQL 2) Embedded SQL
 Interactive SQL is used to operate directly on a database to produce output for our purpose.
 Embedded SQL consists of SQL commands put inside programs that are mostly written in some
other high level language. This method can make the program more powerful and efficient.

Features of SQL
 It’s an interactive query language that allows the users to use SQL statements to retrieve data
and display it o the screen.
 It’s a database programming language that allows programmer to embed SQL statements in
3GL programs to access data in a database.
 It’s a database administration language that defines the structure of the database and controls
the user access to data.
 It’s a client/server language that allows application programs on PCs connected via LAN to
communicate with the database servers that store shared data.





 It’s a database gateway language and often used in gateway that allows one brand of DBMS to
communicate with another brand.

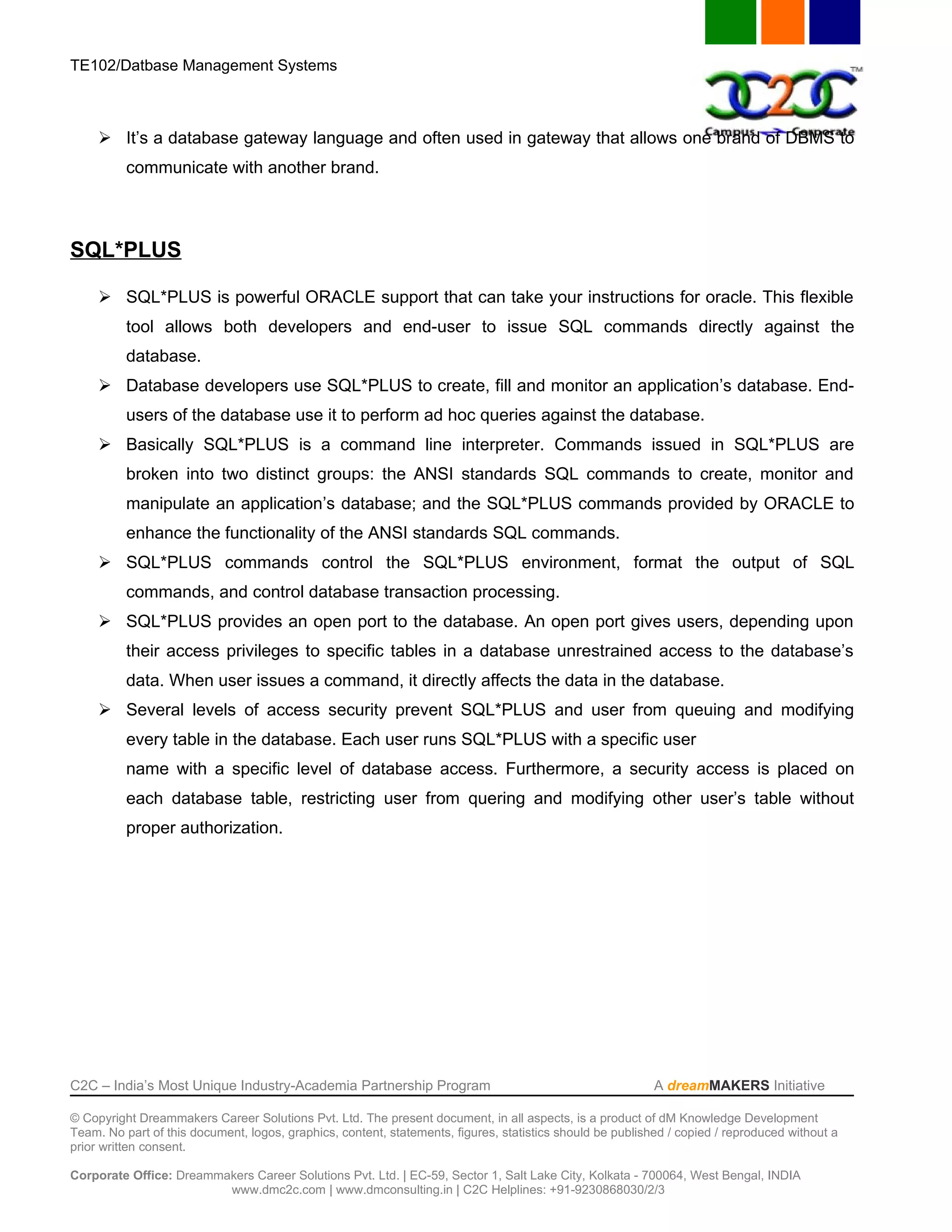

SQL*PLUS

 SQL*PLUS is powerful ORACLE support that can take your instructions for oracle. This flexible
tool allows both developers and end-user to issue SQL commands directly against the
database.
 Database developers use SQL*PLUS to create, fill and monitor an application’s database. End-
users of the database use it to perform ad hoc queries against the database.
 Basically SQL*PLUS is a command line interpreter. Commands issued in SQL*PLUS are
broken into two distinct groups: the ANSI standards SQL commands to create, monitor and
manipulate an application’s database; and the SQL*PLUS commands provided by ORACLE to
enhance the functionality of the ANSI standards SQL commands.
 SQL*PLUS commands control the SQL*PLUS environment, format the output of SQL
commands, and control database transaction processing.
 SQL*PLUS provides an open port to the database. An open port gives users, depending upon
their access privileges to specific tables in a database unrestrained access to the database’s
data. When user issues a command, it directly affects the data in the database.
 Several levels of access security prevent SQL*PLUS and user from queuing and modifying
every table in the database. Each user runs SQL*PLUS with a specific user
name with a specific level of database access. Furthermore, a security access is placed on
each database table, restricting user from quering and modifying other user’s table without
proper authorization.

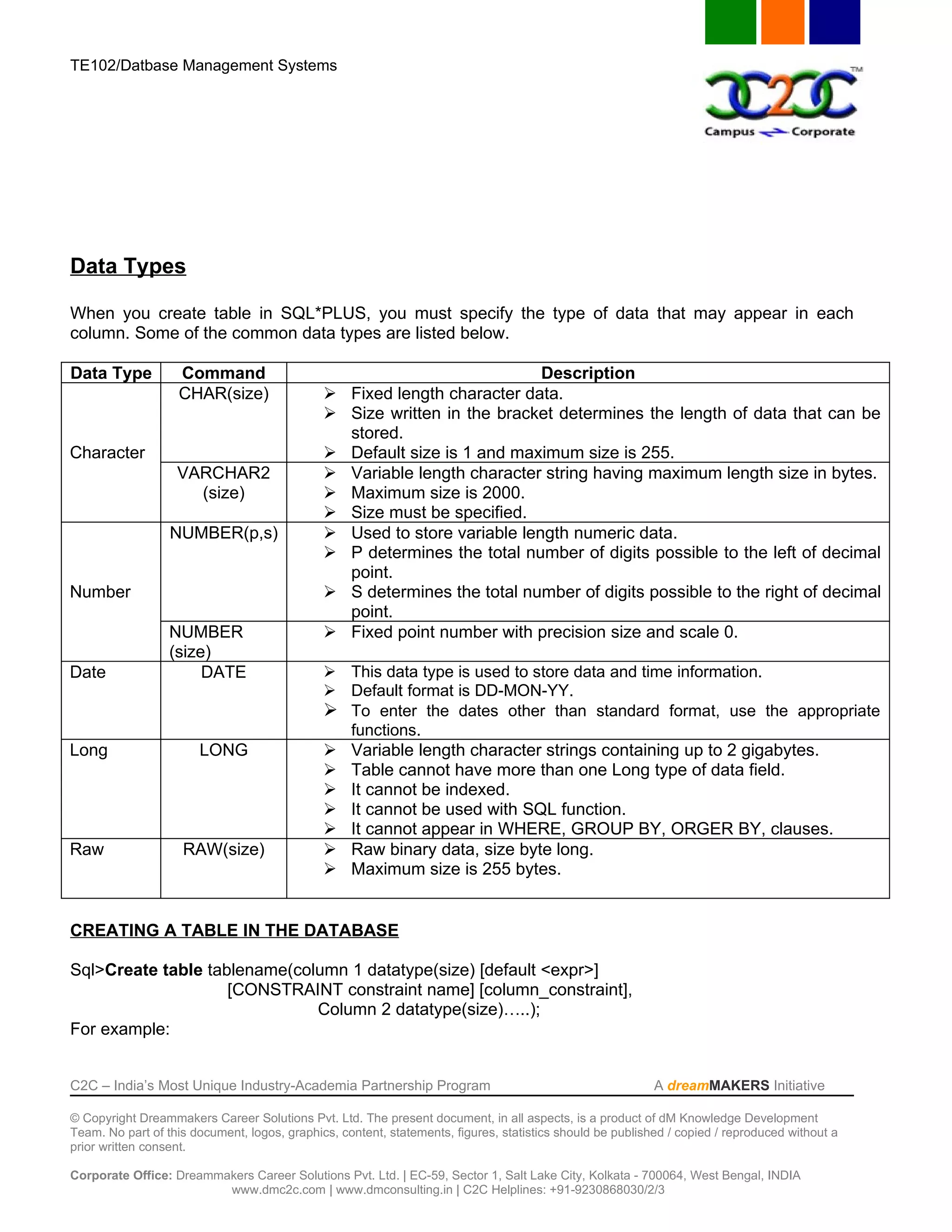

Data Types

When you create table in SQL*PLUS, you must specify the type of data that may appear in each
column. Some of the common data types are listed below.

Data Type Command Description
CHAR(size)  Fixed length character data.
 Size written in the bracket determines the length of data that can be
stored.
Character  Default size is 1 and maximum size is 255.
VARCHAR2  Variable length character string having maximum length size in bytes.
(size)  Maximum size is 2000.
 Size must be specified.
NUMBER(p,s)  Used to store variable length numeric data.
 P determines the total number of digits possible to the left of decimal
point.
Number  S determines the total number of digits possible to the right of decimal
point.
NUMBER  Fixed point number with precision size and scale 0.
(size)
Date DATE  This data type is used to store data and time information.
 Default format is DD-MON-YY.
 To enter the dates other than standard format, use the appropriate
functions.
Long LONG  Variable length character strings containing up to 2 gigabytes.
 Table cannot have more than one Long type of data field.
 It cannot be indexed.
 It cannot be used with SQL function.
 It cannot appear in WHERE, GROUP BY, ORGER BY, clauses.
Raw RAW(size)  Raw binary data, size byte long.
 Maximum size is 255 bytes.

CREATING A TABLE IN THE DATABASE

Sql>Create table tablename(column 1 datatype(size) [default <expr>]
[CONSTRAINT constraint name] [column_constraint],
Column 2 datatype(size)…..);
For example:

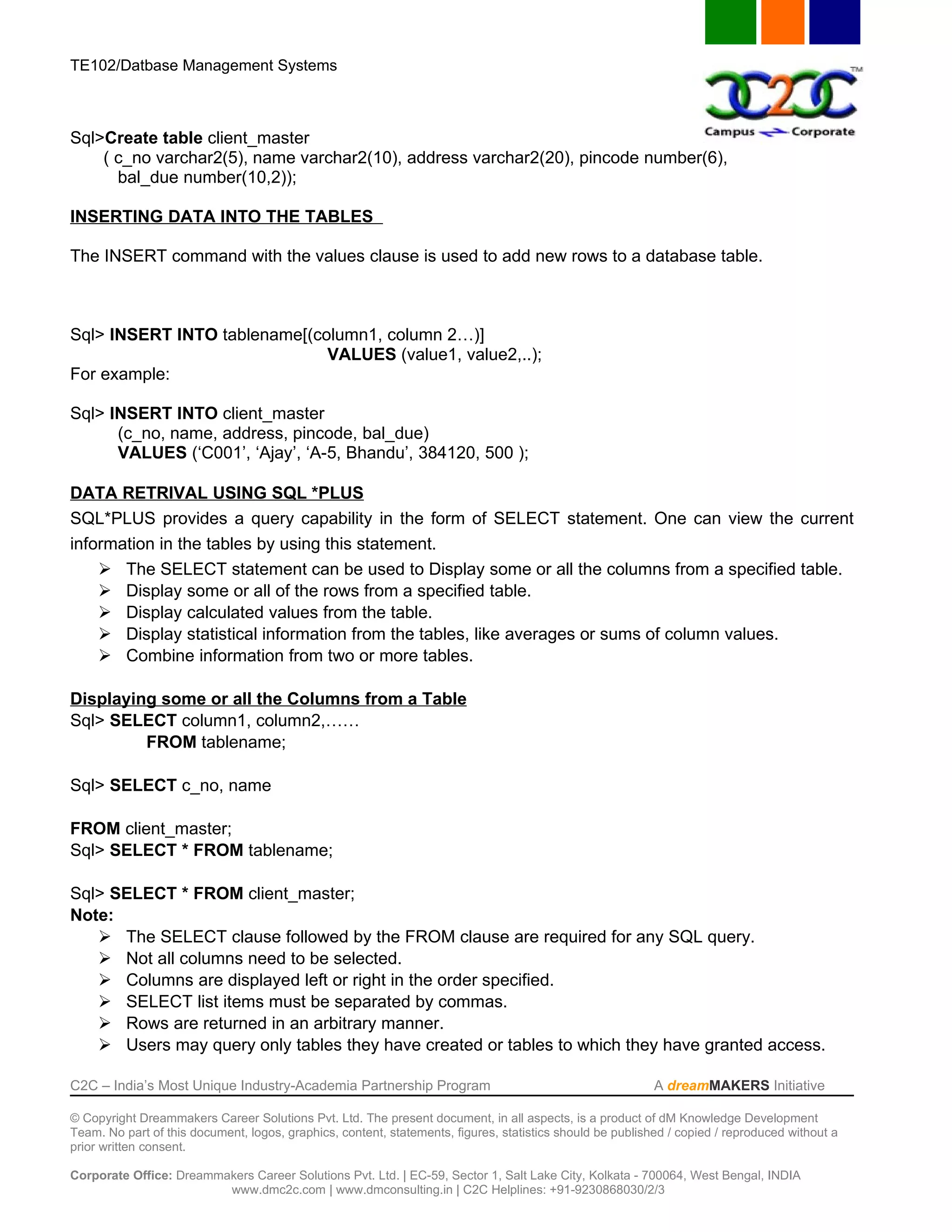

Sql>Create table client_master
( c_no varchar2(5), name varchar2(10), address varchar2(20), pincode number(6),
bal_due number(10,2));

INSERTING DATA INTO THE TABLES

The INSERT command with the values clause is used to add new rows to a database table.

Sql> INSERT INTO tablename[(column1, column 2…)]
VALUES (value1, value2,..);
For example:

Sql> INSERT INTO client_master
(c_no, name, address, pincode, bal_due)
VALUES (‘C001’, ‘Ajay’, ‘A-5, Bhandu’, 384120, 500 );

DATA RETRIVAL USING SQL *PLUS
SQL*PLUS provides a query capability in the form of SELECT statement. One can view the current
information in the tables by using this statement.
 The SELECT statement can be used to Display some or all the columns from a specified table.
 Display some or all of the rows from a specified table.
 Display calculated values from the table.
 Display statistical information from the tables, like averages or sums of column values.
 Combine information from two or more tables.

Displaying some or all the Columns from a Table
Sql> SELECT column1, column2,……
FROM tablename;

Sql> SELECT c_no, name

FROM client_master;
Sql> SELECT * FROM tablename;

Sql> SELECT * FROM client_master;
Note:
 The SELECT clause followed by the FROM clause are required for any SQL query.
 Not all columns need to be selected.
 Columns are displayed left or right in the order specified.
 SELECT list items must be separated by commas.
 Rows are returned in an arbitrary manner.
 Users may query only tables they have created or tables to which they have granted access.

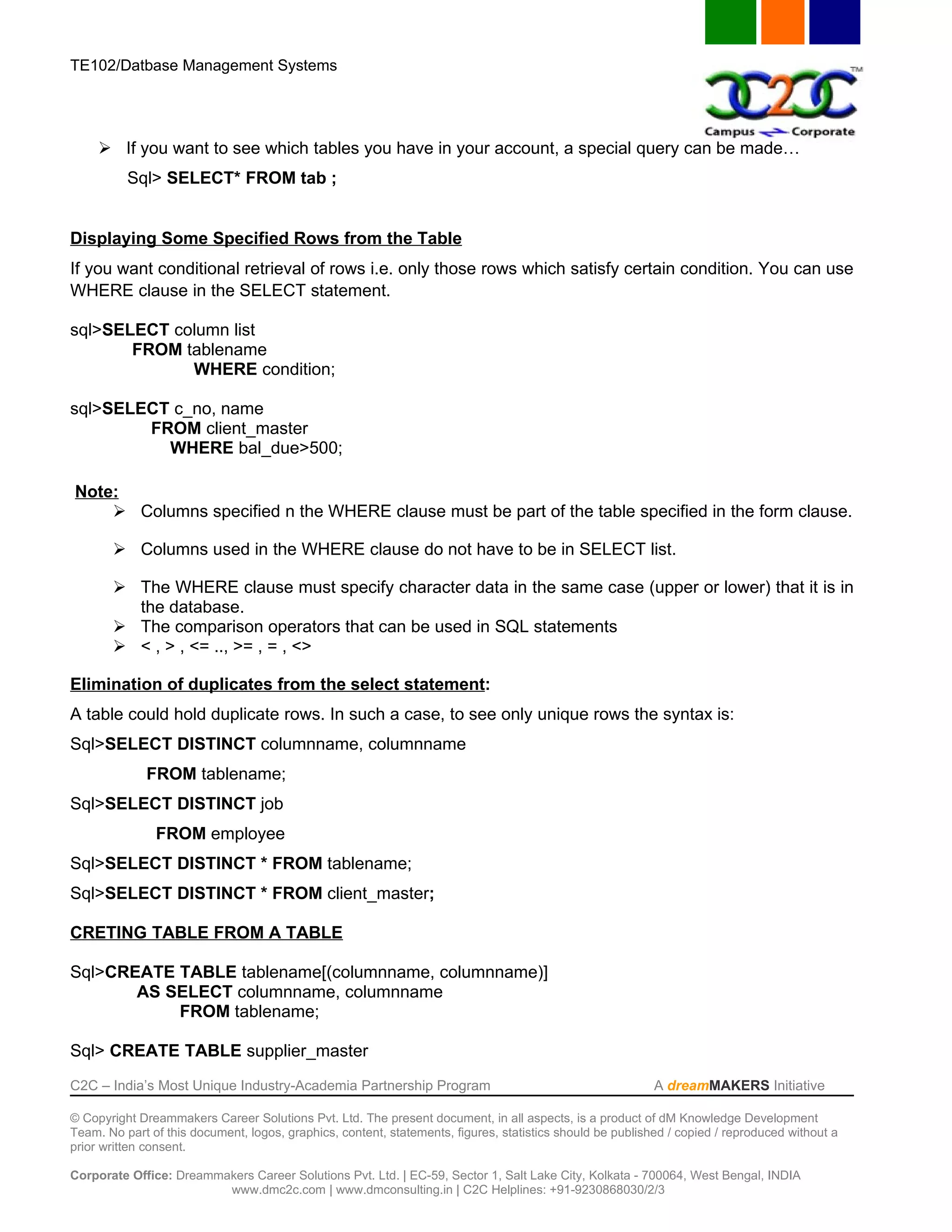

 If you want to see which tables you have in your account, a special query can be made…
Sql> SELECT* FROM tab ;

Displaying Some Specified Rows from the Table
If you want conditional retrieval of rows i.e. only those rows which satisfy certain condition. You can use
WHERE clause in the SELECT statement.

sql>SELECT column list
FROM tablename
WHERE condition;

sql>SELECT c_no, name
FROM client_master
WHERE bal_due>500;

Note:
 Columns specified n the WHERE clause must be part of the table specified in the form clause.

 Columns used in the WHERE clause do not have to be in SELECT list.

 The WHERE clause must specify character data in the same case (upper or lower) that it is in
the database.
 The comparison operators that can be used in SQL statements
 < , > , <= .., >= , = , <>

Elimination of duplicates from the select statement:
A table could hold duplicate rows. In such a case, to see only unique rows the syntax is:
Sql>SELECT DISTINCT columnname, columnname
FROM tablename;
Sql>SELECT DISTINCT job
FROM employee
Sql>SELECT DISTINCT * FROM tablename;
Sql>SELECT DISTINCT * FROM client_master;

CRETING TABLE FROM A TABLE

Sql>CREATE TABLE tablename[(columnname, columnname)]
AS SELECT columnname, columnname
FROM tablename;

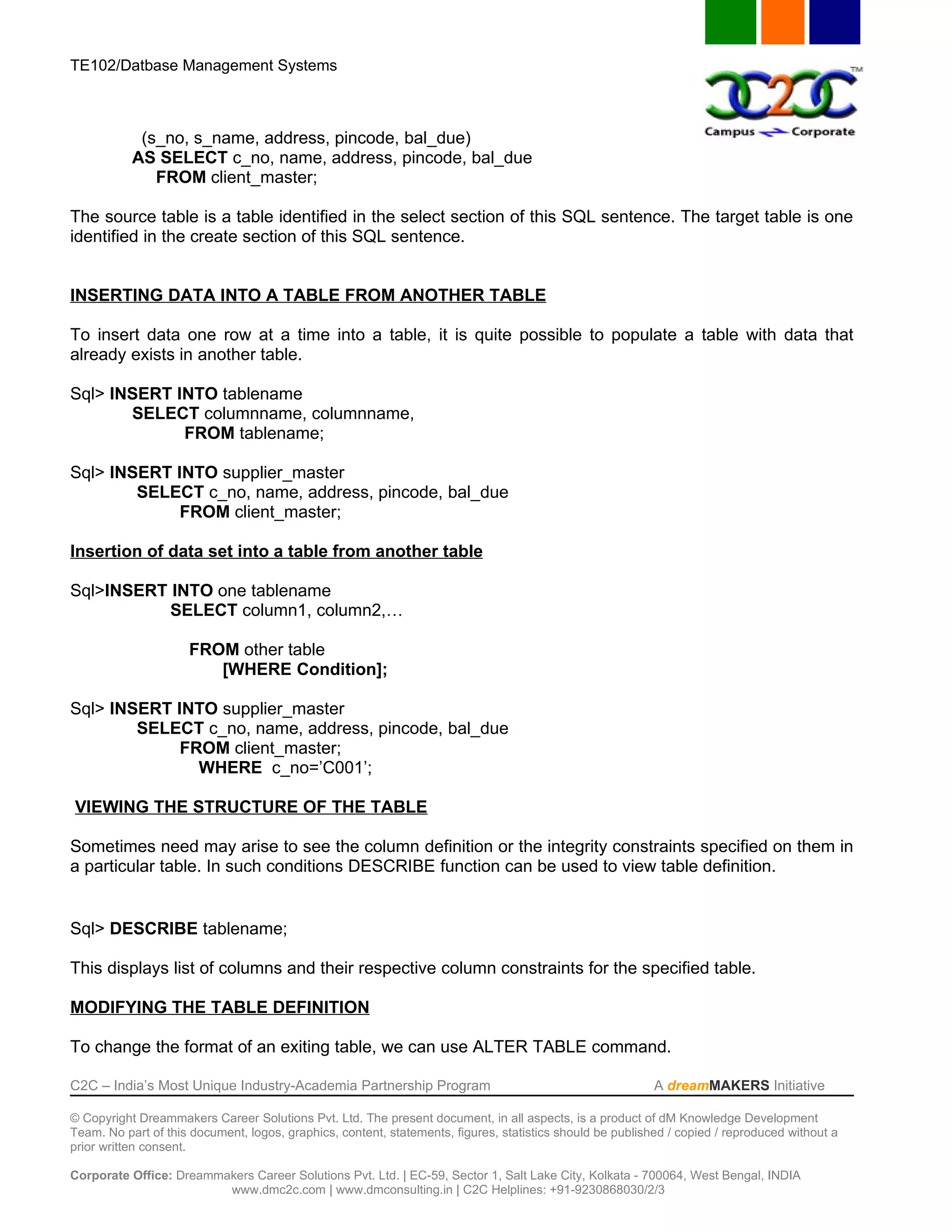

Sql> CREATE TABLE supplier_master




(s_no, s_name, address, pincode, bal_due)
AS SELECT c_no, name, address, pincode, bal_due
FROM client_master;

The source table is a table identified in the select section of this SQL sentence. The target table is one
identified in the create section of this SQL sentence.

INSERTING DATA INTO A TABLE FROM ANOTHER TABLE

To insert data one row at a time into a table, it is quite possible to populate a table with data that
already exists in another table.

Sql> INSERT INTO tablename
SELECT columnname, columnname,
FROM tablename;

Sql> INSERT INTO supplier_master
SELECT c_no, name, address, pincode, bal_due
FROM client_master;

Insertion of data set into a table from another table

Sql>INSERT INTO one tablename
SELECT column1, column2,…

FROM other table
[WHERE Condition];

Sql> INSERT INTO supplier_master
SELECT c_no, name, address, pincode, bal_due
FROM client_master;
WHERE c_no=’C001’;

VIEWING THE STRUCTURE OF THE TABLE

Sometimes need may arise to see the column definition or the integrity constraints specified on them in
a particular table. In such conditions DESCRIBE function can be used to view table definition.

Sql> DESCRIBE tablename;

This displays list of columns and their respective column constraints for the specified table.

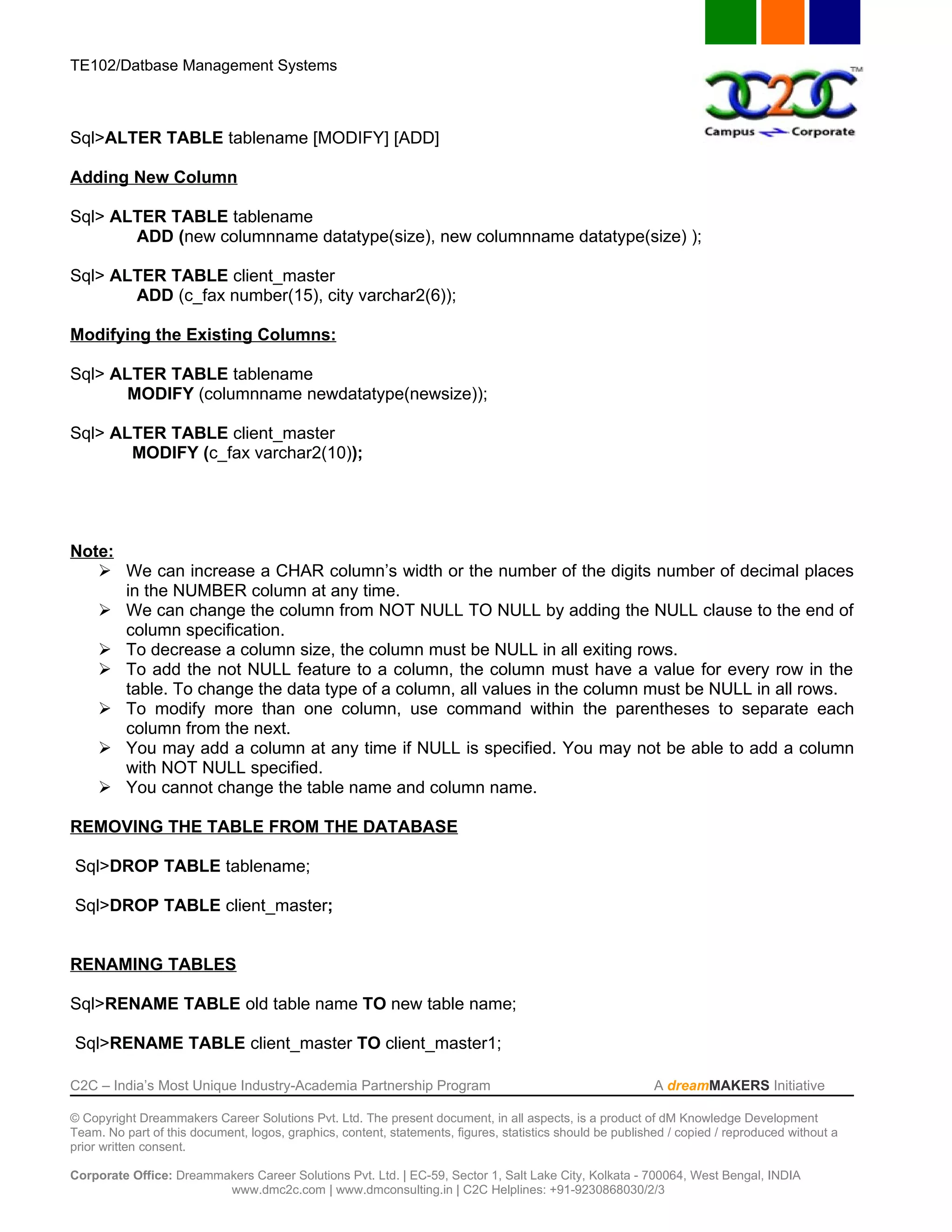

MODIFYING THE TABLE DEFINITION

To change the format of an exiting table, we can use ALTER TABLE command.





Sql>ALTER TABLE tablename [MODIFY] [ADD]

Adding New Column

Sql> ALTER TABLE tablename
ADD (new columnname datatype(size), new columnname datatype(size) );

Sql> ALTER TABLE client_master
ADD (c_fax number(15), city varchar2(6));

Modifying the Existing Columns:

Sql> ALTER TABLE tablename
MODIFY (columnname newdatatype(newsize));

Sql> ALTER TABLE client_master
MODIFY (c_fax varchar2(10));

Note:
 We can increase a CHAR column’s width or the number of the digits number of decimal places
in the NUMBER column at any time.
 We can change the column from NOT NULL TO NULL by adding the NULL clause to the end of
column specification.
 To decrease a column size, the column must be NULL in all exiting rows.
 To add the not NULL feature to a column, the column must have a value for every row in the
table. To change the data type of a column, all values in the column must be NULL in all rows.
 To modify more than one column, use command within the parentheses to separate each
column from the next.
 You may add a column at any time if NULL is specified. You may not be able to add a column
with NOT NULL specified.
 You cannot change the table name and column name.

REMOVING THE TABLE FROM THE DATABASE

Sql>DROP TABLE tablename;

Sql>DROP TABLE client_master;

RENAMING TABLES

Sql>RENAME TABLE old table name TO new table name;

Sql>RENAME TABLE client_master TO client_master1;

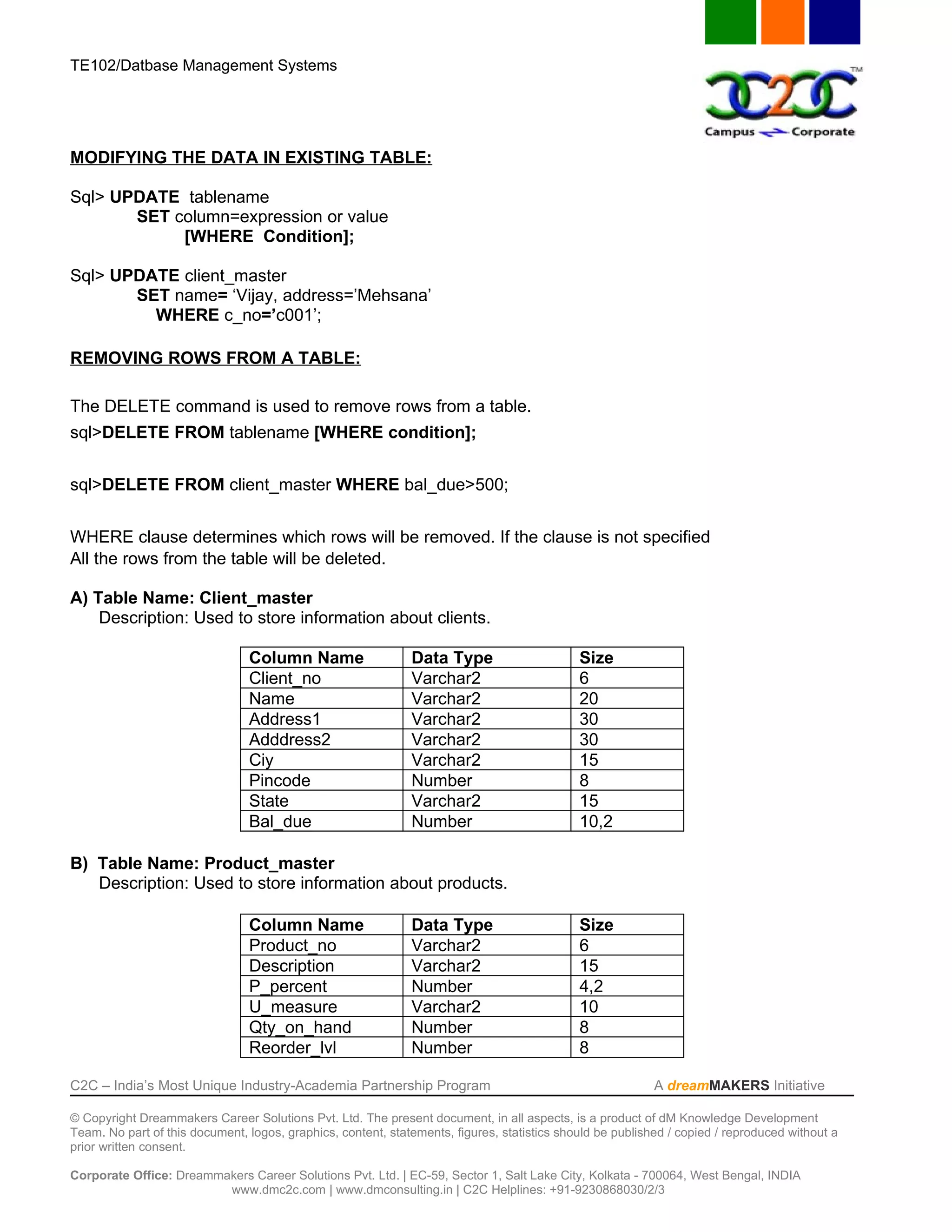

MODIFYING THE DATA IN EXISTING TABLE:

Sql> UPDATE tablename
SET column=expression or value
[WHERE Condition];

Sql> UPDATE client_master
SET name= ‘Vijay, address=’Mehsana’
WHERE c_no=’c001’;

REMOVING ROWS FROM A TABLE:

The DELETE command is used to remove rows from a table.
sql>DELETE FROM tablename [WHERE condition];

sql>DELETE FROM client_master WHERE bal_due>500;

WHERE clause determines which rows will be removed. If the clause is not specified
All the rows from the table will be deleted.

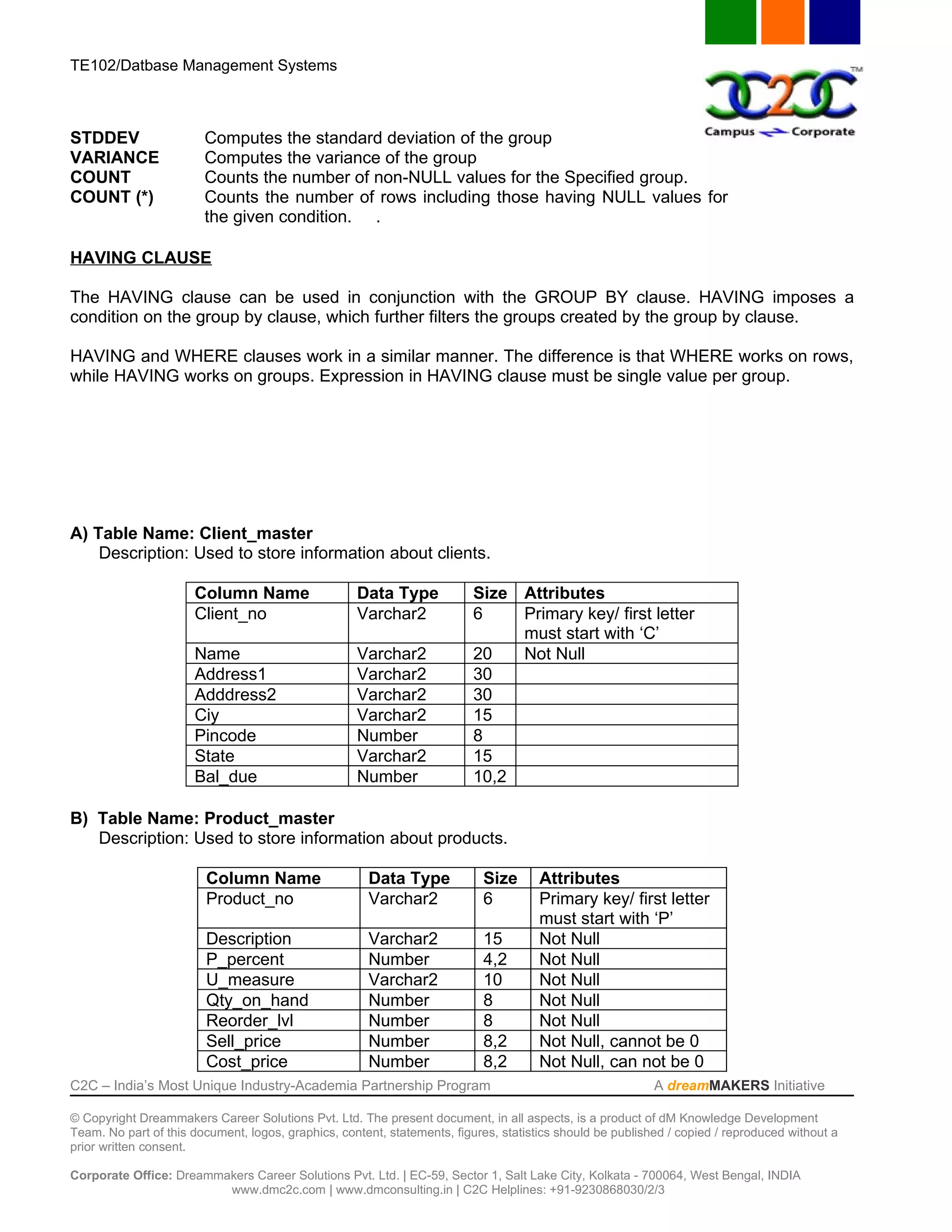

A) Table Name: Client_master
Description: Used to store information about clients.

Column Name Data Type Size
Client_no Varchar2 6
Name Varchar2 20
Address1 Varchar2 30
Adddress2 Varchar2 30
Ciy Varchar2 15
Pincode Number 8
State Varchar2 15
Bal_due Number 10,2

B) Table Name: Product_master
Description: Used to store information about products.

Product_no Varchar2 6
Description Varchar2 15
P_percent Number 4,2
U_measure Varchar2 10
Qty_on_hand Number 8
Reorder_lvl Number 8





Sell_price Number 8,2
Cost_price Number 8,2

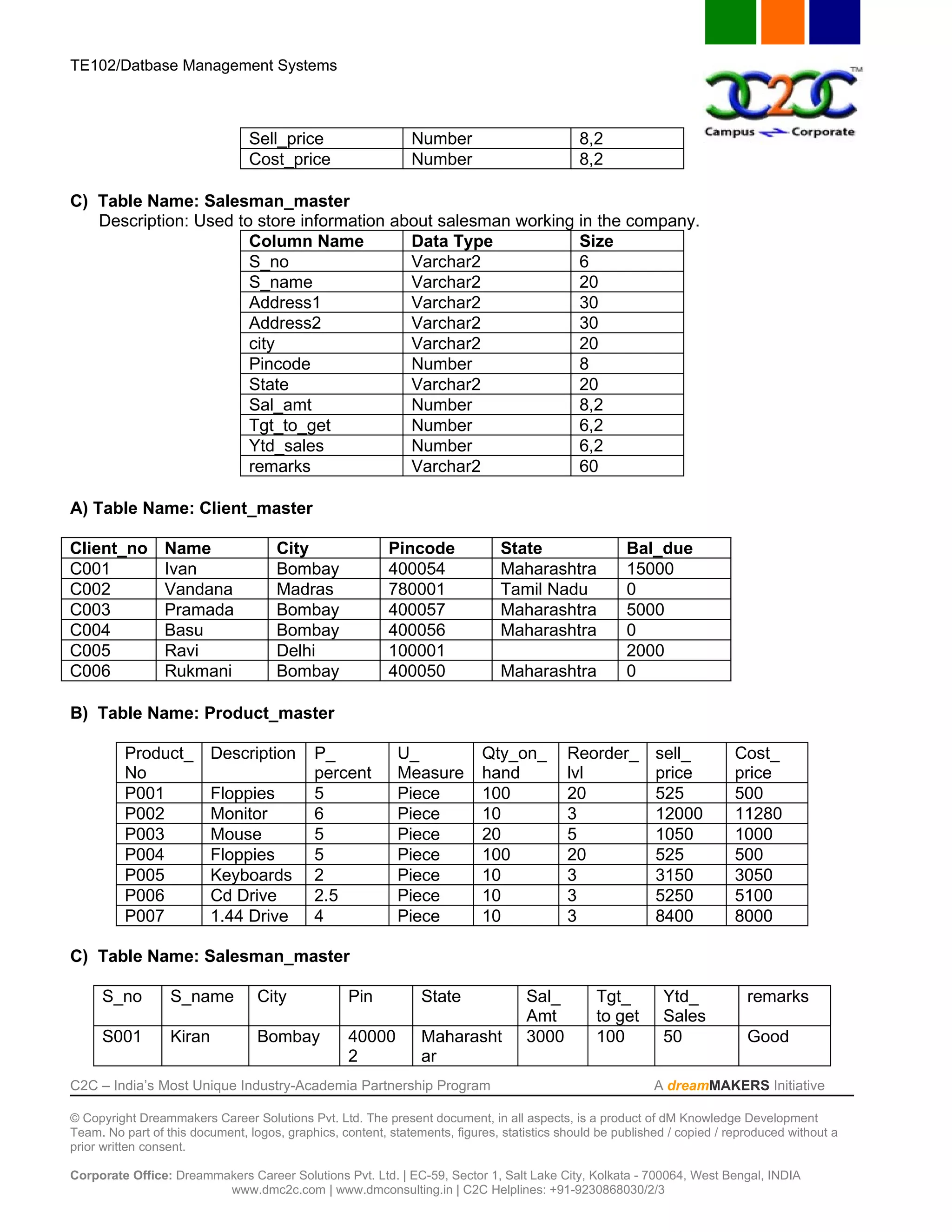

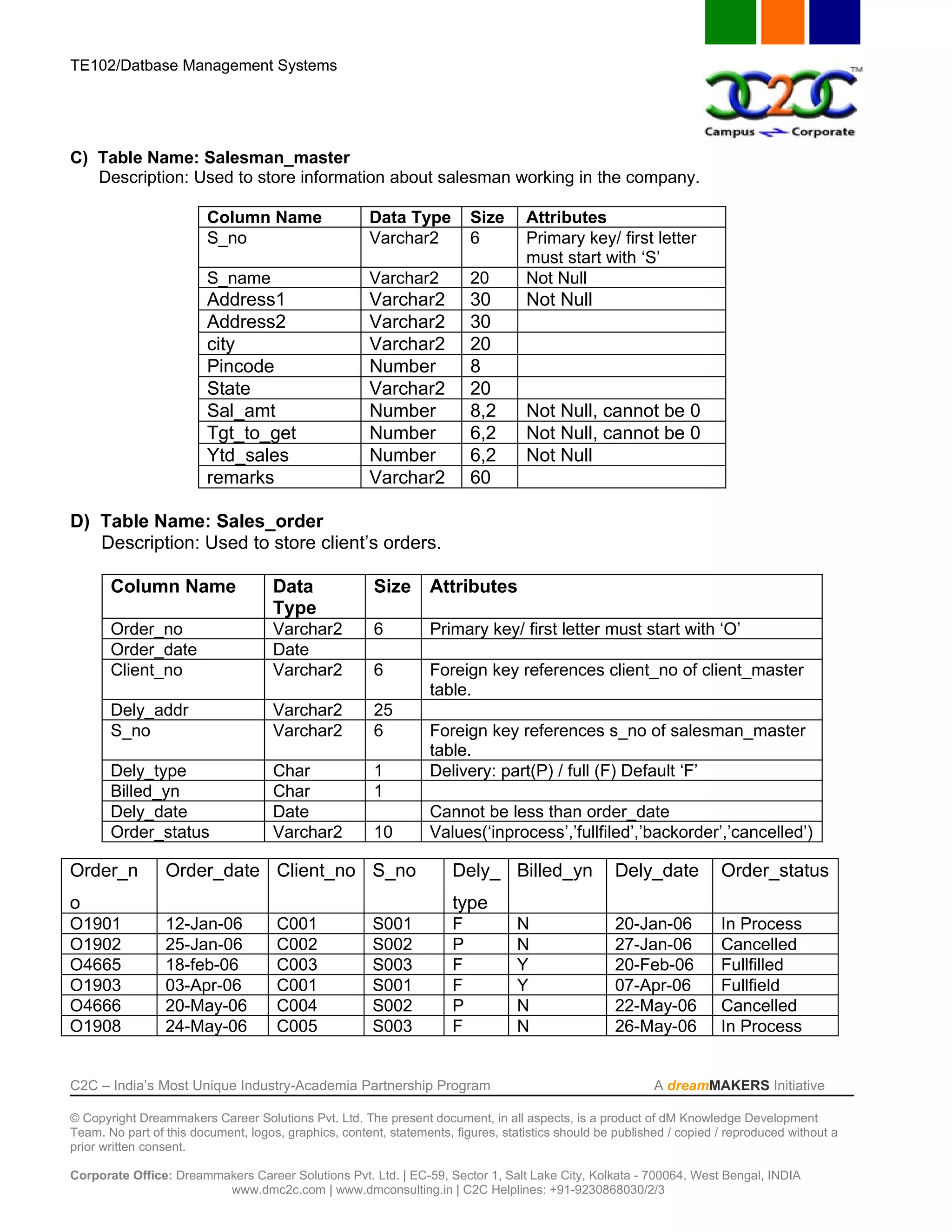

C) Table Name: Salesman_master
Description: Used to store information about salesman working in the company.
S_no Varchar2 6
S_name Varchar2 20
city Varchar2 20
Pincode Number 8
State Varchar2 20
Sal_amt Number 8,2
Tgt_to_get Number 6,2
Ytd_sales Number 6,2
remarks Varchar2 60


Client_no Name City Pincode State Bal_due
C001 Ivan Bombay 400054 Maharashtra 15000
C002 Vandana Madras 780001 Tamil Nadu 0
C003 Pramada Bombay 400057 Maharashtra 5000
C004 Basu Bombay 400056 Maharashtra 0
C005 Ravi Delhi 100001 2000
C006 Rukmani Bombay 400050 Maharashtra 0


Product_ Description P_ U_ Qty_on_ Reorder_ sell_ Cost_
No percent Measure hand lvl price price
P001 Floppies 5 Piece 100 20 525 500
P002 Monitor 6 Piece 10 3 12000 11280
P003 Mouse 5 Piece 20 5 1050 1000
P004 Floppies 5 Piece 100 20 525 500
P005 Keyboards 2 Piece 10 3 3150 3050
P006 Cd Drive 2.5 Piece 10 3 5250 5100
P007 1.44 Drive 4 Piece 10 3 8400 8000


S_no S_name City Pin State Sal_ Tgt_ Ytd_ remarks
Amt to get Sales
S001 Kiran Bombay 40000 Maharasht 3000 100 50 Good
2 ar




S002 Manish Bombay 40000 Maharasht 3000 200 100 Good
1 a
S003 Ravi Bombay 40003 Maharasht 3000 200 100 Good
2 a
S004 Ashish Bombay 40004 Maharasht 3500 200 150 Good
4 a

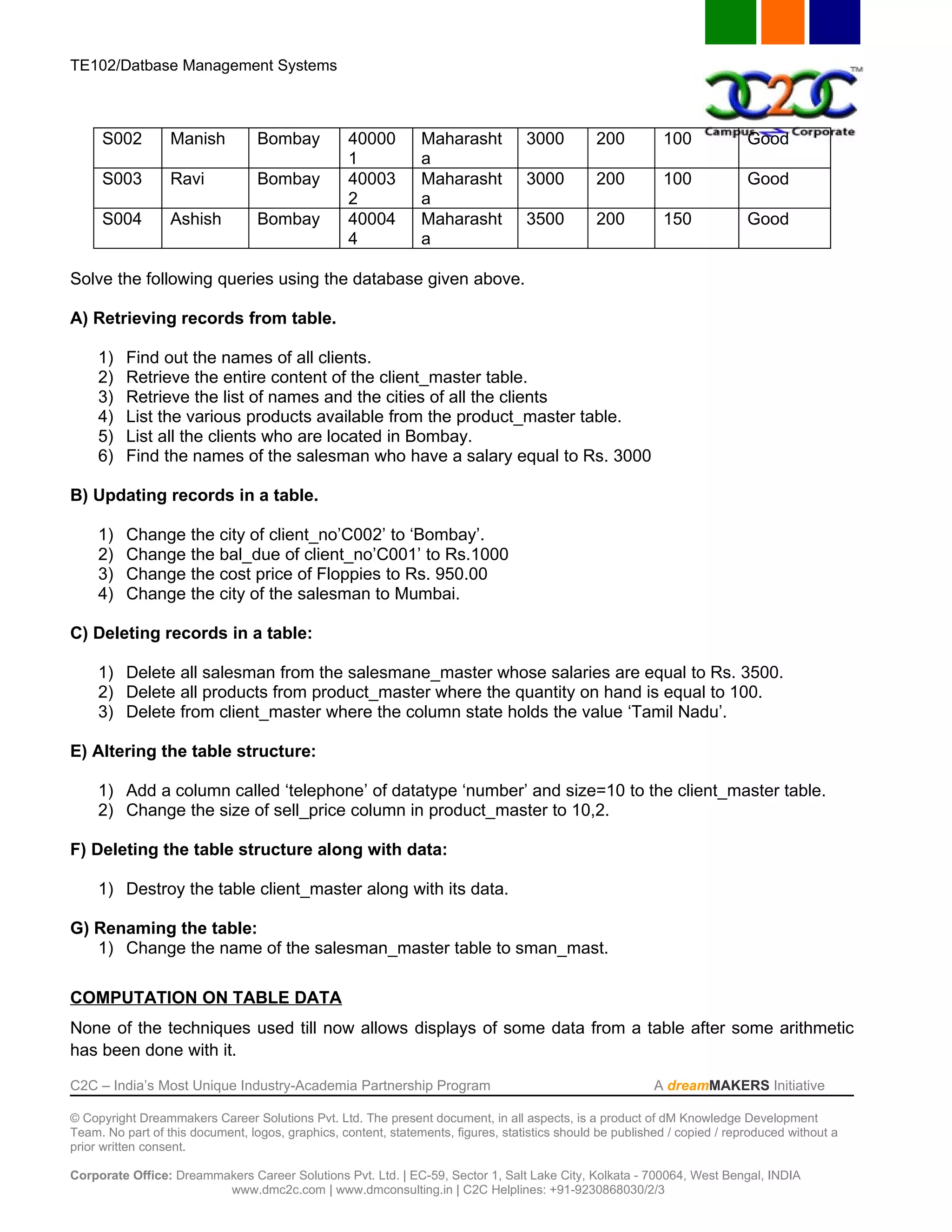

Solve the following queries using the database given above.

A) Retrieving records from table.

1) Find out the names of all clients.
2) Retrieve the entire content of the client_master table.
3) Retrieve the list of names and the cities of all the clients
4) List the various products available from the product_master table.
5) List all the clients who are located in Bombay.
6) Find the names of the salesman who have a salary equal to Rs. 3000

B) Updating records in a table.

1) Change the city of client_no’C002’ to ‘Bombay’.
2) Change the bal_due of client_no’C001’ to Rs.1000
3) Change the cost price of Floppies to Rs. 950.00
4) Change the city of the salesman to Mumbai.

C) Deleting records in a table:

1) Delete all salesman from the salesmane_master whose salaries are equal to Rs. 3500.
2) Delete all products from product_master where the quantity on hand is equal to 100.
3) Delete from client_master where the column state holds the value ‘Tamil Nadu’.

E) Altering the table structure:

1) Add a column called ‘telephone’ of datatype ‘number’ and size=10 to the client_master table.
2) Change the size of sell_price column in product_master to 10,2.

F) Deleting the table structure along with data:

1) Destroy the table client_master along with its data.

G) Renaming the table:
1) Change the name of the salesman_master table to sman_mast.

COMPUTATION ON TABLE DATA
None of the techniques used till now allows displays of some data from a table after some arithmetic
has been done with it.

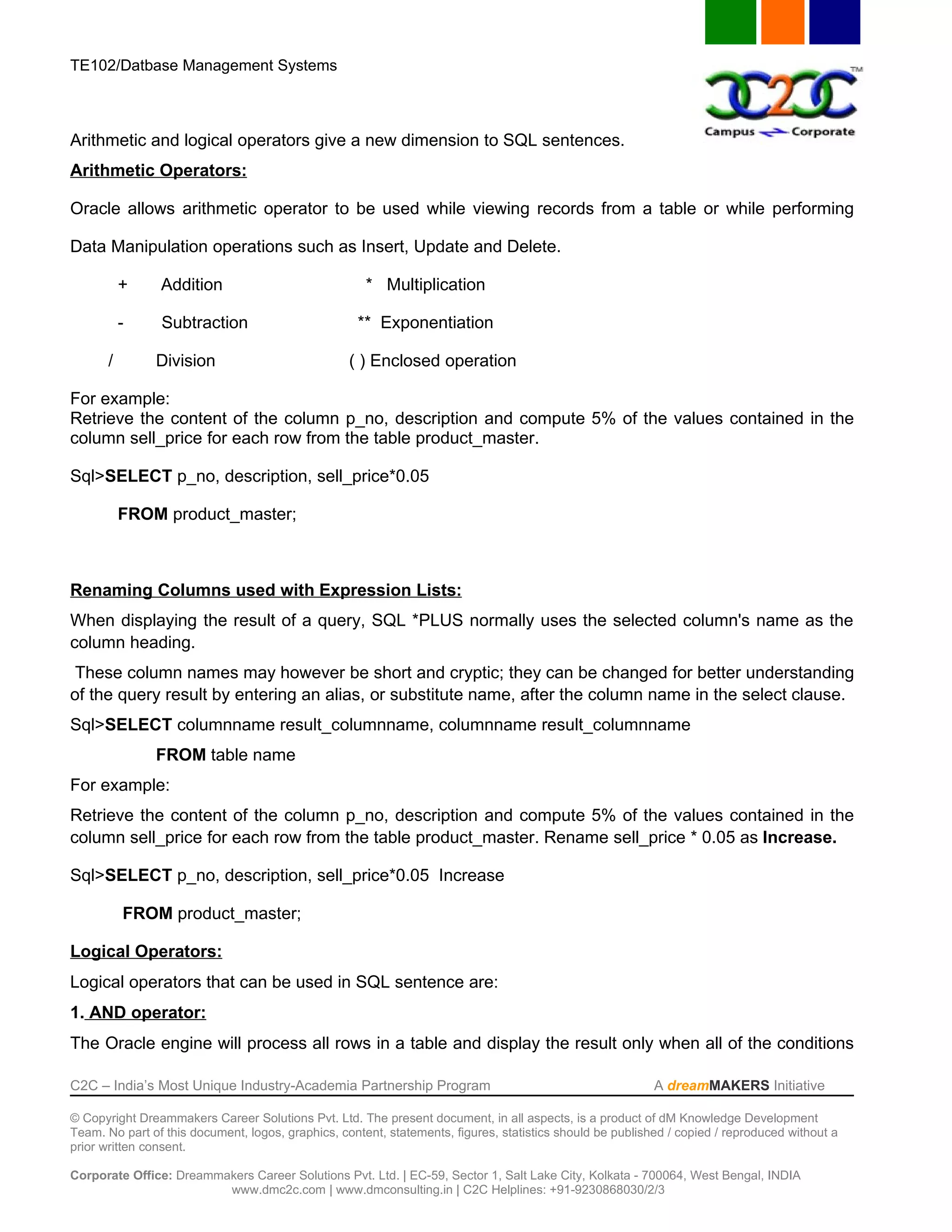

Arithmetic and logical operators give a new dimension to SQL sentences.
Arithmetic Operators:

Oracle allows arithmetic operator to be used while viewing records from a table or while performing

Data Manipulation operations such as Insert, Update and Delete.

+ Addition * Multiplication

- Subtraction ** Exponentiation

/ Division ( ) Enclosed operation

For example:
Retrieve the content of the column p_no, description and compute 5% of the values contained in the
column sell_price for each row from the table product_master.

Sql>SELECT p_no, description, sell_price*0.05

FROM product_master;

Renaming Columns used with Expression Lists:
When displaying the result of a query, SQL *PLUS normally uses the selected column's name as the
column heading.
These column names may however be short and cryptic; they can be changed for better understanding
of the query result by entering an alias, or substitute name, after the column name in the select clause.
Sql>SELECT columnname result_columnname, columnname result_columnname
FROM table name
For example:
Retrieve the content of the column p_no, description and compute 5% of the values contained in the
column sell_price for each row from the table product_master. Rename sell_price * 0.05 as Increase.

Sql>SELECT p_no, description, sell_price*0.05 Increase

FROM product_master;

Logical Operators:
Logical operators that can be used in SQL sentence are:
1. AND operator:
The Oracle engine will process all rows in a table and display the result only when all of the conditions





specified using the AND operator are satisfied.
sql >SELECT column list
FROM tablename
WHERE columnname AND columnname;

Sql>SELECT p_no, desc, p_percent
FROM product_master
WHERE p_percent>=10 AND p_percent<=20;

2. OR operator:
The Oracle engine will process all rows in a table and display the result only when any of the conditions
specified using the OR operators are satisfied.

sql >SELECT column list
FROM tablename
WHERE columnname OR columnname;
sql >SELECT c_no, name, address, pincode
FROM client_master
WHERE (pincode=400125 OR pincode=400126);

3. NOT operator:
The Oracle engine will process all rows in a table and display the result only when none of the
conditions specified using the NOT operator are satisfied.
Sql> SELECT c_no, name, address, pincode
FROM client_master WHERE NOT (city=’Bombay’ or city=’Delhi’);

Range Searching:
In order to select data that is within a range of values, the BETWEEN operator is used. This operator
allows the selection of rows that contain values within a specified lower and upper limit.
sql >SELECT column list from tablename
WHERE column BETWEEN min _value AND max_value;

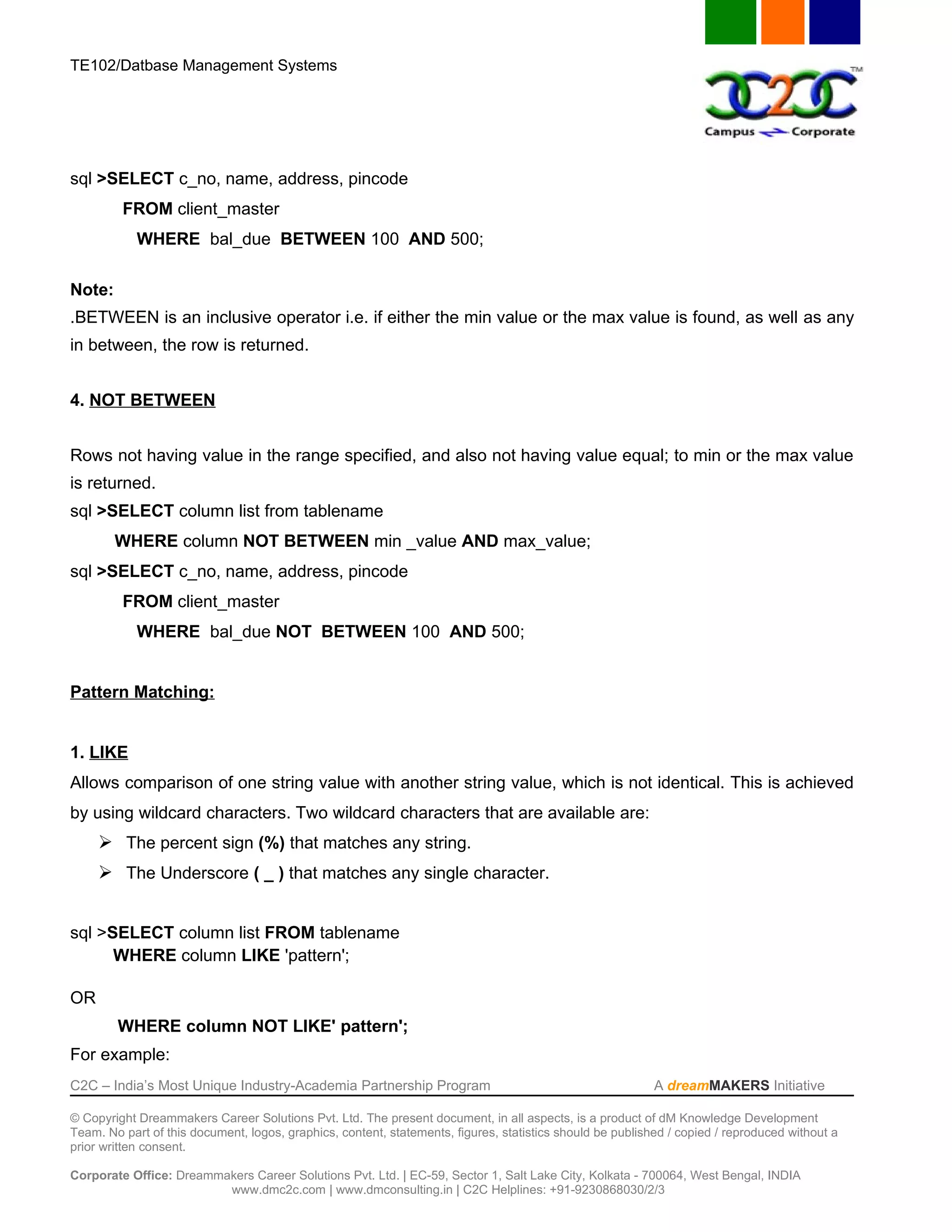

FROM client_master
WHERE bal_due BETWEEN 100 AND 500;

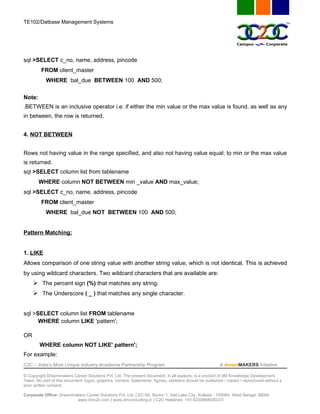

Note:
.BETWEEN is an inclusive operator i.e. if either the min value or the max value is found, as well as any
in between, the row is returned.

4. NOT BETWEEN

Rows not having value in the range specified, and also not having value equal; to min or the max value
is returned.
sql >SELECT column list from tablename
WHERE column NOT BETWEEN min _value AND max_value;
FROM client_master
WHERE bal_due NOT BETWEEN 100 AND 500;

Pattern Matching:

1. LIKE
Allows comparison of one string value with another string value, which is not identical. This is achieved
by using wildcard characters. Two wildcard characters that are available are:
 The percent sign (%) that matches any string.
 The Underscore ( _ ) that matches any single character.

sql >SELECT column list FROM tablename
WHERE column LIKE 'pattern';

OR
WHERE column NOT LIKE' pattern';
For example:

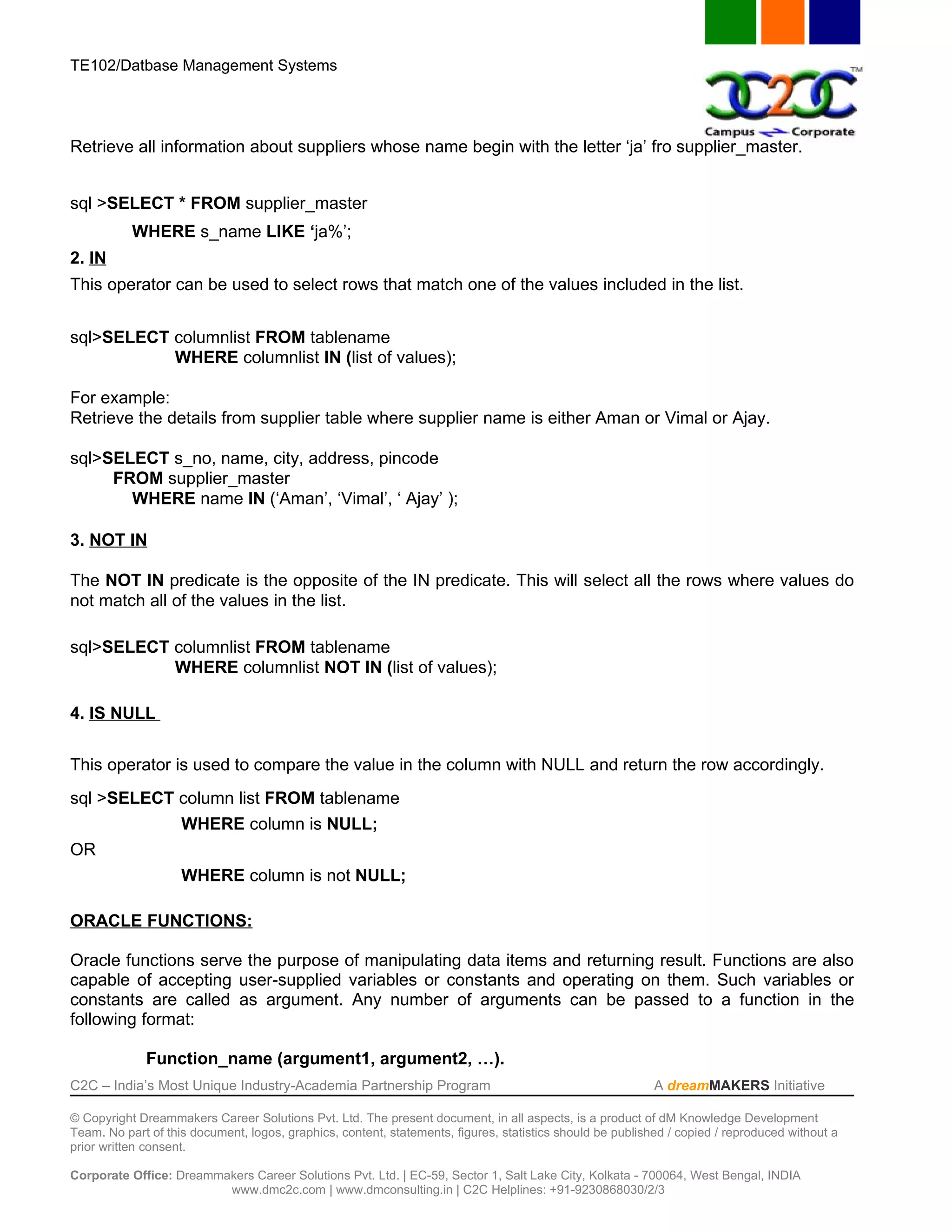

Retrieve all information about suppliers whose name begin with the letter ‘ja’ fro supplier_master.

sql >SELECT * FROM supplier_master
WHERE s_name LIKE ‘ja%’;
2. IN
This operator can be used to select rows that match one of the values included in the list.

sql>SELECT columnlist FROM tablename
WHERE columnlist IN (list of values);

For example:
Retrieve the details from supplier table where supplier name is either Aman or Vimal or Ajay.

sql>SELECT s_no, name, city, address, pincode
FROM supplier_master
WHERE name IN (‘Aman’, ‘Vimal’, ‘ Ajay’ );

3. NOT IN

The NOT IN predicate is the opposite of the IN predicate. This will select all the rows where values do
not match all of the values in the list.

sql>SELECT columnlist FROM tablename
WHERE columnlist NOT IN (list of values);

4. IS NULL

This operator is used to compare the value in the column with NULL and return the row accordingly.
sql >SELECT column list FROM tablename
WHERE column is NULL;
OR
WHERE column is not NULL;

ORACLE FUNCTIONS:

Oracle functions serve the purpose of manipulating data items and returning result. Functions are also
capable of accepting user-supplied variables or constants and operating on them. Such variables or
constants are called as argument. Any number of arguments can be passed to a function in the
following format:

Function_name (argument1, argument2, …).

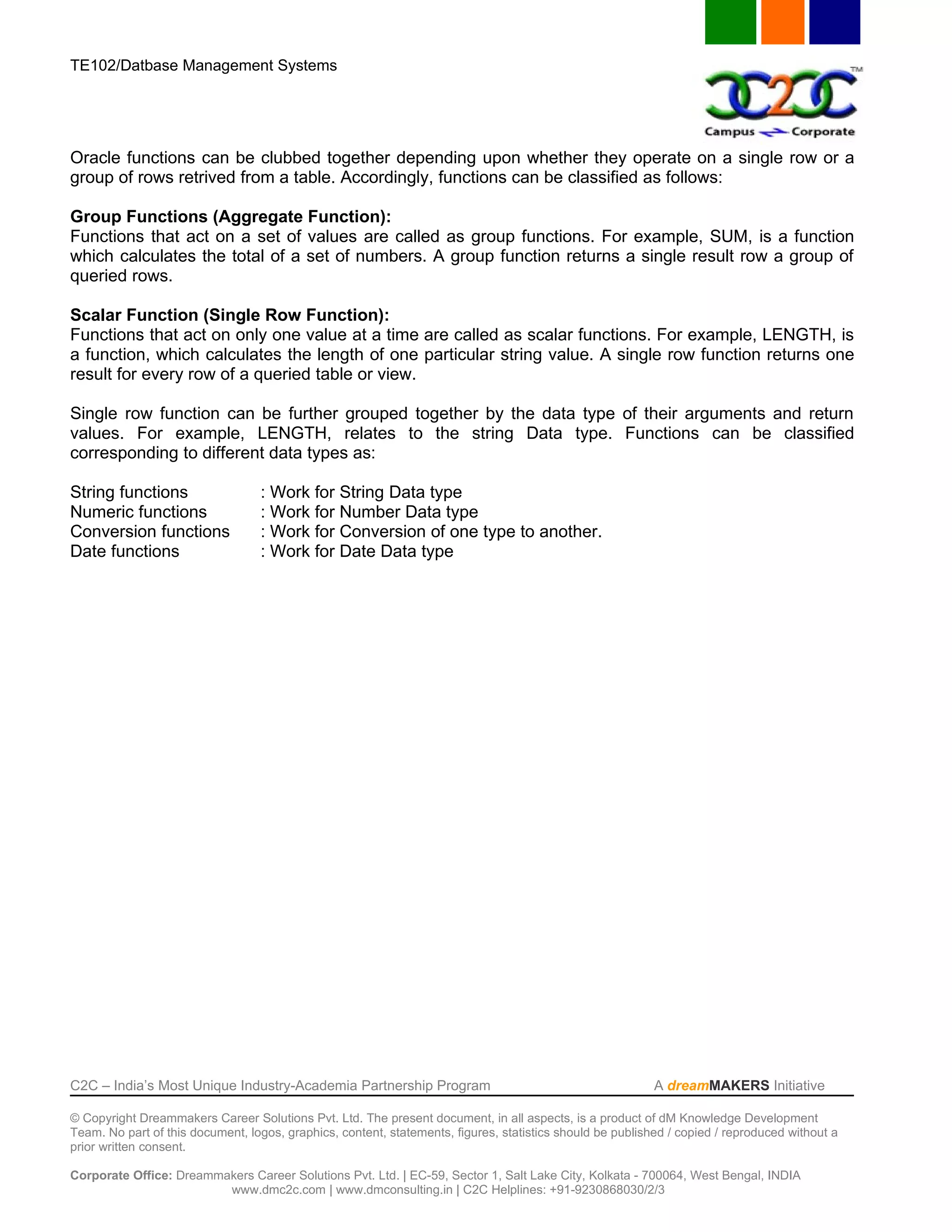

Oracle functions can be clubbed together depending upon whether they operate on a single row or a
group of rows retrived from a table. Accordingly, functions can be classified as follows:

Group Functions (Aggregate Function):
Functions that act on a set of values are called as group functions. For example, SUM, is a function
which calculates the total of a set of numbers. A group function returns a single result row a group of
queried rows.

Scalar Function (Single Row Function):
Functions that act on only one value at a time are called as scalar functions. For example, LENGTH, is
a function, which calculates the length of one particular string value. A single row function returns one
result for every row of a queried table or view.

Single row function can be further grouped together by the data type of their arguments and return
values. For example, LENGTH, relates to the string Data type. Functions can be classified
corresponding to different data types as:

String functions : Work for String Data type
Numeric functions : Work for Number Data type
Conversion functions : Work for Conversion of one type to another.
Date functions : Work for Date Data type

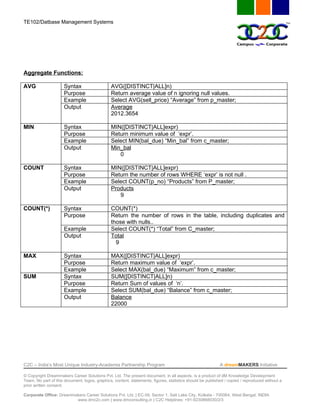

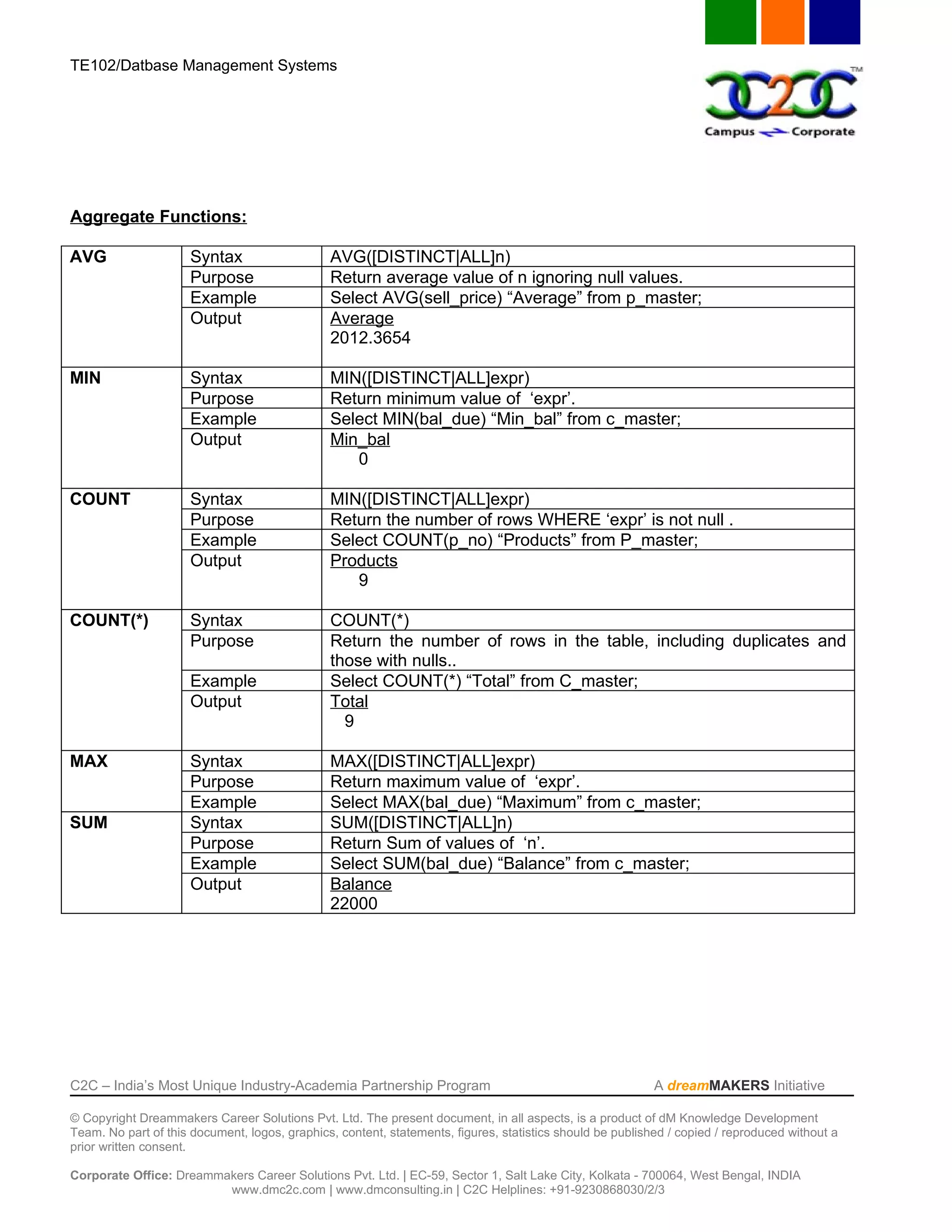

Aggregate Functions:

AVG Syntax AVG([DISTINCT|ALL]n)
Purpose Return average value of n ignoring null values.
Example Select AVG(sell_price) “Average” from p_master;
Output Average
2012.3654

MIN Syntax MIN([DISTINCT|ALL]expr)
Purpose Return minimum value of ‘expr’.
Example Select MIN(bal_due) “Min_bal” from c_master;
Output Min_bal
0

COUNT Syntax MIN([DISTINCT|ALL]expr)
Purpose Return the number of rows WHERE ‘expr’ is not null .
Example Select COUNT(p_no) “Products” from P_master;
Output Products
9

COUNT(*) Syntax COUNT(*)
Purpose Return the number of rows in the table, including duplicates and
those with nulls..
Example Select COUNT(*) “Total” from C_master;
Output Total
9

MAX Syntax MAX([DISTINCT|ALL]expr)
Purpose Return maximum value of ‘expr’.
Example Select MAX(bal_due) “Maximum” from c_master;
SUM Syntax SUM([DISTINCT|ALL]n)
Purpose Return Sum of values of ‘n’.
Example Select SUM(bal_due) “Balance” from c_master;
Output Balance
22000

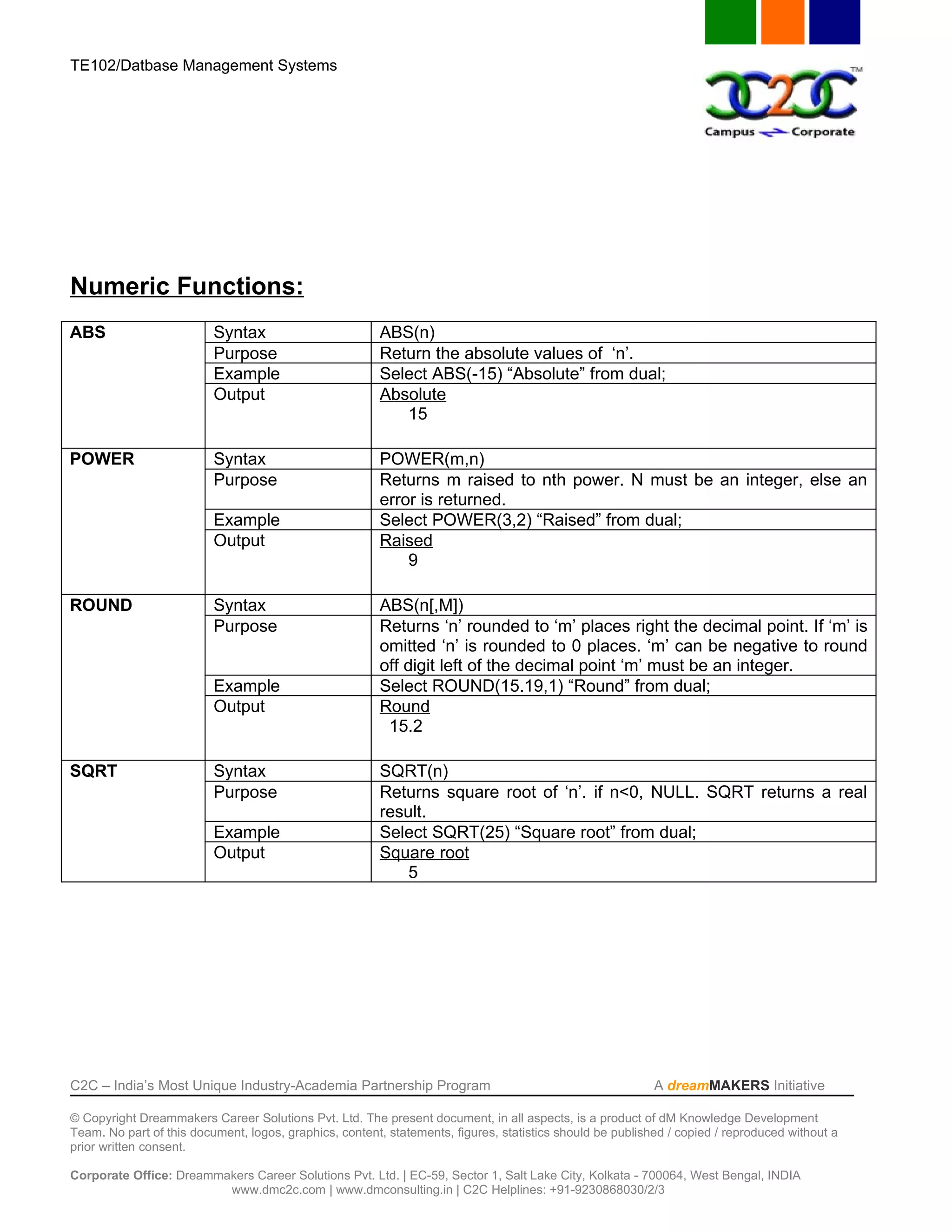

Numeric Functions:
ABS Syntax ABS(n)
Purpose Return the absolute values of ‘n’.
Example Select ABS(-15) “Absolute” from dual;
Output Absolute
15

POWER Syntax POWER(m,n)
Purpose Returns m raised to nth power. N must be an integer, else an
error is returned.
Example Select POWER(3,2) “Raised” from dual;
Output Raised
9

ROUND Syntax ABS(n[,M])
Purpose Returns ‘n’ rounded to ‘m’ places right the decimal point. If ‘m’ is
omitted ‘n’ is rounded to 0 places. ‘m’ can be negative to round
off digit left of the decimal point ‘m’ must be an integer.
Example Select ROUND(15.19,1) “Round” from dual;
Output Round
15.2

SQRT Syntax SQRT(n)
Purpose Returns square root of ‘n’. if n<0, NULL. SQRT returns a real
result.
Example Select SQRT(25) “Square root” from dual;
Output Square root
5

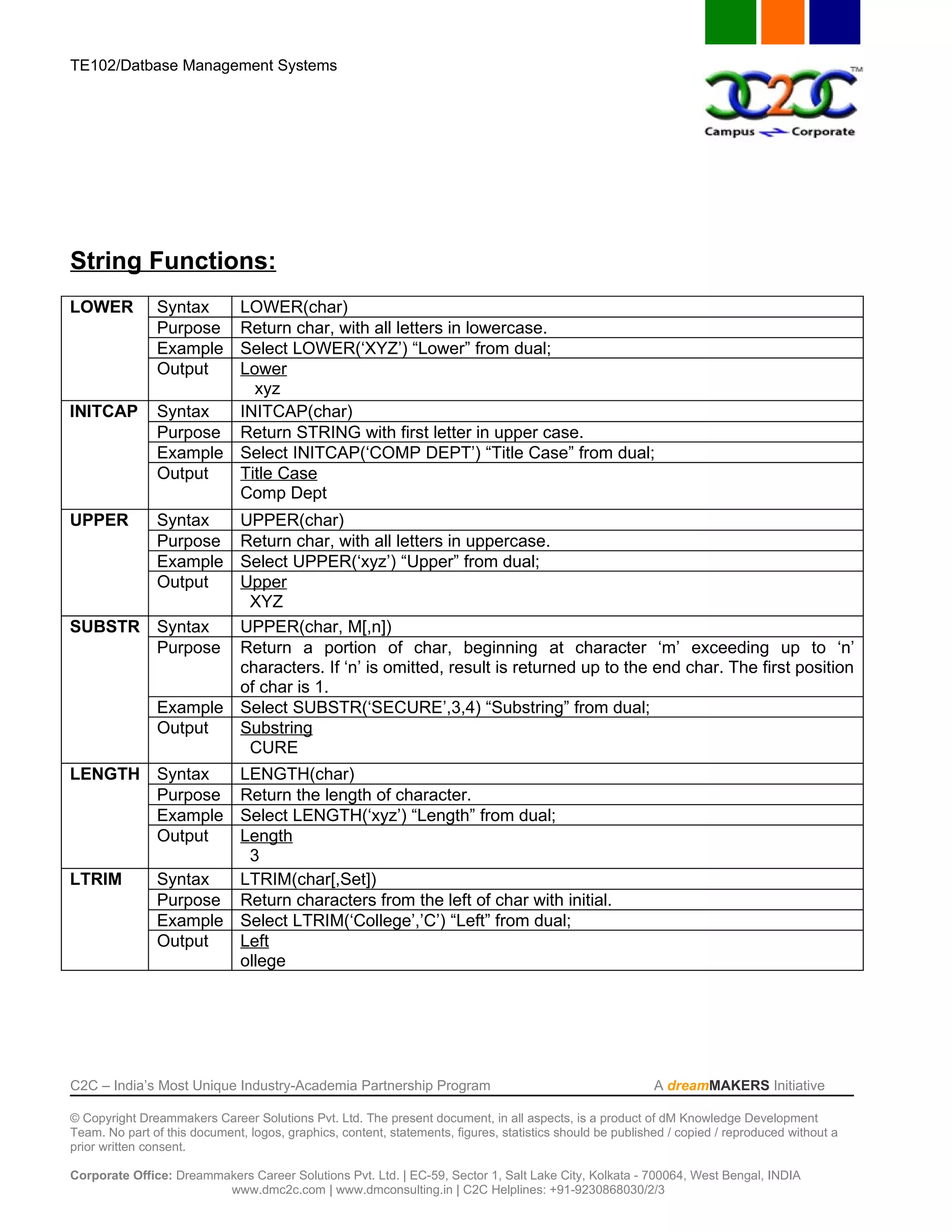

String Functions:
LOWER Syntax LOWER(char)
Purpose Return char, with all letters in lowercase.
Example Select LOWER(‘XYZ’) “Lower” from dual;
Output Lower
xyz
INITCAP Syntax INITCAP(char)
Purpose Return STRING with first letter in upper case.
Example Select INITCAP(‘COMP DEPT’) “Title Case” from dual;
Output Title Case
Comp Dept
UPPER Syntax
UPPER(char)
Purpose
Return char, with all letters in uppercase.
Example
Select UPPER(‘xyz’) “Upper” from dual;
Output
Upper
XYZ
SUBSTR Syntax UPPER(char, M[,n])
Purpose Return a portion of char, beginning at character ‘m’ exceeding up to ‘n’
characters. If ‘n’ is omitted, result is returned up to the end char. The first position
of char is 1.
Example Select SUBSTR(‘SECURE’,3,4) “Substring” from dual;
Output Substring
CURE
LENGTH Syntax LENGTH(char)
Purpose Return the length of character.
Example Select LENGTH(‘xyz’) “Length” from dual;
Output Length
3
LTRIM Syntax LTRIM(char[,Set])
Purpose Return characters from the left of char with initial.
Example Select LTRIM(‘College’,’C’) “Left” from dual;
Output Left
ollege

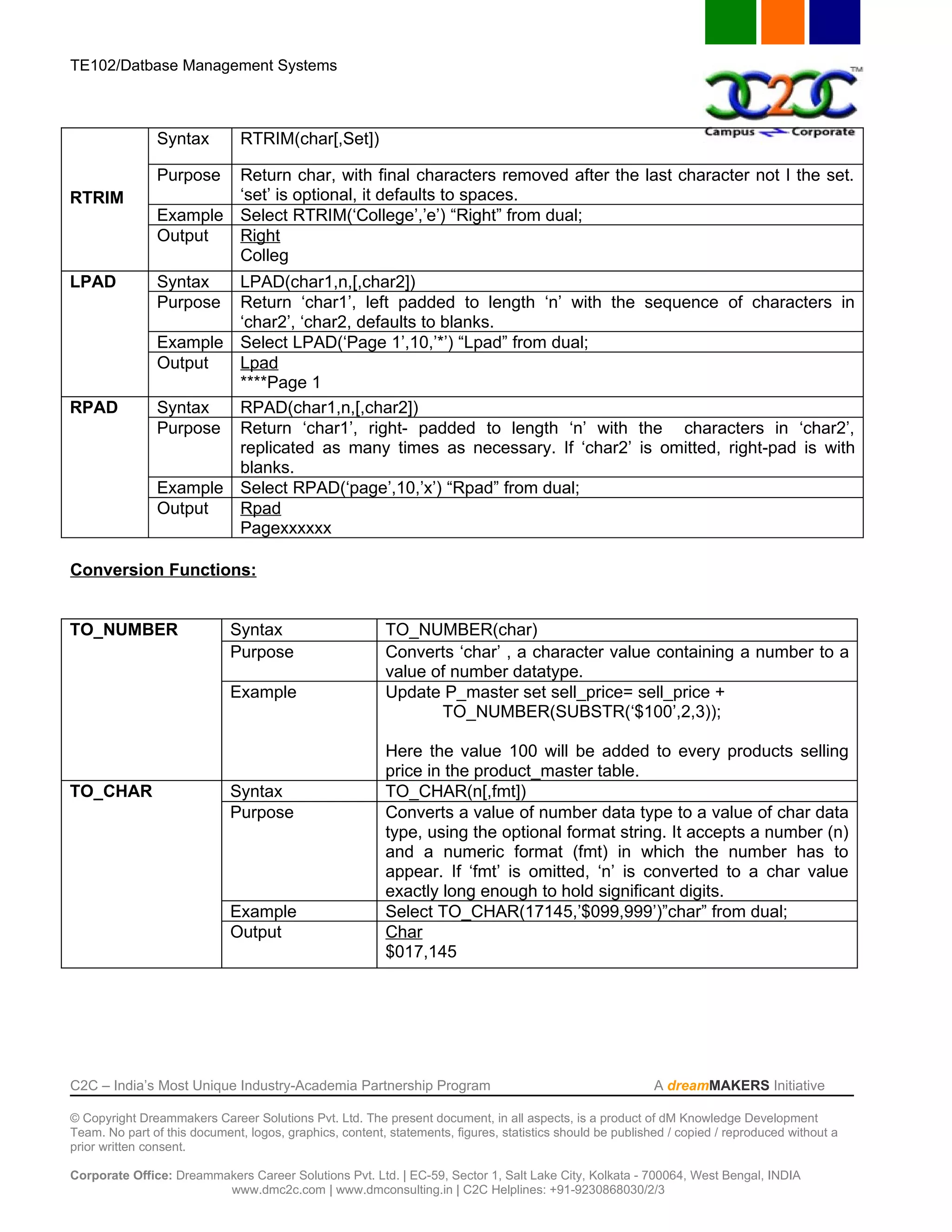

Syntax RTRIM(char[,Set])

Purpose Return char, with final characters removed after the last character not I the set.
RTRIM ‘set’ is optional, it defaults to spaces.
Example Select RTRIM(‘College’,’e’) “Right” from dual;
Output Right
Colleg
LPAD Syntax LPAD(char1,n,[,char2])
Purpose Return ‘char1’, left padded to length ‘n’ with the sequence of characters in
‘char2’, ‘char2, defaults to blanks.
Example Select LPAD(‘Page 1’,10,’*’) “Lpad” from dual;
Output Lpad
****Page 1
RPAD Syntax RPAD(char1,n,[,char2])
Purpose Return ‘char1’, right- padded to length ‘n’ with the characters in ‘char2’,
replicated as many times as necessary. If ‘char2’ is omitted, right-pad is with
blanks.
Example Select RPAD(‘page’,10,’x’) “Rpad” from dual;
Output Rpad
Pagexxxxxx

Conversion Functions:

TO_NUMBER Syntax TO_NUMBER(char)
Purpose Converts ‘char’ , a character value containing a number to a
value of number datatype.
Example Update P_master set sell_price= sell_price +
TO_NUMBER(SUBSTR(‘$100’,2,3));

Here the value 100 will be added to every products selling
price in the product_master table.
TO_CHAR Syntax TO_CHAR(n[,fmt])
Purpose Converts a value of number data type to a value of char data
type, using the optional format string. It accepts a number (n)
and a numeric format (fmt) in which the number has to
appear. If ‘fmt’ is omitted, ‘n’ is converted to a char value
exactly long enough to hold significant digits.
Example Select TO_CHAR(17145,’$099,999’)”char” from dual;
Output Char
$017,145

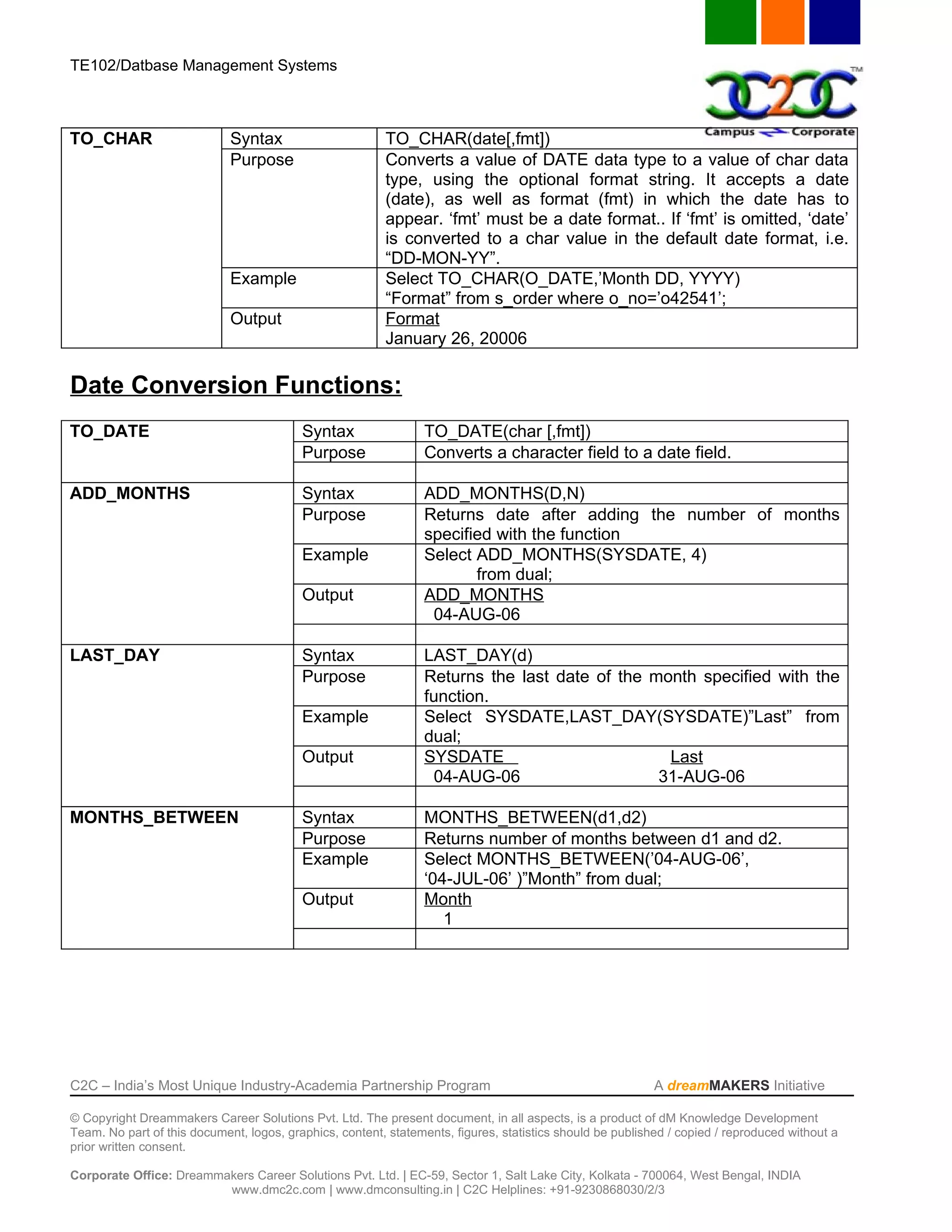

TO_CHAR Syntax TO_CHAR(date[,fmt])
Purpose Converts a value of DATE data type to a value of char data
type, using the optional format string. It accepts a date
(date), as well as format (fmt) in which the date has to
appear. ‘fmt’ must be a date format.. If ‘fmt’ is omitted, ‘date’
is converted to a char value in the default date format, i.e.
“DD-MON-YY”.
Example Select TO_CHAR(O_DATE,’Month DD, YYYY)
“Format” from s_order where o_no=’o42541’;
Output Format
January 26, 20006

Date Conversion Functions:
TO_DATE Syntax TO_DATE(char [,fmt])
Purpose Converts a character field to a date field.

ADD_MONTHS Syntax ADD_MONTHS(D,N)
Purpose Returns date after adding the number of months
specified with the function
Example Select ADD_MONTHS(SYSDATE, 4)
from dual;
Output ADD_MONTHS
04-AUG-06

LAST_DAY Syntax LAST_DAY(d)
Purpose Returns the last date of the month specified with the
function.
Example Select SYSDATE,LAST_DAY(SYSDATE)”Last” from
dual;
Output SYSDATE Last
04-AUG-06 31-AUG-06

MONTHS_BETWEEN Syntax MONTHS_BETWEEN(d1,d2)
Purpose Returns number of months between d1 and d2.
Example Select MONTHS_BETWEEN(’04-AUG-06’,
‘04-JUL-06’ )”Month” from dual;
Output Month
1

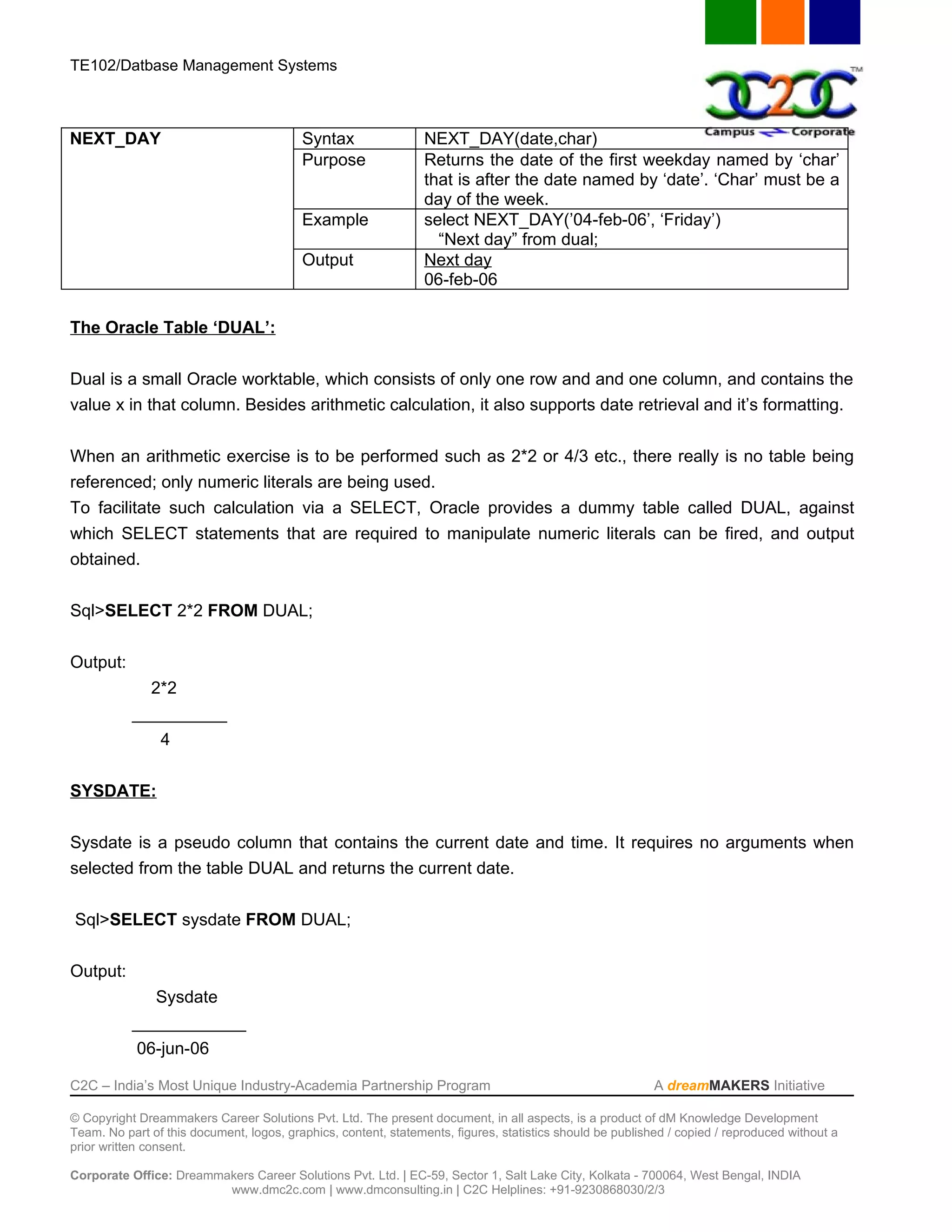

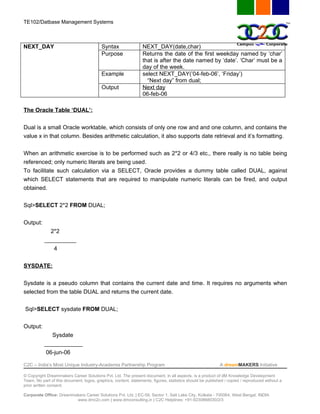

NEXT_DAY Syntax NEXT_DAY(date,char)
Purpose Returns the date of the first weekday named by ‘char’
that is after the date named by ‘date’. ‘Char’ must be a
day of the week.
Example select NEXT_DAY(’04-feb-06’, ‘Friday’)
“Next day” from dual;
Output Next day
06-feb-06

The Oracle Table ‘DUAL’:

Dual is a small Oracle worktable, which consists of only one row and and one column, and contains the
value x in that column. Besides arithmetic calculation, it also supports date retrieval and it’s formatting.

When an arithmetic exercise is to be performed such as 2*2 or 4/3 etc., there really is no table being
referenced; only numeric literals are being used.
To facilitate such calculation via a SELECT, Oracle provides a dummy table called DUAL, against
which SELECT statements that are required to manipulate numeric literals can be fired, and output
obtained.

Sql>SELECT 2*2 FROM DUAL;

Output:
2*2
__________
4

SYSDATE:

Sysdate is a pseudo column that contains the current date and time. It requires no arguments when
selected from the table DUAL and returns the current date.

Sql>SELECT sysdate FROM DUAL;

Output:
Sysdate
____________
06-jun-06

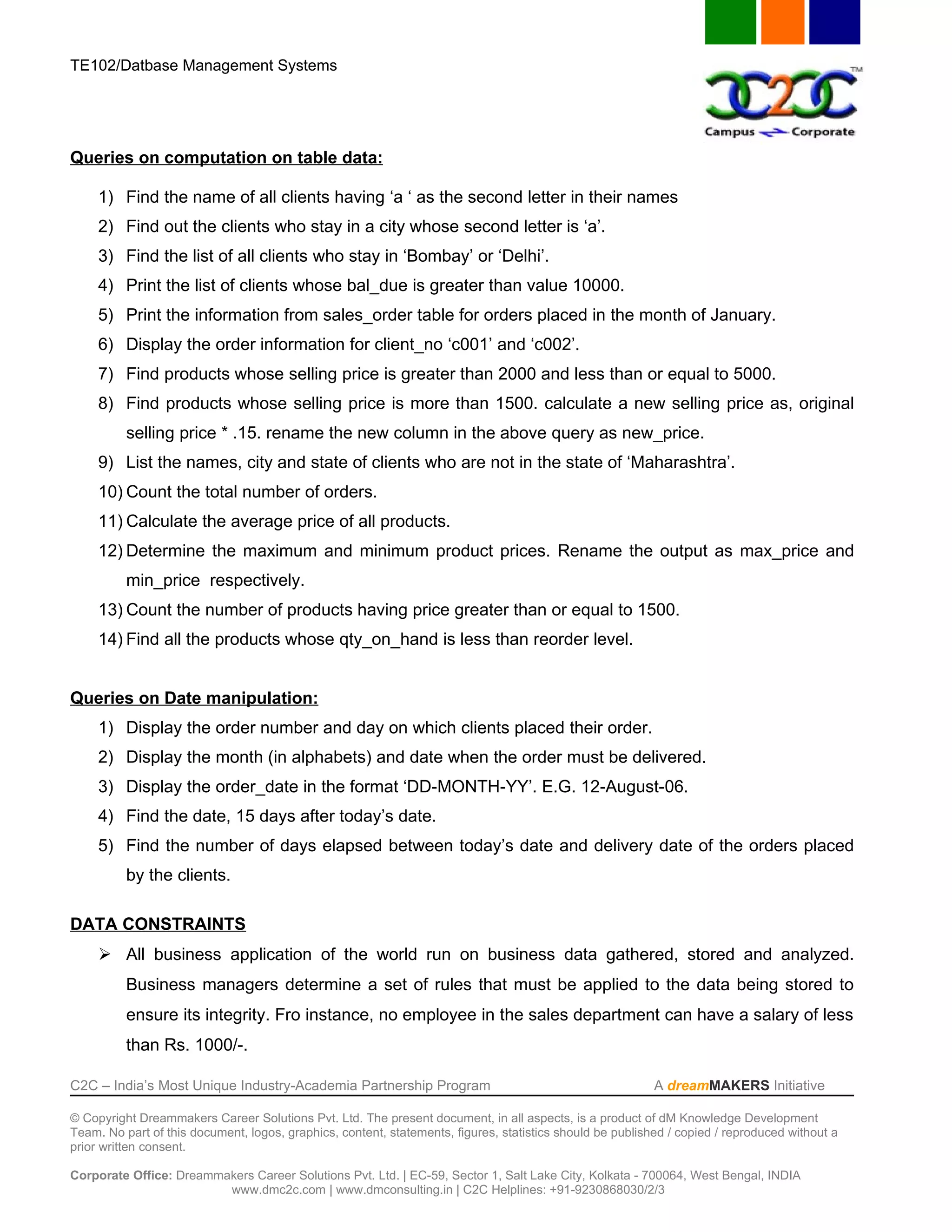

Queries on computation on table data:

1) Find the name of all clients having ‘a ‘ as the second letter in their names
2) Find out the clients who stay in a city whose second letter is ‘a’.
3) Find the list of all clients who stay in ‘Bombay’ or ‘Delhi’.
4) Print the list of clients whose bal_due is greater than value 10000.
5) Print the information from sales_order table for orders placed in the month of January.
6) Display the order information for client_no ‘c001’ and ‘c002’.
7) Find products whose selling price is greater than 2000 and less than or equal to 5000.
8) Find products whose selling price is more than 1500. calculate a new selling price as, original
selling price * .15. rename the new column in the above query as new_price.
9) List the names, city and state of clients who are not in the state of ‘Maharashtra’.
10) Count the total number of orders.
11) Calculate the average price of all products.
12) Determine the maximum and minimum product prices. Rename the output as max_price and
min_price respectively.
13) Count the number of products having price greater than or equal to 1500.
14) Find all the products whose qty_on_hand is less than reorder level.

Queries on Date manipulation:
1) Display the order number and day on which clients placed their order.
2) Display the month (in alphabets) and date when the order must be delivered.
3) Display the order_date in the format ‘DD-MONTH-YY’. E.G. 12-August-06.
4) Find the date, 15 days after today’s date.
5) Find the number of days elapsed between today’s date and delivery date of the orders placed
by the clients.

DATA CONSTRAINTS
 All business application of the world run on business data gathered, stored and analyzed.
Business managers determine a set of rules that must be applied to the data being stored to
ensure its integrity. Fro instance, no employee in the sales department can have a salary of less
than Rs. 1000/-.

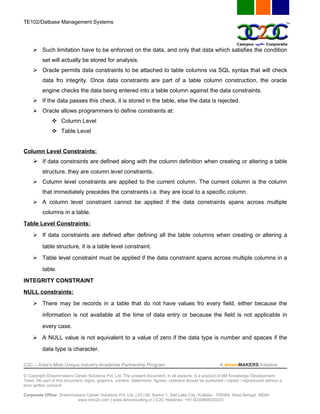

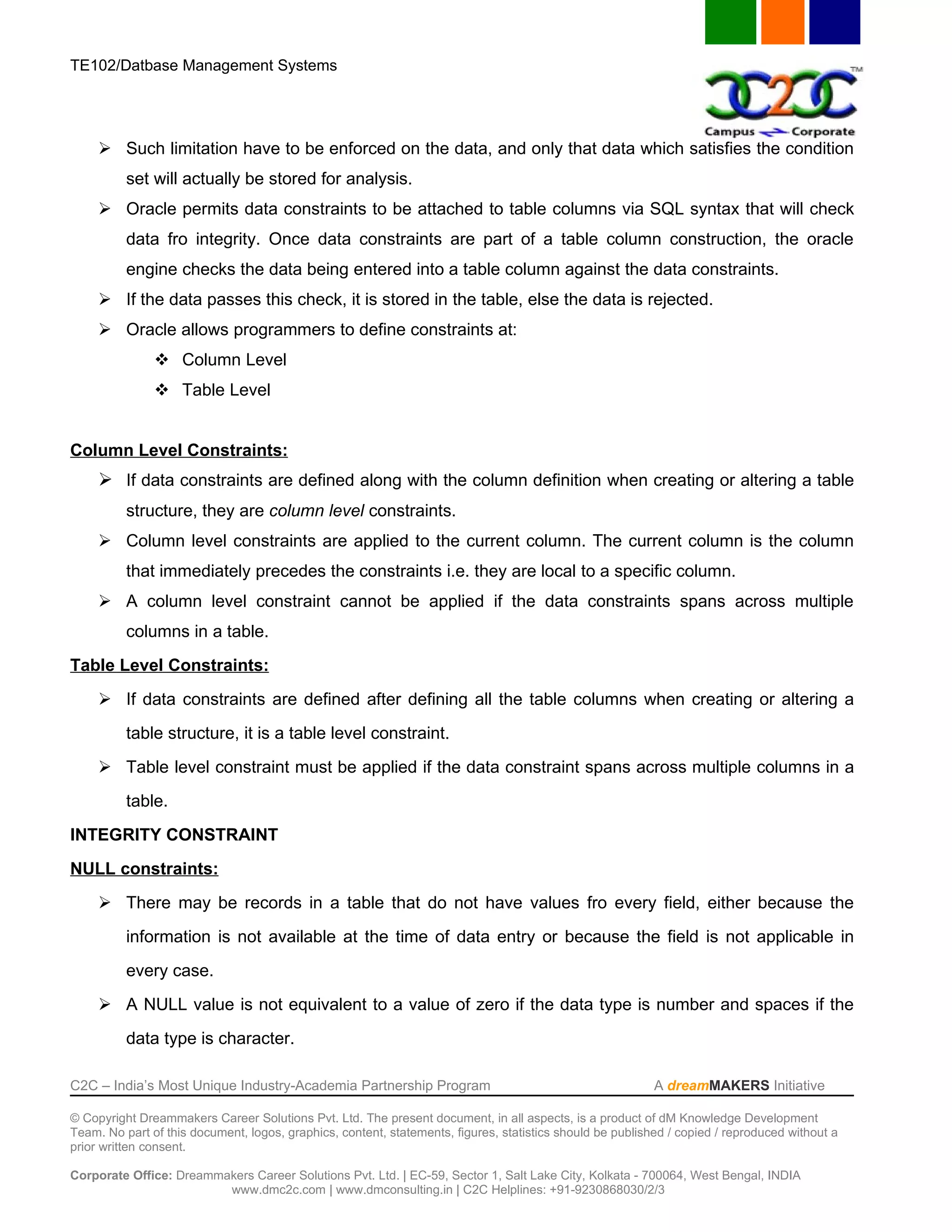

 Such limitation have to be enforced on the data, and only that data which satisfies the condition
set will actually be stored for analysis.
 Oracle permits data constraints to be attached to table columns via SQL syntax that will check
data fro integrity. Once data constraints are part of a table column construction, the oracle
engine checks the data being entered into a table column against the data constraints.
 If the data passes this check, it is stored in the table, else the data is rejected.
 Oracle allows programmers to define constraints at:
 Column Level
 Table Level

Column Level Constraints:
 If data constraints are defined along with the column definition when creating or altering a table
structure, they are column level constraints.
 Column level constraints are applied to the current column. The current column is the column
that immediately precedes the constraints i.e. they are local to a specific column.
 A column level constraint cannot be applied if the data constraints spans across multiple
columns in a table.
Table Level Constraints:
 If data constraints are defined after defining all the table columns when creating or altering a
table structure, it is a table level constraint.
 Table level constraint must be applied if the data constraint spans across multiple columns in a
table.
INTEGRITY CONSTRAINT
NULL constraints:
 There may be records in a table that do not have values fro every field, either because the
information is not available at the time of data entry or because the field is not applicable in
every case.
 A NULL value is not equivalent to a value of zero if the data type is number and spaces if the
data type is character.





 A NULL value will evaluate to NULL in any expression e.g. NULL multiplied by 10 is NULL
 NULL value can be inserted into columns of any data type.
 If the column has a NULL value, oracle ignores the UNIQUE, FOREIGN KEY, CHECK
constraints that may be attached to the column.
NOT NULL constraint defined at the column level:
When a column is defined as not NULL, then that column becomes a mandatory column. It implies that
a value must be entered into the column if the record is to be accepted for storage in the table.
Syntax:
Columnname datatype(size) NOT NULL

Sql> Create table client_master
( c_no varchar2(5) NOT NULL,
name varchar2(10) NOT NULL,
address varchar2(20) NOT NULL
);

The NOT NULL constraint can only be applied at column level.
UNIQUE constraints:
The purpose of a unique key is to ensure that information in the columns is unique, i.e. a value entered
in column defined in the unique constraints must not be repeated across the columns. A table may
have many unique keys.
UNIQUE constraint defined at the column level:
Syntax:
Columnname datatype(size) UNIQUE

( c_no varchar2(5) UNIQUE,
name varchar2(10),
pincode UNIQUE
);

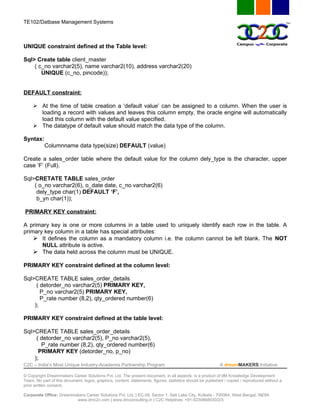

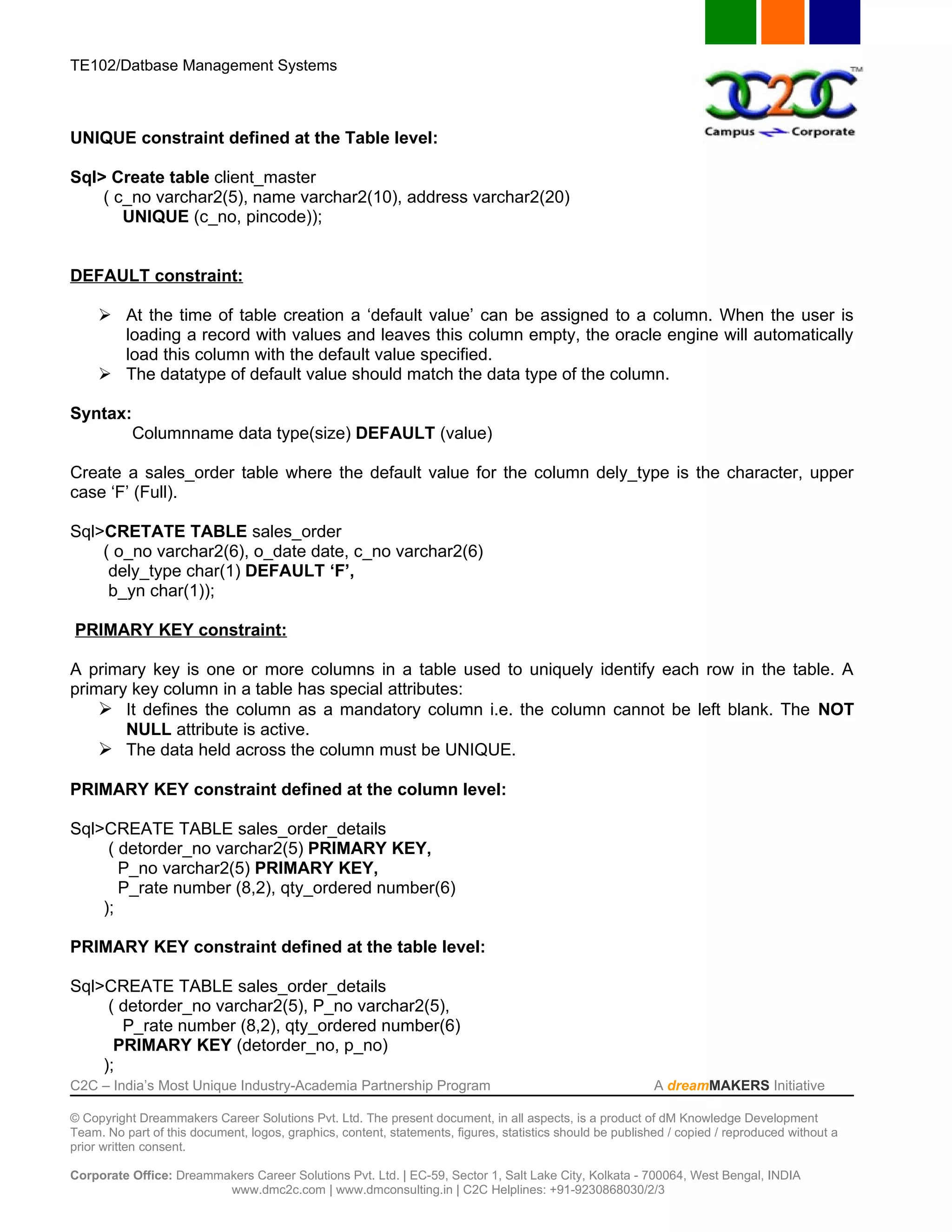

UNIQUE constraint defined at the Table level:

( c_no varchar2(5), name varchar2(10), address varchar2(20)
UNIQUE (c_no, pincode));

DEFAULT constraint:

 At the time of table creation a ‘default value’ can be assigned to a column. When the user is
loading a record with values and leaves this column empty, the oracle engine will automatically
load this column with the default value specified.
 The datatype of default value should match the data type of the column.

Syntax:
Columnname data type(size) DEFAULT (value)

Create a sales_order table where the default value for the column dely_type is the character, upper
case ‘F’ (Full).

Sql>CRETATE TABLE sales_order
( o_no varchar2(6), o_date date, c_no varchar2(6)
dely_type char(1) DEFAULT ‘F’,
b_yn char(1));

PRIMARY KEY constraint:

A primary key is one or more columns in a table used to uniquely identify each row in the table. A
primary key column in a table has special attributes:
 It defines the column as a mandatory column i.e. the column cannot be left blank. The NOT
NULL attribute is active.
 The data held across the column must be UNIQUE.

PRIMARY KEY constraint defined at the column level:

Sql>CREATE TABLE sales_order_details
( detorder_no varchar2(5) PRIMARY KEY,
P_no varchar2(5) PRIMARY KEY,
P_rate number (8,2), qty_ordered number(6)
);

PRIMARY KEY constraint defined at the table level:

( detorder_no varchar2(5), P_no varchar2(5),
P_rate number (8,2), qty_ordered number(6)
PRIMARY KEY (detorder_no, p_no)
);

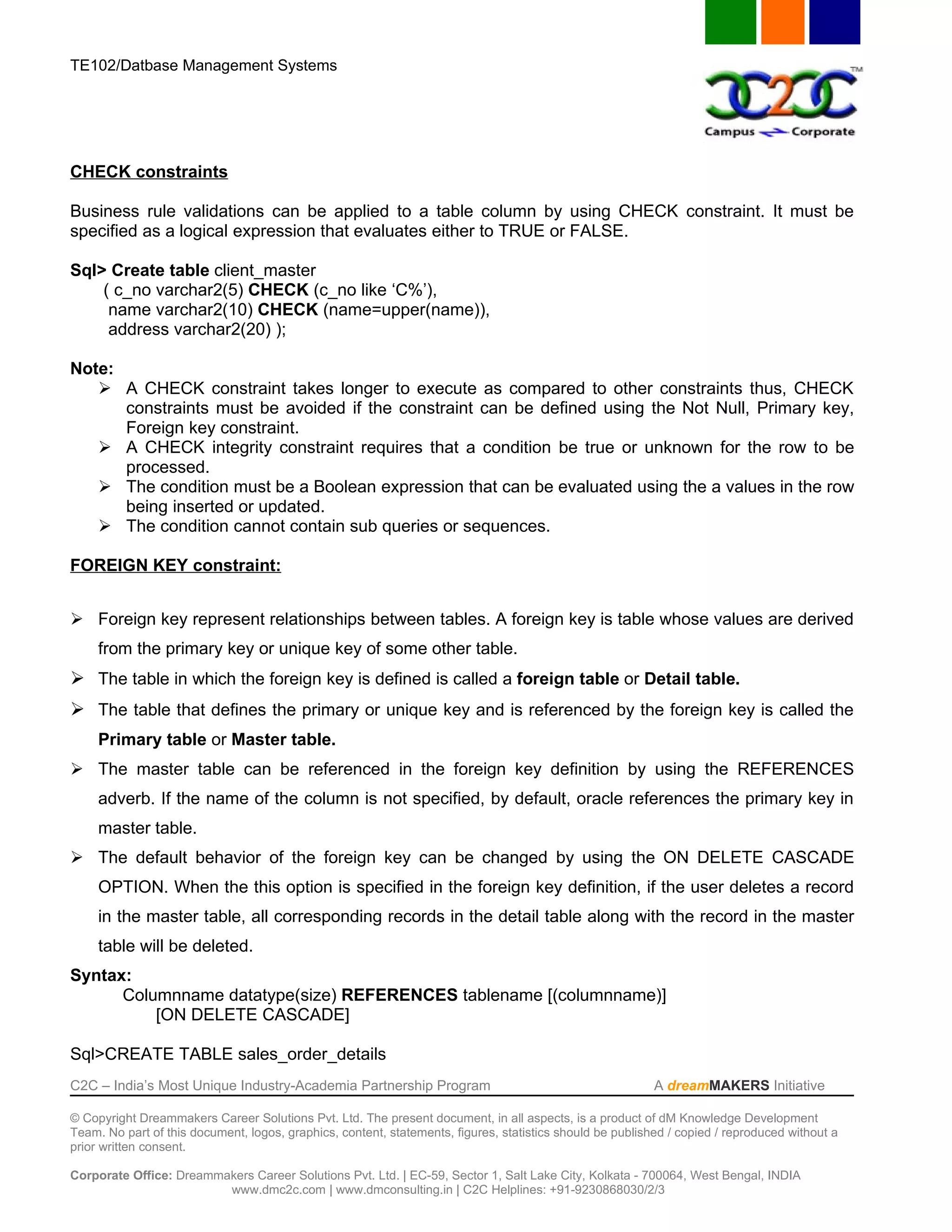

CHECK constraints

Business rule validations can be applied to a table column by using CHECK constraint. It must be
specified as a logical expression that evaluates either to TRUE or FALSE.

( c_no varchar2(5) CHECK (c_no like ‘C%’),
name varchar2(10) CHECK (name=upper(name)),
address varchar2(20) );

Note:
 A CHECK constraint takes longer to execute as compared to other constraints thus, CHECK
constraints must be avoided if the constraint can be defined using the Not Null, Primary key,
Foreign key constraint.
 A CHECK integrity constraint requires that a condition be true or unknown for the row to be
processed.
 The condition must be a Boolean expression that can be evaluated using the a values in the row
being inserted or updated.
 The condition cannot contain sub queries or sequences.

FOREIGN KEY constraint:

 Foreign key represent relationships between tables. A foreign key is table whose values are derived
from the primary key or unique key of some other table.
 The table in which the foreign key is defined is called a foreign table or Detail table.
 The table that defines the primary or unique key and is referenced by the foreign key is called the
Primary table or Master table.
 The master table can be referenced in the foreign key definition by using the REFERENCES
adverb. If the name of the column is not specified, by default, oracle references the primary key in
master table.
 The default behavior of the foreign key can be changed by using the ON DELETE CASCADE
OPTION. When the this option is specified in the foreign key definition, if the user deletes a record
in the master table, all corresponding records in the detail table along with the record in the master
table will be deleted.
Syntax:
Columnname datatype(size) REFERENCES tablename [(columnname)]
[ON DELETE CASCADE]

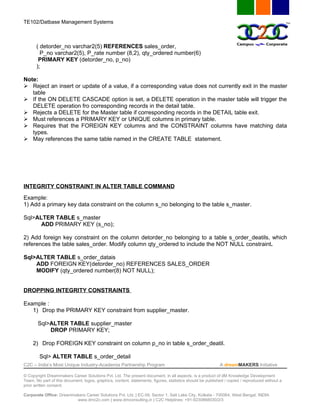

( detorder_no varchar2(5) REFERENCES sales_order,
P_no varchar2(5), P_rate number (8,2), qty_ordered number(6)
PRIMARY KEY (detorder_no, p_no)
);

Note:
 Reject an insert or update of a value, if a corresponding value does not currently exit in the master
table
 If the ON DELETE CASCADE option is set, a DELETE operation in the master table will trigger the
DELETE operation fro corresponding records in the detail table.
 Rejects a DELETE for the Master table if corresponding records in the DETAIL table exit.
 Must references a PRIMARY KEY or UNIQUE columns in primary table.
 Requires that the FOREIGN KEY columns and the CONSTRAINT columns have matching data
types.
 May references the same table named in the CREATE TABLE statement.

INTEGRITY CONSTRAINT IN ALTER TABLE COMMAND
Example:
1) Add a primary key data constraint on the column s_no belonging to the table s_master.

Sql>ALTER TABLE s_master
ADD PRIMARY KEY (s_no);

2) Add foreign key constraint on the column detorder_no belonging to a table s_order_deatils, which
references the table sales_order. Modify column qty_ordered to include the NOT NULL constraint.

Sql>ALTER TABLE s_order_datais
ADD FOREIGN KEY(detorder_no) REFERENCES SALES_ORDER
MODIFY (qty_ordered number(8) NOT NULL);

DROPPING INTEGRITY CONSTRAINTS

Example :
1) Drop the PRIMARY KEY constraint from supplier_master.

Sql>ALTER TABLE supplier_master
DROP PRIMARY KEY;

2) Drop FOREIGN KEY constraint on column p_no in table s_order_deatil.

Sql> ALTER TABLE s_order_detail




DROP FOREIGN KEY;

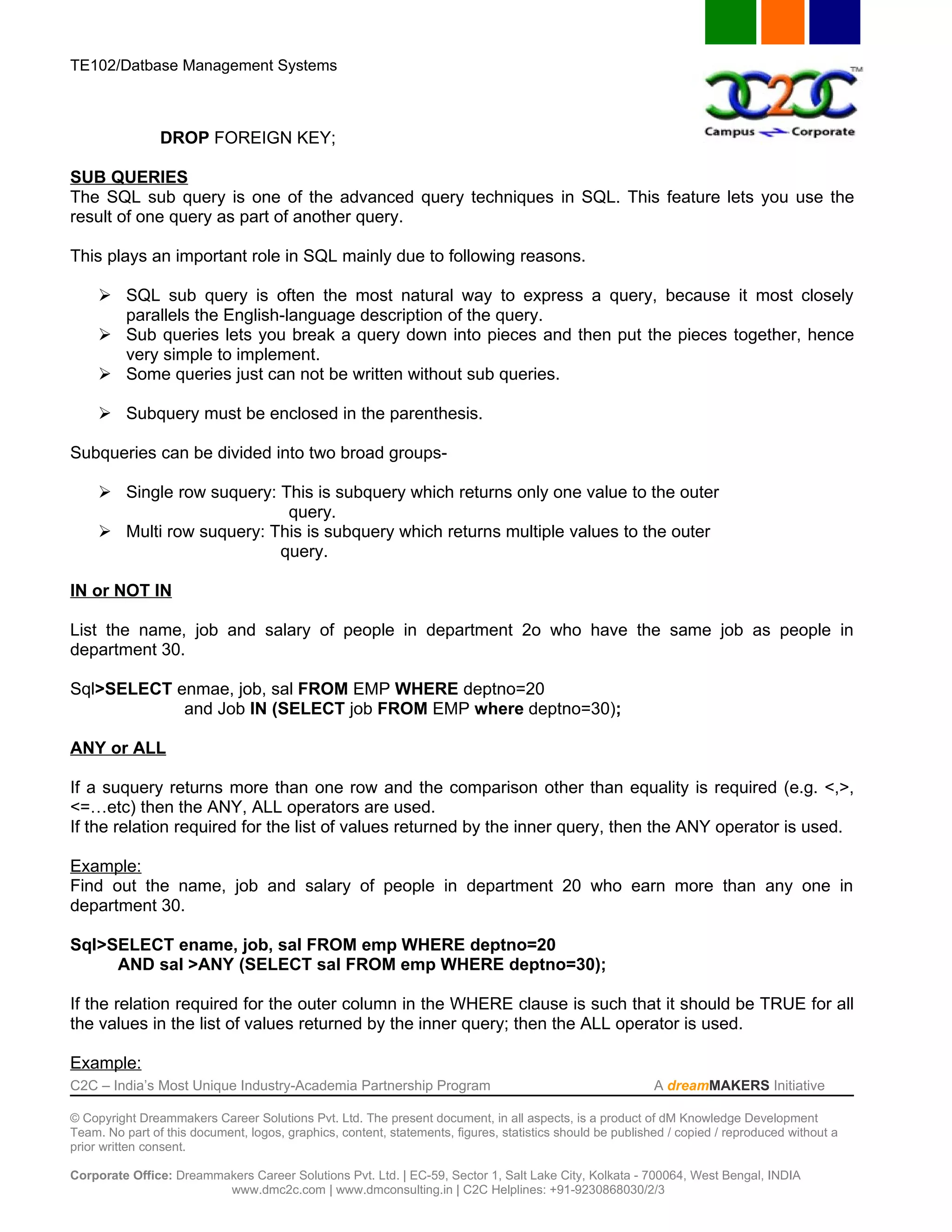

SUB QUERIES
The SQL sub query is one of the advanced query techniques in SQL. This feature lets you use the
result of one query as part of another query.

This plays an important role in SQL mainly due to following reasons.

 SQL sub query is often the most natural way to express a query, because it most closely
parallels the English-language description of the query.
 Sub queries lets you break a query down into pieces and then put the pieces together, hence
very simple to implement.
 Some queries just can not be written without sub queries.

 Subquery must be enclosed in the parenthesis.

Subqueries can be divided into two broad groups-

 Single row suquery: This is subquery which returns only one value to the outer
query.
 Multi row suquery: This is subquery which returns multiple values to the outer
query.

IN or NOT IN

List the name, job and salary of people in department 2o who have the same job as people in
department 30.

Sql>SELECT enmae, job, sal FROM EMP WHERE deptno=20
and Job IN (SELECT job FROM EMP where deptno=30);

ANY or ALL

If a suquery returns more than one row and the comparison other than equality is required (e.g. <,>,
<=…etc) then the ANY, ALL operators are used.
If the relation required for the list of values returned by the inner query, then the ANY operator is used.

Example:
Find out the name, job and salary of people in department 20 who earn more than any one in
department 30.

Sql>SELECT ename, job, sal FROM emp WHERE deptno=20
AND sal >ANY (SELECT sal FROM emp WHERE deptno=30);

If the relation required for the outer column in the WHERE clause is such that it should be TRUE for all
the values in the list of values returned by the inner query; then the ALL operator is used.

Example:

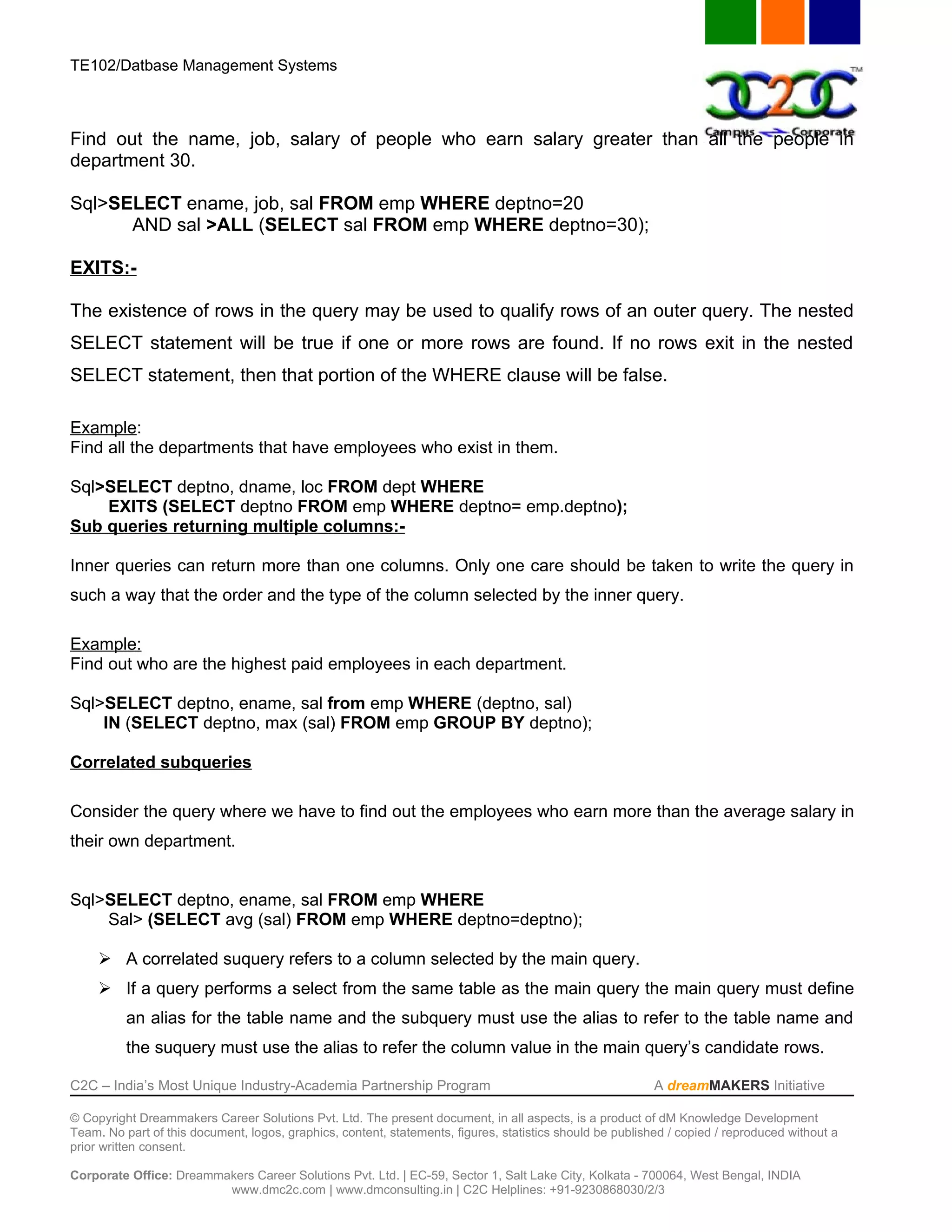

Find out the name, job, salary of people who earn salary greater than all the people in
department 30.

Sql>SELECT ename, job, sal FROM emp WHERE deptno=20
AND sal >ALL (SELECT sal FROM emp WHERE deptno=30);

EXITS:-

The existence of rows in the query may be used to qualify rows of an outer query. The nested
SELECT statement will be true if one or more rows are found. If no rows exit in the nested
SELECT statement, then that portion of the WHERE clause will be false.

Example:
Find all the departments that have employees who exist in them.

Sql>SELECT deptno, dname, loc FROM dept WHERE
EXITS (SELECT deptno FROM emp WHERE deptno= emp.deptno);
Sub queries returning multiple columns:-

Inner queries can return more than one columns. Only one care should be taken to write the query in
such a way that the order and the type of the column selected by the inner query.

Example:
Find out who are the highest paid employees in each department.

Sql>SELECT deptno, ename, sal from emp WHERE (deptno, sal)
IN (SELECT deptno, max (sal) FROM emp GROUP BY deptno);

Correlated subqueries

Consider the query where we have to find out the employees who earn more than the average salary in
their own department.

Sql>SELECT deptno, ename, sal FROM emp WHERE
Sal> (SELECT avg (sal) FROM emp WHERE deptno=deptno);

 A correlated suquery refers to a column selected by the main query.
 If a query performs a select from the same table as the main query the main query must define
an alias for the table name and the subquery must use the alias to refer to the table name and
the suquery must use the alias to refer the column value in the main query’s candidate rows.

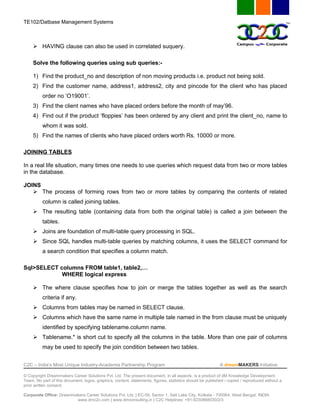

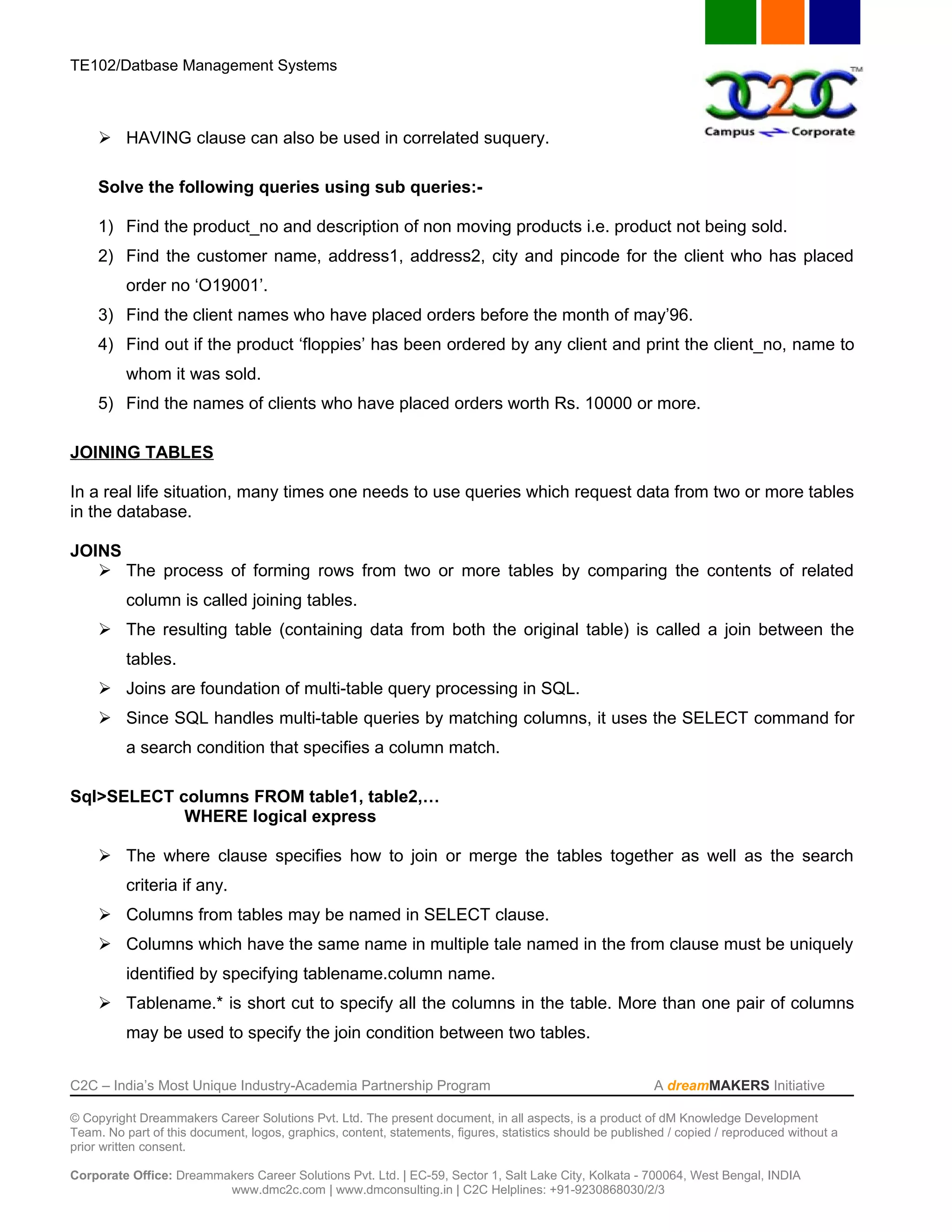

 HAVING clause can also be used in correlated suquery.

Solve the following queries using sub queries:-

1) Find the product_no and description of non moving products i.e. product not being sold.
2) Find the customer name, address1, address2, city and pincode for the client who has placed
order no ‘O19001’.
3) Find the client names who have placed orders before the month of may’96.
4) Find out if the product ‘floppies’ has been ordered by any client and print the client_no, name to
whom it was sold.
5) Find the names of clients who have placed orders worth Rs. 10000 or more.

JOINING TABLES

In a real life situation, many times one needs to use queries which request data from two or more tables
in the database.

JOINS
 The process of forming rows from two or more tables by comparing the contents of related
column is called joining tables.
 The resulting table (containing data from both the original table) is called a join between the
tables.
 Joins are foundation of multi-table query processing in SQL.
 Since SQL handles multi-table queries by matching columns, it uses the SELECT command for
a search condition that specifies a column match.

Sql>SELECT columns FROM table1, table2,…
WHERE logical express

 The where clause specifies how to join or merge the tables together as well as the search
criteria if any.
 Columns from tables may be named in SELECT clause.
 Columns which have the same name in multiple tale named in the from clause must be uniquely
identified by specifying tablename.column name.
 Tablename.* is short cut to specify all the columns in the table. More than one pair of columns
may be used to specify the join condition between two tables.

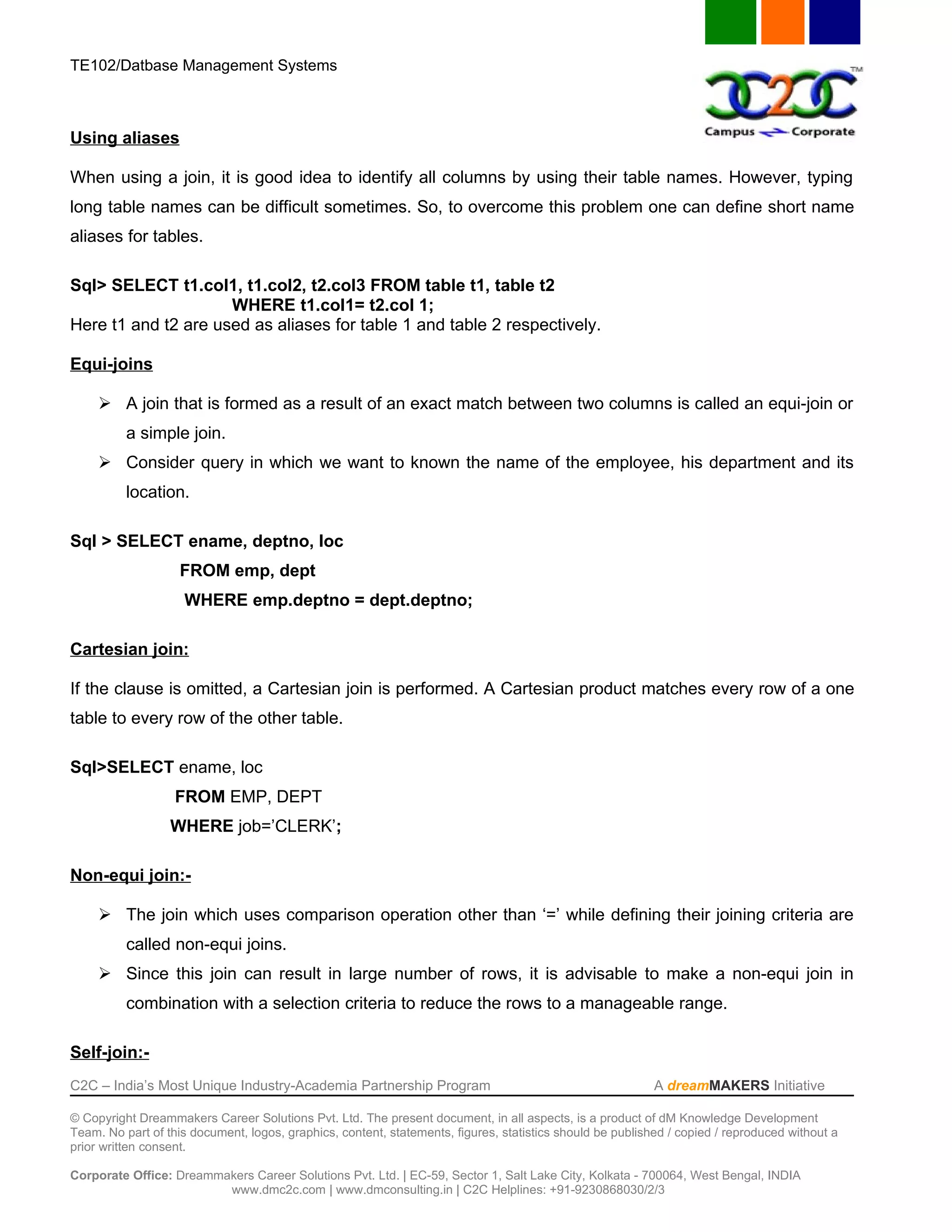

Using aliases

When using a join, it is good idea to identify all columns by using their table names. However, typing
long table names can be difficult sometimes. So, to overcome this problem one can define short name
aliases for tables.

Sql> SELECT t1.col1, t1.col2, t2.col3 FROM table t1, table t2
WHERE t1.col1= t2.col 1;
Here t1 and t2 are used as aliases for table 1 and table 2 respectively.

Equi-joins

 A join that is formed as a result of an exact match between two columns is called an equi-join or
a simple join.
 Consider query in which we want to known the name of the employee, his department and its
location.

Sql > SELECT ename, deptno, loc
FROM emp, dept
WHERE emp.deptno = dept.deptno;

Cartesian join:

If the clause is omitted, a Cartesian join is performed. A Cartesian product matches every row of a one
table to every row of the other table.

Sql>SELECT ename, loc
FROM EMP, DEPT
WHERE job=’CLERK’;

Non-equi join:-

 The join which uses comparison operation other than ‘=’ while defining their joining criteria are
called non-equi joins.
 Since this join can result in large number of rows, it is advisable to make a non-equi join in
combination with a selection criteria to reduce the rows to a manageable range.

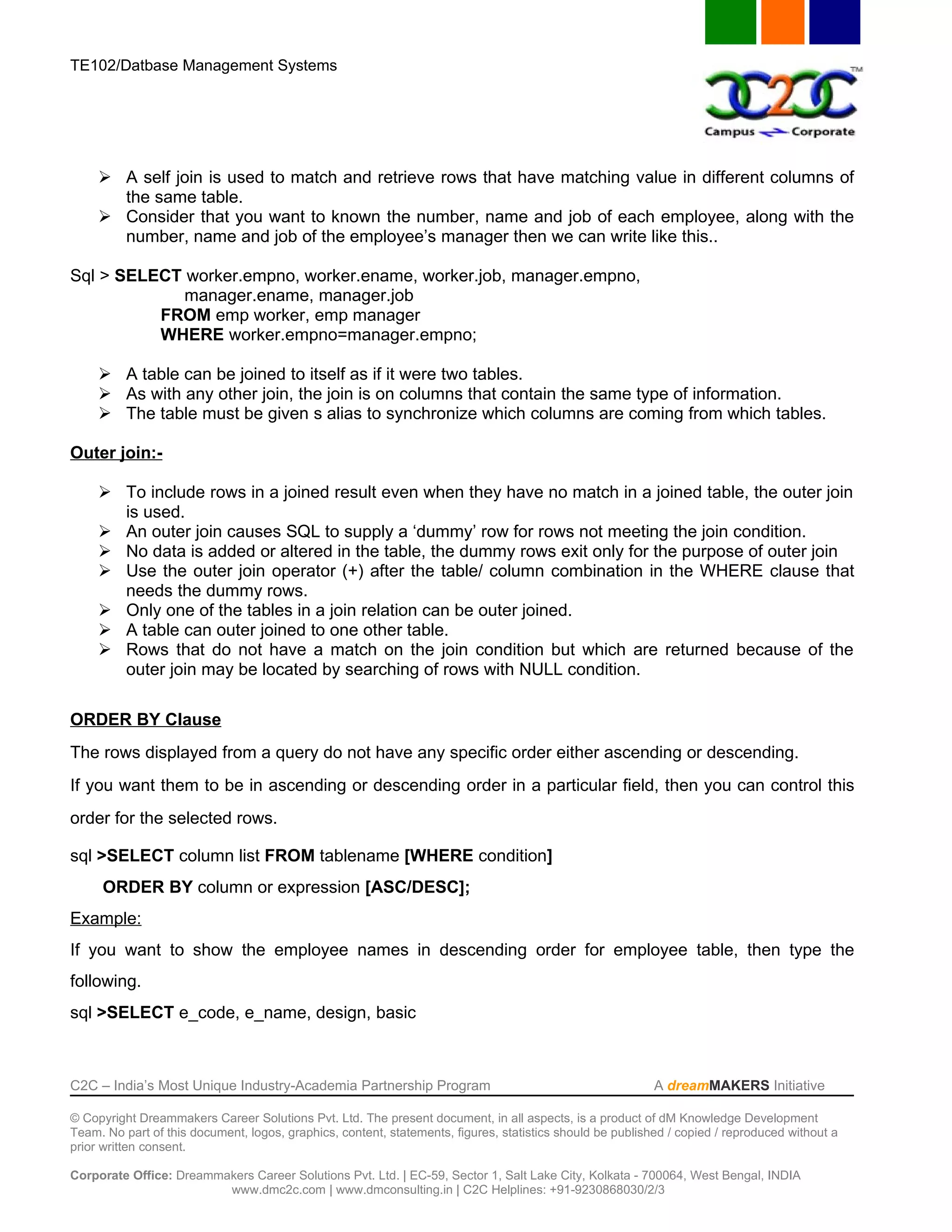

Self-join:-




 A self join is used to match and retrieve rows that have matching value in different columns of
the same table.
 Consider that you want to known the number, name and job of each employee, along with the
number, name and job of the employee’s manager then we can write like this..

Sql > SELECT worker.empno, worker.ename, worker.job, manager.empno,
manager.ename, manager.job
FROM emp worker, emp manager
WHERE worker.empno=manager.empno;

 A table can be joined to itself as if it were two tables.
 As with any other join, the join is on columns that contain the same type of information.
 The table must be given s alias to synchronize which columns are coming from which tables.

Outer join:-

 To include rows in a joined result even when they have no match in a joined table, the outer join
is used.
 An outer join causes SQL to supply a ‘dummy’ row for rows not meeting the join condition.
 No data is added or altered in the table, the dummy rows exit only for the purpose of outer join
 Use the outer join operator (+) after the table/ column combination in the WHERE clause that
needs the dummy rows.
 Only one of the tables in a join relation can be outer joined.
 A table can outer joined to one other table.
 Rows that do not have a match on the join condition but which are returned because of the
outer join may be located by searching of rows with NULL condition.

ORDER BY Clause
The rows displayed from a query do not have any specific order either ascending or descending.
If you want them to be in ascending or descending order in a particular field, then you can control this
order for the selected rows.

sql >SELECT column list FROM tablename [WHERE condition]
ORDER BY column or expression [ASC/DESC];
Example:
If you want to show the employee names in descending order for employee table, then type the
following.
sql >SELECT e_code, e_name, design, basic





FROM employee
WHERE basic > 2500
ORDER BY e_name DESC;

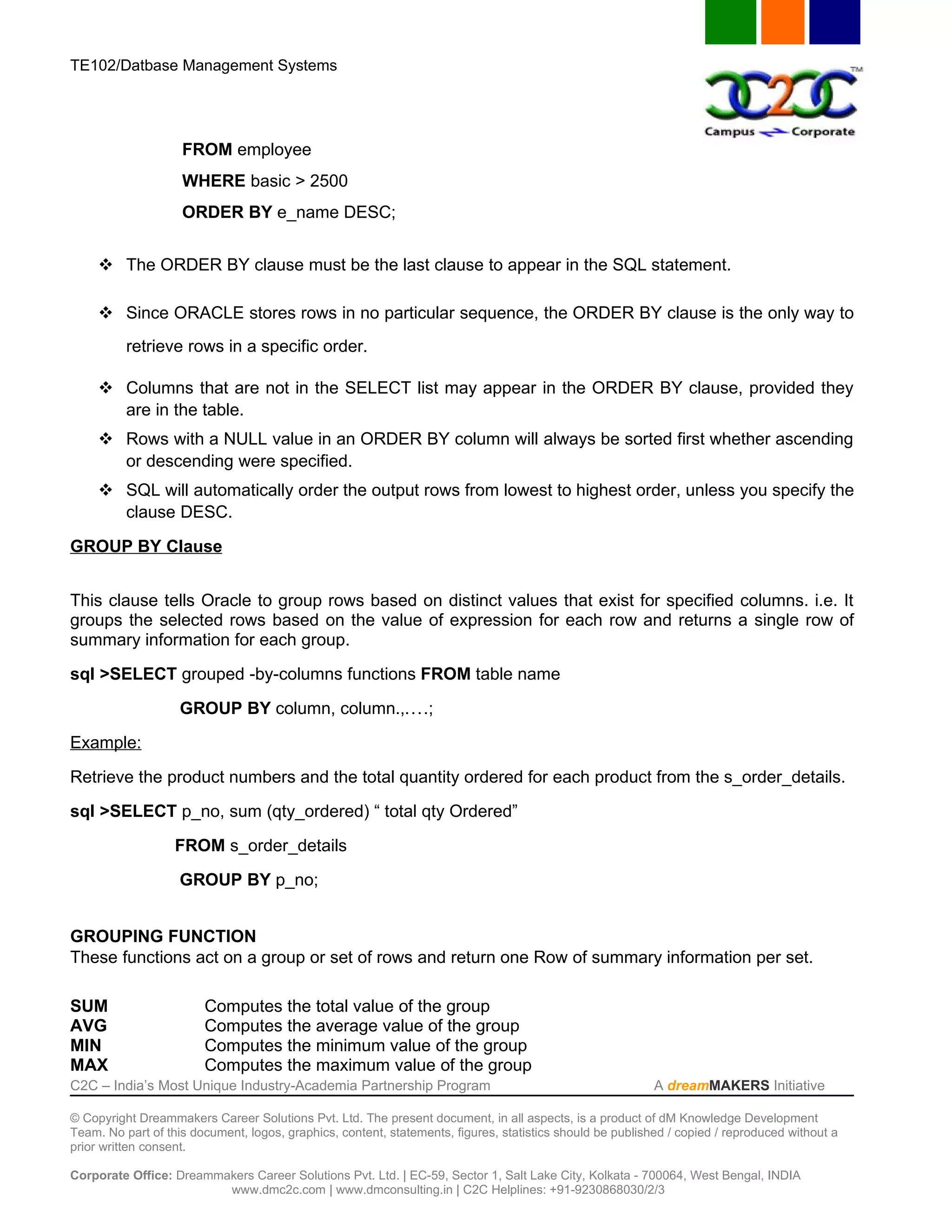

 The ORDER BY clause must be the last clause to appear in the SQL statement.

 Since ORACLE stores rows in no particular sequence, the ORDER BY clause is the only way to
retrieve rows in a specific order.

 Columns that are not in the SELECT list may appear in the ORDER BY clause, provided they
are in the table.
 Rows with a NULL value in an ORDER BY column will always be sorted first whether ascending
or descending were specified.
 SQL will automatically order the output rows from lowest to highest order, unless you specify the
clause DESC.

GROUP BY Clause

This clause tells Oracle to group rows based on distinct values that exist for specified columns. i.e. It
groups the selected rows based on the value of expression for each row and returns a single row of
summary information for each group.

sql >SELECT grouped -by-columns functions FROM table name

GROUP BY column, column.,....;

Example:

Retrieve the product numbers and the total quantity ordered for each product from the s_order_details.

sql >SELECT p_no, sum (qty_ordered) “ total qty Ordered”

FROM s_order_details

GROUP BY p_no;

GROUPING FUNCTION
These functions act on a group or set of rows and return one Row of summary information per set.

SUM Computes the total value of the group
AVG Computes the average value of the group
MIN Computes the minimum value of the group
MAX Computes the maximum value of the group




STDDEV Computes the standard deviation of the group
VARIANCE Computes the variance of the group
COUNT Counts the number of non-NULL values for the Specified group.
COUNT (*) Counts the number of rows including those having NULL values for
the given condition. .

HAVING CLAUSE

The HAVING clause can be used in conjunction with the GROUP BY clause. HAVING imposes a
condition on the group by clause, which further filters the groups created by the group by clause.

HAVING and WHERE clauses work in a similar manner. The difference is that WHERE works on rows,
while HAVING works on groups. Expression in HAVING clause must be single value per group.

Description: Used to store information about clients.

Column Name Data Type Size Attributes
Client_no Varchar2 6 Primary key/ first letter
must start with ‘C’
Name Varchar2 20 Not Null
Adddress2 Varchar2 30
Ciy Varchar2 15
Pincode Number 8
State Varchar2 15
Bal_due Number 10,2

Description: Used to store information about products.

Product_no Varchar2 6 Primary key/ first letter
must start with ‘P’
Description Varchar2 15 Not Null
P_percent Number 4,2 Not Null
U_measure Varchar2 10 Not Null
Qty_on_hand Number 8 Not Null
Reorder_lvl Number 8 Not Null
Sell_price Number 8,2 Not Null, cannot be 0
Cost_price Number 8,2 Not Null, can not be 0




Description: Used to store information about salesman working in the company.

S_no Varchar2 6 Primary key/ first letter
must start with ‘S’
S_name Varchar2 20 Not Null
Address1 Varchar2 30 Not Null
city Varchar2 20
Pincode Number 8
State Varchar2 20
Sal_amt Number 8,2 Not Null, cannot be 0
Tgt_to_get Number 6,2 Not Null, cannot be 0
Ytd_sales Number 6,2 Not Null
remarks Varchar2 60

D) Table Name: Sales_order
Description: Used to store client’s orders.

Column Name Data Size Attributes
Type
Order_no Varchar2 6 Primary key/ first letter must start with ‘O’
Order_date Date
Client_no Varchar2 6 Foreign key references client_no of client_master
table.
Dely_addr Varchar2 25
S_no Varchar2 6 Foreign key references s_no of salesman_master
table.
Dely_type Char 1 Delivery: part(P) / full (F) Default ‘F’
Billed_yn Char 1
Dely_date Date Cannot be less than order_date
Order_status Varchar2 10 Values(‘inprocess’,’fullfiled’,’backorder’,’cancelled’)

Order_n Order_date Client_no S_no Dely_ Billed_yn Dely_date Order_status
o type
O1901 12-Jan-06 C001 S001 F N 20-Jan-06 In Process
O1902 25-Jan-06 C002 S002 P N 27-Jan-06 Cancelled
O4665 18-feb-06 C003 S003 F Y 20-Feb-06 Fullfilled
O1903 03-Apr-06 C001 S001 F Y 07-Apr-06 Fullfield
O4666 20-May-06 C004 S002 P N 22-May-06 Cancelled
O1908 24-May-06 C005 S003 F N 26-May-06 In Process





E) Table Name: Sales_order_details
Description: Used to store client’s orders with details of each product ordered.

Order_no Varchar2 6 Primary Key/ Foreign Key
references order_no of the
sales_order table.
Product_no Varchar2 6 Primary Key/ Foreign Key
references product_no of the
Product_master table.
Qty_ordered Number 8
Qty_disp Number 8
Product_rate Number 10,2

Order_no Product_no Qty_ordered Qty_disp Product_rate
O1901 P001 4 4 525
O1901 P002 2 1 8400
O1901 P003 2 1 5250
O1902 P001 10 0 525
O4665 P002 3 3 3150
O4665 P004 3 1 5250
O4665 P005 10 10 525
O4665 P003 4 4 1050
O1903 P006 2 2 1050
O1903 P004 1 1 12000
O1908 P005 1 0 8400
O1908 P007 10 0 1050

Queries using Having and Group By Clause:
1) Print the description and total qty sold for each product.
2) Find the value of each product sold.
3) Calculate the average qty sold for each client that has a maximum order value of 15000.
4) Find out the sum total of all the billed orders for the month of January

Queries on Joins and Correlation:
1) Find out the products, which have been sold to ‘Ivan Bayross’.
2) Find out the products and their quantities that will have to be delivered in current month.
3) Find the product_no and description of constantly sold i.e. rapidly moving products.
4) Find the names of clients who have purchased ‘CD Drive’.




5) List the product_no and order_no of customers having qty_ordered less than 5 from the
sales_order_details table for the product ‘floppies’.
6) Find the products and their quantities for the orders placed b ‘Ivan Bayross’ and ‘Vandana
Saitwal’.
7) Find the products and their quantities for the orders placed by client_no ‘C001’ and ‘C002’.

CONSTRUCTING AN ENGLISH SENTENCE WITH DATA FROM TABLE COLUMNS

Example:
Create an English sentence, by joining predetermined string values with column data retrieved from the
sales_order table.

The string literals are : Order No.
Was placed by Client No.
On

The columns are: Order_no
Client_no
Order_date

Table Name: Sales_order

Order_no Client_no Order_date
O1001 C001 04-aug-06
O1002 C002 05-aug-06
O1003 C003 06-aug-06

SELECT ‘order no.’|| order_no || ‘was placed by Client No’|| Client_no|| ‘on’ || order_date
FROM sales_order;

Output:

‘orderno.’||Order_no||’wasplacedbyclientno.’||Client_no||’on’||Order_date
____________________________________________________________

Order no. O1001 was placed by Client no. C001 on 04-aug-06

To avoid a data header that appears meaningless, use an alias as shown below:

SELECT ‘order no.’|| order_no || ‘was placed by Client No’|| Client_no||
‘on’ || order_date “Orders placed”
FROM sales_order;





Output:
Orders placed
___________________________________________________

USING THE UNION, INTERSECT AND MINUS CLAUSE

Union Clause:

Multiple queries can be put together and their output combined using the union clause. The union
clause merges the output of two or more queries into a single set of rows and columns.

Example:
Retrive the names of all the clients and salesman in the city of ‘mumbai ‘ from the tables client_master
and salesman_master.
SELECT salesman_no, name
FROM salesman_master
WHERE city=’mumbai’

UNION

SELECT client_no, name
FROM client_master
WHERE city=’mumbai’;

Intersect Clause:

Multiple queries can be put together and their output combined using the intersect clause. The intersect
clause outputs only rows produced by both the queries intersected i.e. the output in an intersect clause
will include only those rows that are retrieved by both the queries.

Example:
Retrieves the salesman name in ‘mumbai’ whose efforts have resulted into at least one sales
transaction.

SELECT salesman_no, name FROM salesman_master
WHERE city=’mumbai’;

INTERSECT

SELECT salesman_master.salesman_no, name
FROM salesman_master, sales_order
WHERE salesman_master.salesman_no = sales_order.salesman_no;

The intersect clause picks up records that are common in both queries.

Minus Clause:




Multiple queries can be put together and their output combined using the minus clause. The minus
clause outputs the rows produced by the first query, after filtering the rows retrieved by the second
query.

Example:
Retrives all the product numbers of non-moving items from the product_master table.

Table name: sales_order_deatils

Order No Product No
O111 P112
O112 P111
O113 P113
O114 P114

Table name: product_master

Product No Description
P112 Monitors
P113 CD Drives
P116 Keyboards
P117 HDD

SELECT product no FROM product_master
MINUS
SELECT product no FROM sales_order_details;

The minus clause picks up records in the first query after filtering the records retrived by the second
query. Thus, the output after applying the MINUS clause will be:

Output:

Product No
______________

P113
P114

Queries on Constructing Sentences with data:
1) Print information from product-master, sales_order_detail tables in the following format for all
records:-
{description} worth Rs. {total sales for the product} was sold.





2) Print information from product-master, sales_order_detail tables in the following format for all
records:-
{description} worth Rs. {total sales for the product} was ordered in the month of
{order- date in month format}.
3) print information from product-master, sales_order, client_master tables in the following format
for all the records:-
{cust_name} has placed order {order_no}on {order_date}.

SQL PERFORMANCE TUNING

INDEXES

 An index is an ordered list of the content of a column of a table.
 Indexing a table is an ‘access strategy’, that is a way to sort and search records in the table.
Indexes are essential to improve the speed with which the record can be located and retrieved
from a table.
 When data is inserted in the table, the oracle engine inserts the data value in the index.
 For every data value held in the index the oracle engine inserts a unique ROWID value.
 The Rowid indicates exactly where the record is stored in table.
 The Rowid format used by oracle is as follows:

BBBBBBB.RRRR.FFFF

 FFFF is a unique number given by the oracle engine to each data file. Data file are file used by
oracle engine to store user data.
 BBBBBBB is the block number in which the record is stored. The data file is divided into data
blocks and each block is given a unique number.
 RRRR is unique record number. Each data block can store one or more records. Thus each
record in the data block is given a unique record number.

Creating INDEX:





Sql>CREATE INDEX index_name
ON tablename (columnname);

Example:

Sql>CREATE INDEX idx_c_no
ON client_master(c_no);

Creation of Unique Index:

An unique index can also be created on one or more columns. If an index is created on a single column
it is called simple Unique Index.

Sql>CREATE UNIQUE INDEX indexname
ON tablemname (columnname);

When the user defines a primary key or a unique key constraint, the oracle engine automatically
creates a unique index on the primary key or unique key column.

If an index is created on more than one column it is called Composite Unique Index.
The syntax for creating a composite unique index is:

Sql>CREATE UNIQUE INDEX indexname
ON tablemname (columnname, columnname);

Dropping INDEX:

Sql>DROP INDEX index_name;

 For each row returned by query, the ROWNUM column returns a number indicating the record
in which the oracle engine selects the row from table. The first row selected has a ROWNUM of
1, the second has 2 etc.
 The order in which data is retrieved is dependent upon the indexes created on the table.
 If an index is created on the column used I the order by clause, the oracle engine uses the index
to retrieve data in sorted order. Thus the ROWNUM will be in the order of the rows retrieved
from the index.
 If an index is not created on the column used in the order by clause, the oracle engine will
retrieve data from the table in the order of data insertion and thus an order by clause does not
affect the ROWNUM of each row.

SEQUENCES




 Most application requires automatic generation of numeric value.
 A sequence is a database object that generates automatic sequence number for rows in tables.
 Oracle provides an object called a sequence that can generate numeric values.
 The value generated can have a maximum of 38 digits. A sequence can be defined to:
 Generate numbers in ascending or descending.
 Provide intervals between numbers
 Caching of sequence numbers in memory etc.
 This information is provided to oracle at the time of sequence generation. The SQL statement
used for creating sequence is:

Sql>CREATE SEQUENCE sequence_name
[ INCREMENT BY integervalue
START WITH integervalue
MAXVALUE integervalue / NOMAXVALUE
MINVALUE integervalue / NOMINVALUE
CYCLE/ NOCYCLE
CACHE integervalue/ NOCACHE
ORDER / NOORDER]

Sequence is always given a name so that it can be referenced later when required.

Example:
Create sequence order_seq, which will generate numbers from 1 to 9999 in ascending order with an
interval of 1. The sequence must restart from the number 1 after generating number 9999.

Sql>CREATE SEQUENCE order_seq
[ INCREMENT BY 1
START WITH 1
MINVALUE 1
MAXVALUE 9999
CYCLE;

Keywords Description
INCREMENTED BY Specifies the interval between sequence numbers.
It can be positive or negative value but not zero.
If this clause is omitted the default value is 1.

MINVALUE Specifies the sequence minimum value.

MAXVALUE Specifies the maximum value that the sequence can
generate.





START WITH Specifies the first sequence number to be generated.
The default for a ascending sequence is the minimum value
(1) and for a descending sequence, it is the maximum
value (-1).

CYCLE Specifies that the sequence continue to generate repeat
values after reaching either its maximum value.

NO CYCLE Specifies sequence cannot generate more values after
reaching the maximum value.
CACHE Specifies how many values of a sequence oracle pre allocate
and keeps in memory for faster access.
The minimum value for this parameter is two.
NOCACHE Specifies that value of a sequence are not pre-allocated.

If the CACHE / NOCACHE clause is omitted oracle caches 20 sequence numbers by default.
The ORDER / NOORDER clause has no significance, if oracle is configured with single server
option. It is useful only when you are using Parallel Server in Parallel mode option.

Referencing a Sequence:

Once a sequence is created SQL can be used to view the values held in its caches. To simply view
sequence value use a select sentence as described below.

Sql>SELECT sequence_name.nextval FROM dual;

This will display the next value held in the cache on the VDU screen. Every time nextval references a
sequence its output is automatically incremented from the old value to the new value ready for use.

After creating a table you can add the data by using the INSERT command like this:

Sql>INSERT INTO sales_order(o_no, o_date, c_no)
VALUES (order_seq.nextval, sysdate, ‘c0001’);

To references the current value of a sequence:

Sql>SELECT sequence_name.currval FROM dual;

Altering A Sequence

A sequence once created can be altered. This is achieved by using the ALTER SEQUENCE command.

Sql>ALTER SEQUENCE sequence_name
[ INCREMENT BY integervalue




START WITH integervalue
MAXVALUE integervalue / NOMAXVALUE
MINVALUE integervalue / NOMINVALUE
CYCLE/ NOCYCLE
CACHE integervalue/ NOCACHE
ORDER / NOORDER]

Example:
Change the cache value of the sequence order_seq to 30 and interval between two numbers as 2.

Sql>ALTER SEQUENCE order_seq
INCREMENTED BY 2
CACHE 30;

Dropping A Sequence

The DROP SEQUENCE command is used to remove the sequence from the database.

Sql>DROP SEQUENCE sequence_name;

Views

 The table of a database defines the structure and the organization of its data. Once they are
defined they always present the data in a particular way.
 After a table is created and populated with data, it may become necessary to prevent all users
from accessing all columns of a table, for data security reason.
 This would mean creating several tables having the appropriate number of columns and
assigning specific users to each table, as required.
 Sometimes in application, a different view of the data or the information in a different format is
desired.
 This is handled in ORACLE using VIEWS.
 A VIEW is a virtual table in the database whose contents are defined by a query it can
represent.
 A view holds no data at all, until a specific call to the view is made. This reduce
redundant data on a HDD to a very large extent.

Characteristics of a view

 Define with any SELECT statement.
 Stored in the data dictionary in the table called USER VIEWS.
 Views do not exit physically. They are virtual tables that exit only as definitions record in the
system catalogue.

Creation of views:




Sql>CREATE VIEW viewname AS
SELECT columnname, coluimnname

FROM tablename
WHERE columnname=expression list;
GROUP BY grouping criteria
HAVING predicate

The ORDER BY clause cannot be used while creating a view.

Example:
Create view on the client_master table for the Administration Department.

Sql>CREATE VIEW vw_clientadmin AS
SELECT name, adddress1, address2, city, pincode, state
FROM client_master;

Selecting a data set from a view:
Once a view has been created, it can be queried exactly like a base table.

Sql>SELECT columnname, columnname
FROM viewname;

The select statement can have the clause like WHERE, ORDER BY etc.

Example:

Sql>SELECT name, address1, address2, city, pincode, state
FROM vw_clientadmin
WHERE city IN (‘Mehsana’, ‘Patan’);

Destroying a view:

The DROP VIEW commnd is used to remove a view from the database.

Sql>DROP VIEW viewname;

Advantages of using views

Security:
Each user can be given permission to access the database only through a small set of views that
contain the specific data.
The user is authorized to see, rather than the entire table, thus restricting the user’s access to stored
data.

Query Simplicity:





A view can draw data from several different tables and present it to the user as a single table, turning
what would have been multi-table queries into simple single table queries against the view.

Insulation from changes:
A view can present a consistent, unchanged image of the structure of the database, even if the
underlying tables are split, reconstructed or renamed.

Data integrity:
If the data is accessed and entered through a view, the DBMS can automatically check the data to
ensure that it meets specified integrity constraint.

Disadvantages of views

Performance:
View creates the appearance of a table, but the DBMS must still translate the queries against the view
into the queries against the underlying source tables.
If the view is defined by a complex multi-join, then it may take long time to carry out.

Update restrictions:
More complex views can not be used to update the underlying source tables they are ‘read only’.

GRANTING AND REVOKING PERMISSSIONS

 Objects that are created by a user are owned and controlled by that user.
 If a user wishes to access any of the objects belonging to another user, the owner of the object
will have to give the permission for each access. This is called Granting of Privileges.
 Privileges once given can be taken back by the owner of the object. This is called Revoking of
Privileges.

Granting Privileges using the GRANT statement.

The Grant statement provides various types of access to database objects such as tables, views and
sequences.

Sql>GRANT object privileges
ON object name
TO username
[WITH GRANT OPTION]

OBJECT PRIVILEGES:

Each object privileges that are granted authorize the grantee to perform some operation on the object.
The user can grant the privileges or grant only specific object privileges.

The lists of object privileges are as follows:




ALTER : allows the grantee to change the table definition with the ALTER
TABLE command.
DELETE : allows the grantee to remove the record from a table with the DELETE
Command.
INDEX : allows the grantee to create an index on the table with the INDEX
Command.
INSERT : allows the grantee to add records to the table with the INSERT
Command.
SELECT : allows the grantee to query the table with the SELECT Command.
UPDATE : allows the grantee to modify the records in the table with the UPDATE
Command.

WITH GRANT OPTION:

The WITH GRANT OPTION allows the grantee to in turn grant object privileges to other users.

Example:
Give the user Pradeep all data manipulation permission on the table product_master.

Sql>GRANT ALL
ON product_master
TO pradeep;
Give the user Mita only the permission to view and modify records in the table client_master.

Sql>GRANT select, update
ON client_master
TO Mita;

Revoking Privileges Given:
Privileges once given can be denied to a user using the REVOKE command.

Sql>REVOKE object privileges
ON object name
FROM username

Example:
Take back all privileges on the table bonous from Florian.

Sql>REVOKE ALL
ON bonous
FROM Florian;

TRANSCATION PROCESSSING IN SQL





 ORACLE allows the grouping of individual changes done through the use of SQL commands
like SELECT, INSERT, UPDATE or DELETE, INTO logical transactions to ensure data
consistency and integrity.
 Transaction is a logical unit of work or a sequence of logical operations or event which is treated
as a single unit. In other words, transaction is a series of SQL statements that either succeed or
fail as a unit.
 When you manipulating the data in the database, the changes made by you are not normally
made permanent in the database until you give a command to do so or you exit oracle.

Saving the changes in the transaction

You can make changes permanent in the database by using.

Sql> COMMIT [WORK];

WORK is optional and only provided for readability.
Following things happen when you issue COMMIT.

 The changes are permanent in the database.
 The transaction is marked as closed.
 New transaction is started.
 Any locks acquired by the transaction are released.

Undo the changes made in the transaction

 It may so happen that you may not want to make the data permanent in the database, due to
the failing of some SQL statement in a sequence or wrong information provided; then you may
use the command ROLLABACK to discard the change made.

Sql>ROLLBACK [WORK];

Following things happen when you use ROLLBACK:

 Any changes made by the transaction are undone, as if it hadn’t been issued.
 New transaction is started.
 Any locks acquired by the transaction are released.





ROLLBACK statement undoes the entire transaction. If you want to undo only part of the transaction,
then it can be done by using

Sql>SAVEPOINT name;

During the transaction if you want to undo the changes up to certain savepoint, you have to give the
ROLLBACK command like…

Sql>ROLLBACK [WORK] TO SAVEPOINT name;

Following things happen when you issue ROLLBACK TO SAVEPOINT.

 The changes made by the statement issued after the savepoint, are undone. The savepoint
remains active, so it can be rolled back to again if desired.
 Any locks and resources acquired by the SQL statements since the save point are released.
 The transaction is still active as there are SQL statements pending.
 Savepoint are useful in interactive programs, because you can create and name intermediate
steps of a program. This allows you more control over longer, more complex program.
Introduction to PL/SQL:-

PL/SQL stands for Procedural Language/Structured Query Language. It is standard procedural
language that helps user by combining the power and flexibility of SQL with various procedural
construct.

A PL/SQL segment is called a block. A block consists of three sections. These sections are:
1) Declare section.
2) Begin section.
3) Exception section.
4) End section.

Declare section :-

Code block start with a declaration section, in which memory variable and other Oracle object can
be declared, and if required initialized. Once declared,they can be used in the SQL statement for data
manipulation.

Begin section:-

It consists of a set of SQL and PL/SQL statements, which describe processes that have to be
applied to data. Actual data manipulation, retrieval, looping and branching construct are specified in this
section.





Exception section:-

This section deals with handling of errors that arise during execution of the data manipulation
statements which make up the PL/SQL code block. Errors can arise due to syntax, logic and/or
validation rule violation.

End section:-

This mark the end of a PL/SQL block.

Block Structure:-

DECLARE
<Declaration of memory variable, constants, cursors>
BEGIN
<Executable statement>
EXCEPTION
<Exception handlers>
END;

PL/SQL Control Structure:-

PL/SQL has a variety of control structures that allow you to control the behavior of the block as it
runs.
IF-THEN-ELSE statements

IF <Boolean Expression> Then
Sequence of statements;
ELSIF<Boolean Expression> Then
ELSE
END IF;

LOOPS:-

LOOP
Sequence of statement;
EXIT [WHEN condition];
END LOOP;

WHILE<condition>LOOP
END LOOP;

FOR<variable>IN<lower value>..<Upper value>LOOP




END LOOP;

PL/SQL Data Types:-

The default data types that can be declared in PL/SQL are Number, Char, and Varchar2, Boolean,
date.

%TYPE attribute is used when you want a variable to have the same data type as that of column of a
table. Using %type has the advantage that whenever the type and/or
Size of a column in the table is changed; it is automatically reflected in the variable. For example the
following statement declares variable NAME to have the same data type as that of the column
EMP_NAME of EMPLOYEE table.

NAME EMLOYEE.EMP_NAME%TYPE;

%ROWTYPE attribute is used when you want the variable to hold the values of an entire row of a table.
In case variables for the entire row of a table need to be declared, the instead of declaring them
individually, %ROWTYPE should be used in following manner.

EMP_ROW EMPLOYEE%ROWTYPE

The above statement declares EMP_ROW variable as composite variable consisting of the column
names of the EMPLOYEE table as its members. It is capable of storing one whole row of a table. To
refer to a value in the row, say ENAME a (.) followed by the column name is used as shown below:

EMP_ROW.ENAME:=’ABC’;

Advantages of PL/SQL:

1. PL/SQL is development tool that not only supports SQL data manipulation but also provides
facilities of conditional checking, branching and looping.

2. PL/SQL sends an entire block of statements to the Oracle engine at one time. The
communication between the program block and the Oracle engine reduces considerably. This in
turn reduces network traffic. The Oracle engine gets the SQL statements as a single block, and
hence it processes this code much faster than if it got the code one sentence at a time.

3. PL/SQL also permits dealing with errors as required, and facilitates displaying user-friendly
messages, when errors are encountered.

4. PL/SQL allows declaration and use of variable in block of code. These variables can be used to
store intermediate results of a query for faster processing, or calculate values and insert them
into an Oracle table.

5. Application written in PL/SQL is portable to any computer hardware and operating system,
where oracle is operational.

Program:




1. Write a PL/SQL code to print numbers 1 to 8. Also insert the result into a table TEMP, having
one column of NUMBER data type.
2. Write PL/SQL code to calculate the area of a circle for a value of radius varying from 3 to 7.
Store the radius and the corresponding values of calculated area in an empty table named
AREA, consisting of two columns radius and area.
3. Write a PL/SQL block to find the factorial of a given number.
4. Write a PL/SQL code to insert all the details of the employee whose code is 107 to a new table
EMP which has same structure as EMPLOYEE table.
5. Write a PL/SQL code block that will accept an account number from the user, check if the user’s
balance is less than the minimum balance, only then deduct Rs. 100/- from the balance. The
process is fired on the ACC_MSTR table.

Cursor:-

• The Oracle engine uses a work area for its internal processing in order to execute an SQL
statement. This work area is private to SQL’s operation and is called as Cursor. The SQL
statement are executed in this work area and Query results are also stored in this work area.
• The date that is stored in the cursor is called the Active Data set.
• When cursor is loaded with multiple rows via query the Oracle engine open and maintains a row
pointer. Depending on user request to view data the row pointer will be relocated within the
cursor’s Active Data Set.
• The Oracle also maintains the cursor variables and the values held in these variables indicate
the status of the processing being done by the cursor.
• Depending upon the circumstances under which they are opened there are two types of
cursor. 1) Implicit Cursor 2) Explicit Cursor

Implicit cursor: -

• The oracle engine implicitly opens a cursor on the server to process each SQL statement.
• Implicit cursor is opened and managed by the Oracle engine internally, the function of reserving
an area in memory, populating this area with appropriate data, processing the data in memory
area, releasing the memory area when the processing is complete is taken care of by the Oracle
engine.
• The resultant data is then passed to the client via network.
• Implicit cursor attributes can be used to access information about the status of last insert
,update , delete or single row select statement.

Implicit cursor Attributes: -

• %ISOPEN: - The Oracle engine automatically opens and close the SQL cursor after executing
its associated select, insert, delete and update SQL statement.

• %FOUND: - Evaluate to TRUE, if an insert, update or delete affected one or more Rows, or a
single-row select returned one or more rows. Otherwise it evaluates to FALSE.





• %NOTFOUND: - It is the logical opposite of %FOUND. It evaluates to TRUE, if an insert,
update or delete affected no rows, or a single-row select returns no rows. Otherwise it evaluate
to FALSE.

• %ROWCOUNT: - Returns the number of rows affected by an insert, update or delete or select
into statement.

Explicit Cursor: -

Explicit cursors are user defined cursor. The cursor is opened and managed by the user. This cursor
will be declared and mapped to an SQL query in the Declare section of the PL/SQL block and used
within the Executable Section.

Cursor Management:-

• Declare a cursor mapped to a SQL select statement that retrieves data for processing.
• Open cursor
• Fetch data from the cursor one row at a time into memory variables.
• Process the data held in the memory variables as required using aloop.
• Exit from the loop after processing is complete.
• Close the cursor.

Handling of Cursor:-

A cursor is defined in the declarative part of PL/SQL block. This is done by naming the cursor and
mapping it to a query.
Syntax:

CURSOR cursorname IS
SQL select statement;

The three statements that are used to control the cursor are open, fetch and close.

Open statement:

• Opening a cursor execute the query and creates the active set that contains all rows, which
meet the query search criteria.
• An Open statement retrieves records from a database table and places the records in the
cursor.
• A cursor is opened in server memory.
• Syntax:
OPEN cursorname;

Fetch Statement:





• The Fetch statement retrieves the rows from the active set opened in the server into memory
variables declared in the PL/SQL code block on the client one row at a time. The memory
variables are opened on the client machine.
• Each time a fetch is executed, the cursor pointer is advanced to the next row in the Active Data
Set.
• A standard loop structure (Loop….End loop) is used to fetch records from the cursor into
memory variables one row at a time.
• Syntax:
FETCH cursorname INTO variable1, variable2,….;

Close statement:

• The close statement disables the cursor and the active date set becomes undefined.
• This will release the memory occupied by the cursor and data set both on the Client and on the
Server.

• Syntax:
CLOSE cursorname;
Explicit Cursor Attributes: -
• %ISOPEN: - Evaluate to TRUE, if an explicit cursor is open, or to FALSE, if it is closed.

Cursorname%ISOPEN.

• %FOUND: - Evaluate to TRUE, if the last fetch succeeded because a row was available, or to
FALSE, if the last fetch failed because no more rows were available.

Cursorname%FOUND.

• %NOTFOUND: - Evaluate to TRUE, if the last fetch has failed because no more rows were
available, or to FALSE, if the last fetch returned a row.

Cursorname%NOTFOUND.

• %ROWCOUNT: - Returns the number of rows fetched from the active data set. It set to zero, when
the cursor is opened.

Cursorname%ROWCOUNT.

Parameterized Cursor

Commercial application require that the query, which, defines the cursor, be generic and the data that is
retrieved from the table be allowed to change according to need.

Oracle recognizes this and permits the creation of a parameterized cursor prior opening. Hence the content
of the opened cursor will constantly change depending upon a value passed.





Since the cursor accepts values or parameter it is called as Parameterized Cursor. The parameters can be
either a constant or a variable.

Declaring a Parameterized Cursor:

Syntax:
CURSOR cursor_name(variable_name data type) is <SELECT statement…>

Opening a Parameterized cursor and passing values to the cursor:

Syntax:
OPEN cursor_name(value/variable/expression)

Program:

1. Write PL/SQL code that uses a cursor to list the four highest paid employees from the employee
table.
2. Write a PL/SQL code that retrieve a number from two tables, then insert the sum of the numbers into
a third table. It stops when all rows have been retrieved from both tables.
3. Write a PL/SQL code that using a cursor that display the details of those employees from employee
table who have joined after ’01-jan-07’.
All The Best
Team C2C




Dbms Lecture Notes

More Related Content

What's hot

Viewers also liked

Similar to Dbms Lecture Notes

Recently uploaded

In this document

Dbms Lecture Notes
