- 1. Deep Dive intoKubernetes Part 1 Imesh Gunaratne, WSO2

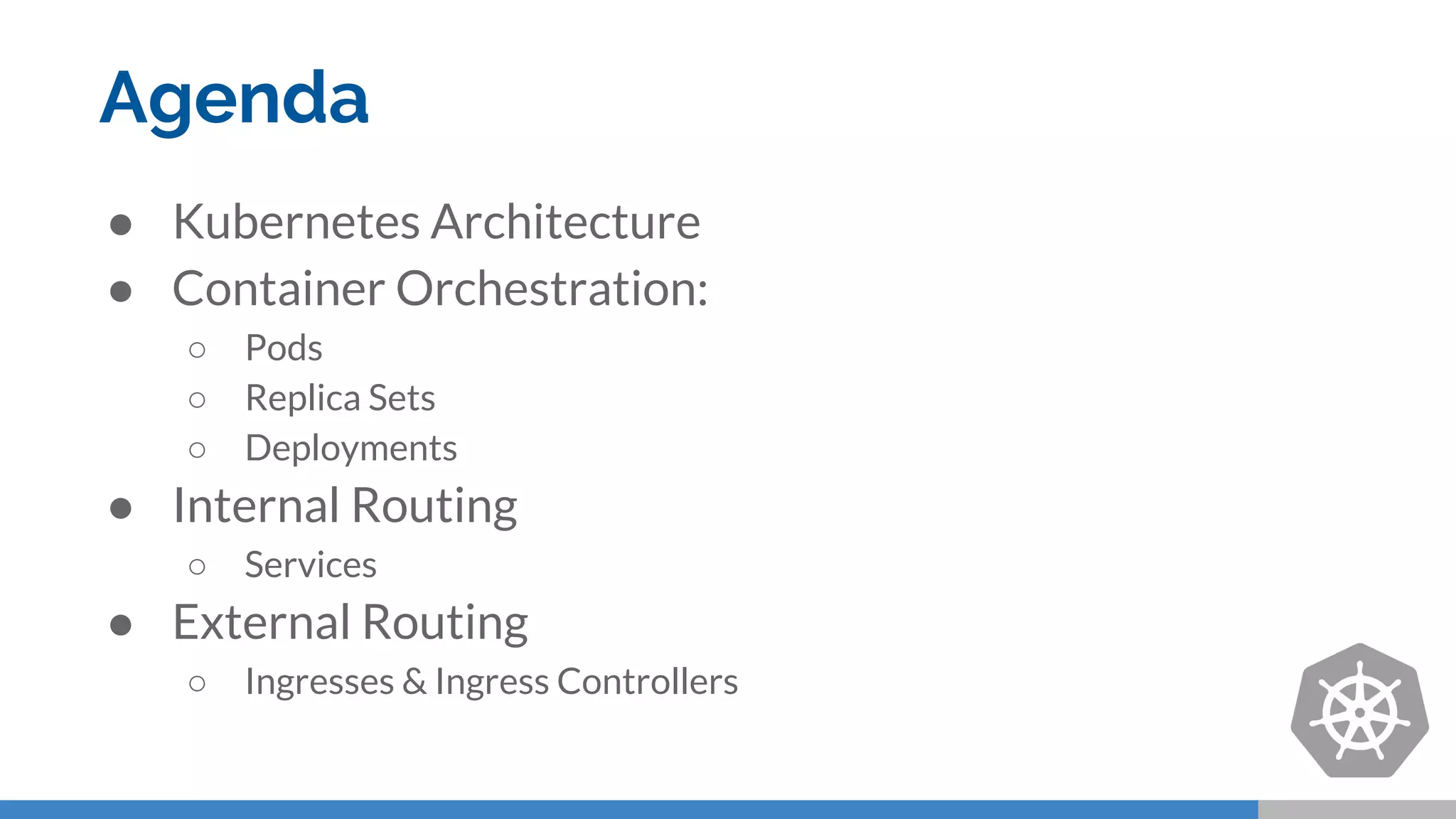

- 2. Agenda ● Kubernetes Architecture ●Container Orchestration: ○ Pods ○ Replica Sets ○ Deployments ● Internal Routing ○ Services ● External Routing ○ Ingresses & Ingress Controllers

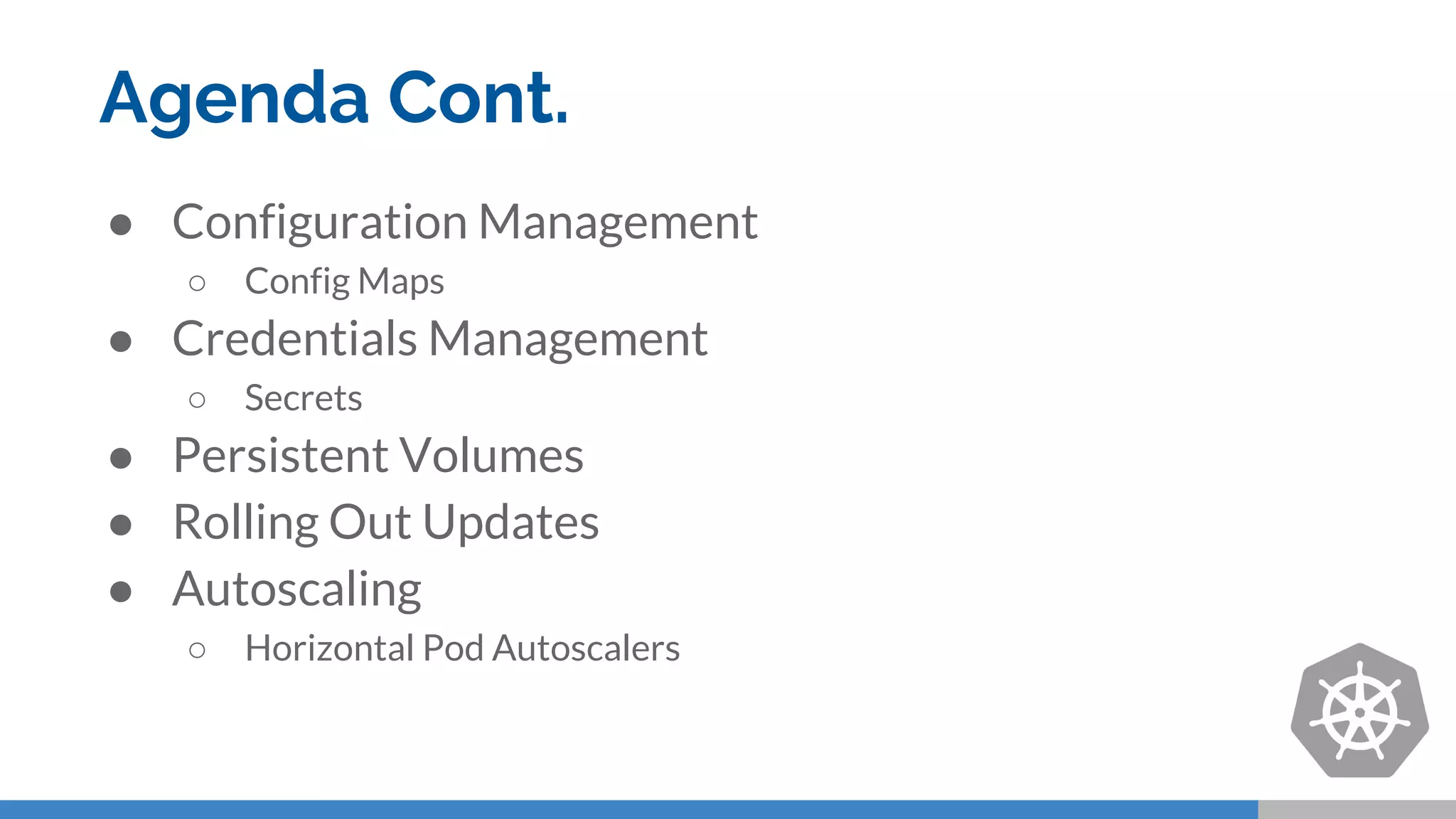

- 3. Agenda Cont. ● ConfigurationManagement ○ Config Maps ● Credentials Management ○ Secrets ● Persistent Volumes ● Rolling Out Updates ● Autoscaling ○ Horizontal Pod Autoscalers

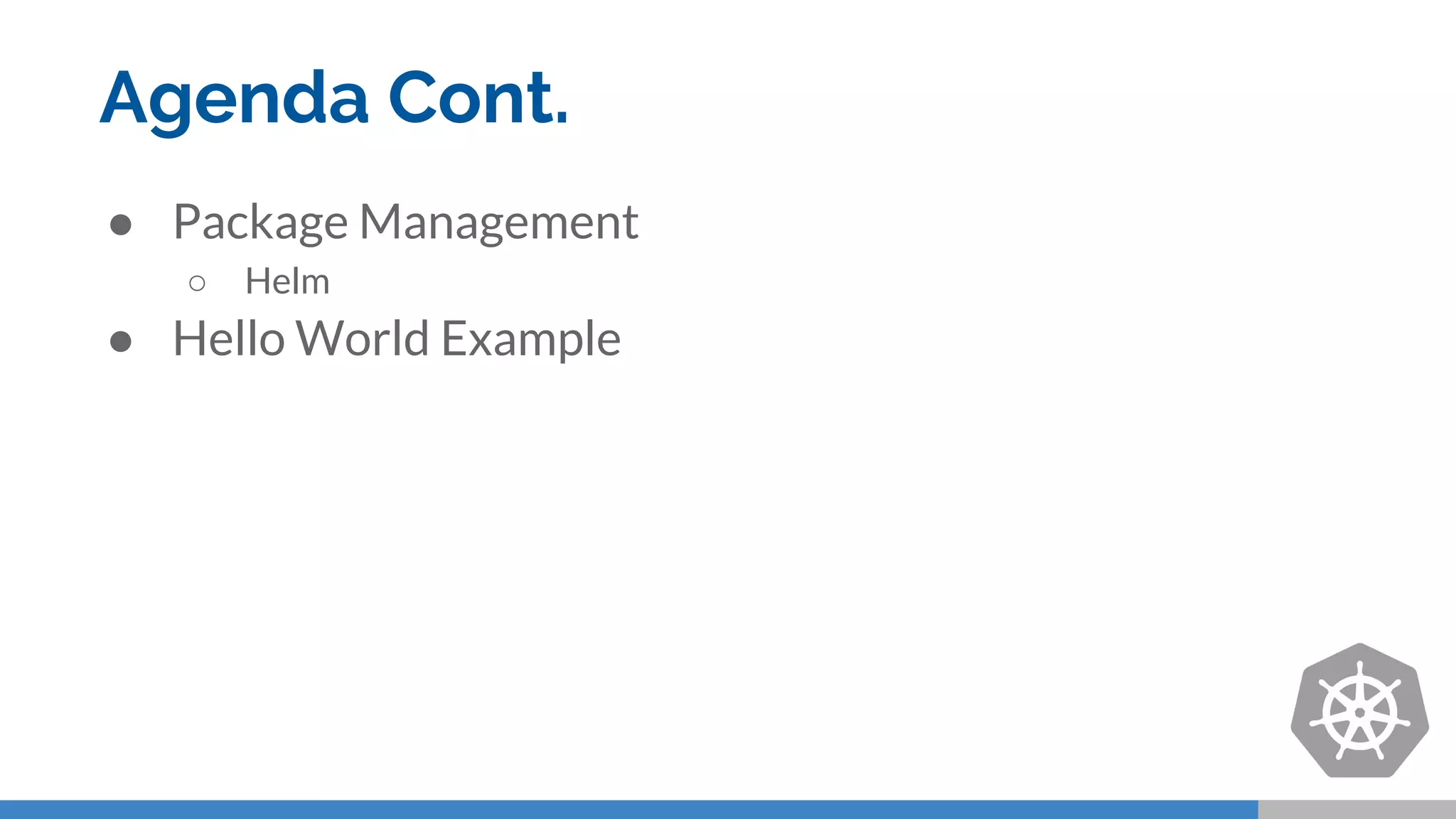

- 4. Agenda Cont. ● PackageManagement ○ Helm ● Hello World Example
- 5.

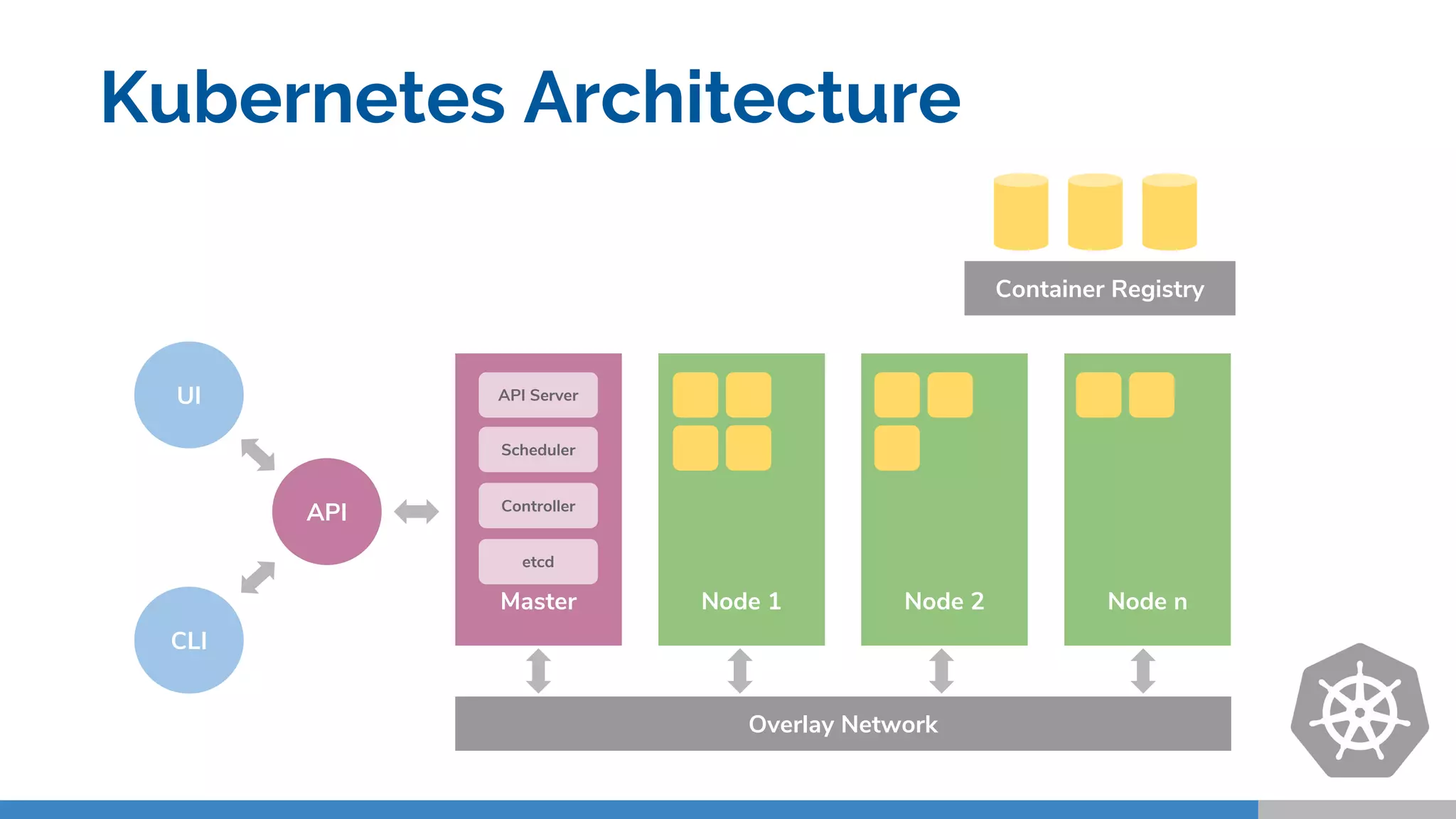

- 6. Kubernetes Architecture Node 1Node 2 Node nMaster API Overlay Network UI CLI Container Registry API Server Scheduler Controller etcd
- 7.

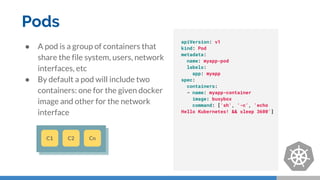

- 8. Pods ● A podis a group of containers that share the file system, users, network interfaces, etc ● By default a pod will include two containers: one for the given docker image and other for the network interface C1 C2 Cn apiVersion: v1 kind: Pod metadata: name: myapp-pod labels: app: myapp spec: containers: - name: myapp-container image: busybox command: ['sh', '-c', 'echo Hello Kubernetes! && sleep 3600']

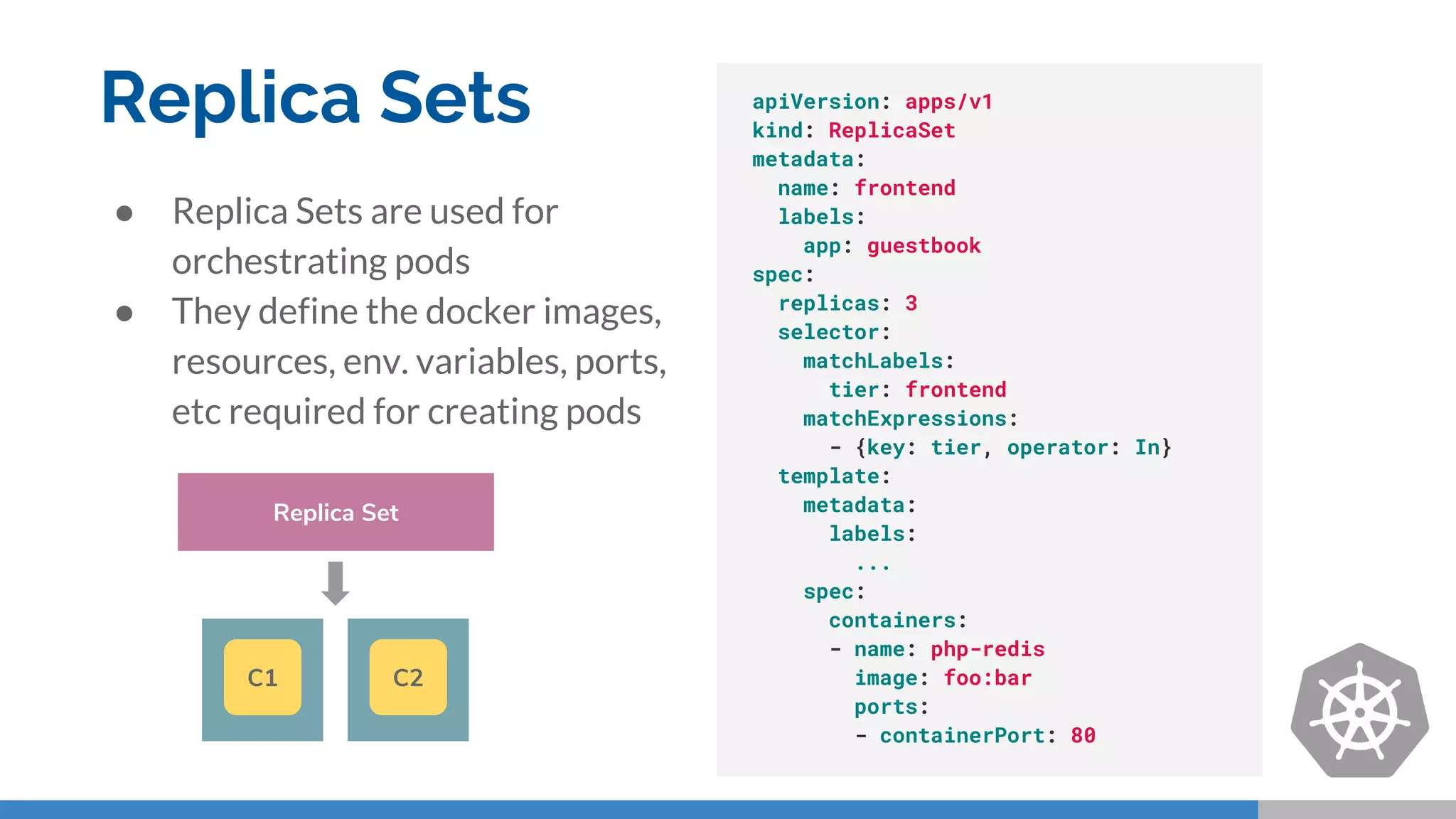

- 9. Replica Sets ● ReplicaSets are used for orchestrating pods ● They define the docker images, resources, env. variables, ports, etc required for creating pods apiVersion: apps/v1 kind: ReplicaSet metadata: name: frontend labels: app: guestbook spec: replicas: 3 selector: matchLabels: tier: frontend matchExpressions: - {key: tier, operator: In} template: metadata: labels: ... spec: containers: - name: php-redis image: foo:bar ports: - containerPort: 80 Replica Set C1 C2

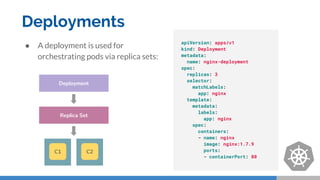

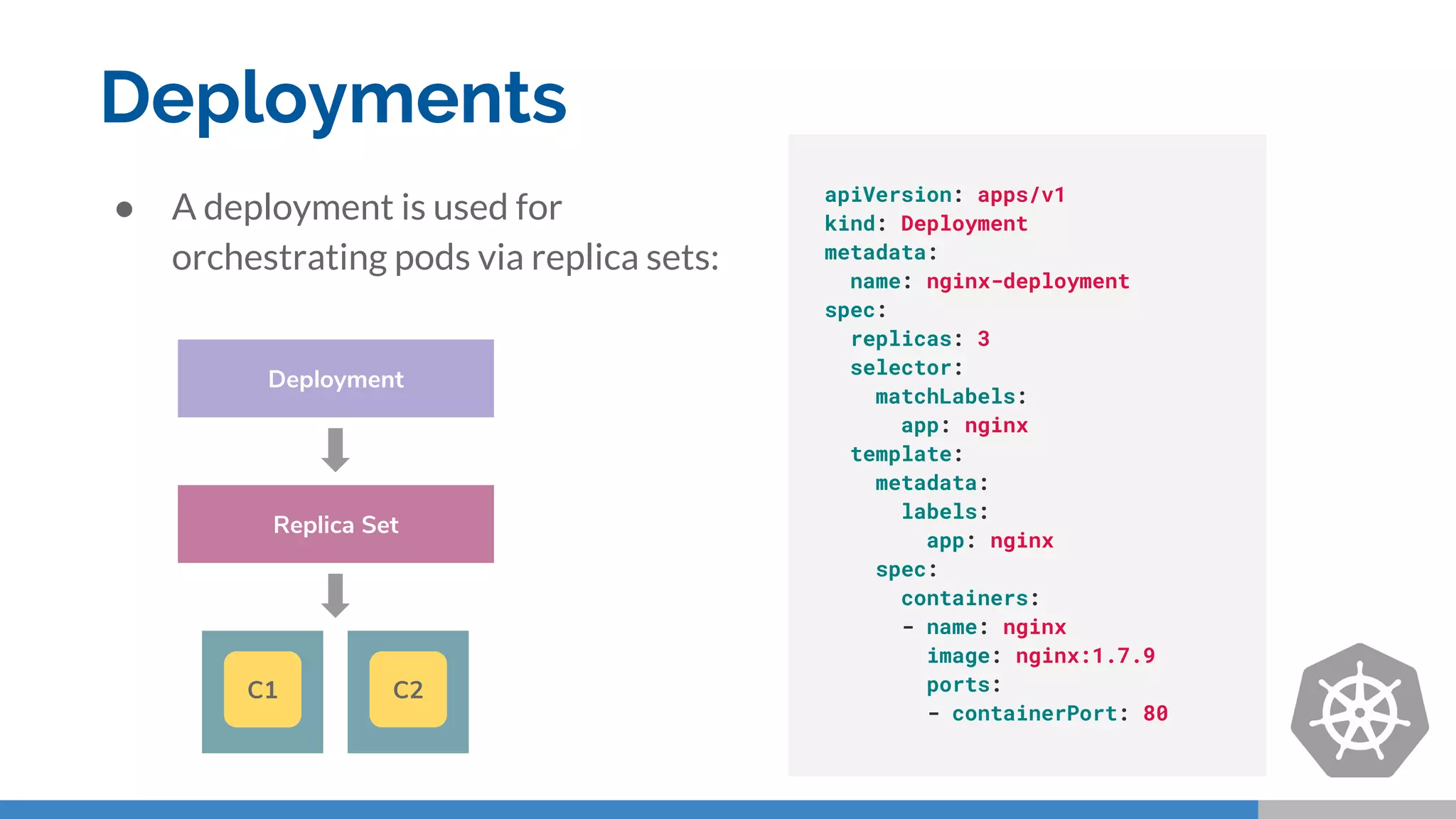

- 10. Deployments ● A deploymentis used for orchestrating pods via replica sets: apiVersion: apps/v1 kind: Deployment metadata: name: nginx-deployment spec: replicas: 3 selector: matchLabels: app: nginx template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 Replica Set Deployment C1 C2
- 11.

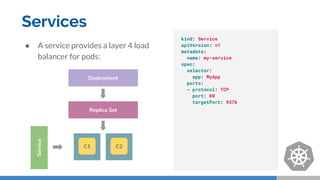

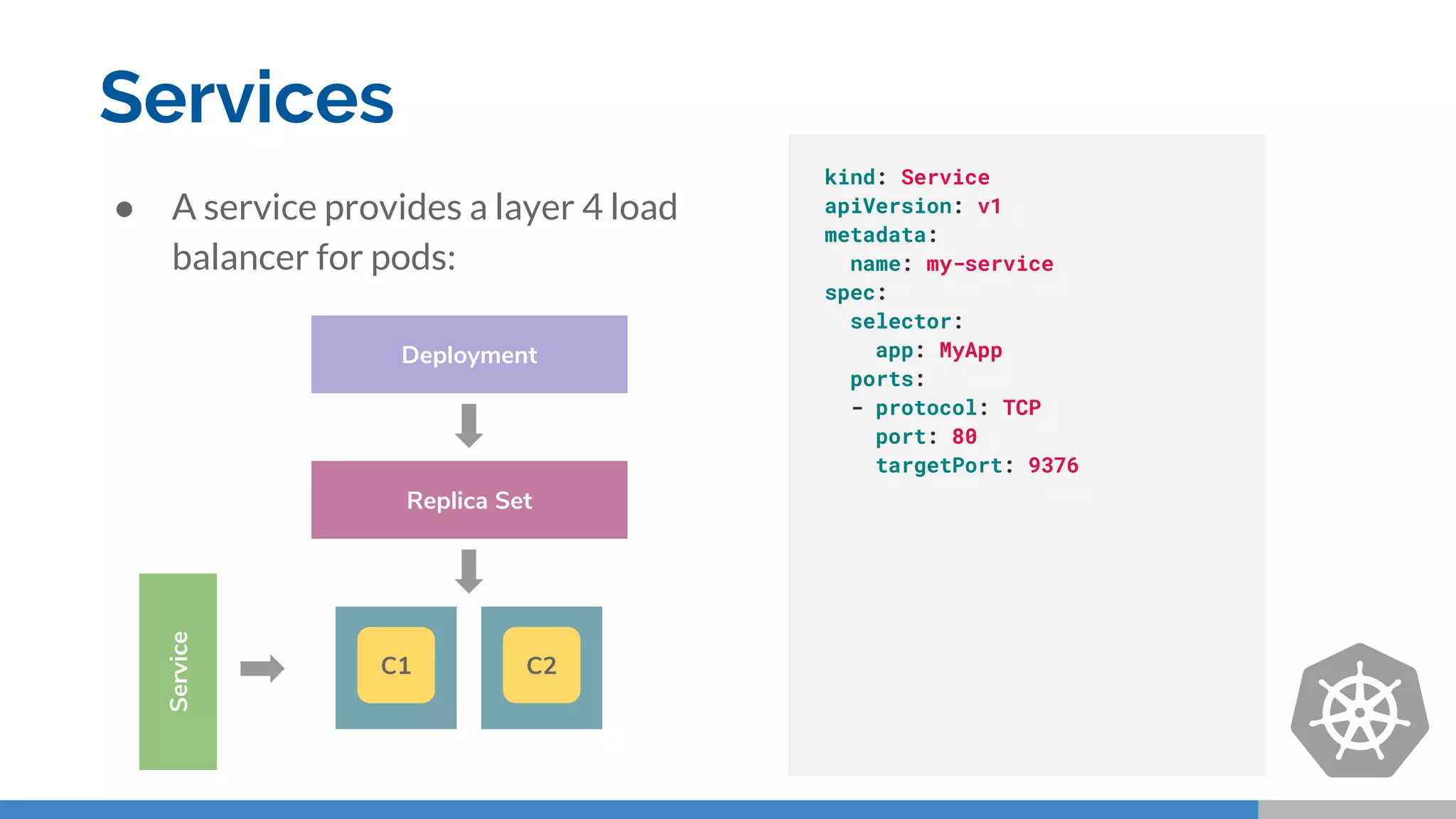

- 12. Services kind: Service apiVersion: v1 metadata: name:my-service spec: selector: app: MyApp ports: - protocol: TCP port: 80 targetPort: 9376 Replica Set Deployment Service ● A service provides a layer 4 load balancer for pods: C1 C2

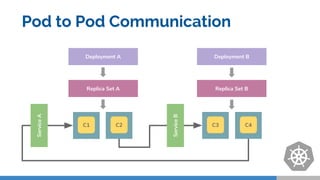

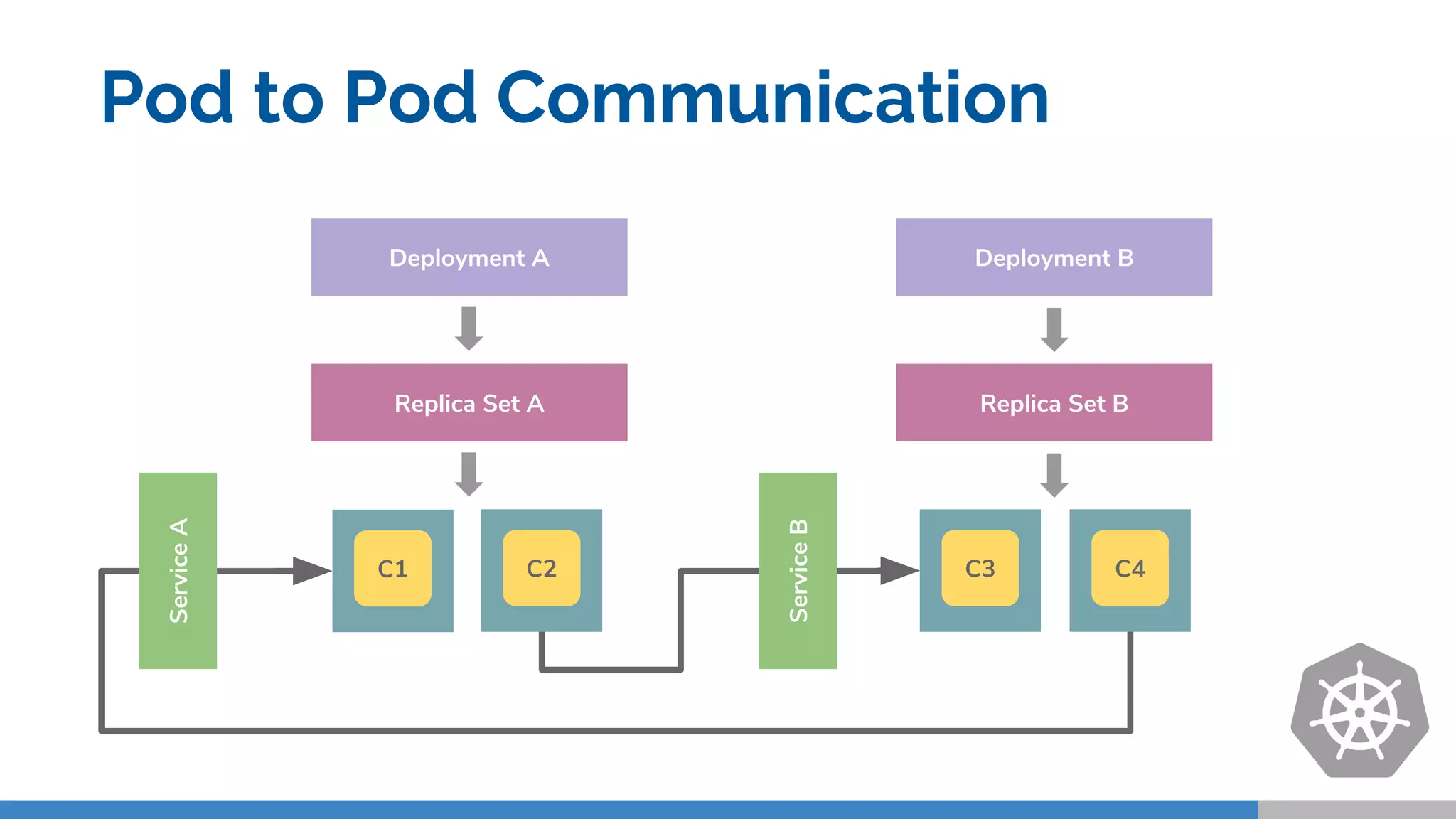

- 13. Pod to PodCommunication Replica Set A Deployment A ServiceA C1 C2 Deployment B Replica Set B C3 C4 ServiceB
- 14.

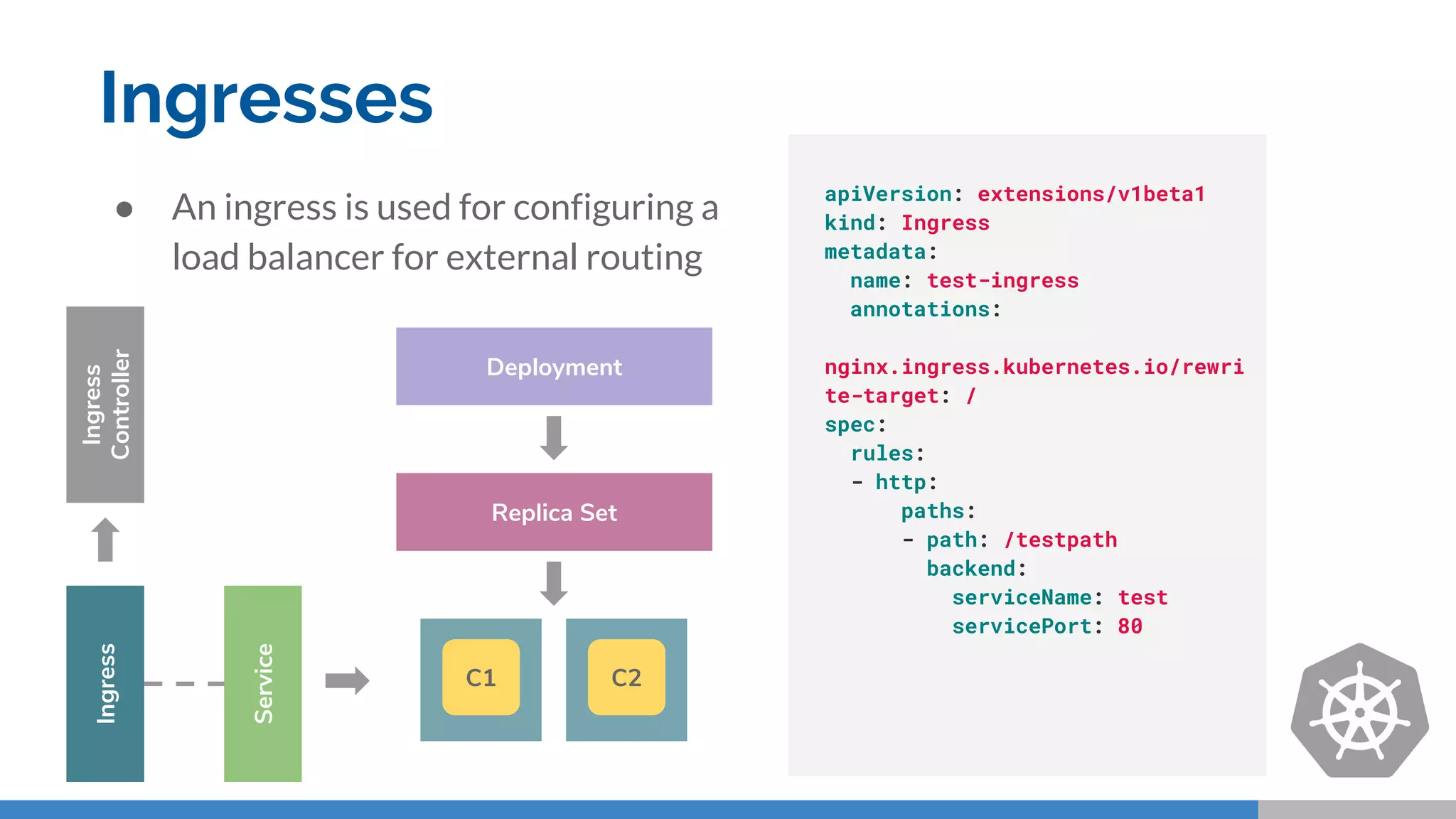

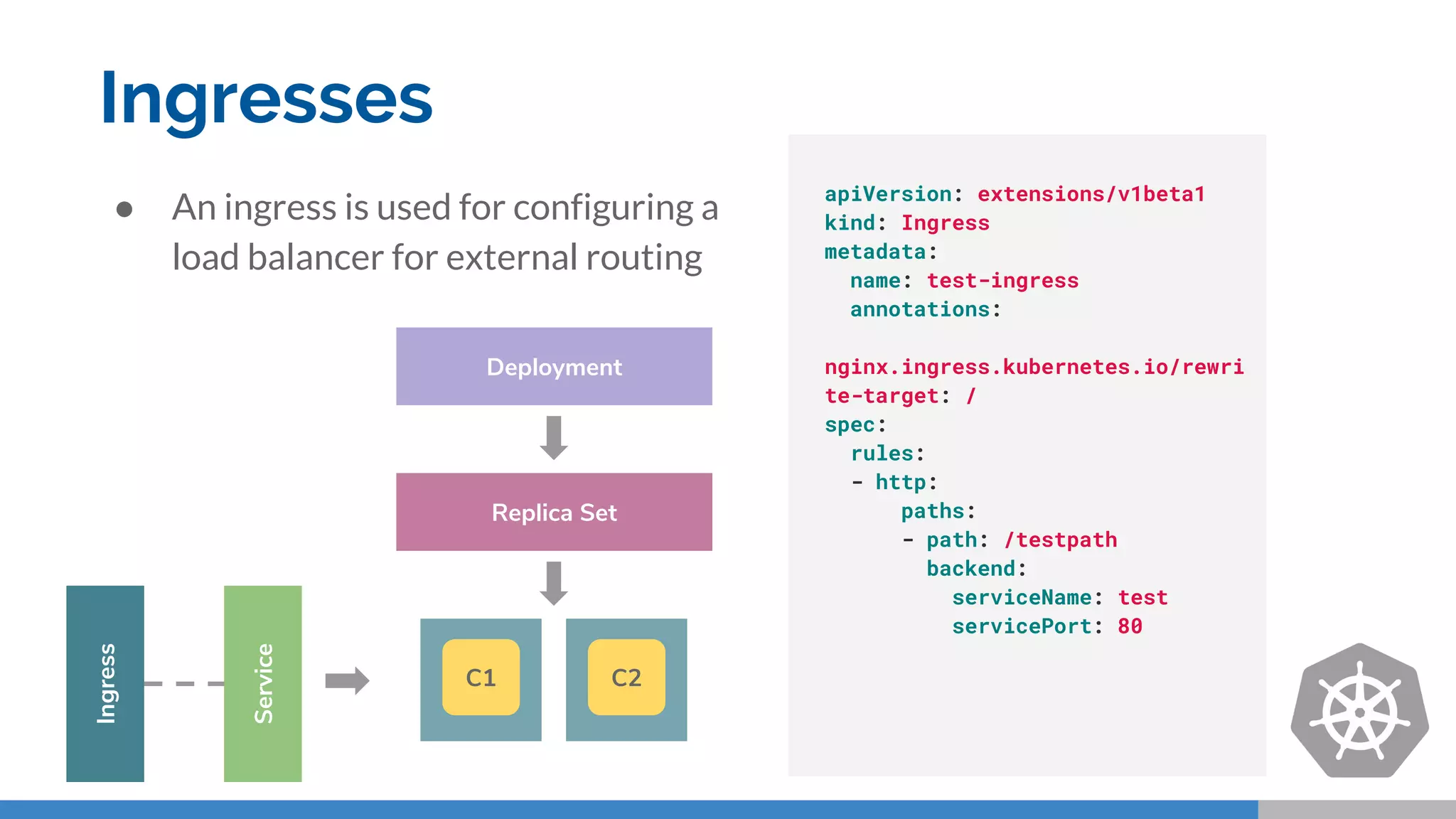

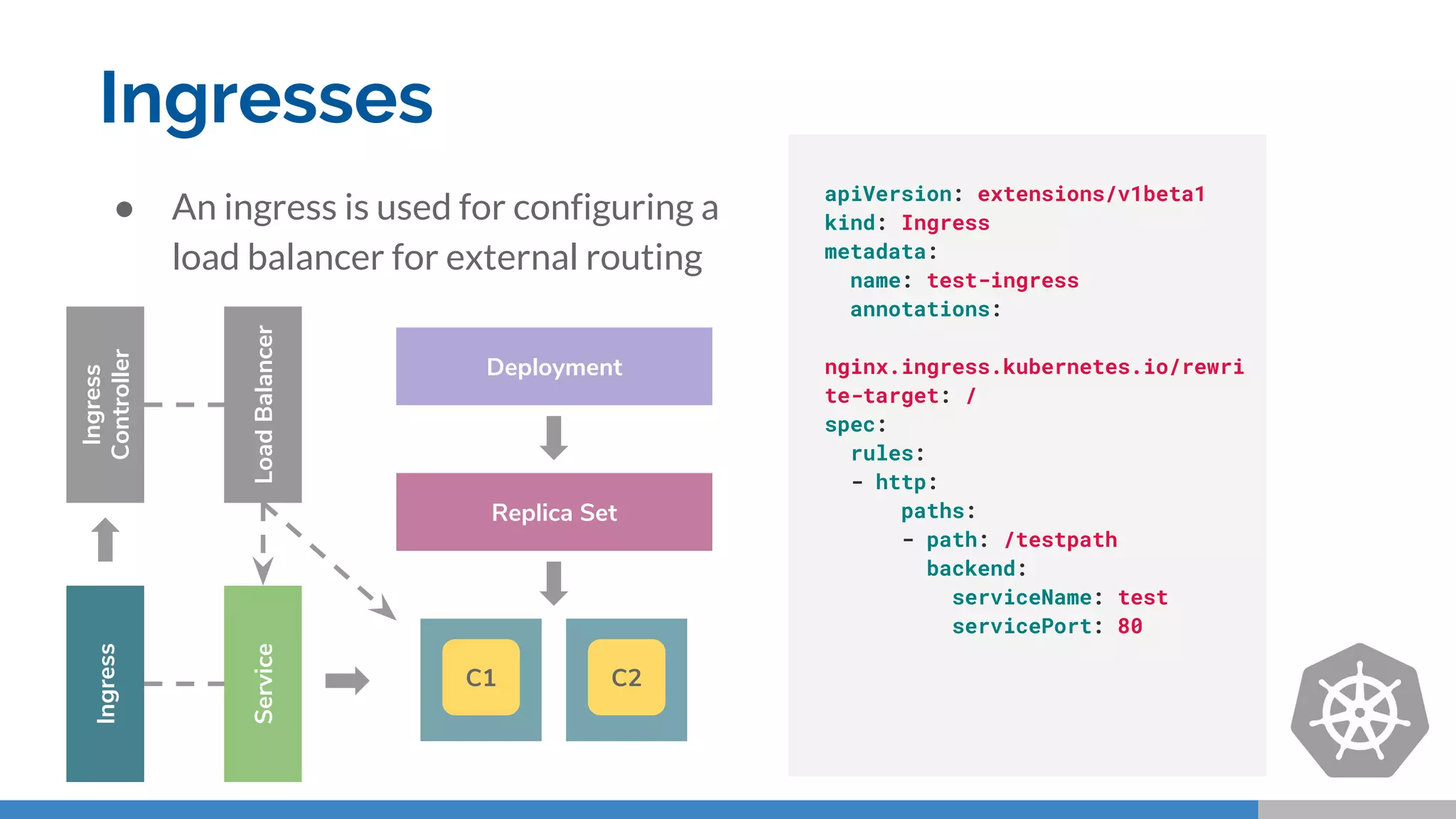

- 15. Ingresses Replica Set Deployment Service Ingress apiVersion: extensions/v1beta1 kind:Ingress metadata: name: test-ingress annotations: nginx.ingress.kubernetes.io/rewri te-target: / spec: rules: - http: paths: - path: /testpath backend: serviceName: test servicePort: 80 ● An ingress is used for configuring a load balancer for external routing C1 C2
- 16. Ingresses Replica Set Deployment Service Ingress Ingress Controller apiVersion: extensions/v1beta1 kind:Ingress metadata: name: test-ingress annotations: nginx.ingress.kubernetes.io/rewri te-target: / spec: rules: - http: paths: - path: /testpath backend: serviceName: test servicePort: 80 ● An ingress is used for configuring a load balancer for external routing C1 C2
- 17. Ingresses Replica Set Deployment Service Ingress Ingress Controller LoadBalancer apiVersion: extensions/v1beta1 kind:Ingress metadata: name: test-ingress annotations: nginx.ingress.kubernetes.io/rewri te-target: / spec: rules: - http: paths: - path: /testpath backend: serviceName: test servicePort: 80 ● An ingress is used for configuring a load balancer for external routing C1 C2
- 18.

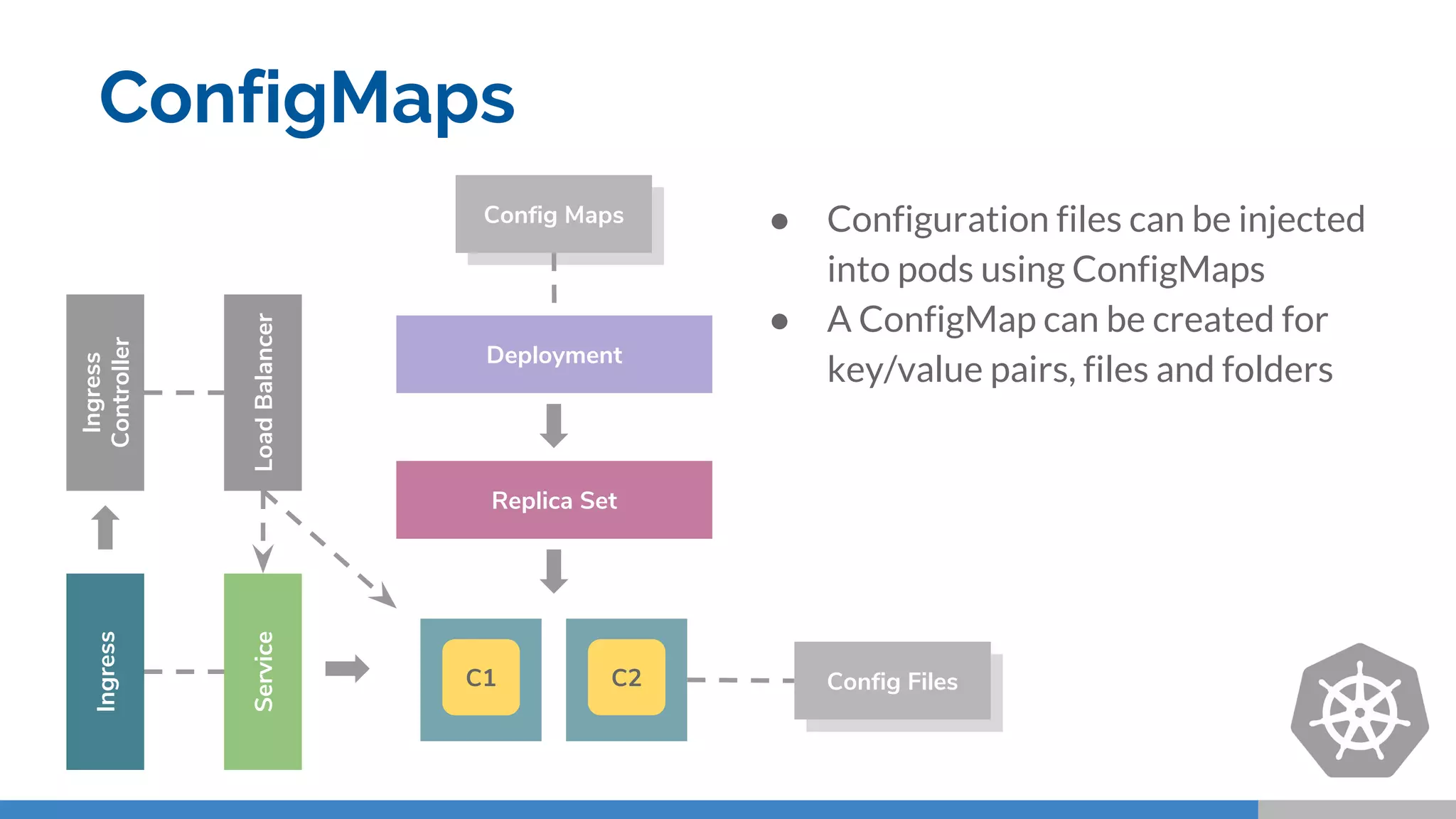

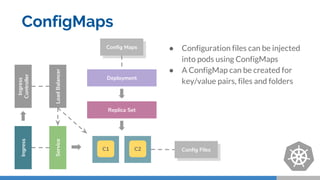

- 19. ConfigMaps Replica Set Deployment Service Ingress Ingress Controller LoadBalancer Config MapsConfigFiles ● Configuration files can be injected into pods using ConfigMaps ● A ConfigMap can be created for key/value pairs, files and folders Config MapsConfig Maps C1 C2
- 20.

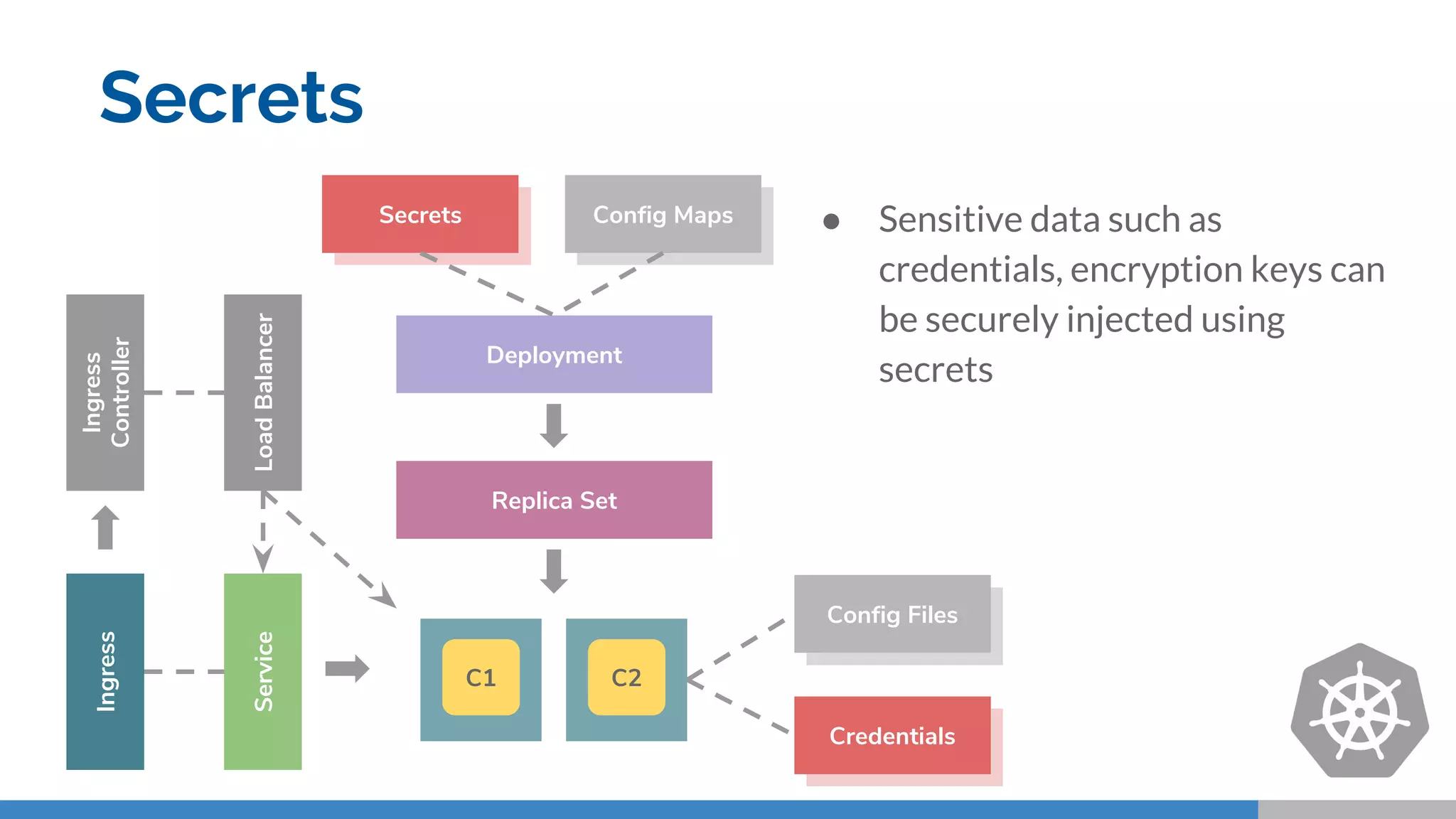

- 21. Config Maps Secrets Replica Set Deployment Service Ingress Ingress Controller LoadBalancer ConfigFiles ● Sensitive data such as credentials, encryption keys can be securely injected using secrets Config MapsConfig MapsConfig MapsSecrets Config Maps Credentials C1 C2
- 22.

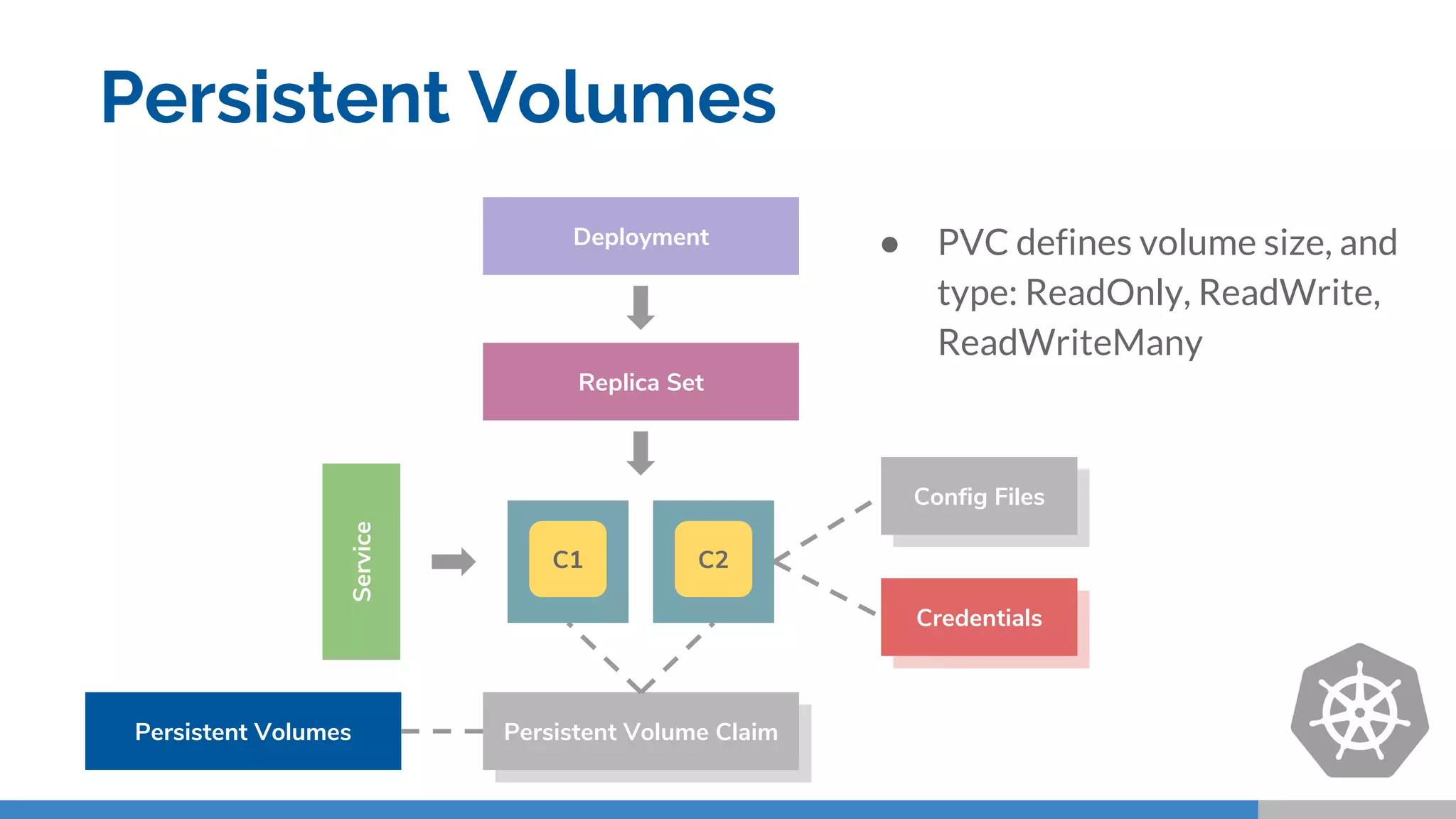

- 23. Config Maps Persistent Volumes ReplicaSet Deployment Config Files Config Maps Credentials C1 C2 Persistent Volume ClaimPersistent Volumes Service ● PVC defines volume size, and type: ReadOnly, ReadWrite, ReadWriteMany

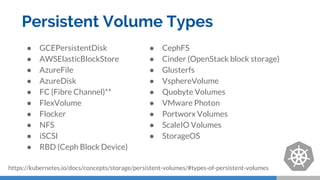

- 24. Persistent Volume Types ●GCEPersistentDisk ● AWSElasticBlockStore ● AzureFile ● AzureDisk ● FC (Fibre Channel)** ● FlexVolume ● Flocker ● NFS ● iSCSI ● RBD (Ceph Block Device) ● CephFS ● Cinder (OpenStack block storage) ● Glusterfs ● VsphereVolume ● Quobyte Volumes ● VMware Photon ● Portworx Volumes ● ScaleIO Volumes ● StorageOS https://kubernetes.io/docs/concepts/storage/persistent-volumes/#types-of-persistent-volumes
- 25.

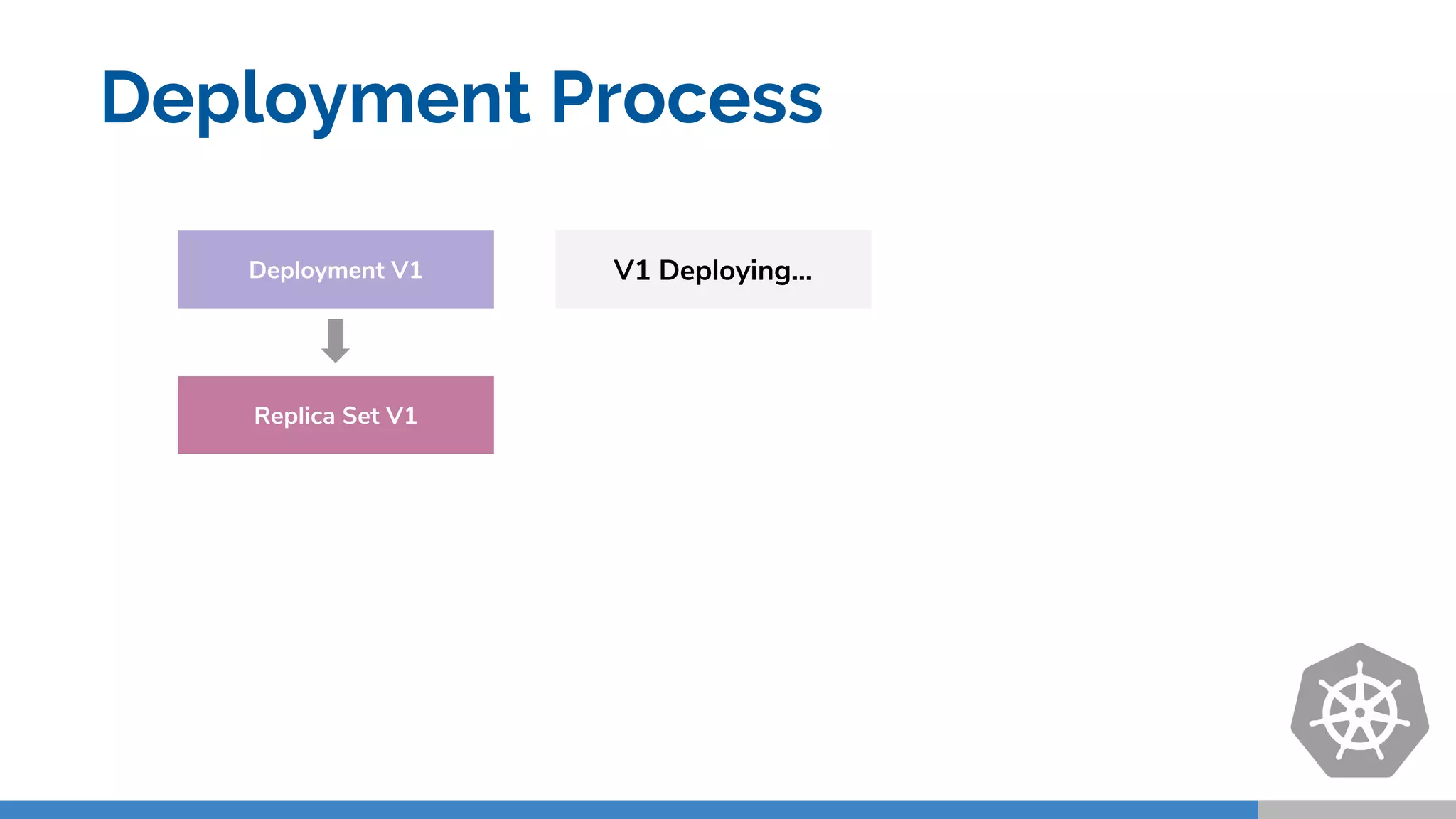

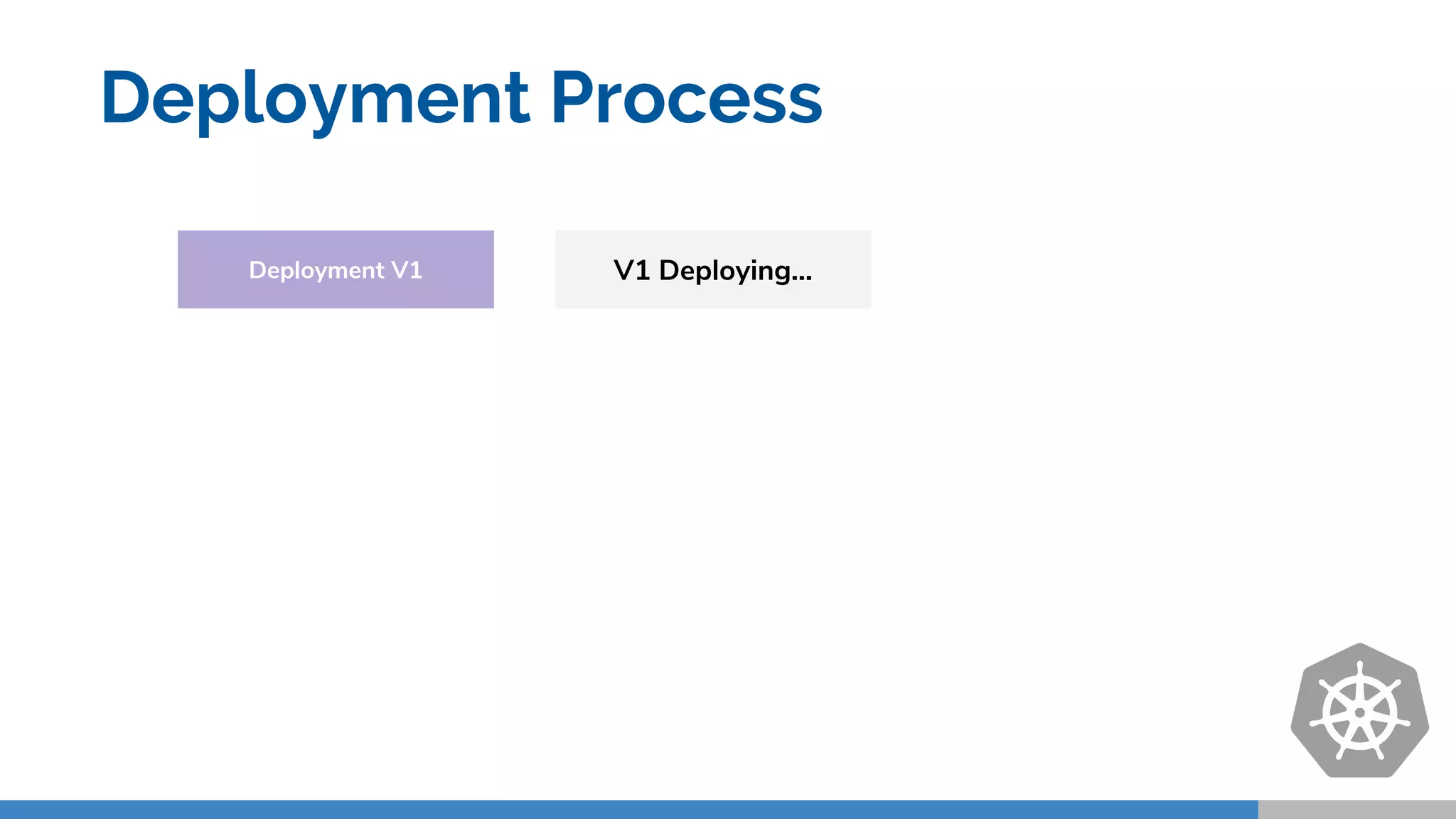

- 26. Deployment Process Deployment V1V1 Deploying...
- 27. Replica Set V1 DeploymentV1 V1 Deploying... Deployment Process

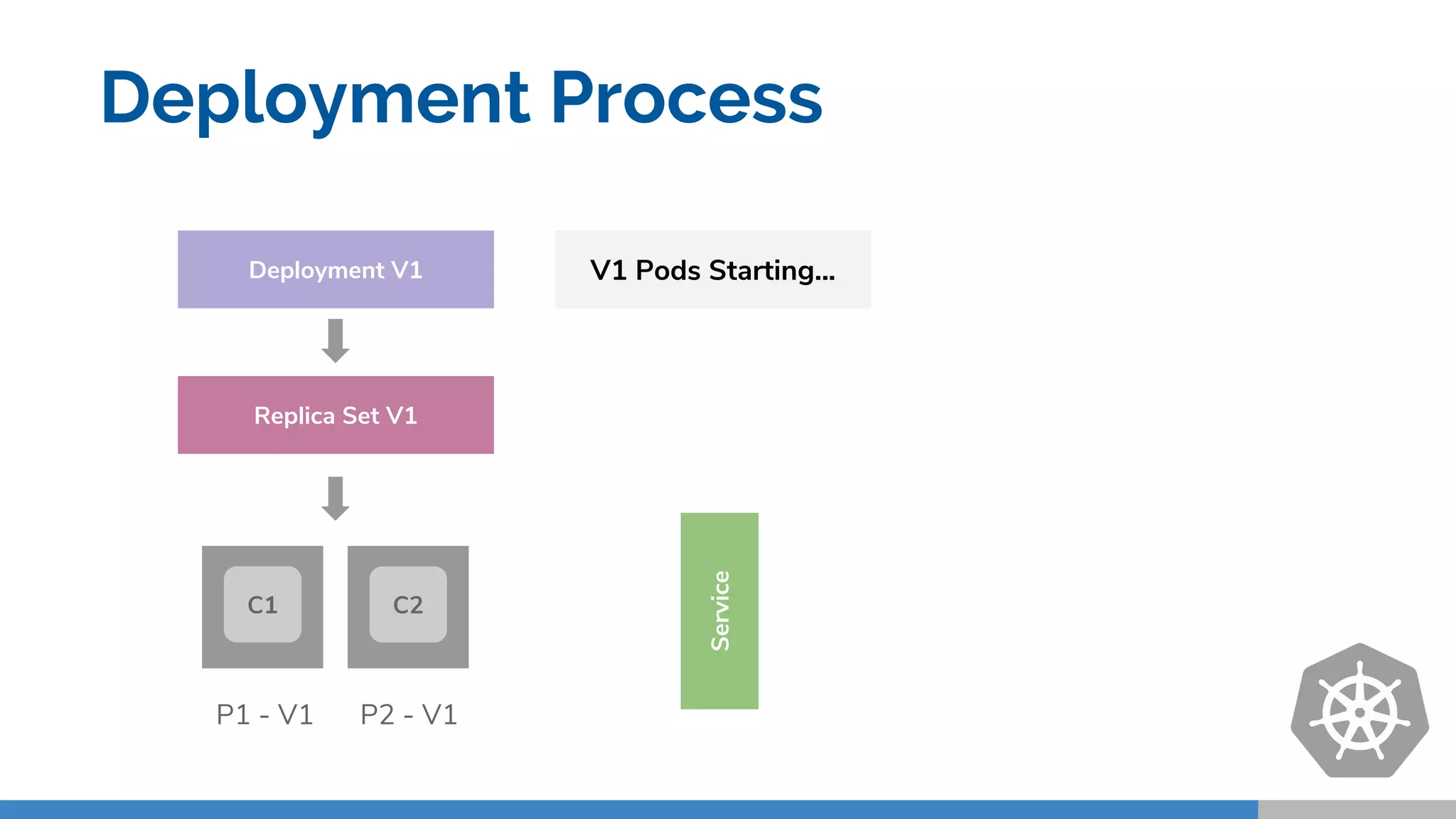

- 28. Replica Set V1 DeploymentV1 P1 - V1 P2 - V1 Service C1 C2 V1 Pods Starting... Deployment Process
- 29. C1 Replica Set V1 DeploymentV1 P1 - V1 P2 - V1 Service C2 V1 Pods Activating... Deployment Process

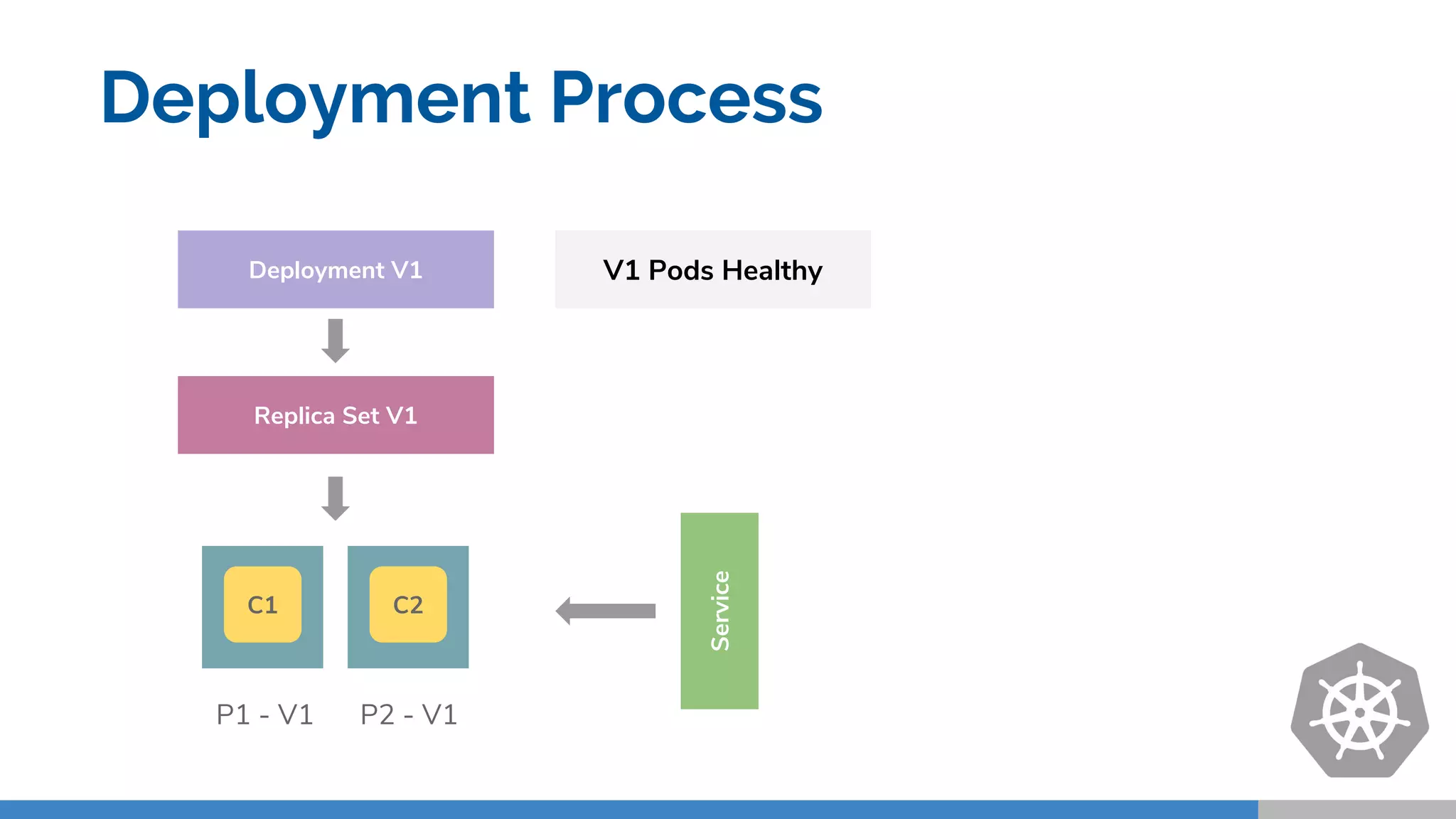

- 30. C1 Replica Set V1 DeploymentV1 C2 P1 - V1 P2 - V1 Service V1 Pods Healthy Deployment Process

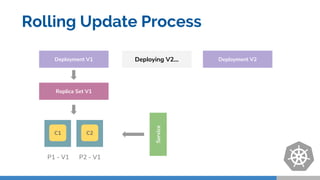

- 31. C1 Replica Set V1 DeploymentV1 C2 P1 - V1 P2 - V1 Deployment V2 Service Deploying V2... Rolling Update Process

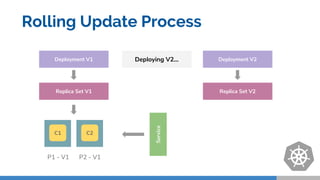

- 32. C1 Replica Set V1 DeploymentV1 C2 P1 - V1 P2 - V1 Deployment V2 Replica Set V2 Service Deploying V2... Rolling Update Process

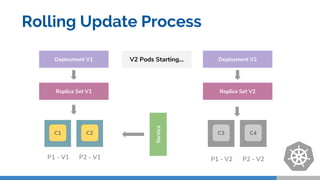

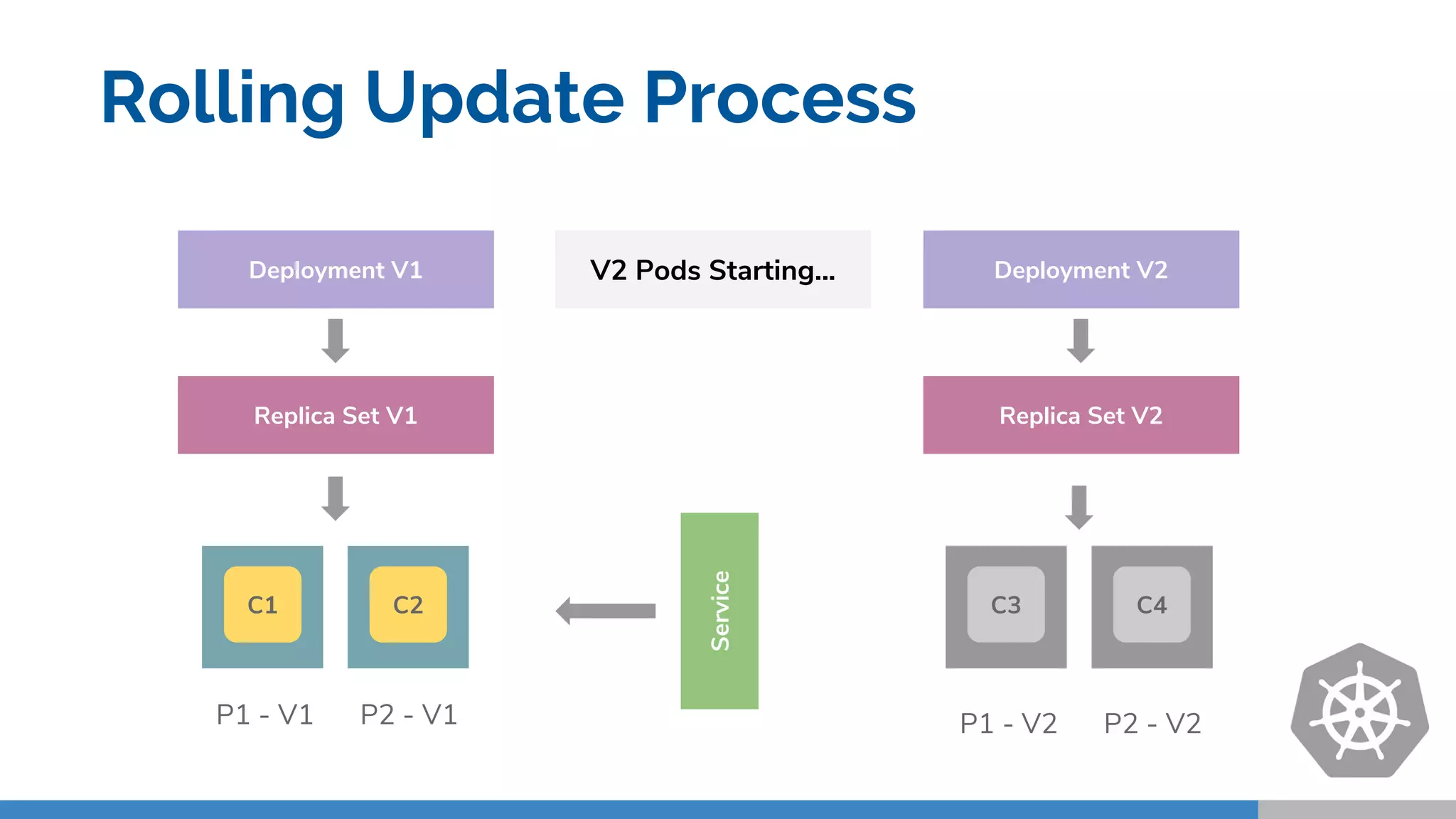

- 33. Replica Set V1 DeploymentV1 C2 P1 - V1 P2 - V1 Deployment V2 Replica Set V2 P1 - V2Service C3 V2 Pods Starting... C4 P2 - V2 C1 Rolling Update Process

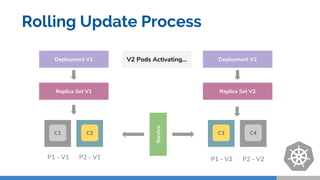

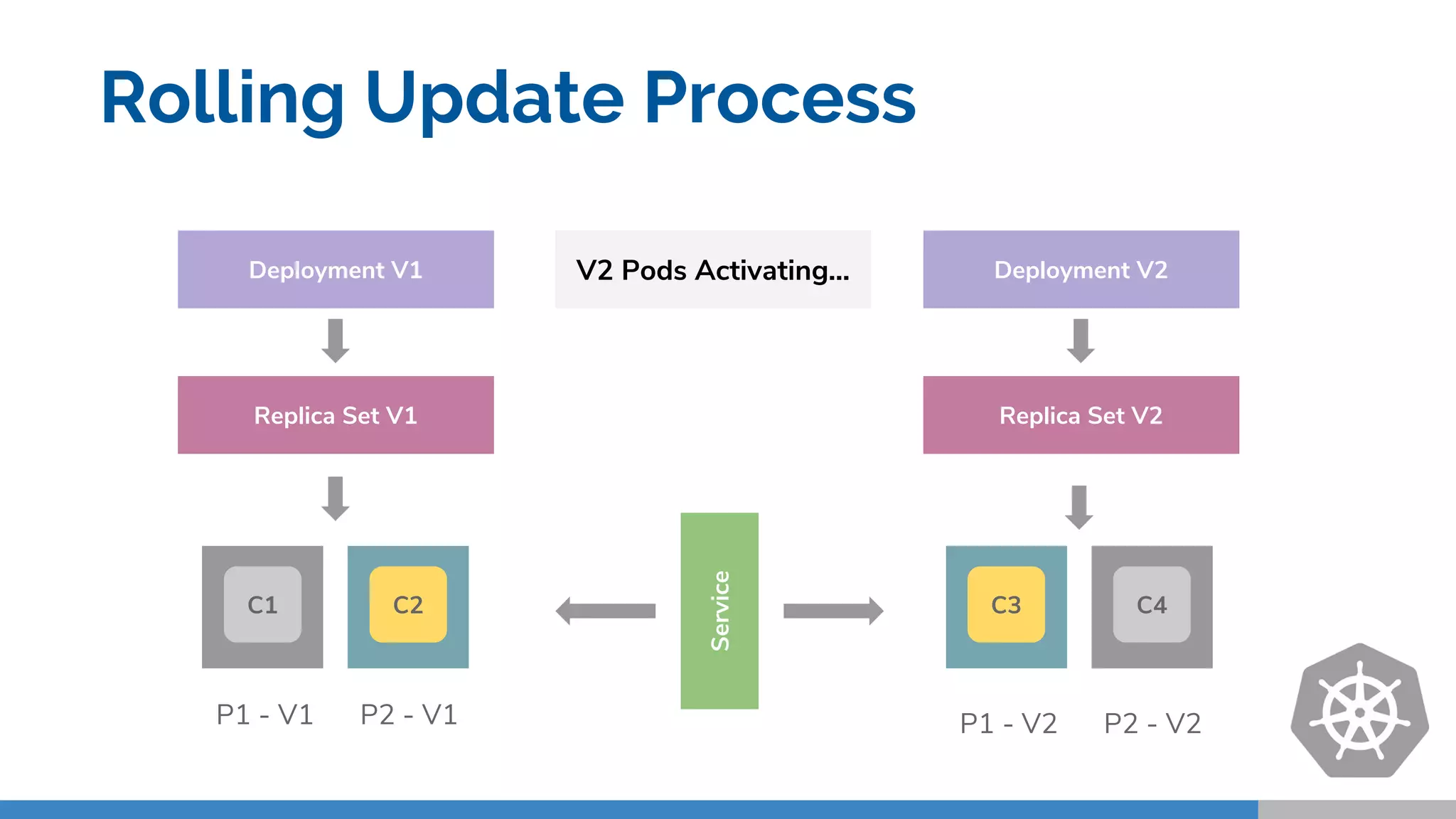

- 34. C1 Replica Set V1 DeploymentV1 C2 P1 - V1 P2 - V1 Deployment V2 Replica Set V2 C3 P1 - V2Service V2 Pods Activating... P2 - V2 C4 Rolling Update Process

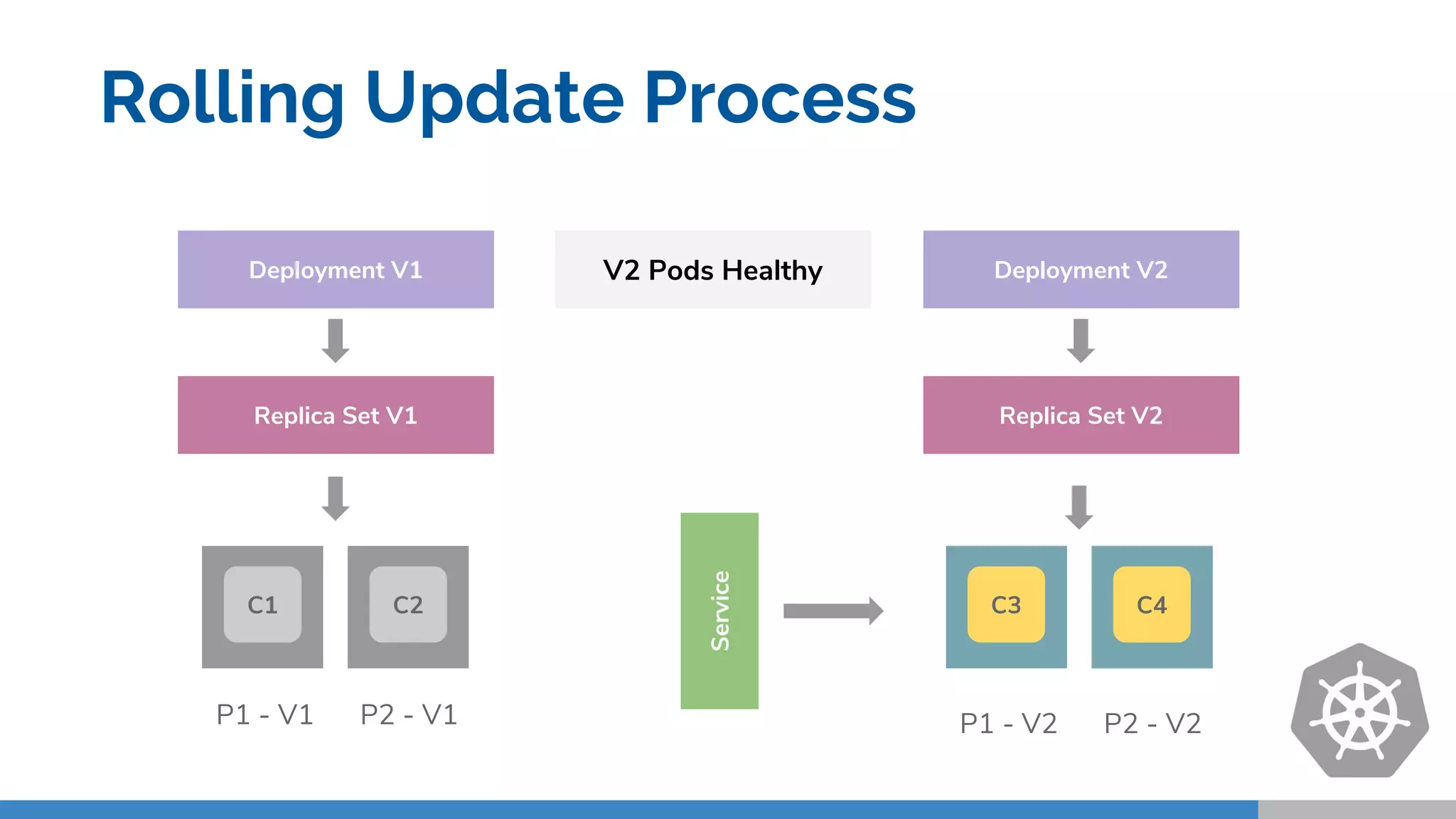

- 35. Replica Set V1 DeploymentV1 P1 - V1 P2 - V1 Deployment V2 Replica Set V2 C3 C4 P1 - V2 P2 - V2 C1 C2 Service V2 Pods Healthy Rolling Update Process
- 36.

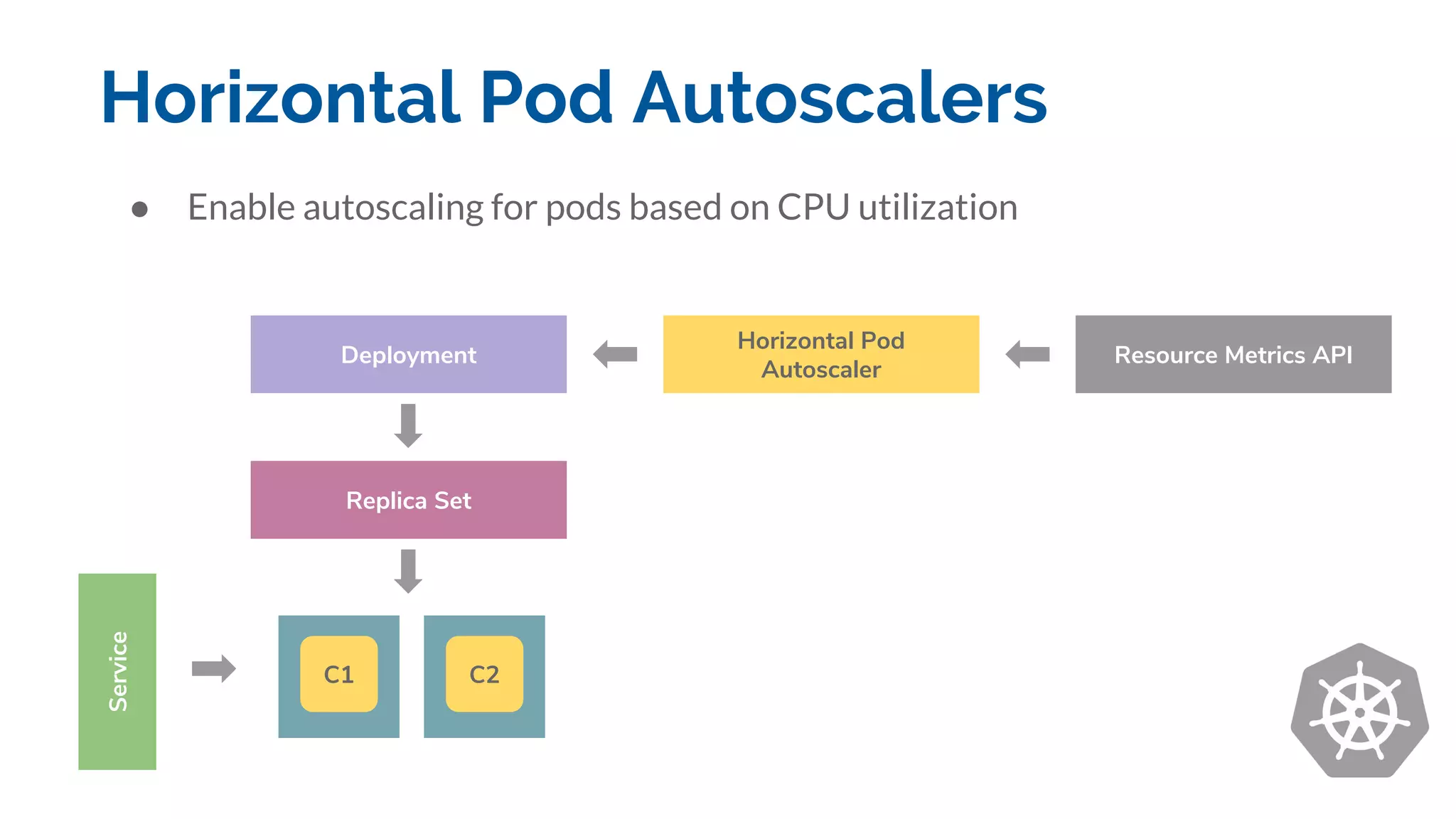

- 37. Horizontal Pod Autoscalers ReplicaSet Deployment Service ● Enable autoscaling for pods based on CPU utilization Horizontal Pod Autoscaler Resource Metrics API C1 C2
- 38.
- 39. Helm ● Helm isthe Kubernetes package manager. ● It uses Charts for defining, installing and upgrading applications on Kubernetes. ● Runtime configurations can be templated and parameterized. ● Existing Charts can be reused and added as dependencies to new Charts. ● Helm is managed by CNCF. https://docs.helm.sh

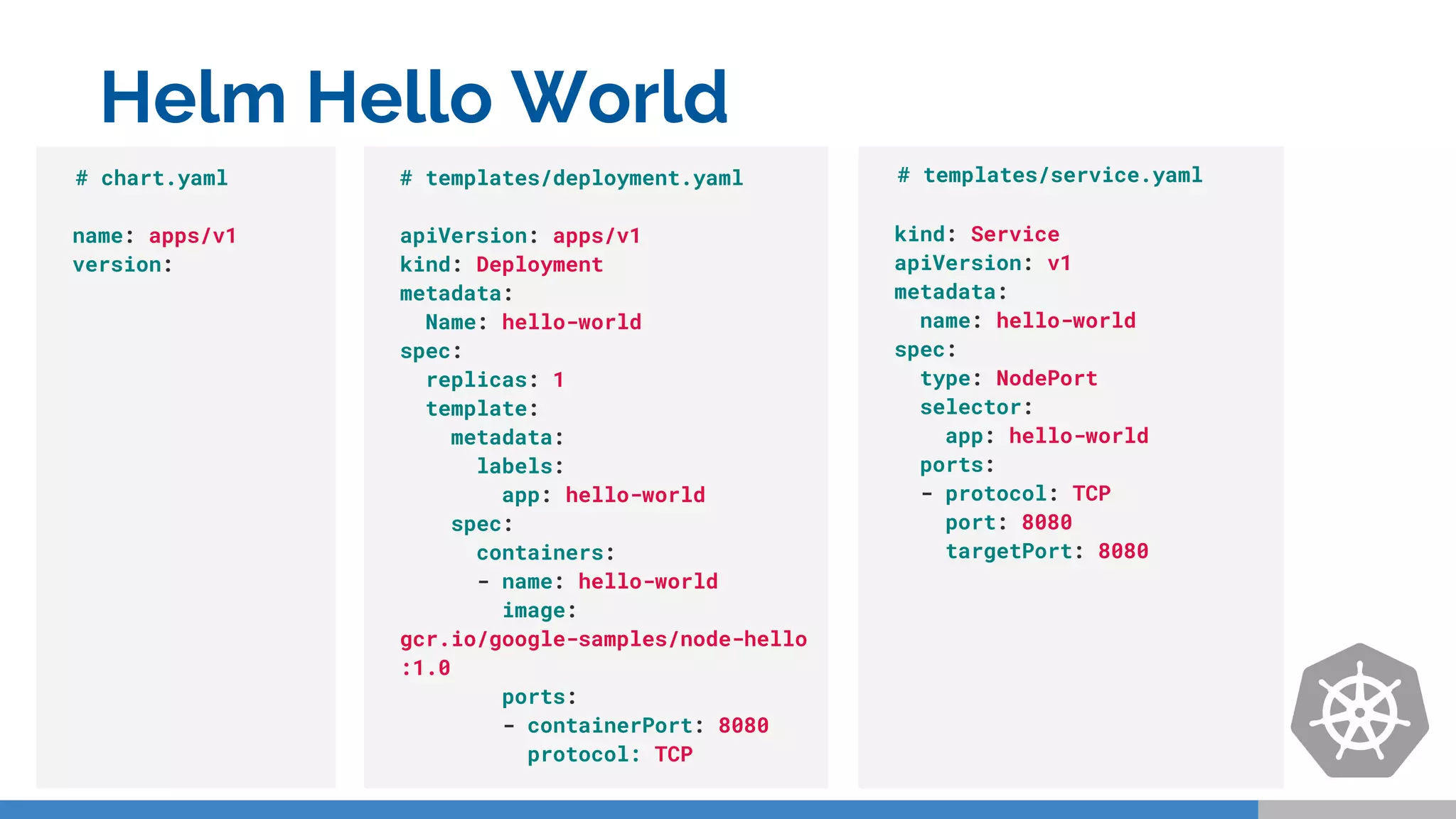

- 40. Helm Hello World #templates/deployment.yaml apiVersion: apps/v1 kind: Deployment metadata: Name: hello-world spec: replicas: 1 template: metadata: labels: app: hello-world spec: containers: - name: hello-world image: gcr.io/google-samples/node-hello :1.0 ports: - containerPort: 8080 protocol: TCP # chart.yaml name: apps/v1 version: # templates/service.yaml kind: Service apiVersion: v1 metadata: name: hello-world spec: type: NodePort selector: app: hello-world ports: - protocol: TCP port: 8080 targetPort: 8080
- 41.
- 42.
- 43.

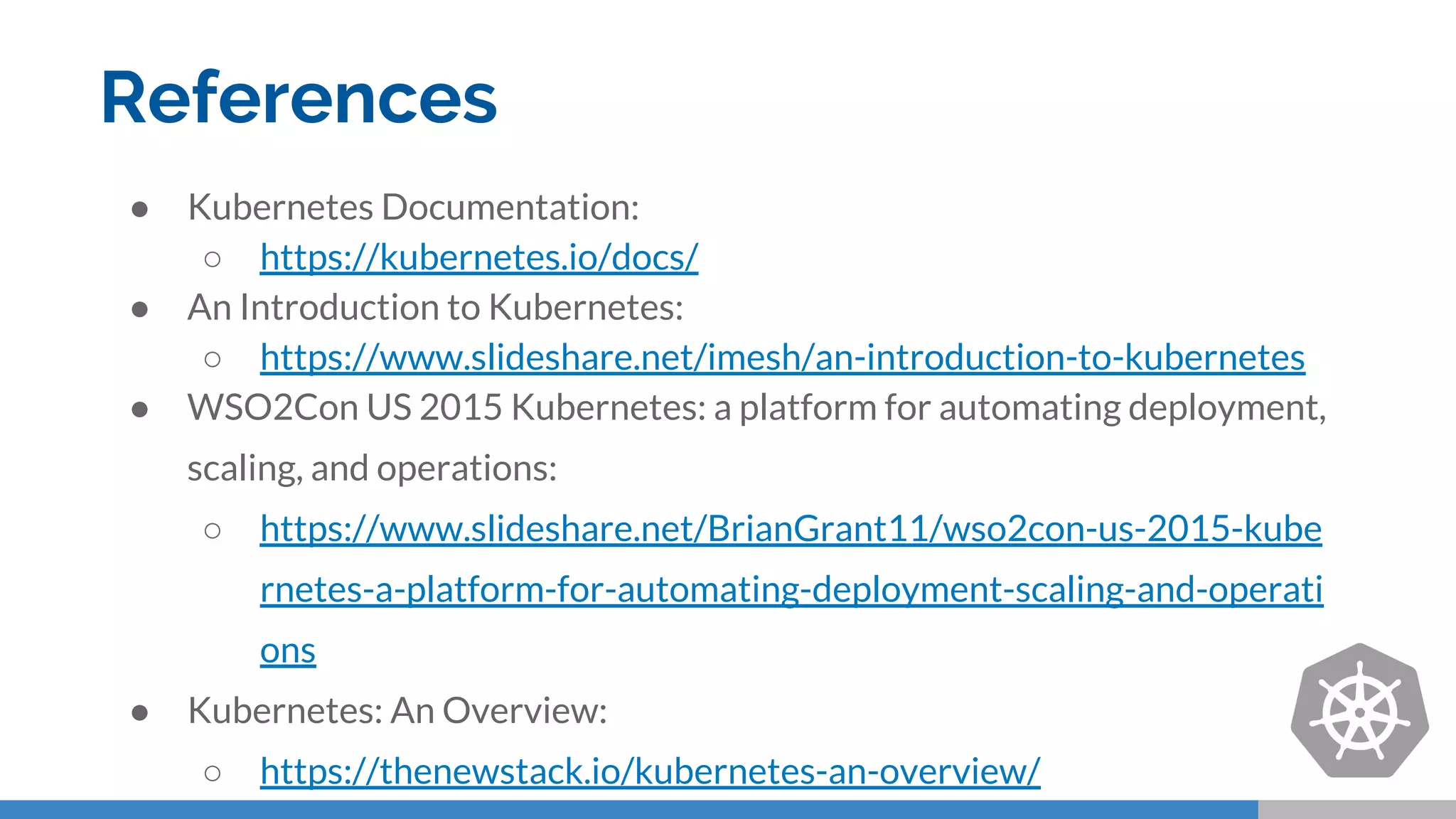

- 44. References ● Kubernetes Documentation: ○https://kubernetes.io/docs/ ● An Introduction to Kubernetes: ○ https://www.slideshare.net/imesh/an-introduction-to-kubernetes ● WSO2Con US 2015 Kubernetes: a platform for automating deployment, scaling, and operations: ○ https://www.slideshare.net/BrianGrant11/wso2con-us-2015-kube rnetes-a-platform-for-automating-deployment-scaling-and-operati ons ● Kubernetes: An Overview: ○ https://thenewstack.io/kubernetes-an-overview/

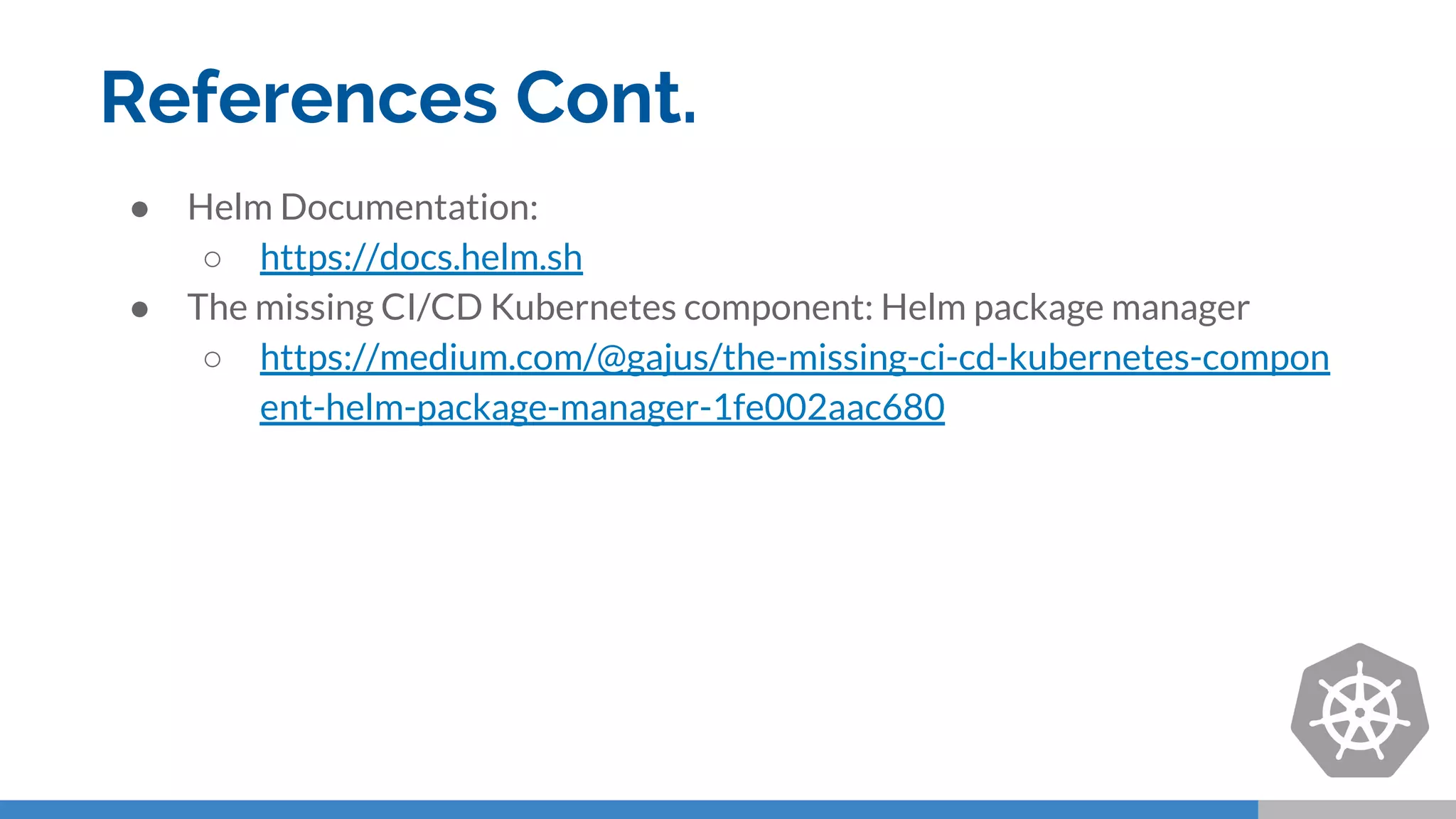

- 45. References Cont. ● HelmDocumentation: ○ https://docs.helm.sh ● The missing CI/CD Kubernetes component: Helm package manager ○ https://medium.com/@gajus/the-missing-ci-cd-kubernetes-compon ent-helm-package-manager-1fe002aac680
