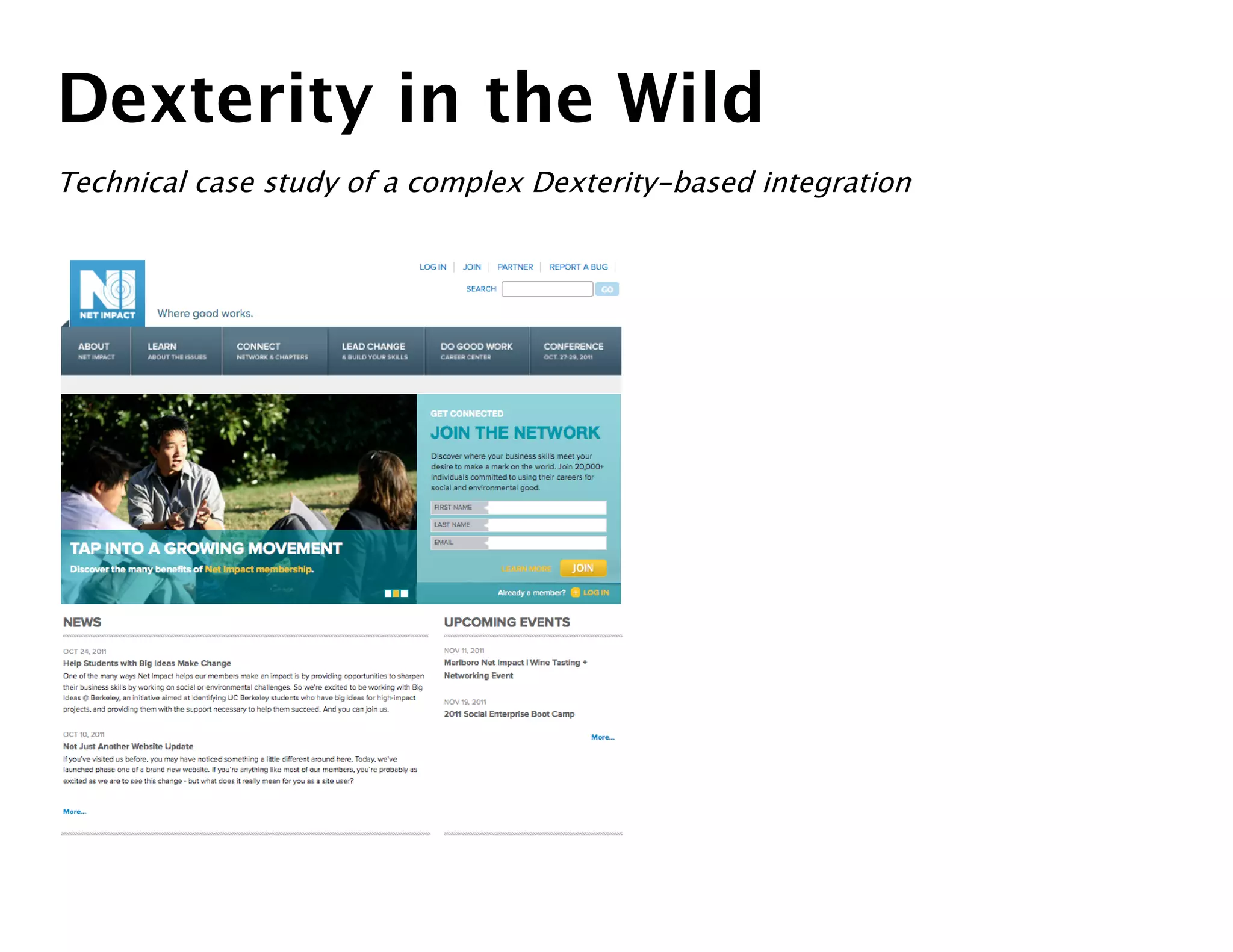

Dexterity in the Wild

Dexterity in the Wild
Technical case study of a complex Dexterity-based integration

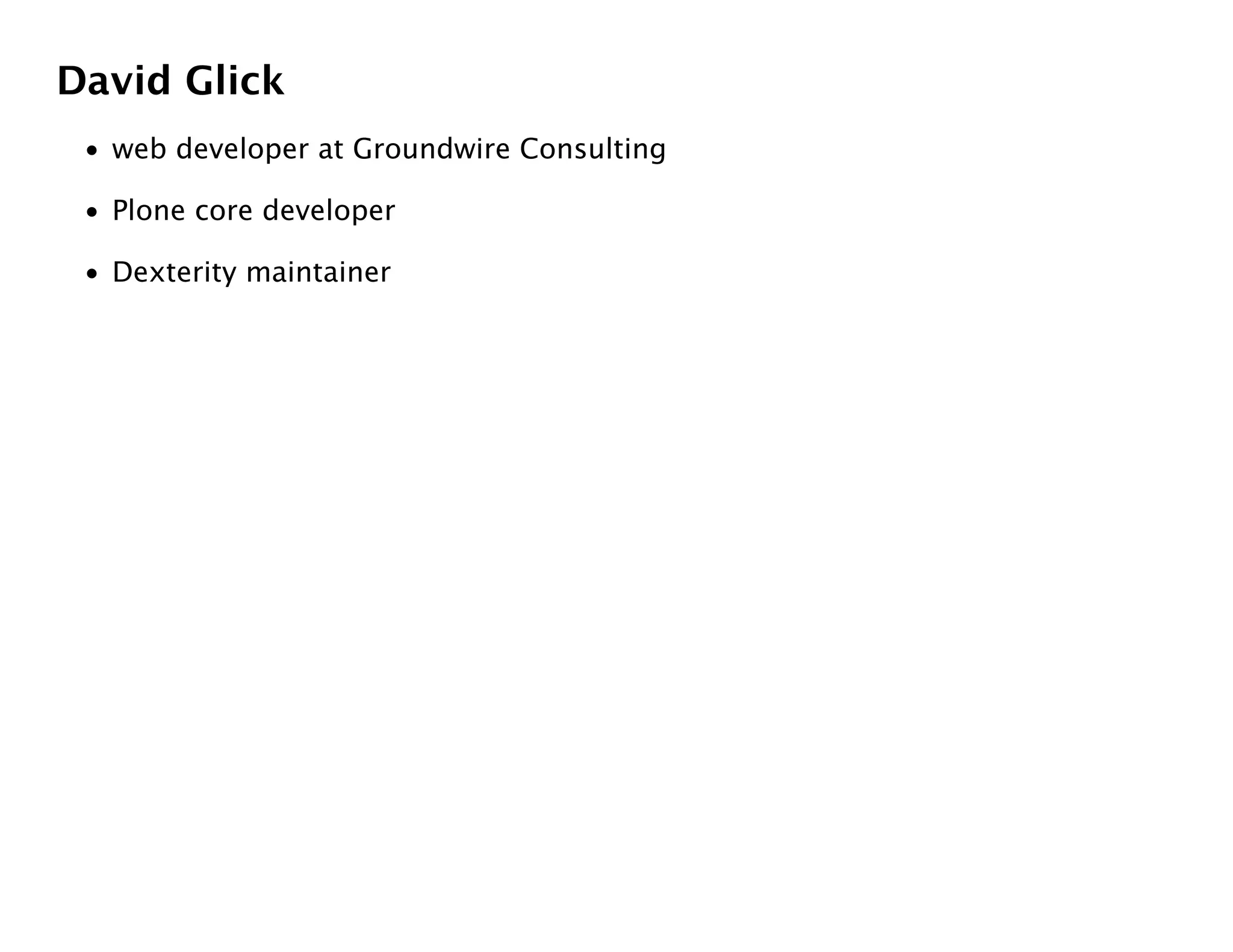

David Glick
• web developer at Groundwire Consulting

• Plone core developer

• Dexterity maintainer

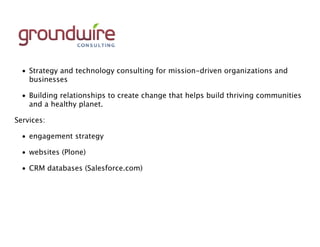

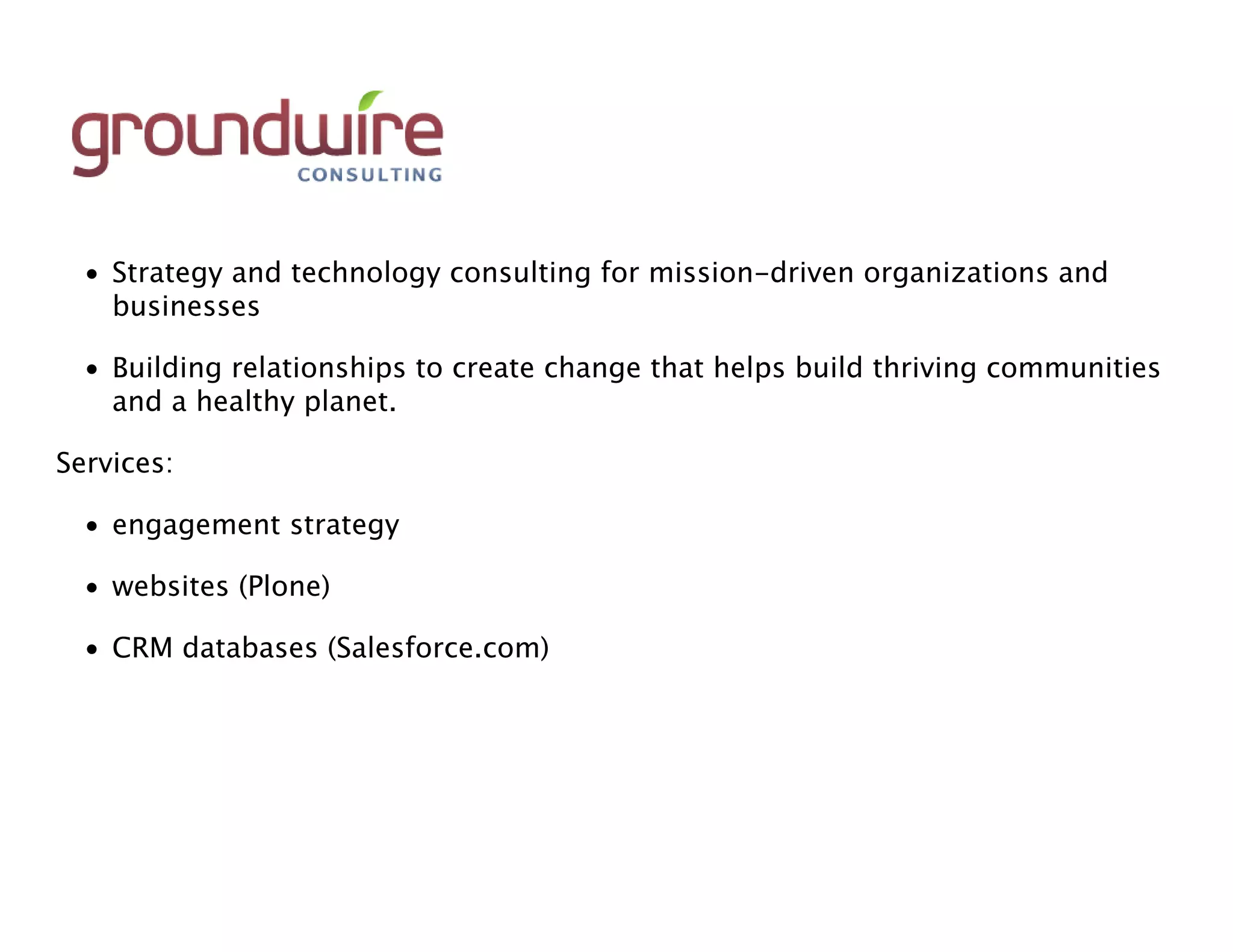

• Strategy and technology consulting for mission-driven organizations and
businesses

• Building relationships to create change that helps build thriving communities
and a healthy planet.

Services:

• engagement strategy

• websites (Plone)

• CRM databases (Salesforce.com)

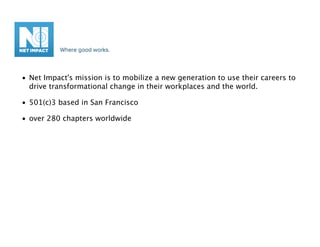

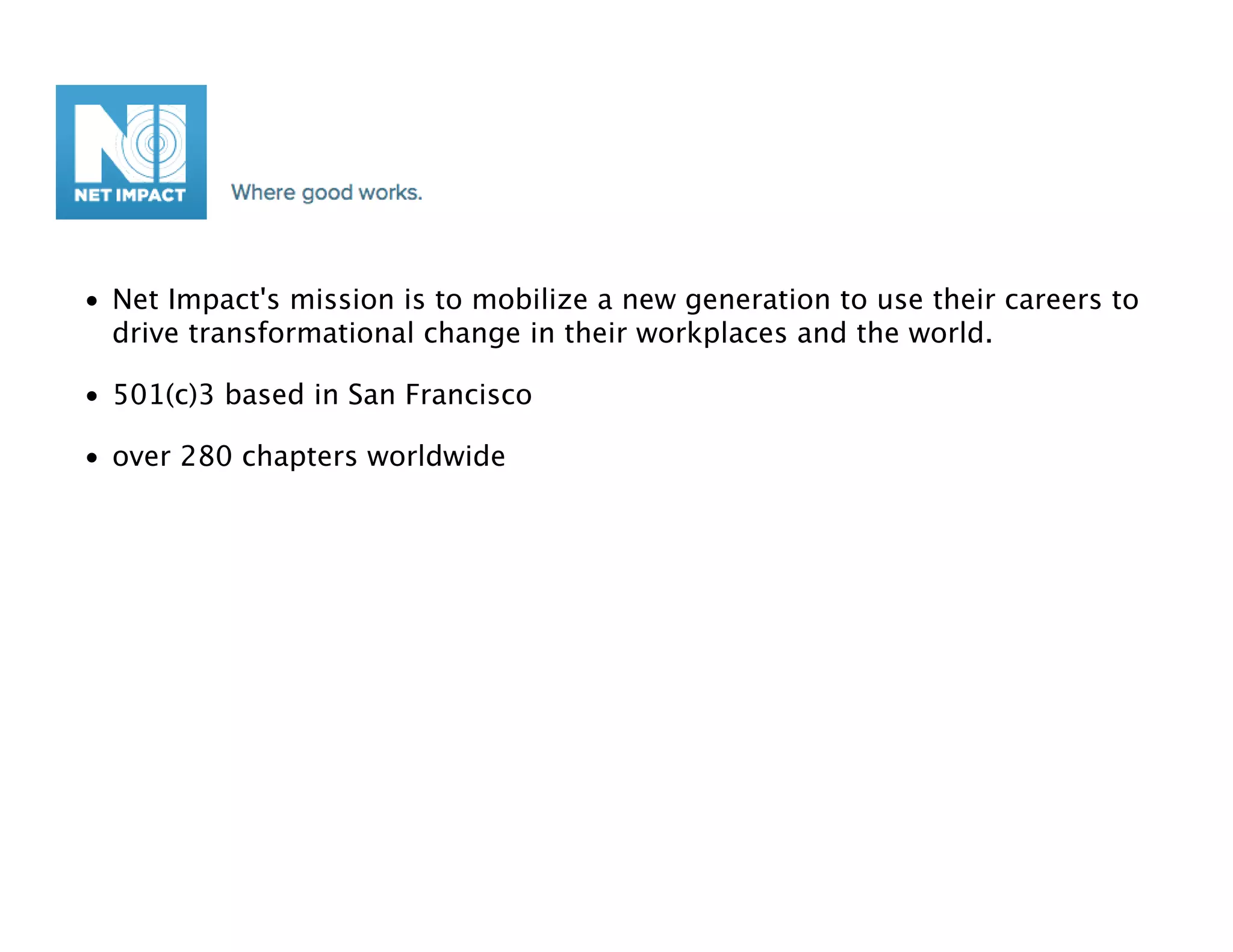

• Net Impact's mission is to mobilize a new generation to use their careers to
drive transformational change in their workplaces and the world.

• 501(c)3 based in San Francisco

• over 280 chapters worldwide

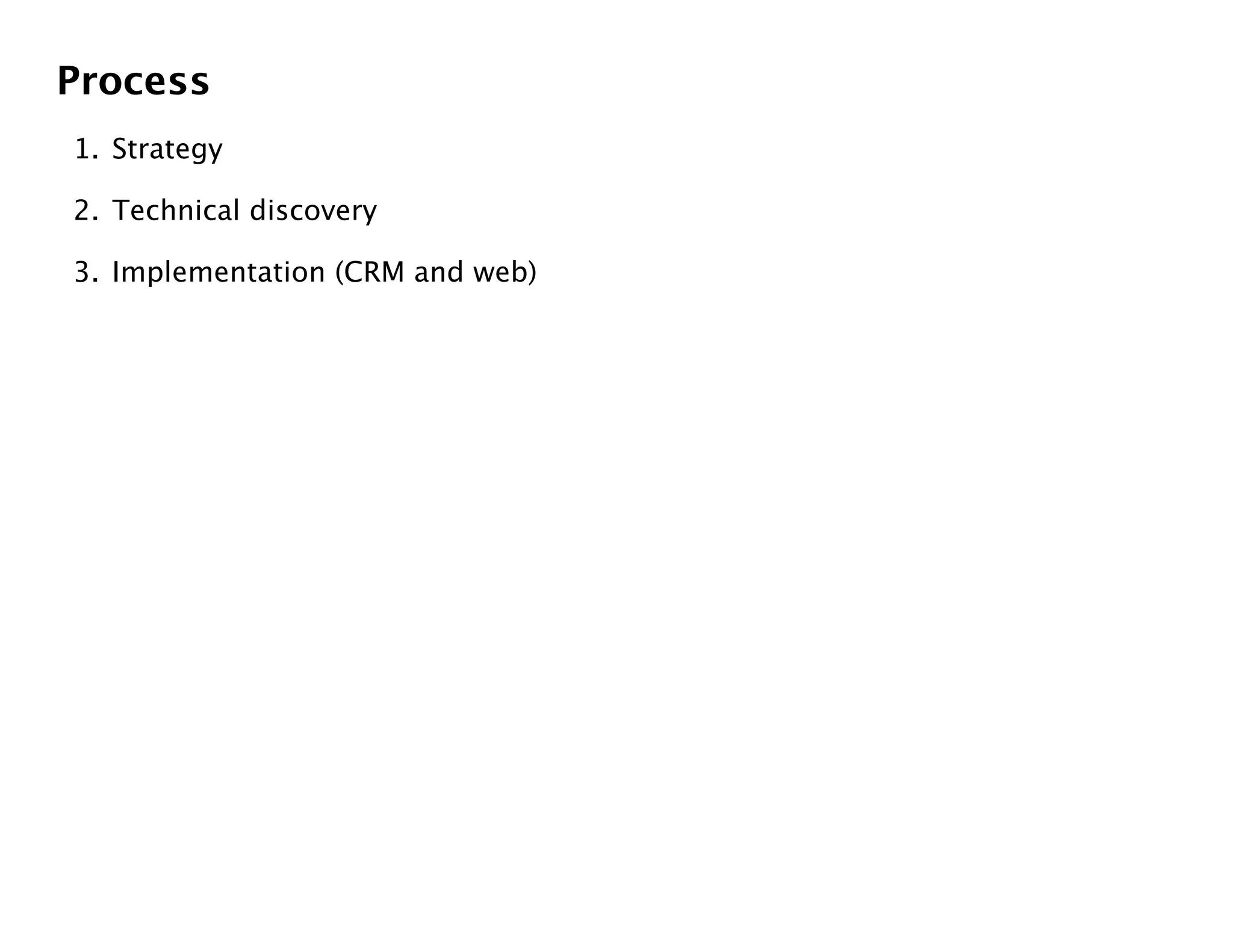

Process
1. Strategy

2. Technical discovery

3. Implementation (CRM and web)

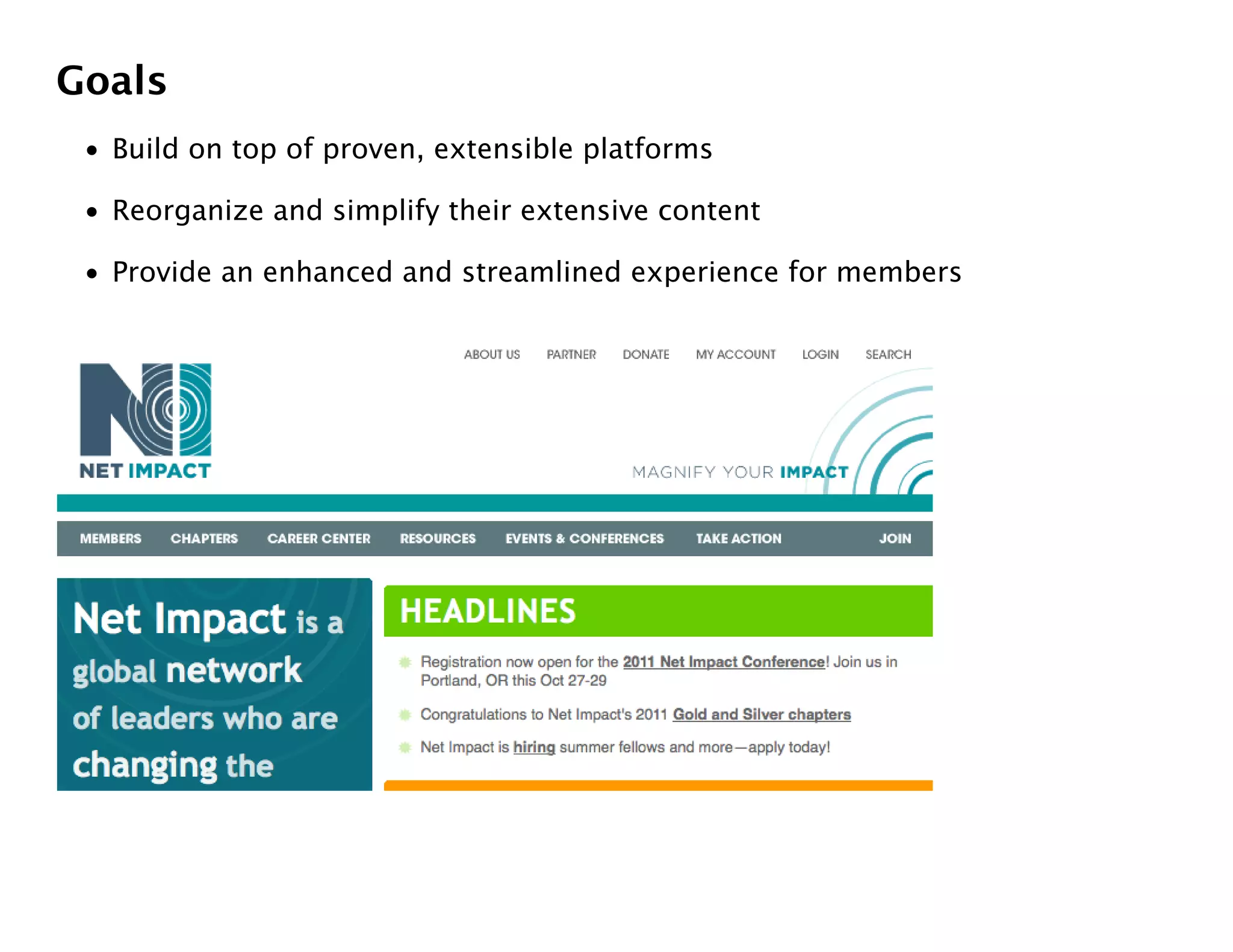

Goals
• Build on top of proven, extensible platforms

• Reorganize and simplify their extensive content

• Provide an enhanced and streamlined experience for members

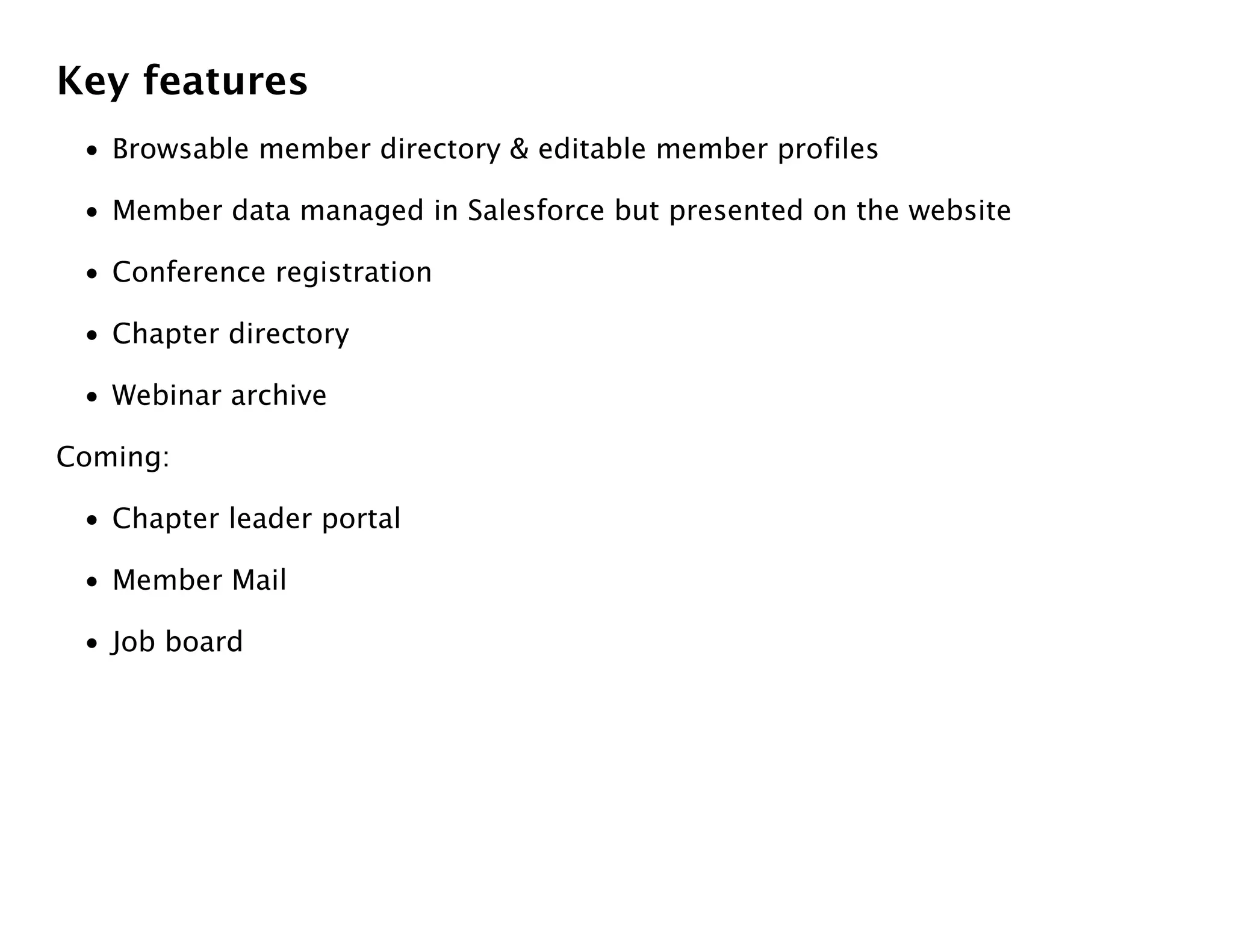

Key features
• Browsable member directory & editable member profiles

• Member data managed in Salesforce but presented on the website

• Conference registration

• Chapter directory

• Webinar archive

Coming:

• Chapter leader portal

• Member Mail

• Job board

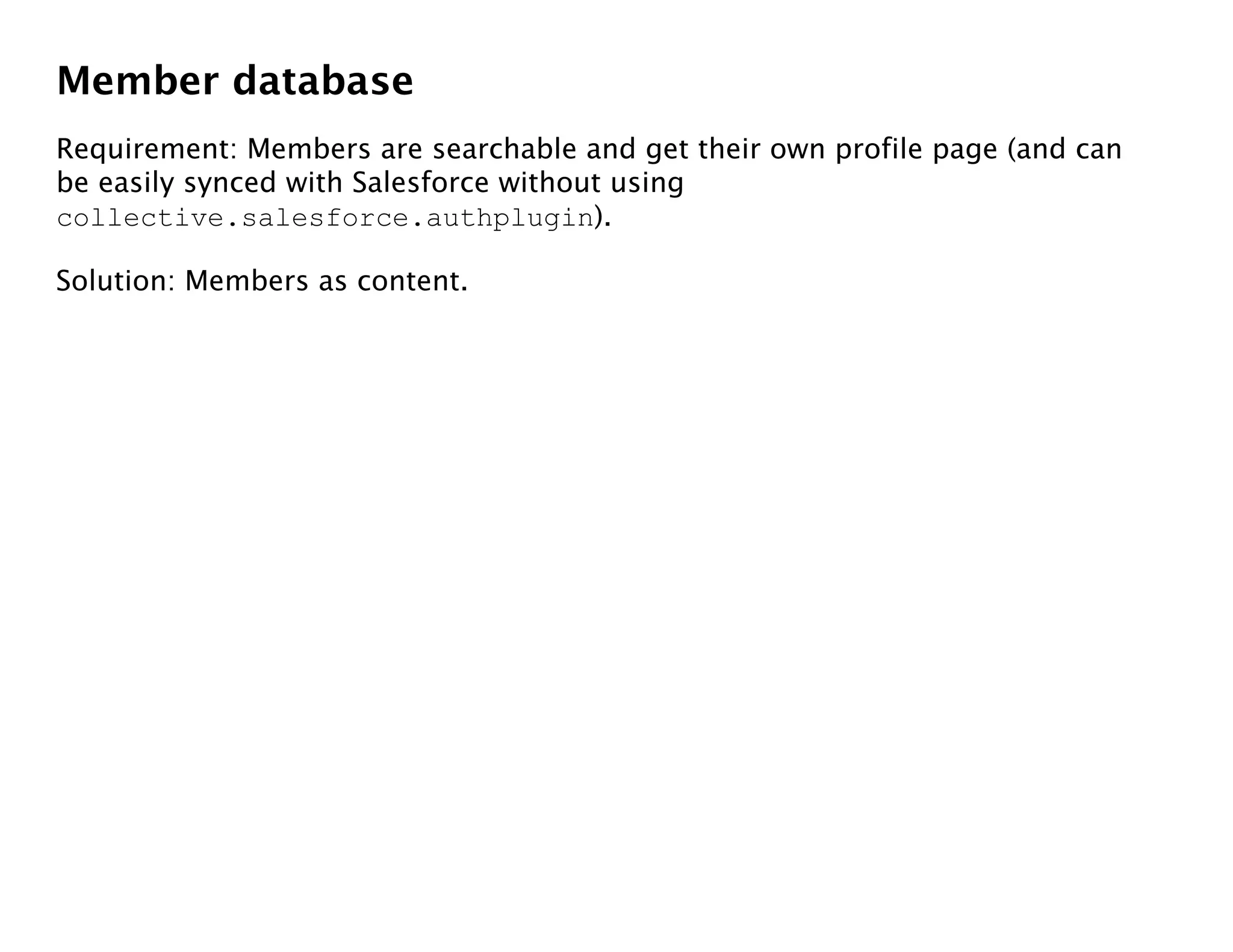

Member database
Requirement: Members are searchable and get their own profile page (and can
be easily synced with Salesforce without using
collective.salesforce.authplugin).

Solution: Members as content.

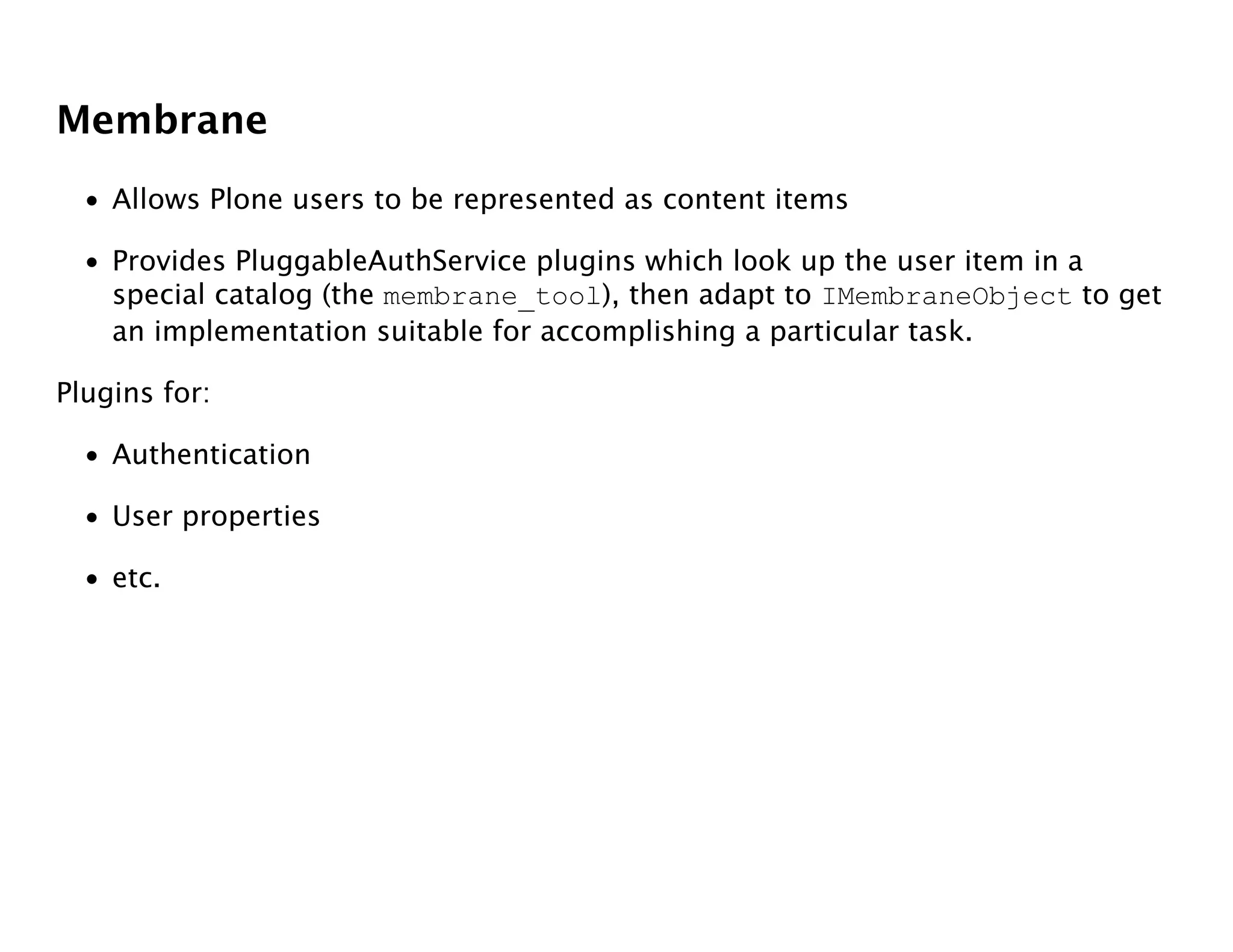

Membrane
• Allows Plone users to be represented as content items

• Provides PluggableAuthService plugins which look up the user item in a
special catalog (the membrane_tool), then adapt to IMembraneObject to get
an implementation suitable for accomplishing a particular task.

Plugins for:

• Authentication

• User properties

• etc.

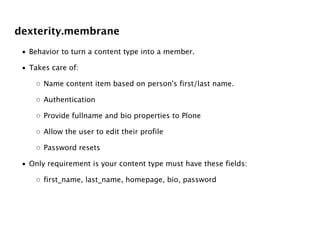

dexterity.membrane
• Behavior to turn a content type into a member.

• Takes care of:

◦ Name content item based on person's first/last name.

◦ Authentication

◦ Provide fullname and bio properties to Plone

◦ Allow the user to edit their profile

◦ Password resets

• Only requirement is your content type must have these fields:

◦ first_name, last_name, homepage, bio, password

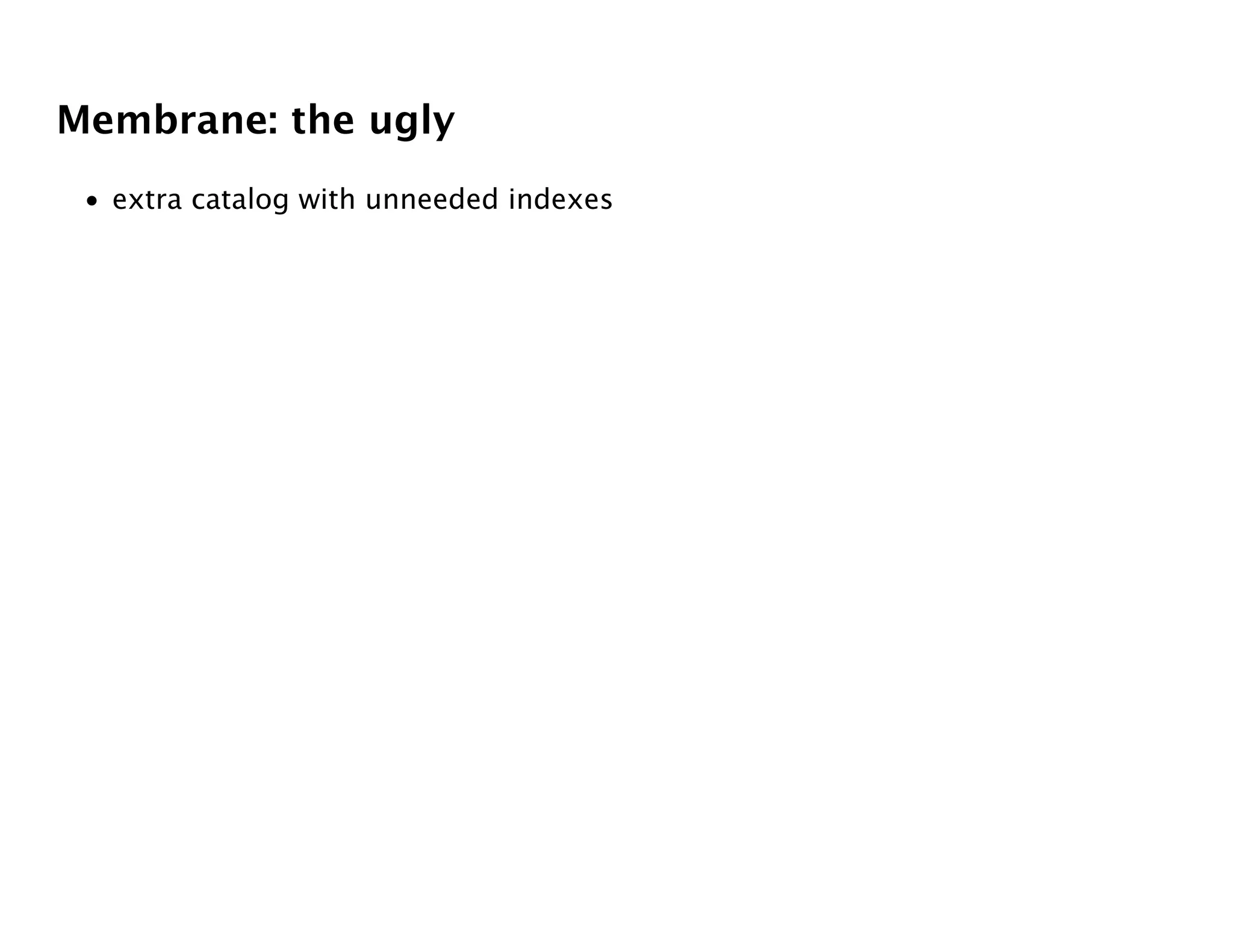

Membrane: the ugly
• extra catalog with unneeded indexes

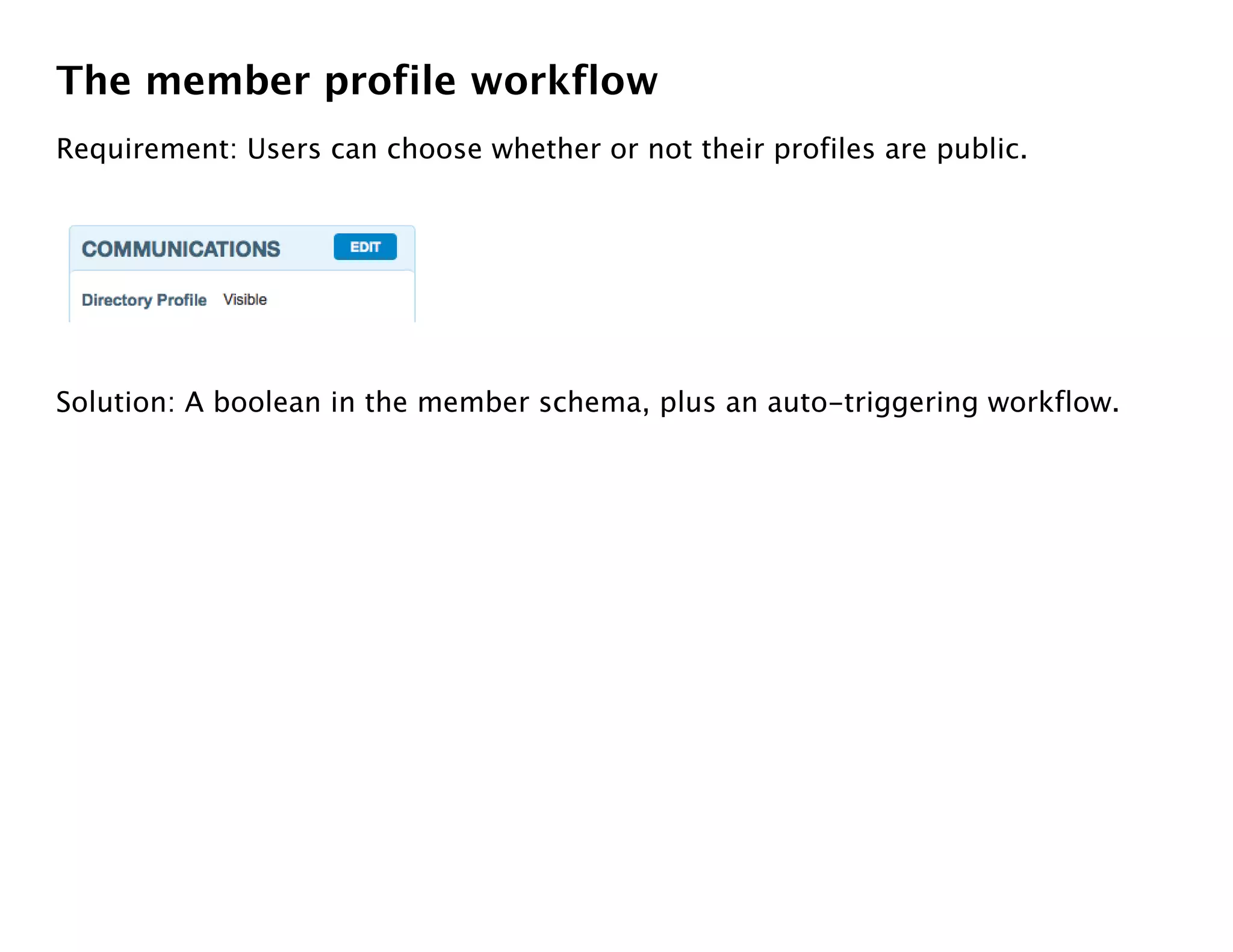

The member profile workflow
Requirement: Users can choose whether or not their profiles are public.

Solution: A boolean in the member schema, plus an auto-triggering workflow.

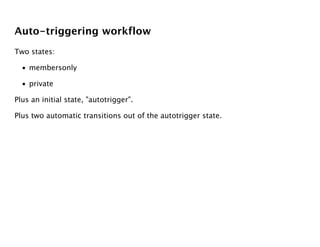

Auto-triggering workflow
Two states:

• membersonly

• private

Plus an initial state, "autotrigger".

Plus two automatic transitions out of the autotrigger state.

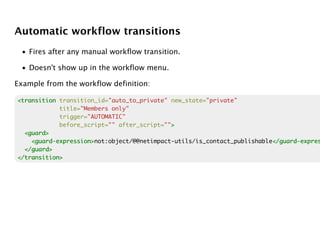

Automatic workflow transitions
• Fires after any manual workflow transition.

• Doesn't show up in the workflow menu.

Example from the workflow definition:

<transition transition_id="auto_to_private" new_state="private"
title="Members only"
trigger="AUTOMATIC"
before_script="" after_script="">
>
<guard>
<guard-expression>
<guard-expression>not:object/@@netimpact-utils/is_contact_publishable</guard-expres
</guard-expres
</guard>
</transition>

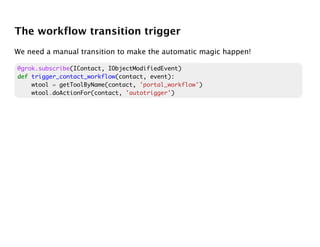

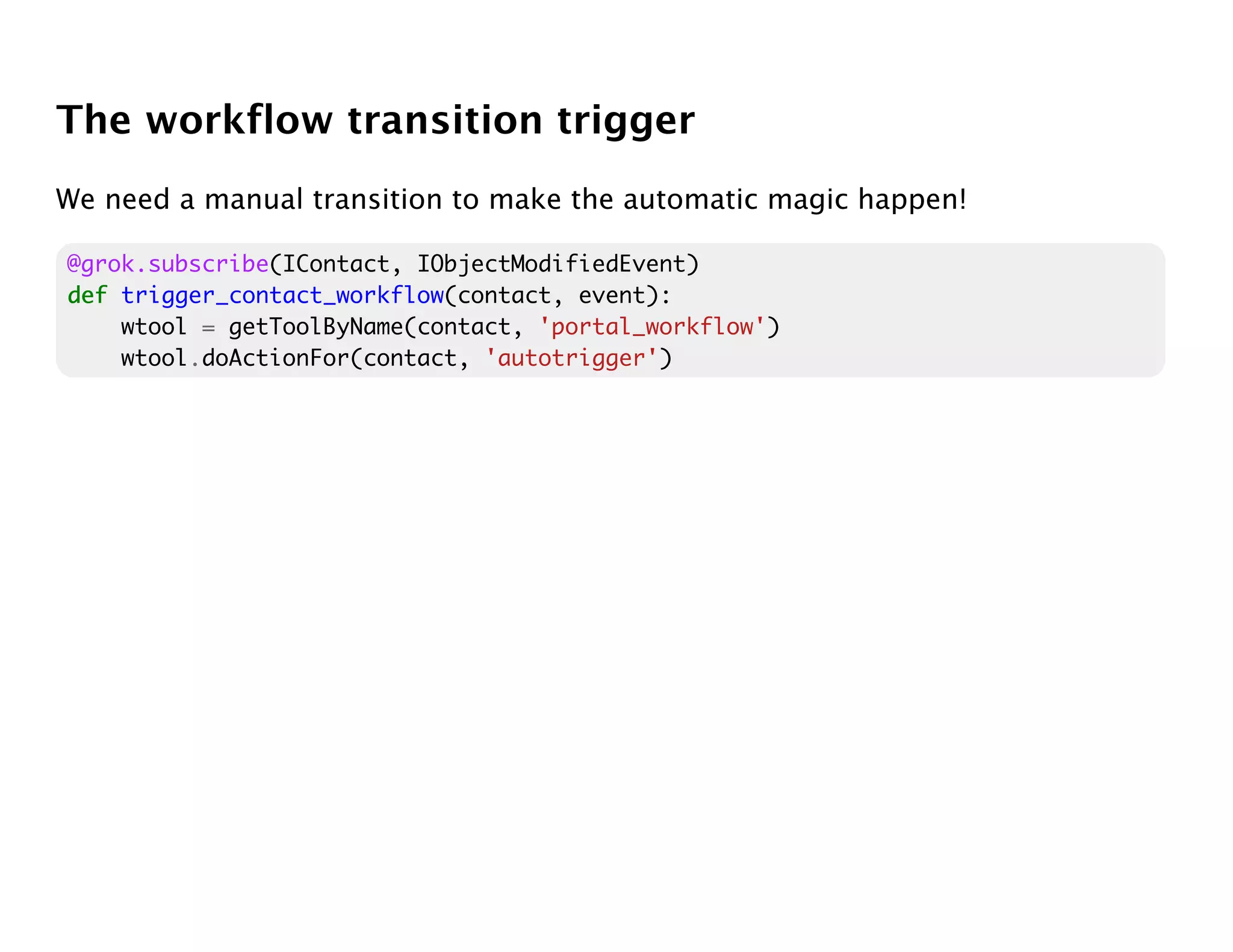

The workflow transition trigger
We need a manual transition to make the automatic magic happen!

@grok.subscribe(IContact, IObjectModifiedEvent)
def trigger_contact_workflow(contact, event):
wtool = getToolByName(contact, 'portal_workflow')
wtool.doActionFor(contact, 'autotrigger')

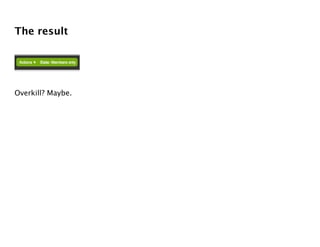

The result

Overkill? Maybe.

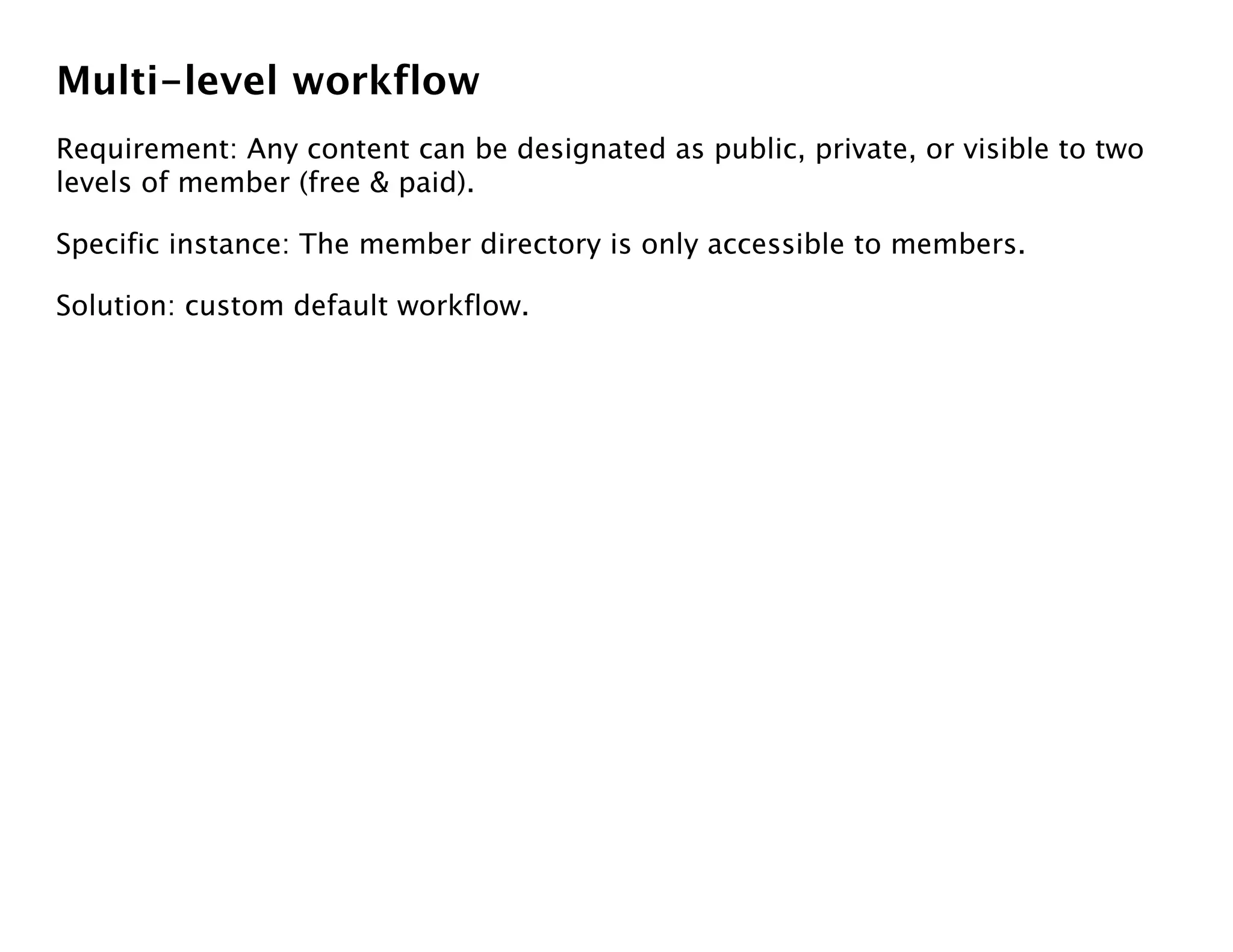

Multi-level workflow
Requirement: Any content can be designated as public, private, or visible to two
levels of member (free & paid).

Specific instance: The member directory is only accessible to members.

Solution: custom default workflow.

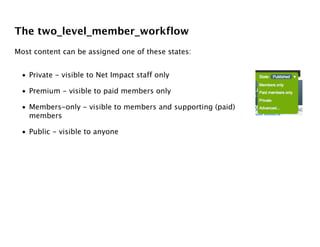

The two_level_member_workflow
Most content can be assigned one of these states:

• Private - visible to Net Impact staff only

• Premium - visible to paid members only

• Members-only - visible to members and supporting (paid)
members

• Public - visible to anyone

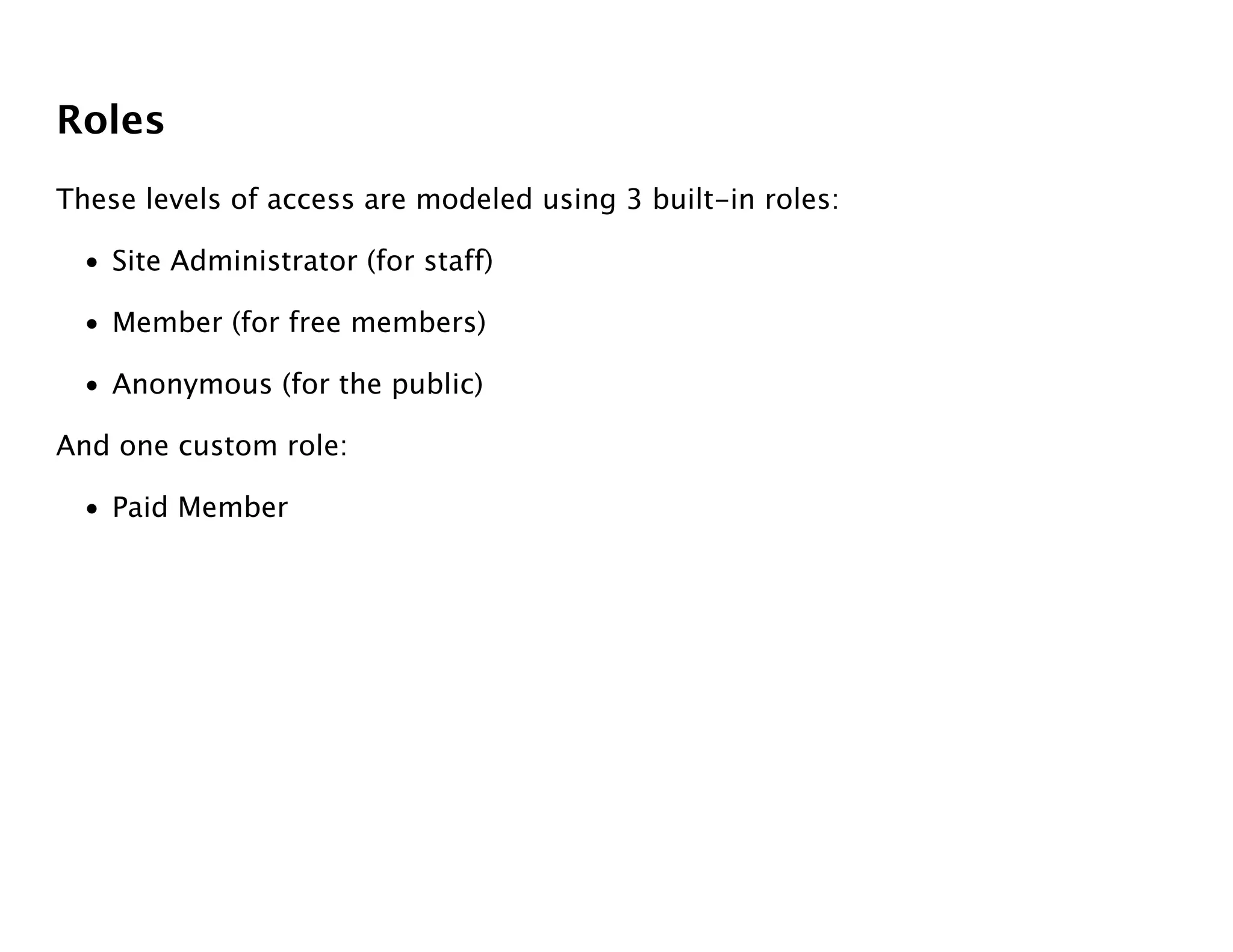

Roles
These levels of access are modeled using 3 built-in roles:

• Site Administrator (for staff)

• Member (for free members)

• Anonymous (for the public)

And one custom role:

• Paid Member

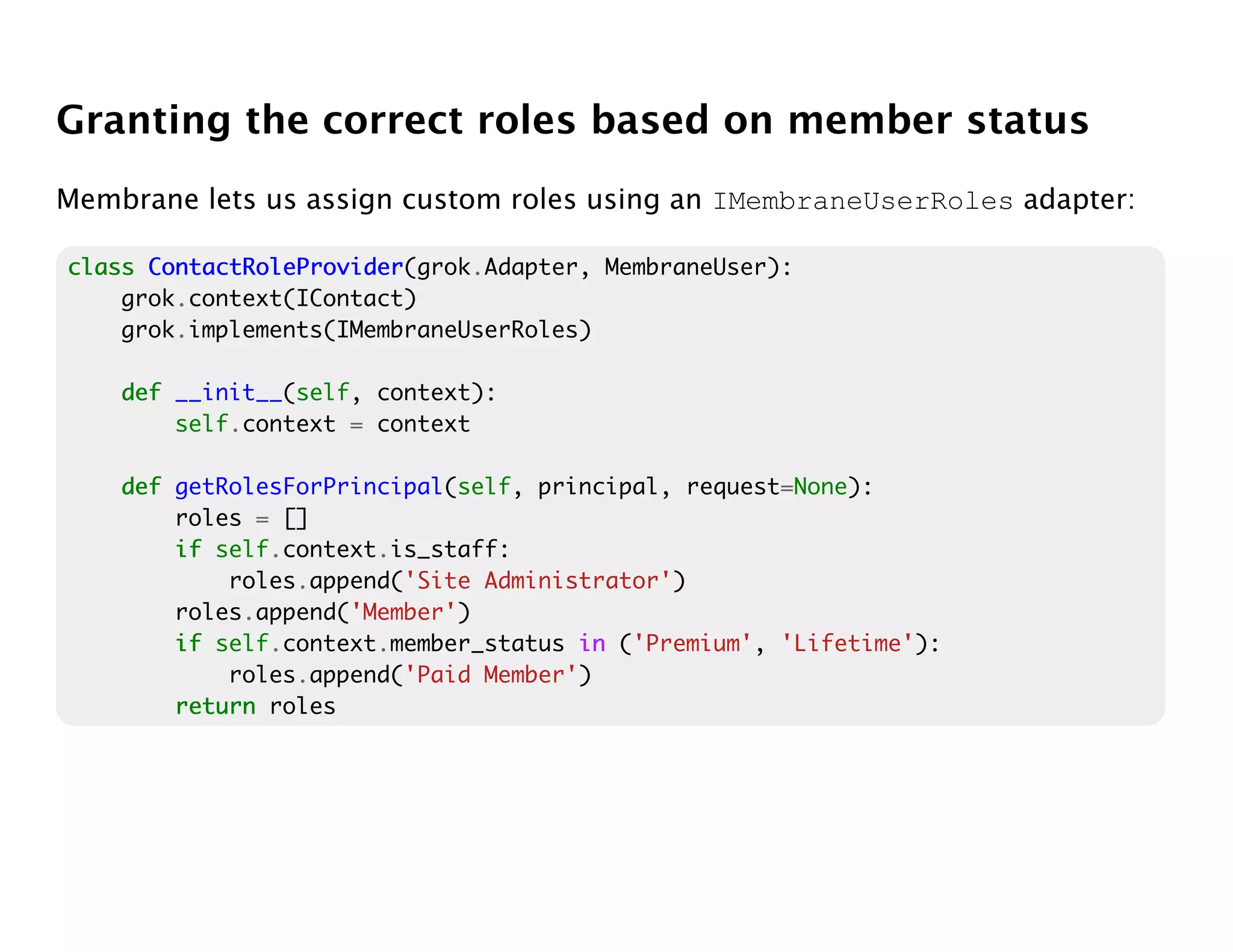

Granting the correct roles based on member status
Membrane lets us assign custom roles using an IMembraneUserRoles adapter:

class ContactRoleProvider
ContactRoleProvider(grok.Adapter, MembraneUser):
grok.context(IContact)
grok.implements(IMembraneUserRoles)

def __init__(self, context):
self.context = context

def getRolesForPrincipal(self, principal, request=None):
roles = []
if self.context.is_staff:
roles.append('Site Administrator')
roles.append('Member')
if self.context.member_status in ('Premium', 'Lifetime'):
roles.append('Paid Member')
return roles

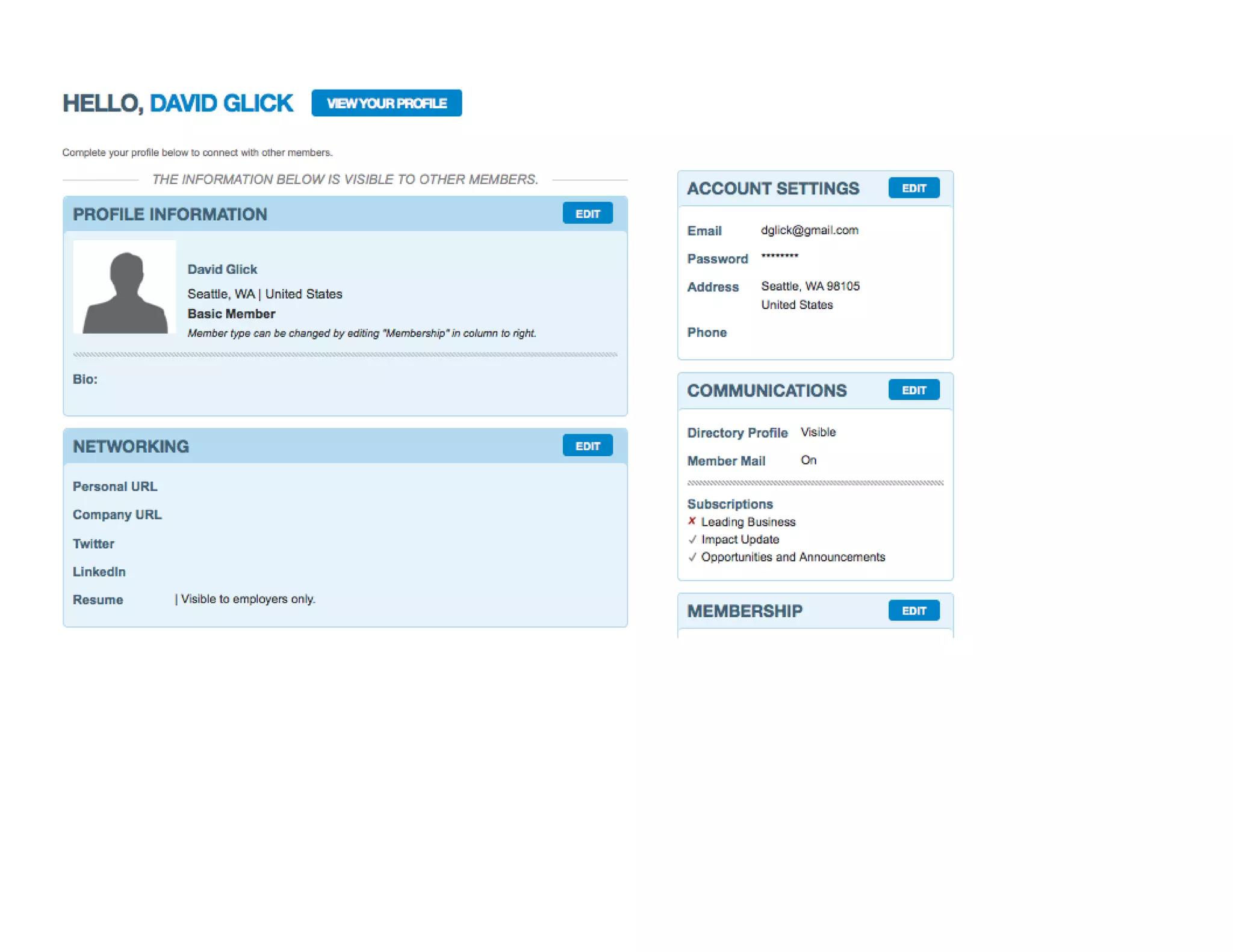

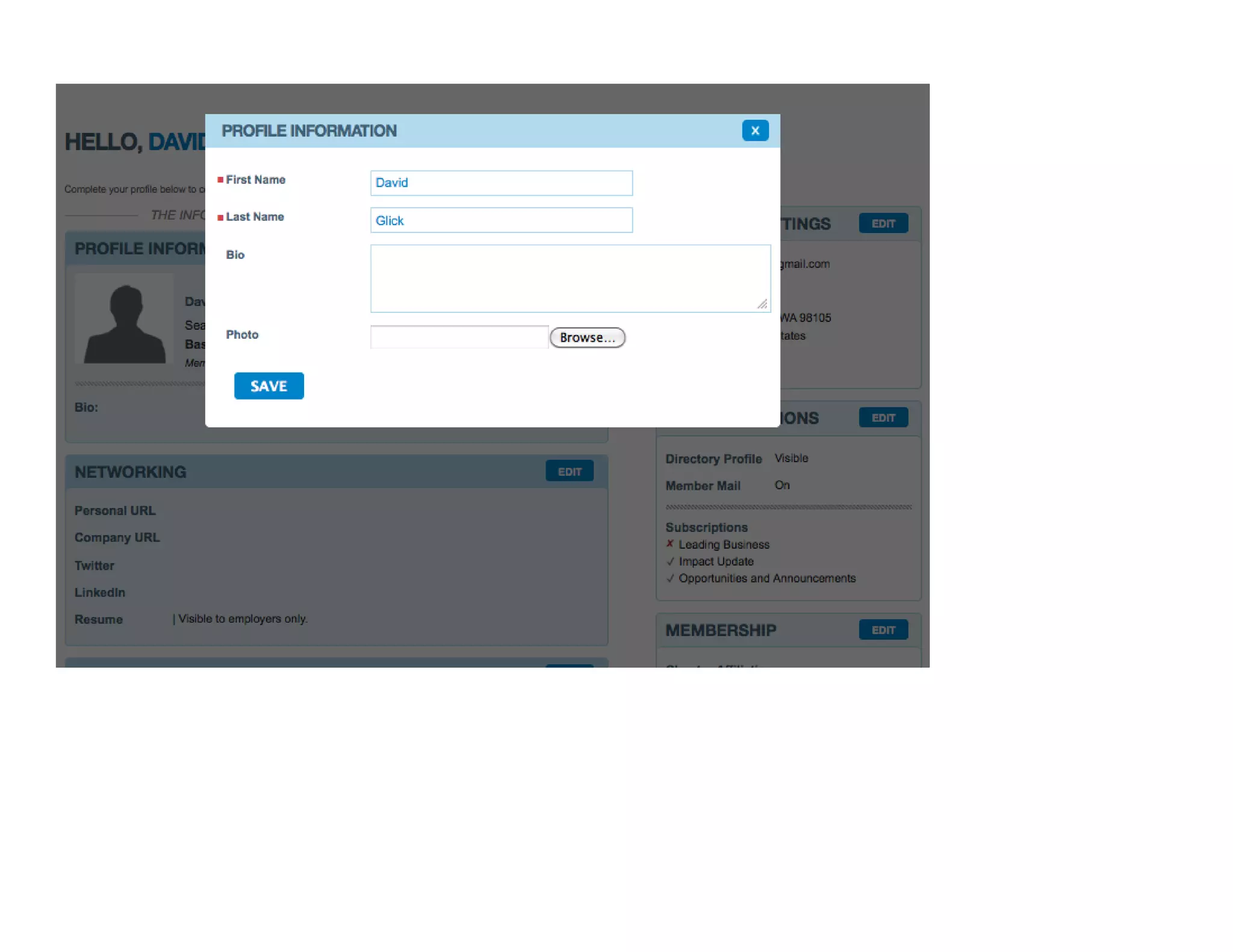

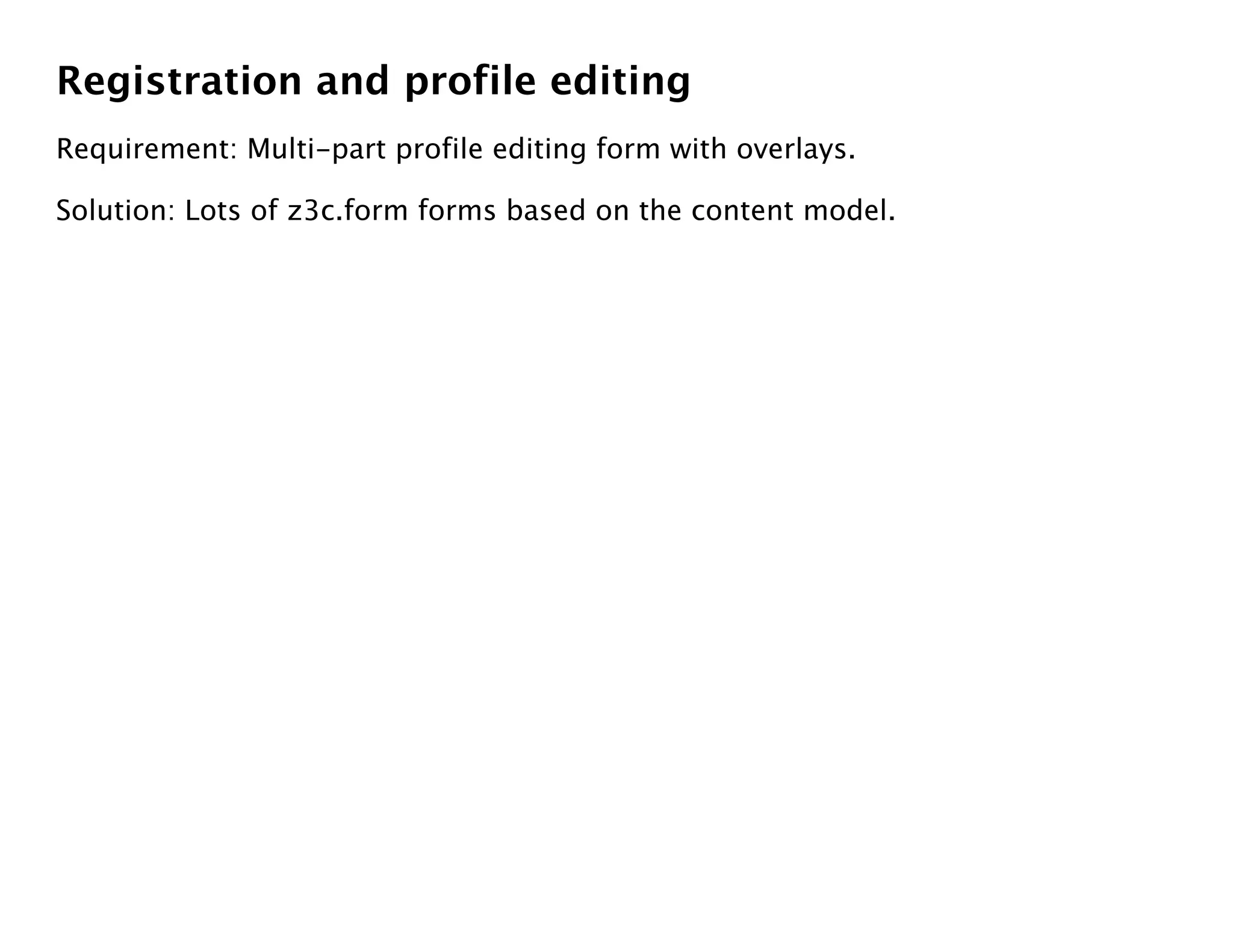

Registration and profile editing
Requirement: Multi-part profile editing form with overlays.

Solution: Lots of z3c.form forms based on the content model.

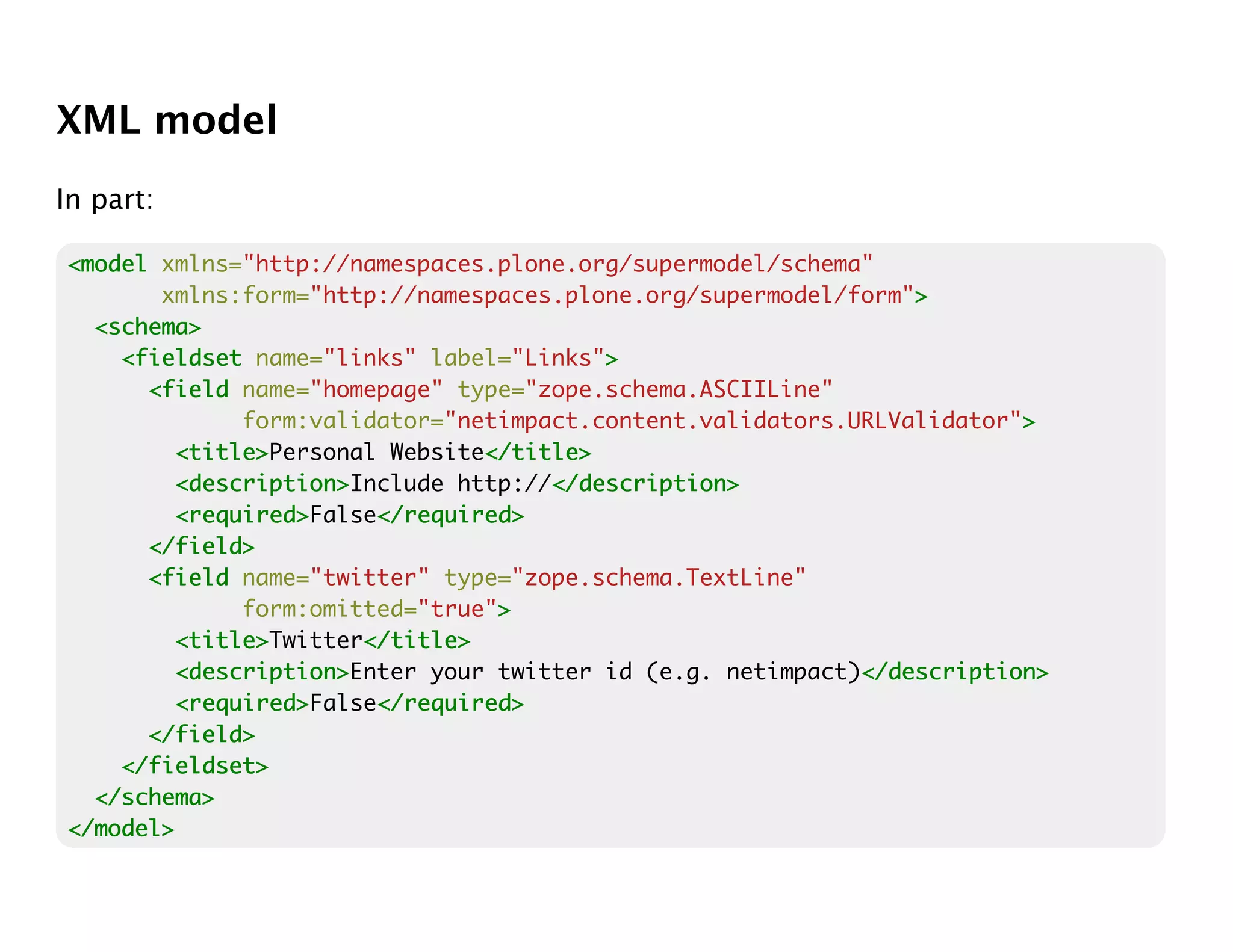

XML model
In part:

<model xmlns="http://namespaces.plone.org/supermodel/schema"
xmlns:form="http://namespaces.plone.org/supermodel/form">>
<schema>
<fieldset name="links" label="Links">>
<field name="homepage" type="zope.schema.ASCIILine"
form:validator="netimpact.content.validators.URLValidator">
>
<title>
<title>Personal Website</title>
</title>
<description>
<description>Include http://</description>
</description>
<required>
<required>False</required>
</required>
</field>
<field name="twitter" type="zope.schema.TextLine"
form:omitted="true">
>
<title>
<title>Twitter</title>
</title>
<description>
<description>Enter your twitter id (e.g. netimpact)</description>
</description>
<required>
</required>
</field>
</fieldset>
</schema>
</model>

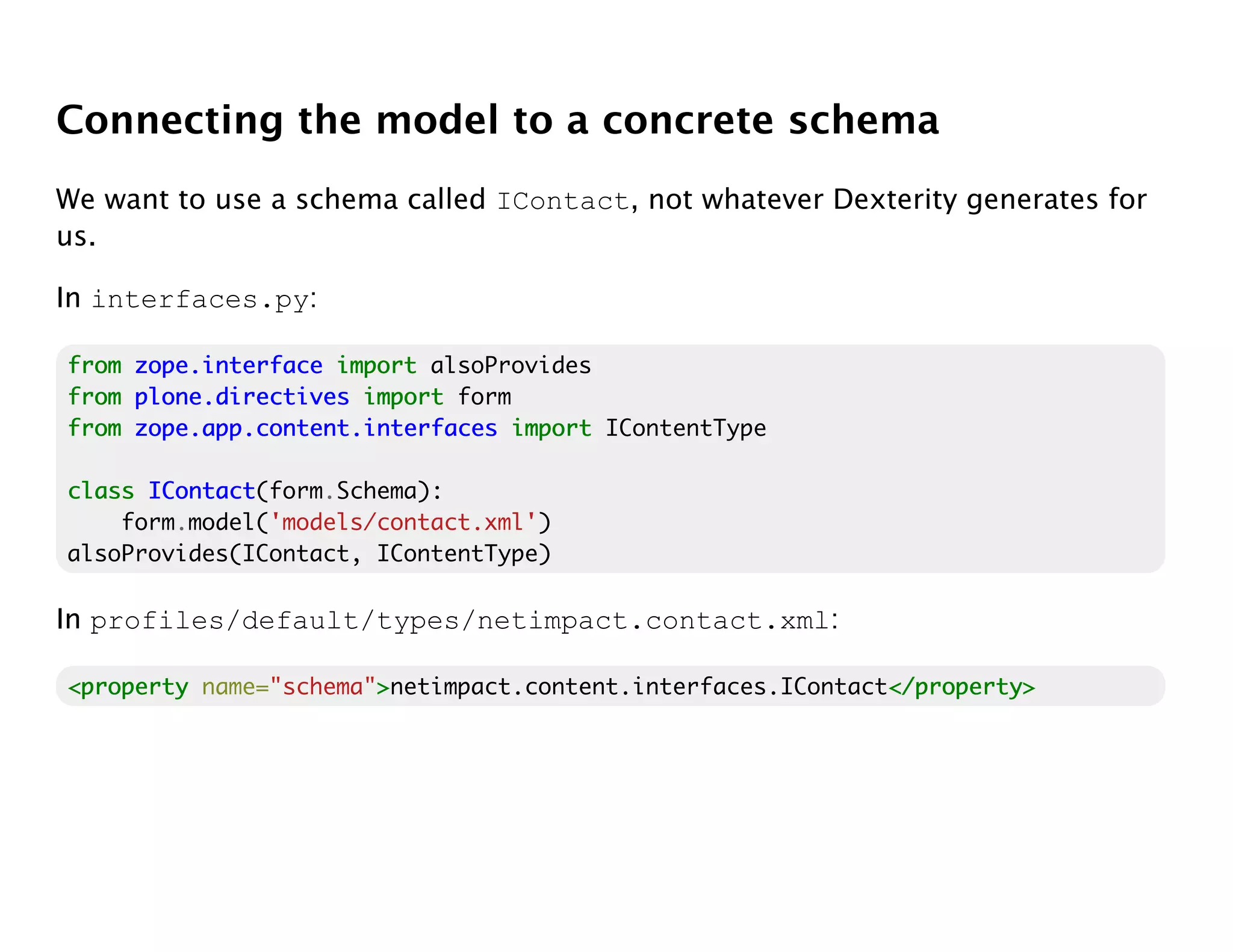

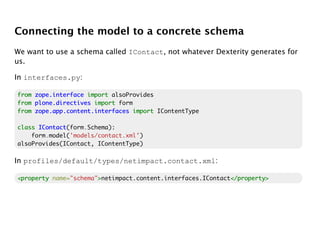

Connecting the model to a concrete schema
We want to use a schema called IContact, not whatever Dexterity generates for
us.

In interfaces.py:

from zope.interface import alsoProvides
from plone.directives import form
from zope.app.content.interfaces import IContentType

class IContact
IContact(form.Schema):
form.model('models/contact.xml')
alsoProvides(IContact, IContentType)

In profiles/default/types/netimpact.contact.xml:

<property name="schema">netimpact.content.interfaces.IContact</property>
> </property>

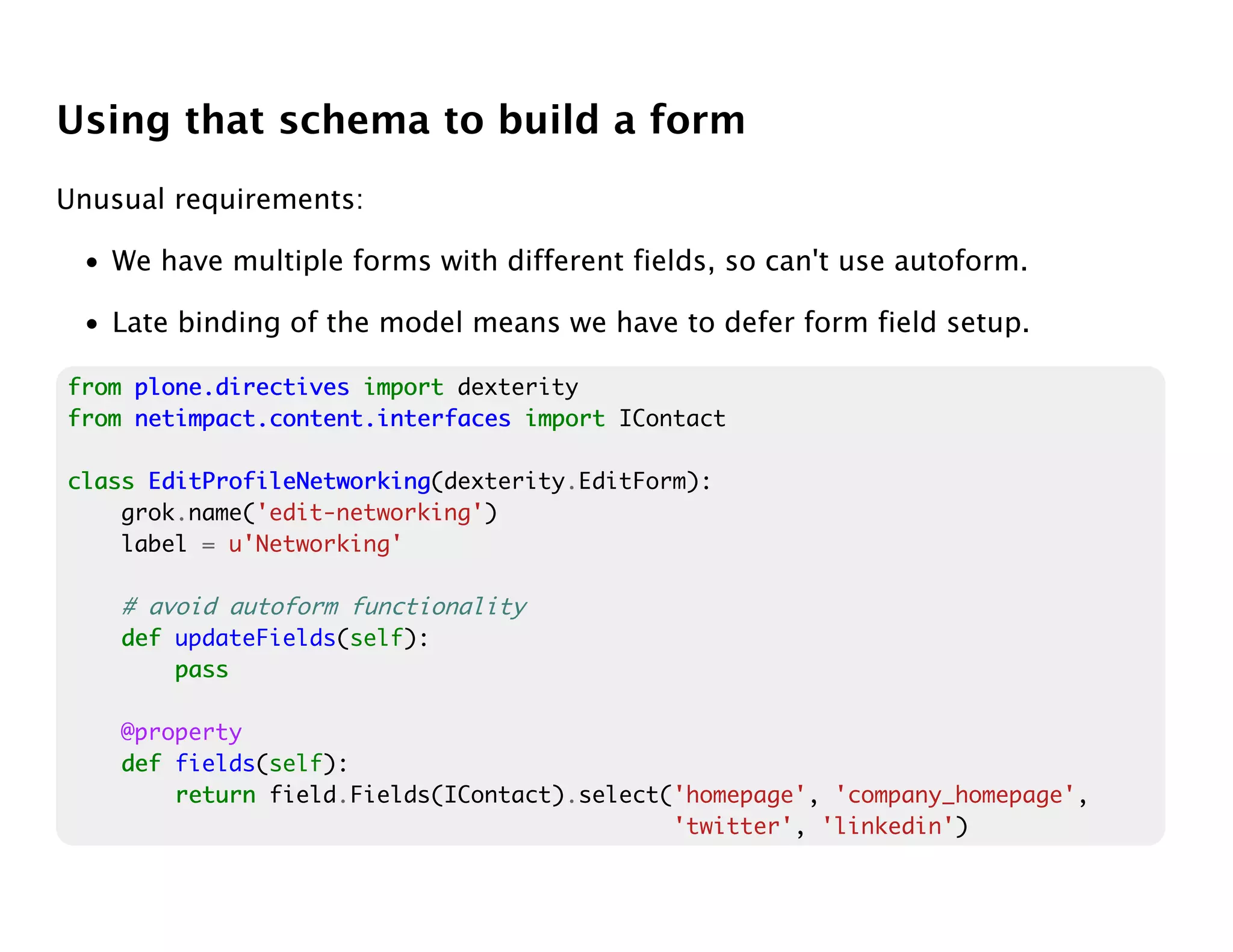

Using that schema to build a form
Unusual requirements:

• We have multiple forms with different fields, so can't use autoform.

• Late binding of the model means we have to defer form field setup.

from plone.directives import dexterity
from netimpact.content.interfaces import IContact

class EditProfileNetworking
EditProfileNetworking(dexterity.EditForm):
grok.name('edit-networking')
label = u'Networking'

# avoid autoform functionality
def updateFields(self):
pass

@property
def fields(self):
return field.Fields(IContact).select('homepage', 'company_homepage',
'twitter', 'linkedin')

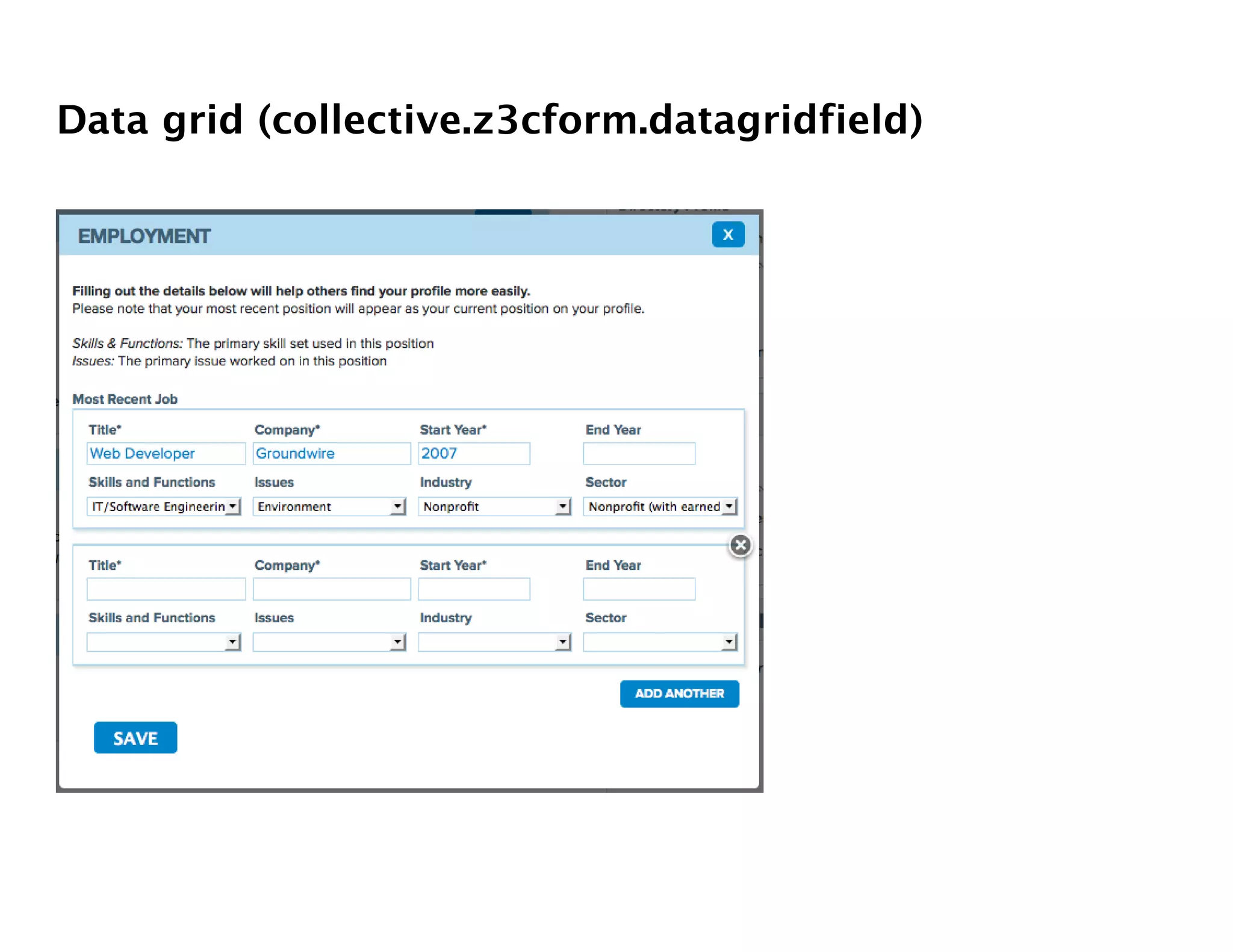

Data grid (collective.z3cform.datagridfield)

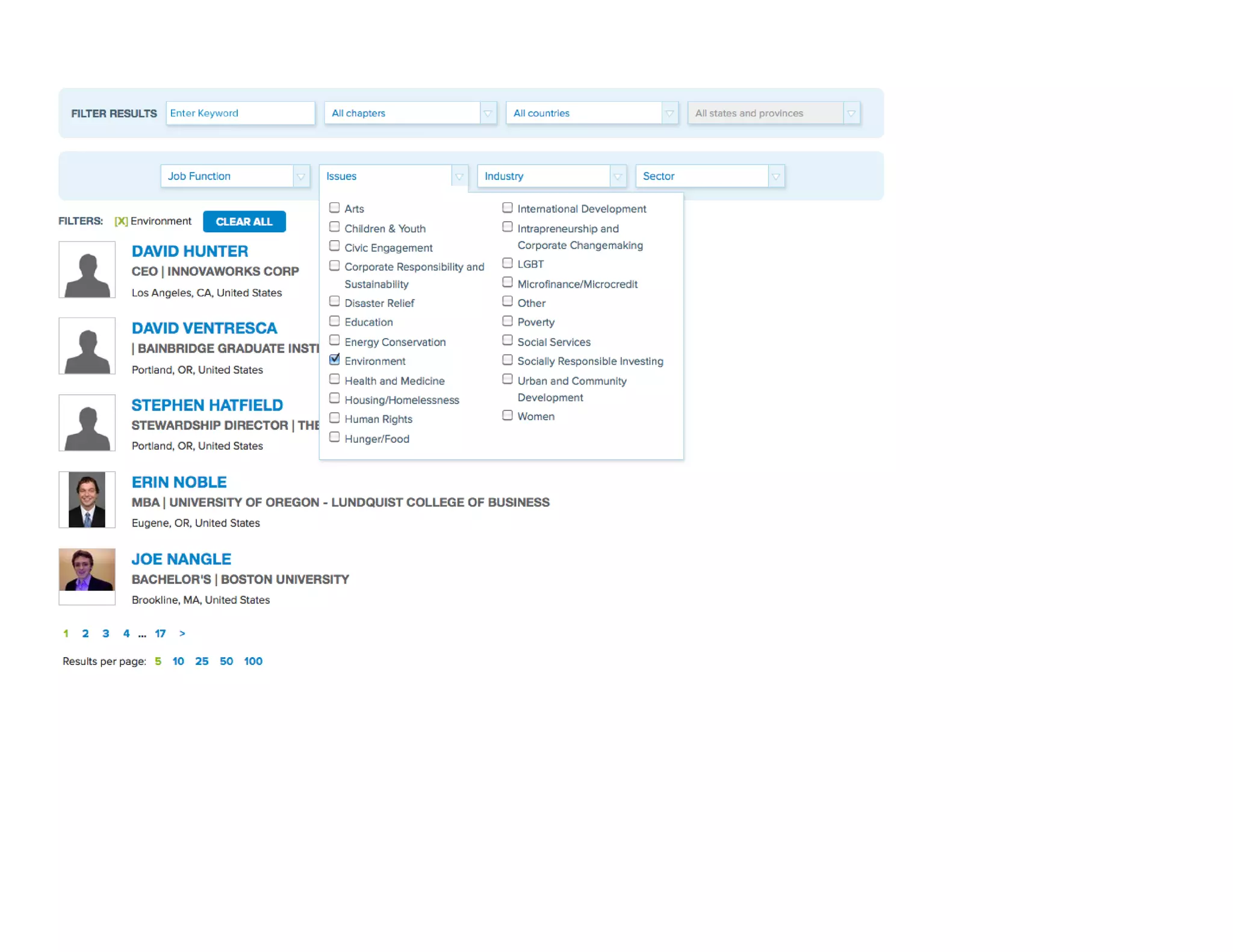

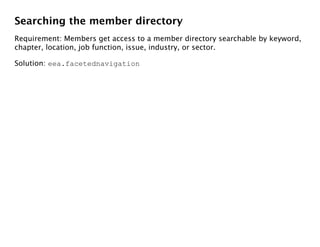

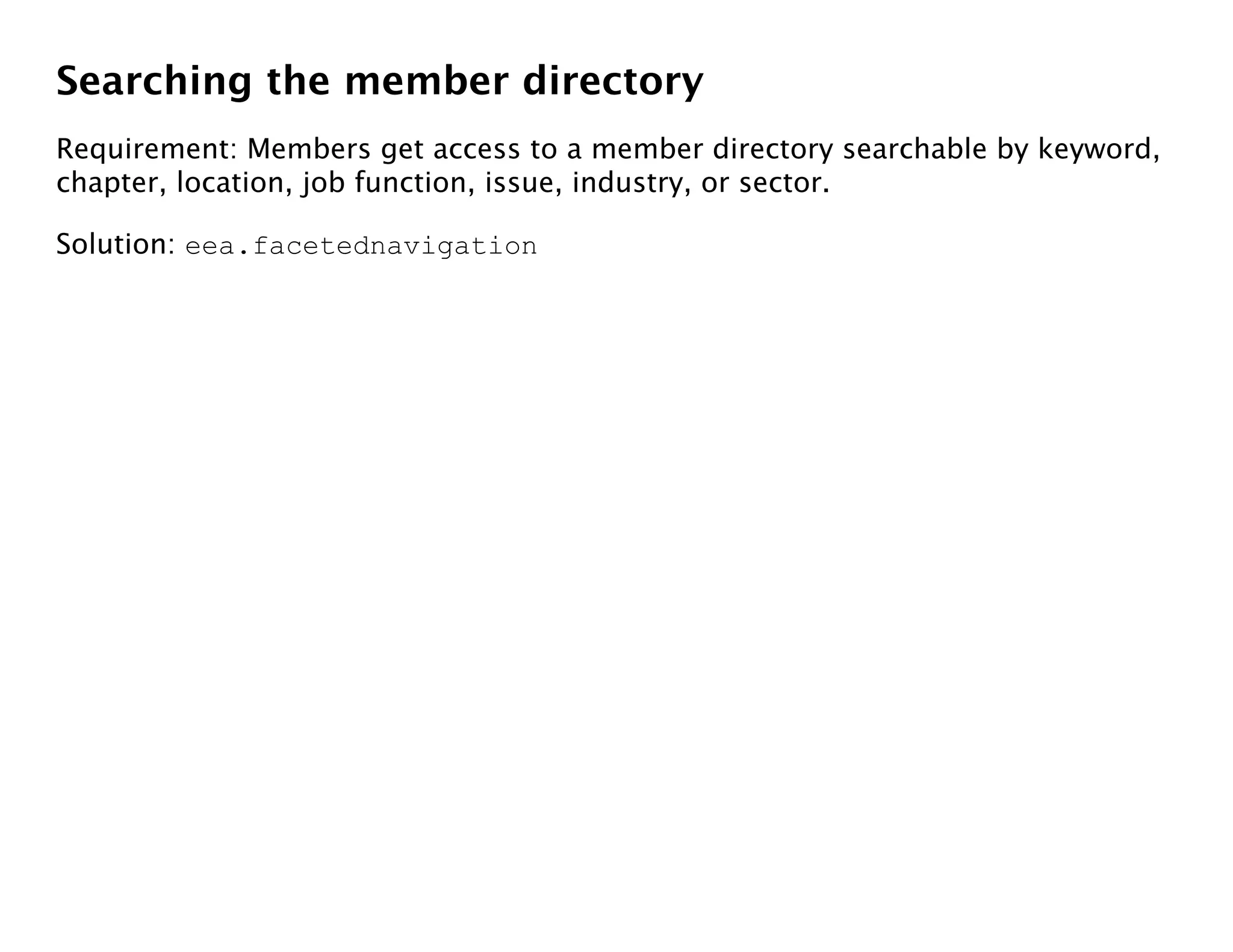

Searching the member directory
Requirement: Members get access to a member directory searchable by keyword,
chapter, location, job function, issue, industry, or sector.

Solution: eea.facetednavigation

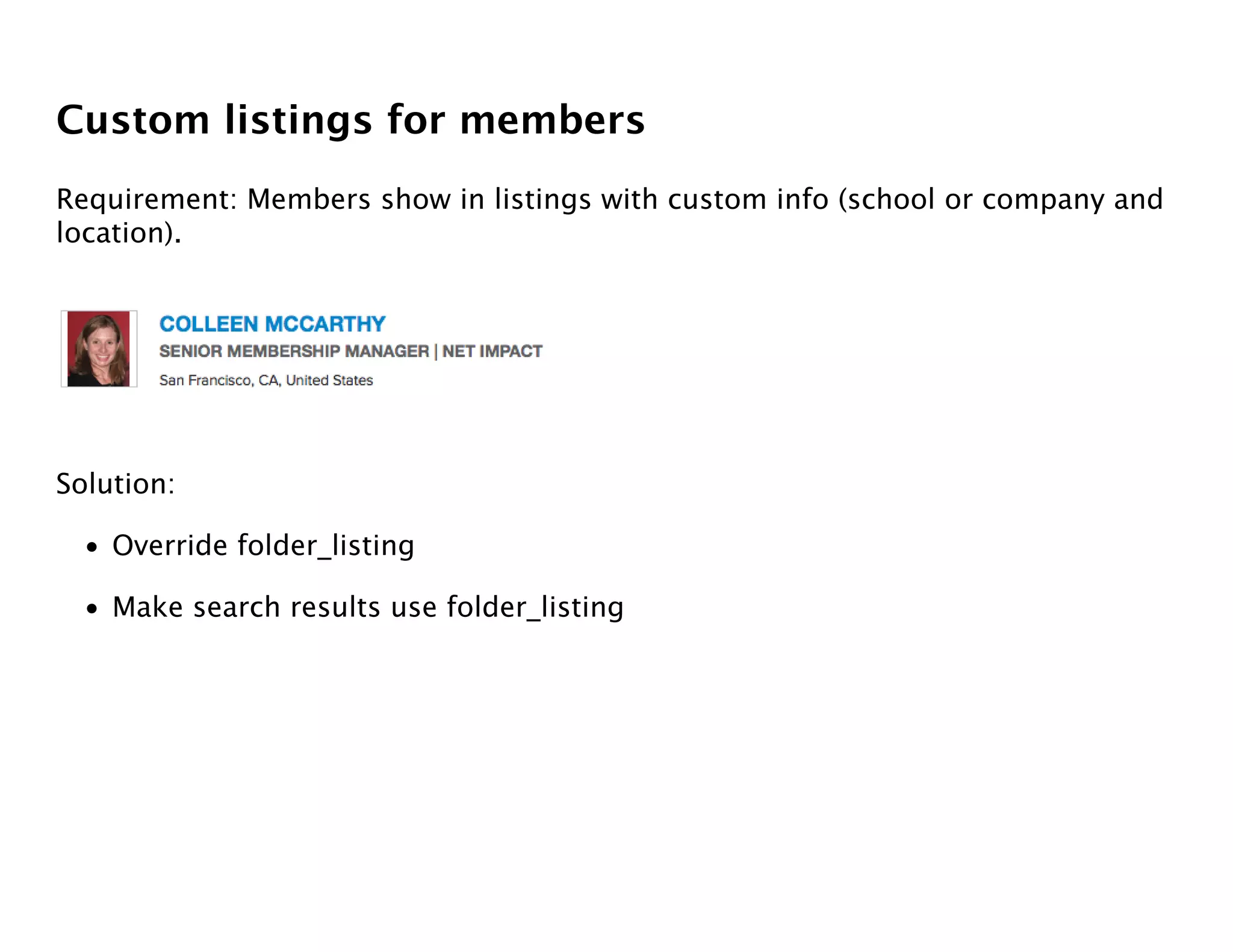

Custom listings for members
Requirement: Members show in listings with custom info (school or company and
location).

Solution:

• Override folder_listing

• Make search results use folder_listing

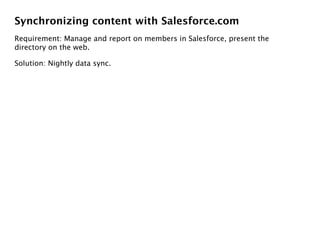

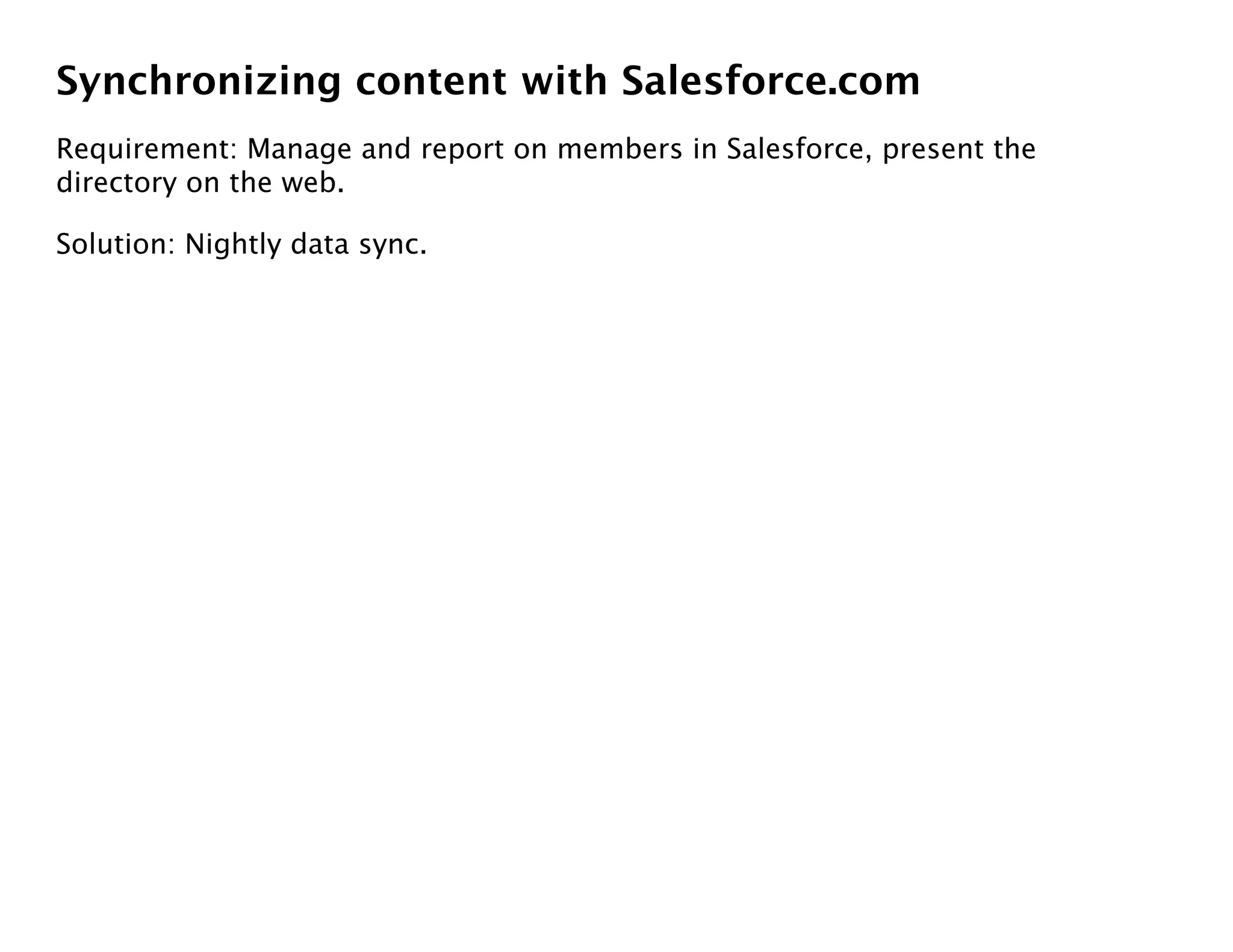

Synchronizing content with Salesforce.com
Requirement: Manage and report on members in Salesforce, present the
directory on the web.

Solution: Nightly data sync.

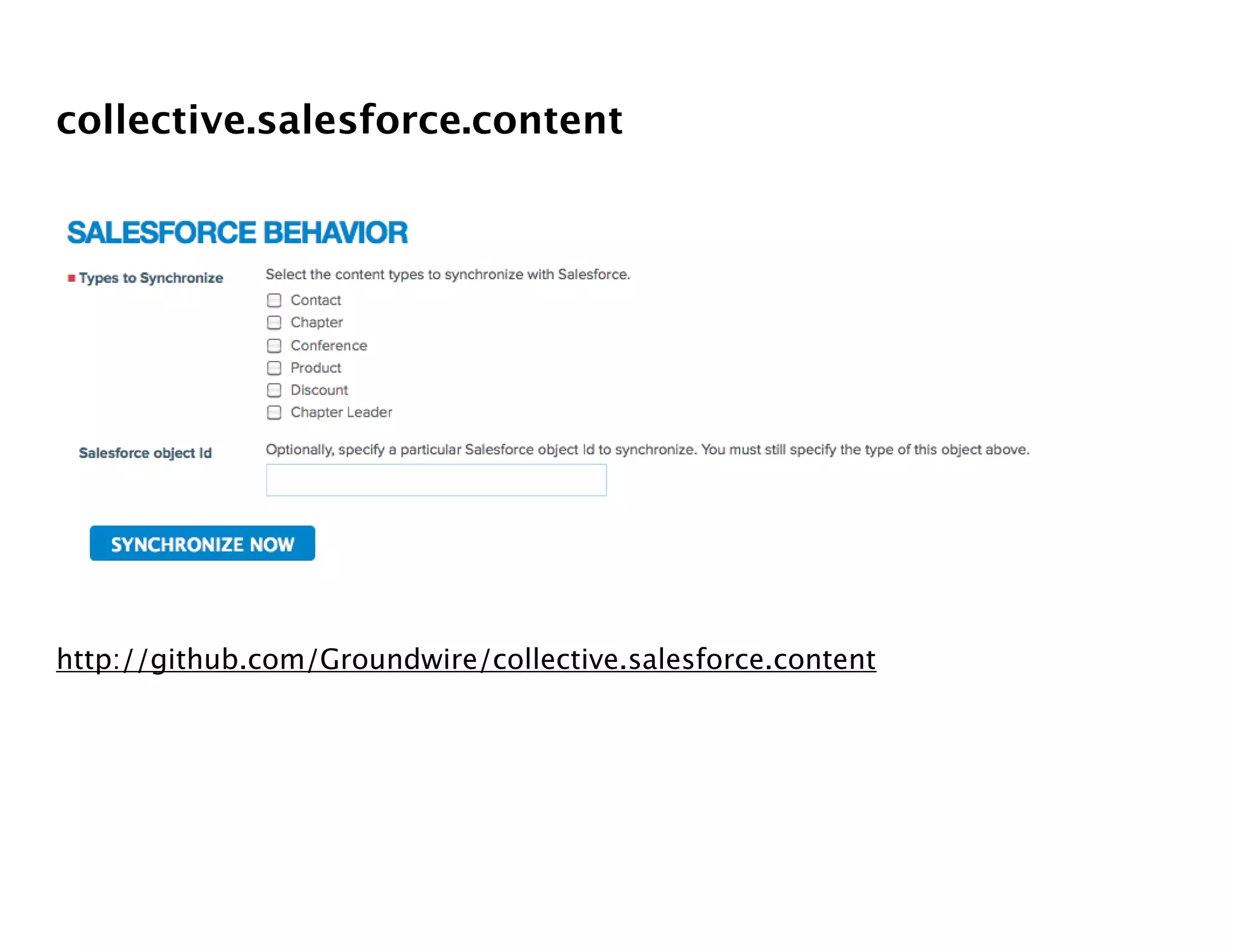

collective.salesforce.content

http://github.com/Groundwire/collective.salesforce.content

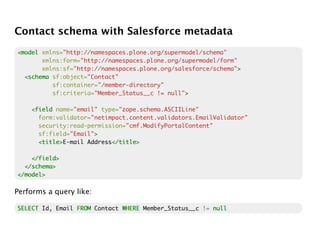

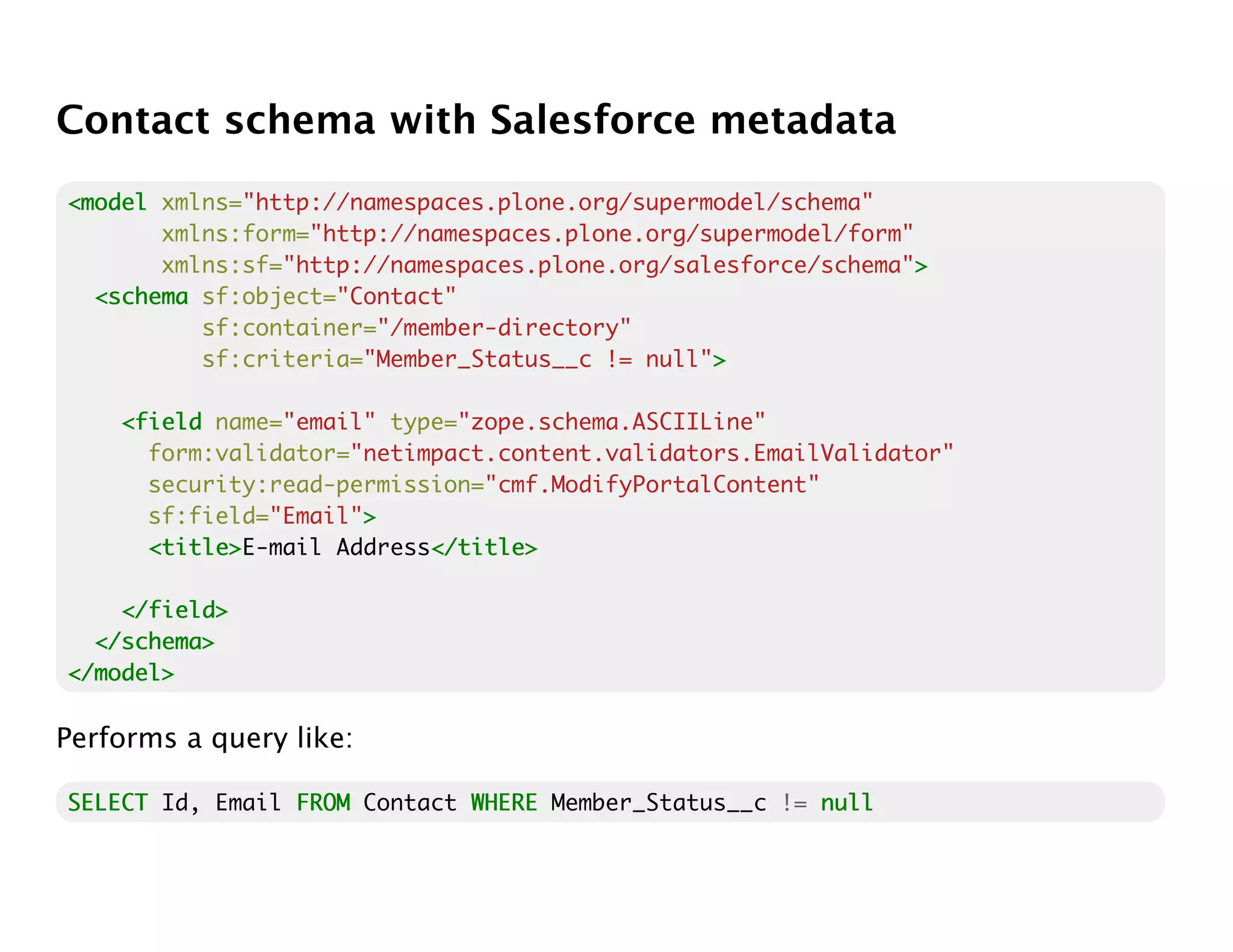

Contact schema with Salesforce metadata
xmlns:form="http://namespaces.plone.org/supermodel/form"
xmlns:sf="http://namespaces.plone.org/salesforce/schema">>
<schema sf:object="Contact"
sf:container="/member-directory"
sf:criteria="Member_Status__c != null">
>

<field name="email" type="zope.schema.ASCIILine"
form:validator="netimpact.content.validators.EmailValidator"
security:read-permission="cmf.ModifyPortalContent"
sf:field="Email">
>
<title>
<title>E-mail Address</title>
</title>

</field>
</schema>
</model>

Performs a query like:

SELECT Id, Email FROM Contact WHERE Member_Status__c != null

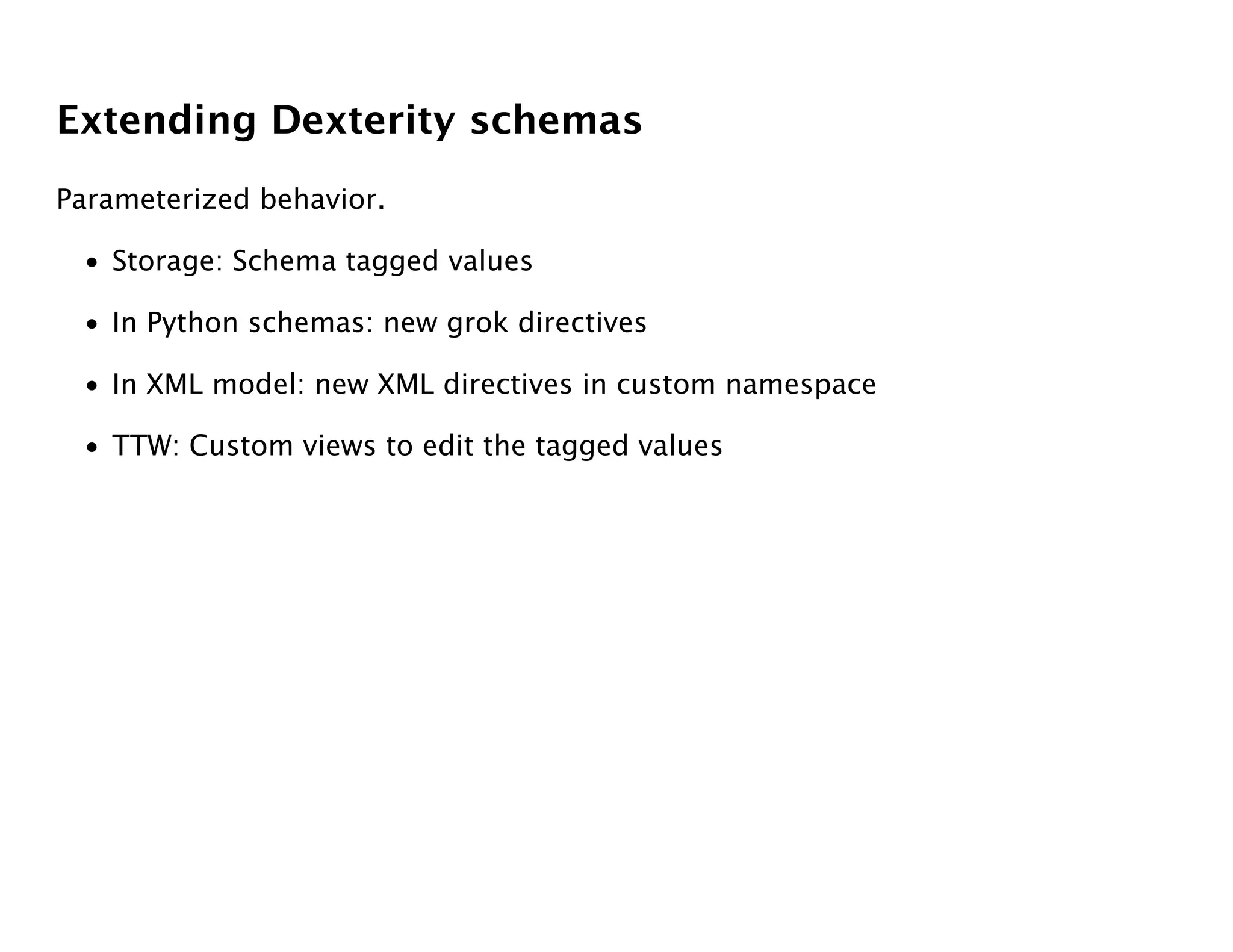

Extending Dexterity schemas
Parameterized behavior.

• Storage: Schema tagged values

• In Python schemas: new grok directives

• In XML model: new XML directives in custom namespace

• TTW: Custom views to edit the tagged values

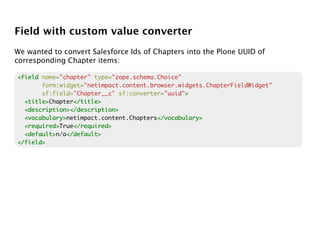

Field with custom value converter
We wanted to convert Salesforce Ids of Chapters into the Plone UUID of
corresponding Chapter items:

<field name="chapter" type="zope.schema.Choice"
form:widget="netimpact.content.browser.widgets.ChapterFieldWidget"
sf:field="Chapter__c" sf:converter="uuid">
>
<title>
<title>Chapter</title>
</title>
<description></description>
<vocabulary>
<vocabulary>netimpact.content.Chapters</vocabulary>
</vocabulary>
<required>
<required>True</required>
</required>
<default>
<default>n/a</default>
</default>
</field>

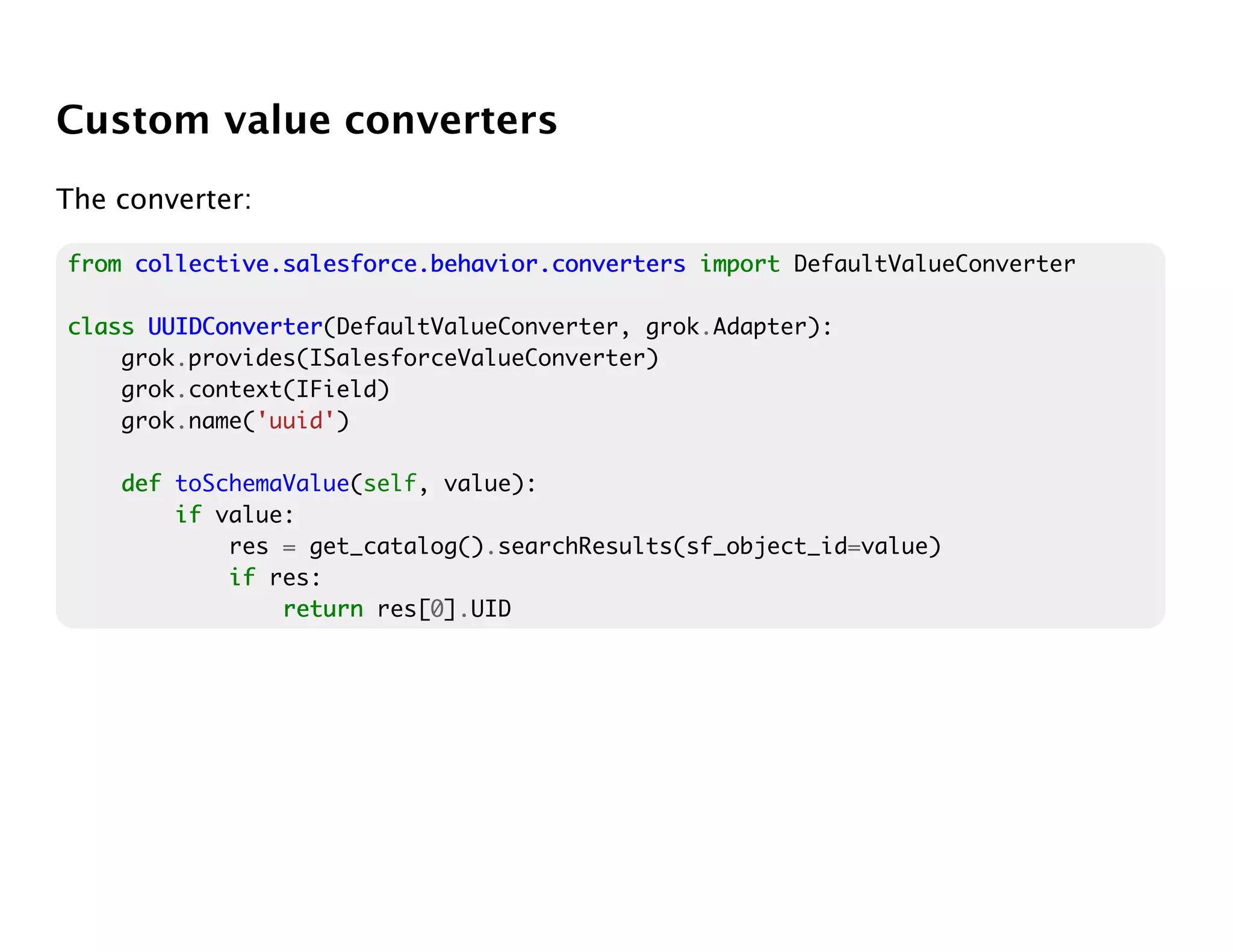

Custom value converters
The converter:

from collective.salesforce.behavior.converters import DefaultValueConverter

class UUIDConverter
UUIDConverter(DefaultValueConverter, grok.Adapter):
grok.provides(ISalesforceValueConverter)
grok.context(IField)
grok.name('uuid')

def toSchemaValue(self, value):
if value:
res = get_catalog().searchResults(sf_object_id=value)
if res:
return res[0].UID

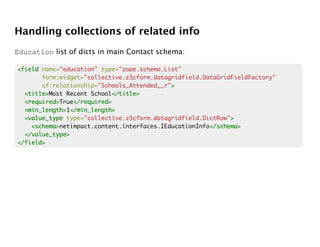

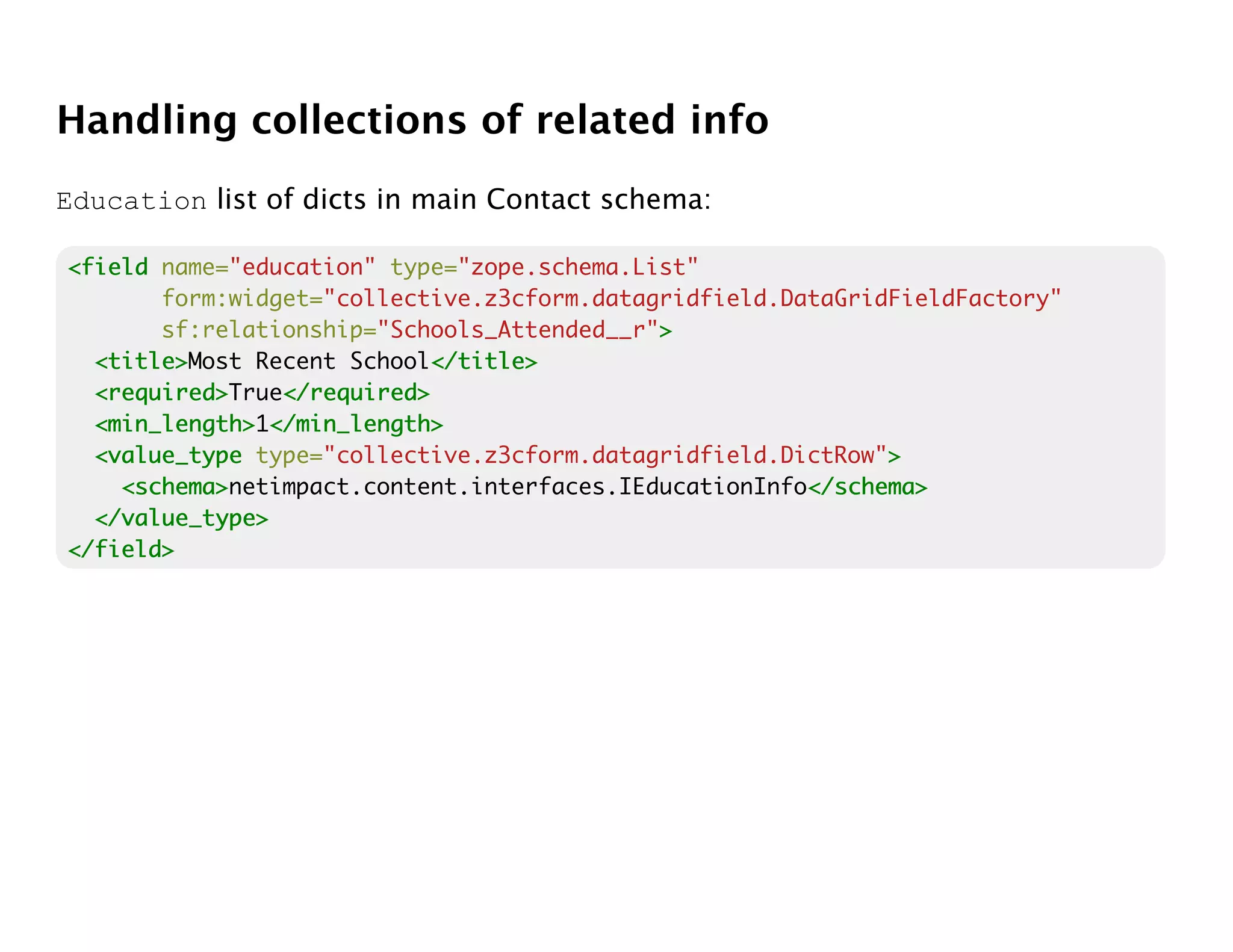

Handling collections of related info
Education list of dicts in main Contact schema:

<field name="education" type="zope.schema.List"
form:widget="collective.z3cform.datagridfield.DataGridFieldFactory"
sf:relationship="Schools_Attended__r">
>
<title>
<title>Most Recent School</title>
</title>
<required>
<required>True</required>
</required>
<min_length> </min_length>
<min_length>1</min_length>
<value_type type="collective.z3cform.datagridfield.DictRow">
>
<schema>
<schema>netimpact.content.interfaces.IEducationInfo</schema>
</schema>
</value_type>
</field>

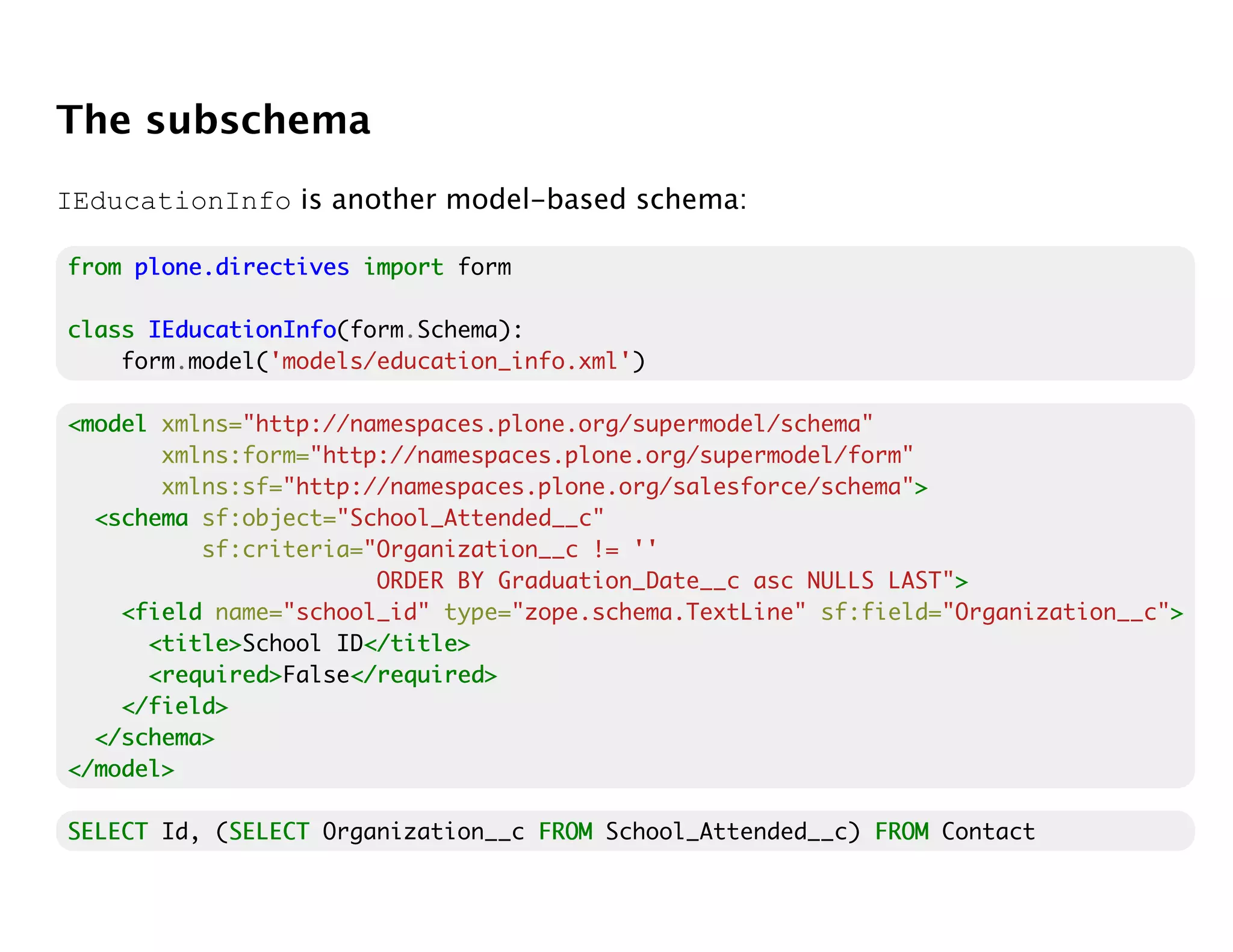

The subschema
IEducationInfo is another model-based schema:

from plone.directives import form

class IEducationInfo
IEducationInfo(form.Schema):
form.model('models/education_info.xml')

xmlns:form="http://namespaces.plone.org/supermodel/form"
xmlns:sf="http://namespaces.plone.org/salesforce/schema">>
<schema sf:object="School_Attended__c"
sf:criteria="Organization__c != ''
ORDER BY Graduation_Date__c asc NULLS LAST">
>
<field name="school_id" type="zope.schema.TextLine" sf:field="Organization__c">
>
<title>
<title>School ID</title>
</title>
<required>
</required>
</field>
</schema>
</model>

SELECT Id, (SELECT Organization__c FROM School_Attended__c) FROM Contact
SELECT

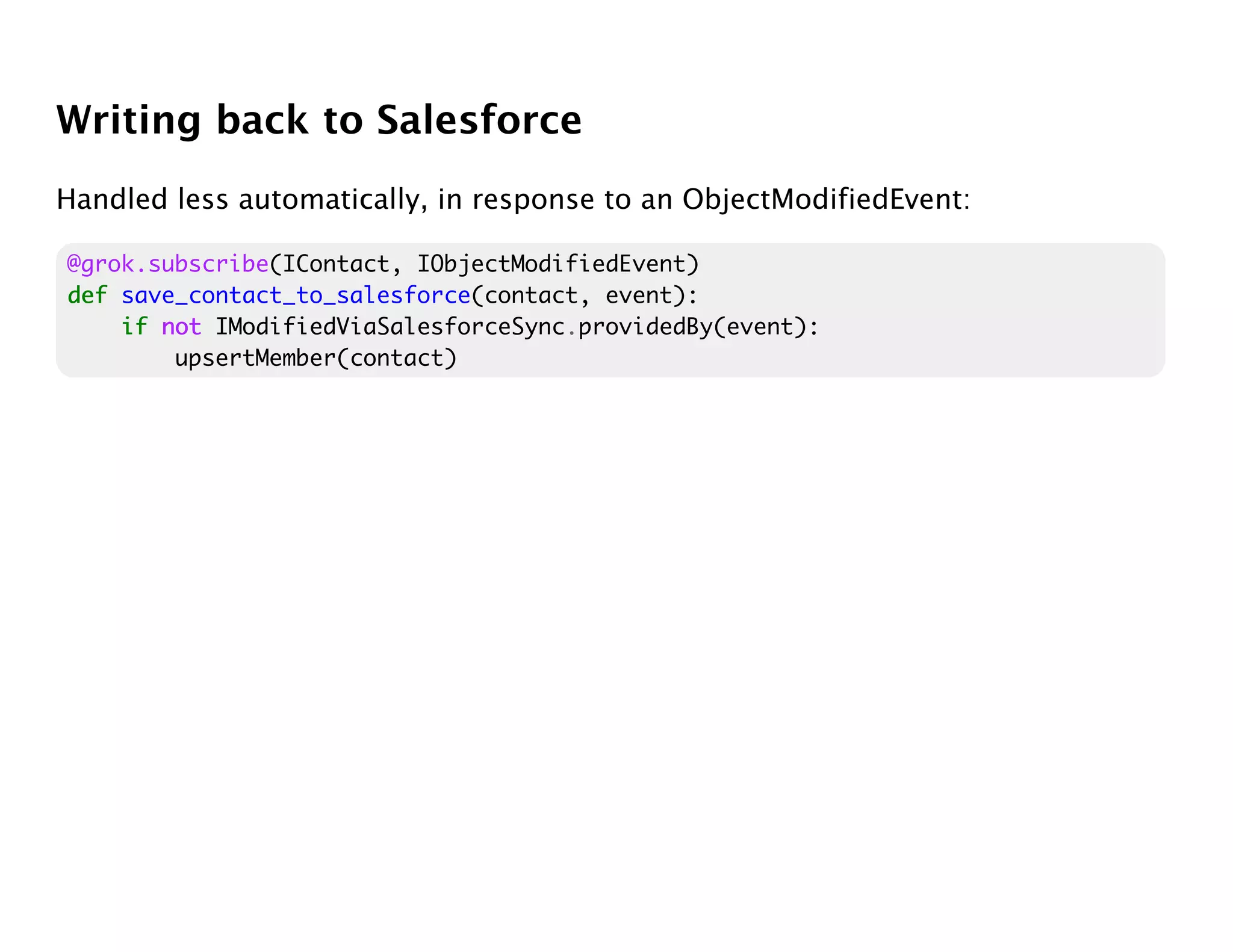

Writing back to Salesforce
Handled less automatically, in response to an ObjectModifiedEvent:

@grok.subscribe(IContact, IObjectModifiedEvent)
def save_contact_to_salesforce(contact, event):
if not IModifiedViaSalesforceSync.providedBy(event):
upsertMember(contact)

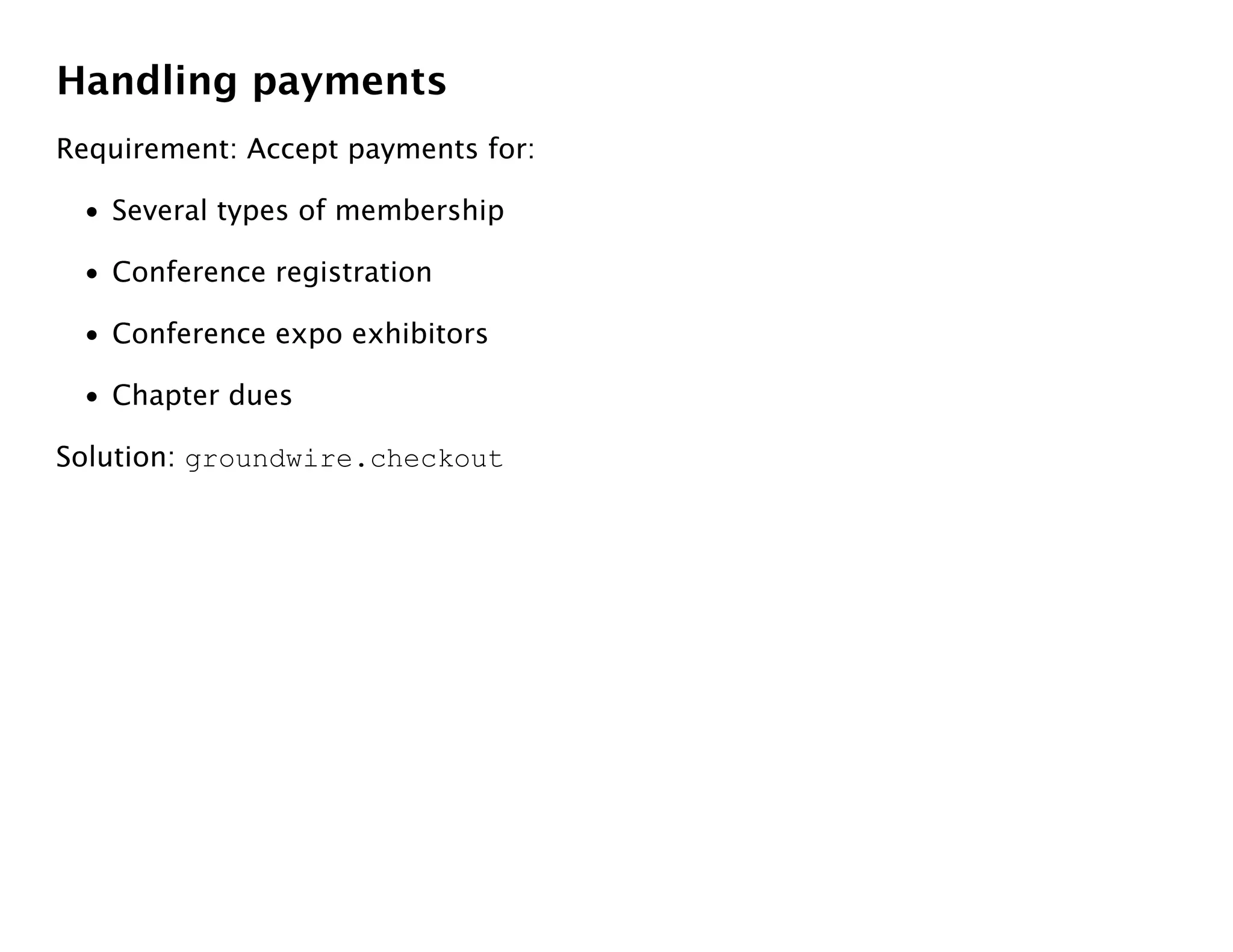

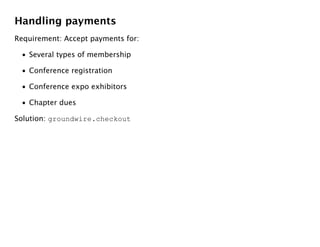

Handling payments
Requirement: Accept payments for:

• Several types of membership

• Conference registration

• Conference expo exhibitors

• Chapter dues

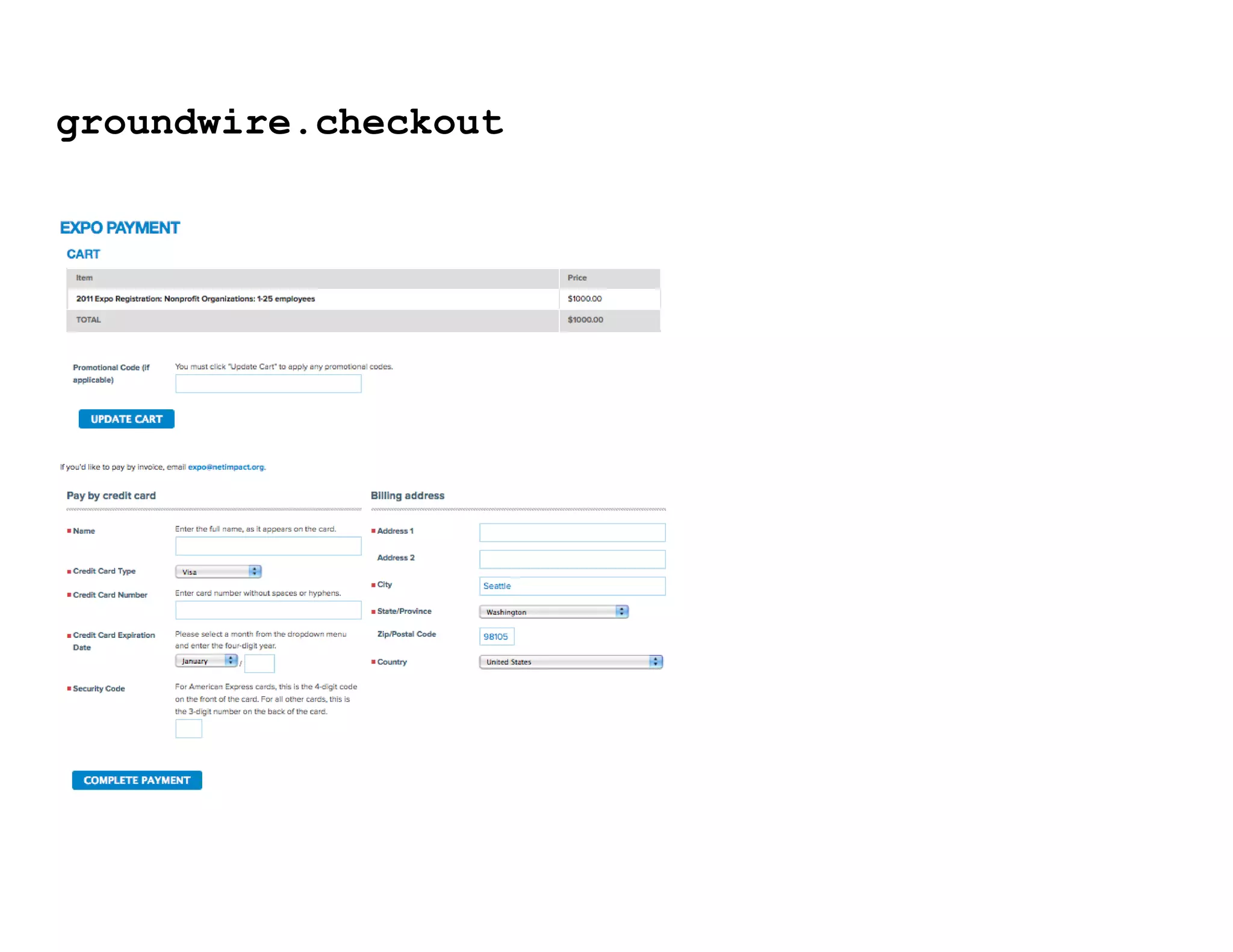

Solution: groundwire.checkout

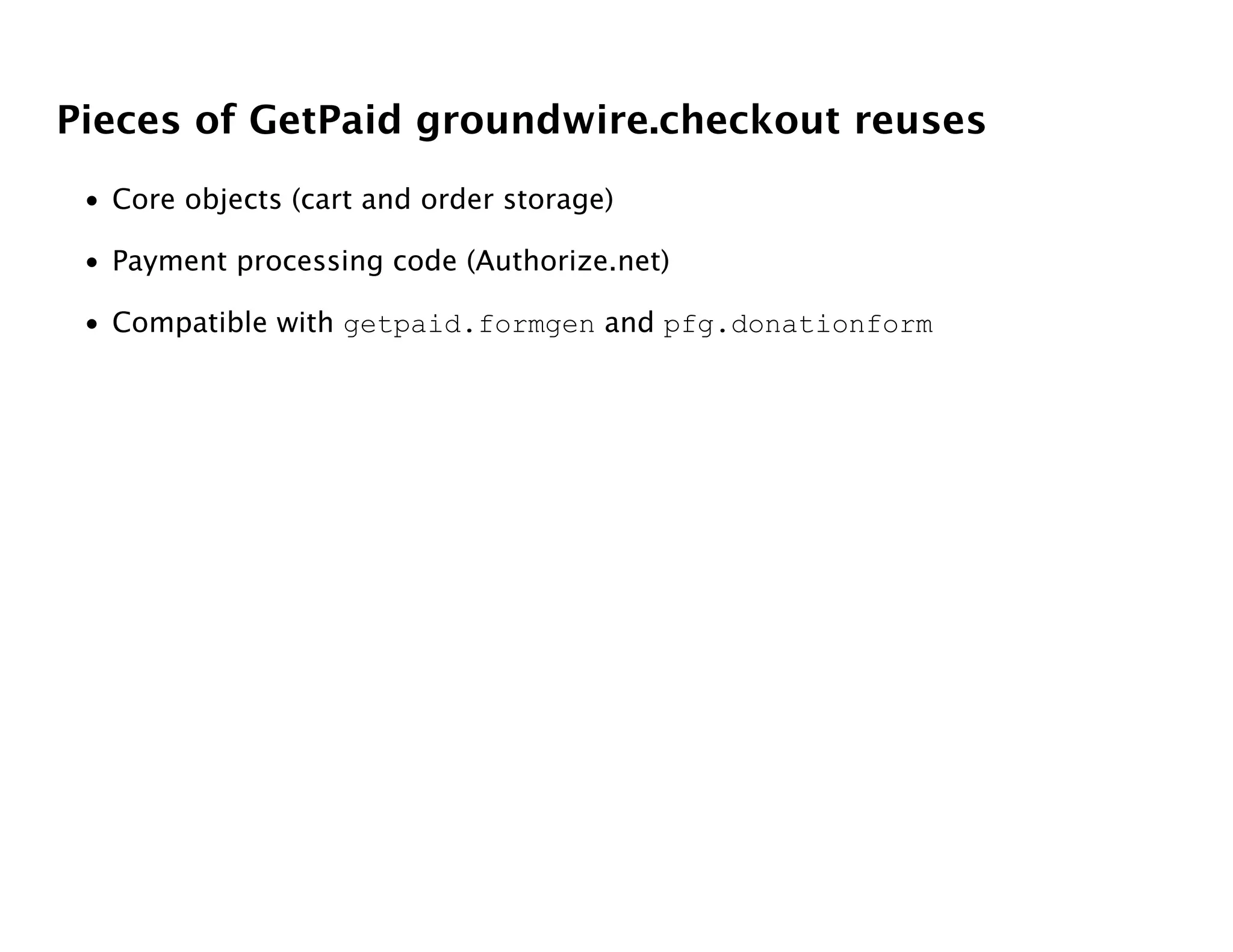

Pieces of GetPaid groundwire.checkout reuses
• Core objects (cart and order storage)

• Payment processing code (Authorize.net)

• Compatible with getpaid.formgen and pfg.donationform

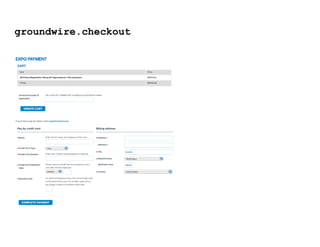

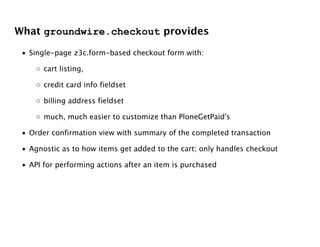

What groundwire.checkout provides

• Single-page z3c.form-based checkout form with:

◦ cart listing,

◦ credit card info fieldset

◦ billing address fieldset

◦ much, much easier to customize than PloneGetPaid's

• Order confirmation view with summary of the completed transaction

• Agnostic as to how items get added to the cart; only handles checkout

• API for performing actions after an item is purchased

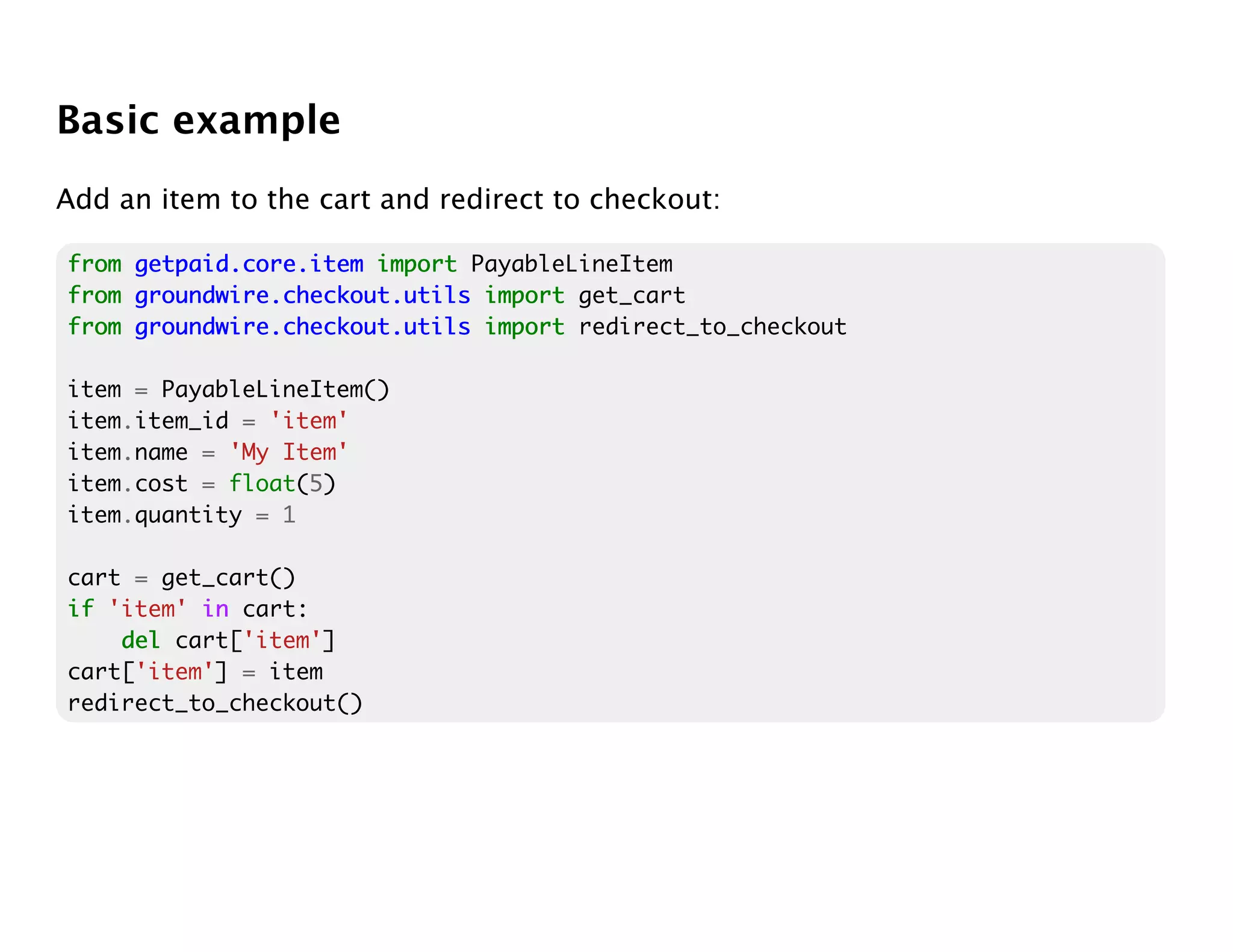

Basic example
Add an item to the cart and redirect to checkout:

from getpaid.core.item import PayableLineItem
from groundwire.checkout.utils import get_cart
from groundwire.checkout.utils import redirect_to_checkout

item = PayableLineItem()
item.item_id = 'item'
item.name = 'My Item'
item.cost = float(5)
item.quantity = 1

cart = get_cart()
if 'item' in cart:
del cart['item']
cart['item'] = item
redirect_to_checkout()

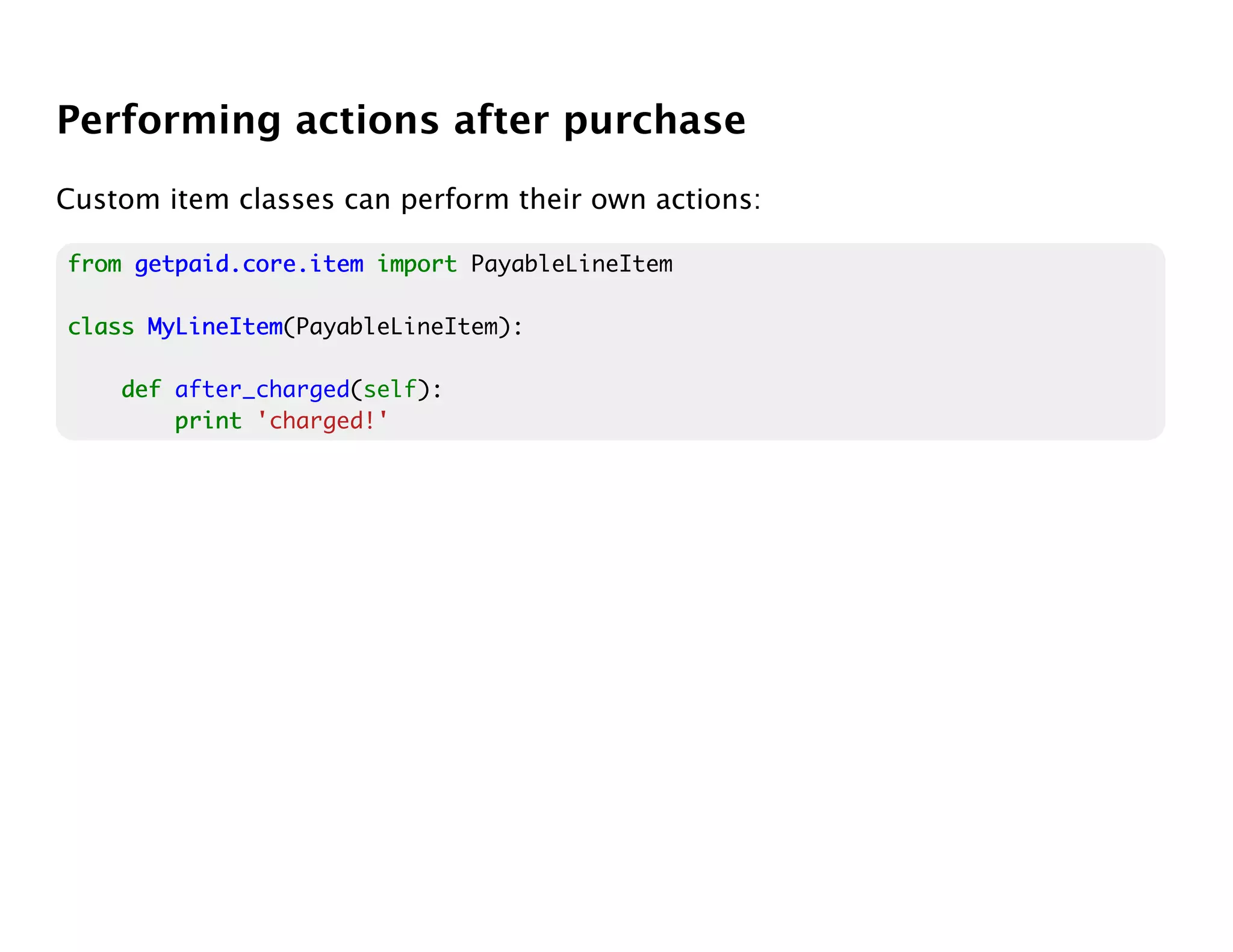

Performing actions after purchase
Custom item classes can perform their own actions:

from getpaid.core.item import PayableLineItem

class MyLineItem
MyLineItem(PayableLineItem):

def after_charged(self):
print 'charged!'

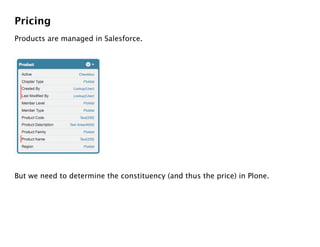

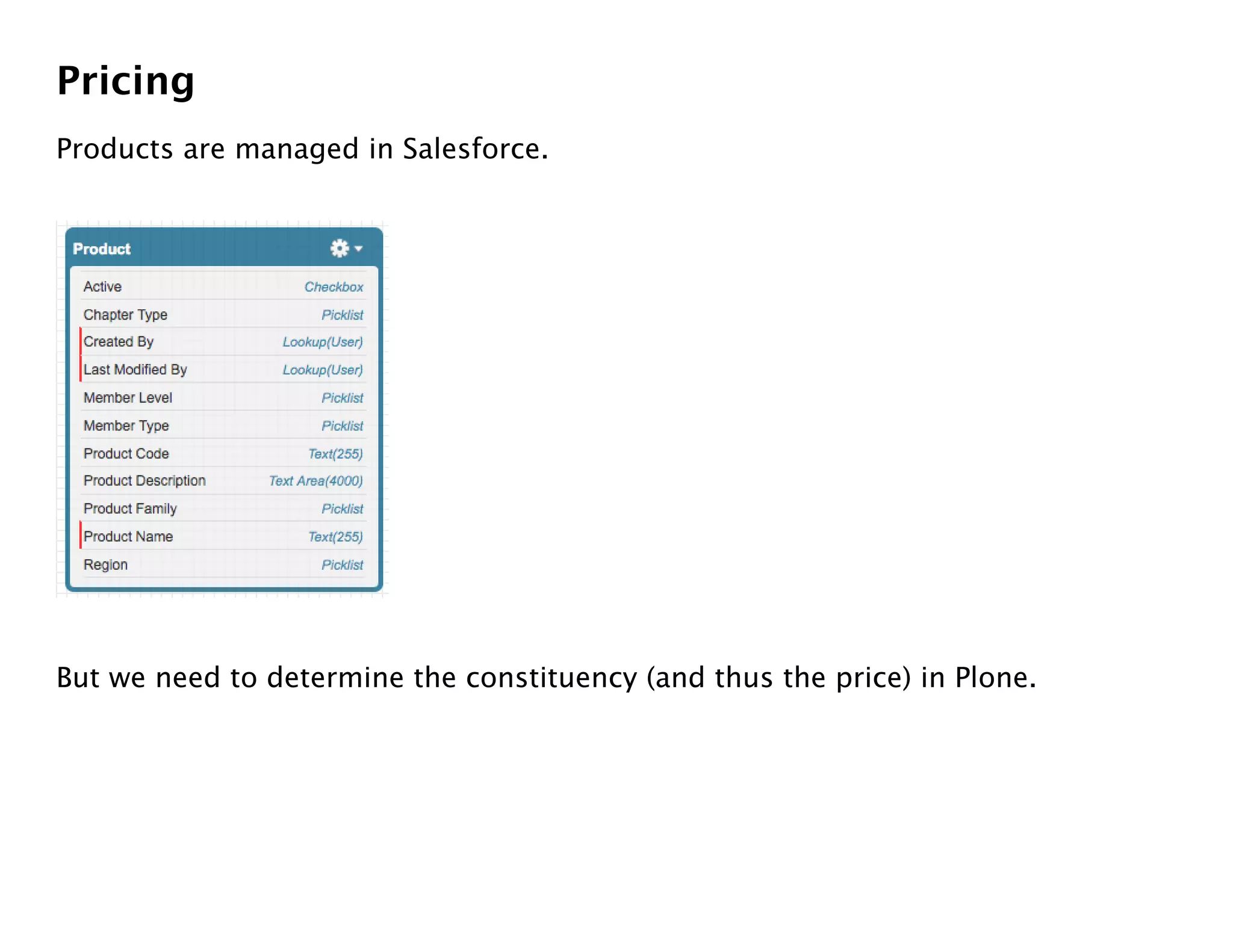

Pricing
Products are managed in Salesforce.

But we need to determine the constituency (and thus the price) in Plone.

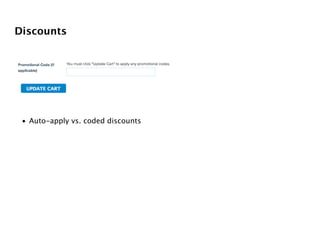

Discounts

• Auto-apply vs. coded discounts

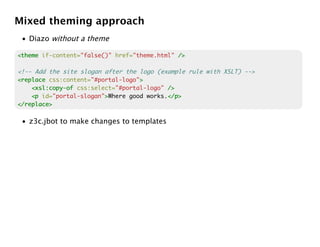

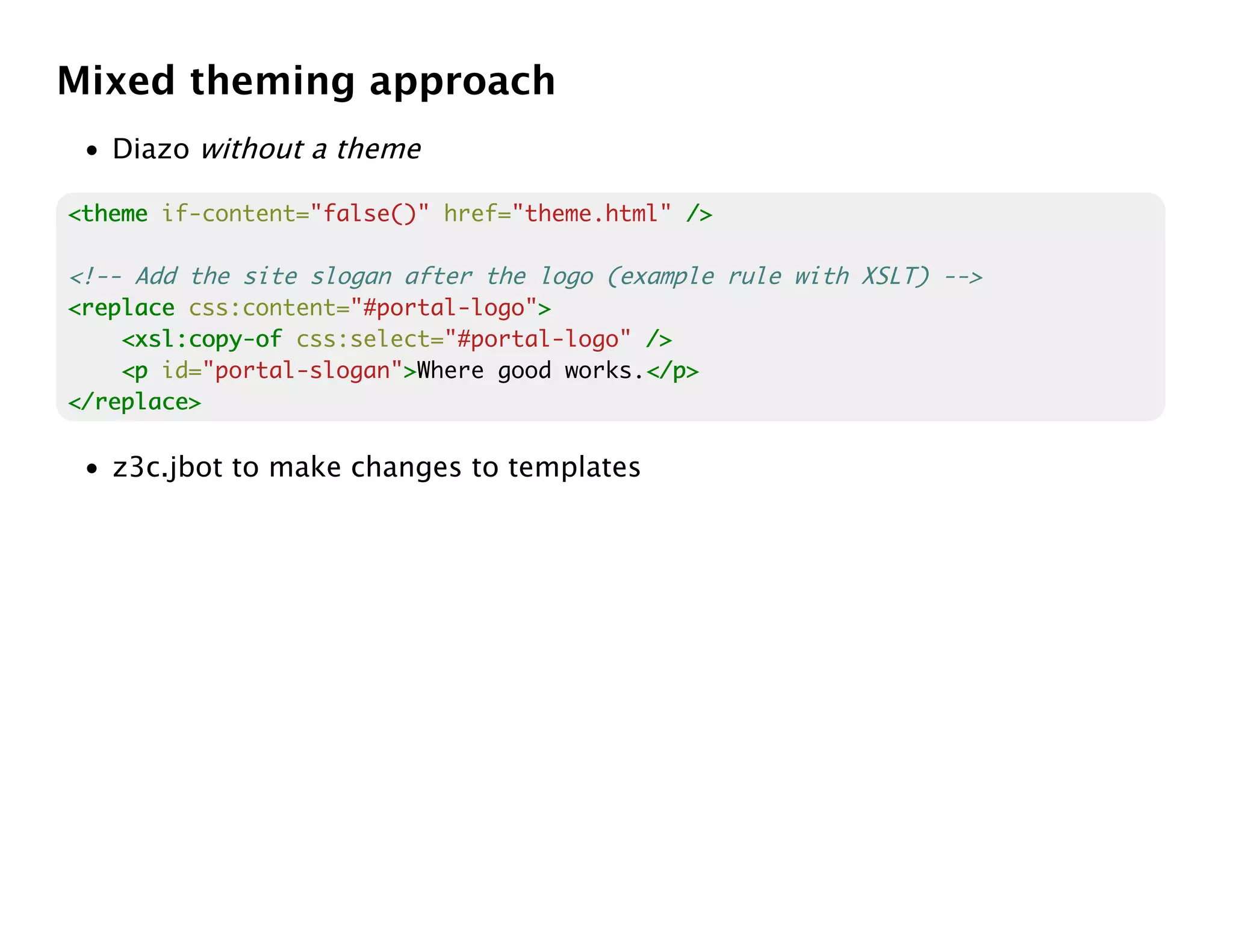

Mixed theming approach
• Diazo without a theme

<theme if-content="false()" href="theme.html" />


<replace css:content="#portal-logo">
>
<xsl:copy-of css:select="#portal-logo" />
<p id="portal-slogan">Where good works.</p>
> </p>
</replace>

• z3c.jbot to make changes to templates

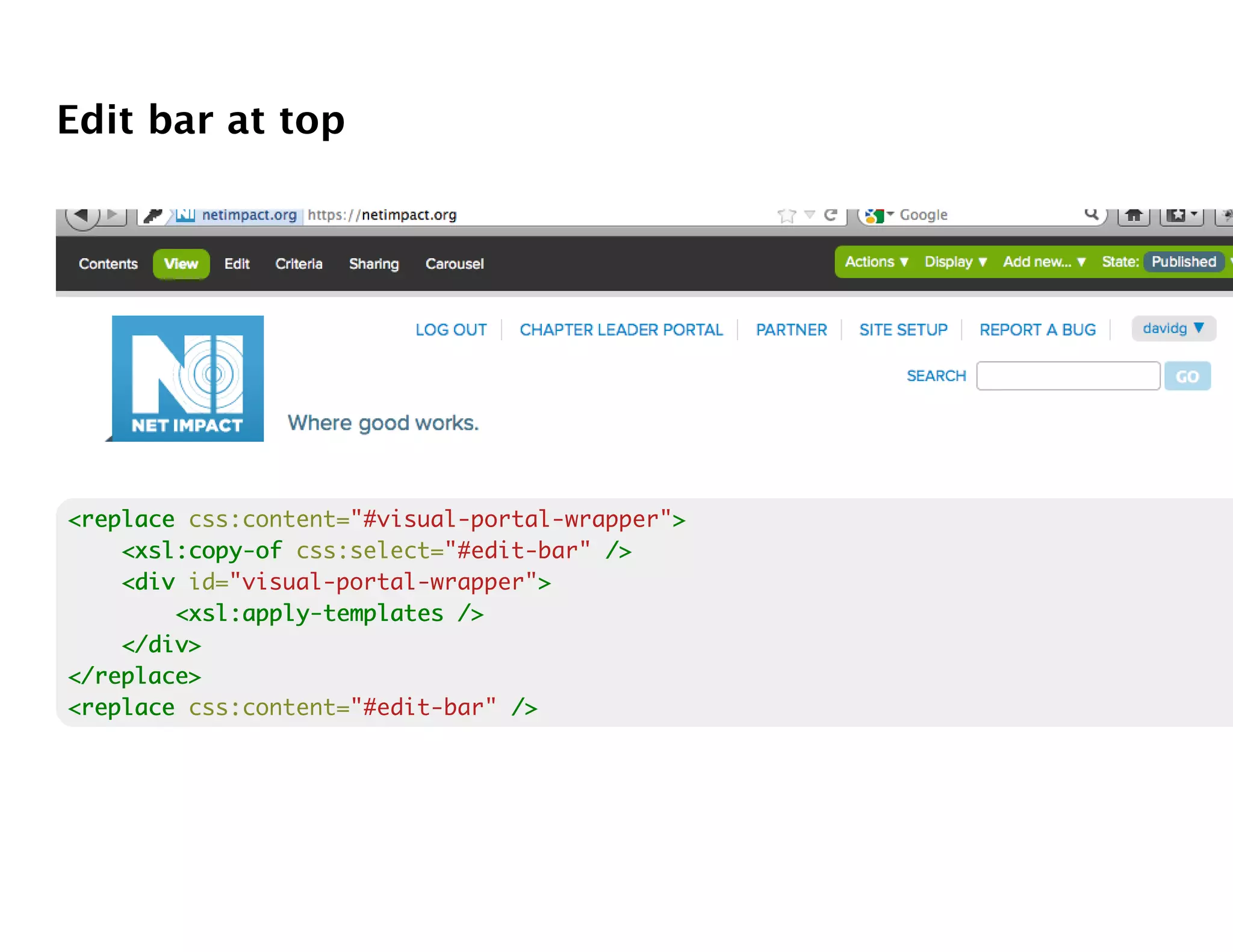

Edit bar at top

<replace css:content="#visual-portal-wrapper">
>
<xsl:copy-of css:select="#edit-bar" />
<div id="visual-portal-wrapper">>
<xsl:apply-templates />
</div>
</replace>
<replace css:content="#edit-bar" />

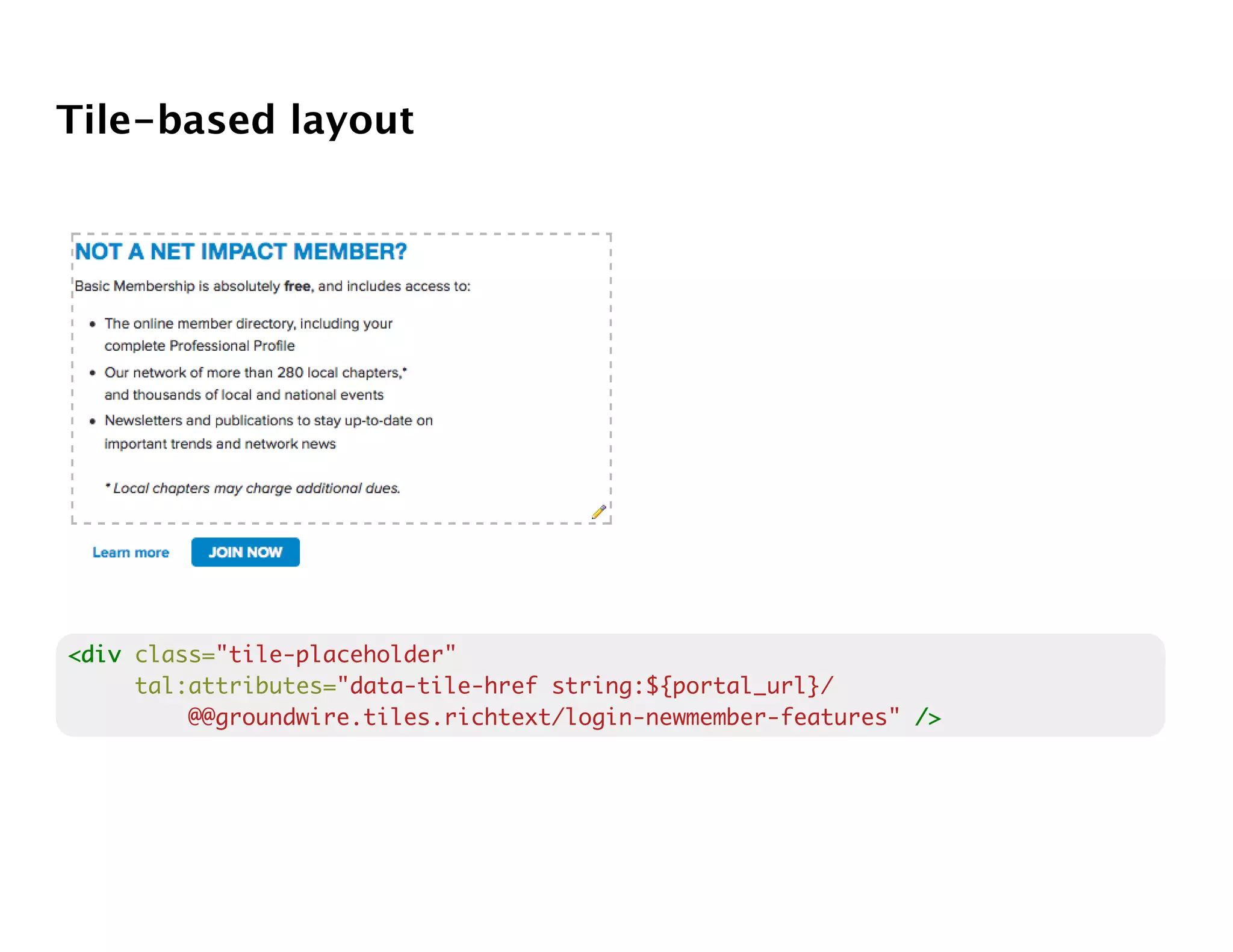

Tile-based layout

<div class="tile-placeholder"
tal:attributes="data-tile-href string:${portal_url}/
@@groundwire.tiles.richtext/login-newmember-features" />

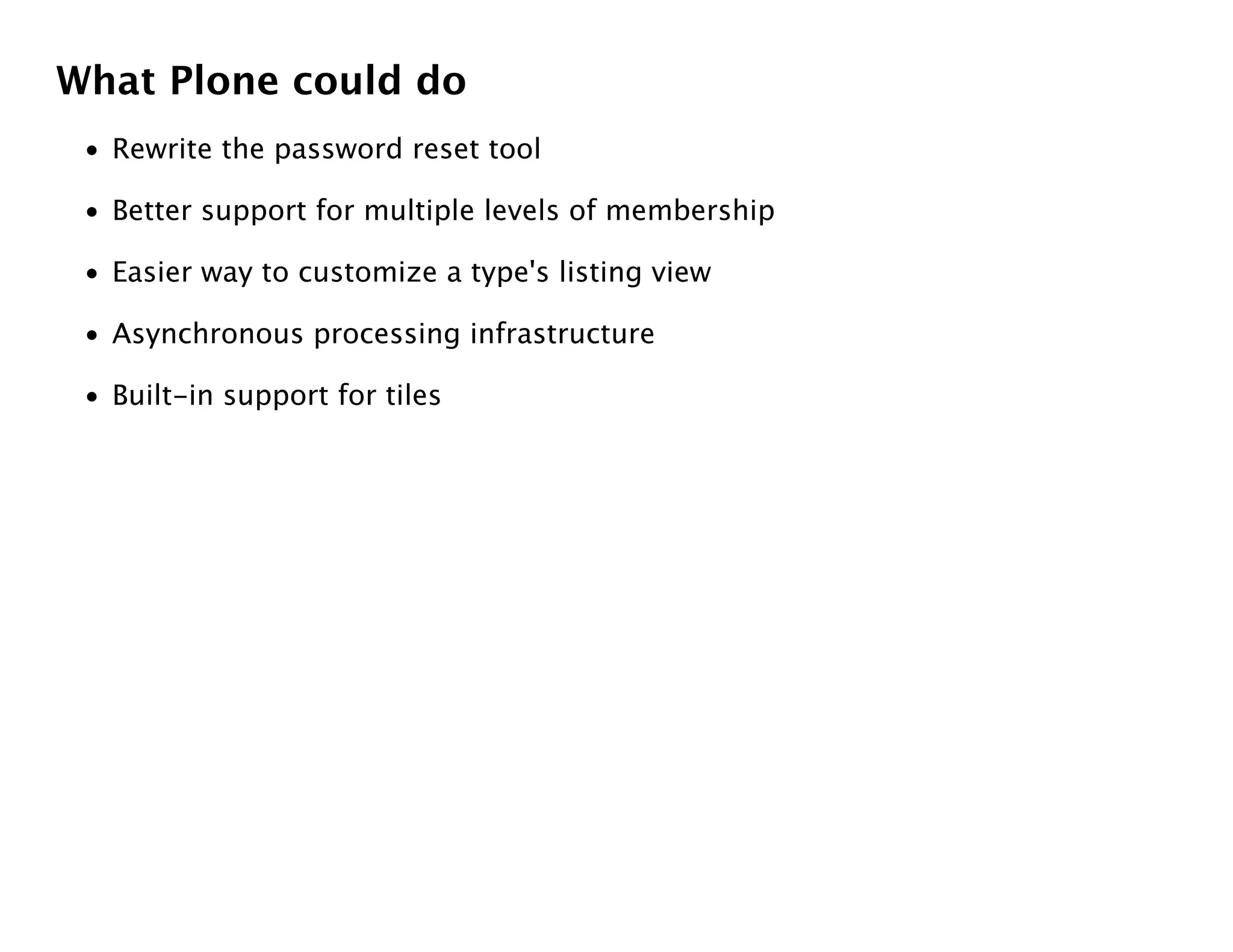

What Plone could do
• Rewrite the password reset tool

• Better support for multiple levels of membership

• Easier way to customize a type's listing view

• Asynchronous processing infrastructure

• Built-in support for tiles

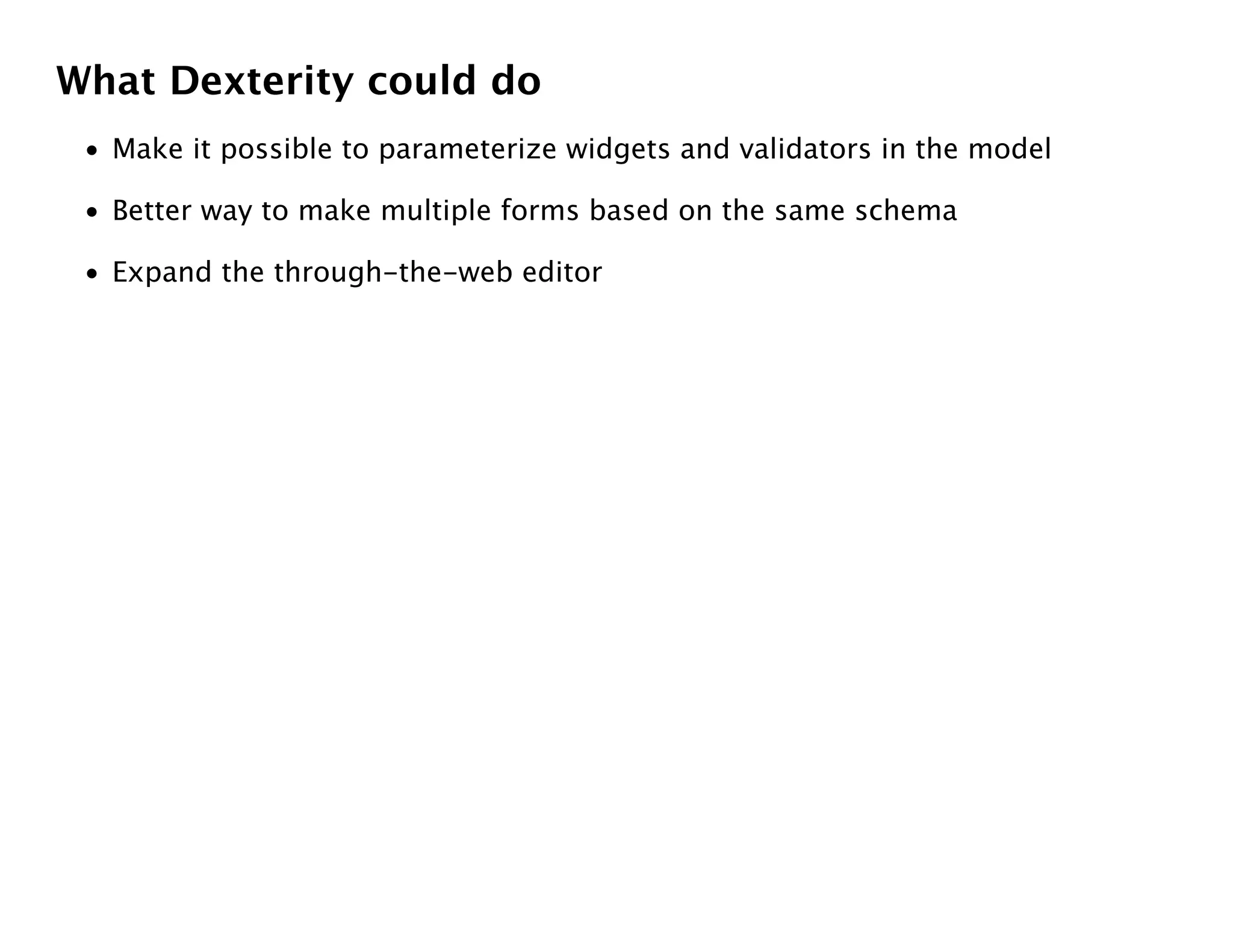

What Dexterity could do
• Make it possible to parameterize widgets and validators in the model

• Better way to make multiple forms based on the same schema

• Expand the through-the-web editor

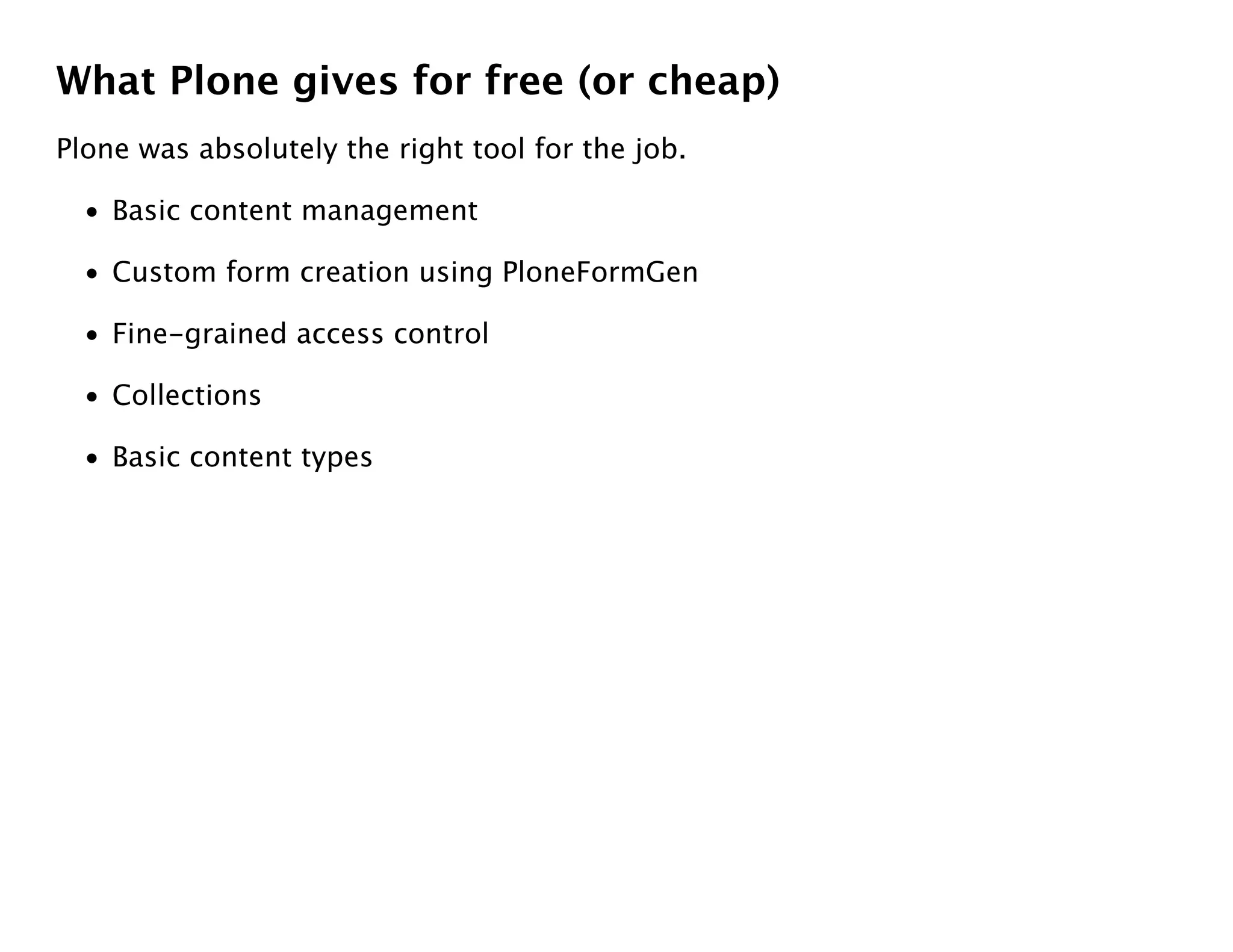

What Plone gives for free (or cheap)
Plone was absolutely the right tool for the job.

• Basic content management

• Custom form creation using PloneFormGen

• Fine-grained access control

• Collections

• Basic content types

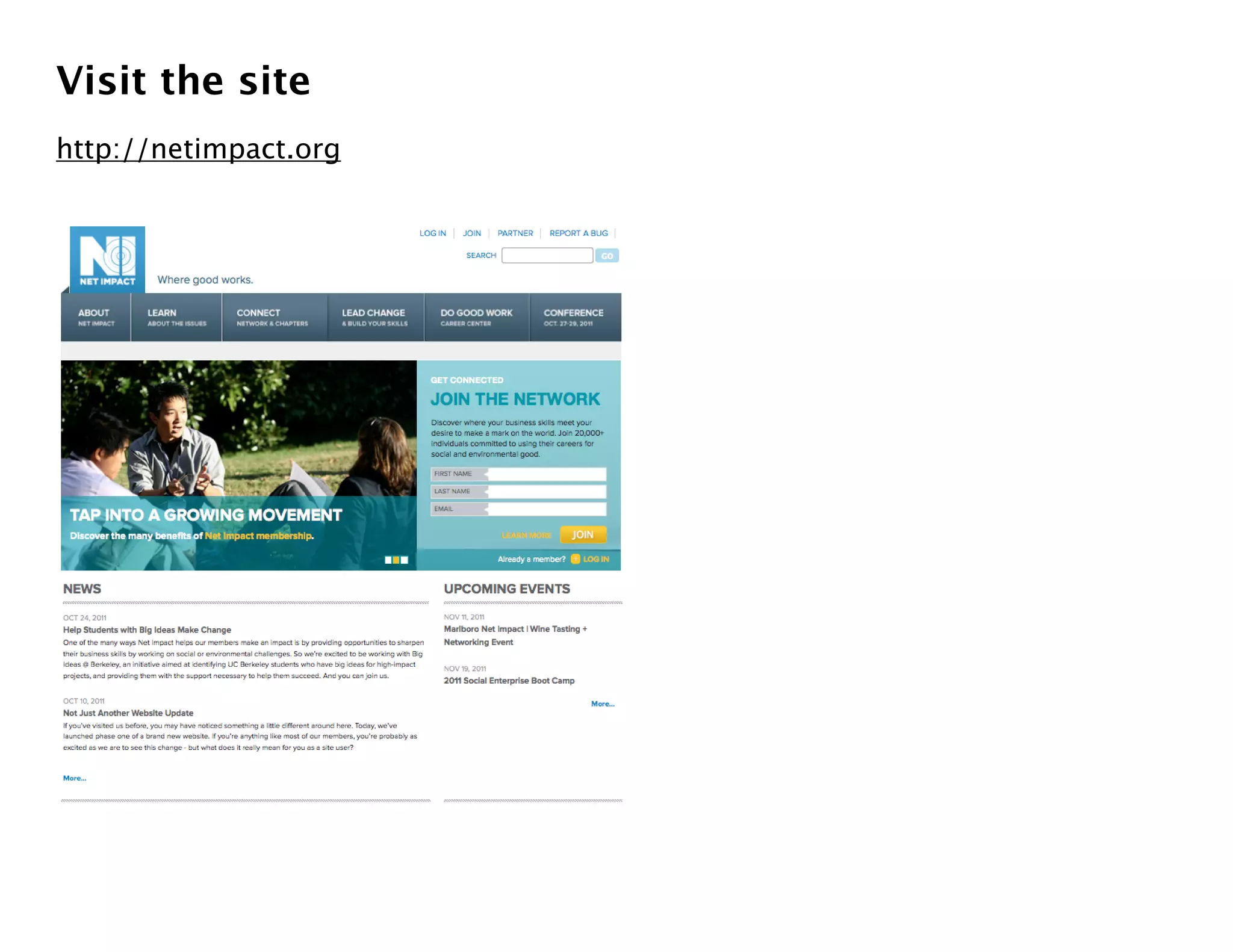

Visit the site
http://netimpact.org

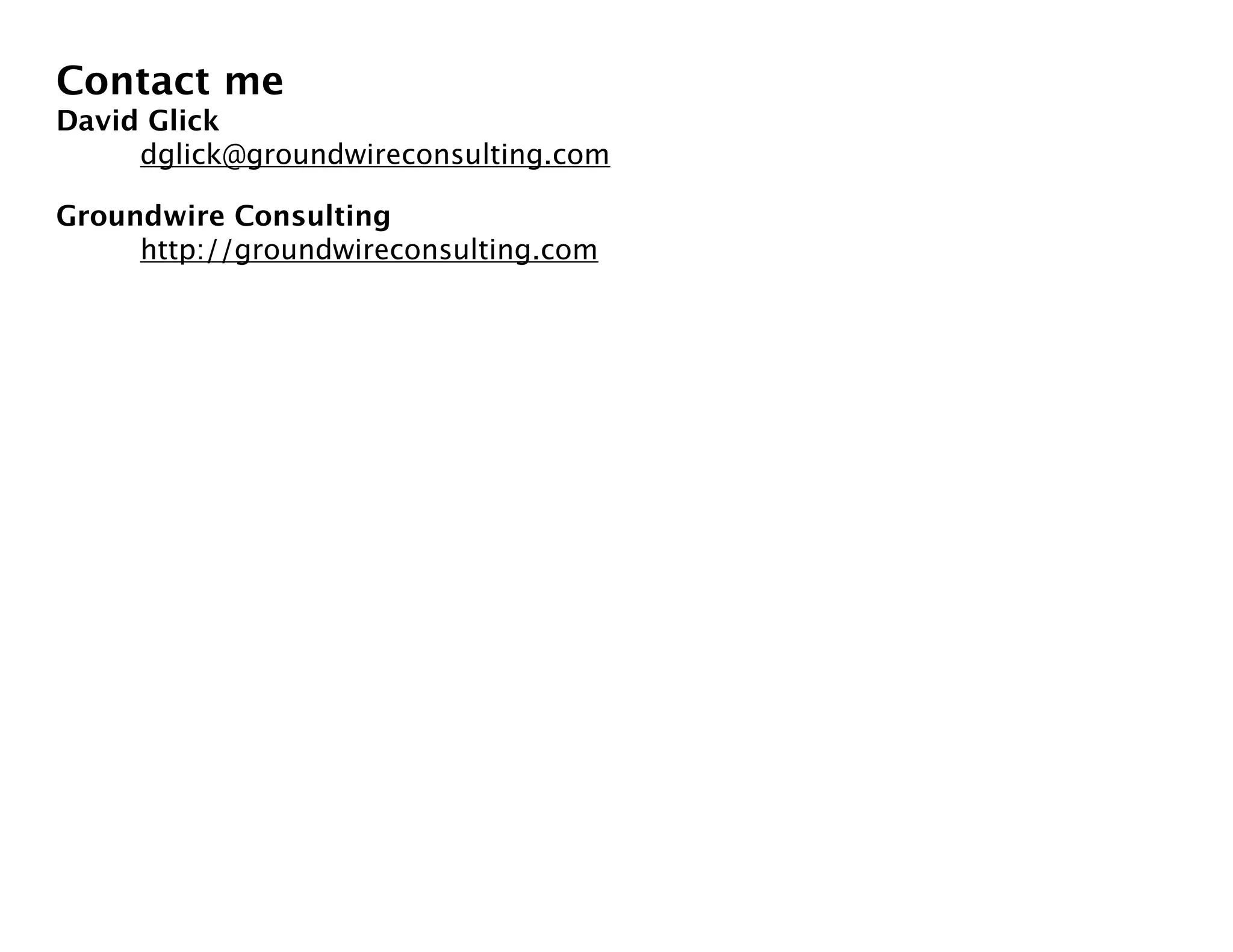

Contact me
David Glick
dglick@groundwireconsulting.com

Groundwire Consulting
http://groundwireconsulting.com

Dexterity in the Wild

More Related Content

What's hot

Similar to Dexterity in the Wild

Recently uploaded

Dexterity in the Wild
