• 1.

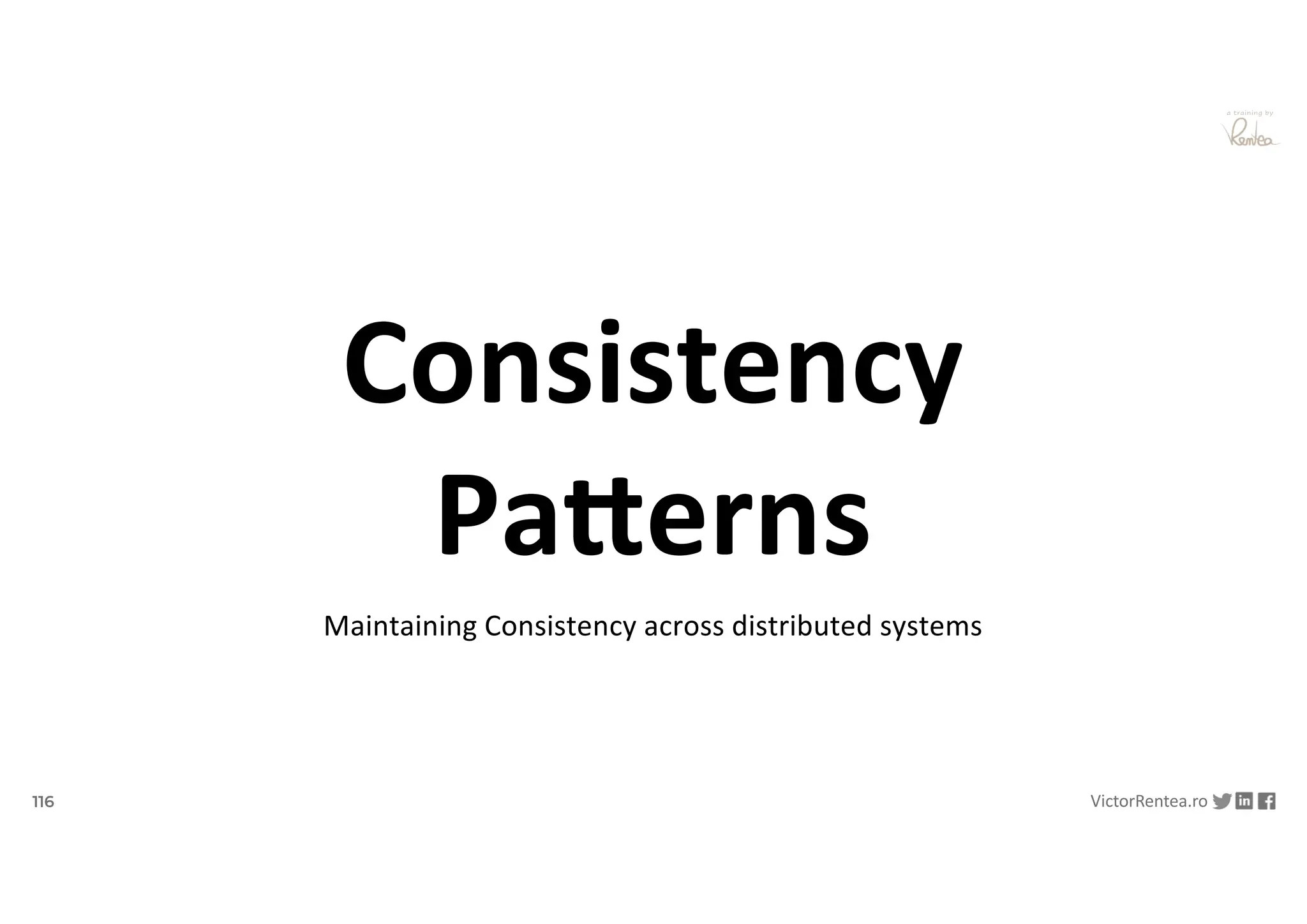

  116 VictorRentea.ro a trainingby Consistency Pa-erns Maintaining Consistency across distributed systems
• 2.

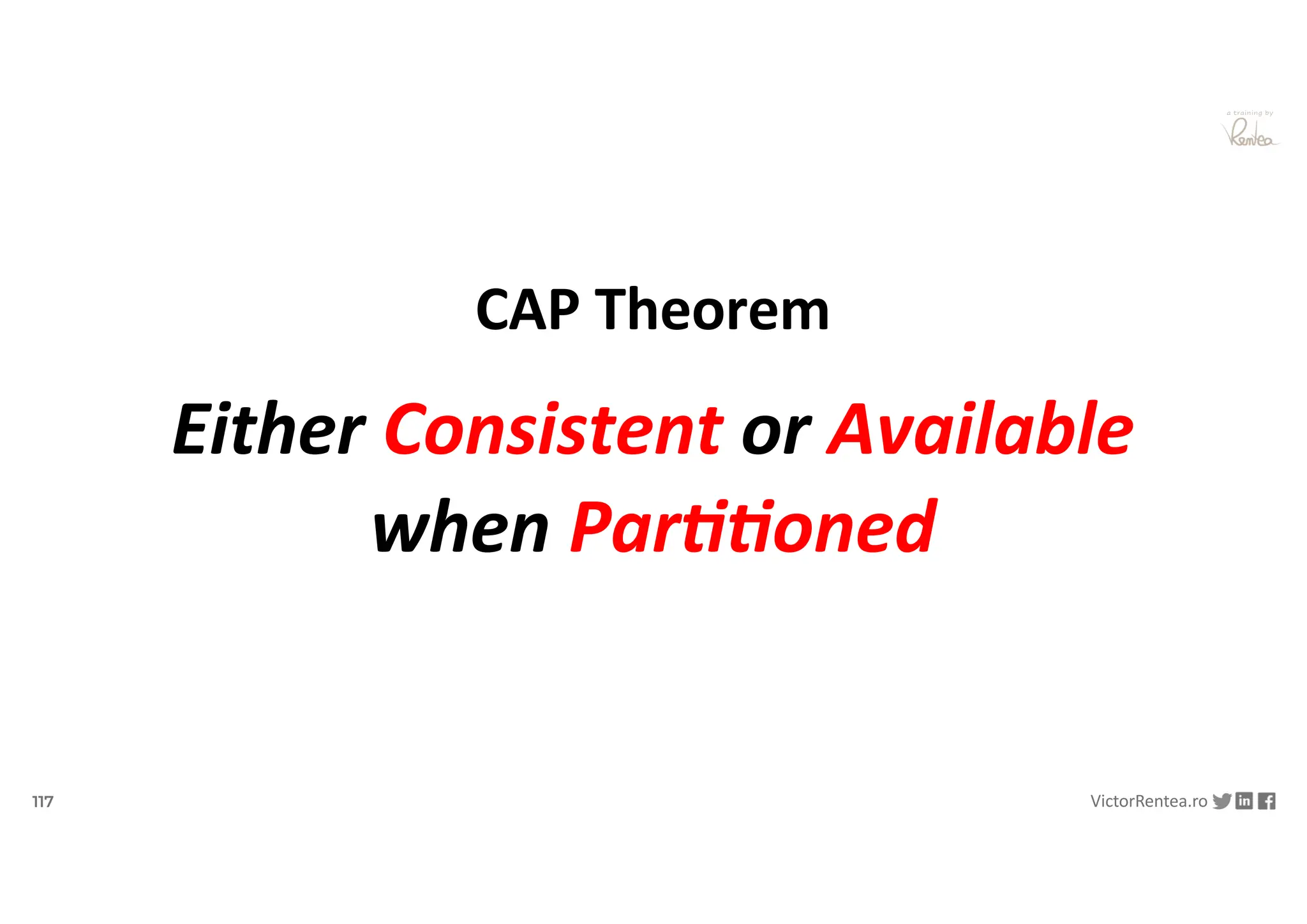

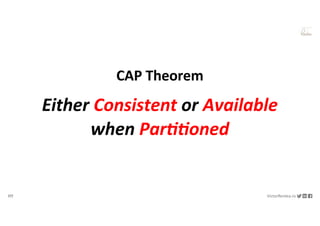

  117 VictorRentea.ro a trainingby Either Consistent or Available when Par33oned CAP Theorem
• 3.

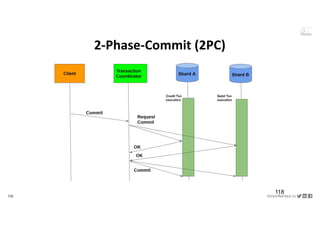

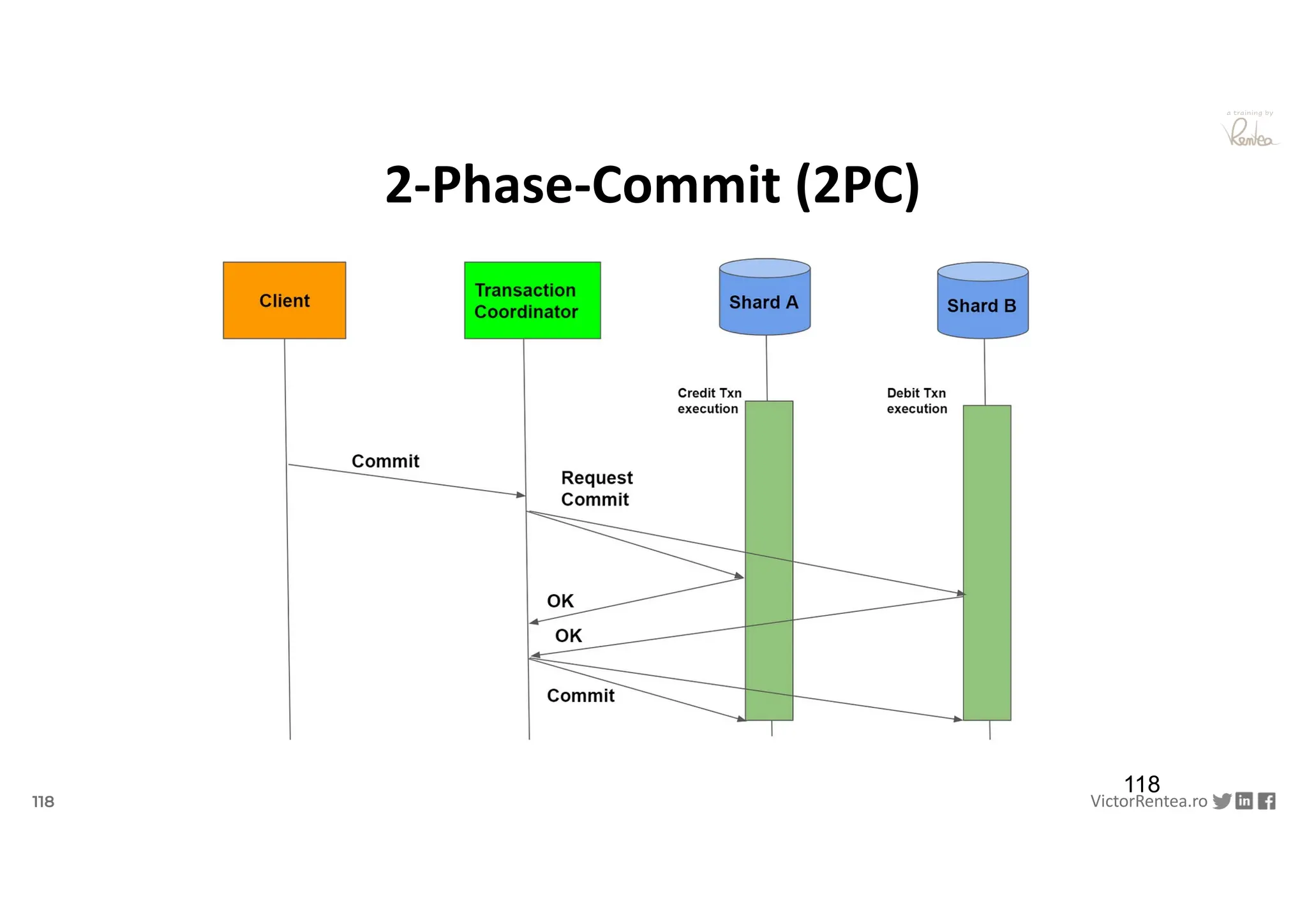

  118 VictorRentea.ro a trainingby 2-Phase-Commit (2PC) 118
• 4.

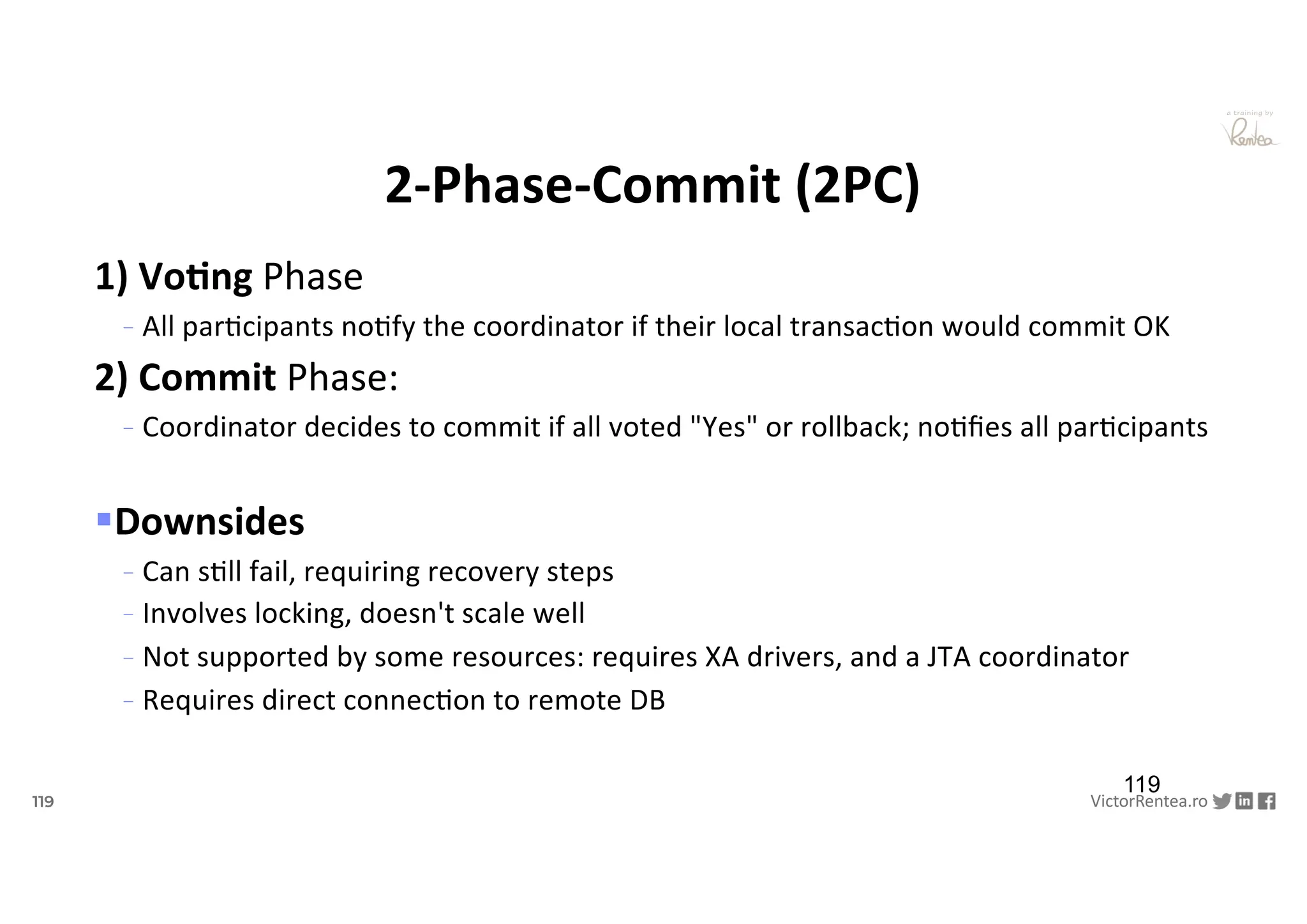

  119 VictorRentea.ro a trainingby 1) Vo&ng Phase - All par6cipants no6fy the coordinator if their local transac6on would commit OK 2) Commit Phase: - Coordinator decides to commit if all voted "Yes" or rollback; no6fies all par6cipants §Downsides - Can s6ll fail, requiring recovery steps - Involves locking, doesn't scale well - Not supported by some resources: requires XA drivers, and a JTA coordinator - Requires direct connec6on to remote DB 2-Phase-Commit (2PC) 119
• 5.

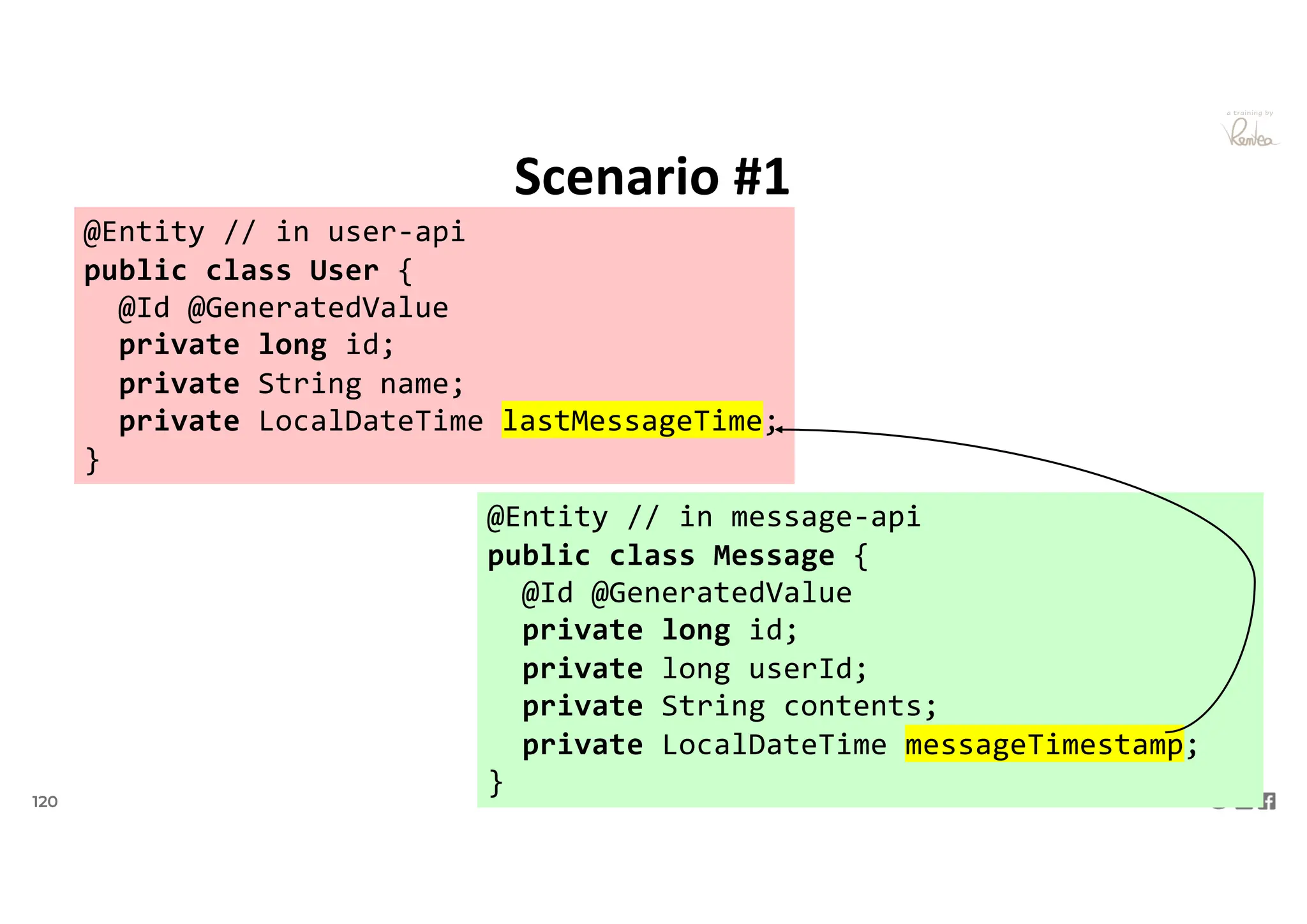

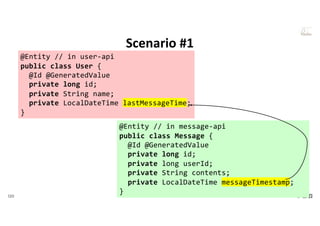

  120 VictorRentea.ro a trainingby Scenario #1 @Entity // in user-api public class User { @Id @GeneratedValue private long id; private String name; private LocalDateTime lastMessageTime; } @Entity // in message-api public class Message { @Id @GeneratedValue private long id; private long userId; private String contents; private LocalDateTime messageTimestamp; }
• 6.

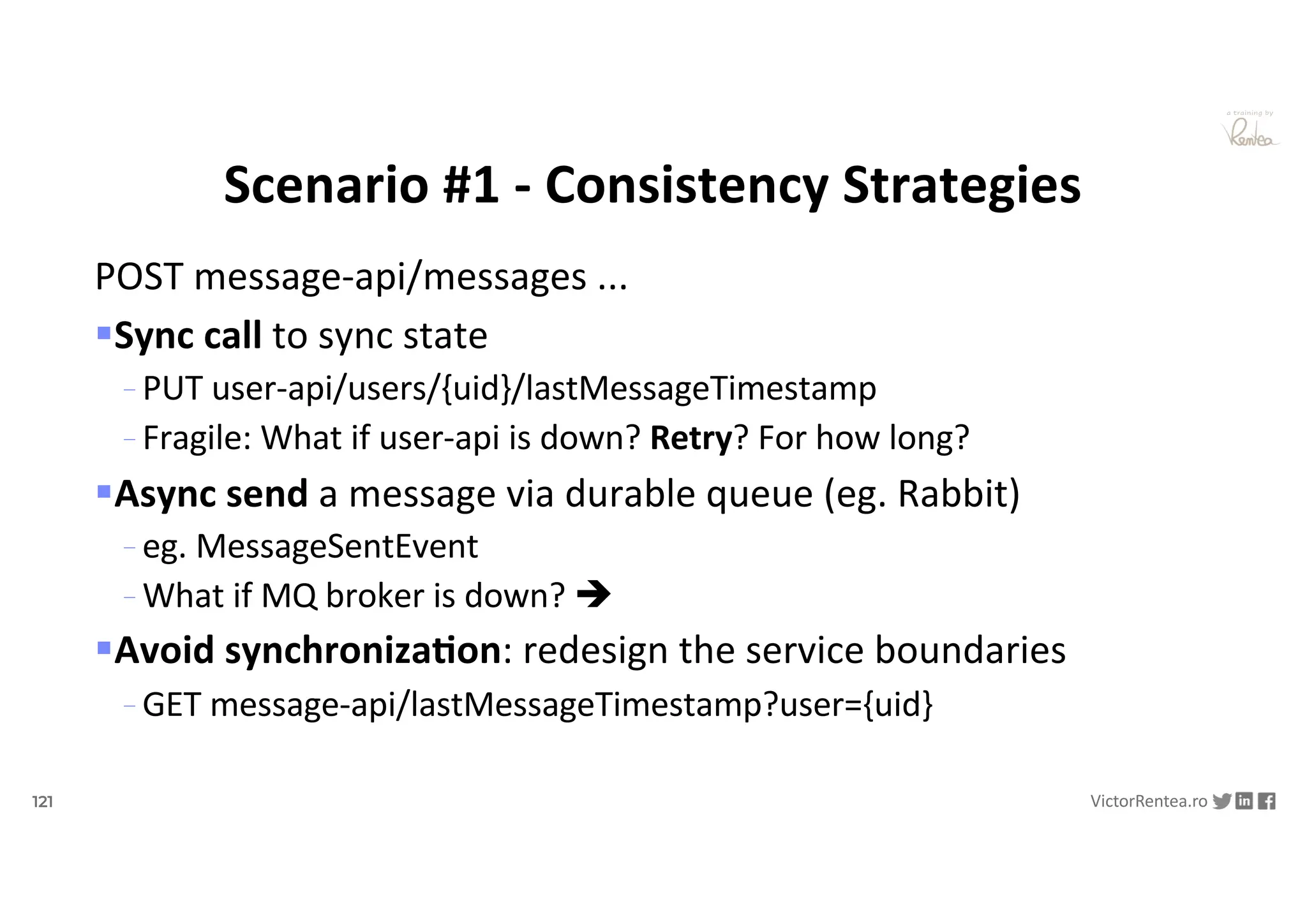

  121 VictorRentea.ro a trainingby POST message-api/messages ... §Sync call to sync state - PUT user-api/users/{uid}/lastMessageTimestamp - Fragile: What if user-api is down? Retry? For how long? §Async send a message via durable queue (eg. Rabbit) - eg. MessageSentEvent - What if MQ broker is down? è §Avoid synchroniza&on: redesign the service boundaries - GET message-api/lastMessageTimestamp?user={uid} Scenario #1 - Consistency Strategies
• 7.

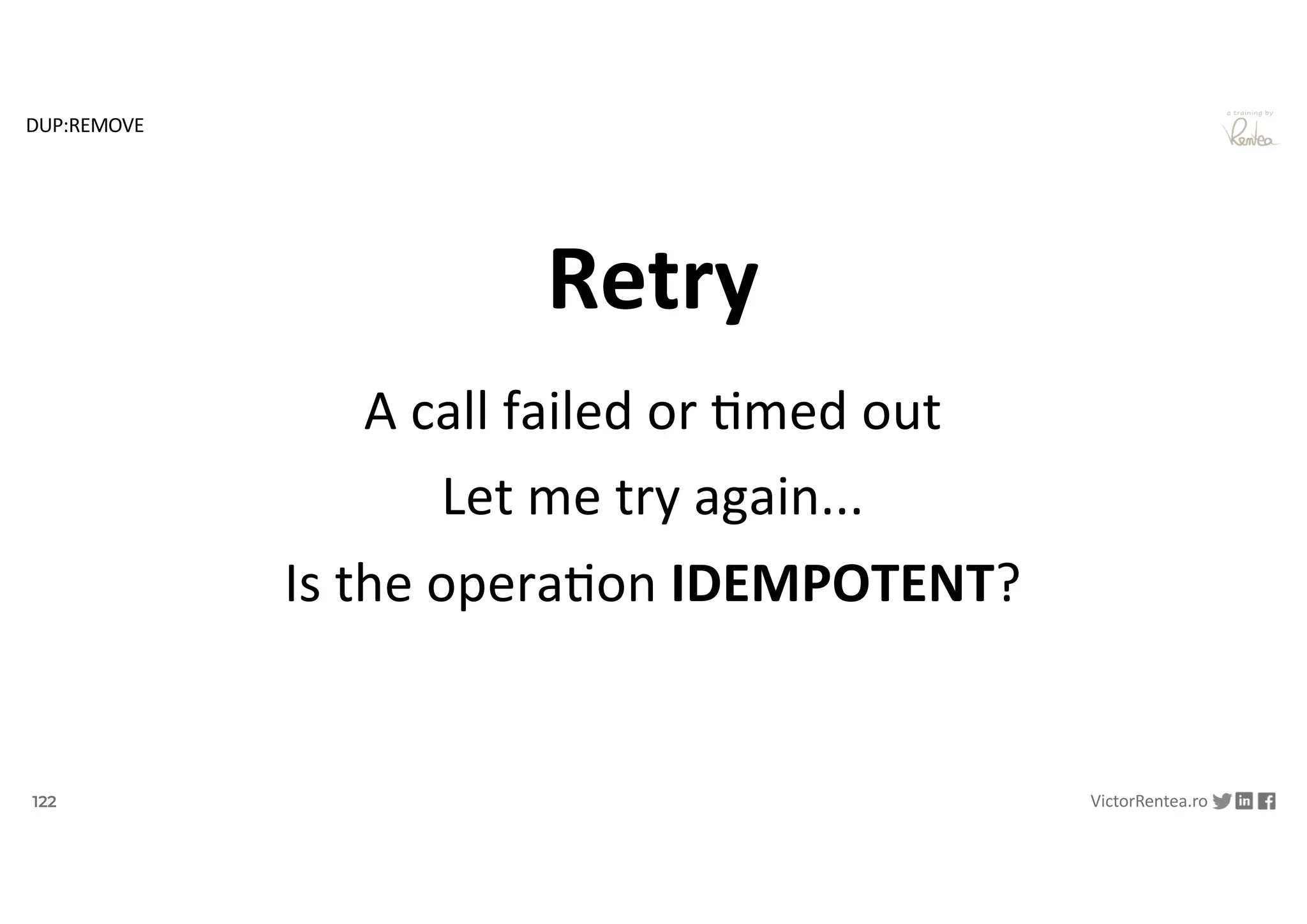

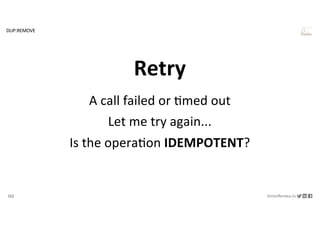

  122 VictorRentea.ro a trainingby A call failed or ,med out Let me try again... Is the opera,on IDEMPOTENT? Retry DUP:REMOVE
• 8.

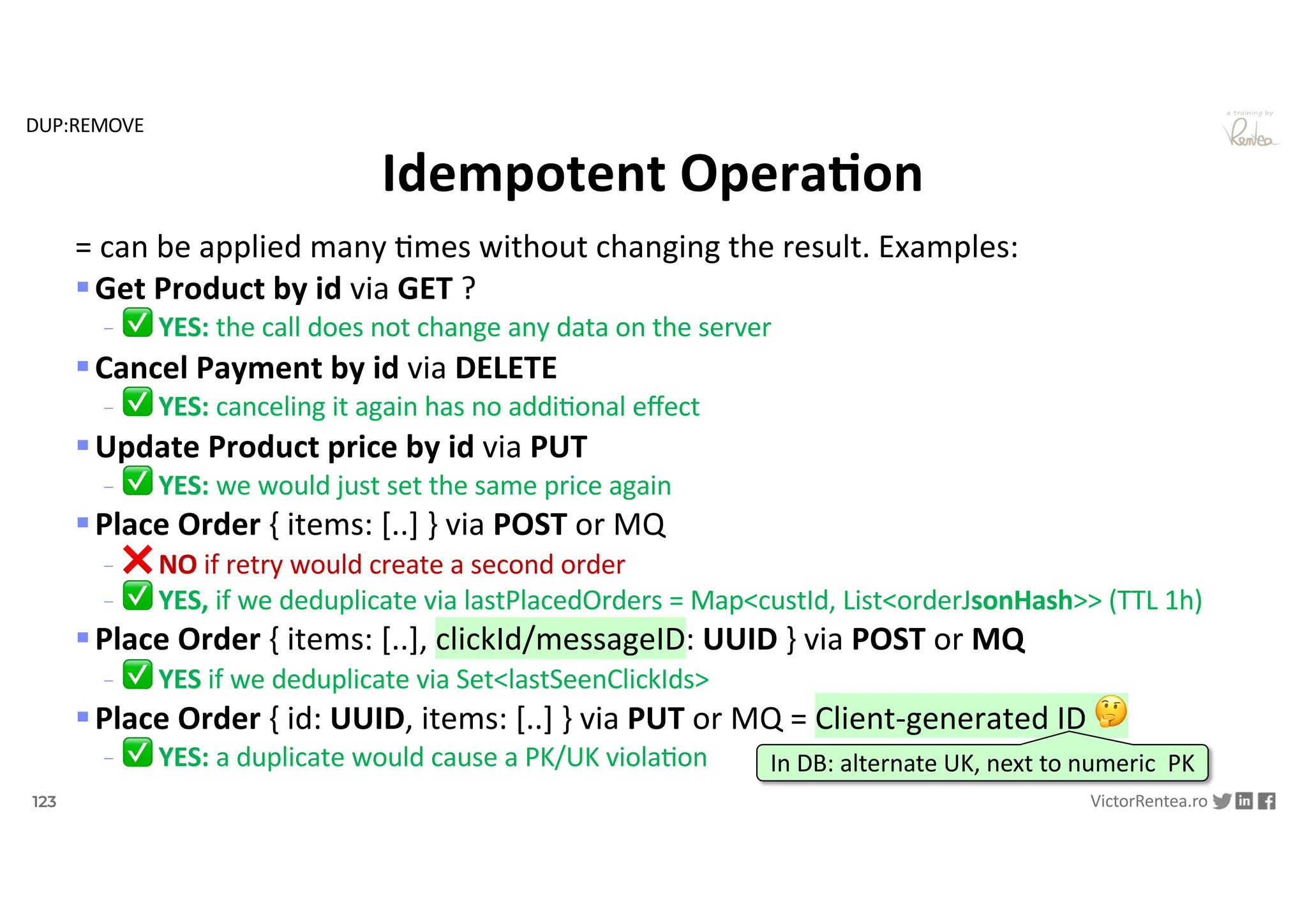

  123 VictorRentea.ro a trainingby = can be applied many .mes without changing the result. Examples: §Get Product by id via GET ? - ✅ YES: the call does not change any data on the server §Cancel Payment by id via DELETE - ✅ YES: canceling it again has no addi1onal effect §Update Product price by id via PUT - ✅ YES: we would just set the same price again §Place Order { items: [..] } via POST or MQ - ❌ NO if retry would create a second order - ✅ YES, if we deduplicate via lastPlacedOrders = Map<custId, List<orderJsonHash>> (TTL 1h) §Place Order { items: [..], clickId/messageID: UUID } via POST or MQ - ✅ YES if we deduplicate via Set<lastSeenClickIds> §Place Order { id: UUID, items: [..] } via PUT or MQ = Client-generated ID 🤔 - ✅ YES: a duplicate would cause a PK/UK viola1on Idempotent OperaAon In DB: alternate UK, next to numeric PK DUP:REMOVE
• 9.

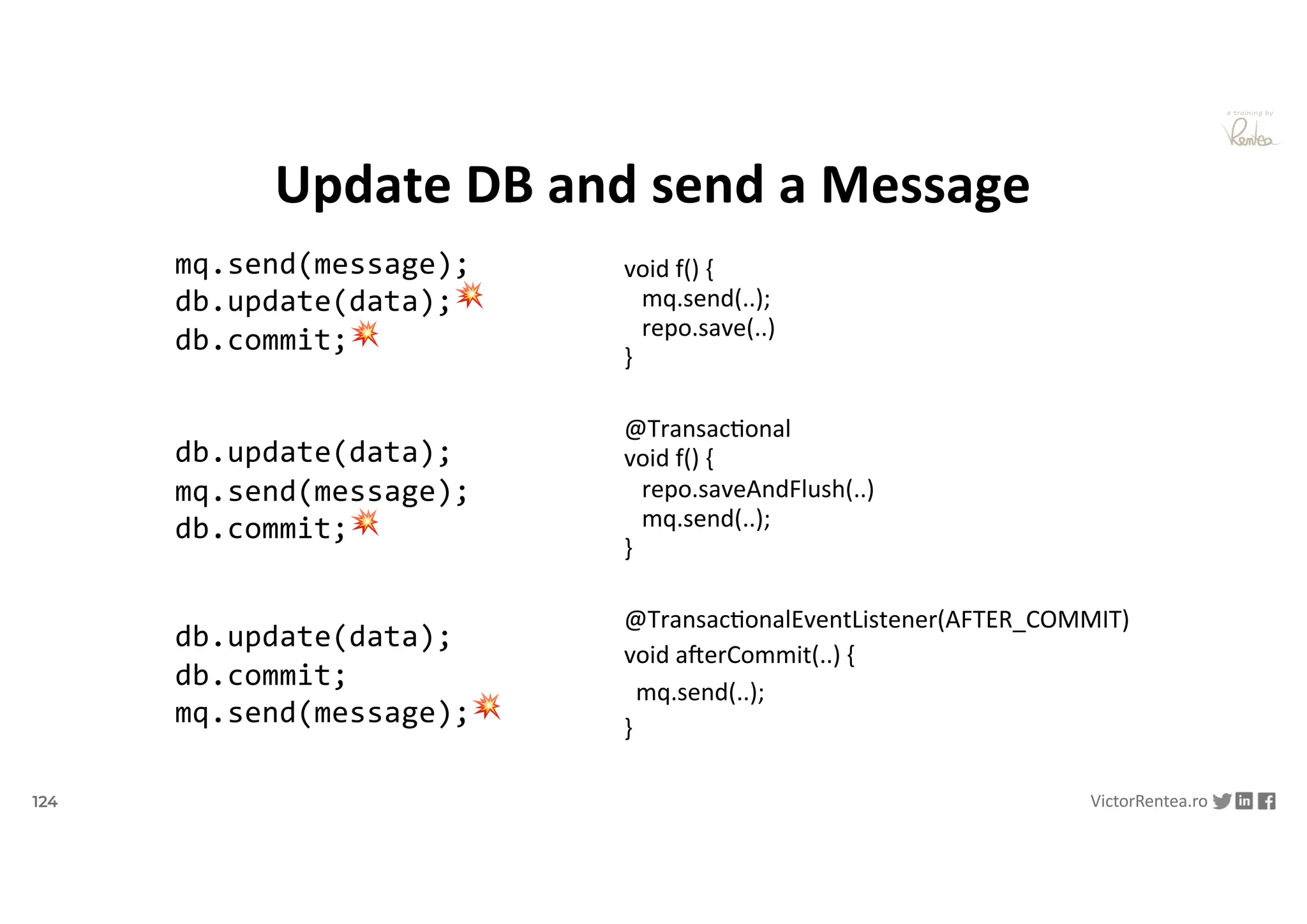

  124 VictorRentea.ro a trainingby Update DB and send a Message void f() { mq.send(..); repo.save(..) } @TransacDonal void f() { repo.saveAndFlush(..) mq.send(..); } @TransacDonalEventListener(AFTER_COMMIT) void aOerCommit(..) { mq.send(..); } db.update(data); db.commit; mq.send(message);💥 db.update(data); mq.send(message); db.commit;💥 mq.send(message); db.update(data);💥 db.commit;💥
• 10.

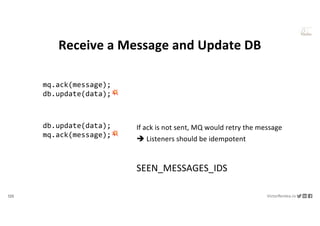

  125 VictorRentea.ro a trainingby Receive a Message and Update DB If ack is not sent, MQ would retry the message è Listeners should be idempotent SEEN_MESSAGES_IDS db.update(data); mq.ack(message);💥 mq.ack(message); db.update(data);💥
• 11.

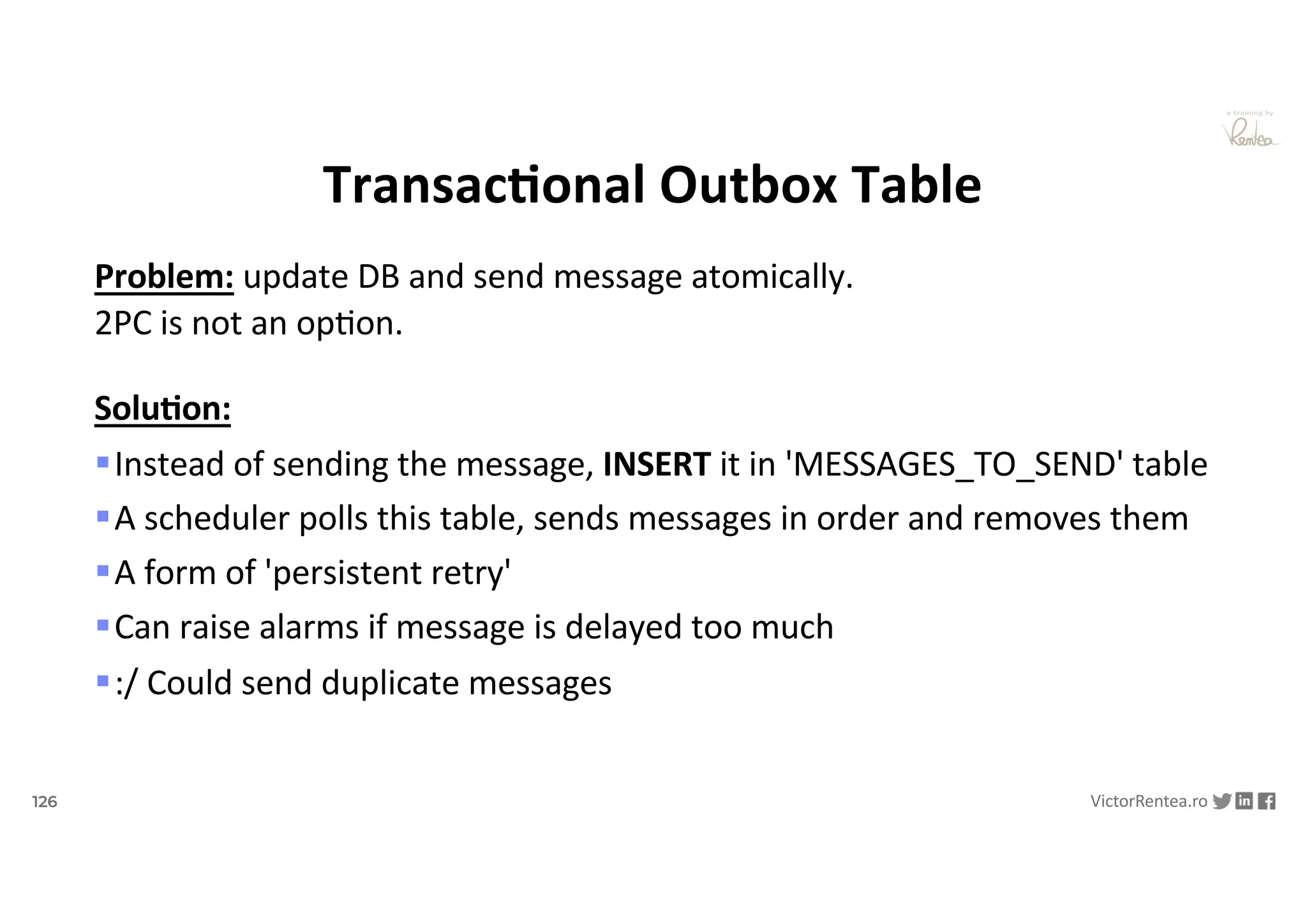

  126 VictorRentea.ro a trainingby TransacAonal Outbox Table Problem: update DB and send message atomically. 2PC is not an opNon. Solu/on: §Instead of sending the message, INSERT it in 'MESSAGES_TO_SEND' table §A scheduler polls this table, sends messages in order and removes them §A form of 'persistent retry' §Can raise alarms if message is delayed too much §:/ Could send duplicate messages
• 12.

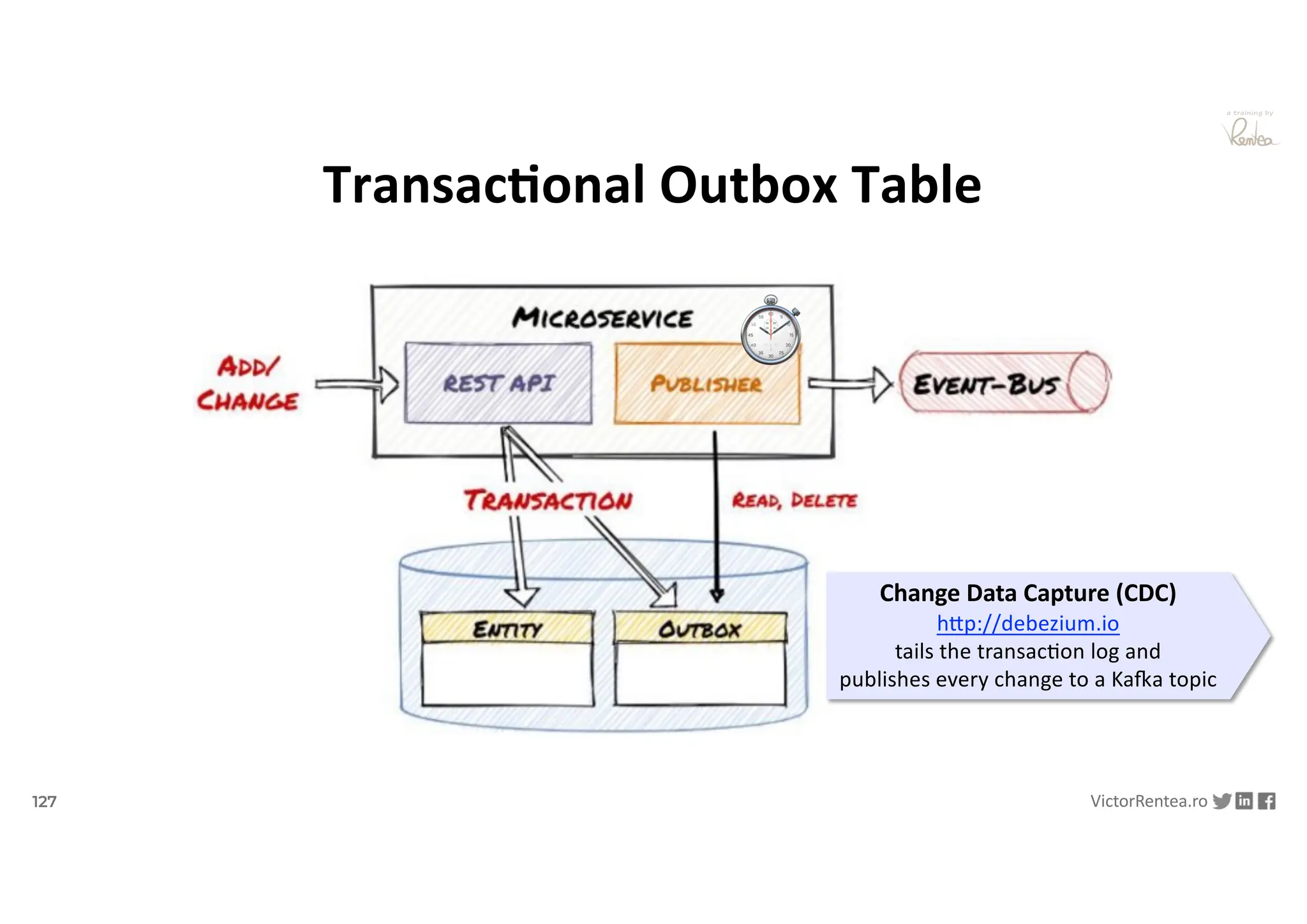

  127 VictorRentea.ro a trainingby TransacAonal Outbox Table ⏱ Change Data Capture (CDC) h"p://debezium.io tails the transac7on log and publishes every change to a Ka<a topic
• 13.

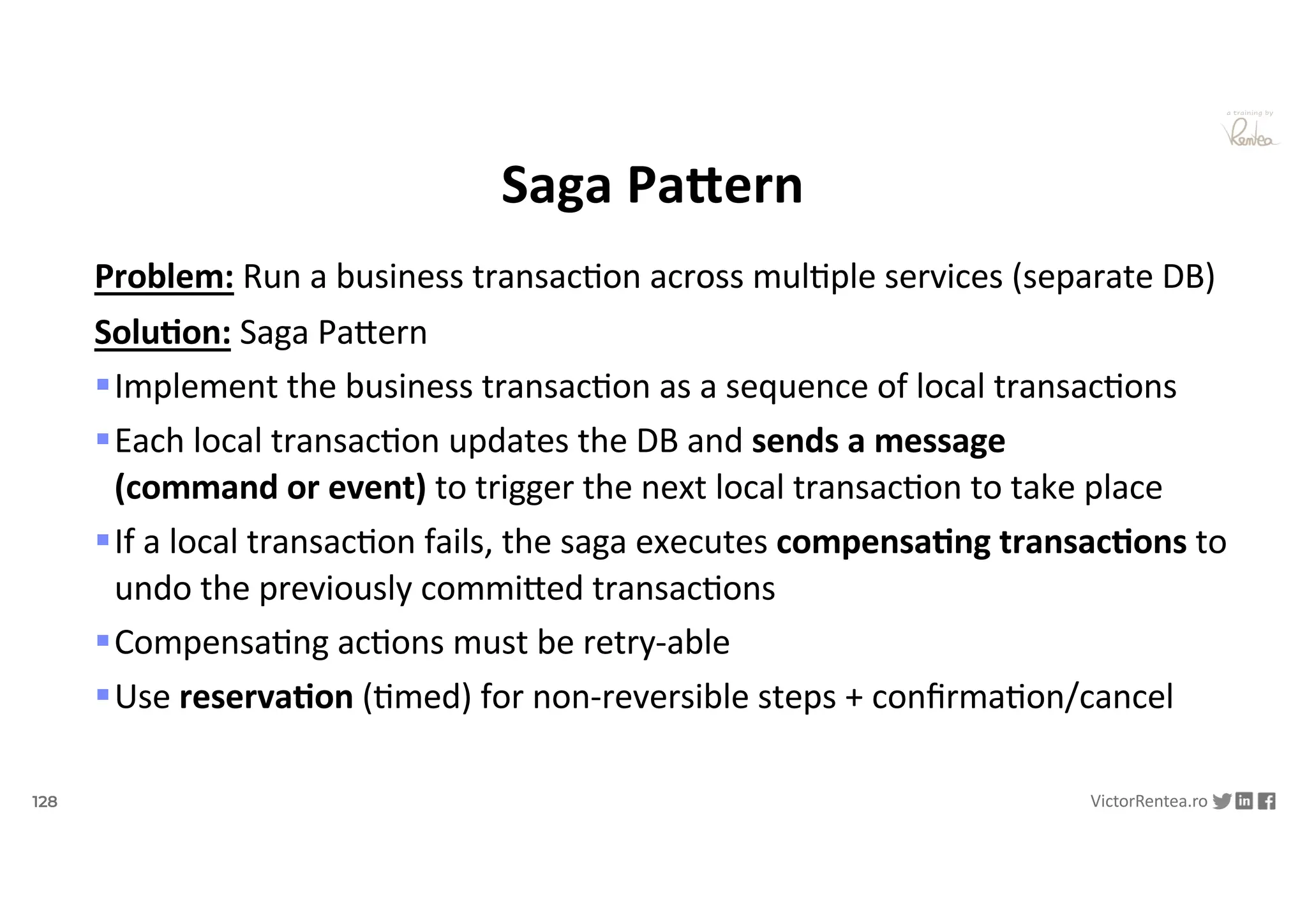

  128 VictorRentea.ro a trainingby Saga PaJern Problem: Run a business transacNon across mulNple services (separate DB) Solu/on: Saga PaYern §Implement the business transacNon as a sequence of local transacNons §Each local transacNon updates the DB and sends a message (command or event) to trigger the next local transacNon to take place §If a local transacNon fails, the saga executes compensa/ng transac/ons to undo the previously commiYed transacNons §CompensaNng acNons must be retry-able §Use reserva/on (Nmed) for non-reversible steps + confirmaNon/cancel
• 14.

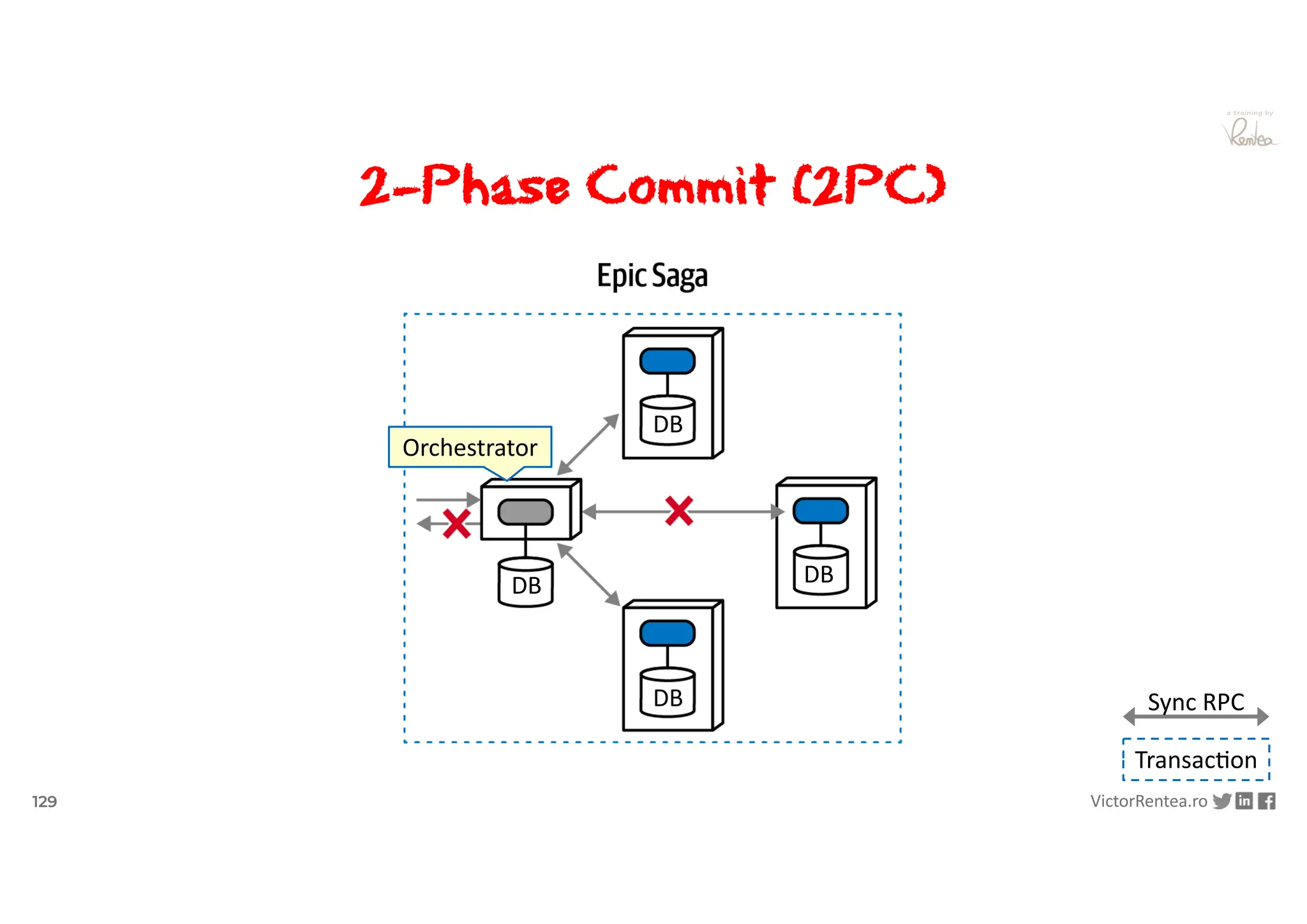

  129 VictorRentea.ro a trainingby 2-Phase Commit (2PC) DB DB DB DB Orchestrator Sync RPC TransacDon
• 15.

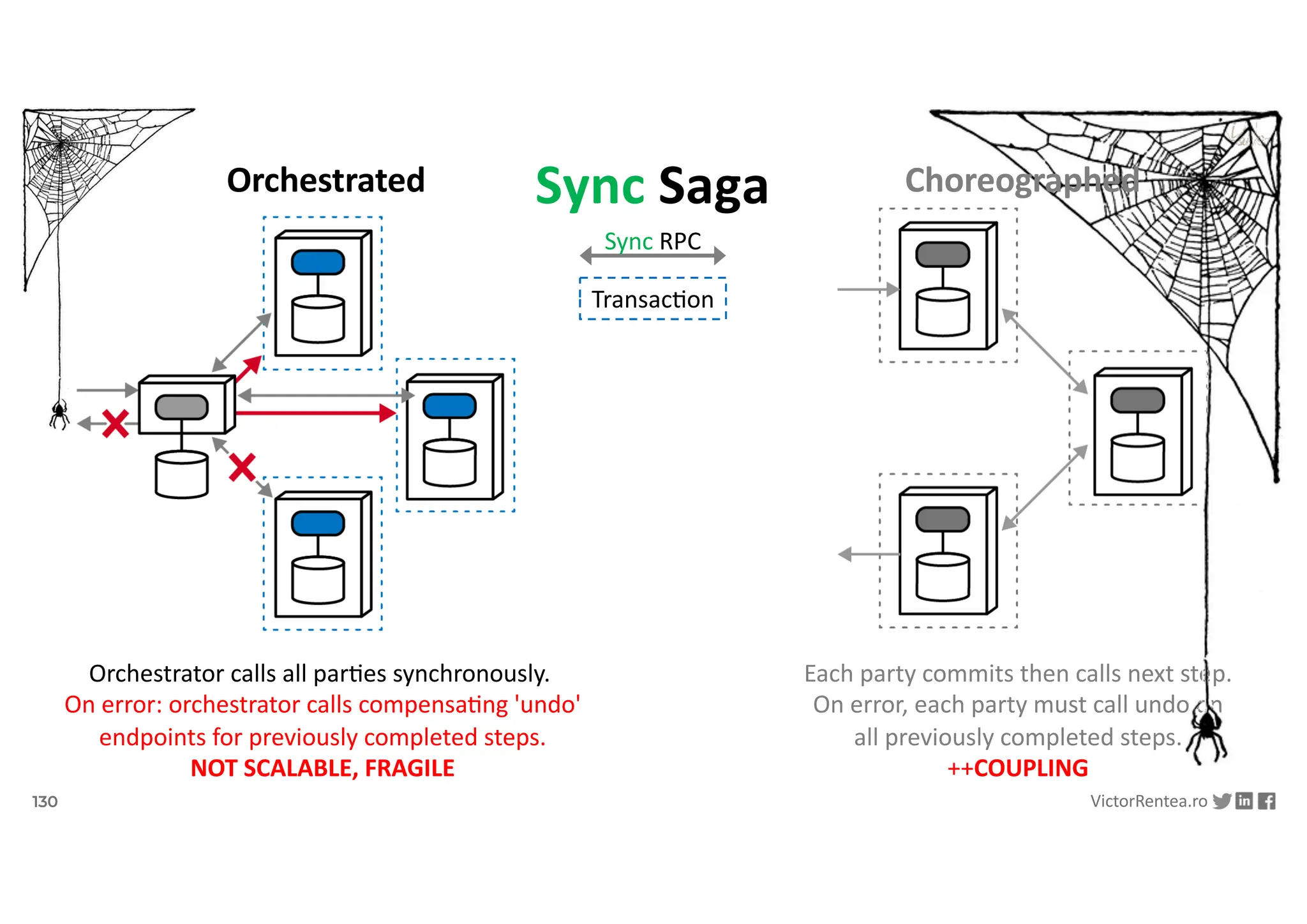

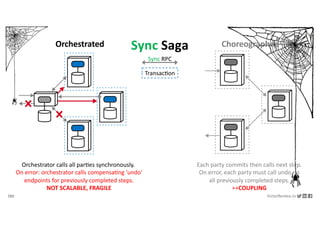

  130 VictorRentea.ro a trainingby Each party commits then calls next step. On error, each party must call undo on all previously completed steps. ++COUPLING Orchestrator calls all parDes synchronously. On error: orchestrator calls compensaDng 'undo' endpoints for previously completed steps. NOT SCALABLE, FRAGILE Sync Saga Sync RPC TransacDon Orchestrated Choreographed
• 16.

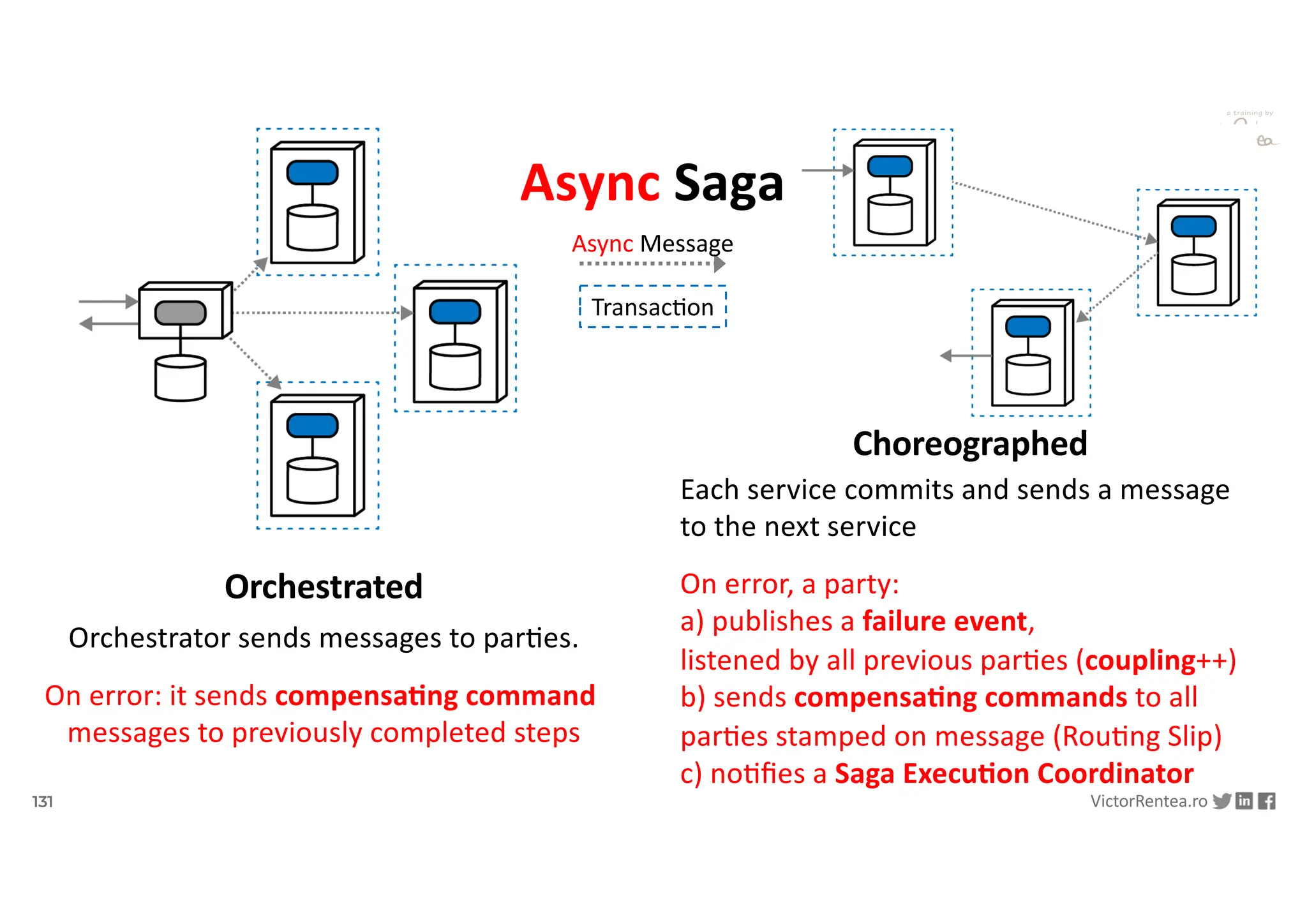

  131 VictorRentea.ro a trainingby Orchestrated Choreographed Async Saga Orchestrator sends messages to par6es. On error: it sends compensa)ng command messages to previously completed steps Async Message TransacDon Each service commits and sends a message to the next service On error, a party: a) publishes a failure event, listened by all previous par6es (coupling++) b) sends compensa)ng commands to all par6es stamped on message (Rou6ng Slip) c) no6fies a Saga Execu)on Coordinator
• 17.

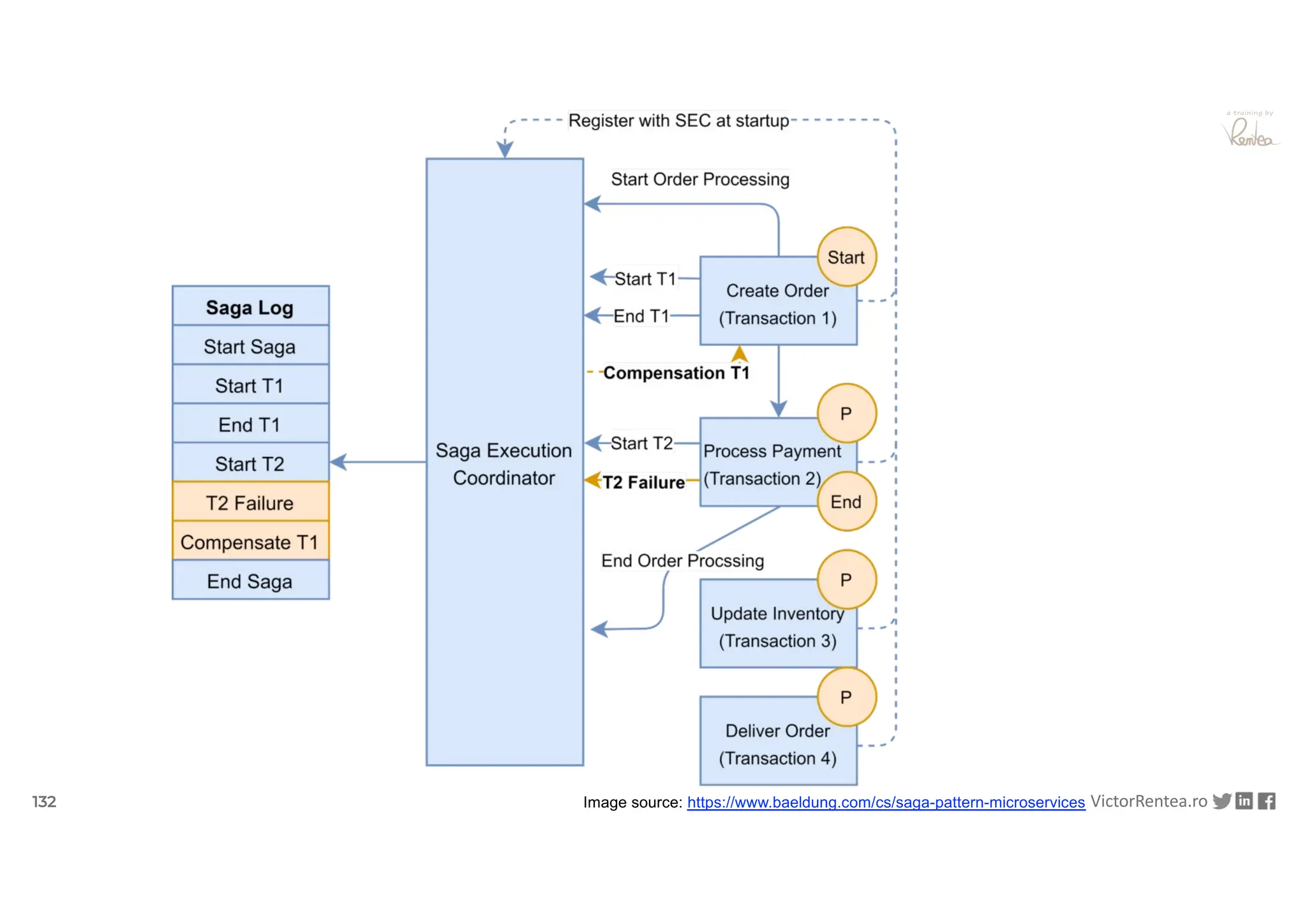

  132 VictorRentea.ro a trainingby Image source: https://www.baeldung.com/cs/saga-pattern-microservices
• 18.

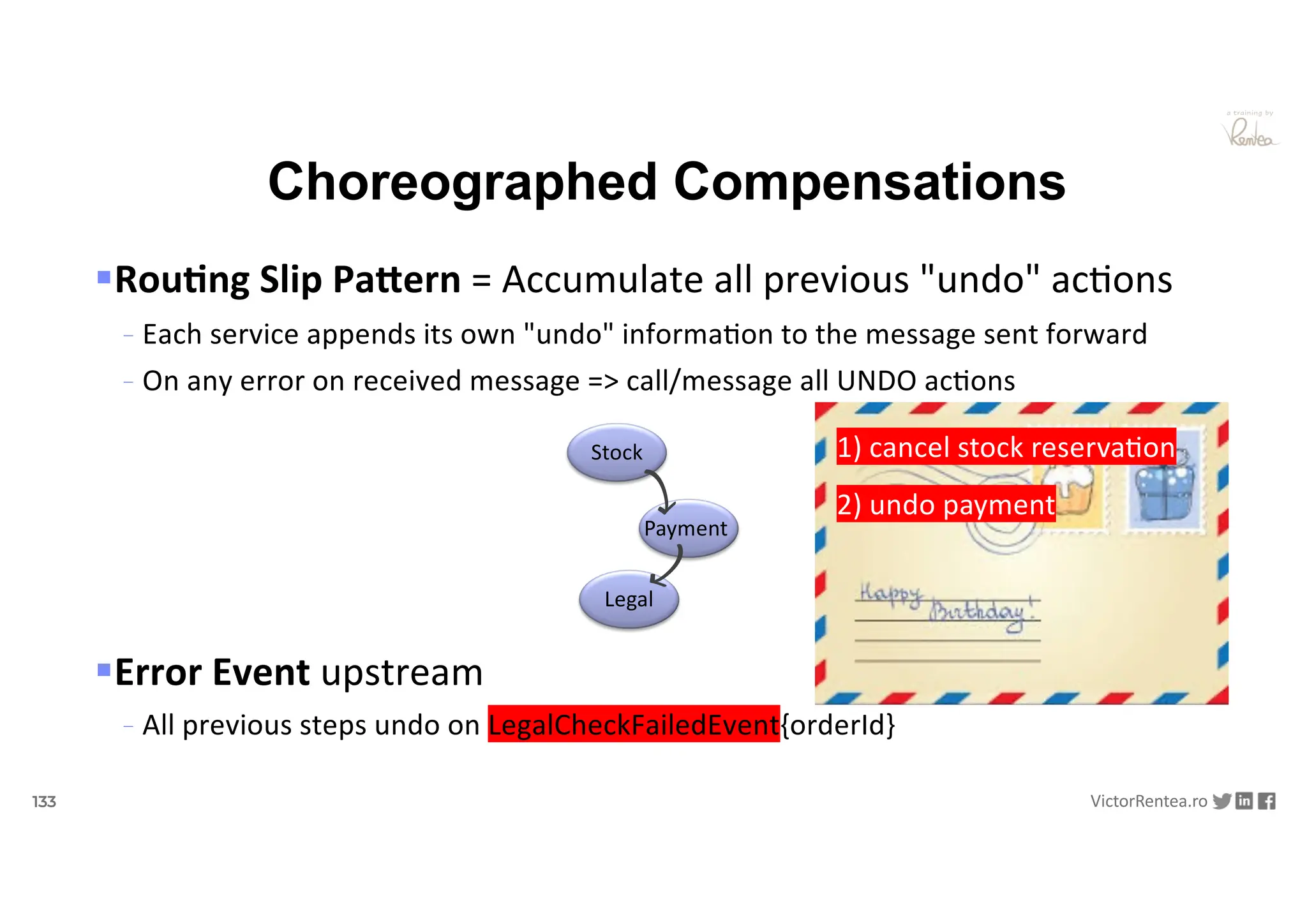

  133 VictorRentea.ro a trainingby §Rou&ng Slip PaAern = Accumulate all previous "undo" ac<ons - Each service appends its own "undo" informa6on to the message sent forward - On any error on received message => call/message all UNDO ac6ons §Error Event upstream - All previous steps undo on LegalCheckFailedEvent{orderId} Choreographed Compensations Stock Payment Legal 1) cancel stock reserva6on 2) undo payment
• 19.

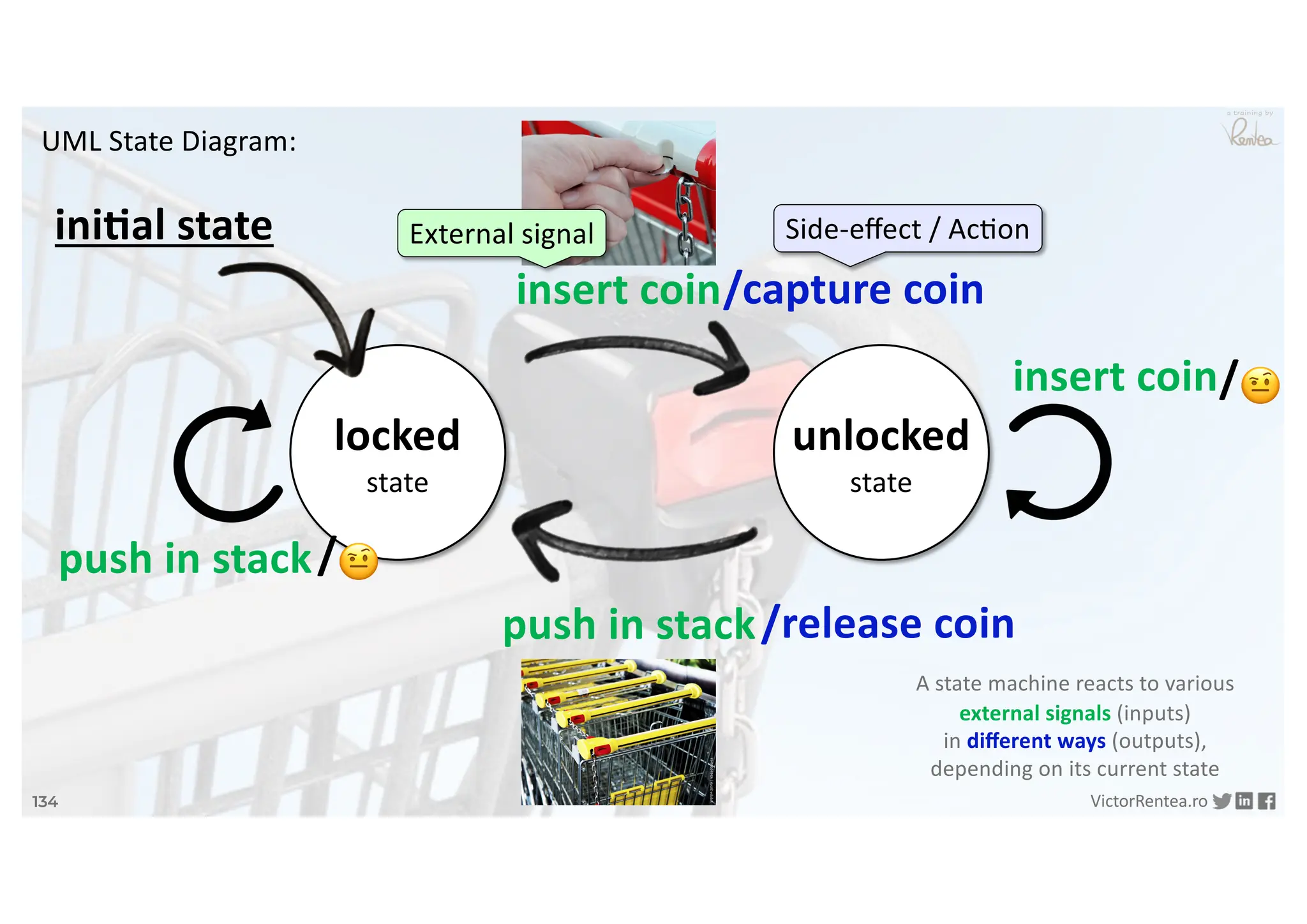

  134 VictorRentea.ro a trainingby locked state unlocked state push in stack insert coin insert coin push in stack /capture coin Side-effect / Ac6on /release coin External signal ini2al state A state machine reacts to various external signals (inputs) in different ways (outputs), depending on its current state /🤨 /🤨 UML State Diagram:
• 20.

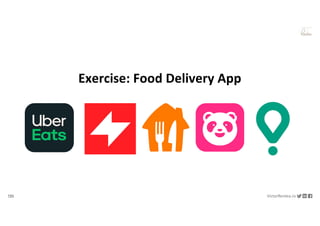

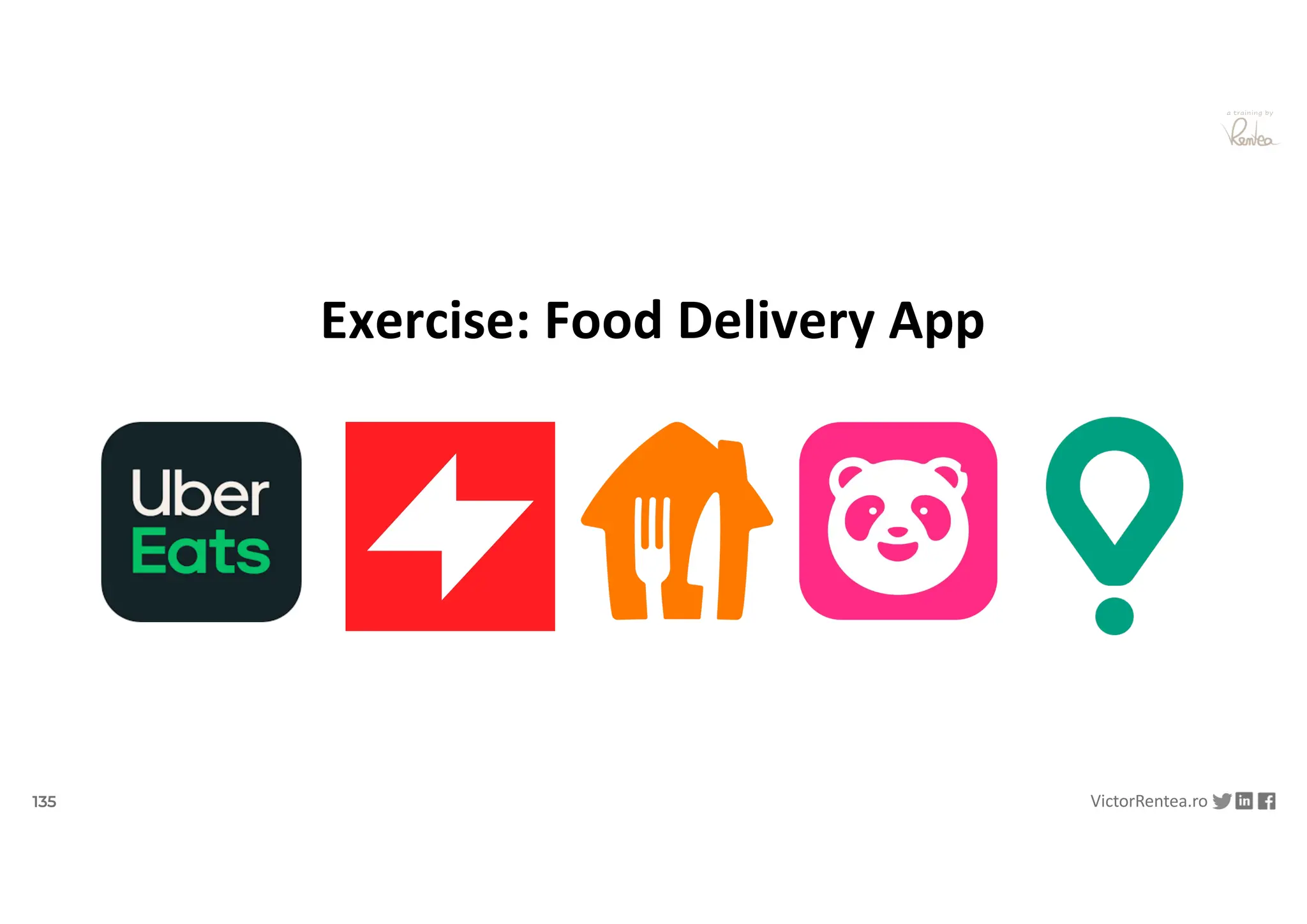

  135 VictorRentea.ro a trainingby Exercise: Food Delivery App
• 21.

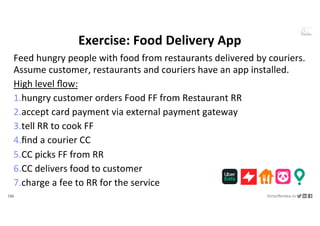

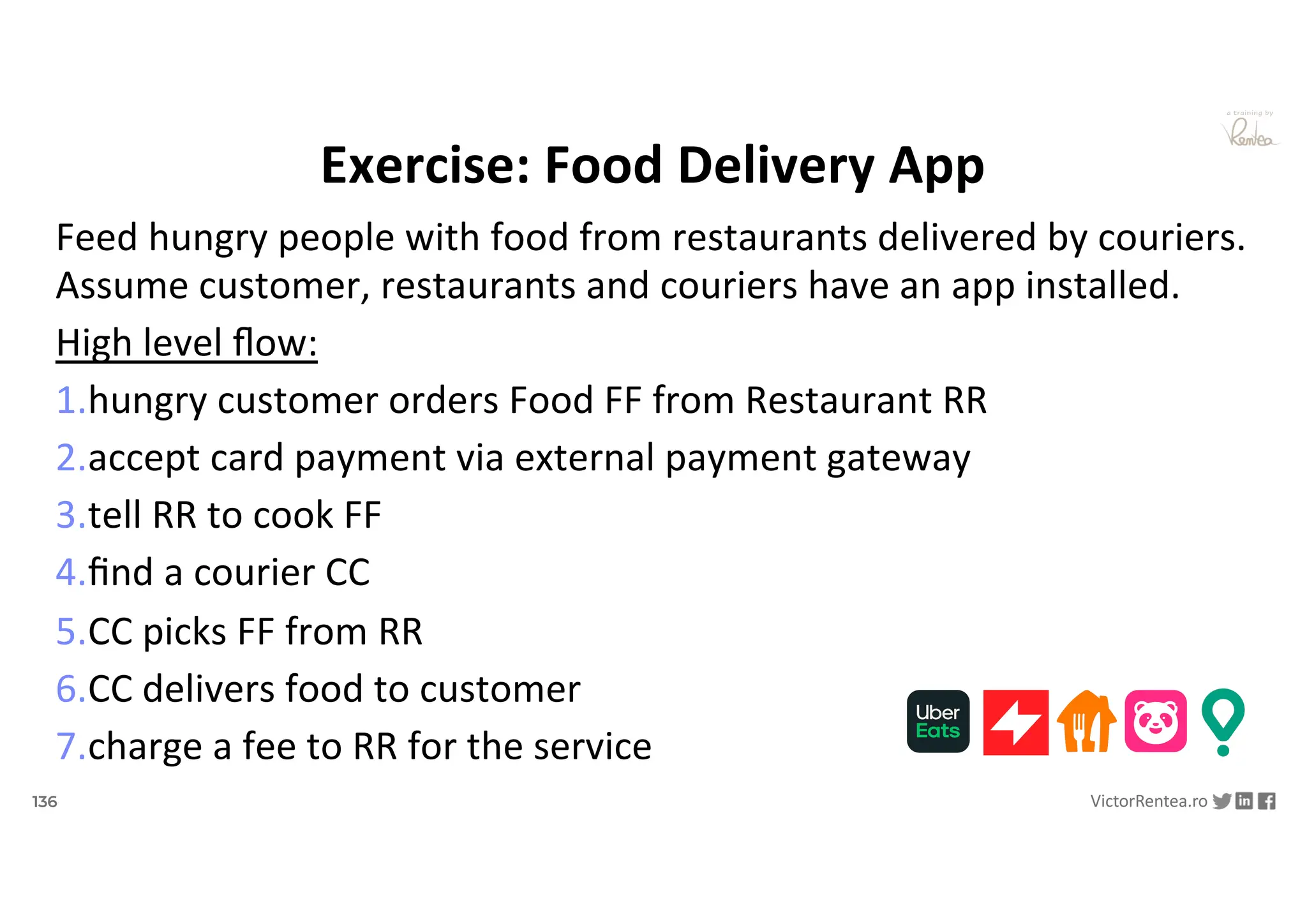

  136 VictorRentea.ro a trainingby Feed hungry people with food from restaurants delivered by couriers. Assume customer, restaurants and couriers have an app installed. High level flow: 1.hungry customer orders Food FF from Restaurant RR 2.accept card payment via external payment gateway 3.tell RR to cook FF 4.find a courier CC 5.CC picks FF from RR 6.CC delivers food to customer 7.charge a fee to RR for the service Exercise: Food Delivery App
• 22.

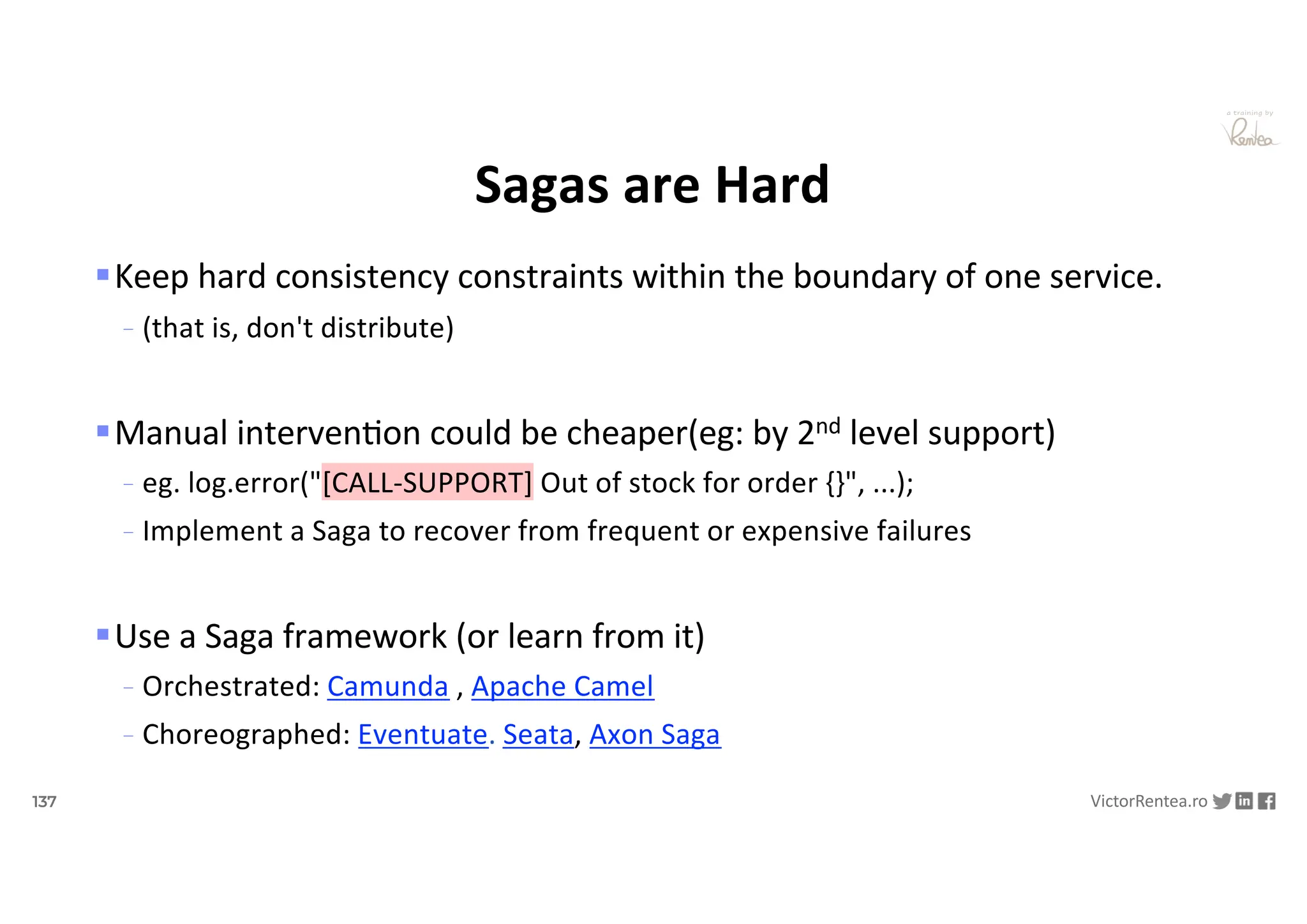

  137 VictorRentea.ro a trainingby Sagas are Hard §Keep hard consistency constraints within the boundary of one service. - (that is, don't distribute) §Manual intervenNon could be cheaper(eg: by 2nd level support) - eg. log.error("[CALL-SUPPORT] Out of stock for order {}", ...); - Implement a Saga to recover from frequent or expensive failures §Use a Saga framework (or learn from it) - Orchestrated: Camunda , Apache Camel - Choreographed: Eventuate. Seata, Axon Saga
• 23.
  138 VictorRentea.ro a trainingby Thank You!
