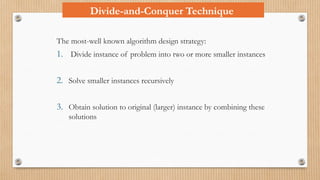

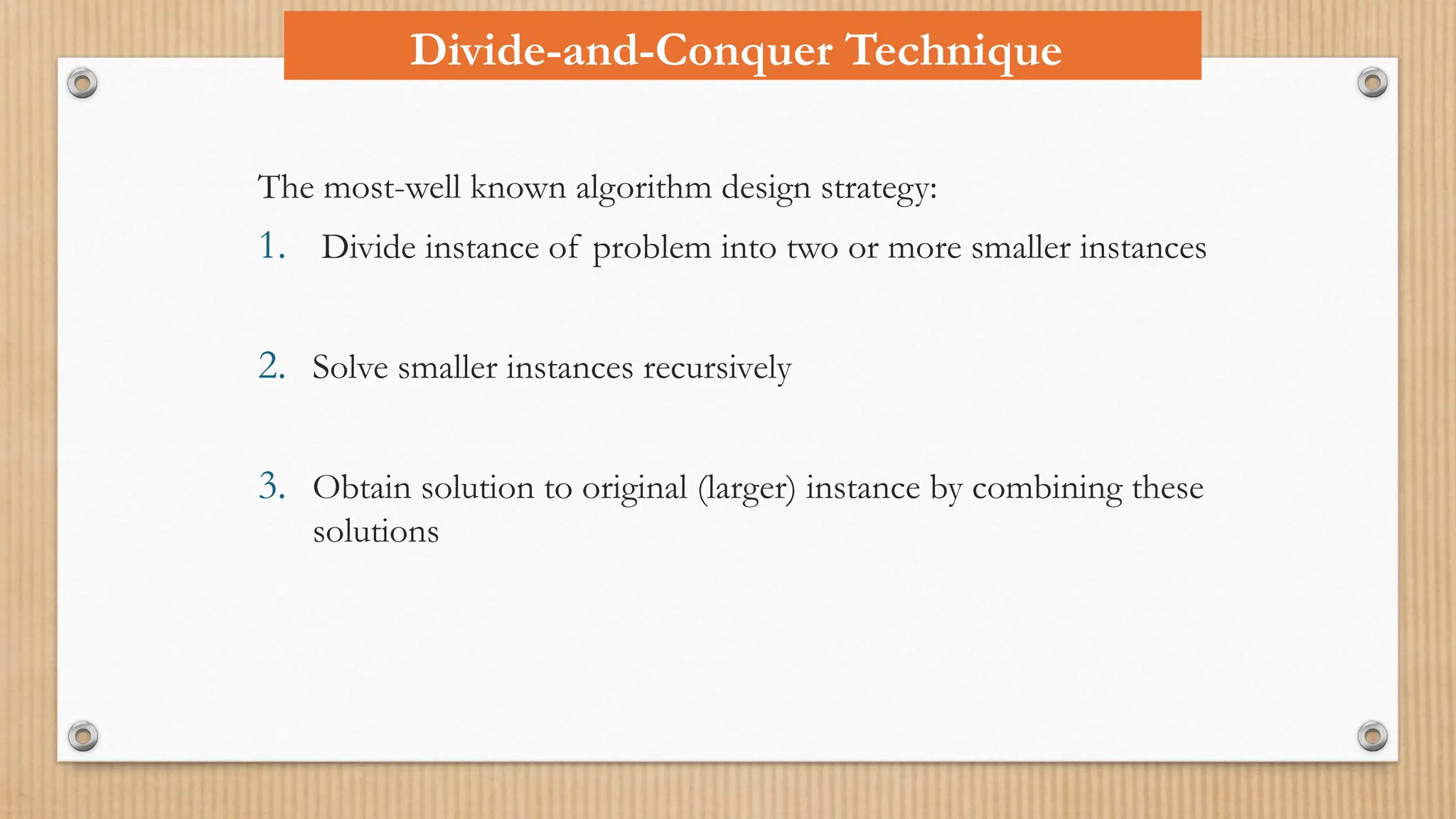

Divide-and-Conquer Technique
The most-well known algorithm design strategy:
1. Divide instance of problem into two or more smaller instances
2. Solve smaller instances recursively
3. Obtain solution to original (larger) instance by combining these
solutions

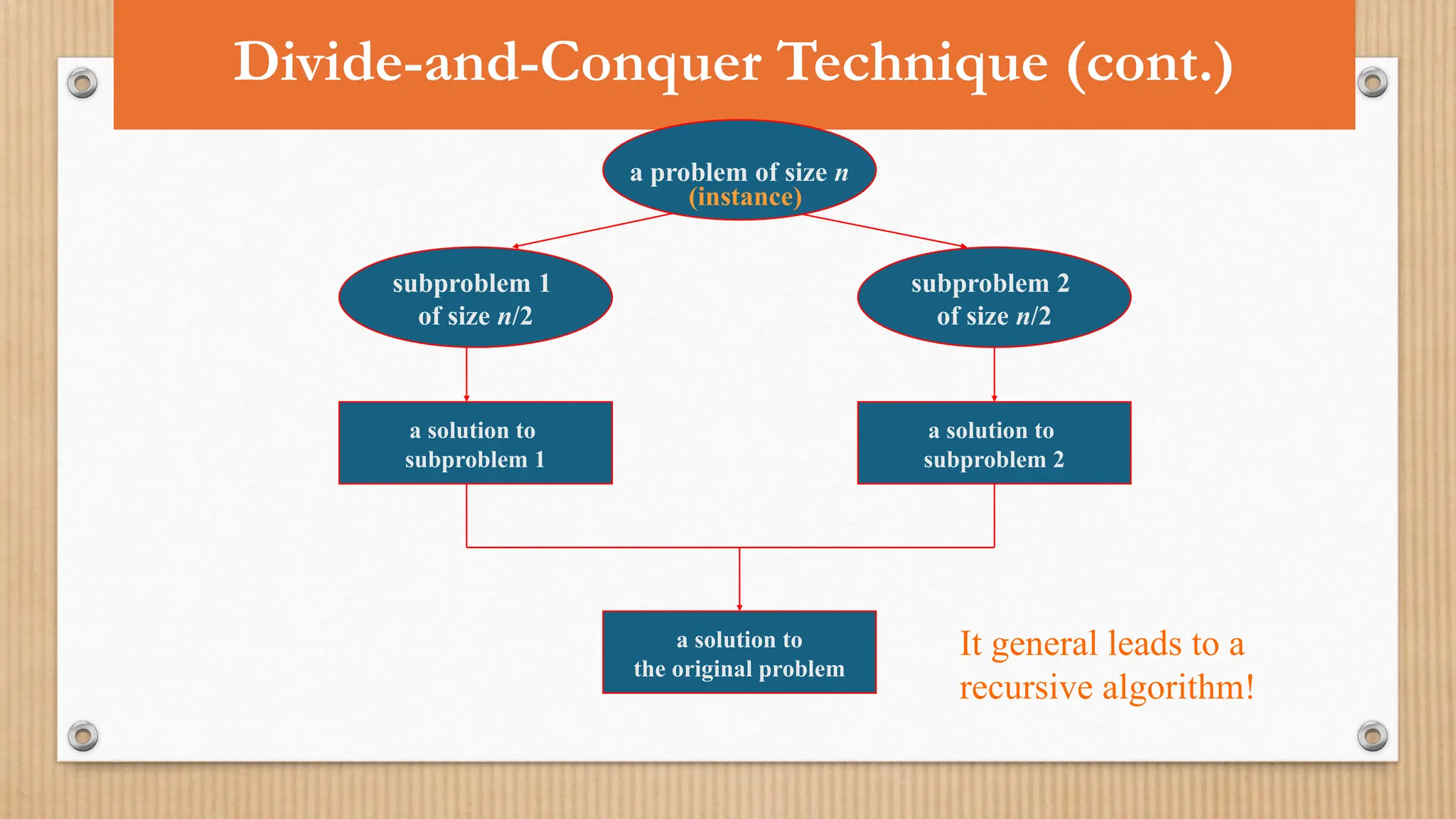

Divide-and-Conquer Technique (cont.)
subproblem 2
of size n/2
subproblem 1
of size n/2
a solution to
subproblem 1
a solution to
the original problem
a solution to
subproblem 2
a problem of size n
(instance)
It general leads to a
recursive algorithm!

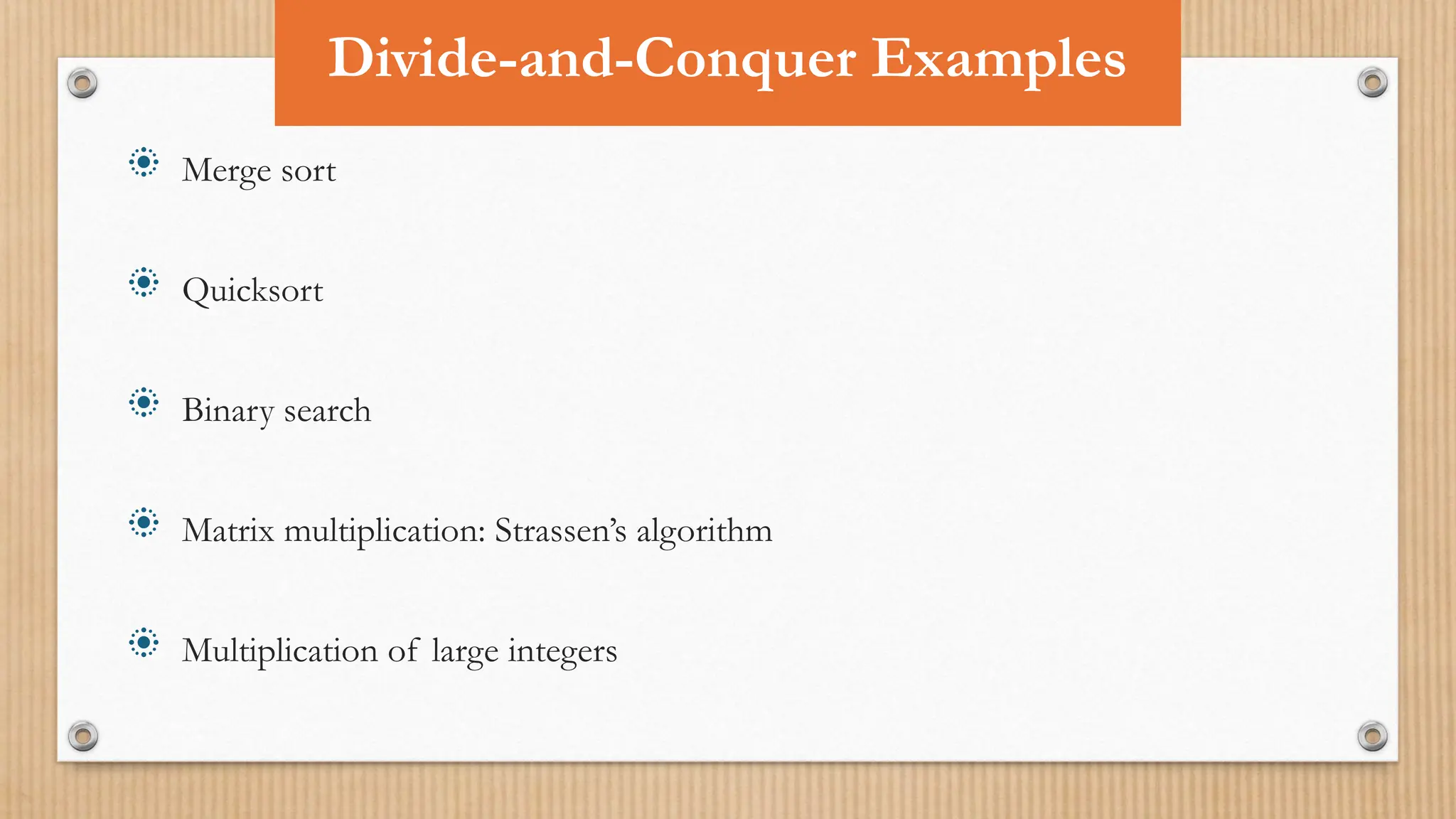

 Merge sort
 Quicksort
 Binary search
 Matrix multiplication: Strassen’s algorithm
 Multiplication of large integers
Divide-and-Conquer Examples

Time complexity: Θ(p + q) = Θ(n) comparisons

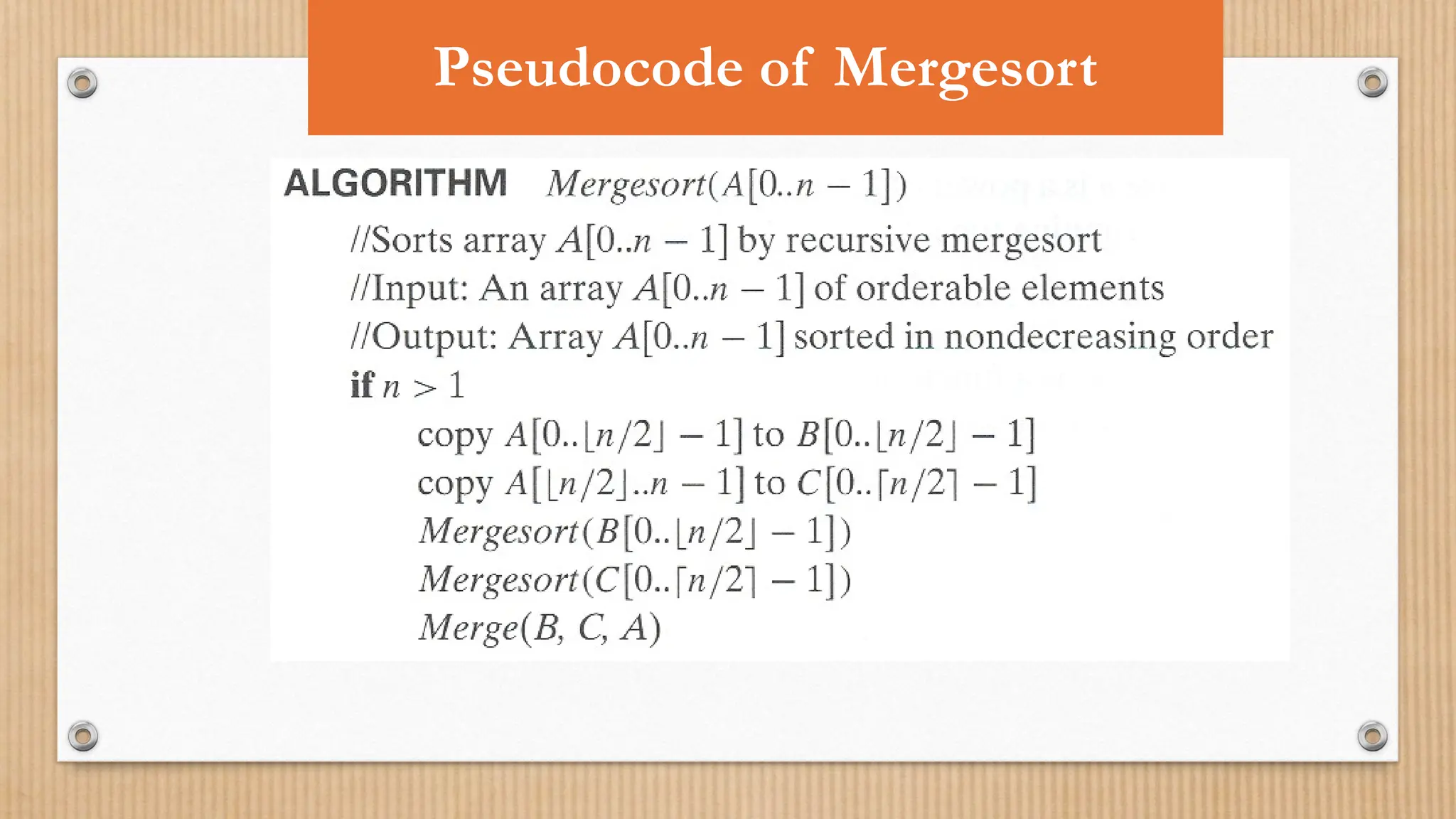

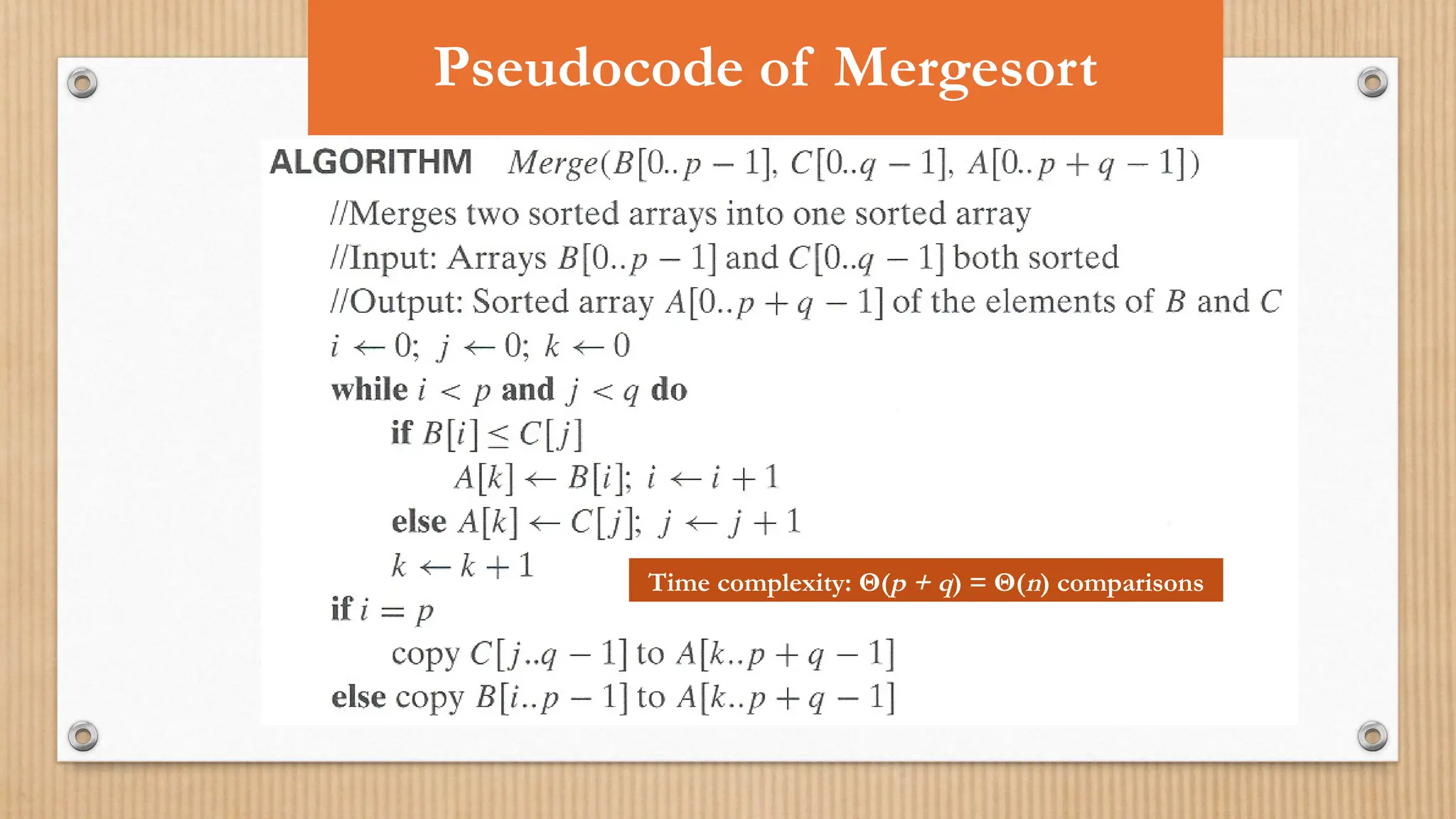

Pseudocode of Mergesort

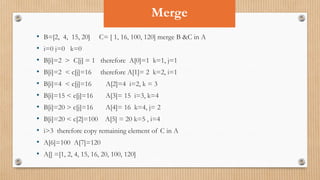

• B=[2, 4, 15, 20] C= [ 1, 16, 100, 120] merge B &C in A
• i=0 j=0 k=0
• B[i]=2 > C[j] = 1 therefore A[0]=1 k=1, j=1
• B[i]=2 < c[j]=16 therefore A[1]= 2 k=2, i=1
• B[i]=4 < c[j]=16 A[2]=4 i=2, k = 3
• B[i]=15 < c[j]=16 A[3]= 15 i=3, k=4
• B[i]=20 > c[j]=16 A[4]= 16 k=4, j= 2
• B[i]=20 < c[2]=100 A[5] = 20 k=5 , i=4
• i>3 therefore copy remaining element of C in A
• A[6]=100 A[7]=120
• A[] =[1, 2, 4, 15, 16, 20, 100, 120]
Merge

8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
3 8 2 9 1 7 4 5
2 3 8 9 1 4 5 7
1 2 3 4 5 7 8 9

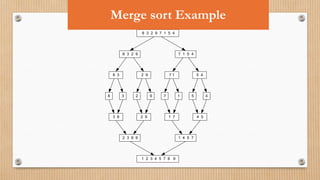

Merge sort Example

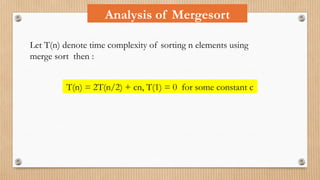

Analysis of Mergesort
Let T(n) denote time complexity of sorting n elements using
merge sort then :
T(n) = 2T(n/2) + cn, T(1) = 0 for some constant c

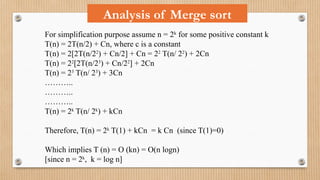

For simplification purpose assume n = 2k
for some positive constant k
T(n) = 2T(n/2) + Cn, where c is a constant
T(n) = 2[2T(n/22
) + Cn/2] + Cn = 22
T(n/ 22
) + 2Cn
T(n) = 22
[2T(n/23
) + Cn/22
] + 2Cn
T(n) = 23
T(n/ 23
) + 3Cn
………..
………..
………..
T(n) = 2k
T(n/ 2k
) + kCn
Therefore, T(n) = 2k
T(1) + kCn = k Cn (since T(1)=0)
Which implies T (n) = O (kn) = O(n logn)
[since n = 2k
, k = log n]
Analysis of Merge sort

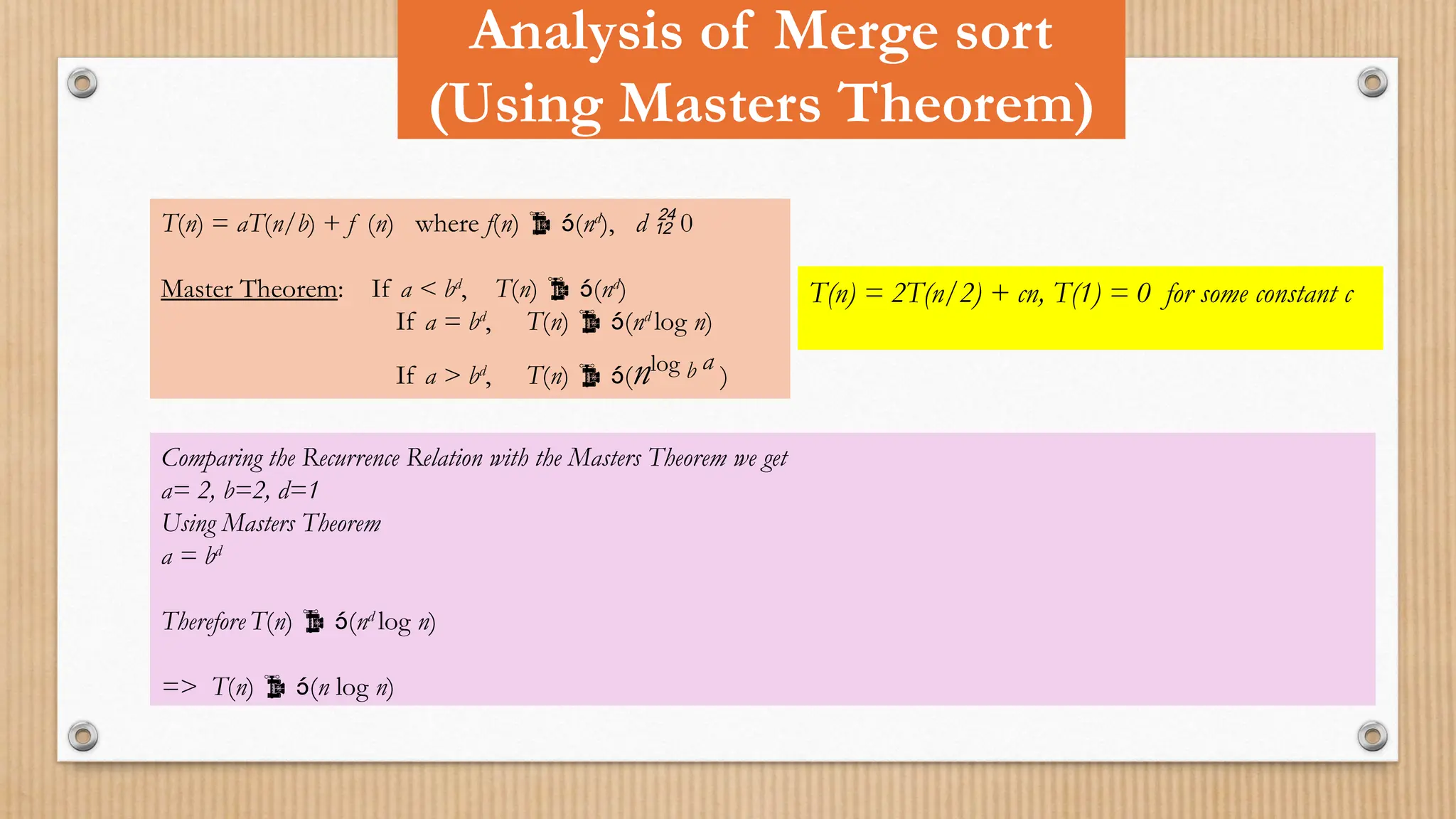

Analysis of Merge sort
(Using Masters Theorem)
T(n) = aT(n/b) + f (n) where f(n)  (nd
), d  0
Master Theorem: If a < bd
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
, T(n)  (nlog b a
)
T(n) = 2T(n/2) + cn, T(1) = 0 for some constant c
Comparing the Recurrence Relation with the Masters Theorem we get
a= 2, b=2, d=1
Using Masters Theorem
a = bd
Therefore T(n)  (nd
log n)
=> T(n)  (n log n)

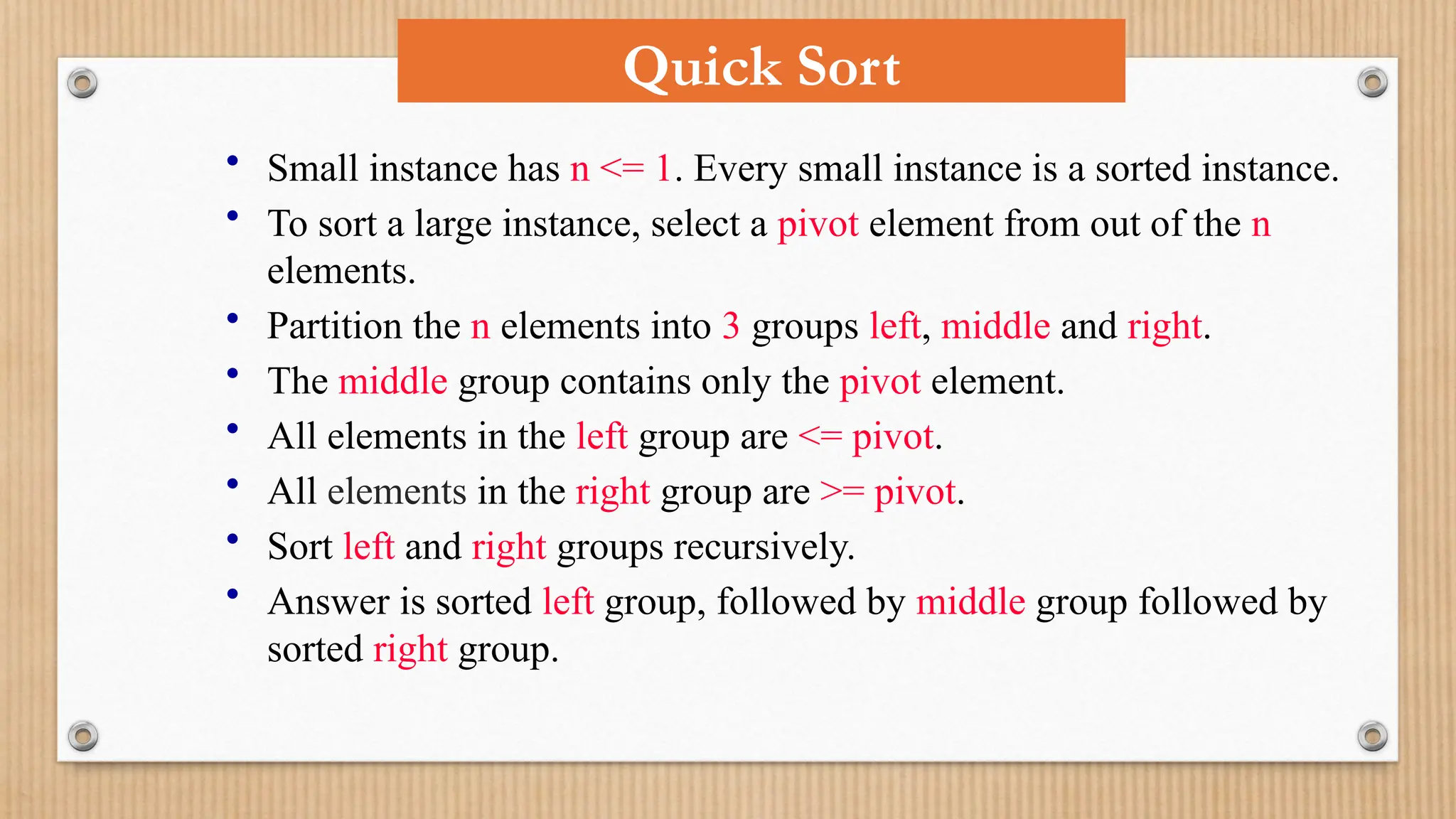

• Small instance has n <= 1. Every small instance is a sorted instance.
• To sort a large instance, select a pivot element from out of the n
elements.
• Partition the n elements into 3 groups left, middle and right.
• The middle group contains only the pivot element.
• All elements in the left group are <= pivot.
• All elements in the right group are >= pivot.
• Sort left and right groups recursively.
• Answer is sorted left group, followed by middle group followed by
sorted right group.
Quick Sort

Example
6 2 8 5 11 10 4 1 9 7 3
Use 6 as the pivot.
11
10
Sort left and right groups recursively.

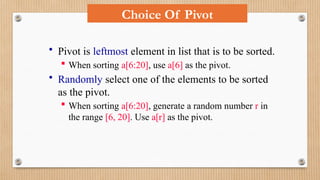

Choice Of Pivot
• Pivot is leftmost element in list that is to be sorted.
 When sorting a[6:20], use a[6] as the pivot.
• Randomly select one of the elements to be sorted
as the pivot.
 When sorting a[6:20], generate a random number r in
the range [6, 20]. Use a[r] as the pivot.

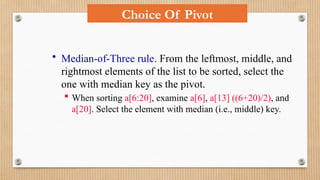

Choice Of Pivot
• Median-of-Three rule. From the leftmost, middle, and
rightmost elements of the list to be sorted, select the
one with median key as the pivot.
 When sorting a[6:20], examine a[6], a[13] ((6+20)/2), and
a[20]. Select the element with median (i.e., middle) key.

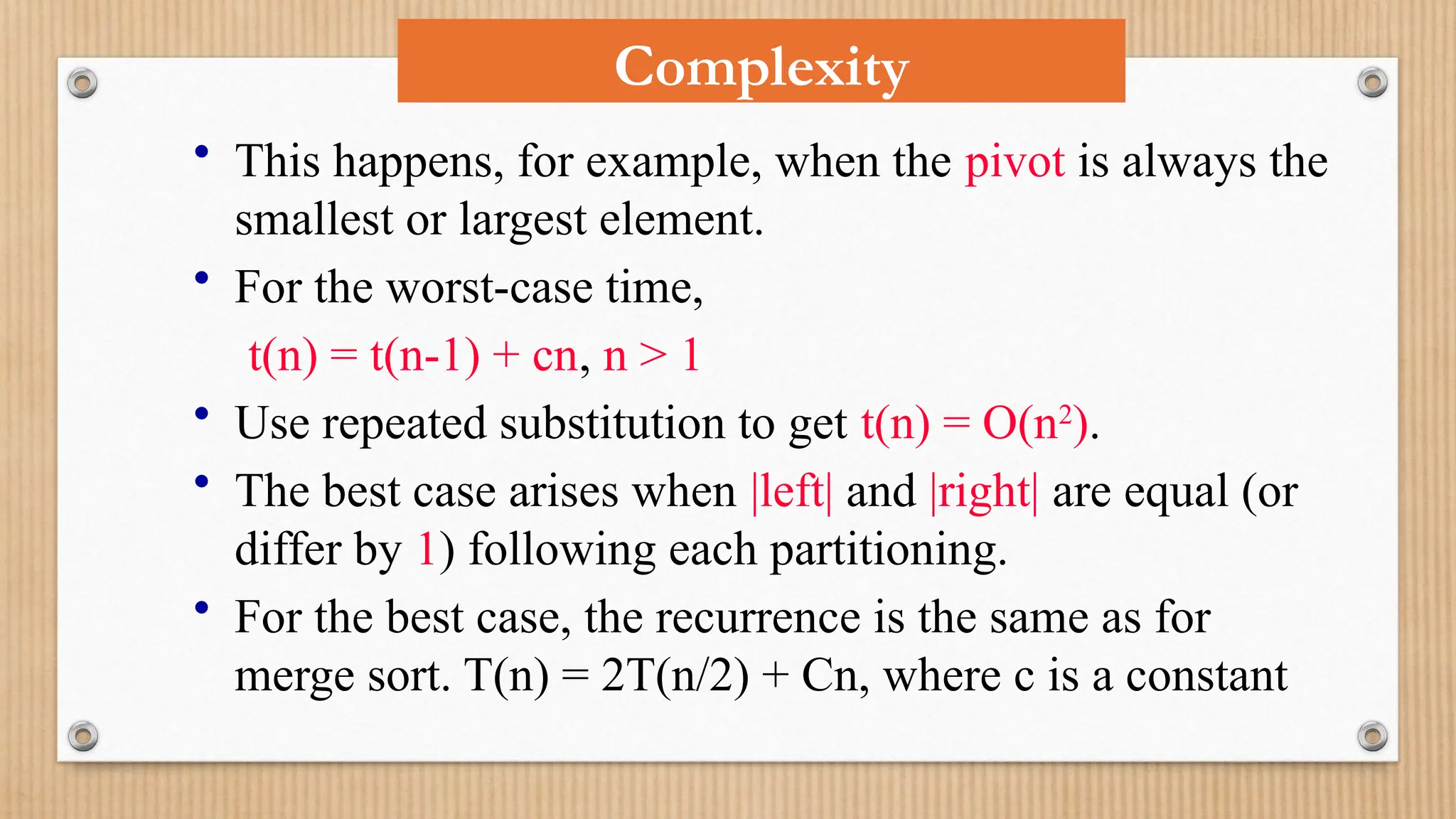

Complexity
• This happens, for example, when the pivot is always the
smallest or largest element.
• For the worst-case time,
t(n) = t(n-1) + cn, n > 1
• Use repeated substitution to get t(n) = O(n2
).
• The best case arises when |left| and |right| are equal (or
differ by 1) following each partitioning.
• For the best case, the recurrence is the same as for
merge sort. T(n) = 2T(n/2) + Cn, where c is a constant

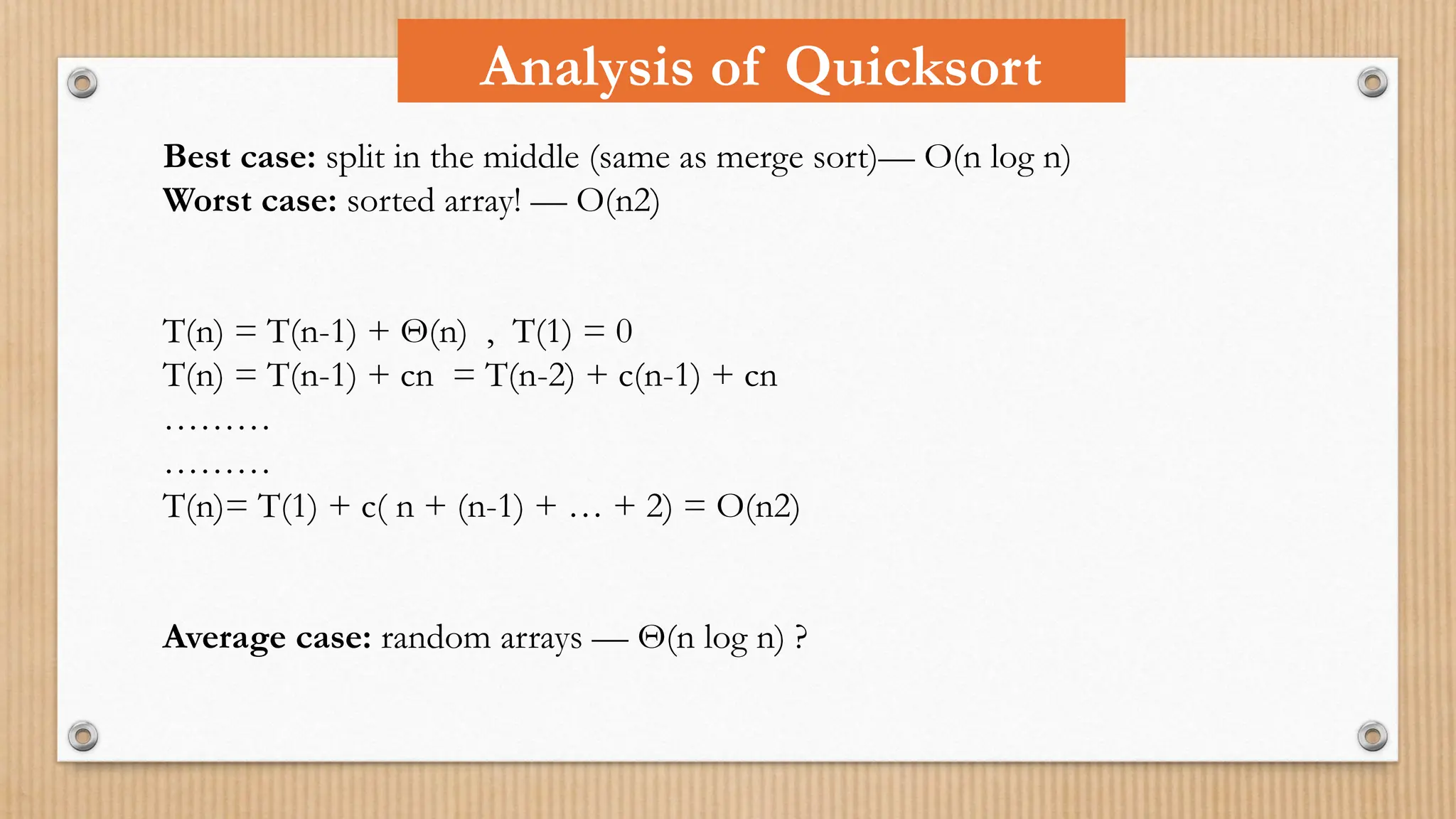

Analysis of Quicksort
Best case: split in the middle (same as merge sort)— O(n log n)
Worst case: sorted array! — O(n2)
T(n) = T(n-1) + Θ(n) , T(1) = 0
T(n) = T(n-1) + cn = T(n-2) + c(n-1) + cn
………
………
T(n)= T(1) + c( n + (n-1) + … + 2) = O(n2)
Average case: random arrays — Θ(n log n) ?

Analysis of Quick sort Best Case
), d  0
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
)
T(n) = 2T(n/2) + Cn
a= 2, b=2, d=1
a = bd
log n)
=> T(n)  (n log n)

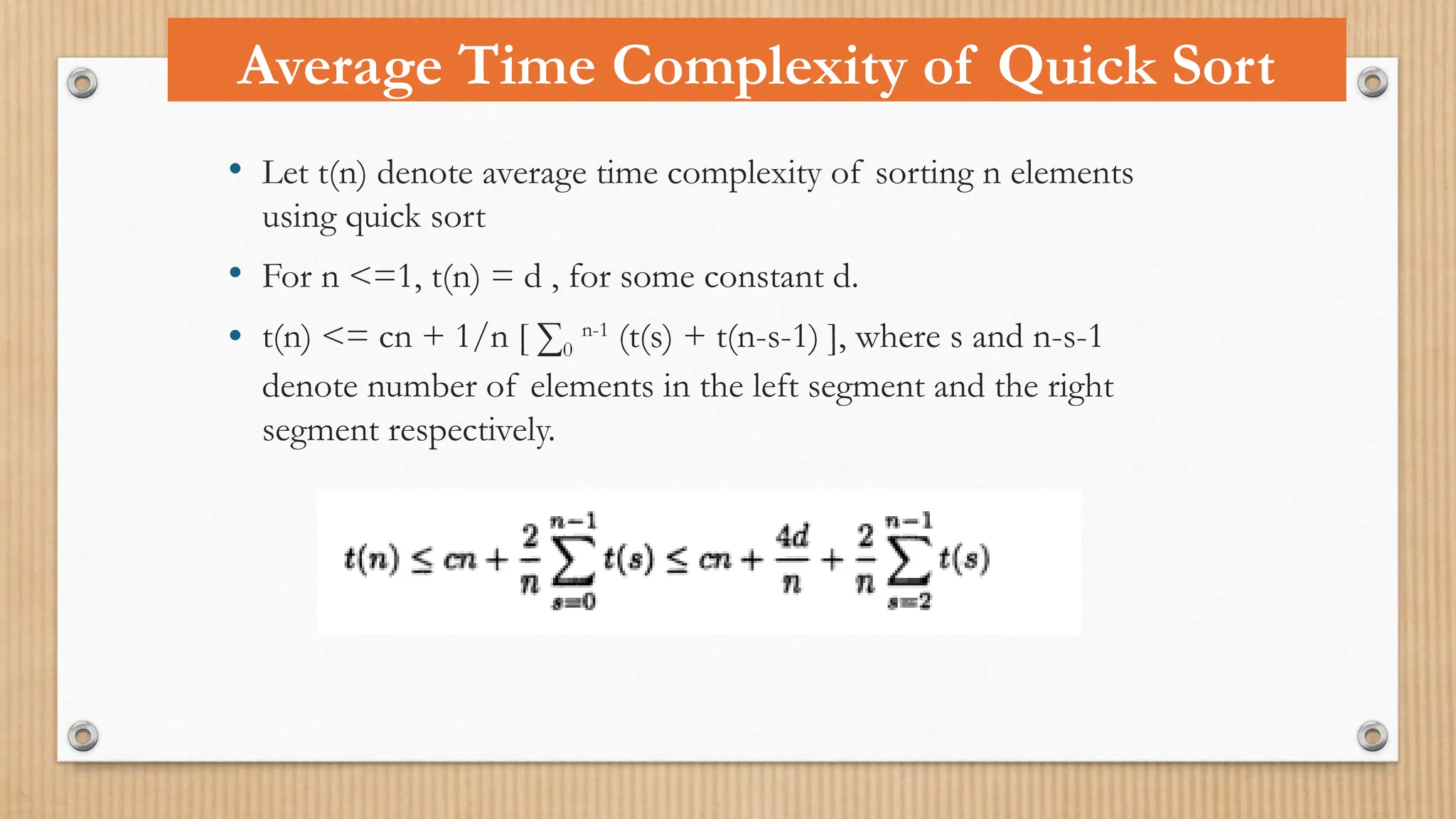

• Let t(n) denote average time complexity of sorting n elements
using quick sort
• For n <=1, t(n) = d , for some constant d.
• t(n) <= cn + 1/n [ ∑0
n-1
(t(s) + t(n-s-1) ], where s and n-s-1
denote number of elements in the left segment and the right
segment respectively.

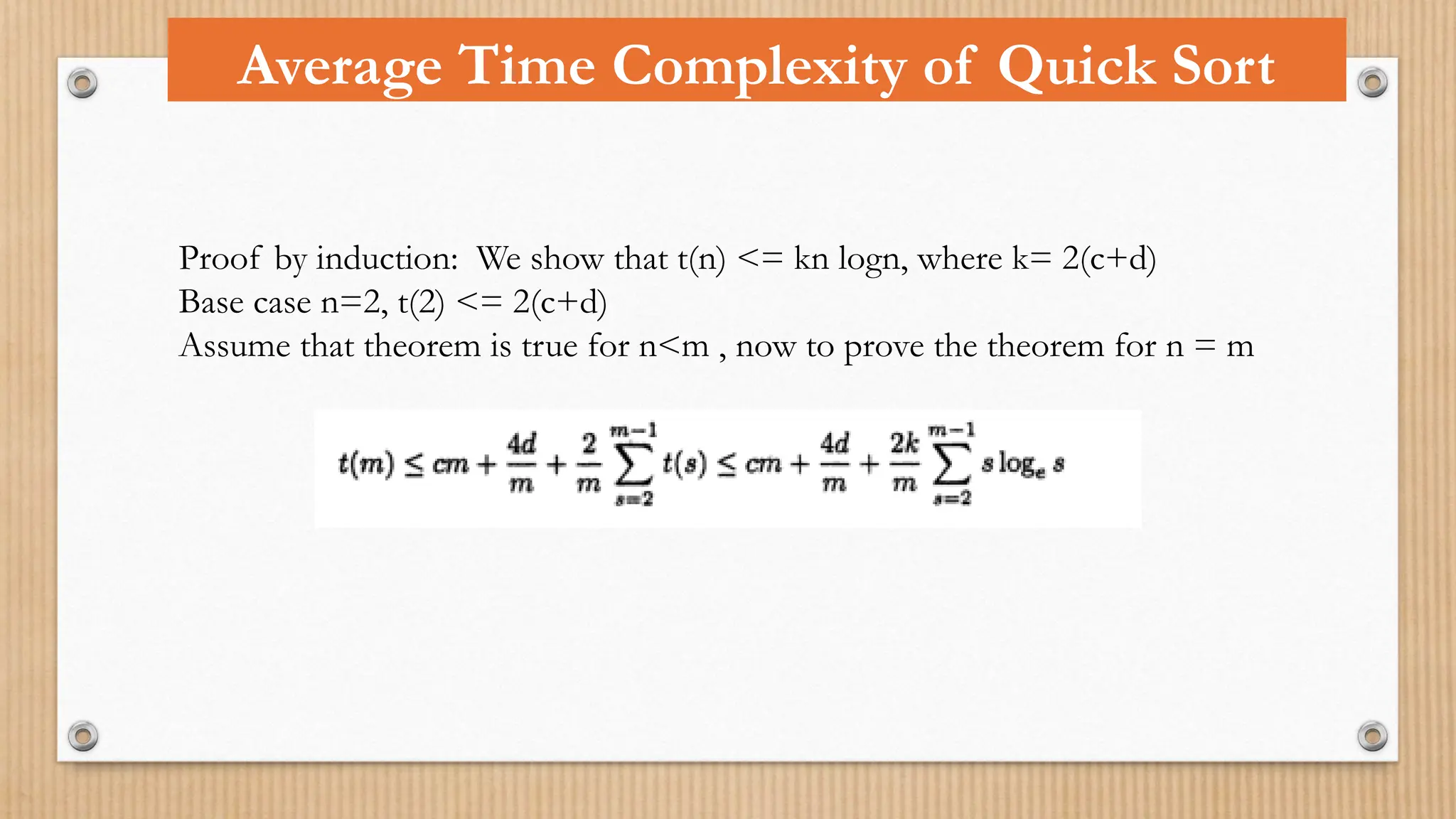

Average Time Complexity of Quick Sort

Proof by induction: We show that t(n) <= kn logn, where k= 2(c+d)
Base case n=2, t(2) <= 2(c+d)
Assume that theorem is true for n<m , now to prove the theorem for n = m

int binarySearch(int a[], int n, const int& x, int left, int right)
{
while (left <= right)
{
int middle = (left + right)/2;
if (x == a[middle]) return middle;
else if (x > a[middle]) binarySearch(a, n, x, mid+1, right);}
else binarySearch(a, n, x, left, mid-1);
}
return -1; // x not found
}
Binary Search

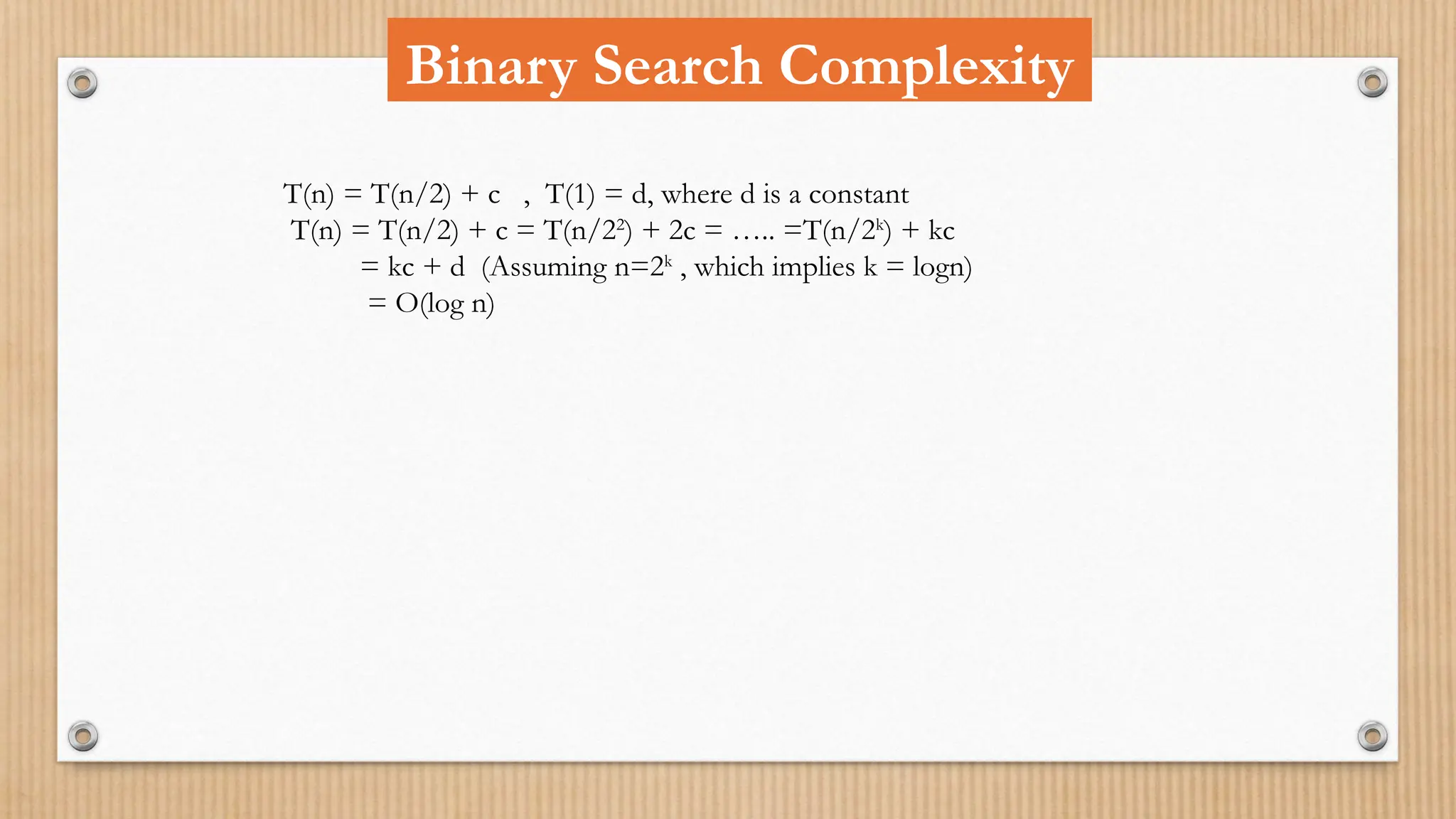

T(n) = T(n/2) + c , T(1) = d, where d is a constant
T(n) = T(n/2) + c = T(n/22
) + 2c = ….. =T(n/2k
) + kc
= kc + d (Assuming n=2k
, which implies k = logn)
= O(log n)
Binary Search Complexity

Analysis of Binary Search
), d  0
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
)
T(n) = T(n/2) + c
a= 1, b=2, d=0
a = bd
log n)
=> T(n)  (log n)

Binary tree traversals and related
Properties

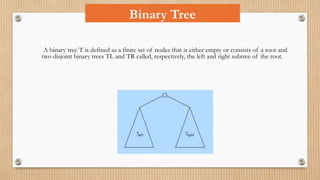

A binary tree T is defined as a finite set of nodes that is either empty or consists of a root and
two disjoint binary trees TL and TR called, respectively, the left and right subtree of the root.

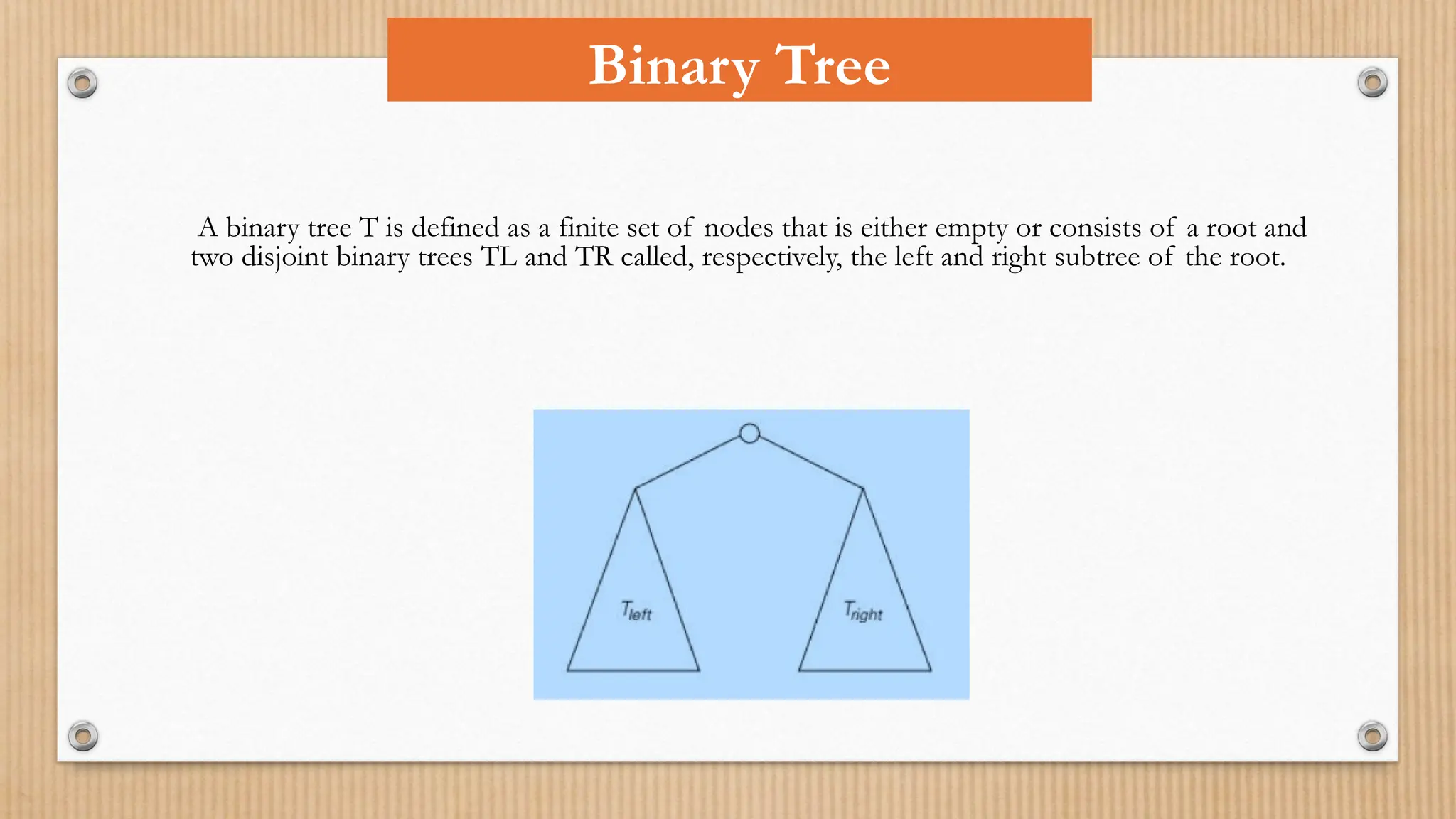

Binary Tree

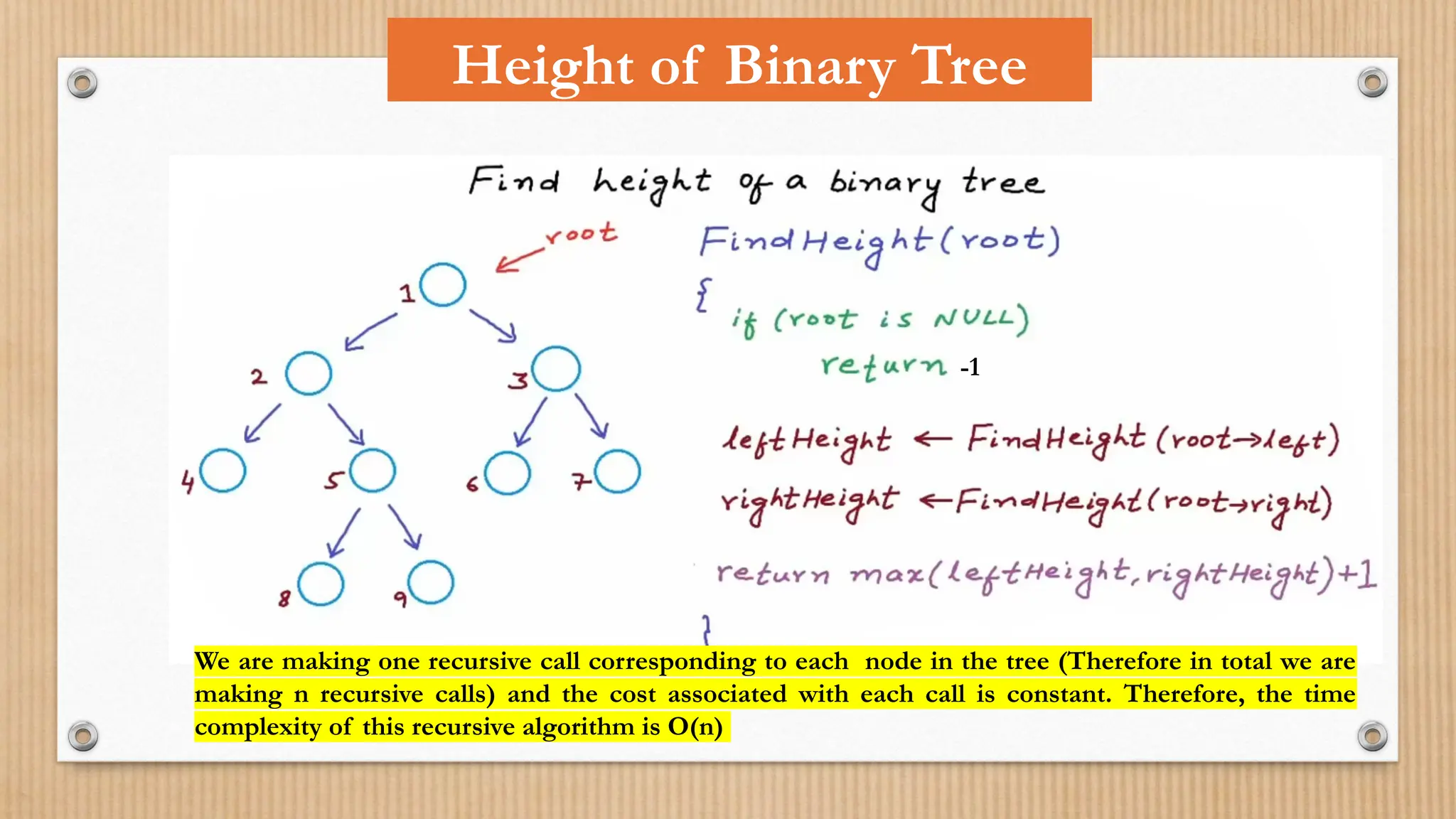

Height of Binary Tree
We are making one recursive call corresponding to each node in the tree (Therefore in total we are
making n recursive calls) and the cost associated with each call is constant. Therefore, the time
complexity of this recursive algorithm is O(n)
-1

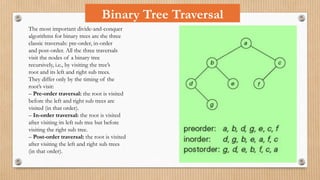

Binary Tree Traversal
The most important divide-and-conquer
algorithms for binary trees are the three
classic traversals: pre-order, in-order
and post-order. All the three traversals
visit the nodes of a binary tree
recursively, i.e., by visiting the tree’s
root and its left and right sub trees.
They differ only by the timing of the
root’s visit:
– Pre-order traversal: the root is visited
before the left and right sub trees are
visited (in that order).
– In-order traversal: the root is visited
after visiting its left sub tree but before
visiting the right sub tree.
– Post-order traversal: the root is visited
after visiting the left and right sub trees
(in that order).

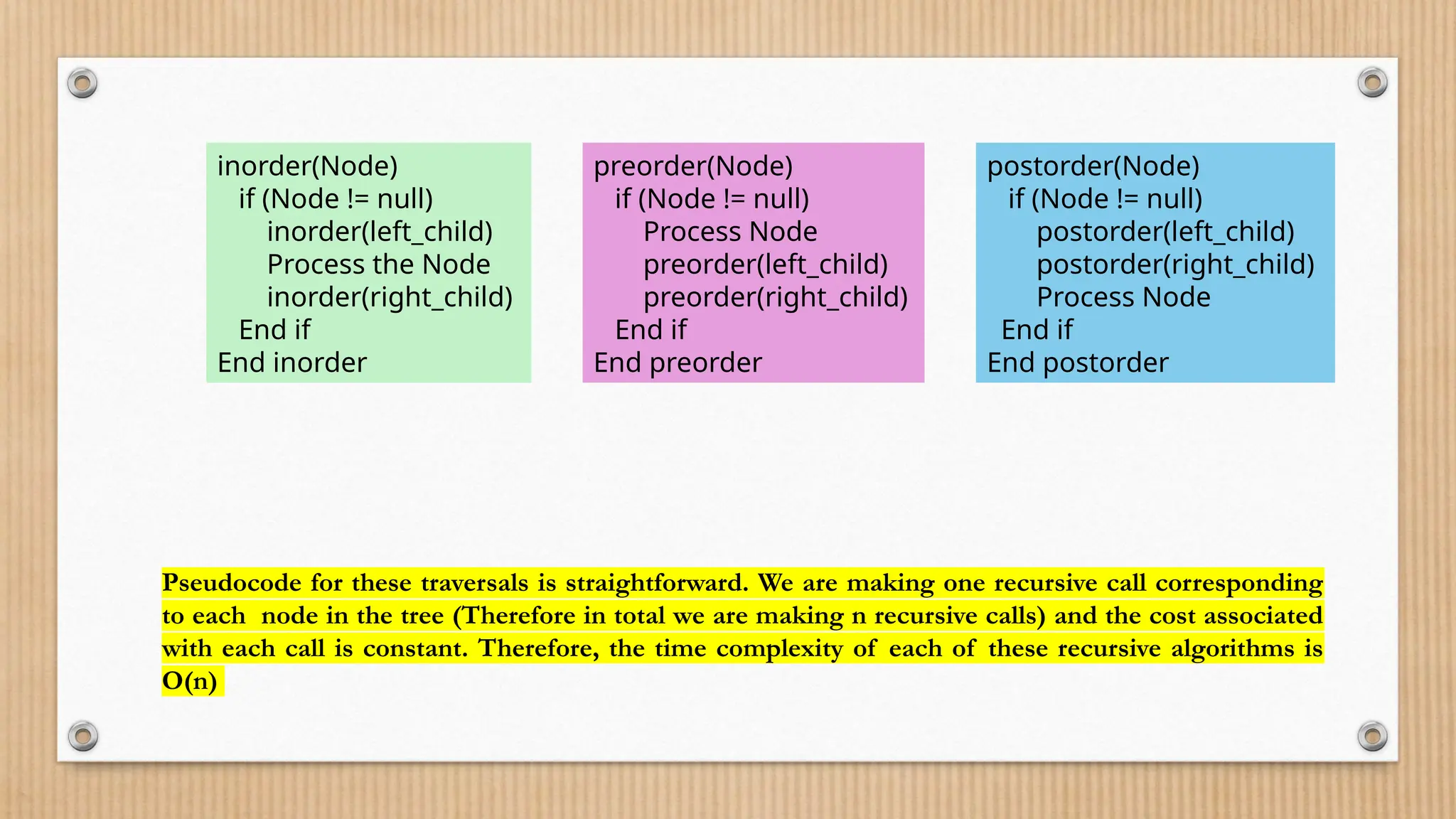

inorder(Node)
if (Node != null)
inorder(left_child)
Process the Node
inorder(right_child)
End if
End inorder
preorder(Node)
if (Node != null)
Process Node
preorder(left_child)
preorder(right_child)
End if
End preorder
postorder(Node)
if (Node != null)
postorder(left_child)
postorder(right_child)
Process Node
End if
End postorder
Pseudocode for these traversals is straightforward. We are making one recursive call corresponding
to each node in the tree (Therefore in total we are making n recursive calls) and the cost associated
with each call is constant. Therefore, the time complexity of each of these recursive algorithms is
O(n)

Multiplication of Large Integers

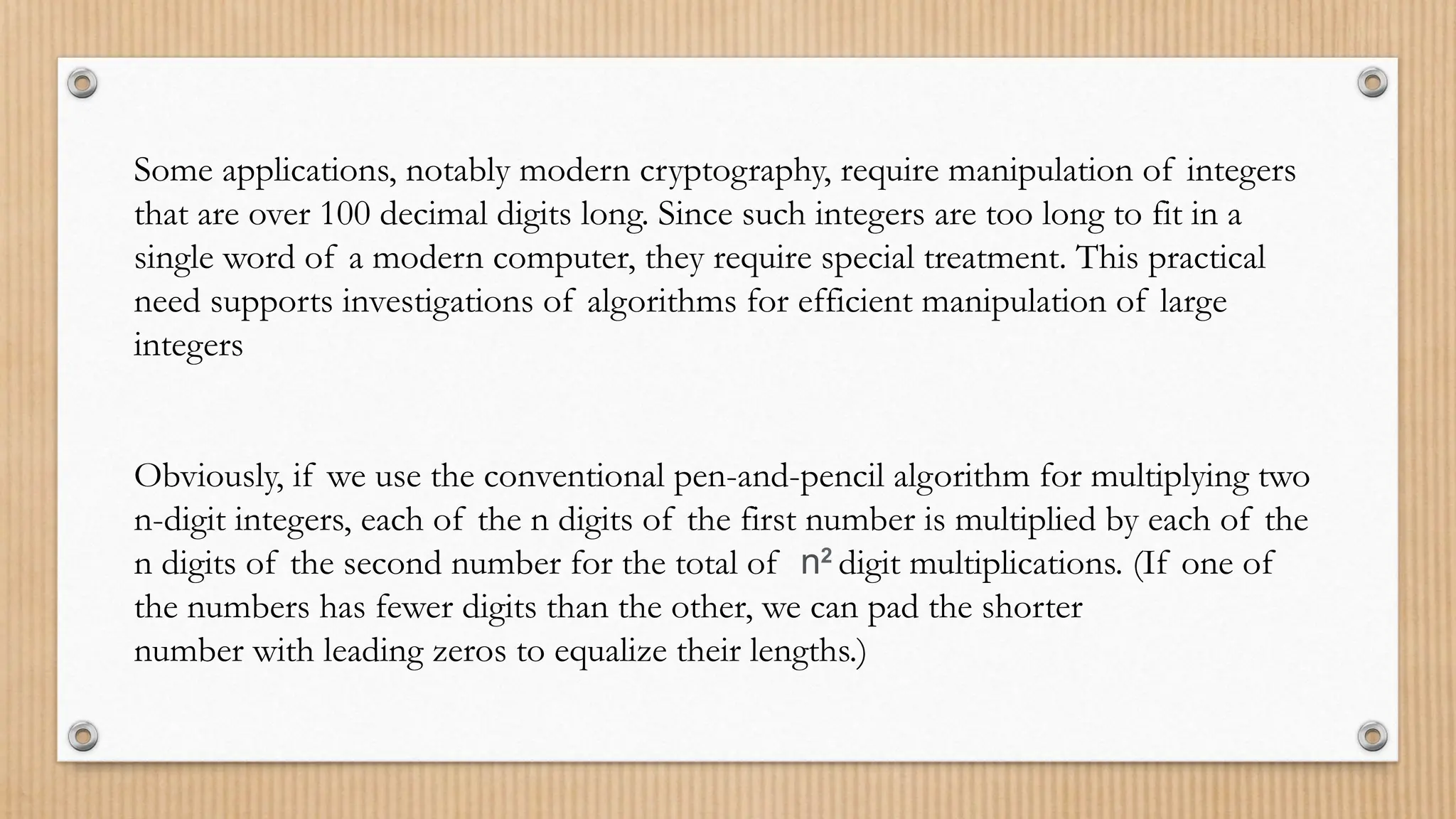

Some applications, notably modern cryptography, require manipulation of integers
that are over 100 decimal digits long. Since such integers are too long to fit in a
single word of a modern computer, they require special treatment. This practical
need supports investigations of algorithms for efficient manipulation of large
integers
Obviously, if we use the conventional pen-and-pencil algorithm for multiplying two
n-digit integers, each of the n digits of the first number is multiplied by each of the
n digits of the second number for the total of n2
digit multiplications. (If one of
the numbers has fewer digits than the other, we can pad the shorter
number with leading zeros to equalize their lengths.)

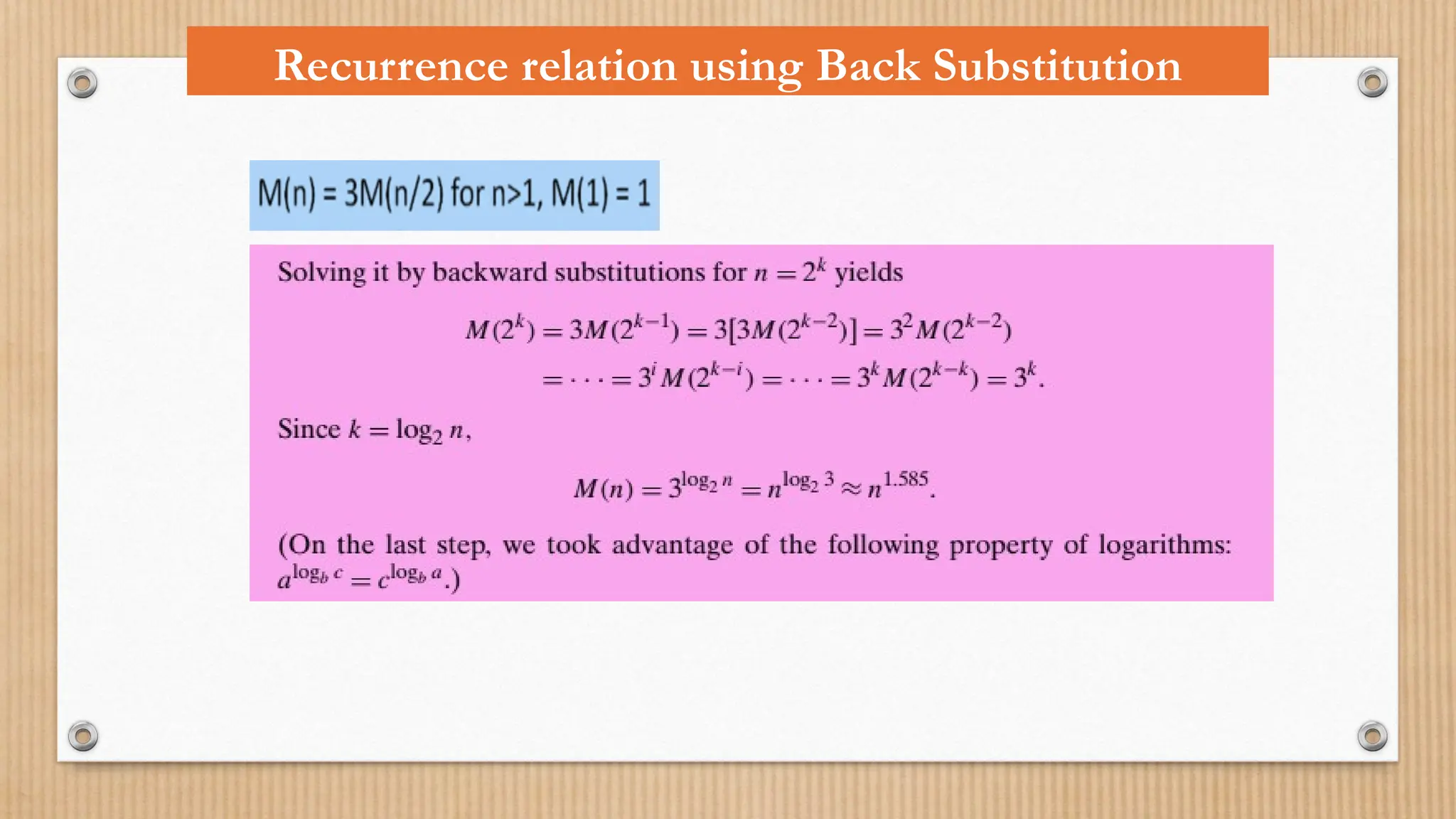

Recurrence relation using Back Substitution

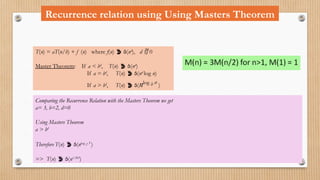

Recurrence relation using Using Masters Theorem
), d  0
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
)
a= 3, b=2, d=0
a > bd
Therefore T(n)  (nlog 2 3
)
=> T(n)  (n1.585
)

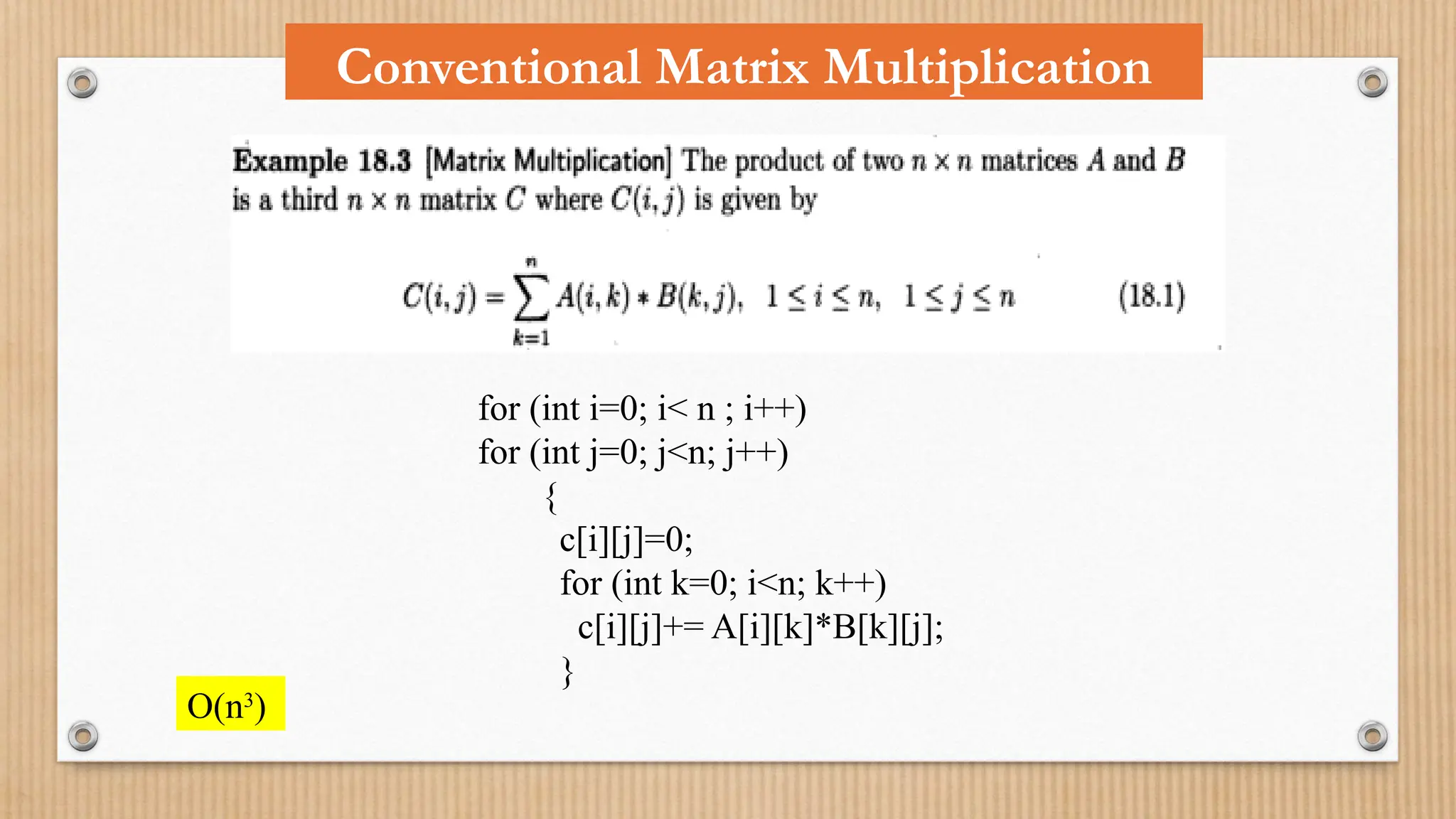

for (int i=0; i< n ; i++)
for (int j=0; j<n; j++)
{
c[i][j]=0;
for (int k=0; i<n; k++)
c[i][j]+= A[i][k]*B[k][j];
}
O(n3
)
Conventional Matrix Multiplication

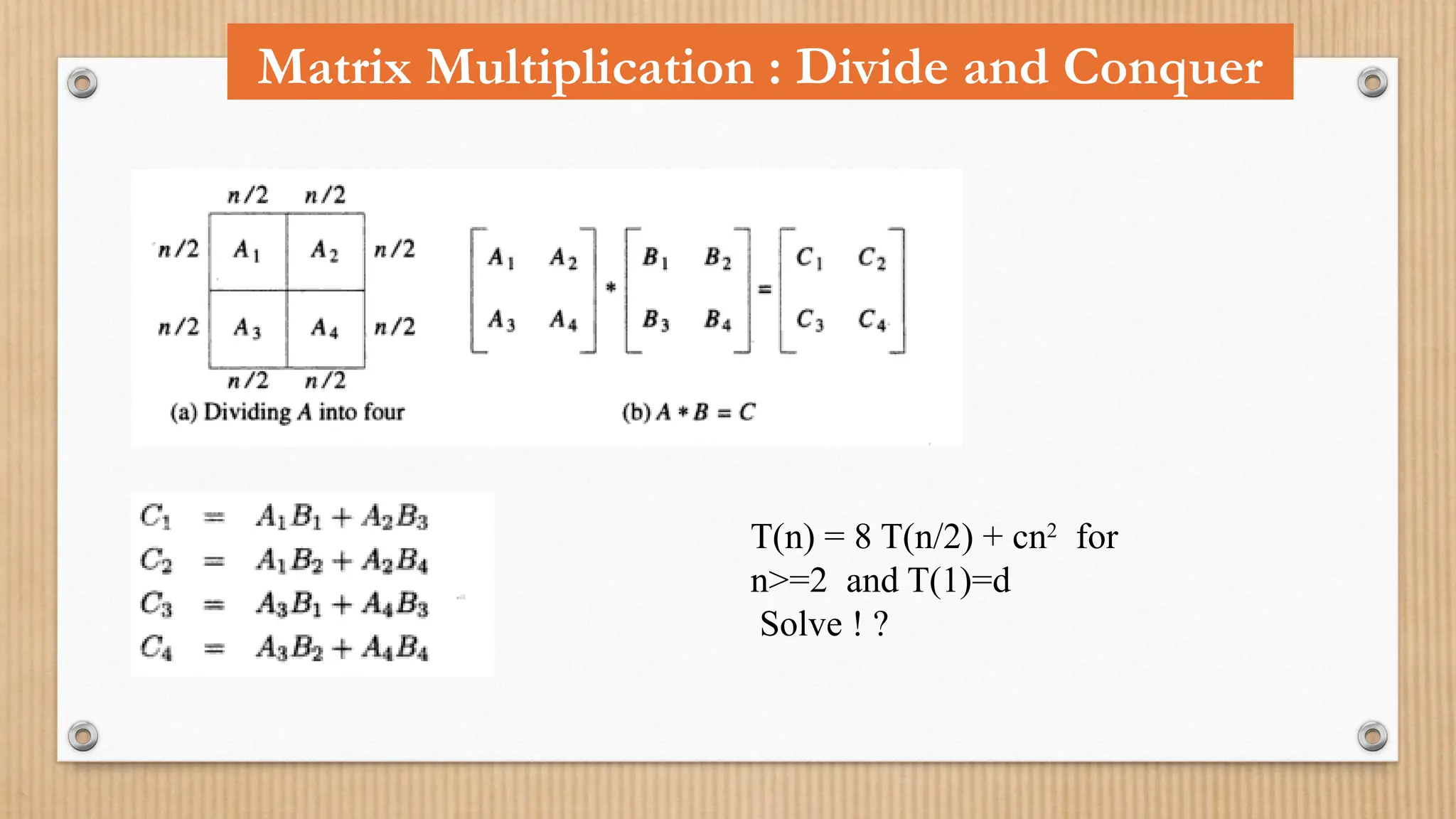

Matrix Multiplication : Divide and Conquer
T(n) = 8 T(n/2) + cn2
for
n>=2 and T(1)=d
Solve ! ?

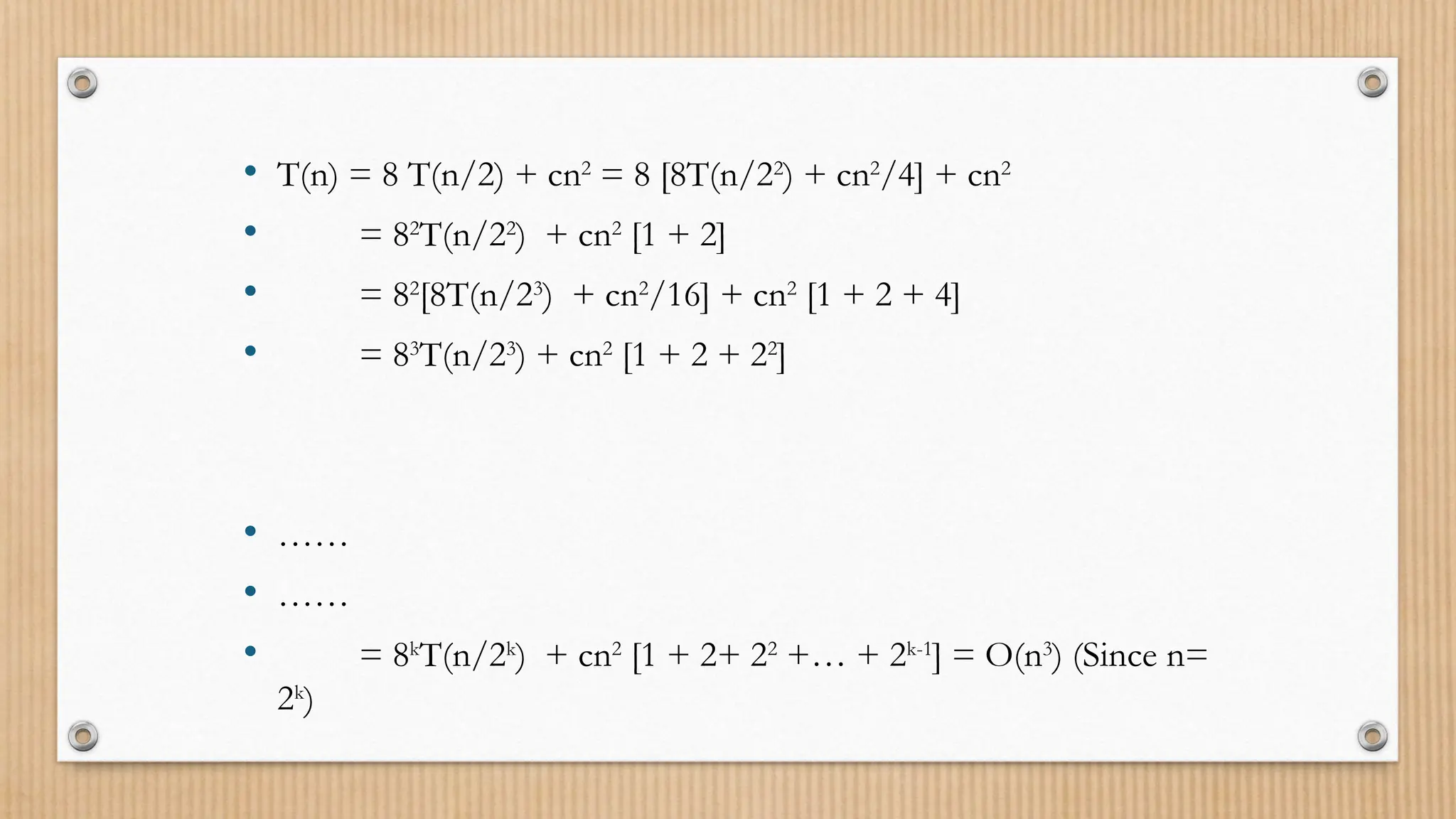

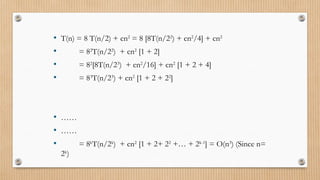

• T(n) = 8 T(n/2) + cn2
= 8 [8T(n/22
) + cn2
/4] + cn2
• = 82
T(n/22
) + cn2
[1 + 2]
• = 82
[8T(n/23
) + cn2
/16] + cn2
[1 + 2 + 4]
• = 83
T(n/23
) + cn2
[1 + 2 + 22
]
• ……
• ……
• = 8k
T(n/2k
) + cn2
[1 + 2+ 22
+… + 2k-1
] = O(n3
) (Since n=
2k
)

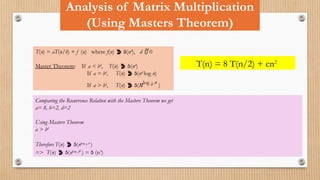

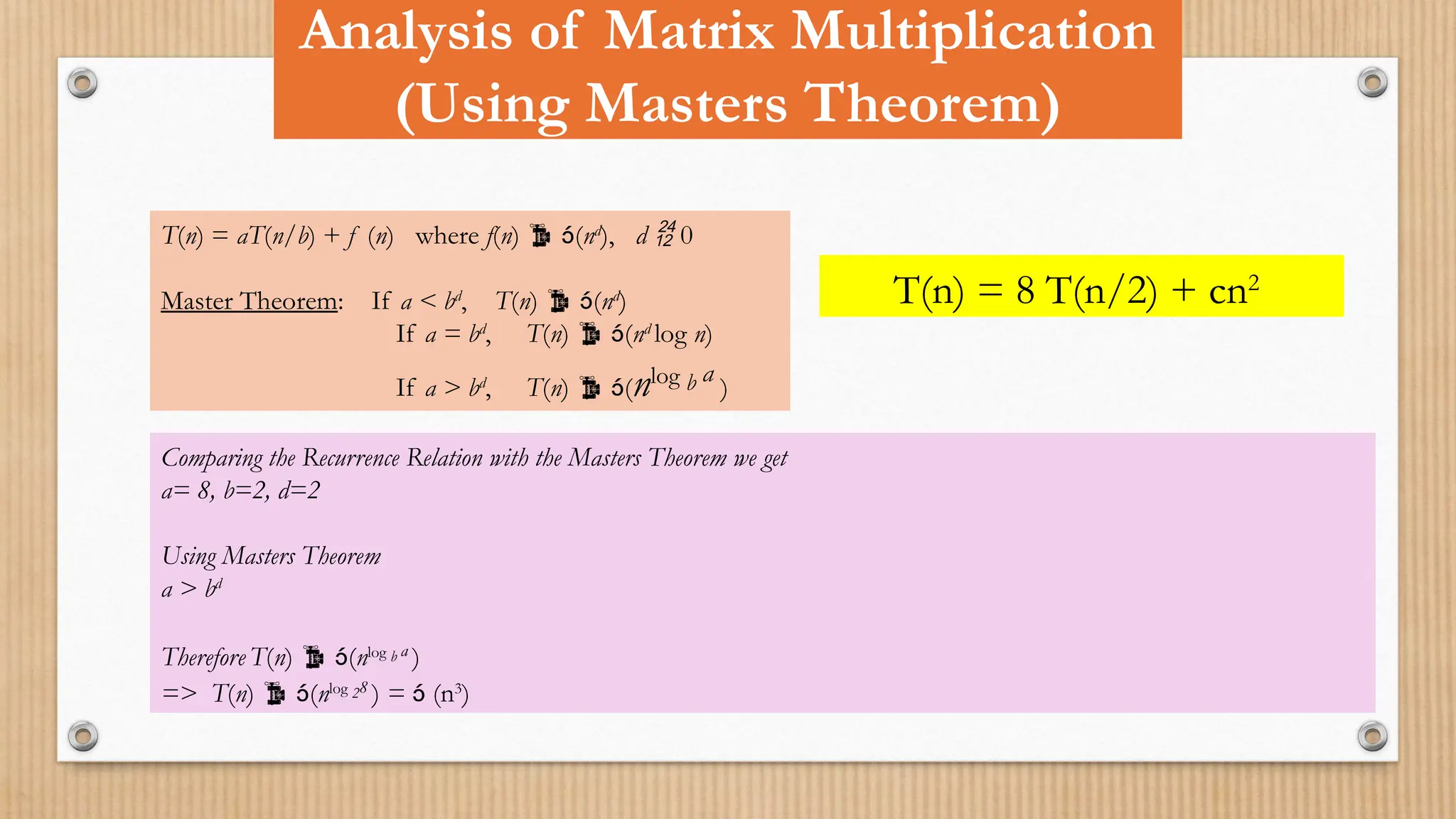

Analysis of Matrix Multiplication
), d  0
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
)
T(n) = 8 T(n/2) + cn2
a= 8, b=2, d=2
a > bd
Therefore T(n)  (nlog b a
)
=> T(n)  (nlog 28
) =  (n3
)

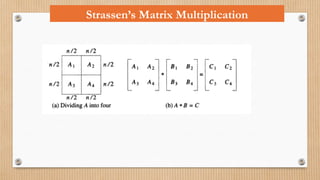

Strassen’s Matrix Multiplication

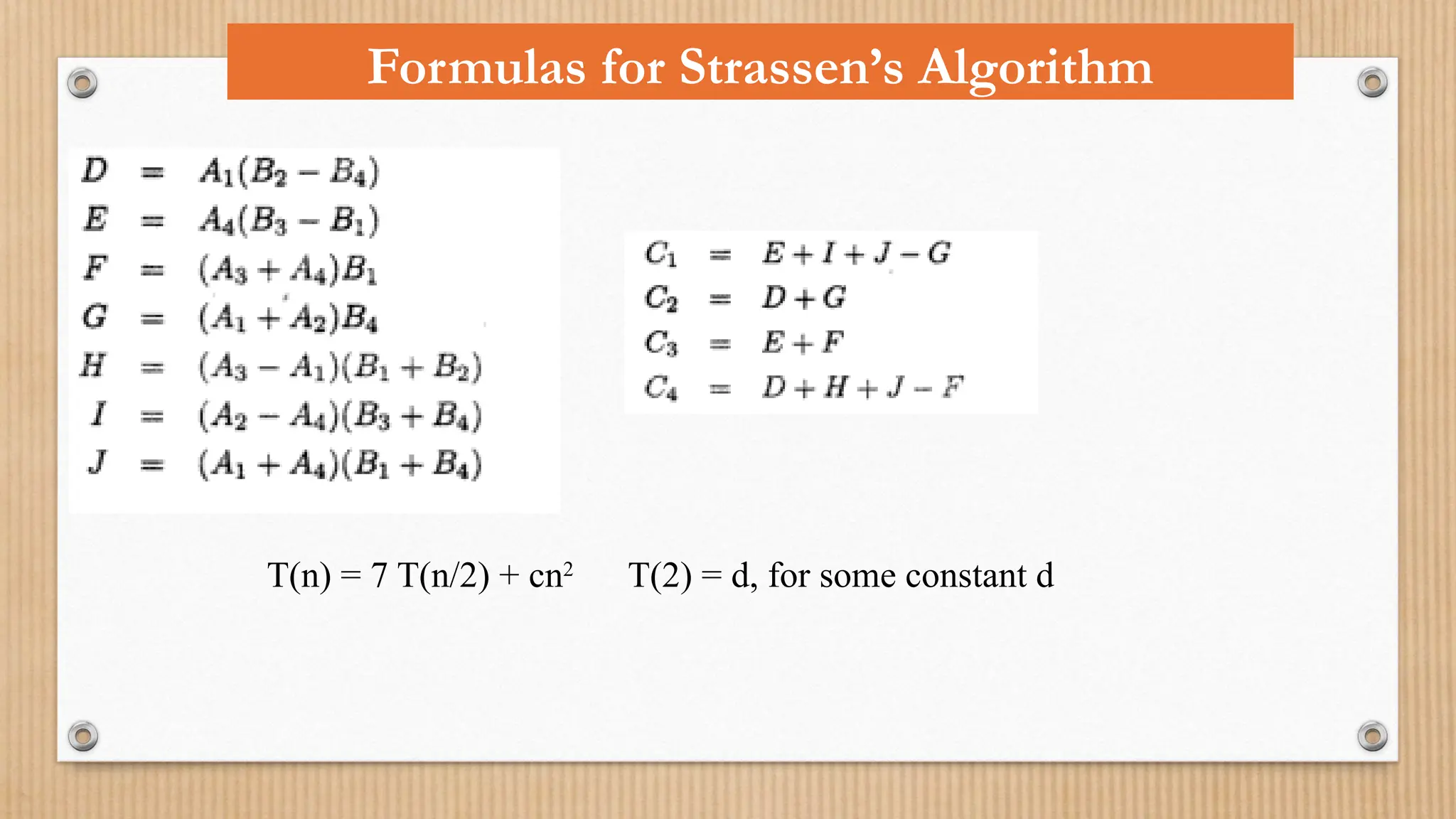

Formulas for Strassen’s Algorithm
T(n) = 7 T(n/2) + cn2
T(2) = d, for some constant d

Analysis of Strassen’s Algorithm
T(n) = 7 T(n/2) + cn2
T(1) = d, for some constant d
T(n) = 7 T(n/2) + cn2
= 7 [7 T(n/22
) + c(n/2)2
] + cn2
=
= 72
T(n/22
) + cn2
[1 + 7/4]
= 73
T(n/23
) + cn2
[1 + 7/4 + (7/4)2
]
…..
…..
= 7k
T(n/2k
) + cn2
[1 + 7/4 + (7/4)2
+ … (7/4)k-1
]
= 7k
T(n/2k
) + cn2
(7/4)k
/ [7/4 – 1] = O(7k
)
= O(7logn
) = O(nlog 7
) = O(n2.81
)

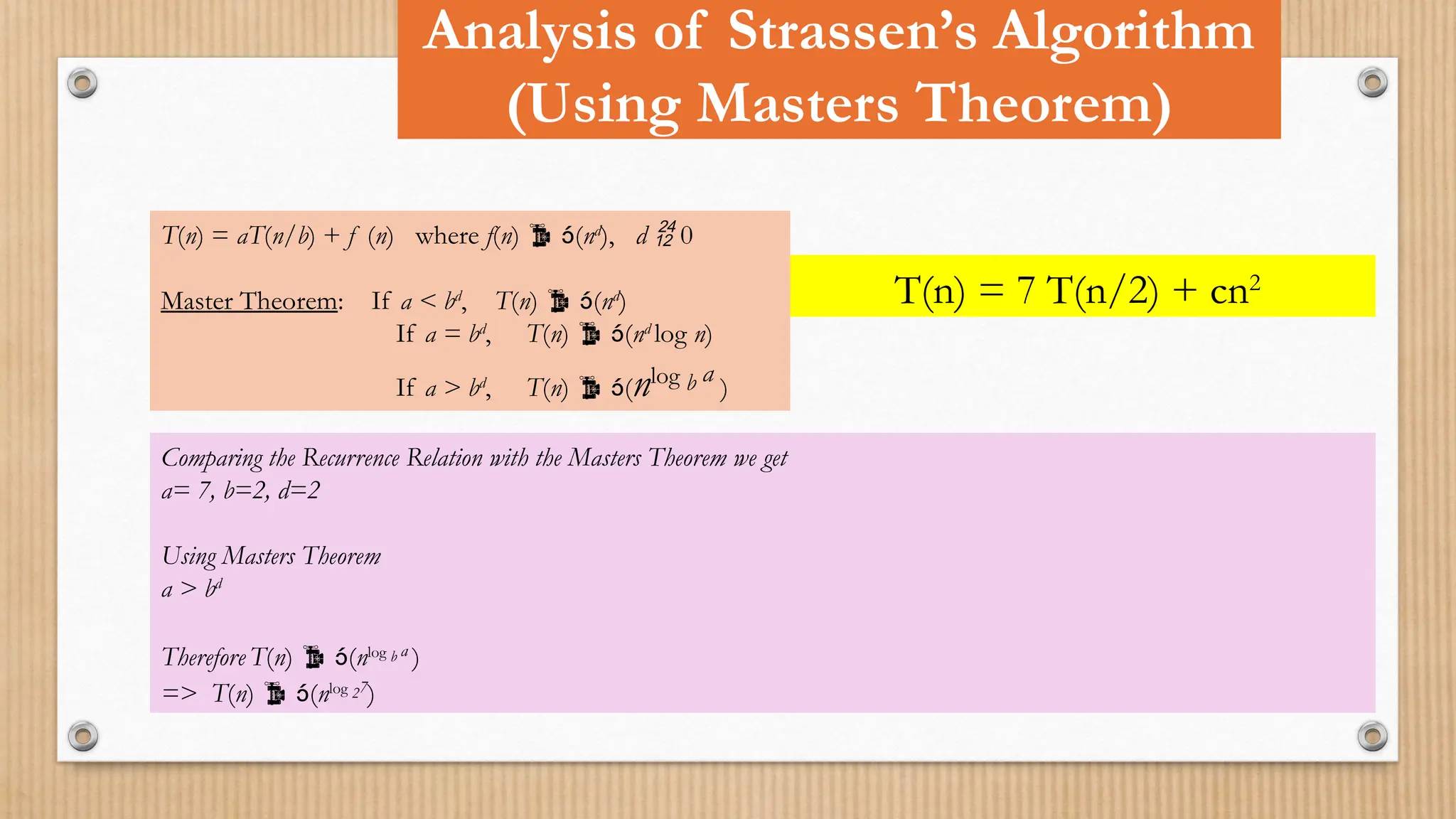

Analysis of Strassen’s Algorithm
), d  0
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
)
T(n) = 7 T(n/2) + cn2
a= 7, b=2, d=2
a > bd
Therefore T(n)  (nlog b a
)
=> T(n)  (nlog 27
)

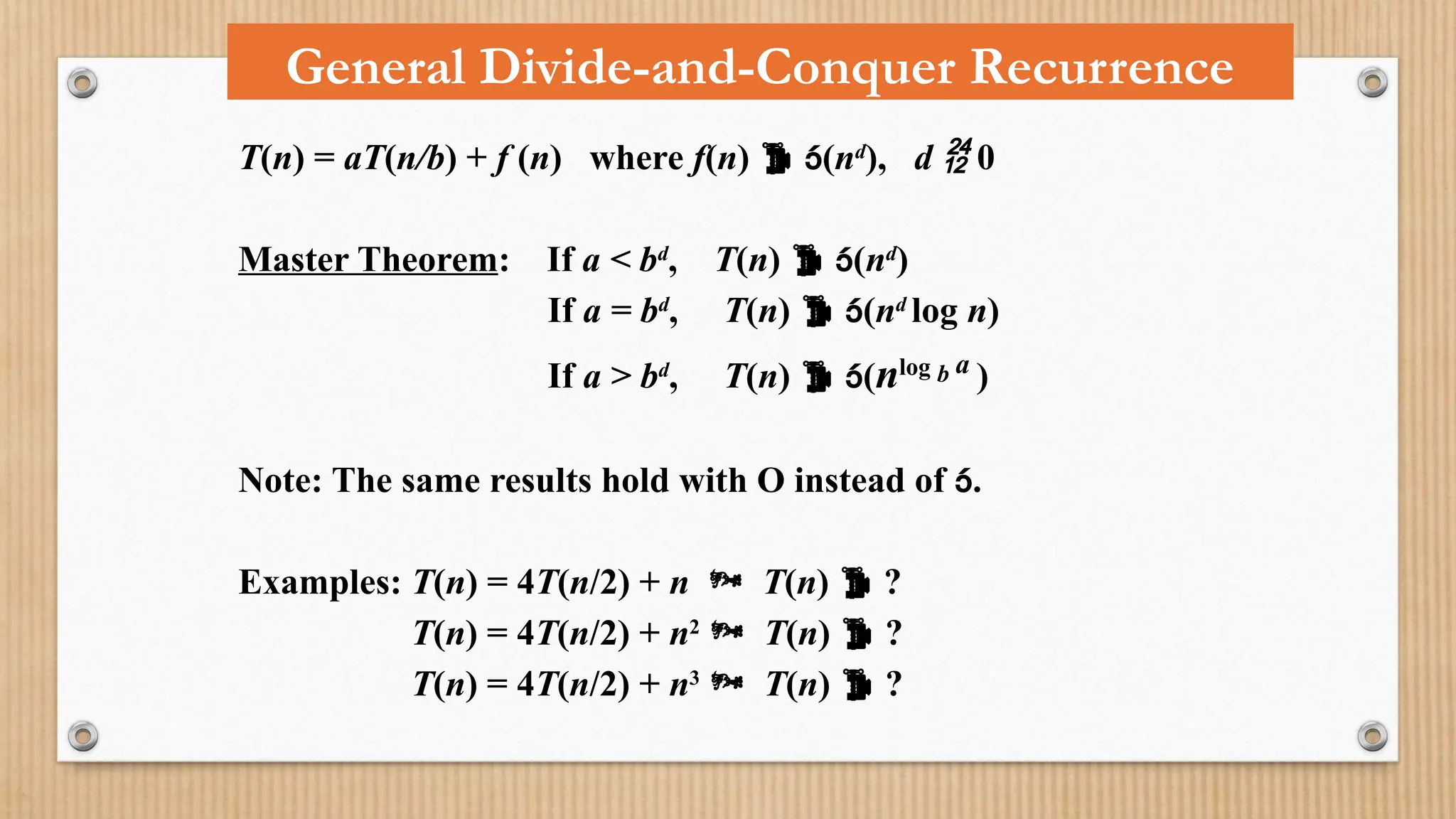

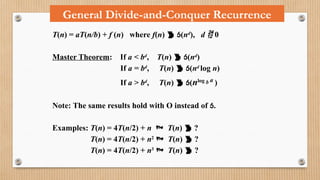

General Divide-and-Conquer Recurrence
), d  0
, T(n)  (nd
)
If a = bd
, T(n)  (nd
log n)
If a > bd
)
Note: The same results hold with O instead of .
Examples: T(n) = 4T(n/2) + n  T(n)  ?
T(n) = 4T(n/2) + n2
 T(n)  ?
T(n) = 4T(n/2) + n3
 T(n)  ?

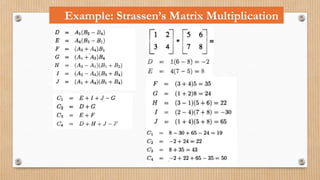

Example: Strassen’s Matrix Multiplication

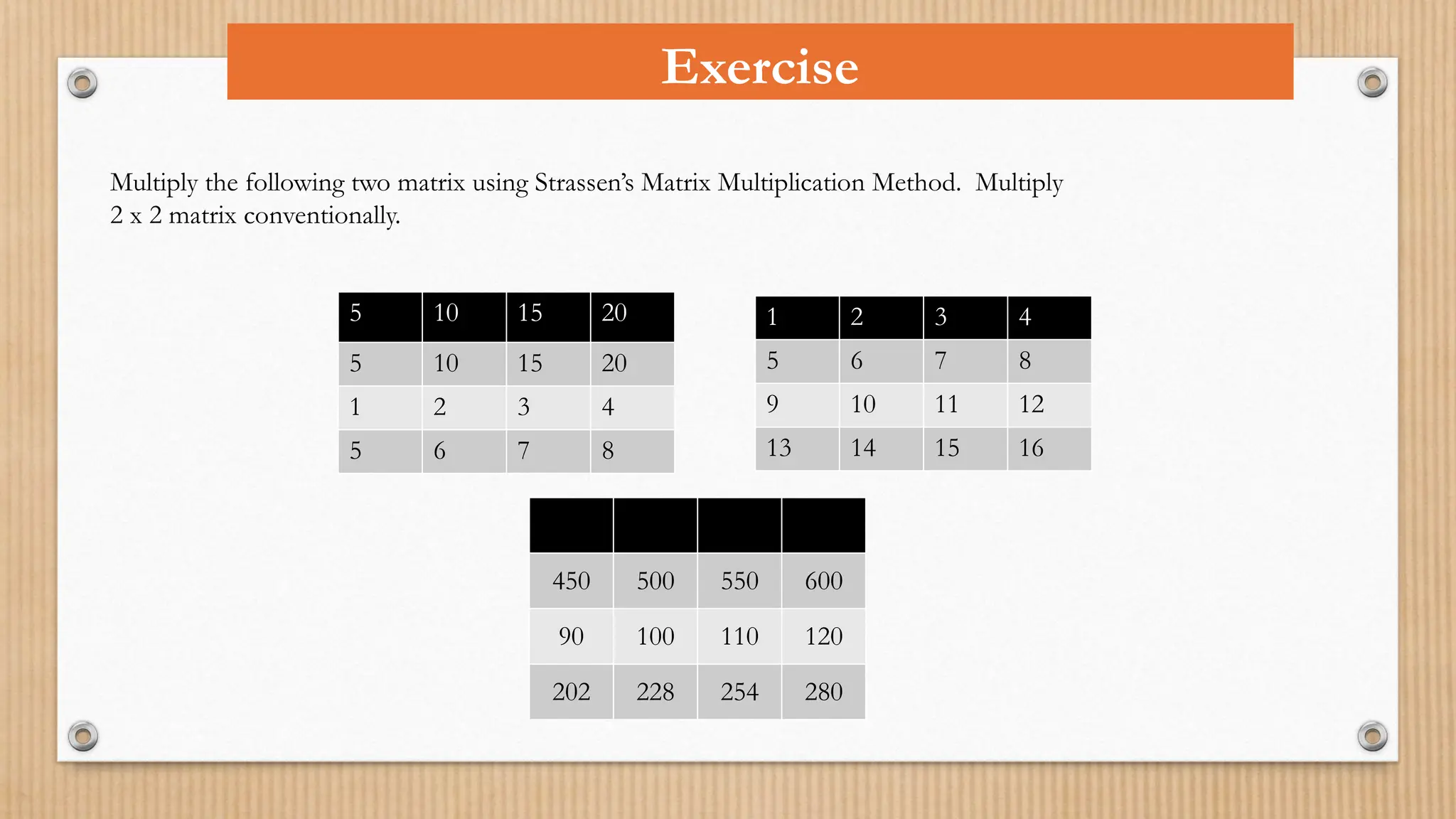

Exercise
Multiply the following two matrix using Strassen’s Matrix Multiplication Method. Multiply
2 x 2 matrix conventionally.
5 10 15 20
5 10 15 20
1 2 3 4
5 6 7 8
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
450 500 550 600
450 500 550 600
90 100 110 120
202 228 254 280

Exercice
Solve the following recurrence equations using substitution Method and Master’s theorem. In
all the examples considered take t(1)=1:
