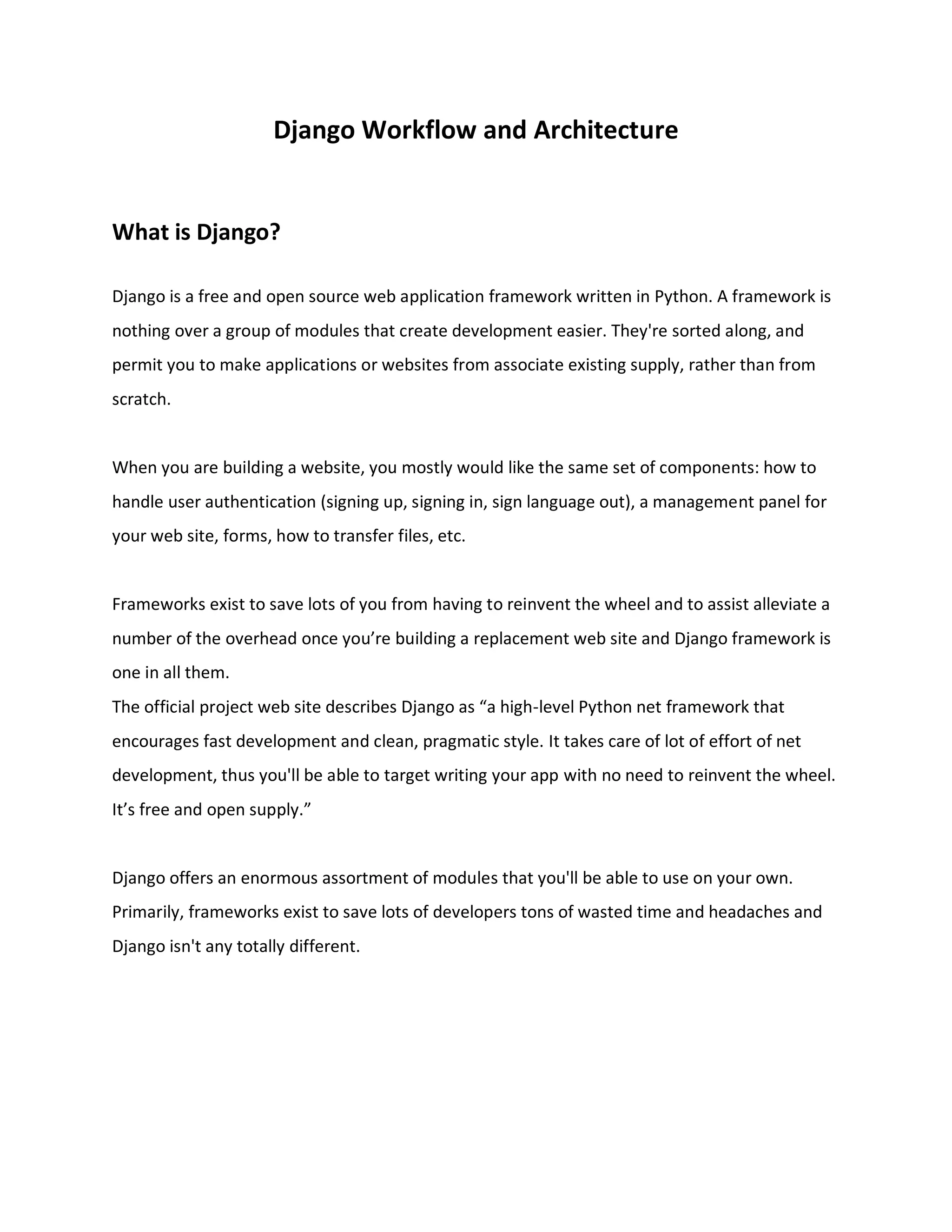

What is Django?
Django is a free and open source web application framework written in Python. A framework is
nothing over a group of modules that create development easier. They're sorted along, and
permit you to make applications or websites from associate existing supply, rather than from
scratch.
When you are building a website, you mostly would like the same set of components: how to
handle user authentication (signing up, signing in, sign language out), a management panel for
your web site, forms, how to transfer files, etc.
Frameworks exist to save lots of you from having to reinvent the wheel and to assist alleviate a
number of the overhead once you’re building a replacement web site and Django framework is
one in all them.
The official project web site describes Django as “a high-level Python net framework that
encourages fast development and clean, pragmatic style. It takes care of lot of effort of net
development, thus you'll be able to target writing your app with no need to reinvent the wheel.
It’s free and open supply.”
Django offers an enormous assortment of modules that you'll be able to use on your own.
Primarily, frameworks exist to save lots of developers tons of wasted time and headaches and
Django isn't any totally different.

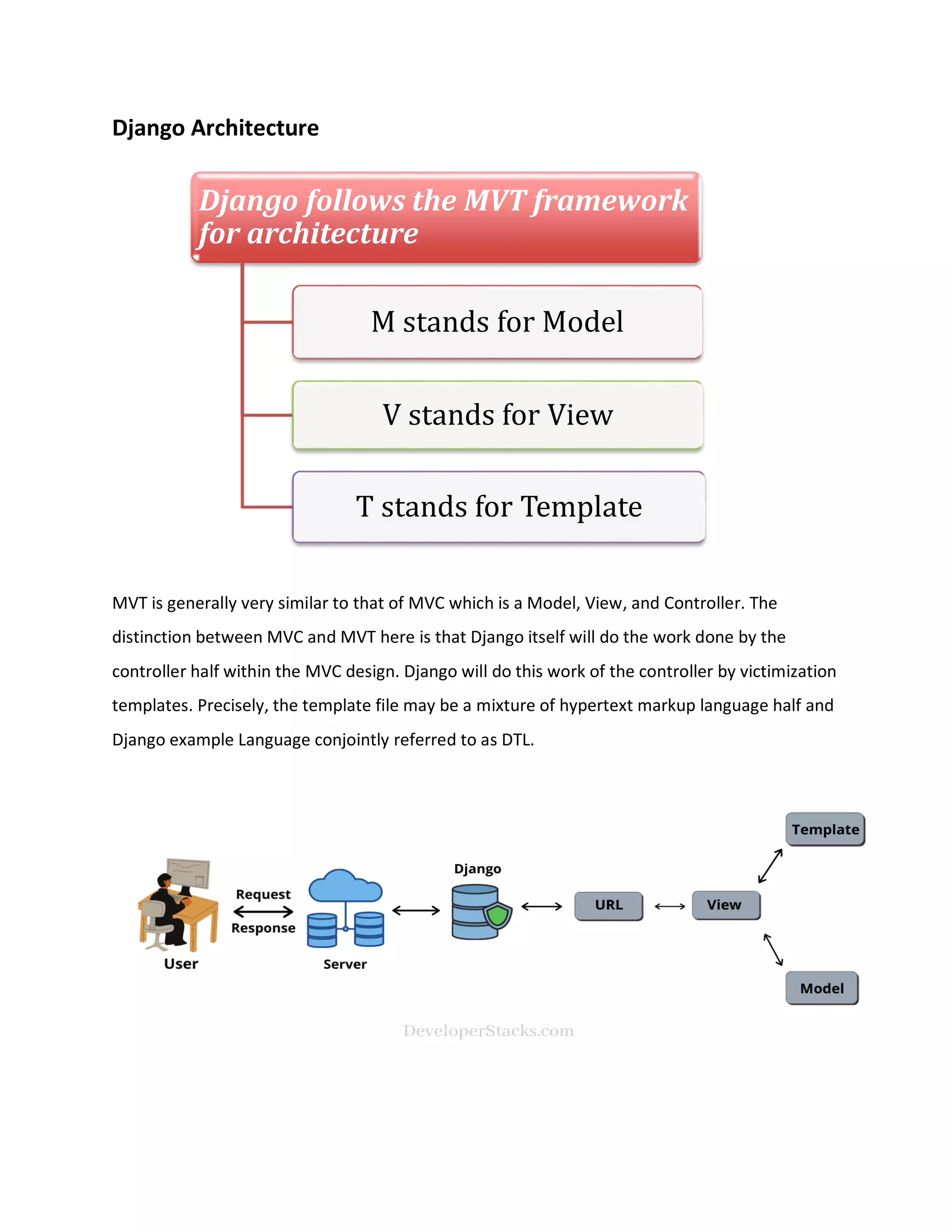

Django Architecture
MVT is generally very similar to that of MVC which is a Model, View, and Controller. The
distinction between MVC and MVT here is that Django itself will do the work done by the
controller half within the MVC design. Django will do this work of the controller by victimization
templates. Precisely, the template file may be a mixture of hypertext markup language half and
Django example Language conjointly referred to as DTL.
Django follows the MVT framework
for architecture
M stands for Model
V stands for View
T stands for Template

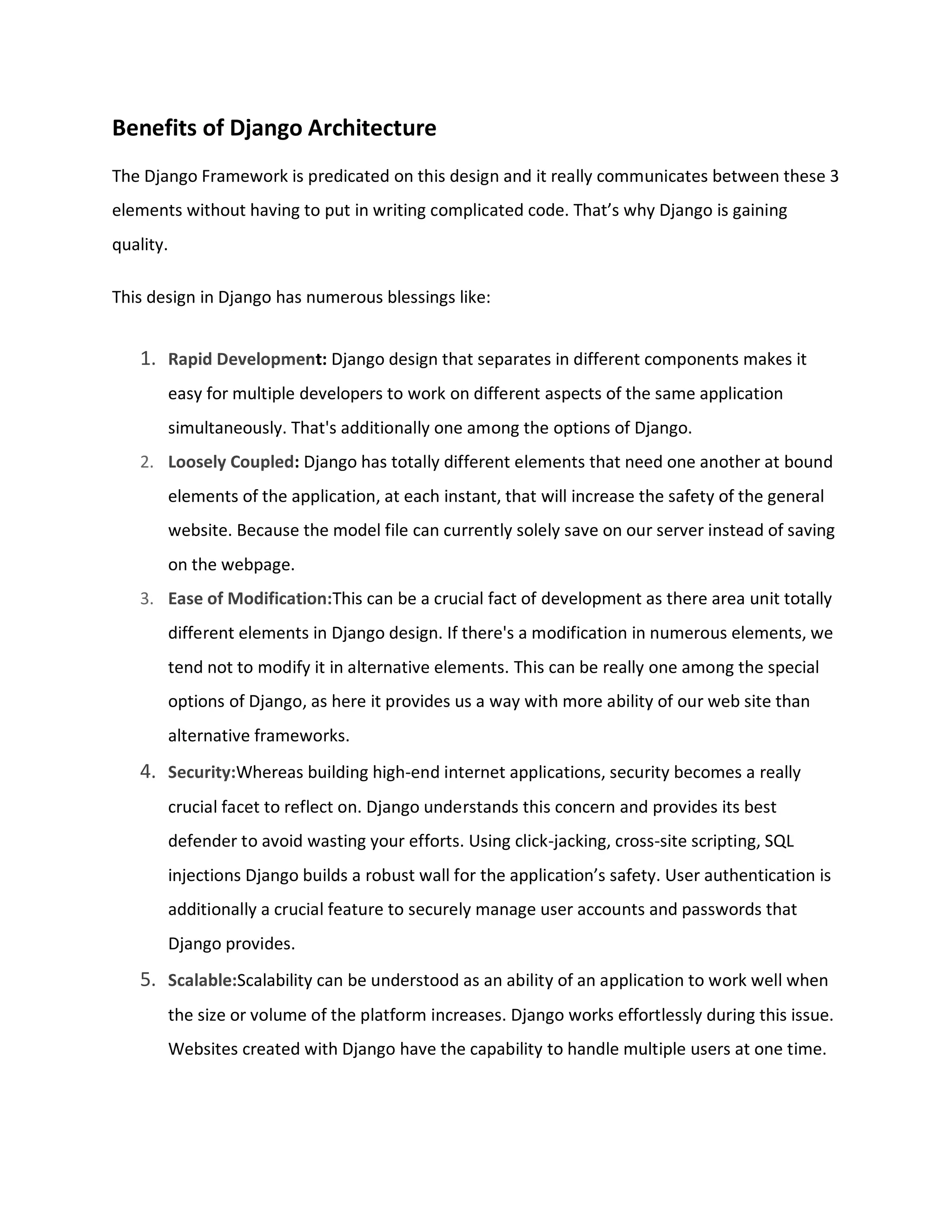

Benefits of Django Architecture
The Django Framework is predicated on this design and it really communicates between these 3
elements without having to put in writing complicated code. That’s why Django is gaining
quality.
This design in Django has numerous blessings like:
1. Rapid Development: Django design that separates in different components makes it
easy for multiple developers to work on different aspects of the same application
simultaneously. That's additionally one among the options of Django.
2. Loosely Coupled: Django has totally different elements that need one another at bound
elements of the application, at each instant, that will increase the safety of the general
website. Because the model file can currently solely save on our server instead of saving
on the webpage.
3. Ease of Modification:This can be a crucial fact of development as there area unit totally
different elements in Django design. If there's a modification in numerous elements, we
tend not to modify it in alternative elements. This can be really one among the special
options of Django, as here it provides us a way with more ability of our web site than
alternative frameworks.
4. Security:Whereas building high-end internet applications, security becomes a really
crucial facet to reflect on. Django understands this concern and provides its best
defender to avoid wasting your efforts. Using click-jacking, cross-site scripting, SQL
injections Django builds a robust wall for the application’s safety. User authentication is
additionally a crucial feature to securely manage user accounts and passwords that
Django provides.
5. Scalable:Scalability can be understood as an ability of an application to work well when
the size or volume of the platform increases. Django works effortlessly during this issue.
Websites created with Django have the capability to handle multiple users at one time.

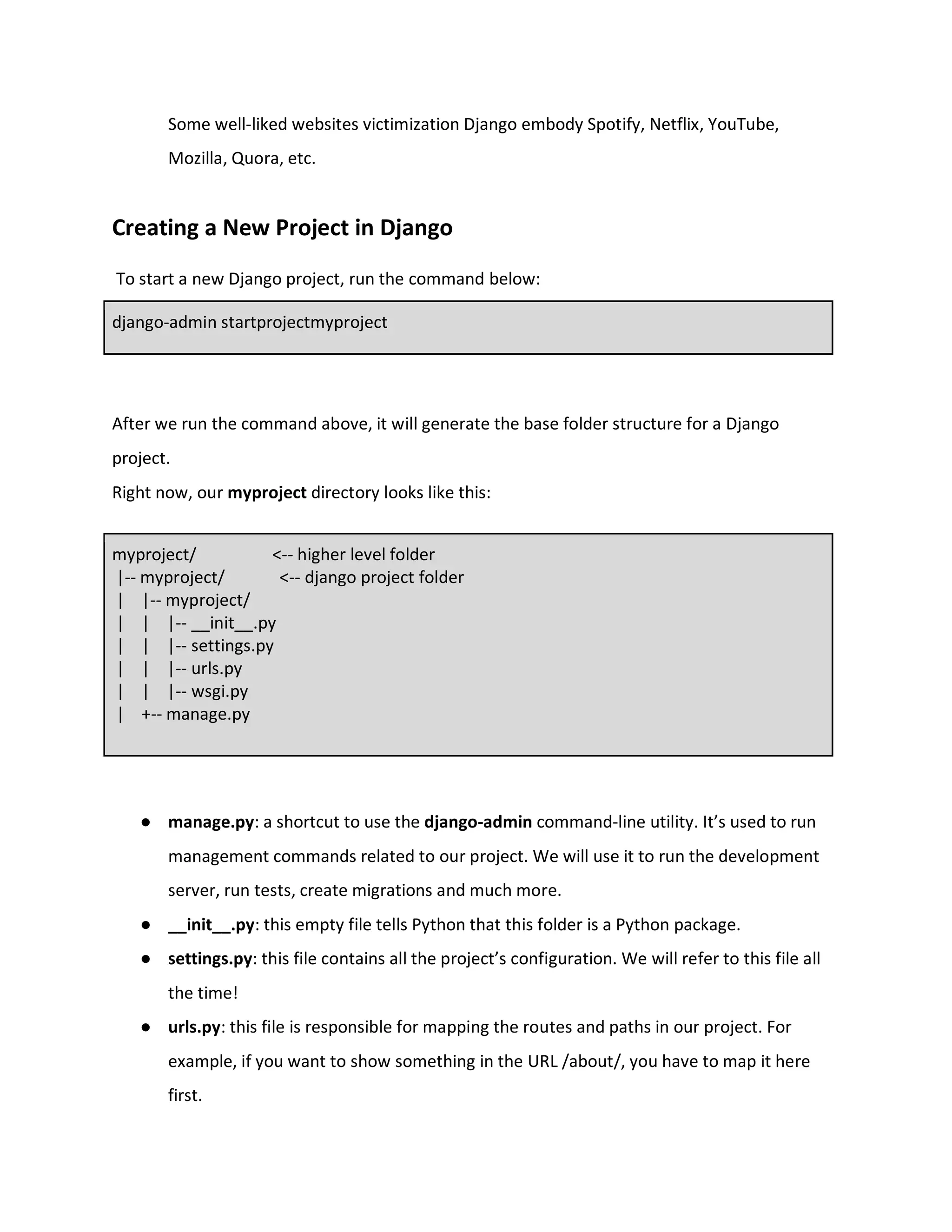

Some well-liked websites victimization Django embody Spotify, Netflix, YouTube,
Mozilla, Quora, etc.
Creating a New Project in Django
To start a new Django project, run the command below:
django-admin startprojectmyproject
After we run the command above, it will generate the base folder structure for a Django
project.
Right now, our myproject directory looks like this:
myproject/ <-- higher level folder
|-- myproject/ <-- django project folder
| |-- myproject/
| | |-- __init__.py
| | |-- settings.py
| | |-- urls.py
| | |-- wsgi.py
| +-- manage.py
● manage.py: a shortcut to use the django-admin command-line utility. It’s used to run
management commands related to our project. We will use it to run the development
server, run tests, create migrations and much more.
● __init__.py: this empty file tells Python that this folder is a Python package.
● settings.py: this file contains all the project’s configuration. We will refer to this file all
the time!
● urls.py: this file is responsible for mapping the routes and paths in our project. For
example, if you want to show something in the URL /about/, you have to map it here
first.

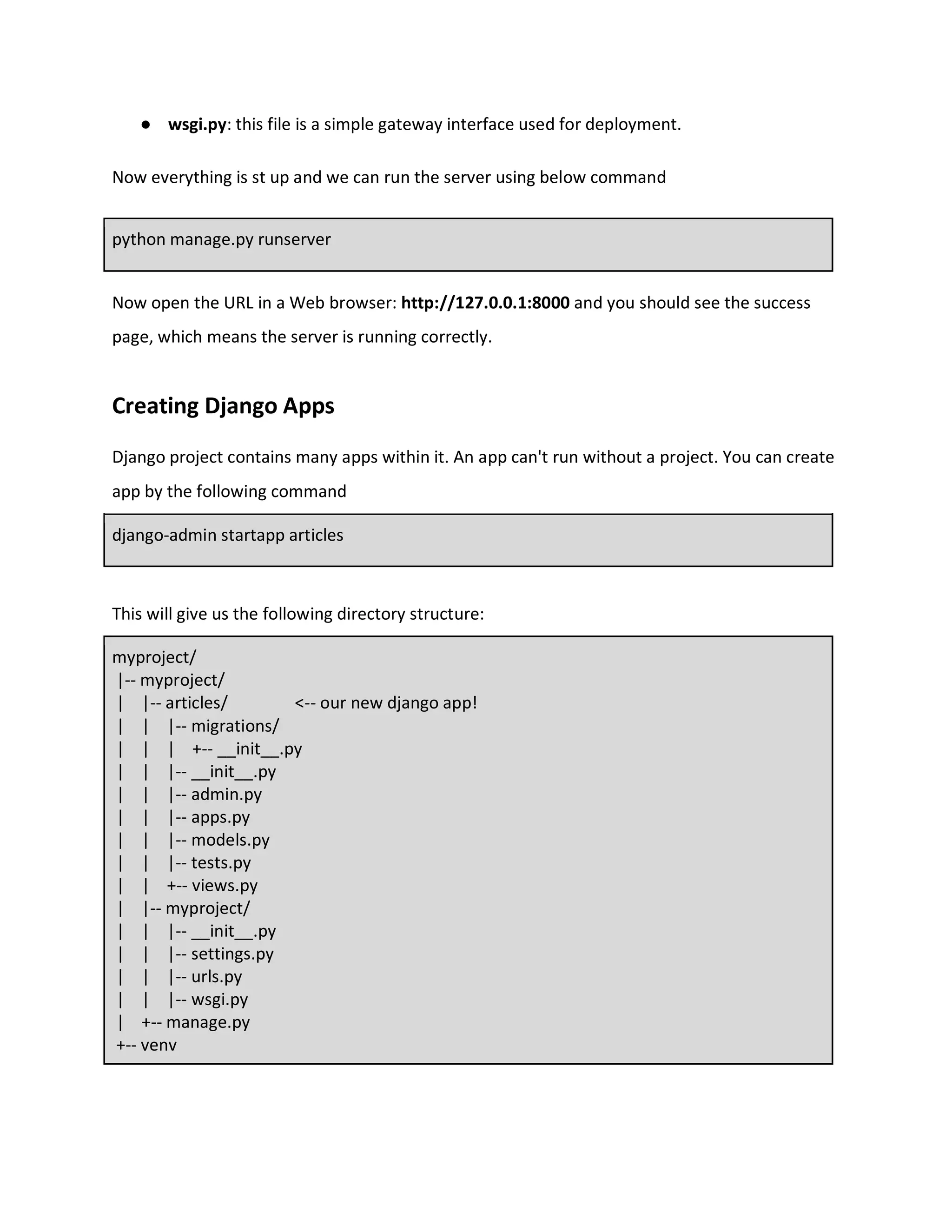

● wsgi.py: this file is a simple gateway interface used for deployment.
Now everything is st up and we can run the server using below command
python manage.py runserver
Now open the URL in a Web browser: http://127.0.0.1:8000 and you should see the success
page, which means the server is running correctly.
Creating Django Apps
Django project contains many apps within it. An app can't run without a project. You can create
app by the following command
django-admin startapp articles
This will give us the following directory structure:
myproject/
|-- myproject/
| |-- articles/ <-- our new django app!
| | |-- migrations/
| | | +-- __init__.py
| | |-- __init__.py
| | |-- admin.py
| | |-- apps.py
| | |-- models.py
| | |-- tests.py
| | +-- views.py
| |-- myproject/
| | |-- __init__.py
| | |-- settings.py
| | |-- urls.py
| | |-- wsgi.py
| +-- manage.py
+-- venv

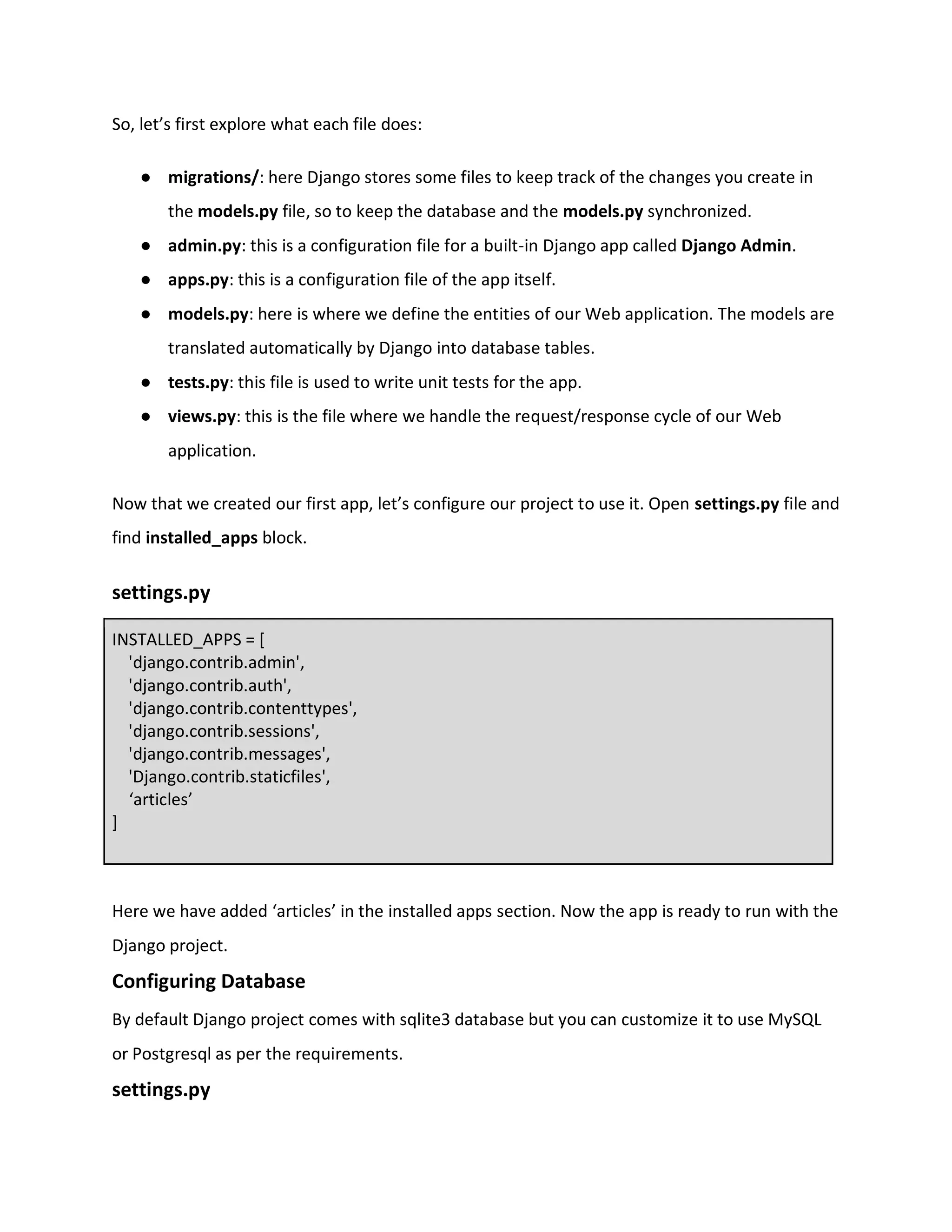

So, let’s first explore what each file does:
● migrations/: here Django stores some files to keep track of the changes you create in
the models.py file, so to keep the database and the models.py synchronized.
● admin.py: this is a configuration file for a built-in Django app called Django Admin.
● apps.py: this is a configuration file of the app itself.
● models.py: here is where we define the entities of our Web application. The models are
translated automatically by Django into database tables.
● tests.py: this file is used to write unit tests for the app.
● views.py: this is the file where we handle the request/response cycle of our Web
application.
Now that we created our first app, let’s configure our project to use it. Open settings.py file and
find installed_apps block.
settings.py
INSTALLED_APPS = [
'django.contrib.admin',
'django.contrib.auth',
'django.contrib.contenttypes',
'django.contrib.sessions',
'django.contrib.messages',
'Django.contrib.staticfiles',
‘articles’
]
Here we have added ‘articles’ in the installed apps section. Now the app is ready to run with the
Django project.
Configuring Database
By default Django project comes with sqlite3 database but you can customize it to use MySQL
or Postgresql as per the requirements.
settings.py

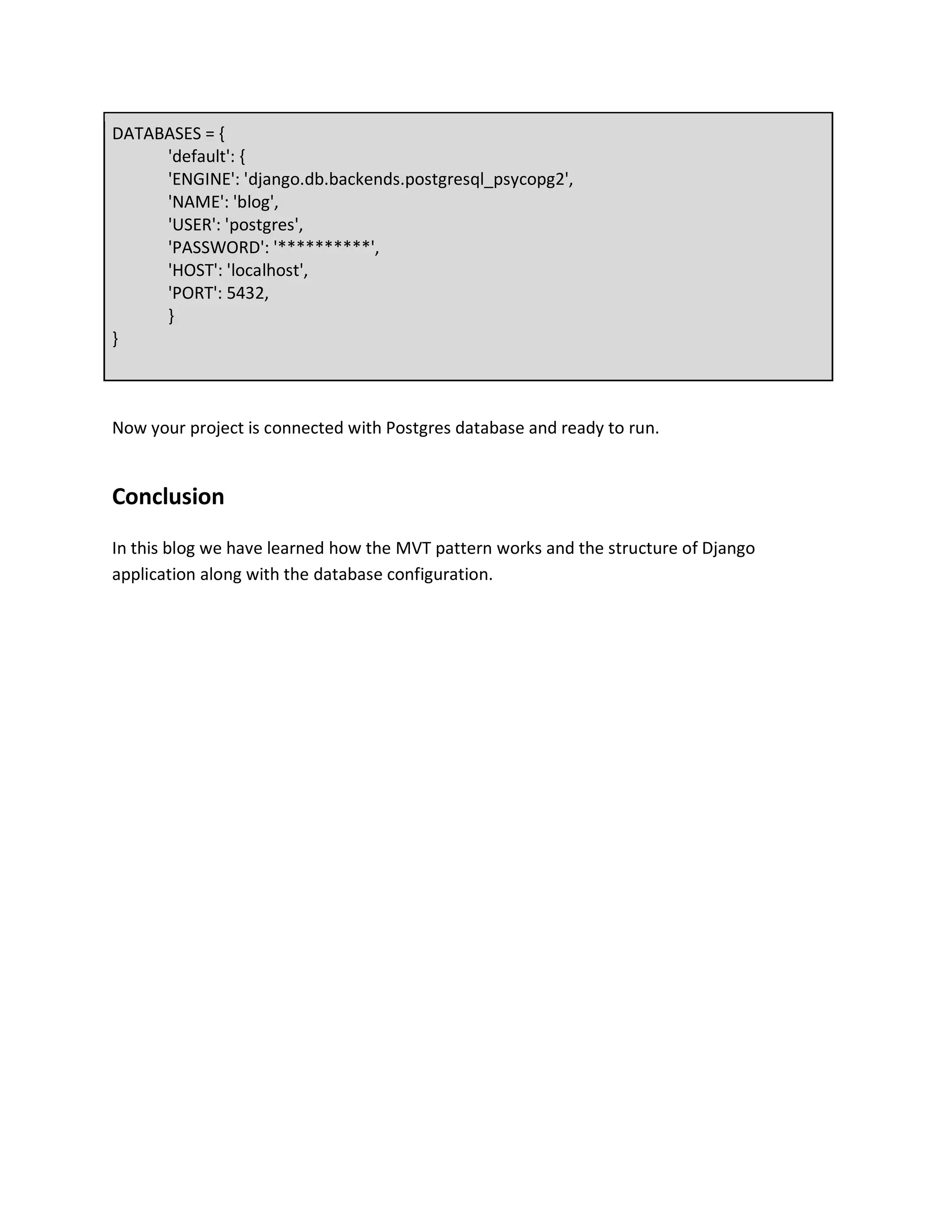

DATABASES = {
'default': {
'ENGINE': 'django.db.backends.postgresql_psycopg2',
'NAME': 'blog',
'USER': 'postgres',
'PASSWORD': '**********',
'HOST': 'localhost',
'PORT': 5432,
}
}
Now your project is connected with Postgres database and ready to run.
Conclusion
In this blog we have learned how the MVT pattern works and the structure of Django
application along with the database configuration.
