Docker Ecosystem on Azure

Patrick Chanezon & Tim Park
Microsoft
@chanezon @timpark

French
Polyglot
Server Side
San Francisco
Developer Relations
@chanezon

5

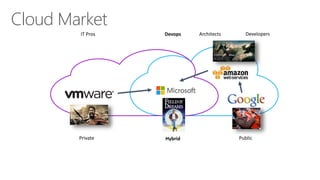

Cloud Market
PublicHybridPrivate
IT Pros Devops DevelopersArchitects

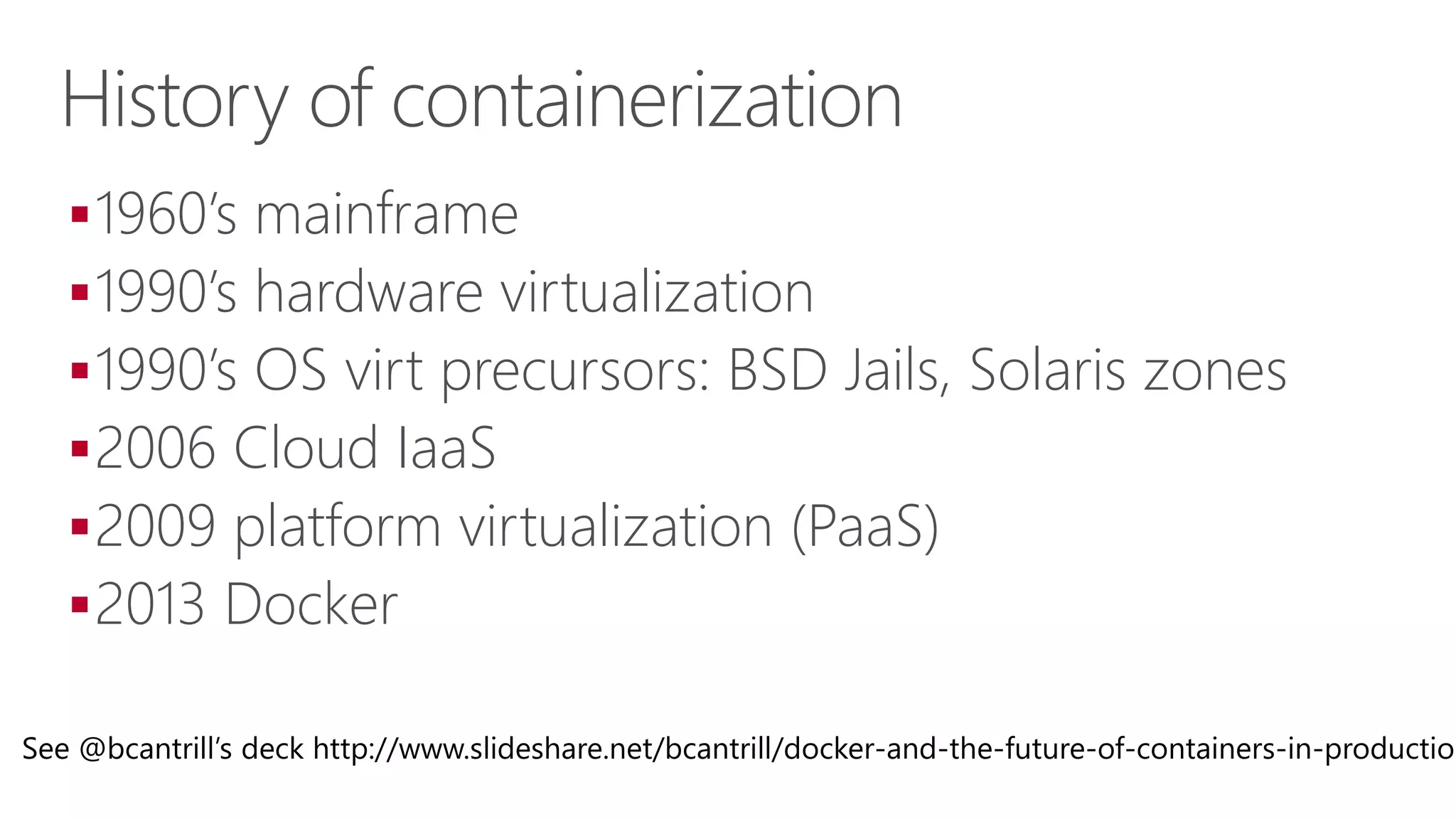

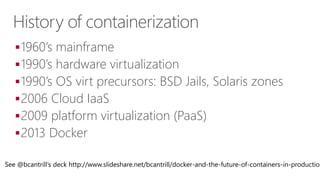

History of containerization
1960’s mainframe
1990’s hardware virtualization
1990’s OS virt precursors: BSD Jails, Solaris zones
2006 Cloud IaaS
2009 platform virtualization (PaaS)
2013 Docker
See @bcantrill’s deck http://www.slideshare.net/bcantrill/docker-and-the-future-of-containers-in-production

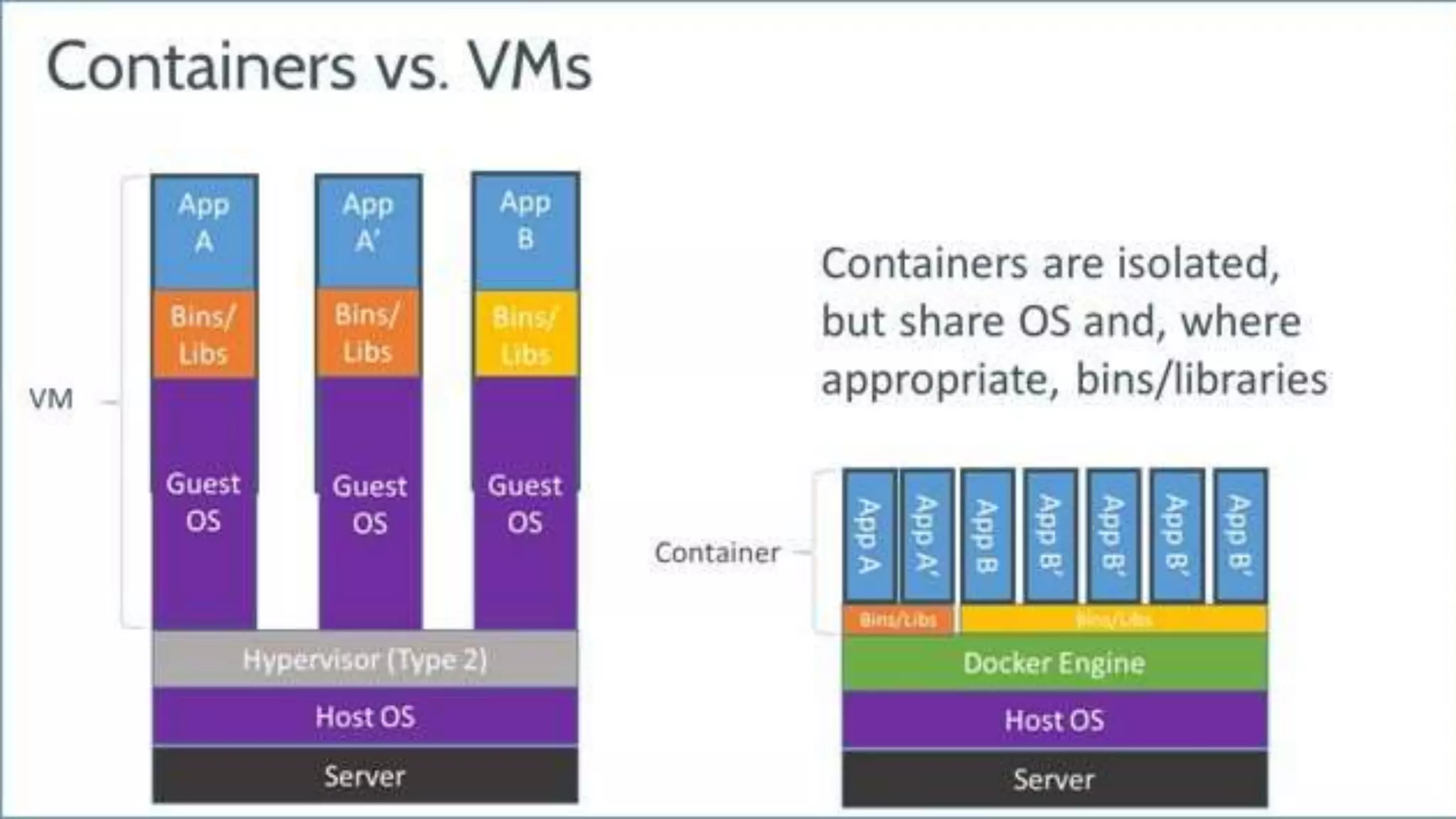

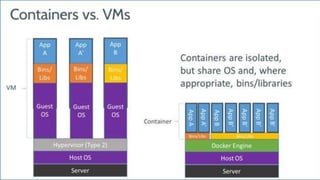

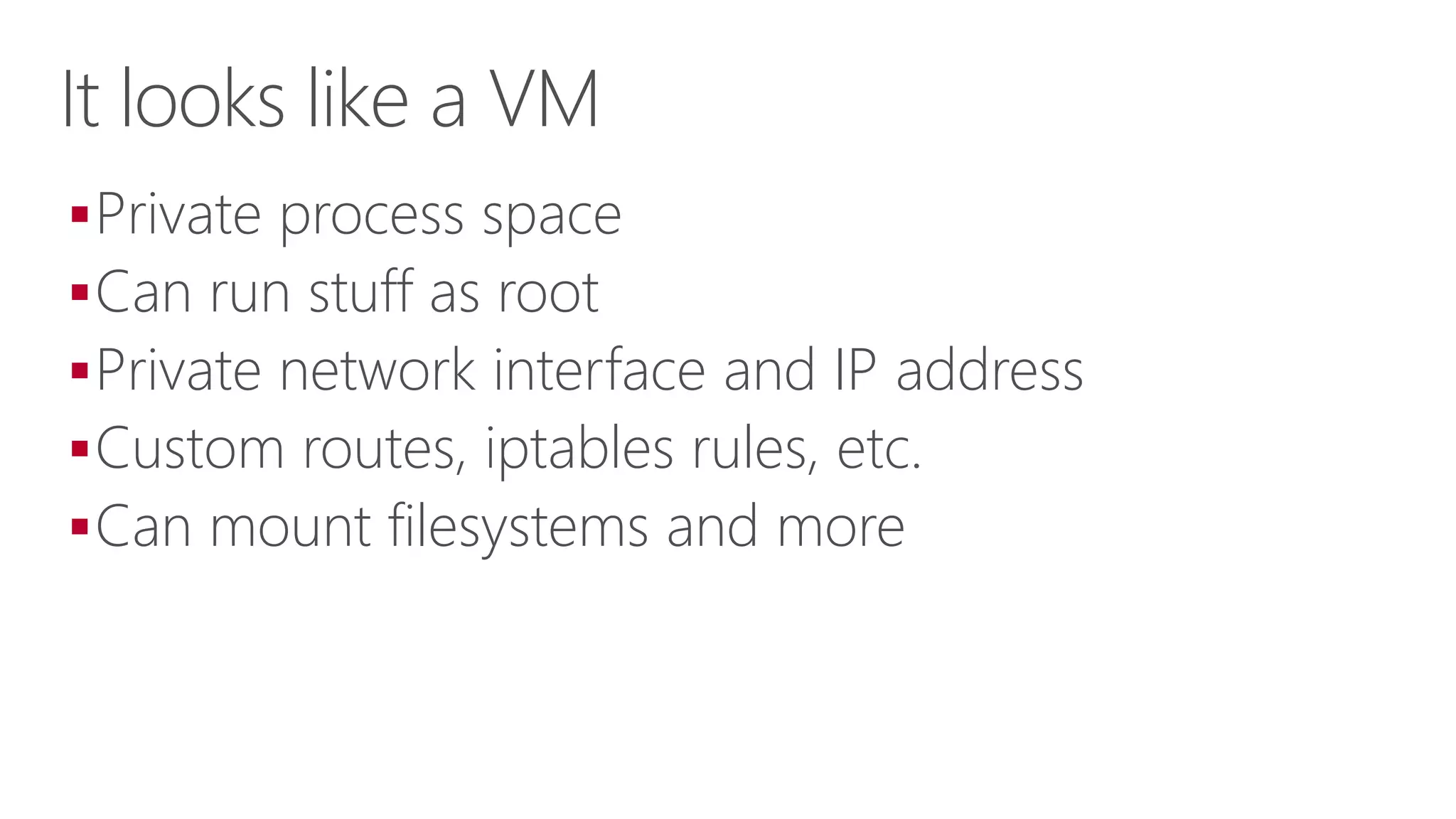

It looks like a VM
Private process space
Can run stuff as root
Private network interface and IP address
Custom routes, iptables rules, etc.
Can mount filesystems and more

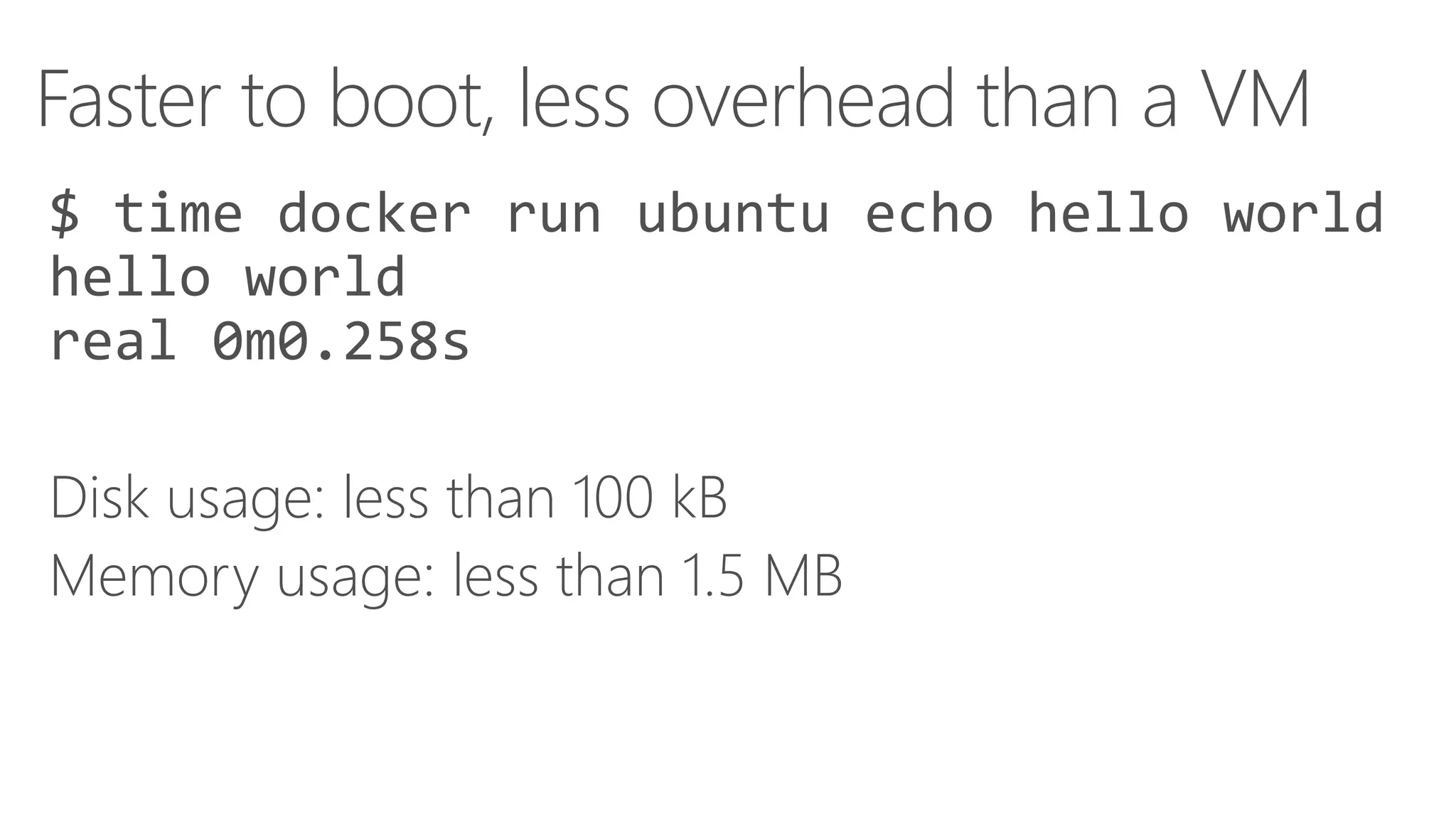

Faster to boot, less overhead than a VM
$ time docker run ubuntu echo hello world
hello world
real 0m0.258s
Disk usage: less than 100 kB
Memory usage: less than 1.5 MB

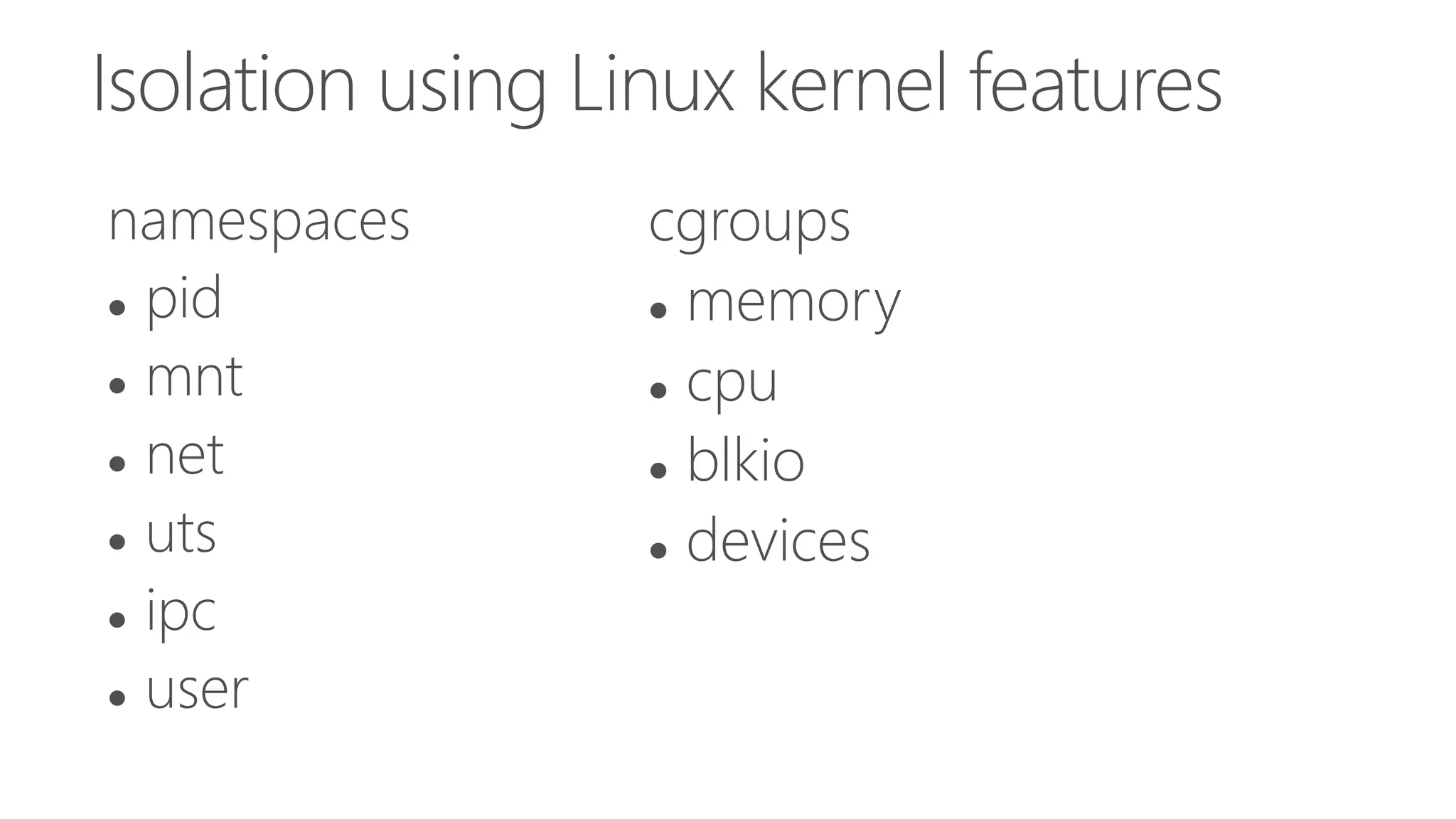

Isolation using Linux kernel features
namespaces
 pid
 mnt
 net
 uts
 ipc
 user
cgroups
 memory
 cpu
 blkio
 devices

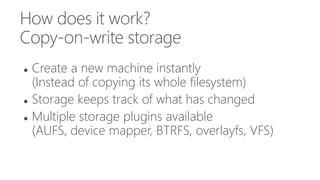

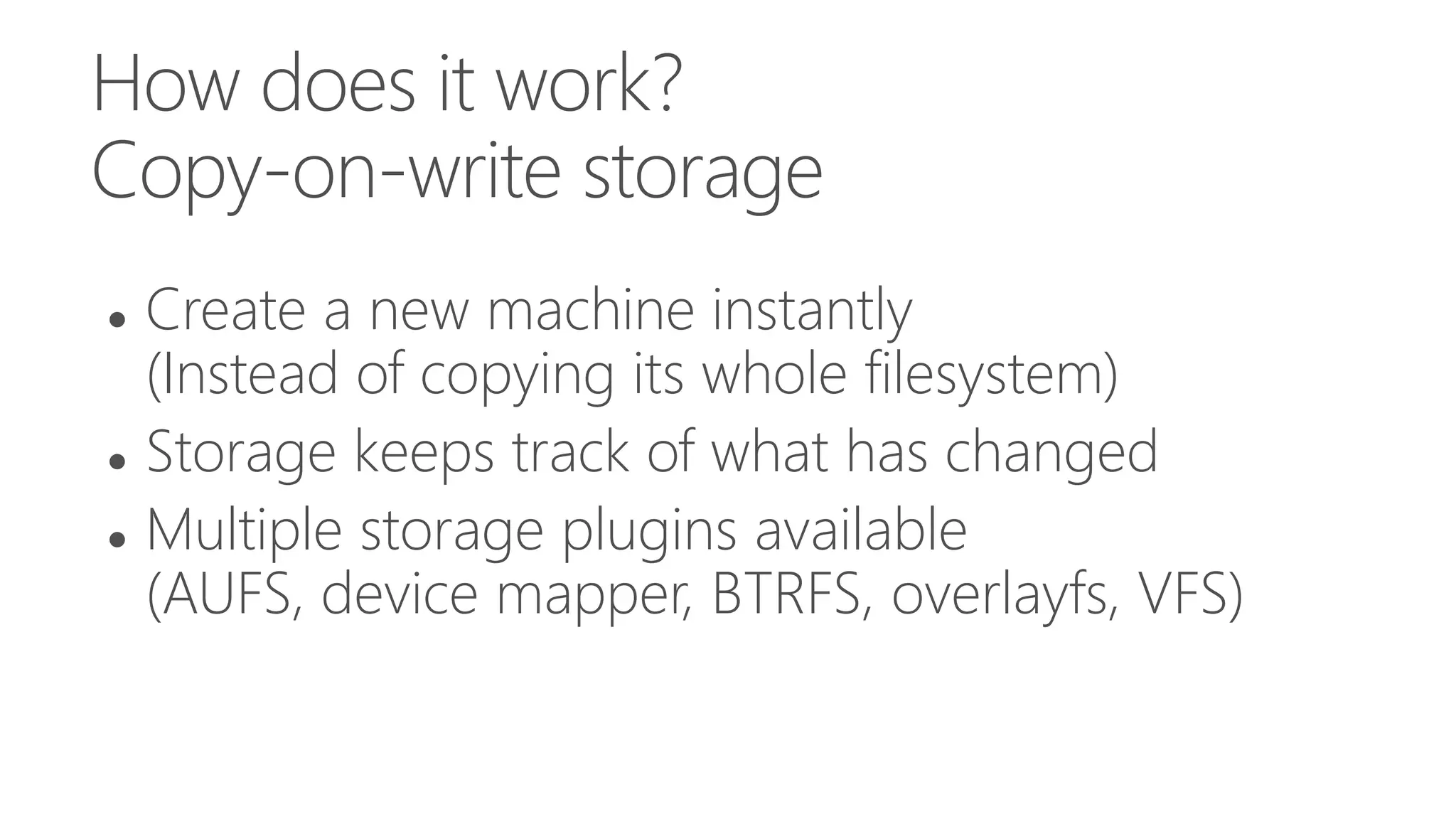

How does it work?
Copy-on-write storage
 Create a new machine instantly
(Instead of copying its whole filesystem)
 Storage keeps track of what has changed
 Multiple storage plugins available
(AUFS, device mapper, BTRFS, overlayfs, VFS)

Union Filesystems
(AUFS, overlayfs)
Copy-on-write
block devices
Snapshotting
filesystems
Provisioning Superfast
Supercheap
Average
Cheap
Fast
Cheap
Changing
small files
Superfast
Supercheap
Fast
Costly
Fast
Cheap
Changing
large files
Slow (first time)
Inefficient (copy-up!)
Fast
Cheap
Fast
Cheap
Diffing Superfast Slow Superfast
Memory usage Efficient Inefficient
(at high densities)
Inefficient
(but may improve)
Drawbacks Random quirks
AUFS not mainline
Overlayfs bleeding edge
Higher disk usage
Great performance (except
diffing)
ZFS not mainline
BTRFS not as nice
Bottom line Ideal for PAAS, CI/CD, high
density things
Works everywhere,
but slow and inefficient
Will be great once memory
usage is fixed

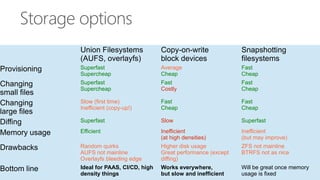

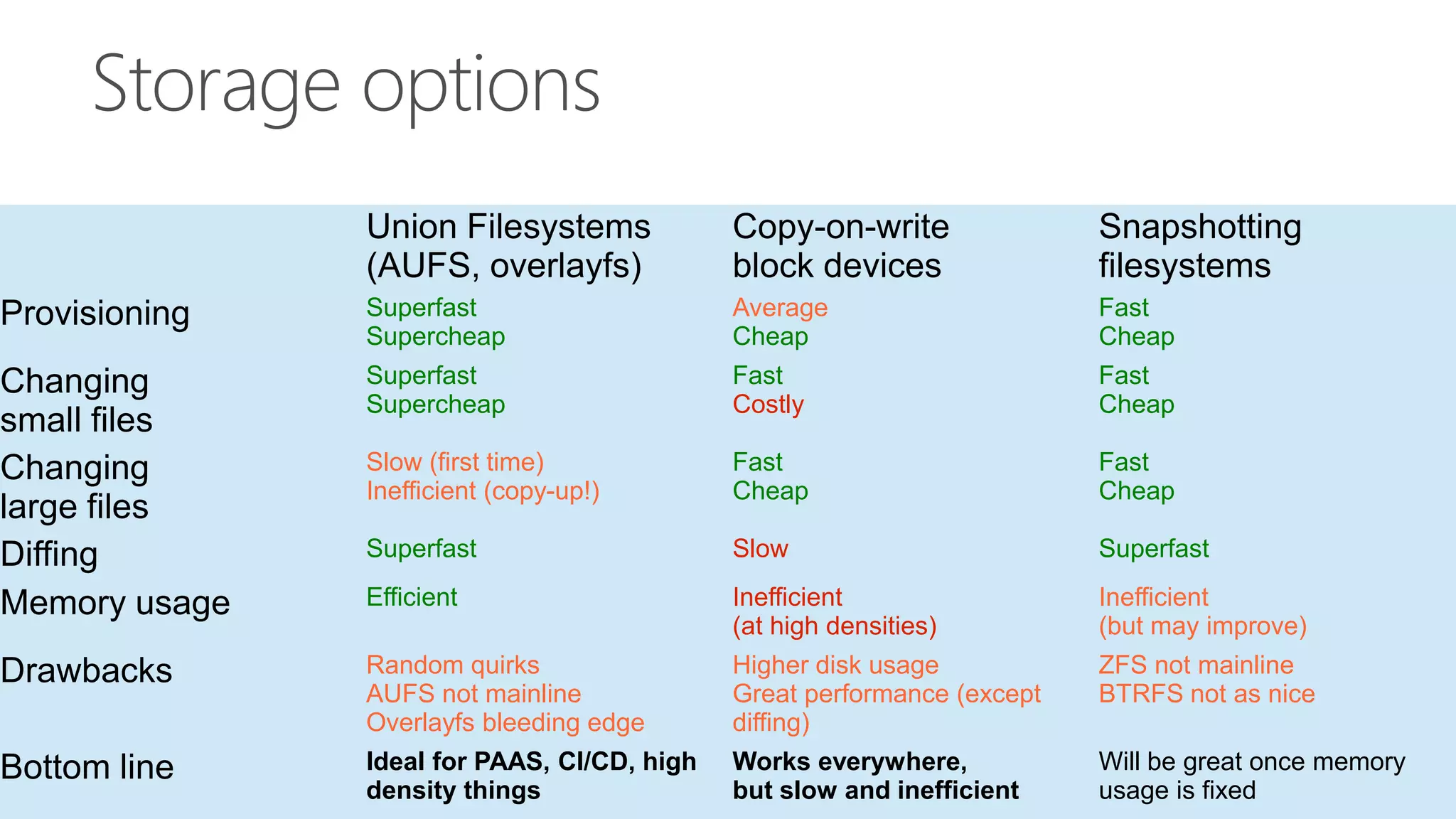

Storage options

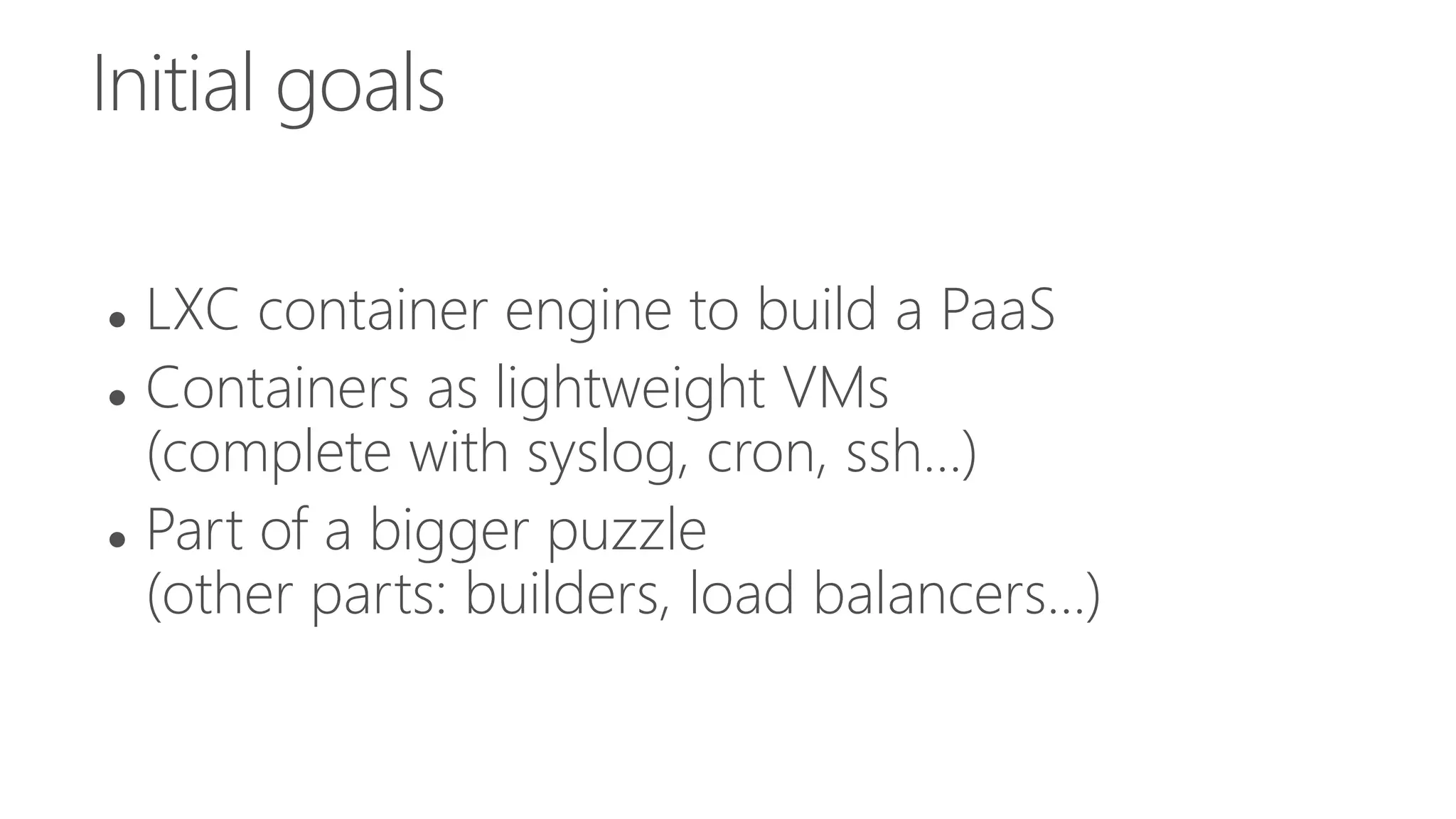

Initial goals
 LXC container engine to build a PaaS
 Containers as lightweight VMs
(complete with syslog, cron, ssh...)
 Part of a bigger puzzle
(other parts: builders, load balancers...)

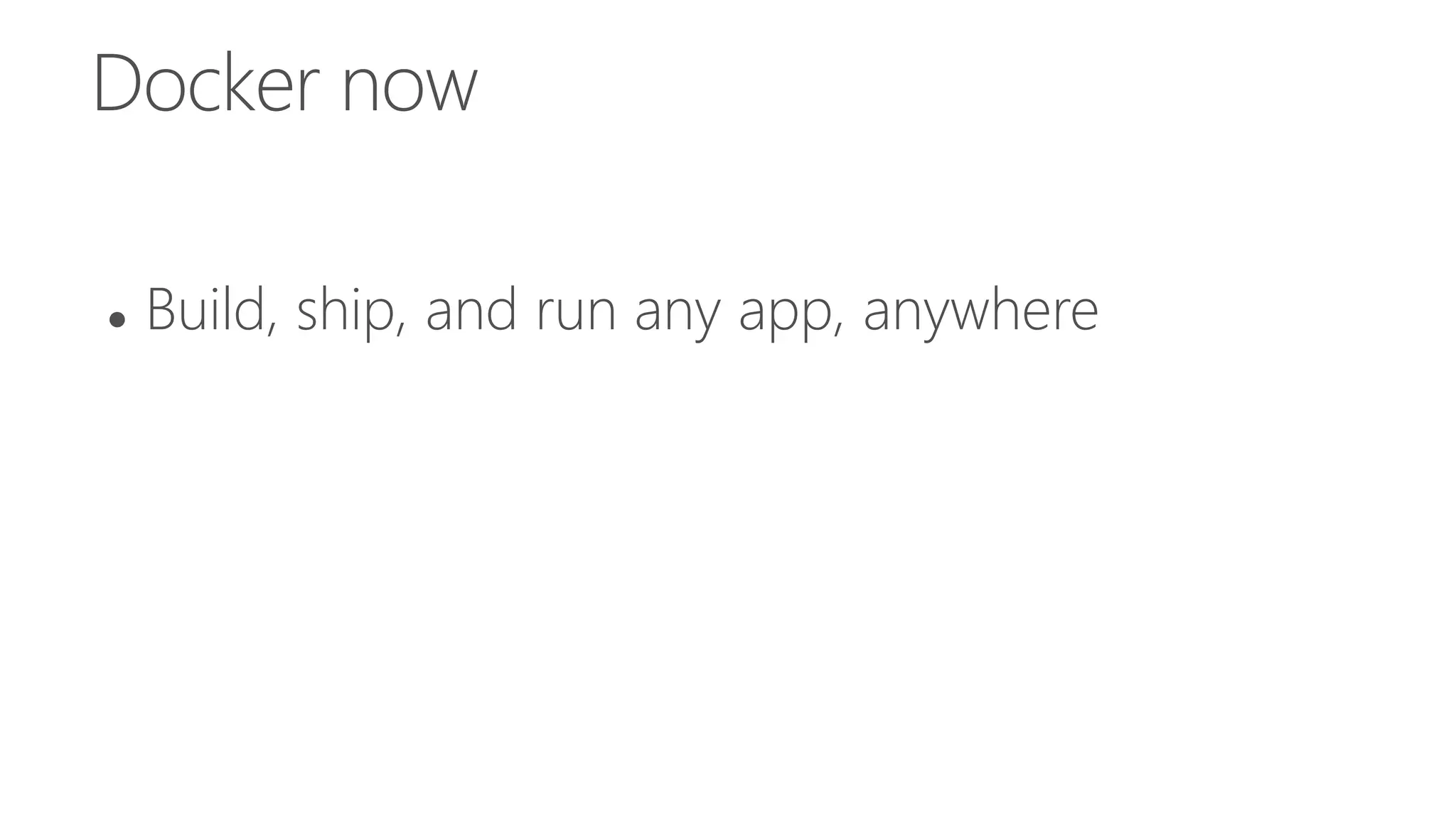

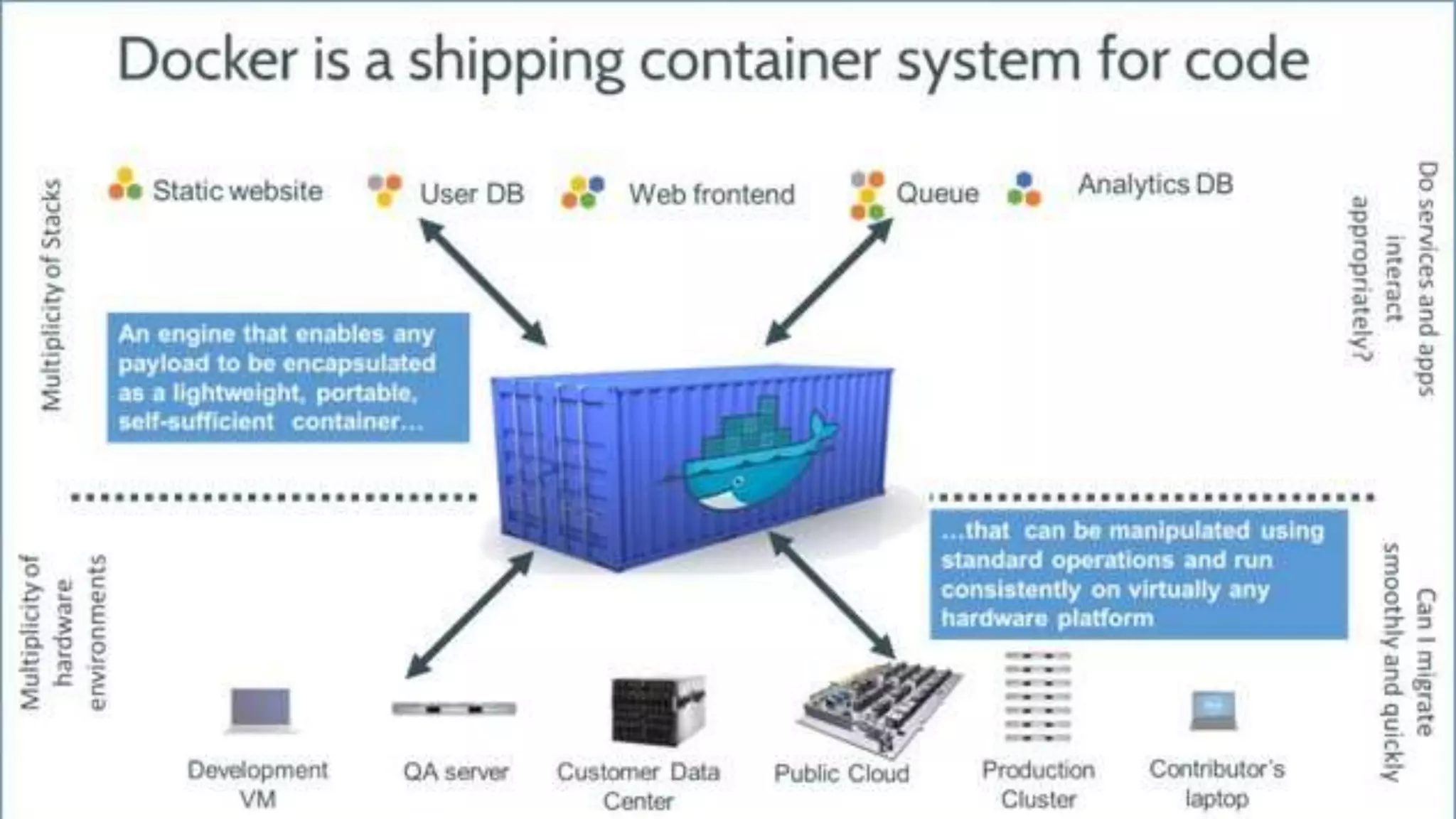

Docker now
 Build, ship, and run any app, anywhere

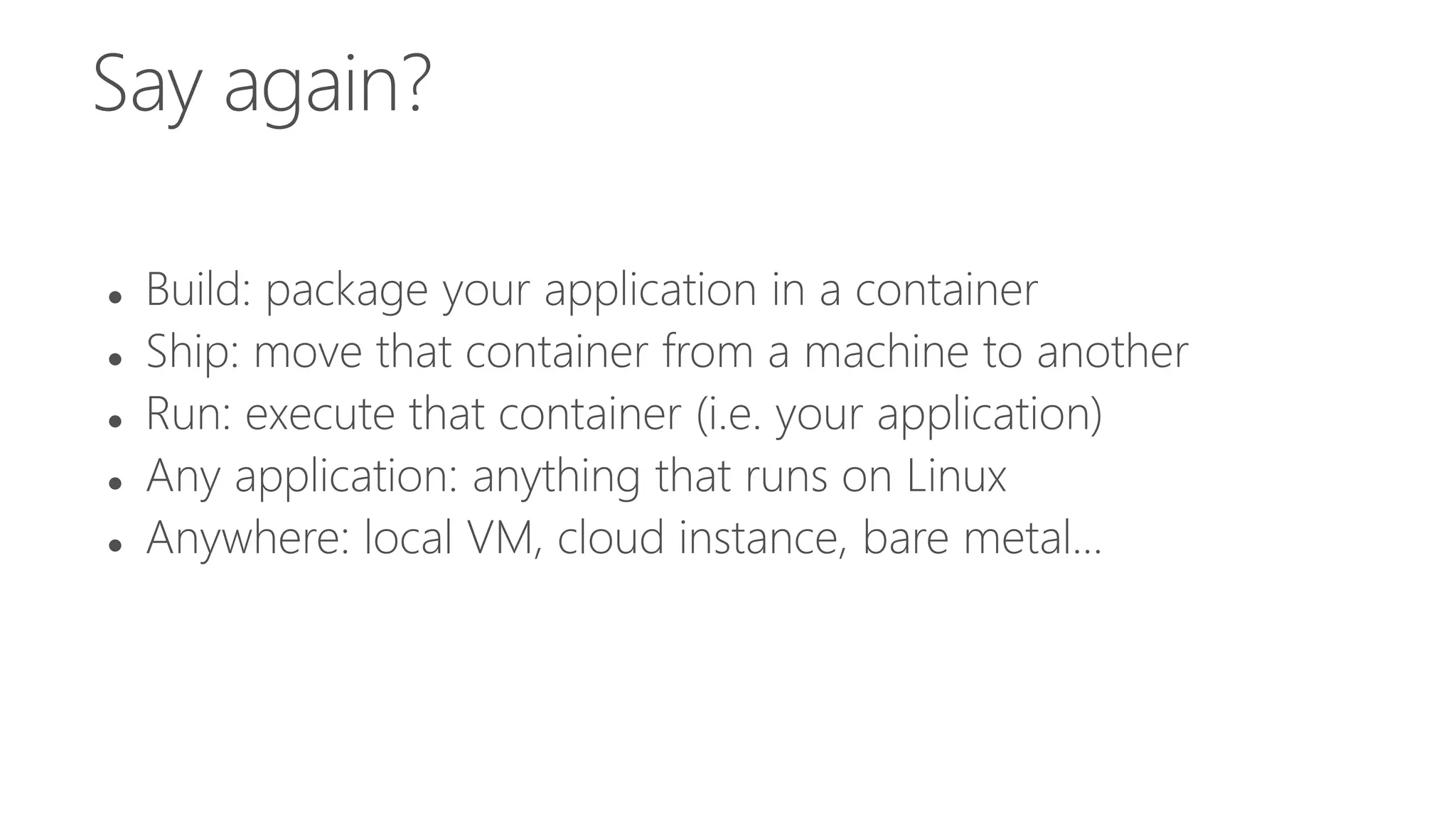

Say again?
 Build: package your application in a container
 Ship: move that container from a machine to another

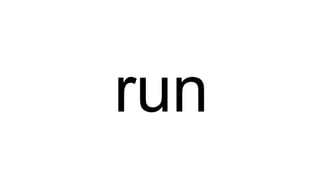

 Run: execute that container (i.e. your application)
 Any application: anything that runs on Linux
 Anywhere: local VM, cloud instance, bare metal...

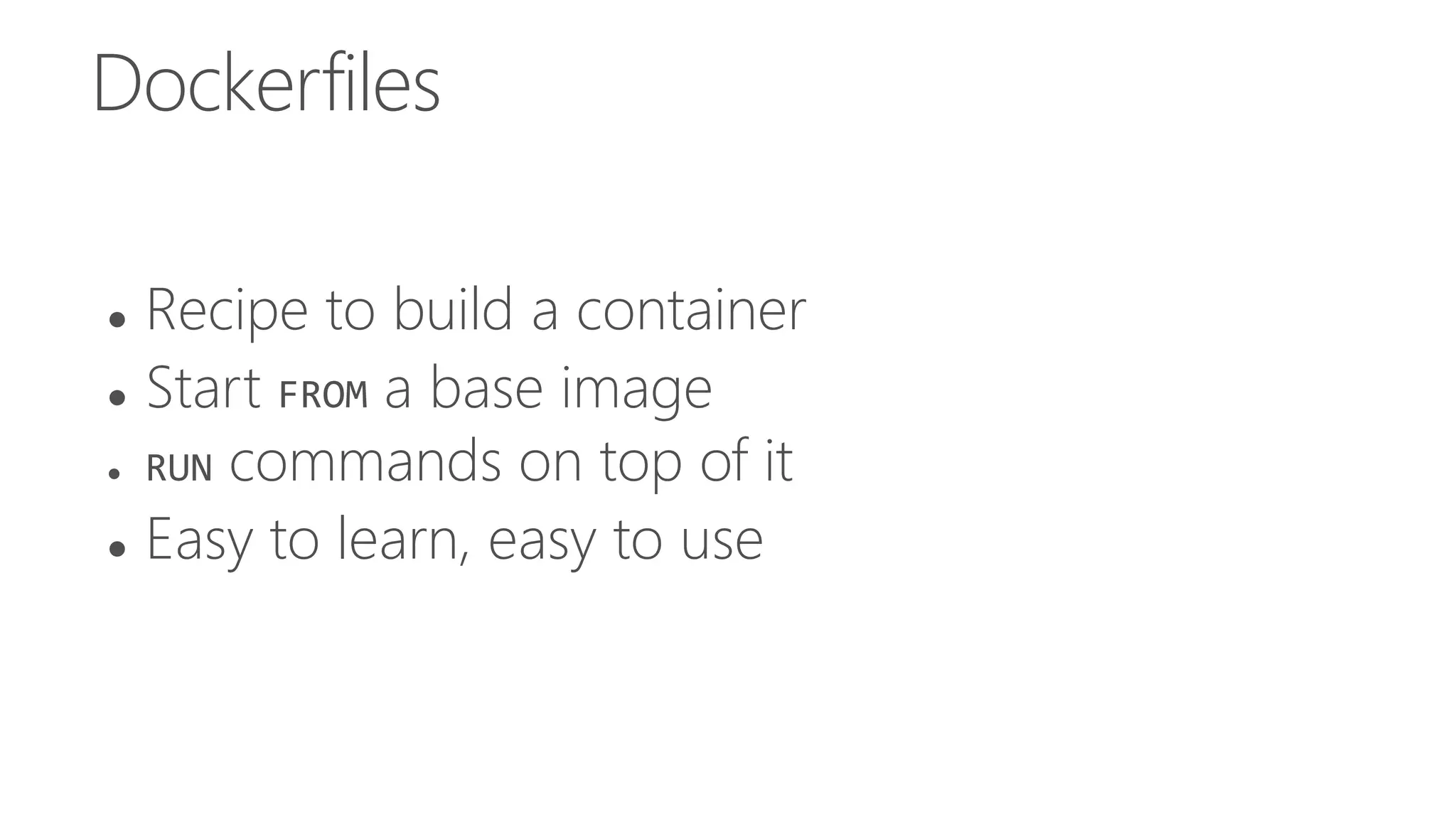

Dockerfiles
 Recipe to build a container
 Start FROM a base image
 RUN commands on top of it
 Easy to learn, easy to use

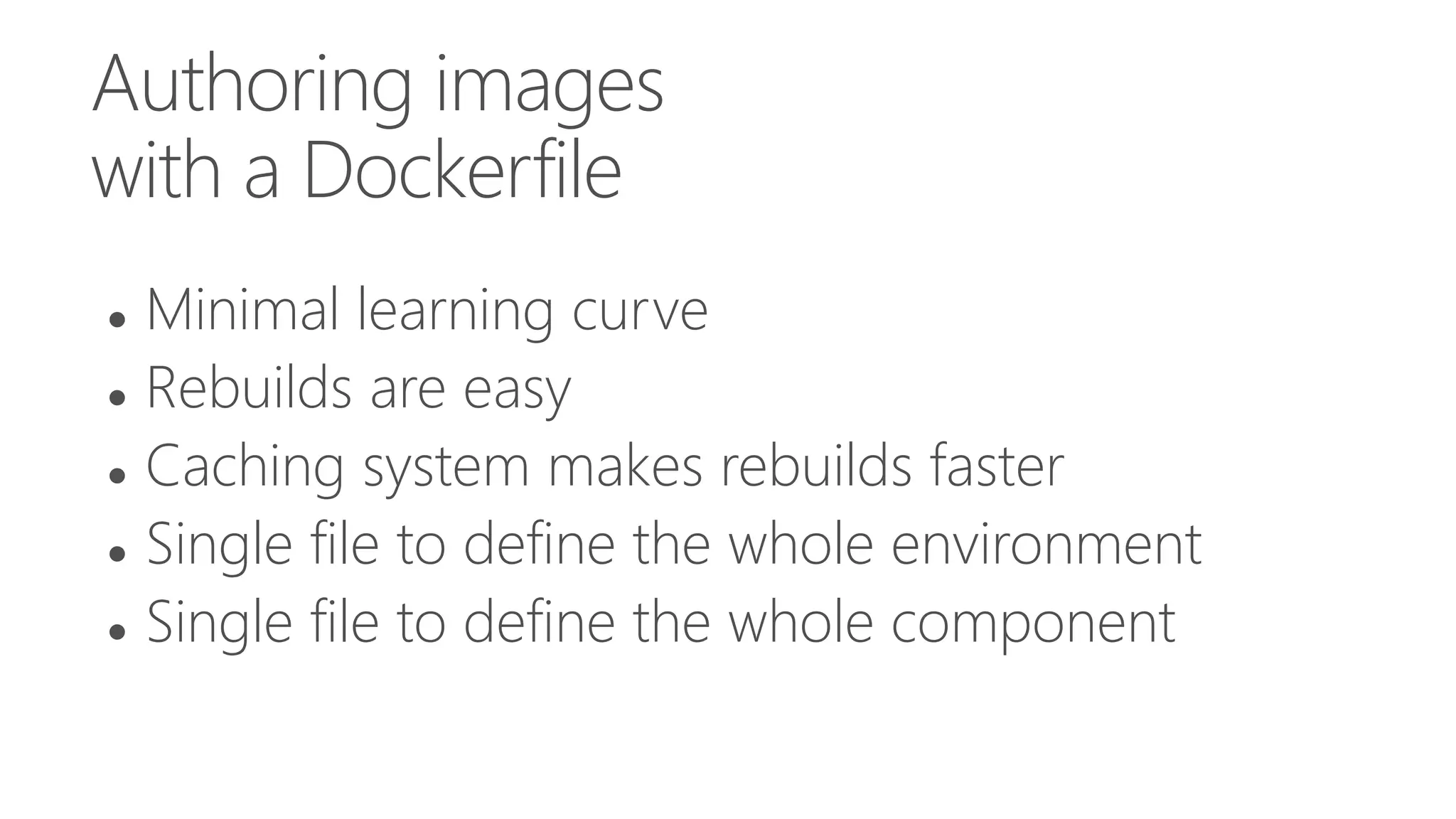

Authoring images
with a Dockerfile
 Minimal learning curve
 Rebuilds are easy
 Caching system makes rebuilds faster
 Single file to define the whole environment
 Single file to define the whole component

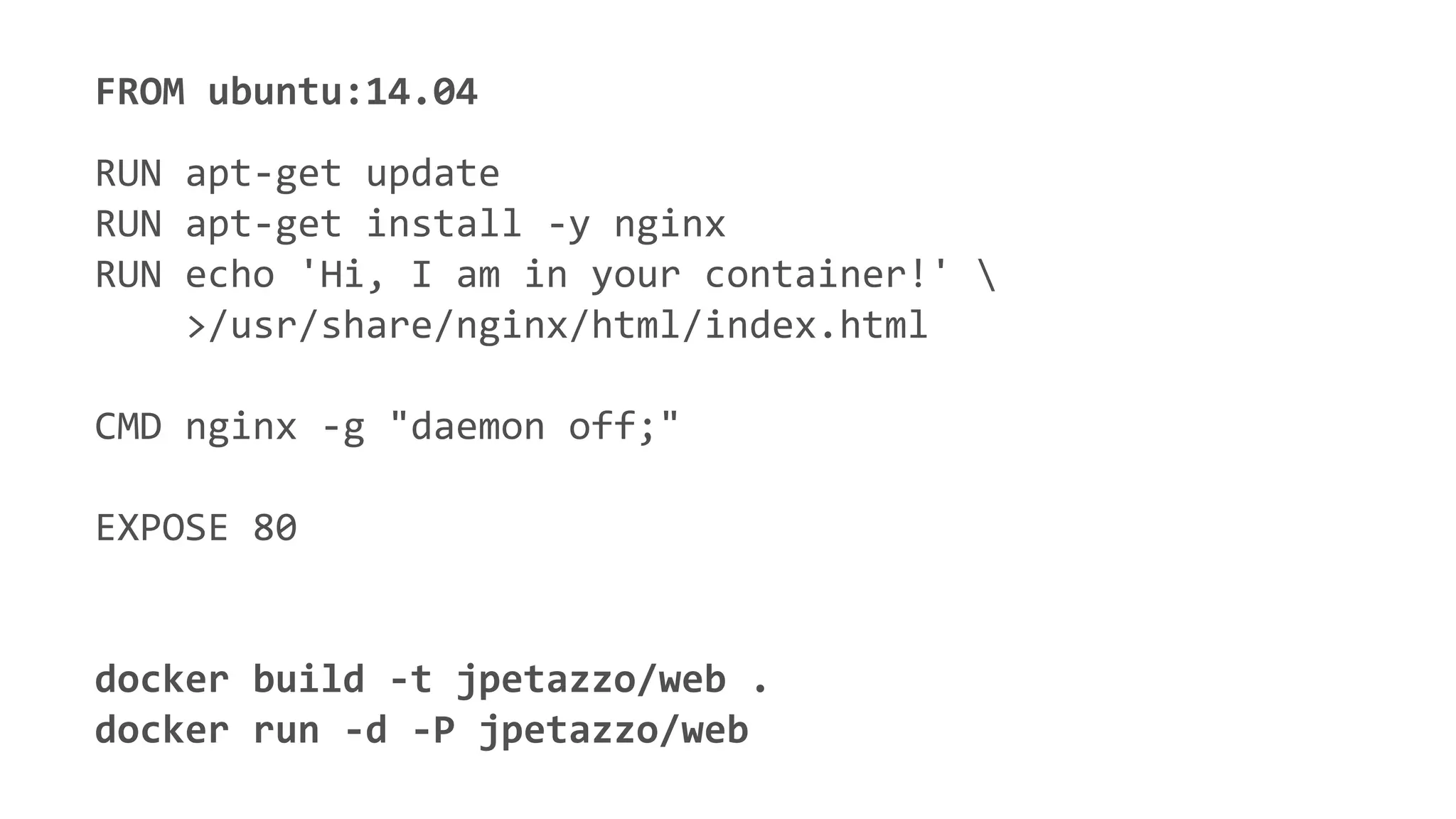

FROM ubuntu:14.04
RUN apt-get update
RUN apt-get install -y nginx
RUN echo 'Hi, I am in your container!'
>/usr/share/nginx/html/index.html
CMD nginx -g "daemon off;"
EXPOSE 80
docker build -t jpetazzo/web .
docker run -d -P jpetazzo/web

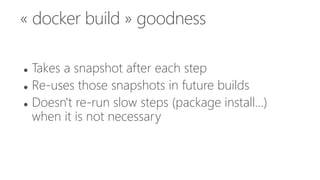

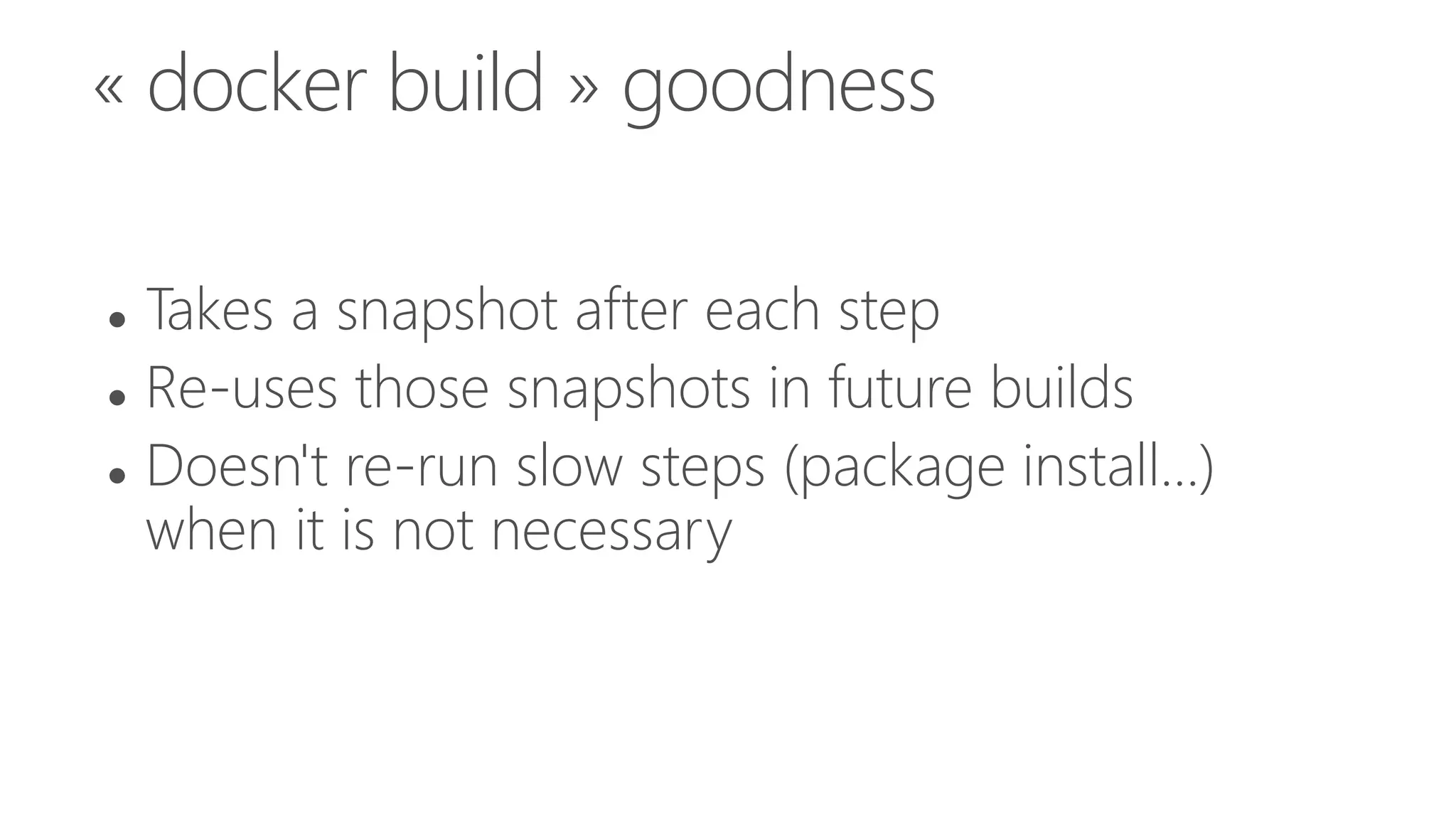

« docker build » goodness
 Takes a snapshot after each step
 Re-uses those snapshots in future builds
 Doesn't re-run slow steps (package install...)
when it is not necessary

Docker Hub
 docker push an image to the Hub
 docker pull this image from any machine

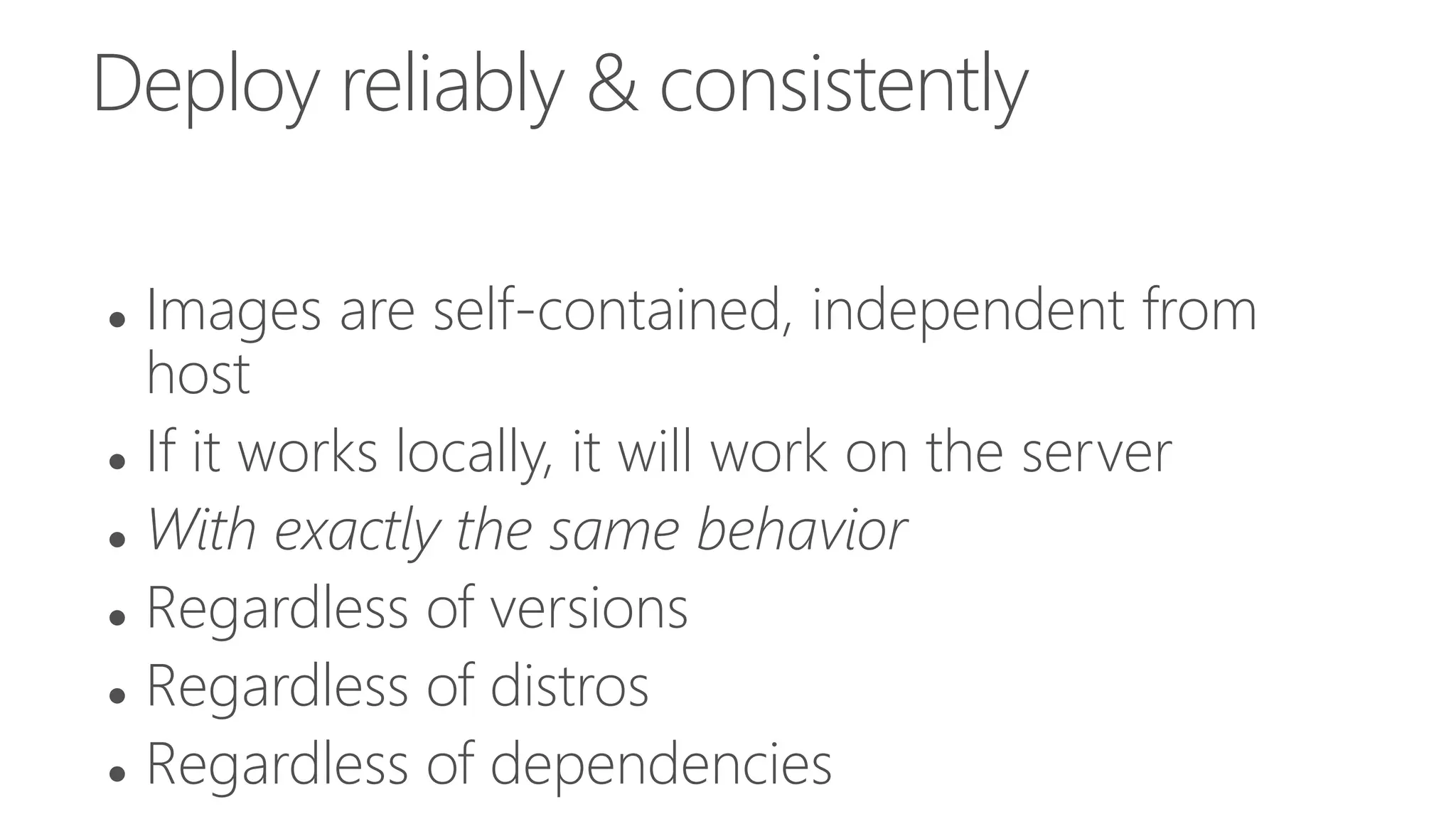

Deploy reliably & consistently
 Images are self-contained, independent from
host
 If it works locally, it will work on the server
 With exactly the same behavior
 Regardless of versions
 Regardless of distros
 Regardless of dependencies

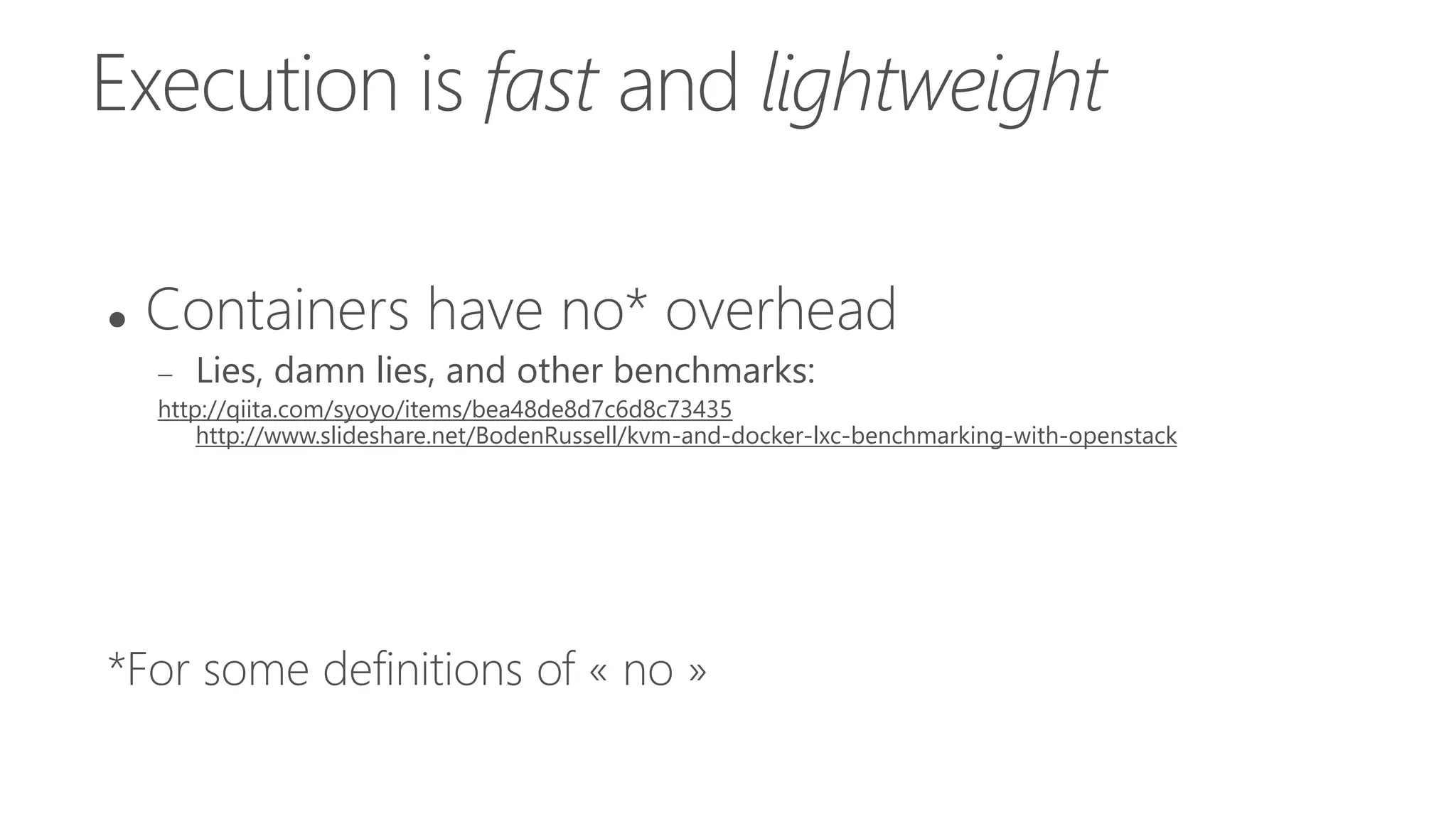

Execution is fast and lightweight
 Containers have no* overhead
 Lies, damn lies, and other benchmarks:
http://qiita.com/syoyo/items/bea48de8d7c6d8c73435
http://www.slideshare.net/BodenRussell/kvm-and-docker-lxc-benchmarking-with-openstack
*For some definitions of « no »

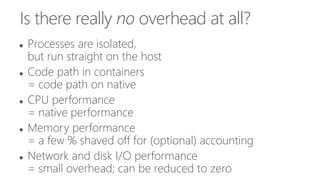

Is there really no overhead at all?
 Processes are isolated,
but run straight on the host
 Code path in containers
= code path on native
 CPU performance
= native performance
 Memory performance
= a few % shaved off for (optional) accounting
 Network and disk I/O performance
= small overhead; can be reduced to zero

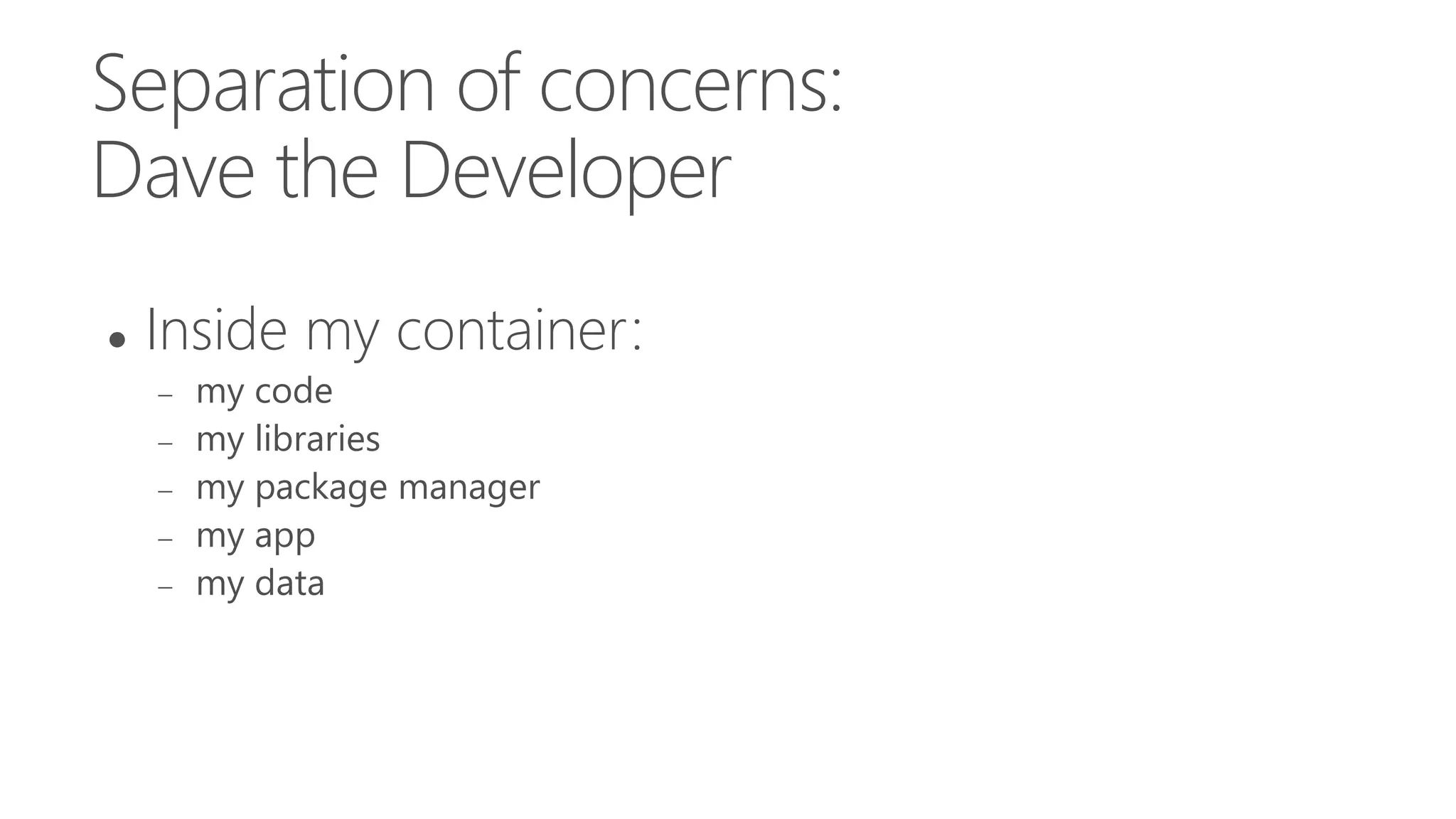

Separation of concerns:
Dave the Developer
 Inside my container:
 my code
 my libraries
 my package manager
 my app
 my data

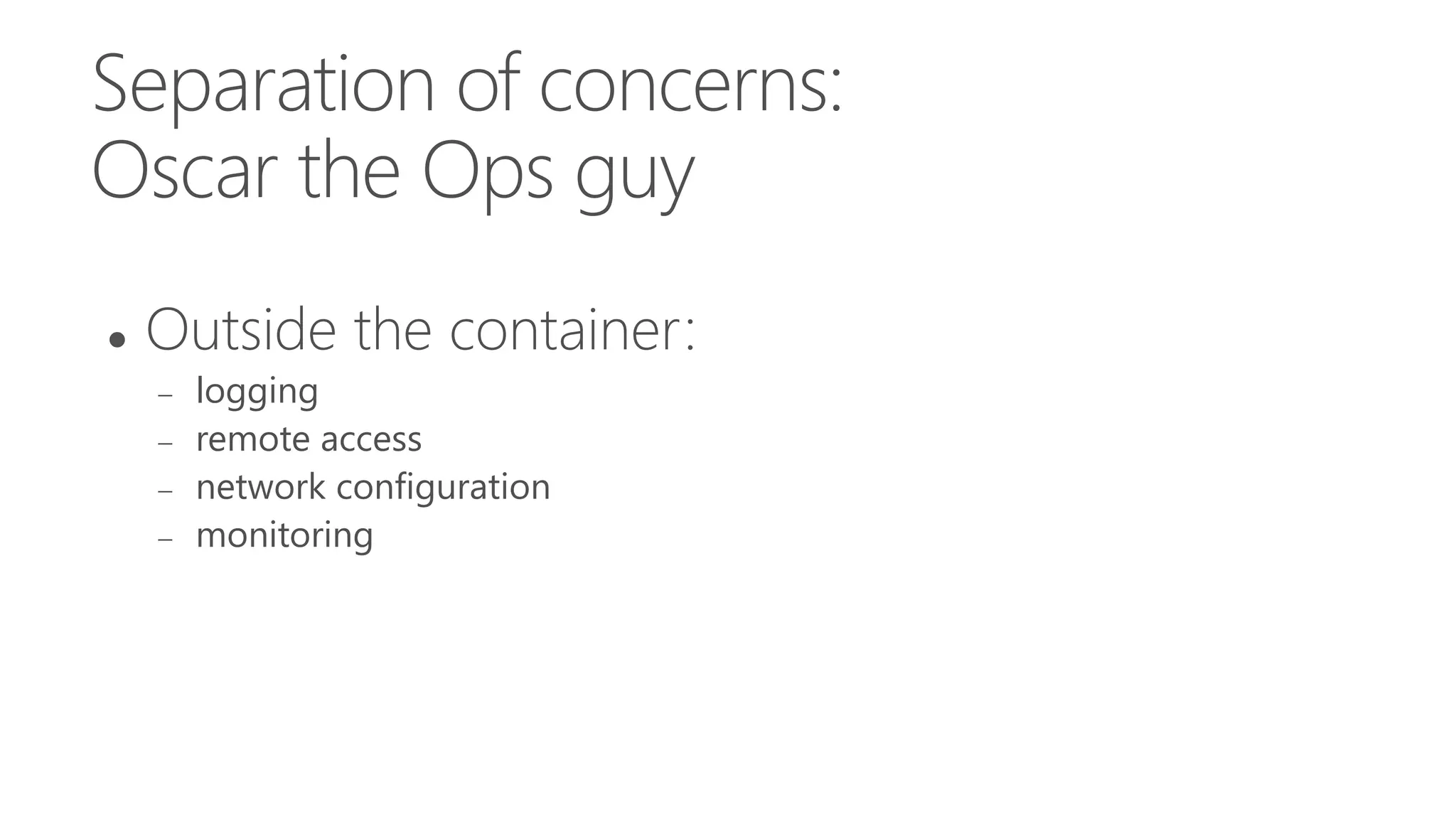

Separation of concerns:
Oscar the Ops guy
 Outside the container:
 logging
 remote access
 network configuration
 monitoring

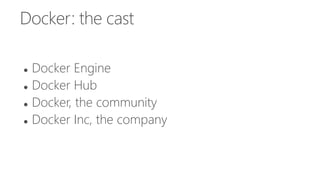

Docker: the cast
 Docker Engine
 Docker Hub
 Docker, the community
 Docker Inc, the company

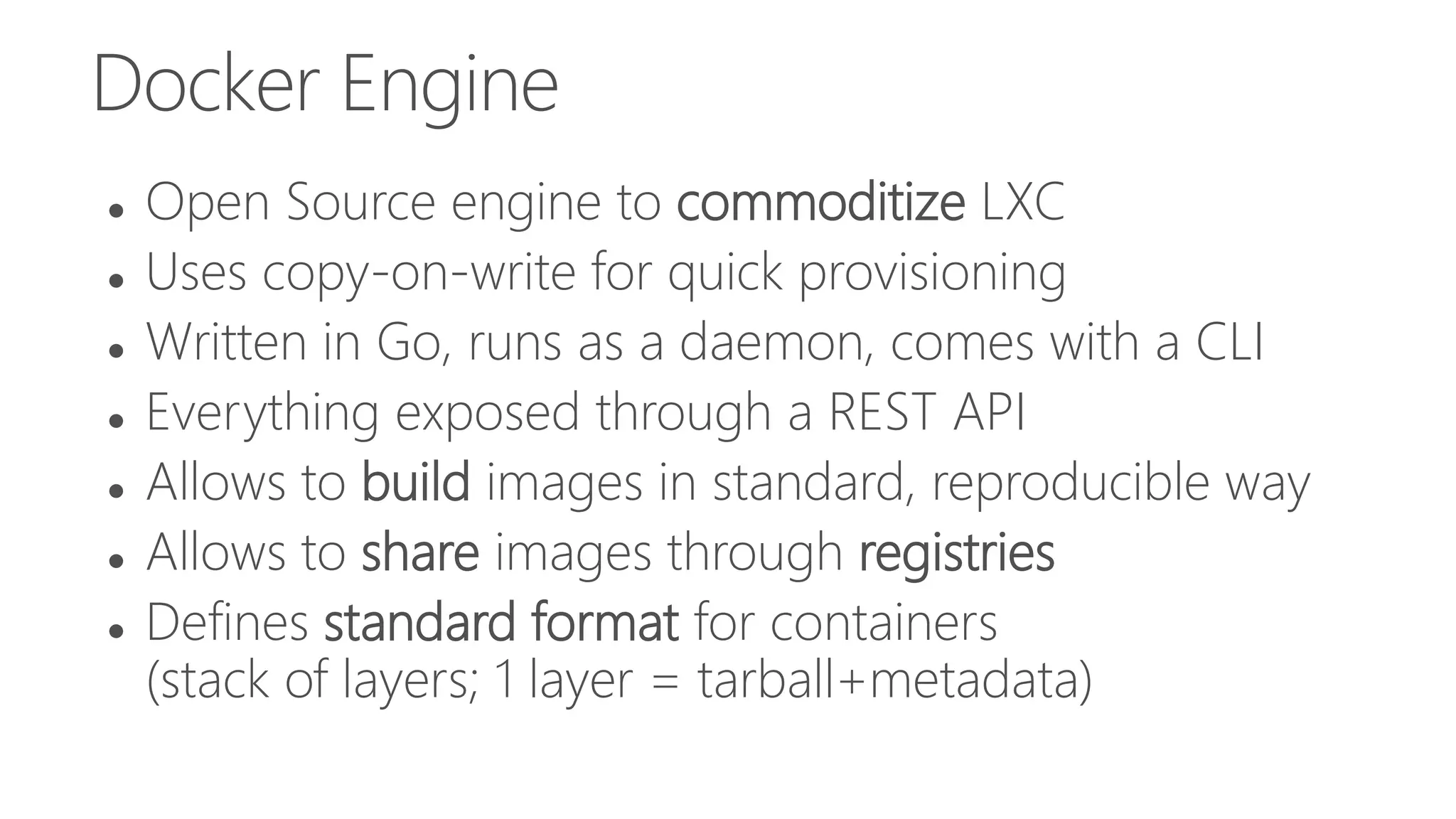

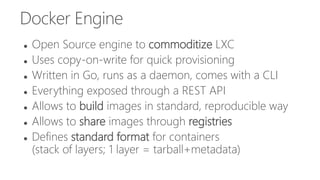

Docker Engine
 Open Source engine to commoditize LXC
 Uses copy-on-write for quick provisioning
 Written in Go, runs as a daemon, comes with a CLI
 Everything exposed through a REST API
 Allows to build images in standard, reproducible way
 Allows to share images through registries
 Defines standard format for containers
(stack of layers; 1 layer = tarball+metadata)

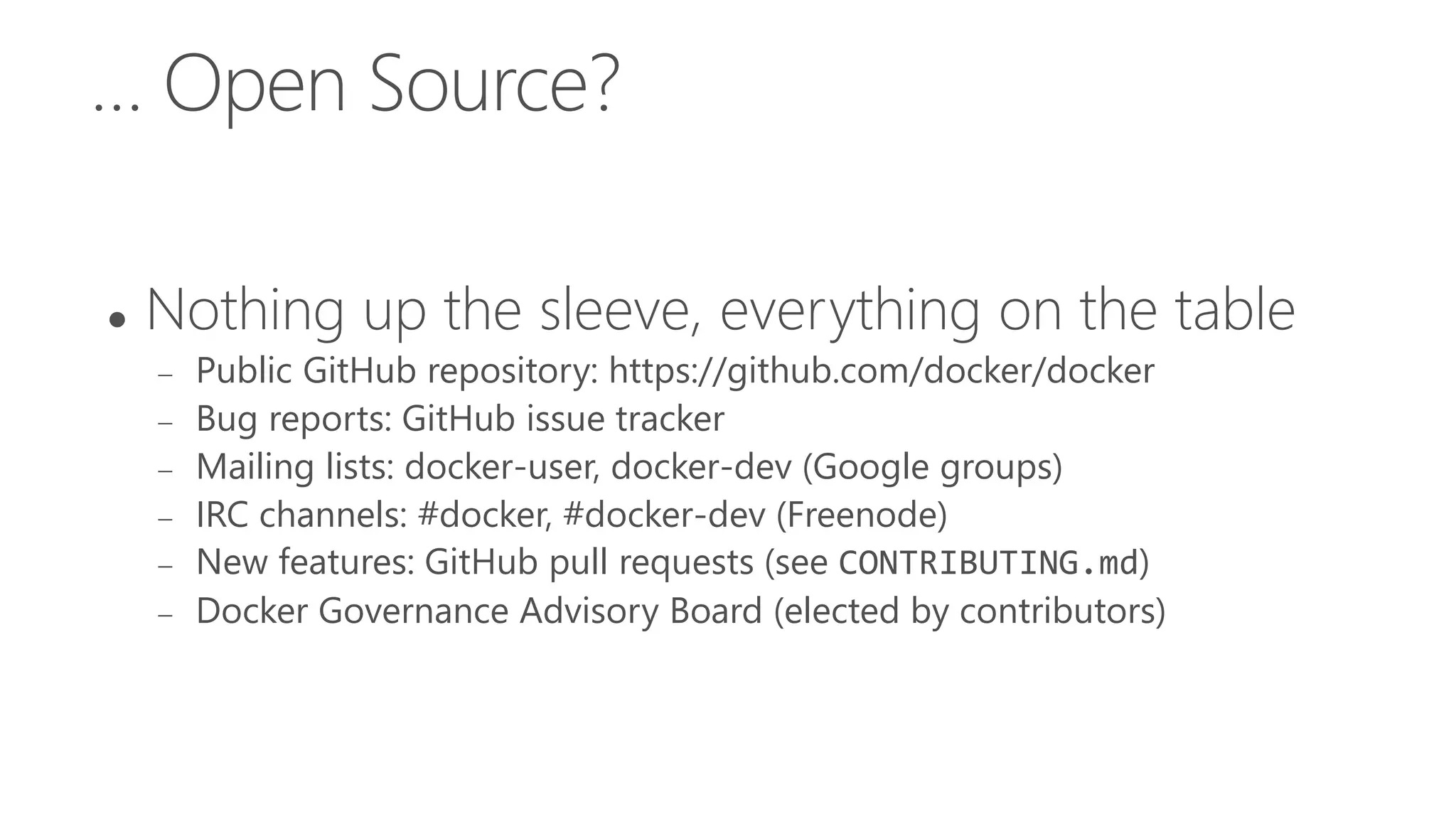

… Open Source?
 Nothing up the sleeve, everything on the table
 Public GitHub repository: https://github.com/docker/docker
 Bug reports: GitHub issue tracker
 Mailing lists: docker-user, docker-dev (Google groups)
 IRC channels: #docker, #docker-dev (Freenode)
 New features: GitHub pull requests (see CONTRIBUTING.md)
 Docker Governance Advisory Board (elected by contributors)

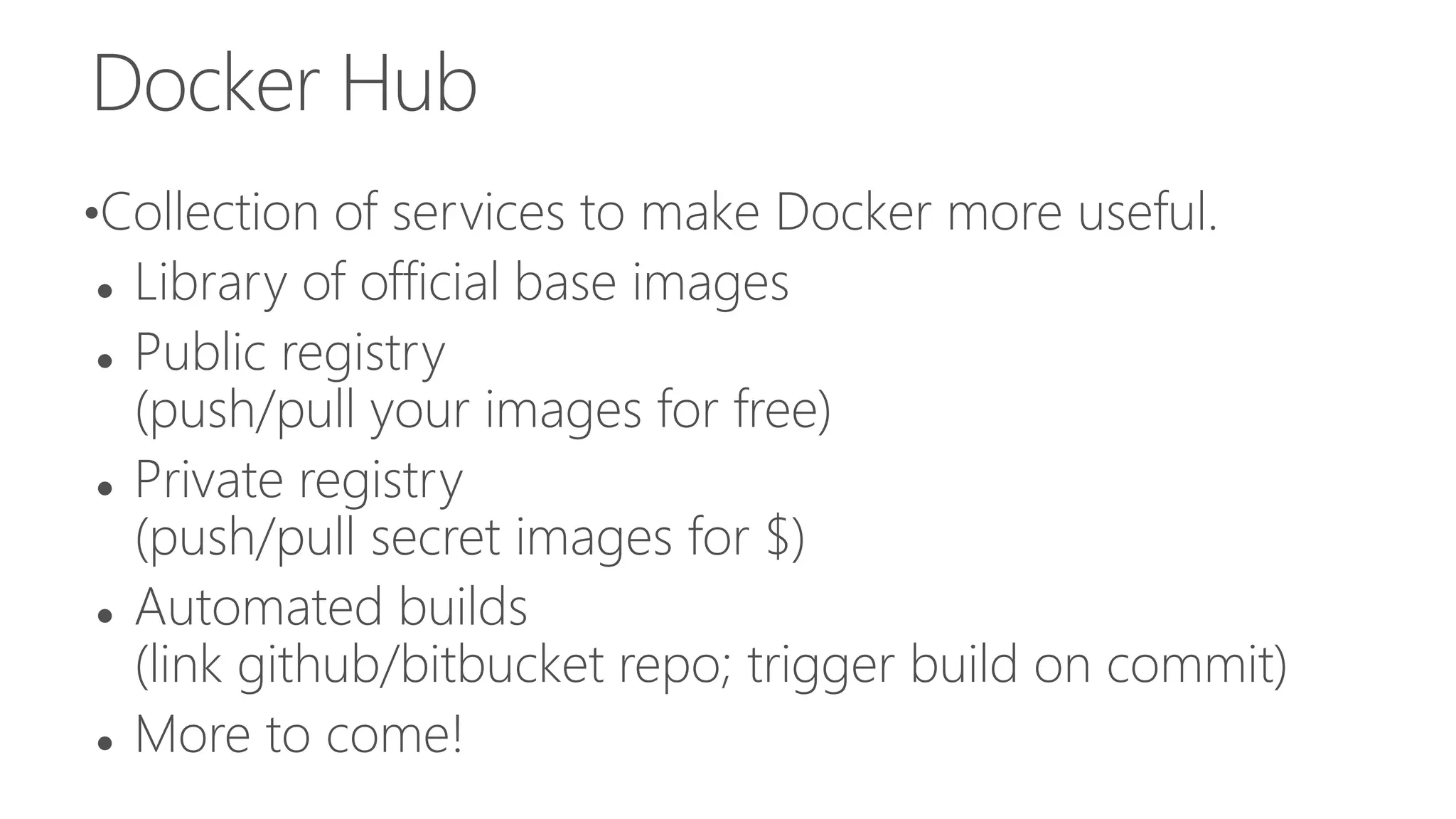

Docker Hub
•Collection of services to make Docker more useful.
 Library of official base images
 Public registry
(push/pull your images for free)
 Private registry
(push/pull secret images for $)
 Automated builds
(link github/bitbucket repo; trigger build on commit)
 More to come!

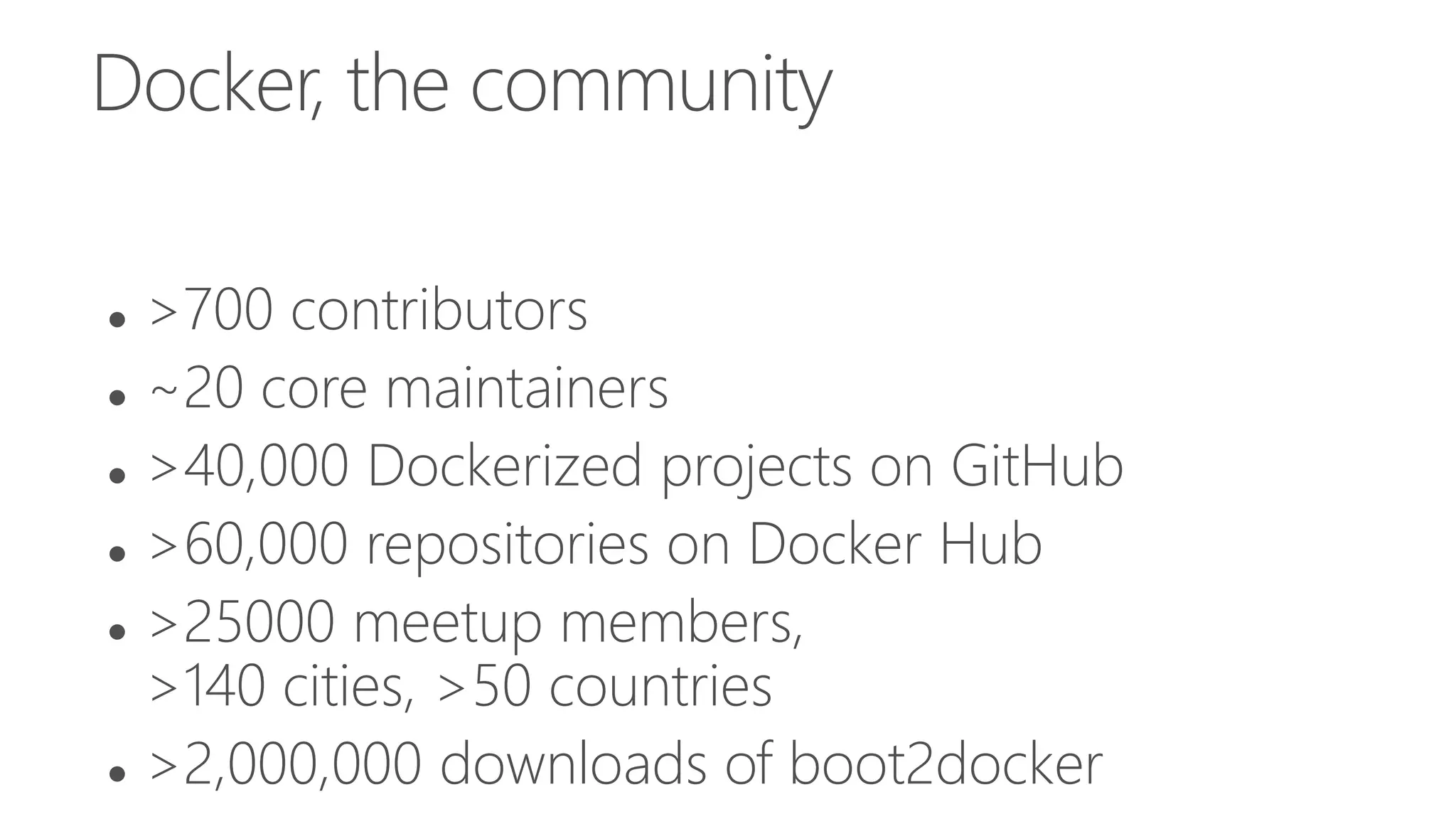

Docker, the community
 >700 contributors
 ~20 core maintainers
 >40,000 Dockerized projects on GitHub
 >60,000 repositories on Docker Hub
 >25000 meetup members,
>140 cities, >50 countries
 >2,000,000 downloads of boot2docker

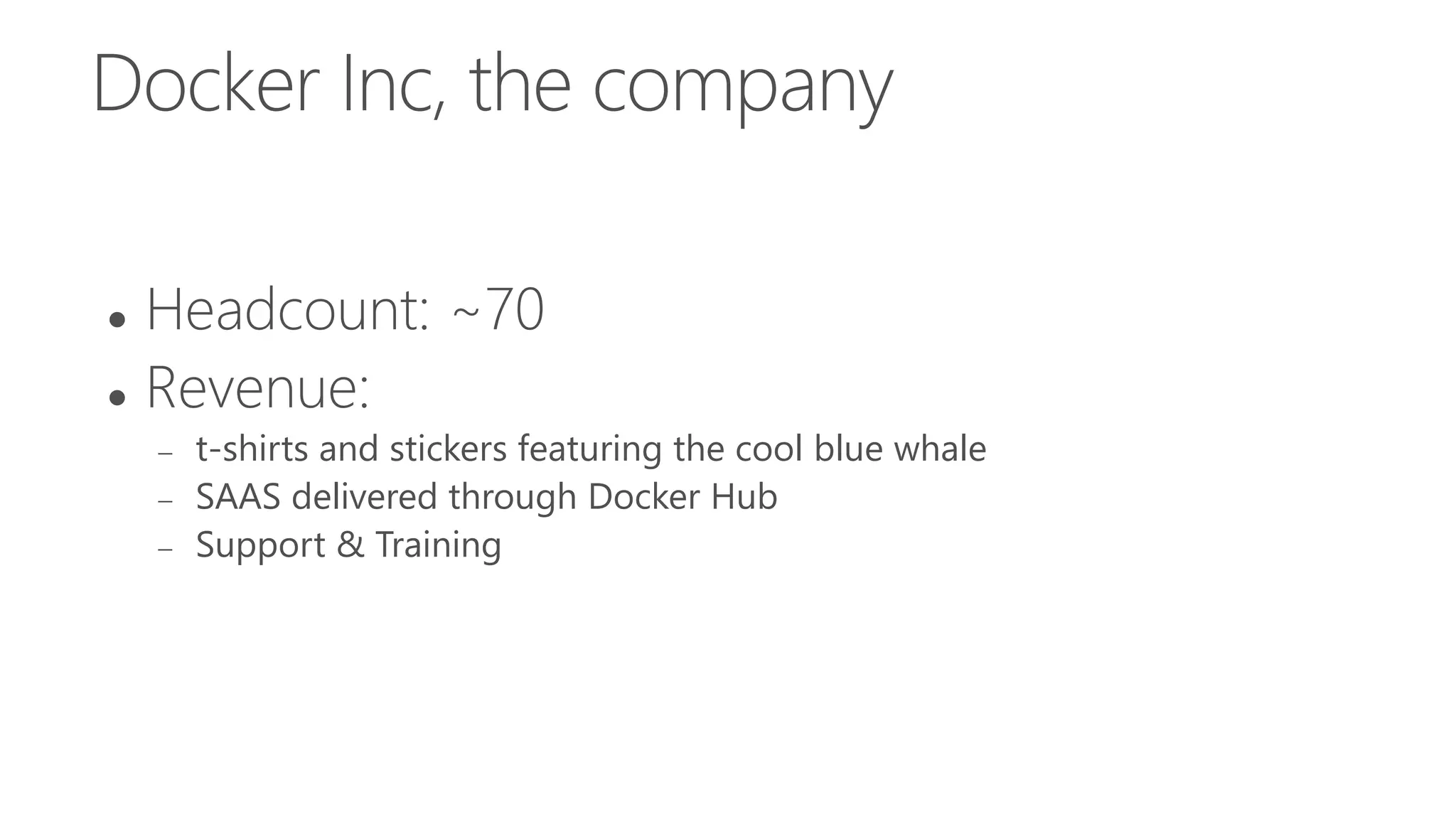

Docker Inc, the company
 Headcount: ~70
 Revenue:
 t-shirts and stickers featuring the cool blue whale
 SAAS delivered through Docker Hub
 Support & Training

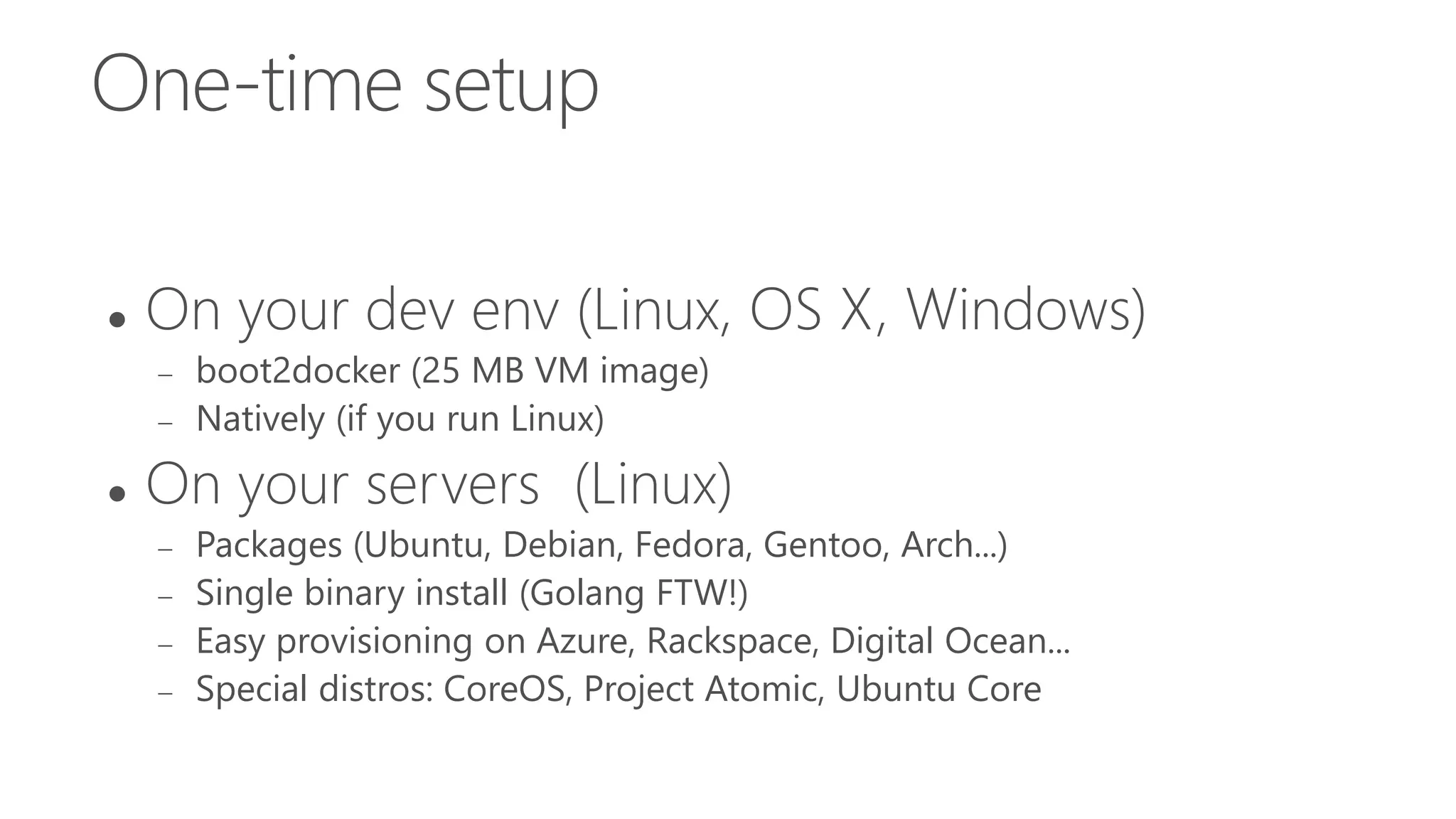

One-time setup
 On your dev env (Linux, OS X, Windows)
 boot2docker (25 MB VM image)
 Natively (if you run Linux)
 On your servers (Linux)
 Packages (Ubuntu, Debian, Fedora, Gentoo, Arch...)
 Single binary install (Golang FTW!)
 Easy provisioning on Azure, Rackspace, Digital Ocean...
 Special distros: CoreOS, Project Atomic, Ubuntu Core

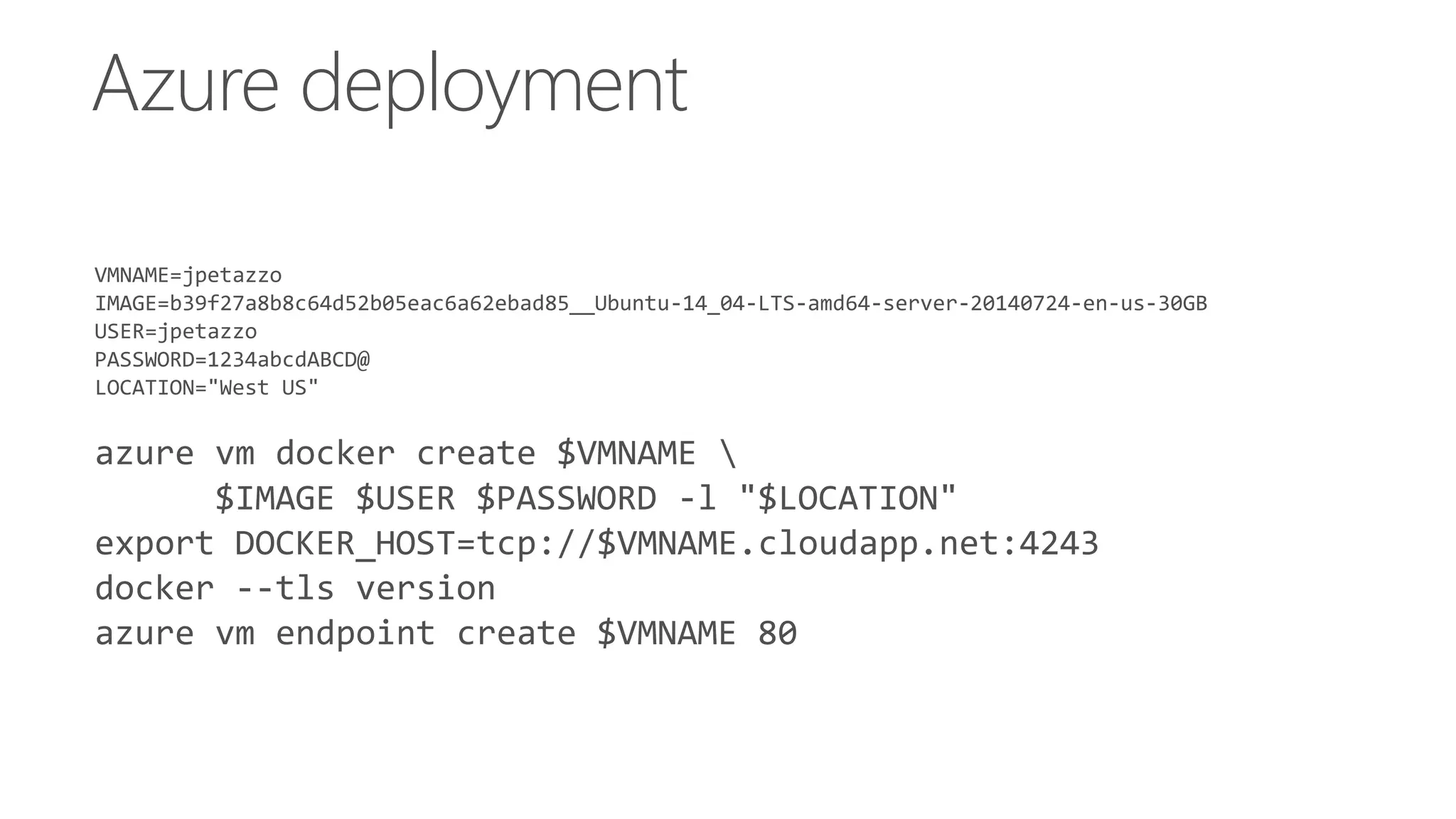

Azure deployment
VMNAME=jpetazzo
IMAGE=b39f27a8b8c64d52b05eac6a62ebad85__Ubuntu-14_04-LTS-amd64-server-20140724-en-us-30GB
USER=jpetazzo
PASSWORD=1234abcdABCD@
LOCATION="West US"
azure vm docker create $VMNAME
$IMAGE $USER $PASSWORD -l "$LOCATION"
export DOCKER_HOST=tcp://$VMNAME.cloudapp.net:4243
docker --tls version
azure vm endpoint create $VMNAME 80

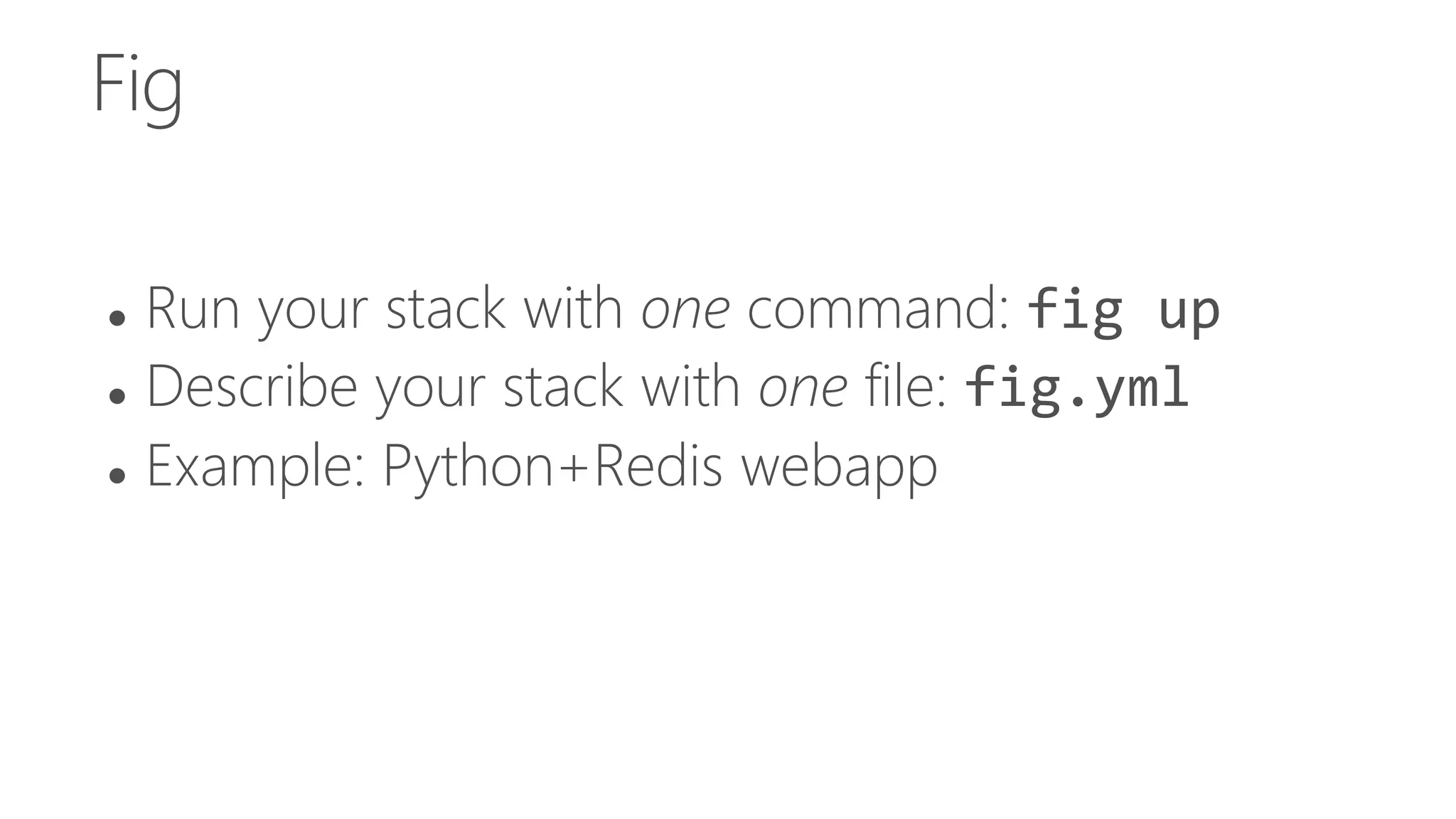

Fig
 Run your stack with one command: fig up
 Describe your stack with one file: fig.yml
 Example: Python+Redis webapp

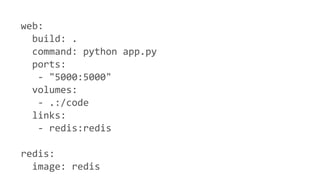

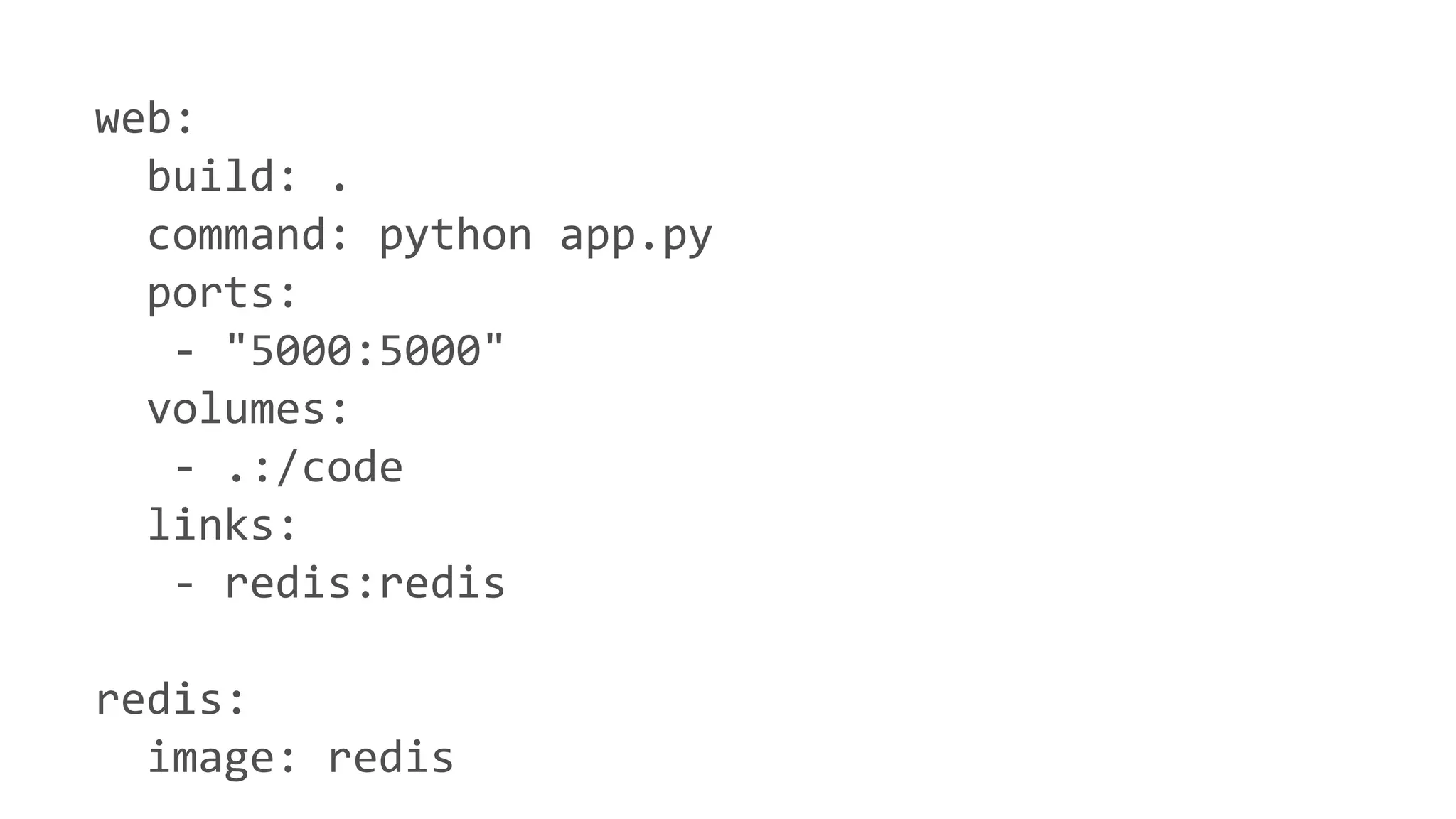

web:
build: .
command: python app.py
ports:
- "5000:5000"
volumes:
- .:/code
links:
- redis:redis
redis:
image: redis

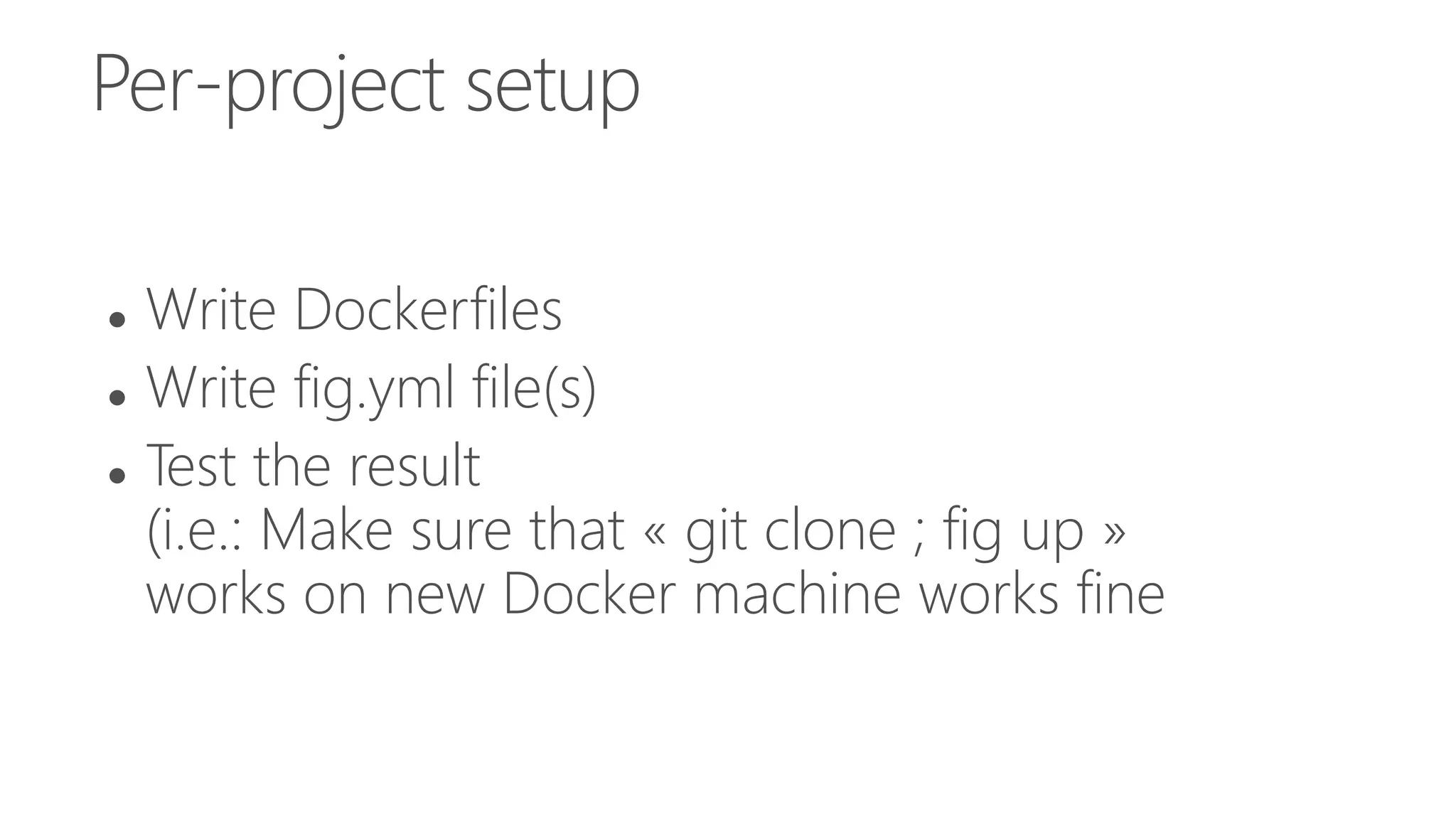

Per-project setup
 Write Dockerfiles
 Write fig.yml file(s)
 Test the result
(i.e.: Make sure that « git clone ; fig up »
works on new Docker machine works fine

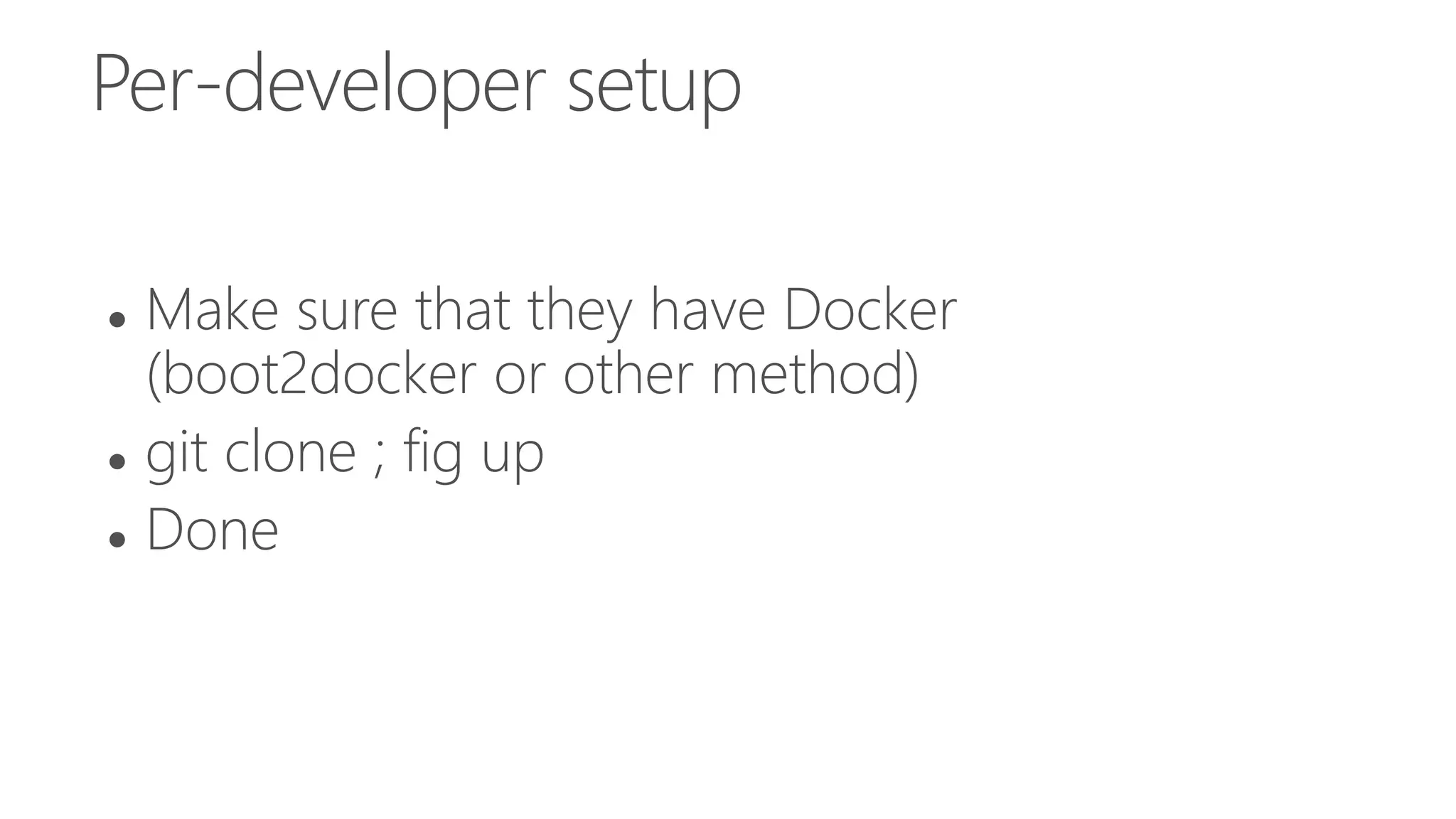

Per-developer setup
 Make sure that they have Docker
(boot2docker or other method)
 git clone ; fig up
 Done

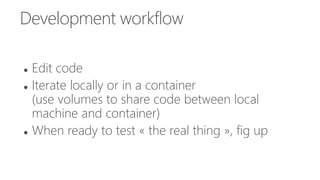

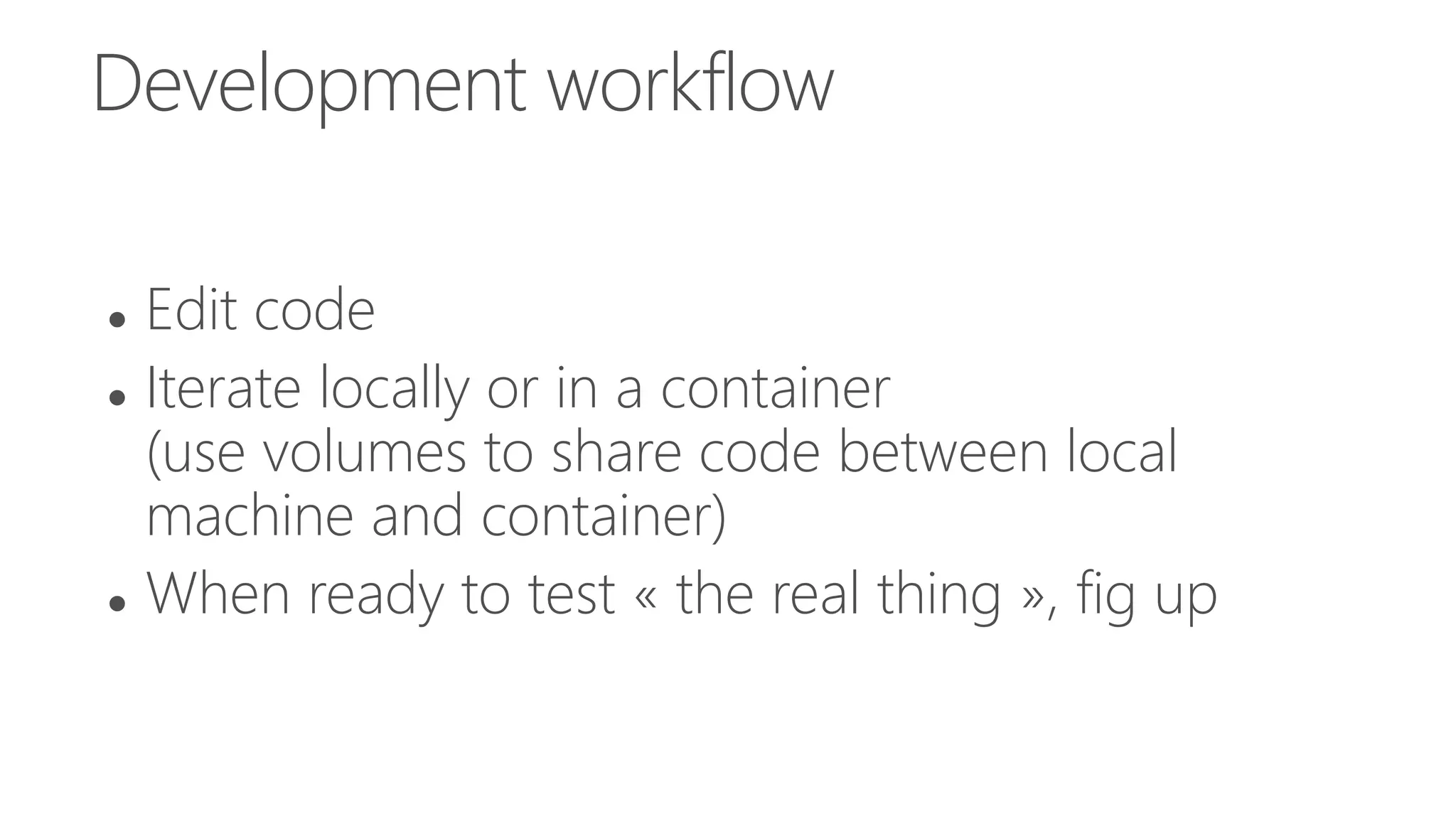

Development workflow
 Edit code
 Iterate locally or in a container
(use volumes to share code between local
machine and container)
 When ready to test « the real thing », fig up

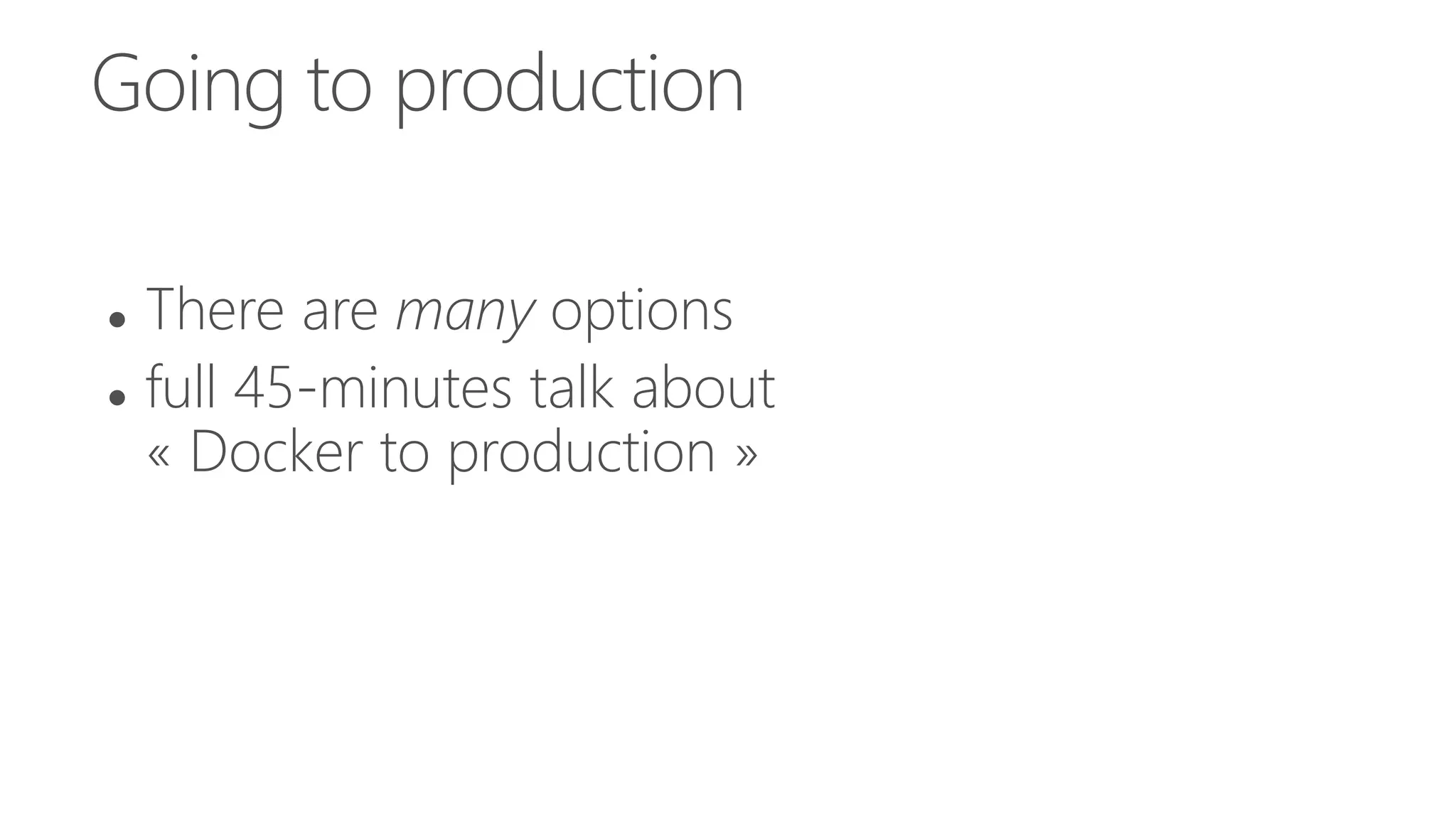

Going to production
 There are many options
 full 45-minutes talk about
« Docker to production »

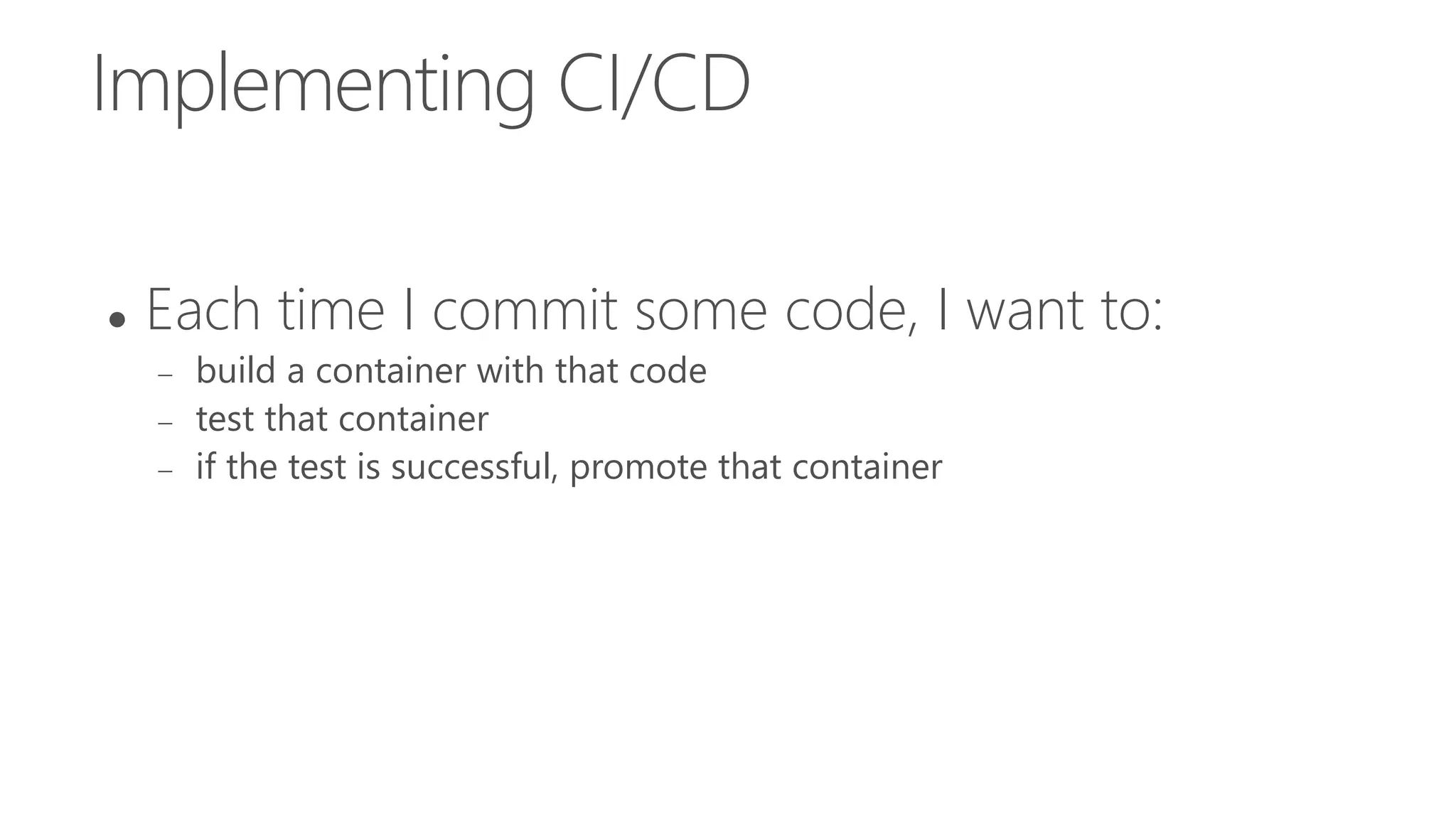

Implementing CI/CD
 Each time I commit some code, I want to:
 build a container with that code
 test that container
 if the test is successful, promote that container

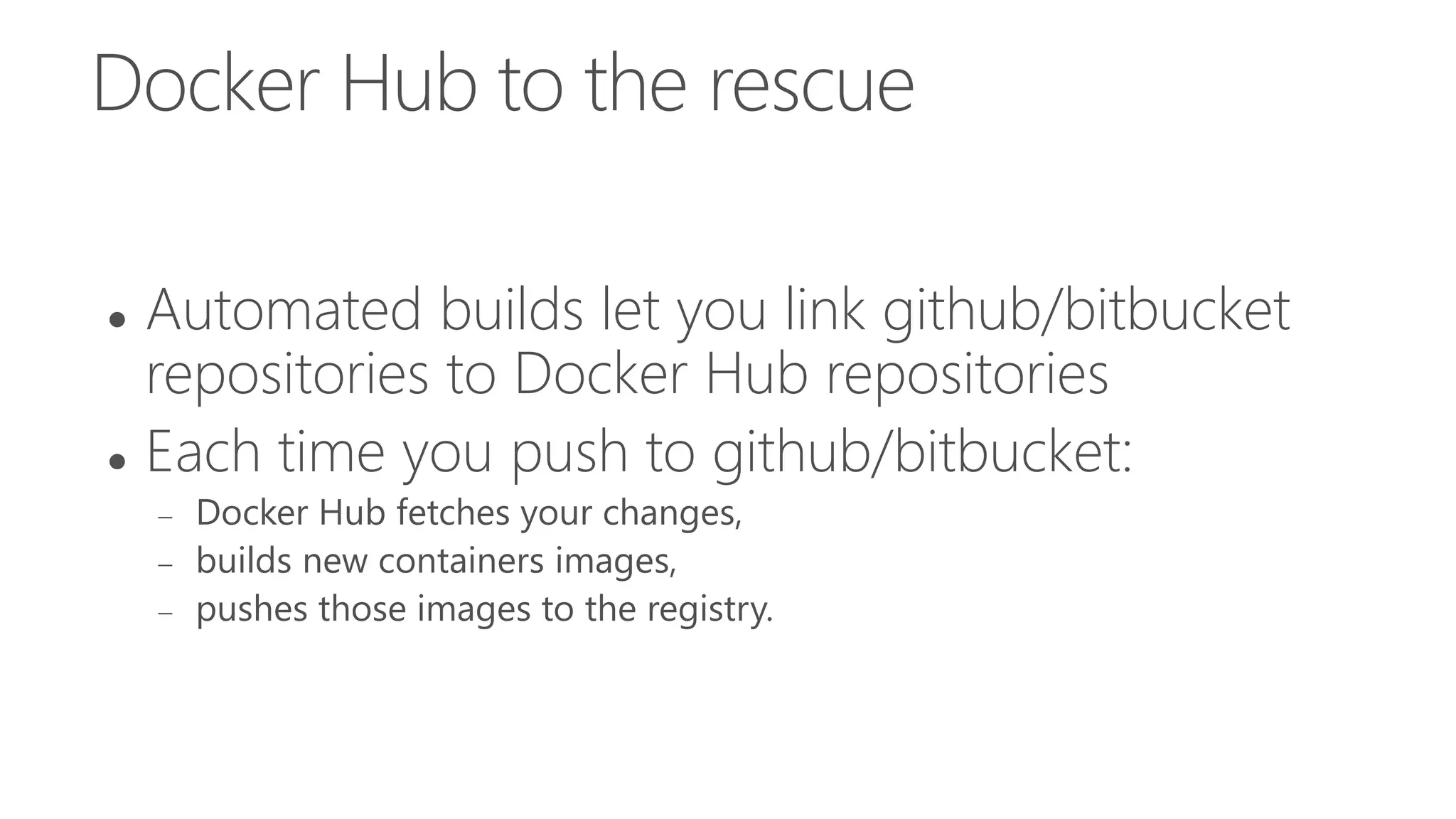

Docker Hub to the rescue
 Automated builds let you link github/bitbucket
repositories to Docker Hub repositories
 Each time you push to github/bitbucket:
 Docker Hub fetches your changes,
 builds new containers images,
 pushes those images to the registry.

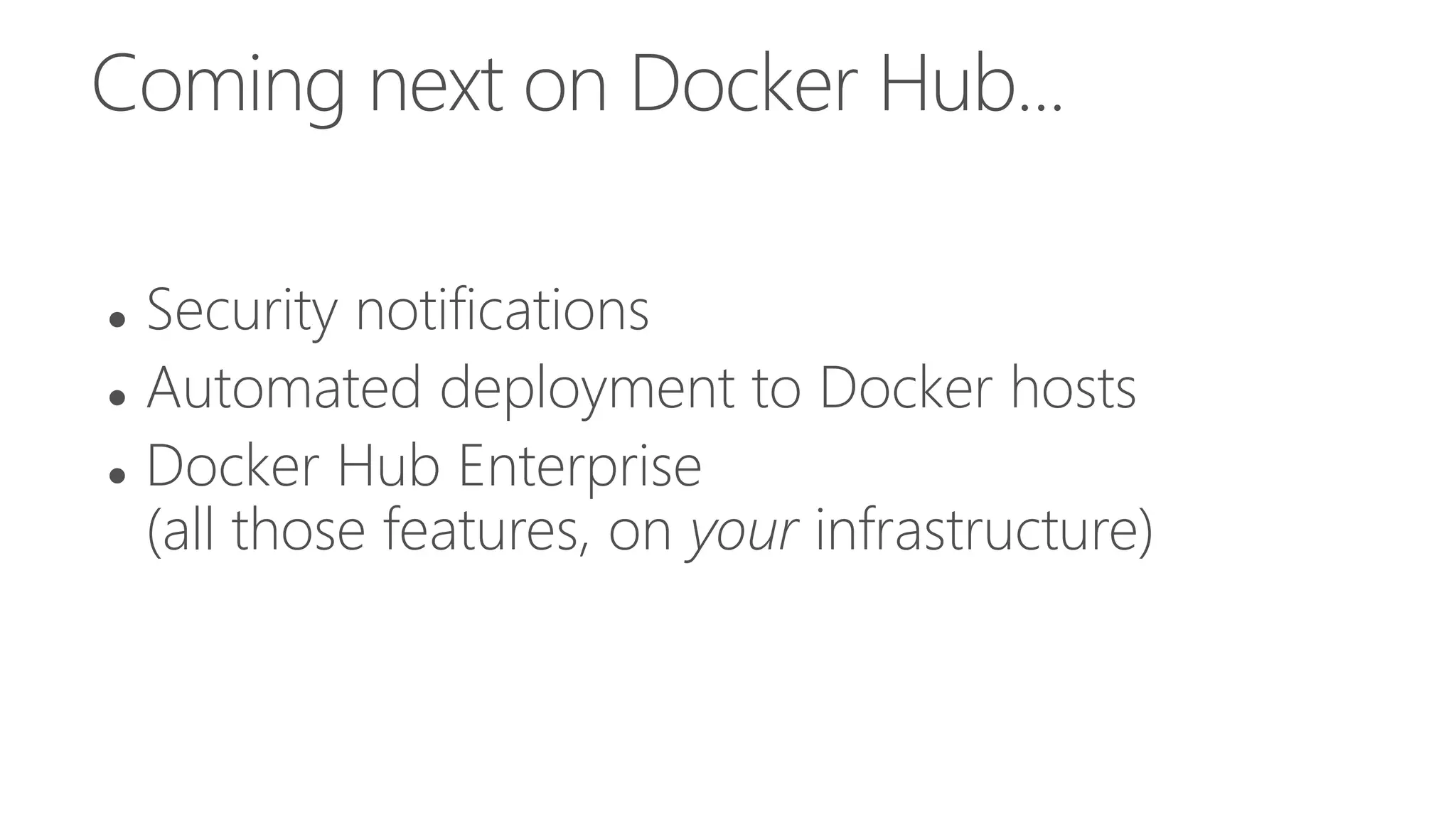

Coming next on Docker Hub...
 Security notifications
 Automated deployment to Docker hosts
 Docker Hub Enterprise
(all those features, on your infrastructure)

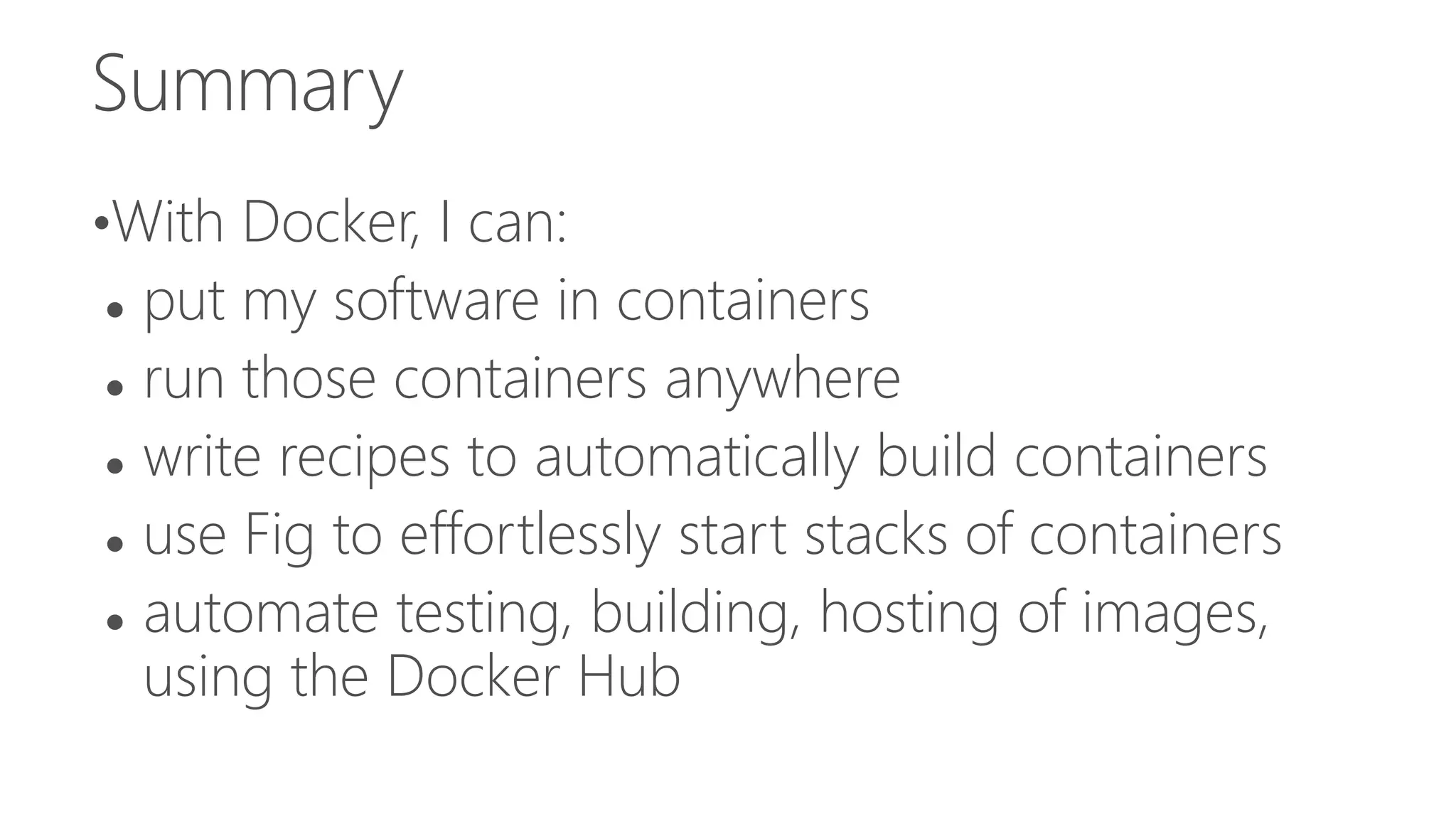

Summary
•With Docker, I can:
 put my software in containers
 run those containers anywhere
 write recipes to automatically build containers
 use Fig to effortlessly start stacks of containers
 automate testing, building, hosting of images,
using the Docker Hub

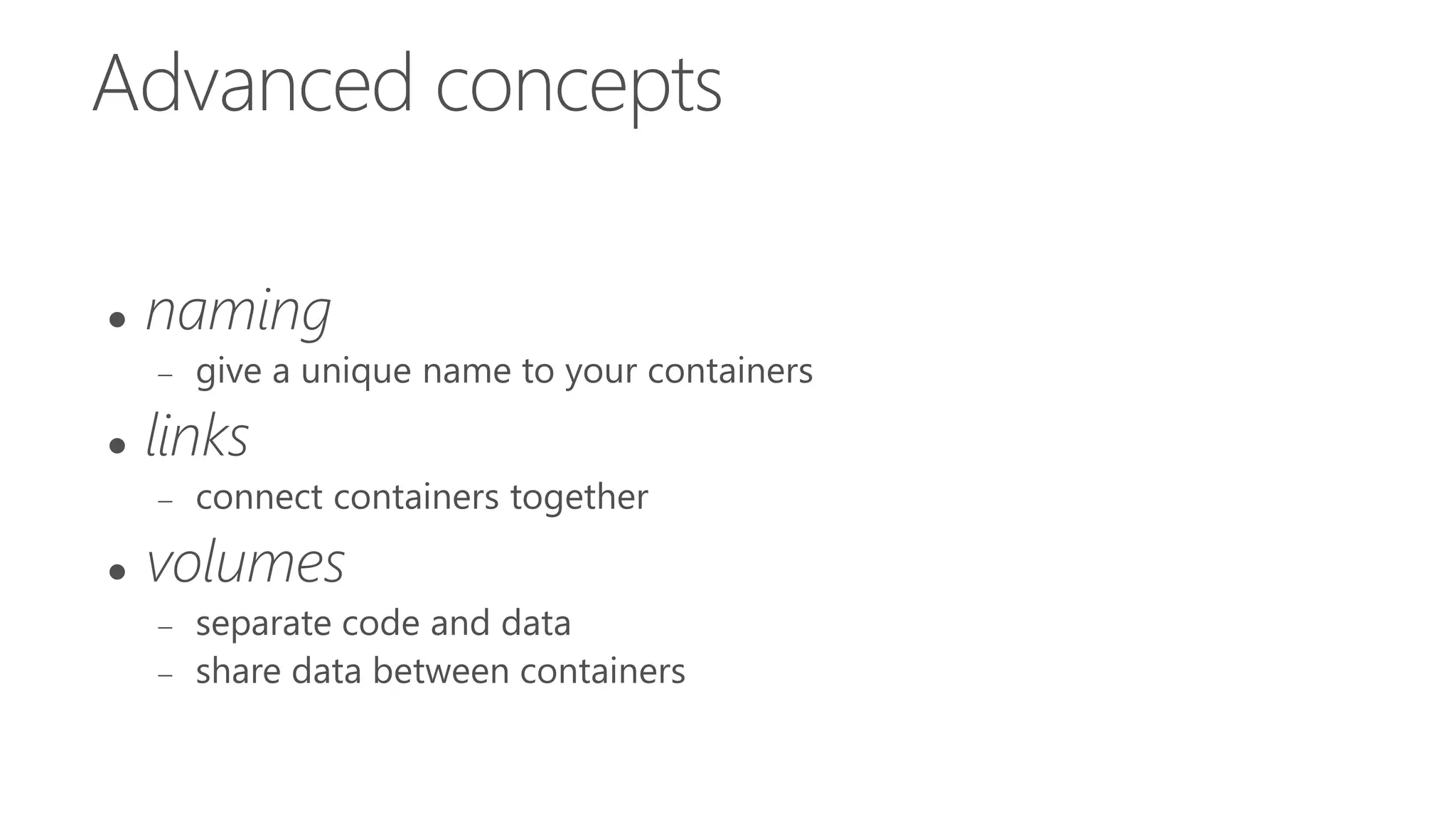

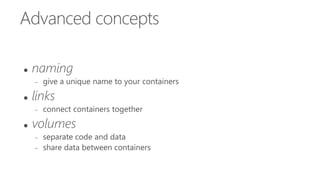

Advanced concepts
 naming
 give a unique name to your containers
 links
 connect containers together
 volumes
 separate code and data
 share data between containers

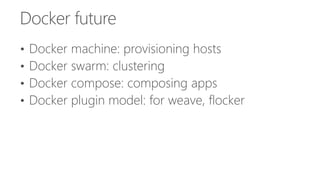

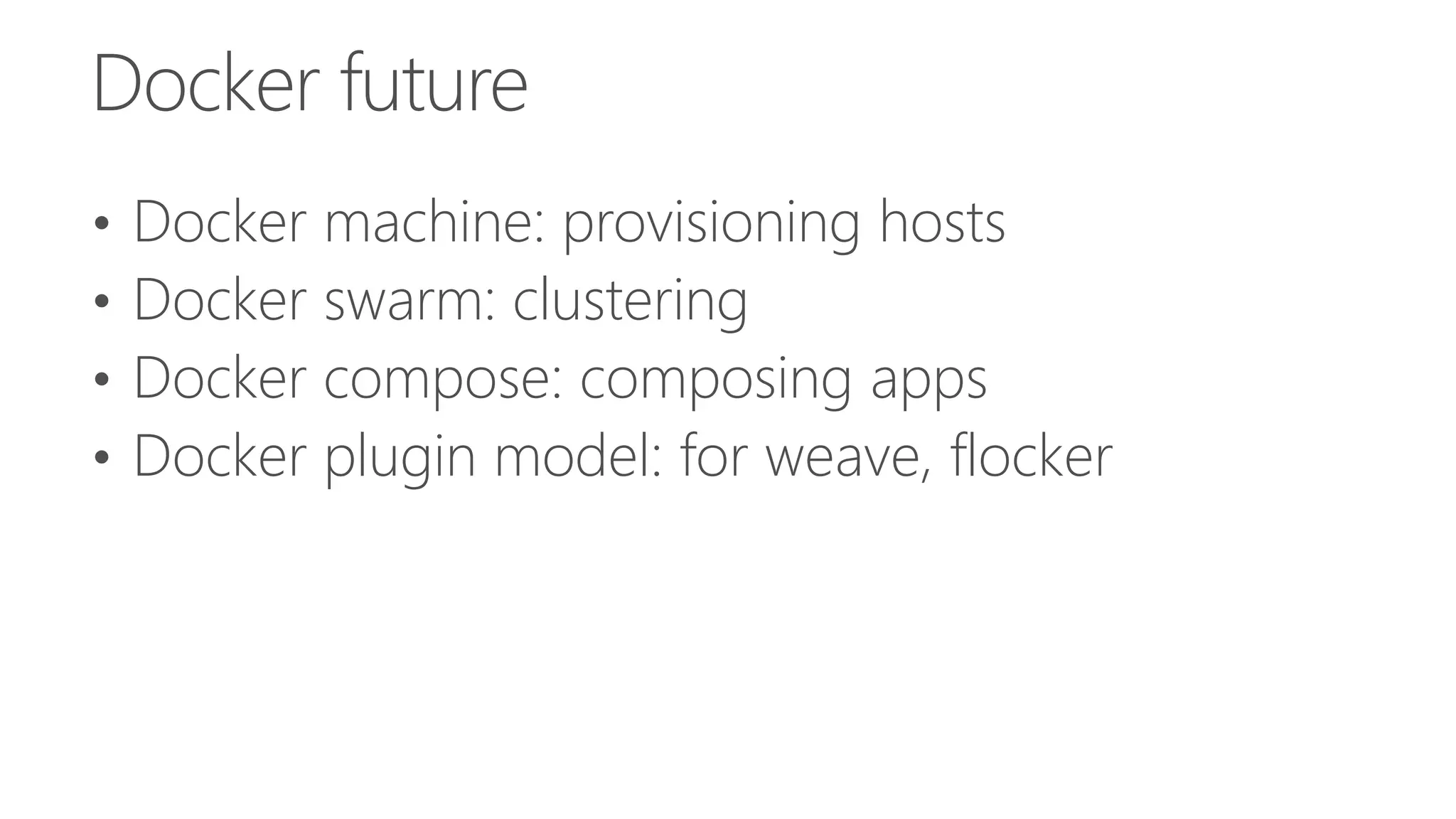

Docker future
• Docker machine: provisioning hosts
• Docker swarm: clustering
• Docker compose: composing apps

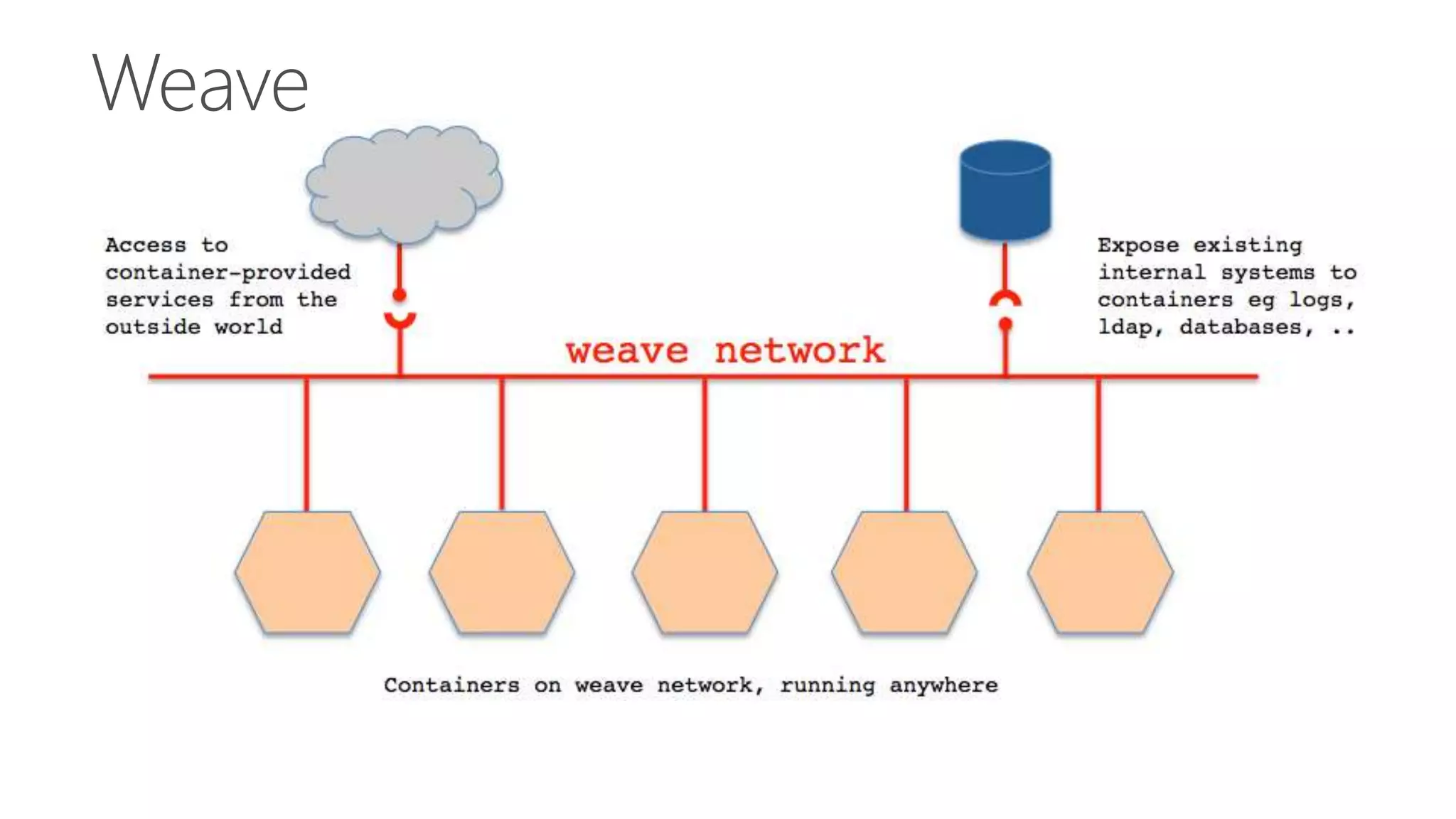

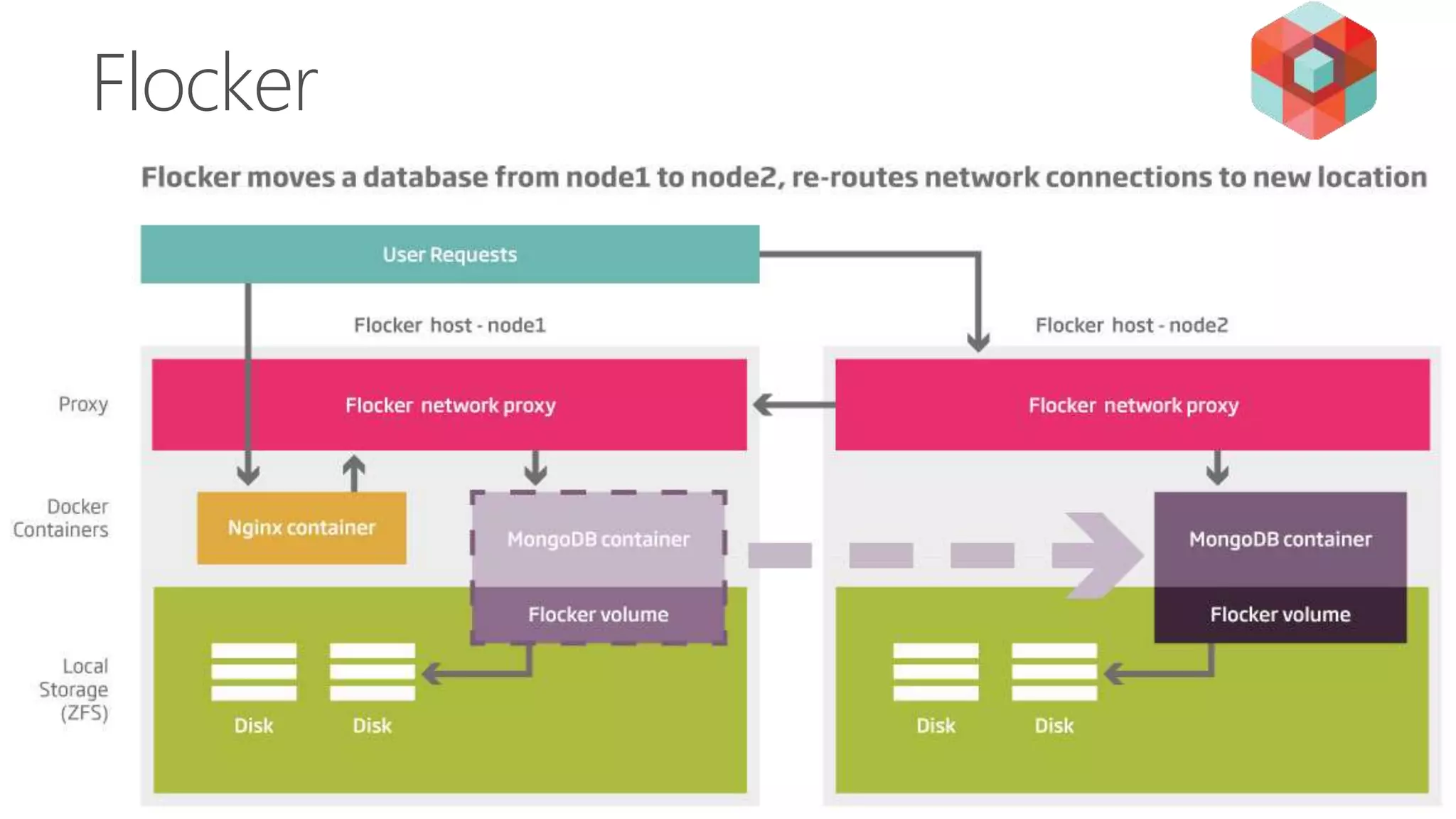

• Docker plugin model: for weave, flocker

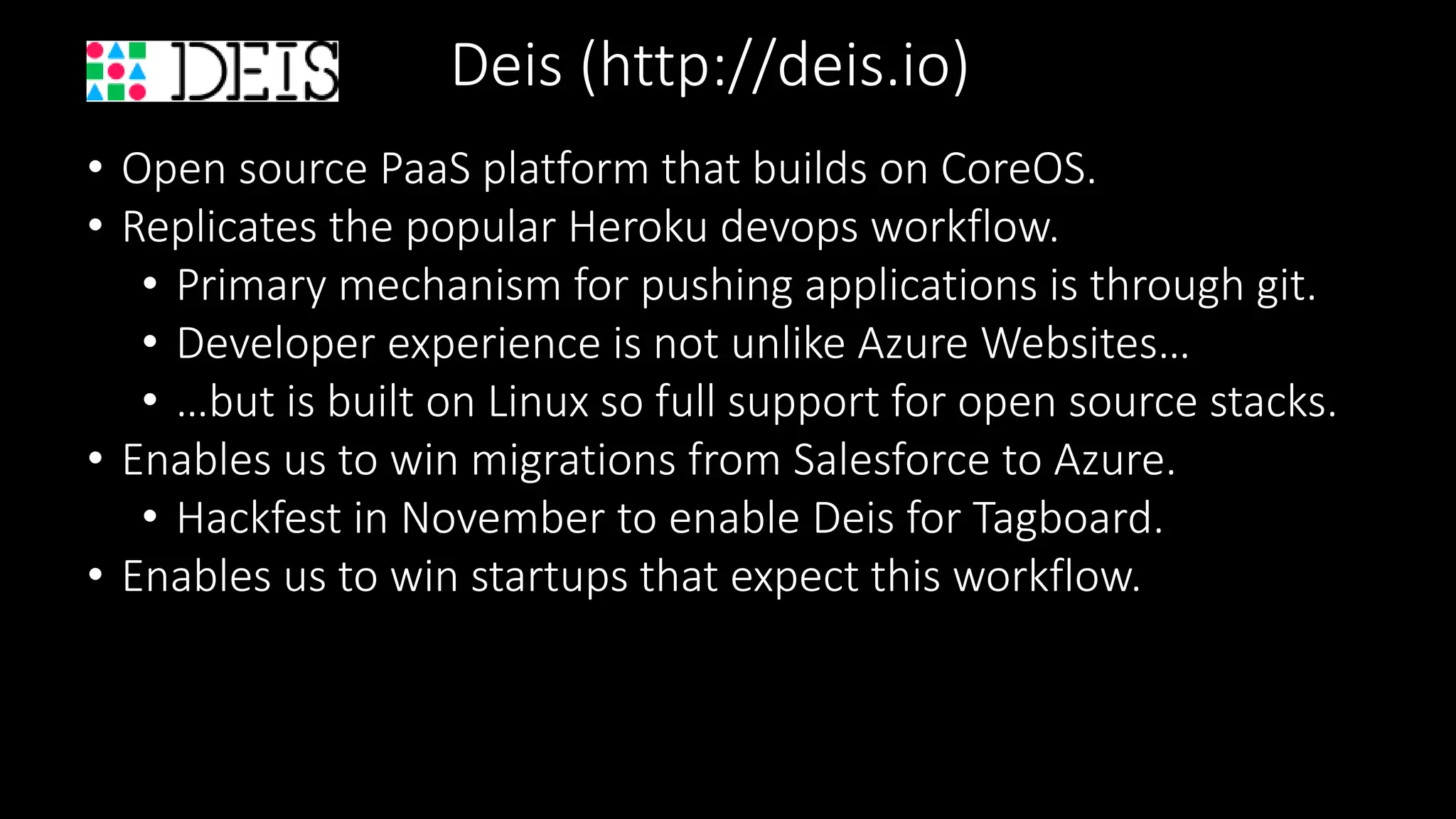

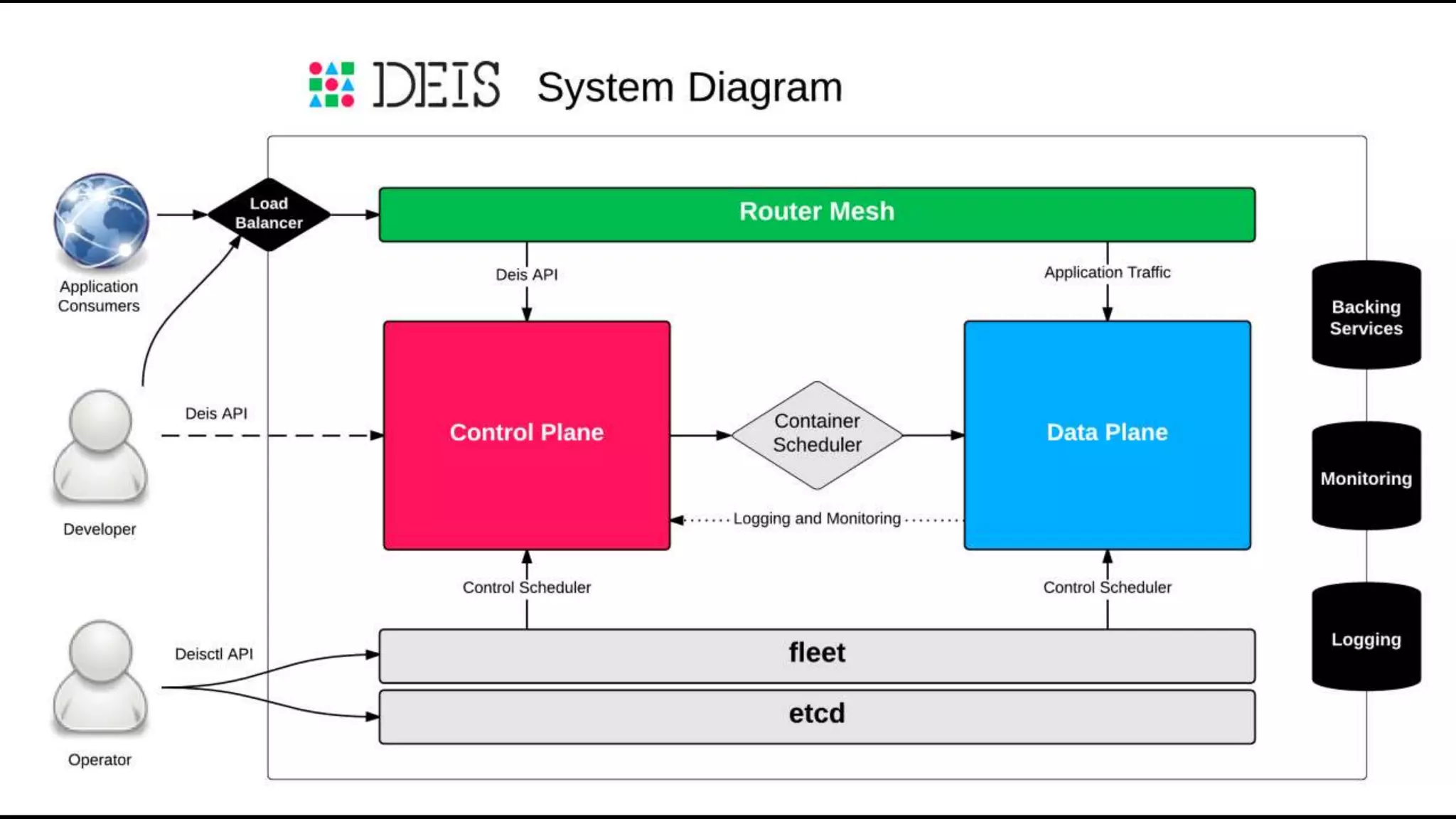

Deis (http://deis.io)
• Open source PaaS platform that builds on CoreOS.
• Replicates the popular Heroku devops workflow.
• Primary mechanism for pushing applications is through git.
• Developer experience is not unlike Azure Websites…
• …but is built on Linux so full support for open source stacks.
• Enables us to win migrations from Salesforce to Azure.
• Hackfest in November to enable Deis for Tagboard.
• Enables us to win startups that expect this workflow.

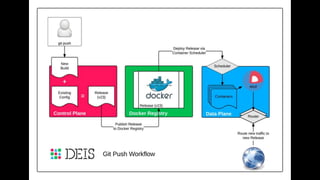

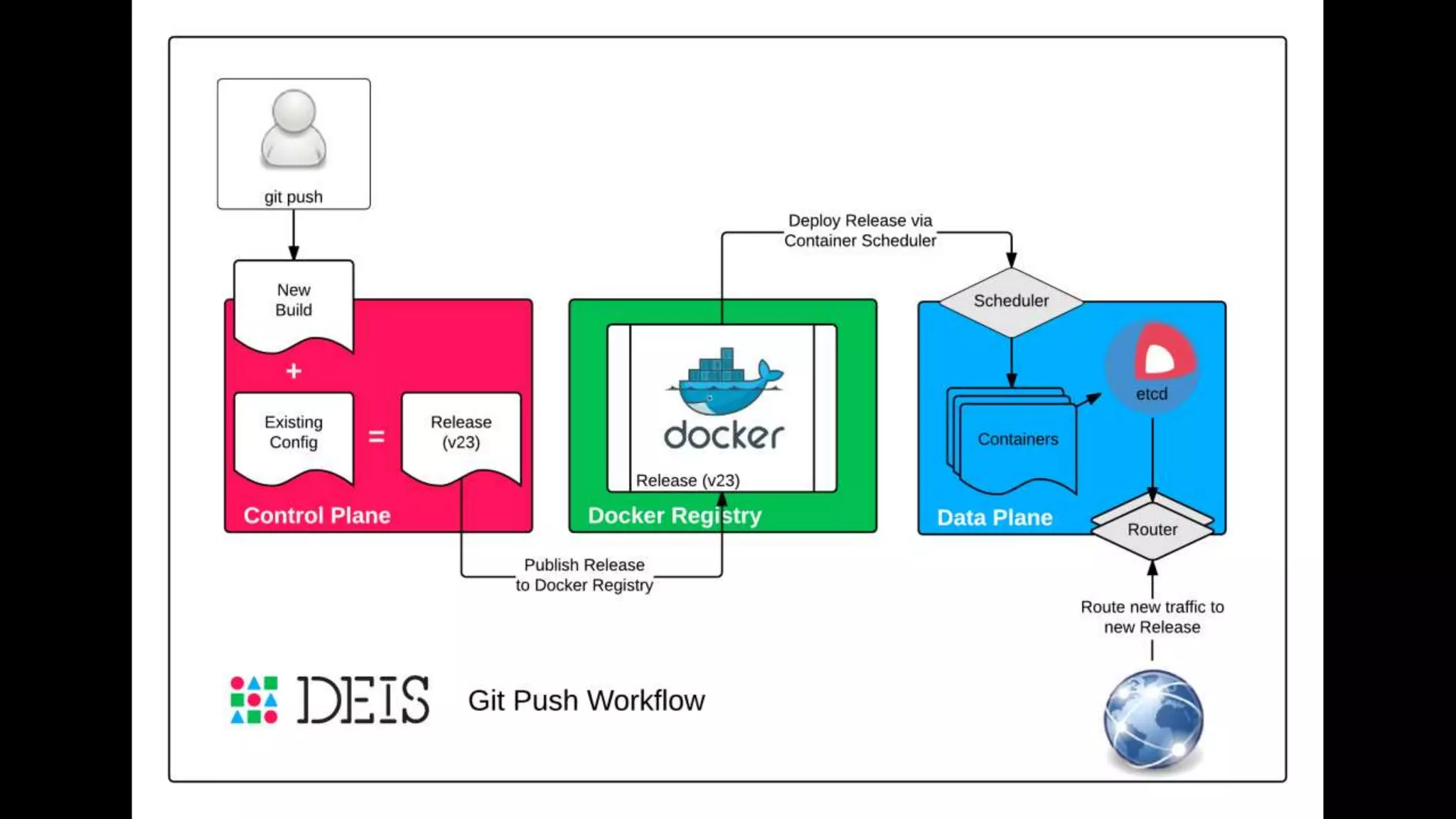

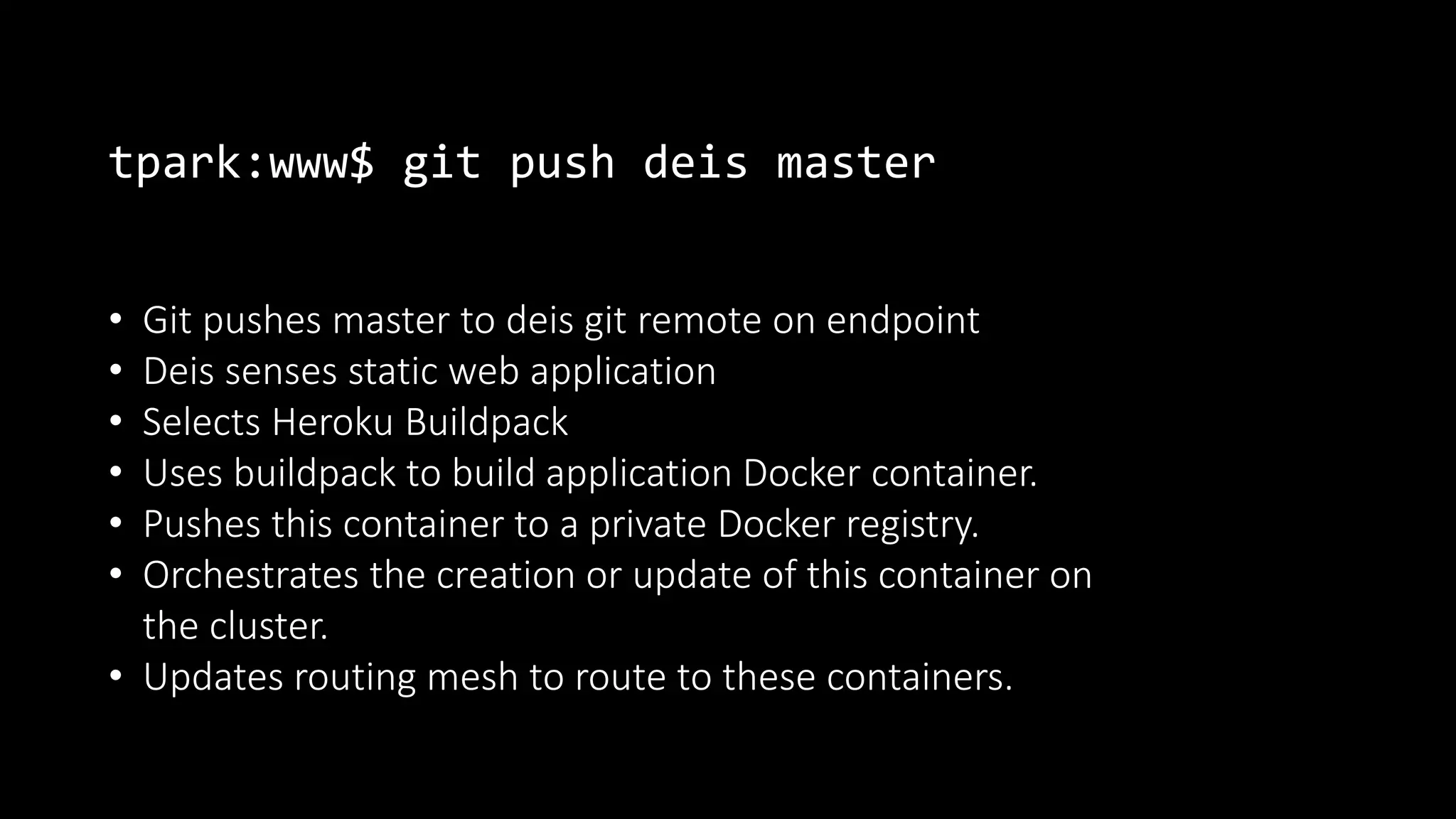

tpark:www$ git push deis master
• Git pushes master to deis git remote on endpoint
• Deis senses static web application
• Selects Heroku Buildpack
• Uses buildpack to build application Docker container.
• Pushes this container to a private Docker registry.
• Orchestrates the creation or update of this container on
the cluster.
• Updates routing mesh to route to these containers.

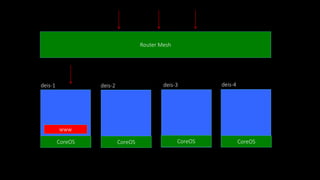

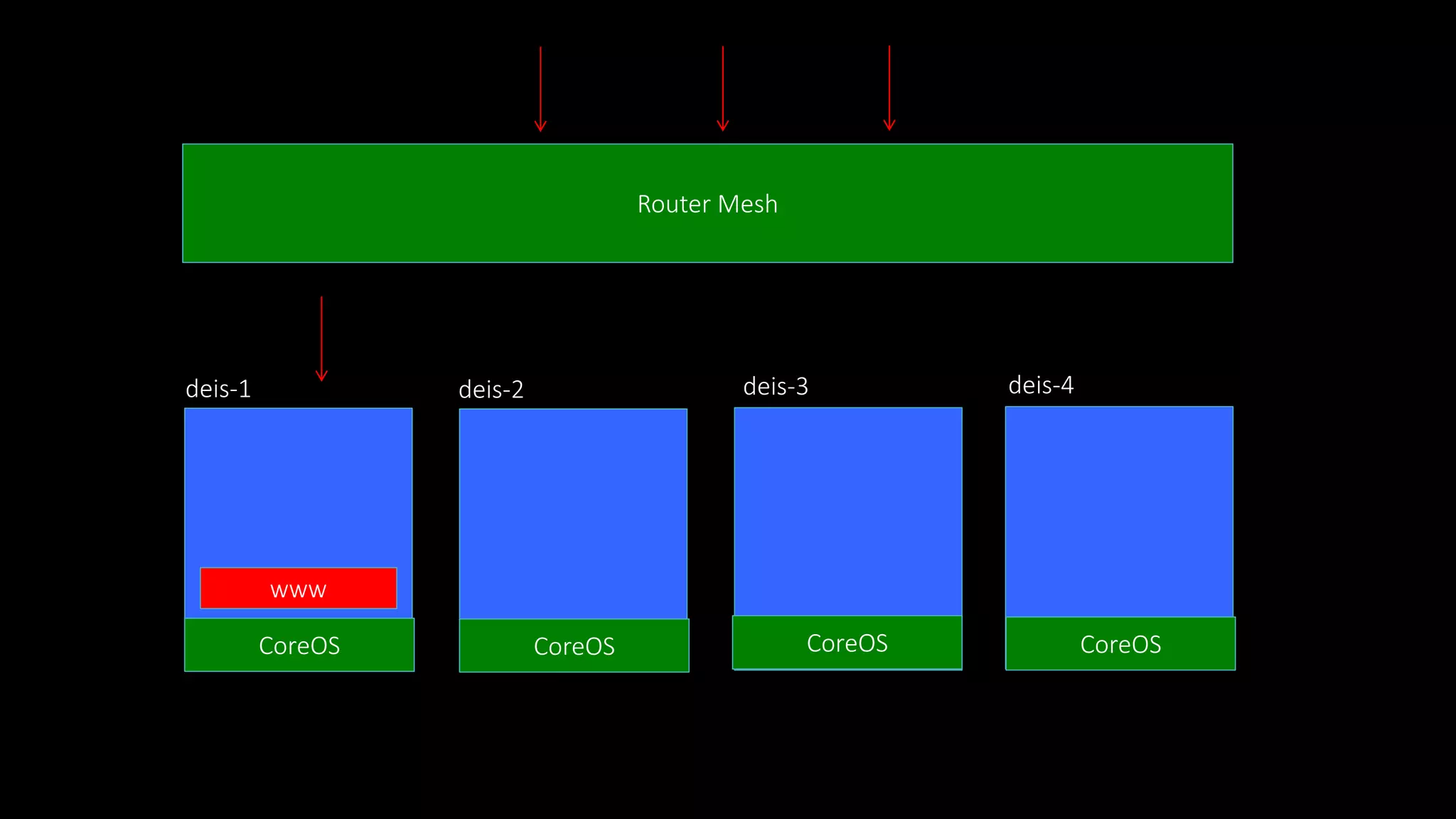

Router Mesh
deis-1 deis-2 deis-3 deis-4
www
CoreOS CoreOS CoreOS CoreOS

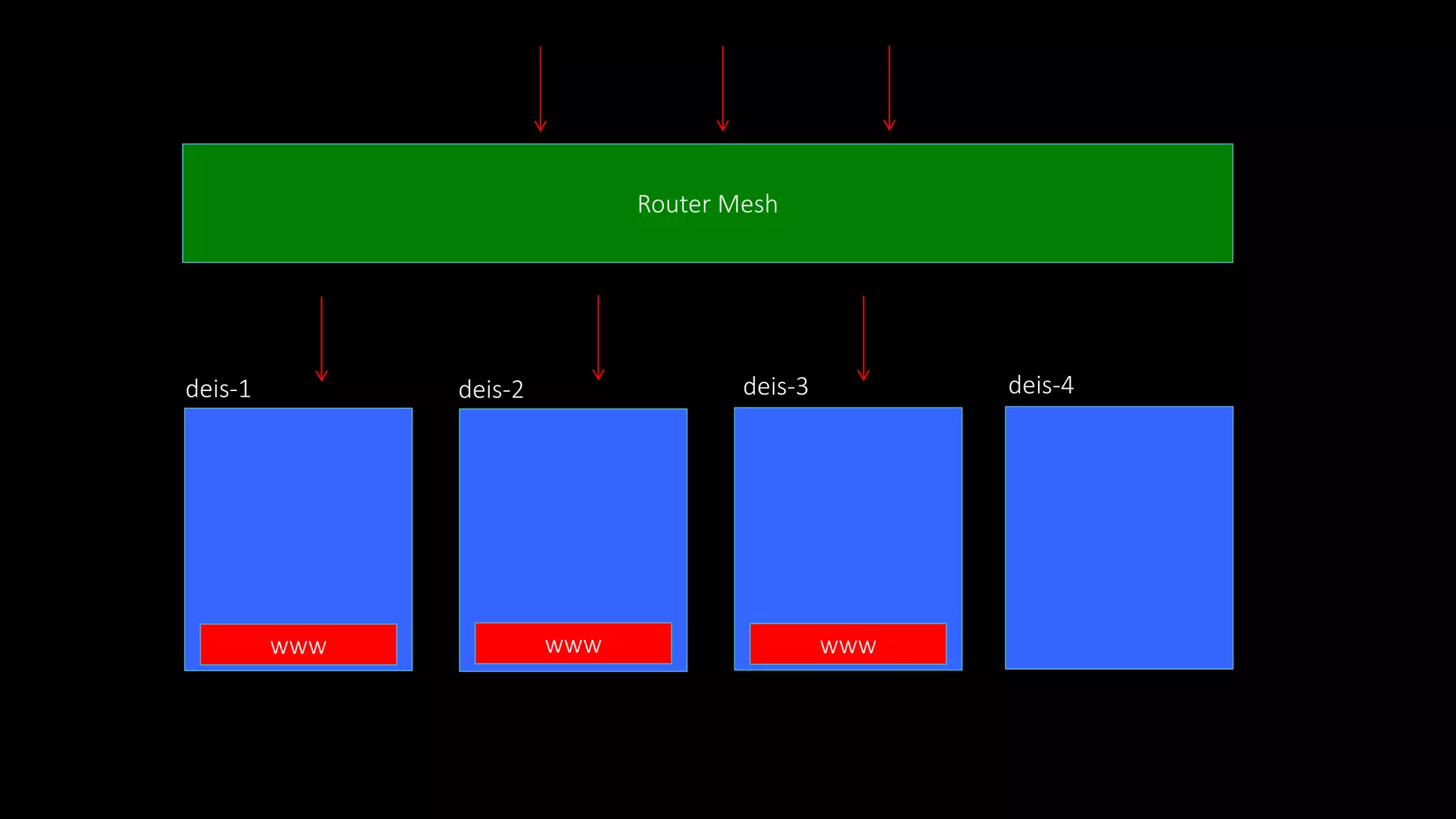

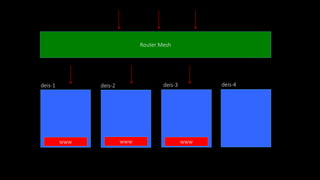

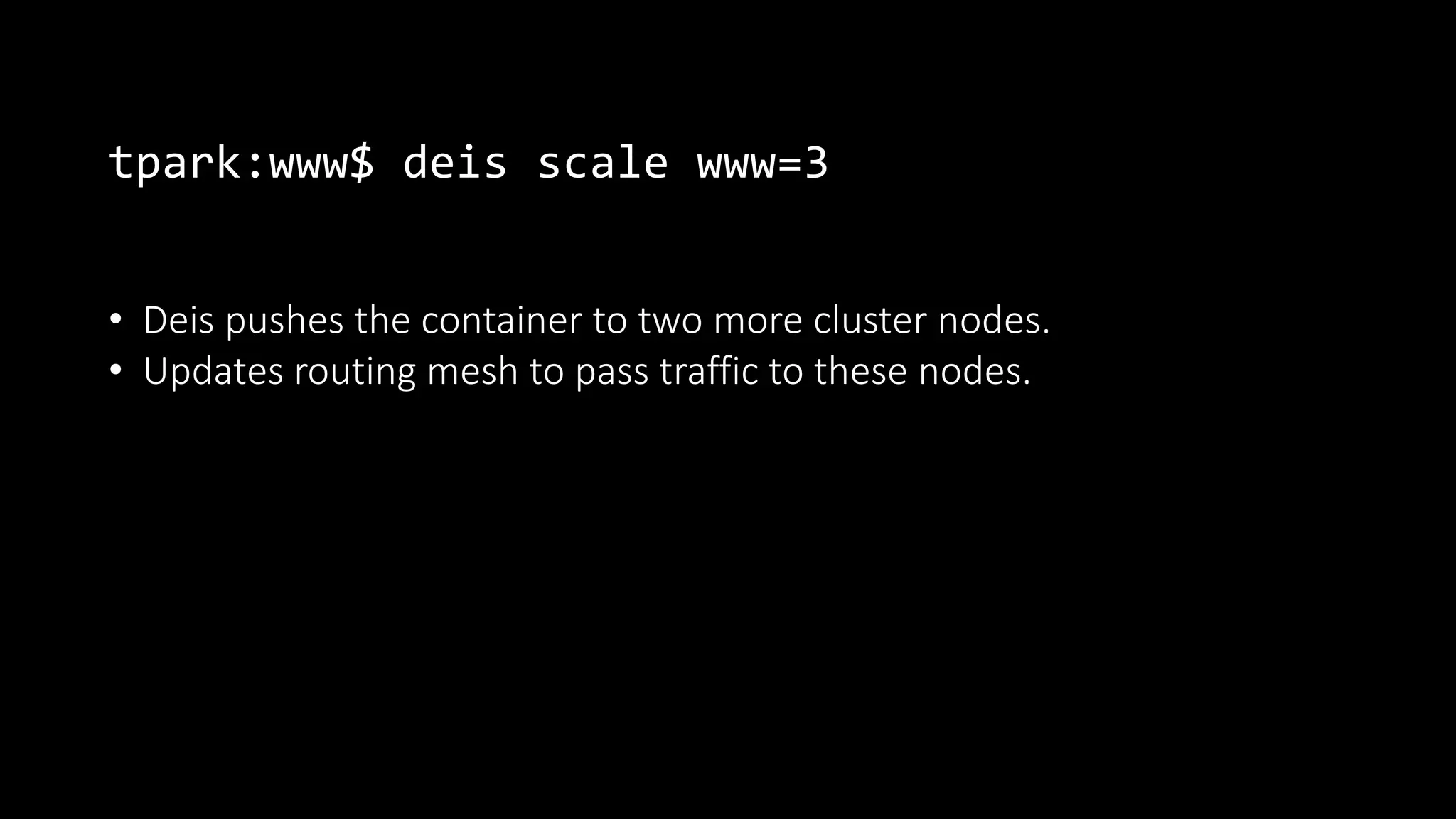

tpark:www$ deis scale www=3
• Deis pushes the container to two more cluster nodes.
• Updates routing mesh to pass traffic to these nodes.

Router Mesh
www www www

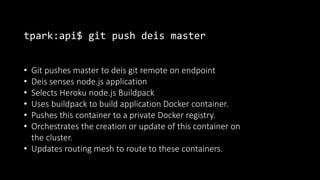

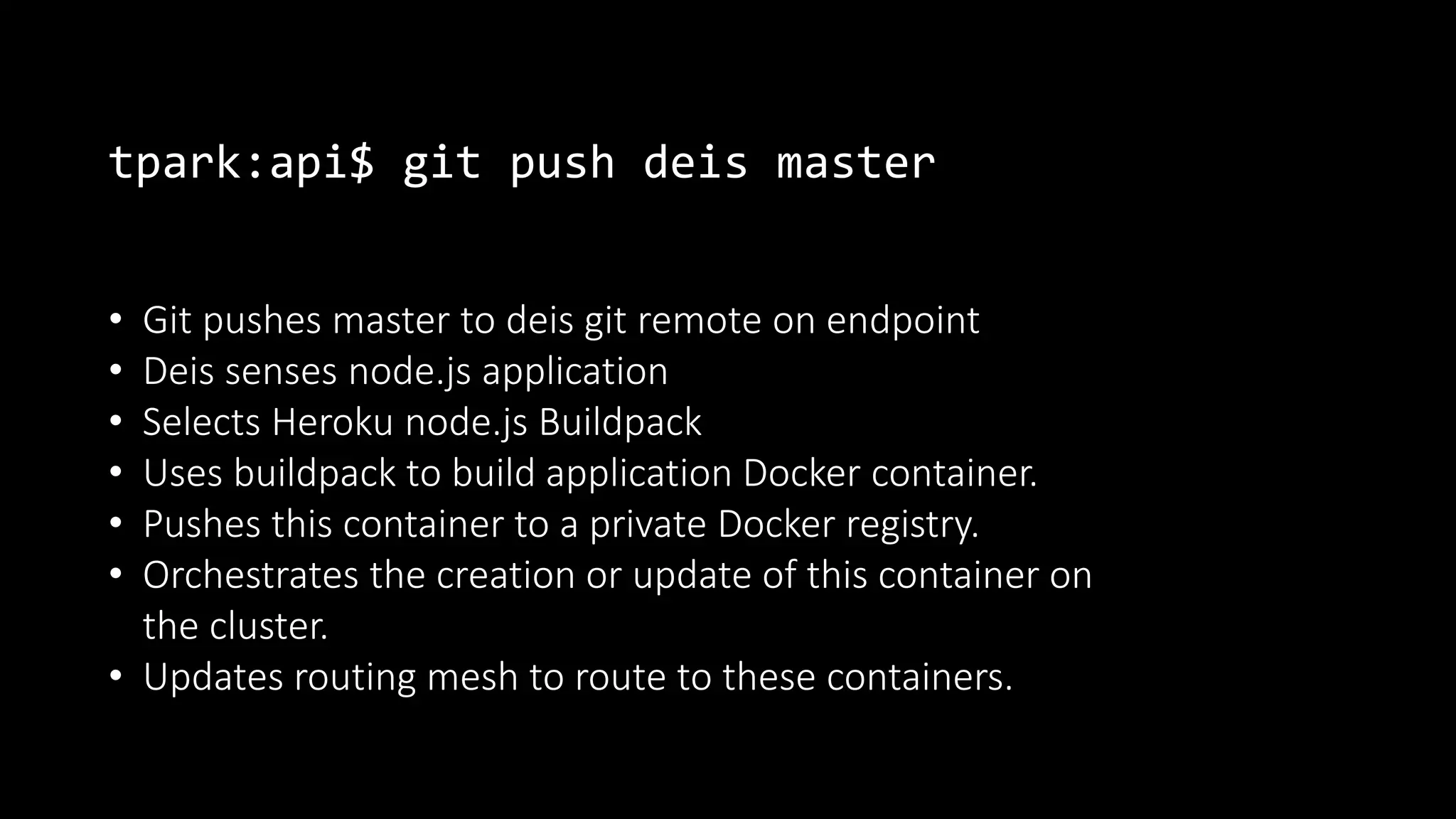

tpark:api$ git push deis master
• Git pushes master to deis git remote on endpoint
• Deis senses node.js application
• Selects Heroku node.js Buildpack
• Uses buildpack to build application Docker container.
• Pushes this container to a private Docker registry.
• Orchestrates the creation or update of this container on
the cluster.
• Updates routing mesh to route to these containers.

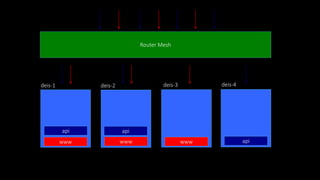

Router Mesh
www
api
www
api
www api

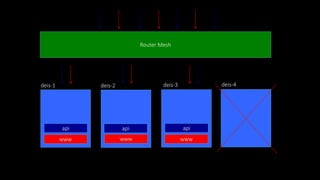

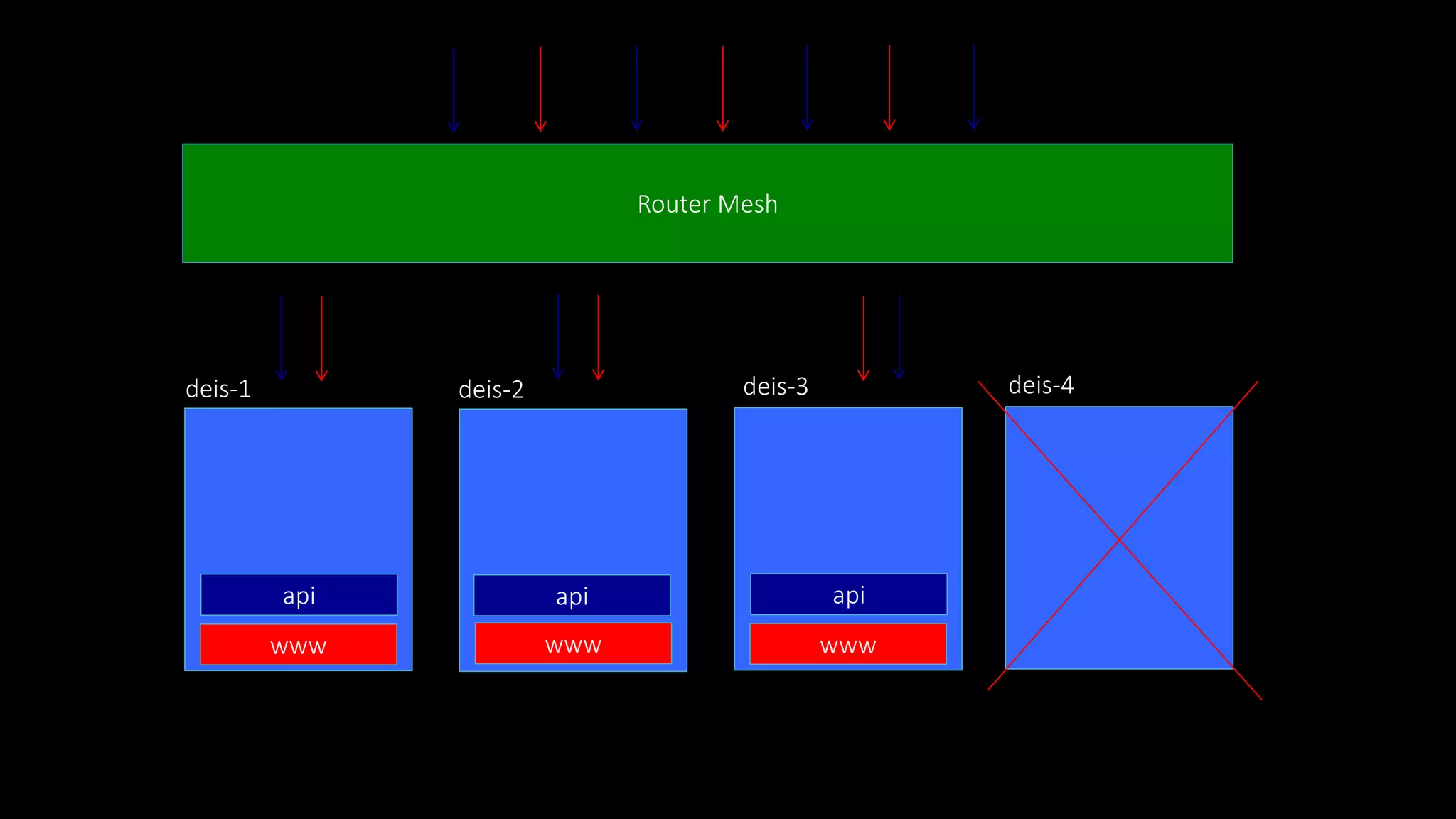

Router Mesh
www
api
www
api
www
api

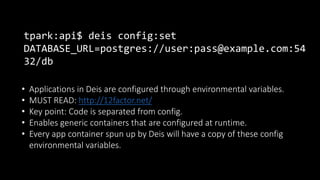

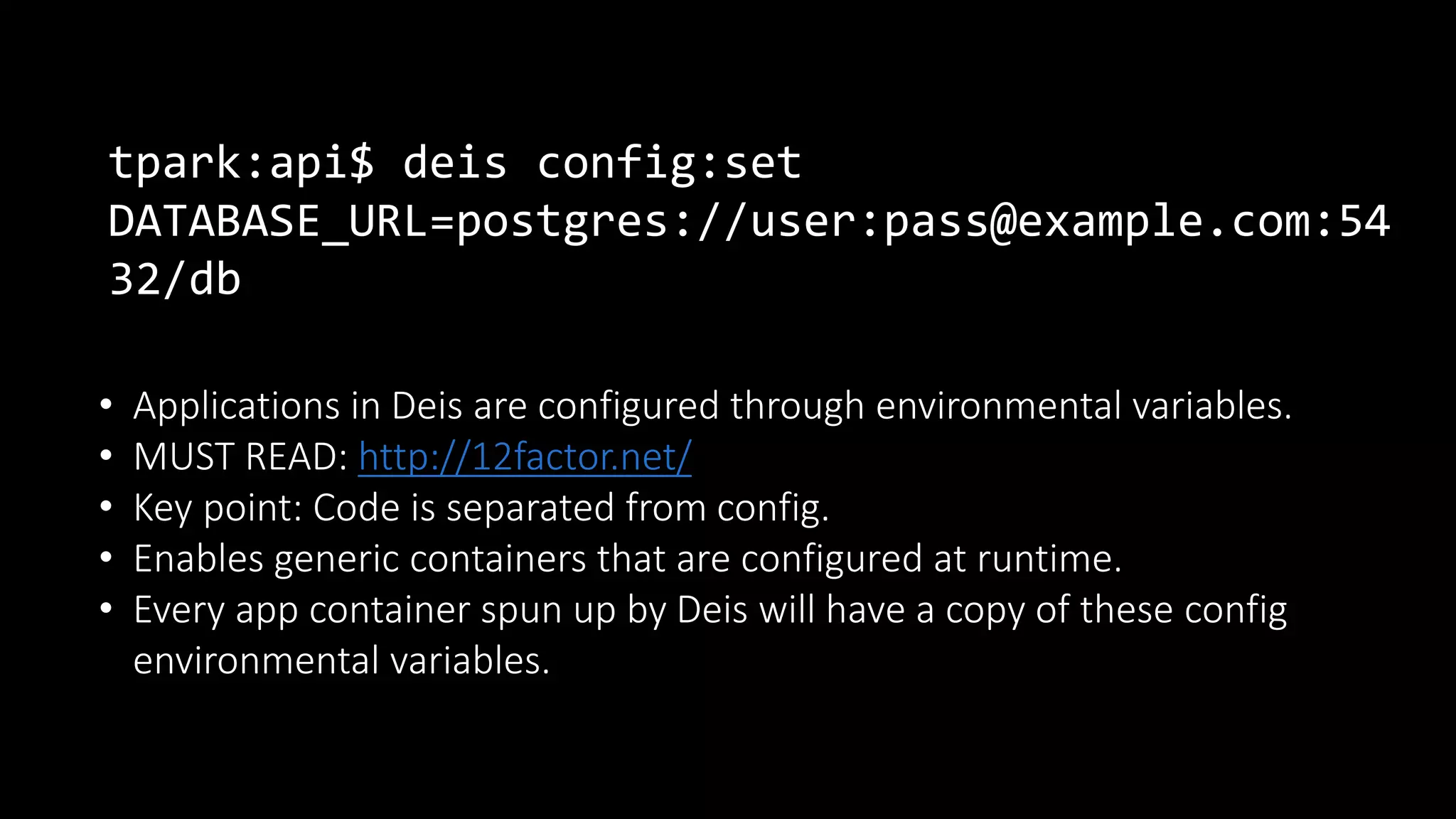

tpark:api$ deis config:set
DATABASE_URL=postgres://user:pass@example.com:54
32/db
• Applications in Deis are configured through environmental variables.
• MUST READ: http://12factor.net/
• Key point: Code is separated from config.
• Enables generic containers that are configured at runtime.
• Every app container spun up by Deis will have a copy of these config
environmental variables.

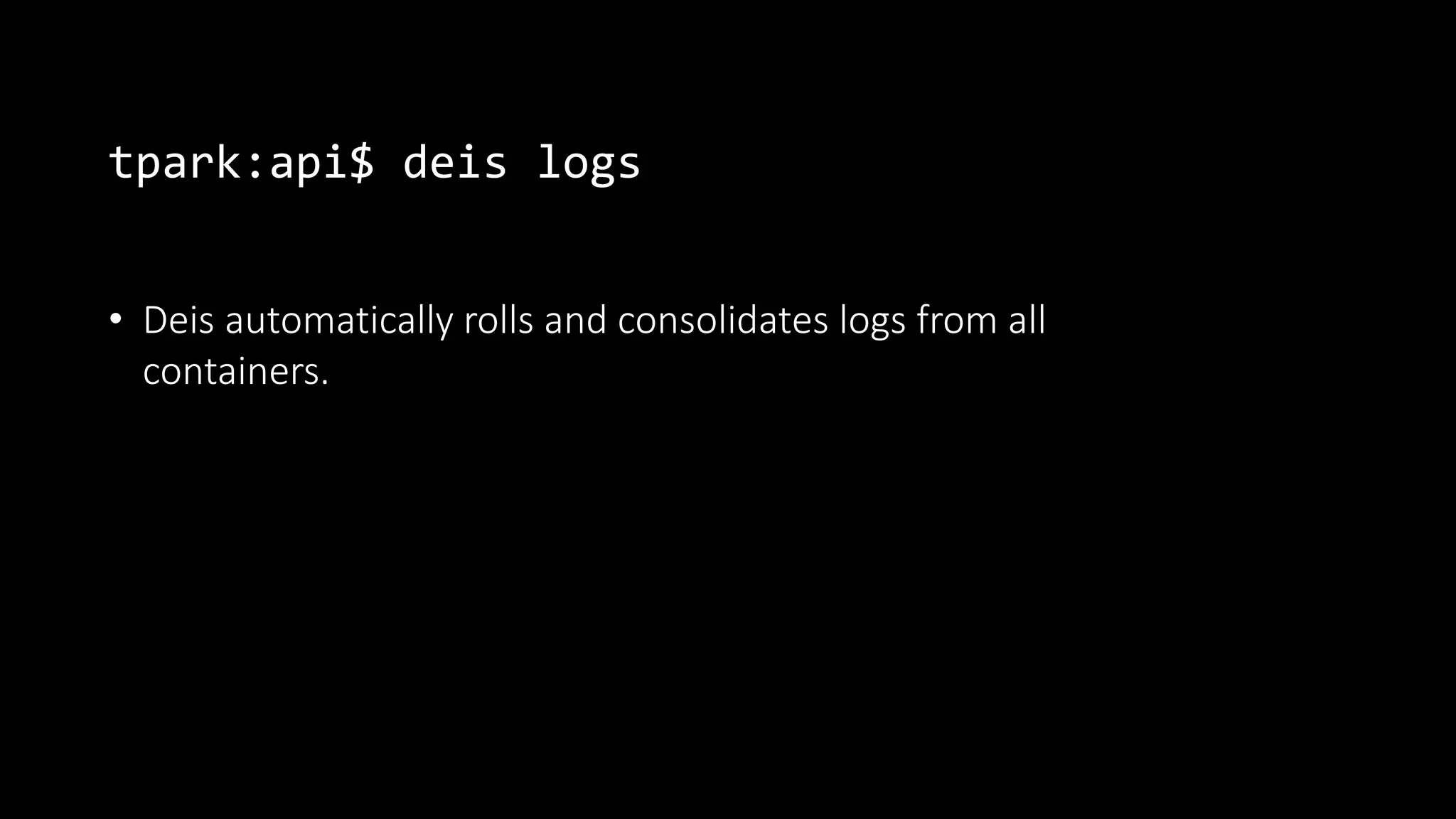

tpark:api$ deis logs
• Deis automatically rolls and consolidates logs from all
containers.

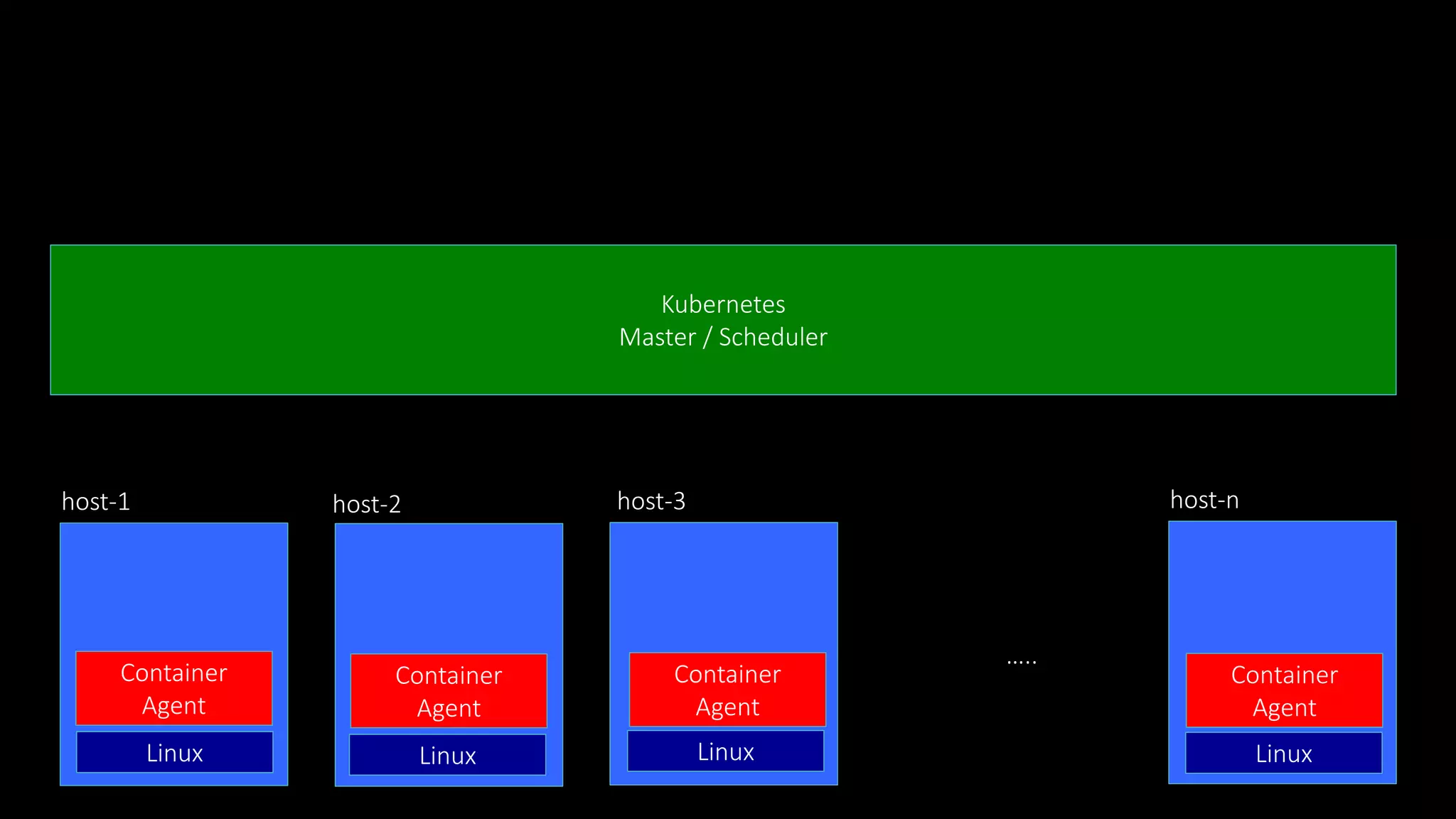

Kubernetes (http://kubernetes.io)

Kubernetes
Master / Scheduler
host-1 host-2 host-3 host-n
…..
Container
Agent
Container
Agent
Container
Agent
Container
Agent
Linux Linux Linux Linux

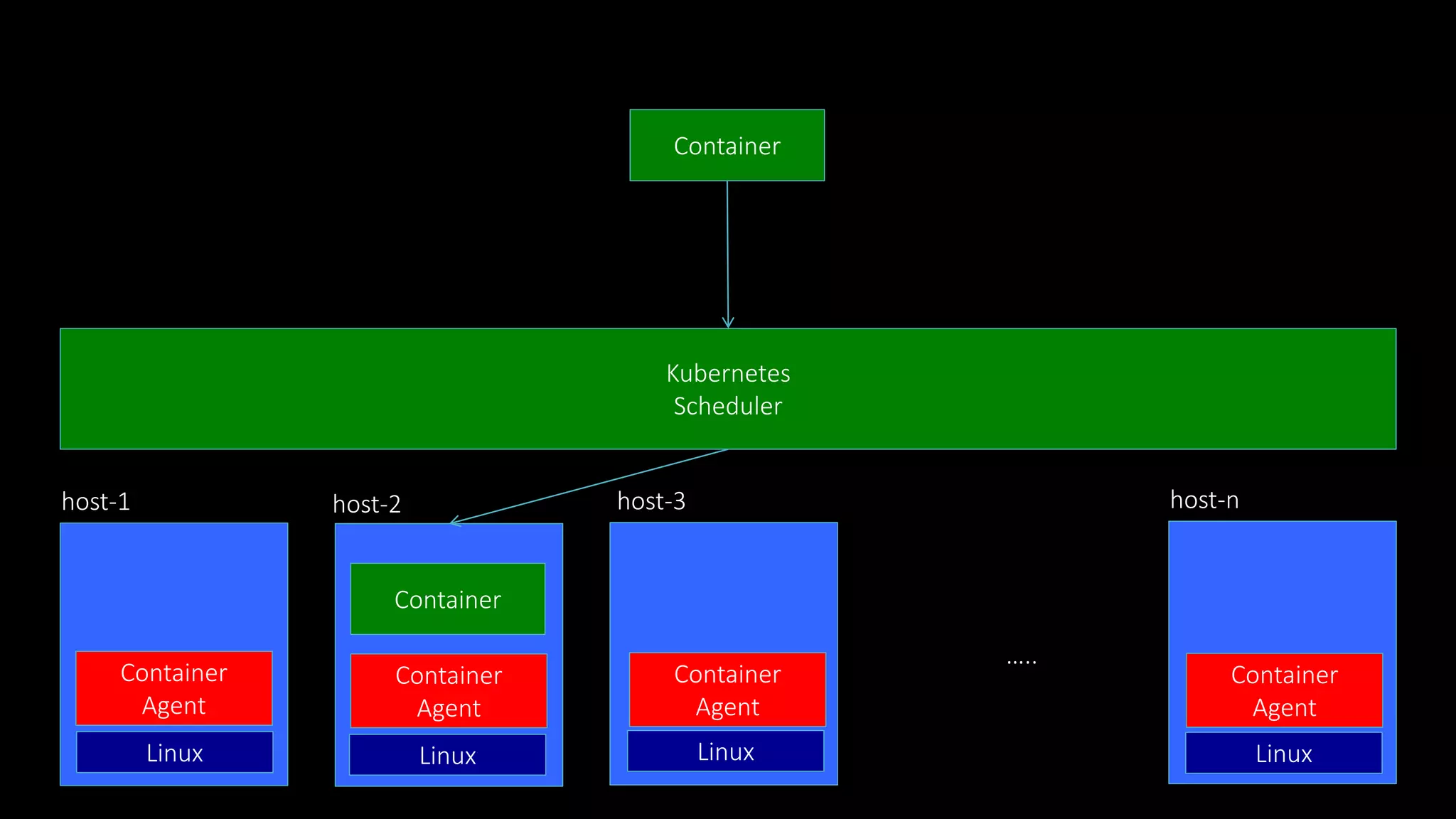

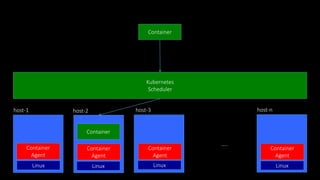

Kubernetes
Scheduler
…..
Container
Agent
Container
Agent
Container
Agent
Container
Agent
Linux Linux Linux Linux

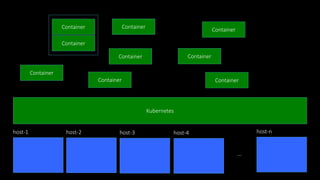

Container
Container

Kubernetes
host-1
Container
…
Container
Container
Container
Container
ContainerContainer
Container
Container

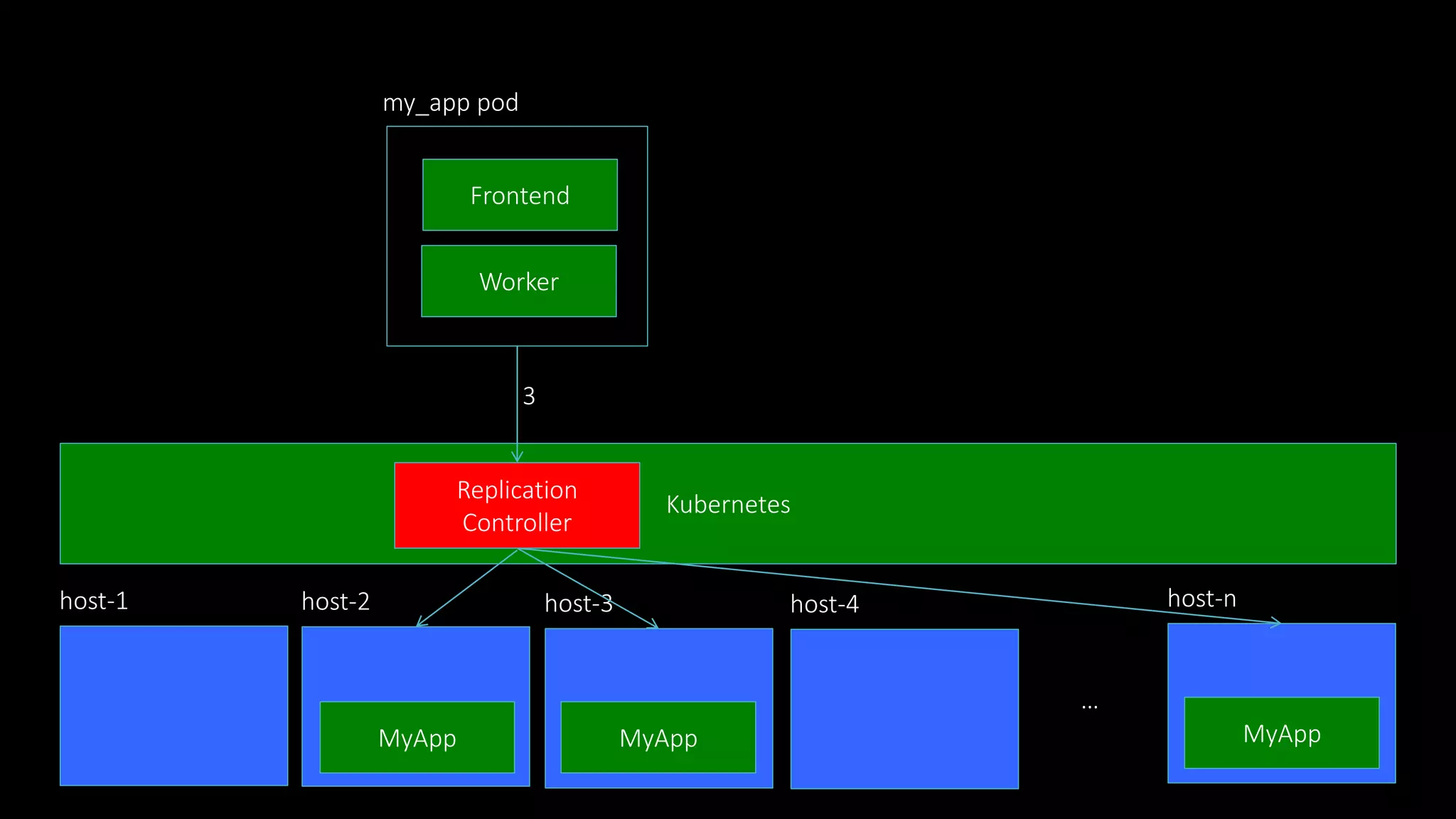

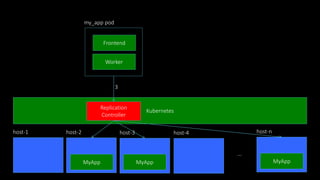

Kubernetes
host-1 host-2 host-3 host-4 host-n
…
Frontend
Worker
my_app pod
MyAppMyApp MyApp
Replication
Controller
3

Kubernetes
…
MyAppMyApp MyApp
Replication
Controller
Pod Pod
Pod
Pod
PodPod
Pod
Pod

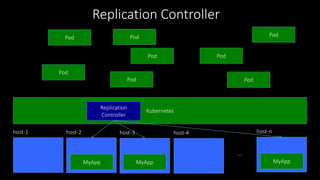

Replication Controller

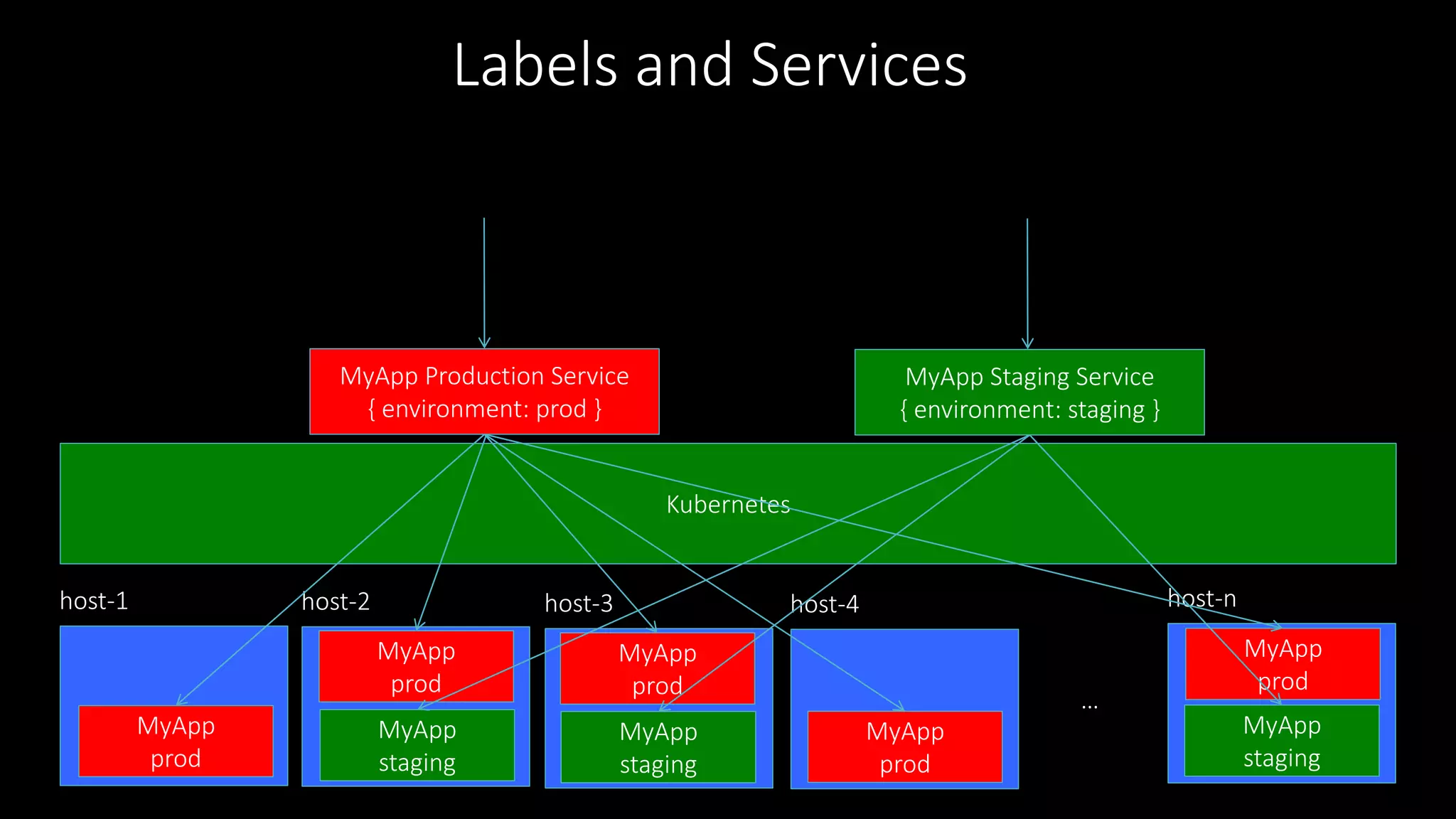

Kubernetes
…
MyApp
staging
MyApp
staging
MyApp
staging
MyApp
prod
MyApp
prod
MyApp
prod
MyApp
prod
MyApp
prod
MyApp Production Service
{ environment: prod }
MyApp Staging Service
{ environment: staging }
Labels and Services

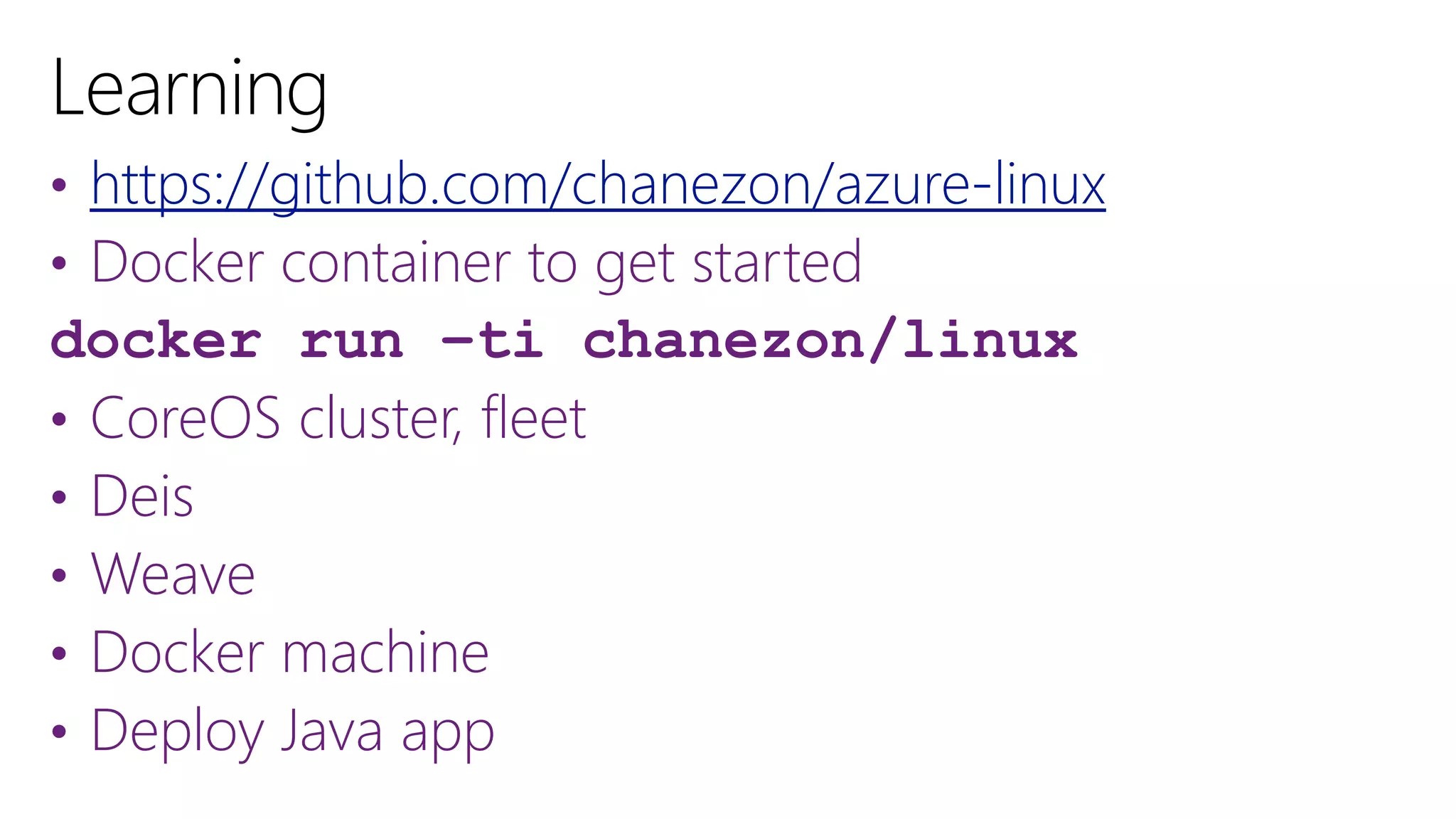

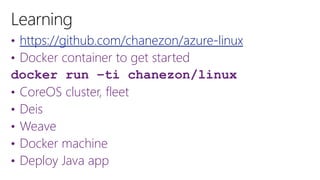

• https://github.com/chanezon/azure-linux
• Docker container to get started
docker run –ti chanezon/linux
• CoreOS cluster, fleet
• Deis
• Weave
• Docker machine
• Deploy Java app

• Strategic Engagement team
• We build Epic stuff with customers
• What can we do together?
• When do you want to start?
• patric@microsoft.com

10
3

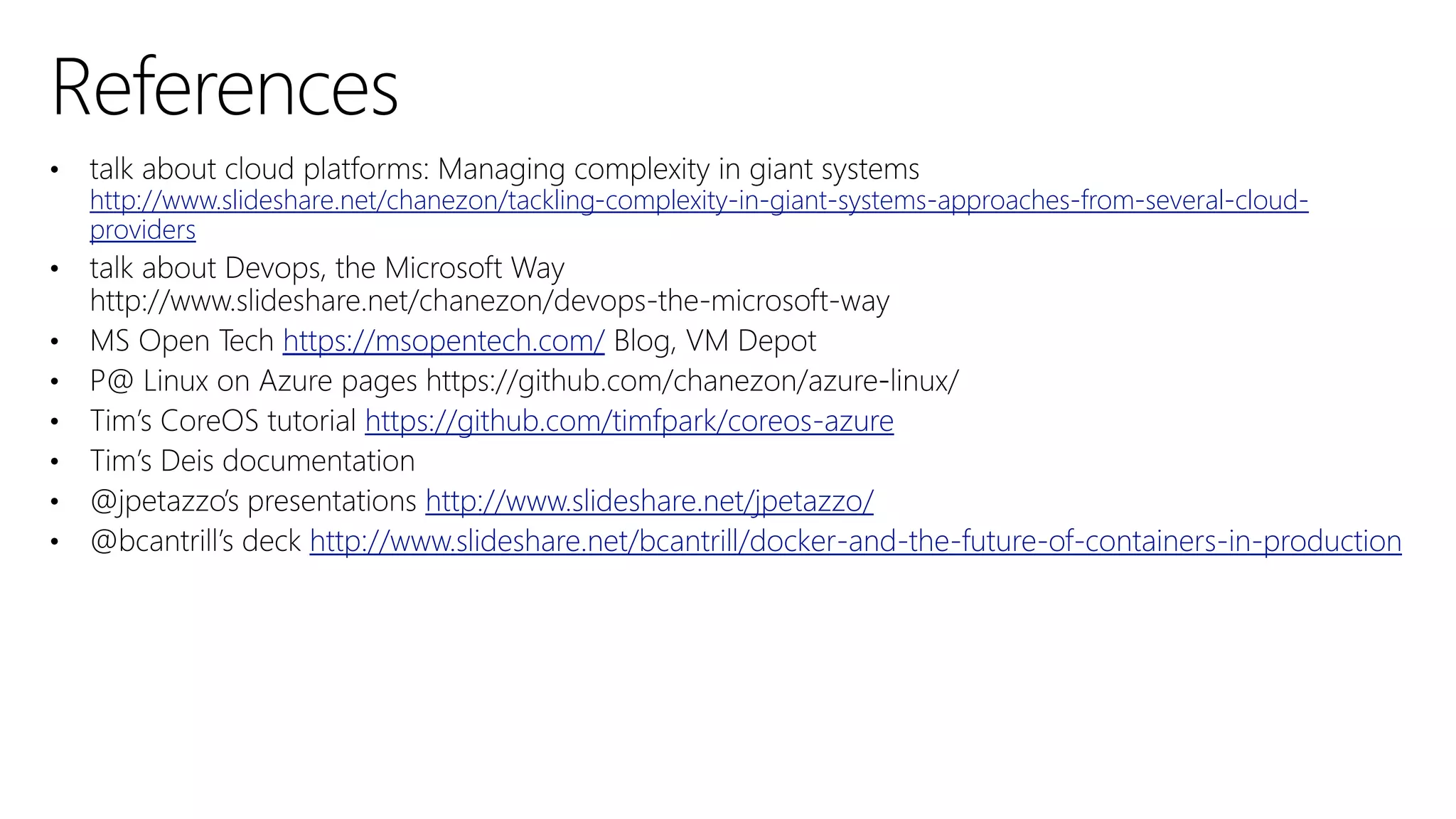

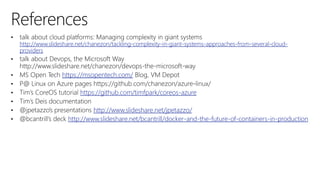

http://www.slideshare.net/chanezon/tackling-complexity-in-giant-systems-approaches-from-several-cloud-
providers
https://msopentech.com/
https://github.com/timfpark/coreos-azure
http://www.slideshare.net/jpetazzo/
http://www.slideshare.net/bcantrill/docker-and-the-future-of-containers-in-production

Docker Ecosystem on Azure

In this document

More Related Content

What's hot

Viewers also liked

Similar to Docker Ecosystem on Azure

More from Patrick Chanezon

Recently uploaded

Docker Ecosystem on Azure
