Ds06 linked list- insert a node at end

Ds06 linked list- insert a node at end

• 1.
  11/28/2020 (c) Dr.Jyoti Lakhani 1 Linked List Linear Data Structure Store more than one value in it (Same as array) 11 12 13 start First Node Last Node pointer Node Node Node NULL
• 2.

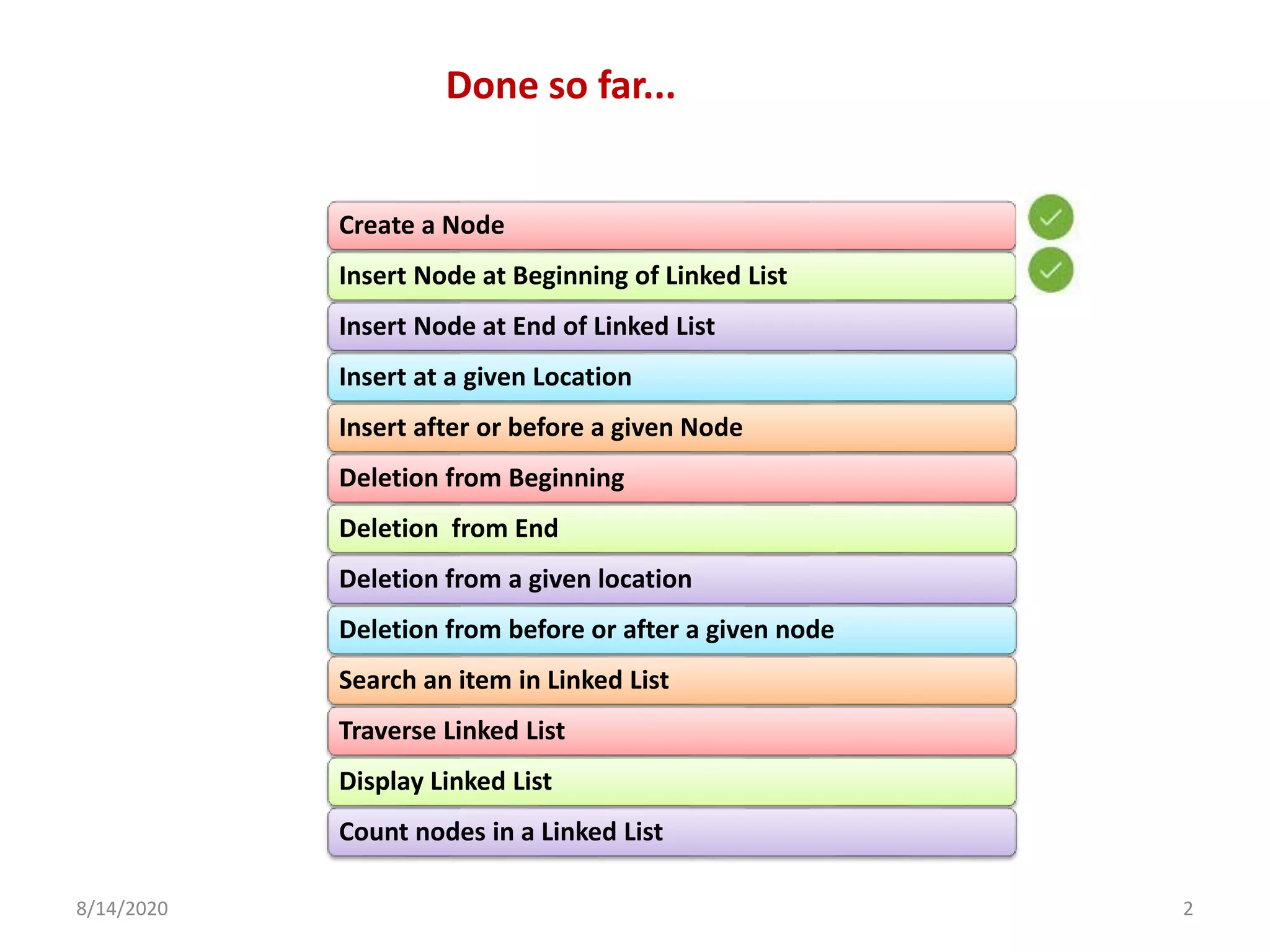

  8/14/2020 2 Done sofar... Create a Node Insert Node at Beginning of Linked List Insert Node at End of Linked List Insert at a given Location Insert after or before a given Node Deletion from Beginning Deletion from End Deletion from a given location Deletion from before or after a given node Search an item in Linked List Traverse Linked List Display Linked List Count nodes in a Linked List
• 3.

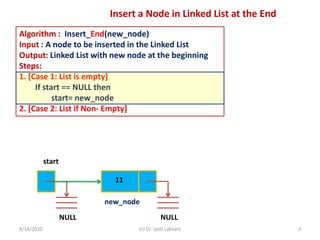

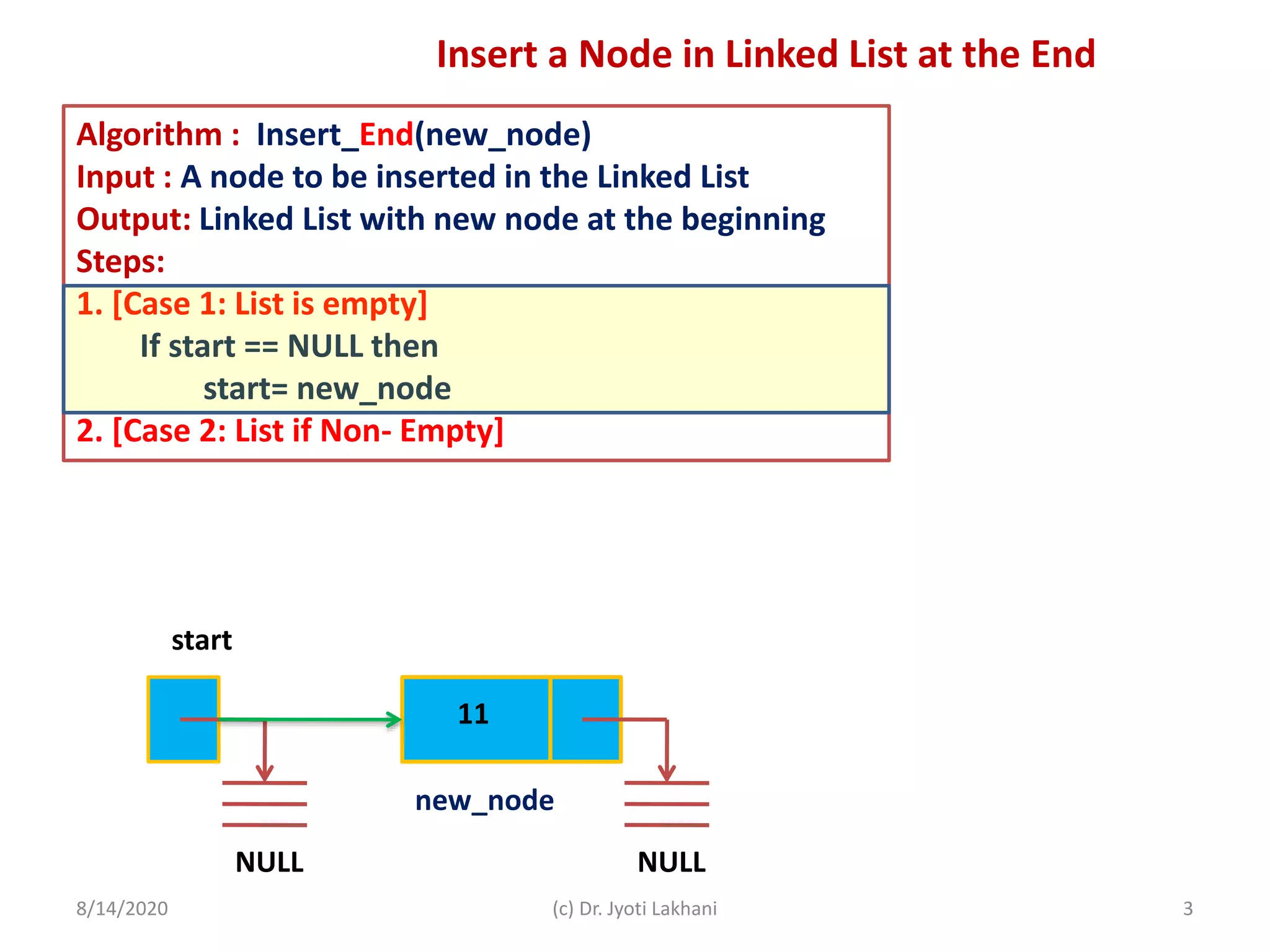

  8/14/2020 (c) Dr.Jyoti Lakhani 3 Insert a Node in Linked List at the End Algorithm : Insert_End(new_node) Input : A node to be inserted in the Linked List Output: Linked List with new node at the beginning Steps: 1. [Case 1: List is empty] If start == NULL then start= new_node 2. [Case 2: List if Non- Empty] start NULL 11 new_node NULL
• 4.

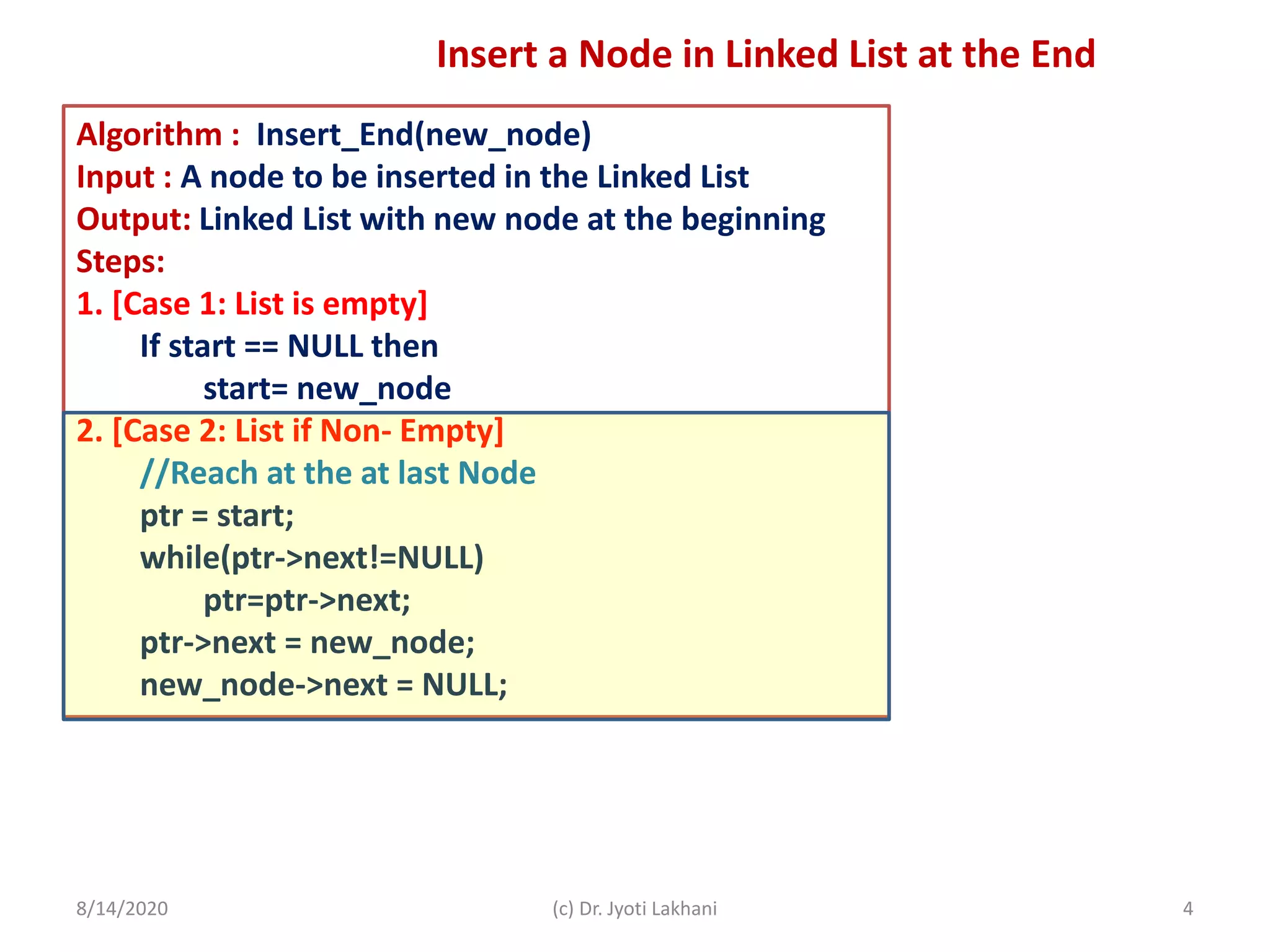

  Algorithm : Insert_End(new_node) Input: A node to be inserted in the Linked List Output: Linked List with new node at the beginning Steps: 1. [Case 1: List is empty] If start == NULL then start= new_node 2. [Case 2: List if Non- Empty] //Reach at the at last Node ptr = start; while(ptr->next!=NULL) ptr=ptr->next; ptr->next = new_node; new_node->next = NULL; 8/14/2020 (c) Dr. Jyoti Lakhani 4 Insert a Node in Linked List at the End
• 5.

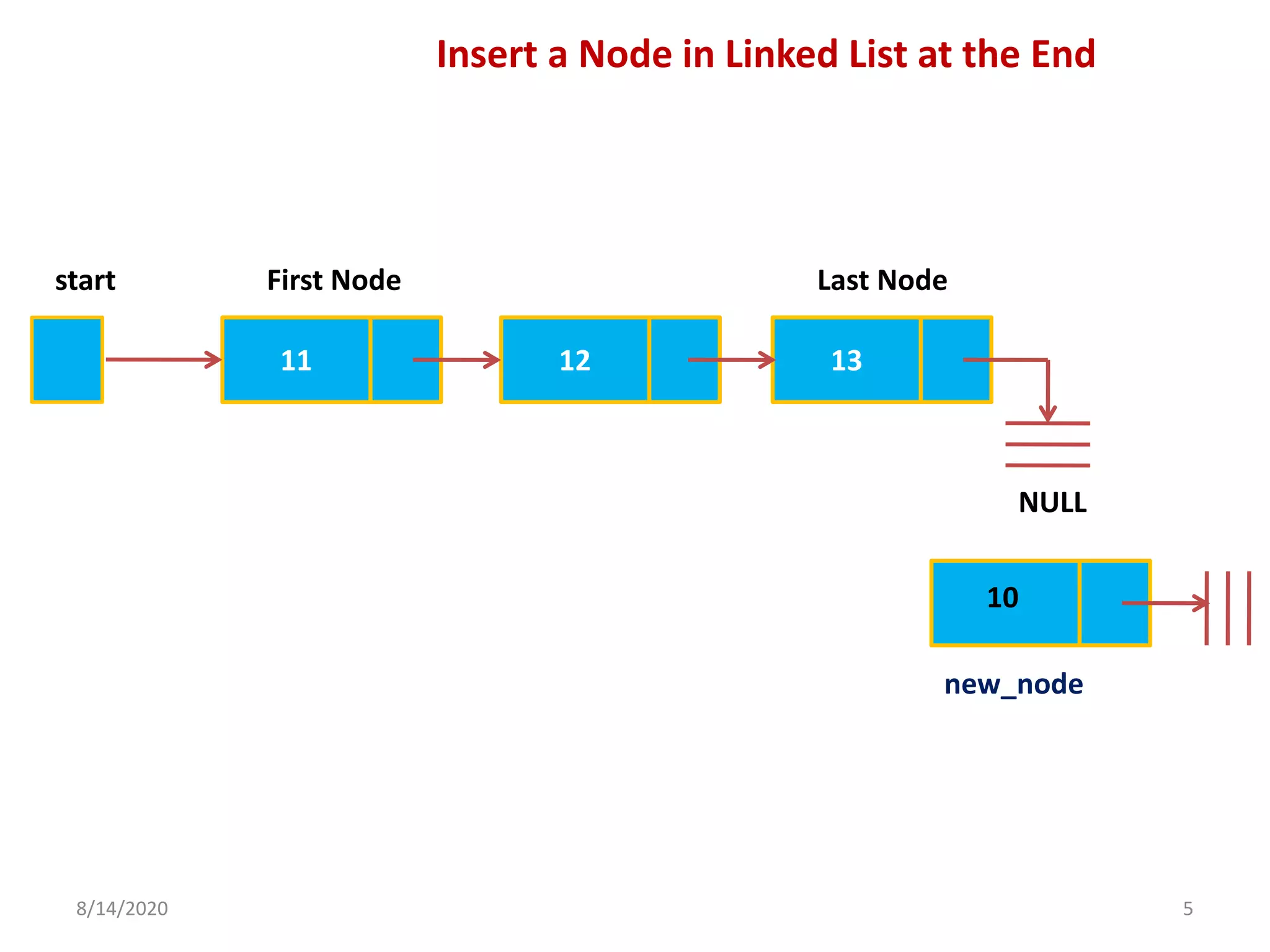

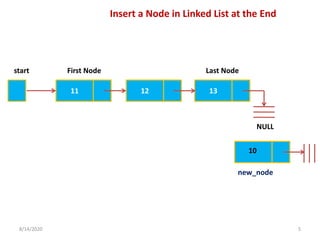

  8/14/2020 5 11 1213 start First Node Last Node NULL 10 new_node Insert a Node in Linked List at the End
• 6.

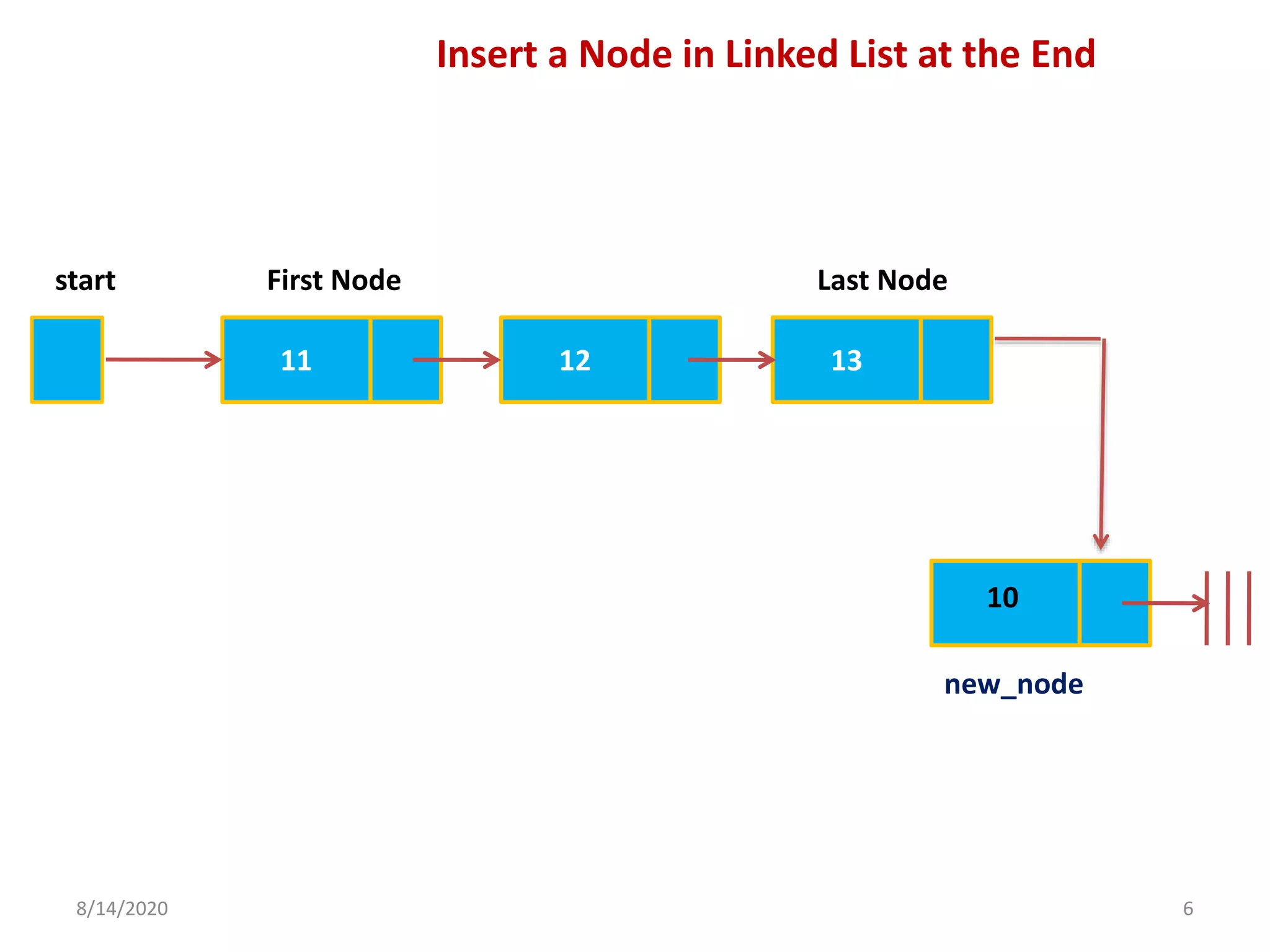

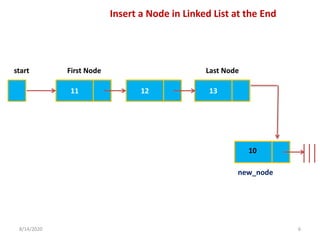

  8/14/2020 6 11 1213 start First Node Last Node 10 new_node Insert a Node in Linked List at the End
• 7.

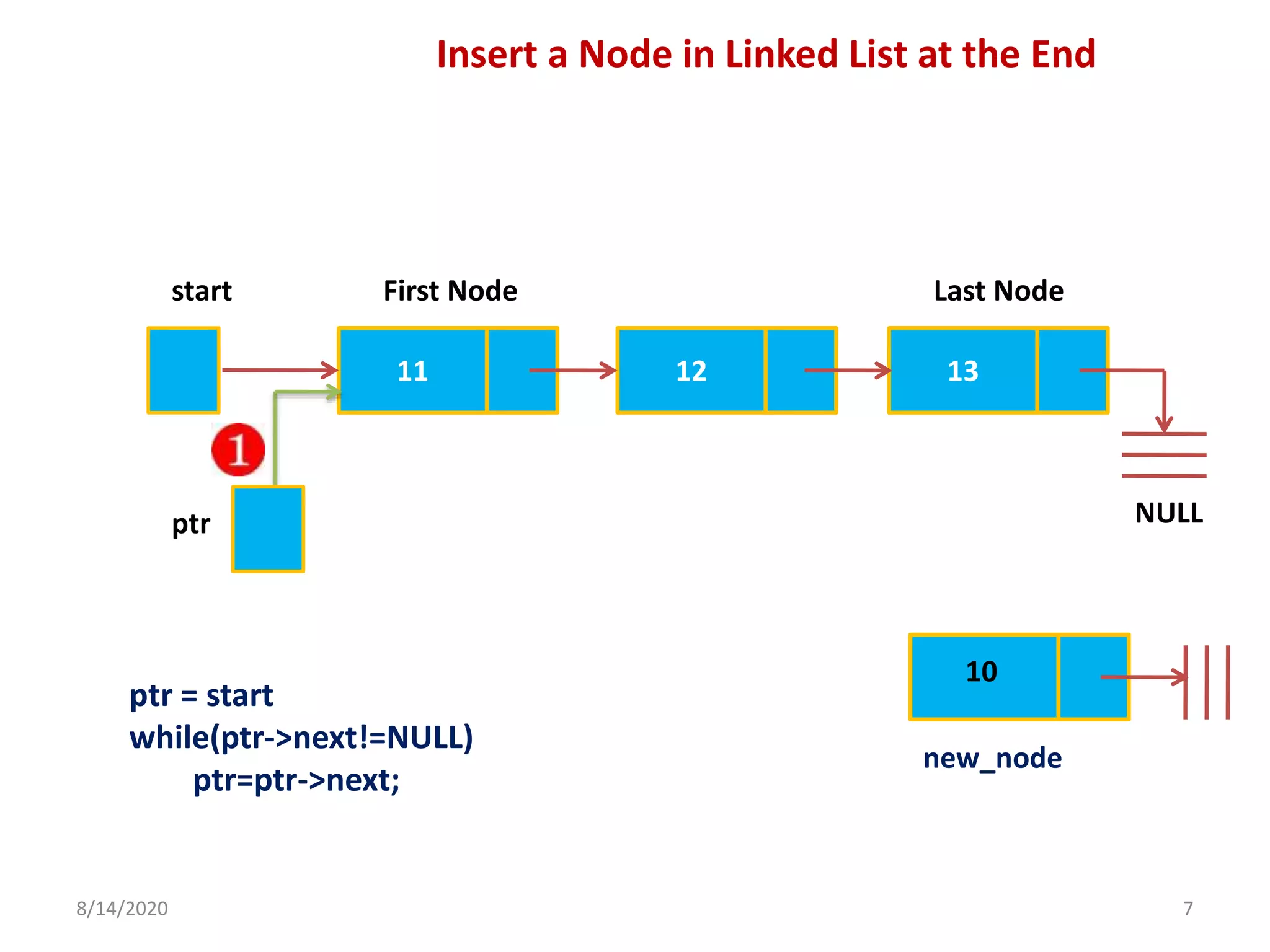

  8/14/2020 7 11 1213 start First Node Last Node NULL 10 new_node Insert a Node in Linked List at the End ptr ptr = start while(ptr->next!=NULL) ptr=ptr->next;
• 8.

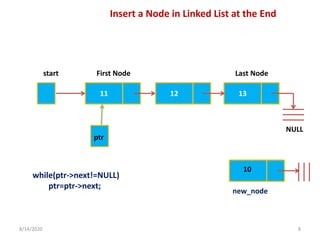

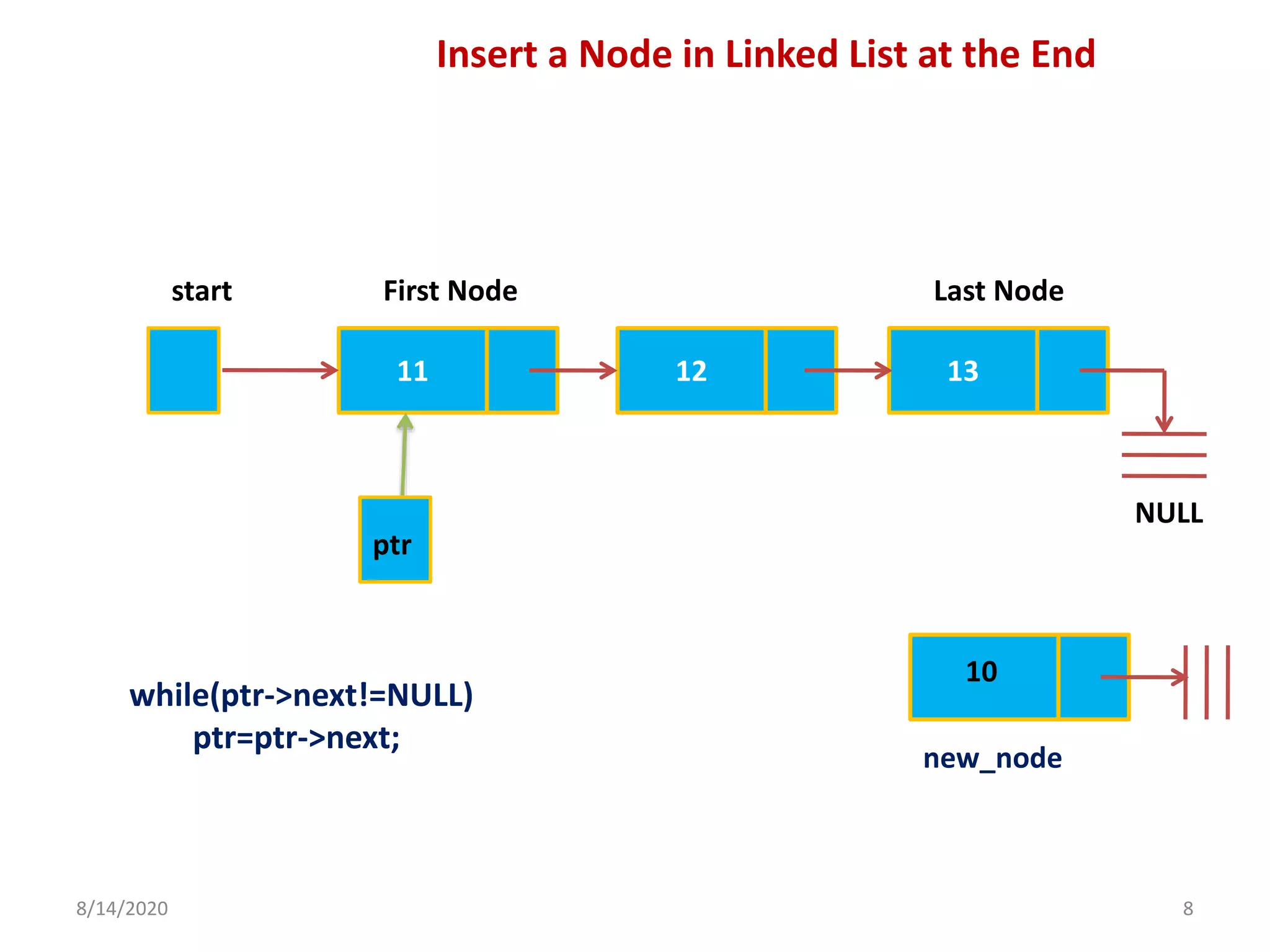

  8/14/2020 8 11 1213 start First Node Last Node Insert a Node in Linked List at the End ptr while(ptr->next!=NULL) ptr=ptr->next; NULL 10 new_node
• 9.

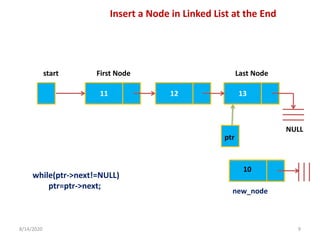

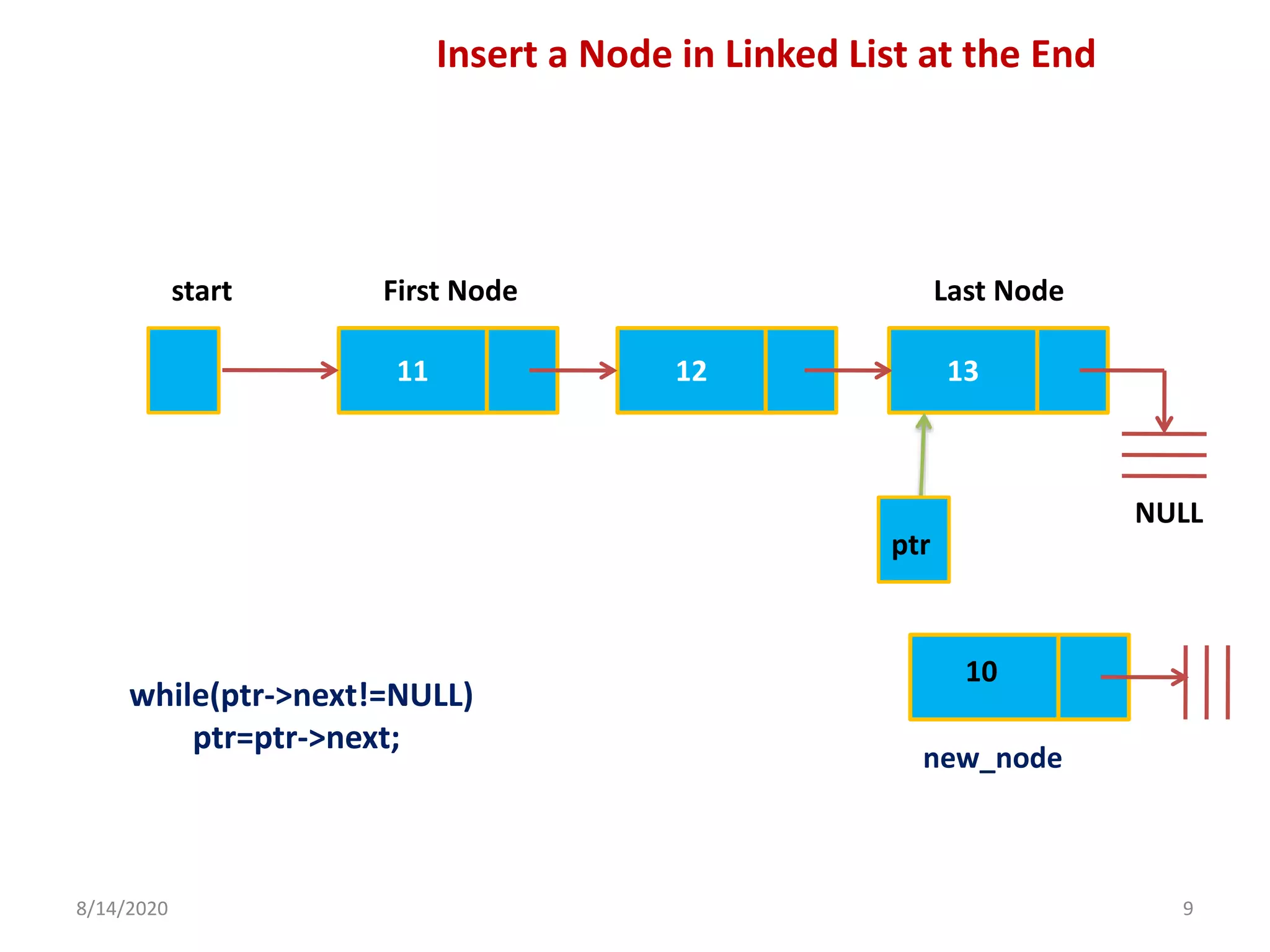

  8/14/2020 9 11 1213 start First Node Last Node NULL 10 new_node Insert a Node in Linked List at the End ptr while(ptr->next!=NULL) ptr=ptr->next;
• 10.

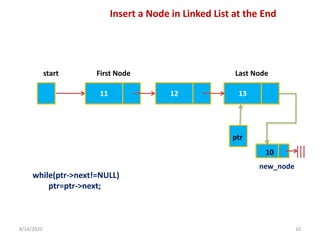

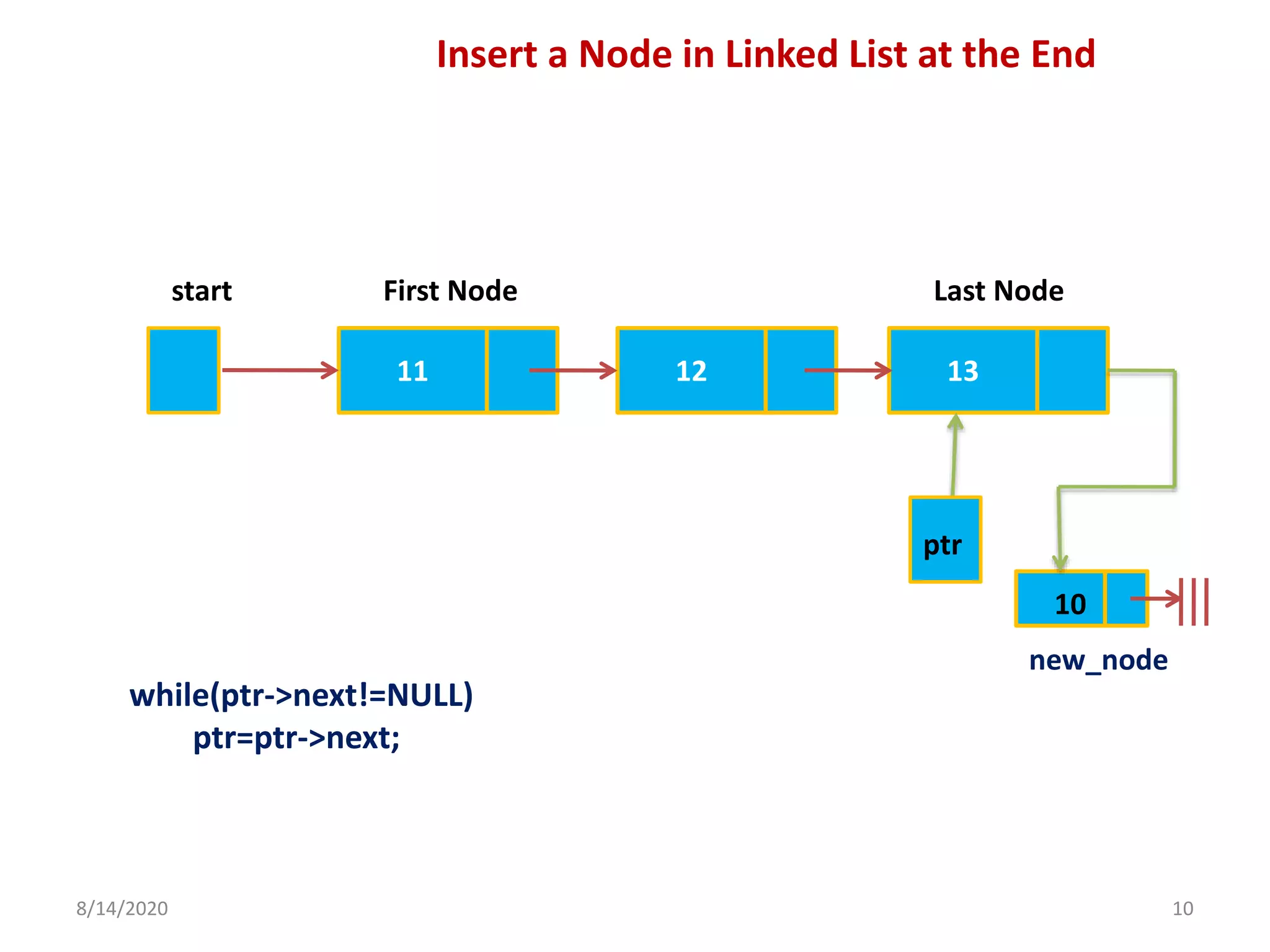

  8/14/2020 10 11 1213 start First Node Last Node 10 new_node Insert a Node in Linked List at the End ptr while(ptr->next!=NULL) ptr=ptr->next;
