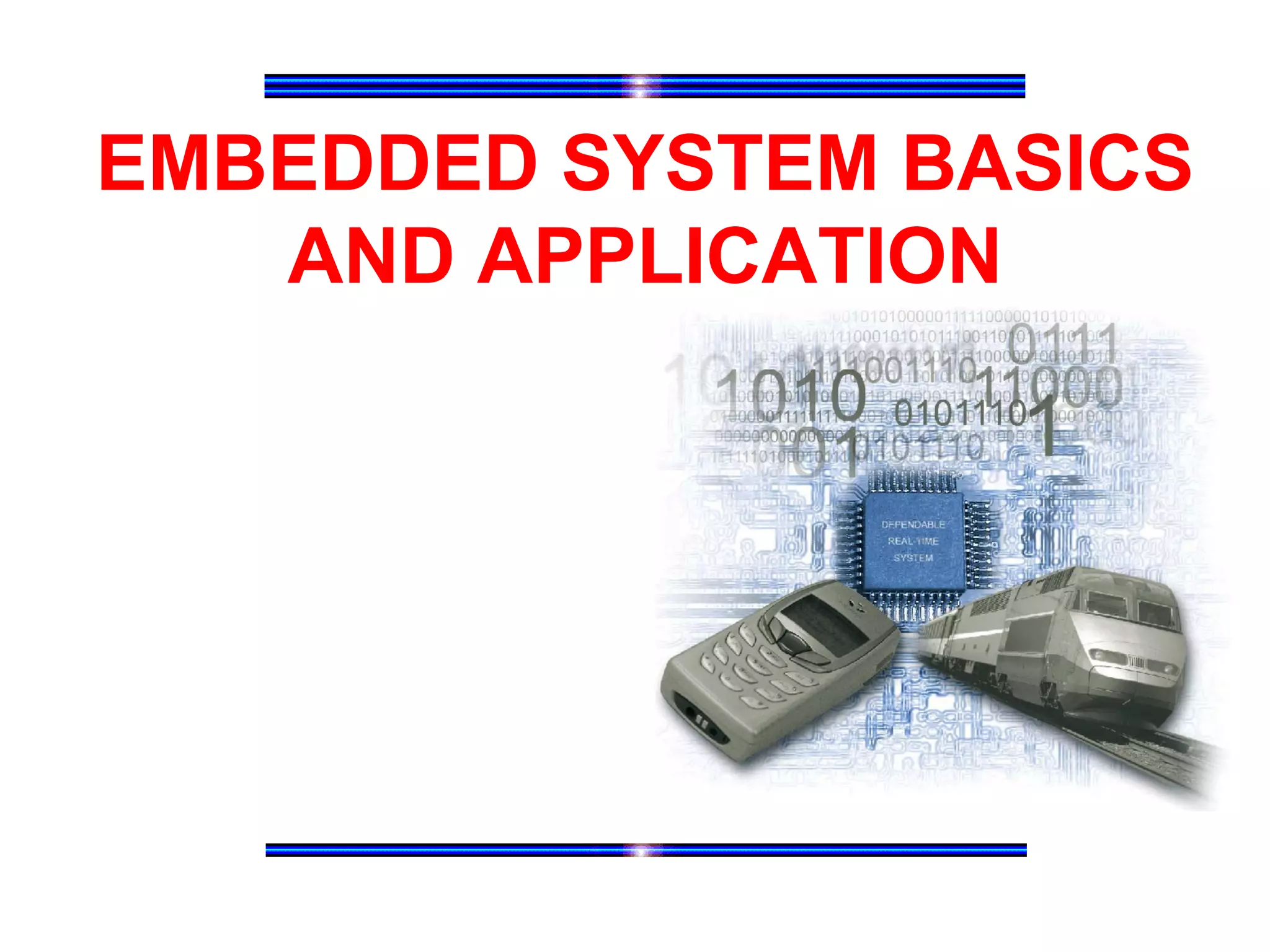

- 1. EMBEDDED SYSTEM BASICS ANDAPPLICATION

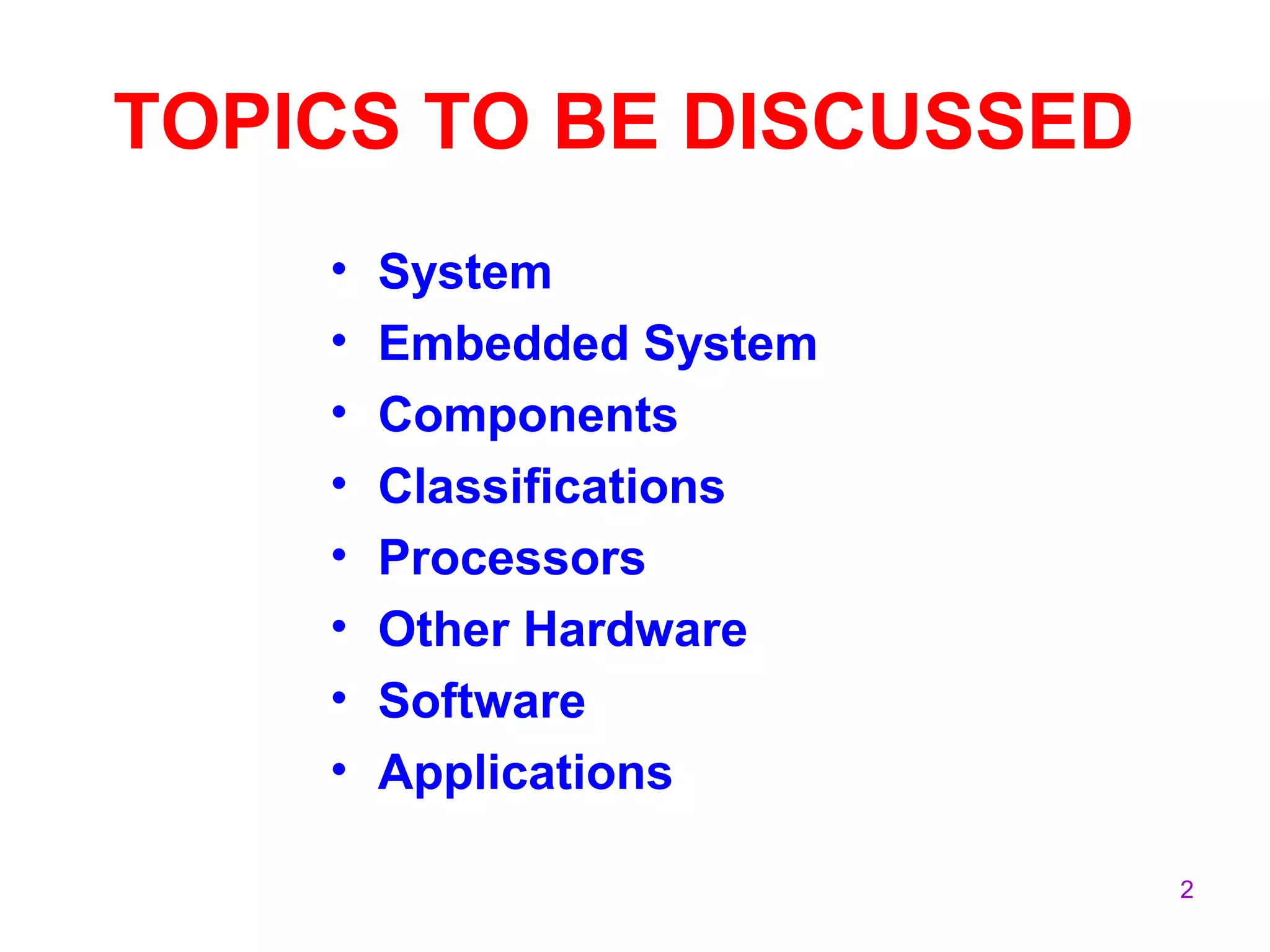

- 2. 2 TOPICS TO BEDISCUSSED • System • Embedded System • Components • Classifications • Processors • Other Hardware • Software • Applications

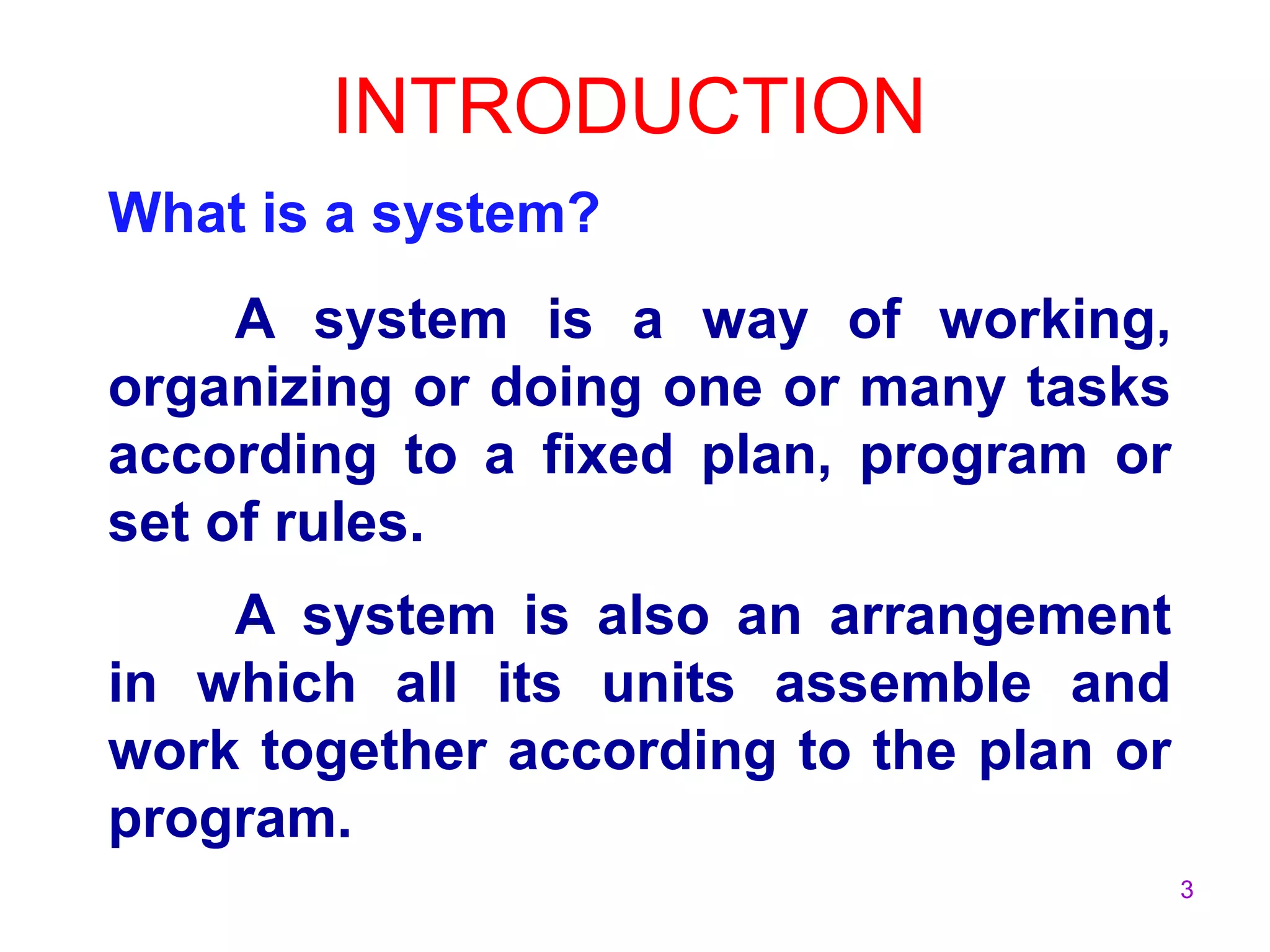

- 3. 3 INTRODUCTION What is asystem? A system is a way of working, organizing or doing one or many tasks according to a fixed plan, program or set of rules. A system is also an arrangement in which all its units assemble and work together according to the plan or program.

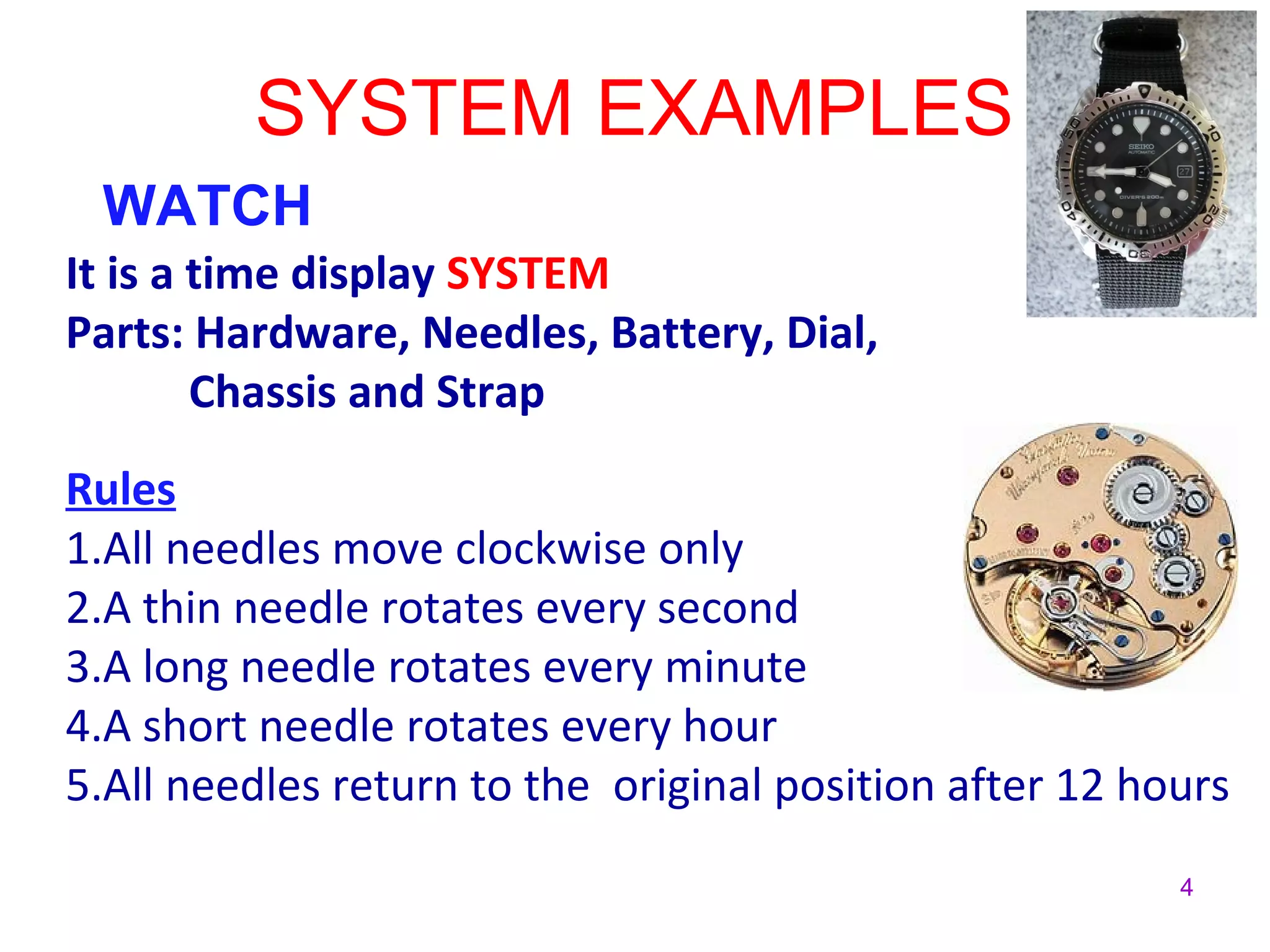

- 4. 4 SYSTEM EXAMPLES WATCH It isa time display SYSTEM Parts: Hardware, Needles, Battery, Dial, Chassis and Strap Rules 1.All needles move clockwise only 2.A thin needle rotates every second 3.A long needle rotates every minute 4.A short needle rotates every hour 5.All needles return to the original position after 12 hours

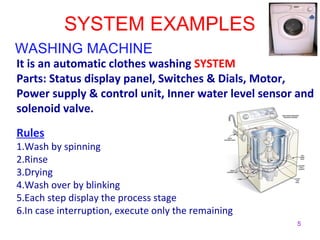

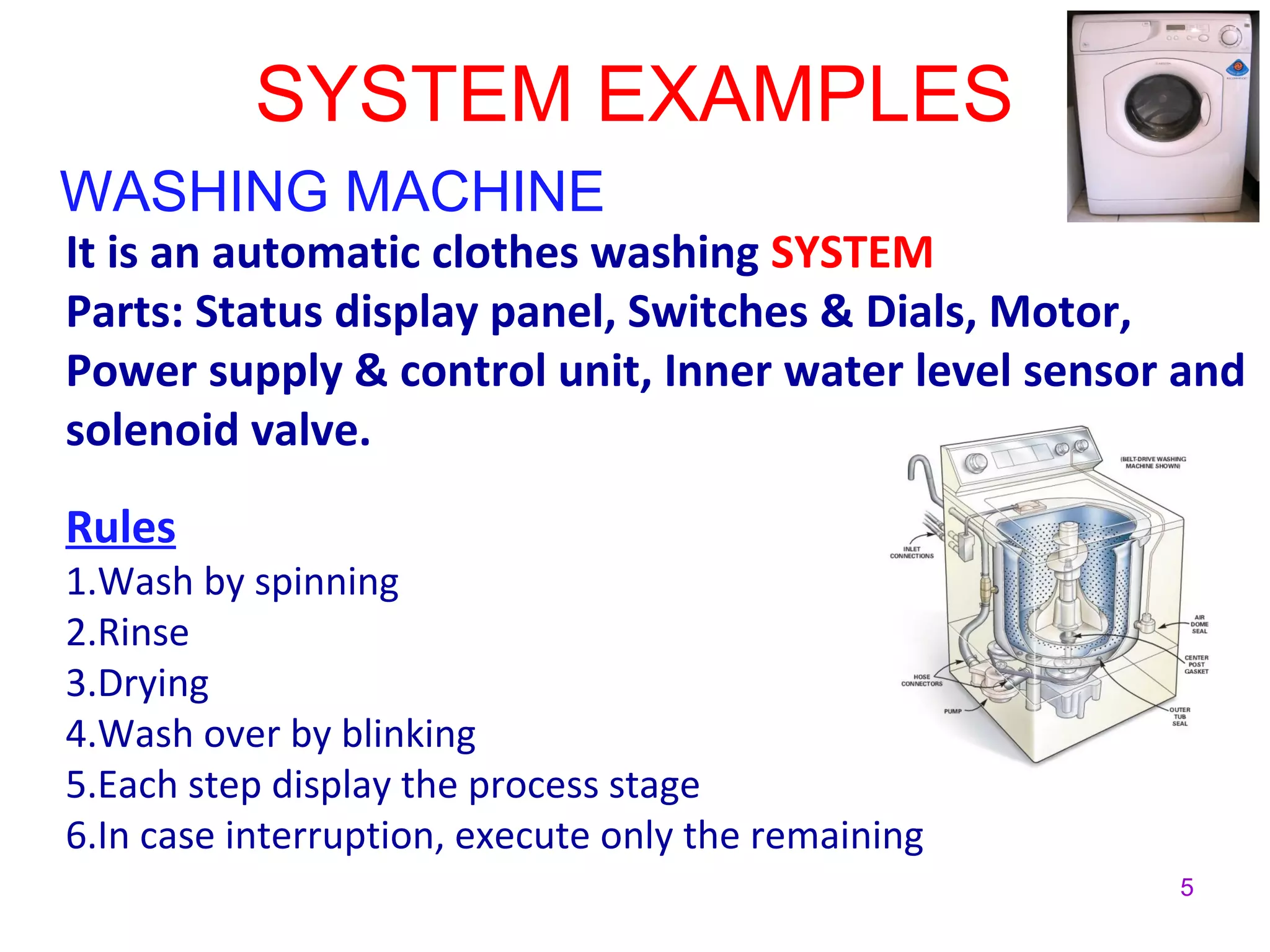

- 5. 5 SYSTEM EXAMPLES WASHING MACHINE Itis an automatic clothes washing SYSTEM Parts: Status display panel, Switches & Dials, Motor, Power supply & control unit, Inner water level sensor and solenoid valve. Rules 1.Wash by spinning 2.Rinse 3.Drying 4.Wash over by blinking 5.Each step display the process stage 6.In case interruption, execute only the remaining

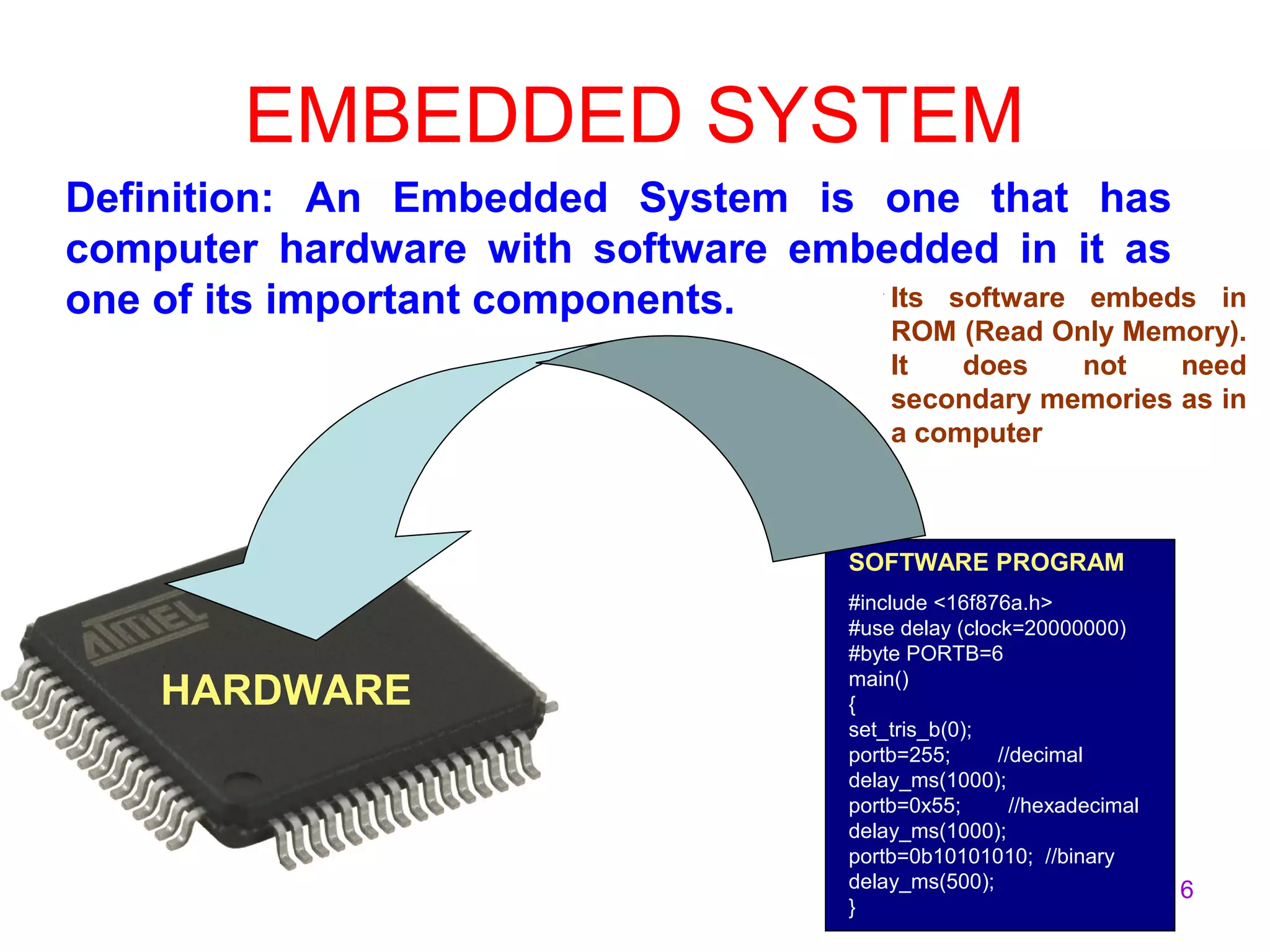

- 6. 6 EMBEDDED SYSTEM Definition: AnEmbedded System is one that has computer hardware with software embedded in it as one of its important components. SOFTWARE PROGRAM #include <16f876a.h> #use delay (clock=20000000) #byte PORTB=6 main() { set_tris_b(0); portb=255; //decimal delay_ms(1000); portb=0x55; //hexadecimal delay_ms(1000); portb=0b10101010; //binary delay_ms(500); } Its software embeds in ROM (Read Only Memory). It does not need secondary memories as in a computer HARDWARE

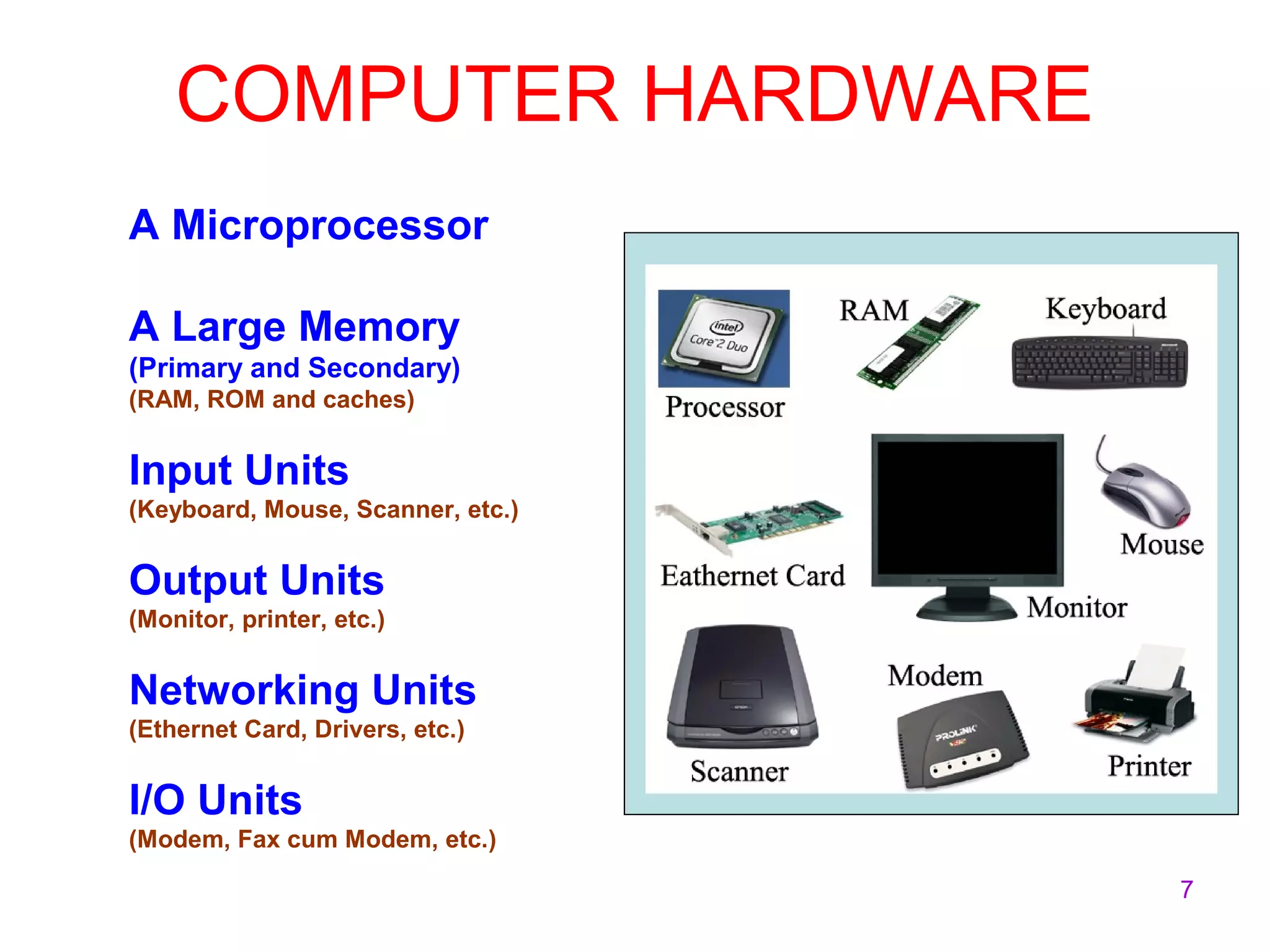

- 7. 7 COMPUTER HARDWARE A Microprocessor ALarge Memory (Primary and Secondary) (RAM, ROM and caches) Input Units (Keyboard, Mouse, Scanner, etc.) Output Units (Monitor, printer, etc.) Networking Units (Ethernet Card, Drivers, etc.) I/O Units (Modem, Fax cum Modem, etc.)

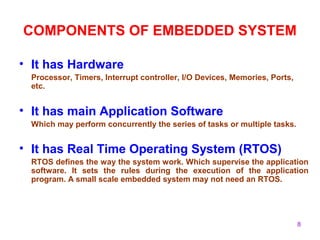

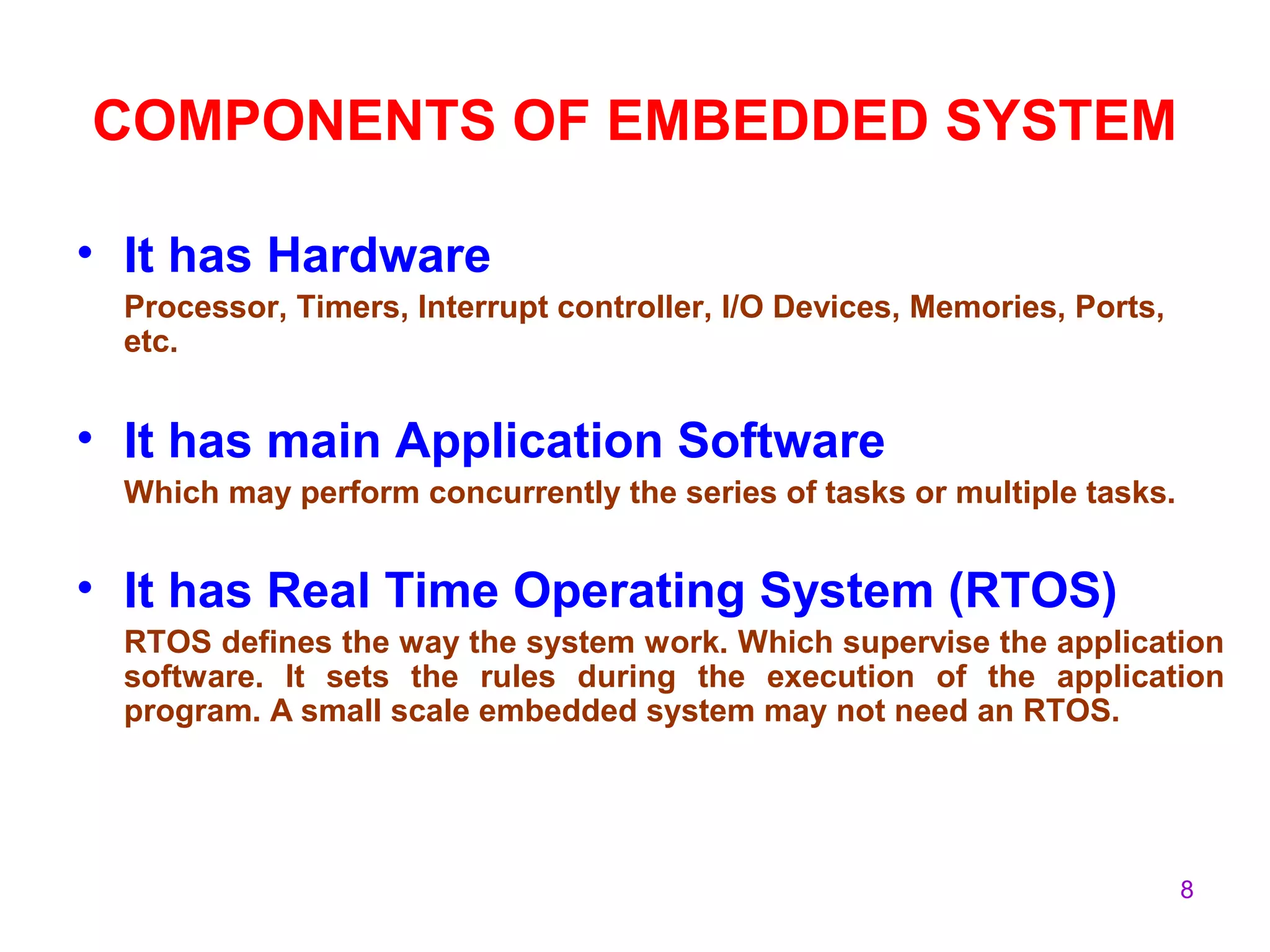

- 8. 8 COMPONENTS OF EMBEDDEDSYSTEM • It has Hardware Processor, Timers, Interrupt controller, I/O Devices, Memories, Ports, etc. • It has main Application Software Which may perform concurrently the series of tasks or multiple tasks. • It has Real Time Operating System (RTOS) RTOS defines the way the system work. Which supervise the application software. It sets the rules during the execution of the application program. A small scale embedded system may not need an RTOS.

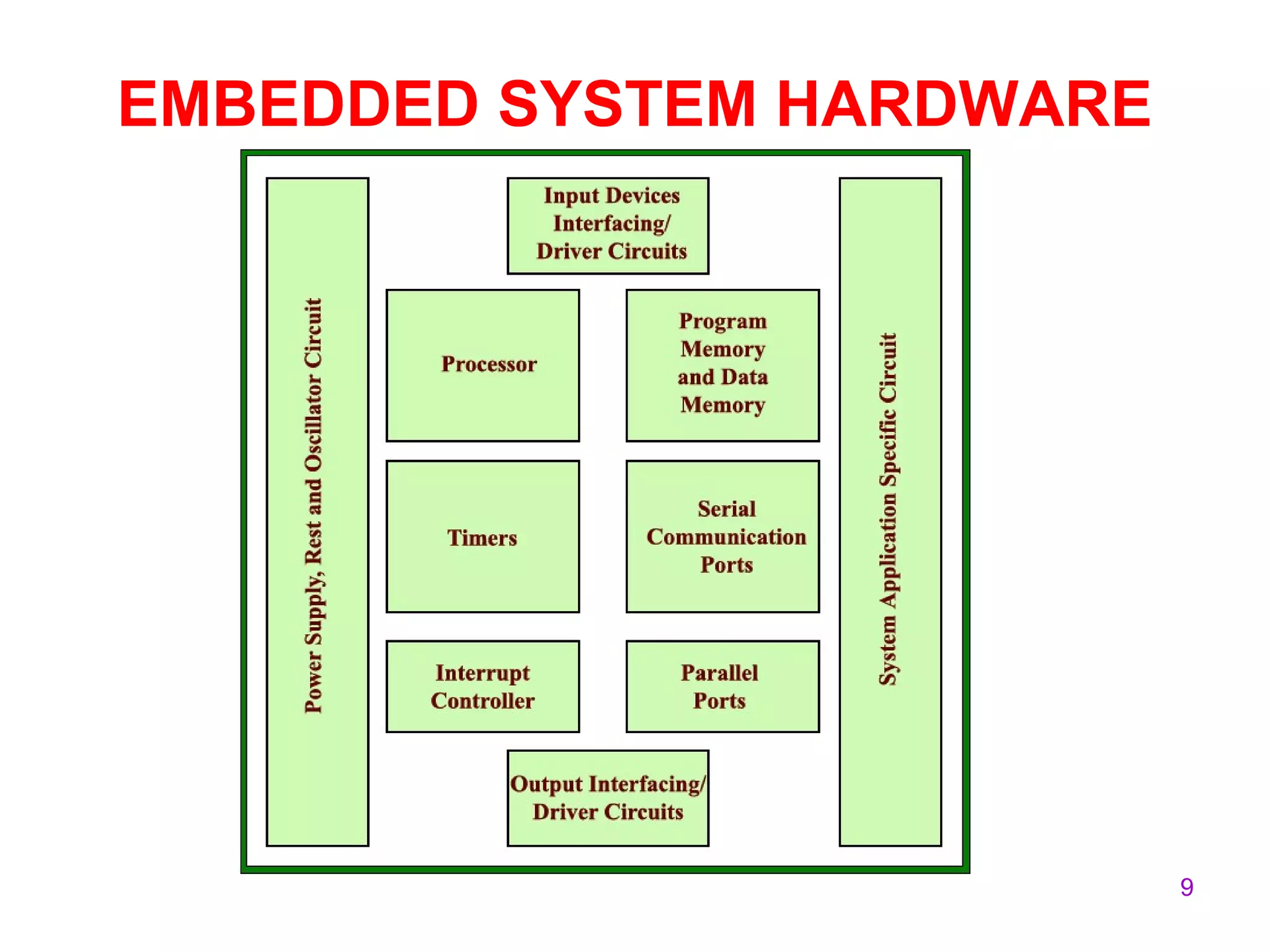

- 9.

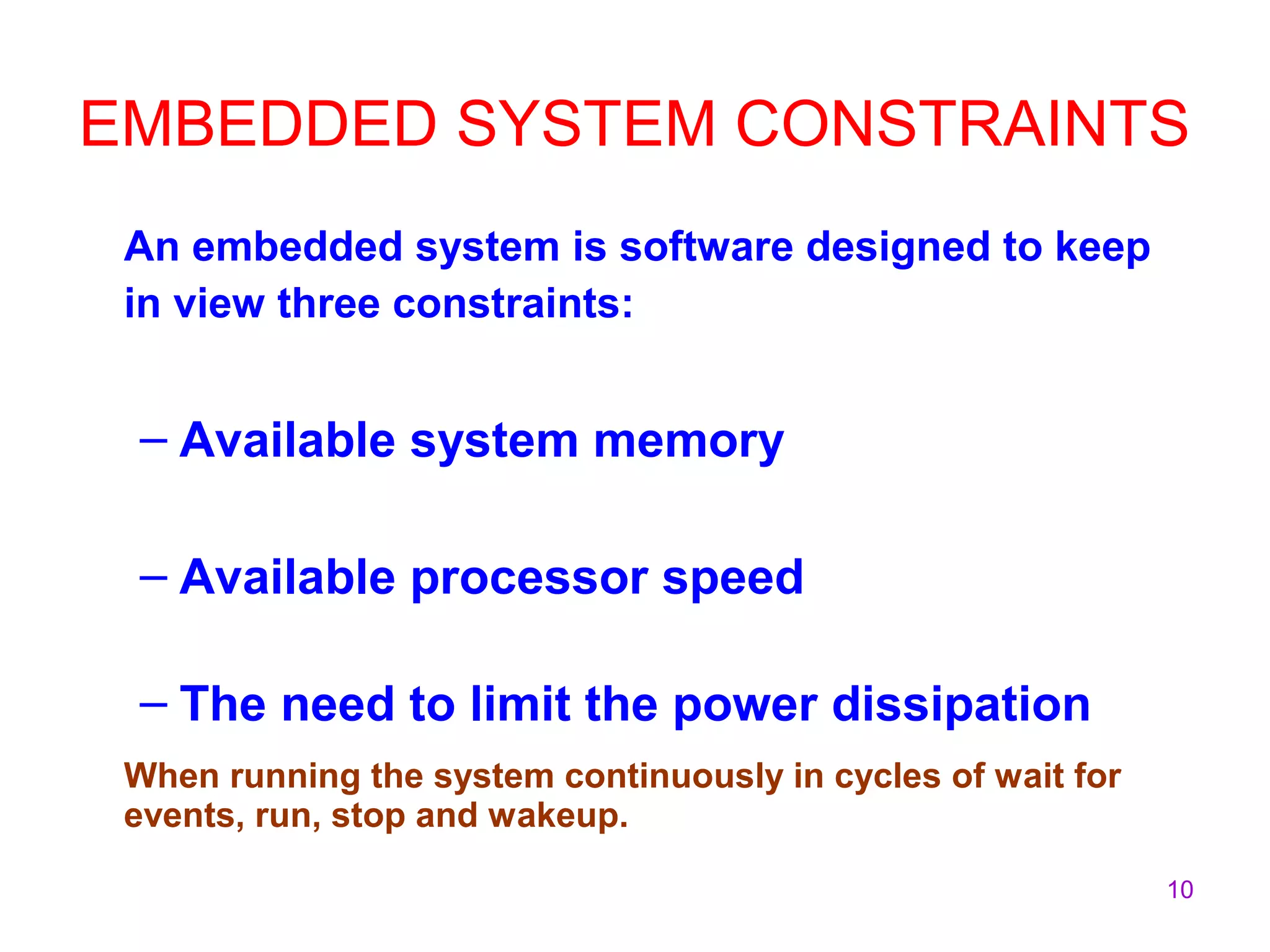

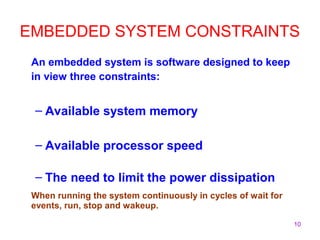

- 10. 10 EMBEDDED SYSTEM CONSTRAINTS Anembedded system is software designed to keep in view three constraints: – Available system memory – Available processor speed – The need to limit the power dissipation When running the system continuously in cycles of wait for events, run, stop and wakeup.

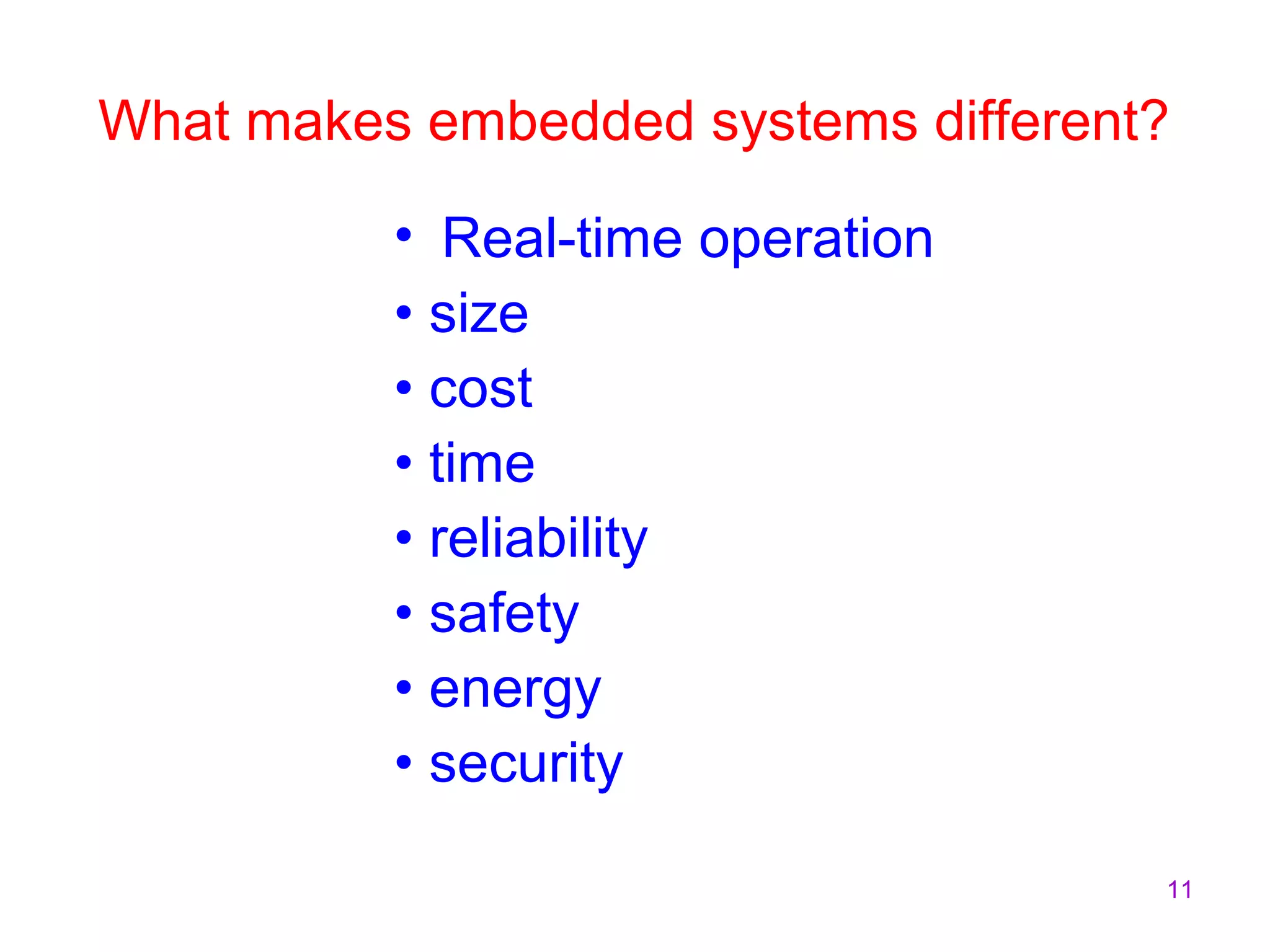

- 11. 11 What makes embeddedsystems different? • Real-time operation • size • cost • time • reliability • safety • energy • security

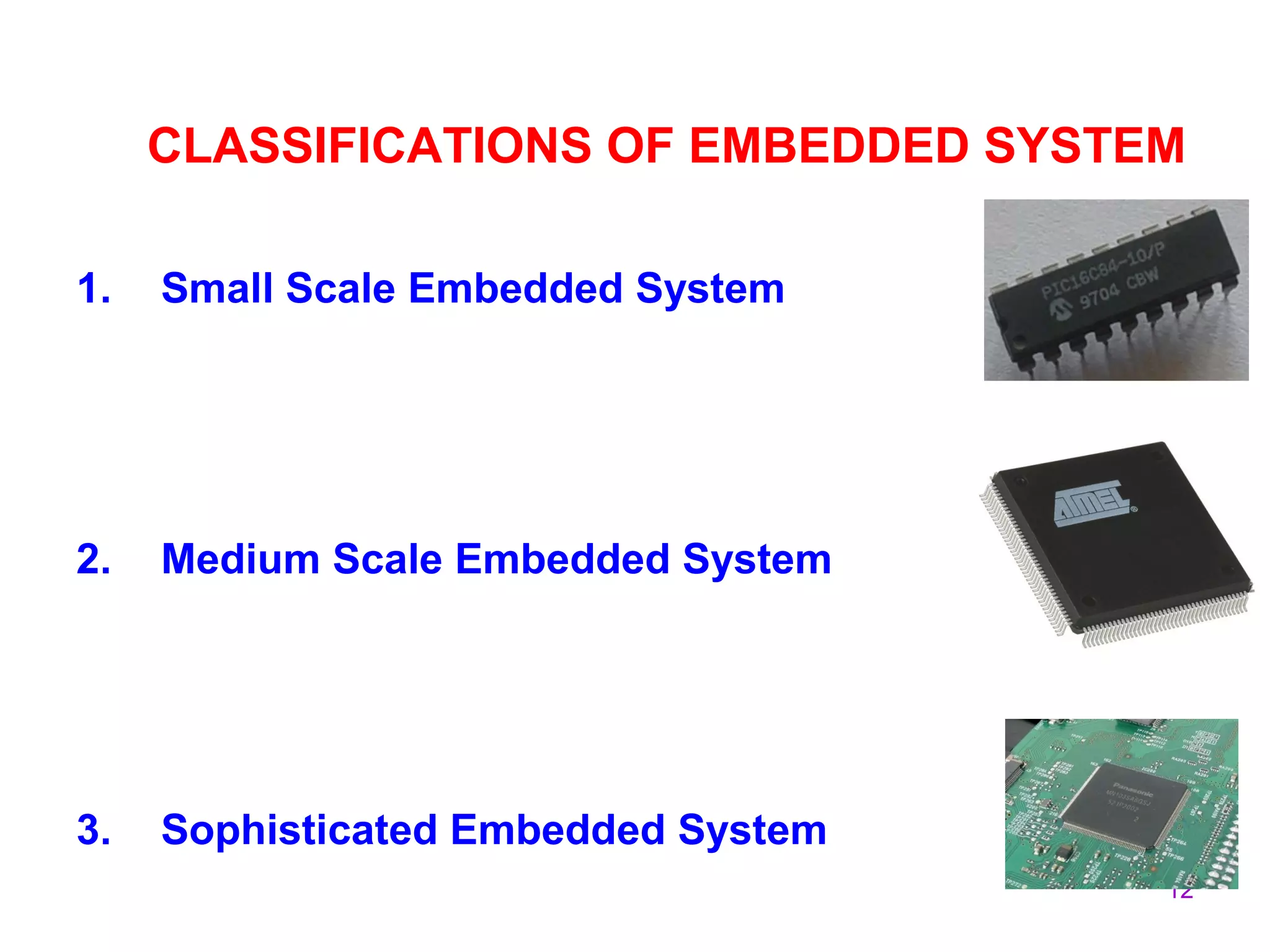

- 12. 12 CLASSIFICATIONS OF EMBEDDEDSYSTEM 1. Small Scale Embedded System 2. Medium Scale Embedded System 3. Sophisticated Embedded System

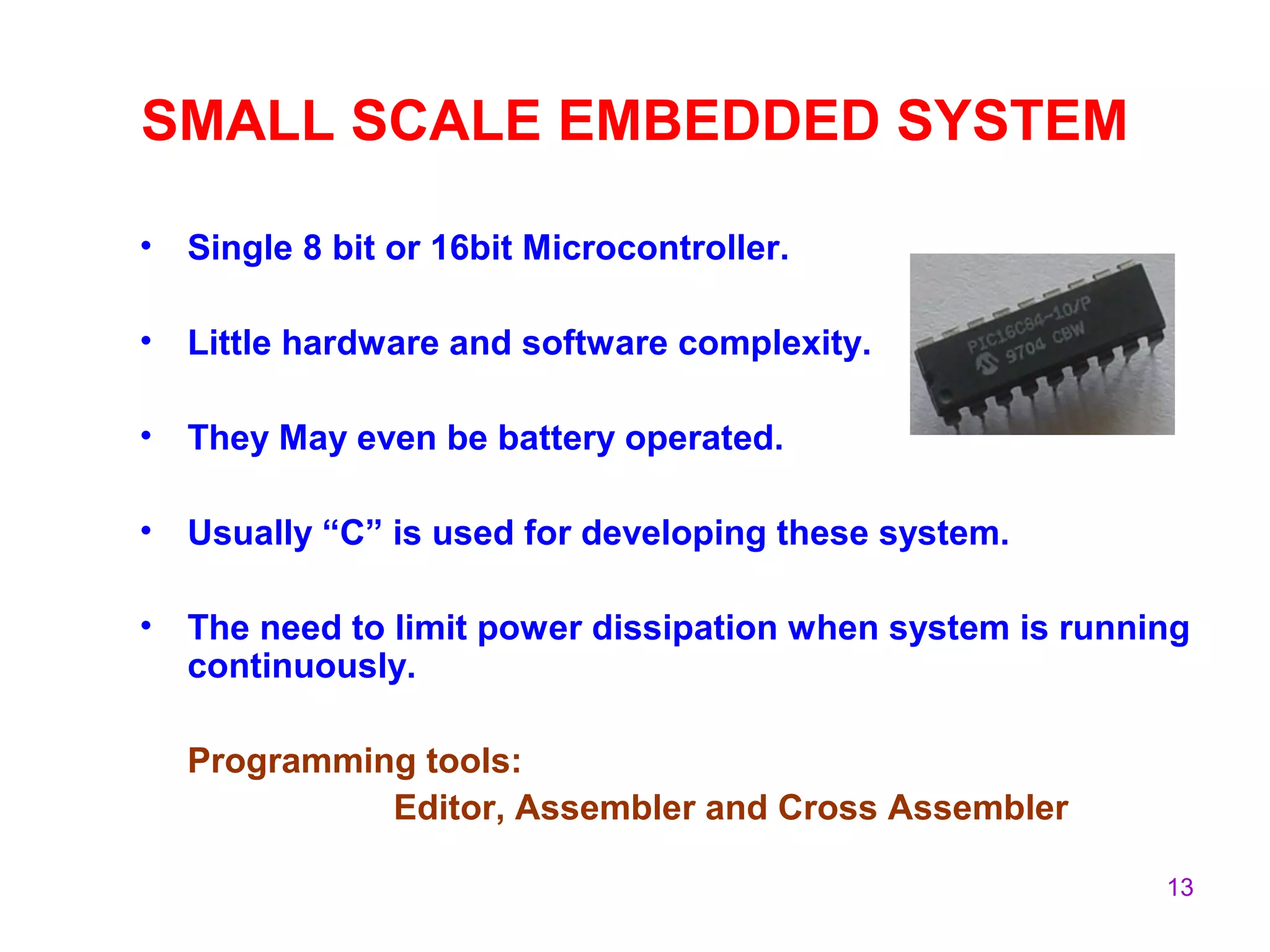

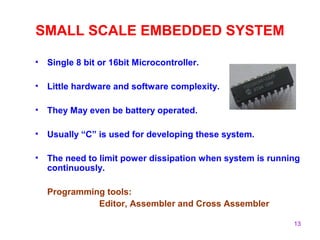

- 13. 13 SMALL SCALE EMBEDDEDSYSTEM • Single 8 bit or 16bit Microcontroller. • Little hardware and software complexity. • They May even be battery operated. • Usually “C” is used for developing these system. • The need to limit power dissipation when system is running continuously. Programming tools: Editor, Assembler and Cross Assembler

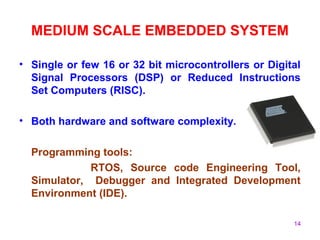

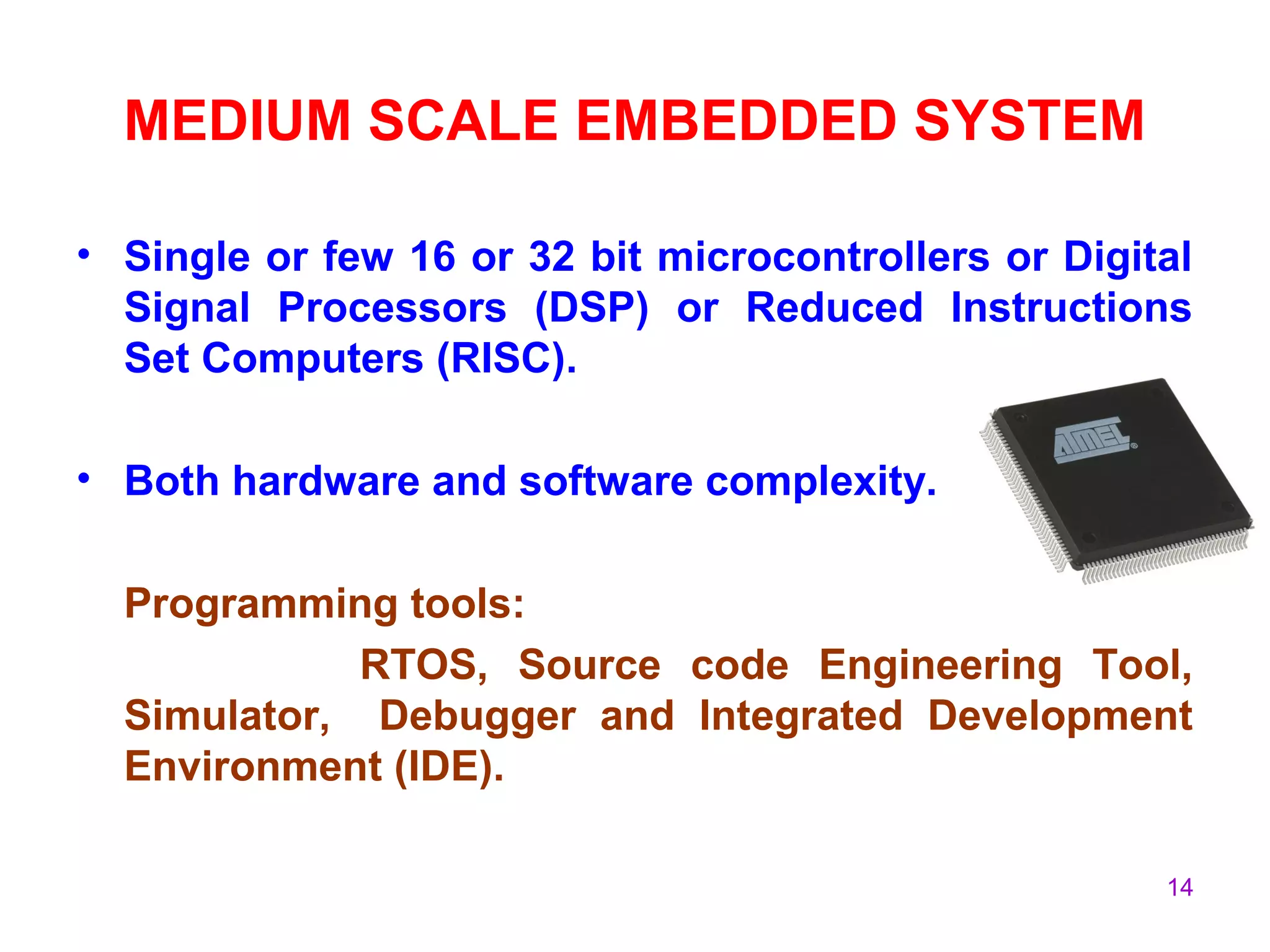

- 14. 14 MEDIUM SCALE EMBEDDEDSYSTEM • Single or few 16 or 32 bit microcontrollers or Digital Signal Processors (DSP) or Reduced Instructions Set Computers (RISC). • Both hardware and software complexity. Programming tools: RTOS, Source code Engineering Tool, Simulator, Debugger and Integrated Development Environment (IDE).

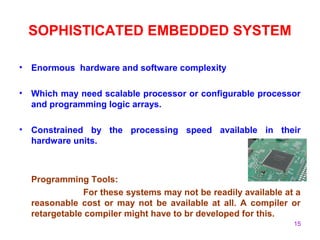

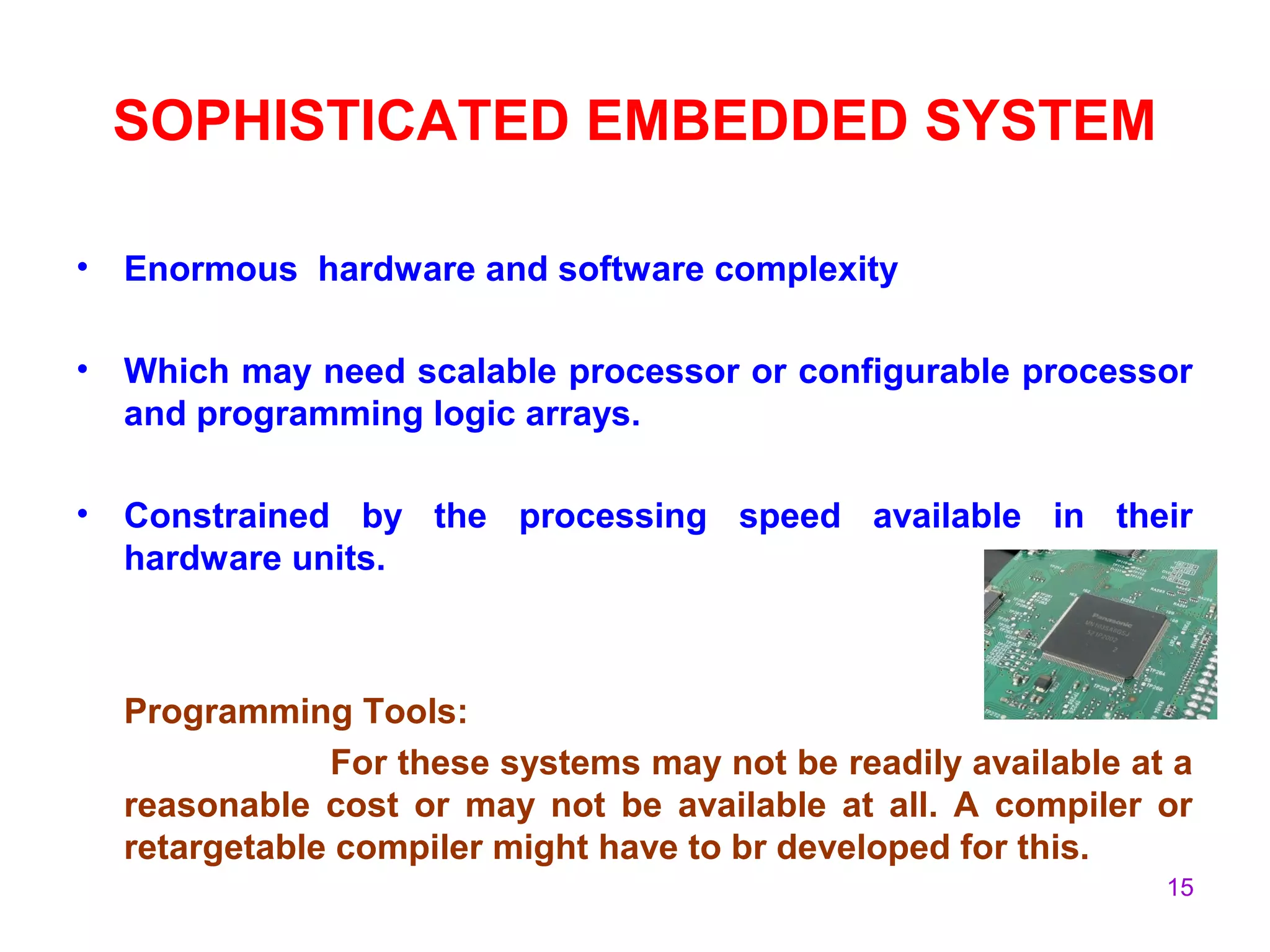

- 15. 15 SOPHISTICATED EMBEDDED SYSTEM •Enormous hardware and software complexity • Which may need scalable processor or configurable processor and programming logic arrays. • Constrained by the processing speed available in their hardware units. Programming Tools: For these systems may not be readily available at a reasonable cost or may not be available at all. A compiler or retargetable compiler might have to br developed for this.

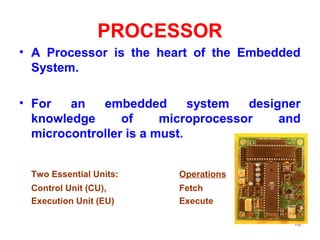

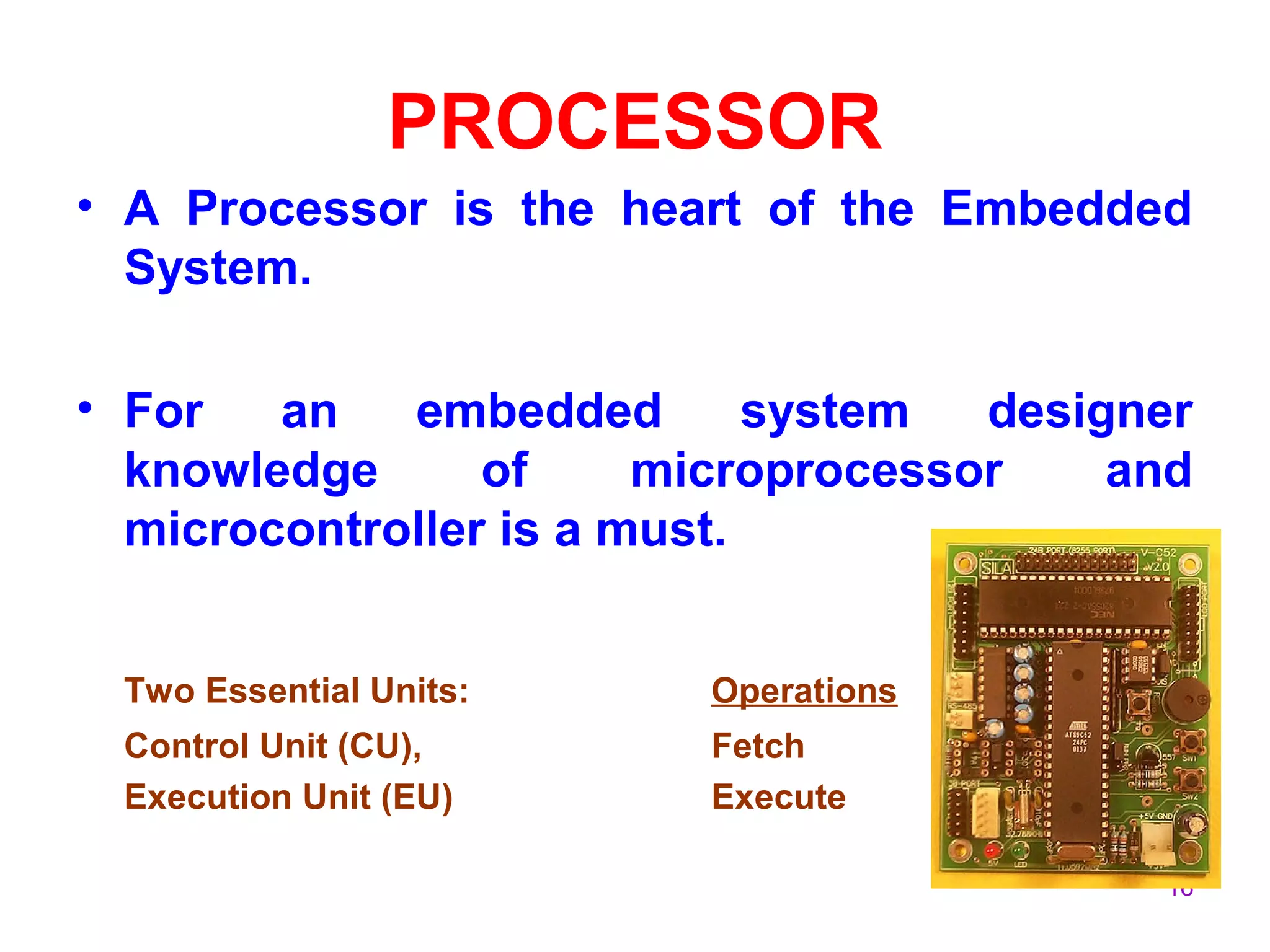

- 16. 16 PROCESSOR • A Processoris the heart of the Embedded System. • For an embedded system designer knowledge of microprocessor and microcontroller is a must. Two Essential Units: Operations Control Unit (CU), Fetch Execution Unit (EU) Execute

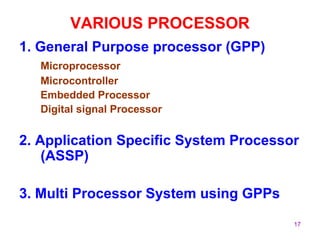

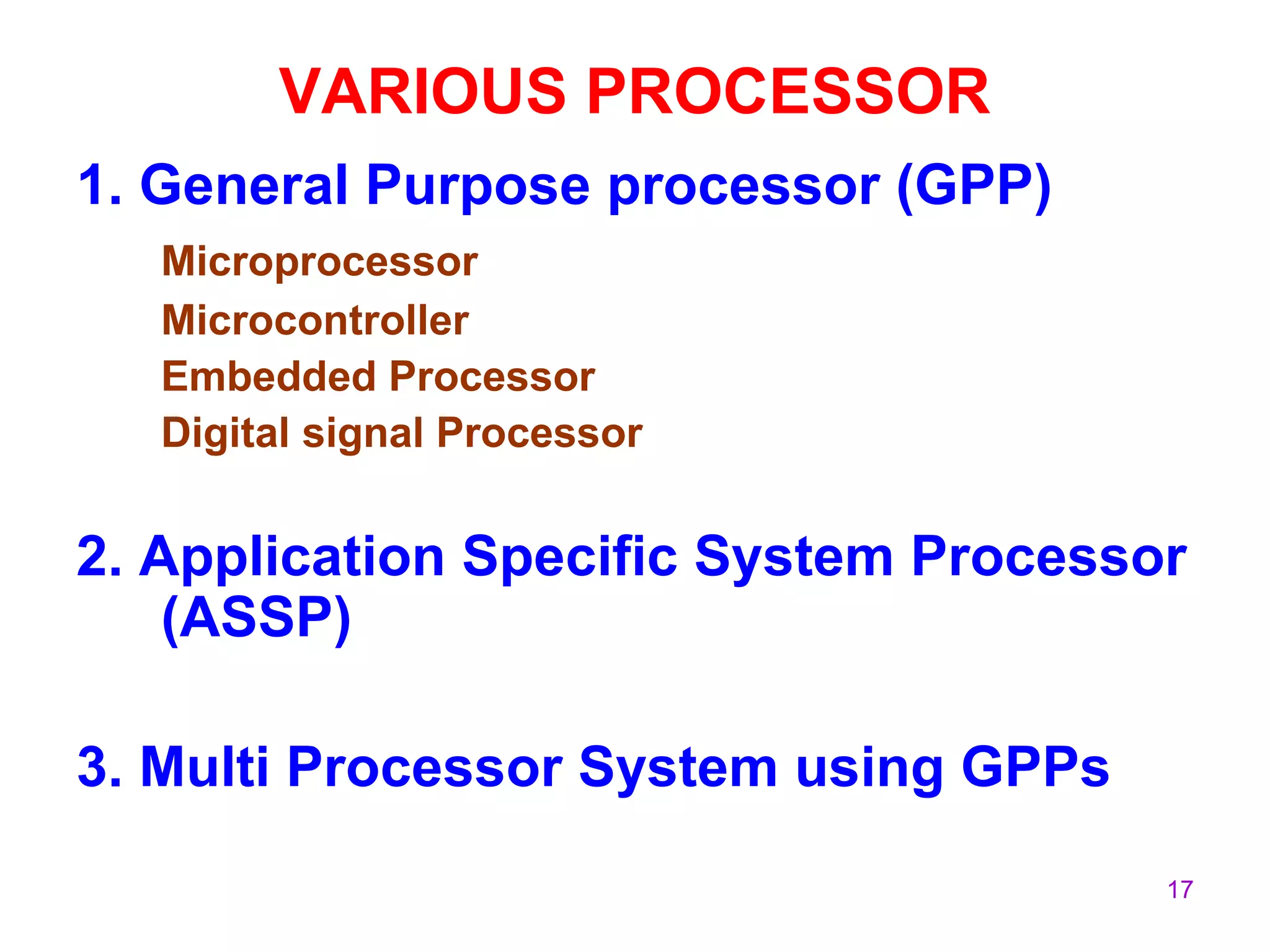

- 17. 17 VARIOUS PROCESSOR 1. GeneralPurpose processor (GPP) Microprocessor Microcontroller Embedded Processor Digital signal Processor 2. Application Specific System Processor (ASSP) 3. Multi Processor System using GPPs

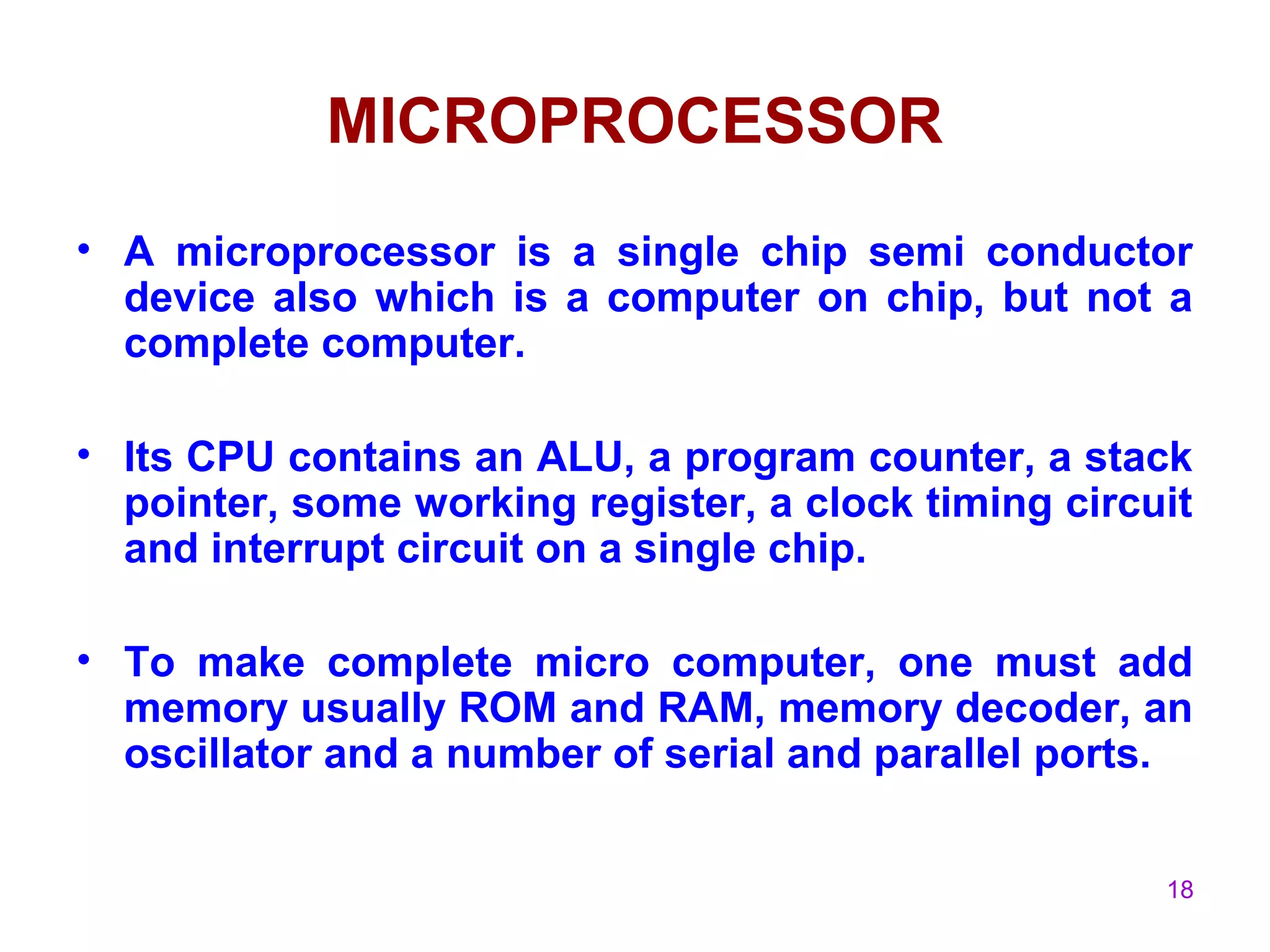

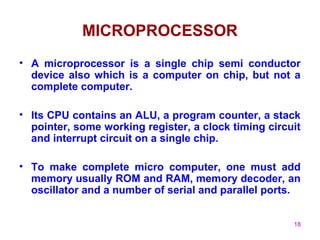

- 18. 18 MICROPROCESSOR • A microprocessoris a single chip semi conductor device also which is a computer on chip, but not a complete computer. • Its CPU contains an ALU, a program counter, a stack pointer, some working register, a clock timing circuit and interrupt circuit on a single chip. • To make complete micro computer, one must add memory usually ROM and RAM, memory decoder, an oscillator and a number of serial and parallel ports.

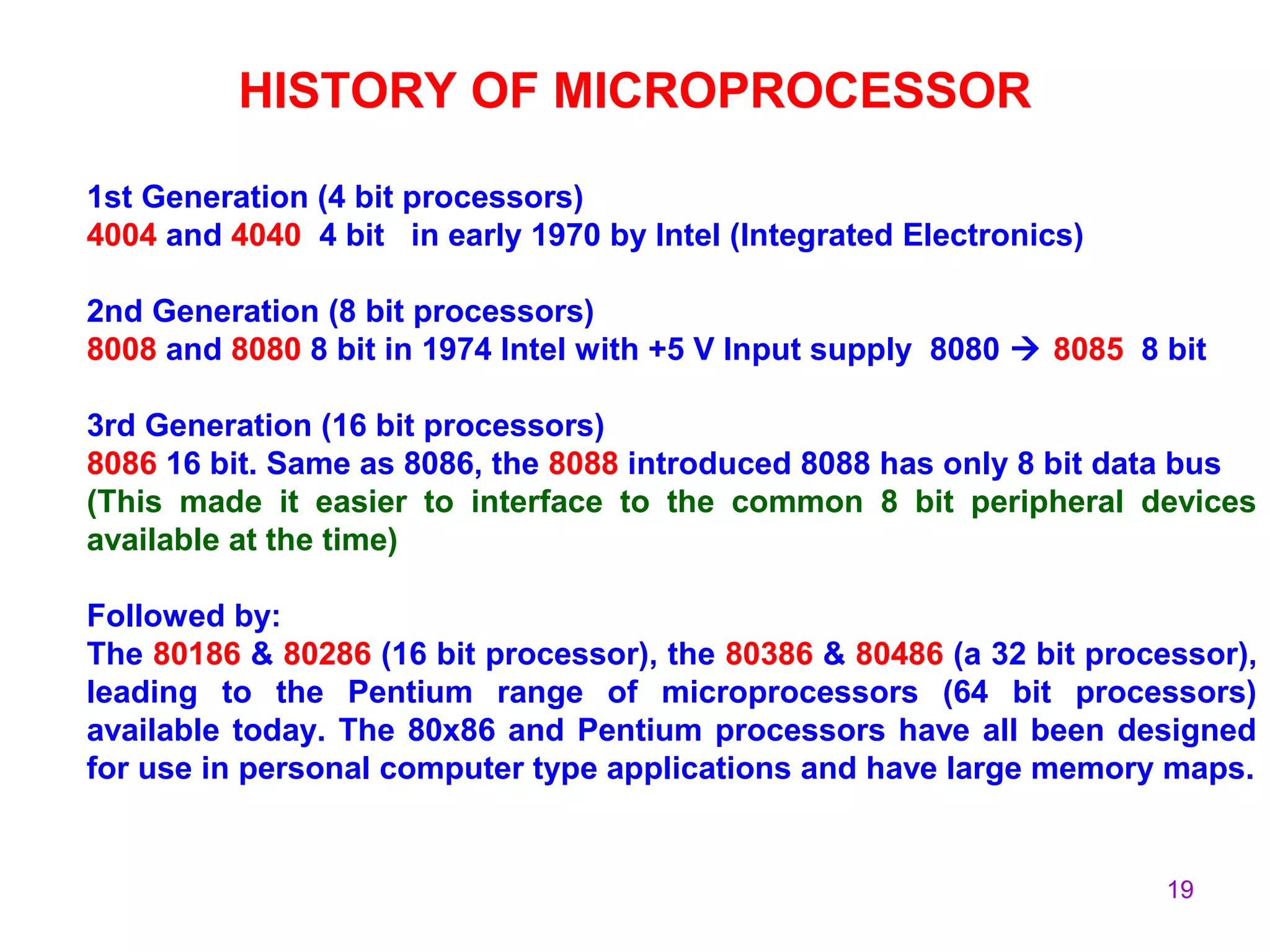

- 19. 19 HISTORY OF MICROPROCESSOR 1stGeneration (4 bit processors) 4004 and 4040 4 bit in early 1970 by Intel (Integrated Electronics) 2nd Generation (8 bit processors) 8008 and 8080 8 bit in 1974 Intel with +5 V Input supply 8080 8085 8 bit 3rd Generation (16 bit processors) 8086 16 bit. Same as 8086, the 8088 introduced 8088 has only 8 bit data bus (This made it easier to interface to the common 8 bit peripheral devices available at the time) Followed by: The 80186 & 80286 (16 bit processor), the 80386 & 80486 (a 32 bit processor), leading to the Pentium range of microprocessors (64 bit processors) available today. The 80x86 and Pentium processors have all been designed for use in personal computer type applications and have large memory maps.

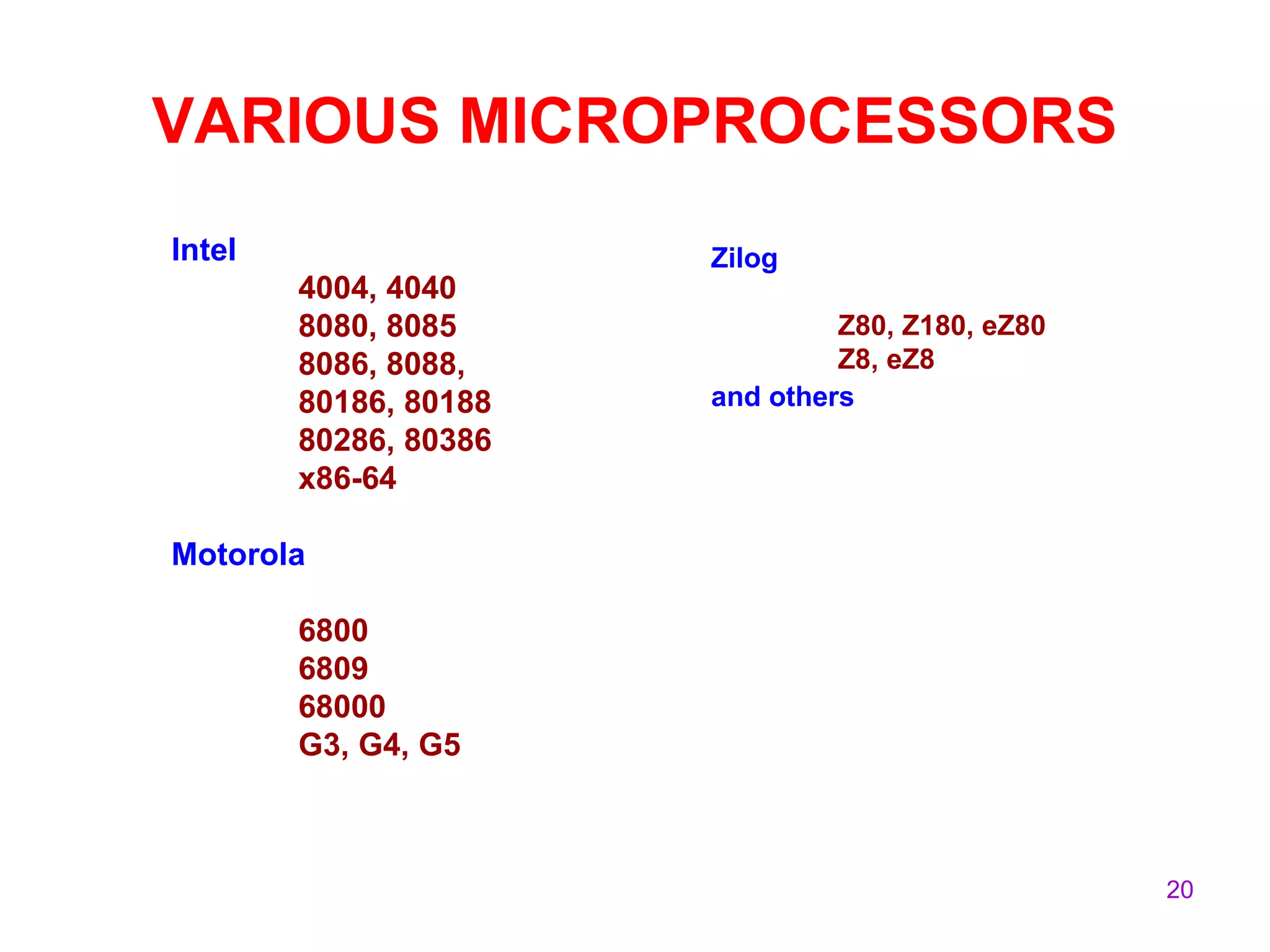

- 20. 20 VARIOUS MICROPROCESSORS Intel 4004, 4040 8080,8085 8086, 8088, 80186, 80188 80286, 80386 x86-64 Motorola 6800 6809 68000 G3, G4, G5 Zilog Z80, Z180, eZ80 Z8, eZ8 and others

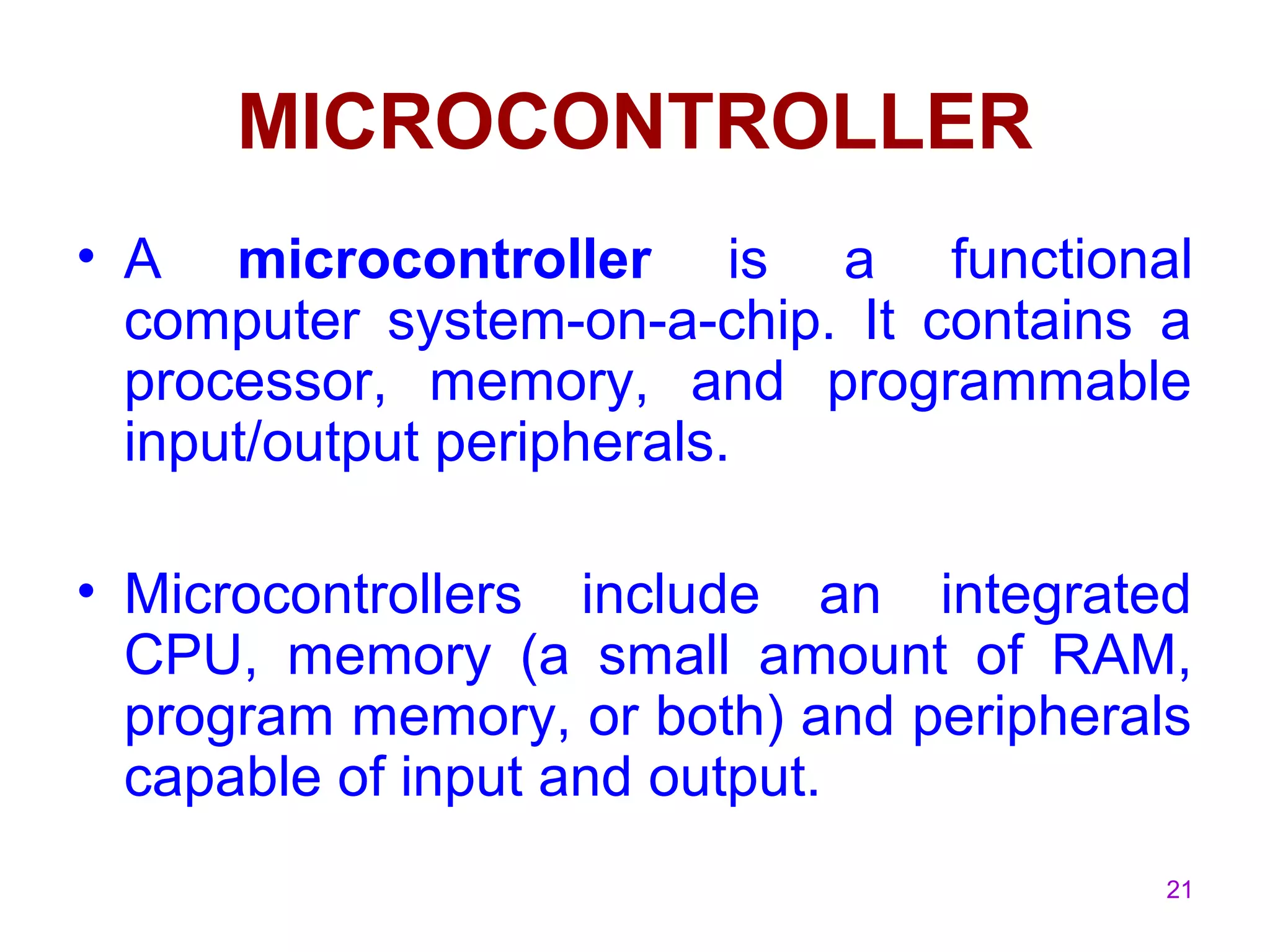

- 21. 21 MICROCONTROLLER • A microcontrolleris a functional computer system-on-a-chip. It contains a processor, memory, and programmable input/output peripherals. • Microcontrollers include an integrated CPU, memory (a small amount of RAM, program memory, or both) and peripherals capable of input and output.

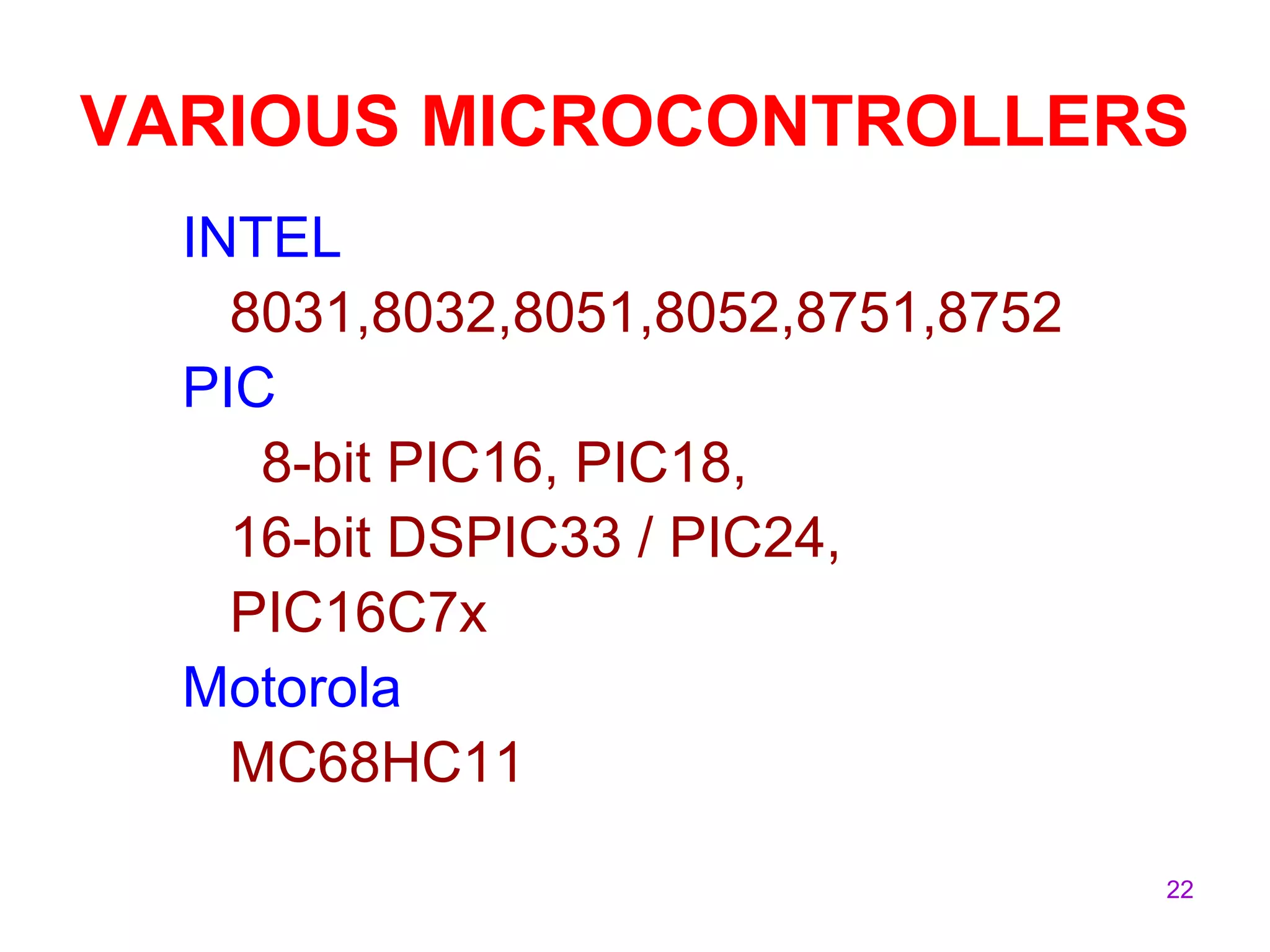

- 22. 22 VARIOUS MICROCONTROLLERS INTEL 8031,8032,8051,8052,8751,8752 PIC 8-bit PIC16,PIC18, 16-bit DSPIC33 / PIC24, PIC16C7x Motorola MC68HC11

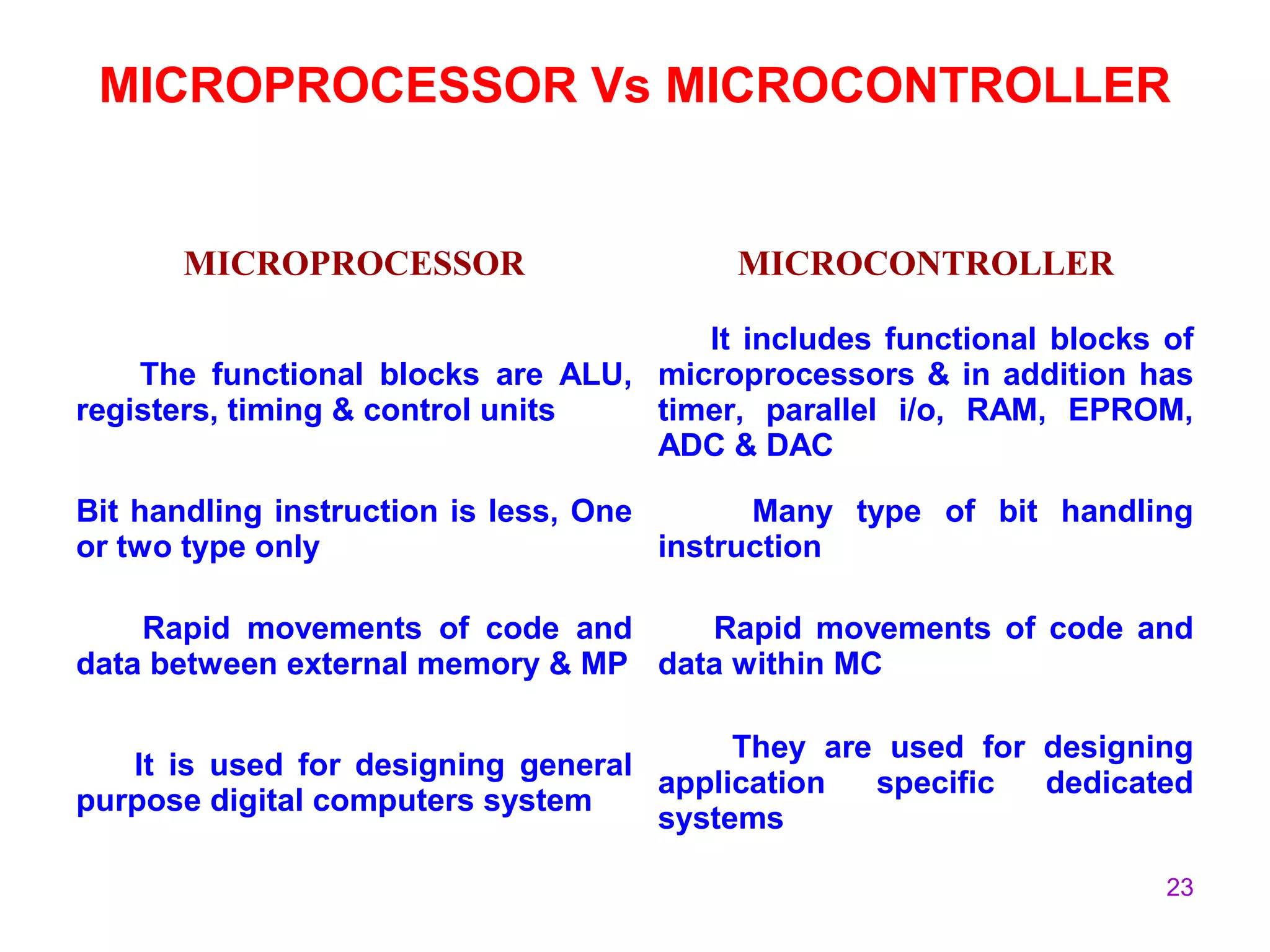

- 23. 23 MICROPROCESSOR Vs MICROCONTROLLER MICROPROCESSORMICROCONTROLLER The functional blocks are ALU, registers, timing & control units It includes functional blocks of microprocessors & in addition has timer, parallel i/o, RAM, EPROM, ADC & DAC Bit handling instruction is less, One or two type only Many type of bit handling instruction Rapid movements of code and data between external memory & MP Rapid movements of code and data within MC It is used for designing general purpose digital computers system They are used for designing application specific dedicated systems

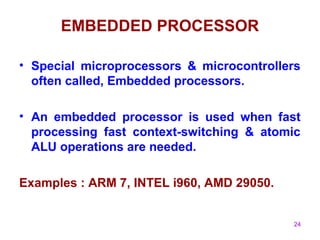

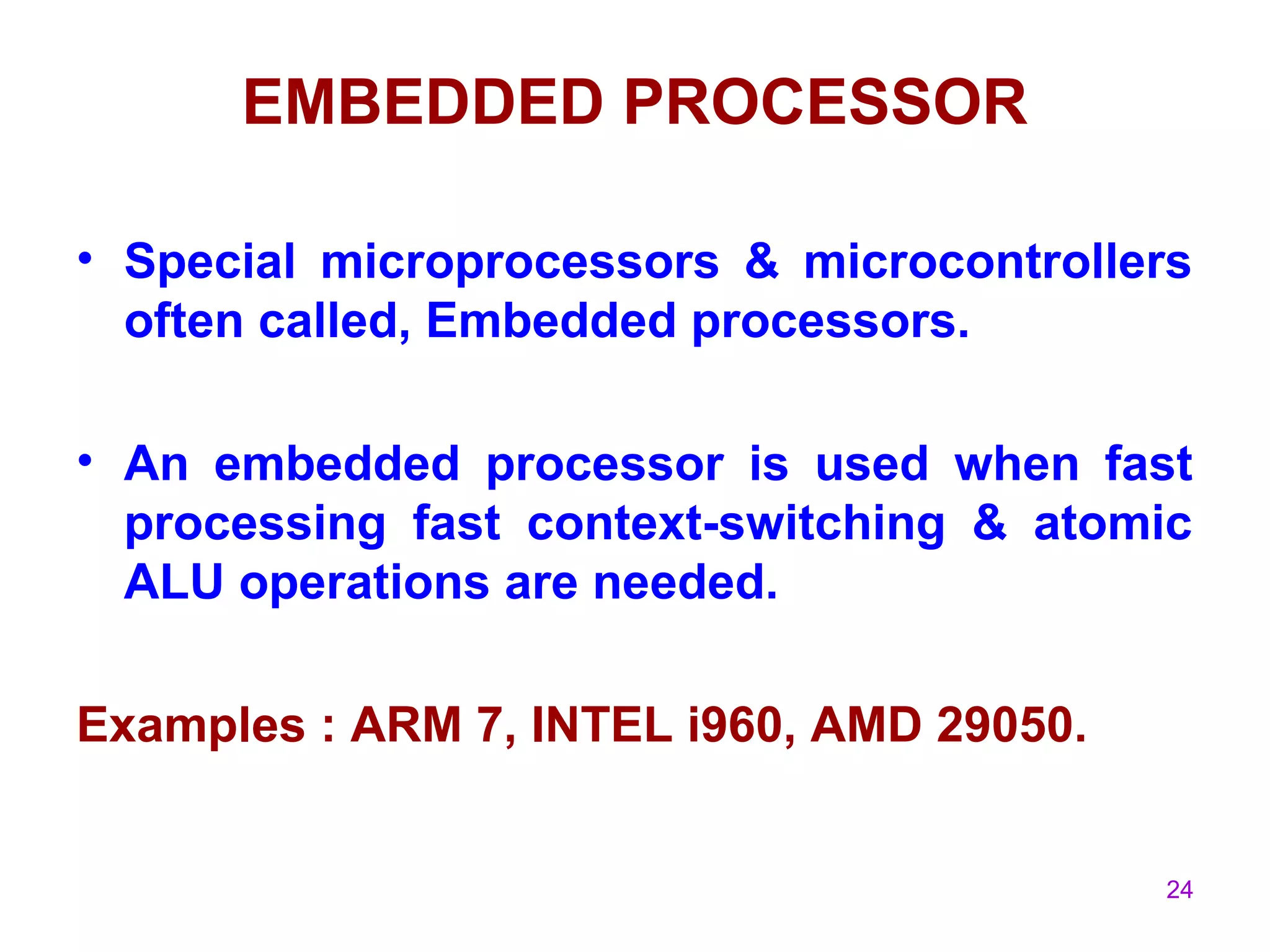

- 24. 24 EMBEDDED PROCESSOR • Specialmicroprocessors & microcontrollers often called, Embedded processors. • An embedded processor is used when fast processing fast context-switching & atomic ALU operations are needed. Examples : ARM 7, INTEL i960, AMD 29050.

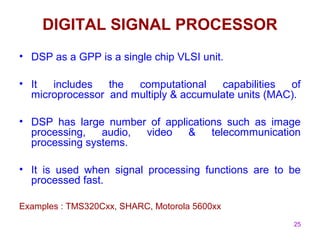

- 25. 25 DIGITAL SIGNAL PROCESSOR •DSP as a GPP is a single chip VLSI unit. • It includes the computational capabilities of microprocessor and multiply & accumulate units (MAC). • DSP has large number of applications such as image processing, audio, video & telecommunication processing systems. • It is used when signal processing functions are to be processed fast. Examples : TMS320Cxx, SHARC, Motorola 5600xx

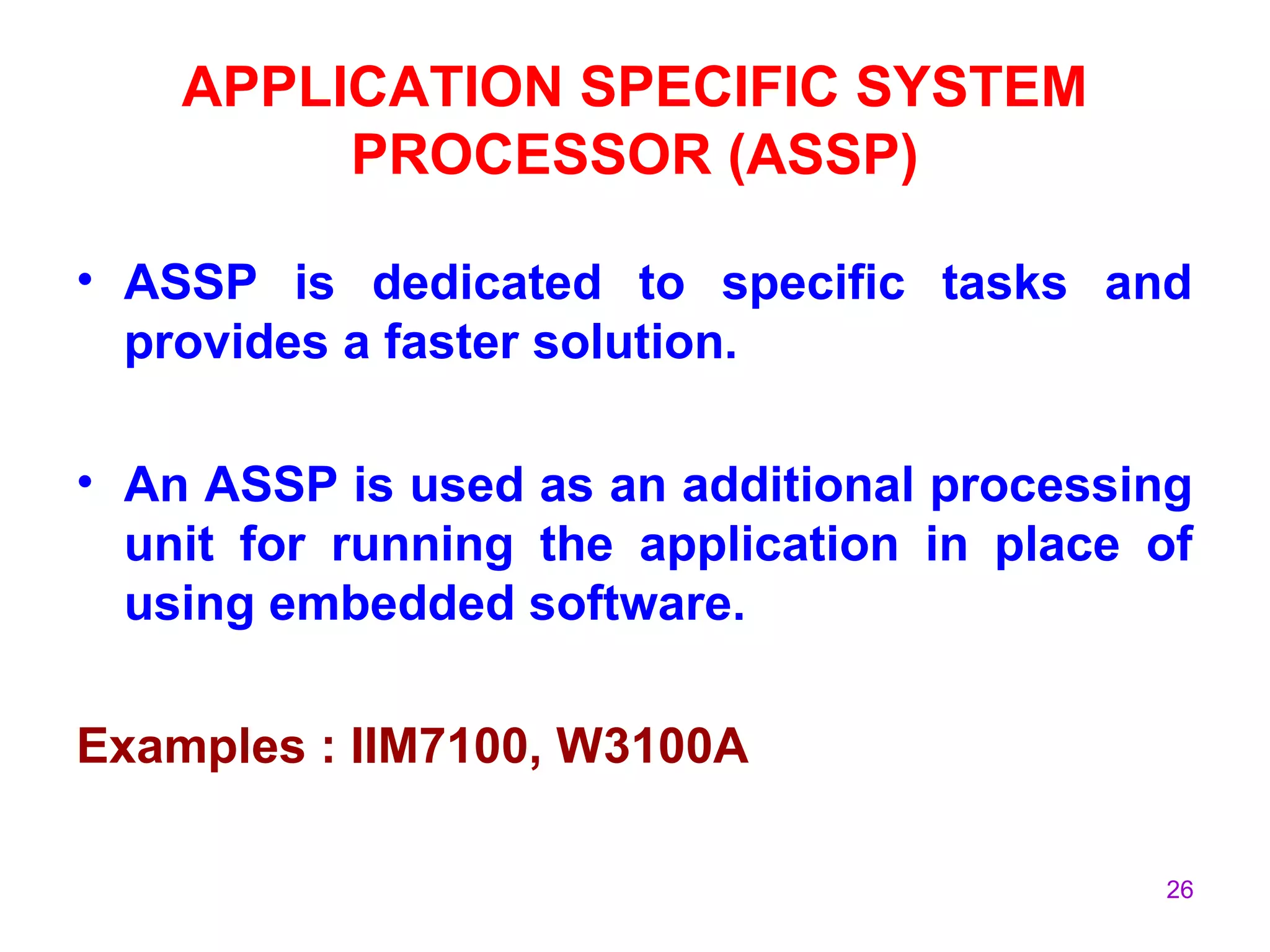

- 26. 26 APPLICATION SPECIFIC SYSTEM PROCESSOR(ASSP) • ASSP is dedicated to specific tasks and provides a faster solution. • An ASSP is used as an additional processing unit for running the application in place of using embedded software. Examples : IIM7100, W3100A

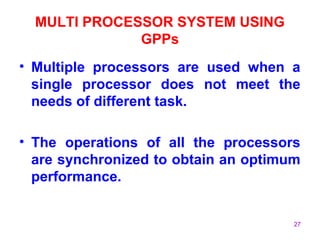

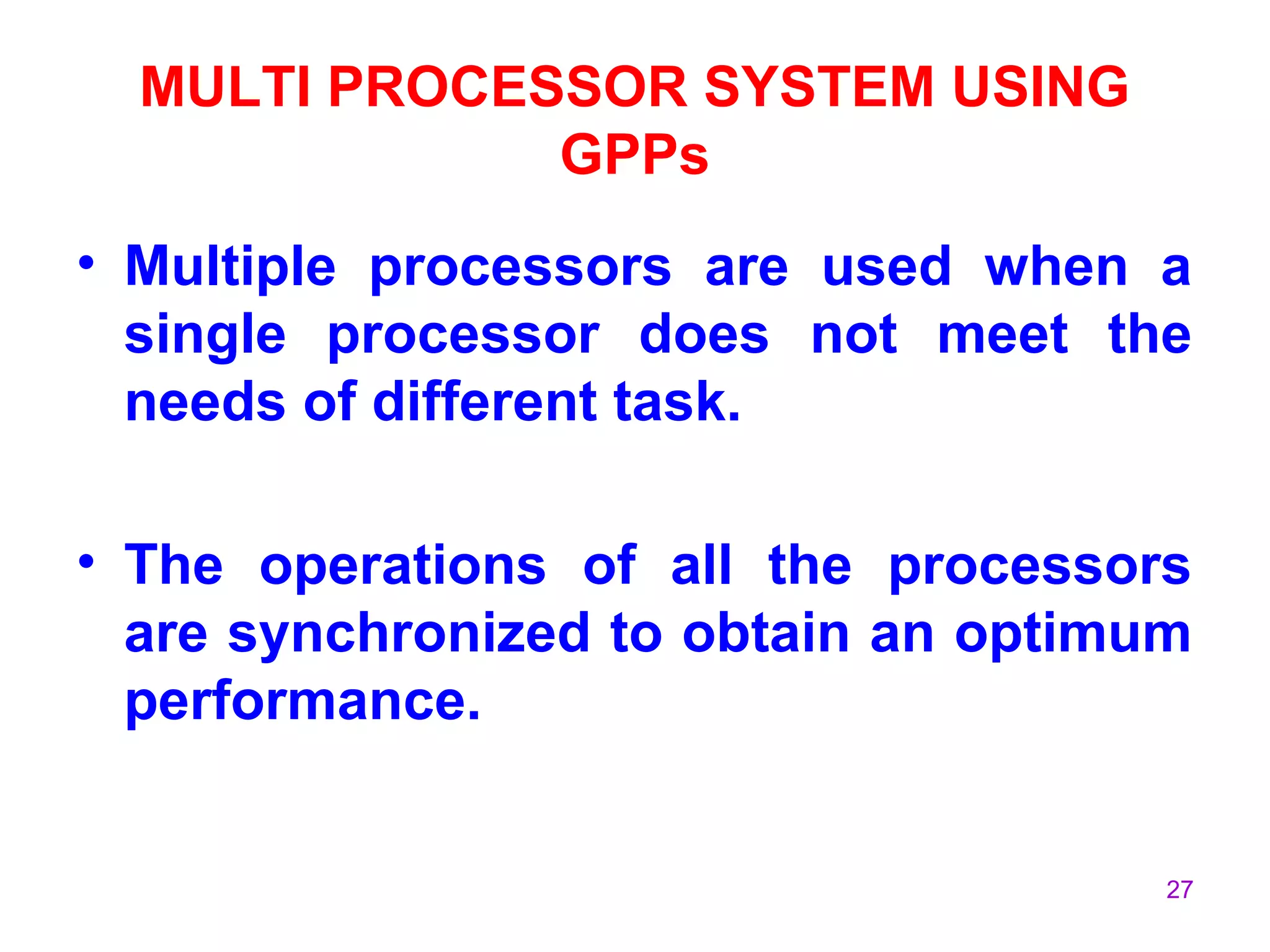

- 27. 27 MULTI PROCESSOR SYSTEMUSING GPPs • Multiple processors are used when a single processor does not meet the needs of different task. • The operations of all the processors are synchronized to obtain an optimum performance.

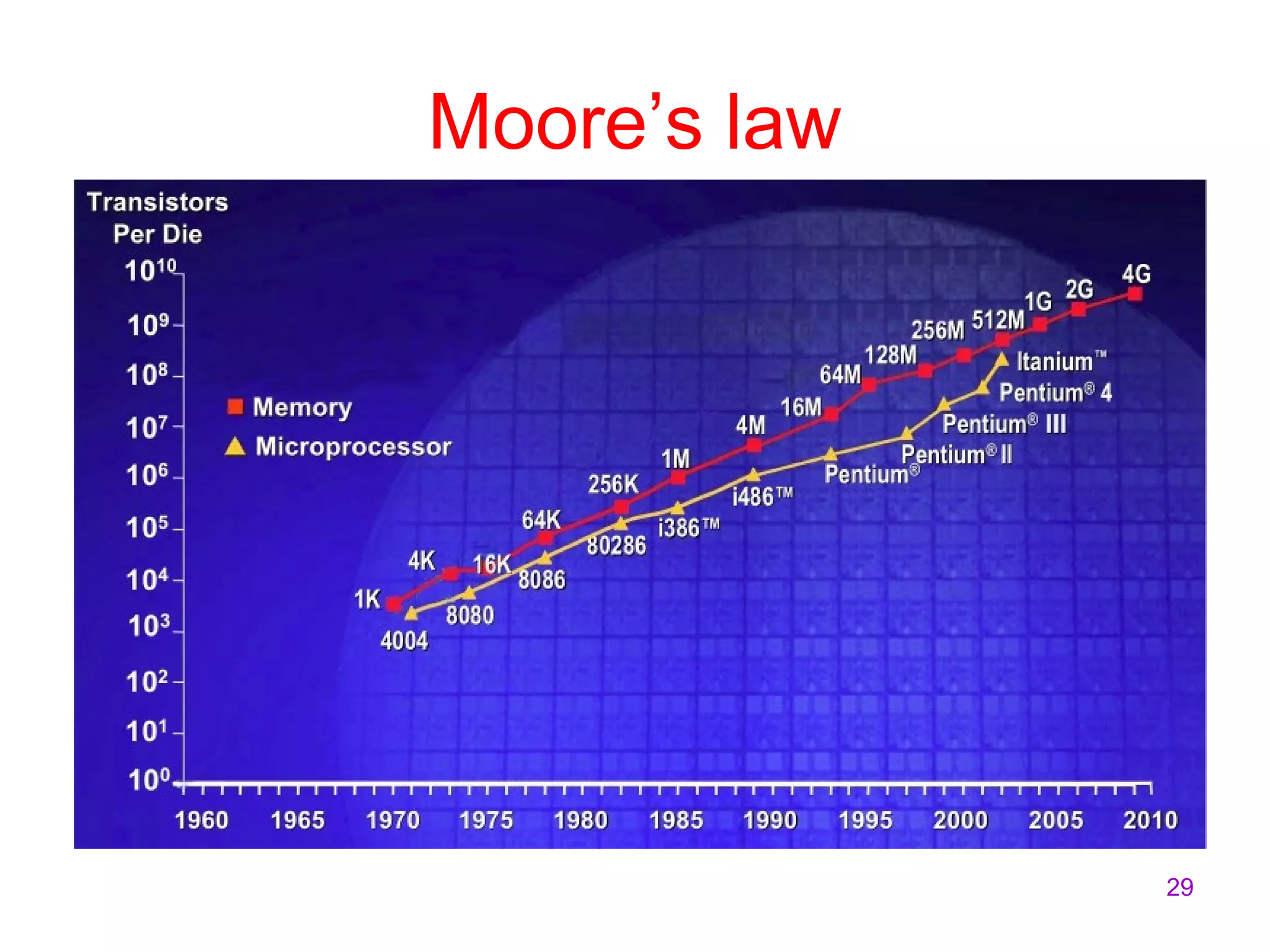

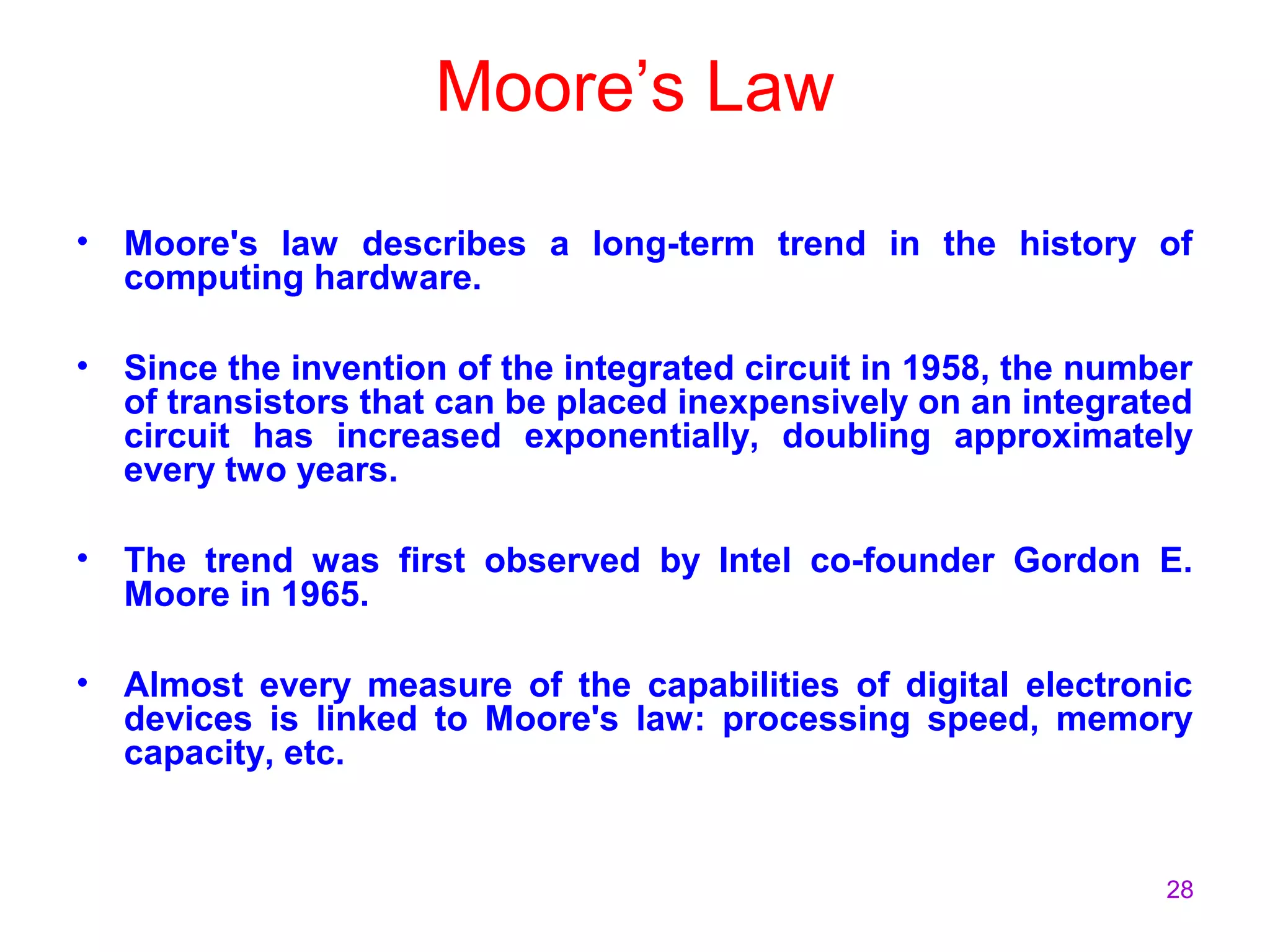

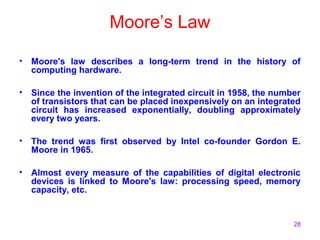

- 28. 28 Moore’s Law • Moore'slaw describes a long-term trend in the history of computing hardware. • Since the invention of the integrated circuit in 1958, the number of transistors that can be placed inexpensively on an integrated circuit has increased exponentially, doubling approximately every two years. • The trend was first observed by Intel co-founder Gordon E. Moore in 1965. • Almost every measure of the capabilities of digital electronic devices is linked to Moore's law: processing speed, memory capacity, etc.
- 29.

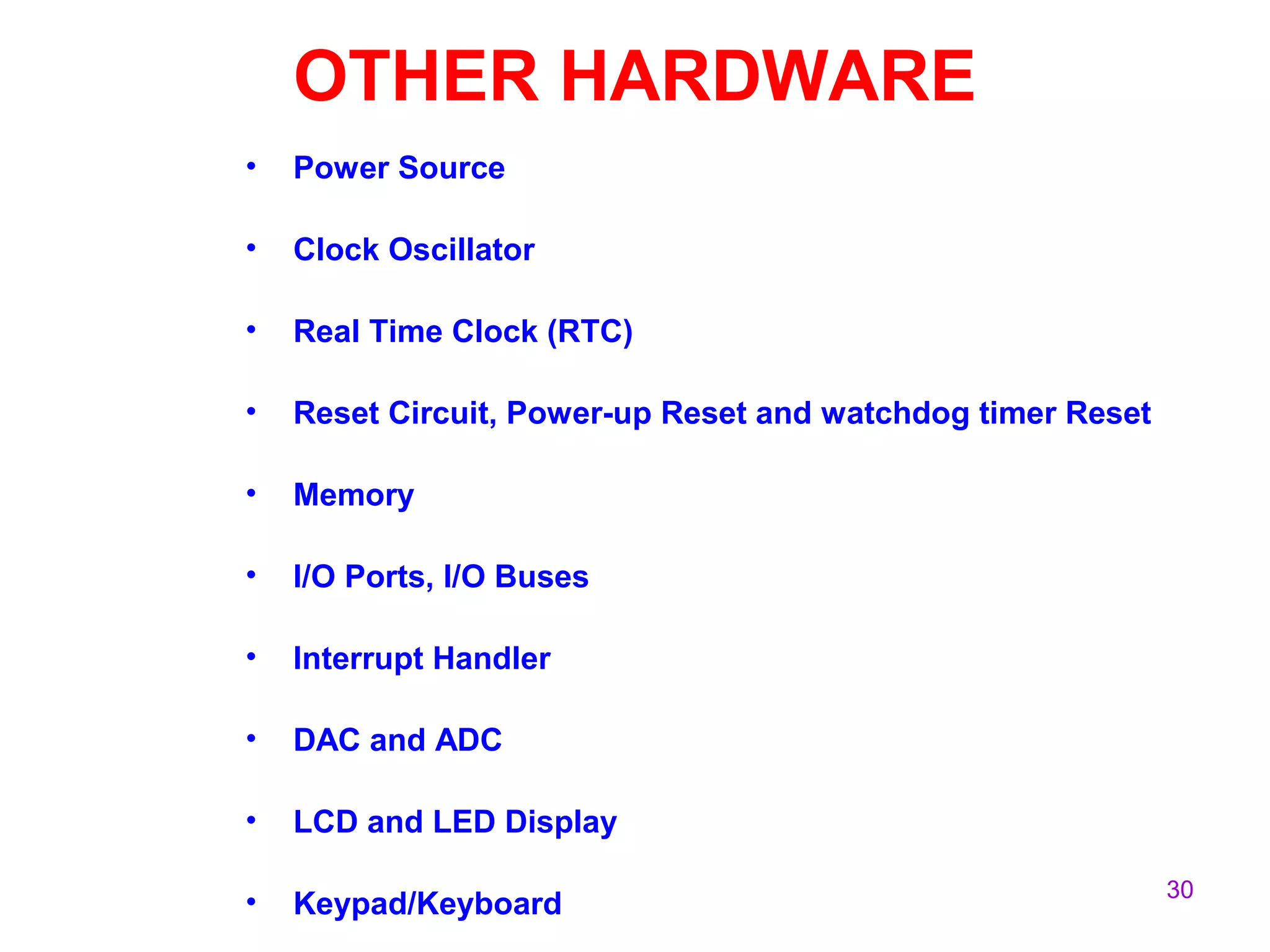

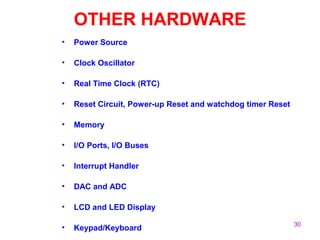

- 30. 30 OTHER HARDWARE • PowerSource • Clock Oscillator • Real Time Clock (RTC) • Reset Circuit, Power-up Reset and watchdog timer Reset • Memory • I/O Ports, I/O Buses • Interrupt Handler • DAC and ADC • LCD and LED Display • Keypad/Keyboard

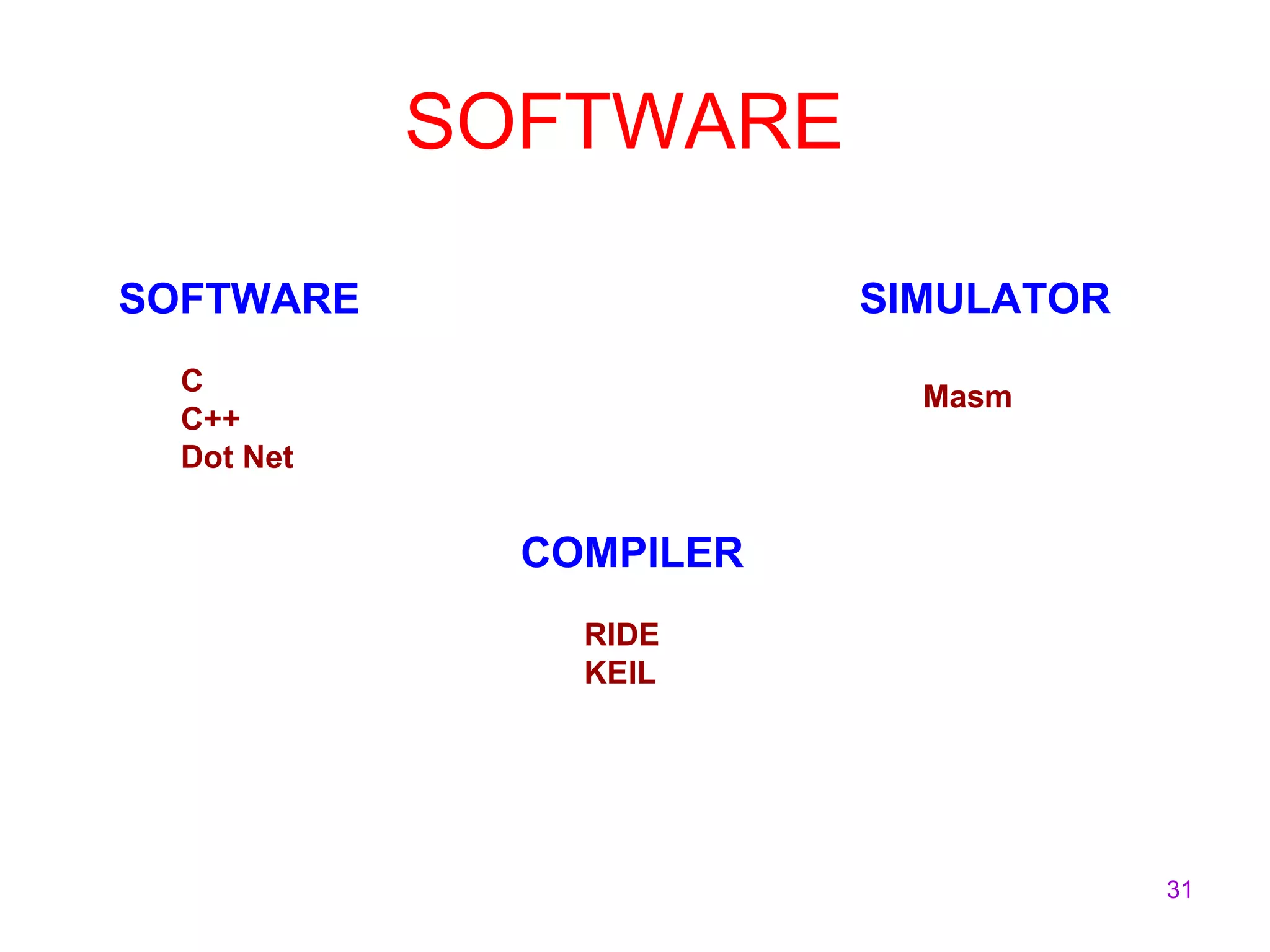

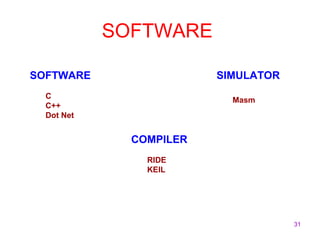

- 31.

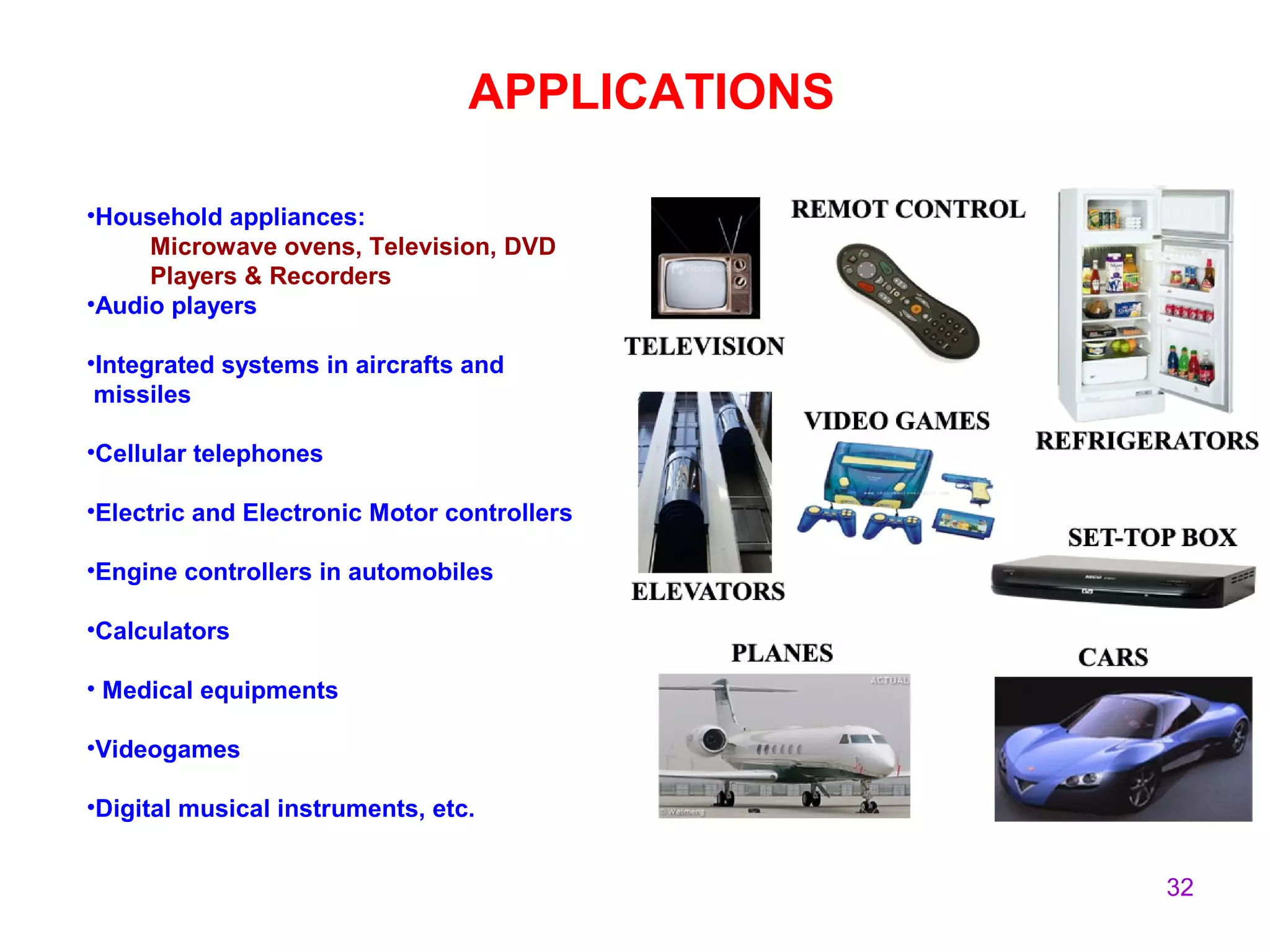

- 32. 32 •Household appliances: Microwave ovens,Television, DVD Players & Recorders •Audio players •Integrated systems in aircrafts and missiles •Cellular telephones •Electric and Electronic Motor controllers •Engine controllers in automobiles •Calculators • Medical equipments •Videogames •Digital musical instruments, etc. APPLICATIONS

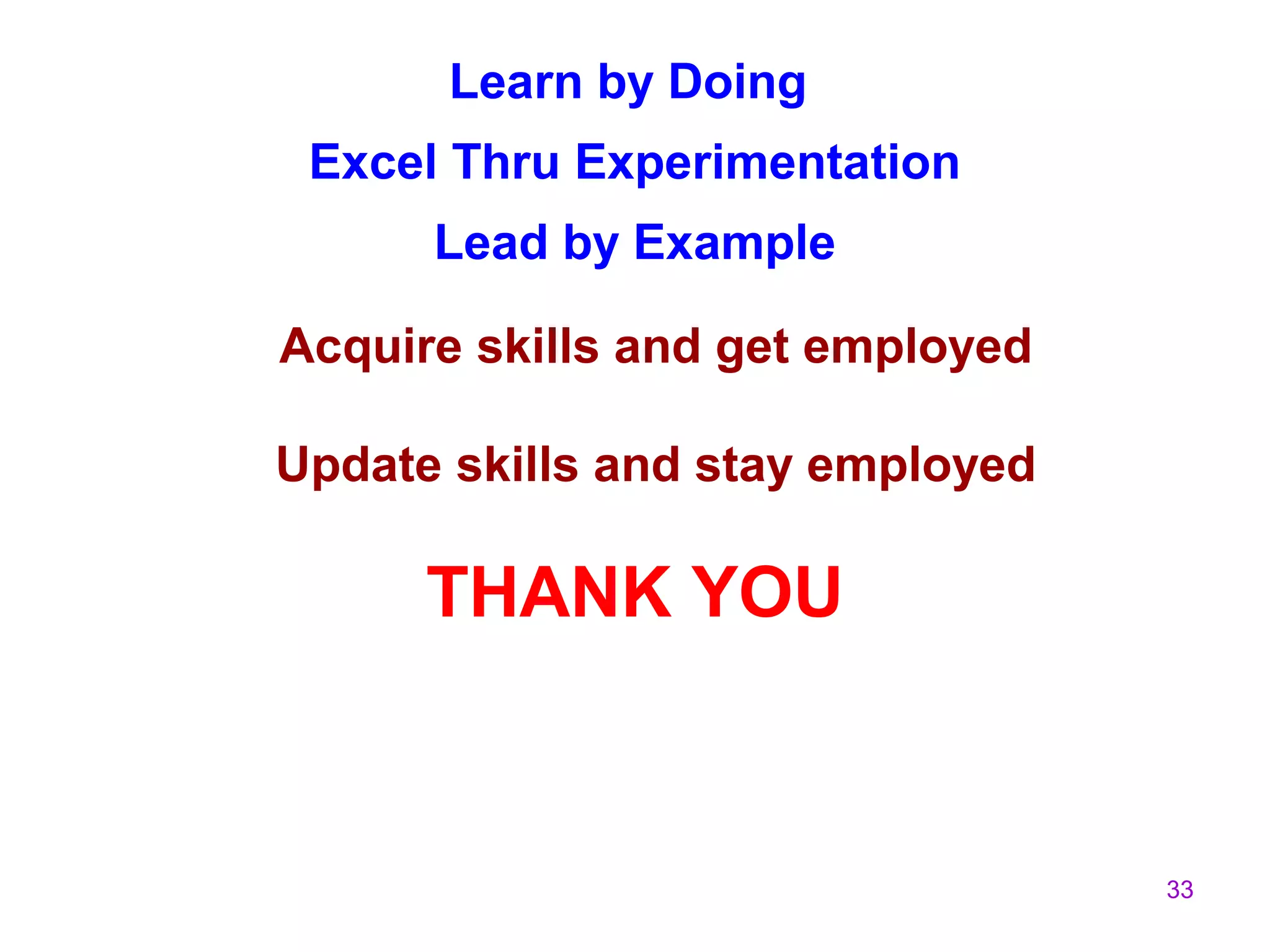

- 33. 33 Learn by Doing ExcelThru Experimentation Lead by Example Acquire skills and get employed Update skills and stay employed THANK YOU
