Getting Started with Serverless PHP
- 1.

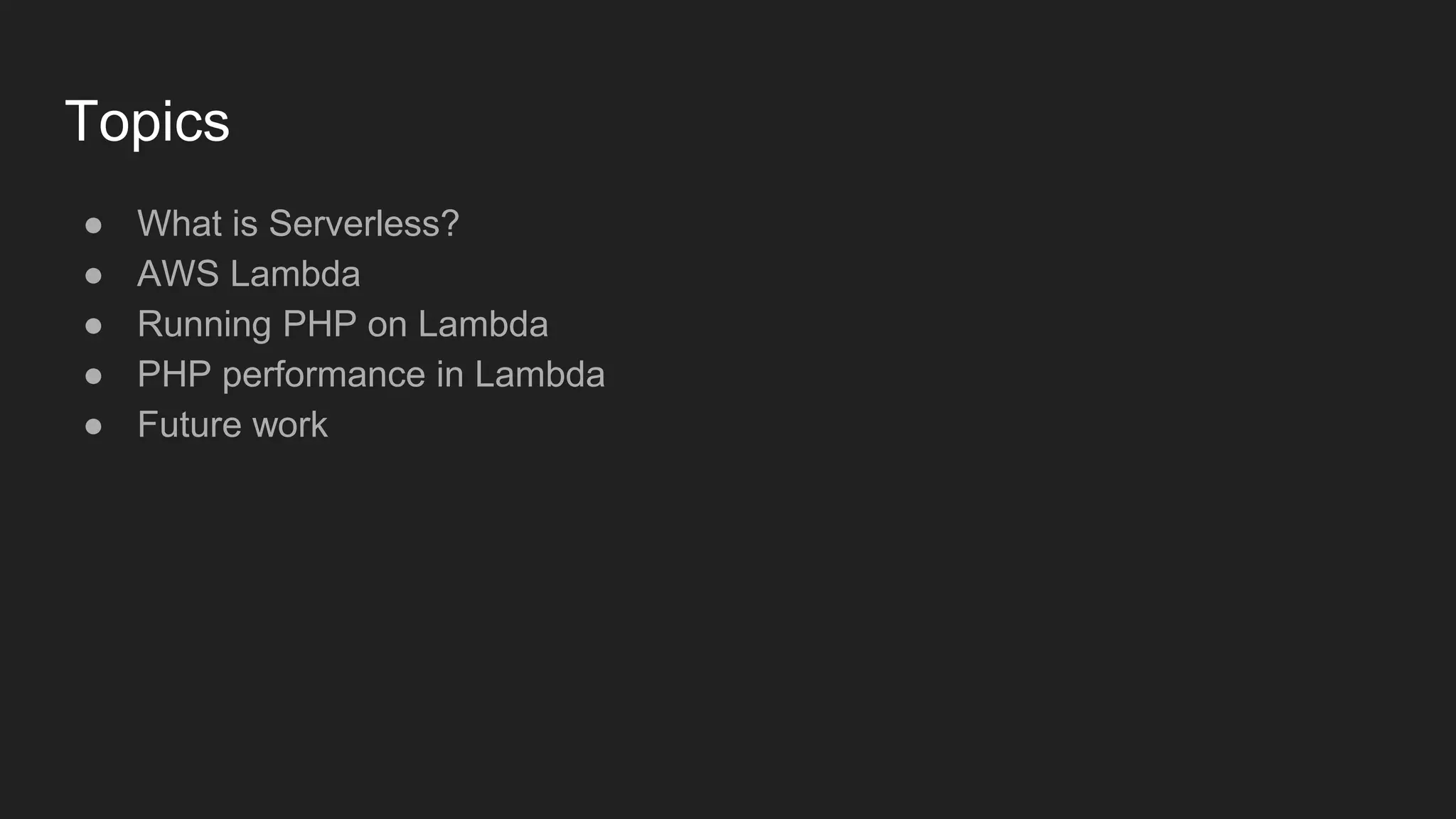

- 2. Topics ● What isServerless? ● AWS Lambda ● Running PHP on Lambda ● PHP performance in Lambda ● Future work
- 3.

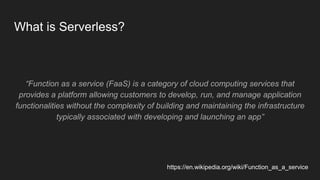

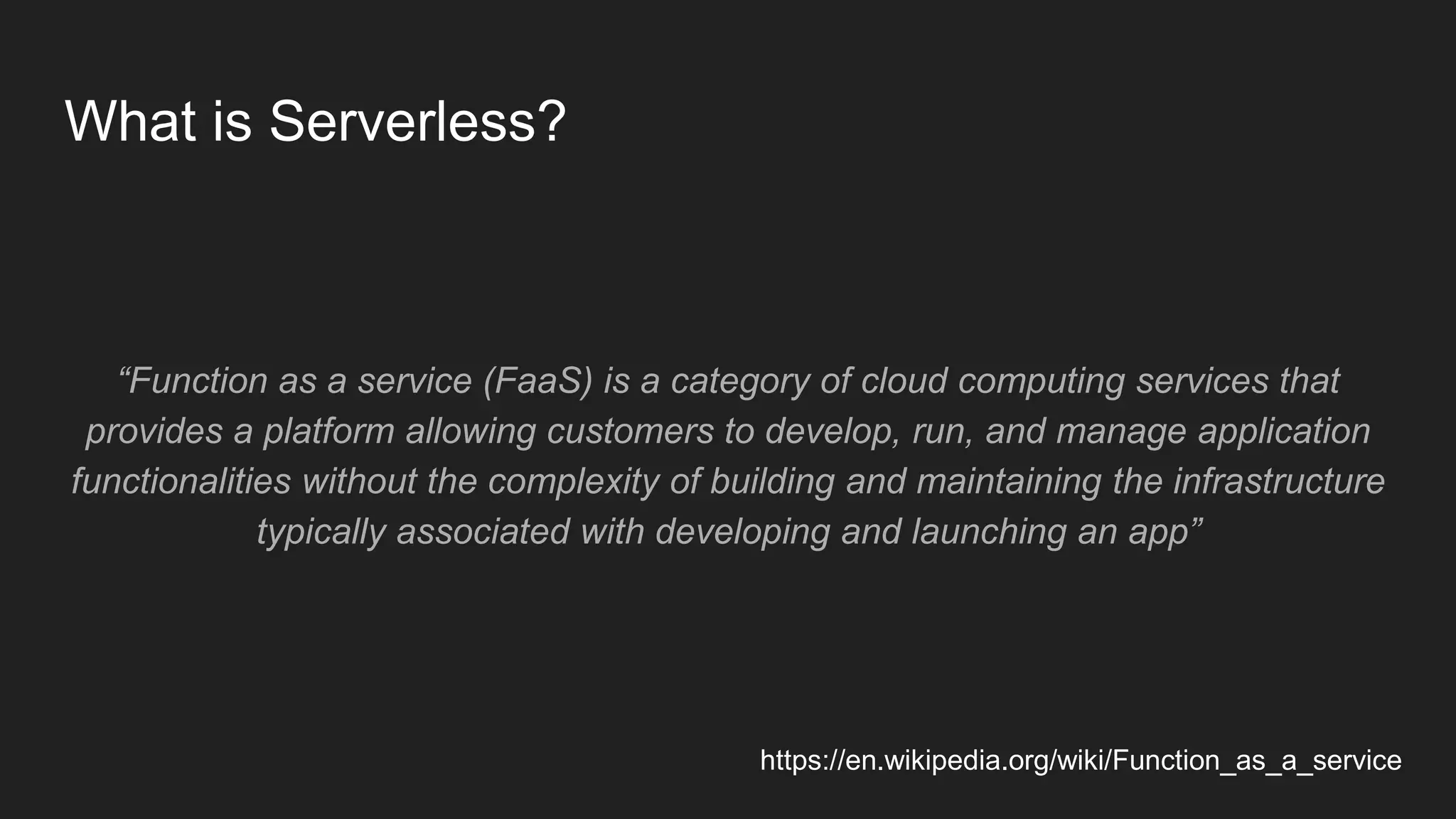

- 4. What is Serverless? “Functionas a service (FaaS) is a category of cloud computing services that provides a platform allowing customers to develop, run, and manage application functionalities without the complexity of building and maintaining the infrastructure typically associated with developing and launching an app” https://en.wikipedia.org/wiki/Function_as_a_service

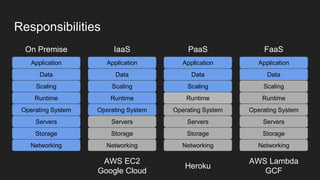

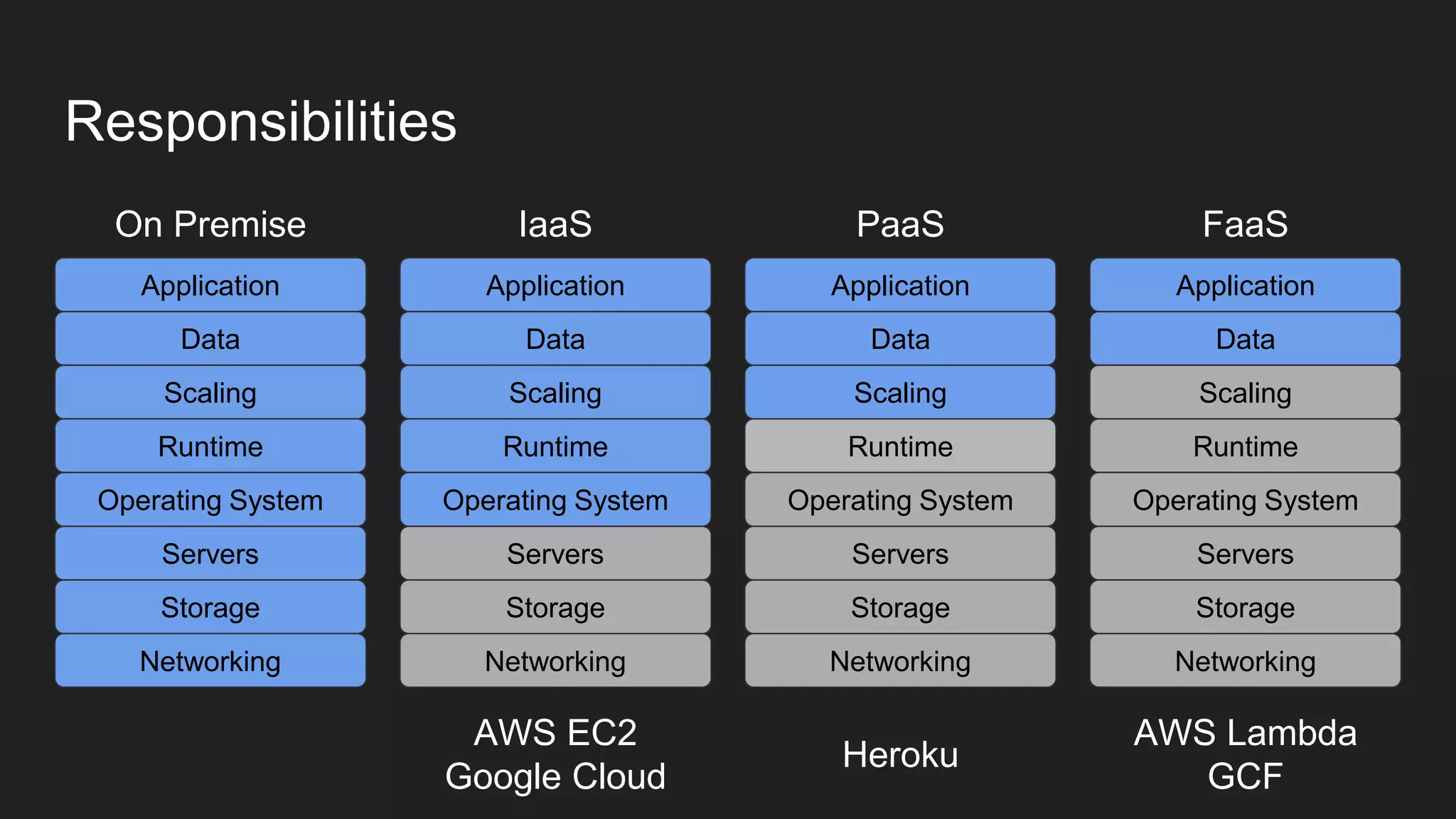

- 5. Responsibilities Application Data Scaling Runtime Operating System Servers Storage Networking Application Data Scaling Runtime Operating System Servers Storage Networking Application Data Scaling Runtime OperatingSystem Servers Storage Networking Application Data Scaling Runtime Operating System Servers Storage Networking On Premise IaaS PaaS FaaS AWS EC2 Google Cloud Heroku AWS Lambda GCF

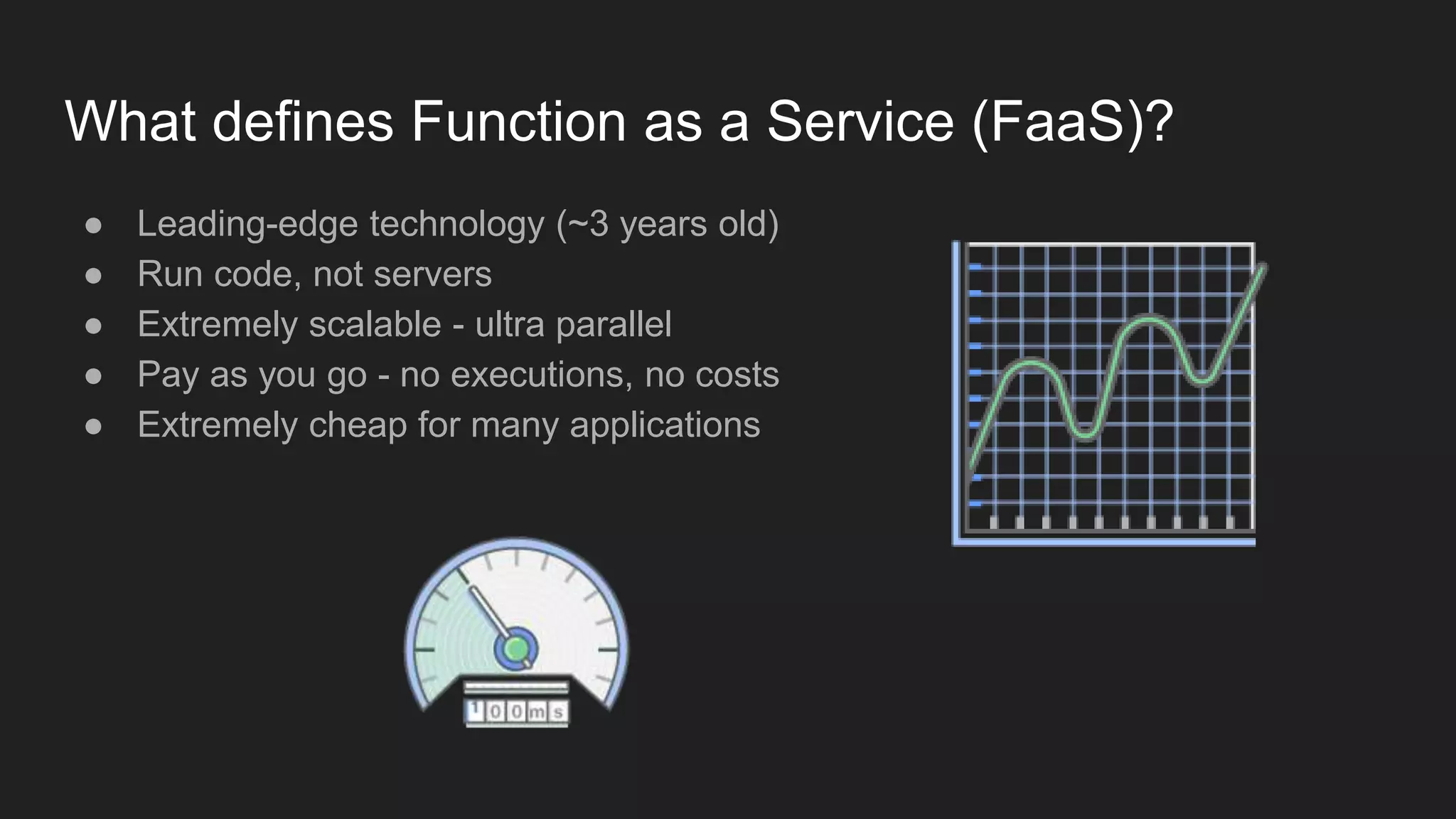

- 6. What defines Functionas a Service (FaaS)? ● Leading-edge technology (~3 years old) ● Run code, not servers ● Extremely scalable - ultra parallel ● Pay as you go - no executions, no costs ● Extremely cheap for many applications
- 7. Serverless Framework ● Simplified,common way to set up serverless architecture ● Works on major FaaS providers ● Configure infrastructure in YAML ● Simple command line deploy / destroy www.serverless.com

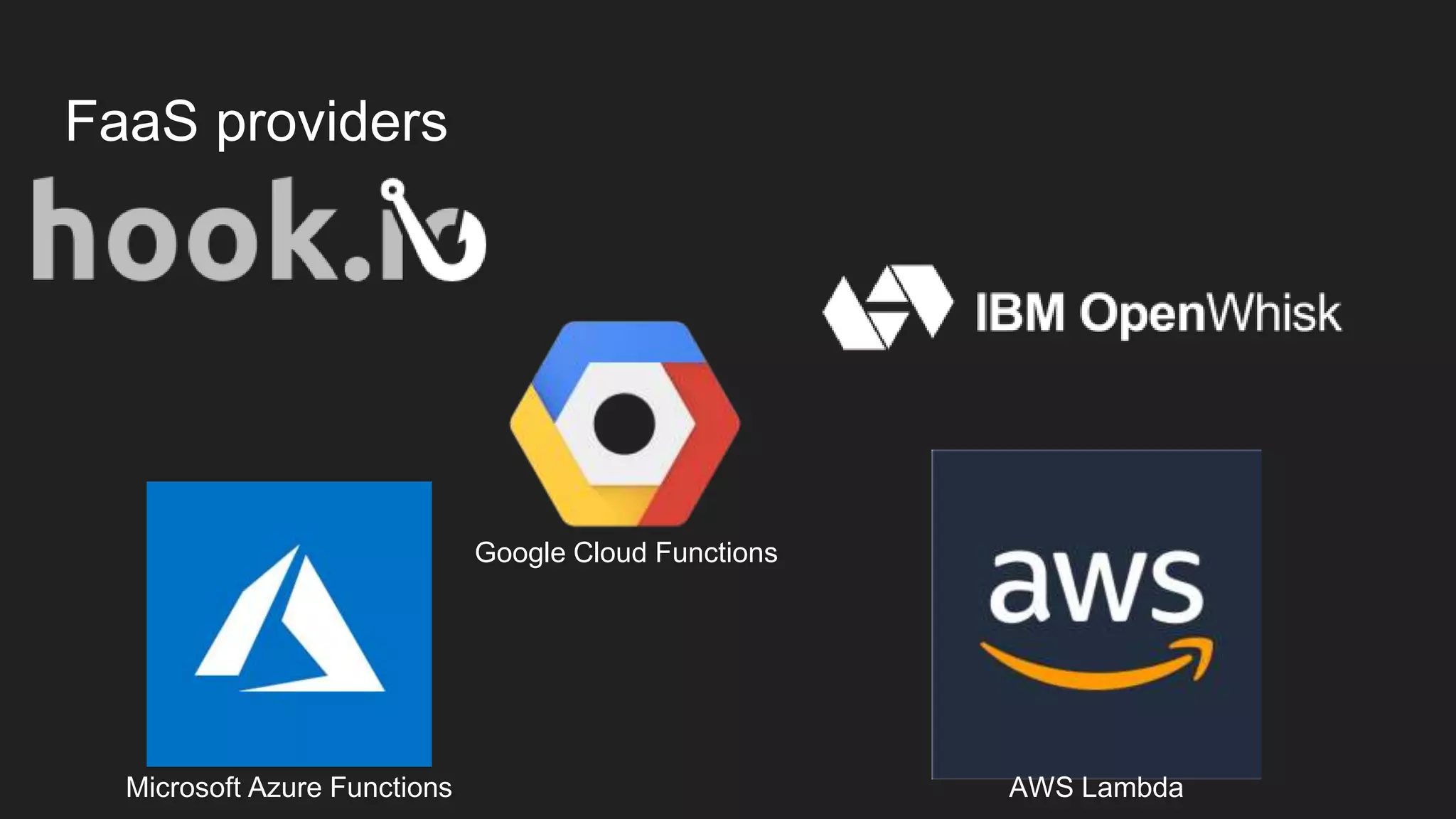

- 8. FaaS providers Microsoft AzureFunctions Google Cloud Functions AWS Lambda
- 9.

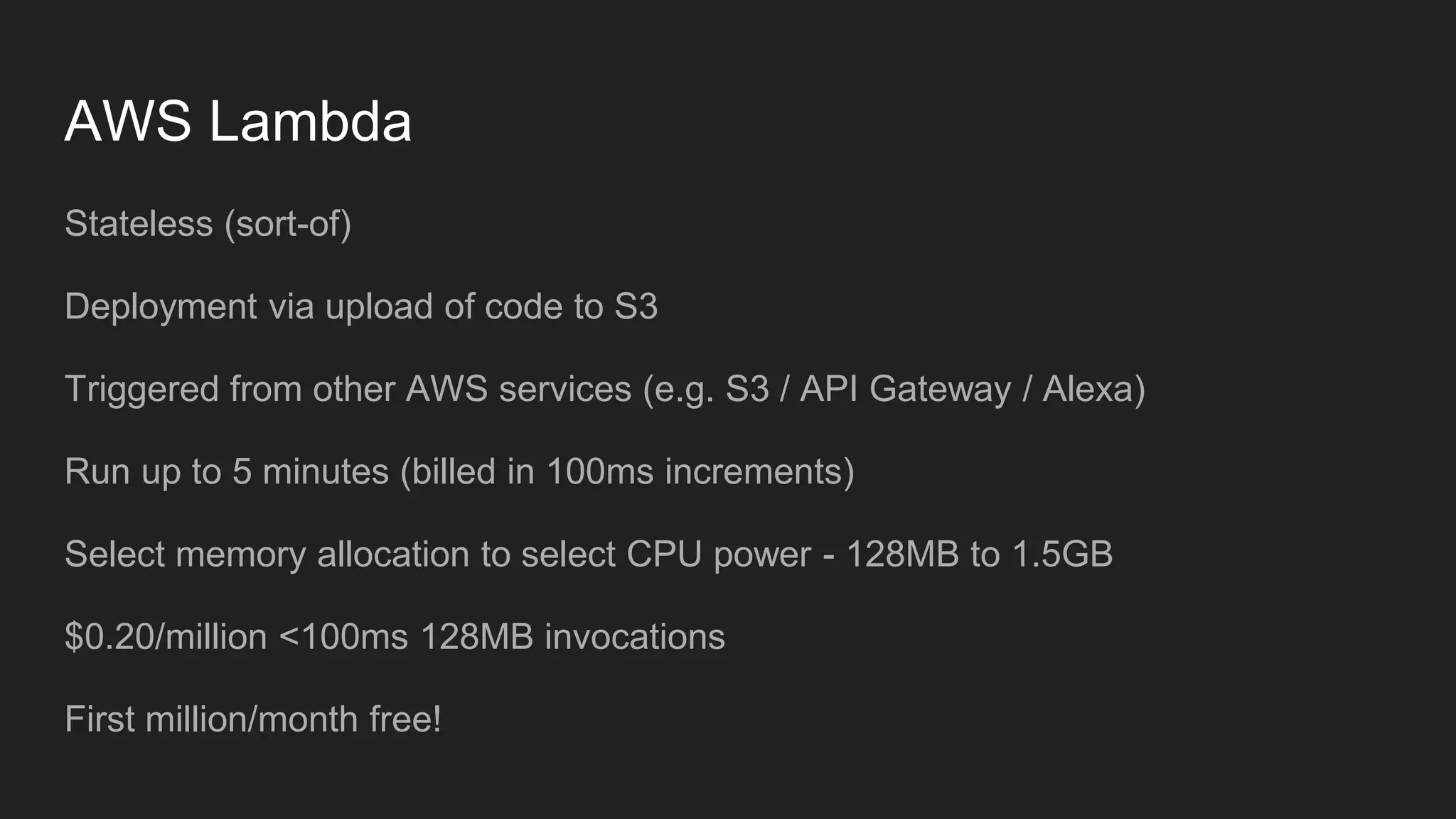

- 10. AWS Lambda Stateless (sort-of) Deploymentvia upload of code to S3 Triggered from other AWS services (e.g. S3 / API Gateway / Alexa) Run up to 5 minutes (billed in 100ms increments) Select memory allocation to select CPU power - 128MB to 1.5GB $0.20/million <100ms 128MB invocations First million/month free!

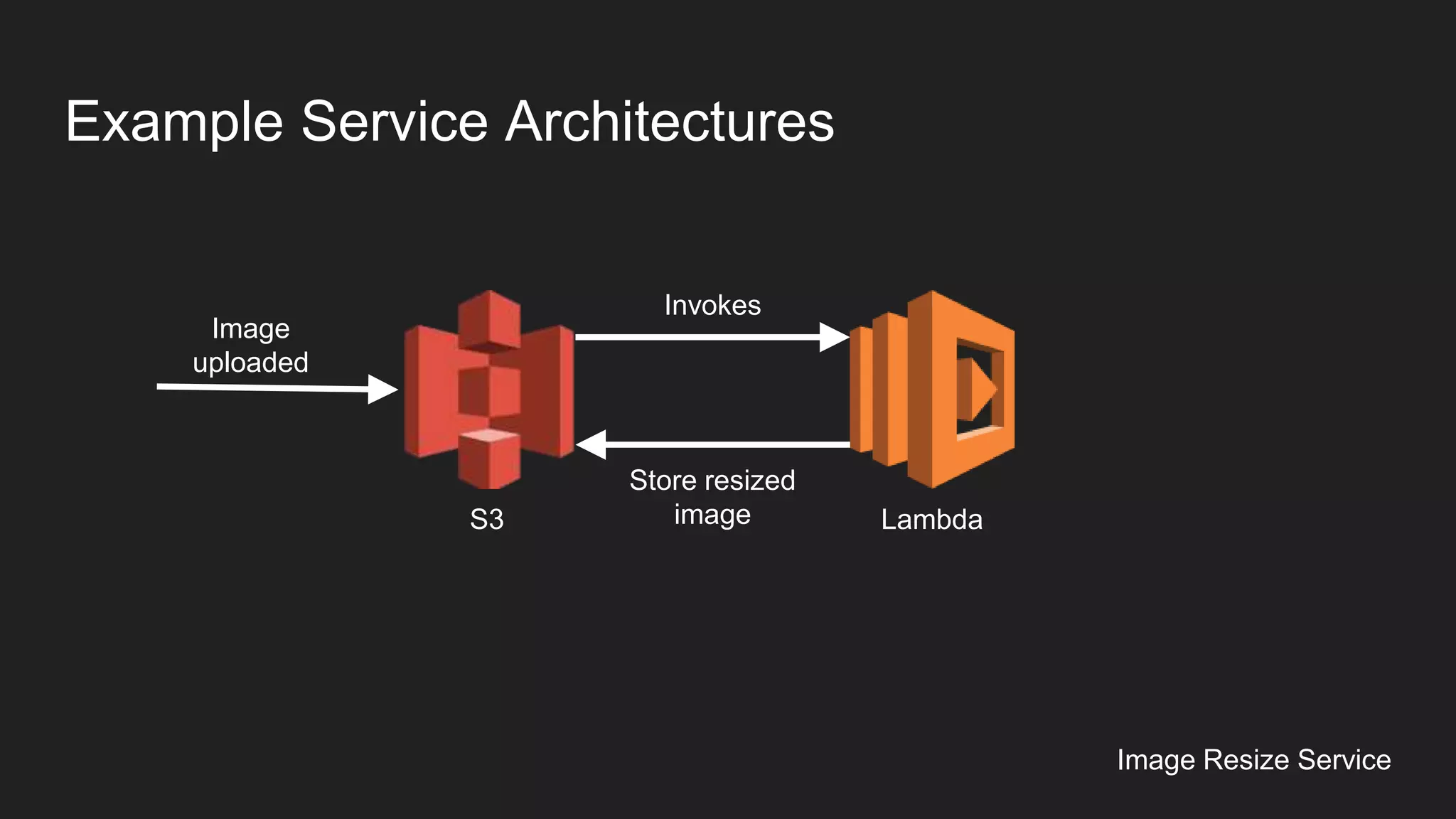

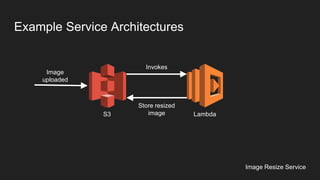

- 11. Example Service Architectures S3 Image uploaded Invokes Lambda Storeresized image Image Resize Service

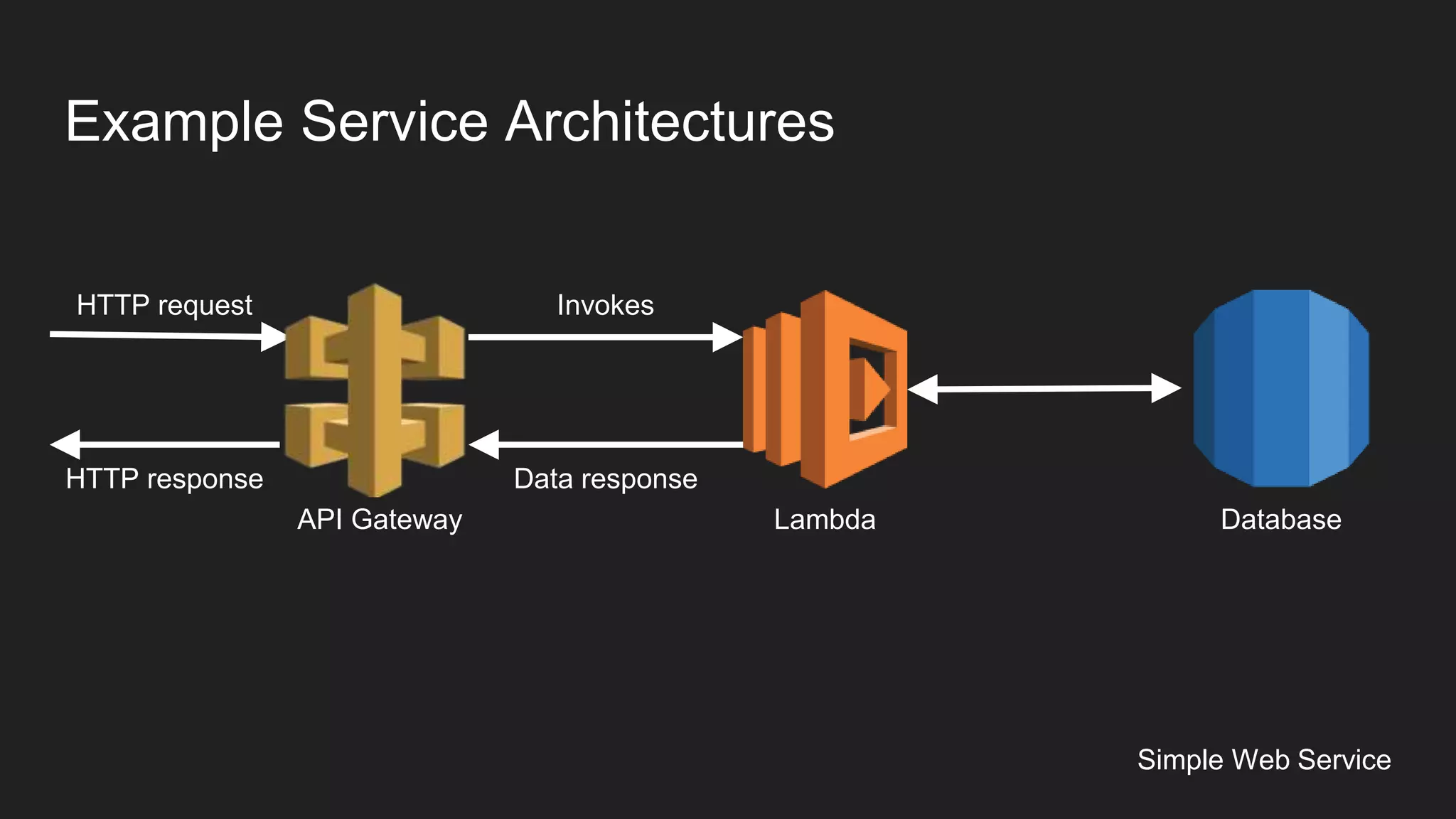

- 12. Example Service Architectures APIGateway HTTP request Invokes Lambda Data response Simple Web Service Database HTTP response

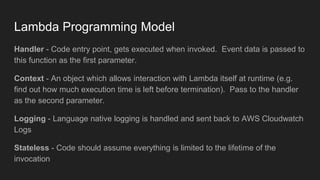

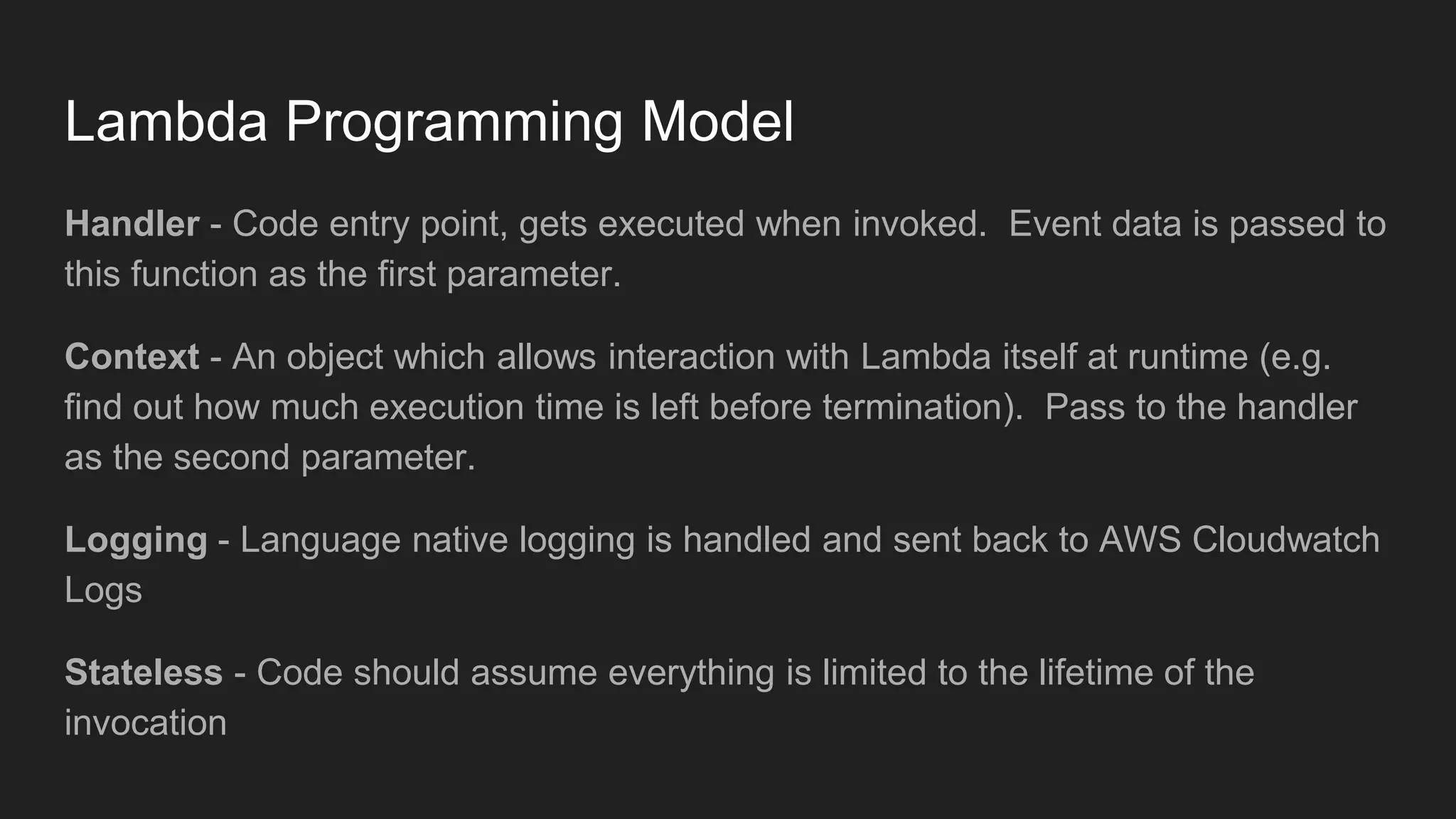

- 13. Lambda Programming Model Handler- Code entry point, gets executed when invoked. Event data is passed to this function as the first parameter. Context - An object which allows interaction with Lambda itself at runtime (e.g. find out how much execution time is left before termination). Pass to the handler as the second parameter. Logging - Language native logging is handled and sent back to AWS Cloudwatch Logs Stateless - Code should assume everything is limited to the lifetime of the invocation
- 14. AWS Lambda LanguageSupport
- 15. AWS Lambda LanguageSupport
- 16.

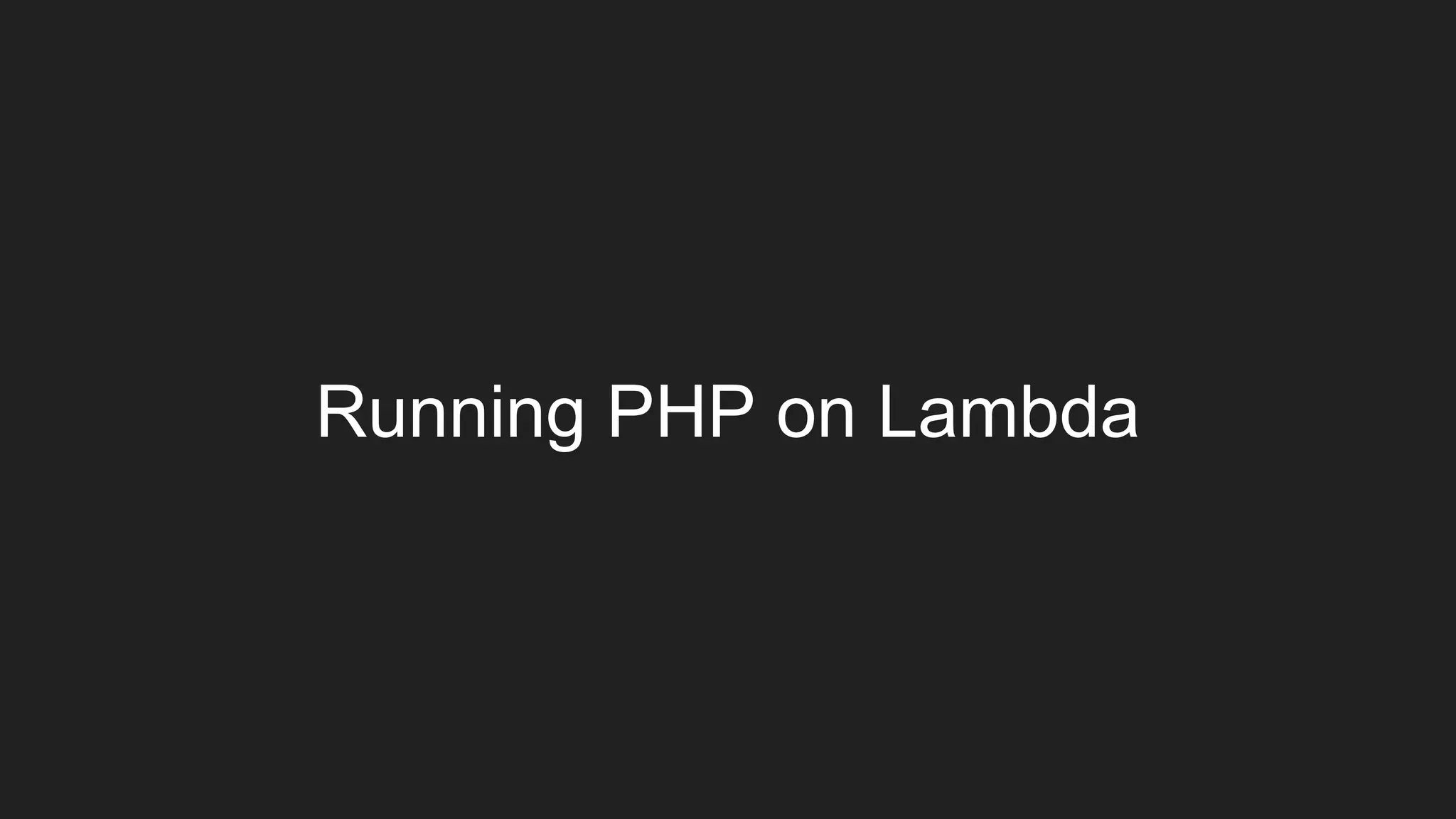

- 17. Running PHP onLambda

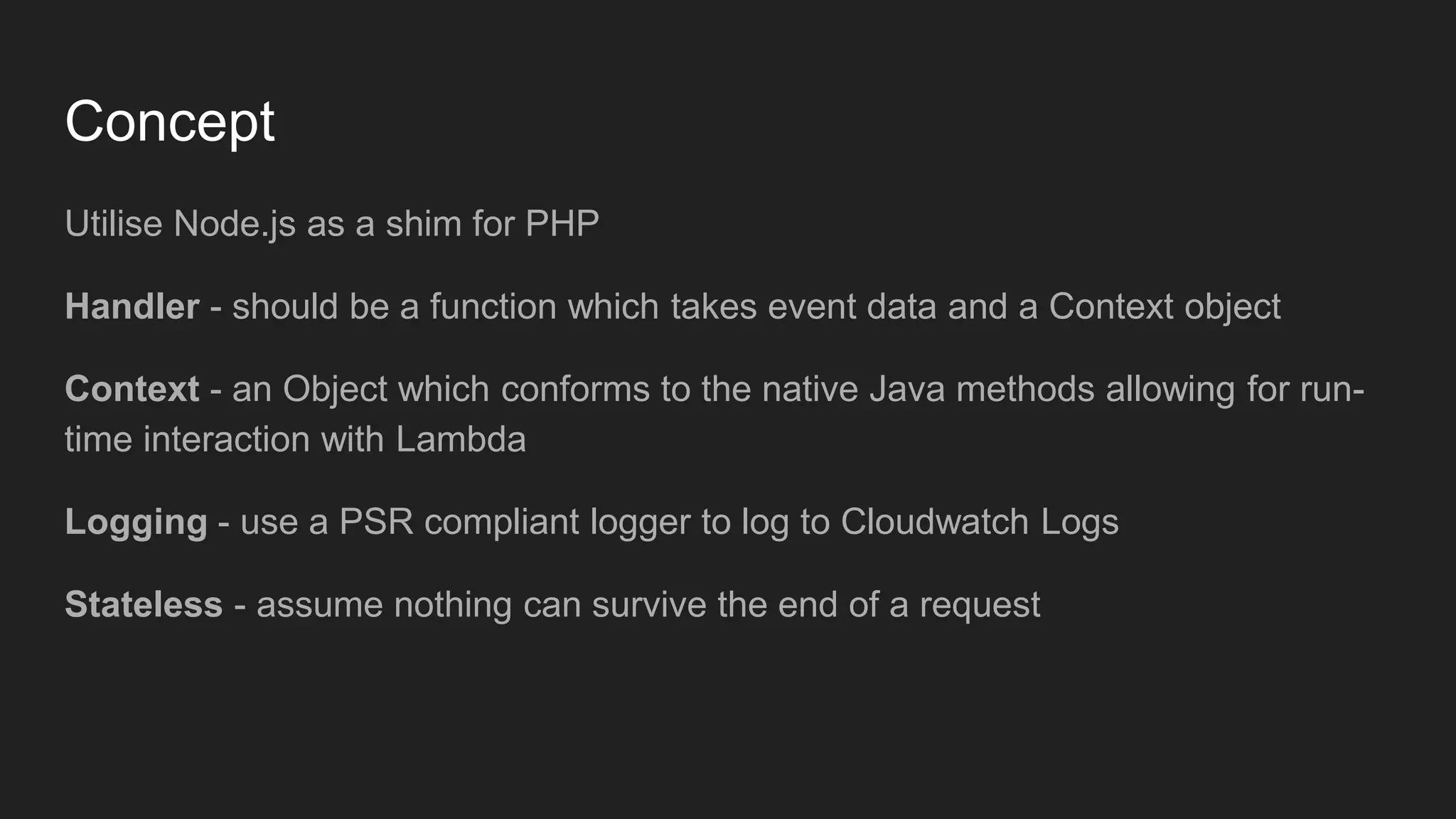

- 18. Concept Utilise Node.js asa shim for PHP Handler - should be a function which takes event data and a Context object Context - an Object which conforms to the native Java methods allowing for run- time interaction with Lambda Logging - use a PSR compliant logger to log to Cloudwatch Logs Stateless - assume nothing can survive the end of a request

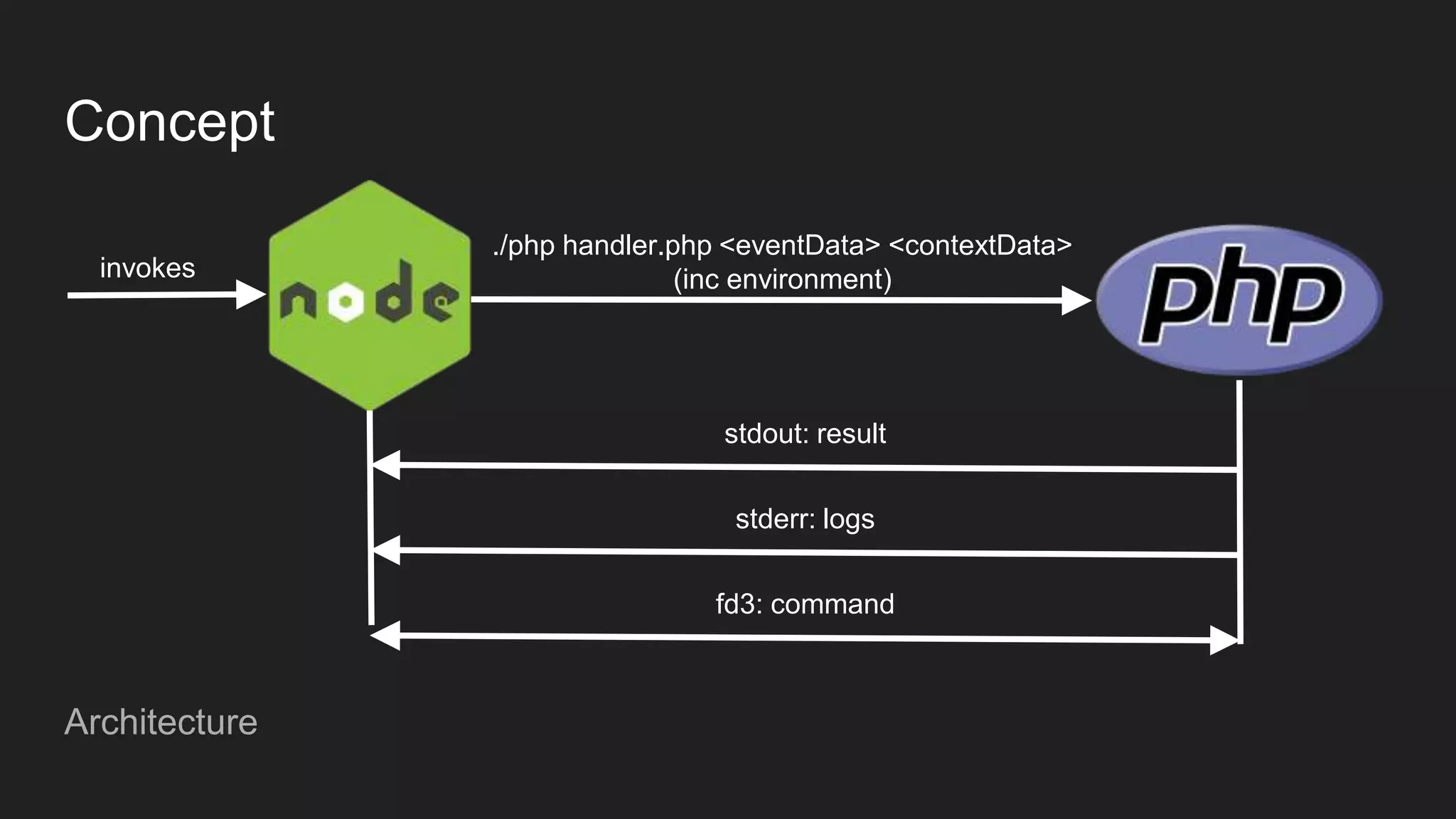

- 19. Architecture ./php handler.php <eventData><contextData> (inc environment) stdout: result stderr: logs fd3: command invokes Concept
- 20.
- 21.
- 22.
- 23.

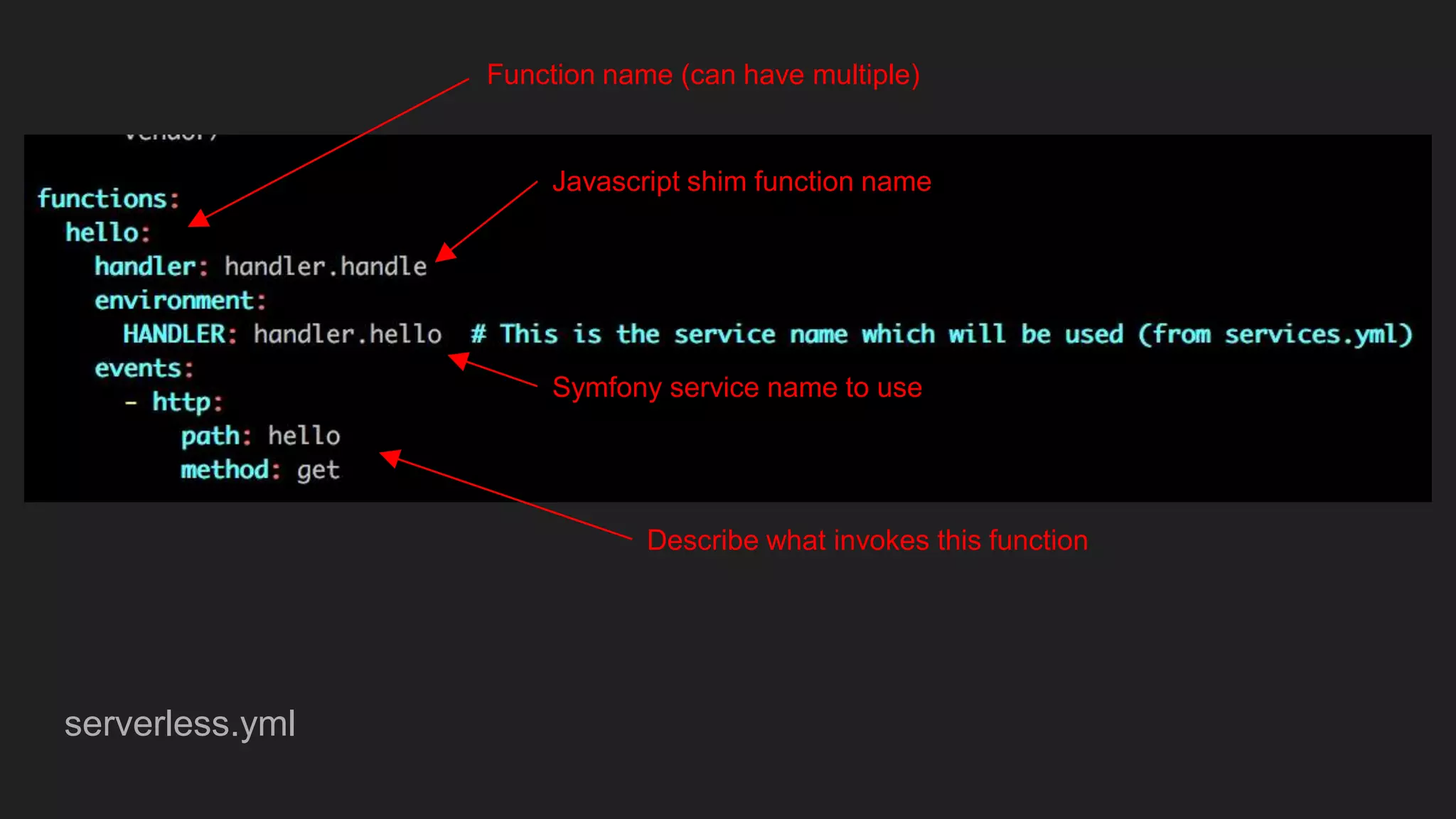

- 24. serverless.yml Function name (canhave multiple) Javascript shim function name Symfony service name to use Describe what invokes this function

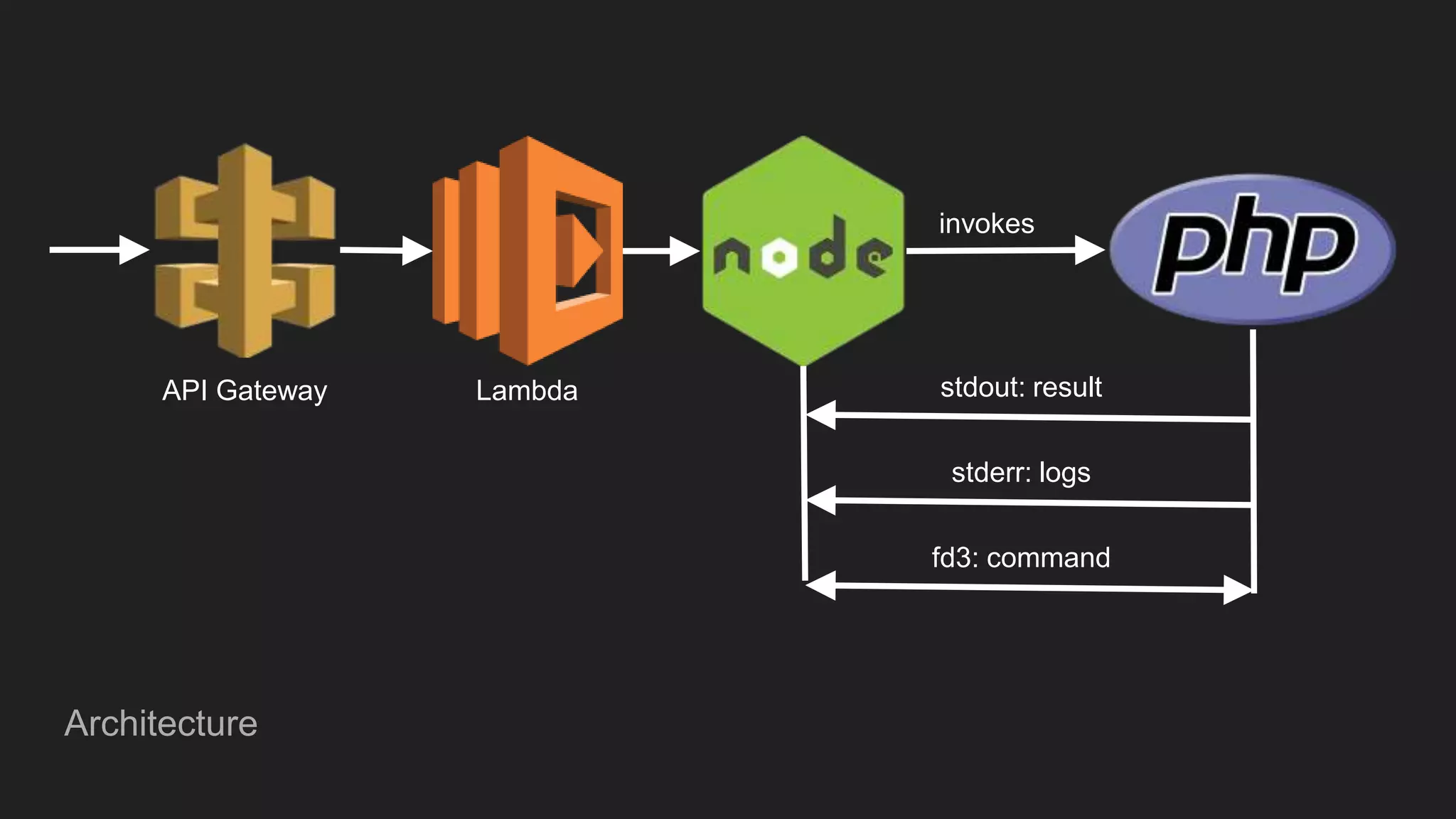

- 25. Architecture invokes stdout: result stderr: logs fd3:command API Gateway Lambda
- 26.
- 27. PHP Performance onLambda
- 28.

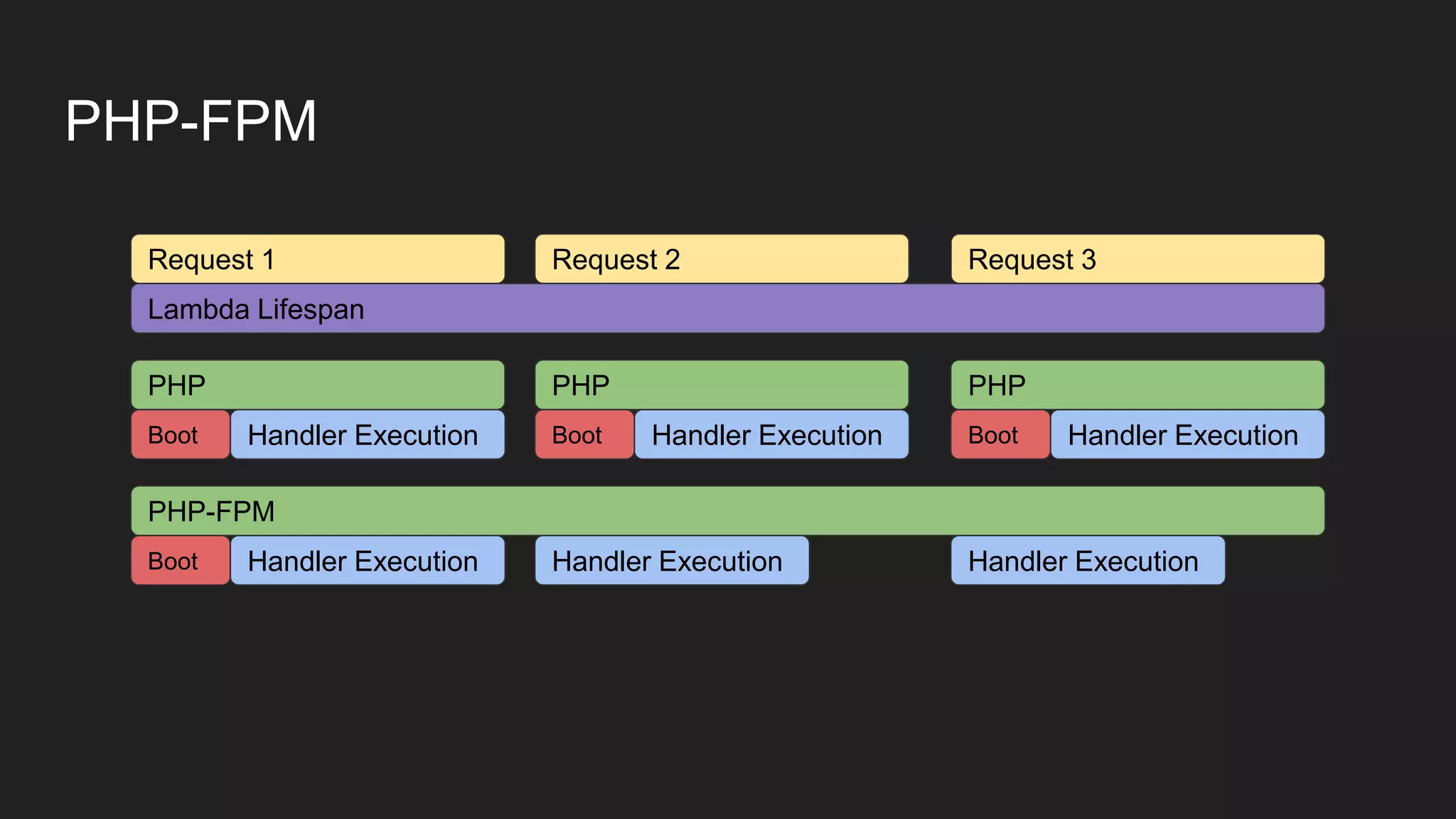

- 29. PHP-FPM PHP Handler ExecutionBoot PHP Handler ExecutionBoot PHP HandlerExecutionBoot Request 1 Request 2 Request 3 Lambda Lifespan PHP-FPM Handler ExecutionBoot Handler Execution Handler Execution

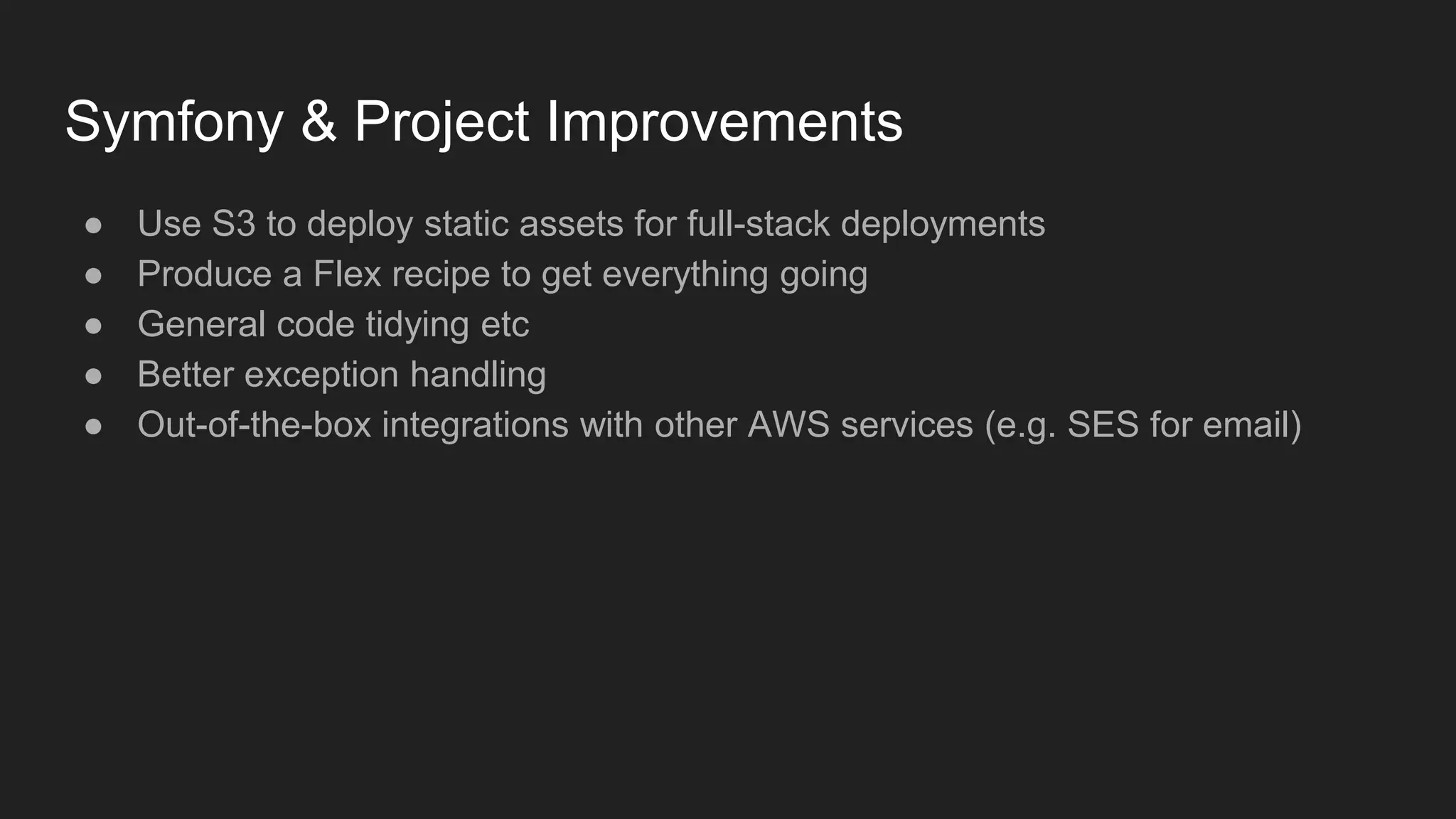

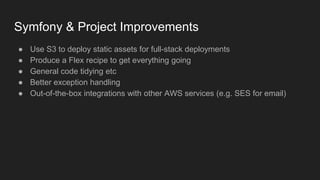

- 30. Symfony & ProjectImprovements ● Use S3 to deploy static assets for full-stack deployments ● Produce a Flex recipe to get everything going ● General code tidying etc ● Better exception handling ● Out-of-the-box integrations with other AWS services (e.g. SES for email)
- 31.
Editor's Notes
- #2 Introduce self How many people used AWS Lambda / FaaS / Serverless?
- #5 Serverless is the commonly used name for Function as a Service But what does this mean?
- #6 In blue are your responsibilities when using different setups
- #7 First FaaS around 3 years ago (hook.io), lots more providers since We may be now where we were 5 years ago with containers Upload code, run code - don’t worry about OS, servers etc Scale with events - practically unlimited scalability AWS Lambda - billed per 100ms, first million requests every month are free, 20 US cents per million thereafter - assuming <100ms per request
- #8 Probably most popular project for managing serverless services There are other projects too!
- #9 Microsoft Azure Functions Google Cloud Functions AWS Lambda IBM OpenWhisk Others….
- #17 Work daily with PHP and Symfony Very familiar with the language, and more importantly the tooling and processes Save many hours learning something new and becoming proficient at it Excellent community
- #20 Request hits API Gateway API Gateway invokes Lambda with request data Lambda starts node and executes Node.js shim Shim invokes PHP passing request data as command line arguments PHP executes and returns the result via stdout, logs via stderr and uses fd3 for context commands

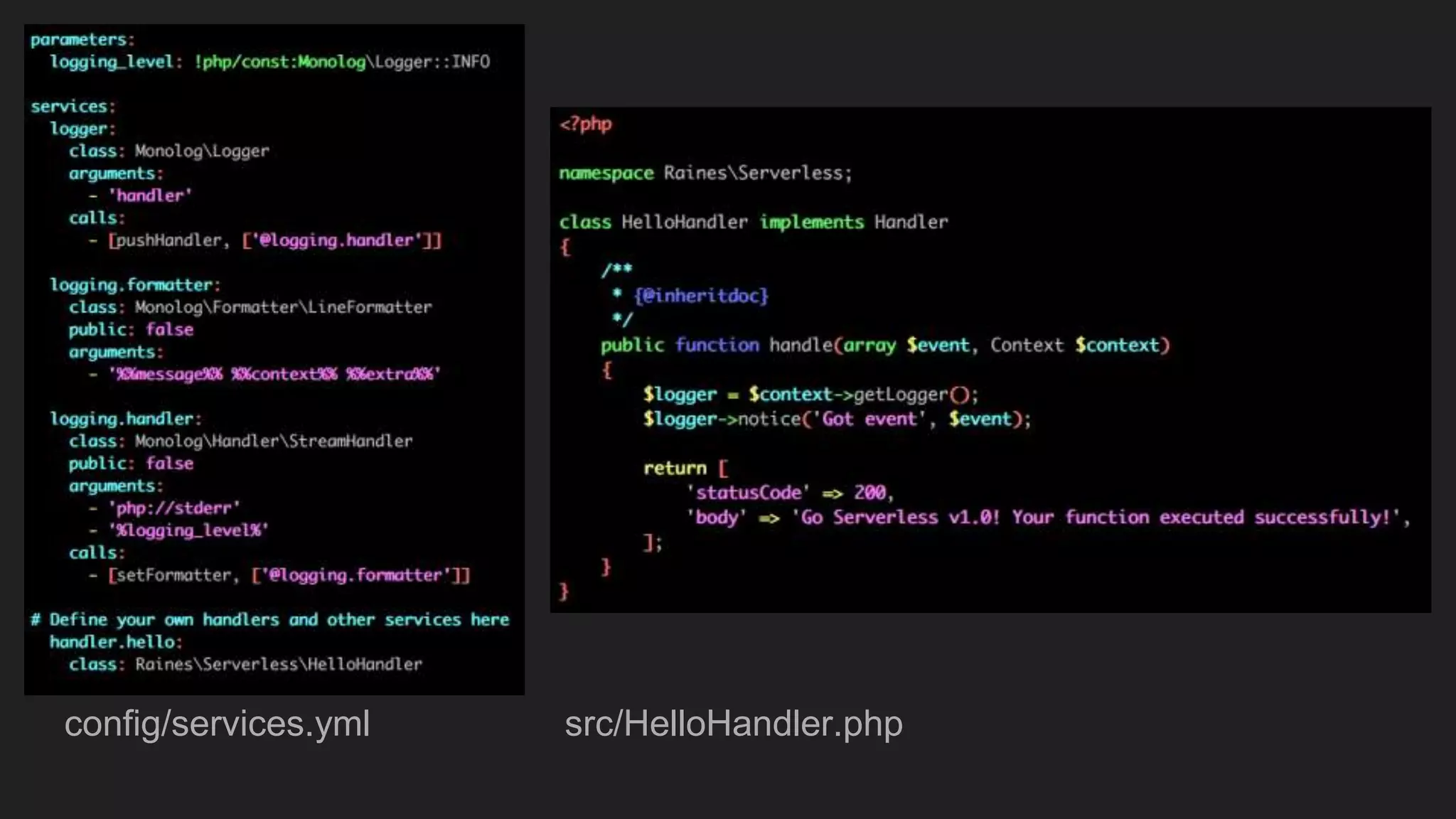

- #22 Logger logs to stderr
- #26 Request hits API Gateway API Gateway invokes Lambda with request data Lambda starts node and executes Node.js shim Shim invokes PHP passing request data as command line arguments PHP executes and returns the result via stdout, logs via stderr and uses fd3 for context commands

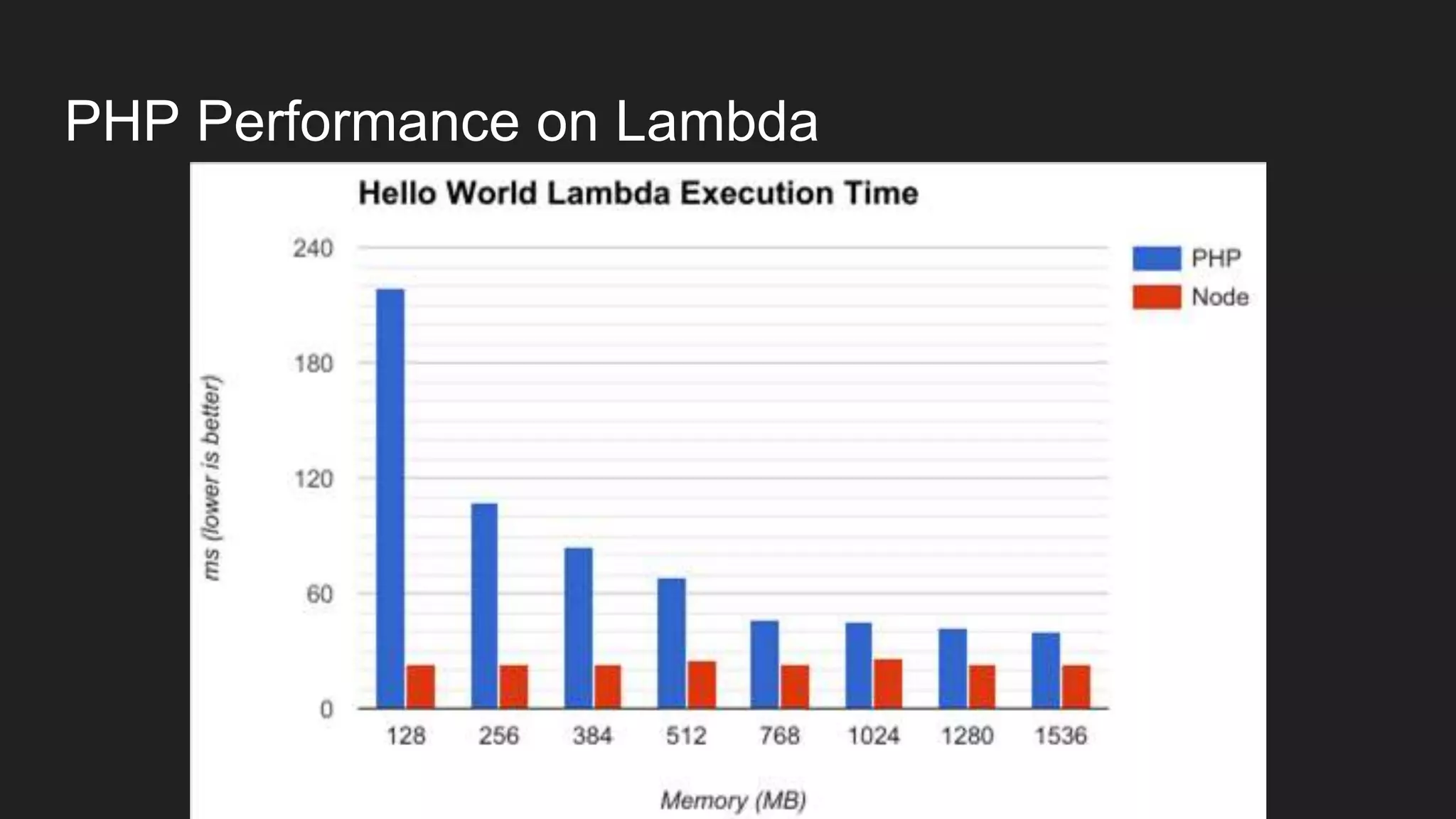

- #28 Can pick different sizes of Lambda - CPU scales with memory Node pretty consistently 20ms PHP ~40ms boot time Believe this is primarily because we are starting a PHP binary every time
- #30 Lambda functions should be considered stateless when developing However, they actually live for quite some time (5-30 minutes) Boot FPM once, reuse for subsequent requests
- #32 GitHub - has a link to my blog post with way more detail Serverless Framework
