GraphQL, Redux, and React

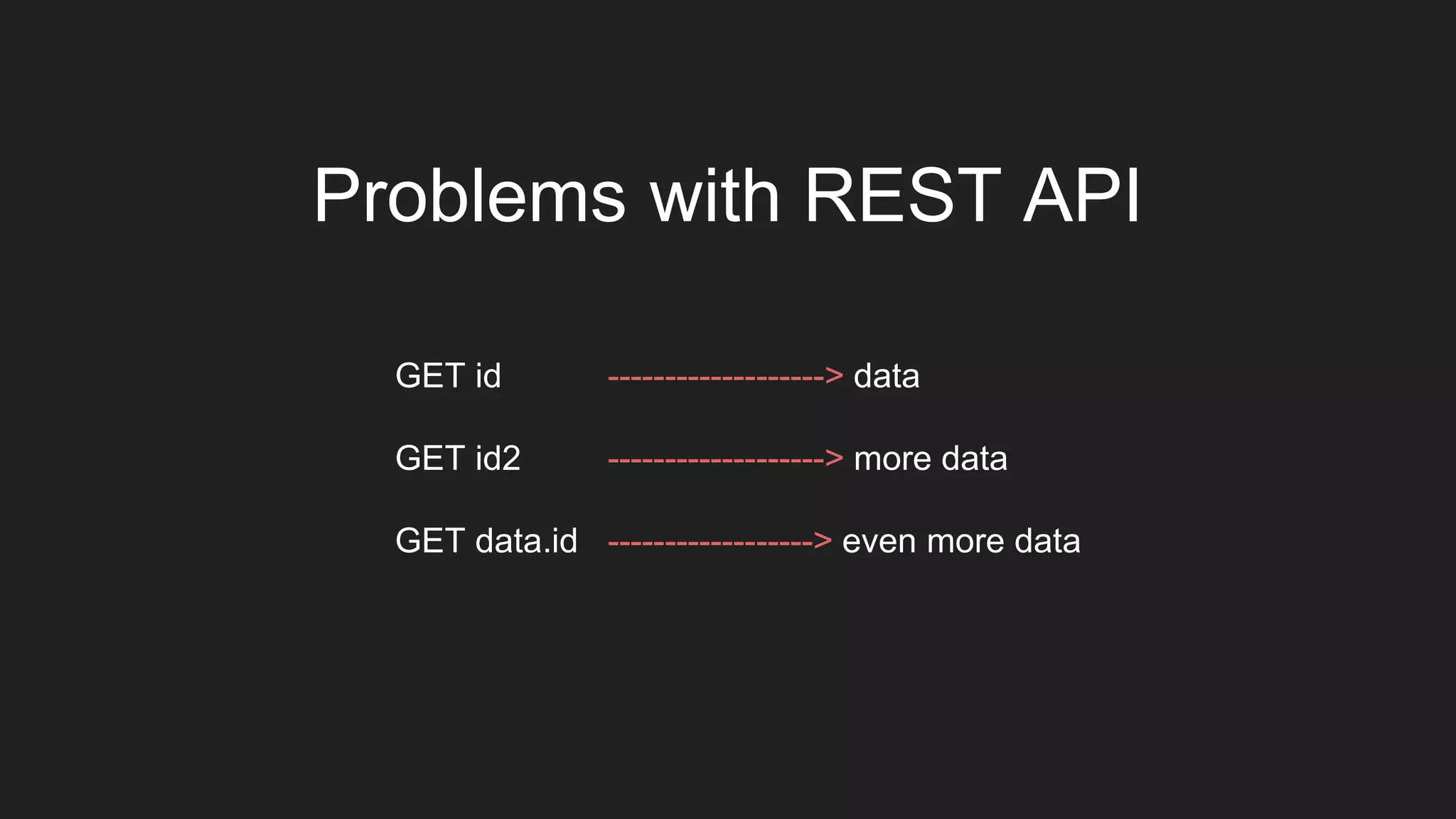

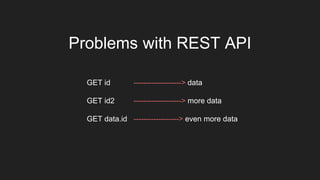

Problems with REST API
GET id -------------------> data
GET id2 -------------------> more data
GET data.id ------------------> even more data

Multiple Round Trips
● In order to descent into the object graph, multiple
round trips to the server are required.
● Critical for Mobile Environment

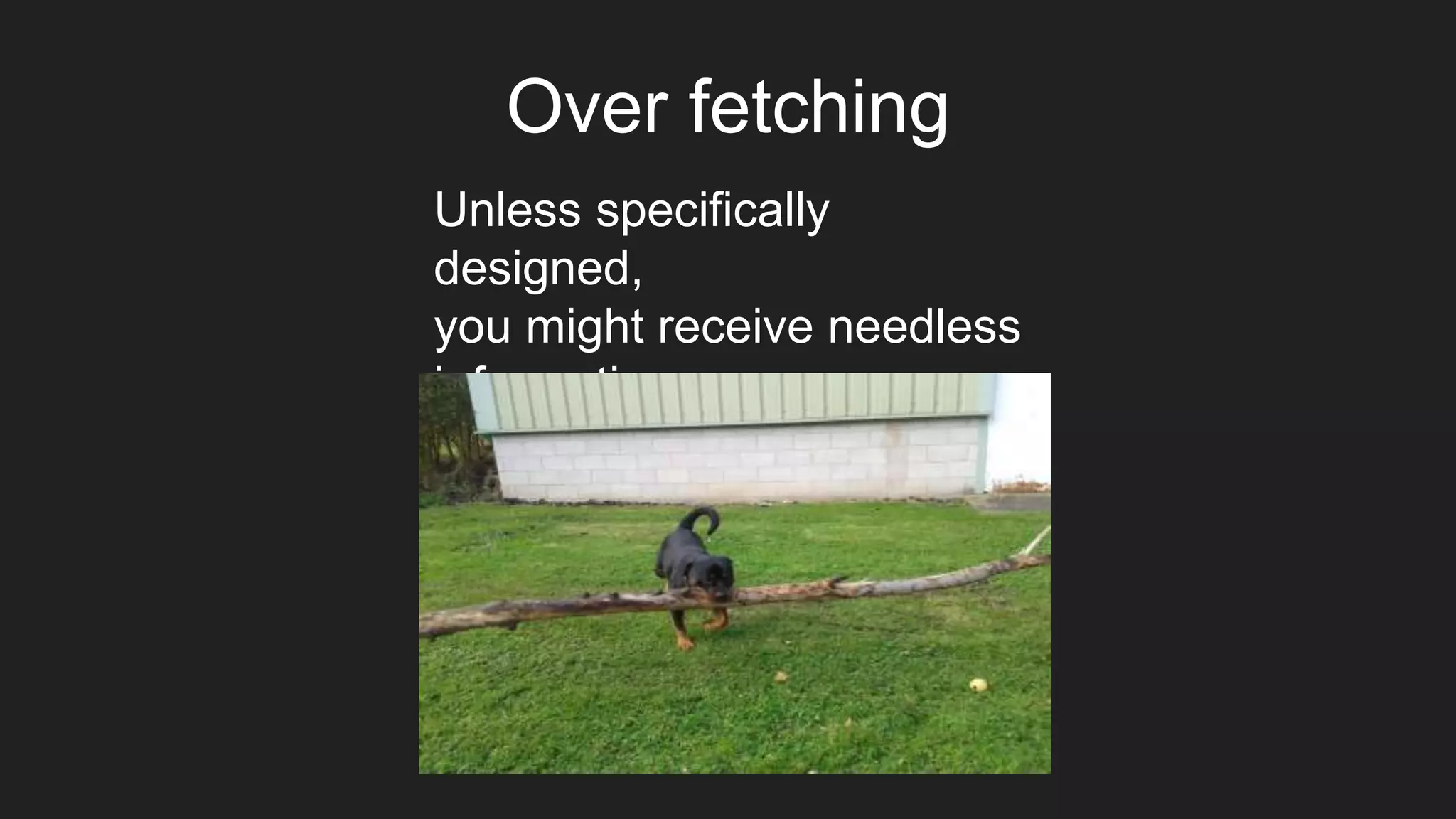

Over fetching
Unless specifically
designed,
you might receive needless
information

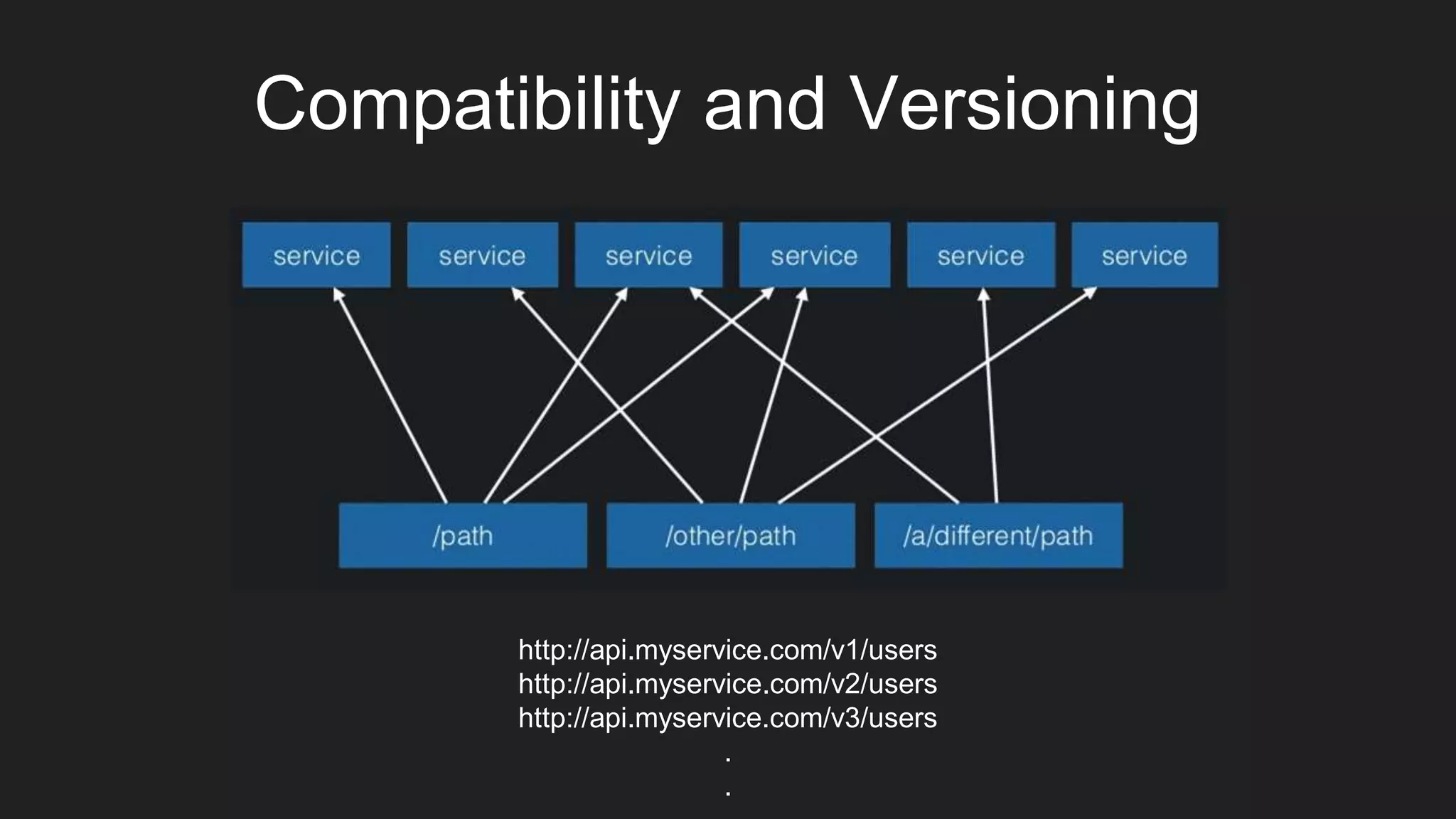

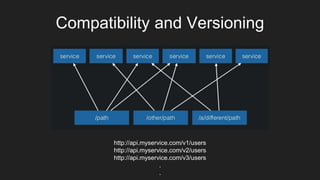

Compatibility and Versioning
http://api.myservice.com/v1/users
.
.

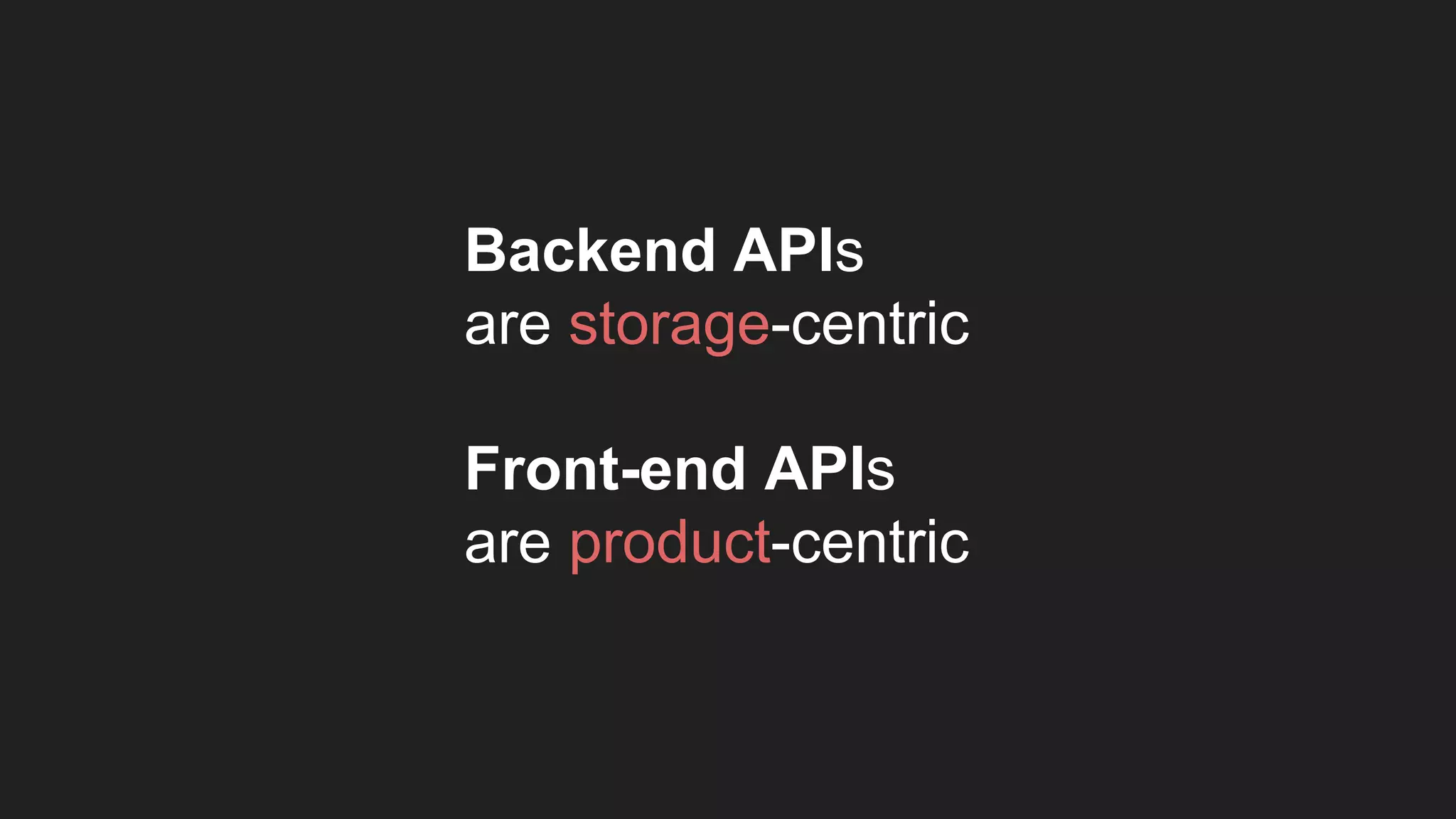

Backend APIs
are storage-centric
Front-end APIs
are product-centric

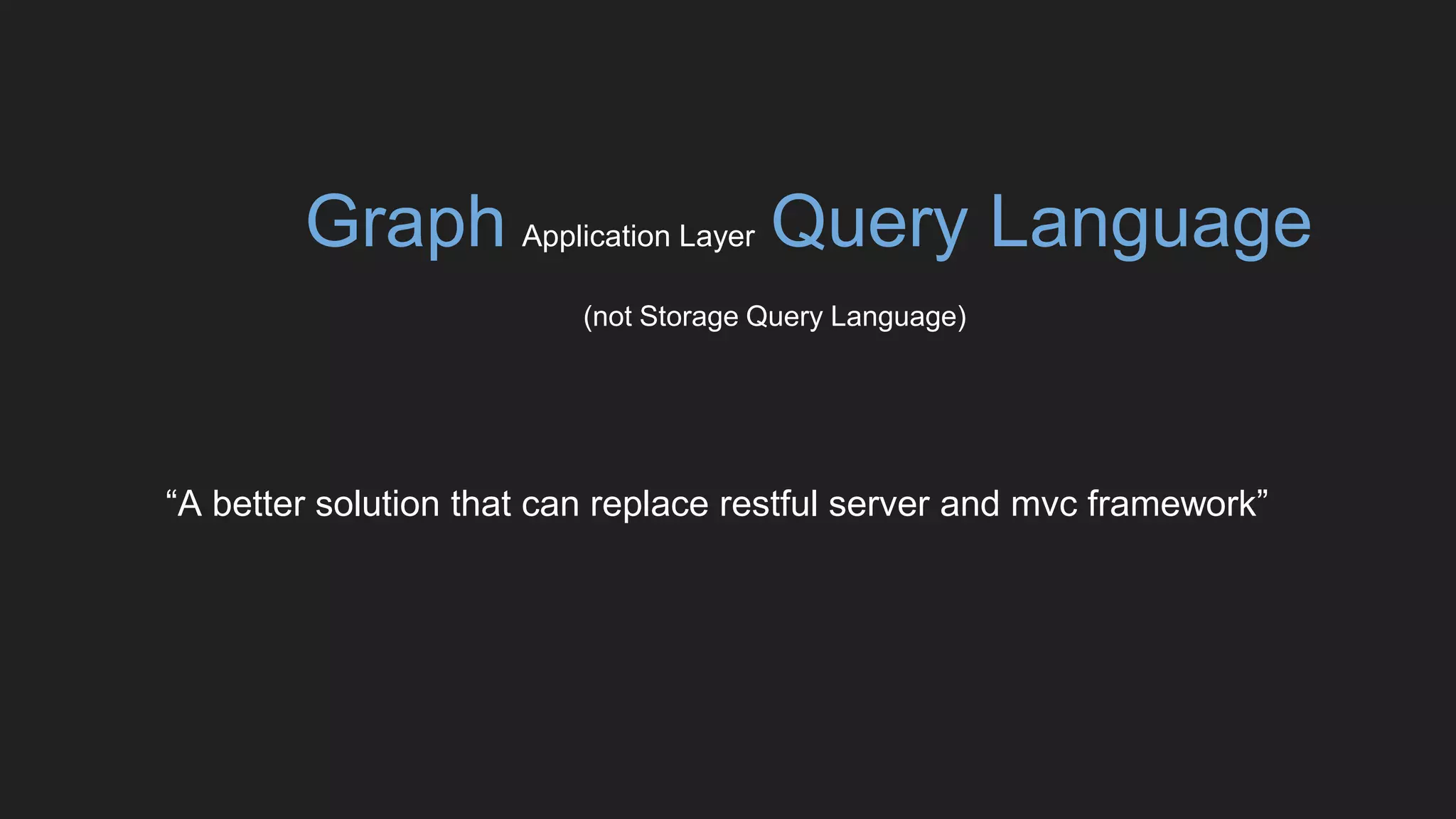

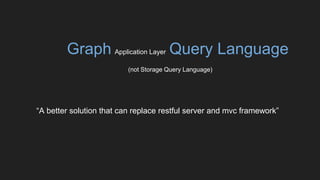

Graph Application Layer Query Language
(not Storage Query Language)
“A better solution that can replace restful server and mvc framework”

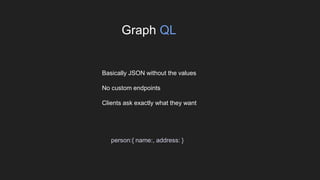

Basically JSON without the values
No custom endpoints
Clients ask exactly what they want
person:{ name:, address: }

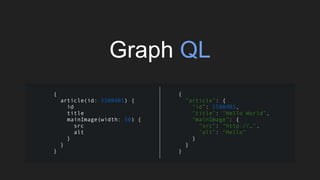

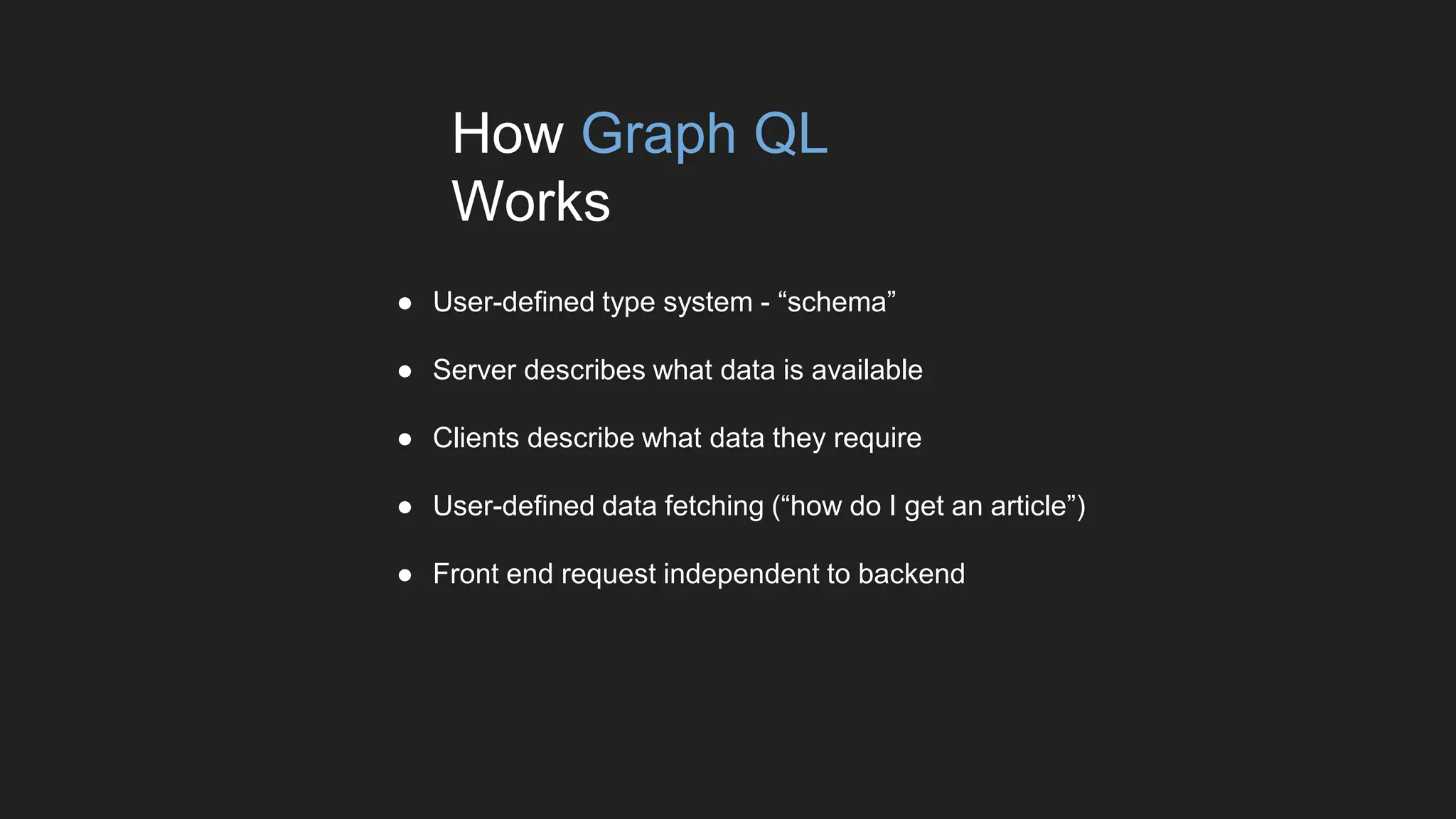

Graph QL

● User-defined type system - “schema”
● Server describes what data is available
● Clients describe what data they require
● User-defined data fetching (“how do I get an article”)
● Front end request independent to backend
How Graph QL
Works

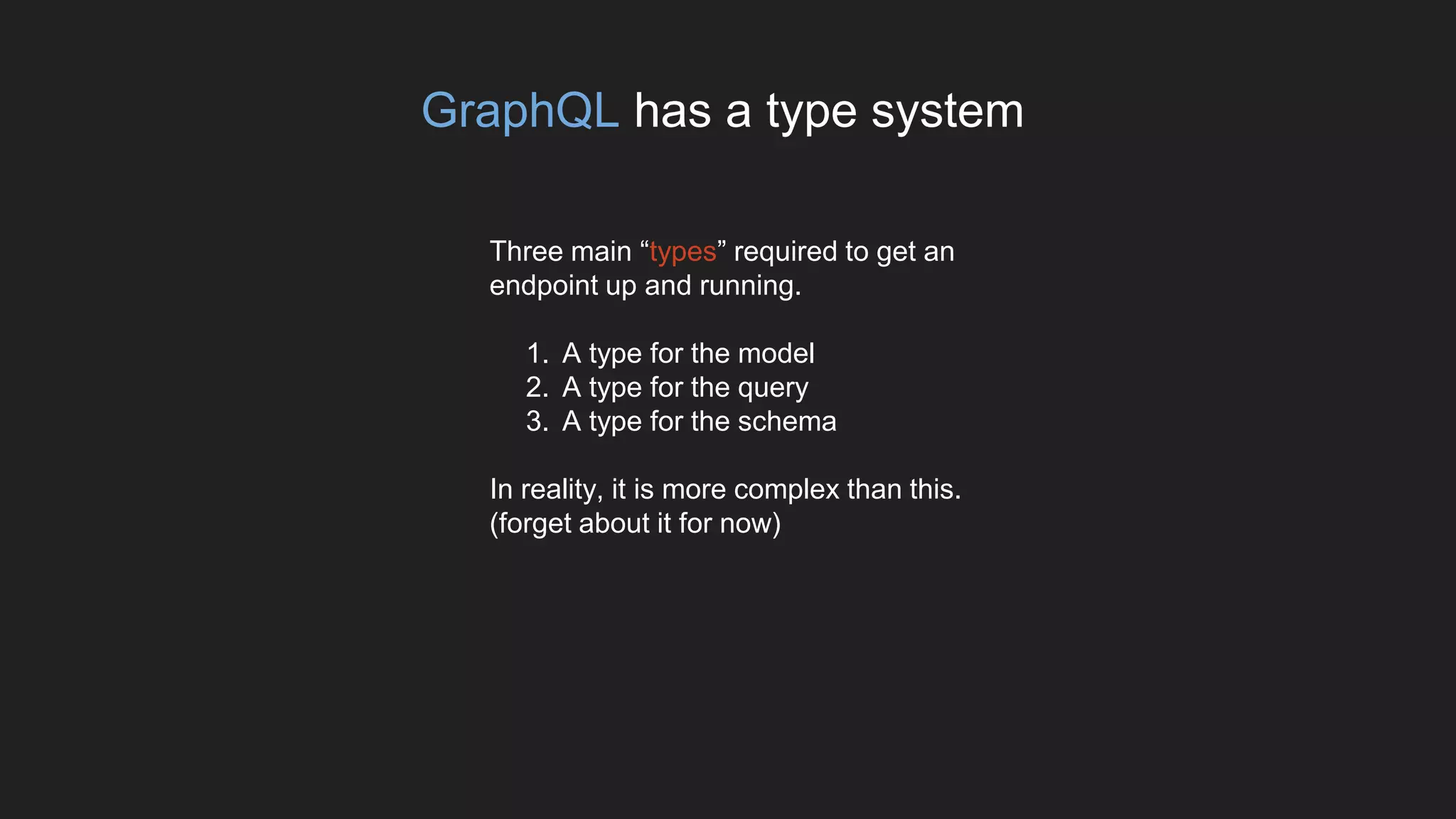

GraphQL has a type system
Three main “types” required to get an
endpoint up and running.
1. A type for the model
2. A type for the query
3. A type for the schema
In reality, it is more complex than this.
(forget about it for now)

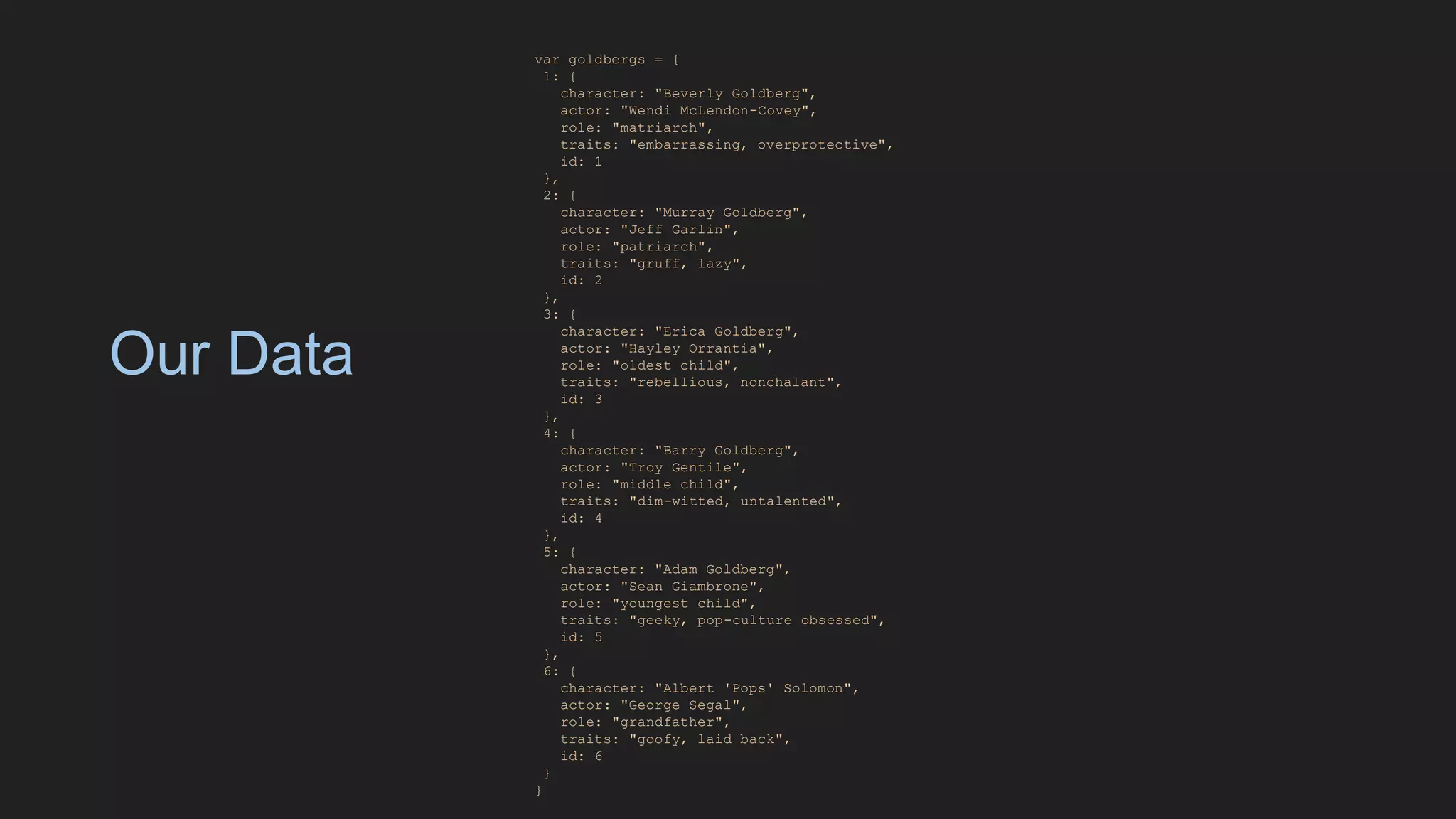

Our Data
var goldbergs = {
1: {
character: "Beverly Goldberg",
actor: "Wendi McLendon-Covey",
role: "matriarch",
traits: "embarrassing, overprotective",
id: 1
},
2: {
character: "Murray Goldberg",
actor: "Jeff Garlin",
role: "patriarch",
traits: "gruff, lazy",
id: 2
},
3: {
character: "Erica Goldberg",
actor: "Hayley Orrantia",
role: "oldest child",
traits: "rebellious, nonchalant",
id: 3
},
4: {
character: "Barry Goldberg",
actor: "Troy Gentile",
role: "middle child",
traits: "dim-witted, untalented",
id: 4
},
5: {
character: "Adam Goldberg",
actor: "Sean Giambrone",
role: "youngest child",
traits: "geeky, pop-culture obsessed",
id: 5
},
6: {
character: "Albert 'Pops' Solomon",
actor: "George Segal",
role: "grandfather",
traits: "goofy, laid back",
id: 6
}
}

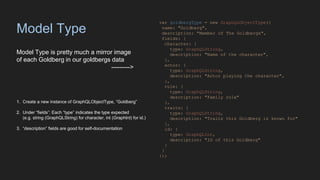

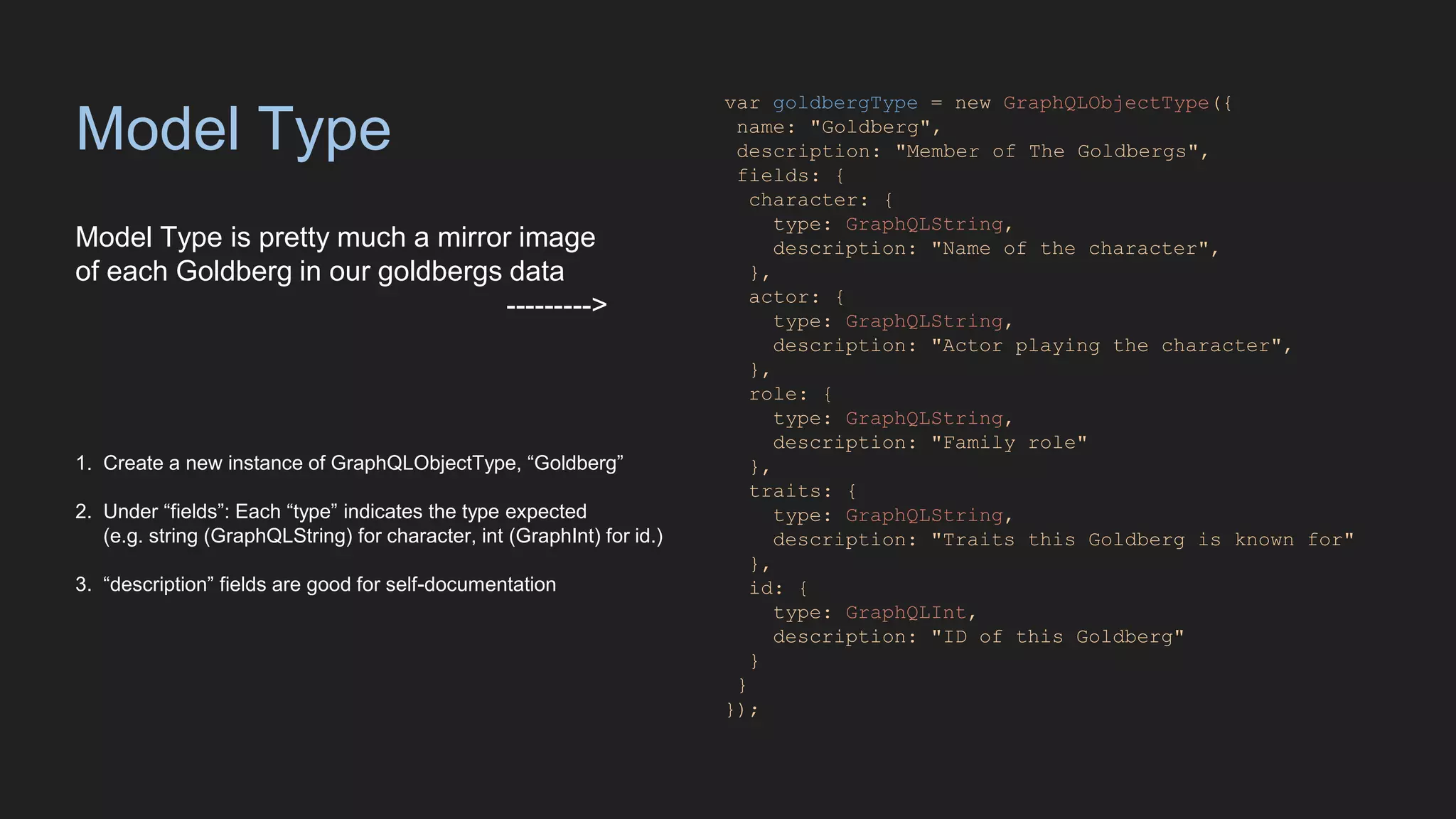

Model Type
Model Type is pretty much a mirror image
of each Goldberg in our goldbergs data
--------->
var goldbergType = new GraphQLObjectType({
name: "Goldberg",
description: "Member of The Goldbergs",
fields: {
character: {
type: GraphQLString,
description: "Name of the character",
},
actor: {
description: "Actor playing the character",
},
role: {
description: "Family role"
},
traits: {
description: "Traits this Goldberg is known for"
},
id: {
type: GraphQLInt,
description: "ID of this Goldberg"
}
}
});
1. Create a new instance of GraphQLObjectType, “Goldberg”
2. Under “fields”: Each “type” indicates the type expected
(e.g. string (GraphQLString) for character, int (GraphInt) for id.)
3. “description” fields are good for self-documentation

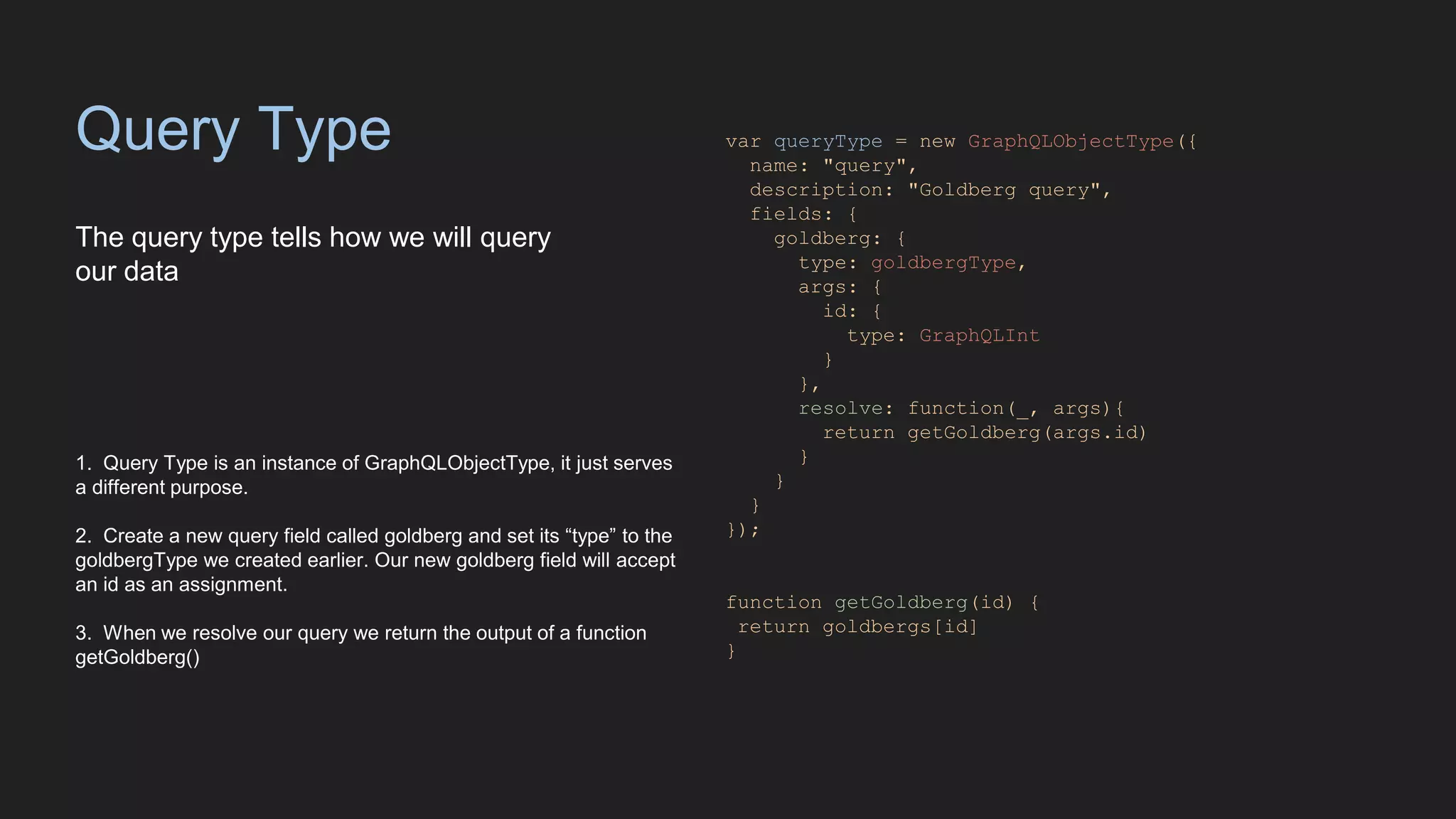

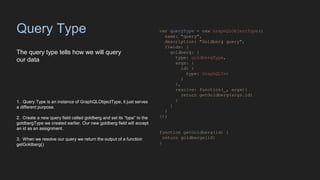

Query Type
The query type tells how we will query
our data
var queryType = new GraphQLObjectType({
name: "query",
description: "Goldberg query",
fields: {
goldberg: {
type: goldbergType,
args: {
id: {
type: GraphQLInt
}
},
resolve: function(_, args){
return getGoldberg(args.id)
}
}
}
});
function getGoldberg(id) {
return goldbergs[id]
}
1. Query Type is an instance of GraphQLObjectType, it just serves
a different purpose.
2. Create a new query field called goldberg and set its “type” to the
goldbergType we created earlier. Our new goldberg field will accept
an id as an assignment.
3. When we resolve our query we return the output of a function
getGoldberg()

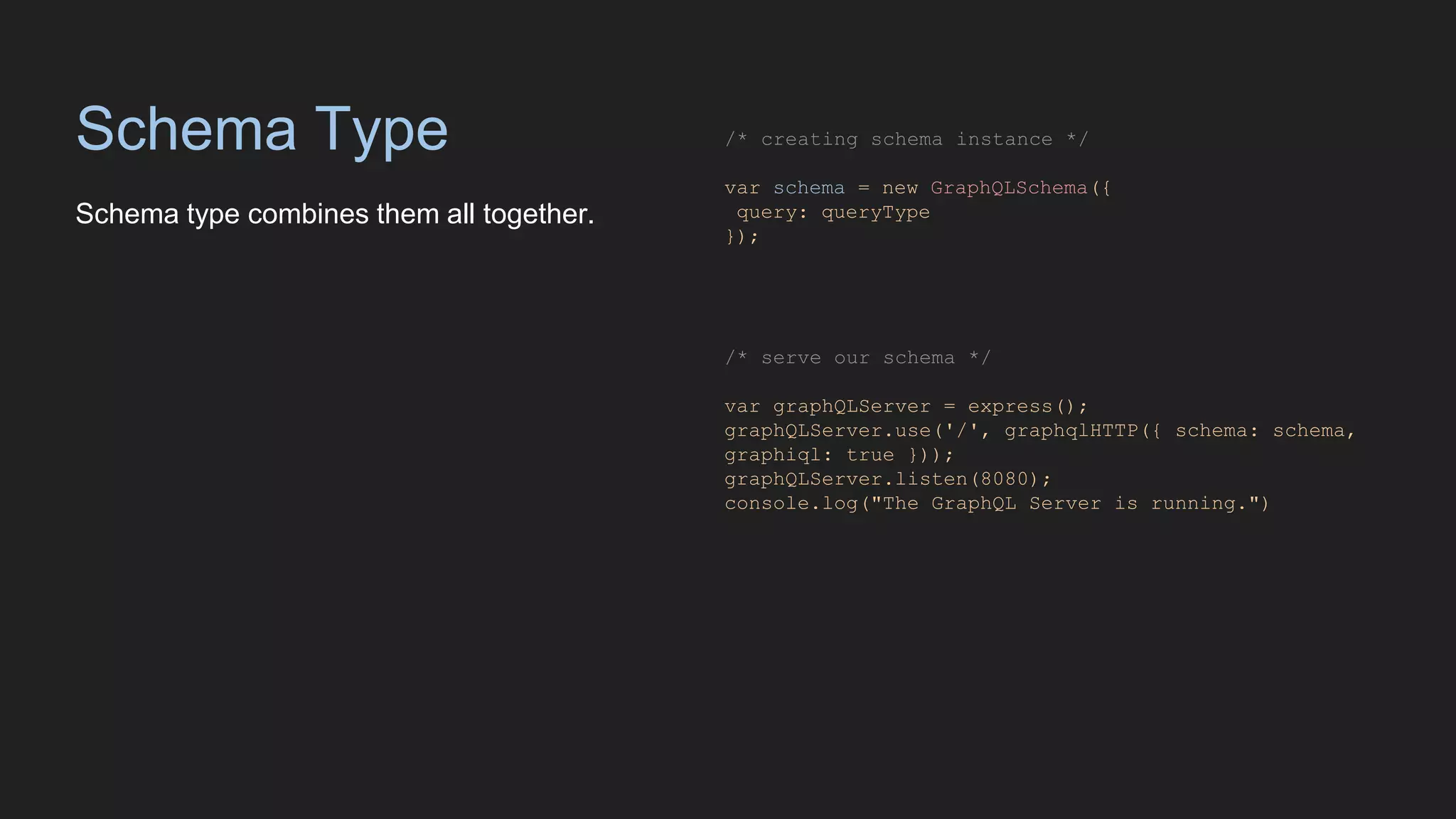

Schema Type
Schema type combines them all together.
/* creating schema instance */
var schema = new GraphQLSchema({
query: queryType
});
/* serve our schema */
var graphQLServer = express();
graphQLServer.use('/', graphqlHTTP({ schema: schema,
graphiql: true }));
graphQLServer.listen(8080);
console.log("The GraphQL Server is running.")

{

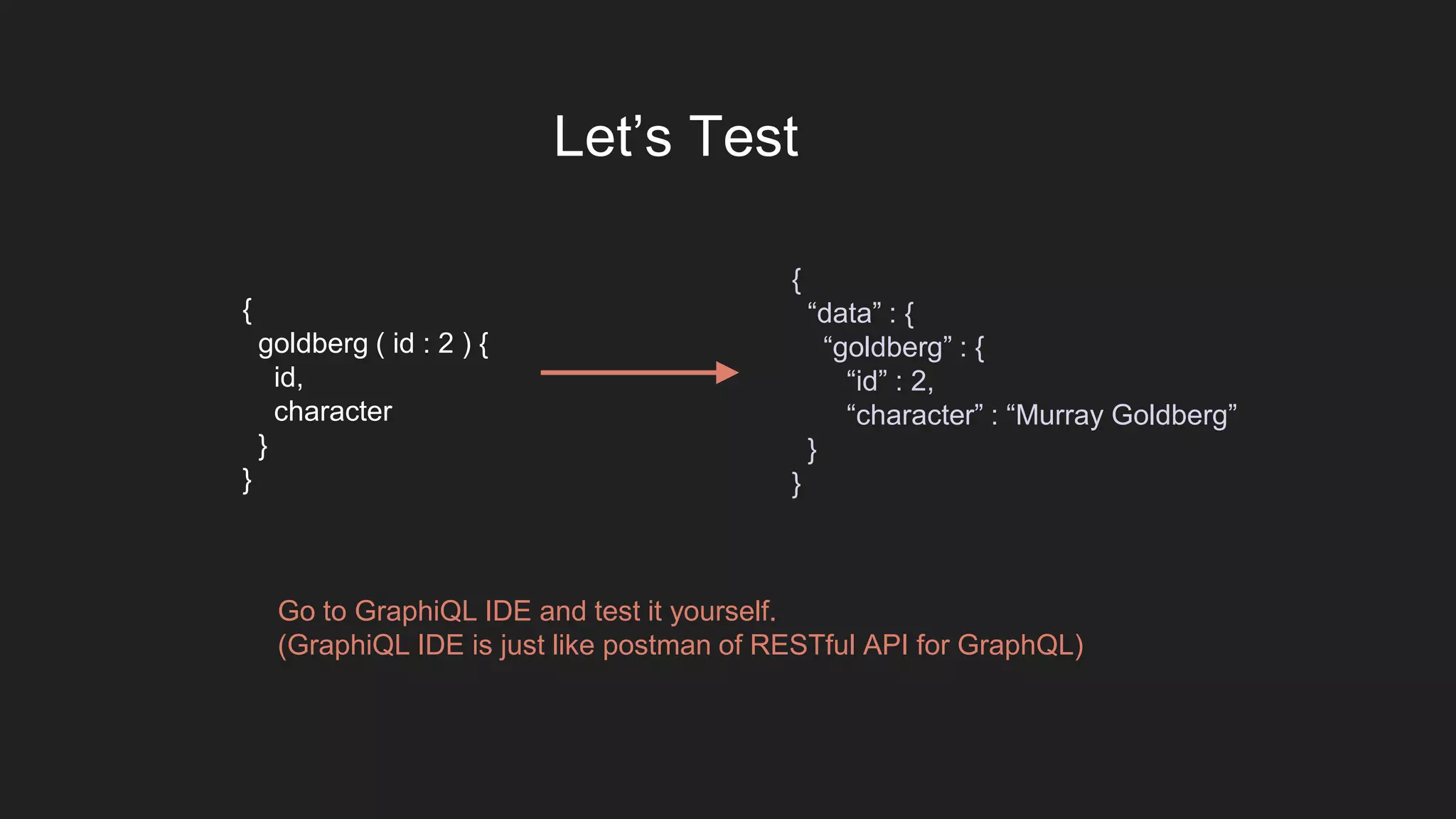

goldberg ( id : 2 ) {
id,
character
}
}
{
“data” : {
“goldberg” : {
“id” : 2,
“character” : “Murray Goldberg”
}
}

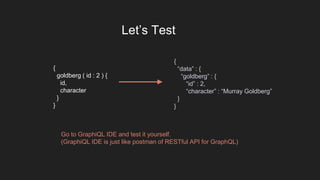

Let’s Test
Go to GraphiQL IDE and test it yourself.
(GraphiQL IDE is just like postman of RESTful API for GraphQL)

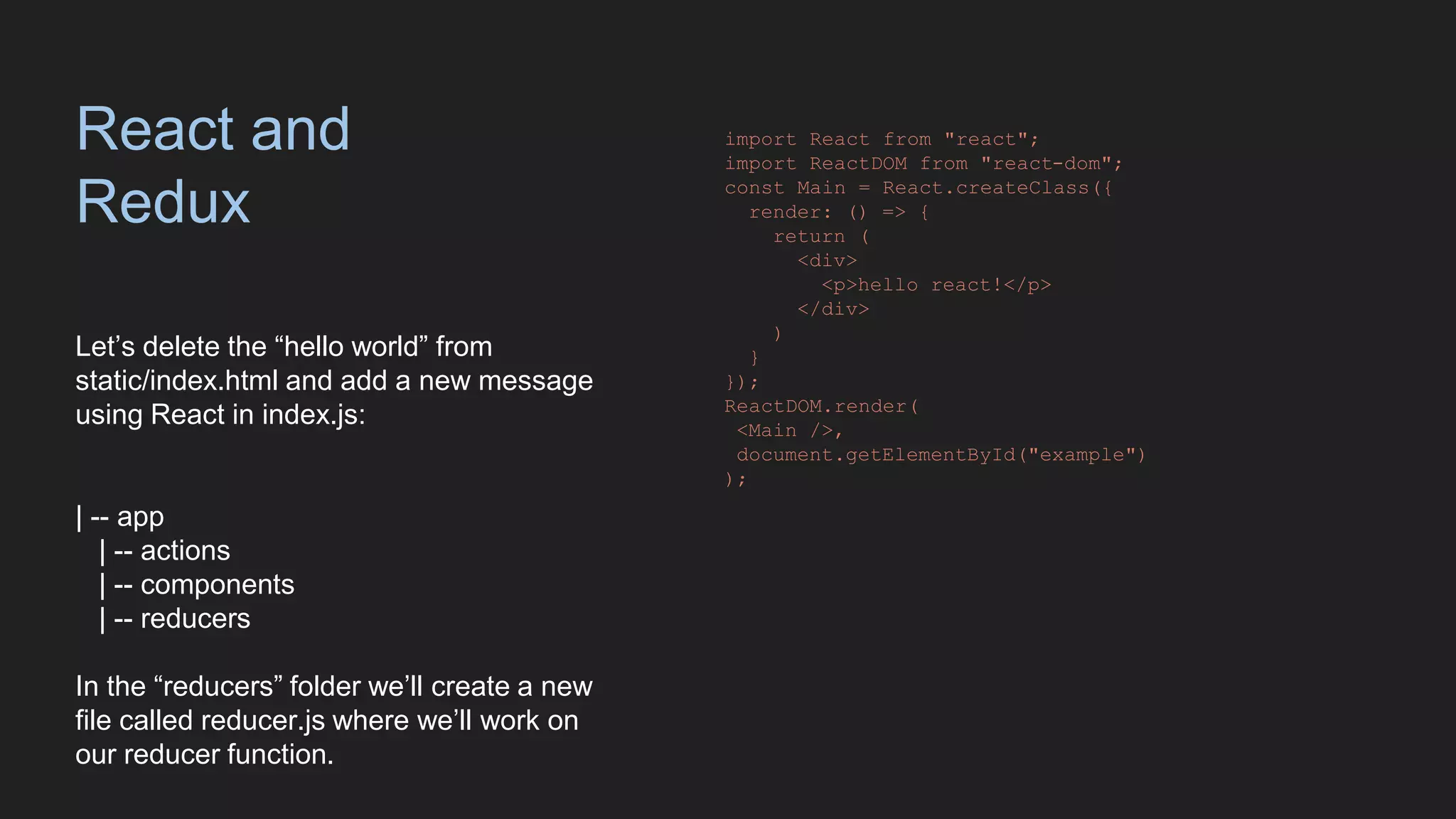

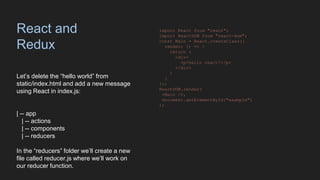

React and
Redux
Let’s delete the “hello world” from
static/index.html and add a new message
using React in index.js:
| -- app
| -- actions
| -- components
| -- reducers
In the “reducers” folder we’ll create a new
file called reducer.js where we’ll work on
our reducer function.
import React from "react";
import ReactDOM from "react-dom";
const Main = React.createClass({
render: () => {
return (
<div>
<p>hello react!</p>
</div>
)
}
});
ReactDOM.render(
<Main />,
document.getElementById("example")
);

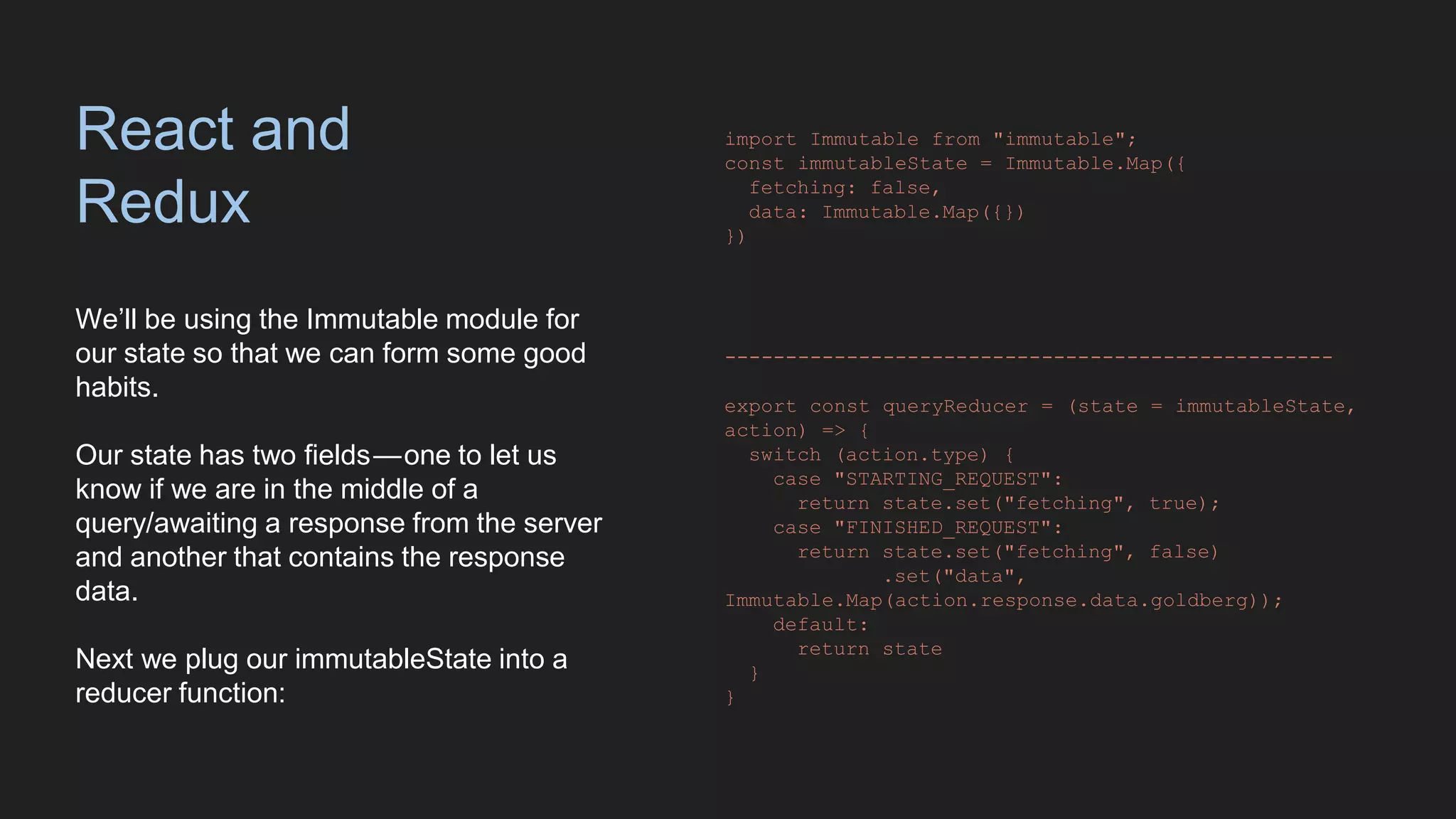

React and
Redux
We’ll be using the Immutable module for
our state so that we can form some good
habits.
Our state has two fields — one to let us
know if we are in the middle of a
query/awaiting a response from the server
and another that contains the response
data.
Next we plug our immutableState into a
reducer function:
import Immutable from "immutable";
const immutableState = Immutable.Map({
fetching: false,
data: Immutable.Map({})
})
--------------------------------------------------
export const queryReducer = (state = immutableState,
action) => {
switch (action.type) {
case "STARTING_REQUEST":
return state.set("fetching", true);
case "FINISHED_REQUEST":
return state.set("fetching", false)
.set("data",
Immutable.Map(action.response.data.goldberg));
default:
return state
}
}

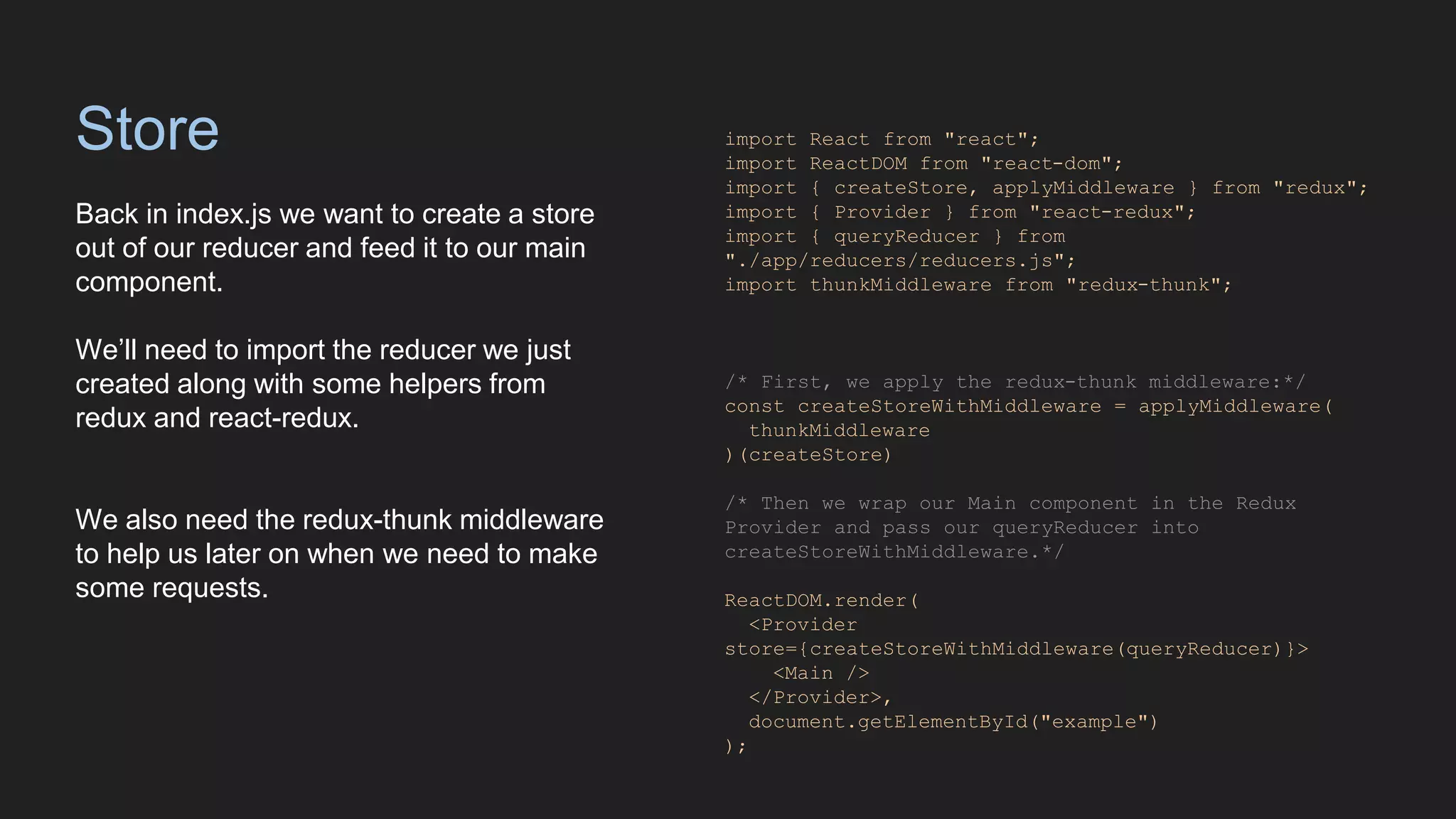

Store
Back in index.js we want to create a store
out of our reducer and feed it to our main
component.
We’ll need to import the reducer we just
created along with some helpers from
redux and react-redux.
We also need the redux-thunk middleware
to help us later on when we need to make
some requests.
import React from "react";
import ReactDOM from "react-dom";
import { createStore, applyMiddleware } from "redux";
import { Provider } from "react-redux";
import { queryReducer } from
"./app/reducers/reducers.js";
import thunkMiddleware from "redux-thunk";
/* First, we apply the redux-thunk middleware:*/
const createStoreWithMiddleware = applyMiddleware(
thunkMiddleware
)(createStore)
/* Then we wrap our Main component in the Redux
Provider and pass our queryReducer into
createStoreWithMiddleware.*/
ReactDOM.render(
<Provider
store={createStoreWithMiddleware(queryReducer)}>
<Main />
</Provider>,
document.getElementById("example")
);

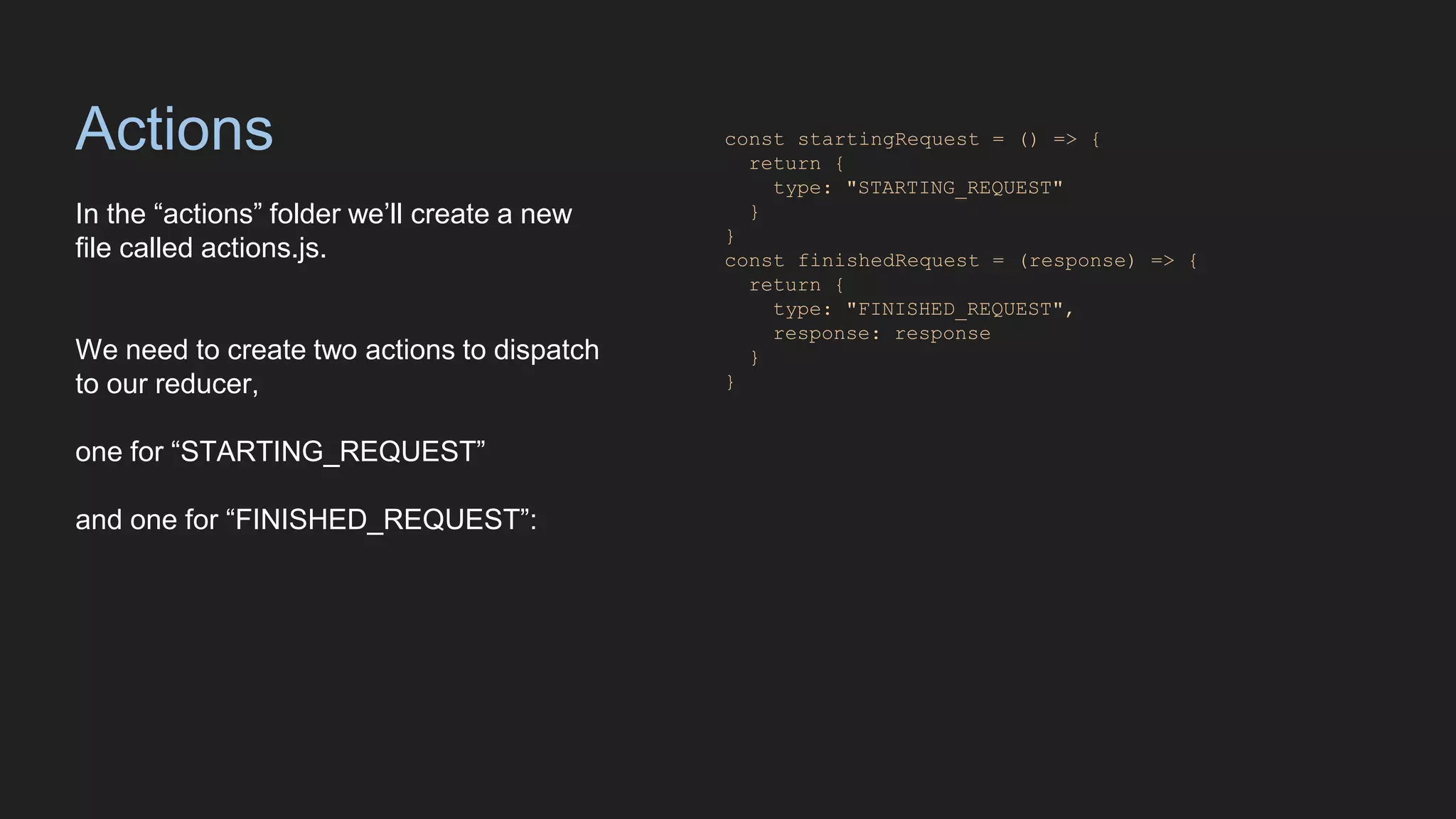

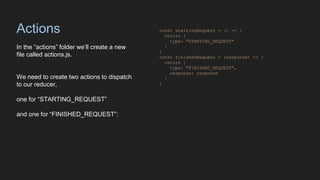

Actions
In the “actions” folder we’ll create a new
file called actions.js.
We need to create two actions to dispatch
to our reducer,
one for “STARTING_REQUEST”
and one for “FINISHED_REQUEST”:
const startingRequest = () => {
return {
type: "STARTING_REQUEST"
}
}
const finishedRequest = (response) => {
return {
type: "FINISHED_REQUEST",
response: response
}
}

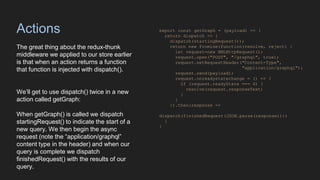

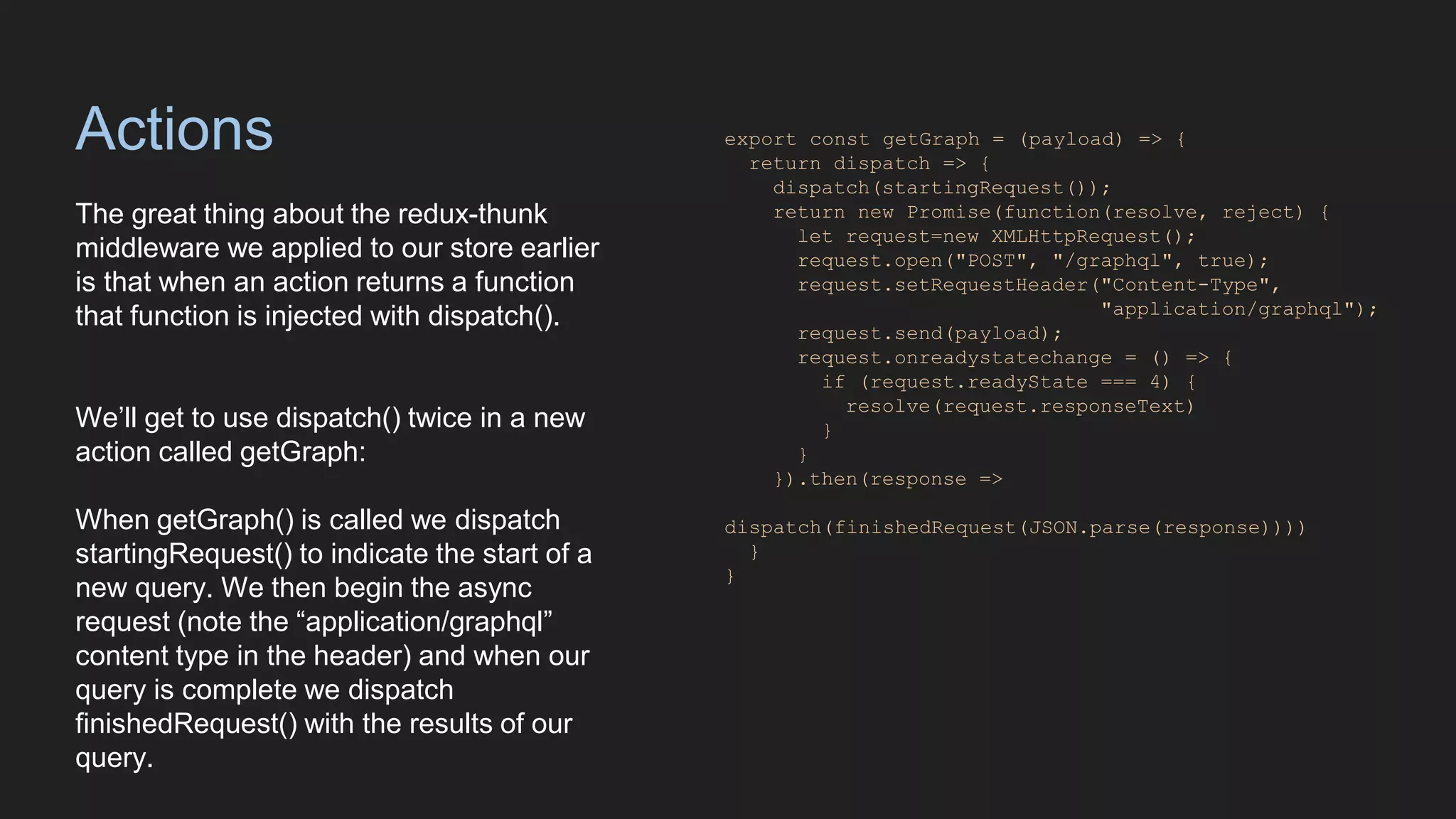

Actions
The great thing about the redux-thunk
middleware we applied to our store earlier
is that when an action returns a function
that function is injected with dispatch().
We’ll get to use dispatch() twice in a new
action called getGraph:
When getGraph() is called we dispatch
startingRequest() to indicate the start of a
new query. We then begin the async
request (note the “application/graphql”
content type in the header) and when our
query is complete we dispatch
finishedRequest() with the results of our
query.
export const getGraph = (payload) => {
return dispatch => {
dispatch(startingRequest());
return new Promise(function(resolve, reject) {
let request=new XMLHttpRequest();
request.open("POST", "/graphql", true);
request.setRequestHeader("Content-Type",
"application/graphql");
request.send(payload);
request.onreadystatechange = () => {
if (request.readyState === 4) {
resolve(request.responseText)
}
}
}).then(response =>
dispatch(finishedRequest(JSON.parse(response))))
}
}

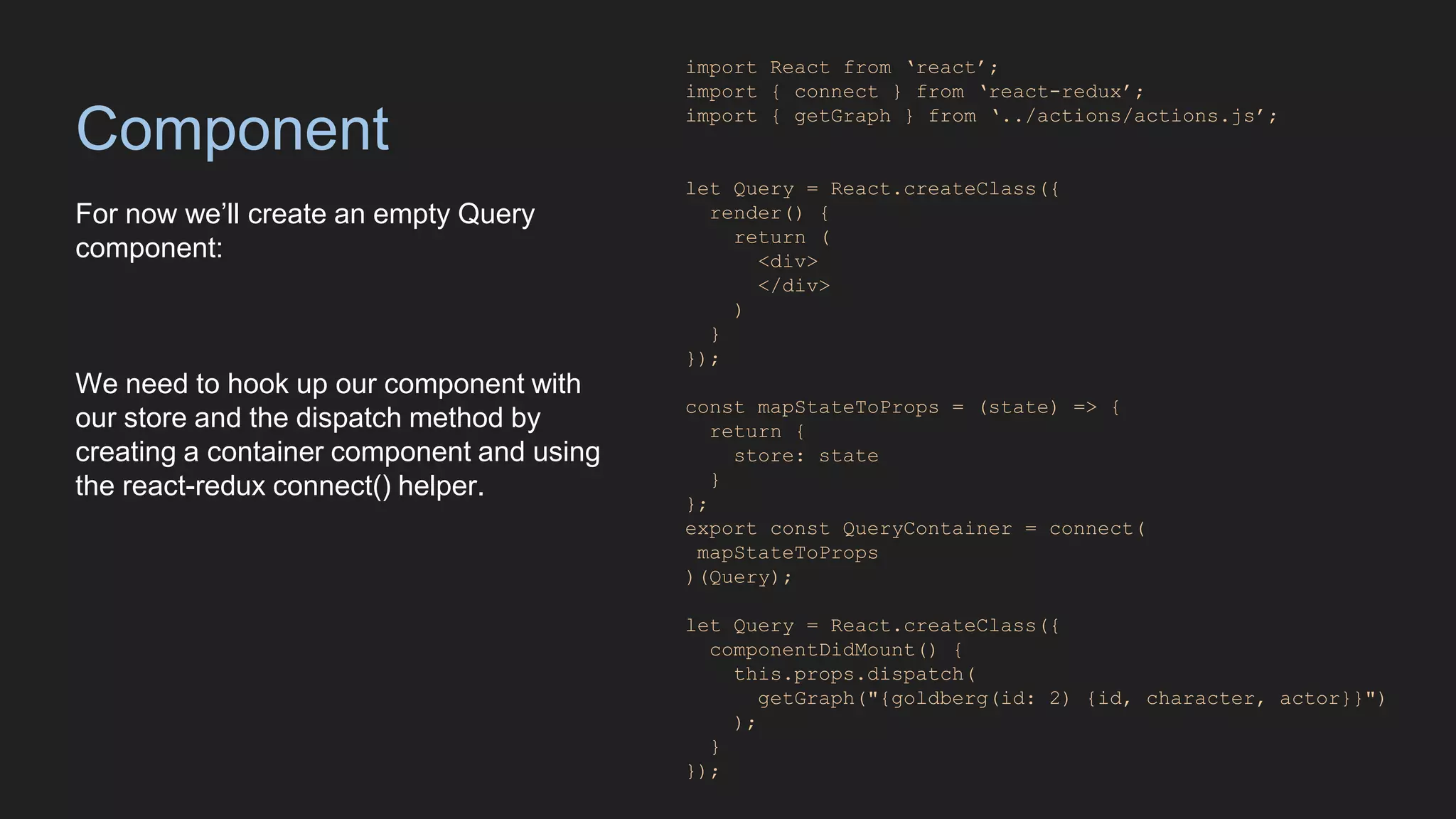

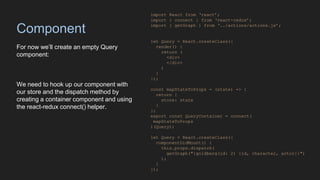

Component
For now we’ll create an empty Query
component:
We need to hook up our component with
our store and the dispatch method by
creating a container component and using
the react-redux connect() helper.
import React from ‘react’;
import { connect } from ‘react-redux’;
import { getGraph } from ‘../actions/actions.js’;
let Query = React.createClass({
render() {
return (
<div>
</div>
)
}
});
const mapStateToProps = (state) => {
return {
store: state
}
};
export const QueryContainer = connect(
mapStateToProps
)(Query);
componentDidMount() {
this.props.dispatch(
getGraph("{goldberg(id: 2) {id, character, actor}}")
);
}
});

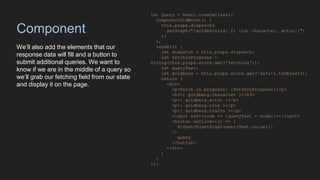

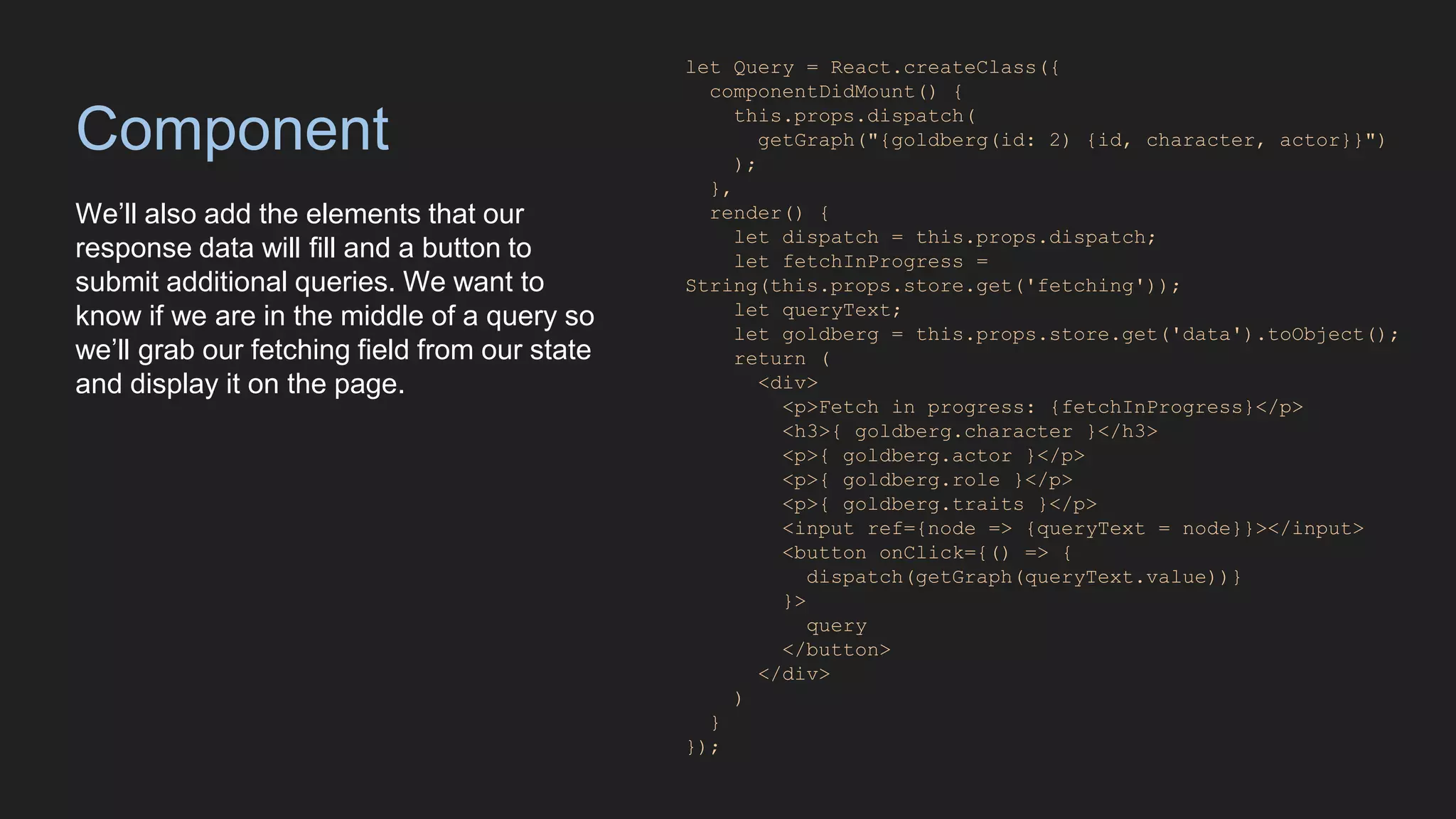

Component
We’ll also add the elements that our
response data will fill and a button to
submit additional queries. We want to
know if we are in the middle of a query so
we’ll grab our fetching field from our state
and display it on the page.
componentDidMount() {
this.props.dispatch(
getGraph("{goldberg(id: 2) {id, character, actor}}")
);
},
render() {
let dispatch = this.props.dispatch;
let fetchInProgress =
String(this.props.store.get('fetching'));
let queryText;
let goldberg = this.props.store.get('data').toObject();
return (
<div>
<p>Fetch in progress: {fetchInProgress}</p>
<h3>{ goldberg.character }</h3>
<p>{ goldberg.actor }</p>
<p>{ goldberg.role }</p>
<p>{ goldberg.traits }</p>
<input ref={node => {queryText = node}}></input>
<button onClick={() => {
dispatch(getGraph(queryText.value))}
}>
query
</button>
</div>
)
}
});

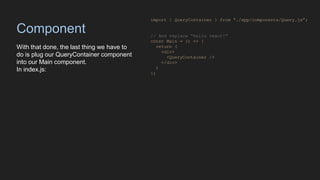

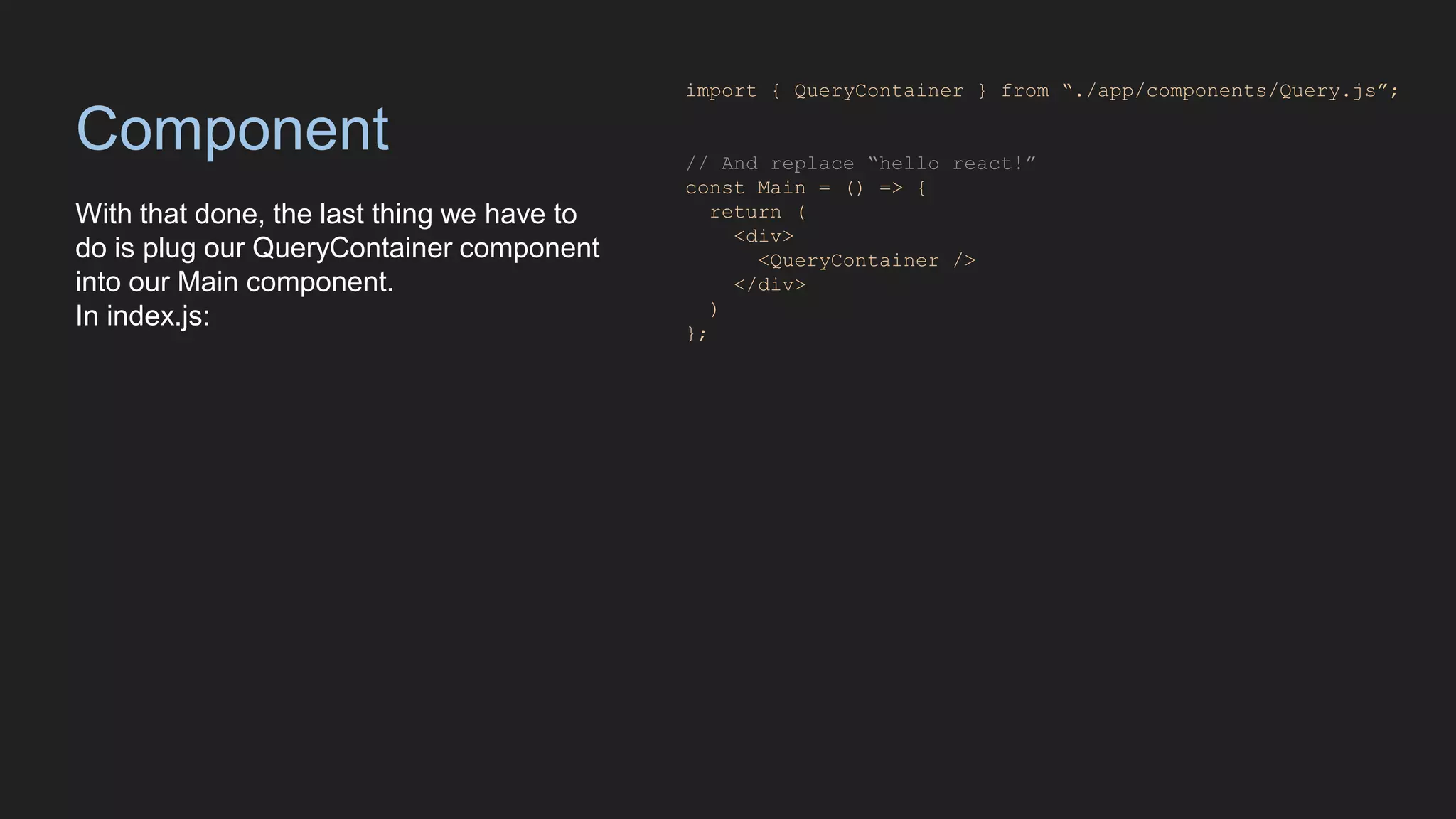

Component
With that done, the last thing we have to
do is plug our QueryContainer component
into our Main component.
In index.js:
import { QueryContainer } from “./app/components/Query.js”;
// And replace “hello react!”
const Main = () => {
return (
<div>
<QueryContainer />
</div>
)
};

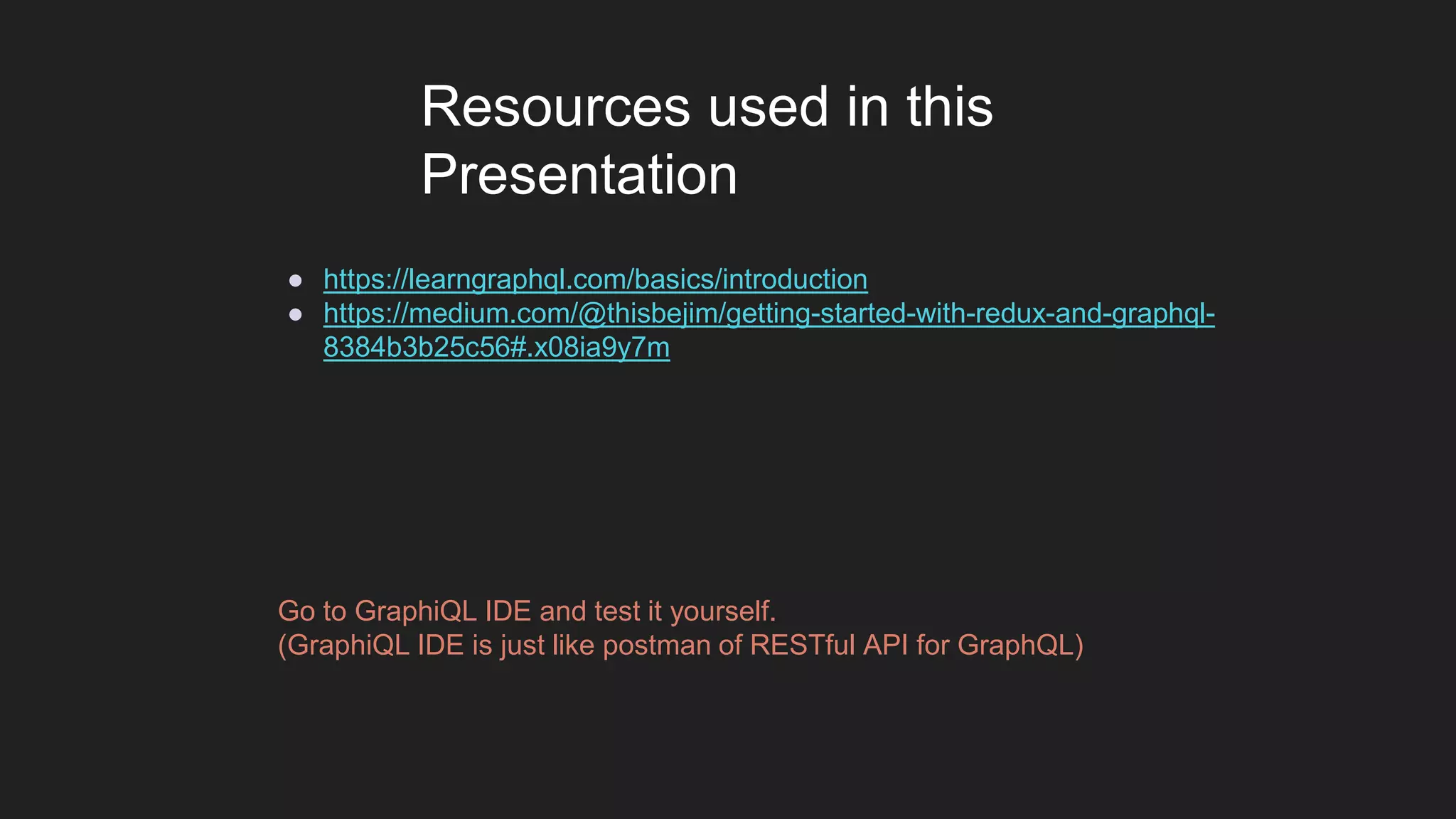

● https://learngraphql.com/basics/introduction
● https://medium.com/@thisbejim/getting-started-with-redux-and-graphql-
8384b3b25c56#.x08ia9y7m
Resources used in this
Presentation
Go to GraphiQL IDE and test it yourself.
(GraphiQL IDE is just like postman of RESTful API for GraphQL)
