Protection from Cyber attacks and Security Firewall
- 1.

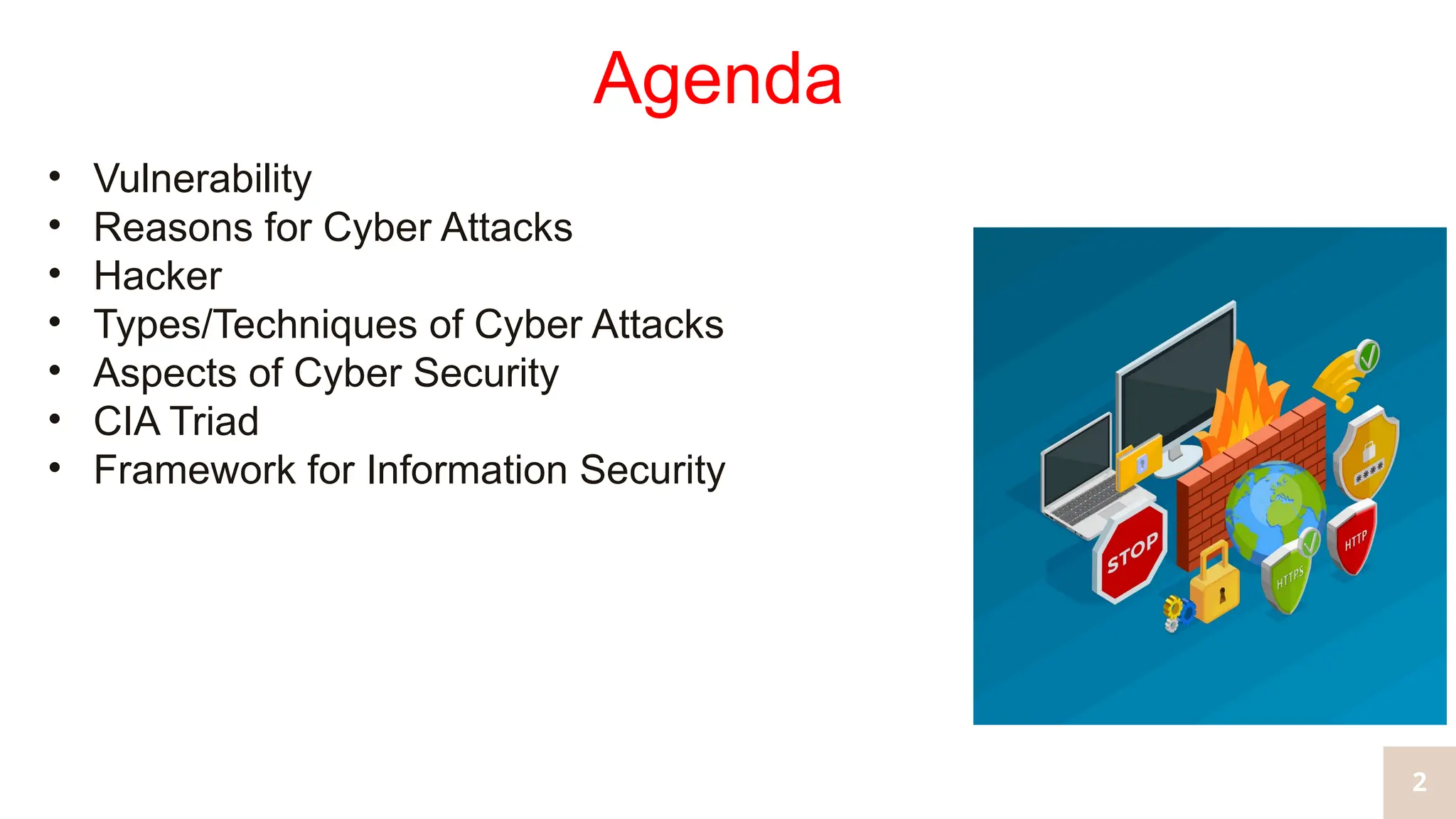

- 2. 2 Agenda • Vulnerability • Reasonsfor Cyber Attacks • Hacker • Types/Techniques of Cyber Attacks • Aspects of Cyber Security • CIA Triad • Framework for Information Security

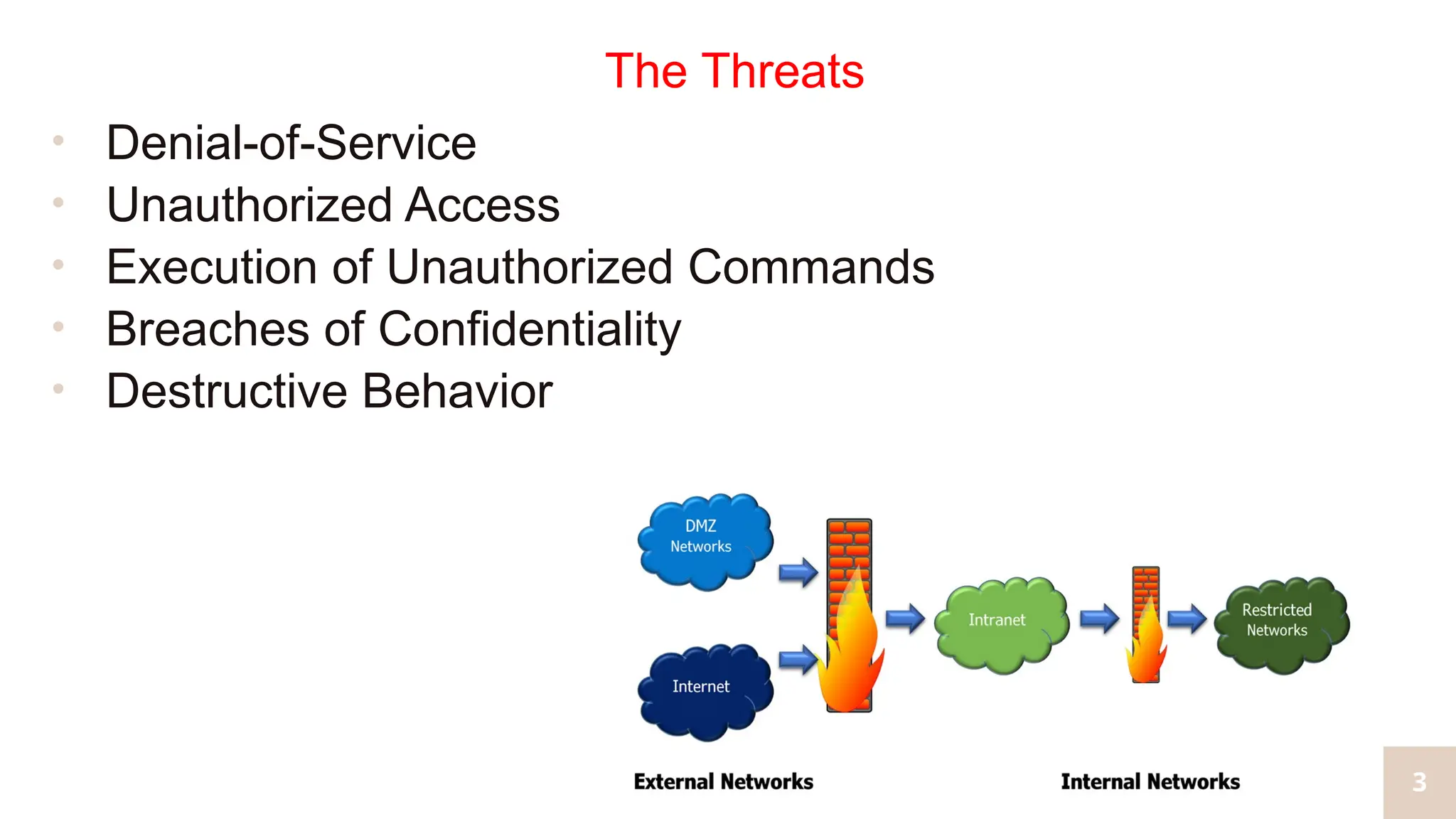

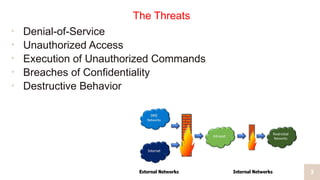

- 3. 3 • Denial-of-Service • UnauthorizedAccess • Execution of Unauthorized Commands • Breaches of Confidentiality • Destructive Behavior The Threats

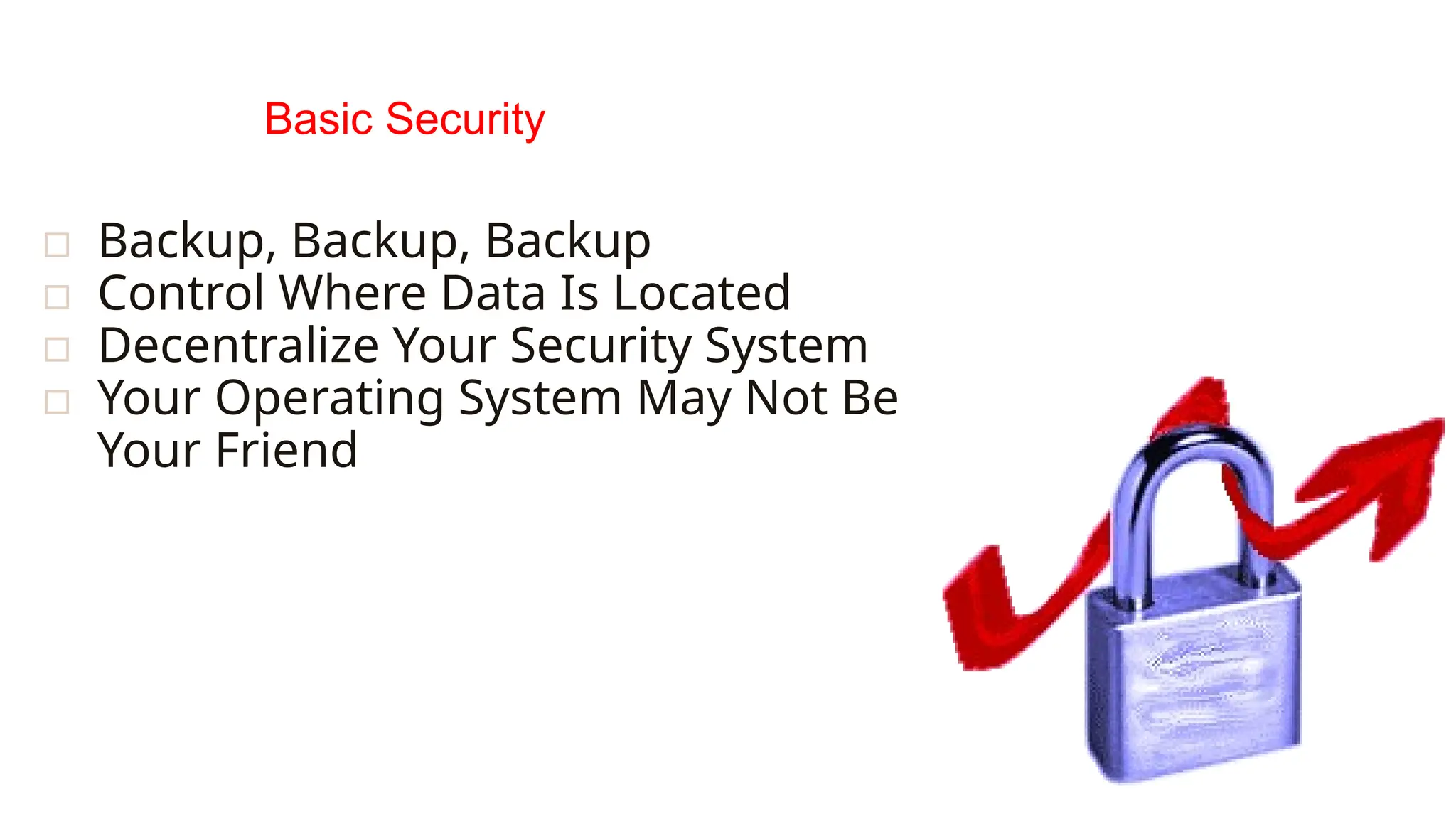

- 4. Basic Security ▫ Backup,Backup, Backup ▫ Control Where Data Is Located ▫ Decentralize Your Security System ▫ Your Operating System May Not Be Your Friend

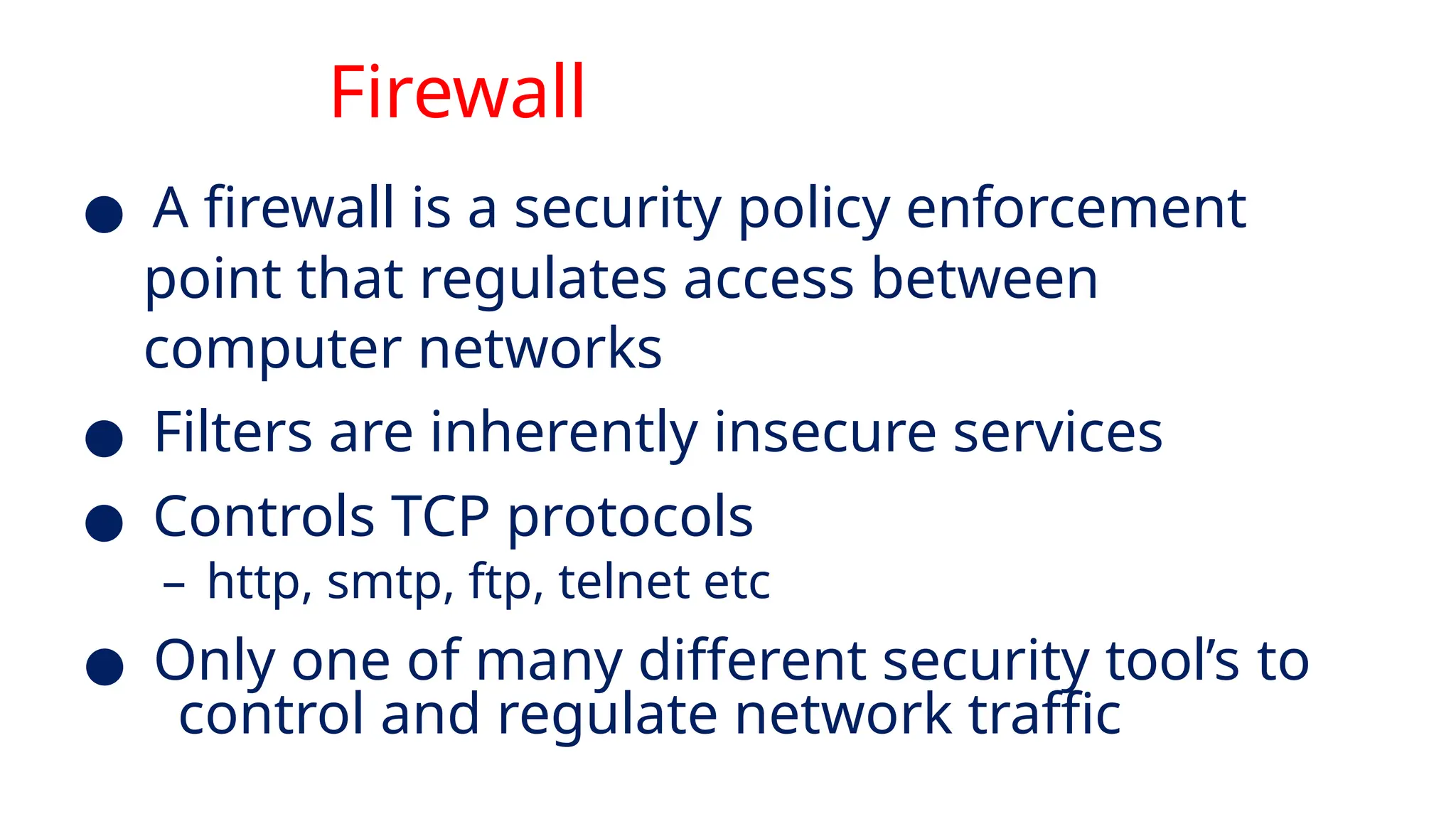

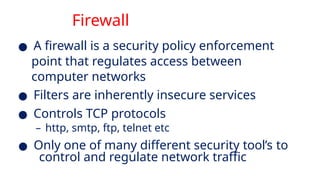

- 5. Firewall ● A firewallis a security policy enforcement point that regulates access between computer networks ● Filters are inherently insecure services ● Controls TCP protocols – http, smtp, ftp, telnet etc ● Only one of many different security tool’s to control and regulate network traffic

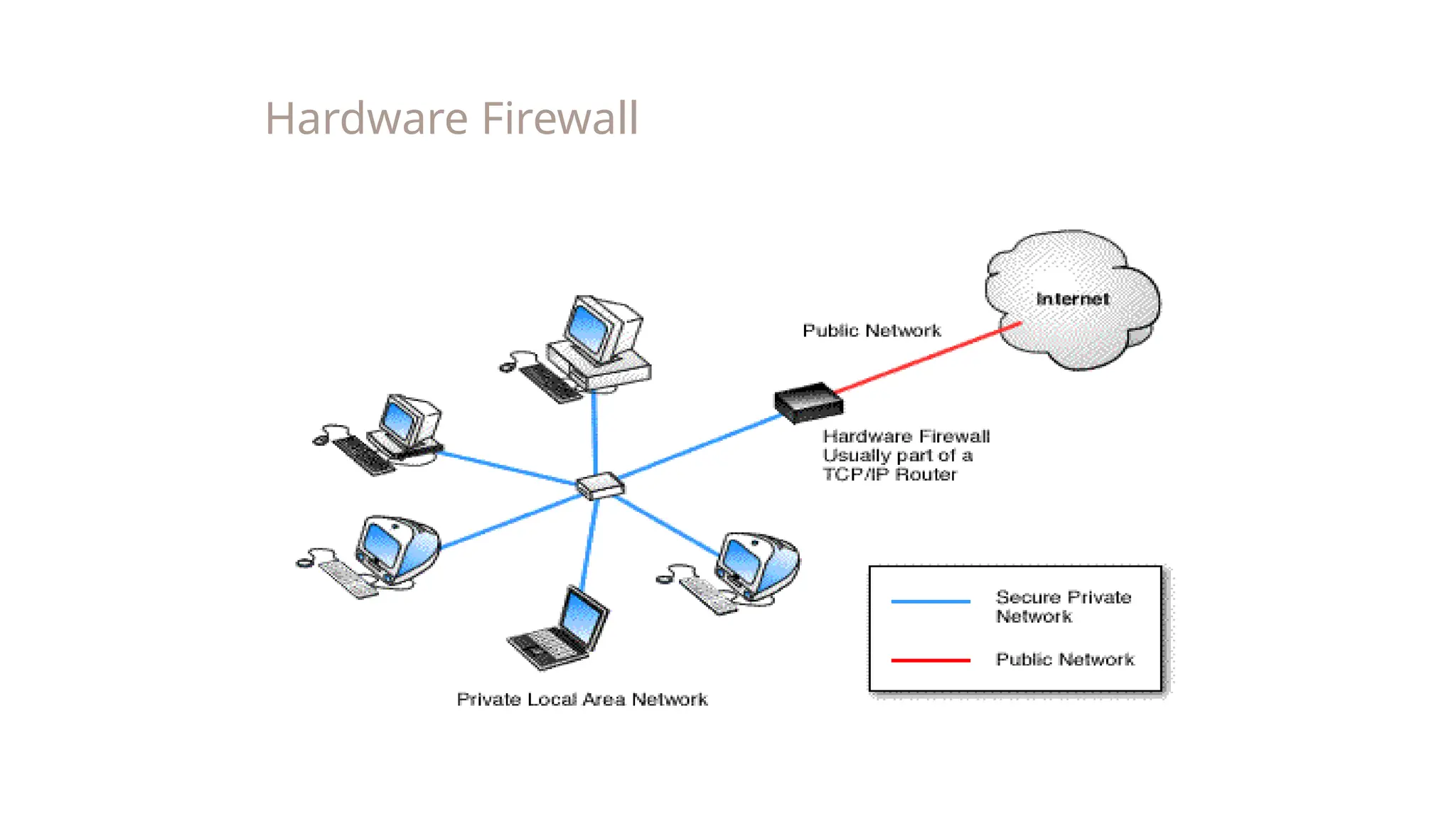

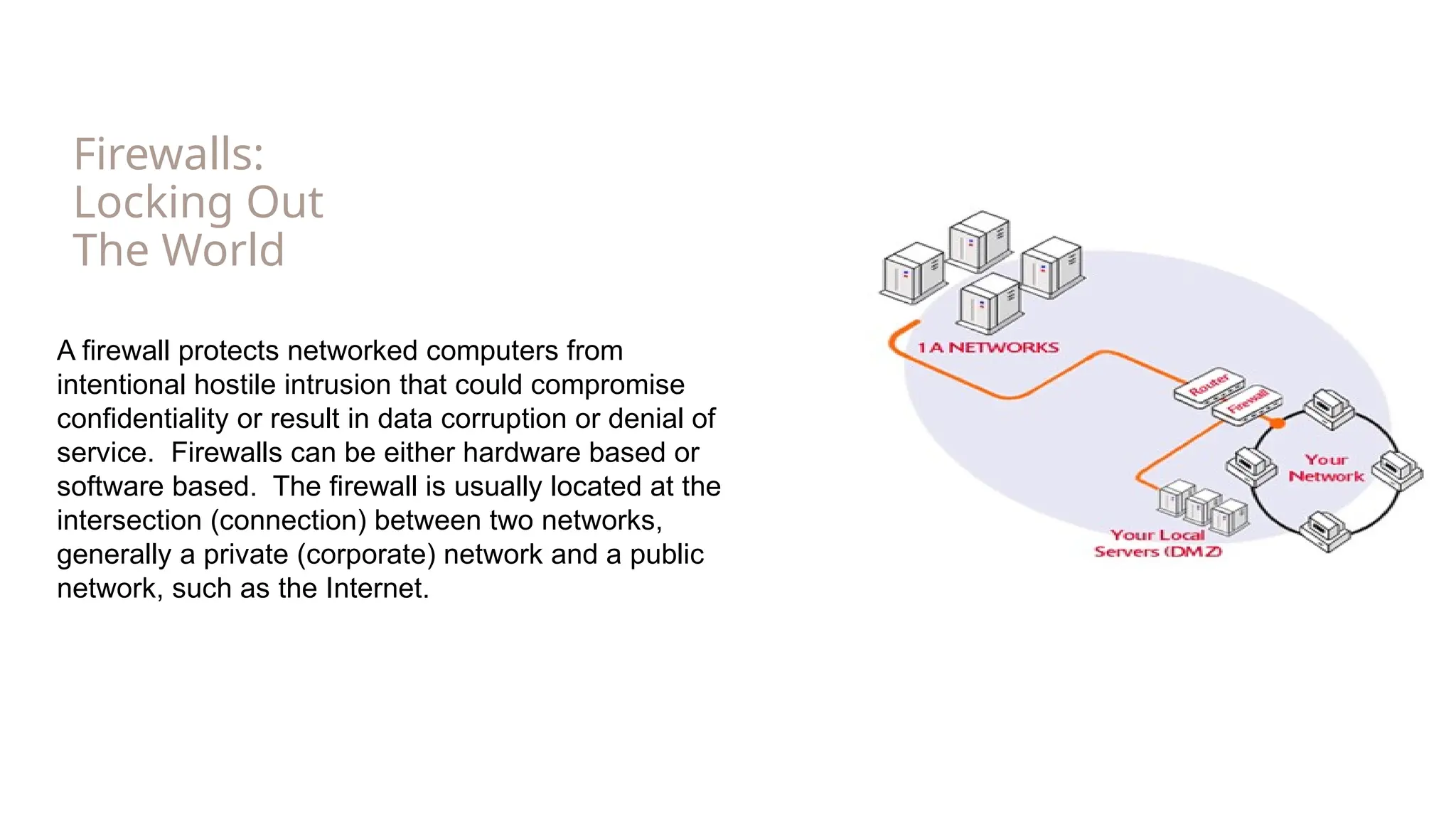

- 8. Firewalls: Locking Out The World Afirewall protects networked computers from intentional hostile intrusion that could compromise confidentiality or result in data corruption or denial of service. Firewalls can be either hardware based or software based. The firewall is usually located at the intersection (connection) between two networks, generally a private (corporate) network and a public network, such as the Internet.

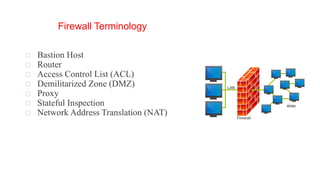

- 9. Firewall Terminology ▫ BastionHost ▫ Router ▫ Access Control List (ACL) ▫ Demilitarized Zone (DMZ) ▫ Proxy ▫ Stateful Inspection ▫ Network Address Translation (NAT)
- 10.

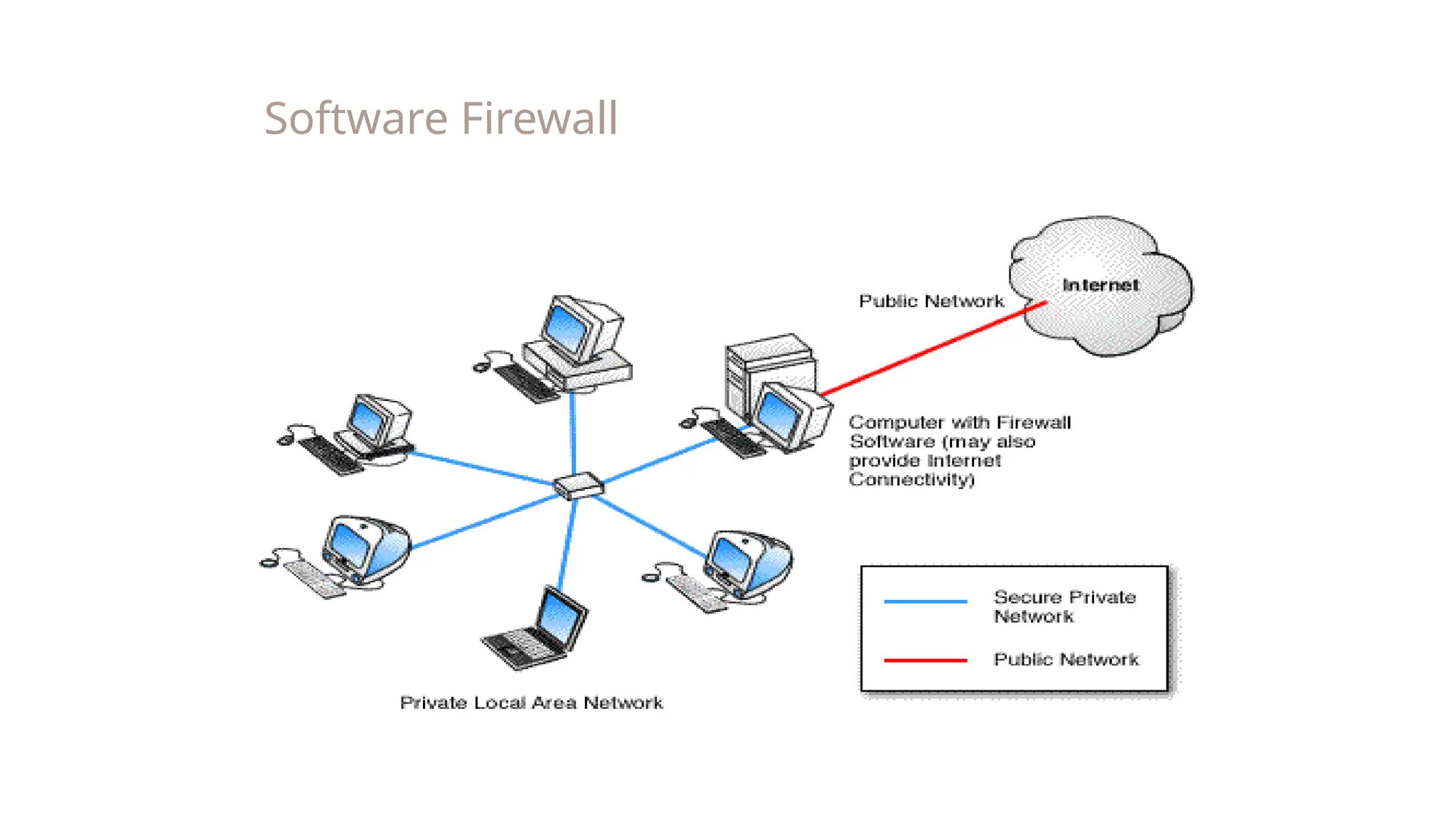

- 11.

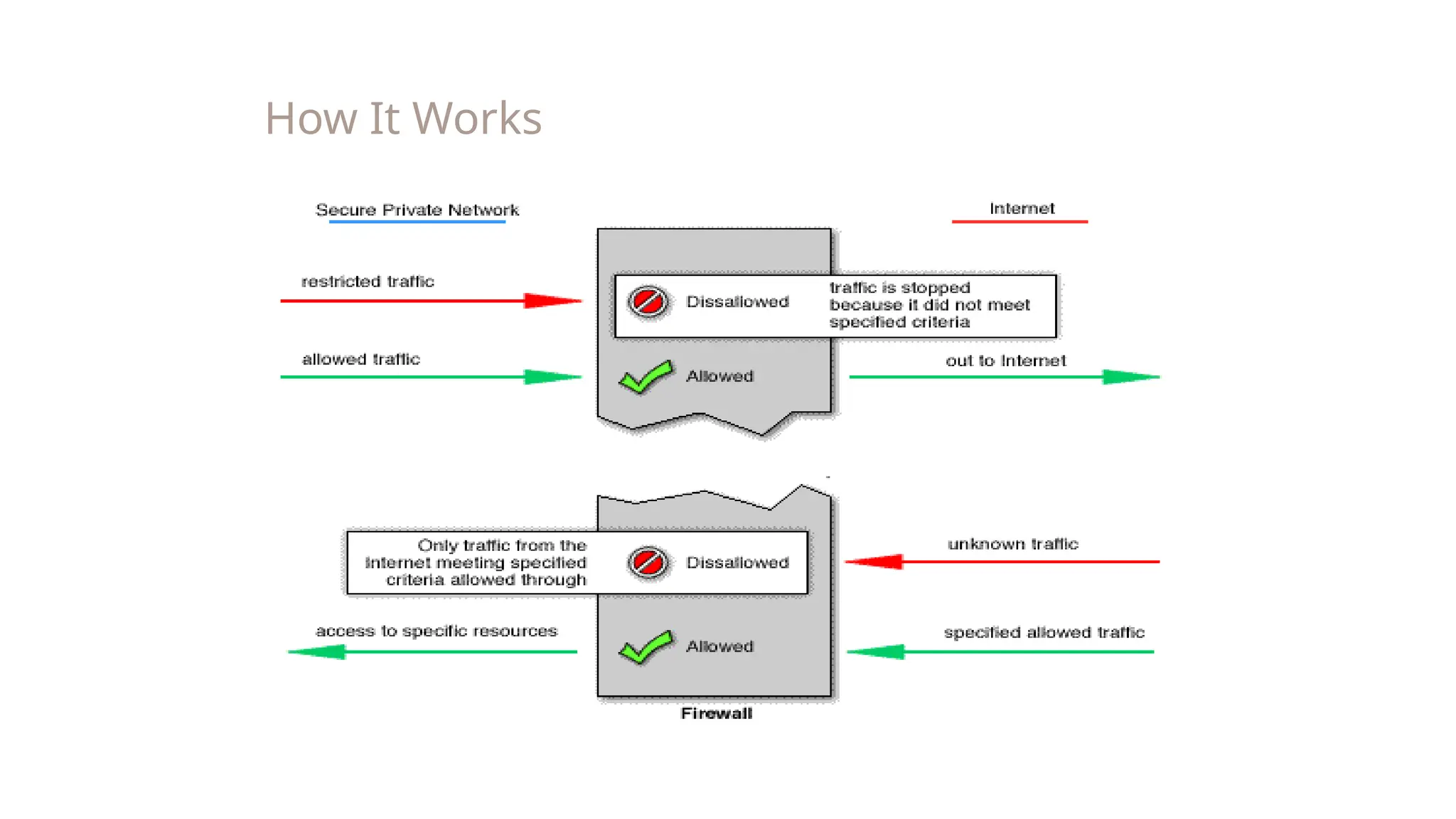

- 12.
- 13.
- 15. Firewall Architecture Overview ● BasicFirewall Components – Software – Hardware – Purpose Built/Appliance based
- 16. Firewall Software Types ●Problems to watch for – Administrative limitations ● Access ● Monitoring ● logging – Management requirements ● Additional control points ● Additional non-secure applications required – Software limitations ● Capacity ● Availability ● Hardware
- 17. Packet Filtering Firewalls ●Packet filtering is one of the oldest, and one of the most common types of firewall technologies. Packet filters inspect each packet of information individually, examining the source and destination IP addresses and ports. This information is compared to access control rules to decide whether the given packet should be allowed through the firewall. ● ● Packet filters consider only the most basic attributes of each packet, and they don't need to remember anything about the traffic since each packet is examined in isolation. For this reason they can decide packet flow very quickly. Because every packet of every connection is checked against the access control rules, larger, complex rule bases decrease performance. And because packet filters can only check low-level attributes, they are not secure against malicious code hiding in the other layers. Packet filters are often used as a first defense in combination with other firewall technologies, and their most common implementation today is seen in the access control lists of routers at the perimeters of networks. ● For simple protocols or one-sided connections, like ICMP or SNMP traps, it is still useful to use packet filtering technology.

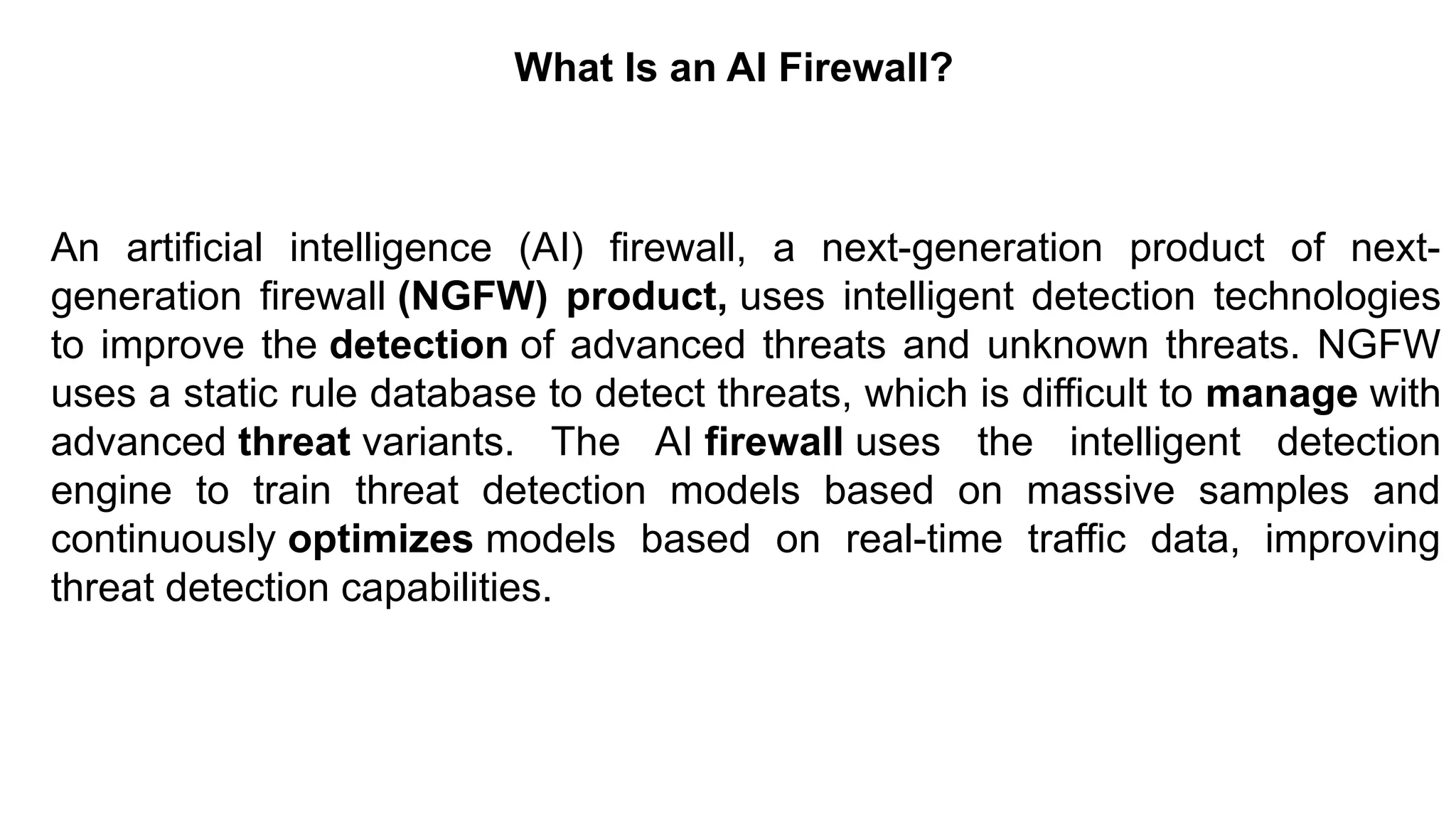

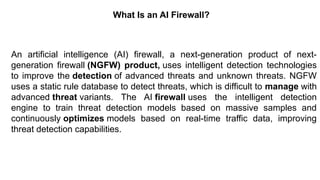

- 18. – For draftingsecurity policies Zwicky – BugTraq – Security Focus What Is an AI Firewall? An artificial intelligence (AI) firewall, a next-generation product of next- generation firewall (NGFW) product, uses intelligent detection technologies to improve the detection of advanced threats and unknown threats. NGFW uses a static rule database to detect threats, which is difficult to manage with advanced threat variants. The AI firewall uses the intelligent detection engine to train threat detection models based on massive samples and continuously optimizes models based on real-time traffic data, improving threat detection capabilities.

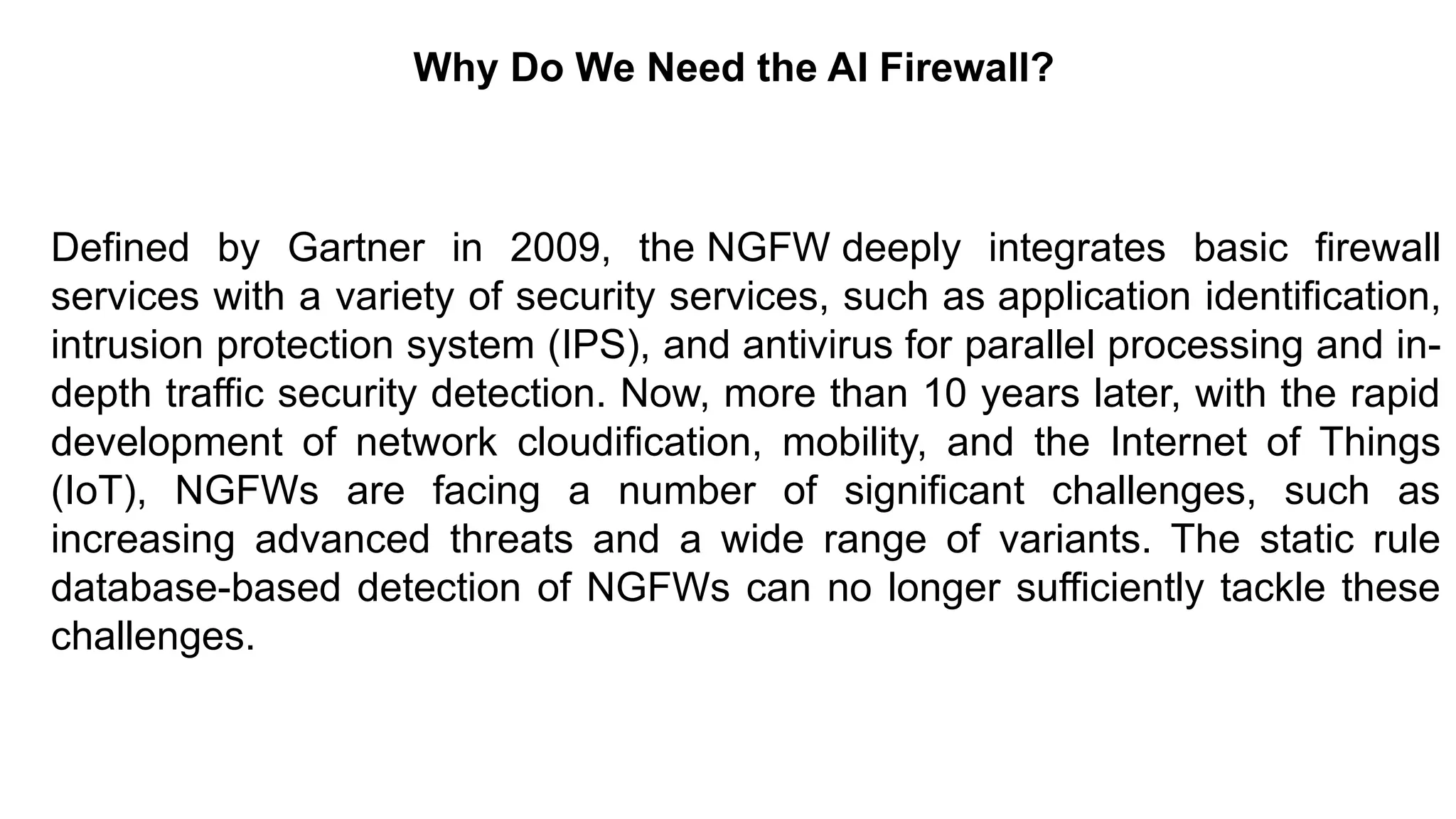

- 19. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Why Do We Need the AI Firewall? Defined by Gartner in 2009, the NGFW deeply integrates basic firewall services with a variety of security services, such as application identification, intrusion protection system (IPS), and antivirus for parallel processing and in- depth traffic security detection. Now, more than 10 years later, with the rapid development of network cloudification, mobility, and the Internet of Things (IoT), NGFWs are facing a number of significant challenges, such as increasing advanced threats and a wide range of variants. The static rule database-based detection of NGFWs can no longer sufficiently tackle these challenges.

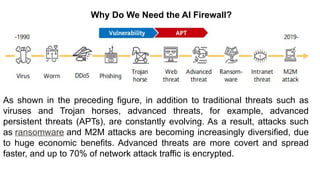

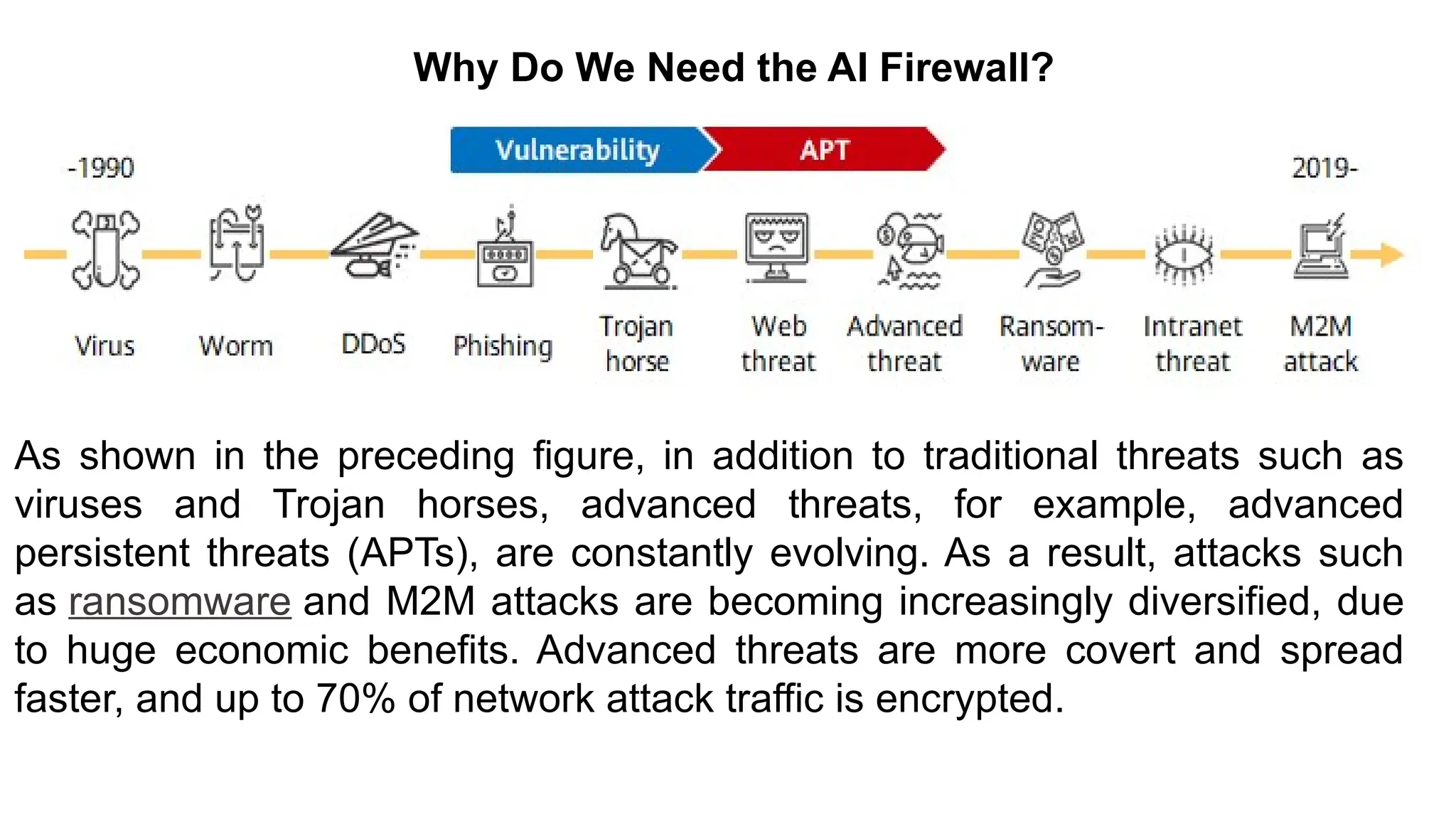

- 20. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Why Do We Need the AI Firewall? As shown in the preceding figure, in addition to traditional threats such as viruses and Trojan horses, advanced threats, for example, advanced persistent threats (APTs), are constantly evolving. As a result, attacks such as ransomware and M2M attacks are becoming increasingly diversified, due to huge economic benefits. Advanced threats are more covert and spread faster, and up to 70% of network attack traffic is encrypted.

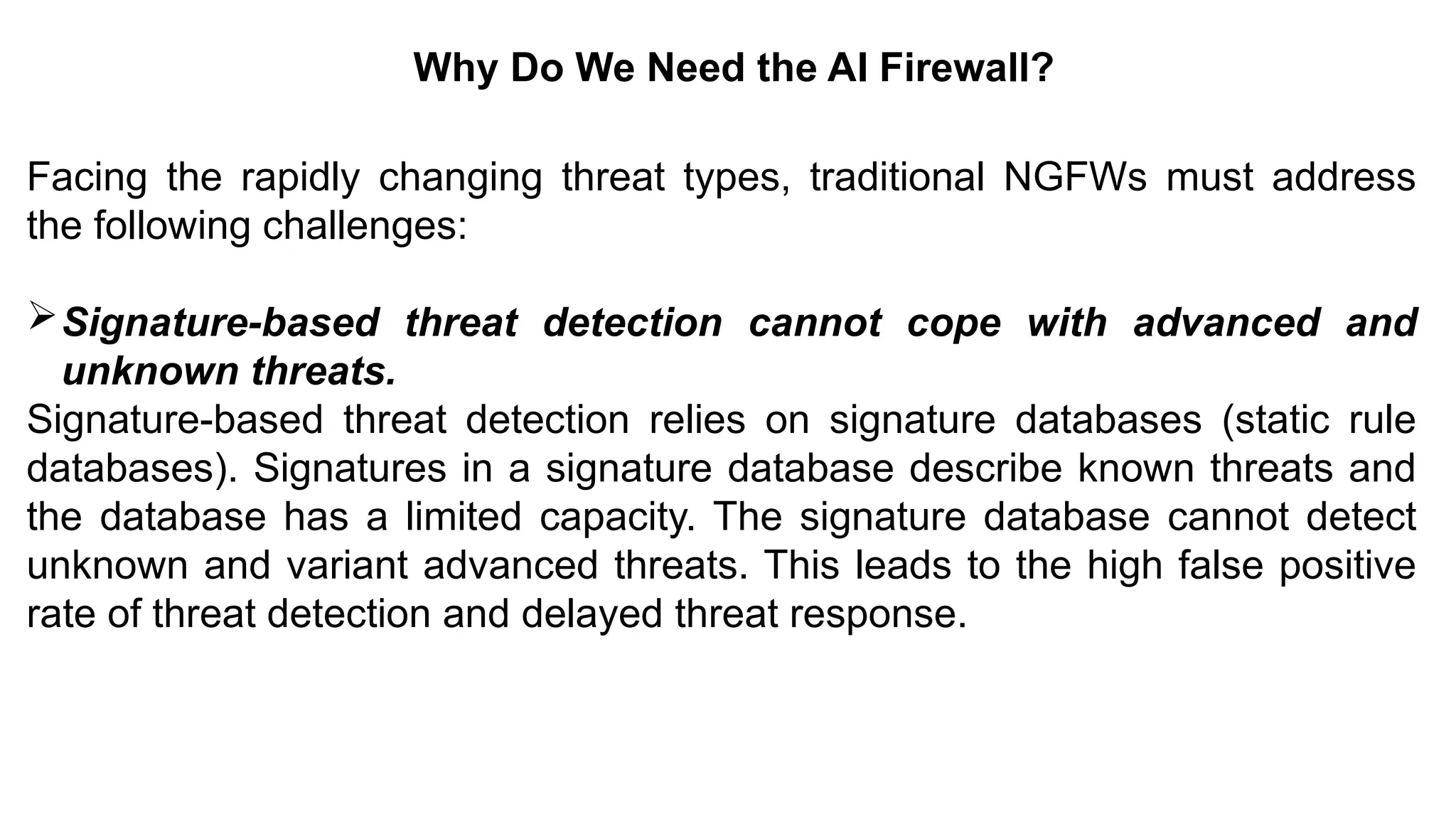

- 21. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Why Do We Need the AI Firewall? Facing the rapidly changing threat types, traditional NGFWs must address the following challenges: Signature-based threat detection cannot cope with advanced and unknown threats. Signature-based threat detection relies on signature databases (static rule databases). Signatures in a signature database describe known threats and the database has a limited capacity. The signature database cannot detect unknown and variant advanced threats. This leads to the high false positive rate of threat detection and delayed threat response.

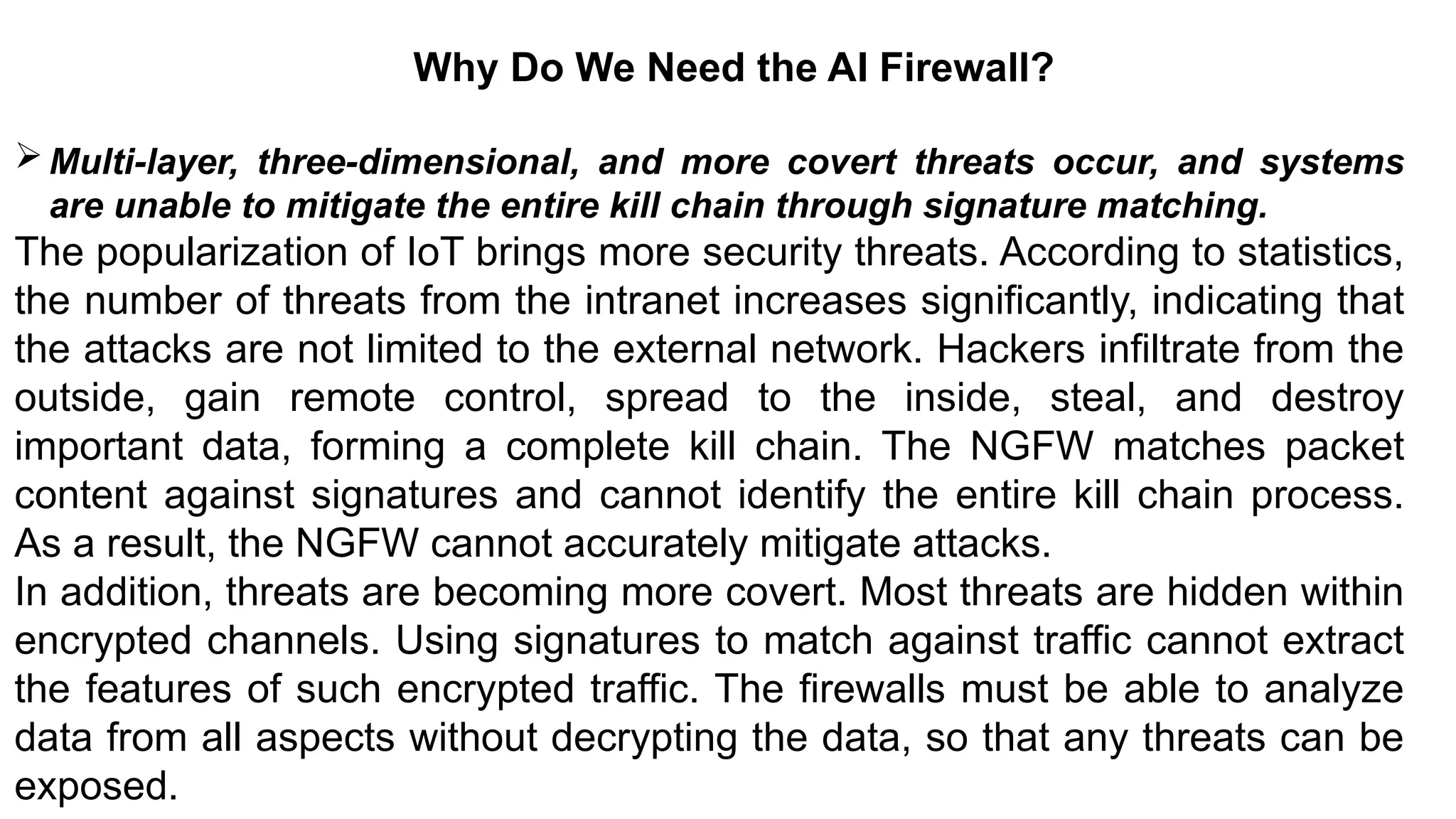

- 22. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Why Do We Need the AI Firewall? Multi-layer, three-dimensional, and more covert threats occur, and systems are unable to mitigate the entire kill chain through signature matching. The popularization of IoT brings more security threats. According to statistics, the number of threats from the intranet increases significantly, indicating that the attacks are not limited to the external network. Hackers infiltrate from the outside, gain remote control, spread to the inside, steal, and destroy important data, forming a complete kill chain. The NGFW matches packet content against signatures and cannot identify the entire kill chain process. As a result, the NGFW cannot accurately mitigate attacks. In addition, threats are becoming more covert. Most threats are hidden within encrypted channels. Using signatures to match against traffic cannot extract the features of such encrypted traffic. The firewalls must be able to analyze data from all aspects without decrypting the data, so that any threats can be exposed.

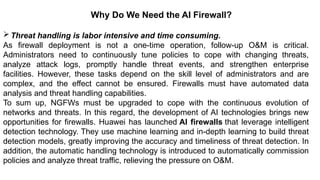

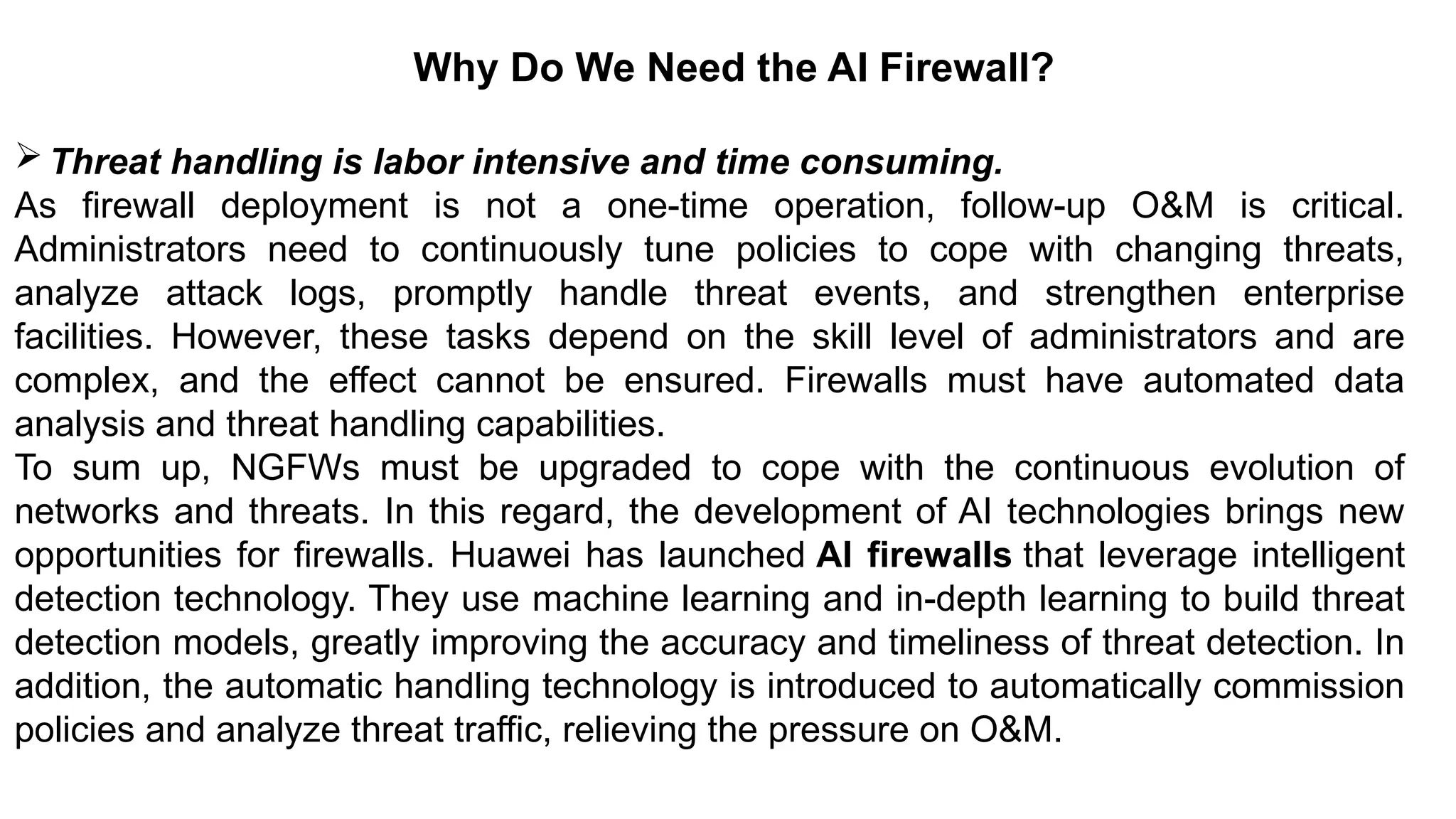

- 23. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Why Do We Need the AI Firewall? Threat handling is labor intensive and time consuming. As firewall deployment is not a one-time operation, follow-up O&M is critical. Administrators need to continuously tune policies to cope with changing threats, analyze attack logs, promptly handle threat events, and strengthen enterprise facilities. However, these tasks depend on the skill level of administrators and are complex, and the effect cannot be ensured. Firewalls must have automated data analysis and threat handling capabilities. To sum up, NGFWs must be upgraded to cope with the continuous evolution of networks and threats. In this regard, the development of AI technologies brings new opportunities for firewalls. Huawei has launched AI firewalls that leverage intelligent detection technology. They use machine learning and in-depth learning to build threat detection models, greatly improving the accuracy and timeliness of threat detection. In addition, the automatic handling technology is introduced to automatically commission policies and analyze threat traffic, relieving the pressure on O&M.

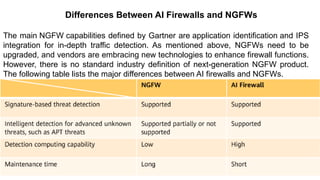

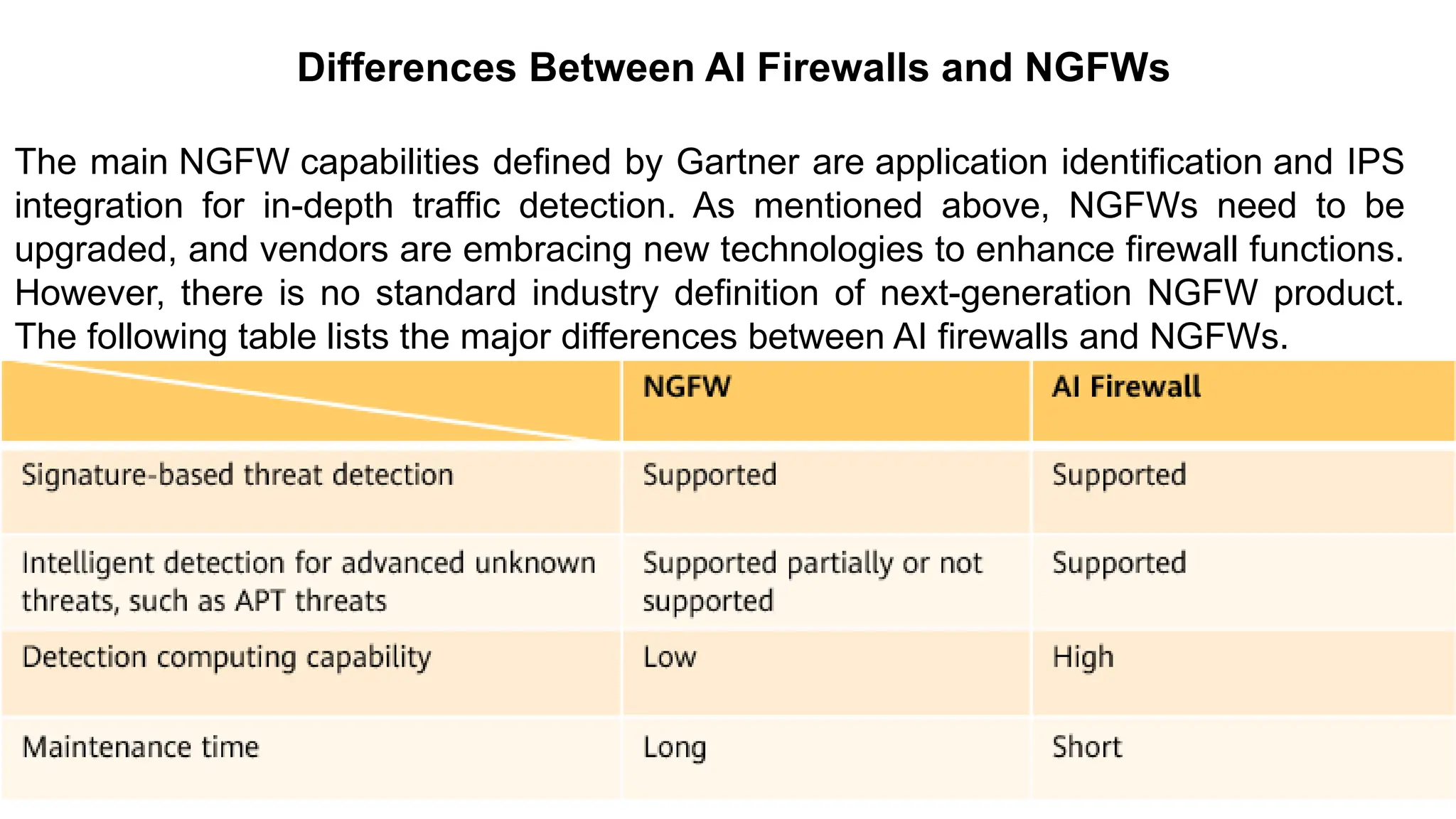

- 24. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Differences Between AI Firewalls and NGFWs The main NGFW capabilities defined by Gartner are application identification and IPS integration for in-depth traffic detection. As mentioned above, NGFWs need to be upgraded, and vendors are embracing new technologies to enhance firewall functions. However, there is no standard industry definition of next-generation NGFW product. The following table lists the major differences between AI firewalls and NGFWs.

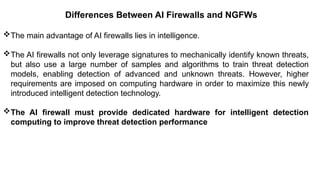

- 25. – For draftingsecurity policies Zwicky – BugTraq – Security Focus Differences Between AI Firewalls and NGFWs The main advantage of AI firewalls lies in intelligence. The AI firewalls not only leverage signatures to mechanically identify known threats, but also use a large number of samples and algorithms to train threat detection models, enabling detection of advanced and unknown threats. However, higher requirements are imposed on computing hardware in order to maximize this newly introduced intelligent detection technology. The AI firewall must provide dedicated hardware for intelligent detection computing to improve threat detection performance

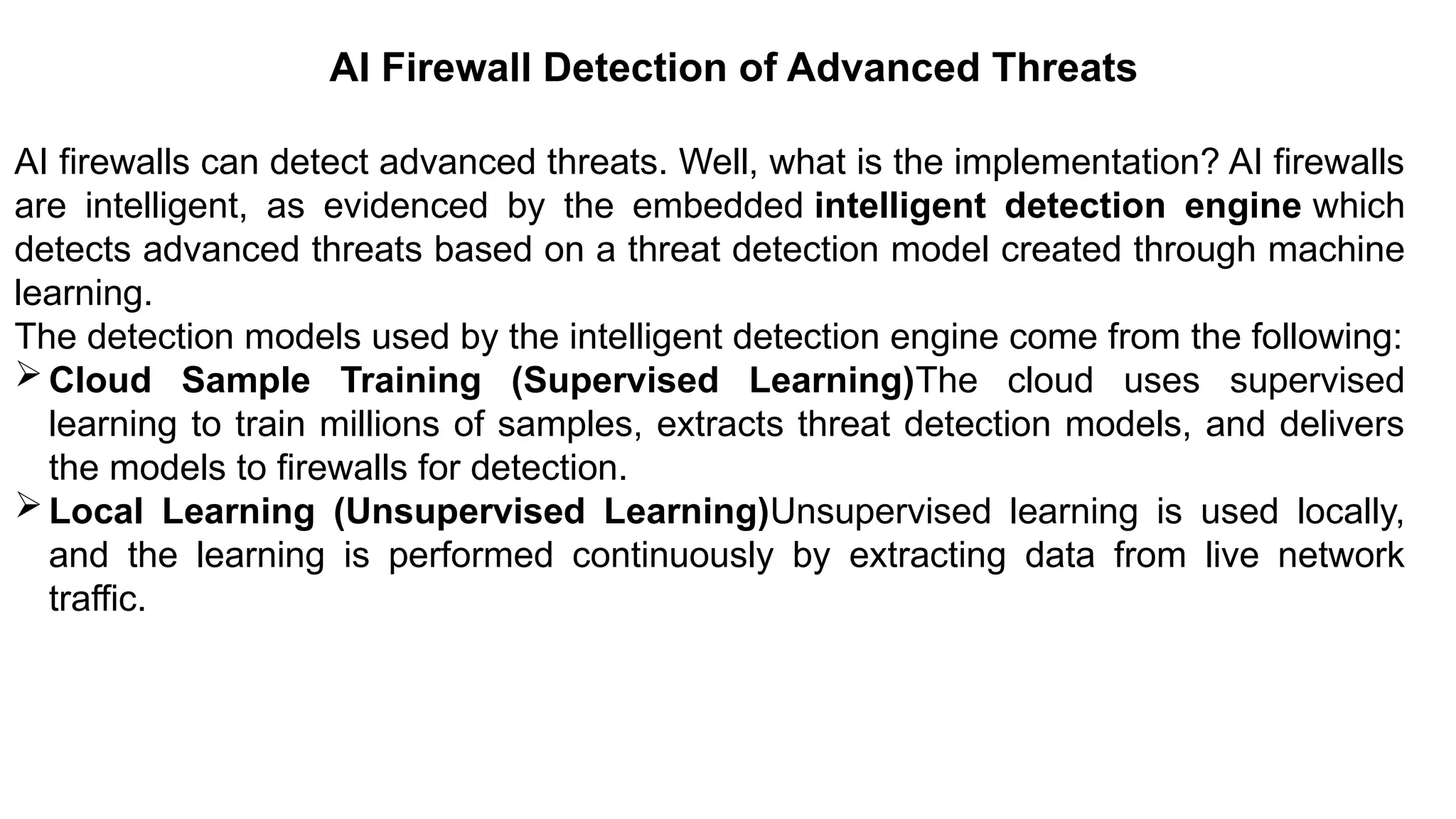

- 26. – For draftingsecurity policies Zwicky – BugTraq – Security Focus AI Firewall Detection of Advanced Threats AI firewalls can detect advanced threats. Well, what is the implementation? AI firewalls are intelligent, as evidenced by the embedded intelligent detection engine which detects advanced threats based on a threat detection model created through machine learning. The detection models used by the intelligent detection engine come from the following: Cloud Sample Training (Supervised Learning)The cloud uses supervised learning to train millions of samples, extracts threat detection models, and delivers the models to firewalls for detection. Local Learning (Unsupervised Learning)Unsupervised learning is used locally, and the learning is performed continuously by extracting data from live network traffic.

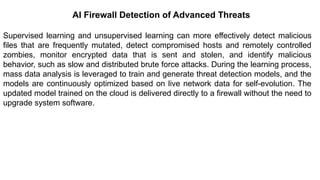

- 27. – For draftingsecurity policies Zwicky – BugTraq – Security Focus AI Firewall Detection of Advanced Threats Supervised learning and unsupervised learning can more effectively detect malicious files that are frequently mutated, detect compromised hosts and remotely controlled zombies, monitor encrypted data that is sent and stolen, and identify malicious behavior, such as slow and distributed brute force attacks. During the learning process, mass data analysis is leveraged to train and generate threat detection models, and the models are continuously optimized based on live network data for self-evolution. The updated model trained on the cloud is delivered directly to a firewall without the need to upgrade system software.

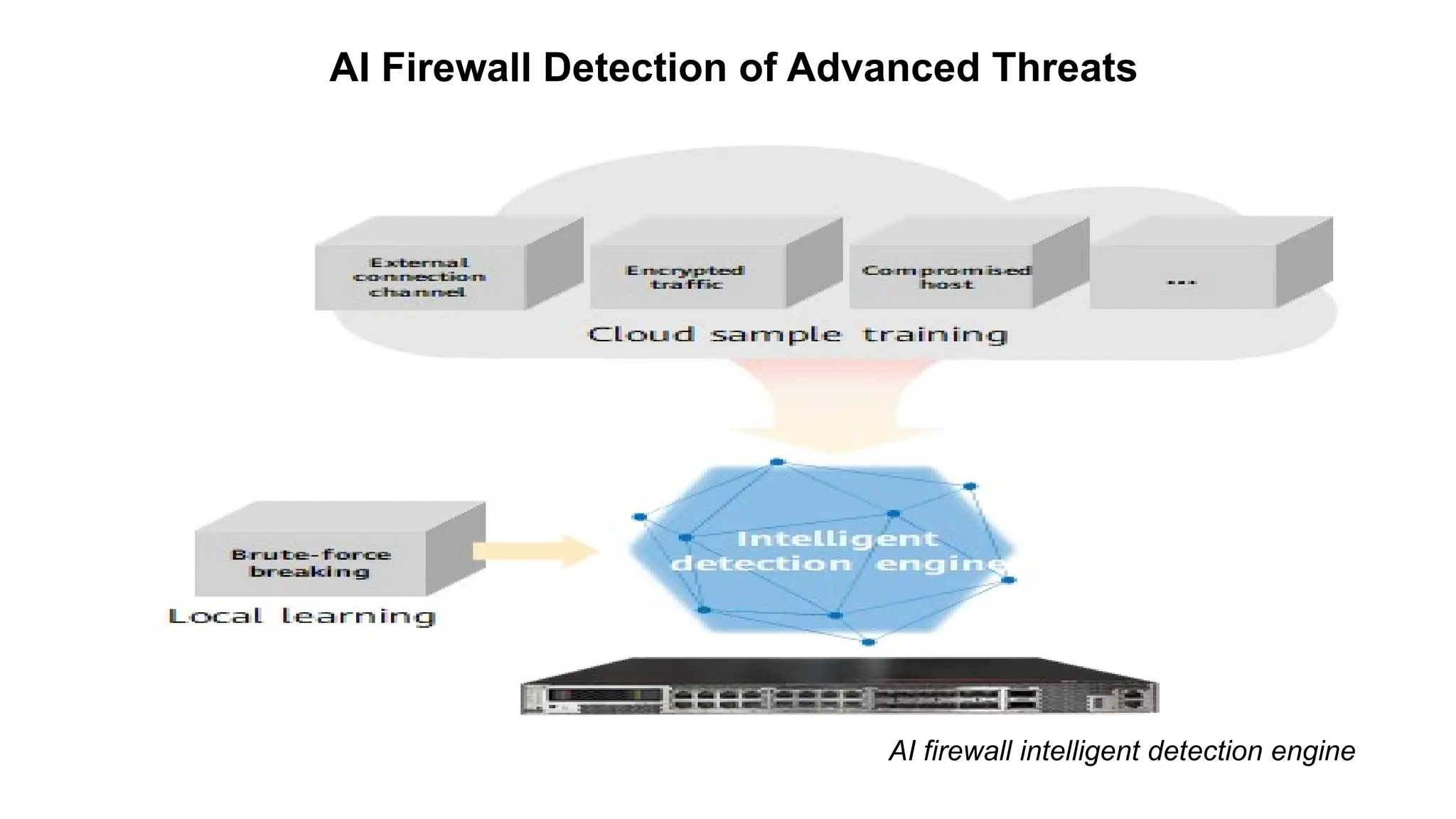

- 28. – For draftingsecurity policies Zwicky – BugTraq – Security Focus AI Firewall Detection of Advanced Threats AI firewall intelligent detection engine

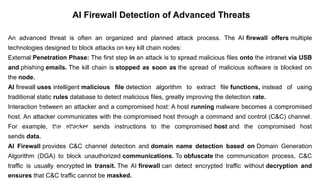

- 29. An advanced threatis often an organized and planned attack process. The AI firewall offers multiple technologies designed to block attacks on key kill chain nodes: External Penetration Phase: The first step in an attack is to spread malicious files onto the intranet via USB and phishing emails. The kill chain is stopped as soon as the spread of malicious software is blocked on the node. AI firewall uses intelligent malicious file detection algorithm to extract file functions, instead of using traditional static rules database to detect malicious files, greatly improving the detection rate. Interaction between an attacker and a compromised host: A host running malware becomes a compromised host. An attacker communicates with the compromised host through a command and control (C&C) channel. For example, the attacker sends instructions to the compromised host and the compromised host sends data. AI Firewall provides C&C channel detection and domain name detection based on Domain Generation Algorithm (DGA) to block unauthorized communications. To obfuscate the communication process, C&C traffic is usually encrypted in transit. The AI firewall can detect encrypted traffic without decryption and ensures that C&C traffic cannot be masked.– For drafting security policies Zwicky – BugTraq – Security Focus AI Firewall Detection of Advanced Threats

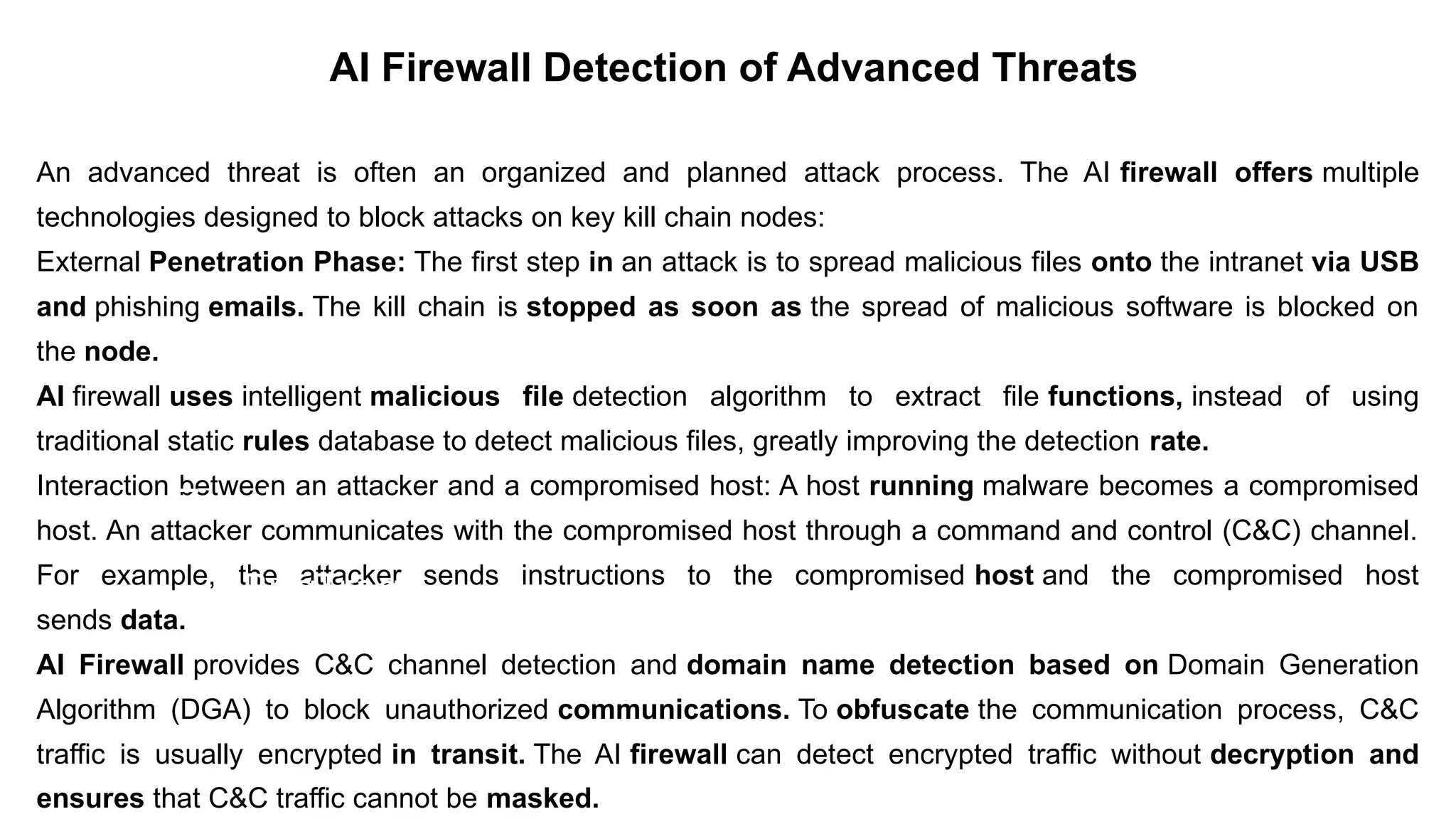

- 30. An advanced threatis often an organized and planned attack process. The AI firewall offers multiple technologies designed to block attacks on key kill chain nodes: External Penetration Phase: The first step in an attack is to spread malicious files onto the intranet via USB and phishing emails. The kill chain is stopped as soon as the spread of malicious software is blocked on the node. AI firewall uses intelligent malicious file detection algorithm to extract file functions, instead of using traditional static rules database to detect malicious files, greatly improving the detection rate. Interaction between an attacker and a compromised host: A host running malware becomes a compromised host. An attacker communicates with the compromised host through a command and control (C&C) channel. For example, the attacker sends instructions to the compromised host and the compromised host sends data. AI Firewall provides C&C channel detection and domain name detection based on Domain Generation Algorithm (DGA) to block unauthorized communications. To obfuscate the communication process, C&C traffic is usually encrypted in transit. The AI firewall can detect encrypted traffic without decryption and ensures that C&C traffic cannot be masked.– For drafting security policies Zwicky – BugTraq AI Firewall Detection of Advanced Threats

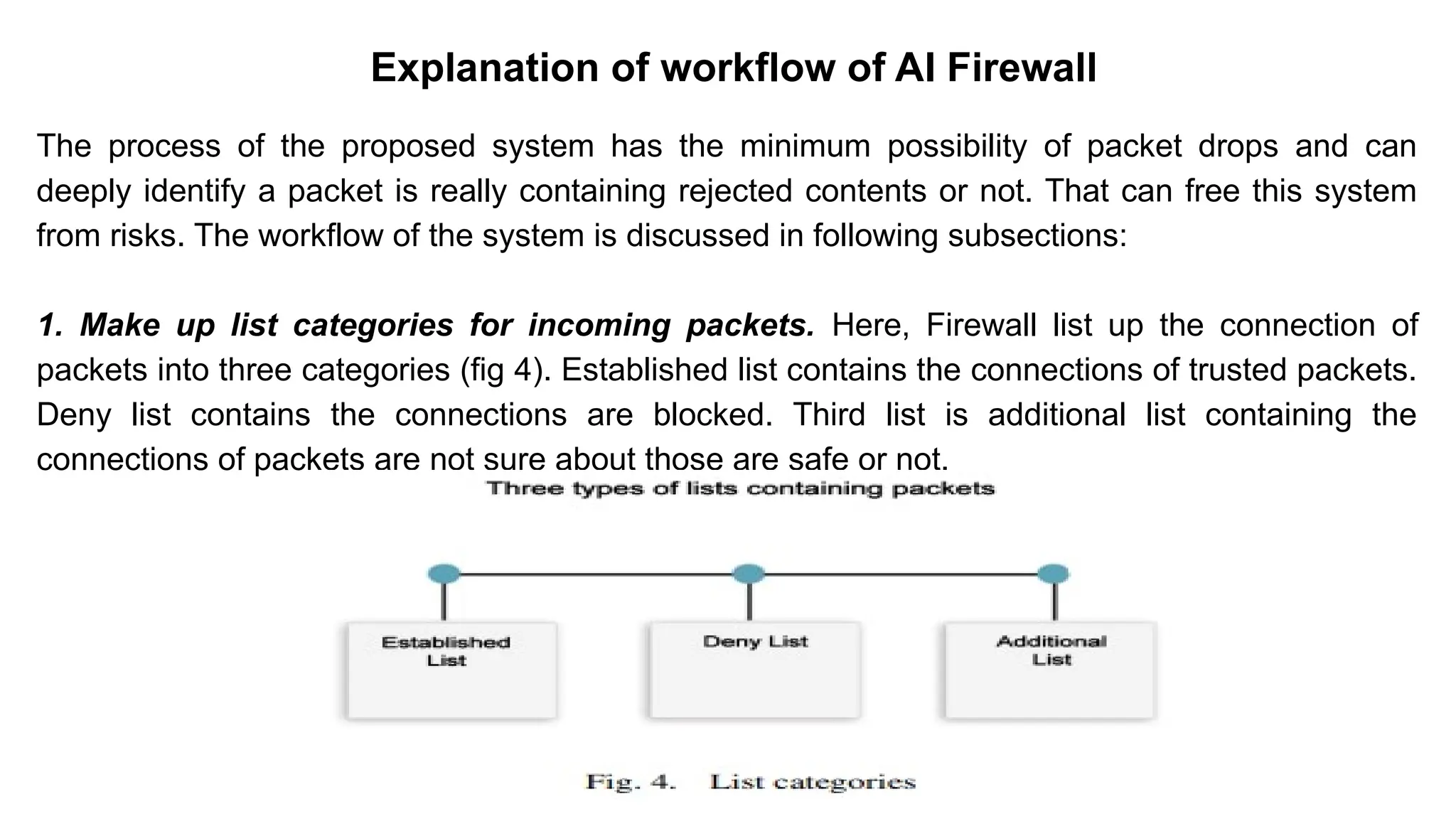

- 31. The process ofthe proposed system has the minimum possibility of packet drops and can deeply identify a packet is really containing rejected contents or not. That can free this system from risks. The workflow of the system is discussed in following subsections: 1. Make up list categories for incoming packets. Here, Firewall list up the connection of packets into three categories (fig 4). Established list contains the connections of trusted packets. Deny list contains the connections are blocked. Third list is additional list containing the connections of packets are not sure about those are safe or not. Zwicky – BugTraq – Security Focus Explanation of workflow of AI Firewall

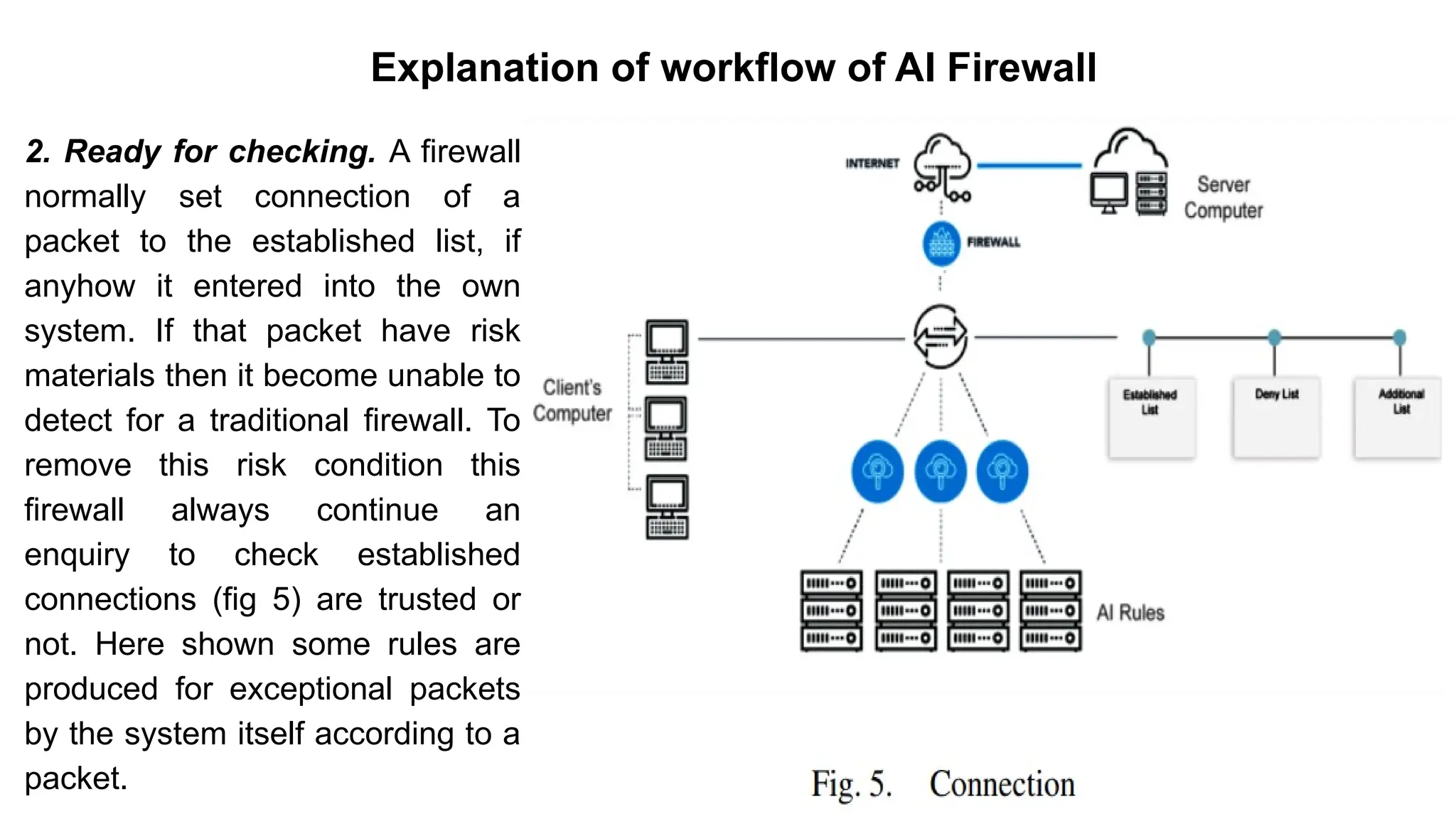

- 32. – BugTraq Explanation ofworkflow of AI Firewall 2. Ready for checking. A firewall normally set connection of a packet to the established list, if anyhow it entered into the own system. If that packet have risk materials then it become unable to detect for a traditional firewall. To remove this risk condition this firewall always continue an enquiry to check established connections (fig 5) are trusted or not. Here shown some rules are produced for exceptional packets by the system itself according to a packet.

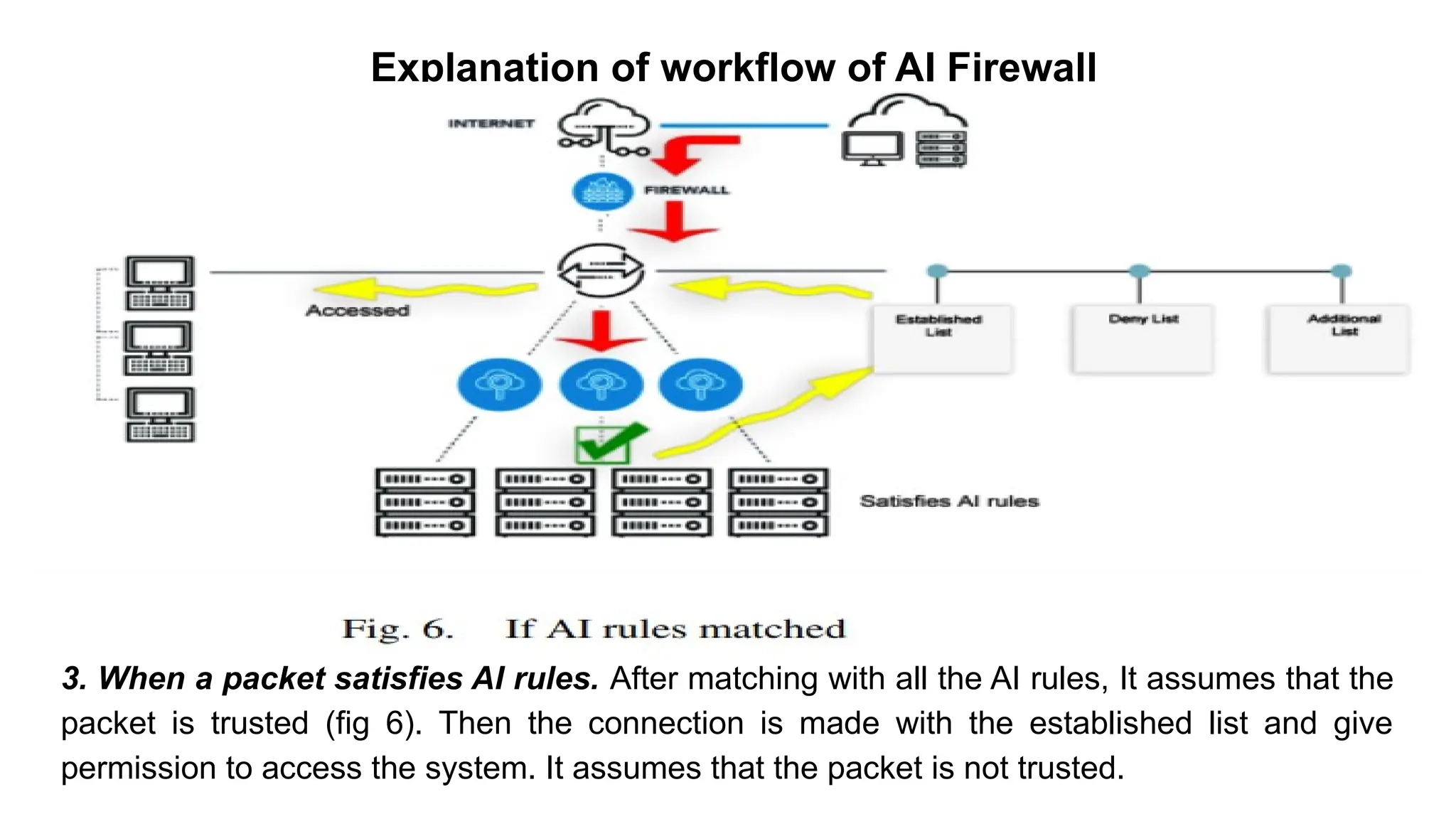

- 33. – BugTraq Explanation ofworkflow of AI Firewall 3. When a packet satisfies AI rules. After matching with all the AI rules, It assumes that the packet is trusted (fig 6). Then the connection is made with the established list and give permission to access the system. It assumes that the packet is not trusted.

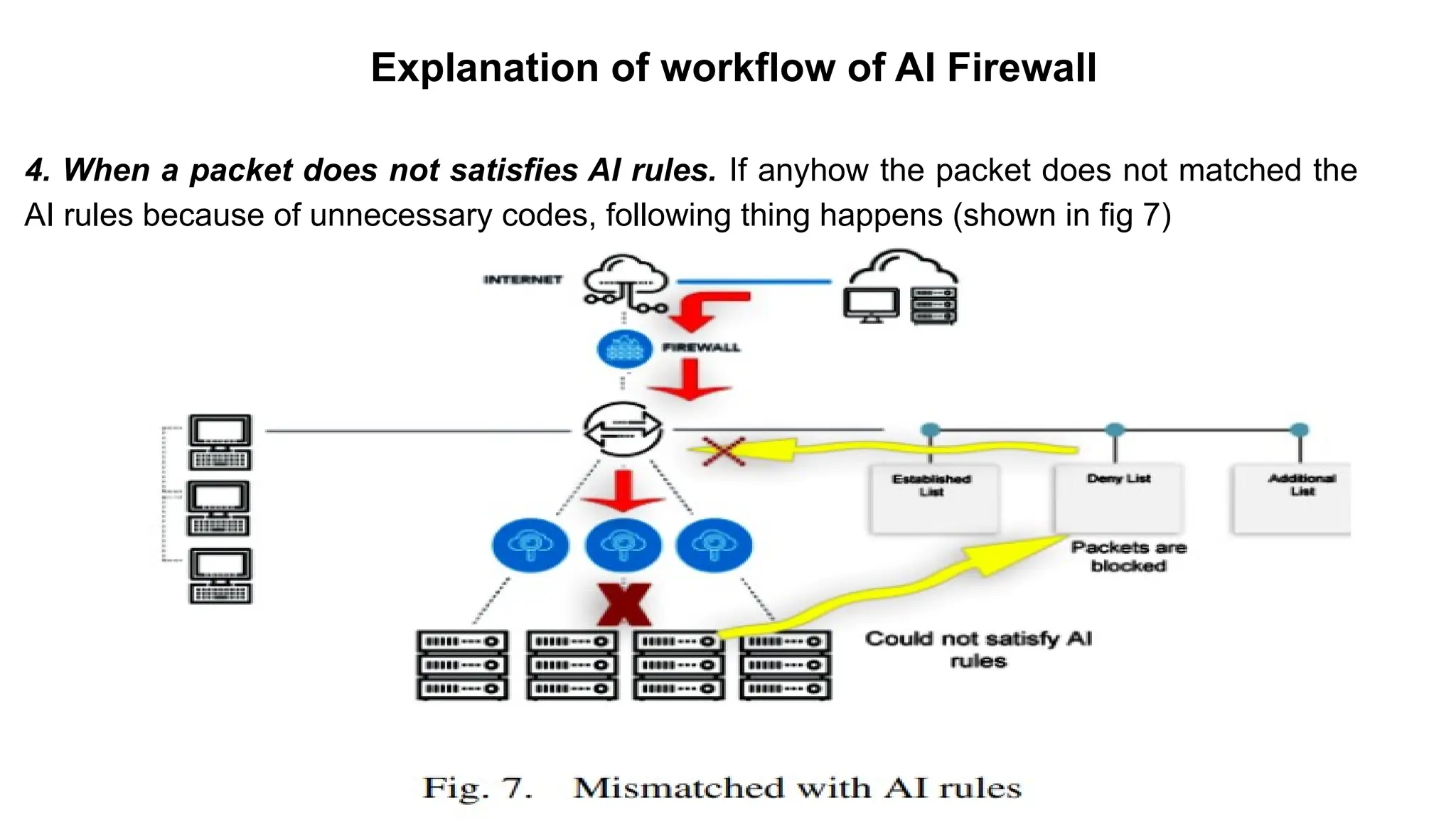

- 34. – BugTraq Explanation ofworkflow of AI Firewall 4. When a packet does not satisfies AI rules. If anyhow the packet does not matched the AI rules because of unnecessary codes, following thing happens (shown in fig 7)

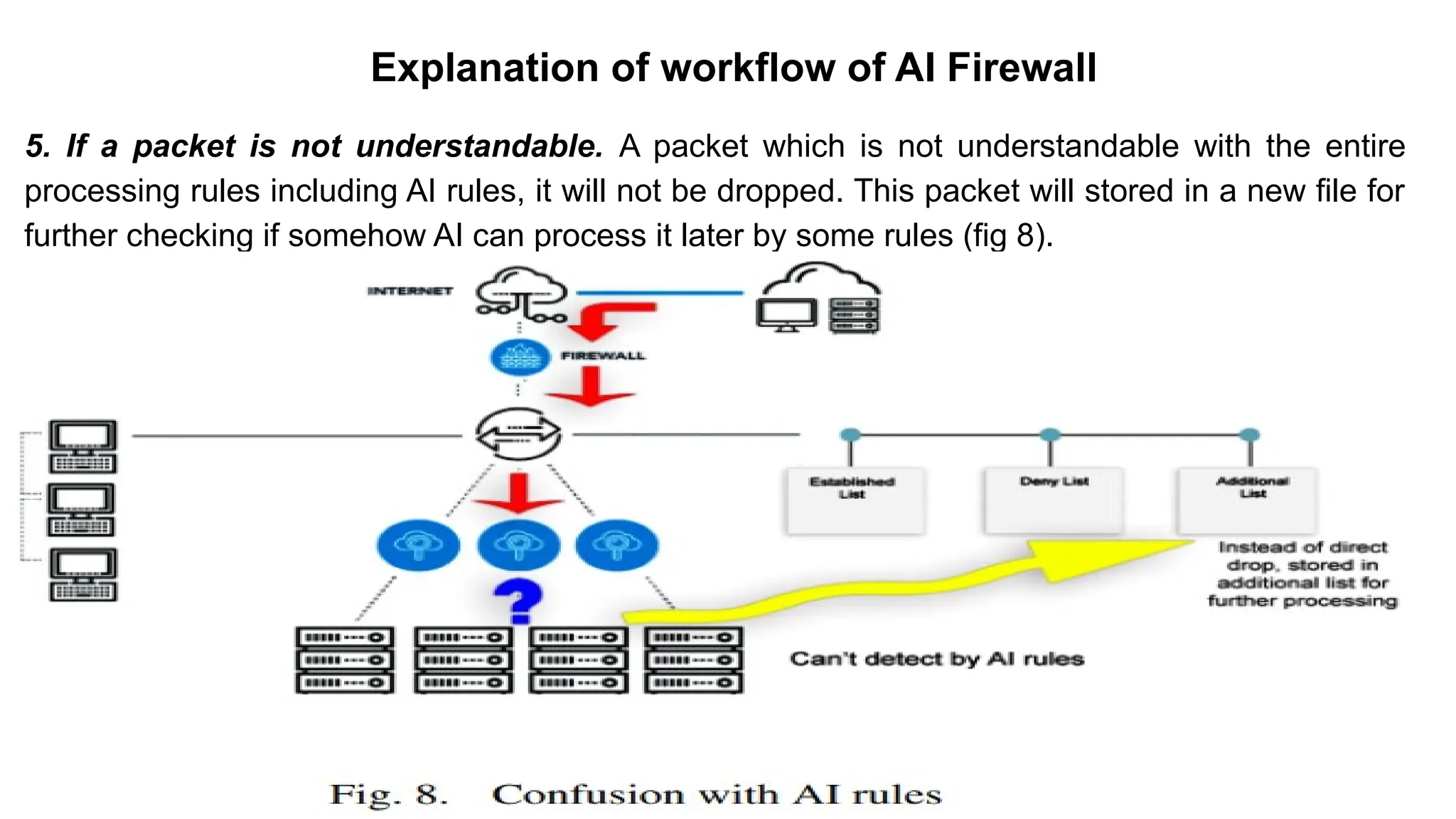

- 35. – BugTraq Explanation ofworkflow of AI Firewall 5. If a packet is not understandable. A packet which is not understandable with the entire processing rules including AI rules, it will not be dropped. This packet will stored in a new file for further checking if somehow AI can process it later by some rules (fig 8).

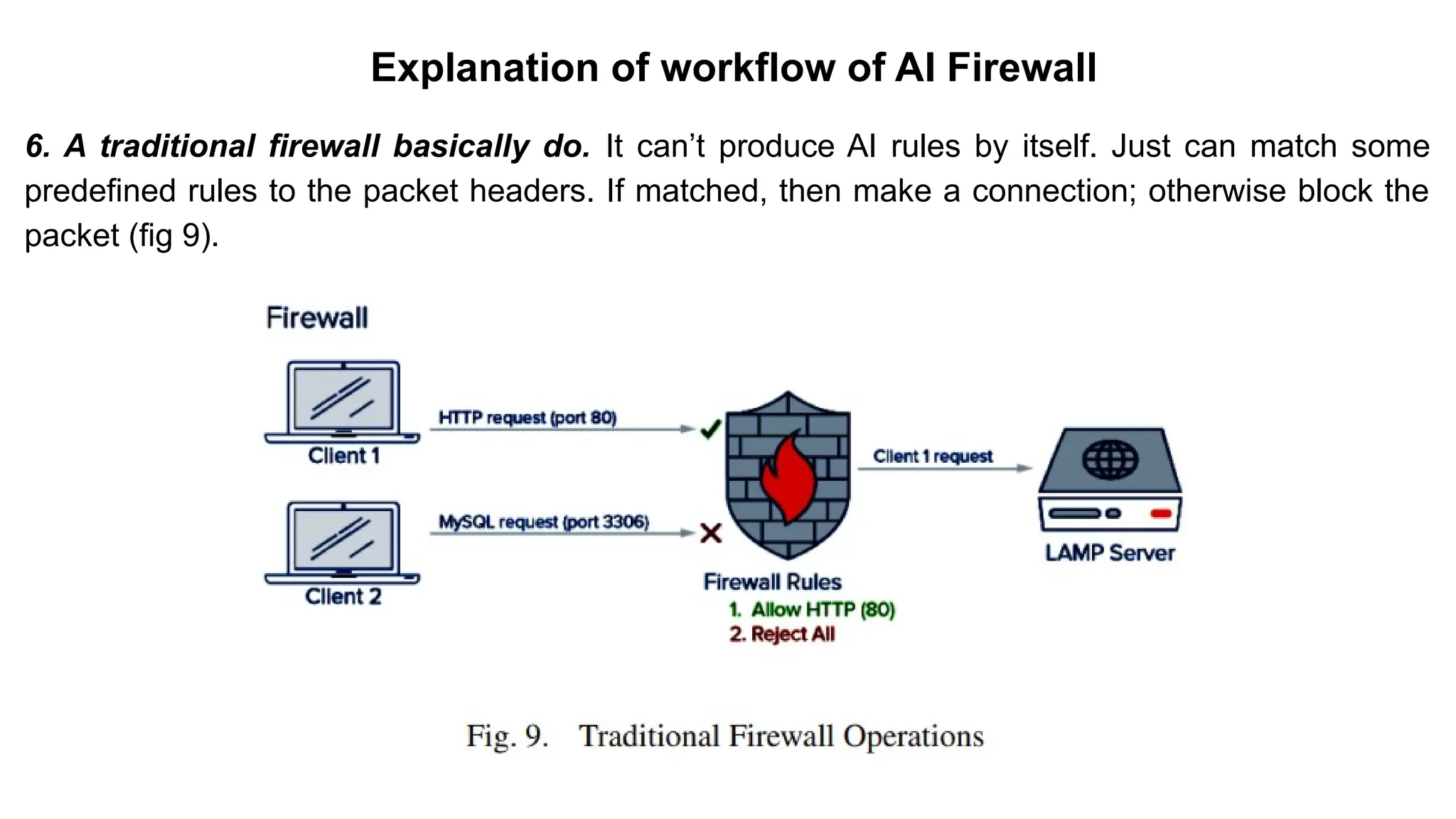

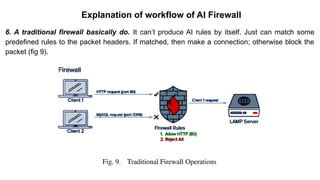

- 36. – BugTraq Explanation ofworkflow of AI Firewall 6. A traditional firewall basically do. It can’t produce AI rules by itself. Just can match some predefined rules to the packet headers. If matched, then make a connection; otherwise block the packet (fig 9).

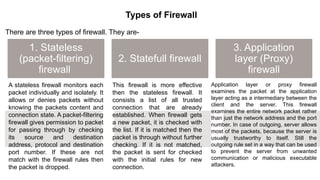

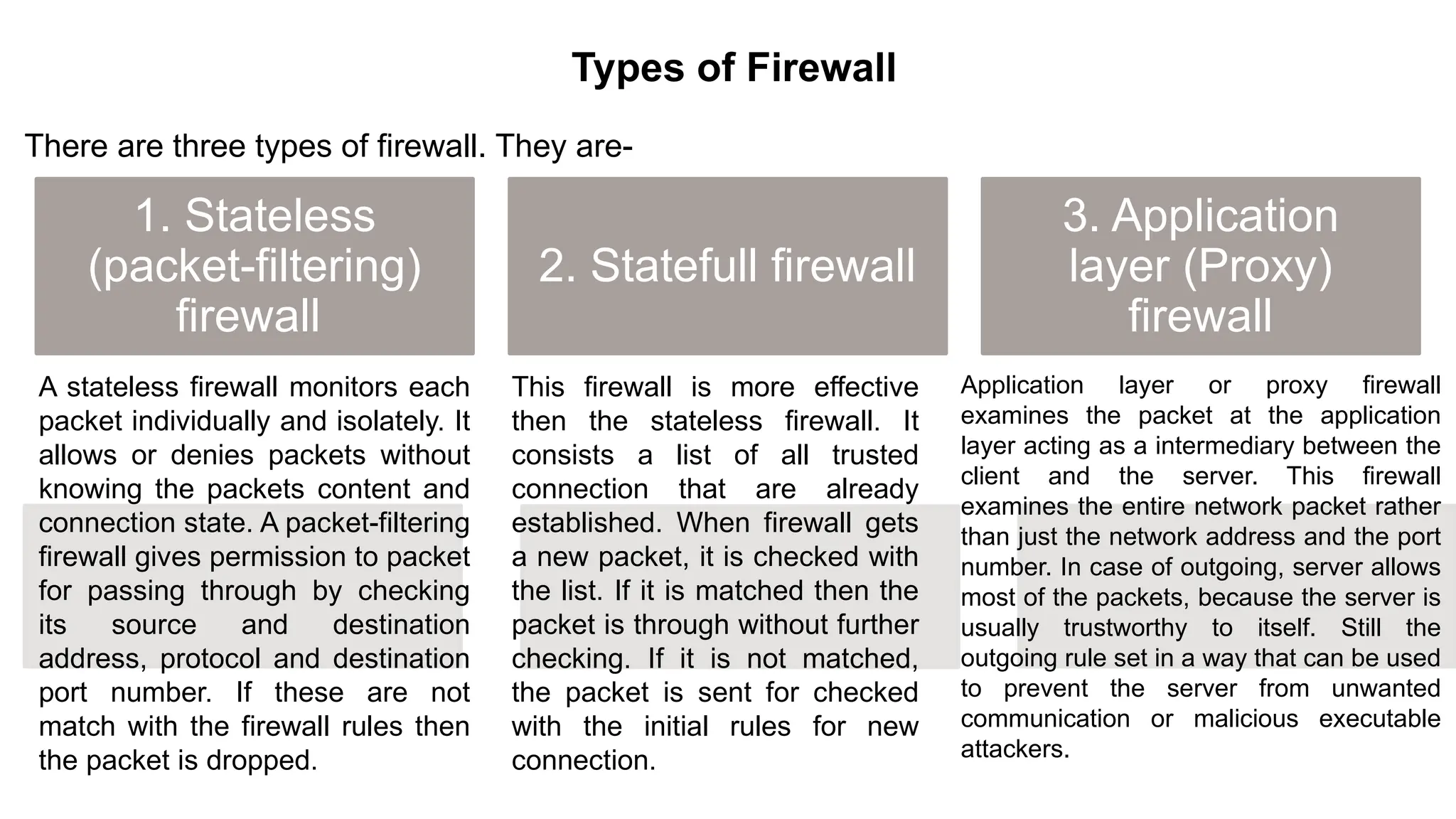

- 37. – BugTraq Types ofFirewall There are three types of firewall. They are- 1. Stateless (packet-filtering) firewall 2. Statefull firewall 3. Application layer (Proxy) firewall A stateless firewall monitors each packet individually and isolately. It allows or denies packets without knowing the packets content and connection state. A packet-filtering firewall gives permission to packet for passing through by checking its source and destination address, protocol and destination port number. If these are not match with the firewall rules then the packet is dropped. This firewall is more effective then the stateless firewall. It consists a list of all trusted connection that are already established. When firewall gets a new packet, it is checked with the list. If it is matched then the packet is through without further checking. If it is not matched, the packet is sent for checked with the initial rules for new connection. Application layer or proxy firewall examines the packet at the application layer acting as a intermediary between the client and the server. This firewall examines the entire network packet rather than just the network address and the port number. In case of outgoing, server allows most of the packets, because the server is usually trustworthy to itself. Still the outgoing rule set in a way that can be used to prevent the server from unwanted communication or malicious executable attackers.

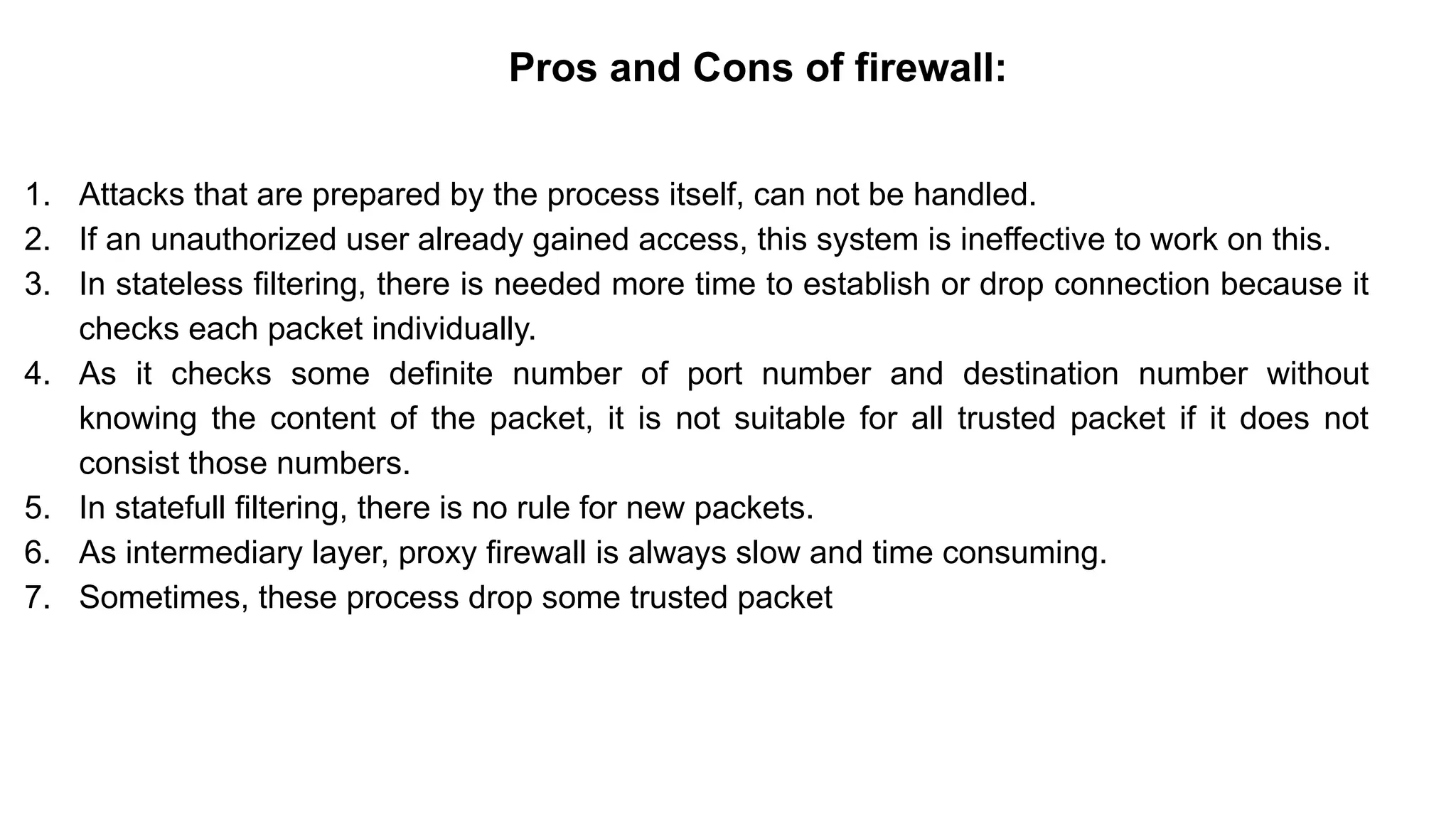

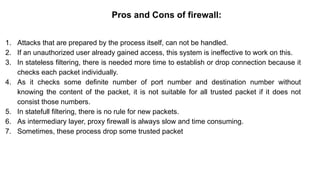

- 38. – BugTraq Pros andCons of firewall: 1. Attacks that are prepared by the process itself, can not be handled. 2. If an unauthorized user already gained access, this system is ineffective to work on this. 3. In stateless filtering, there is needed more time to establish or drop connection because it checks each packet individually. 4. As it checks some definite number of port number and destination number without knowing the content of the packet, it is not suitable for all trusted packet if it does not consist those numbers. 5. In statefull filtering, there is no rule for new packets. 6. As intermediary layer, proxy firewall is always slow and time consuming. 7. Sometimes, these process drop some trusted packet

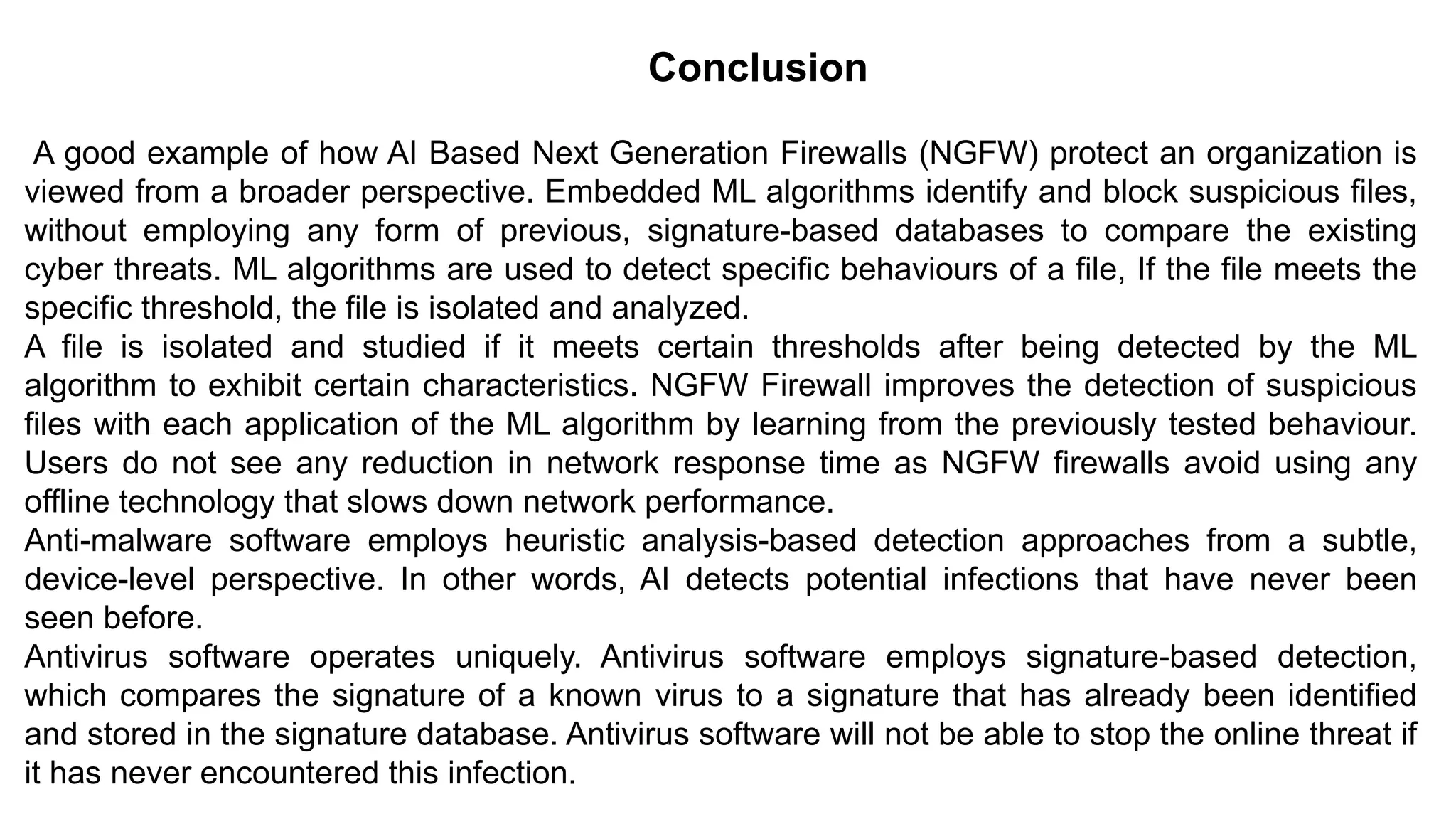

- 39. – BugTraq Conclusion A goodexample of how AI Based Next Generation Firewalls (NGFW) protect an organization is viewed from a broader perspective. Embedded ML algorithms identify and block suspicious files, without employing any form of previous, signature-based databases to compare the existing cyber threats. ML algorithms are used to detect specific behaviours of a file, If the file meets the specific threshold, the file is isolated and analyzed. A file is isolated and studied if it meets certain thresholds after being detected by the ML algorithm to exhibit certain characteristics. NGFW Firewall improves the detection of suspicious files with each application of the ML algorithm by learning from the previously tested behaviour. Users do not see any reduction in network response time as NGFW firewalls avoid using any offline technology that slows down network performance. Anti-malware software employs heuristic analysis-based detection approaches from a subtle, device-level perspective. In other words, AI detects potential infections that have never been seen before. Antivirus software operates uniquely. Antivirus software employs signature-based detection, which compares the signature of a known virus to a signature that has already been identified and stored in the signature database. Antivirus software will not be able to stop the online threat if it has never encountered this infection.
- 40. Free templates forall your presentation needs Ready to use, professional and customizable 100% free for personal or commercial use Blow your audience away with attractive visuals For PowerPoint and Google Slides 40
