High Availability Perl DBI + MySQL
- 1. High Availability? Setting UpMySQL Our Approach DBI Framework Questions High Availability DBI & MySQL YAPC::NA 2005 High Availability DBI & MySQL Steve Purkis

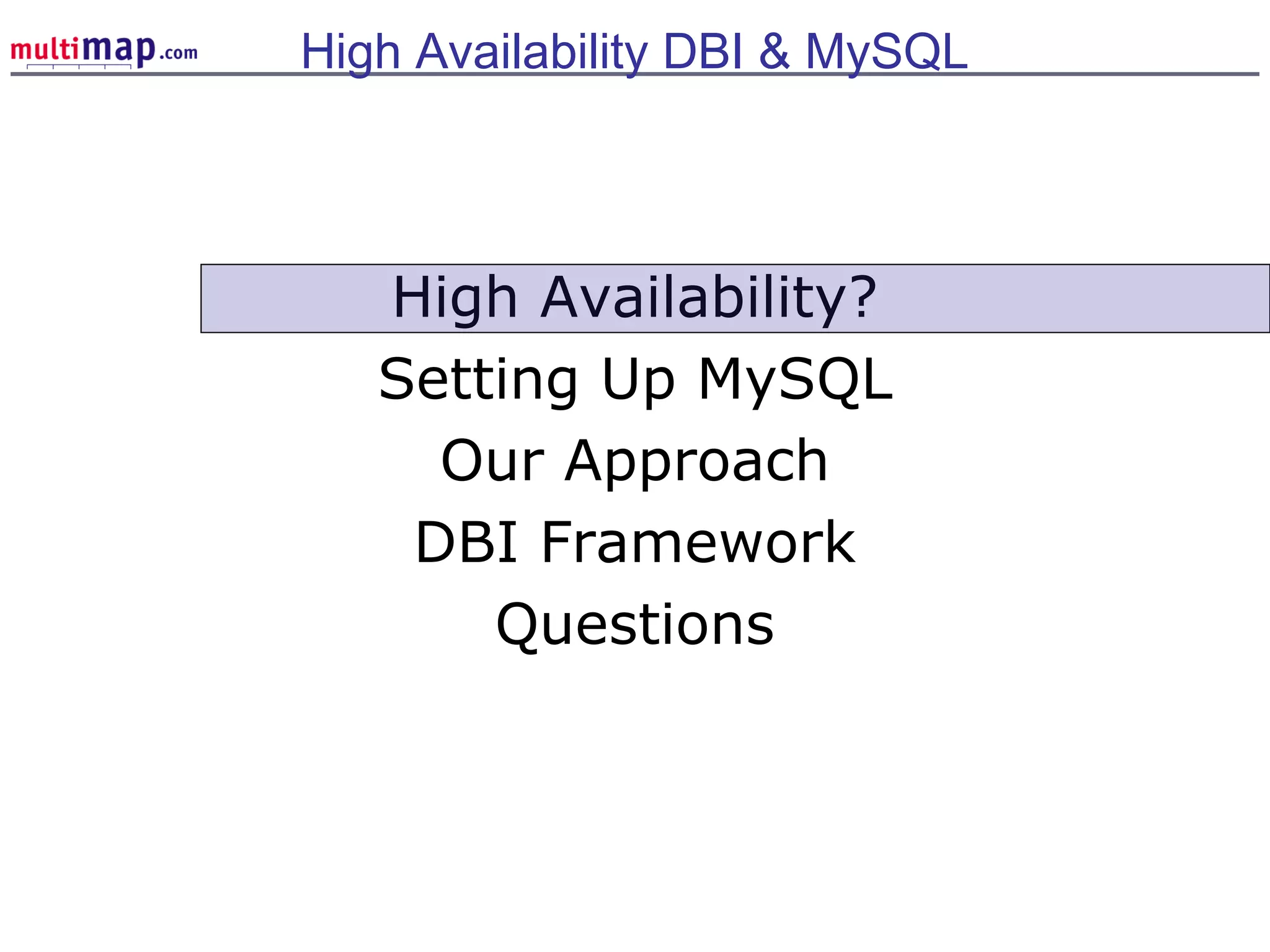

- 2. High Availability? Setting UpMySQL Our Approach DBI Framework Questions High Availability DBI & MySQL

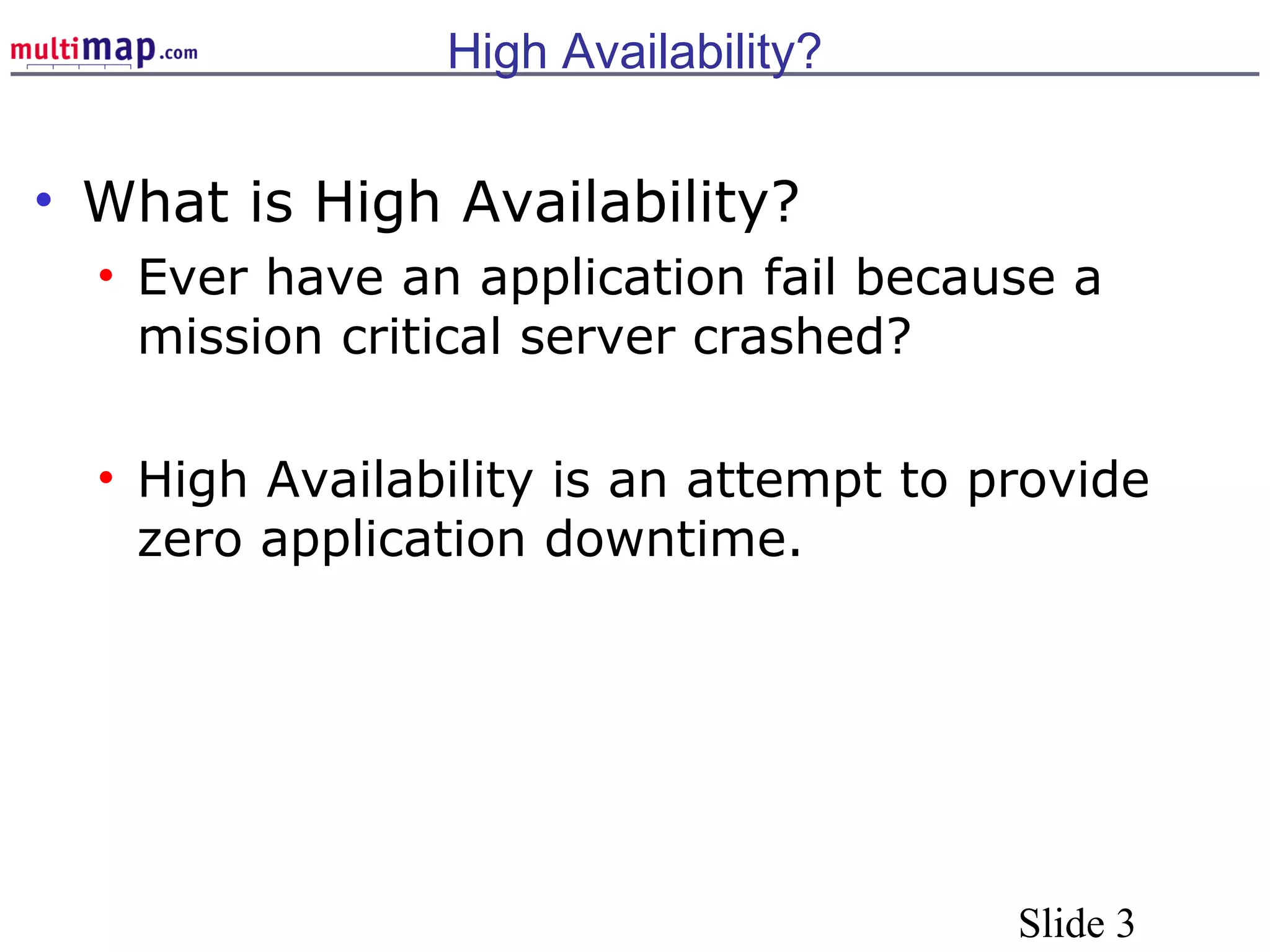

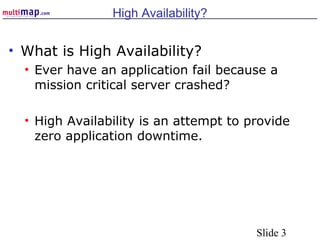

- 3. Slide 3 High Availability? •What is High Availability? • Ever have an application fail because a mission critical server crashed? • High Availability is an attempt to provide zero application downtime.

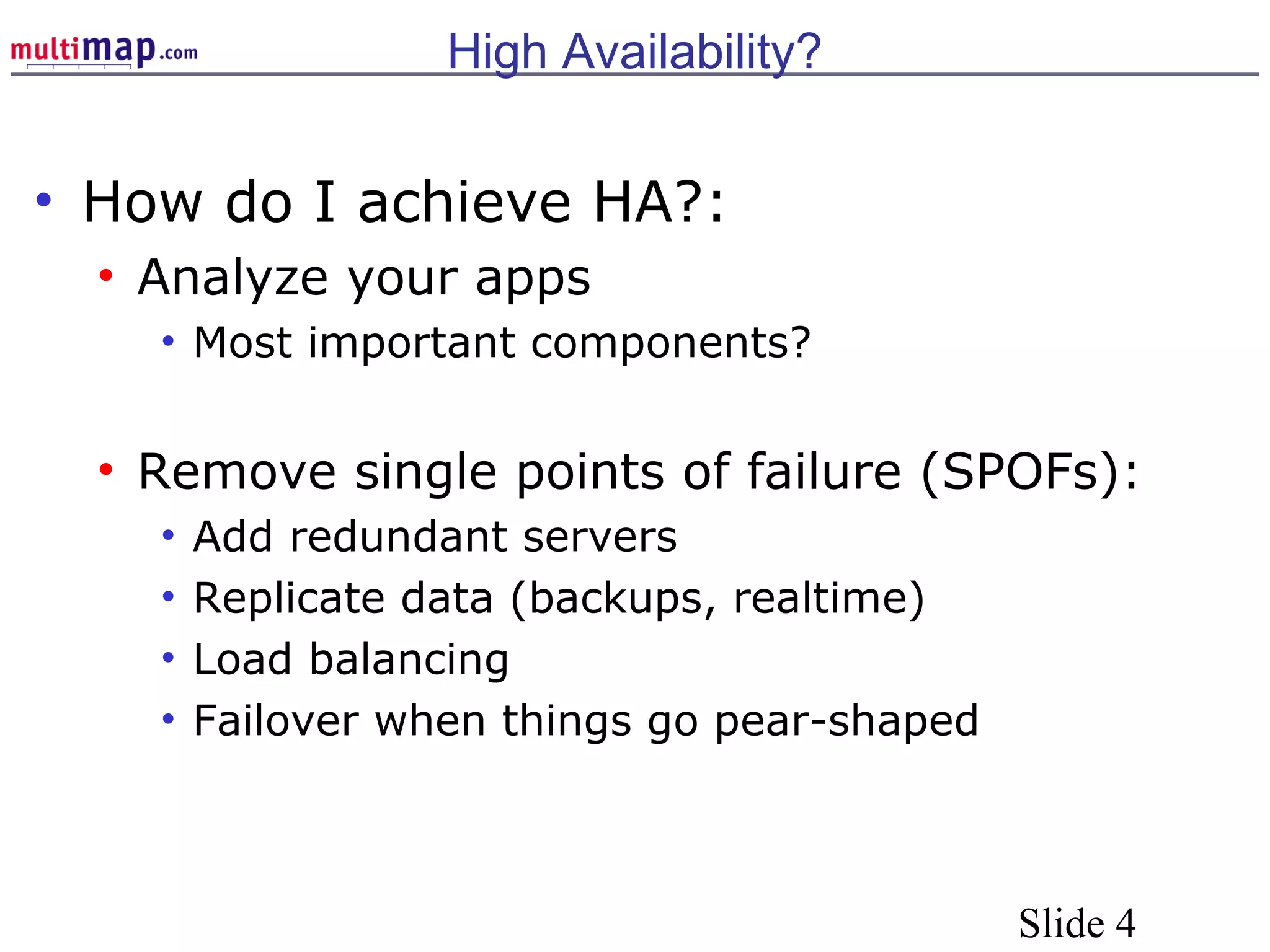

- 4. Slide 4 High Availability? •How do I achieve HA?: • Analyze your apps • Most important components? • Remove single points of failure (SPOFs): • Add redundant servers • Replicate data (backups, realtime) • Load balancing • Failover when things go pear-shaped

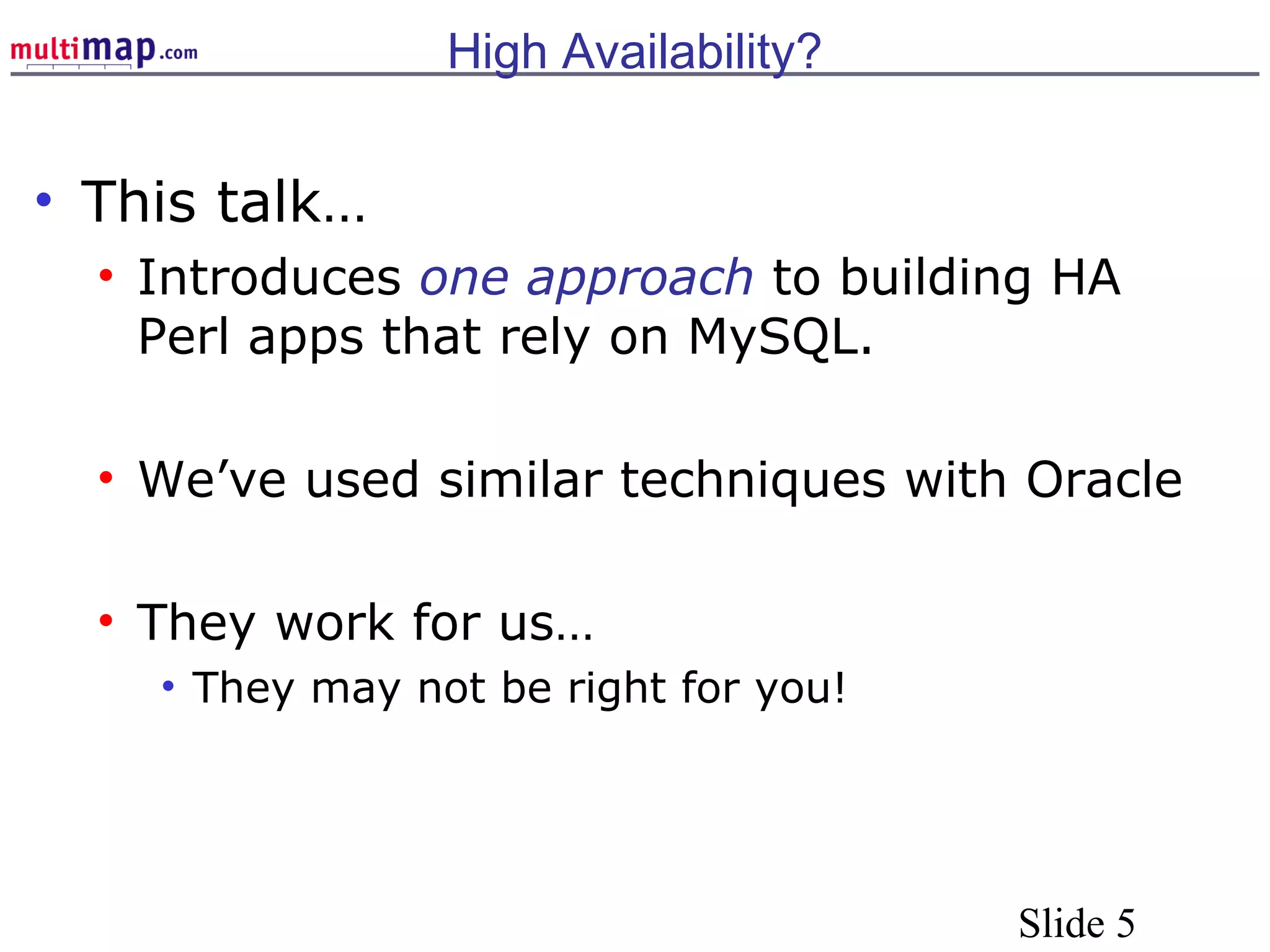

- 5. Slide 5 High Availability? •This talk… • Introduces one approach to building HA Perl apps that rely on MySQL. • We’ve used similar techniques with Oracle • They work for us… • They may not be right for you!

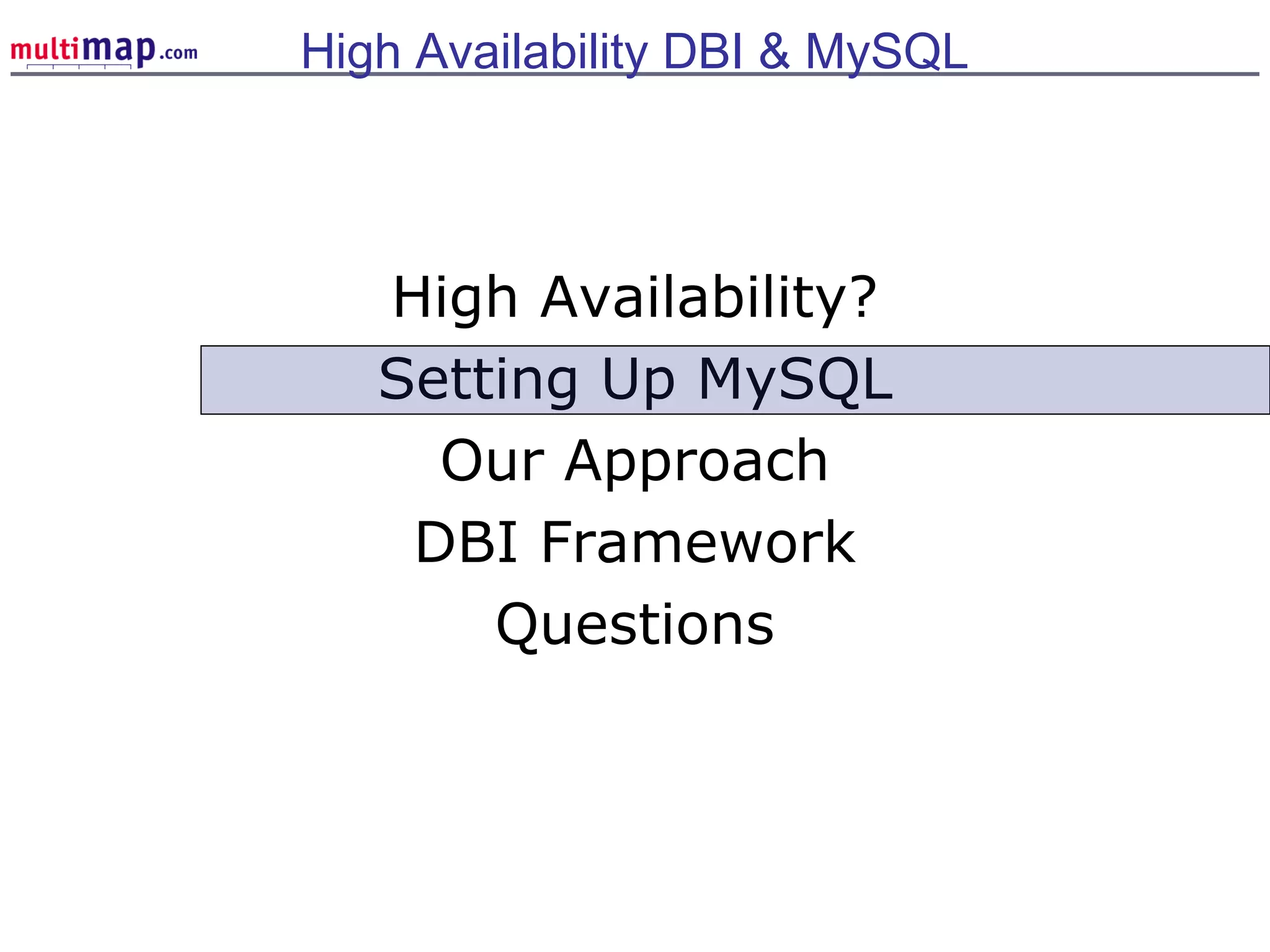

- 6. High Availability? Setting UpMySQL Our Approach DBI Framework Questions High Availability DBI & MySQL

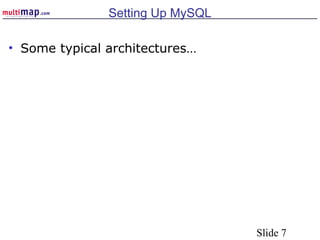

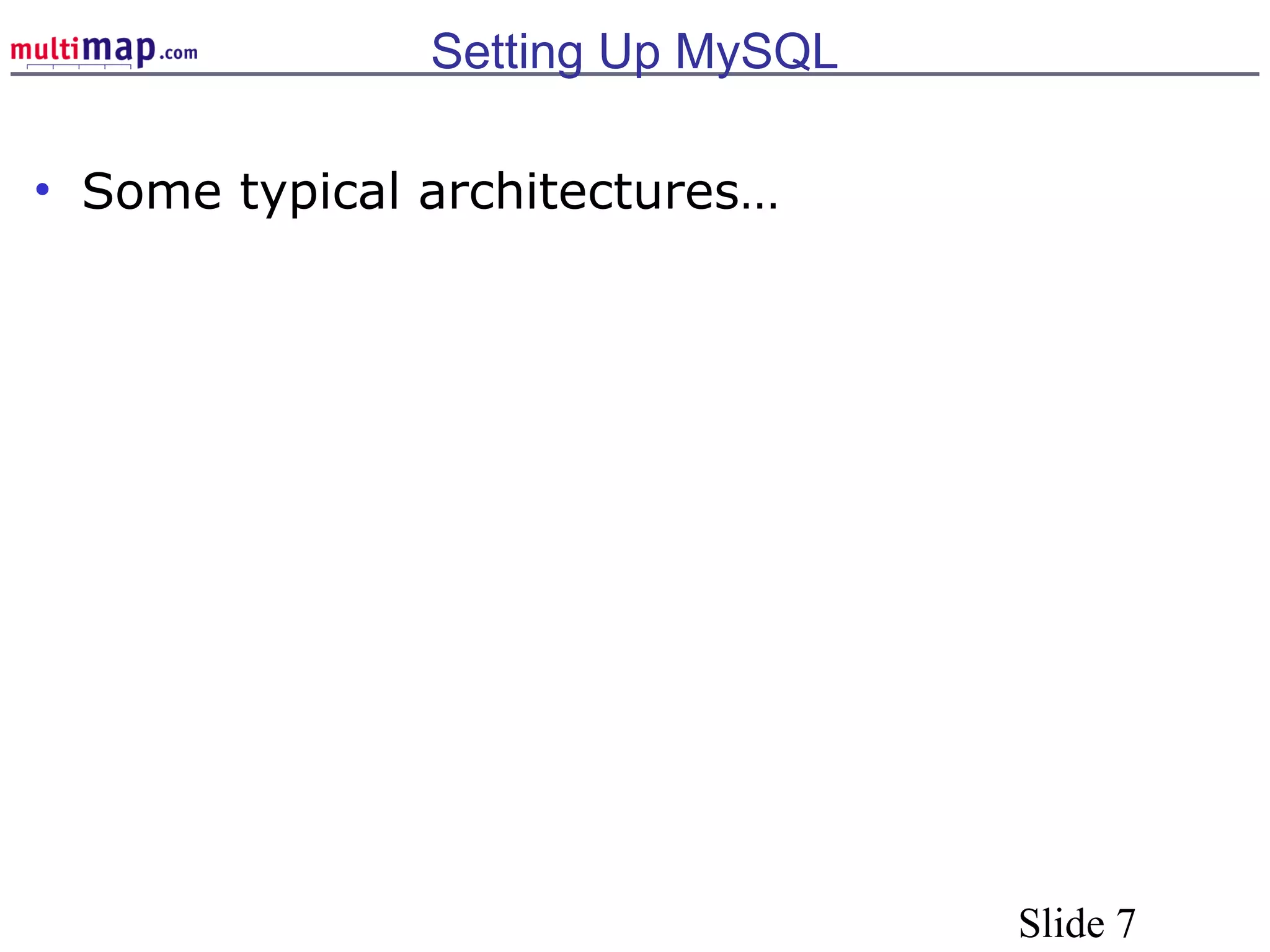

- 7. Slide 7 Setting UpMySQL • Some typical architectures…

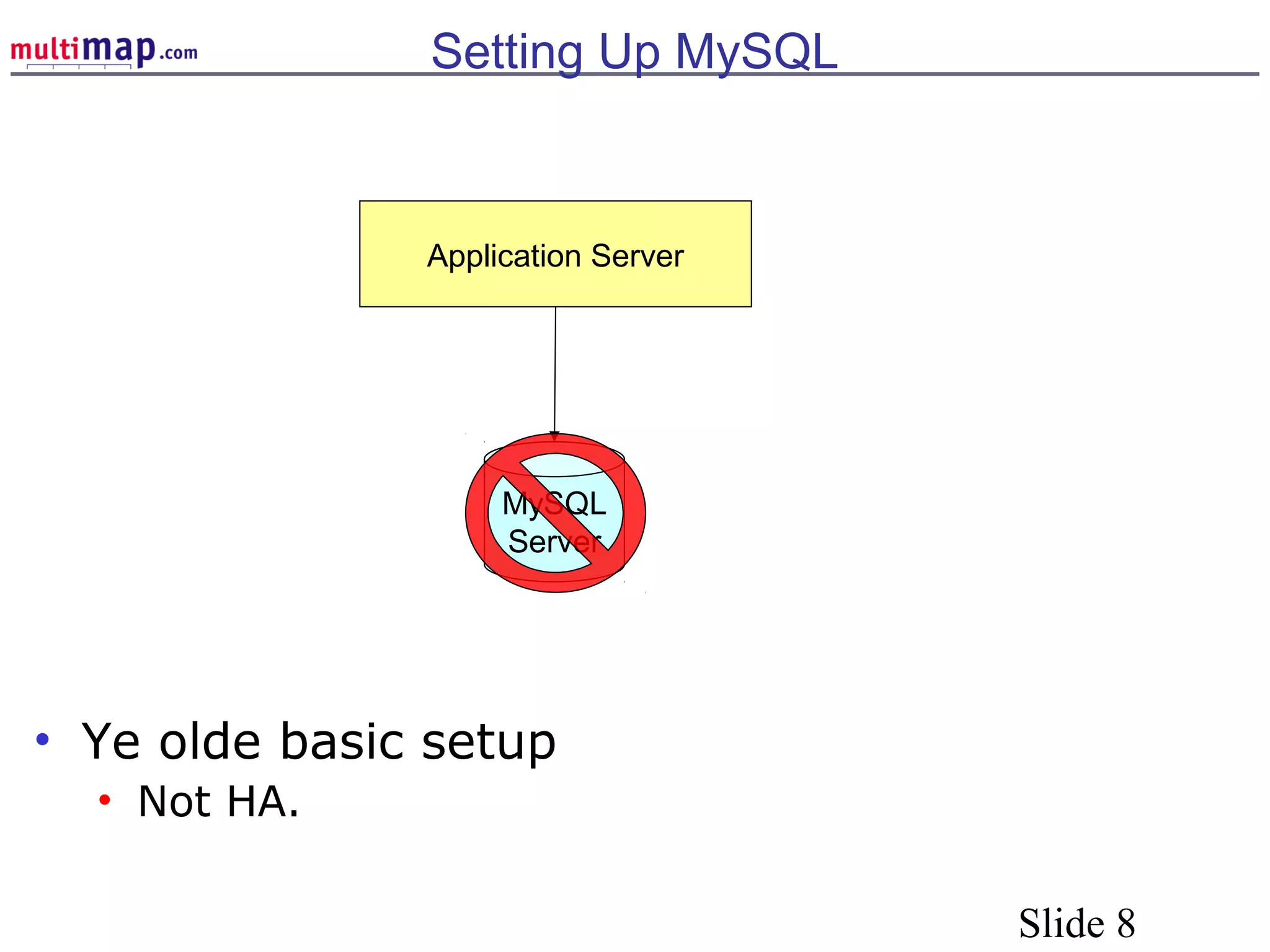

- 8. Slide 8 Setting UpMySQL • Ye olde basic setup • Not HA. Application Server MySQL Server

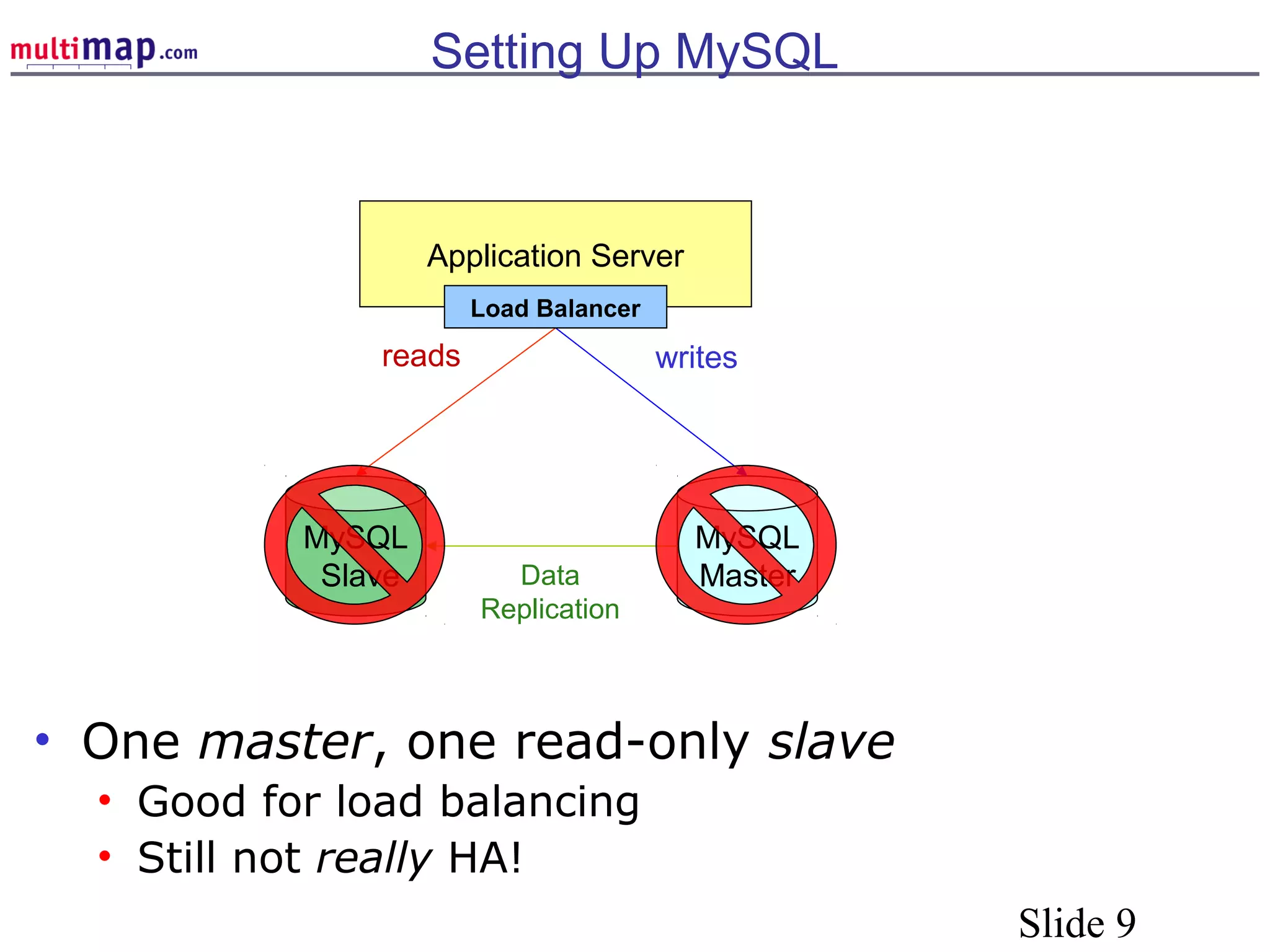

- 9. Slide 9 Setting UpMySQL • One master, one read-only slave • Good for load balancing • Still not really HA! Application Server MySQL Master MySQL Slave Data Replication reads writes Load Balancer

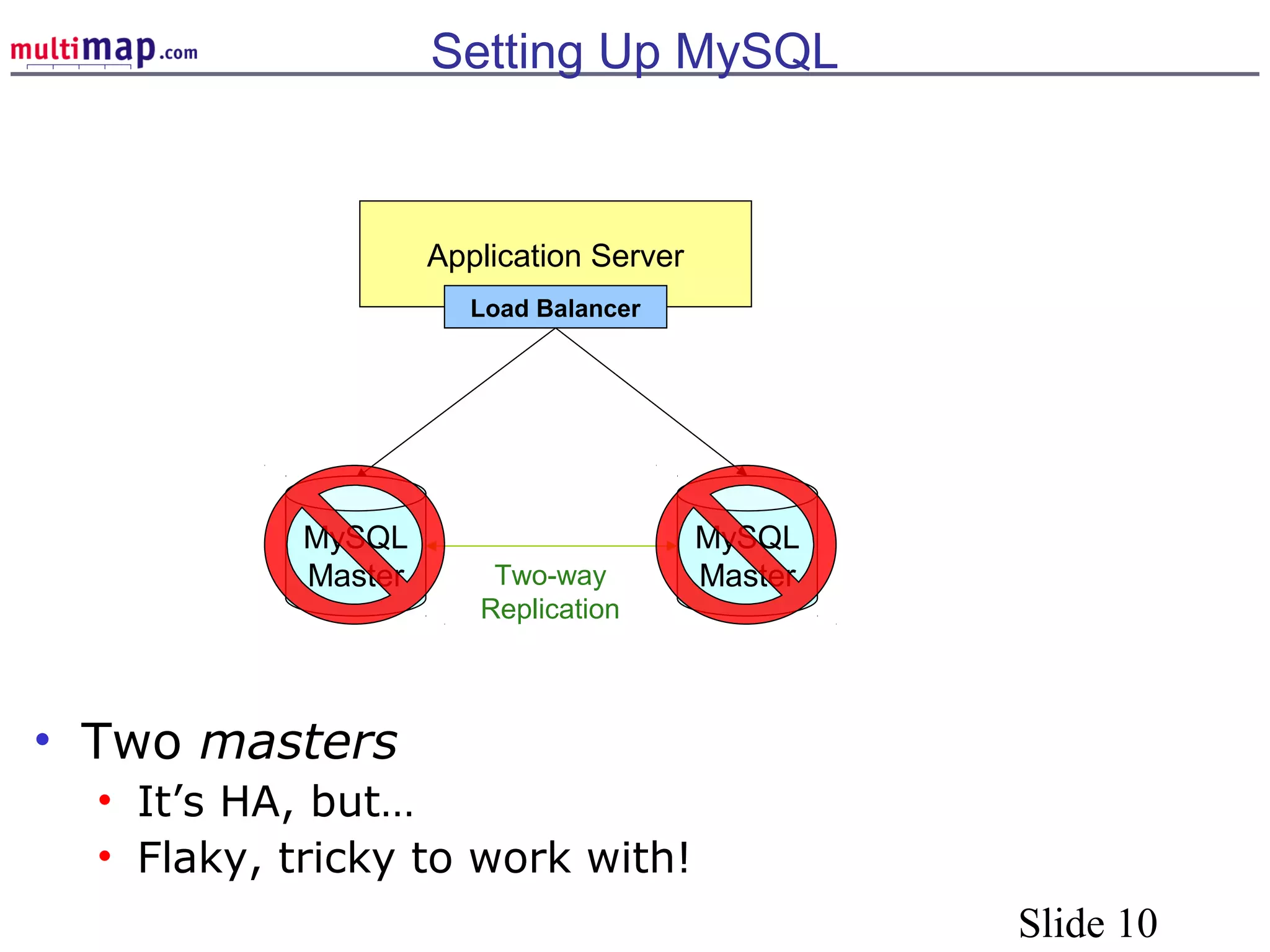

- 10. Slide 10 Setting UpMySQL • Two masters • It’s HA, but… • Flaky, tricky to work with! Application Server MySQL MasterTwo-way Replication MySQL Master Load Balancer
- 11. Slide 11 MySQL Slave Setting UpMySQL • Two masters, multiple slaves • Only one master active at a time • HA Application Server MySQL Slaves Data Replication reads writes Primary Master 2nd ary Master Master Failover Load Balancer • HA (unless your hosting center goes down)

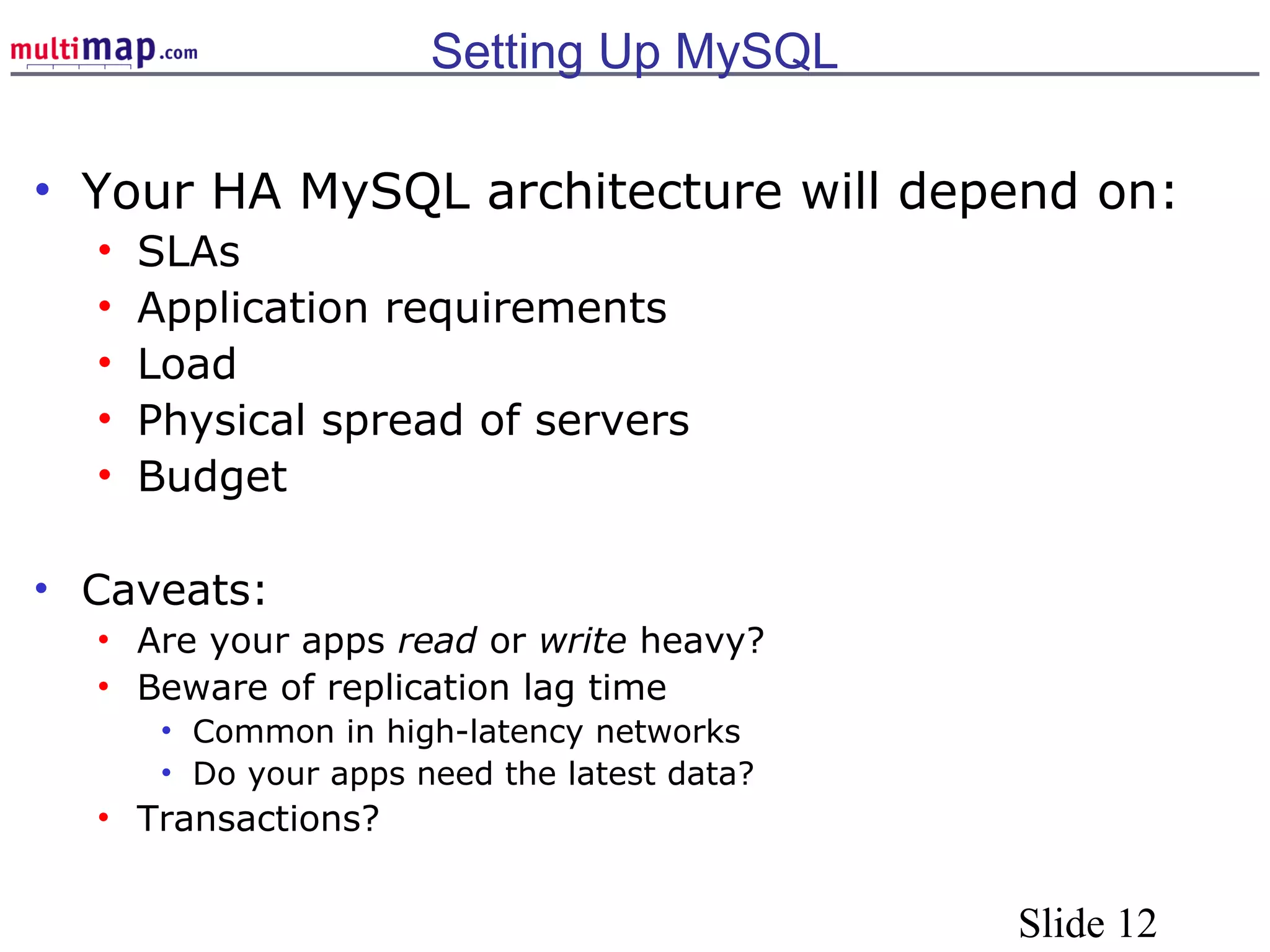

- 12. Slide 12 Setting UpMySQL • Your HA MySQL architecture will depend on: • SLAs • Application requirements • Load • Physical spread of servers • Budget • Caveats: • Are your apps read or write heavy? • Beware of replication lag time • Common in high-latency networks • Do your apps need the latest data? • Transactions?

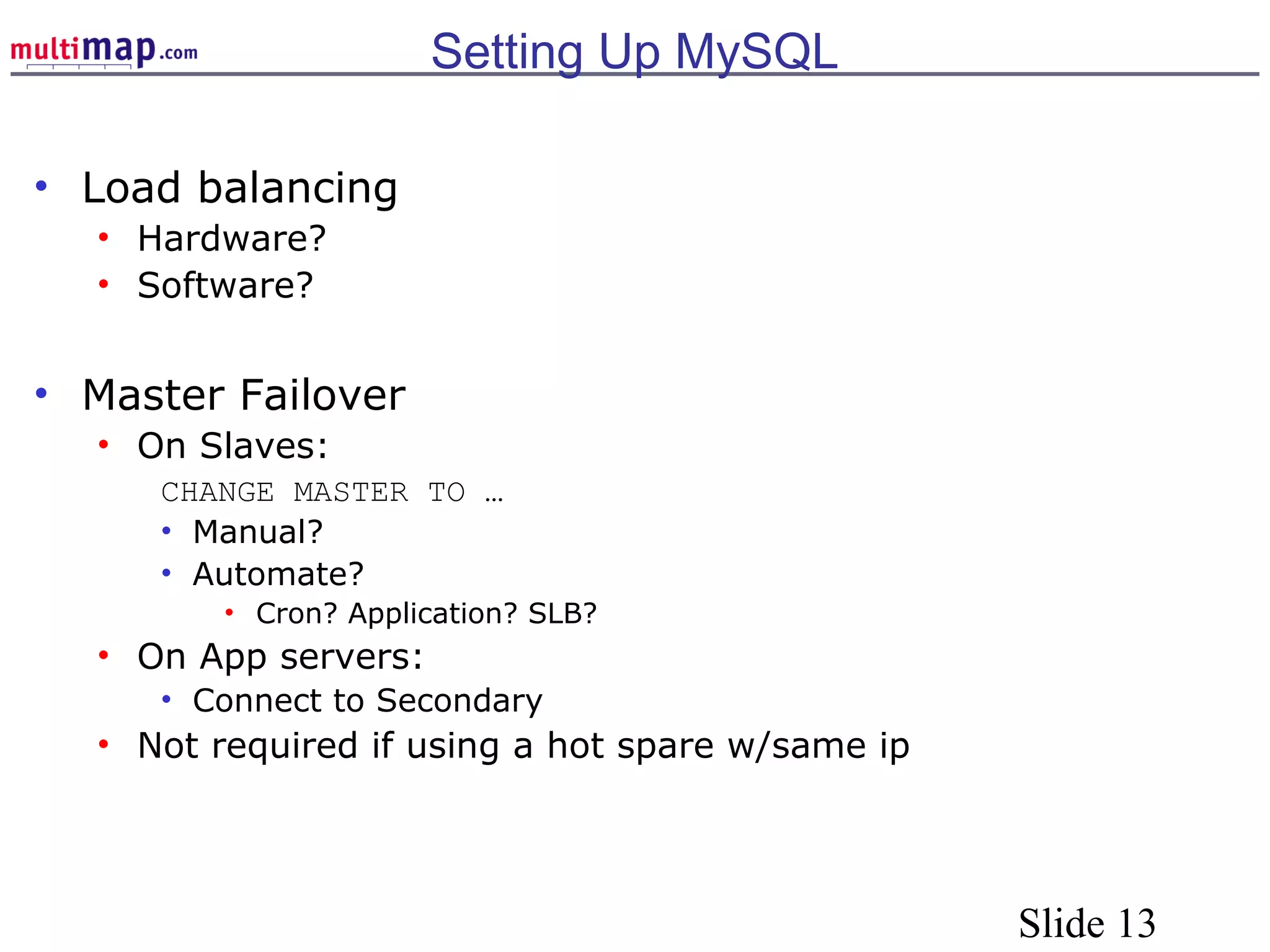

- 13. Slide 13 Setting UpMySQL • Load balancing • Hardware? • Software? • Master Failover • On Slaves: CHANGE MASTER TO … • Manual? • Automate? • Cron? Application? SLB? • On App servers: • Connect to Secondary • Not required if using a hot spare w/same ip

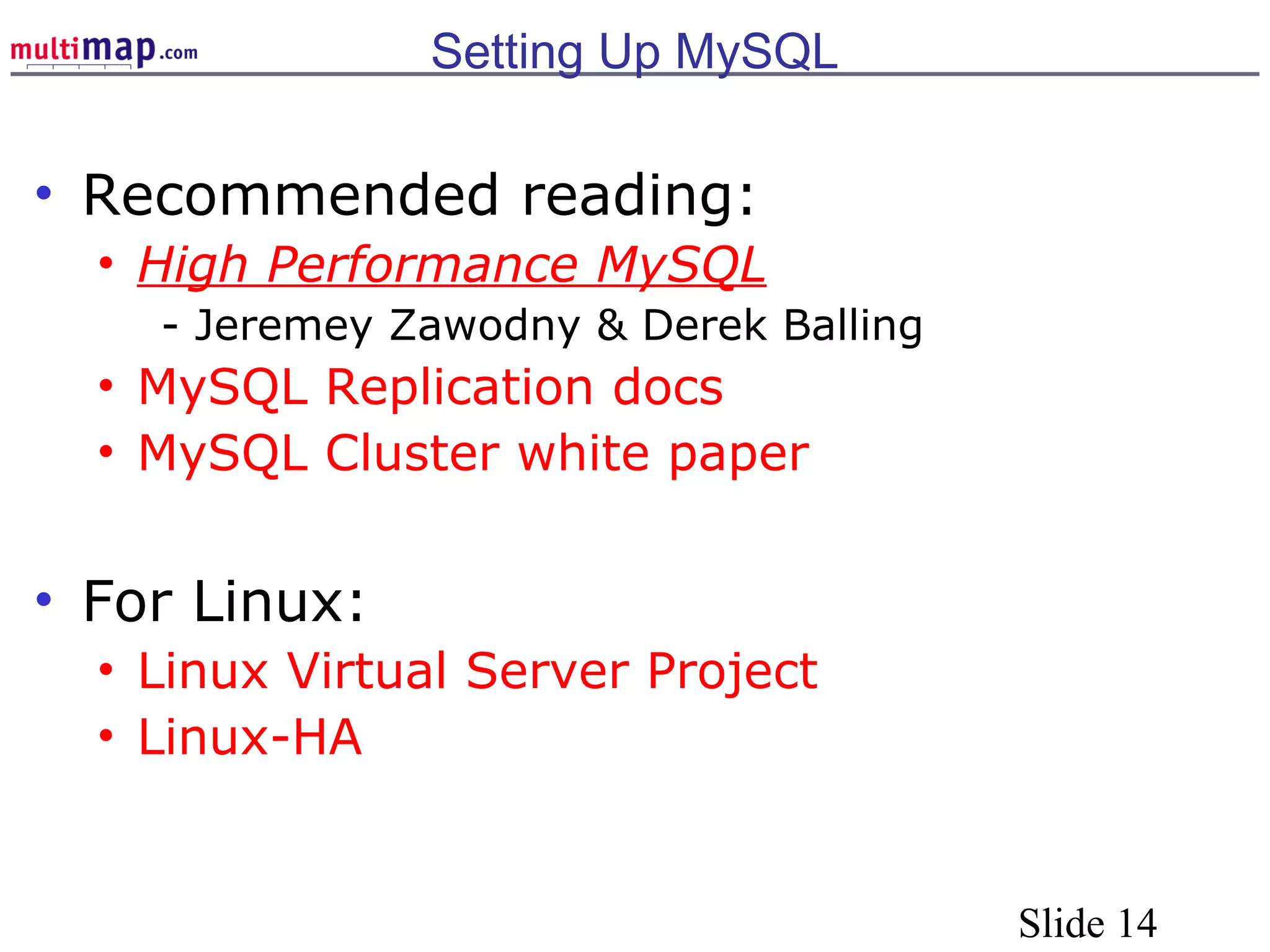

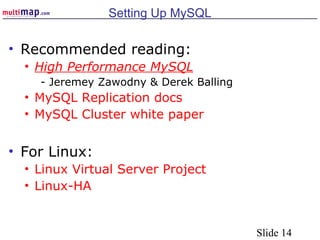

- 14. Slide 14 Setting UpMySQL • Recommended reading: • High Performance MySQL - Jeremey Zawodny & Derek Balling • MySQL Replication docs • MySQL Cluster white paper • For Linux: • Linux Virtual Server Project • Linux-HA

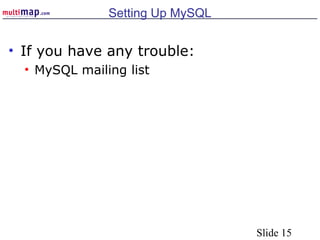

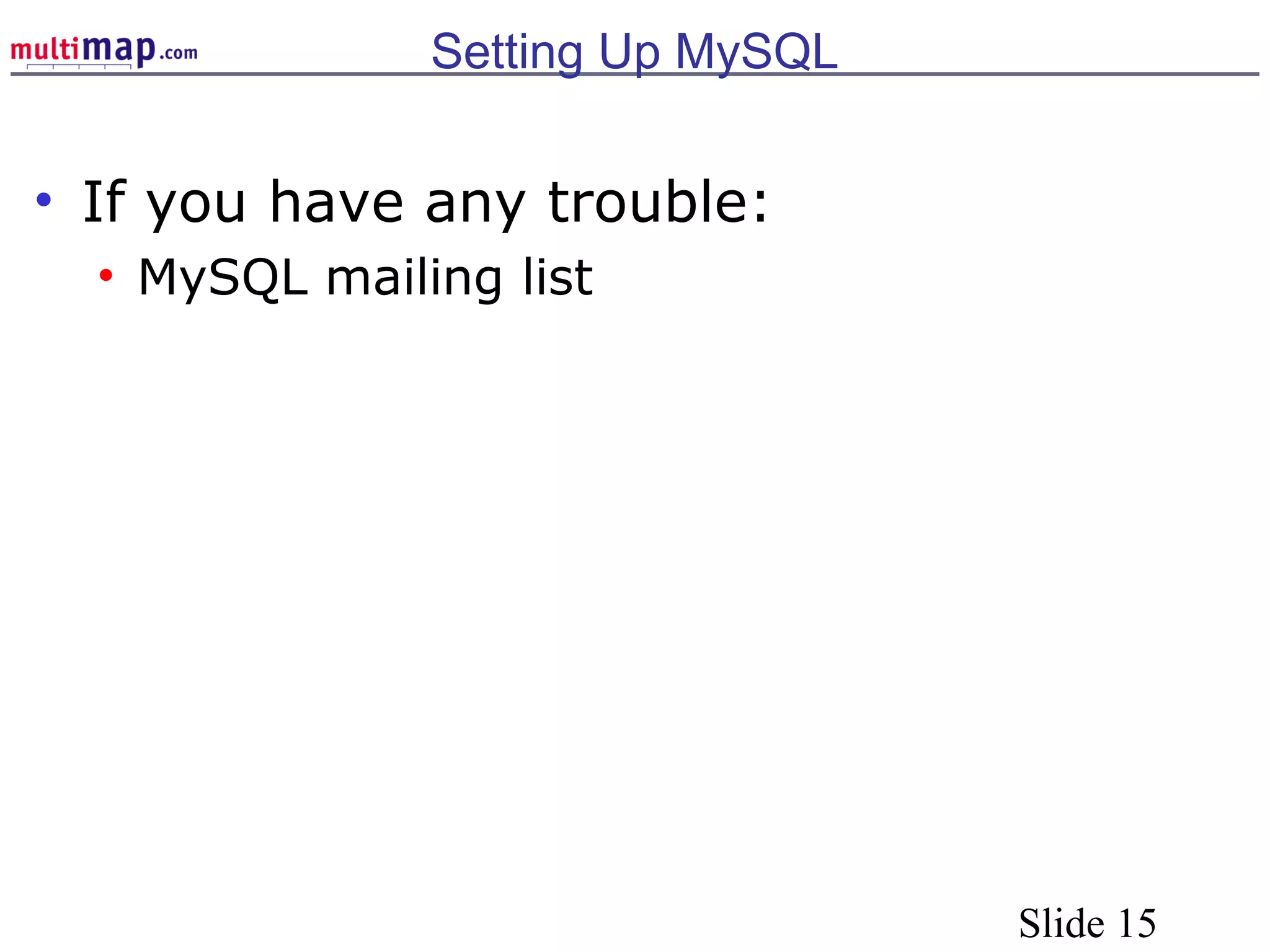

- 15. Slide 15 Setting UpMySQL • If you have any trouble: • MySQL mailing list

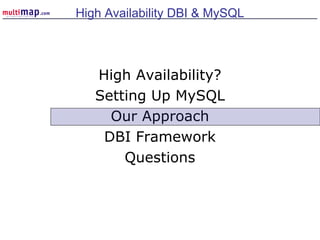

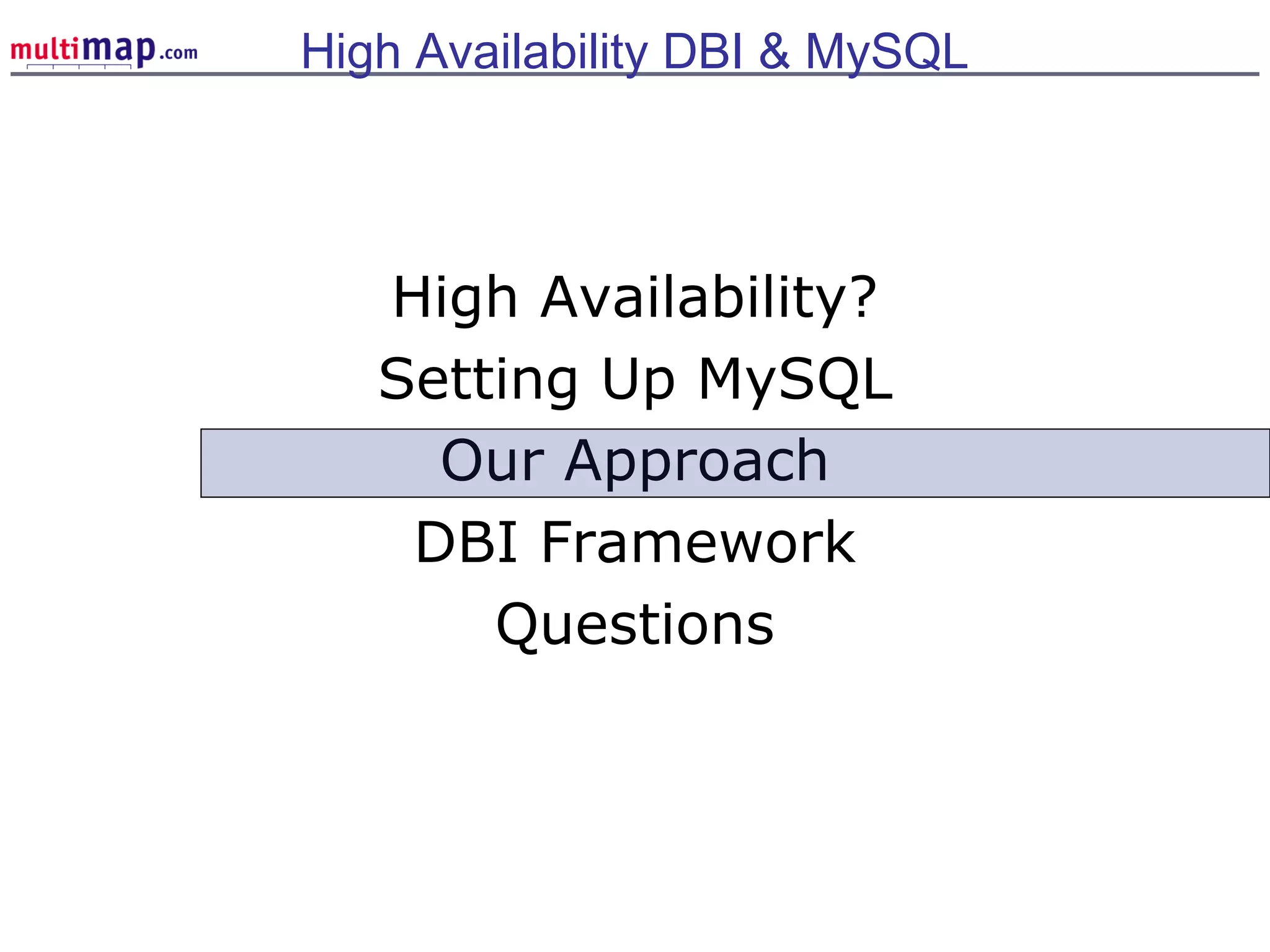

- 16. High Availability? Setting UpMySQL Our Approach DBI Framework Questions High Availability DBI & MySQL

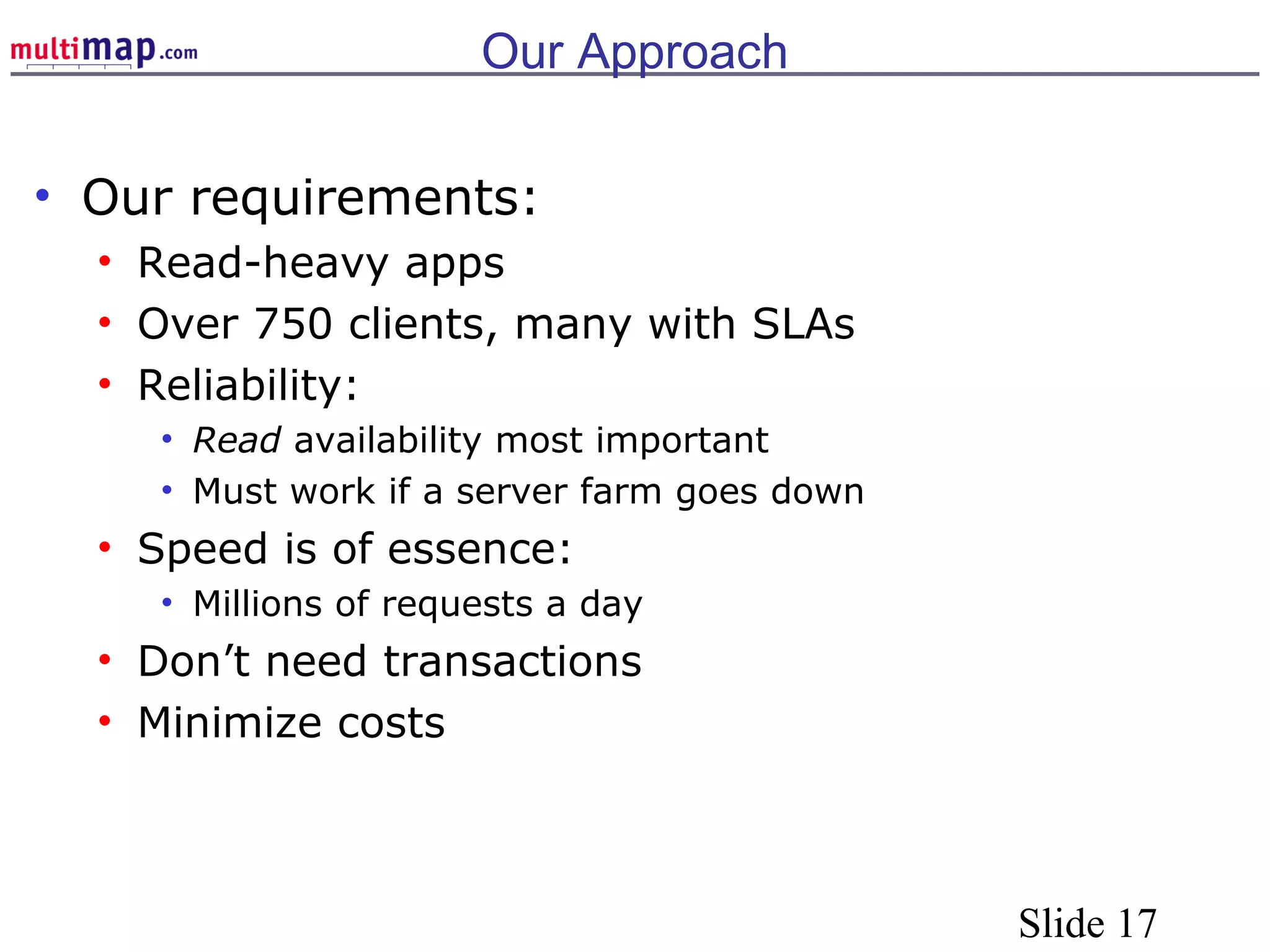

- 17. Slide 17 Our Approach •Our requirements: • Read-heavy apps • Over 750 clients, many with SLAs • Reliability: • Read availability most important • Must work if a server farm goes down • Speed is of essence: • Millions of requests a day • Don’t need transactions • Minimize costs
- 18.

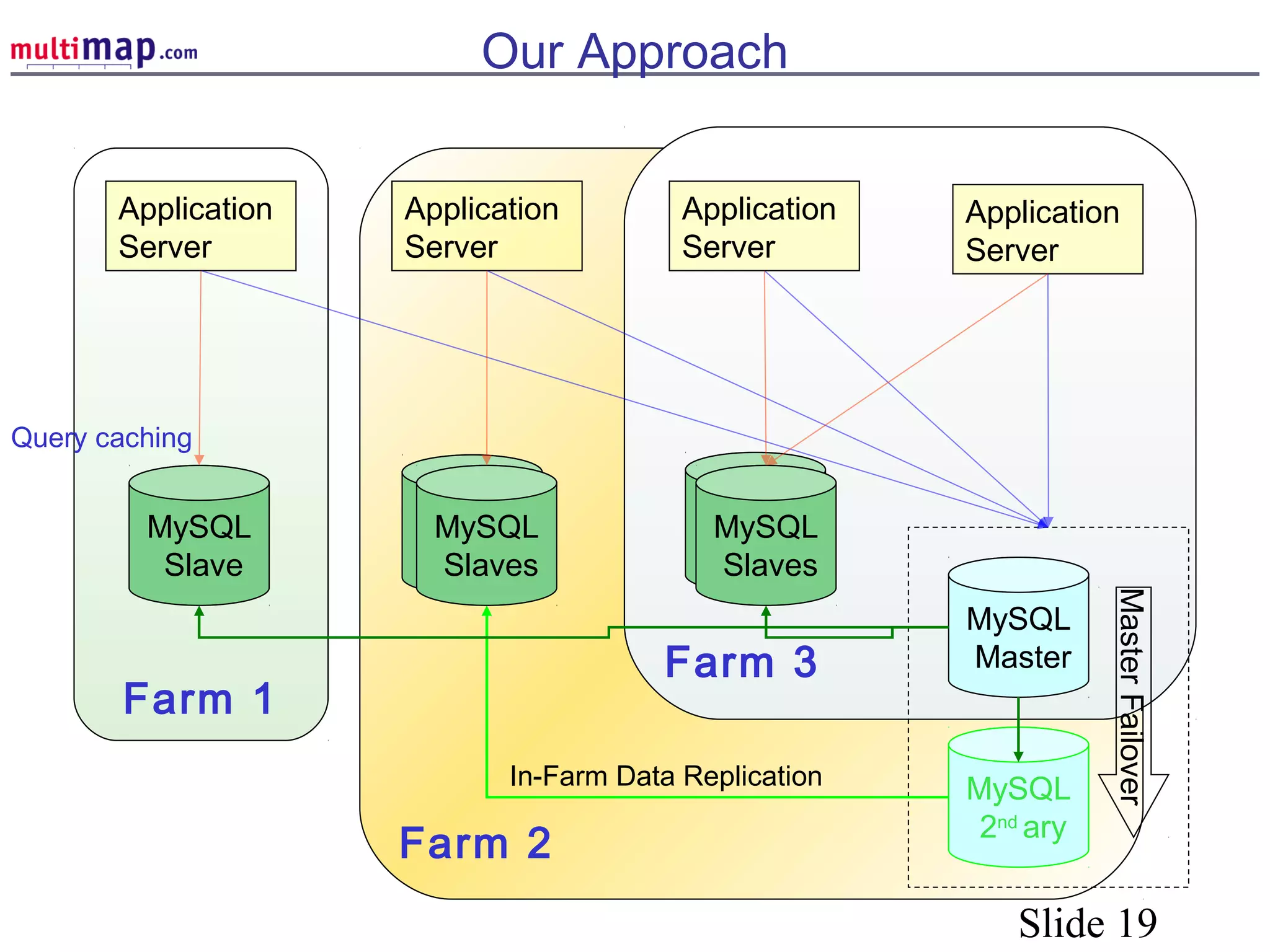

- 19. Slide 19 Farm 2 Farm3 Farm 1 Our Approach Application Server Application Server MySQL Slave Application Server MySQL Master MySQL 2nd ary MasterFailover In-Farm Data Replication Application Server MySQL Slave MySQL Slaves MySQL Slave MySQL Slaves Query caching

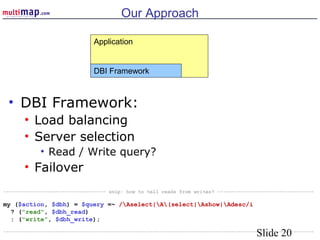

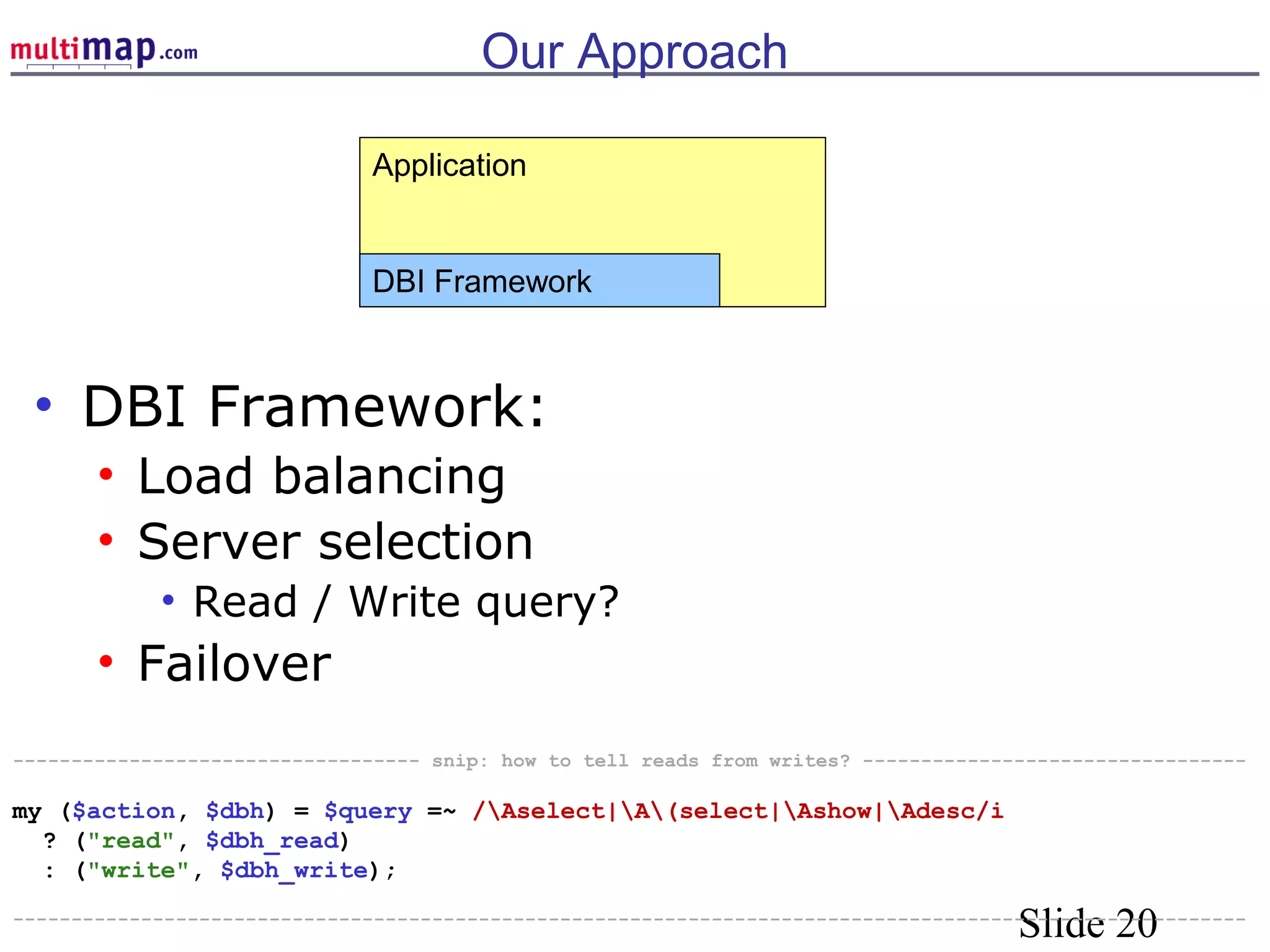

- 20. Slide 20 Our Approach •DBI Framework: • Load balancing • Server selection • Read / Write query? • Failover Application DBI Framework ----------------------------------- snip: how to tell reads from writes? --------------------------------- my ($action, $dbh) = $query =~ /Aselect|A(select|Ashow|Adesc/i ? ("read", $dbh_read) : ("write", $dbh_write); ----------------------------------------------------------------------------------------------------------

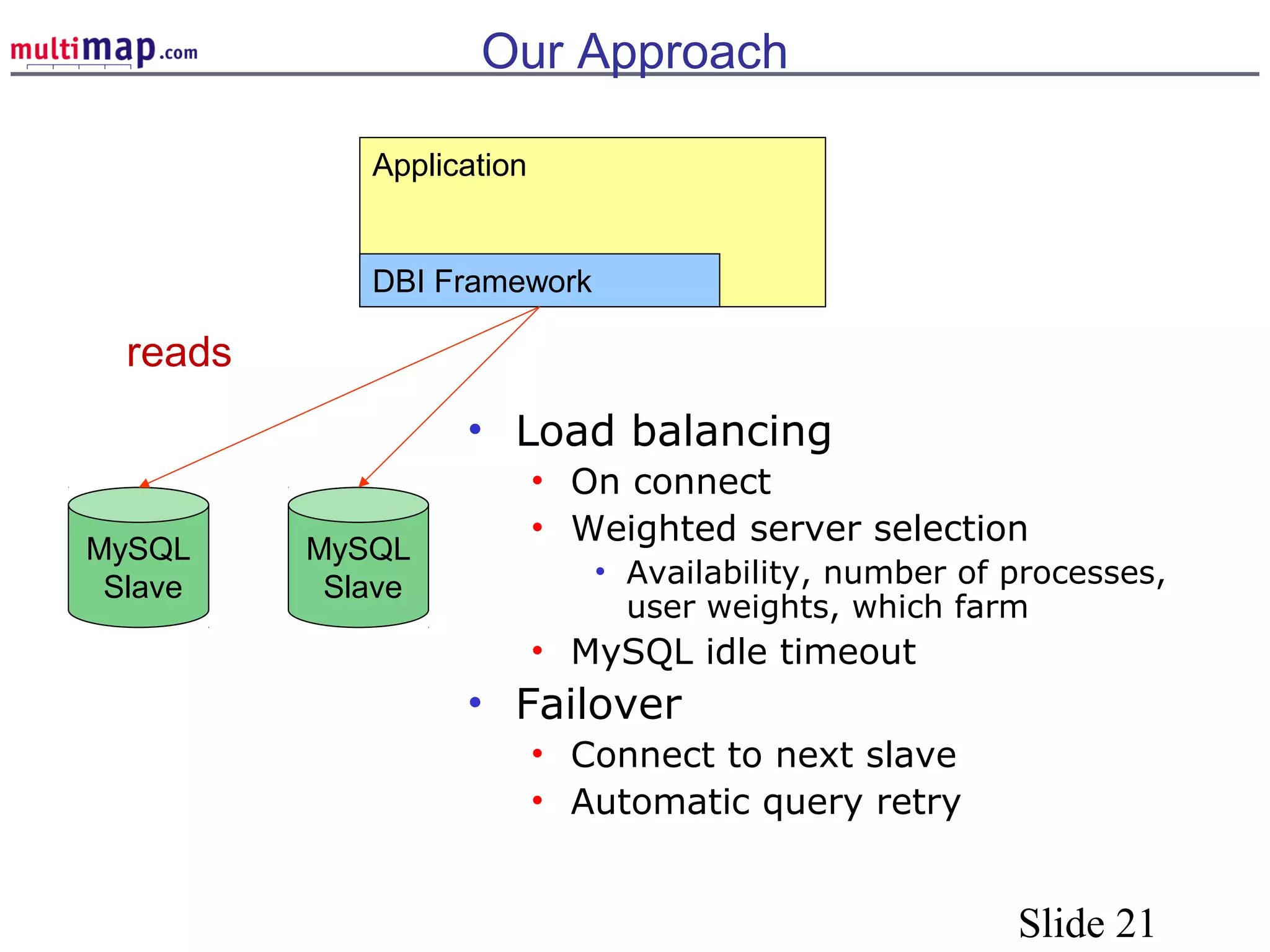

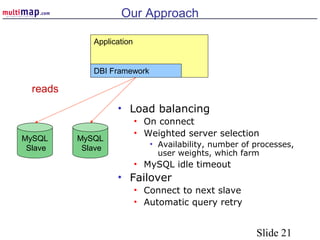

- 21. Slide 21 Our Approach •Load balancing • On connect • Weighted server selection • Availability, number of processes, user weights, which farm • MySQL idle timeout • Failover • Connect to next slave • Automatic query retry Application DBI Framework MySQL Slave MySQL Slave reads

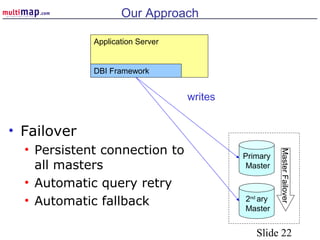

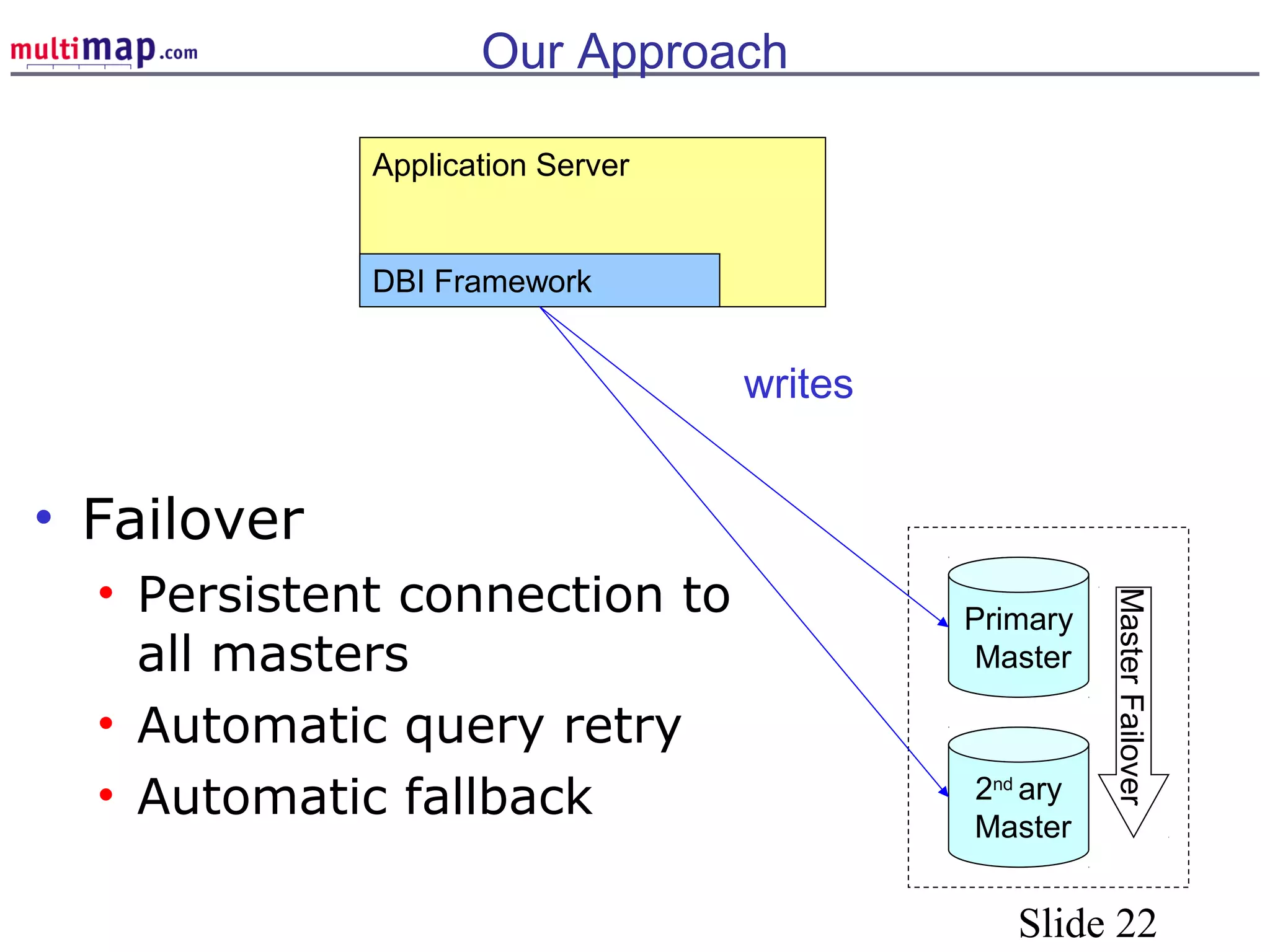

- 22. Slide 22 Our Approach •Failover • Persistent connection to all masters • Automatic query retry • Automatic fallback Application Server DBI Framework Primary Master 2nd ary Master MasterFailover writes

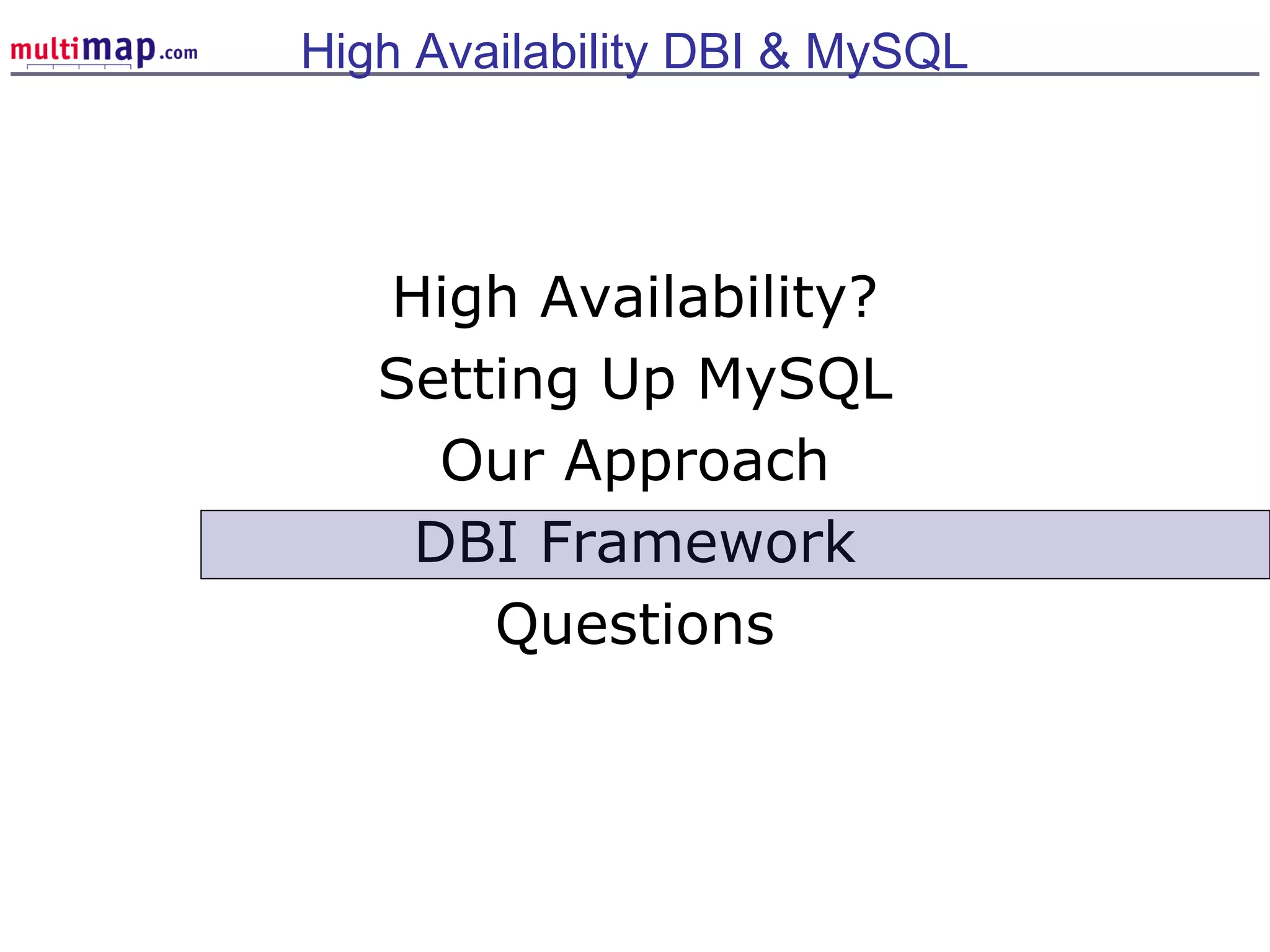

- 23. High Availability? Setting UpMySQL Our Approach DBI Framework Questions High Availability DBI & MySQL

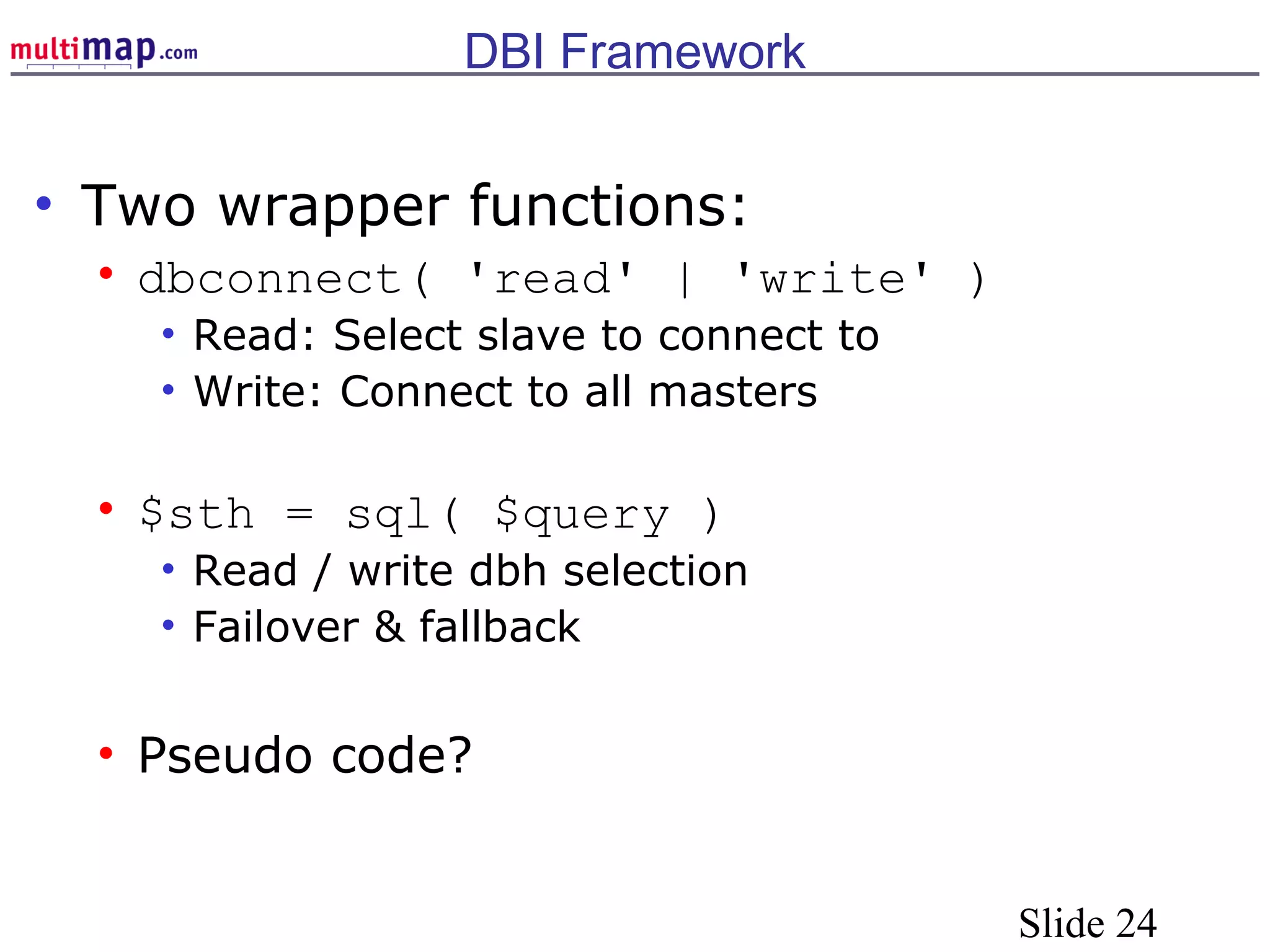

- 24. Slide 24 DBI Framework •Two wrapper functions: • dbconnect( 'read' | 'write' ) • Read: Select slave to connect to • Write: Connect to all masters • $sth = sql( $query ) • Read / write dbh selection • Failover & fallback • Pseudo code?

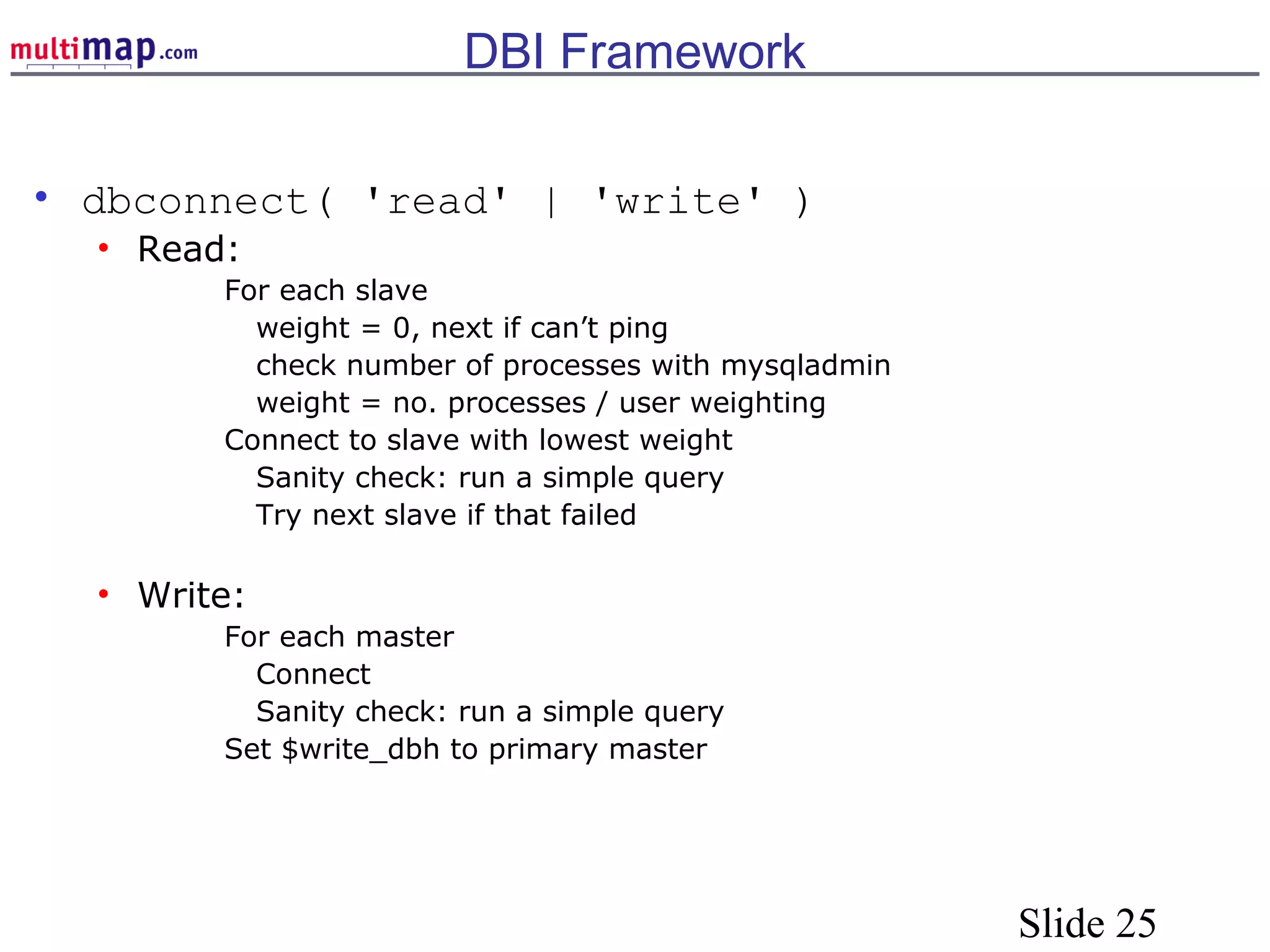

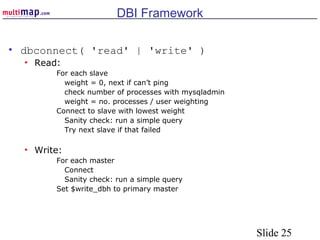

- 25. Slide 25 DBI Framework •dbconnect( 'read' | 'write' ) • Read: For each slave weight = 0, next if can’t ping check number of processes with mysqladmin weight = no. processes / user weighting Connect to slave with lowest weight Sanity check: run a simple query Try next slave if that failed • Write: For each master Connect Sanity check: run a simple query Set $write_dbh to primary master

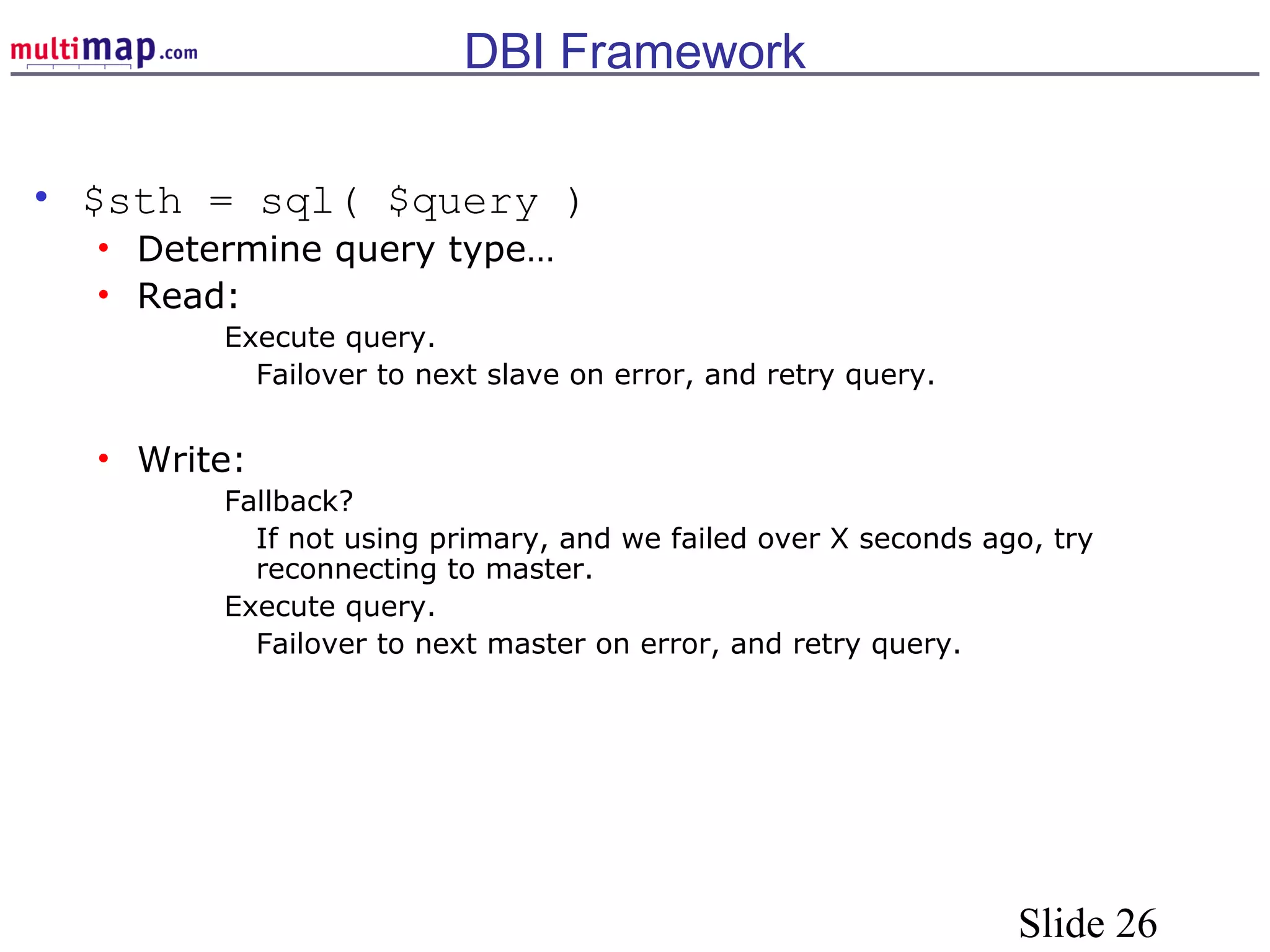

- 26. Slide 26 DBI Framework •$sth = sql( $query ) • Determine query type… • Read: Execute query. Failover to next slave on error, and retry query. • Write: Fallback? If not using primary, and we failed over X seconds ago, try reconnecting to master. Execute query. Failover to next master on error, and retry query.

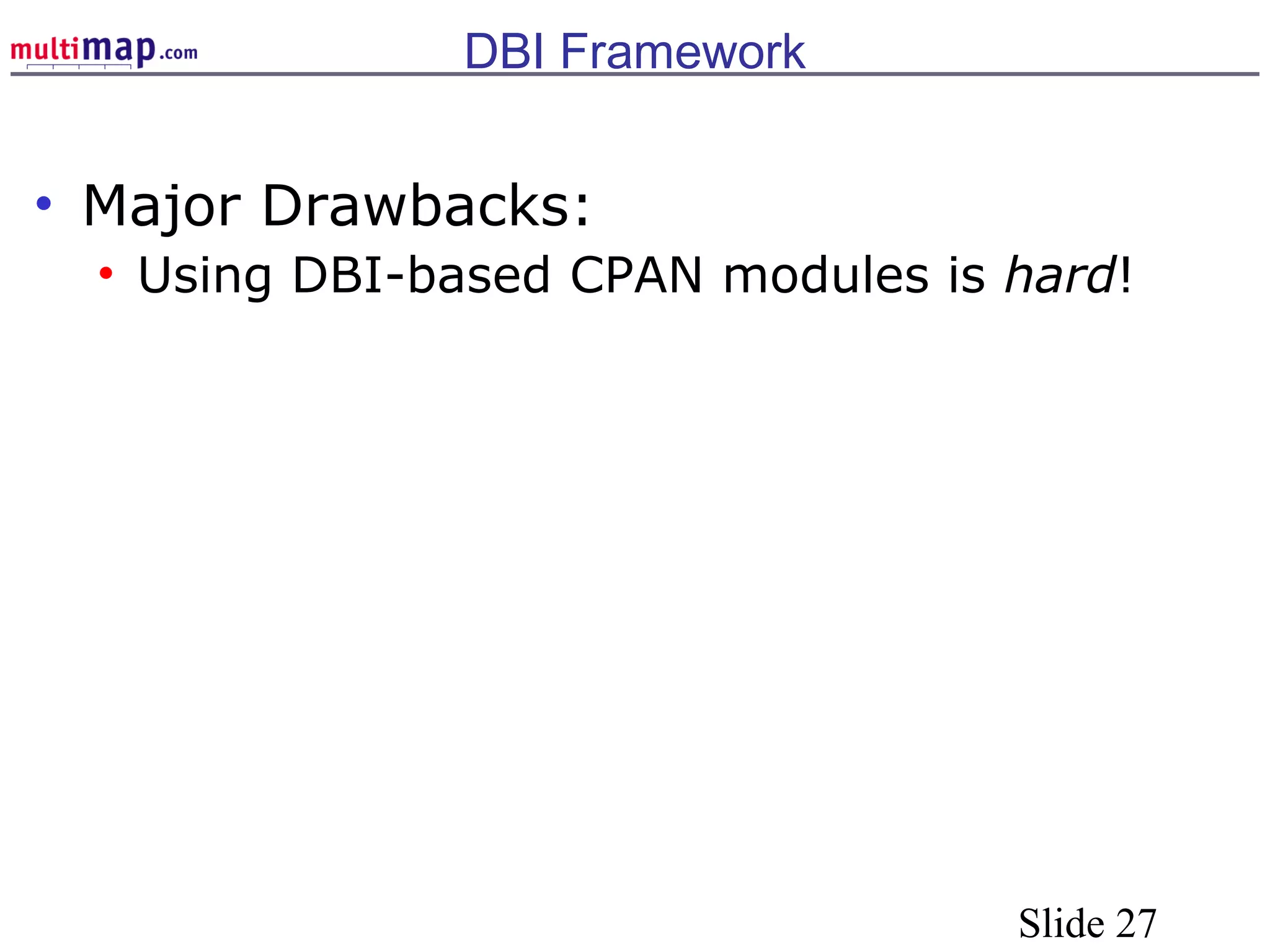

- 27. Slide 27 DBI Framework •Major Drawbacks: • Using DBI-based CPAN modules is hard!

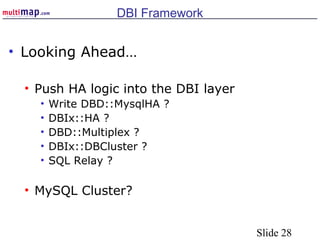

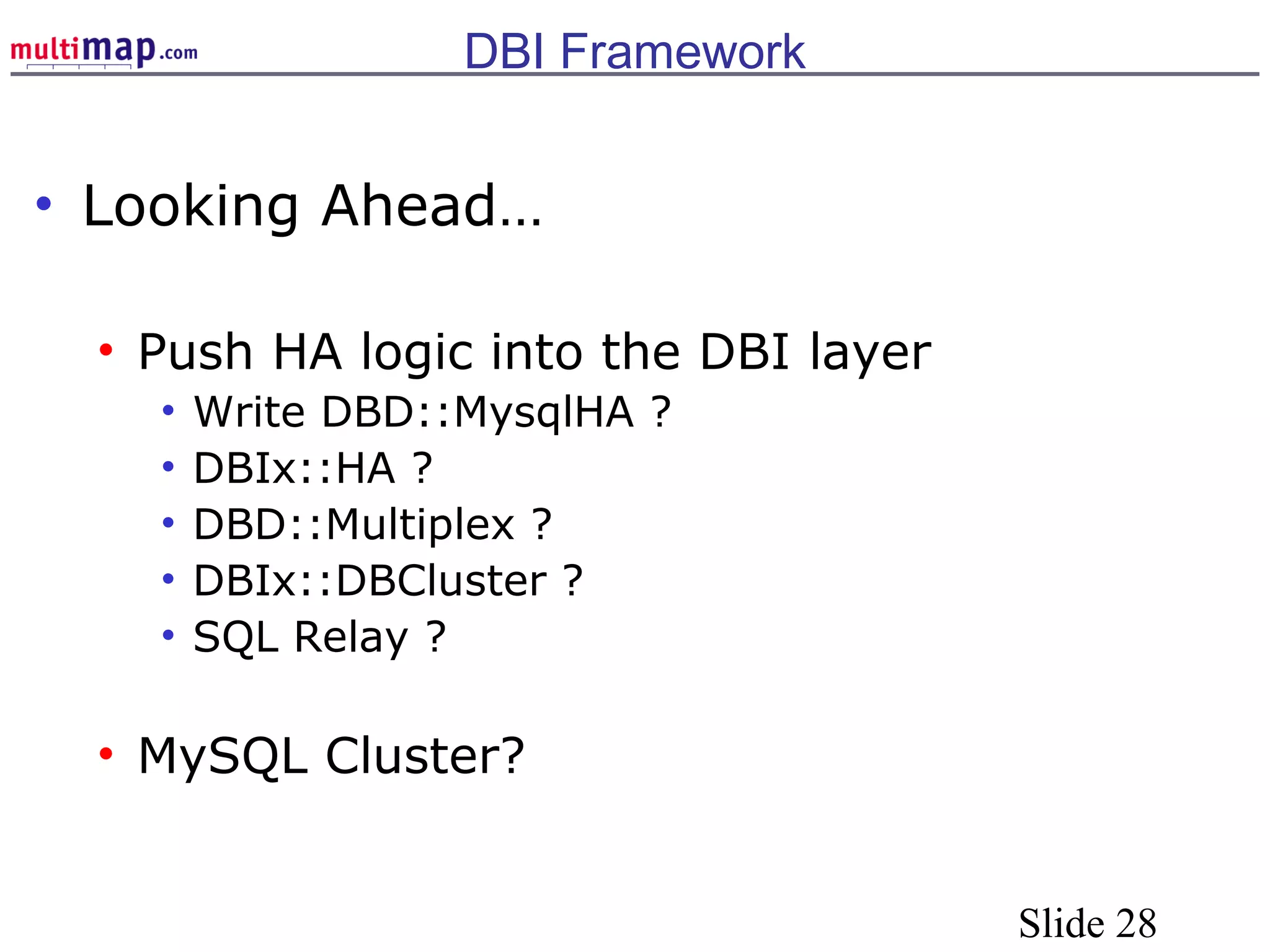

- 28. Slide 28 DBI Framework •Looking Ahead… • Push HA logic into the DBI layer • Write DBD::MysqlHA ? • DBIx::HA ? • DBD::Multiplex ? • DBIx::DBCluster ? • SQL Relay ? • MySQL Cluster?

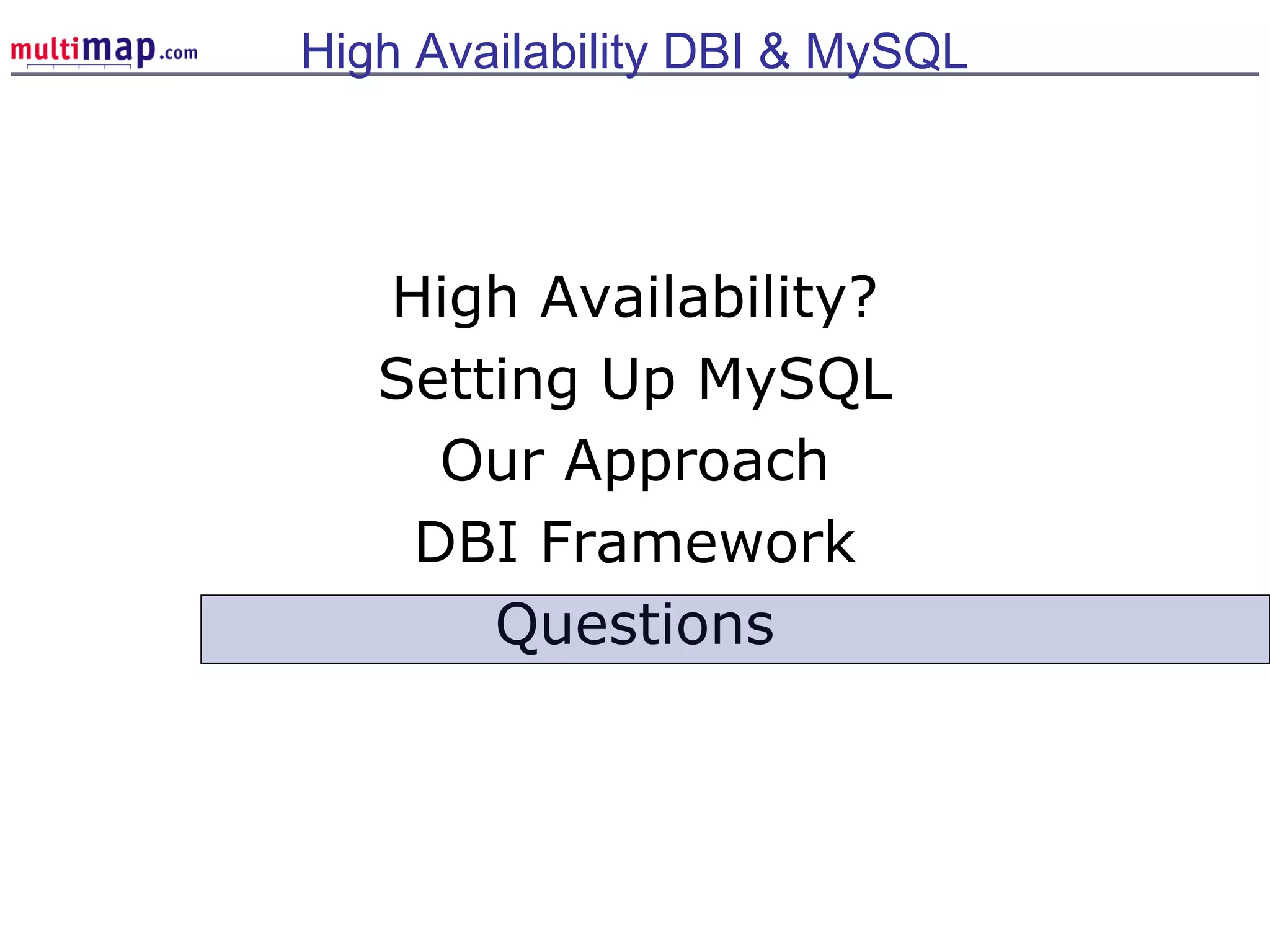

- 29. High Availability? Setting UpMySQL Our Approach DBI Framework Questions High Availability DBI & MySQL

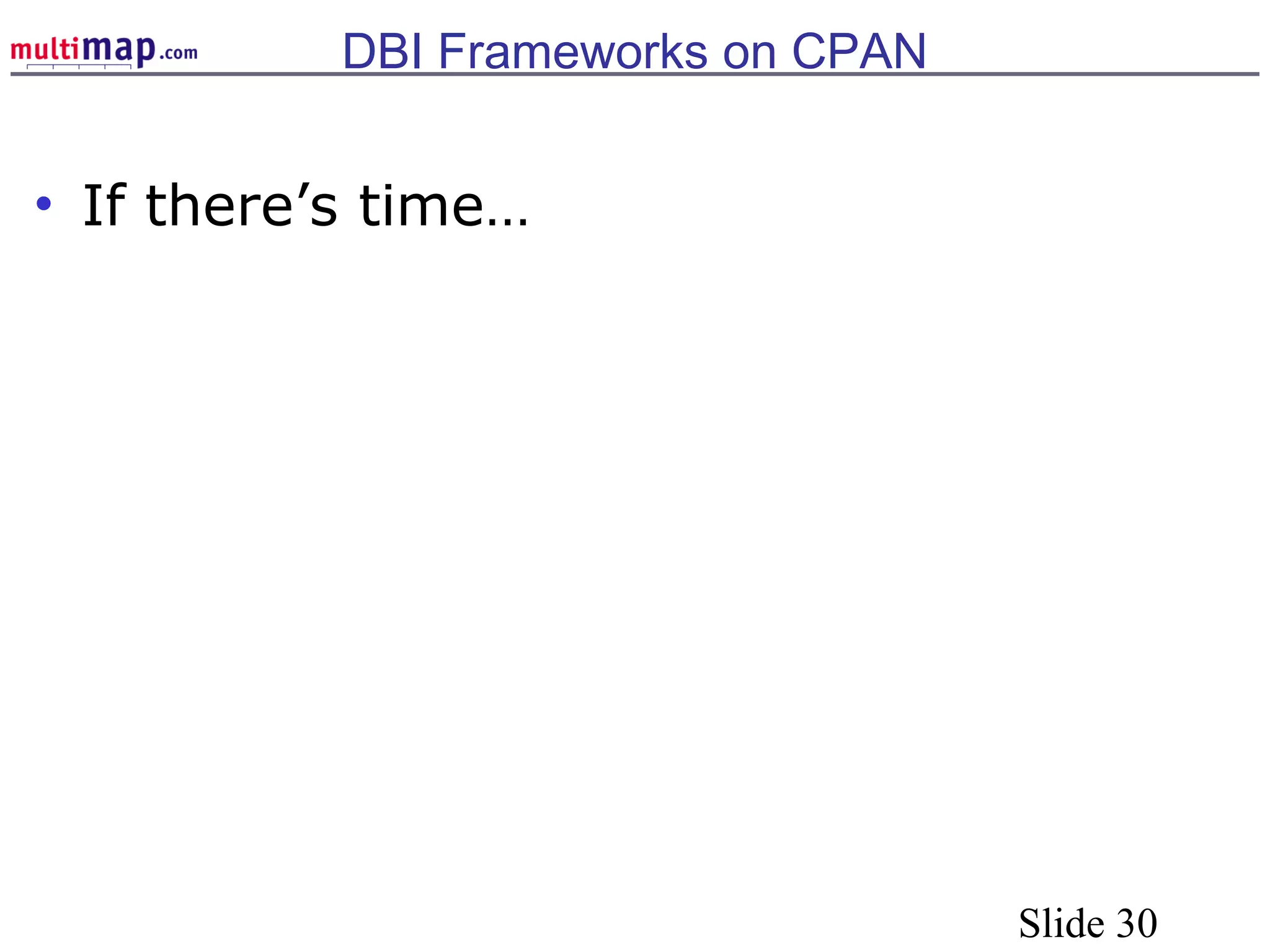

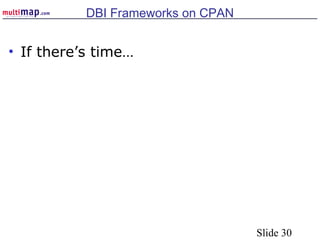

- 30. Slide 30 DBI Frameworkson CPAN • If there’s time…

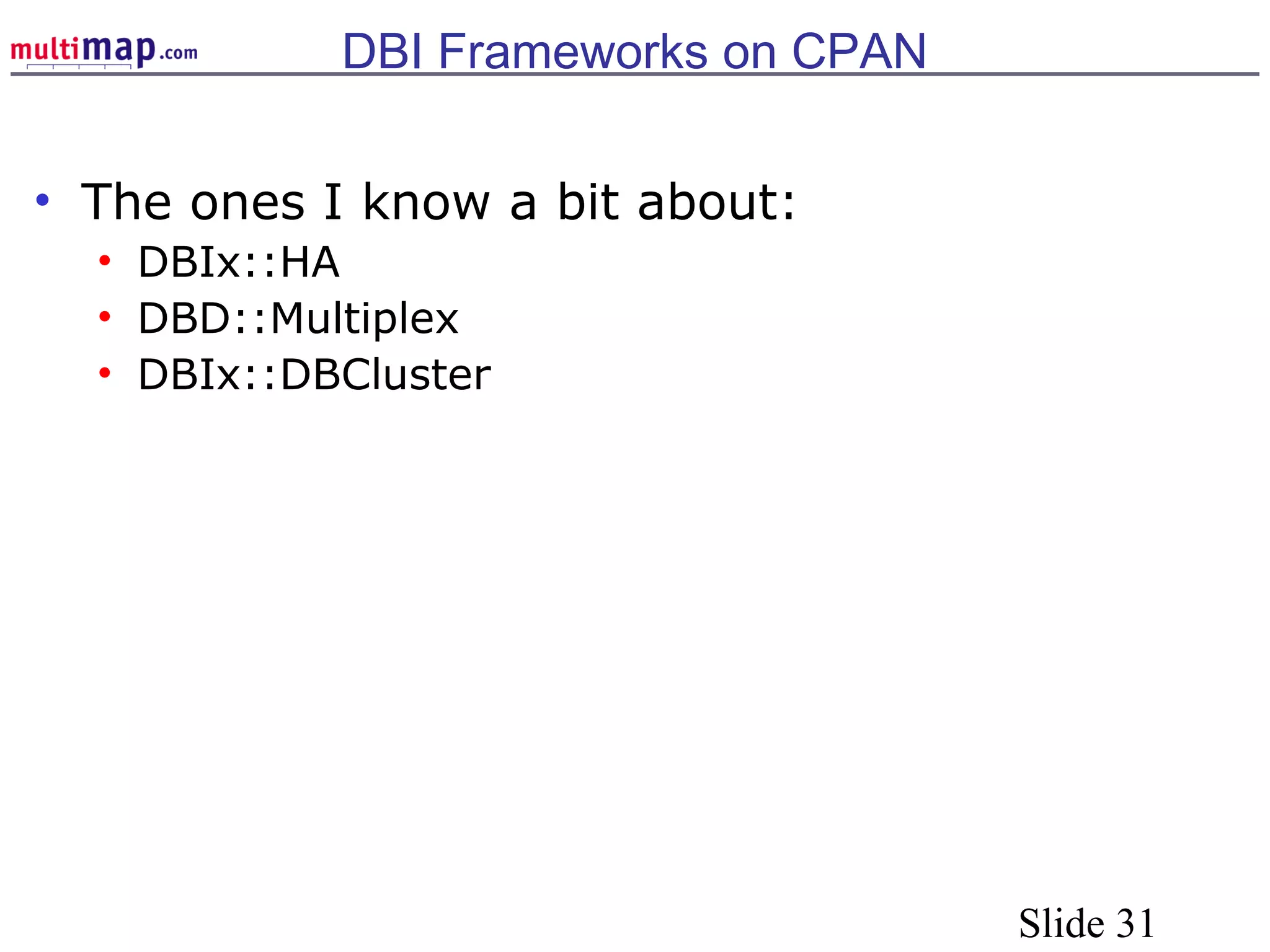

- 31. Slide 31 DBI Frameworkson CPAN • The ones I know a bit about: • DBIx::HA • DBD::Multiplex • DBIx::DBCluster

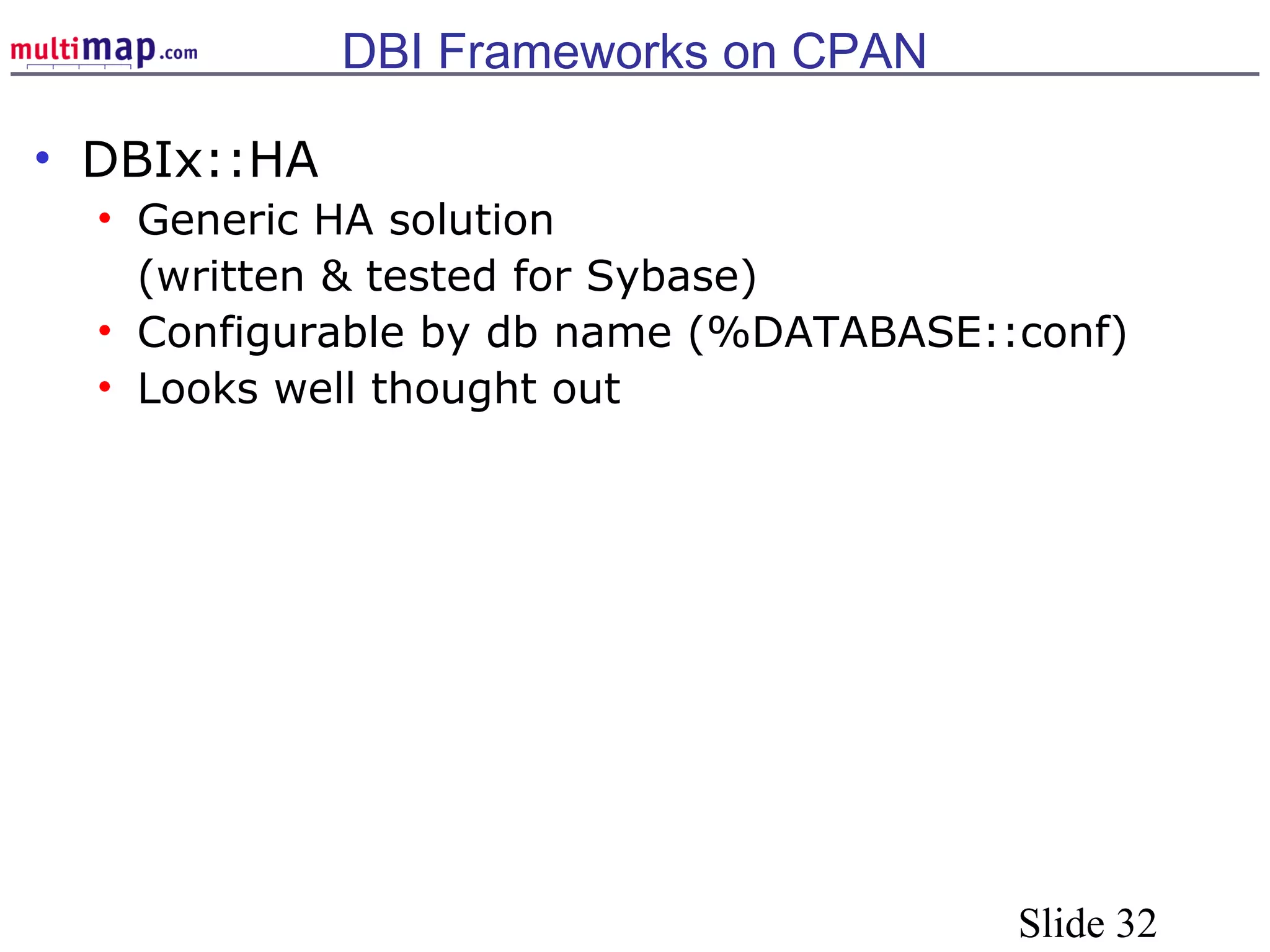

- 32. Slide 32 DBI Frameworkson CPAN • DBIx::HA • Generic HA solution (written & tested for Sybase) • Configurable by db name (%DATABASE::conf) • Looks well thought out

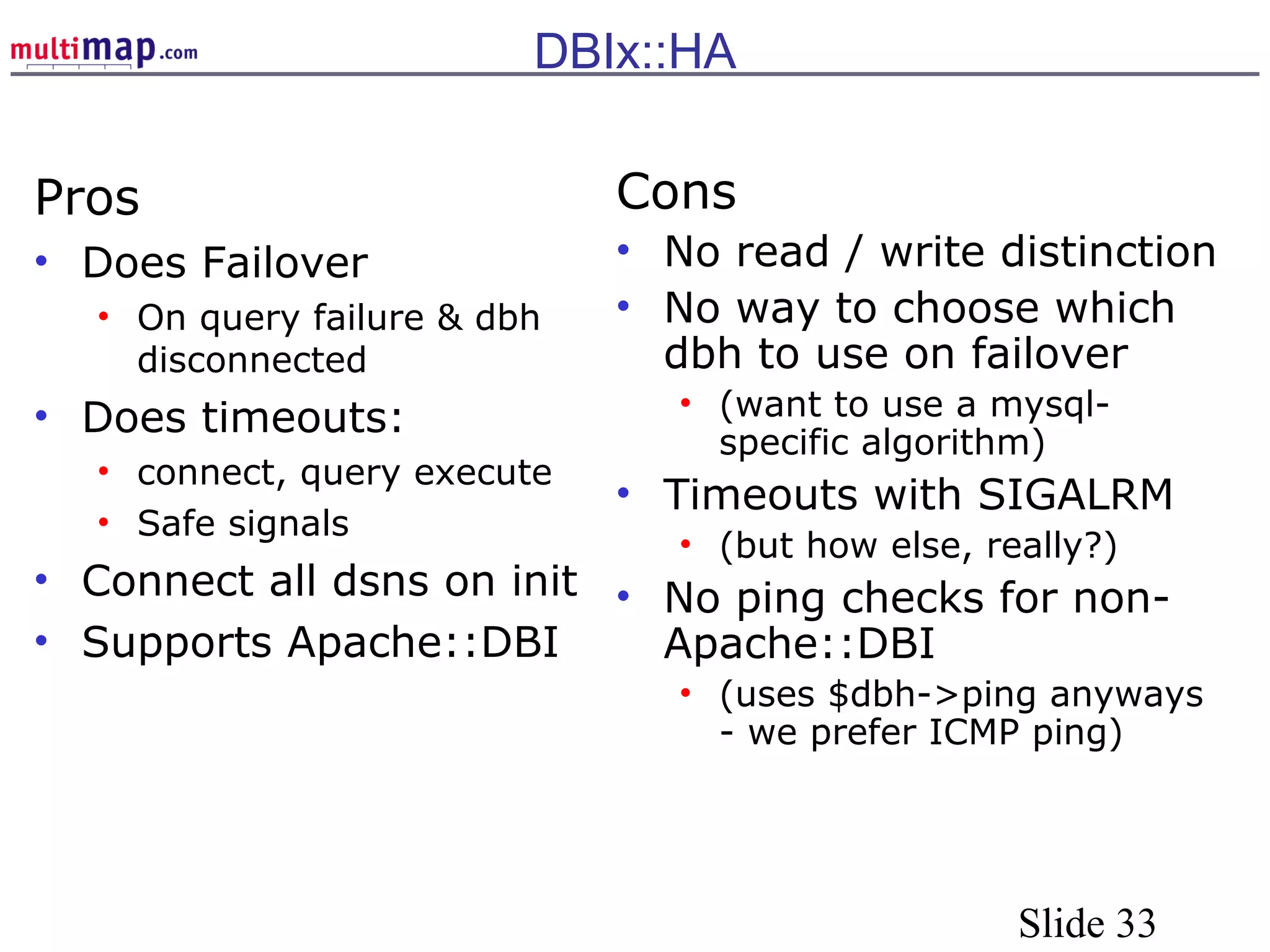

- 33. Slide 33 DBIx::HA Pros • DoesFailover • On query failure & dbh disconnected • Does timeouts: • connect, query execute • Safe signals • Connect all dsns on init • Supports Apache::DBI Cons • No read / write distinction • No way to choose which dbh to use on failover • (want to use a mysql- specific algorithm) • Timeouts with SIGALRM • (but how else, really?) • No ping checks for non- Apache::DBI • (uses $dbh->ping anyways - we prefer ICMP ping)

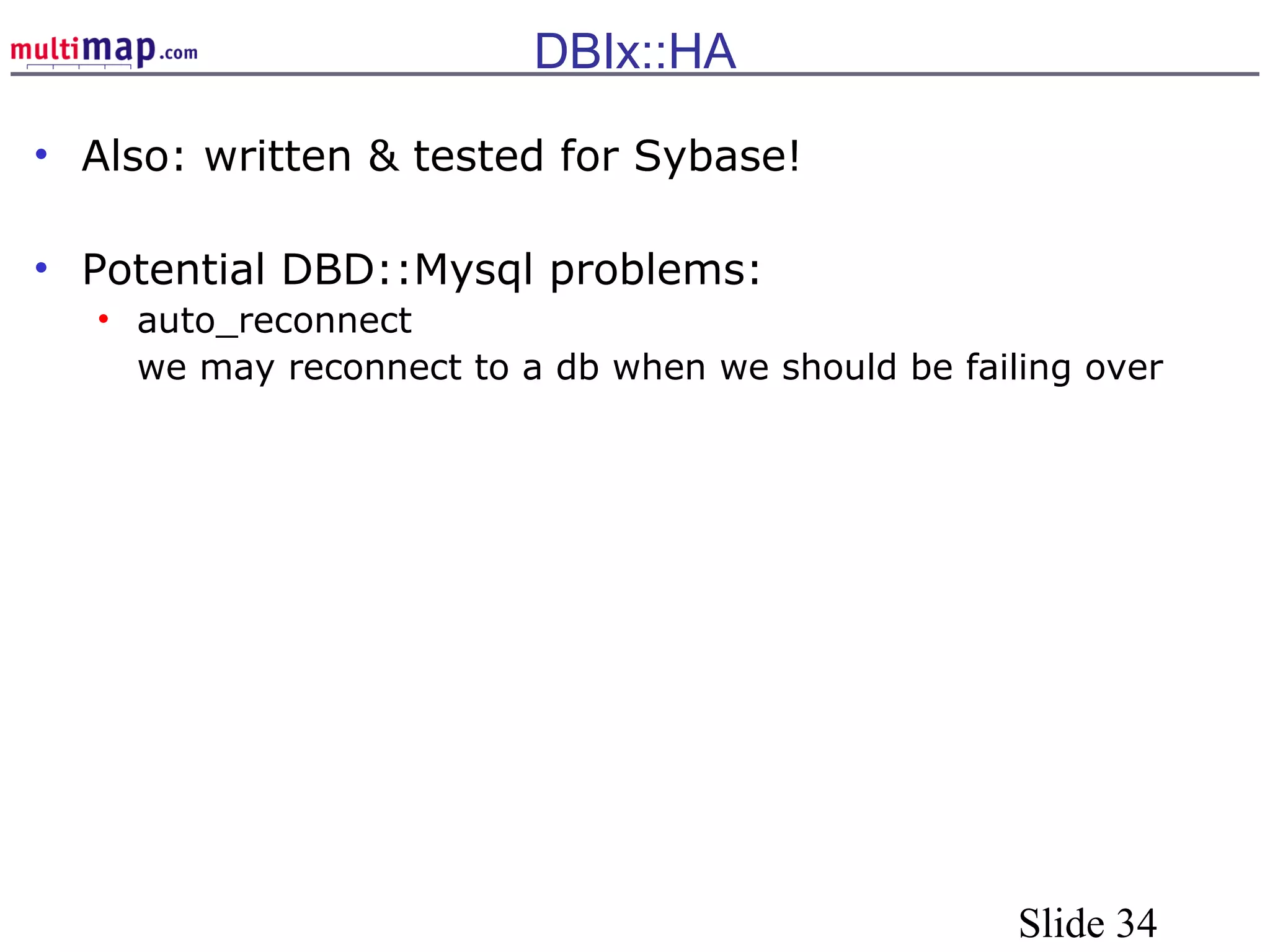

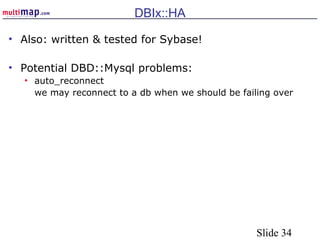

- 34. Slide 34 DBIx::HA • Also:written & tested for Sybase! • Potential DBD::Mysql problems: • auto_reconnect we may reconnect to a db when we should be failing over

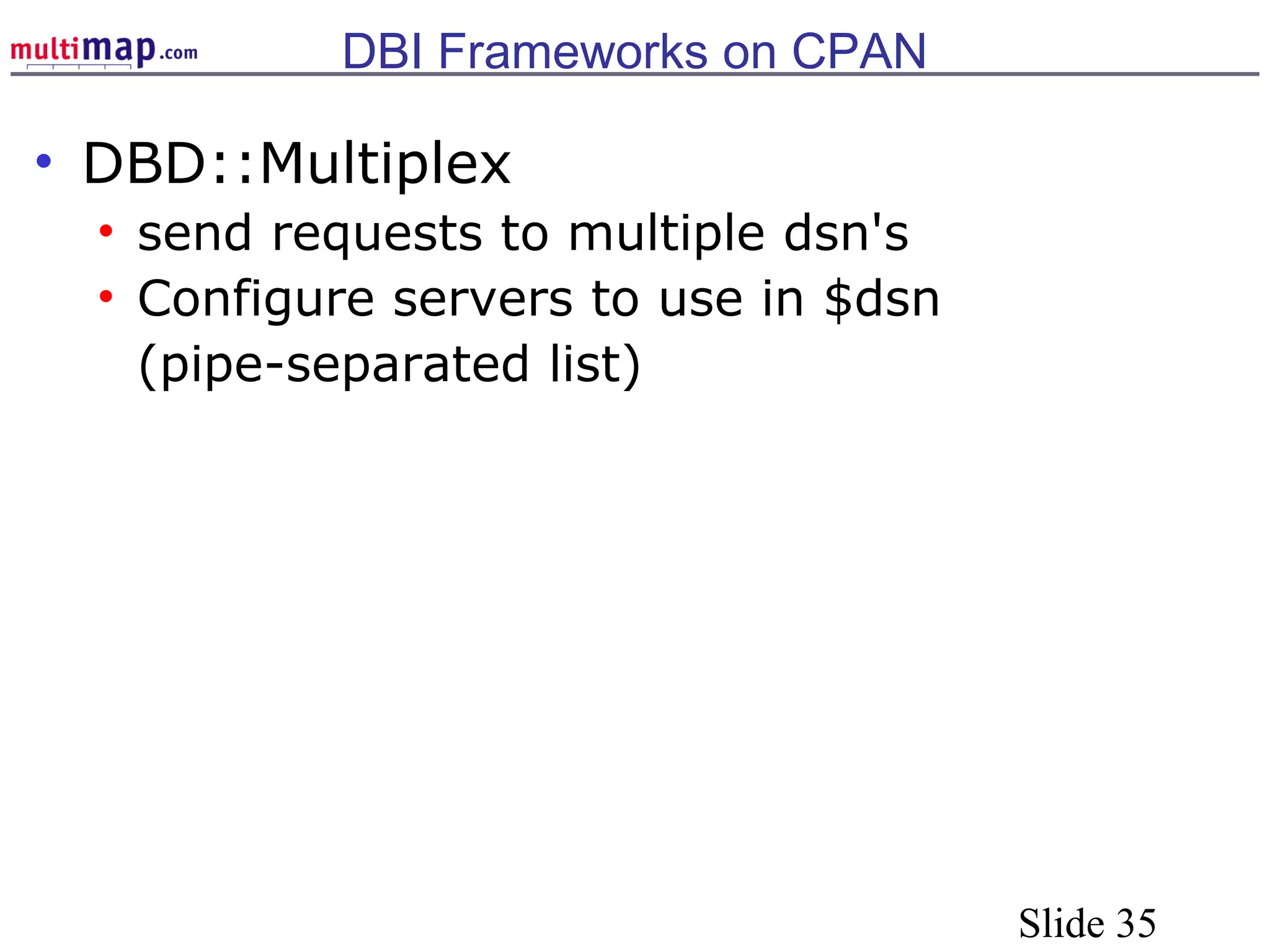

- 35. Slide 35 DBI Frameworkson CPAN • DBD::Multiplex • send requests to multiple dsn's • Configure servers to use in $dsn (pipe-separated list)

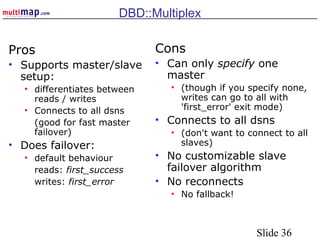

- 36. Slide 36 DBD::Multiplex Pros • Supportsmaster/slave setup: • differentiates between reads / writes • Connects to all dsns (good for fast master failover) • Does failover: • default behaviour reads: first_success writes: first_error Cons • Can only specify one master • (though if you specify none, writes can go to all with 'first_error' exit mode) • Connects to all dsns • (don't want to connect to all slaves) • No customizable slave failover algorithm • No reconnects • No fallback!

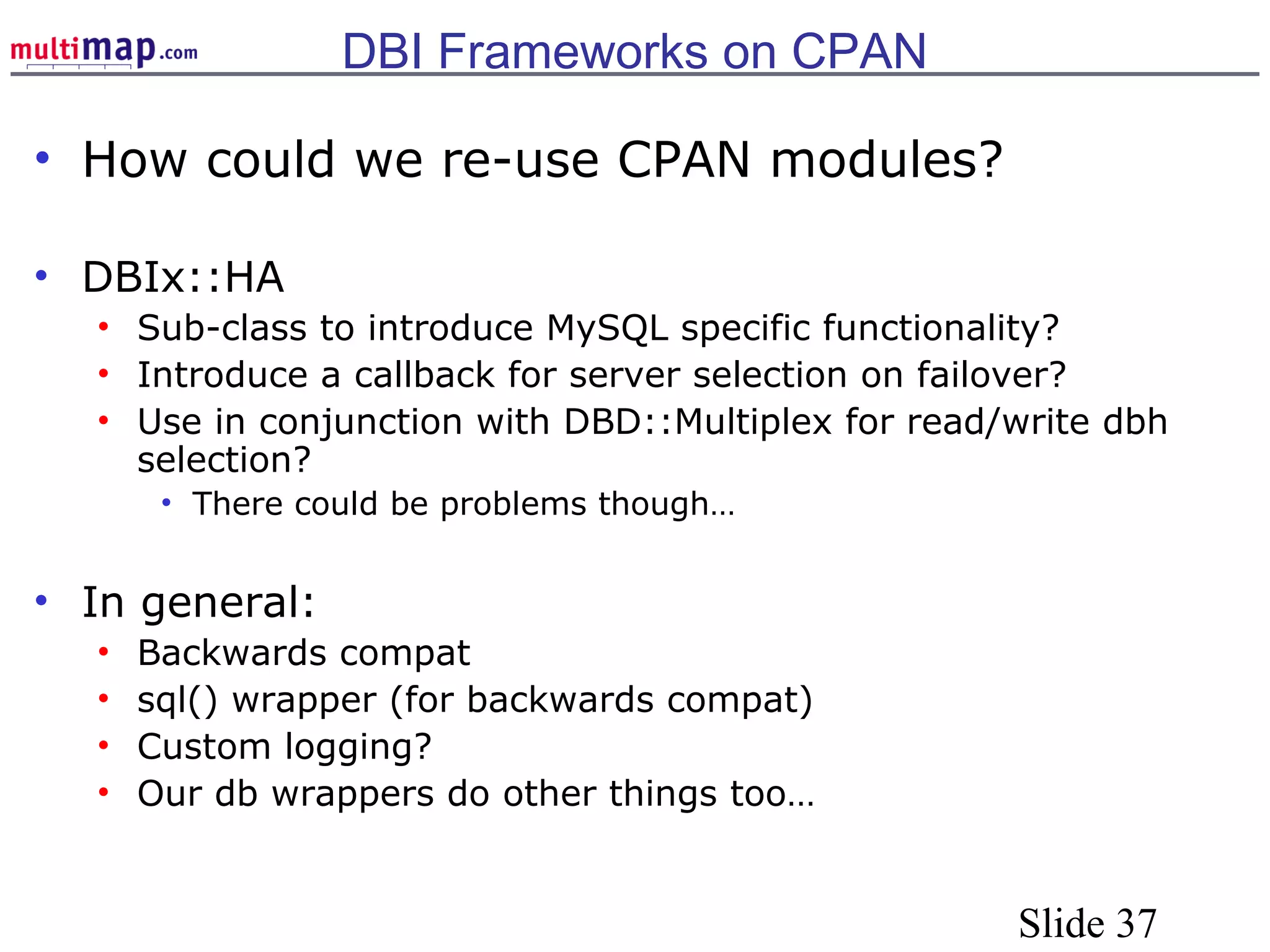

- 37. Slide 37 DBI Frameworkson CPAN • How could we re-use CPAN modules? • DBIx::HA • Sub-class to introduce MySQL specific functionality? • Introduce a callback for server selection on failover? • Use in conjunction with DBD::Multiplex for read/write dbh selection? • There could be problems though… • In general: • Backwards compat • sql() wrapper (for backwards compat) • Custom logging? • Our db wrappers do other things too…

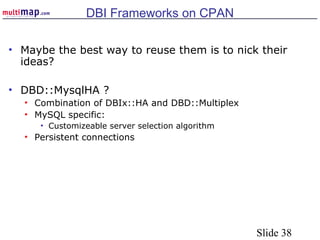

- 38. Slide 38 DBI Frameworkson CPAN • Maybe the best way to reuse them is to nick their ideas? • DBD::MysqlHA ? • Combination of DBIx::HA and DBD::Multiplex • MySQL specific: • Customizeable server selection algorithm • Persistent connections
Editor's Notes
- #3 Start off by asking who knows what HA is, and get a feel for how much experience they’ve got with HA.
- #4 Did your clients notice? Did you have an SLA? Were you in bed at the time? Did you have a backup server? Did you have a backup of the data? How long did it take to get the backup server with the backup data back online?
- #10 HA for reads, but not for writes.
- #11 Due to the way MySQL replication works - conflicting writes (typically auto increment keys) Mention FS replication
- #14 Include further links
- #18 Confirm with andrew on # requests a day.
- #20 Speak about minimizing costs: replication across farms. Query caching run on all slaves out of memory to remove io bottleneck
- #21 S/w Loadbalancing
- #23 Mention Tear down / setup of connections.
- #38 HA dsn: dsn1: Multiplex to primary master + many slaves dsn2: Multiplex to secondary master + many slaves If all slaves go down, will all reads go to master?
