Hooking SharePoint APIs with Android
This document provides an agenda for an Office Camp module on hooking Android apps into Office 365, SharePoint, and other Microsoft APIs. The agenda includes modules on setting up development environments, connecting to apps for SharePoint, Office 365 APIs, Apps for Office, and SharePoint APIs from Android. It also provides code samples and documentation for using the Azure Active Directory authentication library and Office 365 SDK for Android to authenticate users and make API calls to SharePoint and Office 365 from an Android app.
More Related Content
Hooking SharePoint APIs with Android

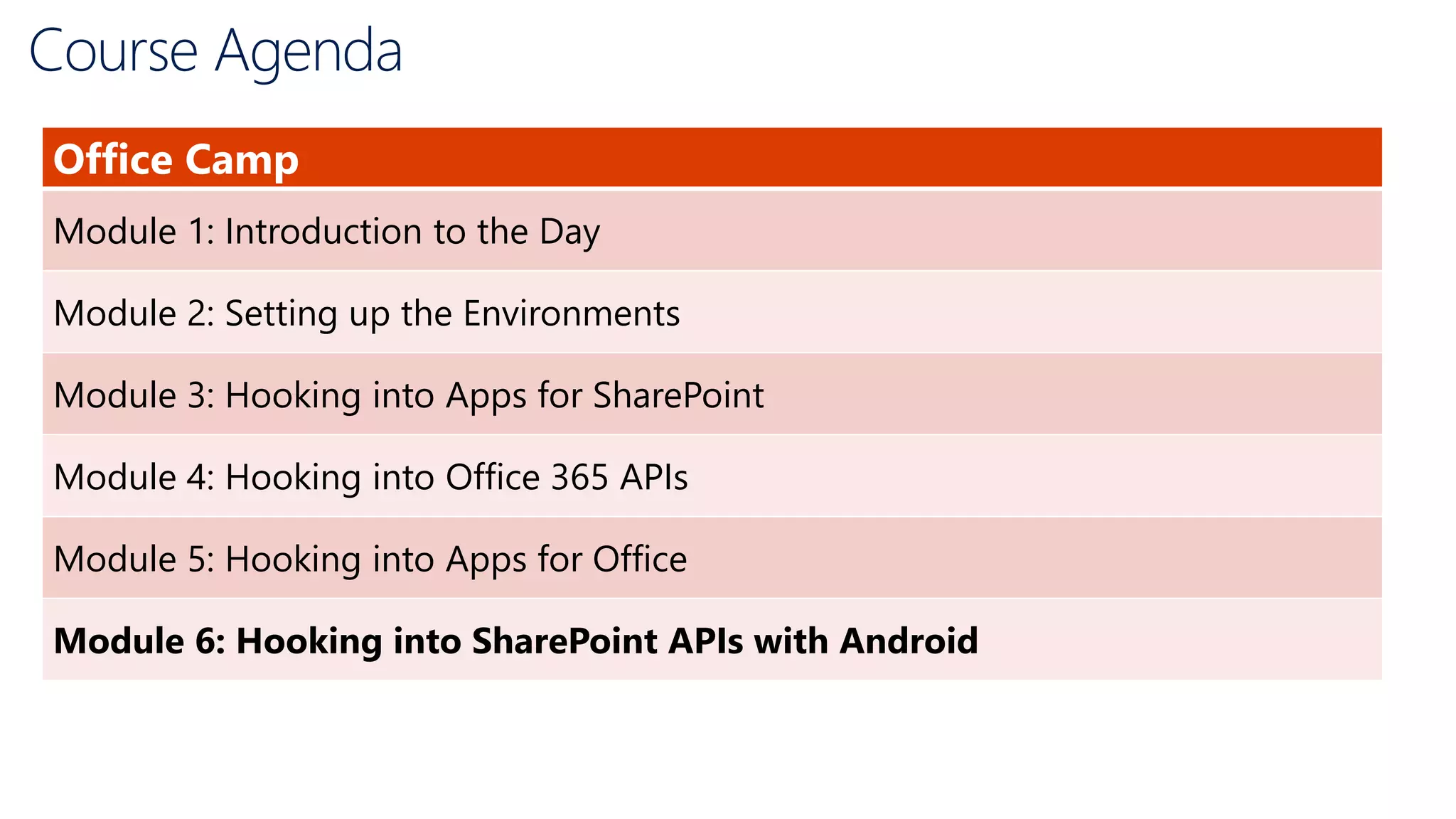

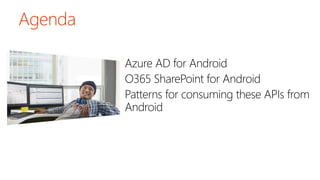

- 2. Course Agenda Office Camp Module1: Introduction to the Day Module 2: Setting up the Environments Module 3: Hooking into Apps for SharePoint Module 4: Hooking into Office 365 APIs Module 5: Hooking into Apps for Office Module 6: Hooking into SharePoint APIs with Android

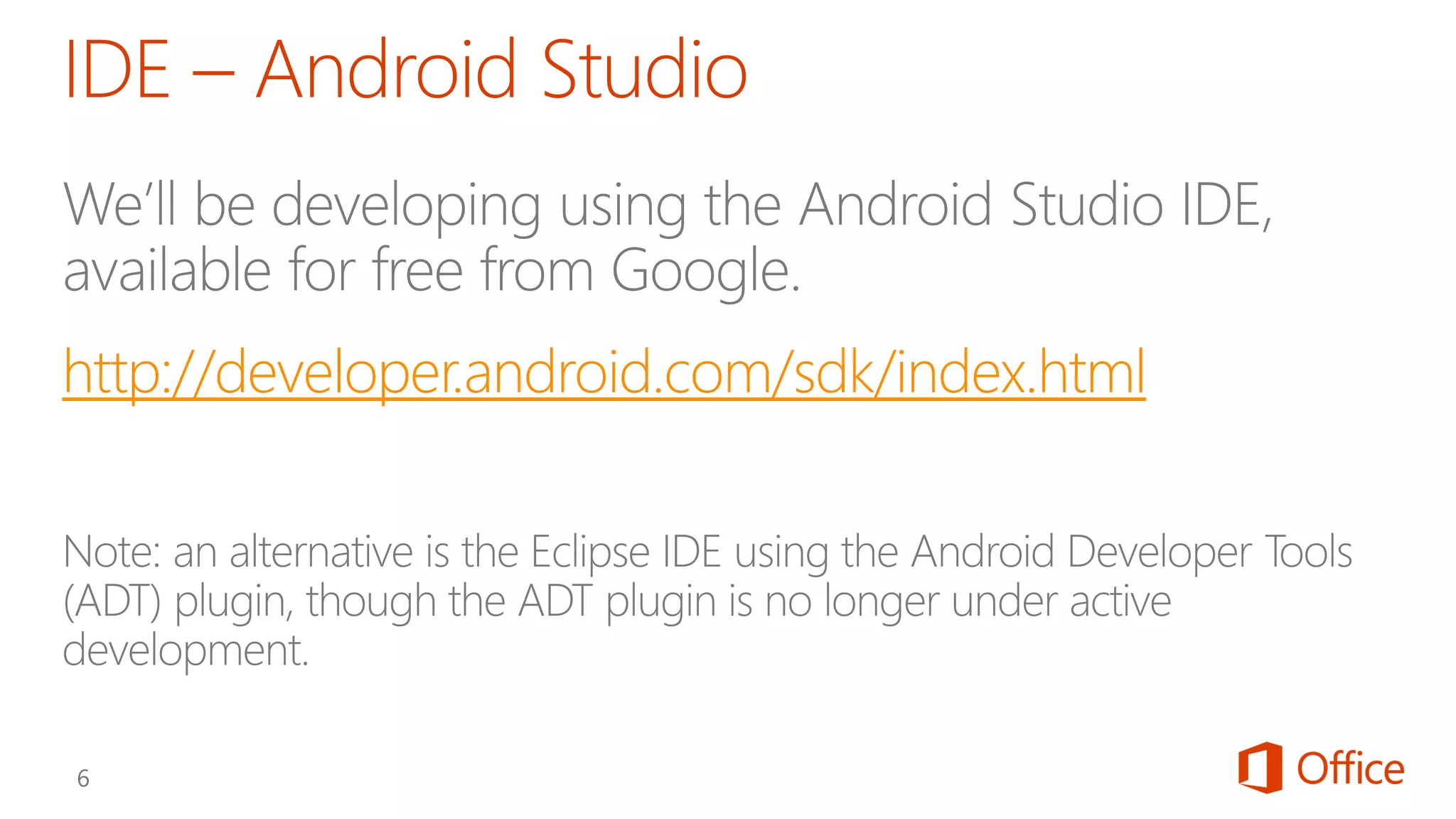

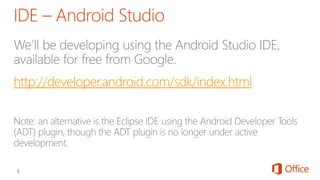

- 6.

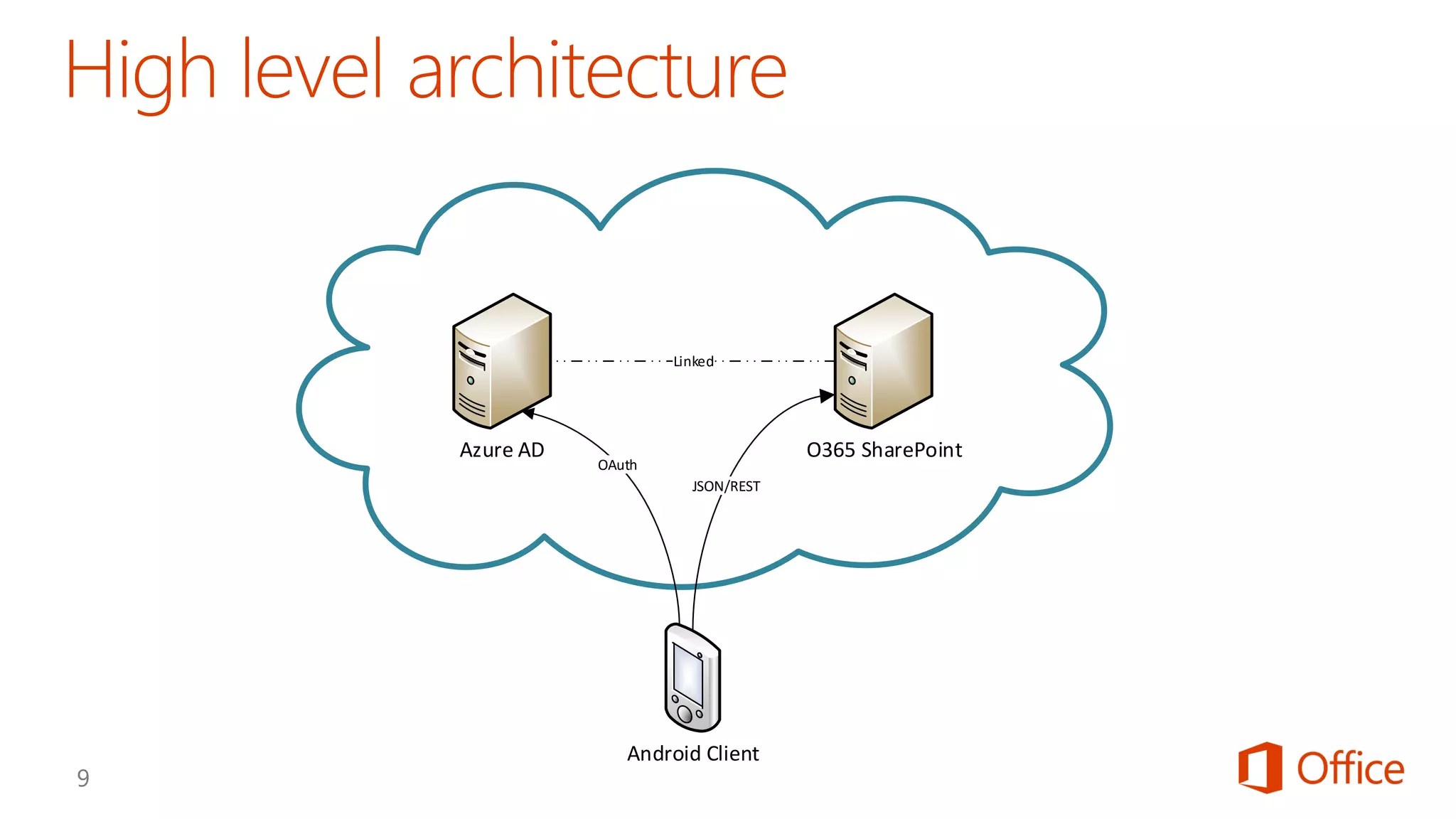

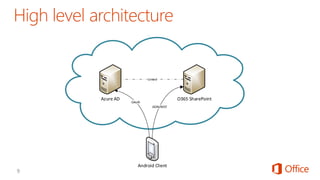

- 9. Android Client Azure ADO365 SharePoint Linked JSON/REST OAuth

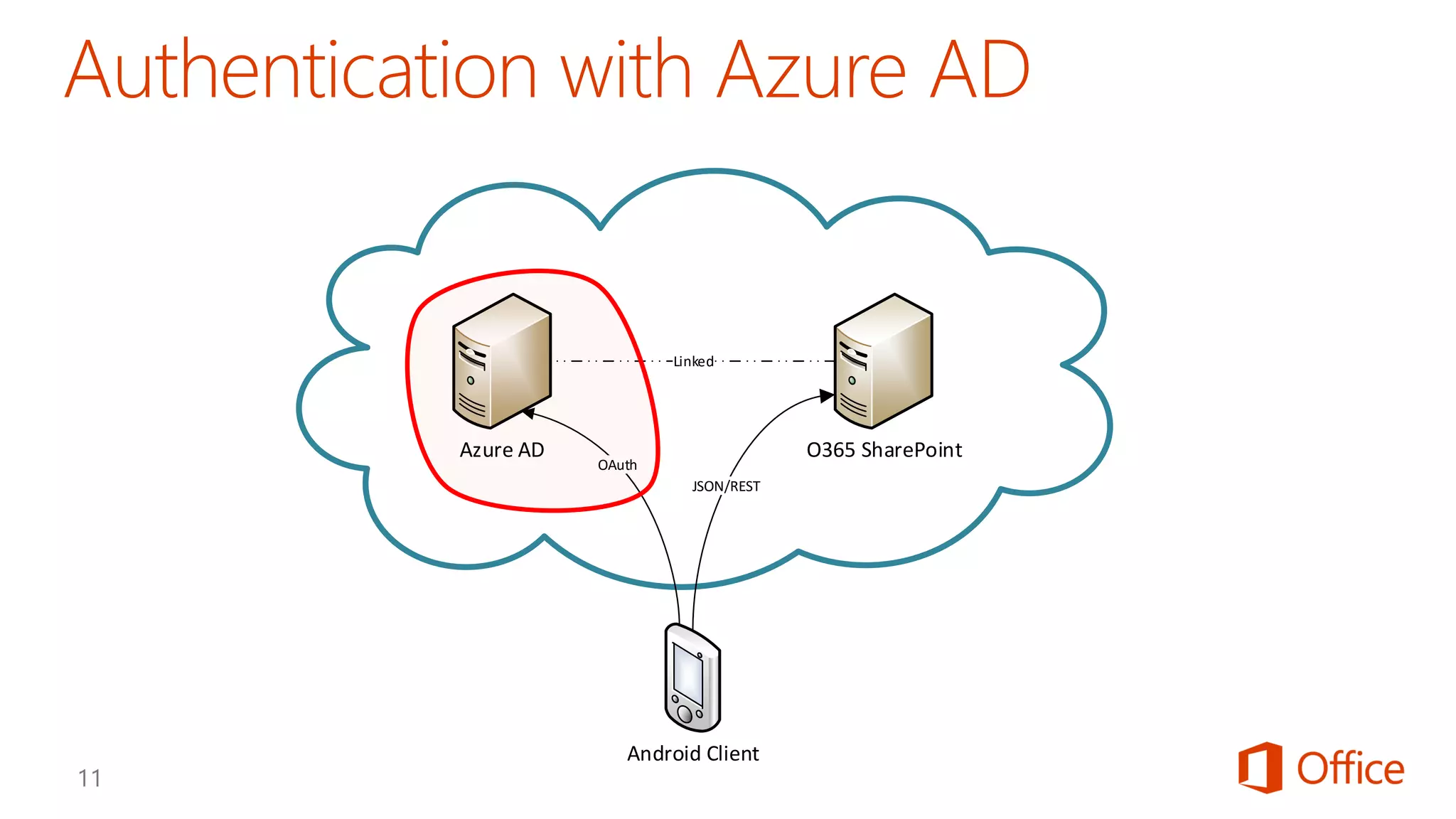

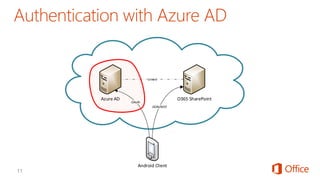

- 11. Android Client Azure ADO365 SharePoint Linked JSON/REST OAuth

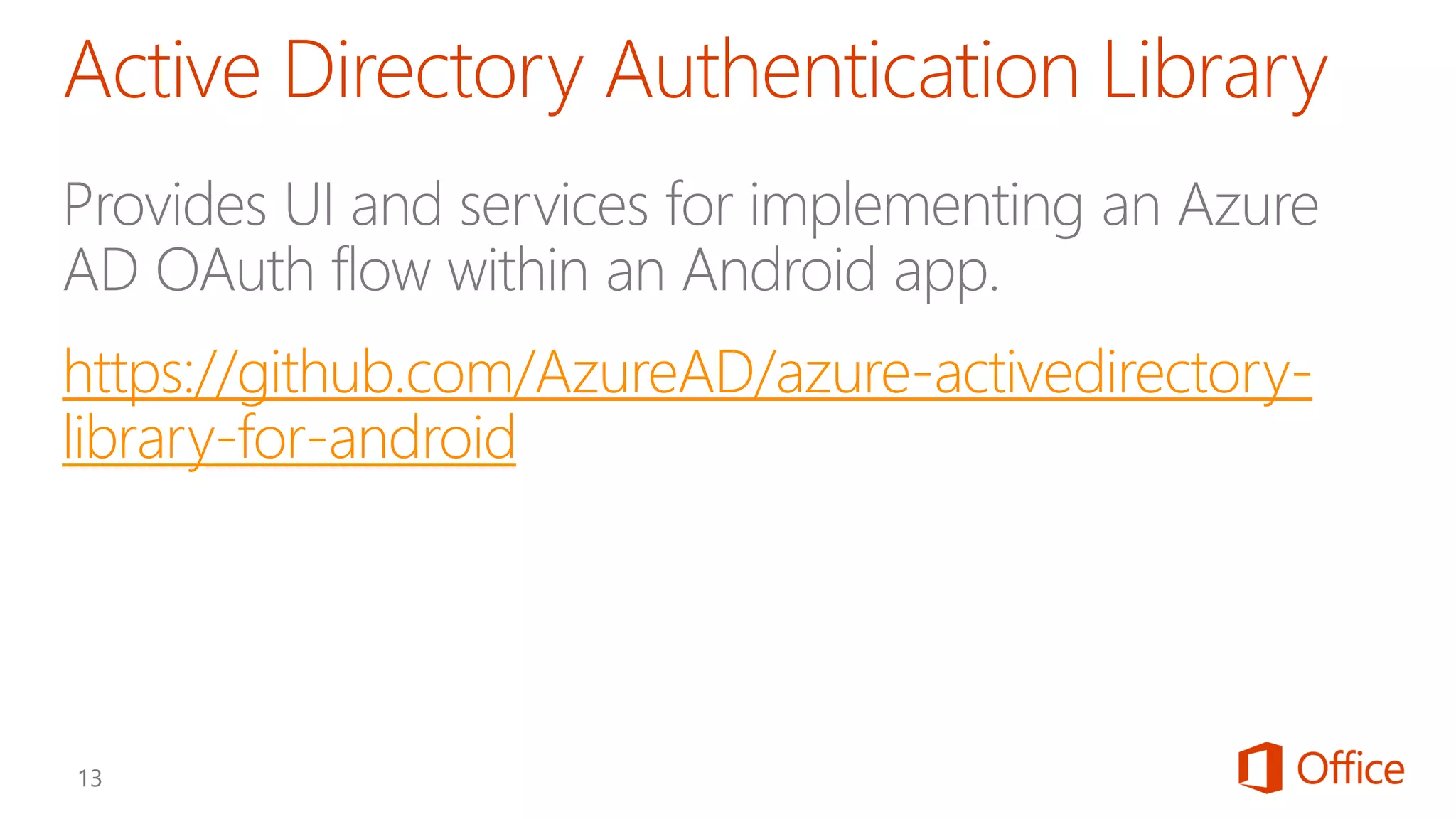

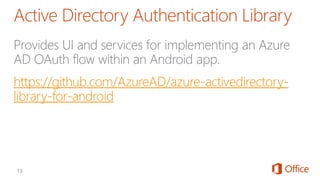

- 13.

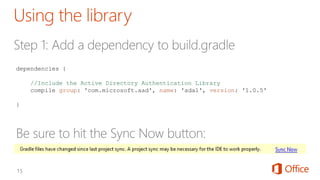

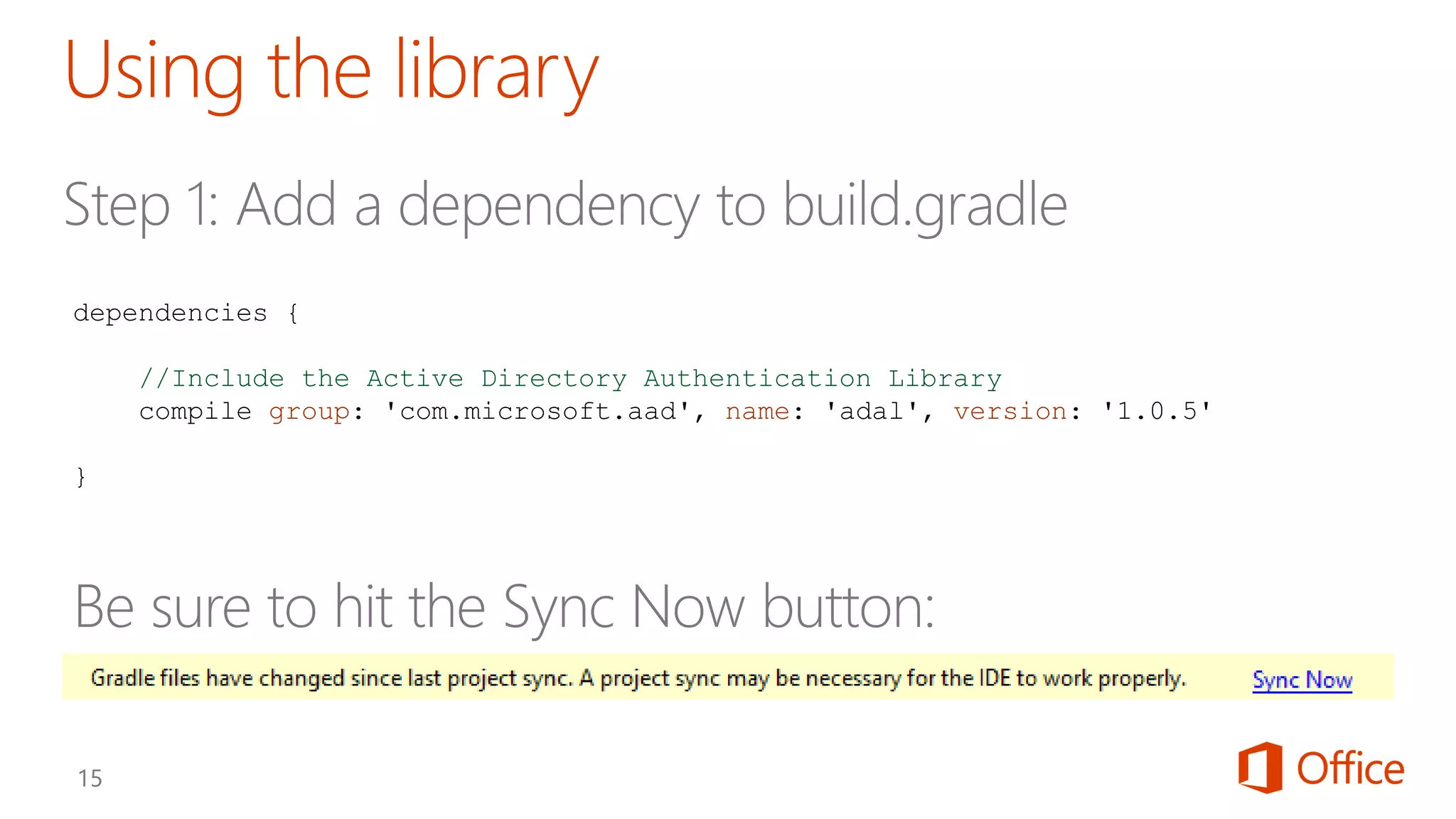

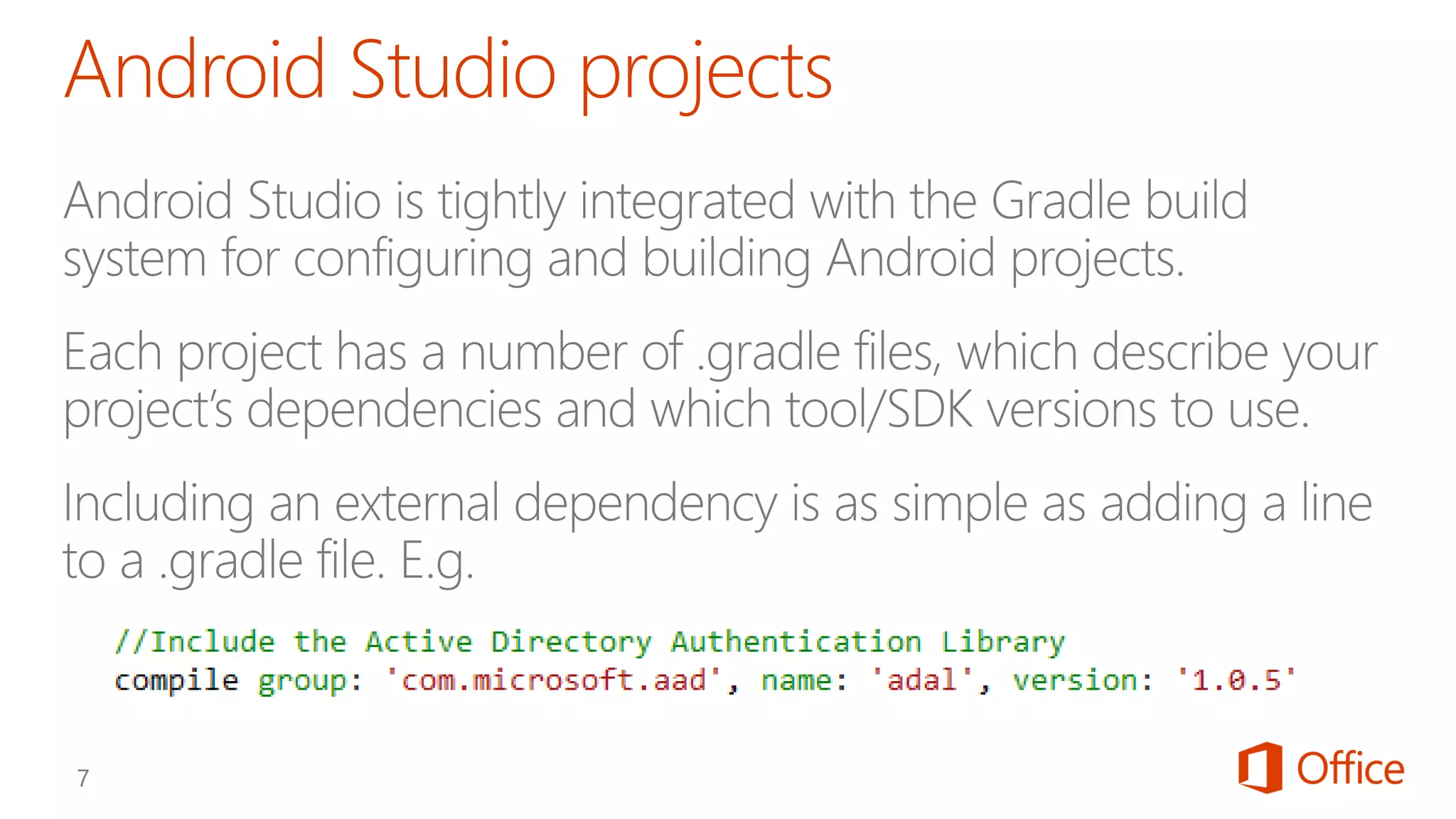

- 15. dependencies { //Include theActive Directory Authentication Library compile group: 'com.microsoft.aad', name: 'adal', version: '1.0.5' }

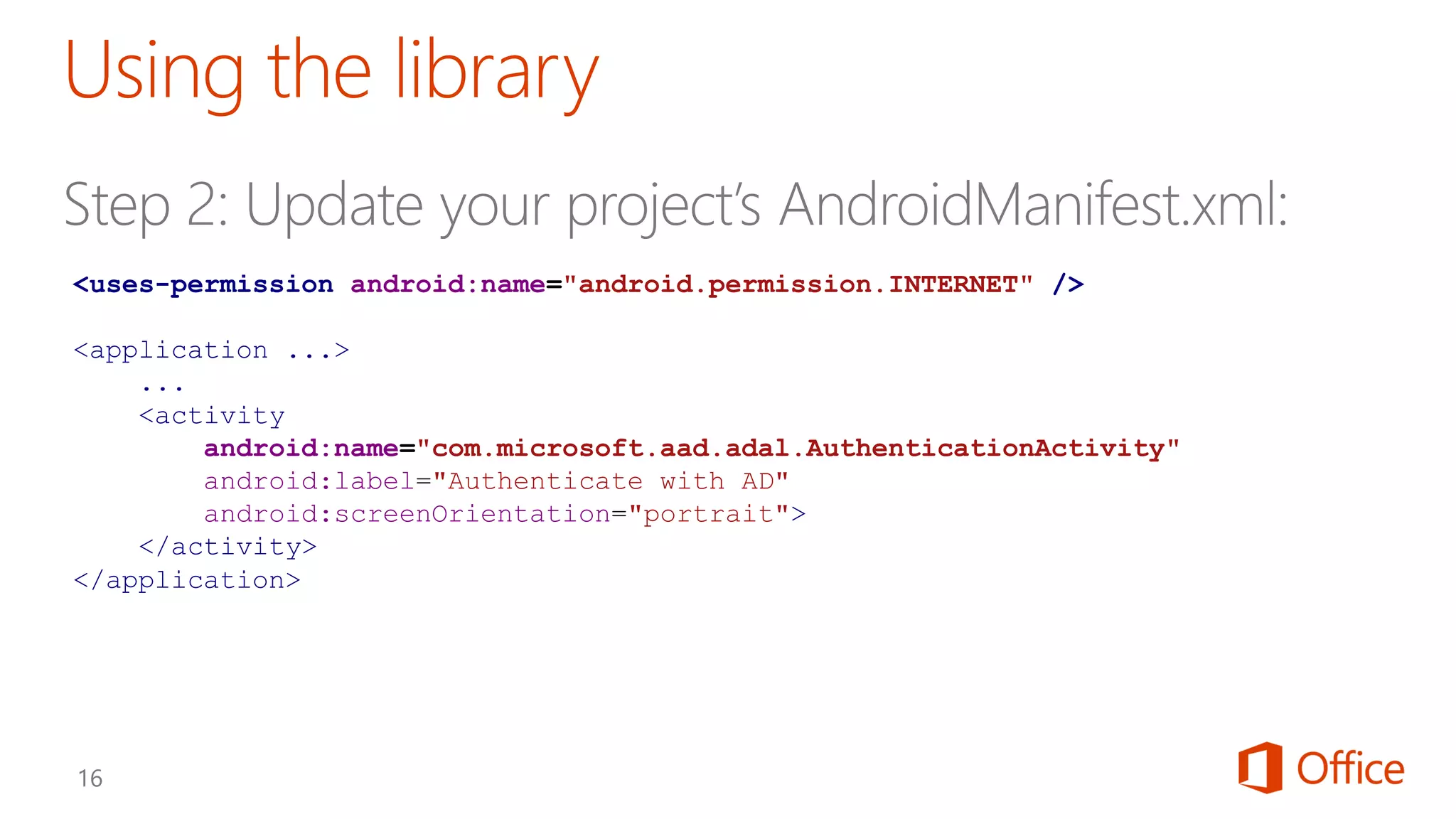

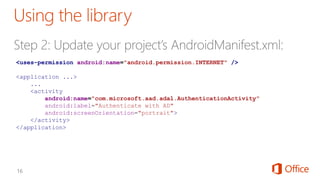

- 16. <uses-permission android:name="android.permission.INTERNET" /> <application...> ... <activity android:name="com.microsoft.aad.adal.AuthenticationActivity" android:label="Authenticate with AD" android:screenOrientation="portrait"> </activity> </application>

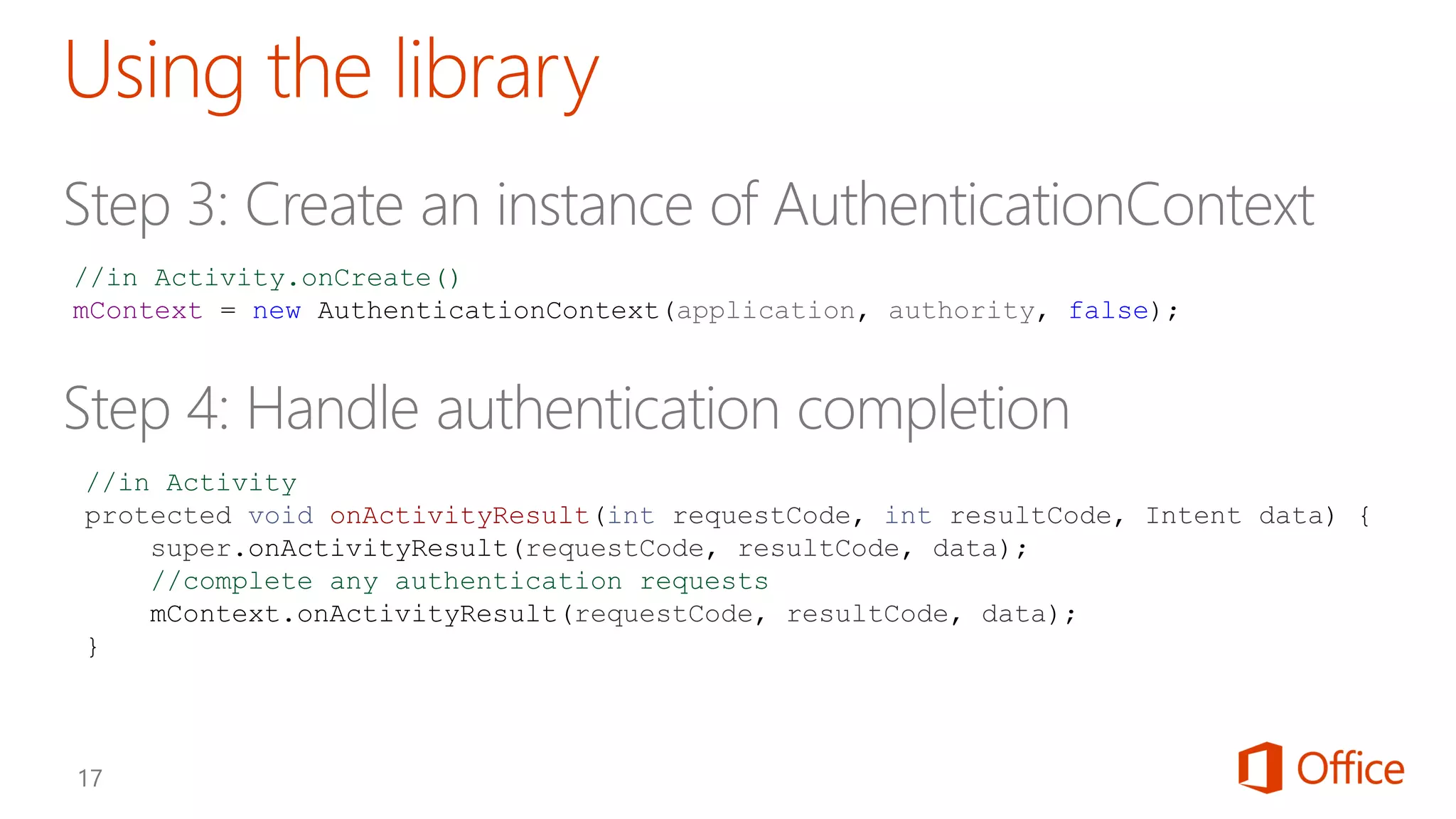

- 17. //in Activity protected voidonActivityResult(int requestCode, int resultCode, Intent data) { super.onActivityResult(requestCode, resultCode, data); //complete any authentication requests mContext.onActivityResult(requestCode, resultCode, data); } //in Activity.onCreate() mContext = new AuthenticationContext(application, authority, false);

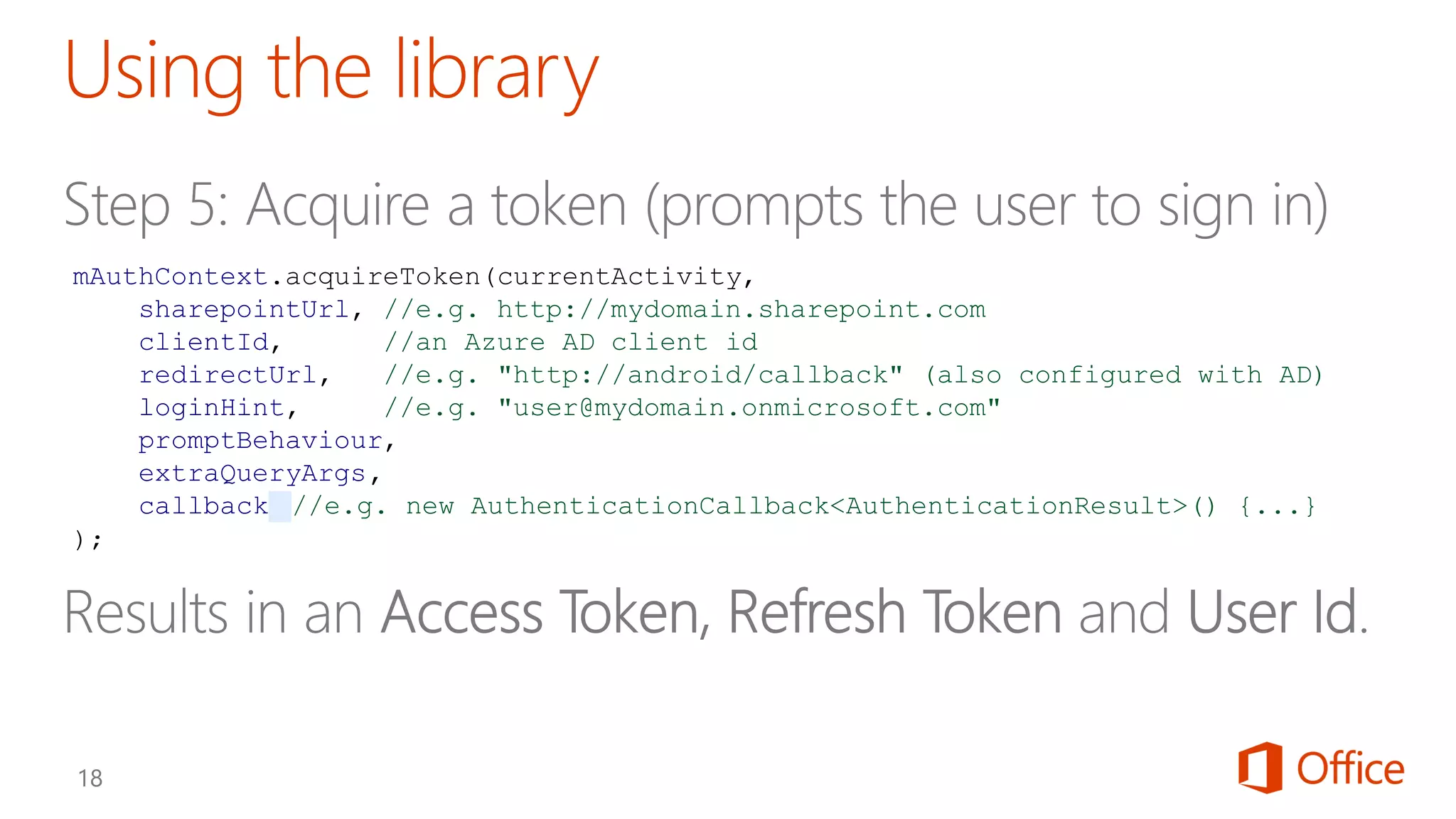

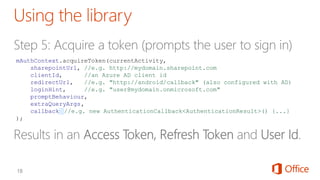

- 18. mAuthContext.acquireToken(currentActivity, sharepointUrl, //e.g. http://mydomain.sharepoint.com clientId,//an Azure AD client id redirectUrl, //e.g. "http://android/callback" (also configured with AD) loginHint, //e.g. "user@mydomain.onmicrosoft.com" promptBehaviour, extraQueryArgs, callback //e.g. new AuthenticationCallback<AuthenticationResult>() {...} );

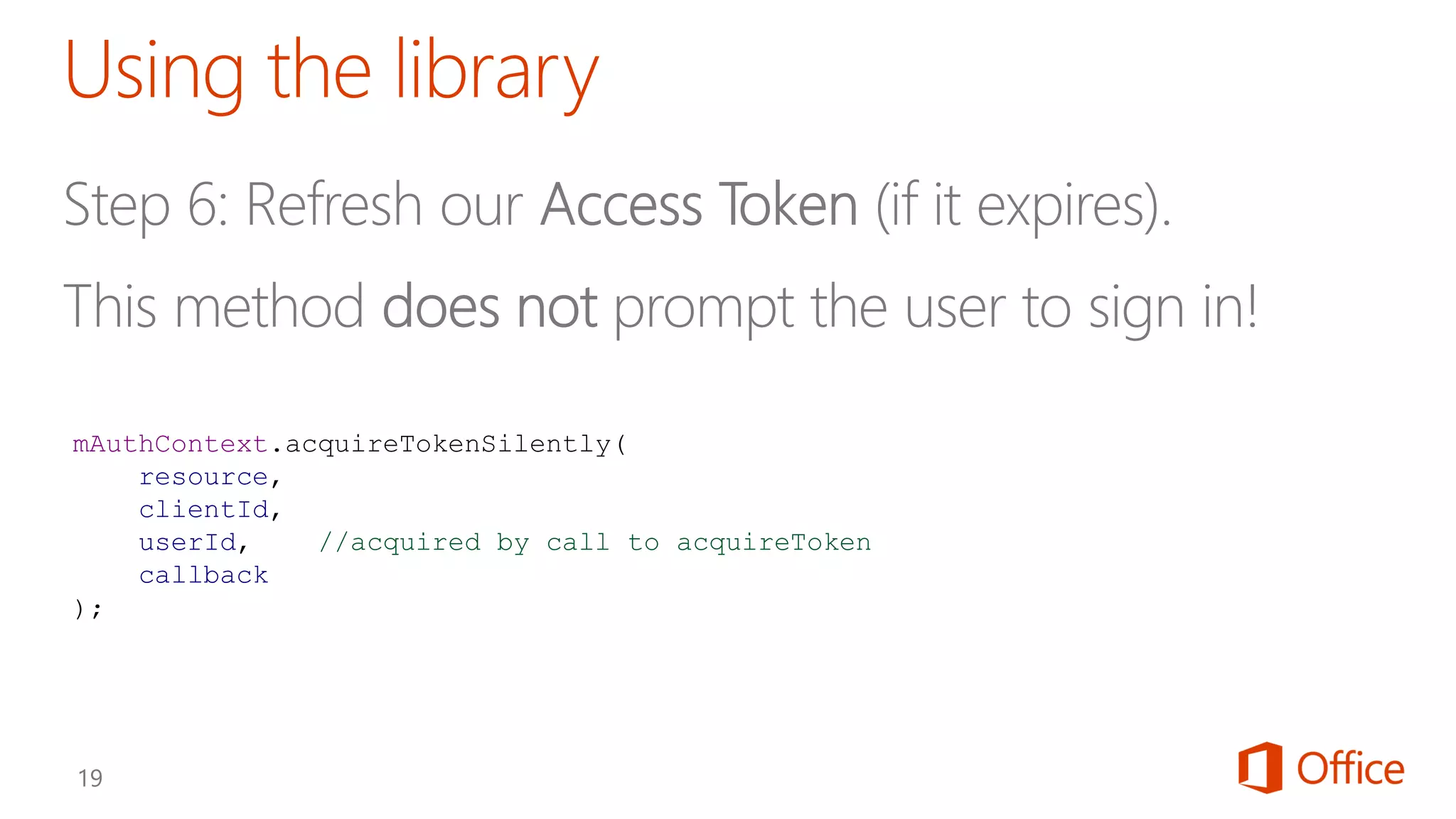

- 19. mAuthContext.acquireTokenSilently( resource, clientId, userId, //acquired bycall to acquireToken callback );

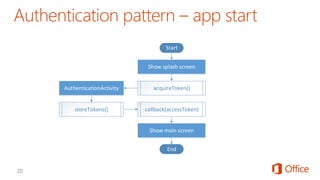

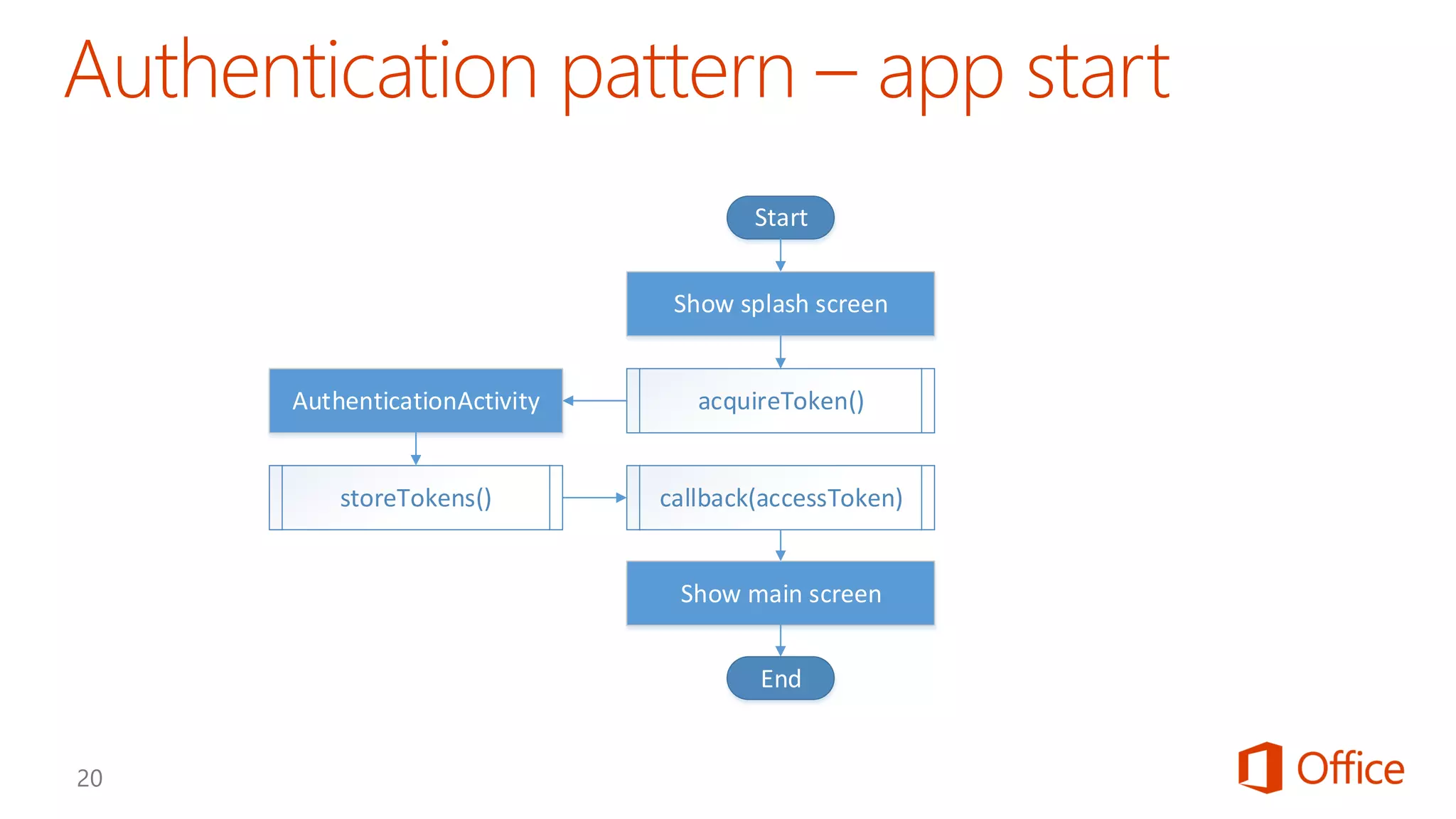

- 20. Start Show splash screen acquireToken()AuthenticationActivity Showmain screen End storeTokens() callback(accessToken)

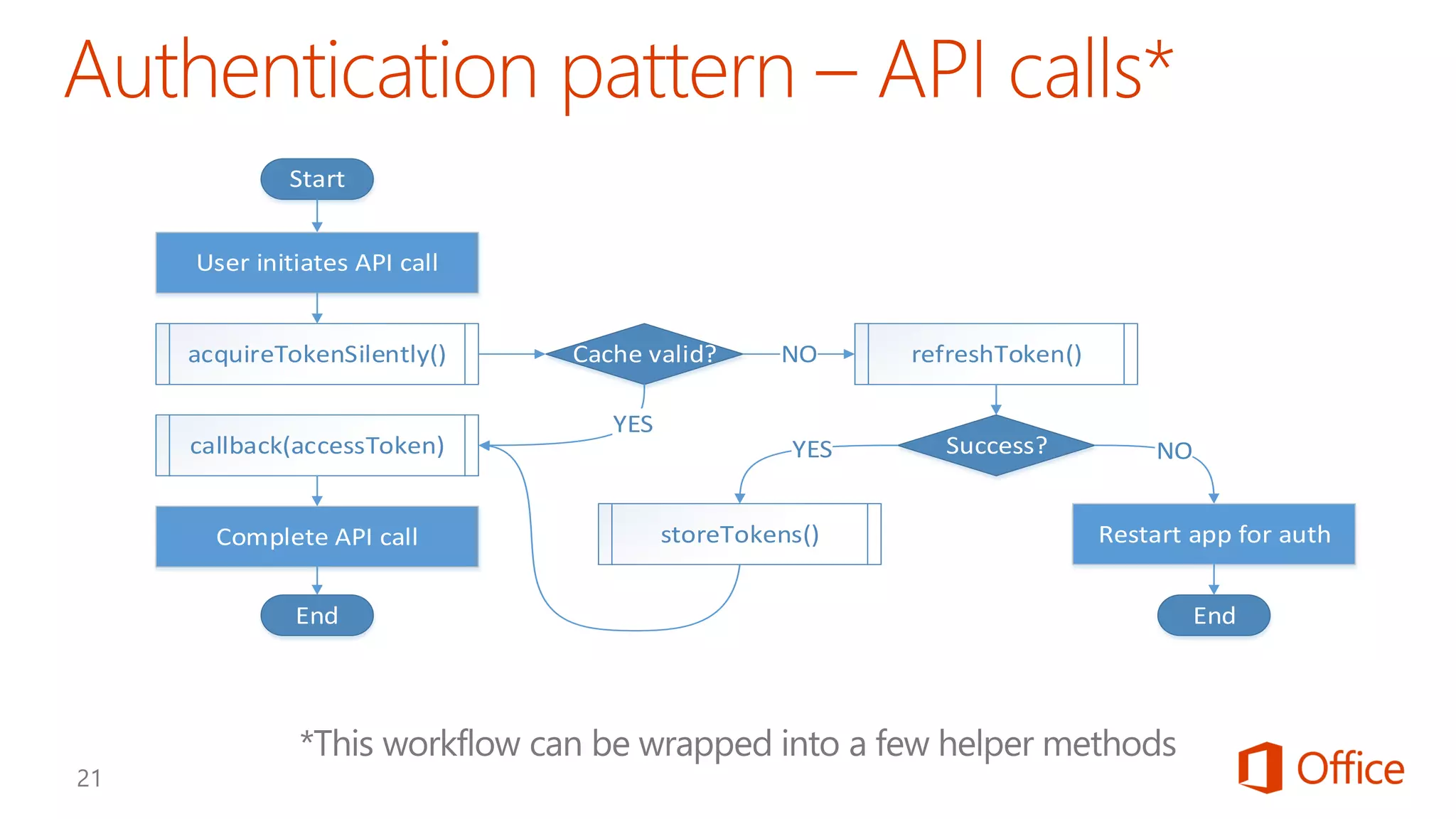

- 21. Start User initiates APIcall acquireTokenSilently() callback(accessToken) Complete API call End Cache valid? NO YES refreshToken() Success?YES NO Restart app for auth End storeTokens()

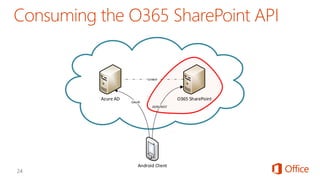

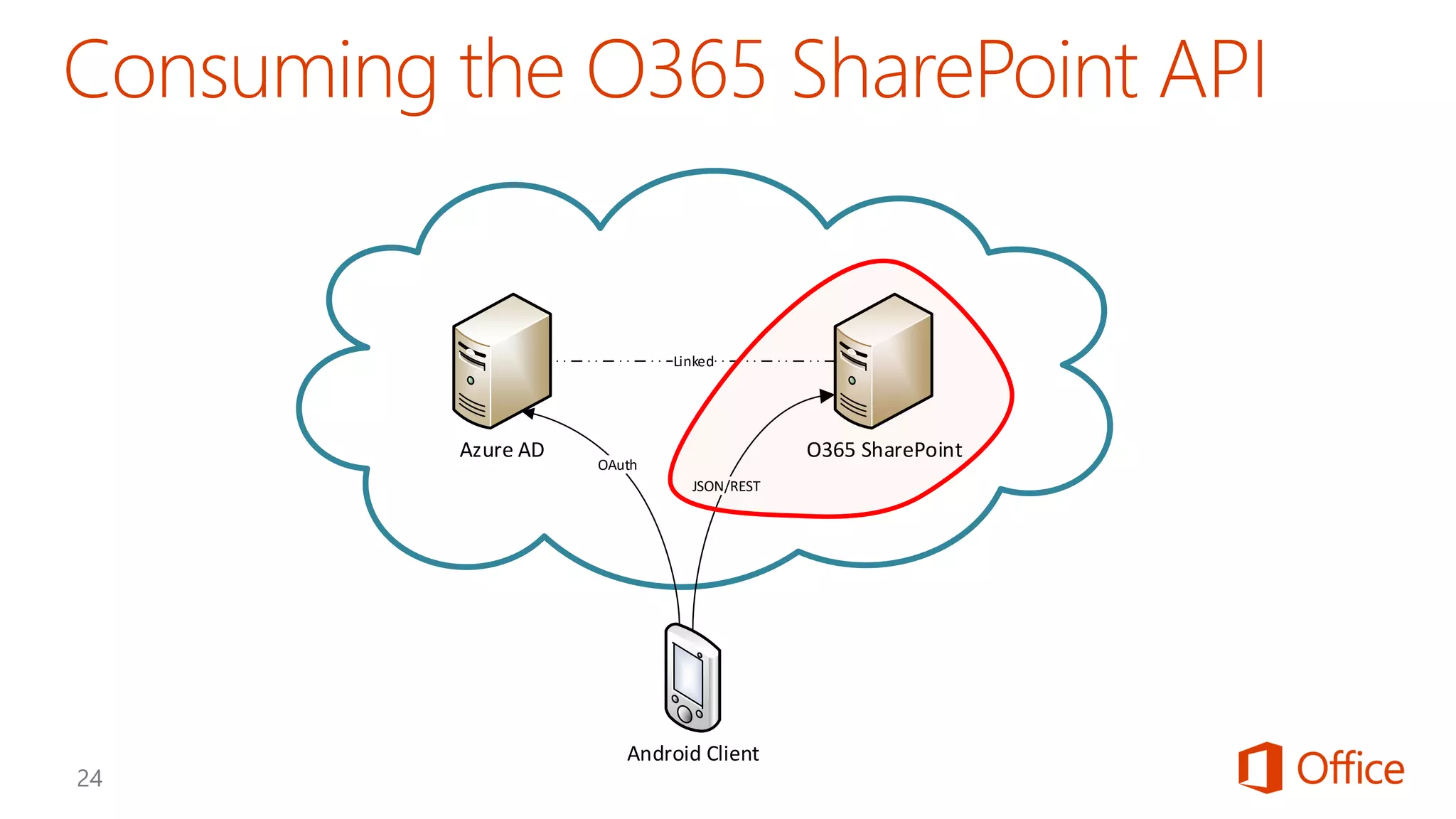

- 24. Android Client Azure ADO365 SharePoint Linked JSON/REST OAuth

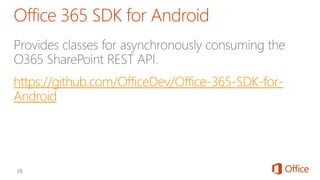

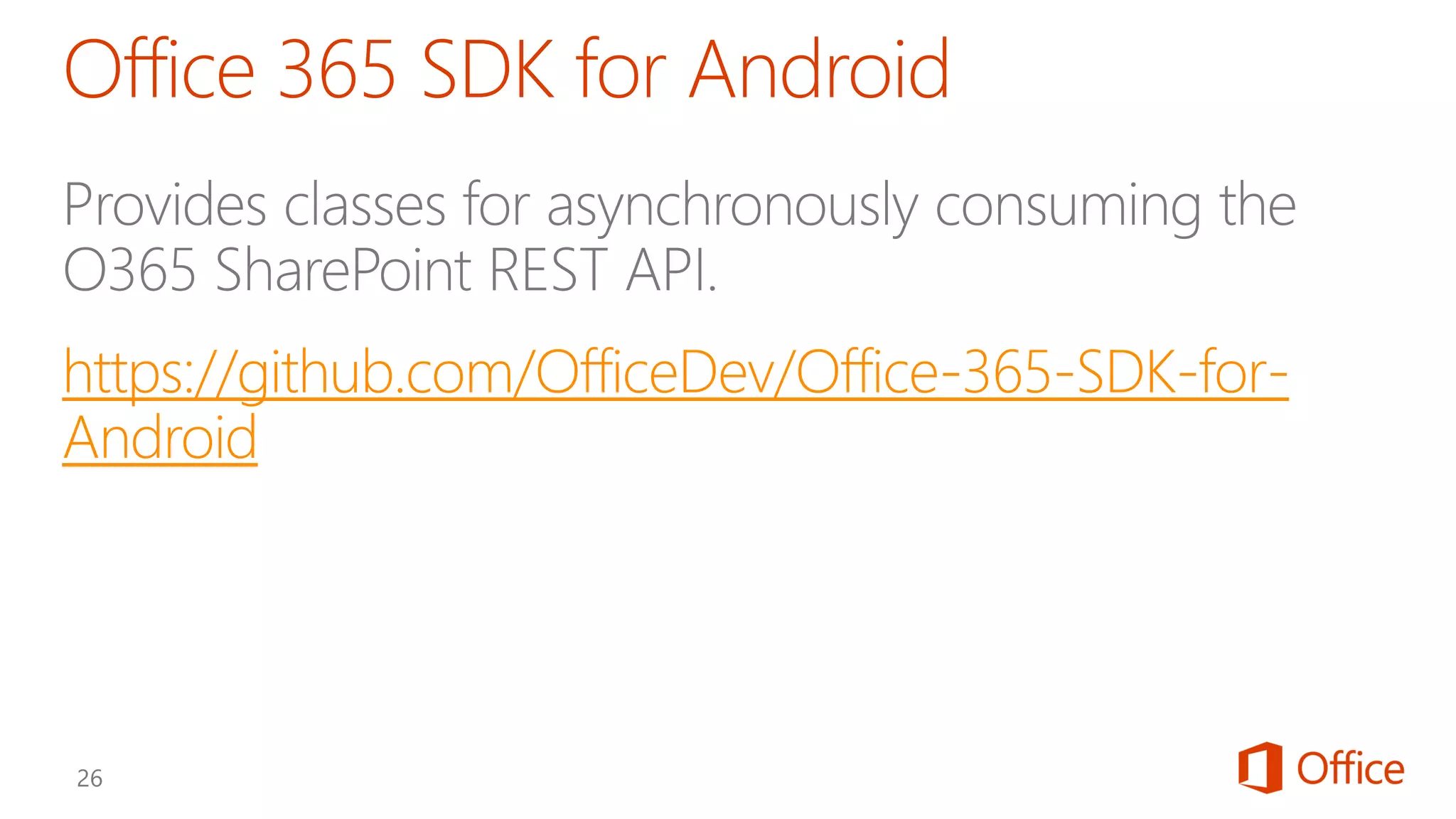

- 26.

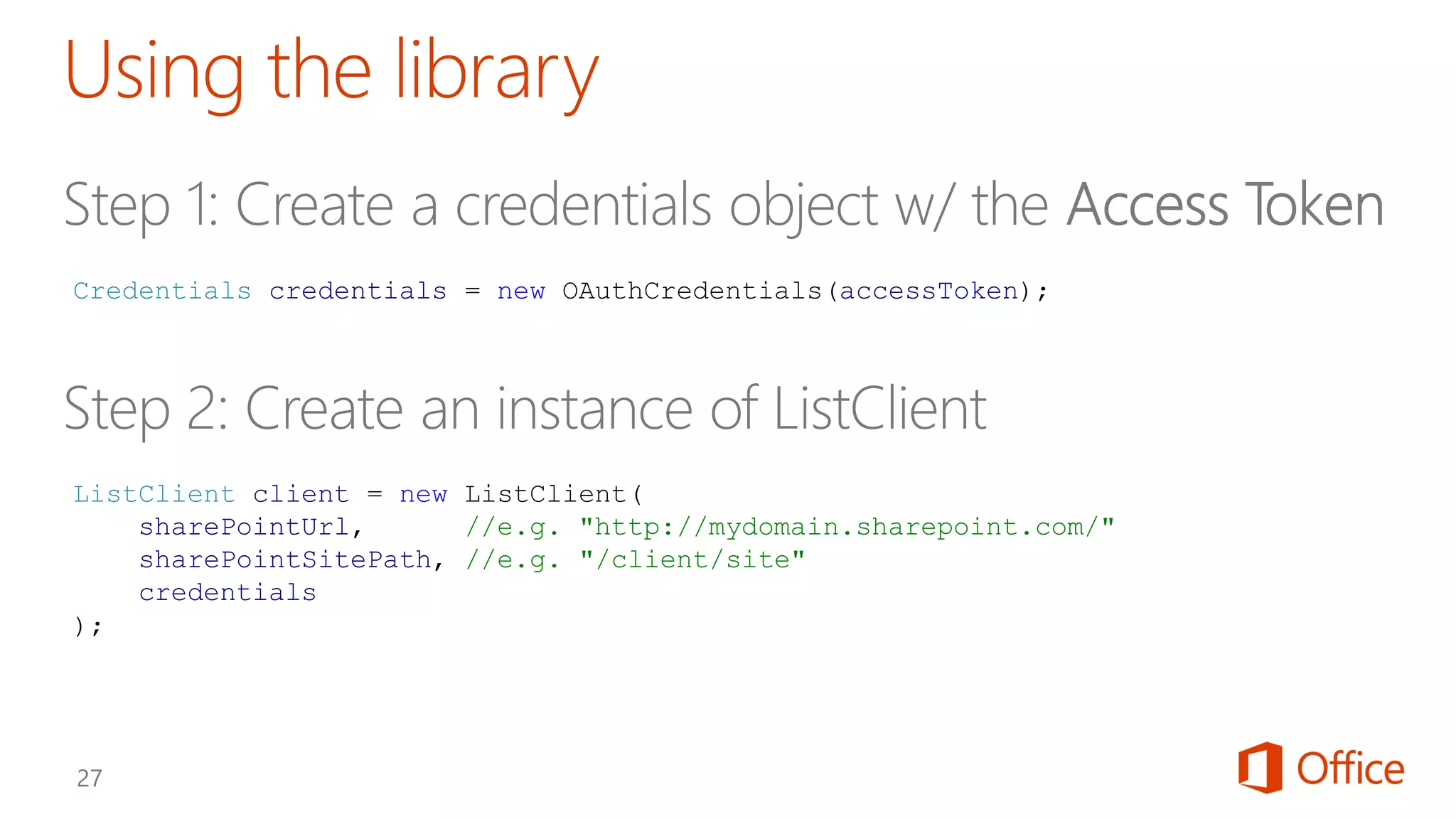

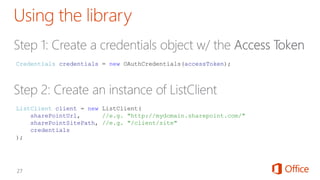

- 27. ListClient client =new ListClient( sharePointUrl, //e.g. "http://mydomain.sharepoint.com/" sharePointSitePath, //e.g. "/client/site" credentials ); Credentials credentials = new OAuthCredentials(accessToken);

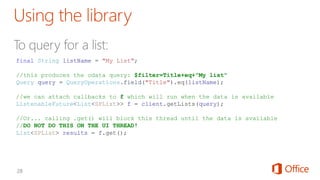

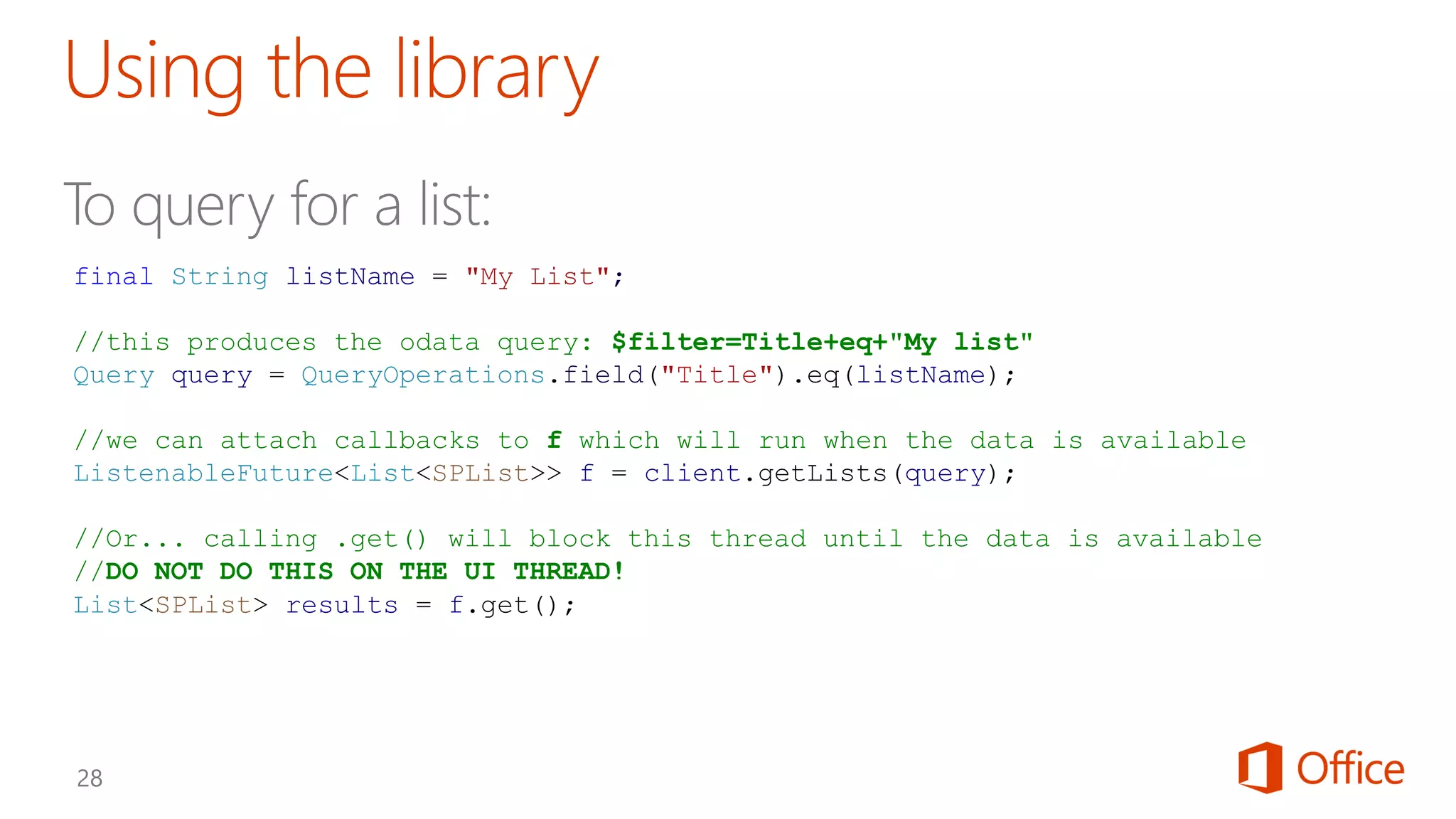

- 28. final String listName= "My List"; //this produces the odata query: $filter=Title+eq+"My list" Query query = QueryOperations.field("Title").eq(listName); //we can attach callbacks to f which will run when the data is available ListenableFuture<List<SPList>> f = client.getLists(query); //Or... calling .get() will block this thread until the data is available //DO NOT DO THIS ON THE UI THREAD! List<SPList> results = f.get();

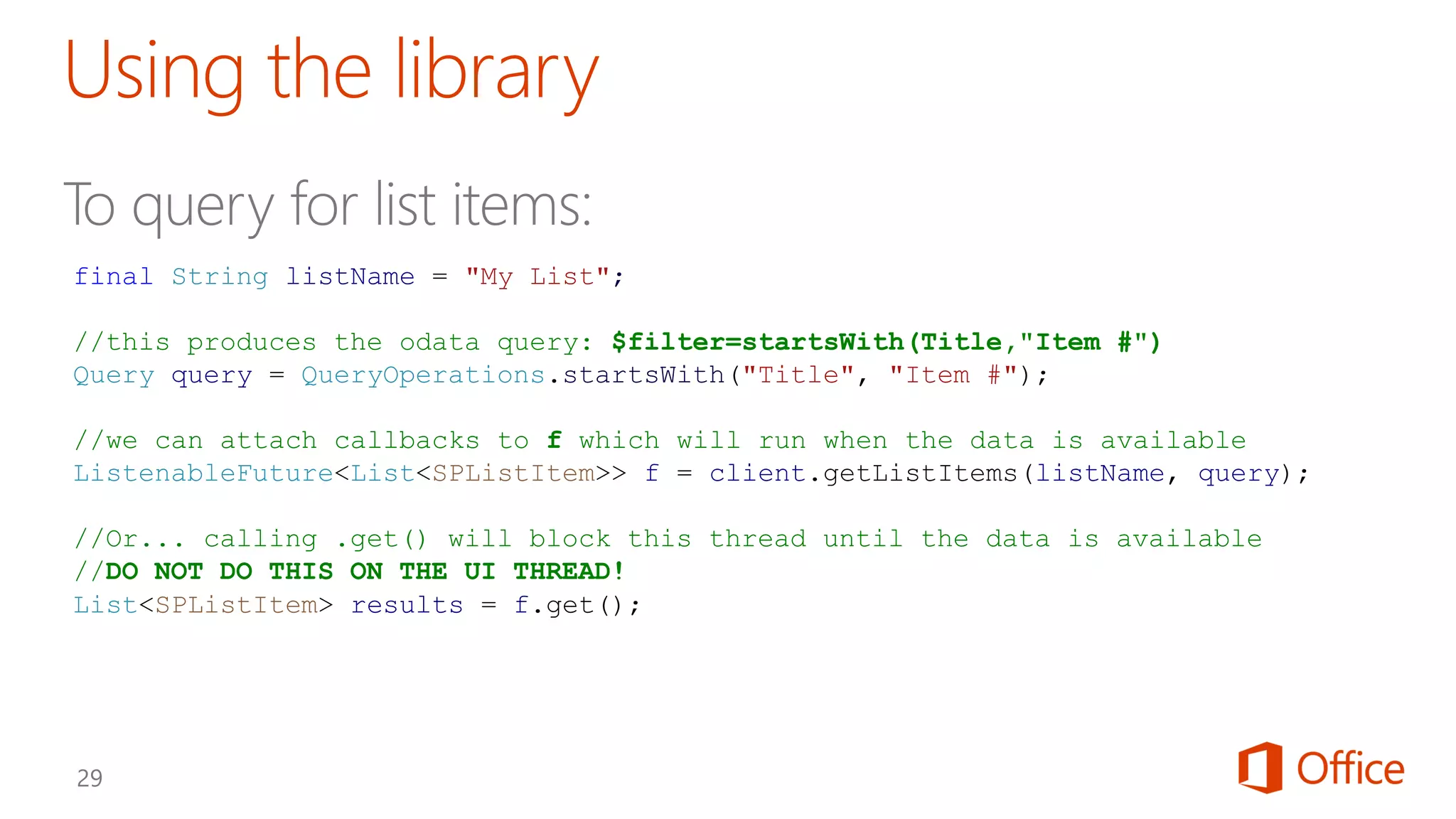

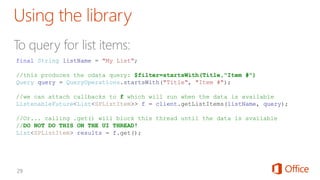

- 29. final String listName= "My List"; //this produces the odata query: $filter=startsWith(Title,"Item #") Query query = QueryOperations.startsWith("Title", "Item #"); //we can attach callbacks to f which will run when the data is available ListenableFuture<List<SPListItem>> f = client.getListItems(listName, query); //Or... calling .get() will block this thread until the data is available //DO NOT DO THIS ON THE UI THREAD! List<SPListItem> results = f.get();
