Http pipeline
- 1.

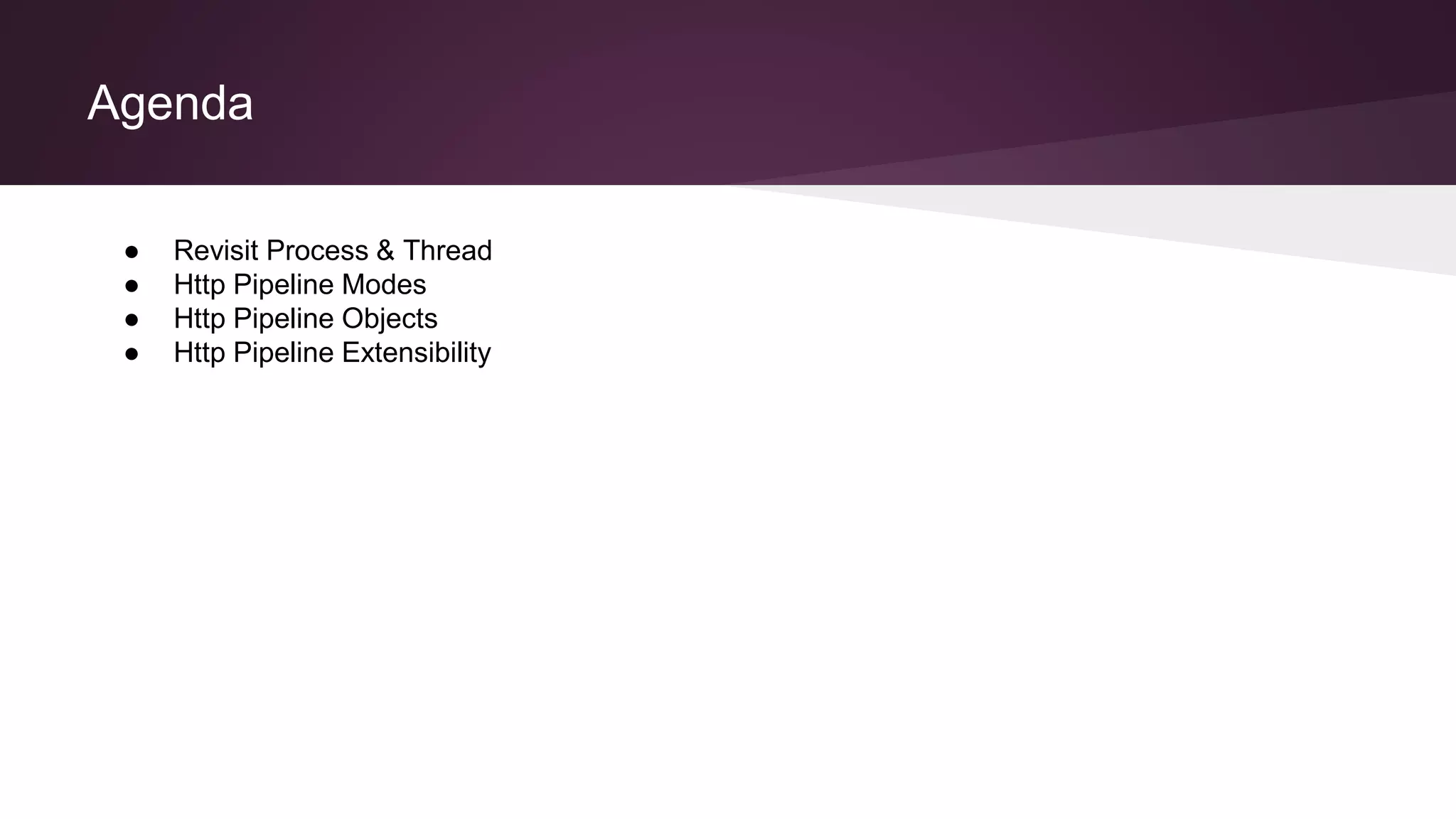

- 2. Agenda ● Revisit Process& Thread ● Http Pipeline Modes ● Http Pipeline Objects ● Http Pipeline Extensibility

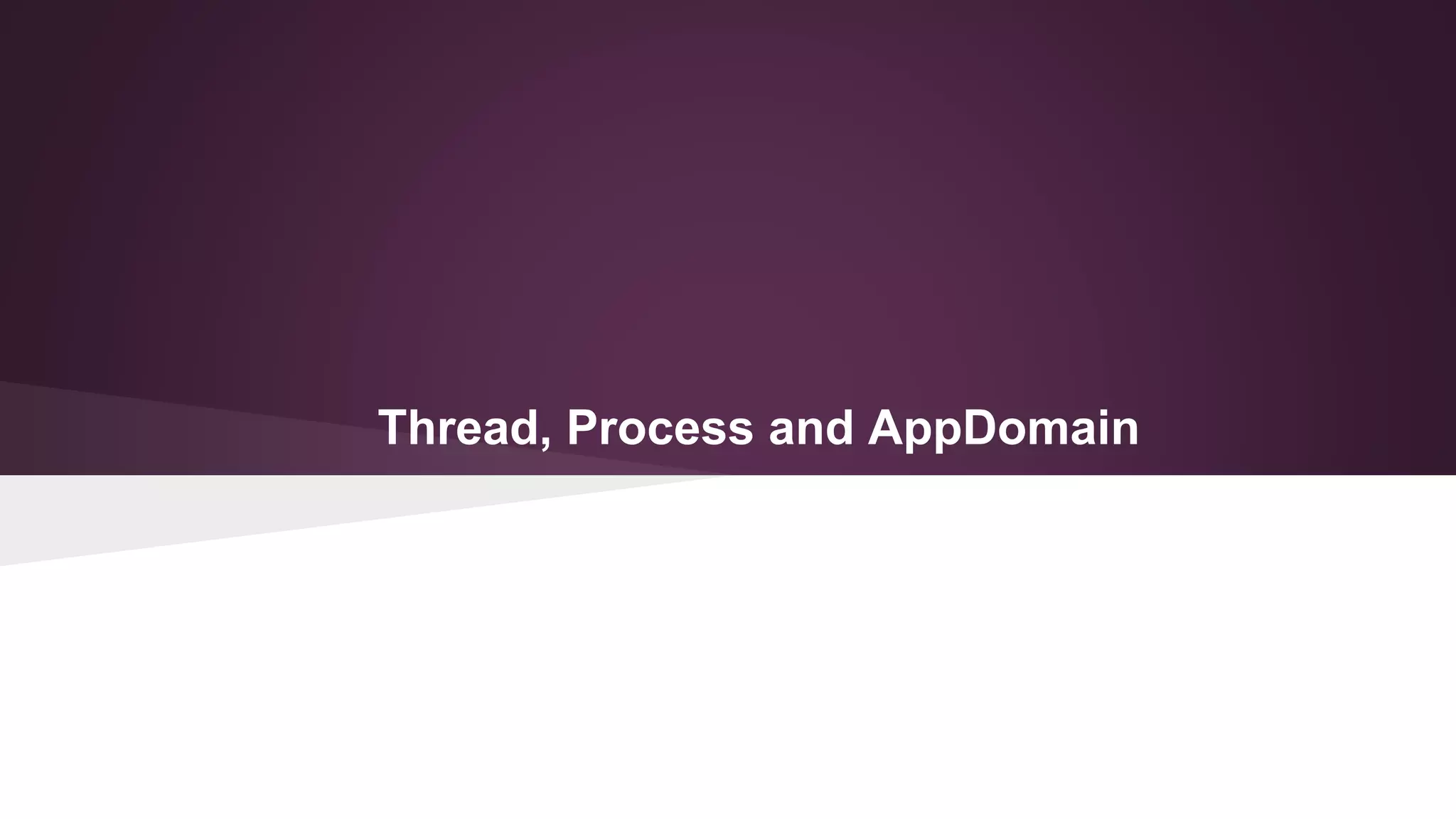

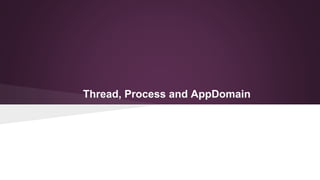

- 3. Thread, Process andAppDomain

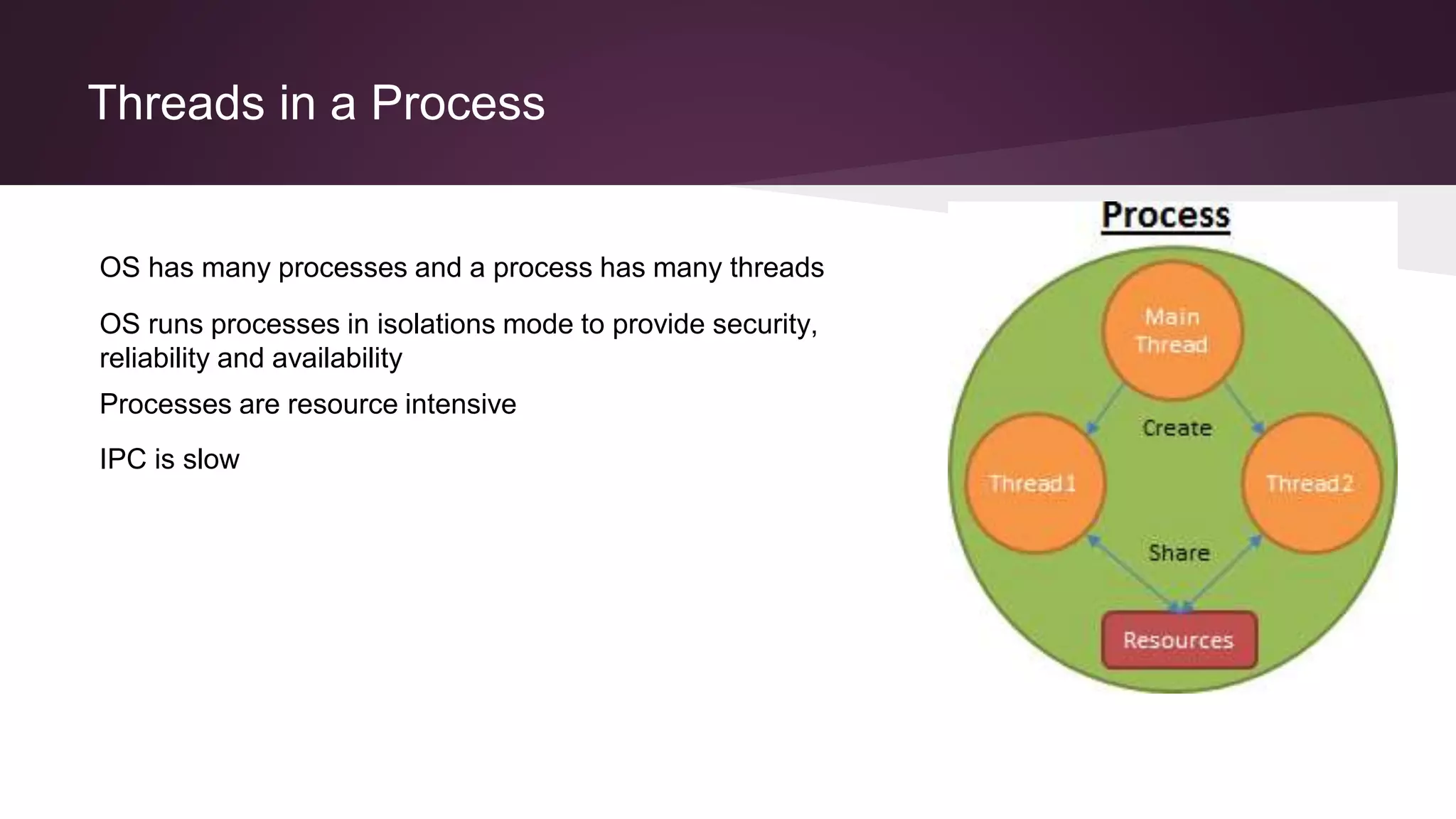

- 4. Threads in aProcess OS has many processes and a process has many threads Processes are resource intensive OS runs processes in isolations mode to provide security, reliability and availability IPC is slow

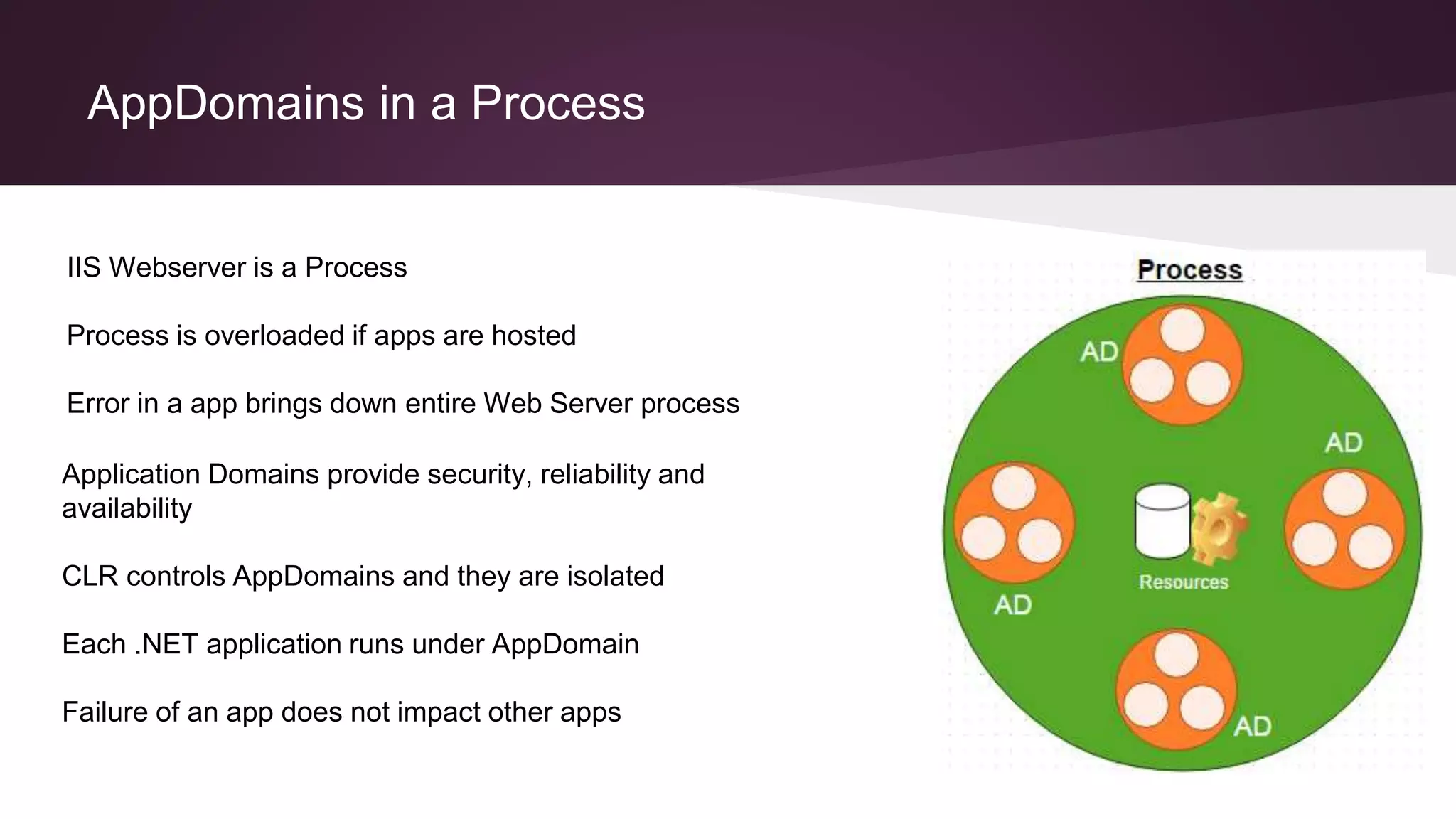

- 5. AppDomains in aProcess IIS Webserver is a Process Process is overloaded if apps are hosted Error in a app brings down entire Web Server process Application Domains provide security, reliability and availability CLR controls AppDomains and they are isolated Each .NET application runs under AppDomain Failure of an app does not impact other apps

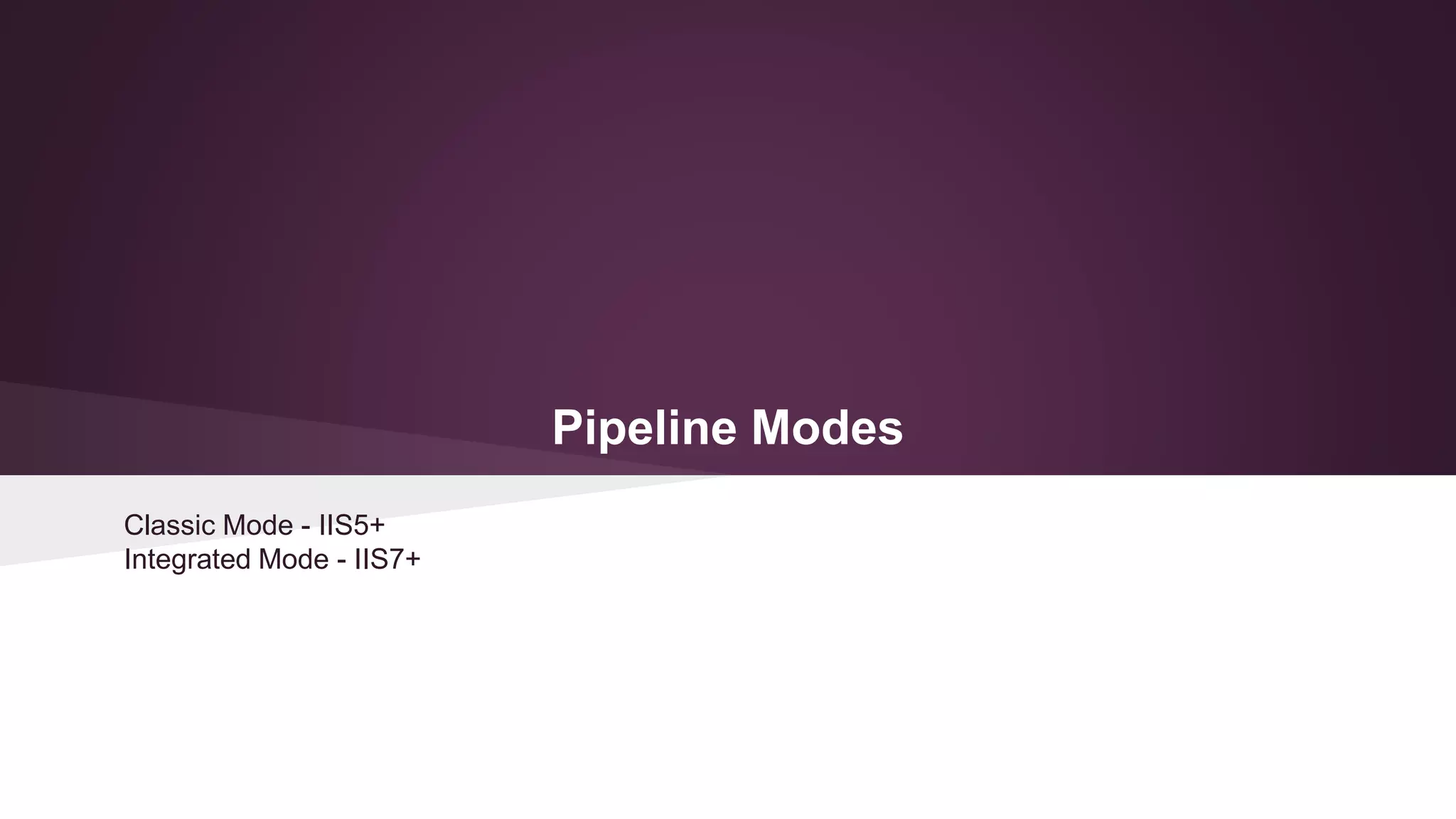

- 6. Pipeline Modes Classic Mode- IIS5+ Integrated Mode - IIS7+

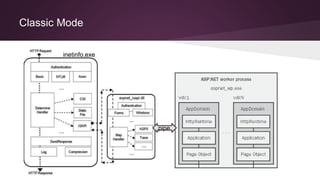

- 7.

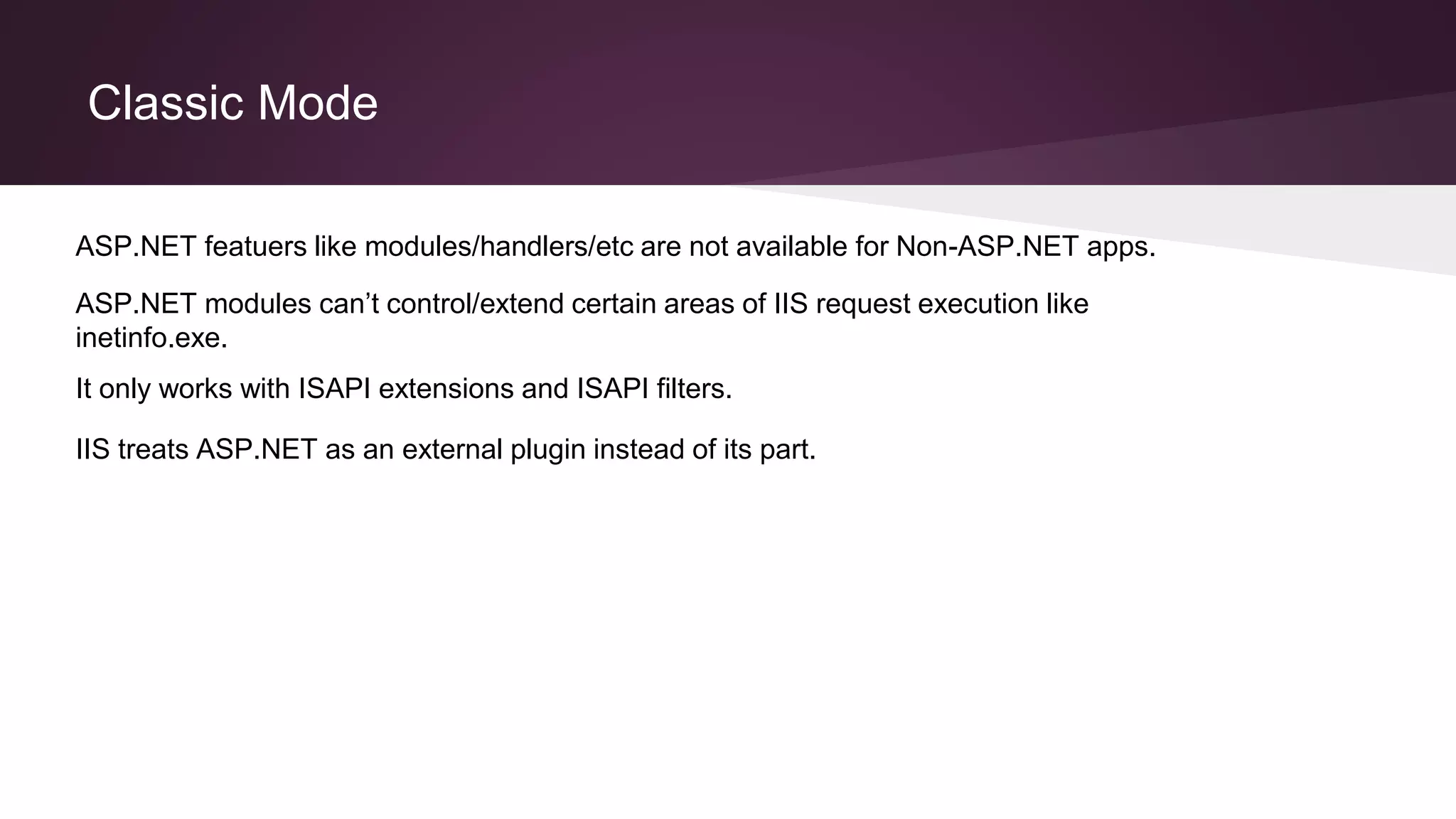

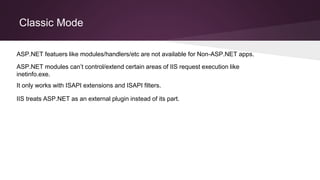

- 8. Classic Mode It onlyworks with ISAPI extensions and ISAPI filters. ASP.NET modules can’t control/extend certain areas of IIS request execution like inetinfo.exe. ASP.NET featuers like modules/handlers/etc are not available for Non-ASP.NET apps. IIS treats ASP.NET as an external plugin instead of its part.
- 9.
- 10.

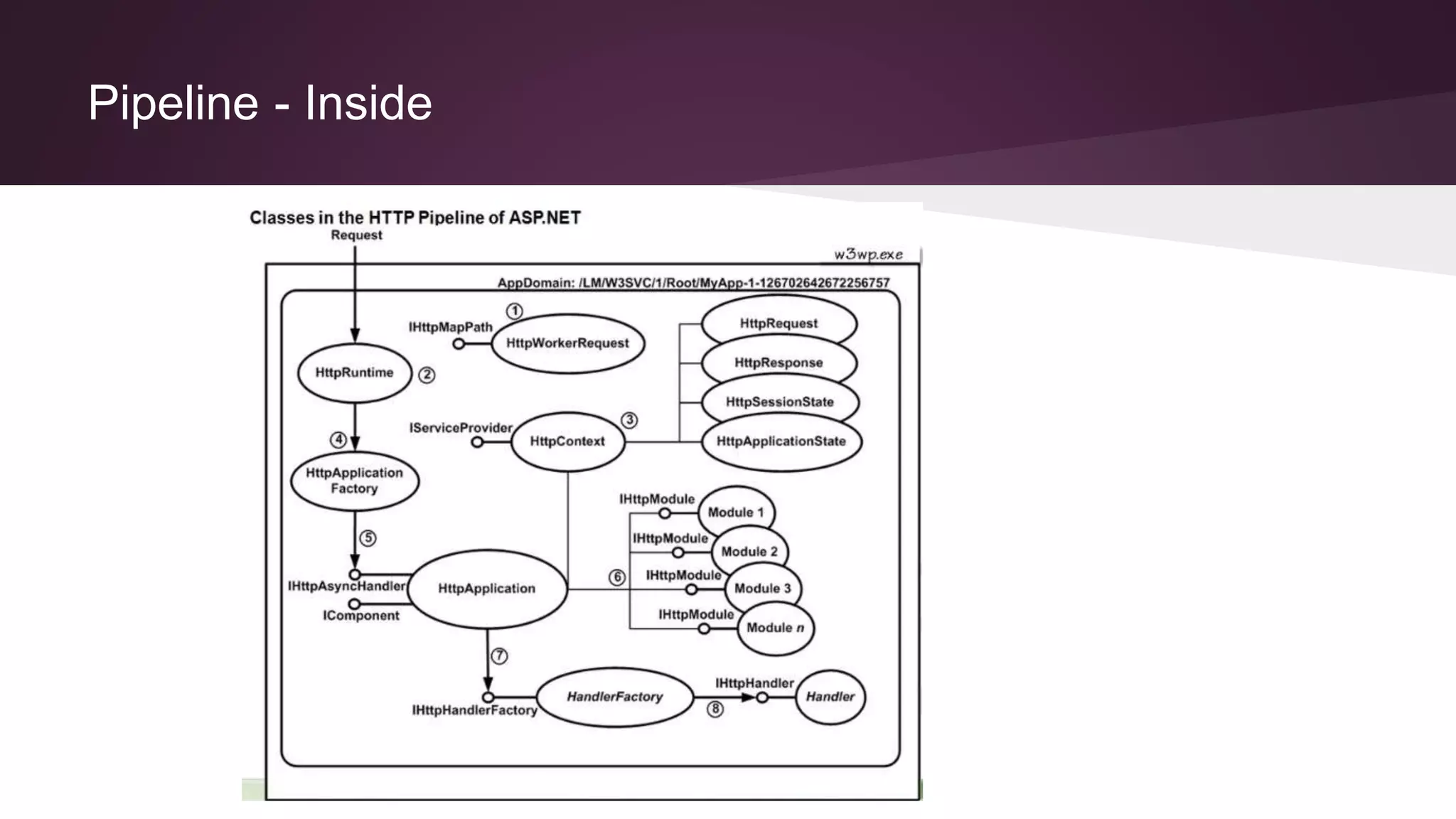

- 11.

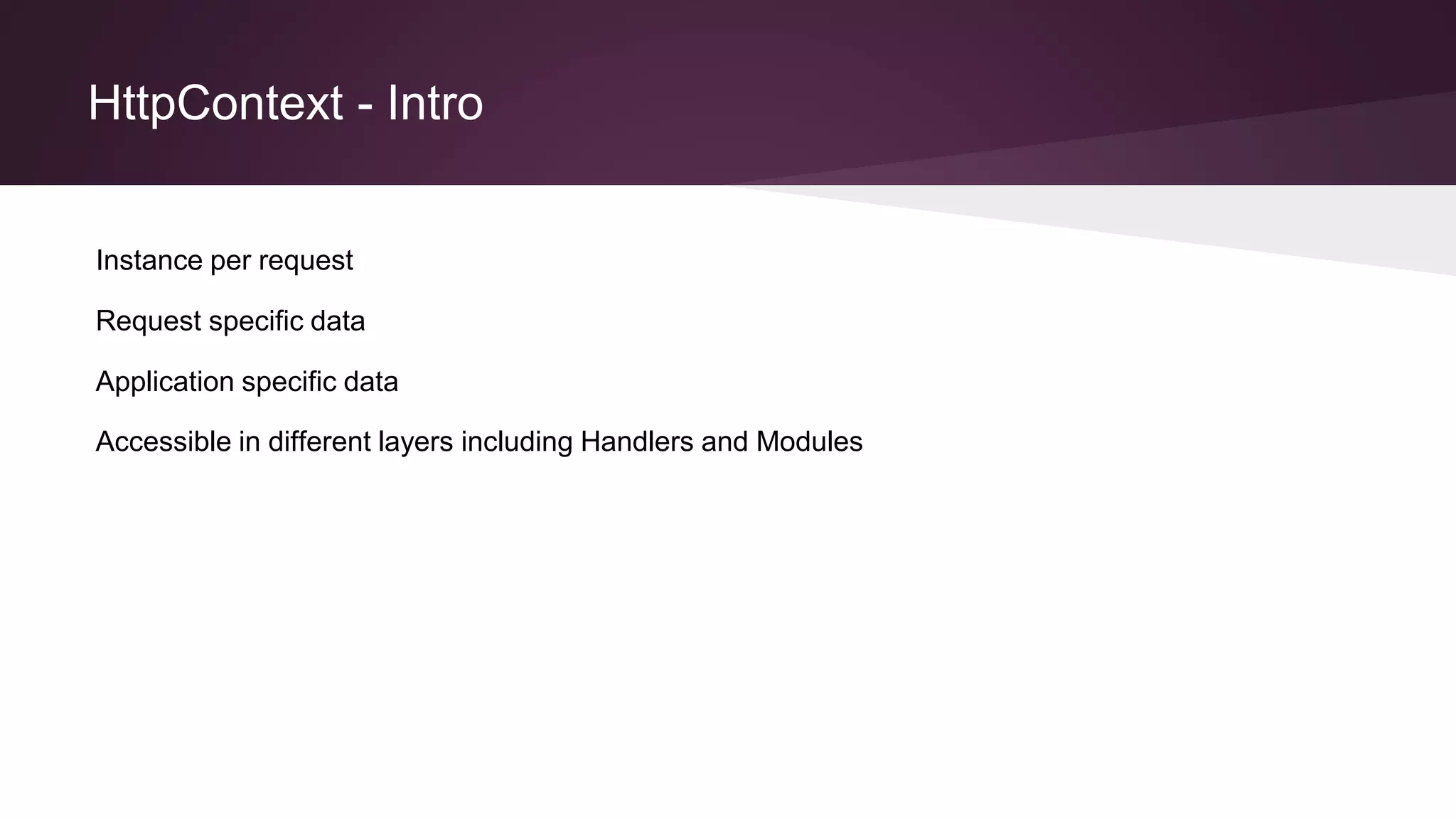

- 12. HttpContext - Intro Instanceper request Request specific data Application specific data Accessible in different layers including Handlers and Modules

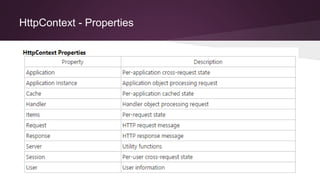

- 13.

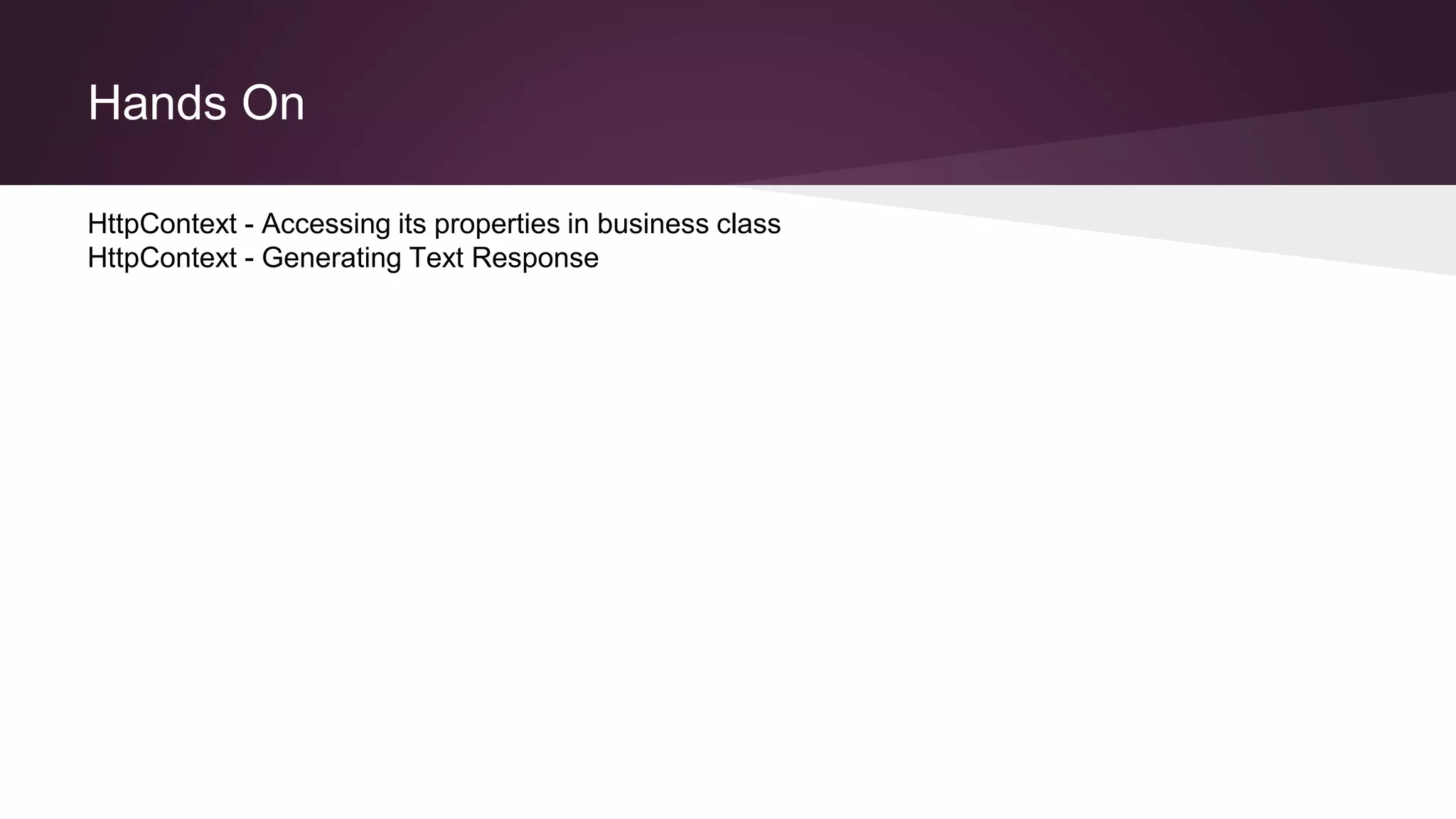

- 14. Hands On HttpContext -Accessing its properties in business class HttpContext - Generating Text Response

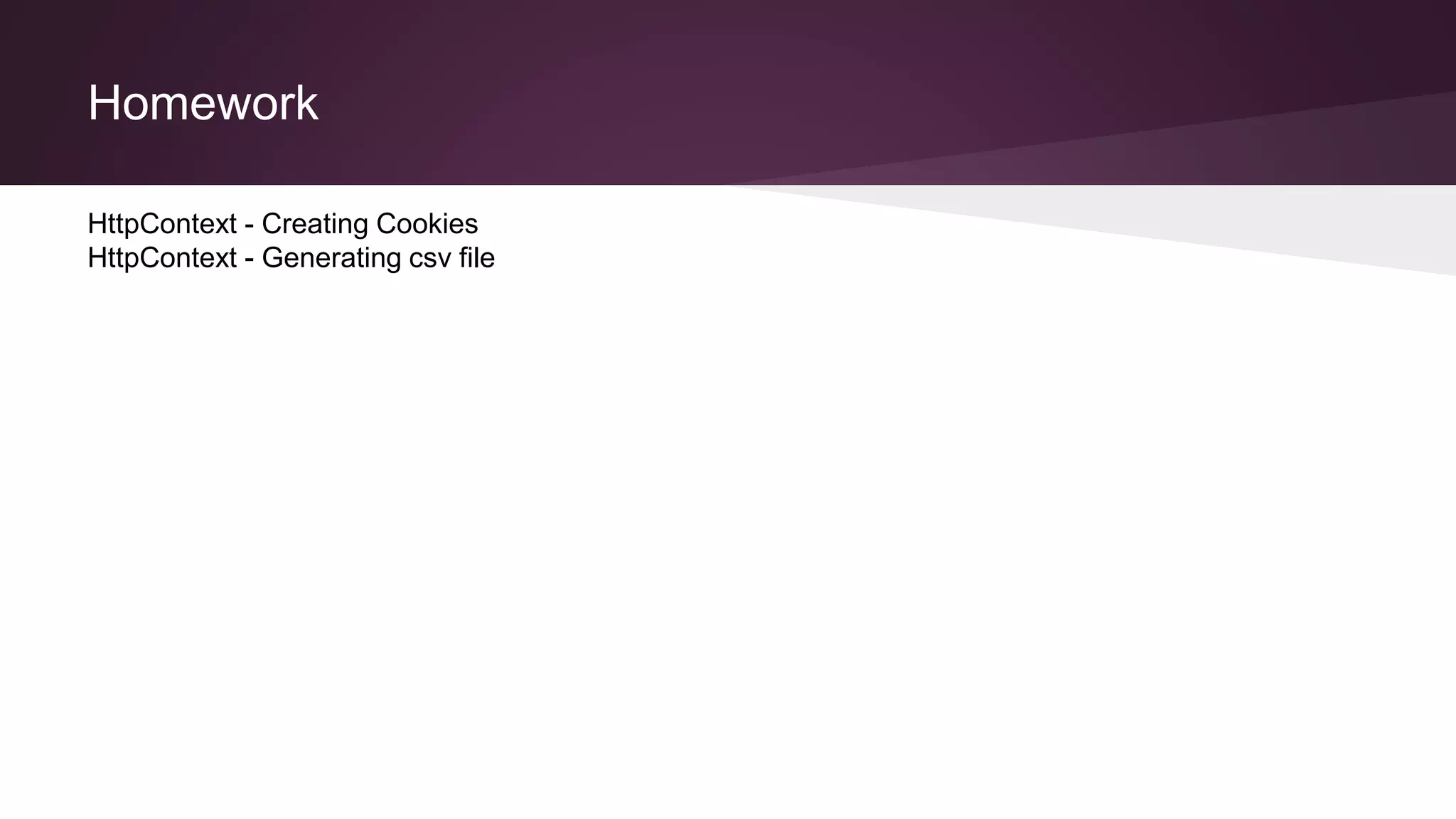

- 15. Homework HttpContext - CreatingCookies HttpContext - Generating csv file
- 16.

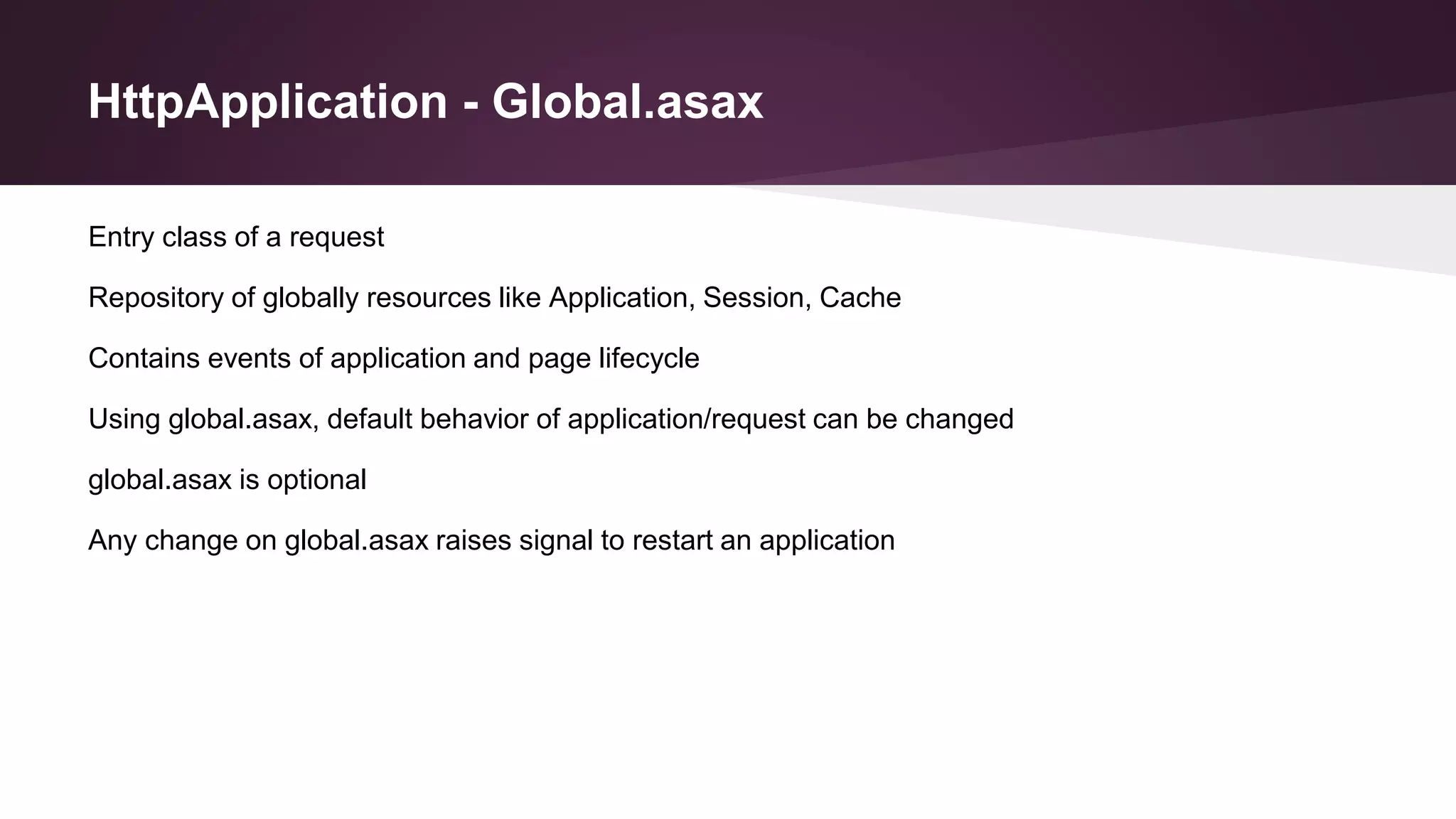

- 17. HttpApplication - Global.asax Entryclass of a request Repository of globally resources like Application, Session, Cache Contains events of application and page lifecycle Using global.asax, default behavior of application/request can be changed global.asax is optional Any change on global.asax raises signal to restart an application

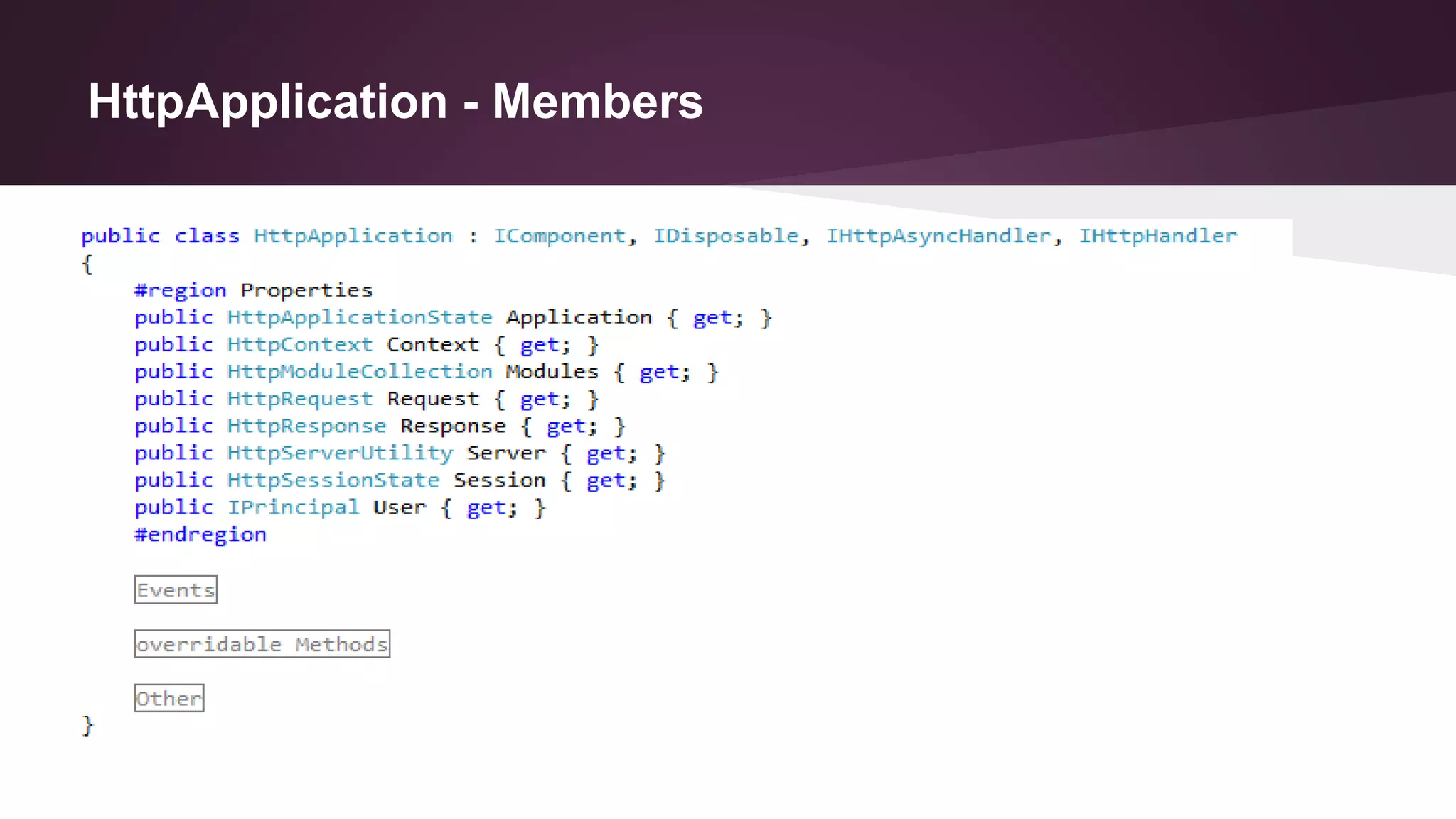

- 18.
- 19.
- 20.

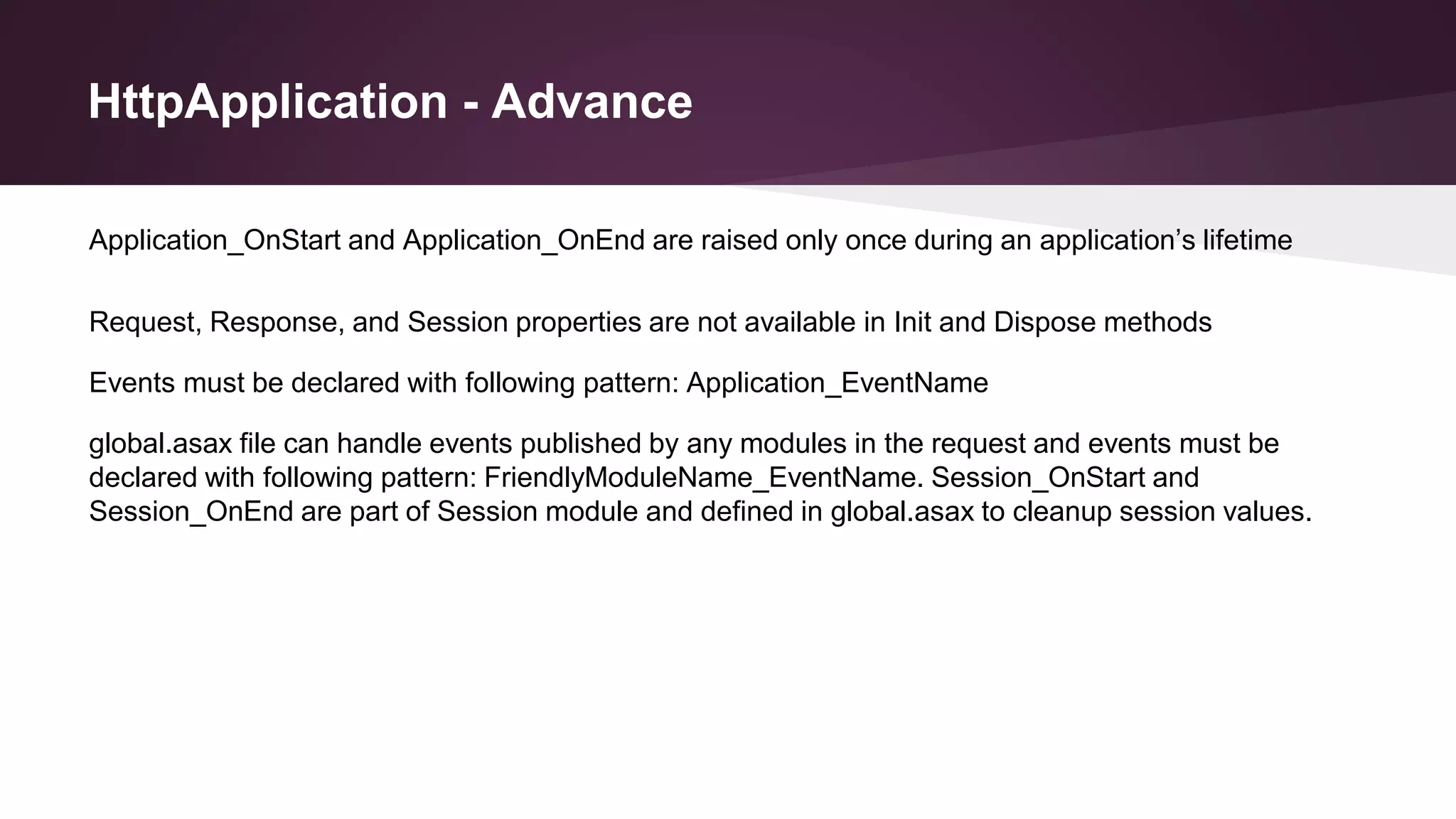

- 21. HttpApplication - Advance Application_OnStartand Application_OnEnd are raised only once during an application’s lifetime Request, Response, and Session properties are not available in Init and Dispose methods Events must be declared with following pattern: Application_EventName global.asax file can handle events published by any modules in the request and events must be declared with following pattern: FriendlyModuleName_EventName. Session_OnStart and Session_OnEnd are part of Session module and defined in global.asax to cleanup session values.

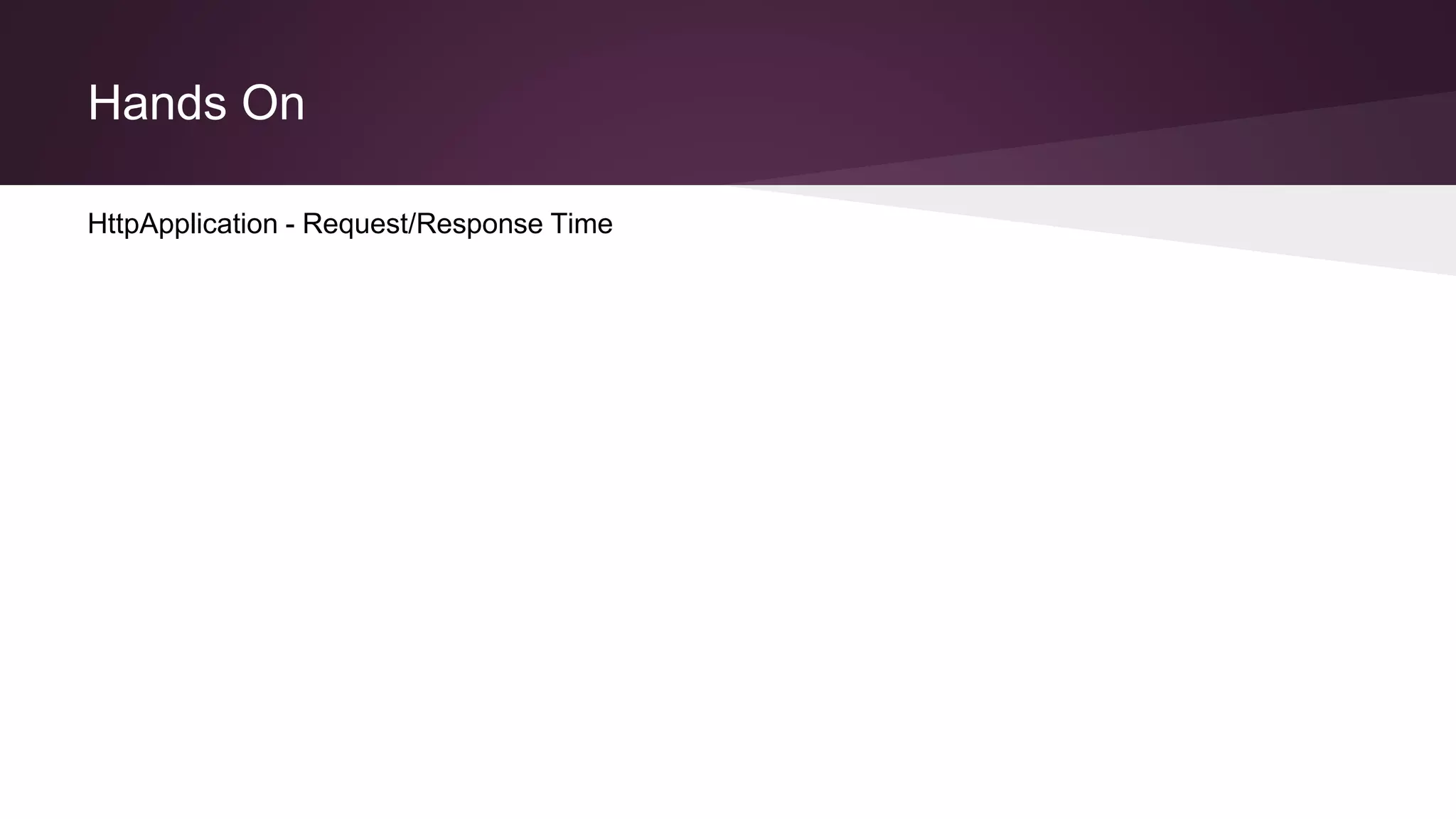

- 22. Hands On HttpApplication -Request/Response Time

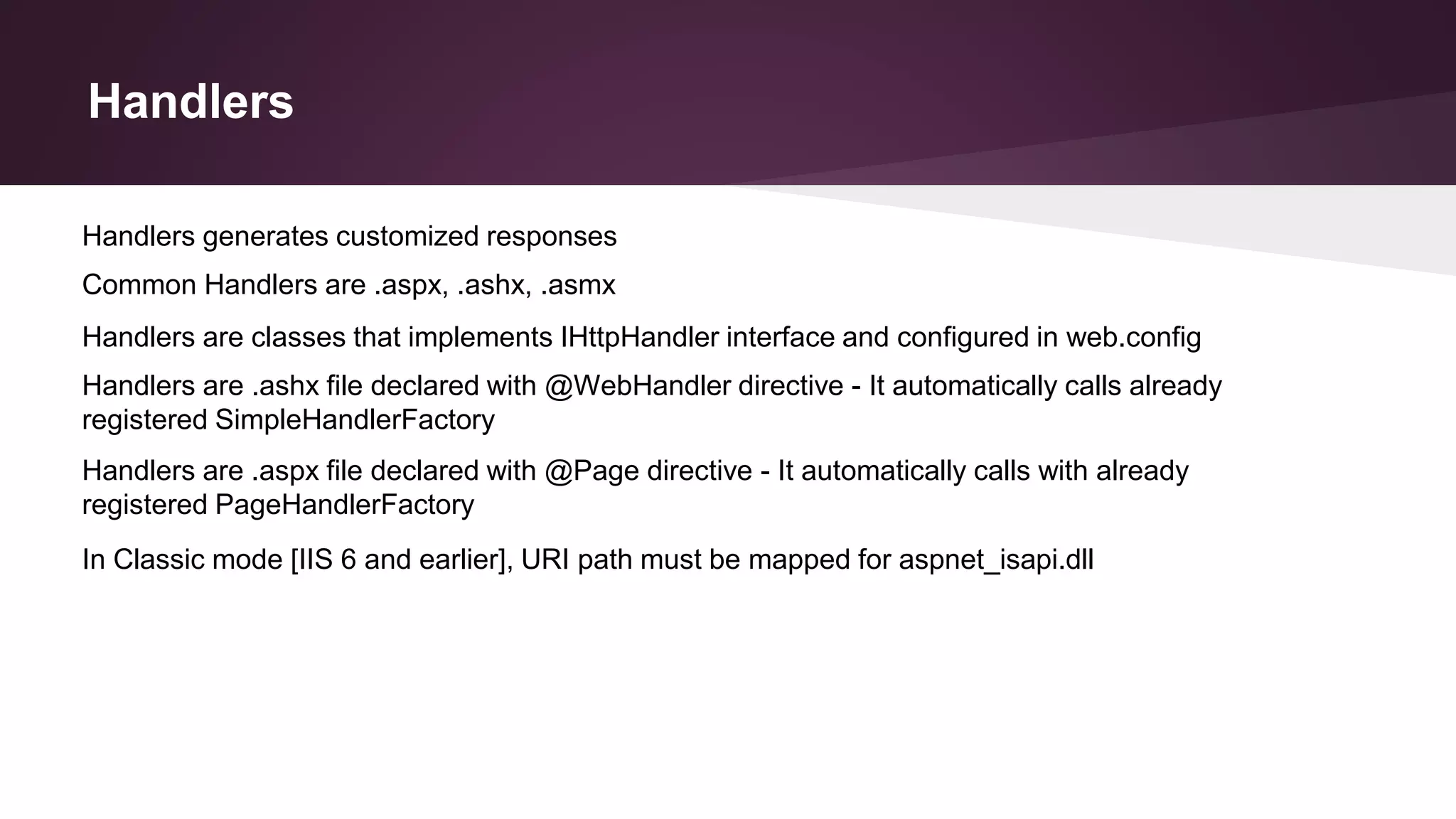

- 23. Handlers Handlers are classesthat implements IHttpHandler interface and configured in web.config Handlers are .ashx file declared with @WebHandler directive - It automatically calls already registered SimpleHandlerFactory Handlers are .aspx file declared with @Page directive - It automatically calls with already registered PageHandlerFactory In Classic mode [IIS 6 and earlier], URI path must be mapped for aspnet_isapi.dll Handlers generates customized responses Common Handlers are .aspx, .ashx, .asmx

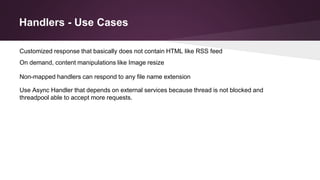

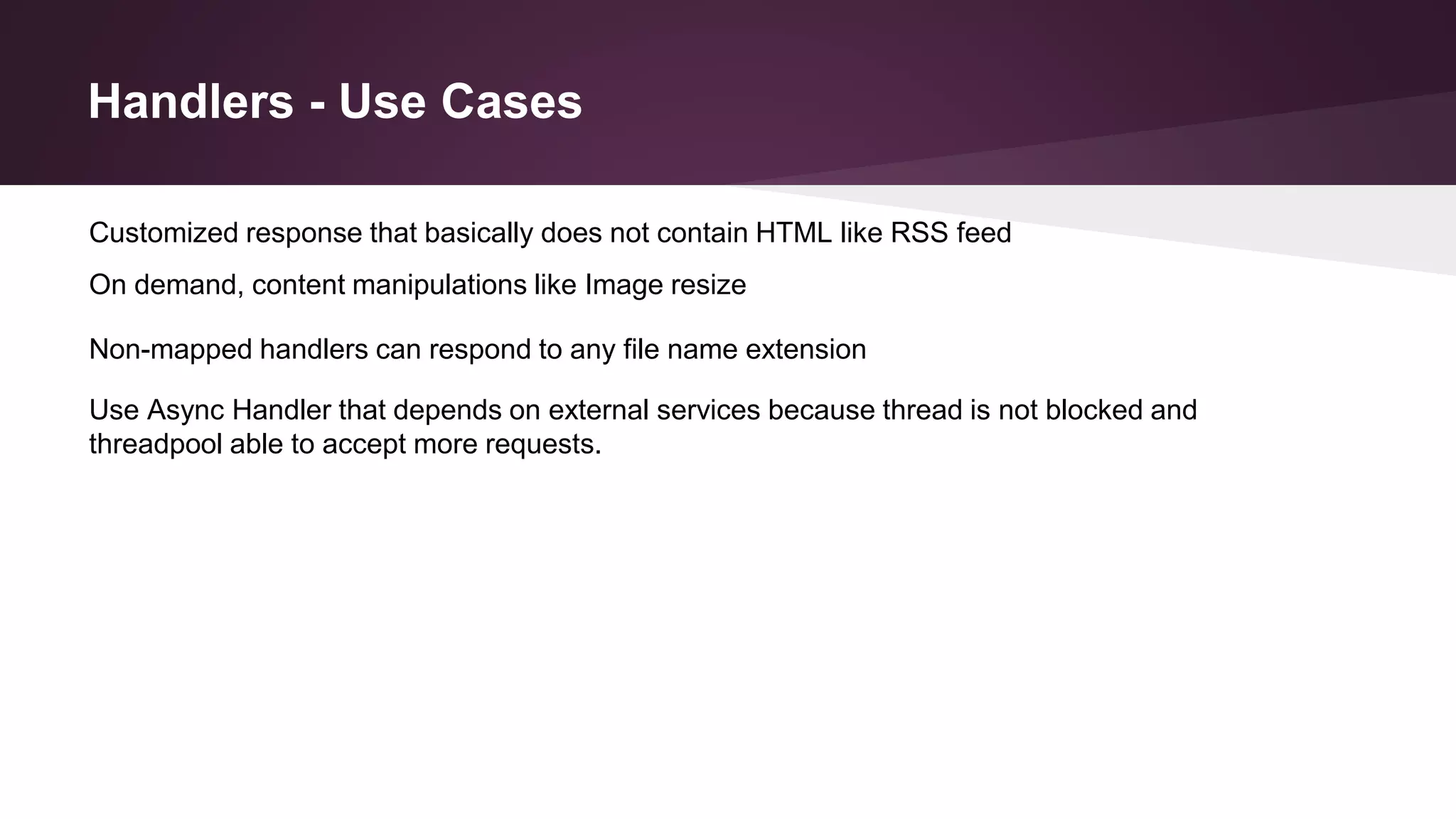

- 24. Handlers - UseCases Non-mapped handlers can respond to any file name extension Use Async Handler that depends on external services because thread is not blocked and threadpool able to accept more requests. Customized response that basically does not contain HTML like RSS feed On demand, content manipulations like Image resize

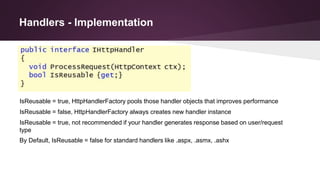

- 25. Handlers - Implementation IsReusable= true, HttpHandlerFactory pools those handler objects that improves performance IsReusable = false, HttpHandlerFactory always creates new handler instance IsReusable = true, not recommended if your handler generates response based on user/request type By Default, IsReusable = false for standard handlers like .aspx, .asmx, .ashx

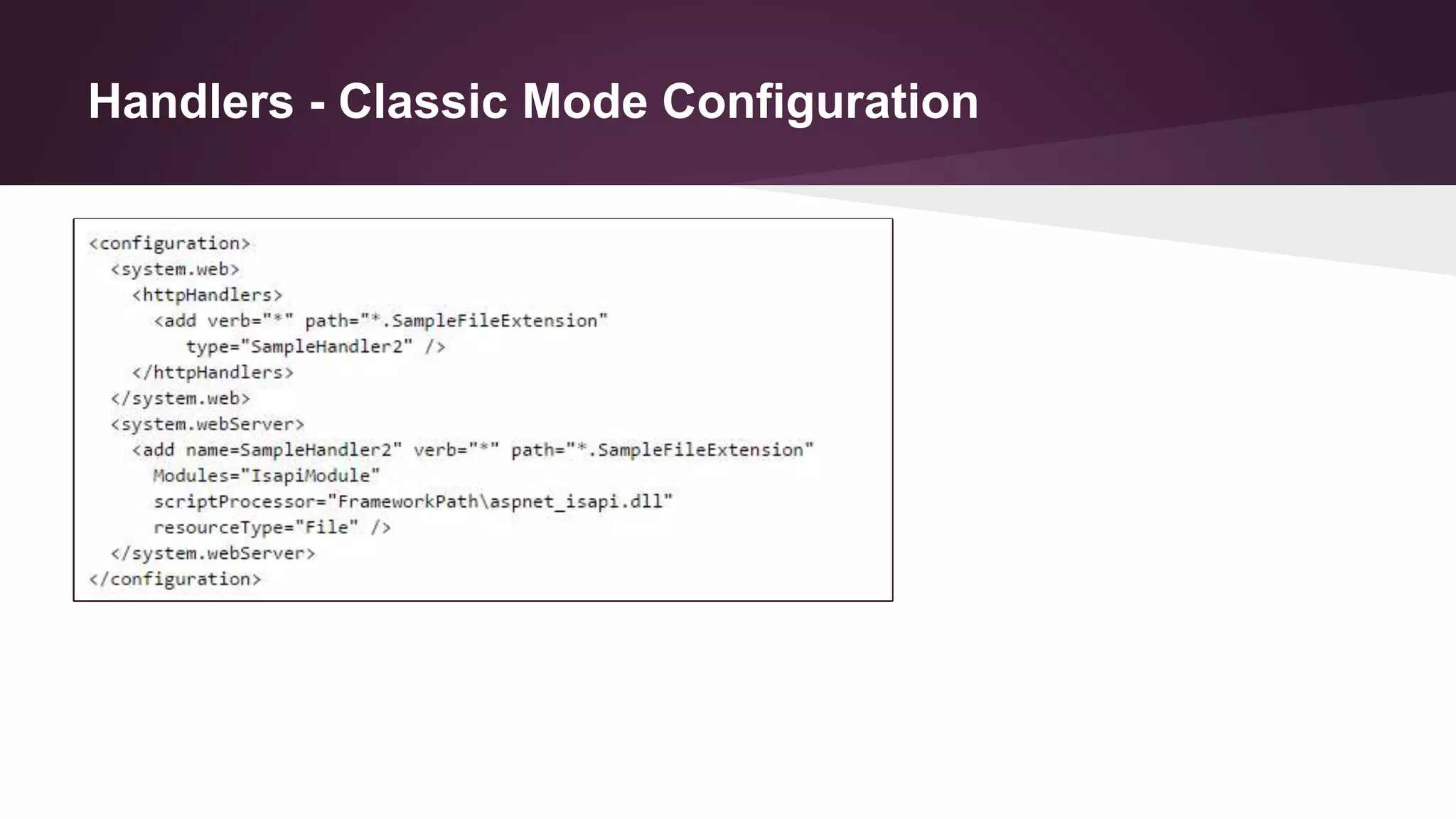

- 26. Handlers - ClassicMode Configuration

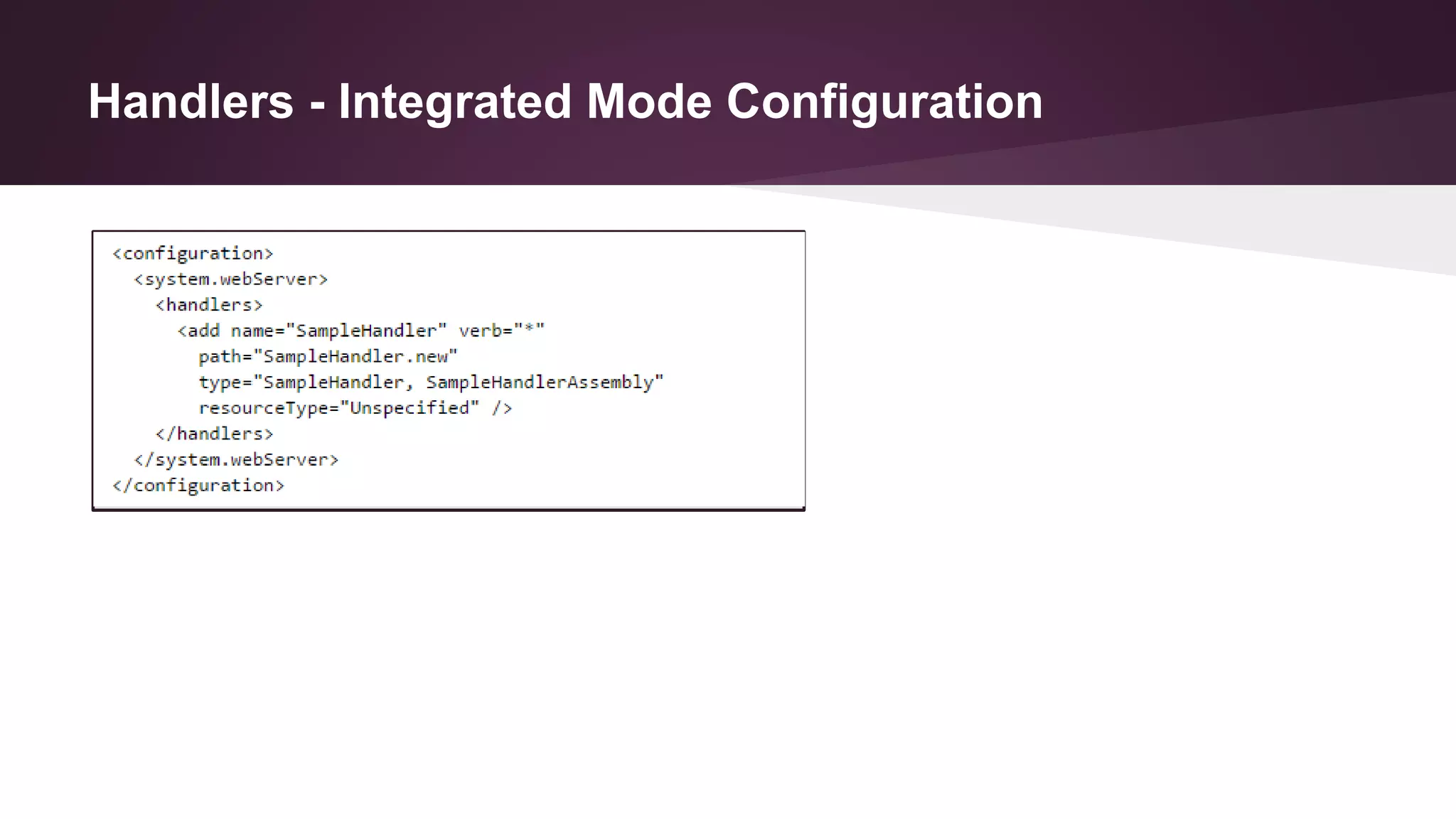

- 27. Handlers - IntegratedMode Configuration

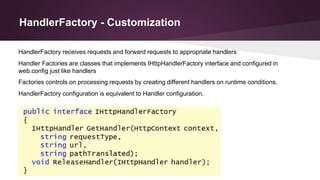

- 28. HandlerFactory - Customization HandlerFactories are classes that implements IHttpHandlerFactory interface and configured in web.config just like handlers Factories controls on processing requests by creating different handlers on runtime conditions. HandlerFactory configuration is equivalent to Handler configuration. HandlerFactory receives requests and forward requests to appropriate handlers

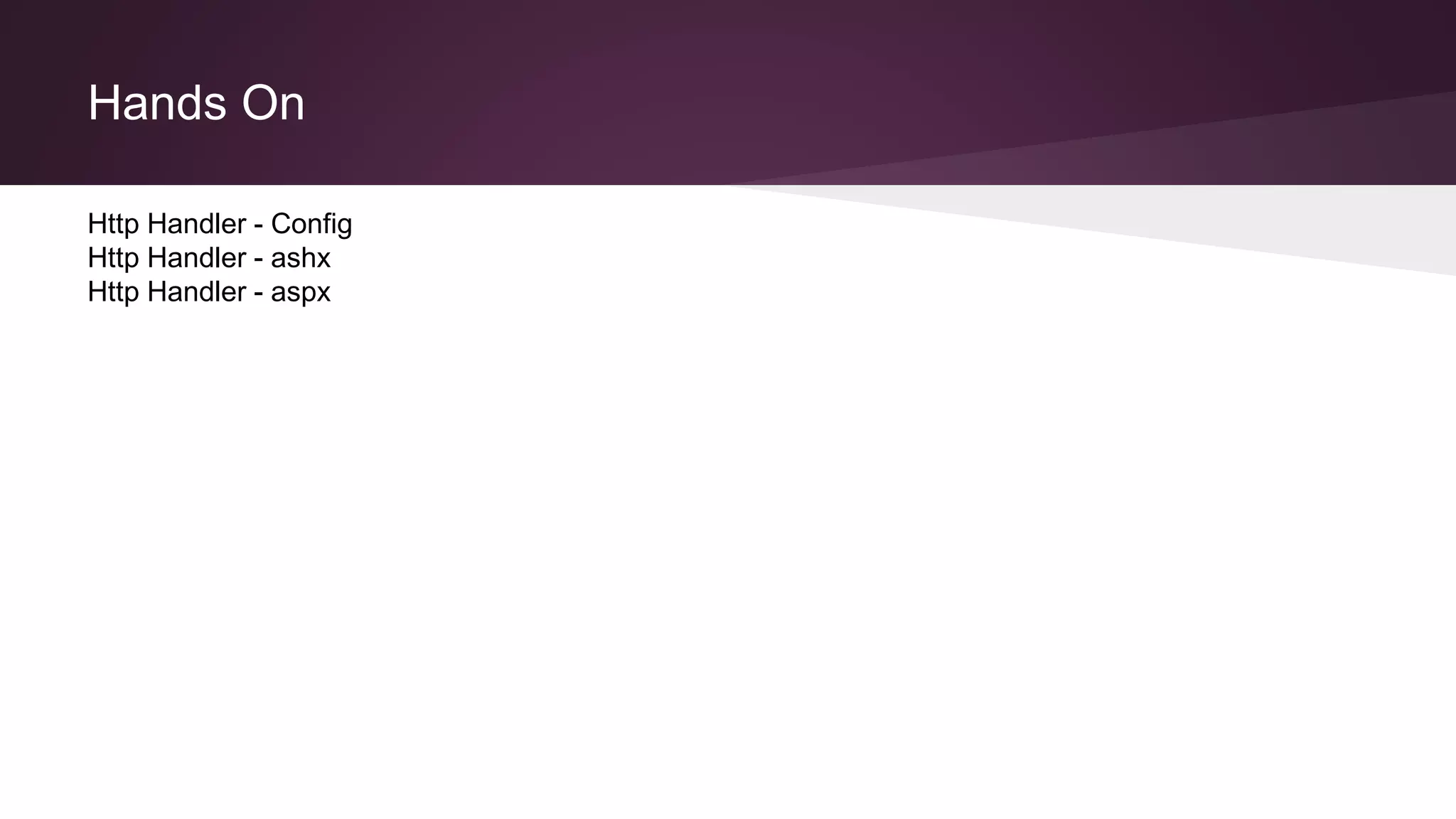

- 29. Hands On Http Handler- Config Http Handler - ashx Http Handler - aspx

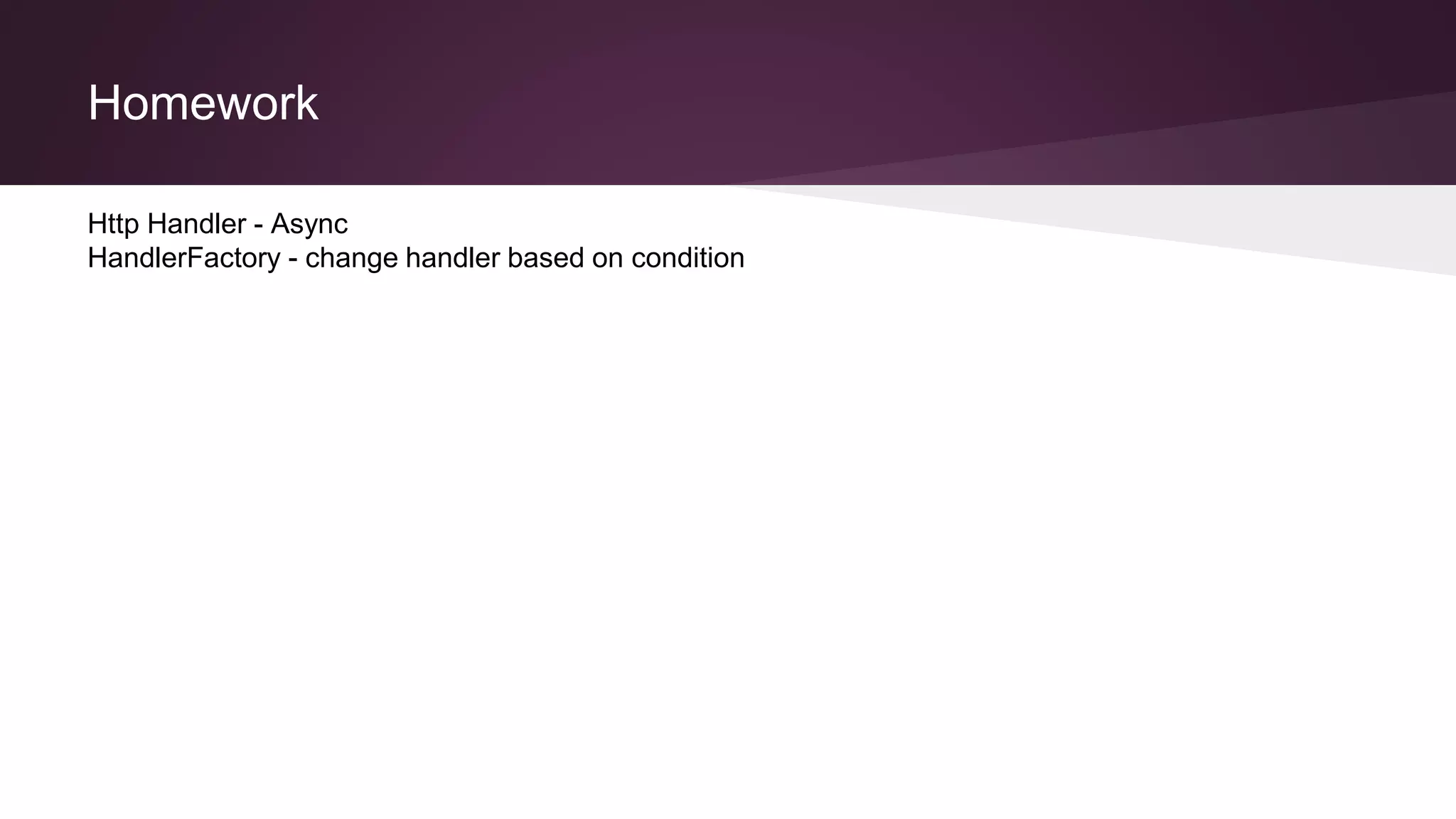

- 30. Homework Http Handler -Async HandlerFactory - change handler based on condition

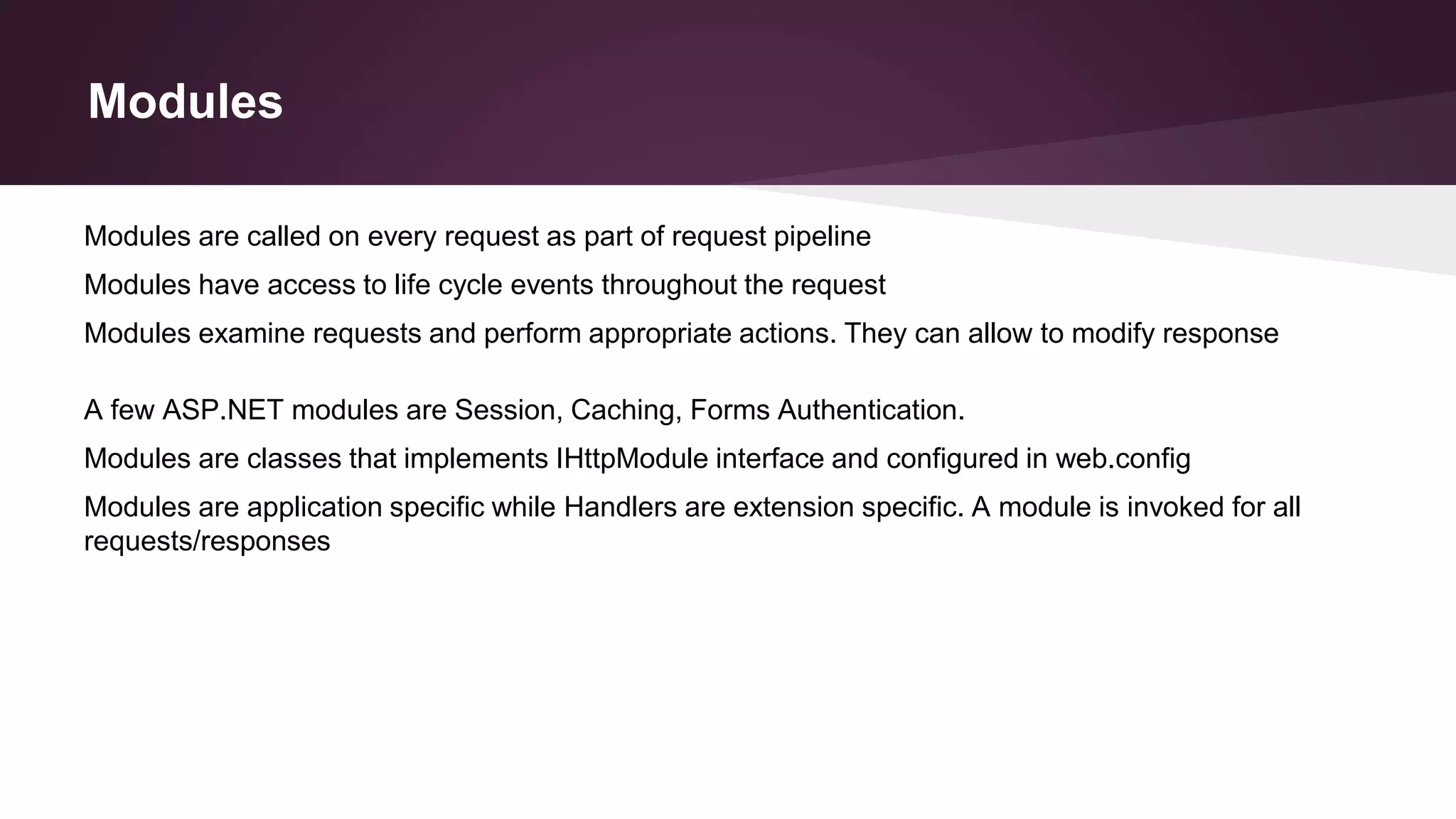

- 31. Modules Modules are classesthat implements IHttpModule interface and configured in web.config Modules are application specific while Handlers are extension specific. A module is invoked for all requests/responses Modules are called on every request as part of request pipeline Modules have access to life cycle events throughout the request Modules examine requests and perform appropriate actions. They can allow to modify response A few ASP.NET modules are Session, Caching, Forms Authentication.

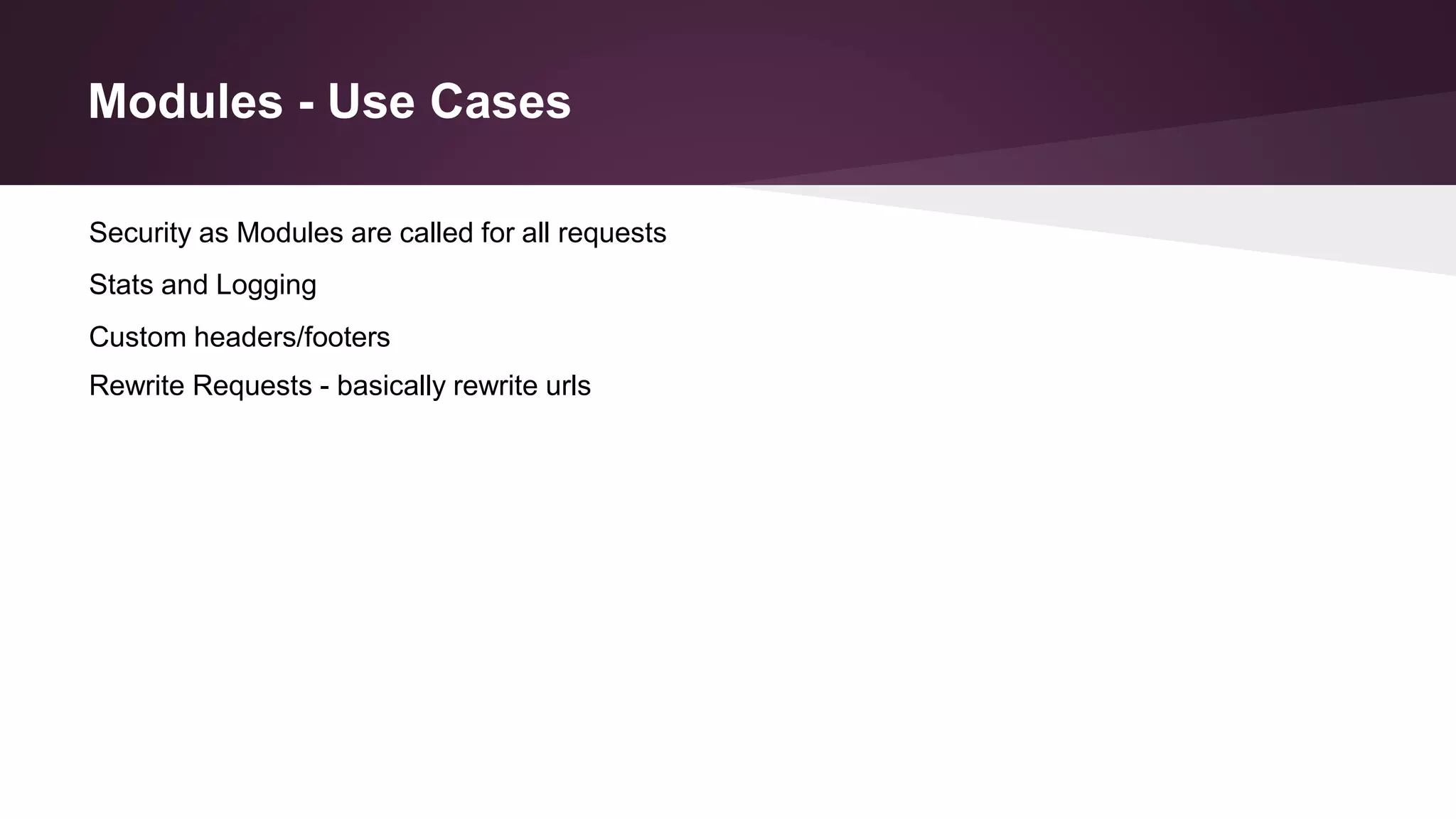

- 32. Modules - UseCases Custom headers/footers Rewrite Requests - basically rewrite urls Security as Modules are called for all requests Stats and Logging

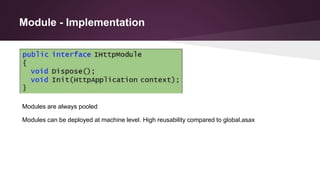

- 33. Module - Implementation Modulesare always pooled Modules can be deployed at machine level. High reusability compared to global.asax

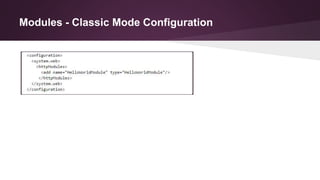

- 34. Modules - ClassicMode Configuration

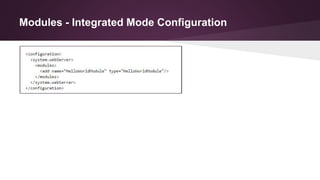

- 35. Modules - IntegratedMode Configuration

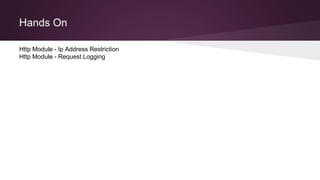

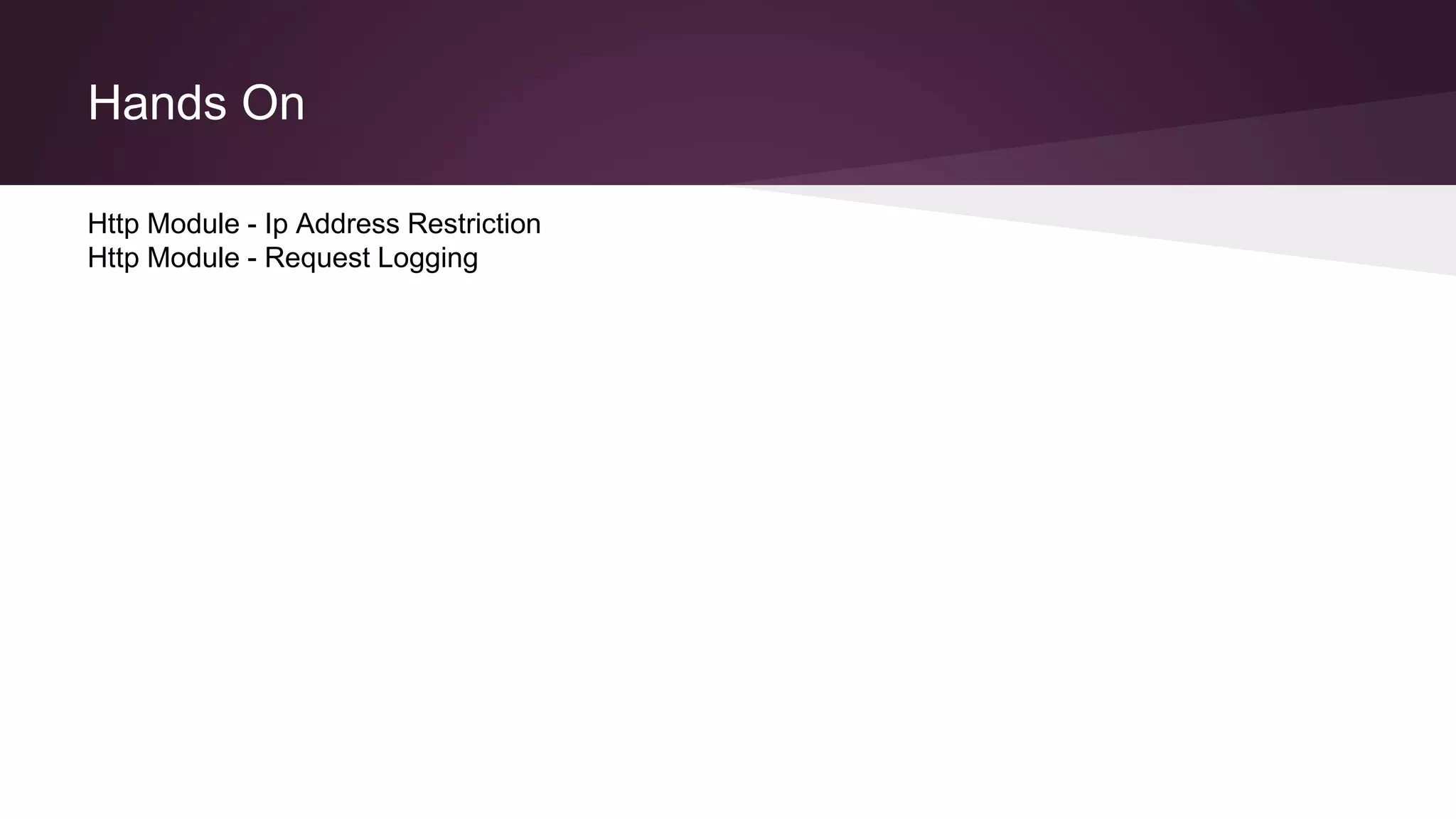

- 36. Hands On Http Module- Ip Address Restriction Http Module - Request Logging

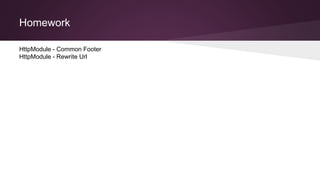

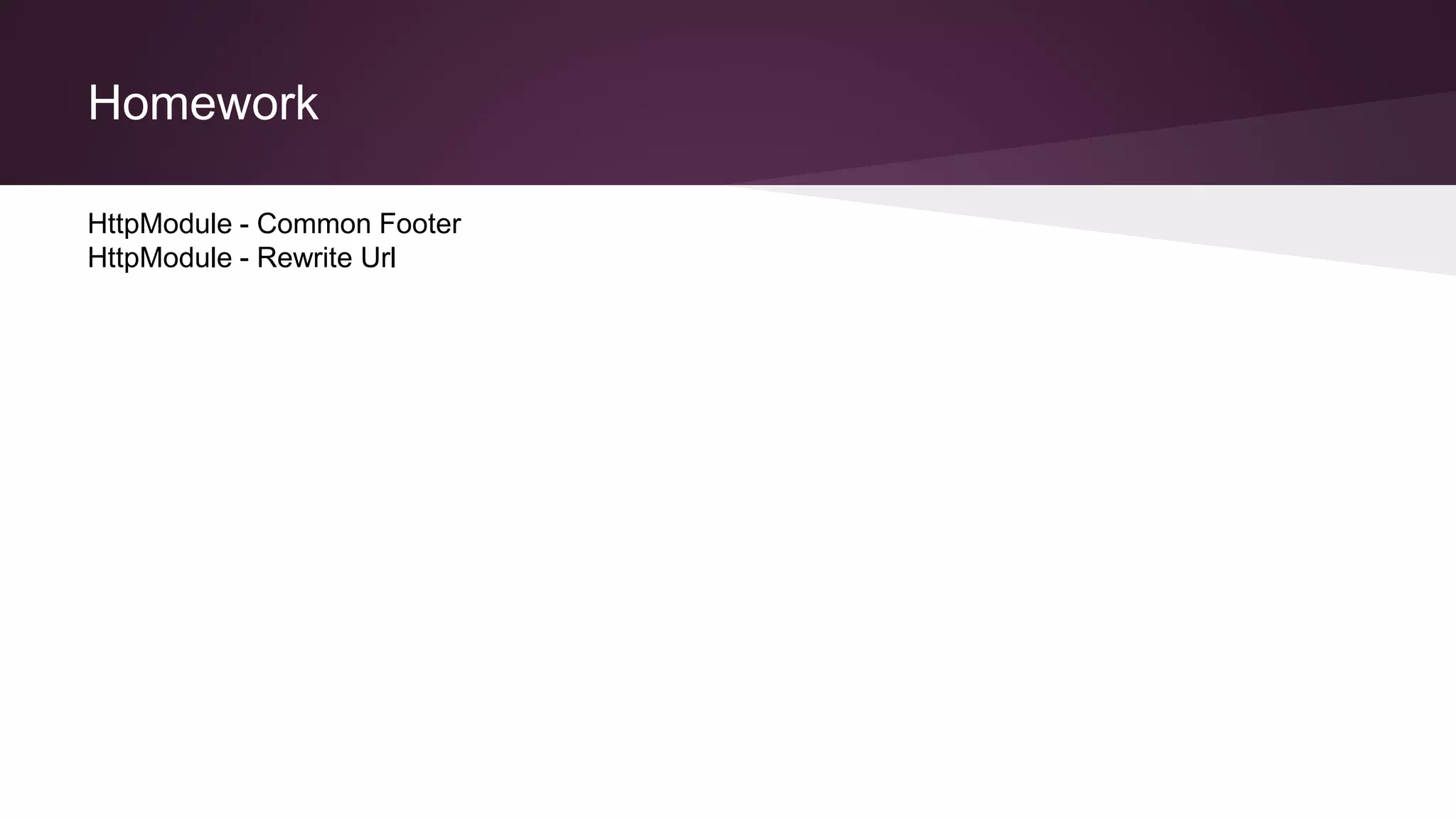

- 37. Homework HttpModule - CommonFooter HttpModule - Rewrite Url

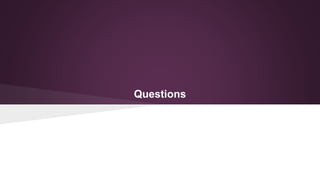

- 38.
Editor's Notes

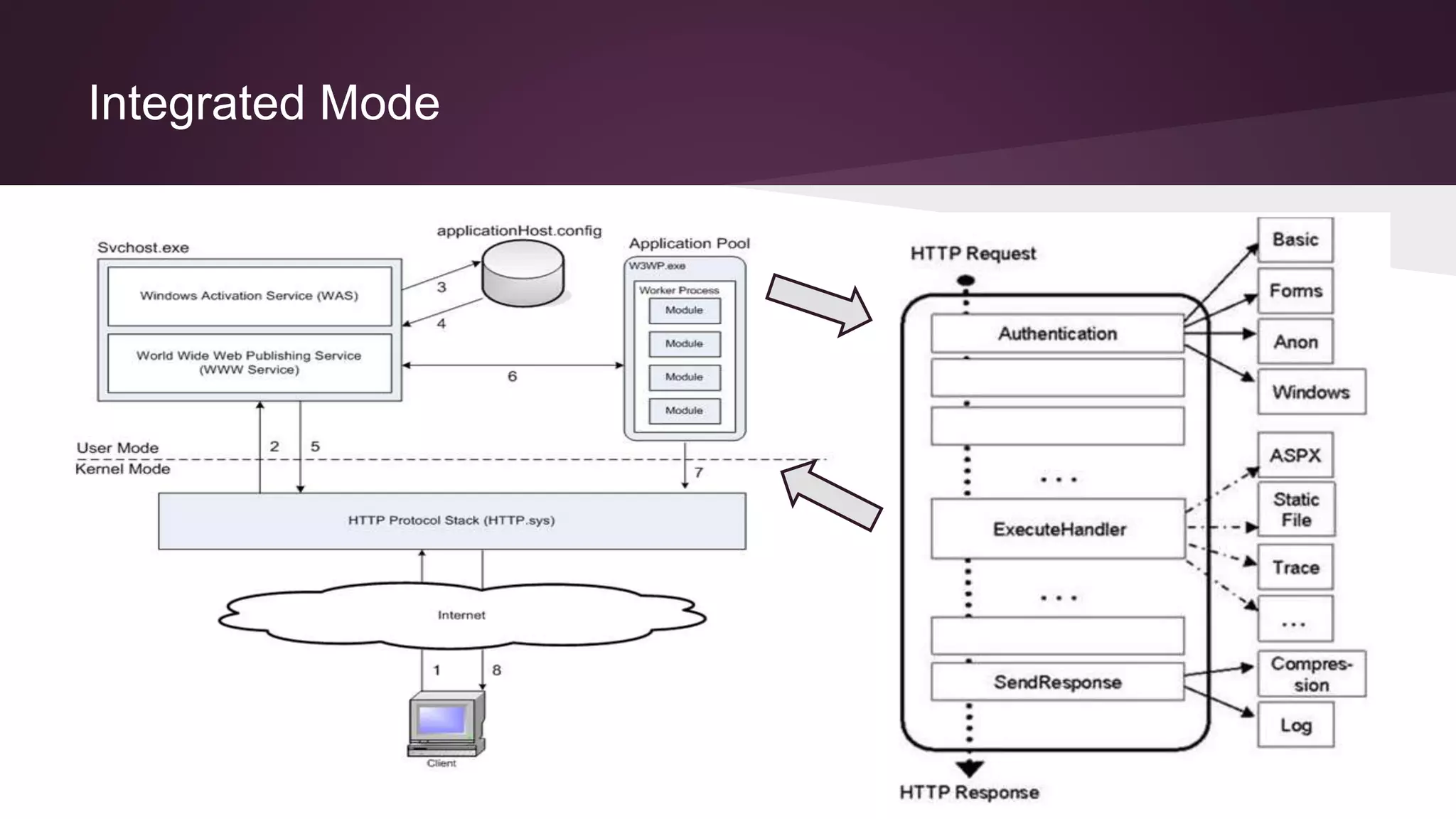

- #10 The following list describes the request-processing flow that is shown in Figure 1: When a client browser initiates an HTTP request for a resource on the Web server, HTTP.sys intercepts the request. HTTP.sys contacts WAS to obtain information from the configuration store. WAS requests configuration information from the configuration store, applicationHost.config. The WWW Service receives configuration information, such as application pool and site configuration. The WWW Service uses the configuration information to configure HTTP.sys. WAS starts a worker process for the application pool to which the request was made. The worker process processes the request and returns a response to HTTP.sys. The client receives a response.
