Hyperloop
- 1. c.svensson@cgi.com, @connysvensson dev:mobile 22May 2014 Conny Svensson Managing Architect and Strategist Mobility Hyperloop - new frontiers

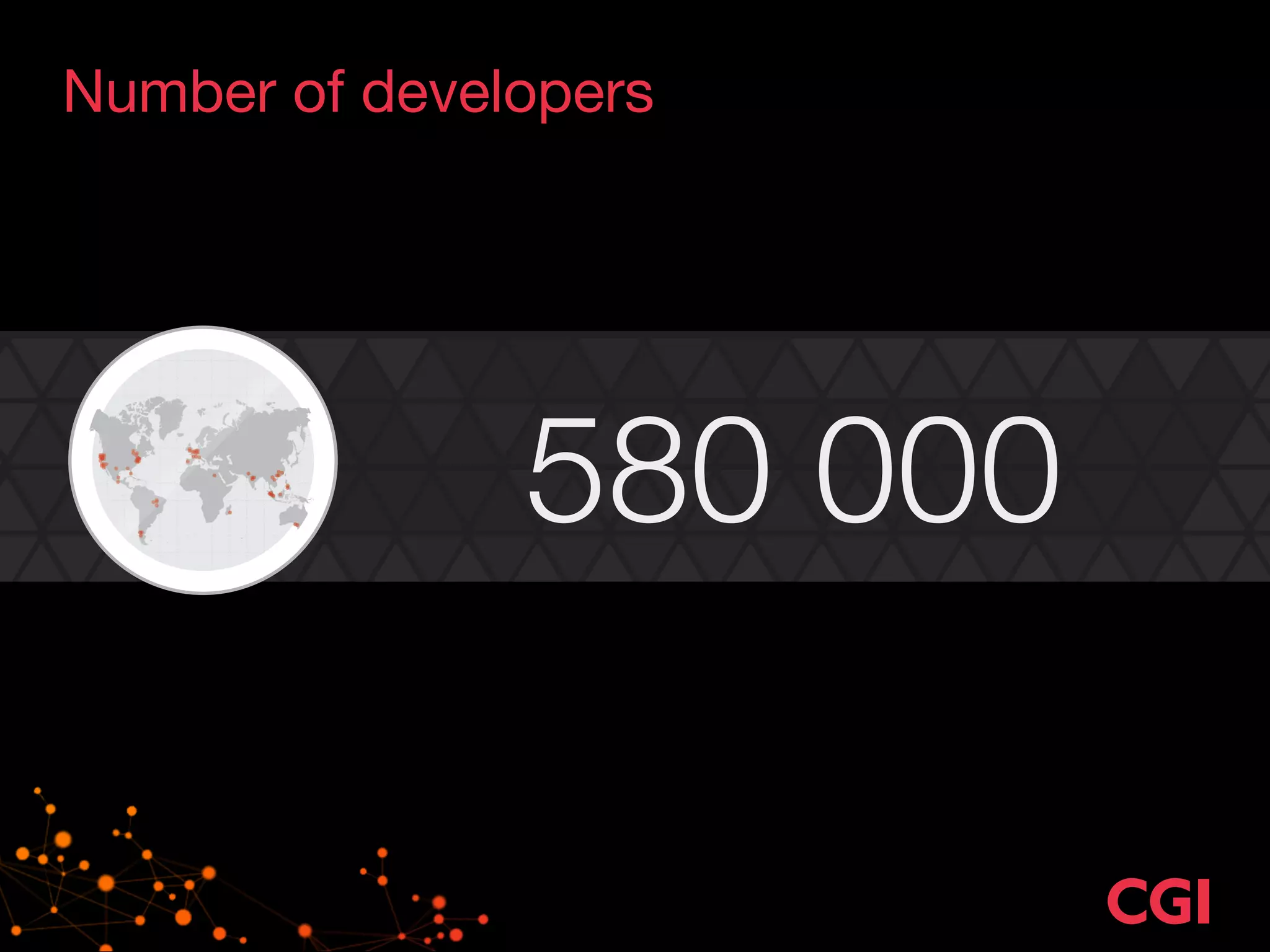

- 3.

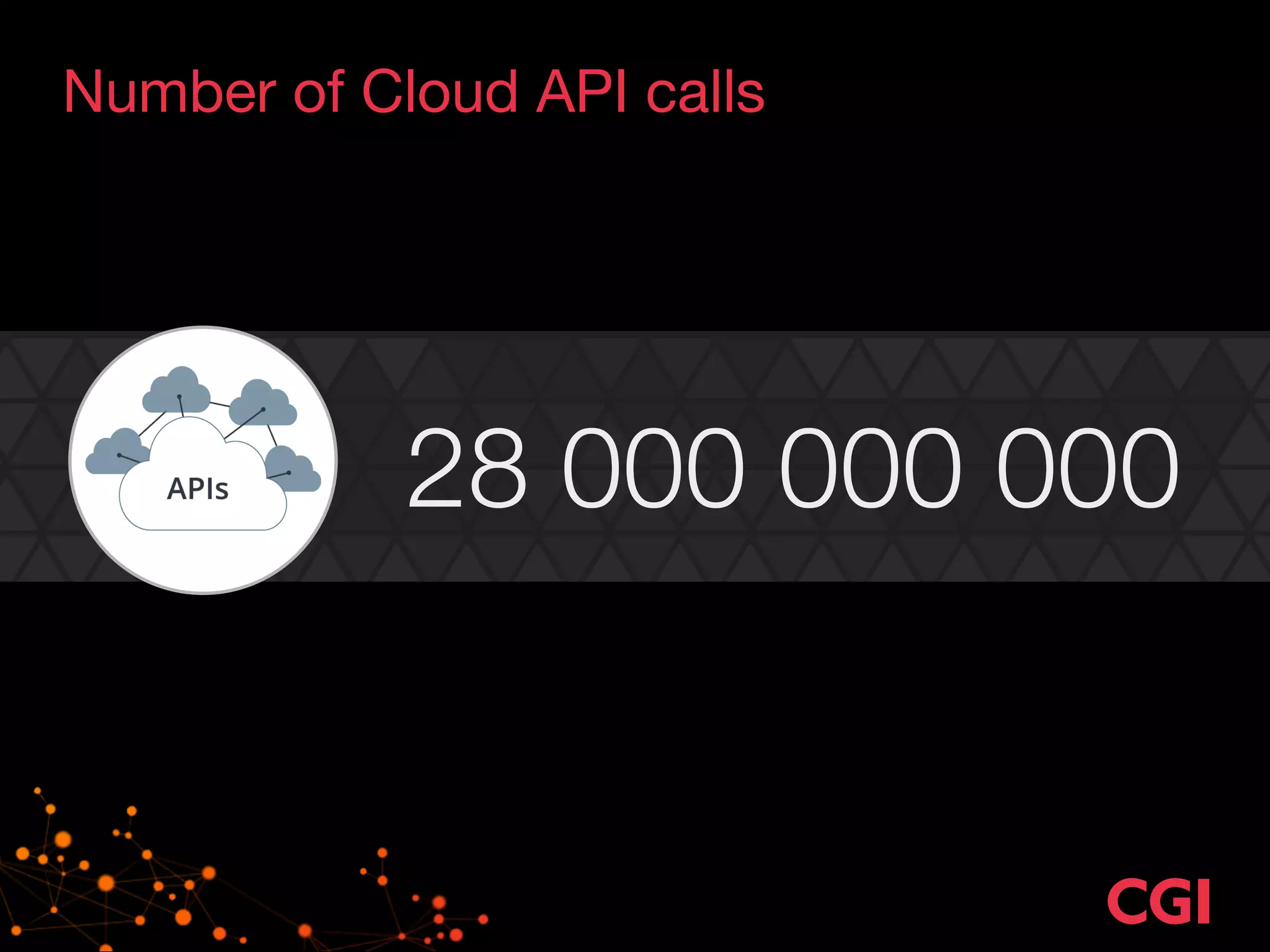

- 4. Number of CloudAPI calls 28 000 000 000

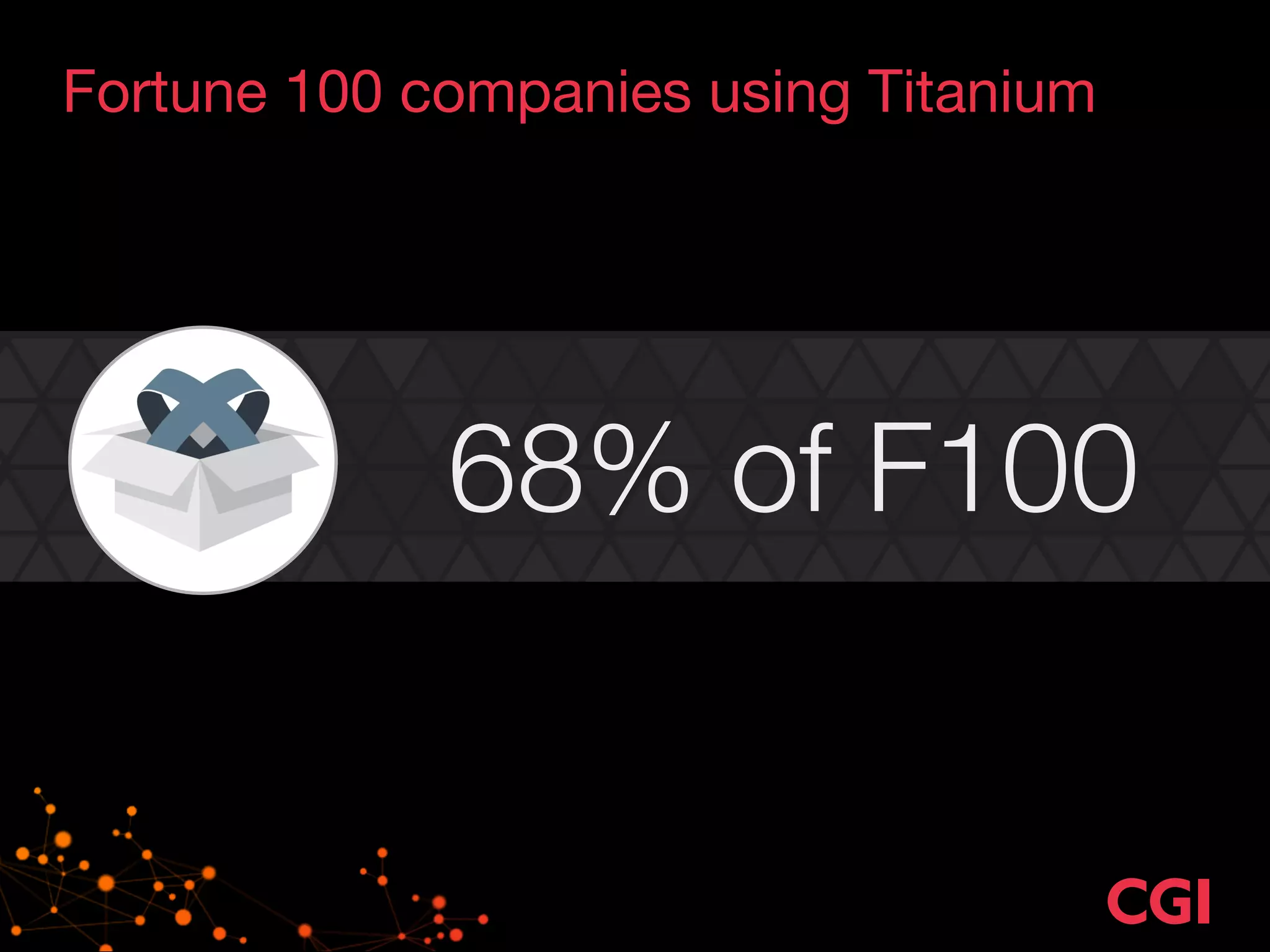

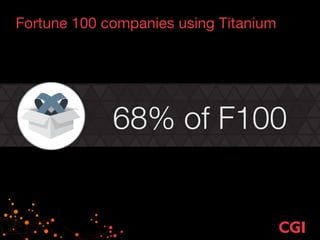

- 5. Fortune 100 companiesusing Titanium 68% of F100

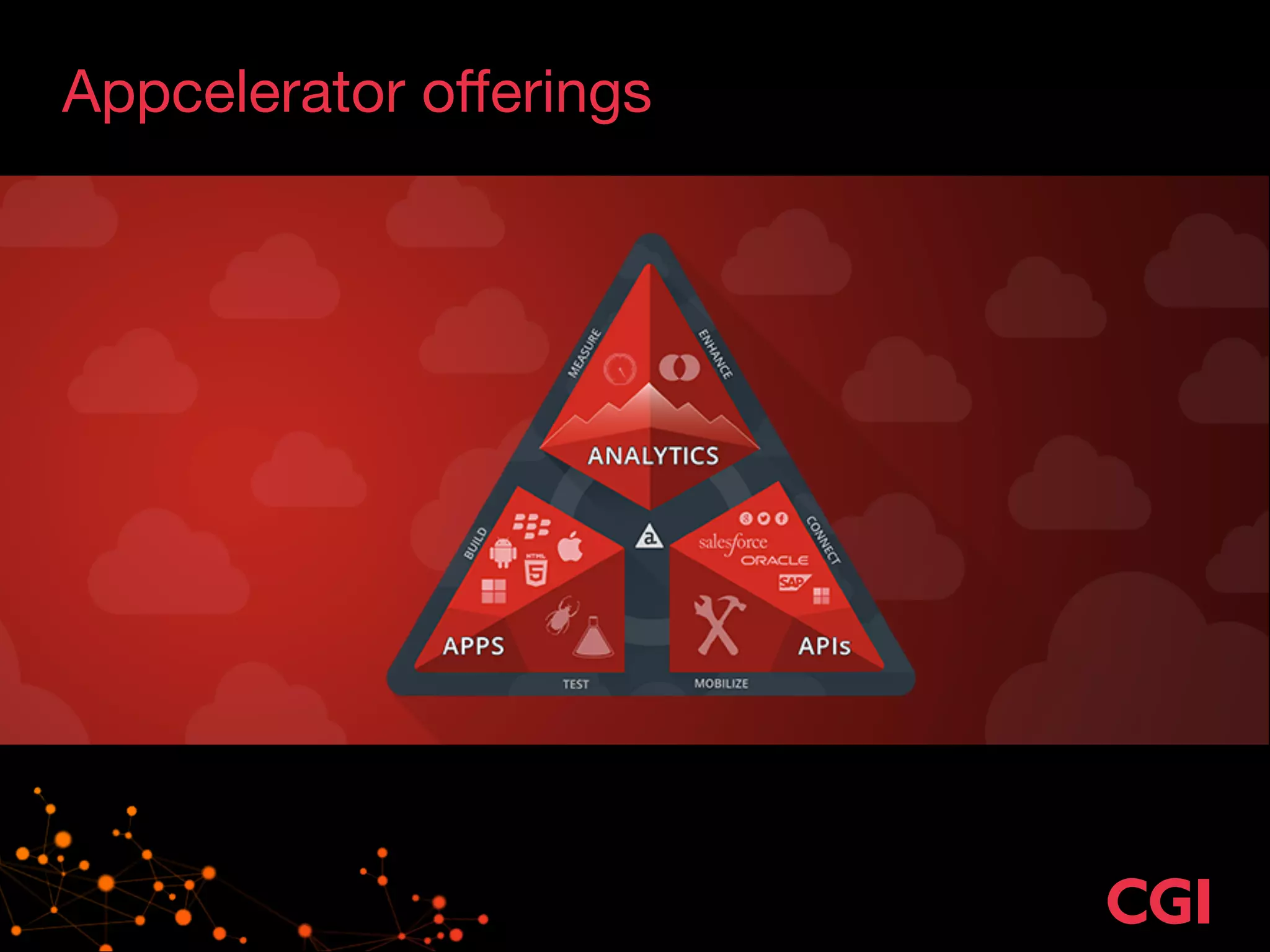

- 6.

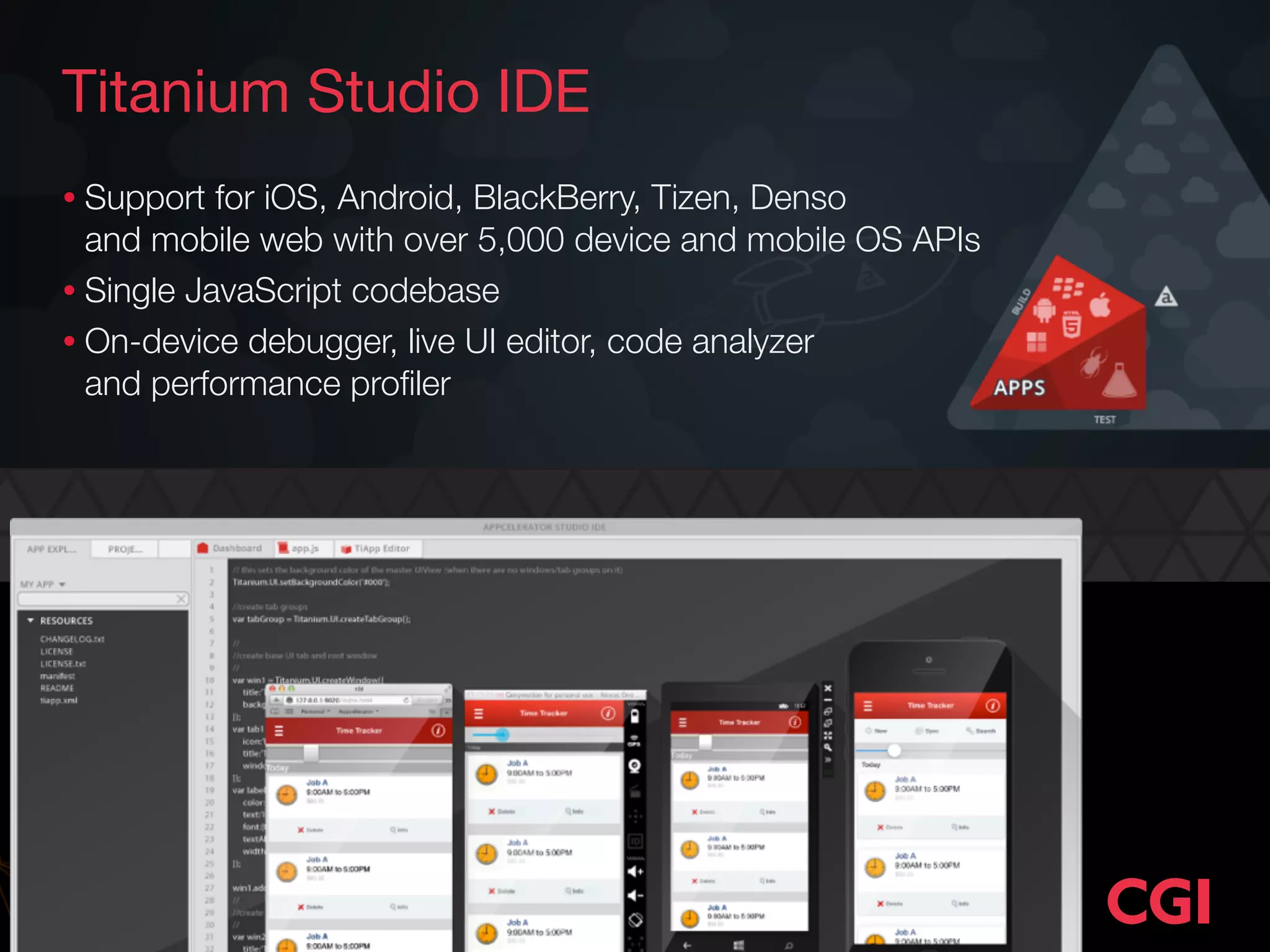

- 7. Titanium Studio IDE •Support for iOS, Android, BlackBerry, Tizen, Denso and mobile web with over 5,000 device and mobile OS APIs • Single JavaScript codebase • On-device debugger, live UI editor, code analyzer and performance profiler

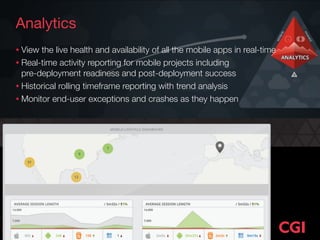

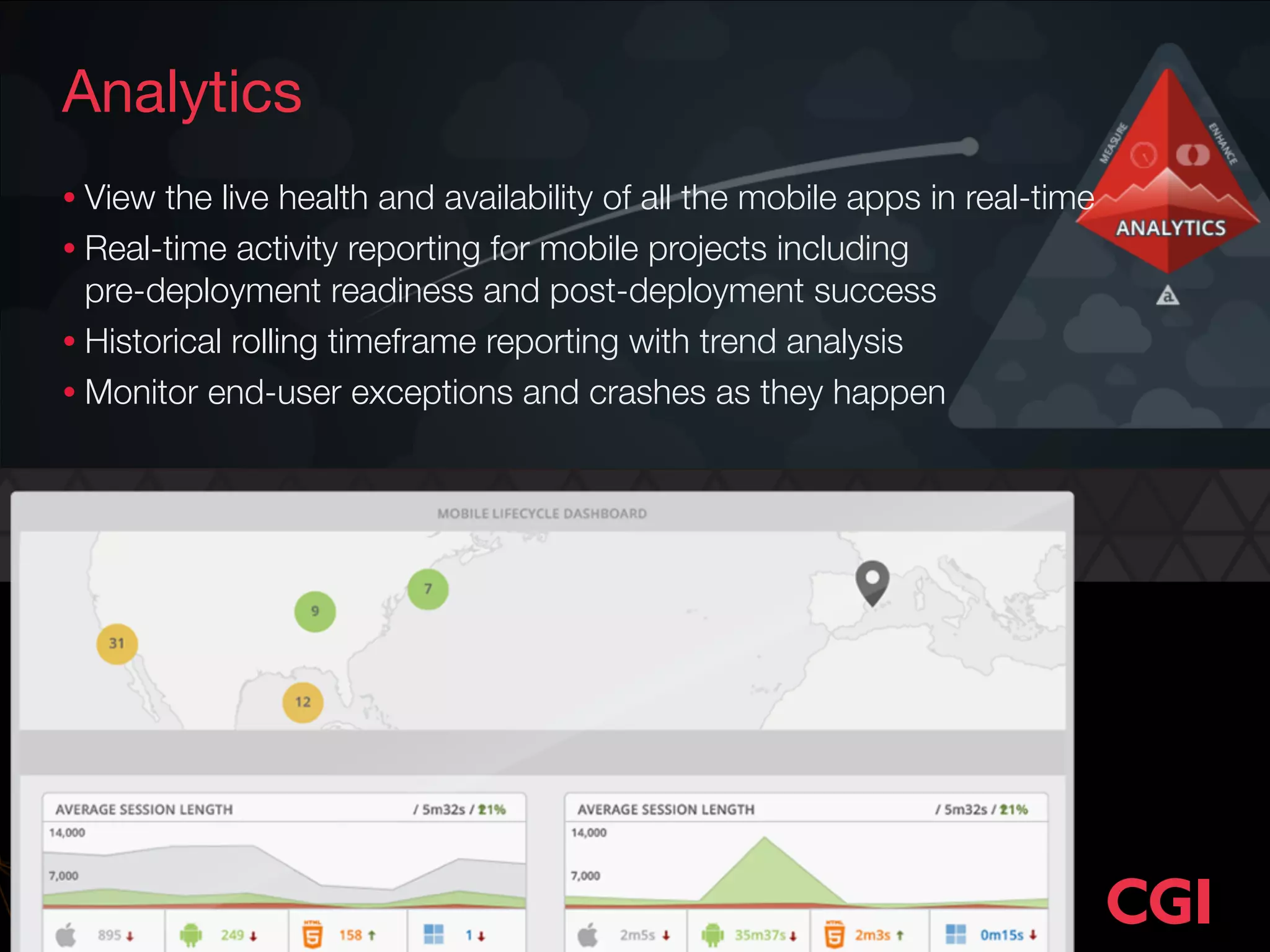

- 8. Analytics • View thelive health and availability of all the mobile apps in real-time • Real-time activity reporting for mobile projects including pre-deployment readiness and post-deployment success • Historical rolling timeframe reporting with trend analysis • Monitor end-user exceptions and crashes as they happen

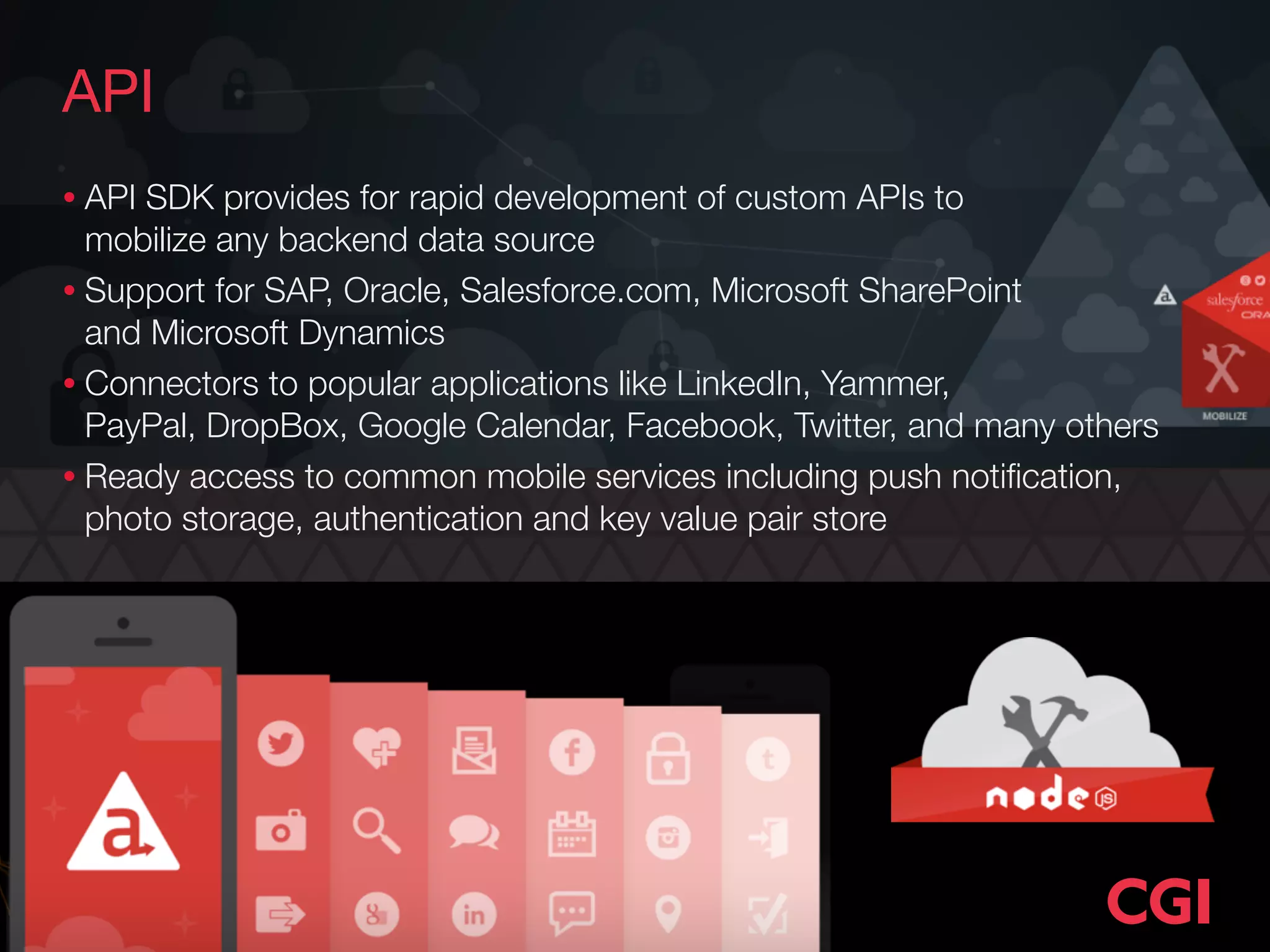

- 9. API • API SDKprovides for rapid development of custom APIs to mobilize any backend data source • Support for SAP, Oracle, Salesforce.com, Microsoft SharePoint and Microsoft Dynamics • Connectors to popular applications like LinkedIn, Yammer, PayPal, DropBox, Google Calendar, Facebook, Twitter, and many others • Ready access to common mobile services including push notification, photo storage, authentication and key value pair store
- 10.

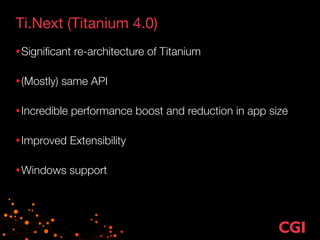

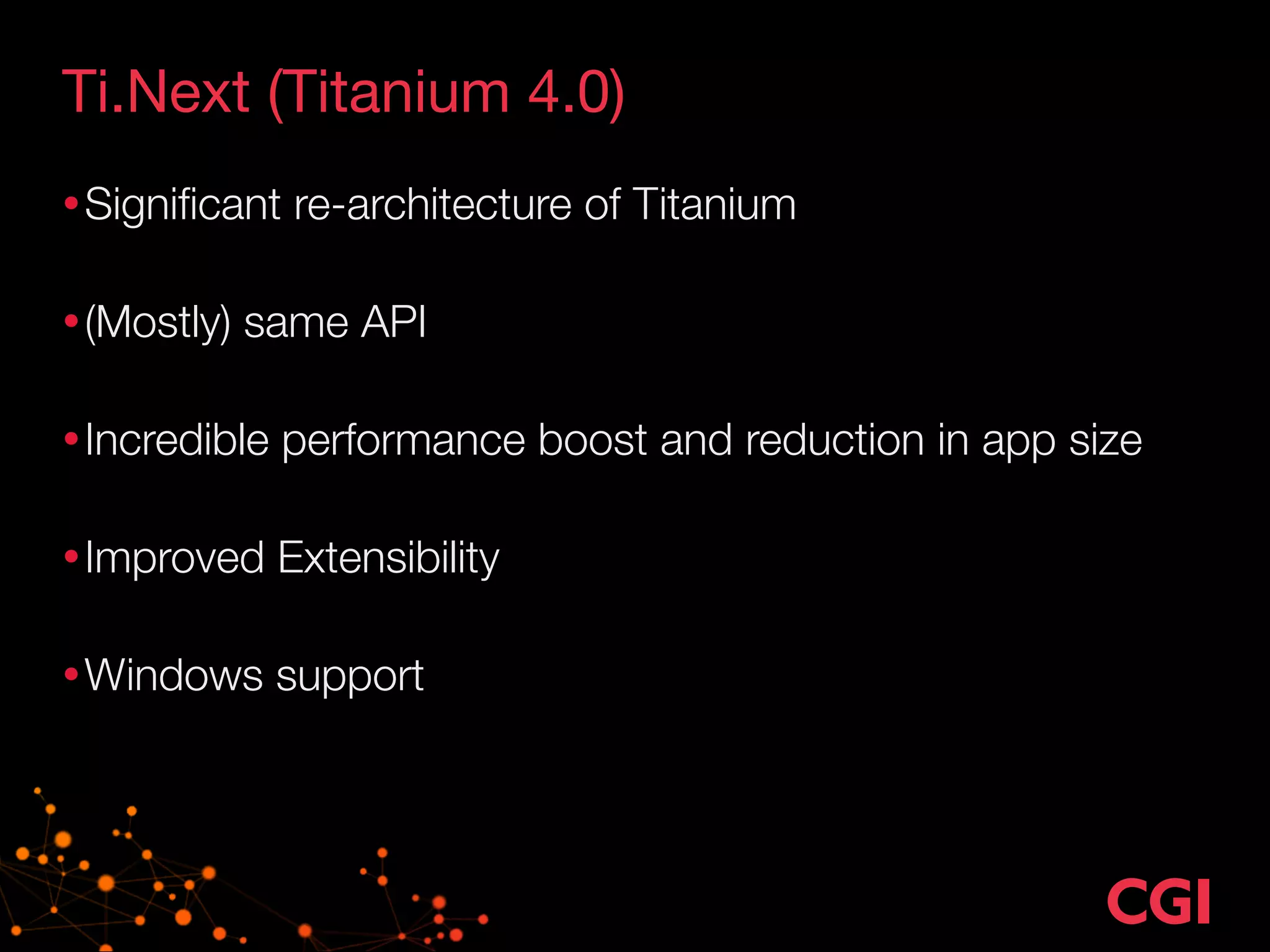

- 11. Ti.Next (Titanium 4.0) •Significantre-architecture of Titanium •(Mostly) same API •Incredible performance boost and reduction in app size •Improved Extensibility •Windows support

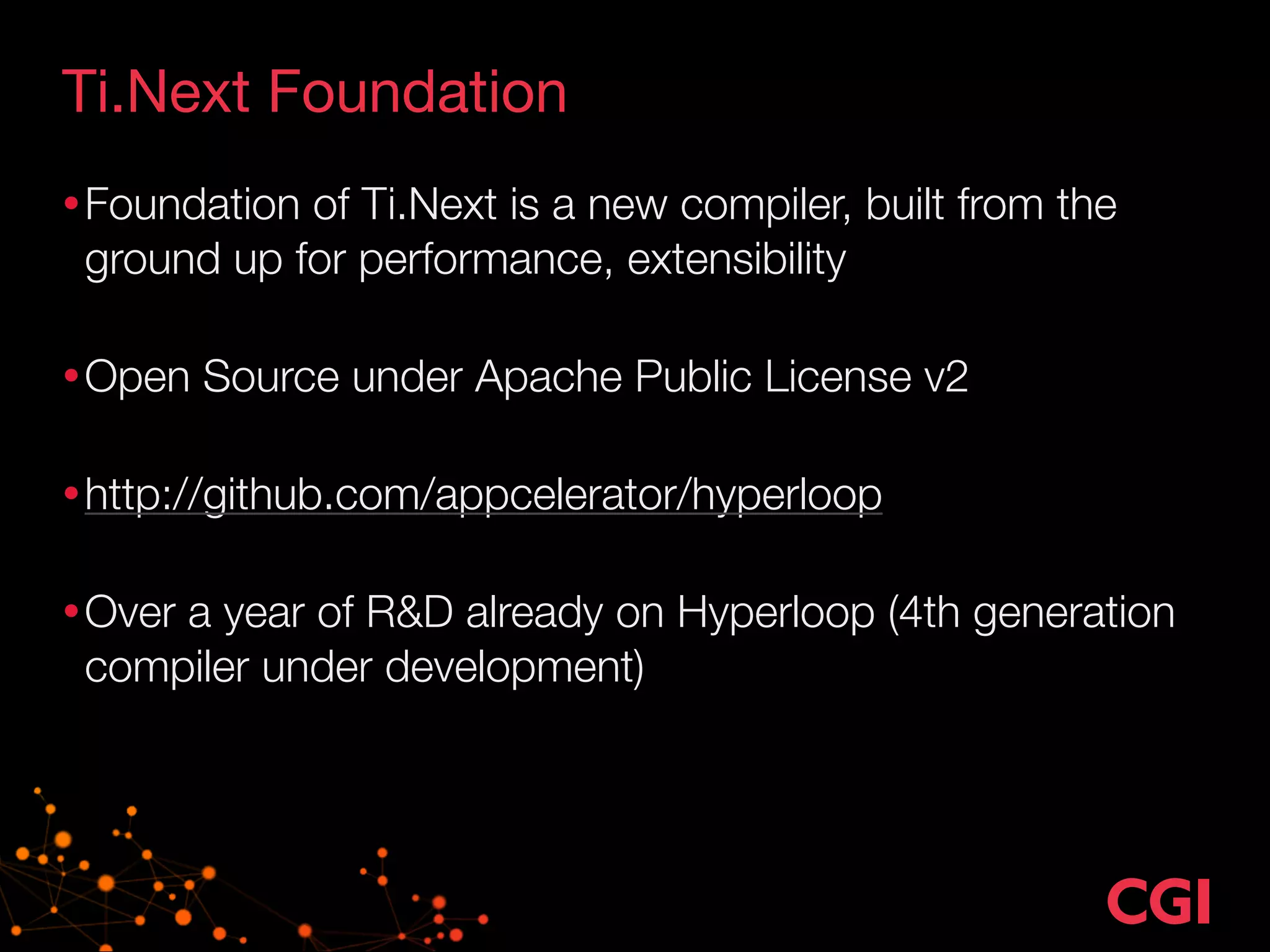

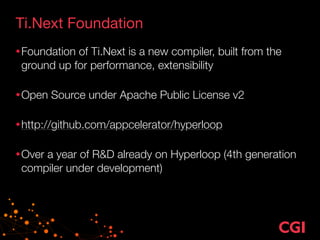

- 12. Ti.Next Foundation •Foundation ofTi.Next is a new compiler, built from the ground up for performance, extensibility •Open Source under Apache Public License v2 •http://github.com/appcelerator/hyperloop •Over a year of R&D already on Hyperloop (4th generation compiler under development)

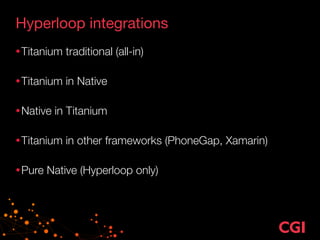

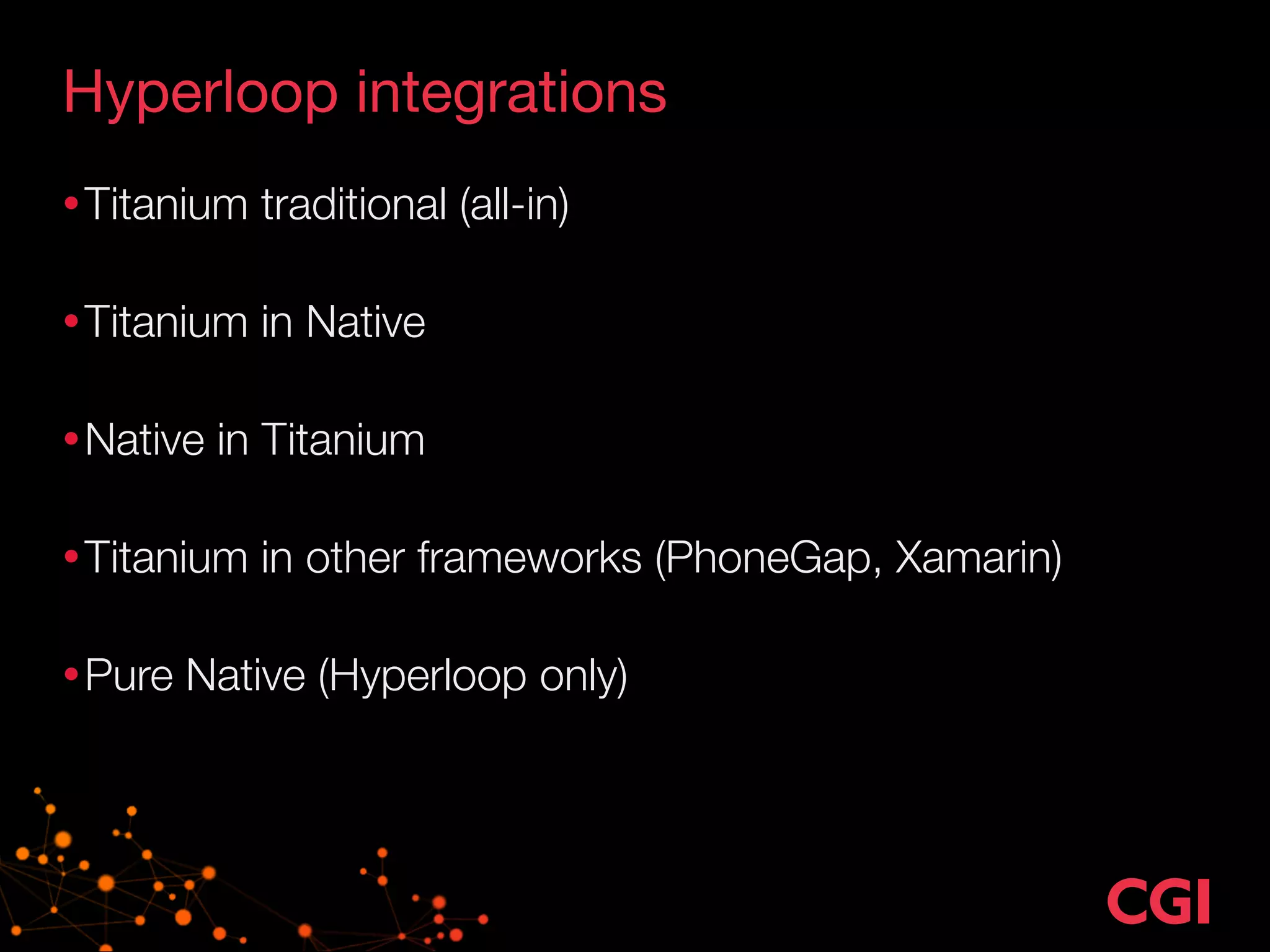

- 13. Hyperloop integrations •Titanium traditional(all-in) •Titanium in Native •Native in Titanium •Titanium in other frameworks (PhoneGap, Xamarin) •Pure Native (Hyperloop only)

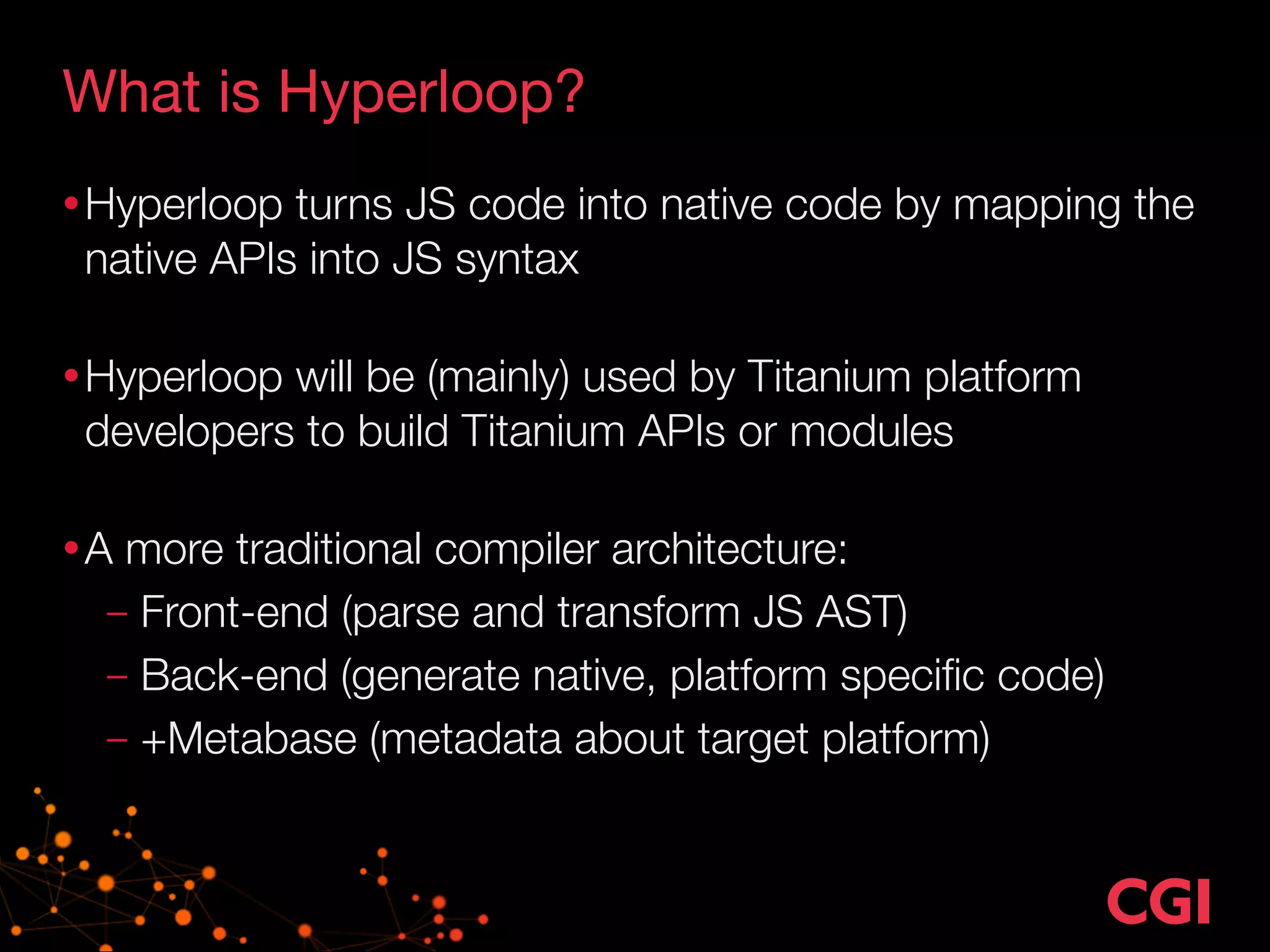

- 14. What is Hyperloop? •Hyperloopturns JS code into native code by mapping the native APIs into JS syntax •Hyperloop will be (mainly) used by Titanium platform developers to build Titanium APIs or modules •A more traditional compiler architecture: – Front-end (parse and transform JS AST) – Back-end (generate native, platform specific code) – +Metabase (metadata about target platform)

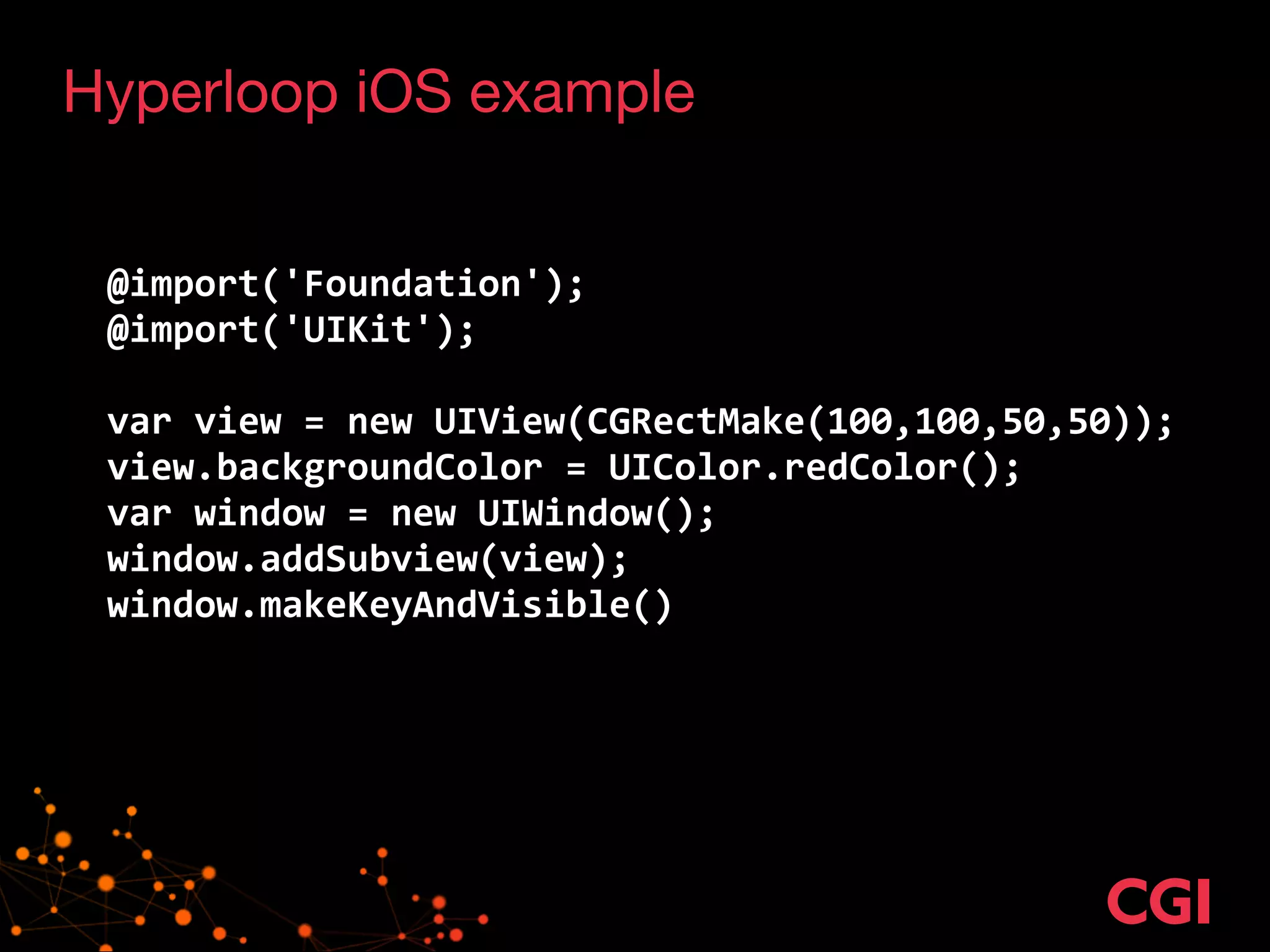

- 15. Hyperloop iOS example ! ! @import('Foundation'); @import('UIKit'); ! var view = new UIView(CGRectMake(100,100,50,50)); view.backgroundColor = UIColor.redColor(); var window = new UIWindow(); window.addSubview(view); window.makeKeyAndVisible()

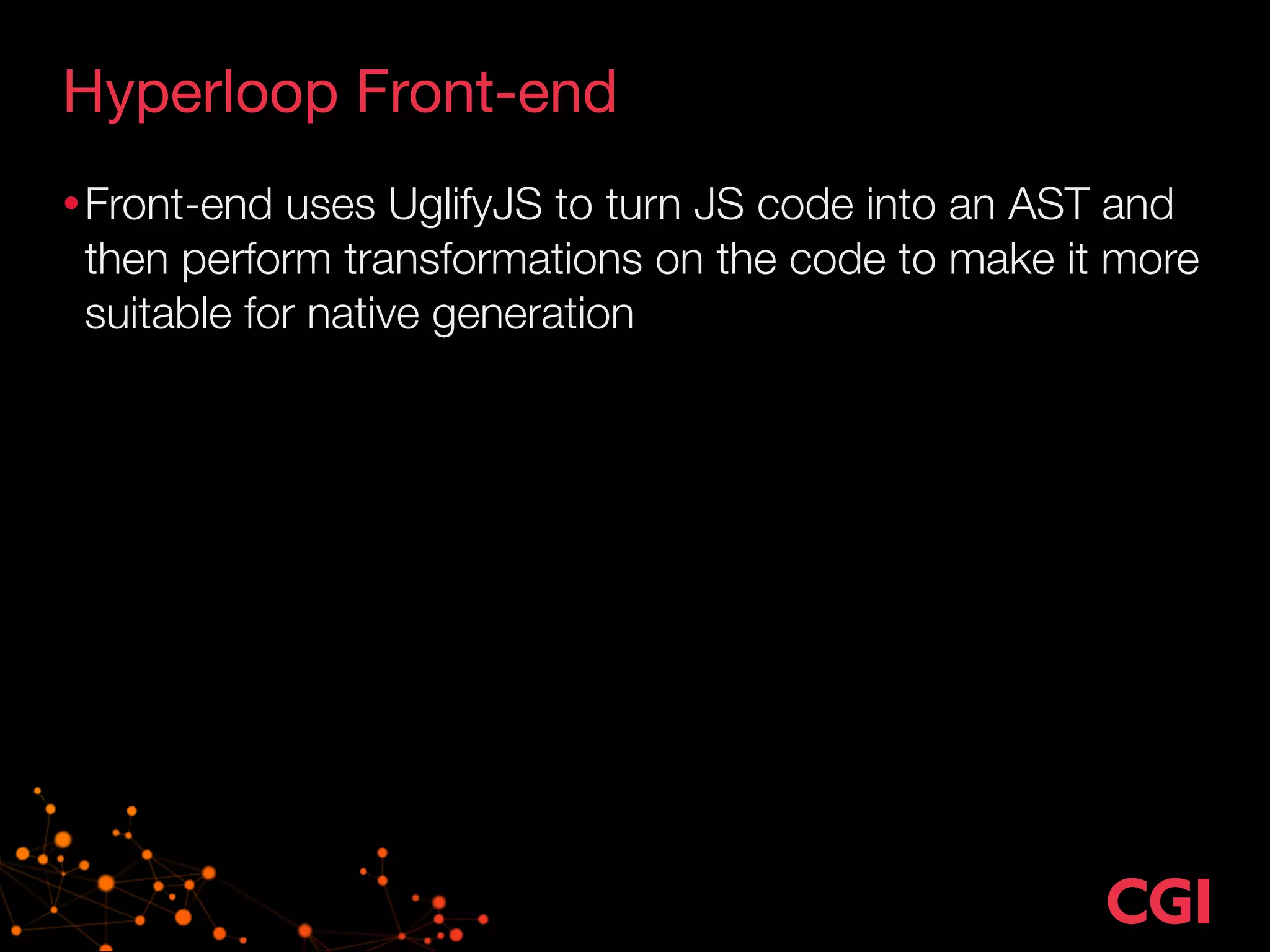

- 16. Hyperloop Front-end •Front-end usesUglifyJS to turn JS code into an AST and then perform transformations on the code to make it more suitable for native generation

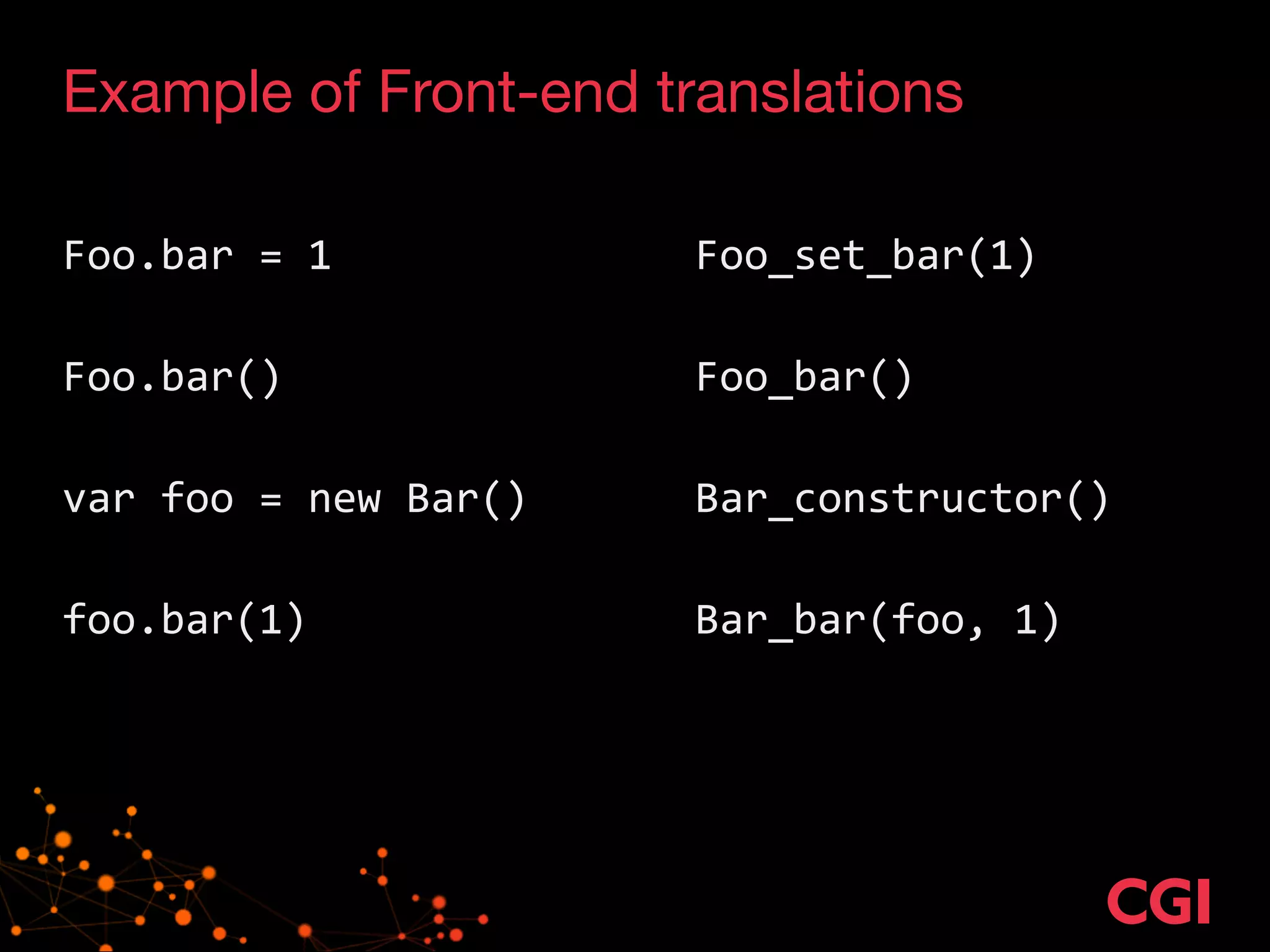

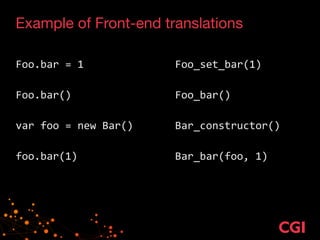

- 17. Example of Front-endtranslations ! Foo.bar = 1 Foo_set_bar(1) ! Foo.bar() Foo_bar() ! var foo = new Bar() Bar_constructor() ! foo.bar(1) Bar_bar(foo, 1)

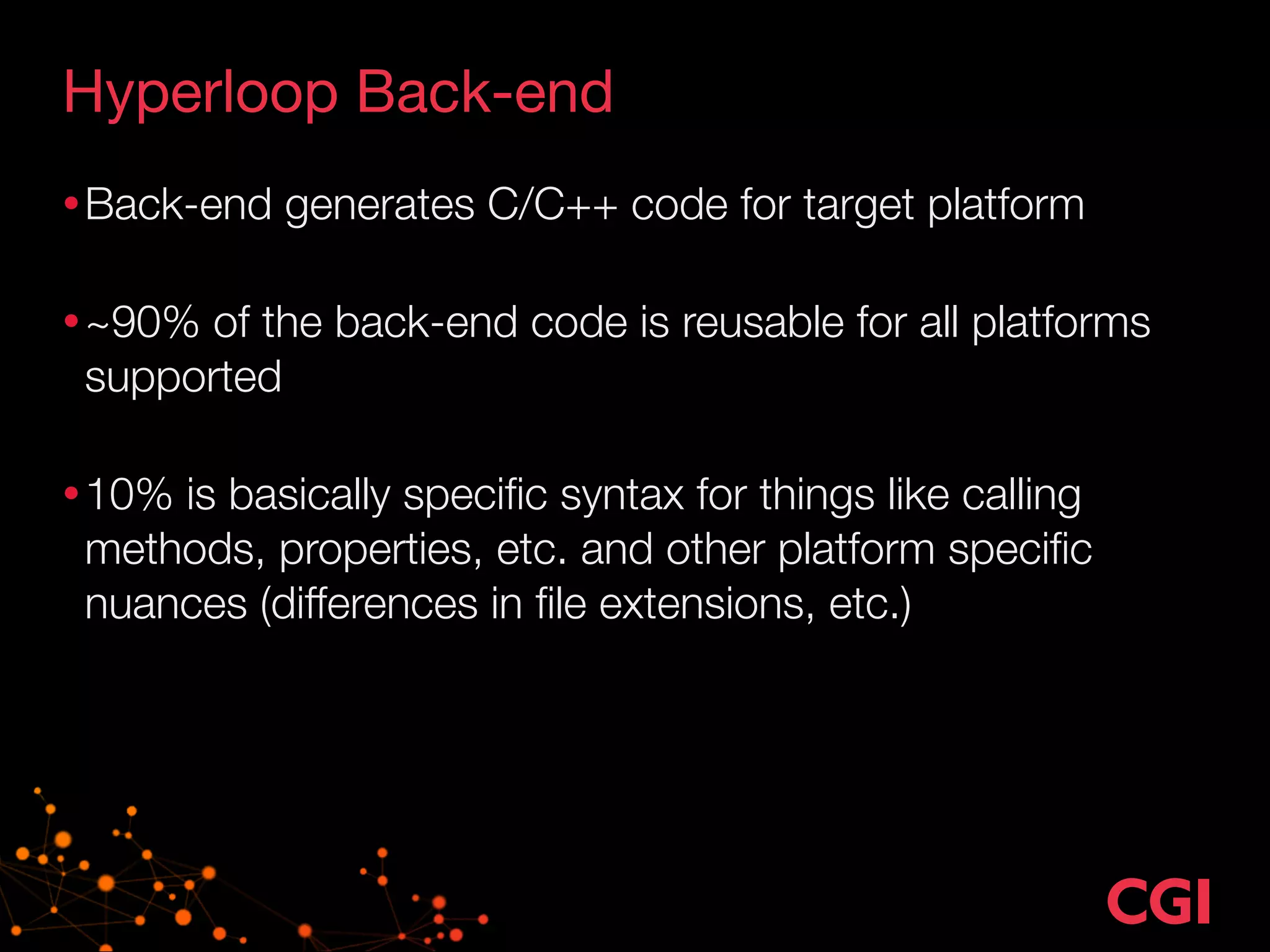

- 18. Hyperloop Back-end •Back-end generatesC/C++ code for target platform •~90% of the back-end code is reusable for all platforms supported •10% is basically specific syntax for things like calling methods, properties, etc. and other platform specific nuances (differences in file extensions, etc.)

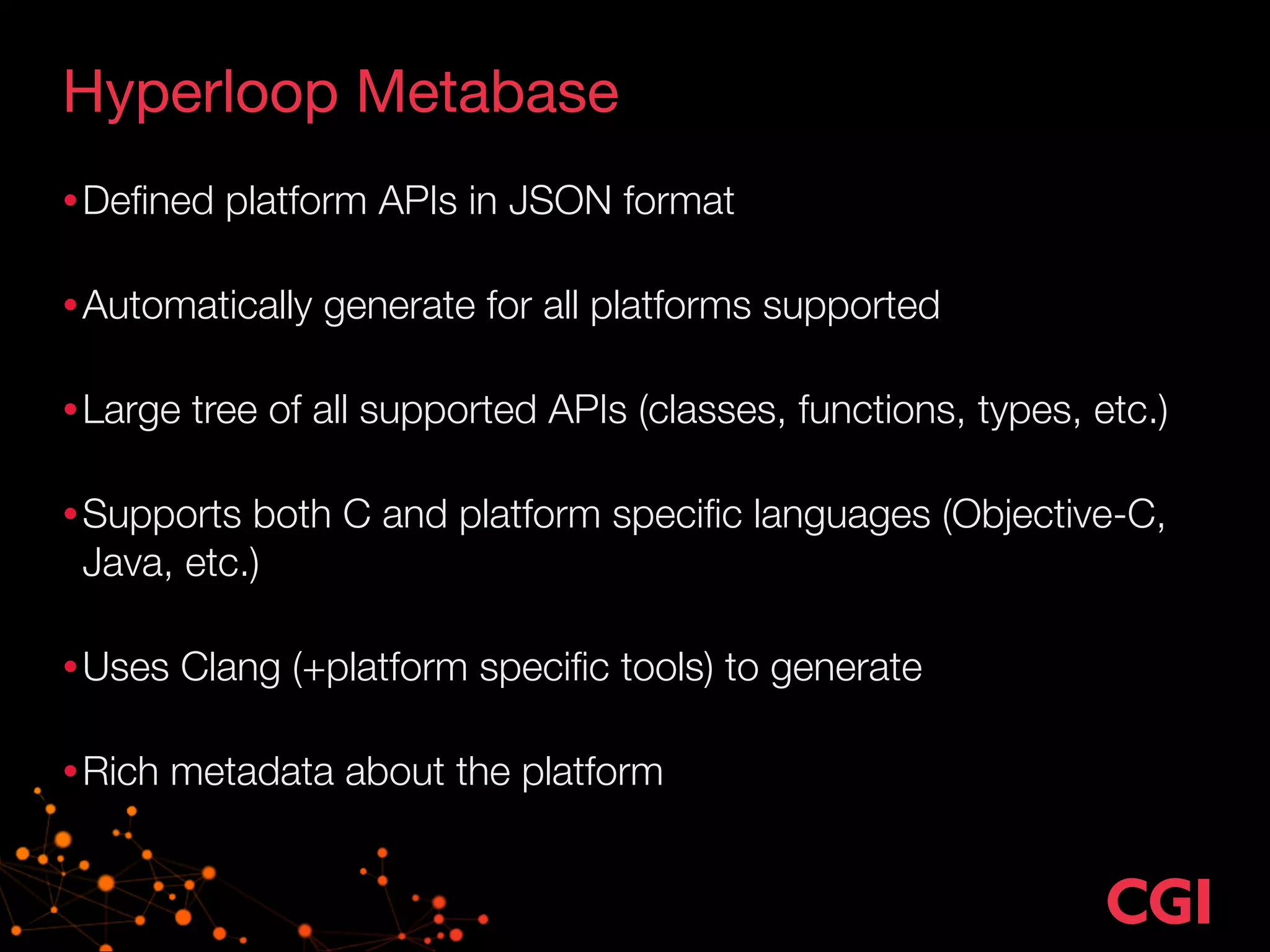

- 19. Hyperloop Metabase •Defined platformAPIs in JSON format •Automatically generate for all platforms supported •Large tree of all supported APIs (classes, functions, types, etc.) •Supports both C and platform specific languages (Objective-C, Java, etc.) •Uses Clang (+platform specific tools) to generate •Rich metadata about the platform

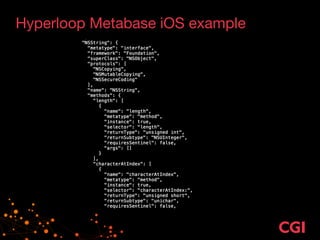

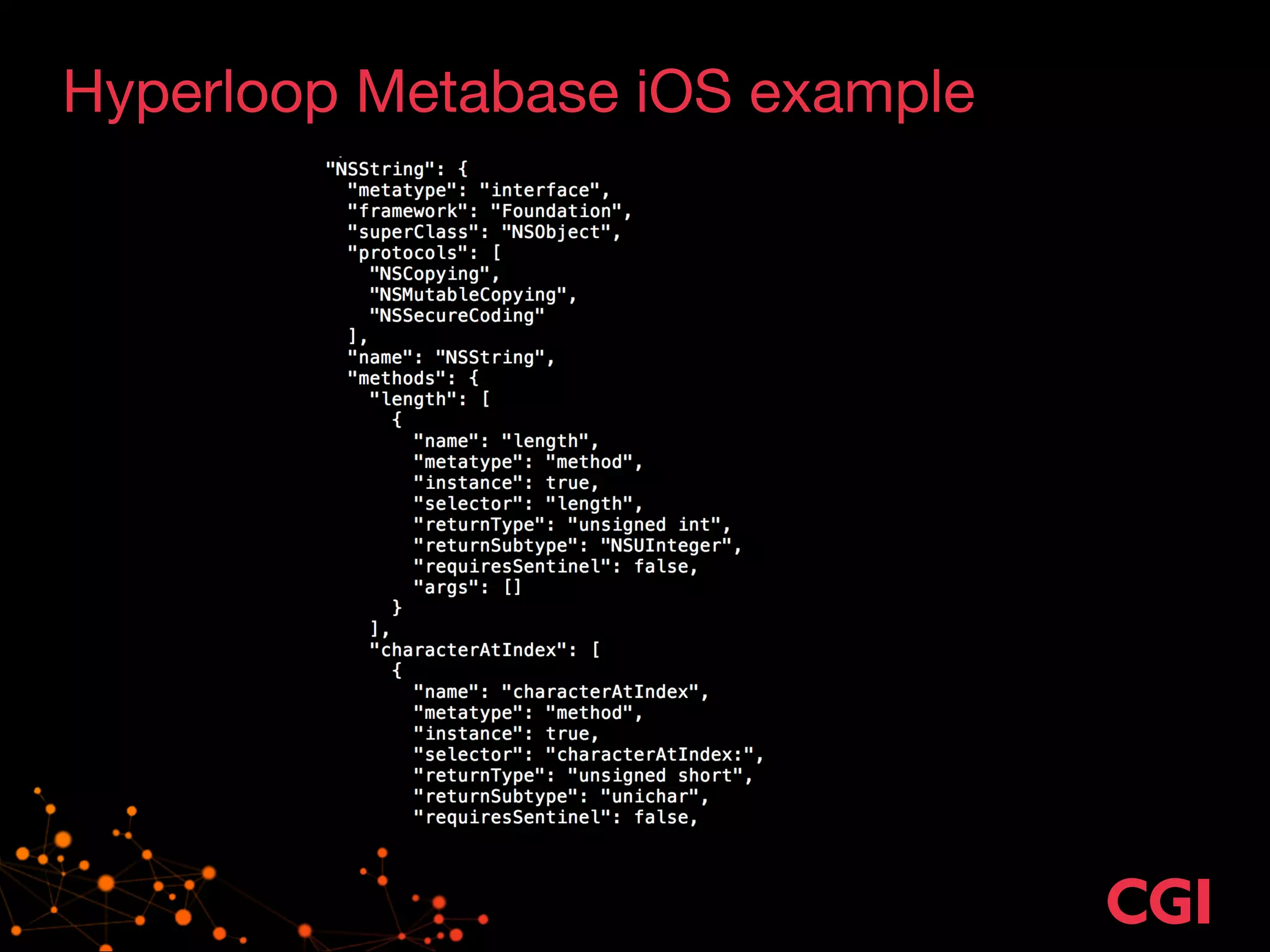

- 20. Hyperloop Metabase iOSexample

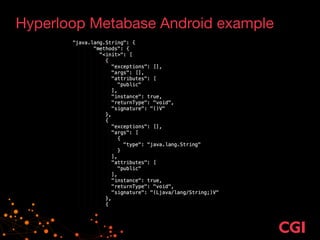

- 21. Hyperloop Metabase Androidexample

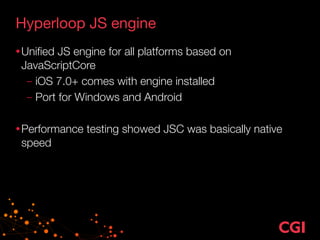

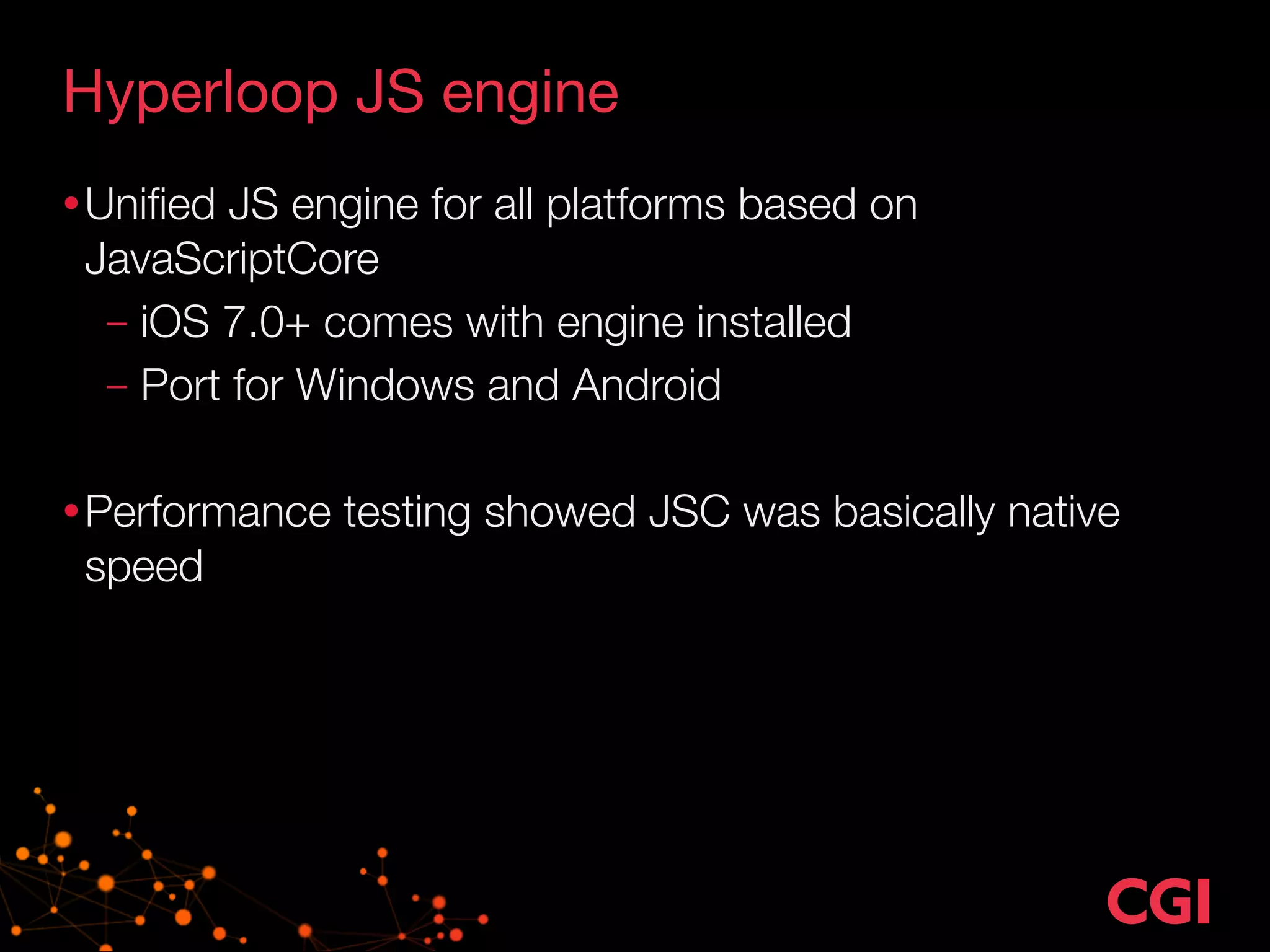

- 22. Hyperloop JS engine •UnifiedJS engine for all platforms based on JavaScriptCore – iOS 7.0+ comes with engine installed – Port for Windows and Android ! •Performance testing showed JSC was basically native speed

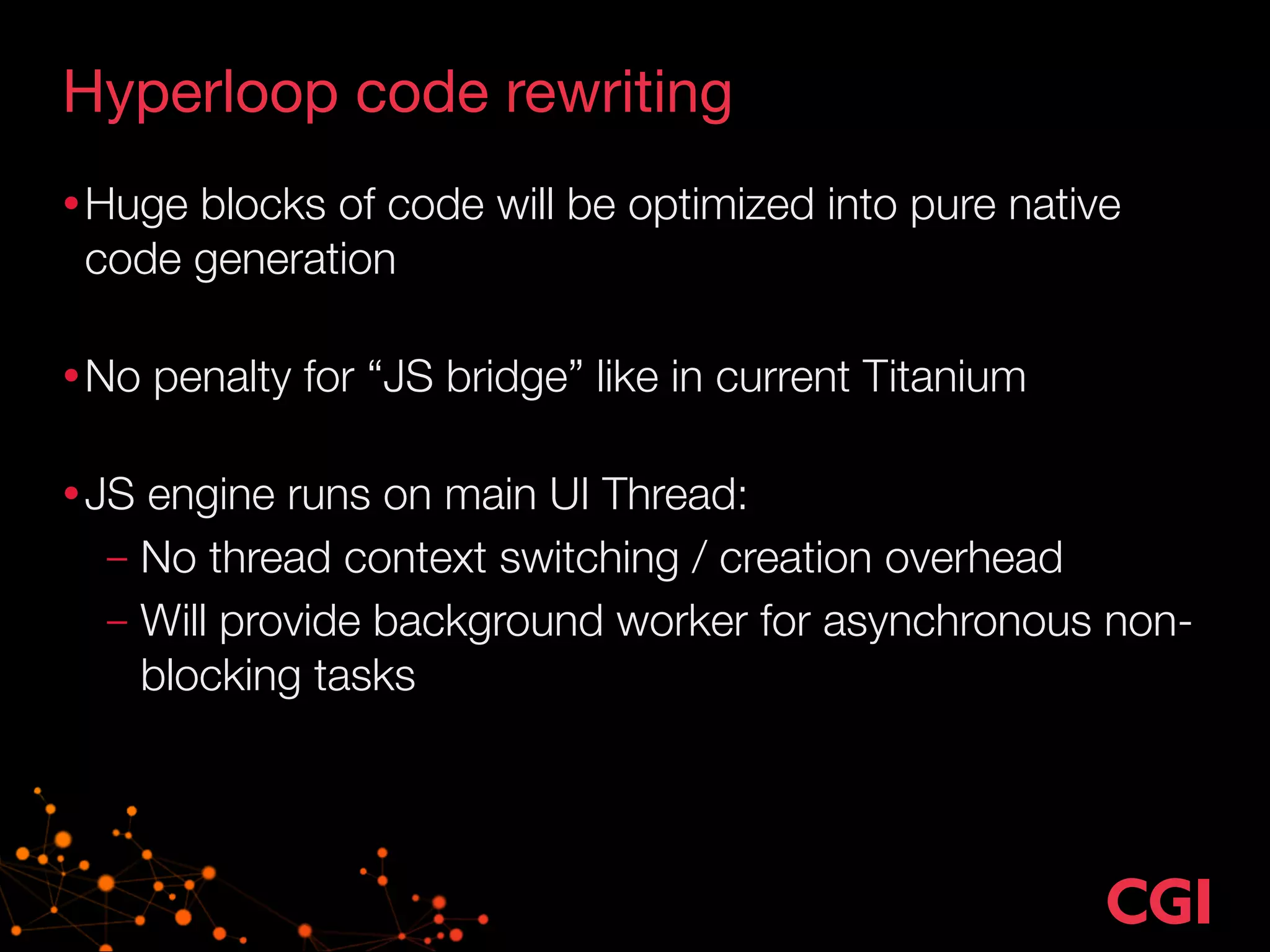

- 23. Hyperloop code rewriting •Hugeblocks of code will be optimized into pure native code generation •No penalty for “JS bridge” like in current Titanium •JS engine runs on main UI Thread: – No thread context switching / creation overhead – Will provide background worker for asynchronous non- blocking tasks
- 24. The proof isin the pudding! DEMO

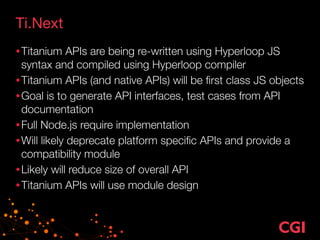

- 25. Ti.Next •Titanium APIs arebeing re-written using Hyperloop JS syntax and compiled using Hyperloop compiler •Titanium APIs (and native APIs) will be first class JS objects •Goal is to generate API interfaces, test cases from API documentation •Full Node.js require implementation •Will likely deprecate platform specific APIs and provide a compatibility module •Likely will reduce size of overall API •Titanium APIs will use module design

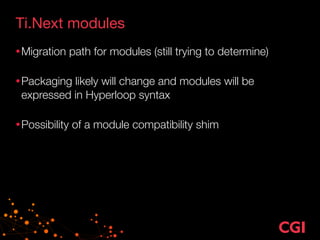

- 26. Ti.Next modules •Migration pathfor modules (still trying to determine) •Packaging likely will change and modules will be expressed in Hyperloop syntax •Possibility of a module compatibility shim
- 27.
