IntoWebGL - Unite Melbourne 2015

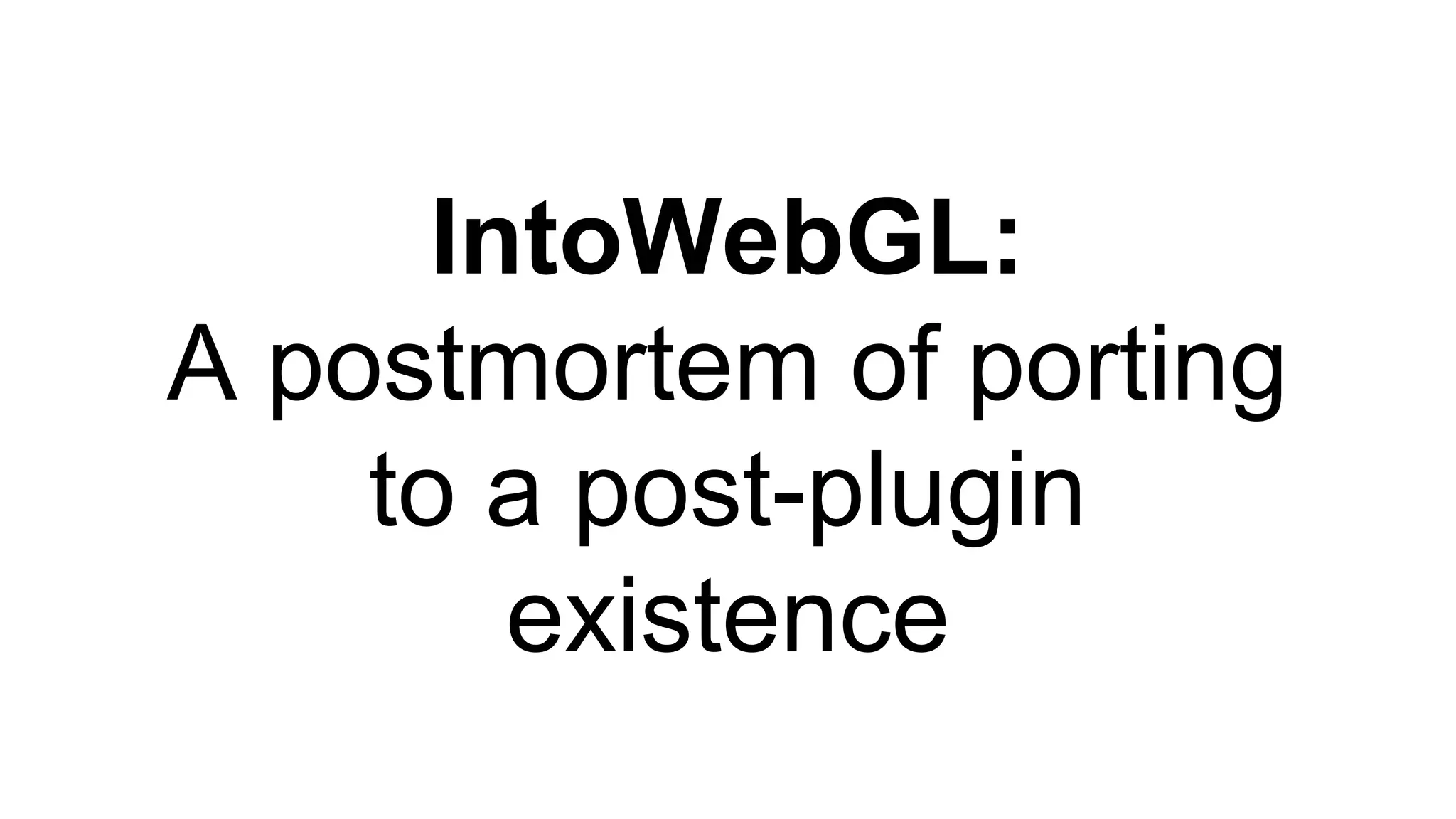

- 1. IntoWebGL: A postmortem ofporting to a post-plugin existence
- 2.
- 3.

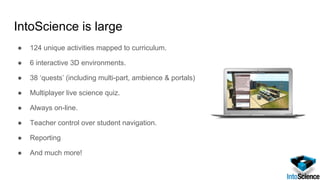

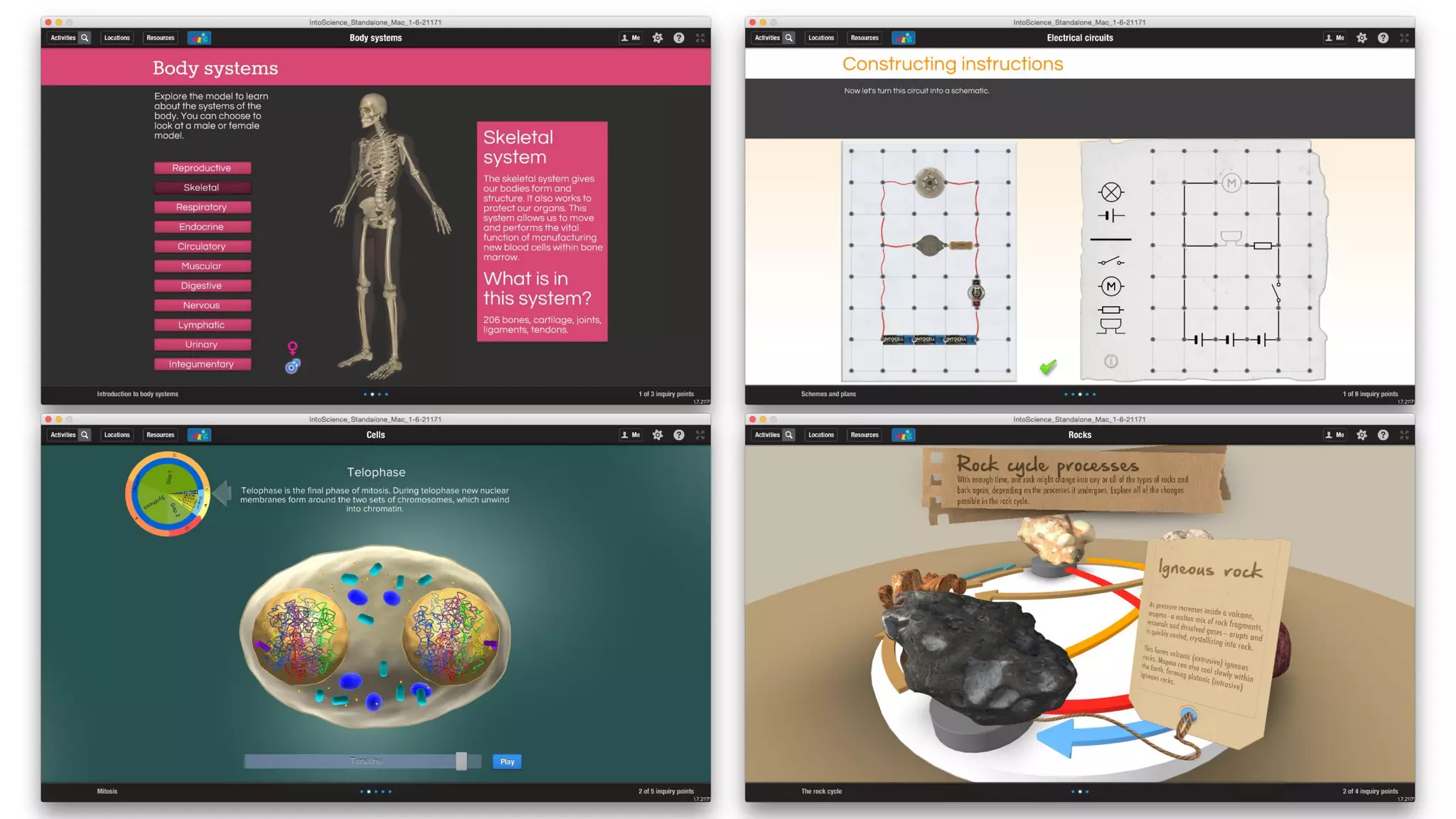

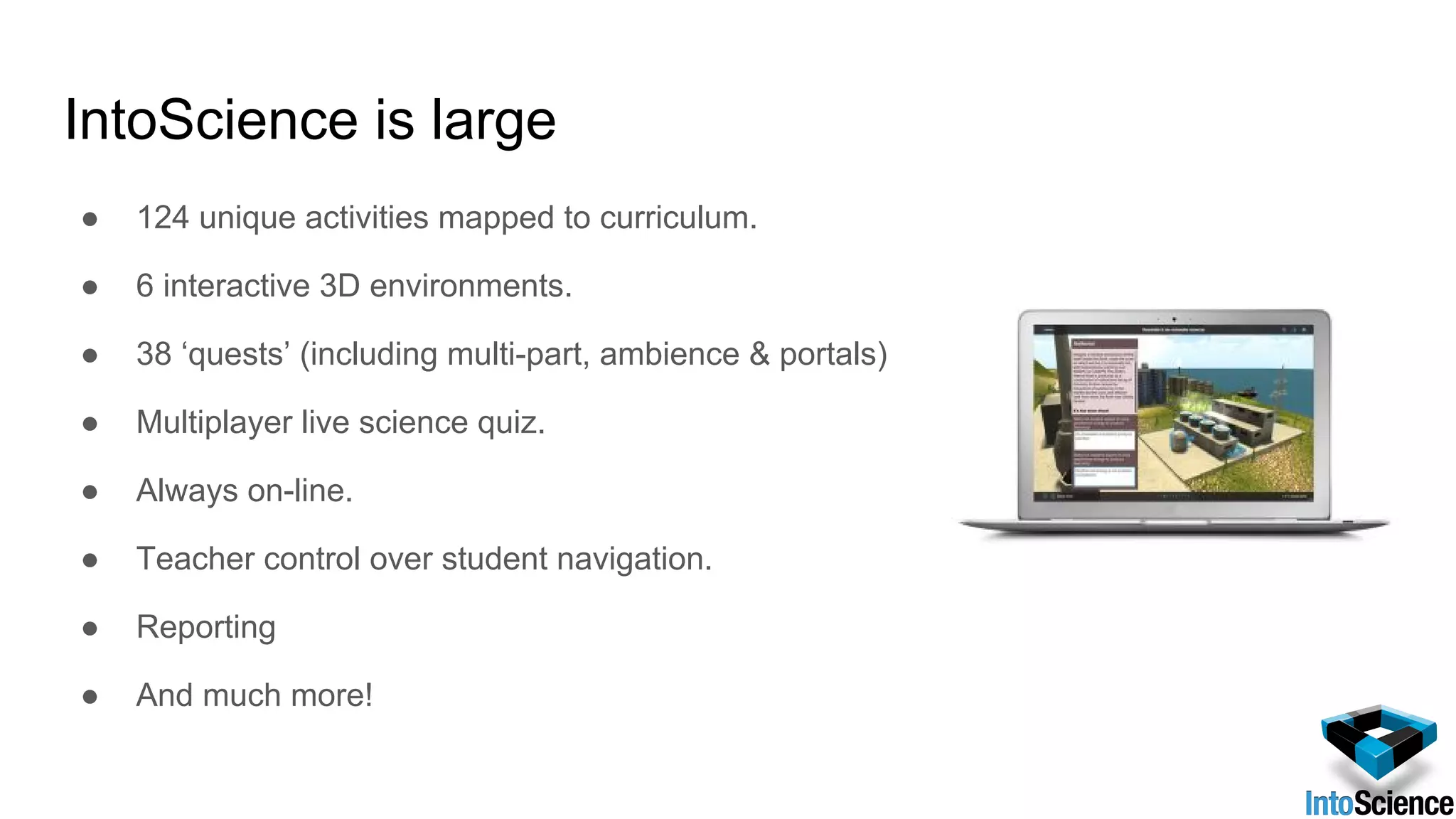

- 6. IntoScience is large ●124 unique activities mapped to curriculum. ● 6 interactive 3D environments. ● 38 ‘quests’ (including multi-part, ambience & portals) ● Multiplayer live science quiz. ● Always on-line. ● Teacher control over student navigation. ● Reporting ● And much more!

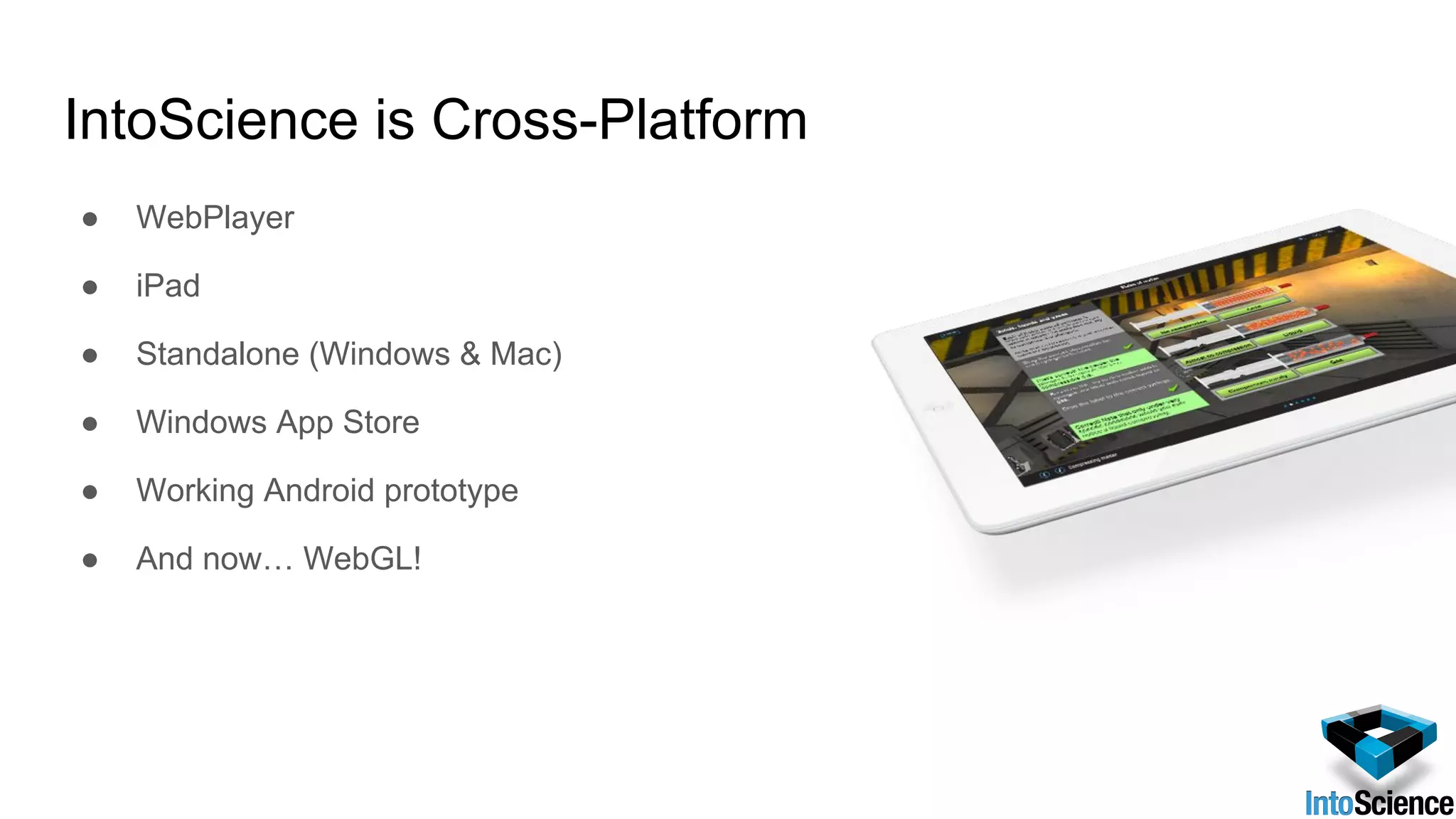

- 7. IntoScience is Cross-Platform ●WebPlayer ● iPad ● Standalone (Windows & Mac) ● Windows App Store ● Working Android prototype ● And now… WebGL!

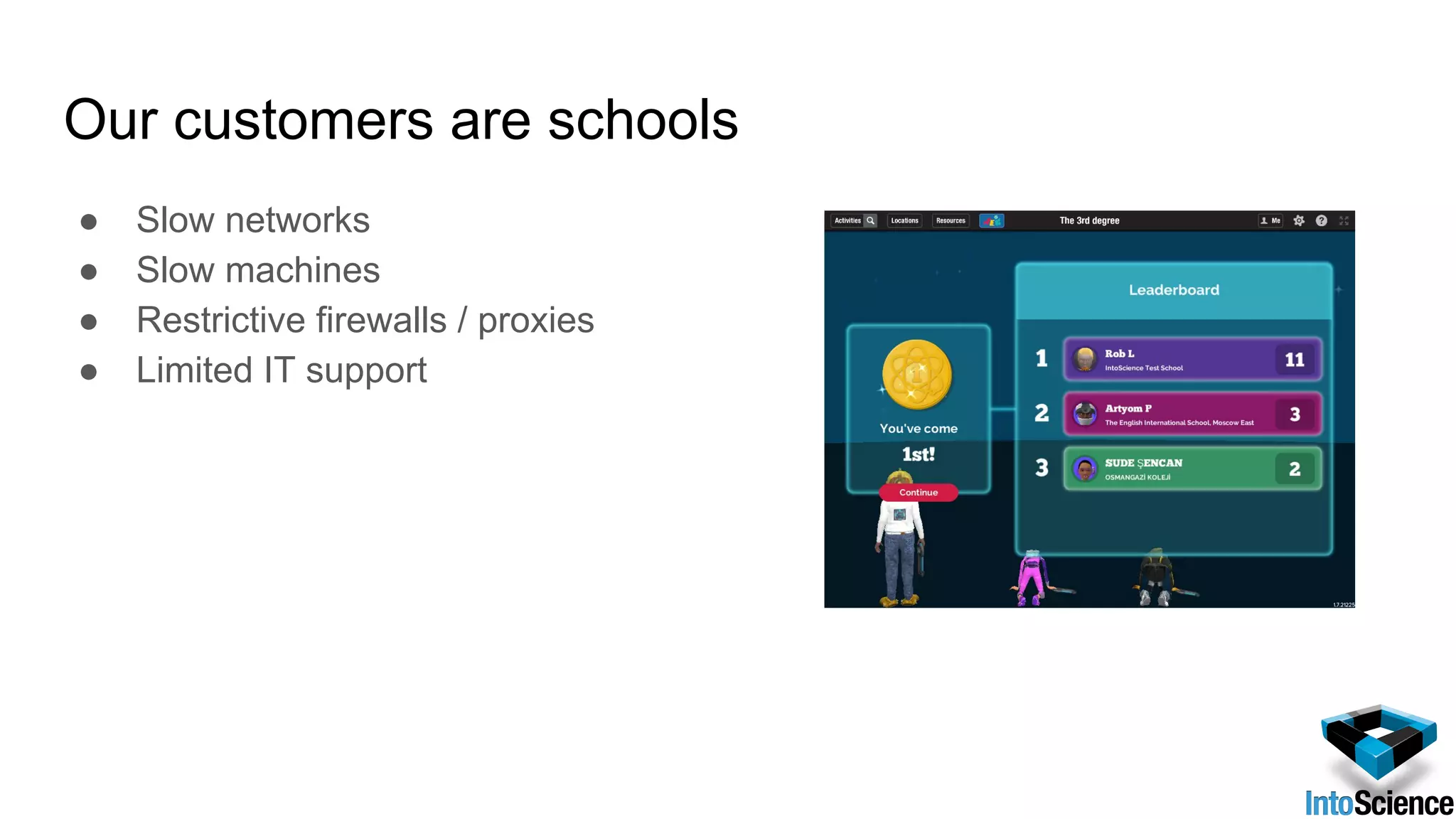

- 8. Our customers areschools ● Slow networks ● Slow machines ● Restrictive firewalls / proxies ● Limited IT support

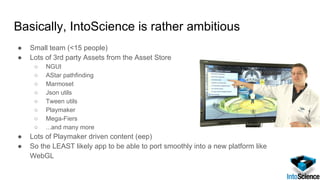

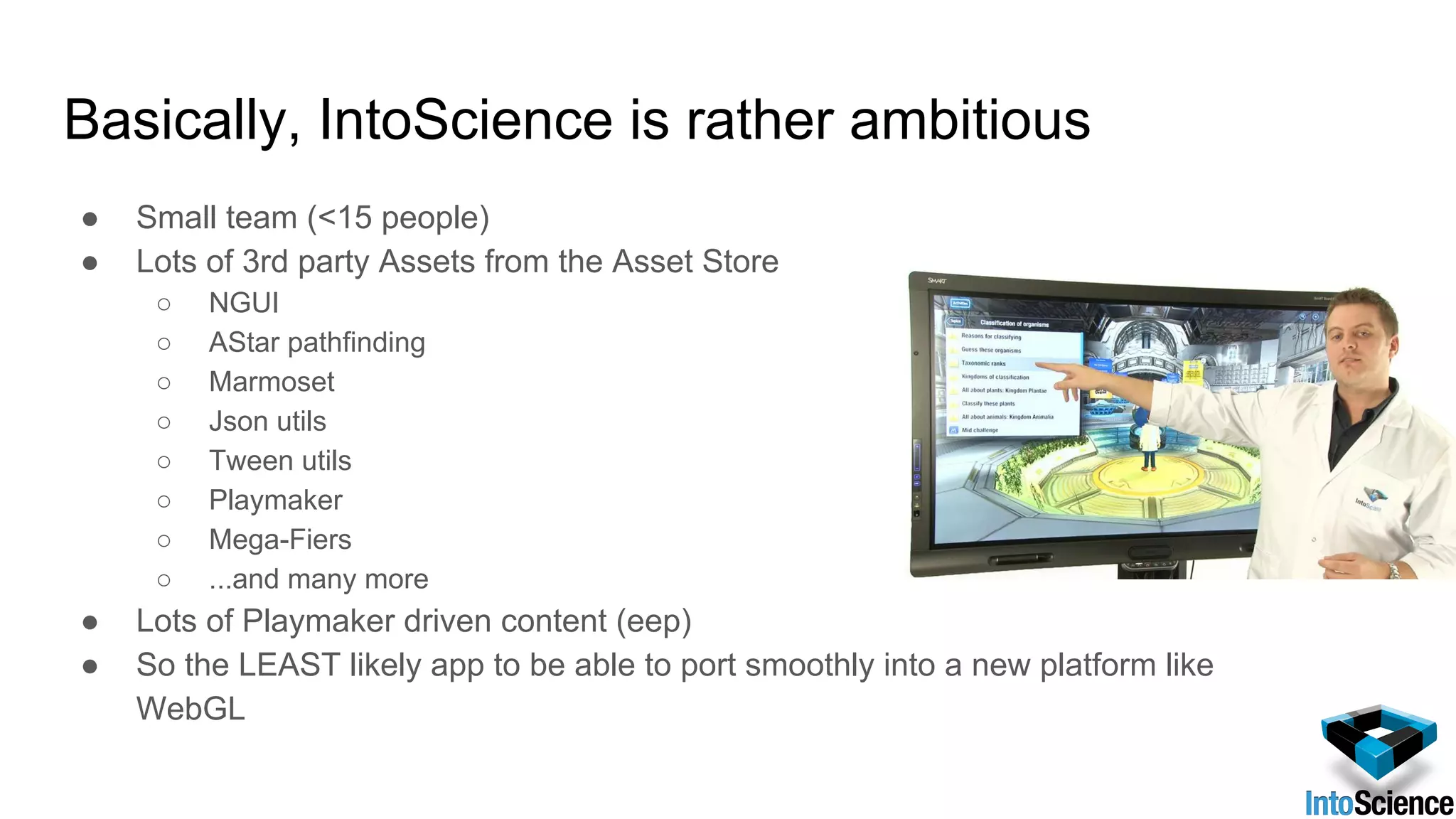

- 9. Basically, IntoScience israther ambitious ● Small team (<15 people) ● Lots of 3rd party Assets from the Asset Store ○ NGUI ○ AStar pathfinding ○ Marmoset ○ Json utils ○ Tween utils ○ Playmaker ○ Mega-Fiers ○ ...and many more ● Lots of Playmaker driven content (eep) ● So the LEAST likely app to be able to port smoothly into a new platform like WebGL
- 10.
- 11.

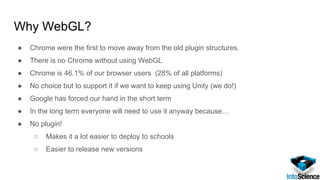

- 13. Why WebGL? ● Chromewere the first to move away from the old plugin structures. ● There is no Chrome without using WebGL ● Chrome is 46.1% of our browser users (28% of all platforms) ● No choice but to support it if we want to keep using Unity (we do!) ● Google has forced our hand in the short term ● In the long term everyone will need to use it anyway because… ● No plugin! ○ Makes it a lot easier to deploy to schools ○ Easier to release new versions

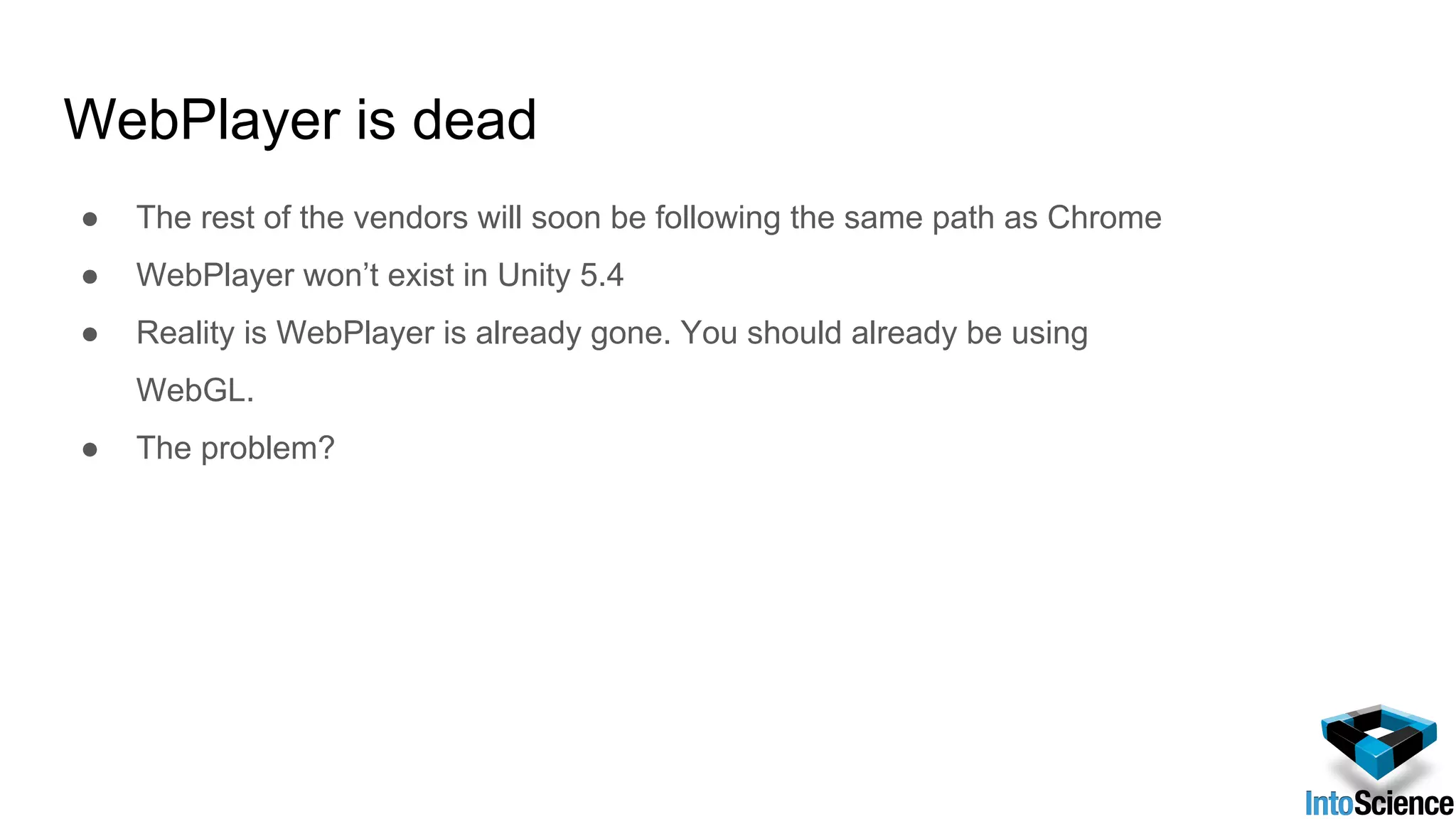

- 14. WebPlayer is dead ●The rest of the vendors will soon be following the same path as Chrome ● WebPlayer won’t exist in Unity 5.4 ● Reality is WebPlayer is already gone. You should already be using WebGL. ● The problem?

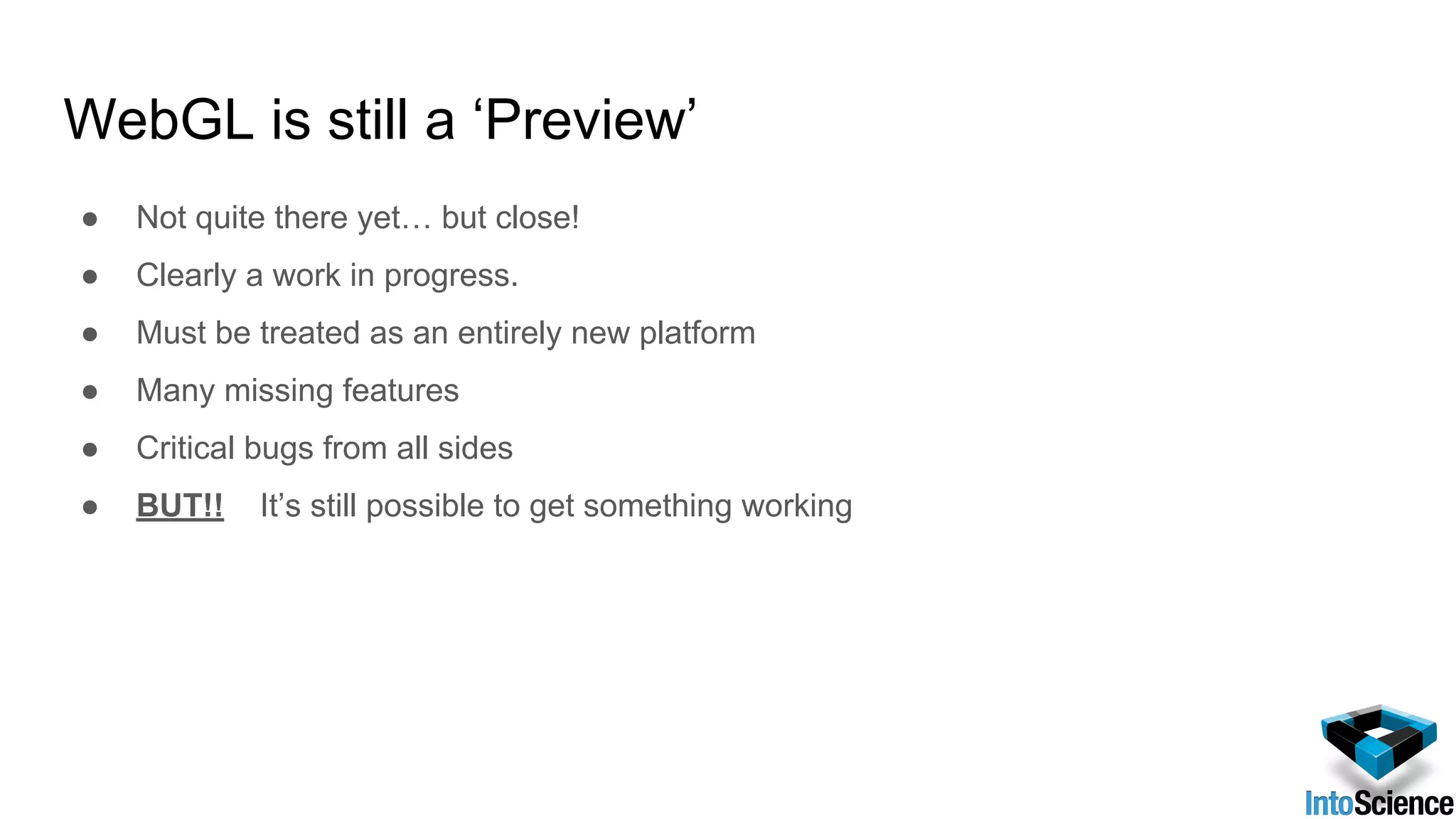

- 15. WebGL is stilla ‘Preview’ ● Not quite there yet… but close! ● Clearly a work in progress. ● Must be treated as an entirely new platform ● Many missing features ● Critical bugs from all sides ● BUT!! It’s still possible to get something working

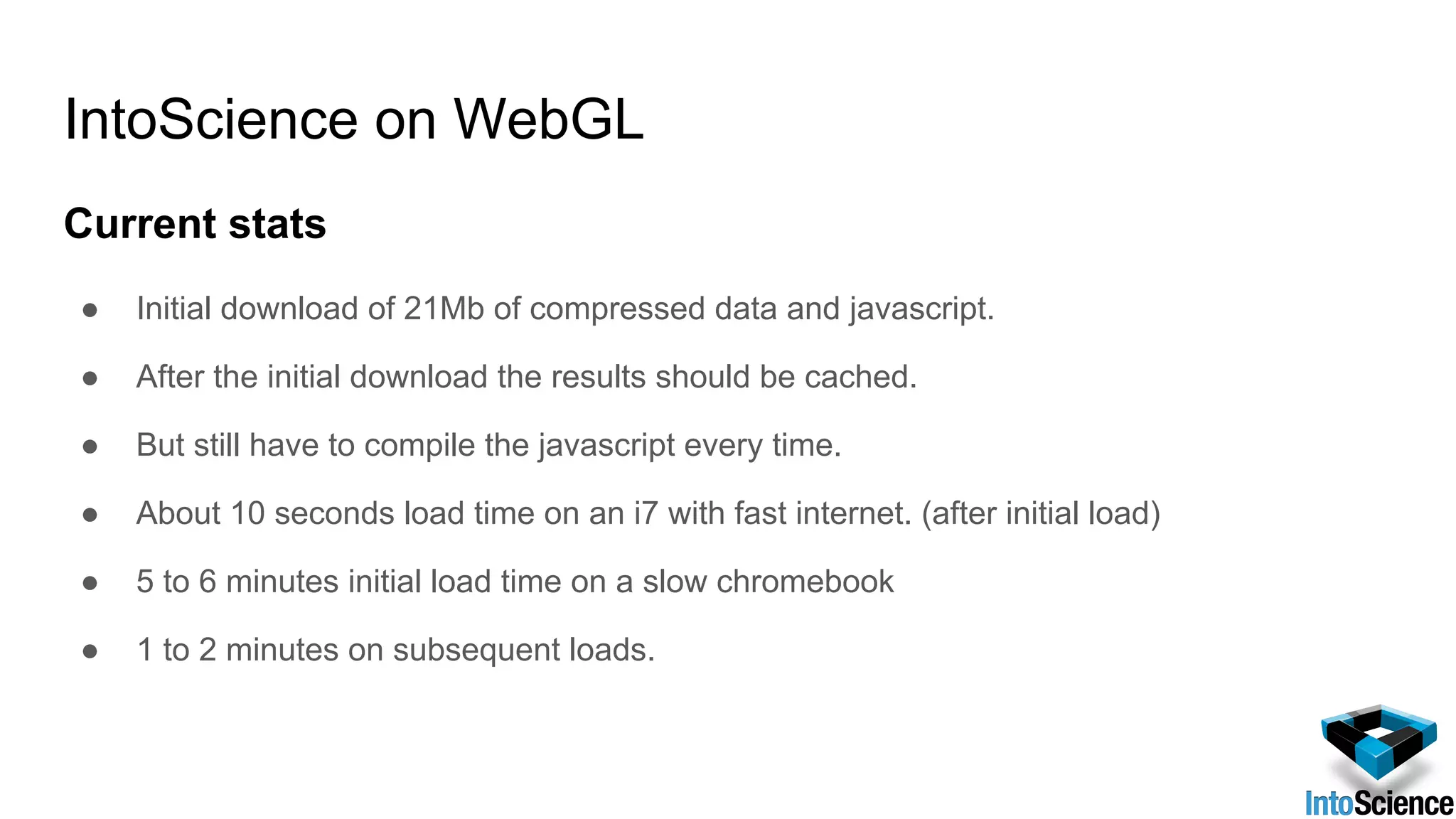

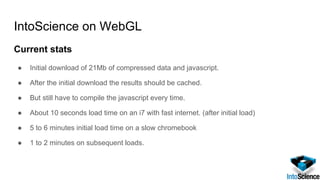

- 17. IntoScience on WebGL Currentstats ● Initial download of 21Mb of compressed data and javascript. ● After the initial download the results should be cached. ● But still have to compile the javascript every time. ● About 10 seconds load time on an i7 with fast internet. (after initial load) ● 5 to 6 minutes initial load time on a slow chromebook ● 1 to 2 minutes on subsequent loads.

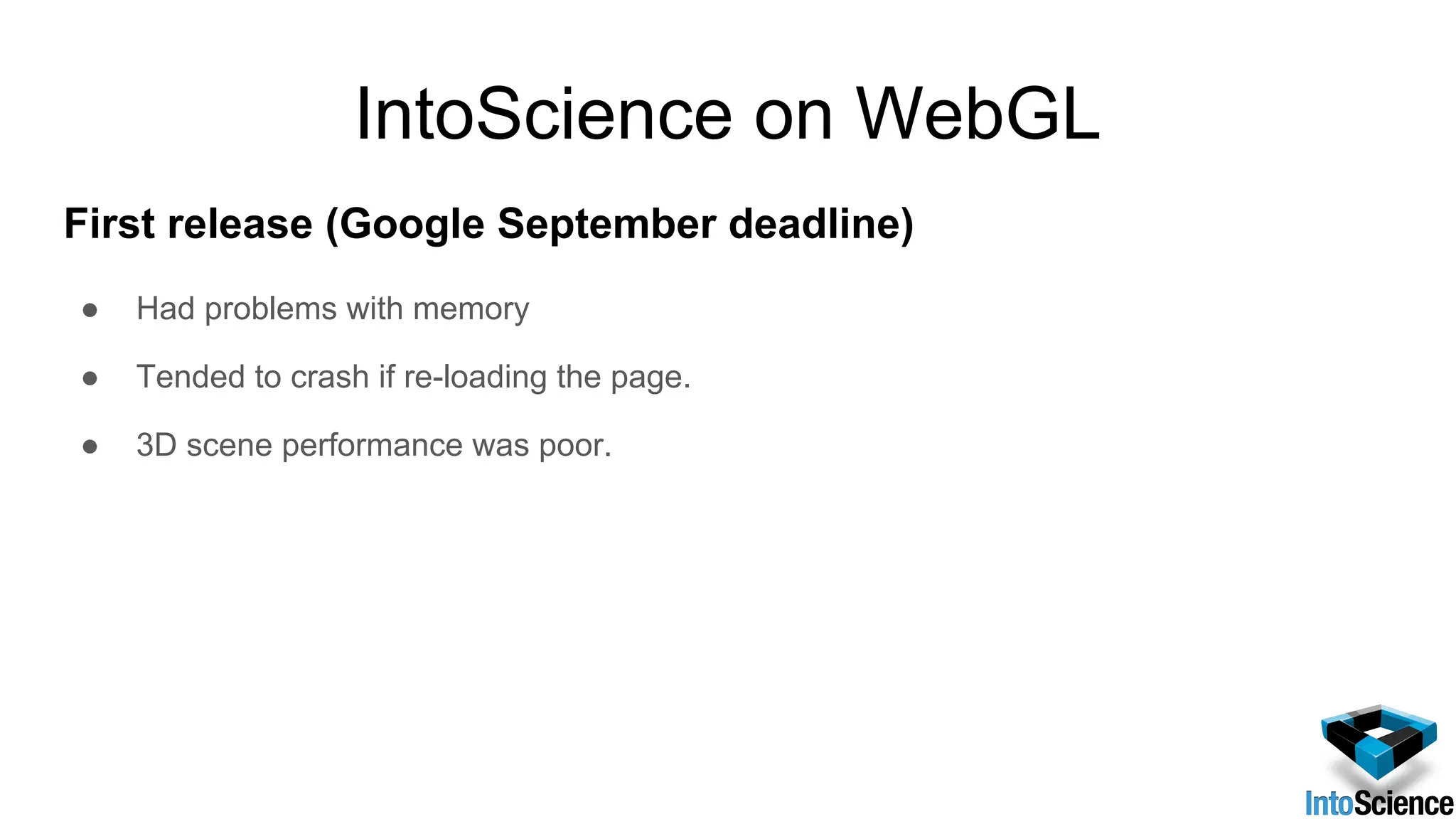

- 18. IntoScience on WebGL Firstrelease (Google September deadline) ● Had problems with memory ● Tended to crash if re-loading the page. ● 3D scene performance was poor.

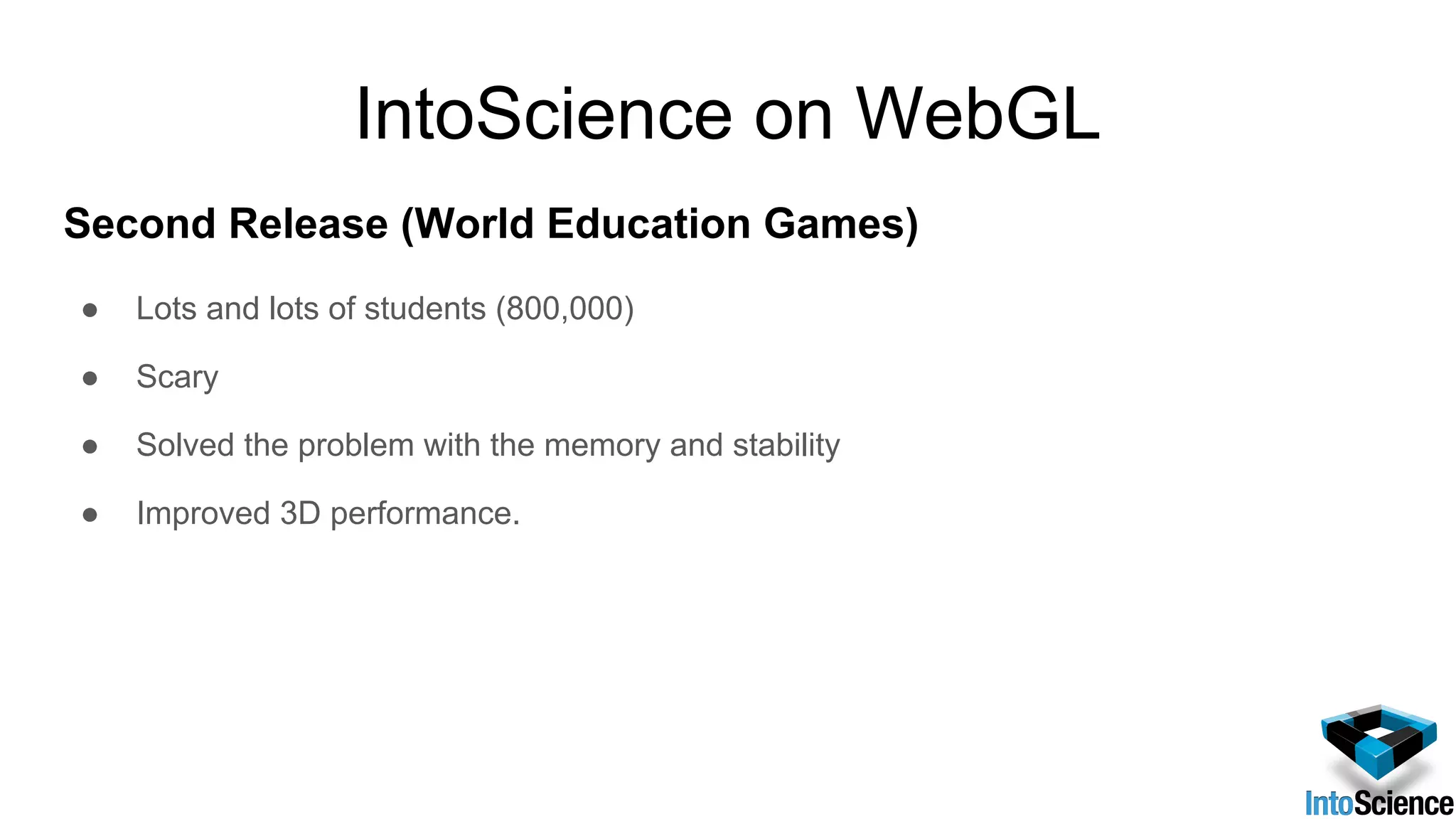

- 19. IntoScience on WebGL SecondRelease (World Education Games) ● Lots and lots of students (800,000) ● Scary ● Solved the problem with the memory and stability ● Improved 3D performance.
- 20.

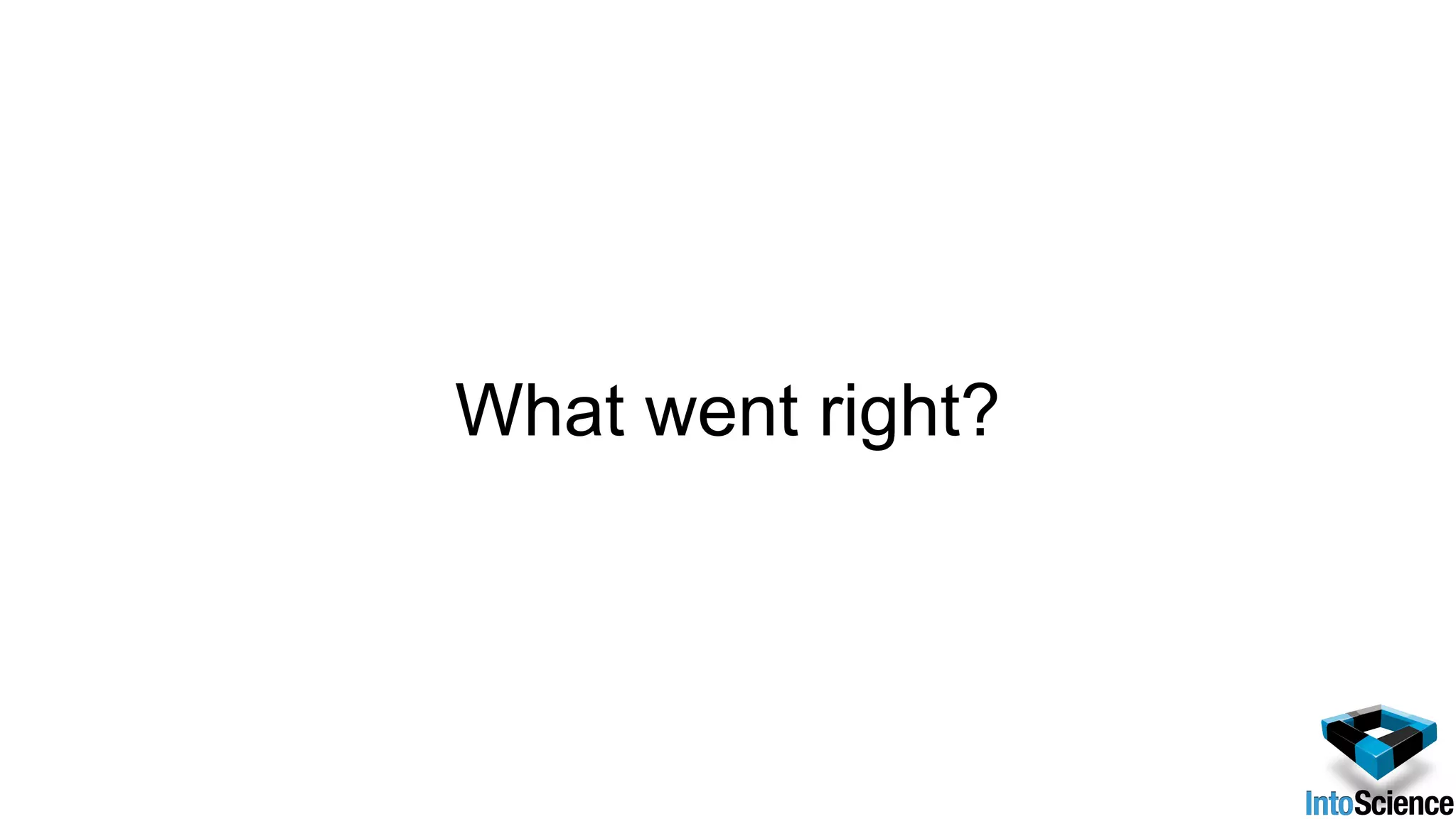

- 21. What went right? ●Released on time. ● Multiple releases in short period of time. ● Most of the content ‘just worked’ ● Unity managed to fix the most critical issues before the deadline. ● Still sharing the codebase between all our platforms. ● Content team didn’t have to worry about the WebGL differences. ● Now have a plugin free environment.

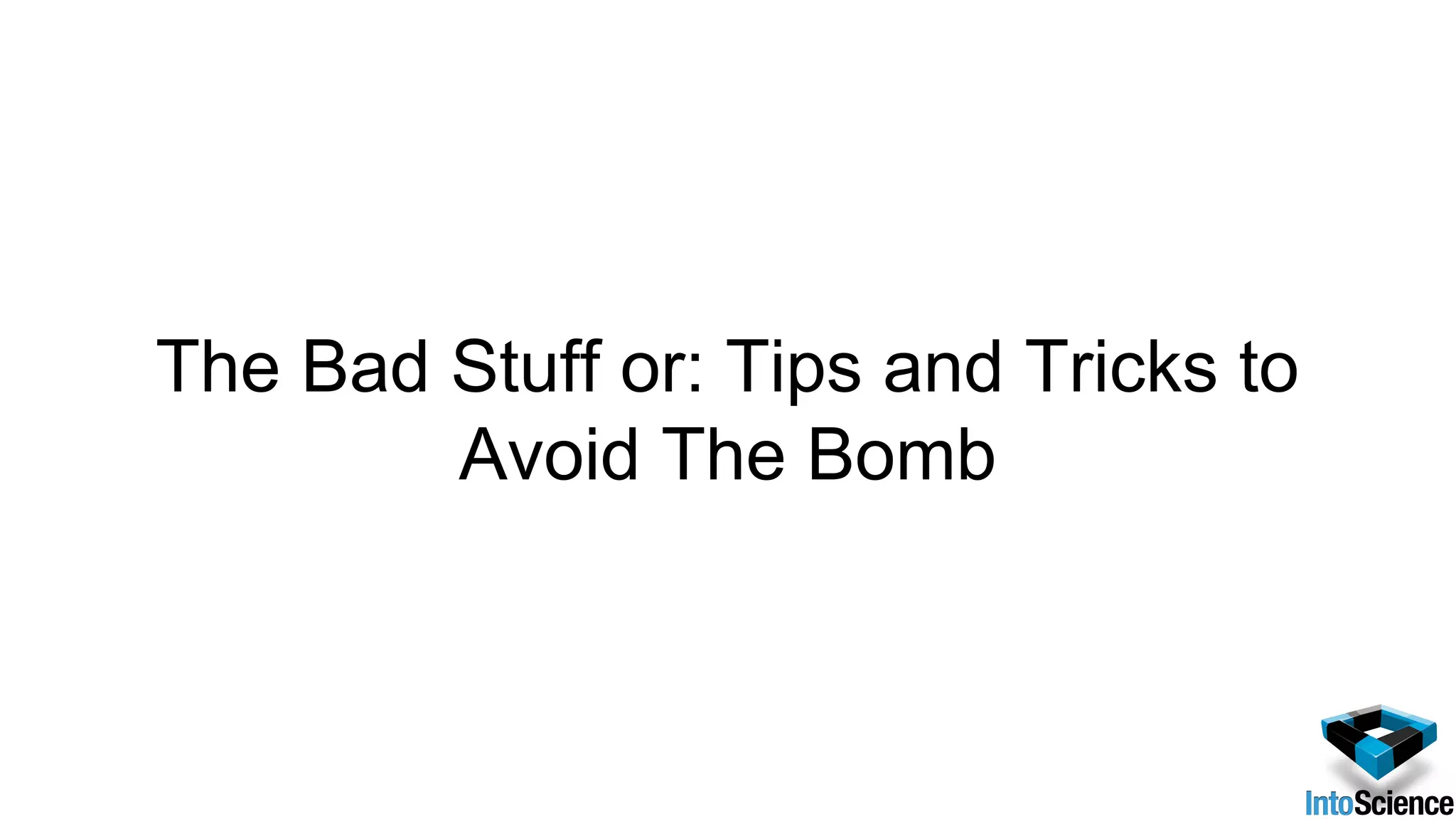

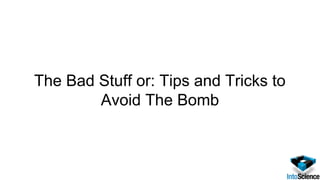

- 22. The Bad Stuffor: Tips and Tricks to Avoid The Bomb

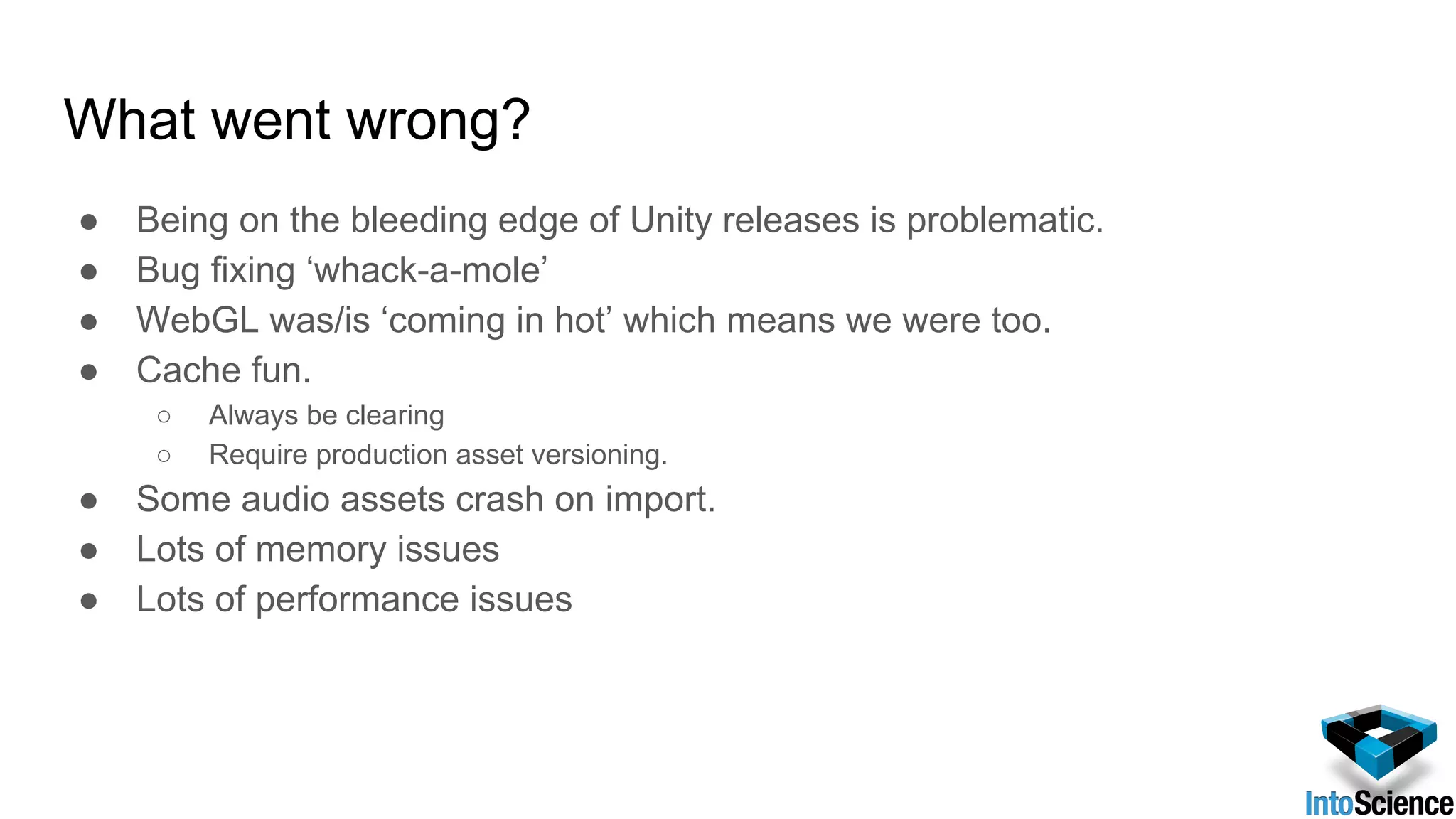

- 23. What went wrong? ●Being on the bleeding edge of Unity releases is problematic. ● Bug fixing ‘whack-a-mole’ ● WebGL was/is ‘coming in hot’ which means we were too. ● Cache fun. ○ Always be clearing ○ Require production asset versioning. ● Some audio assets crash on import. ● Lots of memory issues ● Lots of performance issues

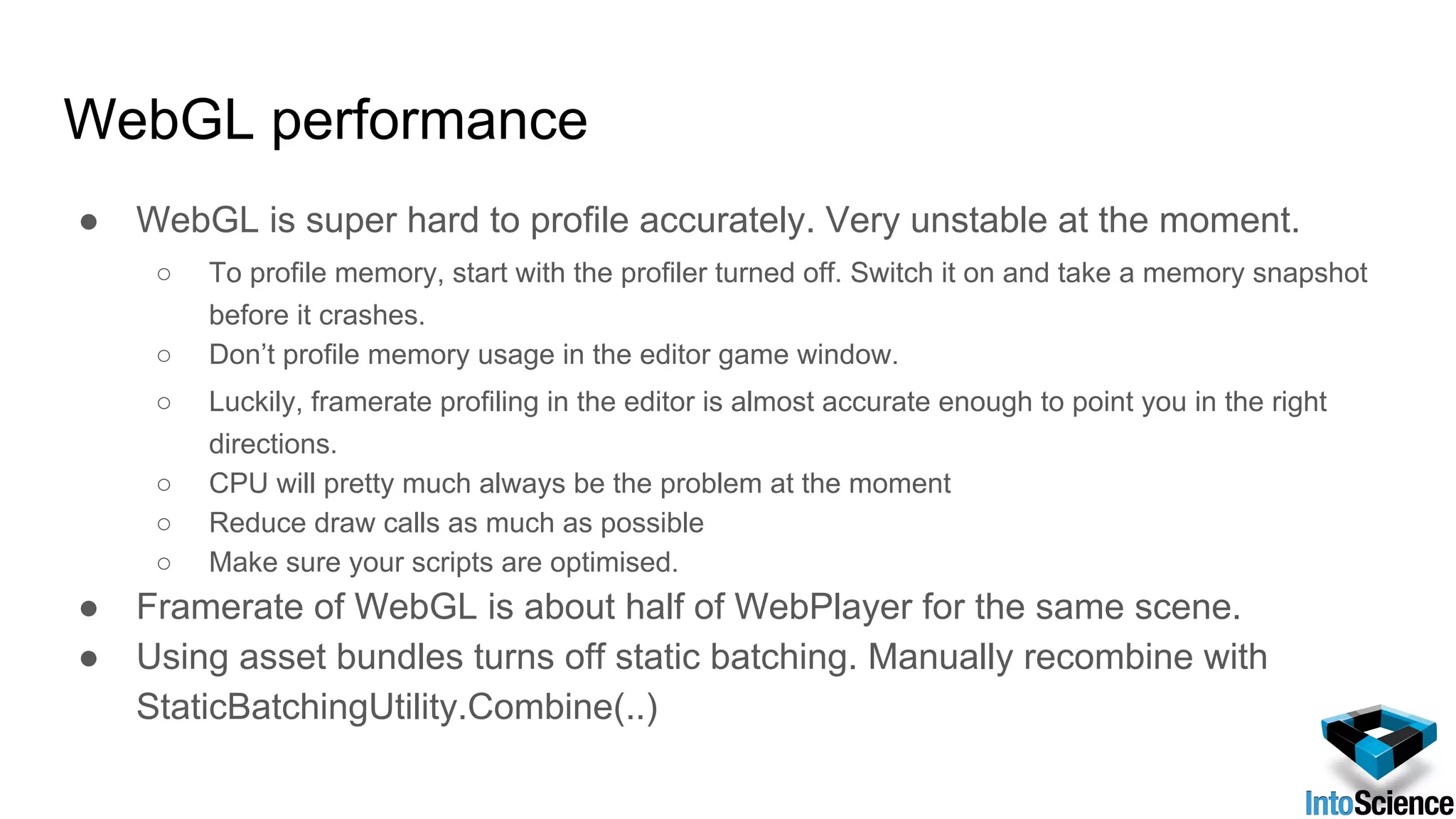

- 24. WebGL performance ● WebGLis super hard to profile accurately. Very unstable at the moment. ○ To profile memory, start with the profiler turned off. Switch it on and take a memory snapshot before it crashes. ○ Don’t profile memory usage in the editor game window. ○ Luckily, framerate profiling in the editor is almost accurate enough to point you in the right directions. ○ CPU will pretty much always be the problem at the moment ○ Reduce draw calls as much as possible ○ Make sure your scripts are optimised. ● Framerate of WebGL is about half of WebPlayer for the same scene. ● Using asset bundles turns off static batching. Manually recombine with StaticBatchingUtility.Combine(..)

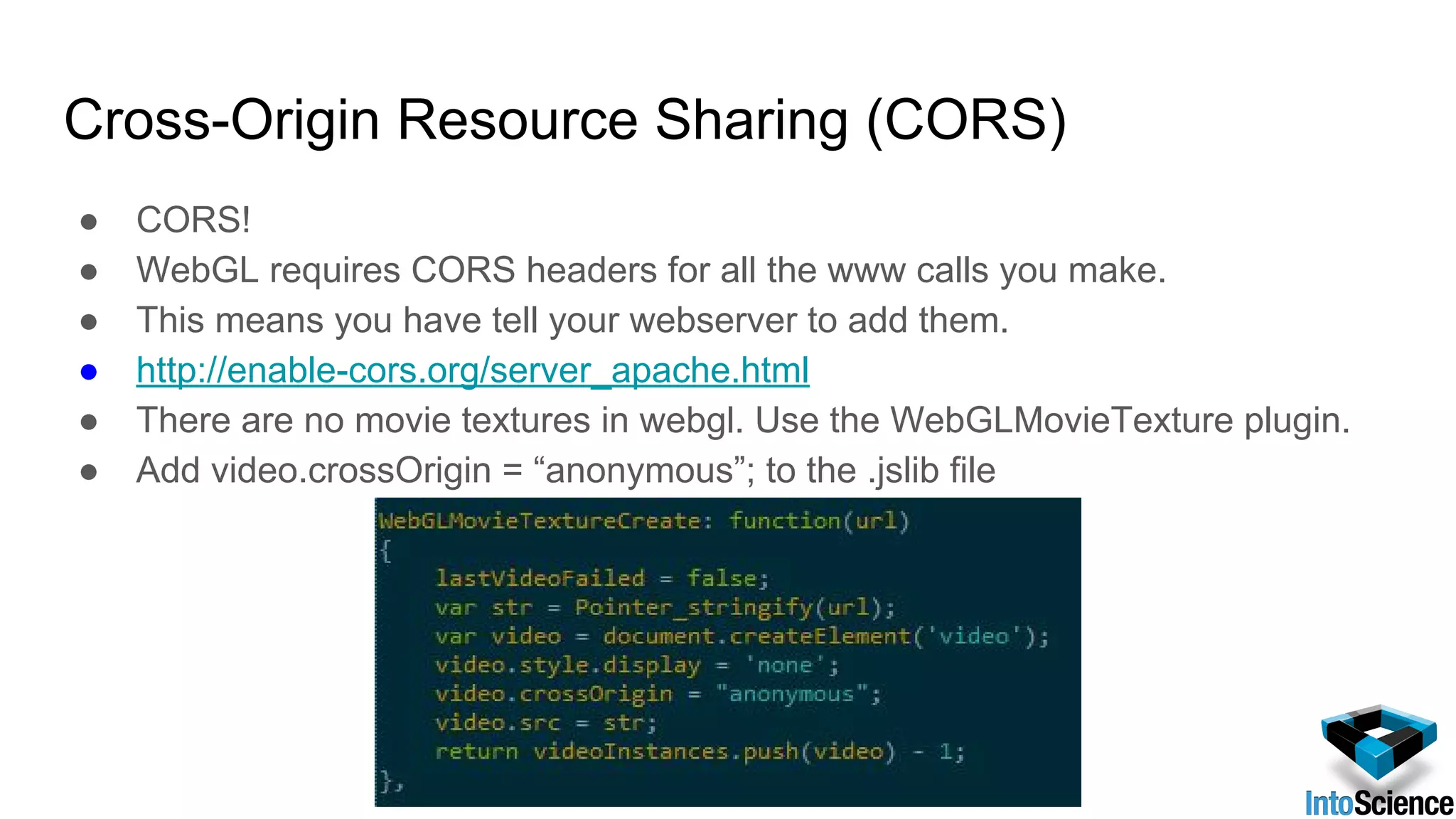

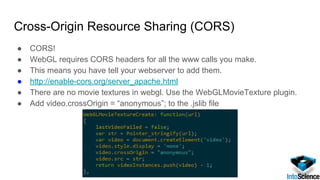

- 25. Cross-Origin Resource Sharing(CORS) ● CORS! ● WebGL requires CORS headers for all the www calls you make. ● This means you have tell your webserver to add them. ● http://enable-cors.org/server_apache.html ● There are no movie textures in webgl. Use the WebGLMovieTexture plugin. ● Add video.crossOrigin = “anonymous”; to the .jslib file

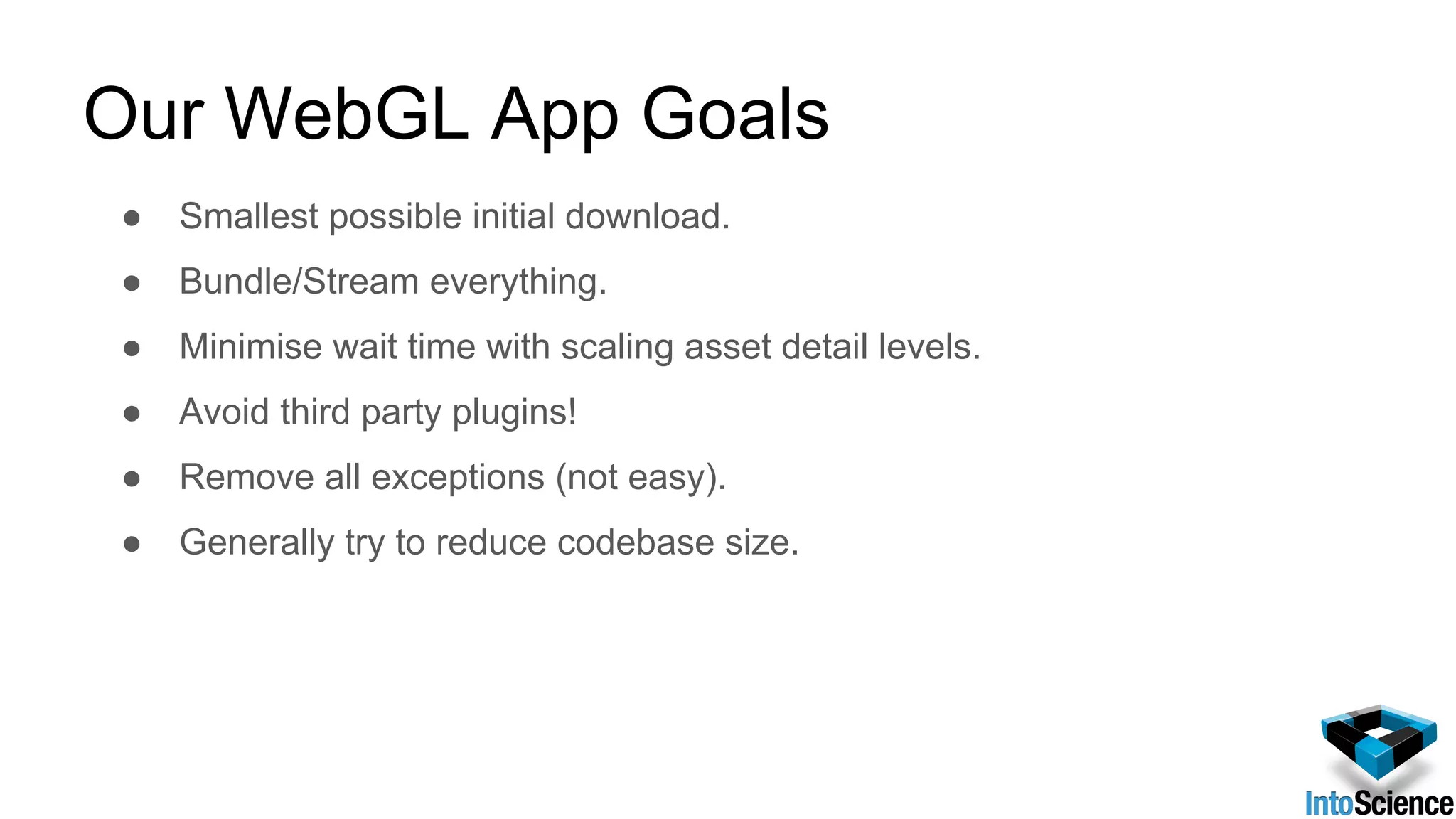

- 26. Our WebGL AppGoals ● Smallest possible initial download. ● Bundle/Stream everything. ● Minimise wait time with scaling asset detail levels. ● Avoid third party plugins! ● Remove all exceptions (not easy). ● Generally try to reduce codebase size.

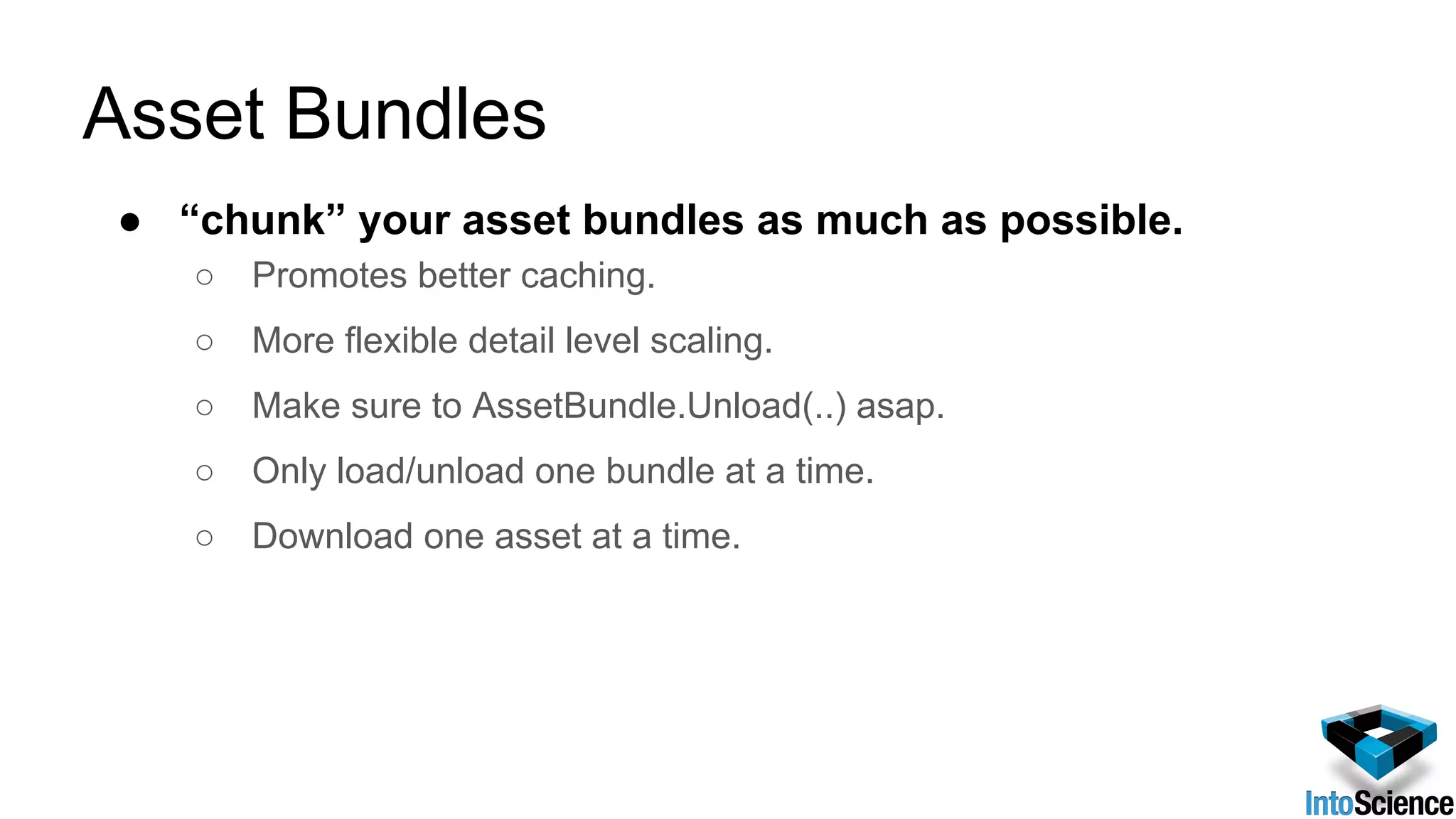

- 27. Asset Bundles ● “chunk”your asset bundles as much as possible. ○ Promotes better caching. ○ More flexible detail level scaling. ○ Make sure to AssetBundle.Unload(..) asap. ○ Only load/unload one bundle at a time. ○ Download one asset at a time.

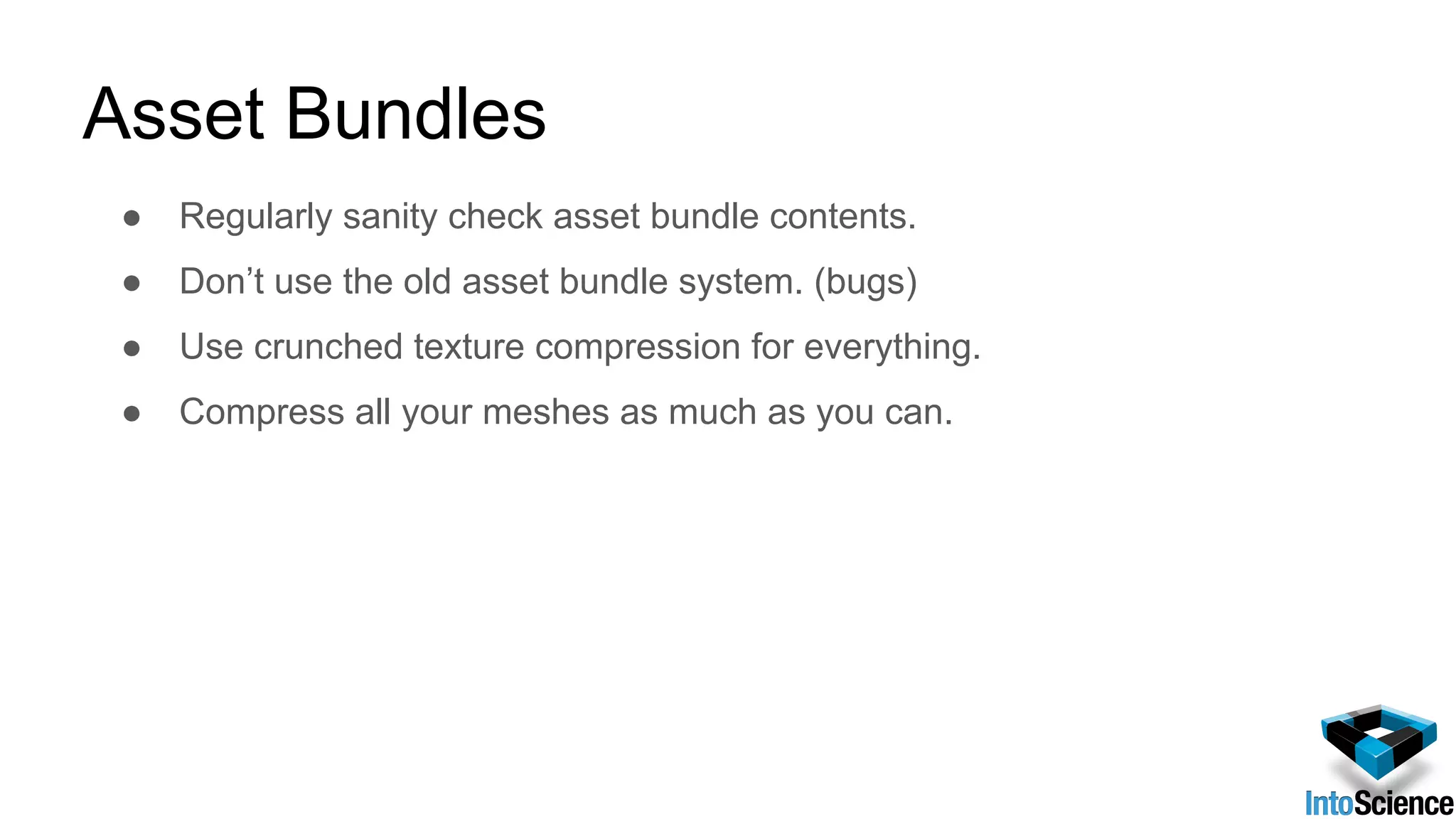

- 28. Asset Bundles ● Regularlysanity check asset bundle contents. ● Don’t use the old asset bundle system. (bugs) ● Use crunched texture compression for everything. ● Compress all your meshes as much as you can.

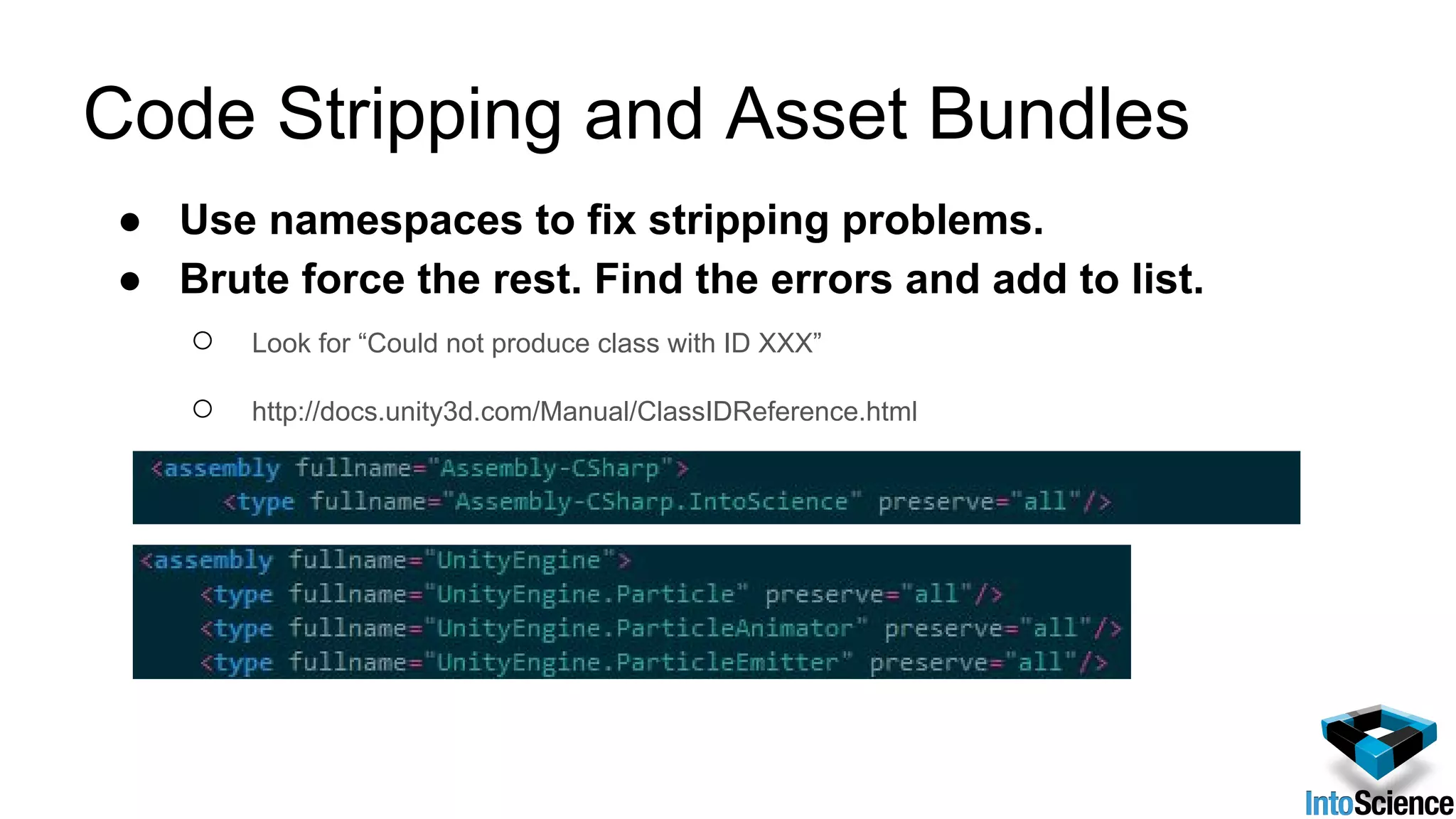

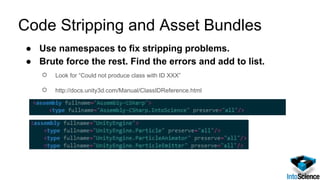

- 29. Code Stripping andAsset Bundles ● Use namespaces to fix stripping problems. ● Brute force the rest. Find the errors and add to list. ○ Look for “Could not produce class with ID XXX” ○ http://docs.unity3d.com/Manual/ClassIDReference.html

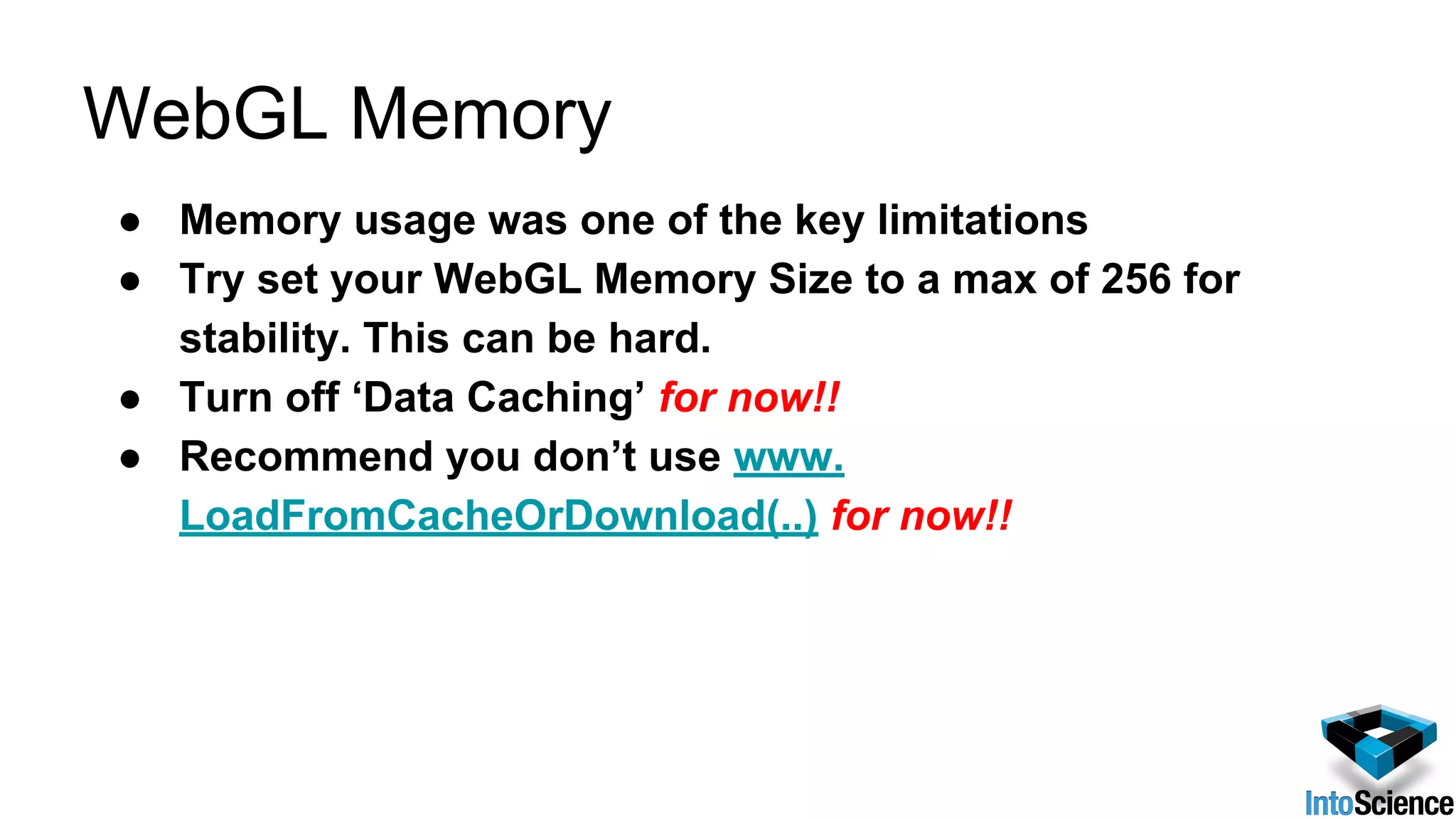

- 30. WebGL Memory ● Memoryusage was one of the key limitations ● Try set your WebGL Memory Size to a max of 256 for stability. This can be hard. ● Turn off ‘Data Caching’ for now!! ● Recommend you don’t use www. LoadFromCacheOrDownload(..) for now!!
- 31.

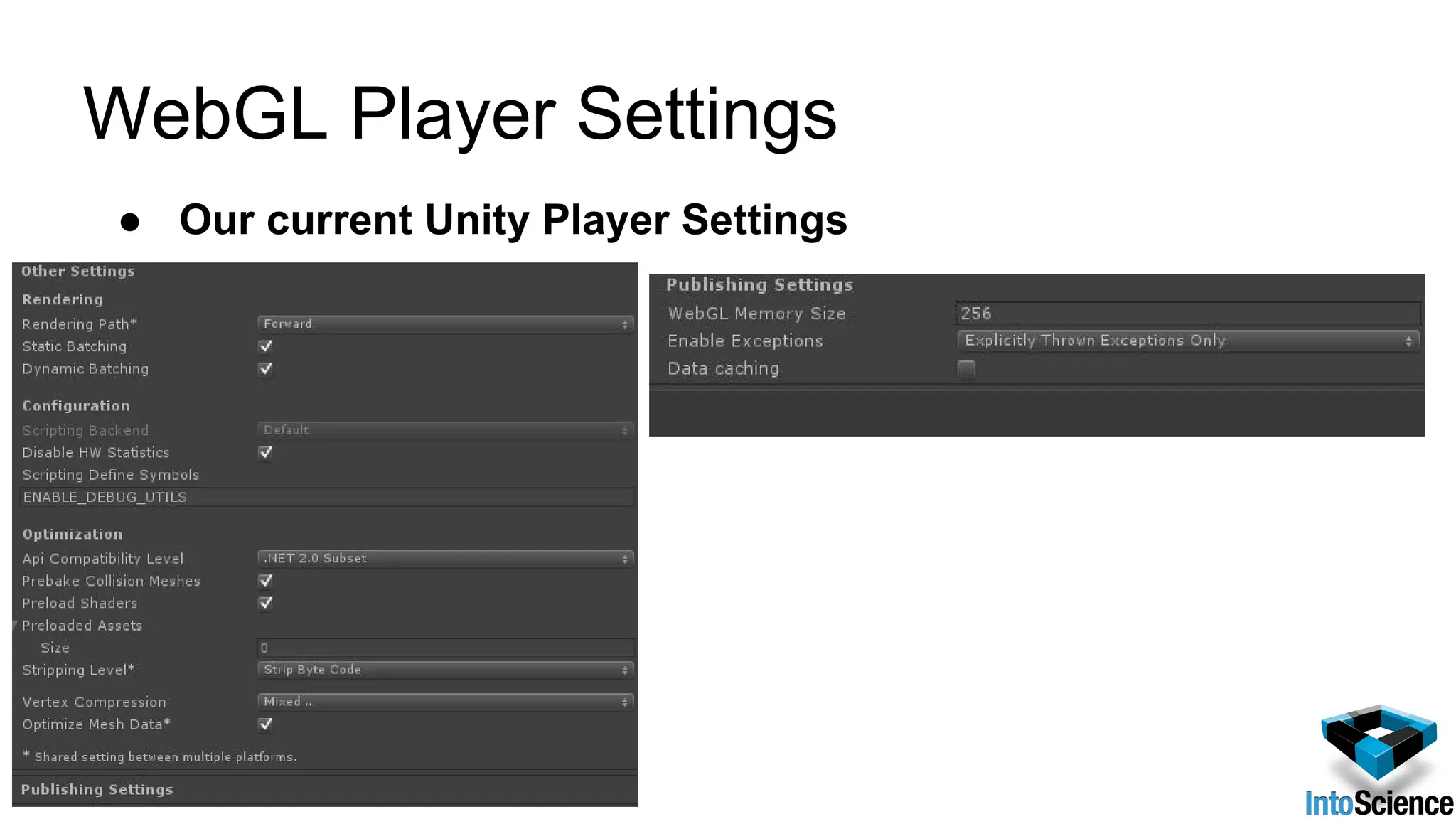

- 32. WebGL Player Settings ●Our current Unity Player Settings

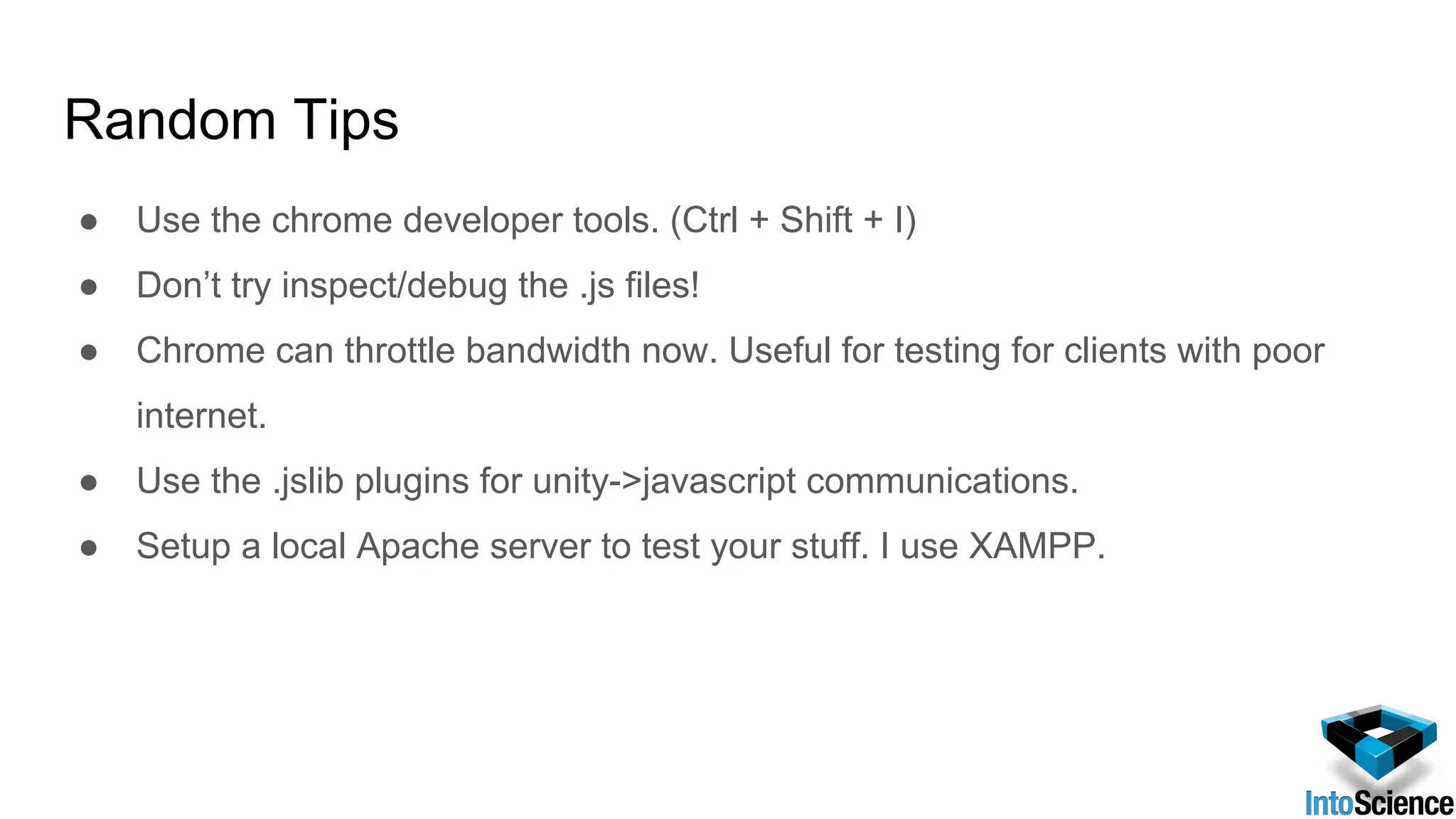

- 33. Random Tips ● Usethe chrome developer tools. (Ctrl + Shift + I) ● Don’t try inspect/debug the .js files! ● Chrome can throttle bandwidth now. Useful for testing for clients with poor internet. ● Use the .jslib plugins for unity->javascript communications. ● Setup a local Apache server to test your stuff. I use XAMPP.

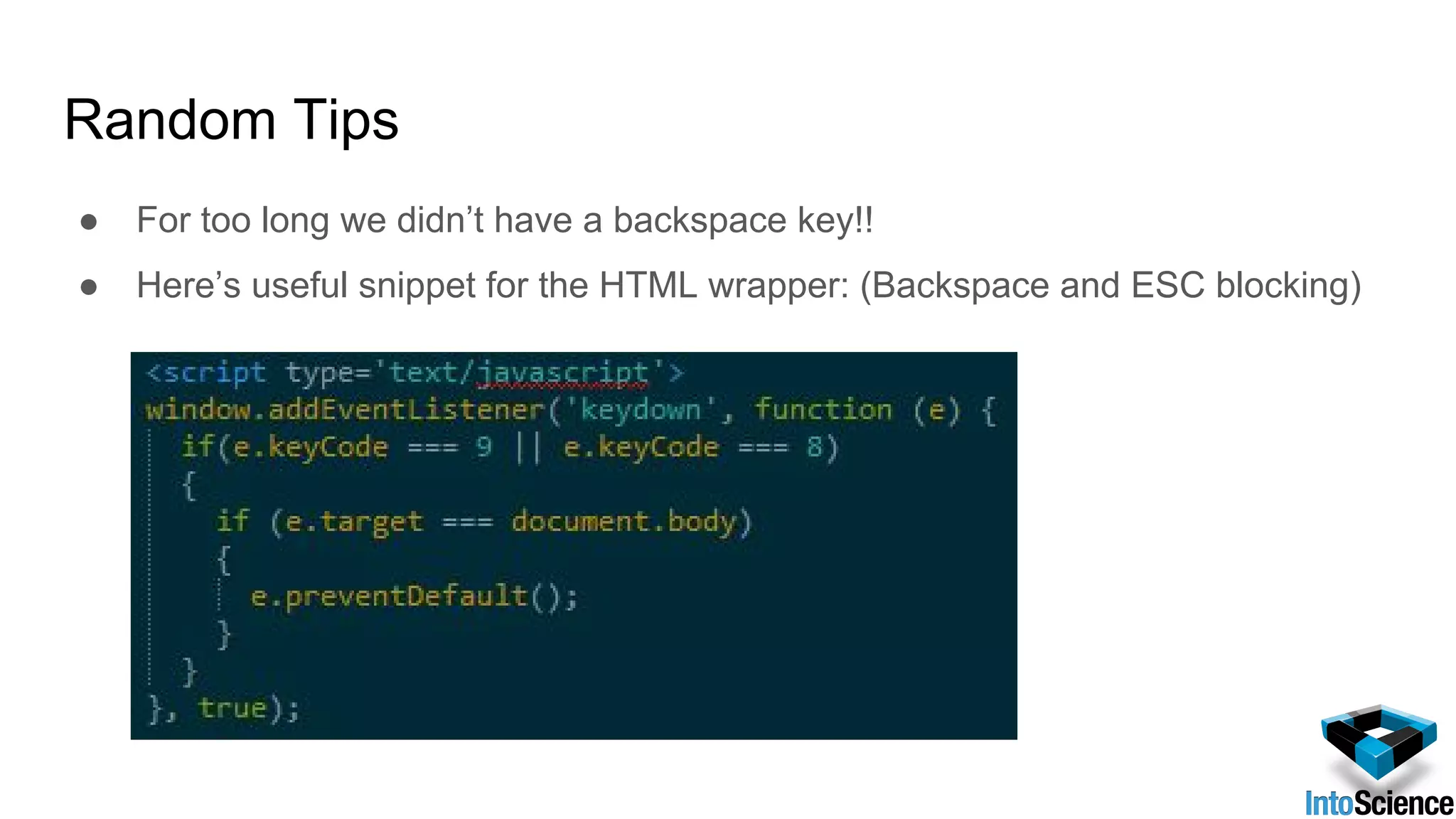

- 34. Random Tips ● Fortoo long we didn’t have a backspace key!! ● Here’s useful snippet for the HTML wrapper: (Backspace and ESC blocking)

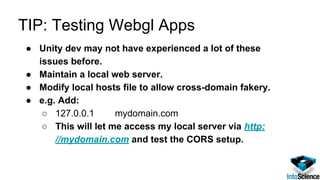

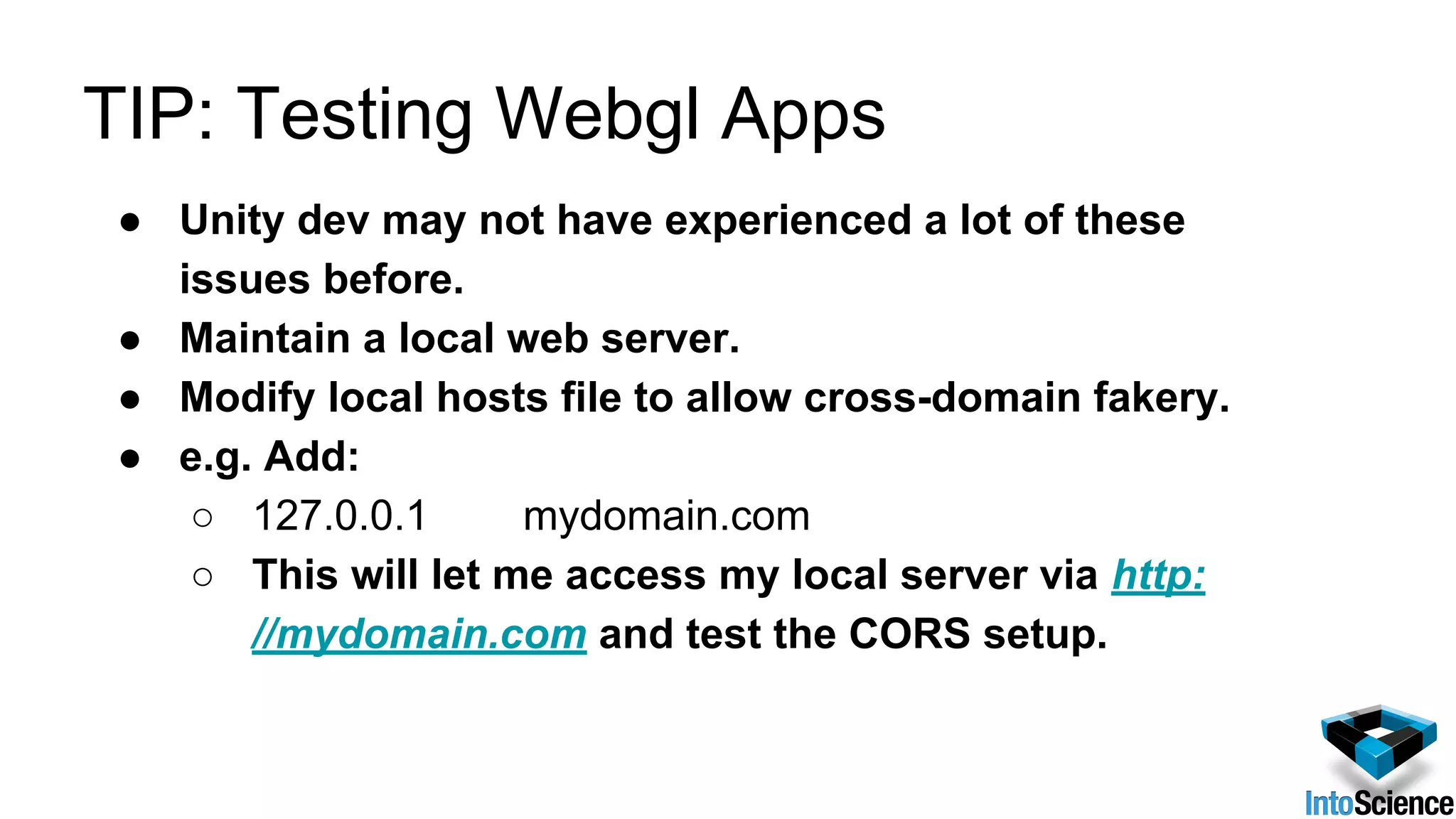

- 35. TIP: Testing WebglApps ● Unity dev may not have experienced a lot of these issues before. ● Maintain a local web server. ● Modify local hosts file to allow cross-domain fakery. ● e.g. Add: ○ 127.0.0.1 mydomain.com ○ This will let me access my local server via http: //mydomain.com and test the CORS setup.
- 36.

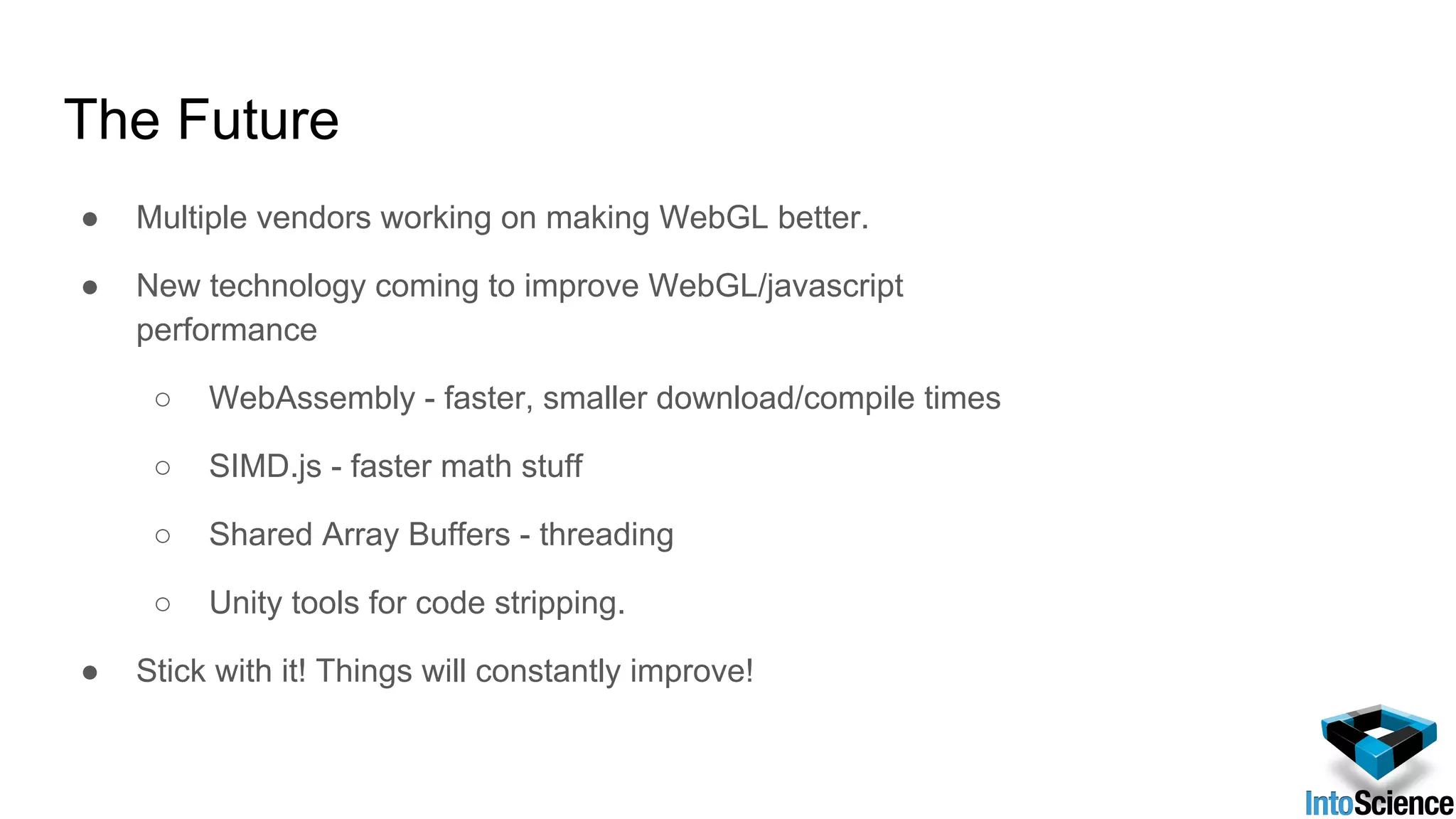

- 37. The Future ● Multiplevendors working on making WebGL better. ● New technology coming to improve WebGL/javascript performance ○ WebAssembly - faster, smaller download/compile times ○ SIMD.js - faster math stuff ○ Shared Array Buffers - threading ○ Unity tools for code stripping. ● Stick with it! Things will constantly improve!
