Intro to Clojure's core.async

Intro to core.async
#cljsyd, July 2013
Leonardo Borges
@leonardo_borges
www.leonardoborges.com
www.thoughtworks.com
Tuesday, 13 August 13

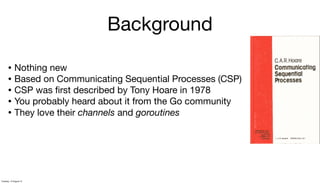

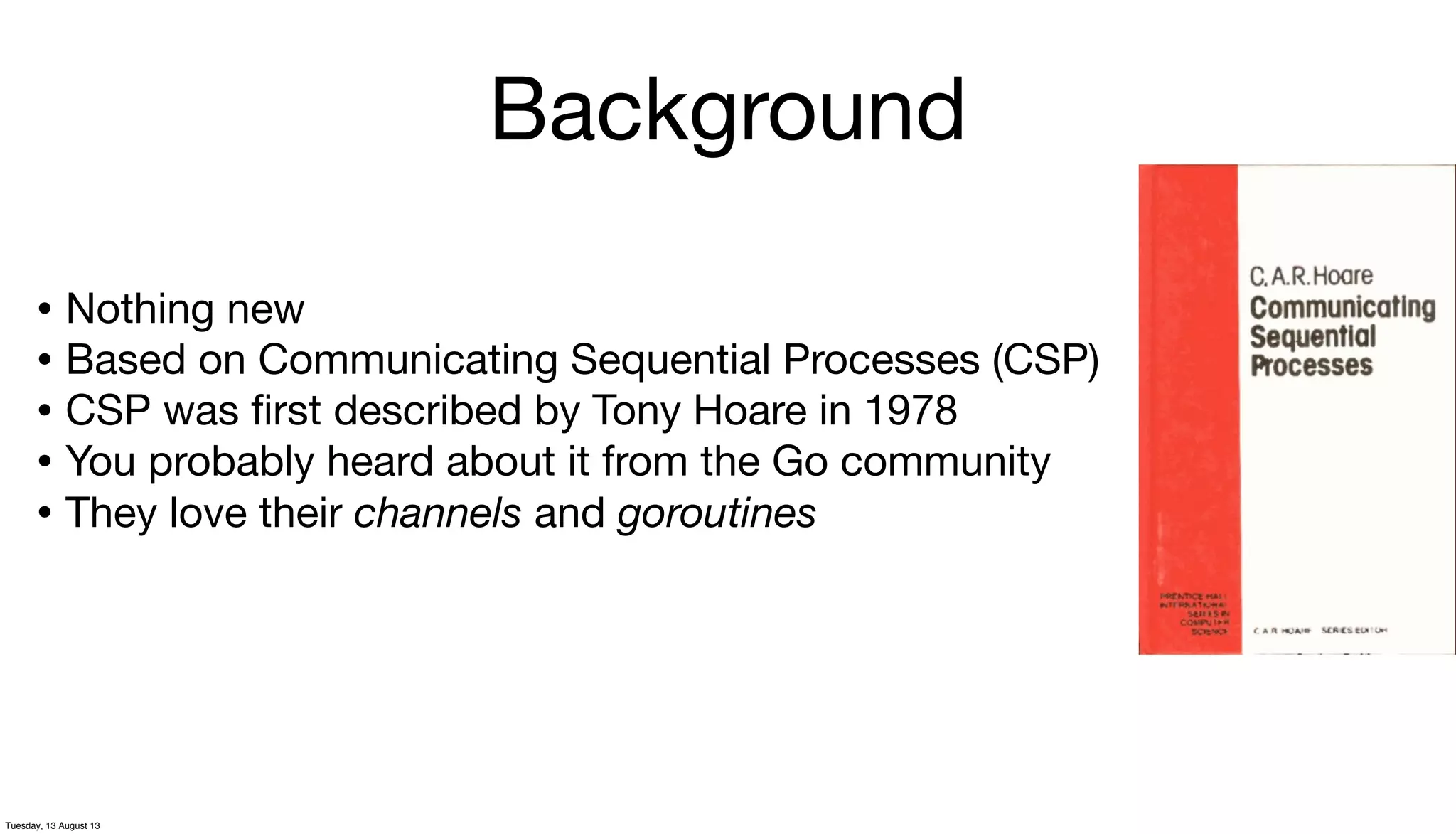

Background
• Nothing new
• Based on Communicating Sequential Processes (CSP)
• CSP was ﬁrst described by Tony Hoare in 1978
• You probably heard about it from the Go community
• They love their channels and goroutines

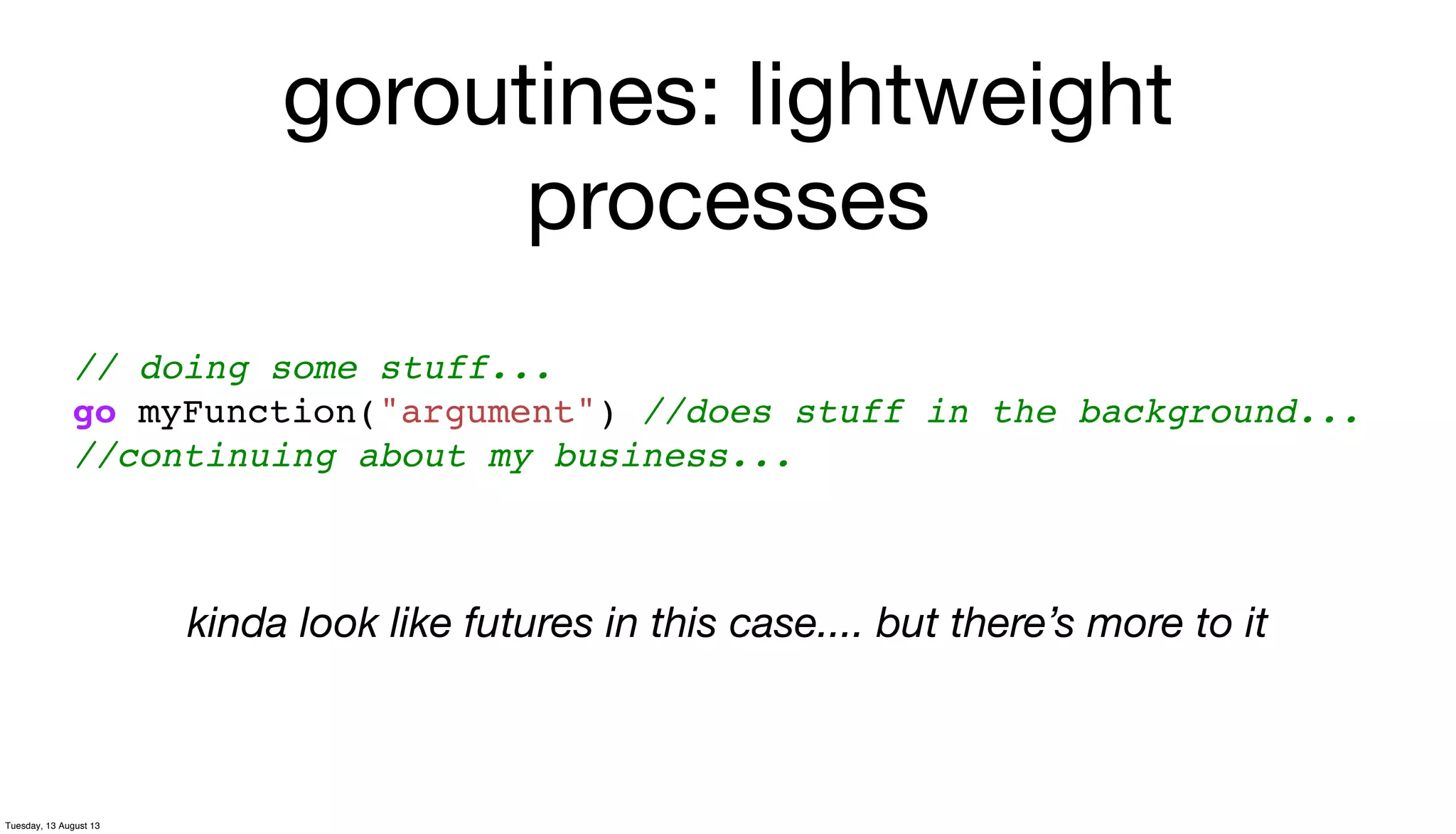

goroutines: lightweight
processes
// doing some stuff...
go myFunction("argument") //does stuff in the background...
//continuing about my business...
kinda look like futures in this case.... but there’s more to it

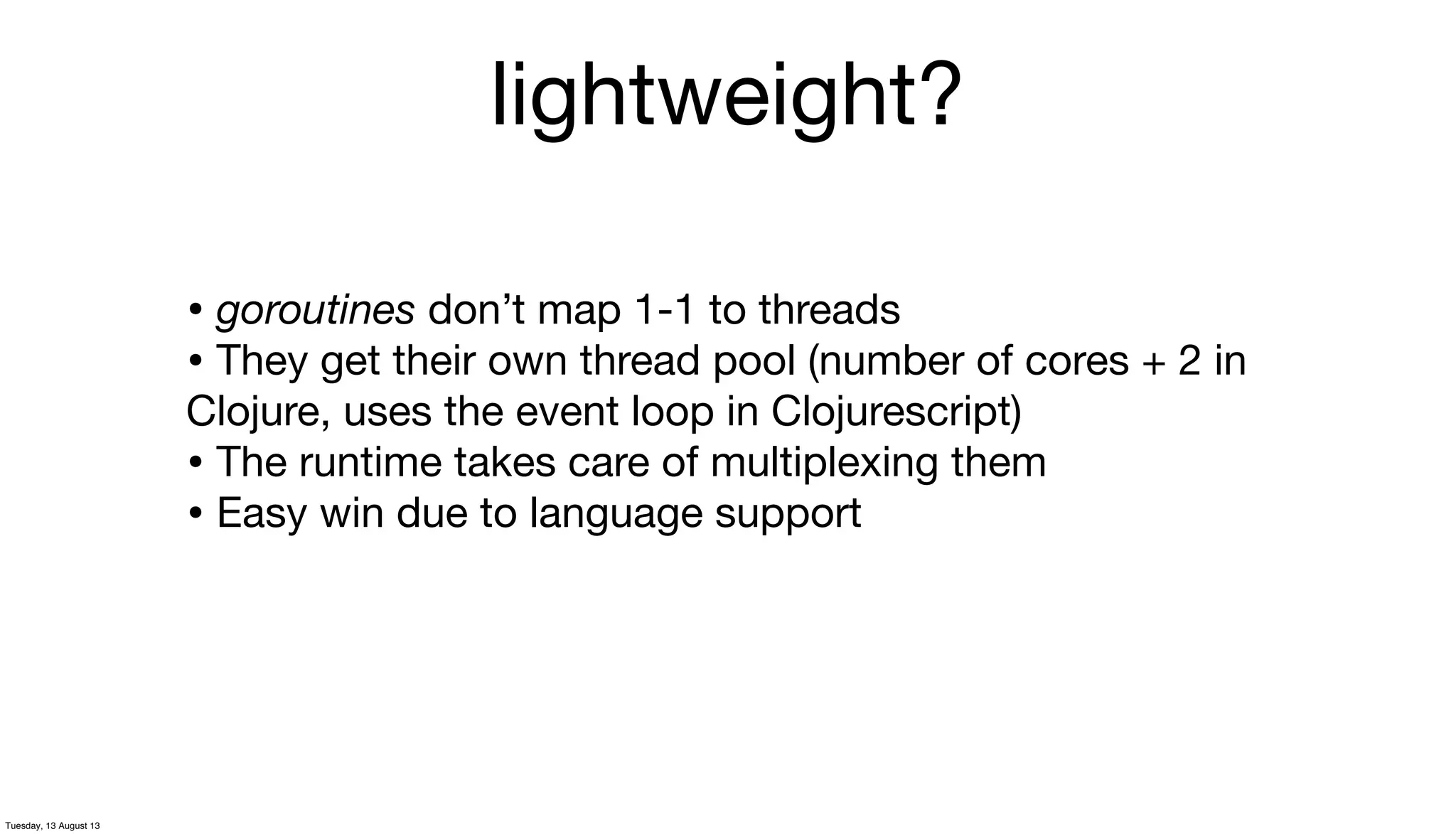

lightweight?
• goroutines don’t map 1-1 to threads
• They get their own thread pool (number of cores + 2 in
Clojure, uses the event loop in Clojurescript)
• The runtime takes care of multiplexing them
• Easy win due to language support

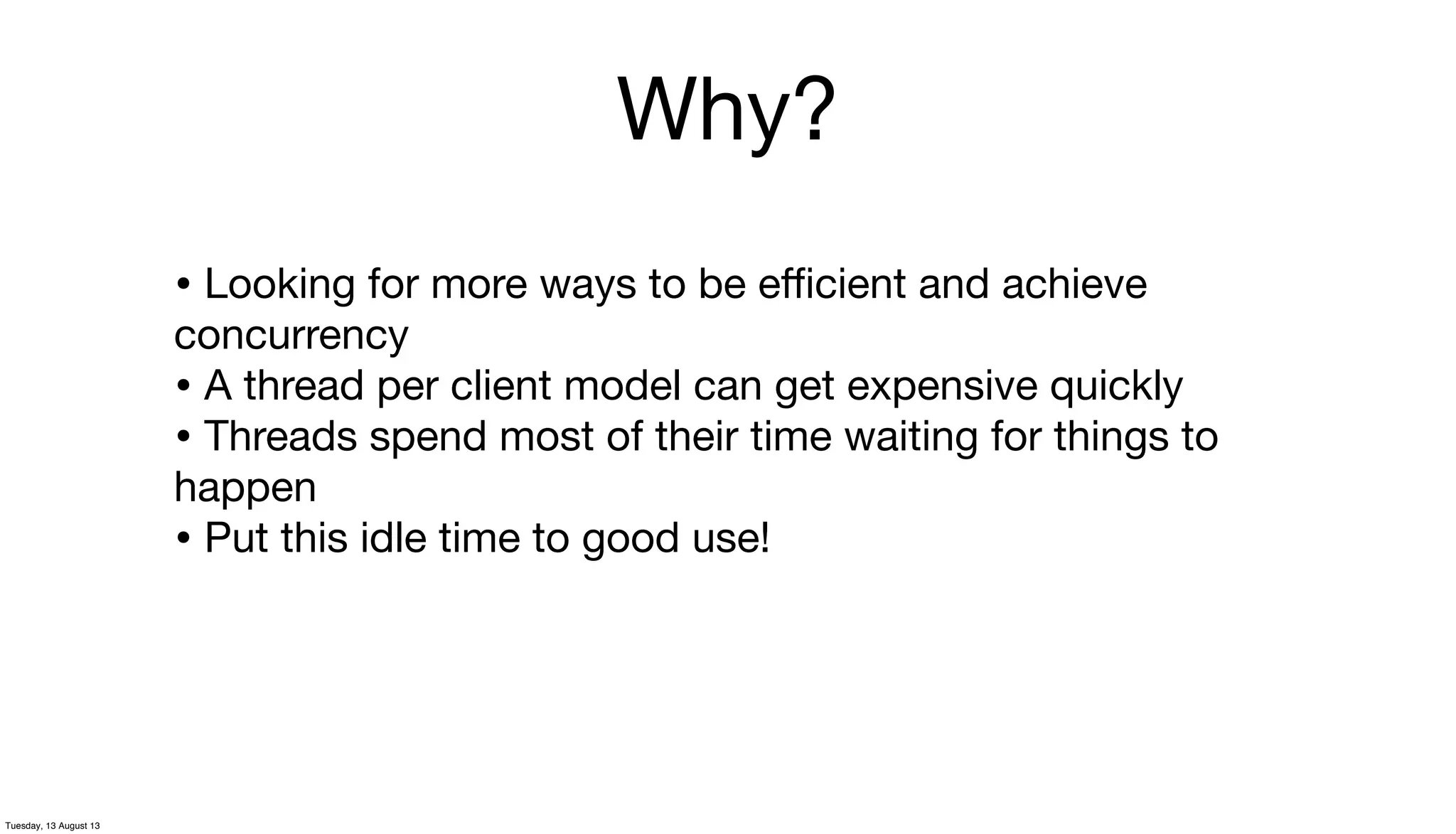

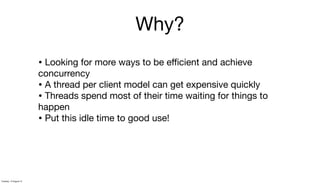

Why?
• Looking for more ways to be eﬃcient and achieve
concurrency
• A thread per client model can get expensive quickly
• Threads spend most of their time waiting for things to
happen
• Put this idle time to good use!

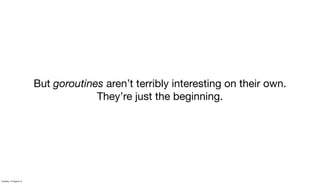

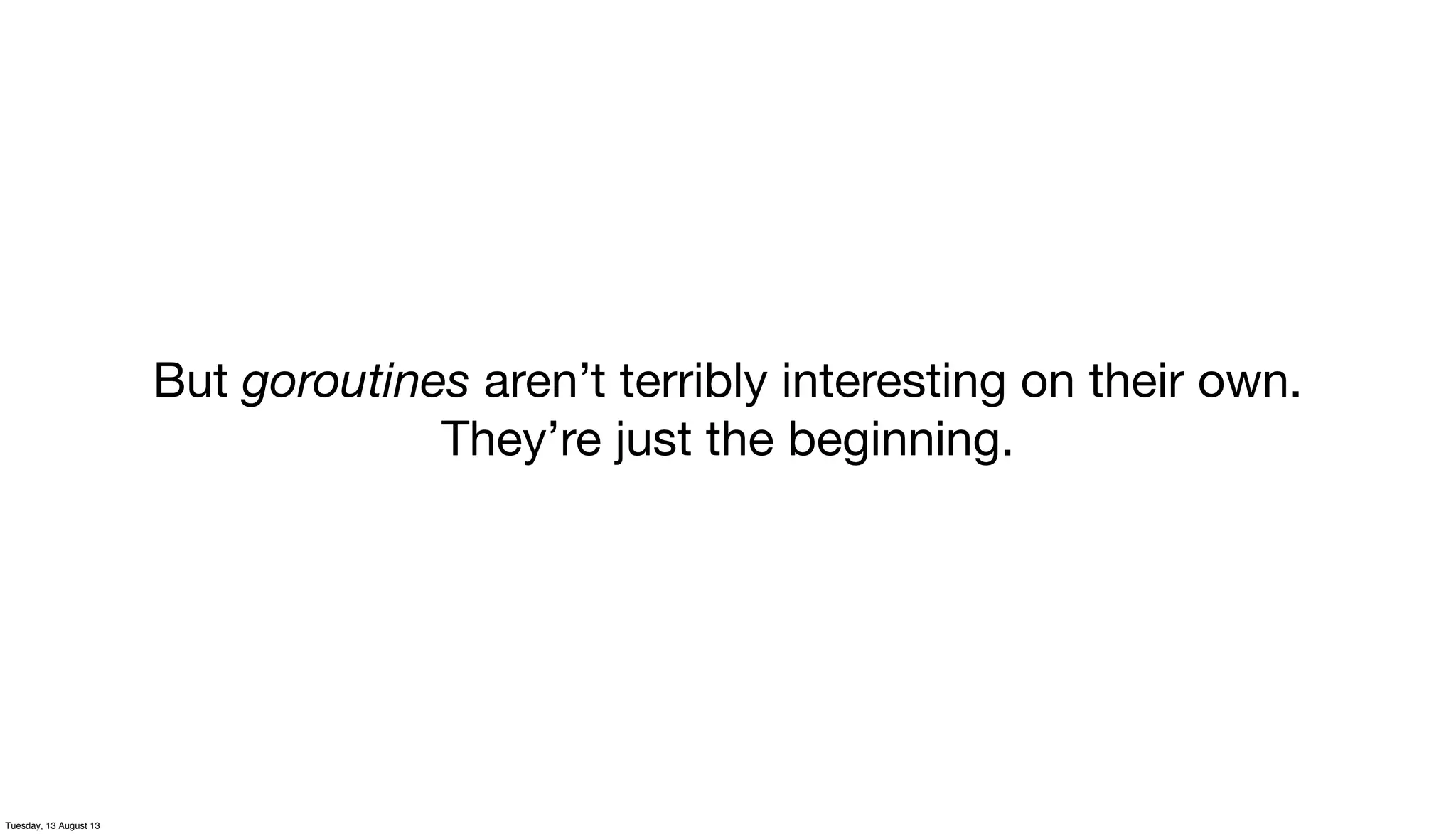

But goroutines aren’t terribly interesting on their own.
They’re just the beginning.

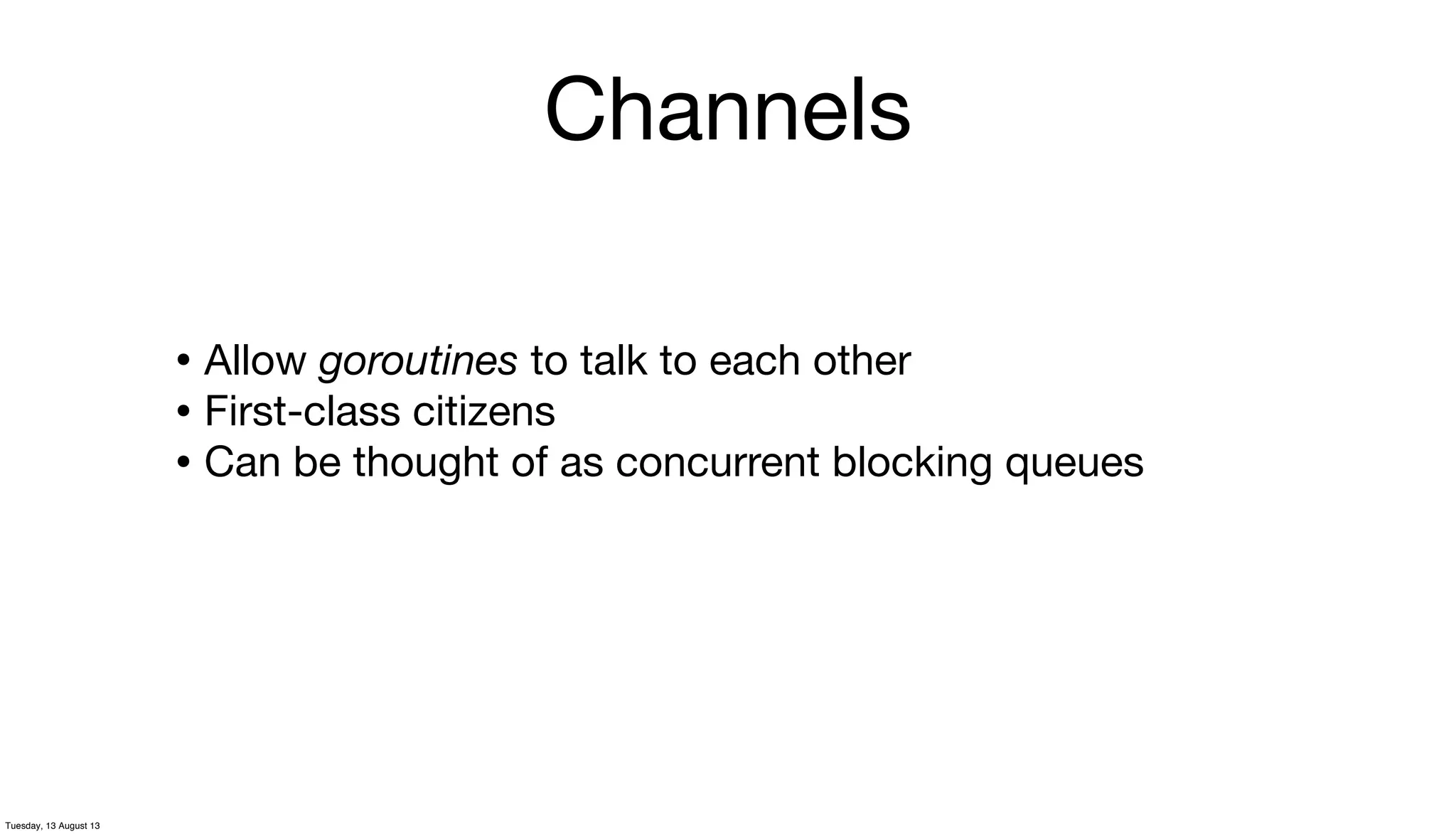

Channels
• Allow goroutines to talk to each other
• First-class citizens
• Can be thought of as concurrent blocking queues

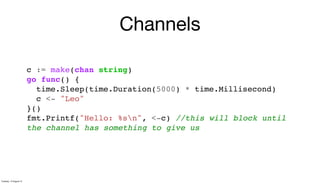

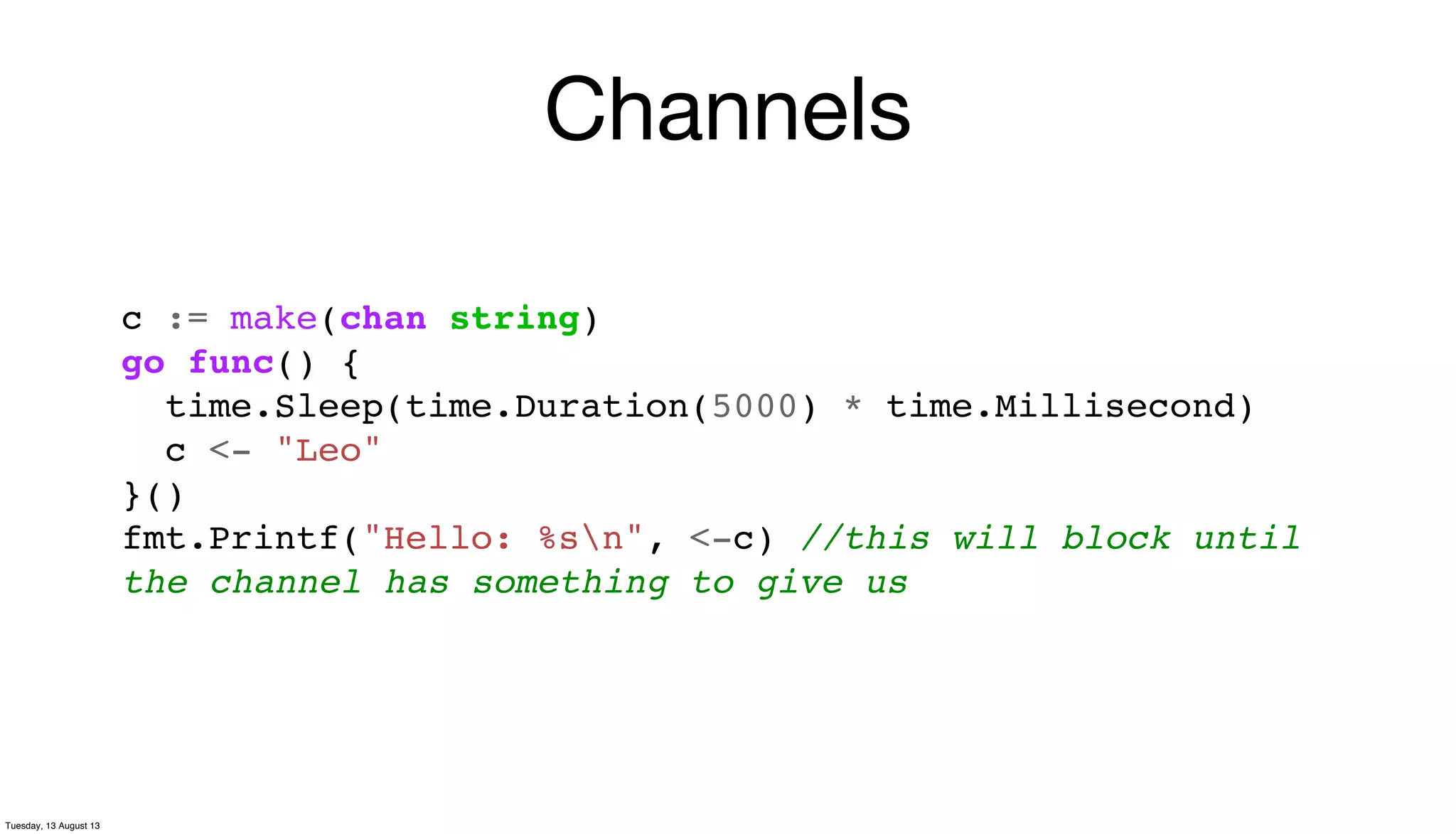

Channels
c := make(chan string)
go func() {
time.Sleep(time.Duration(5000) * time.Millisecond)
c <- "Leo"
}()
fmt.Printf("Hello: %sn", <-c) //this will block until
the channel has something to give us

But what about Clojure?
Patience, young padawan, we’ll get there...

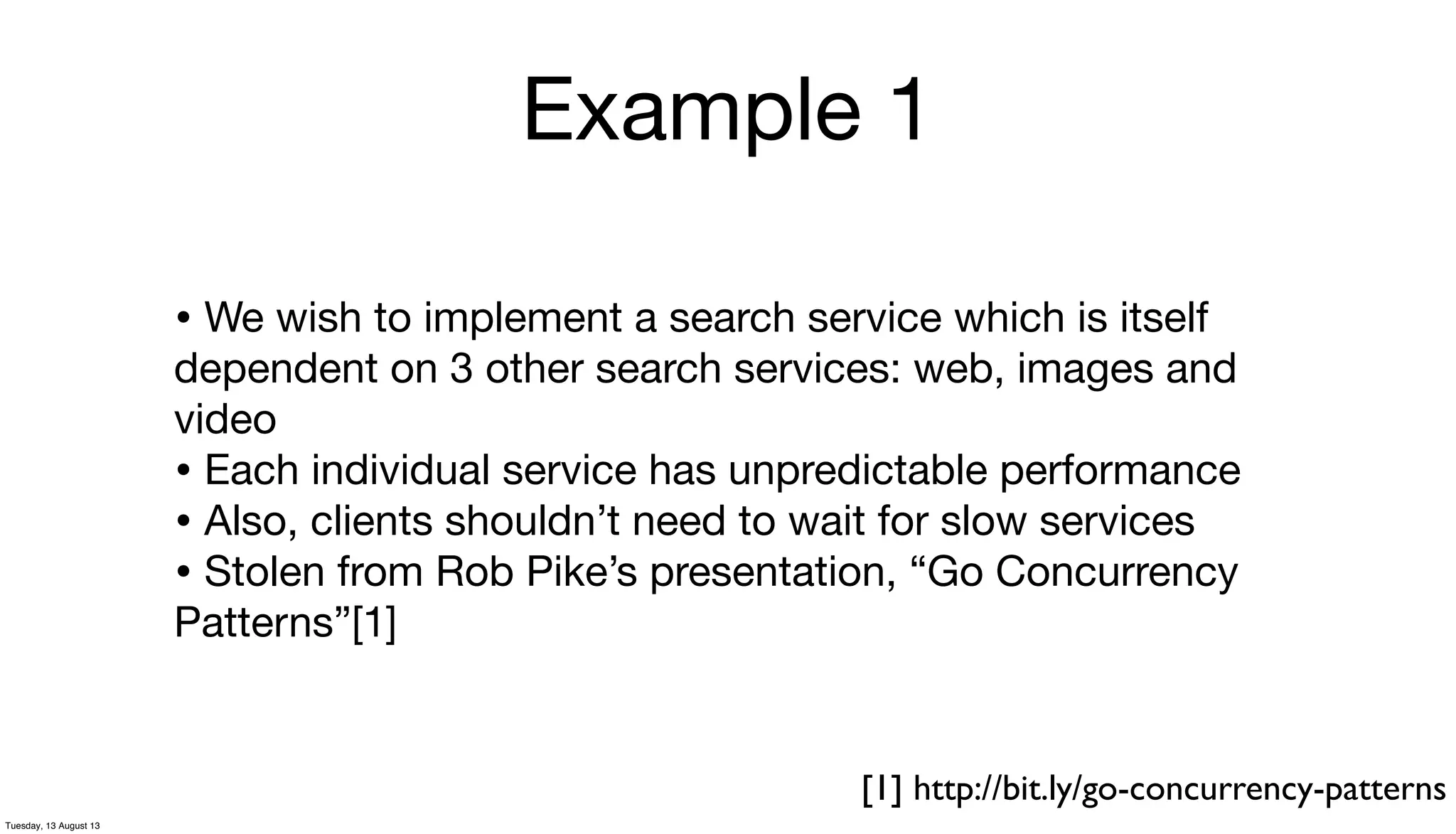

Example 1
• We wish to implement a search service which is itself
dependent on 3 other search services: web, images and
video
• Each individual service has unpredictable performance
• Also, clients shouldn’t need to wait for slow services
• Stolen from Rob Pike’s presentation, “Go Concurrency
Patterns”[1]
[1] http://bit.ly/go-concurrency-patterns

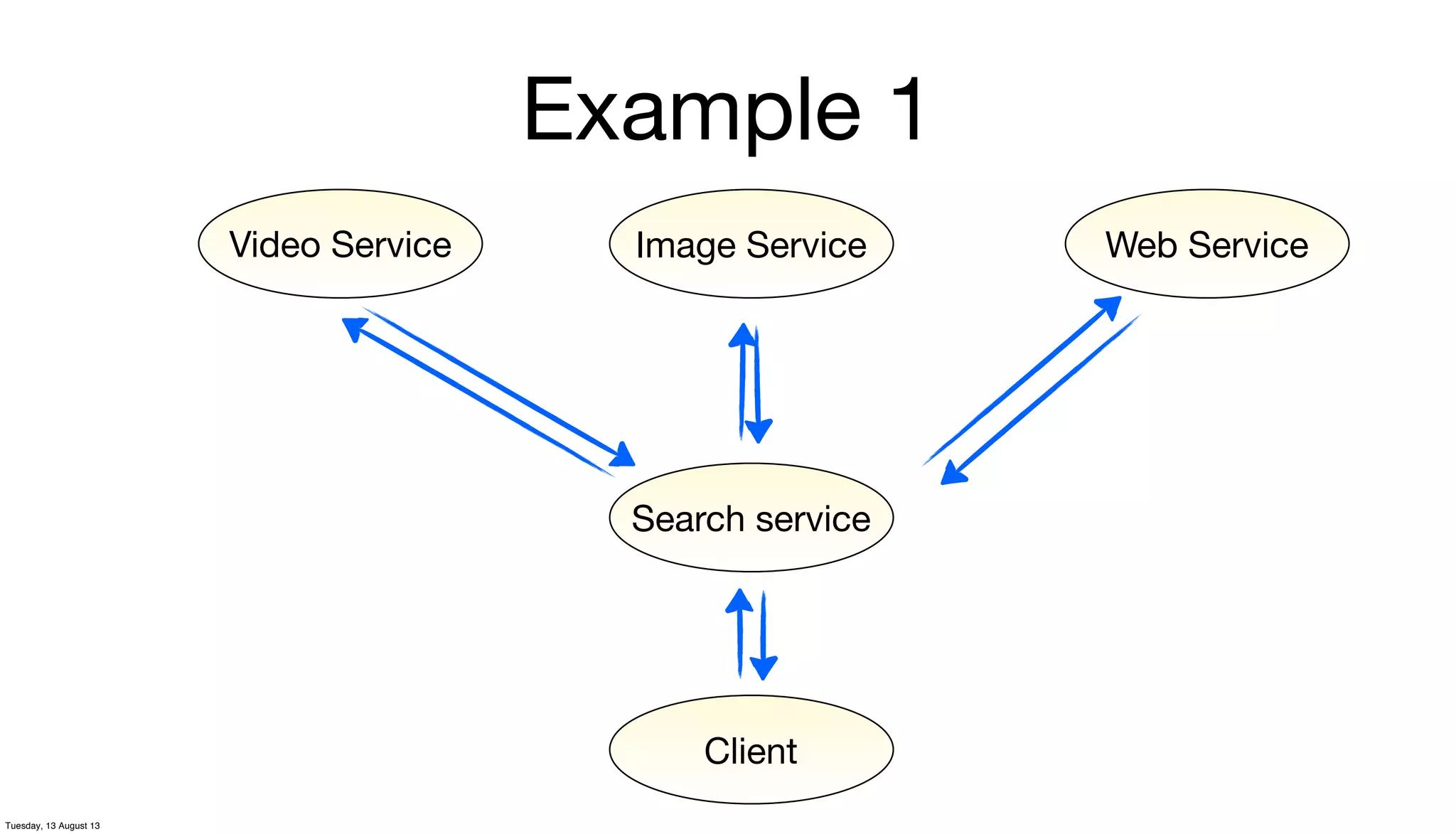

Example 1
Video Service Image Service Web Service
Search service
Client

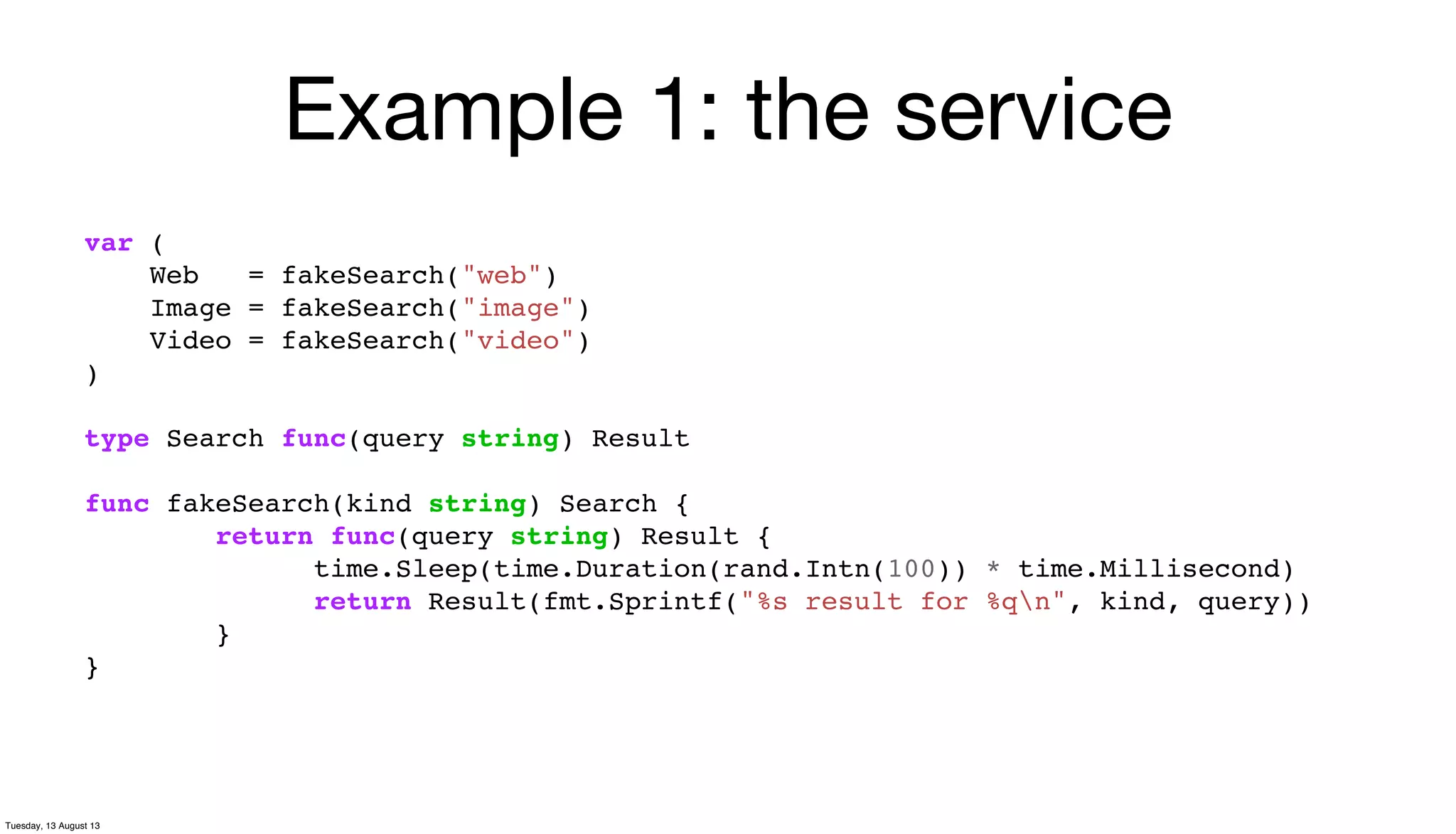

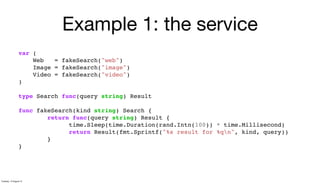

Example 1: the service
var (
Web = fakeSearch("web")
Image = fakeSearch("image")
Video = fakeSearch("video")
)
type Search func(query string) Result
func fakeSearch(kind string) Search {
return func(query string) Result {
time.Sleep(time.Duration(rand.Intn(100)) * time.Millisecond)
return Result(fmt.Sprintf("%s result for %qn", kind, query))
}
}

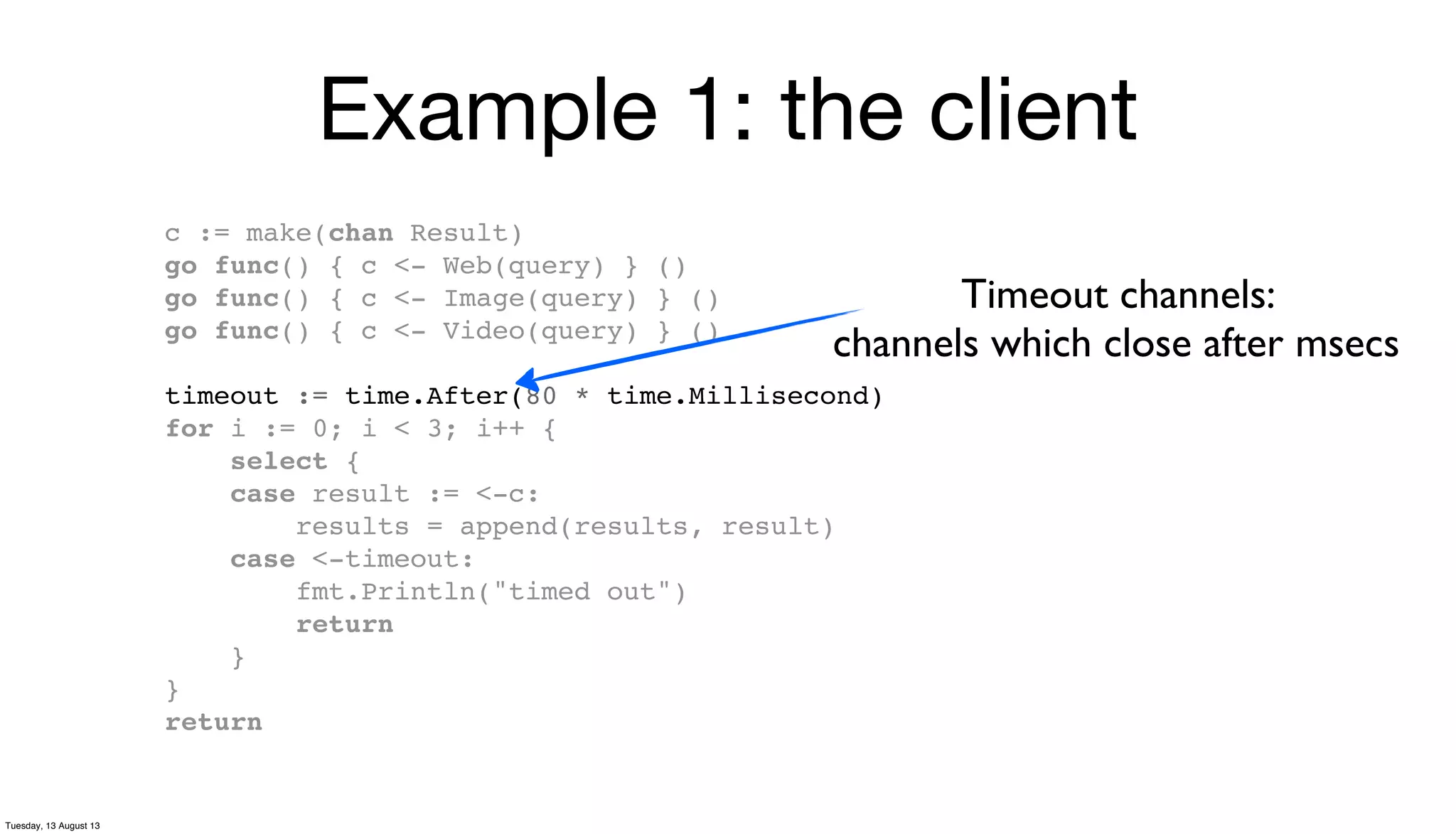

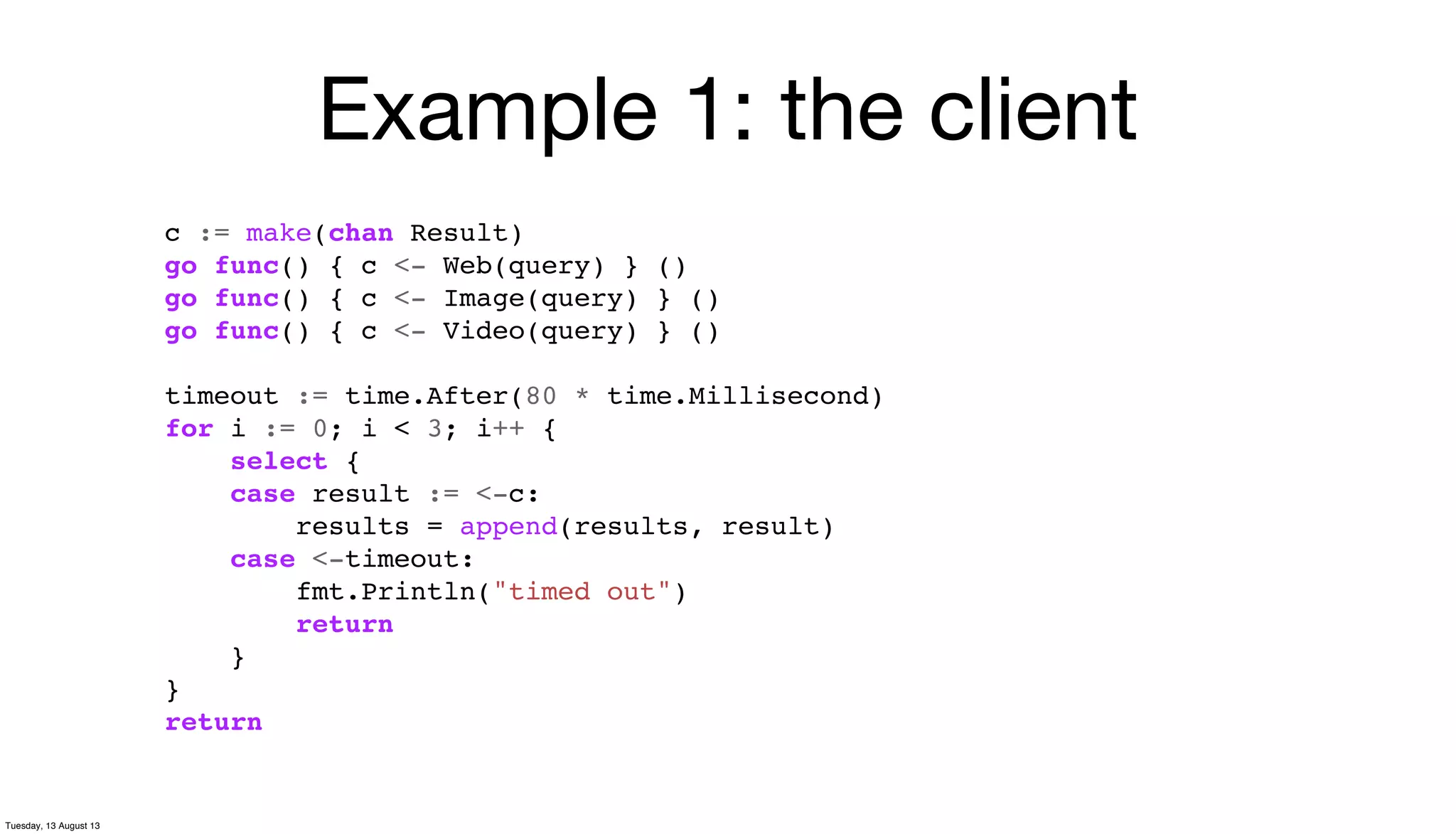

Example 1: the client
c := make(chan Result)
go func() { c <- Web(query) } ()
go func() { c <- Image(query) } ()
go func() { c <- Video(query) } ()
timeout := time.After(80 * time.Millisecond)
for i := 0; i < 3; i++ {
select {
case result := <-c:
results = append(results, result)
case <-timeout:
fmt.Println("timed out")
return
}
}
return

for i := 0; i < 3; i++ {
select {
case result := <-c:
case <-timeout:
return
}
}
return
Timeout channels:
channels which close after msecs

for i := 0; i < 3; i++ {
select {
case result := <-c:
case <-timeout:
return
}
}
return

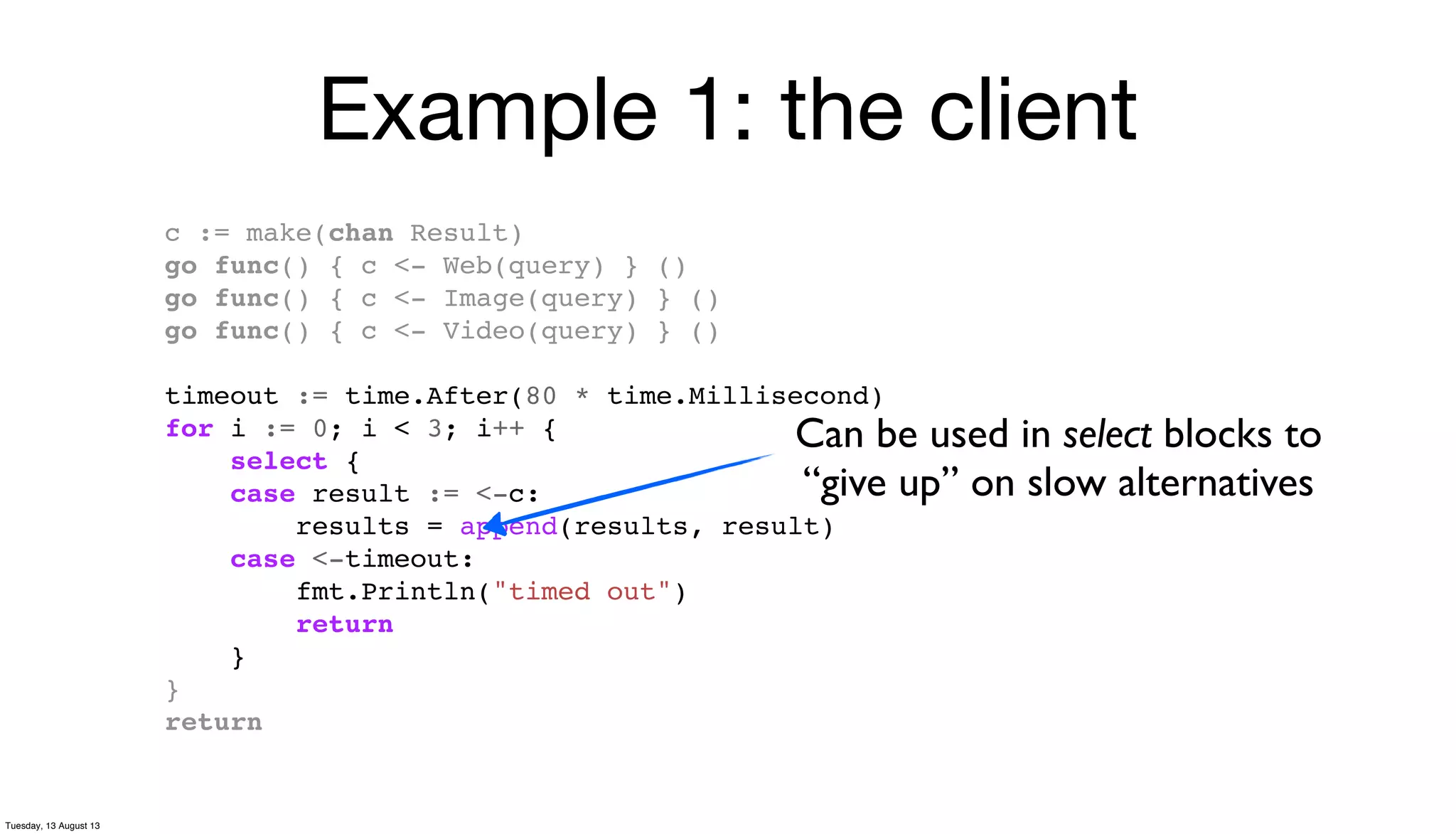

Can be used in select blocks to
“give up” on slow alternatives

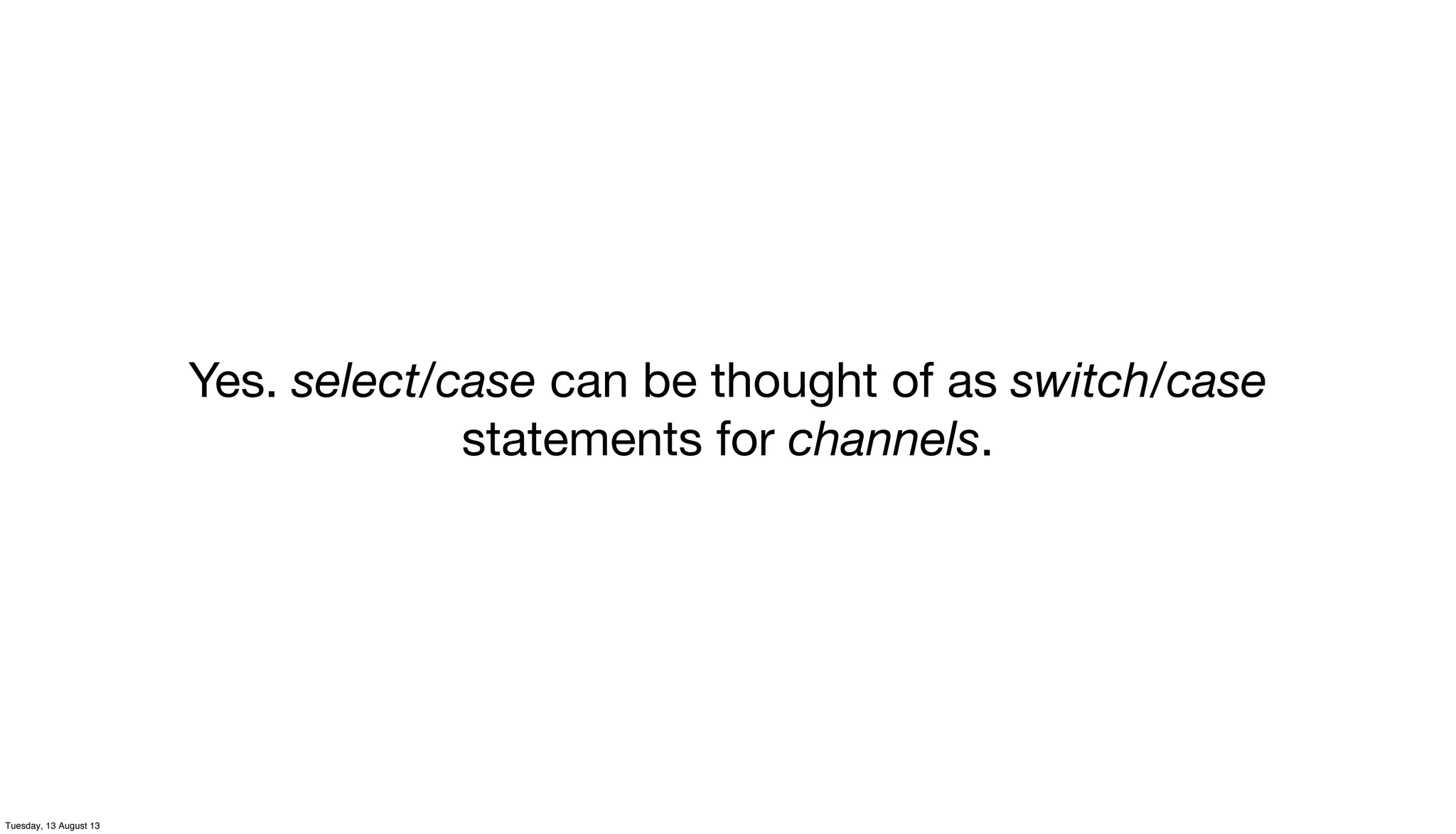

Yes. select/case can be thought of as switch/case
statements for channels.

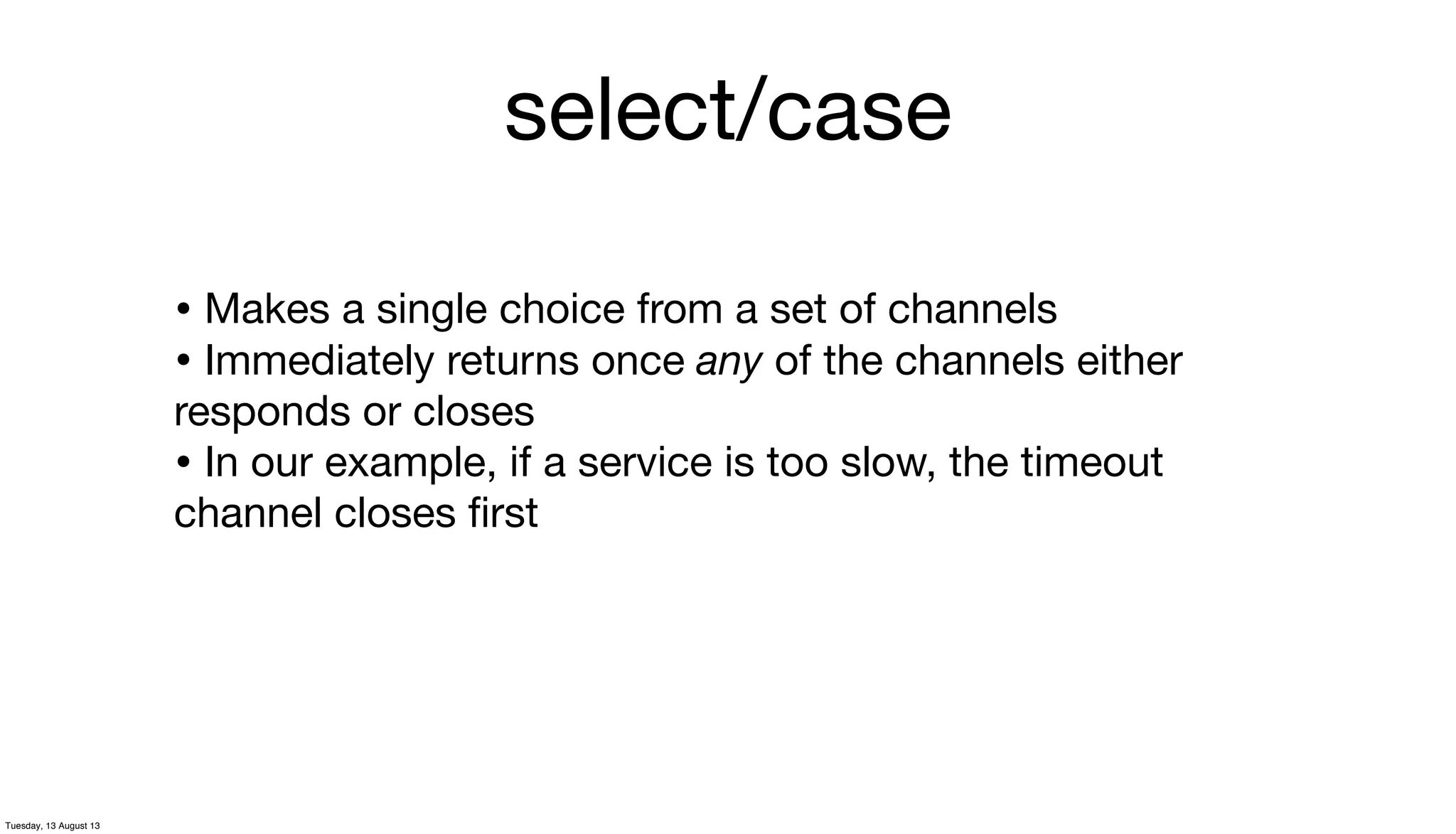

select/case
• Makes a single choice from a set of channels
• Immediately returns once any of the channels either
responds or closes
• In our example, if a service is too slow, the timeout
channel closes ﬁrst

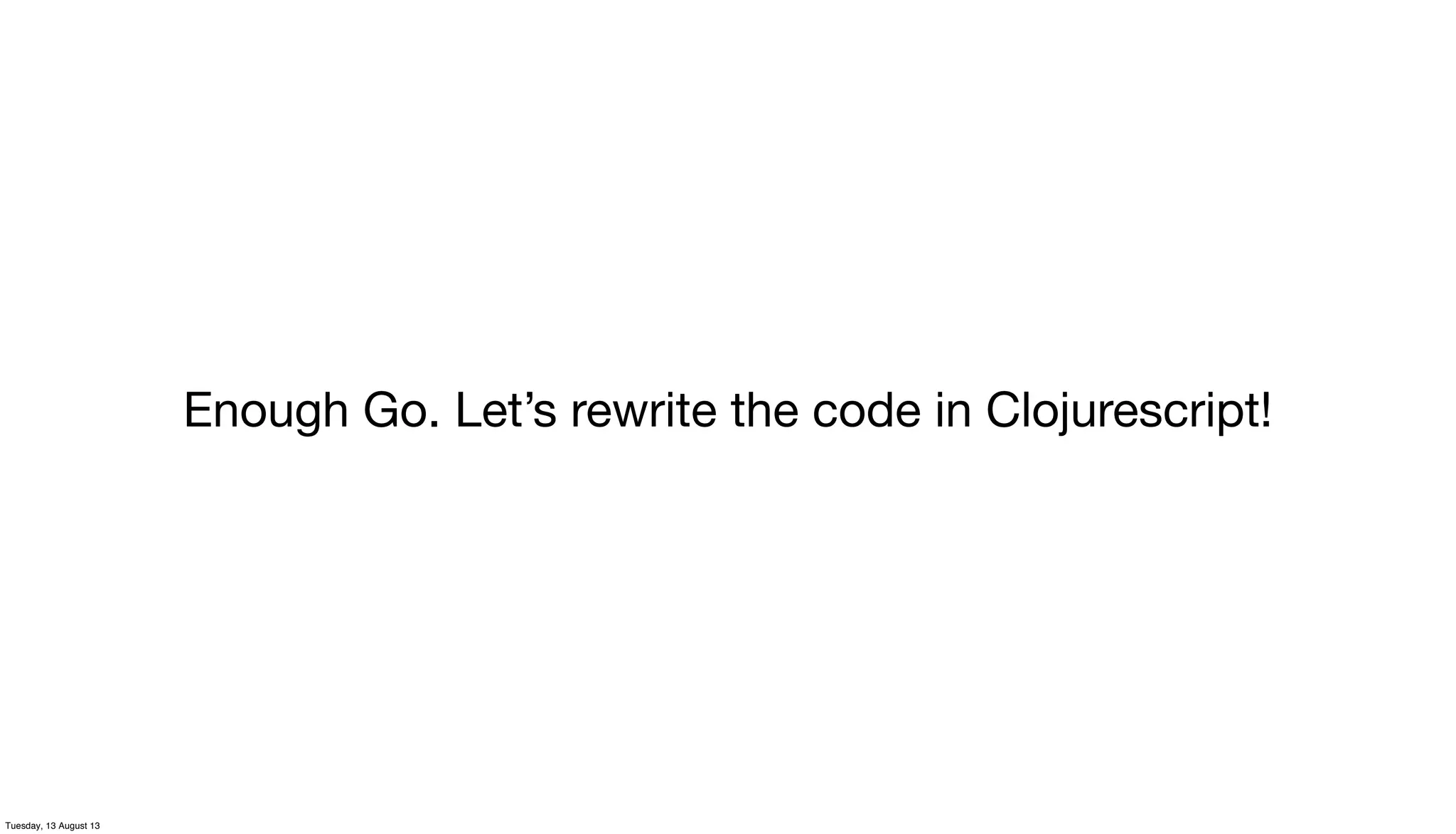

Enough Go. Let’s rewrite the code in Clojurescript!

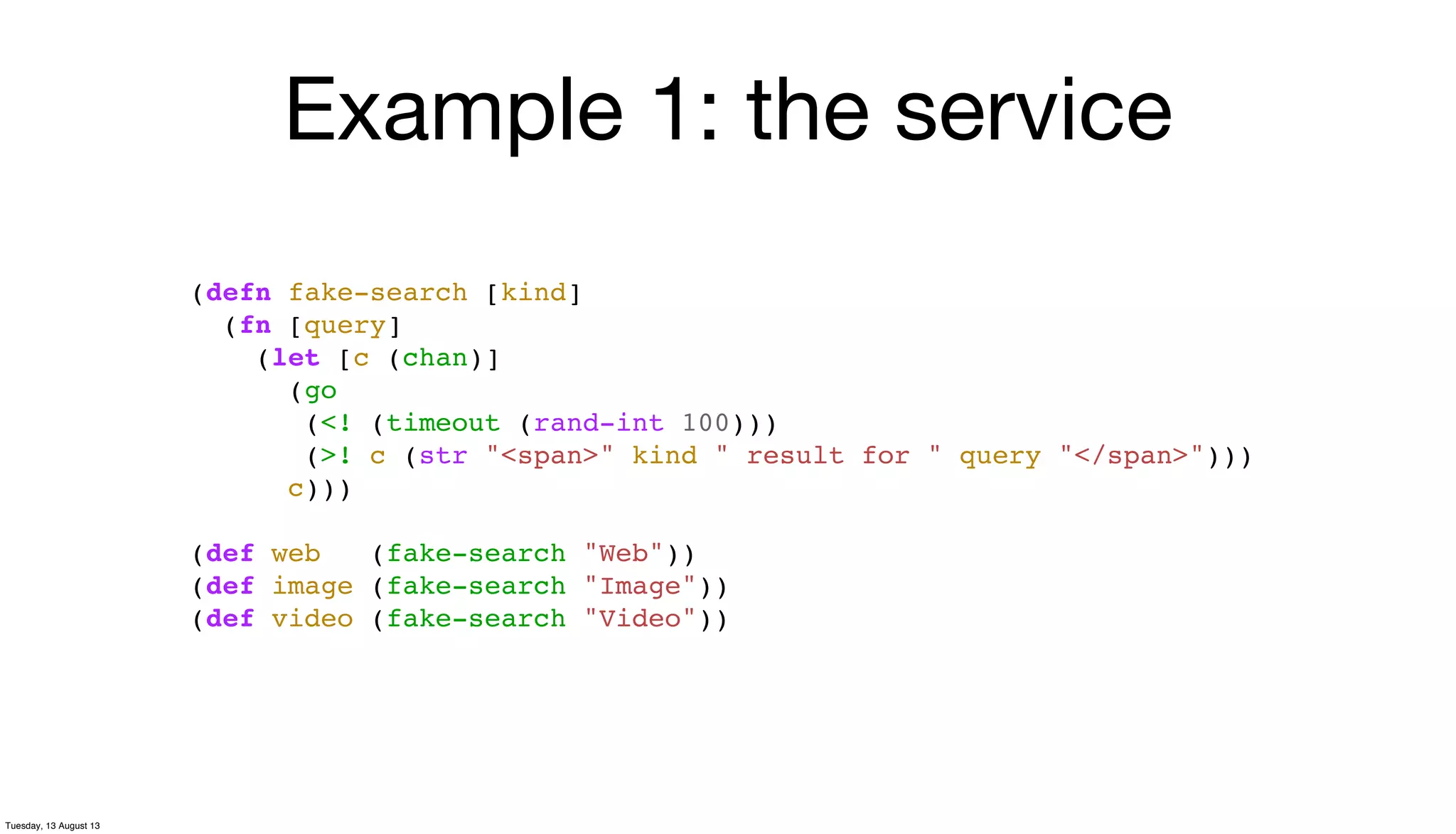

Example 1: the service
(defn fake-search [kind]
(fn [query]
(let [c (chan)]
(go
(<! (timeout (rand-int 100)))
(>! c (str "<span>" kind " result for " query "</span>")))
c)))
(def web (fake-search "Web"))
(def image (fake-search "Image"))
(def video (fake-search "Video"))

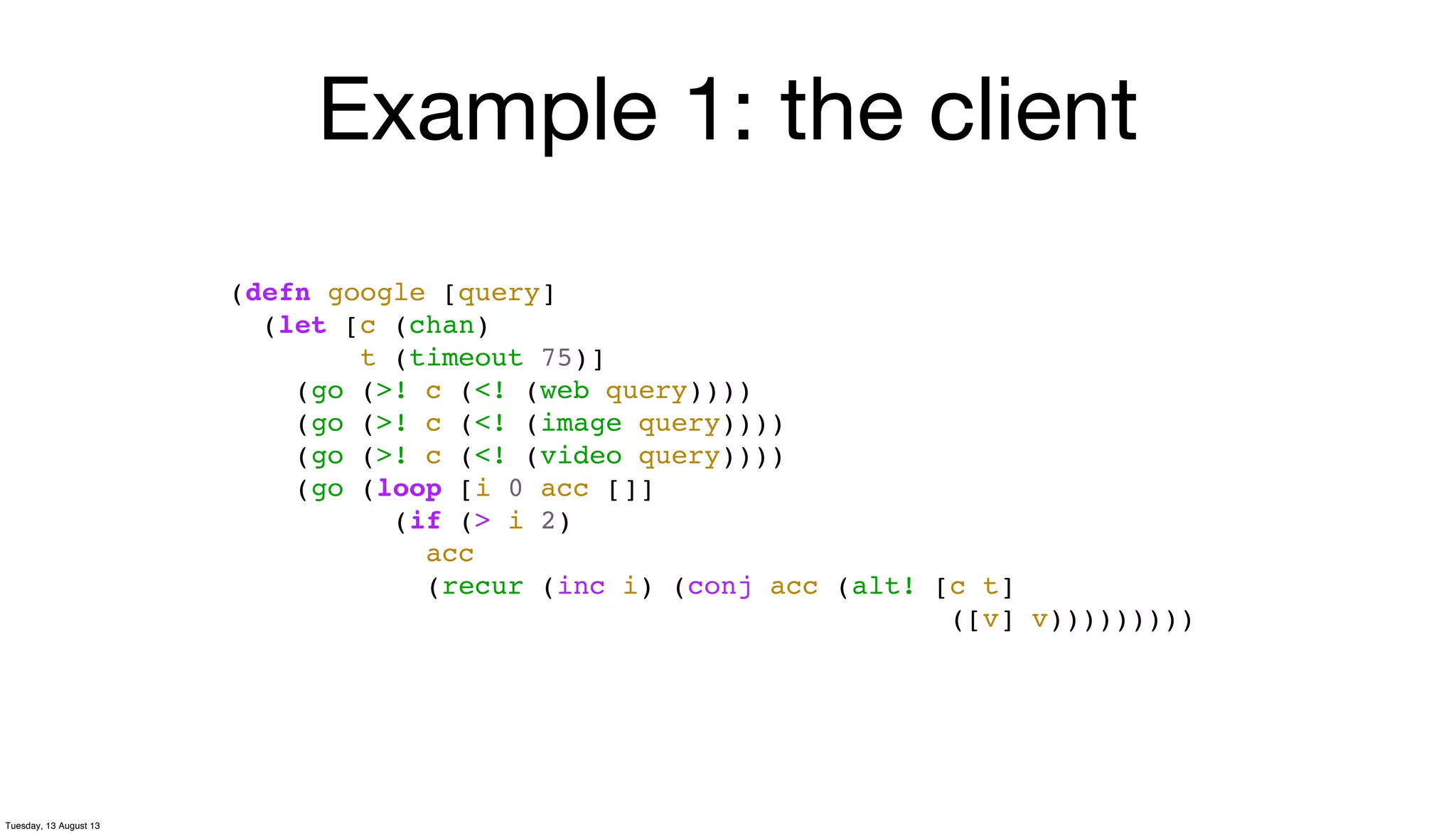

(defn google [query]
(let [c (chan)
t (timeout 75)]
(go (>! c (<! (web query))))
(go (>! c (<! (image query))))
(go (>! c (<! (video query))))
(go (loop [i 0 acc []]
(if (> i 2)
acc
(recur (inc i) (conj acc (alt! [c t]
([v] v)))))))))

(let [c (chan)
t (timeout 75)]
(go (>! c (<! (web query))))
(if (> i 2)
acc
([v] v)))))))))

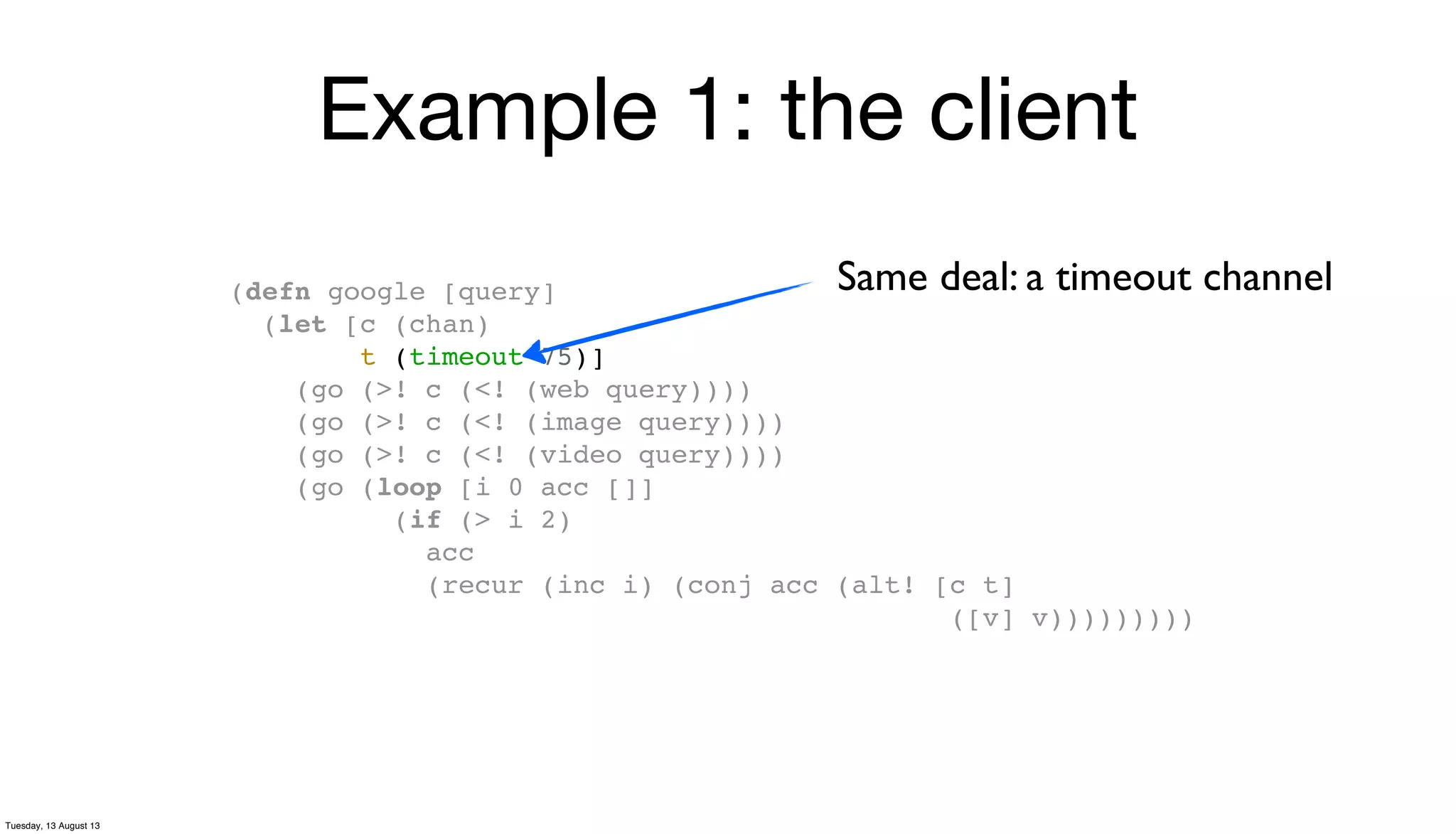

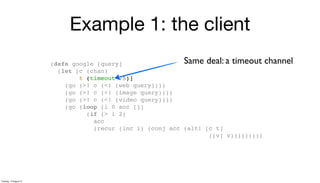

Same deal: a timeout channel

(let [c (chan)
t (timeout 75)]
(go (>! c (<! (web query))))
(if (> i 2)
acc
([v] v)))))))))

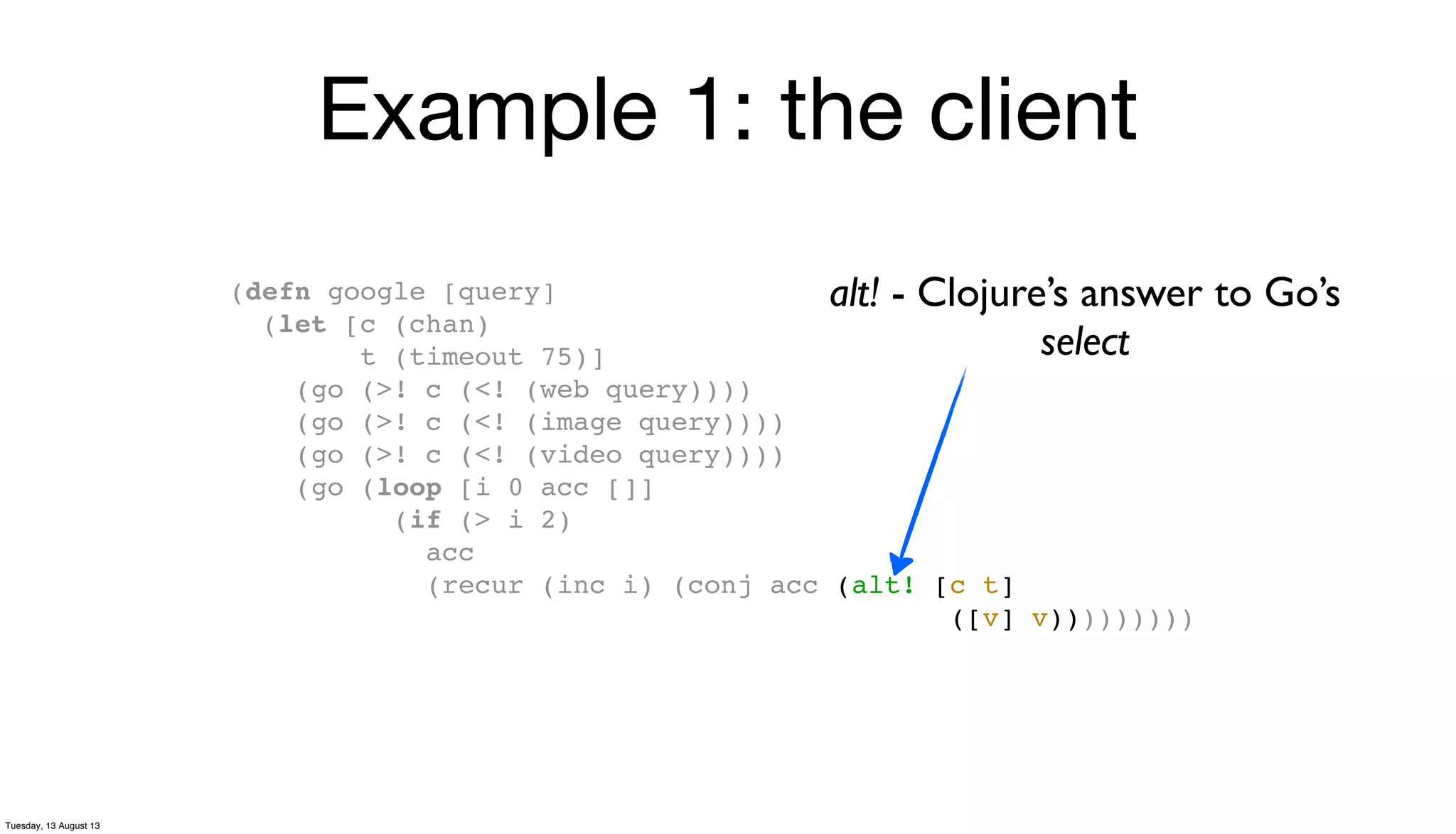

alt! - Clojure’s answer to Go’s
select

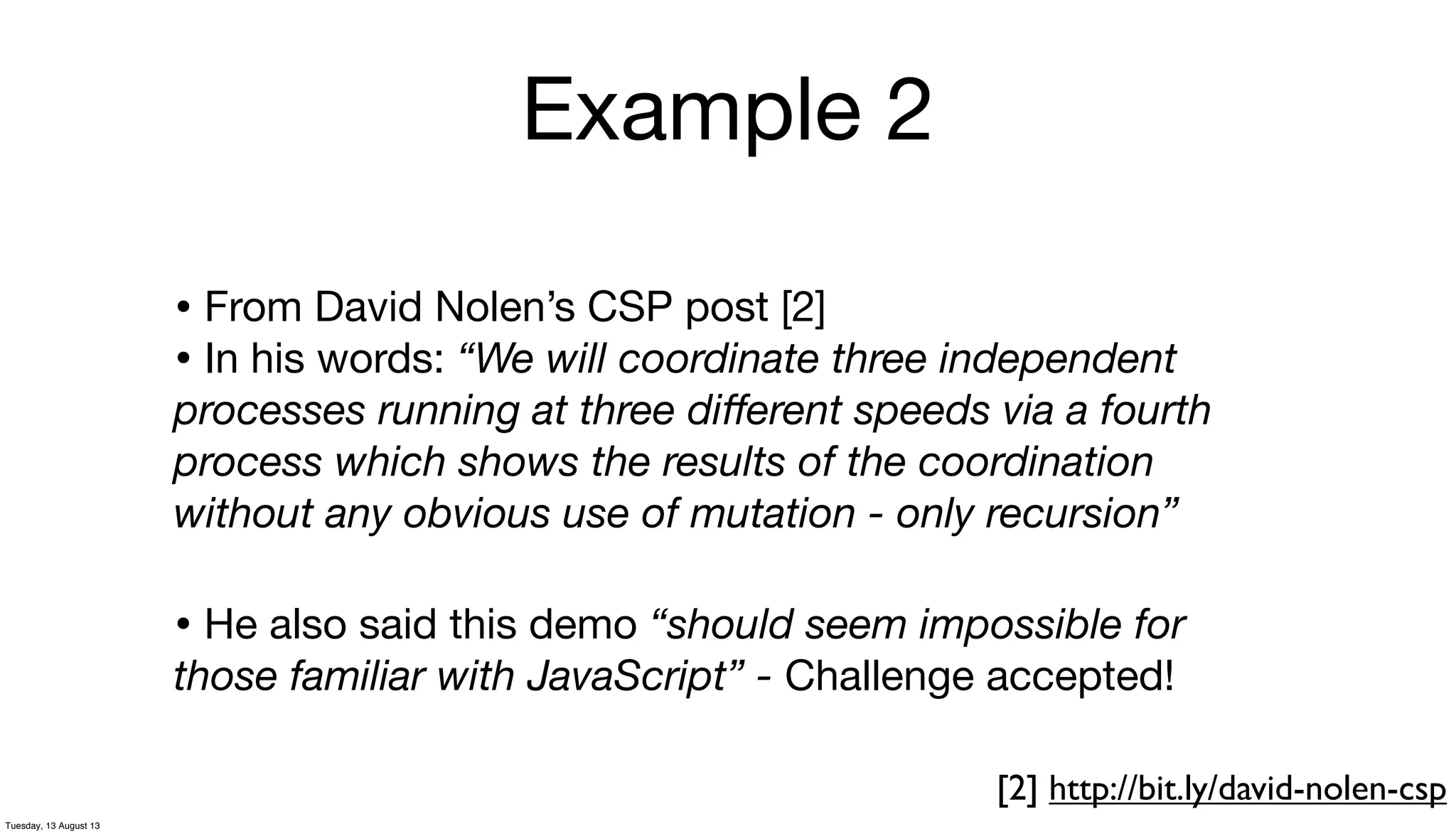

Example 2
• From David Nolen’s CSP post [2]
• In his words: “We will coordinate three independent
processes running at three diﬀerent speeds via a fourth
process which shows the results of the coordination
without any obvious use of mutation - only recursion”
[2] http://bit.ly/david-nolen-csp
• He also said this demo “should seem impossible for
those familiar with JavaScript” - Challenge accepted!

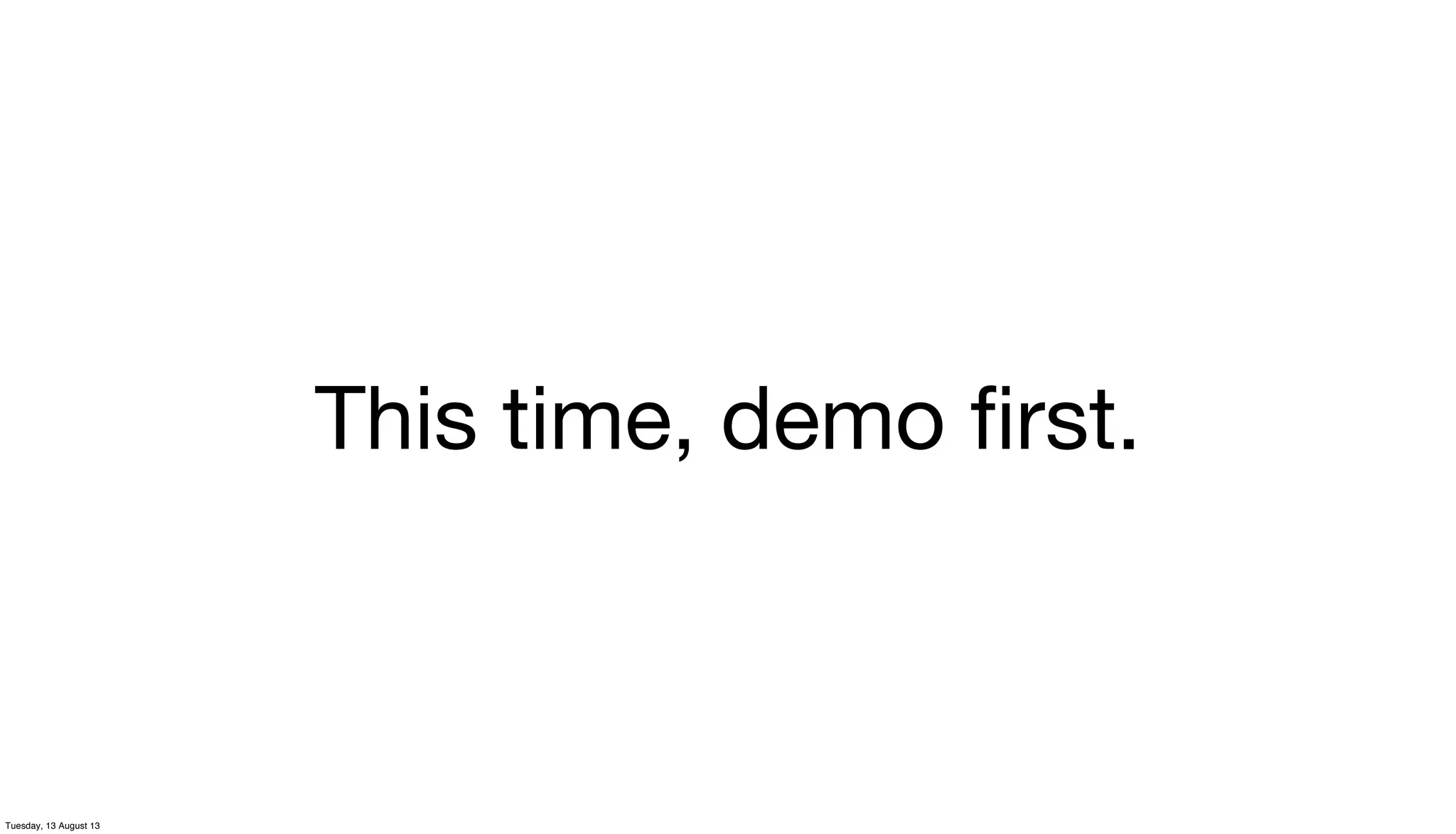

This time, demo ﬁrst.

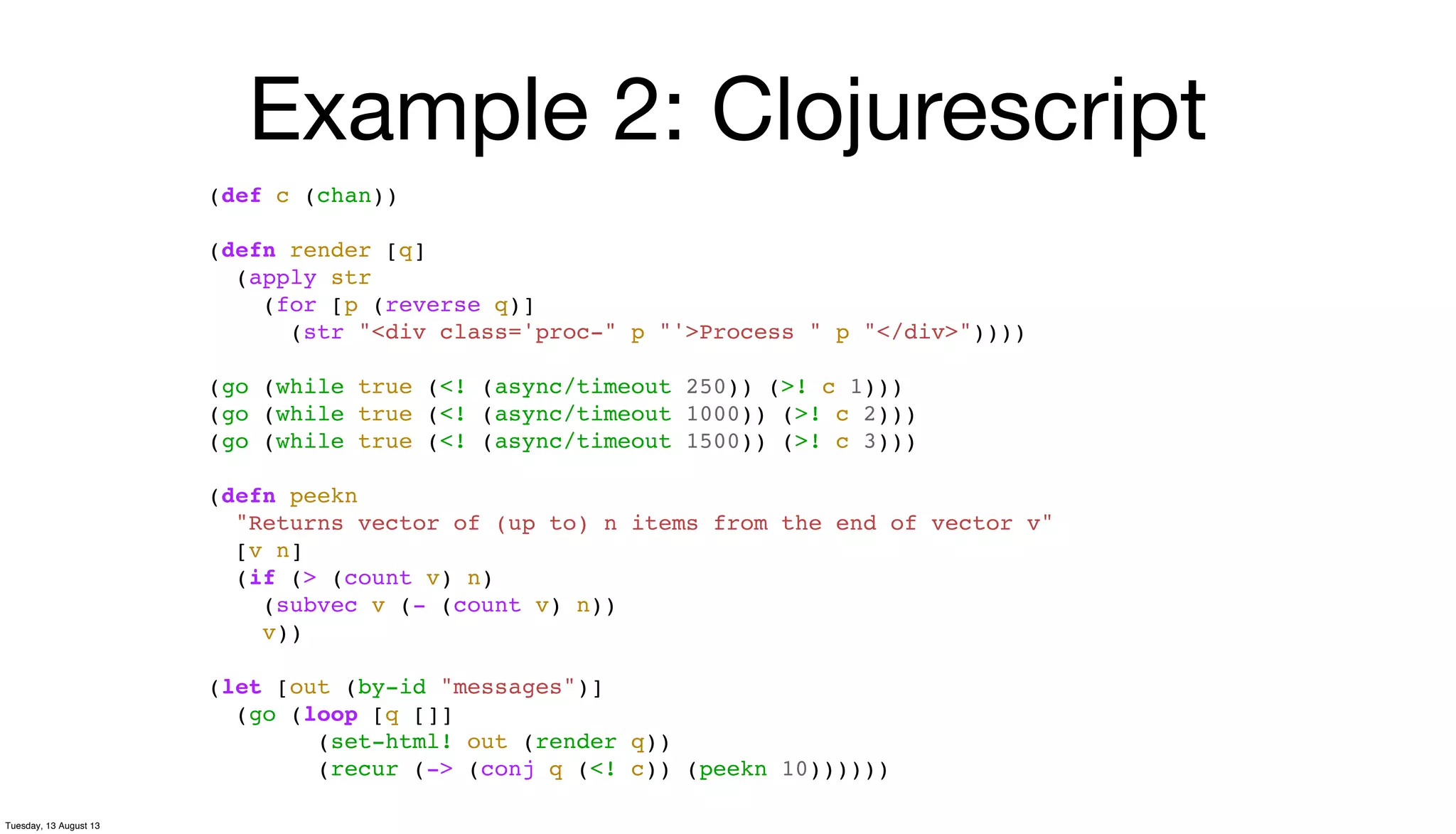

Example 2: Clojurescript
(def c (chan))
(defn render [q]
(apply str
(for [p (reverse q)]
(str "<div class='proc-" p "'>Process " p "</div>"))))
(go (while true (<! (async/timeout 250)) (>! c 1)))
(defn peekn
"Returns vector of (up to) n items from the end of vector v"
[v n]
(if (> (count v) n)
(subvec v (- (count v) n))
v))
(let [out (by-id "messages")]
(go (loop [q []]
(set-html! out (render q))
(recur (-> (conj q (<! c)) (peekn 10))))))

(def c (chan))
(defn render [q]
(apply str
(defn peekn
[v n]
(if (> (count v) n)
v))
(go (loop [q []]

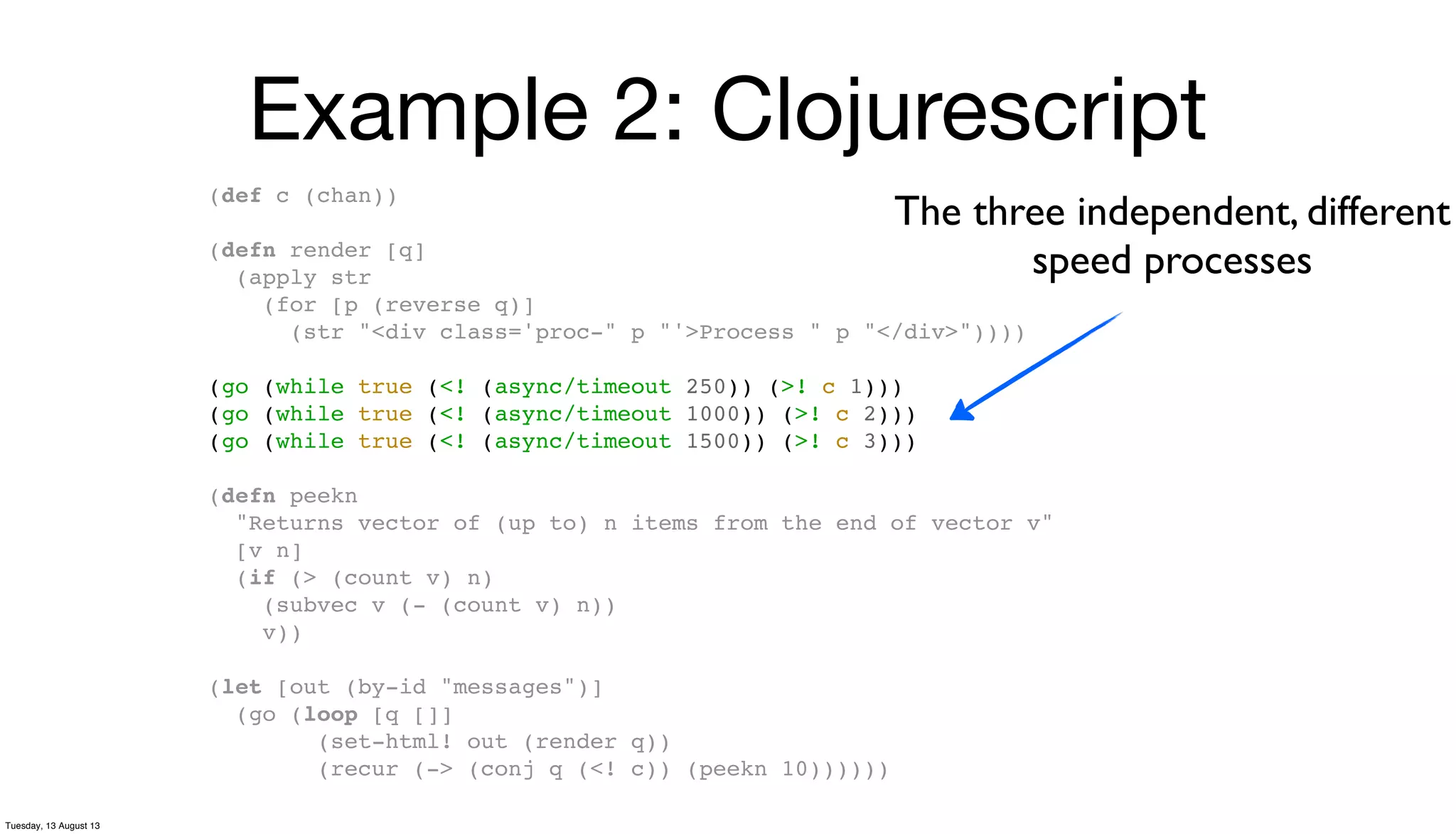

The three independent, different
speed processes

(def c (chan))
(defn render [q]
(apply str
(defn peekn
[v n]
(if (> (count v) n)
v))
(go (loop [q []]

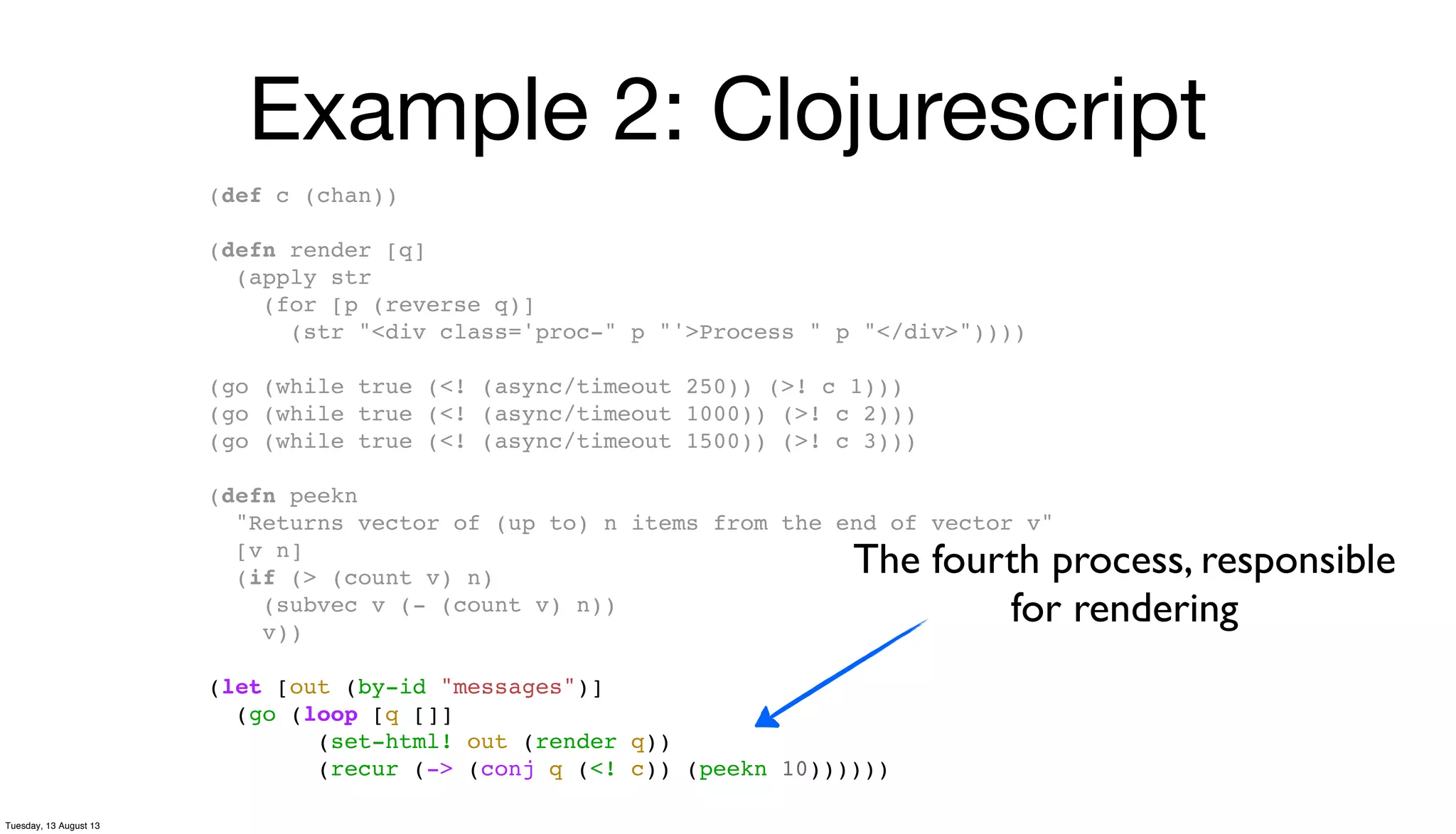

The fourth process, responsible
for rendering

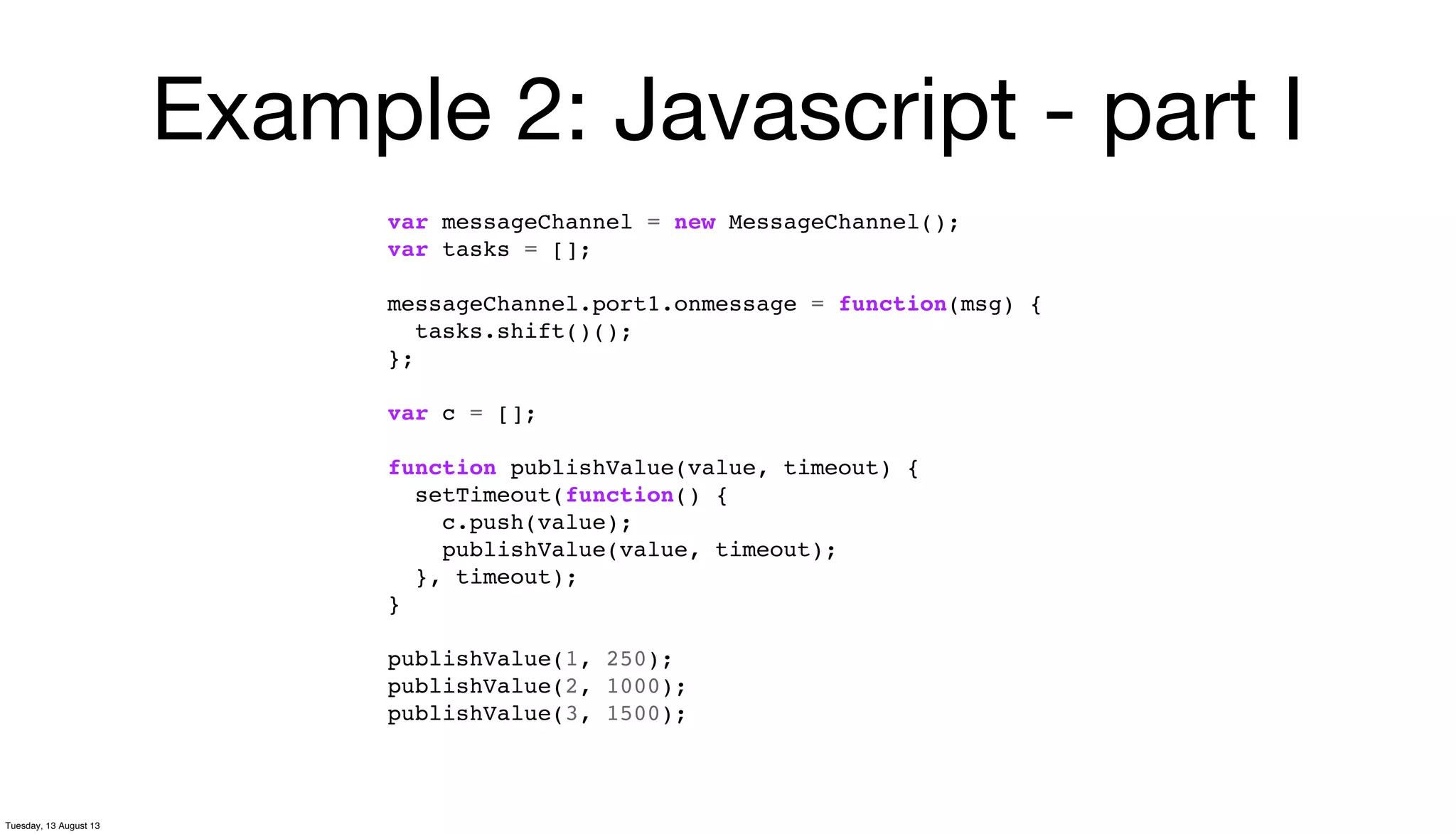

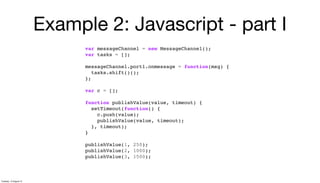

Example 2: Javascript - part I
var messageChannel = new MessageChannel();
var tasks = [];
messageChannel.port1.onmessage = function(msg) {
tasks.shift()();
};
var c = [];
function publishValue(value, timeout) {
setTimeout(function() {
c.push(value);
publishValue(value, timeout);
}, timeout);
}
publishValue(1, 250);

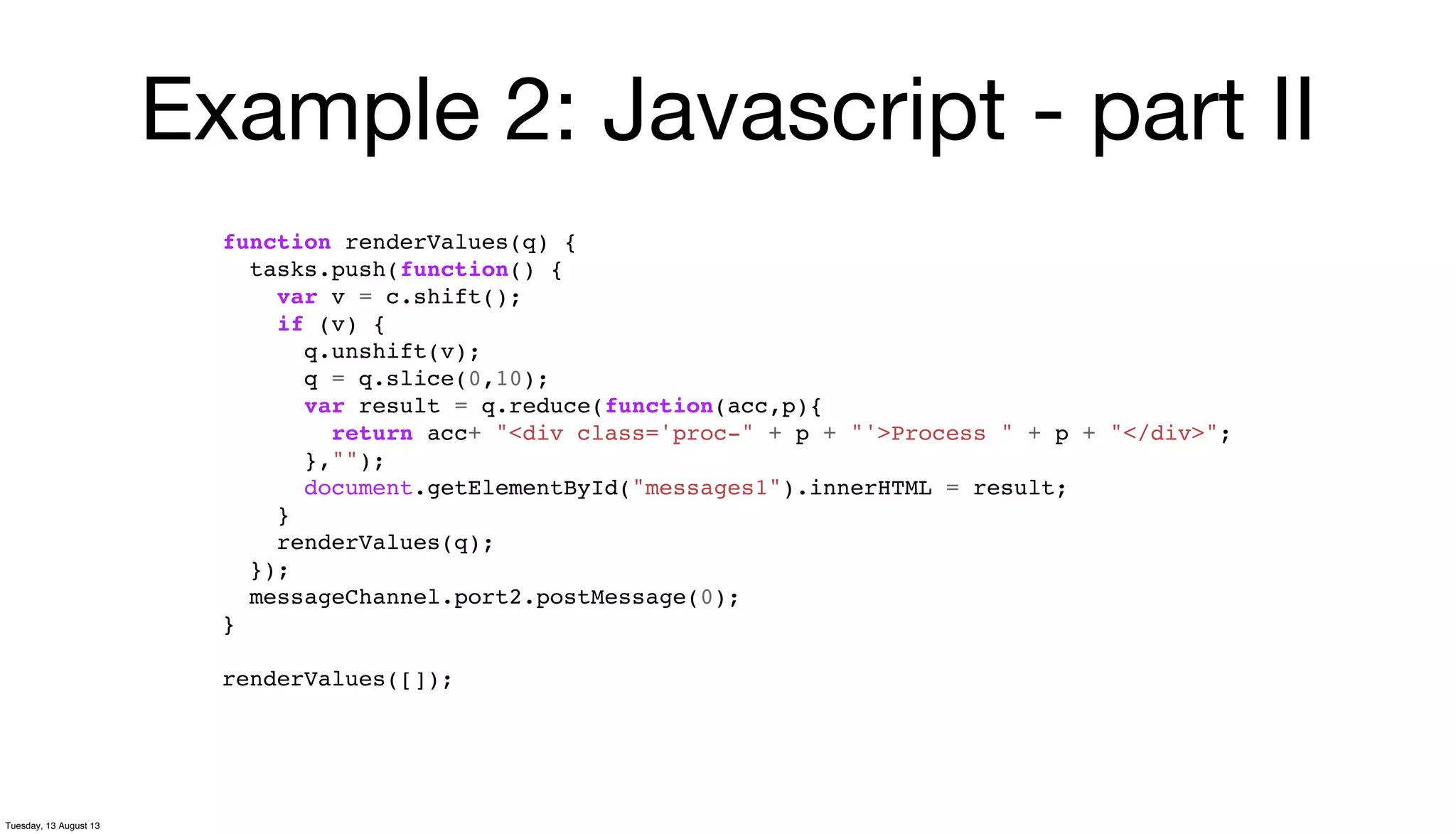

Example 2: Javascript - part II
function renderValues(q) {
tasks.push(function() {
var v = c.shift();
if (v) {
q.unshift(v);
q = q.slice(0,10);
var result = q.reduce(function(acc,p){
return acc+ "<div class='proc-" + p + "'>Process " + p + "</div>";
},"");
document.getElementById("messages1").innerHTML = result;
}
renderValues(q);
});
messageChannel.port2.postMessage(0);
}
renderValues([]);

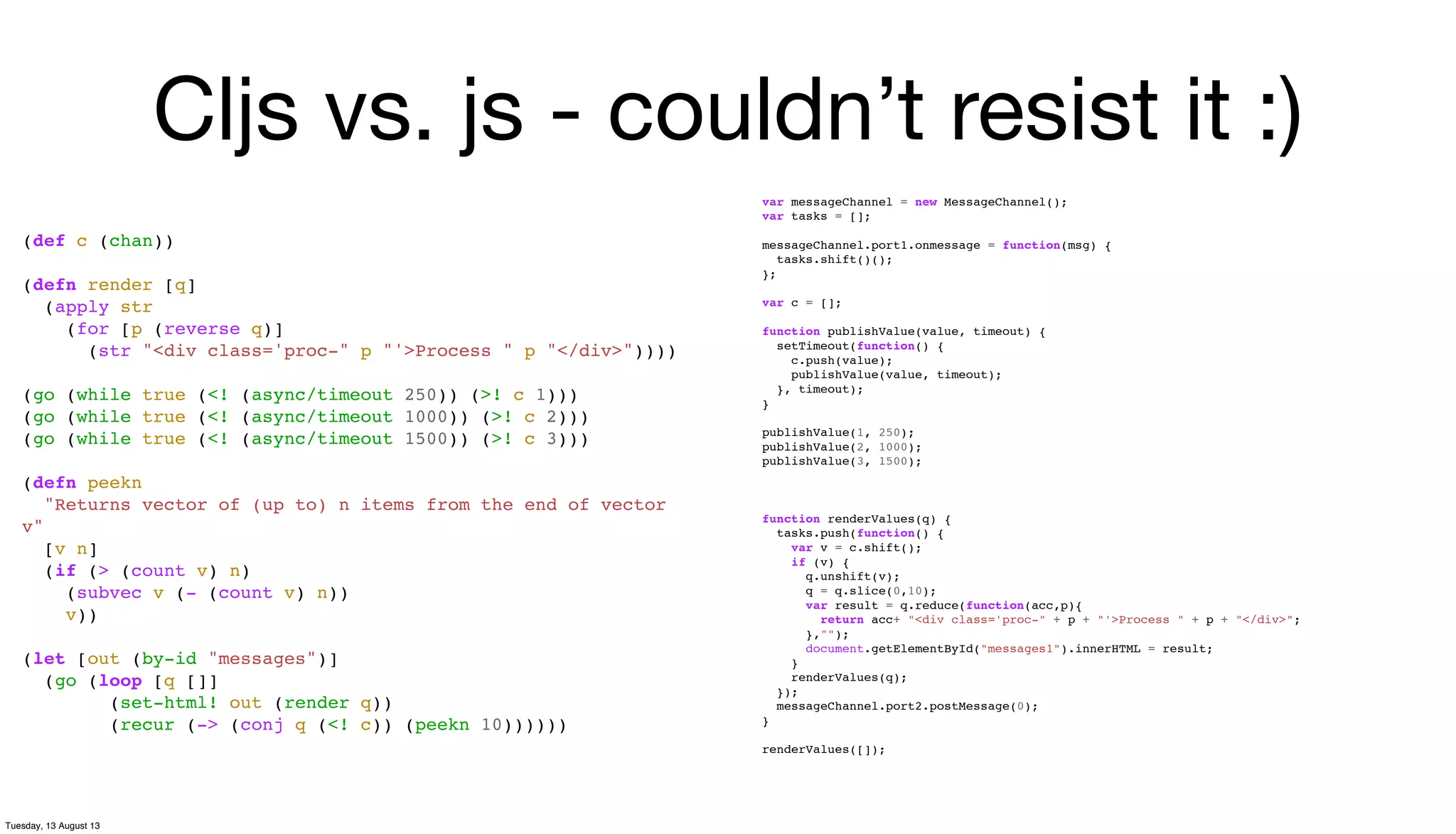

Cljs vs. js - couldn’t resist it :)
(def c (chan))
(defn render [q]
(apply str
(defn peekn
"Returns vector of (up to) n items from the end of vector
v"
[v n]
(if (> (count v) n)
v))
(go (loop [q []]
var messageChannel = new MessageChannel();
var tasks = [];
messageChannel.port1.onmessage = function(msg) {
tasks.shift()();
};
var c = [];
function publishValue(value, timeout) {
setTimeout(function() {
c.push(value);
publishValue(value, timeout);
}, timeout);
}
function renderValues(q) {
tasks.push(function() {
var v = c.shift();
if (v) {
q.unshift(v);
q = q.slice(0,10);
var result = q.reduce(function(acc,p){
return acc+ "<div class='proc-" + p + "'>Process " + p + "</div>";
},"");
document.getElementById("messages1").innerHTML = result;
}
renderValues(q);
});
messageChannel.port2.postMessage(0);
}
renderValues([]);

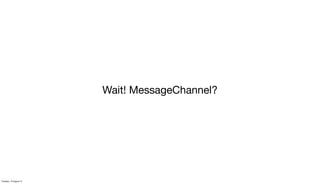

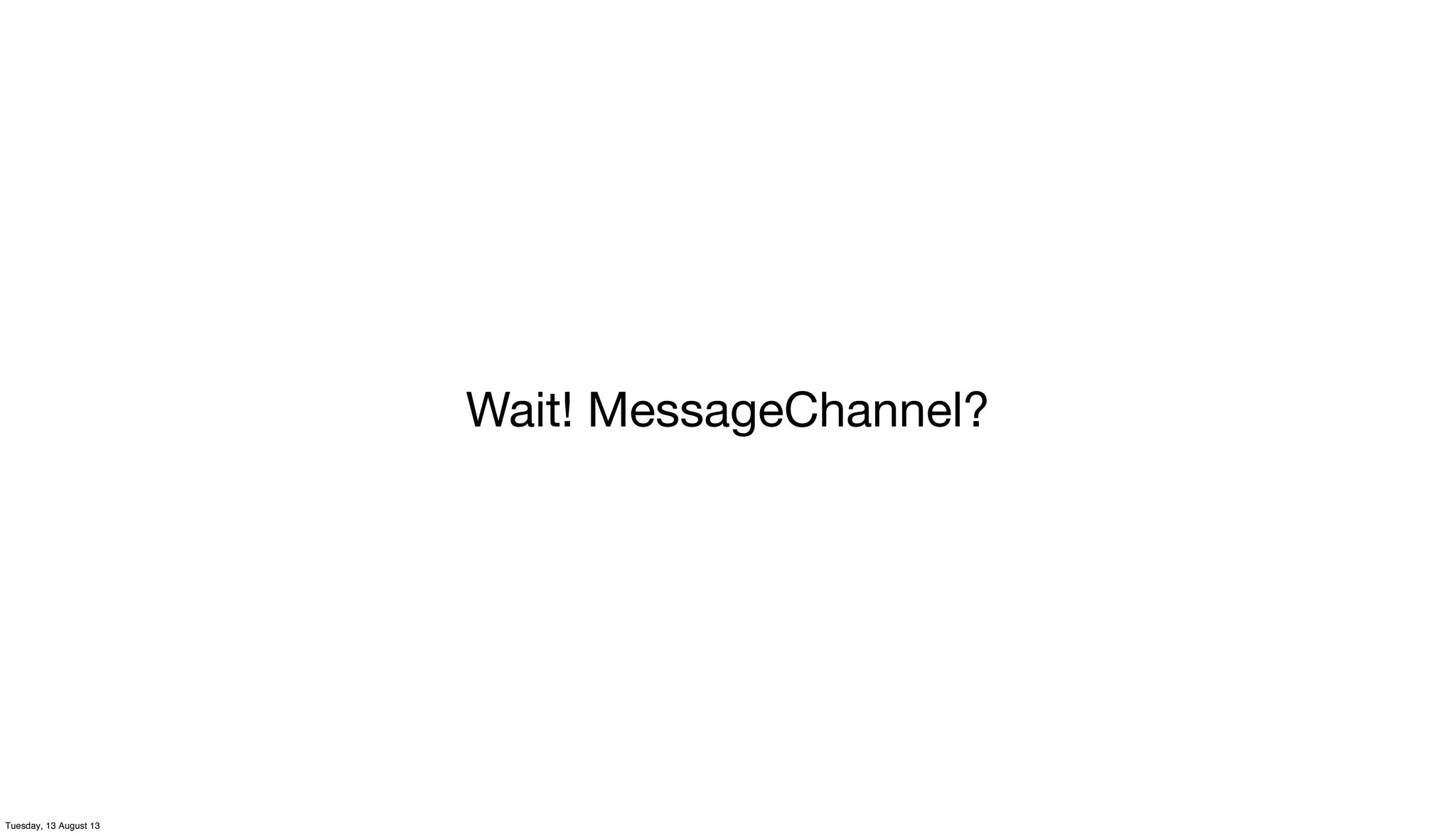

Wait! MessageChannel?

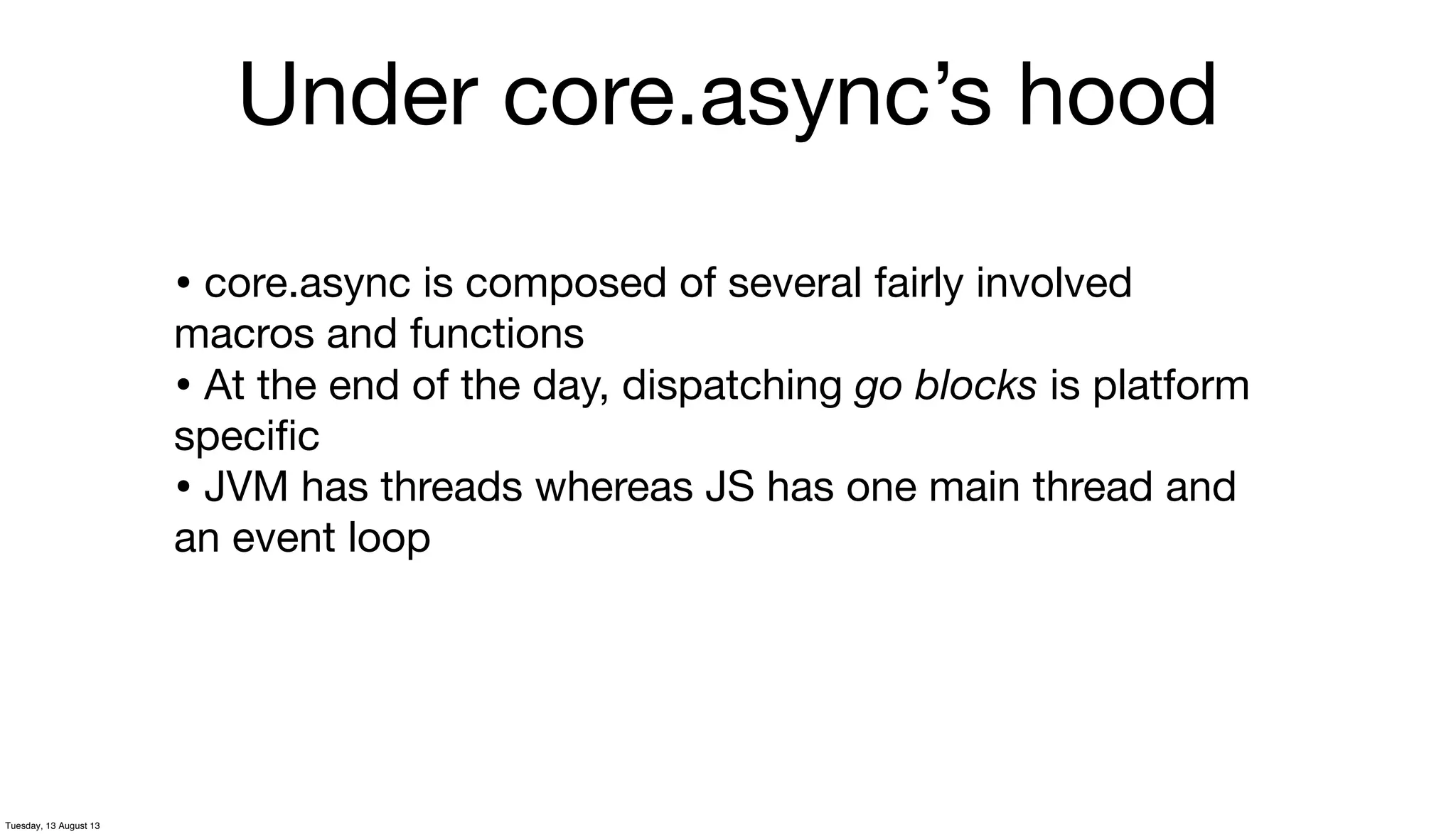

Under core.async’s hood
• core.async is composed of several fairly involved
macros and functions
• At the end of the day, dispatching go blocks is platform
speciﬁc
• JVM has threads whereas JS has one main thread and
an event loop

• the Javascript implementation dispatches like this:
(ns cljs.core.async.impl.dispatch)
...
(defn run [f]
(cond
(exists? js/MessageChannel) (queue-task f)
(exists? js/setImmediate) (js/setImmediate f)
:else (js/setTimeout f 0)))

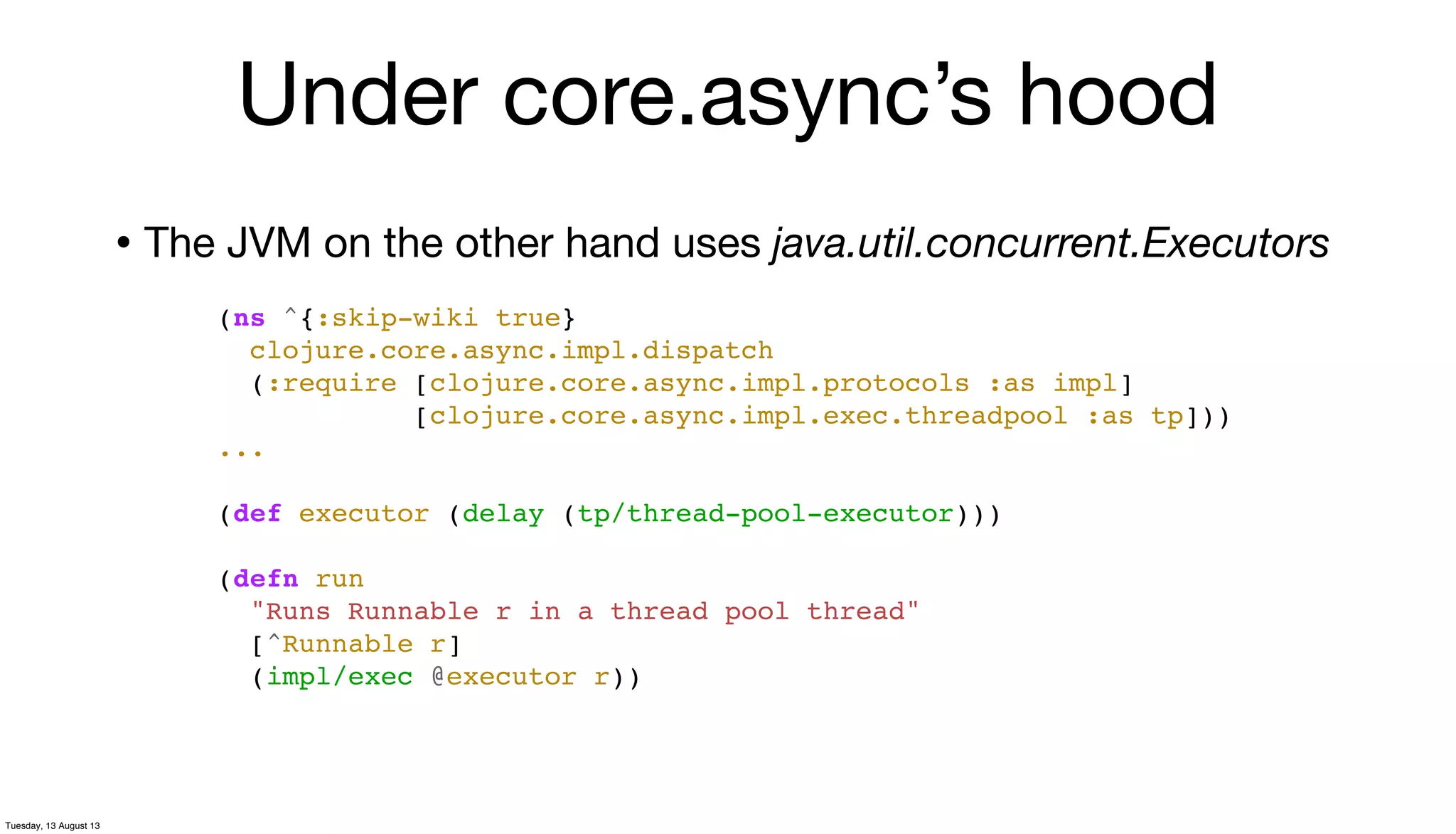

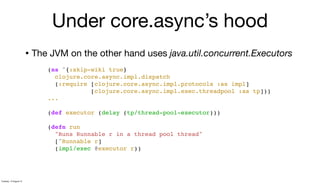

• The JVM on the other hand uses java.util.concurrent.Executors
(ns ^{:skip-wiki true}
clojure.core.async.impl.dispatch
(:require [clojure.core.async.impl.protocols :as impl]
[clojure.core.async.impl.exec.threadpool :as tp]))
...
(def executor (delay (tp/thread-pool-executor)))
(defn run
"Runs Runnable r in a thread pool thread"
[^Runnable r]
(impl/exec @executor r))

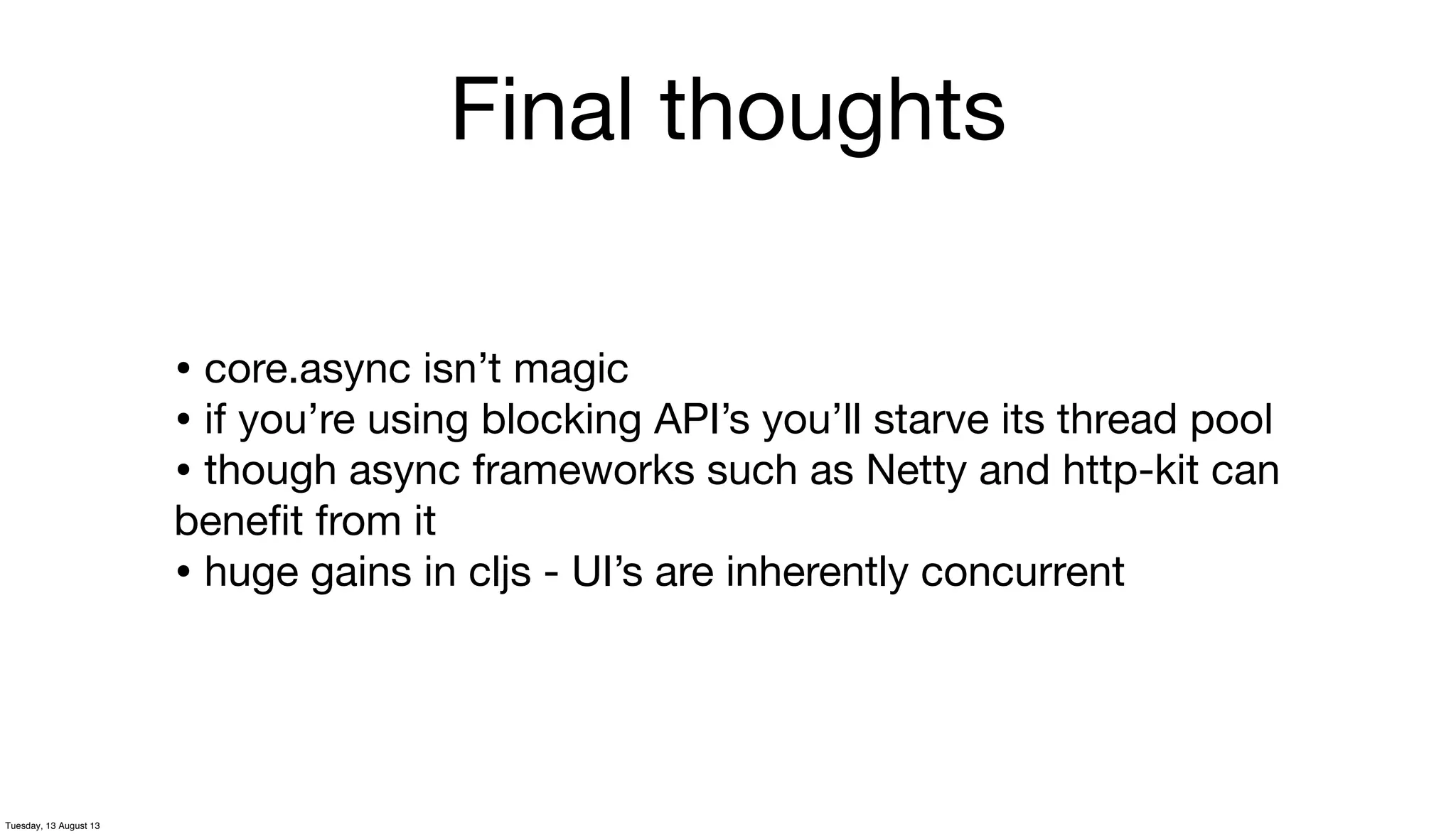

Final thoughts
• core.async isn’t magic
• if you’re using blocking API’s you’ll starve its thread pool
• though async frameworks such as Netty and http-kit can
beneﬁt from it
• huge gains in cljs - UI’s are inherently concurrent

Questions?
Leonardo Borges
@leonardo_borges
www.leonardoborges.com
www.thoughtworks.com

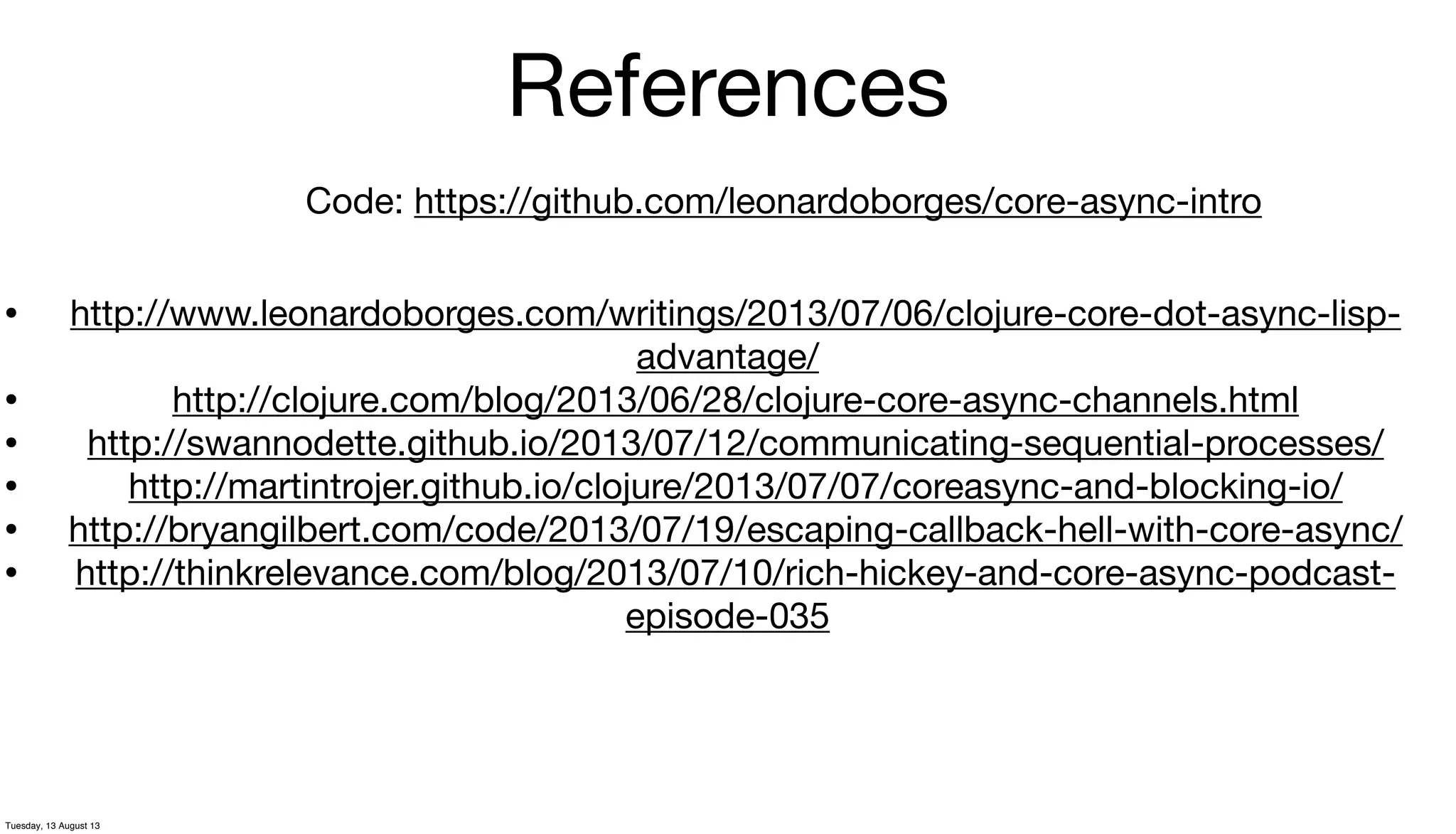

References
• http://www.leonardoborges.com/writings/2013/07/06/clojure-core-dot-async-lisp-
advantage/
• http://clojure.com/blog/2013/06/28/clojure-core-async-channels.html
• http://swannodette.github.io/2013/07/12/communicating-sequential-processes/
• http://martintrojer.github.io/clojure/2013/07/07/coreasync-and-blocking-io/
• http://bryangilbert.com/code/2013/07/19/escaping-callback-hell-with-core-async/
• http://thinkrelevance.com/blog/2013/07/10/rich-hickey-and-core-async-podcast-
episode-035
Code: https://github.com/leonardoborges/core-async-intro
