Introduction to kotlin coroutines

Svetlana Isakova
Kotlin Coroutines

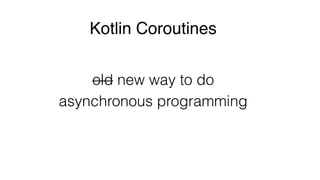

Kotlin Coroutines
old new way to do
asynchronous programming

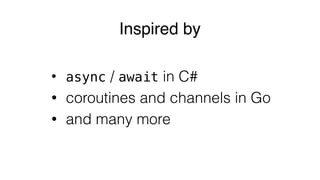

Inspired by
• async / await in C#
• coroutines and channels in Go
• and many more

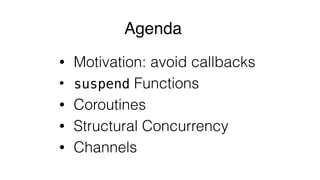

Agenda
• Motivation: avoid callbacks
• suspend Functions
• Coroutines
• Structural Concurrency
• Channels

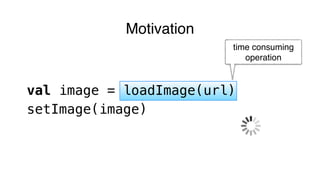

Motivation
time consuming
operation
val image = loadImage(url)
setImage(image)

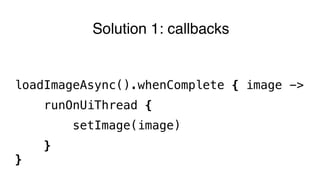

Solution 1: callbacks
loadImageAsync().whenComplete { image ->
runOnUiThread {
setImage(image)
}
}

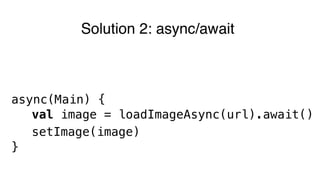

Solution 2: async/await
async(Main) {
val image = loadImageAsync(url).await()
setImage(image)
}

val image = loadImageAsync(url).await()
setImage(image)
val image = loadImage(url)
setImage(image)

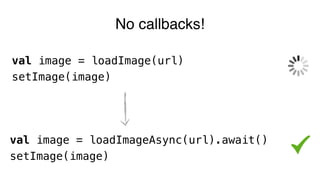

No callbacks!

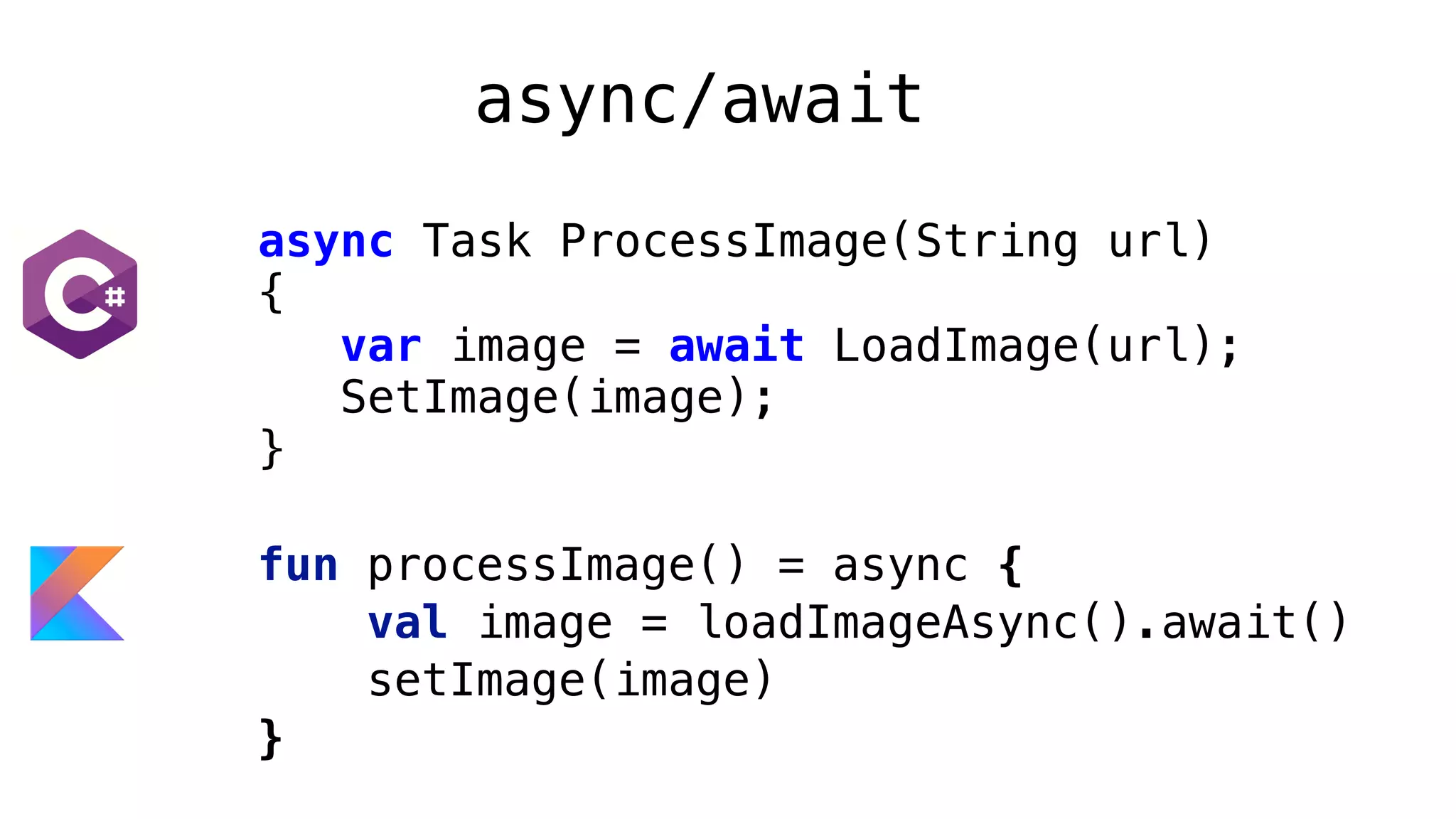

async Task ProcessImage(String url)
{
var image = await LoadImage(url);
SetImage(image);
}
fun processImage() = async {
val image = loadImageAsync().await()
setImage(image)
}

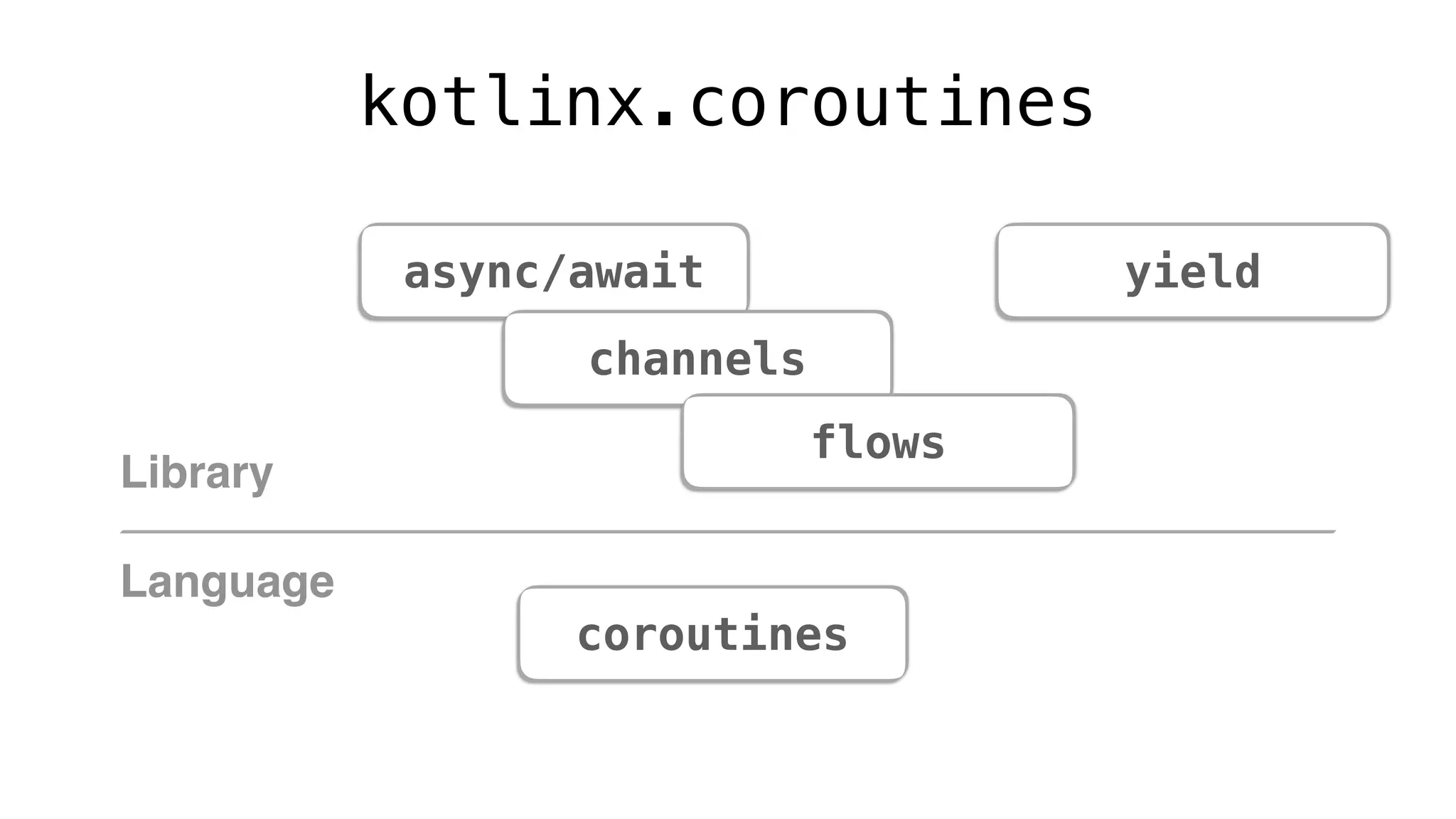

async/await

coroutines
async/await
Language
Library

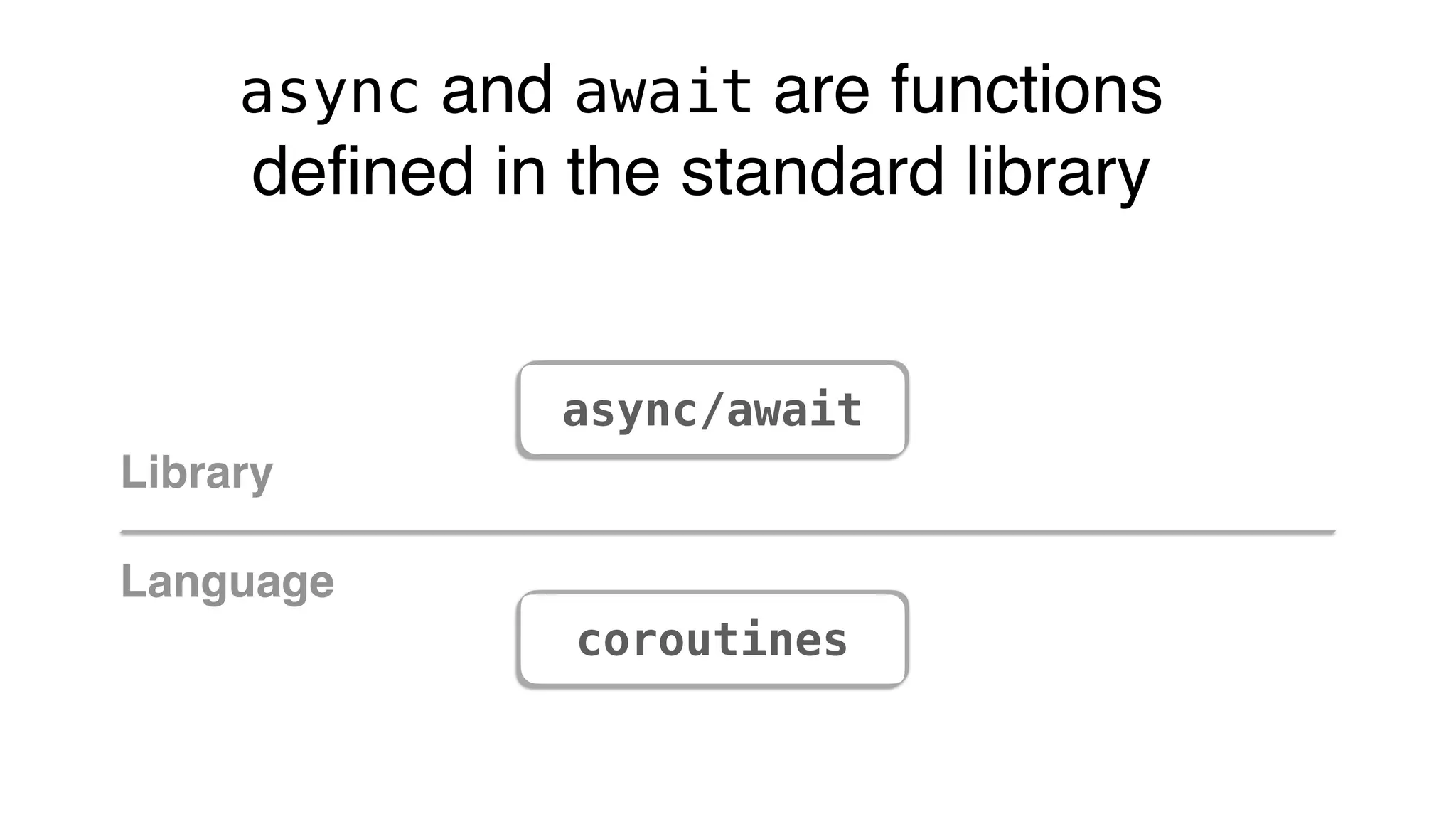

async and await are functions
defined in the standard library

Programming with suspend
functions

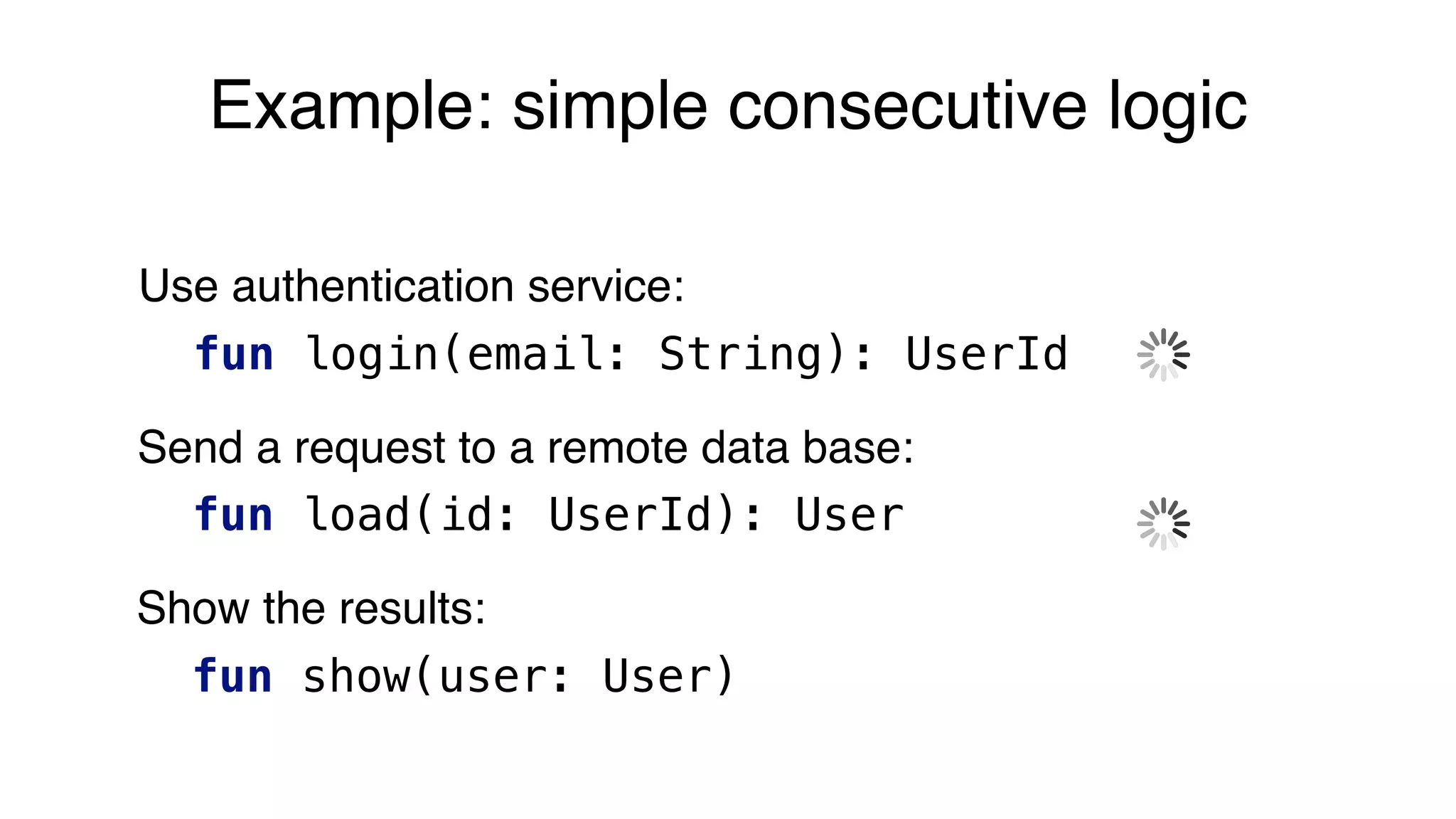

Example: simple consecutive logic
Use authentication service:
fun login(email: String): UserId
Send a request to a remote data base:
fun load(id: UserId): User
Show the results:
fun show(user: User)

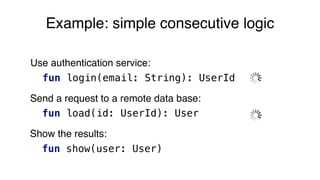

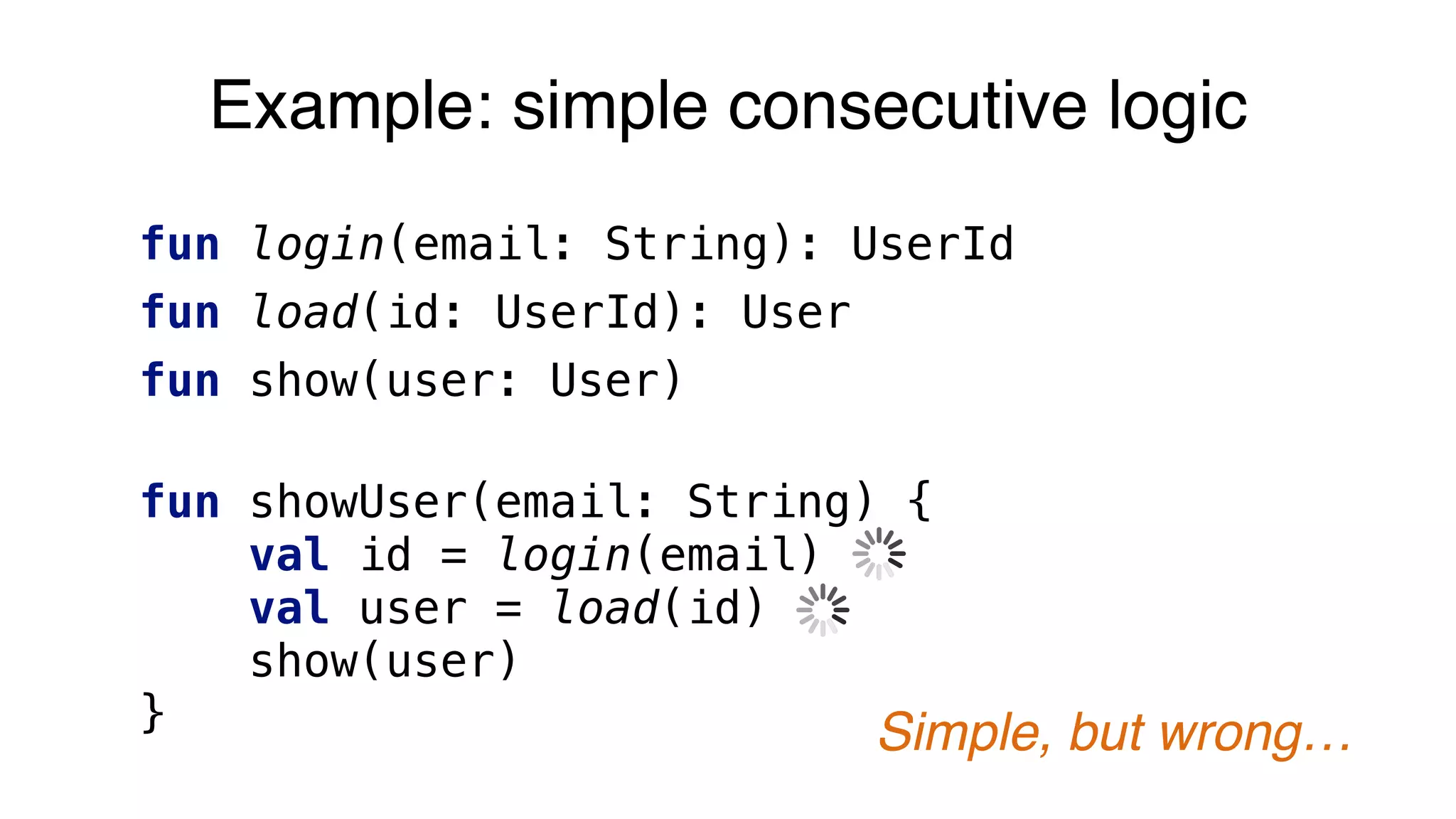

Example: simple consecutive logic
fun login(email: String): UserId
fun load(id: UserId): User
fun showUser(email: String) {
val id = login(email)
val user = load(id)
show(user)
} Simple, but wrong…

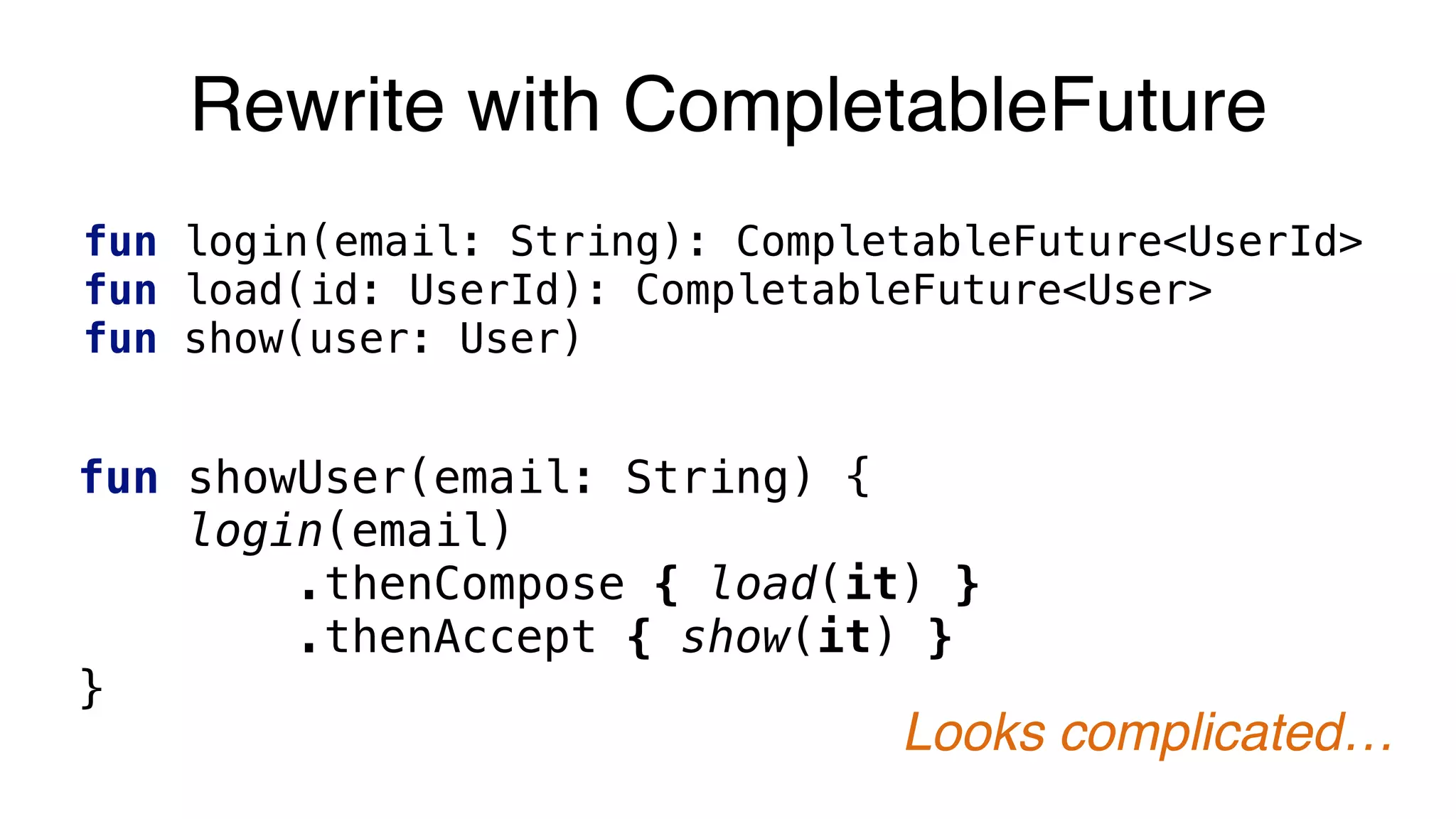

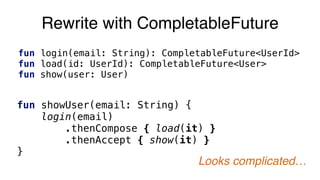

Rewrite with CompletableFuture
fun login(email: String): CompletableFuture<UserId>
fun load(id: UserId): CompletableFuture<User>
login(email)
.thenCompose { load(it) }
.thenAccept { show(it) }
}
Looks complicated…

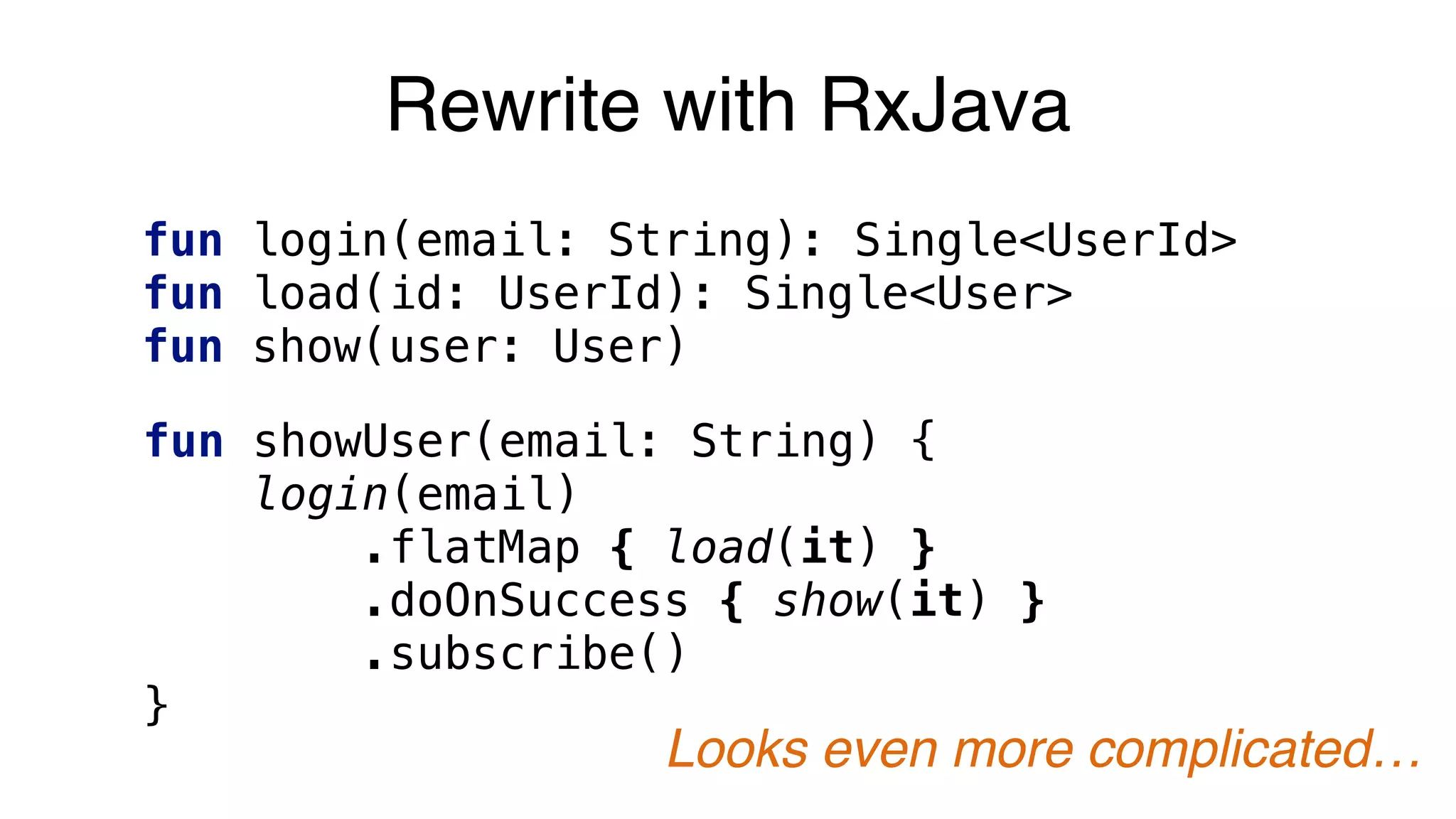

Rewrite with RxJava
fun login(email: String): Single<UserId>
fun load(id: UserId): Single<User>
login(email)
.flatMap { load(it) }
.doOnSuccess { show(it) }
.subscribe()
}
Looks even more complicated…

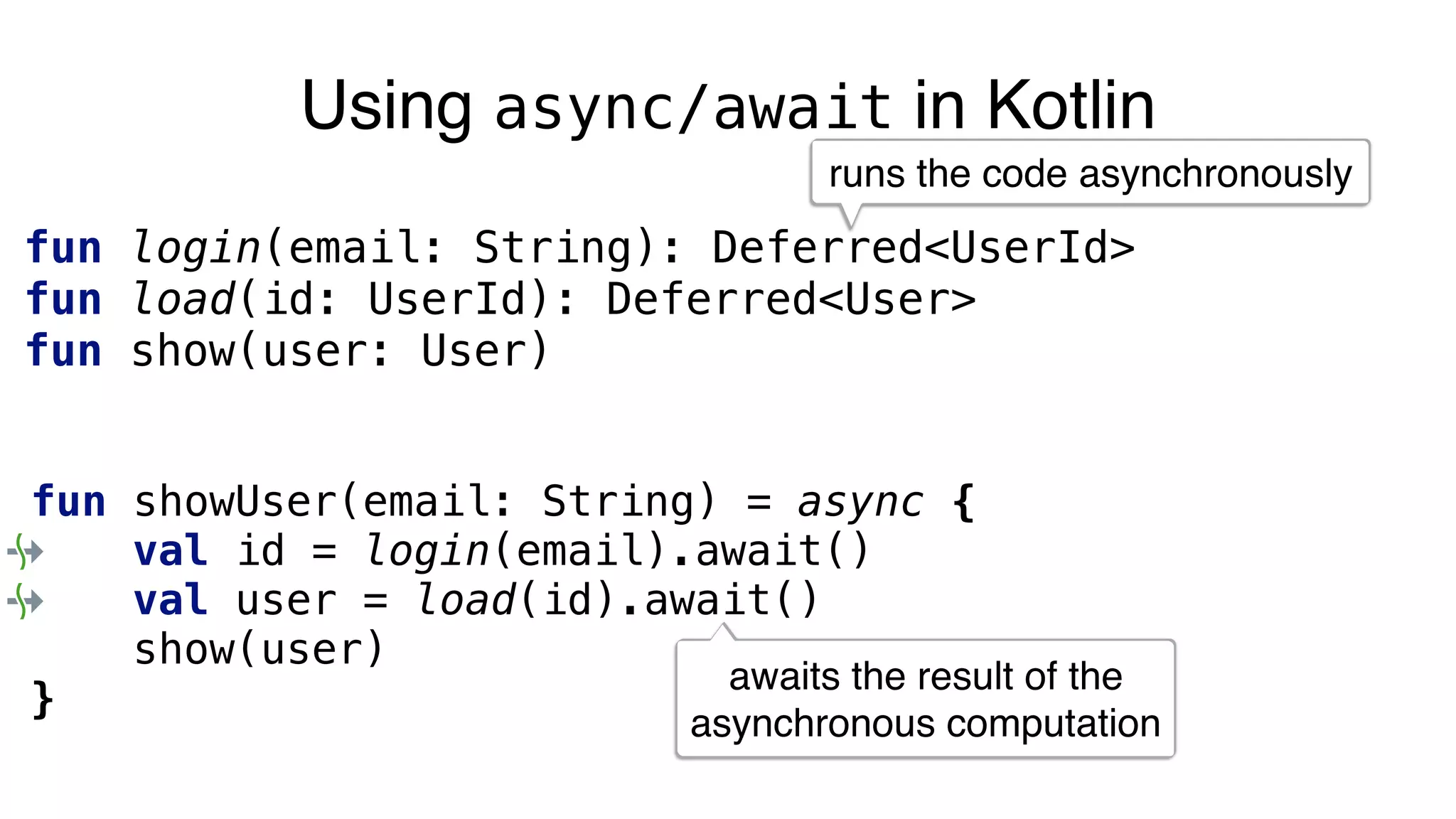

Using async/await in Kotlin
fun login(email: String): Deferred<UserId>
fun load(id: UserId): Deferred<User>
fun showUser(email: String) = async {
val id = login(email).await()
val user = load(id).await()
show(user)
}
runs the code asynchronously
awaits the result of the
asynchronous computation

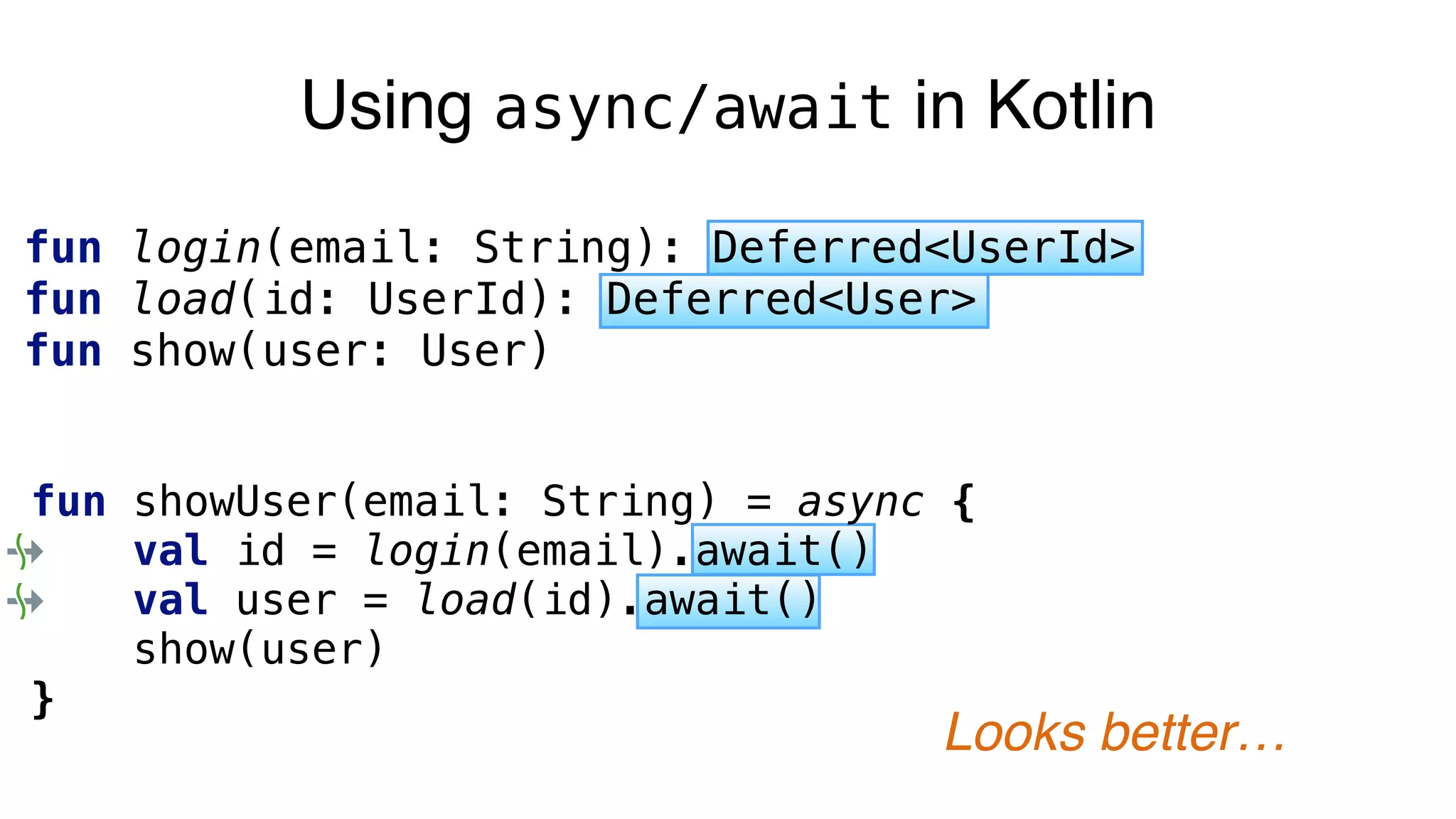

Using async/await in Kotlin
fun login(email: String): Deferred<UserId>
fun load(id: UserId): Deferred<User>
fun showUser(email: String) = async {
val id = login(email).await()
val user = load(id).await()
show(user)
}
Looks better…

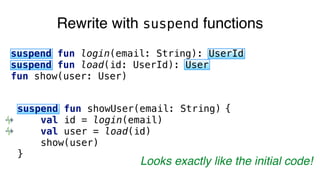

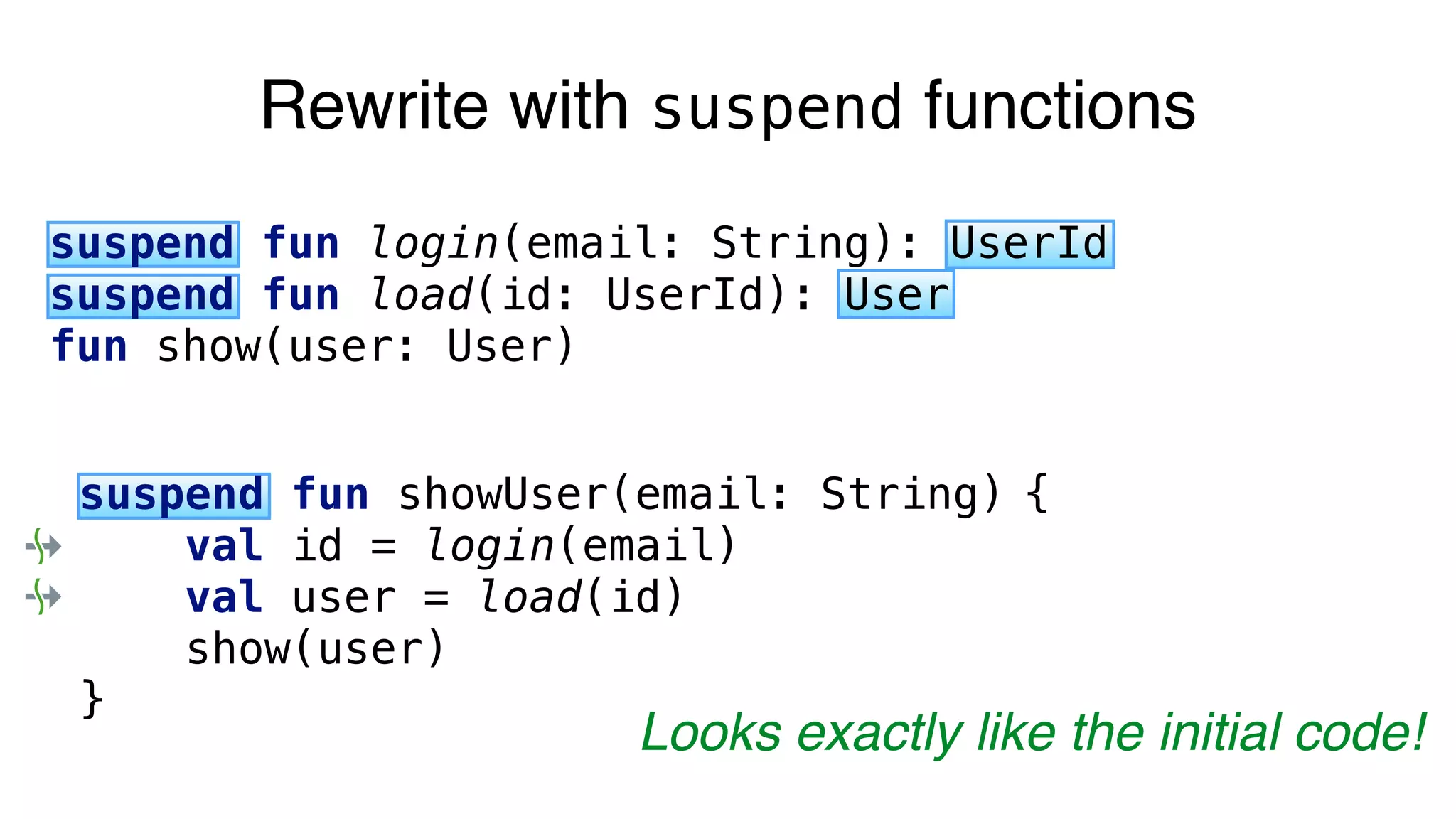

Rewrite with suspend functions
suspend fun login(email: String): UserId
suspend fun load(id: UserId): User
suspend fun showUser(email: String) {
val user = load(id)
show(user)
}
Looks exactly like the initial code!

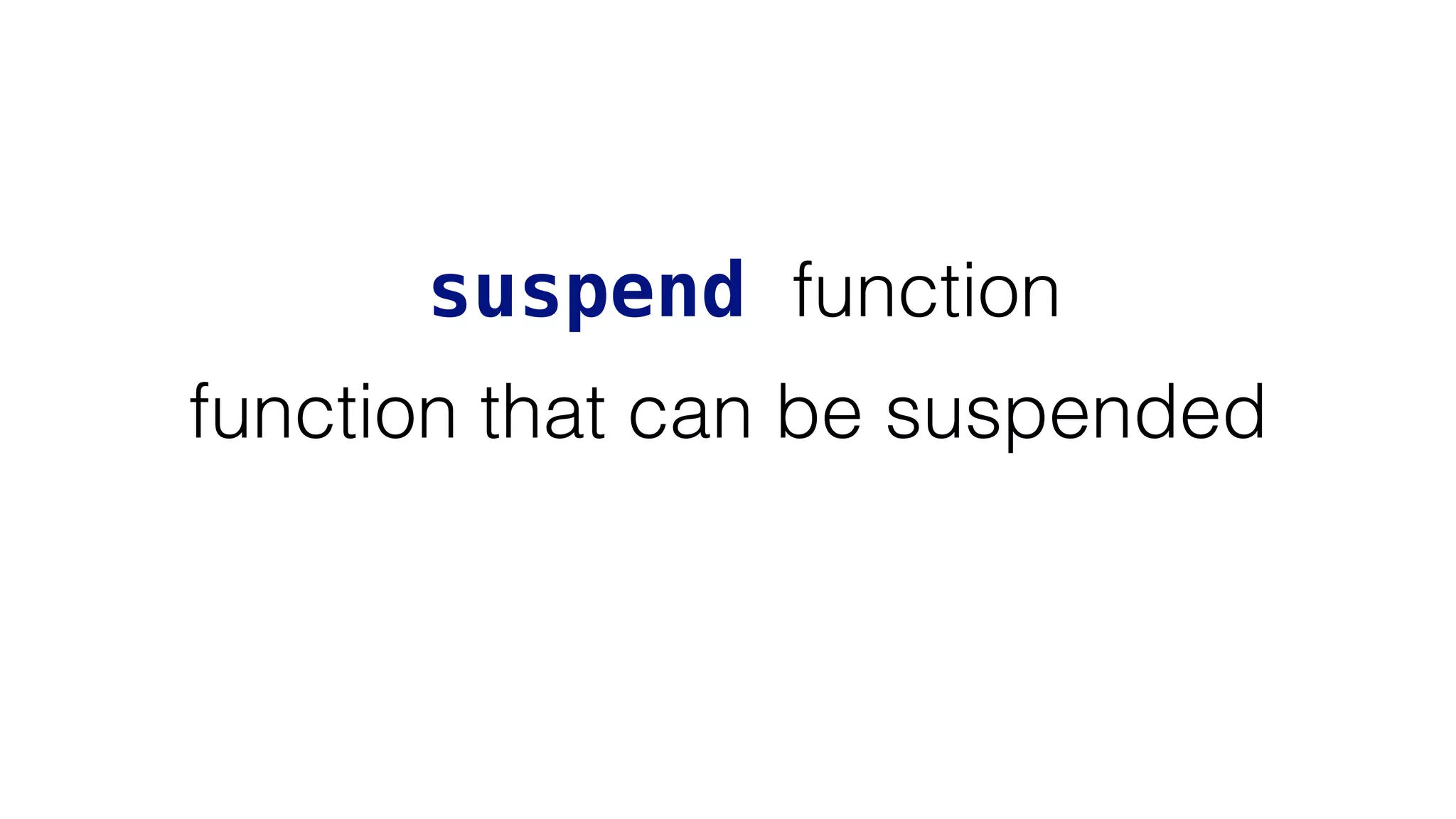

suspend function
function that can be suspended

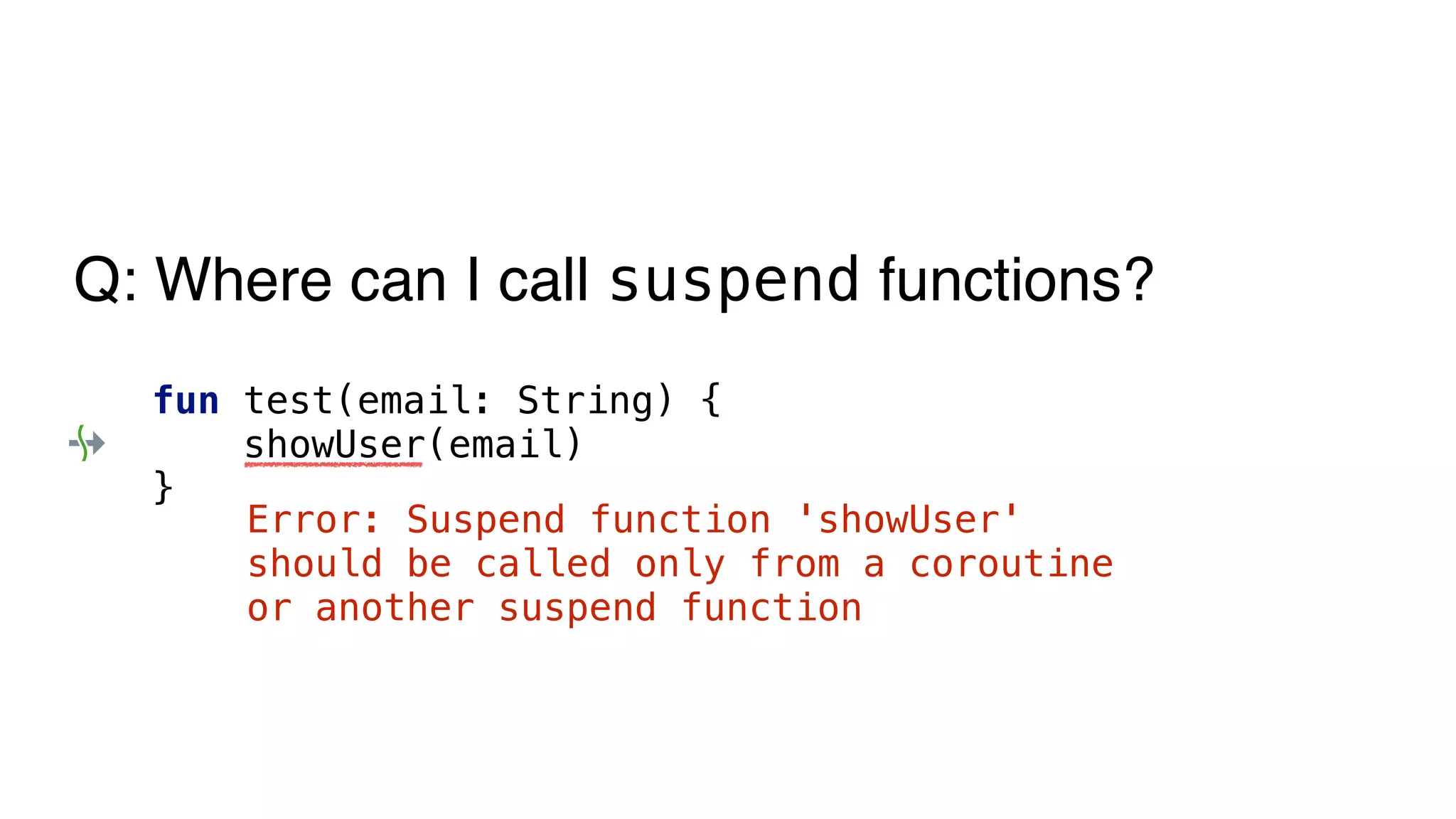

fun test(email: String) {
showUser(email)
}
Error: Suspend function 'showUser'
should be called only from a coroutine
or another suspend function

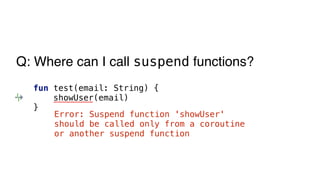

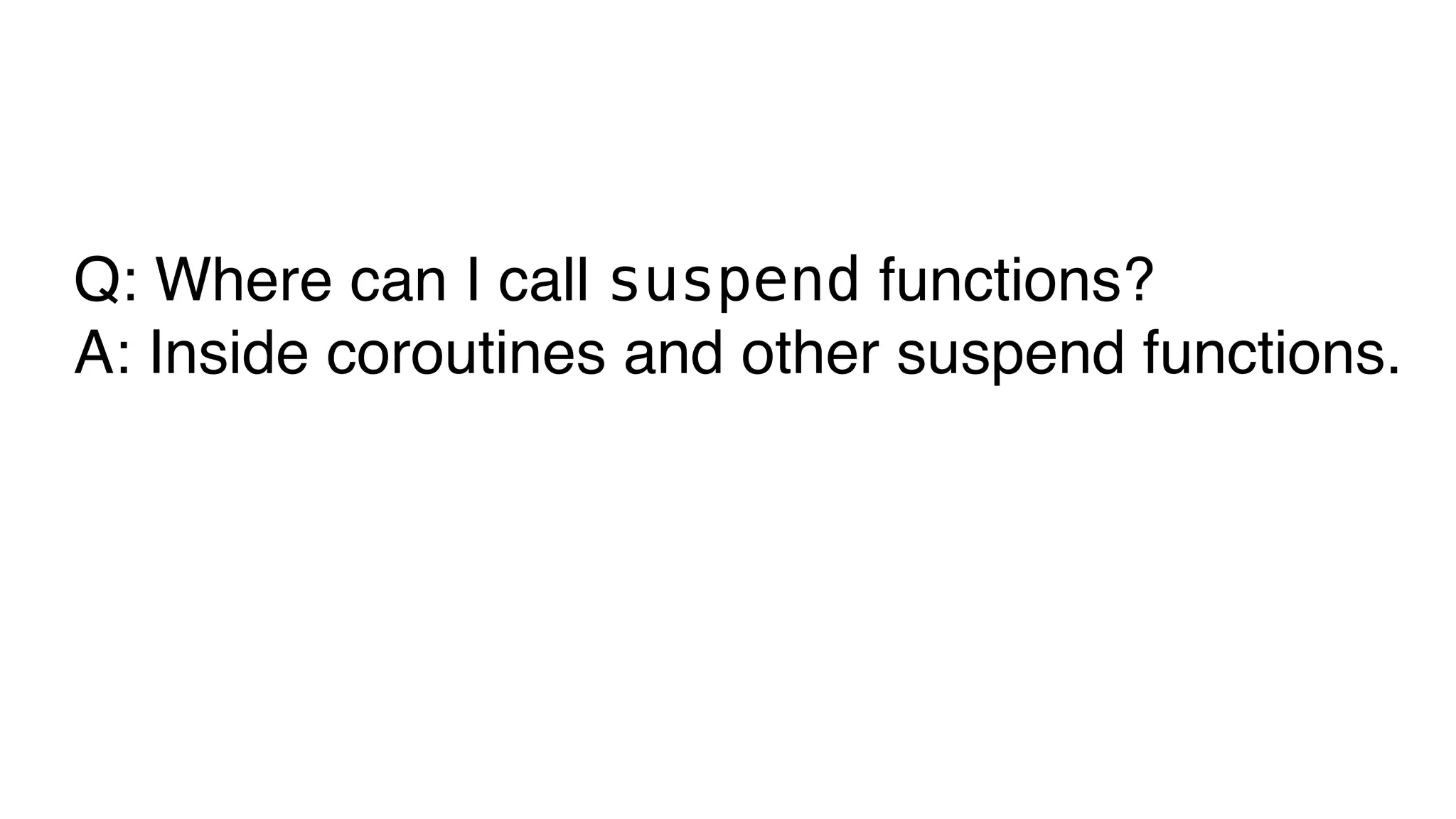

Q: Where can I call suspend functions?

Q: Where can I call suspend functions?
A: Inside coroutines and other suspend functions.

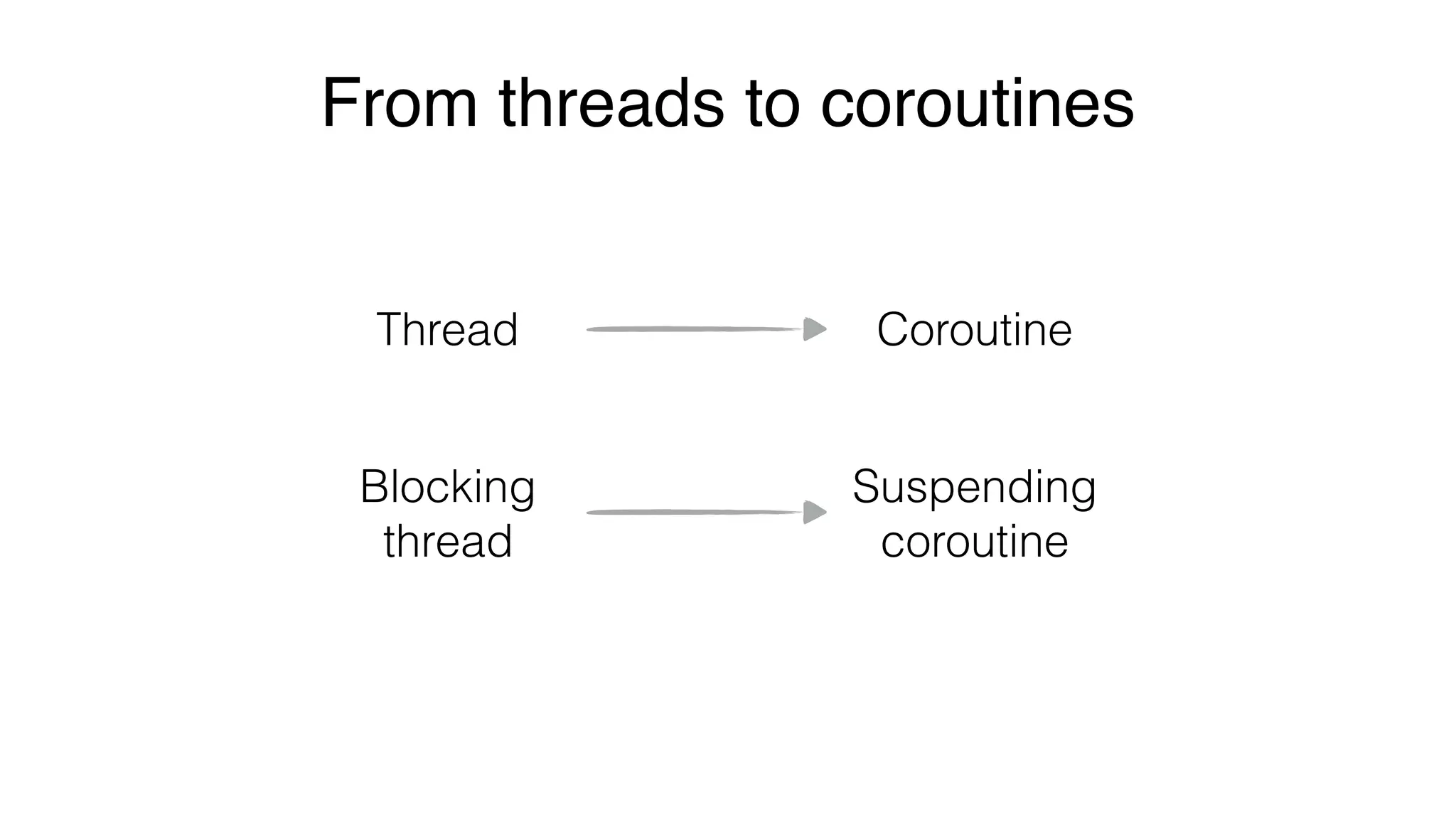

Thread Coroutine
Blocking
thread
Suspending
coroutine

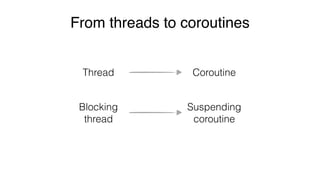

From threads to coroutines

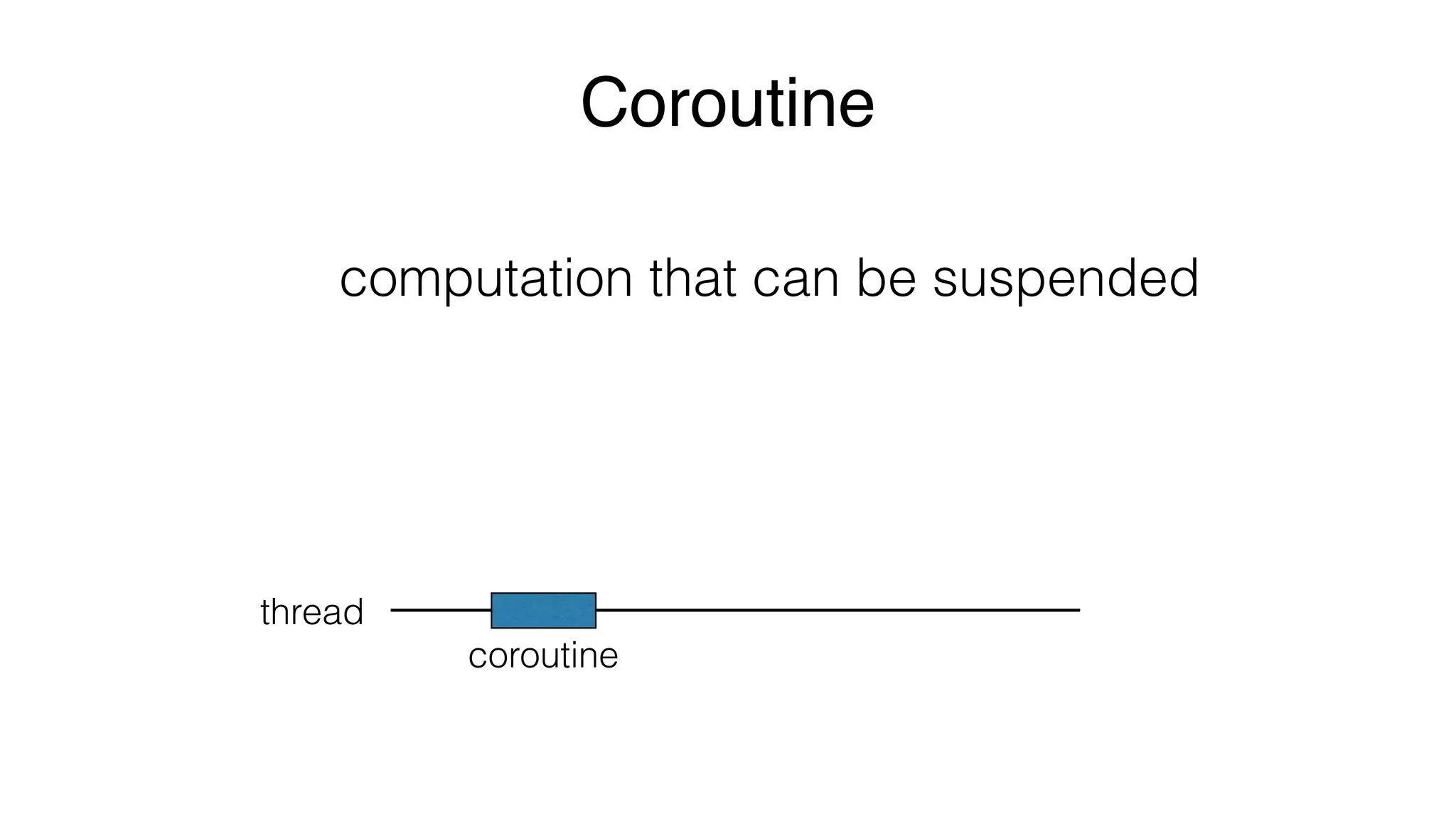

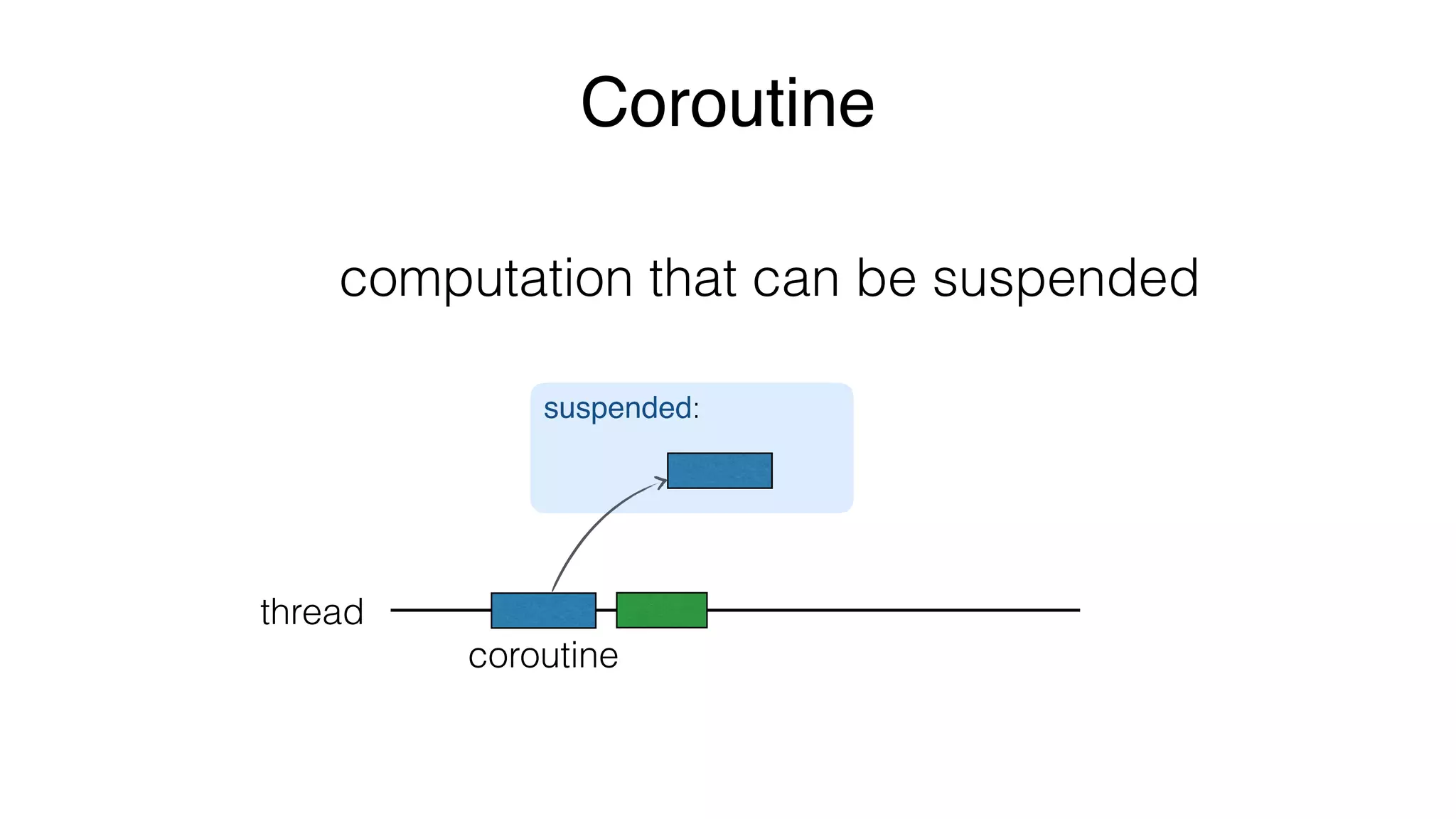

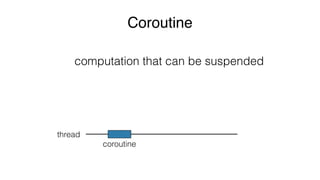

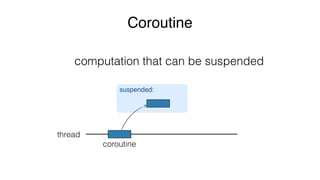

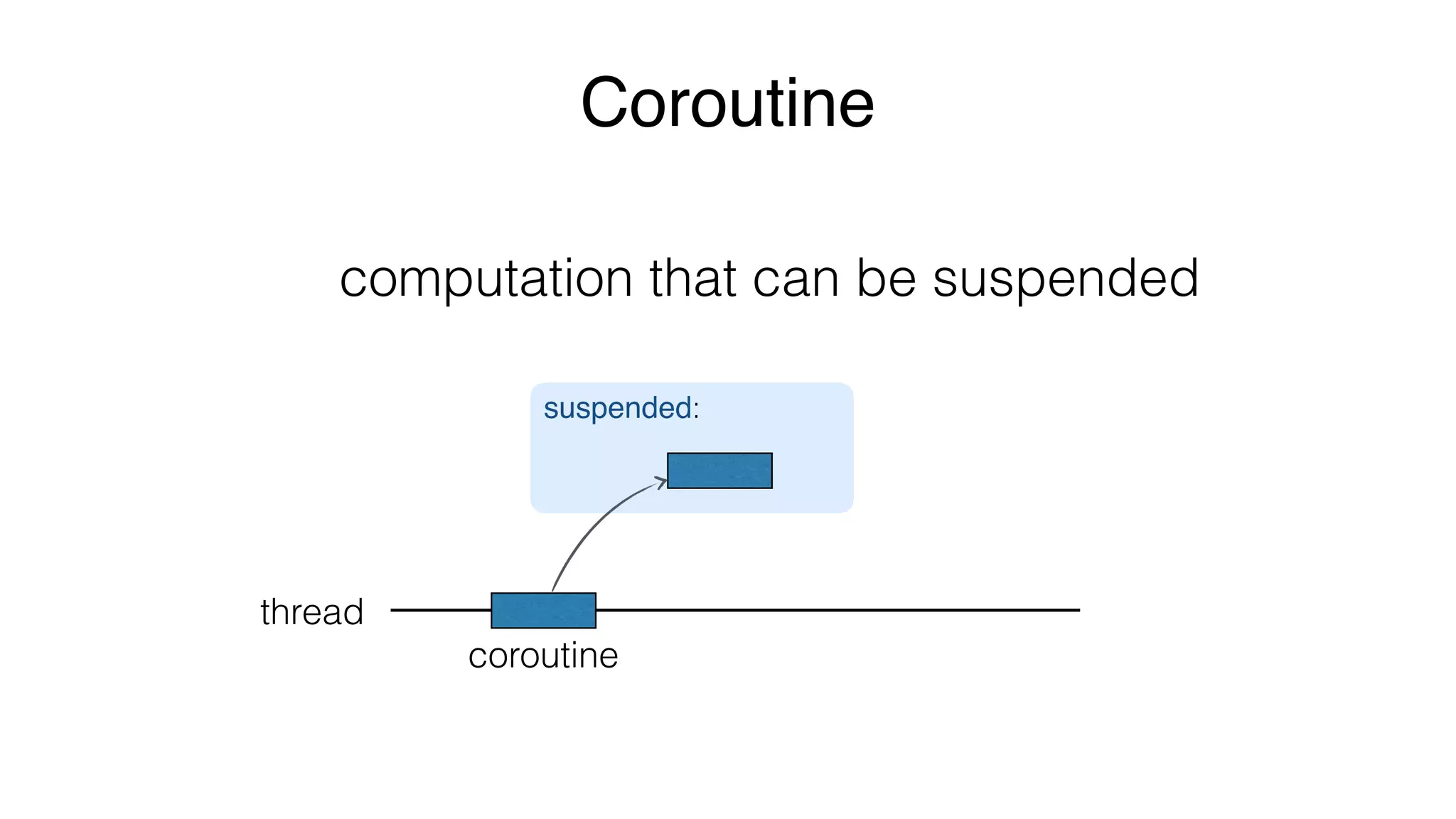

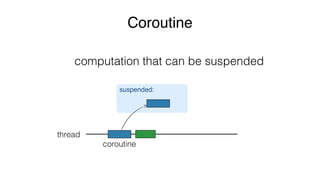

Coroutine
computation that can be suspended
thread
coroutine

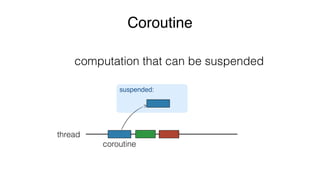

Coroutine
thread
suspended:
coroutine

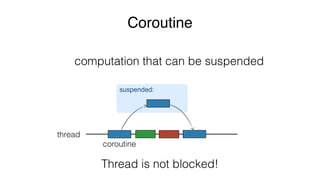

Coroutine
thread
suspended:
coroutine
Thread is not blocked!

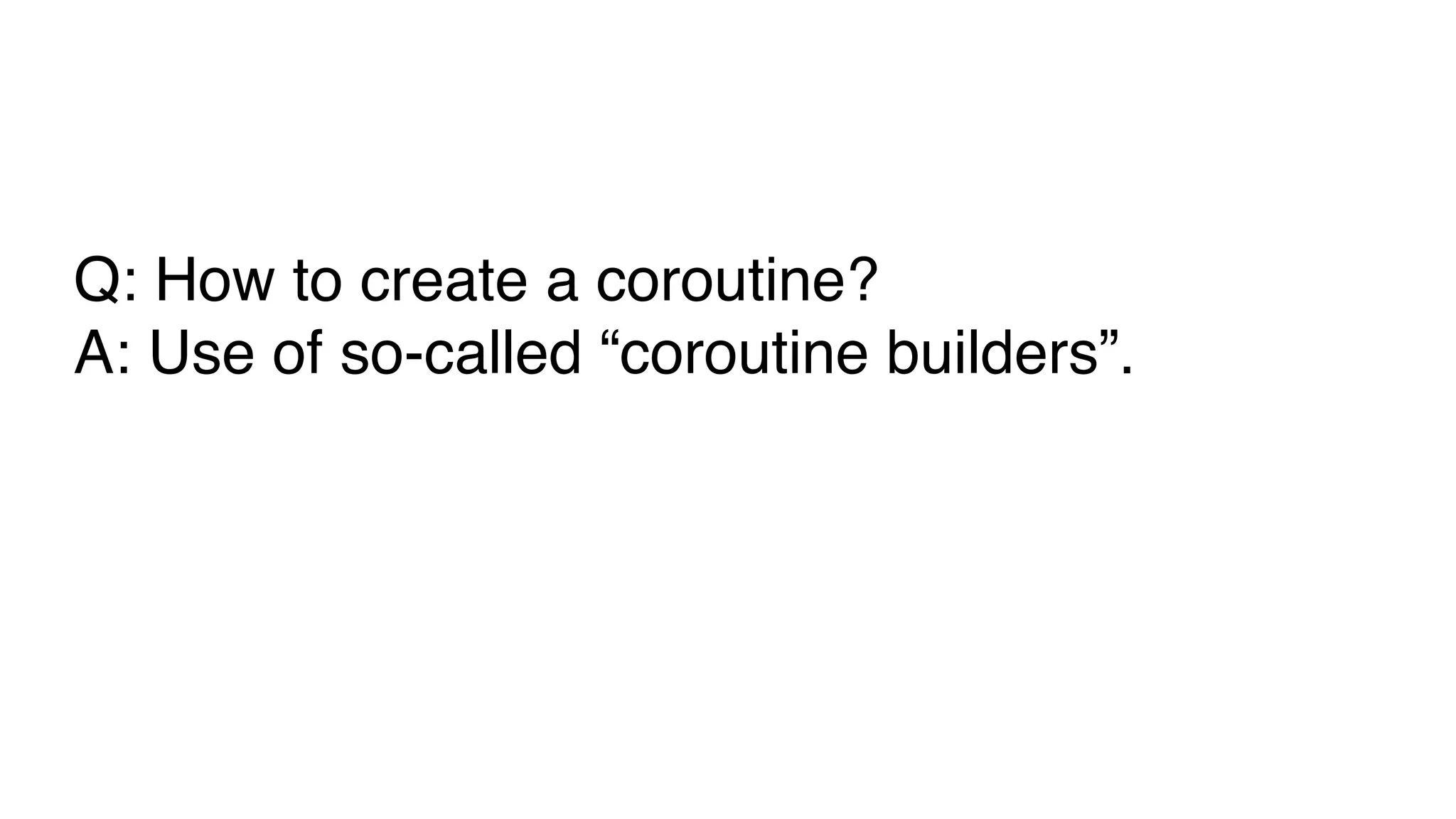

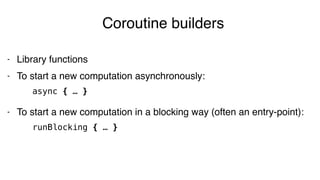

Q: How to create a coroutine?
A: Use of so-called “coroutine builders”.

- Library functions
- To start a new computation asynchronously:
async { … }
- To start a new computation in a blocking way (often an entry-point):
runBlocking { … }
Coroutine builders

setImage(image)
}
fun loadImageAsync() = async {
/* do the work */
}

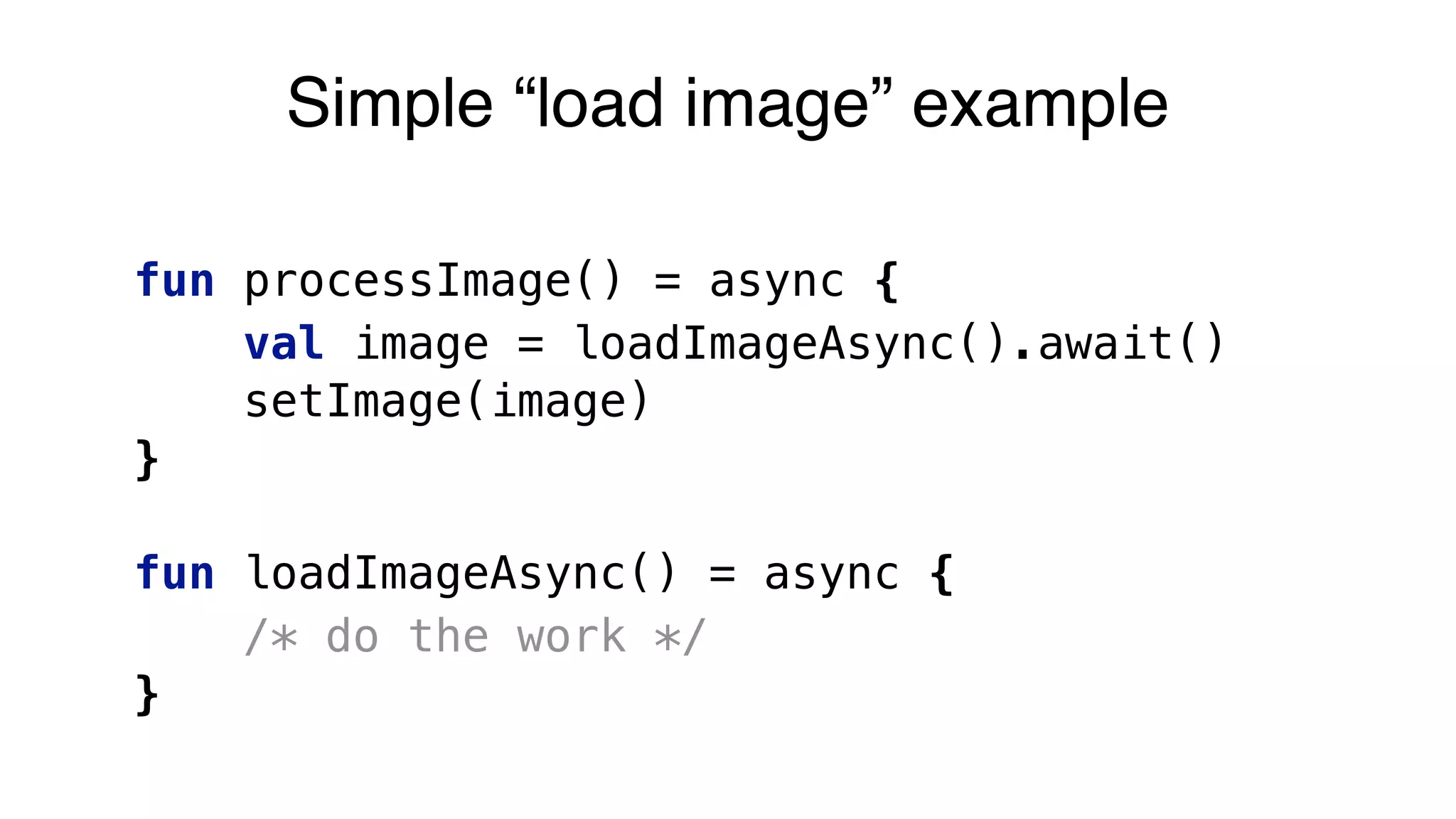

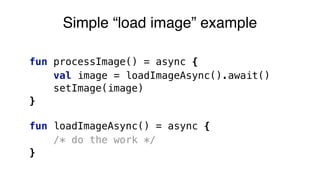

Simple “load image” example

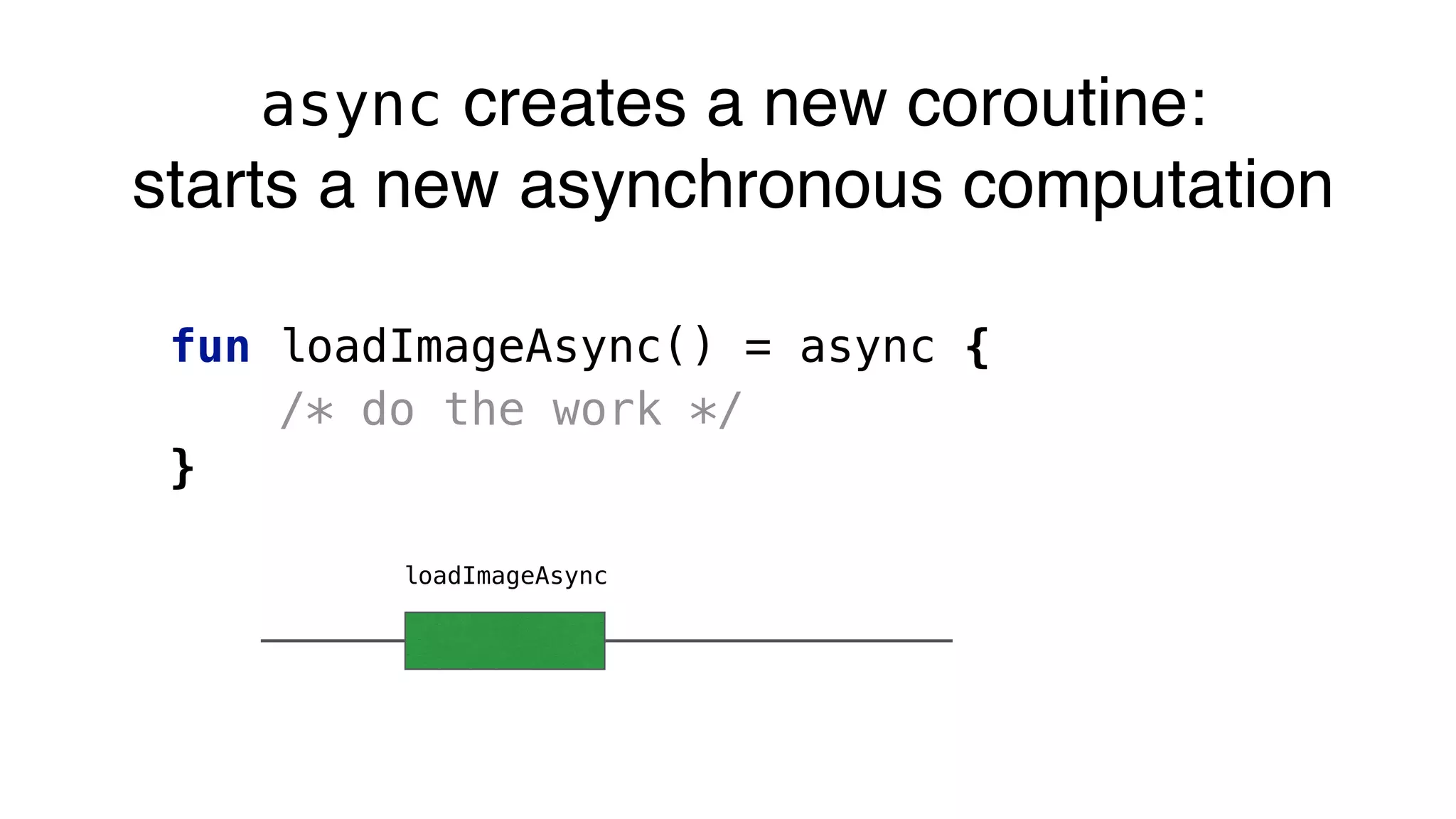

async creates a new coroutine:
starts a new asynchronous computation
fun loadImageAsync() = async {
/* do the work */
}
loadImageAsync

suspension point
setImage(image)
}

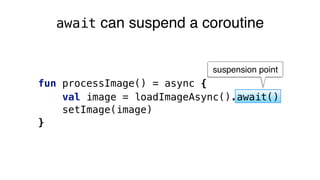

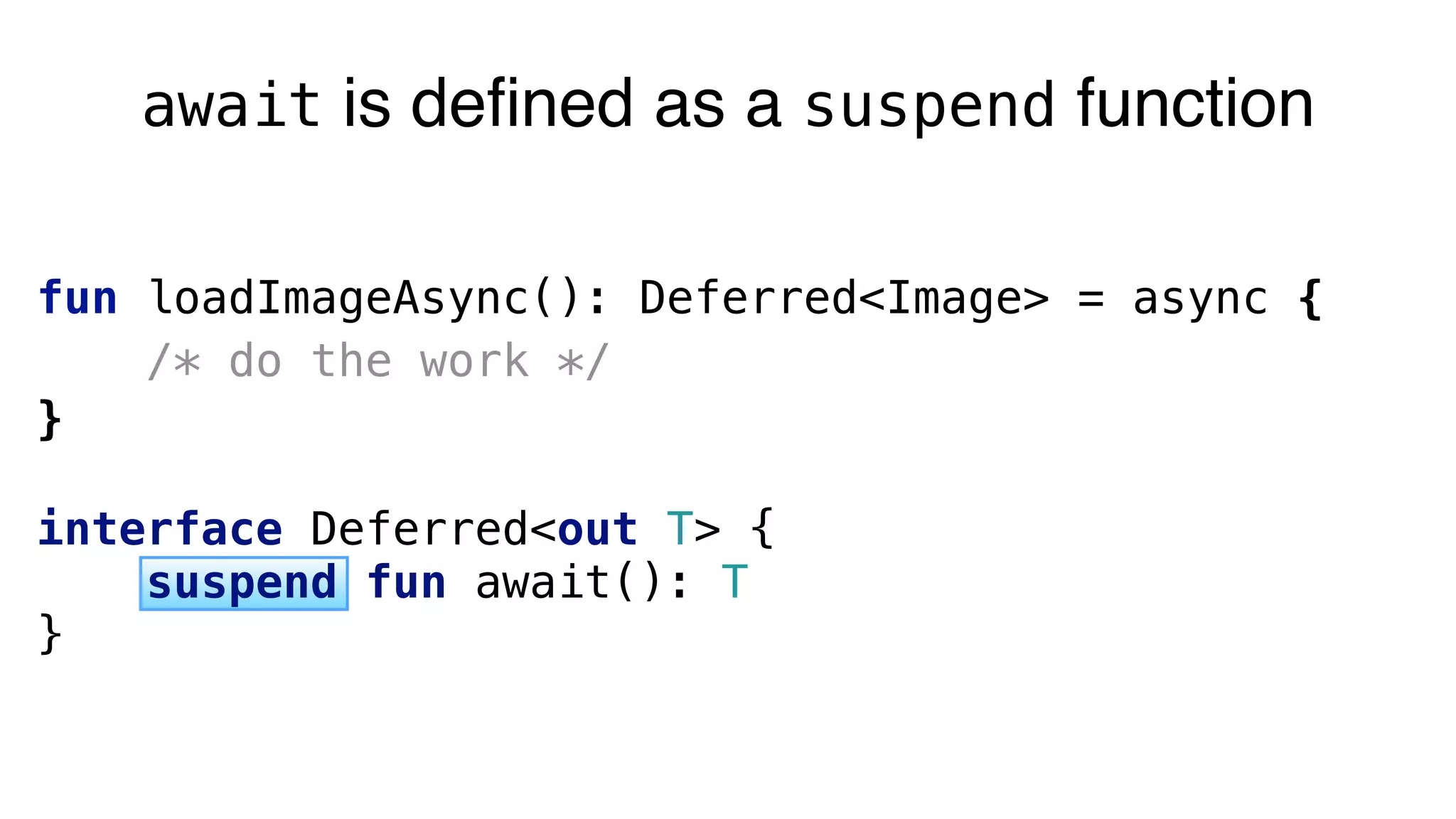

await can suspend a coroutine

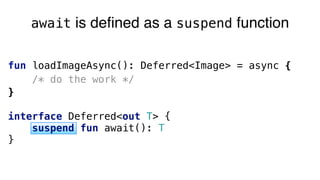

fun loadImageAsync(): Deferred<Image> = async {
/* do the work */
}
interface Deferred<out T> { 
suspend fun await(): T 
}
await is defined as a suspend function

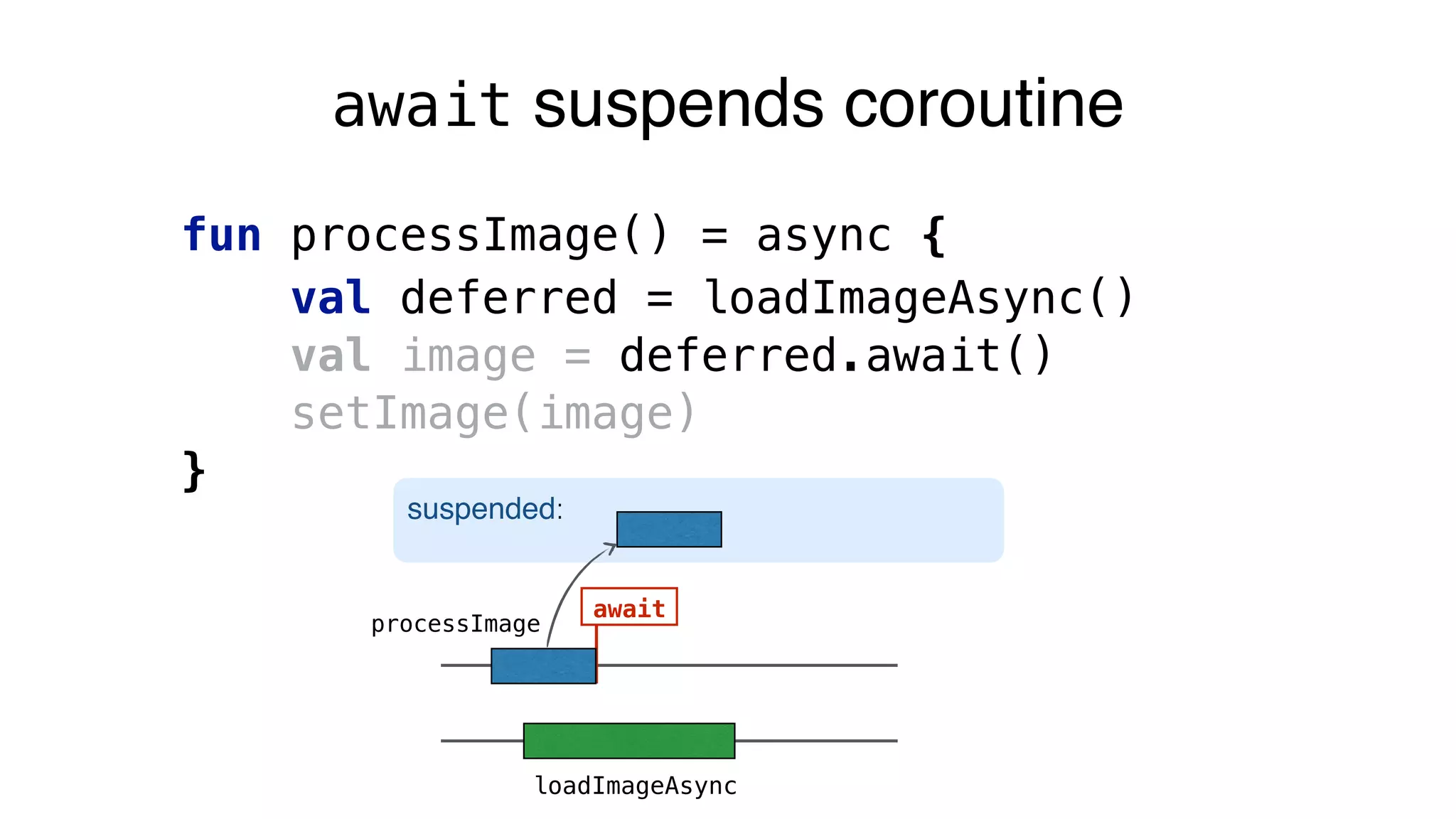

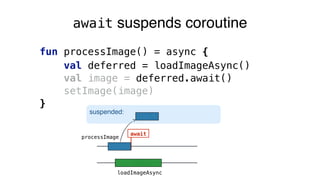

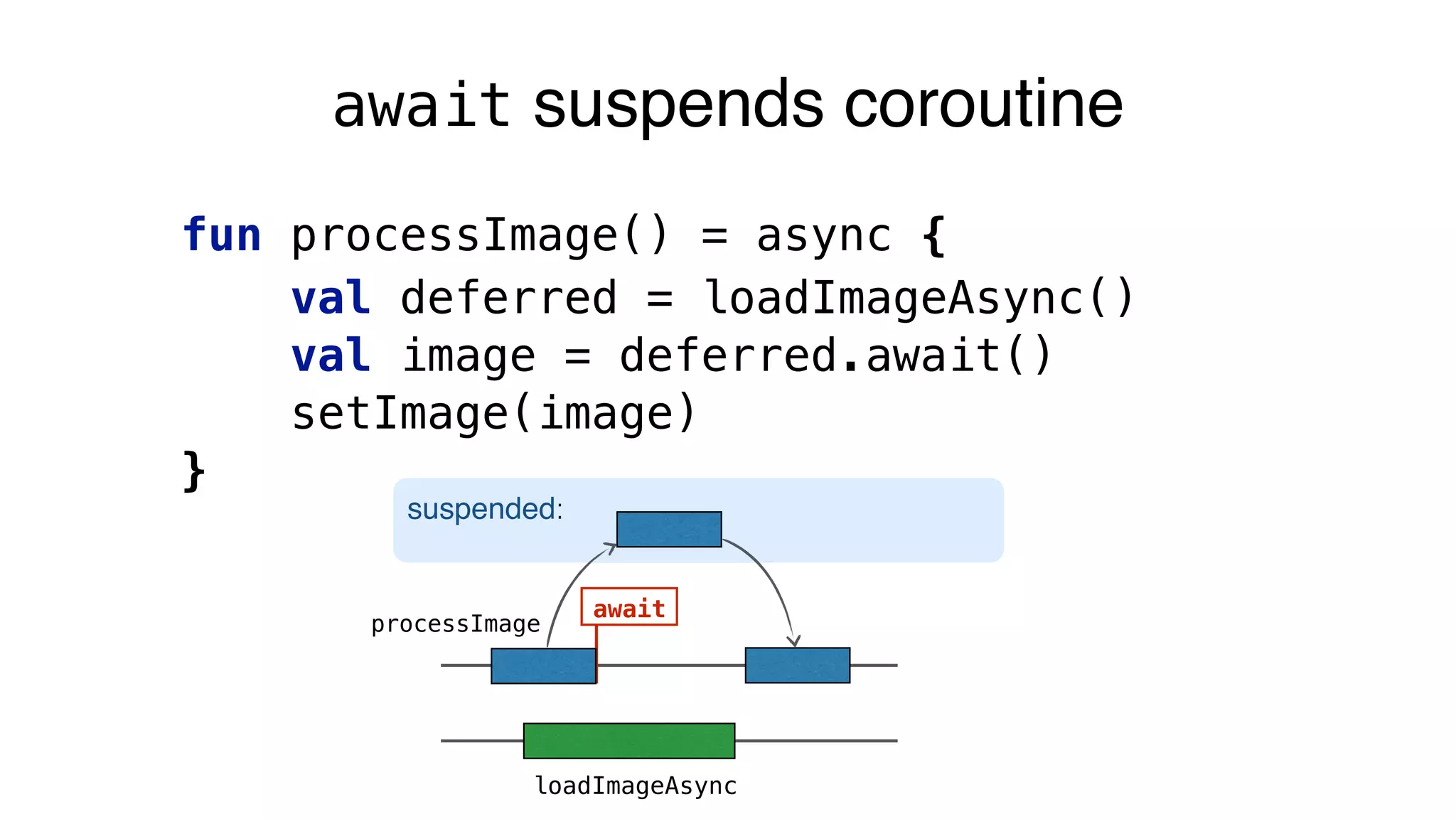

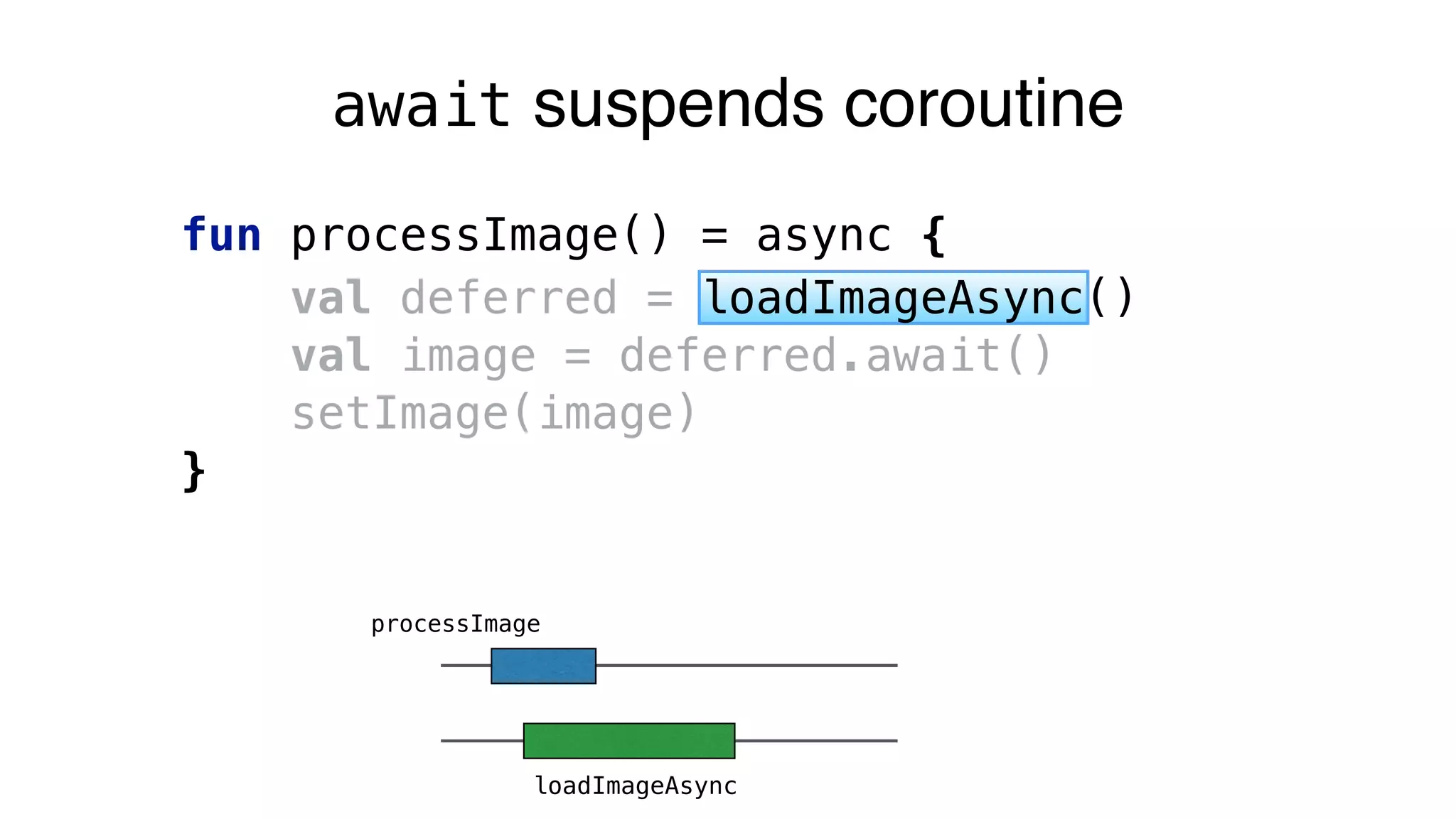

await suspends coroutine
processImage
loadImageAsync
val deferred = loadImageAsync()
val image = deferred.await()
setImage(image)
}

processImage
loadImageAsync
await
setImage(image)
}

processImage
loadImageAsync
await
setImage(image)
}
suspended:

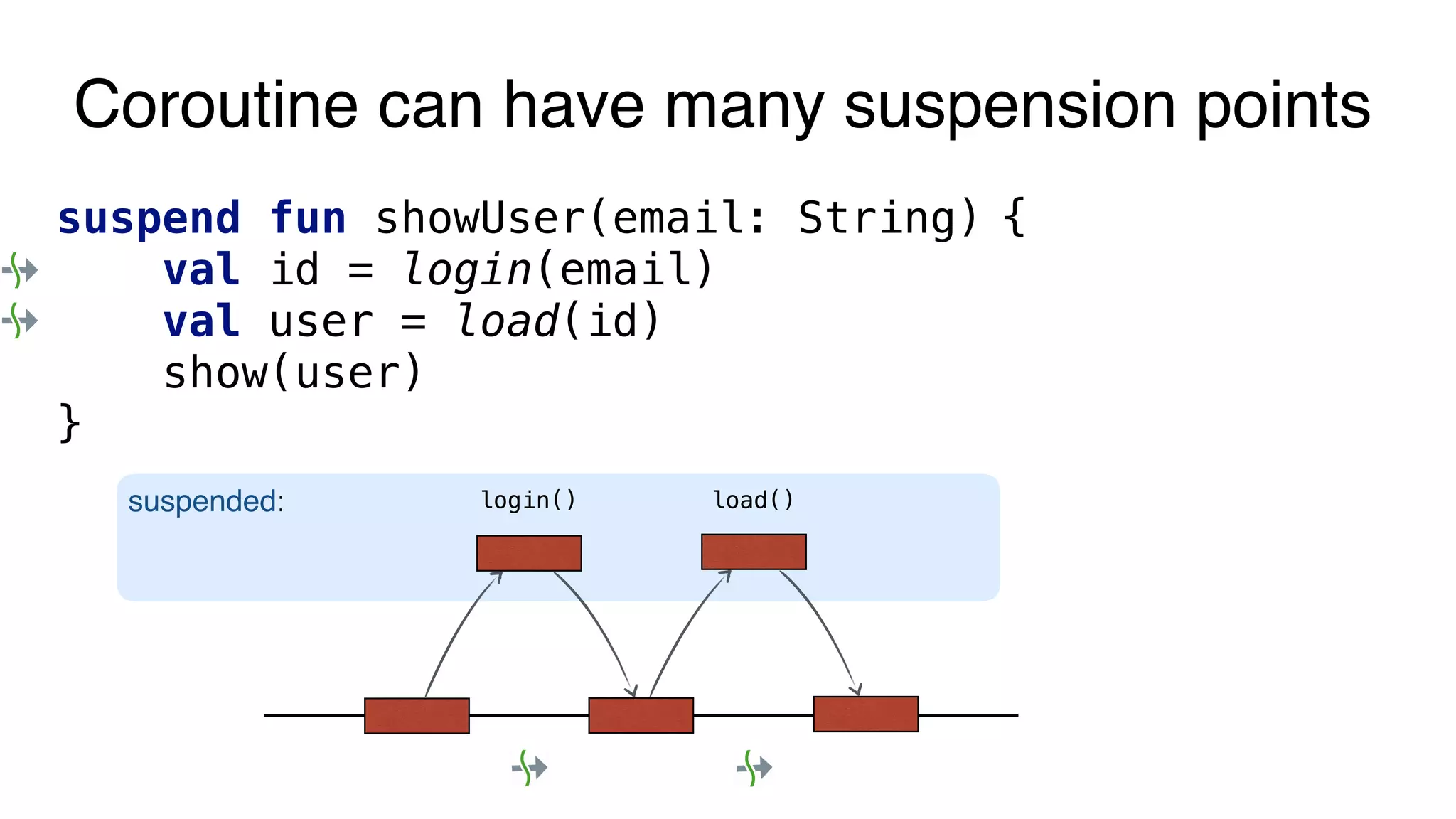

Coroutine can have many suspension points
val user = load(id)
show(user)
}
suspended: login() load()

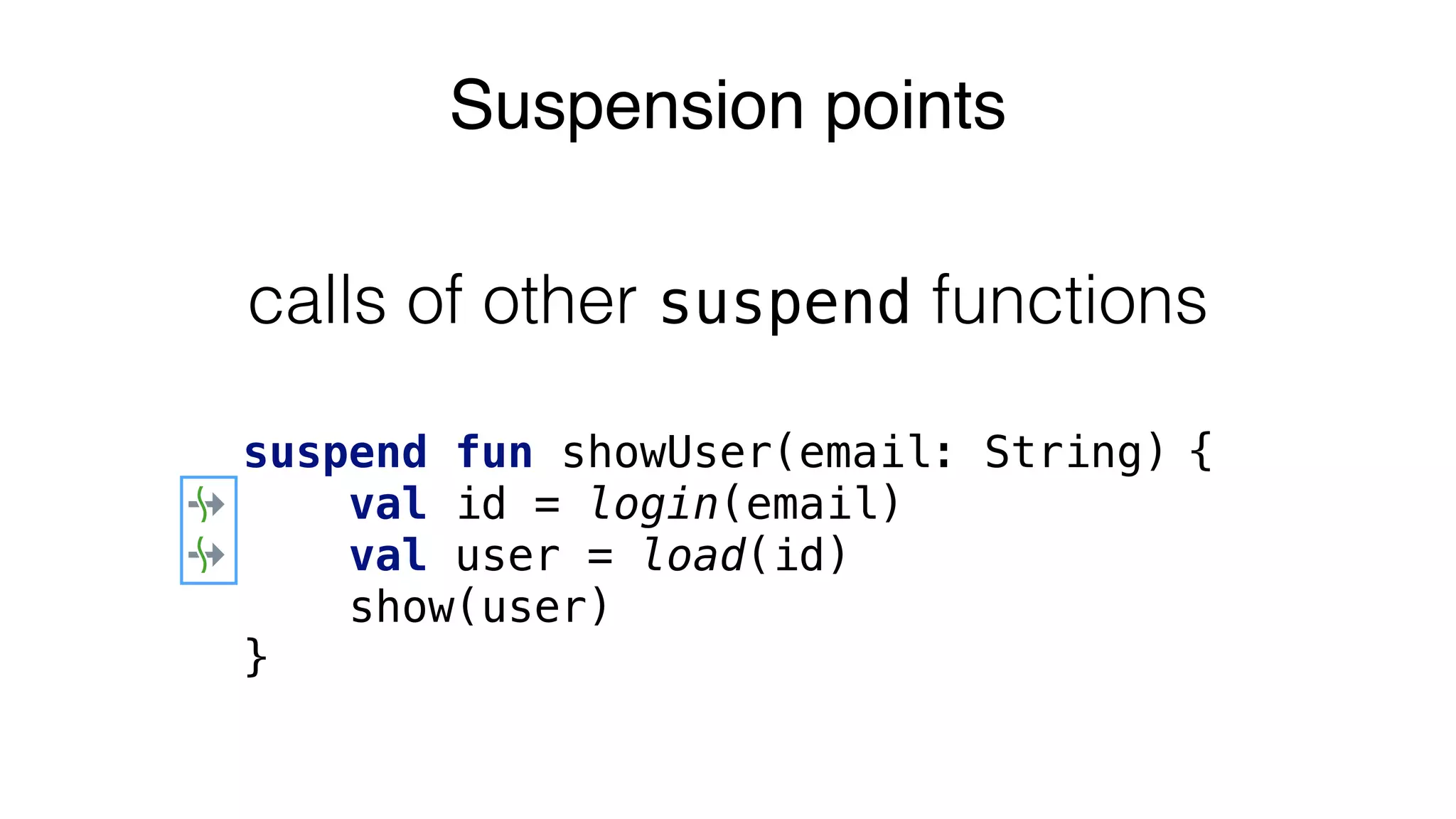

Suspension points
val user = load(id)
show(user)
}
calls of other suspend functions

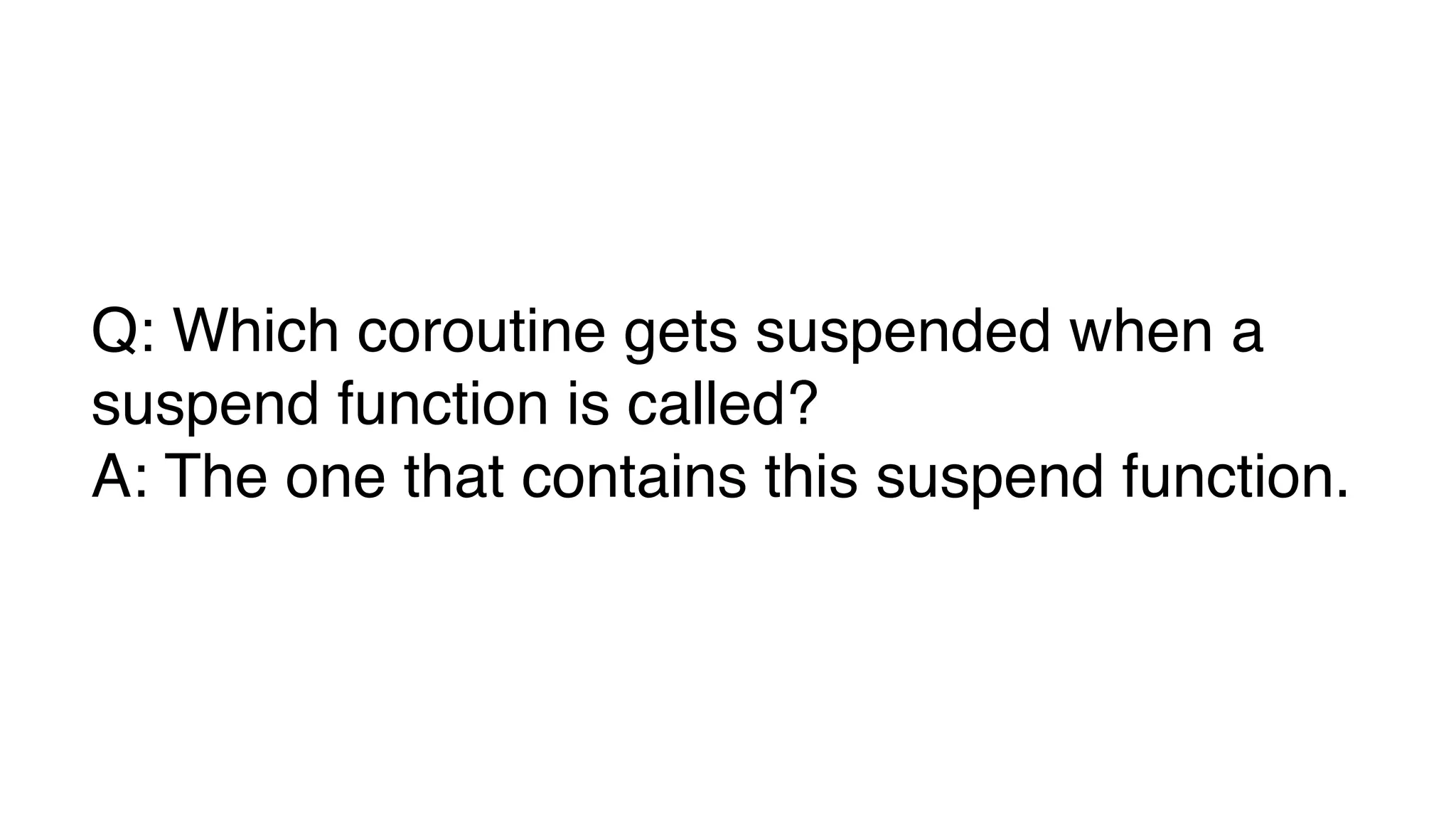

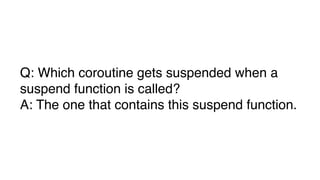

Q: Which coroutine gets suspended when a
suspend function is called?
A: The one that contains this suspend function.

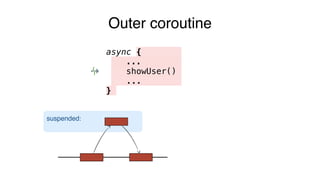

Outer coroutine
suspended:
async {
...
showUser()
...
}

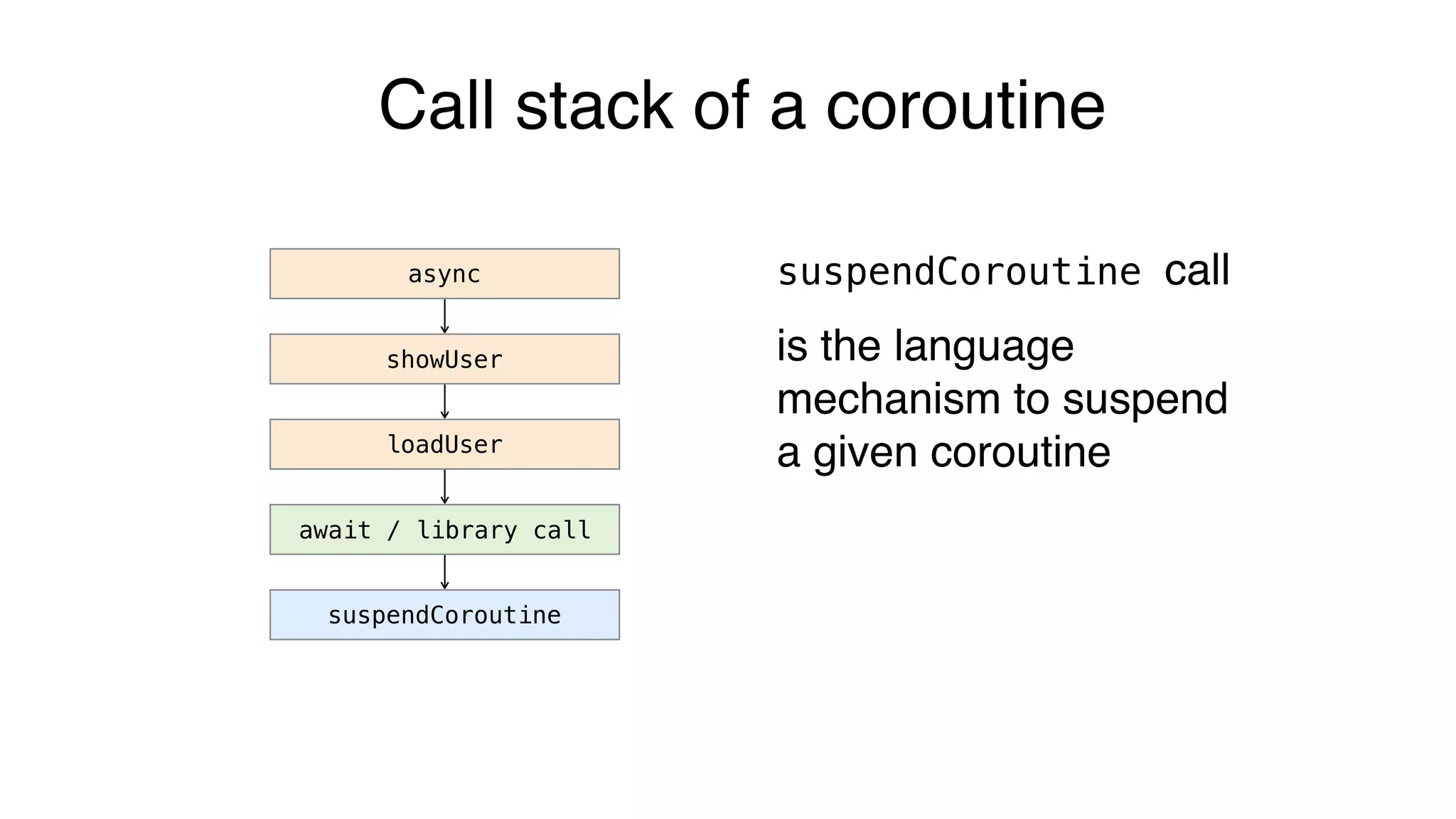

Call stack of a coroutine
async
showUser
loadUser
await / library call
suspendCoroutine
suspendCoroutine call
is the language
mechanism to suspend
a given coroutine

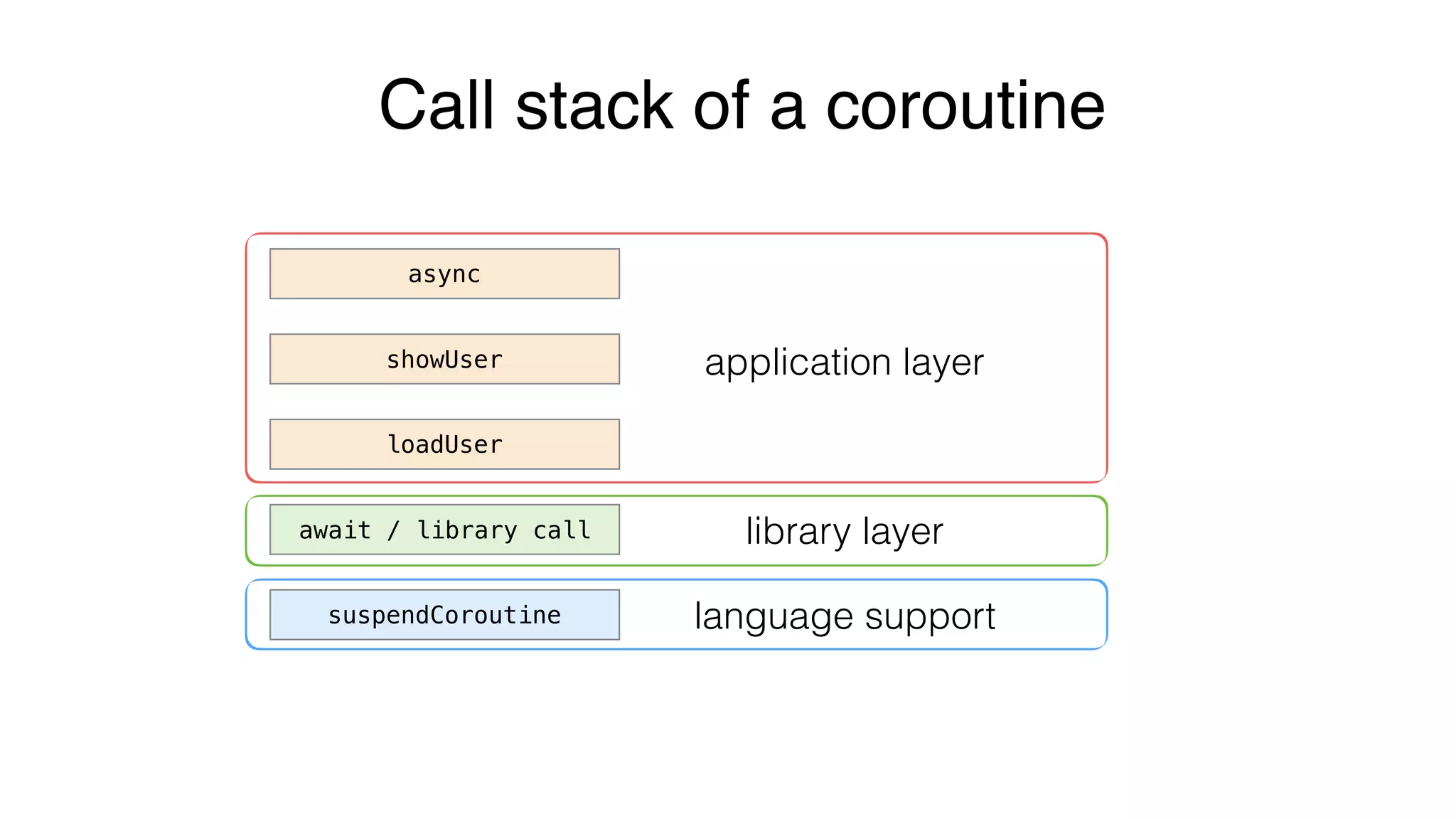

Call stack of a coroutine
async
showUser
loadUser
suspendCoroutine
application layer
library layer
language support

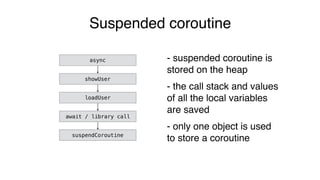

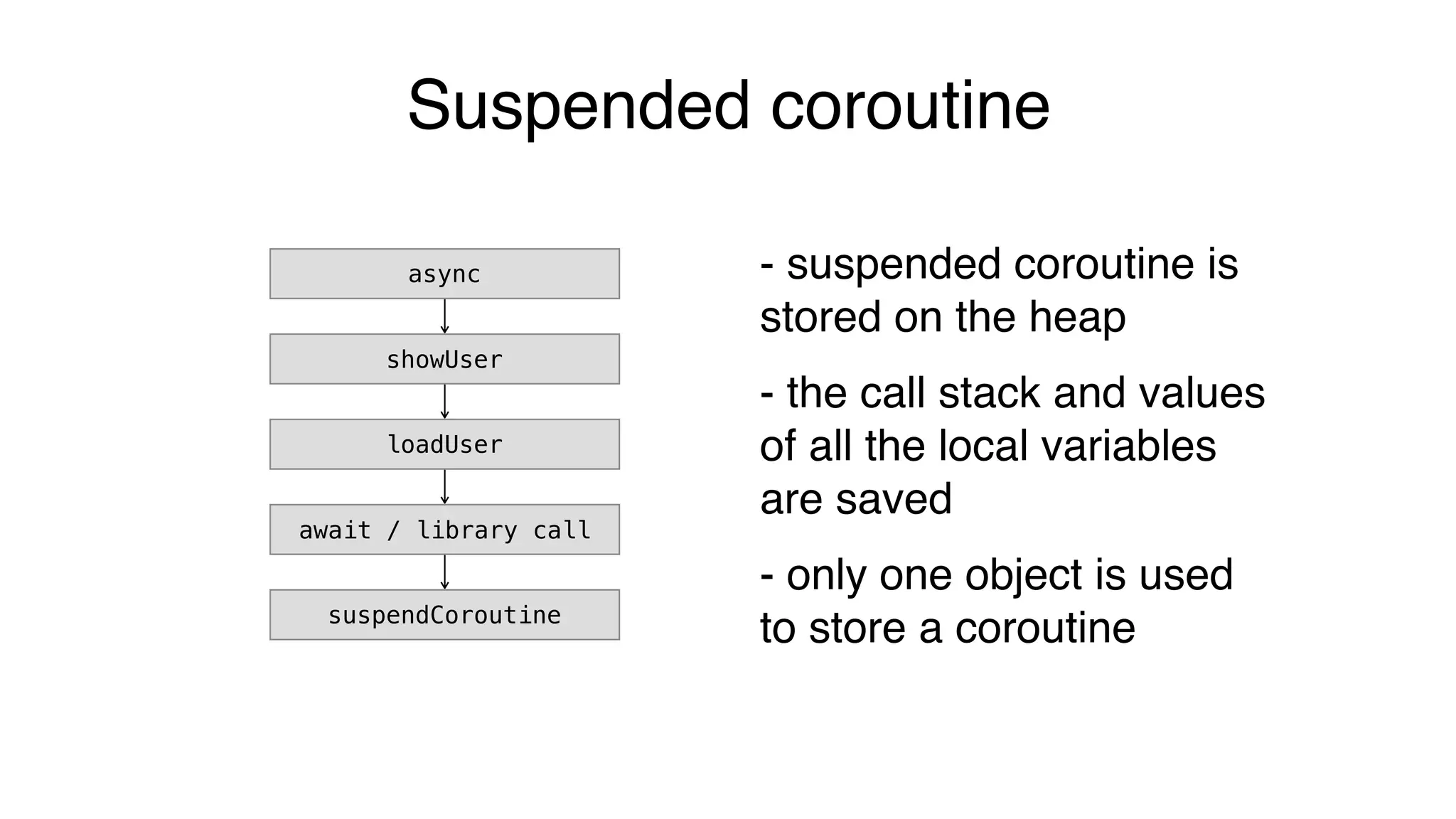

Suspended coroutine
async
showUser
loadUser
suspendCoroutine
- suspended coroutine is
stored on the heap
- the call stack and values
of all the local variables
are saved
- only one object is used
to store a coroutine

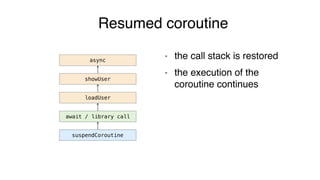

Resumed coroutine
async
showUser
loadUser
suspendCoroutine
- the call stack is restored
- the execution of the
coroutine continues

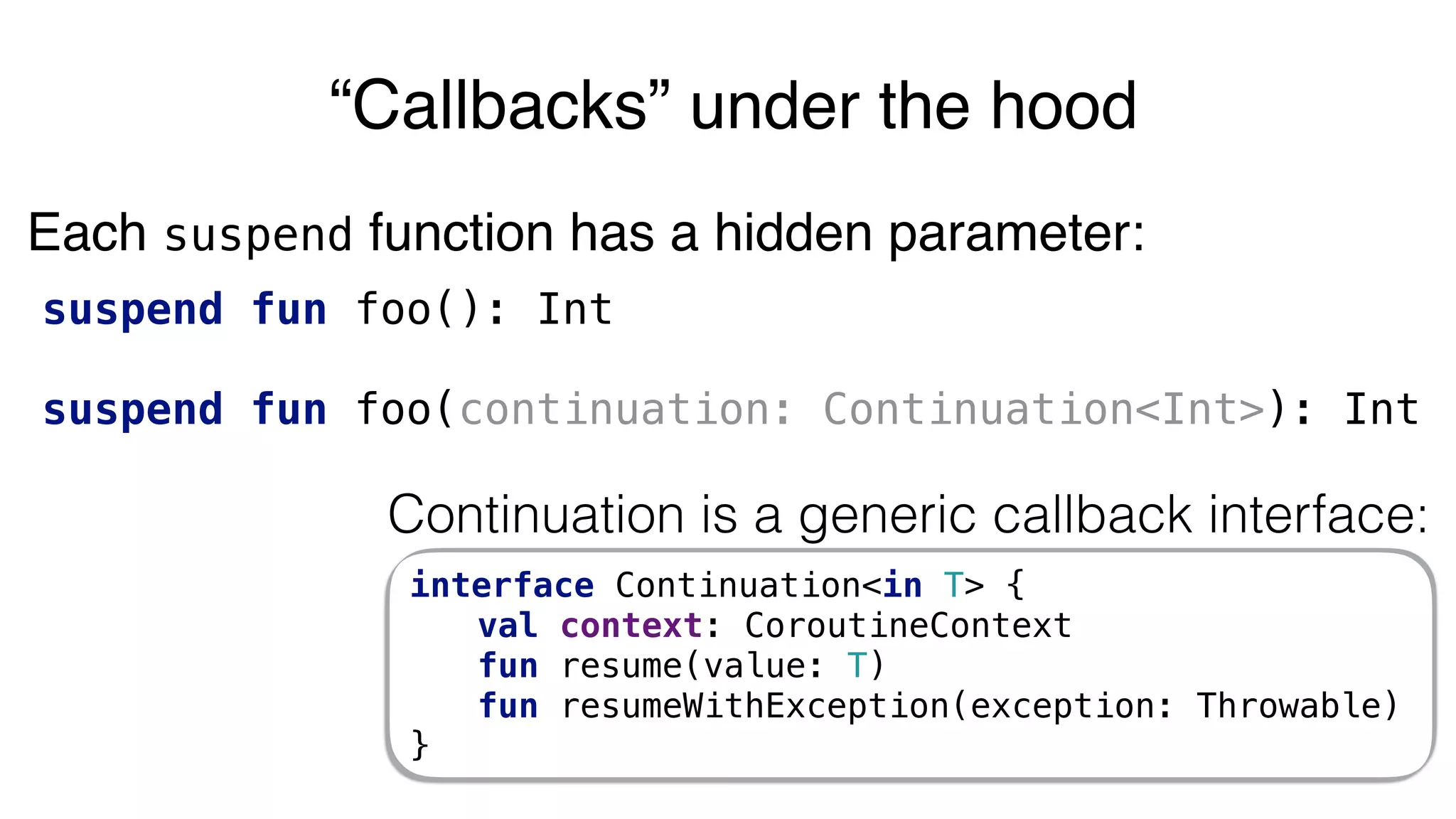

suspend fun foo(): Int
suspend fun foo(continuation: Continuation<Int>): Int

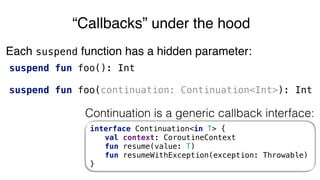

“Callbacks” under the hood
Continuation is a generic callback interface:
interface Continuation<in T> {
val context: CoroutineContext
fun resume(value: T)
fun resumeWithException(exception: Throwable)
}
Each suspend function has a hidden parameter:

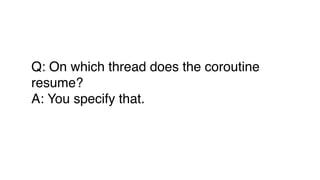

Q: On which thread does the coroutine
resume?
A: You specify that.

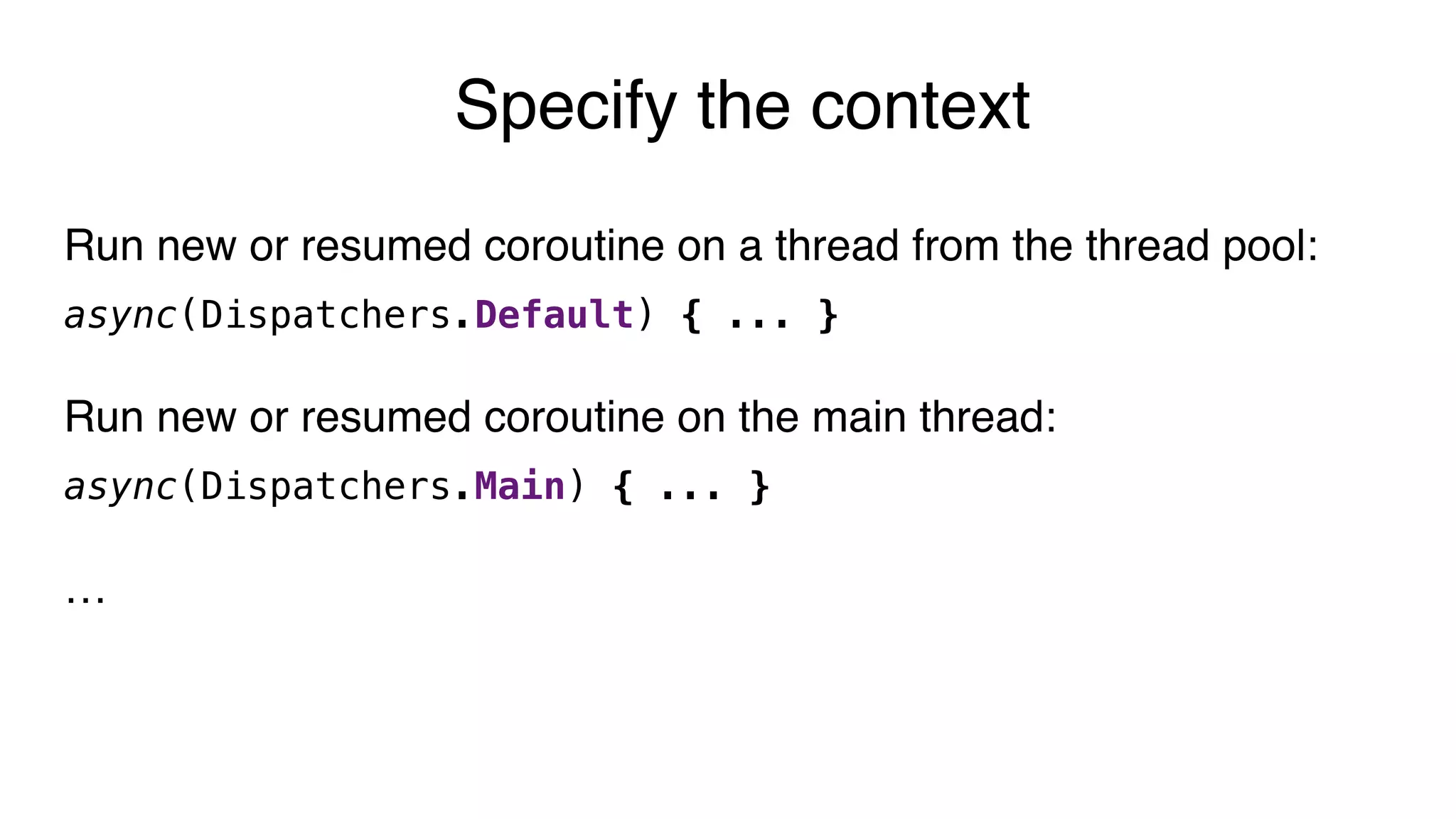

Run new or resumed coroutine on a thread from the thread pool:
async(Dispatchers.Default) { ... }
Run new or resumed coroutine on the main thread:
async(Dispatchers.Main) { ... }
…

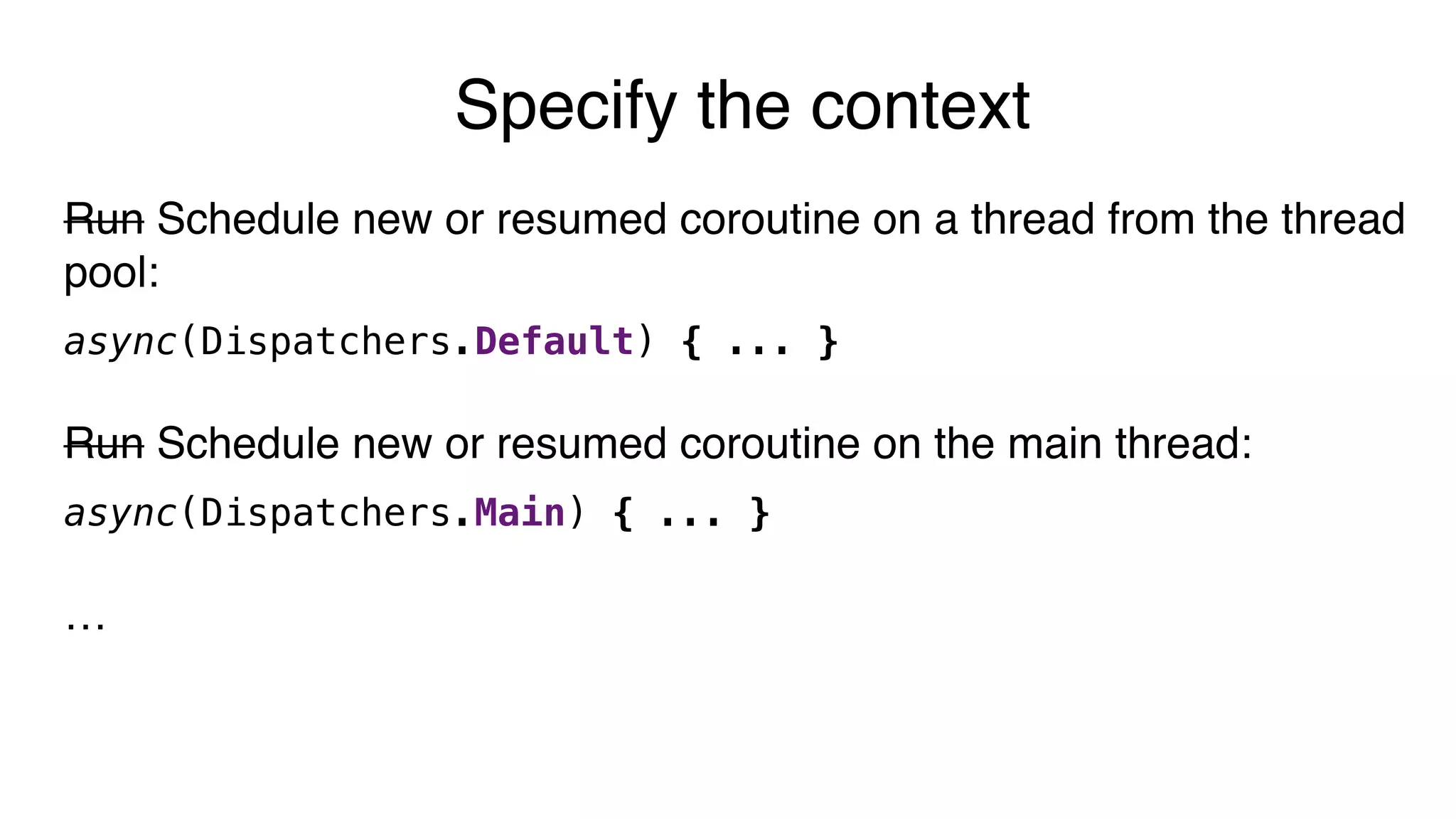

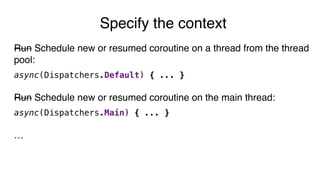

Specify the context

Run Schedule new or resumed coroutine on a thread from the thread
pool:
async(Dispatchers.Default) { ... }
Run Schedule new or resumed coroutine on the main thread:
async(Dispatchers.Main) { ... }
…
Specify the context

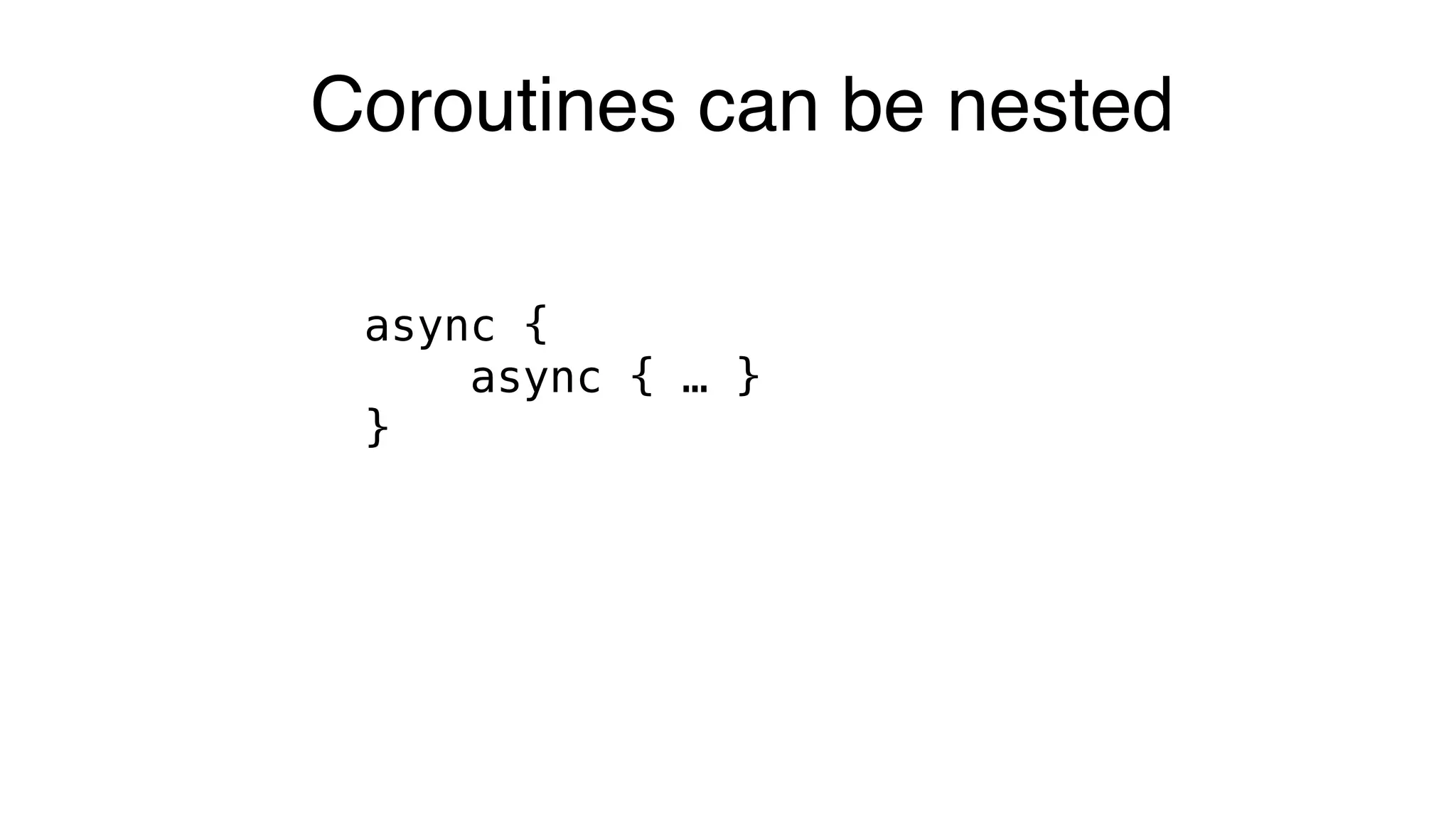

async {
async { … }
}
Coroutines can be nested

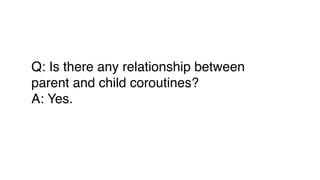

Q: Is there any relationship between
parent and child coroutines?
A: Yes.

fun overlay(image1: Image, image2: Image): Image
suspend fun loadAndOverlay() { 
val first = async { loadImage("green") } 
val second = async { loadImage("red") } 
return overlay(first.await(), second.await()) 
}

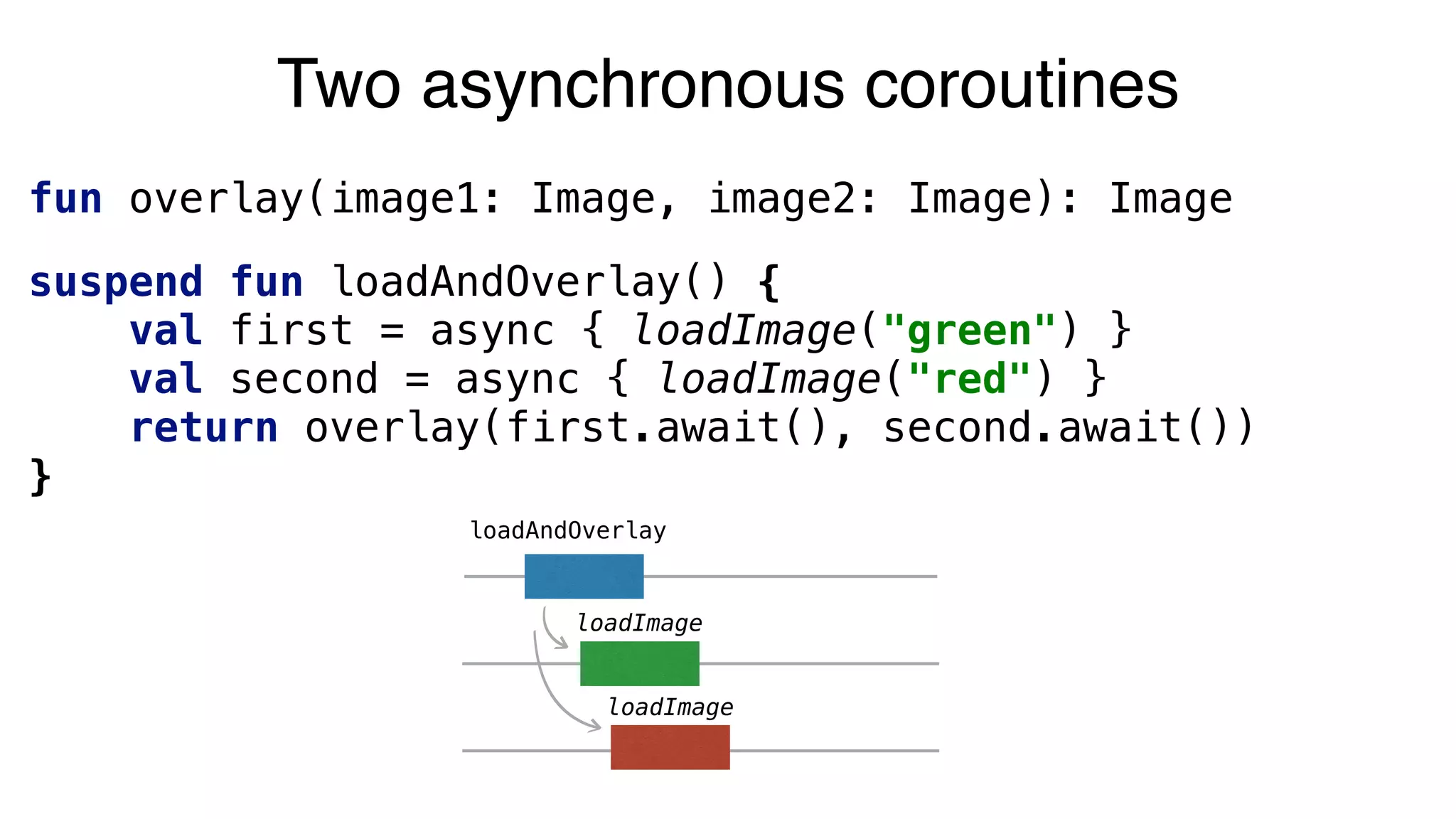

Two asynchronous coroutines
loadAndOverlay
loadImage
loadImage

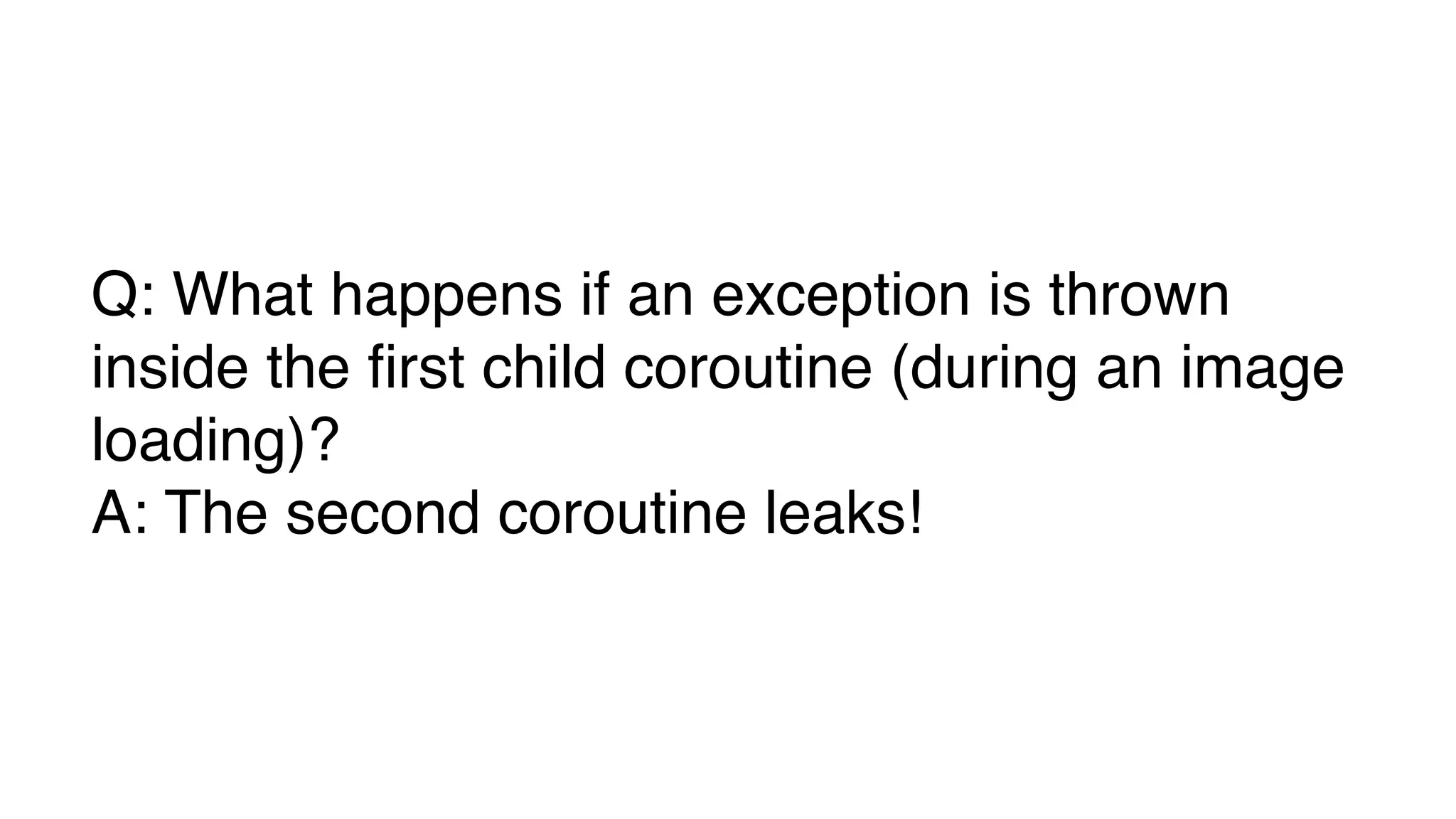

Q: What happens if an exception is thrown
inside the first child coroutine (during an image
loading)?
A: The second coroutine leaks!

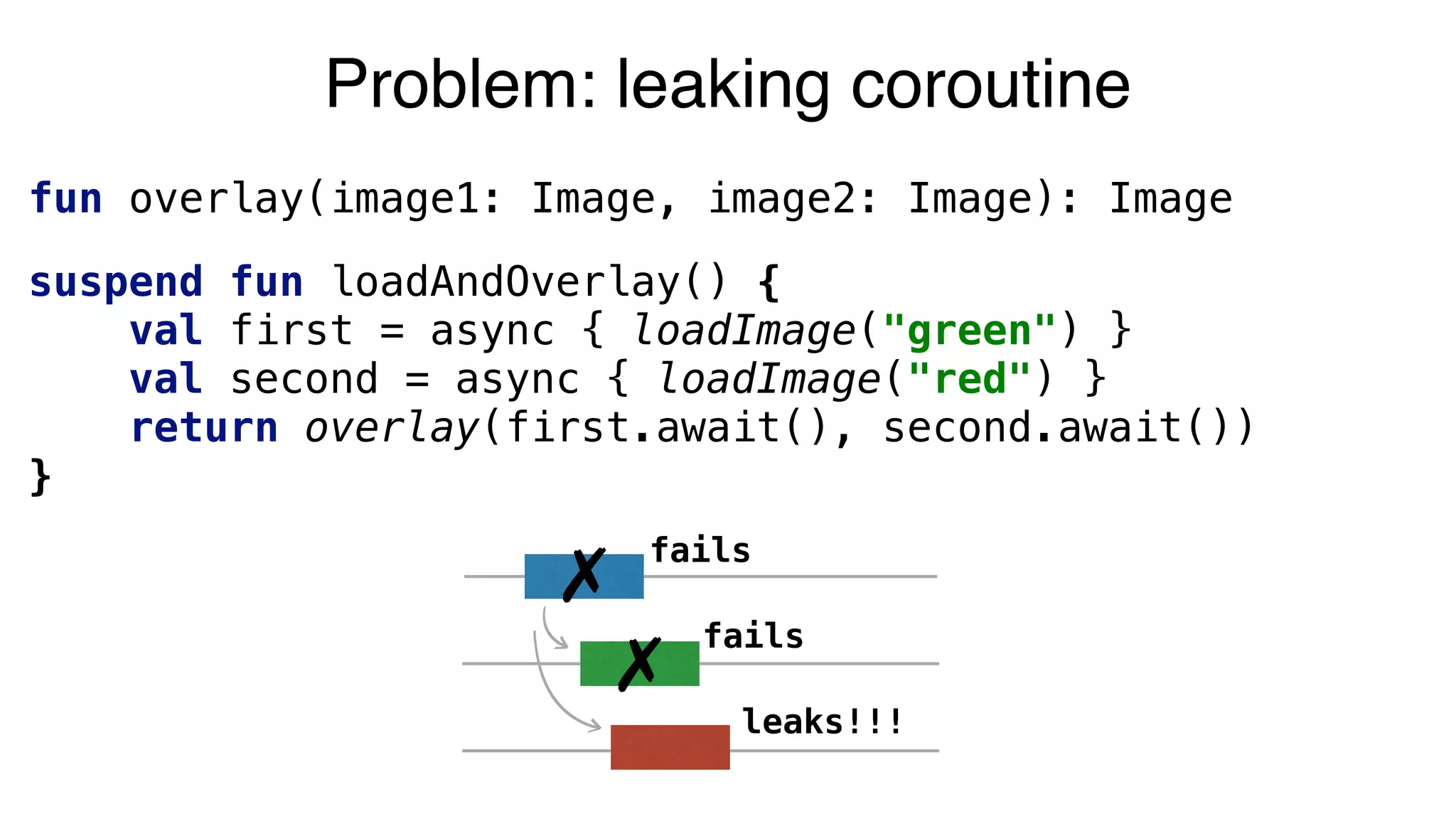

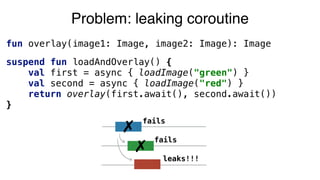

Problem: leaking coroutine
✗
fails
leaks!!!
✗ fails
fun overlay(image1: Image, image2: Image): Image
suspend fun loadAndOverlay() { 
val first = async { loadImage("green") } 
val second = async { loadImage("red") } 
return overlay(first.await(), second.await()) 
}

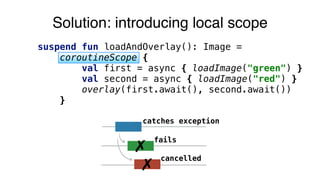

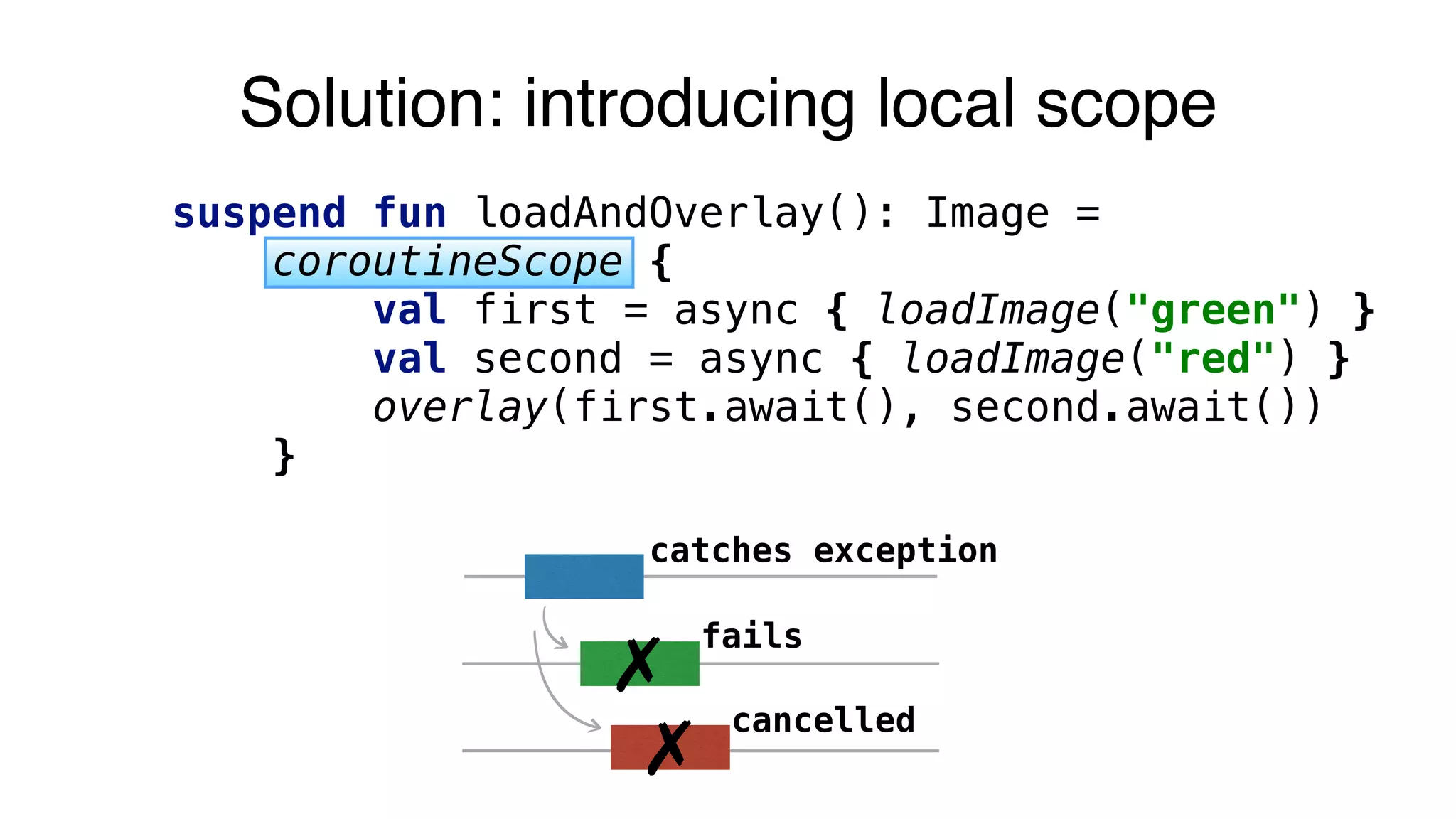

Solution: introducing local scope
suspend fun loadAndOverlay(): Image =
coroutineScope {
val first = async { loadImage("green") }
val second = async { loadImage("red") }
overlay(first.await(), second.await())
}
✗
fails
catches exception
✗
cancelled

suspend fun loadAndOverlay(): Image =
coroutineScope {
val first = async { loadImage("green") }
val second = async { loadImage("red") }
overlay(first.await(), second.await())
}
✗
fails
✗ fails
✗
cancelled

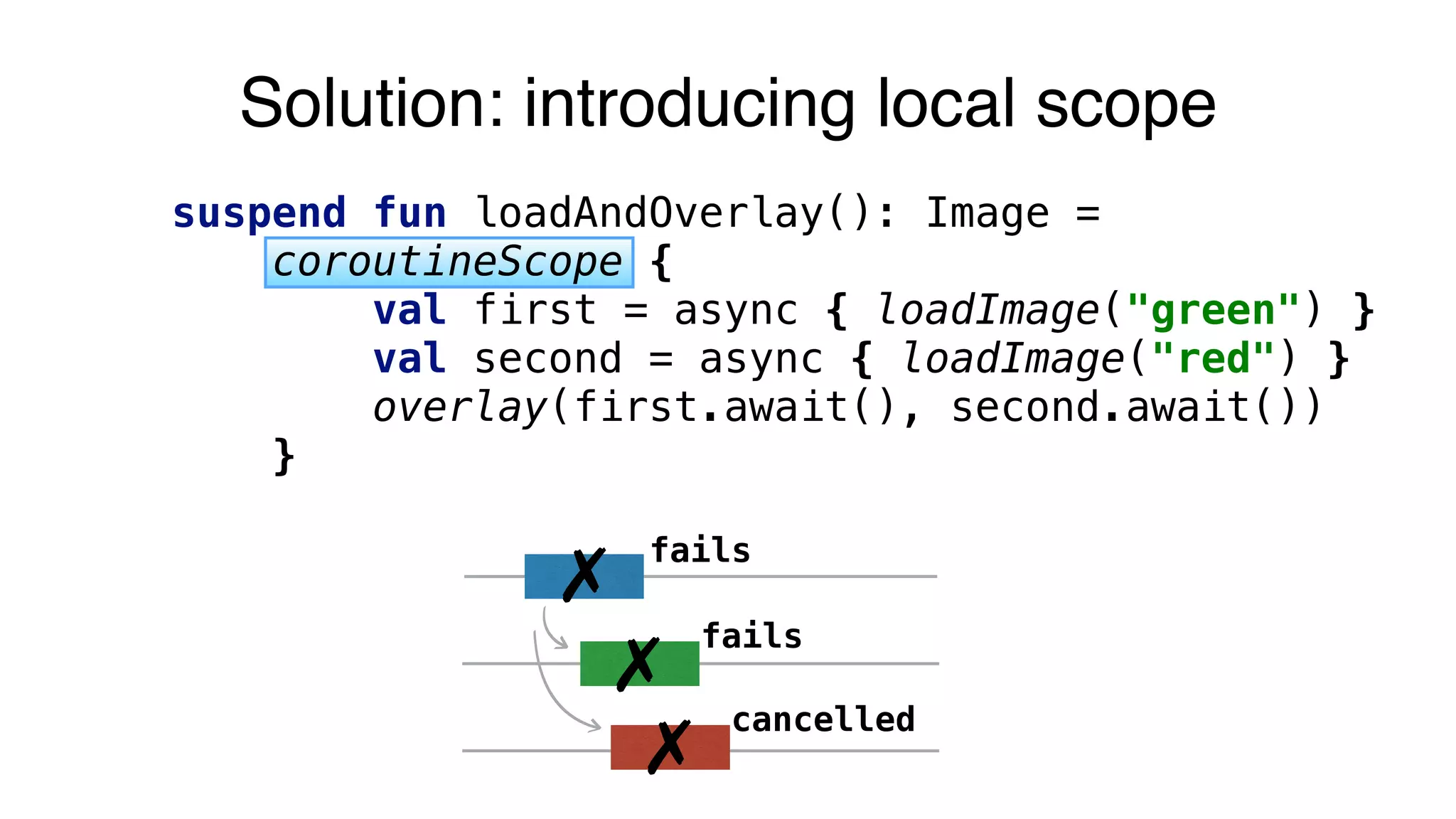

Solution: introducing local scope

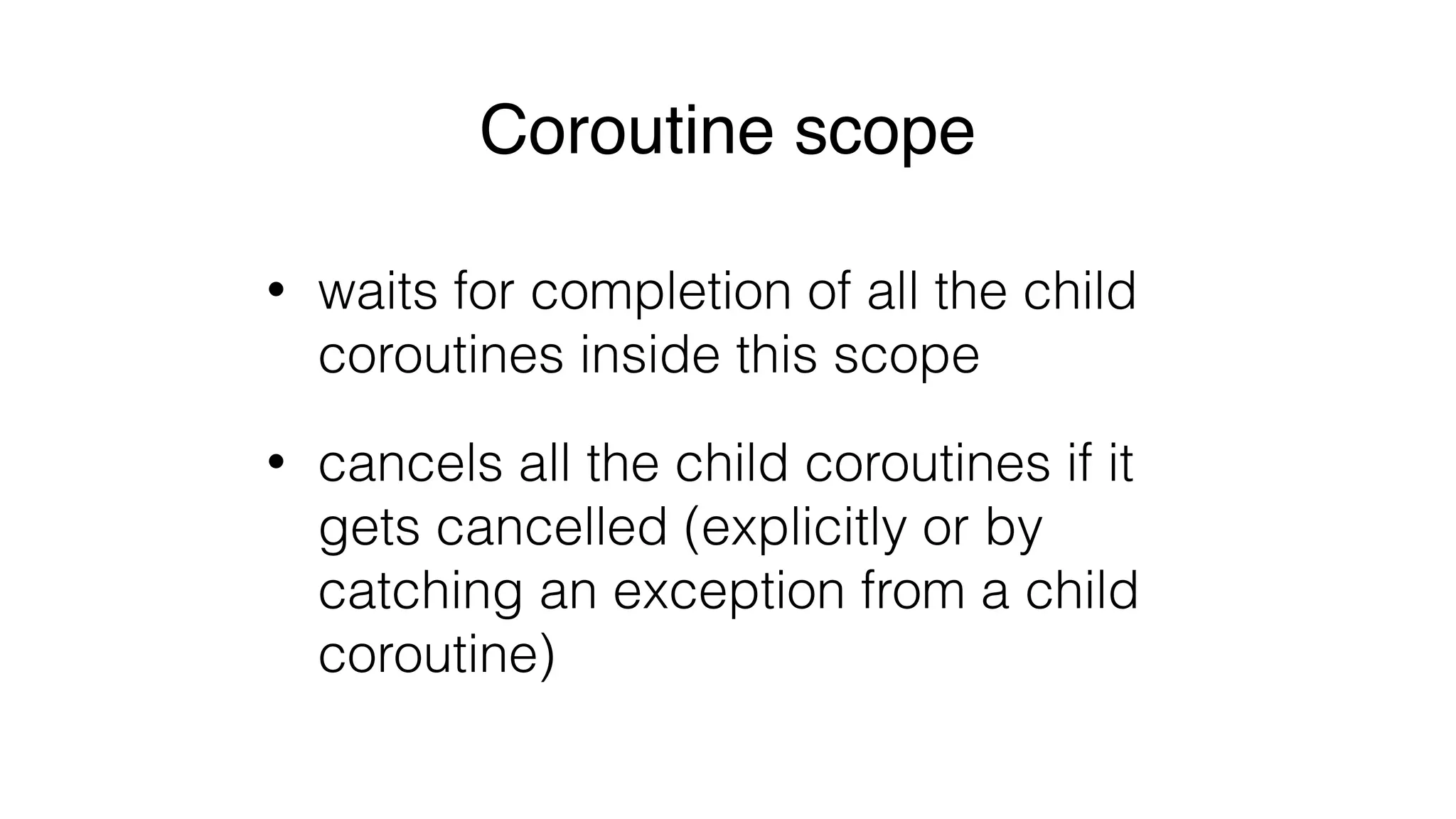

Coroutine scope
• waits for completion of all the child
coroutines inside this scope
• cancels all the child coroutines if it
gets cancelled (explicitly or by
catching an exception from a child
coroutine)

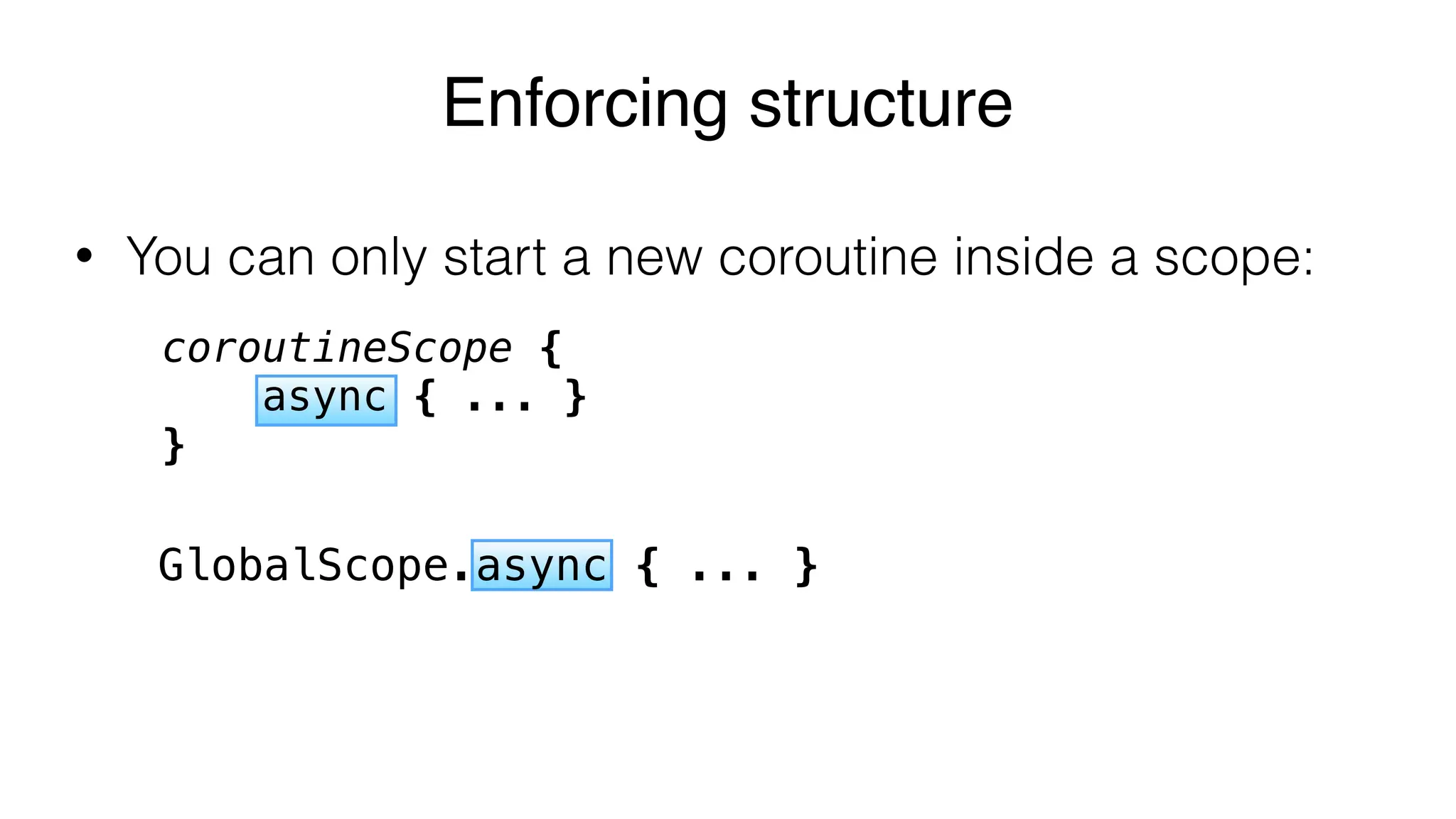

• You can only start a new coroutine inside a scope:
Enforcing structure
coroutineScope {
async { ... }
}
GlobalScope.async { ... }

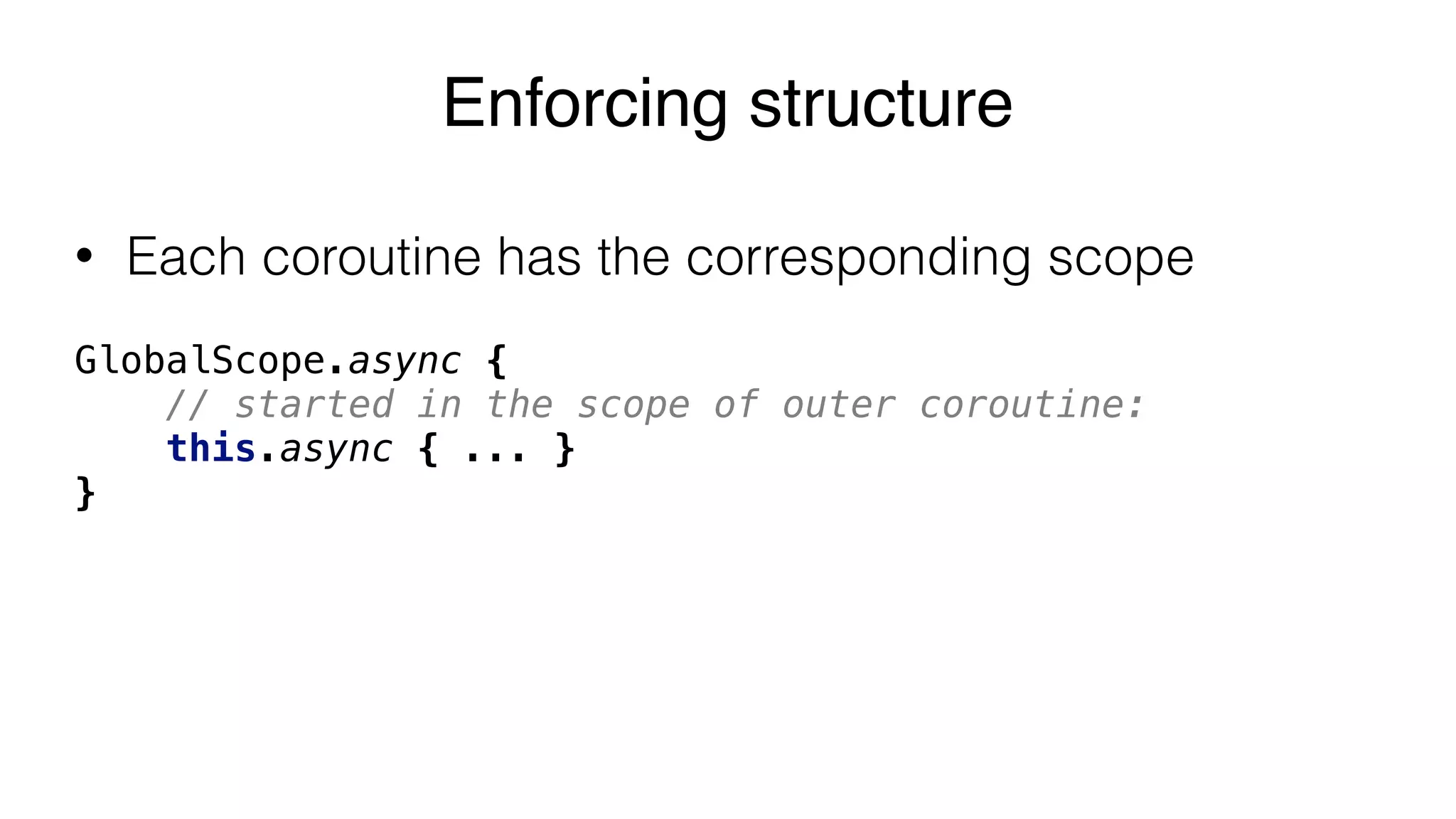

• Each coroutine has the corresponding scope
GlobalScope.async {
// started in the scope of outer coroutine:
this.async { ... }
}
Enforcing structure

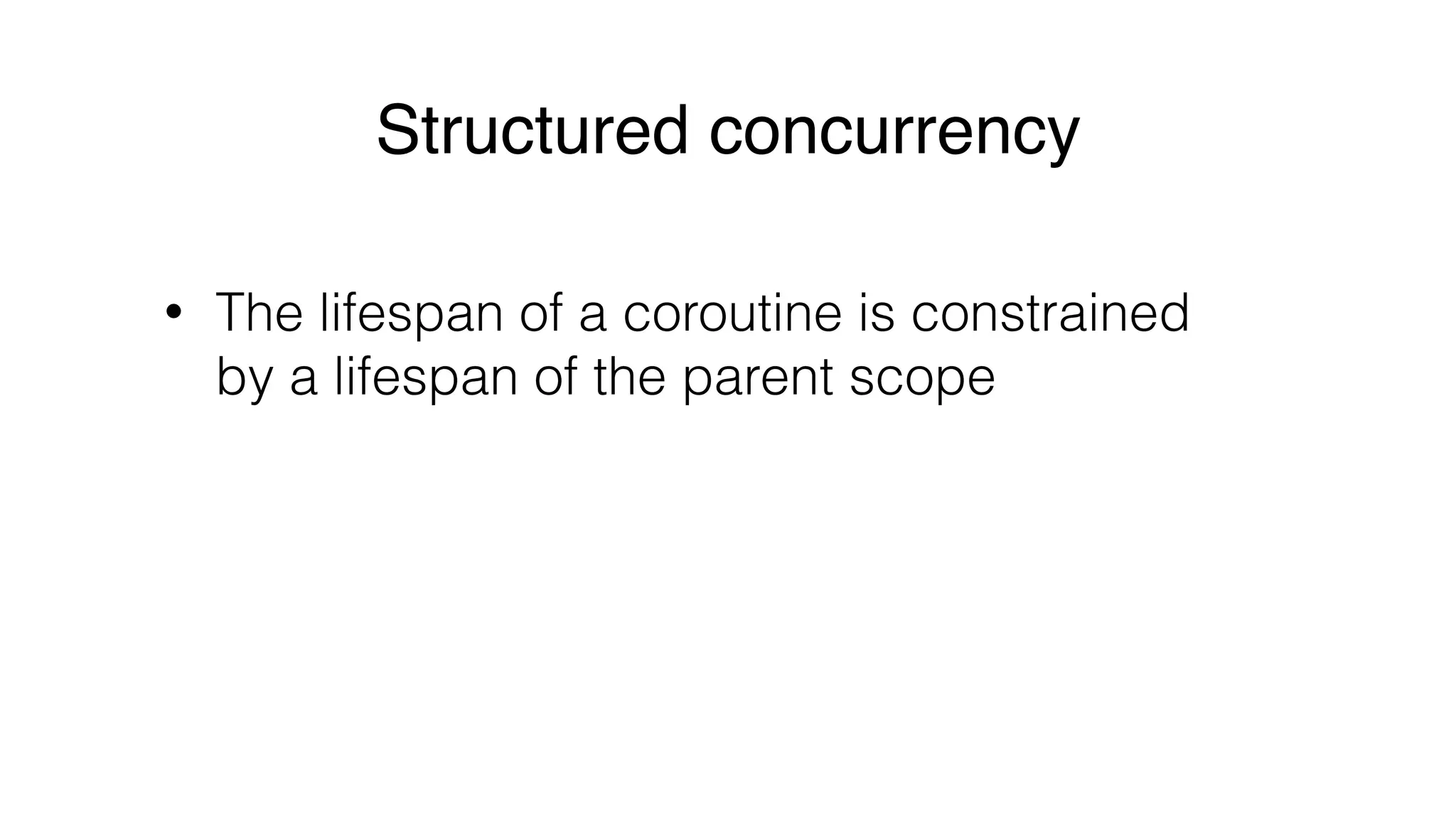

Structured concurrency
• The lifespan of a coroutine is constrained
by a lifespan of the parent scope

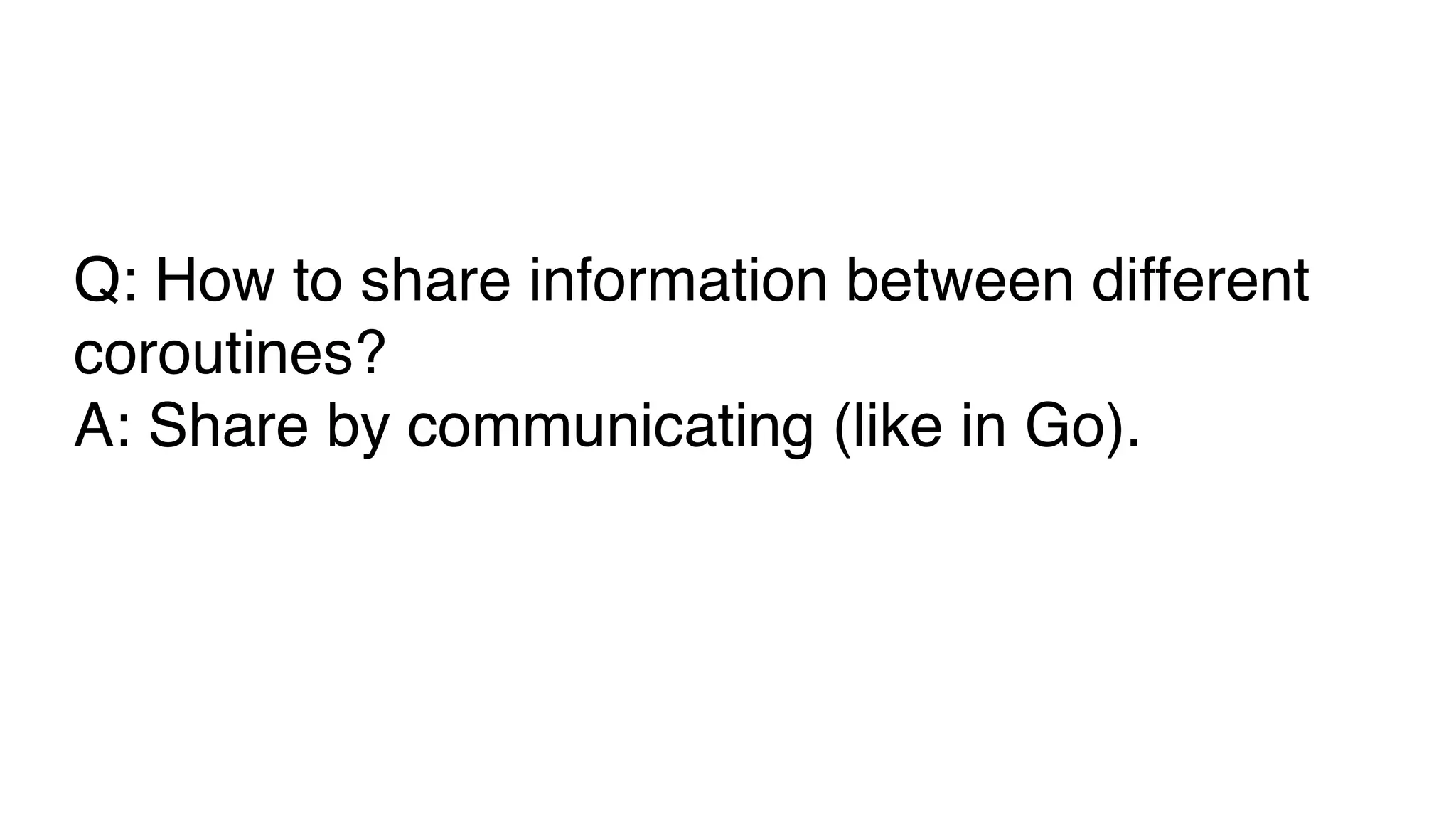

Q: How to share information between different
coroutines?
A: Share by communicating (like in Go).

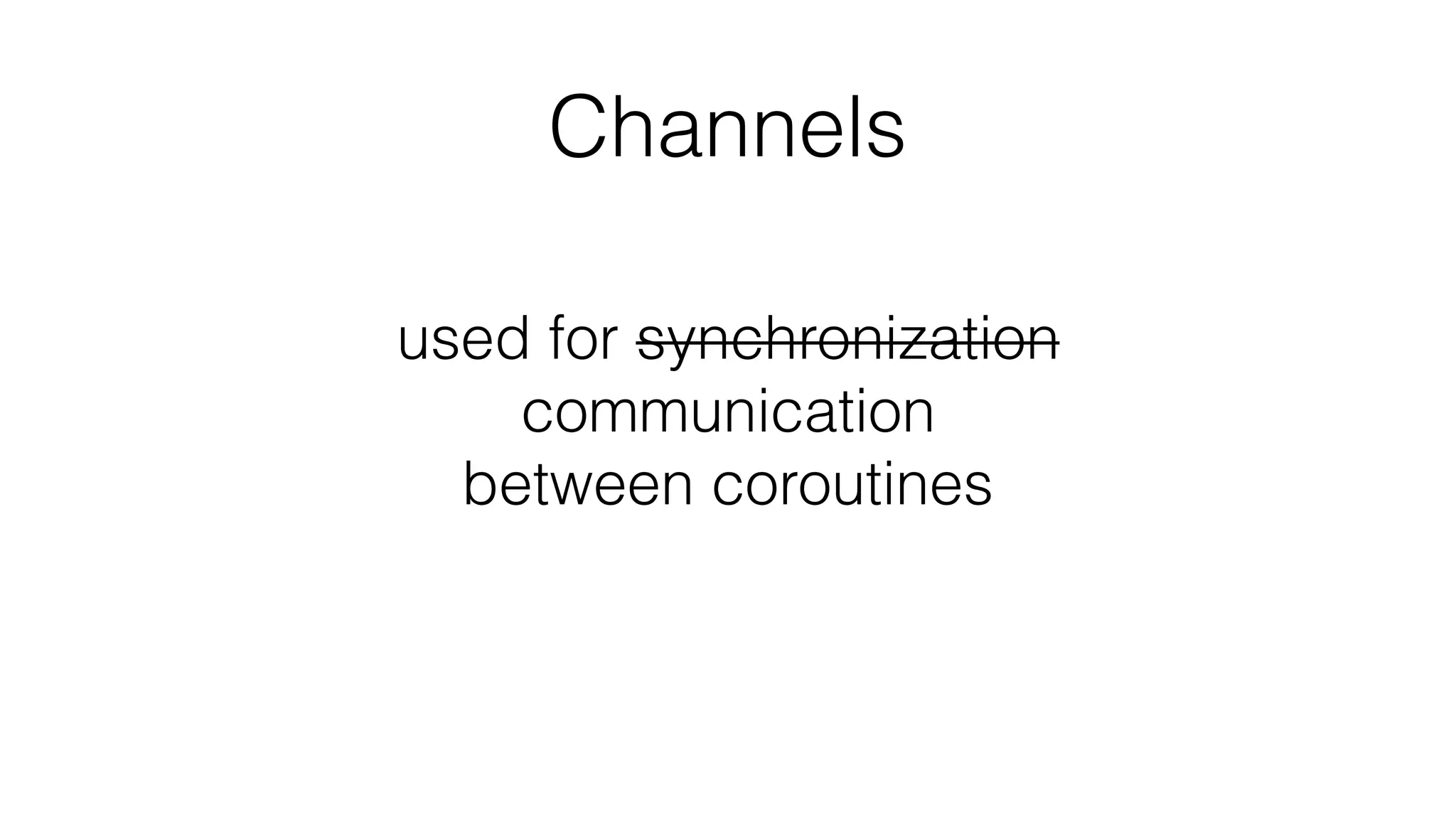

Channels
used for synchronization
communication
between coroutines

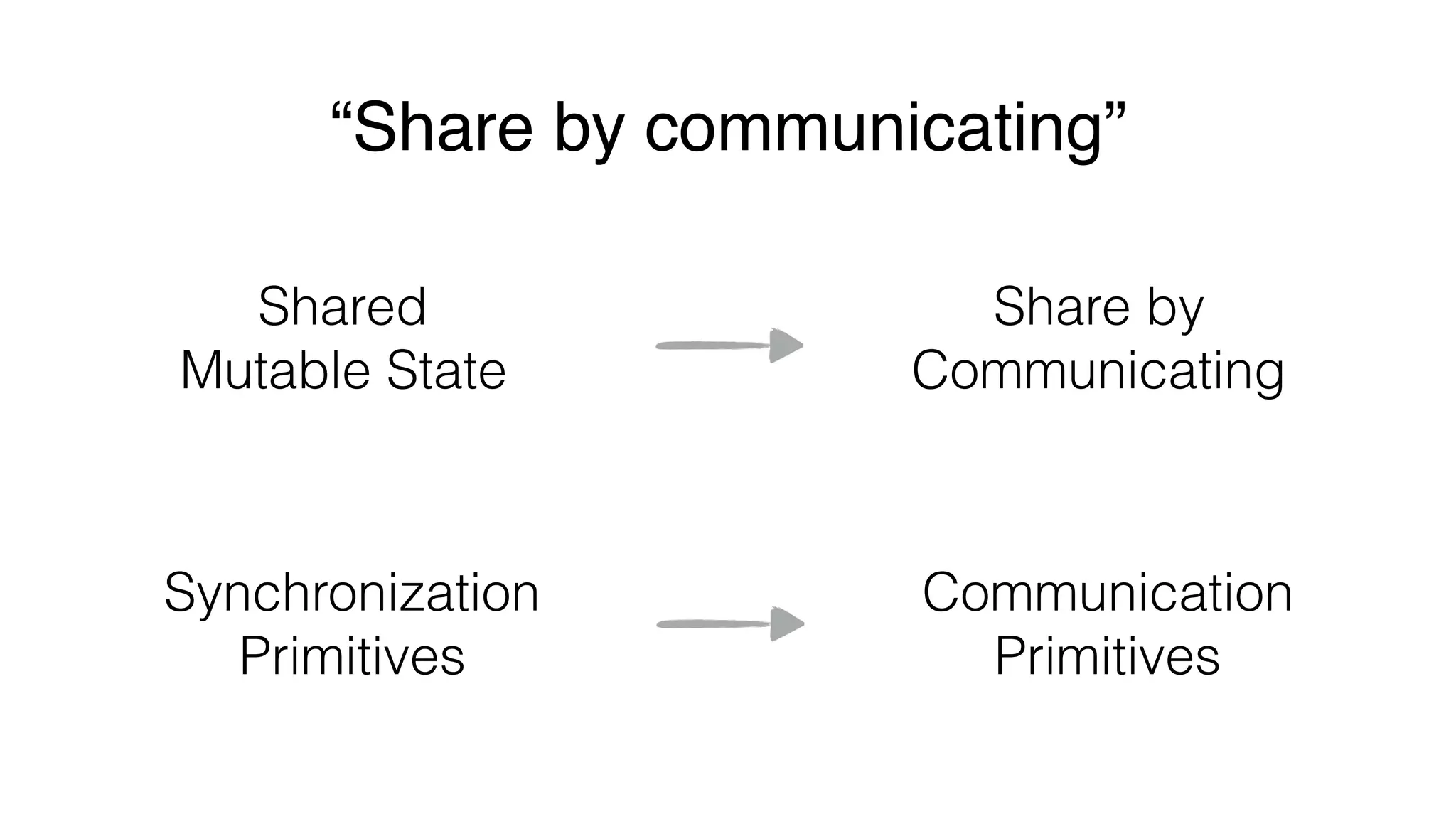

“Share by communicating”
Shared 
Mutable State
Share by
Communicating
Synchronization 
Primitives
Communication
Primitives

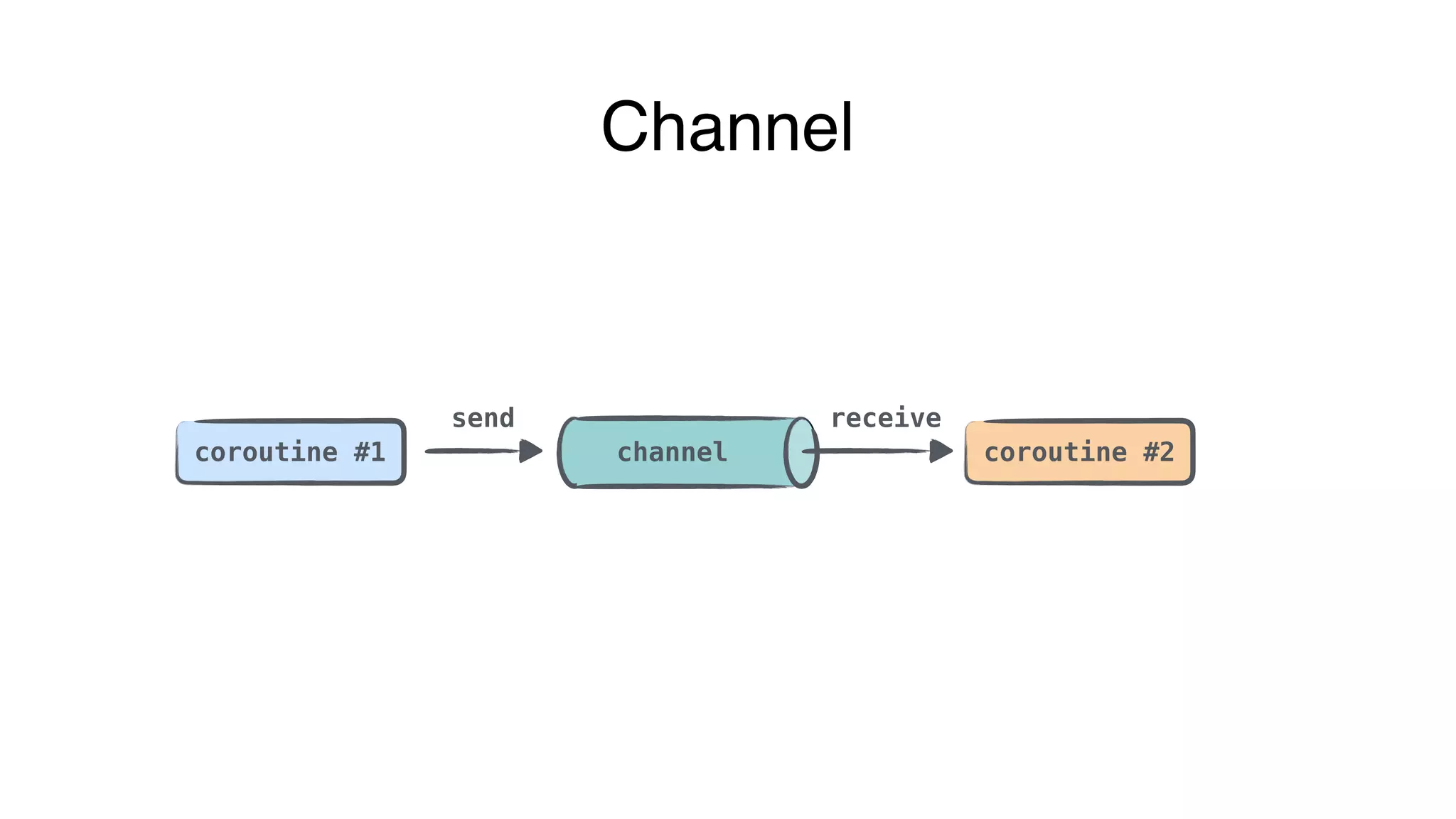

channel coroutine #2coroutine #1
send receive

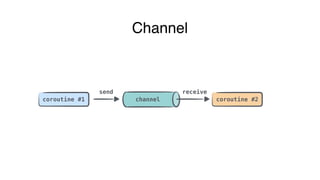

Channel

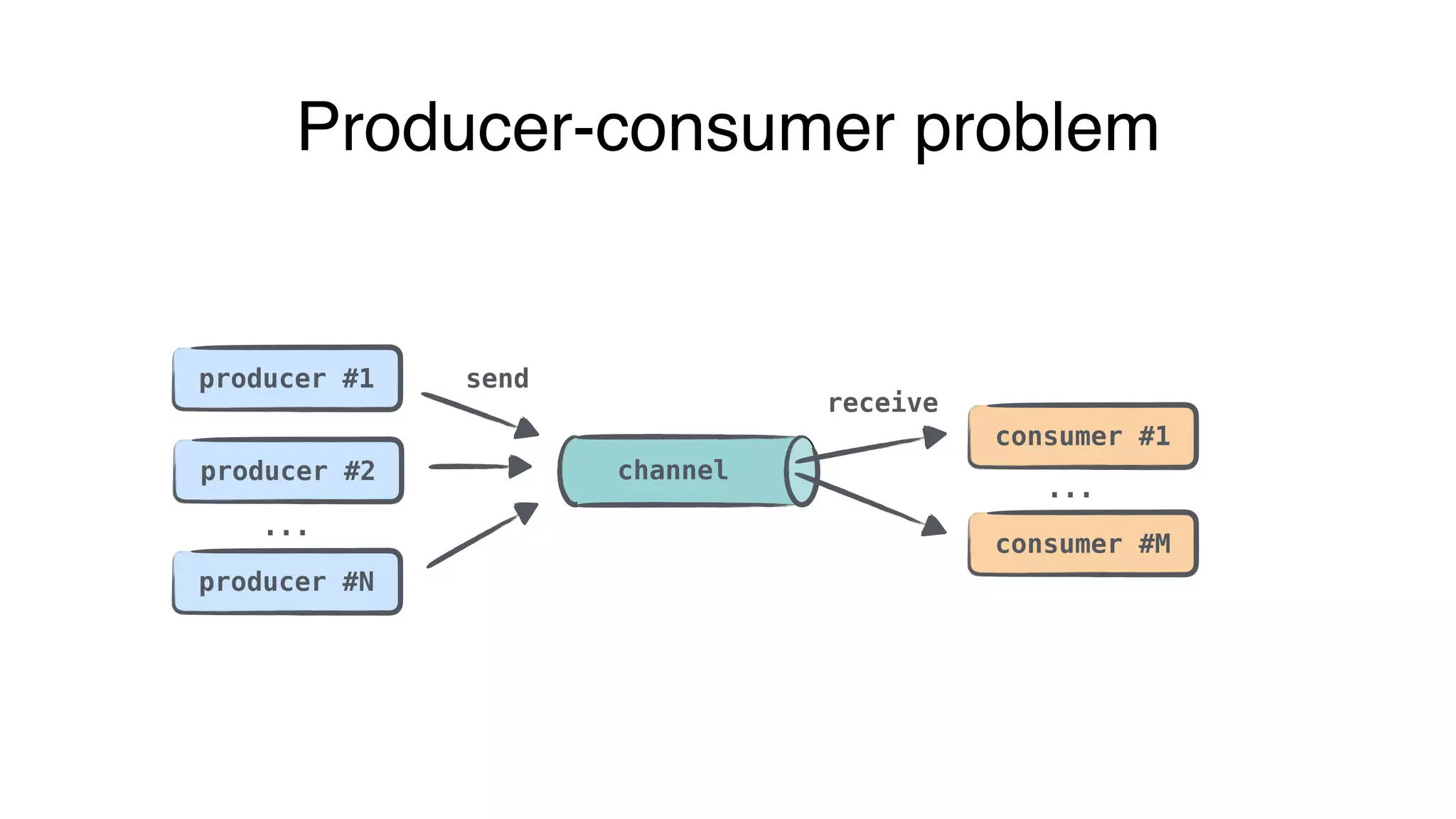

channel
consumer #1
producer #1 send
receive
producer #2
producer #N
consumer #M
...
...
Producer-consumer problem

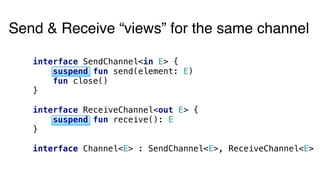

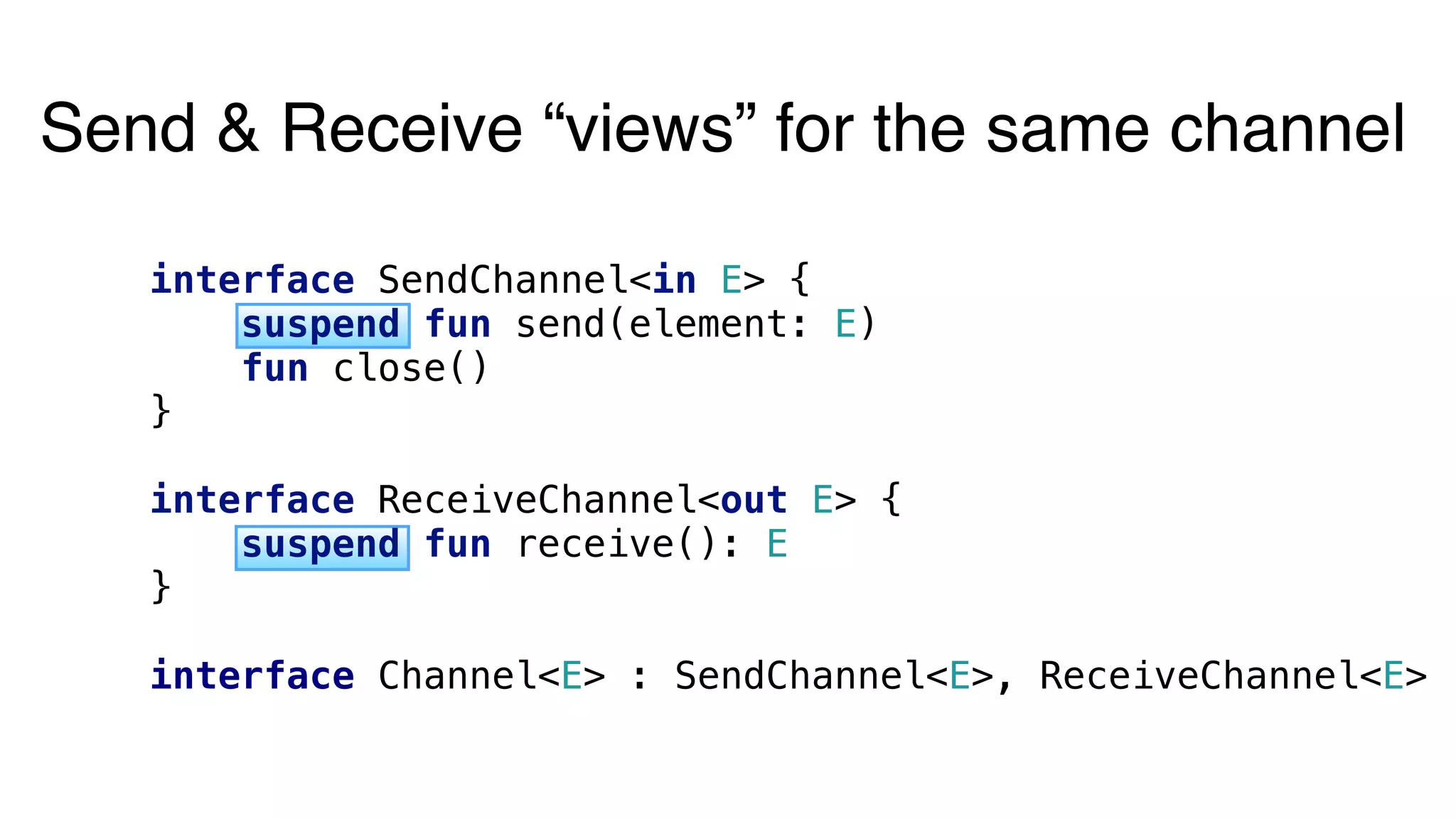

Send & Receive “views” for the same channel
interface SendChannel<in E> {
suspend fun send(element: E)
fun close()
}
interface ReceiveChannel<out E> {
suspend fun receive(): E
}
interface Channel<E> : SendChannel<E>, ReceiveChannel<E>

send receive
...unbuffered
buffered
send receive
“rendezvous”
send receive

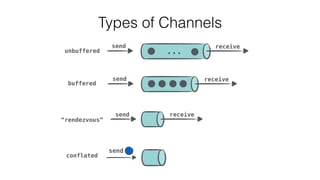

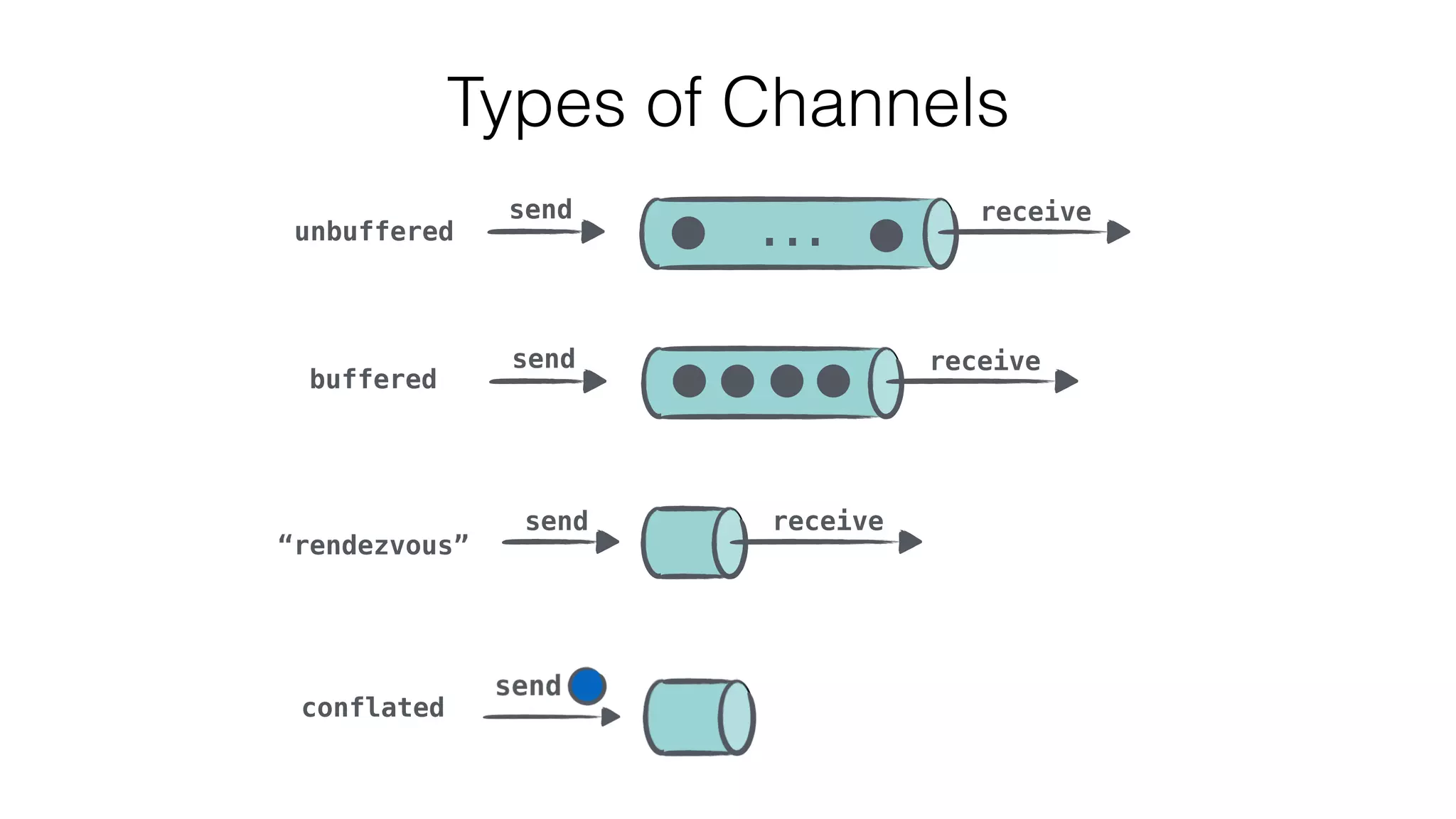

Types of Channels
conflated

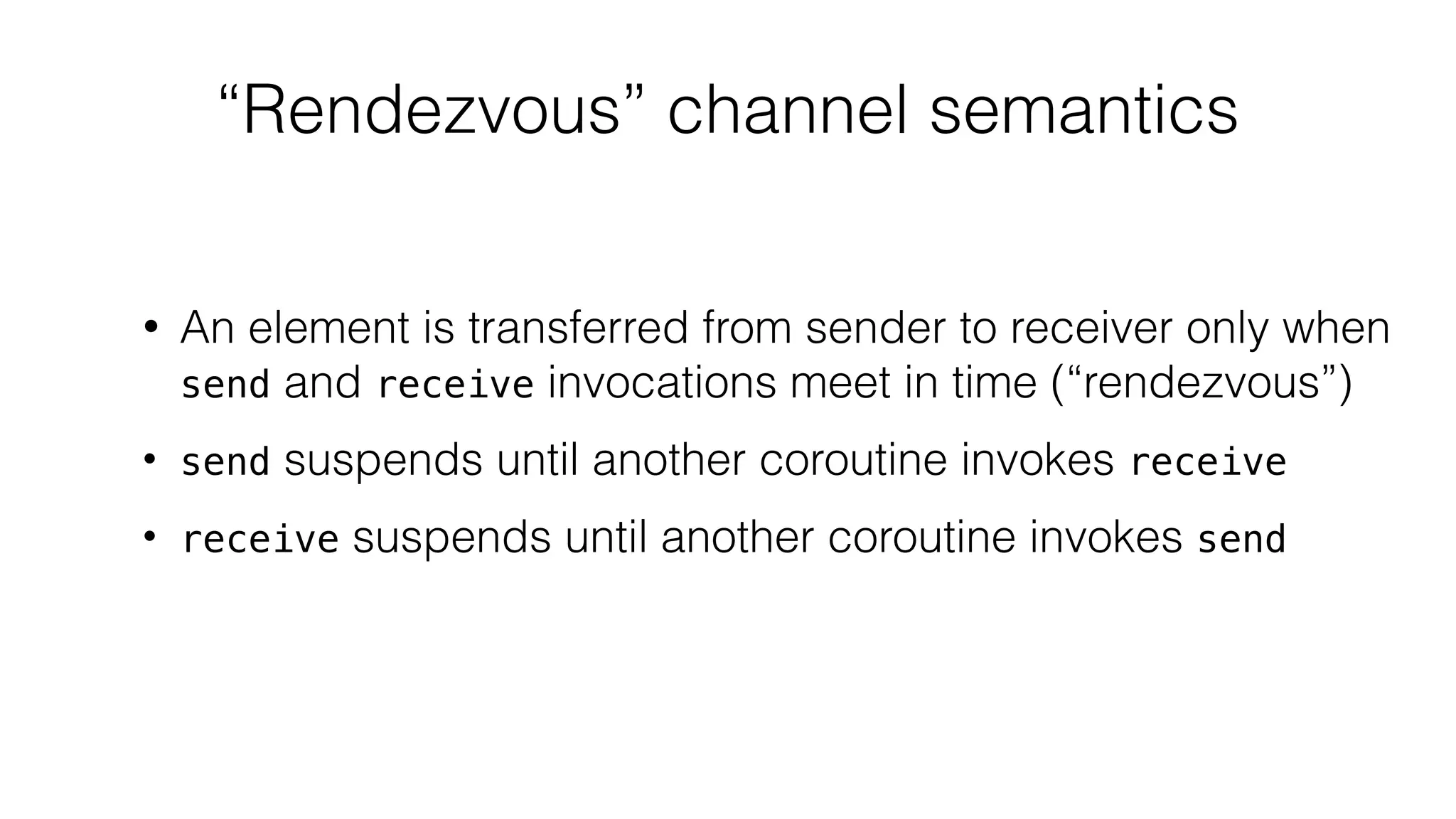

“Rendezvous” channel semantics
• An element is transferred from sender to receiver only when
send and receive invocations meet in time (“rendezvous”)
• send suspends until another coroutine invokes receive
• receive suspends until another coroutine invokes send

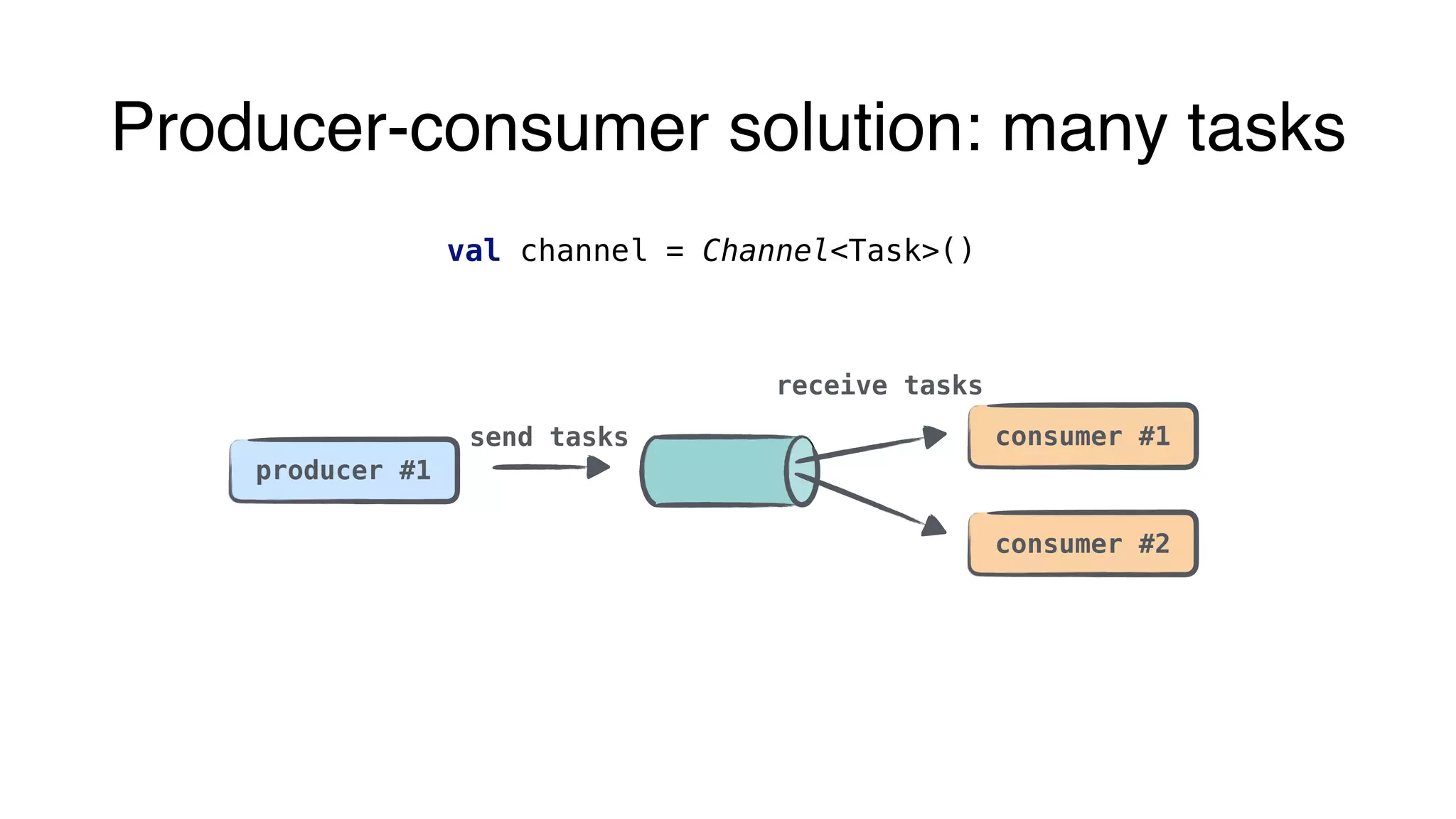

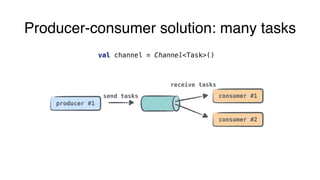

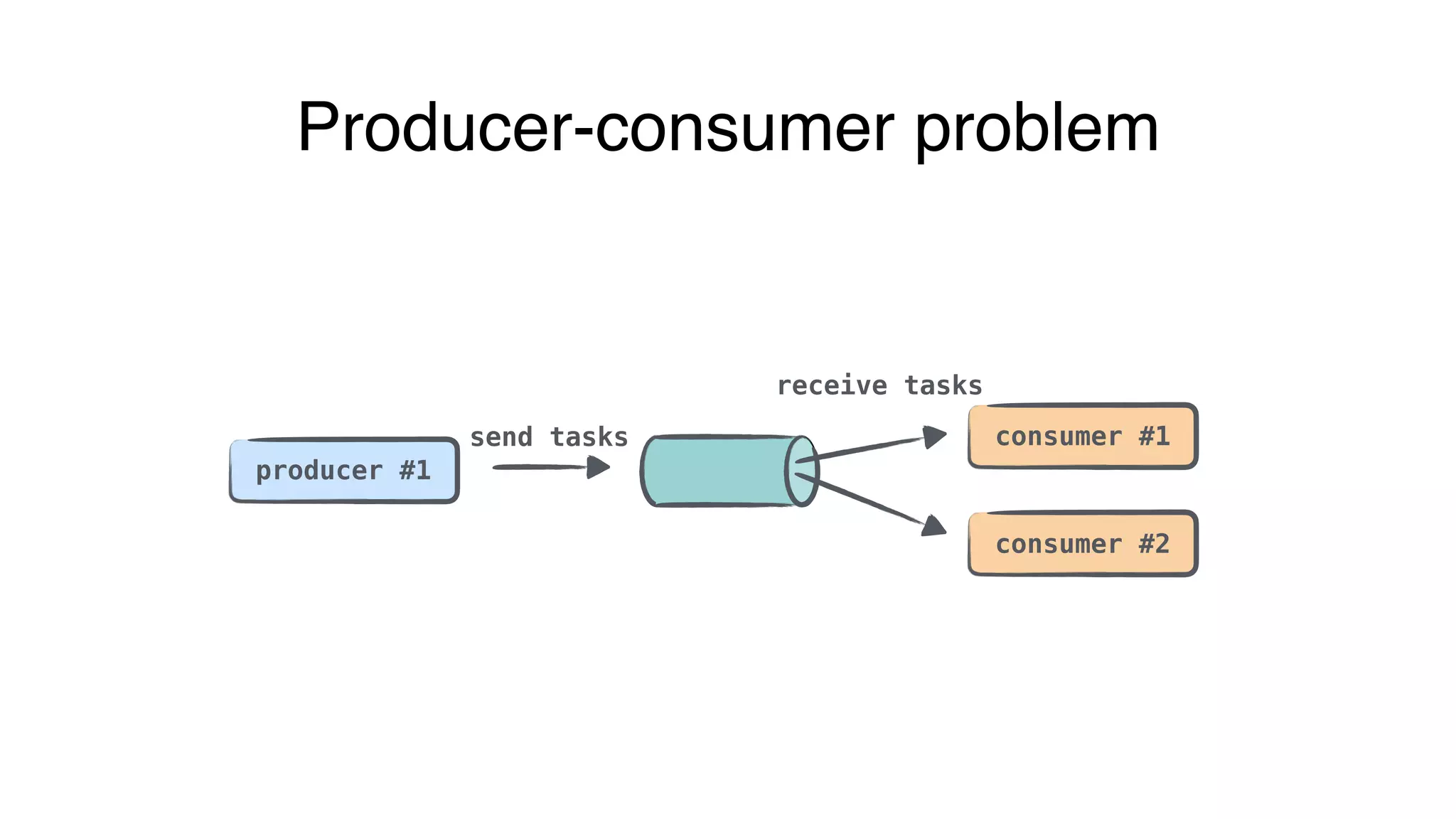

consumer #1
producer #1
send tasks
receive tasks
consumer #2
Producer-consumer problem

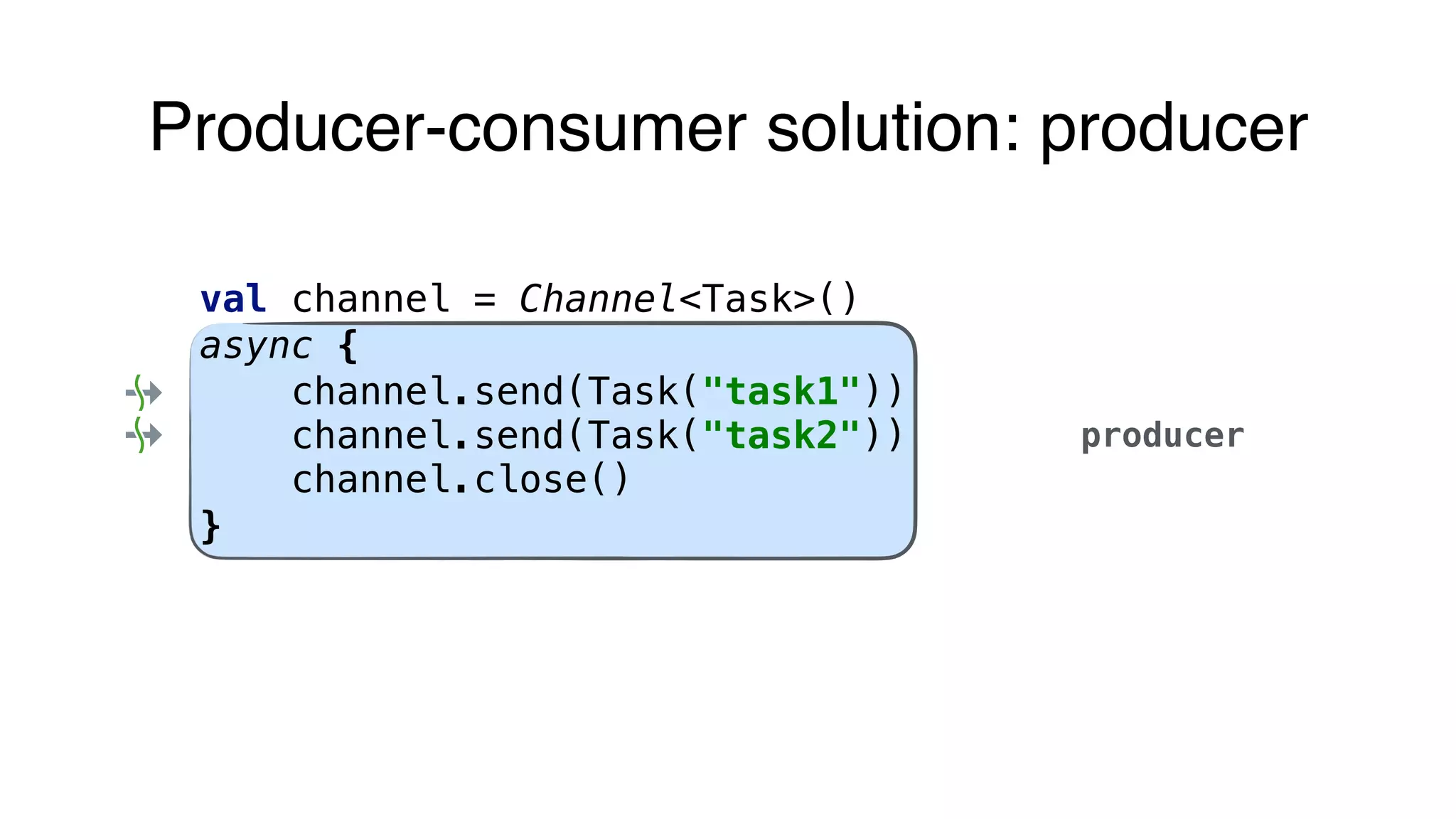

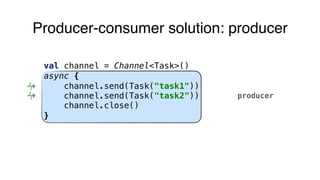

Producer-consumer solution: producer
val channel = Channel<Task>()
async {
channel.send(Task("task1"))
channel.send(Task("task2"))
channel.close()
}
producer

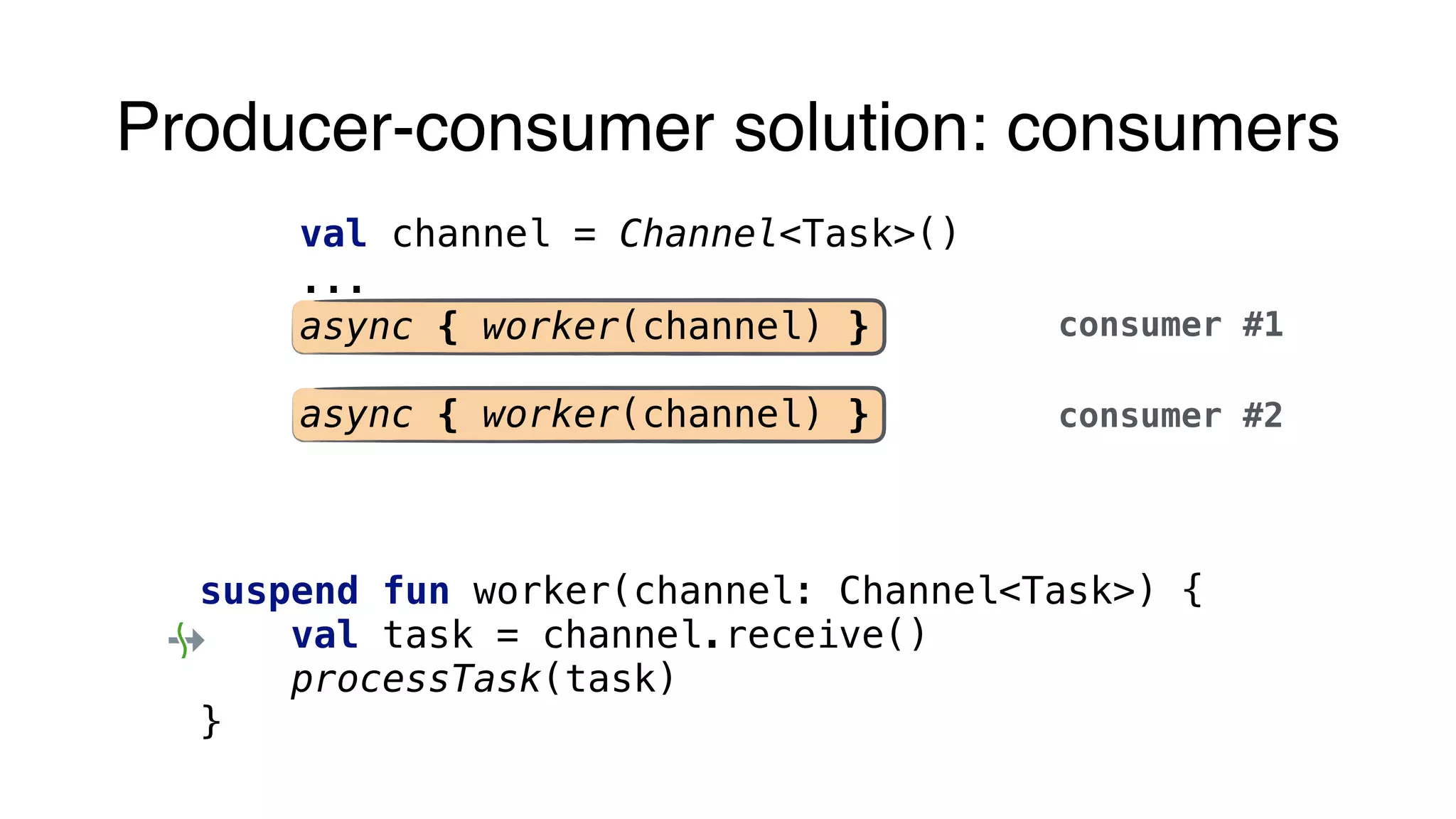

Producer-consumer solution: consumers
...
async { worker(channel) }
consumer #1
suspend fun worker(channel: Channel<Task>) {
val task = channel.receive()
processTask(task)
}
consumer #2

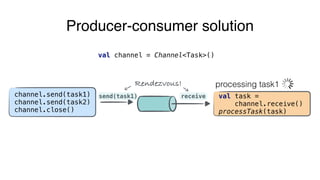

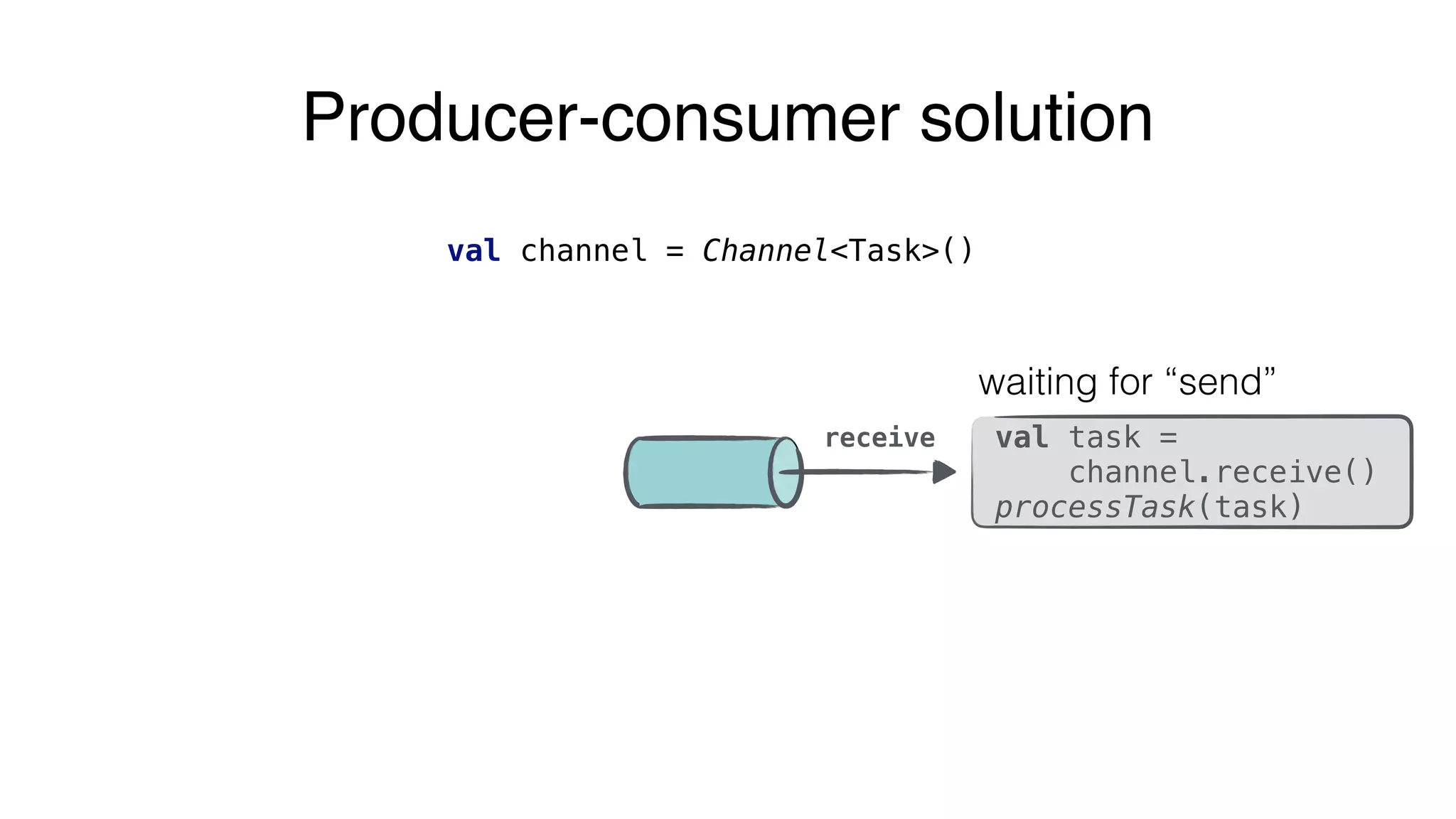

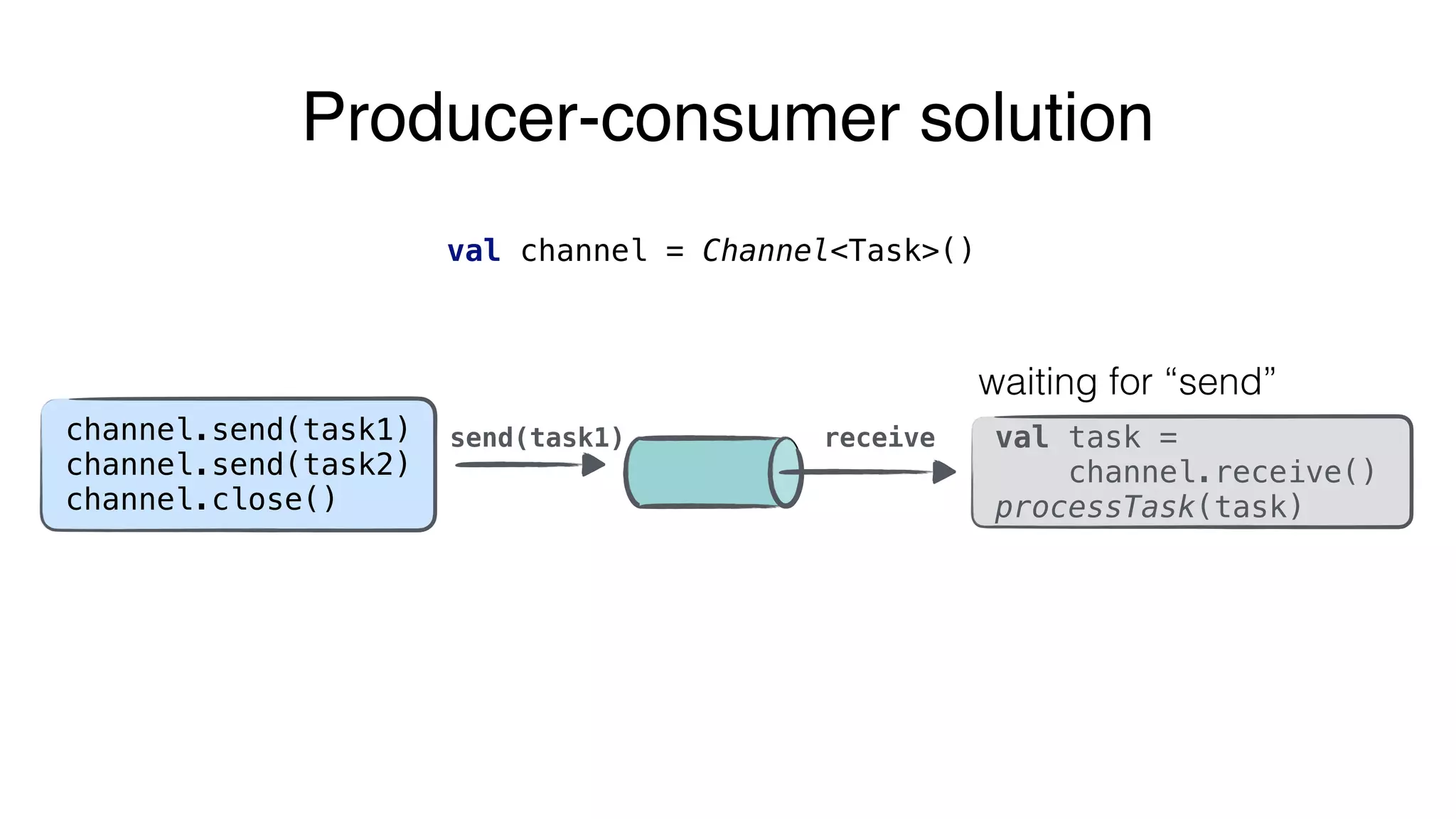

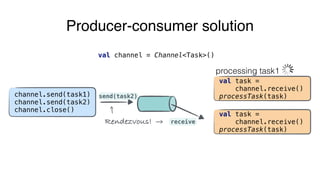

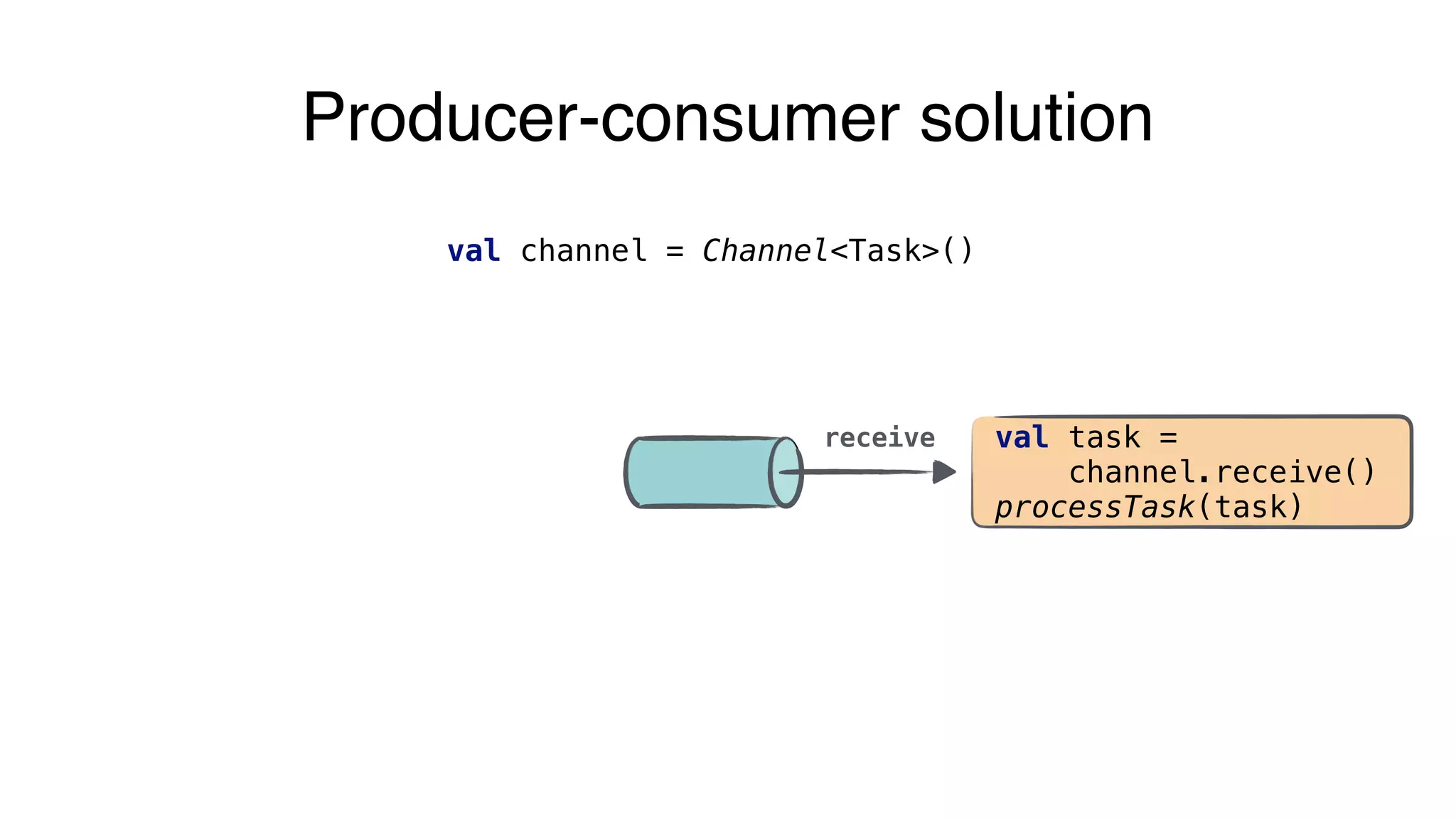

Producer-consumer solution
val task =
channel.receive()
processTask(task)
receive

receive
waiting for “send”
val task =
channel.receive()
processTask(task)

send(task1)
receive
waiting for “send”
val task =
channel.receive()
processTask(task)
channel.send(task1)
channel.send(task2)
channel.close()

send(task1)
receive

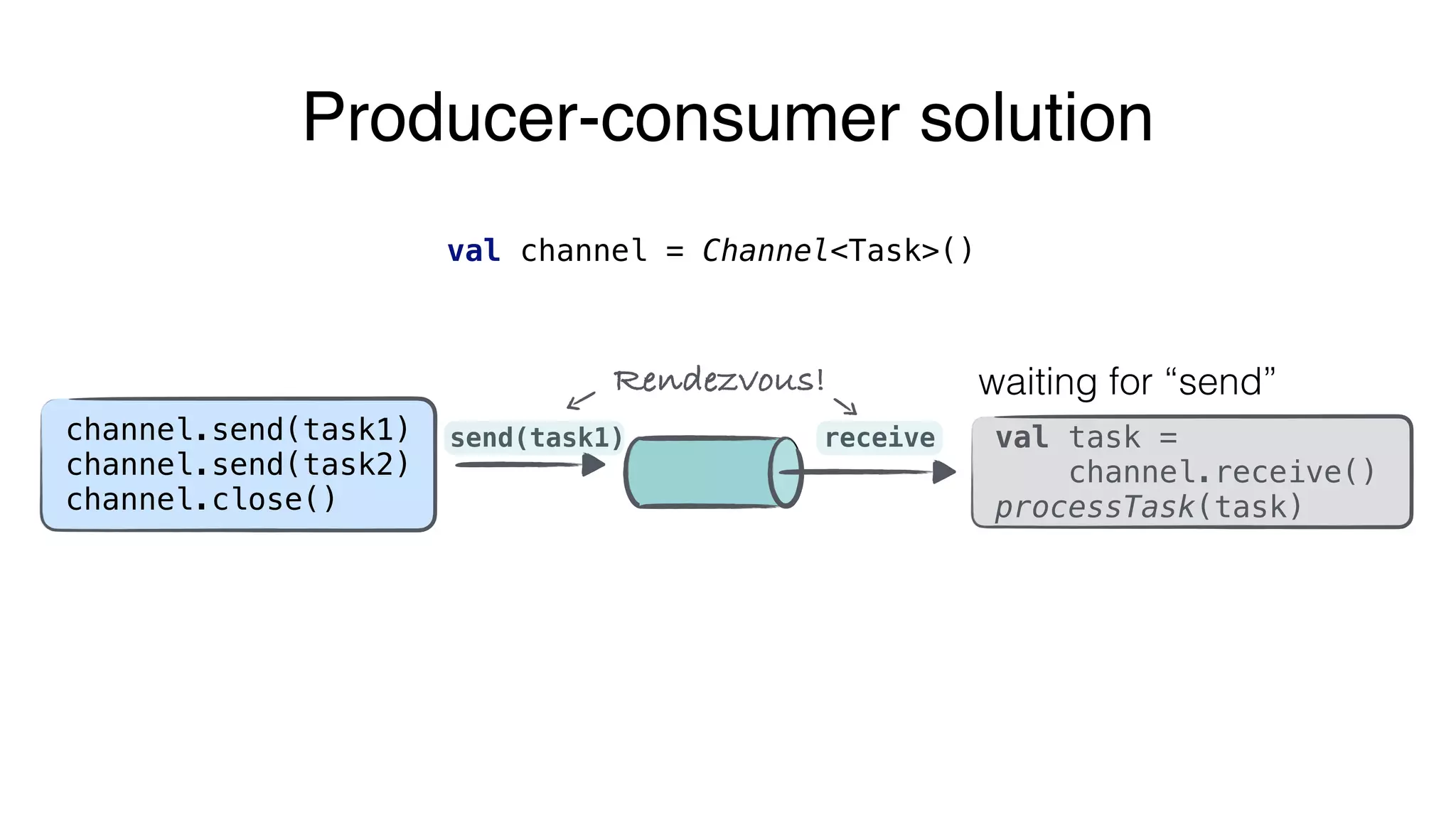

Rendezvous! waiting for “send”
val task =
channel.receive()
processTask(task)
channel.send(task1)
channel.send(task2)
channel.close()

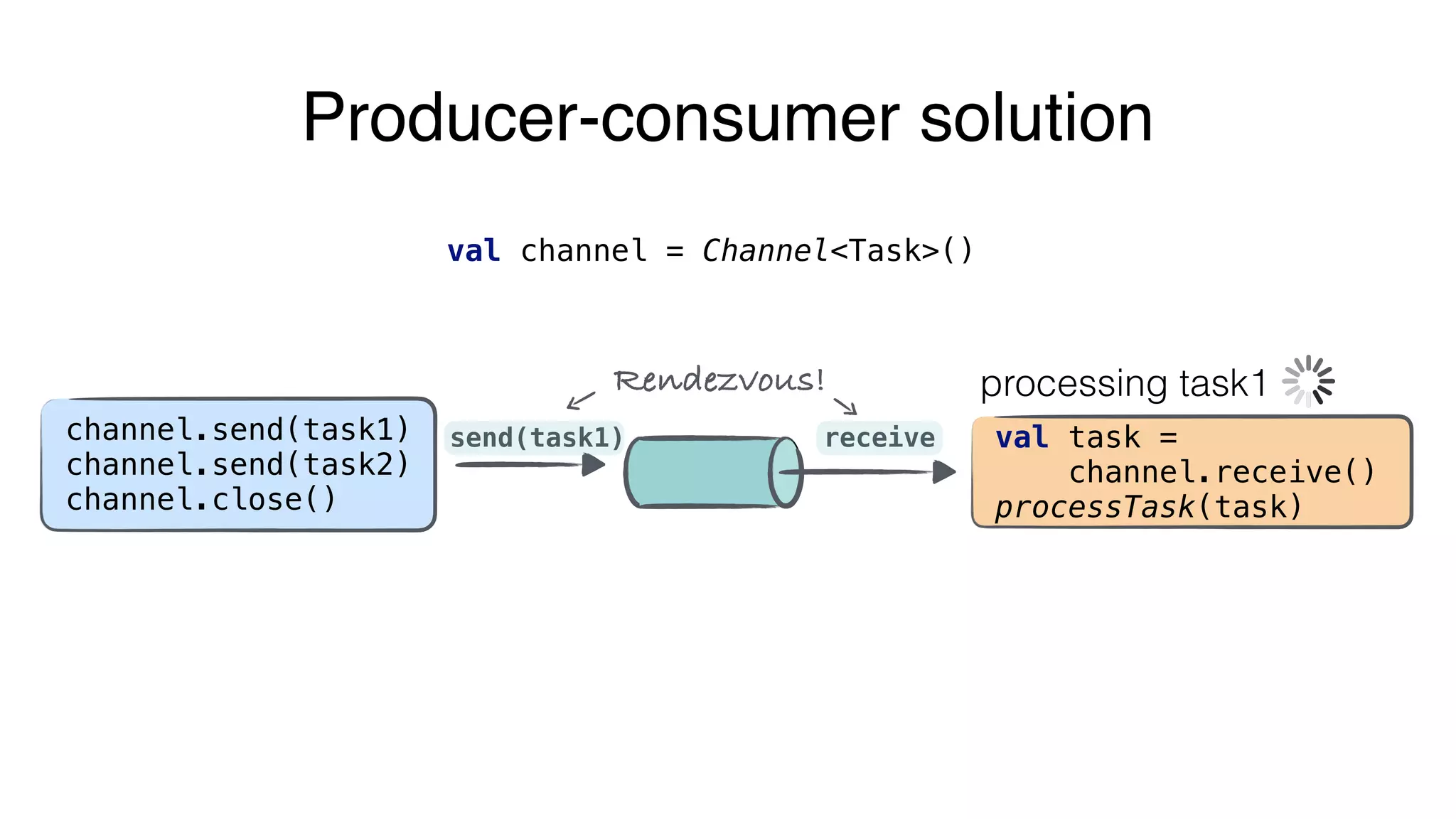

send(task1) receive
Rendezvous!
val task =
channel.receive()
processTask(task)
processing task1
channel.send(task1)
channel.send(task2)
channel.close()

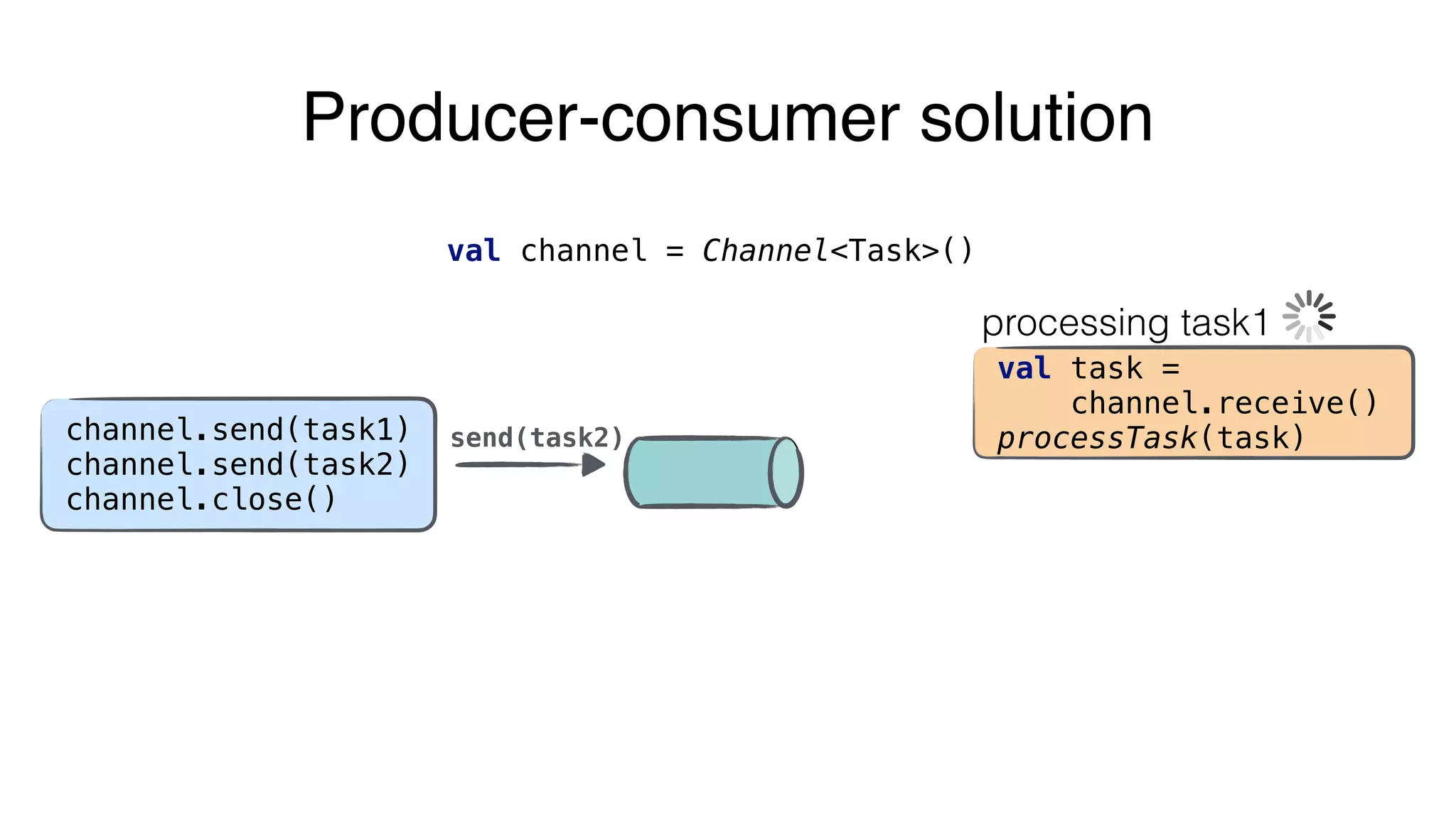

send(task2)
processing task1
val task =
channel.receive()
processTask(task)channel.send(task1)
channel.send(task2)
channel.close()

send(task2)

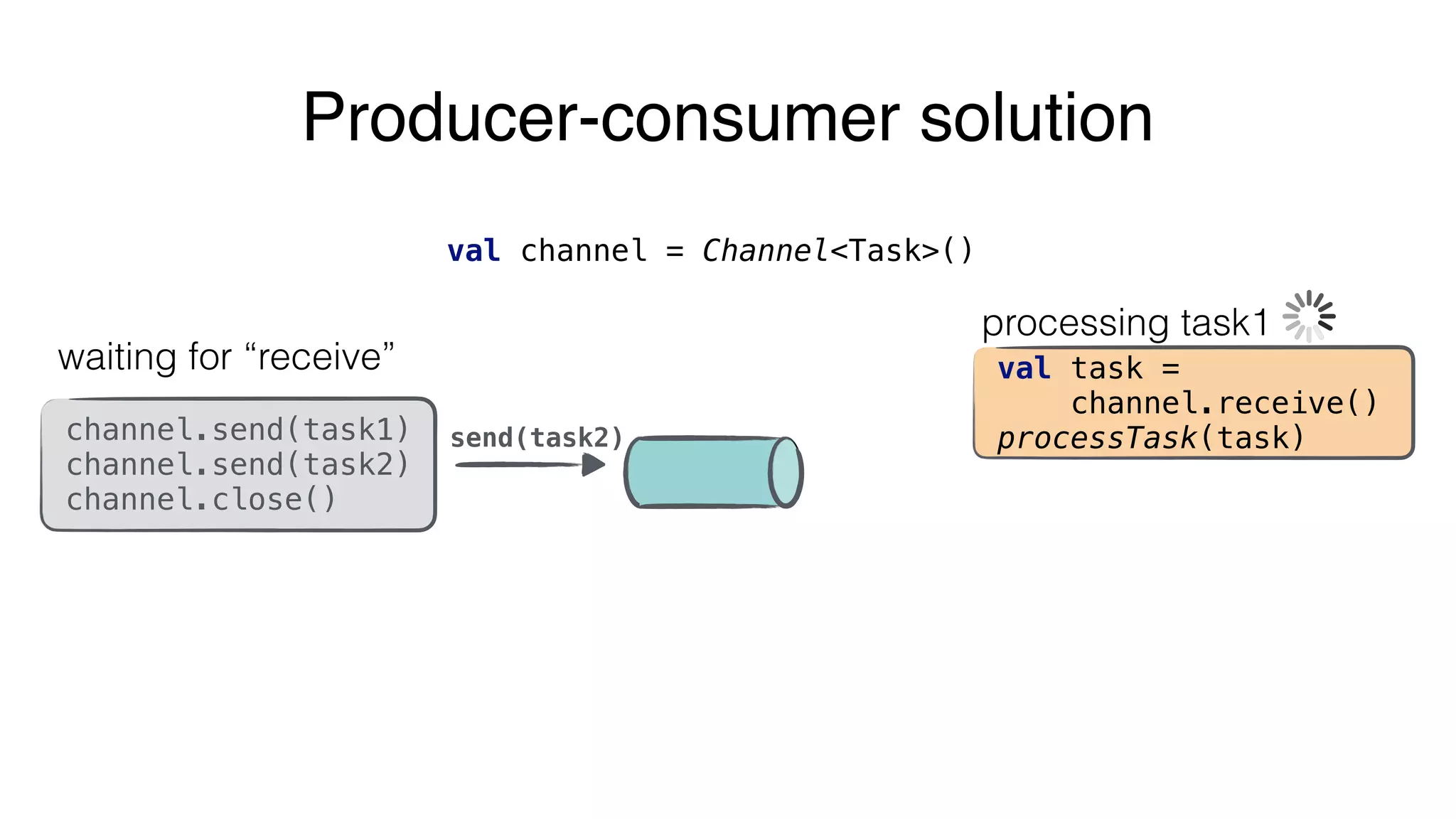

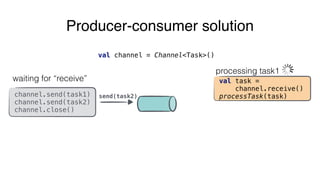

waiting for “receive” val task =
channel.receive()
processTask(task)
processing task1
channel.send(task1)
channel.send(task2)
channel.close()

send(task2)

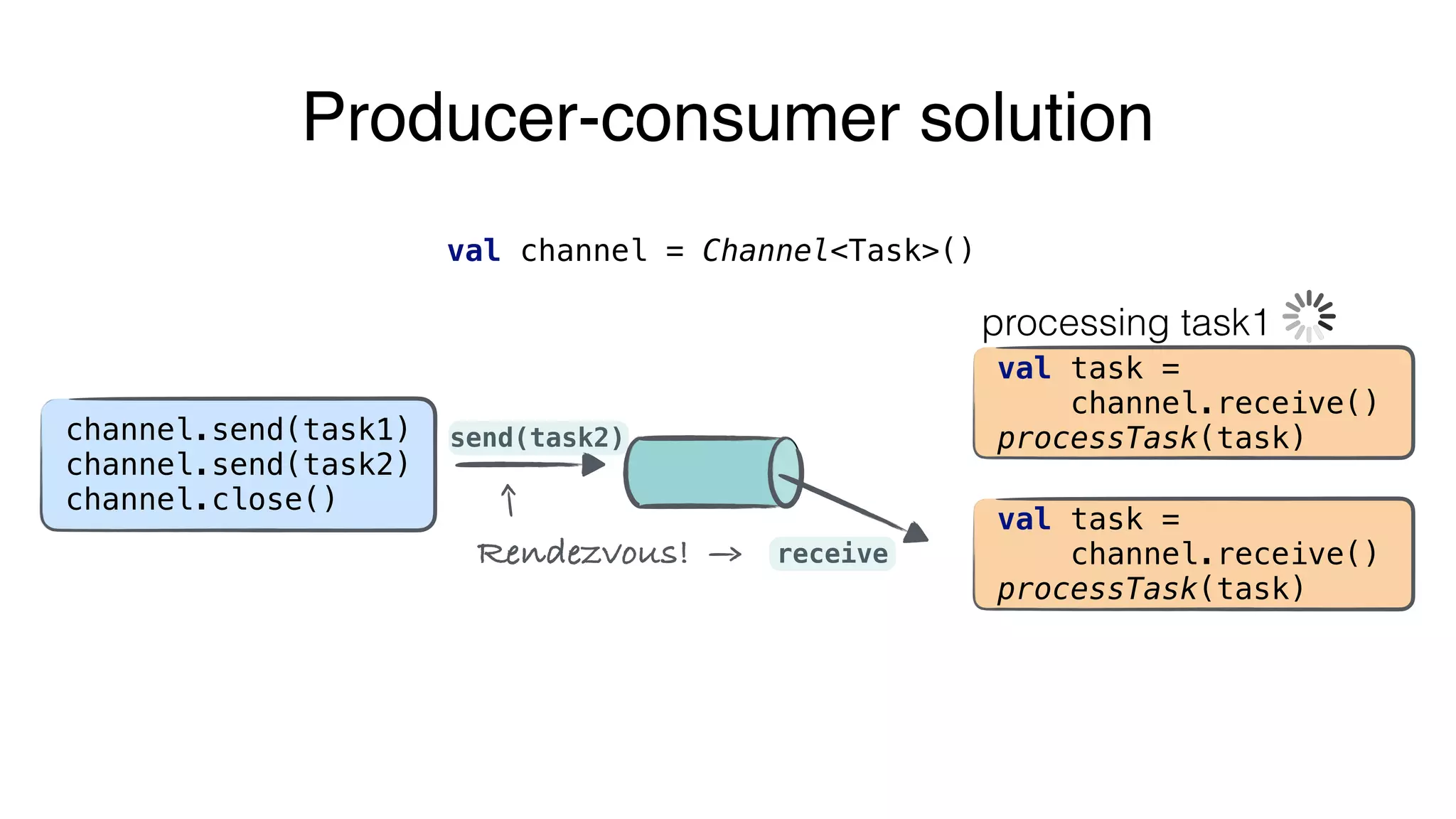

receiveRendezvous!
val task =
channel.receive()
processTask(task)
val task =
channel.receive()
processTask(task)
processing task1
channel.send(task1)
channel.send(task2)
channel.close()

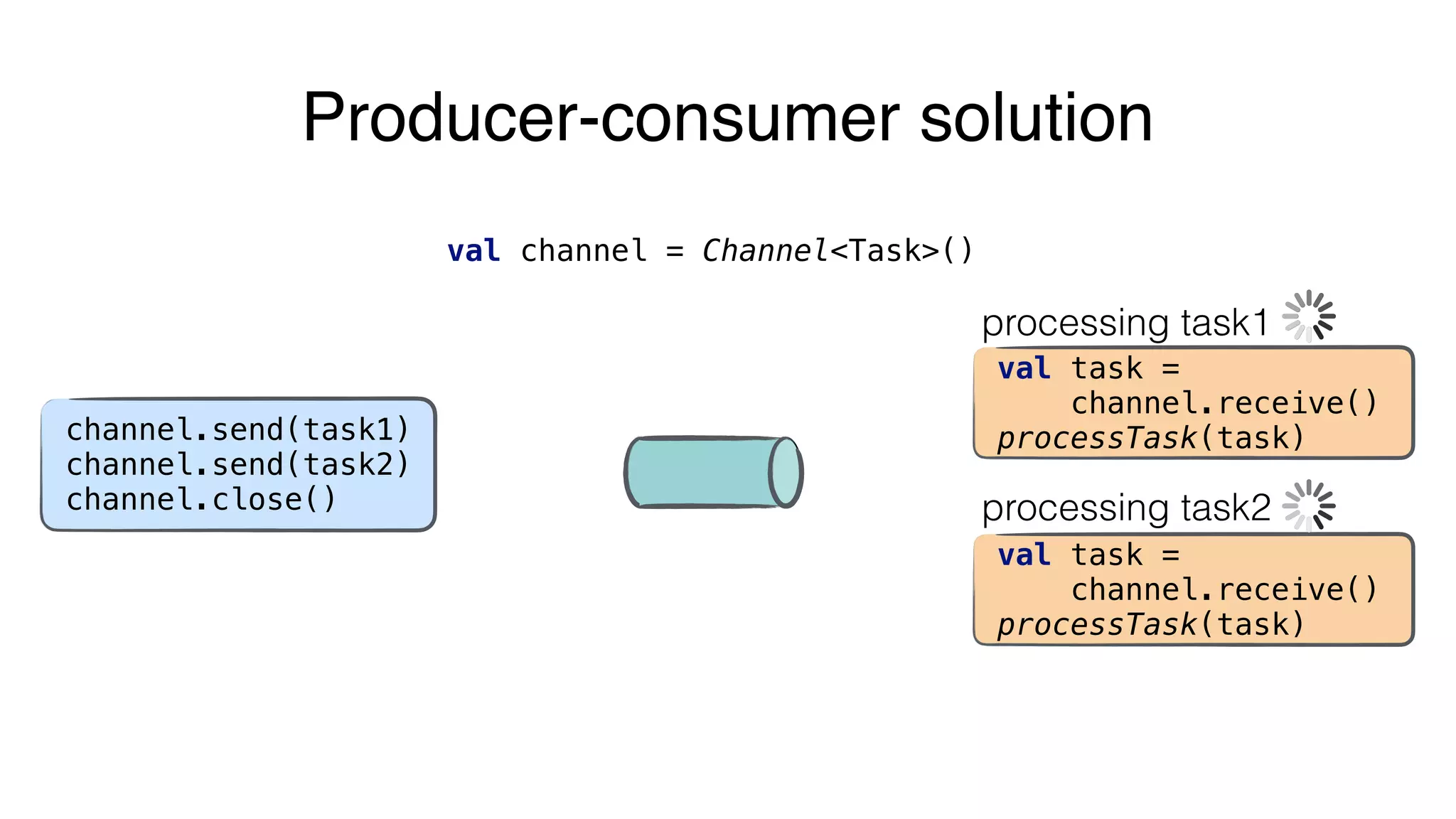

processing task2
val task =
channel.receive()
processTask(task)
val task =
channel.receive()
processTask(task)
processing task1
channel.send(task1)
channel.send(task2)
channel.close()

consumer #1
producer #1
send tasks
receive tasks
consumer #2

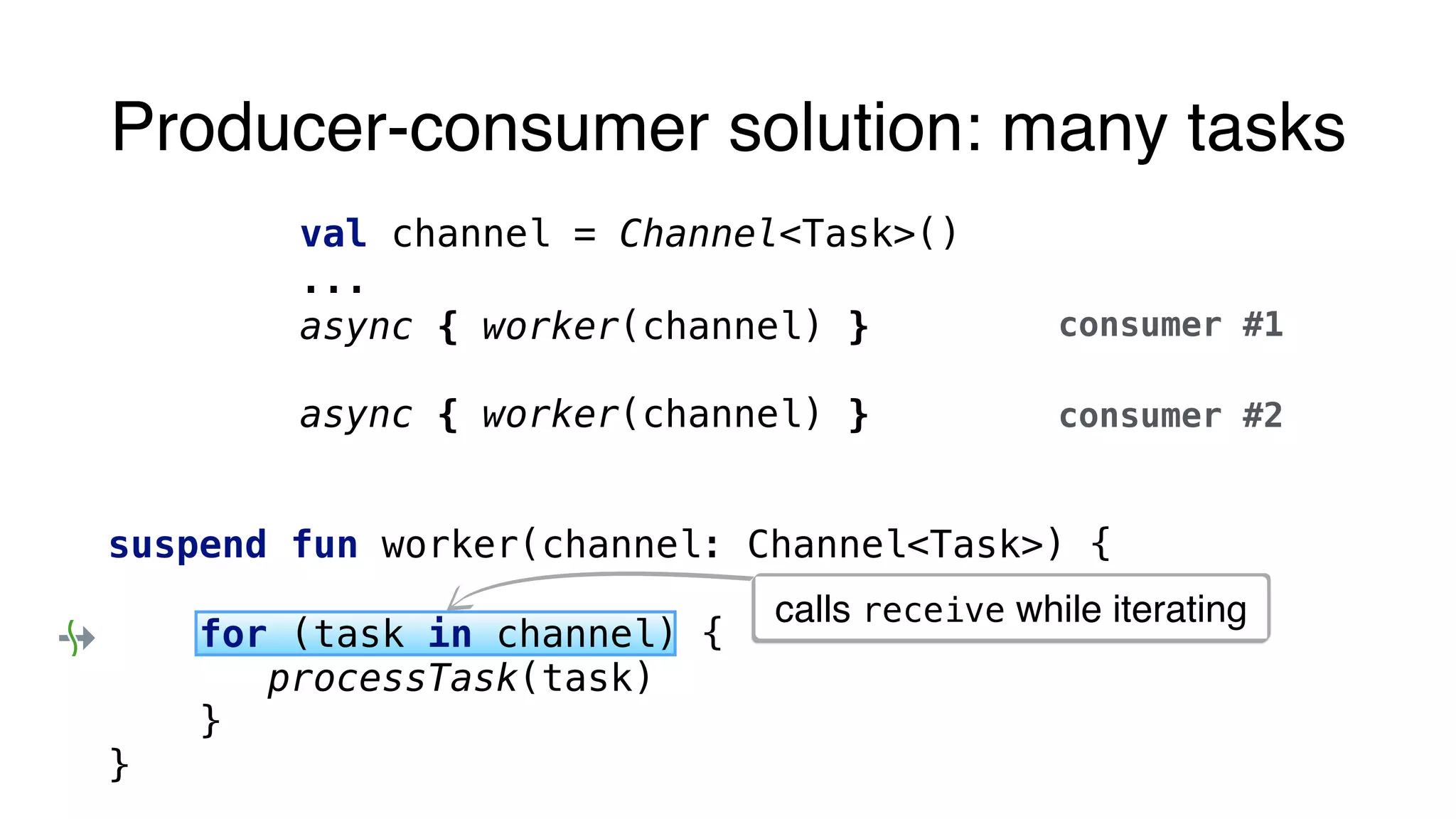

Producer-consumer solution: many tasks

async {
for (i in 1..N) {
channel.send(Task("task$i"))
}
channel.close()
}
producer

...
consumer #1
consumer #2
suspend fun worker(channel: Channel<Task>) {
for (task in channel) {
processTask(task)
}
}
calls receive while iterating

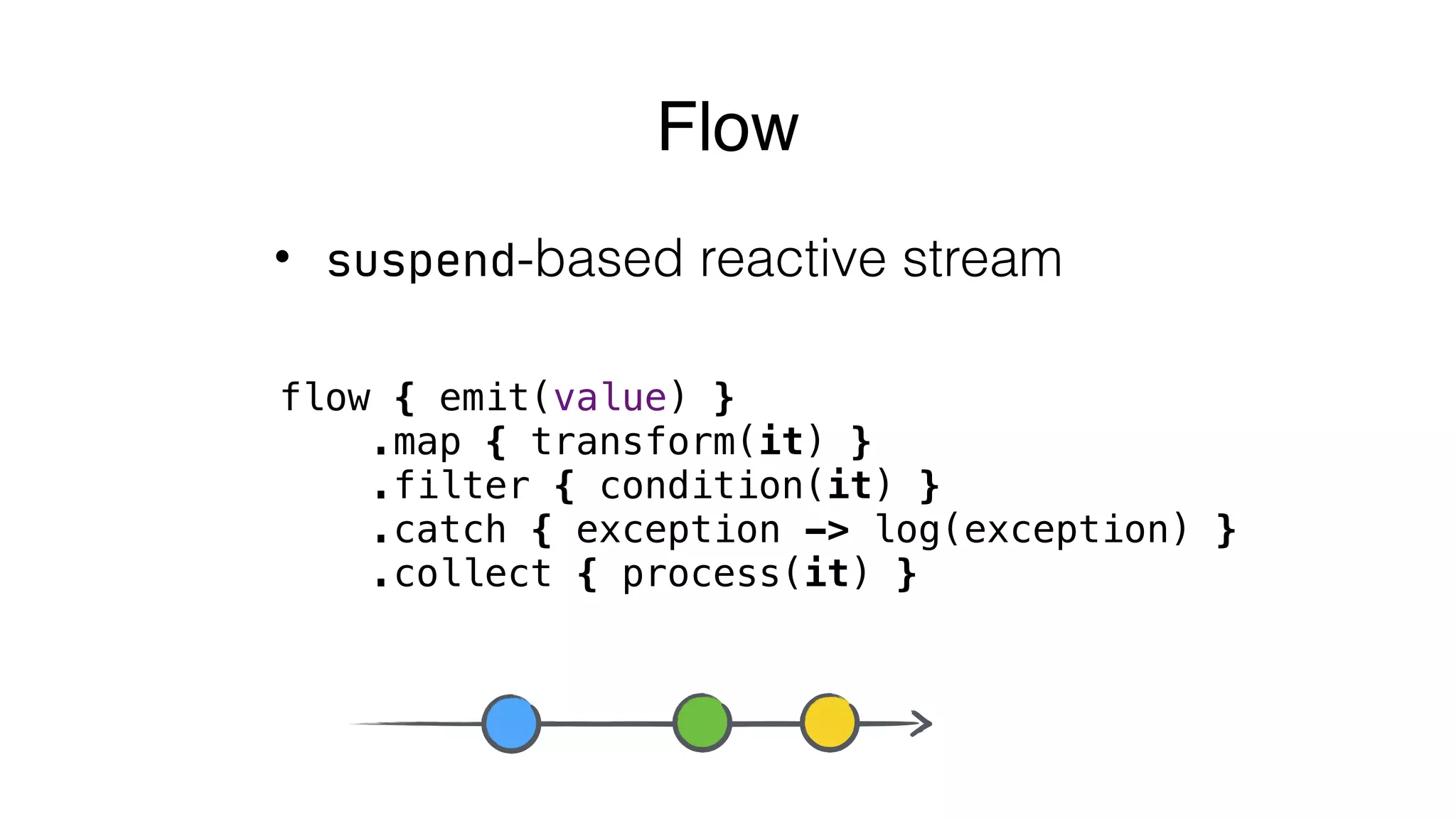

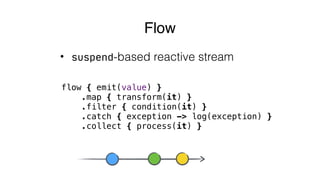

Flow
• suspend-based reactive stream
flow { emit(value) }
.map { transform(it) }
.filter { condition(it) }
.catch { exception -> log(exception) }
.collect { process(it) }

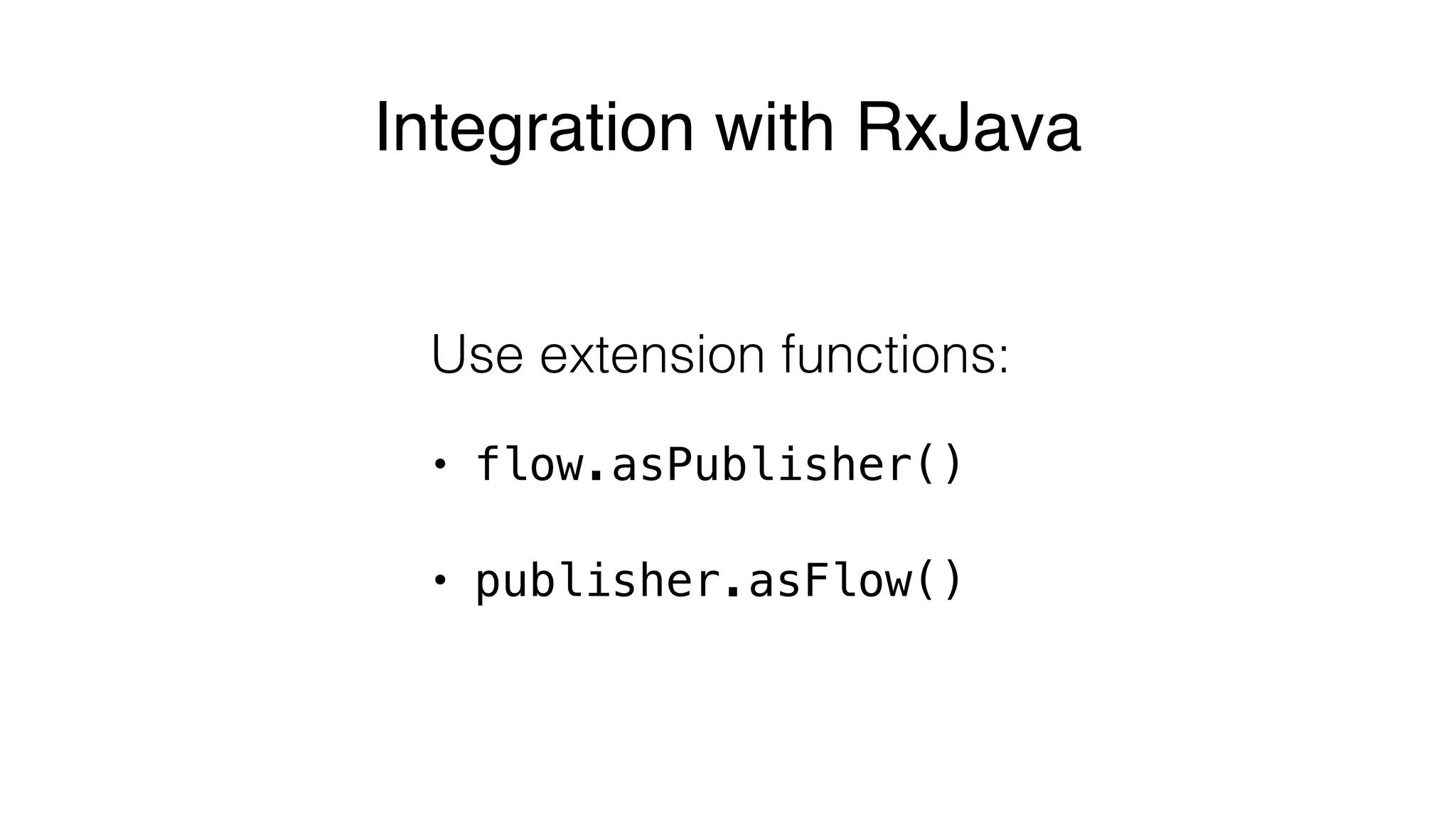

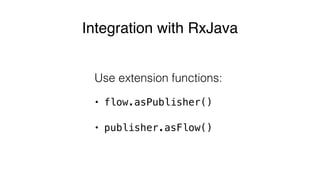

Integration with RxJava
Use extension functions:
• flow.asPublisher()
• publisher.asFlow()

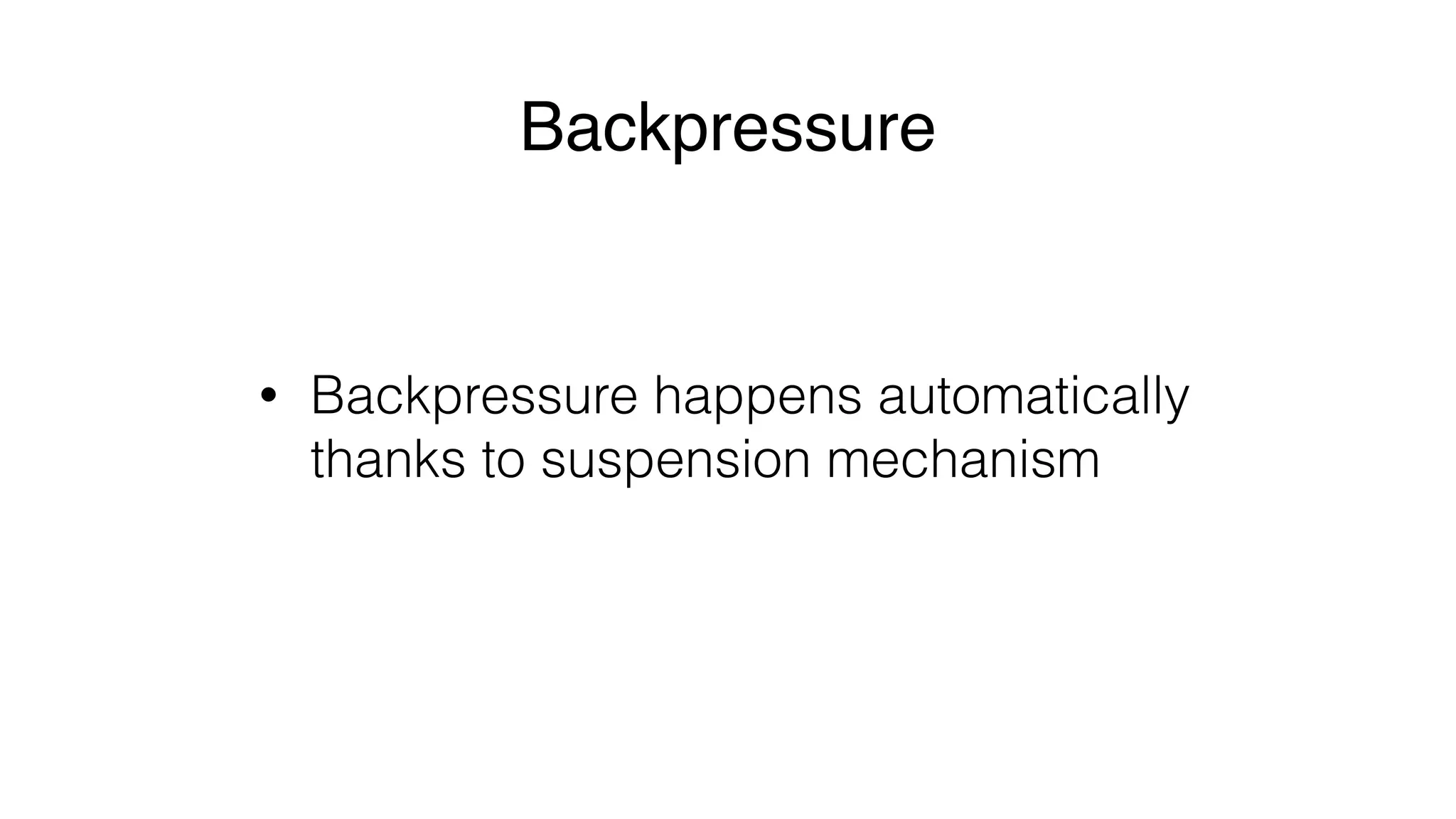

Backpressure
• Backpressure happens automatically
thanks to suspension mechanism

Store4 - Migrating a library from RxJava To Coroutines
Coroutines Case Study - Cleaning Up An Async API
Many successful stories

coroutines
async/await
Language
Library
channels
flows
kotlinx.coroutines
yield

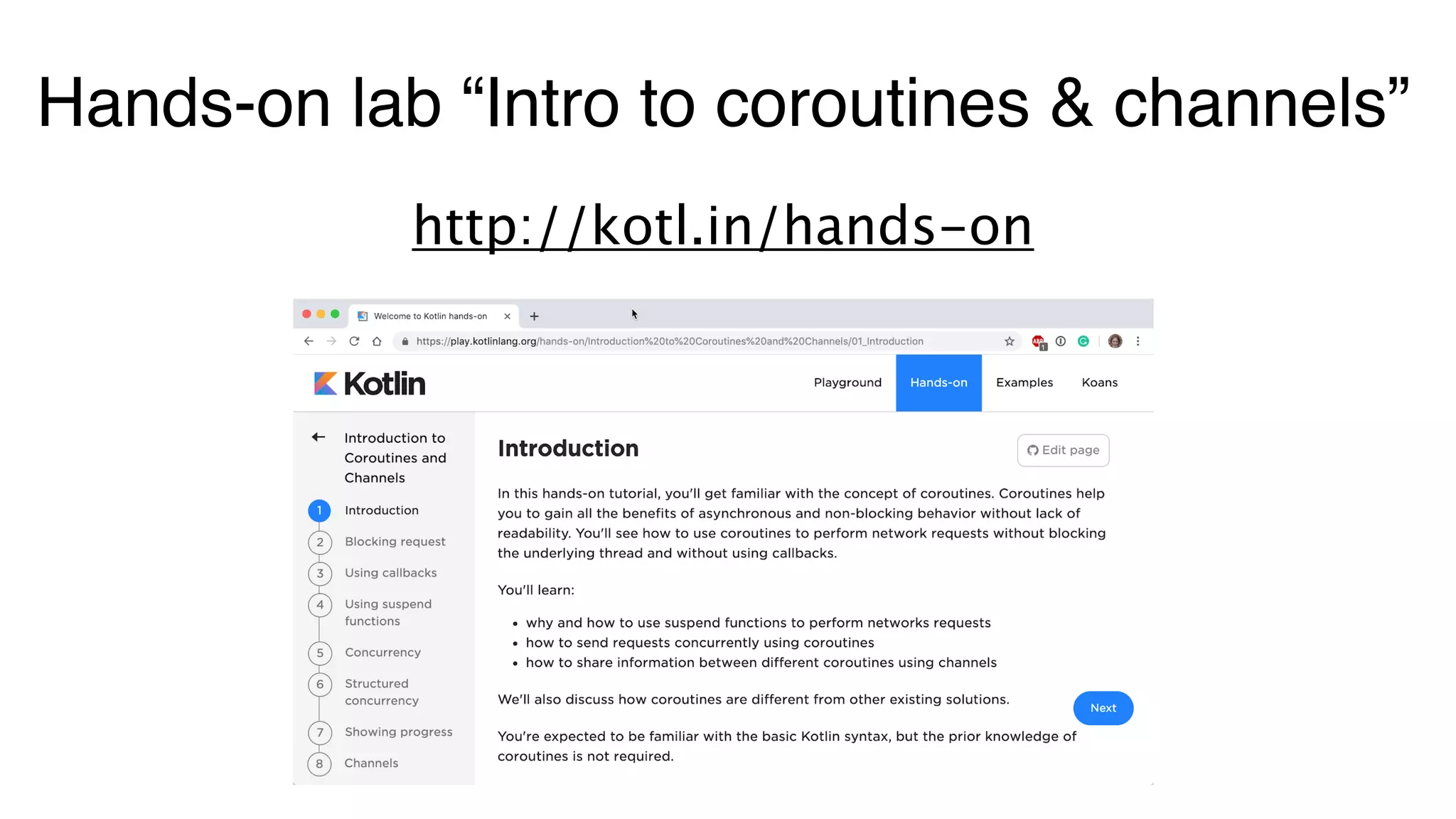

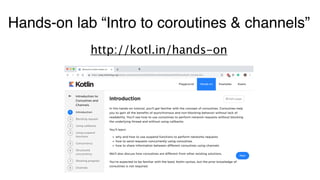

Hands-on lab “Intro to coroutines & channels”
http://kotl.in/hands-on

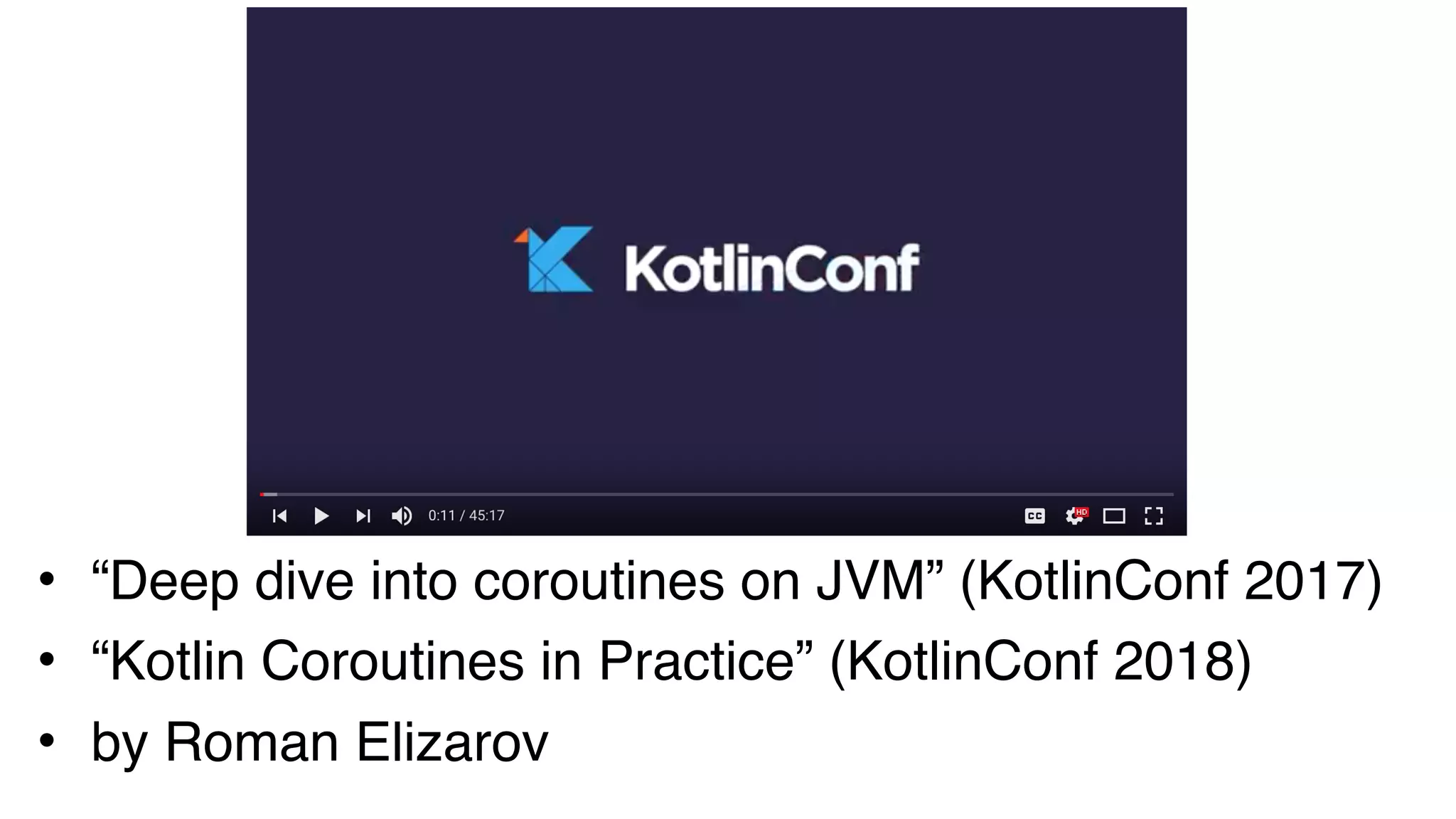

• “Deep dive into coroutines on JVM” (KotlinConf 2017)
• “Kotlin Coroutines in Practice” (KotlinConf 2018)
• by Roman Elizarov

Have a nice Kotlin!
...with coroutines

Introduction to kotlin coroutines

In this document

More Related Content

What's hot

Similar to Introduction to kotlin coroutines

More from NAVER Engineering

Recently uploaded

Introduction to kotlin coroutines
