Jetpack Compose a new way to implement UI on Android

Jetpack Compose is a modern declarative UI toolkit for Android that simplifies and accelerates UI development using Kotlin APIs. It is designed to create components over screens, allowing compatibility with existing Android apps and encouraging progressive adoption, although it is currently in an experimental alpha stage. The document provides an overview of its features, materials, and example code snippets for implementing UI elements and layouts.

Downloaded 62 times
Jetpack Compose a new way to implement UI on Android Nelson Glauber @nglauber

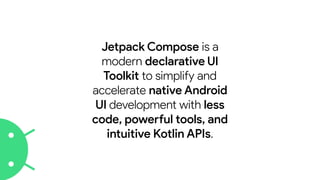

Jetpack Compose is a modern declarative UI Toolkit to simplify and accelerate native Android UI development with less code, powerful tools, and intuitive Kotlin APIs.

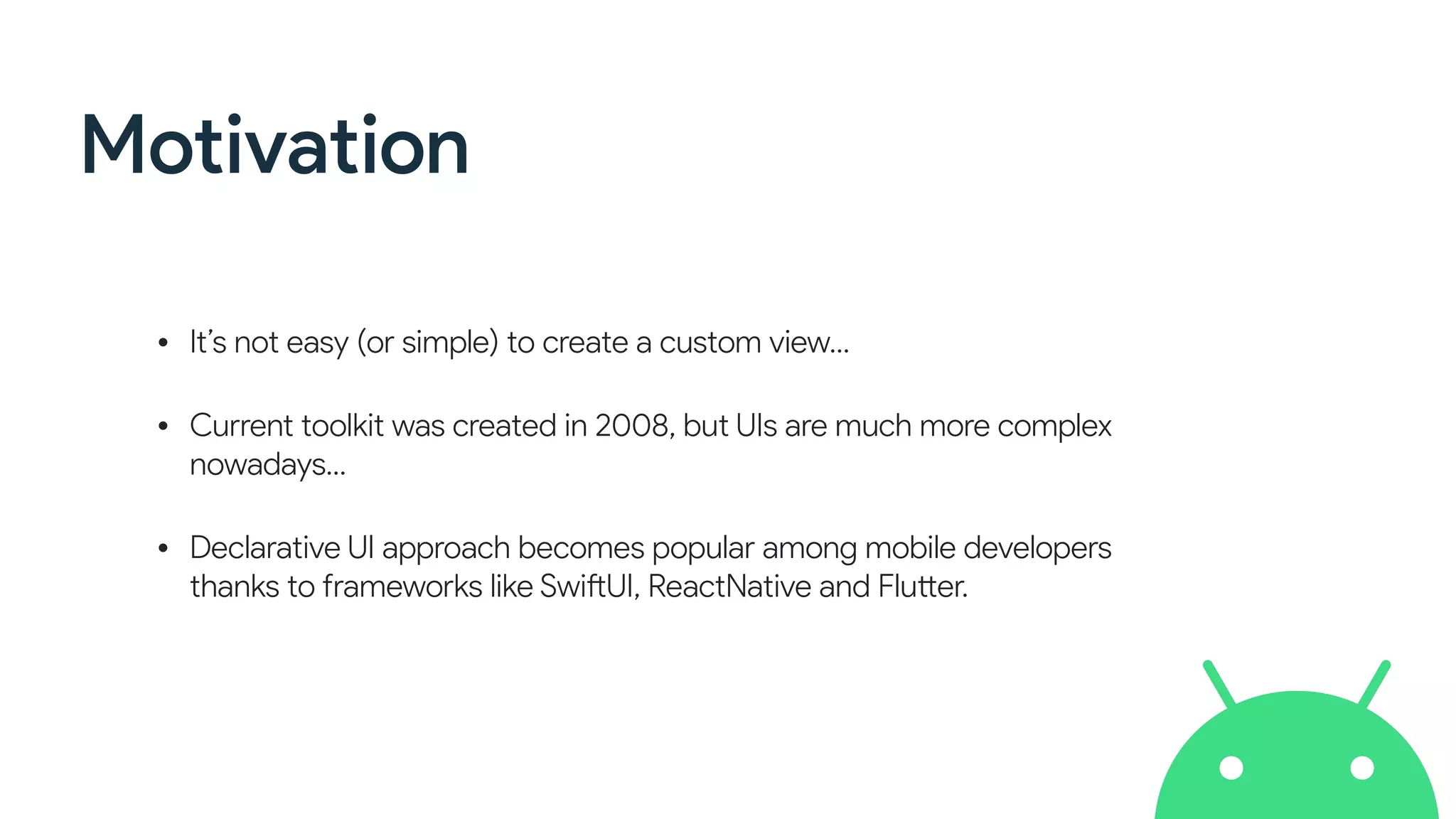

Motivation • It’s not easy (or simple) to create a custom view… • Current toolkit was created in 2008, but UIs are much more complex nowadays… • Declarative UI approach becomes popular among mobile developers thanks to frameworks like SwiftUI, ReactNative and Flutter.

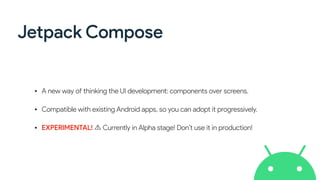

Jetpack Compose • A new way of thinking the UI development: components over screens. • Compatible with existing Android apps, so you can adopt it progressively. • EXPERIMENTAL! Currently in Alpha stage! Don’t use it in production!

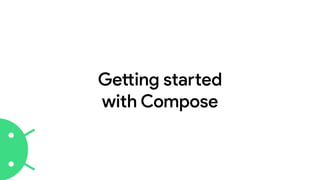

Getting started with Compose

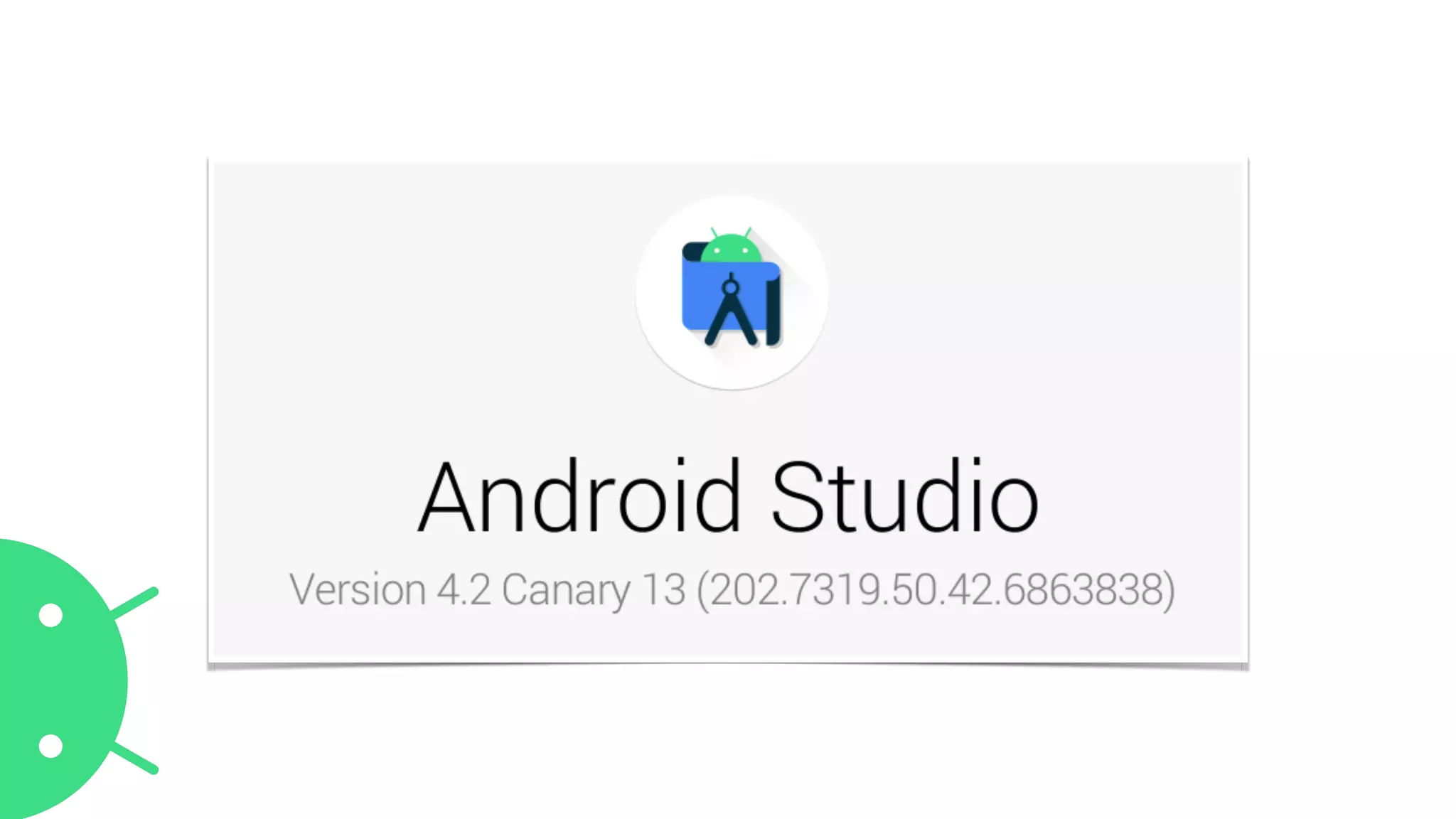

Android Studio 4.2 (Preview)

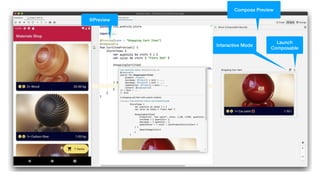

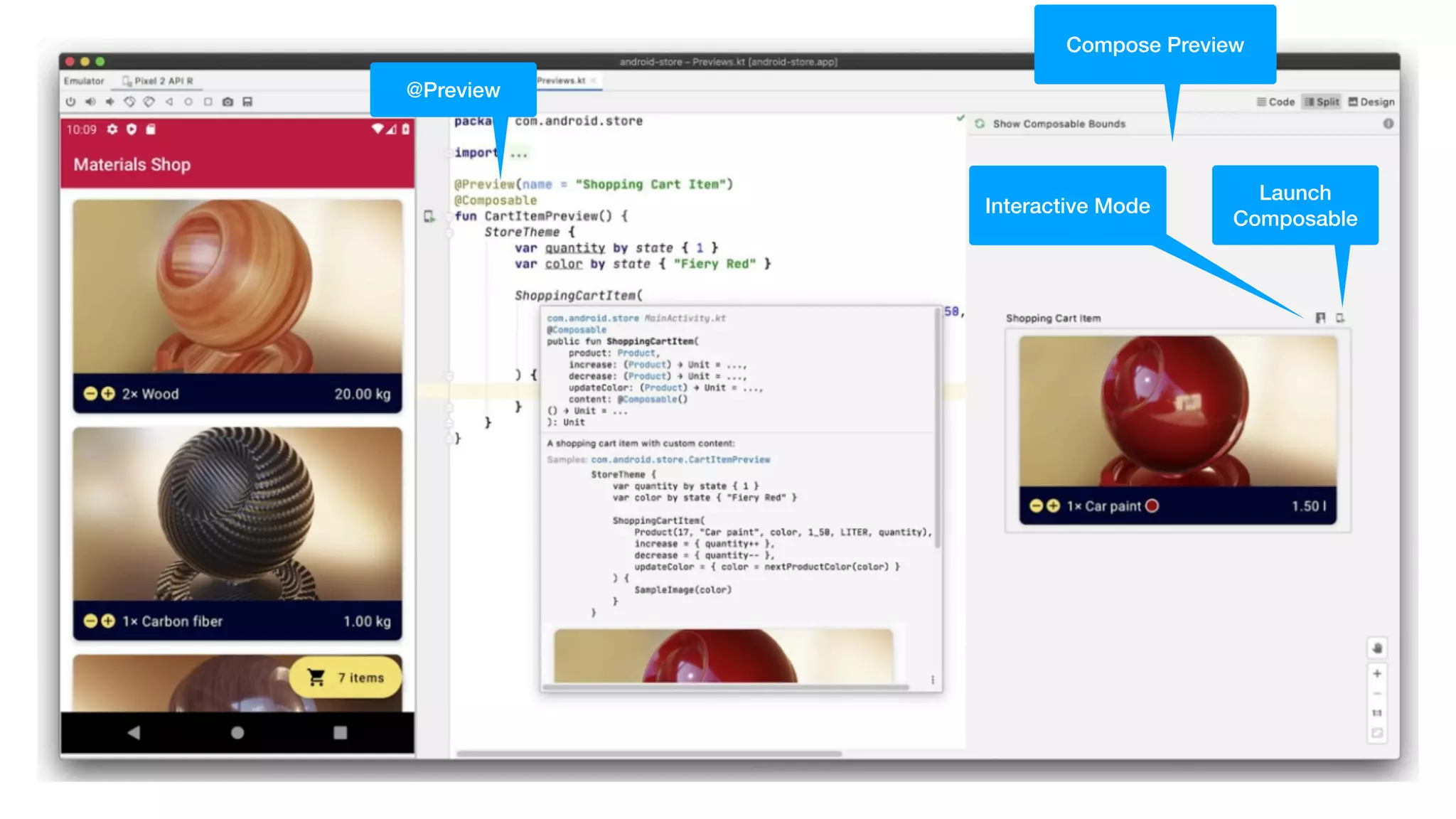

Compose Preview Interactive Mode Launch Composable @Preview

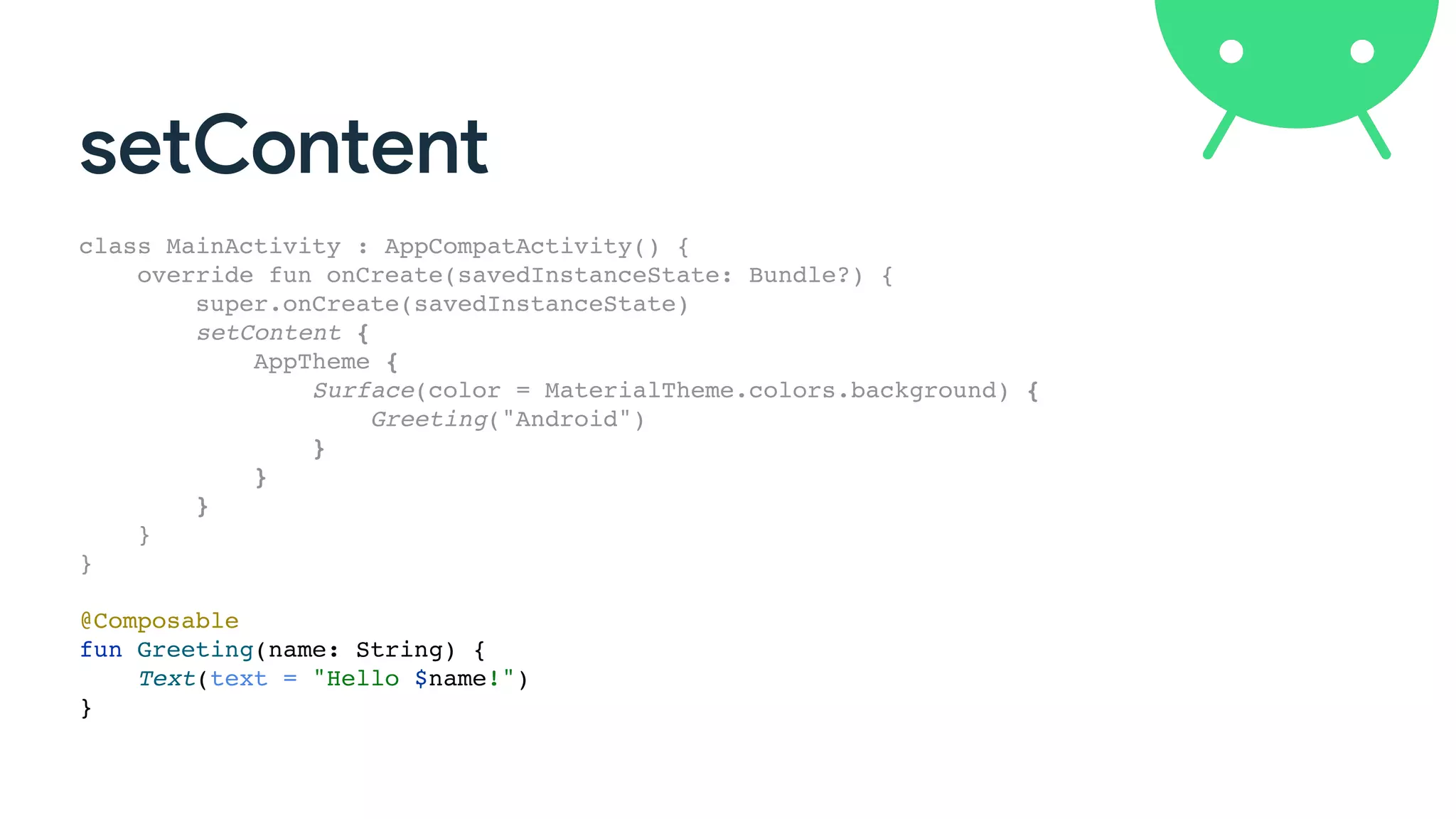

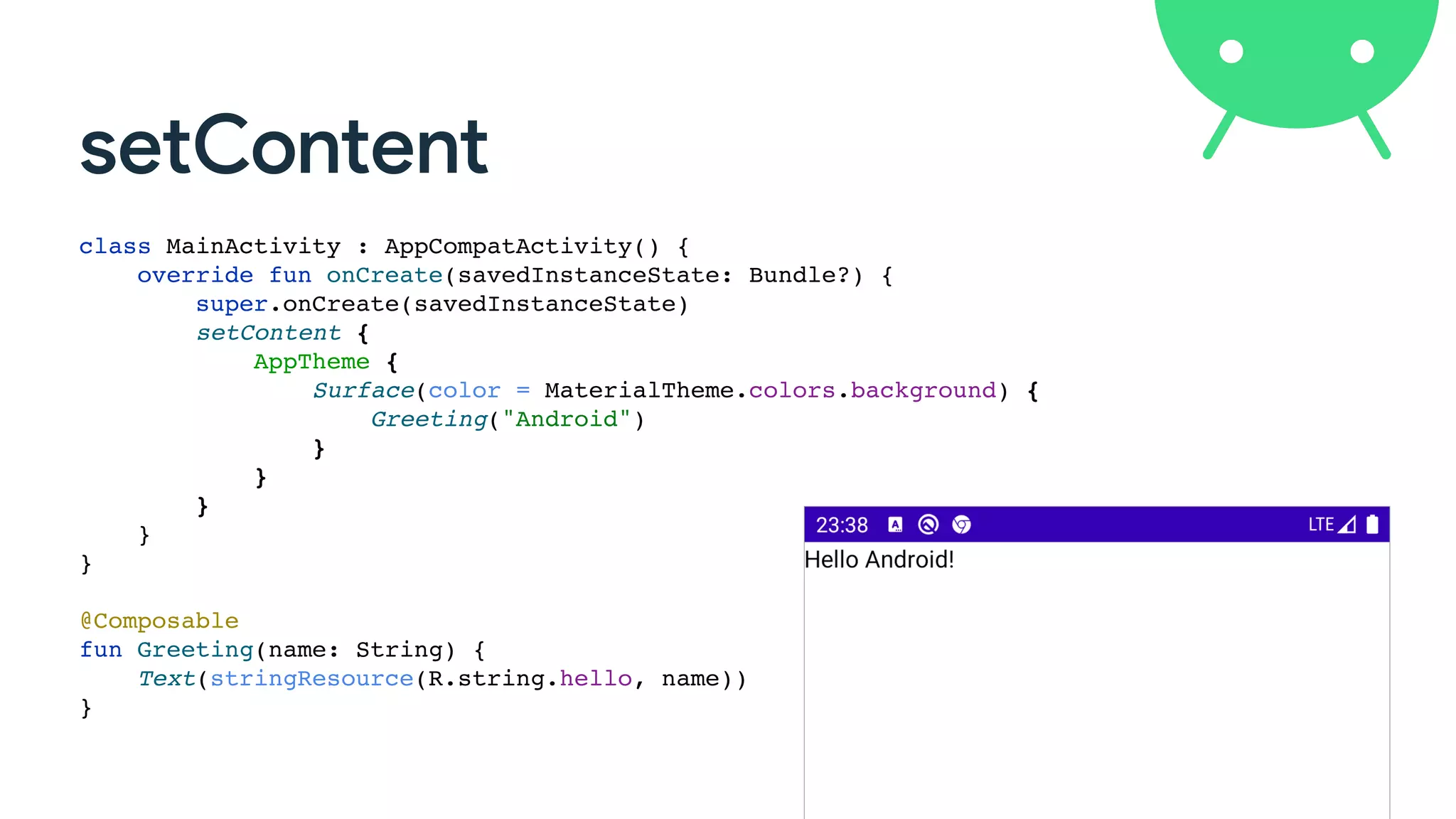

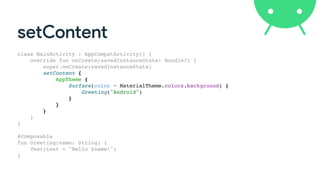

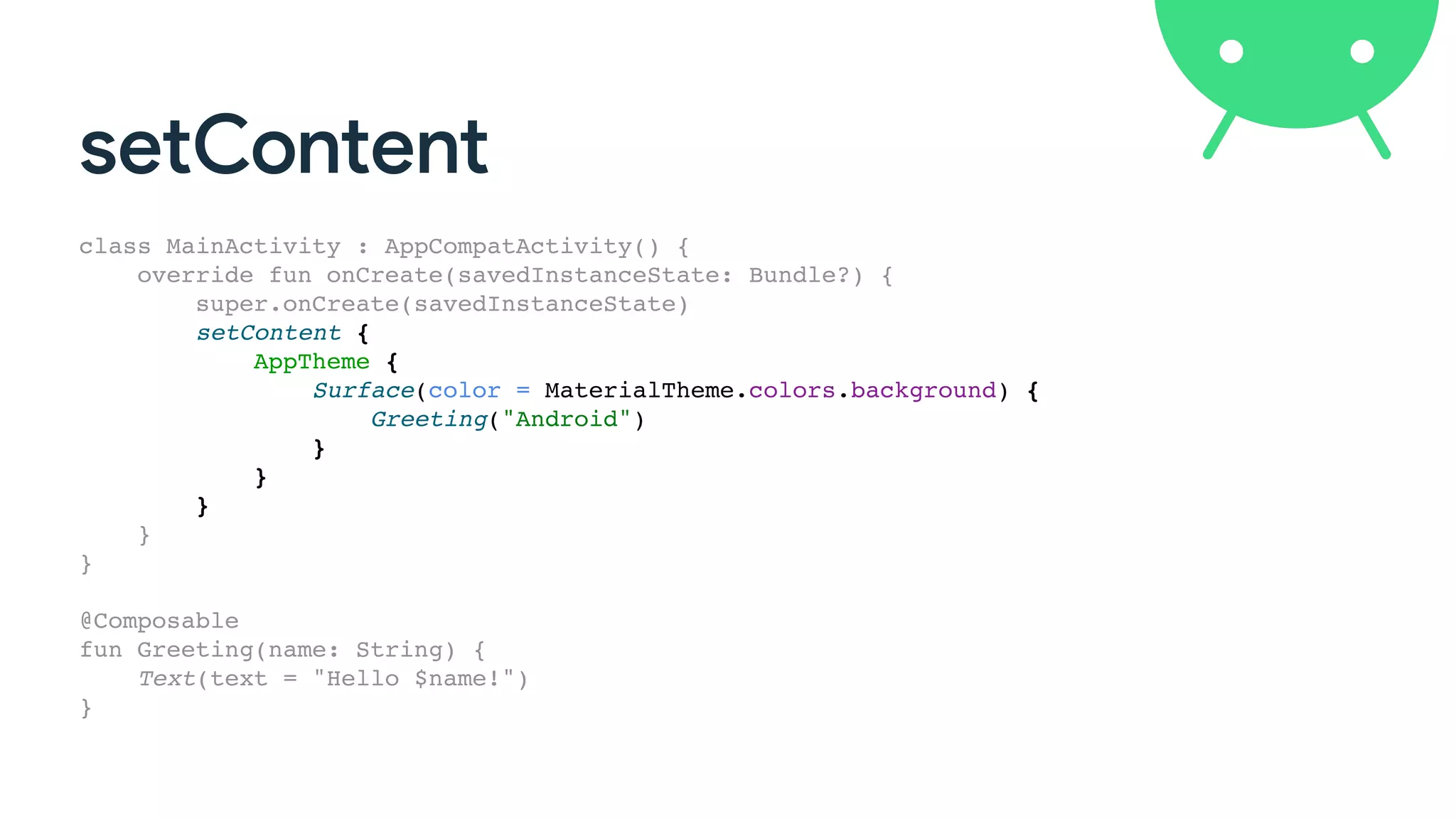

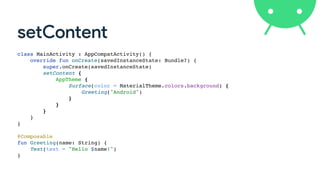

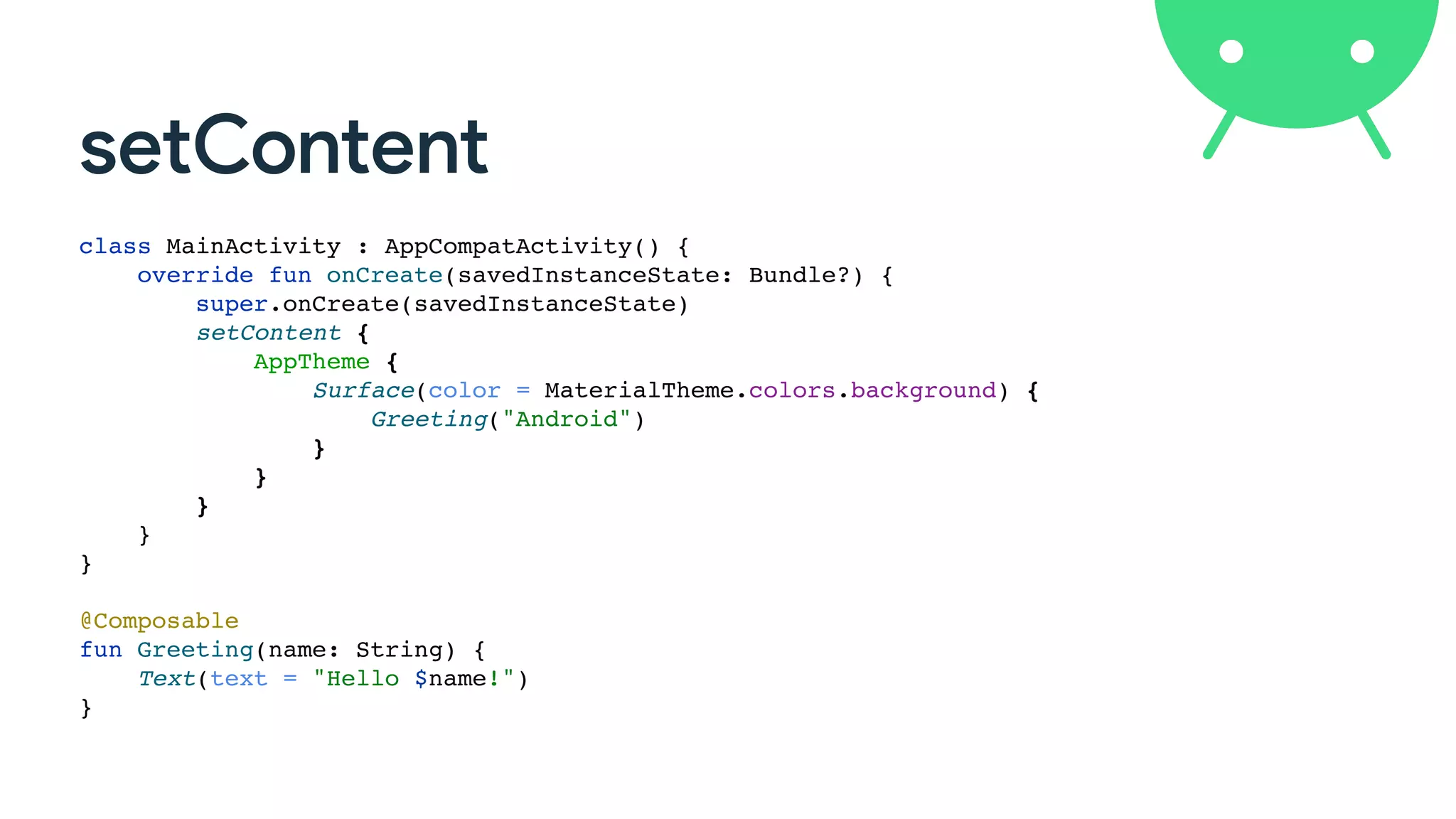

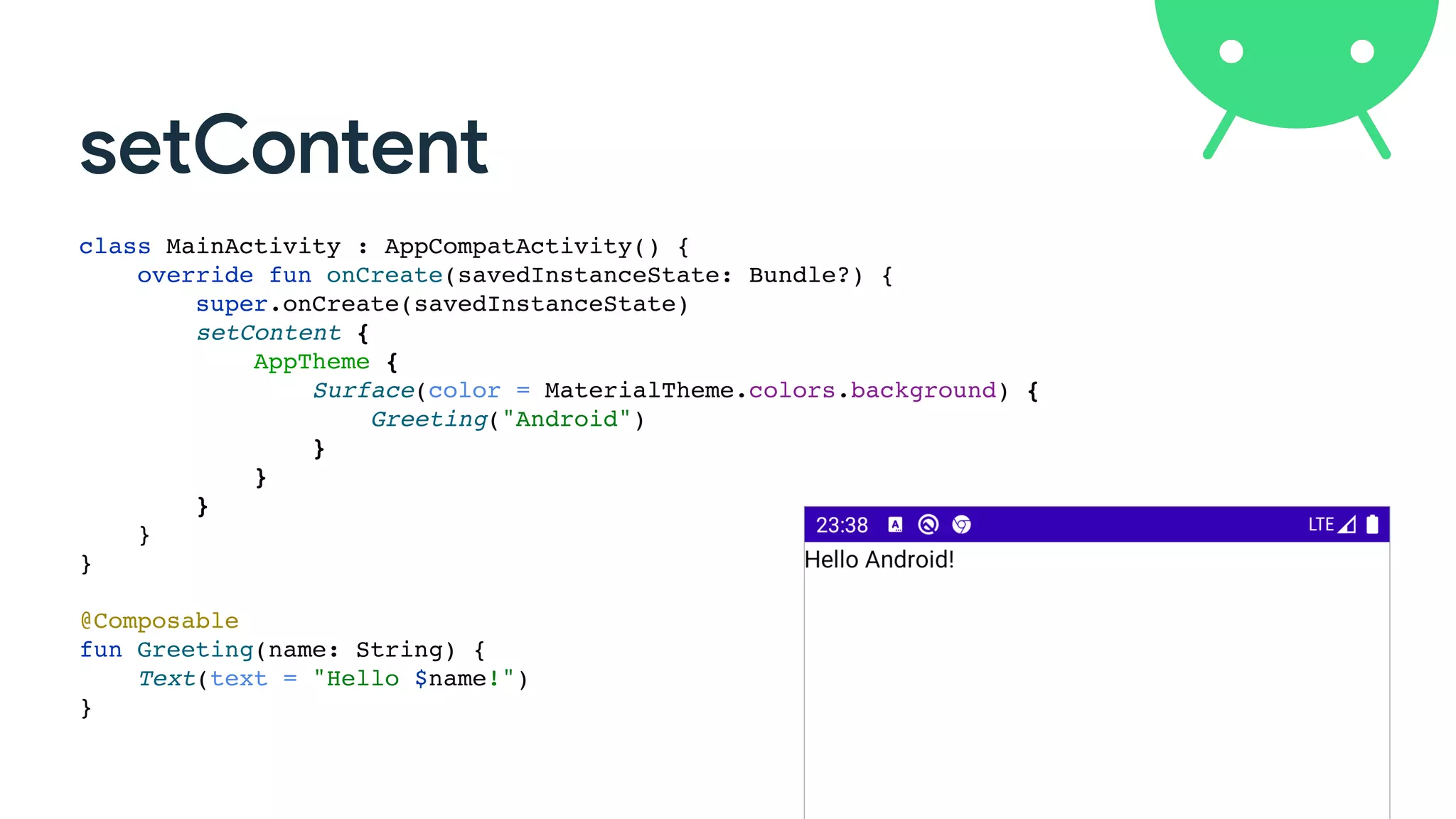

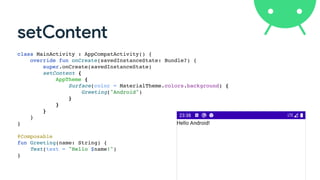

setContent class MainActivity : AppCompatActivity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContent { AppTheme { Surface(color = MaterialTheme.colors.background) { Greeting("Android") } } } } } @Composable fun Greeting(name: String) { Text(text = "Hello $name!") }
setContent class MainActivity : AppCompatActivity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContent { AppTheme { Surface(color = MaterialTheme.colors.background) { Greeting("Android") } } } } } @Composable fun Greeting(name: String) { Text(text = "Hello $name!") }
setContent class MainActivity : AppCompatActivity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContent { AppTheme { Surface(color = MaterialTheme.colors.background) { Greeting("Android") } } } } } @Composable fun Greeting(name: String) { Text(text = "Hello $name!") }
setContent class MainActivity : AppCompatActivity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContent { AppTheme { Surface(color = MaterialTheme.colors.background) { Greeting("Android") } } } } } @Composable fun Greeting(name: String) { Text(text = "Hello $name!") }
setContent class MainActivity : AppCompatActivity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContent { AppTheme { Surface(color = MaterialTheme.colors.background) { Greeting("Android") } } } } } @Composable fun Greeting(name: String) { Text(stringResource(R.string.hello, name)) }

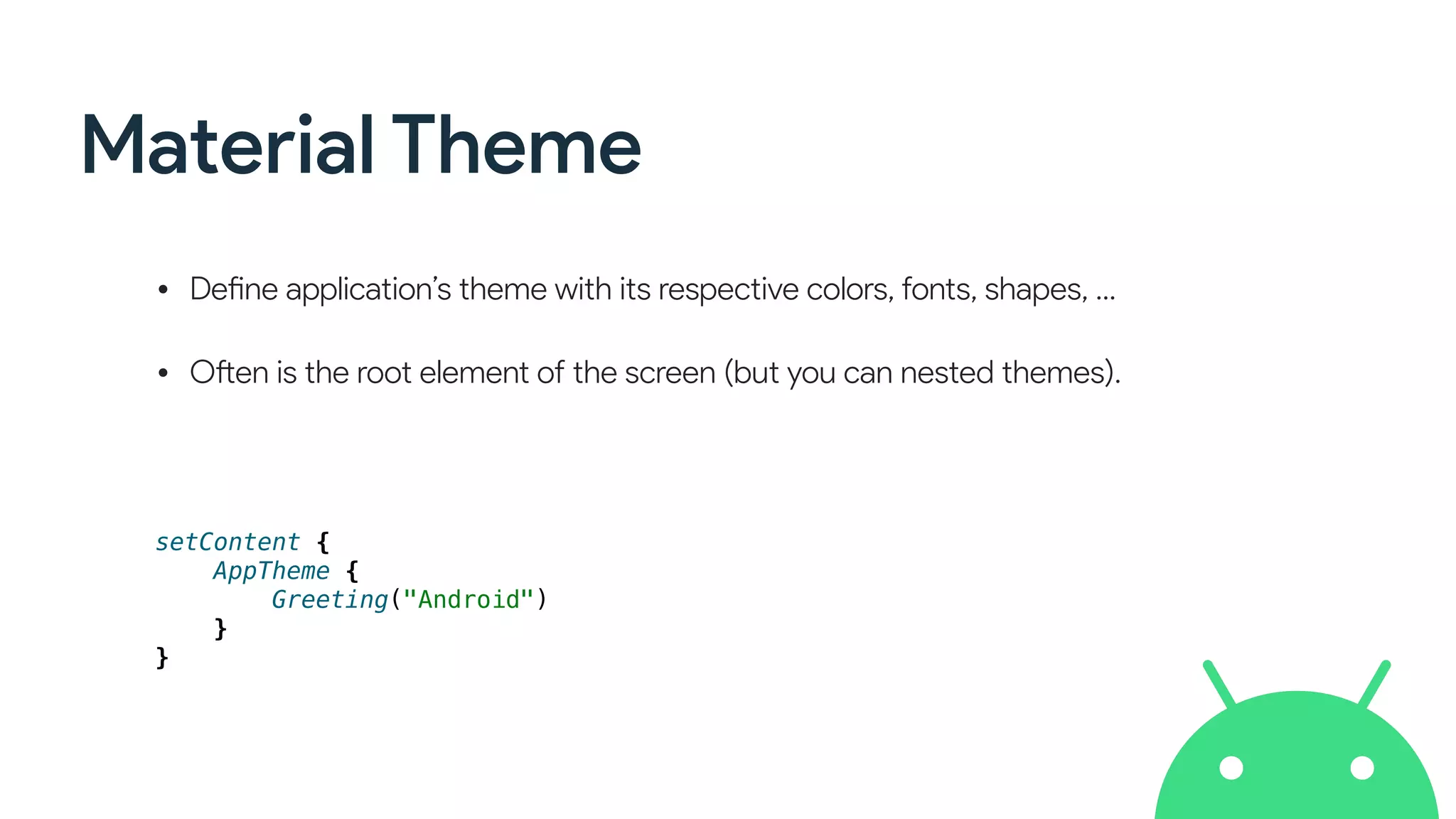

Material Theme • Define application’s theme with its respective colors, fonts, shapes, … • Often is the root element of the screen (but you can nested themes). setContent { AppTheme { Greeting("Android") } }

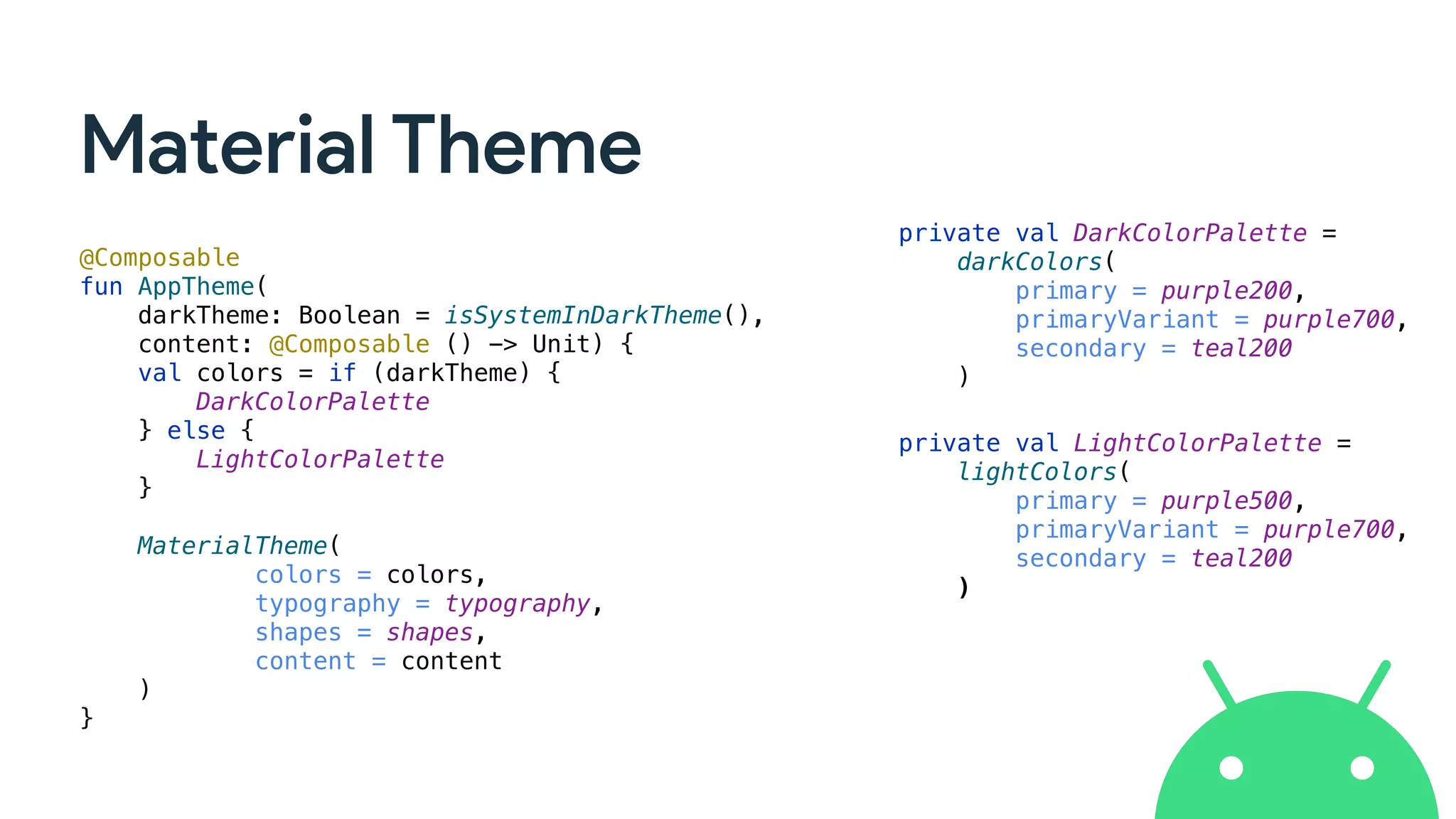

Material Theme @Composable fun AppTheme( darkTheme: Boolean = isSystemInDarkTheme(), content: @Composable () -> Unit) { val colors = if (darkTheme) { DarkColorPalette } else { LightColorPalette } MaterialTheme( colors = colors, typography = typography, shapes = shapes, content = content ) } private val DarkColorPalette = darkColors( primary = purple200, primaryVariant = purple700, secondary = teal200 ) private val LightColorPalette = lightColors( primary = purple500, primaryVariant = purple700, secondary = teal200 )

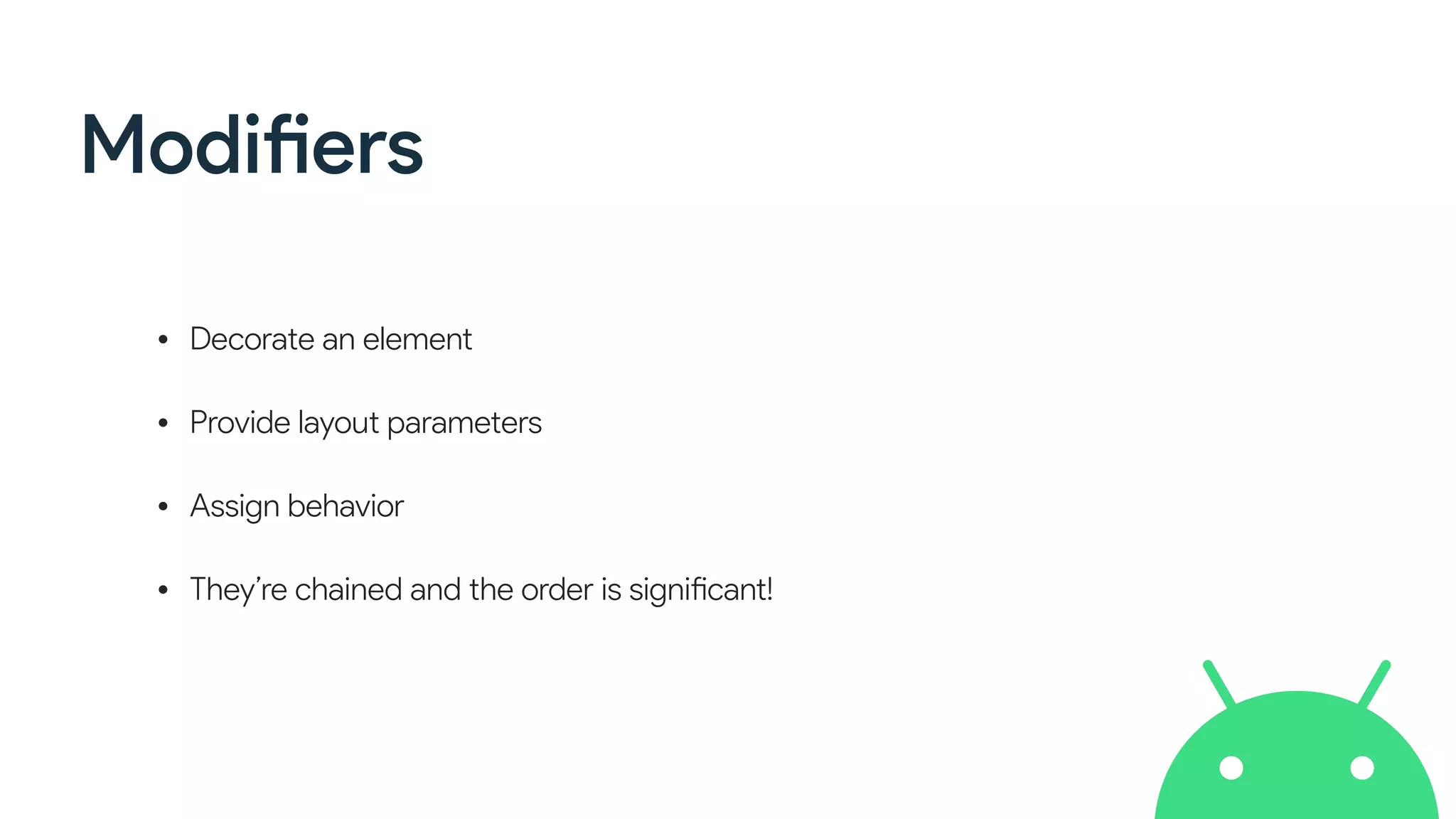

Modifiers • Decorate an element • Provide layout parameters • Assign behavior • They’re chained and the order is significant!

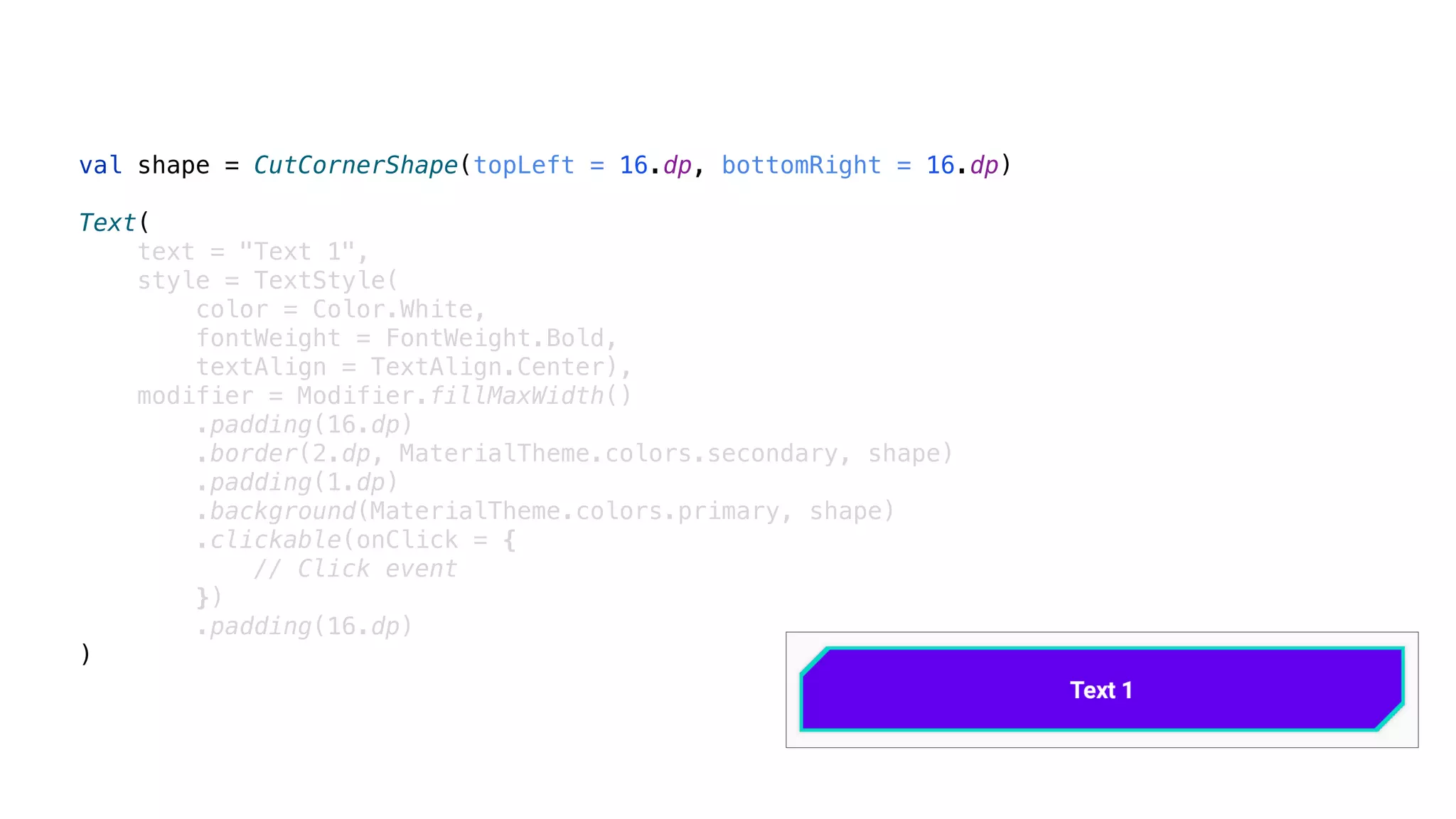

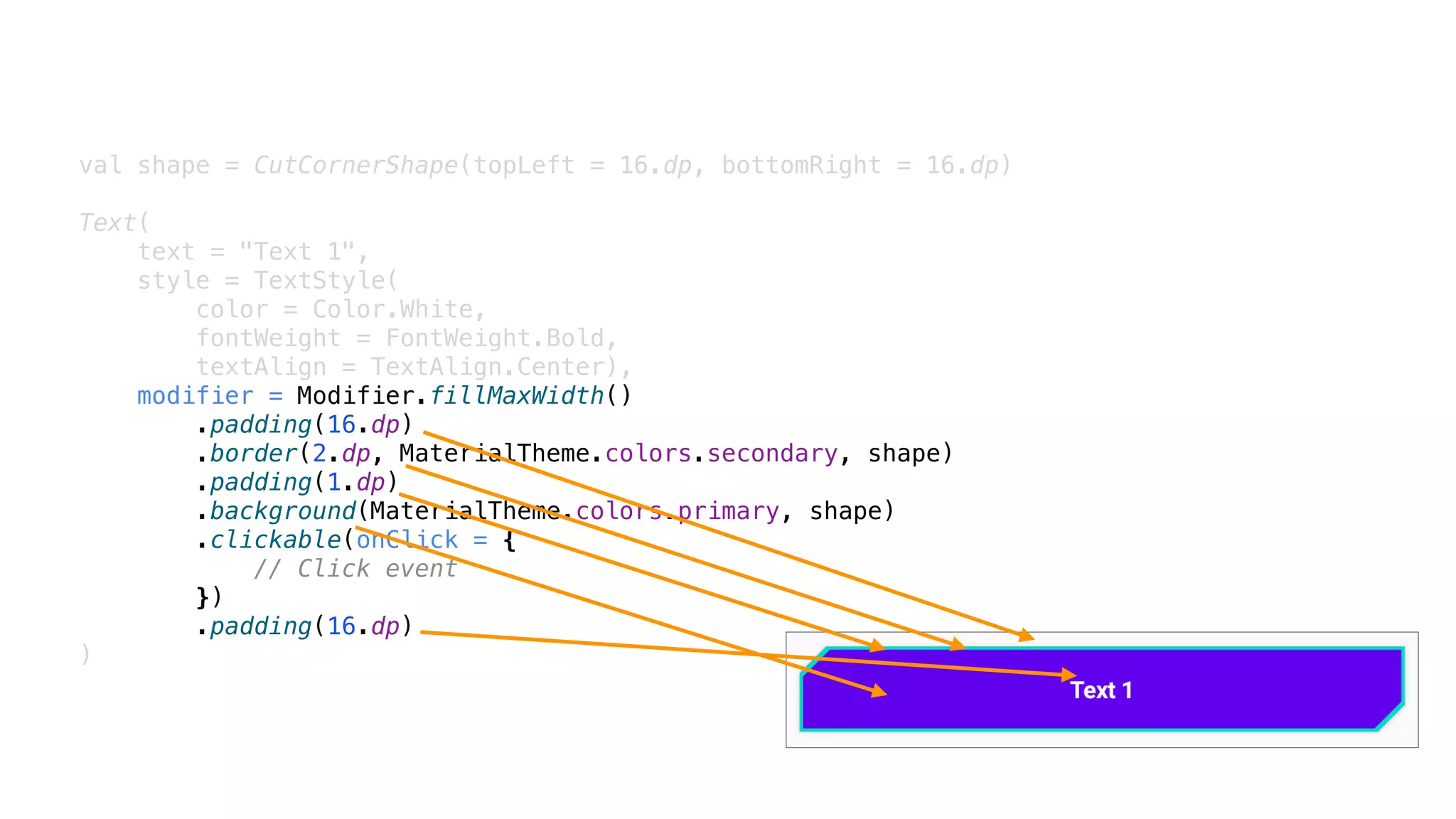

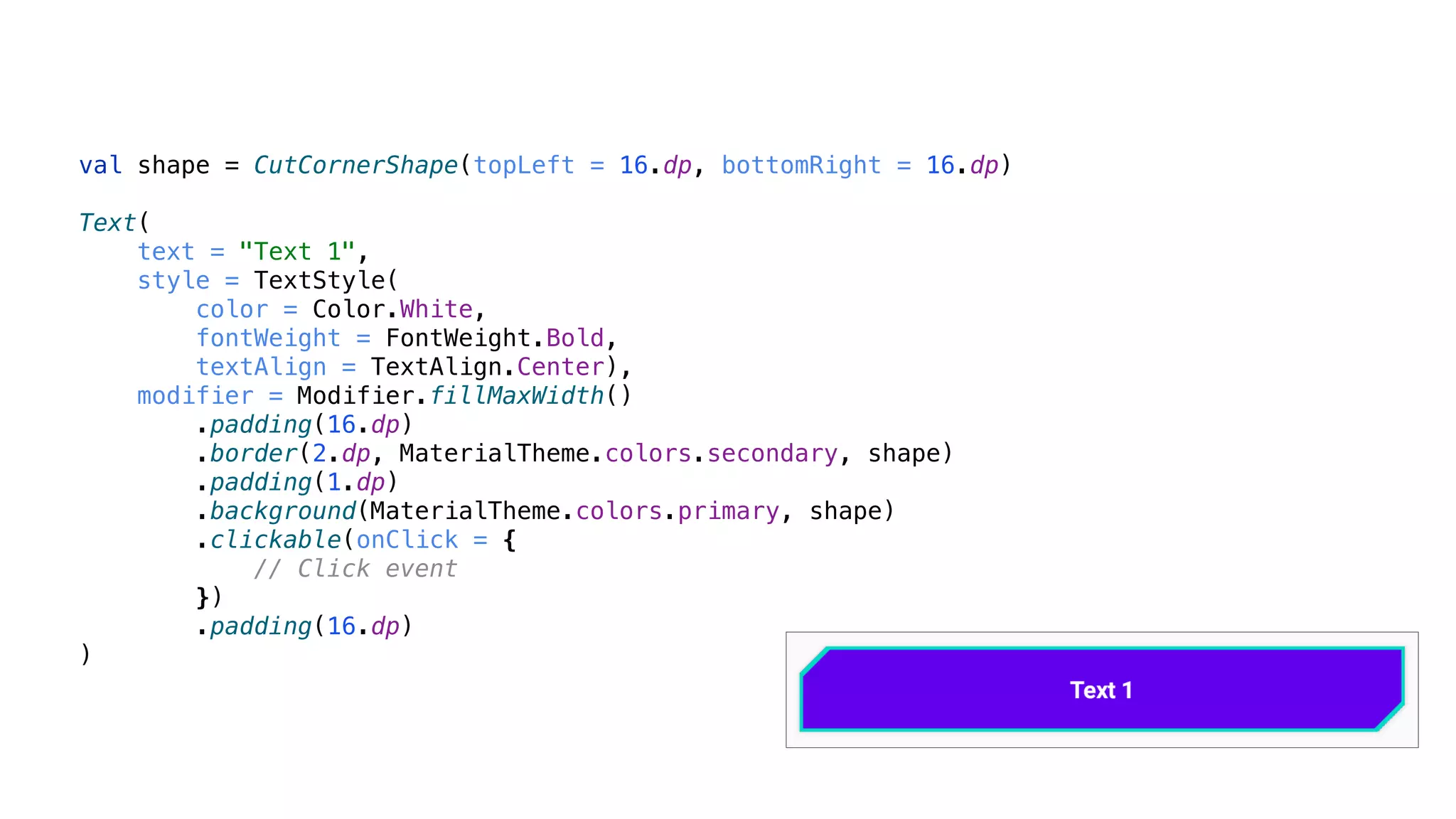

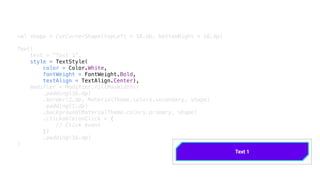

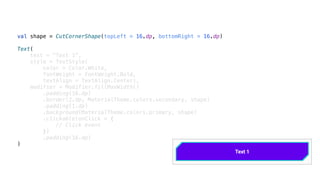

val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp) Text( text = "Text 1", style = TextStyle( color = Color.White, fontWeight = FontWeight.Bold, textAlign = TextAlign.Center), modifier = Modifier.fillMaxWidth() .padding(16.dp) .border(2.dp, MaterialTheme.colors.secondary, shape) .padding(1.dp) .background(MaterialTheme.colors.primary, shape) .clickable(onClick = { // Click event }) .padding(16.dp) )
val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp) Text( text = "Text 1", style = TextStyle( color = Color.White, fontWeight = FontWeight.Bold, textAlign = TextAlign.Center), modifier = Modifier.fillMaxWidth() .padding(16.dp) .border(2.dp, MaterialTheme.colors.secondary, shape) .padding(1.dp) .background(MaterialTheme.colors.primary, shape) .clickable(onClick = { // Click event }) .padding(16.dp) )
val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp) Text( text = "Text 1", style = TextStyle( color = Color.White, fontWeight = FontWeight.Bold, textAlign = TextAlign.Center), modifier = Modifier.fillMaxWidth() .padding(16.dp) .border(2.dp, MaterialTheme.colors.secondary, shape) .padding(1.dp) .background(MaterialTheme.colors.primary, shape) .clickable(onClick = { // Click event }) .padding(16.dp) )
val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp) Text( text = "Text 1", style = TextStyle( color = Color.White, fontWeight = FontWeight.Bold, textAlign = TextAlign.Center), modifier = Modifier.fillMaxWidth() .padding(16.dp) .border(2.dp, MaterialTheme.colors.secondary, shape) .padding(1.dp) .background(MaterialTheme.colors.primary, shape) .clickable(onClick = { // Click event }) .padding(16.dp) )
val shape = RoundedCornerShape(8.dp) Text( text = "Text 1", style = TextStyle( color = Color.White, fontWeight = FontWeight.Bold, textAlign = TextAlign.Center), modifier = Modifier.fillMaxWidth() .padding(16.dp) .border(2.dp, MaterialTheme.colors.secondary, shape) .padding(1.dp) .background(MaterialTheme.colors.primary, shape) .clickable(onClick = { // Click event }) .padding(16.dp) )

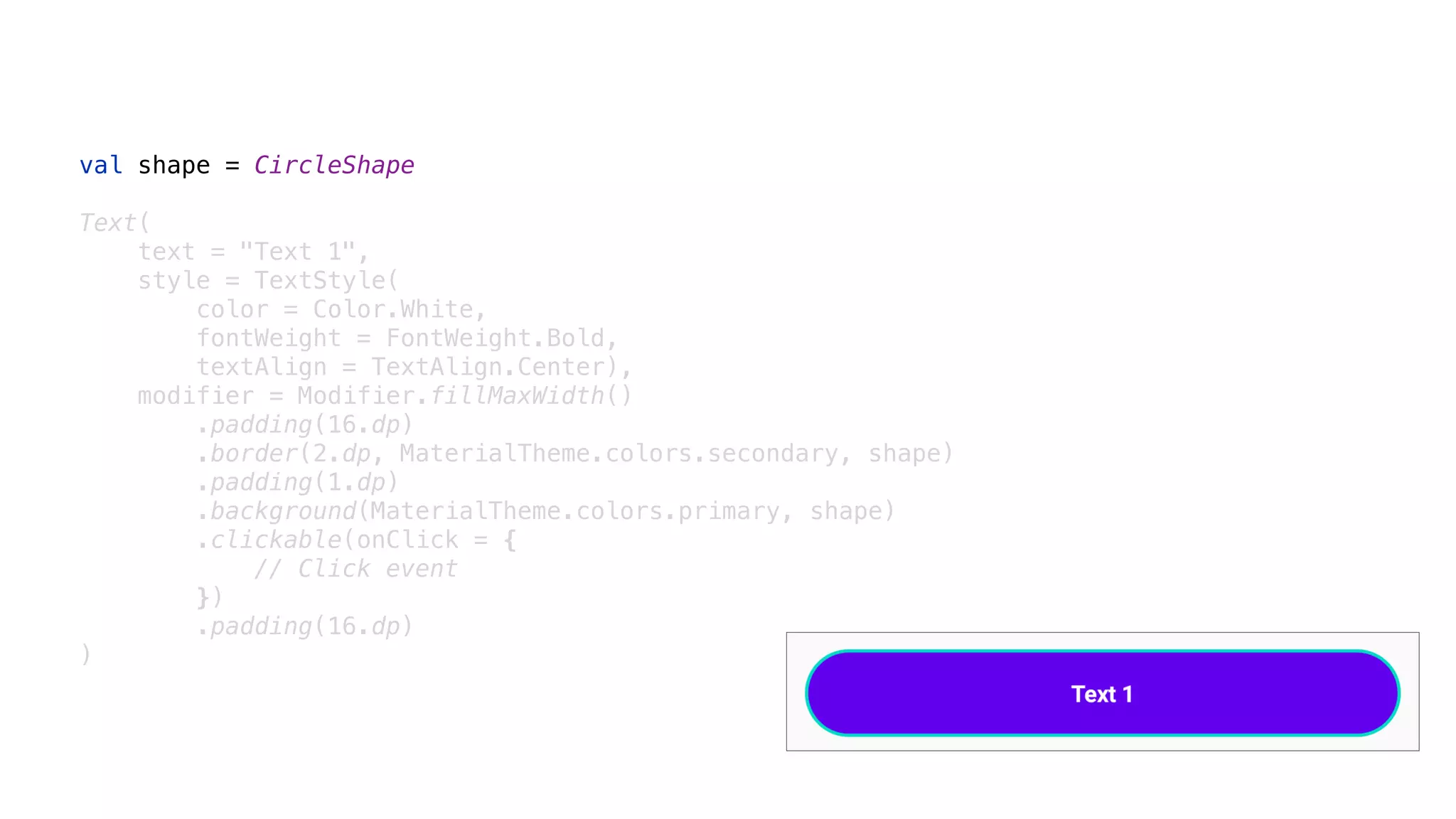

val shape = CircleShape Text( text = "Text 1", style = TextStyle( color = Color.White, fontWeight = FontWeight.Bold, textAlign = TextAlign.Center), modifier = Modifier.fillMaxWidth() .padding(16.dp) .border(2.dp, MaterialTheme.colors.secondary, shape) .padding(1.dp) .background(MaterialTheme.colors.primary, shape) .clickable(onClick = { // Click event }) .padding(16.dp) )

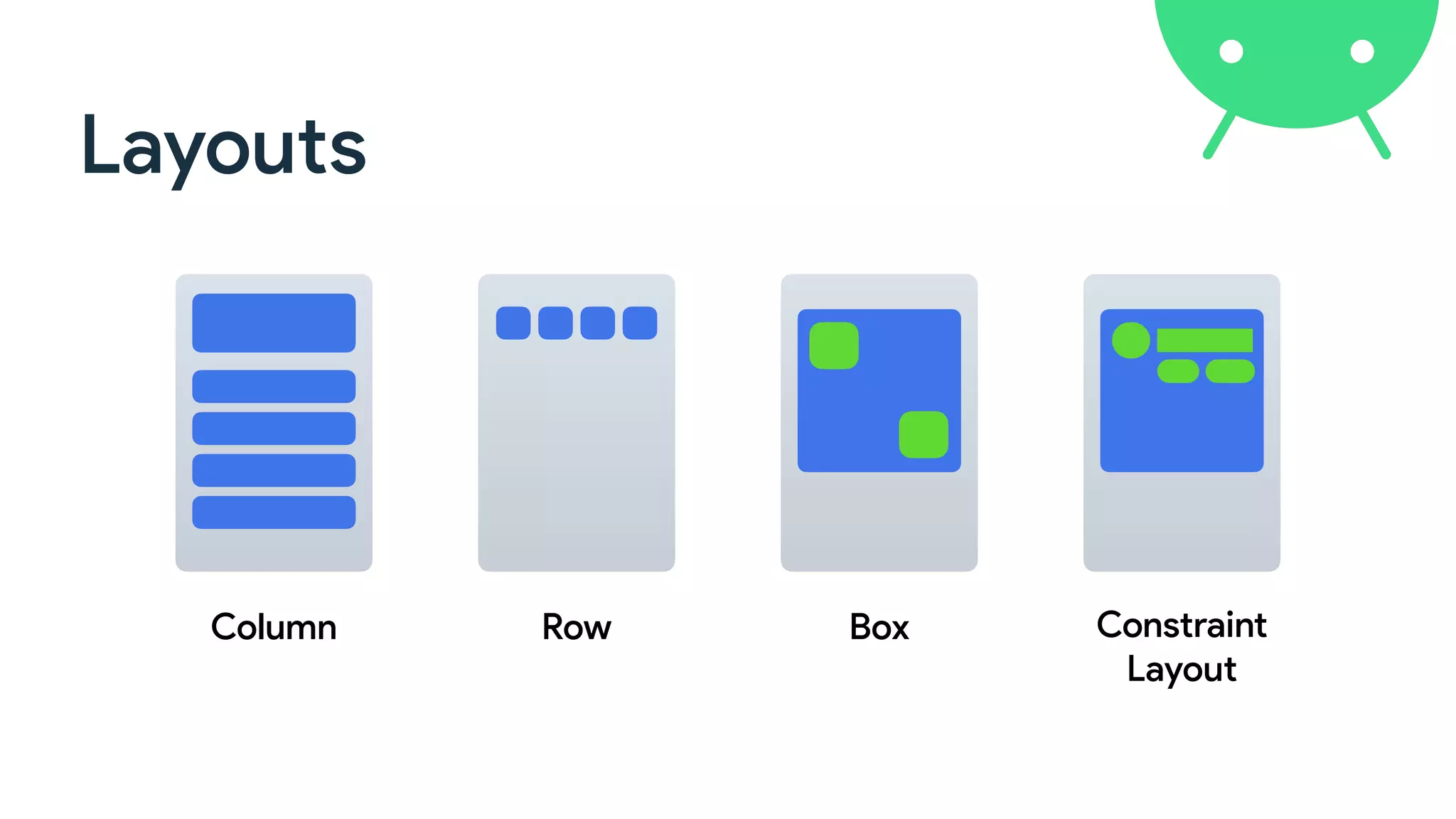

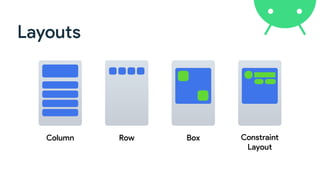

Layouts Column Row Box Constraint Layout

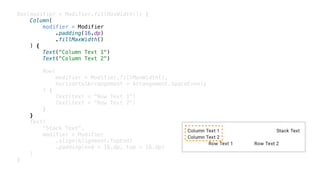

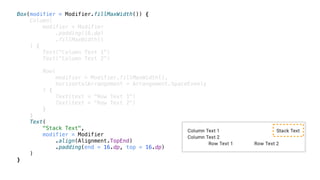

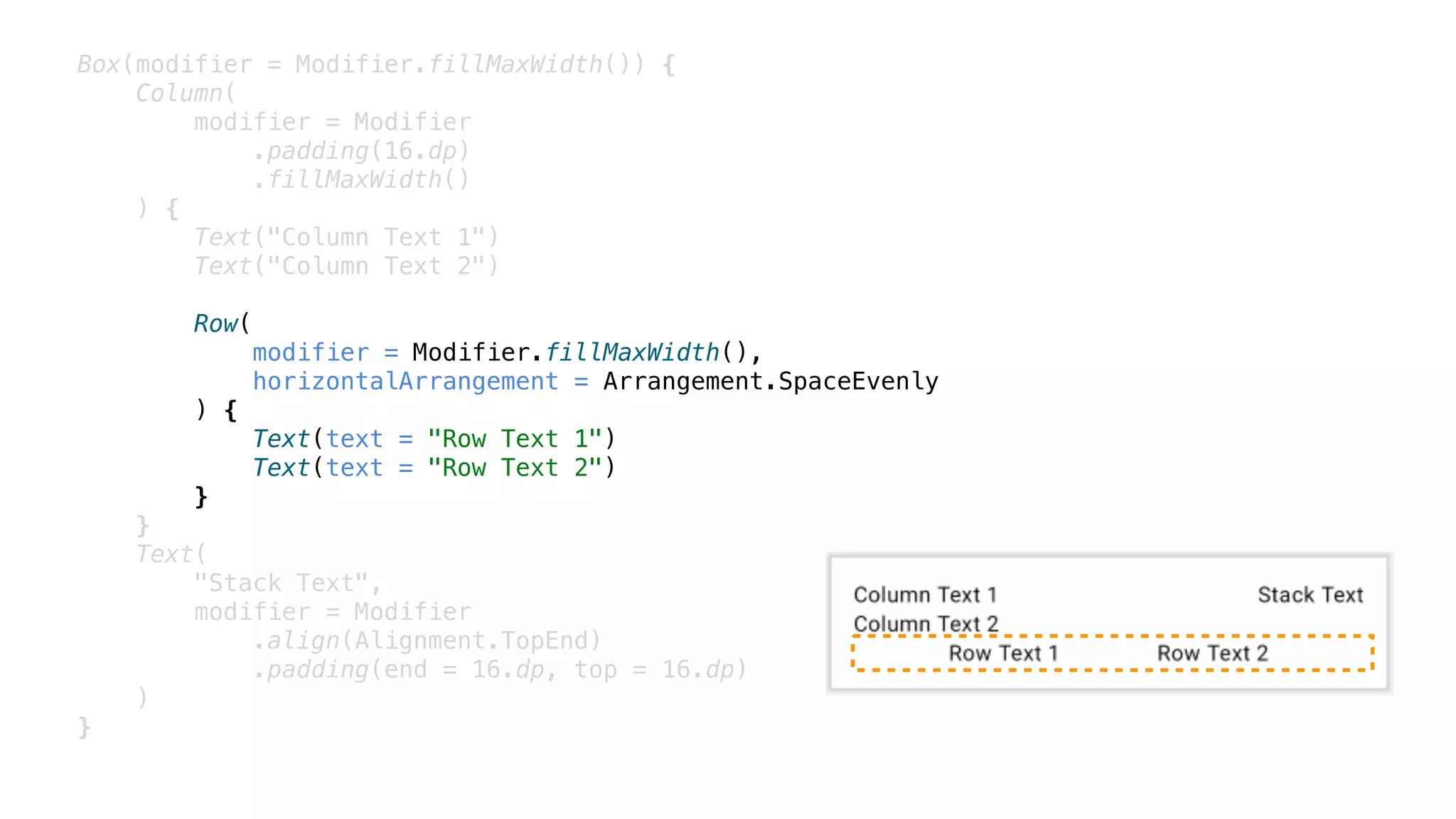

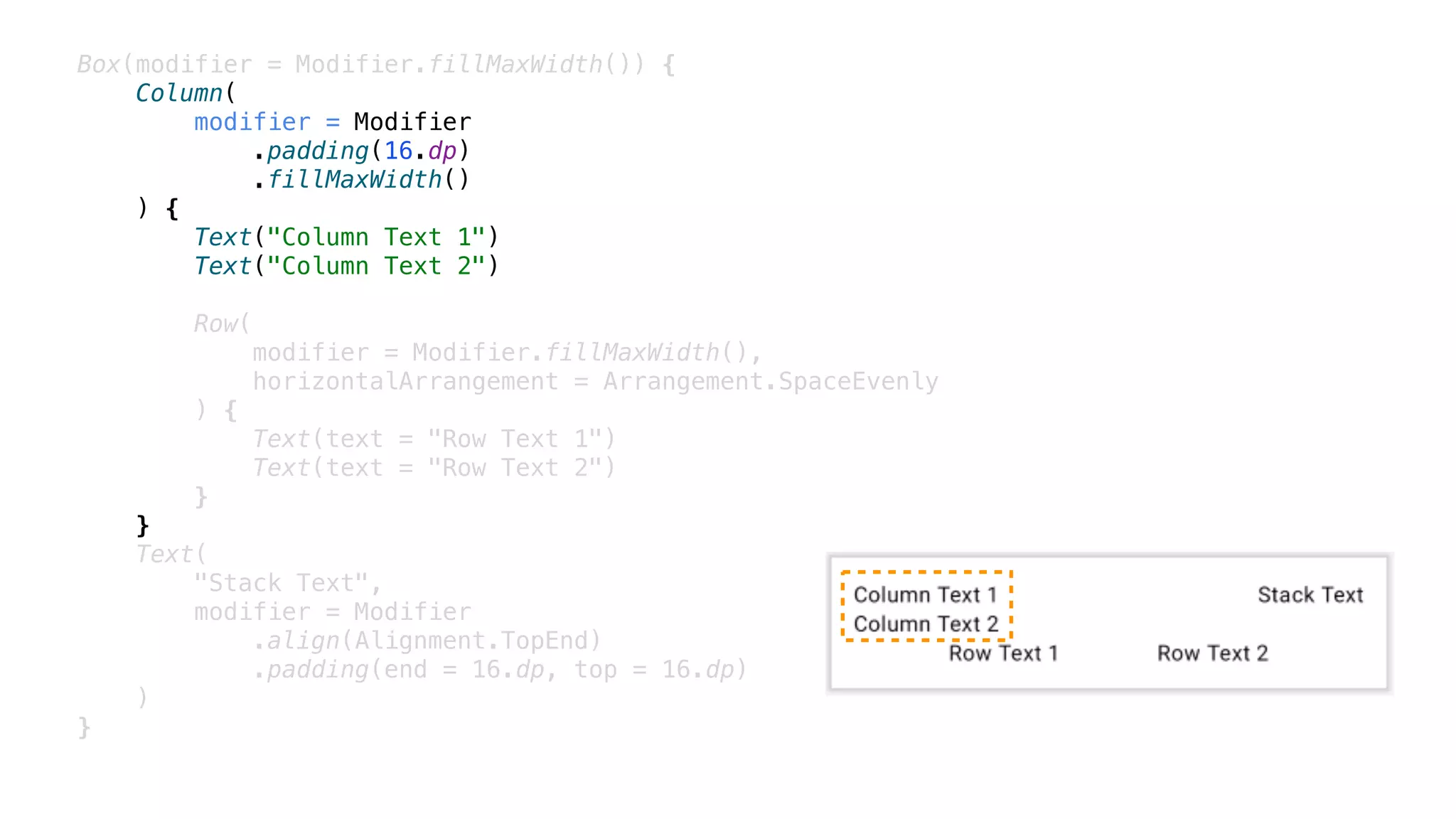

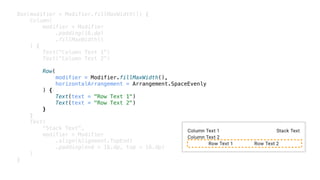

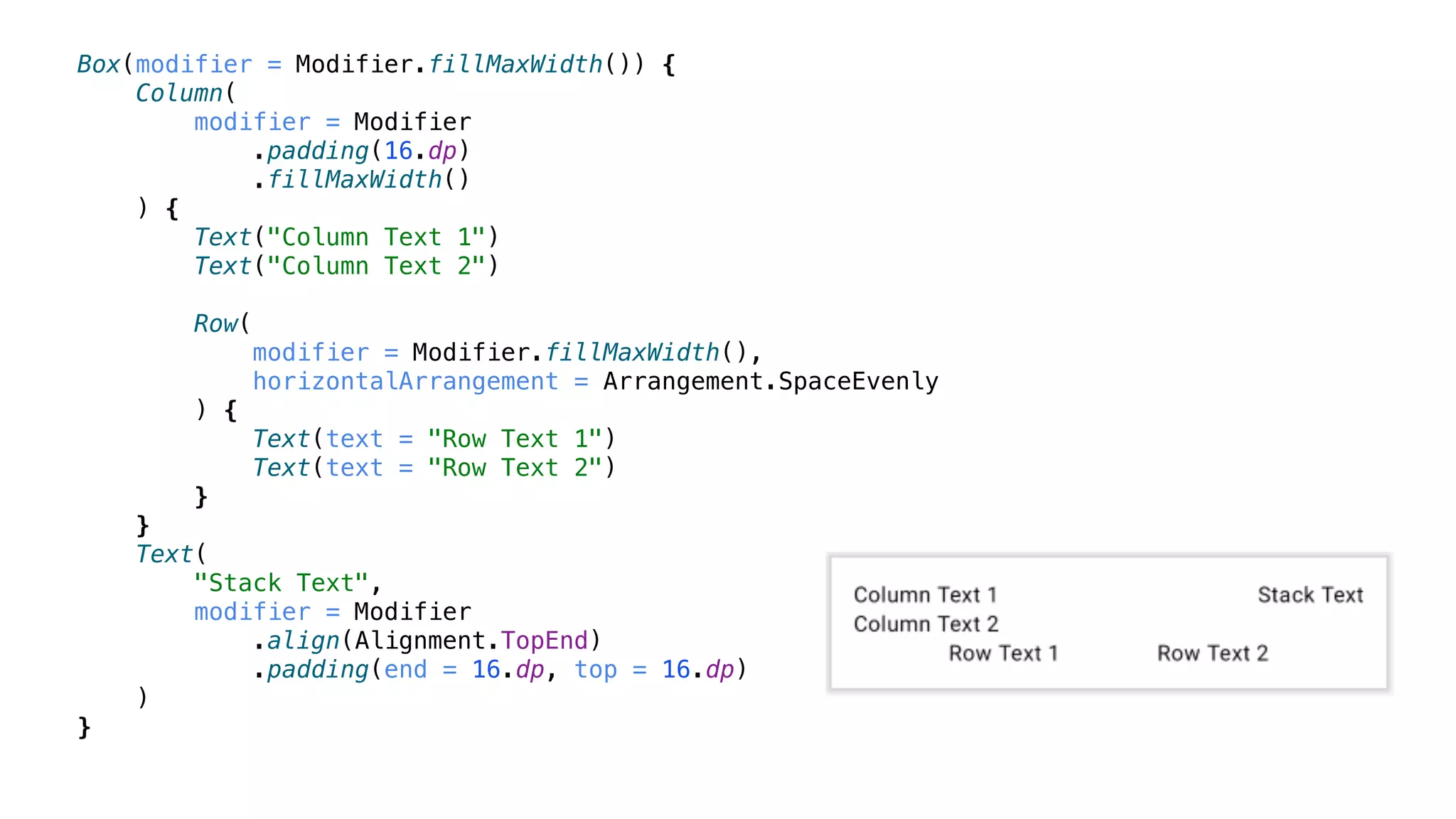

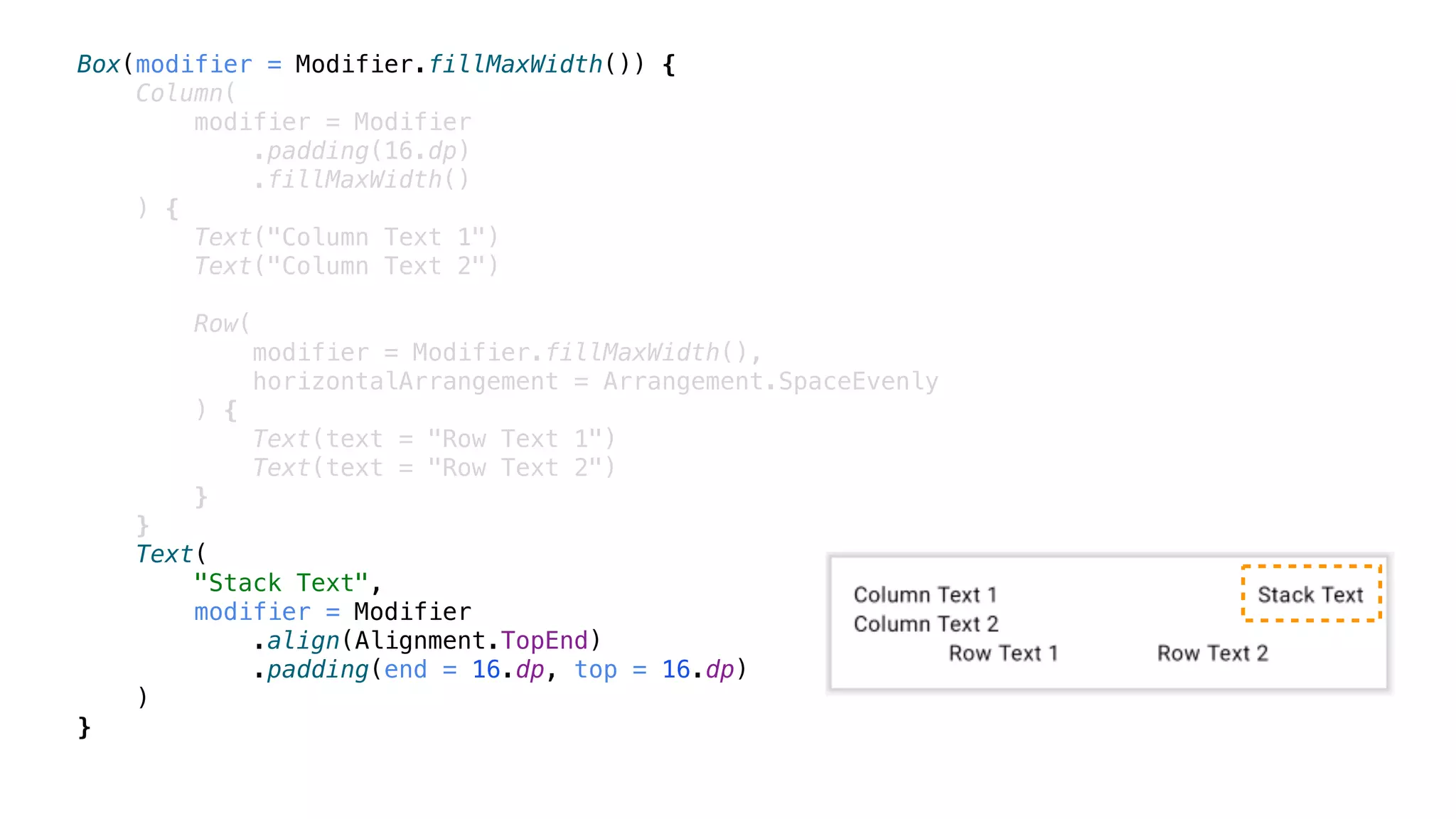

Box(modifier = Modifier.fillMaxWidth()) { Column( modifier = Modifier .padding(16.dp) .fillMaxWidth() ) { Text("Column Text 1") Text("Column Text 2") Row( modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.SpaceEvenly ) { Text(text = "Row Text 1") Text(text = "Row Text 2") } } Text( "Stack Text", modifier = Modifier .align(Alignment.TopEnd) .padding(end = 16.dp, top = 16.dp) ) }
Box(modifier = Modifier.fillMaxWidth()) { Column( modifier = Modifier .padding(16.dp) .fillMaxWidth() ) { Text("Column Text 1") Text("Column Text 2") Row( modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.SpaceEvenly ) { Text(text = "Row Text 1") Text(text = "Row Text 2") } } Text( "Stack Text", modifier = Modifier .align(Alignment.TopEnd) .padding(end = 16.dp, top = 16.dp) ) }
Box(modifier = Modifier.fillMaxWidth()) { Column( modifier = Modifier .padding(16.dp) .fillMaxWidth() ) { Text("Column Text 1") Text("Column Text 2") Row( modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.SpaceEvenly ) { Text(text = "Row Text 1") Text(text = "Row Text 2") } } Text( "Stack Text", modifier = Modifier .align(Alignment.TopEnd) .padding(end = 16.dp, top = 16.dp) ) }
Box(modifier = Modifier.fillMaxWidth()) { Column( modifier = Modifier .padding(16.dp) .fillMaxWidth() ) { Text("Column Text 1") Text("Column Text 2") Row( modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.SpaceEvenly ) { Text(text = "Row Text 1") Text(text = "Row Text 2") } } Text( "Stack Text", modifier = Modifier .align(Alignment.TopEnd) .padding(end = 16.dp, top = 16.dp) ) }

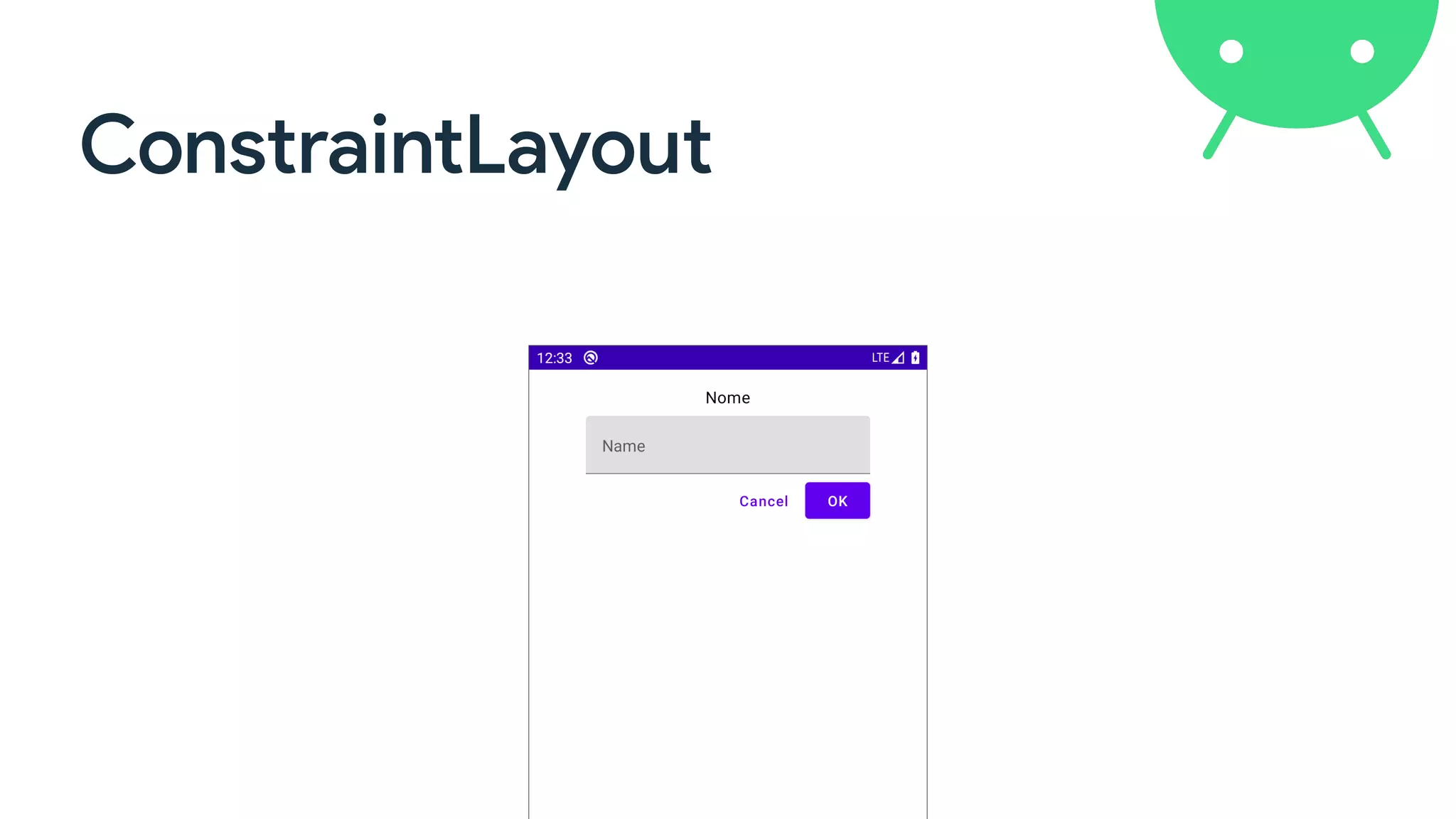

ConstraintLayout

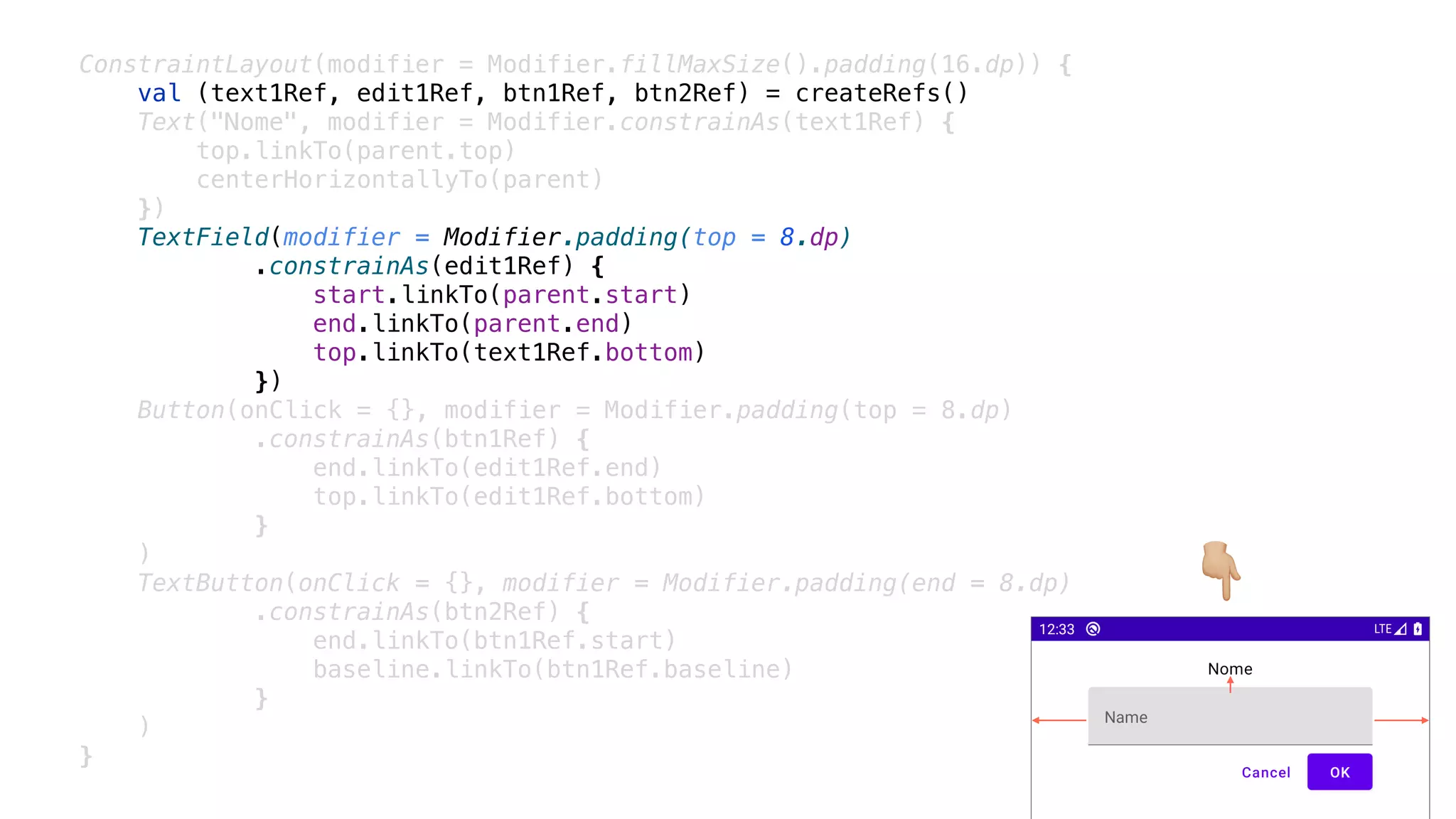

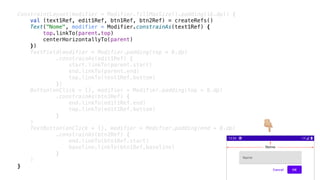

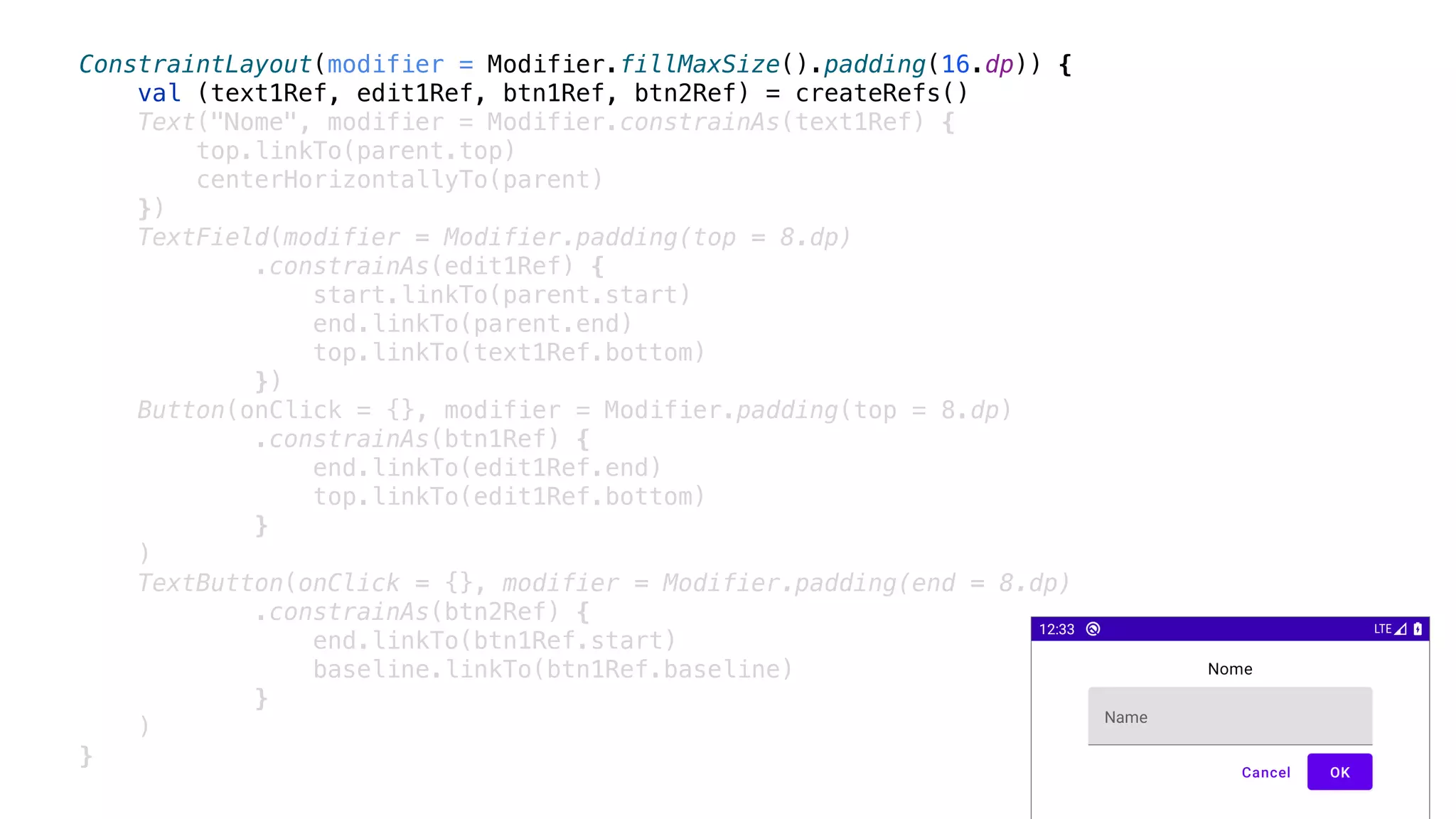

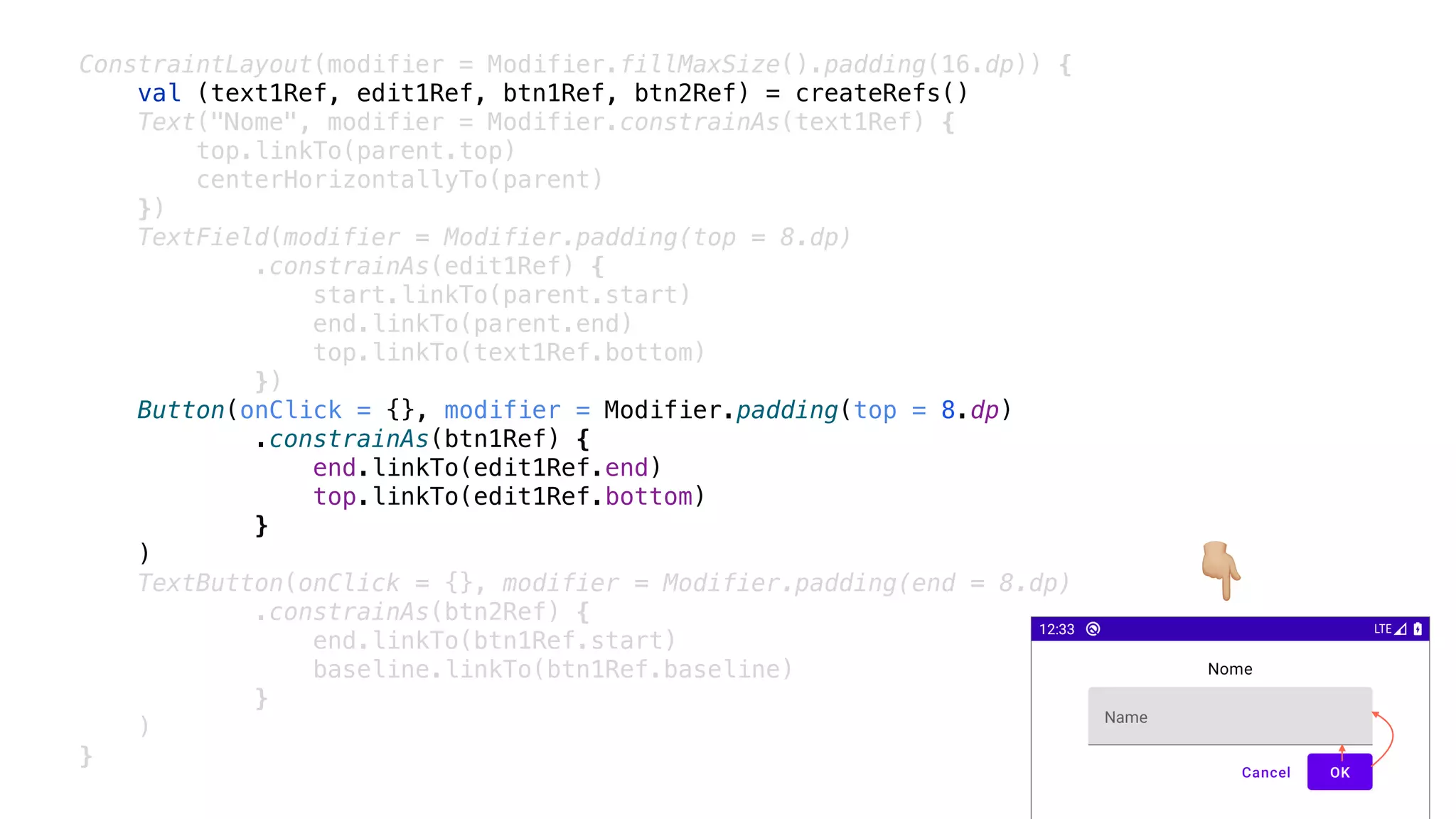

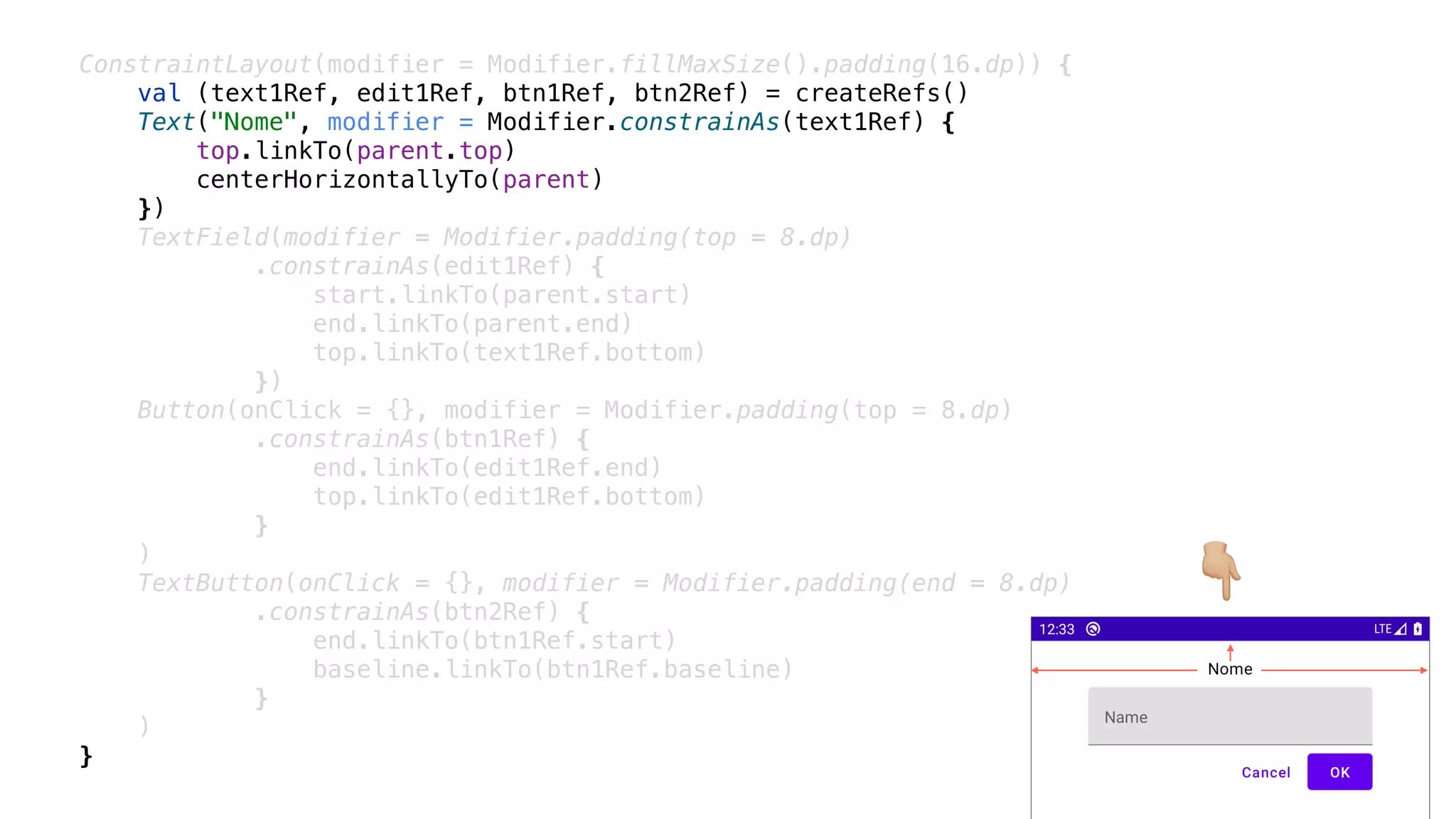

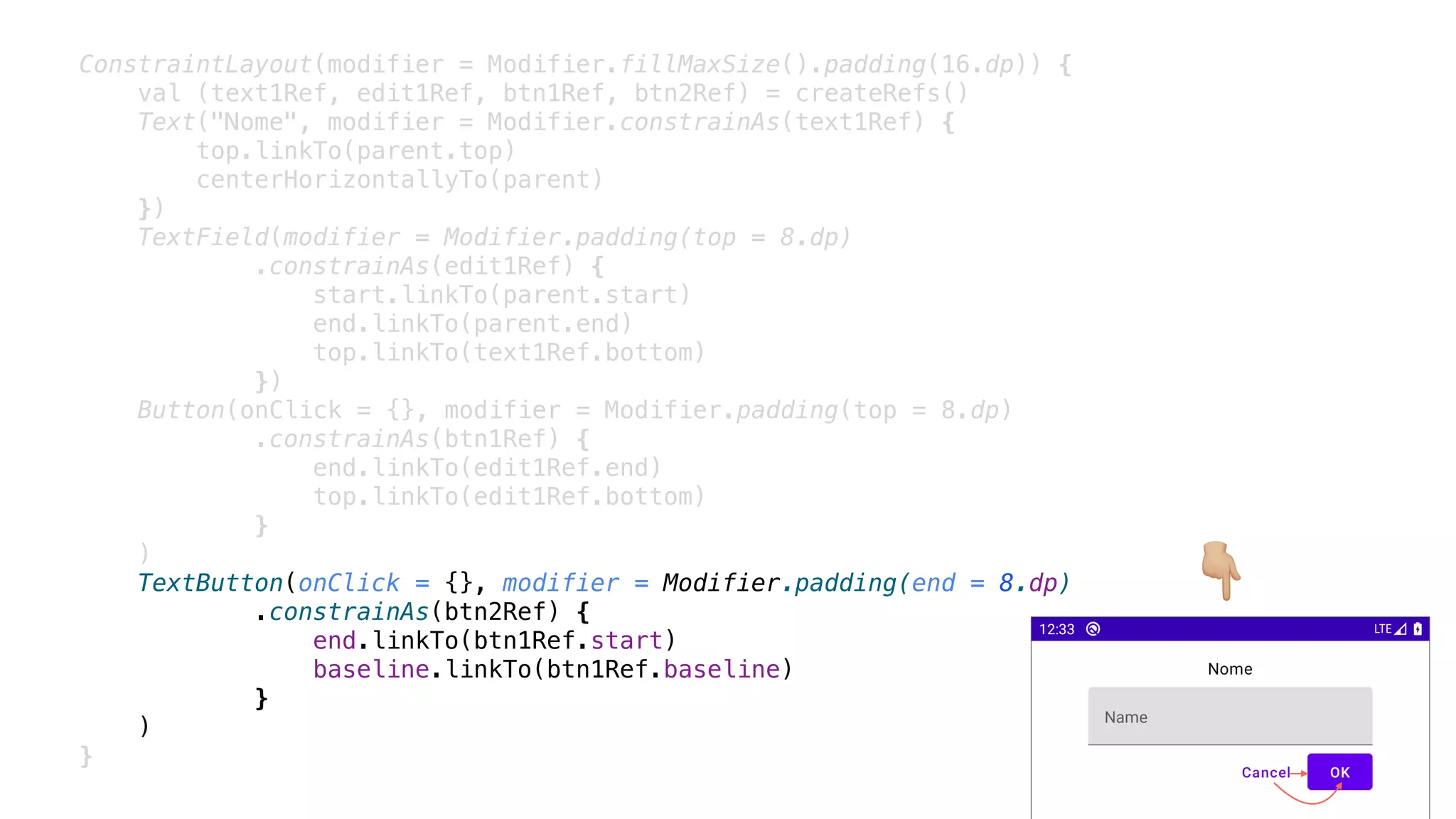

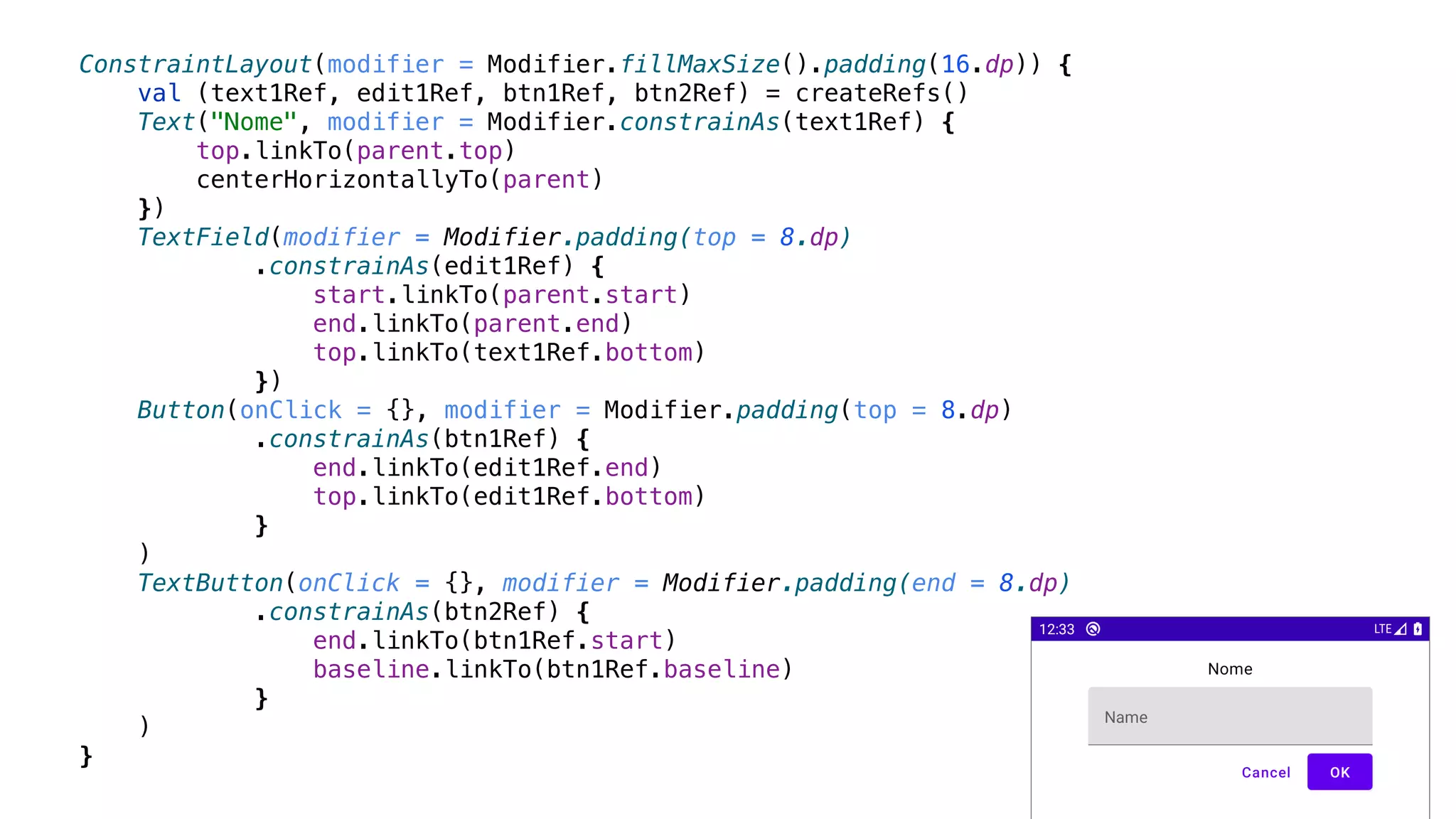

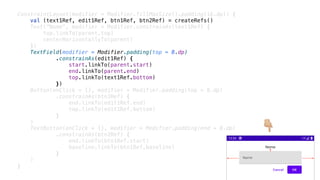

ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) { val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs() Text("Nome", modifier = Modifier.constrainAs(text1Ref) { top.linkTo(parent.top) centerHorizontallyTo(parent) }) TextField(modifier = Modifier.padding(top = 8.dp) .constrainAs(edit1Ref) { start.linkTo(parent.start) end.linkTo(parent.end) top.linkTo(text1Ref.bottom) }) Button(onClick = {}, modifier = Modifier.padding(top = 8.dp) .constrainAs(btn1Ref) { end.linkTo(edit1Ref.end) top.linkTo(edit1Ref.bottom) } ) TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp) .constrainAs(btn2Ref) { end.linkTo(btn1Ref.start) baseline.linkTo(btn1Ref.baseline) } ) }
ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) { val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs() Text("Nome", modifier = Modifier.constrainAs(text1Ref) { top.linkTo(parent.top) centerHorizontallyTo(parent) }) TextField(modifier = Modifier.padding(top = 8.dp) .constrainAs(edit1Ref) { start.linkTo(parent.start) end.linkTo(parent.end) top.linkTo(text1Ref.bottom) }) Button(onClick = {}, modifier = Modifier.padding(top = 8.dp) .constrainAs(btn1Ref) { end.linkTo(edit1Ref.end) top.linkTo(edit1Ref.bottom) } ) TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp) .constrainAs(btn2Ref) { end.linkTo(btn1Ref.start) baseline.linkTo(btn1Ref.baseline) } ) }
ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) { val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs() Text("Nome", modifier = Modifier.constrainAs(text1Ref) { top.linkTo(parent.top) centerHorizontallyTo(parent) }) TextField(modifier = Modifier.padding(top = 8.dp) .constrainAs(edit1Ref) { start.linkTo(parent.start) end.linkTo(parent.end) top.linkTo(text1Ref.bottom) }) Button(onClick = {}, modifier = Modifier.padding(top = 8.dp) .constrainAs(btn1Ref) { end.linkTo(edit1Ref.end) top.linkTo(edit1Ref.bottom) } ) TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp) .constrainAs(btn2Ref) { end.linkTo(btn1Ref.start) baseline.linkTo(btn1Ref.baseline) } ) } 👇
ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) { val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs() Text("Nome", modifier = Modifier.constrainAs(text1Ref) { top.linkTo(parent.top) centerHorizontallyTo(parent) }) TextField(modifier = Modifier.padding(top = 8.dp) .constrainAs(edit1Ref) { start.linkTo(parent.start) end.linkTo(parent.end) top.linkTo(text1Ref.bottom) }) Button(onClick = {}, modifier = Modifier.padding(top = 8.dp) .constrainAs(btn1Ref) { end.linkTo(edit1Ref.end) top.linkTo(edit1Ref.bottom) } ) TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp) .constrainAs(btn2Ref) { end.linkTo(btn1Ref.start) baseline.linkTo(btn1Ref.baseline) } ) } 👇
ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) { val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs() Text("Nome", modifier = Modifier.constrainAs(text1Ref) { top.linkTo(parent.top) centerHorizontallyTo(parent) }) TextField(modifier = Modifier.padding(top = 8.dp) .constrainAs(edit1Ref) { start.linkTo(parent.start) end.linkTo(parent.end) top.linkTo(text1Ref.bottom) }) Button(onClick = {}, modifier = Modifier.padding(top = 8.dp) .constrainAs(btn1Ref) { end.linkTo(edit1Ref.end) top.linkTo(edit1Ref.bottom) } ) TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp) .constrainAs(btn2Ref) { end.linkTo(btn1Ref.start) baseline.linkTo(btn1Ref.baseline) } ) } 👇
ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) { val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs() Text("Nome", modifier = Modifier.constrainAs(text1Ref) { top.linkTo(parent.top) centerHorizontallyTo(parent) }) TextField(modifier = Modifier.padding(top = 8.dp) .constrainAs(edit1Ref) { start.linkTo(parent.start) end.linkTo(parent.end) top.linkTo(text1Ref.bottom) }) Button(onClick = {}, modifier = Modifier.padding(top = 8.dp) .constrainAs(btn1Ref) { end.linkTo(edit1Ref.end) top.linkTo(edit1Ref.bottom) } ) TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp) .constrainAs(btn2Ref) { end.linkTo(btn1Ref.start) baseline.linkTo(btn1Ref.baseline) } ) } 👇
More components…

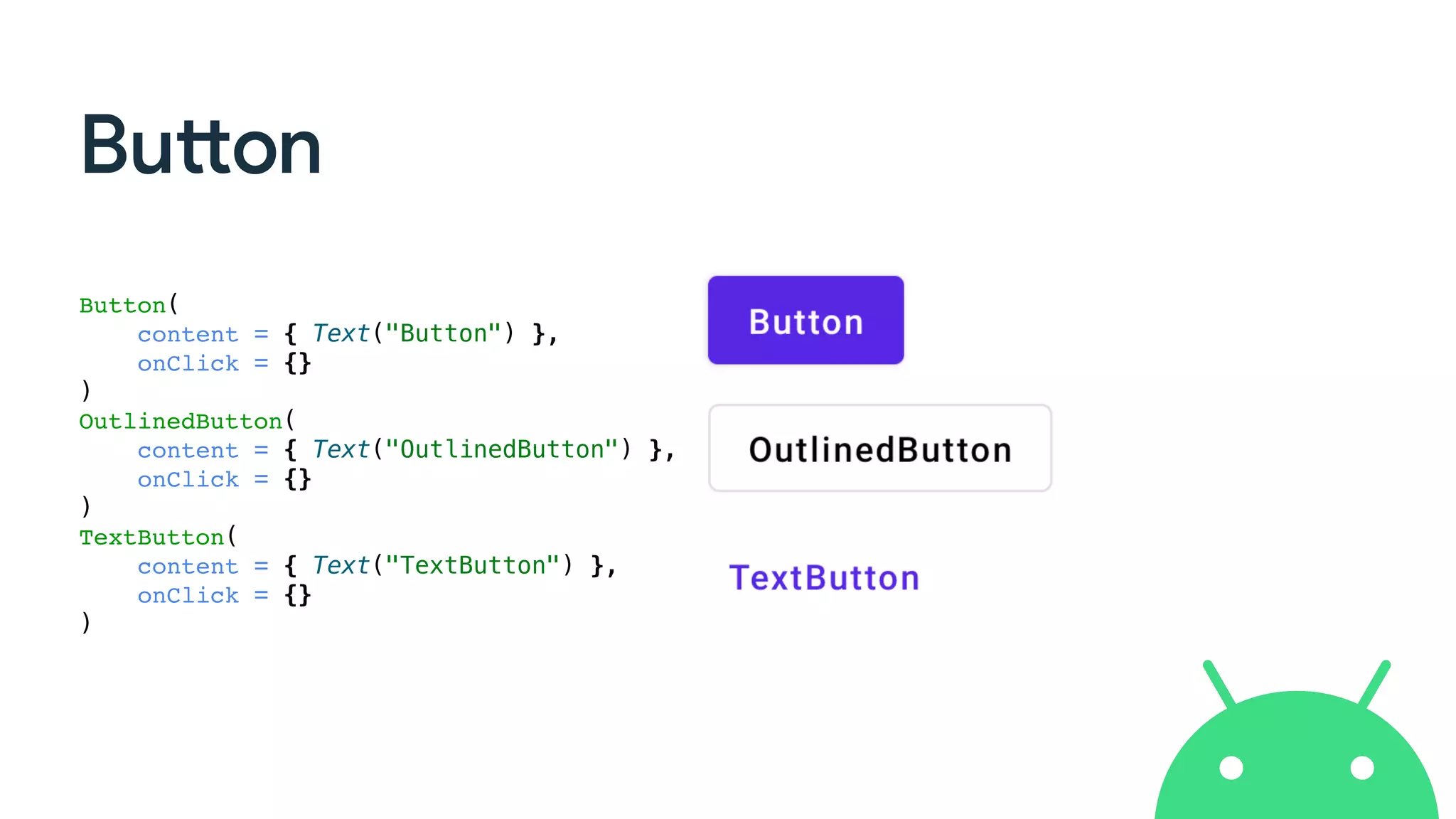

Button Button( content = { Text("Button") }, onClick = {} ) OutlinedButton( content = { Text("OutlinedButton") }, onClick = {} ) TextButton( content = { Text("TextButton") }, onClick = {} )

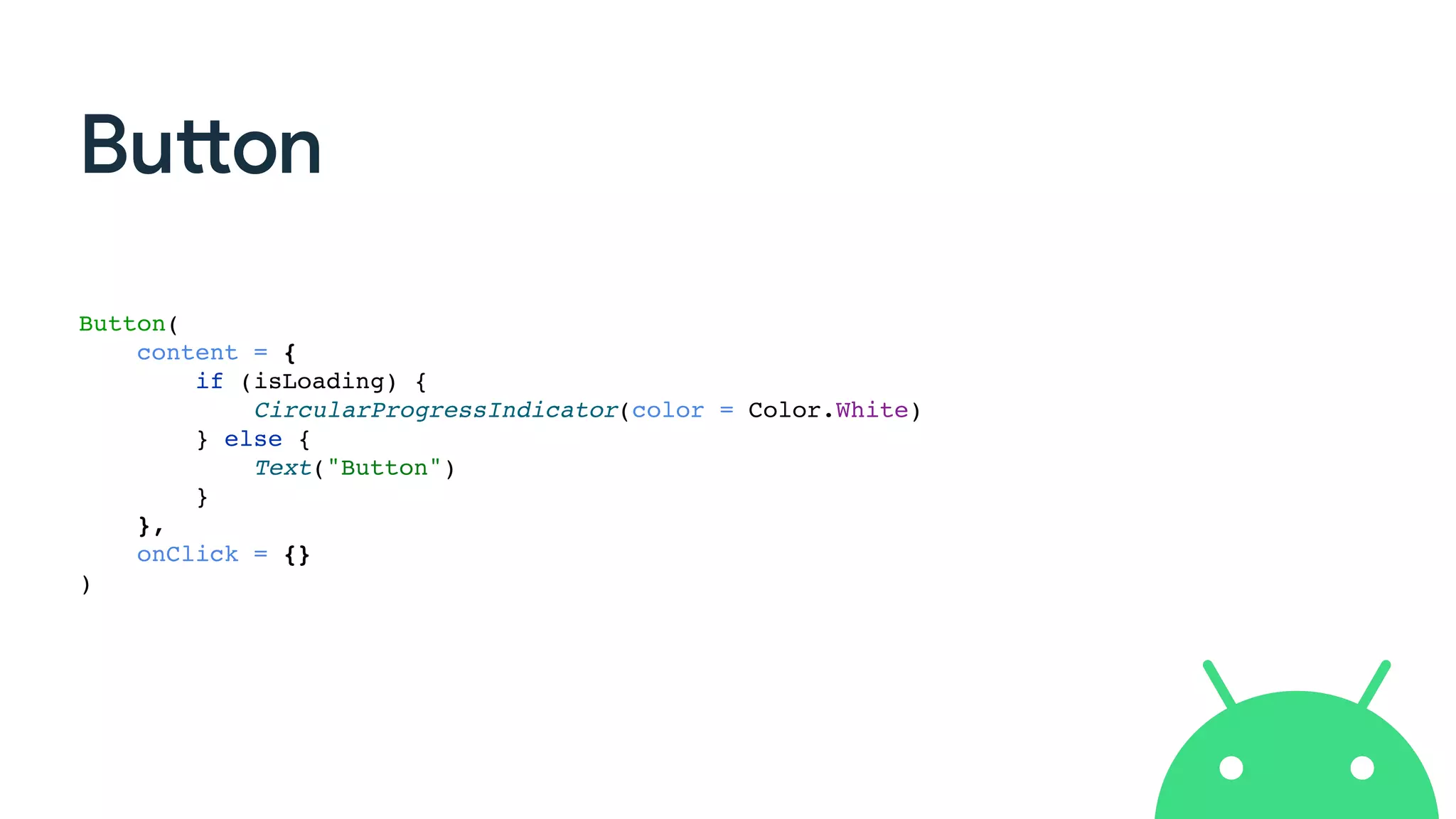

Button Button( content = { if (isLoading) { CircularProgressIndicator(color = Color.White) } else { Text("Button") } }, onClick = {} )

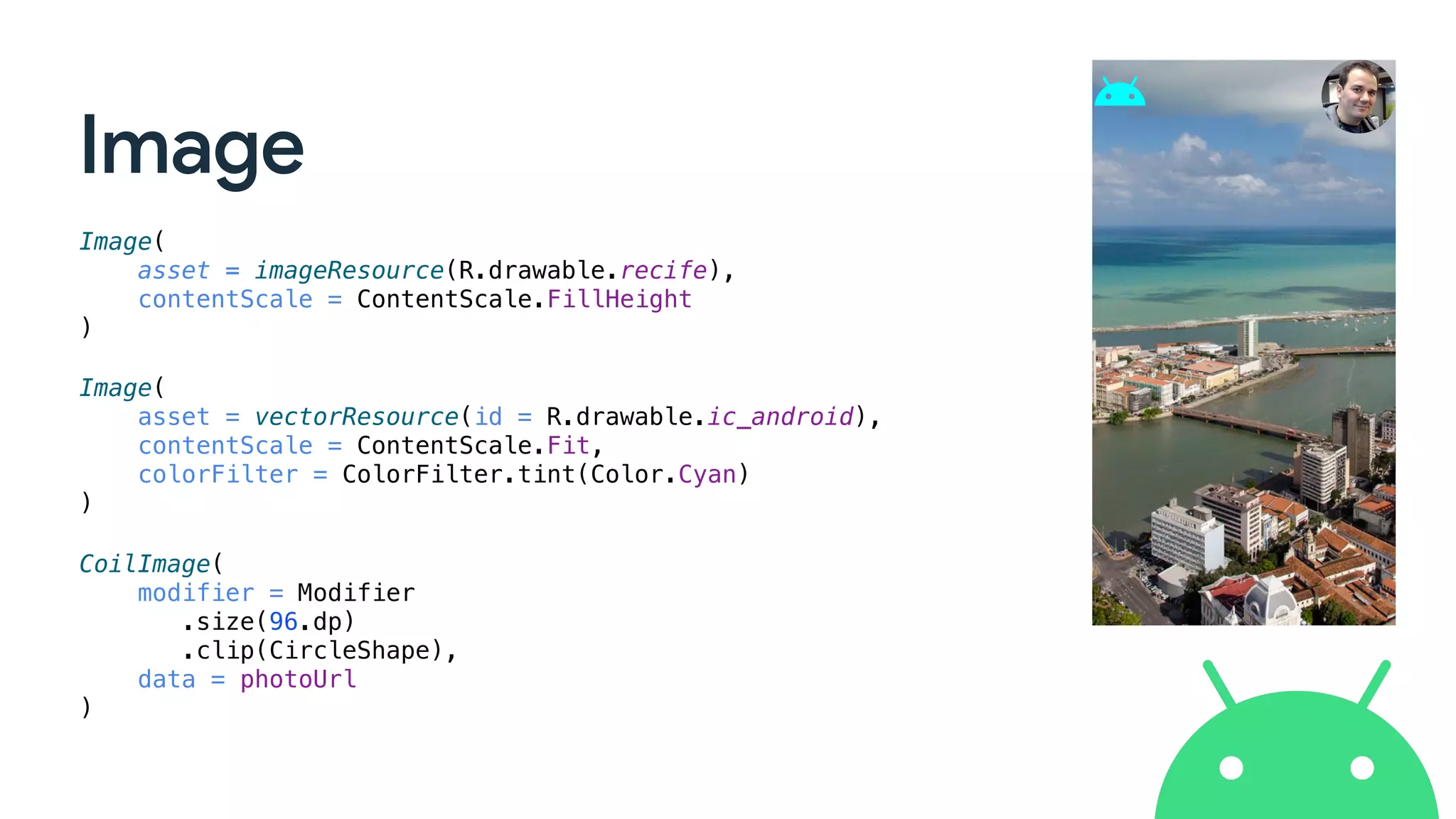

Image Image( asset = imageResource(R.drawable.recife), contentScale = ContentScale.FillHeight ) Image( asset = vectorResource(id = R.drawable.ic_android), contentScale = ContentScale.Fit, colorFilter = ColorFilter.tint(Color.Cyan) ) CoilImage( modifier = Modifier .size(96.dp) .clip(CircleShape), data = photoUrl )
Image Image( asset = imageResource(R.drawable.recife), contentScale = ContentScale.FillHeight ) Image( asset = vectorResource(id = R.drawable.ic_android), contentScale = ContentScale.Fit, colorFilter = ColorFilter.tint(Color.Cyan) ) PicassoImage( modifier = Modifier .size(96.dp) .clip(CircleShape), data = photoUrl )

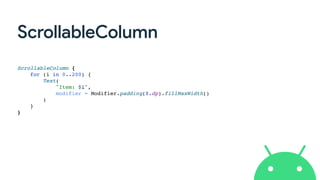

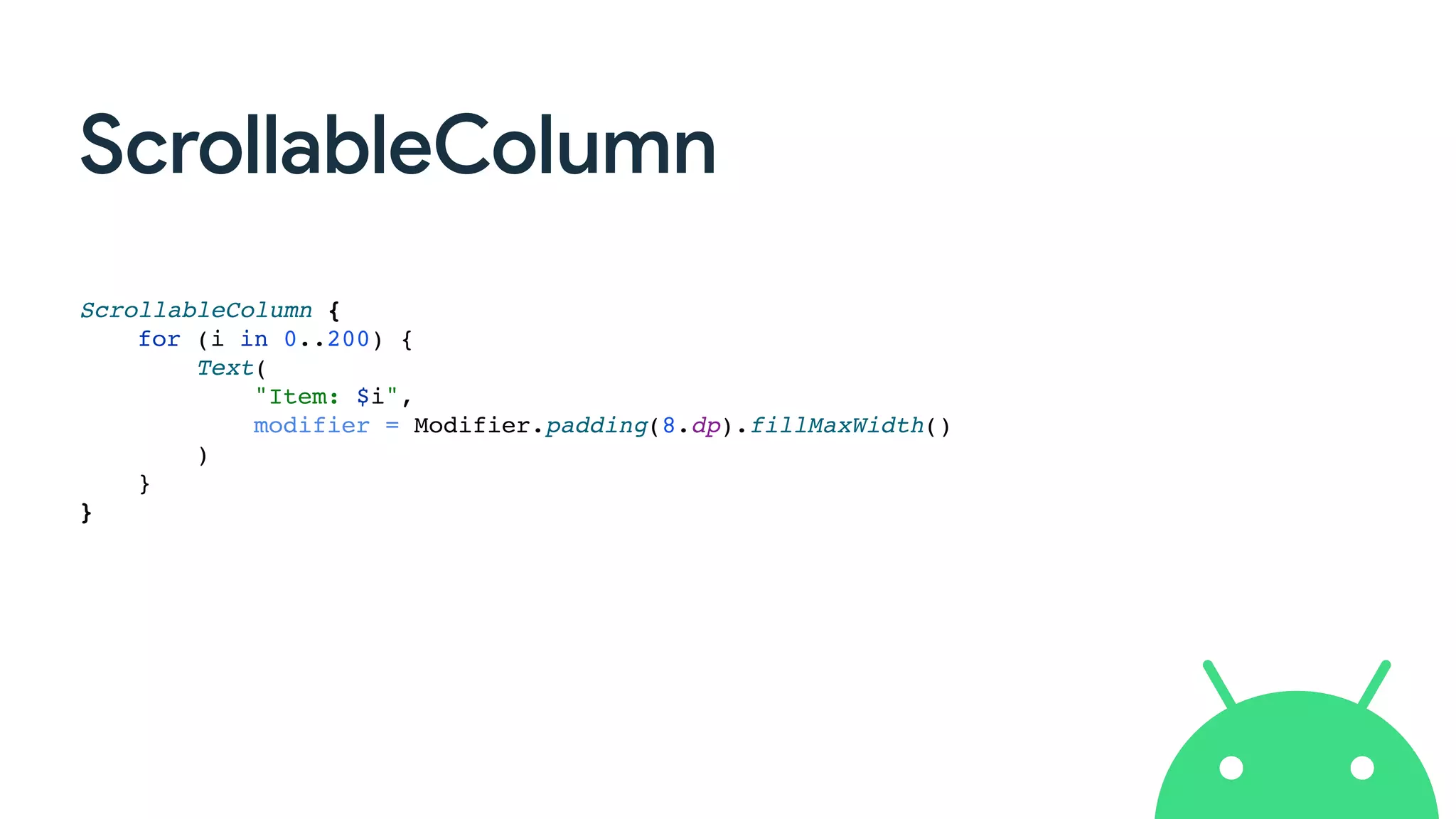

ScrollableColumn ScrollableColumn { for (i in 0..200) { Text( "Item: $i", modifier = Modifier.padding(8.dp).fillMaxWidth() ) } }

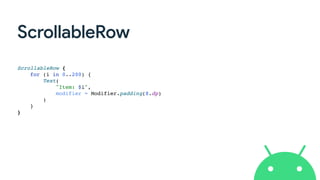

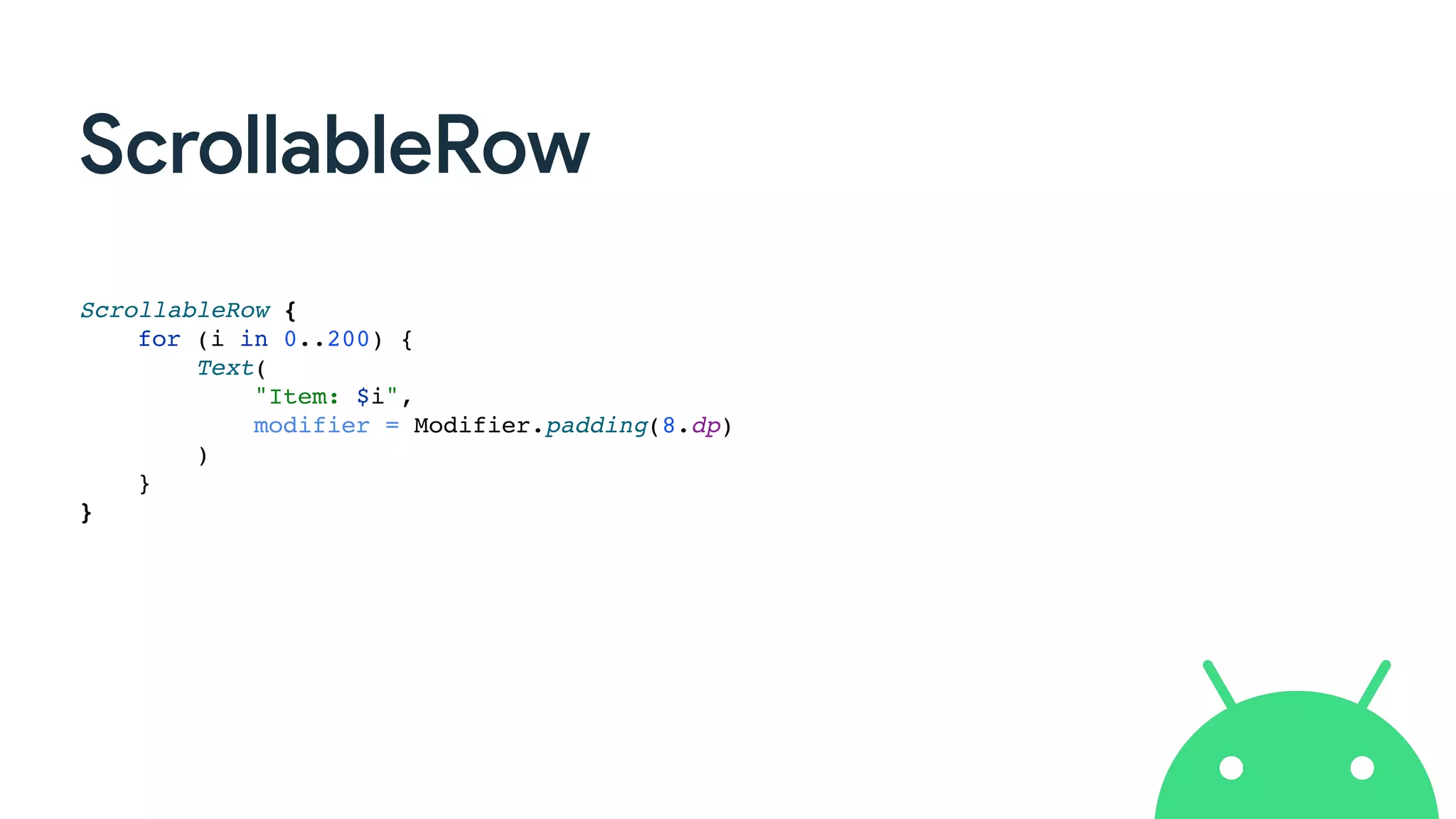

ScrollableRow ScrollableRow { for (i in 0..200) { Text( "Item: $i", modifier = Modifier.padding(8.dp) ) } }

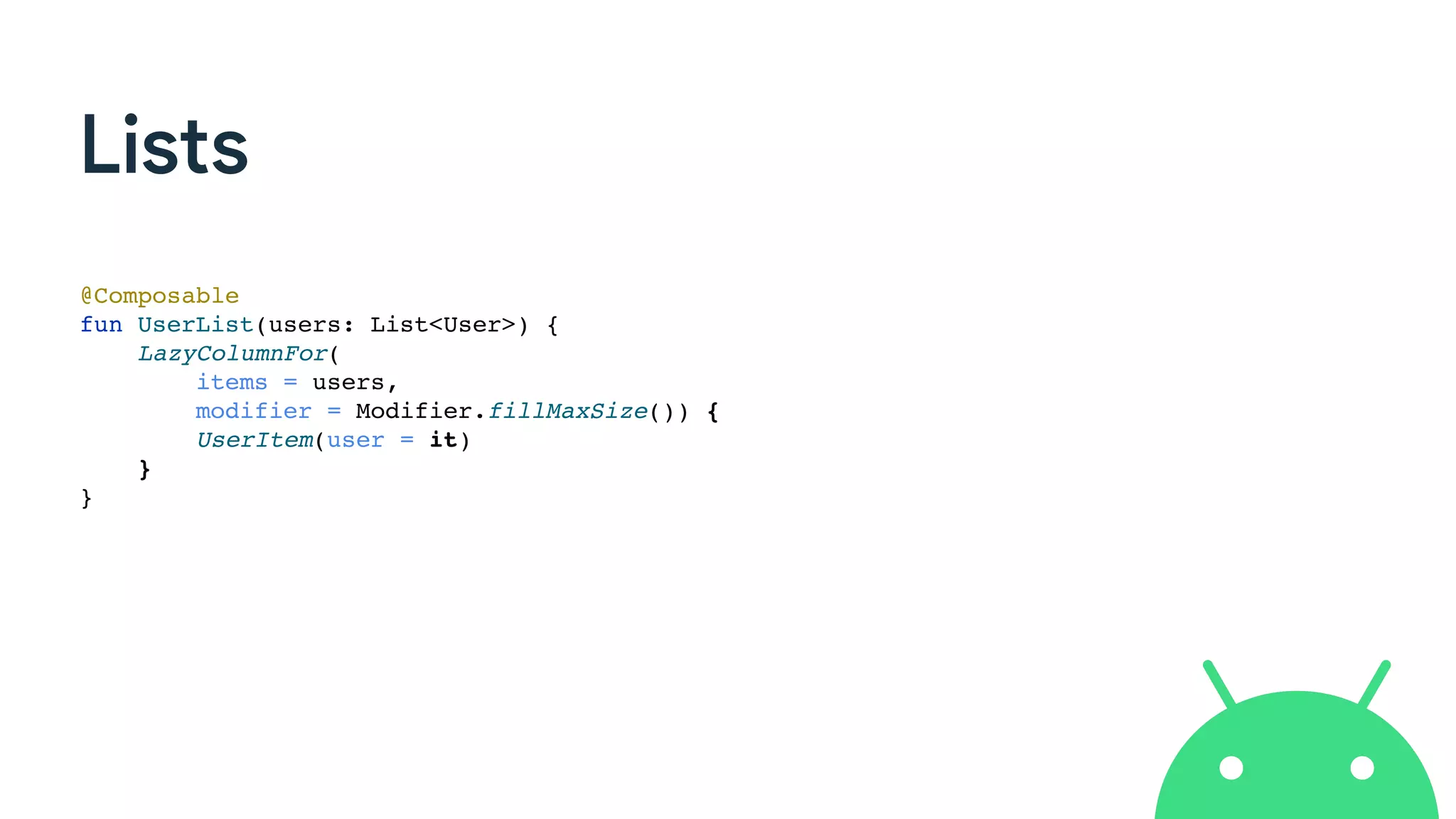

Lists @Composable fun UserList(users: List<User>) { LazyColumnFor( items = users, modifier = Modifier.fillMaxSize()) { UserItem(user = it) } }
Lists @Composable fun UserList(users: List<User>) { LazyColumnForIndexed( items = users, itemContent = { index, item -> UserItem(user = item, index = index) } ) }

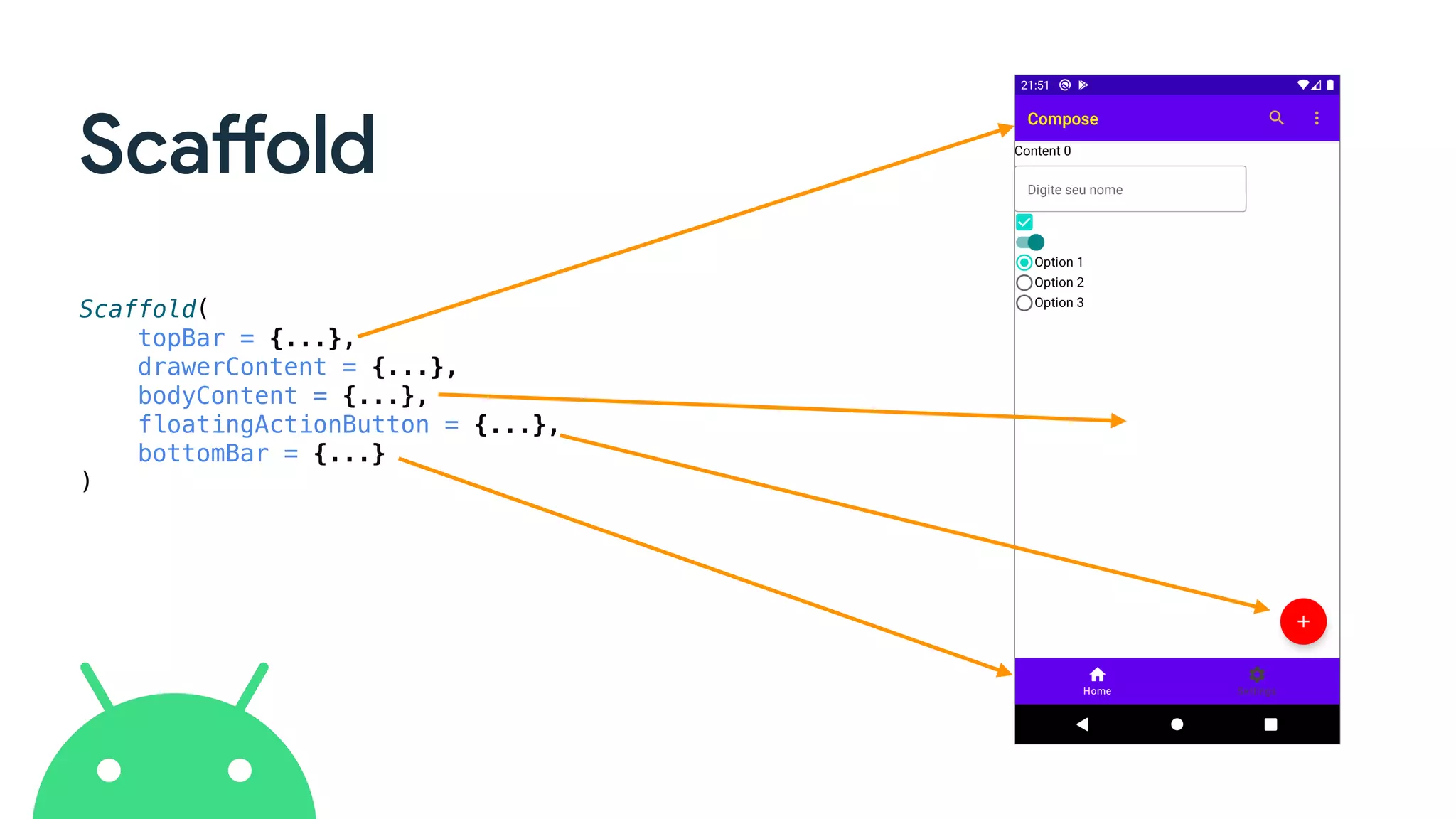

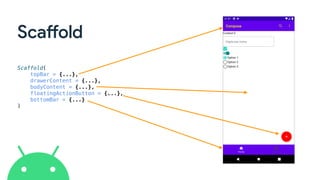

Scaffold Scaffold( topBar = {...}, drawerContent = {...}, bodyContent = {...}, floatingActionButton = {...}, bottomBar = {...} )

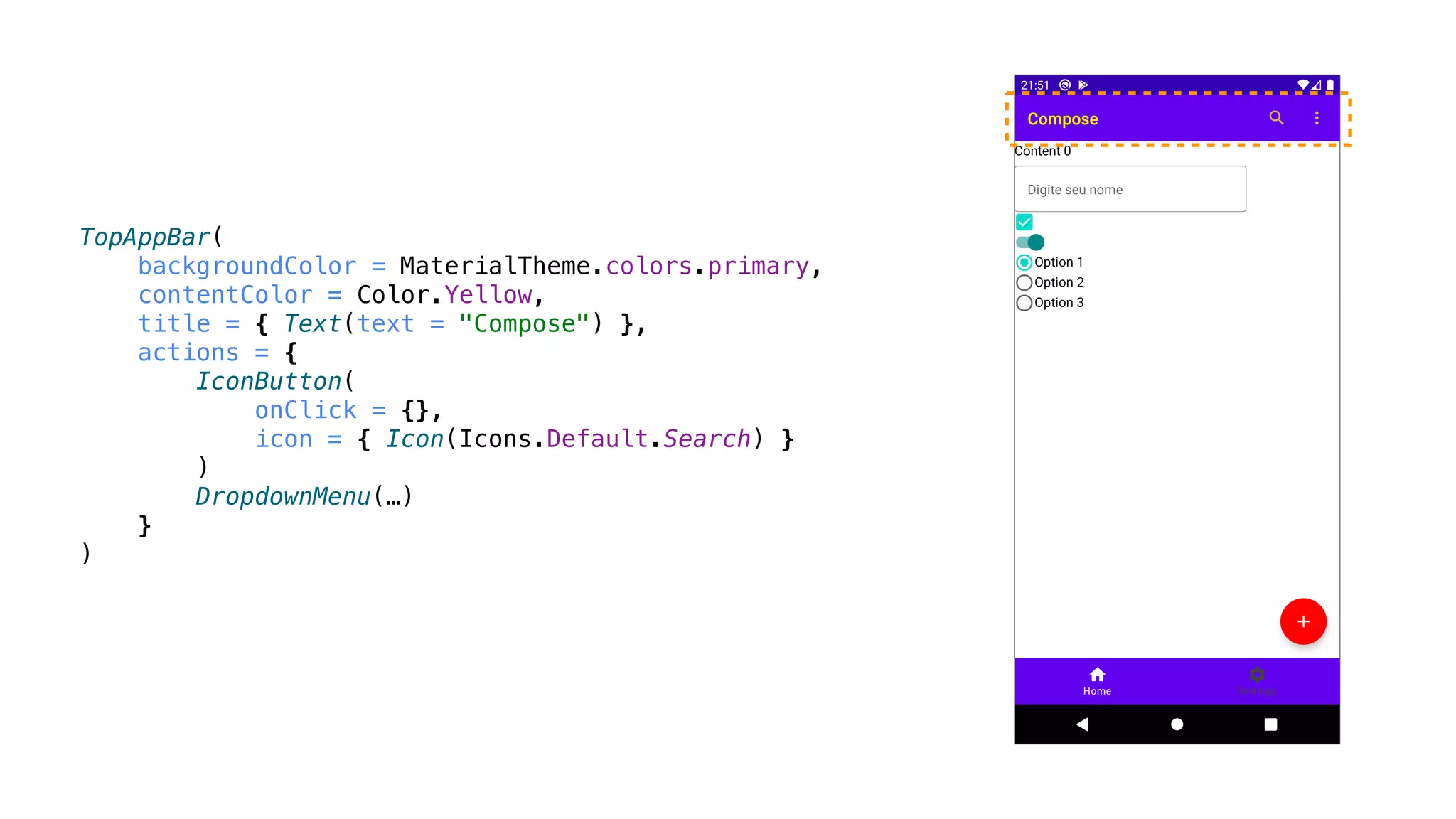

TopAppBar( backgroundColor = MaterialTheme.colors.primary, contentColor = Color.Yellow, title = { Text(text = "Compose") }, actions = { IconButton( onClick = {}, icon = { Icon(Icons.Default.Search) } ) DropdownMenu(…) } )

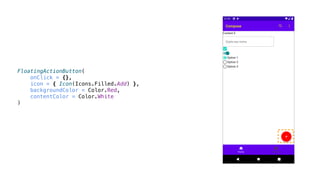

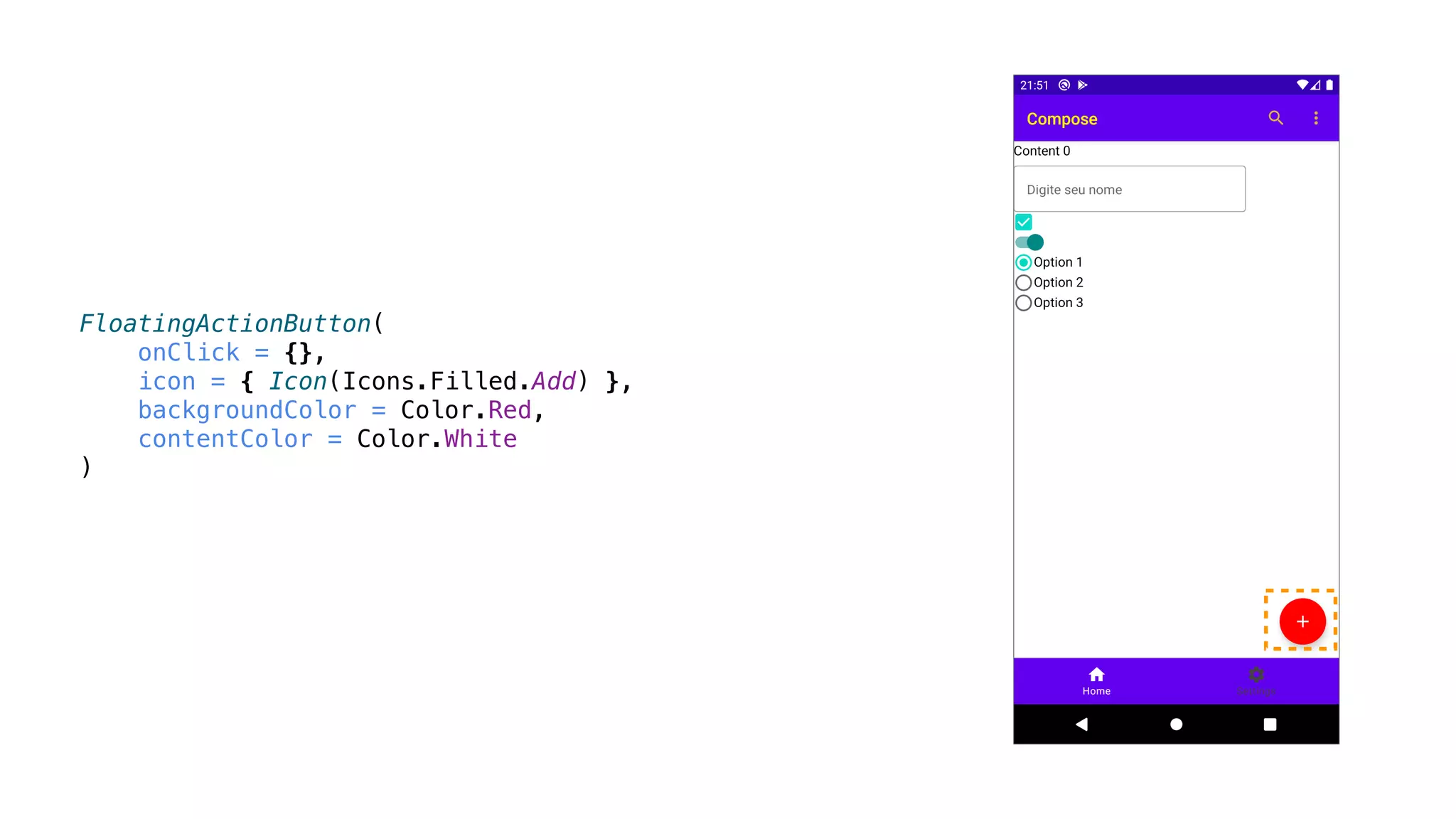

FloatingActionButton( onClick = {}, icon = { Icon(Icons.Filled.Add) }, backgroundColor = Color.Red, contentColor = Color.White )

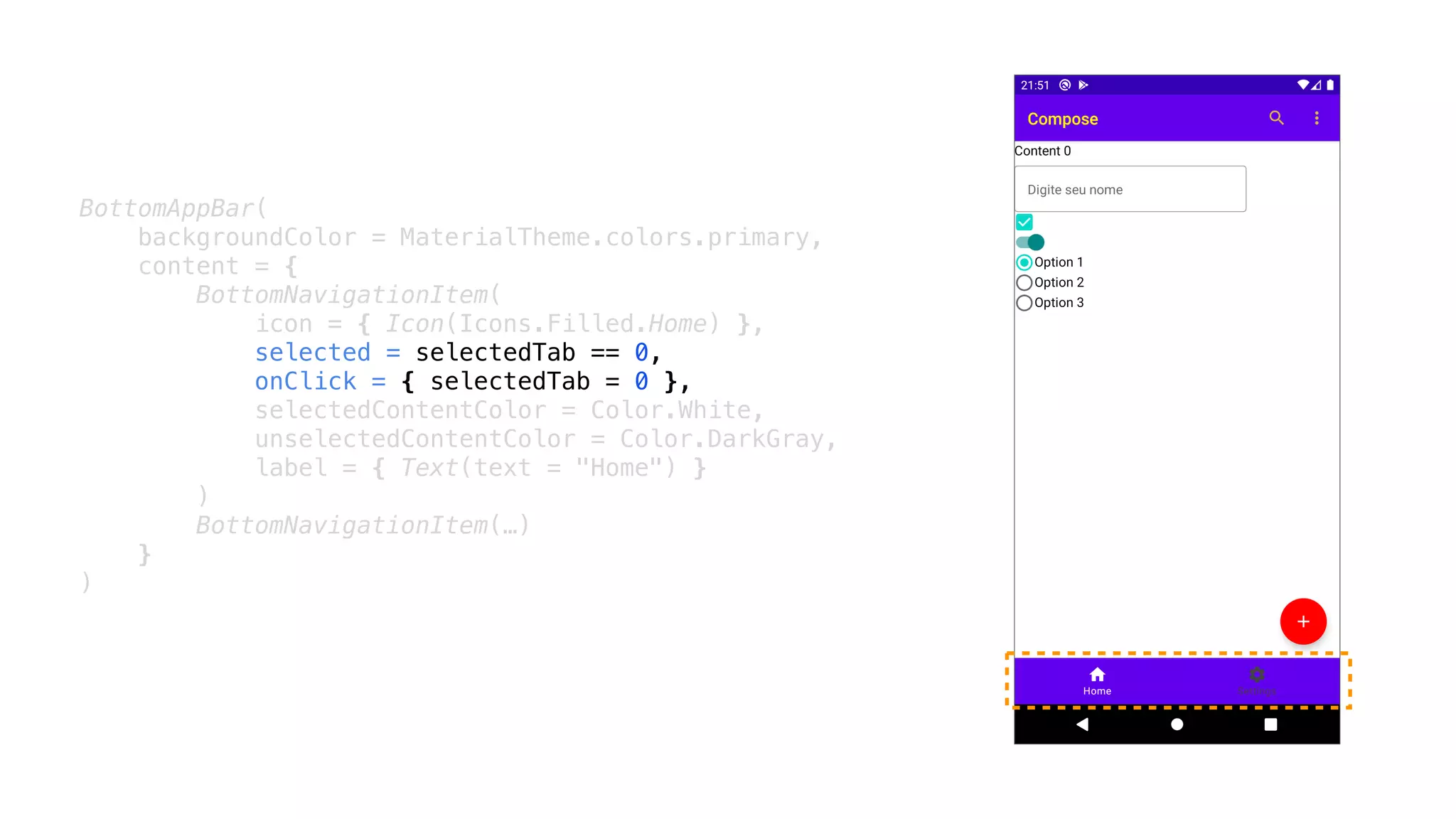

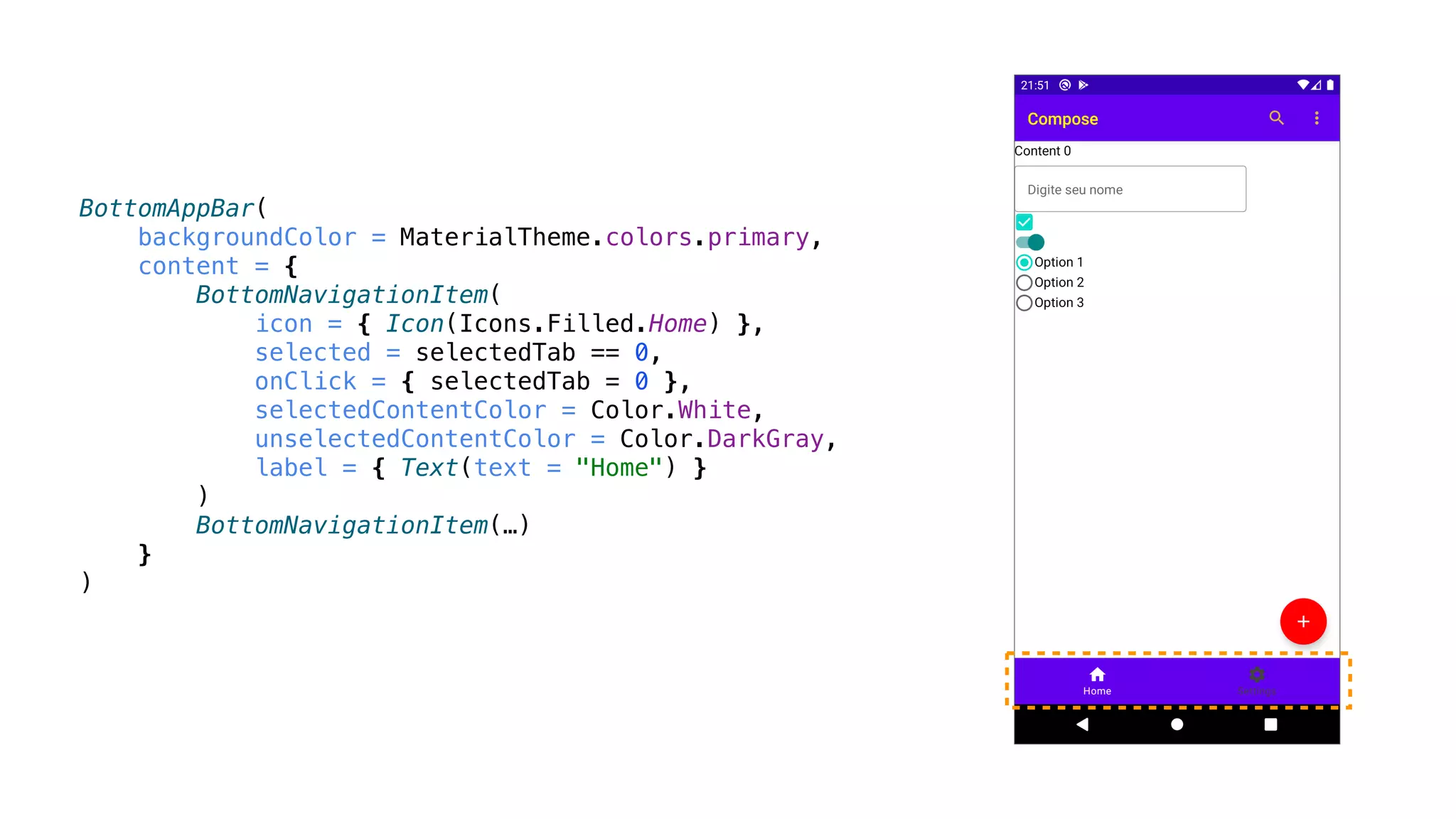

BottomAppBar( backgroundColor = MaterialTheme.colors.primary, content = { BottomNavigationItem( icon = { Icon(Icons.Filled.Home) }, selected = selectedTab == 0, onClick = { selectedTab = 0 }, selectedContentColor = Color.White, unselectedContentColor = Color.DarkGray, label = { Text(text = "Home") } ) BottomNavigationItem(…) } )
BottomAppBar( backgroundColor = MaterialTheme.colors.primary, content = { BottomNavigationItem( icon = { Icon(Icons.Filled.Home) }, selected = selectedTab == 0, onClick = { selectedTab = 0 }, selectedContentColor = Color.White, unselectedContentColor = Color.DarkGray, label = { Text(text = "Home") } ) BottomNavigationItem(…) } )

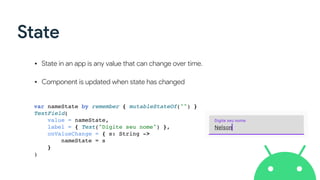

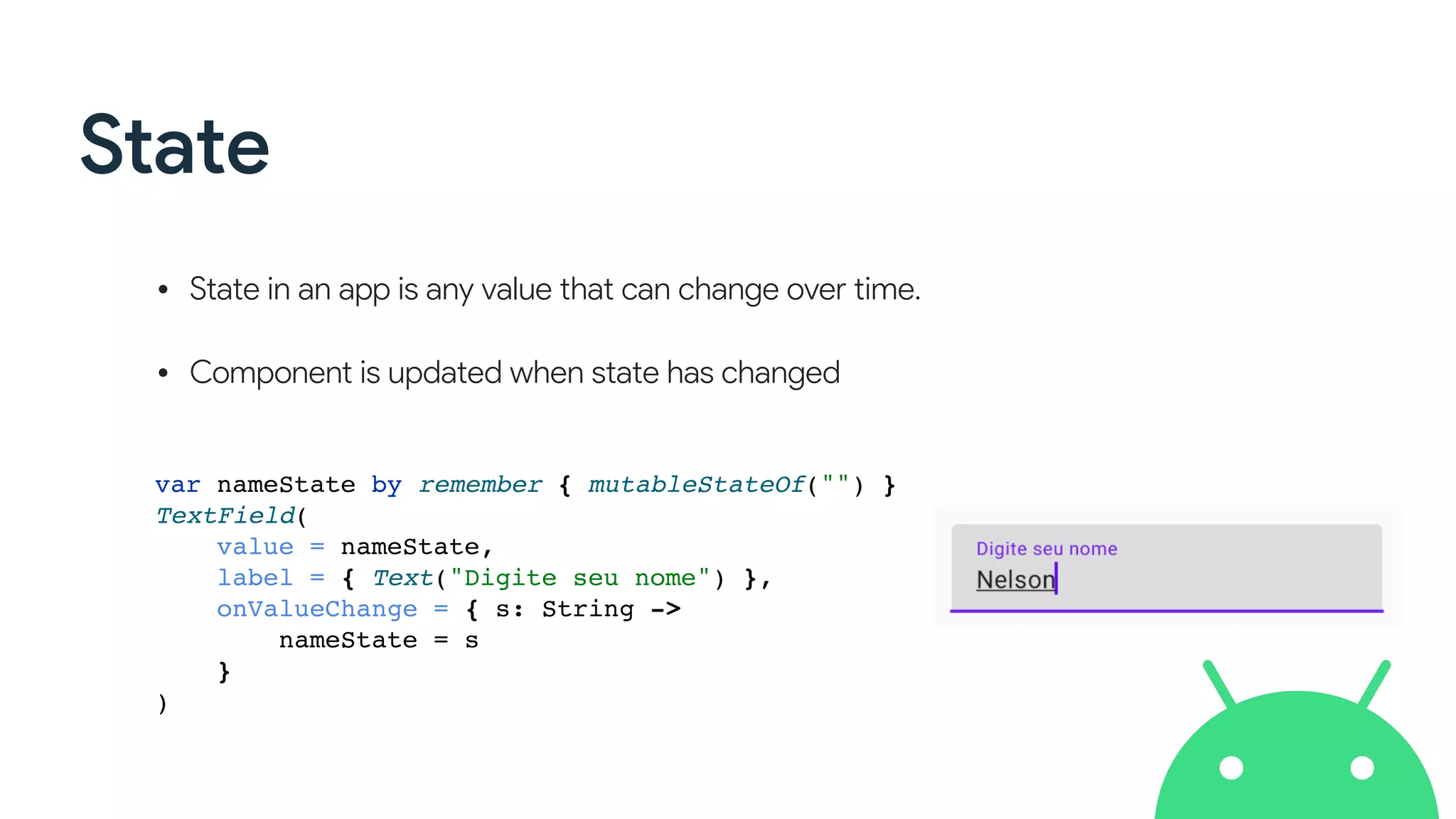

State • State in an app is any value that can change over time.  • Component is updated when state has changed var nameState by remember { mutableStateOf("") } TextField( value = nameState, label = { Text("Digite seu nome") }, onValueChange = { s: String -> nameState = s } )

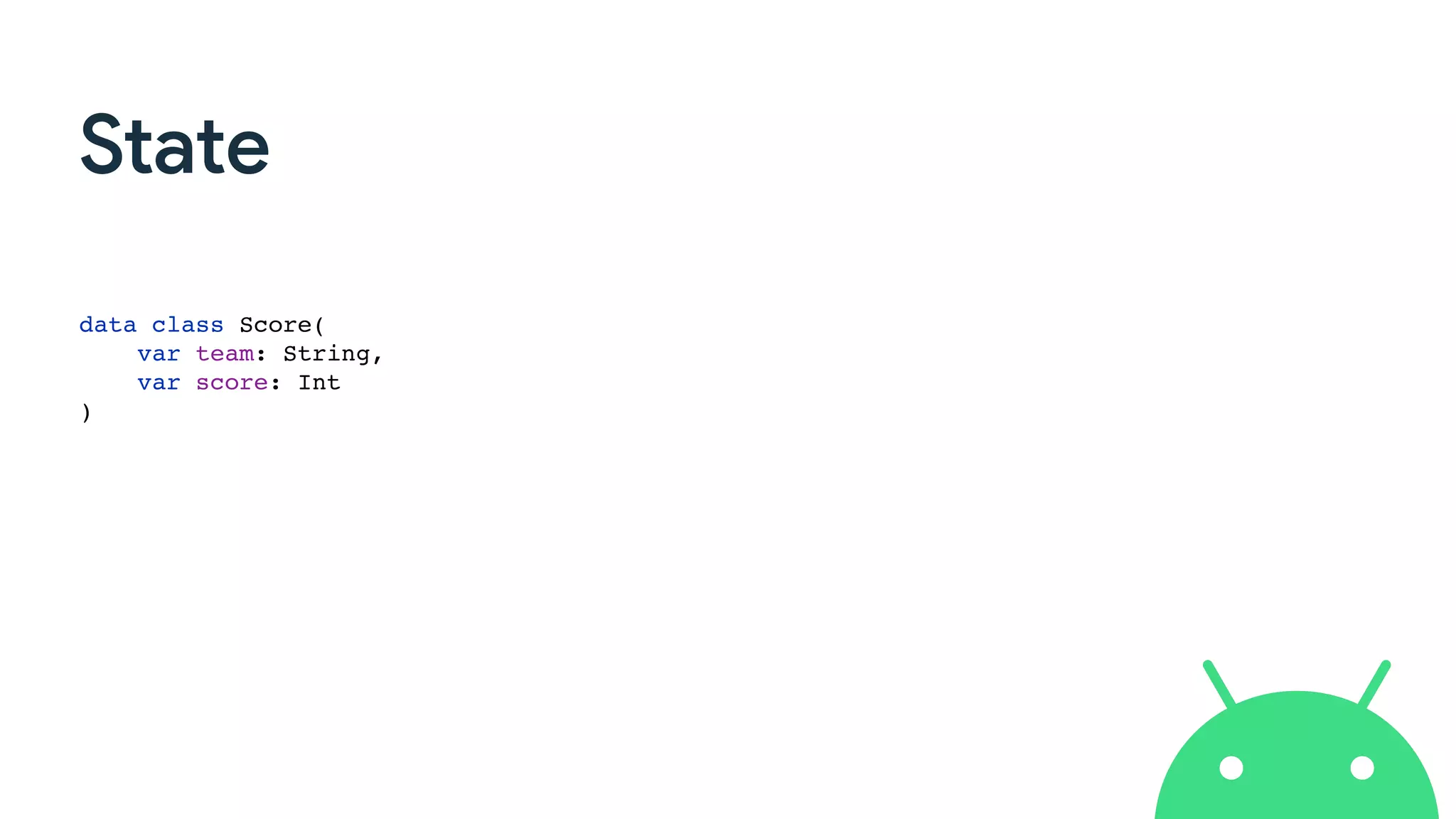

State data class Score( var team: String, var score: Int )

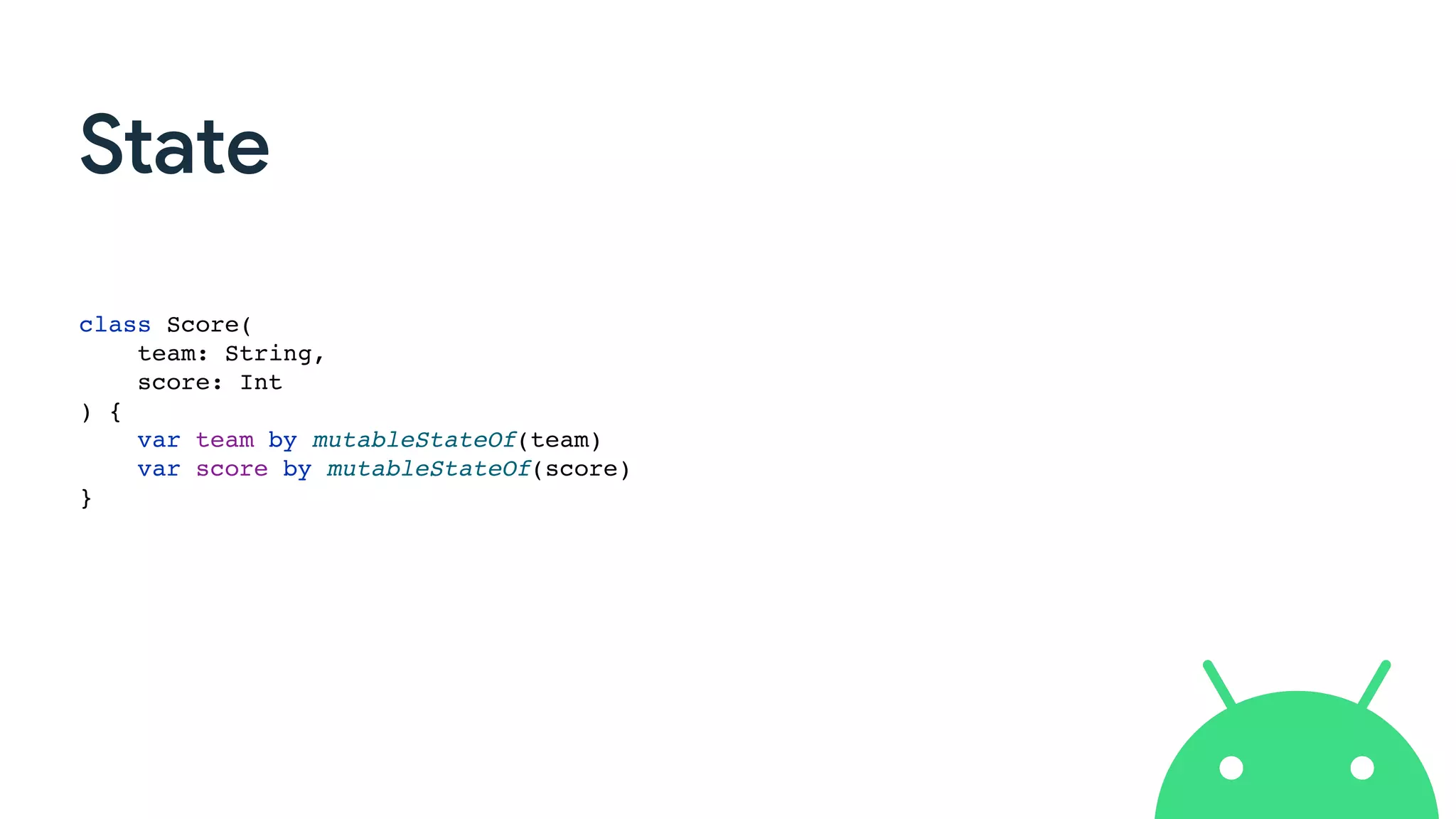

State class Score( team: String, score: Int ) { var team by mutableStateOf(team) var score by mutableStateOf(score) }

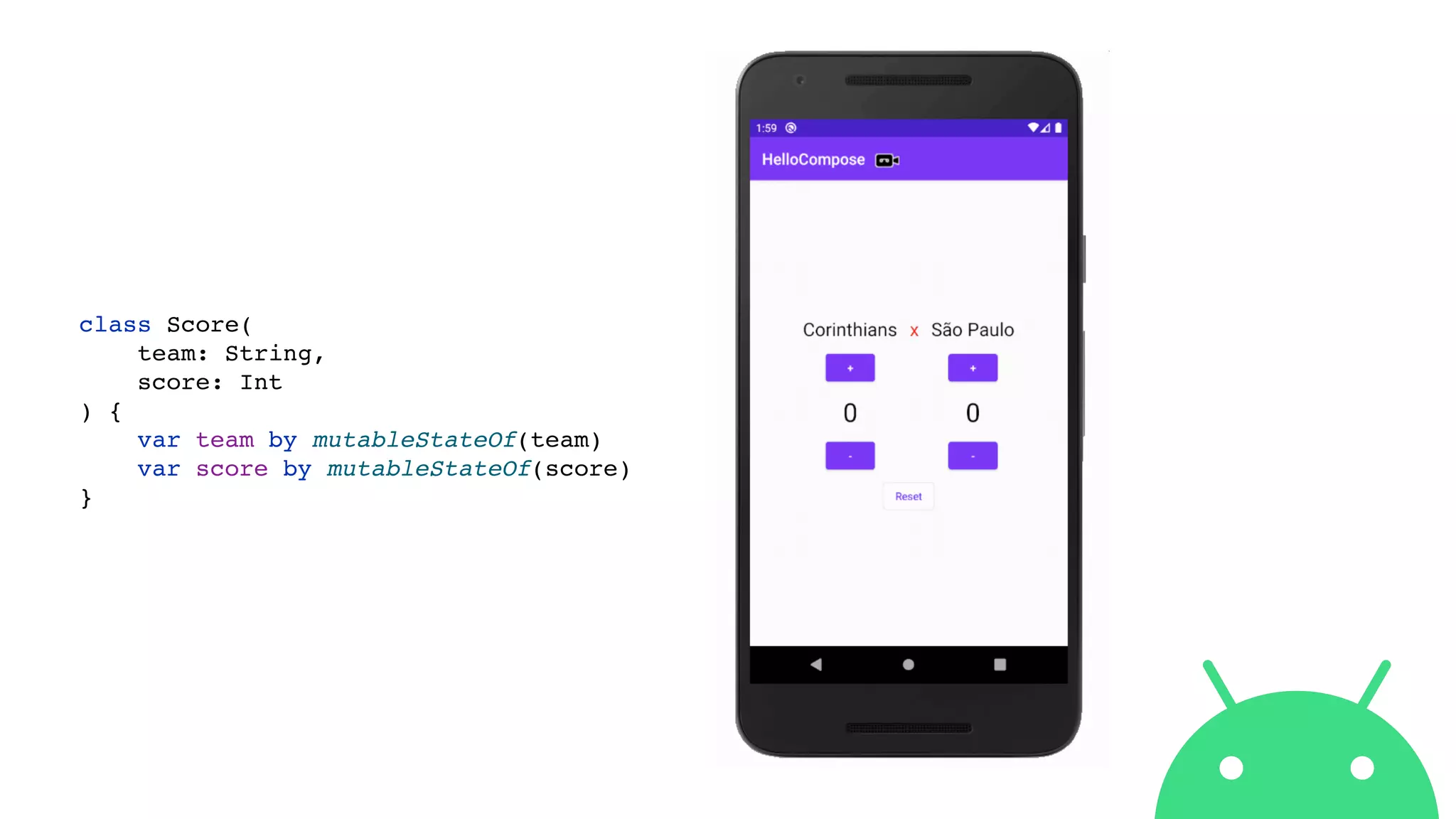

class Score( team: String, score: Int ) { var team by mutableStateOf(team) var score by mutableStateOf(score) }

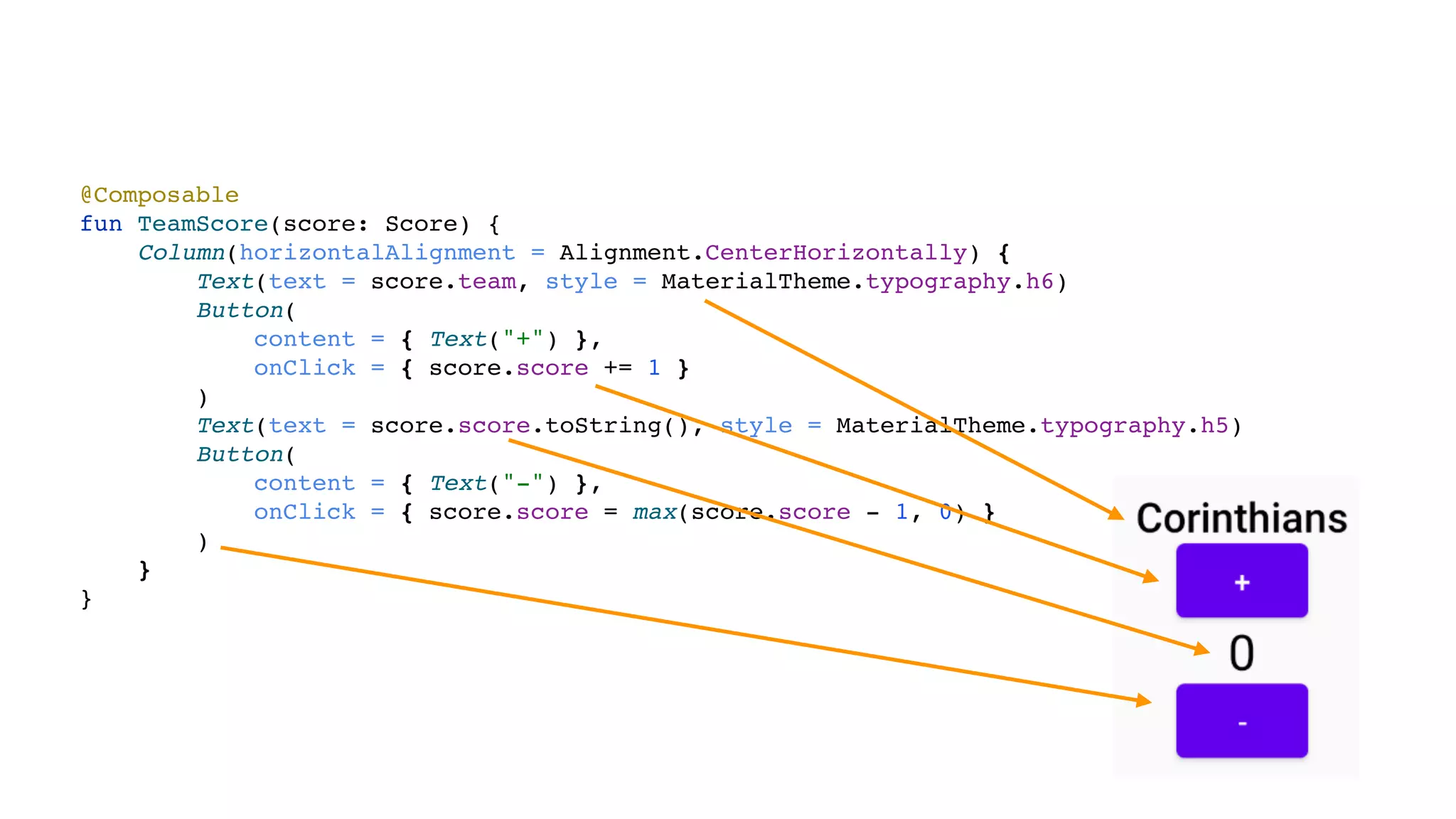

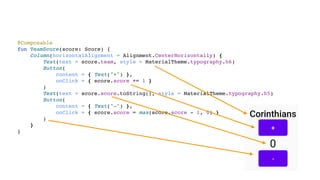

@Composable fun TeamScore(score: Score) { Column(horizontalAlignment = Alignment.CenterHorizontally) { Text(text = score.team, style = MaterialTheme.typography.h6) Button( content = { Text("+") }, onClick = { score.score += 1 } ) Text(text = score.score.toString(), style = MaterialTheme.typography.h5) Button( content = { Text("-") }, onClick = { score.score = max(score.score - 1, 0) } ) } }

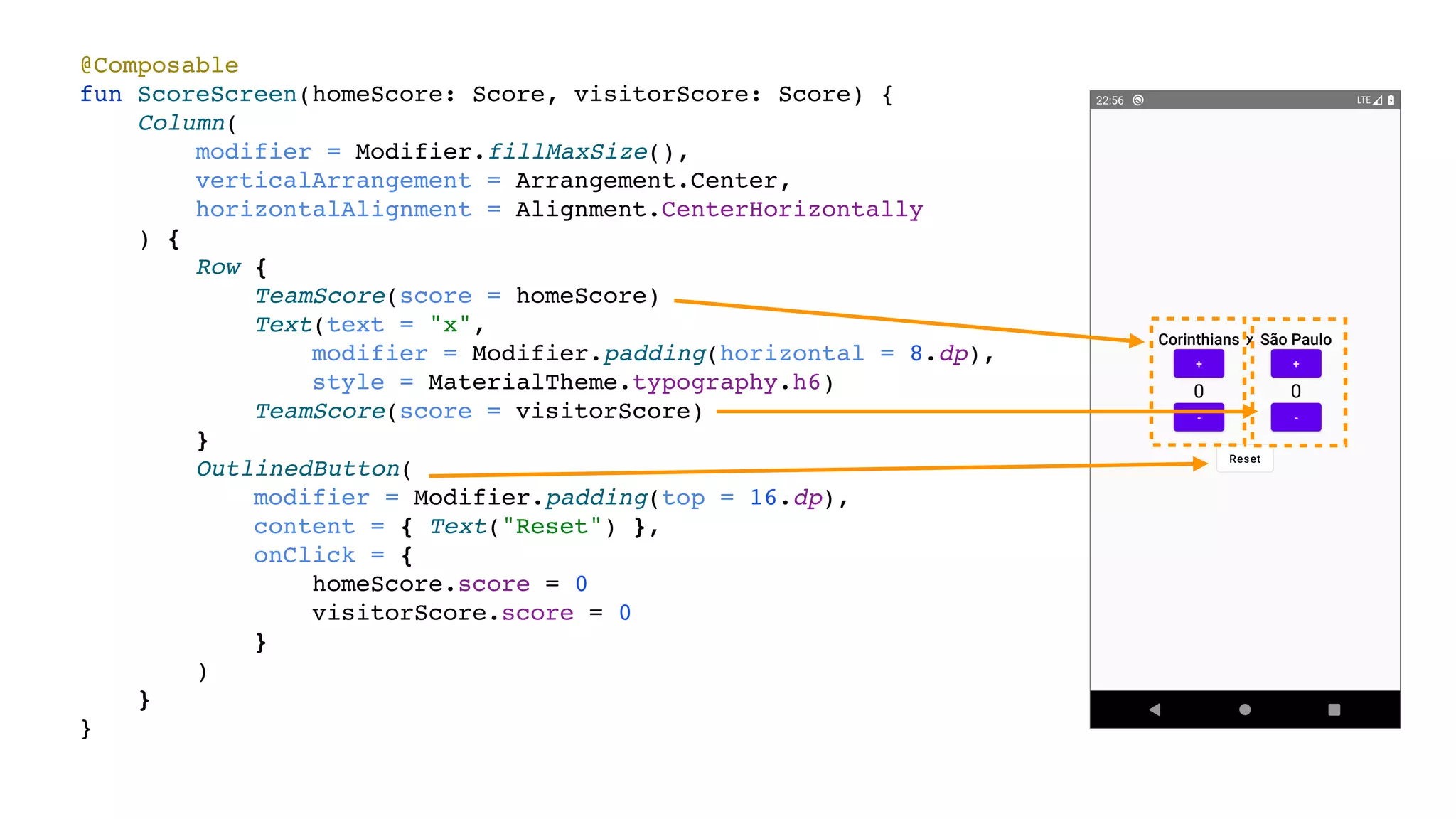

@Composable fun ScoreScreen(homeScore: Score, visitorScore: Score) { Column( modifier = Modifier.fillMaxSize(), verticalArrangement = Arrangement.Center, horizontalAlignment = Alignment.CenterHorizontally ) { Row { TeamScore(score = homeScore) Text(text = "x", modifier = Modifier.padding(horizontal = 8.dp), style = MaterialTheme.typography.h6) TeamScore(score = visitorScore) } OutlinedButton( modifier = Modifier.padding(top = 16.dp), content = { Text("Reset") }, onClick = { homeScore.score = 0 visitorScore.score = 0 } ) } }
Compose in your MVVM app

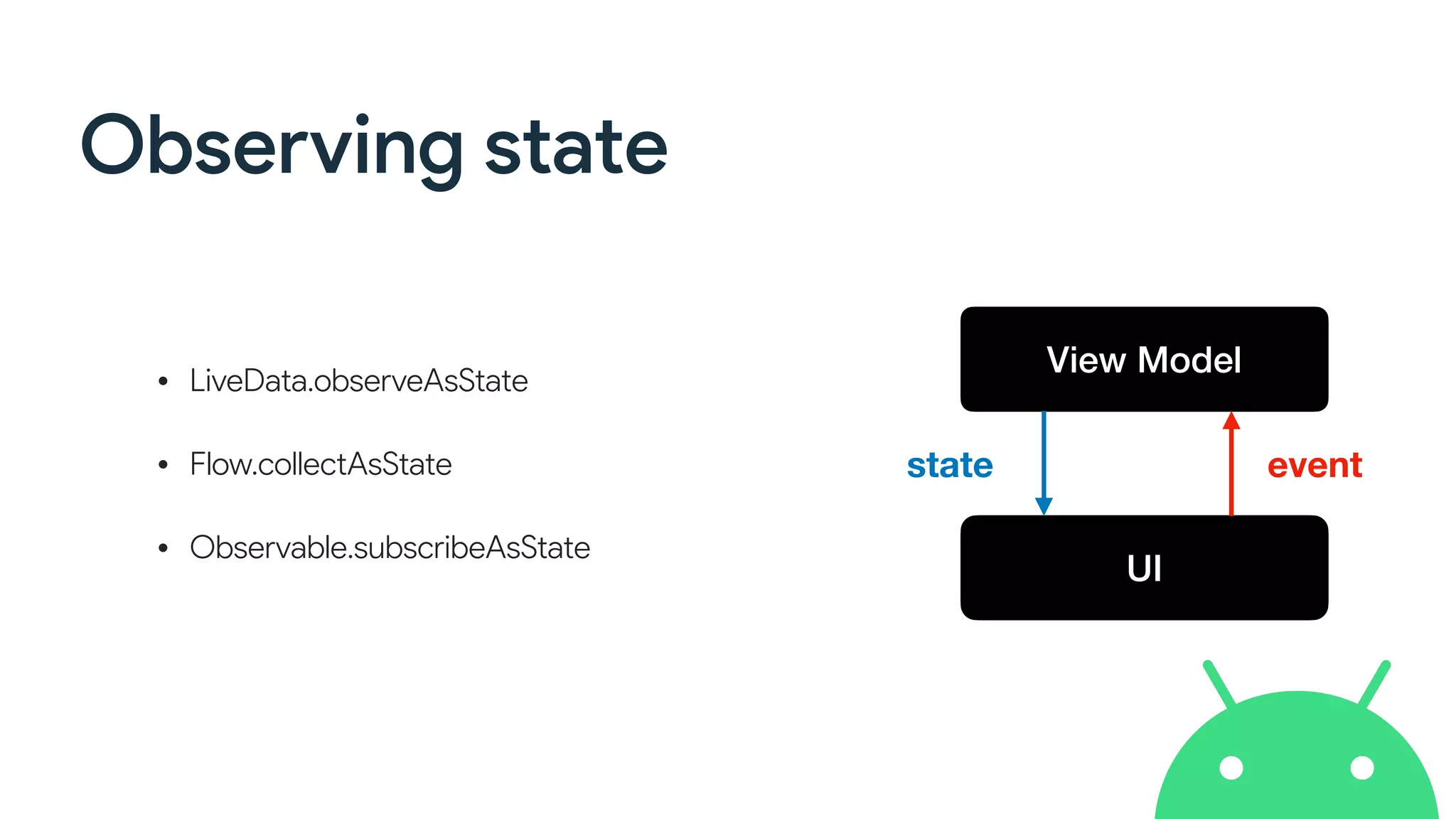

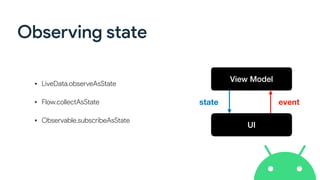

Observing state • LiveData.observeAsState • Flow.collectAsState • Observable.subscribeAsState View Model UI state event

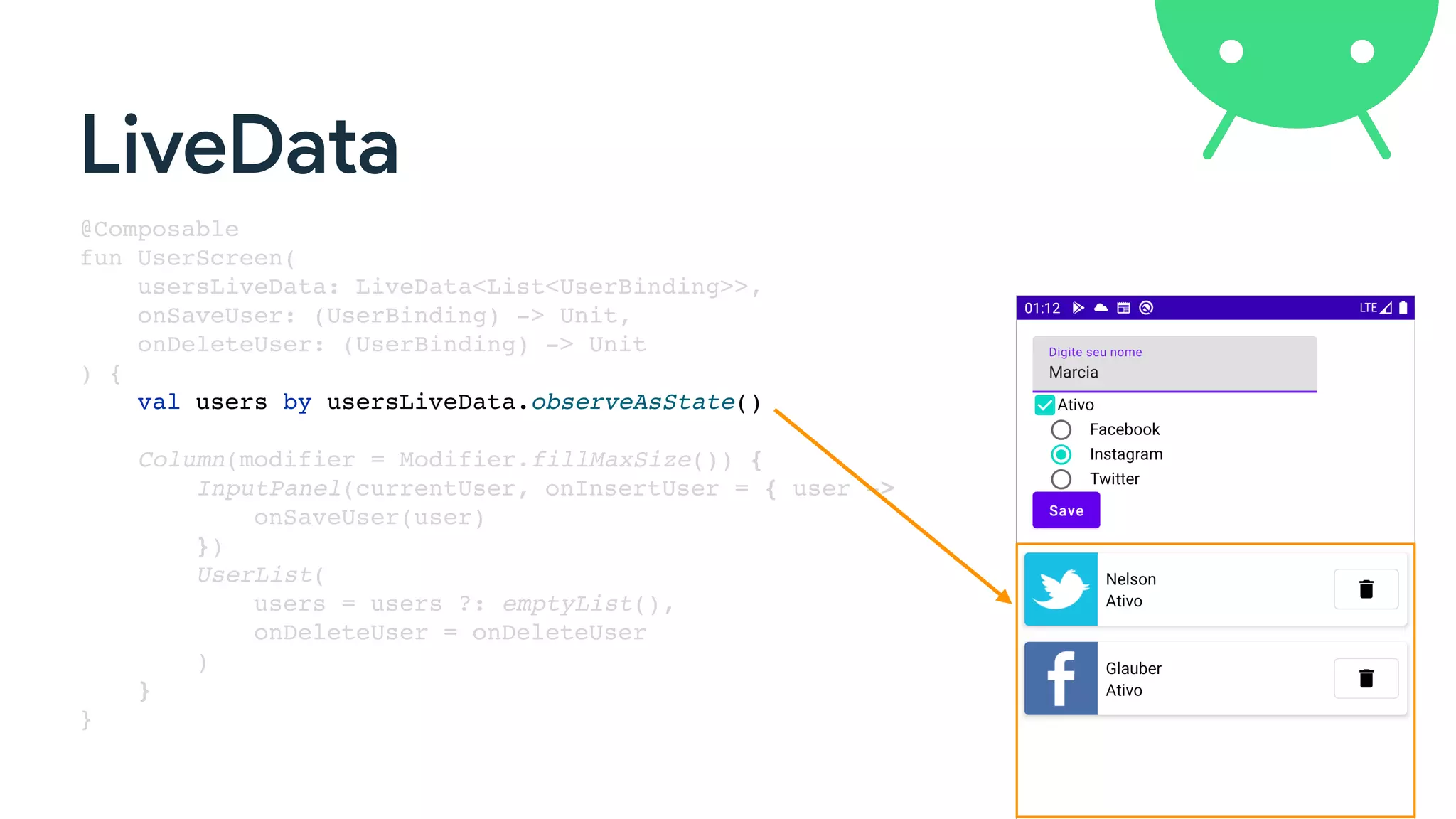

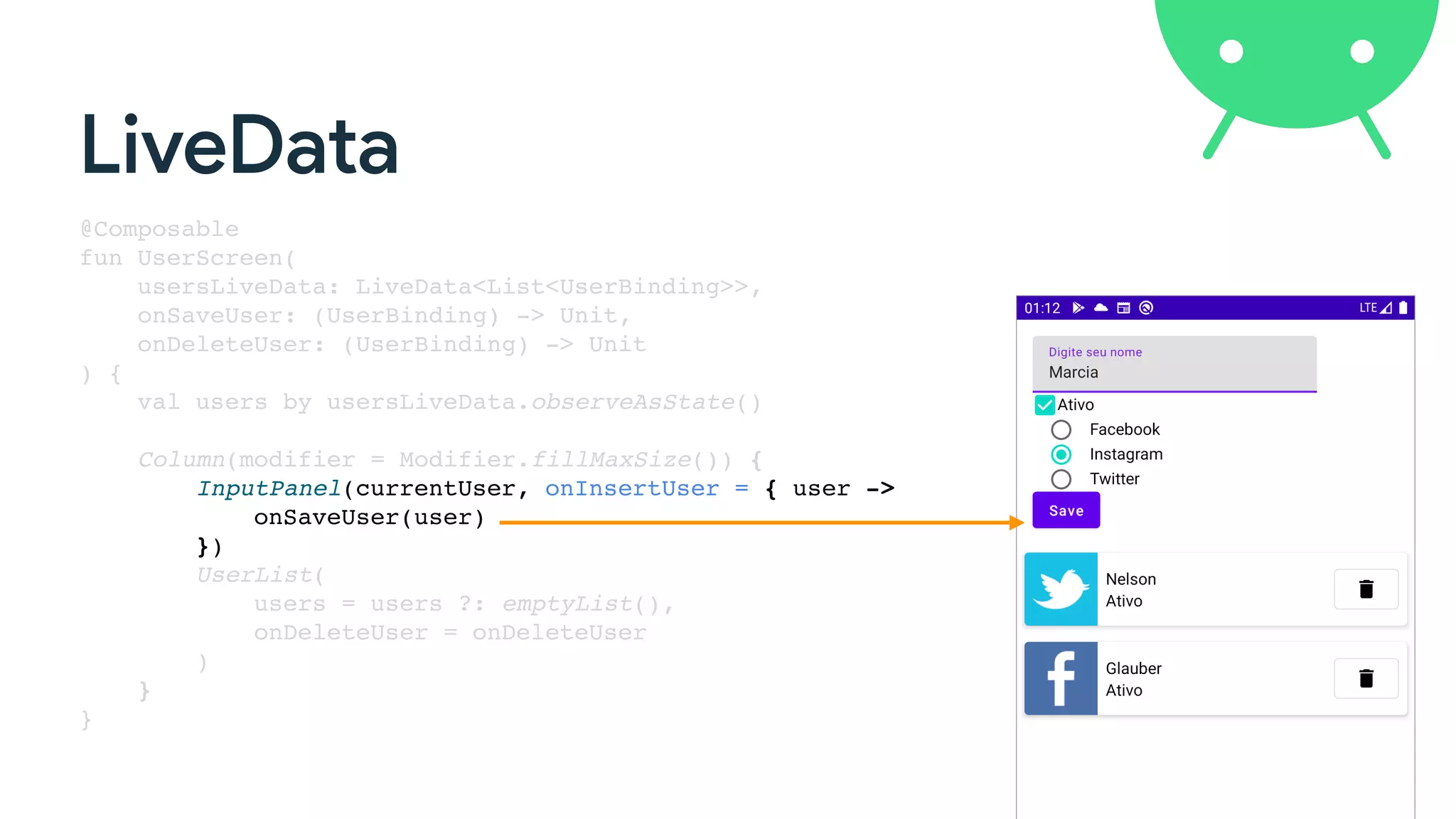

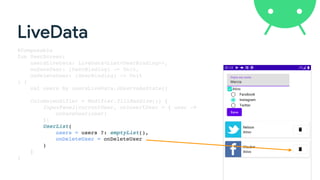

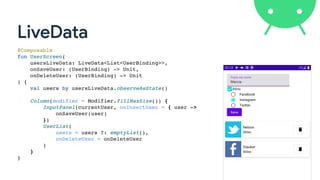

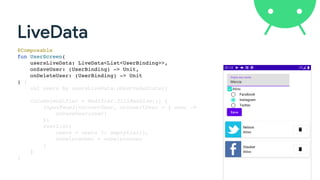

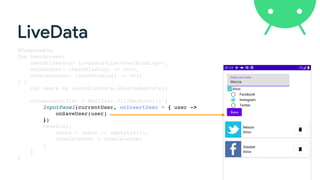

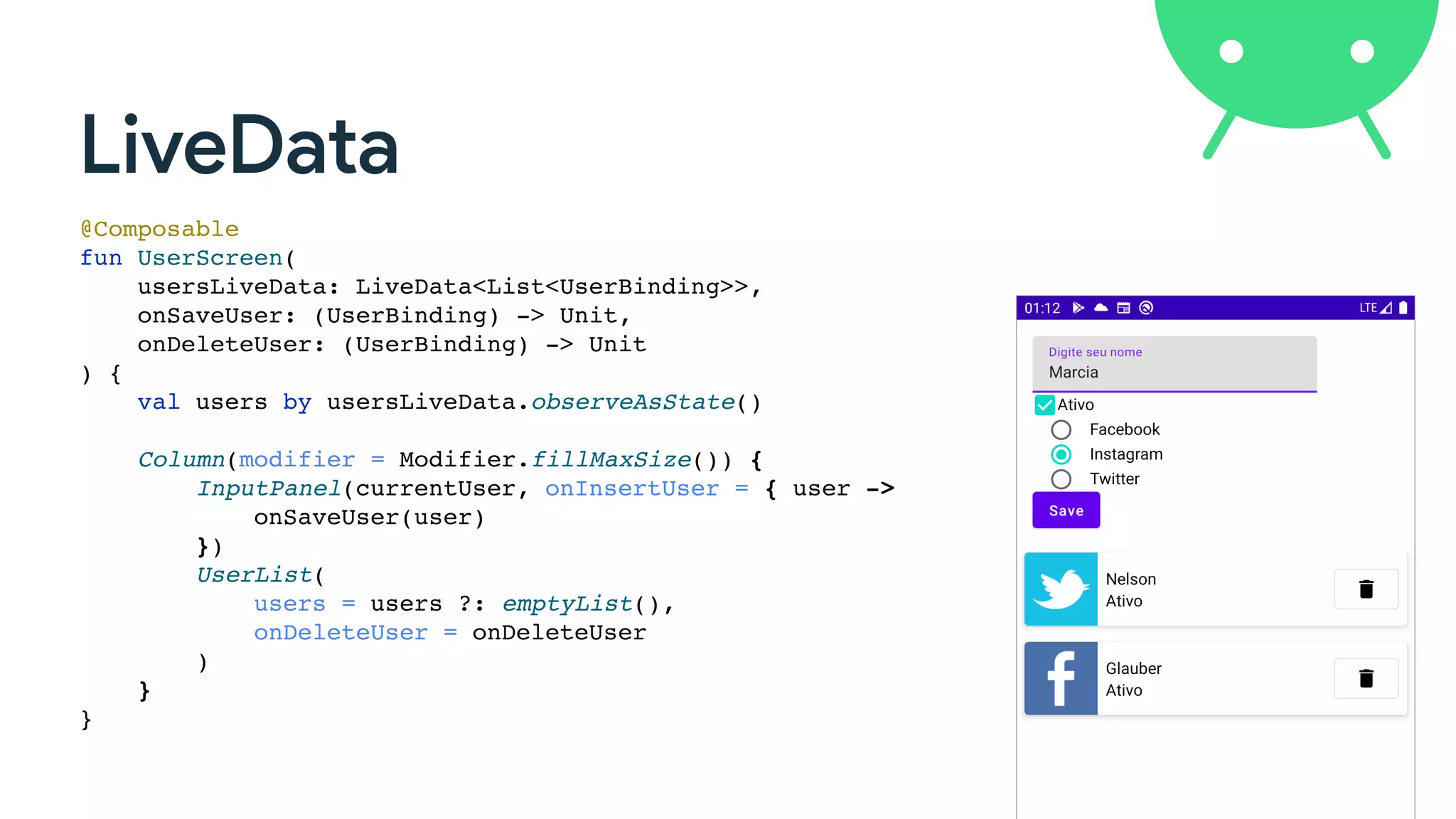

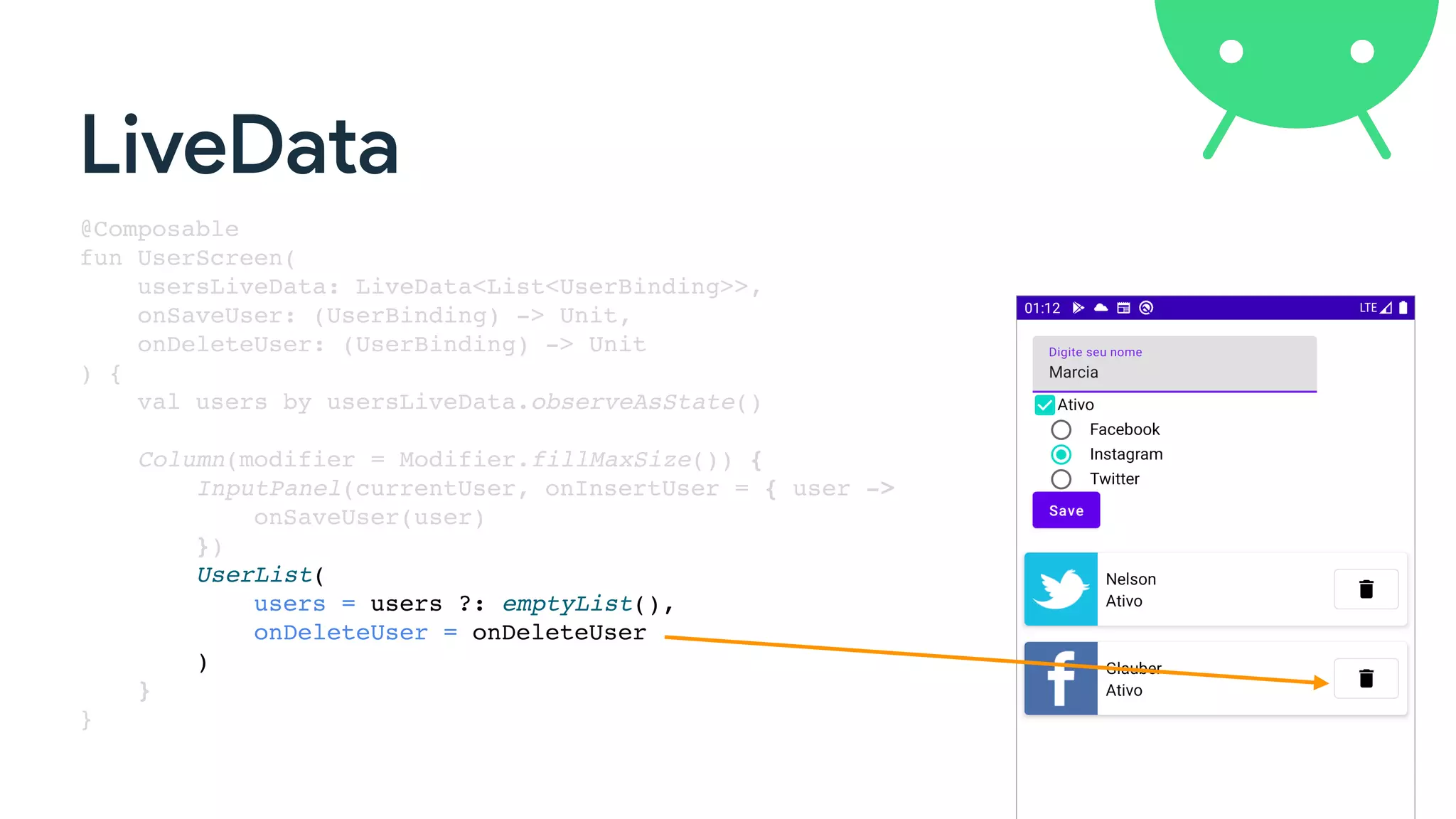

LiveData @Composable fun UserScreen( usersLiveData: LiveData<List<UserBinding>>, onSaveUser: (UserBinding) -> Unit, onDeleteUser: (UserBinding) -> Unit ) { val users by usersLiveData.observeAsState() Column(modifier = Modifier.fillMaxSize()) { InputPanel(currentUser, onInsertUser = { user -> onSaveUser(user) }) UserList( users = users ?: emptyList(), onDeleteUser = onDeleteUser ) } }

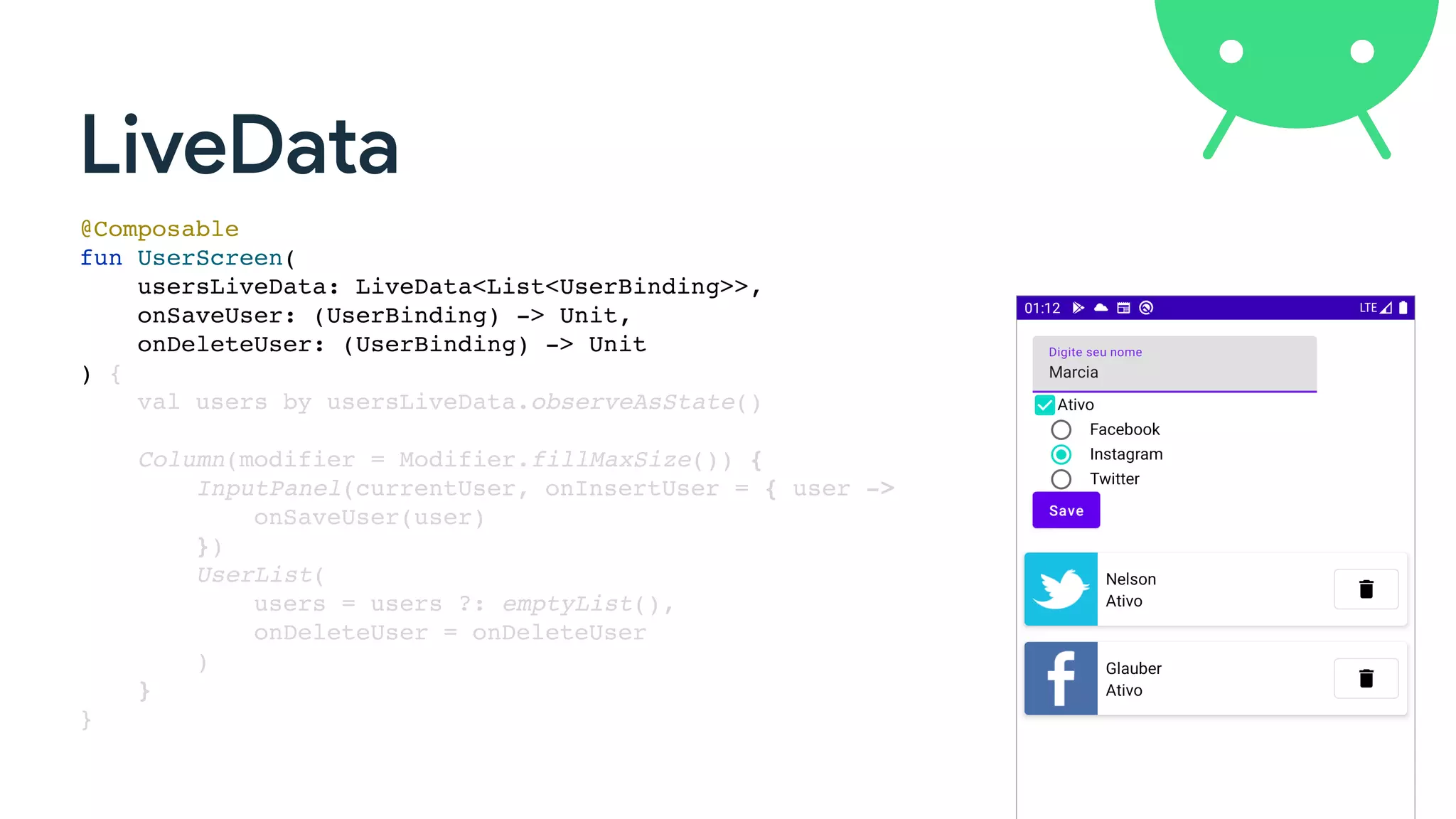

LiveData @Composable fun UserScreen( usersLiveData: LiveData<List<UserBinding>>, onSaveUser: (UserBinding) -> Unit, onDeleteUser: (UserBinding) -> Unit ) { val users by usersLiveData.observeAsState() Column(modifier = Modifier.fillMaxSize()) { InputPanel(currentUser, onInsertUser = { user -> onSaveUser(user) }) UserList( users = users ?: emptyList(), onDeleteUser = onDeleteUser ) } }
LiveData @Composable fun UserScreen( usersLiveData: LiveData<List<UserBinding>>, onSaveUser: (UserBinding) -> Unit, onDeleteUser: (UserBinding) -> Unit ) { val users by usersLiveData.observeAsState() Column(modifier = Modifier.fillMaxSize()) { InputPanel(currentUser, onInsertUser = { user -> onSaveUser(user) }) UserList( users = users ?: emptyList(), onDeleteUser = onDeleteUser ) } }
LiveData @Composable fun UserScreen( usersLiveData: LiveData<List<UserBinding>>, onSaveUser: (UserBinding) -> Unit, onDeleteUser: (UserBinding) -> Unit ) { val users by usersLiveData.observeAsState() Column(modifier = Modifier.fillMaxSize()) { InputPanel(currentUser, onInsertUser = { user -> onSaveUser(user) }) UserList( users = users ?: emptyList(), onDeleteUser = onDeleteUser ) } }
LiveData @Composable fun UserScreen( usersLiveData: LiveData<List<UserBinding>>, onSaveUser: (UserBinding) -> Unit, onDeleteUser: (UserBinding) -> Unit ) { val users by usersLiveData.observeAsState() Column(modifier = Modifier.fillMaxSize()) { InputPanel(currentUser, onInsertUser = { user -> onSaveUser(user) }) UserList( users = users ?: emptyList(), onDeleteUser = onDeleteUser ) } }

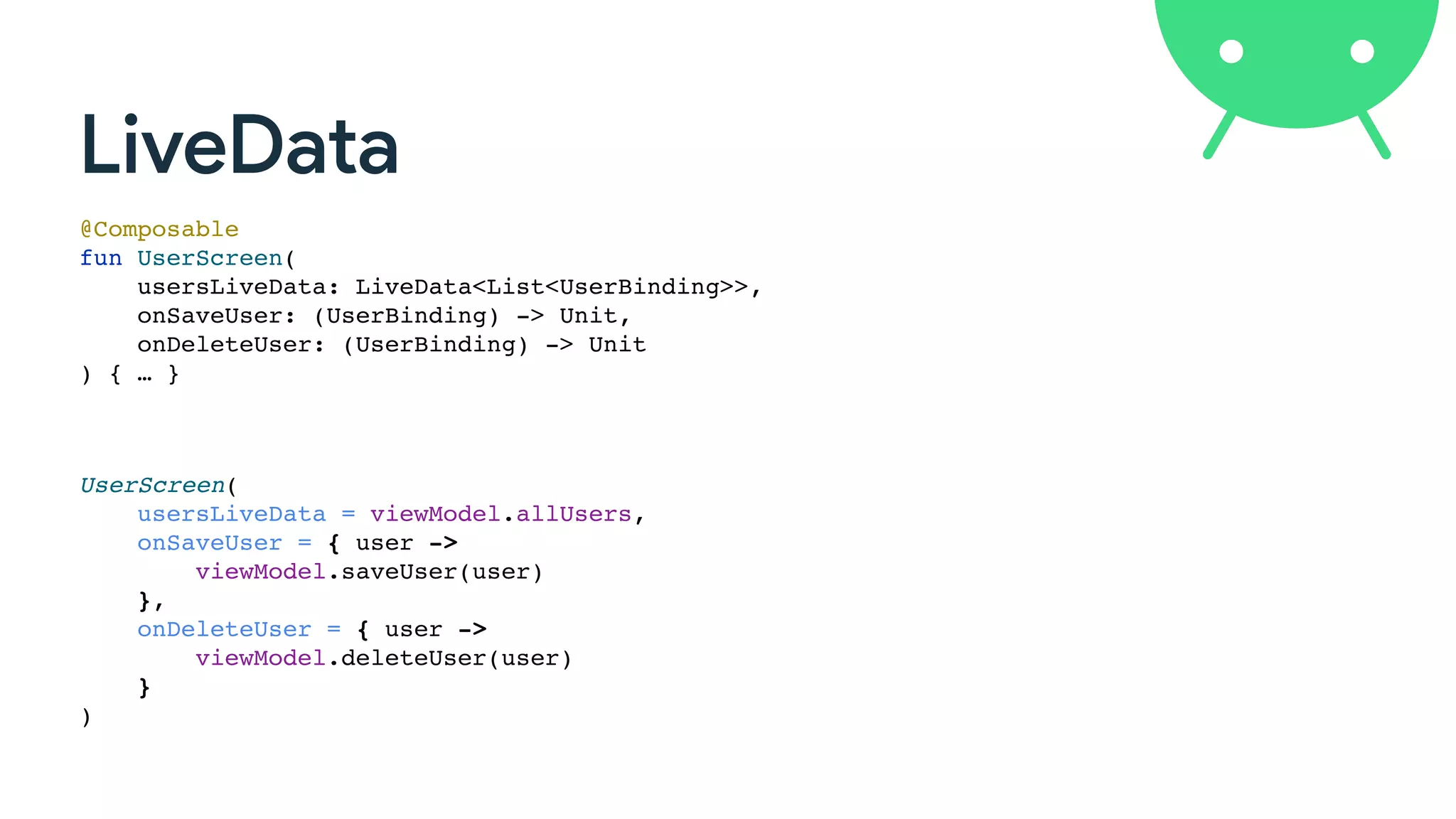

LiveData UserScreen( usersLiveData = viewModel.allUsers, onSaveUser = { user -> viewModel.saveUser(user) }, onDeleteUser = { user -> viewModel.deleteUser(user) } ) @Composable fun UserScreen( usersLiveData: LiveData<List<UserBinding>>, onSaveUser: (UserBinding) -> Unit, onDeleteUser: (UserBinding) -> Unit ) { … }

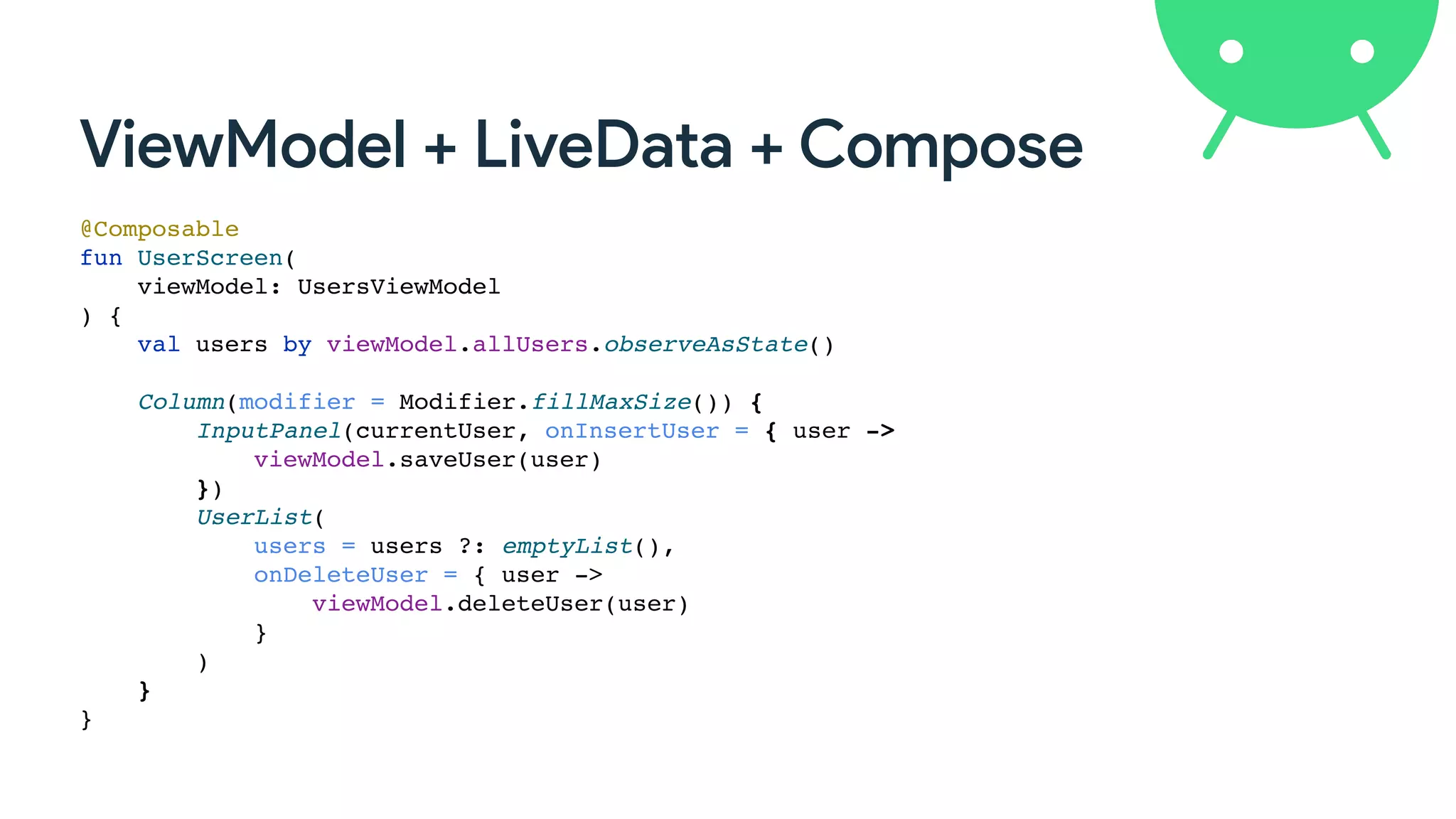

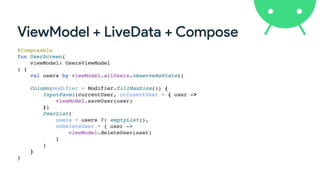

ViewModel + LiveData + Compose @Composable fun UserScreen( viewModel: UsersViewModel ) { val users by viewModel.allUsers.observeAsState() Column(modifier = Modifier.fillMaxSize()) { InputPanel(currentUser, onInsertUser = { user -> viewModel.saveUser(user) }) UserList( users = users ?: emptyList(), onDeleteUser = { user -> viewModel.deleteUser(user) } ) } }

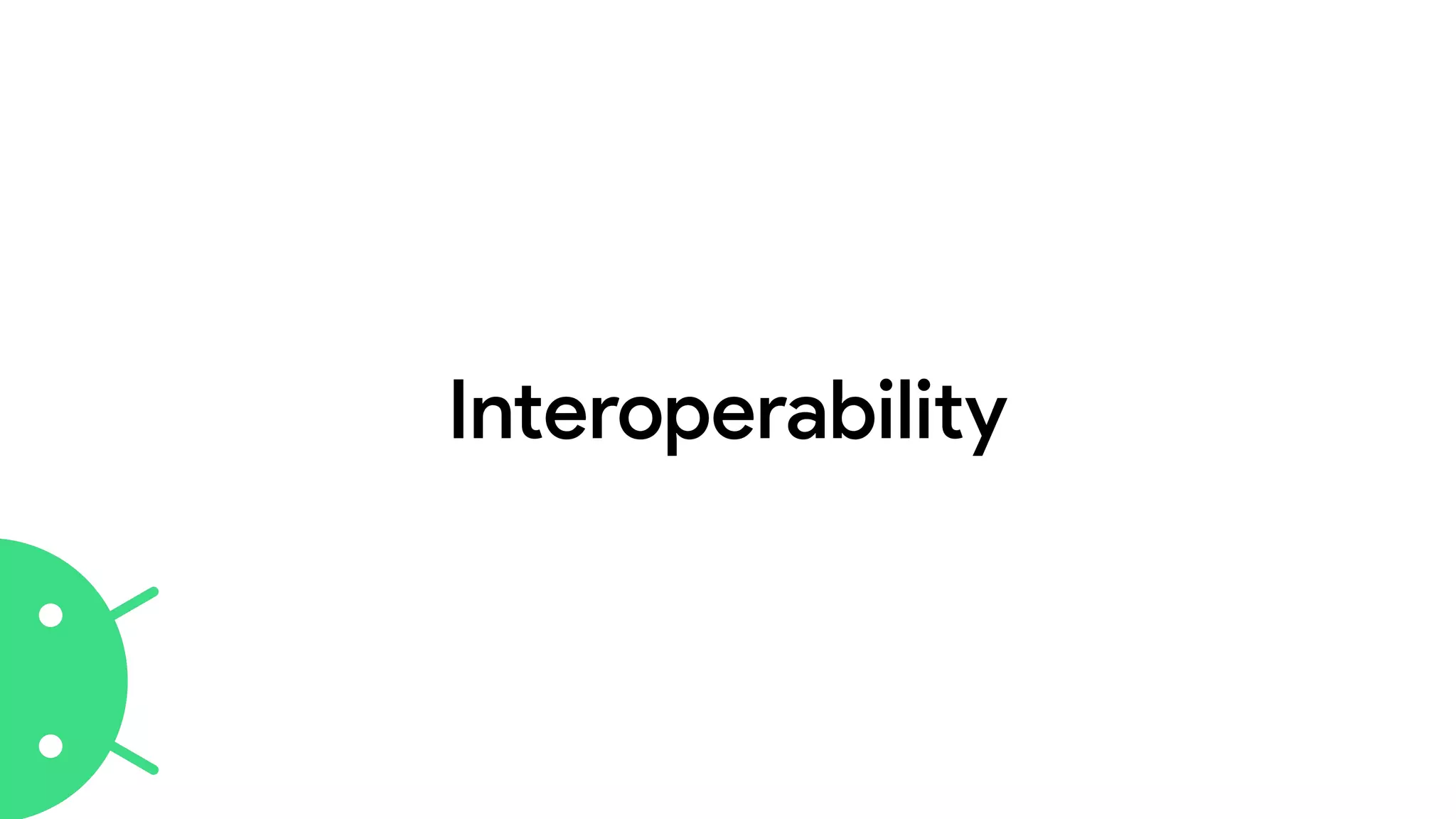

Interoperability

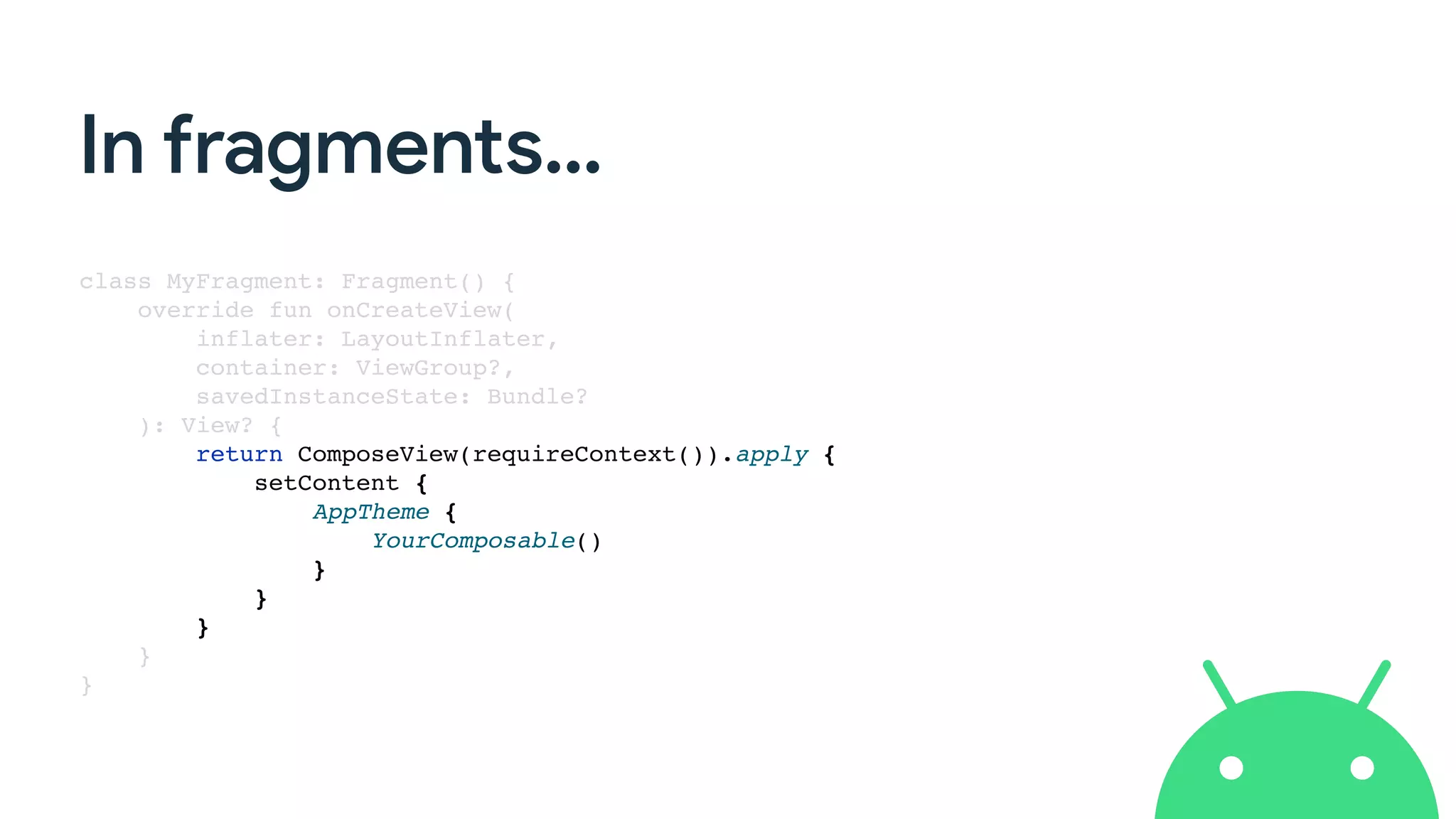

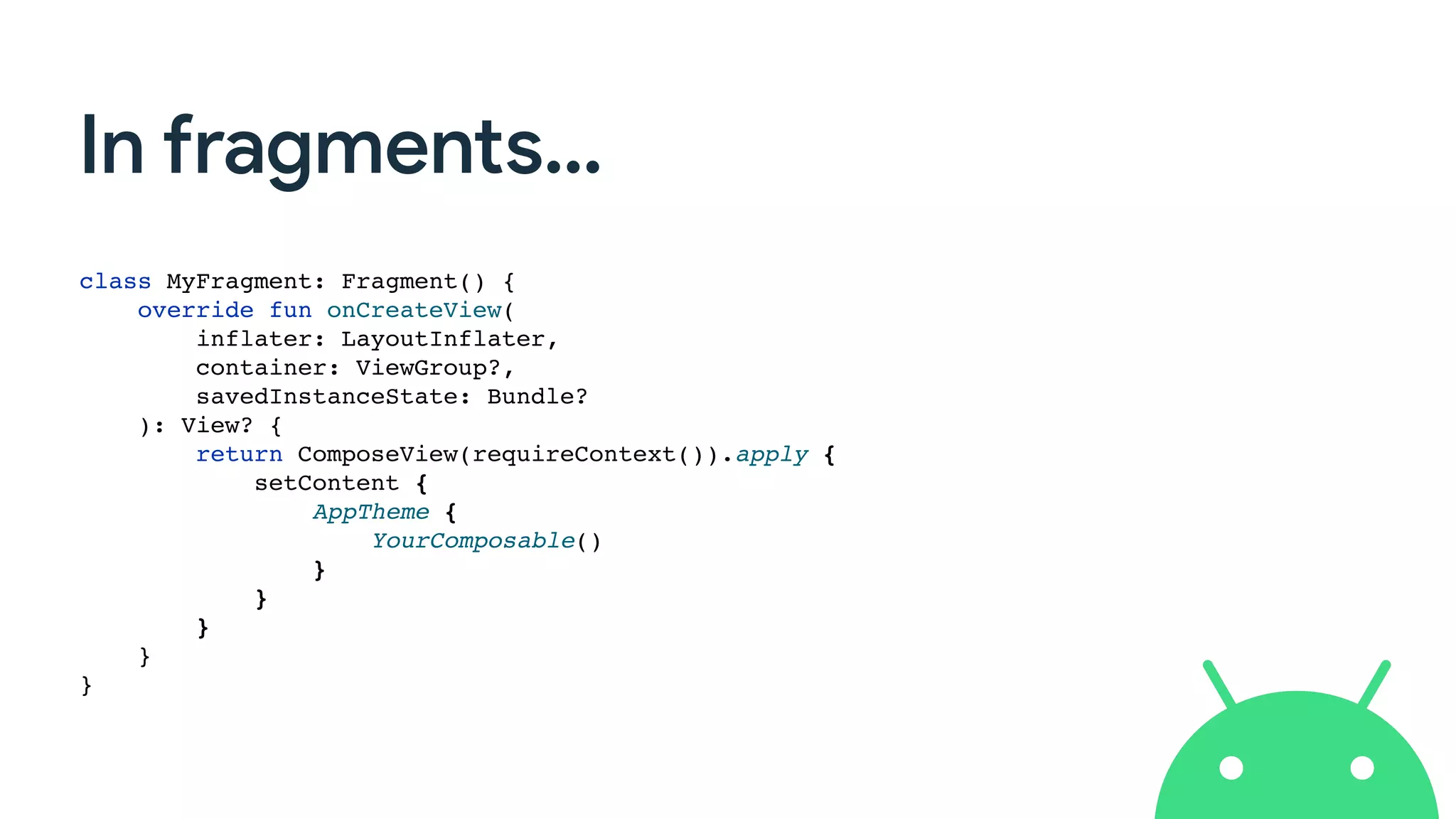

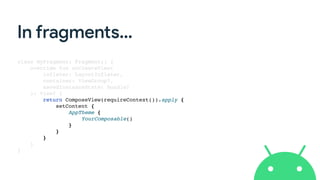

In fragments… class MyFragment: Fragment() { override fun onCreateView( inflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle? ): View? { return ComposeView(requireContext()).apply { setContent { AppTheme { YourComposable() } } } } }
In fragments… class MyFragment: Fragment() { override fun onCreateView( inflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle? ): View? { return ComposeView(requireContext()).apply { setContent { AppTheme { YourComposable() } } } } }

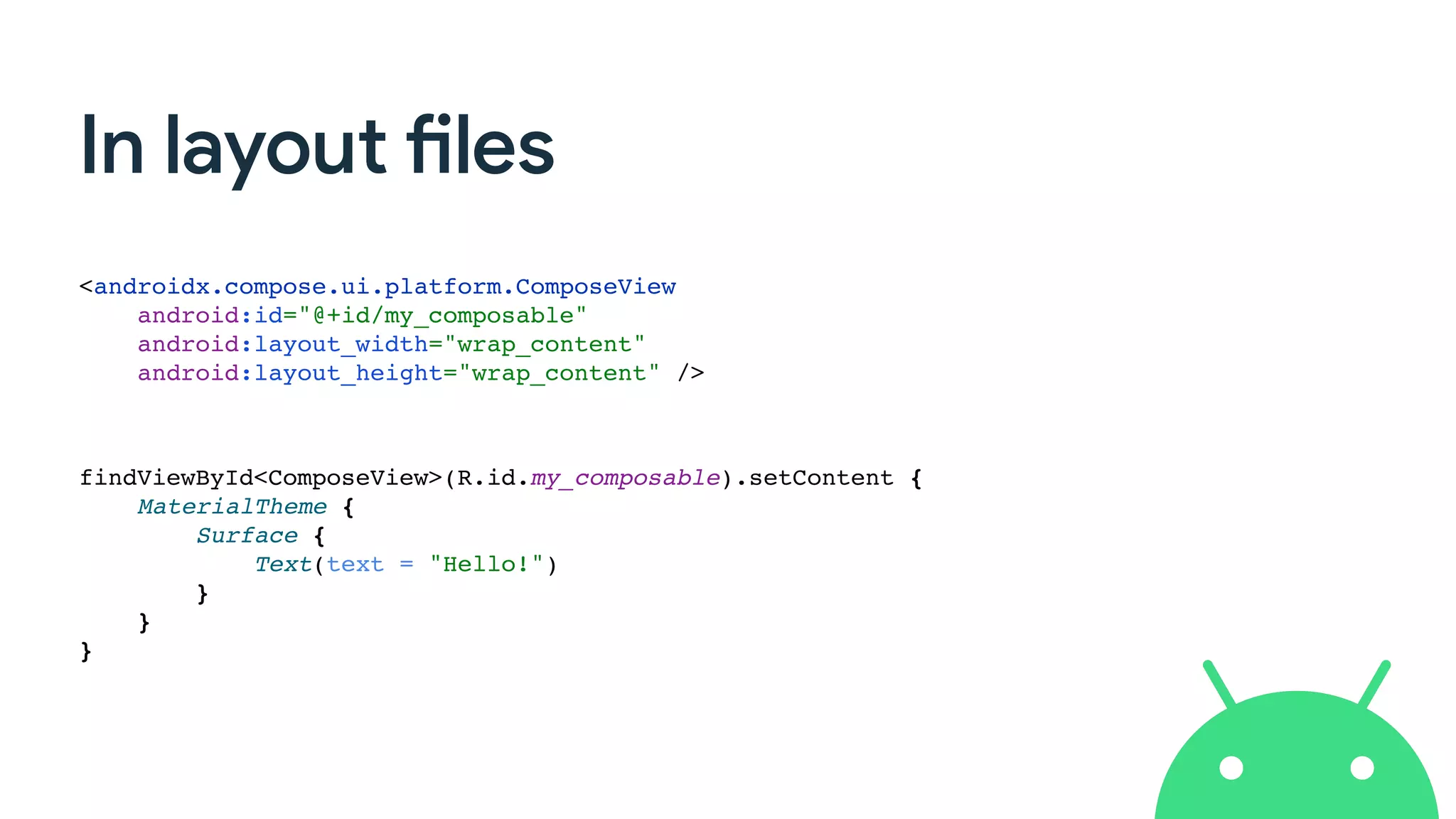

In layout files <androidx.compose.ui.platform.ComposeView android:id="@+id/my_composable" android:layout_width="wrap_content" android:layout_height="wrap_content" /> findViewById<ComposeView>(R.id.my_composable).setContent { MaterialTheme { Surface { Text(text = "Hello!") } } }

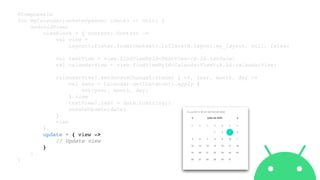

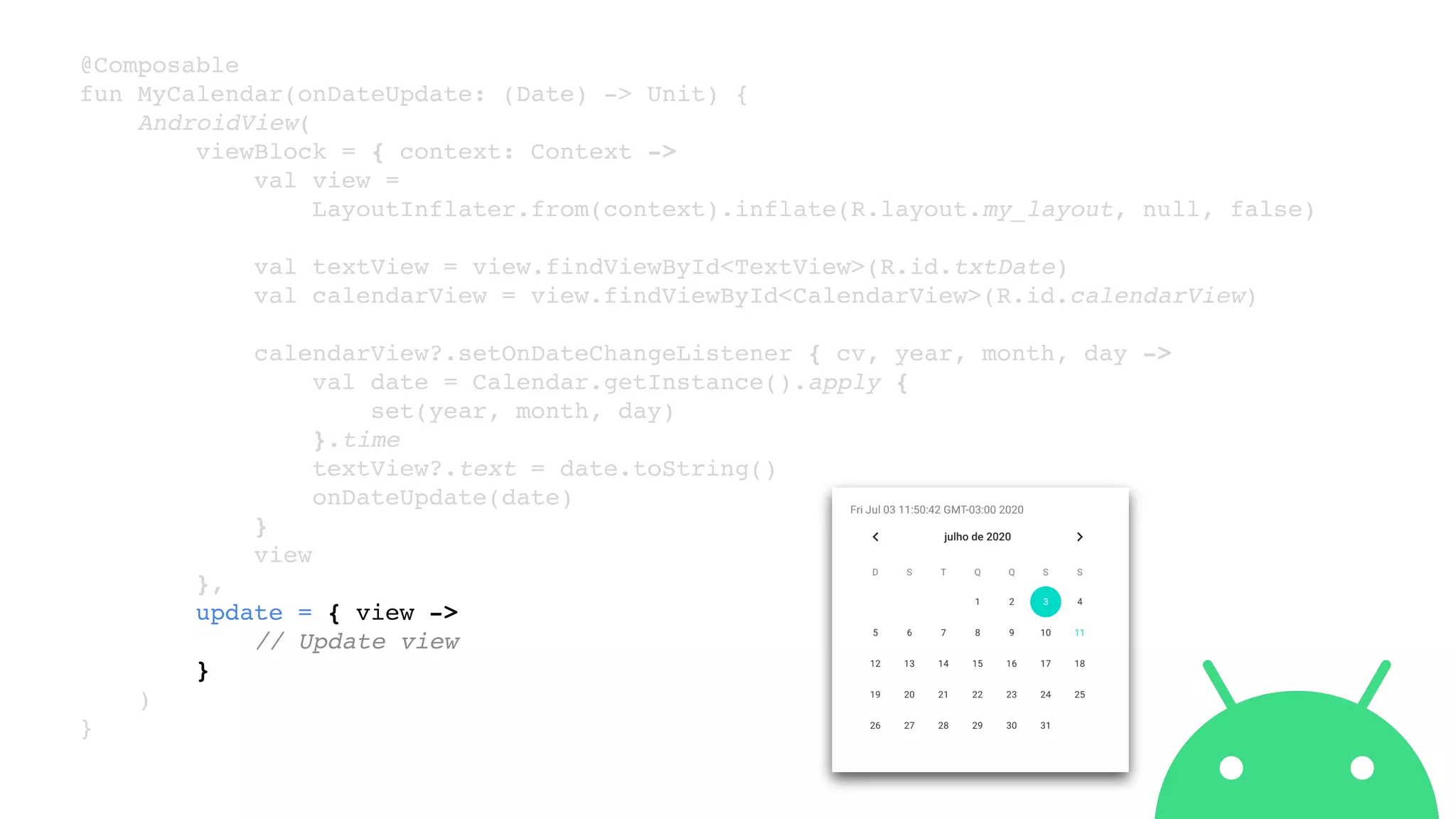

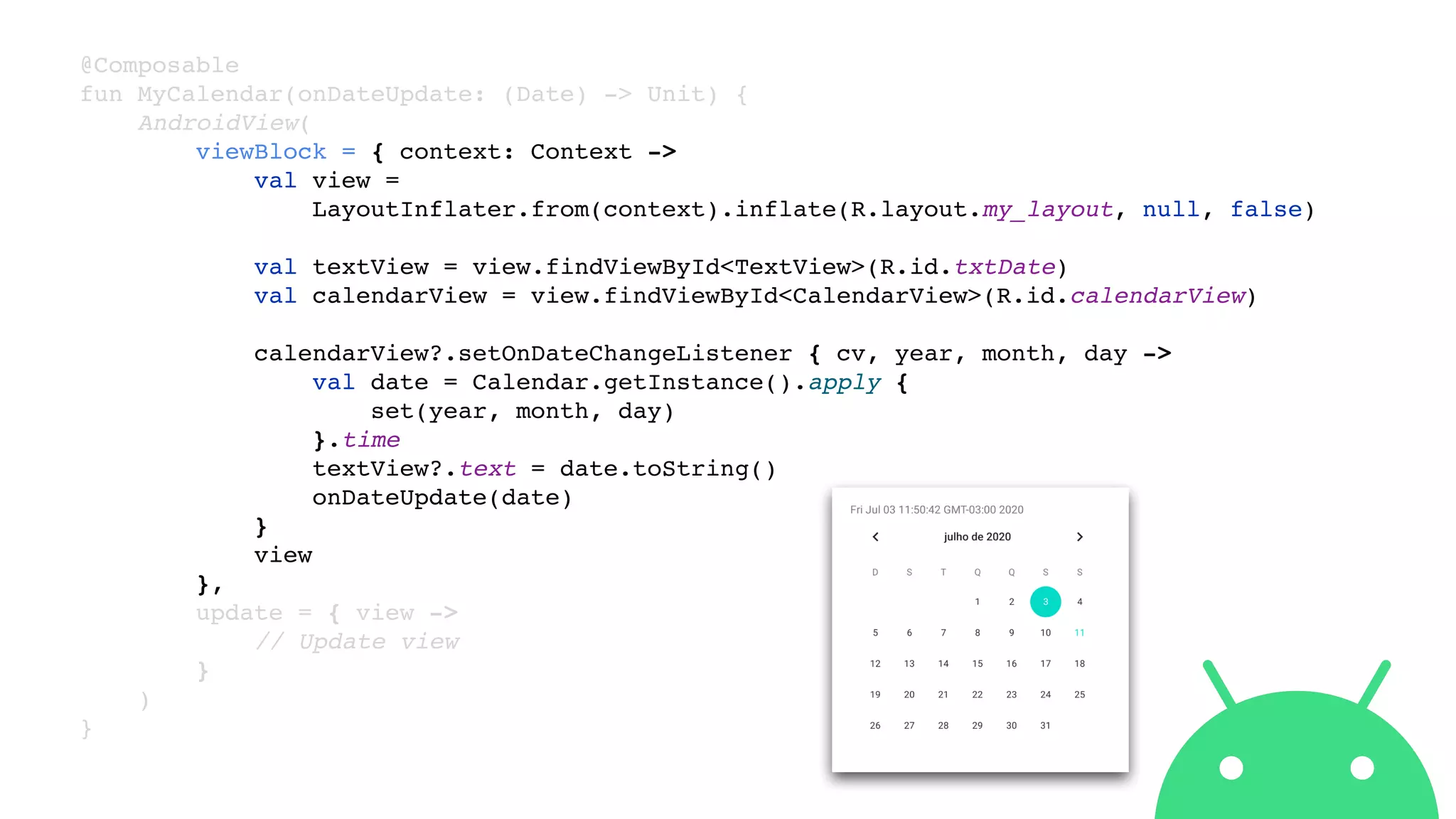

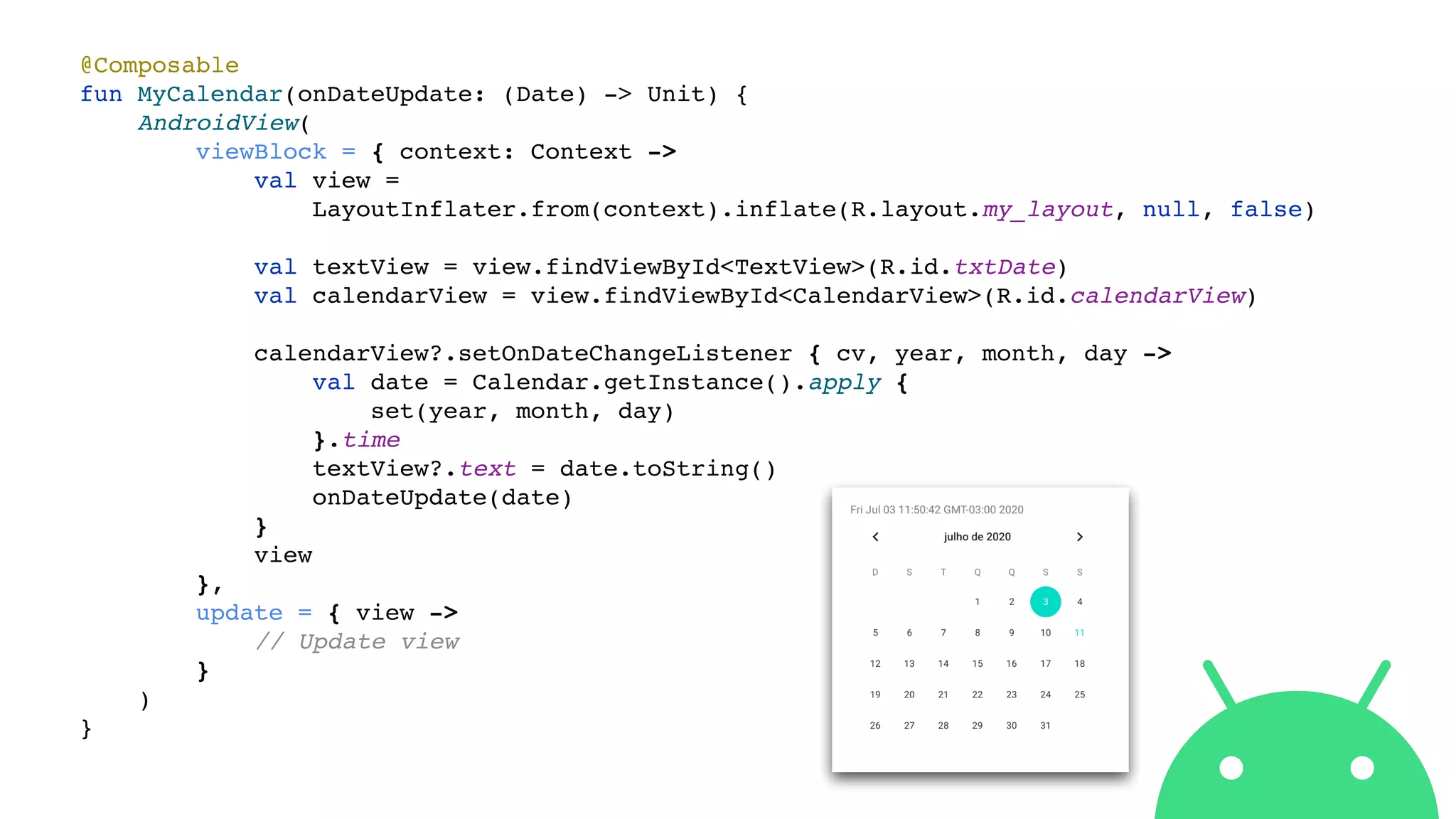

@Composable fun MyCalendar(onDateUpdate: (Date) -> Unit) { AndroidView( viewBlock = { context: Context -> val view = LayoutInflater.from(context).inflate(R.layout.my_layout, null, false) val textView = view.findViewById<TextView>(R.id.txtDate) val calendarView = view.findViewById<CalendarView>(R.id.calendarView) calendarView?.setOnDateChangeListener { cv, year, month, day -> val date = Calendar.getInstance().apply { set(year, month, day) }.time textView?.text = date.toString() onDateUpdate(date) } view }, update = { view -> // Update view } ) }
@Composable fun MyCalendar(onDateUpdate: (Date) -> Unit) { AndroidView( viewBlock = { context: Context -> val view = LayoutInflater.from(context).inflate(R.layout.my_layout, null, false) val textView = view.findViewById<TextView>(R.id.txtDate) val calendarView = view.findViewById<CalendarView>(R.id.calendarView) calendarView?.setOnDateChangeListener { cv, year, month, day -> val date = Calendar.getInstance().apply { set(year, month, day) }.time textView?.text = date.toString() onDateUpdate(date) } view }, update = { view -> // Update view } ) }
@Composable fun MyCalendar(onDateUpdate: (Date) -> Unit) { AndroidView( viewBlock = { context: Context -> val view = LayoutInflater.from(context).inflate(R.layout.my_layout, null, false) val textView = view.findViewById<TextView>(R.id.txtDate) val calendarView = view.findViewById<CalendarView>(R.id.calendarView) calendarView?.setOnDateChangeListener { cv, year, month, day -> val date = Calendar.getInstance().apply { set(year, month, day) }.time textView?.text = date.toString() onDateUpdate(date) } view }, update = { view -> // Update view } ) }

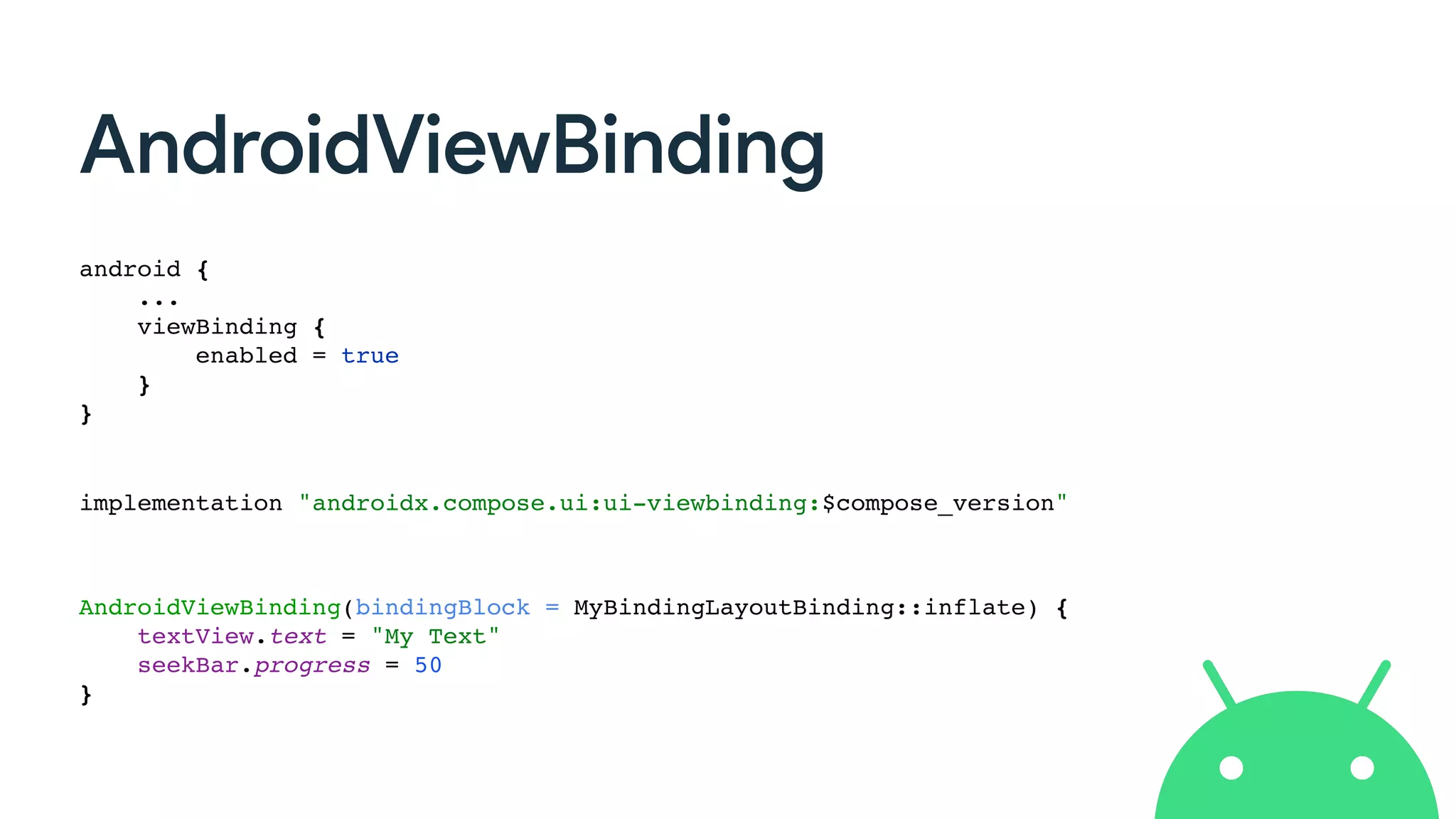

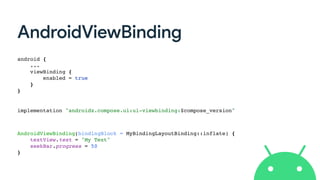

AndroidViewBinding android { ... viewBinding { enabled = true } } implementation "androidx.compose.ui:ui-viewbinding:$compose_version" AndroidViewBinding(bindingBlock = MyBindingLayoutBinding::inflate) { textView.text = "My Text" seekBar.progress = 50 }

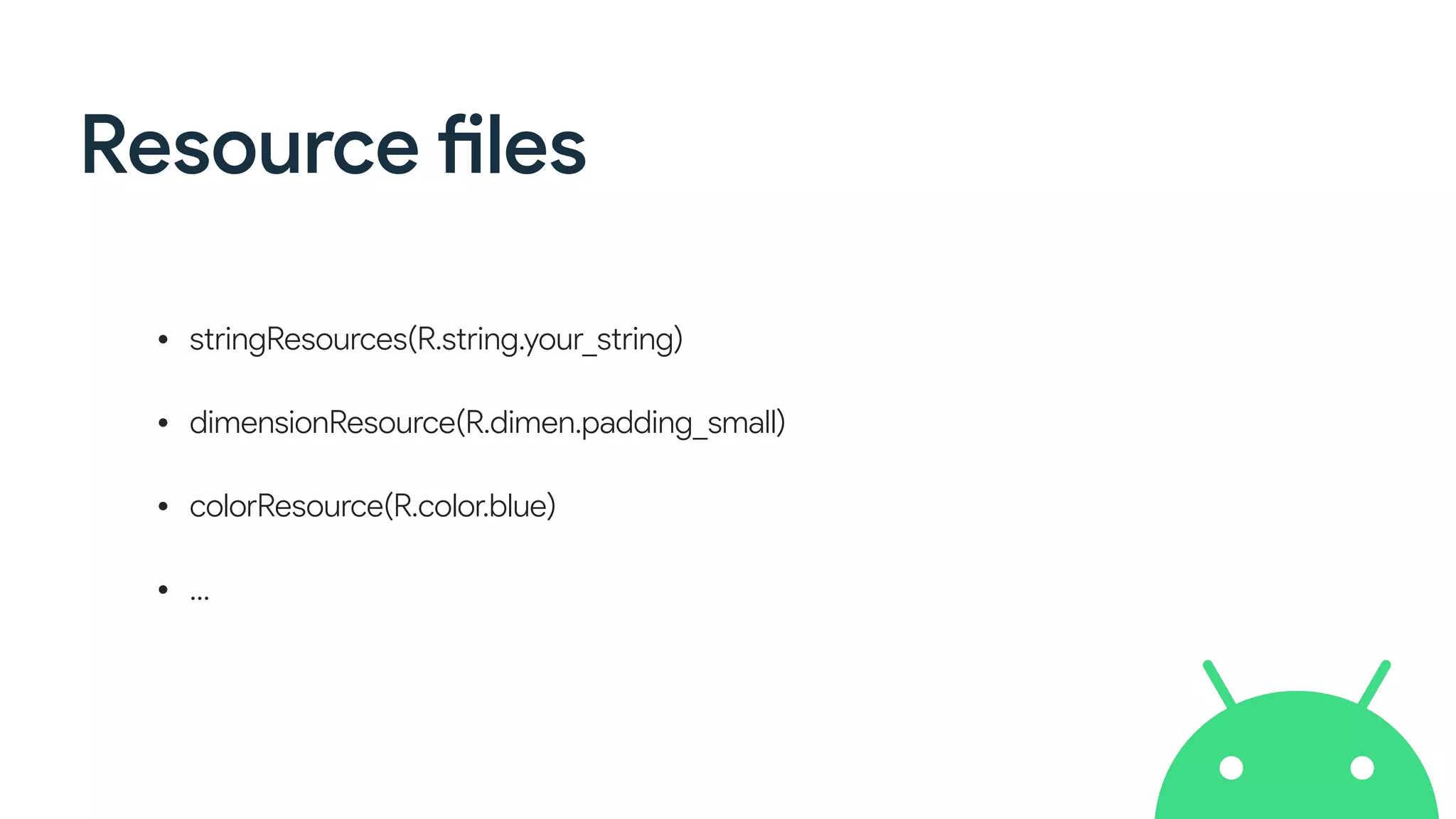

Resource files • stringResources(R.string.your_string) • dimensionResource(R.dimen.padding_small) • colorResource(R.color.blue) • …

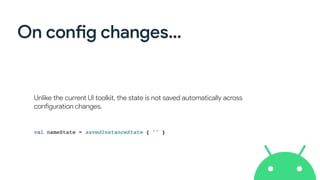

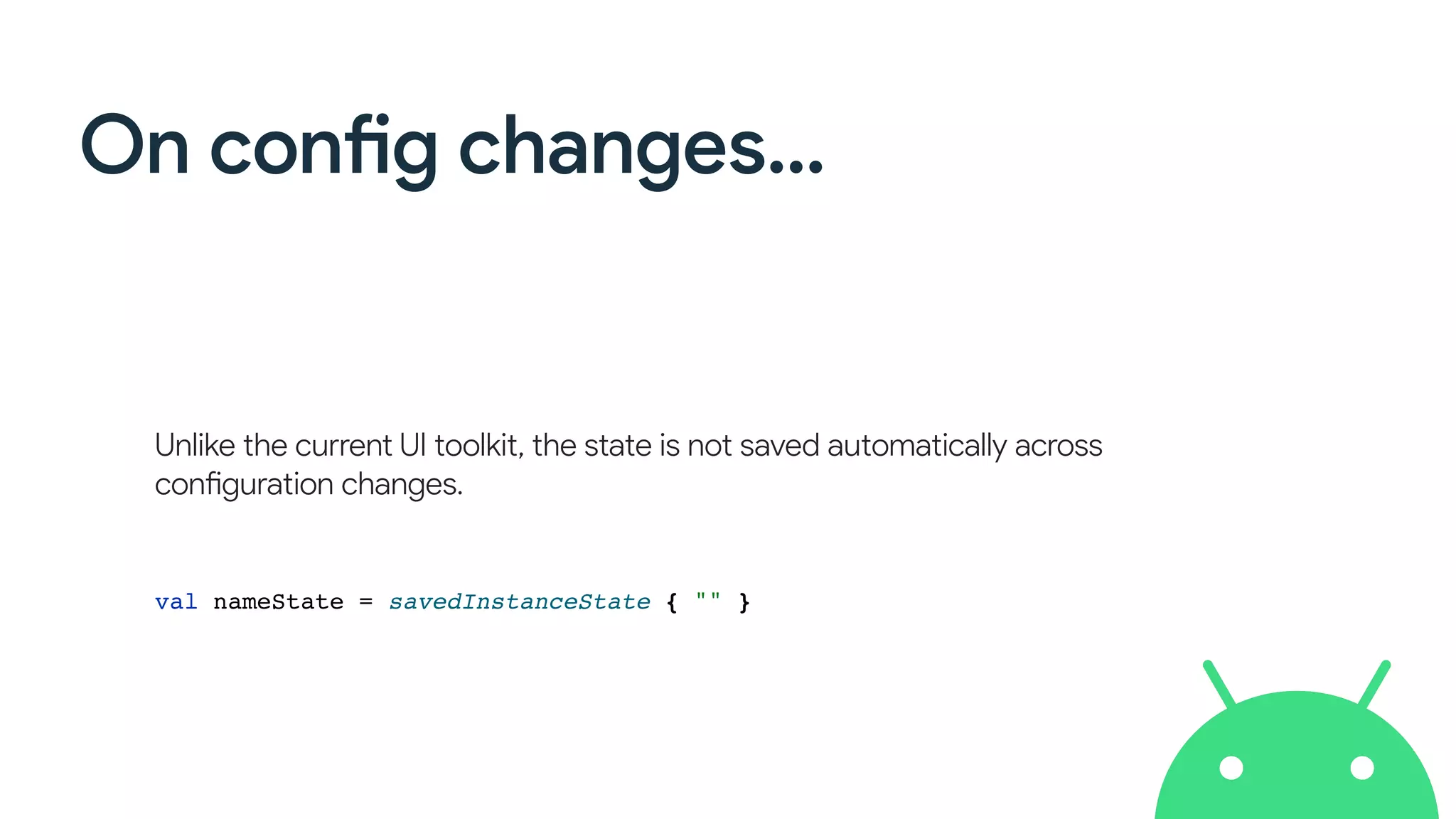

On config changes… Unlike the current UI toolkit, the state is not saved automatically across configuration changes. val nameState = savedInstanceState { "" }

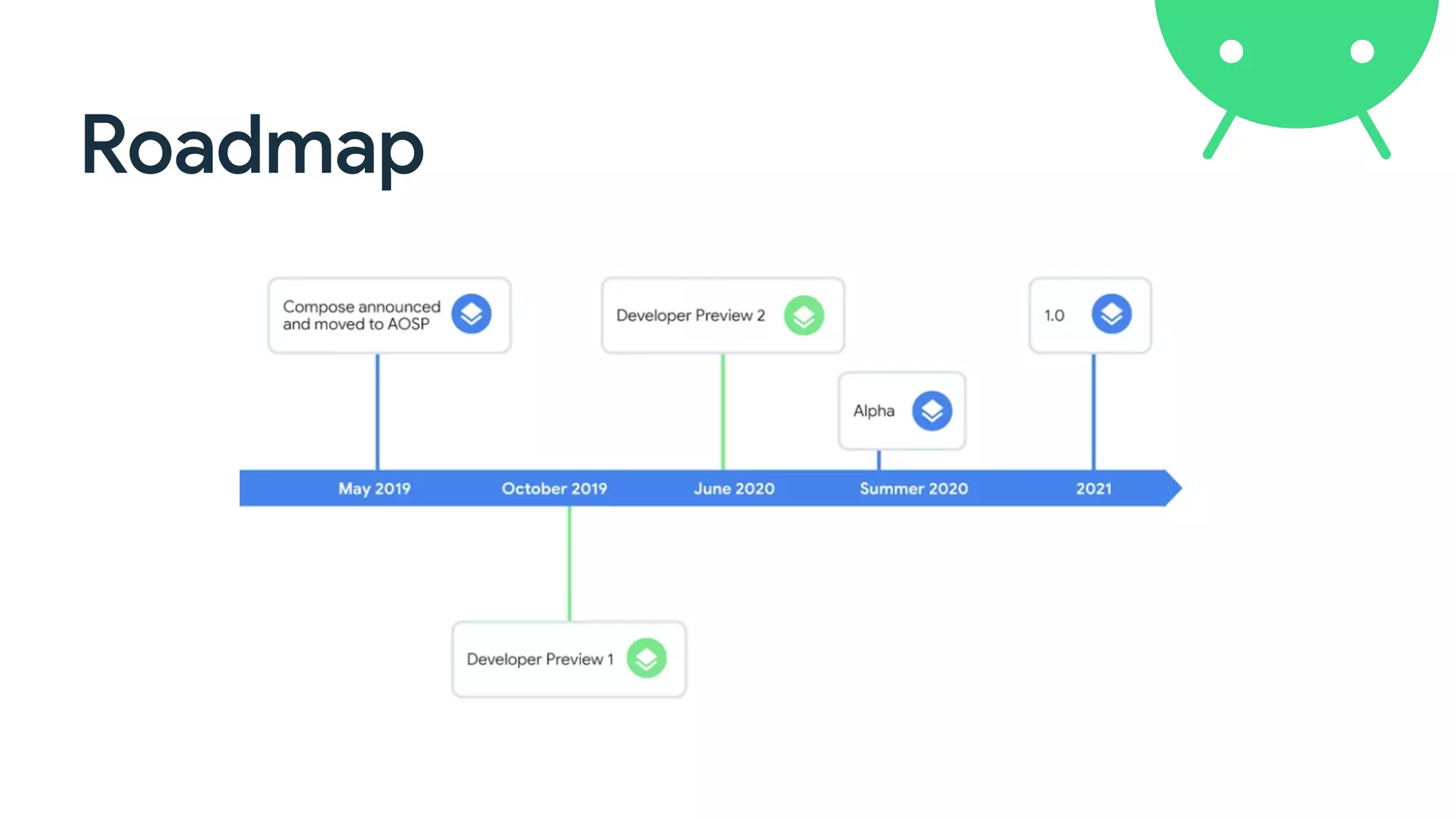

Roadmap

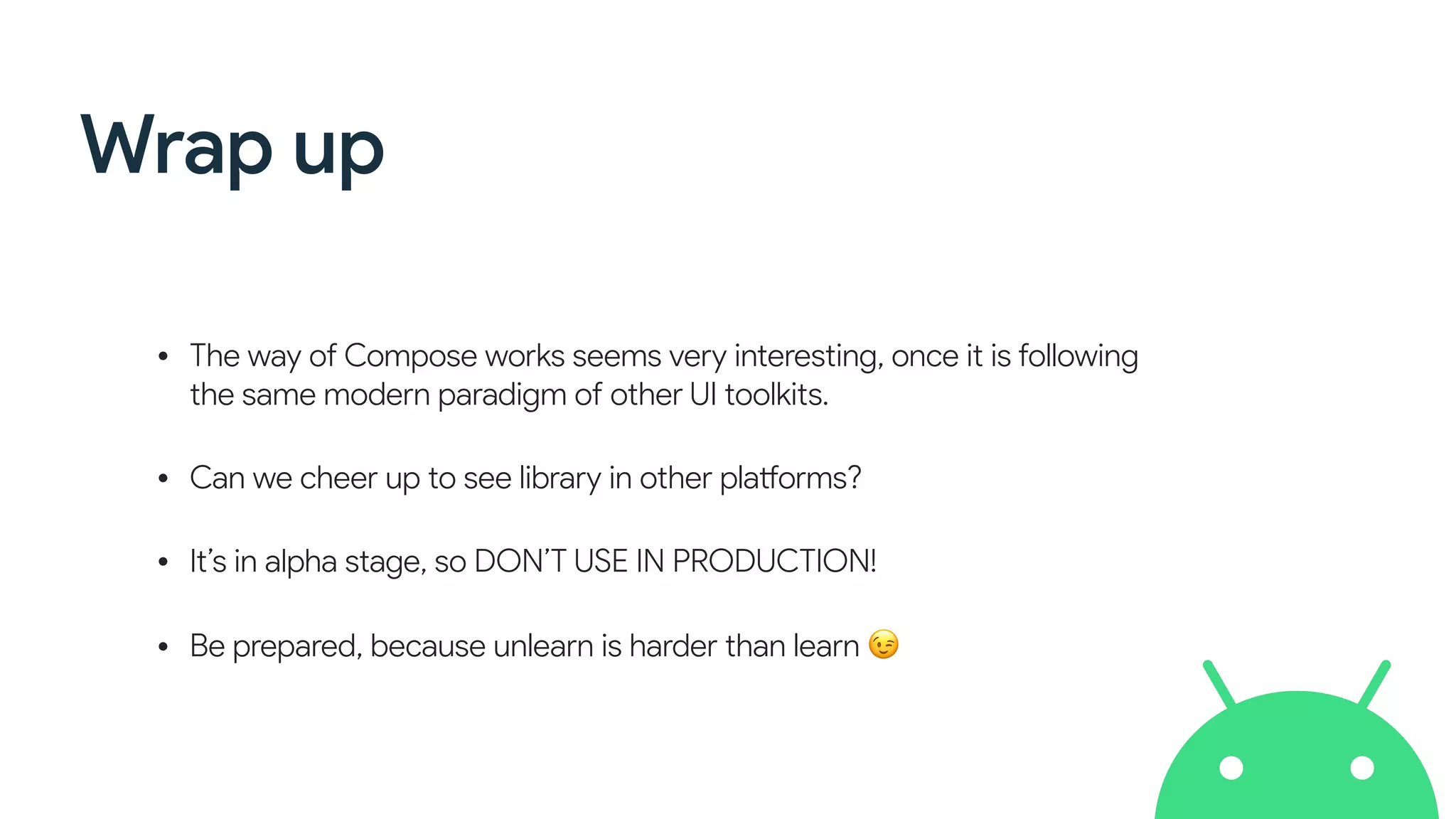

Wrap up • The way of Compose works seems very interesting, once it is following the same modern paradigm of other UI toolkits. • Can we cheer up to see library in other platforms? • It’s in alpha stage, so DON’T USE IN PRODUCTION! • Be prepared, because unlearn is harder than learn 😉

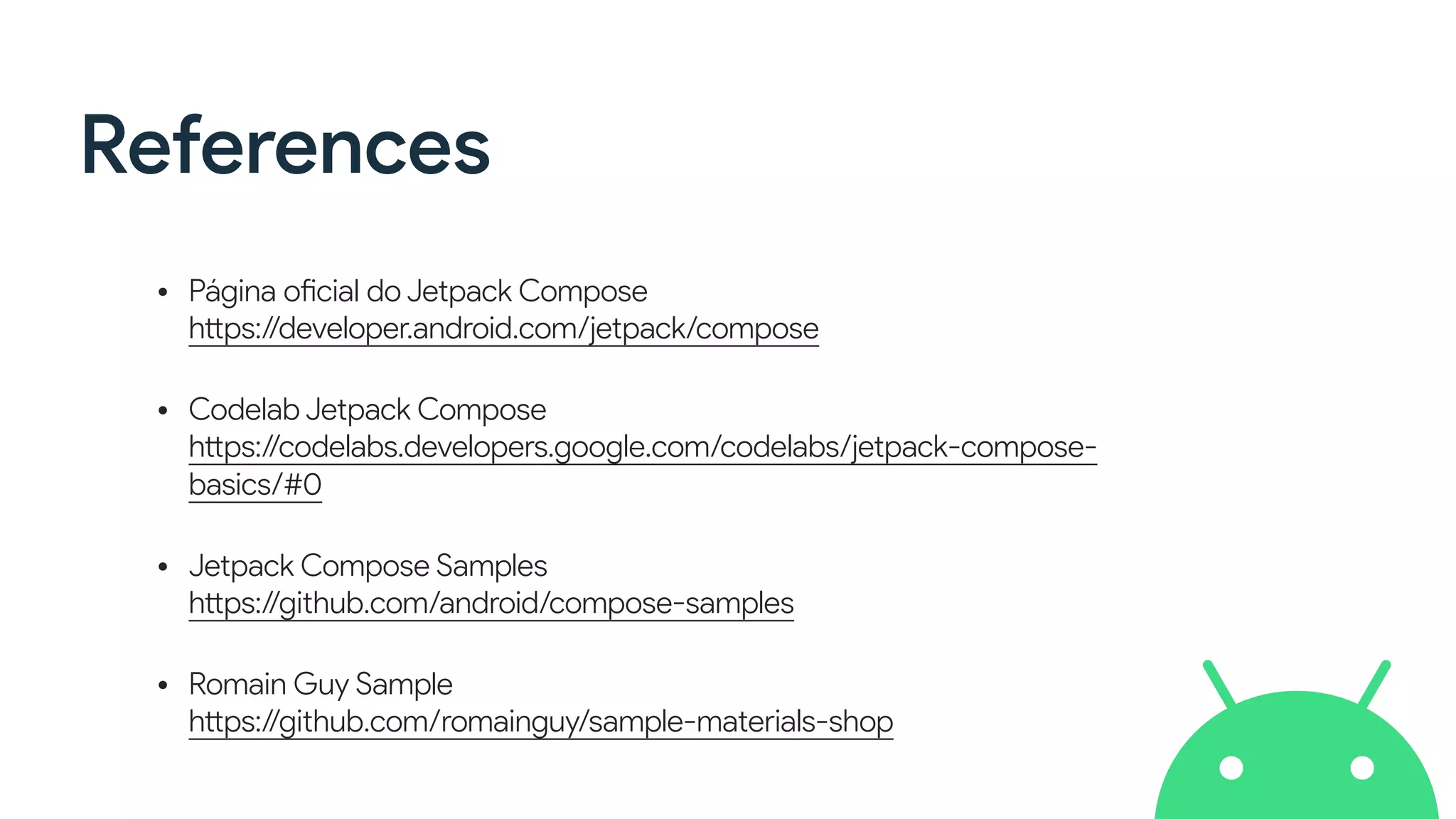

References • Página oficial do Jetpack Compose https://developer.android.com/jetpack/compose • Codelab Jetpack Compose https://codelabs.developers.google.com/codelabs/jetpack-compose- basics/#0 • Jetpack Compose Samples https://github.com/android/compose-samples • Romain Guy Sample https://github.com/romainguy/sample-materials-shop

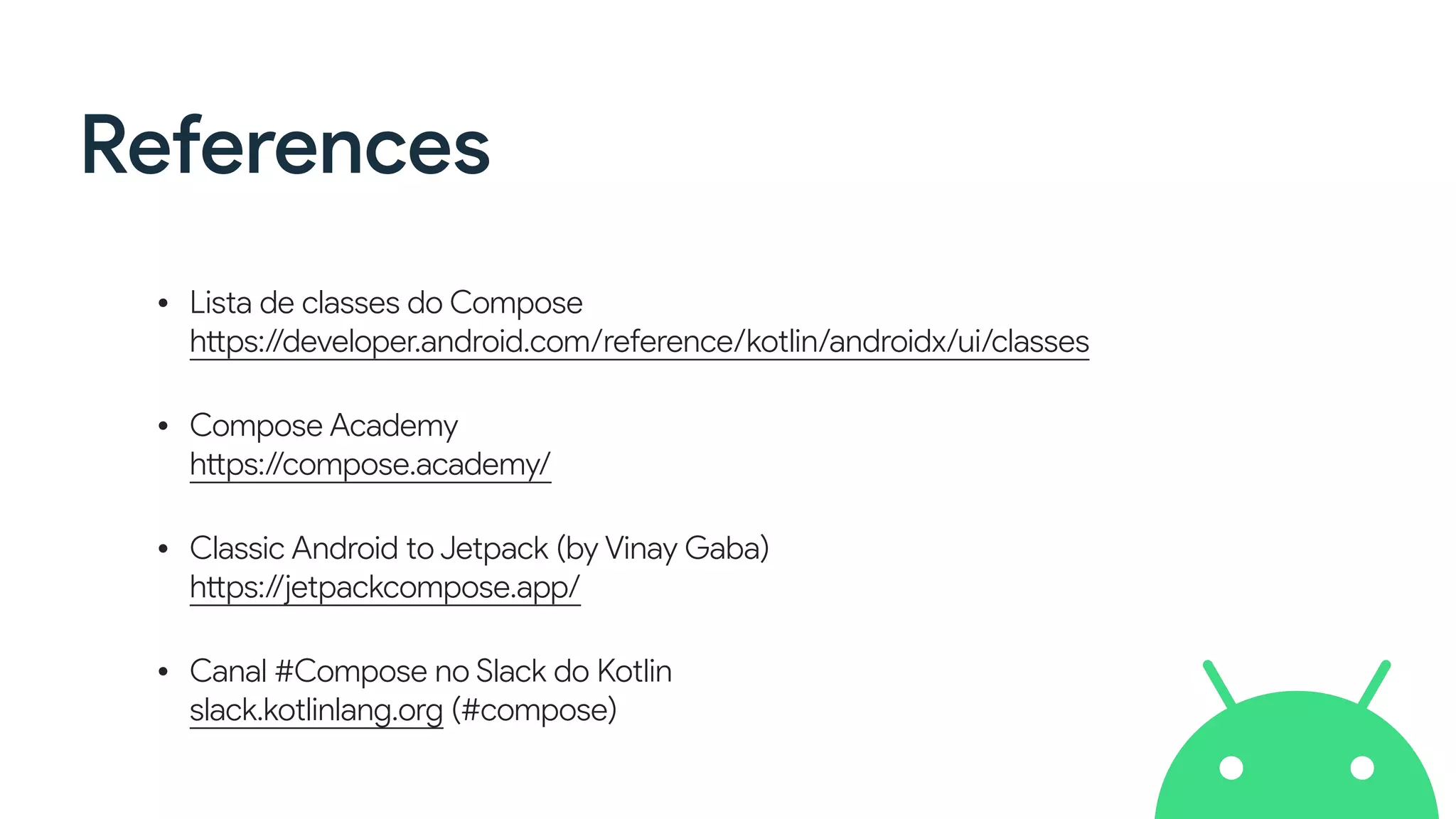

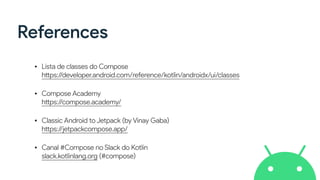

References • Lista de classes do Compose https://developer.android.com/reference/kotlin/androidx/ui/classes • Compose Academy https://compose.academy/ • Classic Android to Jetpack (by Vinay Gaba) https://jetpackcompose.app/ • Canal #Compose no Slack do Kotlin slack.kotlinlang.org (#compose)

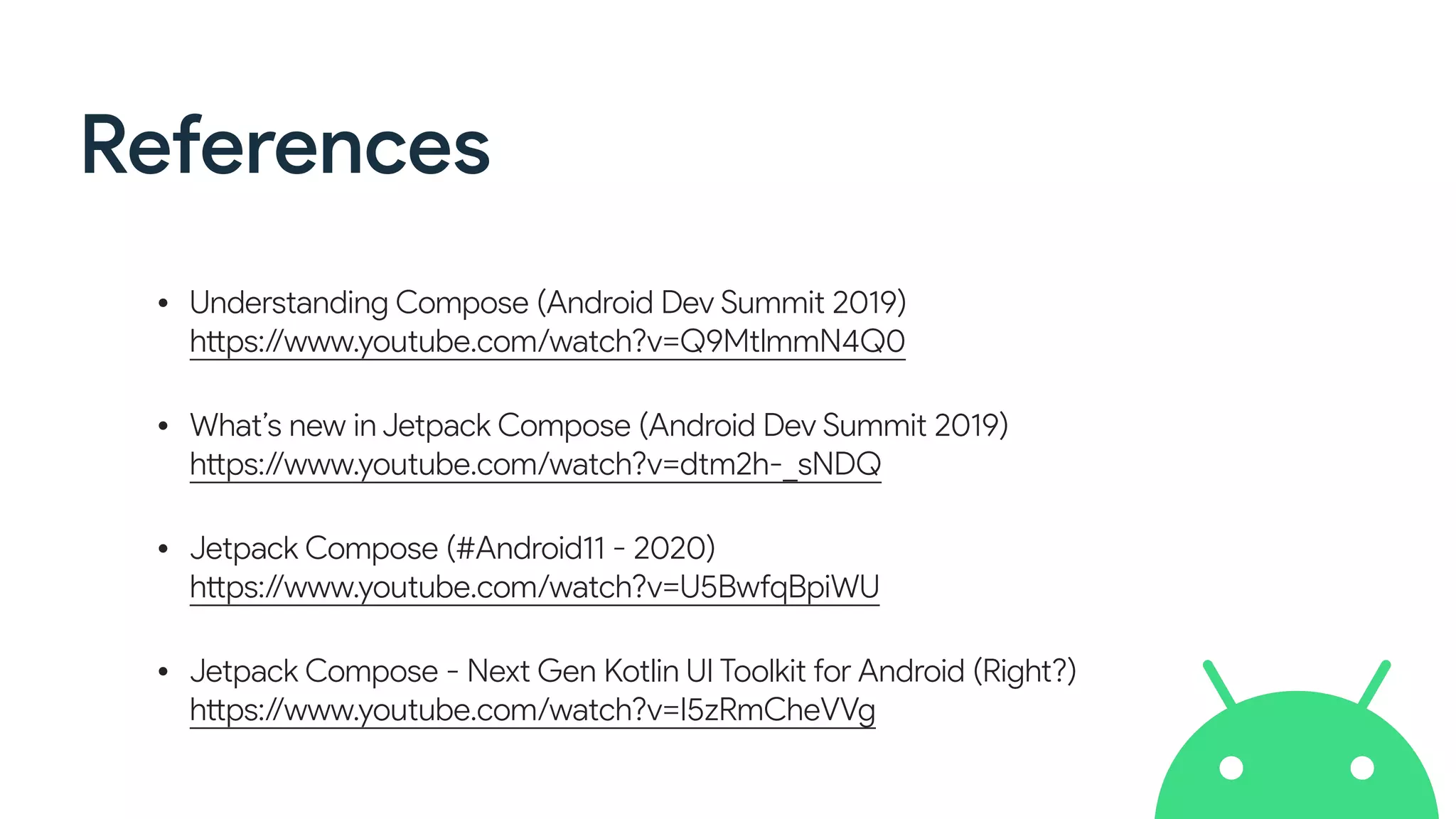

References • Understanding Compose (Android Dev Summit 2019) https://www.youtube.com/watch?v=Q9MtlmmN4Q0 • What’s new in Jetpack Compose (Android Dev Summit 2019) https://www.youtube.com/watch?v=dtm2h-_sNDQ • Jetpack Compose (#Android11 - 2020) https://www.youtube.com/watch?v=U5BwfqBpiWU • Jetpack Compose - Next Gen Kotlin UI Toolkit for Android (Right?) https://www.youtube.com/watch?v=I5zRmCheVVg

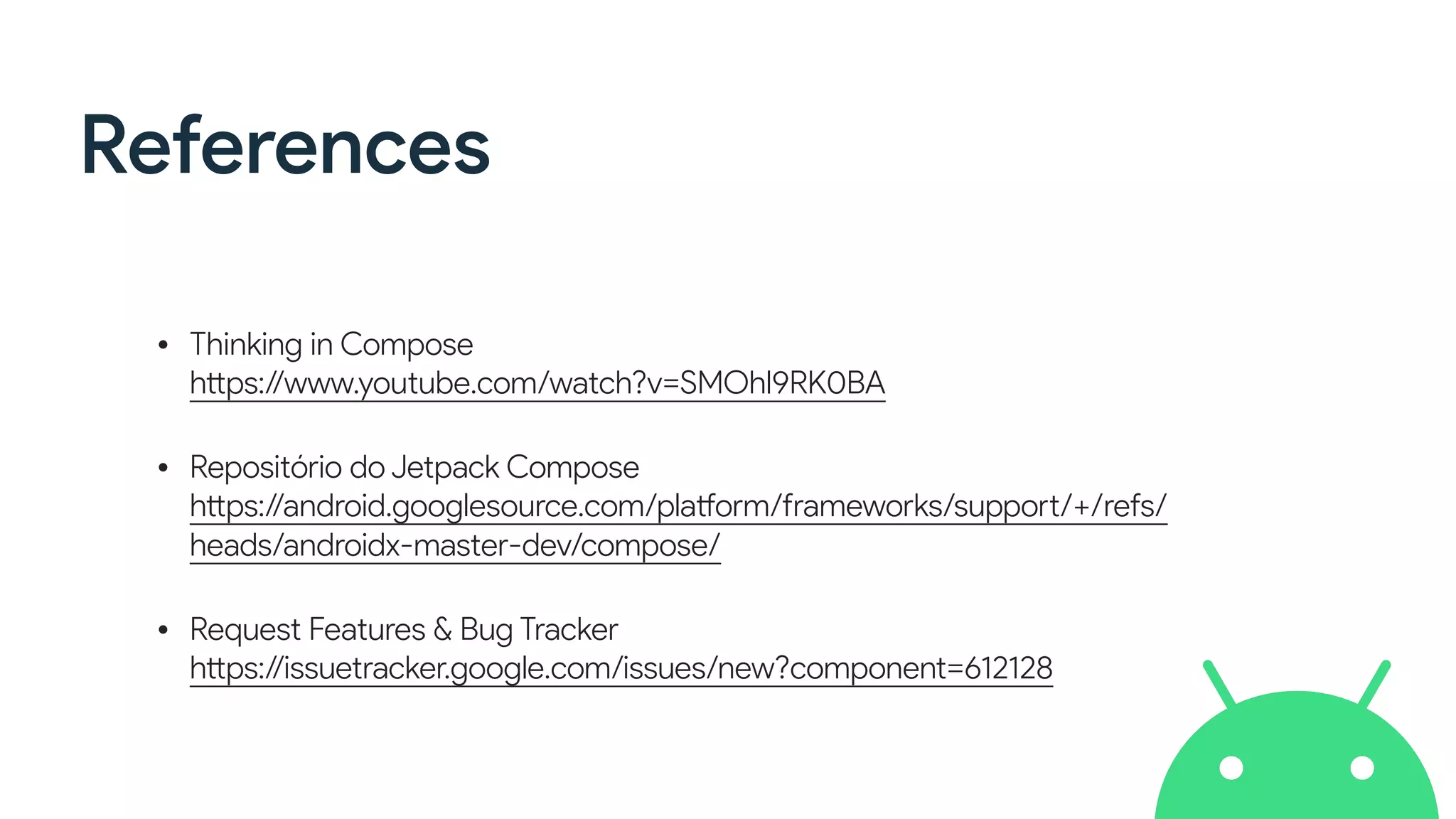

References • Thinking in Compose https://www.youtube.com/watch?v=SMOhl9RK0BA • Repositório do Jetpack Compose https://android.googlesource.com/platform/frameworks/support/+/refs/ heads/androidx-master-dev/compose/ • Request Features & Bug Tracker https://issuetracker.google.com/issues/new?component=612128
References • goo.gle/compose-samples • goo.gle/compose-codelabs • goo.gle/compose-docs • goo.gle/compose-feedback • goo.gle/compose-slack
Thank you! Nelson Glauber @nglauber
