• 1.
  INTRODUCTION TO MACH NE İ LEARN NG İ 3RDED T ON İ İ ETHEM ALPAYDIN © The MIT Press, 2014 alpaydin@boun.edu.tr http://www.cmpe.boun.edu.tr/~ethem/i2ml3e Lecture Slides for
• 2.
  CHAPTER 1: INTRODUCT ON İ
• 3.

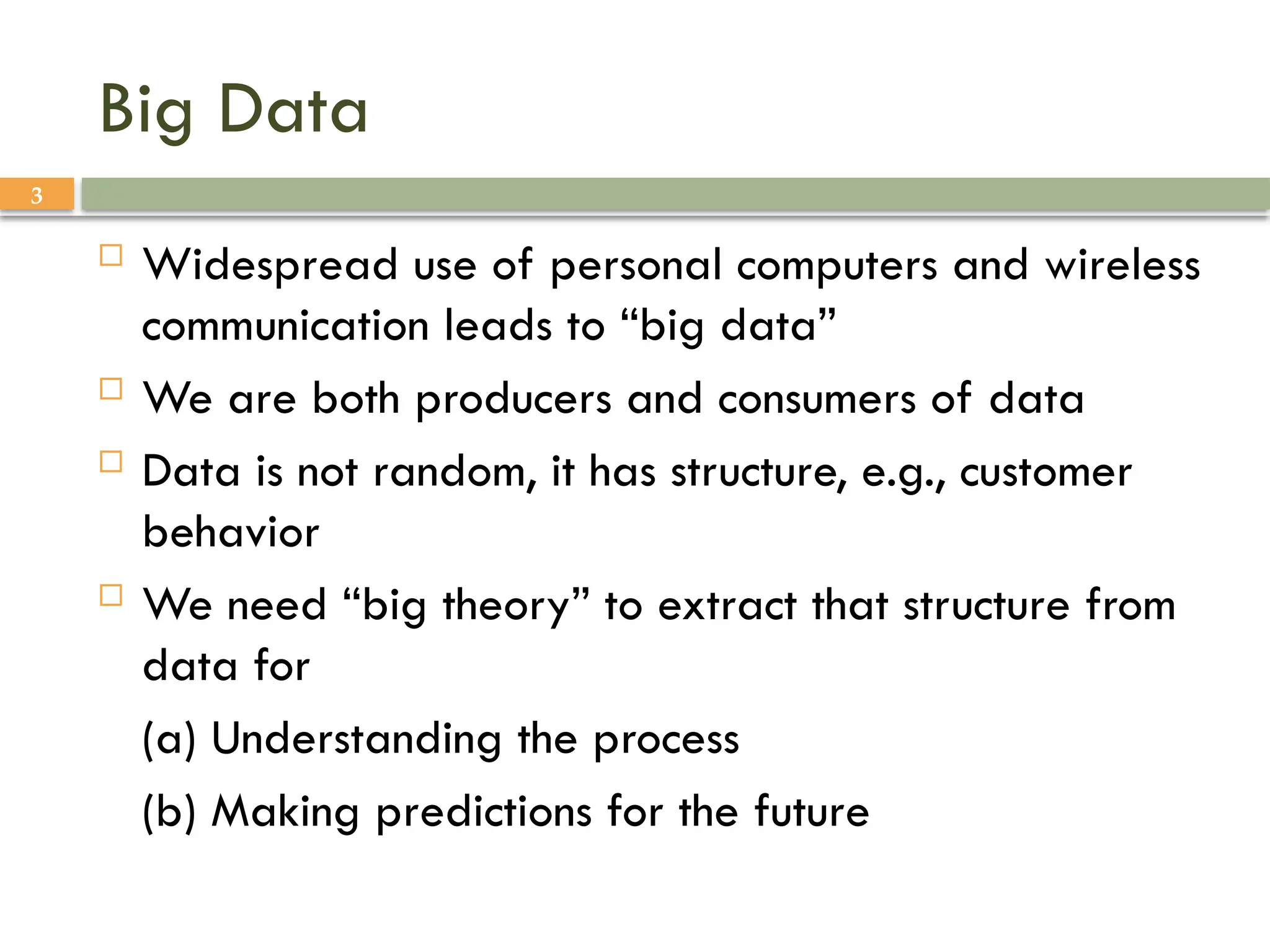

  3 Big Data  Widespreaduse of personal computers and wireless communication leads to “big data”  We are both producers and consumers of data  Data is not random, it has structure, e.g., customer behavior  We need “big theory” to extract that structure from data for (a) Understanding the process (b) Making predictions for the future
• 4.

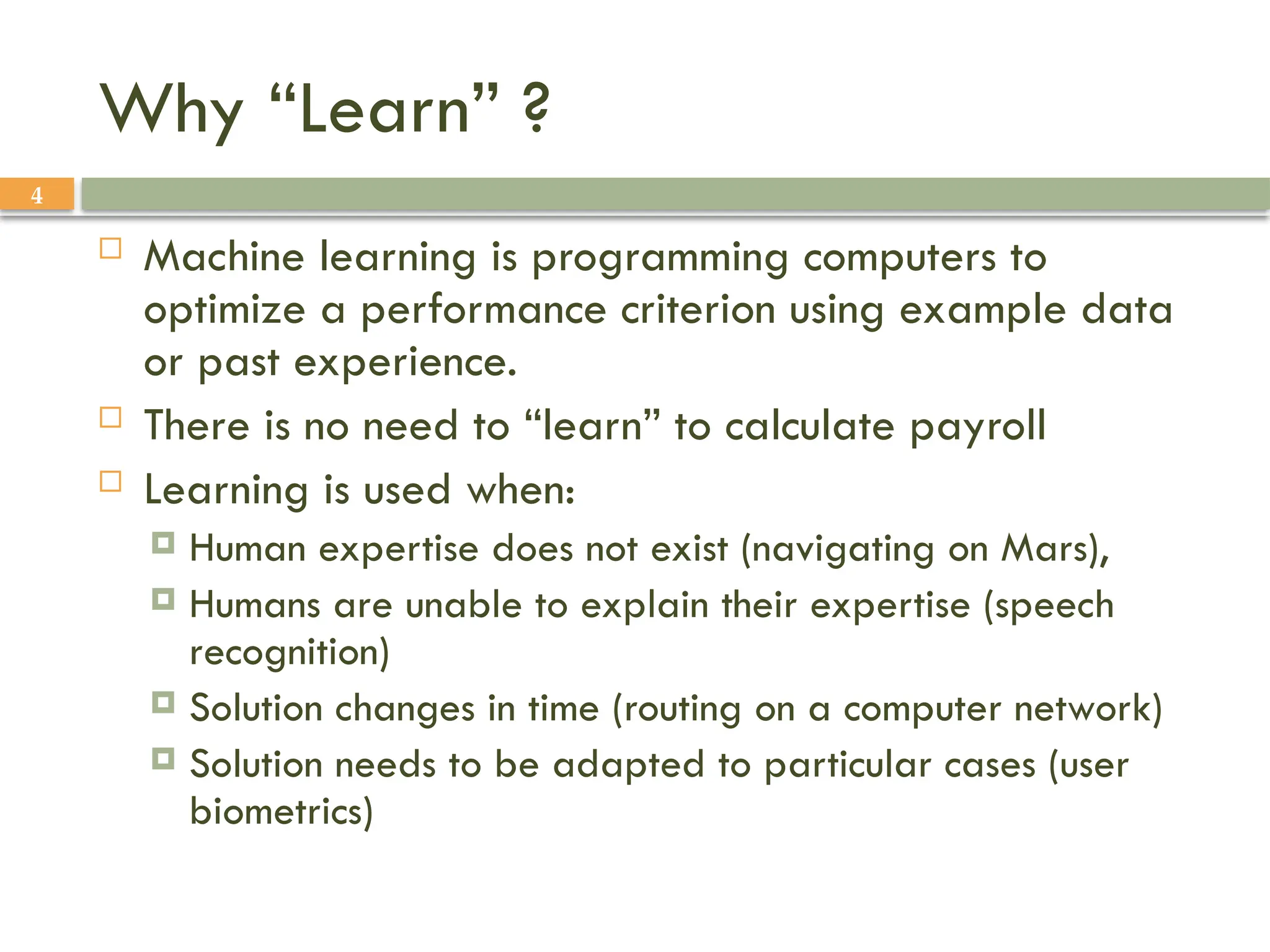

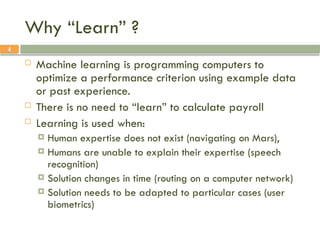

  4 Why “Learn” ? Machine learning is programming computers to optimize a performance criterion using example data or past experience.  There is no need to “learn” to calculate payroll  Learning is used when:  Human expertise does not exist (navigating on Mars),  Humans are unable to explain their expertise (speech recognition)  Solution changes in time (routing on a computer network)  Solution needs to be adapted to particular cases (user biometrics)
• 5.

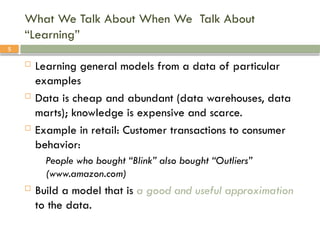

  5 What We TalkAbout When We Talk About “Learning”  Learning general models from a data of particular examples  Data is cheap and abundant (data warehouses, data marts); knowledge is expensive and scarce.  Example in retail: Customer transactions to consumer behavior: People who bought “Blink” also bought “Outliers” (www.amazon.com)  Build a model that is a good and useful approximation to the data.
• 6.

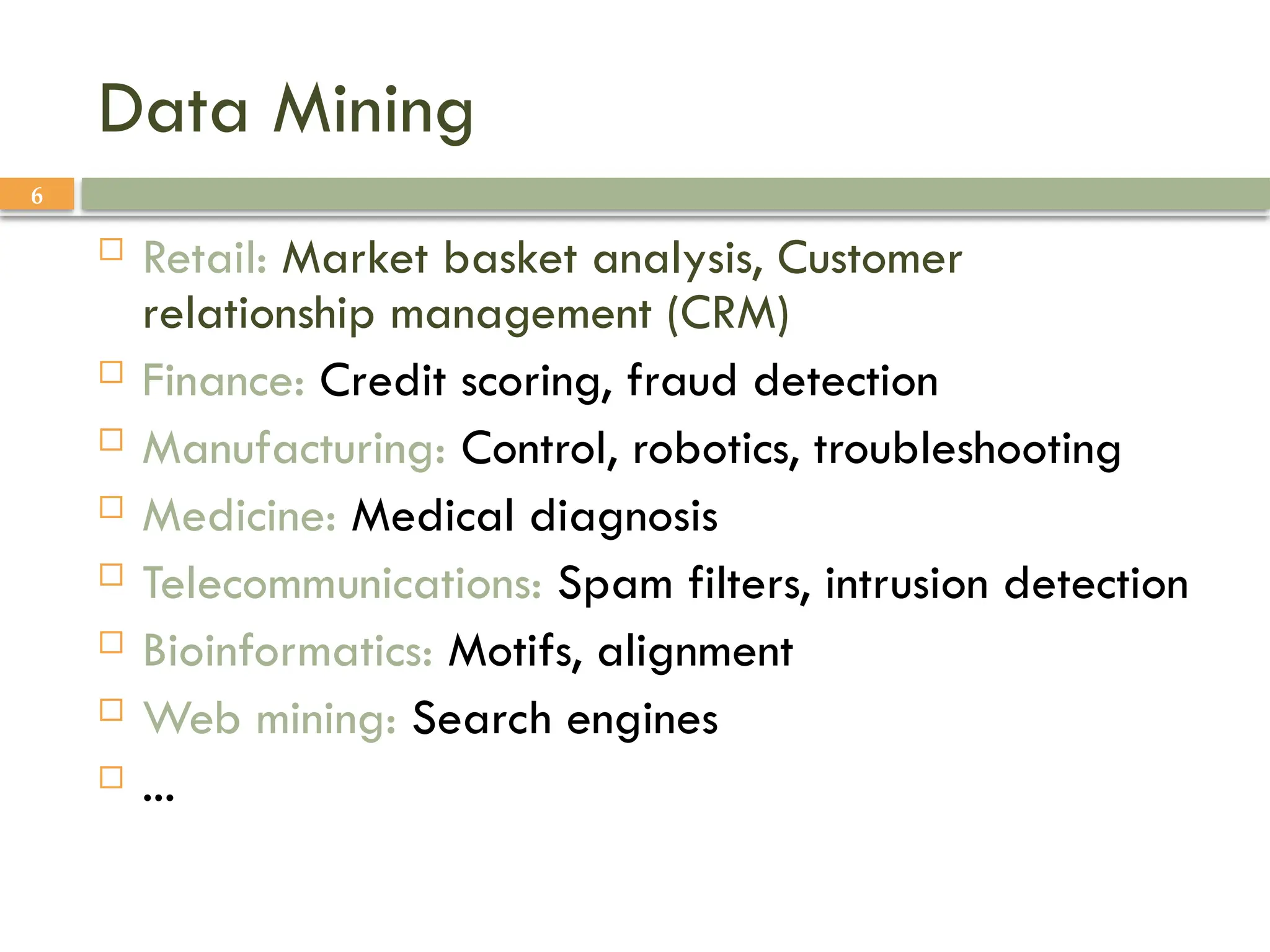

  6 Data Mining  Retail:Market basket analysis, Customer relationship management (CRM)  Finance: Credit scoring, fraud detection  Manufacturing: Control, robotics, troubleshooting  Medicine: Medical diagnosis  Telecommunications: Spam filters, intrusion detection  Bioinformatics: Motifs, alignment  Web mining: Search engines  ...
• 7.

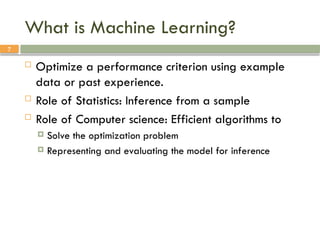

  7 What is MachineLearning?  Optimize a performance criterion using example data or past experience.  Role of Statistics: Inference from a sample  Role of Computer science: Efficient algorithms to  Solve the optimization problem  Representing and evaluating the model for inference
• 8.
  8 Applications  Association  SupervisedLearning  Classification  Regression  Unsupervised Learning  Reinforcement Learning
• 9.

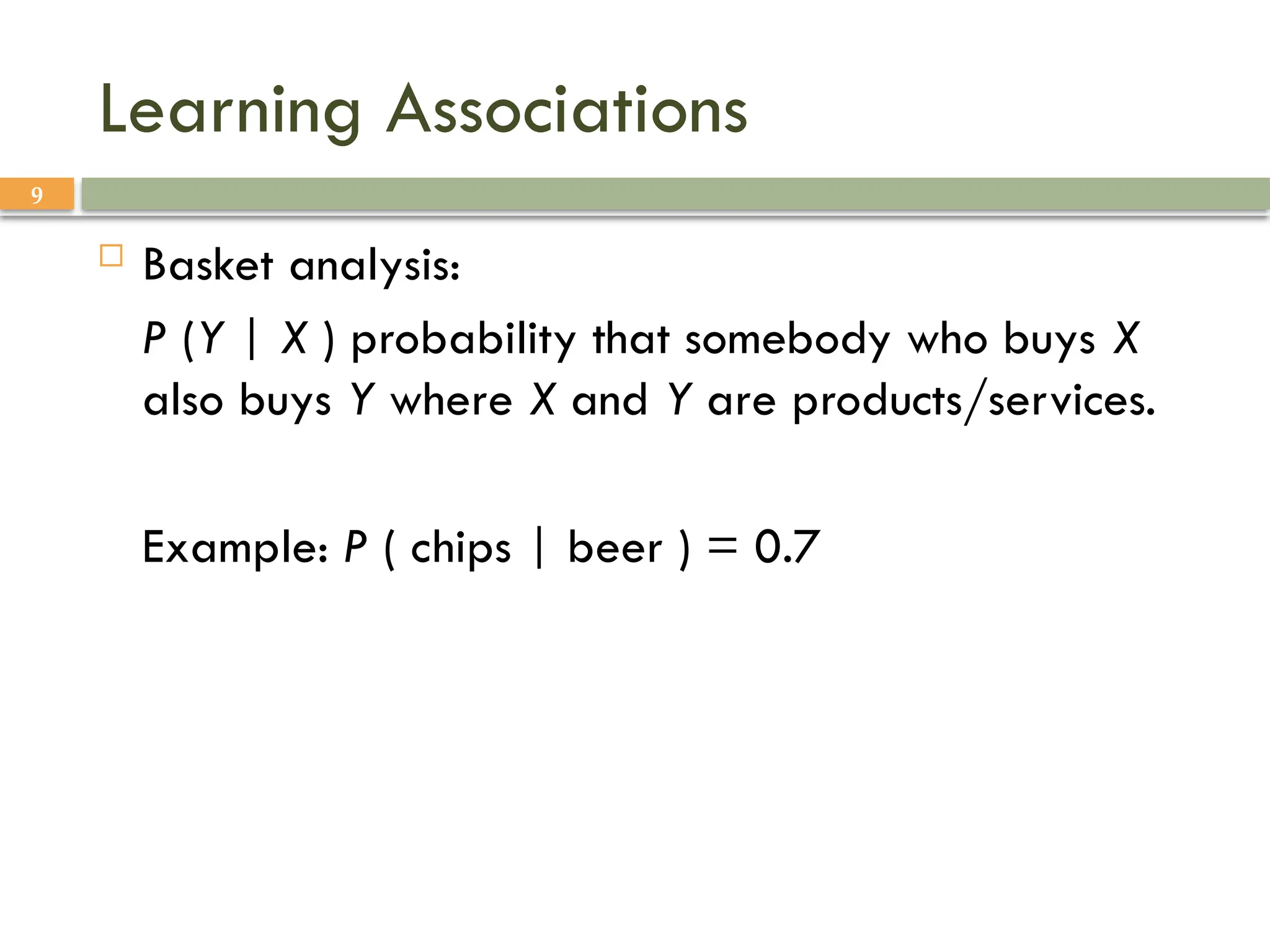

  9 Learning Associations  Basketanalysis: P (Y | X ) probability that somebody who buys X also buys Y where X and Y are products/services. Example: P ( chips | beer ) = 0.7
• 10.

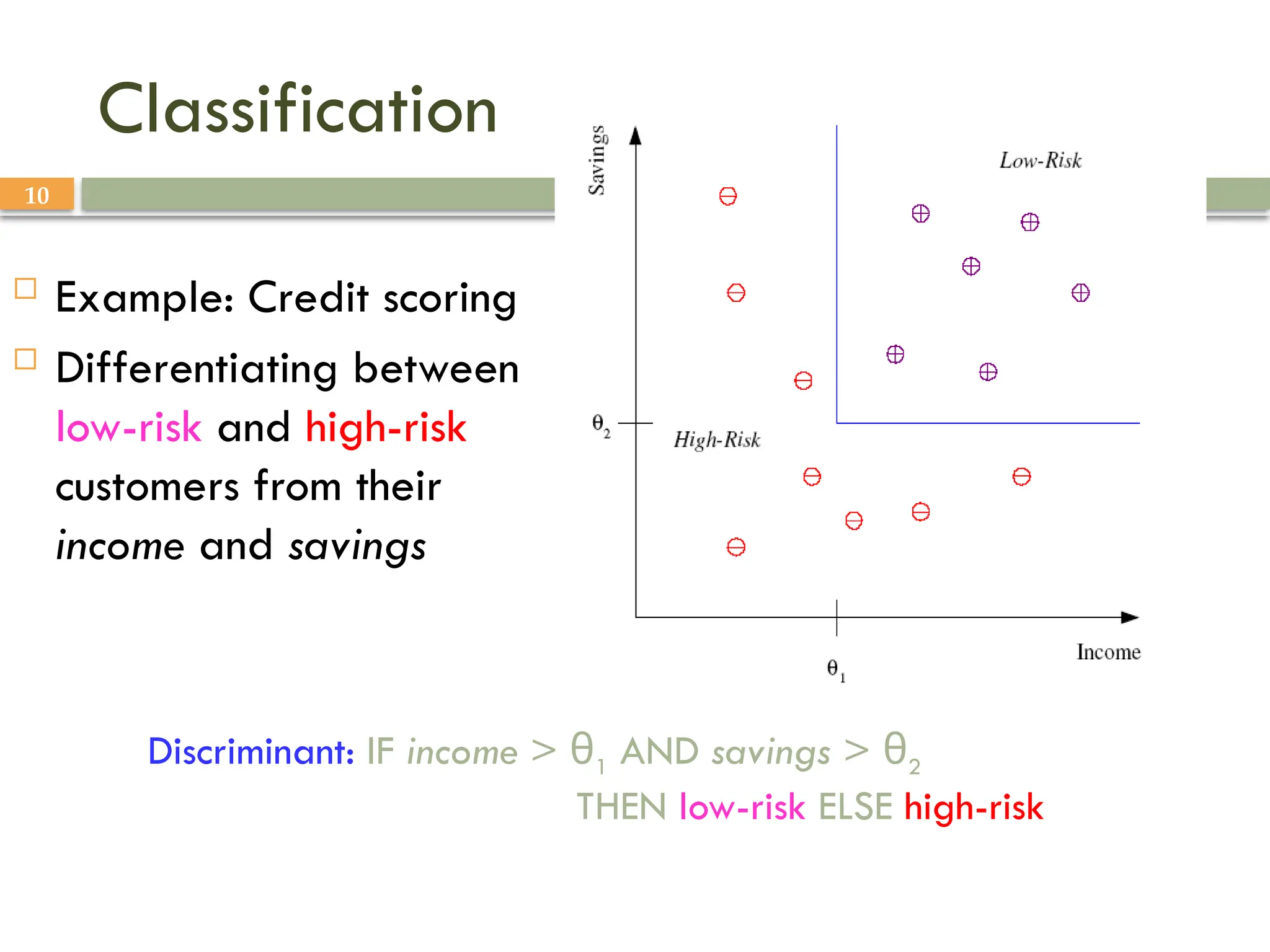

  10 Classification  Example: Creditscoring  Differentiating between low-risk and high-risk customers from their income and savings Discriminant: IF income > θ1 AND savings > θ2 THEN low-risk ELSE high-risk
• 11.

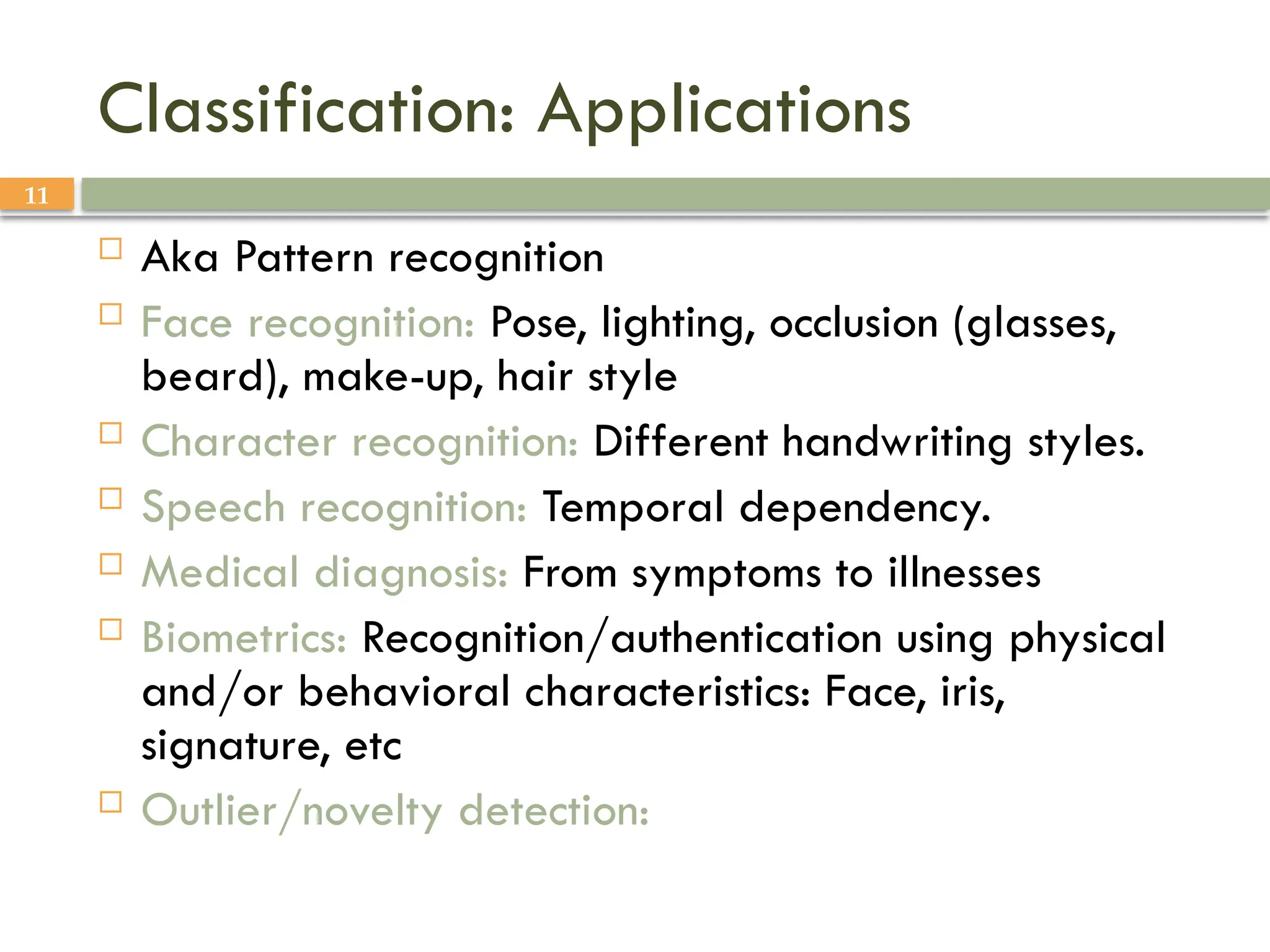

  11 Classification: Applications  AkaPattern recognition  Face recognition: Pose, lighting, occlusion (glasses, beard), make-up, hair style  Character recognition: Different handwriting styles.  Speech recognition: Temporal dependency.  Medical diagnosis: From symptoms to illnesses  Biometrics: Recognition/authentication using physical and/or behavioral characteristics: Face, iris, signature, etc  Outlier/novelty detection:
• 12.

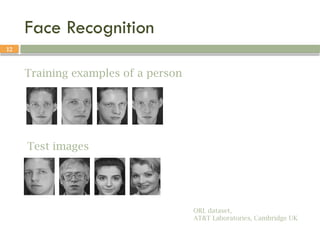

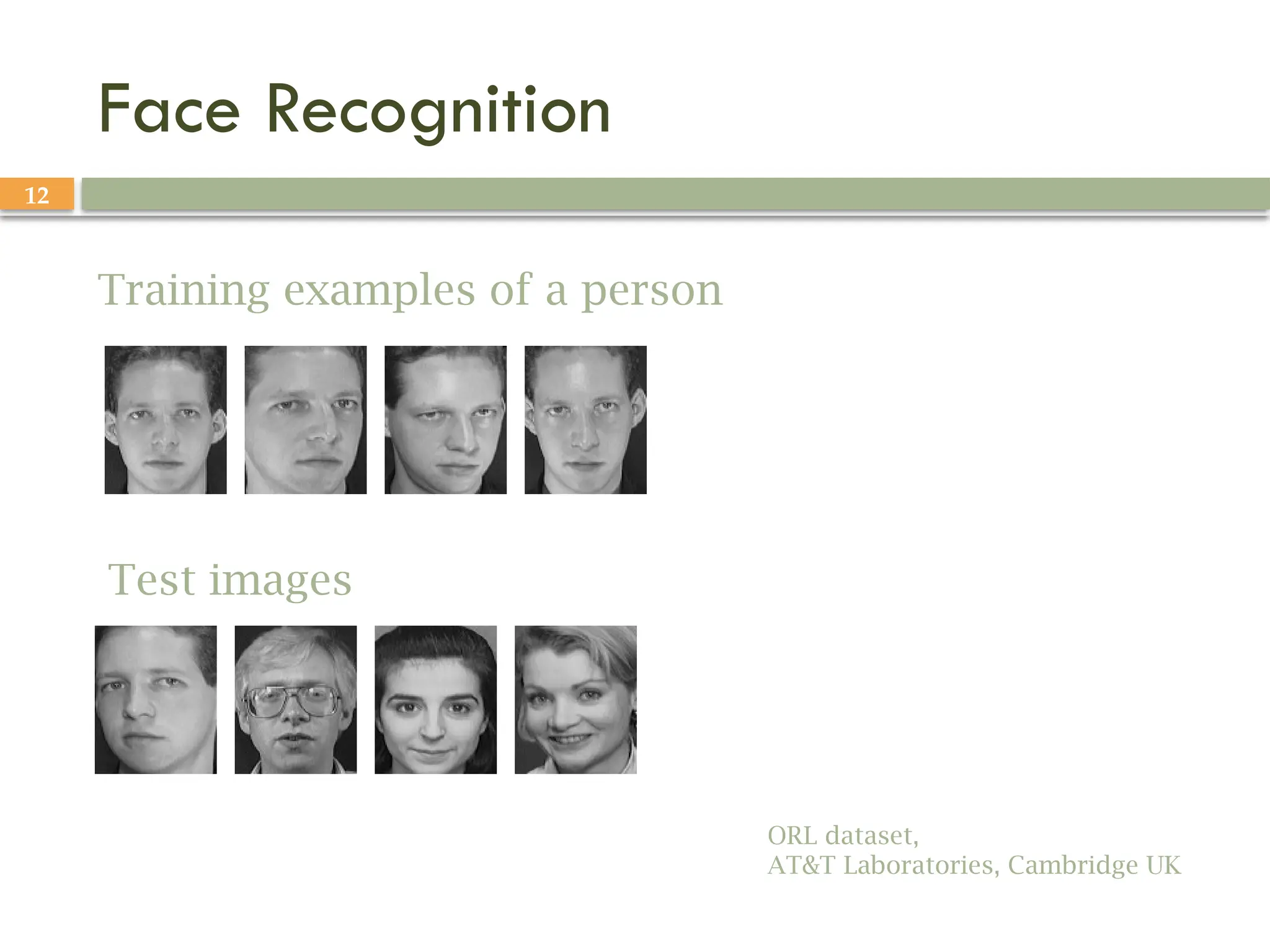

  12 Face Recognition Training examplesof a person Test images ORL dataset, AT&T Laboratories, Cambridge UK
• 13.

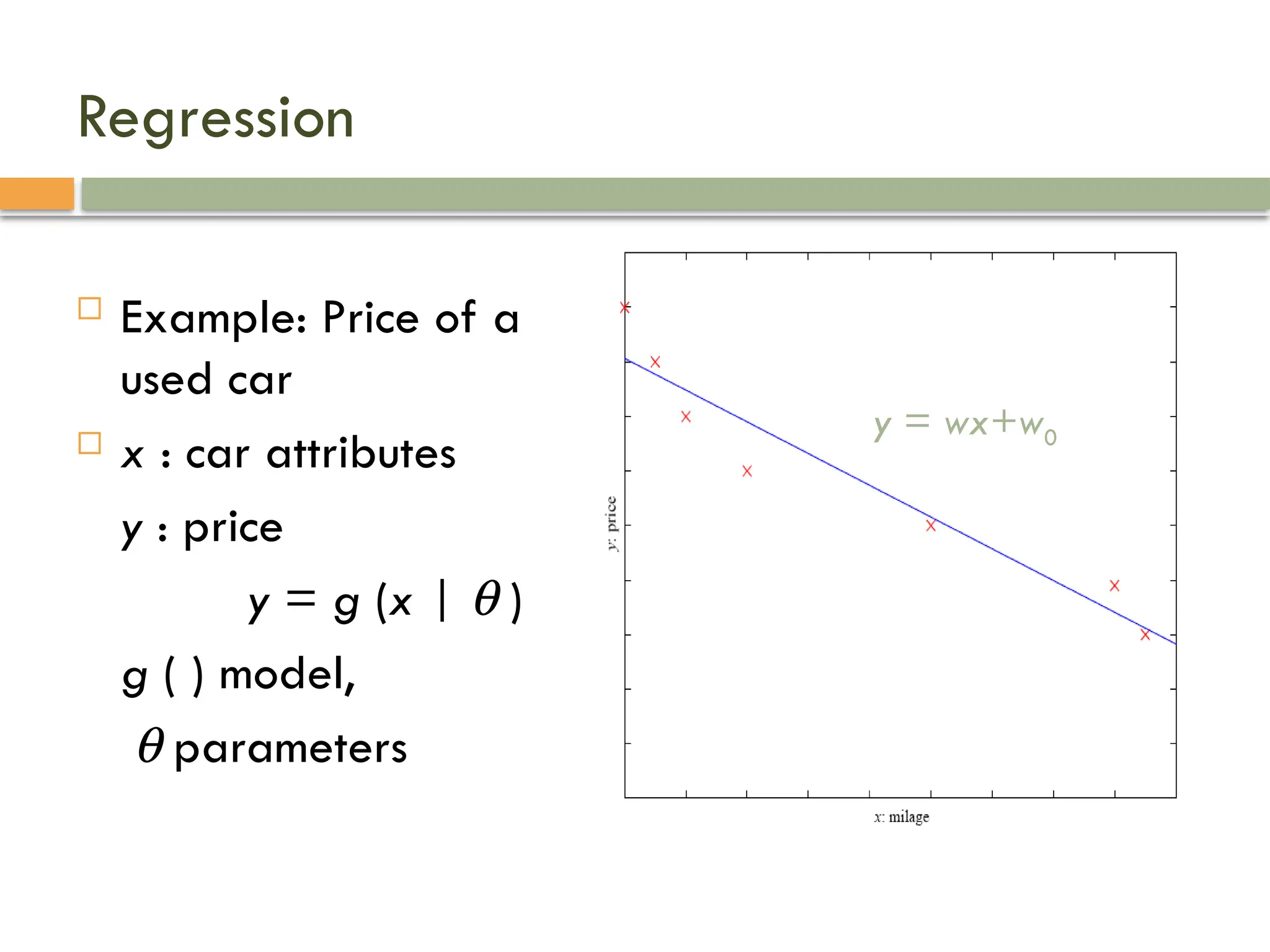

  13 Regression  Example: Priceof a used car  x : car attributes y : price y = g (x | q ) g ( ) model, q parameters y = wx+w0
• 14.

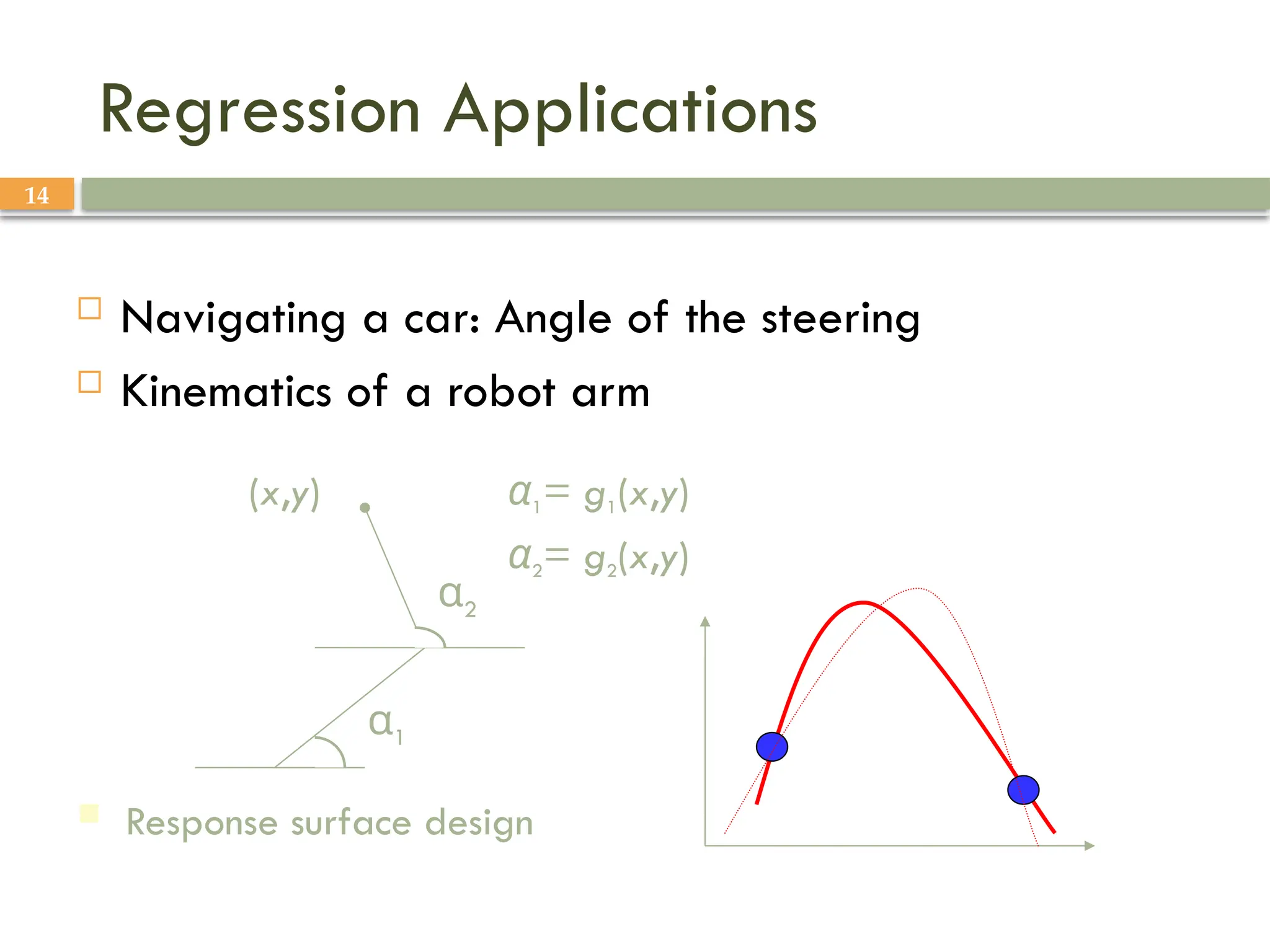

  14 Regression Applications  Navigatinga car: Angle of the steering  Kinematics of a robot arm α1= g1(x,y) α2= g2(x,y) α1 α2 (x,y)  Response surface design
• 15.

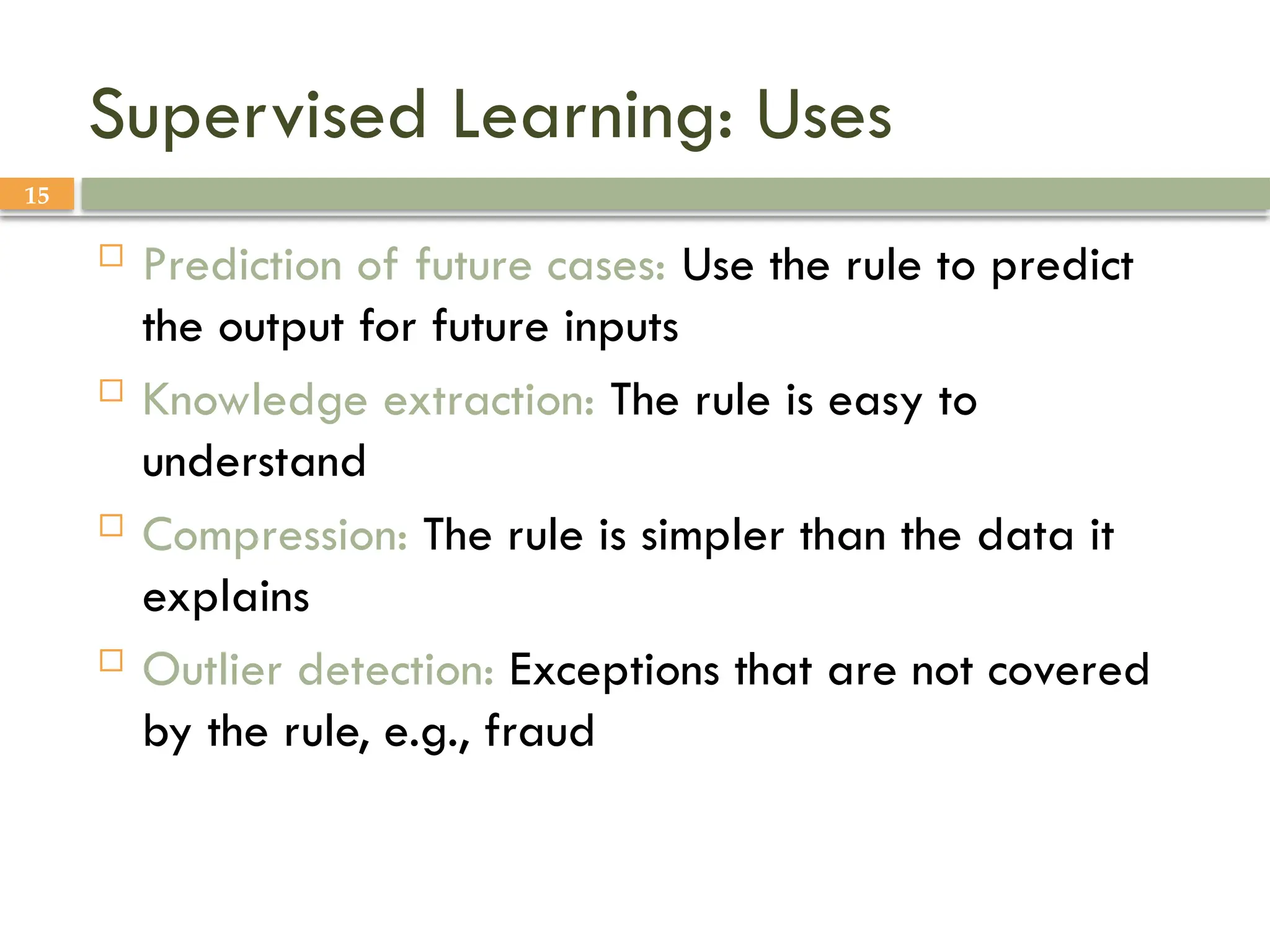

  15 Supervised Learning: Uses Prediction of future cases: Use the rule to predict the output for future inputs  Knowledge extraction: The rule is easy to understand  Compression: The rule is simpler than the data it explains  Outlier detection: Exceptions that are not covered by the rule, e.g., fraud
• 16.

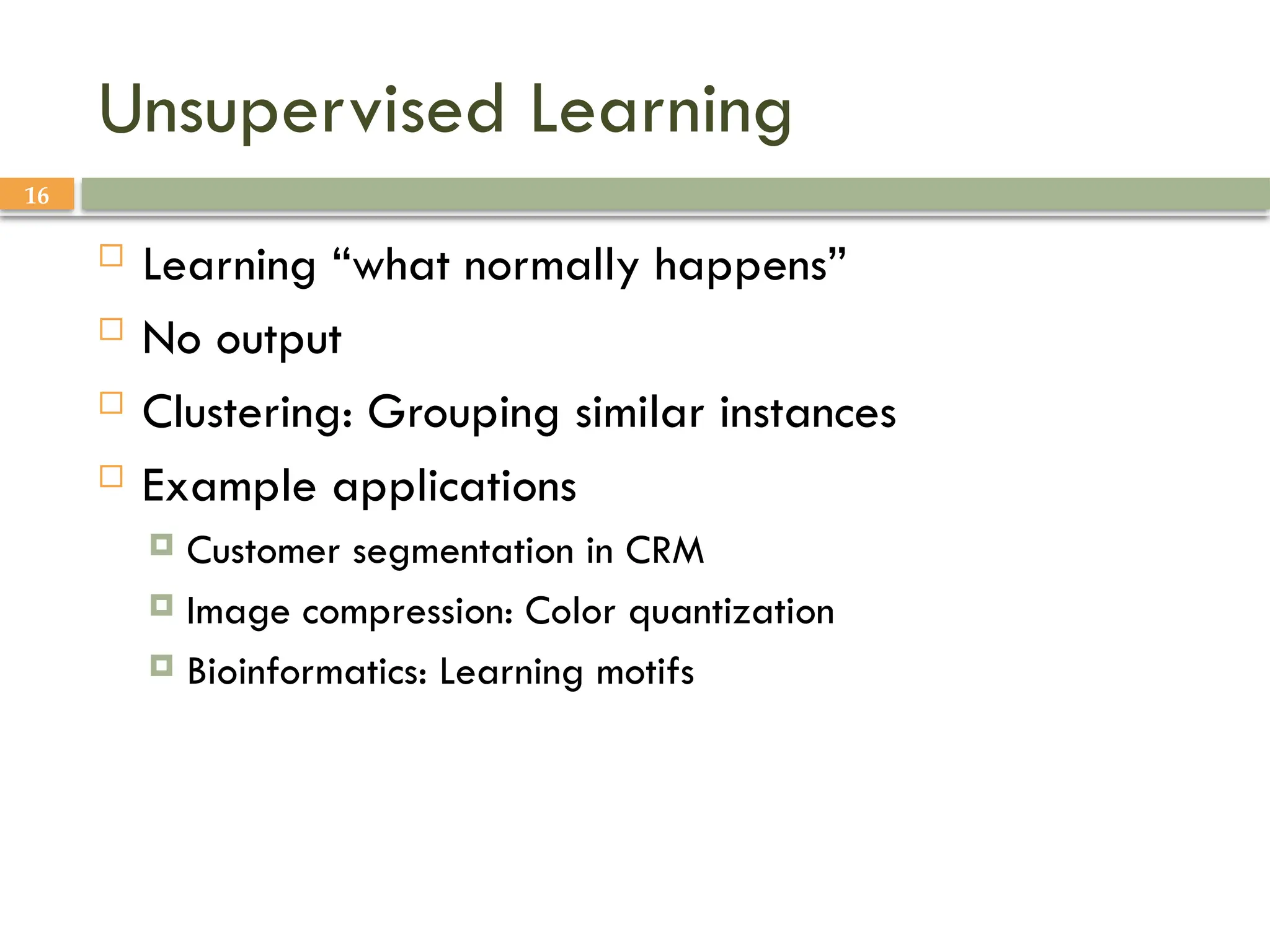

  16 Unsupervised Learning  Learning“what normally happens”  No output  Clustering: Grouping similar instances  Example applications  Customer segmentation in CRM  Image compression: Color quantization  Bioinformatics: Learning motifs
• 17.

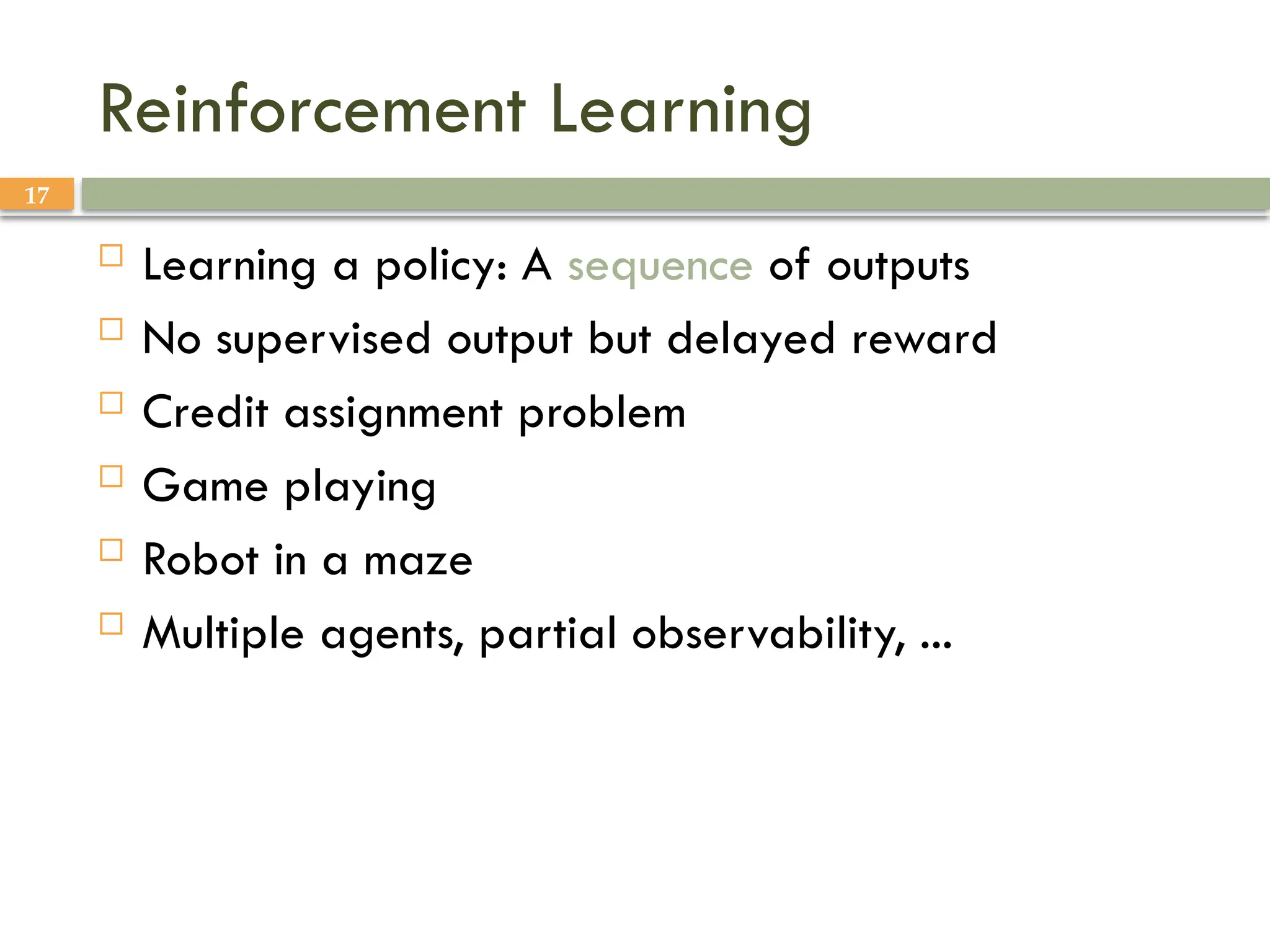

  17 Reinforcement Learning  Learninga policy: A sequence of outputs  No supervised output but delayed reward  Credit assignment problem  Game playing  Robot in a maze  Multiple agents, partial observability, ...
• 18.

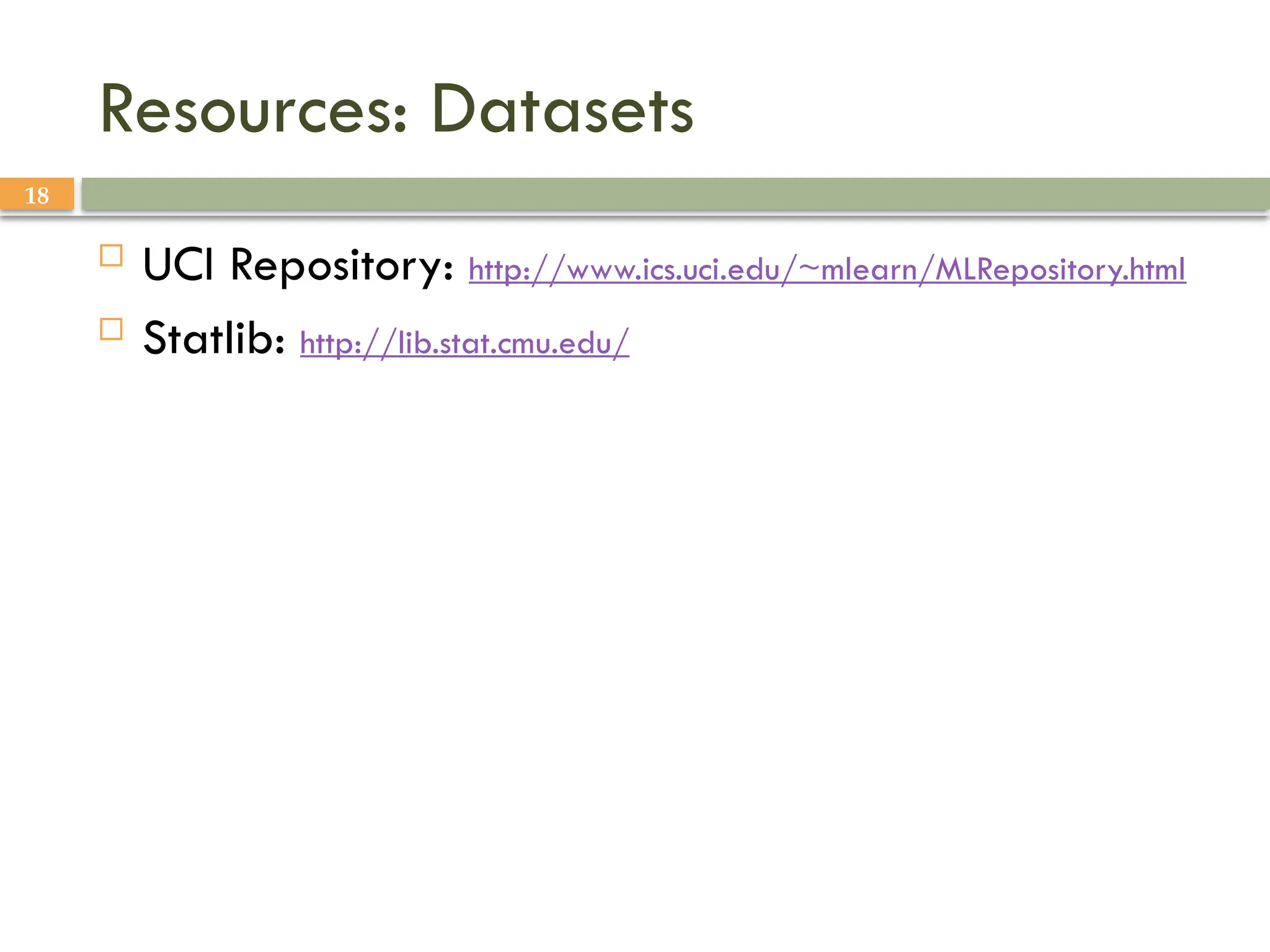

  18 Resources: Datasets  UCIRepository: http://www.ics.uci.edu/~mlearn/MLRepository.html  Statlib: http://lib.stat.cmu.edu/
• 19.

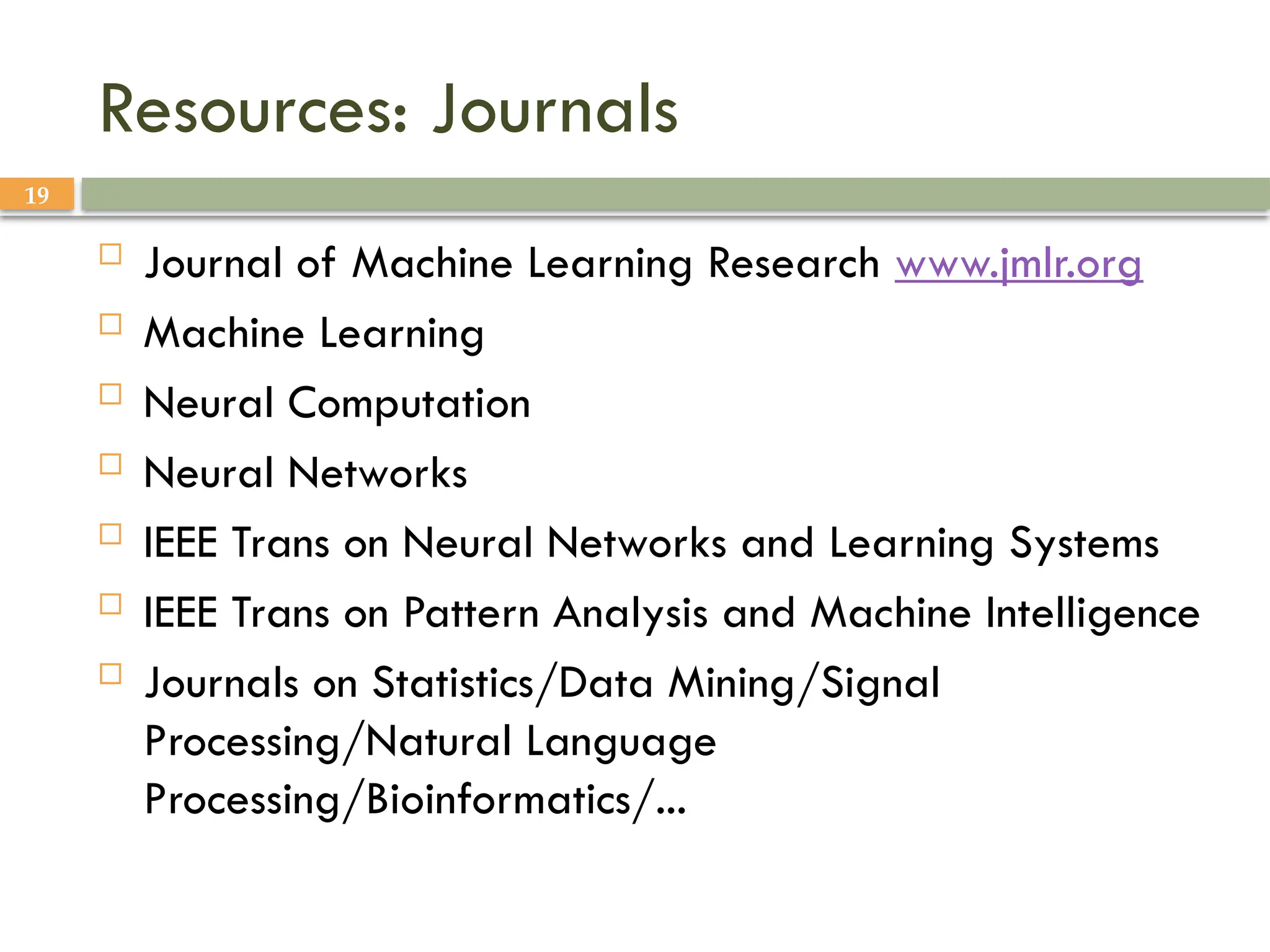

  19 Resources: Journals  Journalof Machine Learning Research www.jmlr.org  Machine Learning  Neural Computation  Neural Networks  IEEE Trans on Neural Networks and Learning Systems  IEEE Trans on Pattern Analysis and Machine Intelligence  Journals on Statistics/Data Mining/Signal Processing/Natural Language Processing/Bioinformatics/...
• 20.

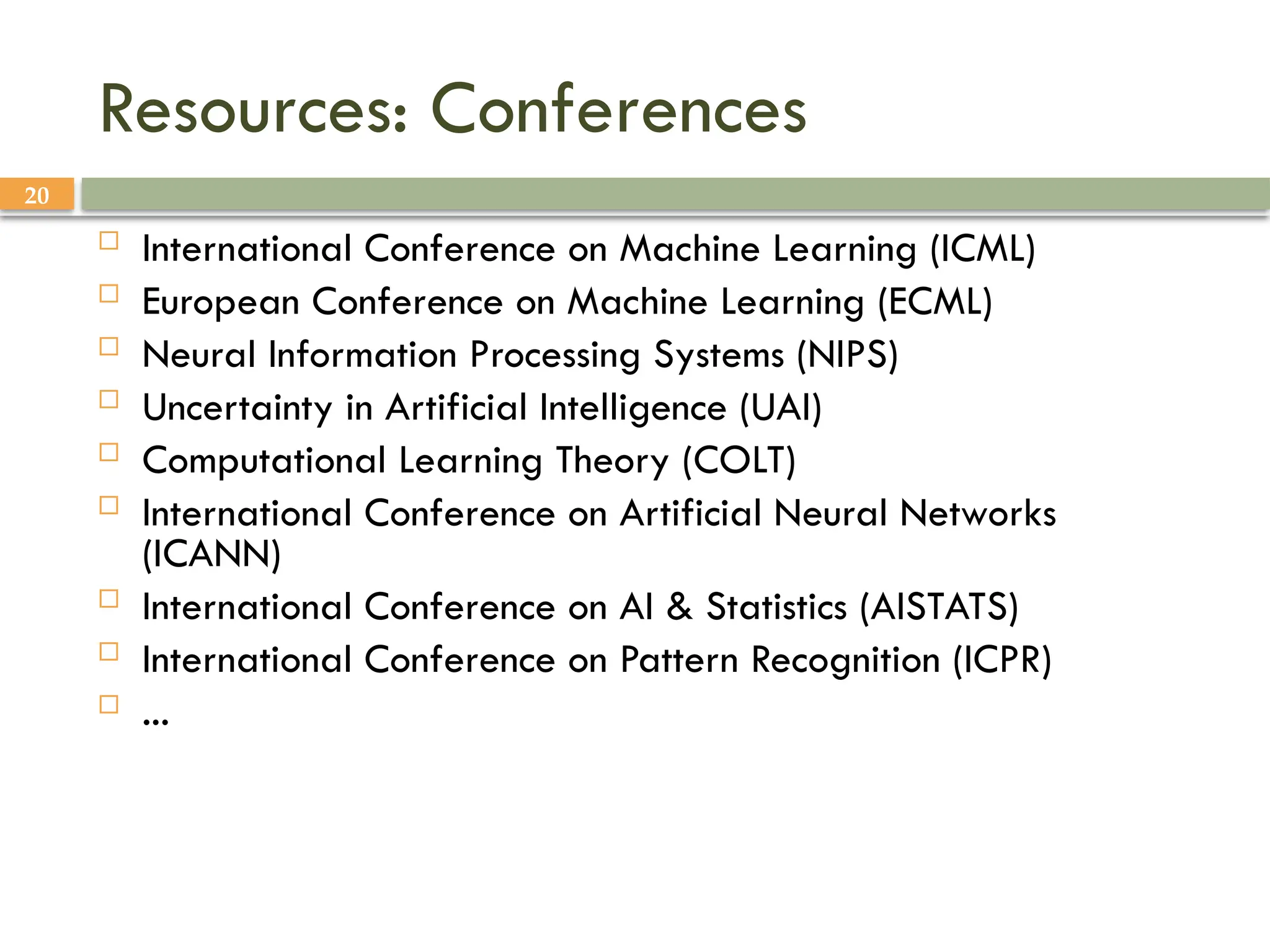

  20 Resources: Conferences  InternationalConference on Machine Learning (ICML)  European Conference on Machine Learning (ECML)  Neural Information Processing Systems (NIPS)  Uncertainty in Artificial Intelligence (UAI)  Computational Learning Theory (COLT)  International Conference on Artificial Neural Networks (ICANN)  International Conference on AI & Statistics (AISTATS)  International Conference on Pattern Recognition (ICPR)  ...
