Introduction to SDN

The document provides an introduction to software-defined networking (SDN). It discusses the evolution of routers and the tight coupling between hardware and software in traditional routers. It describes the Clean Slate project and how it led to the development of OpenFlow, which separated the control and data planes. This separation allowed the control plane to be centralized on a controller. The document outlines the SDN architecture today, including hybrid models, and standards development organizations working in the area. It provides examples of SDN use cases and contrasts SDN with network function virtualization.

Internet◦
In this document
Powered by AI

Introduction to the APRICOT 2018 conference by Tashi Phuntsho, presenting SDN agenda including evolution of routers.

Discussion on router roles in network paths and packet forwarding; exploring data, control, and management planes.

Examination of the Clean Slate project aimed at rethinking Internet design, emphasizing high performance.

Introduction of OpenFlow as a solution for enabling experimental network protocols, addressing tight coupling issues.

Details on how OpenFlow influences packet forwarding through hierarchical control and data planes.

Decoupling the control plane from the data plane creates scalability and reliability challenges.

SDN arose from OpenFlow's compromises, leading to an era of network programmability and architecture.

Hybrid model of SDN architecture balancing centralization and distributed control for improved agility and flexibility. Structured definitions and architectural components for SDN, including its benefits and objectives.

SDN as an evolution rather than revolution, highlighting technologies and API enhancements enabling SDN.

Contrasting SDN's separation of control and data planes with NFV's efforts to decouple software from hardware.

Overview of various open source projects contributing to SDN advancements such as NOX, OpenDayLight, etc.

Introduction to the P4 programming language for reconfigurable packet processing, enhancing flexibility.

Examples demonstrating SDN implementation for efficient traffic forwarding and congestion management in networks.

Insight into Eolo's BLU project focusing on custom routers, OS, and controllers while addressing flow management.

Wrap-up of the SDN presentation and acknowledgment of the APRICOT 2018 event held in Kathmandu.

2018#apricot2018 45 Intro to SDN APRICOT2018/APNIC45 26 Feb 2018 Kathmandu Tashi Phuntsho Senior Network Analyst tashi@apnic.net

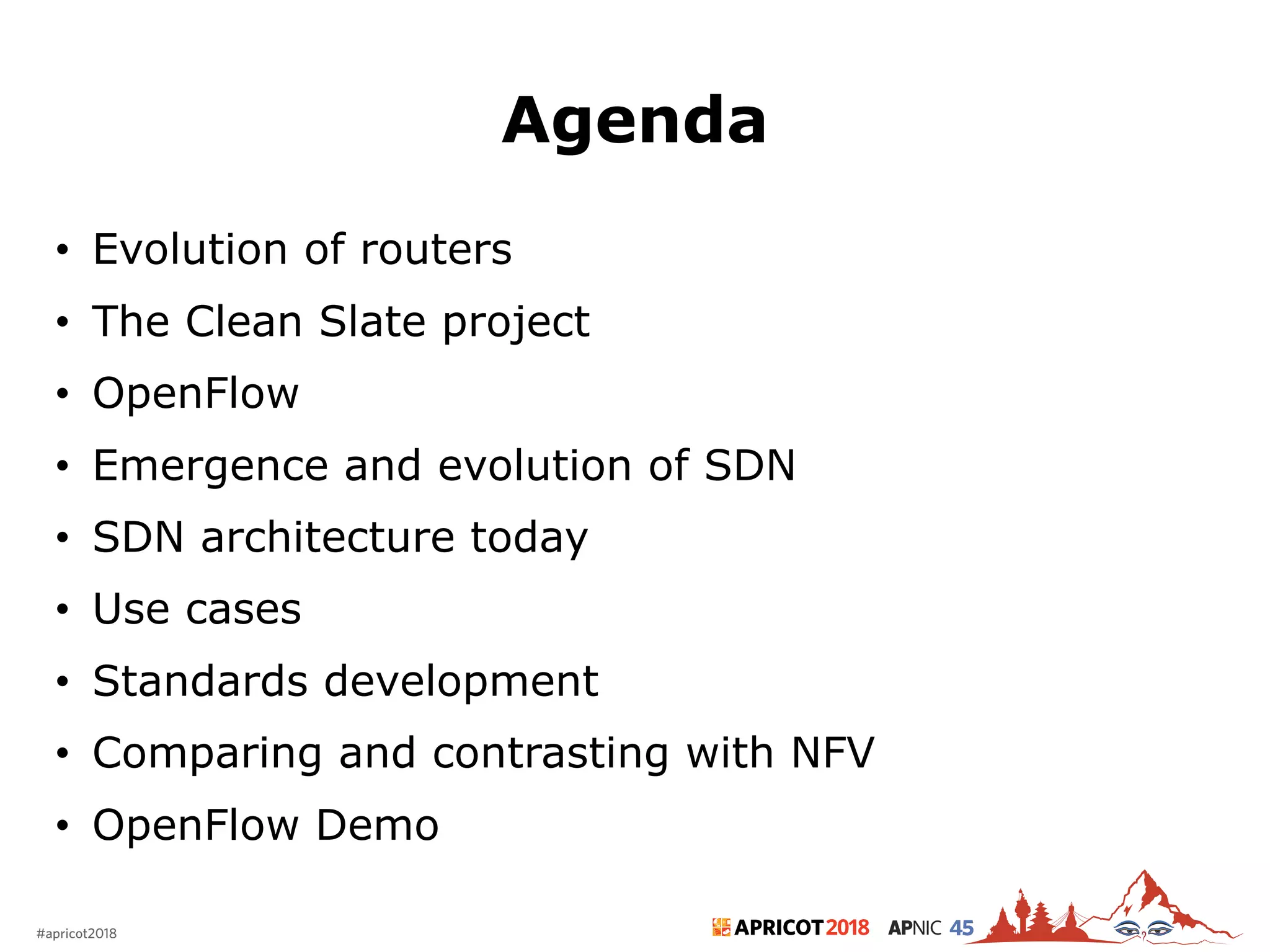

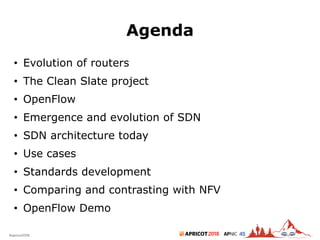

2018#apricot2018 45 Agenda • Evolution of routers • The Clean Slate project • OpenFlow • Emergence and evolution of SDN • SDN architecture today • Use cases • Standards development • Comparing and contrasting with NFV • OpenFlow Demo 2

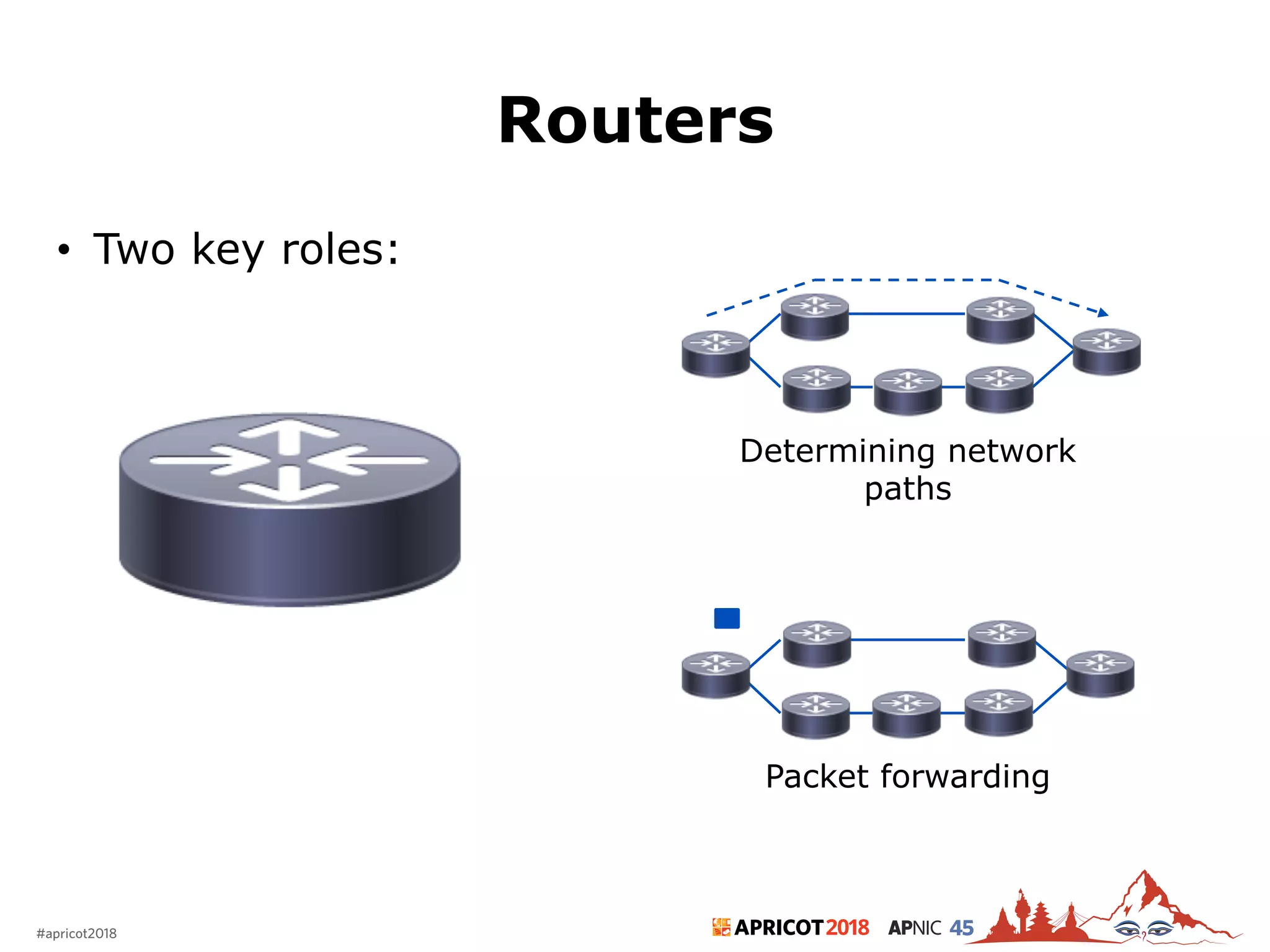

2018#apricot2018 45 Routers 3 • Two key roles: Determining network paths Packet forwarding

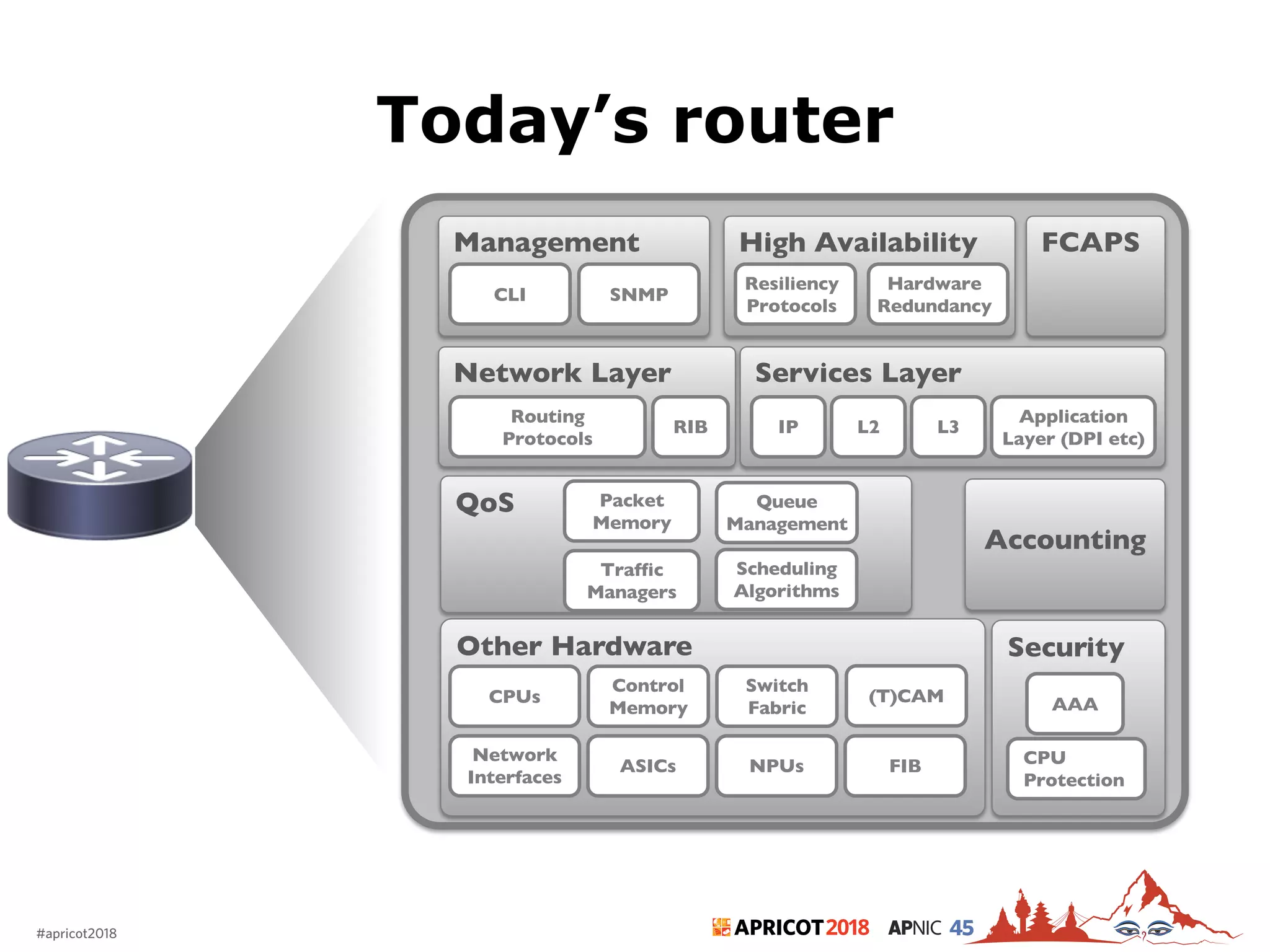

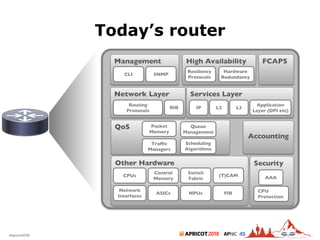

2018#apricot2018 45 Today’s router 4 Other Hardware Network Interfaces CPUs ASICs NPUs Switch Fabric Control Memory (T)CAM FIB Management CLI SNMP High Availability Resiliency Protocols Network Layer RIB Routing Protocols Services Layer IP L2 L3 Application Layer (DPI etc) QoS Queue Management Hardware Redundancy Traffic Managers Packet Memory Scheduling Algorithms FCAPS Security AAA CPU Protection Accounting

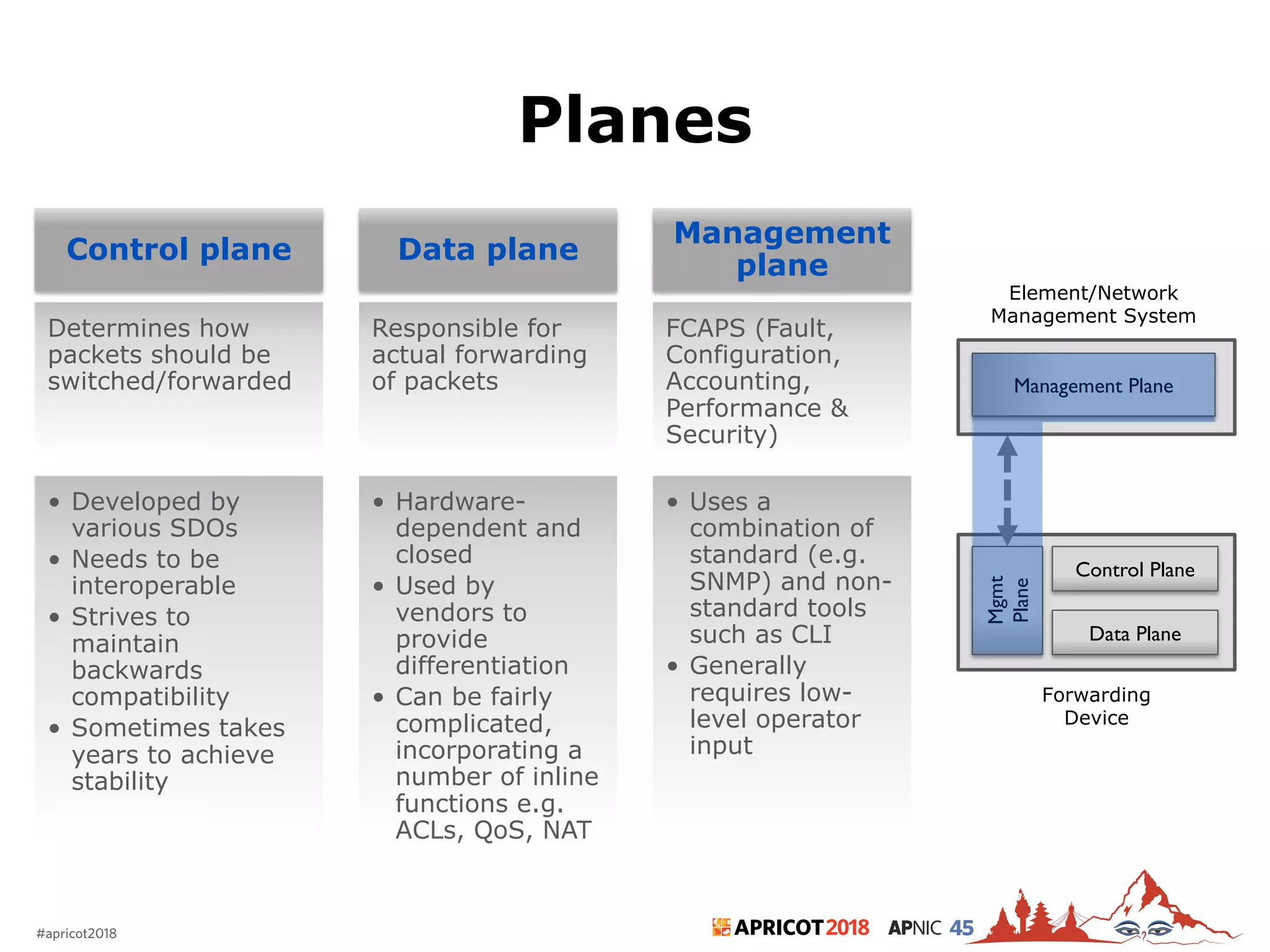

2018#apricot2018 45 Planes 5 Control plane • Developed by various SDOs • Needs to be interoperable • Strives to maintain backwards compatibility • Sometimes takes years to achieve stability Data plane • Hardware- dependent and closed • Used by vendors to provide differentiation • Can be fairly complicated, incorporating a number of inline functions e.g. ACLs, QoS, NAT Management plane • Uses a combination of standard (e.g. SNMP) and non- standard tools such as CLI • Generally requires low- level operator input Forwarding Device Data Plane Element/Network Management System Control Plane Mgmt Plane Management Plane Determines how packets should be switched/forwarded Responsible for actual forwarding of packets FCAPS (Fault, Configuration, Accounting, Performance & Security)

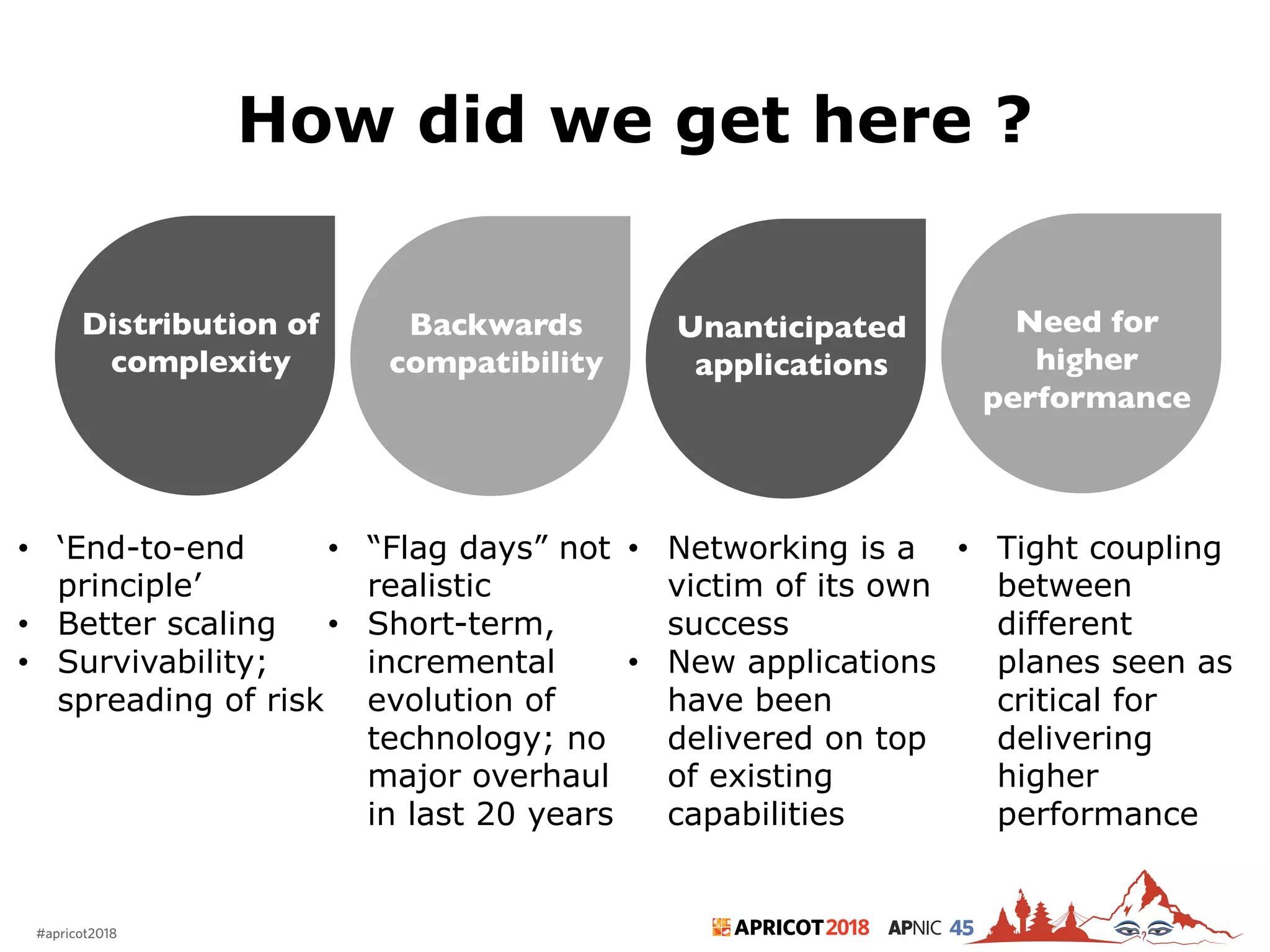

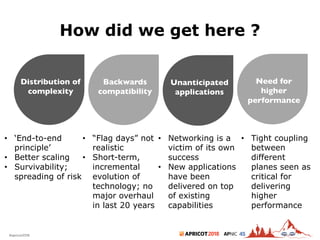

2018#apricot2018 45 How did we get here ? 6 Distribution of complexity Backwards compatibility Unanticipated applications Need for higher performance • ‘End-to-end principle’ • Better scaling • Survivability; spreading of risk • “Flag days” not realistic • Short-term, incremental evolution of technology; no major overhaul in last 20 years • Networking is a victim of its own success • New applications have been delivered on top of existing capabilities • Tight coupling between different planes seen as critical for delivering higher performance

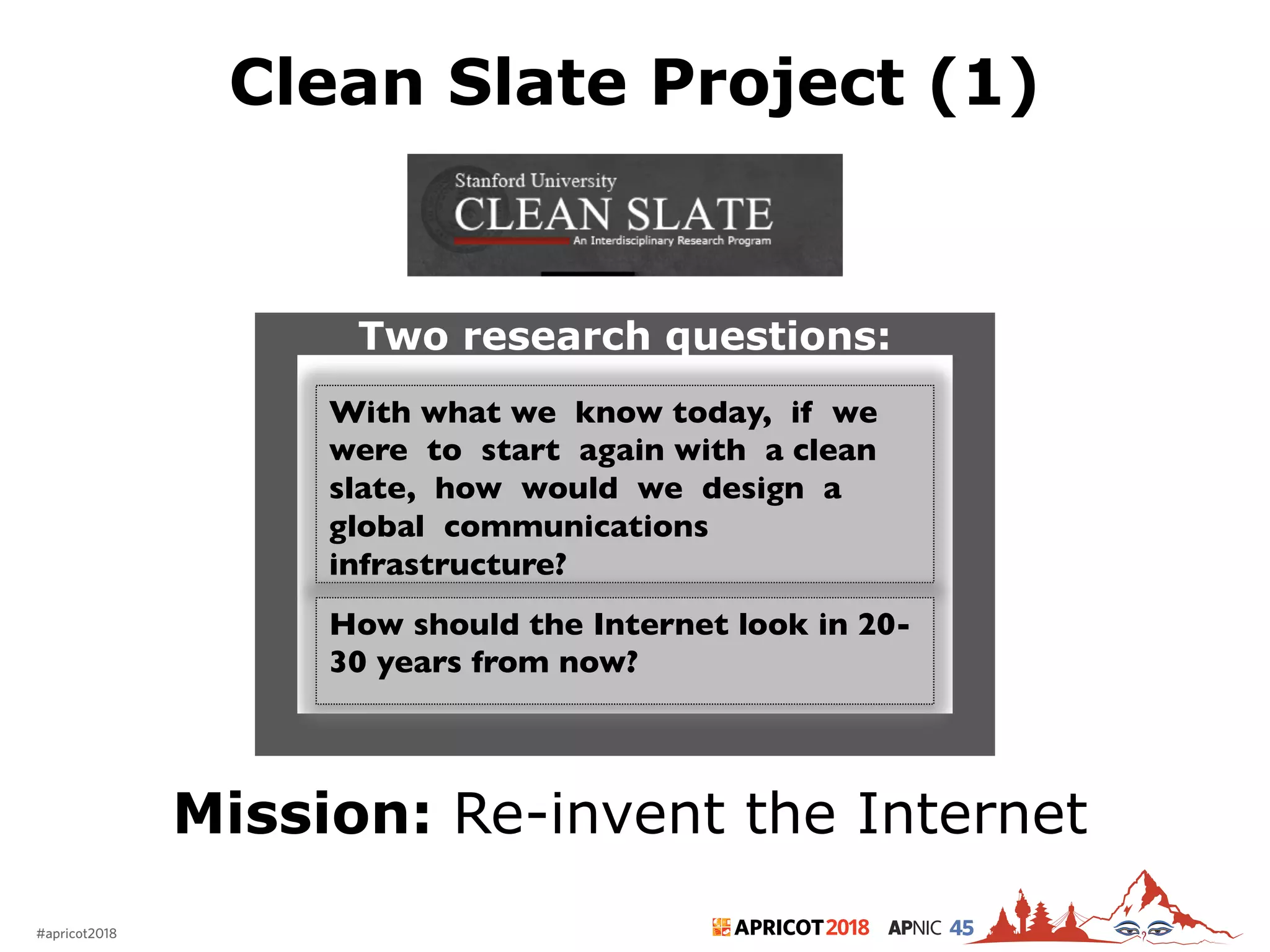

2018#apricot2018 45 Clean Slate Project (1) 7 Mission: Re-invent the Internet With what we know today, if we were to start again with a clean slate, how would we design a global communications infrastructure? Two research questions: How should the Internet look in 20- 30 years from now?

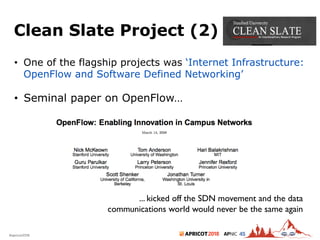

2018#apricot2018 45 Clean Slate Project (2) 8 • One of the flagship projects was ‘Internet Infrastructure: OpenFlow and Software Defined Networking’ • Seminal paper on OpenFlow… ... kicked off the SDN movement and the data communications world would never be the same again
2018#apricot2018 45 OpenFlow: The Problem • Initial Problem: – A mechanism was required for researchers to run experimental network protocols. – Open software platforms did not provide the required performance and commercial solutions were too closed and inflexible. 9 Hardware Software Tight coupling Closed system – only functionalities exposed by vendors available Challenge: how do we influence packet forwarding behaviour ?

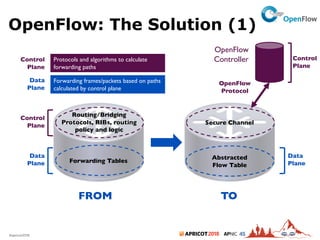

2018#apricot2018 45 OpenFlow: The Solution (1) 10 FROM TO Routing/Bridging Protocols, RIBs, routing policy and logic Forwarding Tables Secure Channel Abstracted Flow Table OpenFlow Controller OpenFlow Protocol Control Plane Data Plane Data Plane Control Plane Control Plane Data Plane Protocols and algorithms to calculate forwarding paths Forwarding frames/packets based on paths calculated by control plane

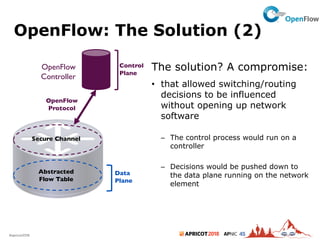

2018#apricot2018 45 OpenFlow: The Solution (2) 11 Secure Channel Abstracted Flow Table OpenFlow Controller OpenFlow Protocol Data Plane Control Plane The solution? A compromise: • that allowed switching/routing decisions to be influenced without opening up network software – The control process would run on a controller – Decisions would be pushed down to the data plane running on the network element

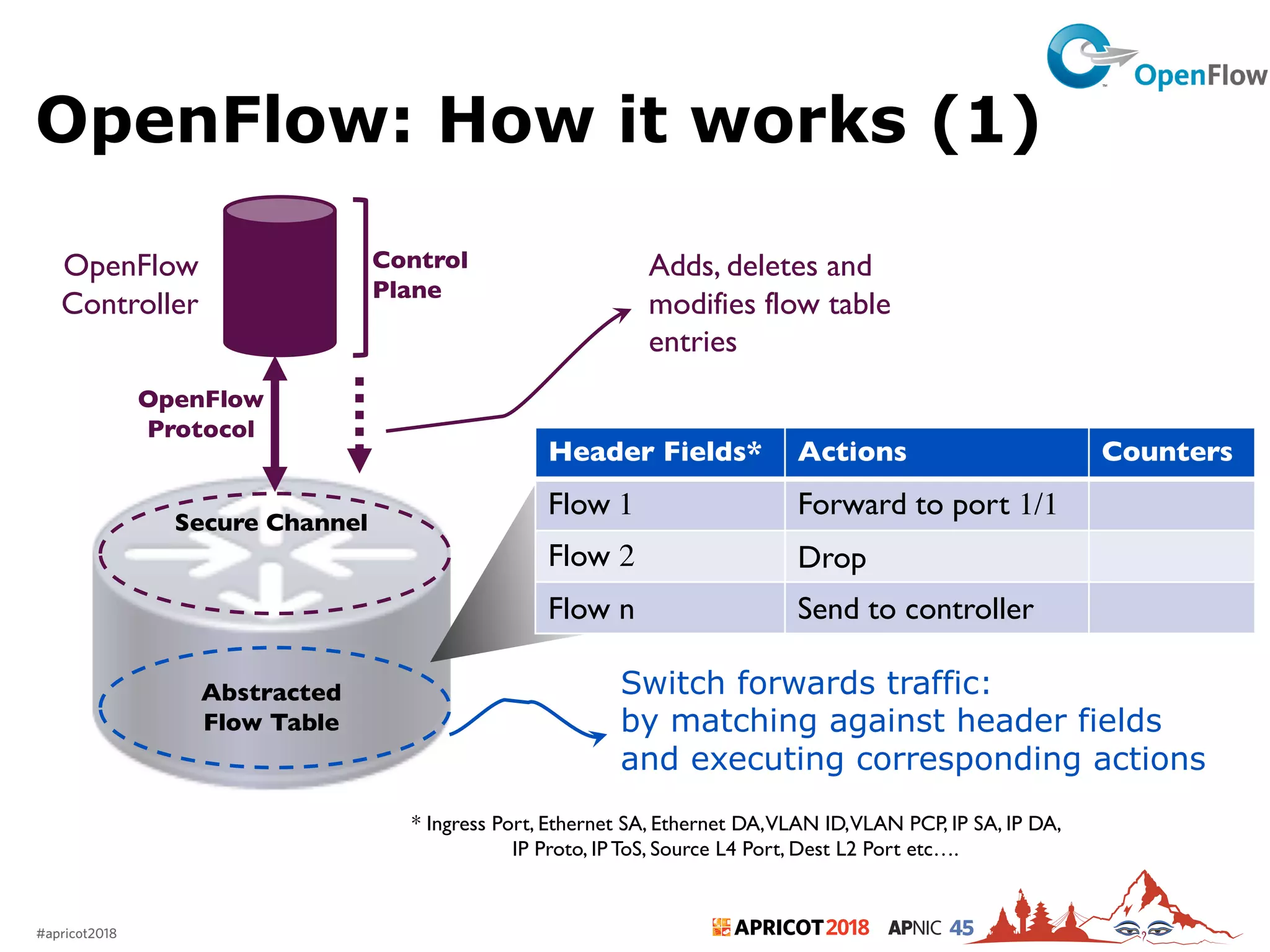

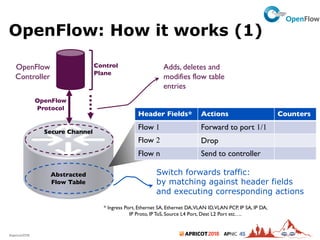

2018#apricot2018 45 12 Secure Channel Abstracted Flow Table OpenFlow Controller OpenFlow Protocol Control Plane * Ingress Port, Ethernet SA, Ethernet DA,VLAN ID,VLAN PCP, IP SA, IP DA, IP Proto, IP ToS, Source L4 Port, Dest L2 Port etc…. Adds, deletes and modifies flow table entries Header Fields* Actions Counters Flow 1 Forward to port 1/1 Flow 2 Drop Flow n Send to controller Switch forwards traffic: by matching against header fields and executing corresponding actions OpenFlow: How it works (1)

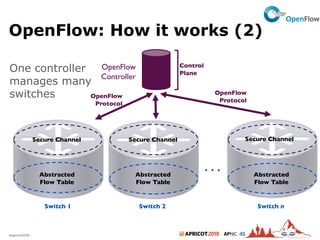

2018#apricot2018 45 OpenFlow: How it works (2) 13 Secure Channel Abstracted Flow Table OpenFlow Controller OpenFlow Protocol Control Plane Secure Channel Abstracted Flow Table Secure Channel Abstracted Flow Table . . . Switch 1 Switch 2 Switch n OpenFlow Protocol One controller manages many switches

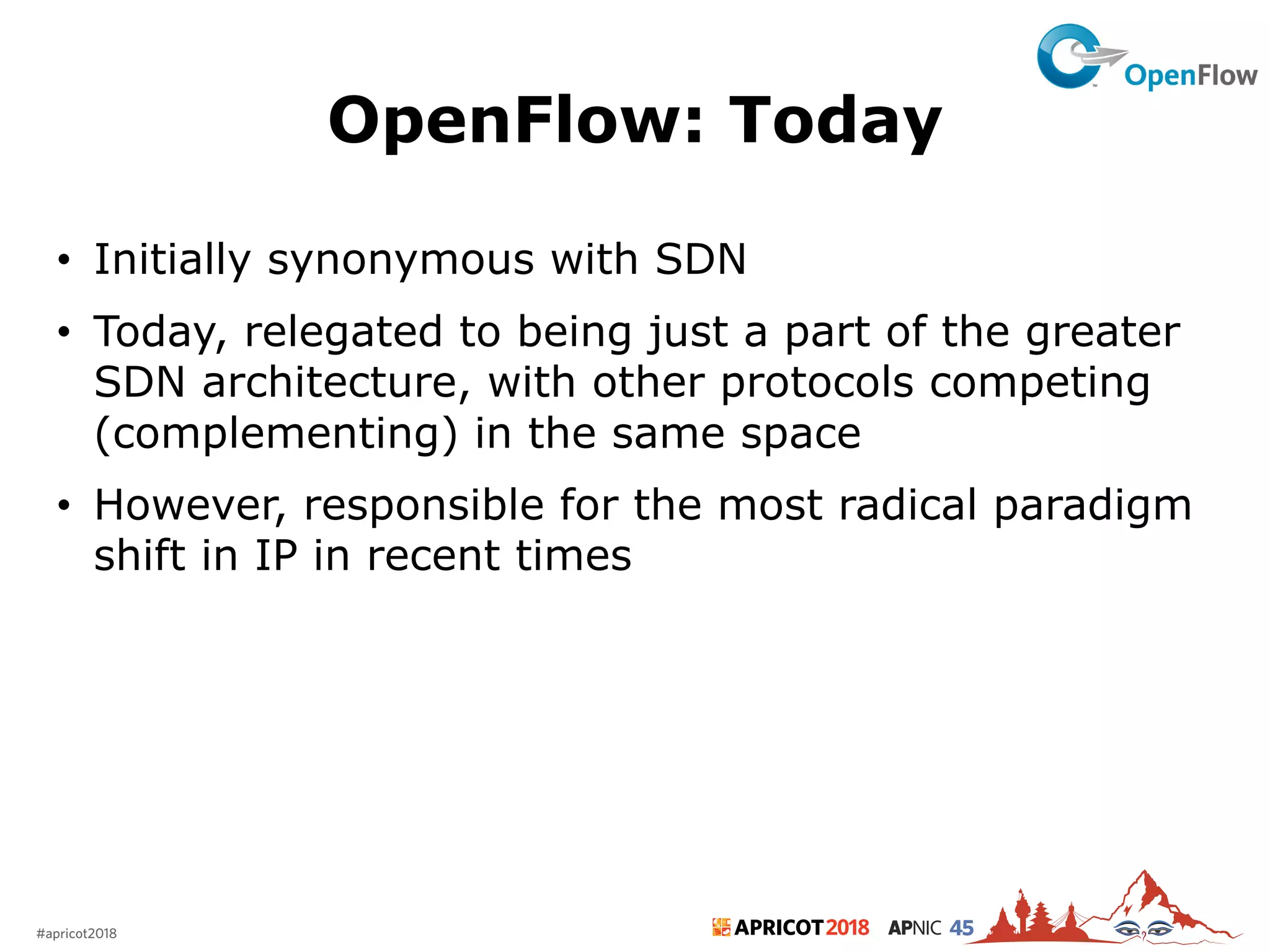

2018#apricot2018 45 OpenFlow: Today • Initially synonymous with SDN • Today, relegated to being just a part of the greater SDN architecture, with other protocols competing (complementing) in the same space • However, responsible for the most radical paradigm shift in IP in recent times 14

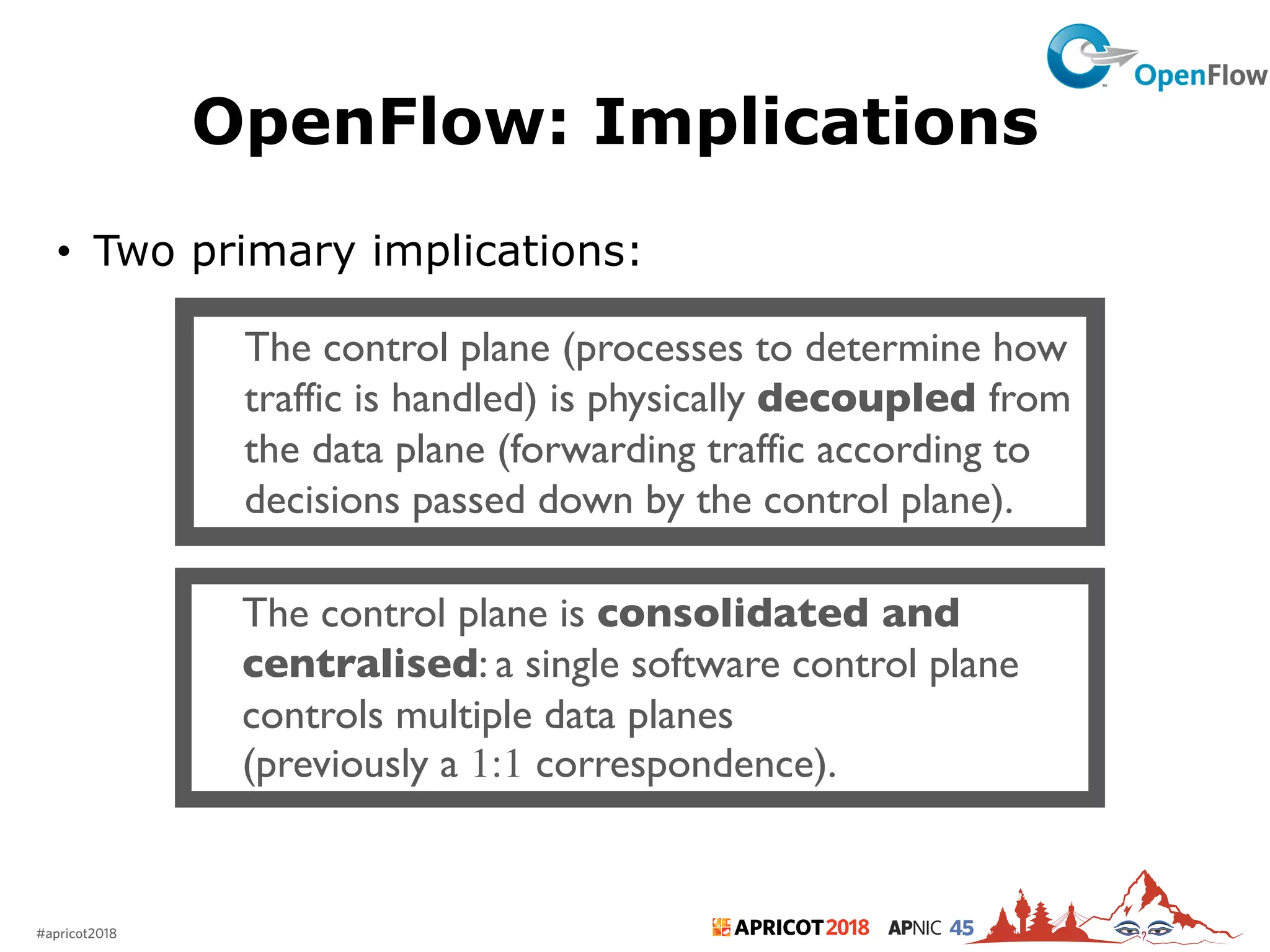

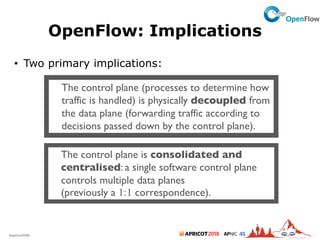

2018#apricot2018 45 OpenFlow: Implications • Two primary implications: 15 The control plane (processes to determine how traffic is handled) is physically decoupled from the data plane (forwarding traffic according to decisions passed down by the control plane). The control plane is consolidated and centralised: a single software control plane controls multiple data planes (previously a 1:1 correspondence).

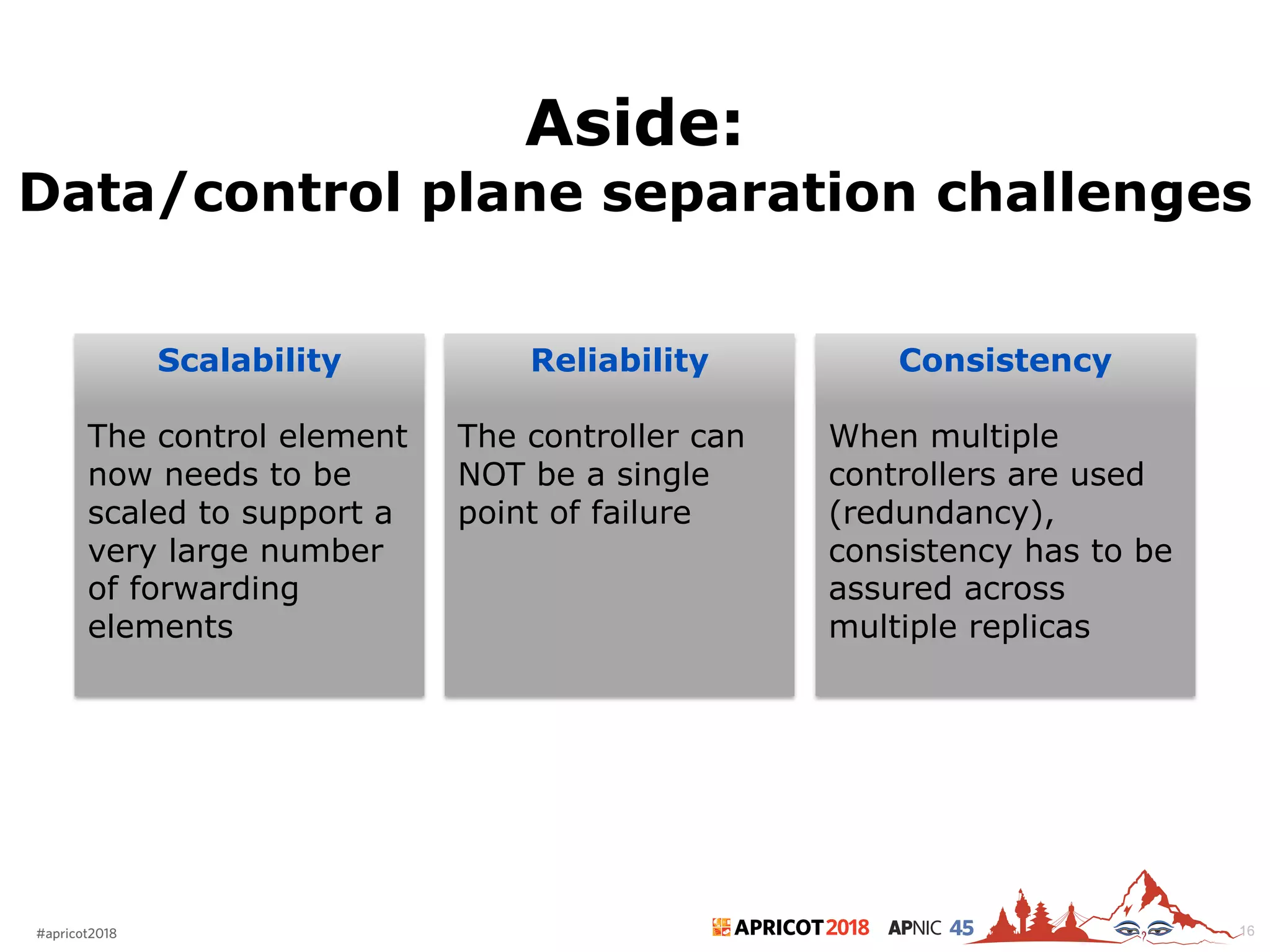

2018#apricot2018 45 Aside: Data/control plane separation challenges 16 Scalability The control element now needs to be scaled to support a very large number of forwarding elements Reliability The controller can NOT be a single point of failure Consistency When multiple controllers are used (redundancy), consistency has to be assured across multiple replicas

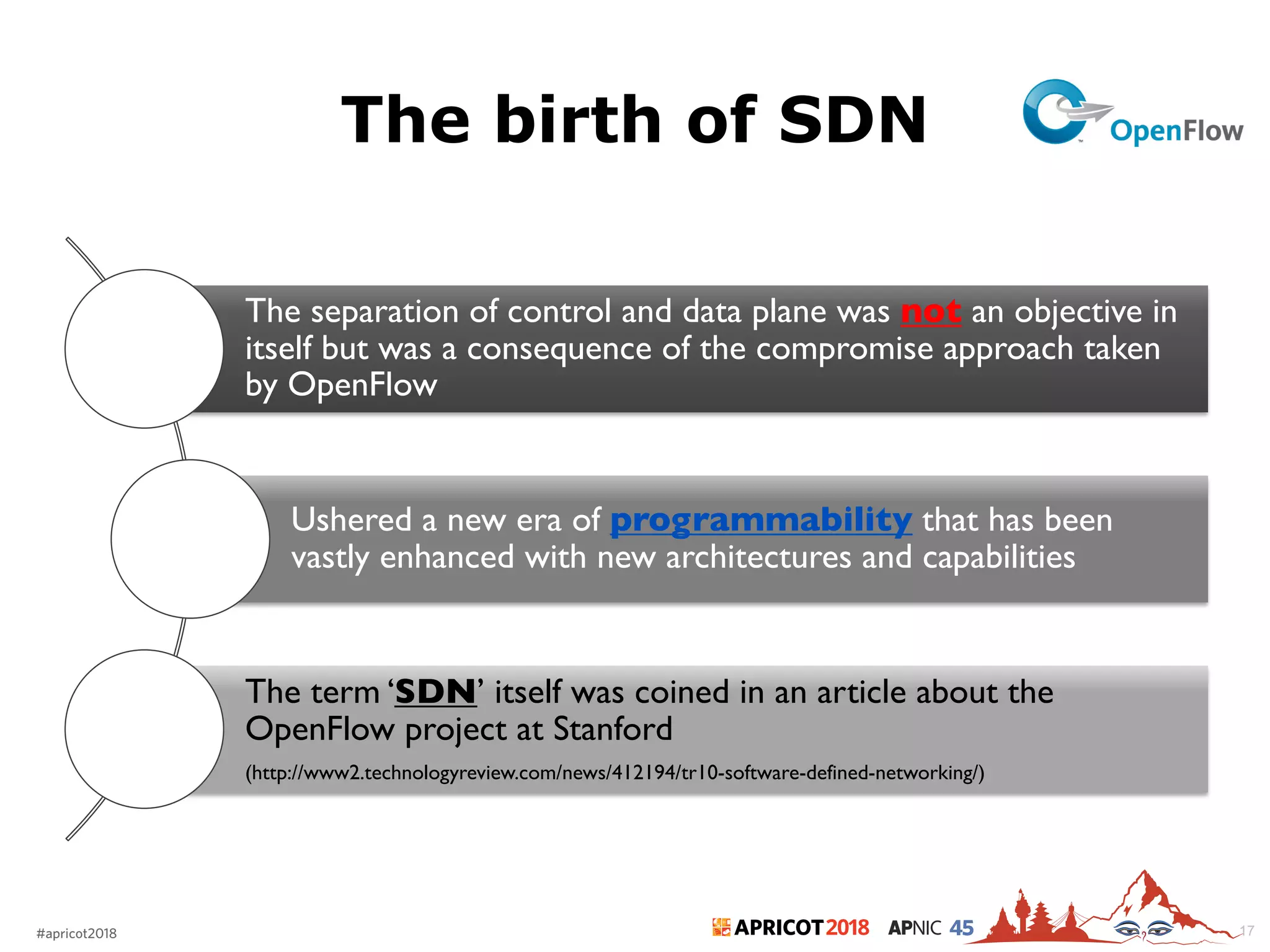

2018#apricot2018 45 The birth of SDN 17 The separation of control and data plane was not an objective in itself but was a consequence of the compromise approach taken by OpenFlow Ushered a new era of programmability that has been vastly enhanced with new architectures and capabilities The term ‘SDN’ itself was coined in an article about the OpenFlow project at Stanford (http://www2.technologyreview.com/news/412194/tr10-software-defined-networking/)

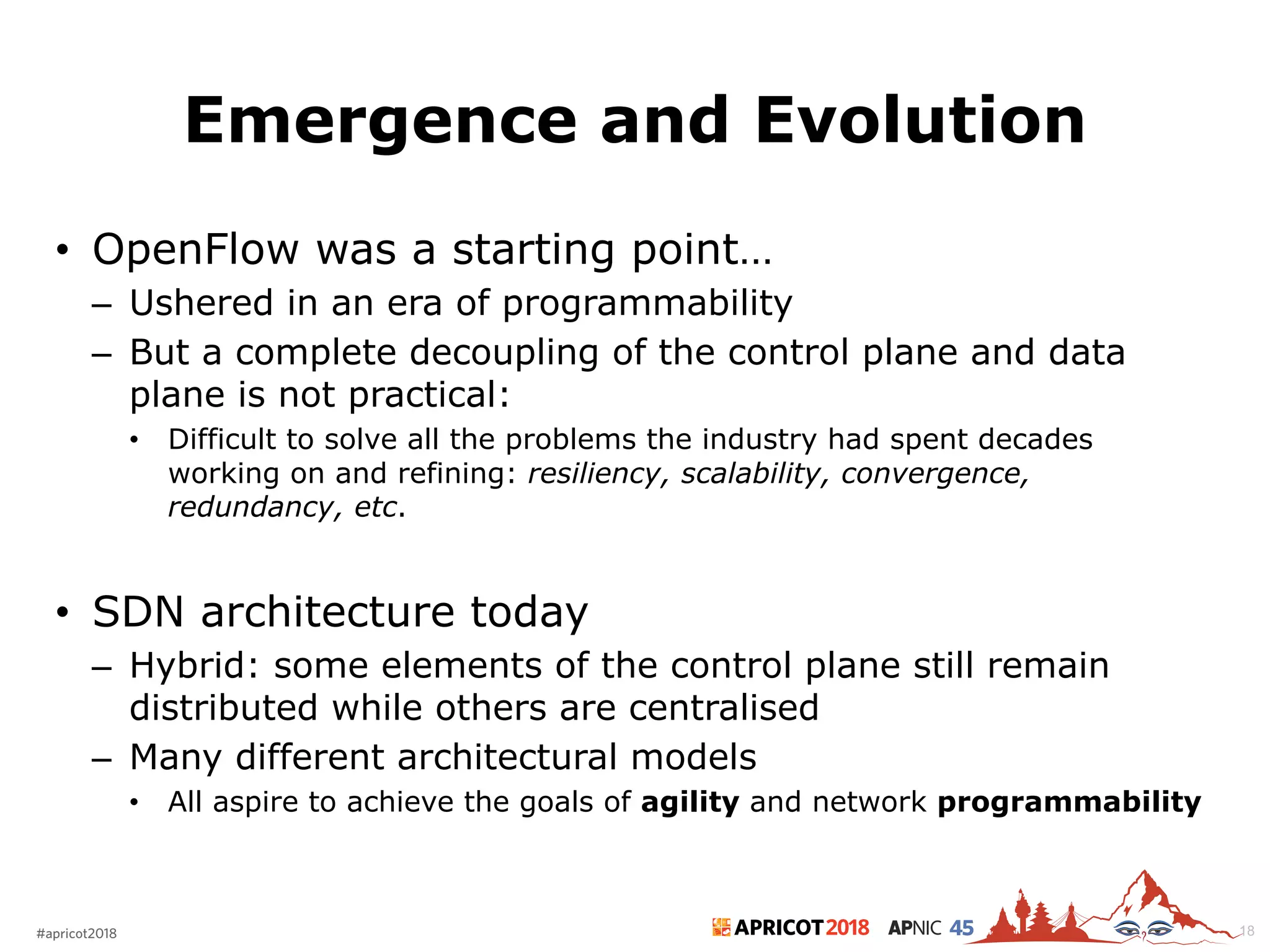

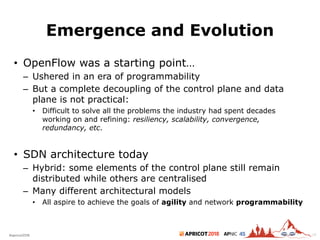

2018#apricot2018 45 Emergence and Evolution 18 • OpenFlow was a starting point… – Ushered in an era of programmability – But a complete decoupling of the control plane and data plane is not practical: • Difficult to solve all the problems the industry had spent decades working on and refining: resiliency, scalability, convergence, redundancy, etc. • SDN architecture today – Hybrid: some elements of the control plane still remain distributed while others are centralised – Many different architectural models • All aspire to achieve the goals of agility and network programmability

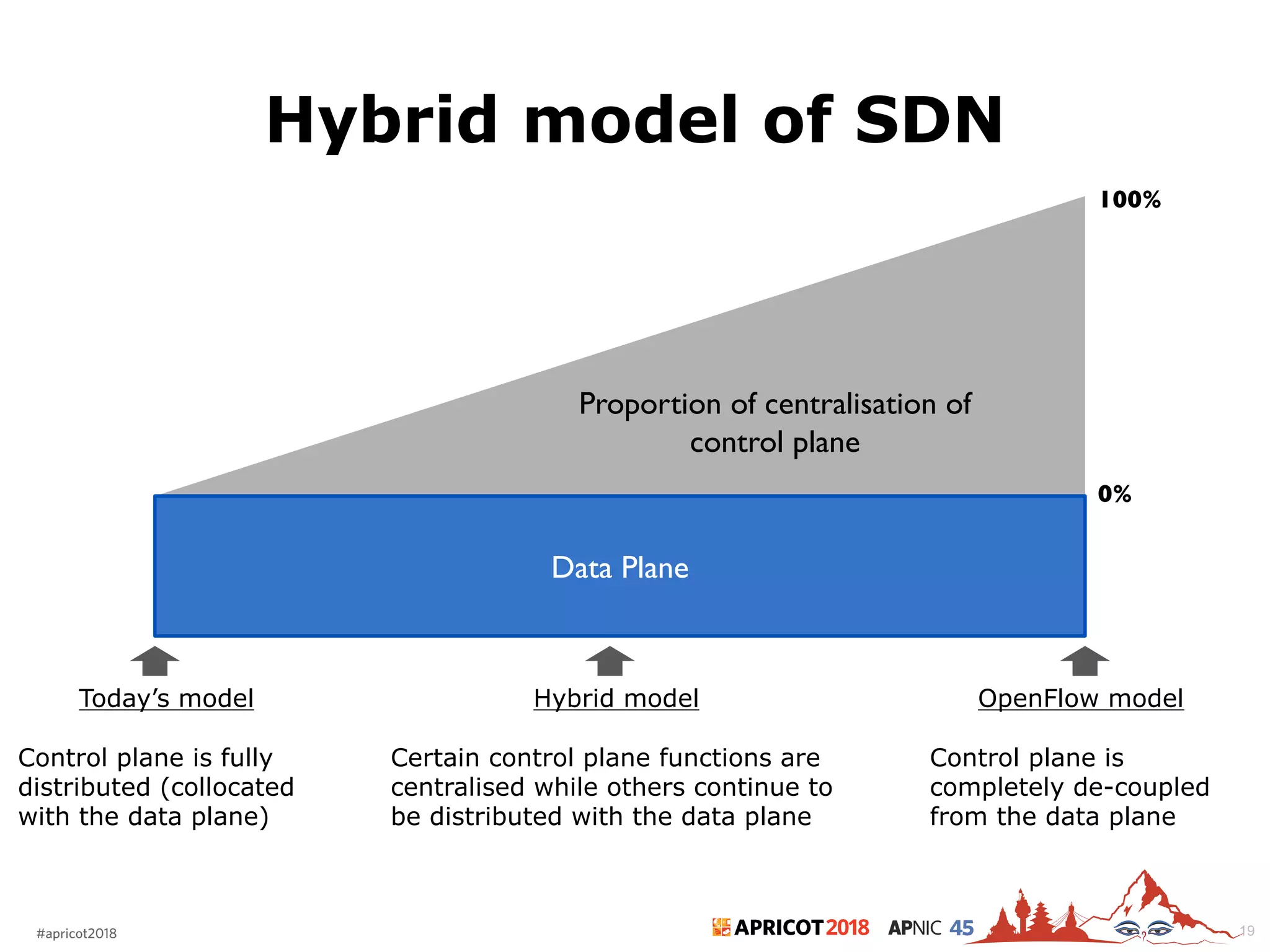

2018#apricot2018 45 Hybrid model of SDN 19 Proportion of centralisation of control plane Data Plane Today’s model Control plane is fully distributed (collocated with the data plane) 0% 100% OpenFlow model Control plane is completely de-coupled from the data plane Hybrid model Certain control plane functions are centralised while others continue to be distributed with the data plane

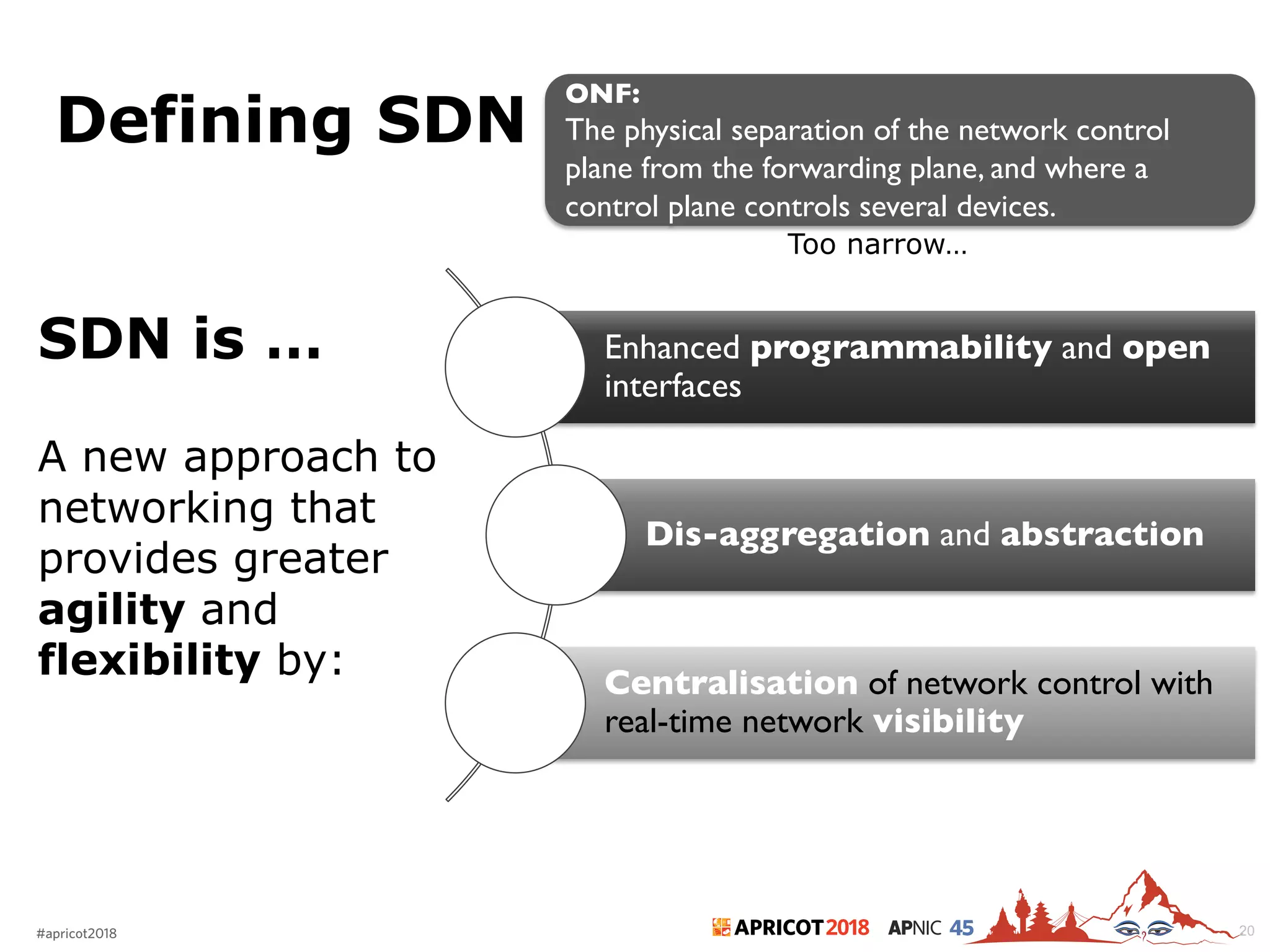

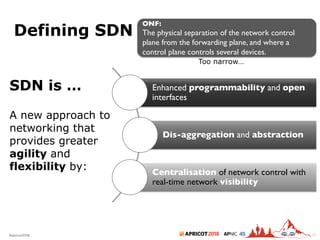

2018#apricot2018 45 Defining SDN 20 ONF: The physical separation of the network control plane from the forwarding plane, and where a control plane controls several devices. Too narrow… Enhanced programmability and open interfaces Dis-aggregation and abstraction Centralisation of network control with real-time network visibility SDN is … A new approach to networking that provides greater agility and flexibility by:

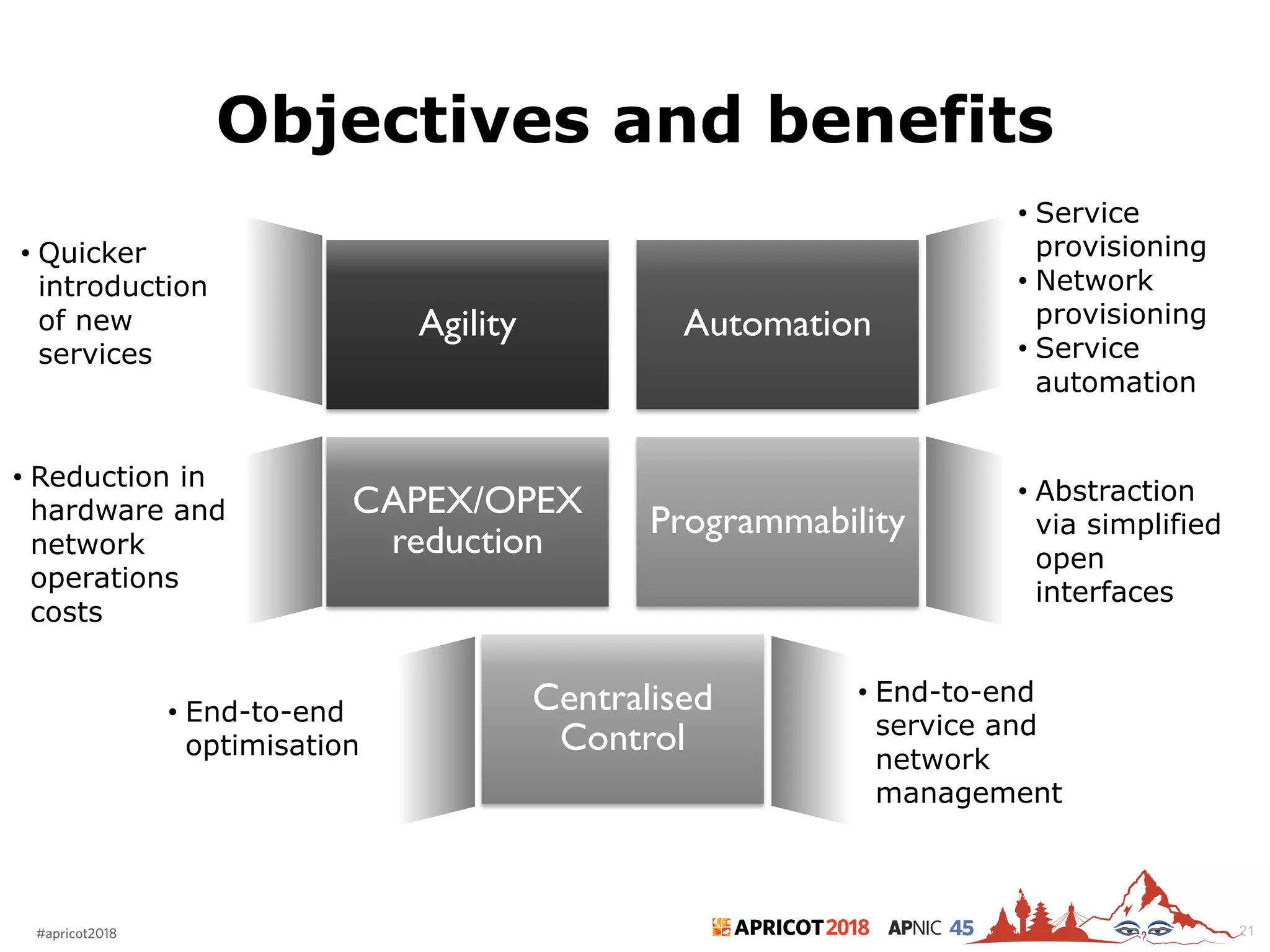

2018#apricot2018 45 Objectives and benefits 21 Agility Automation CAPEX/OPEX reduction Programmability Centralised Control • Service provisioning • Network provisioning • Service automation • Quicker introduction of new services • Reduction in hardware and network operations costs • Abstraction via simplified open interfaces • End-to-end service and network management • End-to-end optimisation
2018#apricot2018 45 SDN SDOs 22

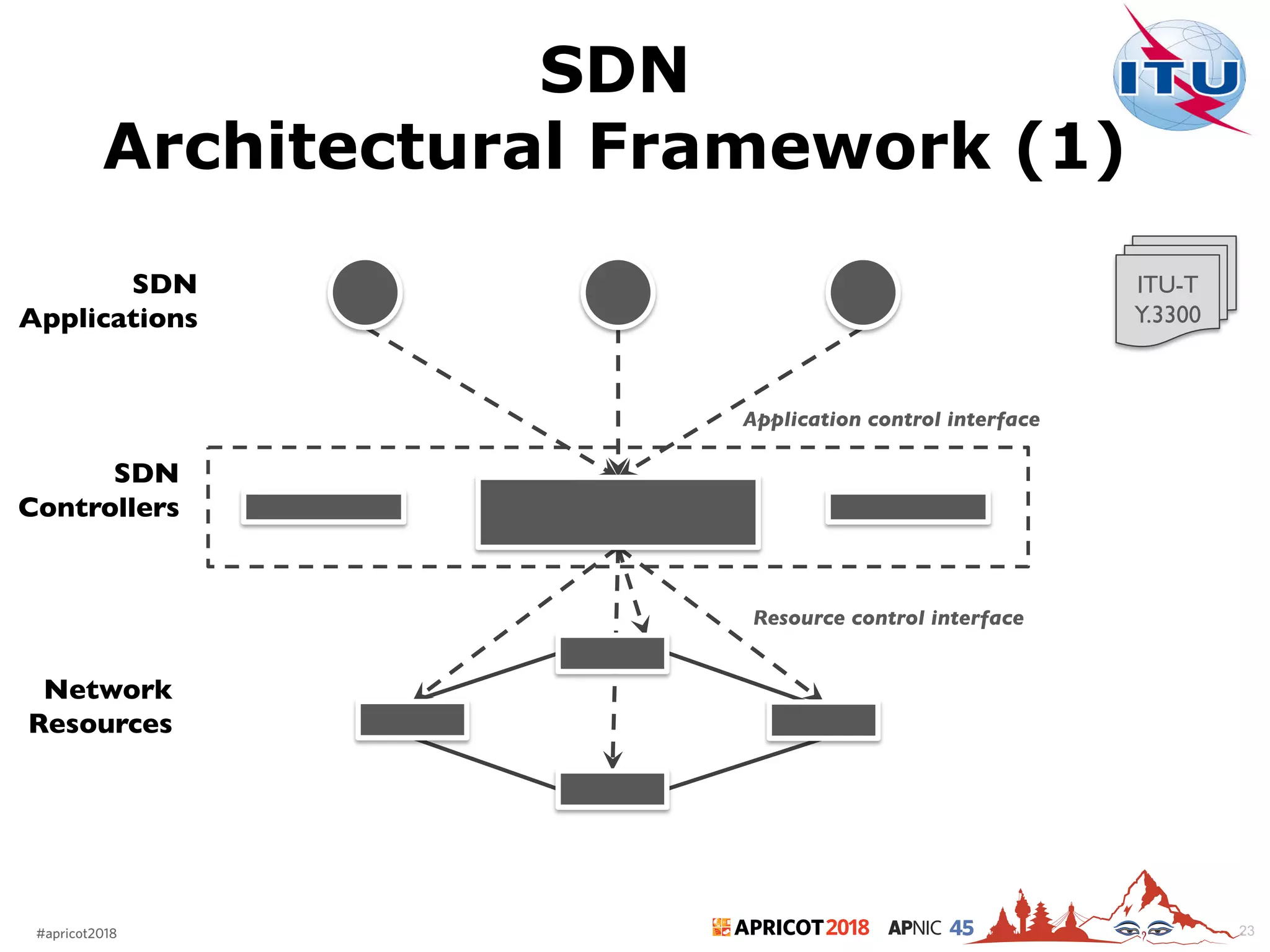

2018#apricot2018 45 SDN Architectural Framework (1) 23 ITU-T Y.3300 SDN Controllers SDN Applications Network Resources Application control interface Resource control interface

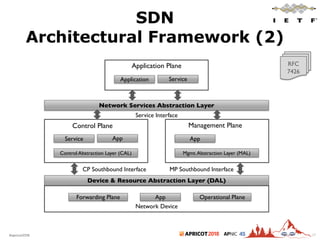

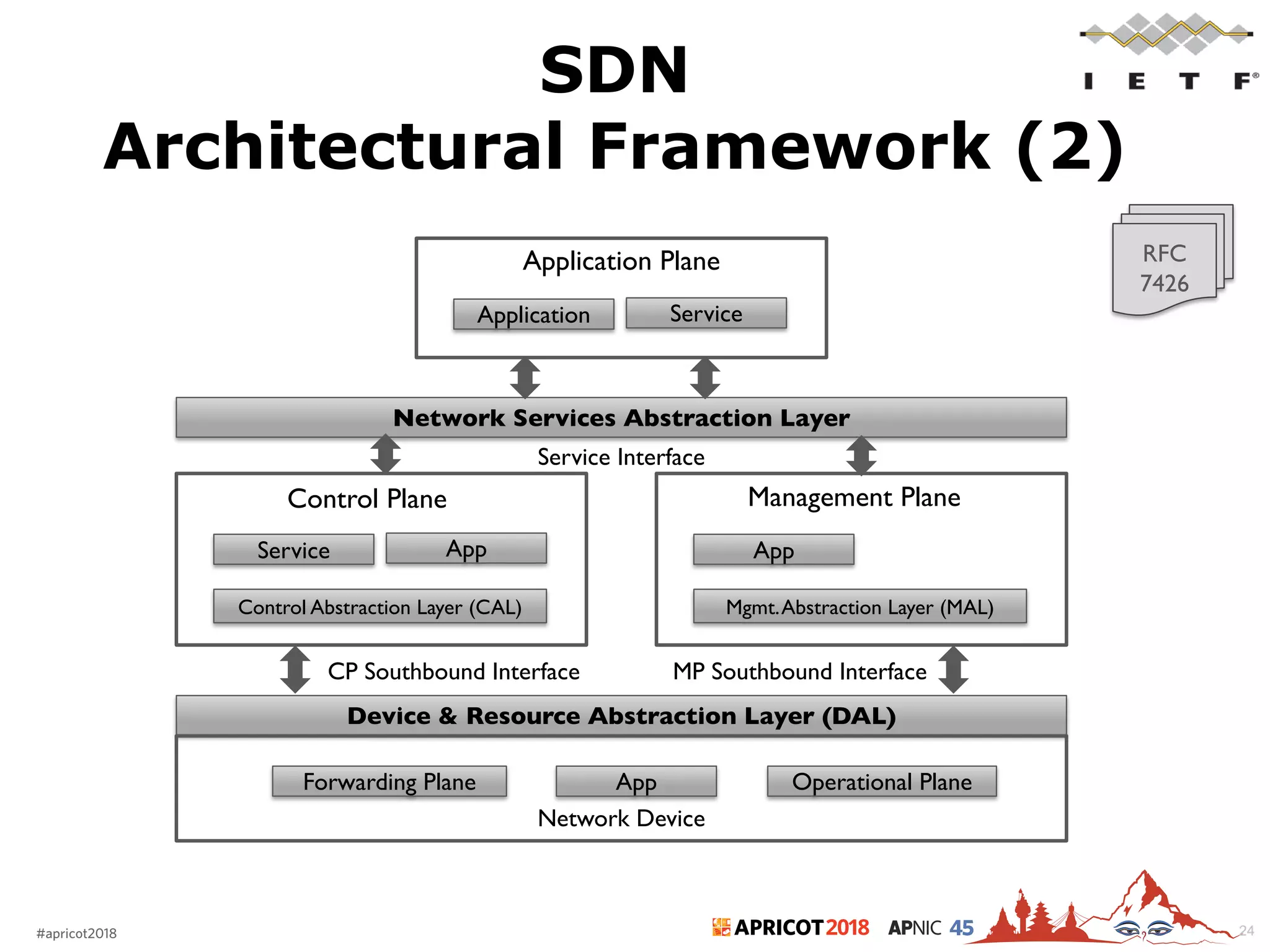

2018#apricot2018 45 24 Application Plane Application Service Network Services Abstraction Layer Control Plane Service App Control Abstraction Layer (CAL) Management Plane App Mgmt.Abstraction Layer (MAL) Service Interface Device & Resource Abstraction Layer (DAL) Forwarding Plane App Operational Plane Network Device CP Southbound Interface MP Southbound Interface RFC 7426 SDN Architectural Framework (2)

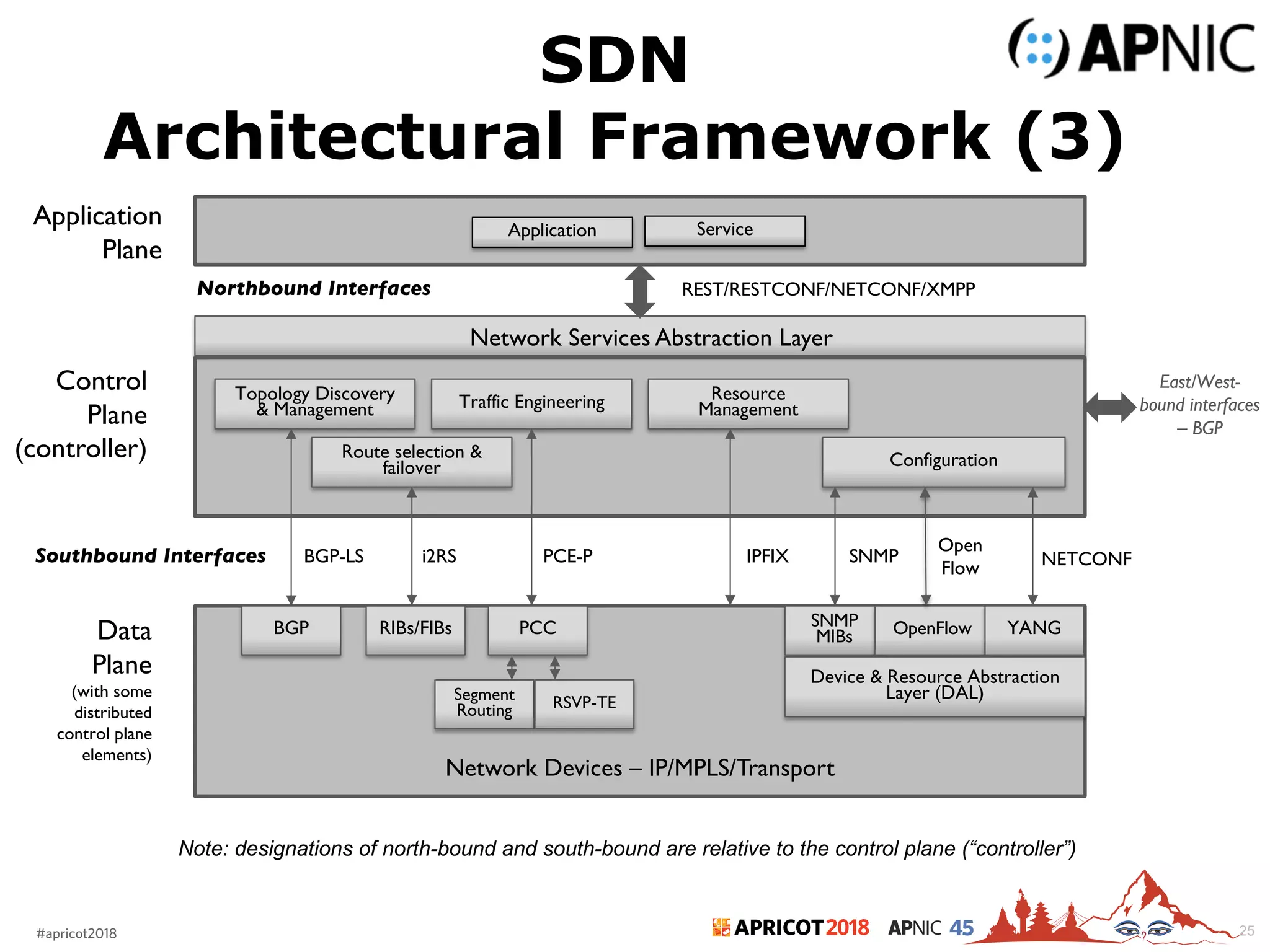

2018#apricot2018 45 25 Application Plane Application Service Topology Discovery & Management Network Devices – IP/MPLS/Transport Southbound Interfaces REST/RESTCONF/NETCONF/XMPP Control Plane (controller) Traffic Engineering Route selection & failover Resource Management BGP-LS PCE-Pi2RS SNMP MIBs OpenFlow YANG Configuration Open Flow SNMP NETCONF Data Plane (with some distributed control plane elements) BGP PCCRIBs/FIBs Segment Routing RSVP-TE East/West- bound interfaces – BGP IPFIX Northbound Interfaces Note: designations of north-bound and south-bound are relative to the control plane (“controller”) Device & Resource Abstraction Layer (DAL) Network Services Abstraction Layer SDN Architectural Framework (3)

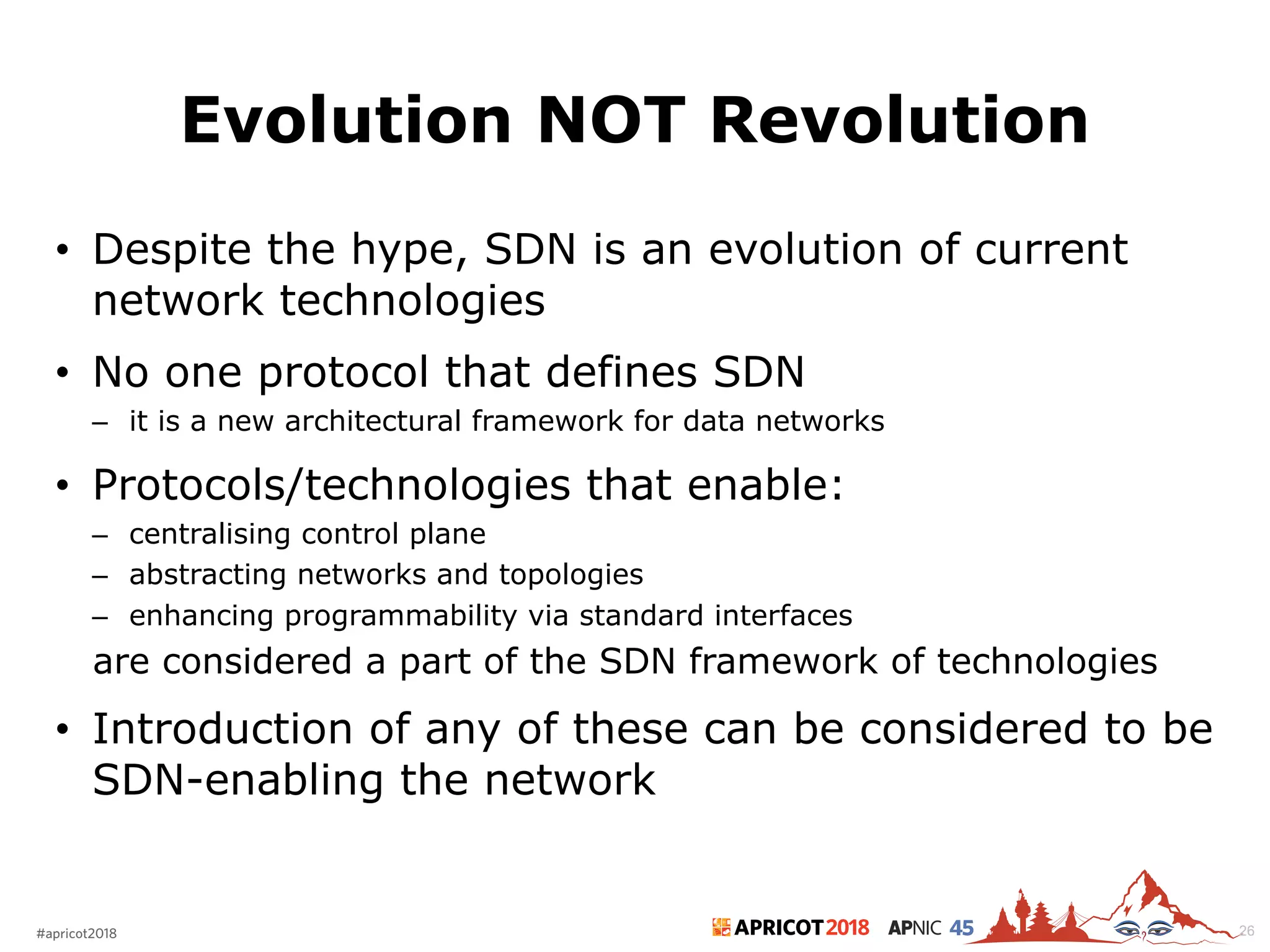

2018#apricot2018 45 Evolution NOT Revolution • Despite the hype, SDN is an evolution of current network technologies • No one protocol that defines SDN – it is a new architectural framework for data networks • Protocols/technologies that enable: – centralising control plane – abstracting networks and topologies – enhancing programmability via standard interfaces are considered a part of the SDN framework of technologies • Introduction of any of these can be considered to be SDN-enabling the network 26

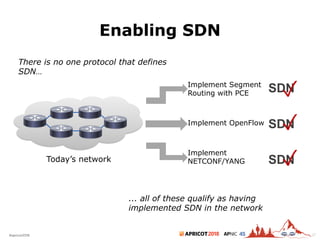

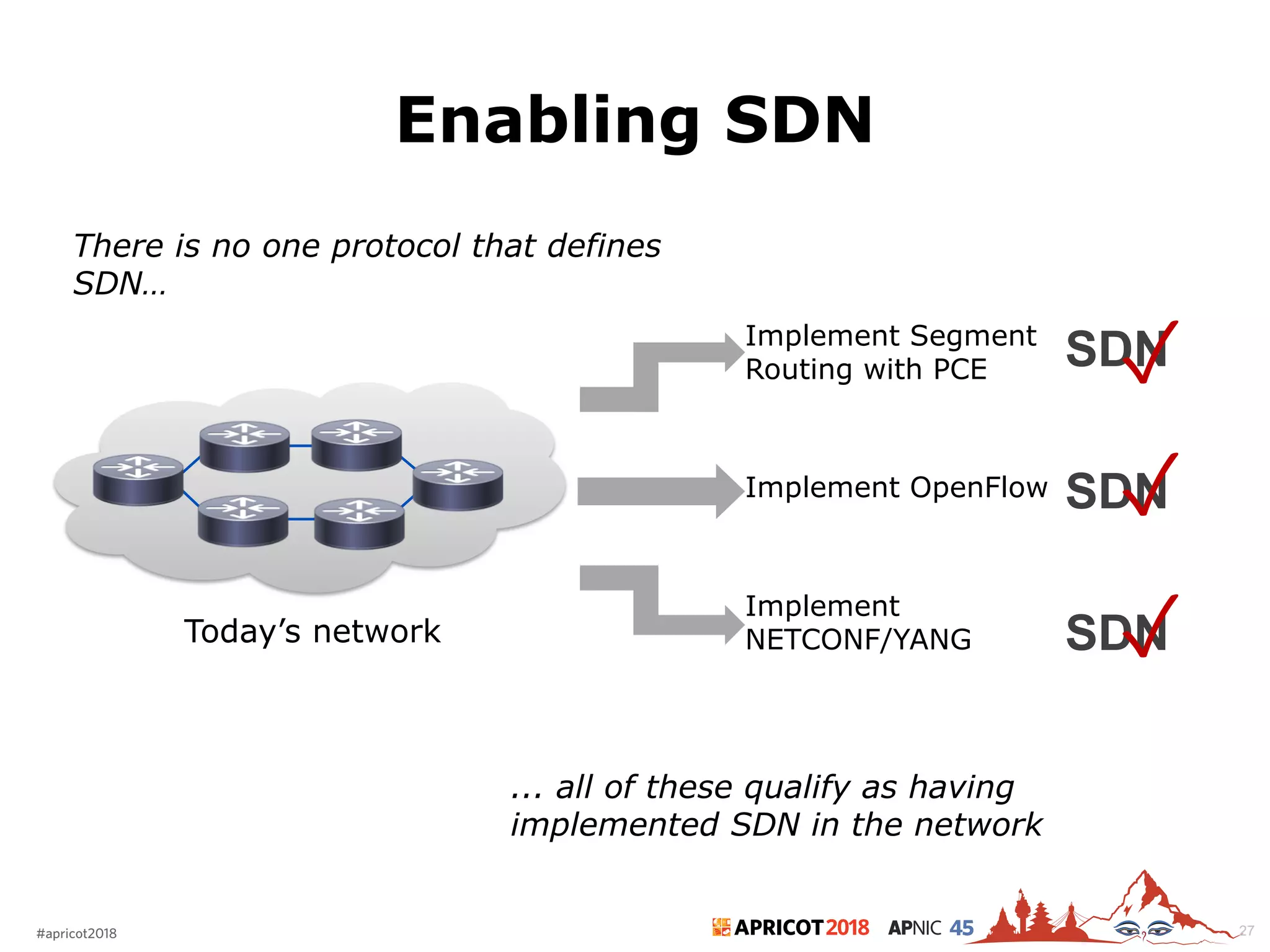

2018#apricot2018 45 Enabling SDN 27 Today’s network There is no one protocol that defines SDN… Implement Segment Routing with PCE SDN✓ Implement OpenFlow SDN✓ Implement NETCONF/YANG SDN✓ ... all of these qualify as having implemented SDN in the network

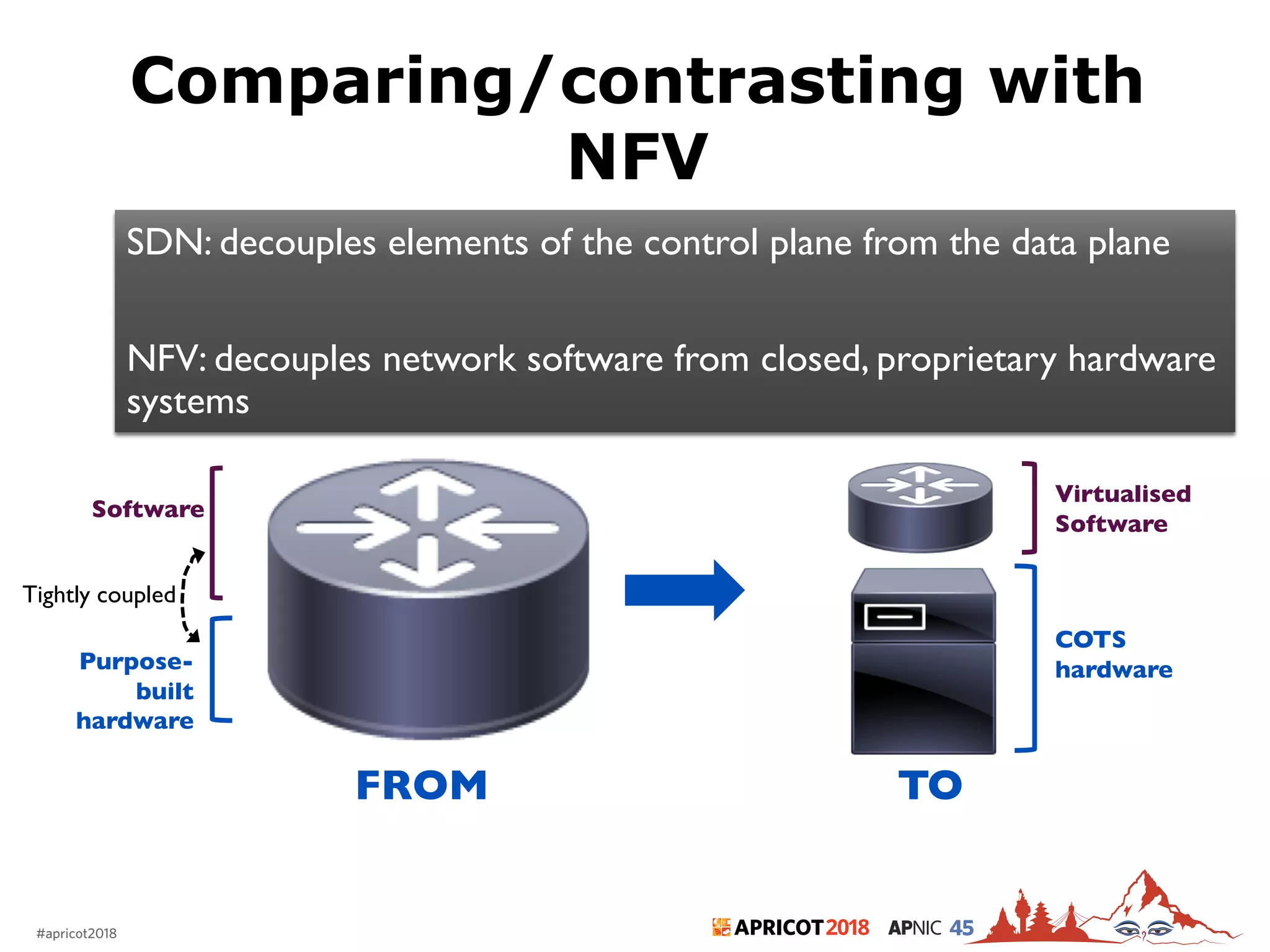

2018#apricot2018 45 Comparing/contrasting with NFV 28 FROM TO Tightly coupled Software Purpose- built hardware COTS hardware Virtualised Software SDN: decouples elements of the control plane from the data plane NFV: decouples network software from closed, proprietary hardware systems

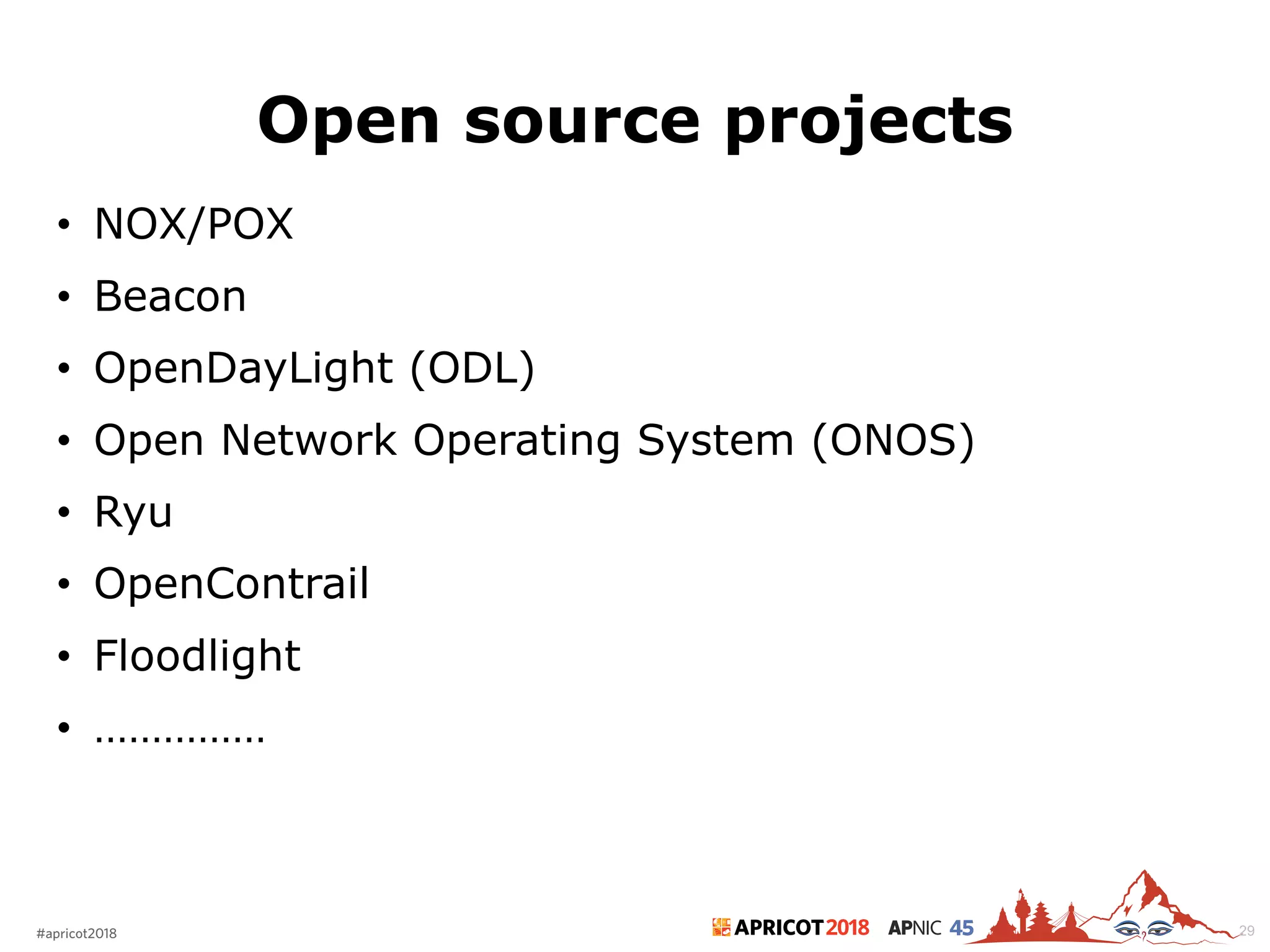

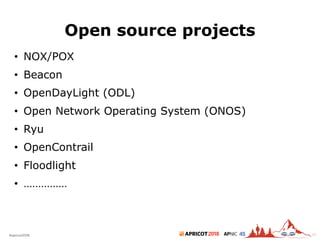

2018#apricot2018 45 Open source projects 29 • NOX/POX • Beacon • OpenDayLight (ODL) • Open Network Operating System (ONOS) • Ryu • OpenContrail • Floodlight • ……………

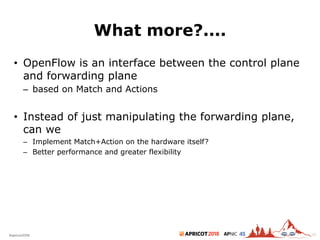

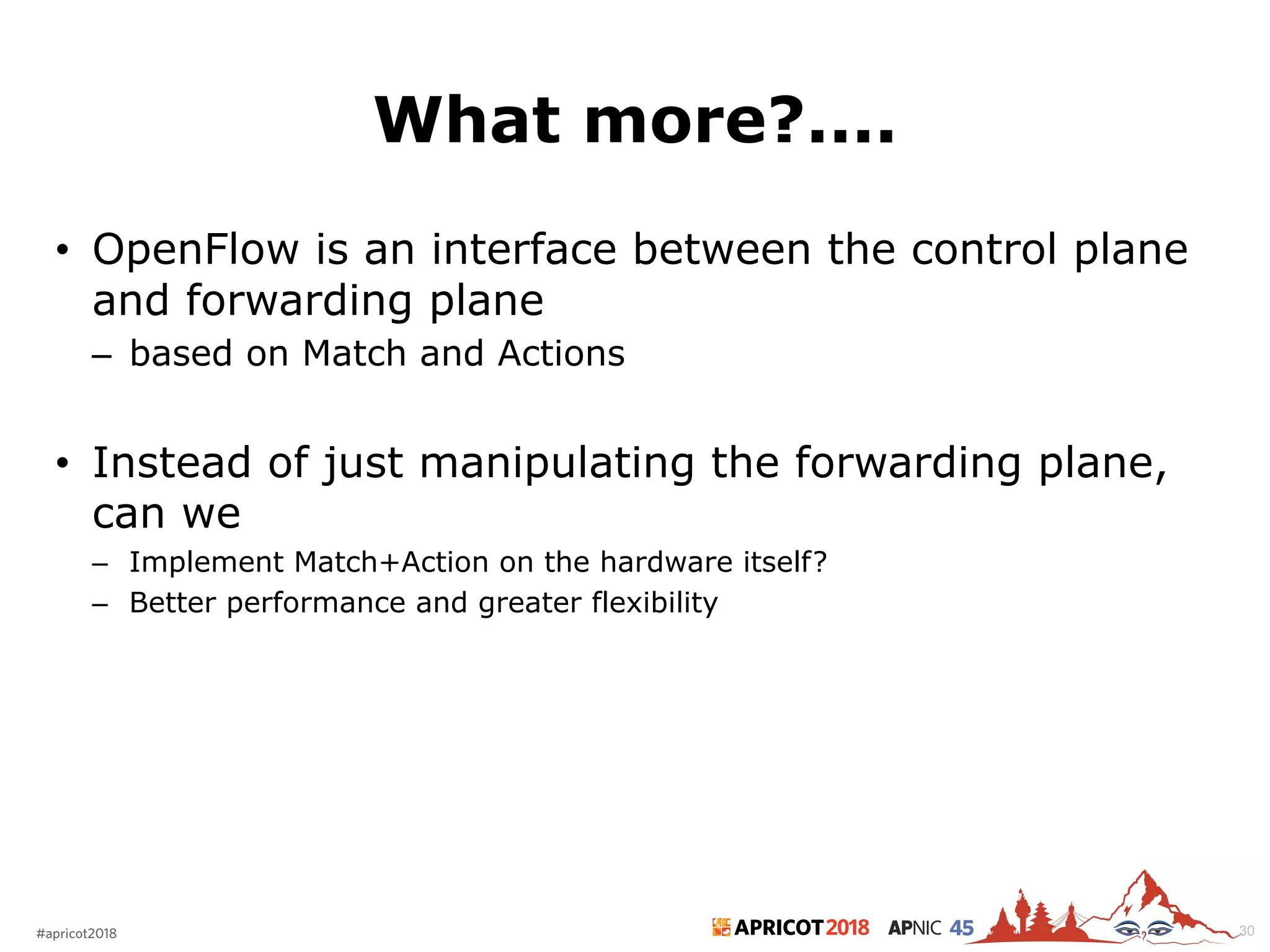

2018#apricot2018 45 What more?.... • OpenFlow is an interface between the control plane and forwarding plane – based on Match and Actions • Instead of just manipulating the forwarding plane, can we – Implement Match+Action on the hardware itself? – Better performance and greater flexibility 30

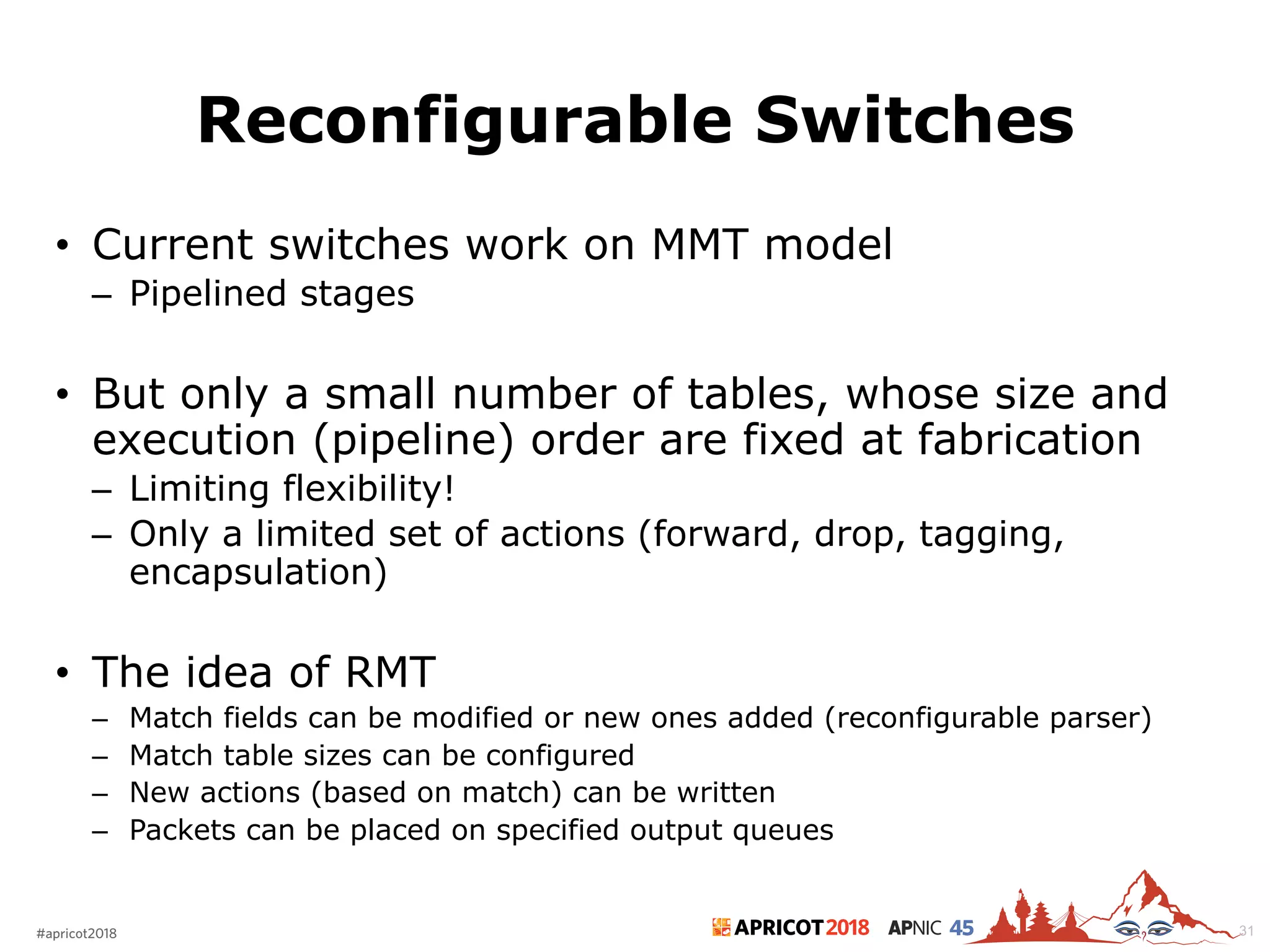

2018#apricot2018 45 Reconfigurable Switches • Current switches work on MMT model – Pipelined stages • But only a small number of tables, whose size and execution (pipeline) order are fixed at fabrication – Limiting flexibility! – Only a limited set of actions (forward, drop, tagging, encapsulation) • The idea of RMT – Match fields can be modified or new ones added (reconfigurable parser) – Match table sizes can be configured – New actions (based on match) can be written – Packets can be placed on specified output queues 31

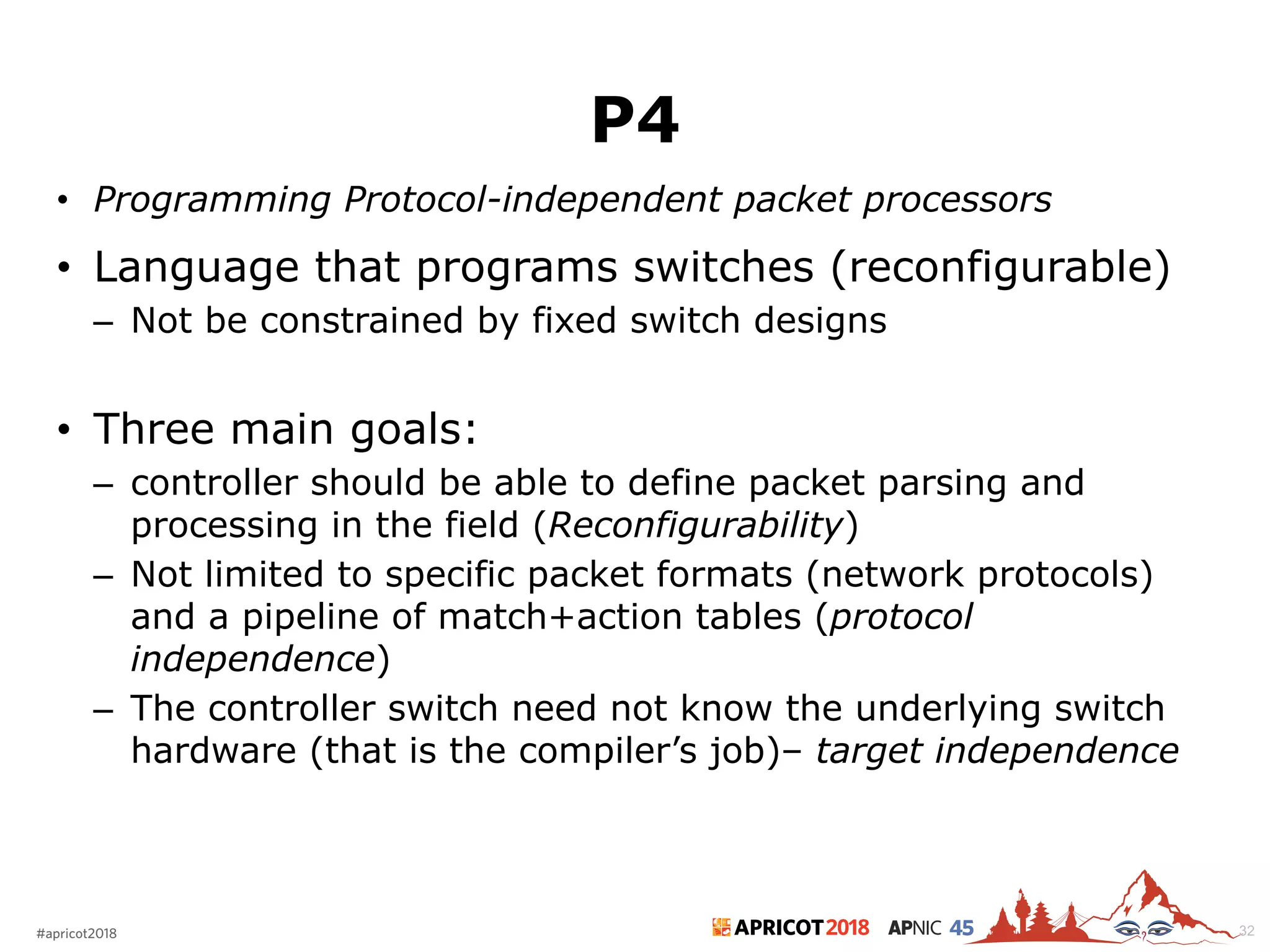

2018#apricot2018 45 P4 • Programming Protocol-independent packet processors • Language that programs switches (reconfigurable) – Not be constrained by fixed switch designs • Three main goals: – controller should be able to define packet parsing and processing in the field (Reconfigurability) – Not limited to specific packet formats (network protocols) and a pipeline of match+action tables (protocol independence) – The controller switch need not know the underlying switch hardware (that is the compiler’s job)– target independence 32

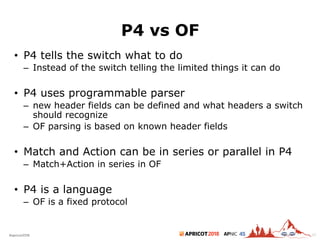

2018#apricot2018 45 P4 vs OF • P4 tells the switch what to do – Instead of the switch telling the limited things it can do • P4 uses programmable parser – new header fields can be defined and what headers a switch should recognize – OF parsing is based on known header fields • Match and Action can be in series or parallel in P4 – Match+Action in series in OF • P4 is a language – OF is a fixed protocol 33
2018#apricot2018 45 Simple use case

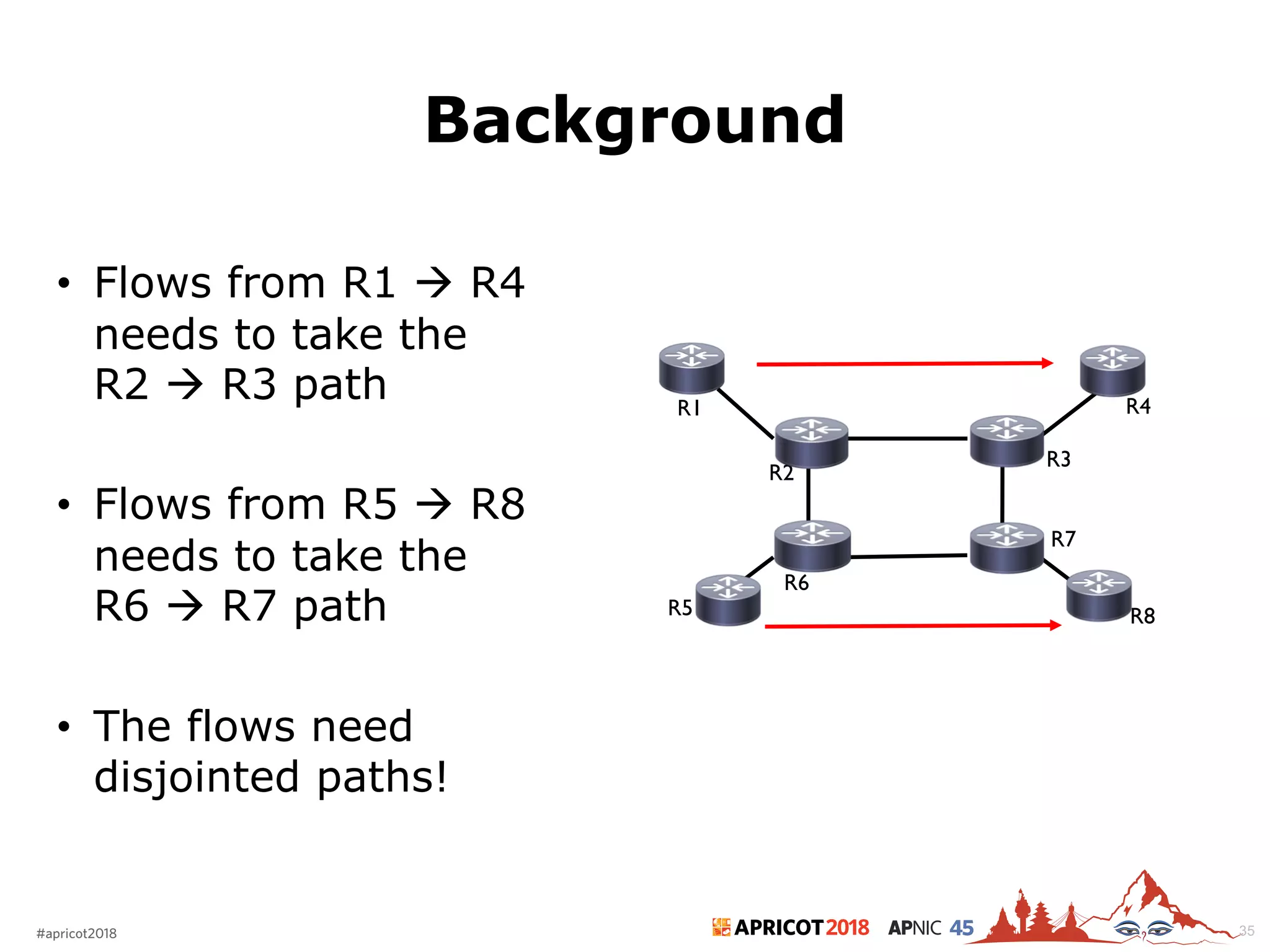

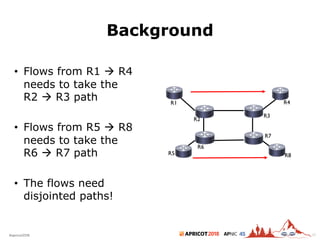

2018#apricot2018 45 Background • Flows from R1 à R4 needs to take the R2 à R3 path • Flows from R5 à R8 needs to take the R6 à R7 path • The flows need disjointed paths! 35 R1 R6 R5 R3 R2 R4 R7 R8

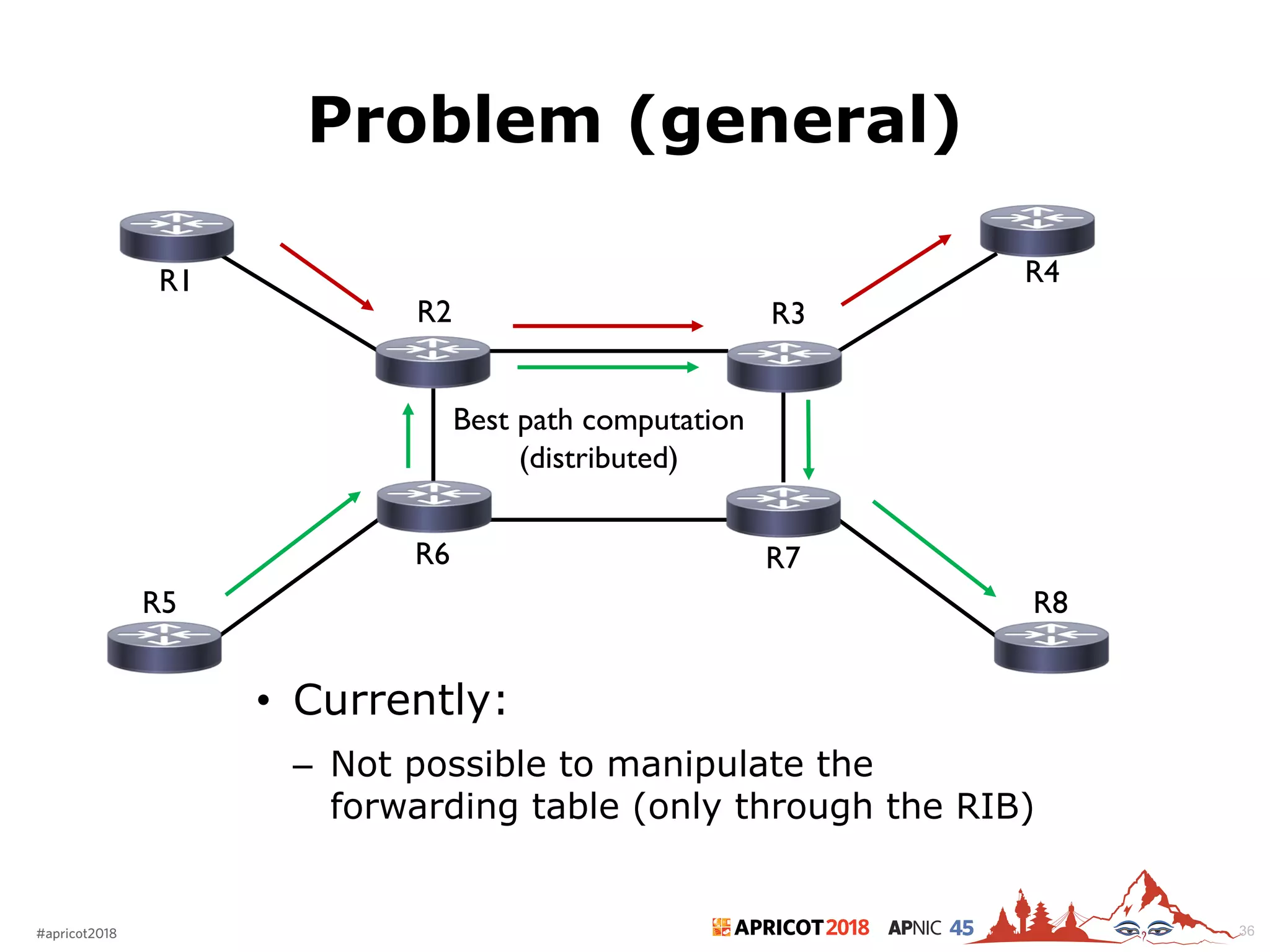

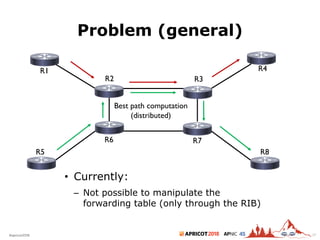

2018#apricot2018 45 Problem (general) 36 • Currently: – Not possible to manipulate the forwarding table (only through the RIB) Best path computation (distributed) R1 R6 R5 R3R2 R4 R7 R8

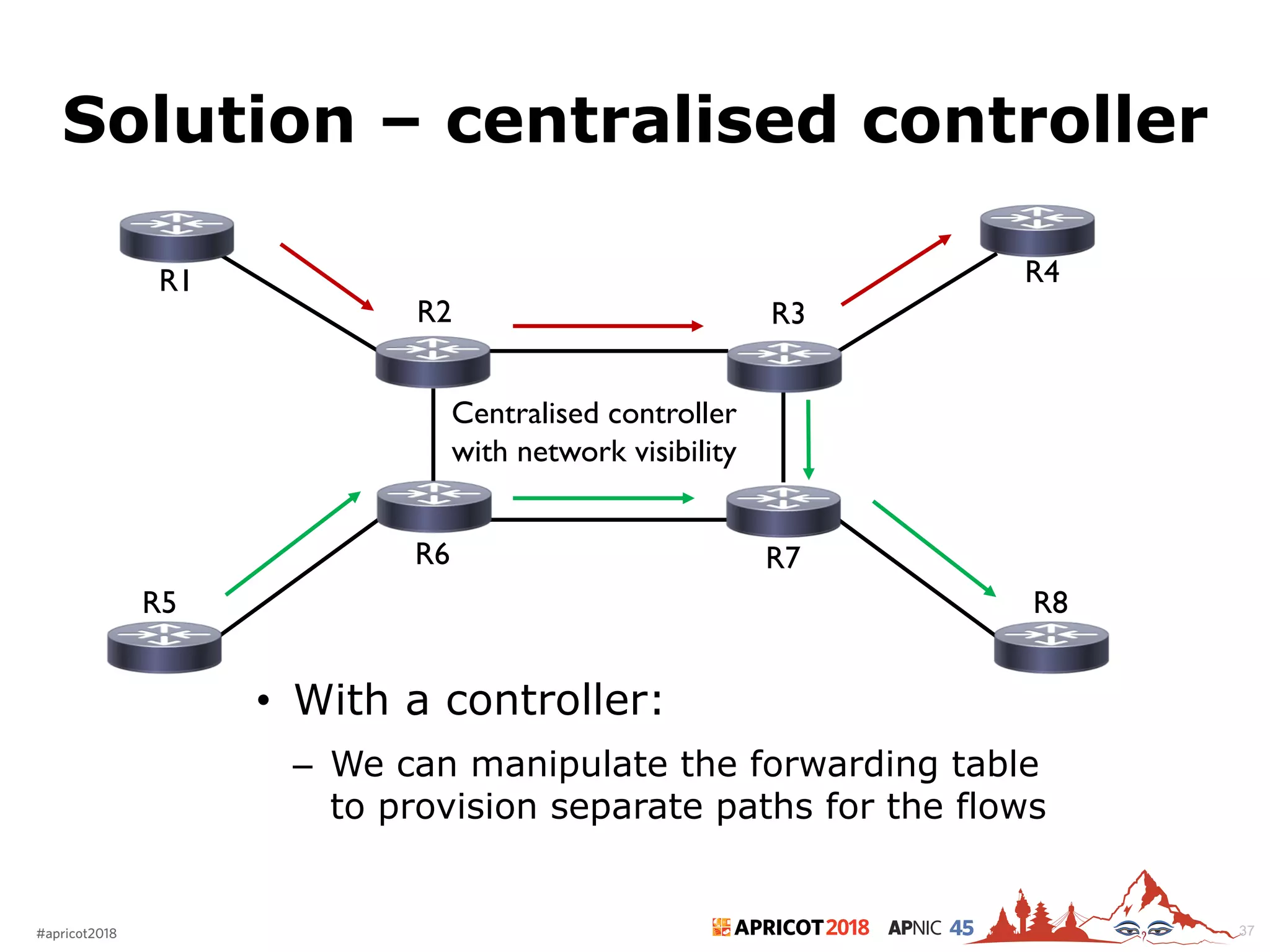

2018#apricot2018 45 Solution – centralised controller 37 • With a controller: – We can manipulate the forwarding table to provision separate paths for the flows R1 R6 R5 R3R2 R4 R7 R8 Centralised controller with network visibility
2018#apricot2018 45 Use Case-1

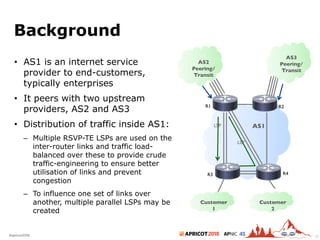

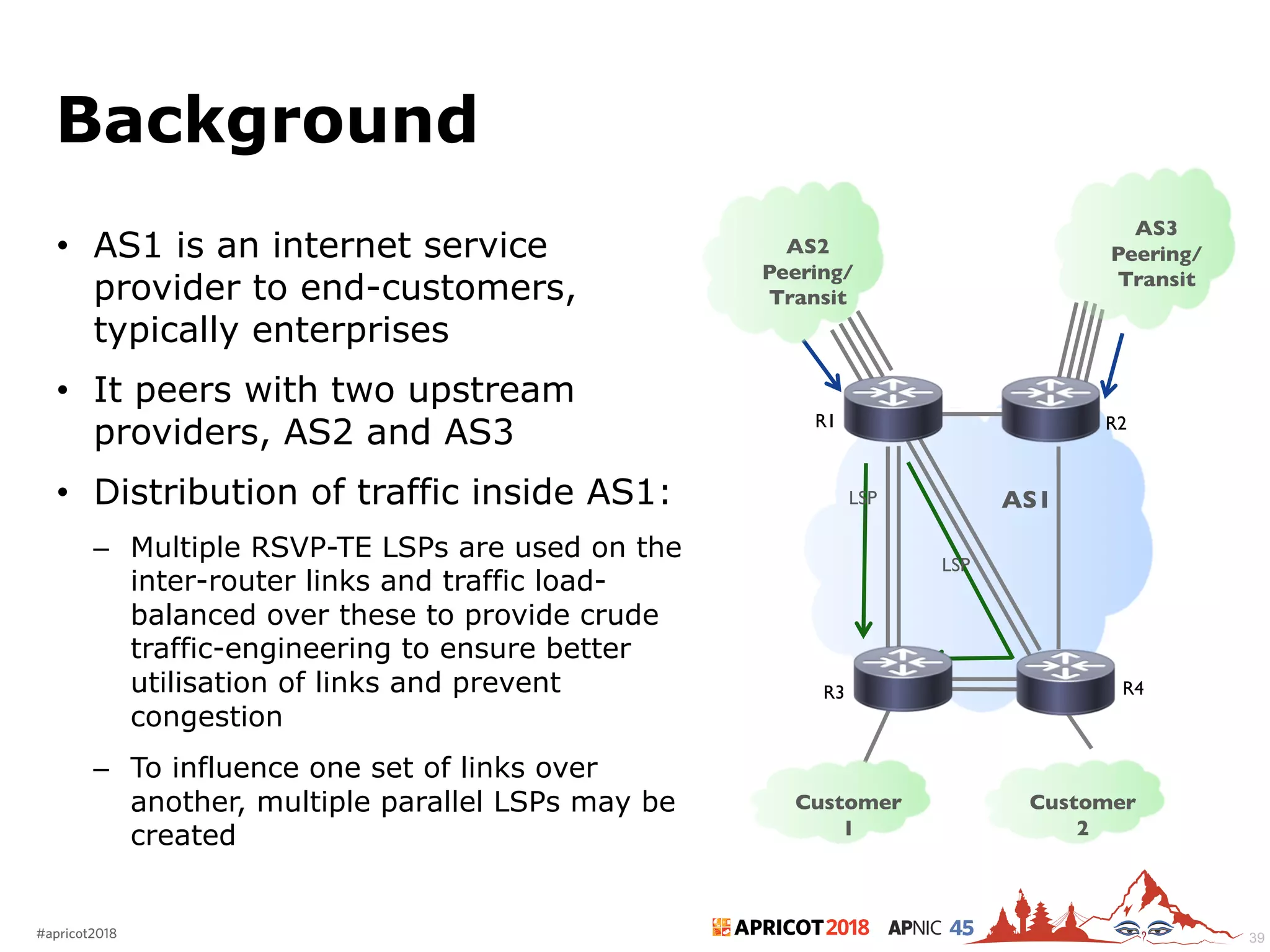

2018#apricot2018 45 Background • AS1 is an internet service provider to end-customers, typically enterprises • It peers with two upstream providers, AS2 and AS3 • Distribution of traffic inside AS1: – Multiple RSVP-TE LSPs are used on the inter-router links and traffic load- balanced over these to provide crude traffic-engineering to ensure better utilisation of links and prevent congestion – To influence one set of links over another, multiple parallel LSPs may be created AS1 R3 R4 R1 R2 LSP LSP AS2 Peering/ Transit AS3 Peering/ Transit Customer 1 Customer 2 39

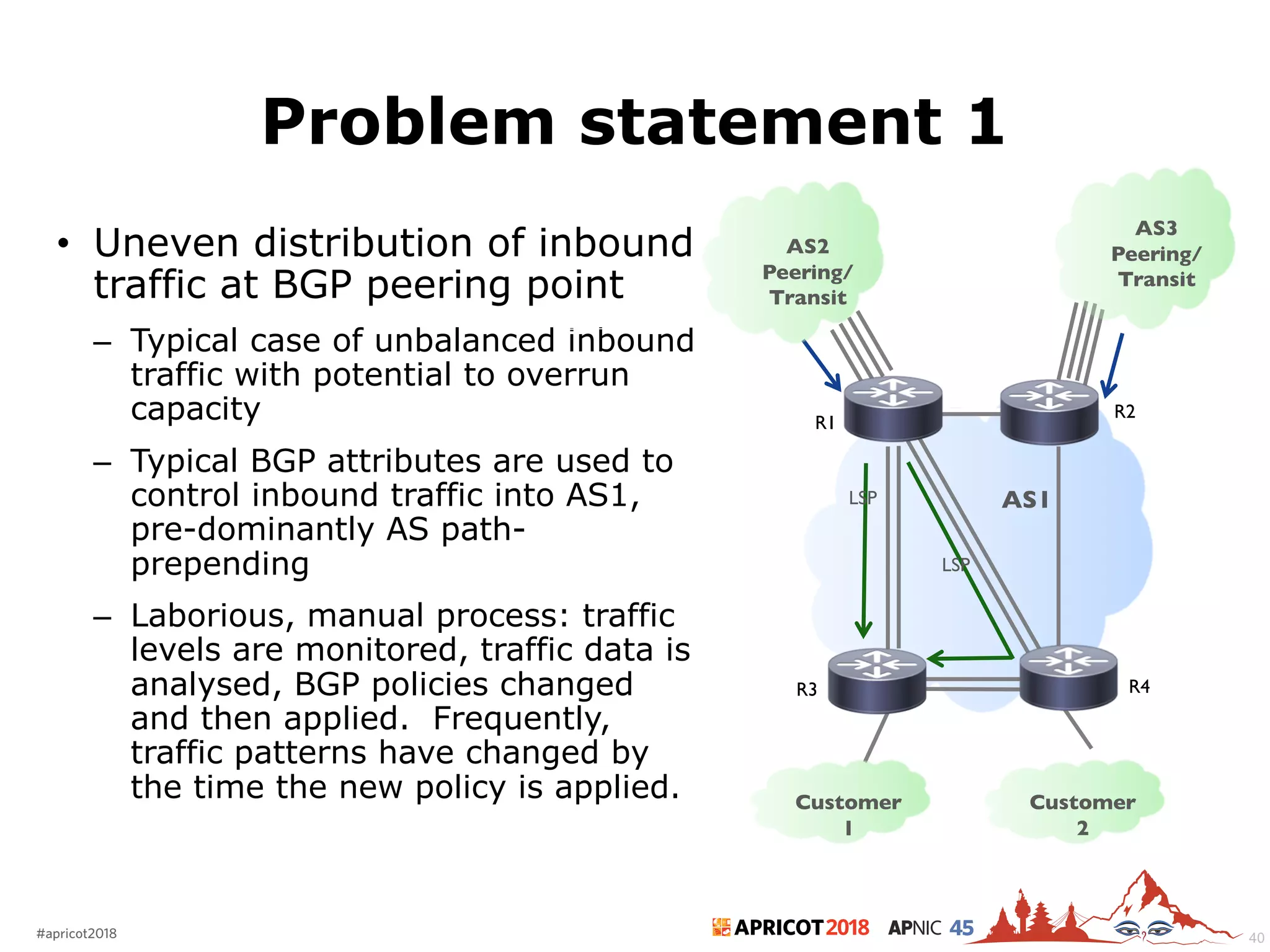

2018#apricot2018 45 Problem statement 1 • Uneven distribution of inbound traffic at BGP peering point – Typical case of unbalanced inbound traffic with potential to overrun capacity – Typical BGP attributes are used to control inbound traffic into AS1, pre-dominantly AS path- prepending – Laborious, manual process: traffic levels are monitored, traffic data is analysed, BGP policies changed and then applied. Frequently, traffic patterns have changed by the time the new policy is applied. AS1 R3 R4 R1 R2 LSP LSP AS2 Peering/ Transit AS3 Peering/ Transit Customer 1 Customer 2 40

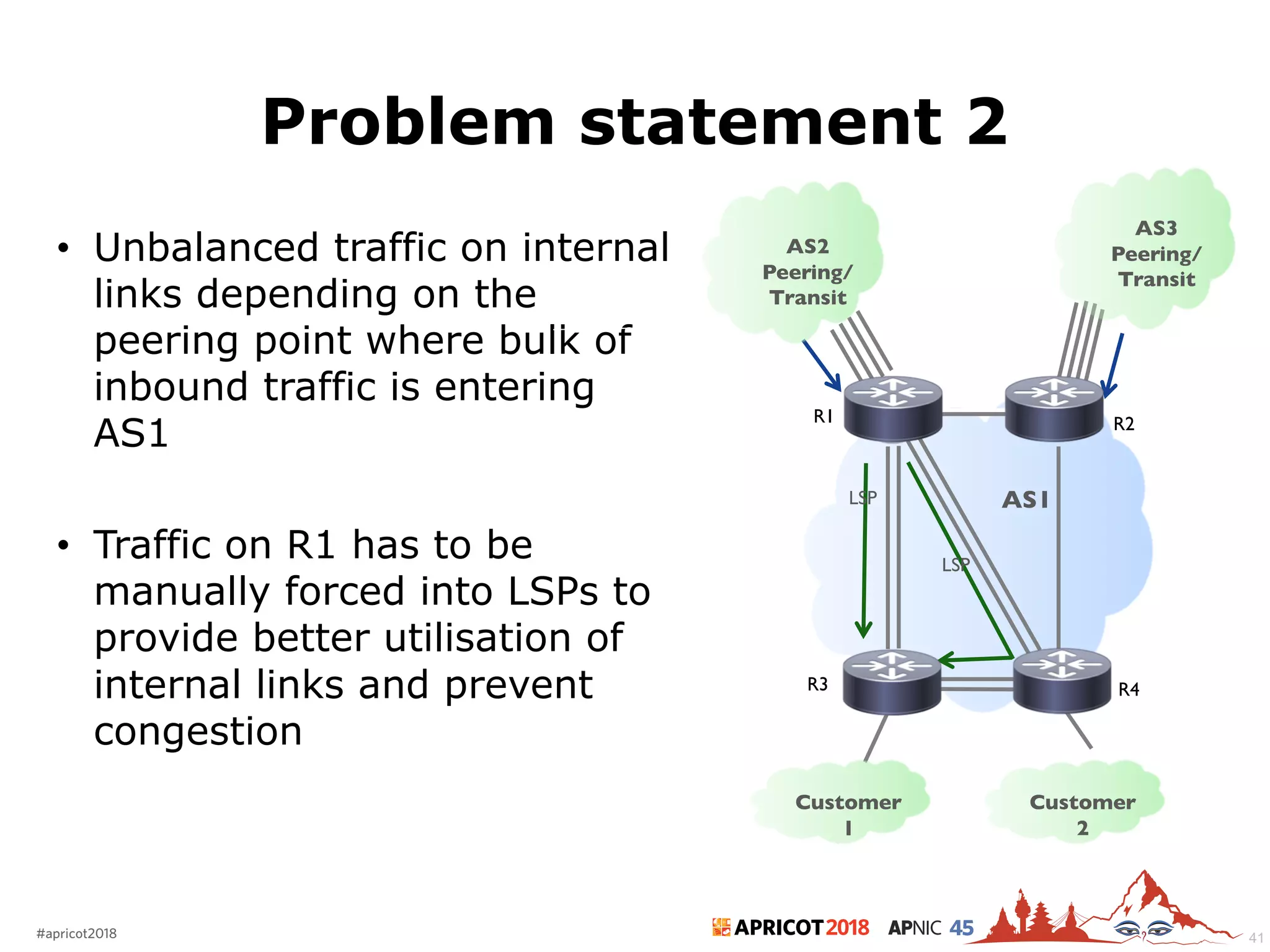

2018#apricot2018 45 Problem statement 2 • Unbalanced traffic on internal links depending on the peering point where bulk of inbound traffic is entering AS1 • Traffic on R1 has to be manually forced into LSPs to provide better utilisation of internal links and prevent congestion AS1 R3 R4 R1 R2 LSP LSP AS2 Peering/ Transit AS3 Peering/ Transit Customer 1 Customer 2 41

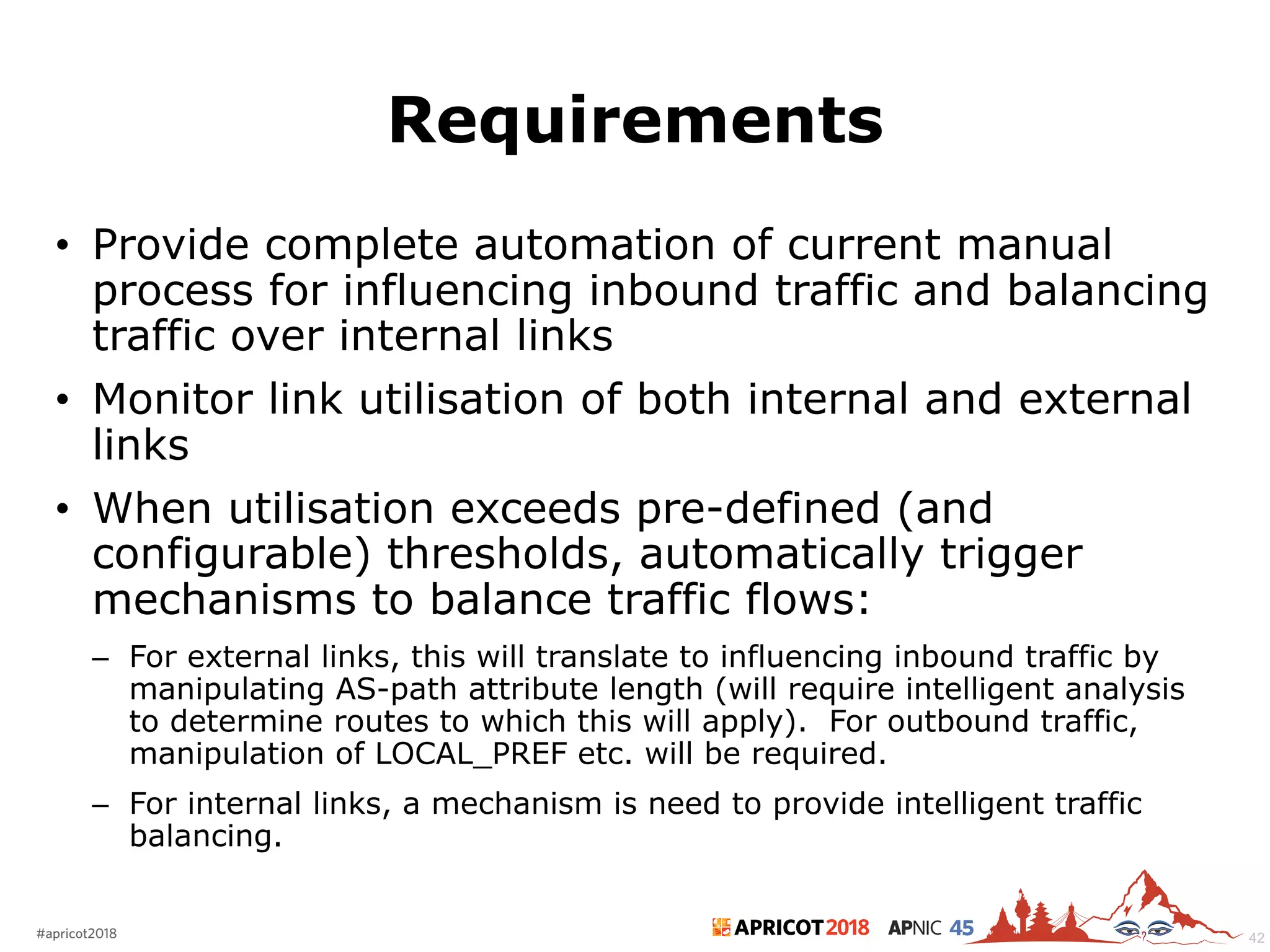

2018#apricot2018 45 Requirements • Provide complete automation of current manual process for influencing inbound traffic and balancing traffic over internal links • Monitor link utilisation of both internal and external links • When utilisation exceeds pre-defined (and configurable) thresholds, automatically trigger mechanisms to balance traffic flows: – For external links, this will translate to influencing inbound traffic by manipulating AS-path attribute length (will require intelligent analysis to determine routes to which this will apply). For outbound traffic, manipulation of LOCAL_PREF etc. will be required. – For internal links, a mechanism is need to provide intelligent traffic balancing. 42

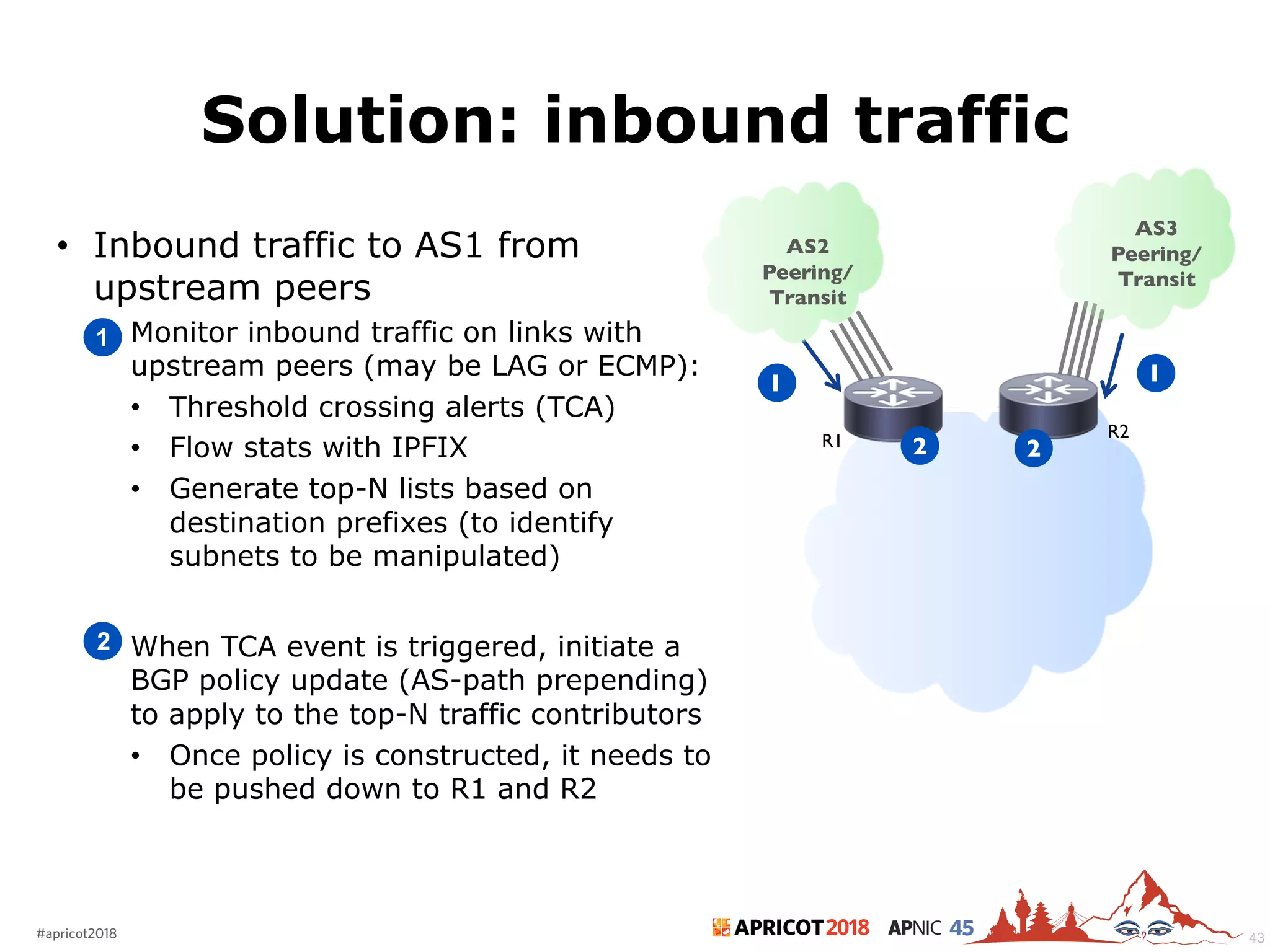

2018#apricot2018 45 Solution: inbound traffic • Inbound traffic to AS1 from upstream peers – Monitor inbound traffic on links with upstream peers (may be LAG or ECMP): • Threshold crossing alerts (TCA) • Flow stats with IPFIX • Generate top-N lists based on destination prefixes (to identify subnets to be manipulated) – When TCA event is triggered, initiate a BGP policy update (AS-path prepending) to apply to the top-N traffic contributors • Once policy is constructed, it needs to be pushed down to R1 and R2 1 R1 R2 AS2 Peering/ Transit AS3 Peering/ Transit 2 11 2 2 43

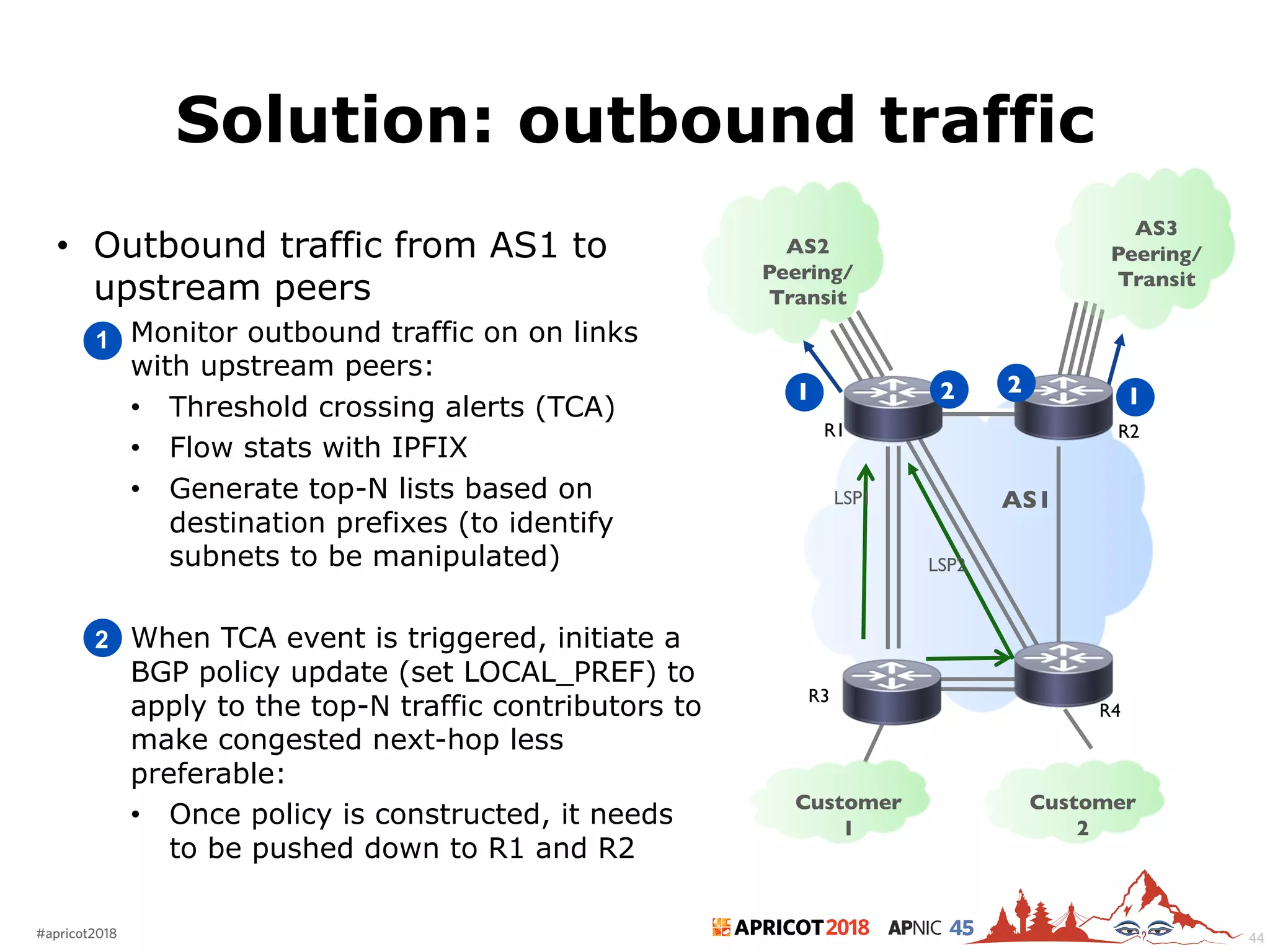

2018#apricot2018 45 Solution: outbound traffic • Outbound traffic from AS1 to upstream peers – Monitor outbound traffic on on links with upstream peers: • Threshold crossing alerts (TCA) • Flow stats with IPFIX • Generate top-N lists based on destination prefixes (to identify subnets to be manipulated) – When TCA event is triggered, initiate a BGP policy update (set LOCAL_PREF) to apply to the top-N traffic contributors to make congested next-hop less preferable: • Once policy is constructed, it needs to be pushed down to R1 and R2 1 2 AS1 R3 R4 R1 R2 LSP1 LSP2 AS2 Peering/ Transit AS3 Peering/ Transit Customer 1 Customer 2 1 12 2 44

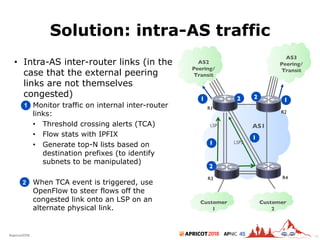

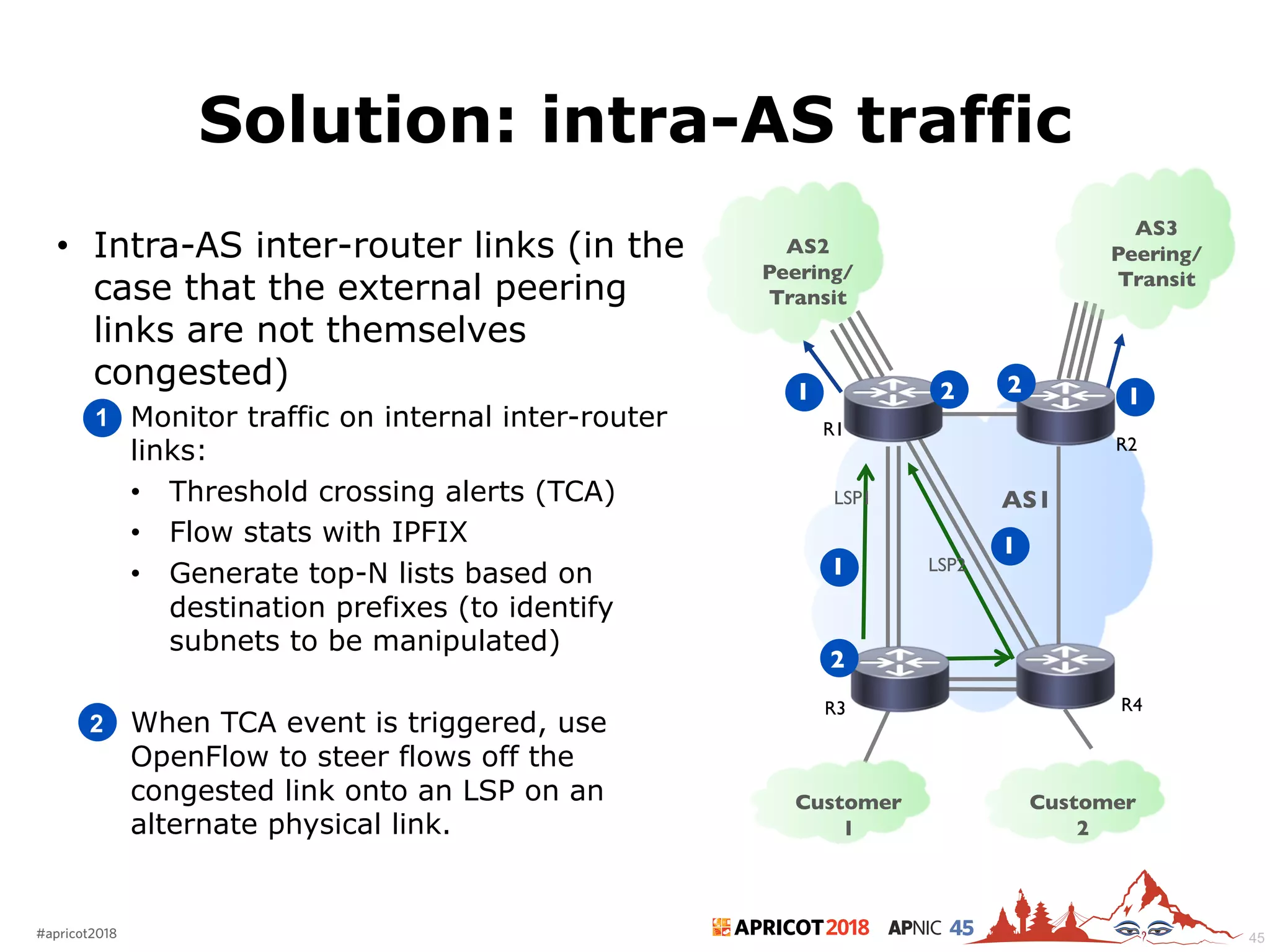

2018#apricot2018 45 Solution: intra-AS traffic • Intra-AS inter-router links (in the case that the external peering links are not themselves congested) – Monitor traffic on internal inter-router links: • Threshold crossing alerts (TCA) • Flow stats with IPFIX • Generate top-N lists based on destination prefixes (to identify subnets to be manipulated) – When TCA event is triggered, use OpenFlow to steer flows off the congested link onto an LSP on an alternate physical link. 1 2 AS1 R3 R4 R1 R2 LSP1 LSP2 AS2 Peering/ Transit AS3 Peering/ Transit Customer 1 Customer 2 1 1 1 1 2 2 2 45

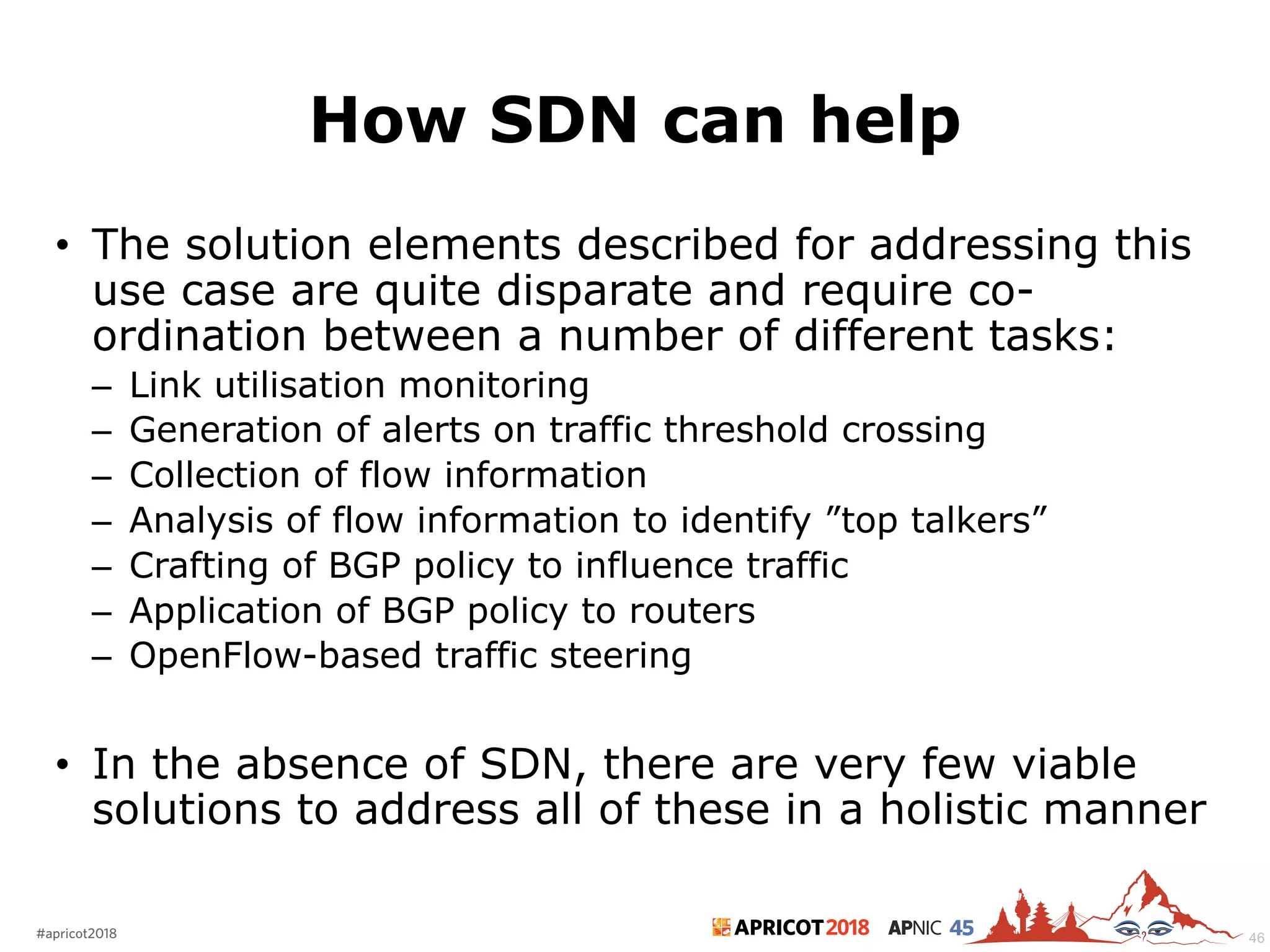

2018#apricot2018 45 How SDN can help • The solution elements described for addressing this use case are quite disparate and require co- ordination between a number of different tasks: – Link utilisation monitoring – Generation of alerts on traffic threshold crossing – Collection of flow information – Analysis of flow information to identify ”top talkers” – Crafting of BGP policy to influence traffic – Application of BGP policy to routers – OpenFlow-based traffic steering • In the absence of SDN, there are very few viable solutions to address all of these in a holistic manner 46

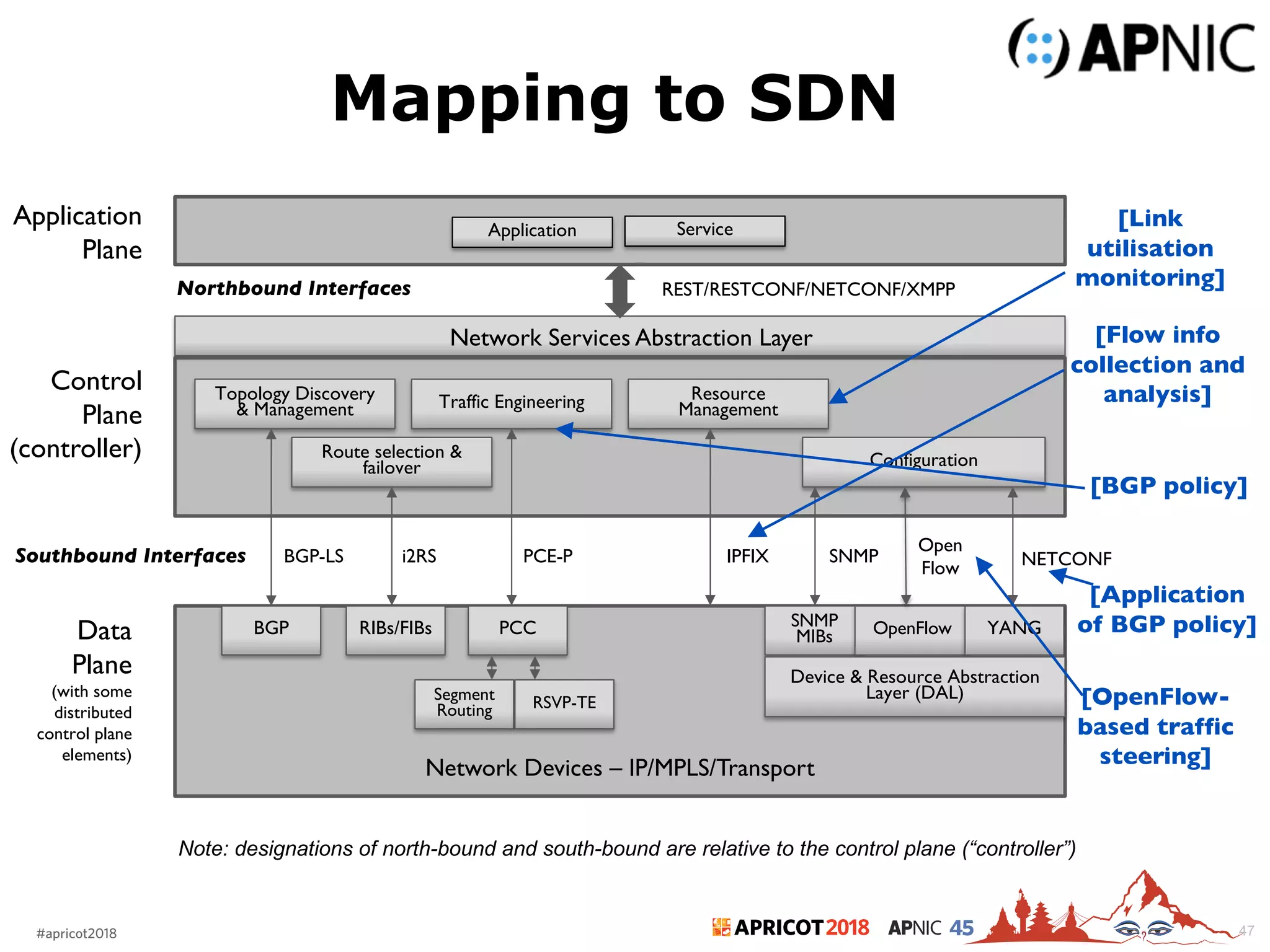

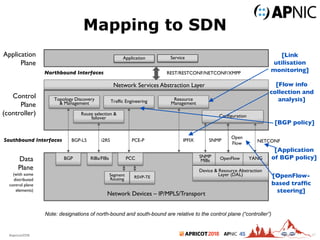

2018#apricot2018 45 47 Application Plane Application Service Topology Discovery & Management Network Devices – IP/MPLS/Transport Southbound Interfaces REST/RESTCONF/NETCONF/XMPP Control Plane (controller) Traffic Engineering Route selection & failover Resource Management BGP-LS PCE-Pi2RS SNMP MIBs OpenFlow YANG Configuration Open Flow SNMP NETCONF Data Plane (with some distributed control plane elements) BGP PCCRIBs/FIBs Segment Routing RSVP-TE IPFIX Northbound Interfaces Note: designations of north-bound and south-bound are relative to the control plane (“controller”) Device & Resource Abstraction Layer (DAL) Network Services Abstraction Layer Mapping to SDN [Link utilisation monitoring] [Flow info collection and analysis] [BGP policy] [Application of BGP policy] [OpenFlow- based traffic steering]
2018#apricot2018 45 Use Case-2

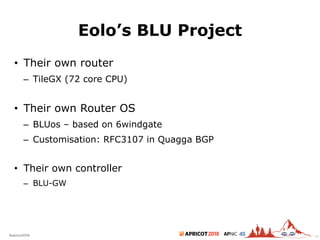

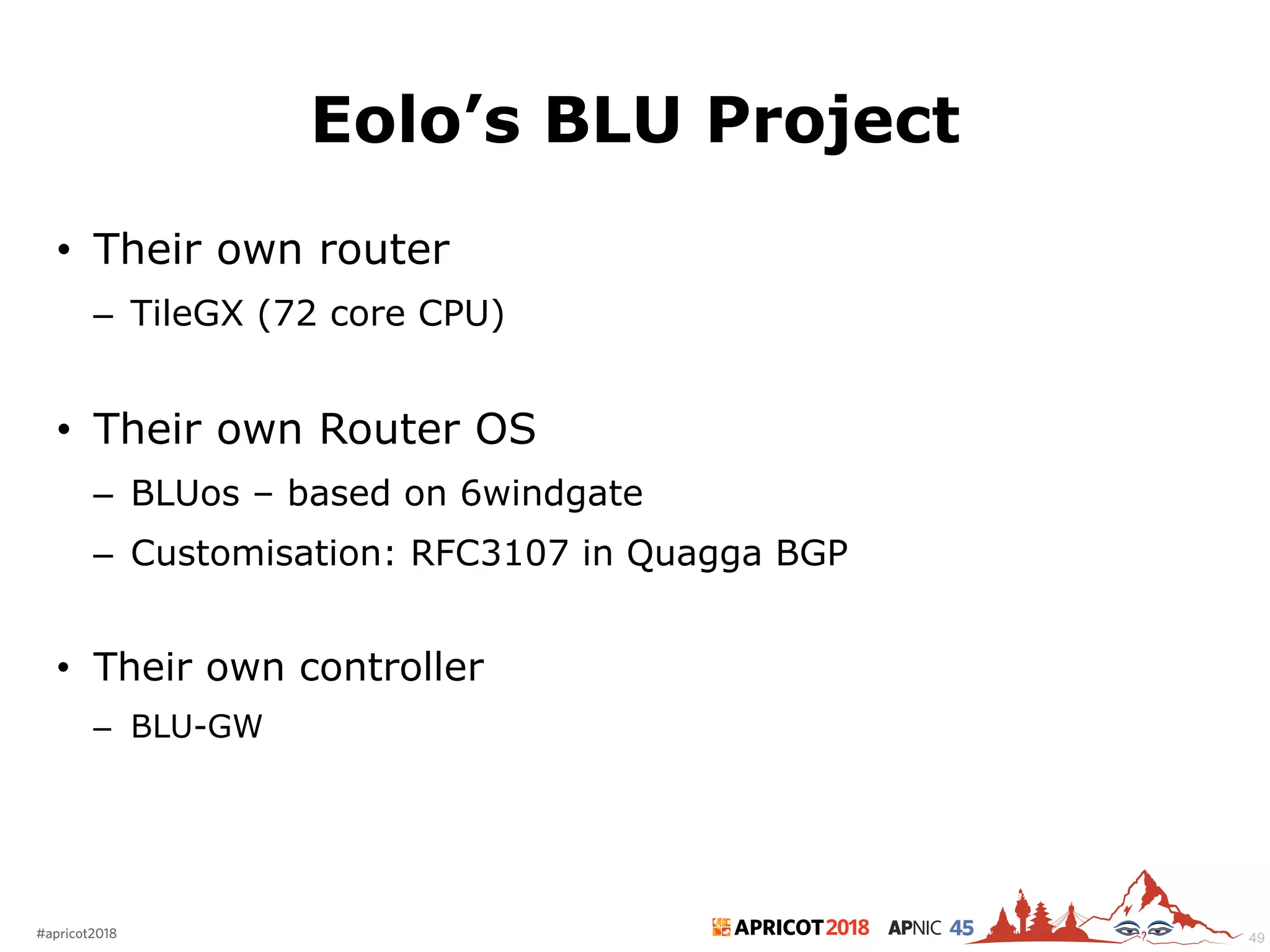

2018#apricot2018 45 Eolo’s BLU Project • Their own router – TileGX (72 core CPU) • Their own Router OS – BLUos – based on 6windgate – Customisation: RFC3107 in Quagga BGP • Their own controller – BLU-GW 49

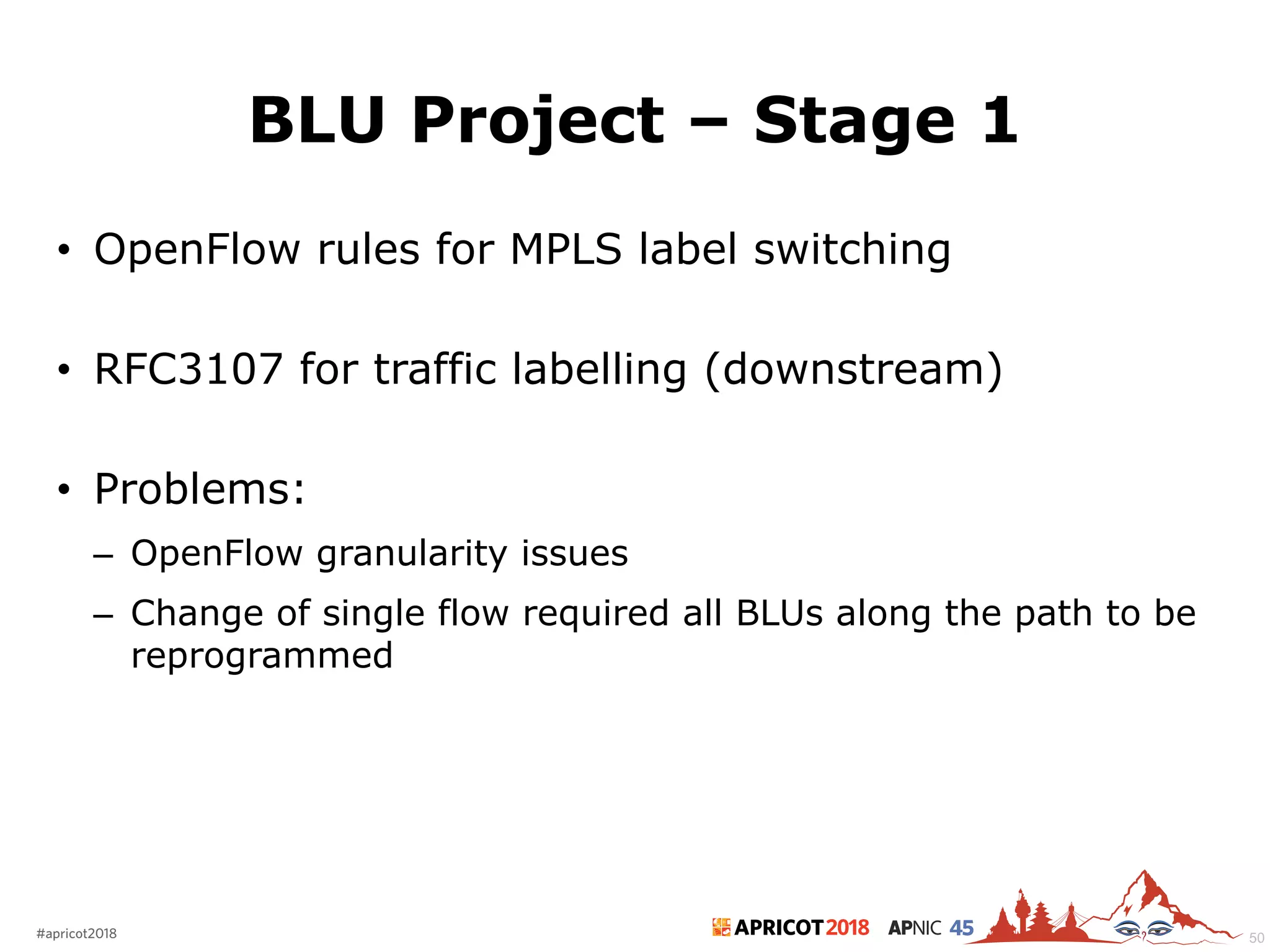

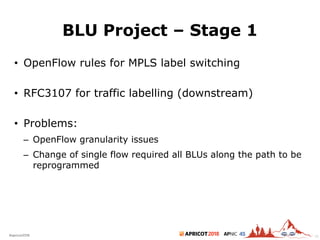

2018#apricot2018 45 BLU Project – Stage 1 • OpenFlow rules for MPLS label switching • RFC3107 for traffic labelling (downstream) • Problems: – OpenFlow granularity issues – Change of single flow required all BLUs along the path to be reprogrammed 50

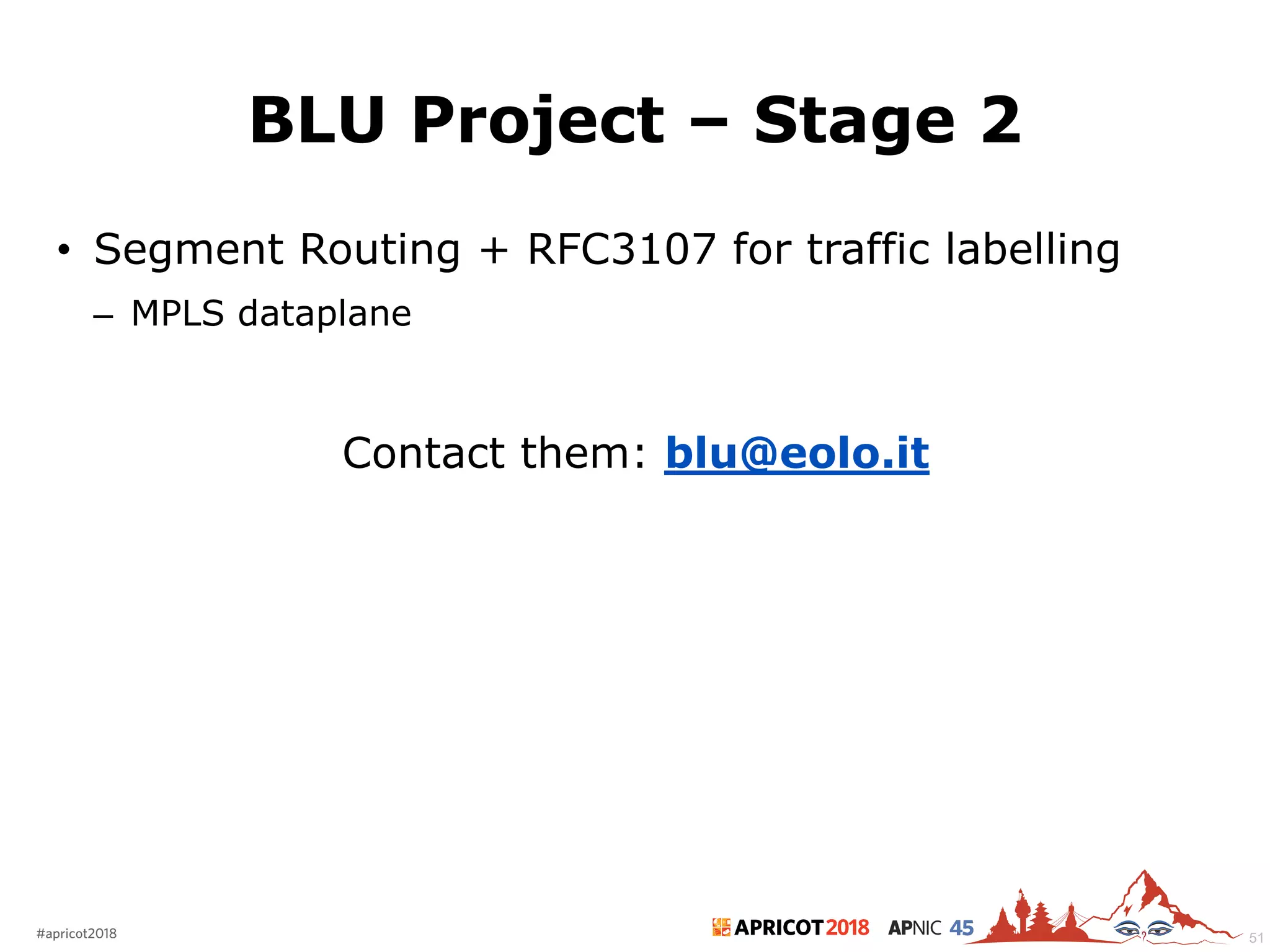

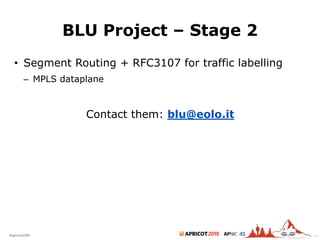

2018#apricot2018 45 BLU Project – Stage 2 • Segment Routing + RFC3107 for traffic labelling – MPLS dataplane Contact them: blu@eolo.it 51

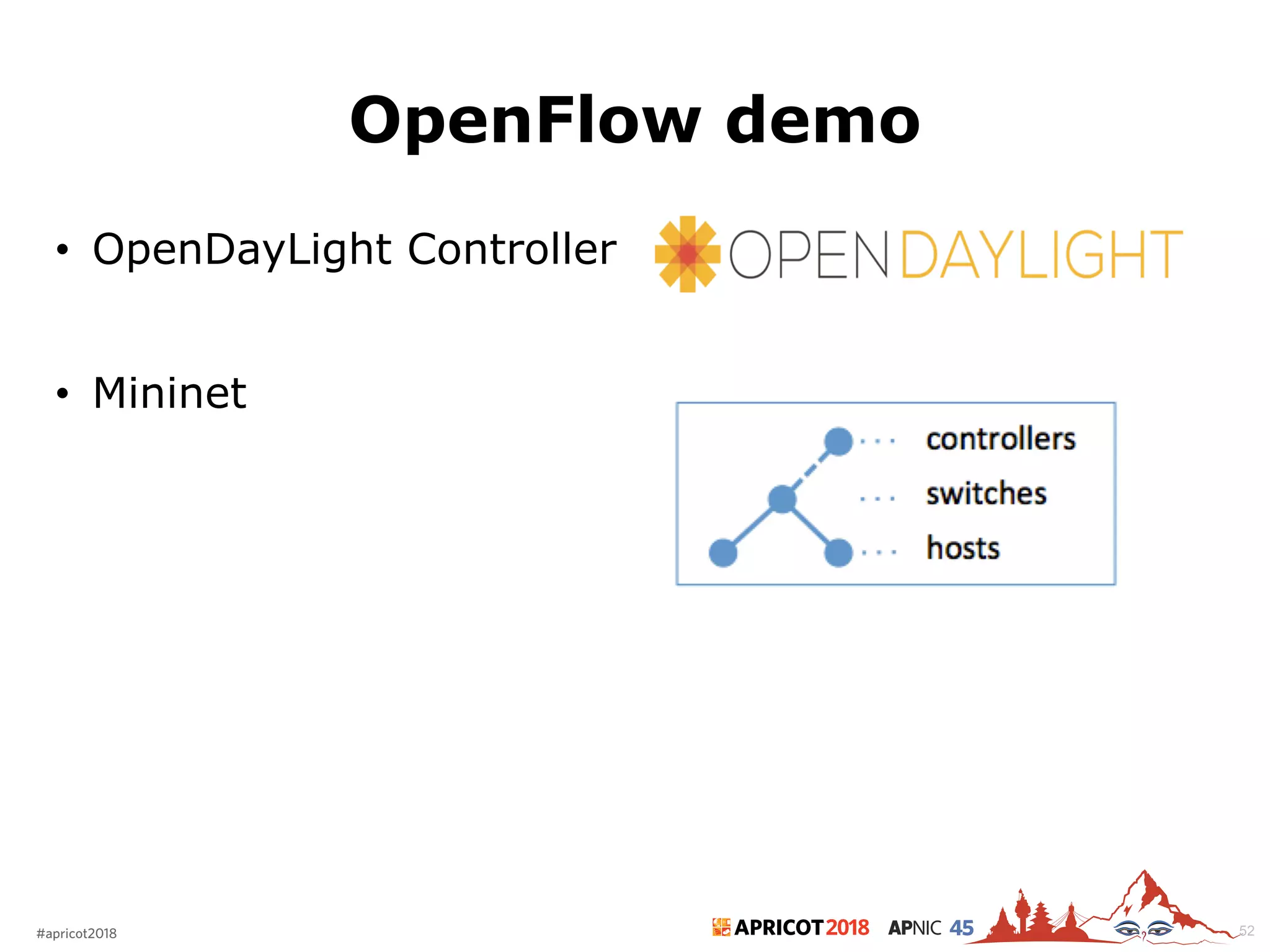

2018#apricot2018 45 OpenFlow demo • OpenDayLight Controller • Mininet 52
2018#apricot2018 45 THANK YOU 53
#apricot2018 19 – 28 February 2018KATHMANDU, NEPAL 2018 45 54
