Is HTML5
ready for
production?

Hi, I’m Remy

@rem
remy@leftlogic.com

I <3 JavaScript

Questions: interrupt
& ask!

MOAR!!!
"HTML5"

Geolocation
Web Workers
Web Sockets
Web SQL Databases
Web Storage
Offline applications
HTML5
Offline events
Canvas
Video
Web Forms

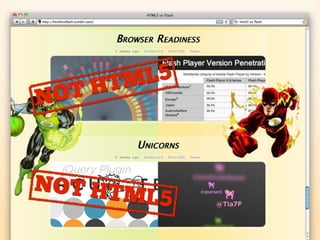

H TM L5
N OT

NOT HTM
L5

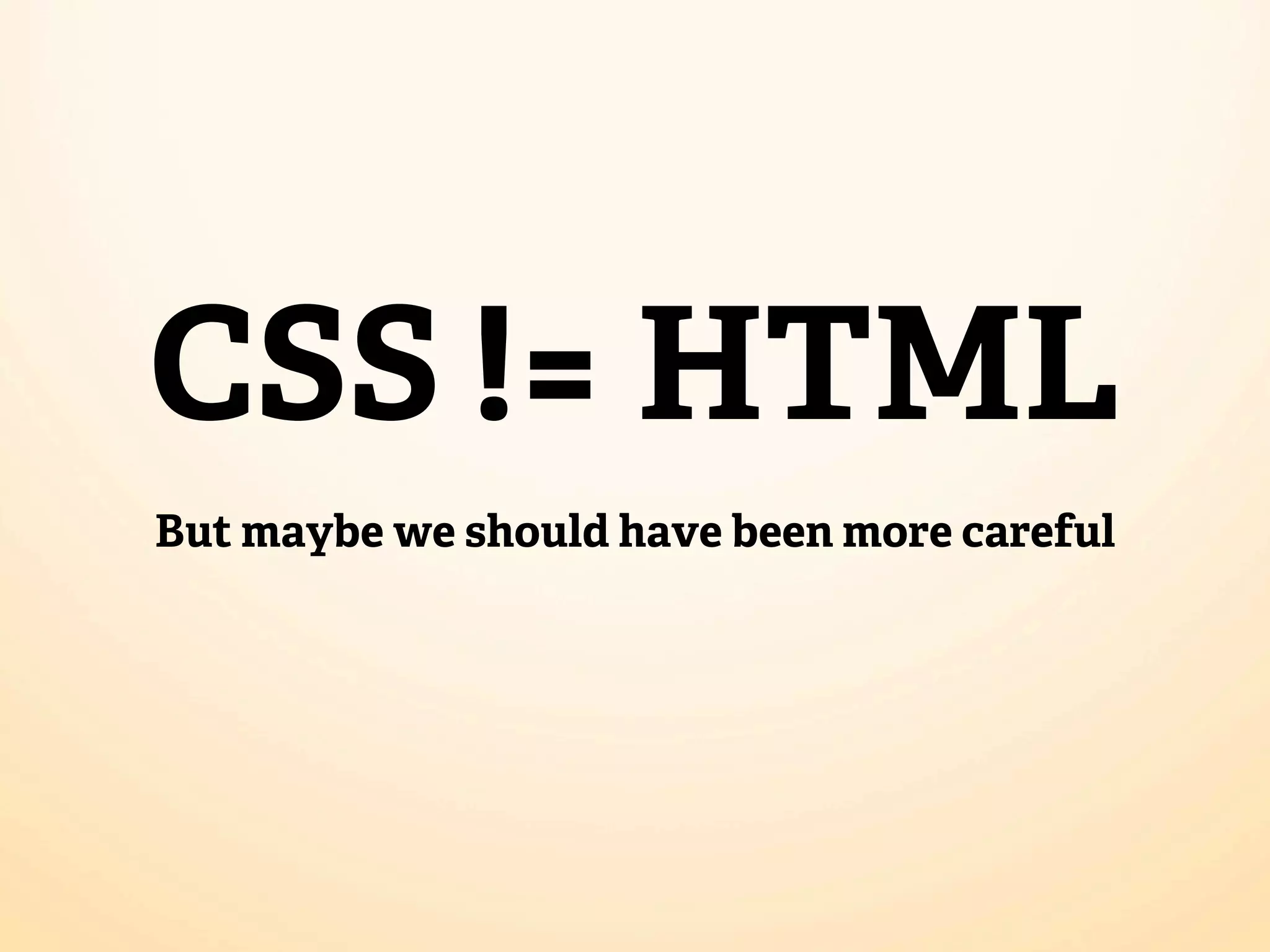

CSS != HTML
But maybe we should have been more careful

Making it
work in
the "other"
browser

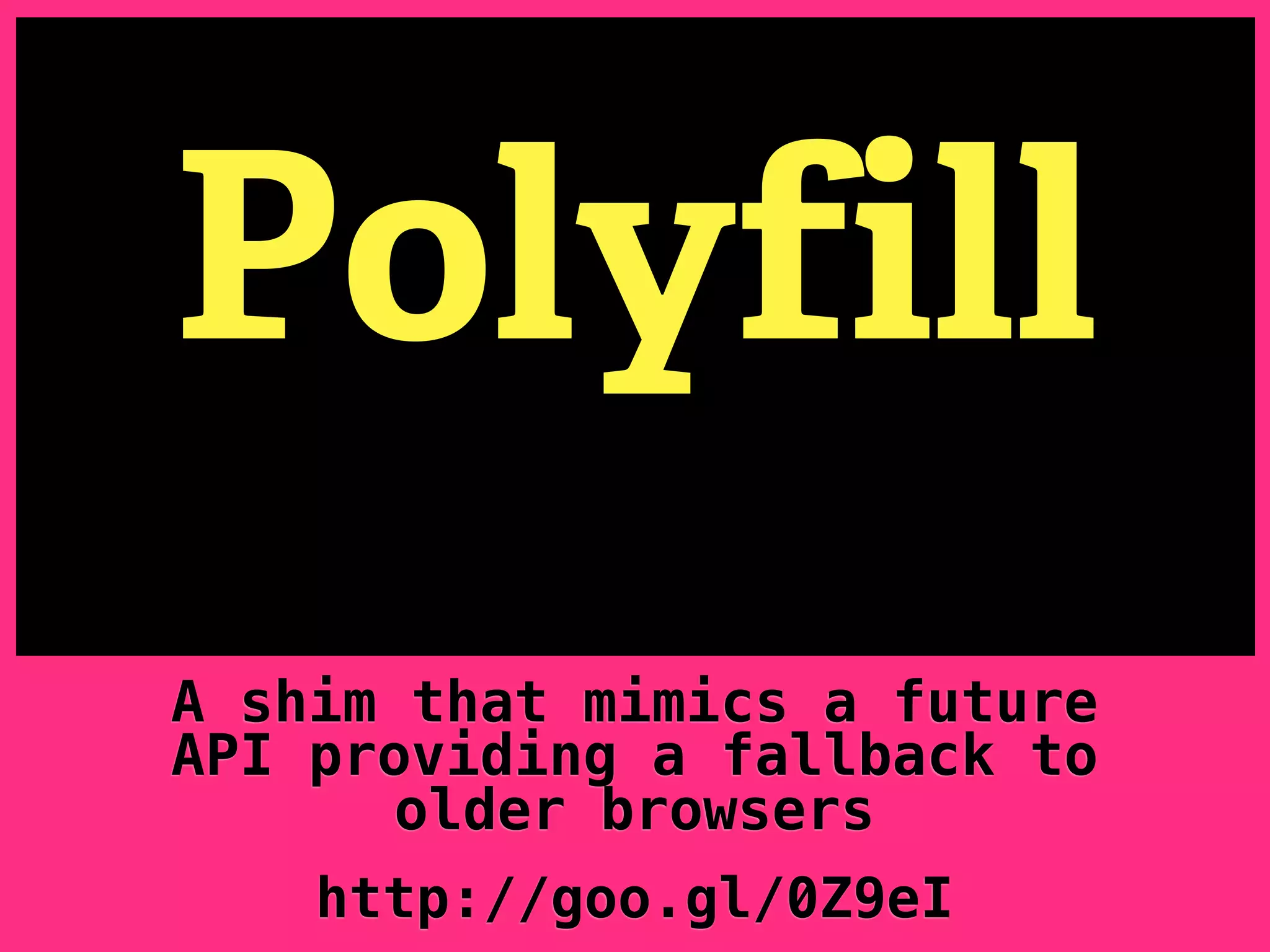

Polyfill
A shim that mimics a future
API providing a fallback to
older browsers
http://goo.gl/0Z9eI

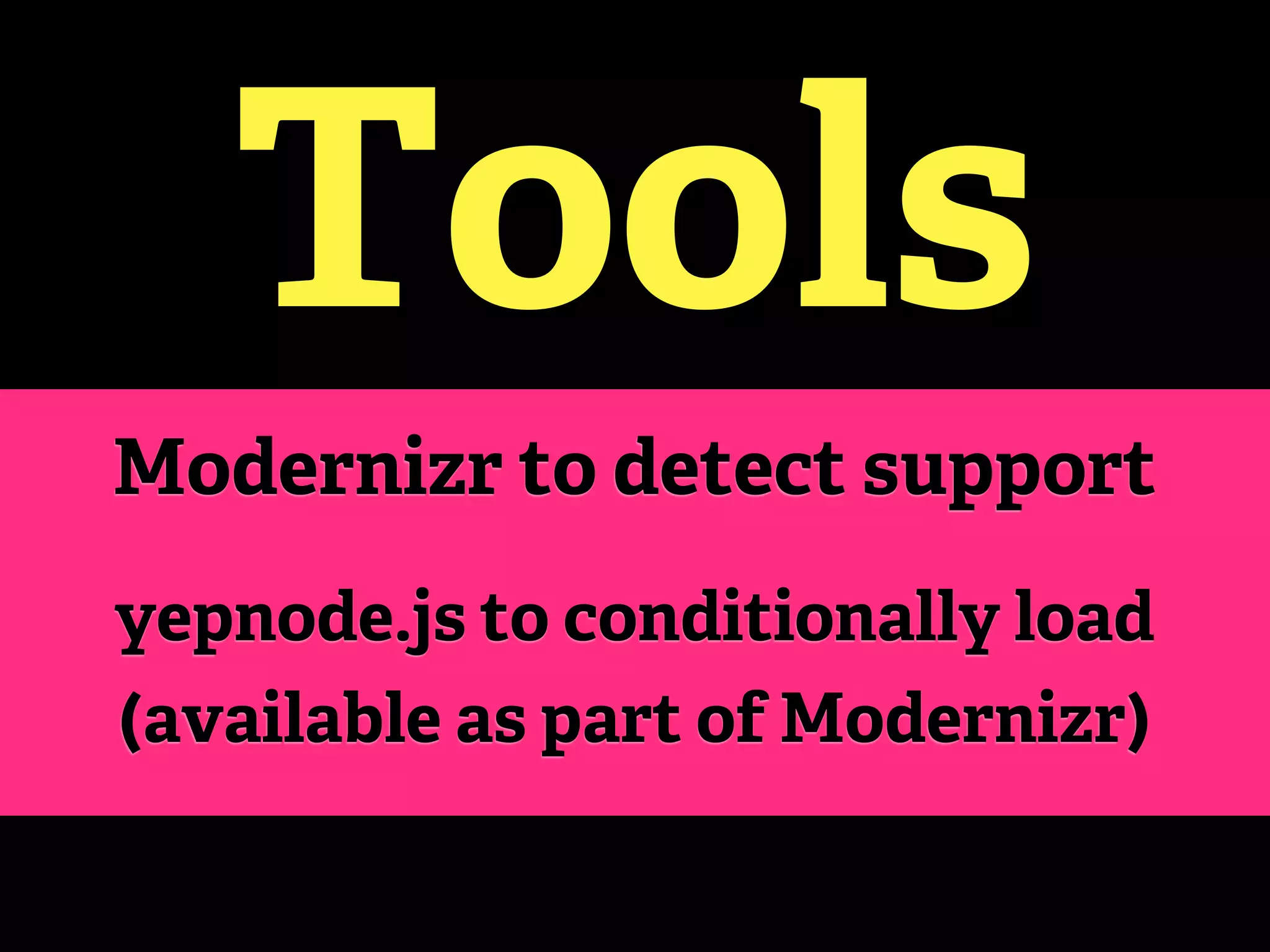

Tools
Modernizr to detect support
yepnode.js to conditionally load
(available as part of Modernizr)

Tools
Modernizr.load({
test: Modernizr.geolocation,
nope: 'geo-polyfill.js',
complete: initMyGeoApp
});

Not the edible ones, duh.

Cookies
suck.

The code for cookies
is a pain - I always
google it.

"Session" cookies
leak across sessions.

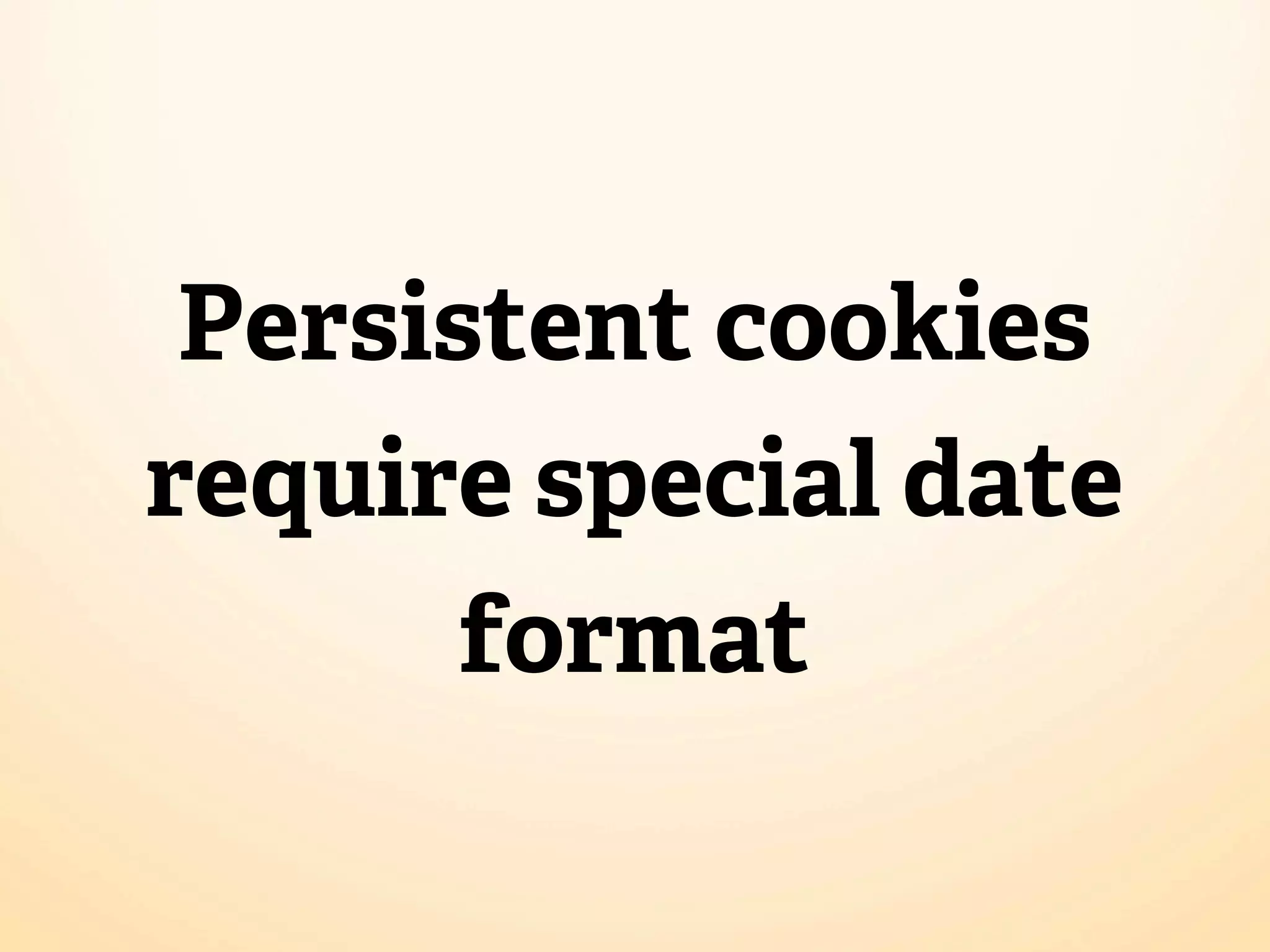

Persistent cookies
require special date
format

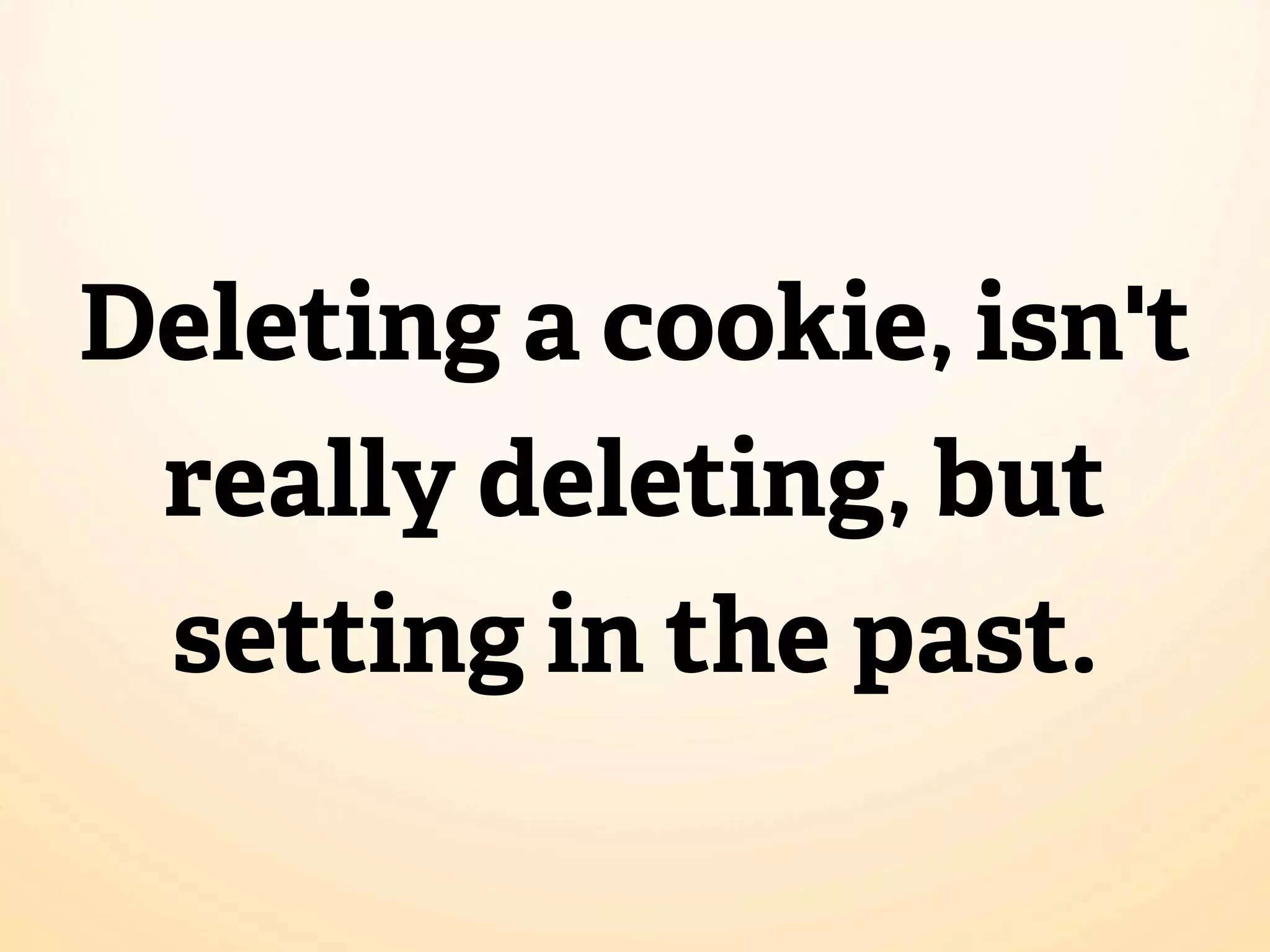

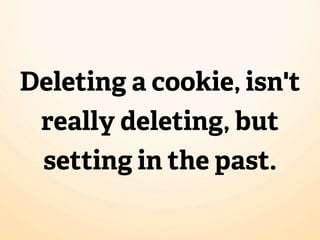

Deleting a cookie, isn't
really deleting, but
setting in the past.

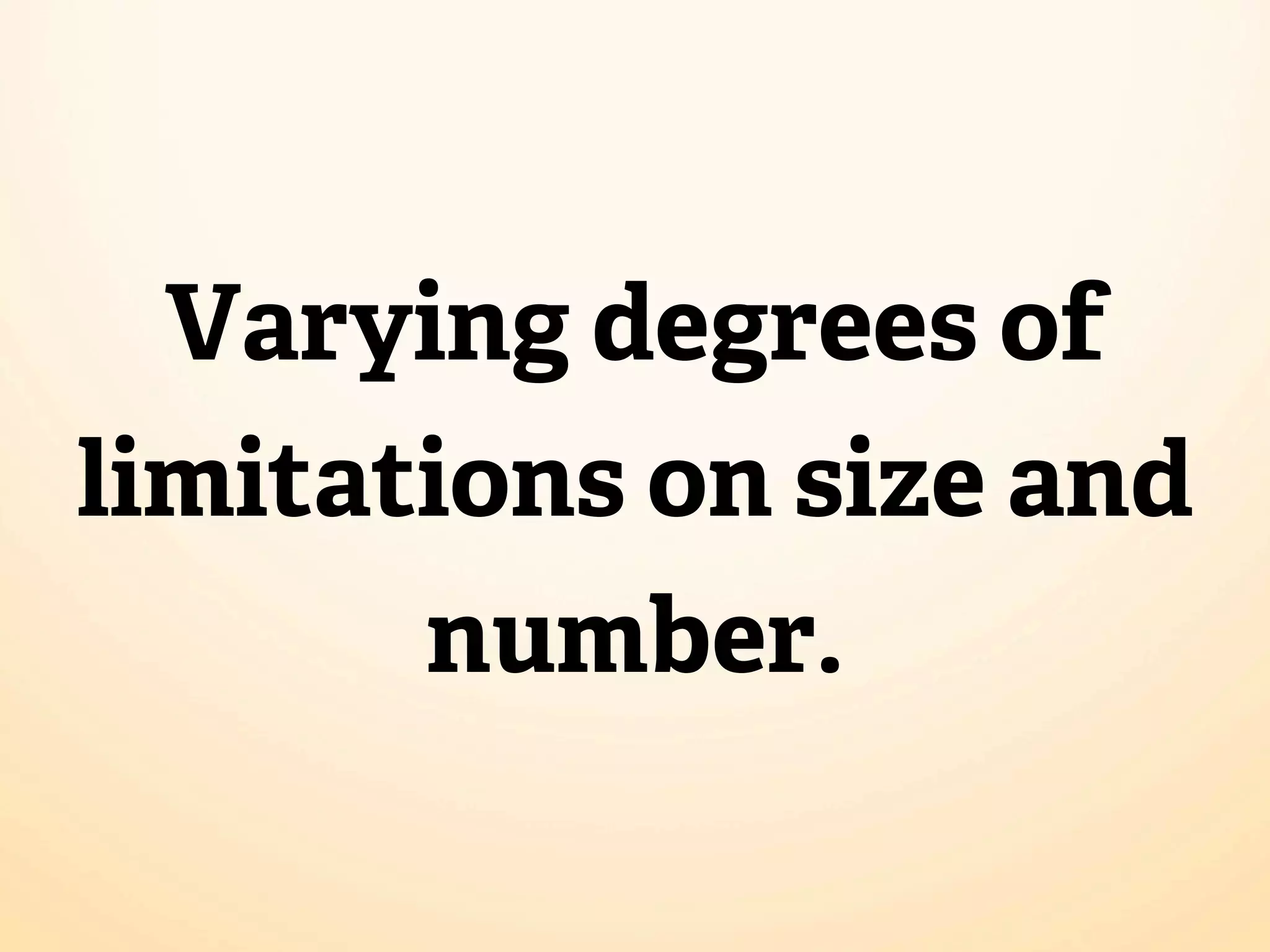

Varying degrees of
limitations on size and
number.

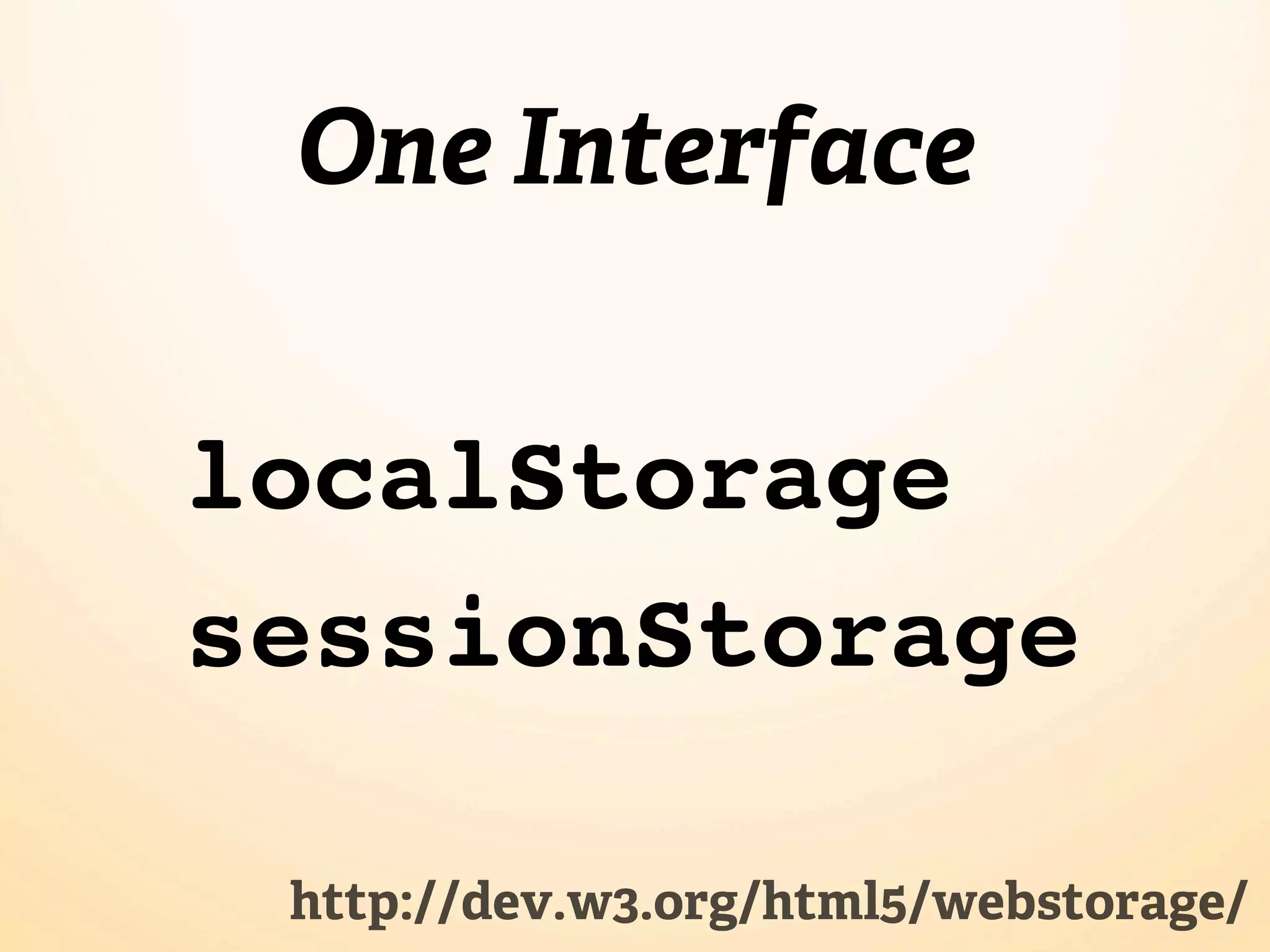

One Interface

localStorage
sessionStorage

http://dev.w3.org/html5/webstorage/

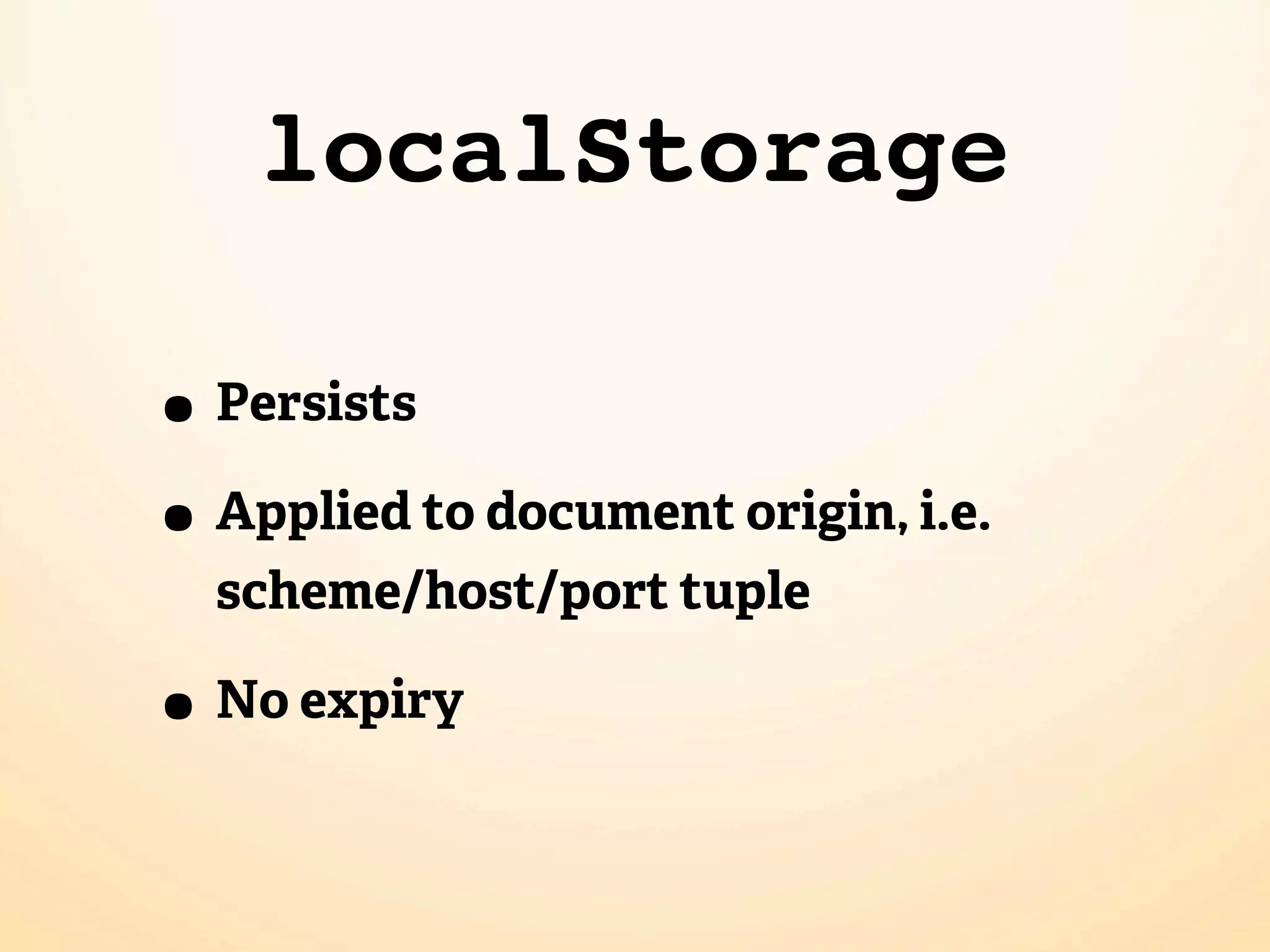

localStorage

• Persists
• Applied to document origin, i.e.
scheme/host/port tuple

• No expiry

sessionStorage

• Lasts whilst on the document origin
• Doesn't leak
• Exactly the same API as localStorage

5mb?
Done! o/
However: utf-16 ∴ 2½Mb

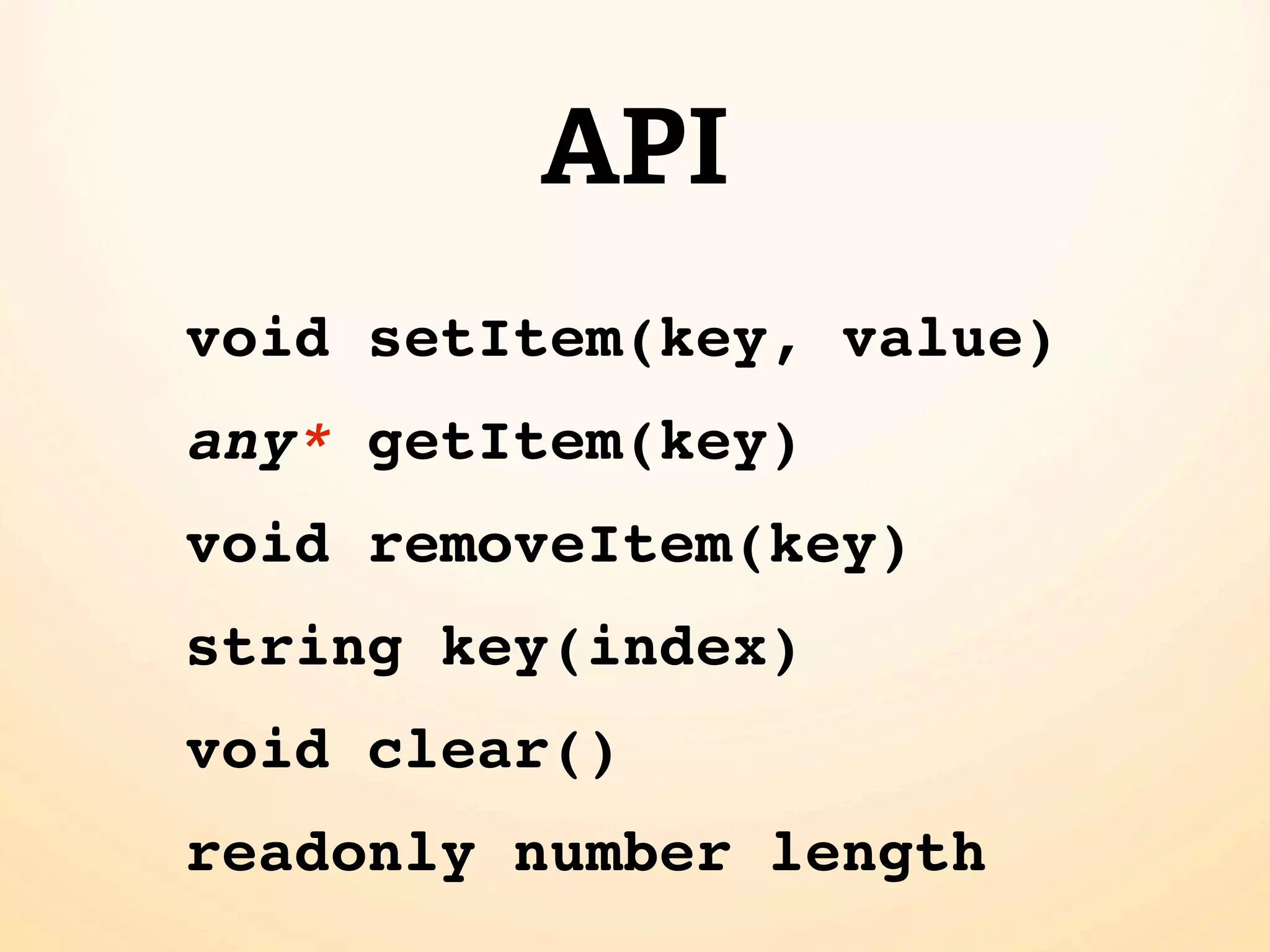

API
void setItem(key, value)
any* getItem(key)
void removeItem(key)
string key(index)
void clear()
readonly number length

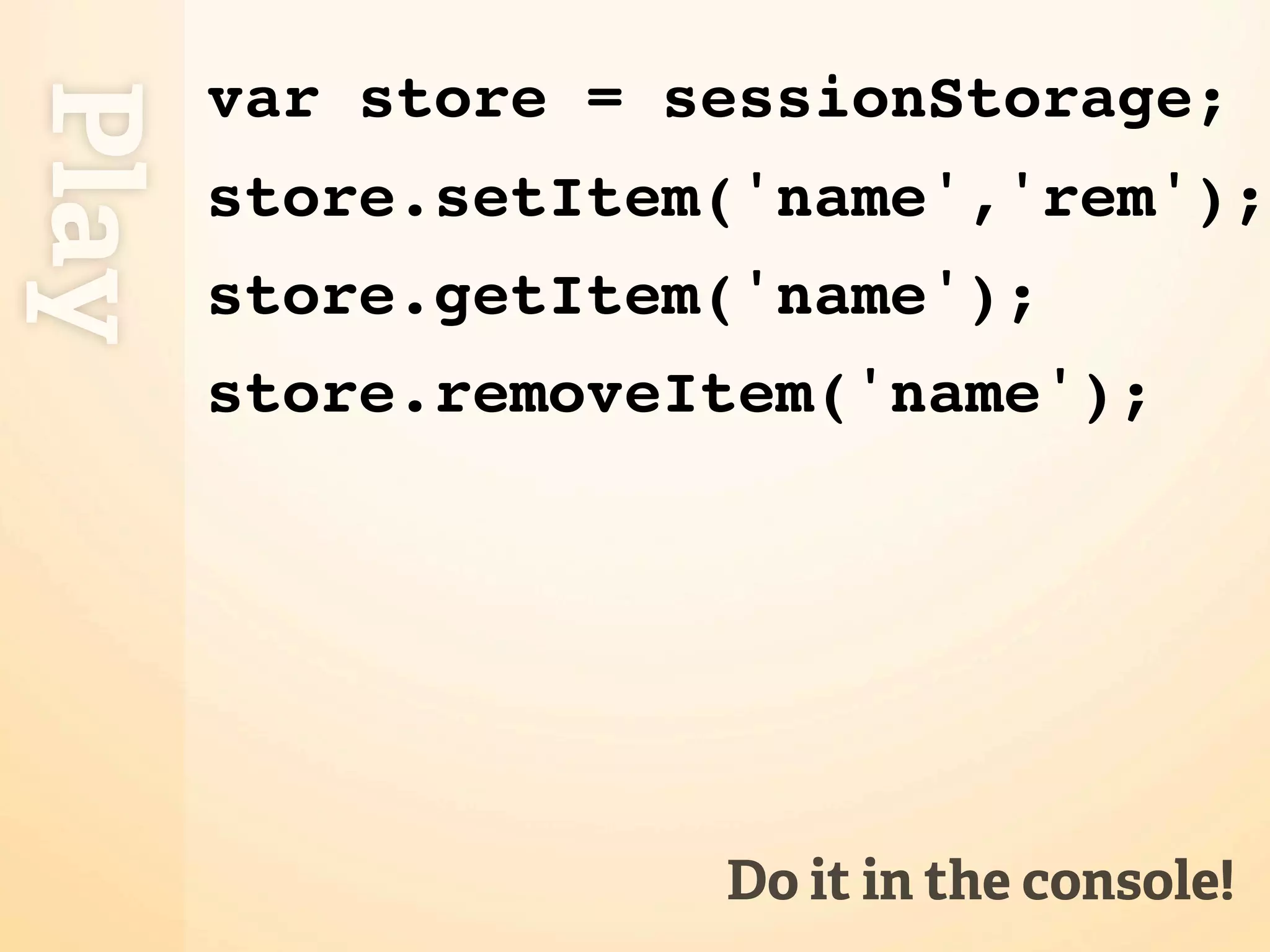

var store = sessionStorage;
Play
store.setItem('name','rem');
store.getItem('name');
store.removeItem('name');

Do it in the console!

API
setter setItem
getter getItem
deleter removeItem

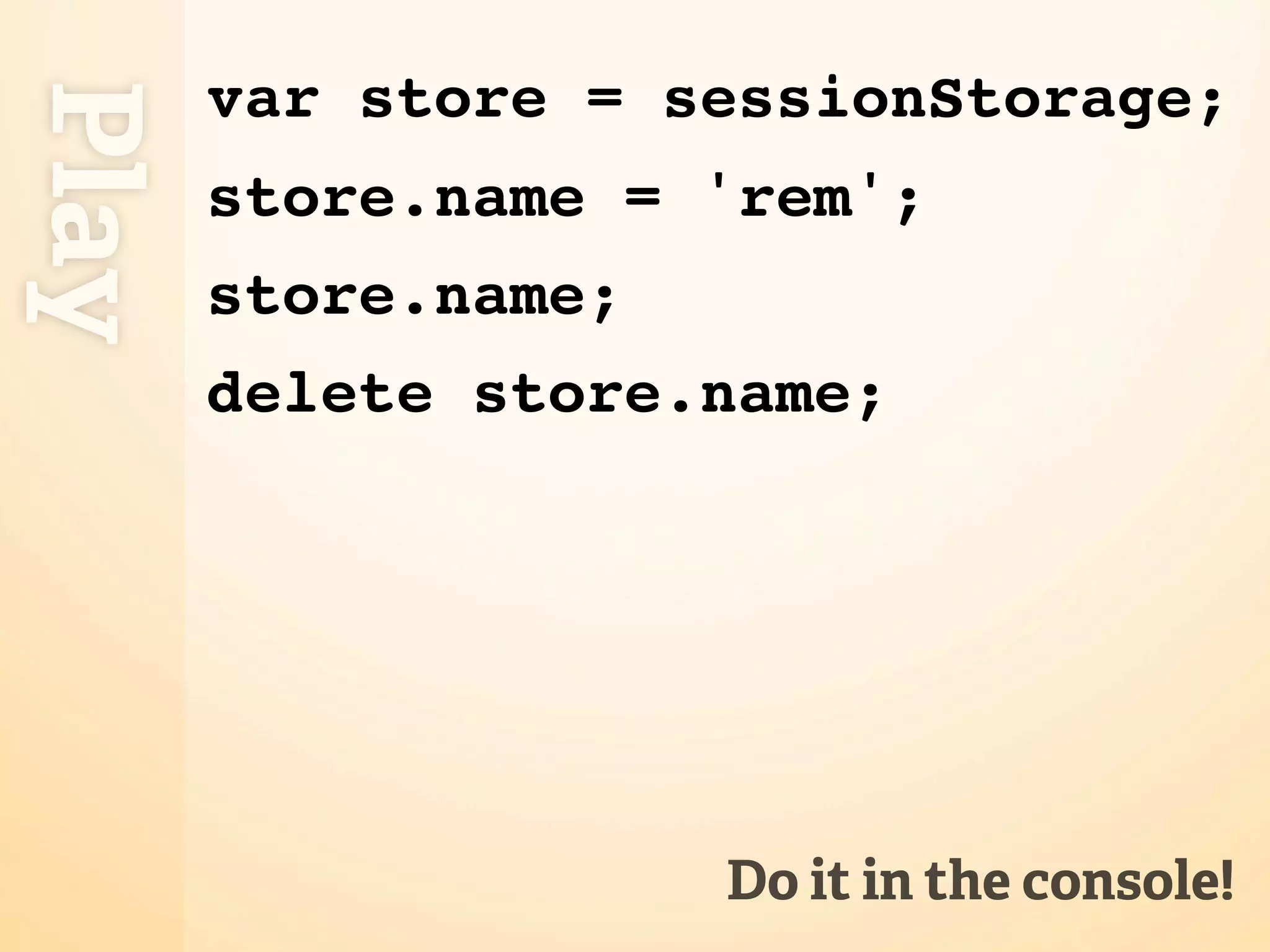

var store = sessionStorage;
Play
store.name = 'rem';
store.name;
delete store.name;

Do it in the console!

t ip
There's no security
protecting the API
// Safari debugger broken:
ss.setItem('key', 12);

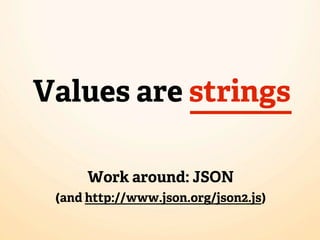

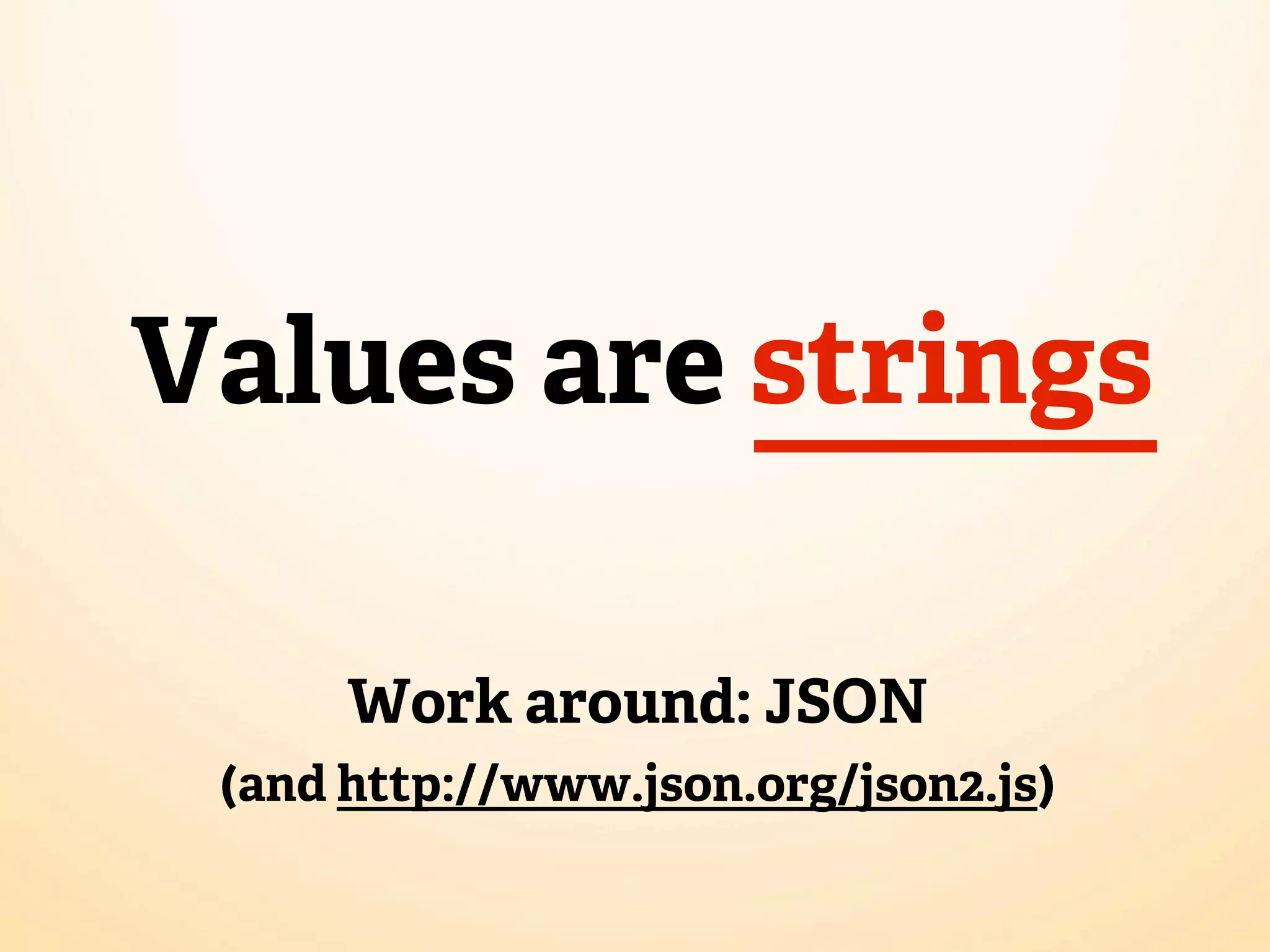

Values are strings

Work around: JSON
(and http://www.json.org/json2.js)

Play
var store = sessionStorage,
user = { screen_name : ‘rem’,
rating : 11 };

store.user = JSON.stringify(user));
var gotUser = JSON.parse(store.user);
alert(gotUser.screen_name);

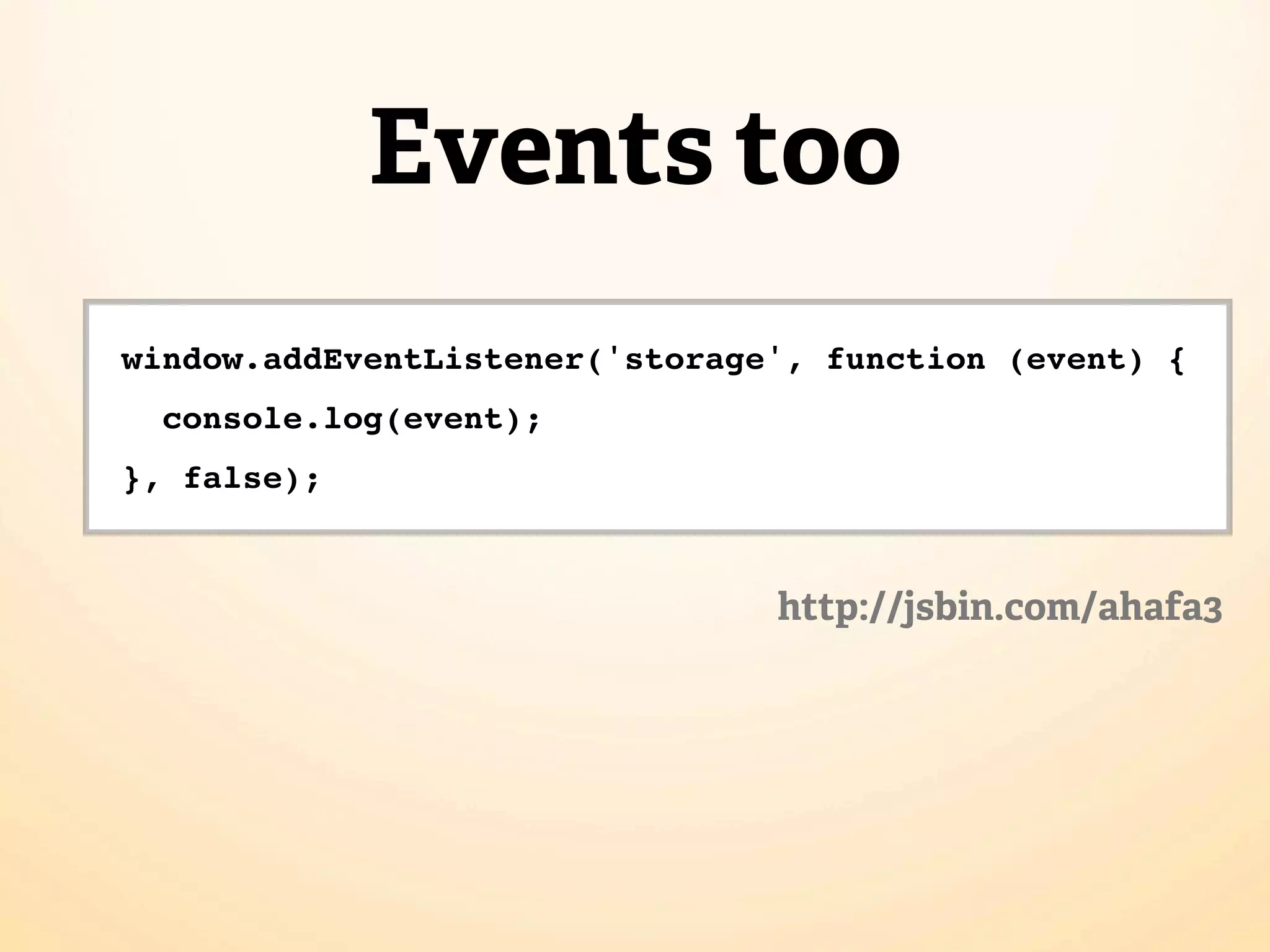

Events too
window.addEventListener('storage', function (event) {
console.log(event);
}, false);

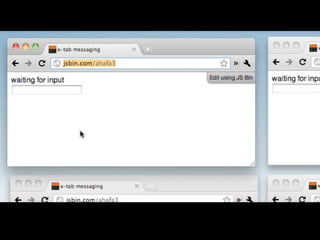

http://jsbin.com/ahafa3

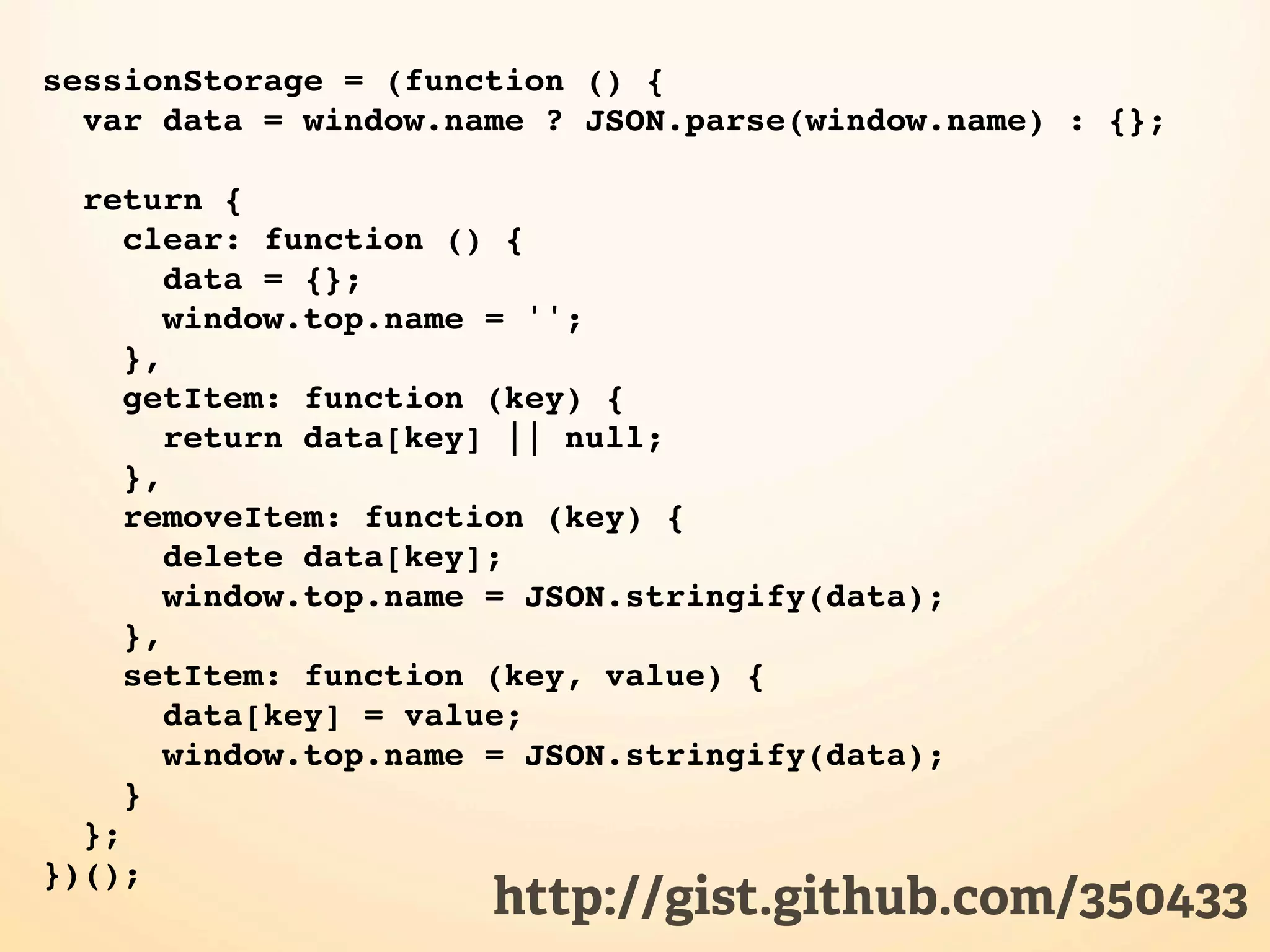

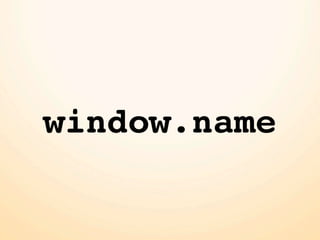

sessionStorage = (function () {

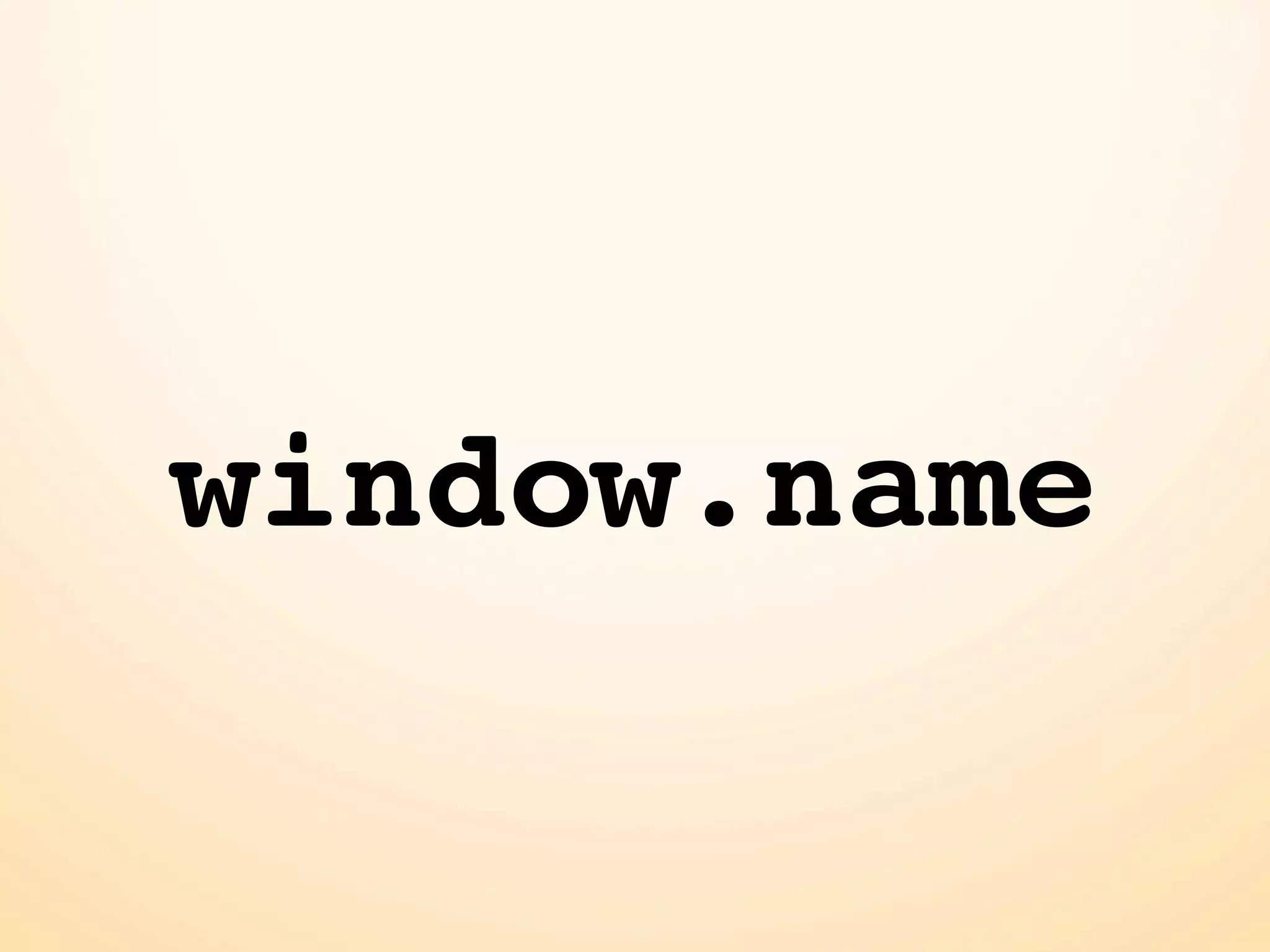

var data = window.name ? JSON.parse(window.name) : {};

return {
clear: function () {
data = {};
window.top.name = '';
},
getItem: function (key) {
return data[key] || null;
},
removeItem: function (key) {
delete data[key];
window.top.name = JSON.stringify(data);
},
setItem: function (key, value) {
data[key] = value;
window.top.name = JSON.stringify(data);
}
};
})();
http://gist.github.com/350433

t ip
Firefox cookie security
applies to Storage too :(

t ip

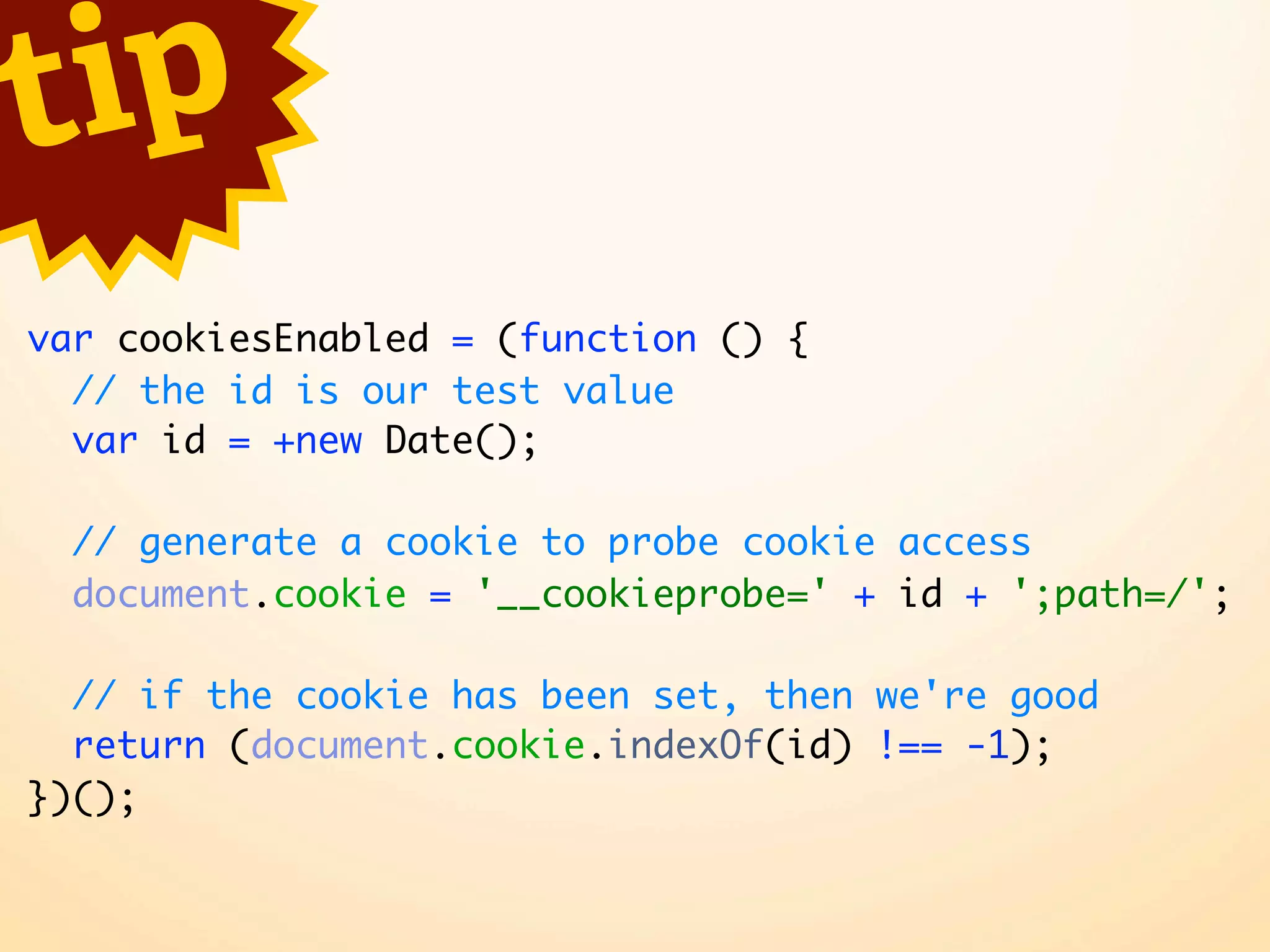

var cookiesEnabled = (function () {
// the id is our test value
var id = +new Date();

// generate a cookie to probe cookie access
document.cookie = '__cookieprobe=' + id + ';path=/';

// if the cookie has been set, then we're good
return (document.cookie.indexOf(id) !== -1);
})();

Web SQL Databases

http://ﬂic.kr/p/drmCJ

IndexedDB

http://ﬂic.kr/p/5KXFwB

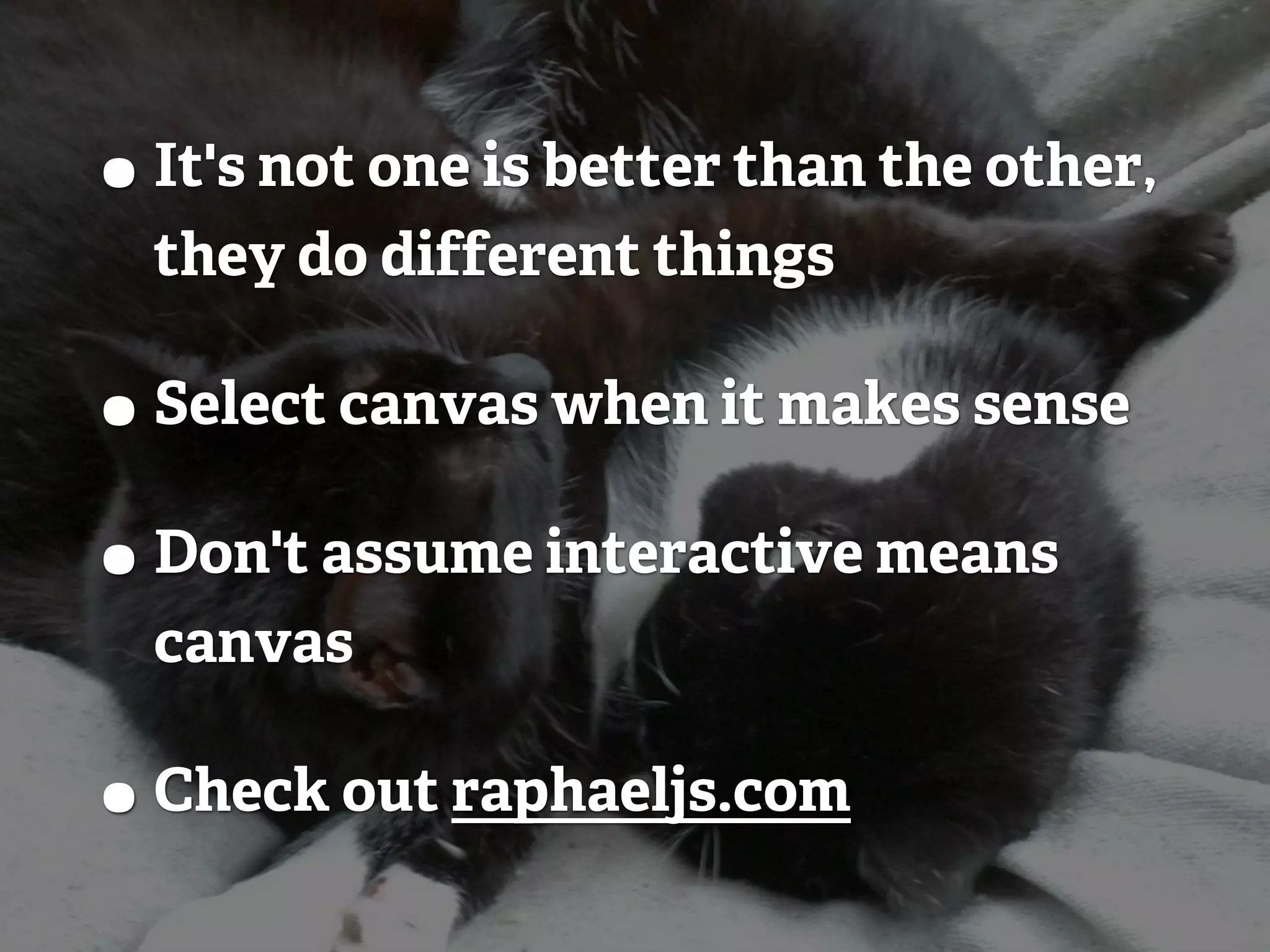

• It's not one is better than the other,
they do different things

• Select canvas when it makes sense
• Don't assume interactive means
canvas

• Check out raphaeljs.com

canvas-1.html
Play
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8" />
<title>Canvas</title>
</head>
<body>
<canvas></canvas>
</body>
</html>
http://dev.w3.org/html5/canvas-api/canvas-2d-api.html

2D API

ctx = canvas.getContext('2d')

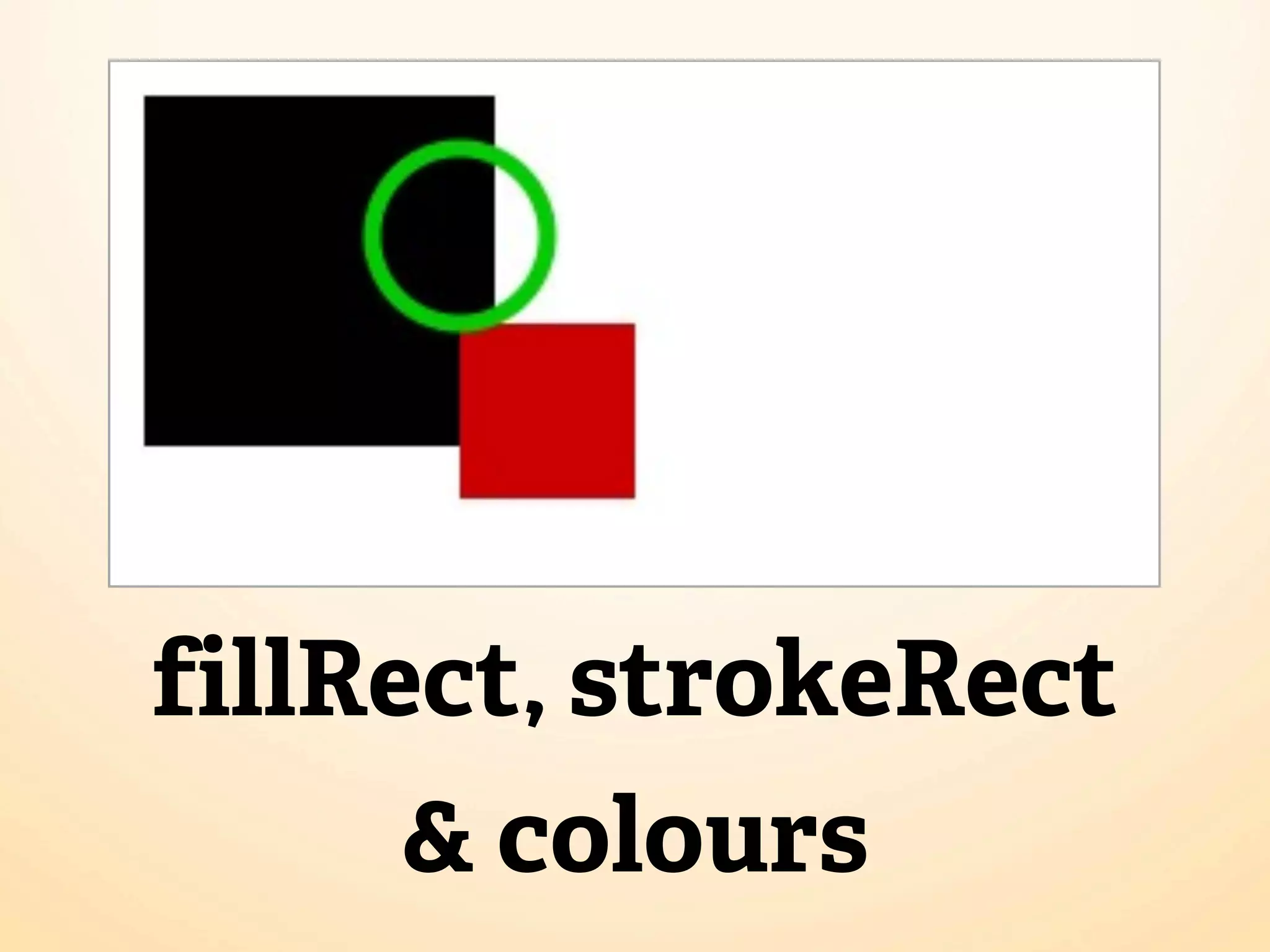

fillRect, strokeRect
& colours

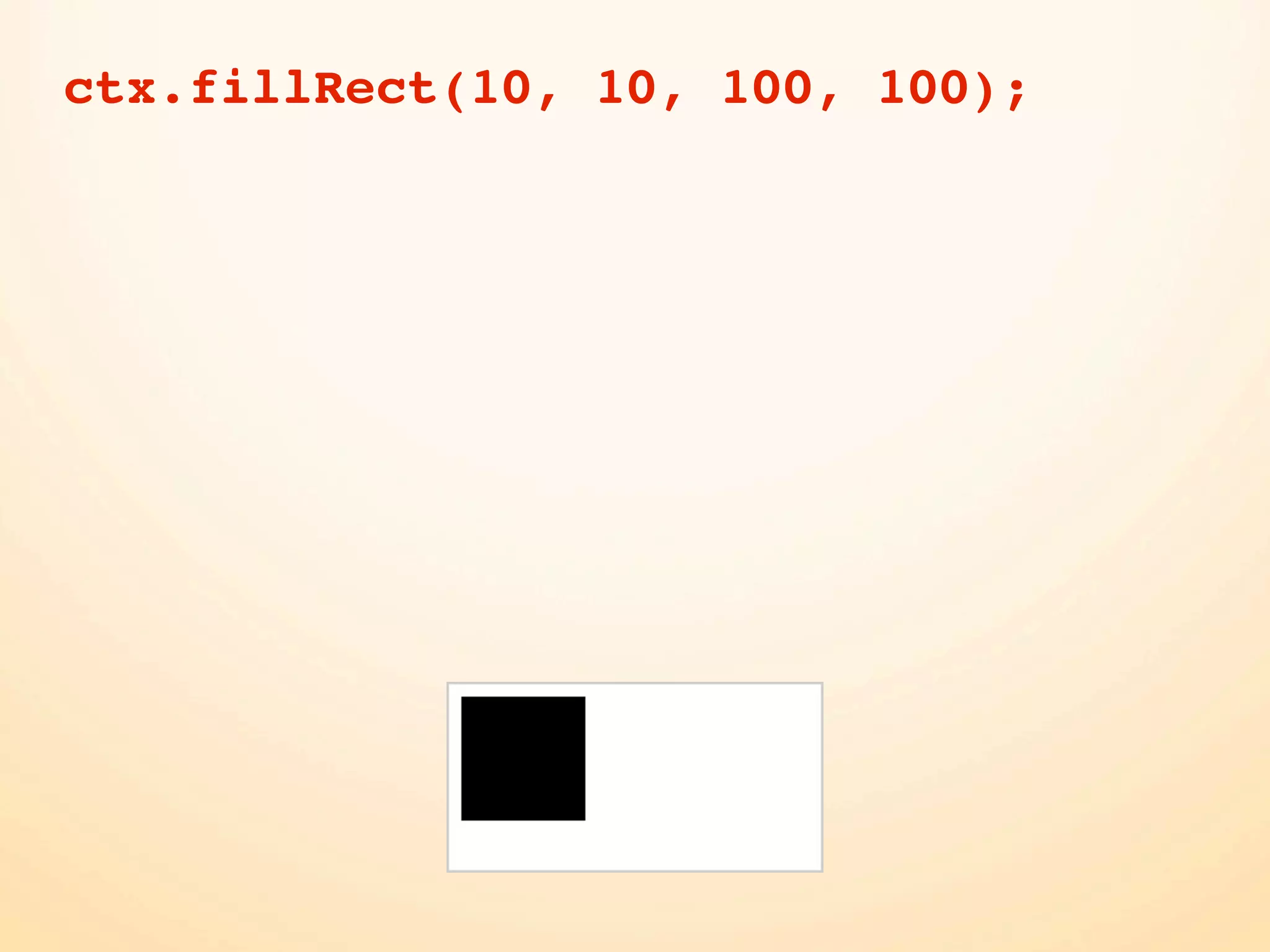

ctx.fillRect(10, 10, 100, 100);

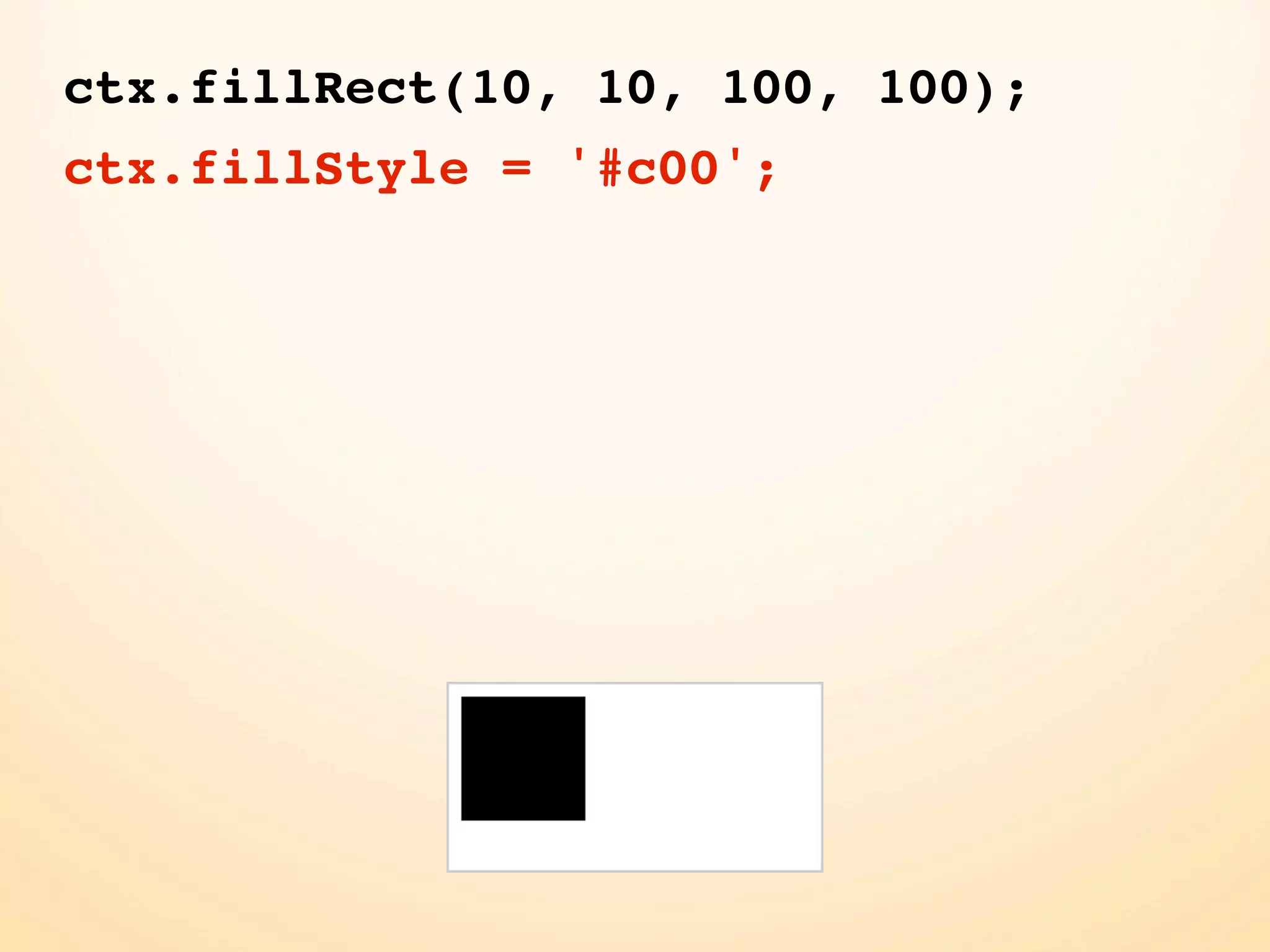

ctx.fillRect(10, 10, 100, 100);
ctx.fillStyle = '#c00';

ctx.fillRect(10, 10, 100, 100);
ctx.fillRect(100, 75, 50, 50);

ctx.fillRect(10, 10, 100, 100);
ctx.fillRect(100, 75, 50, 50);
ctx.strokeStyle = '#0c0';

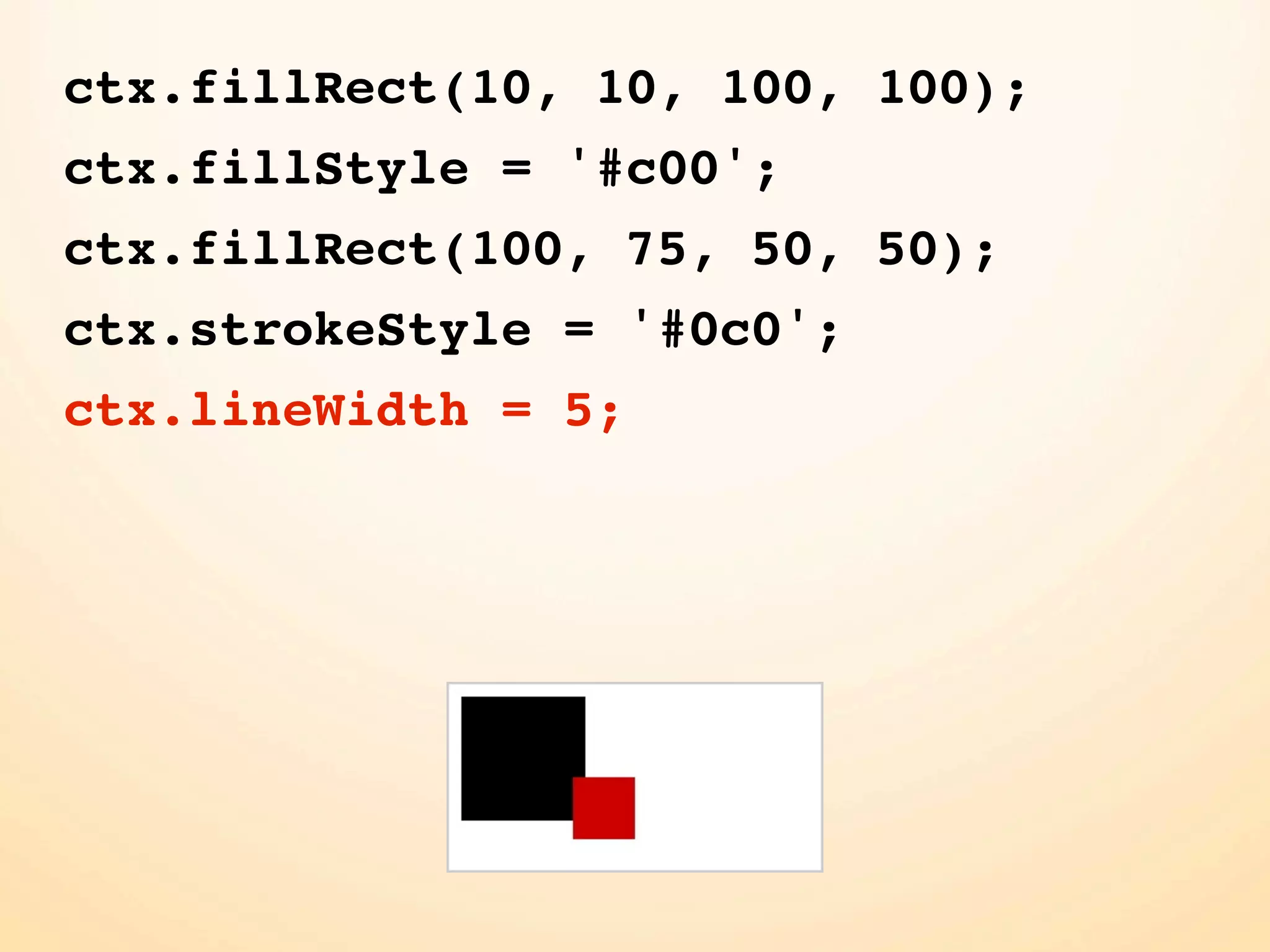

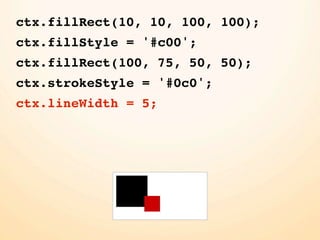

ctx.fillRect(10, 10, 100, 100);
ctx.fillRect(100, 75, 50, 50);
ctx.lineWidth = 5;

ctx.fillRect(10, 10, 100, 100);
ctx.fillRect(100, 75, 50, 50);
ctx.lineWidth = 5;
ctx.arc(100,50,25,0,Math.PI*2,true);

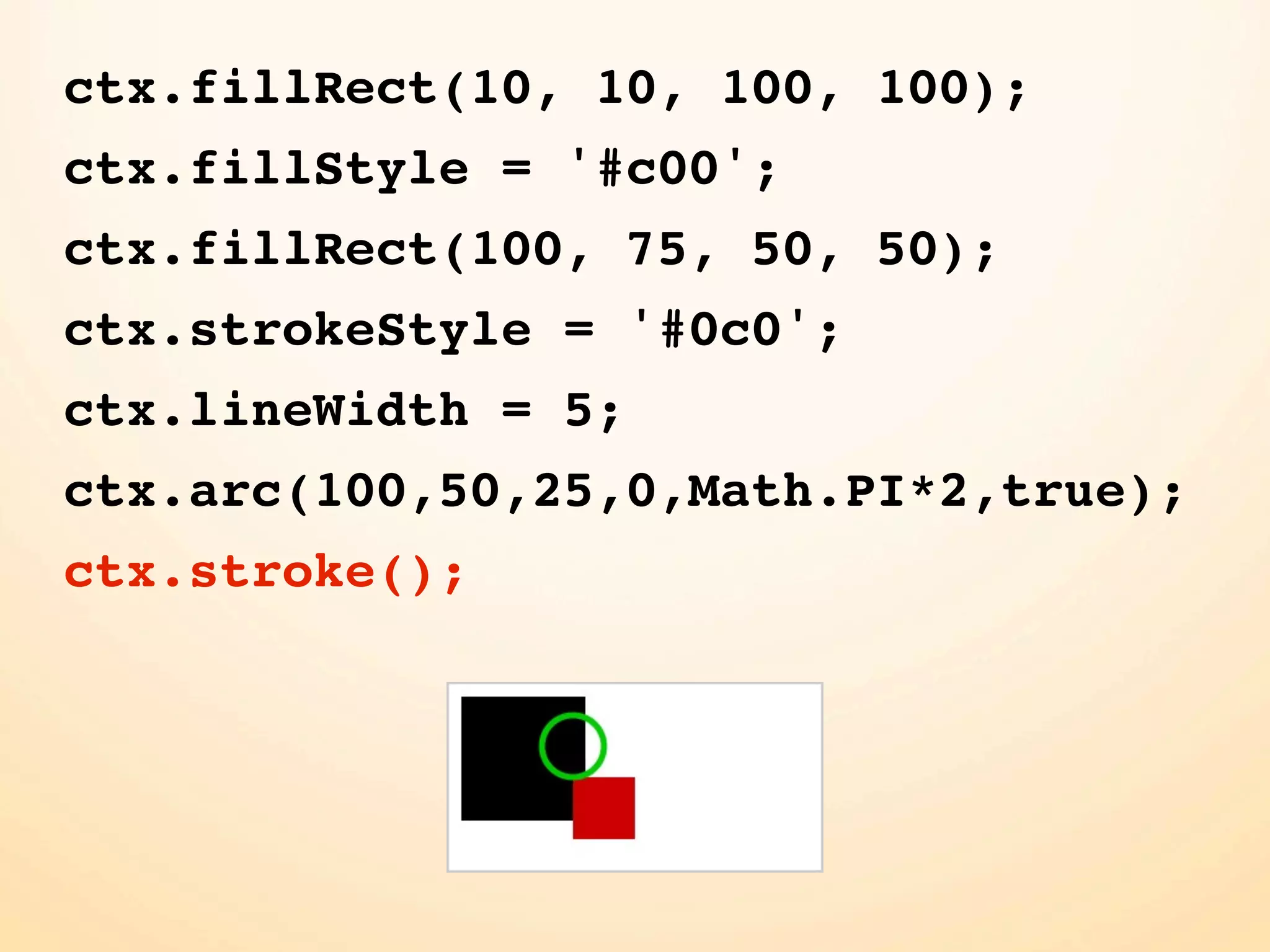

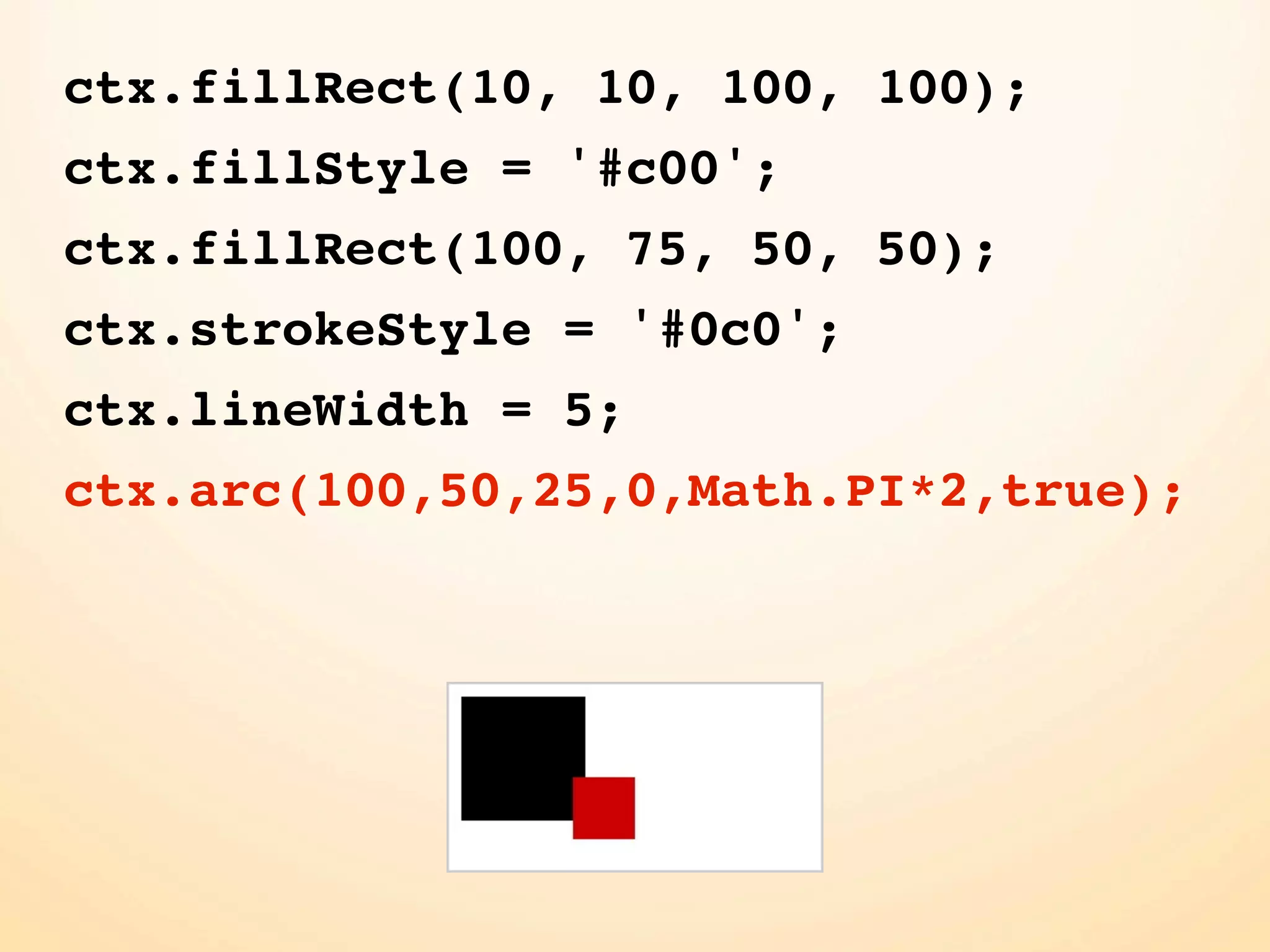

ctx.fillRect(10, 10, 100, 100);
ctx.fillRect(100, 75, 50, 50);
ctx.lineWidth = 5;
ctx.arc(100,50,25,0,Math.PI*2,true);
ctx.stroke();

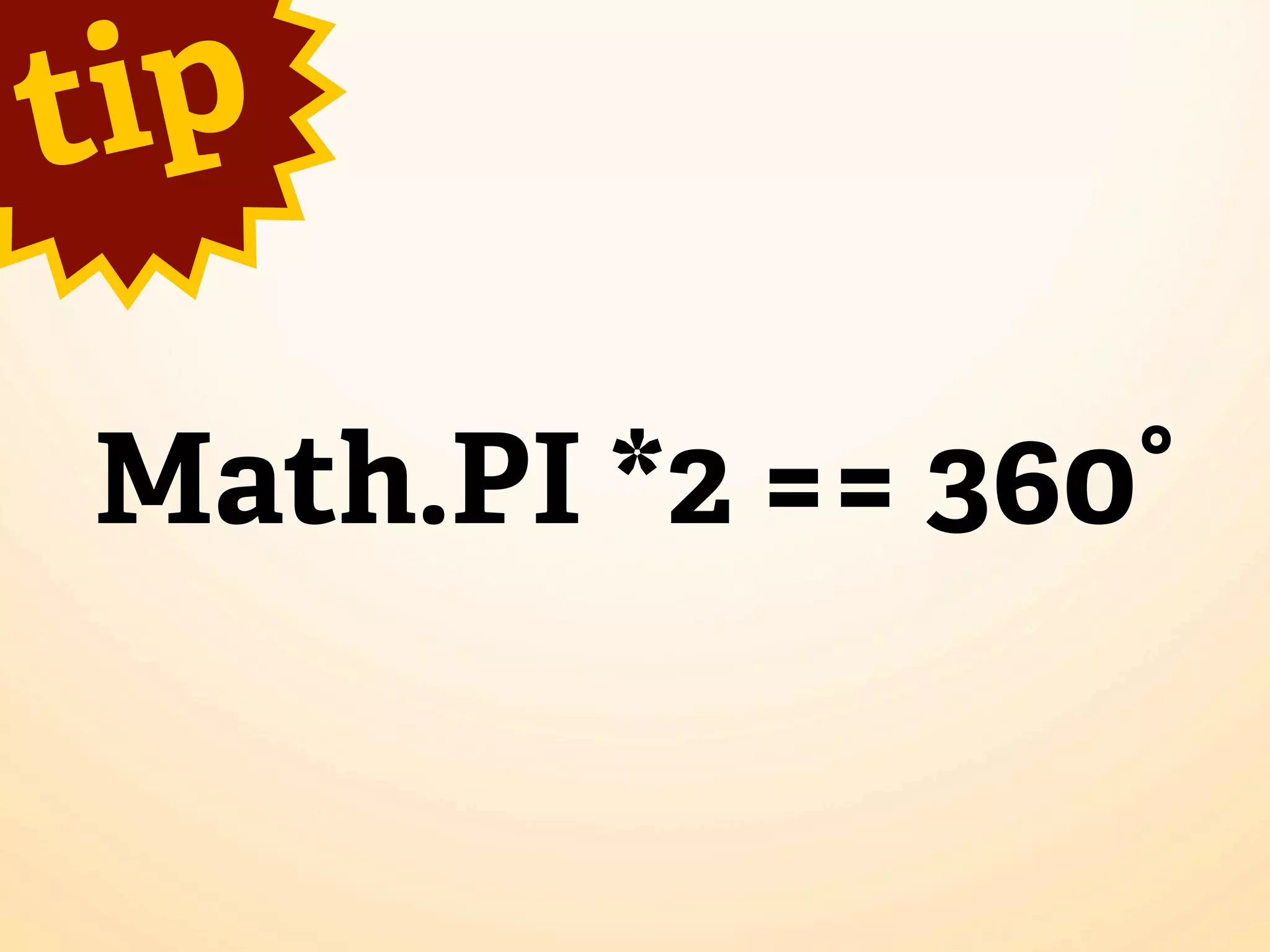

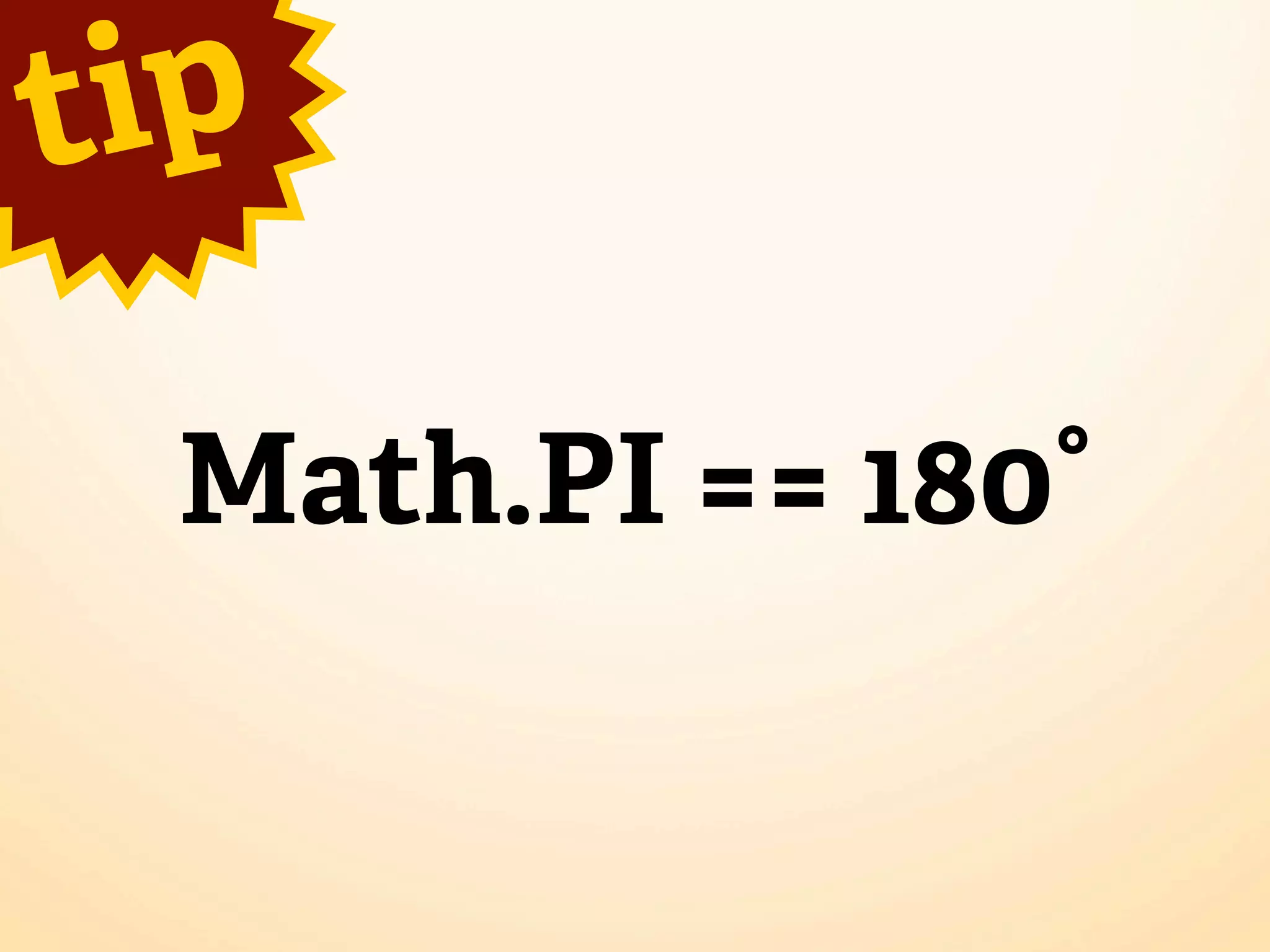

t ip
d * Math.PI / 180
== radian

1. Create a gradient object

2.Add colour stops

3.Set the gradient to the
fillStyle

4.Draw

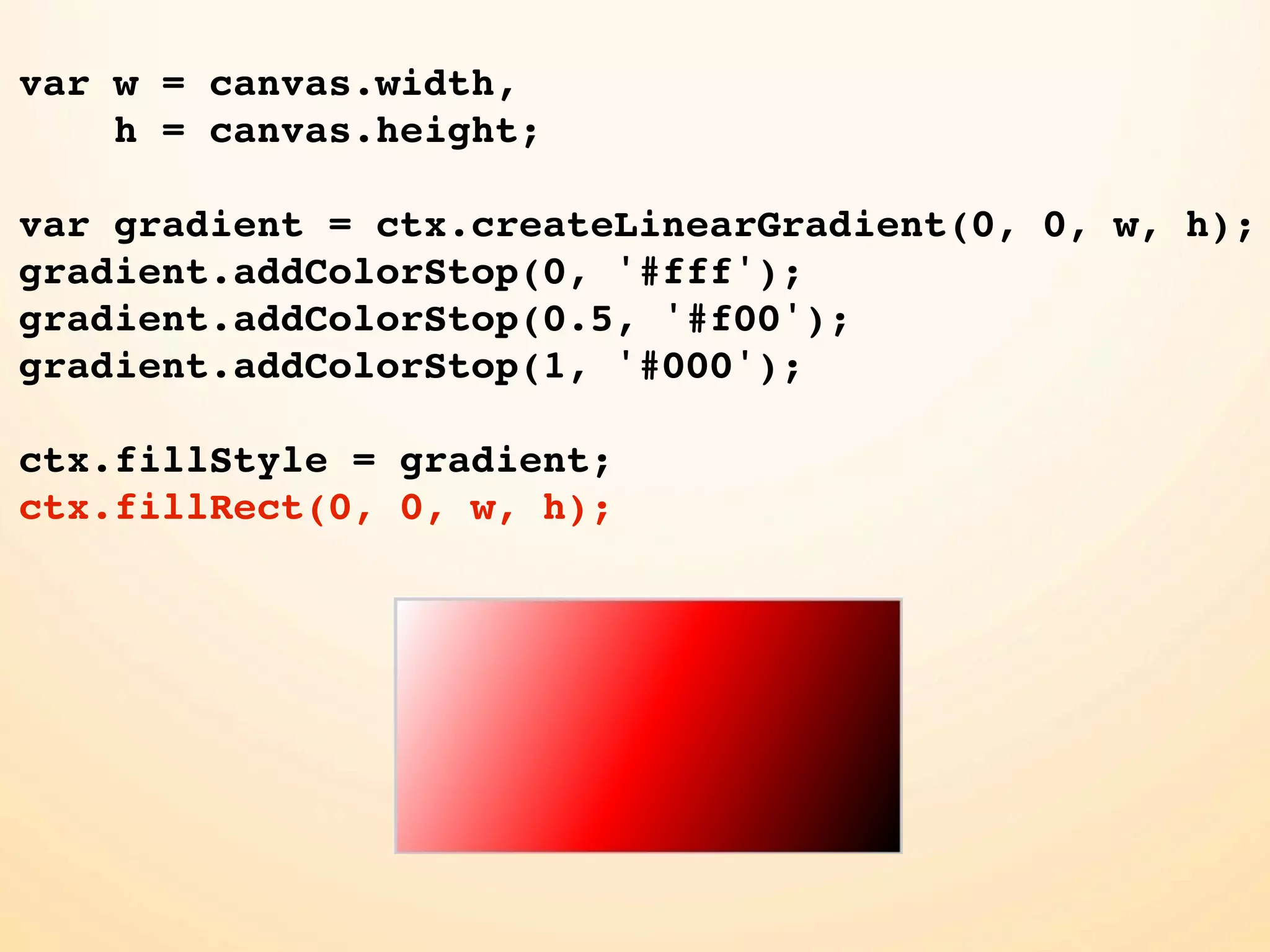

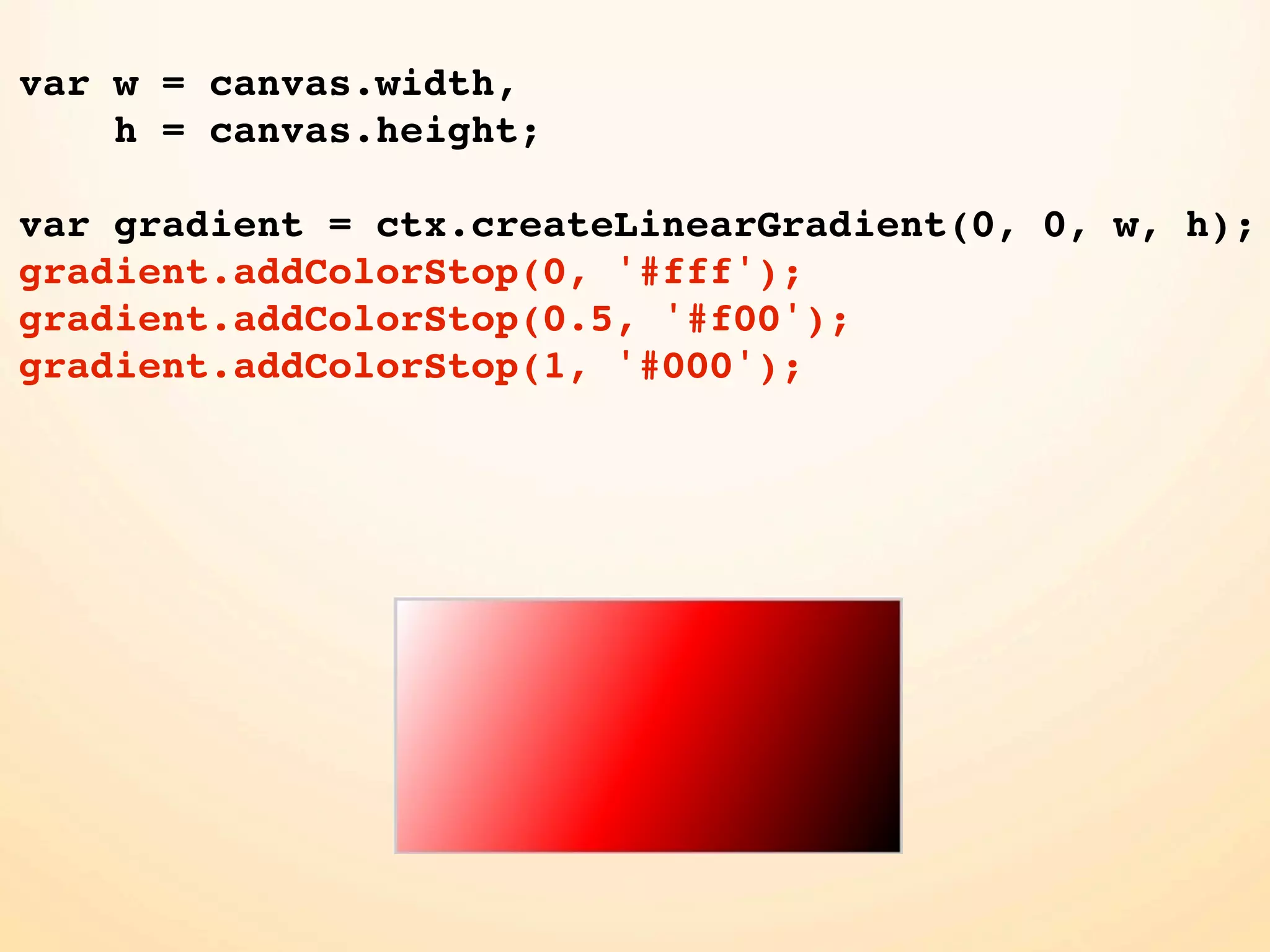

var w = canvas.width,
h = canvas.height;

var gradient = ctx.createLinearGradient(0, 0, w, h);

h = canvas.height;

gradient.addColorStop(0, '#fff');
gradient.addColorStop(0.5, '#f00');
gradient.addColorStop(1, '#000');

h = canvas.height;


ctx.fillStyle = gradient;

h = canvas.height;


ctx.fillStyle = gradient;
ctx.fillRect(0, 0, w, h);

Play

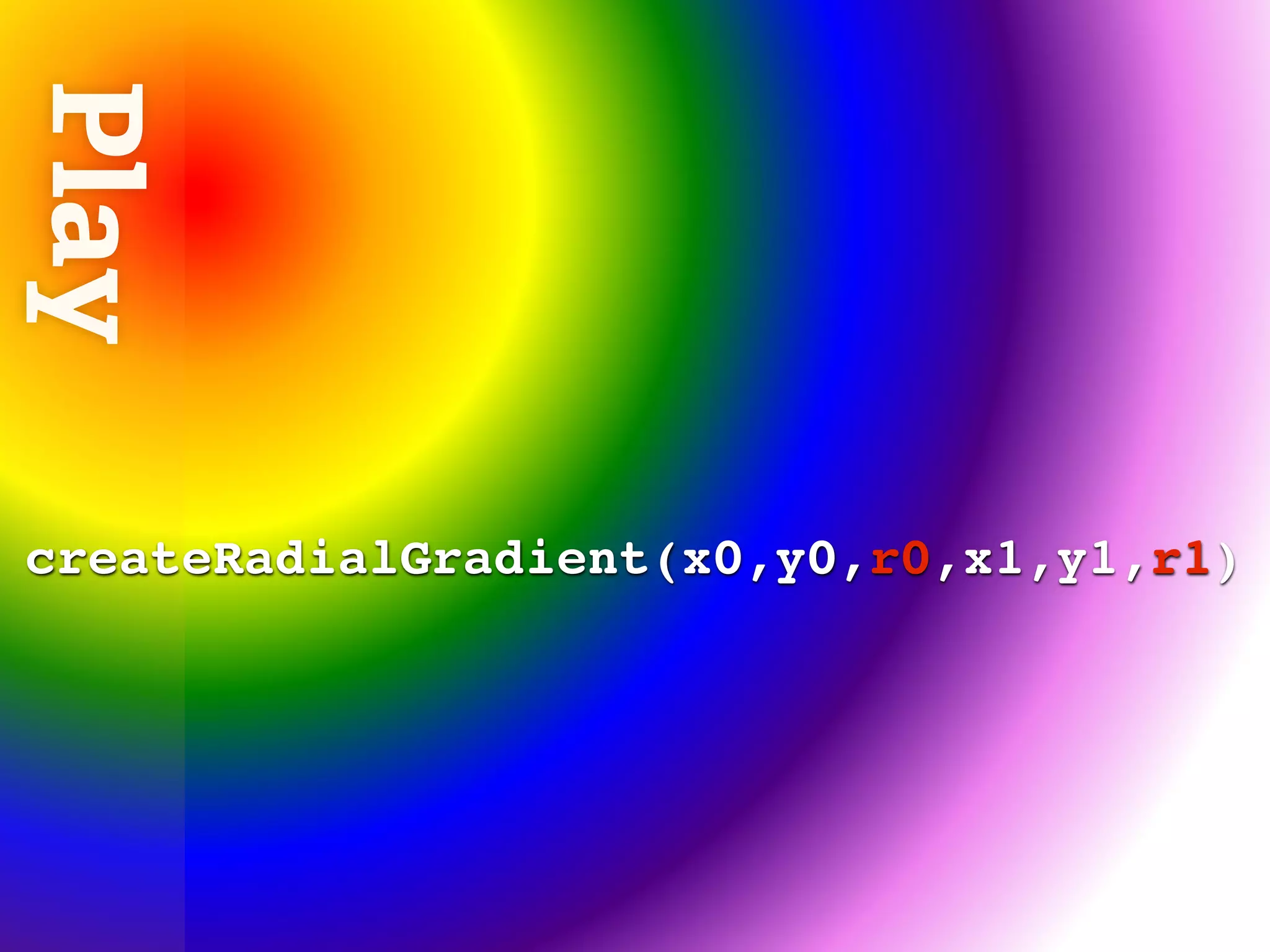

createRadialGradient(x0,y0,r0,x1,y1,r1)

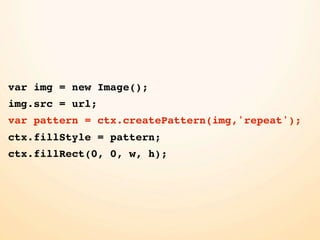

var img = new Image();
img.src = url;
var pattern = ctx.createPattern(img,'repeat');
ctx.fillStyle = pattern;
ctx.fillRect(0, 0, w, h);

t ip invalid_state

img.onload = function () {
// now use image for canvas
};

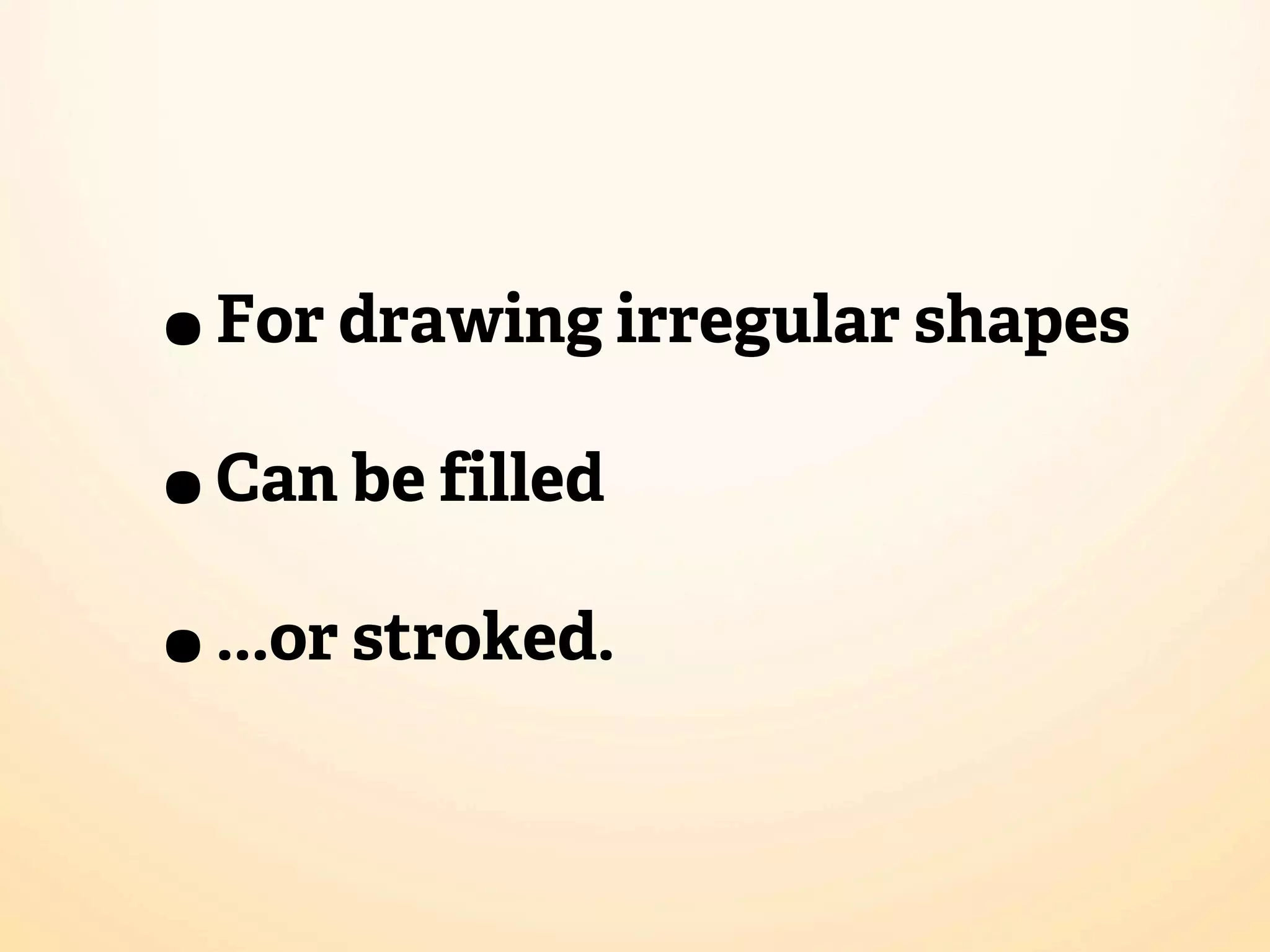

• For drawing irregular shapes
• Can be filled
• ...or stroked.

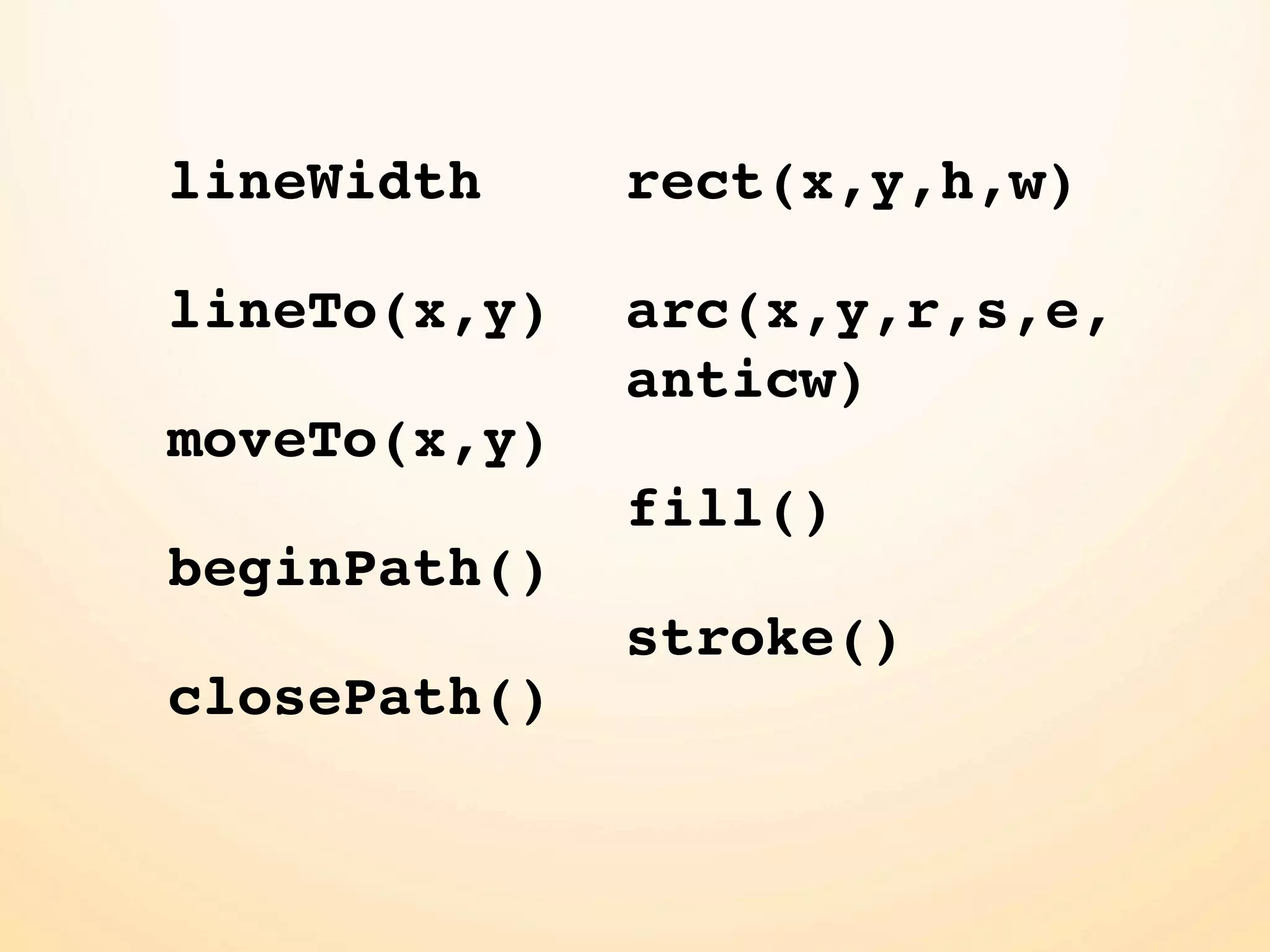

lineWidth rect(x,y,h,w)

lineTo(x,y) arc(x,y,r,s,e,
anticw)
moveTo(x,y)
fill()
beginPath()
stroke()
closePath()

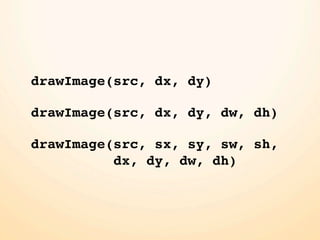

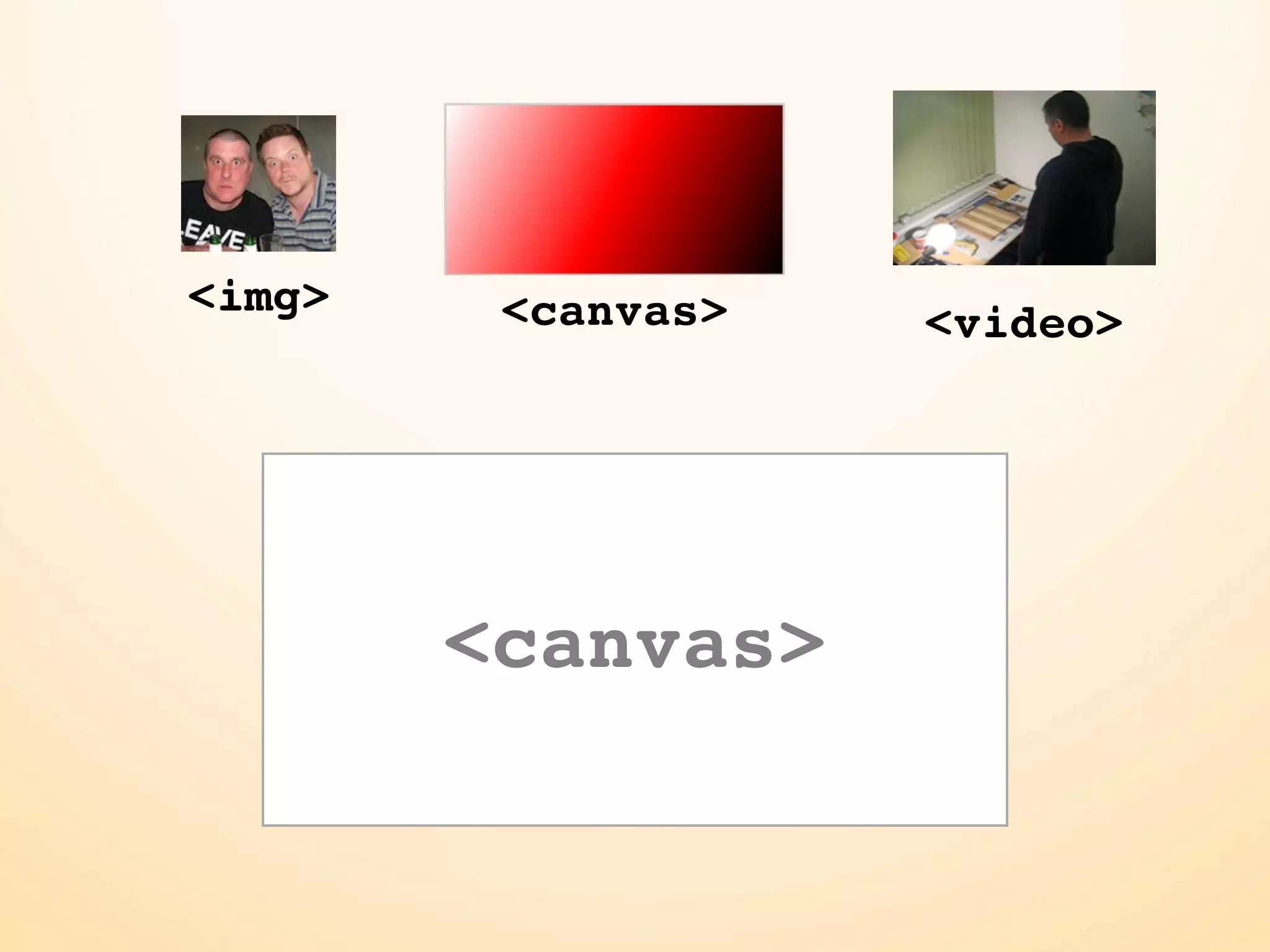

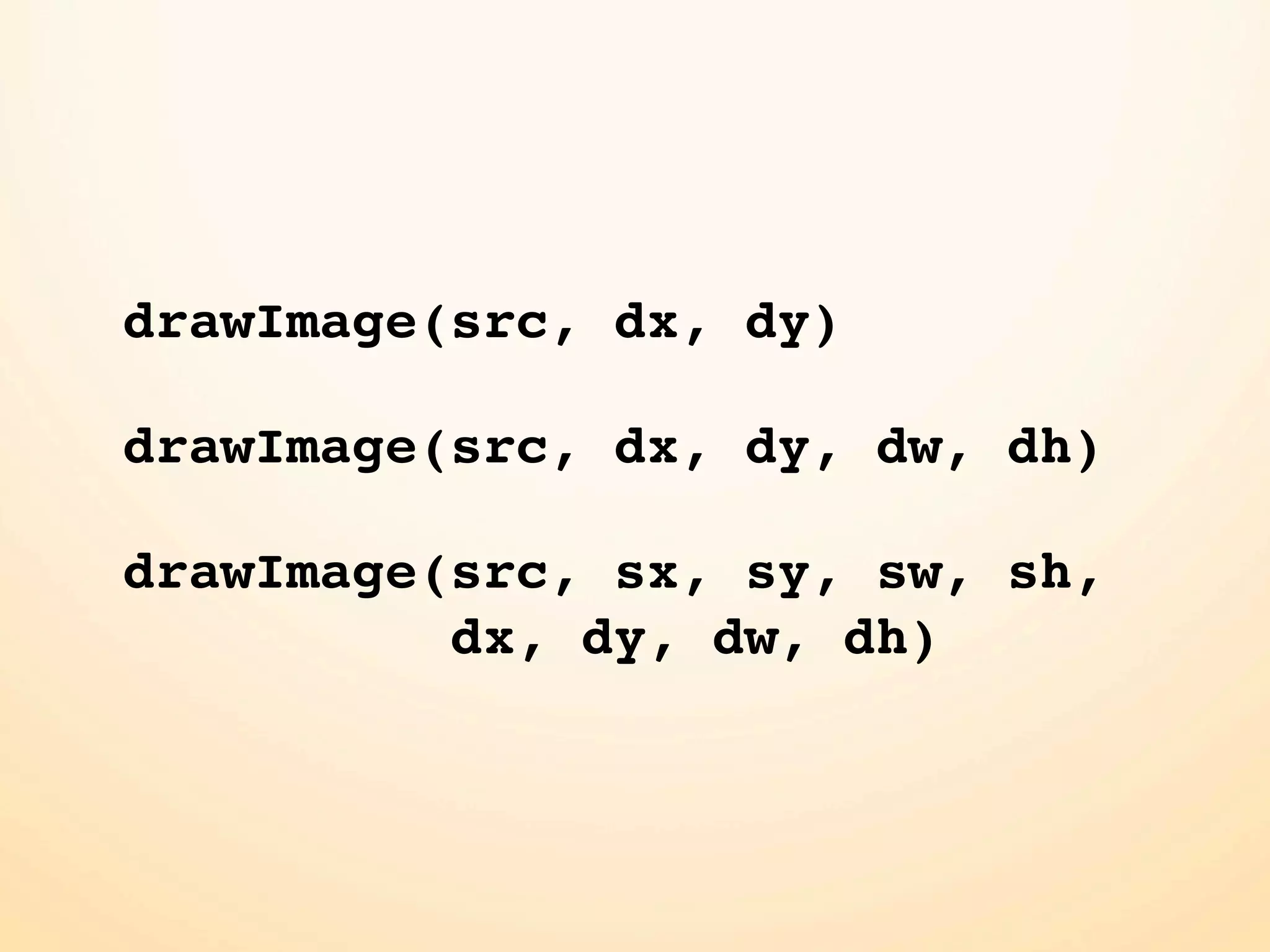

drawImage(src, dx, dy)

drawImage(src, dx, dy, dw, dh)

drawImage(src, sx, sy, sw, sh,
dx, dy, dw, dh)

Play
img.onload = function () {
// this == img
canvas.width = this.width;
canvas.height = this.height;
ctx.drawImage(this, 0, 0);
};

canvas-10.html

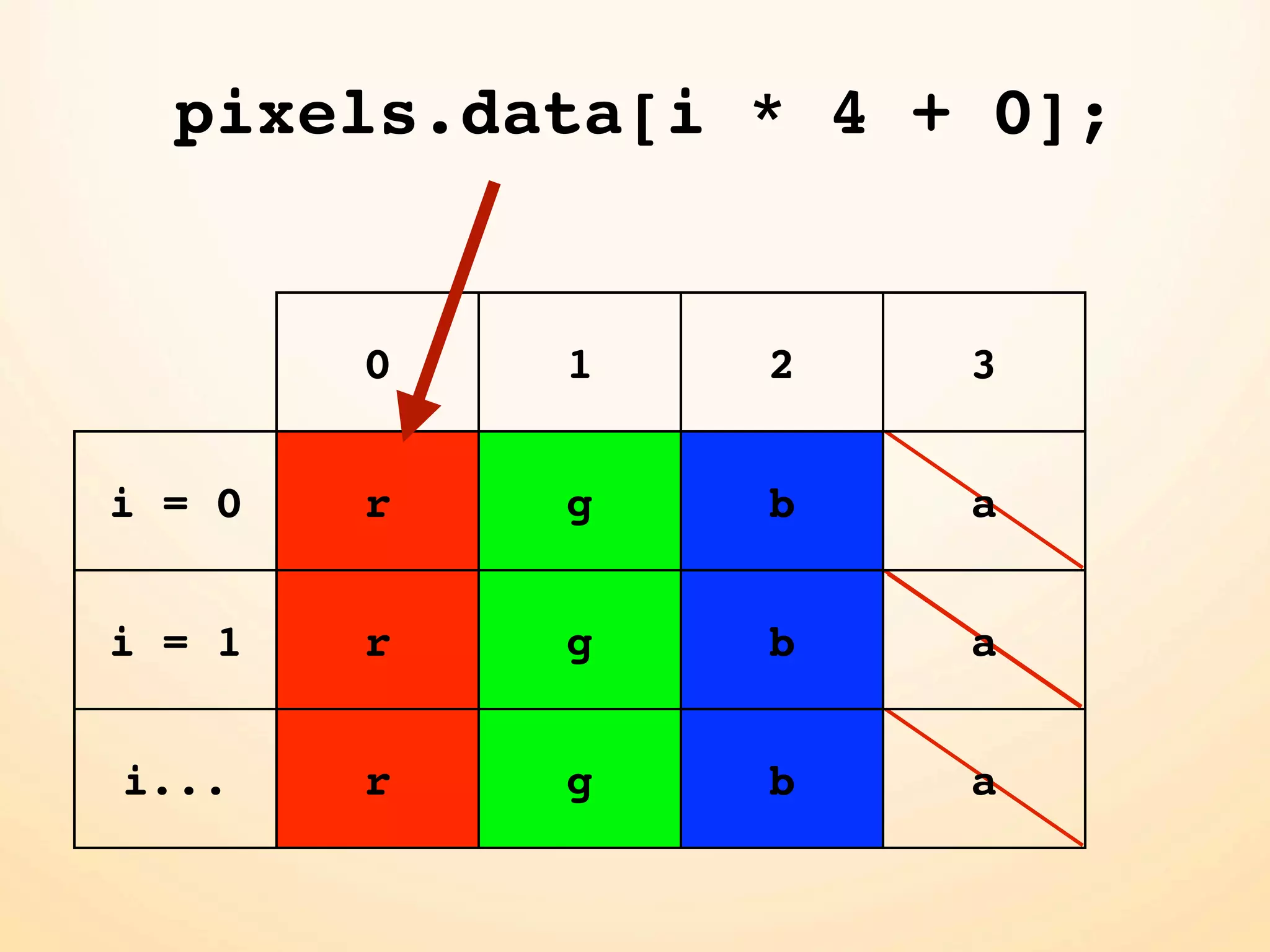

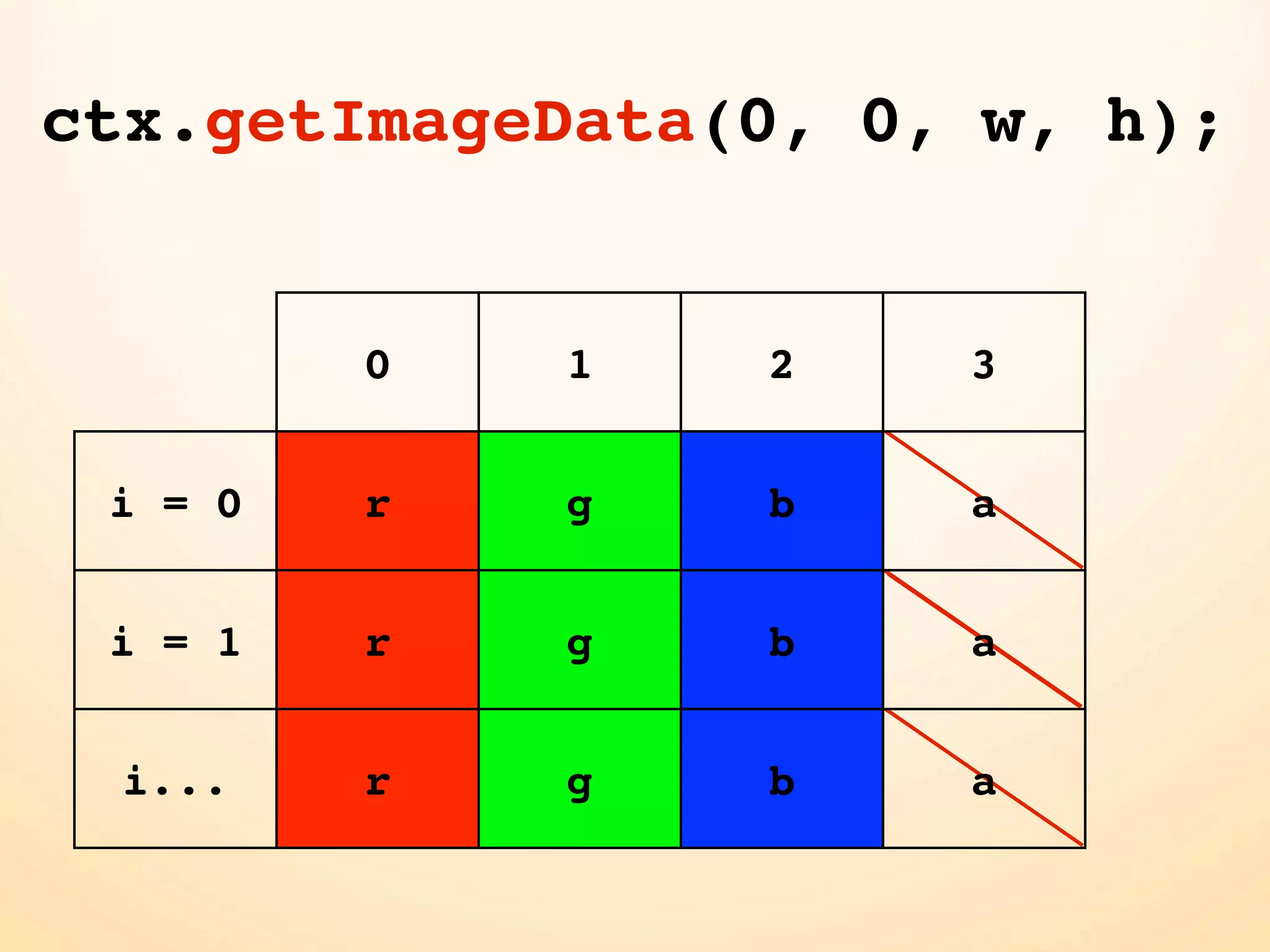

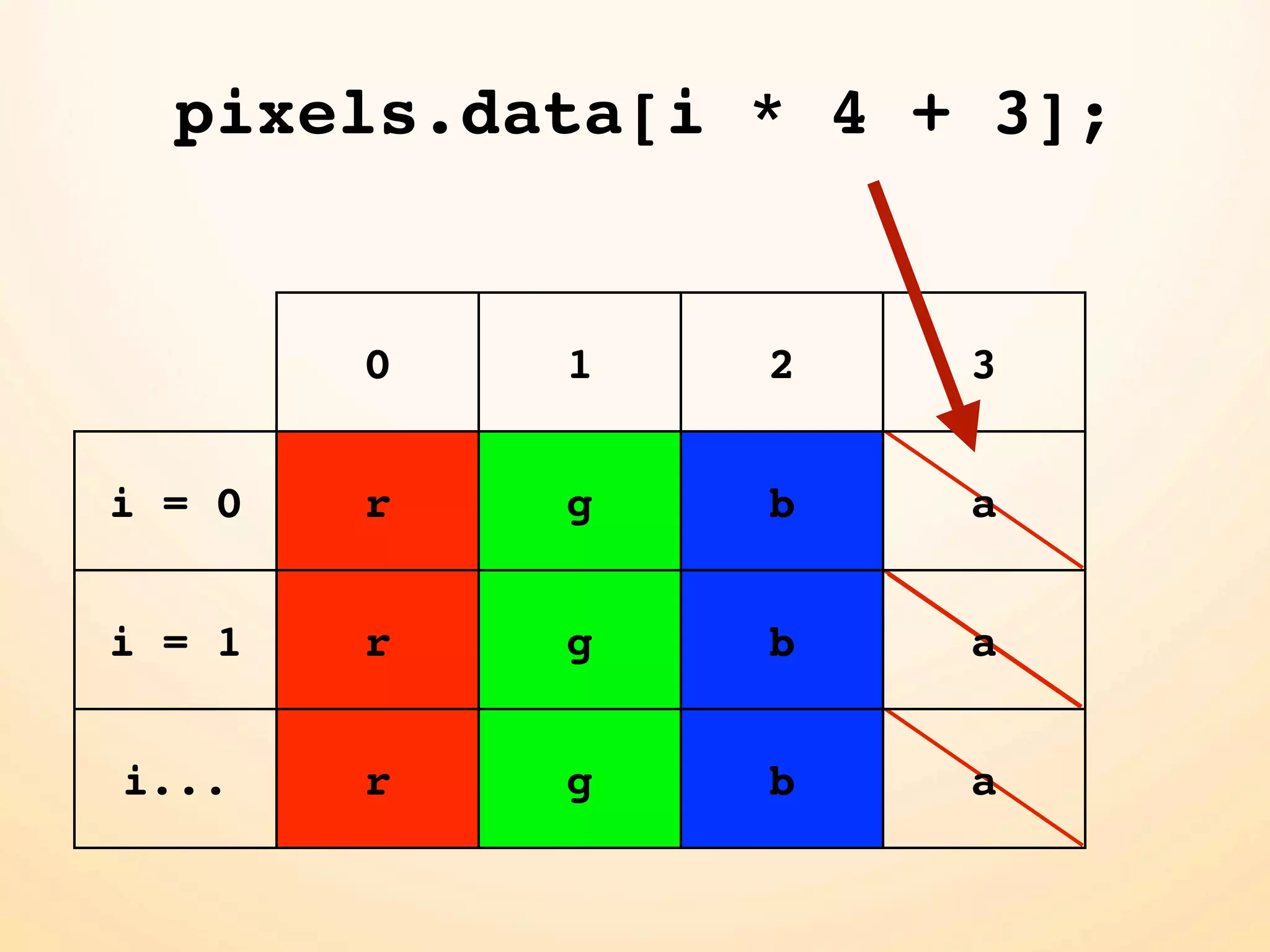

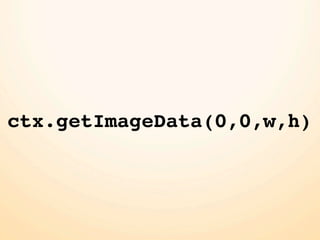

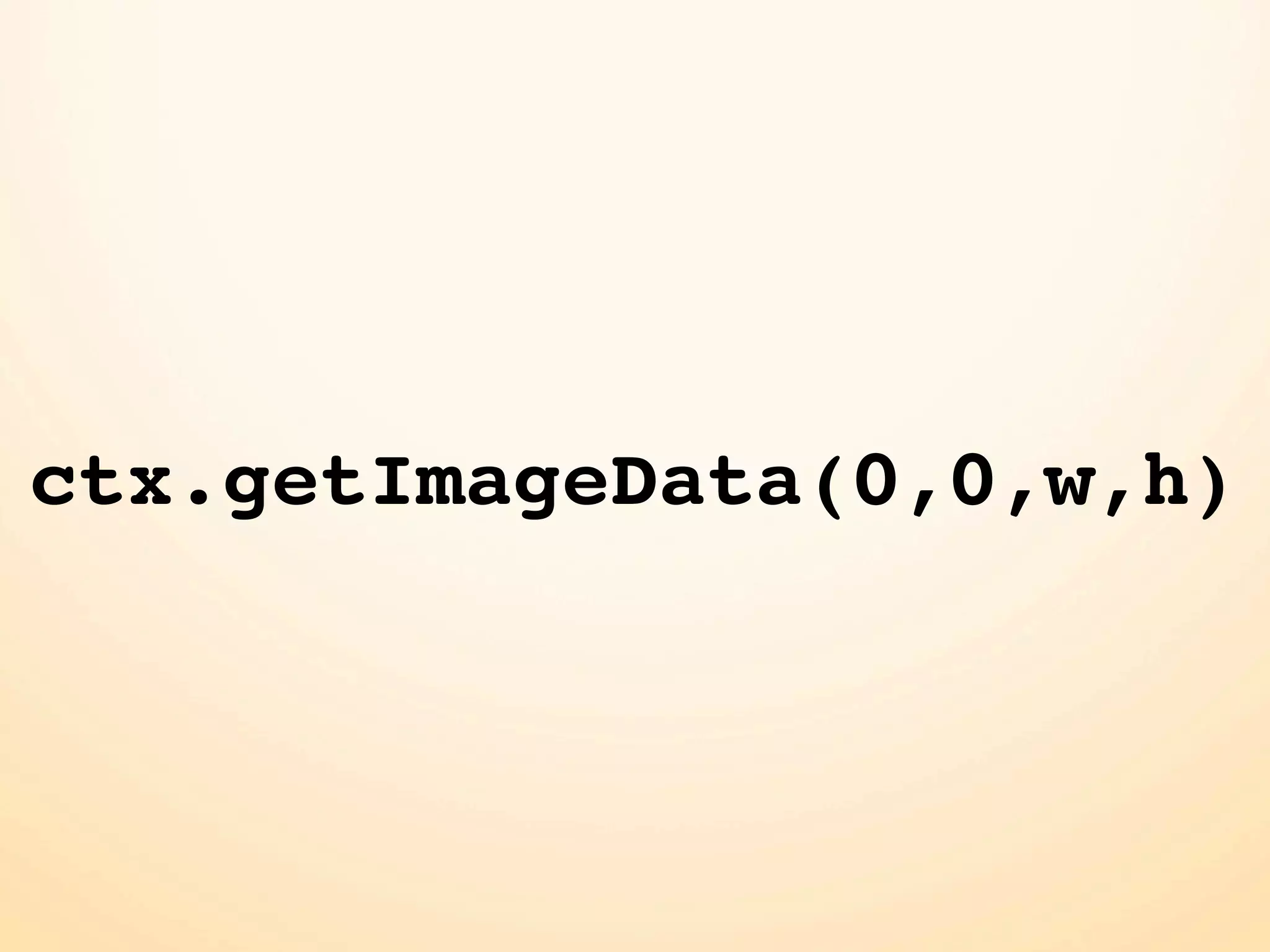

ctx.getImageData(0, 0, w, h);

0 1 2 3

i = 0 r g b a

i = 1 r g b a

i... r g b a

pixels.data[i * 4 + 0];

0 1 2 3

i = 0 r g b a

i = 1 r g b a

i... r g b a


0 1 2 3

i = 0 r g b a

i = 1 r g b a

i... r g b a

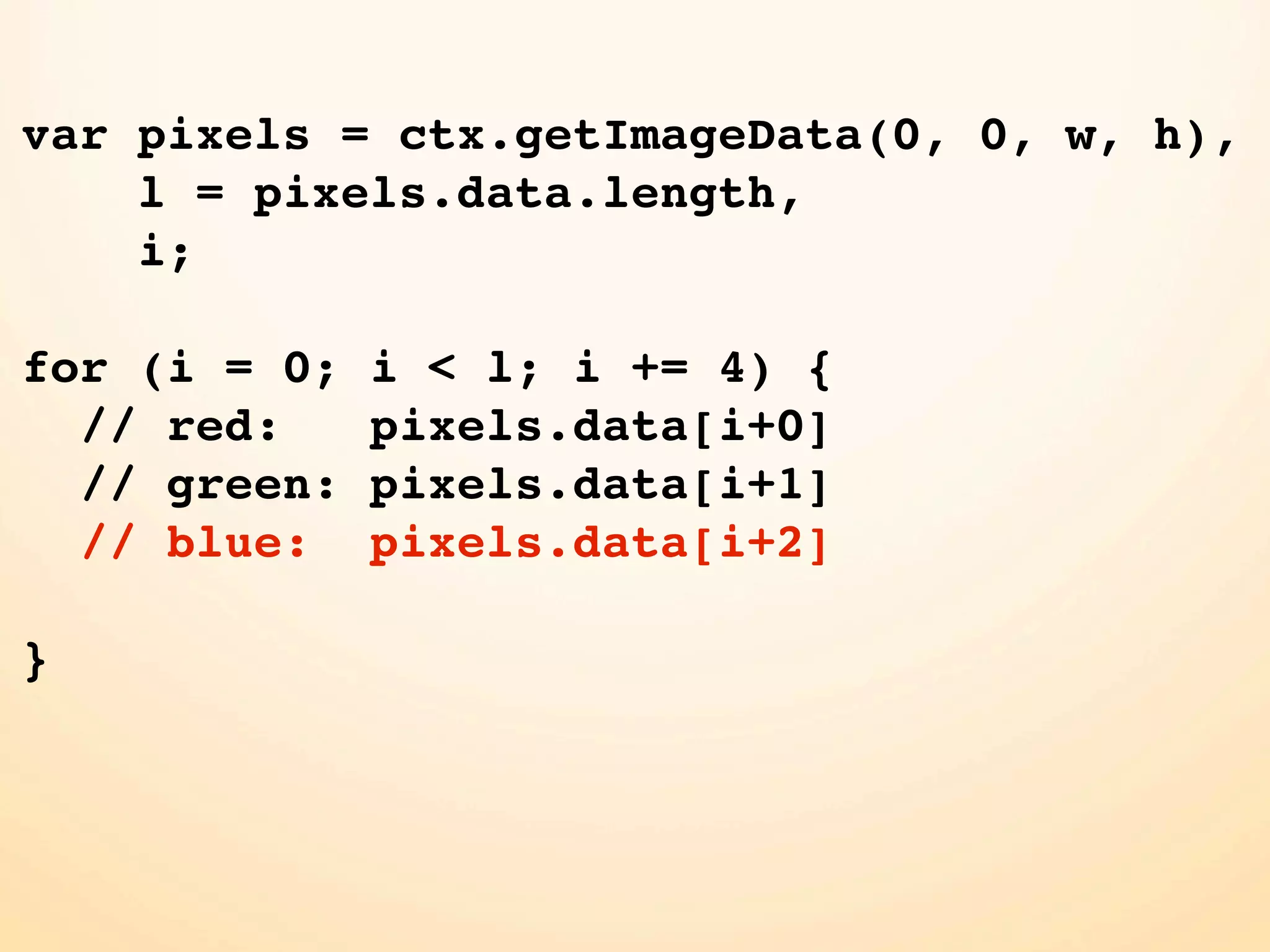

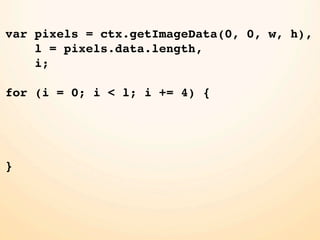

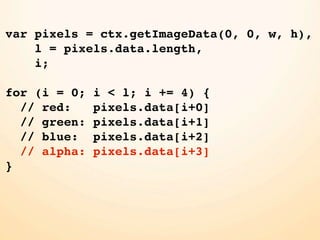

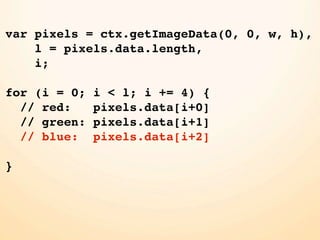

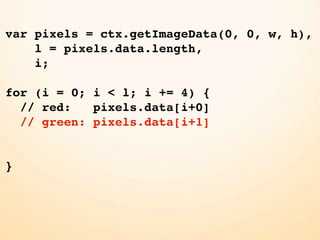

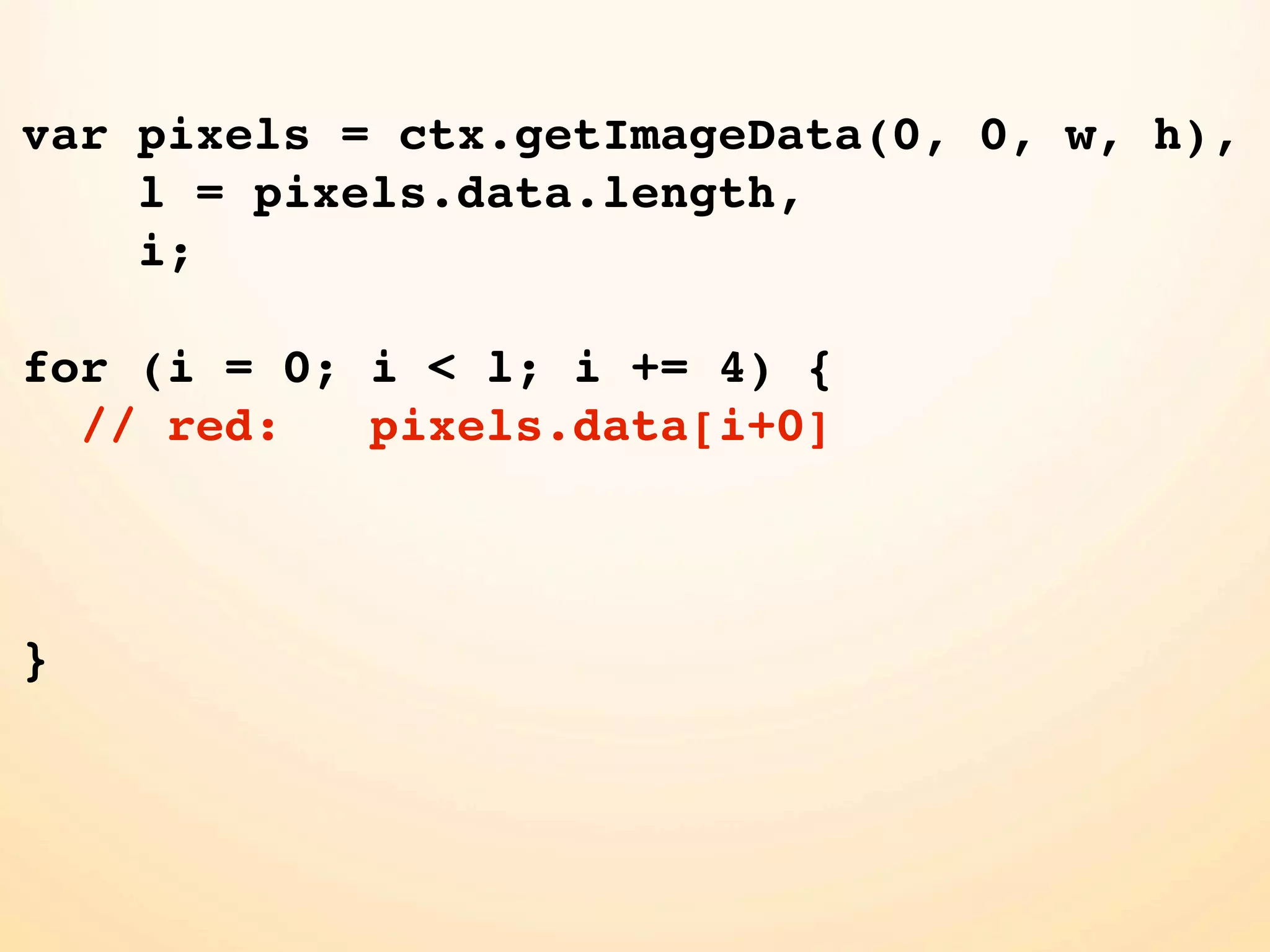

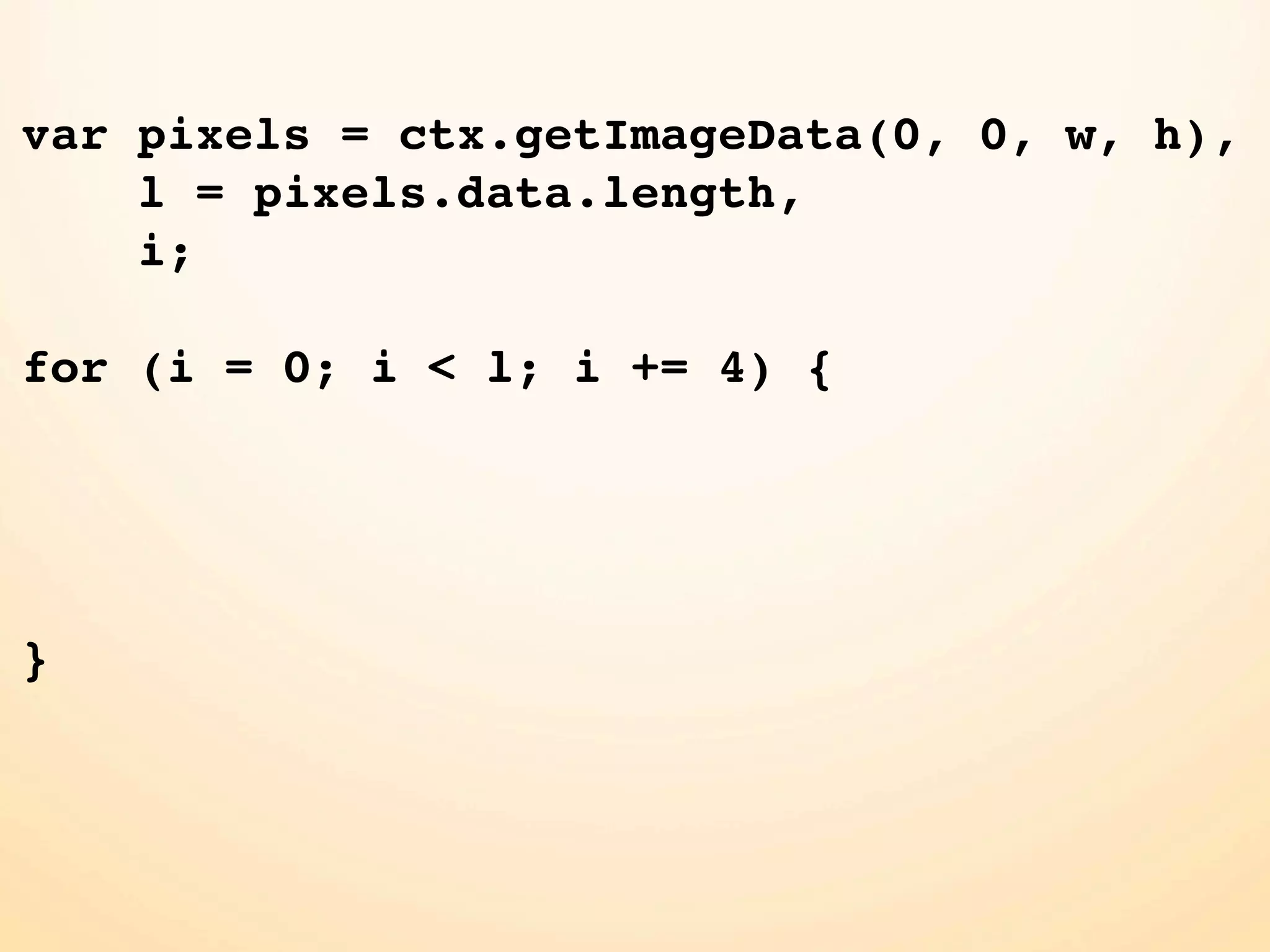

var pixels = ctx.getImageData(0, 0, w, h),
l = pixels.data.length,
i;

for (i = 0; i < l; i += 4) {

}

i;

for (i = 0; i < l; i += 4) {

This says loop
over each pixel
}

i;

for (i = 0; i < l; i += 4) {
// red: pixels.data[i+0]

}

i;

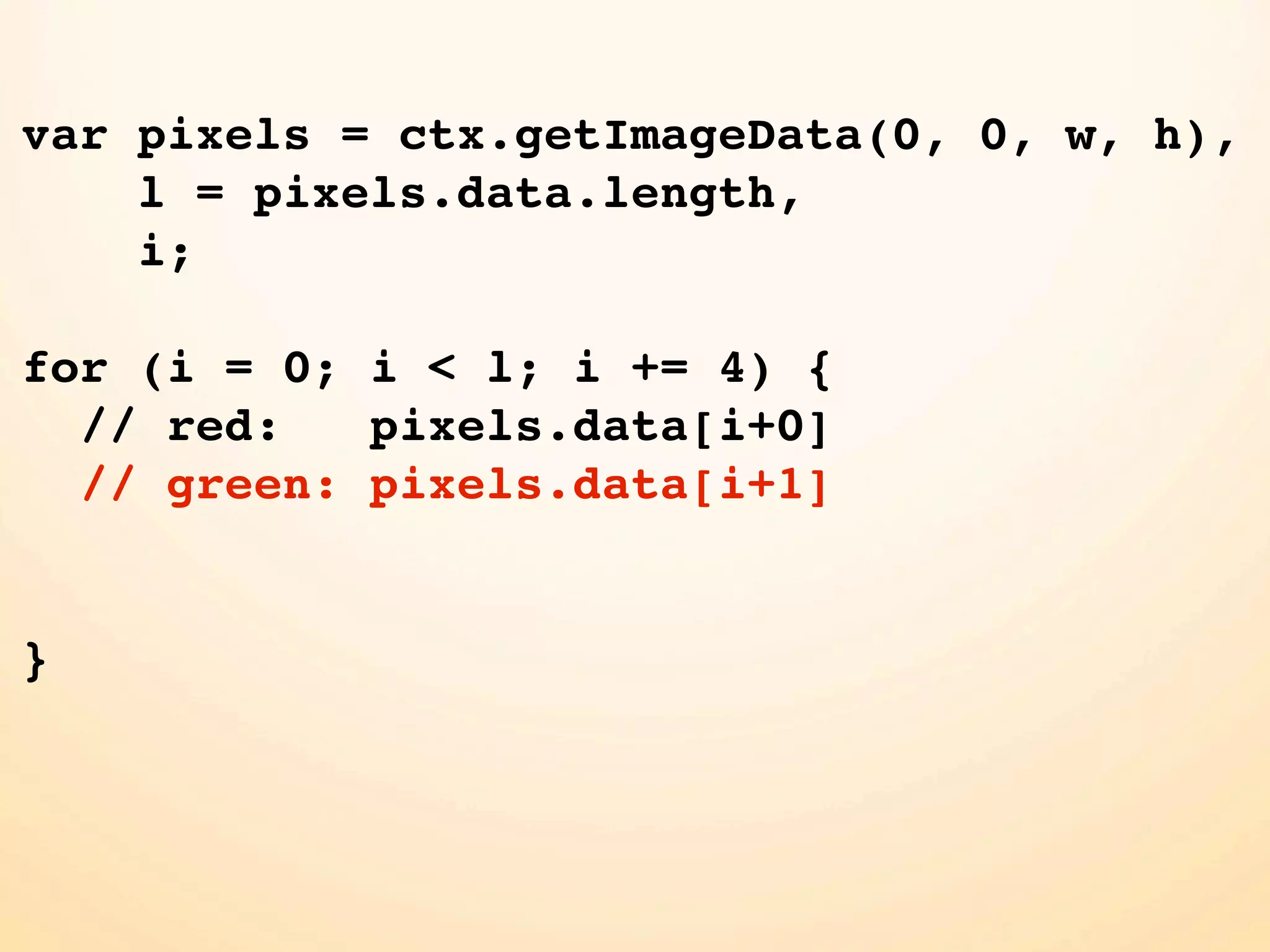

for (i = 0; i < l; i += 4) {
// green: pixels.data[i+1]

}

i;

for (i = 0; i < l; i += 4) {
// blue: pixels.data[i+2]

}

i;

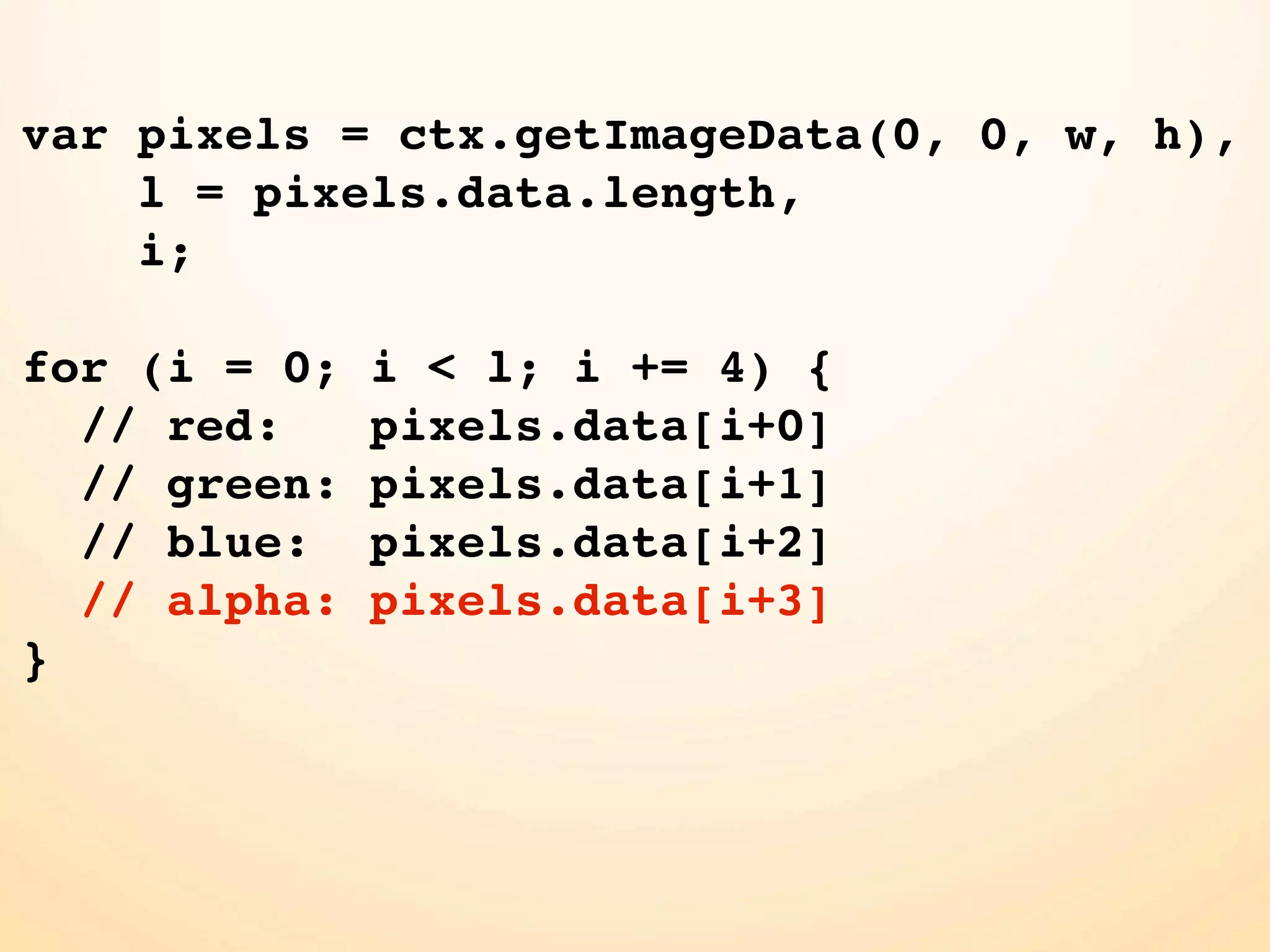

for (i = 0; i < l; i += 4) {
// blue: pixels.data[i+2]
// alpha: pixels.data[i+3]
}

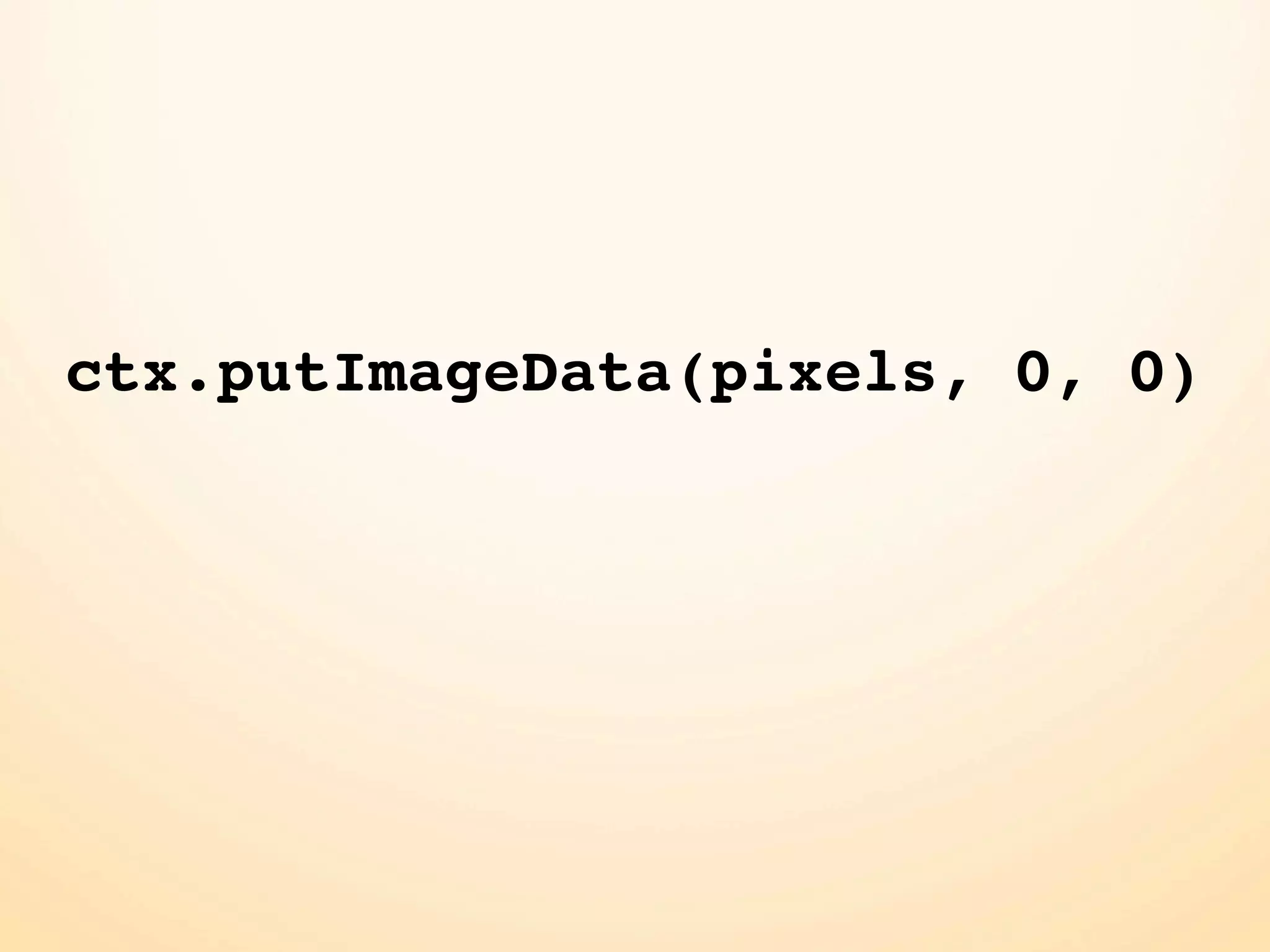

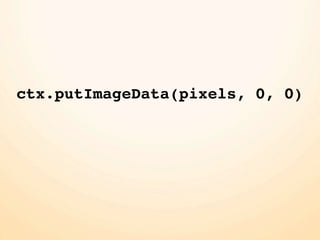

ctx.putImageData(pixels, 0, 0)

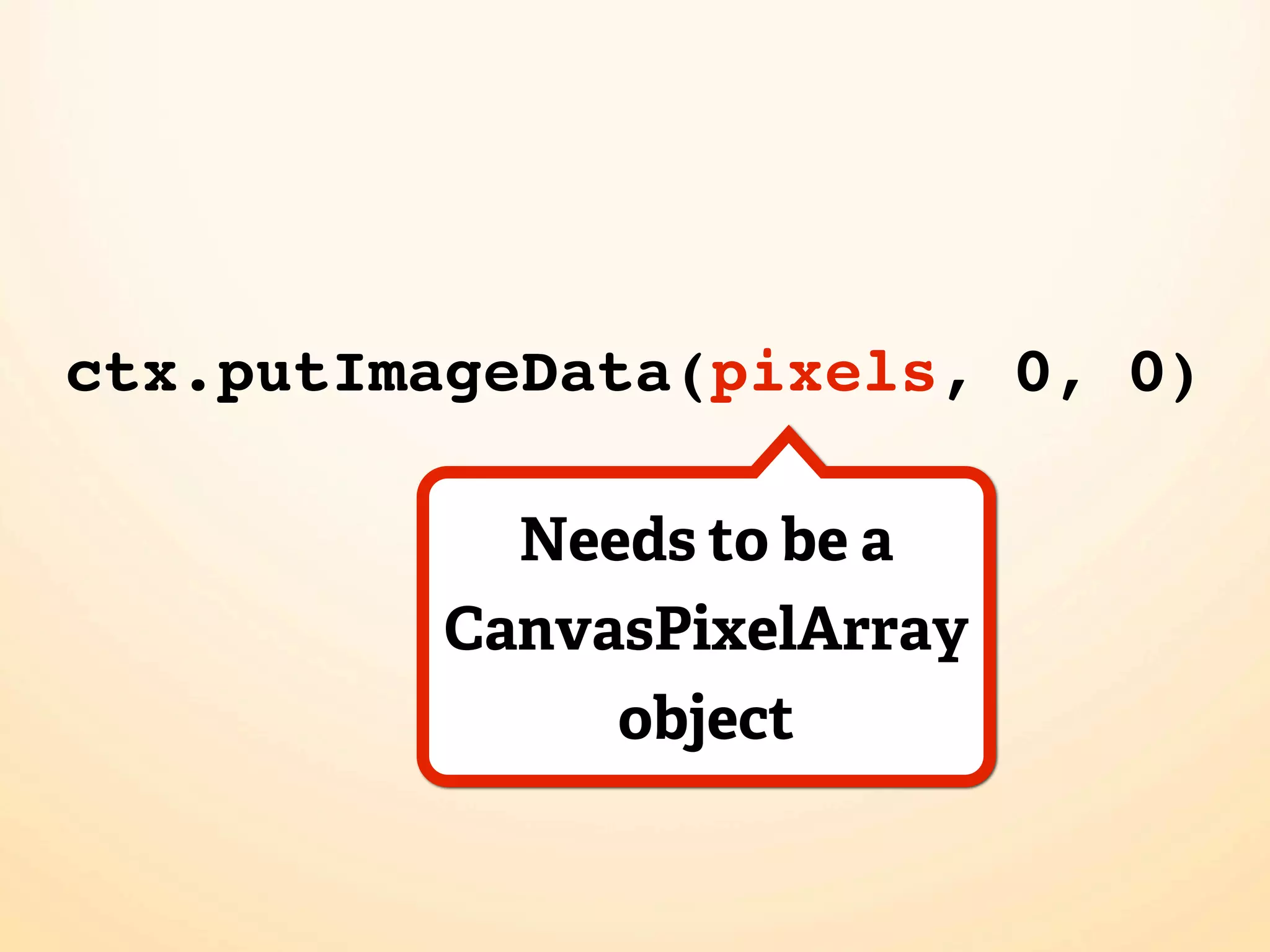

ctx.putImageData(pixels, 0, 0)

Needs to be a
CanvasPixelArray
object

t ip security_err

To use getImageData, your document
must be served over http (or https) -
i.e. it doesn't work offline.

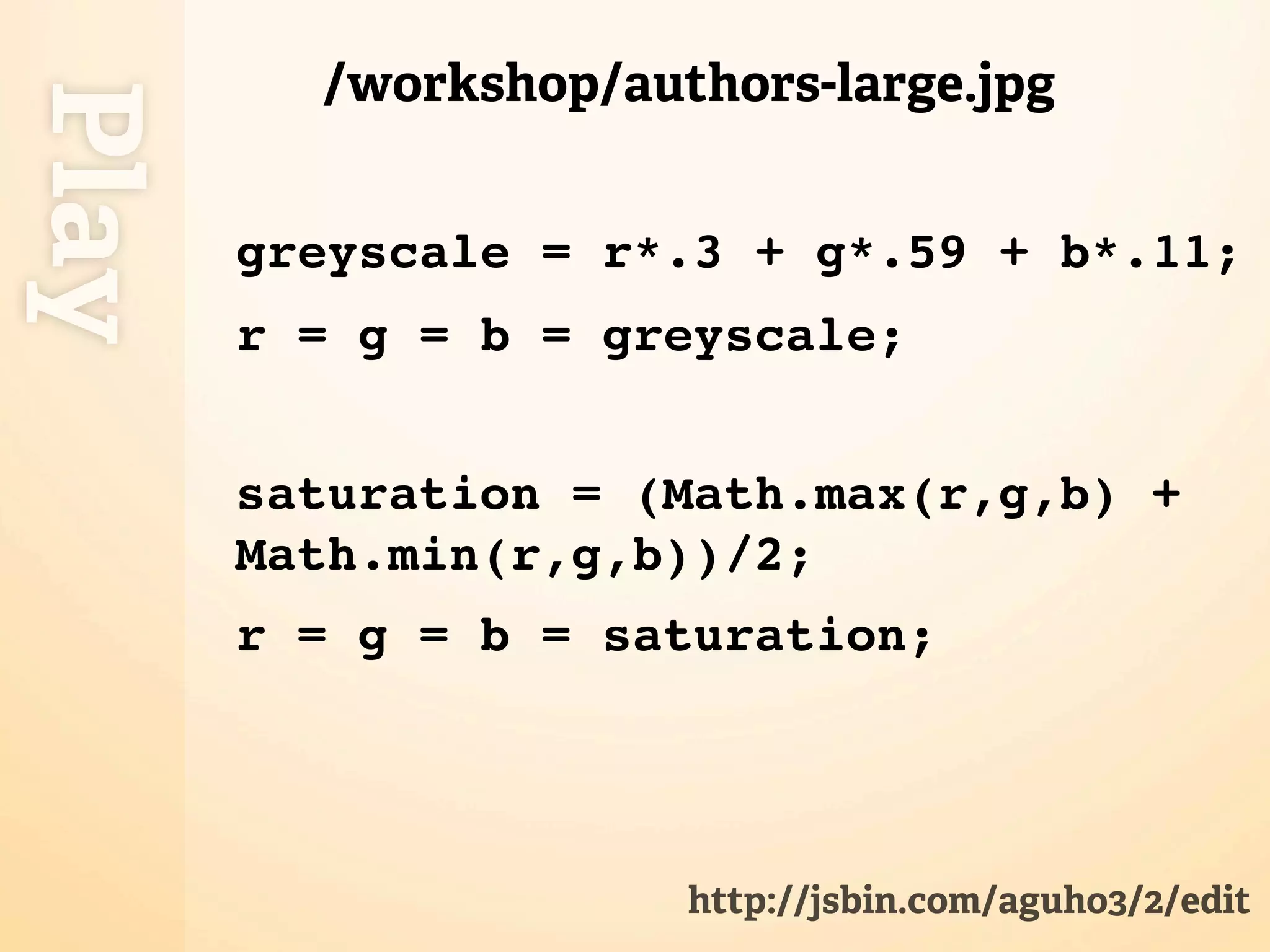

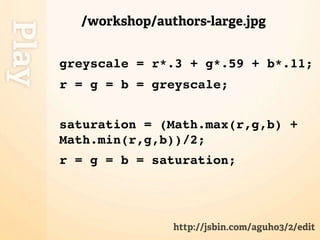

/workshop/authors-large.jpg
Play
greyscale = r*.3 + g*.59 + b*.11;
r = g = b = greyscale;

saturation = (Math.max(r,g,b) +
Math.min(r,g,b))/2;
r = g = b = saturation;

http://jsbin.com/aguho3/2/edit

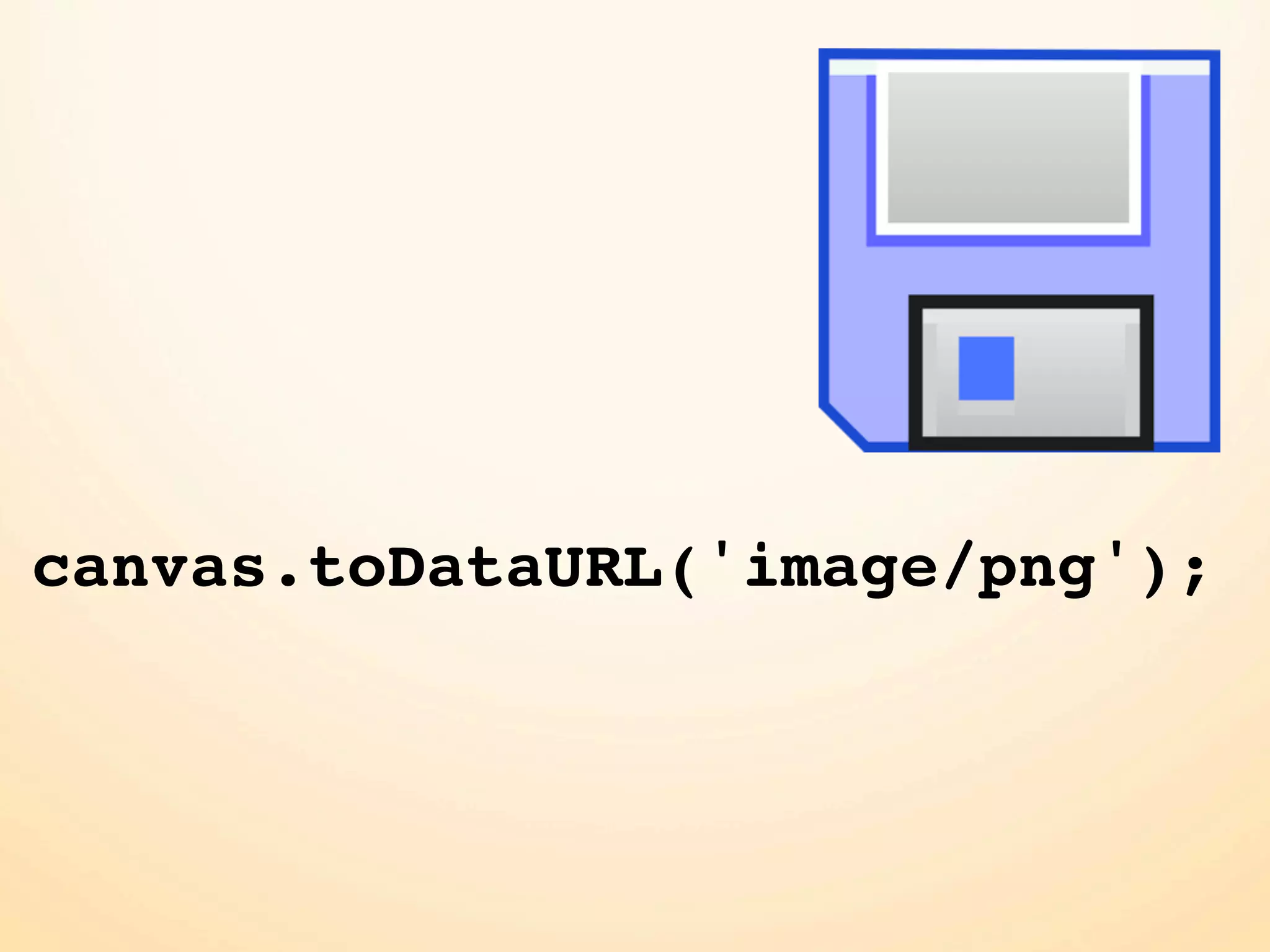

canvas.toDataURL('image/png');

Play
save.onclick = function () {
window.open(
canvas.toDataURL('image/png')
);
};

canvas-13.html

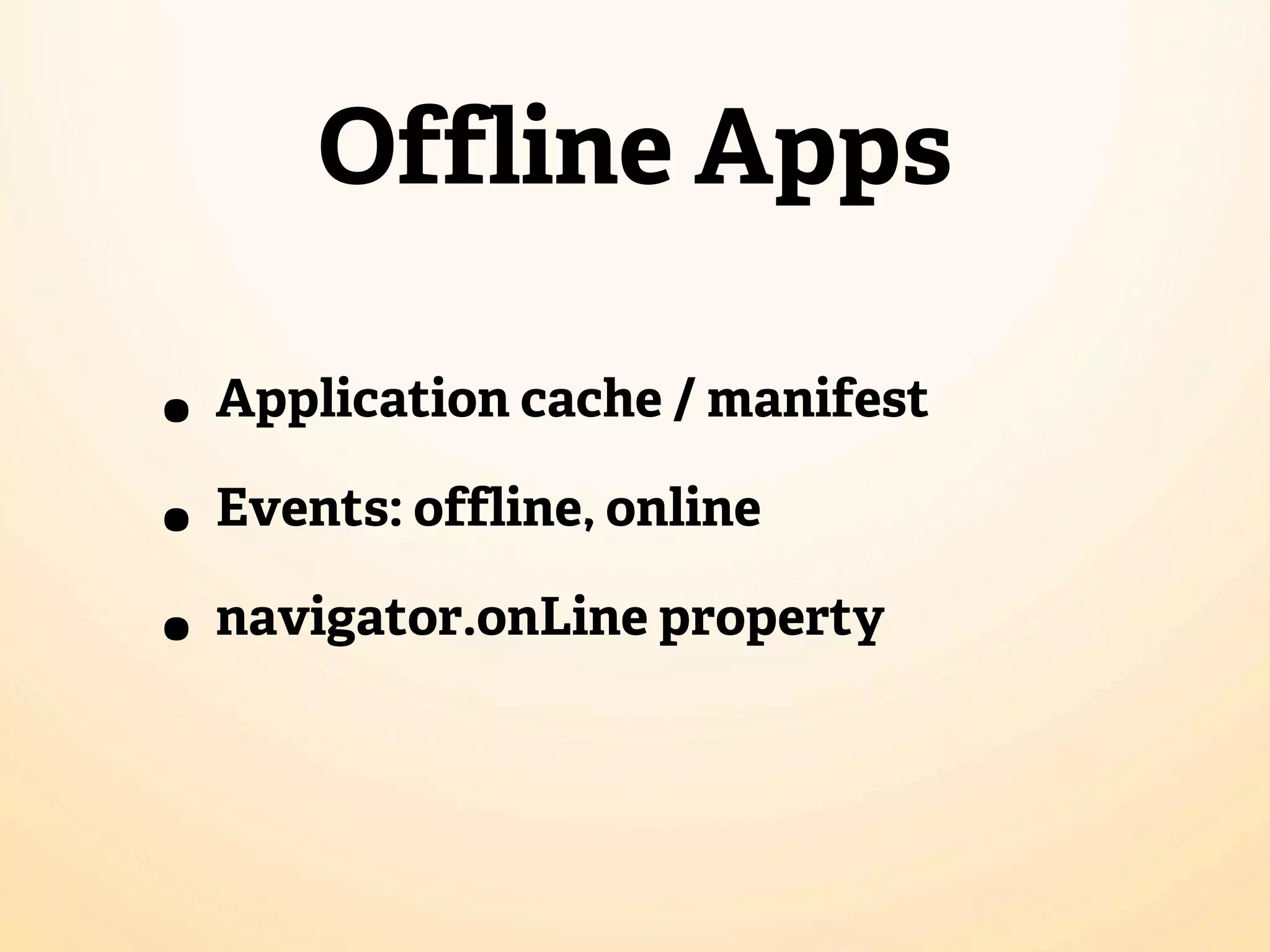

Offline Apps

• Application cache / manifest
• Events: offline, online
• navigator.onLine property

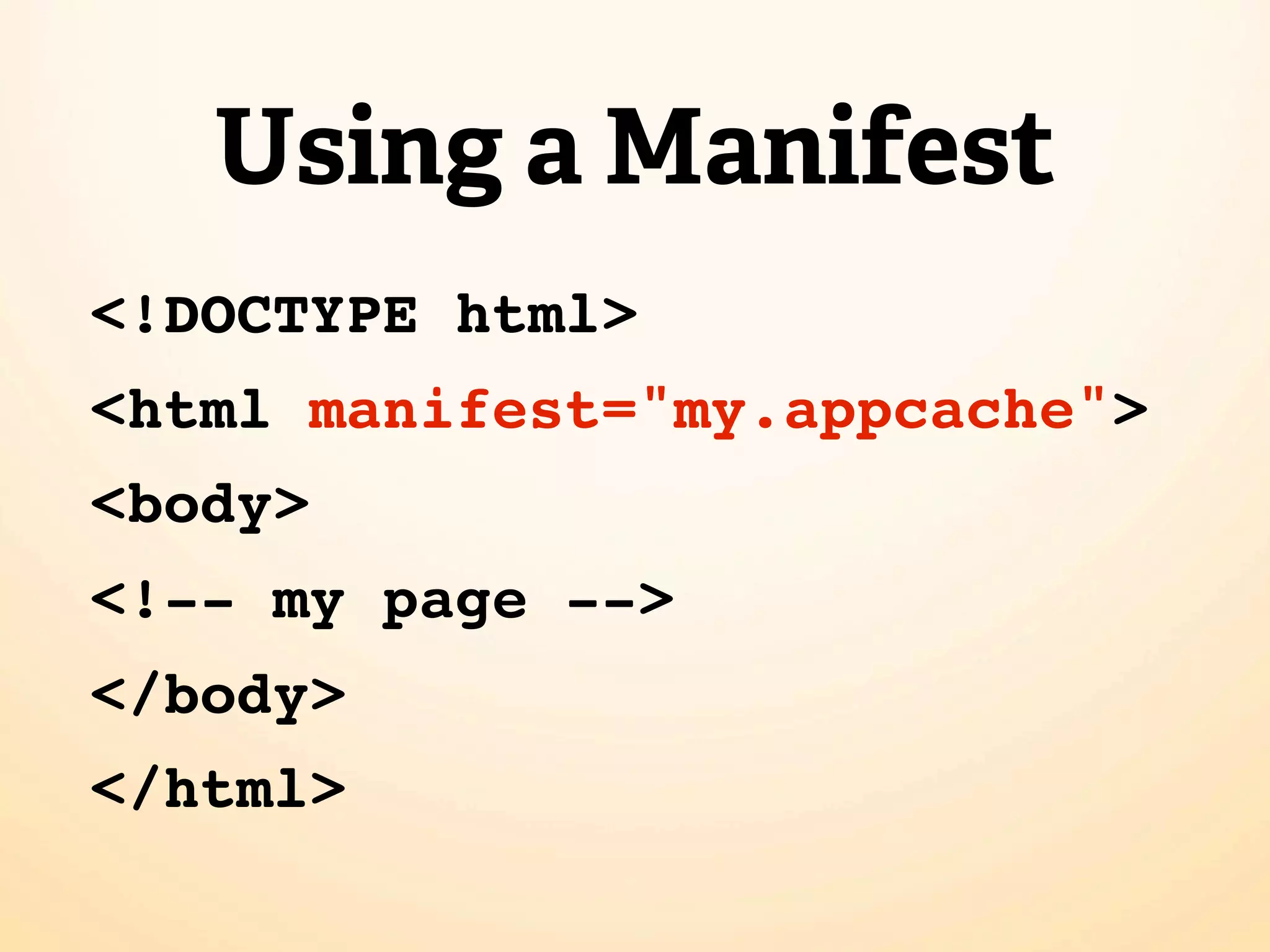

Using a Manifest
<!DOCTYPE html>
<html manifest="my.appcache">
<body>

</body>
</html>

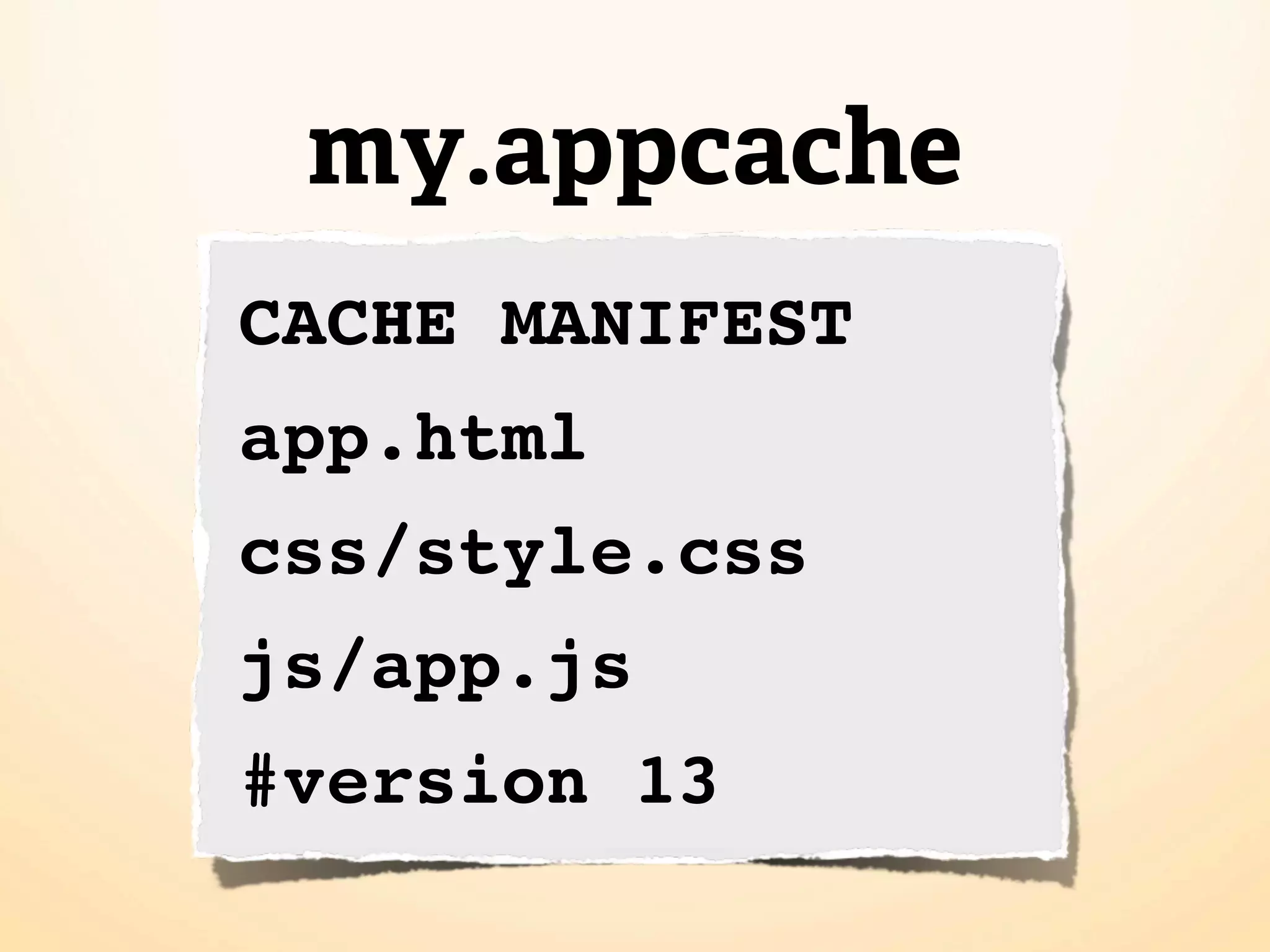

my.appcache
CACHE MANIFEST
app.html
css/style.css
js/app.js
#version 13

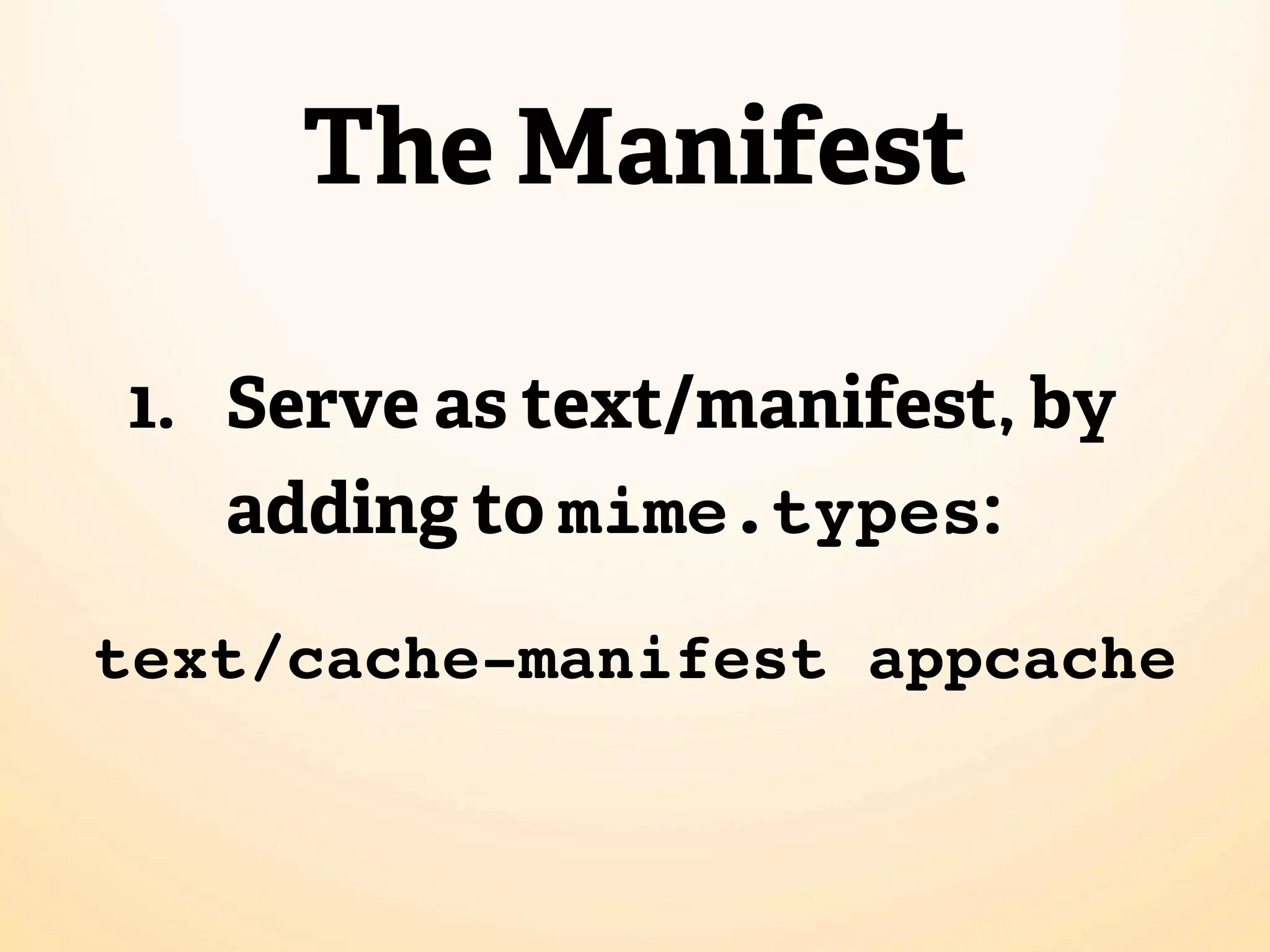

The Manifest

1. Serve as text/manifest, by
adding to mime.types:

text/cache-manifest appcache

t ip Firefox caching

<IfModule mod_expires.c>
ExpiresActive on
ExpiresByType text/cache-manifest
↪ “access plus 0 seconds”
</IfModule>

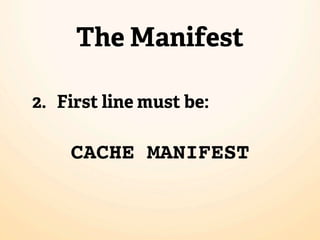

The Manifest

2. First line must be:

CACHE MANIFEST

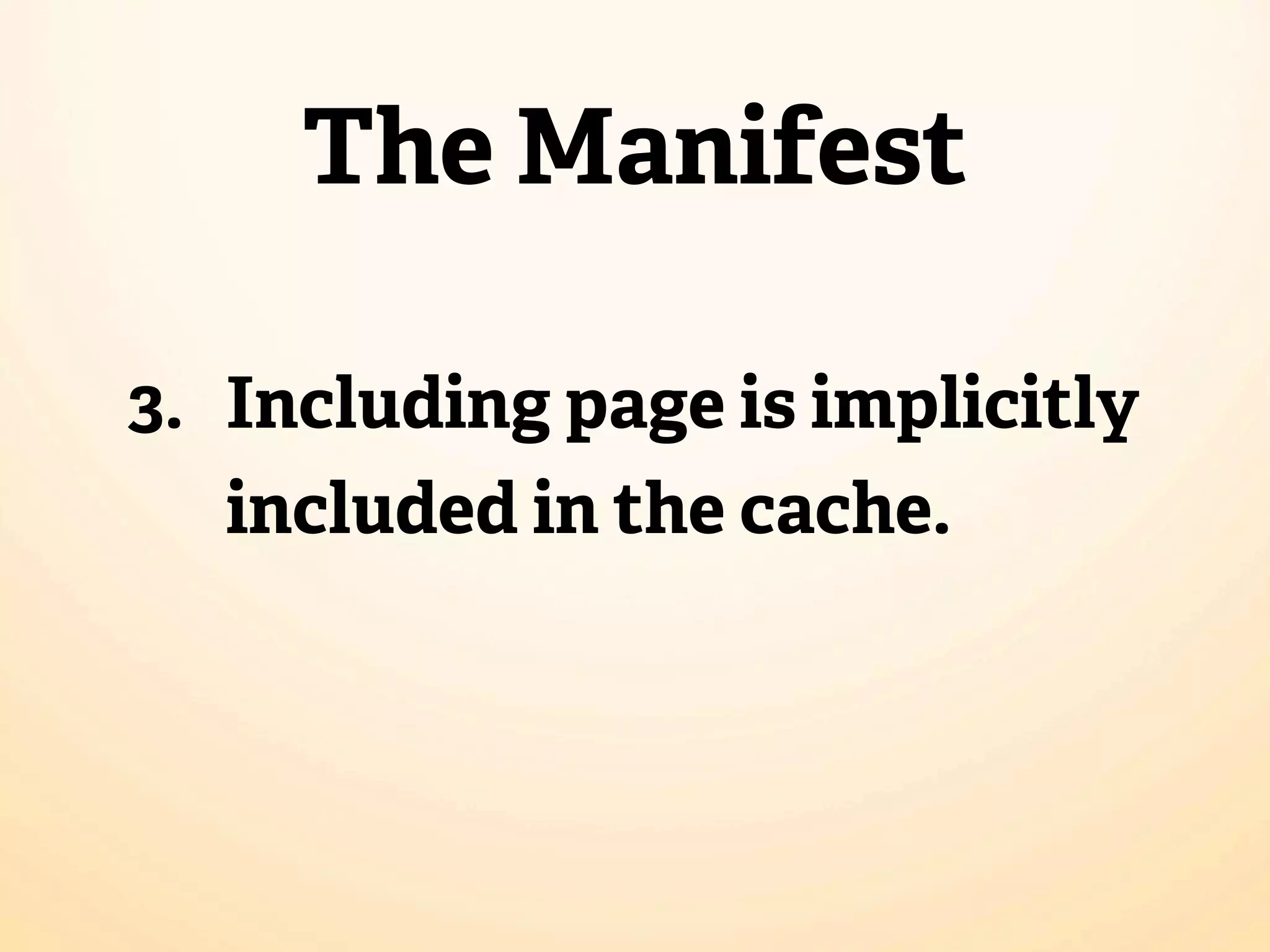

The Manifest

3. Including page is implicitly
included in the cache.

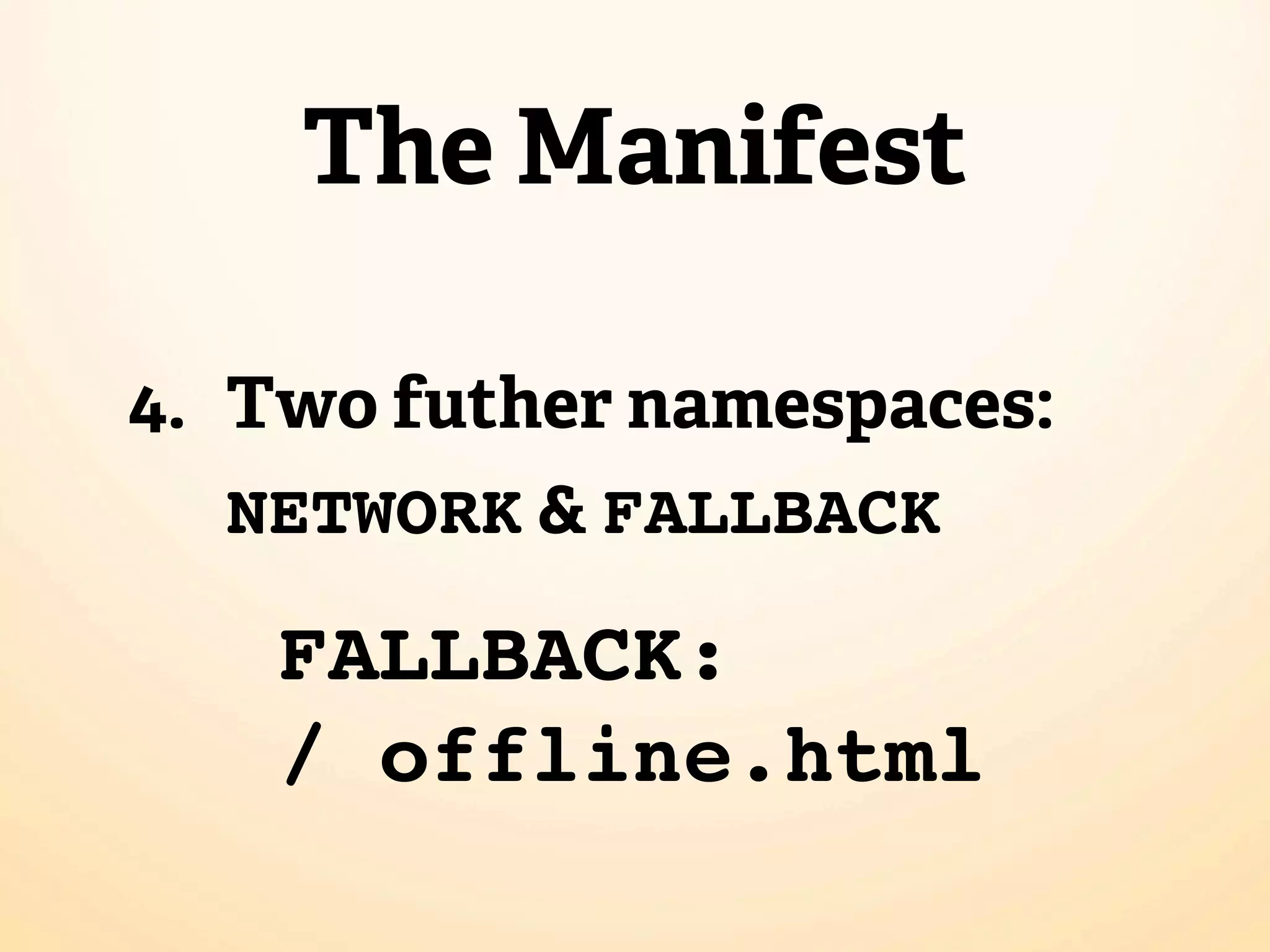

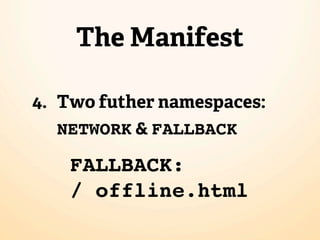

The Manifest

4. Two futher namespaces:
NETWORK & FALLBACK

FALLBACK:
/ offline.html

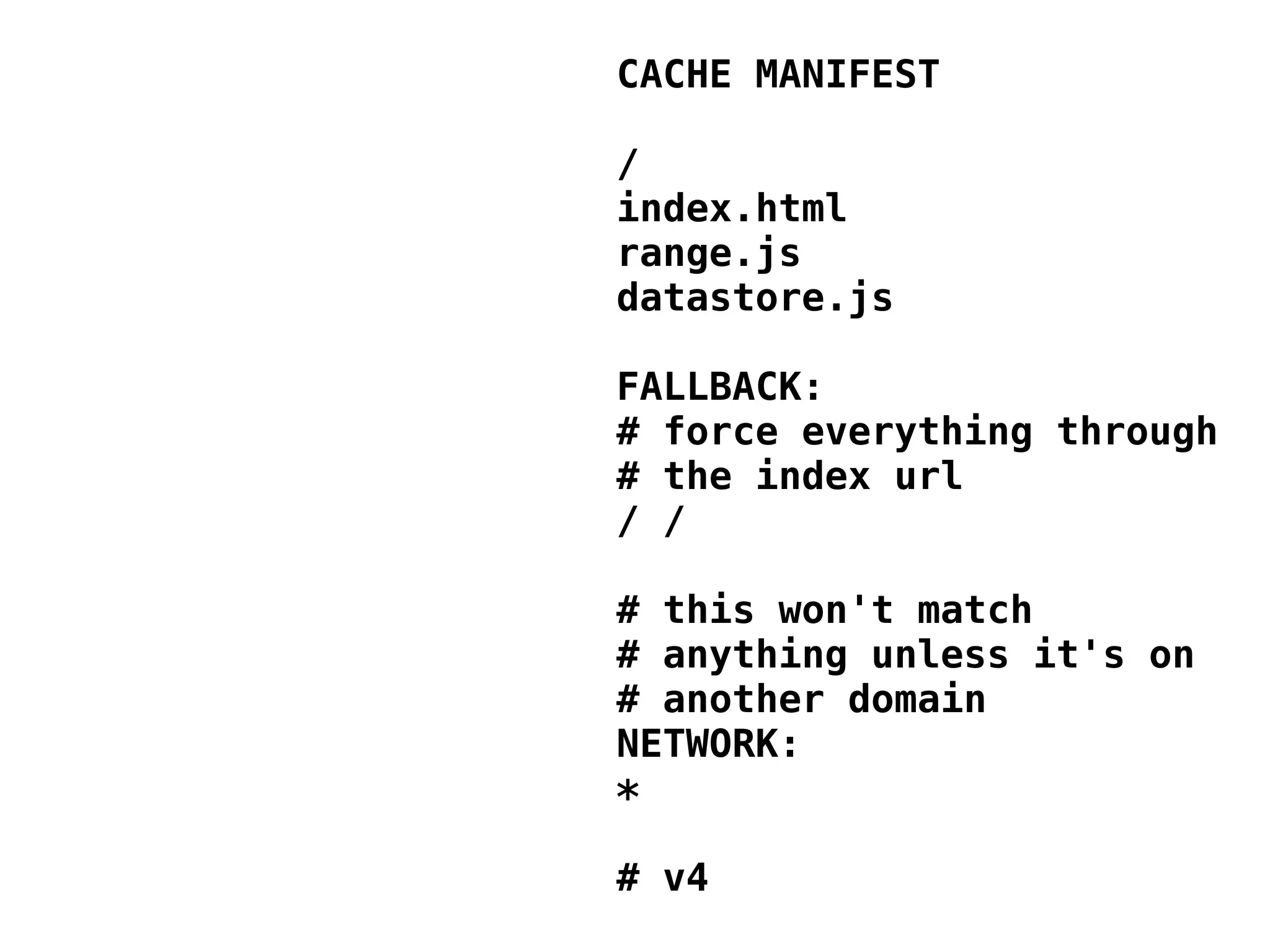

CACHE MANIFEST

/
index.html
range.js
datastore.js

FALLBACK:
# force everything through
# the index url
/ /

# this won't match
# anything unless it's on
# another domain
NETWORK:
*

# v4

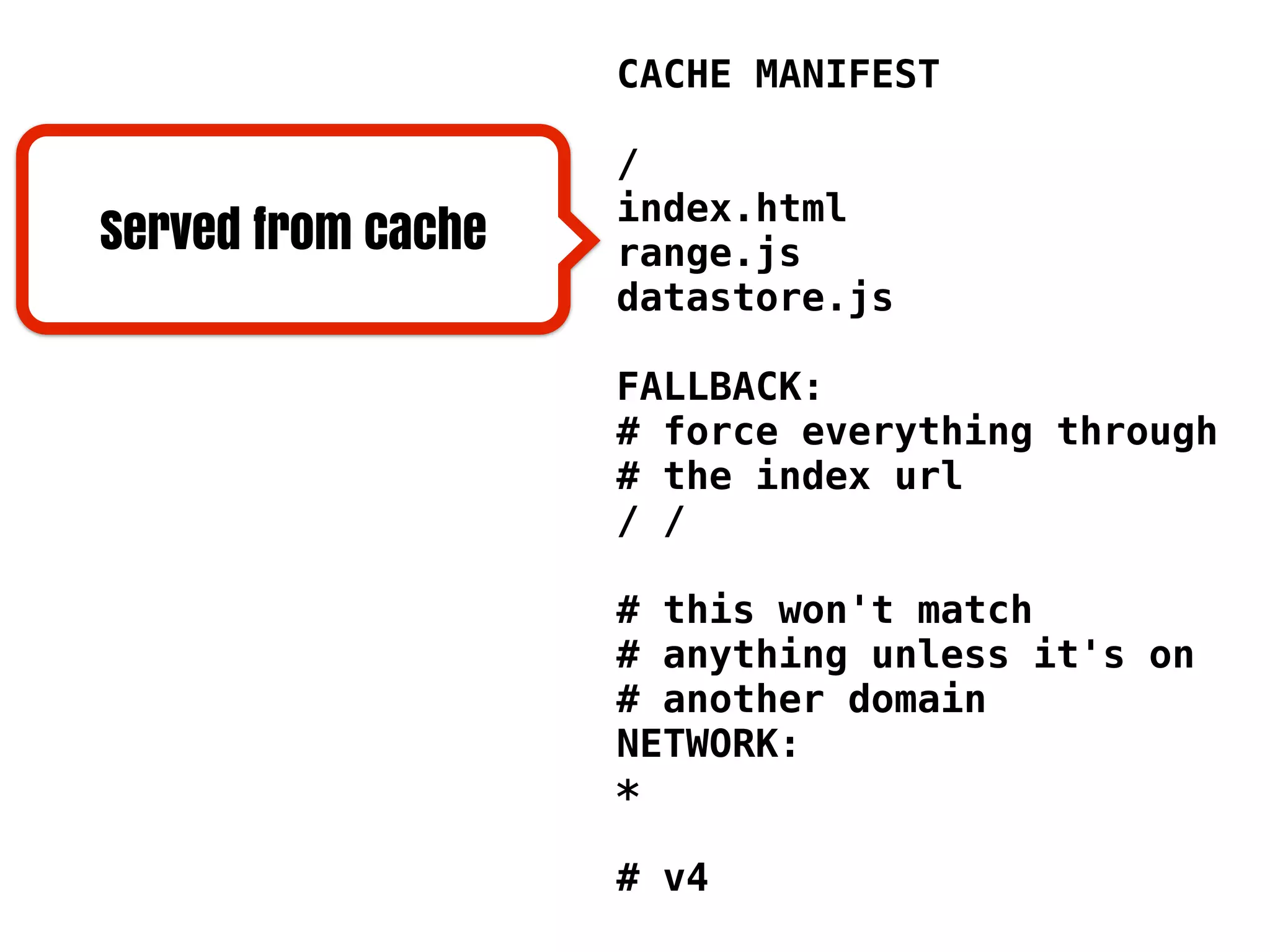

CACHE MANIFEST

/
index.html
Served from cache range.js
datastore.js

FALLBACK:
# the index url
/ /

# this won't match
# another domain
NETWORK:
*

# v4

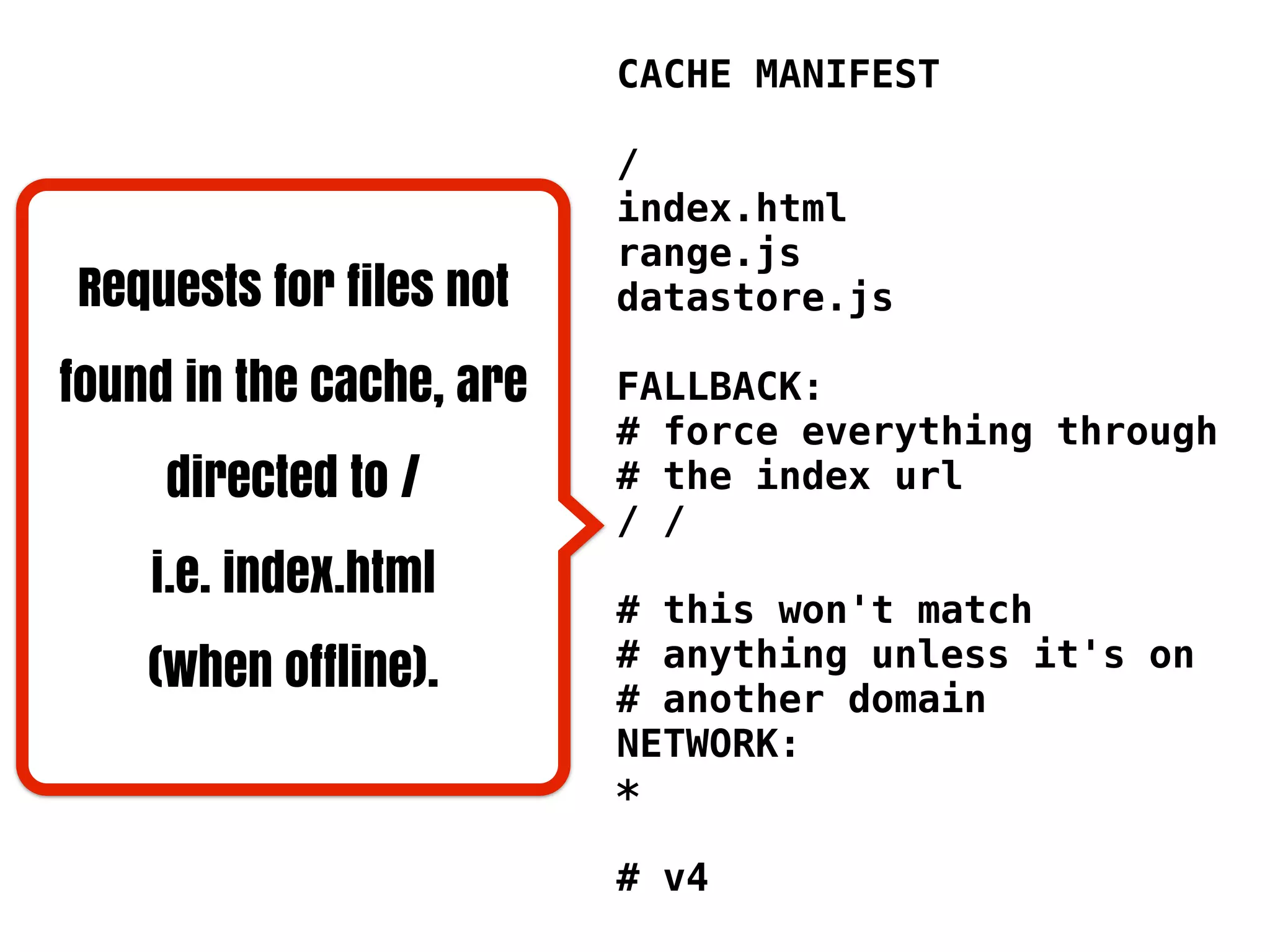

CACHE MANIFEST

/
index.html
range.js
Requests for files not datastore.js

found in the cache, are FALLBACK:
directed to / # the index url
/ /
i.e. index.html
# this won't match
(when offline). # anything unless it's on
# another domain
NETWORK:
*

# v4

CACHE MANIFEST

/
index.html
range.js
datastore.js

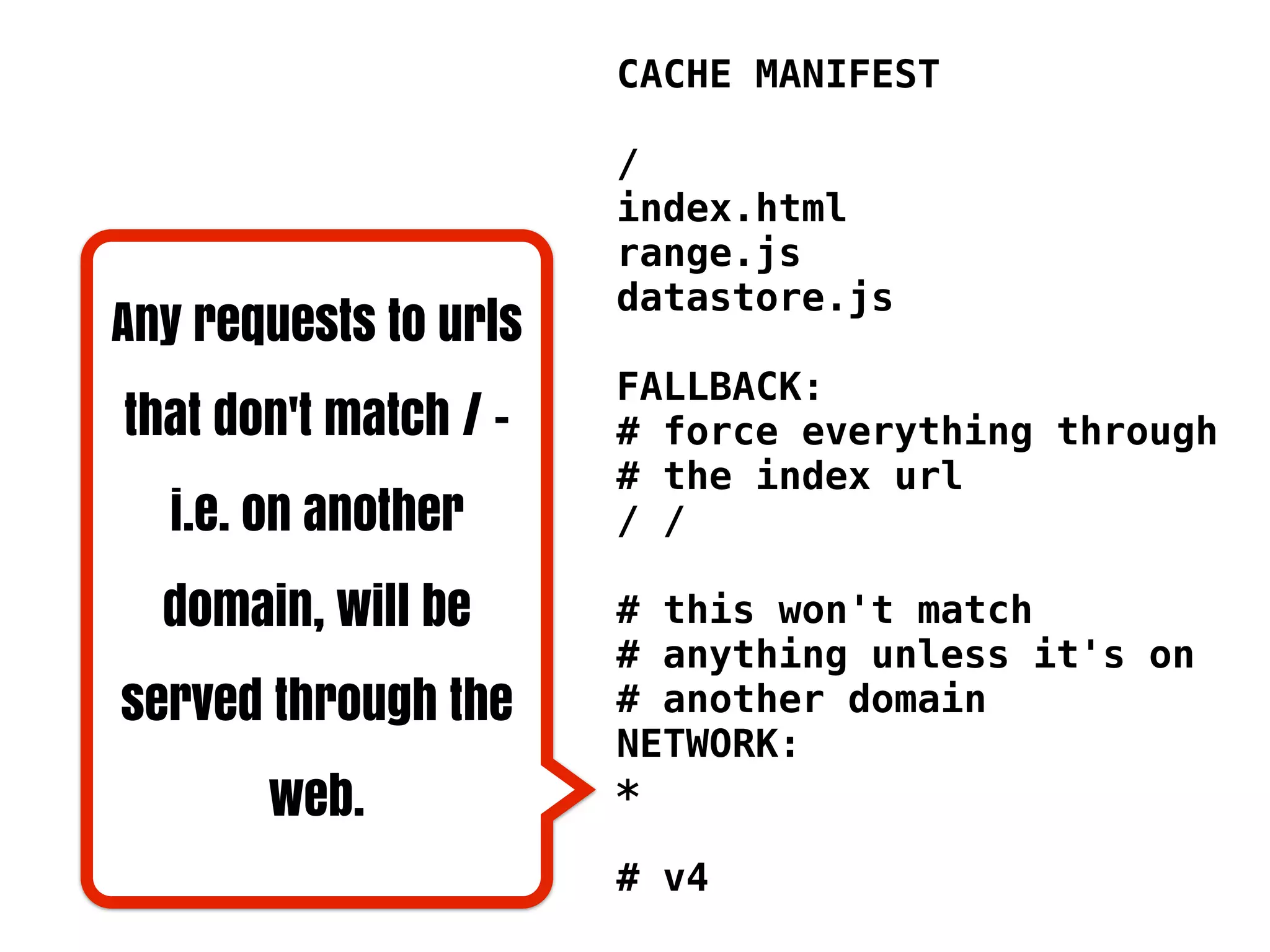

Any requests to urls
FALLBACK:
that don't match / - # force everything through
# the index url
i.e. on another / /

domain, will be # this won't match
served through the # another domain
NETWORK:
web. *

# v4

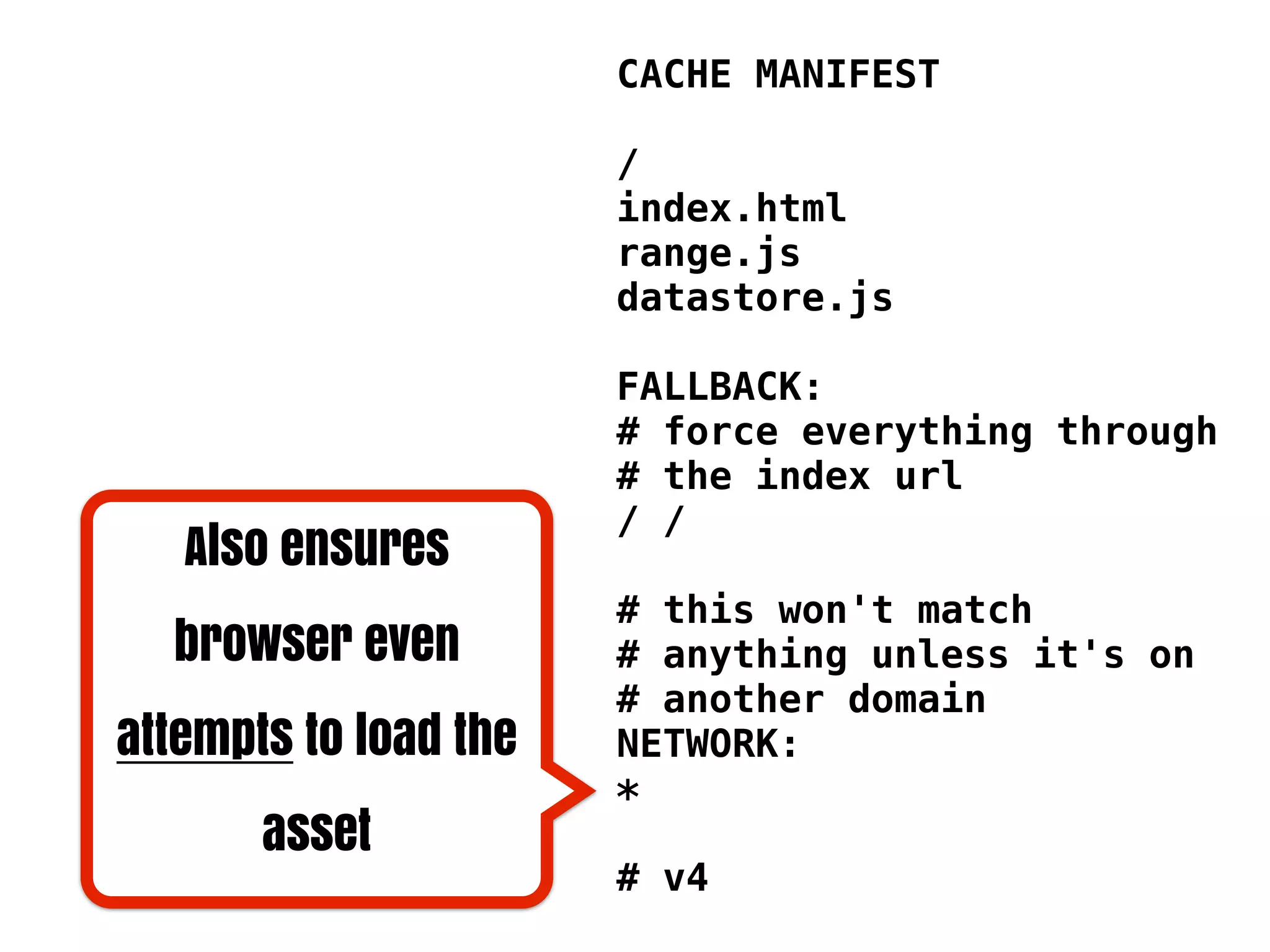

CACHE MANIFEST

/
index.html
range.js
datastore.js

FALLBACK:
# the index url
/ /
Also ensures
# this won't match
browser even # anything unless it's on
# another domain
attempts to load the NETWORK:
*
asset
# v4

CACHE MANIFEST

/
index.html
range.js
datastore.js

FALLBACK:
# the index url
/ /

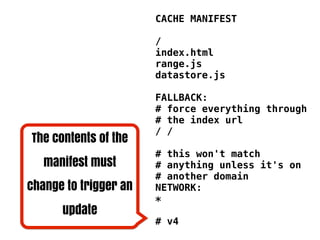

The contents of the
# this won't match
manifest must # anything unless it's on
# another domain
change to trigger an NETWORK:
*
update
# v4

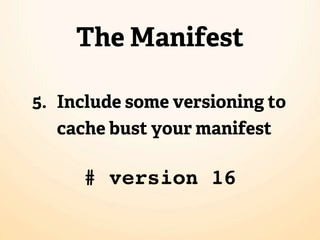

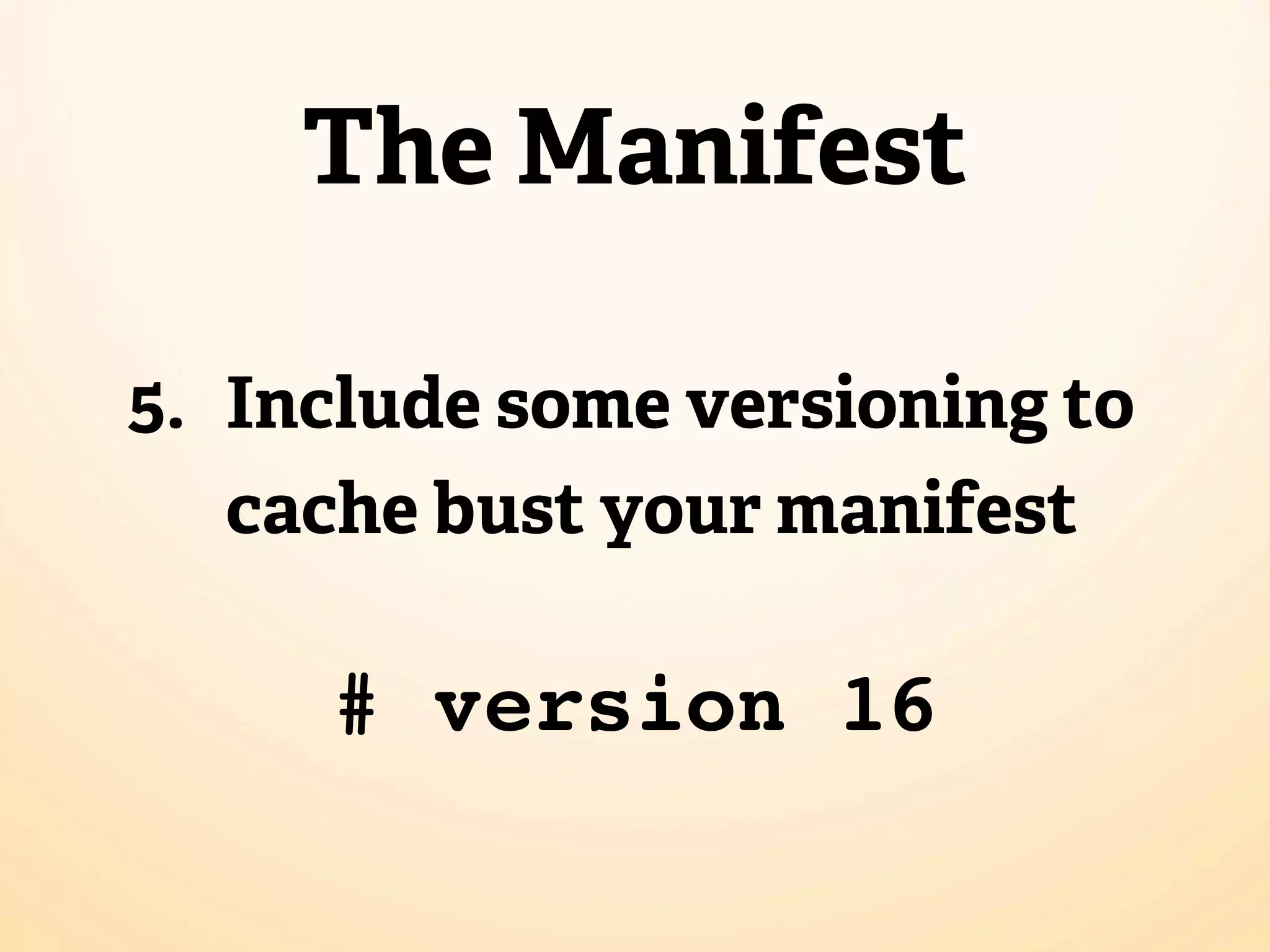

The Manifest

5. Include some versioning to
cache bust your manifest

# version 16

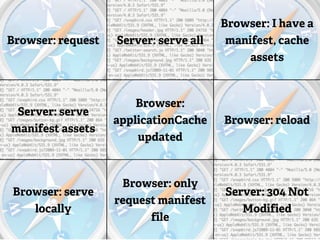

Browser: I have a
Browser: request Server: serve all manifest, cache
assets

Browser:
Server: serve
applicationCache Browser: reload
manifest assets
updated

Browser: only
Browser: serve Server: 304 Not
request manifest
locally Modified
file

Browser: I have a
Problem: serve all
Browser: requestServer: manifest, cache
assets
Change of content
requires 2 refreshes reload
Server: serve
Browser:
applicationCache Browser:
manifest assets
updated

Browser: only
Browser: serve Server: 304 Not
request manifest
locally Modified
file

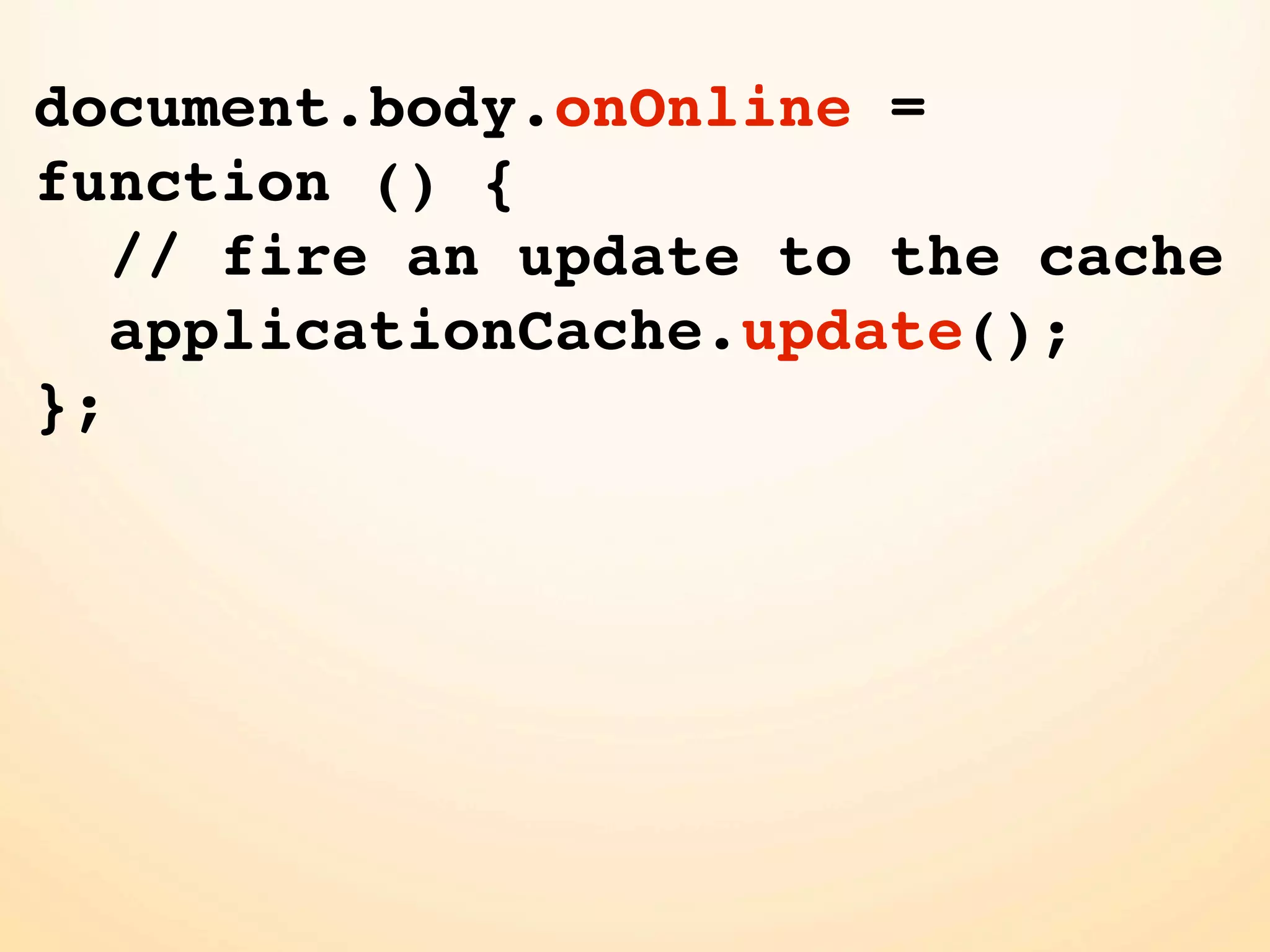

document.body.onOnline =
function () {
// fire an update to the cache
applicationCache.update();
};

applicationCache.onUpdateReady = function () {
if (confirm("New version ready. Refresh?")) {
// reload
window.location.refresh();
}
};

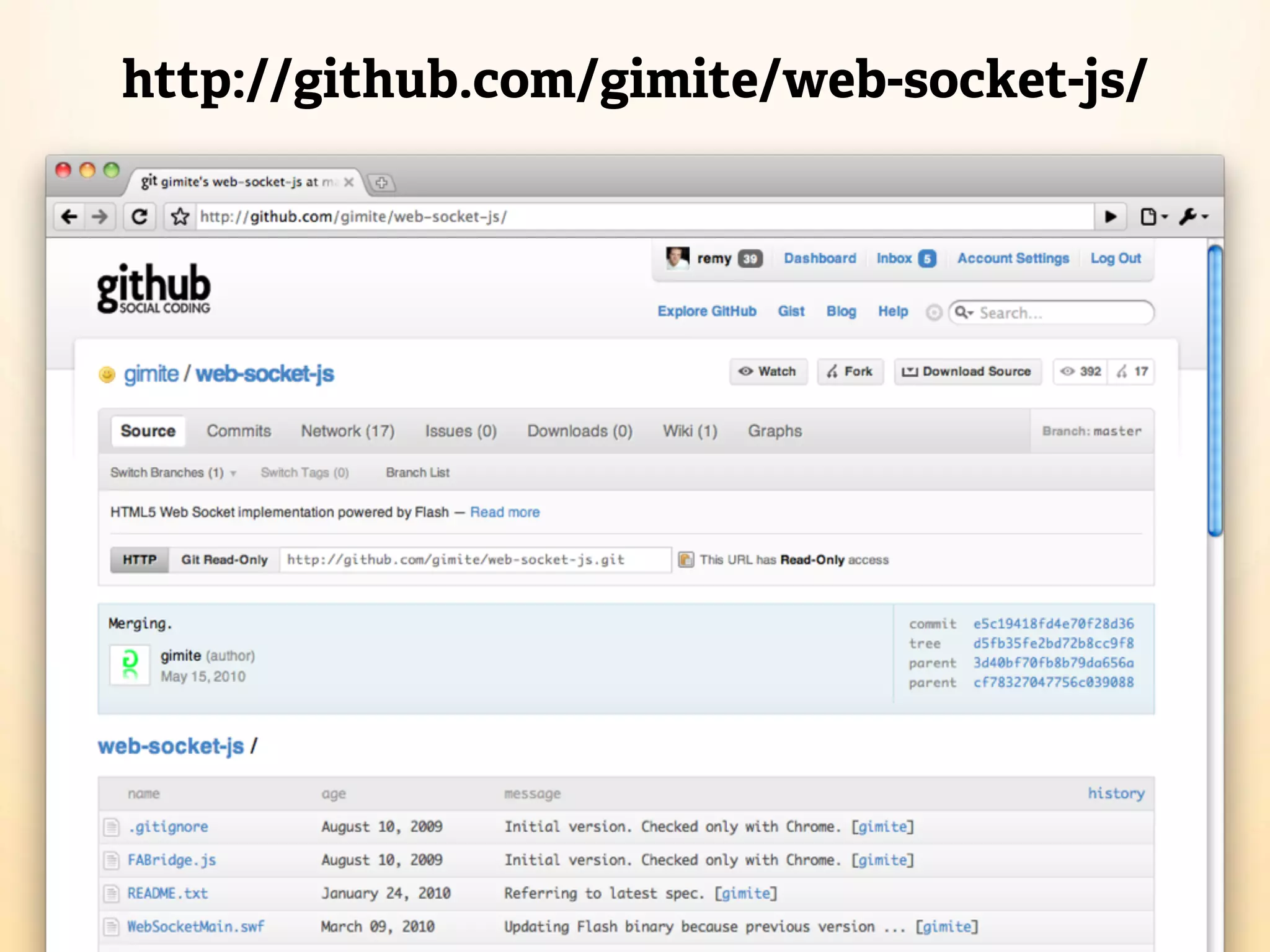

http://github.com/gimite/web-socket-js/

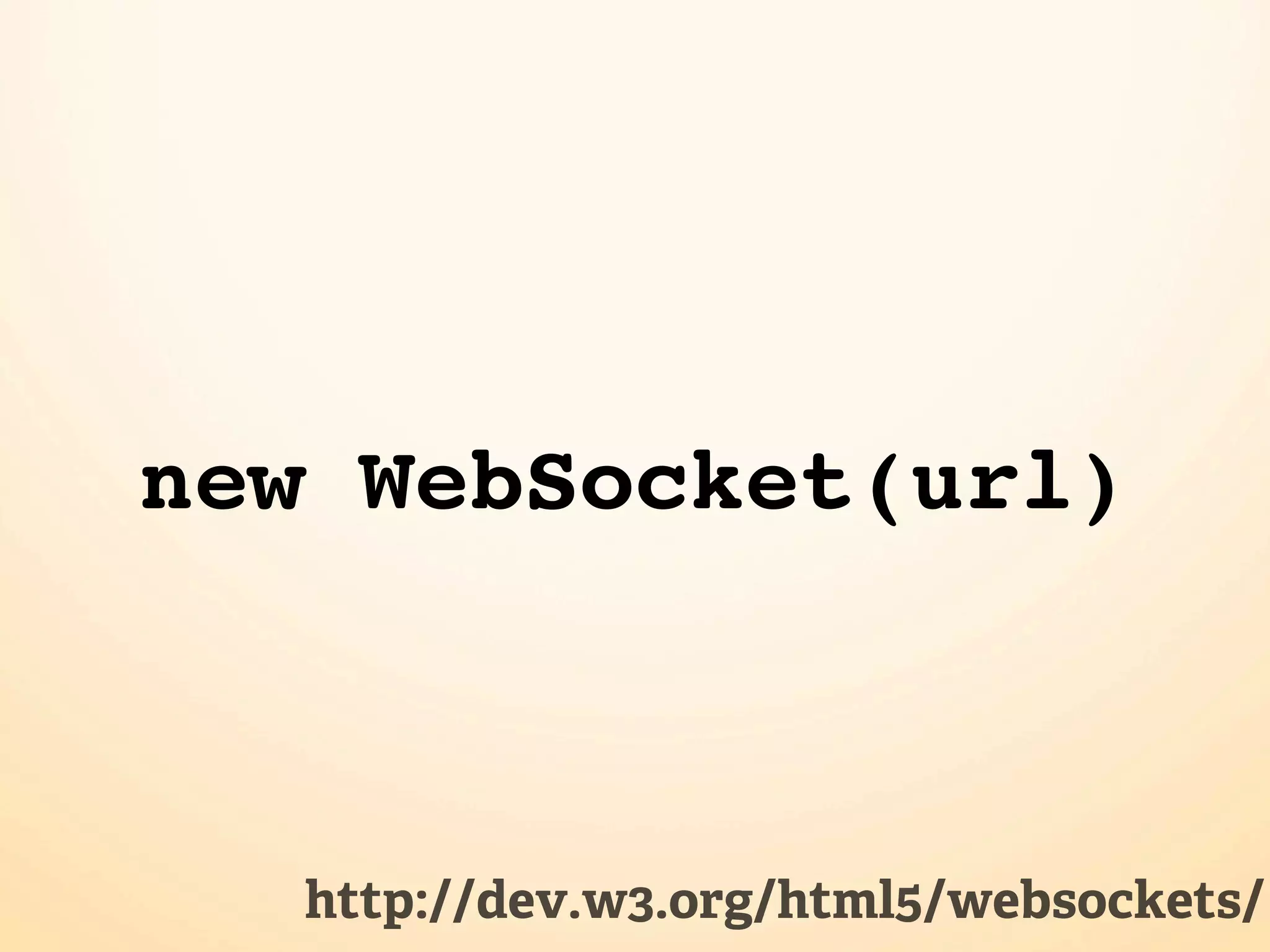

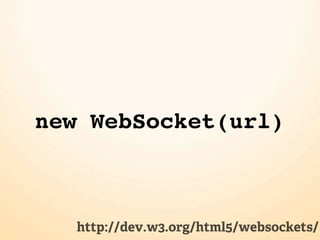

new WebSocket(url)

http://dev.w3.org/html5/websockets/

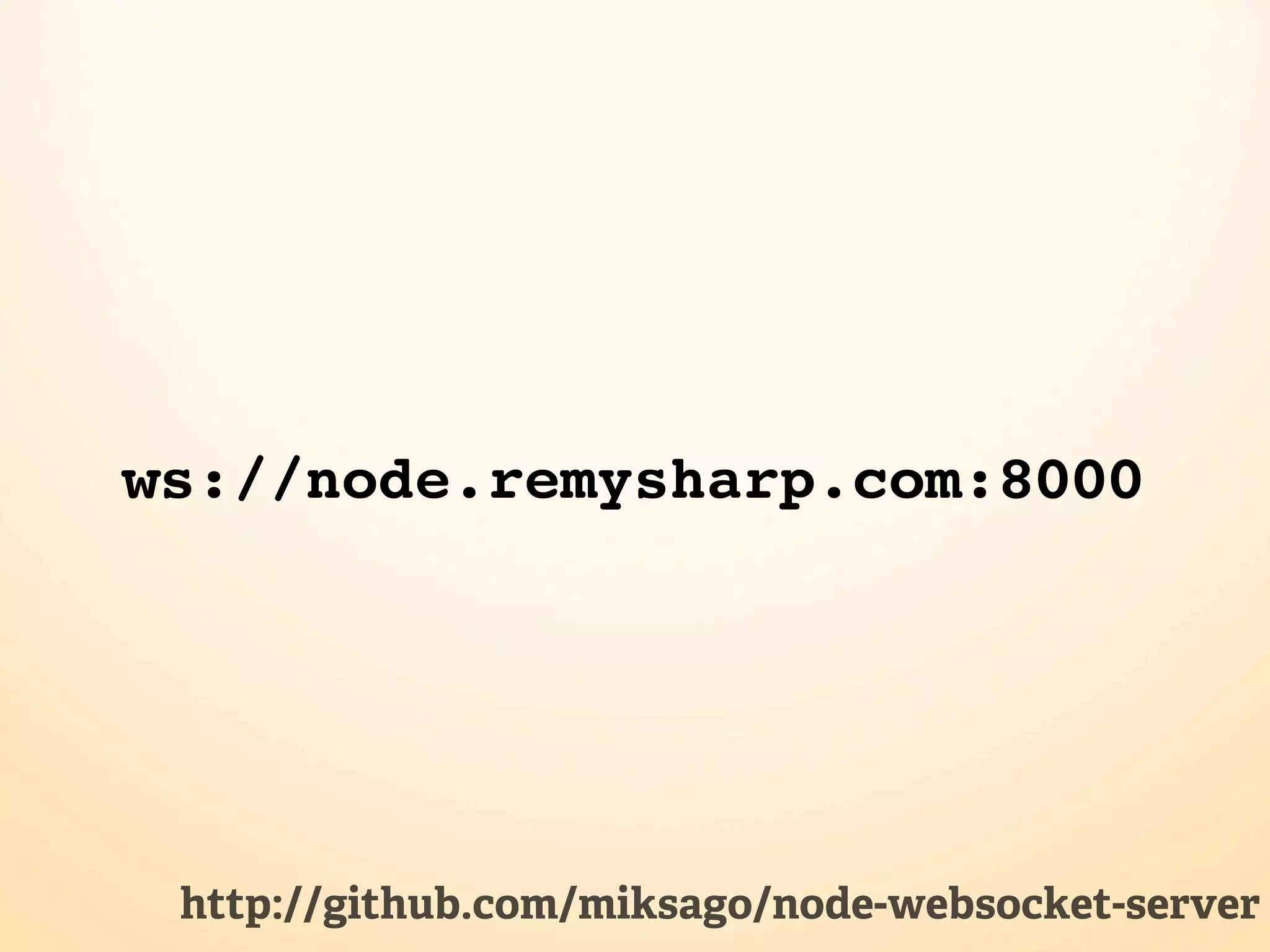

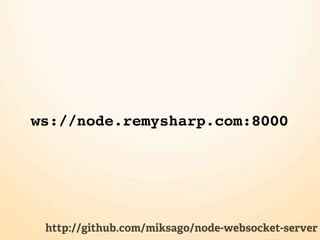

ws://node.remysharp.com:8000

http://github.com/miksago/node-websocket-server

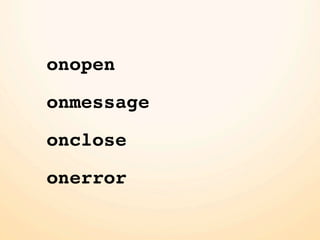

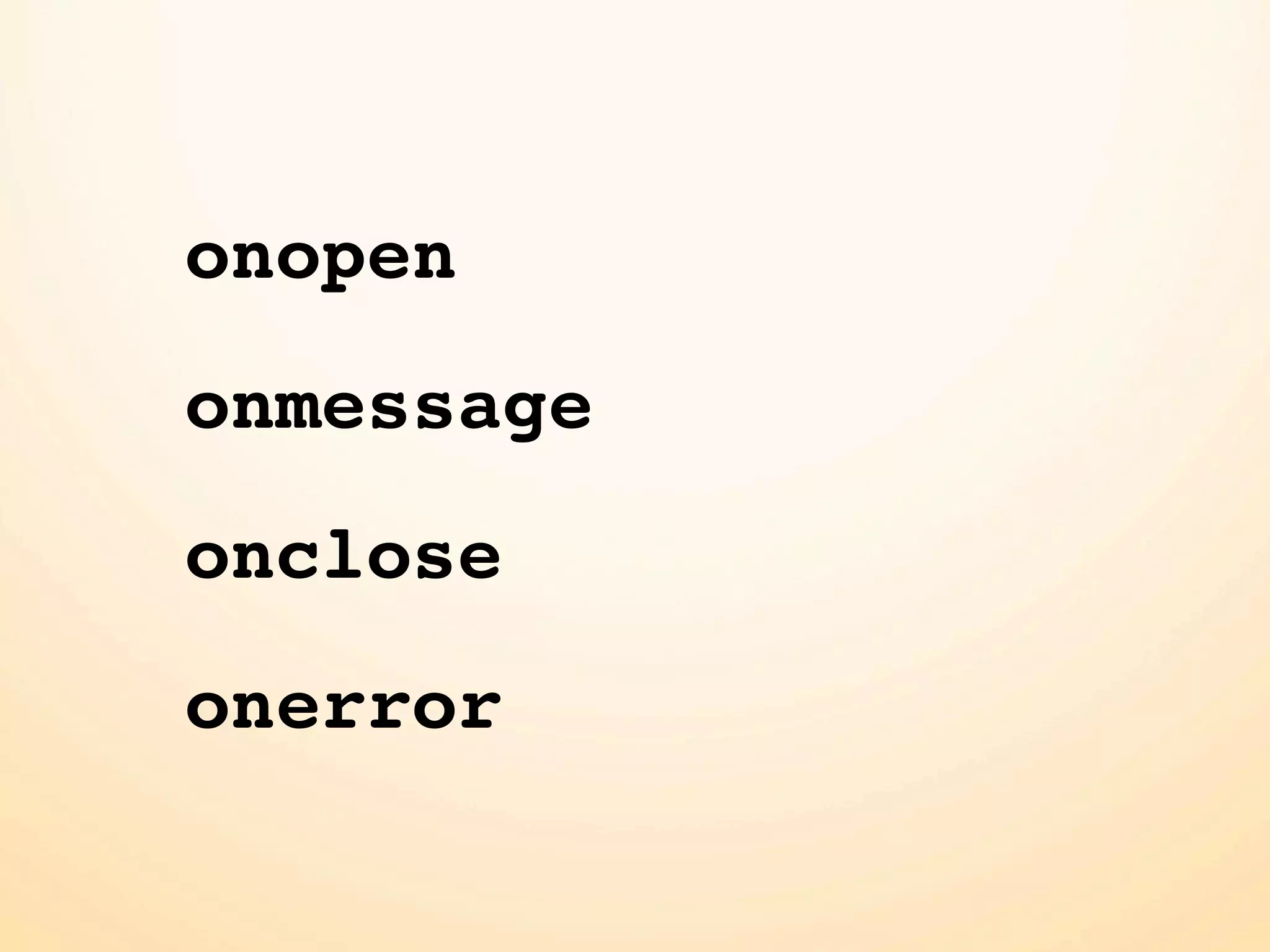

onopen
onmessage
onclose
onerror

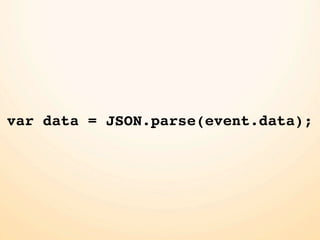

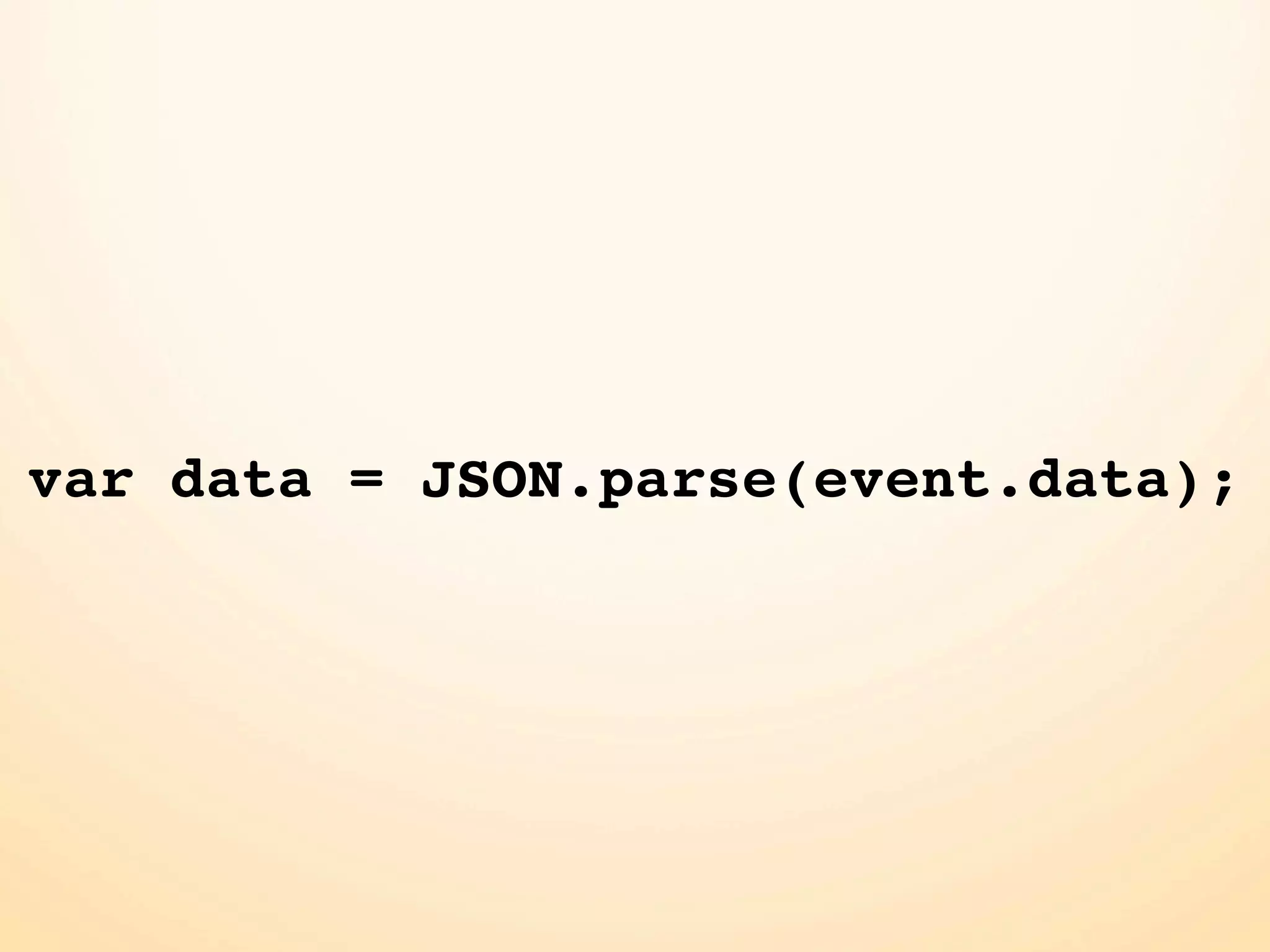

var data = JSON.parse(event.data);

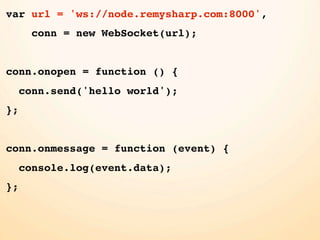

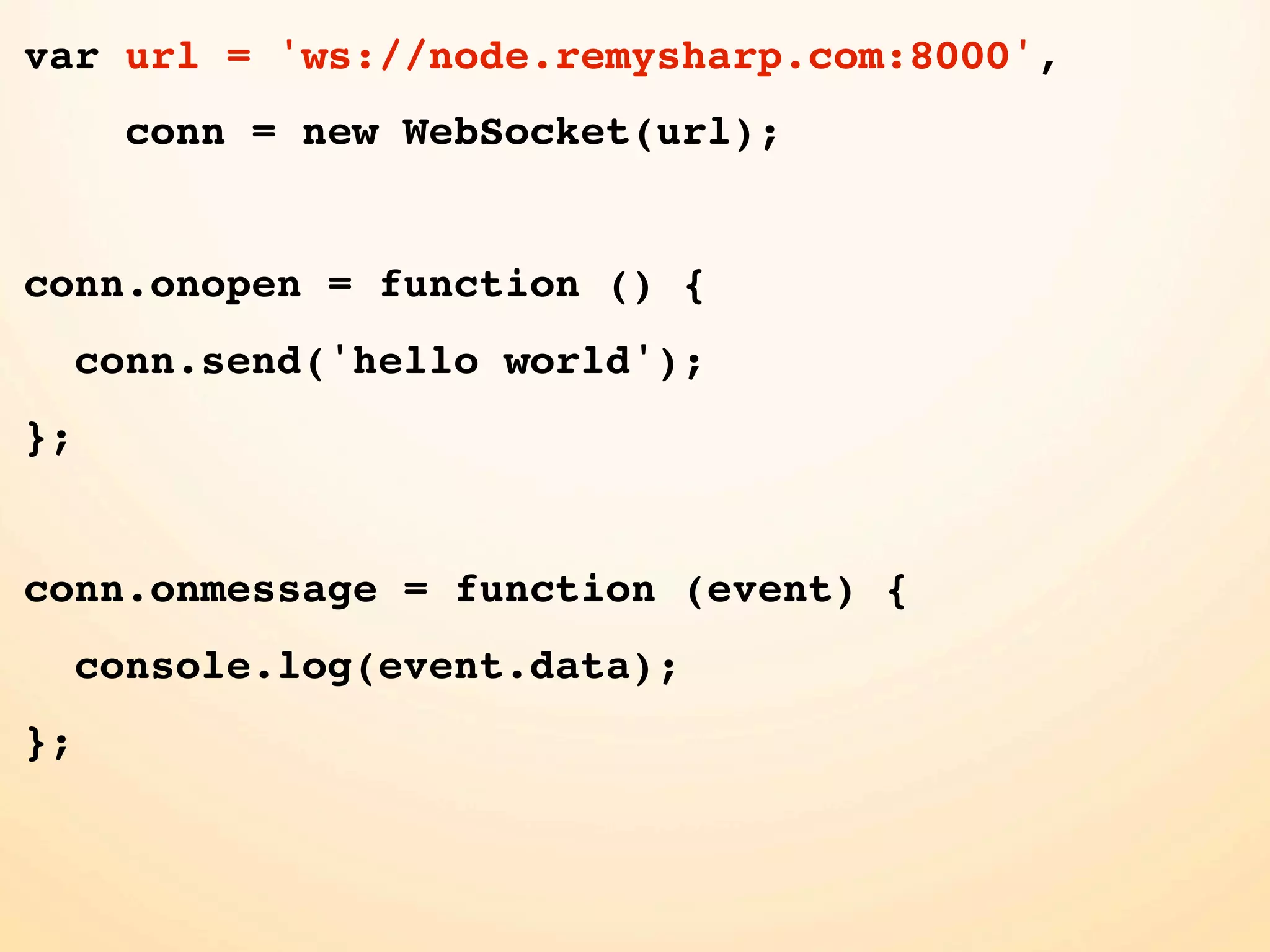

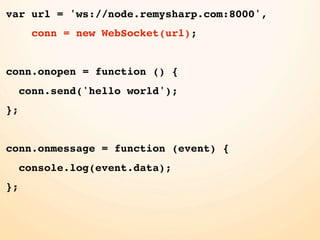

var url = 'ws://node.remysharp.com:8000',
conn = new WebSocket(url);

conn.onopen = function () {
conn.send('hello world');
};

conn.onmessage = function (event) {
console.log(event.data);
};

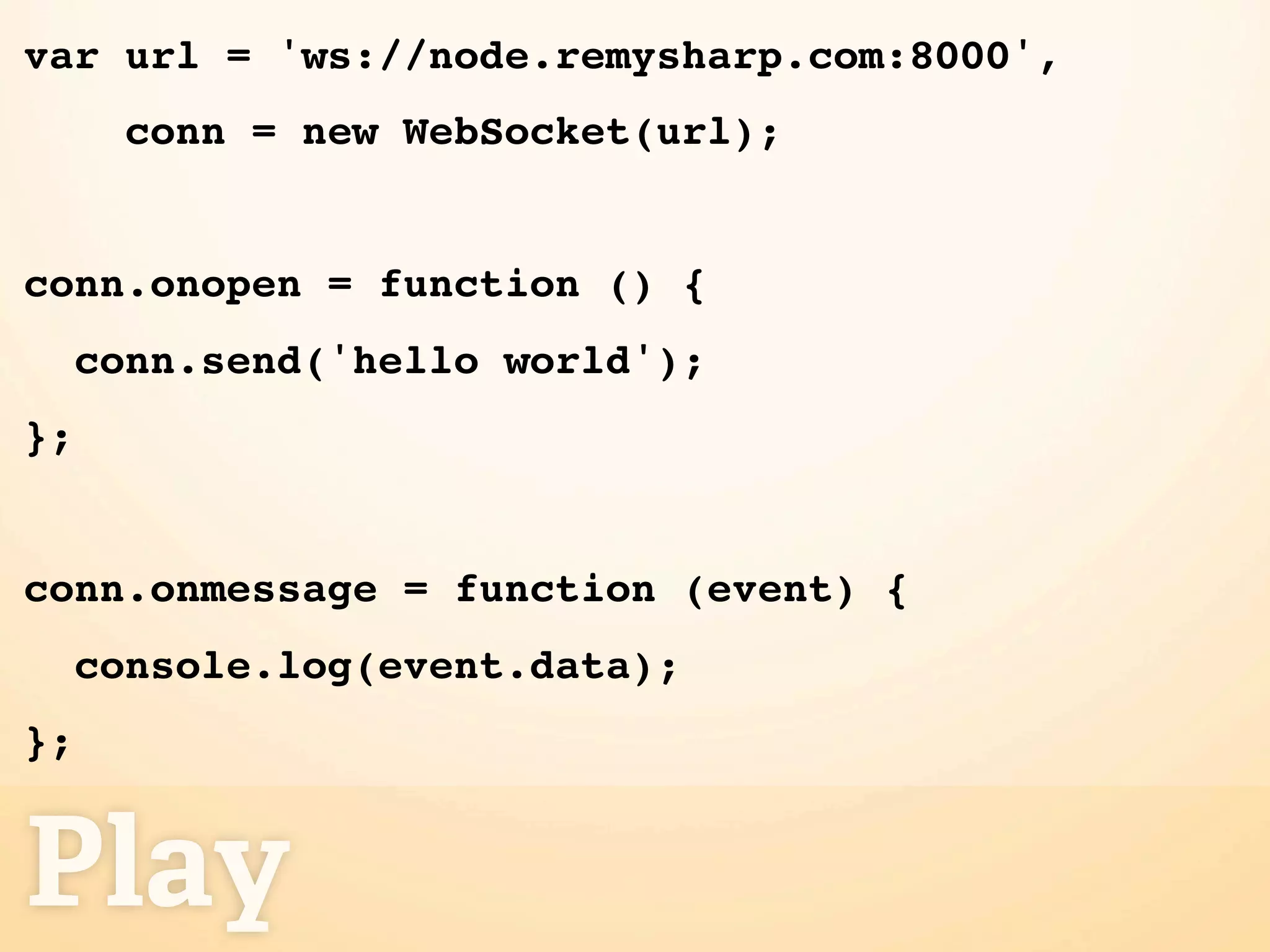

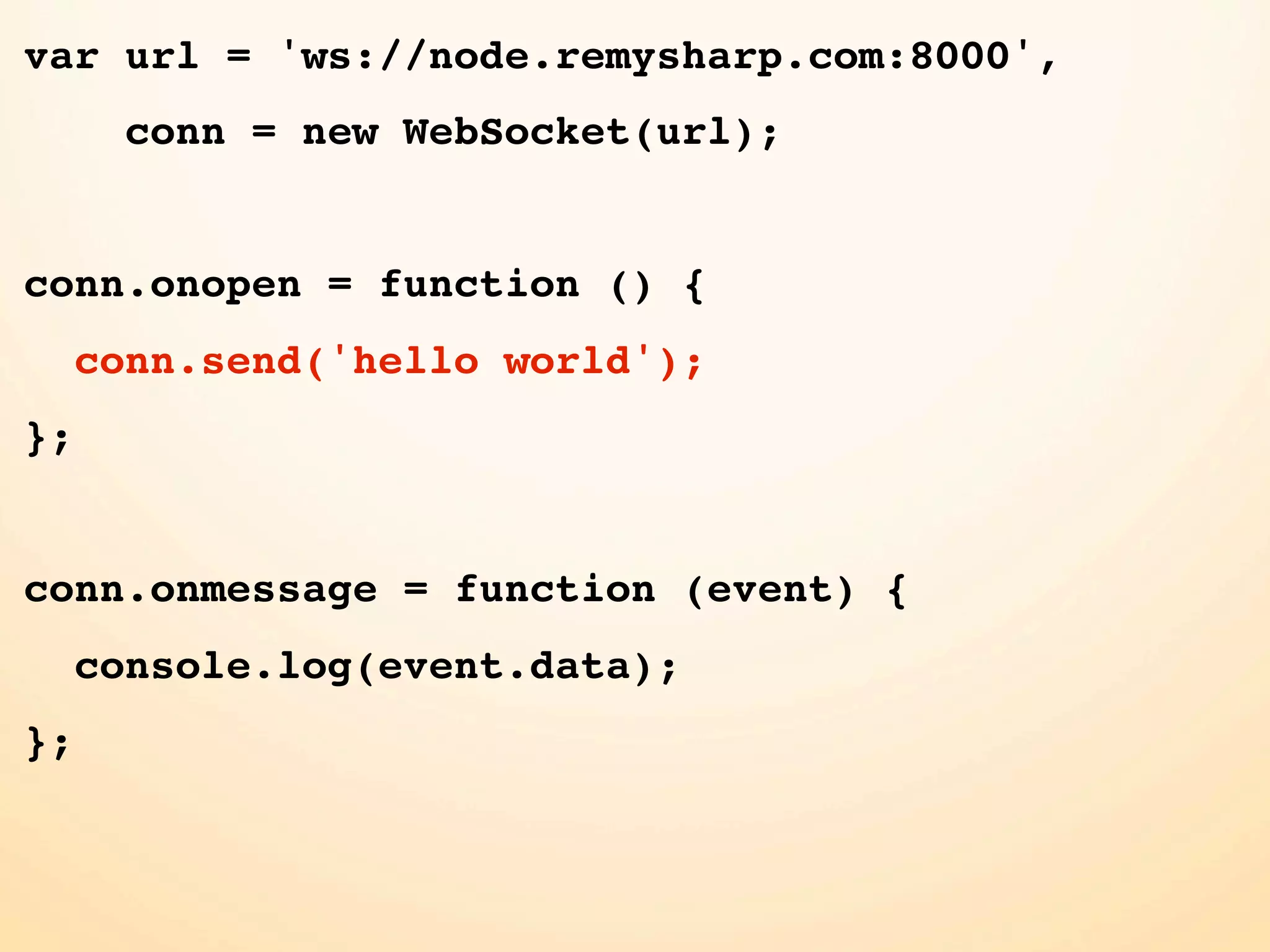

var url = 'ws://node.remysharp.com:8000',
conn = new WebSocket(url);

conn.onopen = function () {
conn.send('hello world');
};

conn.onmessage = function (event) {
console.log(event.data);
};

Play

Questions?
To contact me after my presentation
– text NHT to INTRO (46876)

Or --
remy@leftlogic.com
@rem
