Smart Code editors with
JavaFX (and e4)
Tom Schindl <tom.schindl@bestsolution.at>
Twitter: @tomsontom
Blog: http://tomsondev.bestsolution.at
Website: http://www.bestsolution.at

(c) BestSolution.at - Licensed under Creative Commons Attribution-NonCommerical-ShareAlike 3.0
About Me
‣ CTO BestSolution.at Systemhaus GmbH
‣ Eclipse Committer
‣ e4
‣ Platform
‣ EMF
‣ Project lead
‣ e(fx)clipse
‣ Twitter: @tomsontom
‣ Blog: tomsondev.bestsolution.at
‣ Cooperate: http://bestsolution.at

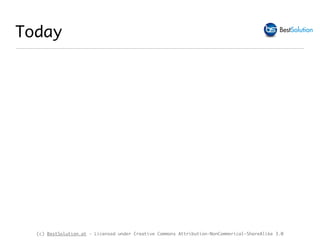

Today

Today
‣ Current situation
‣ Eclipse 4 Application Platform does not support editors
‣ Eclipse IDE / Eclipse 3.x RCP is still required to get
an editor framework

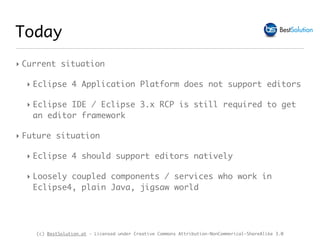

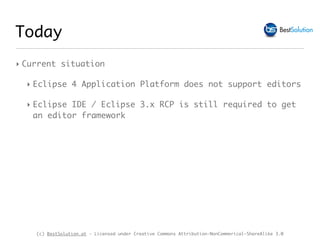

Today
‣ Current situation
‣ Eclipse 4 Application Platform does not support editors
‣ Eclipse IDE / Eclipse 3.x RCP is still required to get
an editor framework
‣ Future situation
‣ Eclipse 4 should support editors natively
‣ Loosely coupled components / services who work in
Eclipse4, plain Java, jigsaw world

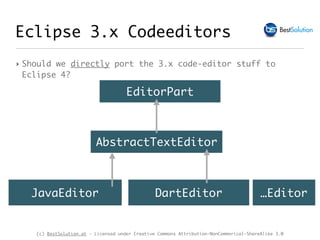

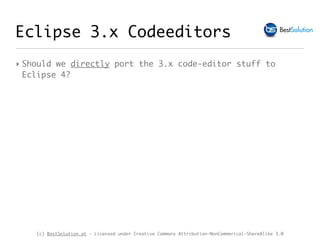

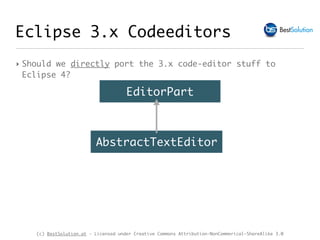

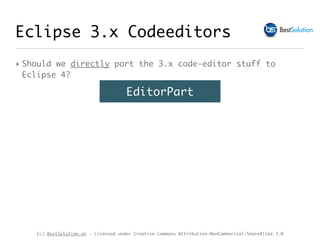

Eclipse 3.x Codeeditors
‣ Should we directly port the 3.x code-editor stuff to
Eclipse 4?

Eclipse 4?
EditorPart

Eclipse 4?
EditorPart
AbstractTextEditor

Eclipse 4?
EditorPart
AbstractTextEditor
JavaEditor DartEditor …Editor

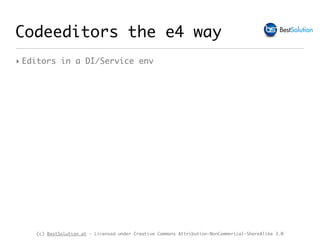

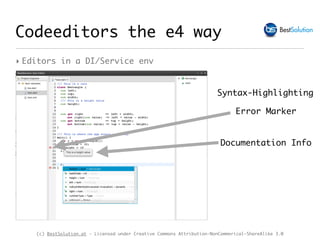

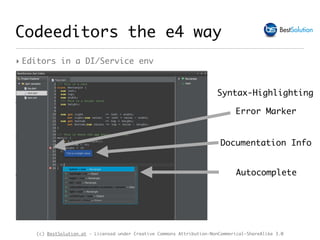

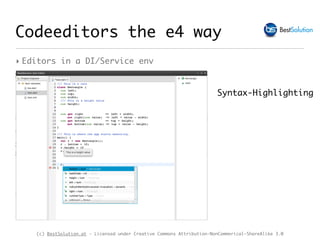

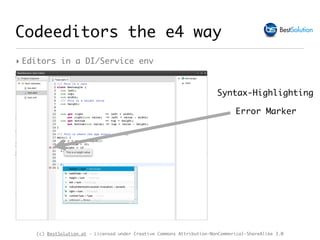

Codeeditors the e4 way
‣ Editors in a DI/Service env

Syntax-Highlighting

Syntax-Highlighting
Error Marker

Syntax-Highlighting
Documentation Info
Error Marker

Syntax-Highlighting
Autocomplete
Documentation Info
Error Marker

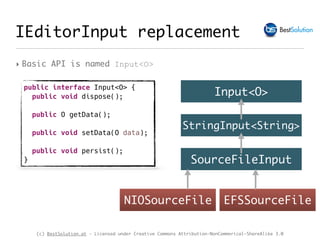

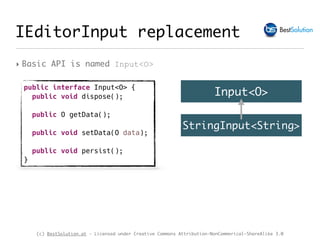

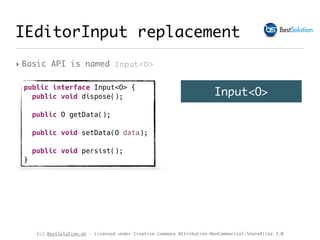

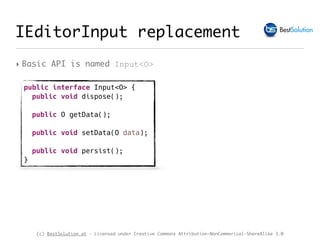

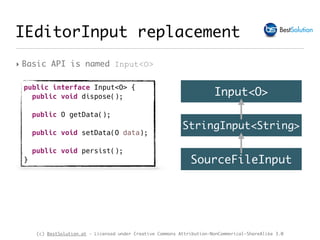

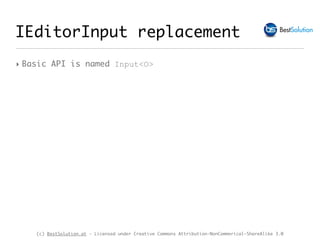

IEditorInput replacement
‣ Basic API is named Input<O>

public interface Input<O> {
public void dispose();
public O getData();
public void setData(O data);
public void persist();
}

public O getData();
}
Input<O>

public O getData();
}
Input<O>
StringInput<String>

public O getData();
}
Input<O>
StringInput<String>
SourceFileInput

public O getData();
}
Input<O>
StringInput<String>
SourceFileInput
NIOSourceFile EFSSourceFile

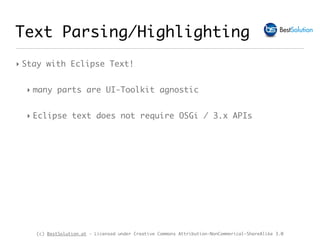

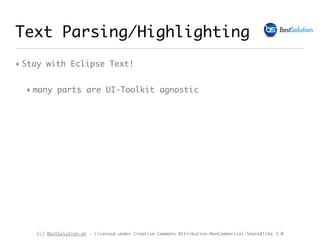

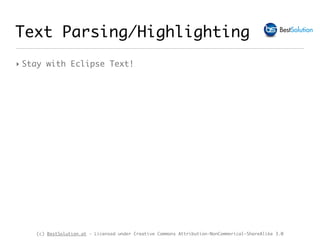

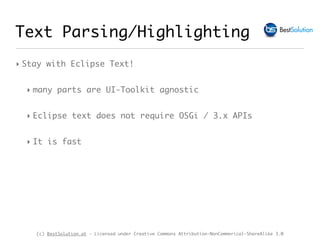

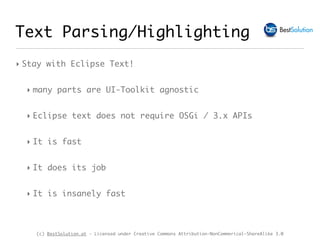

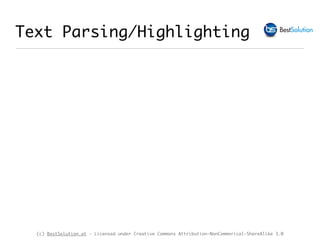

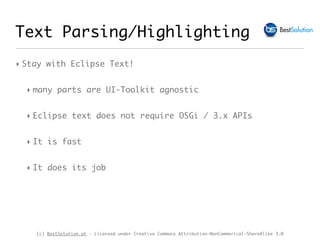

Text Parsing/Highlighting

‣ Stay with Eclipse Text!

‣ many parts are UI-Toolkit agnostic

‣ Eclipse text does not require OSGi / 3.x APIs

‣ It is fast

‣ It is fast
‣ It does its job

‣ It is fast
‣ It does its job
‣ It is insanely fast

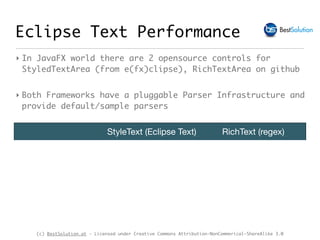

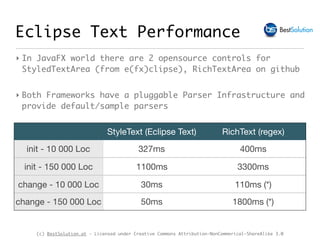

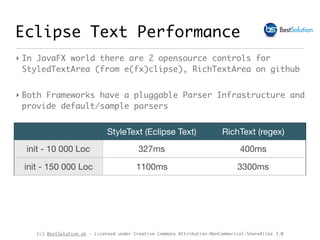

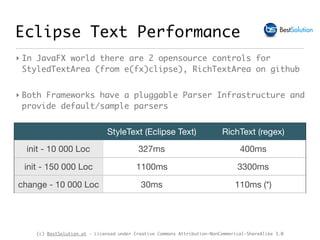

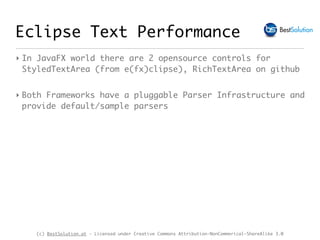

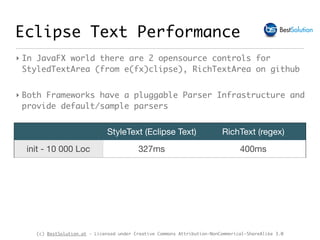

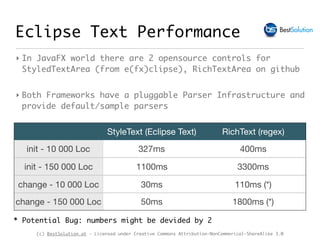

Eclipse Text Performance
‣ In JavaFX world there are 2 opensource controls for
StyledTextArea (from e(fx)clipse), RichTextArea on github
‣ Both Frameworks have a pluggable Parser Infrastructure and
provide default/sample parsers

StyleText (Eclipse Text) RichText (regex)

init - 10 000 Loc 327ms 400ms

init - 10 000 Loc 327ms 400ms
init - 150 000 Loc 1100ms 3300ms

init - 10 000 Loc 327ms 400ms
init - 150 000 Loc 1100ms 3300ms
change - 10 000 Loc 30ms 110ms (*)

init - 10 000 Loc 327ms 400ms
init - 150 000 Loc 1100ms 3300ms
change - 10 000 Loc 30ms 110ms (*)
change - 150 000 Loc 50ms 1800ms (*)

* Potential Bug: numbers might be devided by 2
init - 10 000 Loc 327ms 400ms
init - 150 000 Loc 1100ms 3300ms
change - 10 000 Loc 30ms 110ms (*)
change - 150 000 Loc 50ms 1800ms (*)

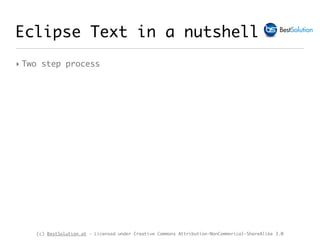

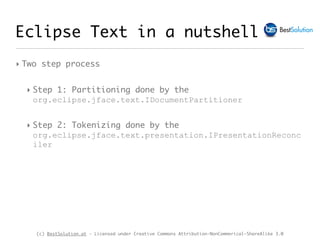

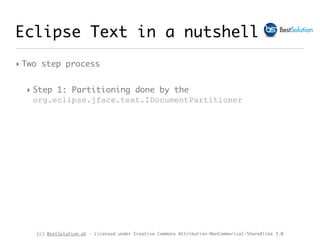

Eclipse Text in a nutshell
‣ Two step process

‣ Step 1: Partitioning done by the
org.eclipse.jface.text.IDocumentPartitioner

‣ Step 1: Partitioning done by the
org.eclipse.jface.text.IDocumentPartitioner
‣ Step 2: Tokenizing done by the
org.eclipse.jface.text.presentation.IPresentationReconc
iler

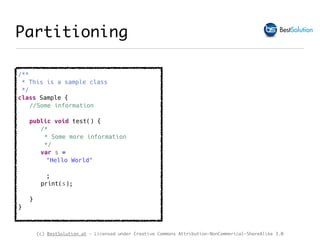

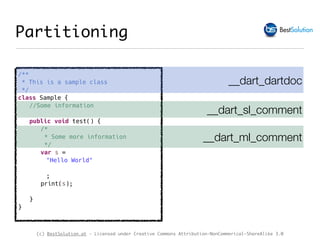

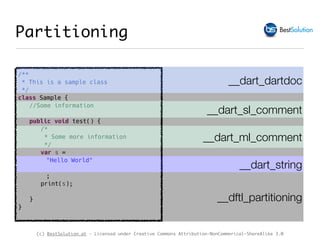

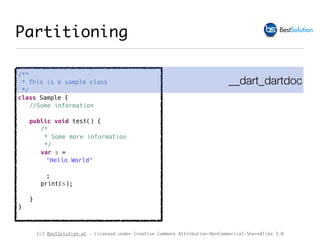

Partitioning
/**
* This is a sample class
*/
class Sample {
//Some information
public void test() {
/*
* Some more information
*/
var s =
"Hello World"
;
print(s);
}
}

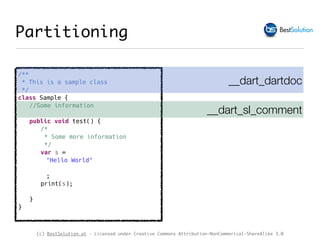

Partitioning
/**
*/
class Sample {
//Some information
/*
*/
var s =
"Hello World"
;
print(s);
}
}
__dart_dartdoc

Partitioning
/**
*/
class Sample {
//Some information
/*
*/
var s =
"Hello World"
;
print(s);
}
}
__dart_dartdoc
__dart_sl_comment

Partitioning
/**
*/
class Sample {
//Some information
/*
*/
var s =
"Hello World"
;
print(s);
}
}
__dart_dartdoc
__dart_sl_comment
__dart_ml_comment

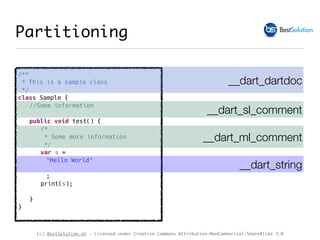

Partitioning
/**
*/
class Sample {
//Some information
/*
*/
var s =
"Hello World"
;
print(s);
}
}
__dart_dartdoc
__dart_sl_comment
__dart_ml_comment
__dart_string

Partitioning
/**
*/
class Sample {
//Some information
/*
*/
var s =
"Hello World"
;
print(s);
}
}
__dart_dartdoc
__dart_sl_comment
__dart_ml_comment
__dart_string
__dftl_partitioning

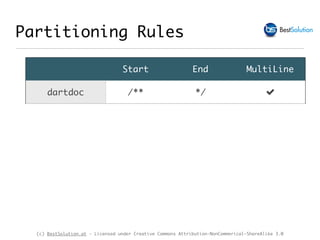

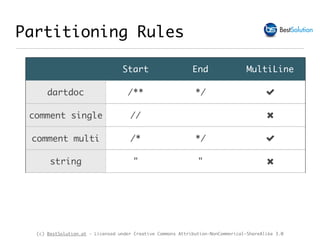

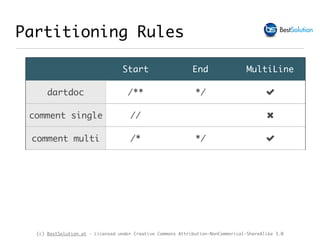

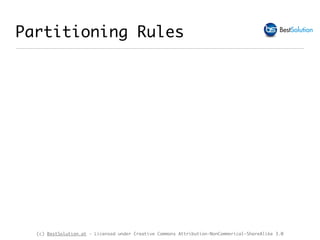

Partitioning Rules

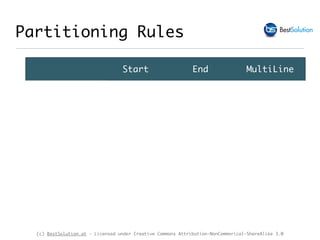

Partitioning Rules
Start End MultiLine

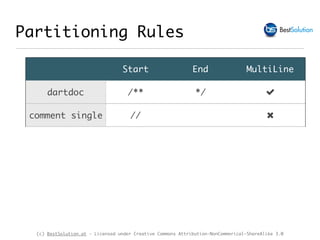

Partitioning Rules
Start End MultiLine
dartdoc /** */ !

Partitioning Rules
Start End MultiLine
dartdoc /** */ !
comment single // "

Partitioning Rules
Start End MultiLine
dartdoc /** */ !
comment single // "
comment multi /* */ !

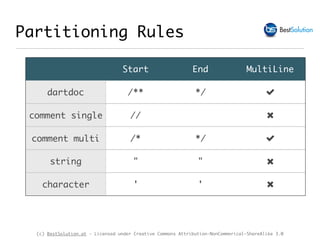

Partitioning Rules
Start End MultiLine
dartdoc /** */ !
comment single // "
string " " "

Partitioning Rules
Start End MultiLine
dartdoc /** */ !
comment single // "
string " " "
character ' ' "

‣ Base interface org.eclipse.jface.text.rules.IRule
‣ 2 Basic implementations
‣ SingleLineRule
‣ MultiLineRule

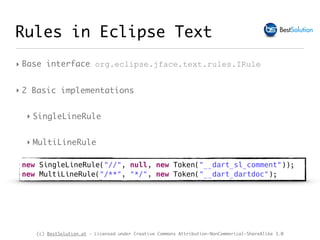

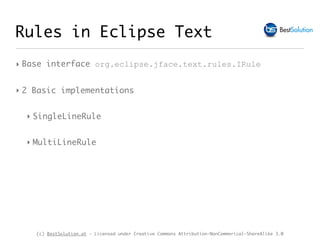

Rules in Eclipse Text

‣ Base interface org.eclipse.jface.text.rules.IRule
‣ 2 Basic implementations
‣ SingleLineRule
‣ MultiLineRule
Rules in Eclipse Text
new SingleLineRule("//", null, new Token("__dart_sl_comment"));
new MultiLineRule("/**", "*/", new Token("__dart_dartdoc");

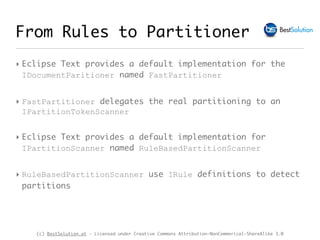

‣ Eclipse Text provides a default implementation for the
IDocumentParitioner named FastPartitioner
‣ FastPartitioner delegates the real partitioning to an
IPartitionTokenScanner
‣ Eclipse Text provides a default implementation for
IPartitionScanner named RuleBasedPartitionScanner
‣ RuleBasedPartitionScanner use IRule definitions to detect
partitions

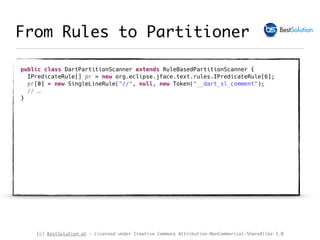

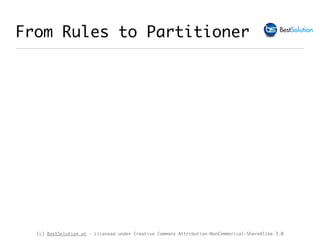

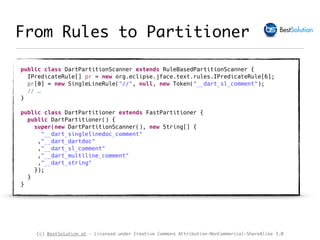

From Rules to Partitioner

public class DartPartitionScanner extends RuleBasedPartitionScanner { 
IPredicateRule[] pr = new org.eclipse.jface.text.rules.IPredicateRule[6]; 
pr[0] = new SingleLineRule("//", null, new Token("__dart_sl_comment"); 
// …  
}

// …  
} 
public class DartPartitioner extends FastPartitioner { 
public DartPartitioner() { 
super(new DartPartitionScanner(), new String[] { 
"__dart_singlelinedoc_comment" 
,"__dart_dartdoc" 
,"__dart_sl_comment" 
,"__dart_multiline_comment" 
,"__dart_string" 
}); 
}

// …  
} 
public class DartPartitioner extends FastPartitioner { 
public DartPartitioner() { 
super(new DartPartitionScanner(), new String[] { 
"__dart_singlelinedoc_comment" 
,"__dart_dartdoc" 
,"__dart_sl_comment" 
,"__dart_multiline_comment" 
,"__dart_string" 
}); 
}
}

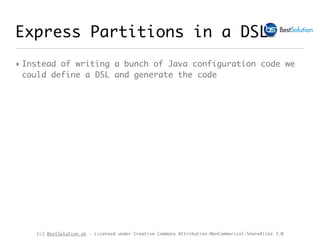

Express Partitions in a DSL
‣ Instead of writing a bunch of Java configuration code we
could define a DSL and generate the code

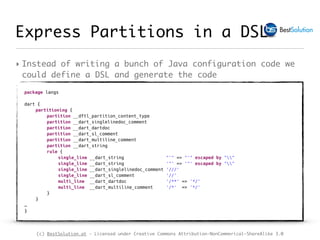

Express Partitions in a DSL
‣ Instead of writing a bunch of Java configuration code we
could define a DSL and generate the code
package langs
dart {
partitioning {
partition __dftl_partition_content_type
partition __dart_singlelinedoc_comment
partition __dart_dartdoc
partition __dart_sl_comment
partition __dart_multiline_comment
partition __dart_string
rule {
single_line __dart_string "'" => "'" escaped by ""
single_line __dart_string '"' => '"' escaped by ""
single_line __dart_singlelinedoc_comment '///'
single_line __dart_sl_comment '//'
multi_line __dart_dartdoc '/**' => '*/'
multi_line __dart_multiline_comment '/*' => '*/'
}
}
…
}

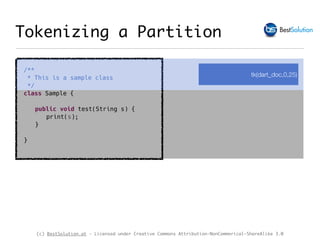

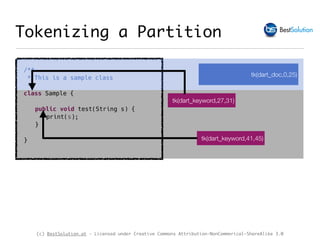

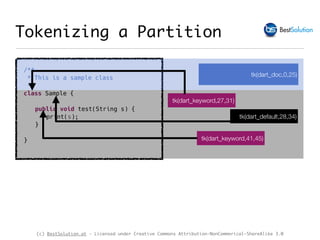

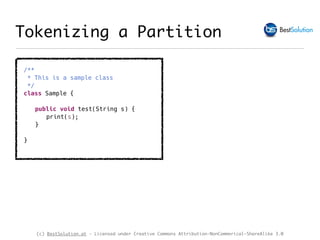

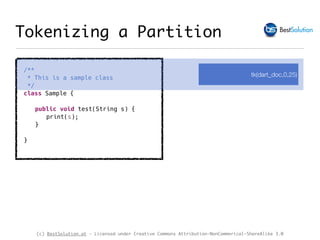

Tokenizing a Partition
/**
*/
class Sample {
public void test(String s) {
print(s);
}
}

/**
*/
class Sample {
print(s);
}
}
tk(dart_doc,0,25)

/**
*/
class Sample {
print(s);
}
}
tk(dart_doc,0,25)
tk(dart_keyword,27,31)

/**
*/
class Sample {
print(s);
}
}
tk(dart_doc,0,25)
tk(dart_default,28,34)

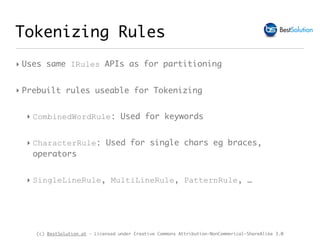

‣ Uses same IRules APIs as for partitioning
‣ Prebuilt rules useable for Tokenizing
‣ CombinedWordRule: Used for keywords
‣ CharacterRule: Used for single chars eg braces,
operators
‣ SingleLineRule, MultiLineRule, PatternRule, …
Tokenizing Rules

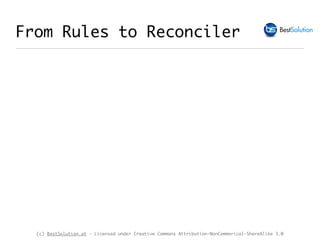

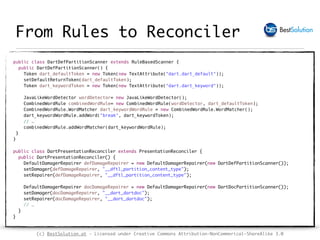

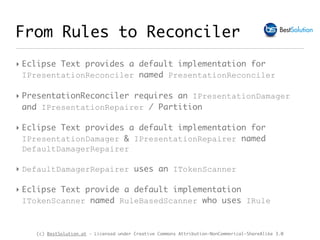

From Rules to Reconciler
IPresentationReconciler named PresentationReconciler
‣ PresentationReconciler requires an IPresentationDamager
and IPresentationRepairer / Partition
IPresentationDamager & IPresentationRepairer named
DefaultDamagerRepairer
‣ DefaultDamagerRepairer uses an ITokenScanner
‣ Eclipse Text provide a default implementation
ITokenScanner named RuleBasedScanner who uses IRule

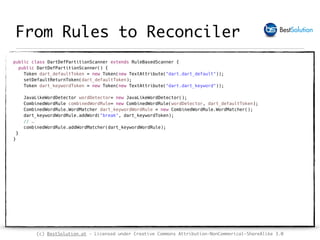

public class DartDefPartitionScanner extends RuleBasedScanner { 
public DartDefPartitionScanner() { 
Token dart_defaultToken = new Token(new TextAttribute("dart.dart_default")); 
setDefaultReturnToken(dart_defaultToken); 
Token dart_keywordToken = new Token(new TextAttribute("dart.dart_keyword")); 
 
JavaLikeWordDetector wordDetector= new JavaLikeWordDetector(); 
CombinedWordRule combinedWordRule= new CombinedWordRule(wordDetector, dart_defaultToken); 
CombinedWordRule.WordMatcher dart_keywordWordRule = new CombinedWordRule.WordMatcher(); 
dart_keywordWordRule.addWord("break", dart_keywordToken); 
// …  
combinedWordRule.addWordMatcher(dart_keywordWordRule); 
}  
}

 
JavaLikeWordDetector wordDetector= new JavaLikeWordDetector(); 
CombinedWordRule combinedWordRule= new CombinedWordRule(wordDetector, dart_defaultToken); 
CombinedWordRule.WordMatcher dart_keywordWordRule = new CombinedWordRule.WordMatcher(); 
dart_keywordWordRule.addWord("break", dart_keywordToken); 
// …  
combinedWordRule.addWordMatcher(dart_keywordWordRule); 
}  
} 
public class DartPresentationReconciler extends PresentationReconciler { 
public DartPresentationReconciler() { 
DefaultDamagerRepairer defDamageRepairer = new DefaultDamagerRepairer(new DartDefPartitionScanner()); 
setDamager(defDamageRepairer, "__dftl_partition_content_type"); 
setRepairer(defDamageRepairer, "__dftl_partition_content_type"); 
 
DefaultDamagerRepairer docDamageRepairer = new DefaultDamagerRepairer(new DartDocPartitionScanner()); 
setDamager(docDamageRepairer, "__dart_dartdoc"); 
setRepairer(docDamageRepairer, "__dart_dartdoc"); 
// … 
} 
}

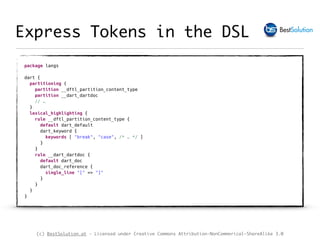

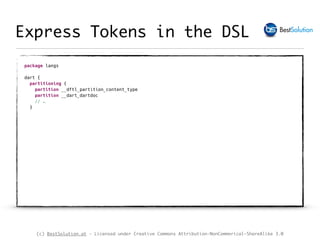

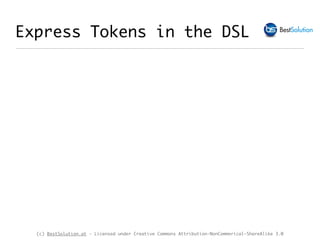

Express Tokens in the DSL

package langs 
 
dart { 
partitioning { 
partition __dftl_partition_content_type 
partition __dart_dartdoc 
// … 
}

package langs 
 
dart { 
partitioning { 
partition __dftl_partition_content_type 
partition __dart_dartdoc 
// … 
}
lexical_highlighting { 
rule __dftl_partition_content_type { 
default dart_default 
dart_keyword { 
keywords [ "break", "case", /* … */ ] 
} 
} 
rule __dart_dartdoc { 
default dart_doc 
dart_doc_reference { 
single_line "[" => "]" 
}  
} 
} 
}

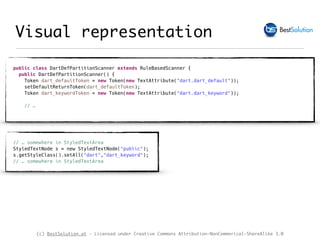

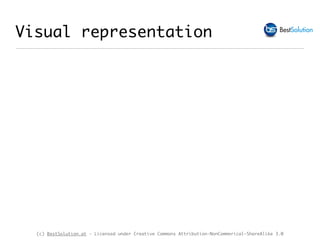

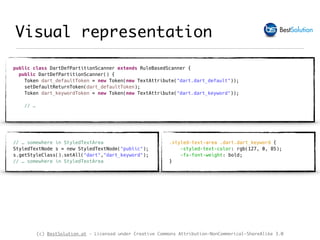

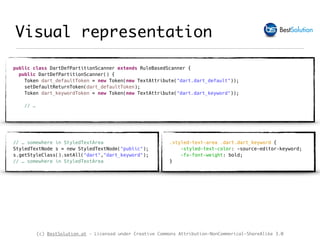

Visual representation

 
// …

 
// …
// … somewhere in StyledTextArea
StyledTextNode s = new StyledTextNode("public");
s.getStyleClass().setAll("dart","dart_keyword");

 
// …
.styled-text-area .dart.dart_keyword {
-styled-text-color: rgb(127, 0, 85);
-fx-font-weight: bold;
}

 
// …
-styled-text-color: rgb(127, 0, 85);
}
-styled-text-color: -source-editor-keyword;
}

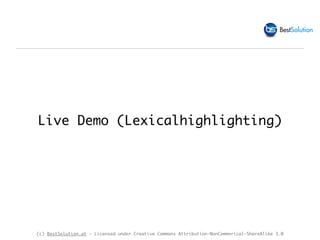

Live Demo (Lexicalhighlighting)

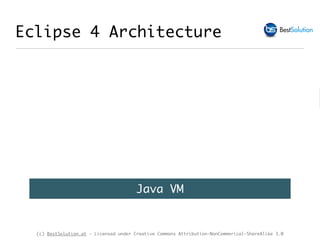

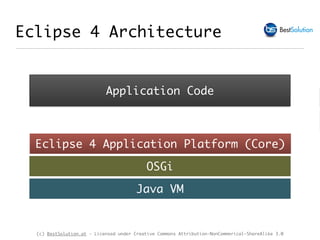

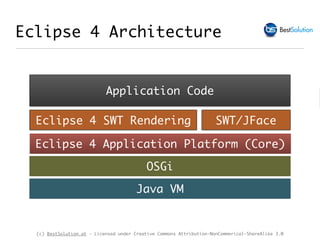

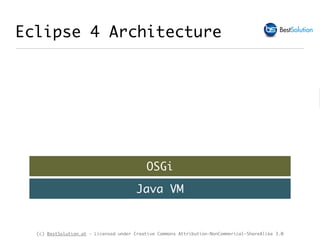

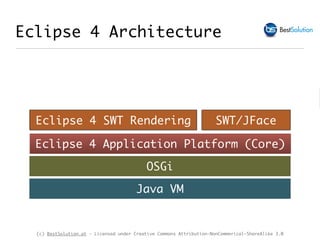

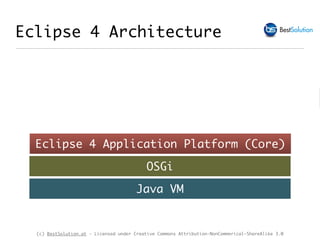

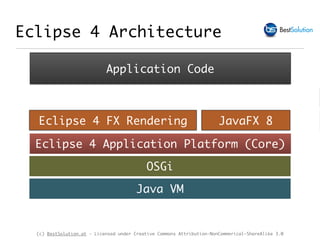

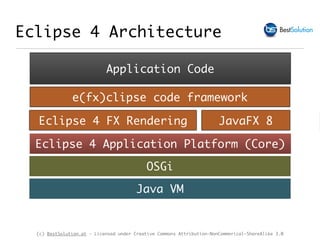

Eclipse 4 Architecture

Java VM

Java VM
OSGi

Java VM
OSGi
Eclipse 4 Application Platform (Core)

Java VM
OSGi
Eclipse 4 SWT Rendering SWT/JFace

Java VM
OSGi
Eclipse 4 SWT Rendering SWT/JFace
Application Code

Java VM
OSGi
Application Code

Java VM
OSGi
Application Code
Eclipse 4 FX Rendering JavaFX 8

Java VM
OSGi
Application Code
Eclipse 4 FX Rendering JavaFX 8
e(fx)clipse code framework

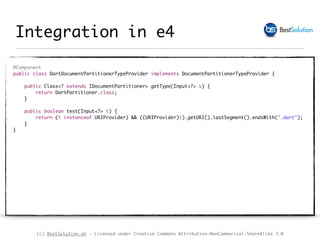

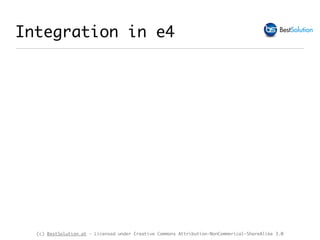

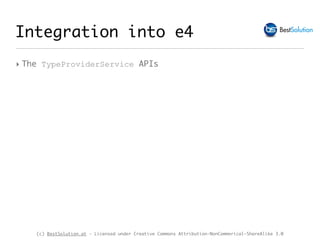

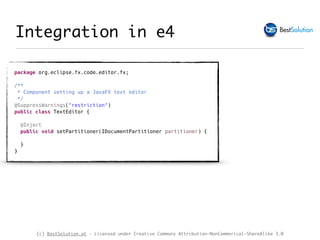

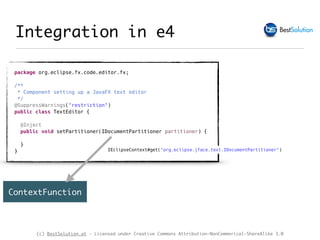

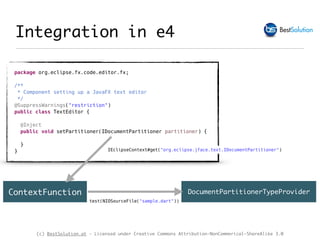

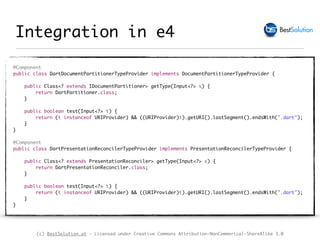

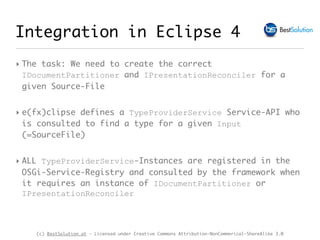

Integration in Eclipse 4
‣ The task: We need to create the correct
IDocumentPartitioner and IPresentationReconciler for a
given Source-File

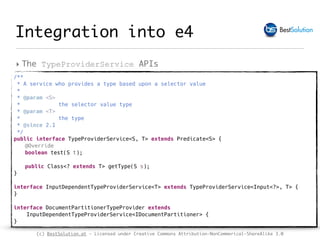

‣ e(fx)clipse defines a TypeProviderService Service-API who
is consulted to find a type for a given Input
(=SourceFile)
‣ ALL TypeProviderService-Instances are registered in the
OSGi-Service-Registry and consulted by the framework when
it requires an instance of IDocumentPartitioner or
IPresentationReconciler

Integration into e4
‣ The TypeProviderService APIs

Integration into e4
‣ The TypeProviderService APIs
/**
* A service who provides a type based upon a selector value
*
* @param <S>
* the selector value type
* @param <T>
* the type
* @since 2.1
*/
public interface TypeProviderService<S, T> extends Predicate<S> {
@Override
boolean test(S t);
public Class<? extends T> getType(S s);
}
interface InputDependentTypeProviderService<T> extends TypeProviderService<Input<?>, T> {
}
interface DocumentPartitionerTypeProvider extends
InputDependentTypeProviderService<IDocumentPartitioner> {
}

Integration in e4

Integration in e4
package org.eclipse.fx.code.editor.fx;
/**
* Component setting up a JavaFX text editor
*/
@SuppressWarnings("restriction")
public class TextEditor {
@Inject
public void setPartitioner(IDocumentPartitioner partitioner) {
}
}

Integration in e4
/**
*/
@Inject
}
}
ContextFunction
IEclipseContext#get("org.eclipse.jface.text.IDocumentPartitioner")

Integration in e4
/**
*/
@Inject
}
}
DocumentPartitionerTypeProvider
test(NIOSourceFile("sample.dart"))
ContextFunction
IEclipseContext#get("org.eclipse.jface.text.IDocumentPartitioner")

Integration in e4
@Component 
public class DartDocumentPartitionerTypeProvider implements DocumentPartitionerTypeProvider { 
 
public Class<? extends IDocumentPartitioner> getType(Input<?> s) { 
return DartPartitioner.class; 
} 
 
public boolean test(Input<?> t) { 
return (t instanceof URIProvider) && ((URIProvider)t).getURI().lastSegment().endsWith(".dart"); 
} 
}

Integration in e4
@Component 
public class DartDocumentPartitionerTypeProvider implements DocumentPartitionerTypeProvider { 
 
public Class<? extends IDocumentPartitioner> getType(Input<?> s) { 
return DartPartitioner.class; 
} 
 
} 
} 
@Component 
public class DartPresentationReconcilerTypeProvider implements PresentationReconcilerTypeProvider { 
 
public Class<? extends PresentationReconciler> getType(Input<?> s) { 
return DartPresentationReconciler.class; 
} 
 
} 
}

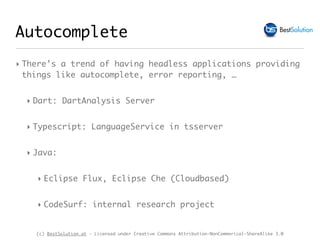

Autocomplete
‣ There’s a trend of having headless applications providing
things like autocomplete, error reporting, …
‣ Dart: DartAnalysis Server
‣ Typescript: LanguageService in tsserver
‣ Java:
‣ Eclipse Flux, Eclipse Che (Cloudbased)
‣ CodeSurf: internal research project

‣ Communication with DartAnalysisServer is via JSON on
STDIN/STDOUT
‣ 2 Interaction Types:
‣ Requests with a direct response (client driven)
‣ Notification informing about things (server driven)
Autocomplete for Dart

Interact with Dart Server

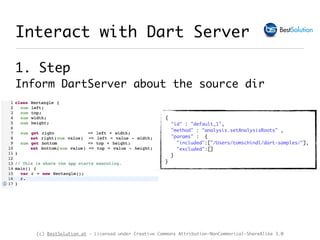

1. Step 
Inform DartServer about the source dir
{
"id" : "default_1",
"method" : "analysis.setAnalysisRoots" ,
"params" : {
"included":["/Users/tomschindl/dart-samples/"],
"excluded":[]
}
}

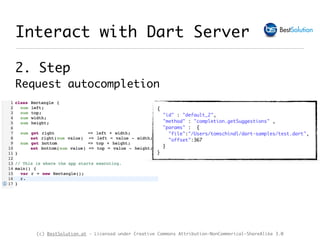

2. Step 
Request autocompletion
{
"id" : "default_2",
"method" : "completion.getSuggestions" ,
"params" : {
"file":"/Users/tomschindl/dart-samples/test.dart",
"offset":367
}
}

{
"event":"completion.results",
"params":{
"id":"0",
"replacementOffset":367,
"replacementLength":0,
"results": [
{
"kind":"INVOCATION",
"relevance":1000,
"completion":"left",
"selectionOffset":4,
"selectionLength":0,
"isDeprecated":false,
"isPotential":false,
"declaringType":"Rectangle",
"element":{
"kind":"FIELD",
"name":"left",
"location":{
"file":"/Users/tomschindl/dart-samples/test.dart",
"offset":24,
"length":4,
"startLine":2,
"startColumn":7
},
"flags":0,
"returnType":"num"
},"returnType":"num"
},
// Many more …
"isLast":true
}
}

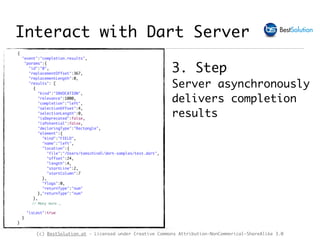

3. Step 
Server asynchronously
delivers completion
results

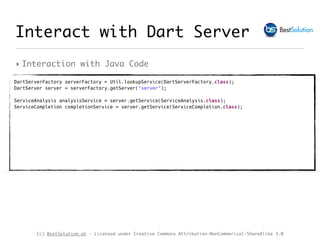

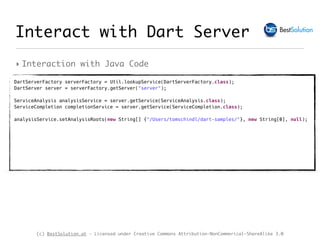

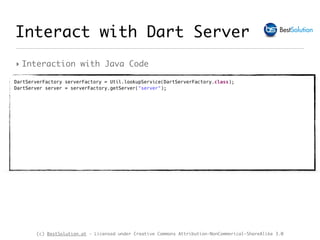

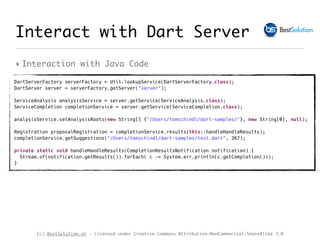

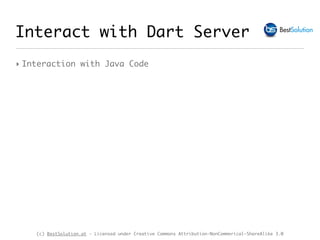

‣ Interaction with Java Code

DartServerFactory serverFactory = Util.lookupService(DartServerFactory.class); 
DartServer server = serverFactory.getServer("server");

DartServer server = serverFactory.getServer("server"); 
ServiceAnalysis analysisService = server.getService(ServiceAnalysis.class); 
ServiceCompletion completionService = server.getService(ServiceCompletion.class);

ServiceCompletion completionService = server.getService(ServiceCompletion.class); 
analysisService.setAnalysisRoots(new String[] {"/Users/tomschindl/dart-samples/"}, new String[0], null);

ServiceCompletion completionService = server.getService(ServiceCompletion.class); 
analysisService.setAnalysisRoots(new String[] {"/Users/tomschindl/dart-samples/"}, new String[0], null);
 
Registration proposalRegistration = completionService.results(this::handleHandleResults); 
completionService.getSuggestions("/Users/tomschindl/dart-samples/test.dart", 367); 
 
private static void handleHandleResults(CompletionResultsNotification notification) { 
Stream.of(notification.getResults()).forEach( c -> System.err.println(c.getCompletion())); 
}

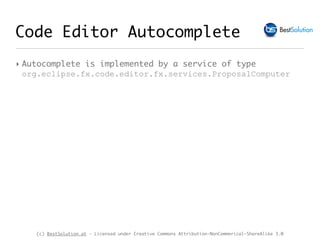

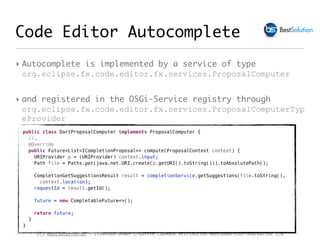

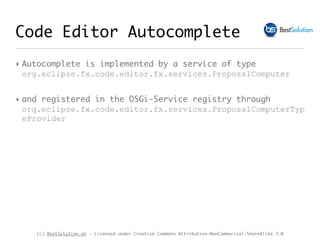

Code Editor Autocomplete

‣ Autocomplete is implemented by a service of type
org.eclipse.fx.code.editor.fx.services.ProposalComputer

‣ and registered in the OSGi-Service registry through
org.eclipse.fx.code.editor.fx.services.ProposalComputerTyp
eProvider

‣ and registered in the OSGi-Service registry through
org.eclipse.fx.code.editor.fx.services.ProposalComputerTyp
eProvider
public class DartProposalComputer implements ProposalComputer {
//…
@Override
public Future<List<ICompletionProposal>> compute(ProposalContext context) {
URIProvider p = (URIProvider) context.input;
Path file = Paths.get(java.net.URI.create(p.getURI().toString())).toAbsolutePath();
CompletionGetSuggestionsResult result = completionService.getSuggestions(file.toString(),
context.location);
requestId = result.getId();
future = new CompletableFuture<>();
return future;
}
}

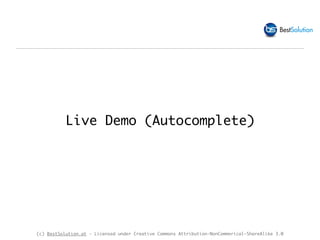

Live Demo (Autocomplete)

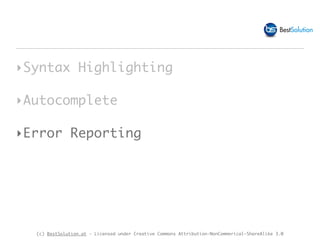

‣Syntax Highlighting
‣Autocomplete
‣Error Reporting

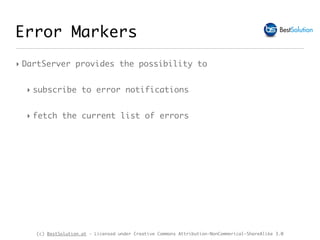

Error Markers
‣ DartServer provides the possibility to
‣ subscribe to error notifications
‣ fetch the current list of errors

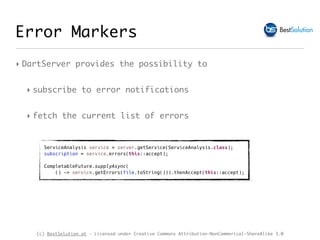

Error Markers
‣ DartServer provides the possibility to
‣ subscribe to error notifications
‣ fetch the current list of errors
ServiceAnalysis service = server.getService(ServiceAnalysis.class);
subscription = service.errors(this::accept);
CompletableFuture.supplyAsync(
() -> service.getErrors(file.toString())).thenAccept(this::accept);

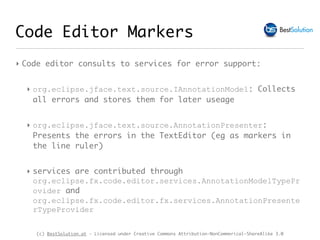

Code Editor Markers
‣ Code editor consults to services for error support:
‣ org.eclipse.jface.text.source.IAnnotationModel: Collects
all errors and stores them for later useage
‣ org.eclipse.jface.text.source.AnnotationPresenter:
Presents the errors in the TextEditor (eg as markers in
the line ruler)
‣ services are contributed through
org.eclipse.fx.code.editor.services.AnnotationModelTypePr
ovider and
org.eclipse.fx.code.editor.fx.services.AnnotationPresente
rTypeProvider

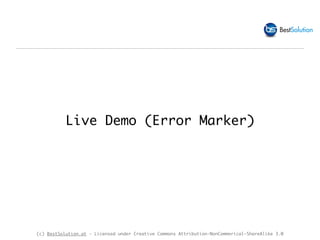

Live Demo (Error Marker)

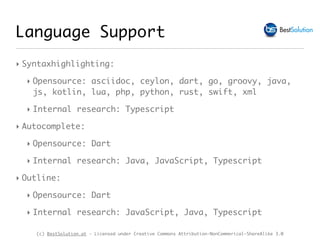

Language Support
‣ Syntaxhighlighting:
‣ Opensource: asciidoc, ceylon, dart, go, groovy, java,
js, kotlin, lua, php, python, rust, swift, xml
‣ Internal research: Typescript
‣ Autocomplete:
‣ Opensource: Dart
‣ Internal research: Java, JavaScript, Typescript
‣ Outline:
‣ Opensource: Dart
‣ Internal research: JavaScript, Java, Typescript

Java fx smart code econ

More Related Content

What's hot

Similar to Java fx smart code econ

Recently uploaded

Java fx smart code econ
