Uploaded byAndres Almiray
vJUG - The JavaFX Ecosystem

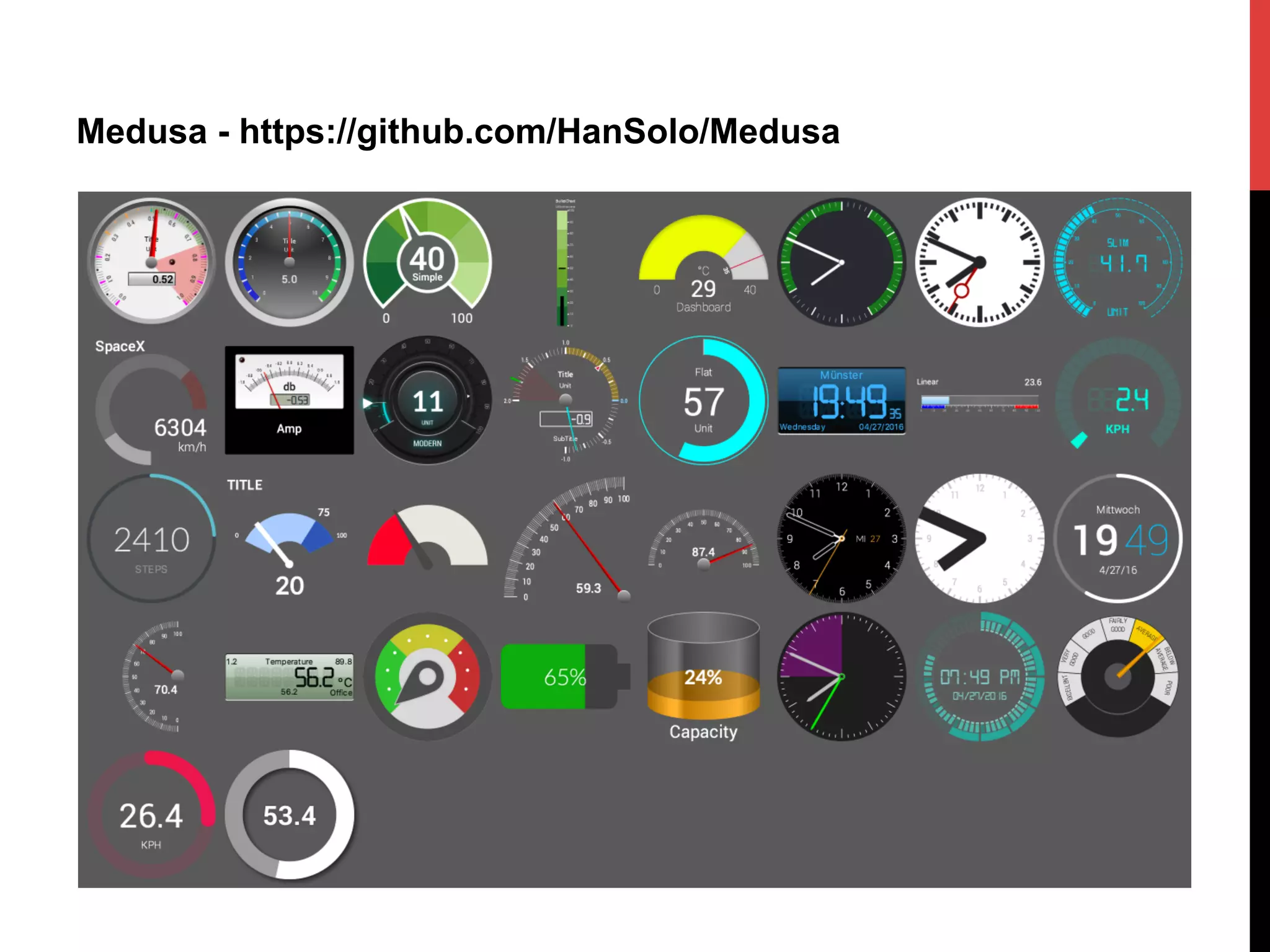

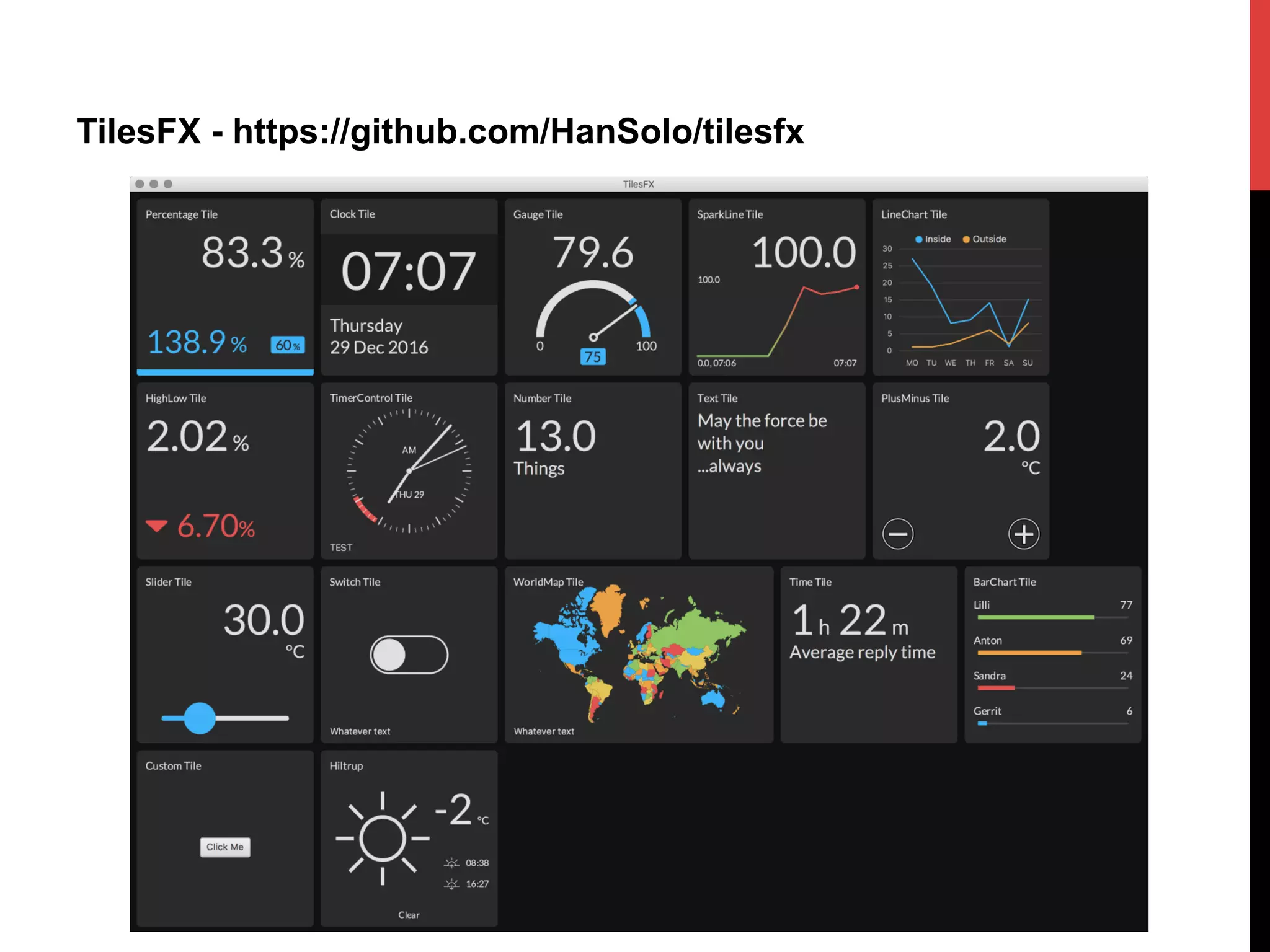

The document summarizes the JavaFX ecosystem, which includes many open source libraries, frameworks, and tools. It covers layout libraries like MigLayout, widgets like Medusa and TilesFX, rich text editors, charts, UI elements, testing tools like TestFX, frameworks like Afterburner.fx and TornadoFX, IDE plugins, and Groovy integration. The ecosystem is large and constantly evolving to provide many options for building desktop and mobile JavaFX applications.
More Related Content
Similar to vJUG - The JavaFX Ecosystem
![JavaFX 2.0 With Alternative Languages [Portuguese]](https://cdn.slidesharecdn.com/ss_thumbnails/javafx2-0-braziljugs-translated-111220145135-phpapp01-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
vJUG - The JavaFX Ecosystem
- 1.

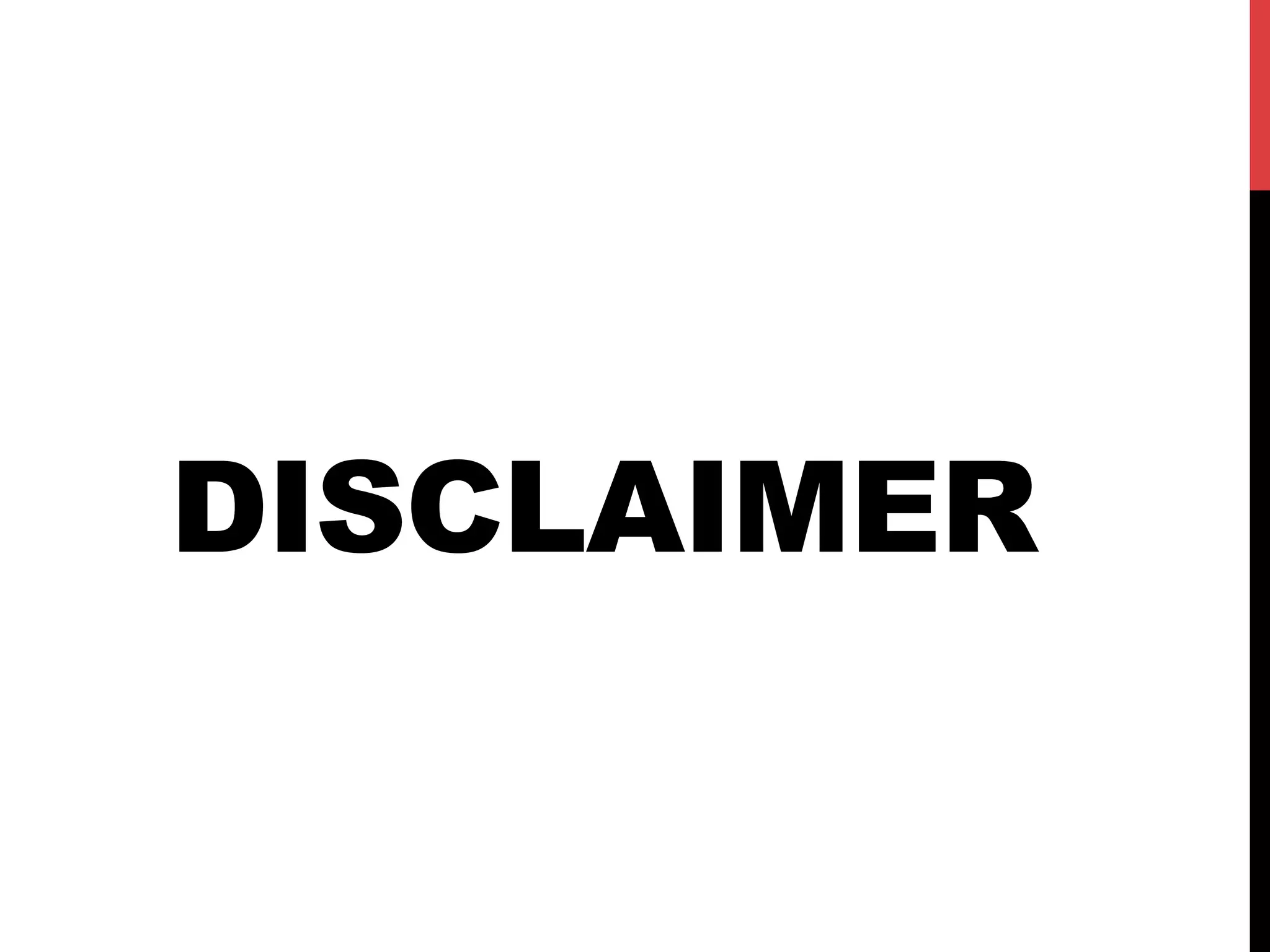

- 3.

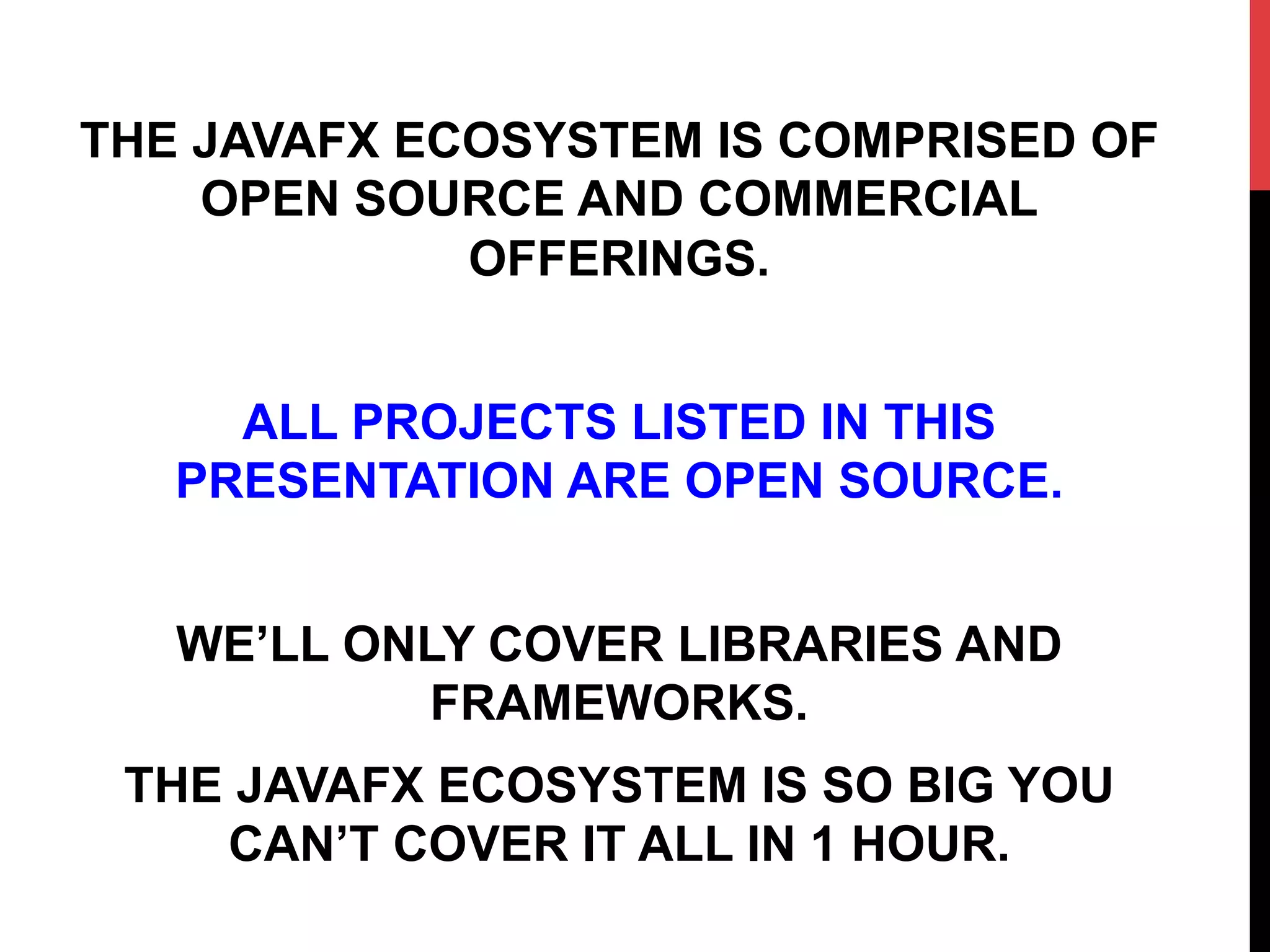

- 4. THE JAVAFX ECOSYSTEMIS COMPRISED OF OPEN SOURCE AND COMMERCIAL OFFERINGS. ALL PROJECTS LISTED IN THIS PRESENTATION ARE OPEN SOURCE. WE’LL ONLY COVER LIBRARIES AND FRAMEWORKS. THE JAVAFX ECOSYSTEM IS SO BIG YOU CAN’T COVER IT ALL IN 1 HOUR.
- 5.

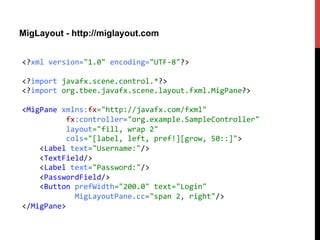

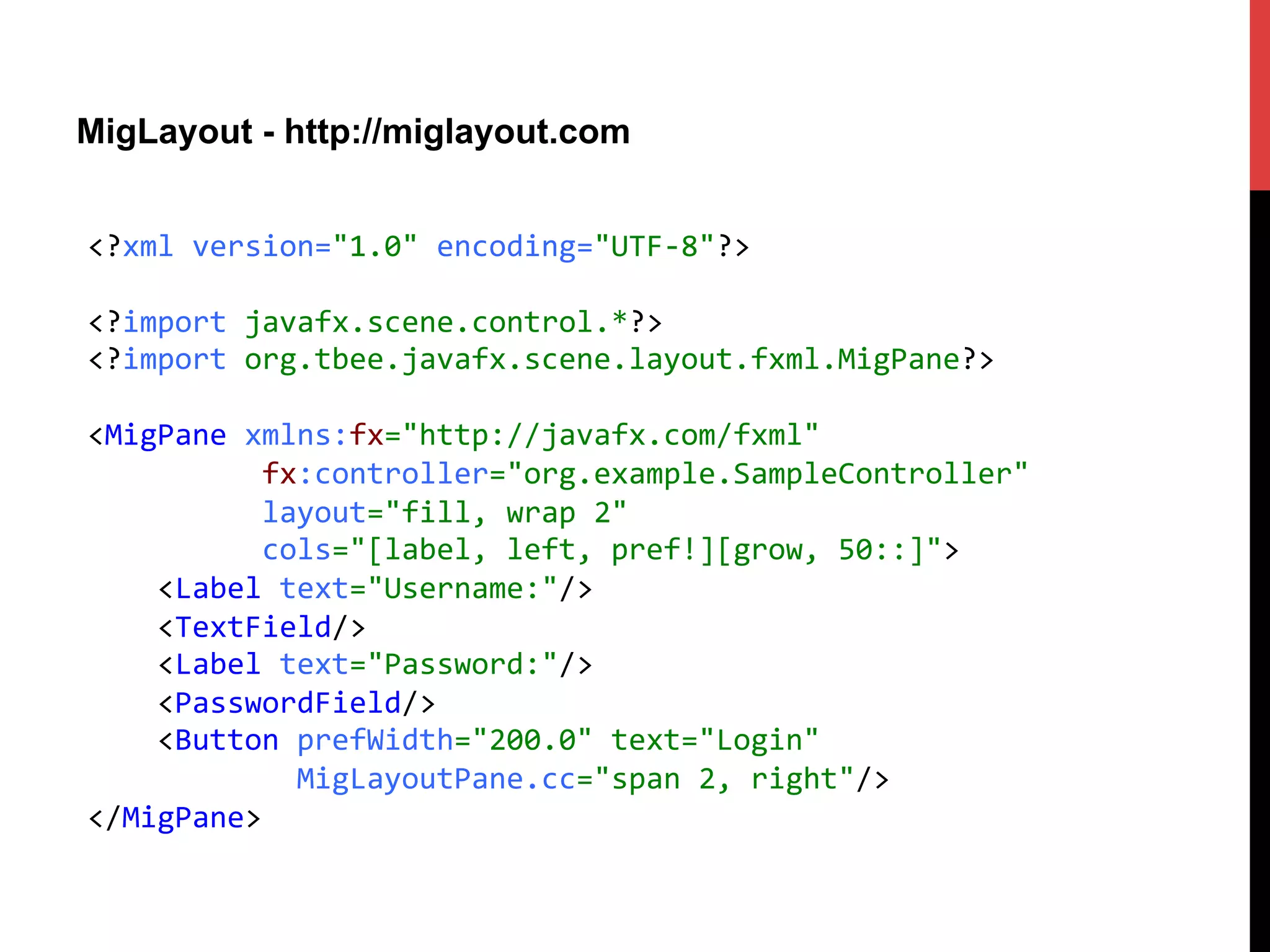

- 6. MigLayout - http://miglayout.com <?xml version="1.0" encoding="UTF-‐8"?> <?import javafx.scene.control.*?> <?import org.tbee.javafx.scene.layout.fxml.MigPane?> <MigPane xmlns:fx="http://javafx.com/fxml" fx:controller="org.example.SampleController" layout="fill, wrap 2" cols="[label, left, pref!][grow, 50::]"> <Label text="Username:"/> <TextField/> <Label text="Password:"/> <PasswordField/> <Button prefWidth="200.0" text="Login" MigLayoutPane.cc="span 2, right"/> </MigPane>
- 7.
- 8.
- 9.
- 10.

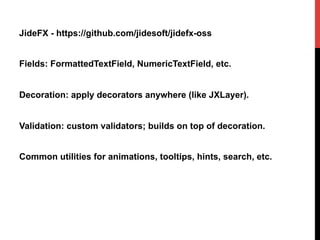

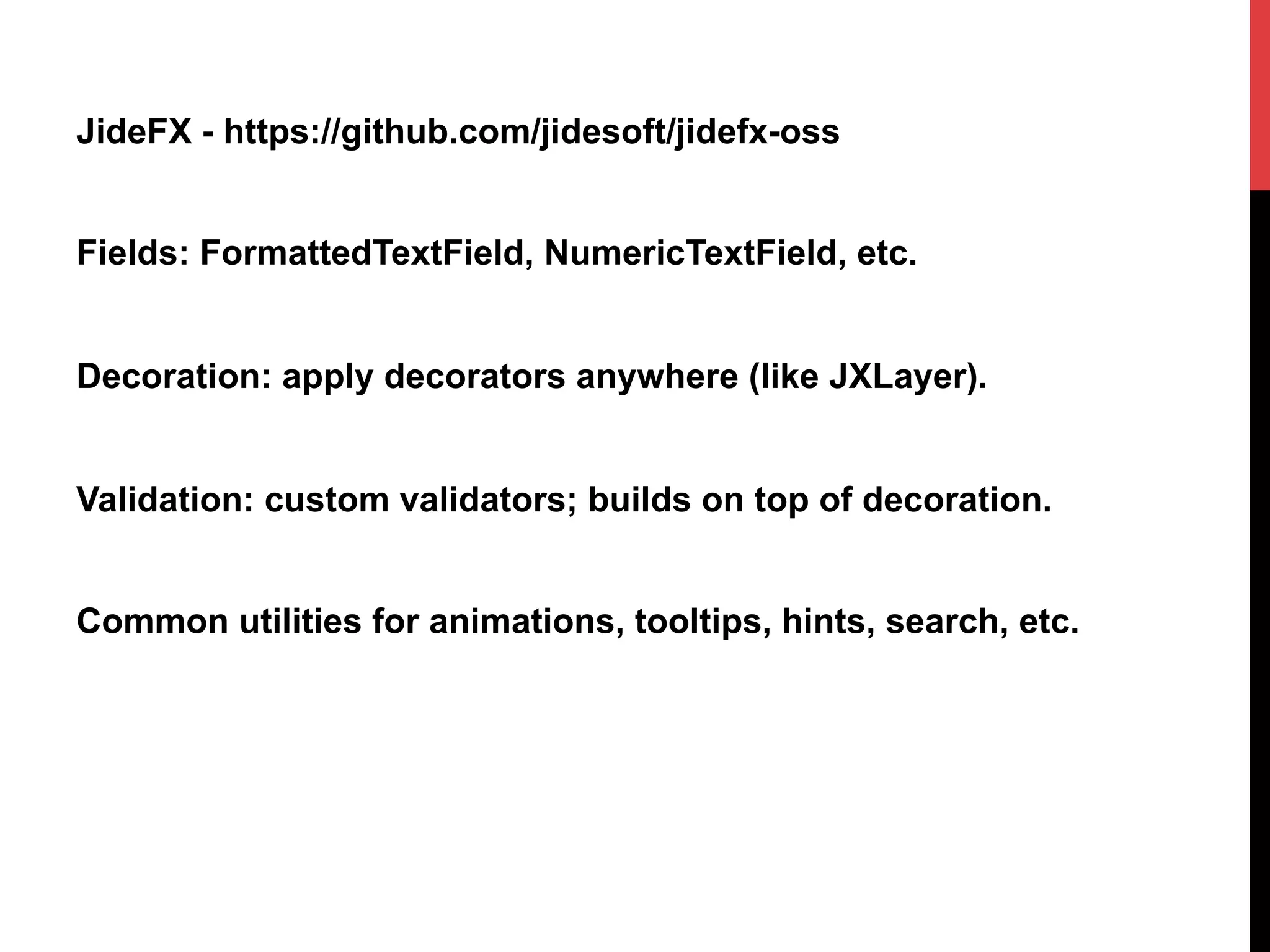

- 11. JideFX - https://github.com/jidesoft/jidefx-oss Fields:FormattedTextField, NumericTextField, etc. Decoration: apply decorators anywhere (like JXLayer). Validation: custom validators; builds on top of decoration. Common utilities for animations, tooltips, hints, search, etc.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.

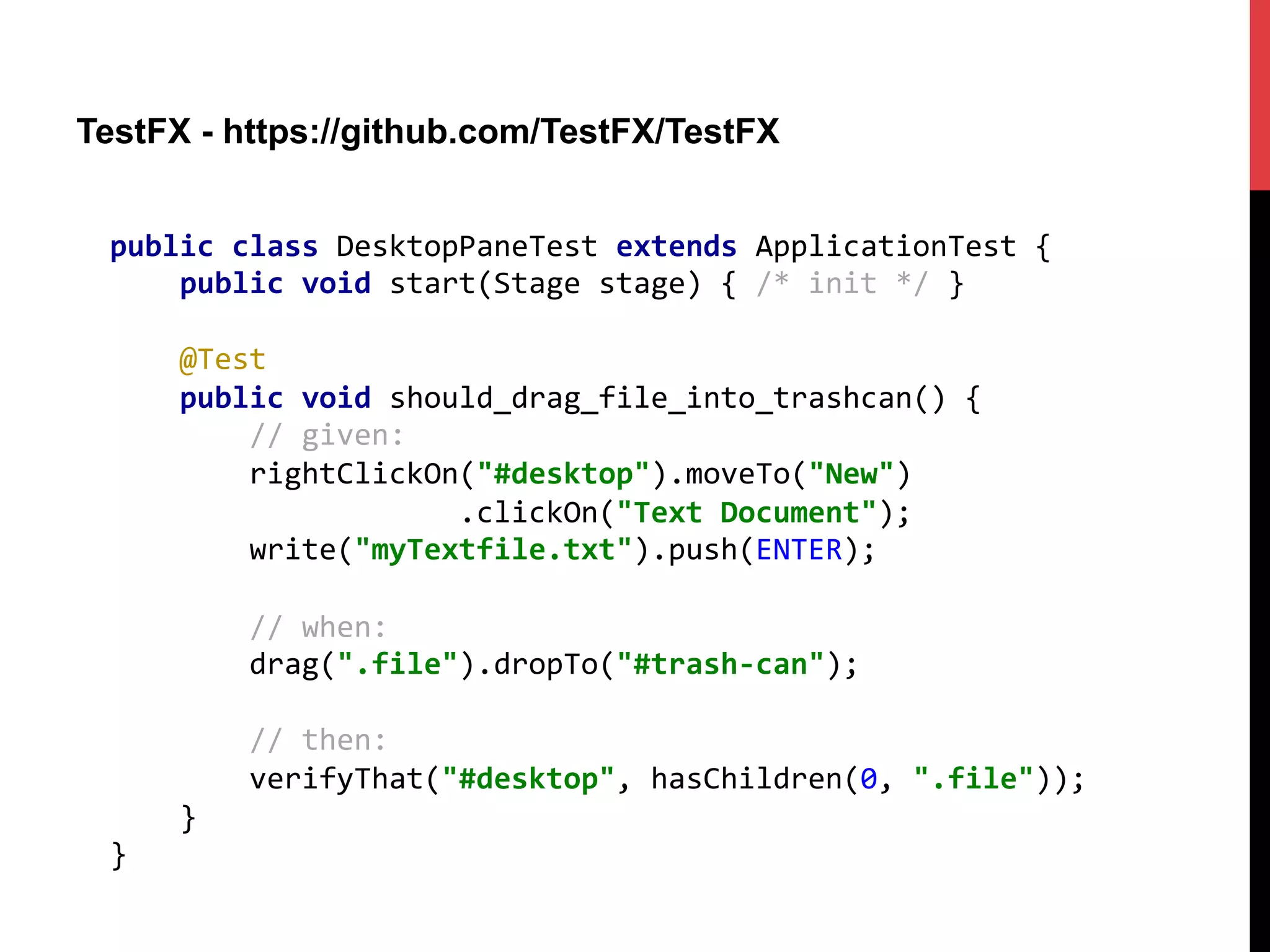

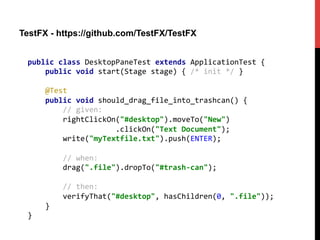

- 24. TestFX - https://github.com/TestFX/TestFX public class DesktopPaneTest extends ApplicationTest { public void start(Stage stage) { /* init */ } @Test public void should_drag_file_into_trashcan() { // given: rightClickOn("#desktop").moveTo("New") .clickOn("Text Document"); write("myTextfile.txt").push(ENTER); // when: drag(".file").dropTo("#trash-‐can"); // then: verifyThat("#desktop", hasChildren(0, ".file")); } }

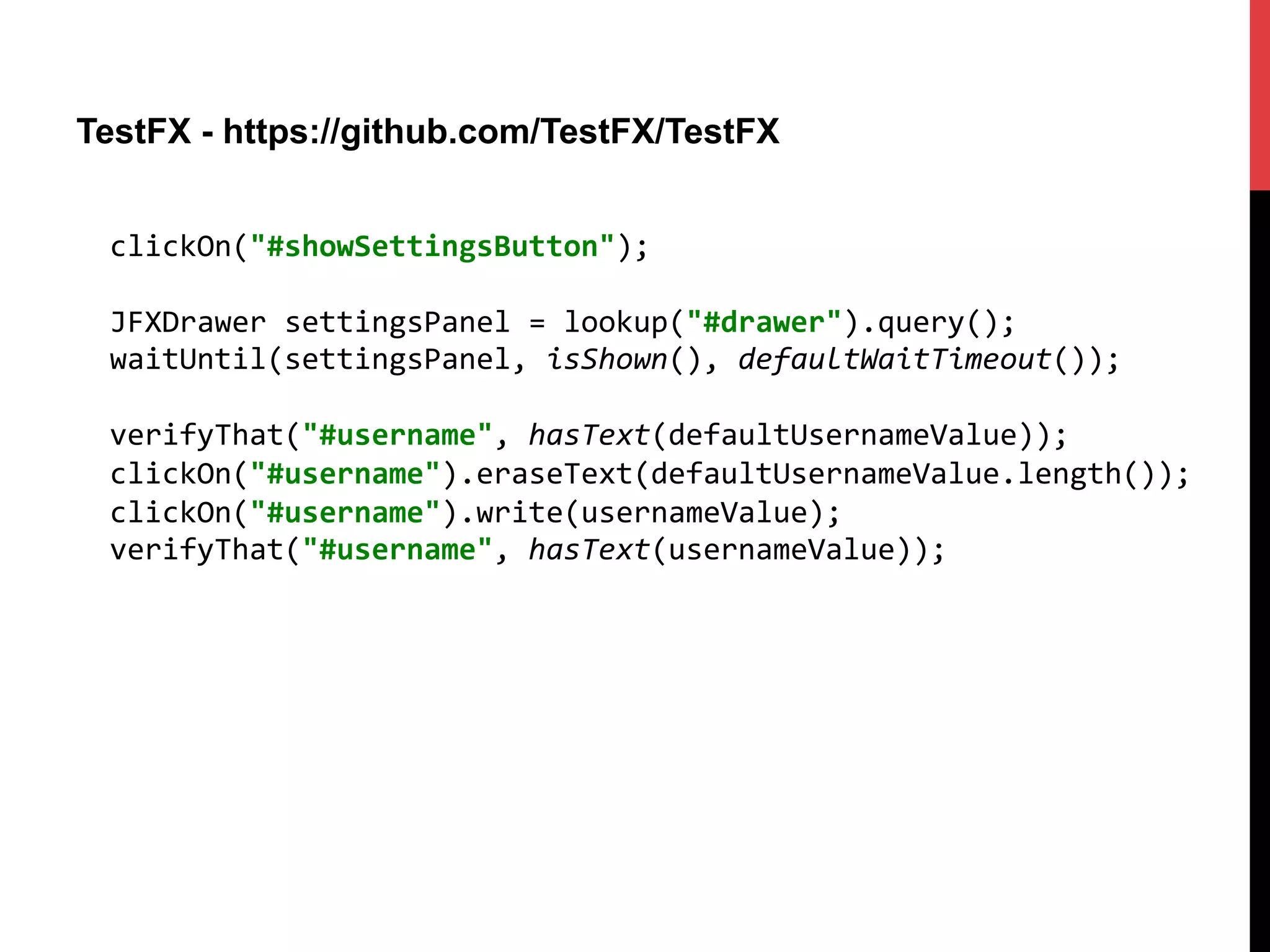

- 25. TestFX - https://github.com/TestFX/TestFX clickOn("#showSettingsButton"); JFXDrawer settingsPanel = lookup("#drawer").query(); waitUntil(settingsPanel, isShown(), defaultWaitTimeout()); verifyThat("#username", hasText(defaultUsernameValue)); clickOn("#username").eraseText(defaultUsernameValue.length()); clickOn("#username").write(usernameValue); verifyThat("#username", hasText(usernameValue));

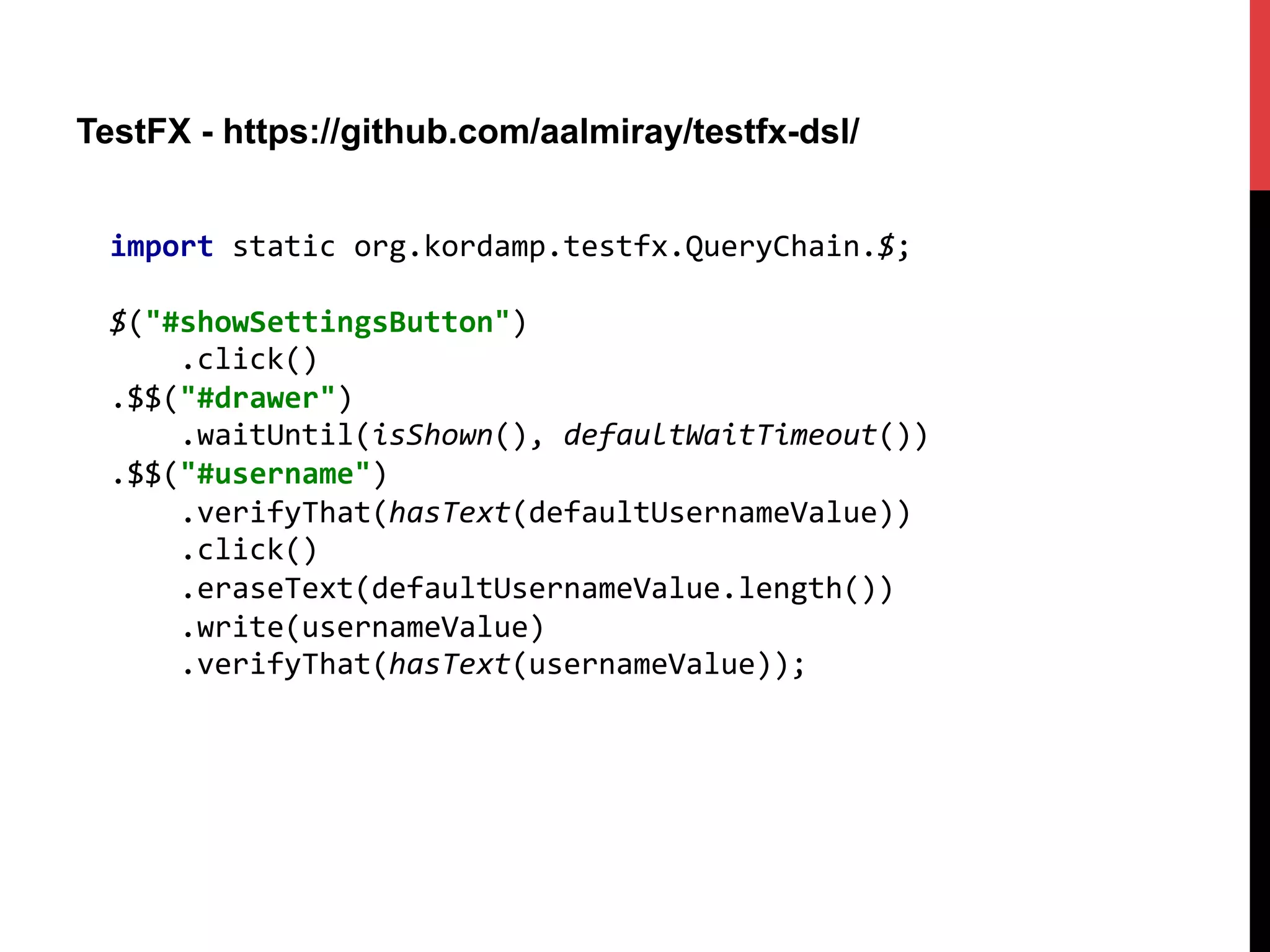

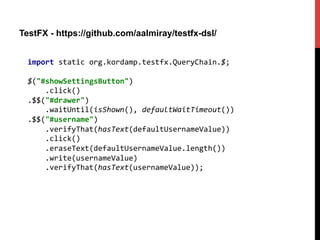

- 26. TestFX - https://github.com/aalmiray/testfx-dsl/ import static org.kordamp.testfx.QueryChain.$; $("#showSettingsButton") .click() .$$("#drawer") .waitUntil(isShown(), defaultWaitTimeout()) .$$("#username") .verifyThat(hasText(defaultUsernameValue)) .click() .eraseText(defaultUsernameValue.length()) .write(usernameValue) .verifyThat(hasText(usernameValue));
- 27.

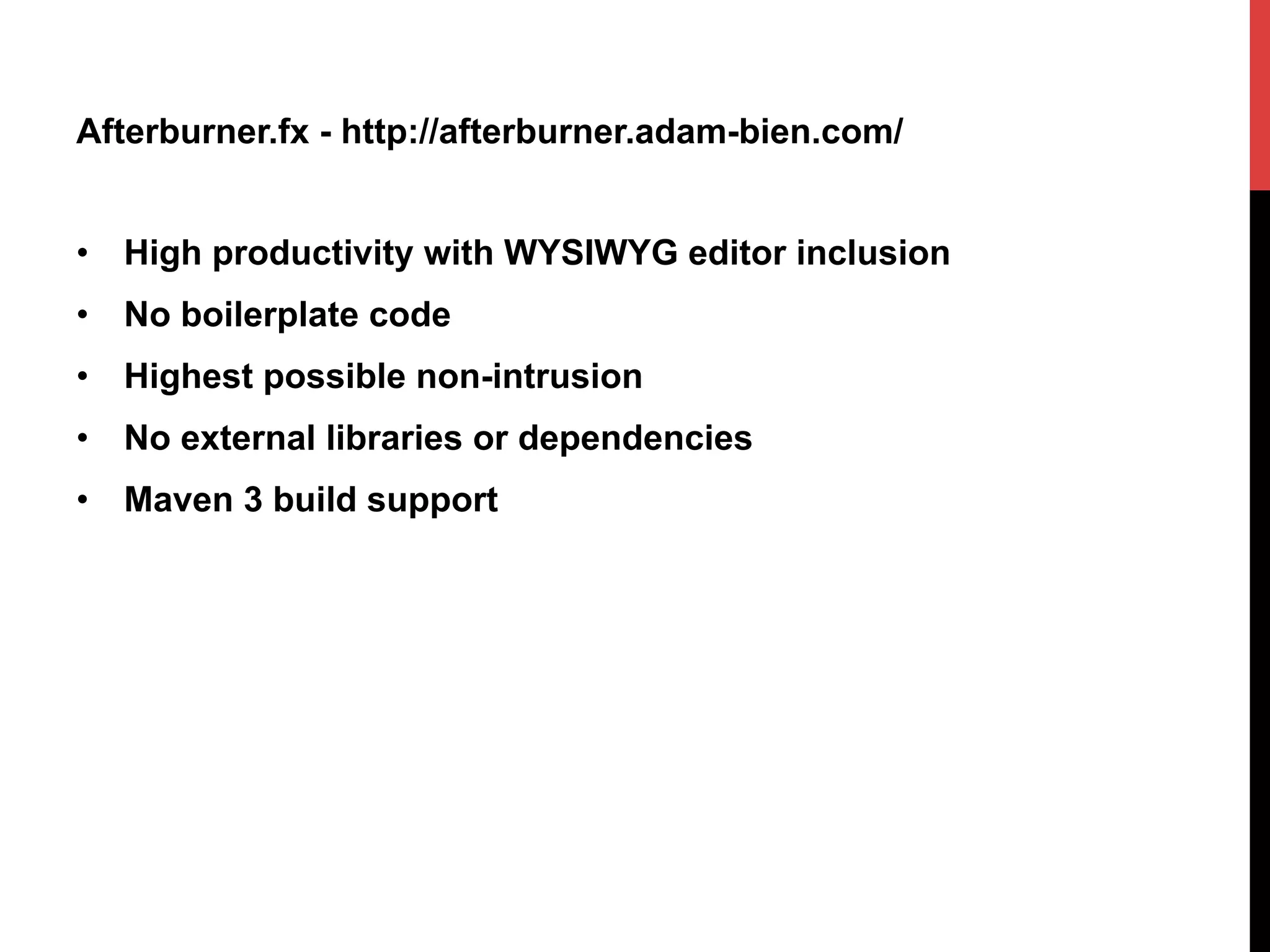

- 28. Afterburner.fx - http://afterburner.adam-bien.com/ • High productivity with WYSIWYG editor inclusion • No boilerplate code • Highest possible non-intrusion • No external libraries or dependencies • Maven 3 build support

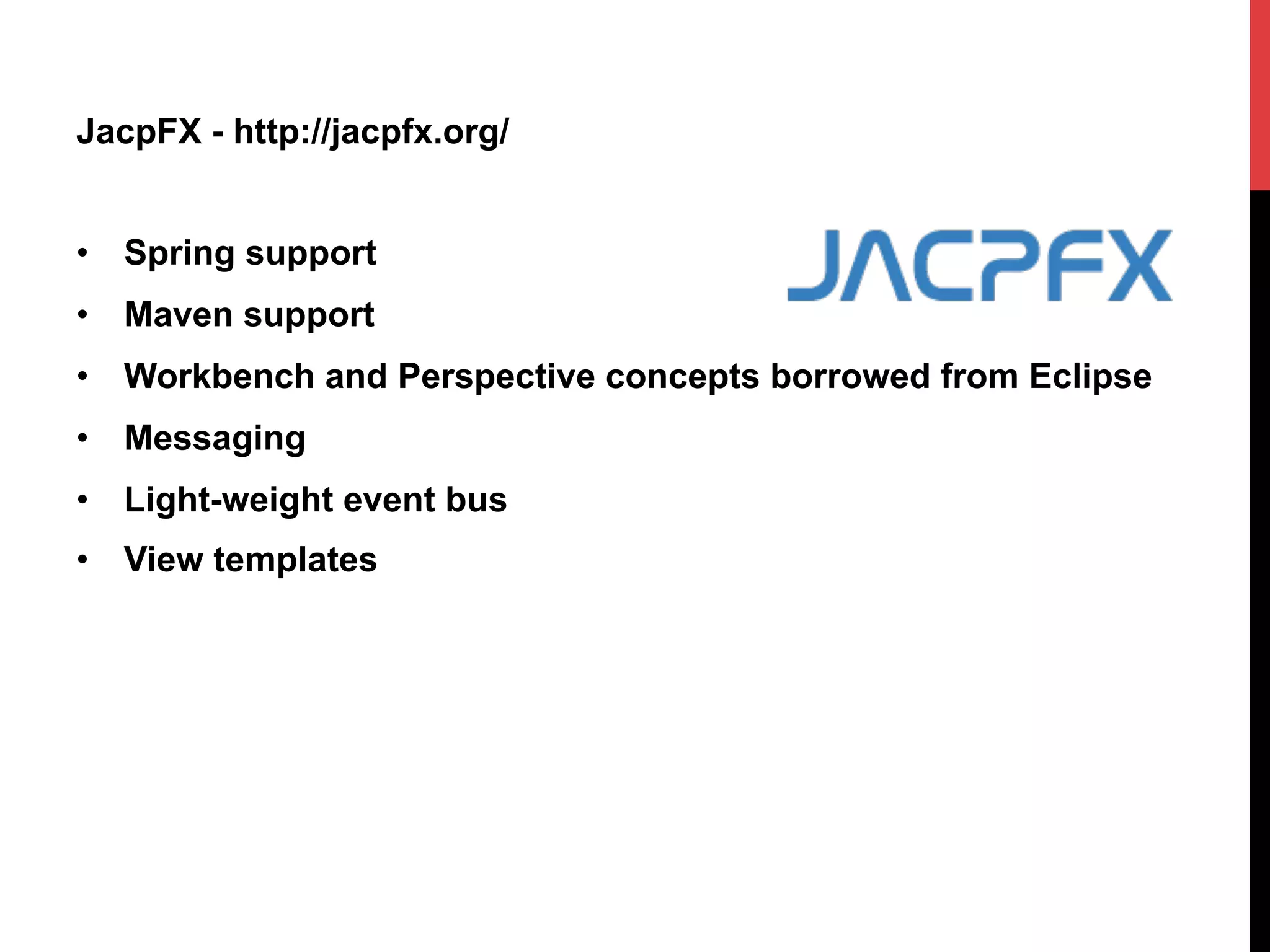

- 29. JacpFX - http://jacpfx.org/ • Spring support • Maven support • Workbench and Perspective concepts borrowed from Eclipse • Messaging • Light-weight event bus • View templates

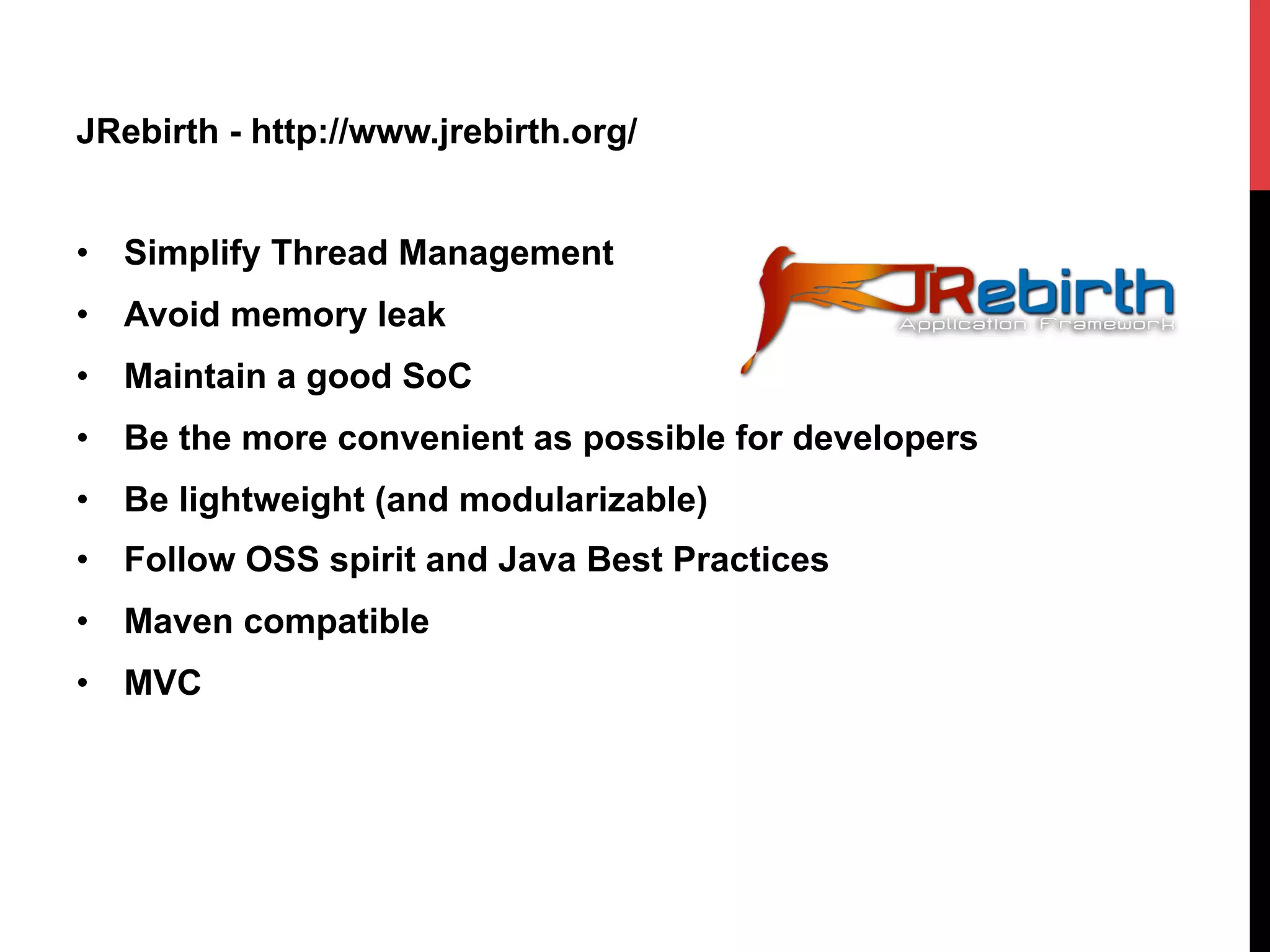

- 30. JRebirth - http://www.jrebirth.org/ • Simplify Thread Management • Avoid memory leak • Maintain a good SoC • Be the more convenient as possible for developers • Be lightweight (and modularizable) • Follow OSS spirit and Java Best Practices • Maven compatible • MVC

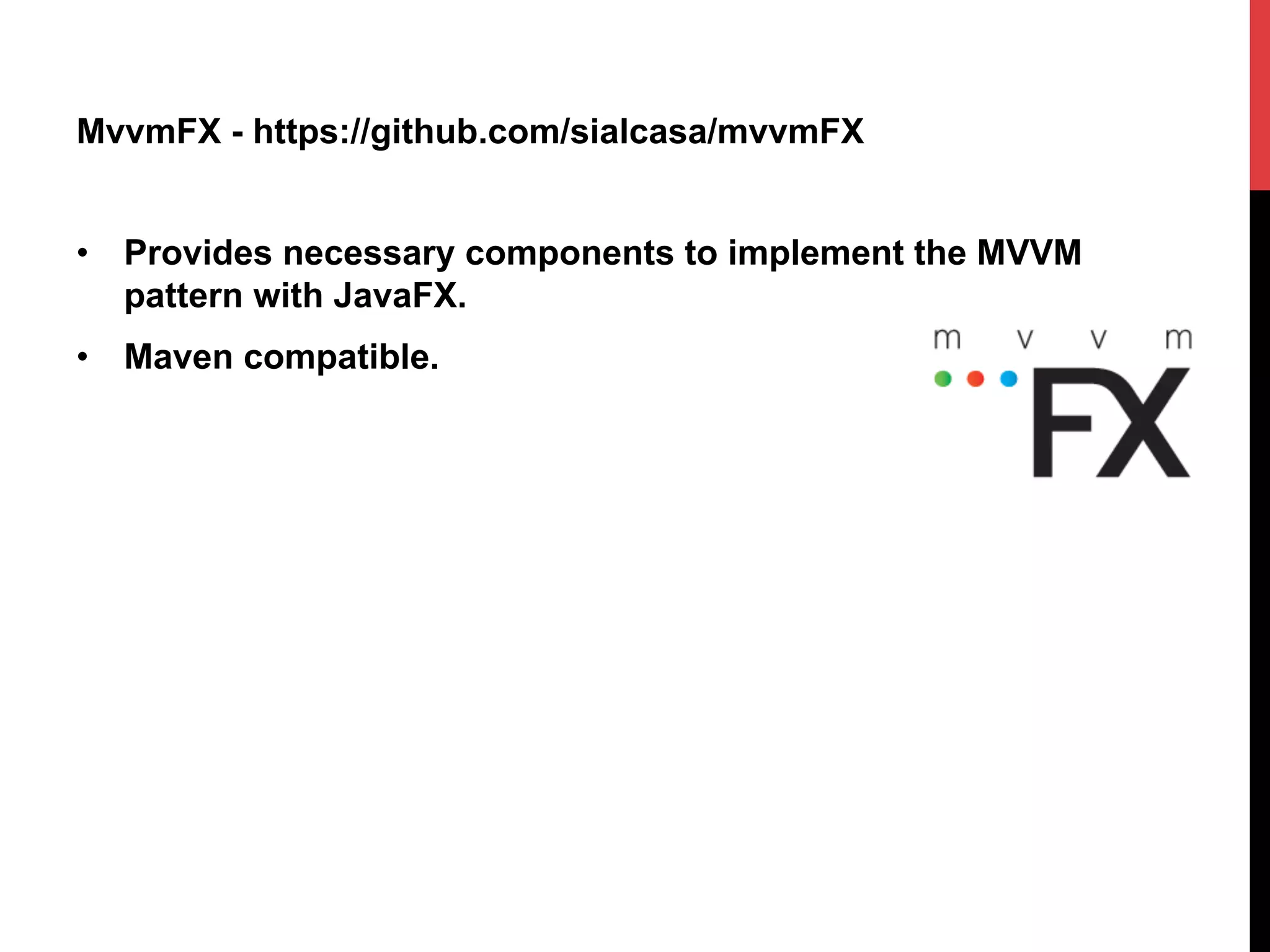

- 31. MvvmFX - https://github.com/sialcasa/mvvmFX • Provides necessary components to implement the MVVM pattern with JavaFX. • Maven compatible.

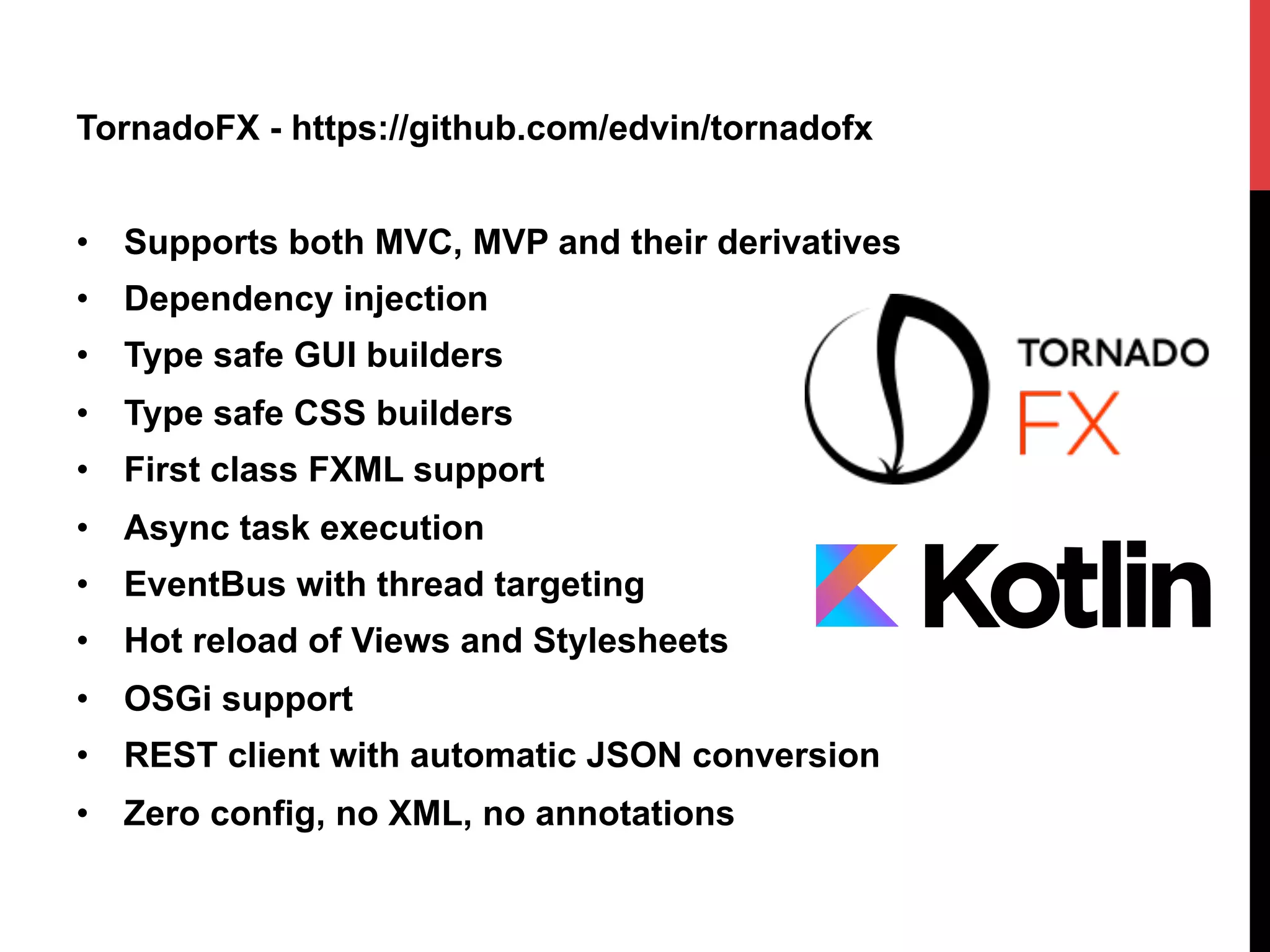

- 32. TornadoFX - https://github.com/edvin/tornadofx • Supports both MVC, MVP and their derivatives • Dependency injection • Type safe GUI builders • Type safe CSS builders • First class FXML support • Async task execution • EventBus with thread targeting • Hot reload of Views and Stylesheets • OSGi support • REST client with automatic JSON conversion • Zero config, no XML, no annotations

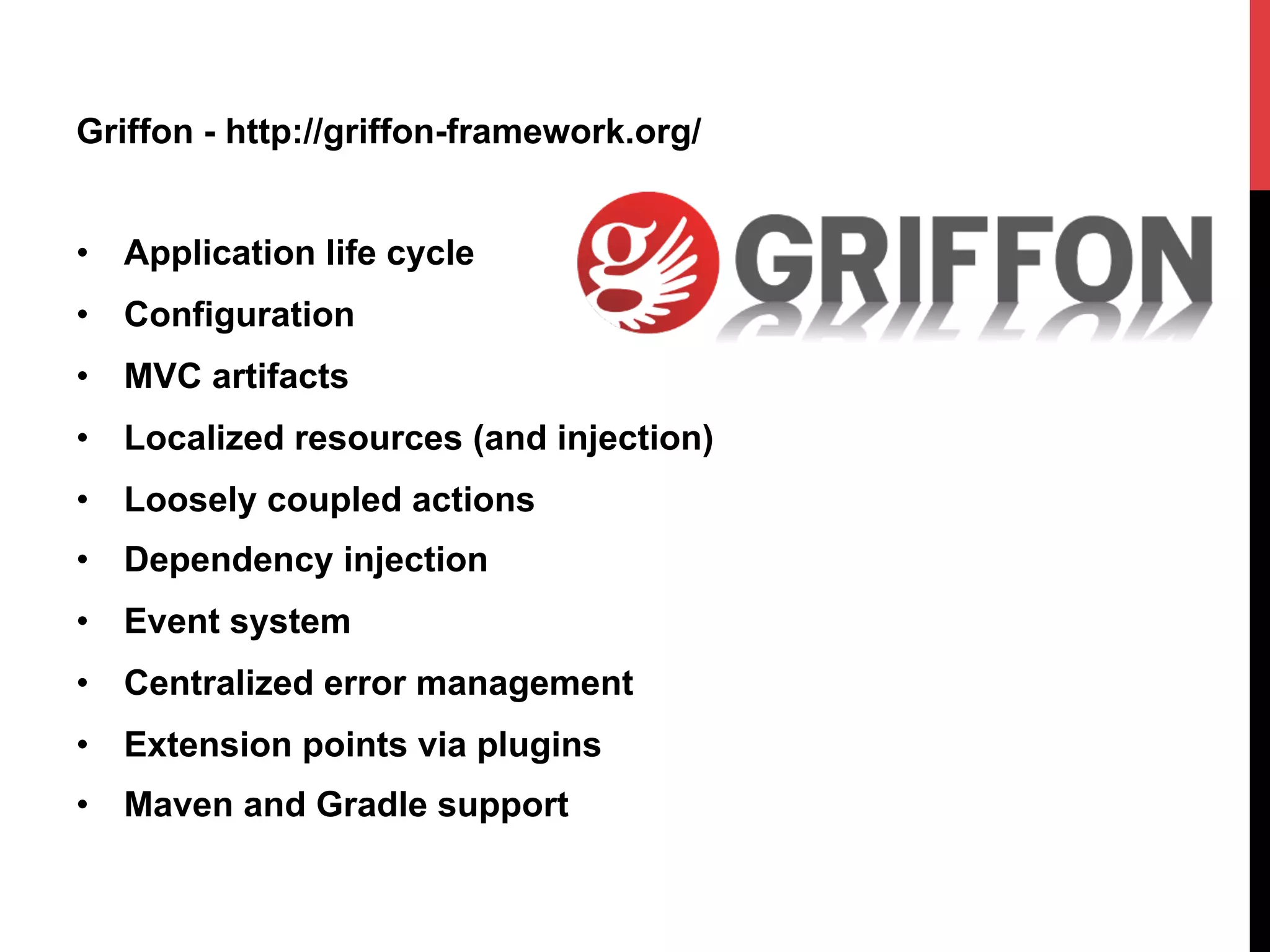

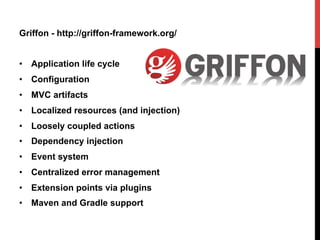

- 33. Griffon - http://griffon-framework.org/ • Application life cycle • Configuration • MVC artifacts • Localized resources (and injection) • Loosely coupled actions • Dependency injection • Event system • Centralized error management • Extension points via plugins • Maven and Gradle support

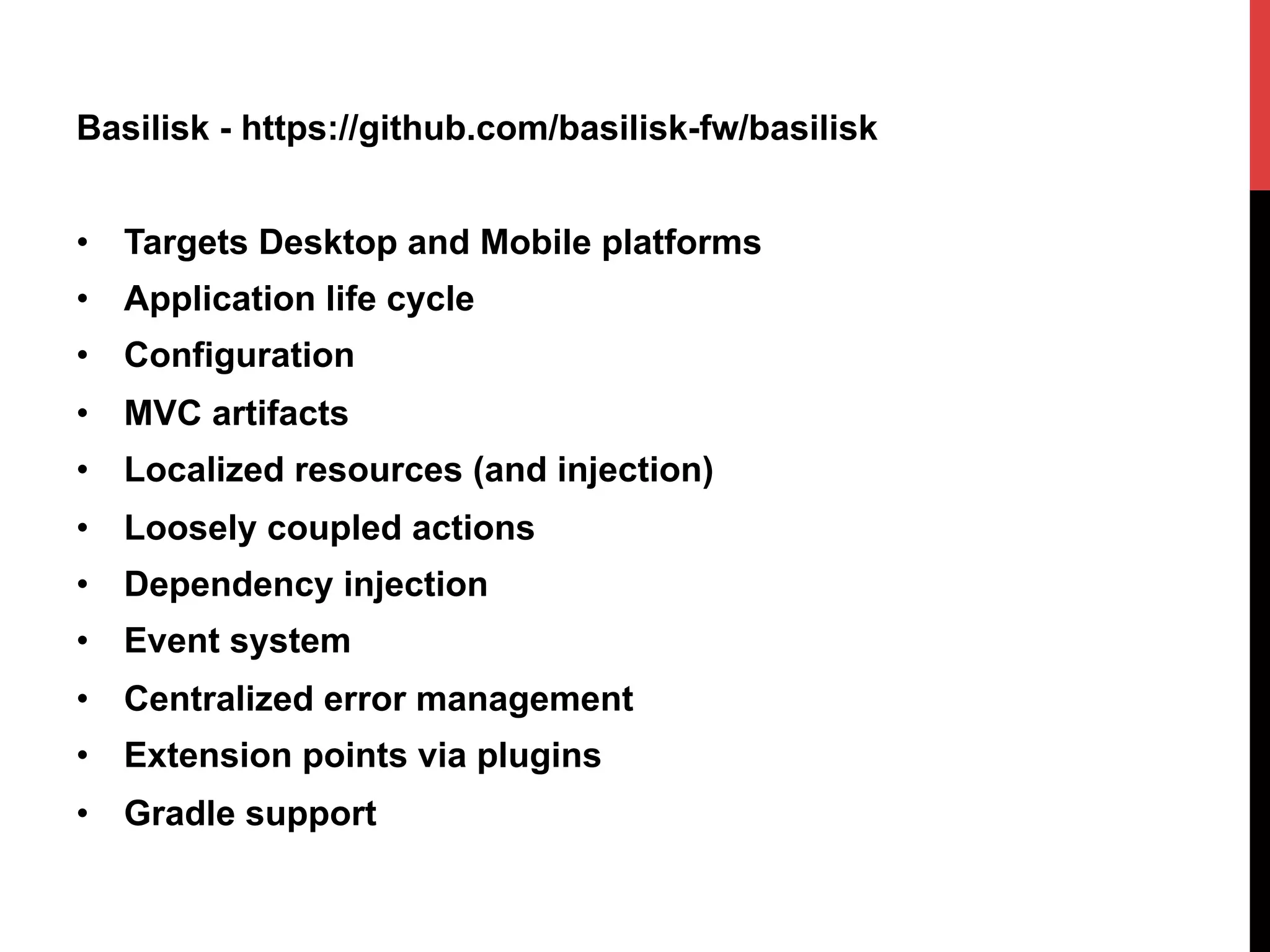

- 34. Basilisk - https://github.com/basilisk-fw/basilisk • Targets Desktop and Mobile platforms • Application life cycle • Configuration • MVC artifacts • Localized resources (and injection) • Loosely coupled actions • Dependency injection • Event system • Centralized error management • Extension points via plugins • Gradle support

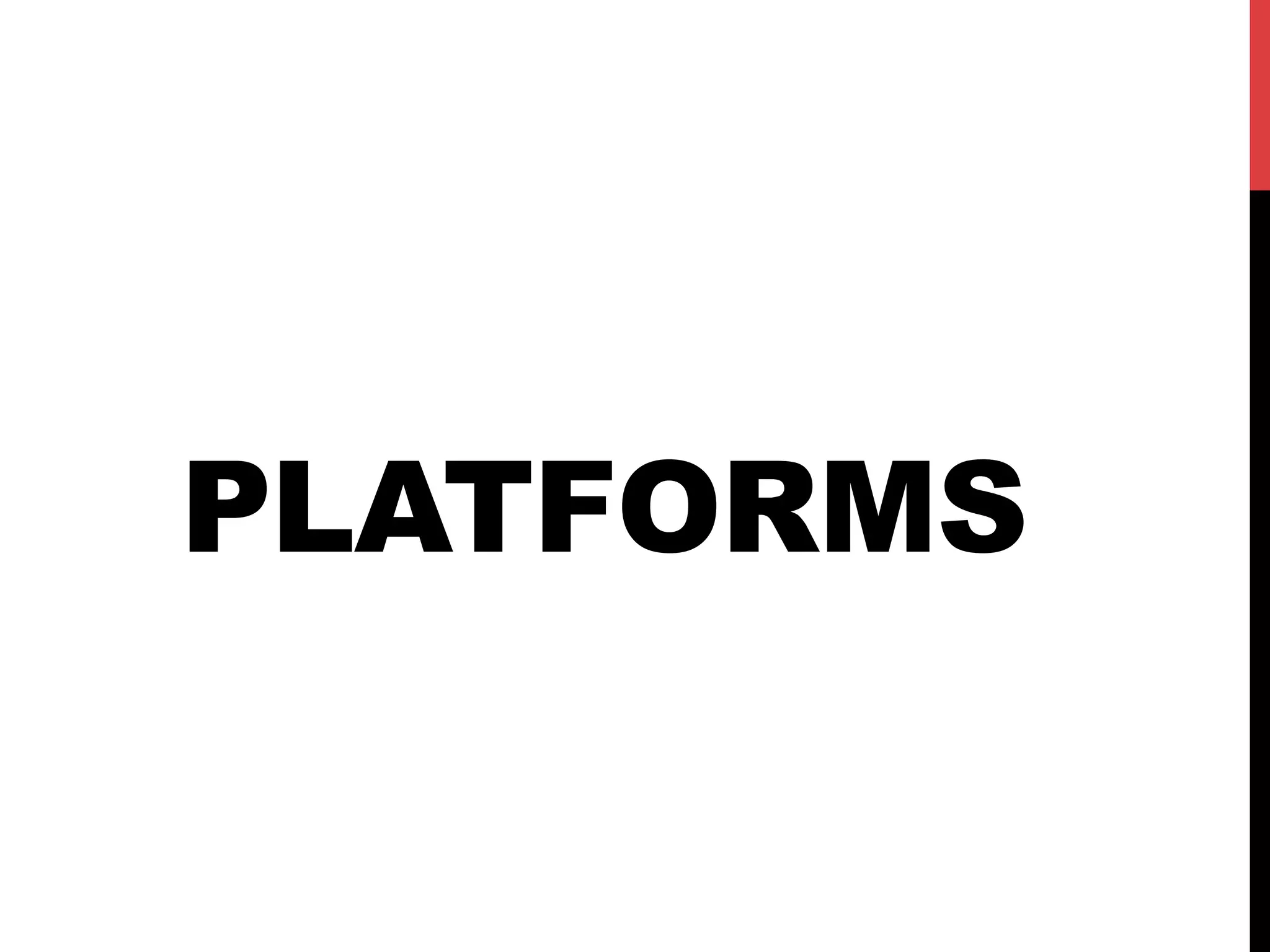

- 35.

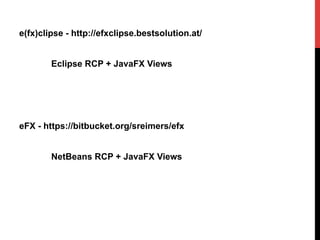

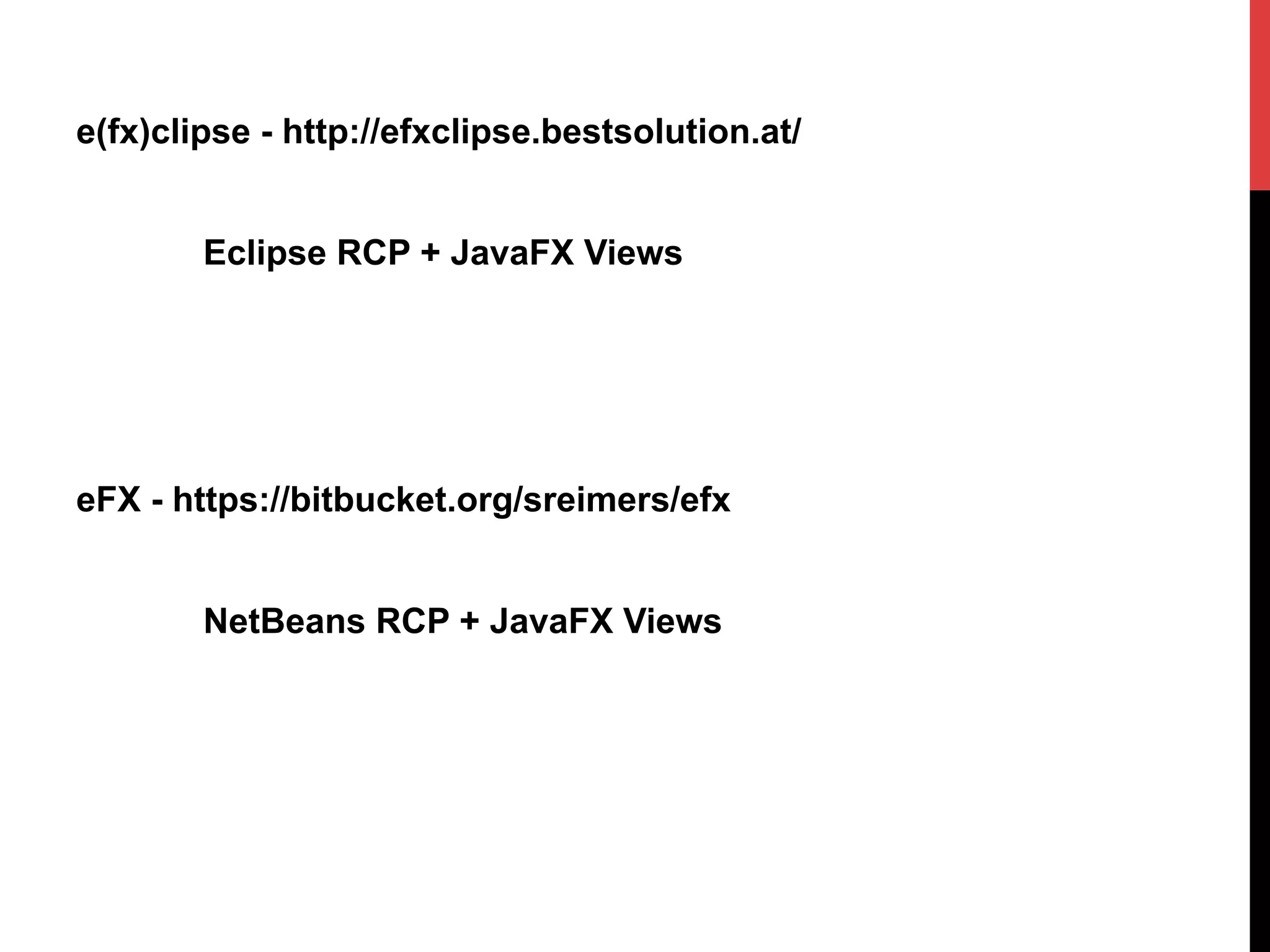

- 36. e(fx)clipse - http://efxclipse.bestsolution.at/ EclipseRCP + JavaFX Views eFX - https://bitbucket.org/sreimers/efx NetBeans RCP + JavaFX Views
- 37.
- 38.
- 39.

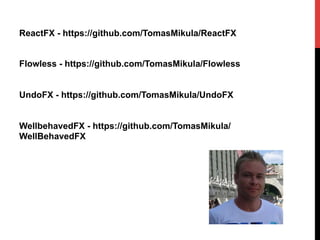

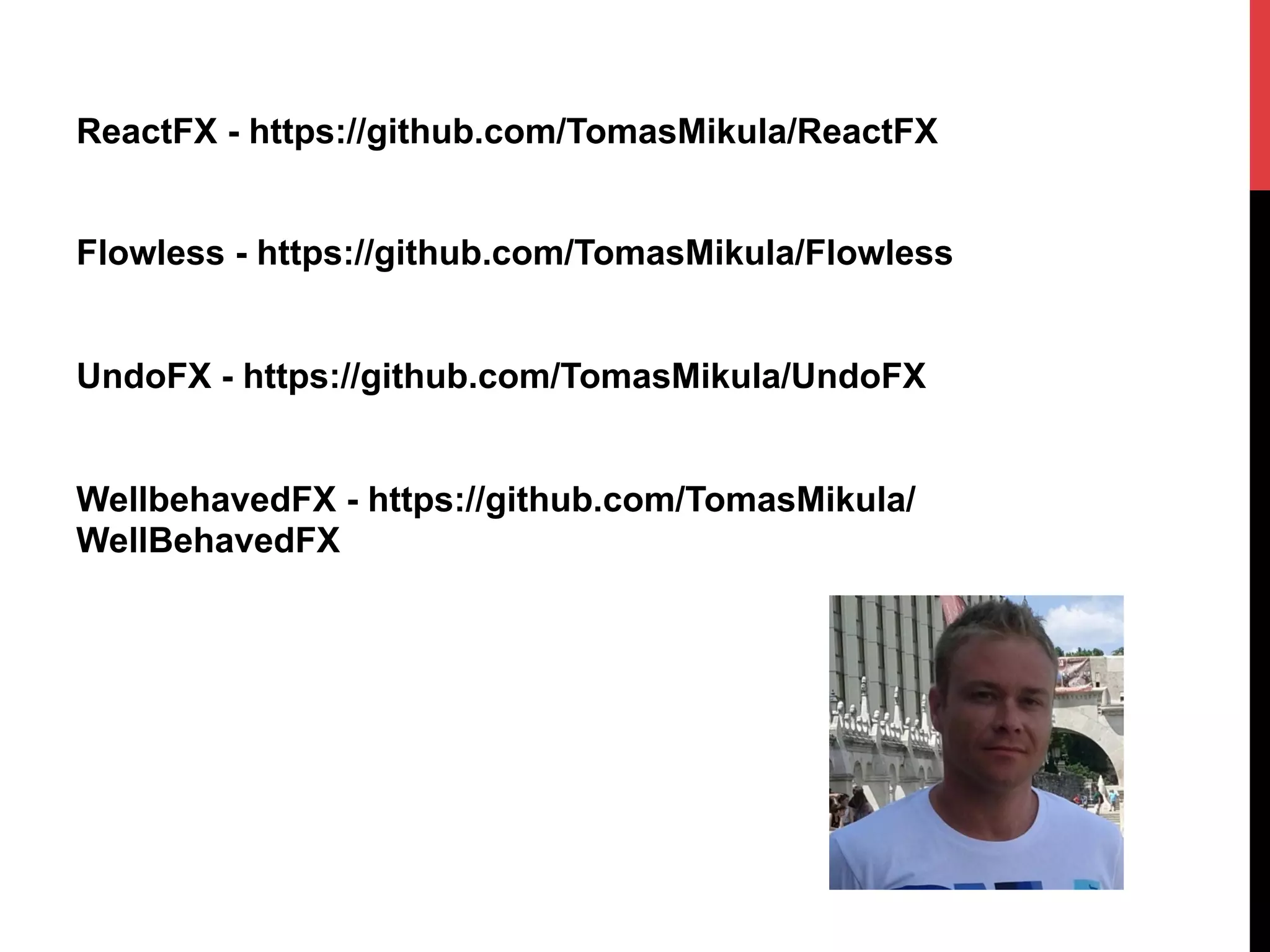

- 40. ReactFX - https://github.com/TomasMikula/ReactFX Flowless- https://github.com/TomasMikula/Flowless UndoFX - https://github.com/TomasMikula/UndoFX WellbehavedFX - https://github.com/TomasMikula/ WellBehavedFX

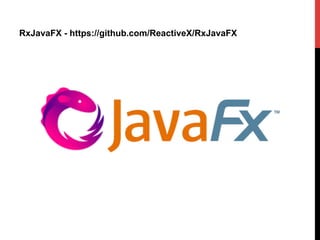

- 41.
- 42.

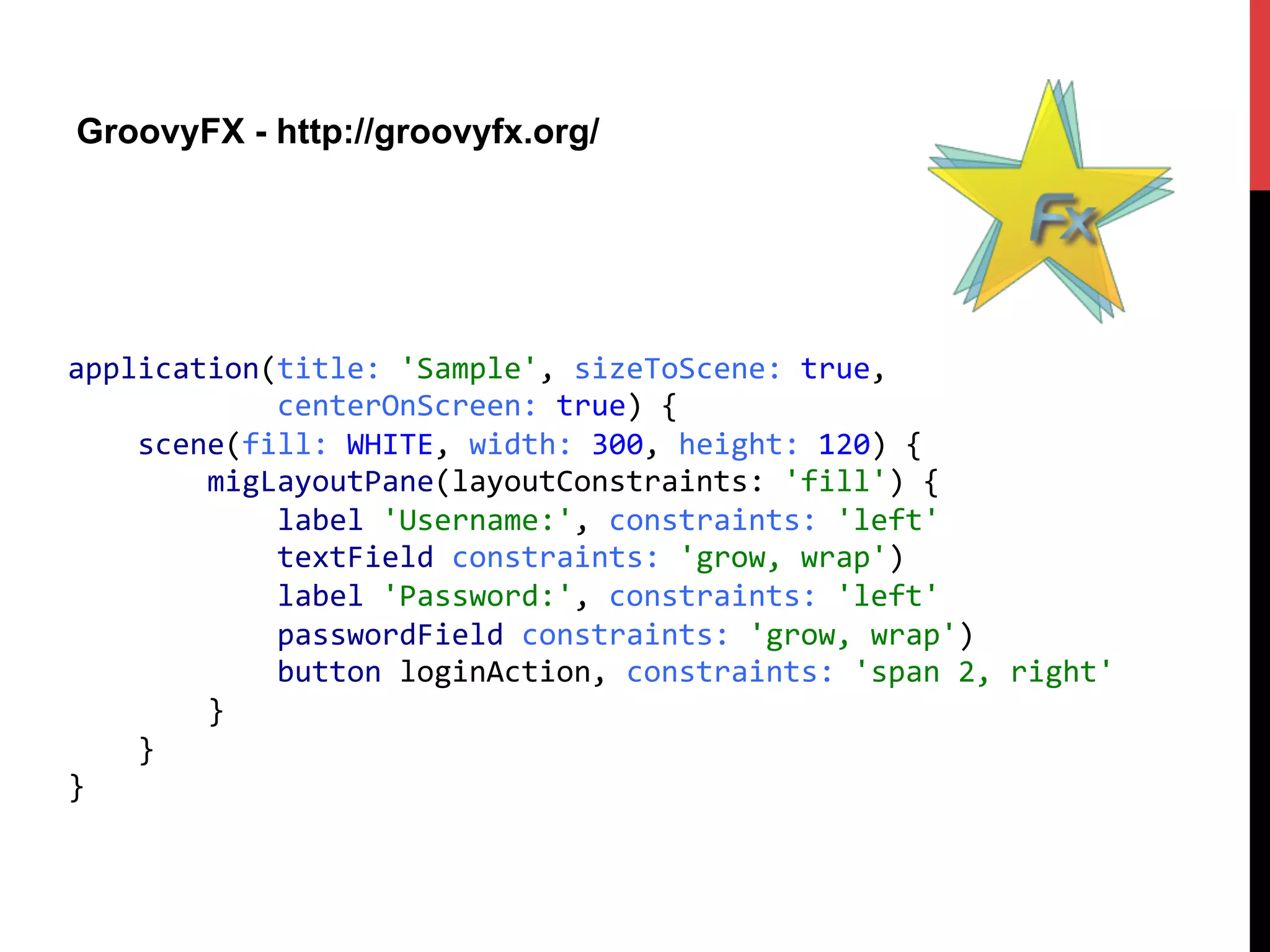

- 43. GroovyFX - http://groovyfx.org/ application(title: 'Sample', sizeToScene: true, centerOnScreen: true) { scene(fill: WHITE, width: 300, height: 120) { migLayoutPane(layoutConstraints: 'fill') { label 'Username:', constraints: 'left' textField constraints: 'grow, wrap') label 'Password:', constraints: 'left' passwordField constraints: 'grow, wrap') button loginAction, constraints: 'span 2, right' } } }
- 44.
- 47.
