Kafka Tutorial - DevOps, Admin and Ops

™
Kafka / Cassandra Support in EC2/AWS. Kafka Training, Kafka Consulting, Kafka
Tutorial
Cassandra and Kafka Support on AWS/EC2
Kafka Admin/Ops Support around Cassandra
and Kafka running in EC2

™
Tutorial

™
Tutorial

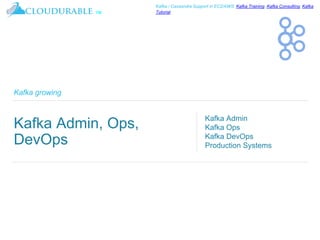

Kafka growing
Kafka Admin, Ops,
DevOps
Kafka Admin
Kafka Ops
Kafka DevOps
Production Systems

™
Tutorial

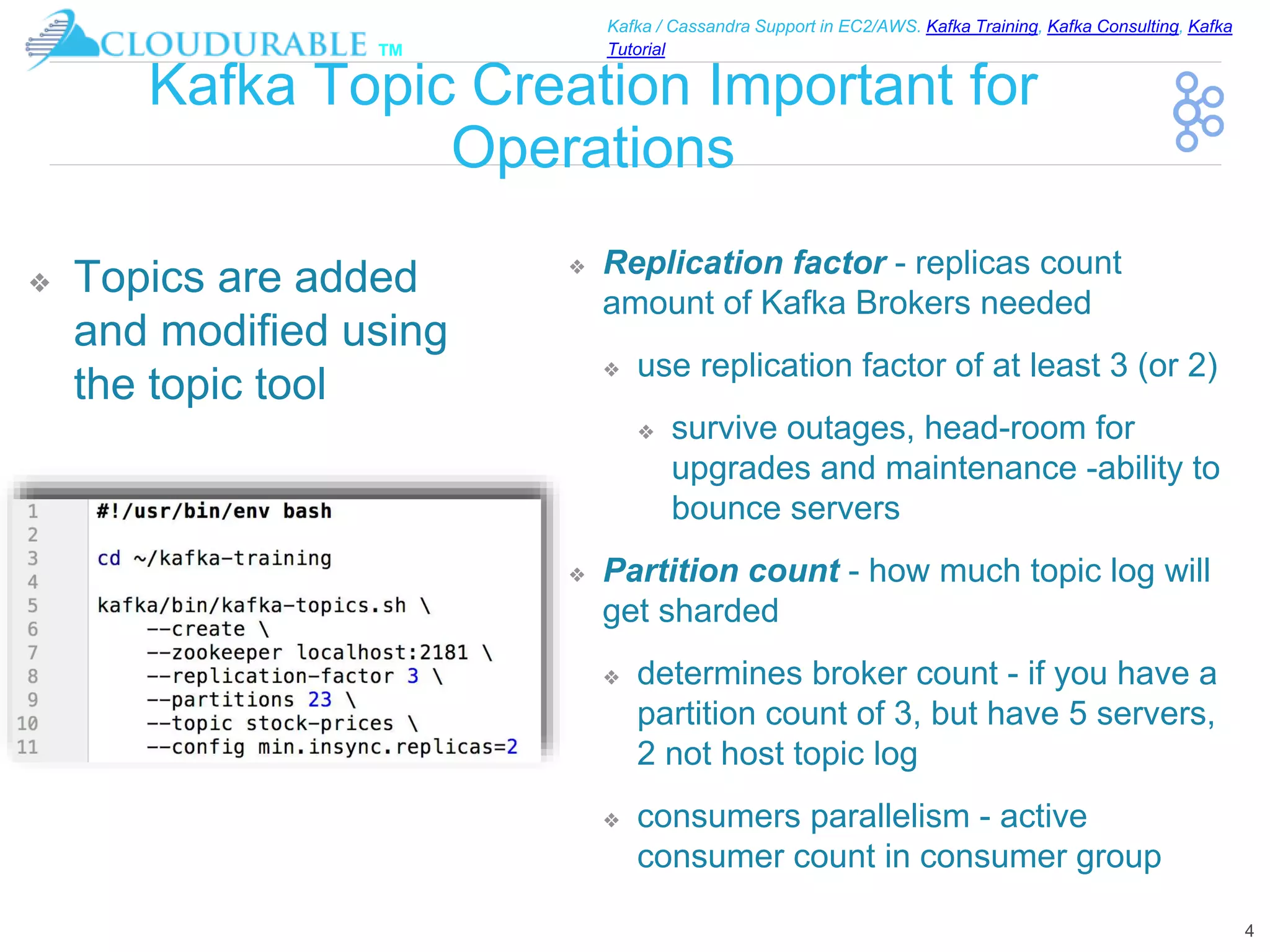

Kafka Topic Creation Important for
Operations
❖ Replication factor - replicas count
amount of Kafka Brokers needed
❖ use replication factor of at least 3 (or 2)
❖ survive outages, head-room for
upgrades and maintenance -ability to
bounce servers
❖ Partition count - how much topic log will
get sharded
❖ determines broker count - if you have a
partition count of 3, but have 5 servers,
2 not host topic log
❖ consumers parallelism - active
consumer count in consumer group
4
❖ Topics are added
and modified using
the topic tool

™
Tutorial

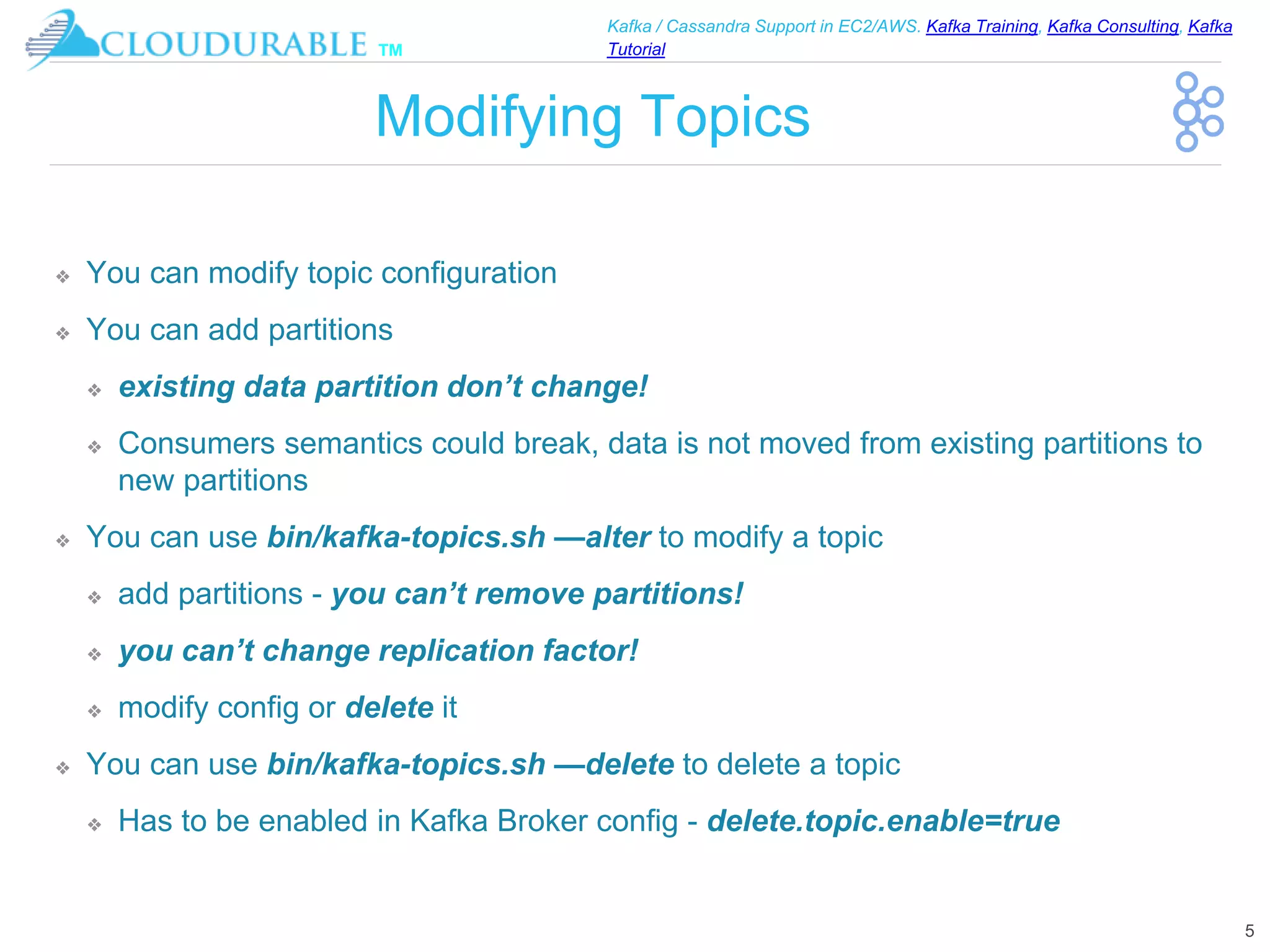

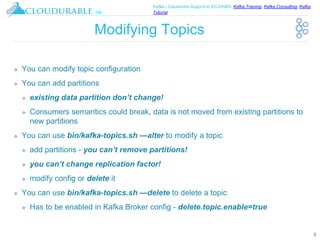

Modifying Topics
❖ You can modify topic configuration
❖ You can add partitions
❖ existing data partition don’t change!
❖ Consumers semantics could break, data is not moved from existing partitions to
new partitions
❖ You can use bin/kafka-topics.sh —alter to modify a topic
❖ add partitions - you can’t remove partitions!
❖ you can’t change replication factor!
❖ modify config or delete it
❖ You can use bin/kafka-topics.sh —delete to delete a topic
❖ Has to be enabled in Kafka Broker config - delete.topic.enable=true
5

™
Tutorial

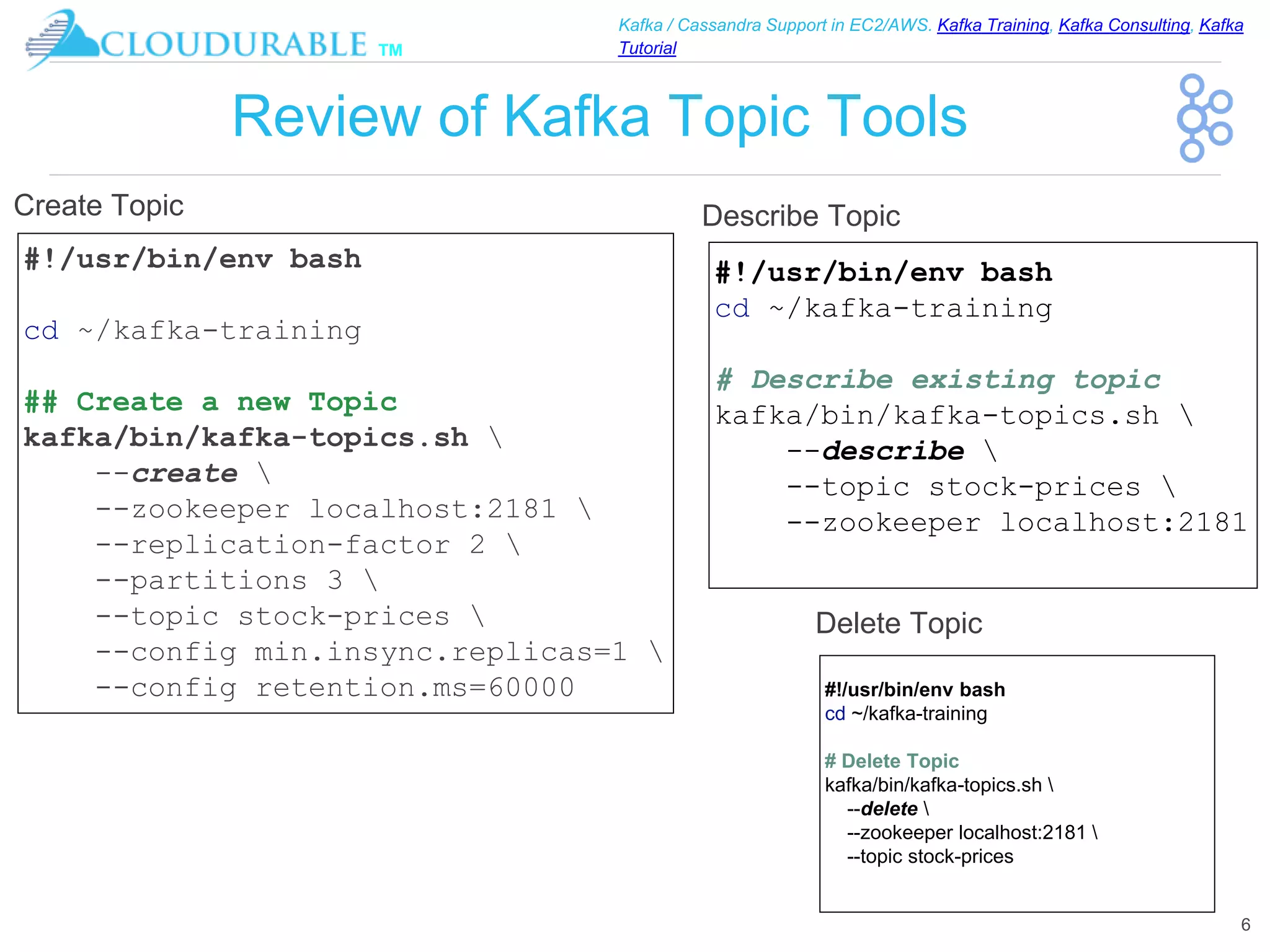

Review of Kafka Topic Tools
6
#!/usr/bin/env bash
cd ~/kafka-training
## Create a new Topic
kafka/bin/kafka-topics.sh
--create
--zookeeper localhost:2181
--replication-factor 2
--partitions 3
--topic stock-prices
--config min.insync.replicas=1
--config retention.ms=60000
Create Topic
#!/usr/bin/env bash
cd ~/kafka-training
# Describe existing topic
--describe
Describe Topic
#!/usr/bin/env bash
cd ~/kafka-training
# Delete Topic
--delete
Delete Topic

™
Tutorial

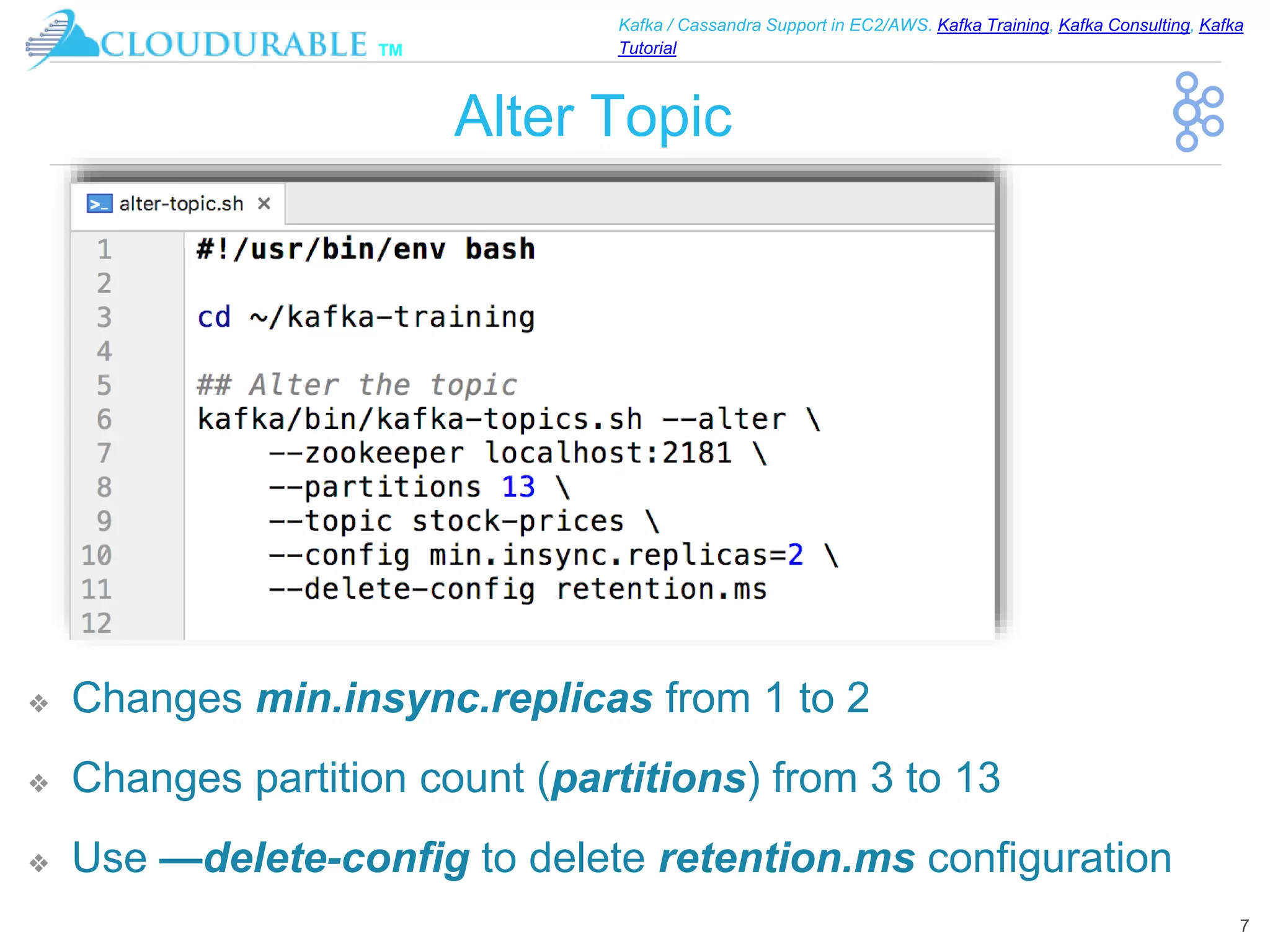

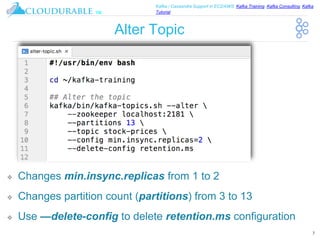

Alter Topic
❖ Changes min.insync.replicas from 1 to 2
❖ Changes partition count (partitions) from 3 to 13
❖ Use —delete-config to delete retention.ms configuration
7

™
Tutorial

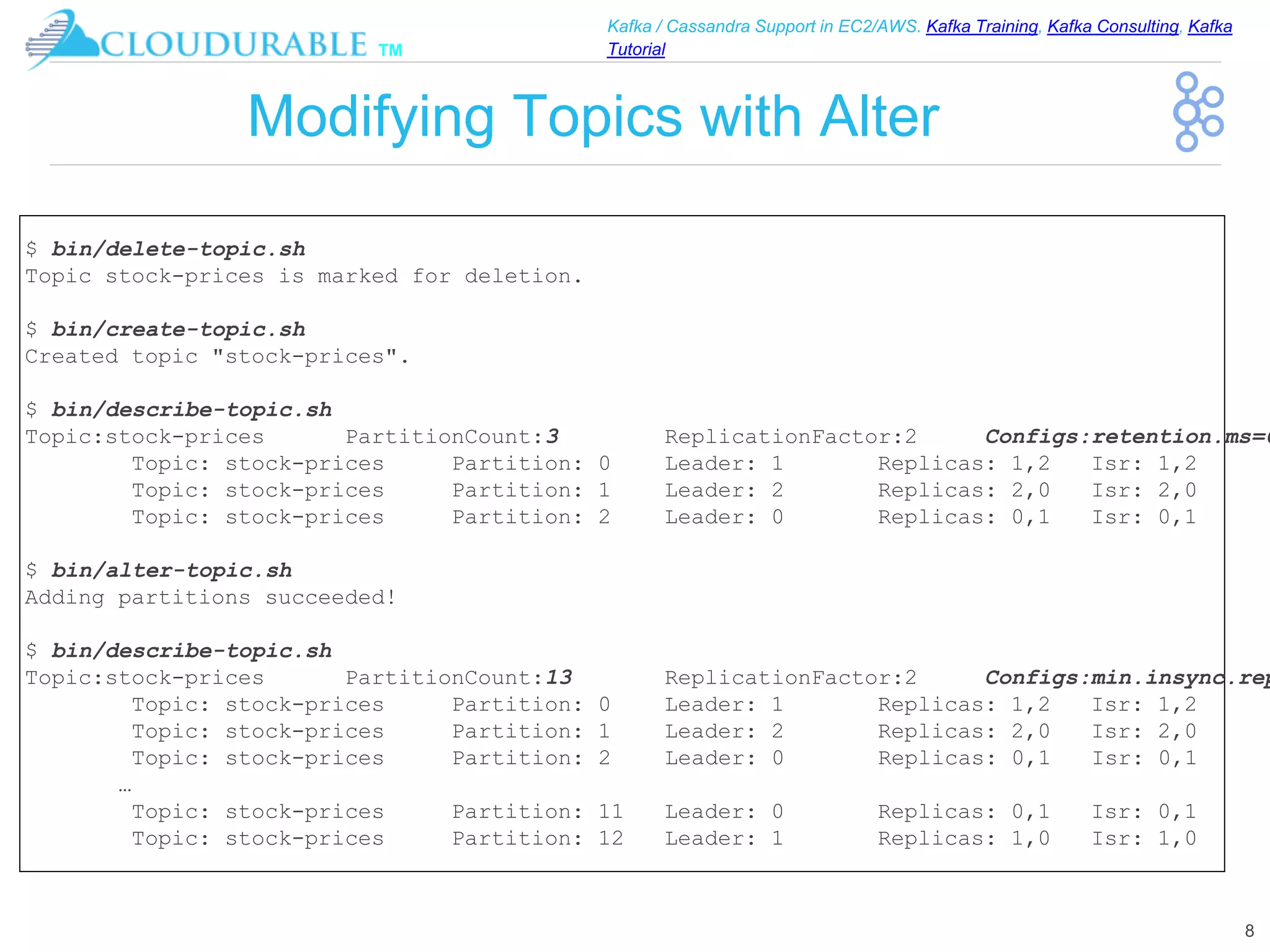

Modifying Topics with Alter
8
$ bin/delete-topic.sh
Topic stock-prices is marked for deletion.
$ bin/create-topic.sh
Created topic "stock-prices".
$ bin/describe-topic.sh
Topic:stock-prices PartitionCount:3 ReplicationFactor:2 Configs:retention.ms=6
Topic: stock-prices Partition: 0 Leader: 1 Replicas: 1,2 Isr: 1,2
$ bin/alter-topic.sh
Adding partitions succeeded!
$ bin/describe-topic.sh
Topic:stock-prices PartitionCount:13 ReplicationFactor:2 Configs:min.insync.rep
…

™
Tutorial

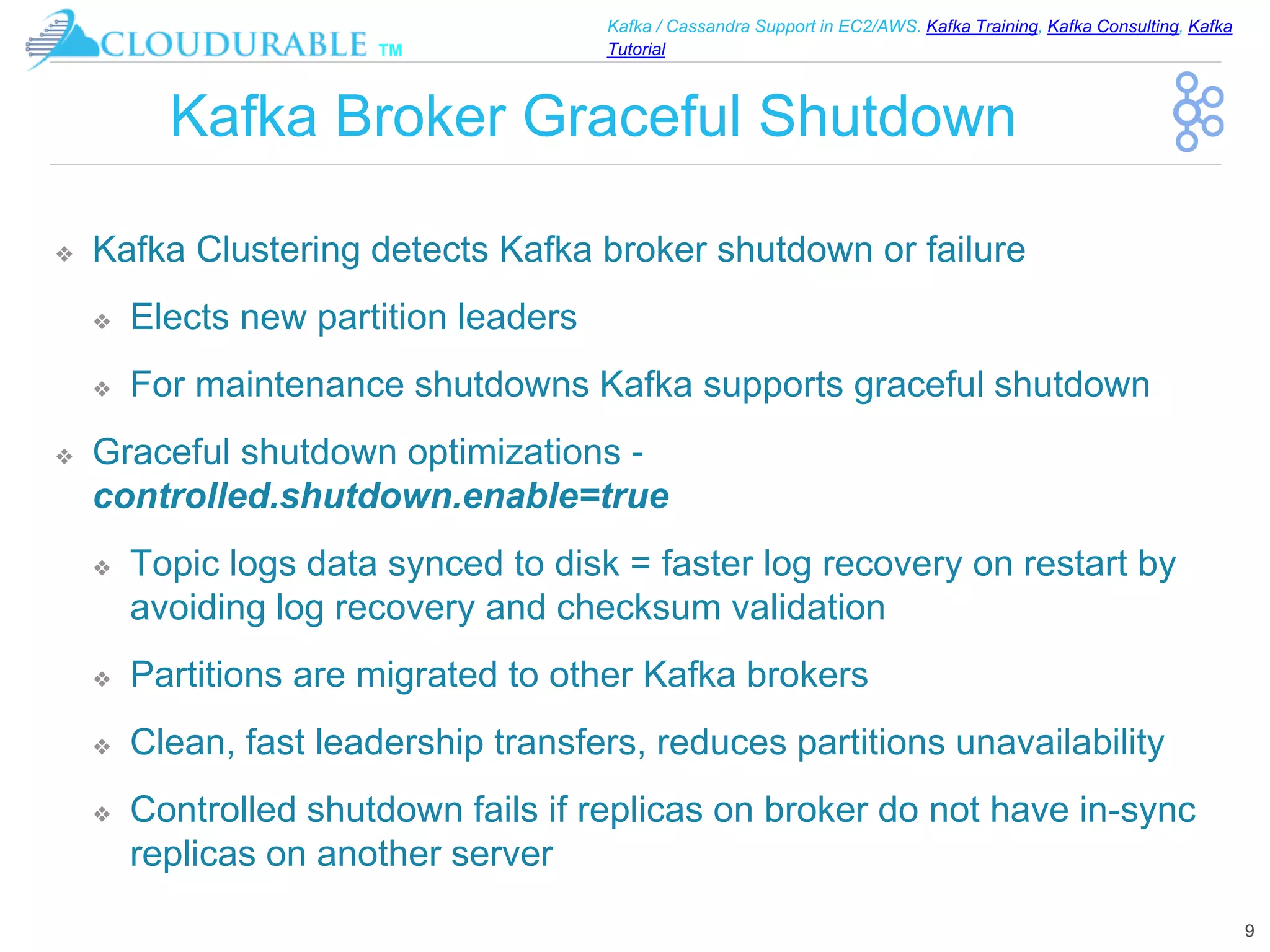

Kafka Broker Graceful Shutdown
❖ Kafka Clustering detects Kafka broker shutdown or failure
❖ Elects new partition leaders
❖ For maintenance shutdowns Kafka supports graceful shutdown
❖ Graceful shutdown optimizations -
controlled.shutdown.enable=true
❖ Topic logs data synced to disk = faster log recovery on restart by
avoiding log recovery and checksum validation
❖ Partitions are migrated to other Kafka brokers
❖ Clean, fast leadership transfers, reduces partitions unavailability
❖ Controlled shutdown fails if replicas on broker do not have in-sync
replicas on another server
9

™
Tutorial

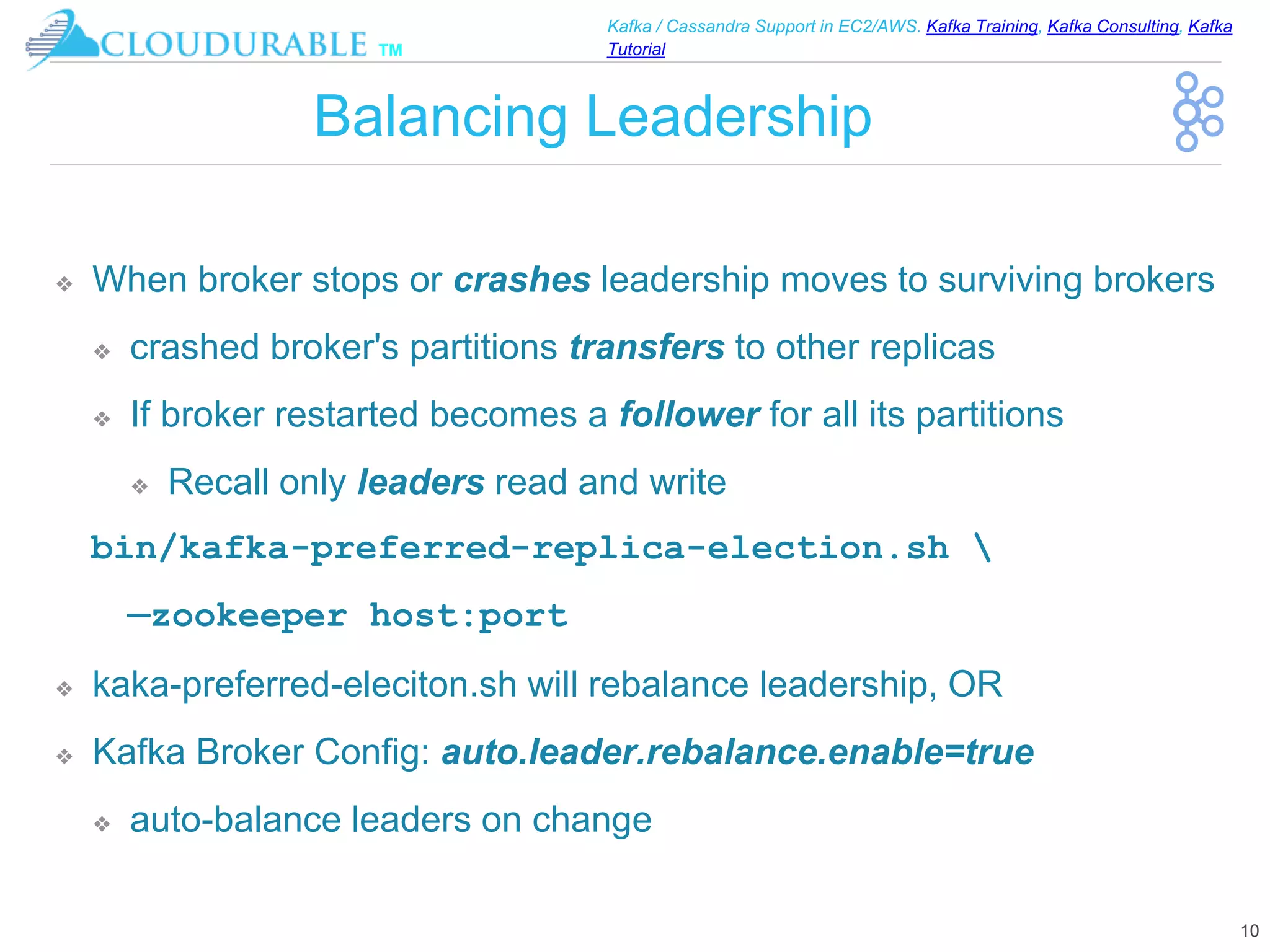

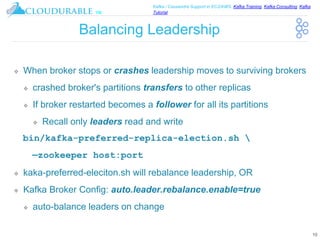

Balancing Leadership
❖ When broker stops or crashes leadership moves to surviving brokers
❖ crashed broker's partitions transfers to other replicas
❖ If broker restarted becomes a follower for all its partitions
❖ Recall only leaders read and write
bin/kafka-preferred-replica-election.sh
—zookeeper host:port
❖ kaka-preferred-eleciton.sh will rebalance leadership, OR
❖ Kafka Broker Config: auto.leader.rebalance.enable=true
❖ auto-balance leaders on change
10

™
Tutorial

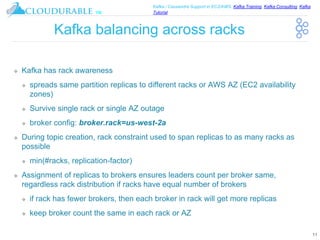

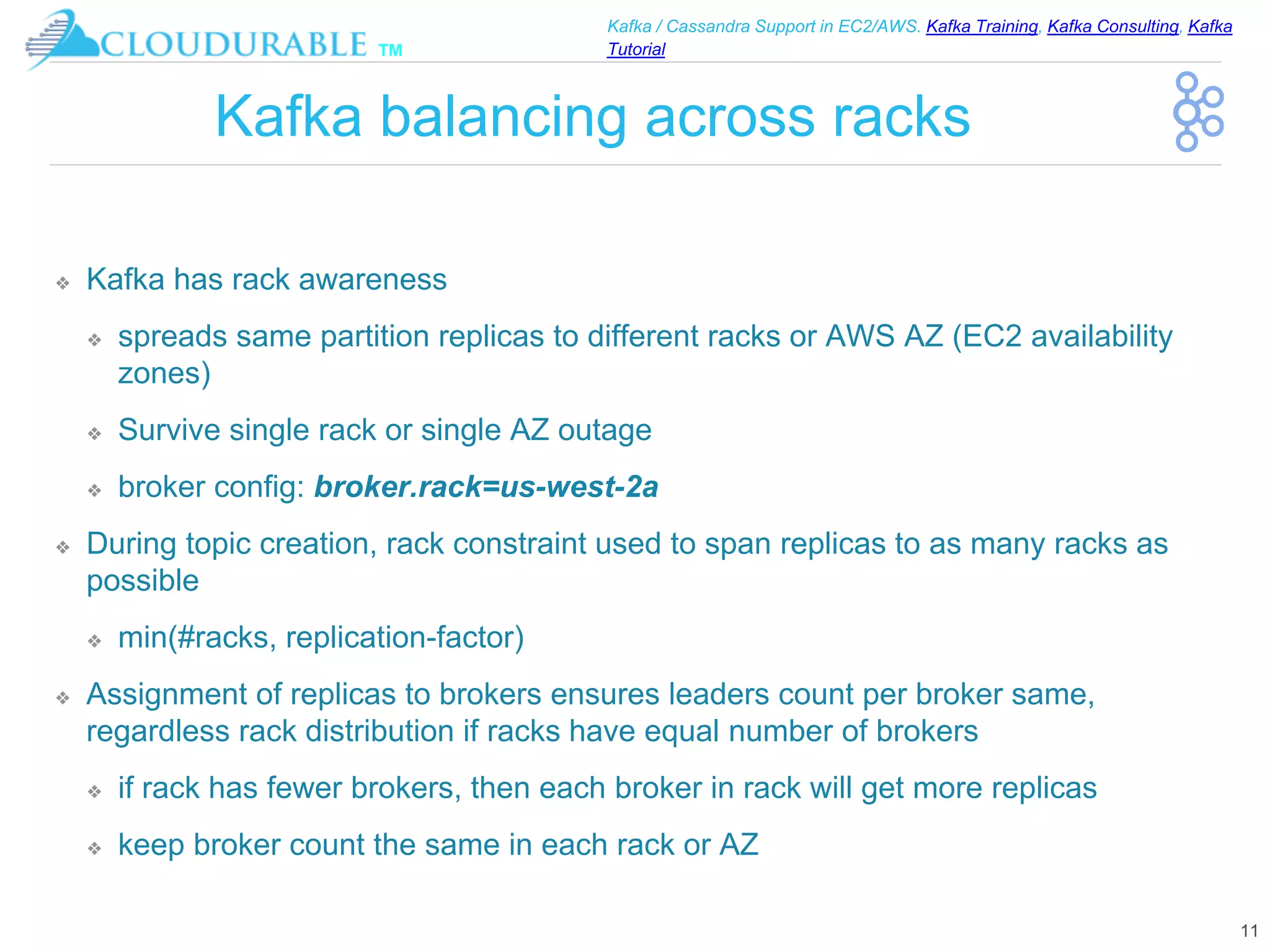

Kafka balancing across racks
❖ Kafka has rack awareness
❖ spreads same partition replicas to different racks or AWS AZ (EC2 availability
zones)
❖ Survive single rack or single AZ outage
❖ broker config: broker.rack=us-west-2a
❖ During topic creation, rack constraint used to span replicas to as many racks as
possible
❖ min(#racks, replication-factor)
❖ Assignment of replicas to brokers ensures leaders count per broker same,
regardless rack distribution if racks have equal number of brokers
❖ if rack has fewer brokers, then each broker in rack will get more replicas
❖ keep broker count the same in each rack or AZ
11

™
Tutorial

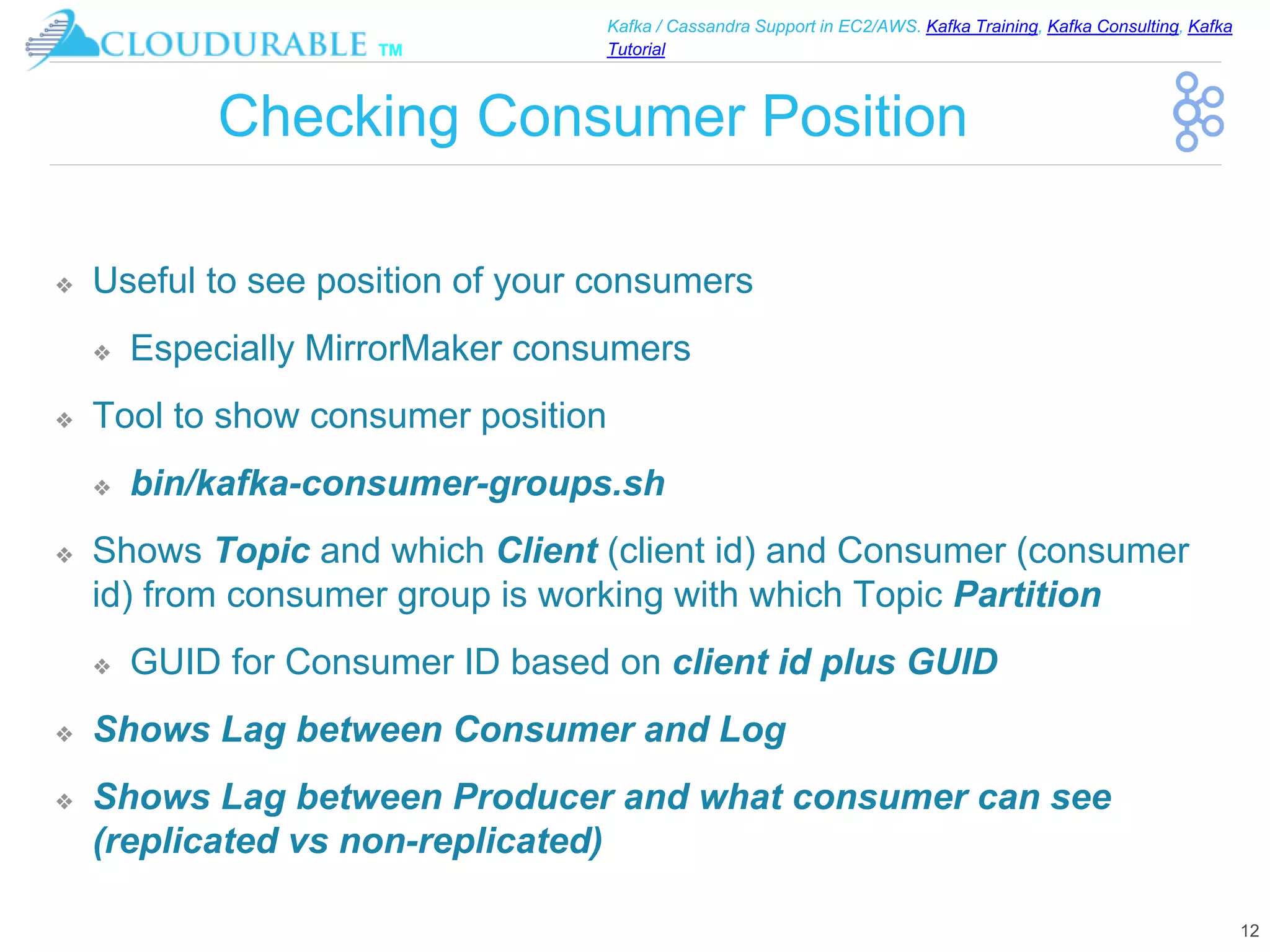

Checking Consumer Position
❖ Useful to see position of your consumers
❖ Especially MirrorMaker consumers
❖ Tool to show consumer position
❖ bin/kafka-consumer-groups.sh
❖ Shows Topic and which Client (client id) and Consumer (consumer
id) from consumer group is working with which Topic Partition
❖ GUID for Consumer ID based on client id plus GUID
❖ Shows Lag between Consumer and Log
❖ Shows Lag between Producer and what consumer can see
(replicated vs non-replicated)
12

™
Tutorial

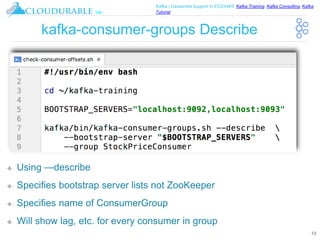

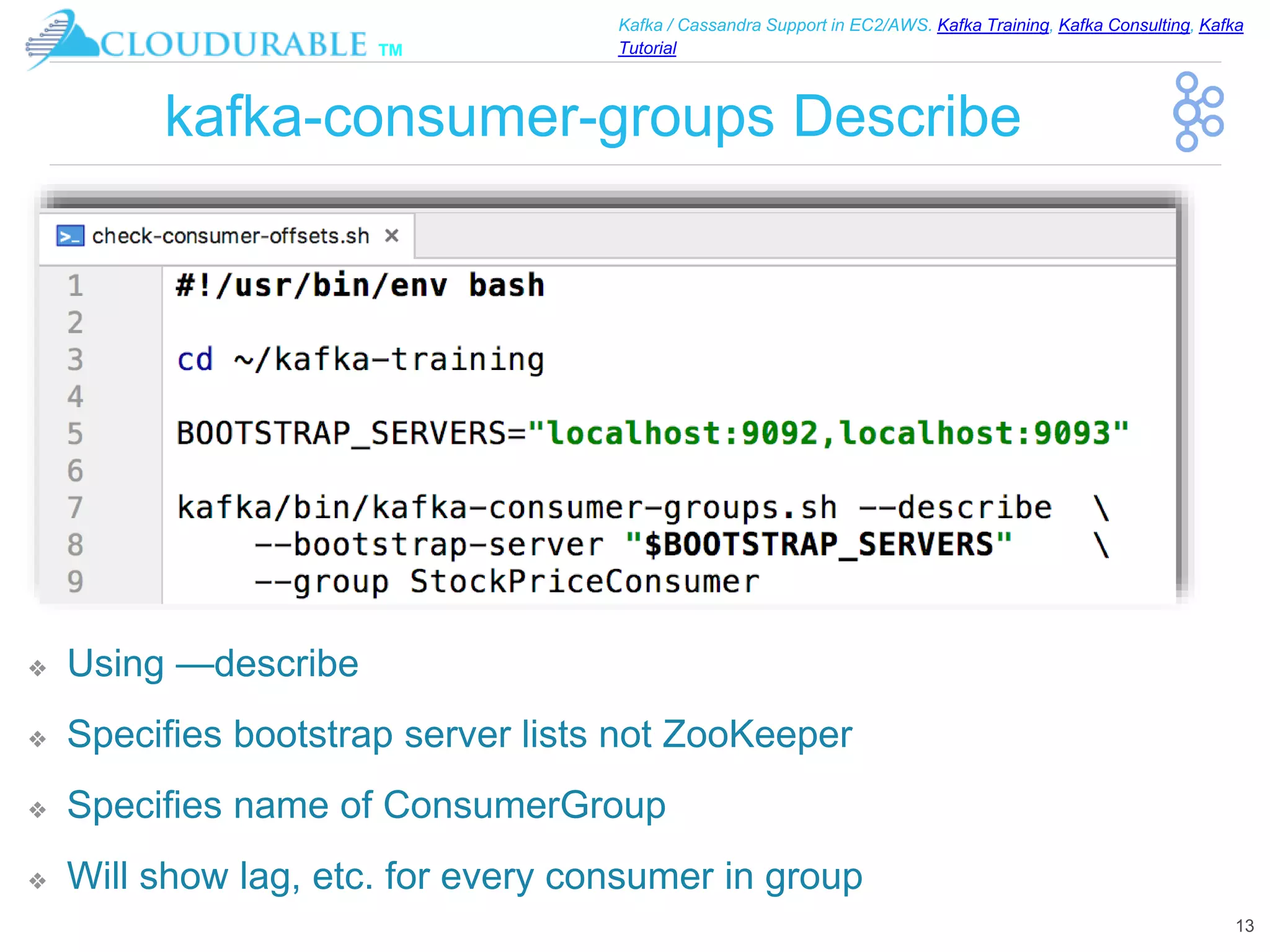

kafka-consumer-groups Describe
❖ Using —describe
❖ Specifies bootstrap server lists not ZooKeeper
❖ Specifies name of ConsumerGroup
❖ Will show lag, etc. for every consumer in group
13

™
Tutorial

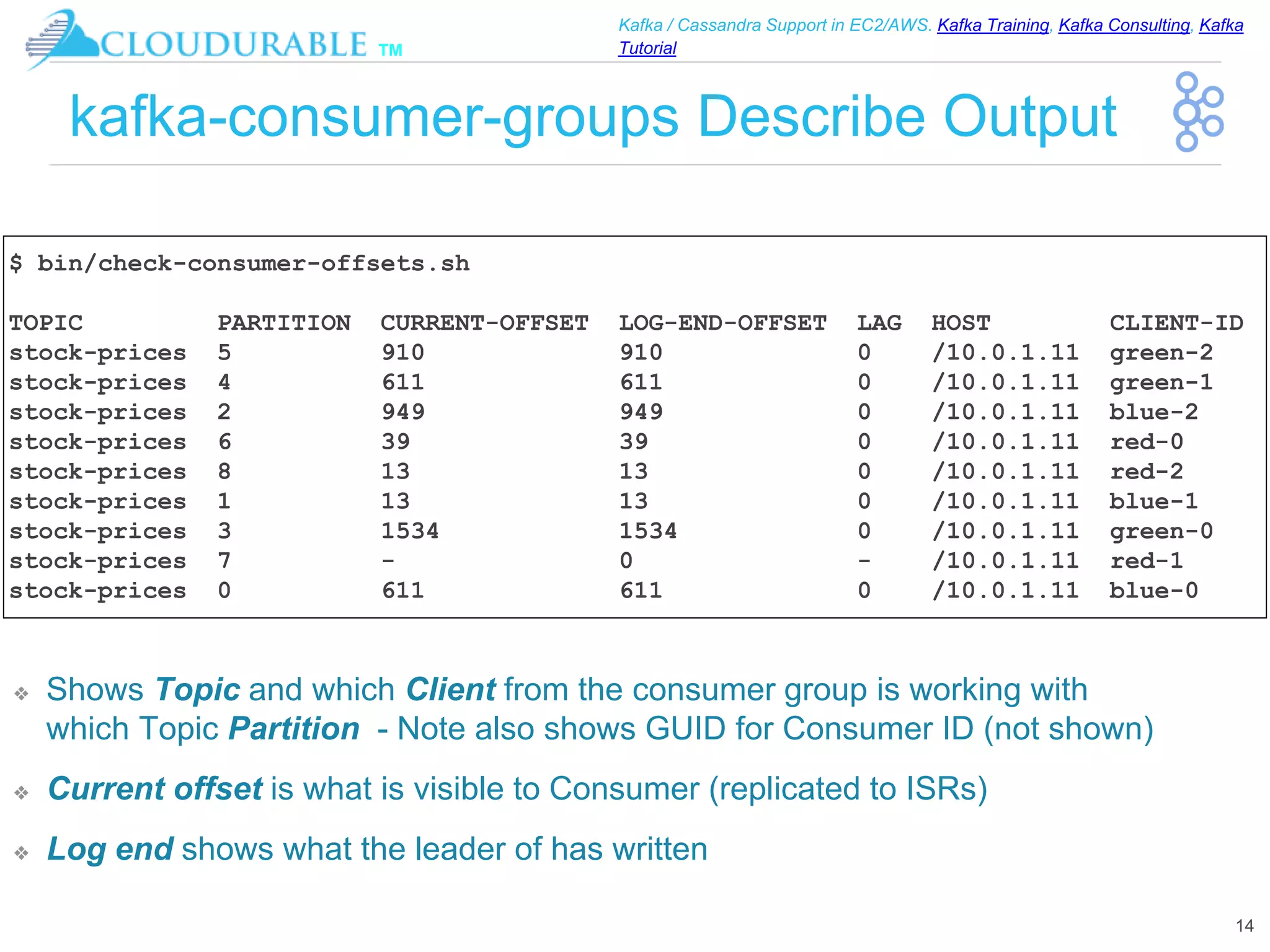

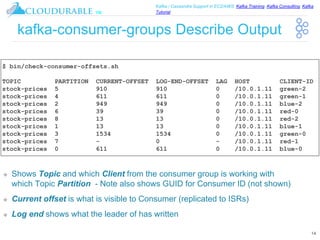

kafka-consumer-groups Describe Output
❖ Shows Topic and which Client from the consumer group is working with
which Topic Partition - Note also shows GUID for Consumer ID (not shown)
❖ Current offset is what is visible to Consumer (replicated to ISRs)
❖ Log end shows what the leader of has written
14
$ bin/check-consumer-offsets.sh
TOPIC PARTITION CURRENT-OFFSET LOG-END-OFFSET LAG HOST CLIENT-ID
stock-prices 5 910 910 0 /10.0.1.11 green-2
stock-prices 2 949 949 0 /10.0.1.11 blue-2
stock-prices 6 39 39 0 /10.0.1.11 red-0
stock-prices 8 13 13 0 /10.0.1.11 red-2
stock-prices 7 - 0 - /10.0.1.11 red-1

™
Tutorial

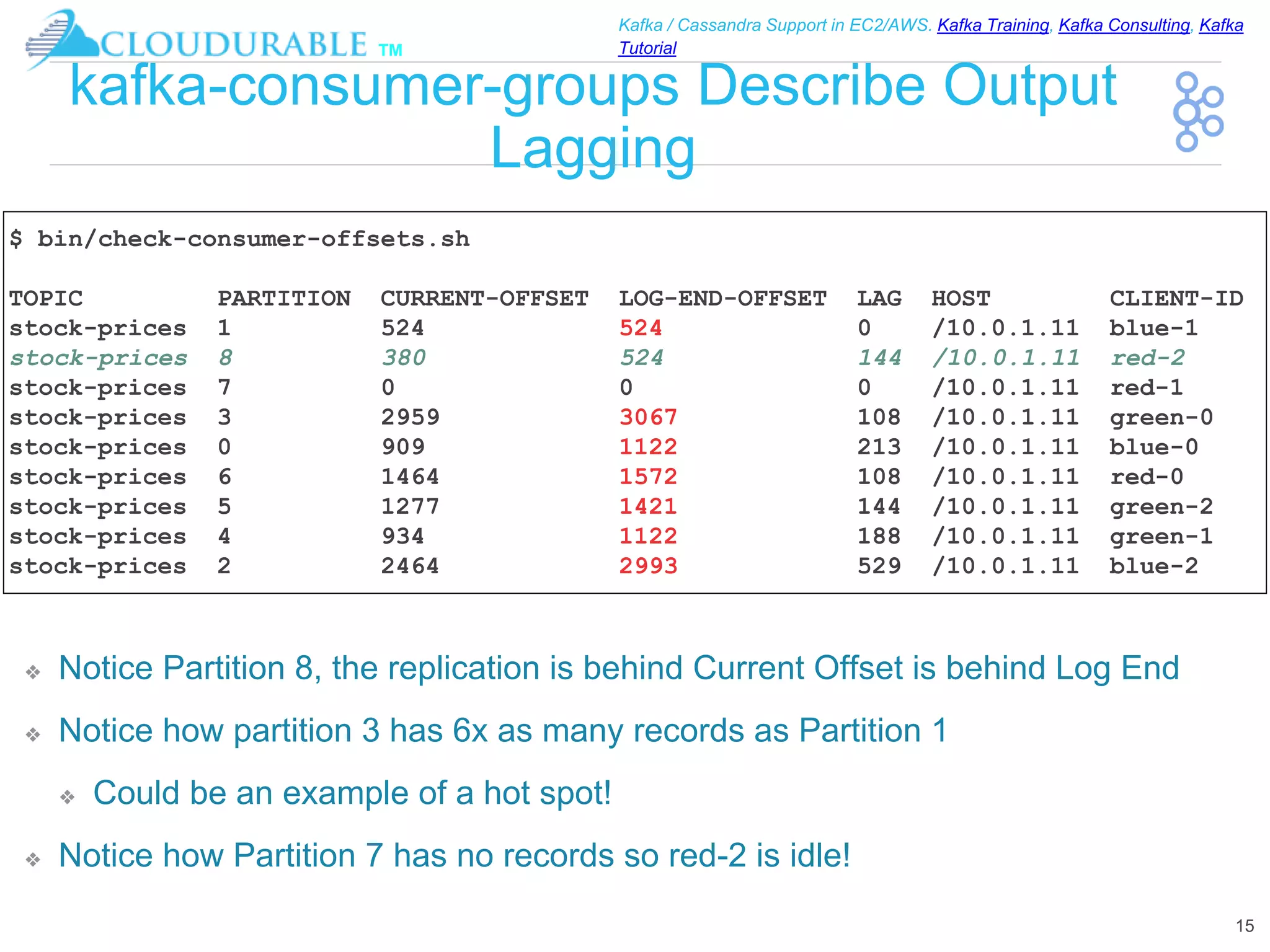

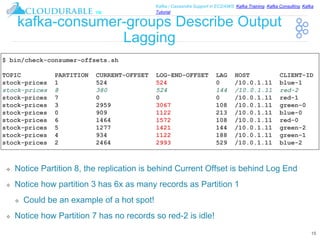

kafka-consumer-groups Describe Output
Lagging
❖ Notice Partition 8, the replication is behind Current Offset is behind Log End
❖ Notice how partition 3 has 6x as many records as Partition 1
❖ Could be an example of a hot spot!
❖ Notice how Partition 7 has no records so red-2 is idle!
15
$ bin/check-consumer-offsets.sh
TOPIC PARTITION CURRENT-OFFSET LOG-END-OFFSET LAG HOST CLIENT-ID
stock-prices 8 380 524 144 /10.0.1.11 red-2
stock-prices 7 0 0 0 /10.0.1.11 red-1
stock-prices 6 1464 1572 108 /10.0.1.11 red-0

™
Tutorial

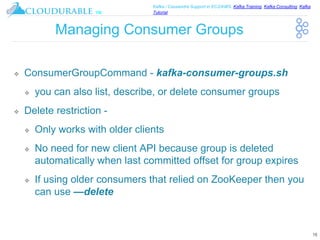

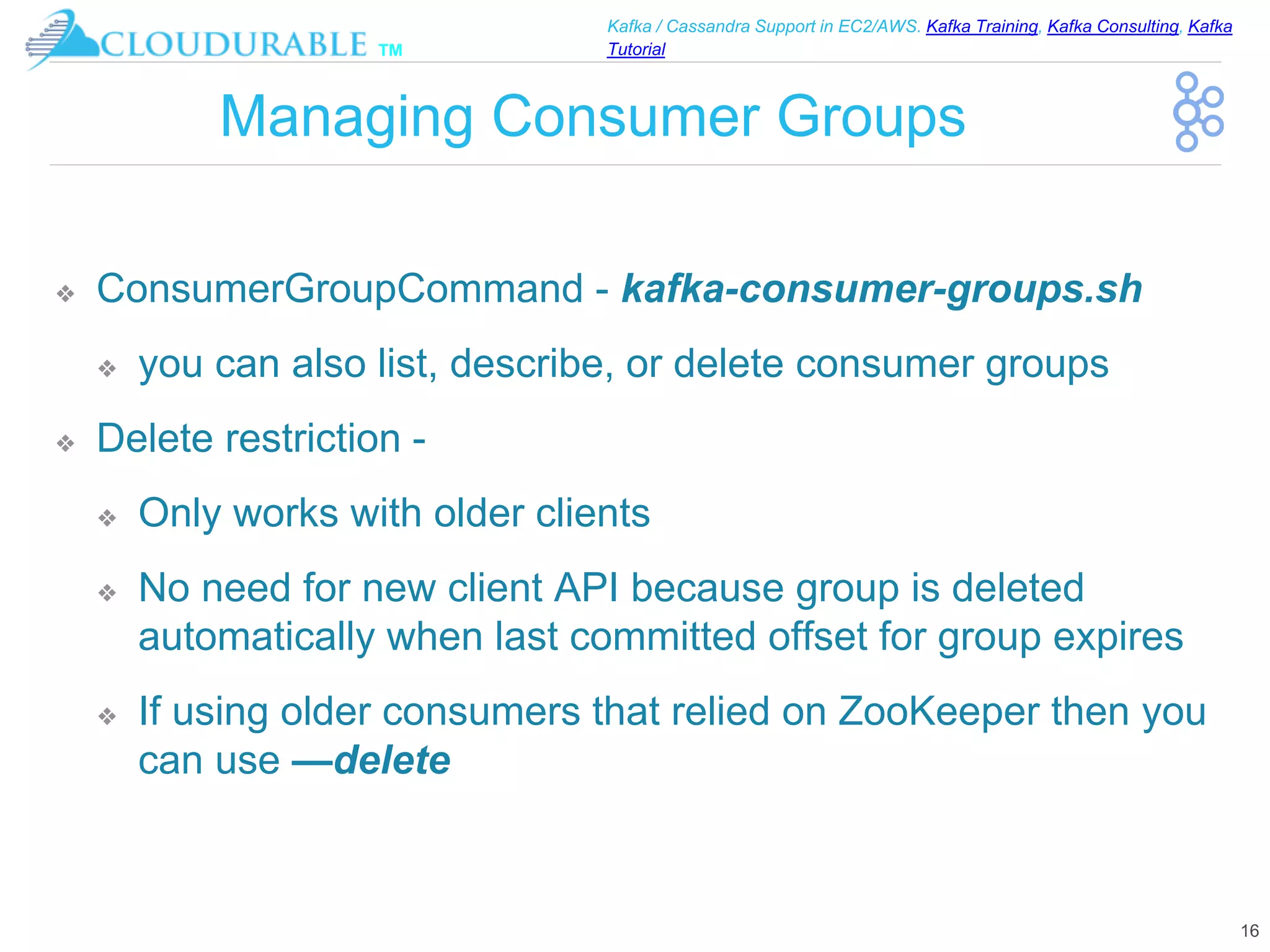

Managing Consumer Groups
❖ ConsumerGroupCommand - kafka-consumer-groups.sh
❖ you can also list, describe, or delete consumer groups
❖ Delete restriction -
❖ Only works with older clients
❖ No need for new client API because group is deleted
automatically when last committed offset for group expires
❖ If using older consumers that relied on ZooKeeper then you
can use —delete
16

™
Tutorial

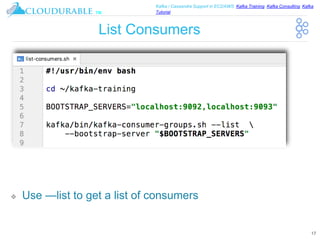

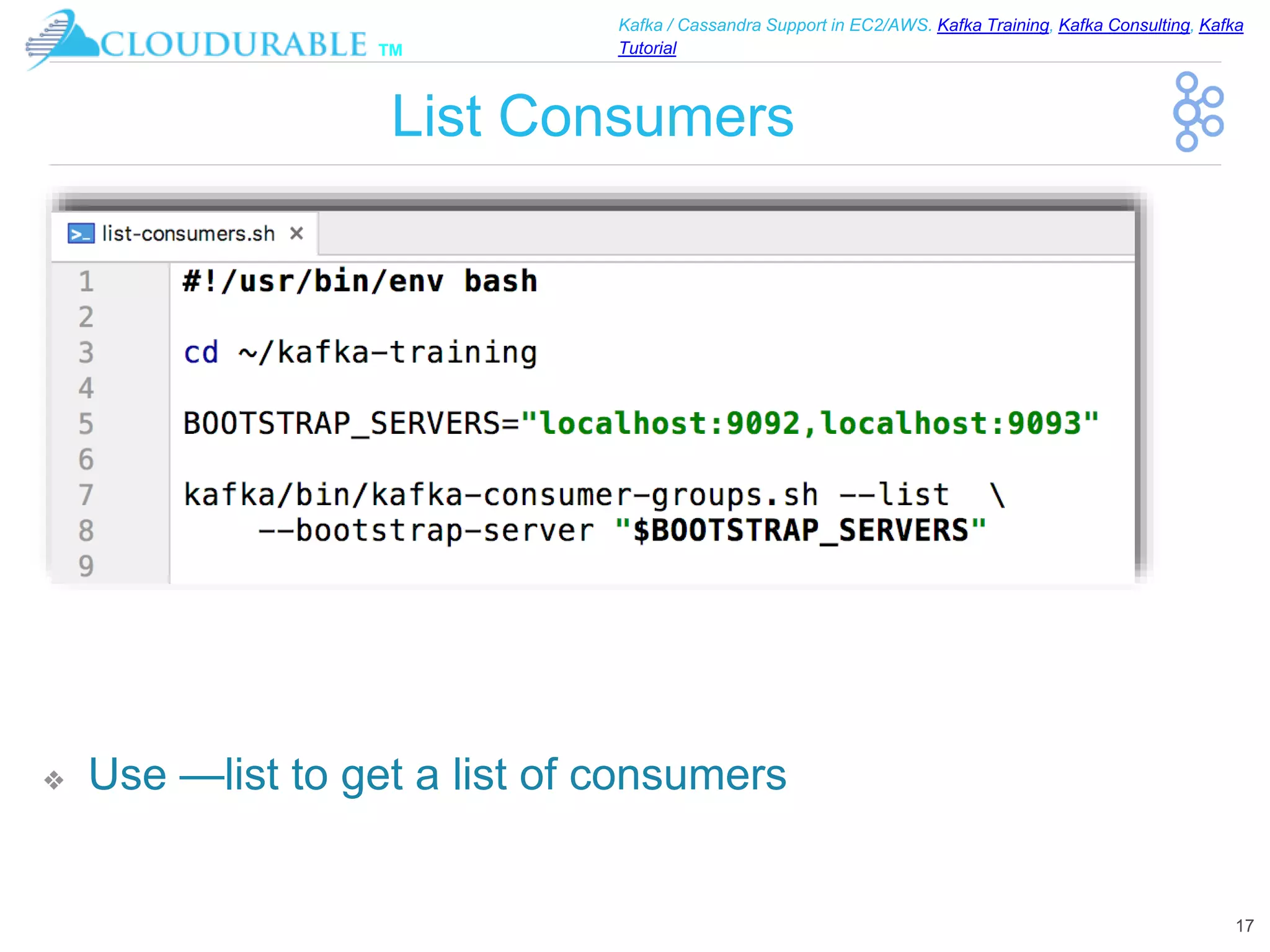

List Consumers
❖ Use —list to get a list of consumers
17

™
Tutorial

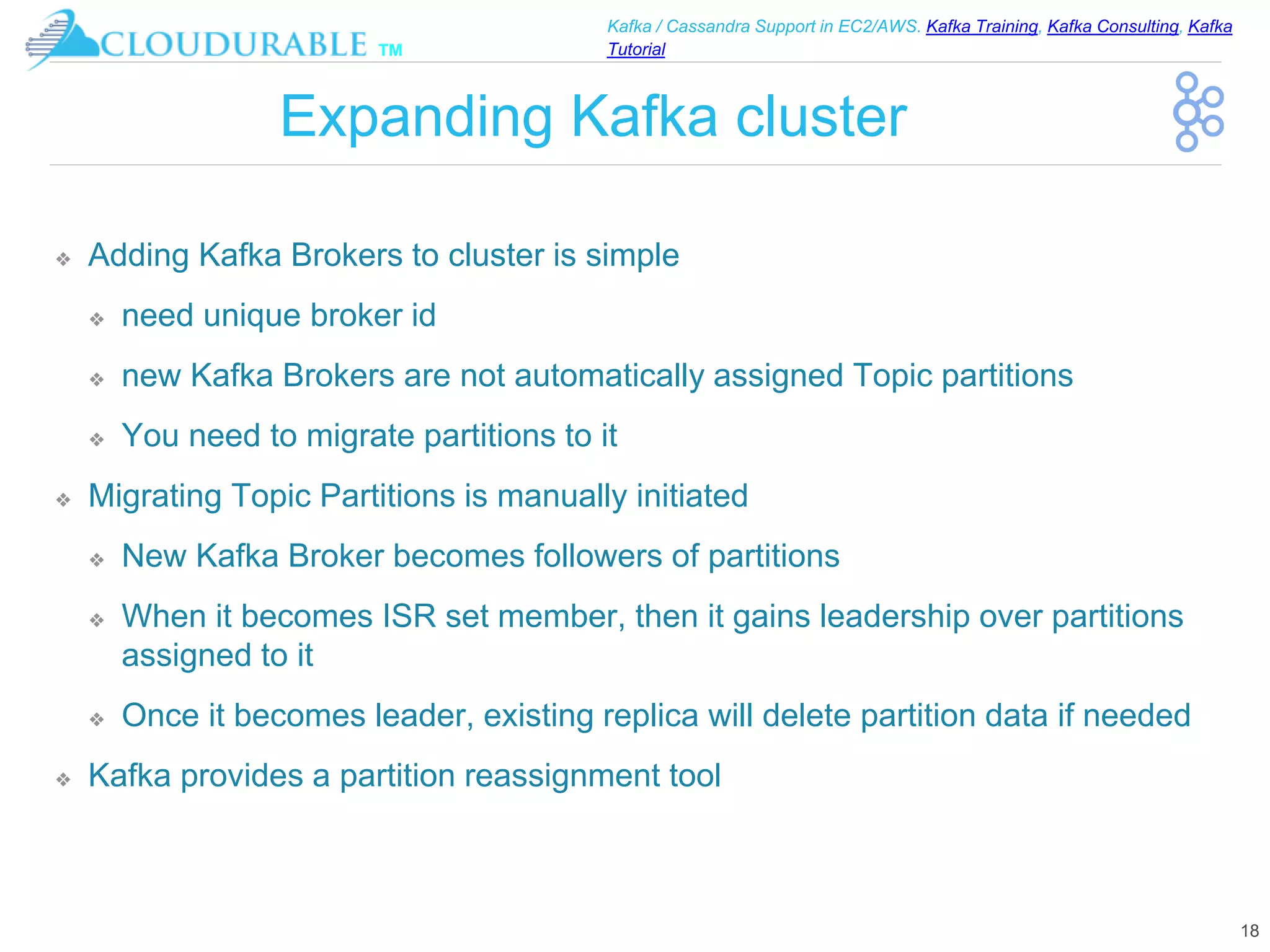

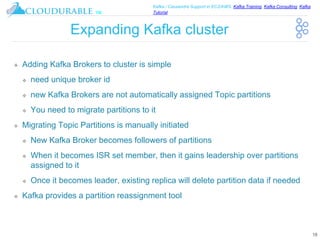

Expanding Kafka cluster
❖ Adding Kafka Brokers to cluster is simple
❖ need unique broker id
❖ new Kafka Brokers are not automatically assigned Topic partitions
❖ You need to migrate partitions to it
❖ Migrating Topic Partitions is manually initiated
❖ New Kafka Broker becomes followers of partitions
❖ When it becomes ISR set member, then it gains leadership over partitions
assigned to it
❖ Once it becomes leader, existing replica will delete partition data if needed
❖ Kafka provides a partition reassignment tool
18

™
Tutorial

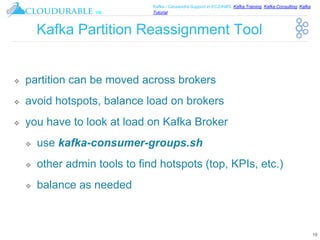

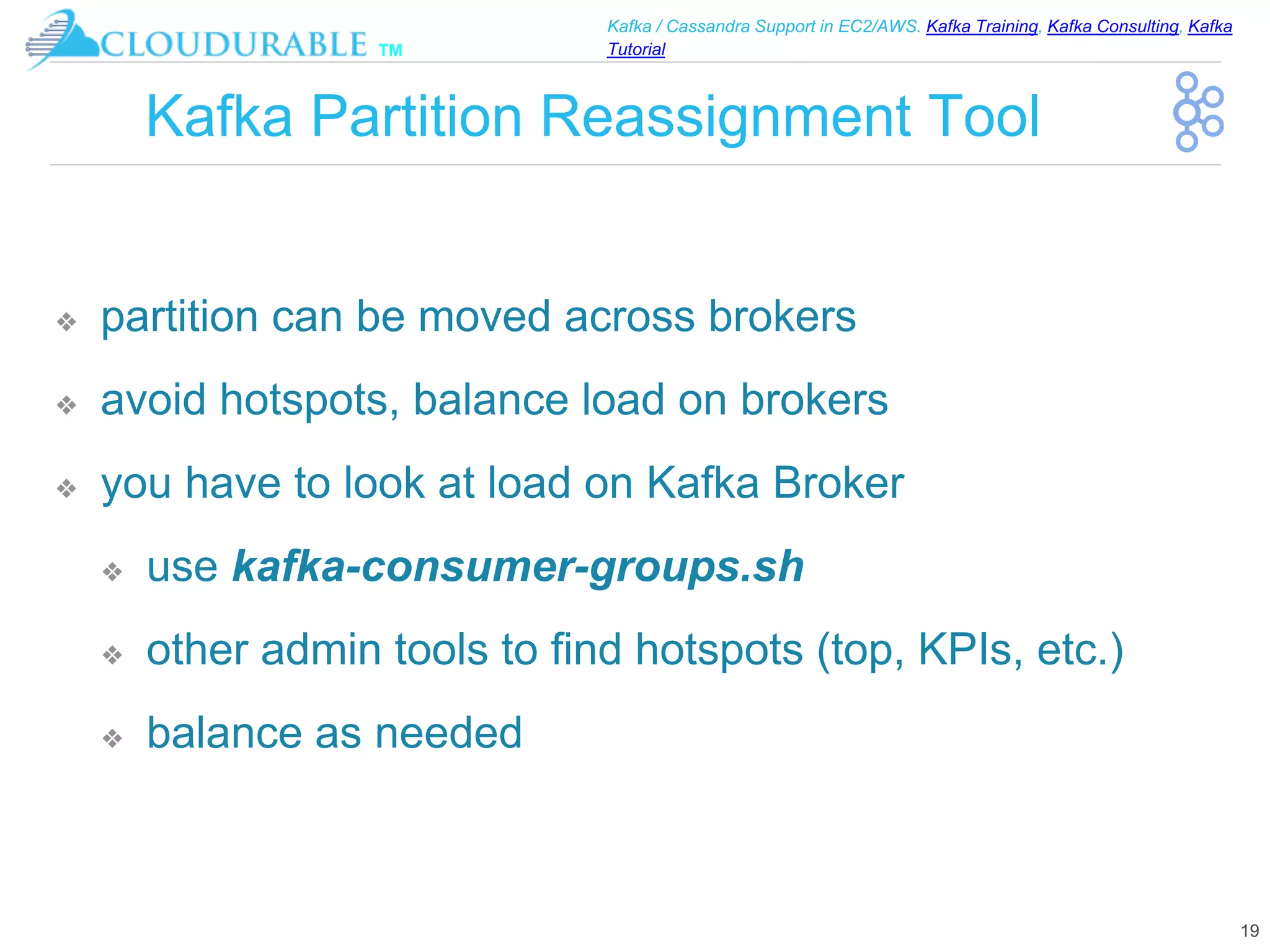

Kafka Partition Reassignment Tool
❖ partition can be moved across brokers
❖ avoid hotspots, balance load on brokers
❖ you have to look at load on Kafka Broker
❖ use kafka-consumer-groups.sh
❖ other admin tools to find hotspots (top, KPIs, etc.)
❖ balance as needed
19

™
Tutorial

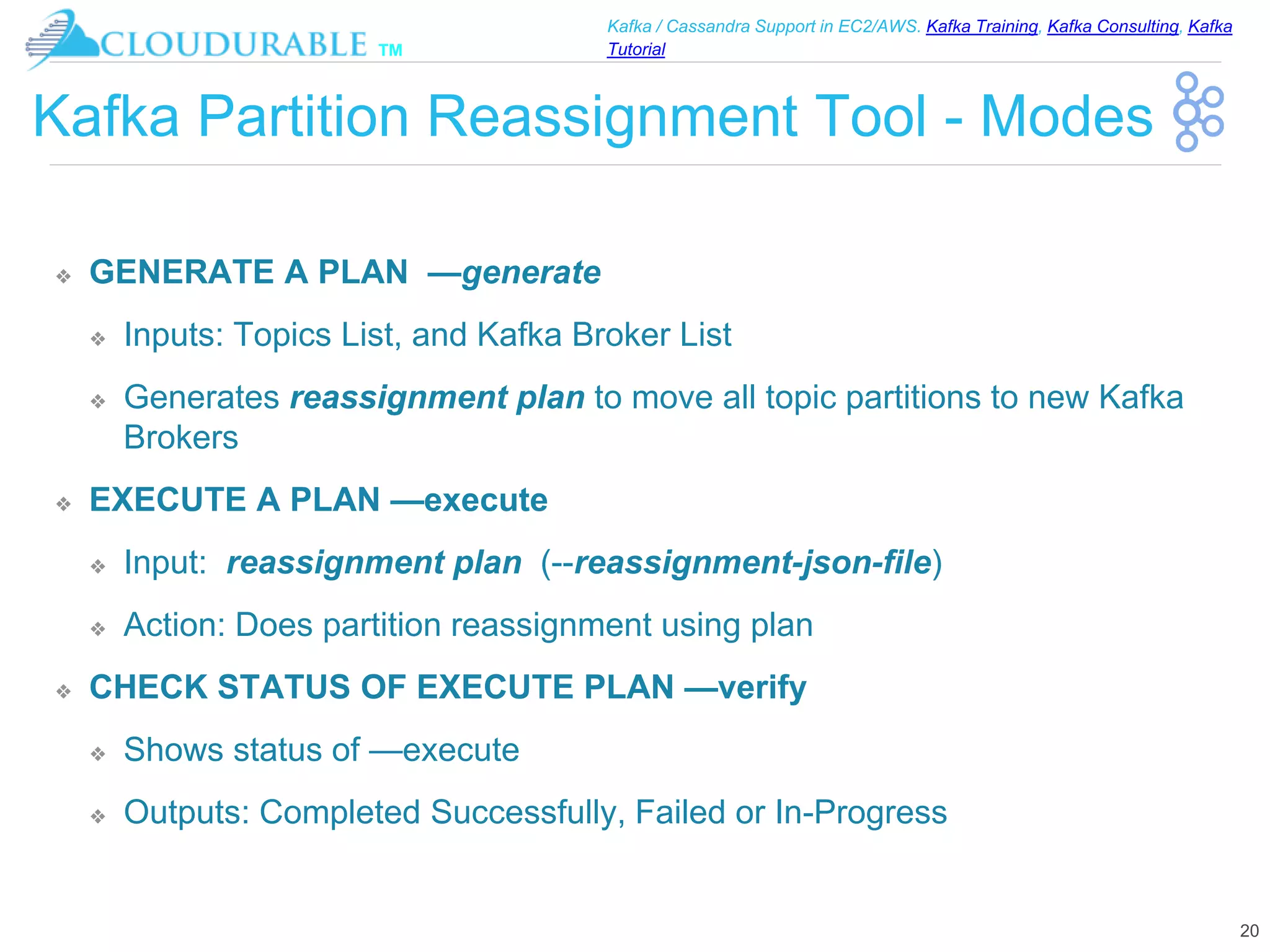

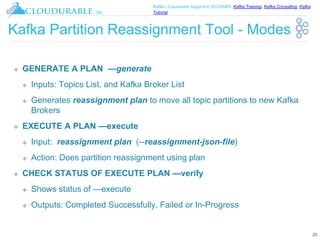

Kafka Partition Reassignment Tool - Modes
❖ GENERATE A PLAN —generate
❖ Inputs: Topics List, and Kafka Broker List
❖ Generates reassignment plan to move all topic partitions to new Kafka
Brokers
❖ EXECUTE A PLAN —execute
❖ Input: reassignment plan (--reassignment-json-file)
❖ Action: Does partition reassignment using plan
❖ CHECK STATUS OF EXECUTE PLAN —verify
❖ Shows status of —execute
❖ Outputs: Completed Successfully, Failed or In-Progress
20

™
Tutorial

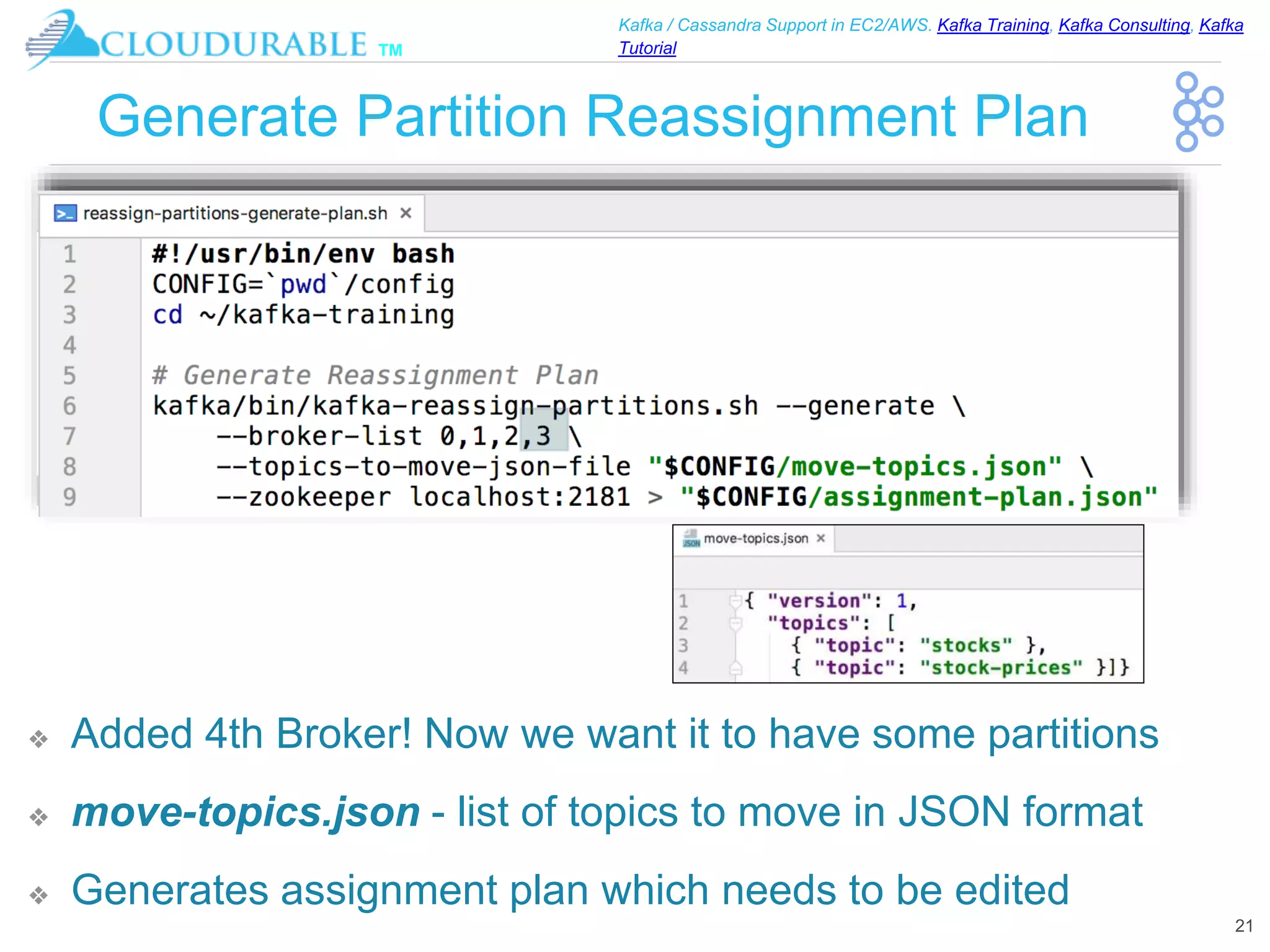

Generate Partition Reassignment Plan
❖ Added 4th Broker! Now we want it to have some partitions
❖ move-topics.json - list of topics to move in JSON format
❖ Generates assignment plan which needs to be edited
21

™
Tutorial

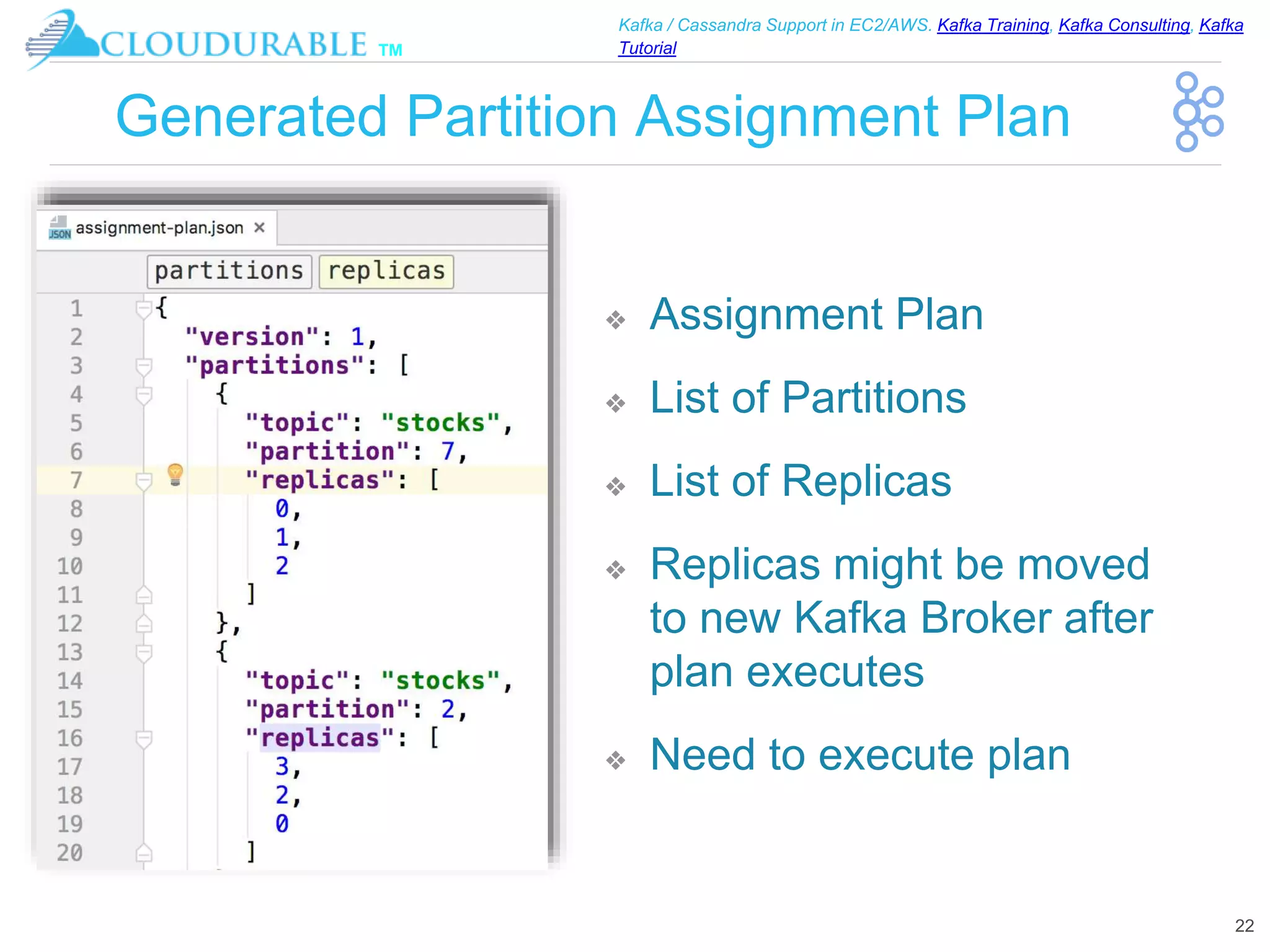

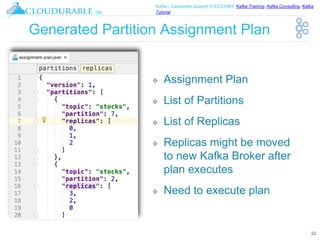

Generated Partition Assignment Plan
❖ Assignment Plan
❖ List of Partitions
❖ List of Replicas
❖ Replicas might be moved
to new Kafka Broker after
plan executes
❖ Need to execute plan
22

™
Tutorial

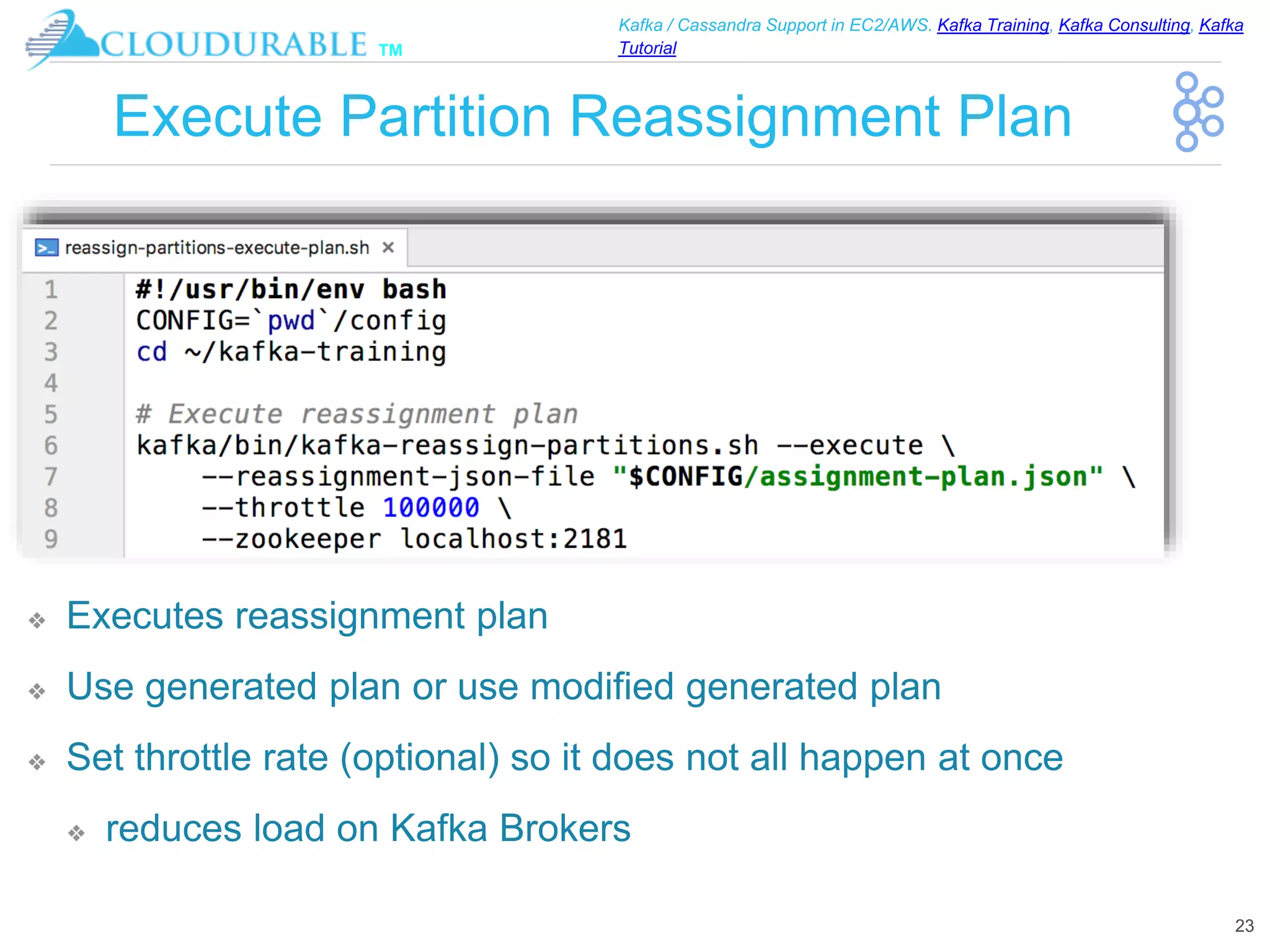

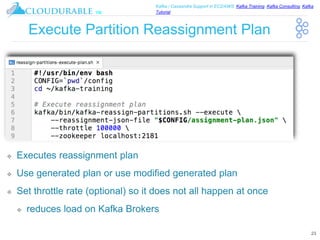

Execute Partition Reassignment Plan
❖ Executes reassignment plan
❖ Use generated plan or use modified generated plan
❖ Set throttle rate (optional) so it does not all happen at once
❖ reduces load on Kafka Brokers
23

™
Tutorial

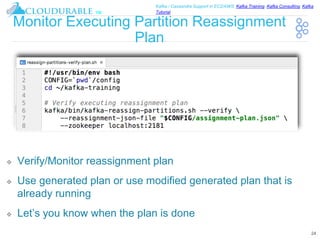

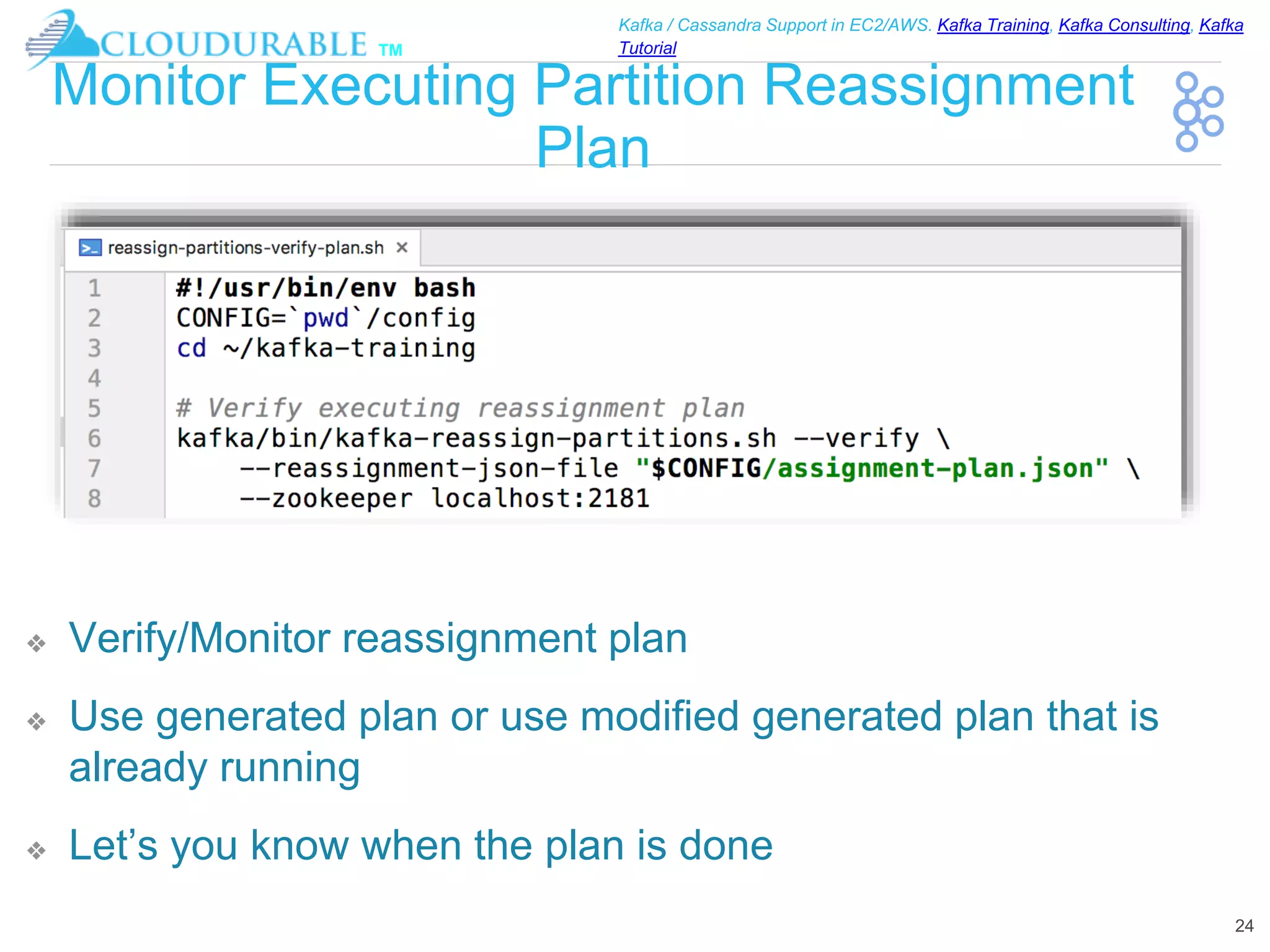

Monitor Executing Partition Reassignment
Plan
❖ Verify/Monitor reassignment plan
❖ Use generated plan or use modified generated plan that is
already running
❖ Let’s you know when the plan is done
24

™
Tutorial

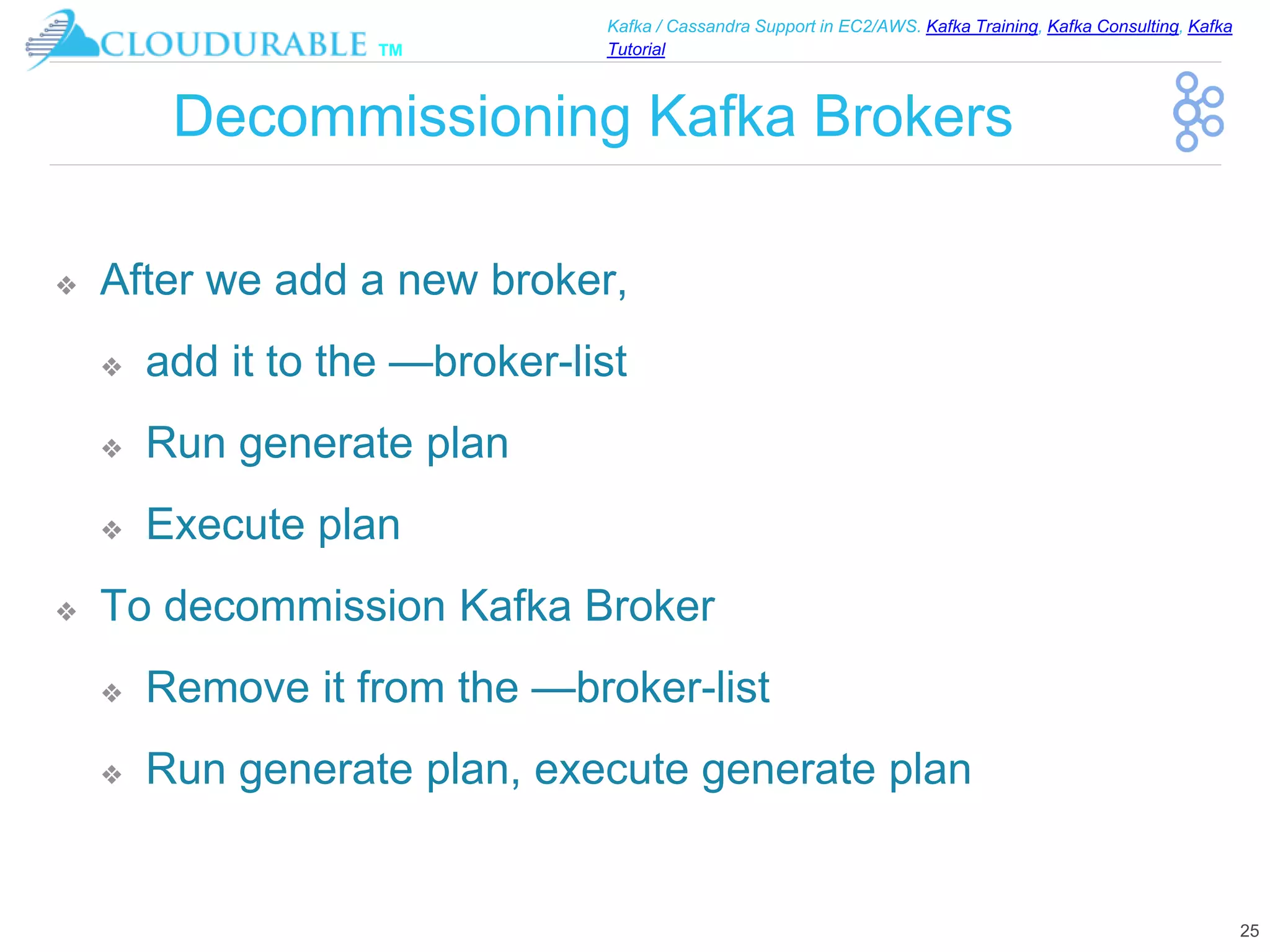

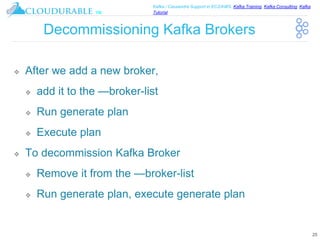

Decommissioning Kafka Brokers
❖ After we add a new broker,
❖ add it to the —broker-list
❖ Run generate plan
❖ Execute plan
❖ To decommission Kafka Broker
❖ Remove it from the —broker-list
❖ Run generate plan, execute generate plan
25

™
Tutorial

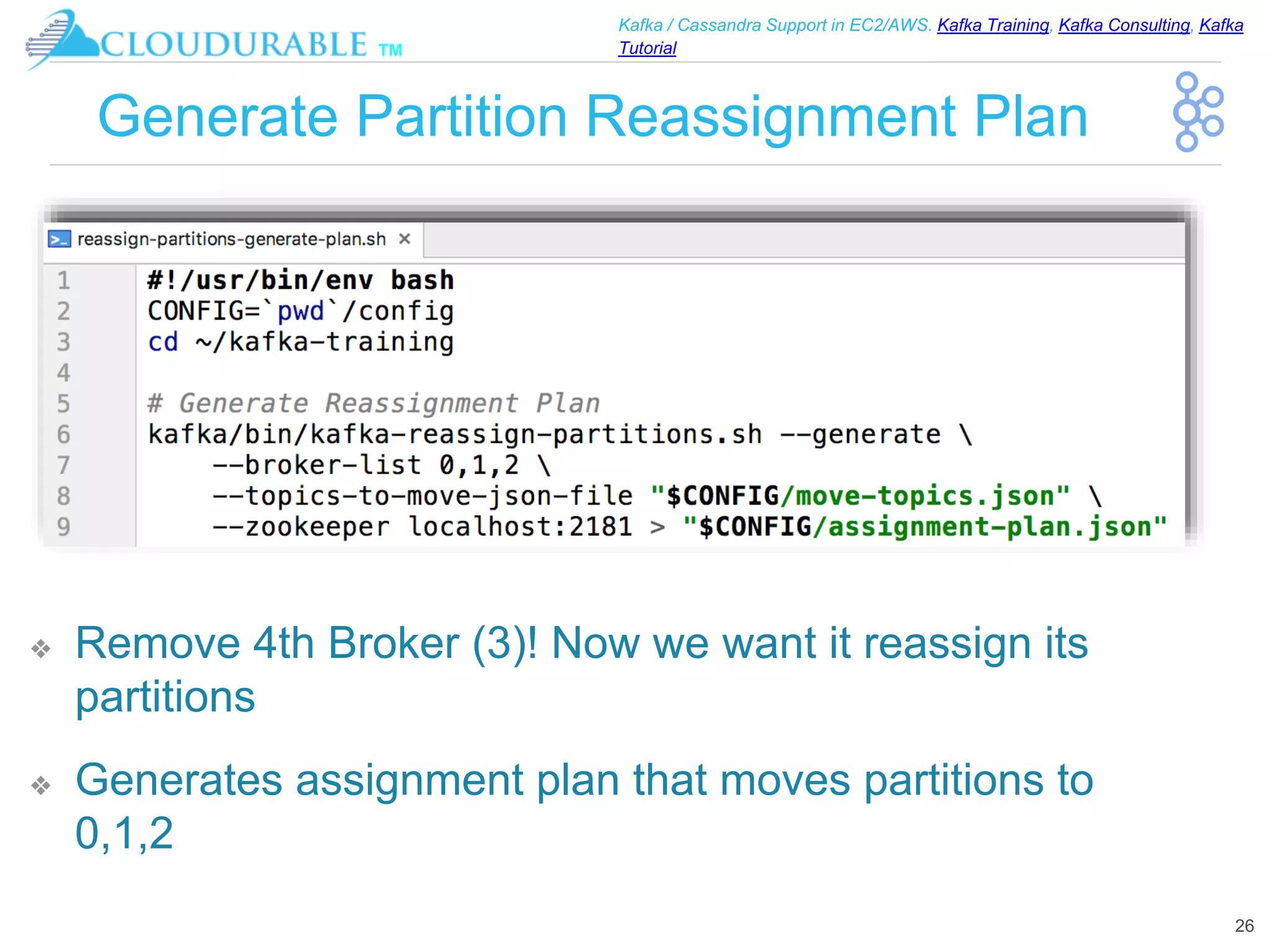

Generate Partition Reassignment Plan
❖ Remove 4th Broker (3)! Now we want it reassign its
partitions
❖ Generates assignment plan that moves partitions to
0,1,2
26

™
Tutorial

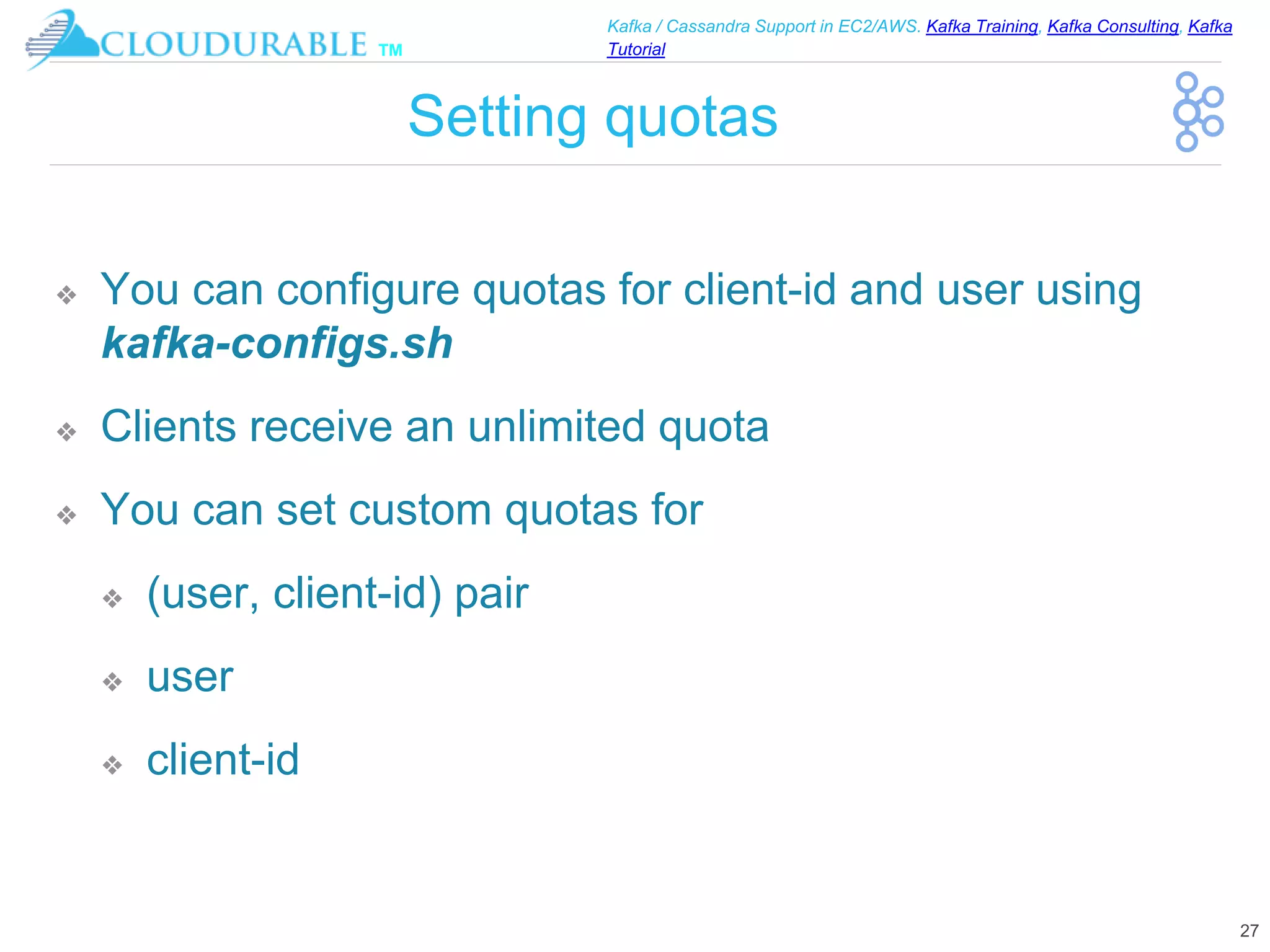

Setting quotas
❖ You can configure quotas for client-id and user using
kafka-configs.sh
❖ Clients receive an unlimited quota
❖ You can set custom quotas for
❖ (user, client-id) pair
❖ user
❖ client-id
27

™
Tutorial

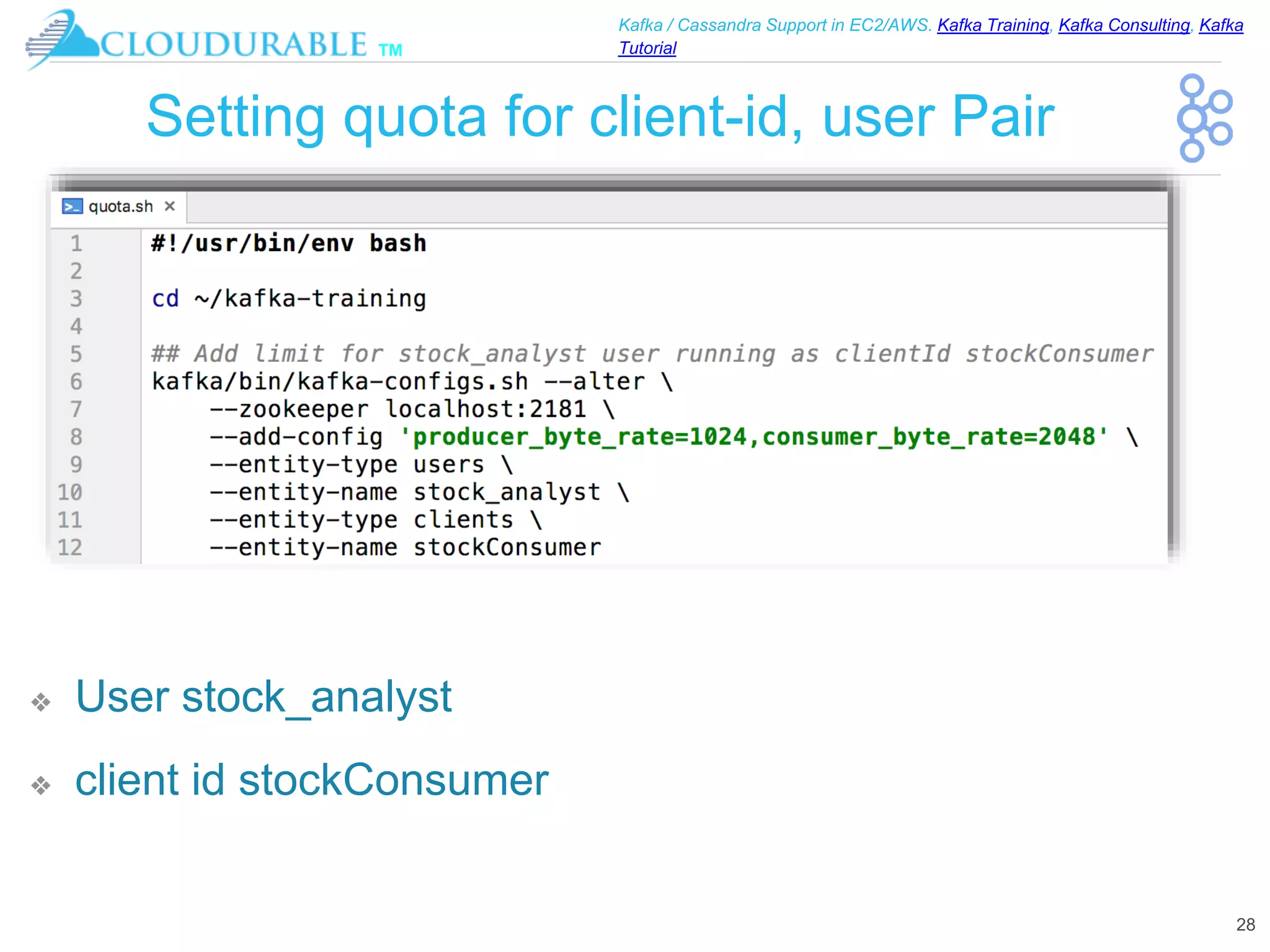

Setting quota for client-id, user Pair
28
❖ User stock_analyst
❖ client id stockConsumer

™
Tutorial

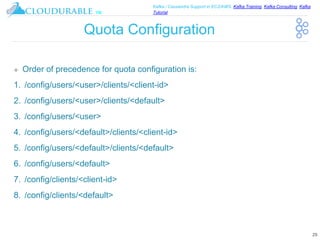

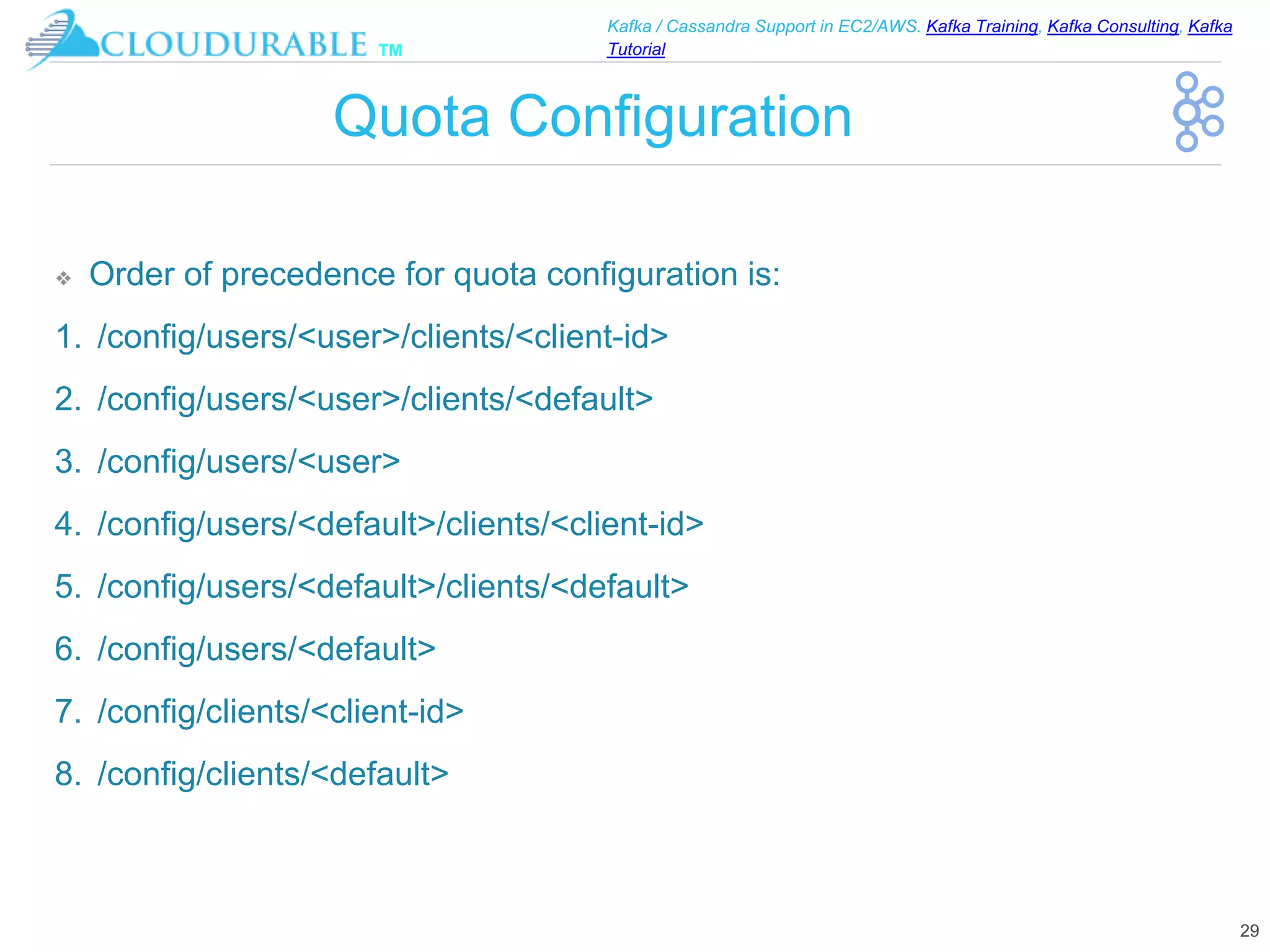

Quota Configuration
❖ Order of precedence for quota configuration is:
1. /config/users/<user>/clients/<client-id>
2. /config/users/<user>/clients/<default>
3. /config/users/<user>
4. /config/users/<default>/clients/<client-id>
5. /config/users/<default>/clients/<default>
6. /config/users/<default>
7. /config/clients/<client-id>
8. /config/clients/<default>
29

™
Tutorial

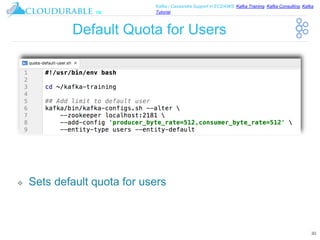

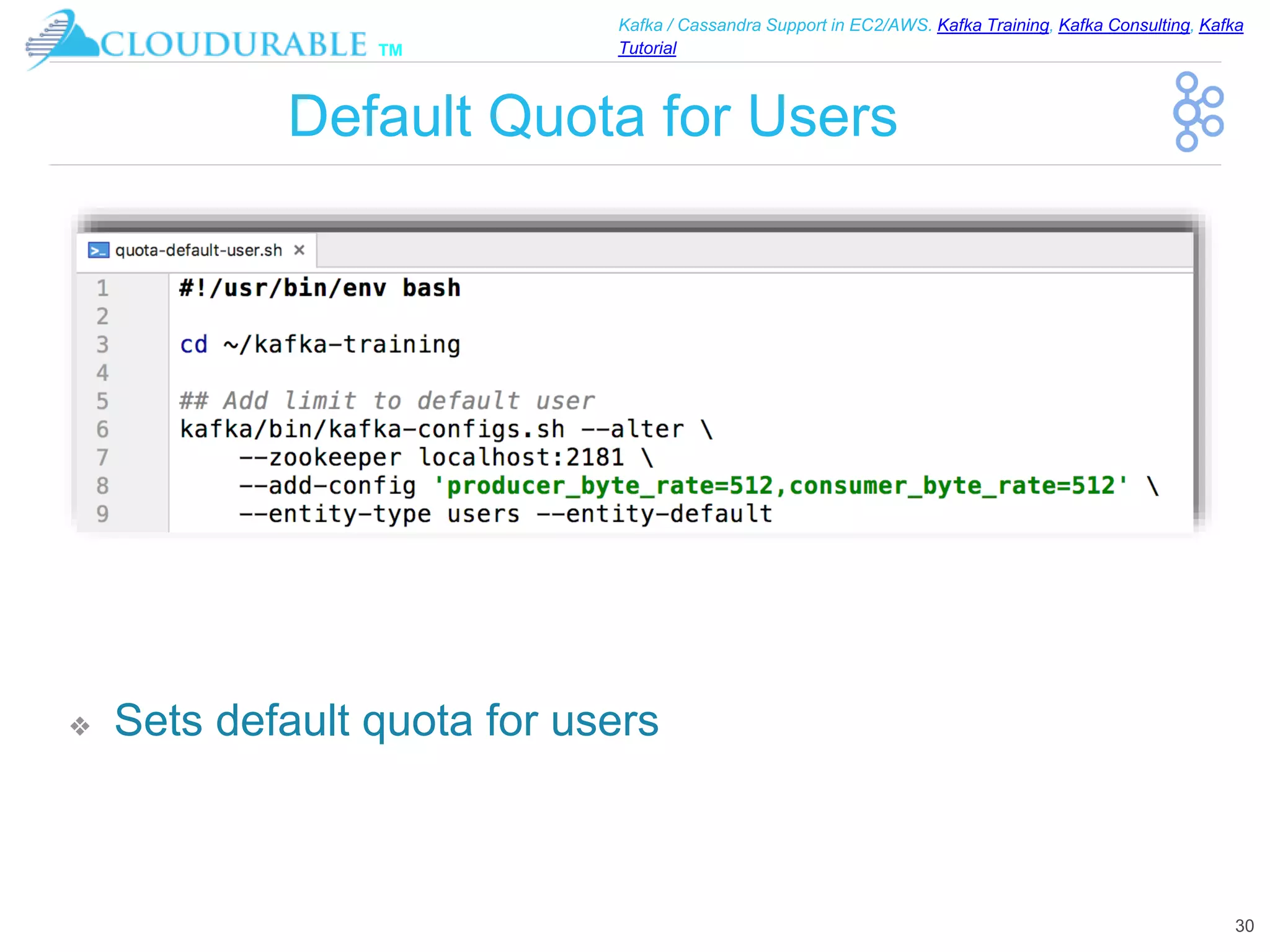

Default Quota for Users
❖ Sets default quota for users
30

™
Tutorial

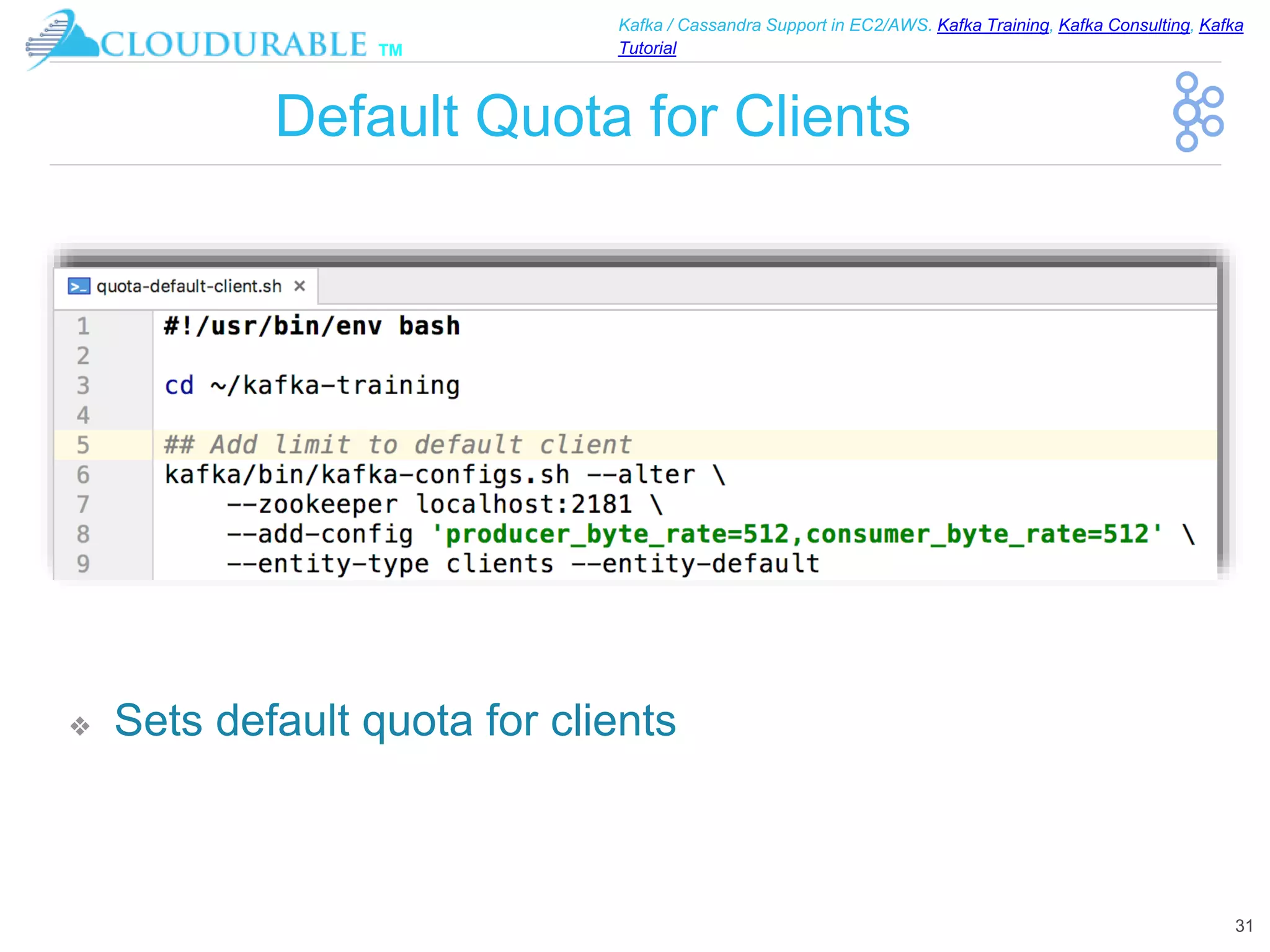

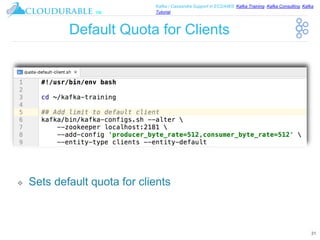

Default Quota for Clients
❖ Sets default quota for clients
31

™
Tutorial

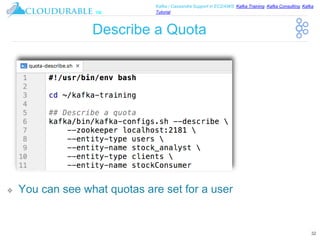

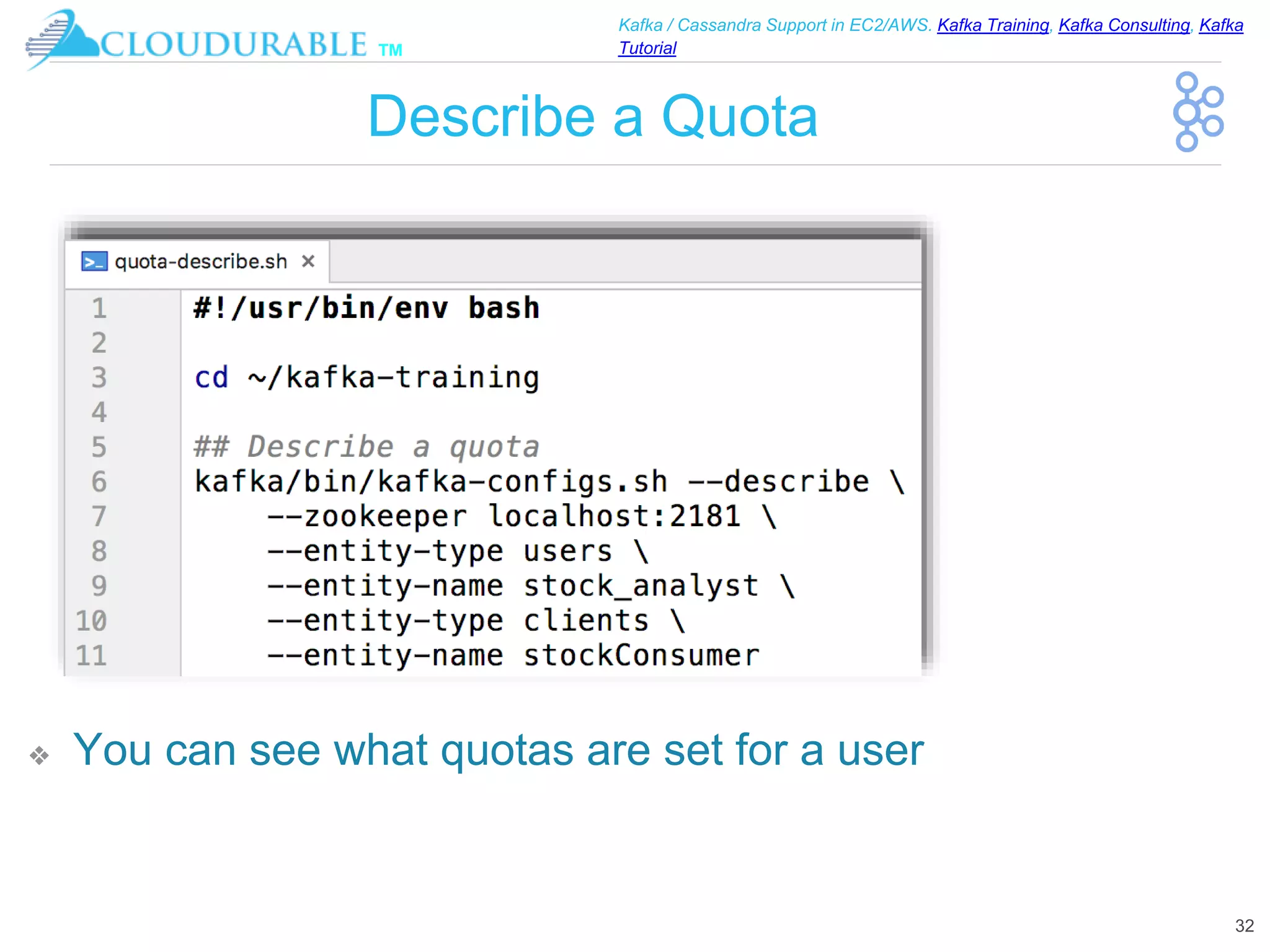

Describe a Quota
❖ You can see what quotas are set for a user
32

™
Tutorial

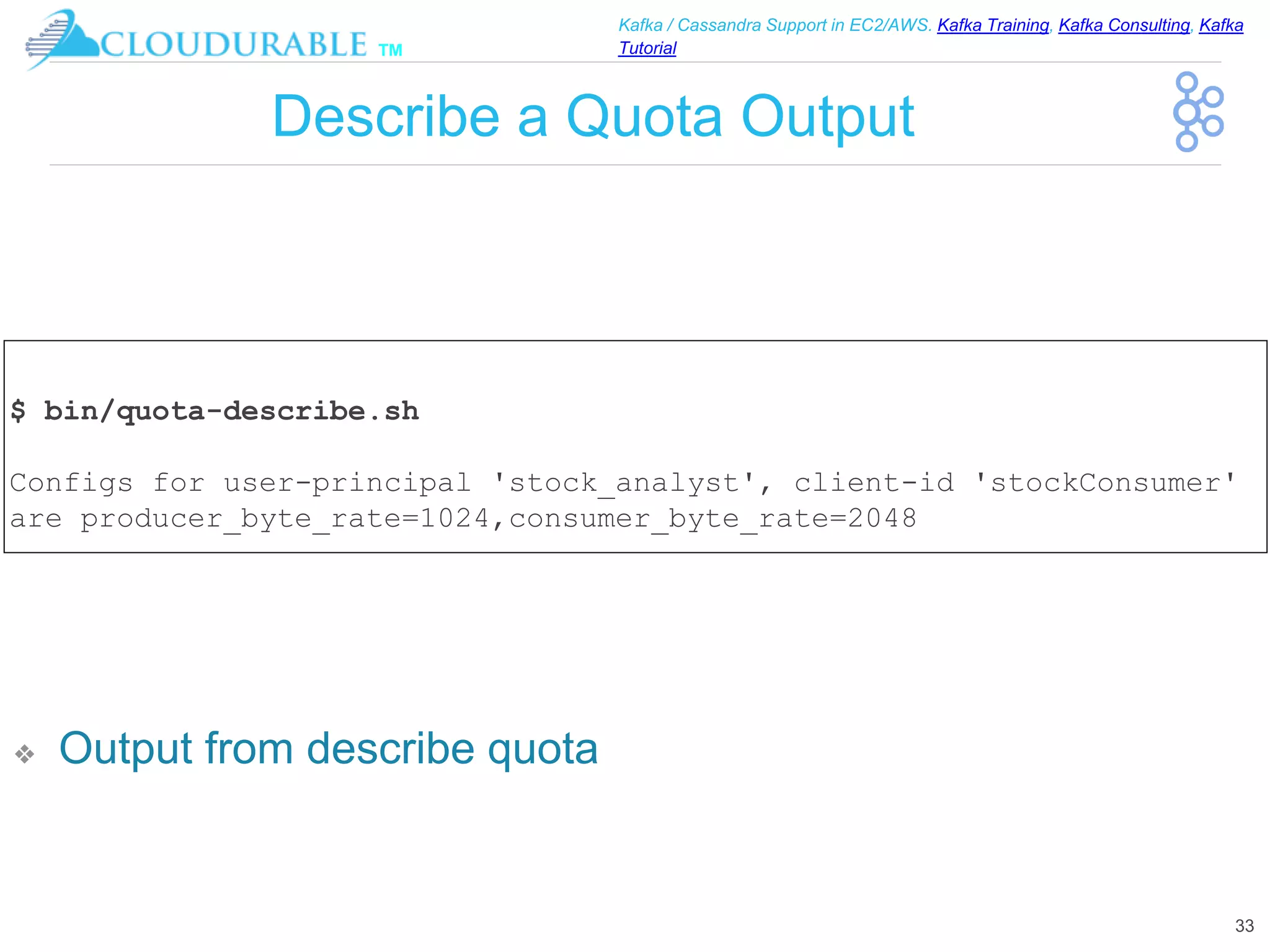

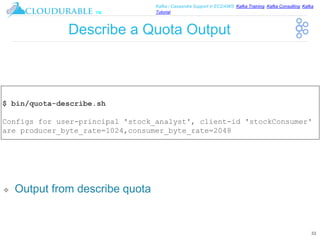

Describe a Quota Output
❖ Output from describe quota
33
$ bin/quota-describe.sh
Configs for user-principal 'stock_analyst', client-id 'stockConsumer'
are producer_byte_rate=1024,consumer_byte_rate=2048

™
Tutorial

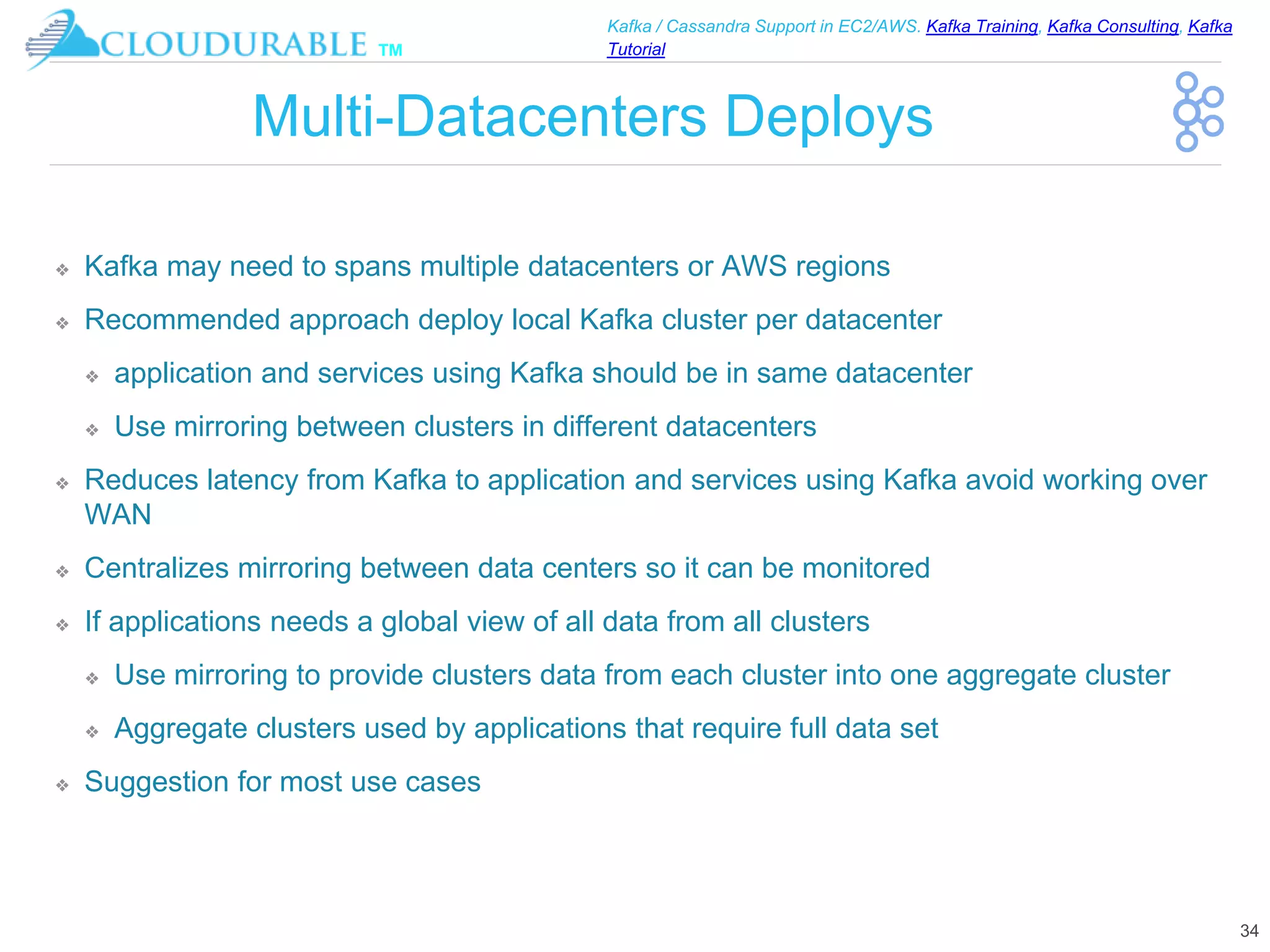

Multi-Datacenters Deploys
❖ Kafka may need to spans multiple datacenters or AWS regions
❖ Recommended approach deploy local Kafka cluster per datacenter
❖ application and services using Kafka should be in same datacenter
❖ Use mirroring between clusters in different datacenters
❖ Reduces latency from Kafka to application and services using Kafka avoid working over
WAN
❖ Centralizes mirroring between data centers so it can be monitored
❖ If applications needs a global view of all data from all clusters
❖ Use mirroring to provide clusters data from each cluster into one aggregate cluster
❖ Aggregate clusters used by applications that require full data set
❖ Suggestion for most use cases
34

™
Tutorial

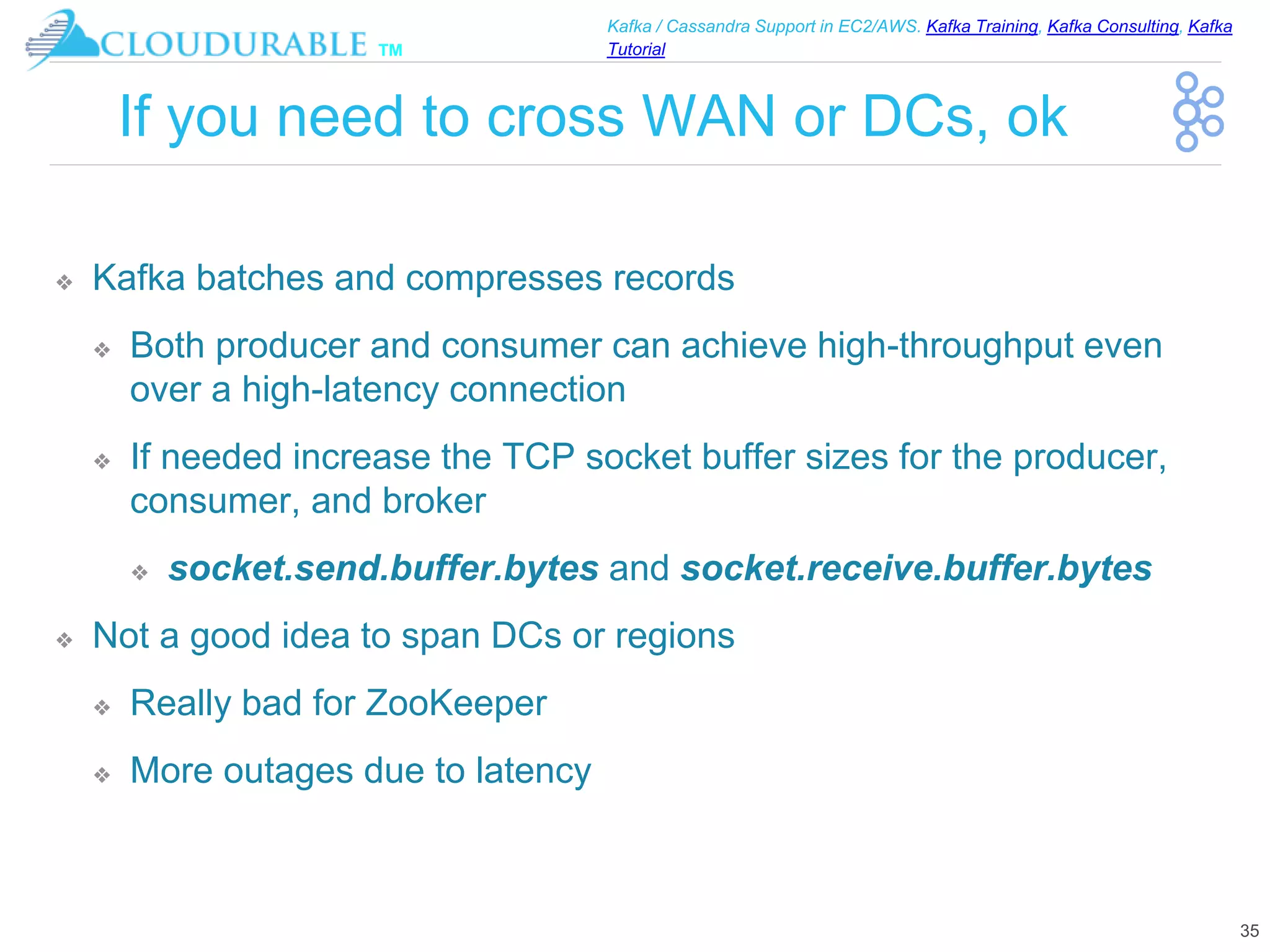

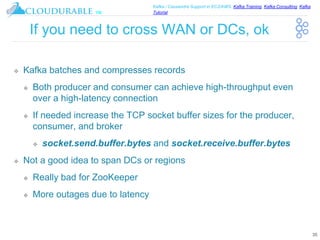

If you need to cross WAN or DCs, ok
❖ Kafka batches and compresses records
❖ Both producer and consumer can achieve high-throughput even
over a high-latency connection
❖ If needed increase the TCP socket buffer sizes for the producer,
consumer, and broker
❖ socket.send.buffer.bytes and socket.receive.buffer.bytes
❖ Not a good idea to span DCs or regions
❖ Really bad for ZooKeeper
❖ More outages due to latency
35

™
Tutorial

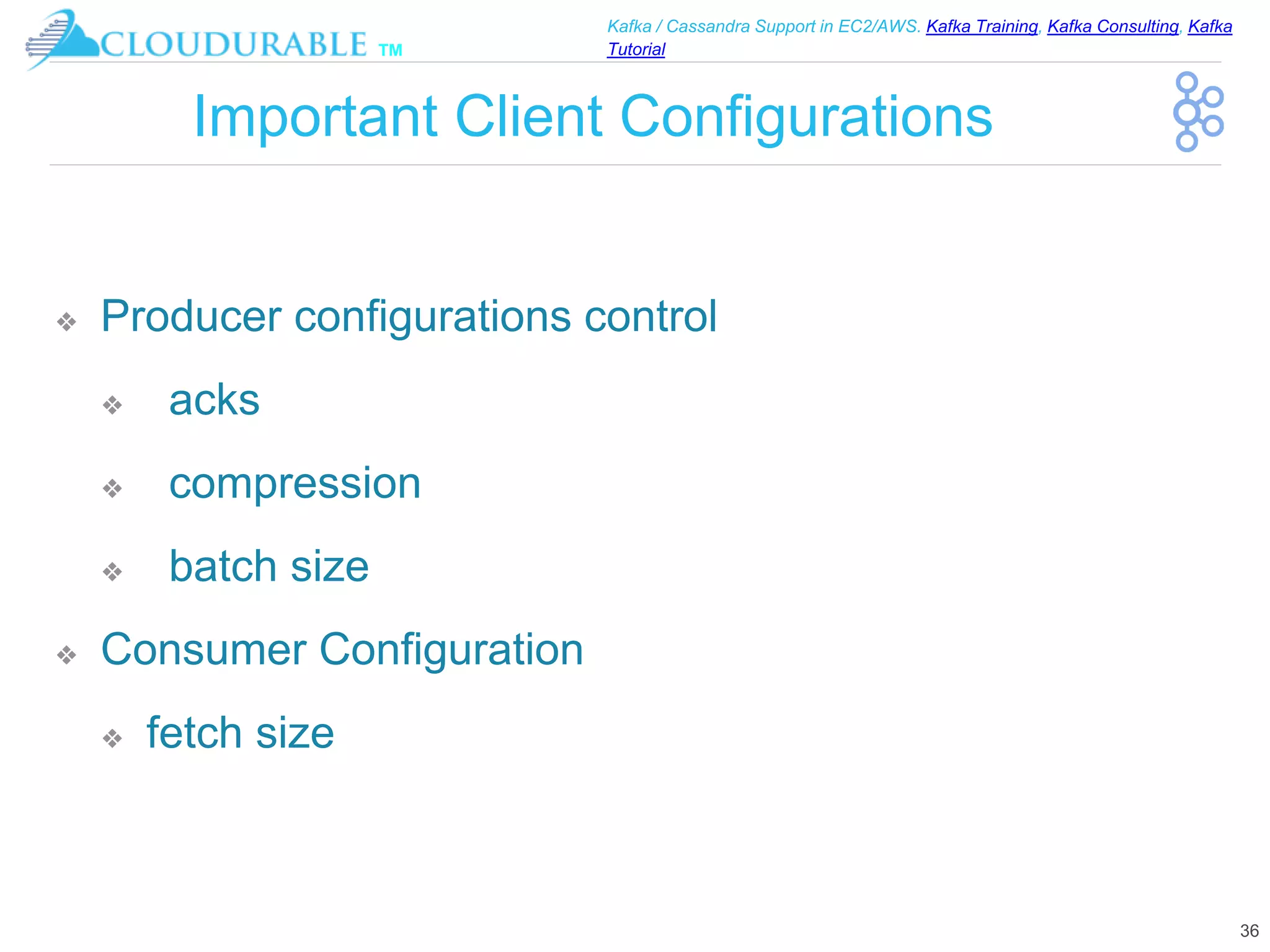

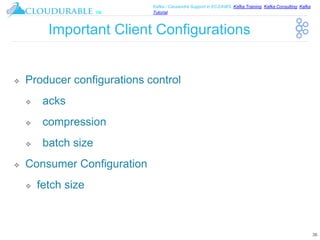

Important Client Configurations
❖ Producer configurations control
❖ acks
❖ compression
❖ batch size
❖ Consumer Configuration
❖ fetch size
36

™
Tutorial
A Production Server Config
37

™
Tutorial

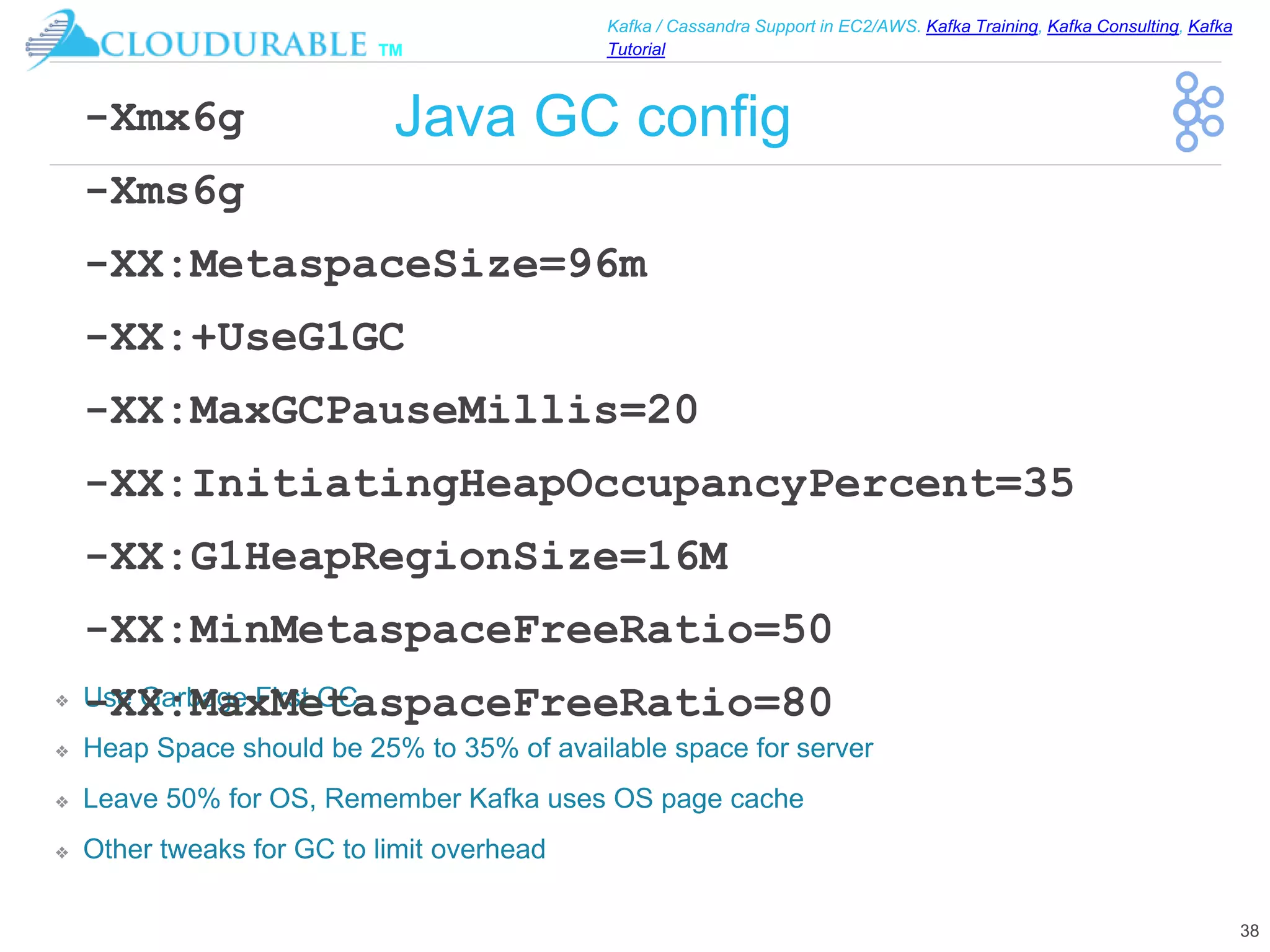

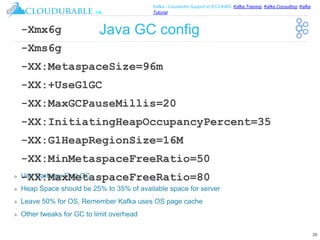

Java GC config
❖ Use Garbage First GC
❖ Heap Space should be 25% to 35% of available space for server
❖ Leave 50% for OS, Remember Kafka uses OS page cache
❖ Other tweaks for GC to limit overhead
38
-Xmx6g
-Xms6g
-XX:MetaspaceSize=96m
-XX:+UseG1GC
-XX:MaxGCPauseMillis=20
-XX:InitiatingHeapOccupancyPercent=35
-XX:G1HeapRegionSize=16M
-XX:MinMetaspaceFreeRatio=50
-XX:MaxMetaspaceFreeRatio=80

™
Tutorial

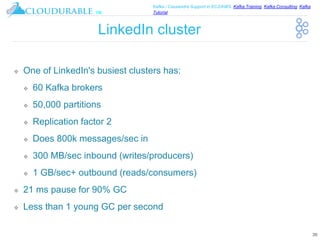

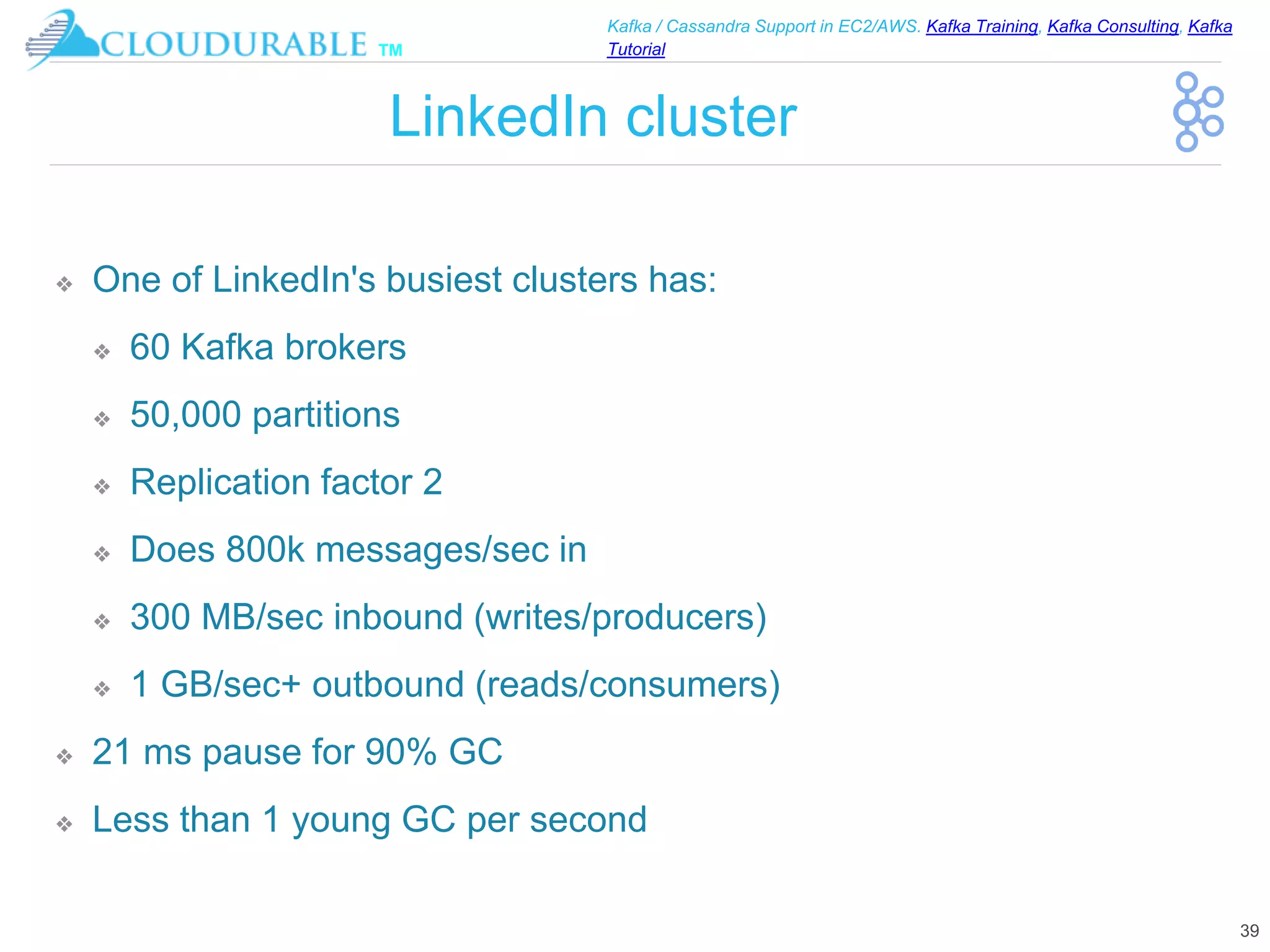

LinkedIn cluster
❖ One of LinkedIn's busiest clusters has:
❖ 60 Kafka brokers
❖ 50,000 partitions
❖ Replication factor 2
❖ Does 800k messages/sec in
❖ 300 MB/sec inbound (writes/producers)
❖ 1 GB/sec+ outbound (reads/consumers)
❖ 21 ms pause for 90% GC
❖ Less than 1 young GC per second
39

™
Tutorial

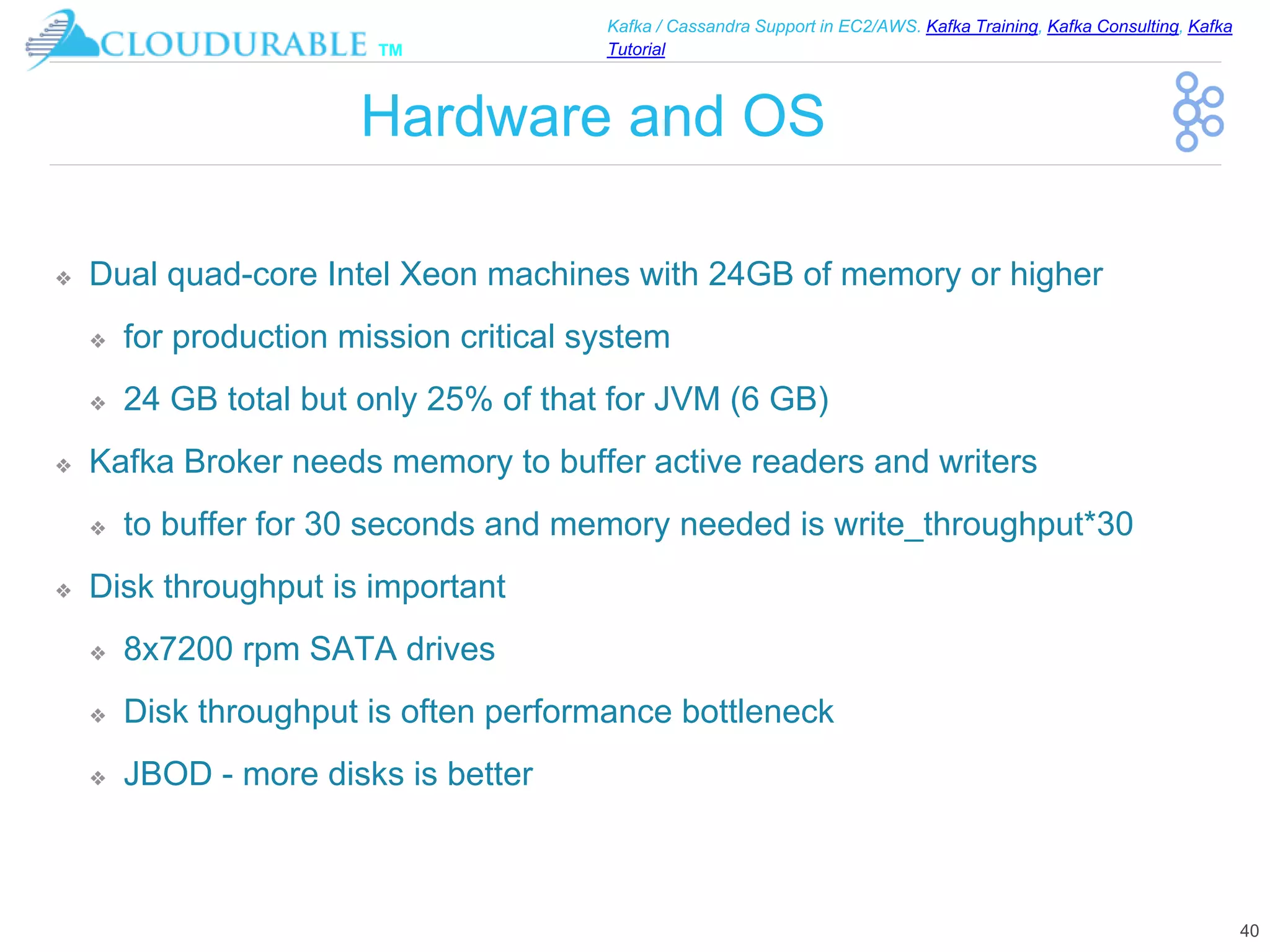

Hardware and OS
❖ Dual quad-core Intel Xeon machines with 24GB of memory or higher
❖ for production mission critical system
❖ 24 GB total but only 25% of that for JVM (6 GB)
❖ Kafka Broker needs memory to buffer active readers and writers
❖ to buffer for 30 seconds and memory needed is write_throughput*30
❖ Disk throughput is important
❖ 8x7200 rpm SATA drives
❖ Disk throughput is often performance bottleneck
❖ JBOD - more disks is better
40

™
Tutorial

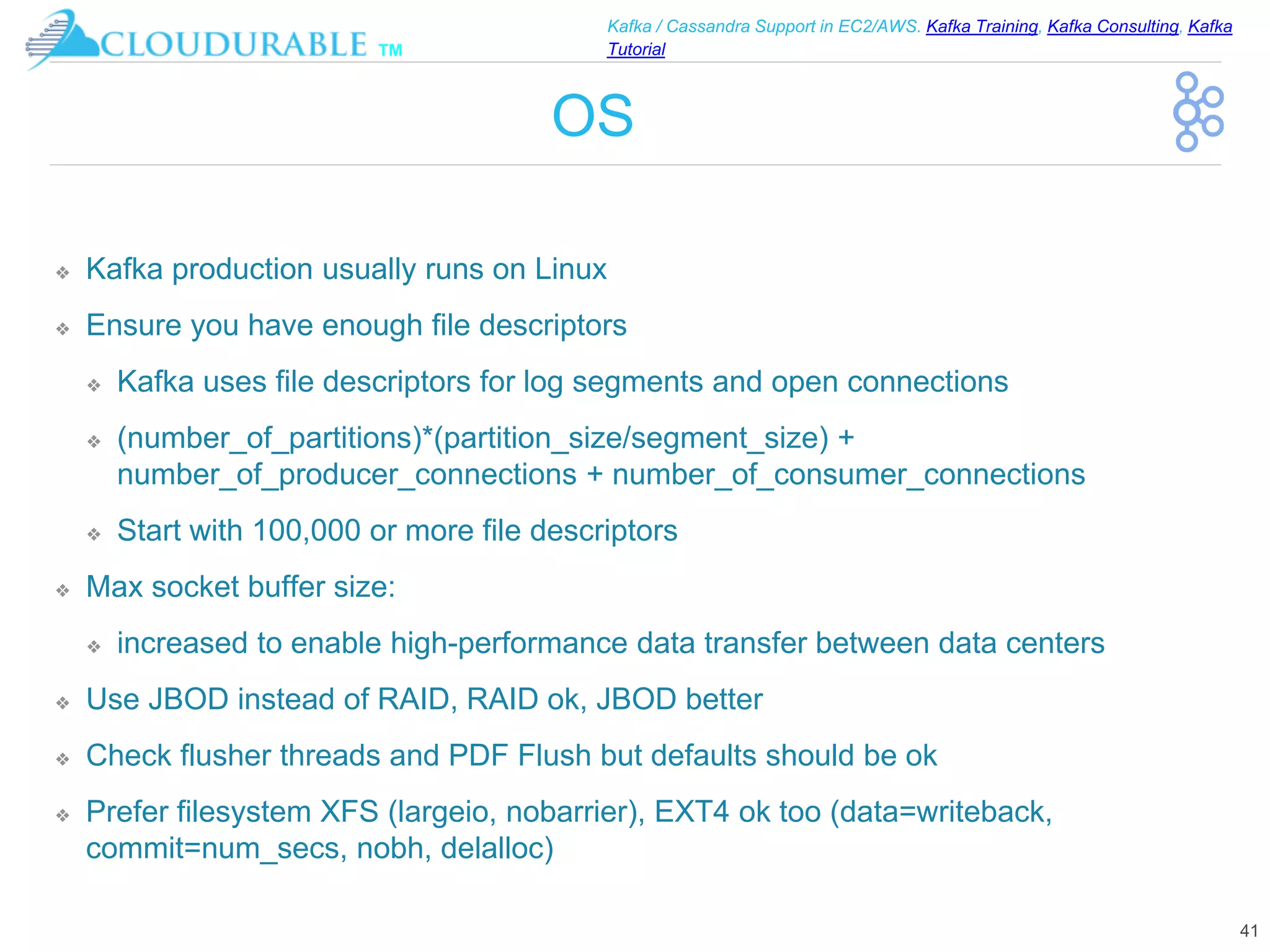

OS
❖ Kafka production usually runs on Linux
❖ Ensure you have enough file descriptors
❖ Kafka uses file descriptors for log segments and open connections
❖ (number_of_partitions)*(partition_size/segment_size) +
number_of_producer_connections + number_of_consumer_connections
❖ Start with 100,000 or more file descriptors
❖ Max socket buffer size:
❖ increased to enable high-performance data transfer between data centers
❖ Use JBOD instead of RAID, RAID ok, JBOD better
❖ Check flusher threads and PDF Flush but defaults should be ok
❖ Prefer filesystem XFS (largeio, nobarrier), EXT4 ok too (data=writeback,
commit=num_secs, nobh, delalloc)
41

™
Tutorial

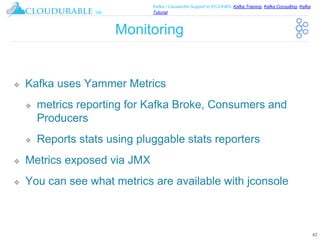

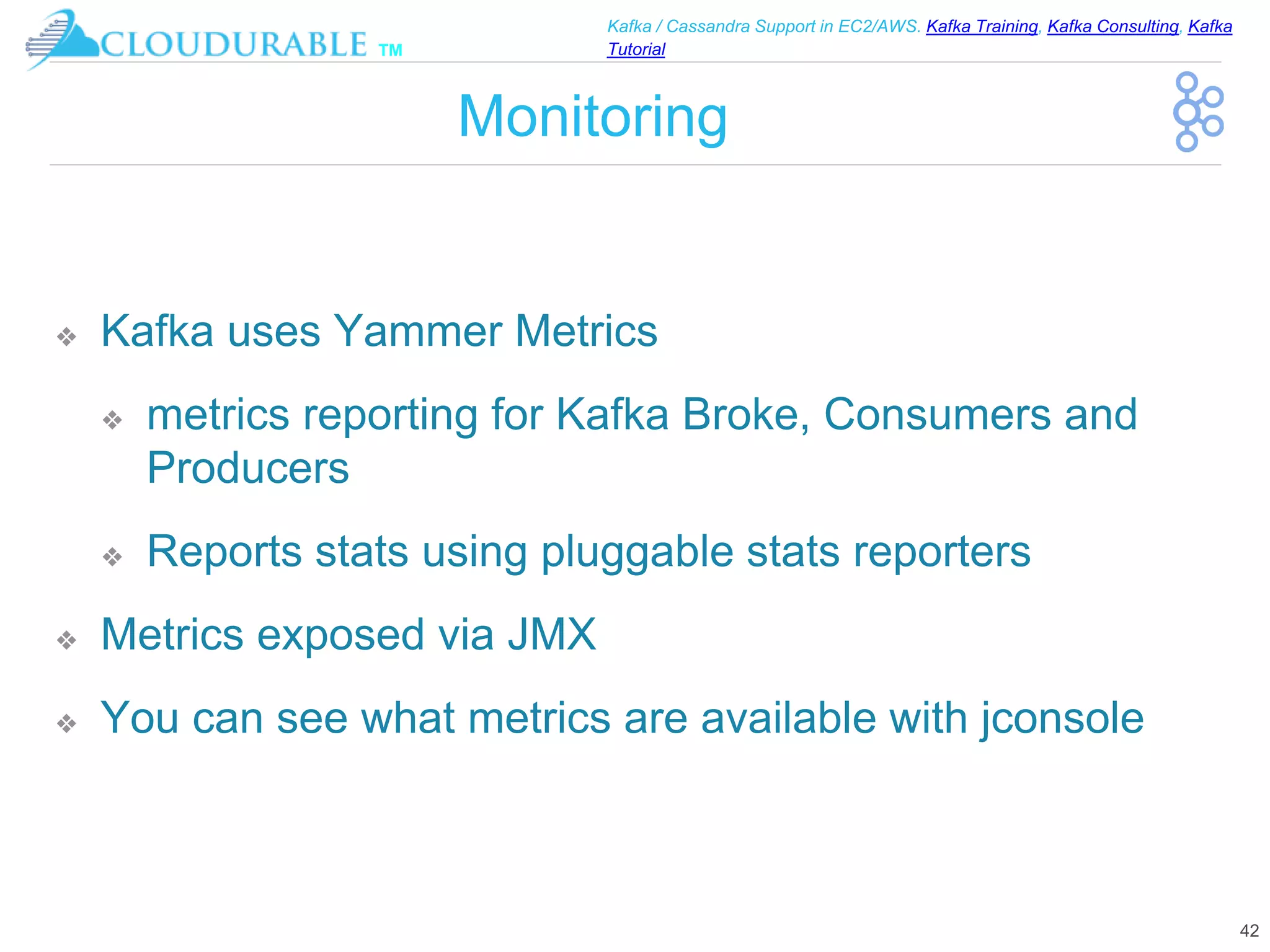

Monitoring
❖ Kafka uses Yammer Metrics
❖ metrics reporting for Kafka Broke, Consumers and
Producers
❖ Reports stats using pluggable stats reporters
❖ Metrics exposed via JMX

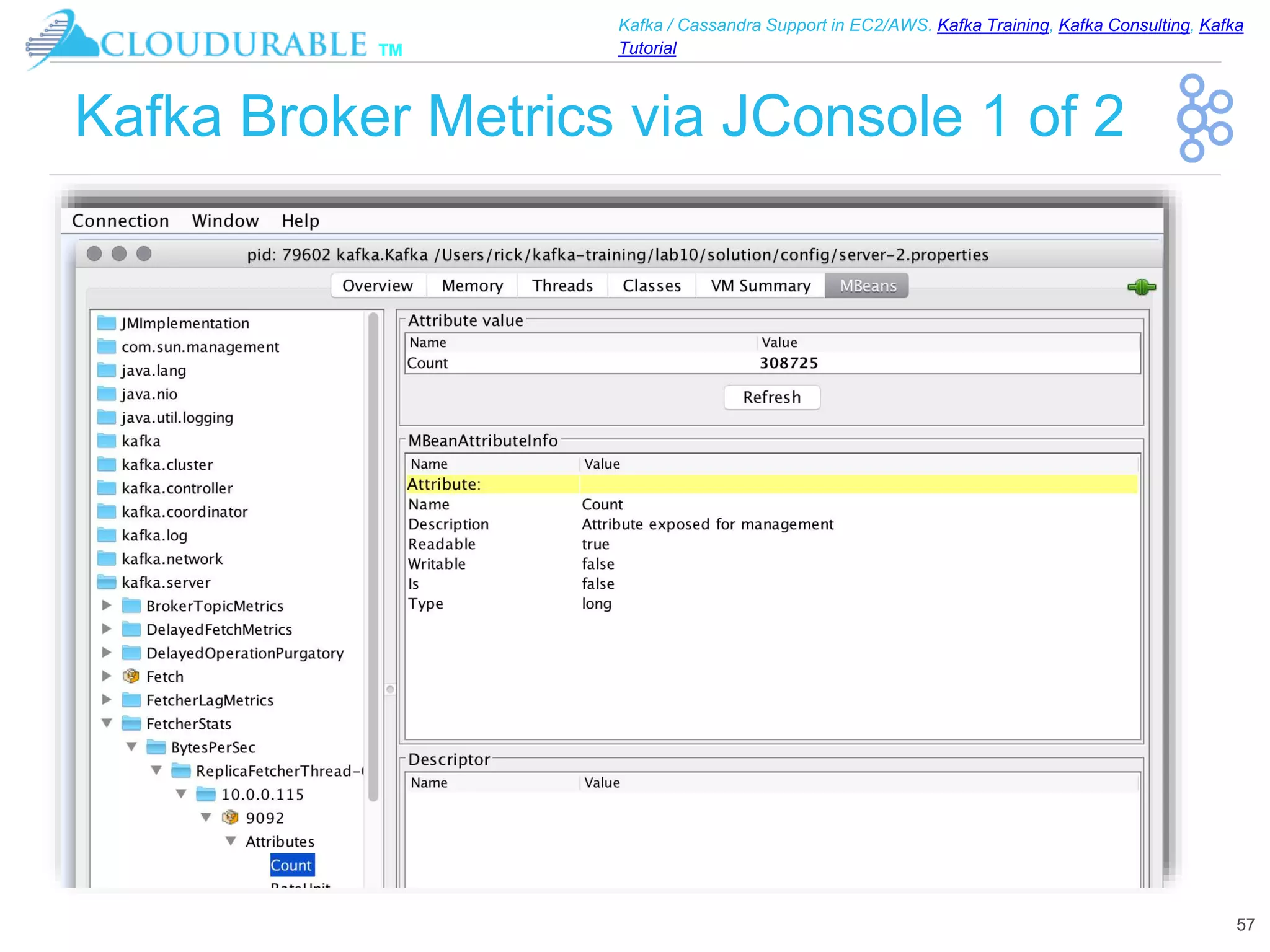

❖ You can see what metrics are available with jconsole
42

™
Tutorial

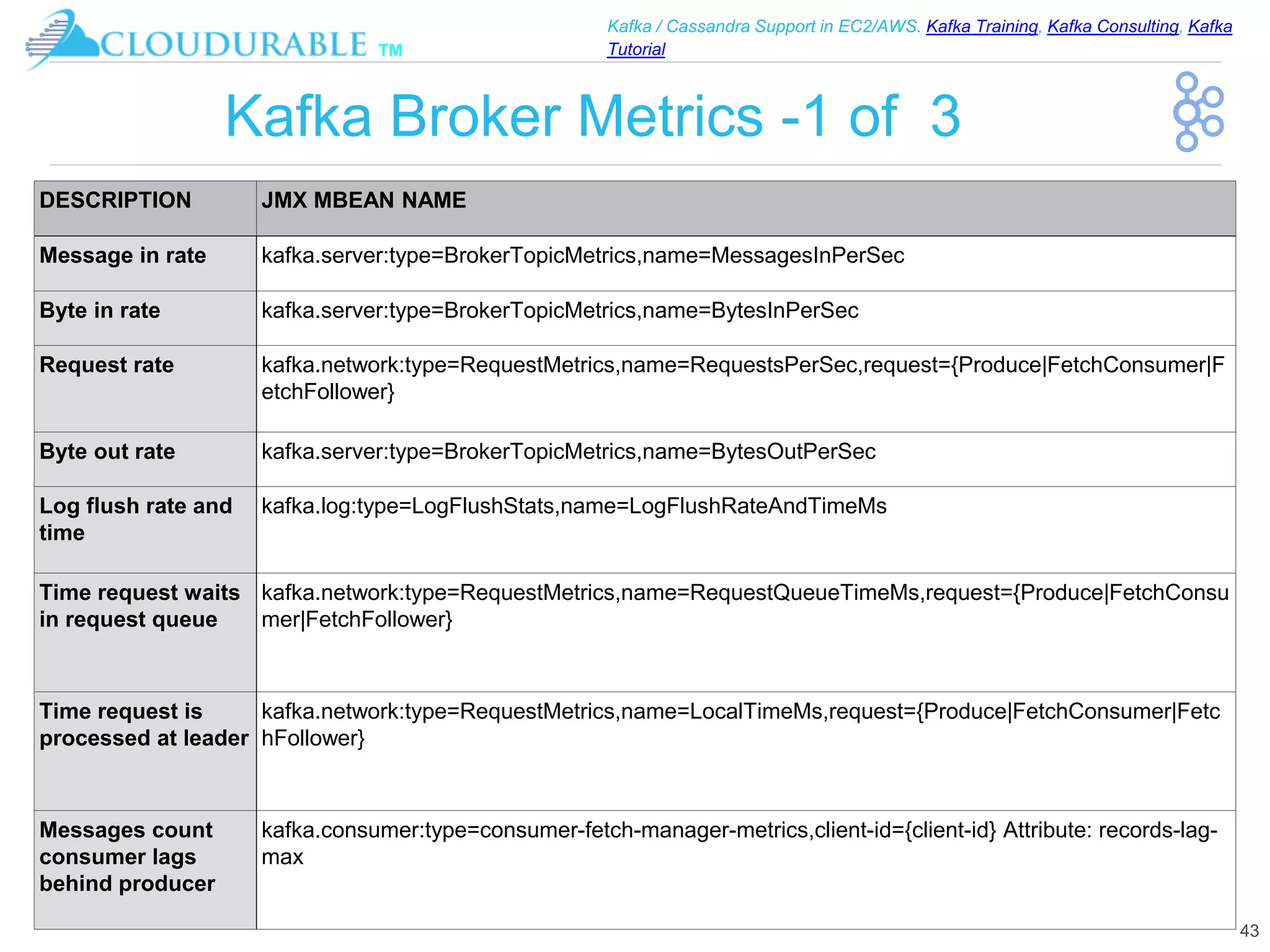

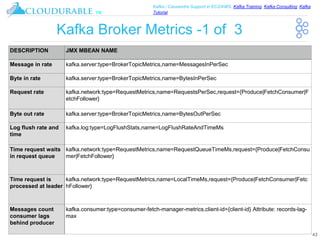

Kafka Broker Metrics -1 of 3
43
DESCRIPTION JMX MBEAN NAME
Message in rate kafka.server:type=BrokerTopicMetrics,name=MessagesInPerSec
Byte in rate kafka.server:type=BrokerTopicMetrics,name=BytesInPerSec
Request rate kafka.network:type=RequestMetrics,name=RequestsPerSec,request={Produce|FetchConsumer|F
etchFollower}
Byte out rate kafka.server:type=BrokerTopicMetrics,name=BytesOutPerSec
Log flush rate and
time
kafka.log:type=LogFlushStats,name=LogFlushRateAndTimeMs
Time request waits
in request queue
kafka.network:type=RequestMetrics,name=RequestQueueTimeMs,request={Produce|FetchConsu
mer|FetchFollower}
Time request is
processed at leader
kafka.network:type=RequestMetrics,name=LocalTimeMs,request={Produce|FetchConsumer|Fetc
hFollower}
Messages count
consumer lags
behind producer
kafka.consumer:type=consumer-fetch-manager-metrics,client-id={client-id} Attribute: records-lag-
max

™
Tutorial

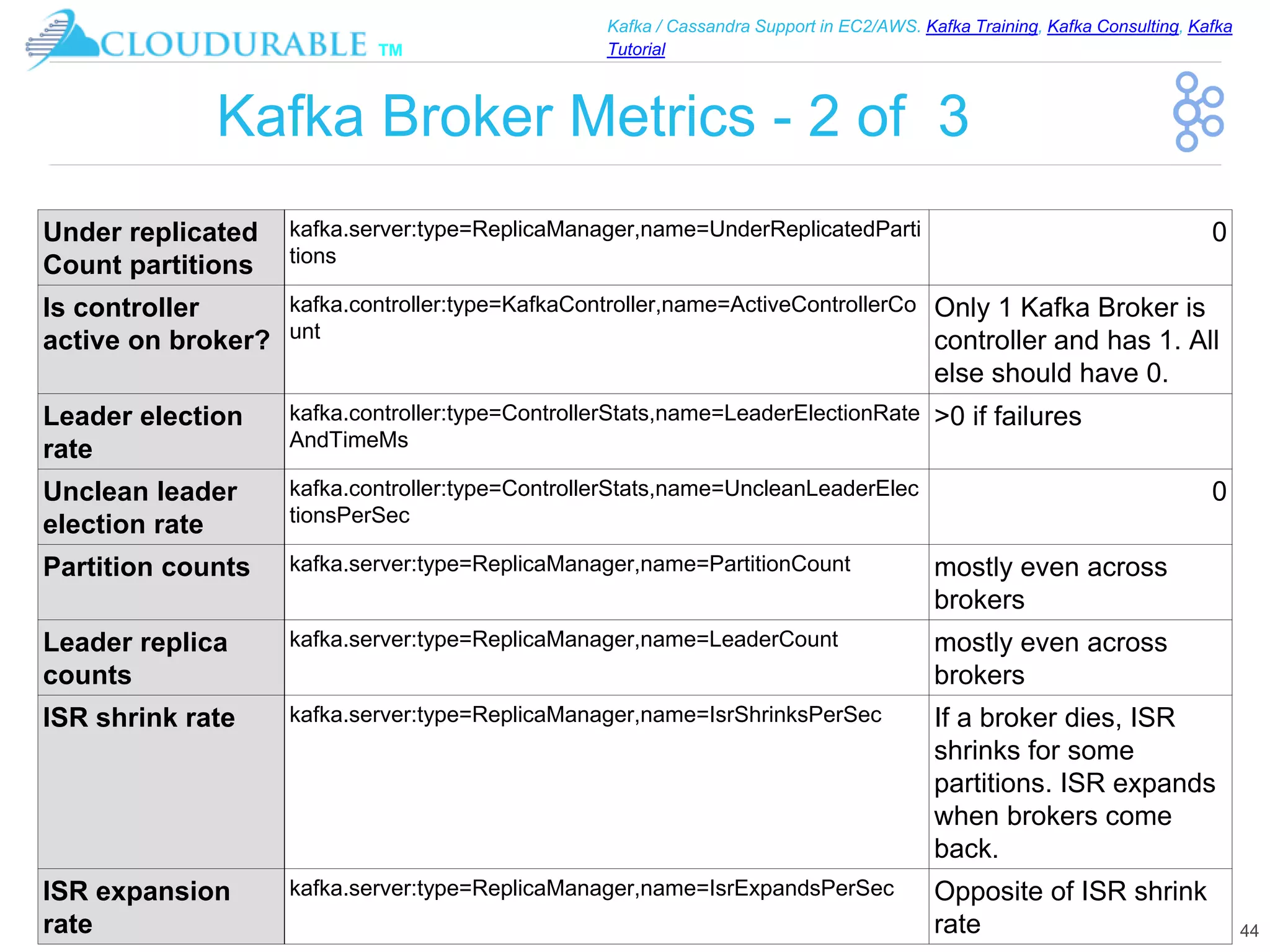

Kafka Broker Metrics - 2 of 3
44
Under replicated
Count partitions
kafka.server:type=ReplicaManager,name=UnderReplicatedParti
tions
0
Is controller
active on broker?
kafka.controller:type=KafkaController,name=ActiveControllerCo
unt
Only 1 Kafka Broker is
controller and has 1. All
else should have 0.
Leader election
rate
kafka.controller:type=ControllerStats,name=LeaderElectionRate
AndTimeMs
>0 if failures
Unclean leader
election rate
kafka.controller:type=ControllerStats,name=UncleanLeaderElec
tionsPerSec
0
Partition counts kafka.server:type=ReplicaManager,name=PartitionCount mostly even across
brokers
Leader replica
counts
kafka.server:type=ReplicaManager,name=LeaderCount mostly even across
brokers
ISR shrink rate kafka.server:type=ReplicaManager,name=IsrShrinksPerSec If a broker dies, ISR
shrinks for some
partitions. ISR expands
when brokers come
back.
ISR expansion
rate
kafka.server:type=ReplicaManager,name=IsrExpandsPerSec Opposite of ISR shrink
rate

™
Tutorial

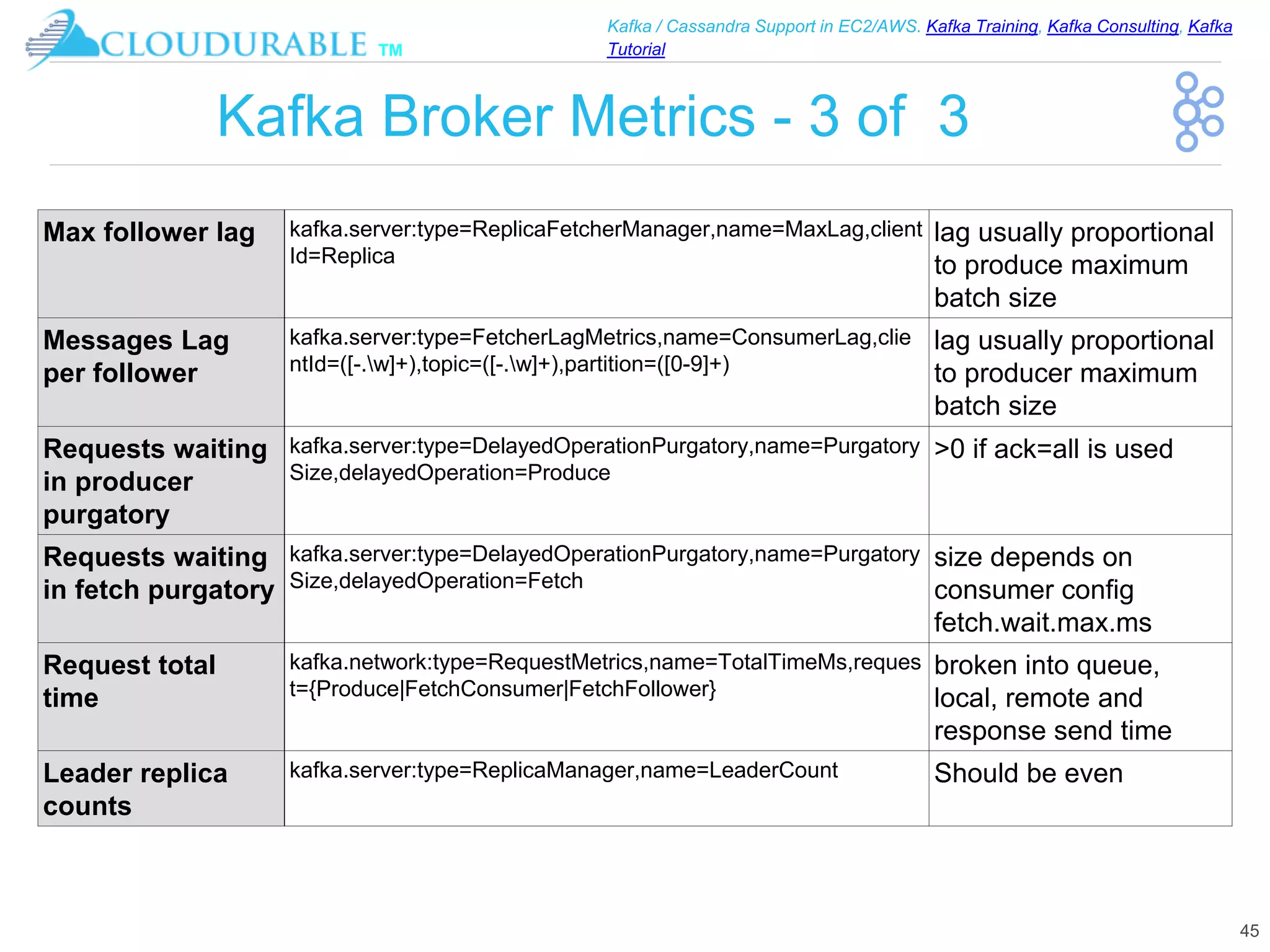

Kafka Broker Metrics - 3 of 3
45
Max follower lag kafka.server:type=ReplicaFetcherManager,name=MaxLag,client
Id=Replica
lag usually proportional
to produce maximum
batch size
Messages Lag
per follower
kafka.server:type=FetcherLagMetrics,name=ConsumerLag,clie
ntId=([-.w]+),topic=([-.w]+),partition=([0-9]+)
lag usually proportional
to producer maximum
batch size
Requests waiting
in producer
purgatory
kafka.server:type=DelayedOperationPurgatory,name=Purgatory
Size,delayedOperation=Produce
>0 if ack=all is used
Requests waiting
in fetch purgatory
kafka.server:type=DelayedOperationPurgatory,name=Purgatory
Size,delayedOperation=Fetch
size depends on
consumer config
fetch.wait.max.ms
Request total
time
kafka.network:type=RequestMetrics,name=TotalTimeMs,reques
t={Produce|FetchConsumer|FetchFollower}
broken into queue,
local, remote and
response send time
Leader replica
counts
kafka.server:type=ReplicaManager,name=LeaderCount Should be even

™
Tutorial

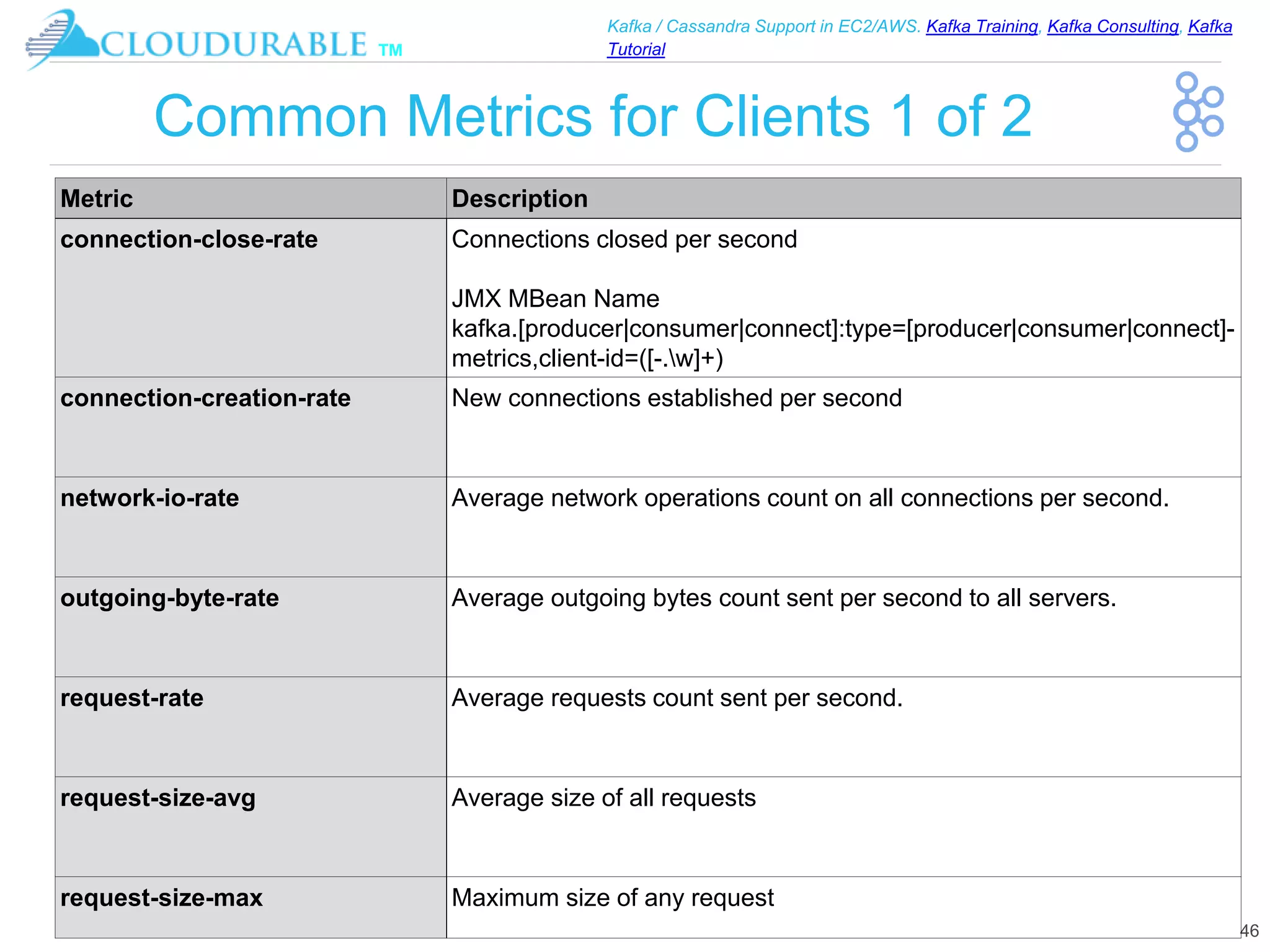

Common Metrics for Clients 1 of 2
46
Metric Description
connection-close-rate Connections closed per second
JMX MBean Name
kafka.[producer|consumer|connect]:type=[producer|consumer|connect]-
metrics,client-id=([-.w]+)
connection-creation-rate New connections established per second
network-io-rate Average network operations count on all connections per second.
outgoing-byte-rate Average outgoing bytes count sent per second to all servers.
request-rate Average requests count sent per second.
request-size-avg Average size of all requests
request-size-max Maximum size of any request

™
Tutorial

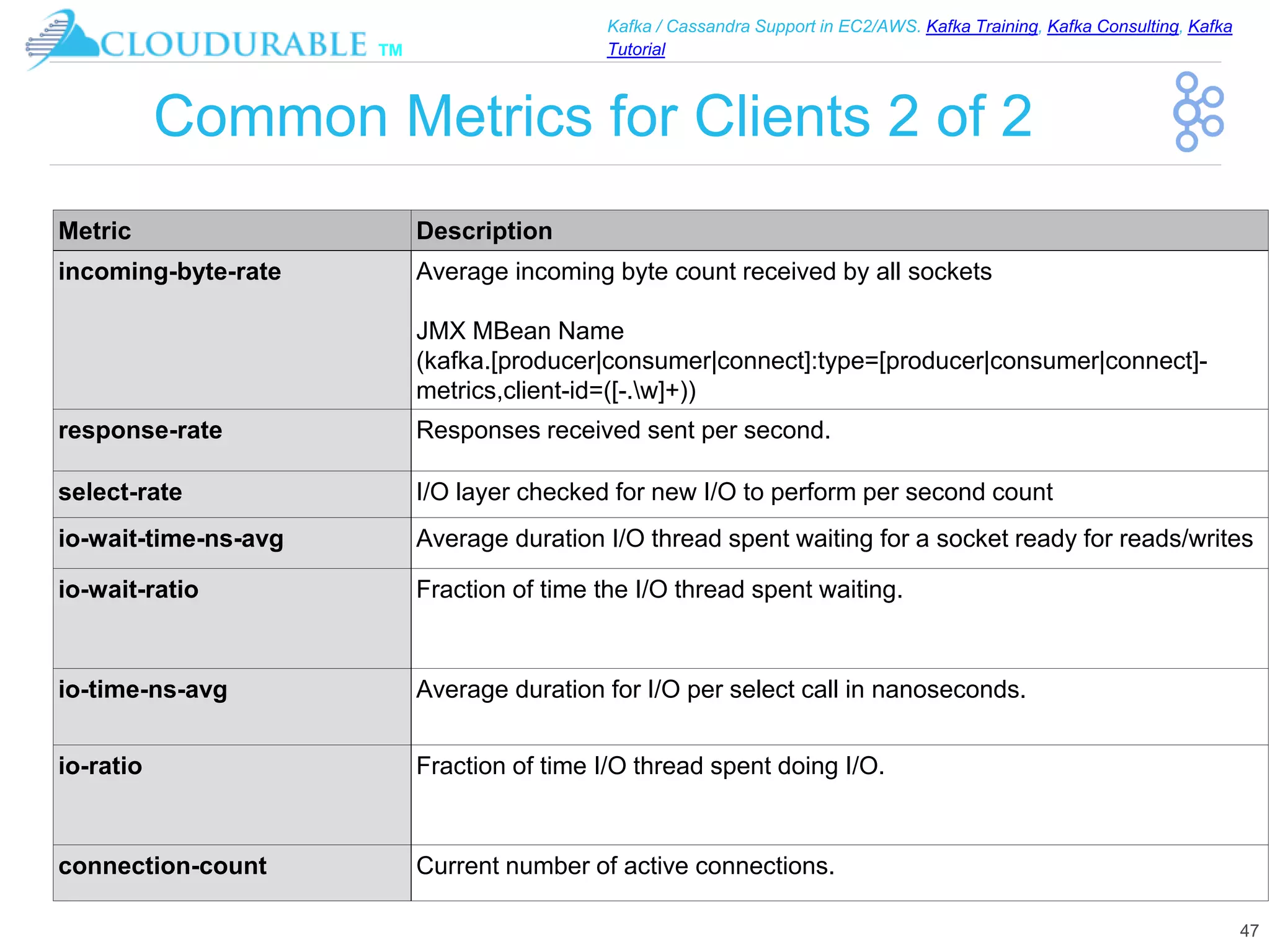

Common Metrics for Clients 2 of 2
47
Metric Description
incoming-byte-rate Average incoming byte count received by all sockets
JMX MBean Name
(kafka.[producer|consumer|connect]:type=[producer|consumer|connect]-
metrics,client-id=([-.w]+))
response-rate Responses received sent per second.
select-rate I/O layer checked for new I/O to perform per second count
io-wait-time-ns-avg Average duration I/O thread spent waiting for a socket ready for reads/writes
io-wait-ratio Fraction of time the I/O thread spent waiting.
io-time-ns-avg Average duration for I/O per select call in nanoseconds.
io-ratio Fraction of time I/O thread spent doing I/O.
connection-count Current number of active connections.

™
Tutorial

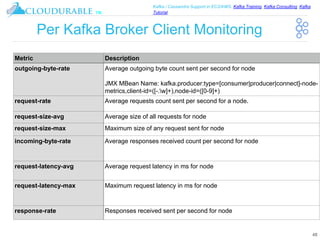

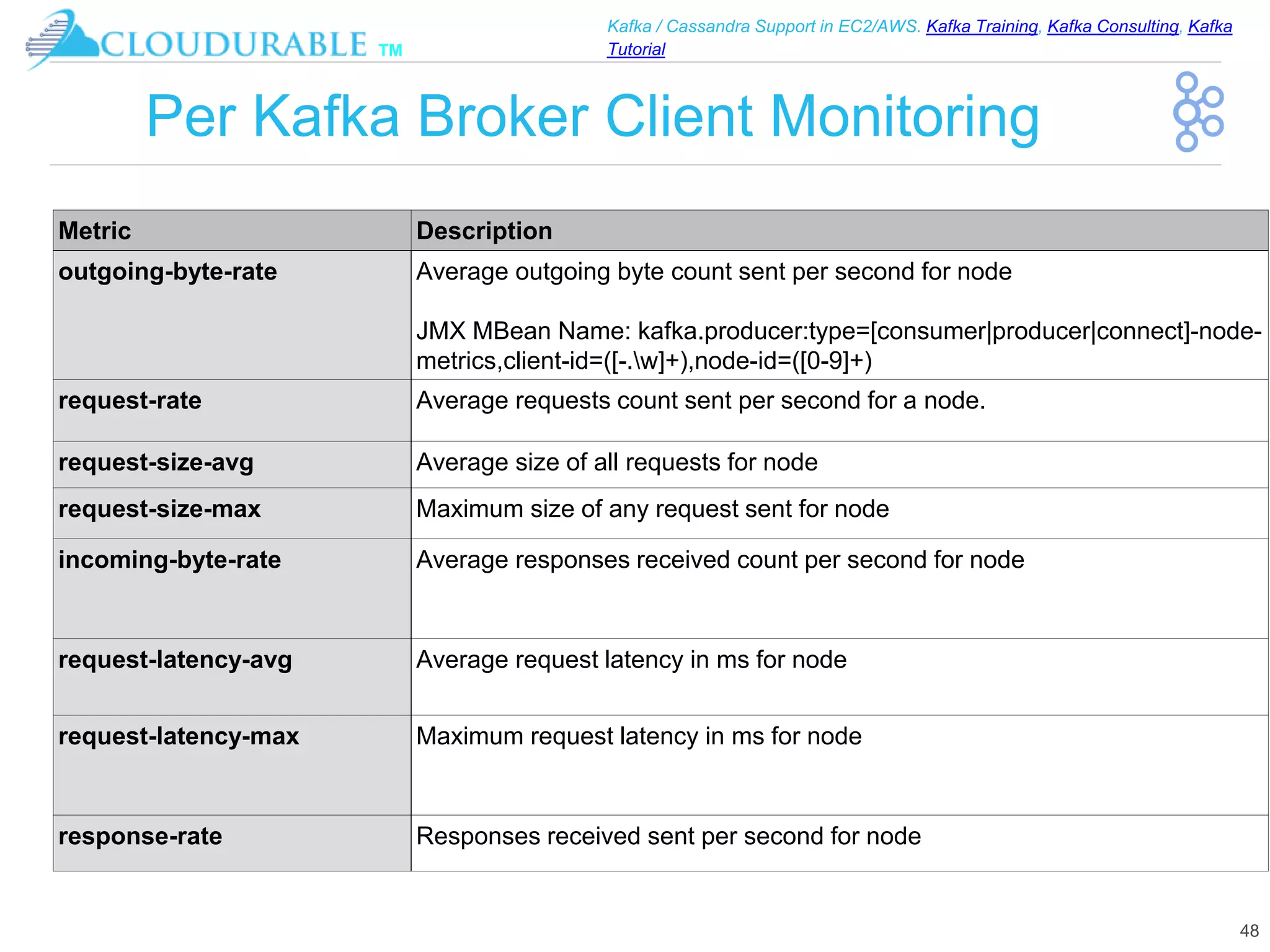

Per Kafka Broker Client Monitoring
48
Metric Description
outgoing-byte-rate Average outgoing byte count sent per second for node
JMX MBean Name: kafka.producer:type=[consumer|producer|connect]-node-
metrics,client-id=([-.w]+),node-id=([0-9]+)
request-rate Average requests count sent per second for a node.
request-size-avg Average size of all requests for node
request-size-max Maximum size of any request sent for node
incoming-byte-rate Average responses received count per second for node
request-latency-avg Average request latency in ms for node
request-latency-max Maximum request latency in ms for node
response-rate Responses received sent per second for node

™
Tutorial

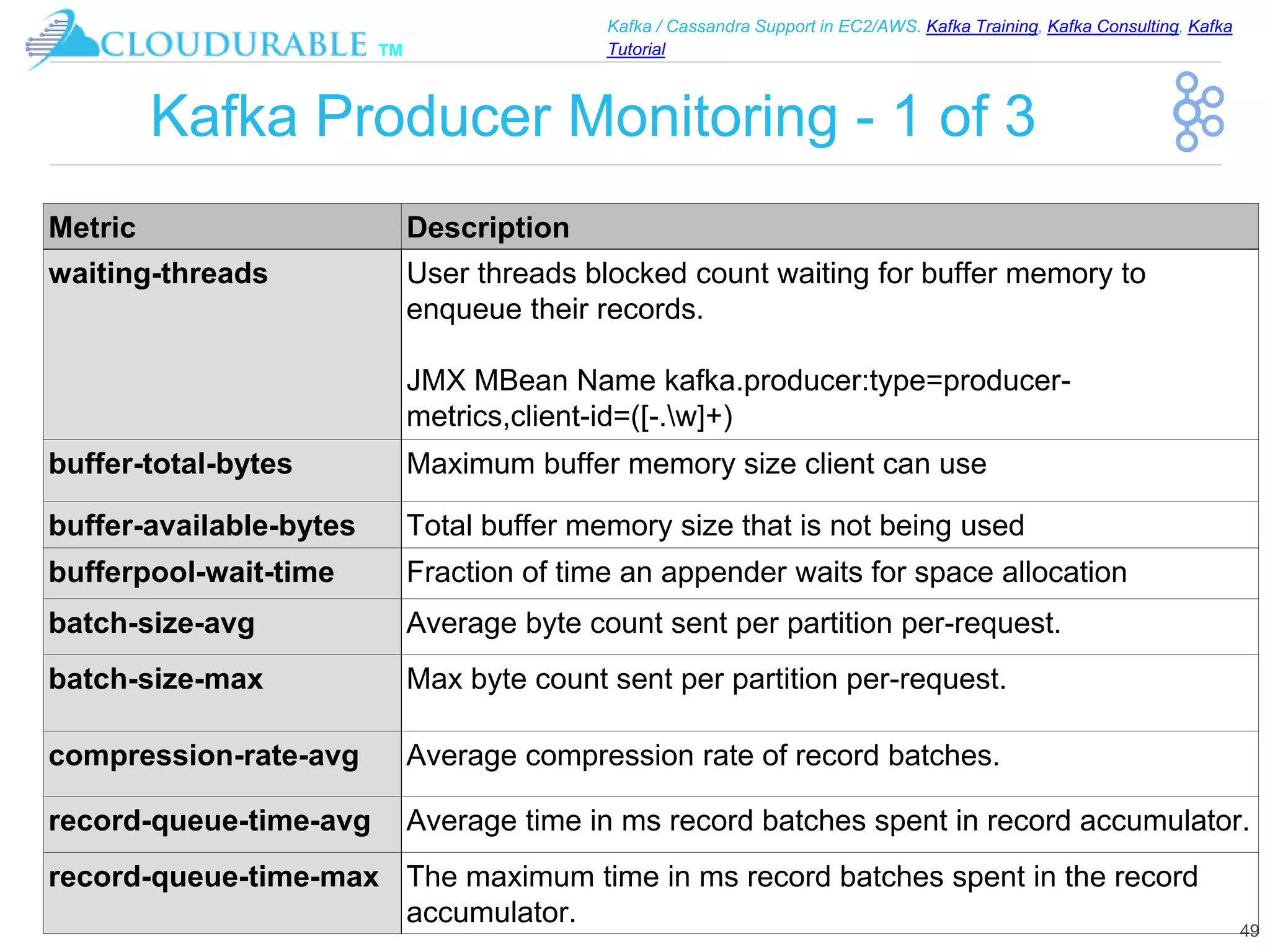

Kafka Producer Monitoring - 1 of 3
49
Metric Description
waiting-threads User threads blocked count waiting for buffer memory to
enqueue their records.
JMX MBean Name kafka.producer:type=producer-
buffer-total-bytes Maximum buffer memory size client can use
buffer-available-bytes Total buffer memory size that is not being used
bufferpool-wait-time Fraction of time an appender waits for space allocation
batch-size-avg Average byte count sent per partition per-request.
batch-size-max Max byte count sent per partition per-request.
compression-rate-avg Average compression rate of record batches.
record-queue-time-avg Average time in ms record batches spent in record accumulator.
record-queue-time-max The maximum time in ms record batches spent in the record
accumulator.

™
Tutorial

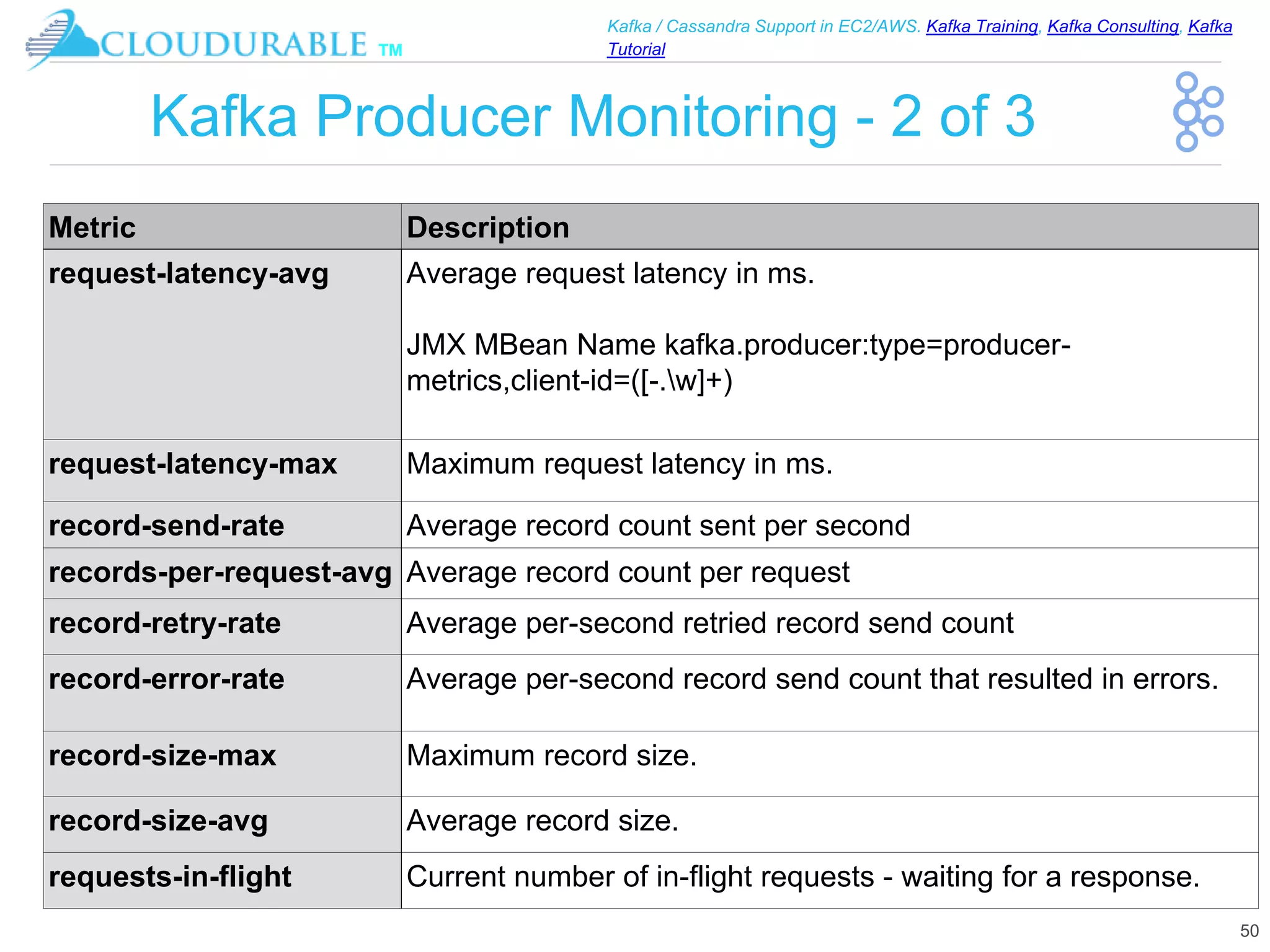

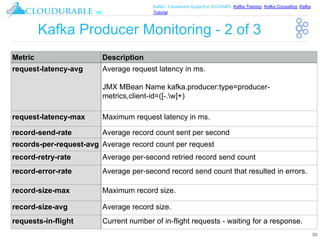

50
Metric Description
request-latency-avg Average request latency in ms.
JMX MBean Name kafka.producer:type=producer-
request-latency-max Maximum request latency in ms.
record-send-rate Average record count sent per second
records-per-request-avg Average record count per request
record-retry-rate Average per-second retried record send count
record-error-rate Average per-second record send count that resulted in errors.
record-size-max Maximum record size.
record-size-avg Average record size.
requests-in-flight Current number of in-flight requests - waiting for a response.

™
Tutorial

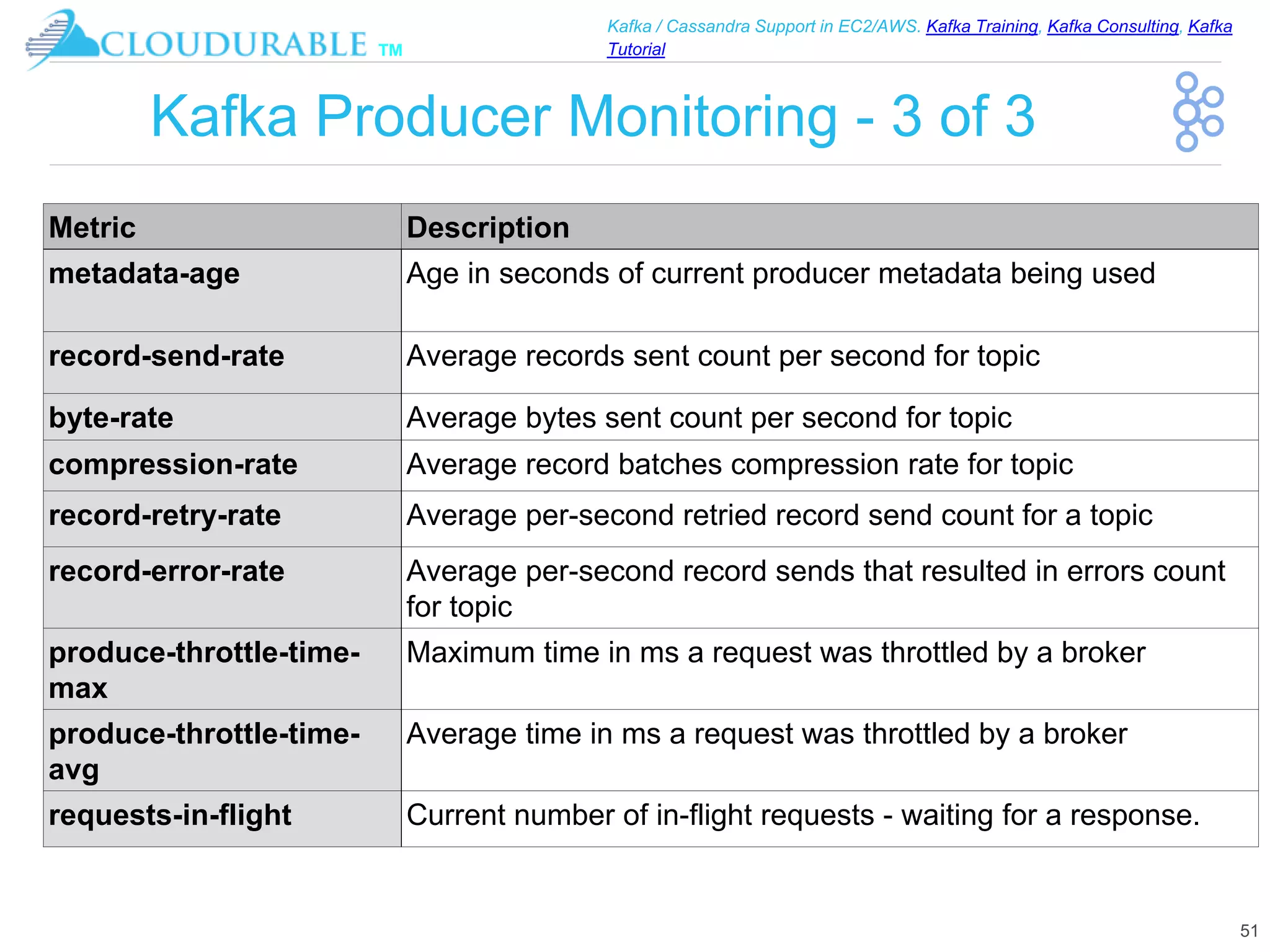

51
Metric Description
metadata-age Age in seconds of current producer metadata being used
record-send-rate Average records sent count per second for topic
byte-rate Average bytes sent count per second for topic
compression-rate Average record batches compression rate for topic
record-retry-rate Average per-second retried record send count for a topic
record-error-rate Average per-second record sends that resulted in errors count
for topic
produce-throttle-time-
max
Maximum time in ms a request was throttled by a broker
produce-throttle-time-
avg
Average time in ms a request was throttled by a broker
requests-in-flight Current number of in-flight requests - waiting for a response.

™
Tutorial

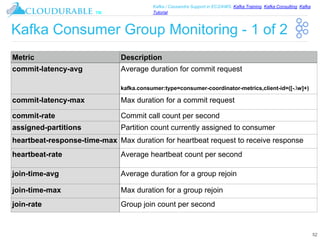

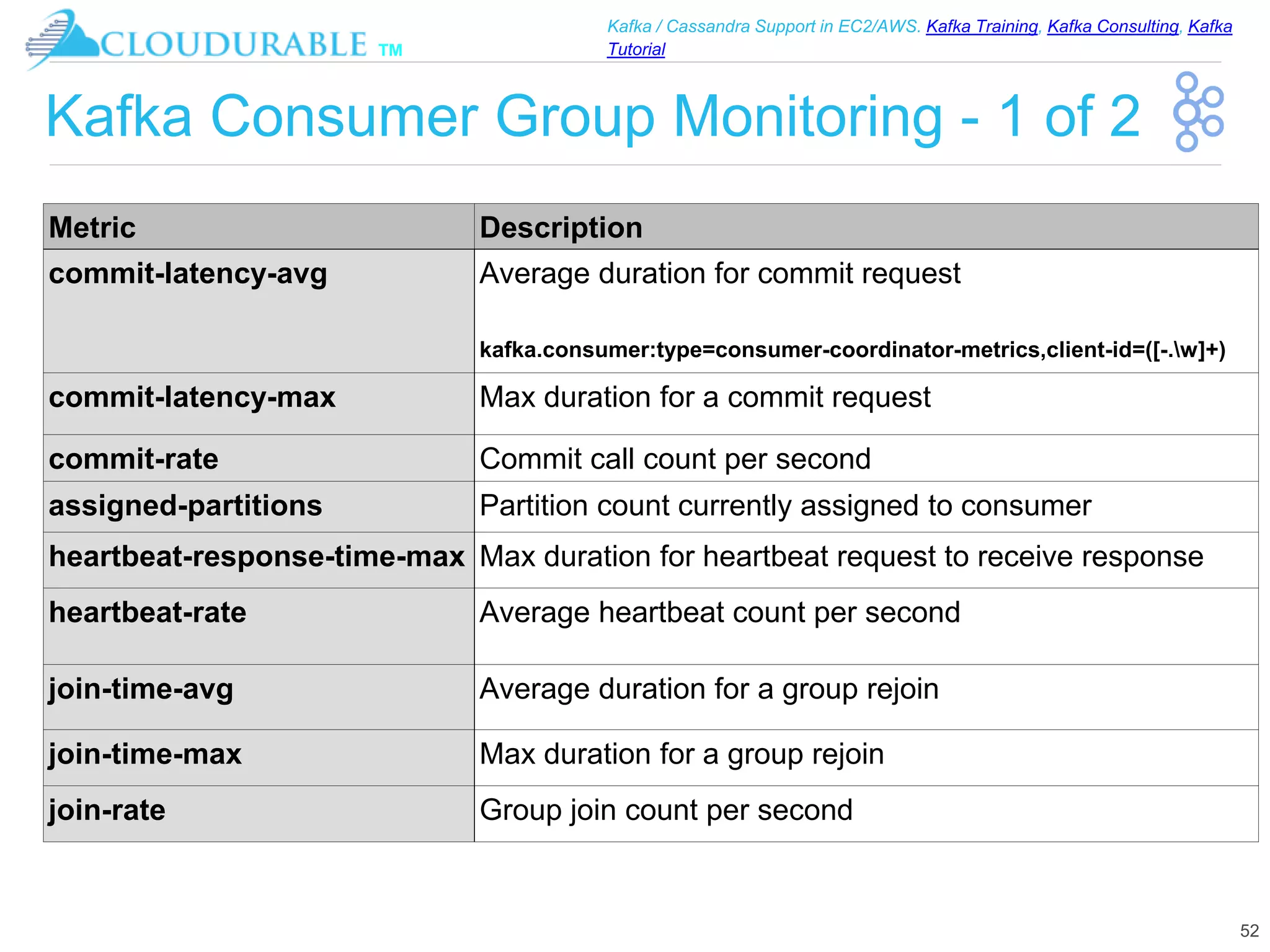

Kafka Consumer Group Monitoring - 1 of 2
52
Metric Description
commit-latency-avg Average duration for commit request
kafka.consumer:type=consumer-coordinator-metrics,client-id=([-.w]+)
commit-latency-max Max duration for a commit request
commit-rate Commit call count per second
assigned-partitions Partition count currently assigned to consumer
heartbeat-response-time-max Max duration for heartbeat request to receive response
heartbeat-rate Average heartbeat count per second
join-time-avg Average duration for a group rejoin
join-time-max Max duration for a group rejoin
join-rate Group join count per second

™
Tutorial

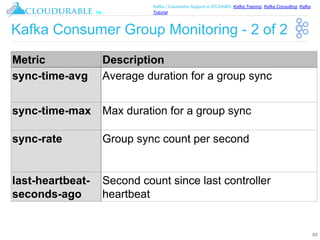

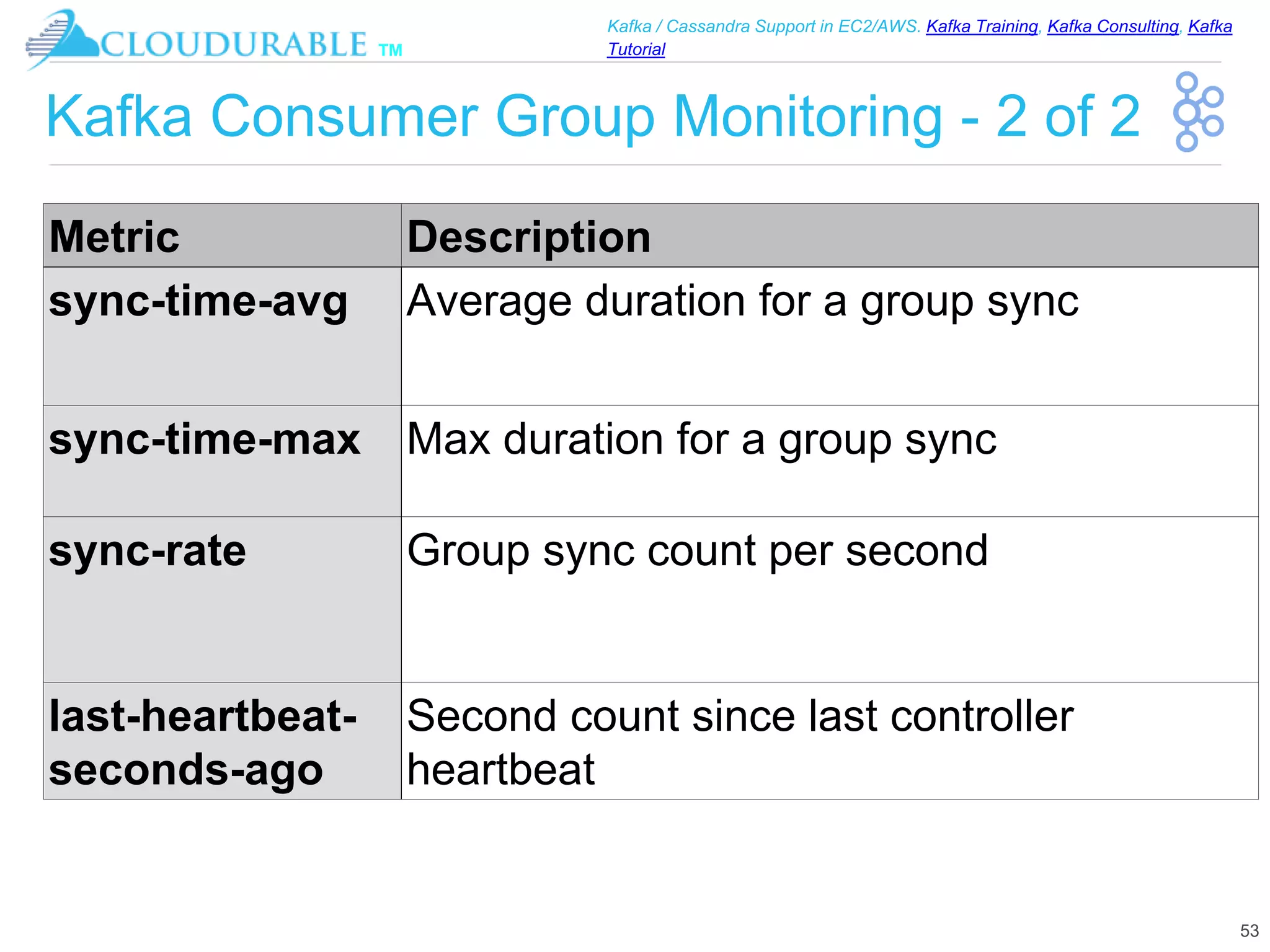

Kafka Consumer Group Monitoring - 2 of 2
53
Metric Description
sync-time-avg Average duration for a group sync
sync-time-max Max duration for a group sync
sync-rate Group sync count per second
last-heartbeat-
seconds-ago
Second count since last controller
heartbeat

™
Tutorial

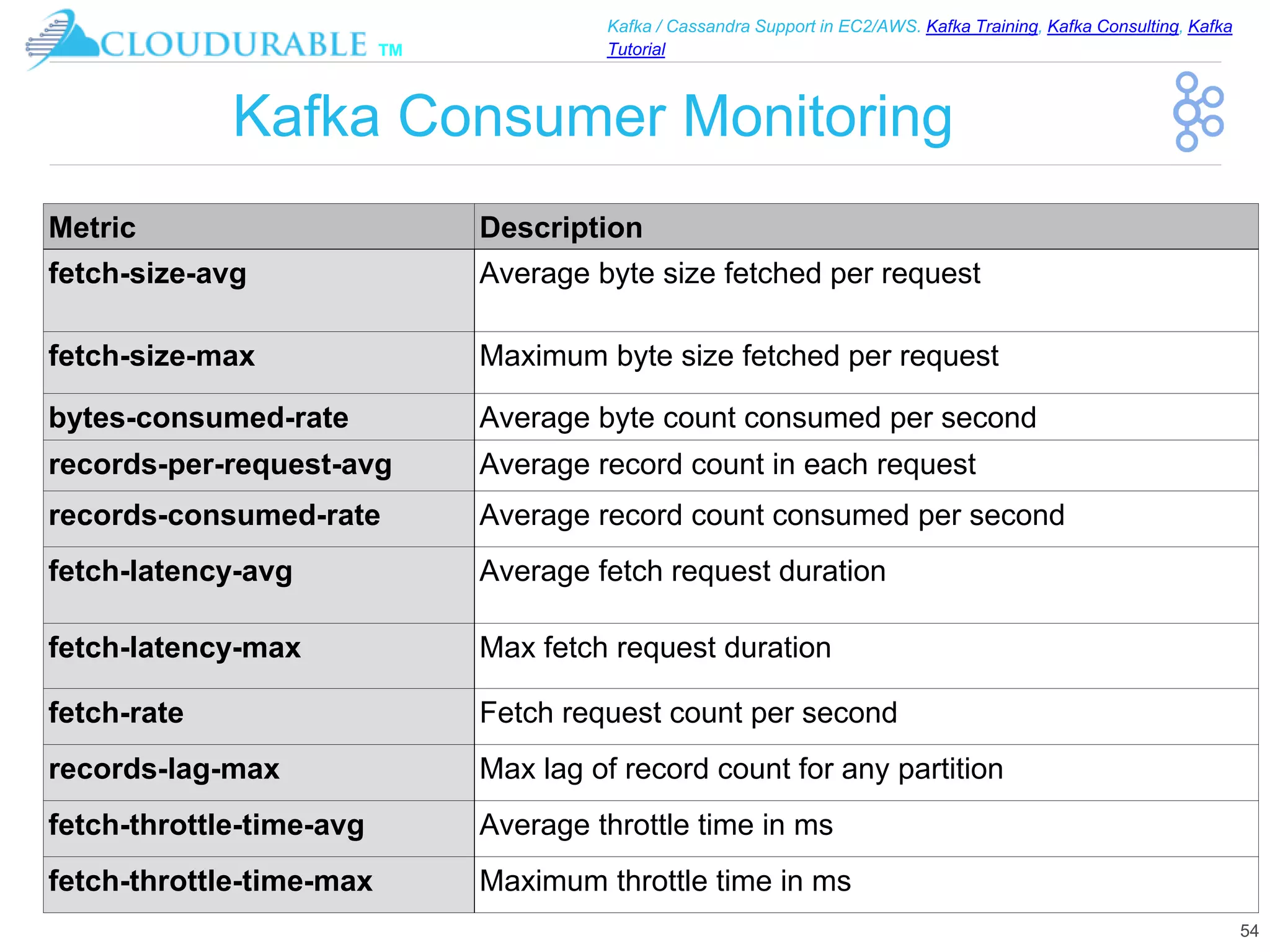

Kafka Consumer Monitoring
54
Metric Description
fetch-size-avg Average byte size fetched per request
fetch-size-max Maximum byte size fetched per request
bytes-consumed-rate Average byte count consumed per second
records-per-request-avg Average record count in each request
records-consumed-rate Average record count consumed per second
fetch-latency-avg Average fetch request duration
fetch-latency-max Max fetch request duration
fetch-rate Fetch request count per second
records-lag-max Max lag of record count for any partition
fetch-throttle-time-avg Average throttle time in ms
fetch-throttle-time-max Maximum throttle time in ms

™
Tutorial

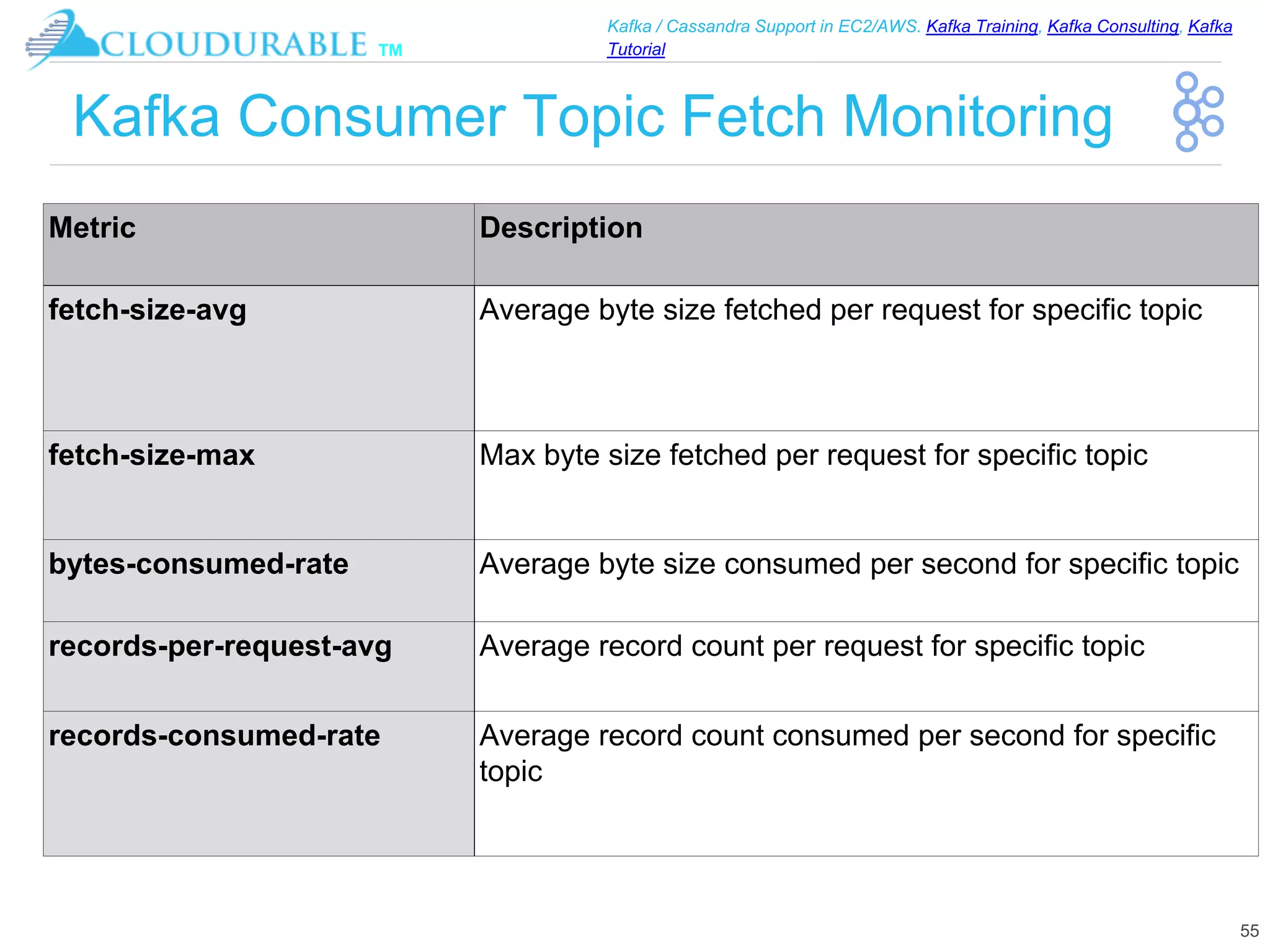

Kafka Consumer Topic Fetch Monitoring
55
Metric Description
fetch-size-avg Average byte size fetched per request for specific topic
fetch-size-max Max byte size fetched per request for specific topic
bytes-consumed-rate Average byte size consumed per second for specific topic
records-per-request-avg Average record count per request for specific topic
records-consumed-rate Average record count consumed per second for specific
topic

™
Tutorial

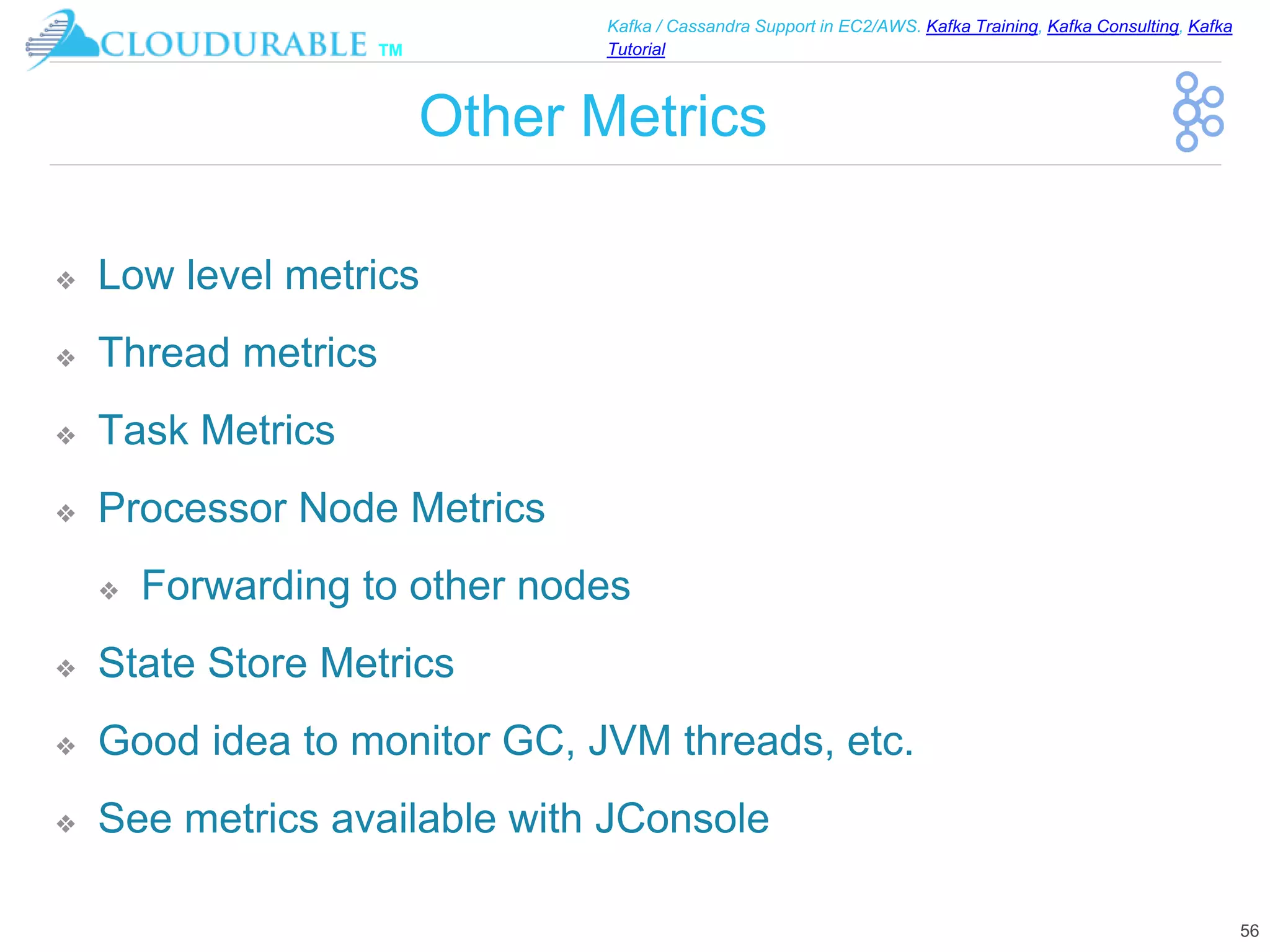

Other Metrics
❖ Low level metrics
❖ Thread metrics
❖ Task Metrics
❖ Processor Node Metrics
❖ Forwarding to other nodes
❖ State Store Metrics
❖ Good idea to monitor GC, JVM threads, etc.
❖ See metrics available with JConsole
56

™
Tutorial
Kafka Broker Metrics via JConsole 1 of 2
57

™
Tutorial

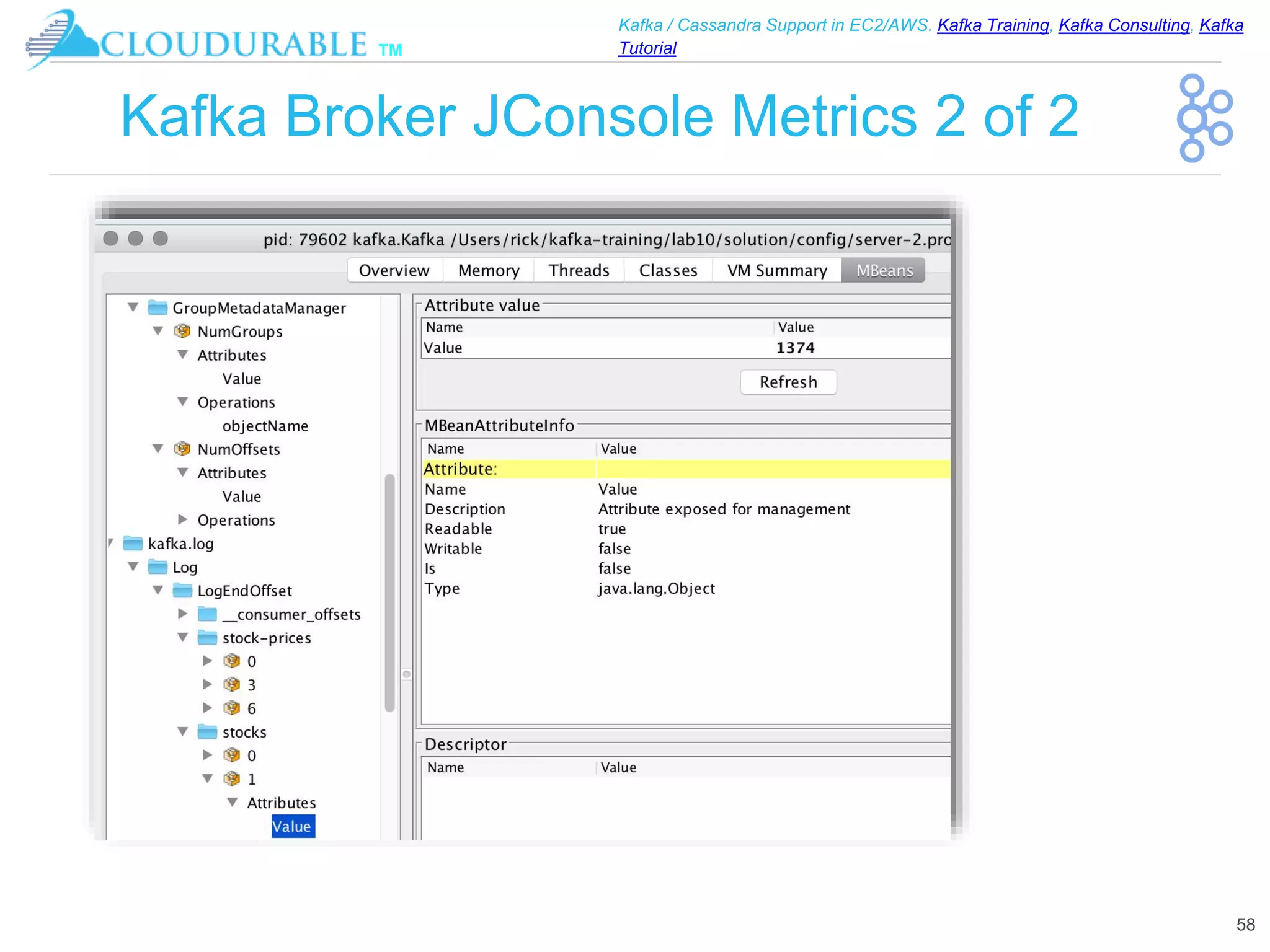

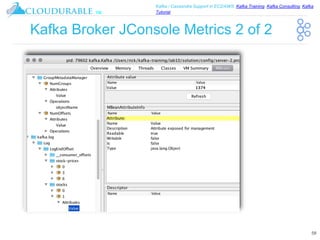

Kafka Broker JConsole Metrics 2 of 2
58

™
Tutorial

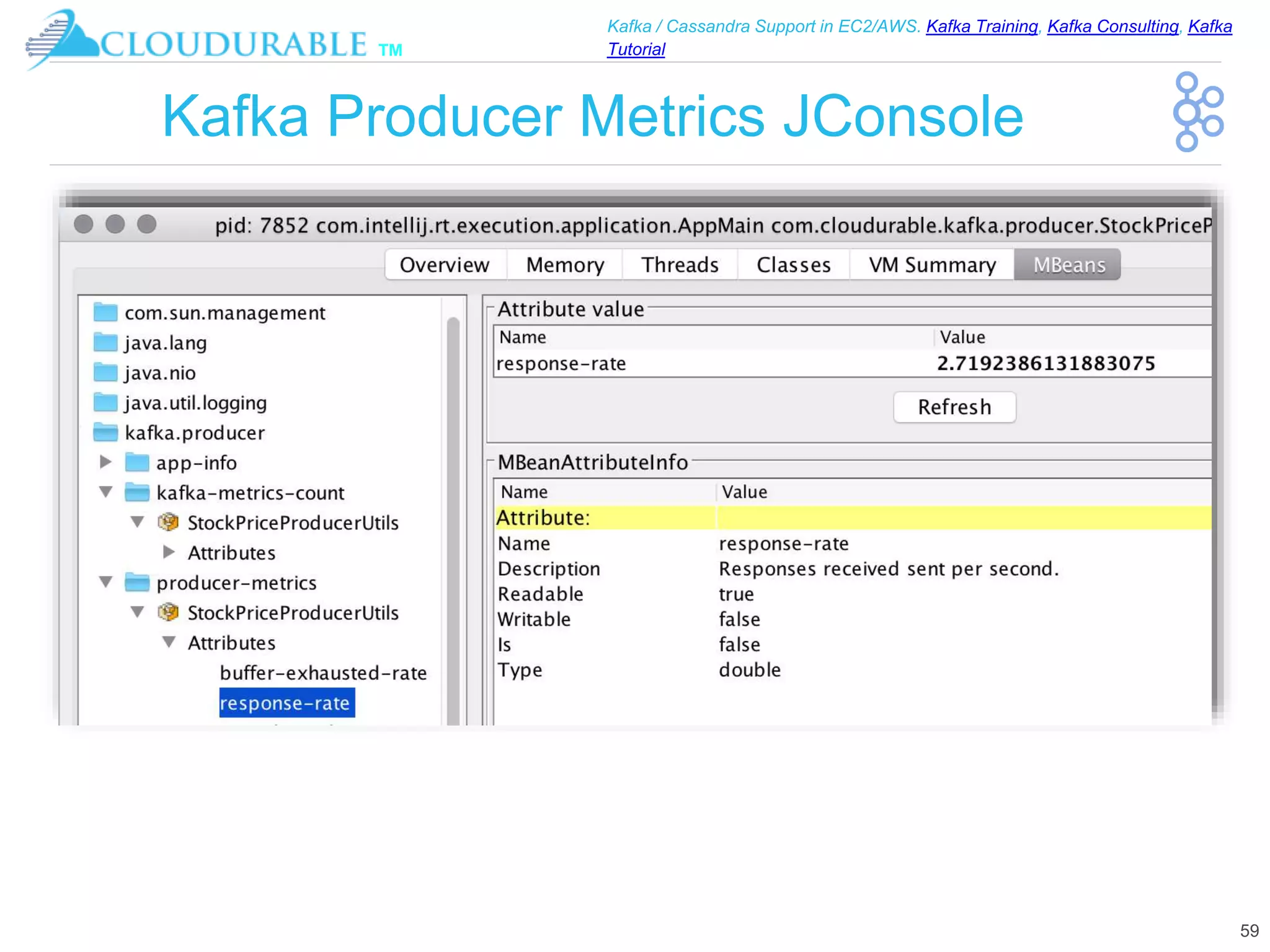

Kafka Producer Metrics JConsole
59

™
Tutorial

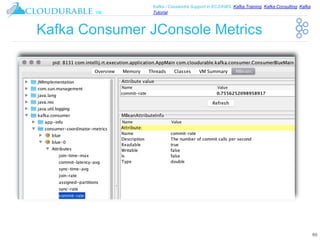

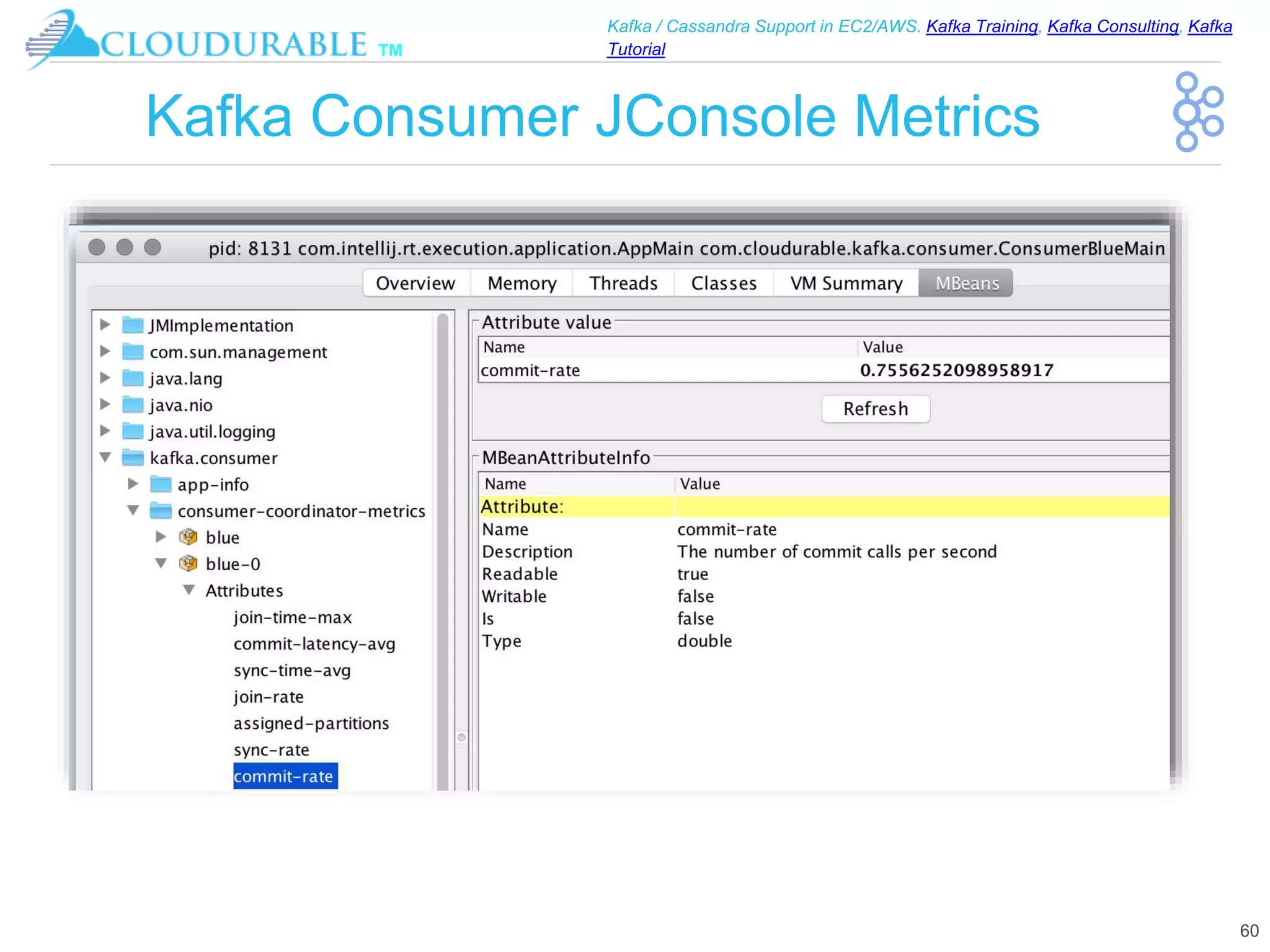

Kafka Consumer JConsole Metrics
60

™
Tutorial

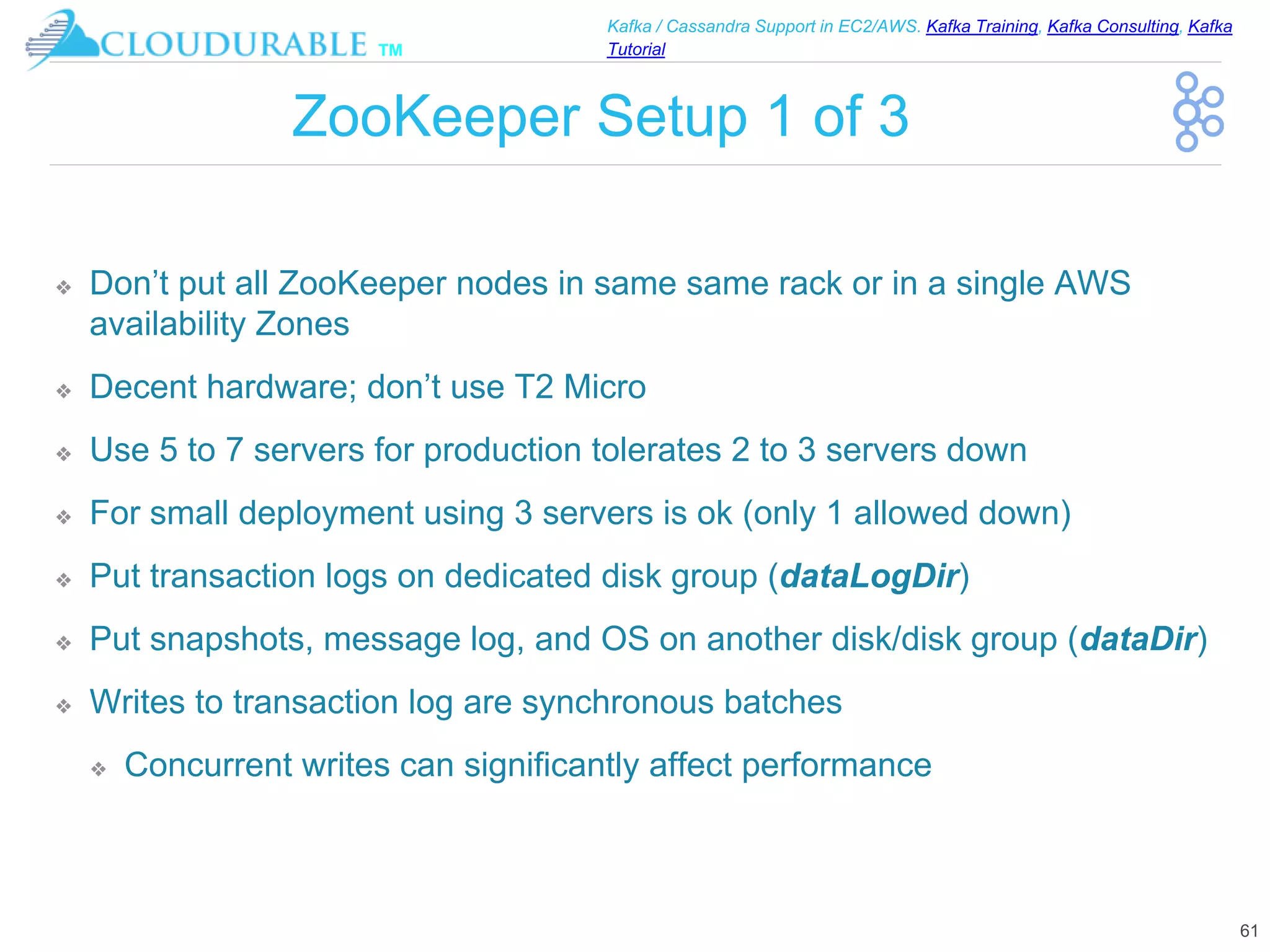

ZooKeeper Setup 1 of 3
❖ Don’t put all ZooKeeper nodes in same same rack or in a single AWS
availability Zones
❖ Decent hardware; don’t use T2 Micro
❖ Use 5 to 7 servers for production tolerates 2 to 3 servers down
❖ For small deployment using 3 servers is ok (only 1 allowed down)
❖ Put transaction logs on dedicated disk group (dataLogDir)
❖ Put snapshots, message log, and OS on another disk/disk group (dataDir)
❖ Writes to transaction log are synchronous batches
❖ Concurrent writes can significantly affect performance
61

™
Tutorial

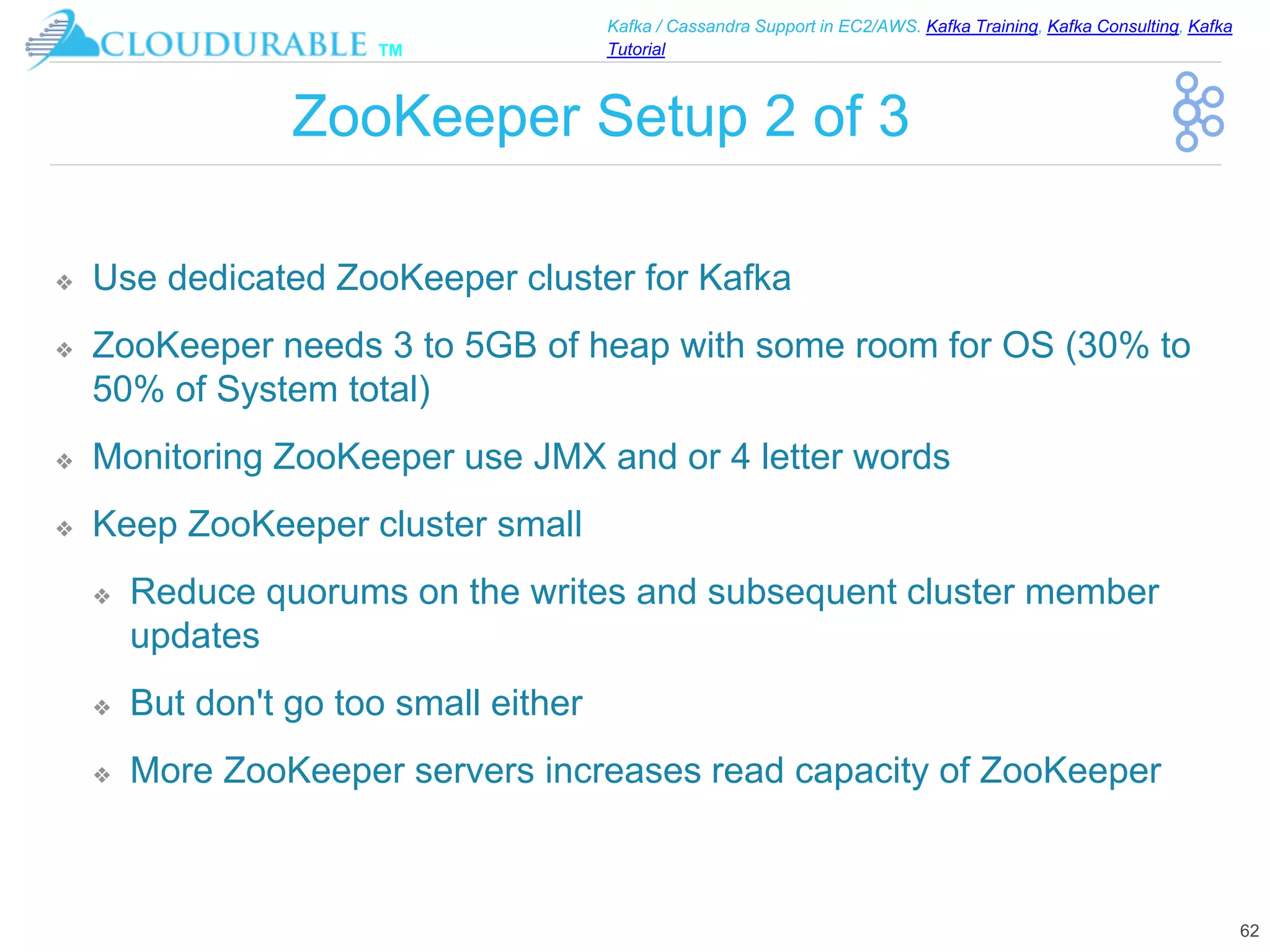

❖ Use dedicated ZooKeeper cluster for Kafka
❖ ZooKeeper needs 3 to 5GB of heap with some room for OS (30% to
50% of System total)
❖ Monitoring ZooKeeper use JMX and or 4 letter words
❖ Keep ZooKeeper cluster small
❖ Reduce quorums on the writes and subsequent cluster member
updates
❖ But don't go too small either
❖ More ZooKeeper servers increases read capacity of ZooKeeper
62

™
Tutorial

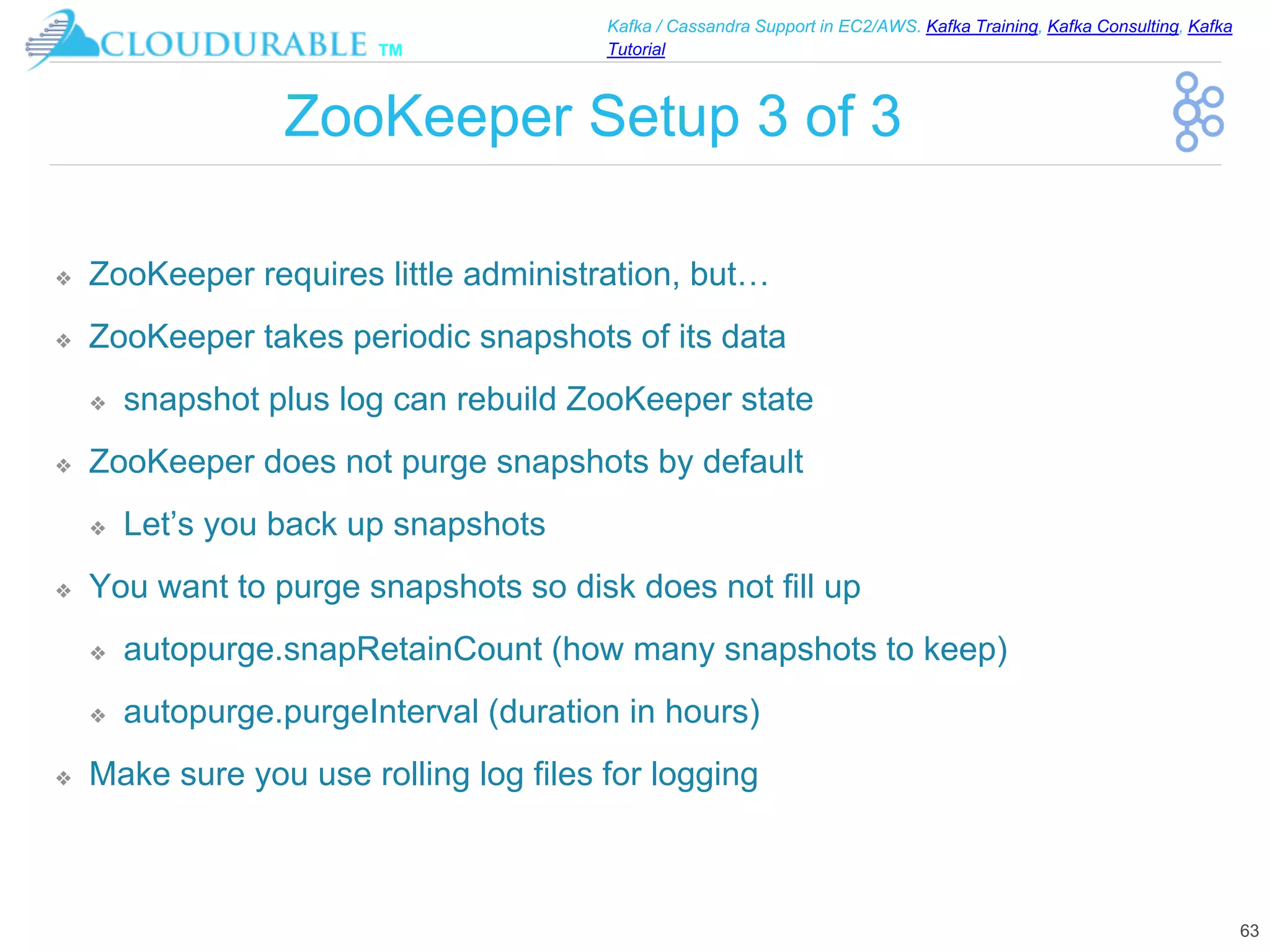

❖ ZooKeeper requires little administration, but…
❖ ZooKeeper takes periodic snapshots of its data
❖ snapshot plus log can rebuild ZooKeeper state
❖ ZooKeeper does not purge snapshots by default
❖ Let’s you back up snapshots
❖ You want to purge snapshots so disk does not fill up
❖ autopurge.snapRetainCount (how many snapshots to keep)
❖ autopurge.purgeInterval (duration in hours)
❖ Make sure you use rolling log files for logging
63

Kafka Tutorial - DevOps, Admin and Ops

More Related Content

What's hot

Similar to Kafka Tutorial - DevOps, Admin and Ops

Recently uploaded

Kafka Tutorial - DevOps, Admin and Ops
