MEF with MetaData And Lazy Loading

Krunal Trivedi
Corporate Trainer For DotNet,Silverlight,SPS 2010
MCT S For .NET Web Technology
MCTS For SharePoint Server 2010 Development
Co-Founder at Aavid Technologies
Email:krunaltrivedi@live.in
Contact : 09998472789

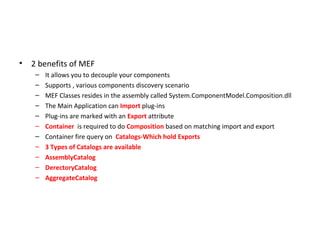

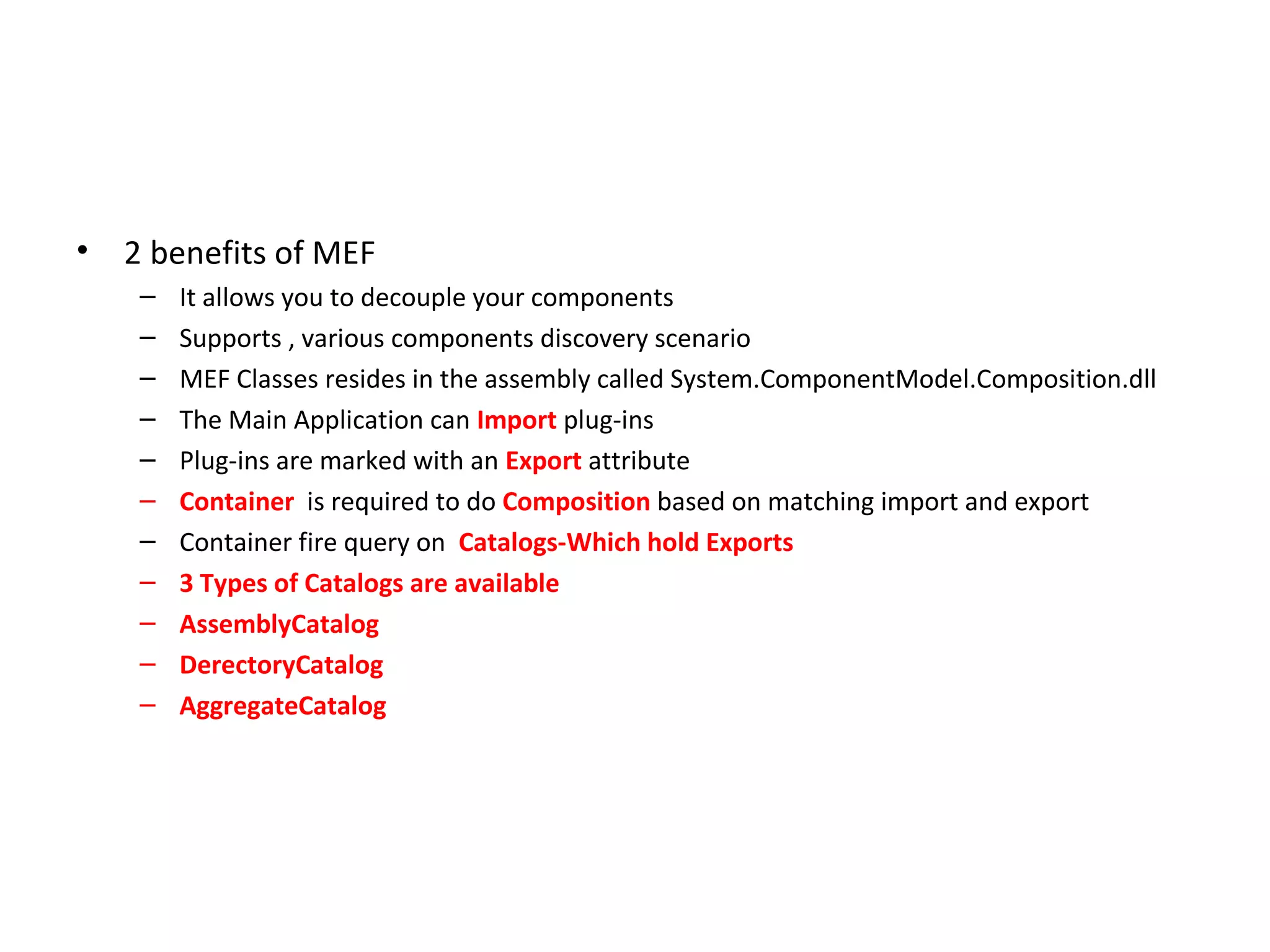

• 2 benefits of MEF
– It allows you to decouple your components
– Supports , various components discovery scenario
– MEF Classes resides in the assembly called System.ComponentModel.Composition.dll
– The Main Application can Import plug-ins
– Plug-ins are marked with an Export attribute
– Container is required to do Composition based on matching import and export
– Container fire query on Catalogs-Which hold Exports
– 3 Types of Catalogs are available
– AssemblyCatalog
– DerectoryCatalog
– AggregateCatalog

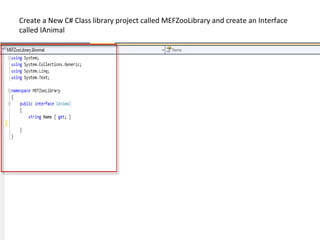

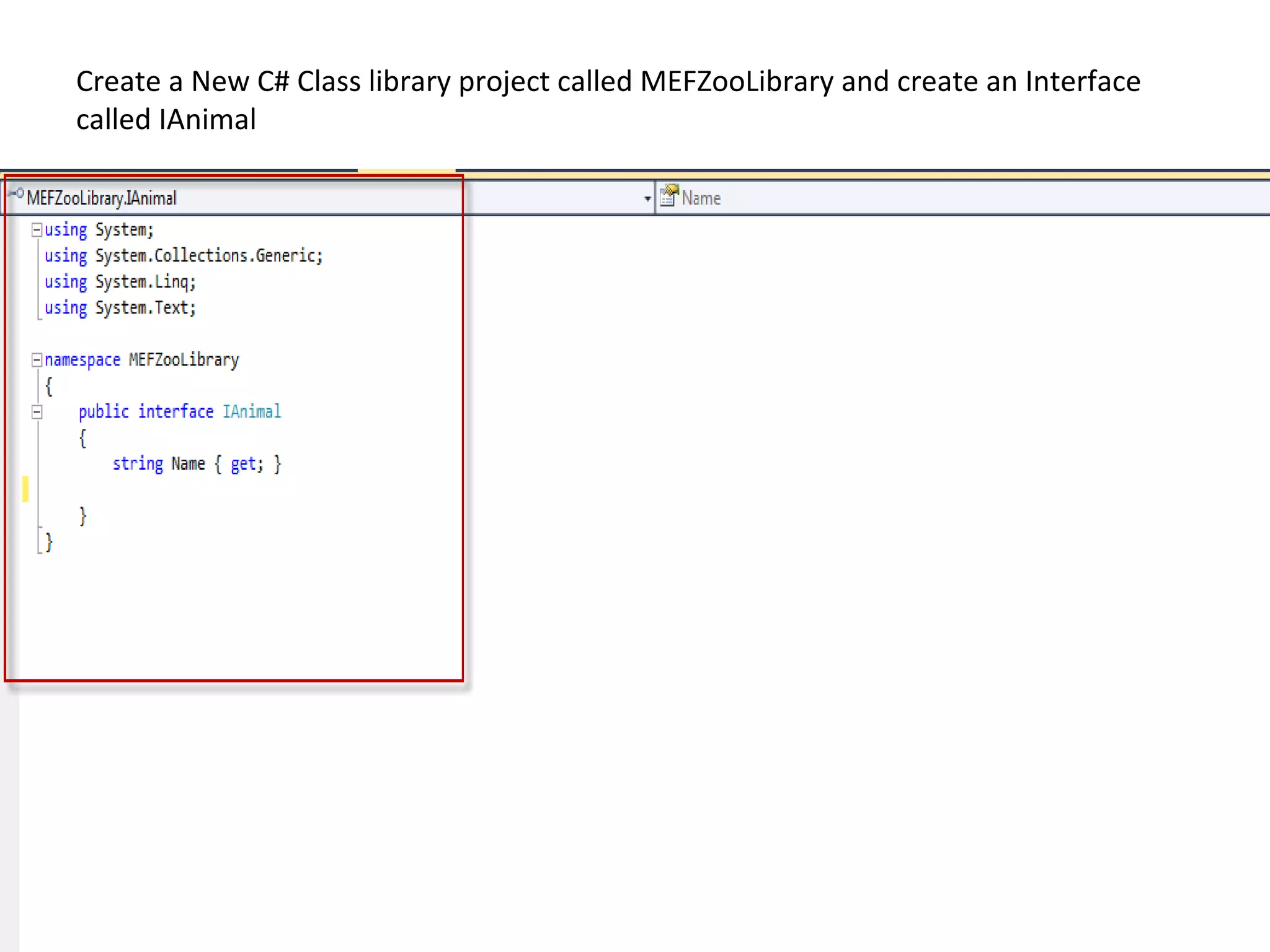

Create a New C# Class library project called MEFZooLibrary and create an Interface
called IAnimal

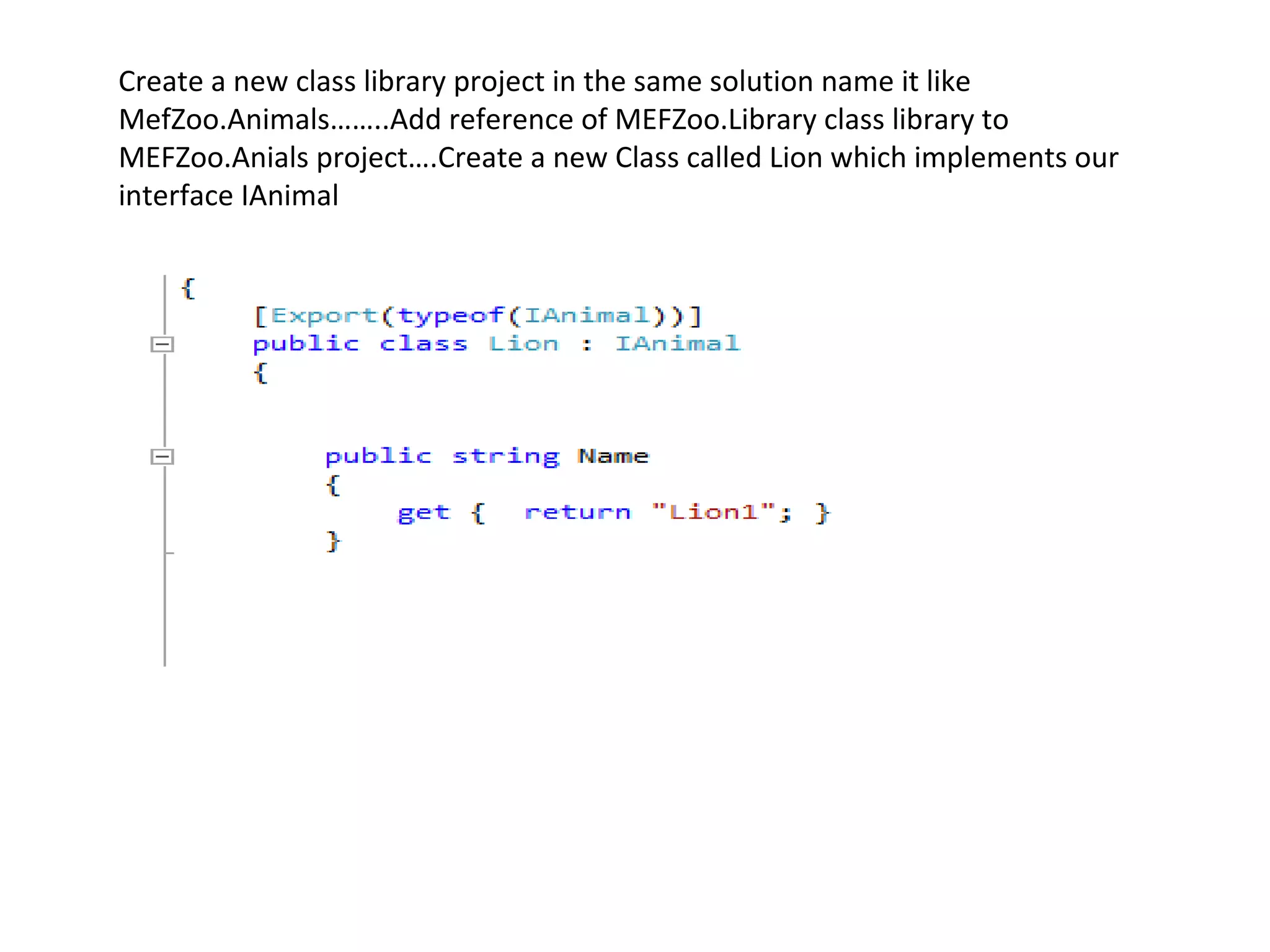

Create a new class library project in the same solution name it like
MefZoo.Animals……..Add reference of MEFZoo.Library class library to
MEFZoo.Anials project….Create a new Class called Lion which implements our
interface IAnimal

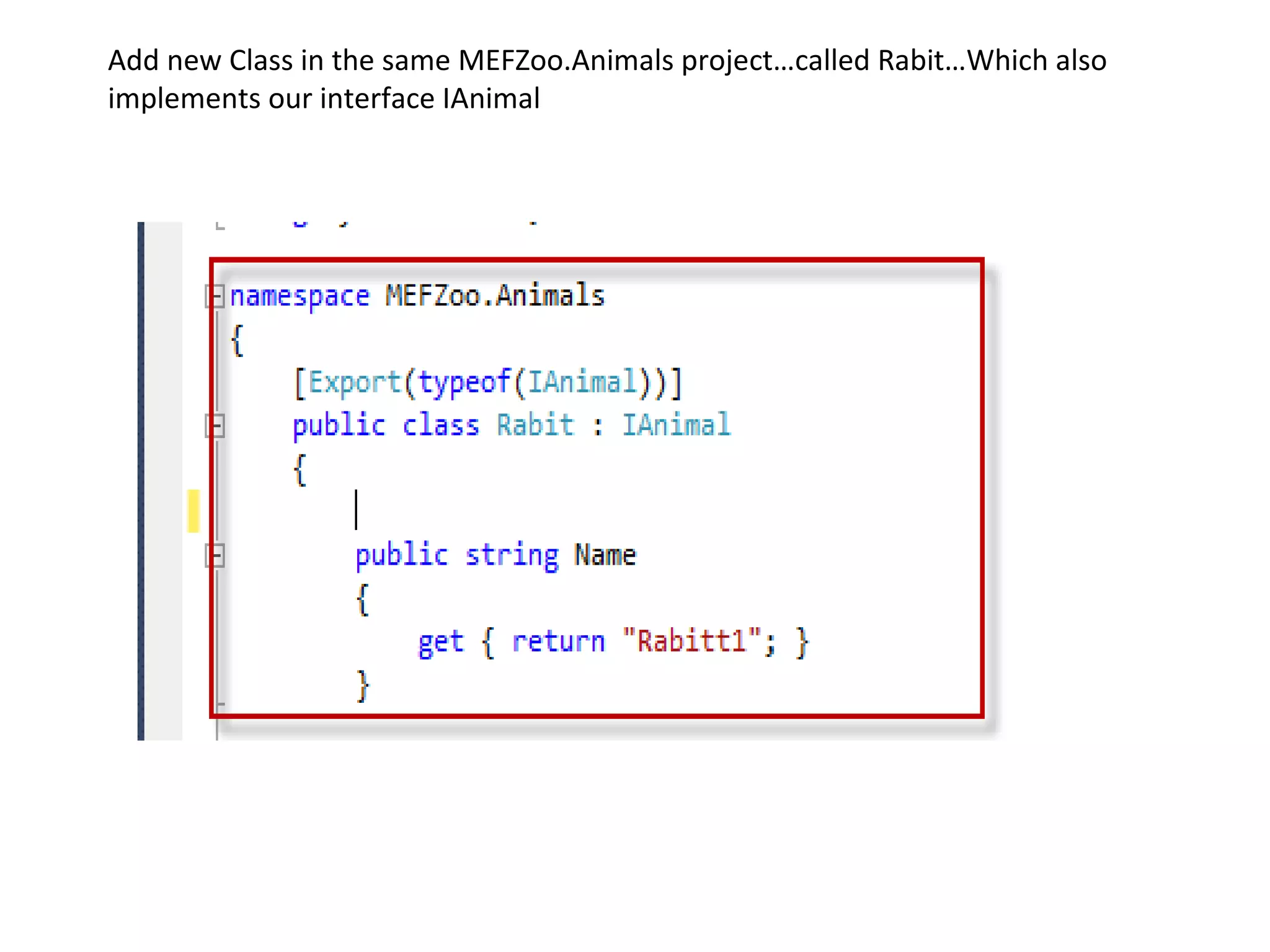

Add new Class in the same MEFZoo.Animals project…called Rabit…Which also
implements our interface IAnimal

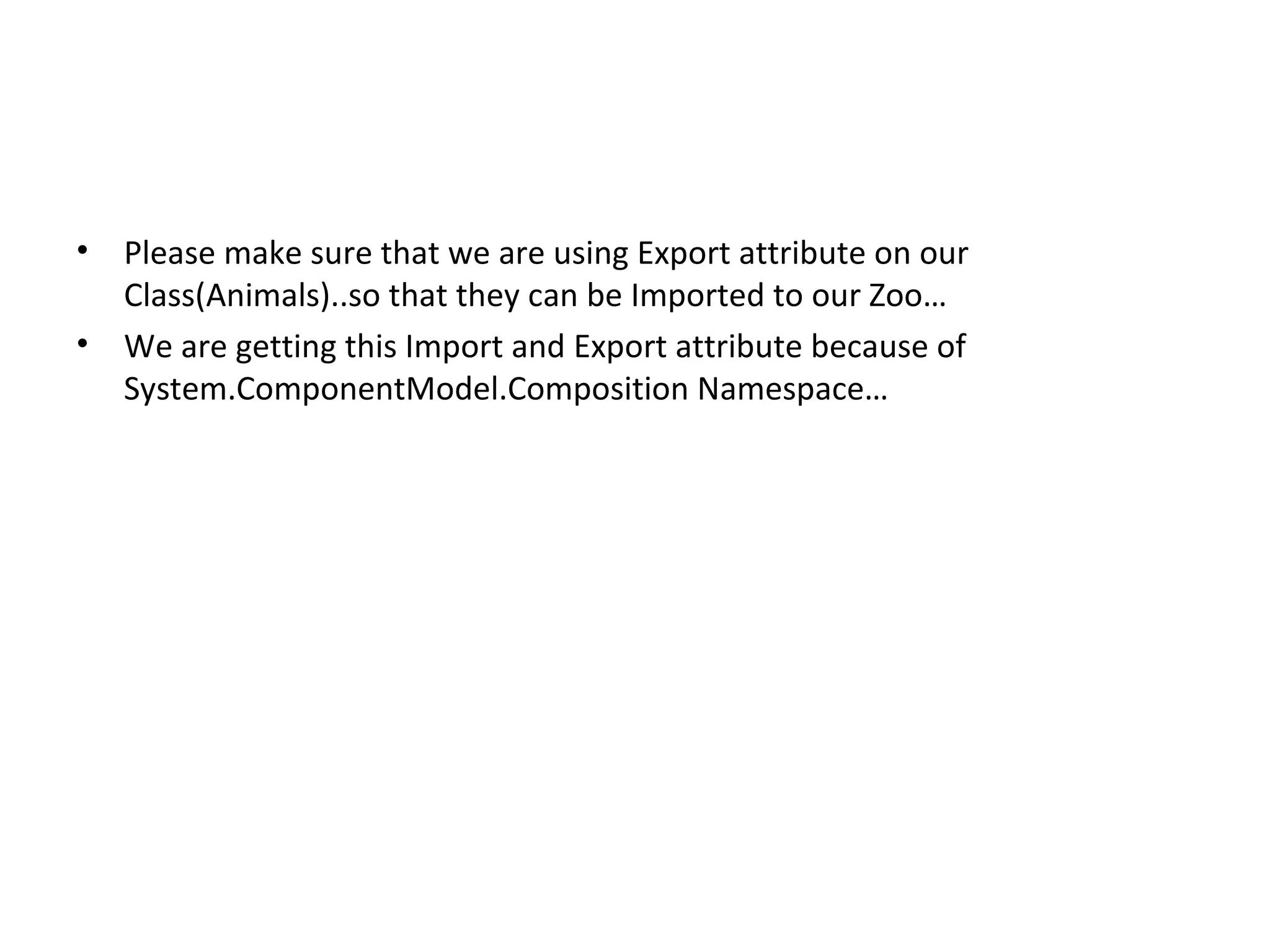

• Please make sure that we are using Export attribute on our
Class(Animals)..so that they can be Imported to our Zoo…
• We are getting this Import and Export attribute because of
System.ComponentModel.Composition Namespace…

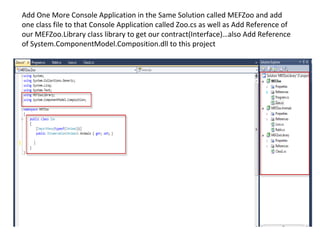

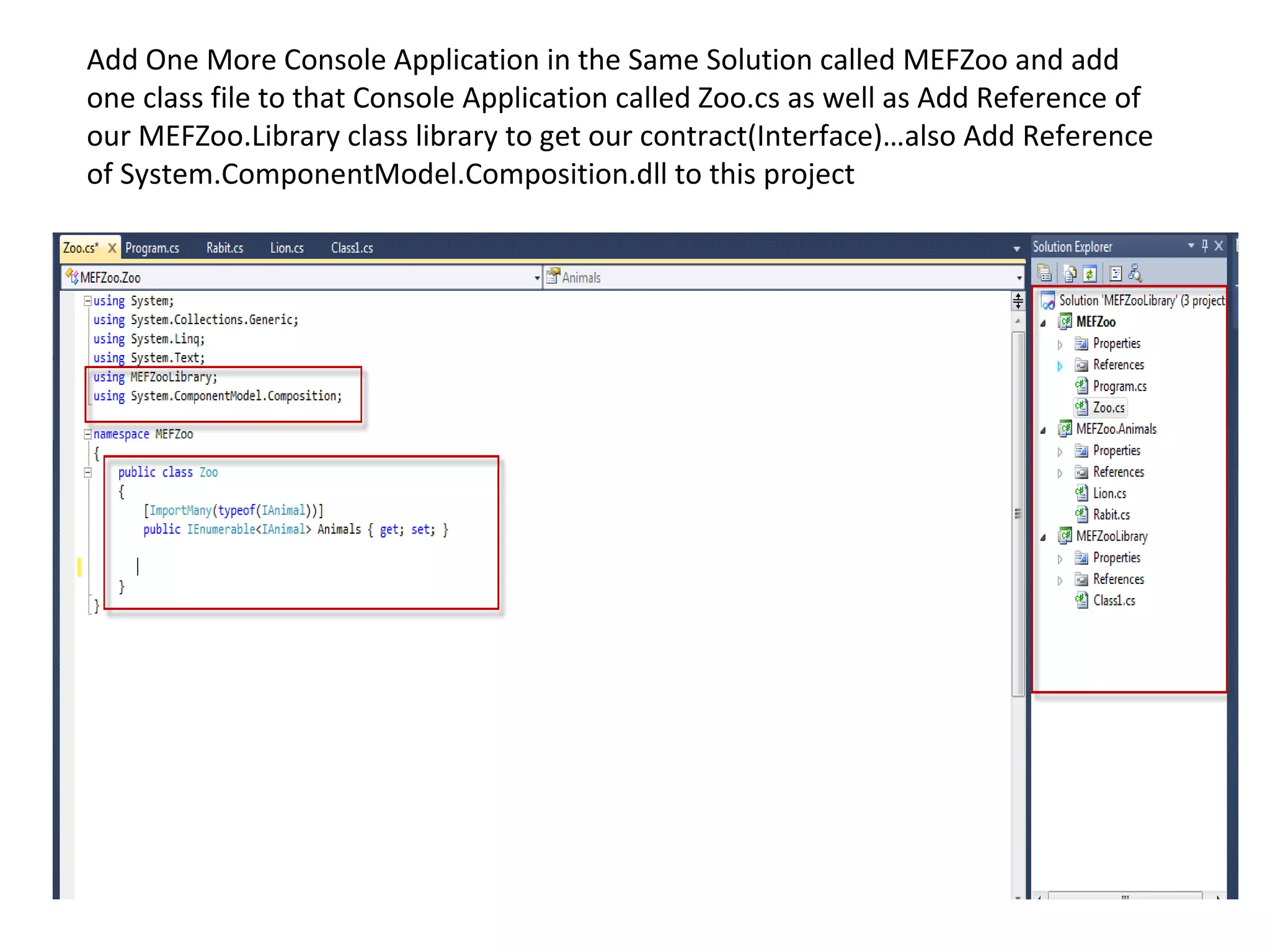

Add One More Console Application in the Same Solution called MEFZoo and add
one class file to that Console Application called Zoo.cs as well as Add Reference of
our MEFZoo.Library class library to get our contract(Interface)…also Add Reference
of System.ComponentModel.Composition.dll to this project

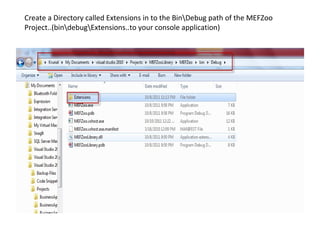

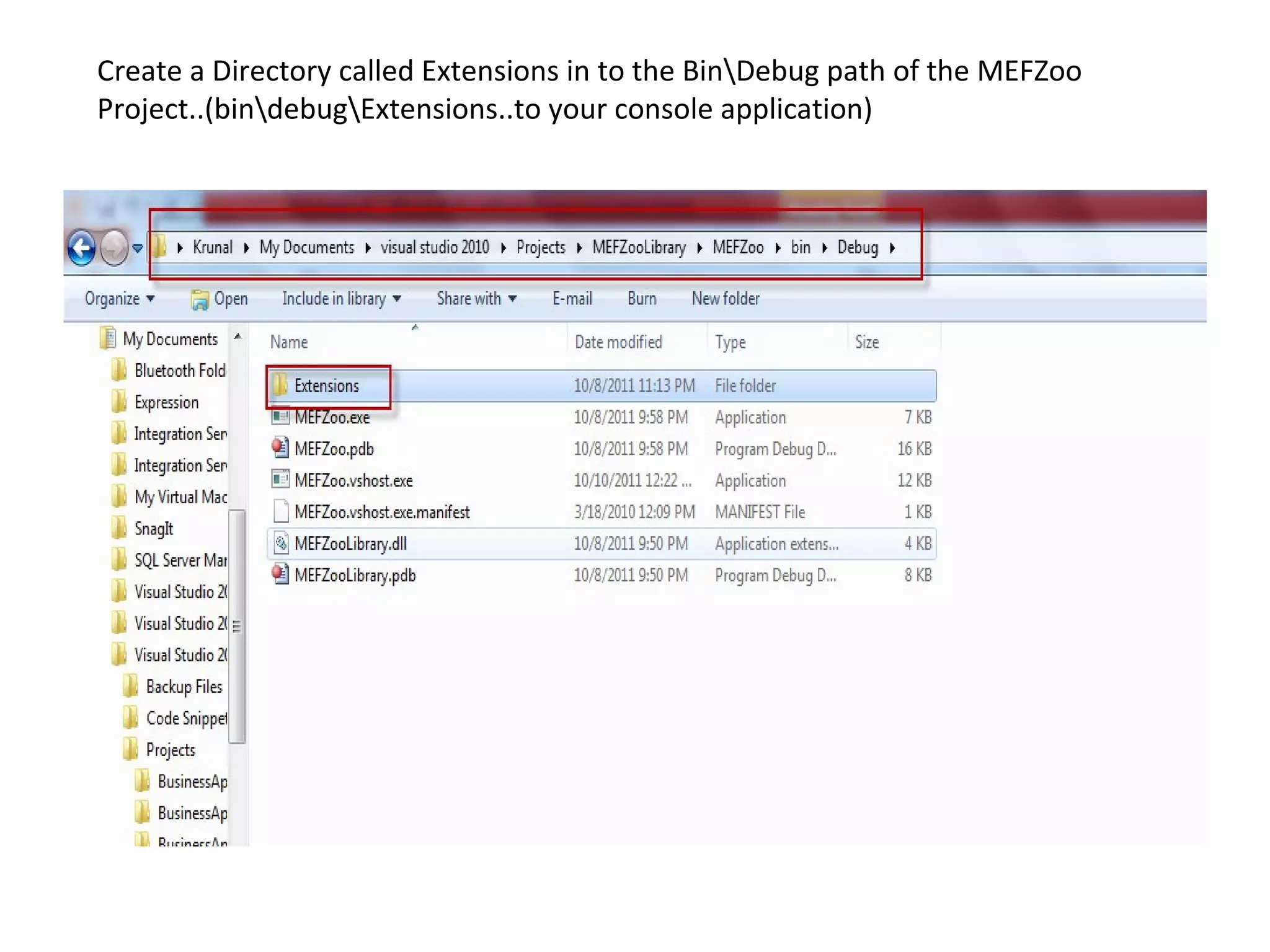

Create a Directory called Extensions in to the BinDebug path of the MEFZoo
Project..(bindebugExtensions..to your console application)

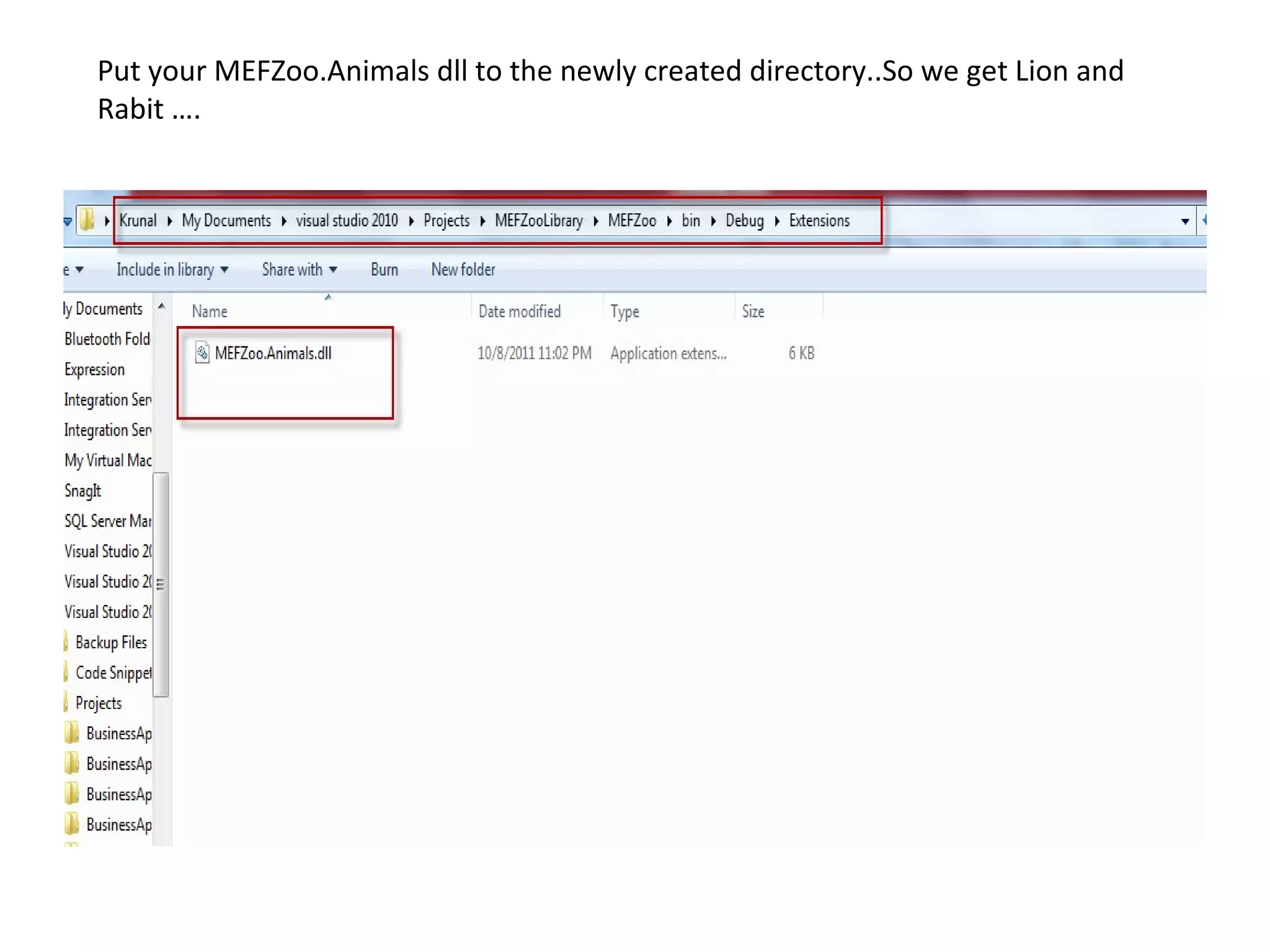

Put your MEFZoo.Animals dll to the newly created directory..So we get Lion and
Rabit ….

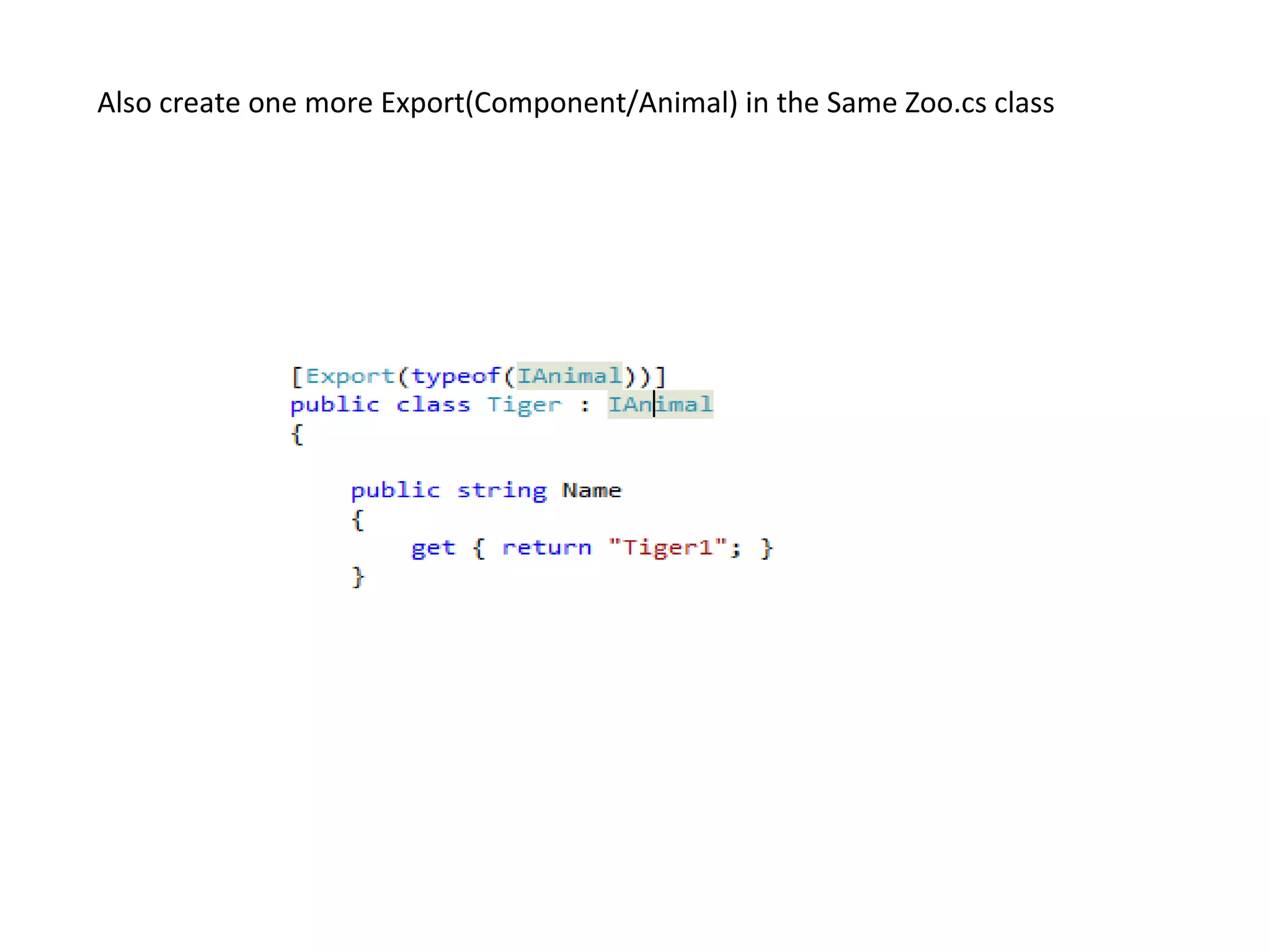

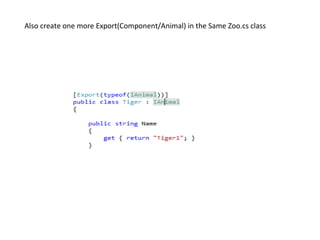

Also create one more Export(Component/Animal) in the Same Zoo.cs class

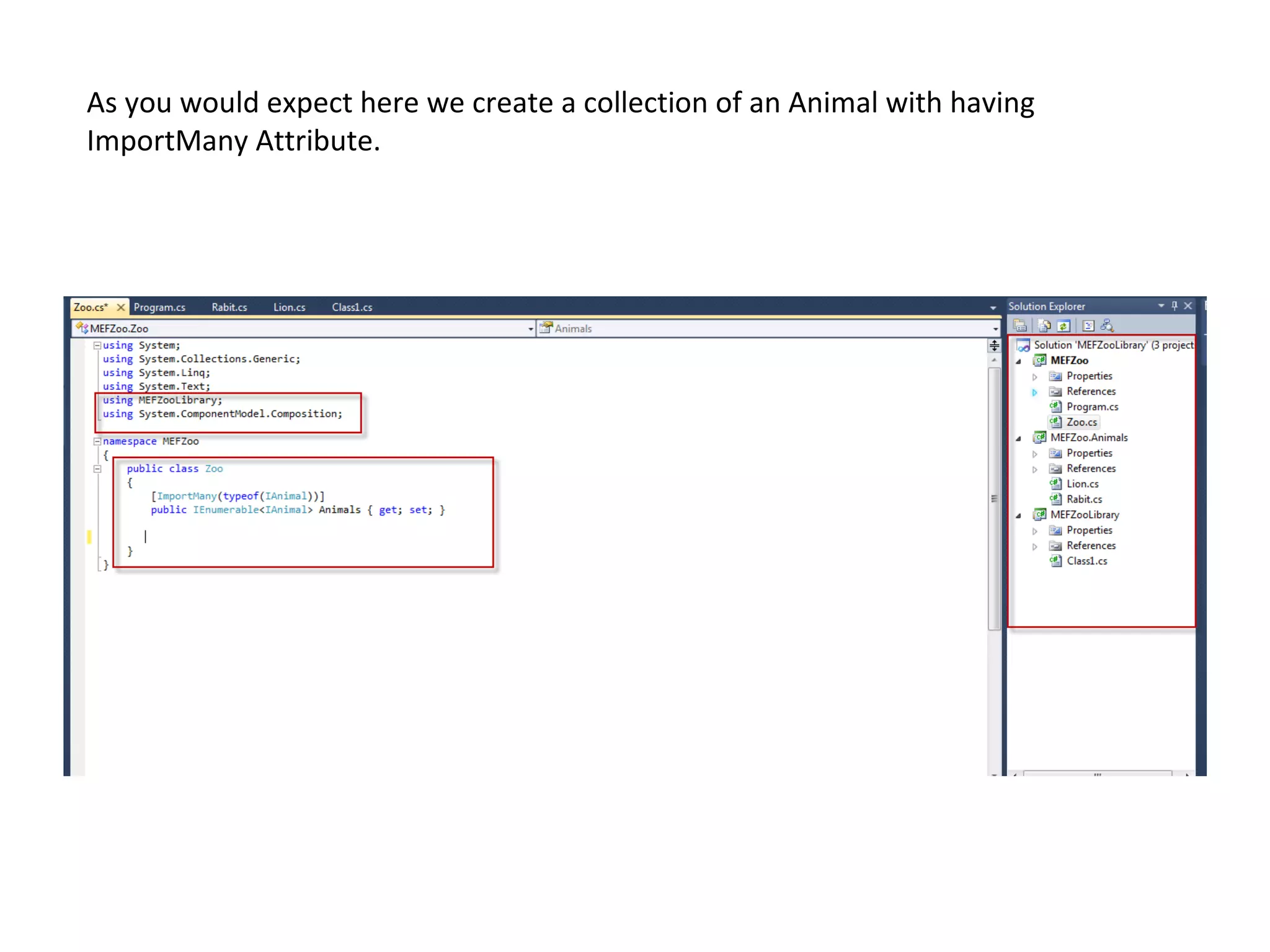

As you would expect here we create a collection of an Animal with having
ImportMany Attribute.

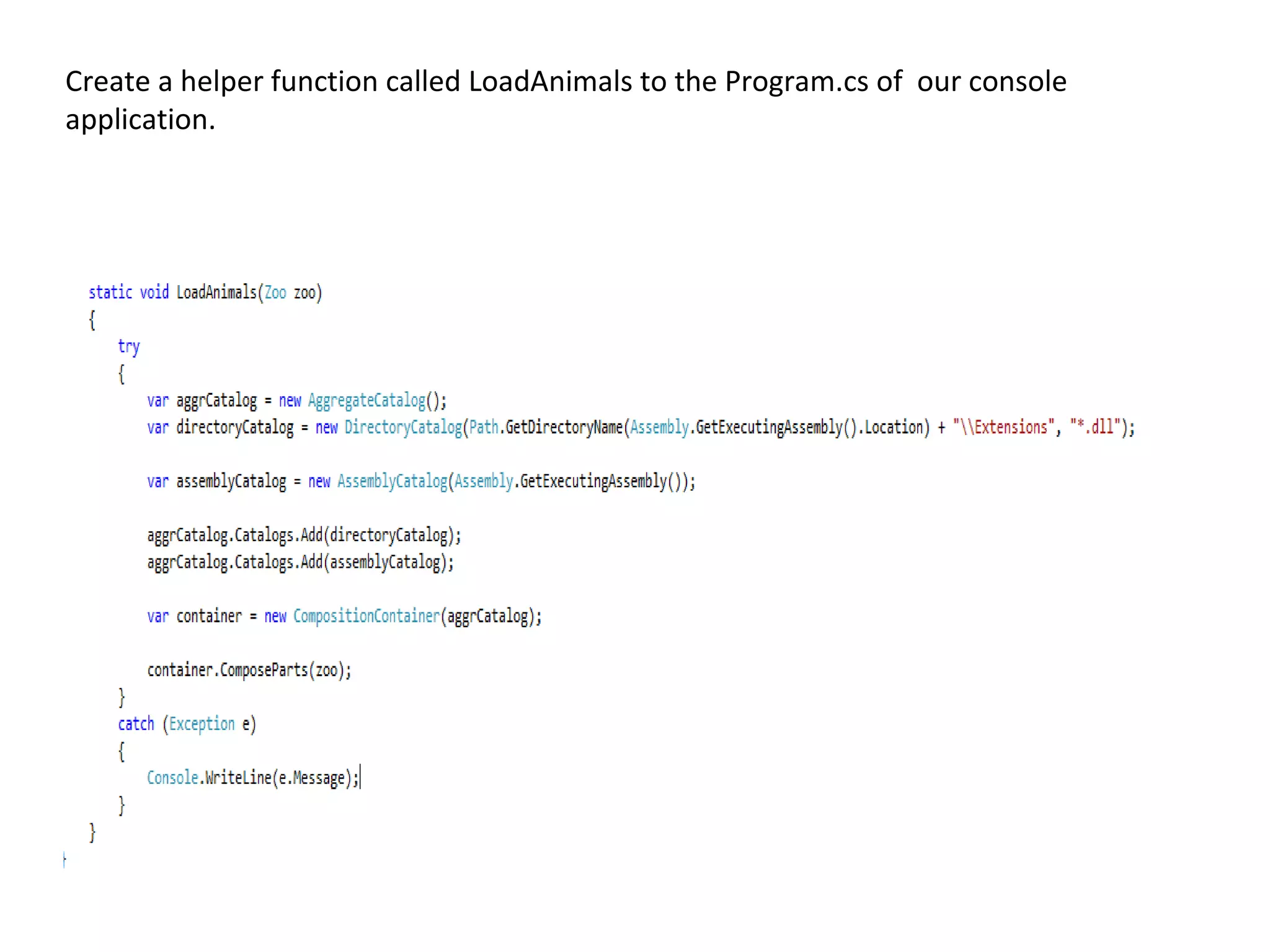

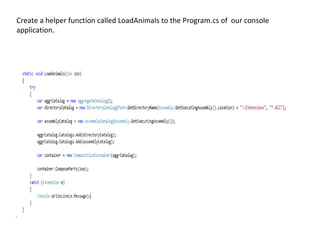

Create a helper function called LoadAnimals to the Program.cs of our console
application.

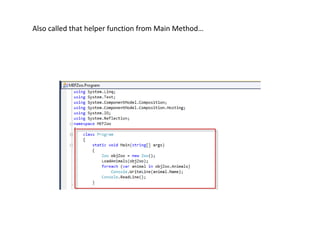

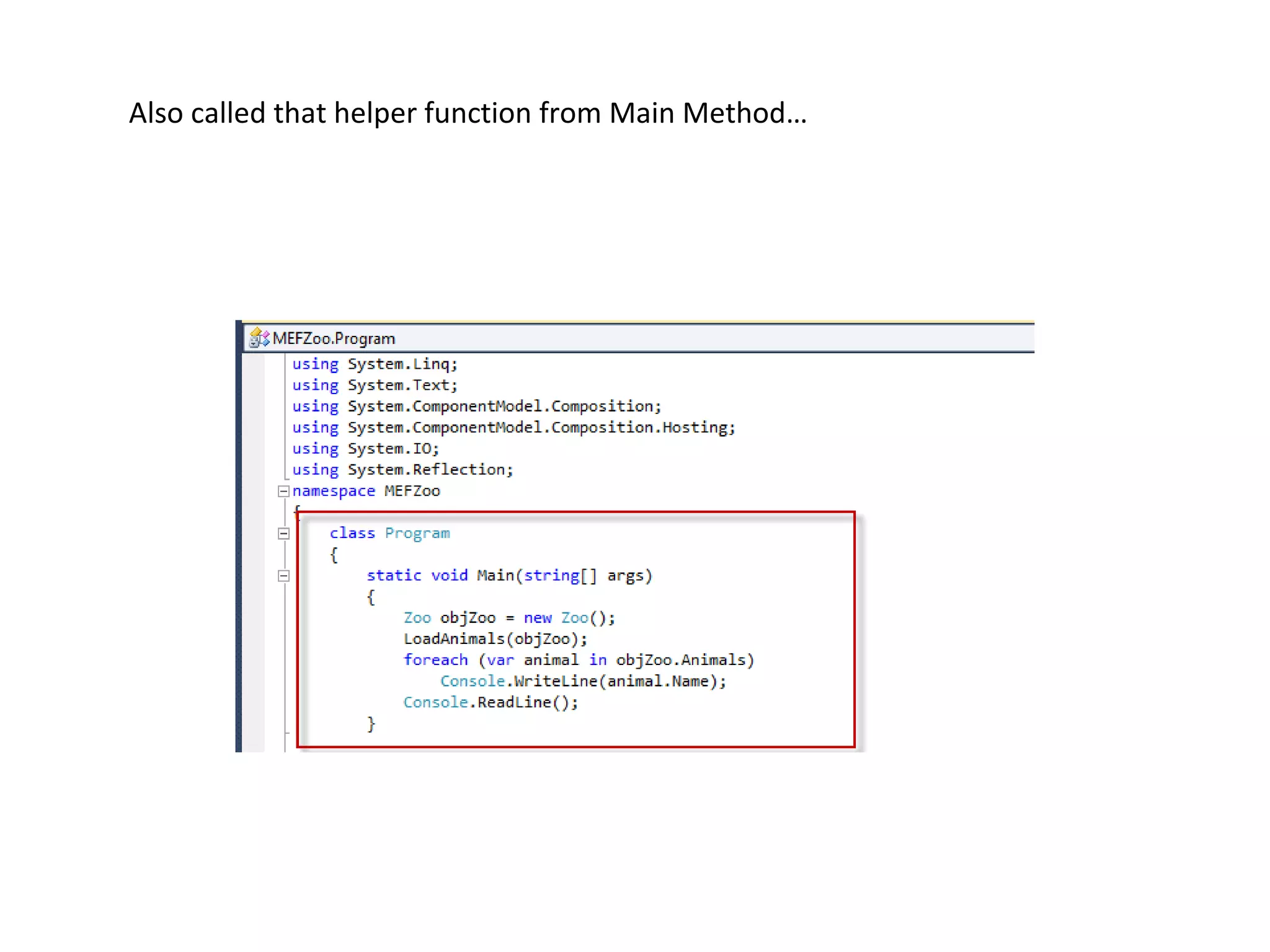

Also called that helper function from Main Method…

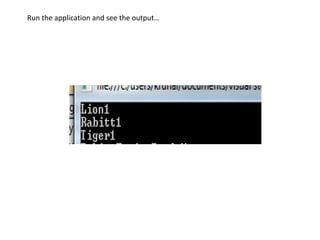

Run the application and see the output…

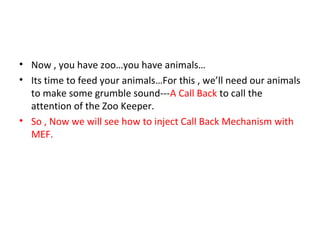

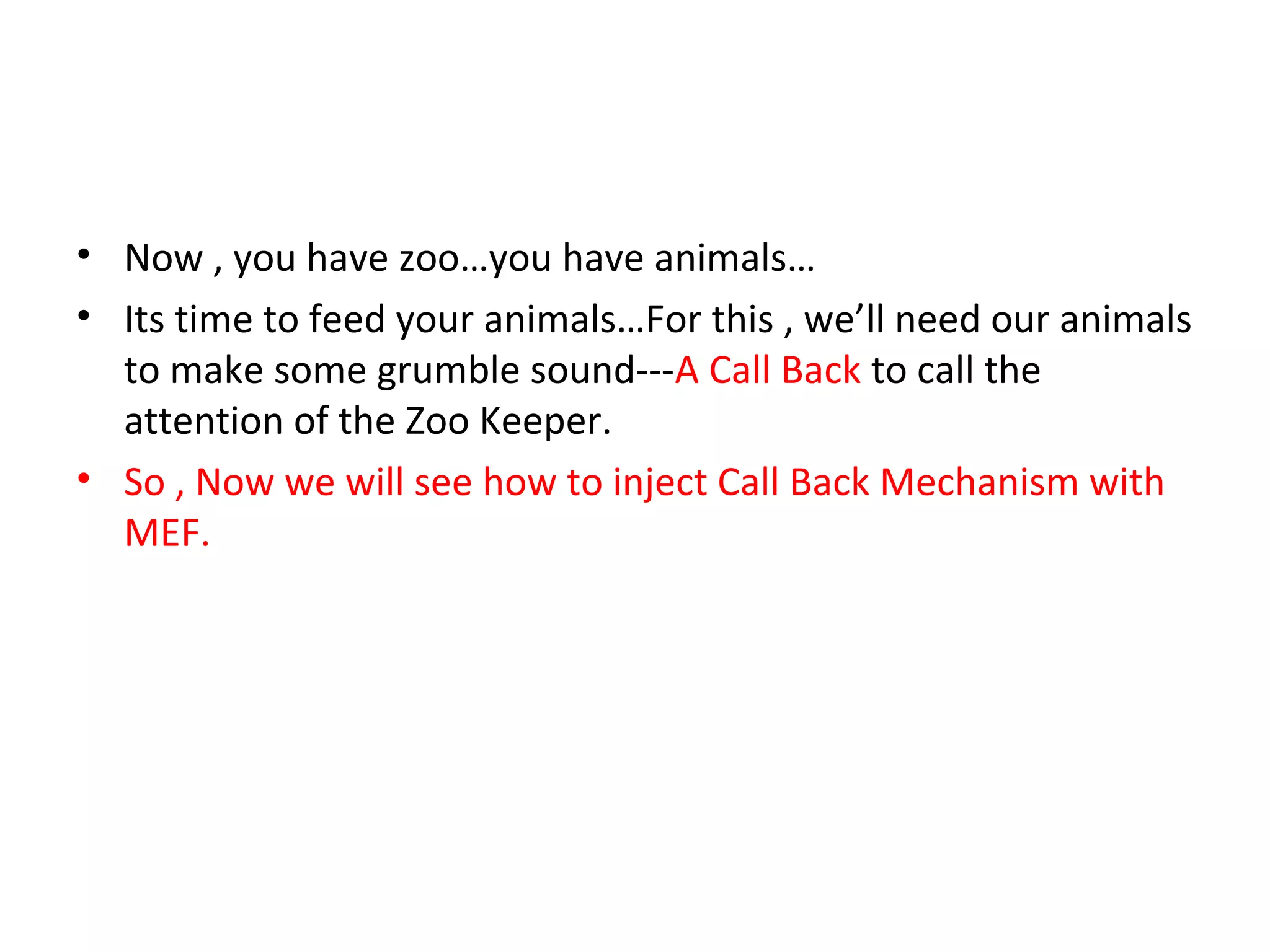

• Now , you have zoo…you have animals…
• Its time to feed your animals…For this , we’ll need our animals
to make some grumble sound---A Call Back to call the
attention of the Zoo Keeper.
• So , Now we will see how to inject Call Back Mechanism with
MEF.

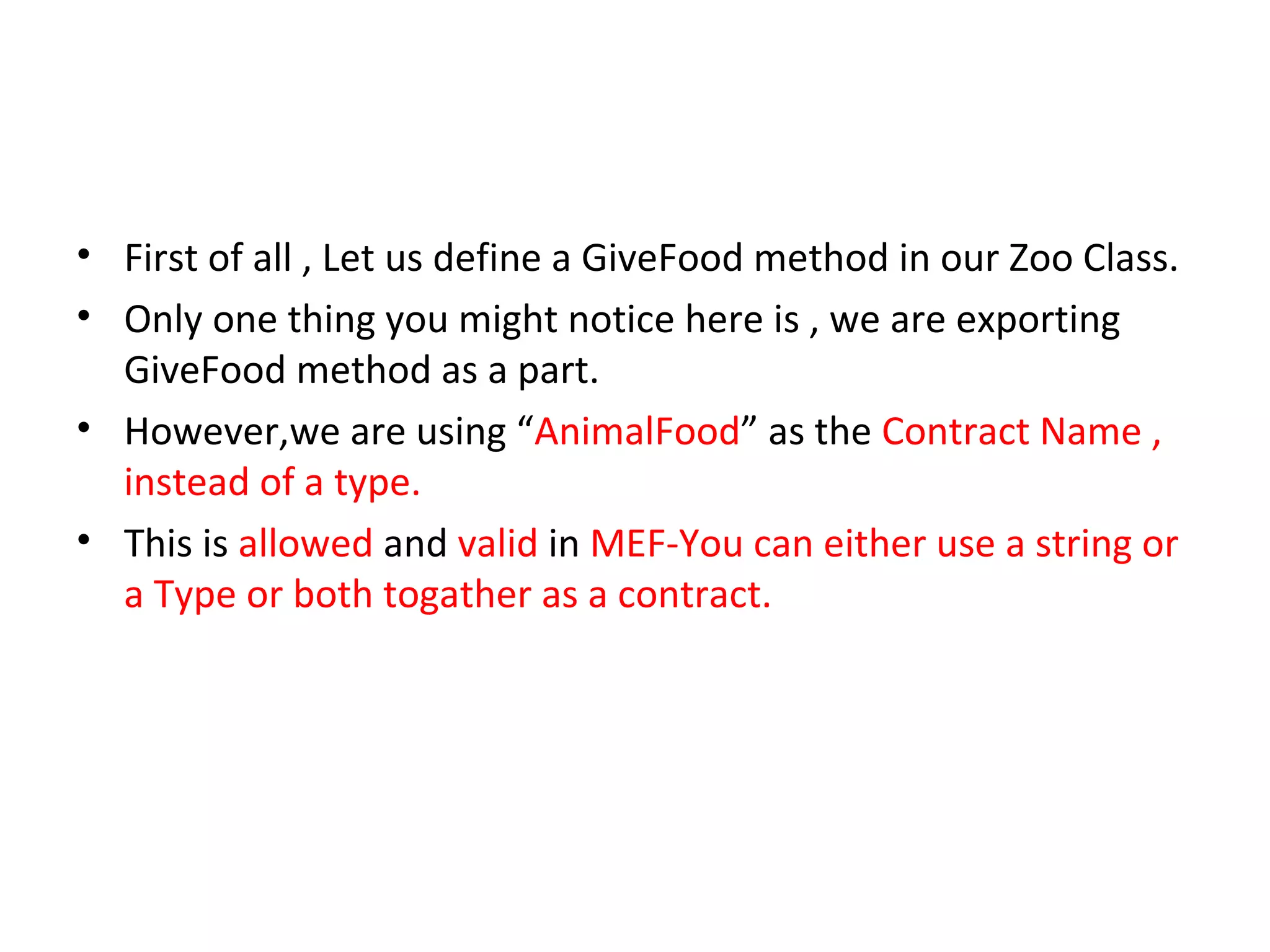

• First of all , Let us define a GiveFood method in our Zoo Class.
• Only one thing you might notice here is , we are exporting
GiveFood method as a part.
• However,we are using “AnimalFood” as the Contract Name ,
instead of a type.
• This is allowed and valid in MEF-You can either use a string or
a Type or both togather as a contract.

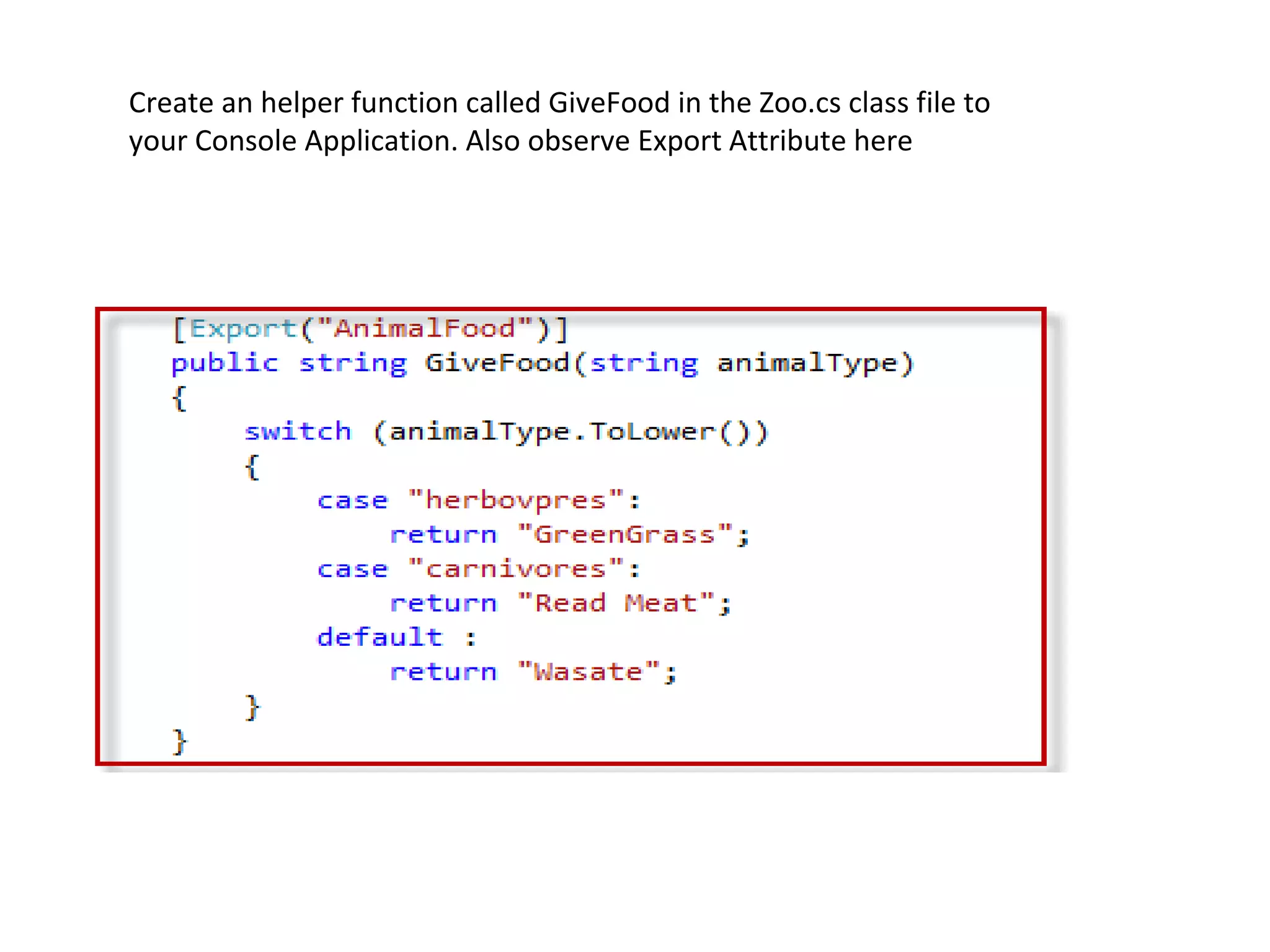

Create an helper function called GiveFood in the Zoo.cs class file to
your Console Application. Also observe Export Attribute here

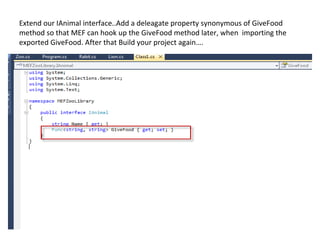

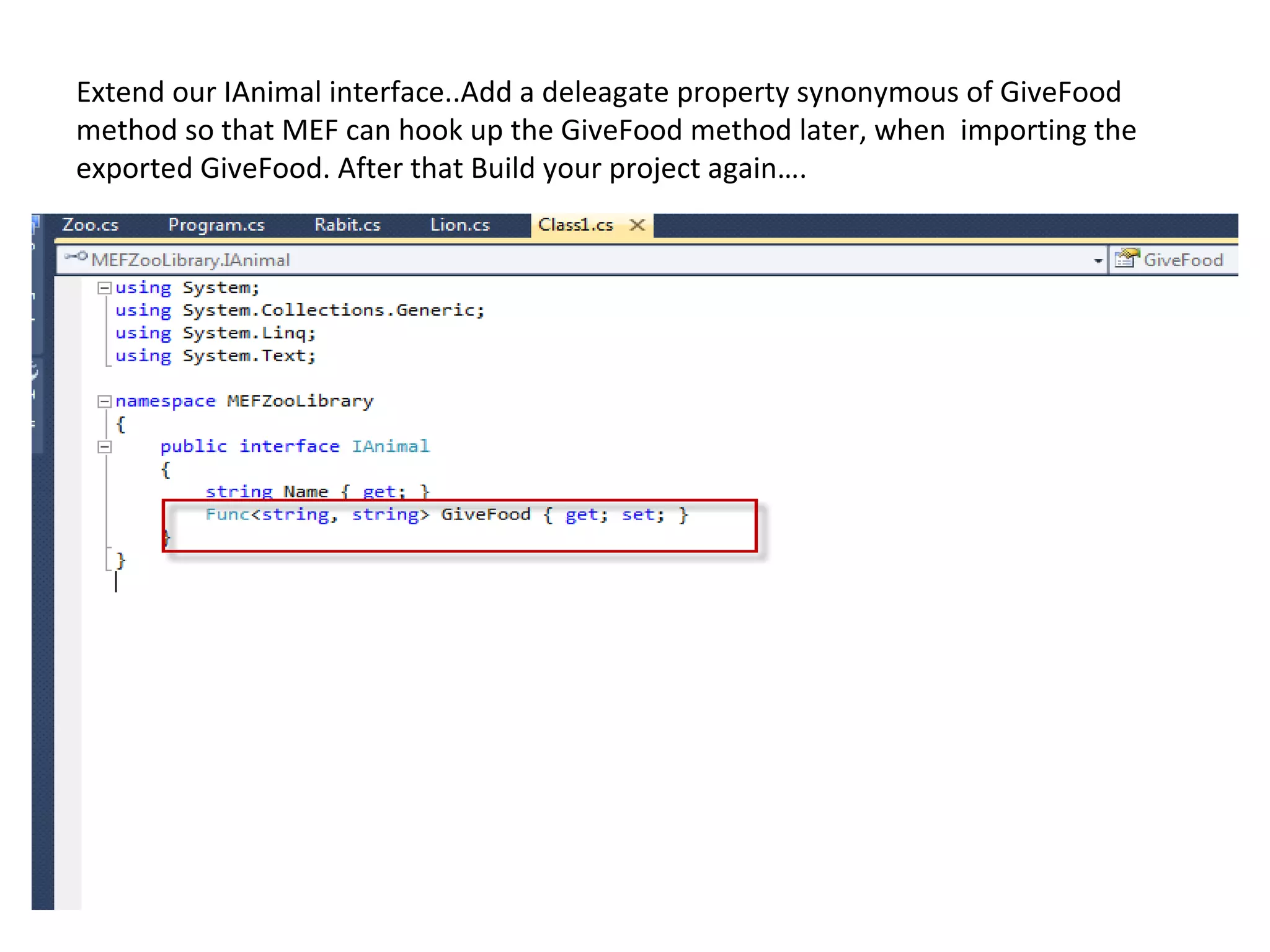

Extend our IAnimal interface..Add a deleagate property synonymous of GiveFood
method so that MEF can hook up the GiveFood method later, when importing the
exported GiveFood. After that Build your project again….

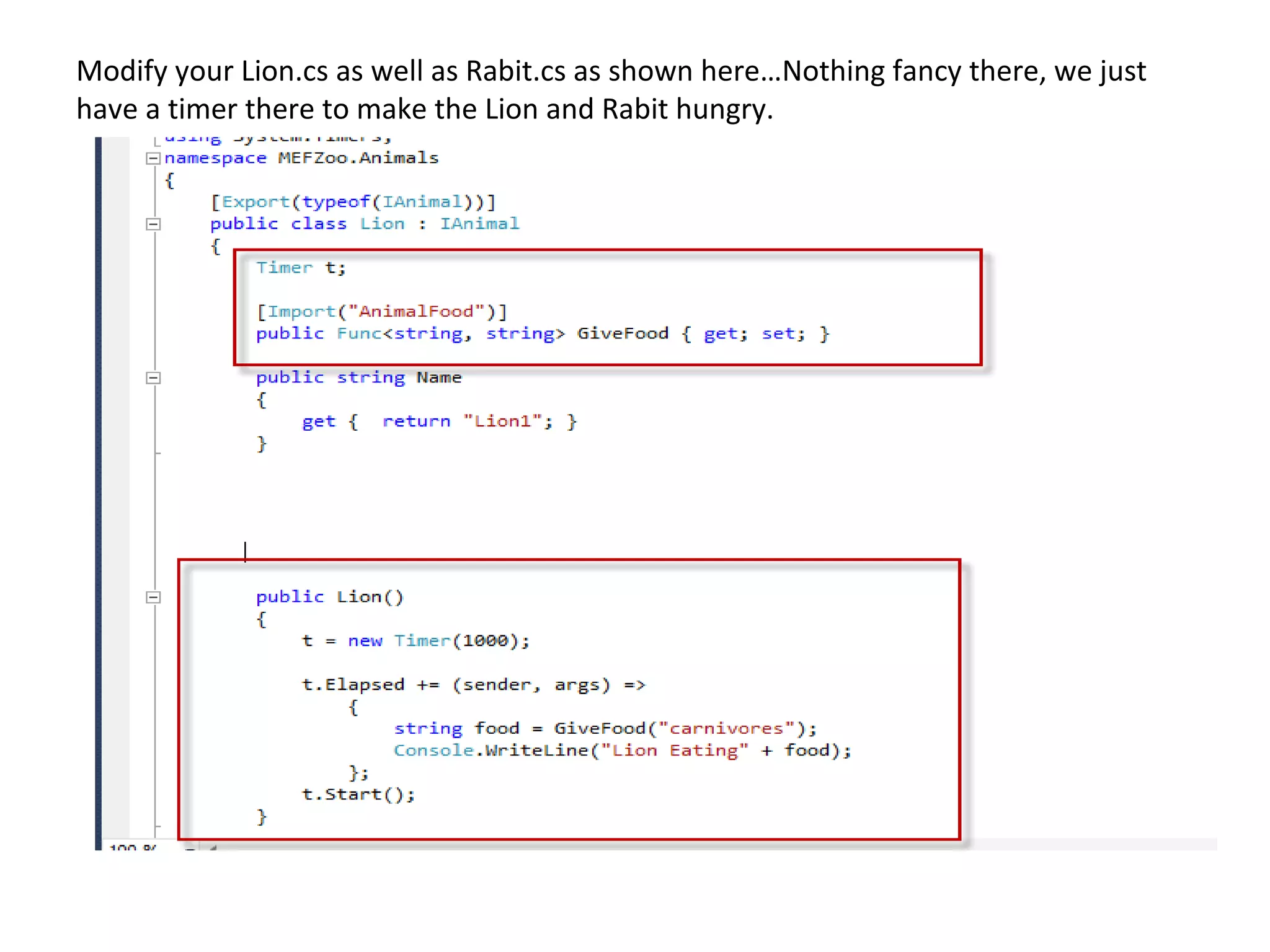

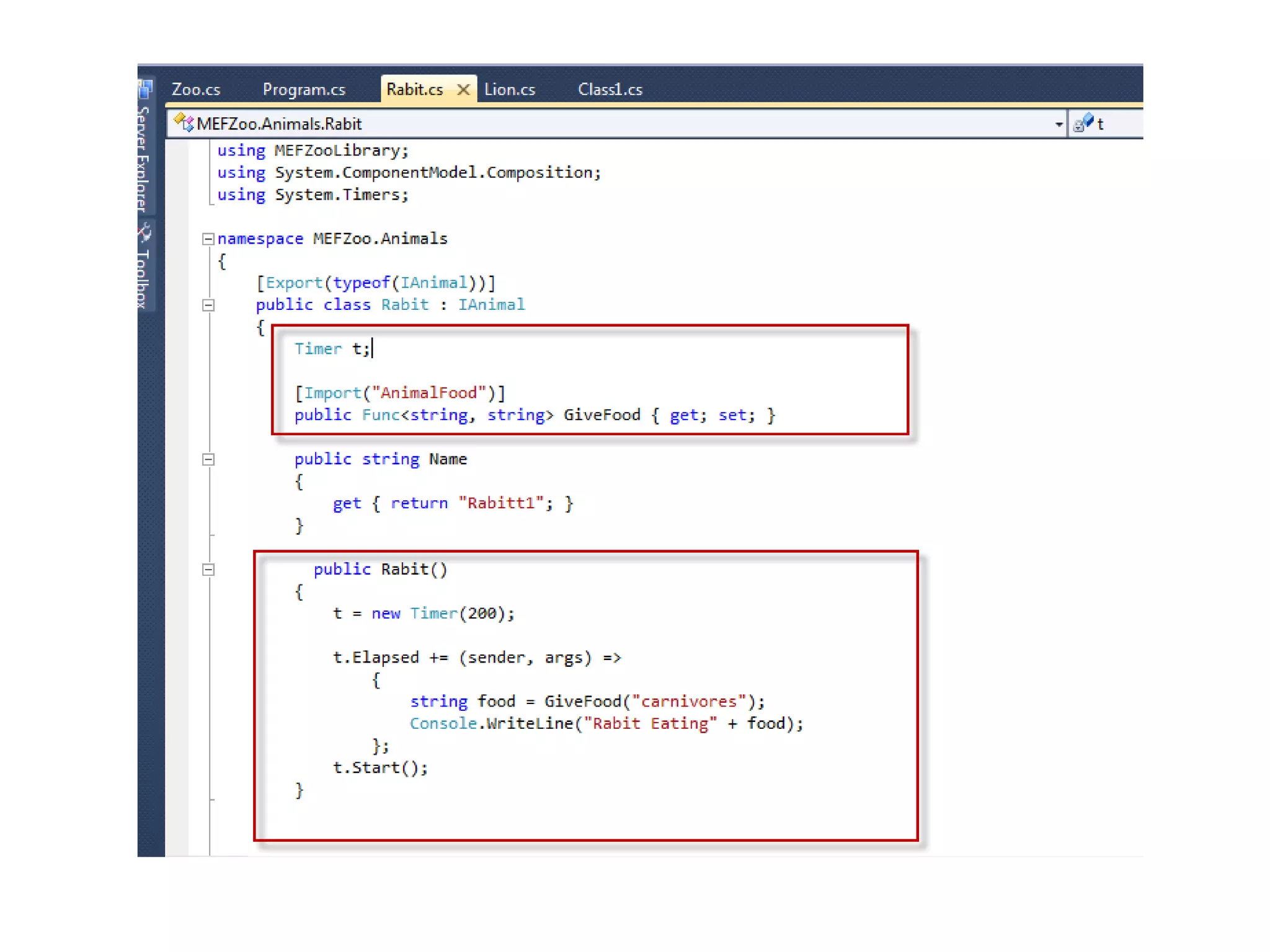

Modify your Lion.cs as well as Rabit.cs as shown here…Nothing fancy there, we just
have a timer there to make the Lion and Rabit hungry.

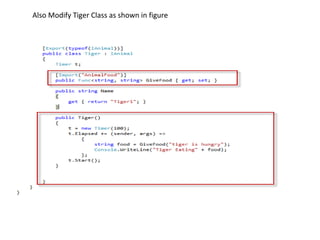

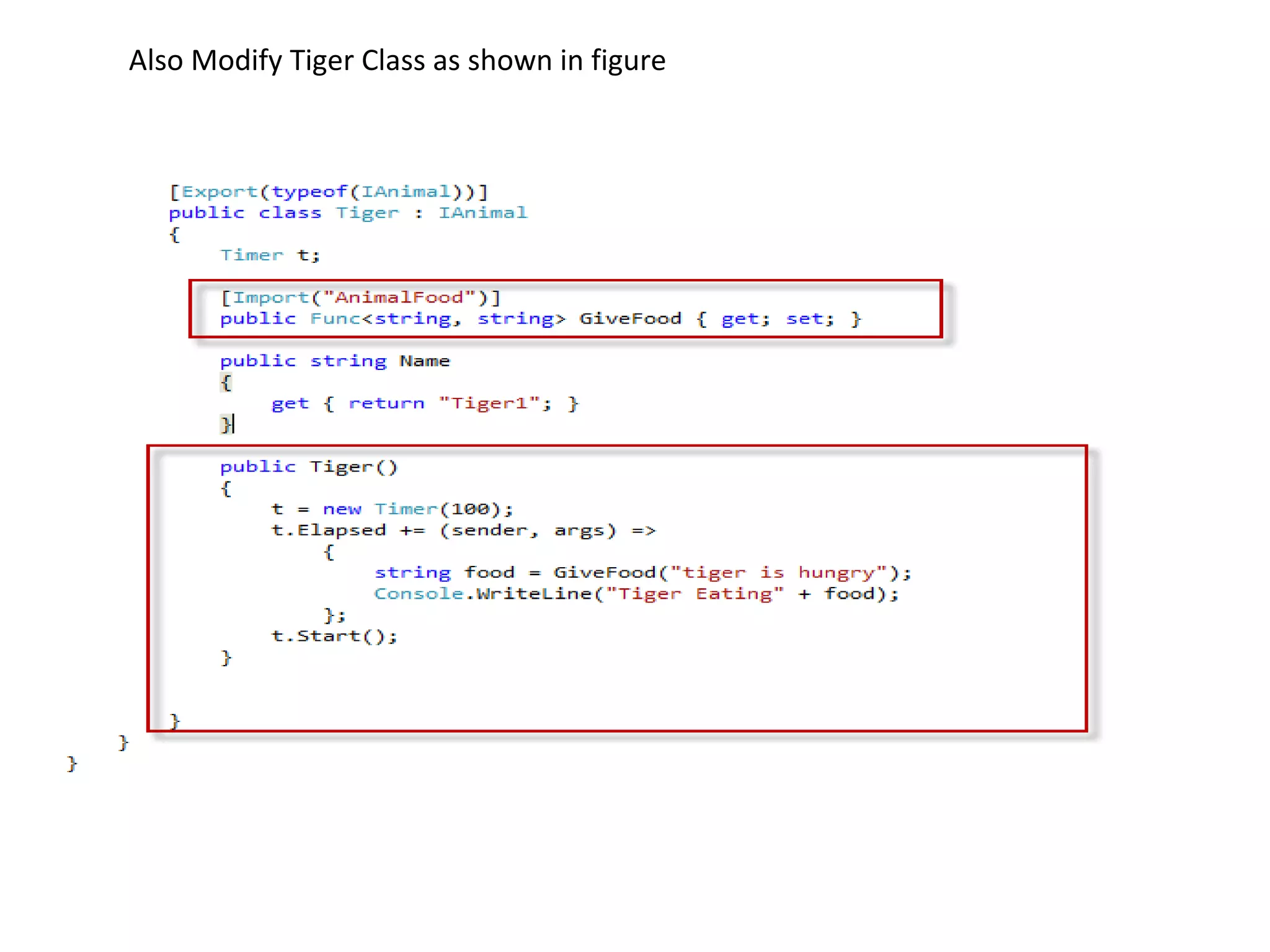

Also Modify Tiger Class as shown in figure

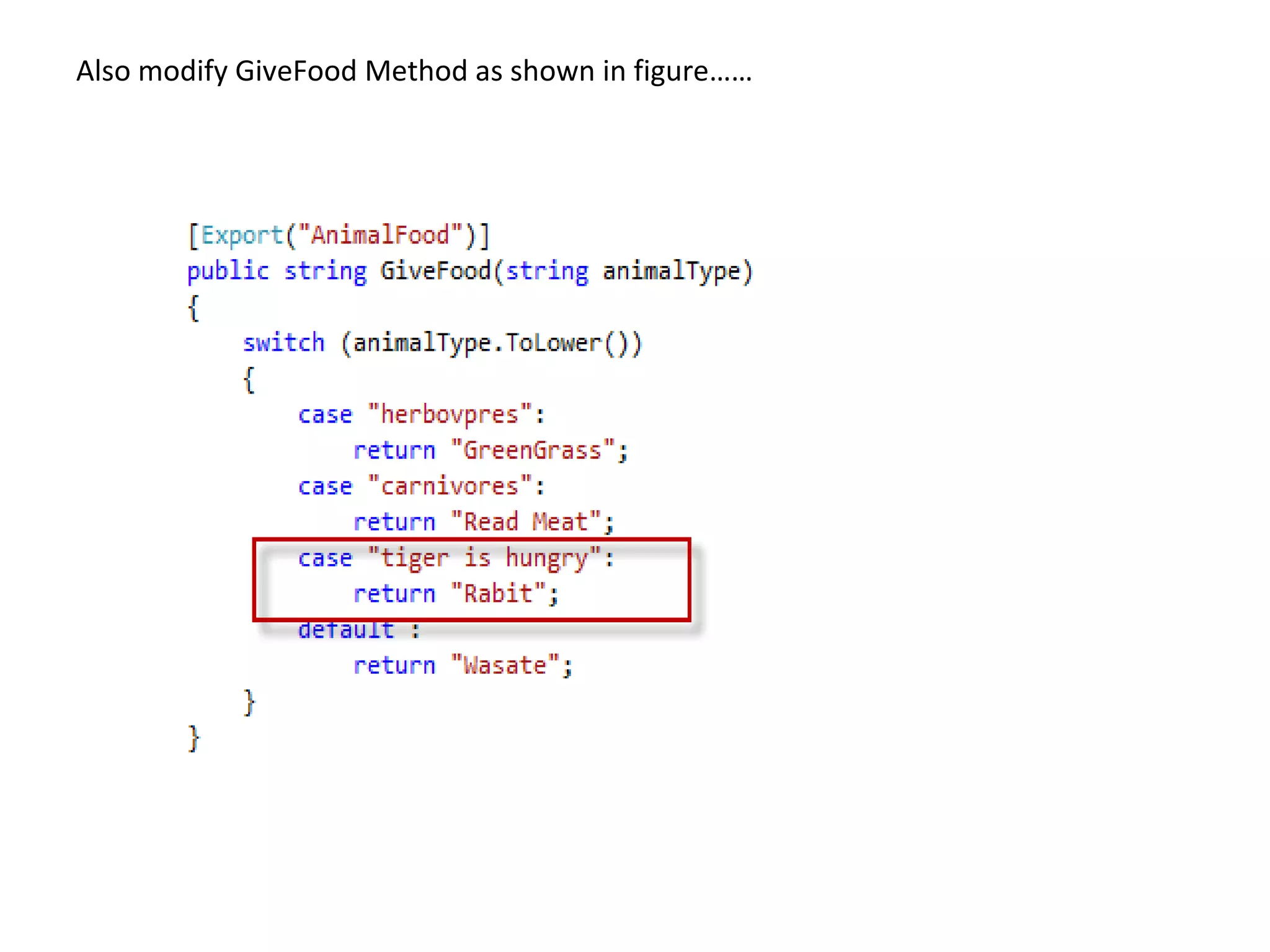

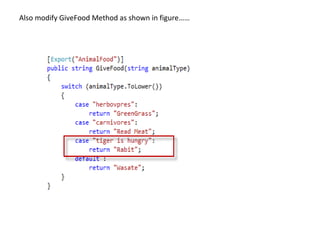

Also modify GiveFood Method as shown in figure……

• Run the solution and observe the output

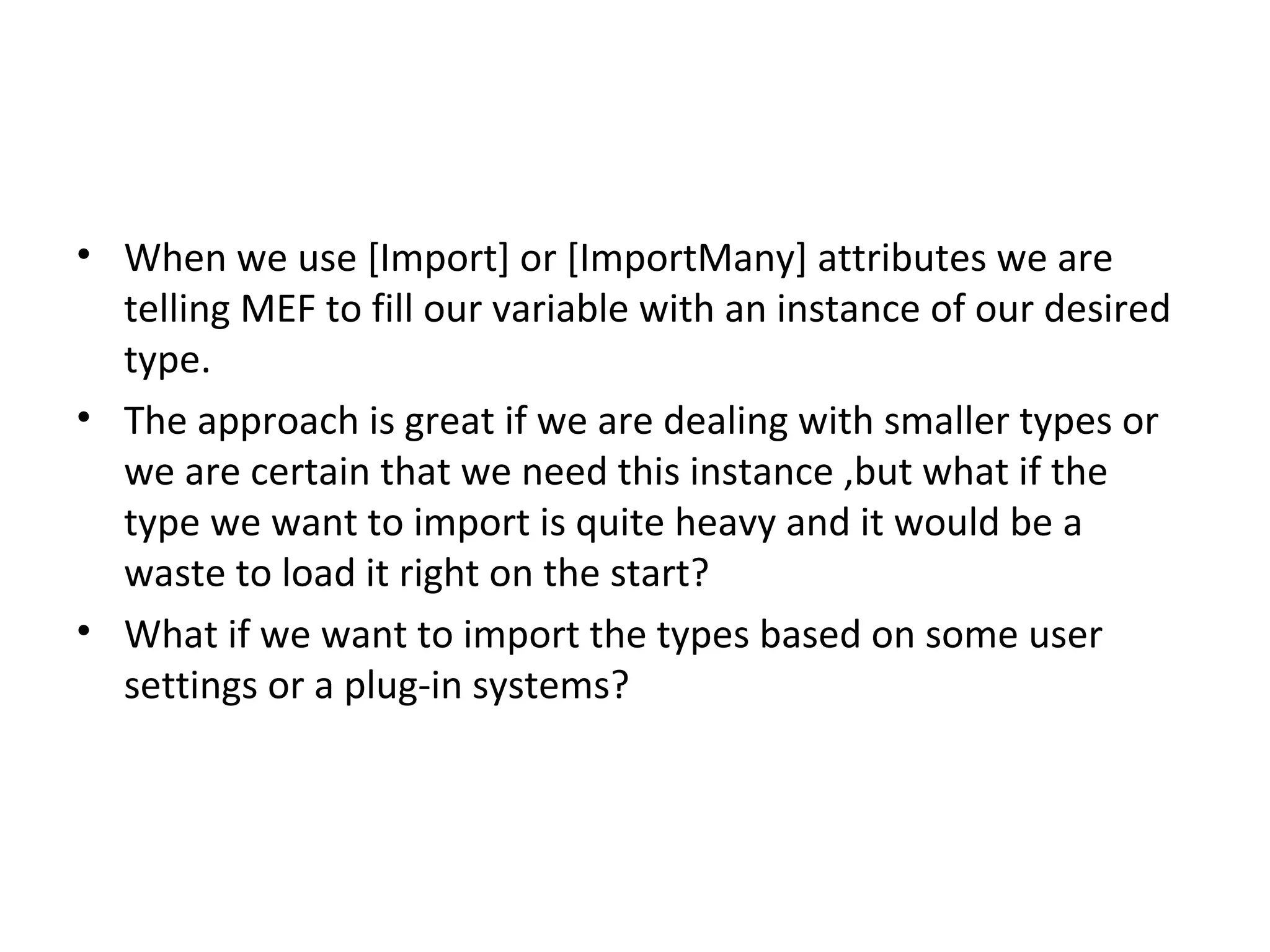

• When we use [Import] or [ImportMany] attributes we are
telling MEF to fill our variable with an instance of our desired
type.
• The approach is great if we are dealing with smaller types or
we are certain that we need this instance ,but what if the
type we want to import is quite heavy and it would be a
waste to load it right on the start?
• What if we want to import the types based on some user
settings or a plug-in systems?

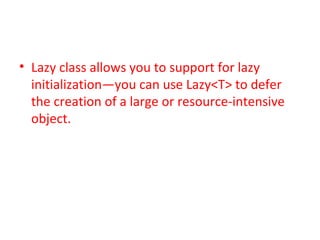

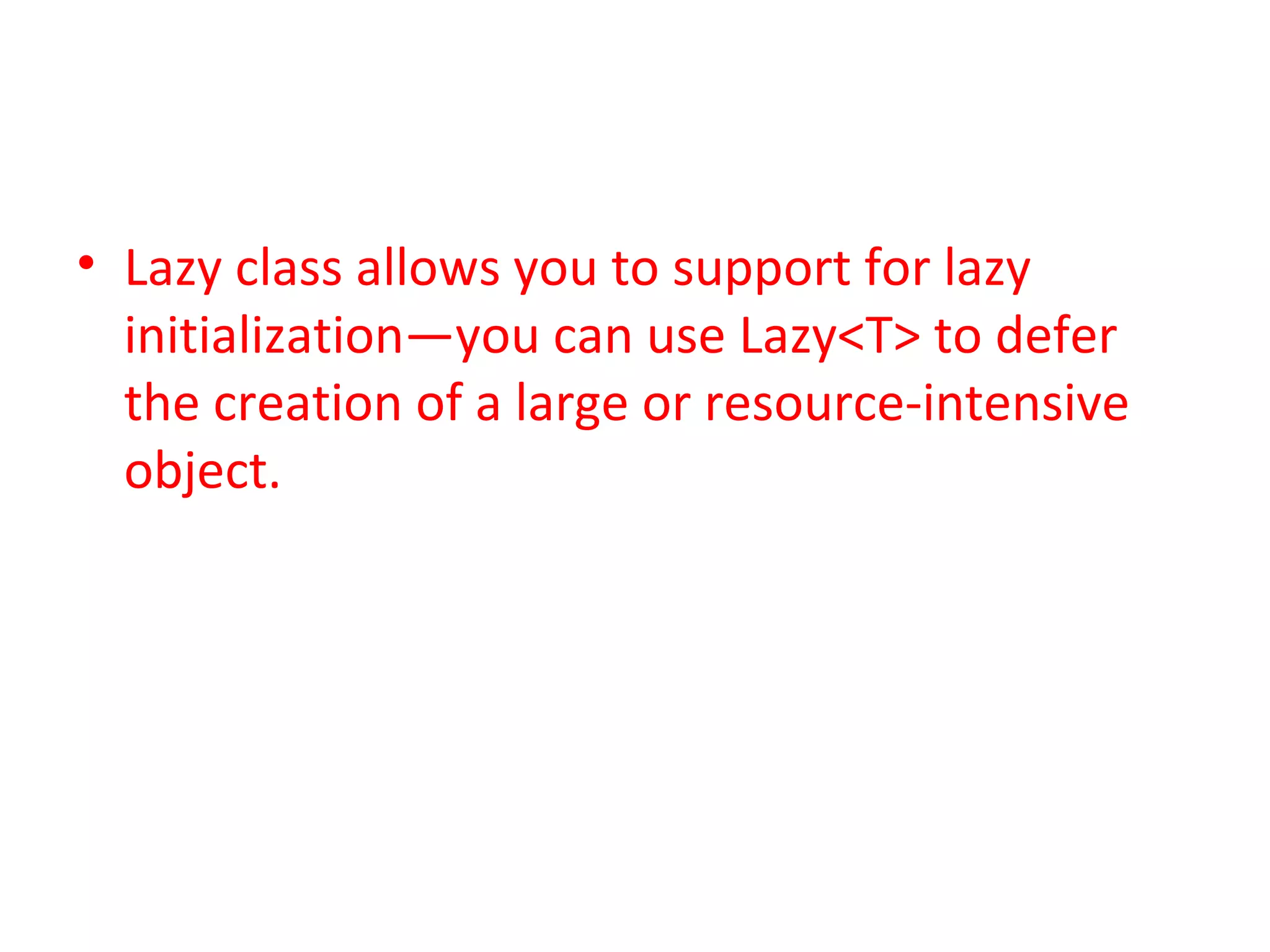

• Lazy class allows you to support for lazy
initialization—you can use Lazy<T> to defer
the creation of a large or resource-intensive
object.

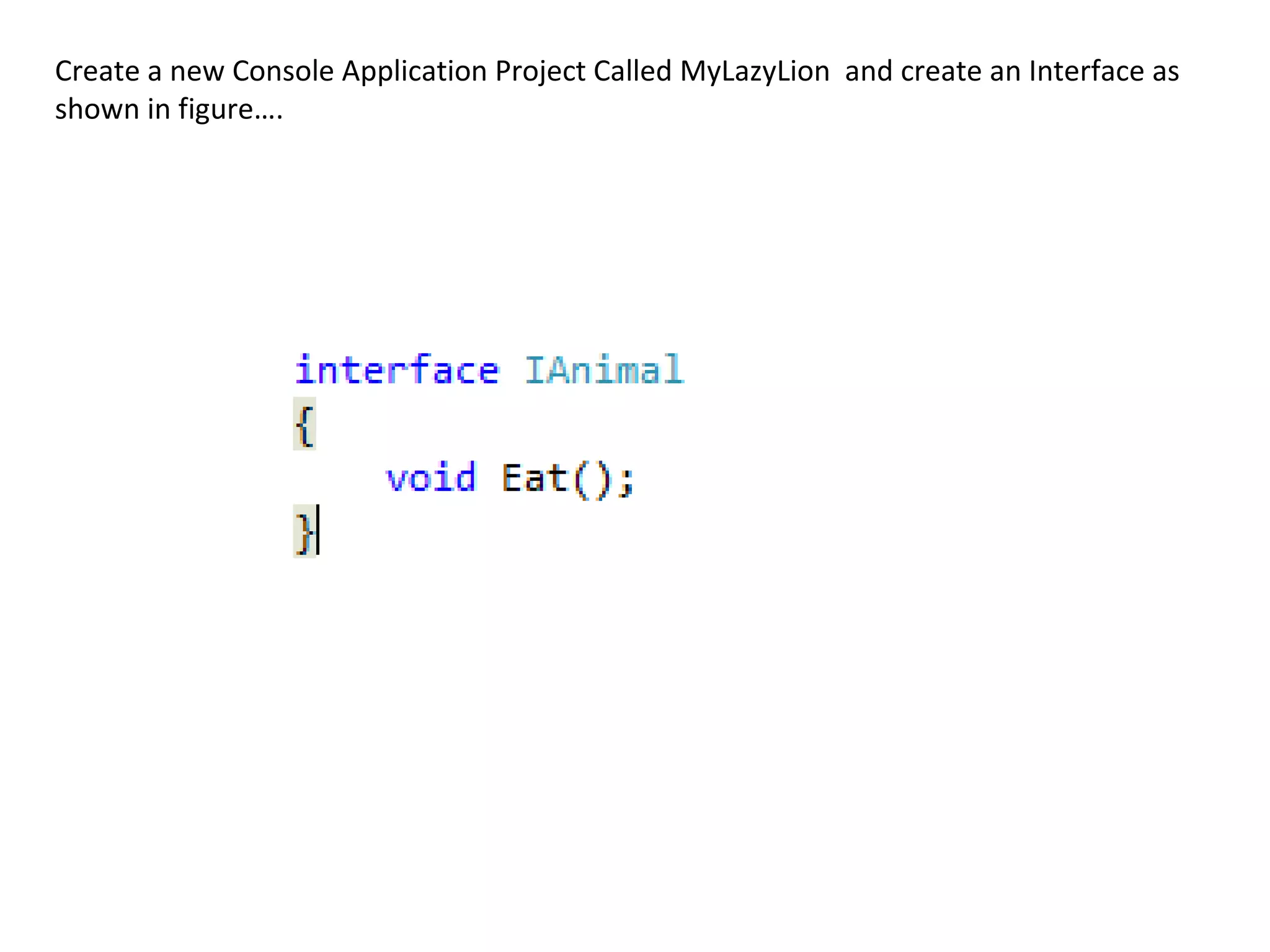

Create a new Console Application Project Called MyLazyLion and create an Interface as
shown in figure….

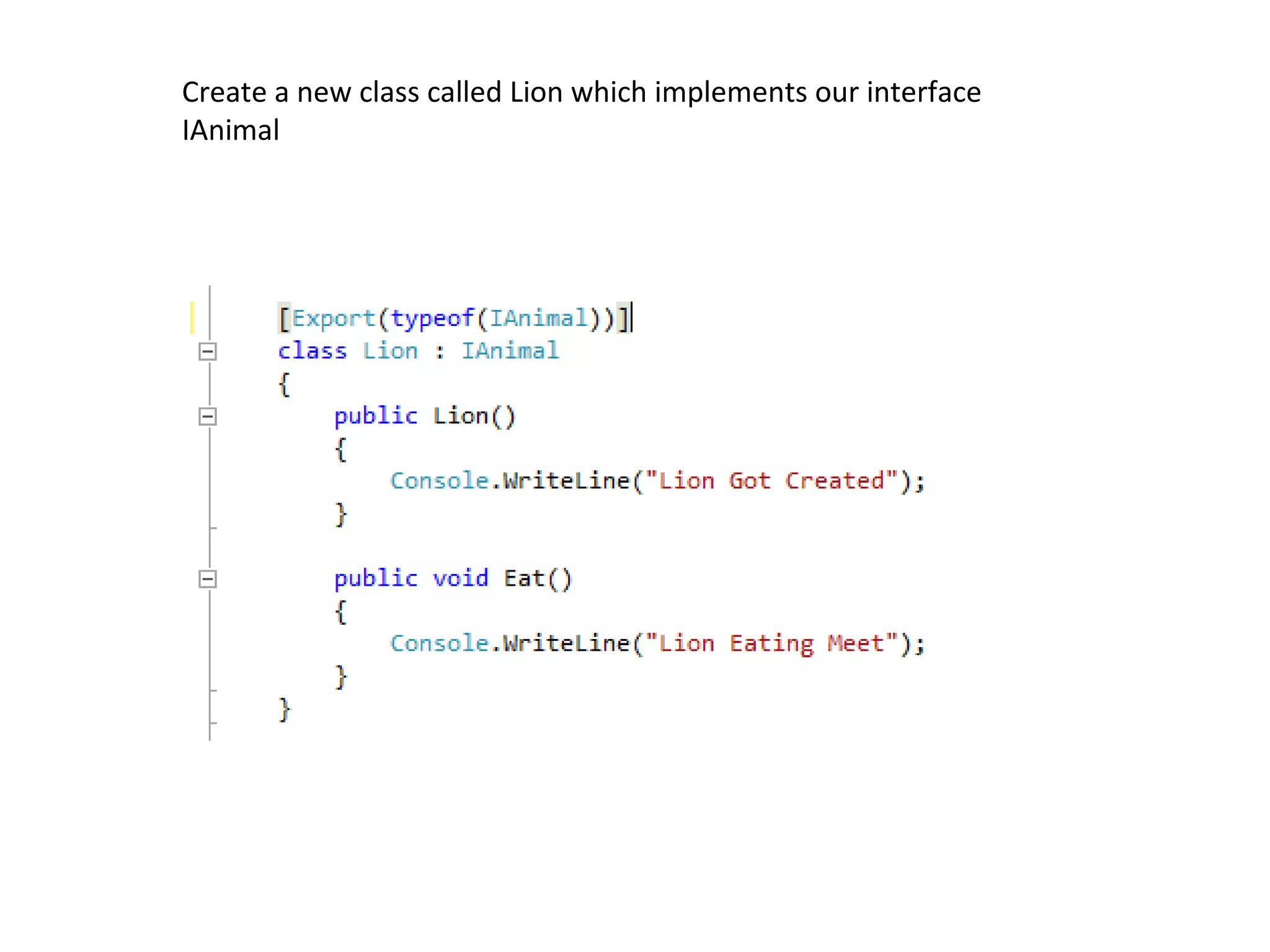

Create a new class called Lion which implements our interface
IAnimal

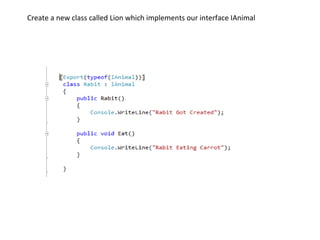

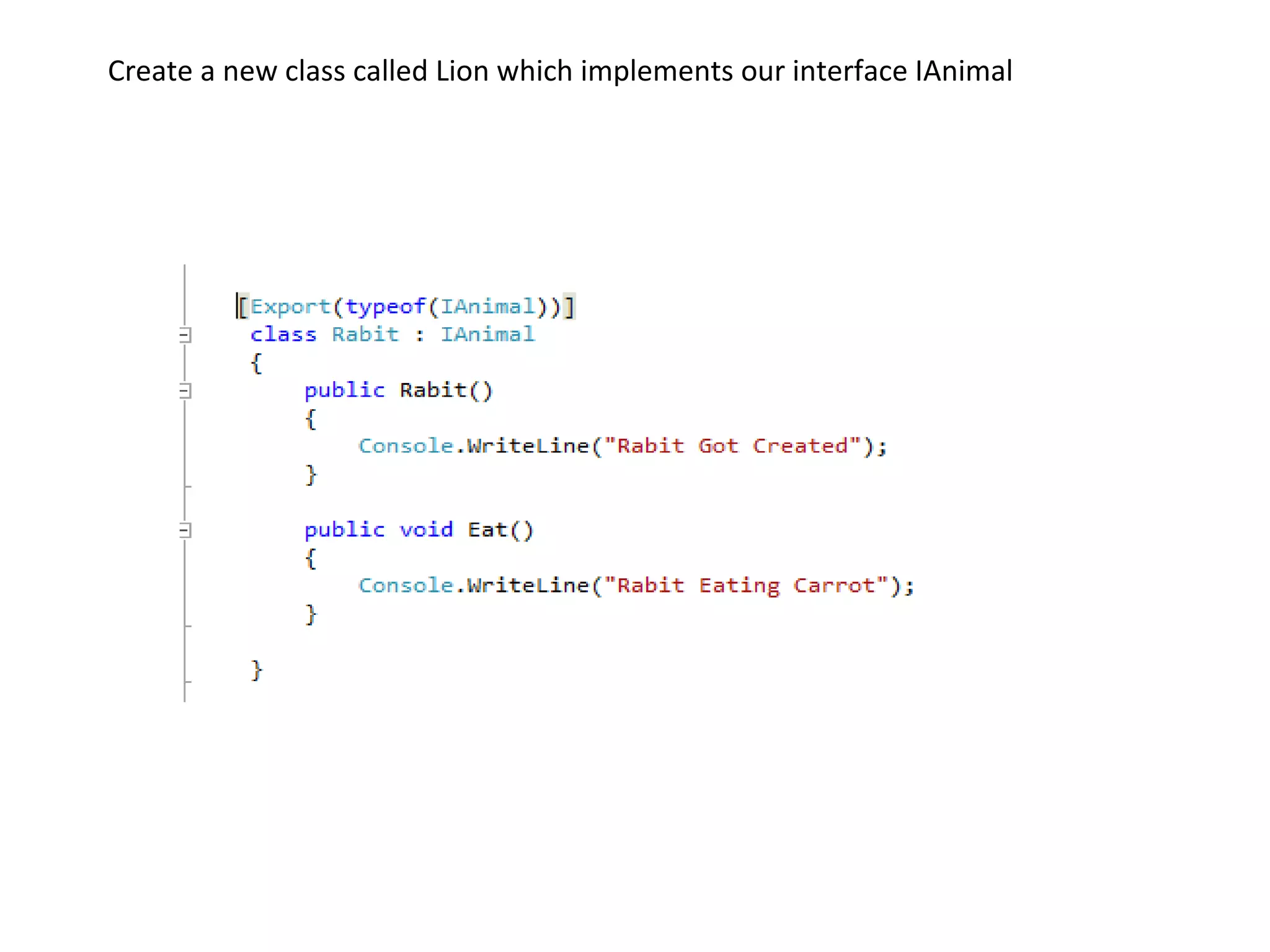

Create a new class called Lion which implements our interface IAnimal

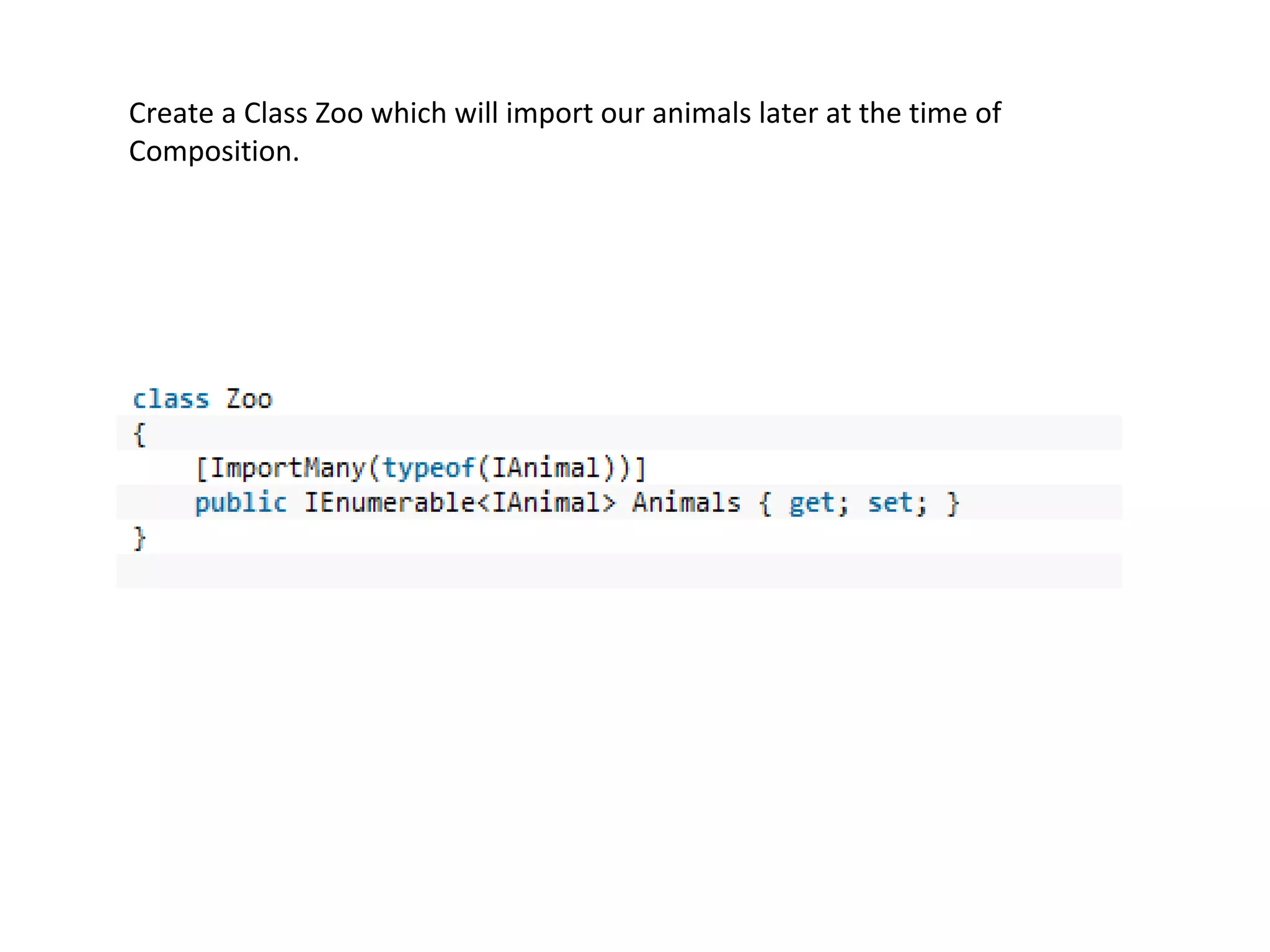

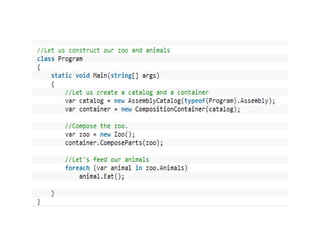

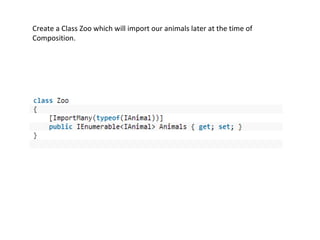

Create a Class Zoo which will import our animals later at the time of
Composition.

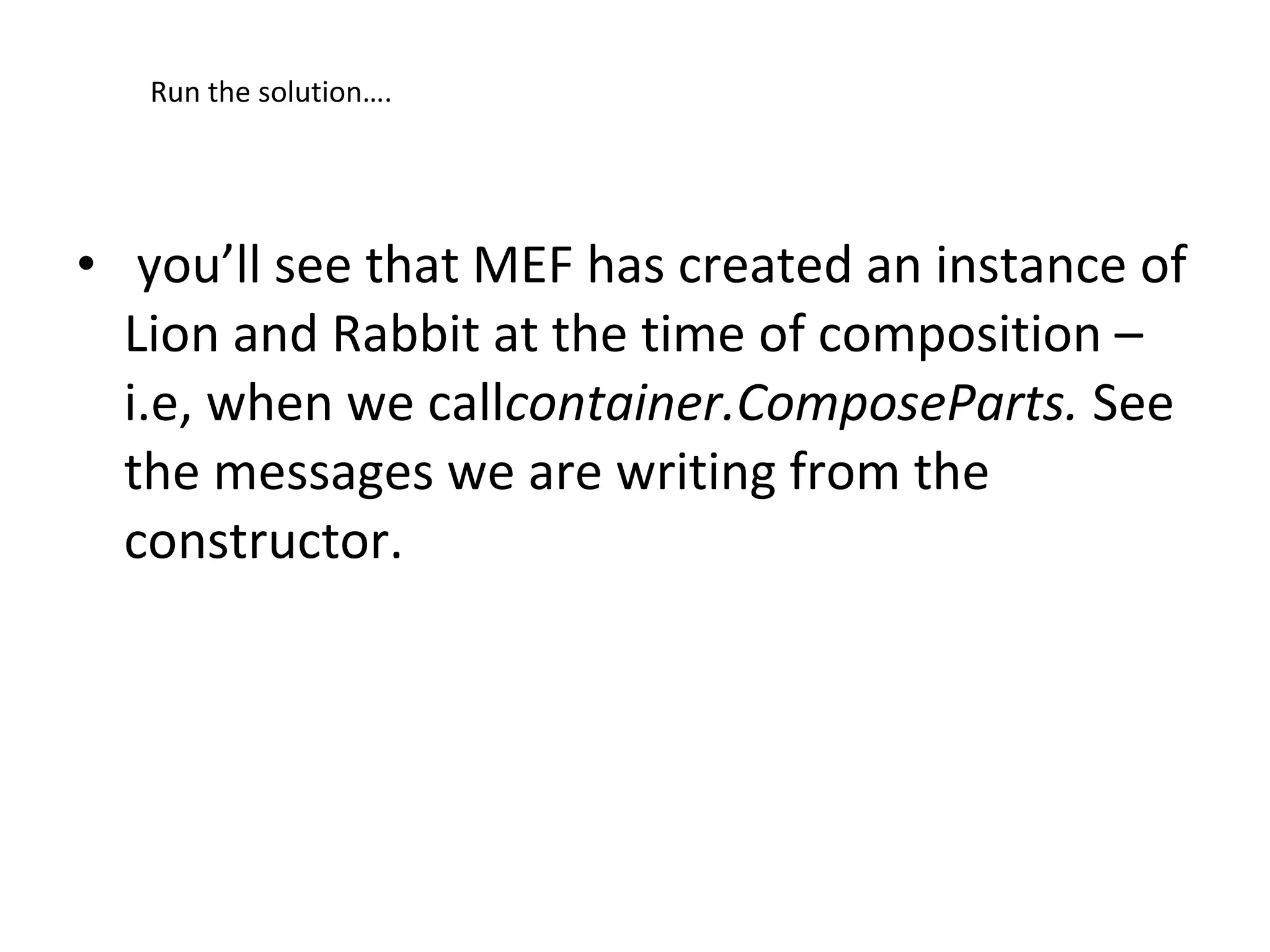

Run the solution….

• you’ll see that MEF has created an instance of
Lion and Rabbit at the time of composition –
i.e, when we callcontainer.ComposeParts. See
the messages we are writing from the
constructor.

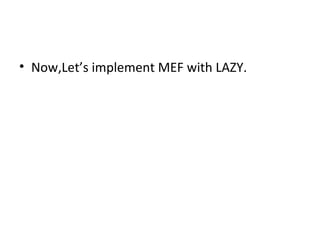

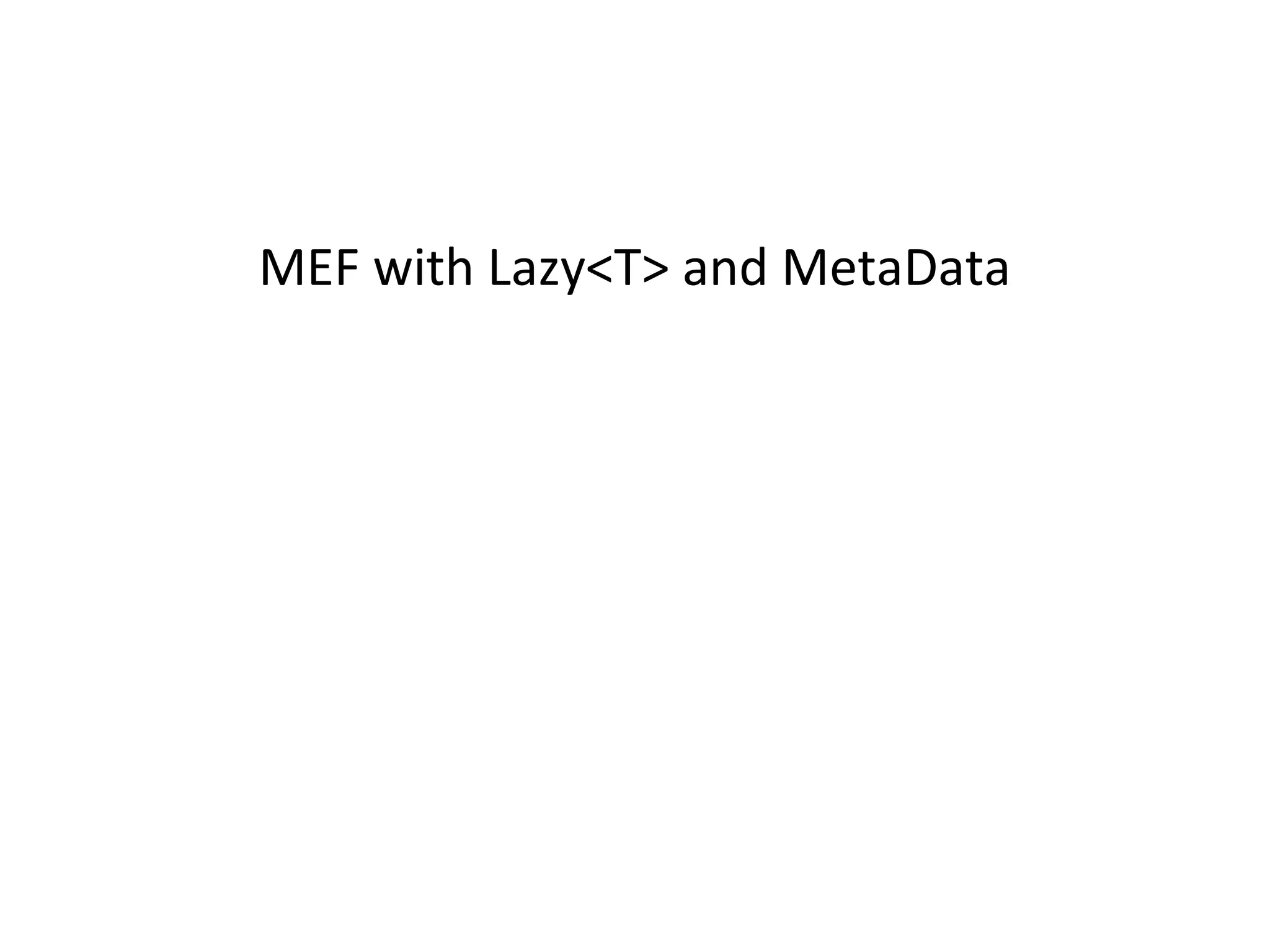

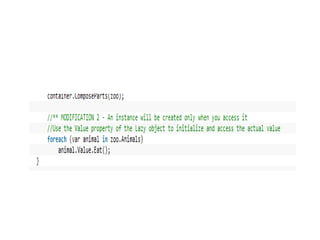

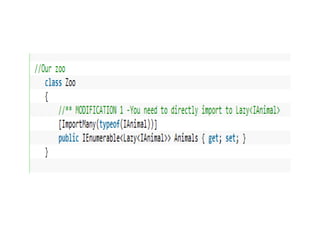

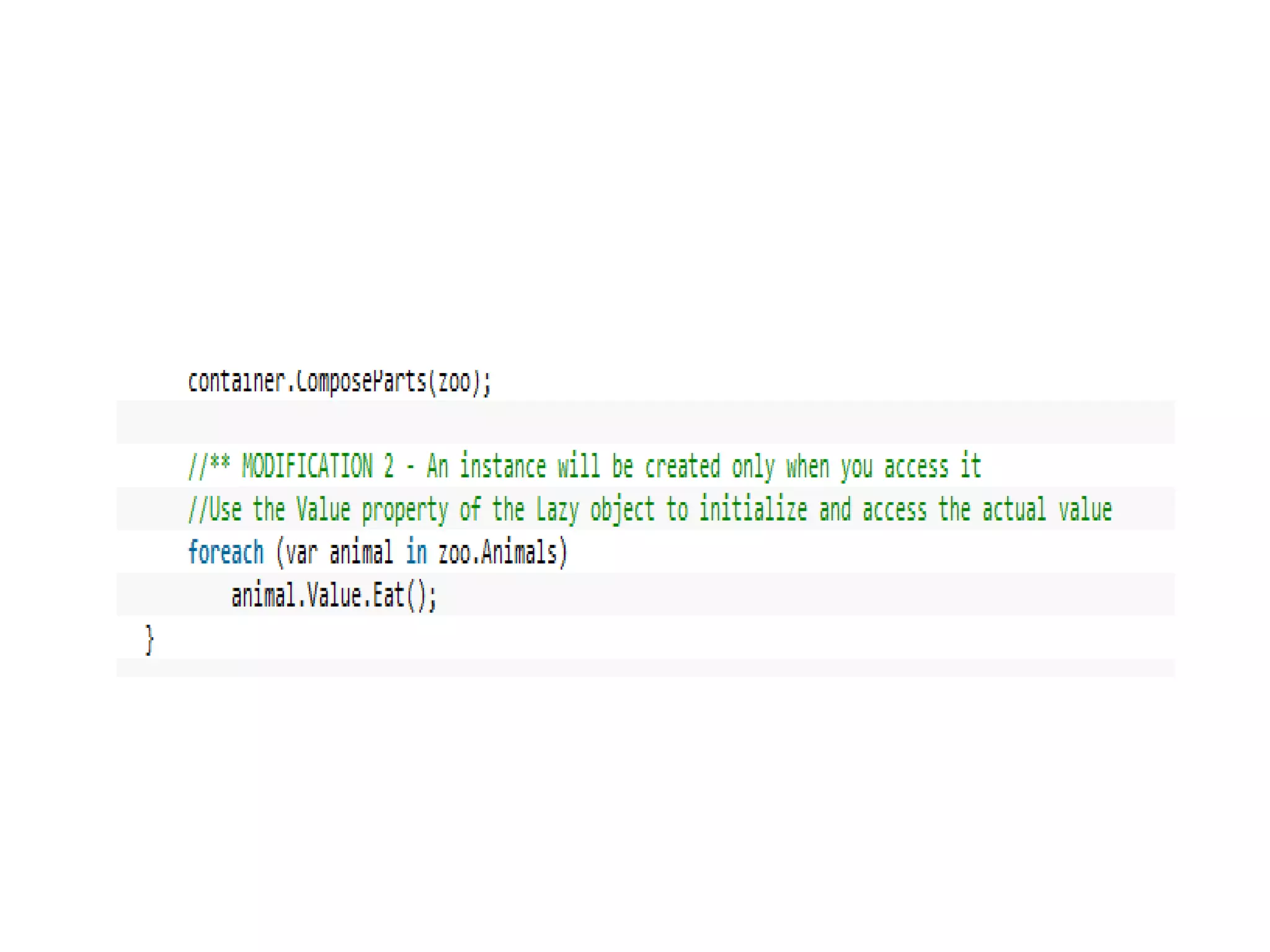

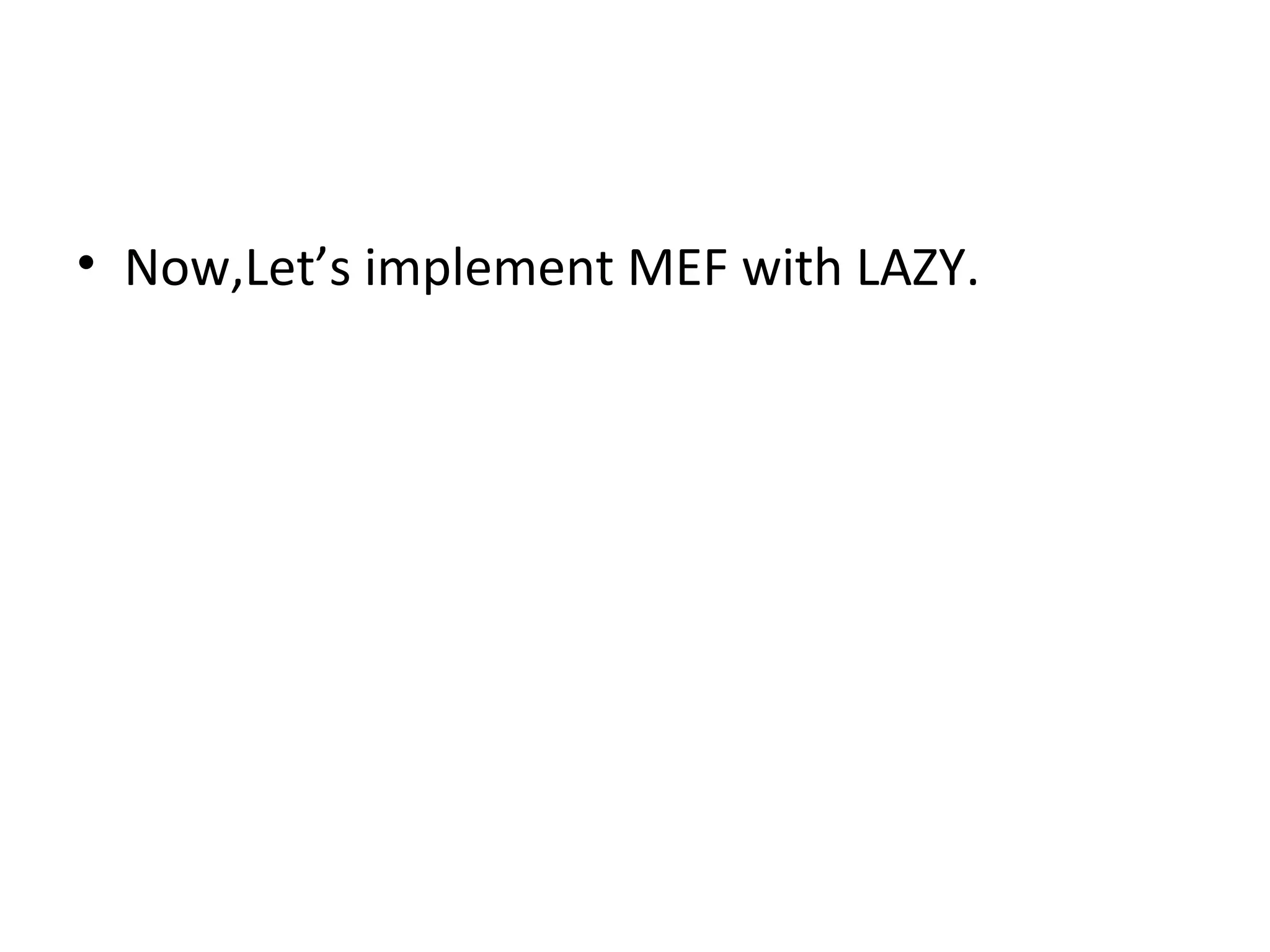

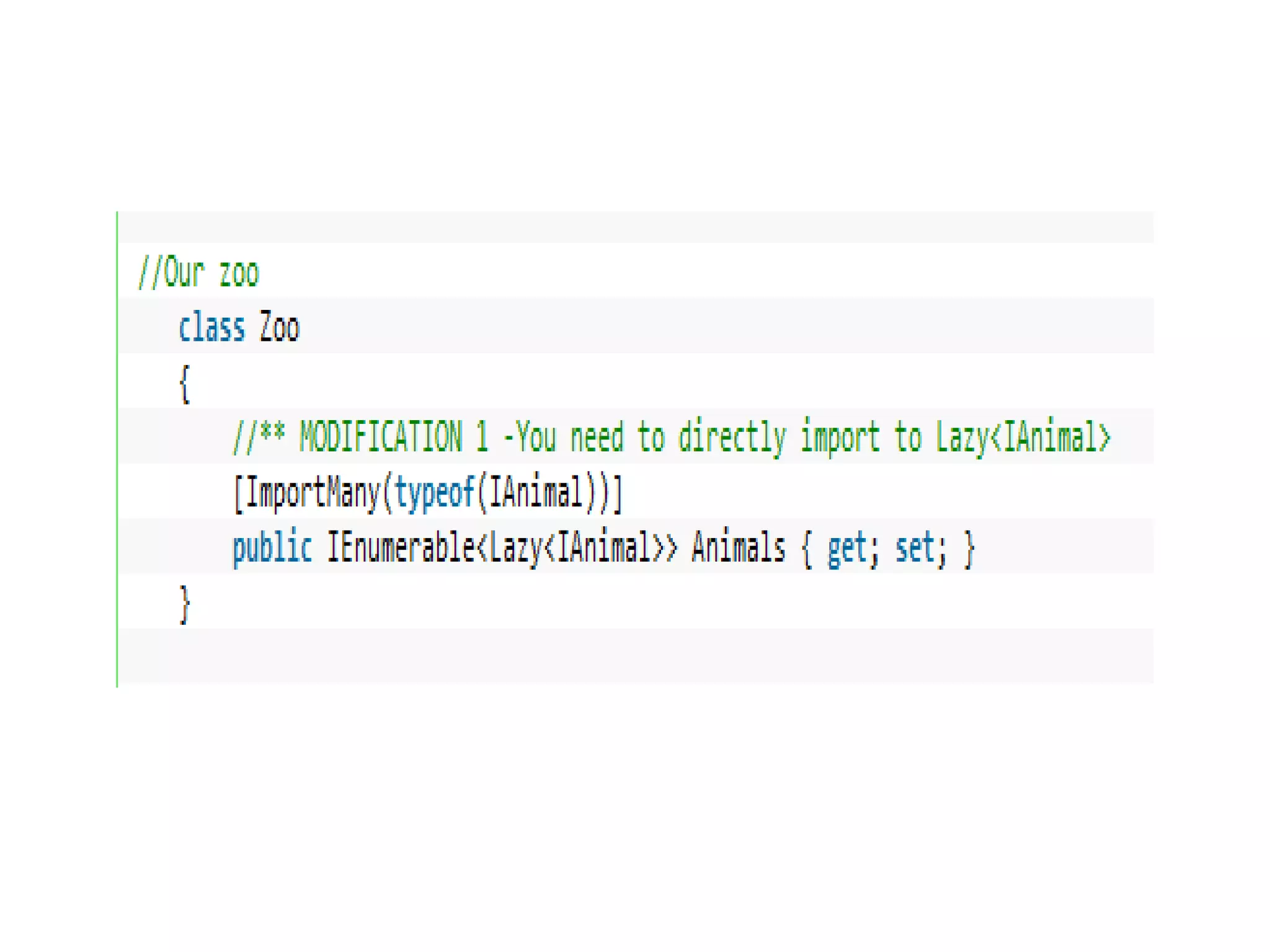

• Now,Let’s implement MEF with LAZY.

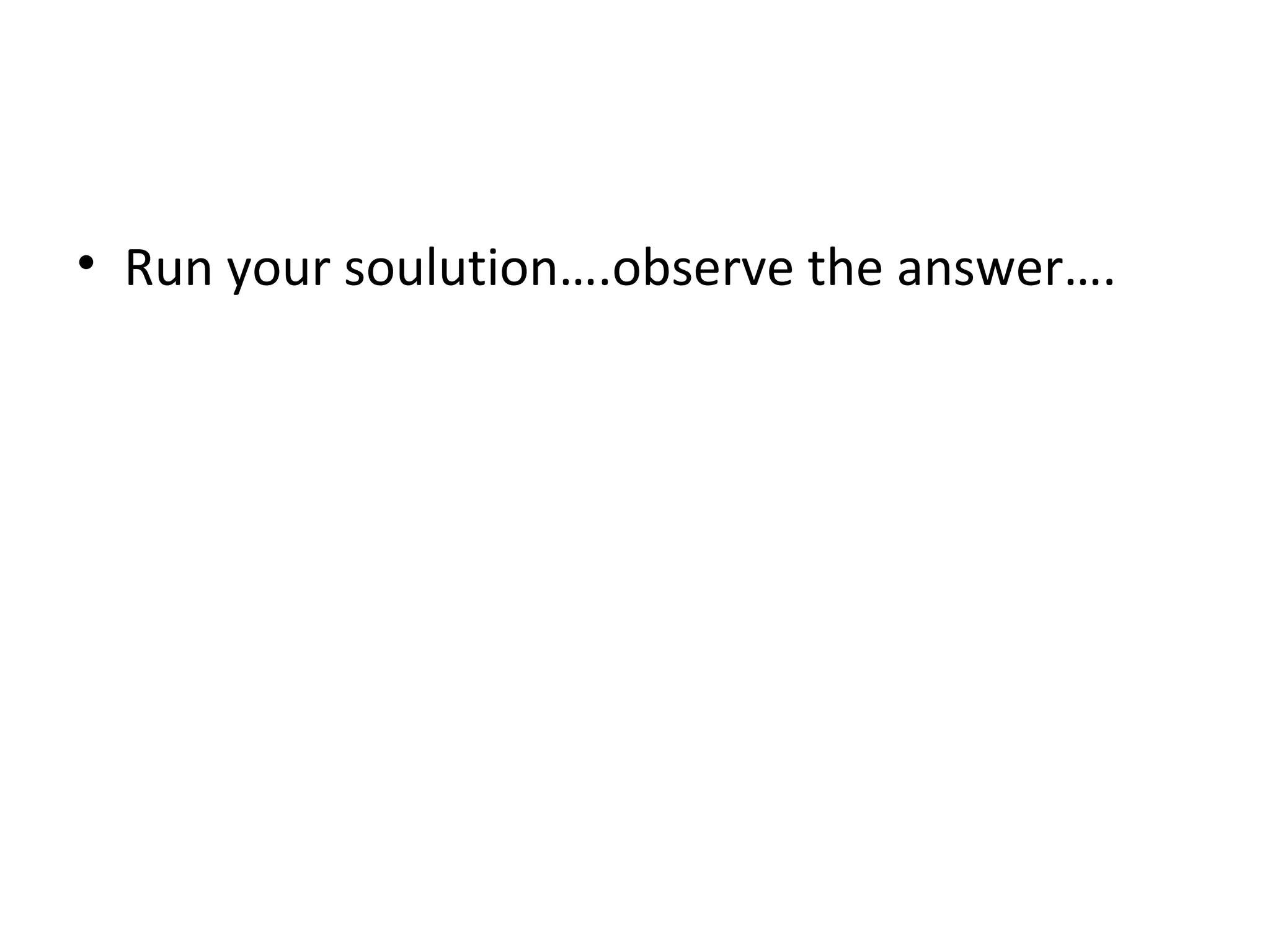

• Run your soulution….observe the answer….

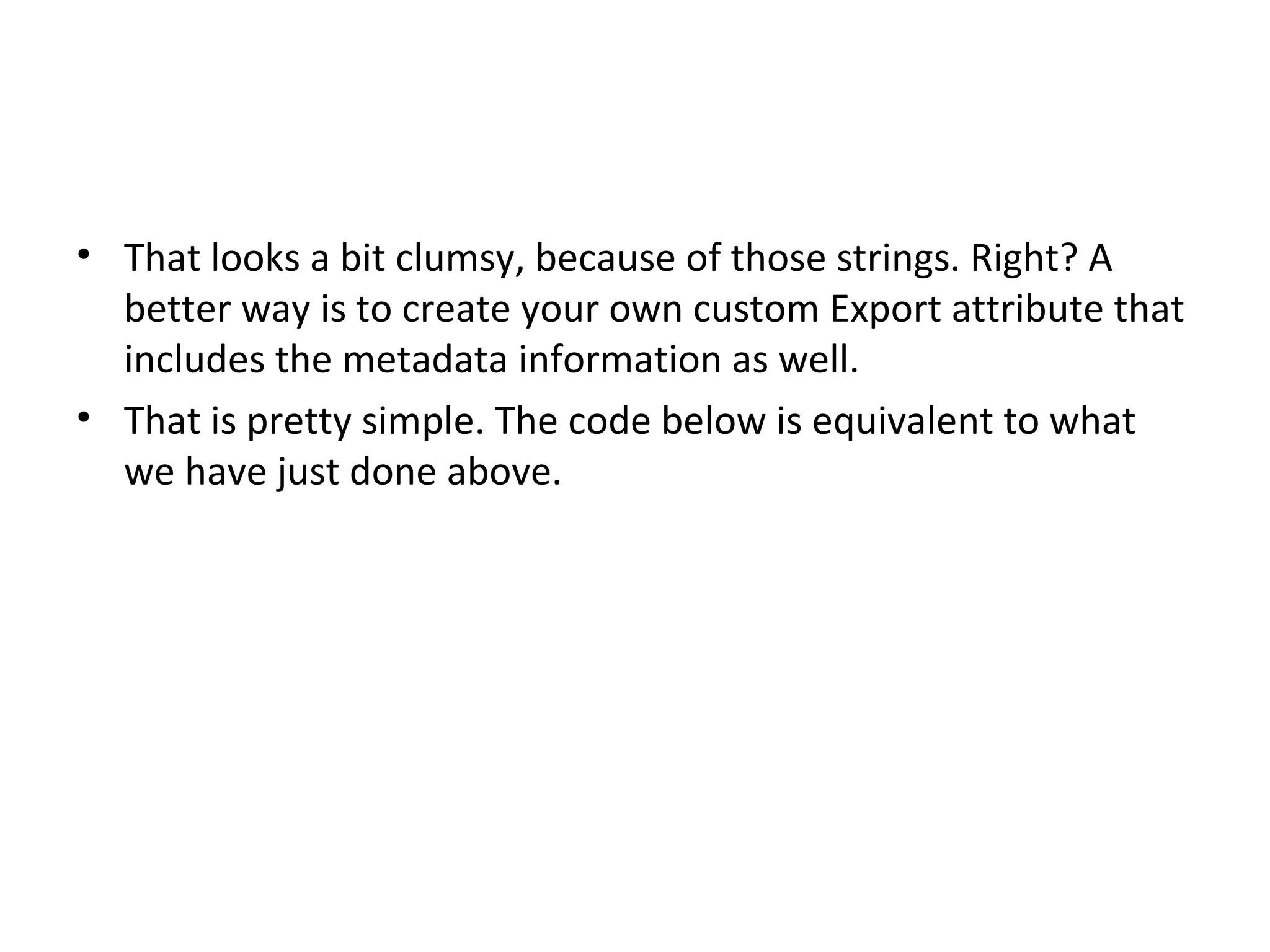

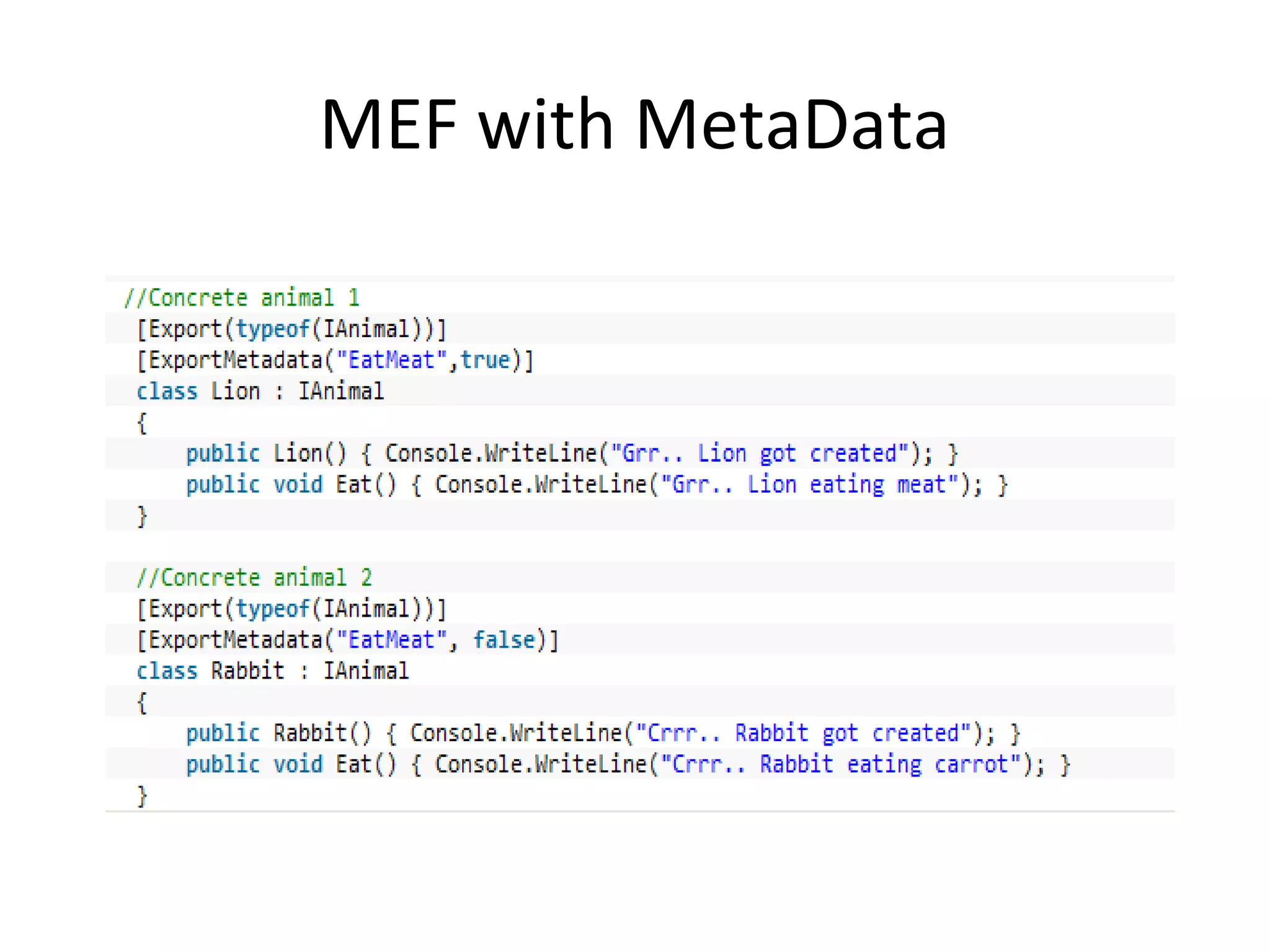

• That looks a bit clumsy, because of those strings. Right? A
better way is to create your own custom Export attribute that
includes the metadata information as well.

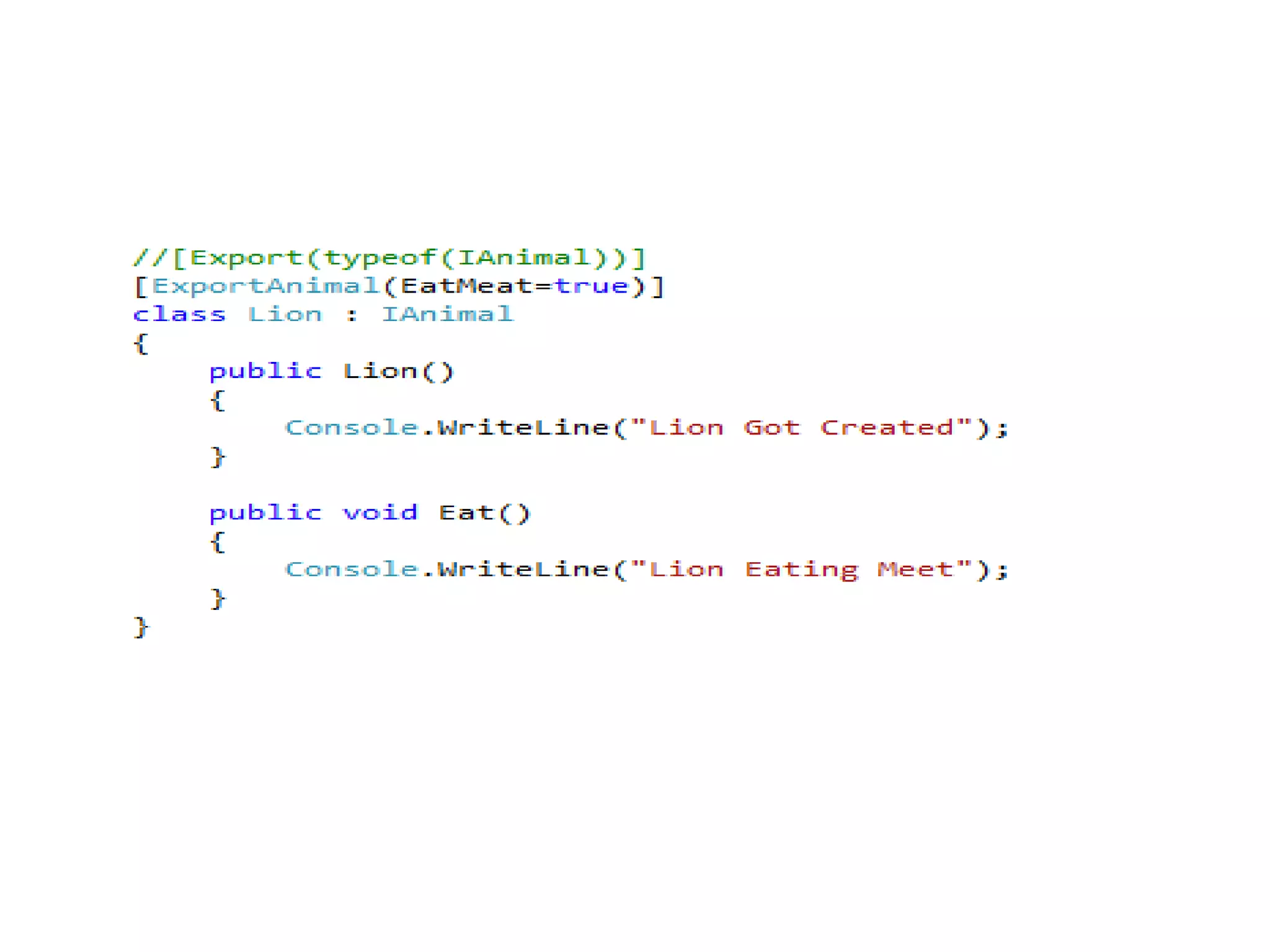

• That is pretty simple. The code below is equivalent to what
we have just done above.

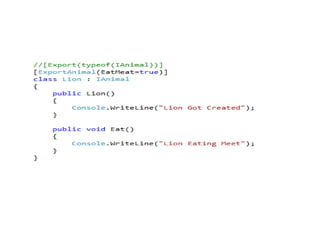

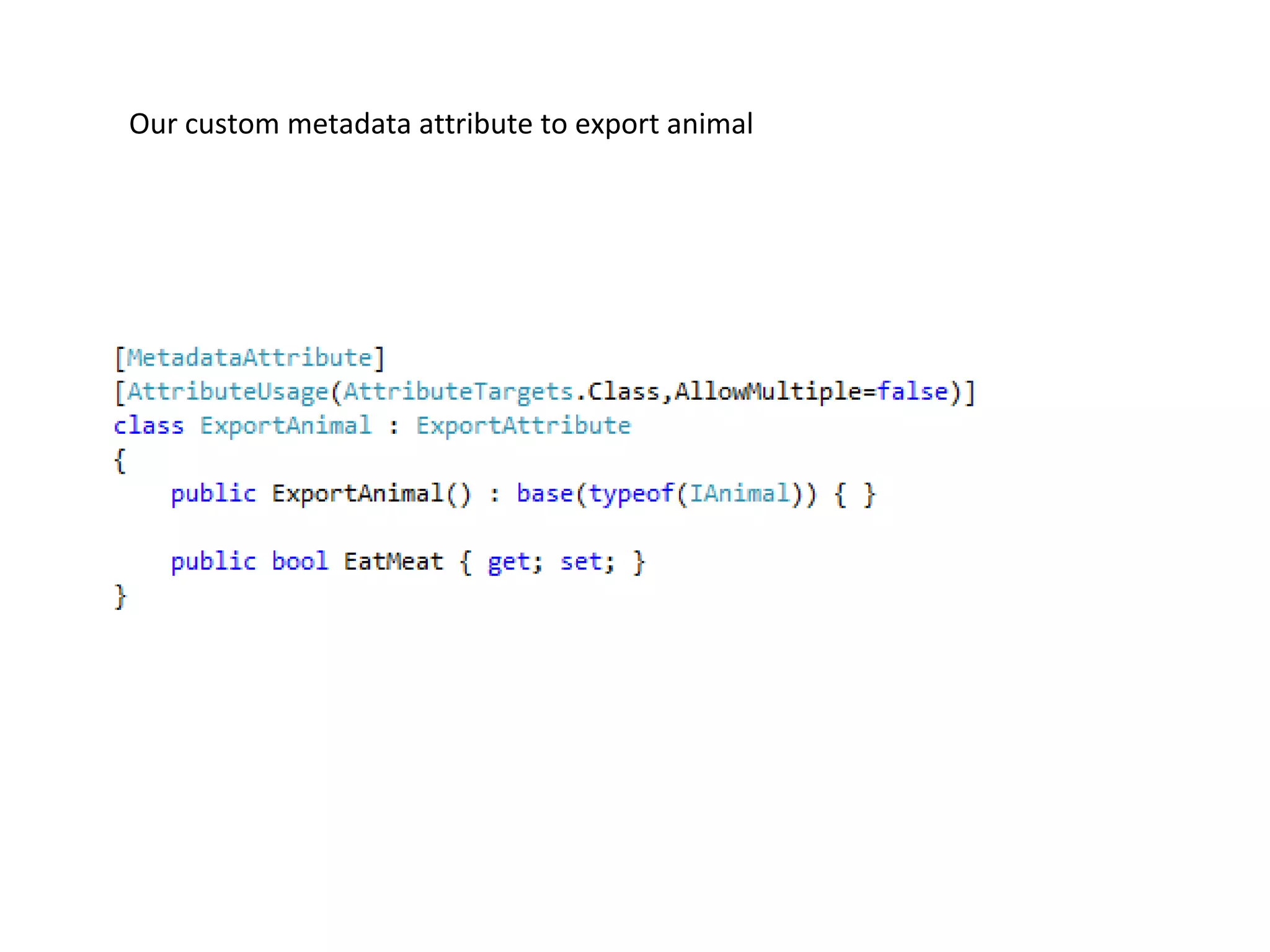

Our custom metadata attribute to export animal

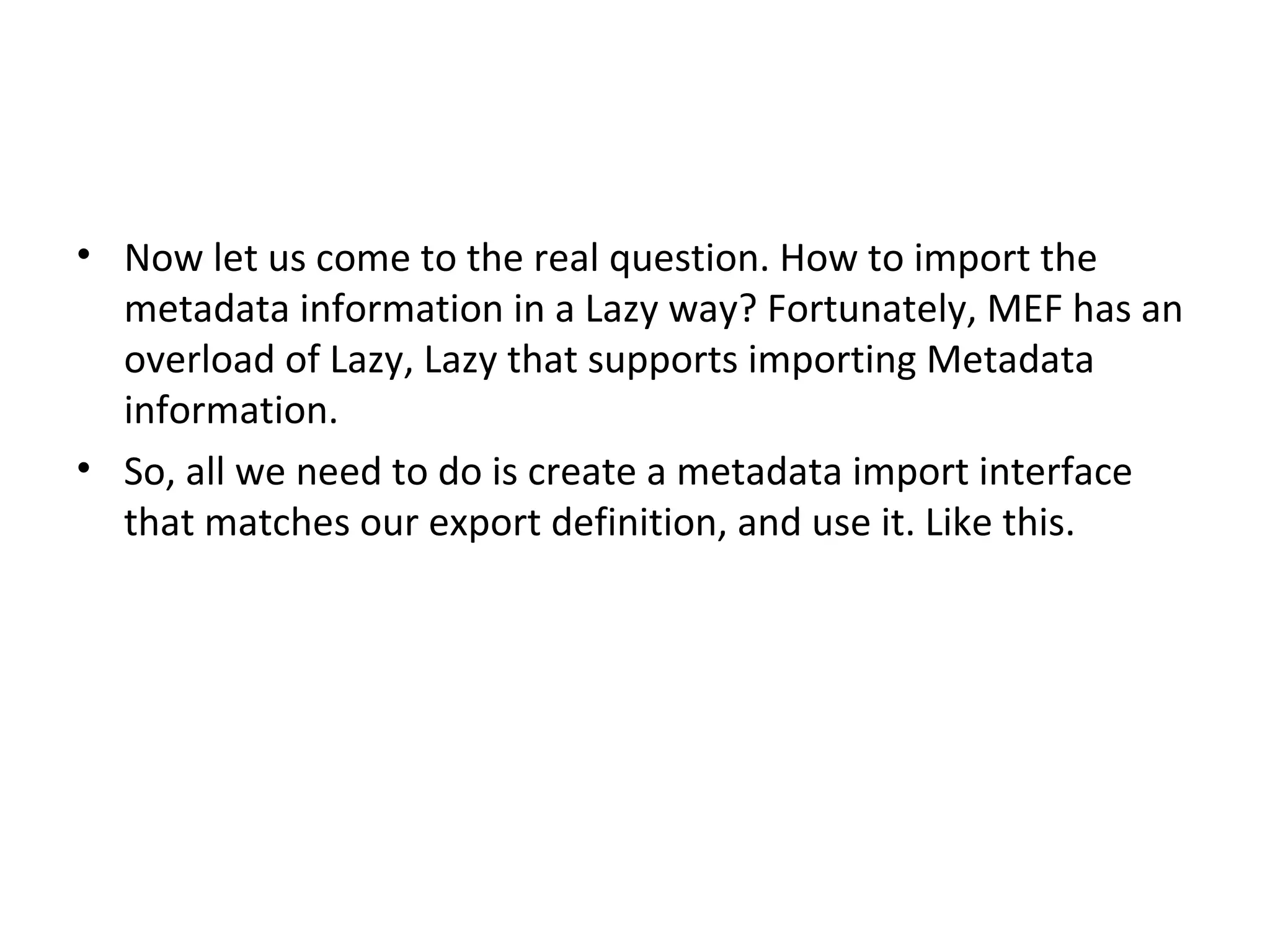

• Now let us come to the real question. How to import the
metadata information in a Lazy way? Fortunately, MEF has an
overload of Lazy, Lazy that supports importing Metadata
information.

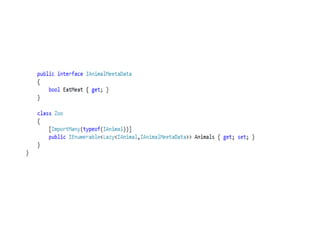

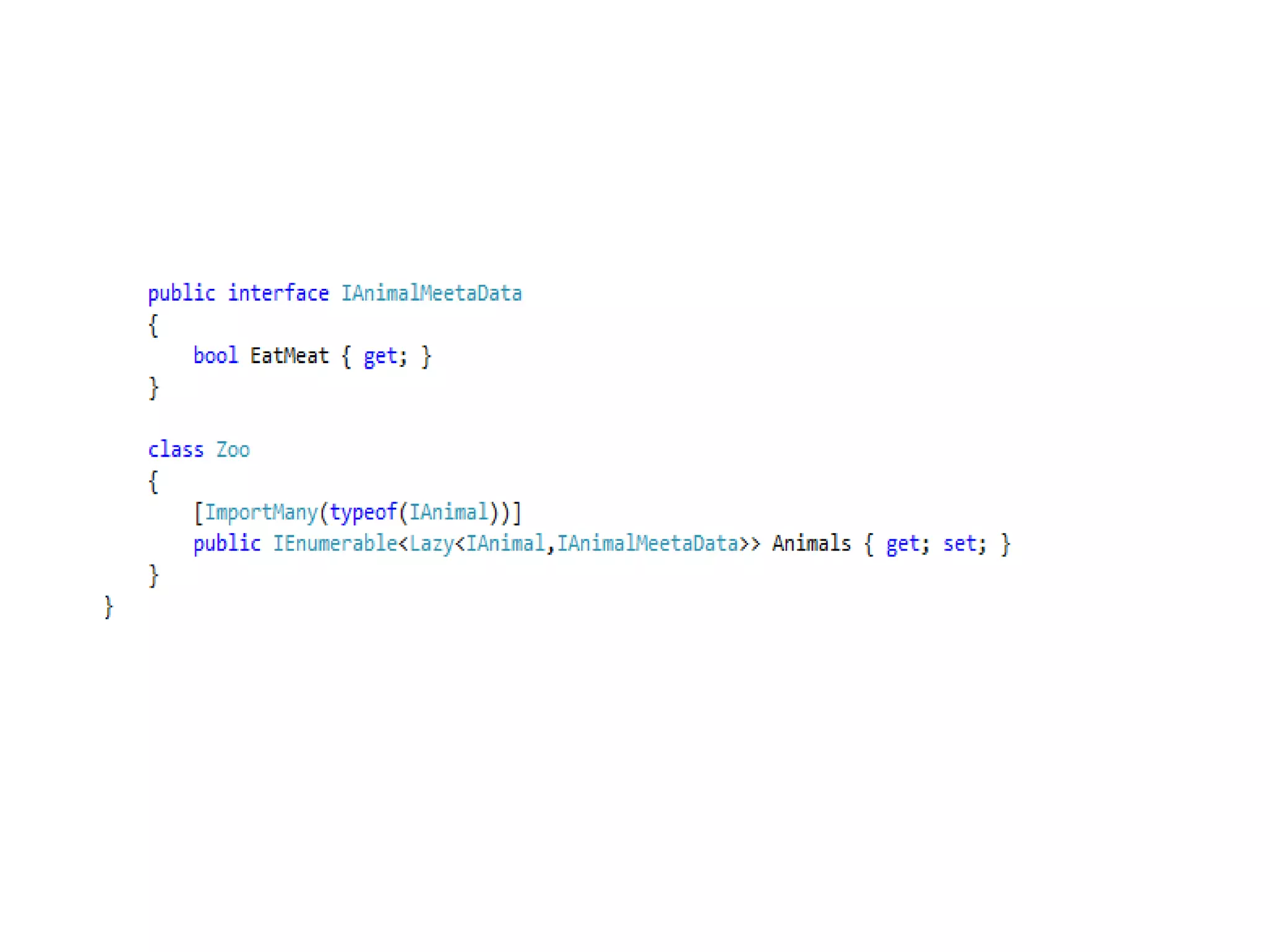

• So, all we need to do is create a metadata import interface
that matches our export definition, and use it. Like this.

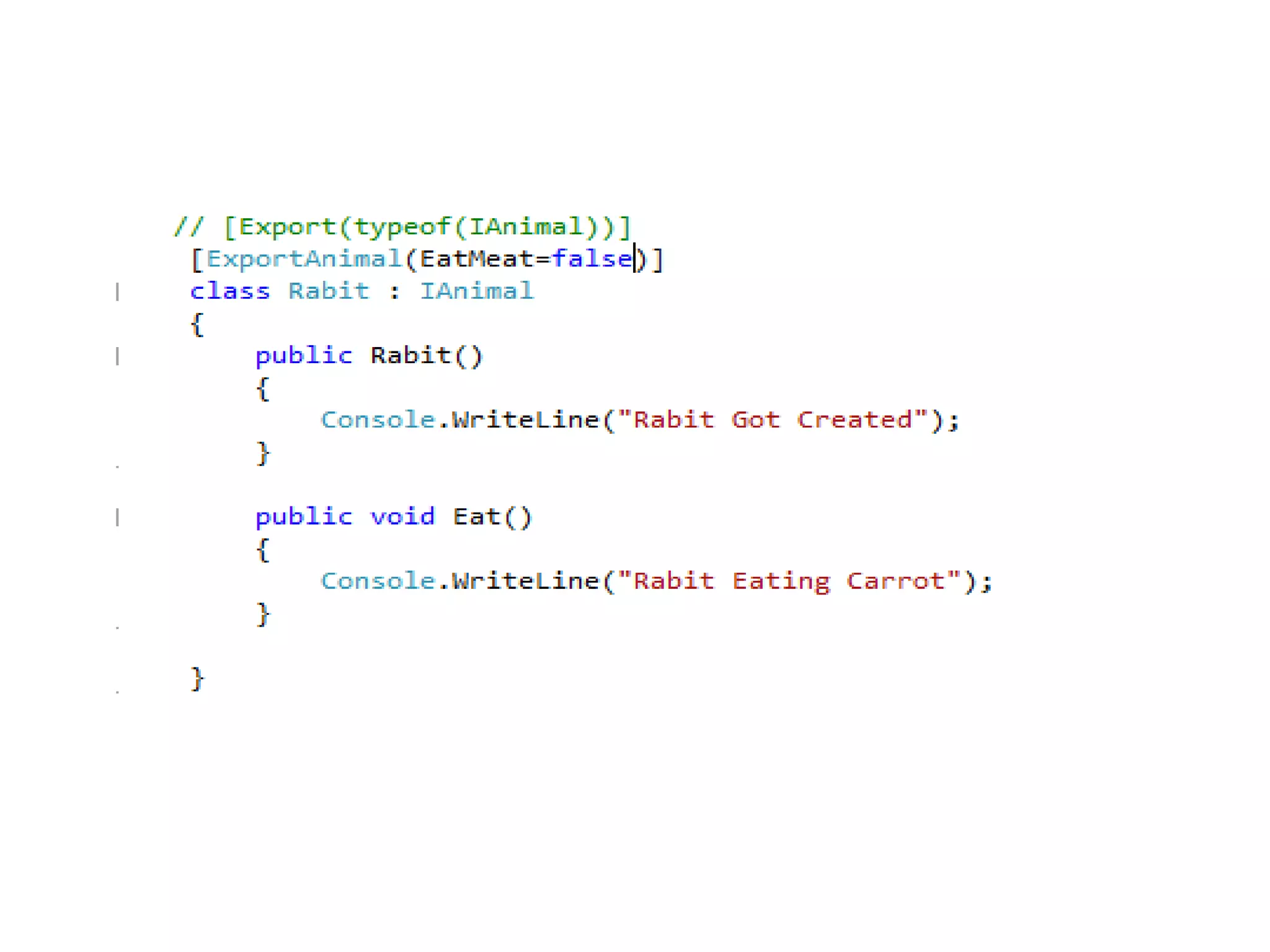

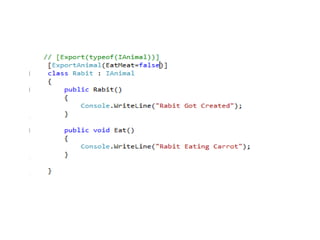

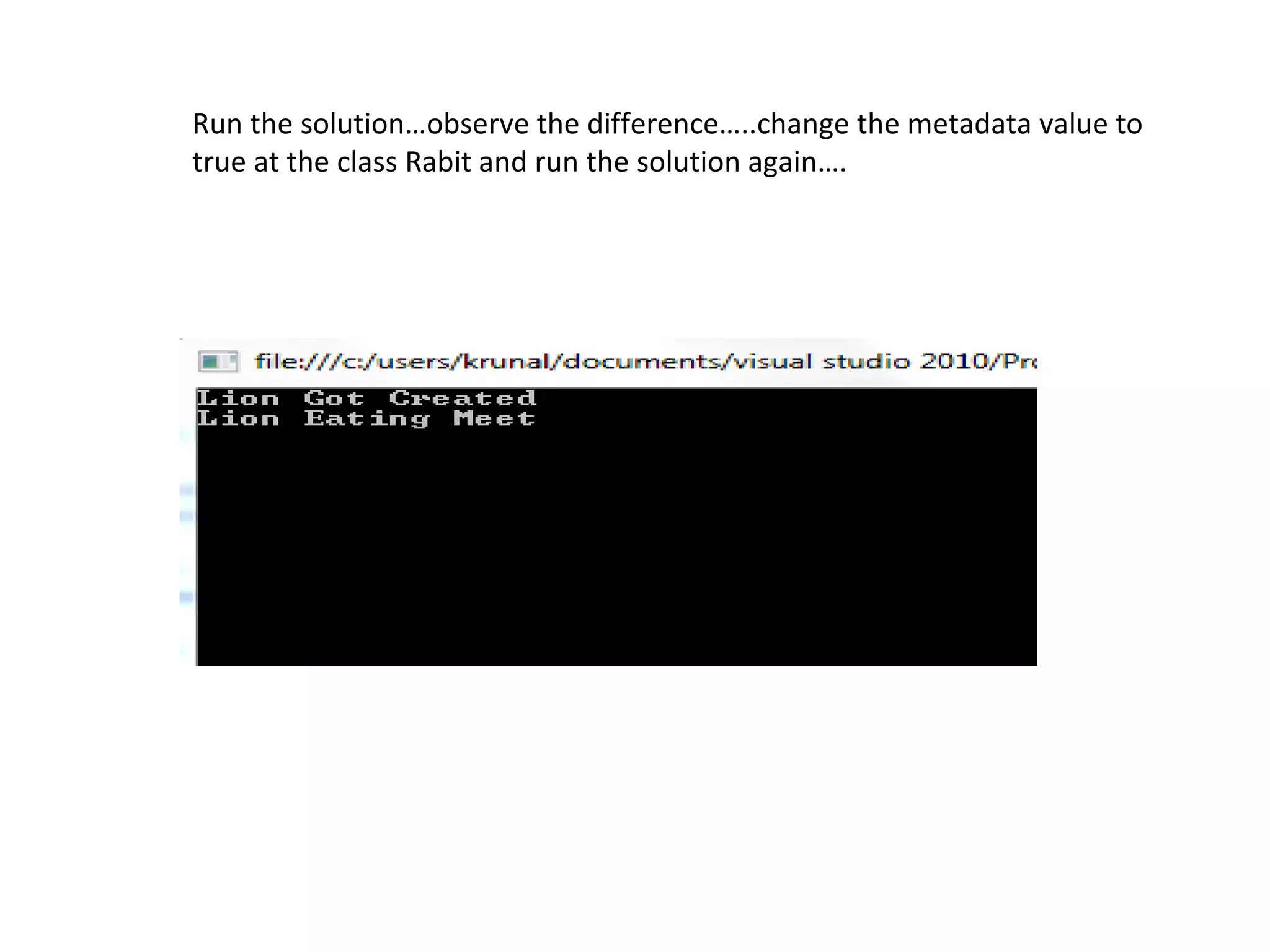

Run the solution…observe the difference…..change the metadata value to
true at the class Rabit and run the solution again….
