Module 2
Introduction to Hadoop

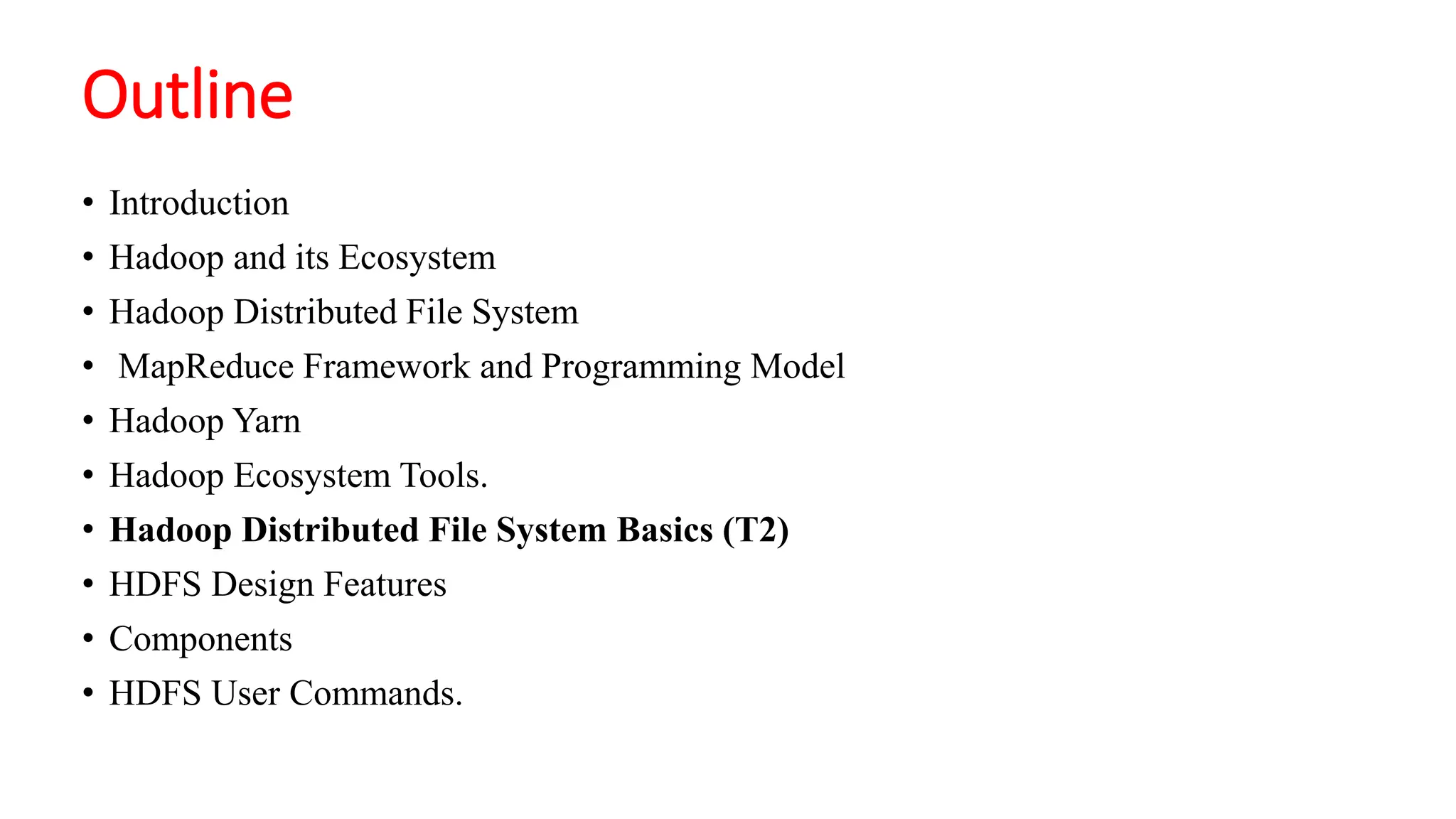

Outline
• Introduction
• Hadoop and its Ecosystem
• Hadoop Distributed File System

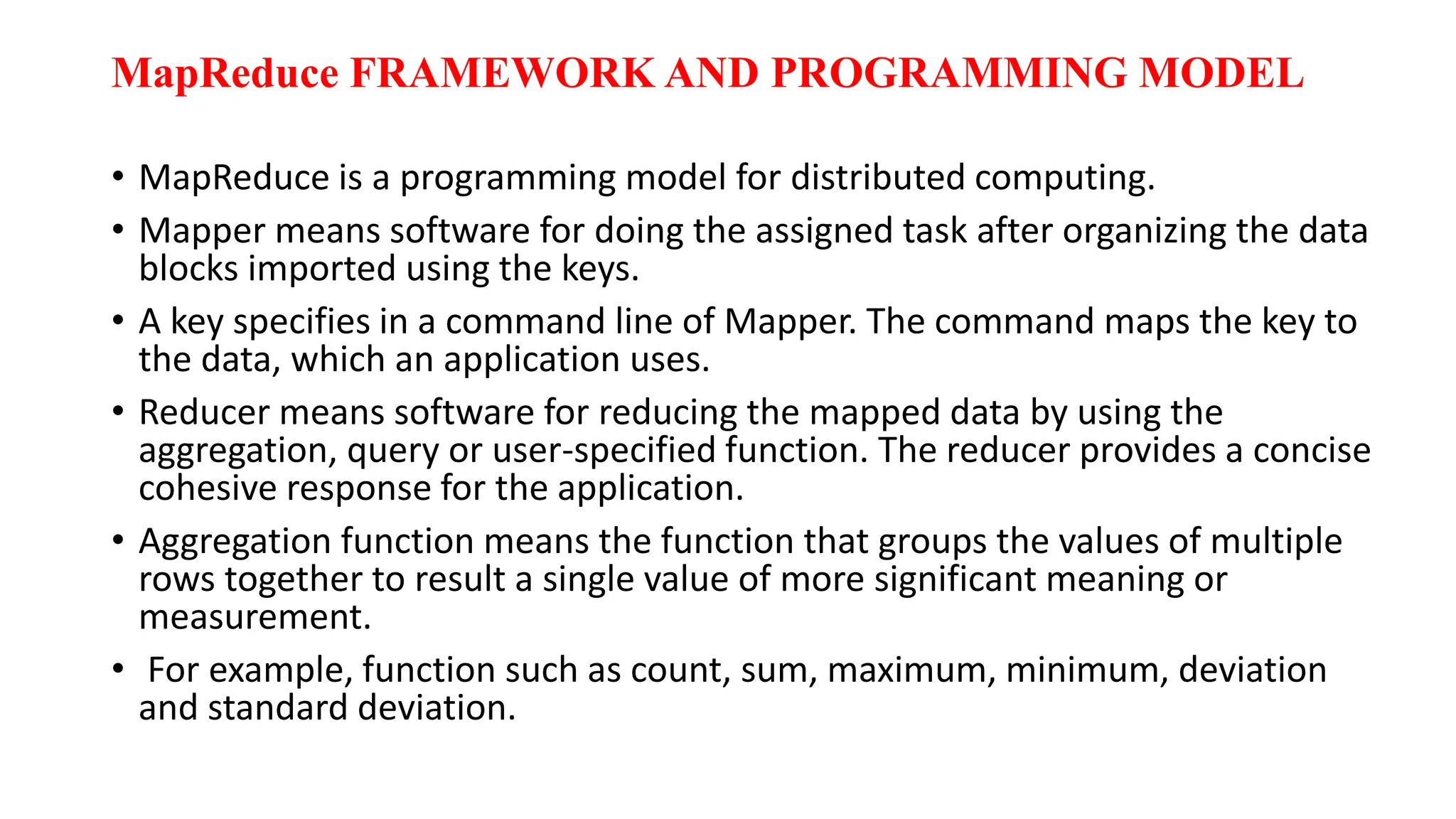

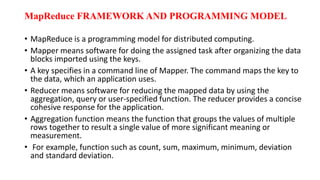

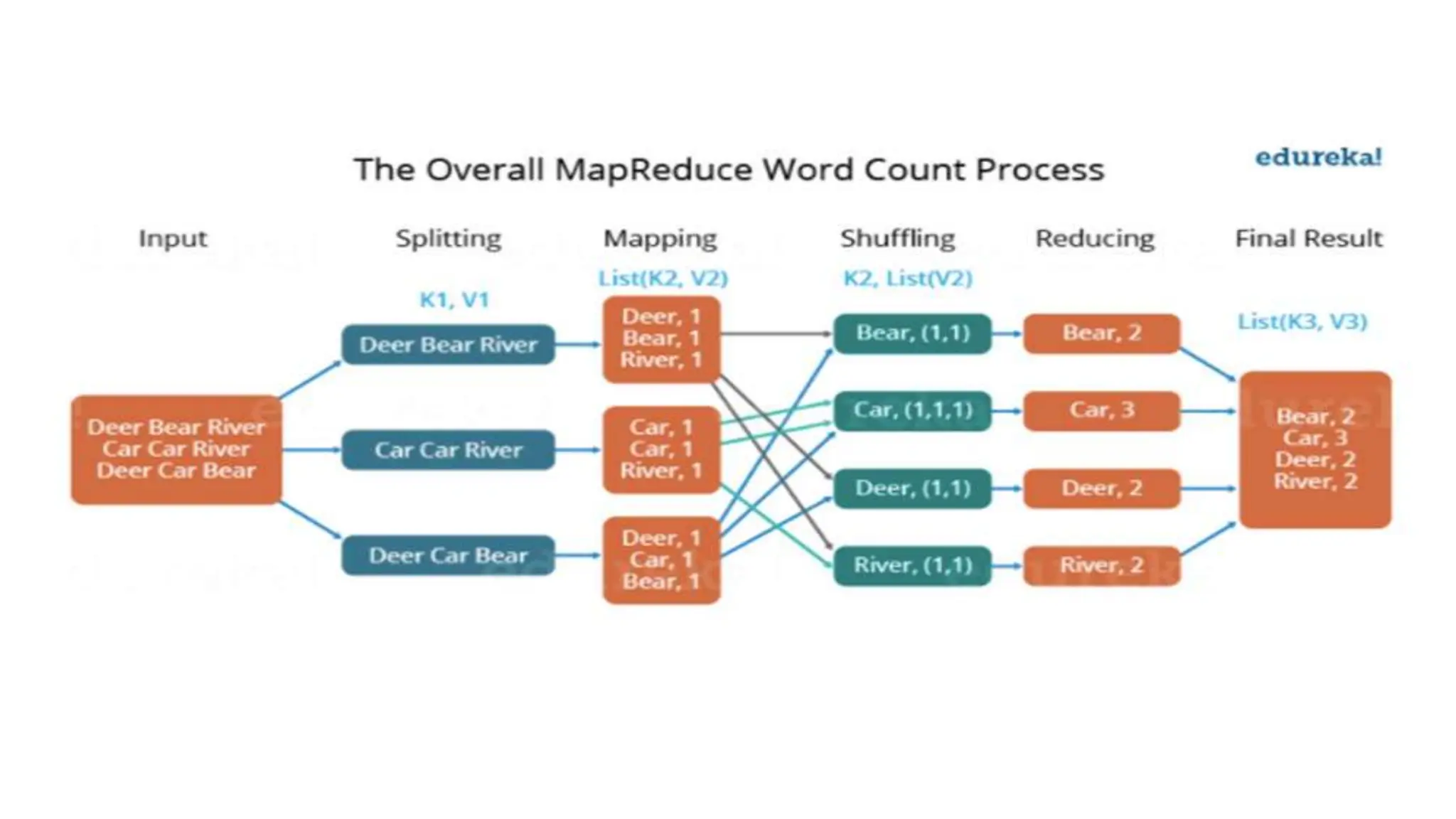

• MapReduce Framework and Programming Model

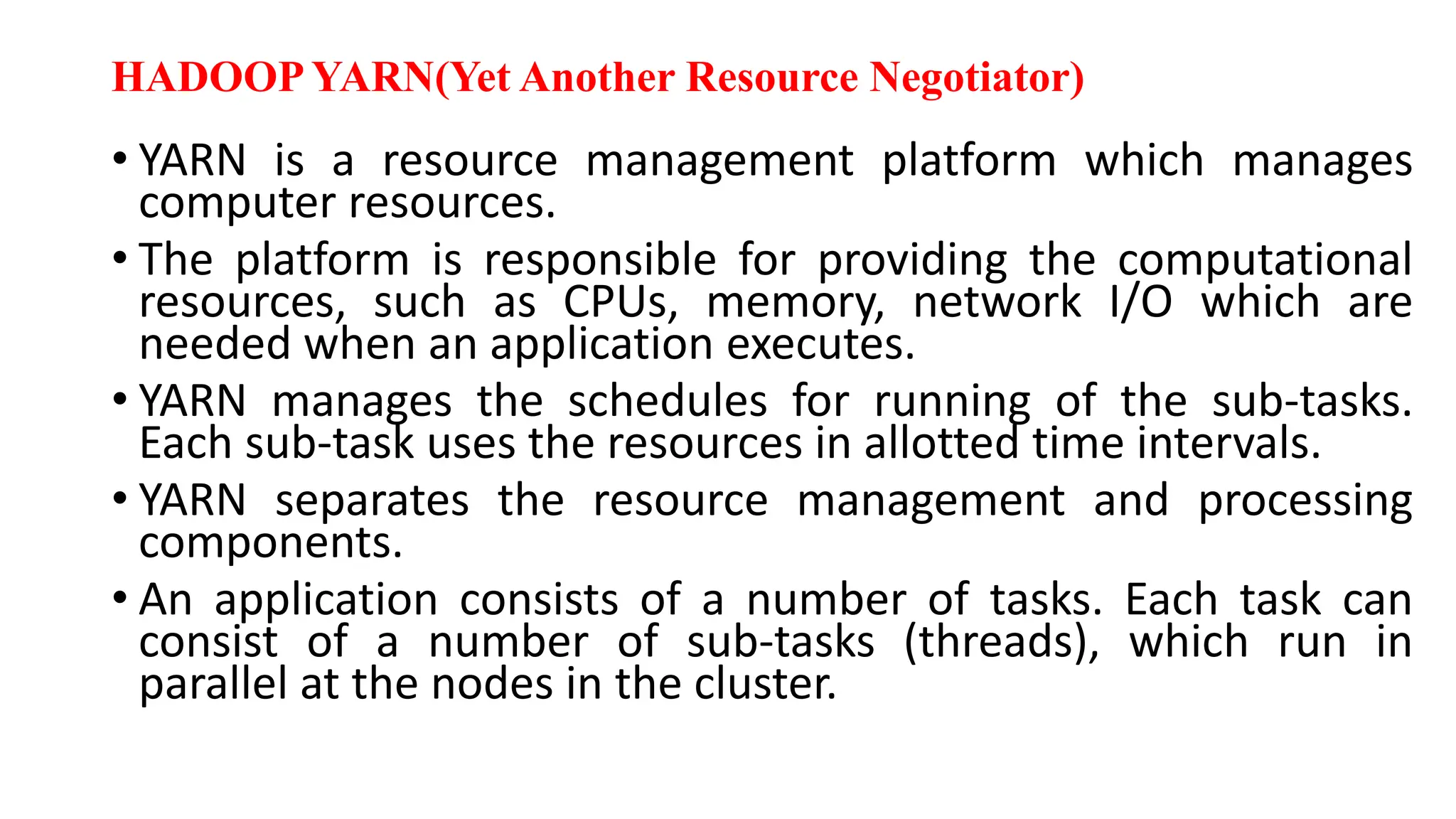

• Hadoop Yarn

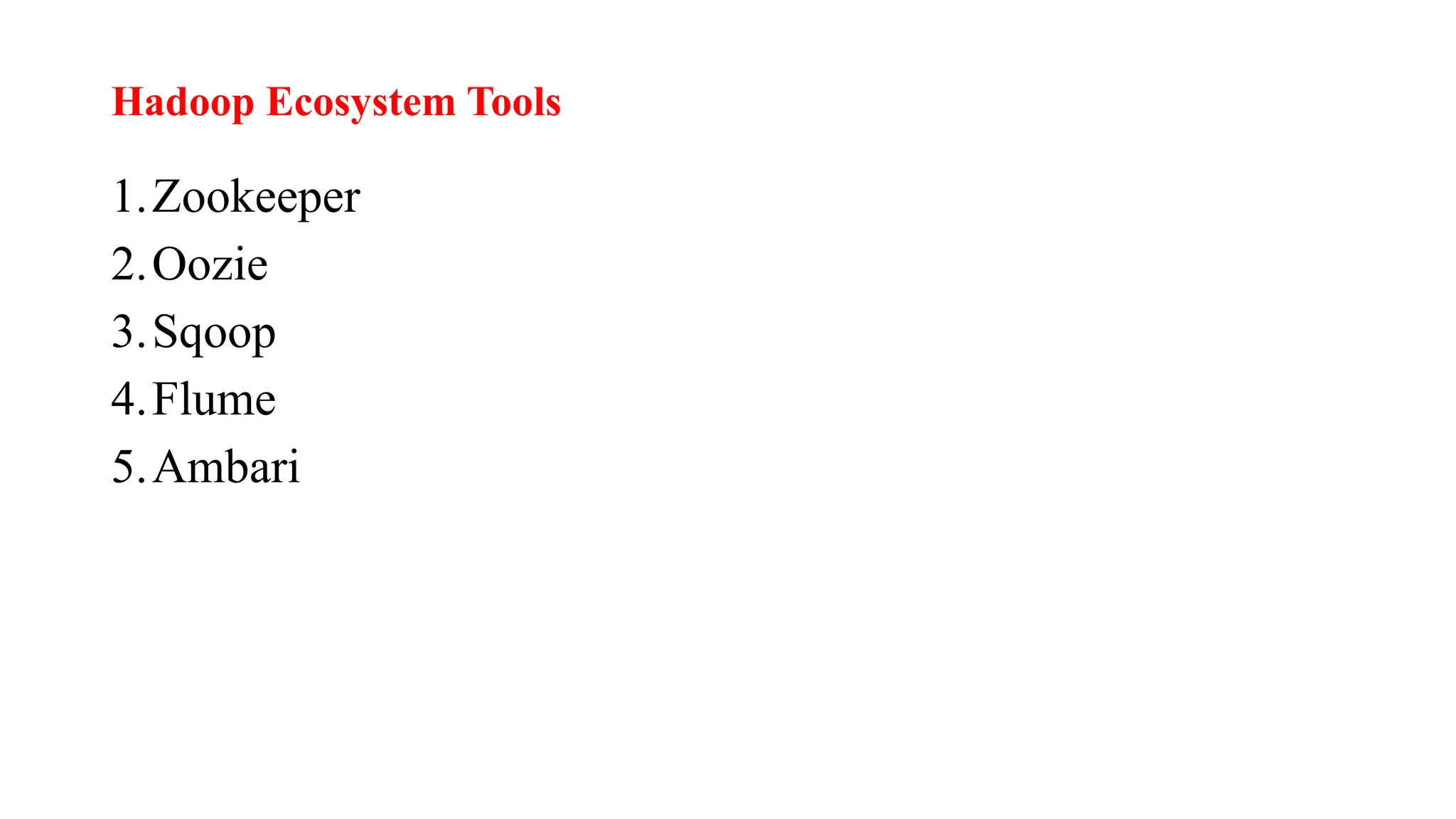

• Hadoop Ecosystem Tools.

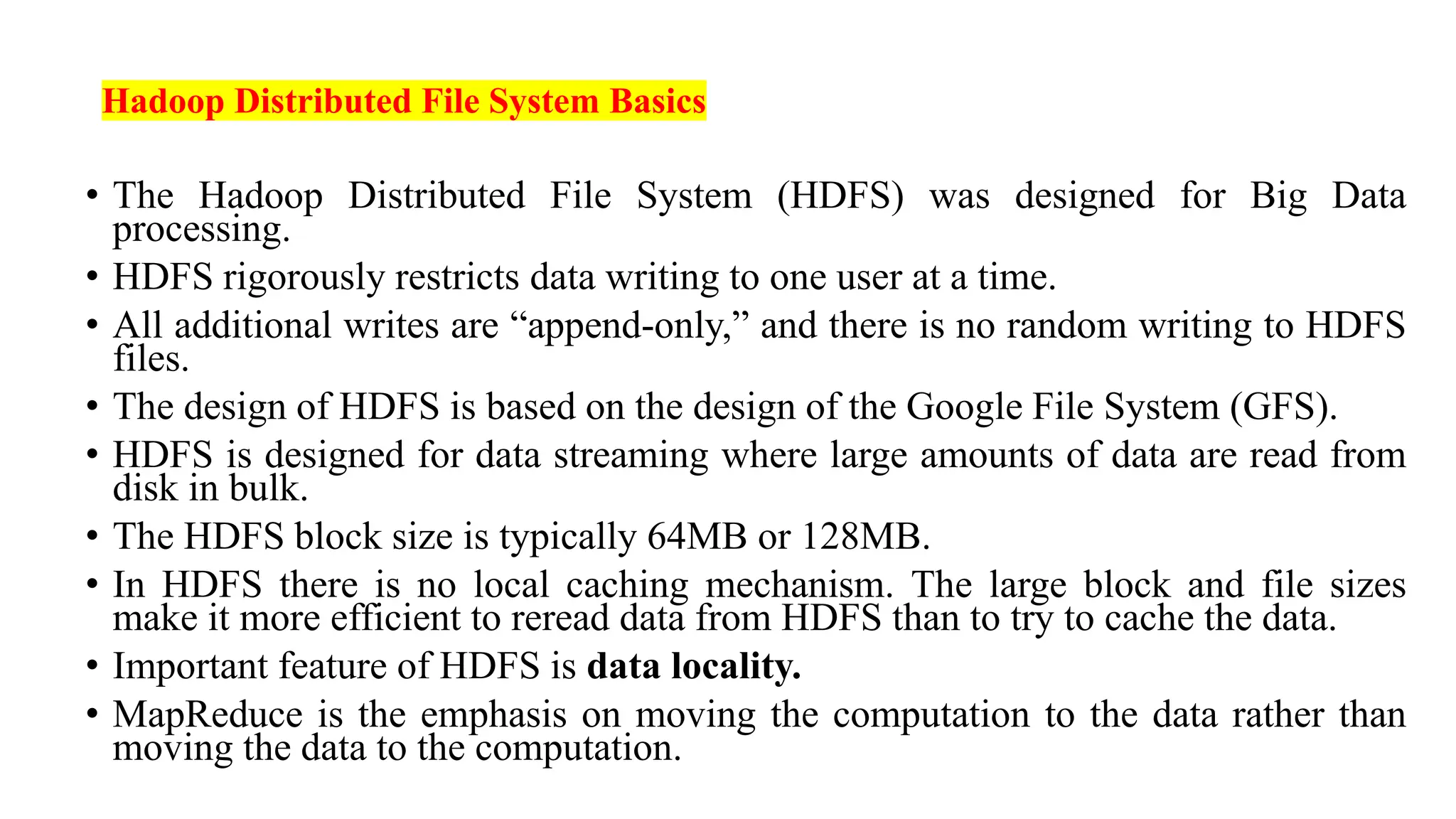

• Hadoop Distributed File System Basics (T2)
• HDFS Design Features
• Components

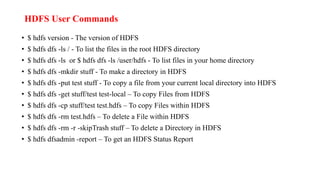

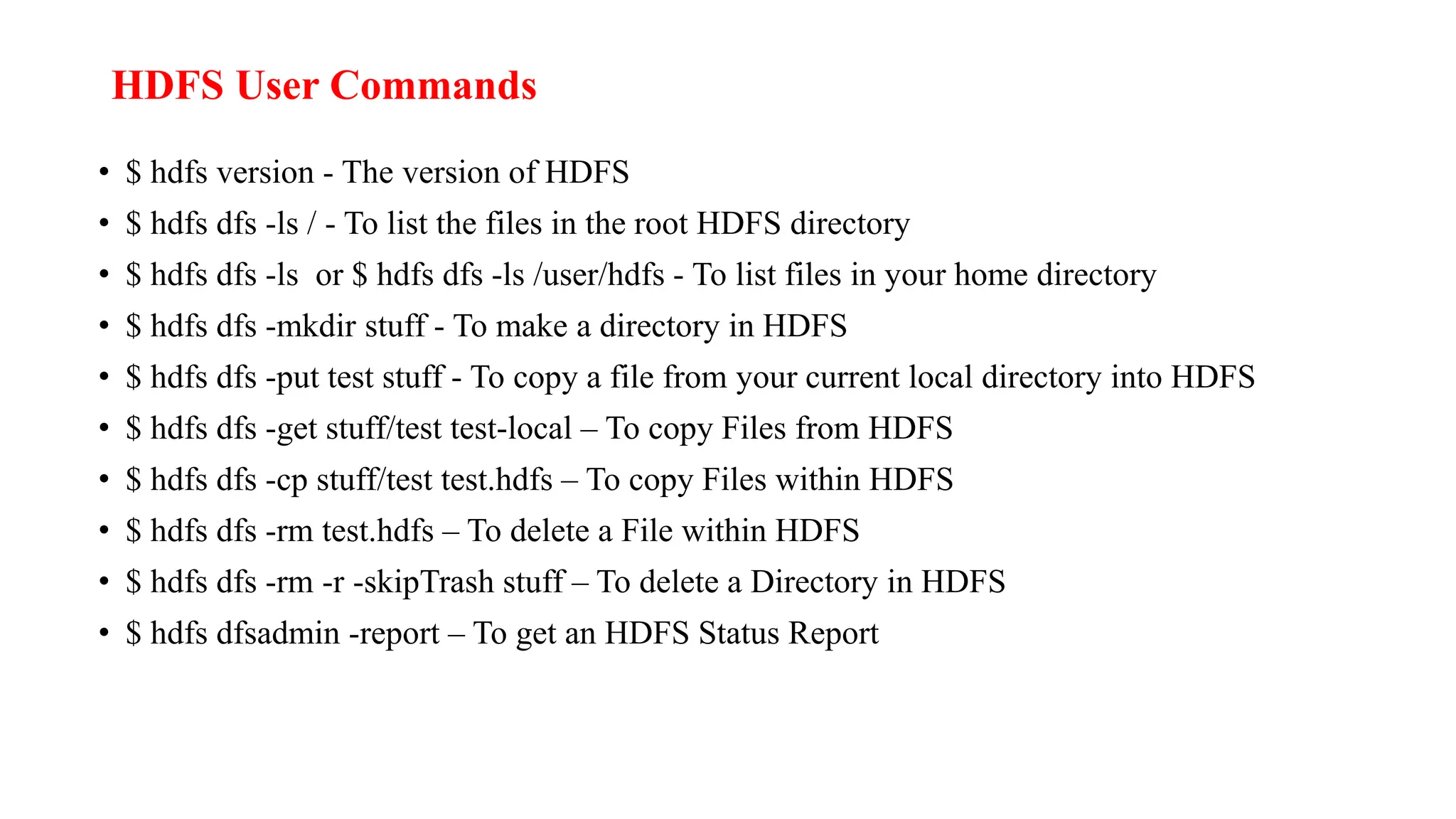

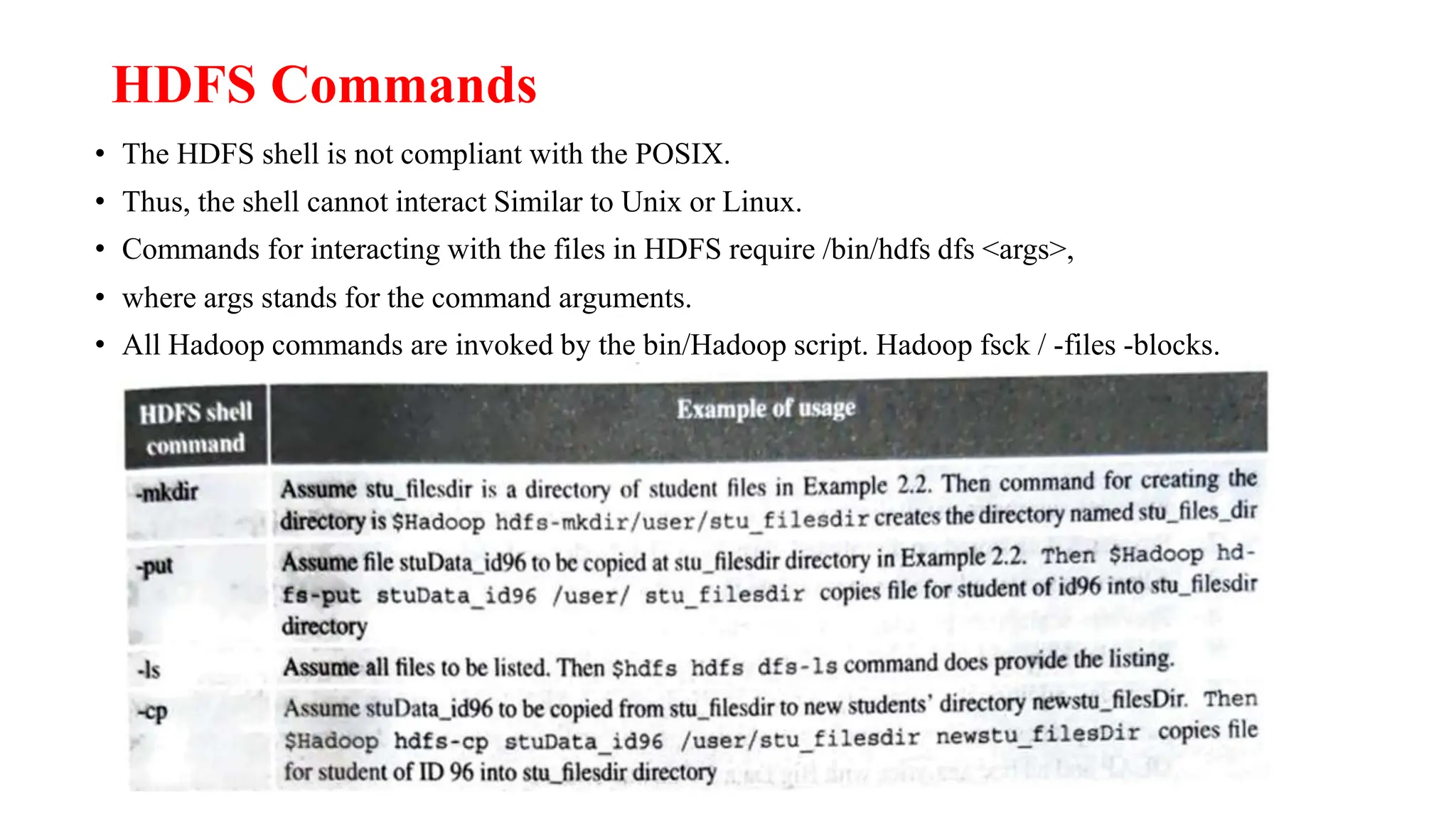

• HDFS User Commands.

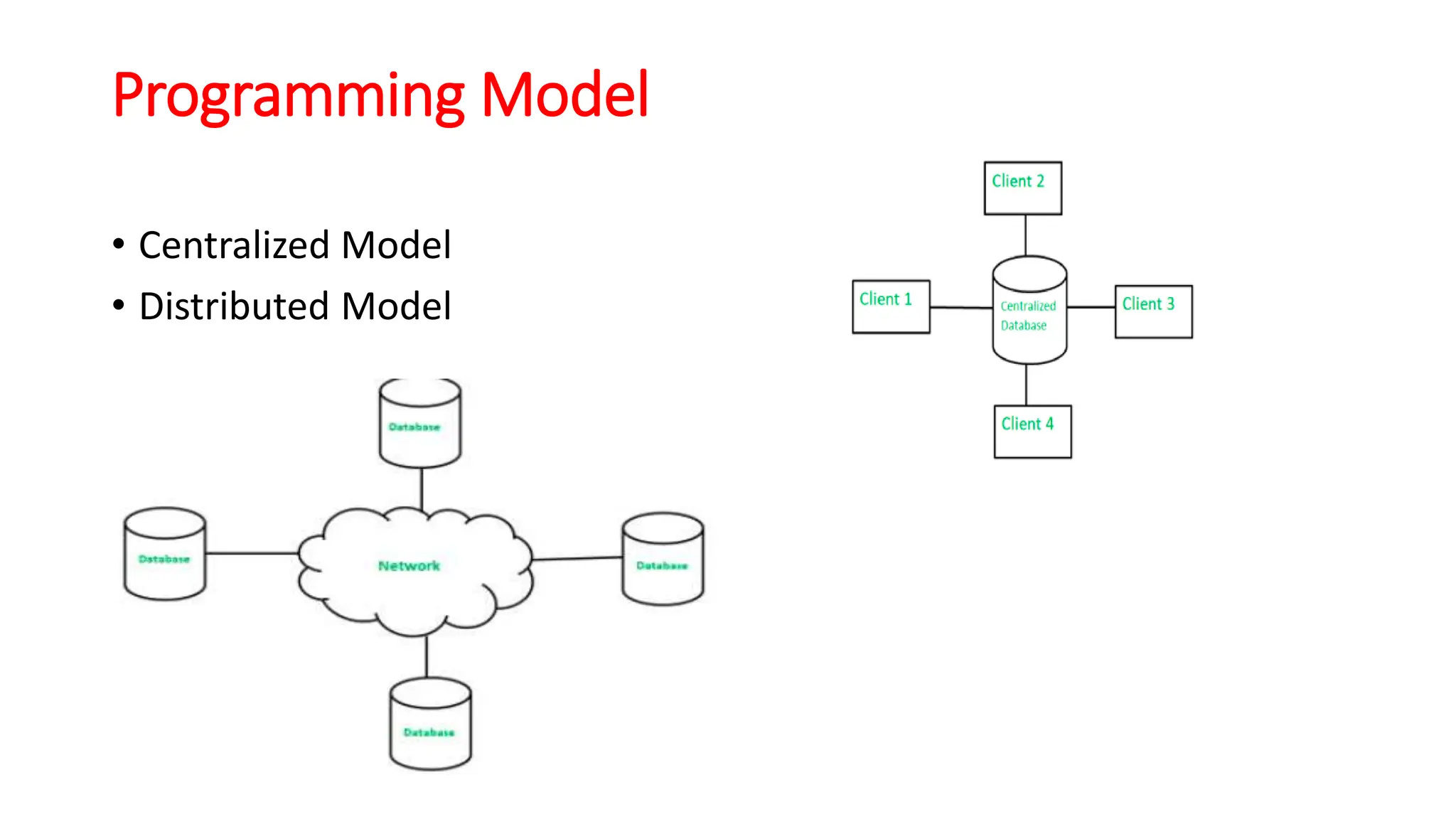

Programming Model
• Centralized Model
• Distributed Model

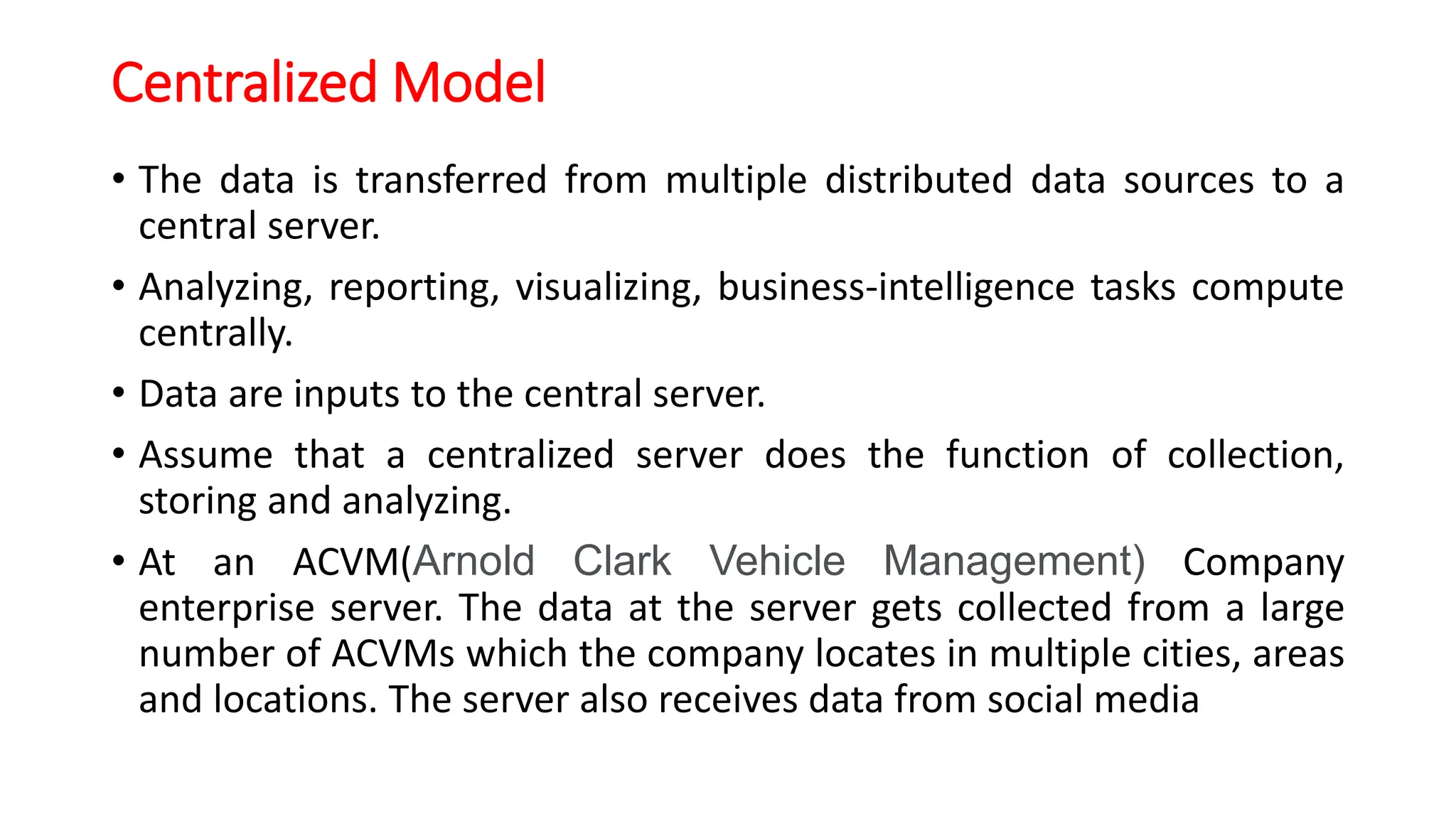

Centralized Model
• The data is transferred from multiple distributed data sources to a
central server.
• Analyzing, reporting, visualizing, business-intelligence tasks compute
centrally.
• Data are inputs to the central server.
• Assume that a centralized server does the function of collection,
storing and analyzing.
• At an ACVM(Arnold Clark Vehicle Management) Company
enterprise server. The data at the server gets collected from a large
number of ACVMs which the company locates in multiple cities, areas
and locations. The server also receives data from social media

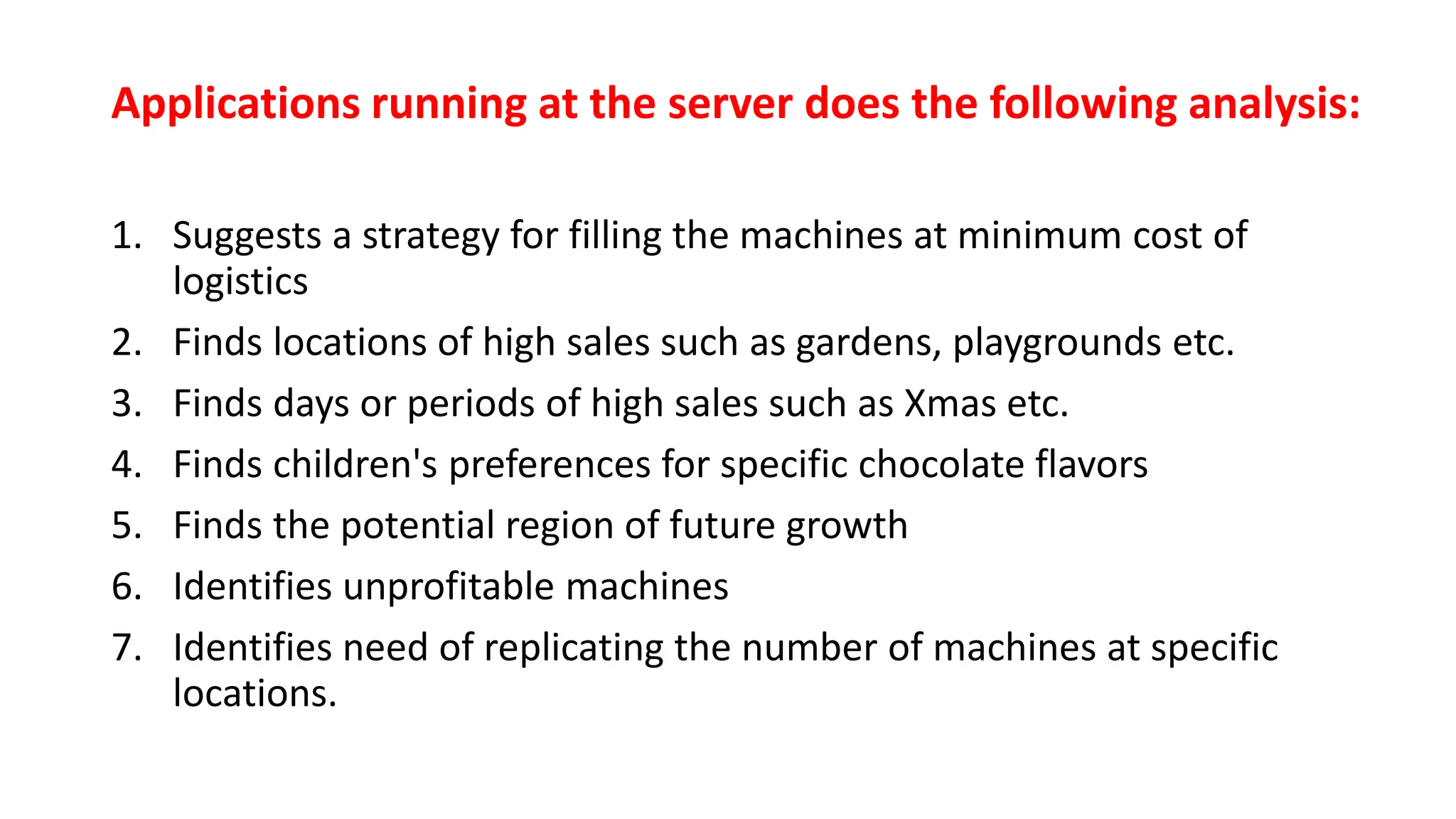

Applications running at the server does the following analysis:
1. Suggests a strategy for filling the machines at minimum cost of
logistics
2. Finds locations of high sales such as gardens, playgrounds etc.
3. Finds days or periods of high sales such as Xmas etc.
4. Finds children's preferences for specific chocolate flavors
5. Finds the potential region of future growth
6. Identifies unprofitable machines
7. Identifies need of replicating the number of machines at specific
locations.

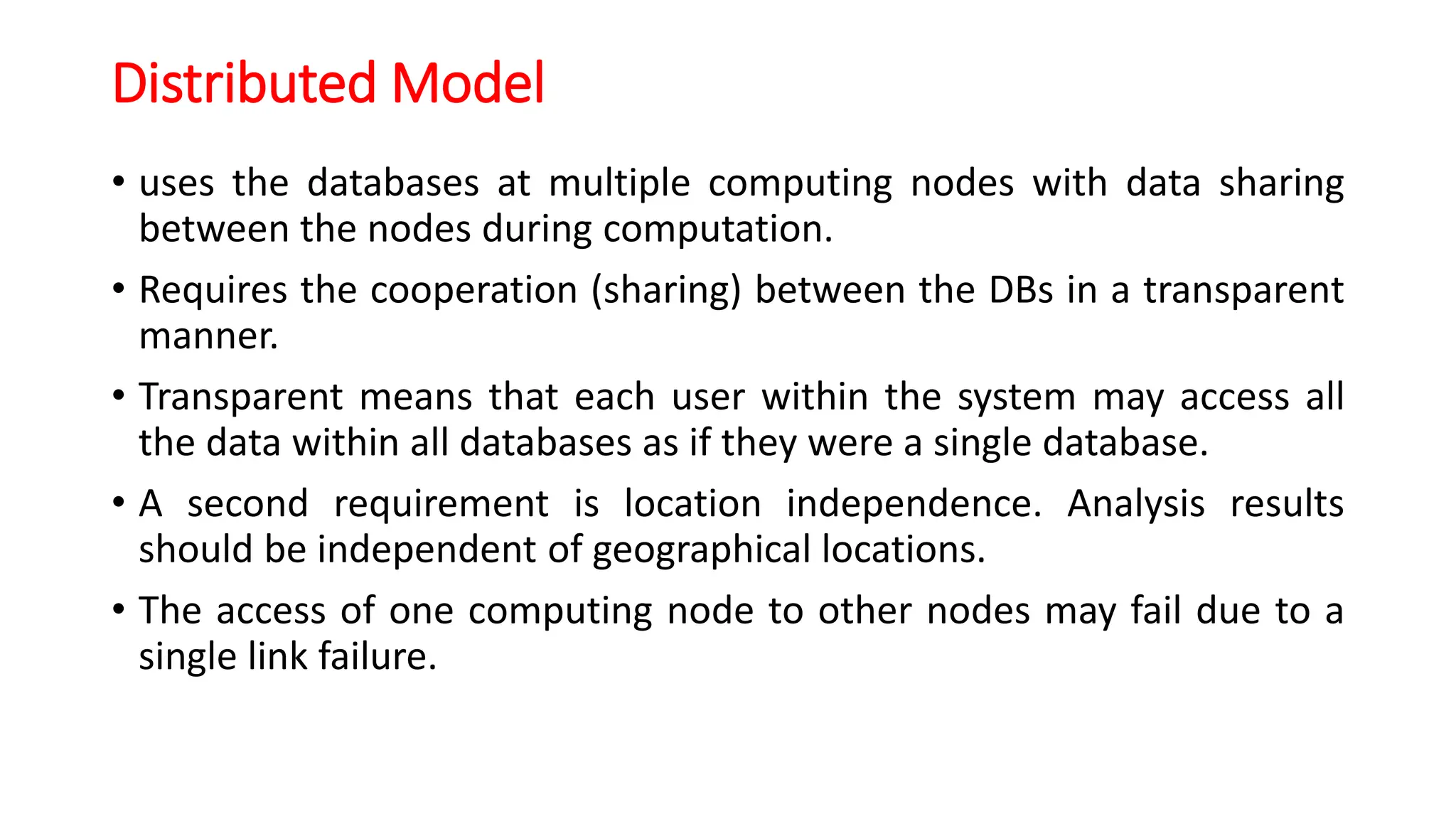

Distributed Model
• uses the databases at multiple computing nodes with data sharing
between the nodes during computation.
• Requires the cooperation (sharing) between the DBs in a transparent
manner.
• Transparent means that each user within the system may access all
the data within all databases as if they were a single database.
• A second requirement is location independence. Analysis results
should be independent of geographical locations.
• The access of one computing node to other nodes may fail due to a
single link failure.

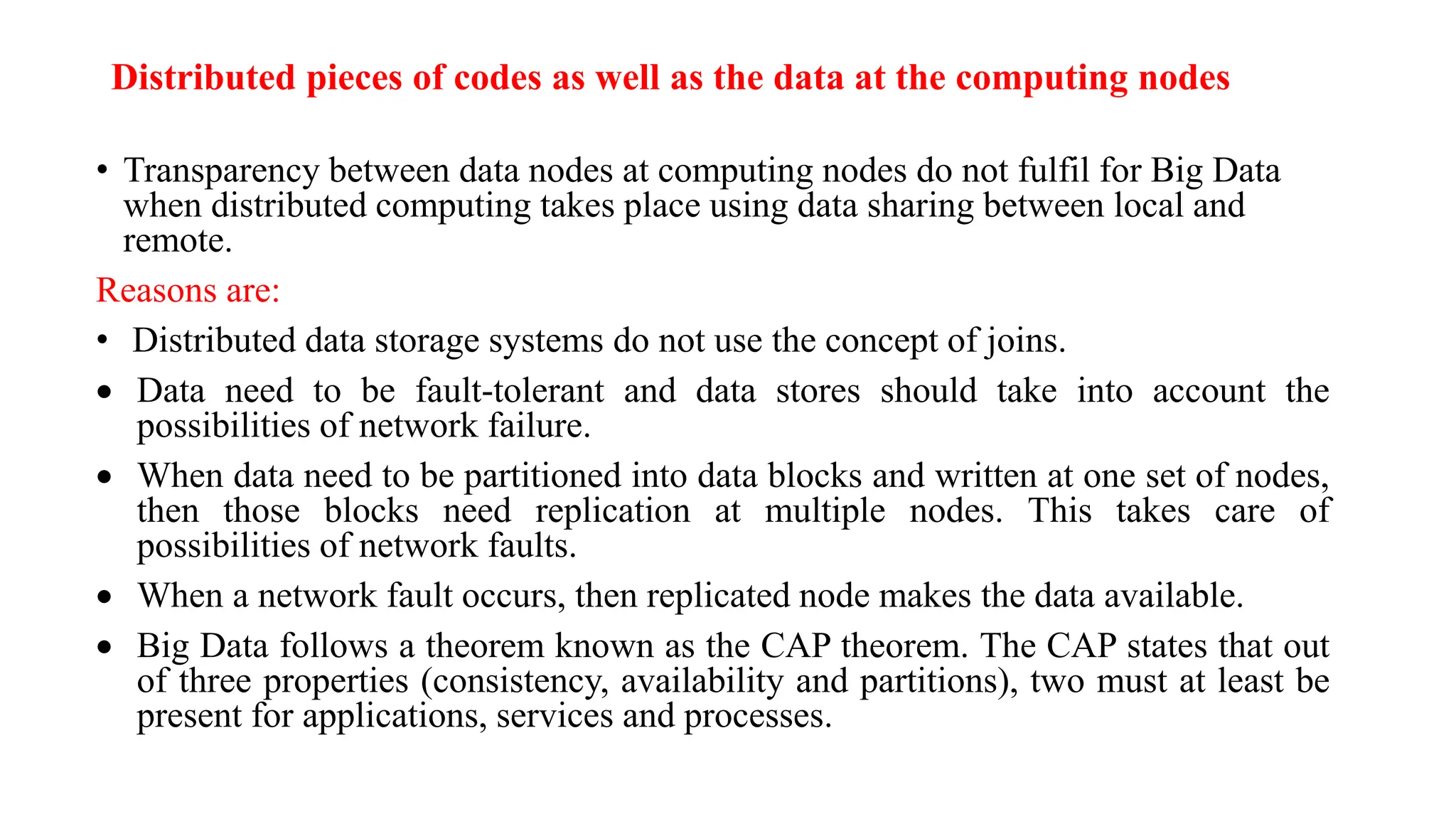

Distributed pieces of codes as well as the data at the computing nodes
• Transparency between data nodes at computing nodes do not fulfil for Big Data
when distributed computing takes place using data sharing between local and
remote.
Reasons are:
• Distributed data storage systems do not use the concept of joins.
 Data need to be fault-tolerant and data stores should take into account the
possibilities of network failure.
 When data need to be partitioned into data blocks and written at one set of nodes,
then those blocks need replication at multiple nodes. This takes care of
possibilities of network faults.
 When a network fault occurs, then replicated node makes the data available.
 Big Data follows a theorem known as the CAP theorem. The CAP states that out
of three properties (consistency, availability and partitions), two must at least be
present for applications, services and processes.

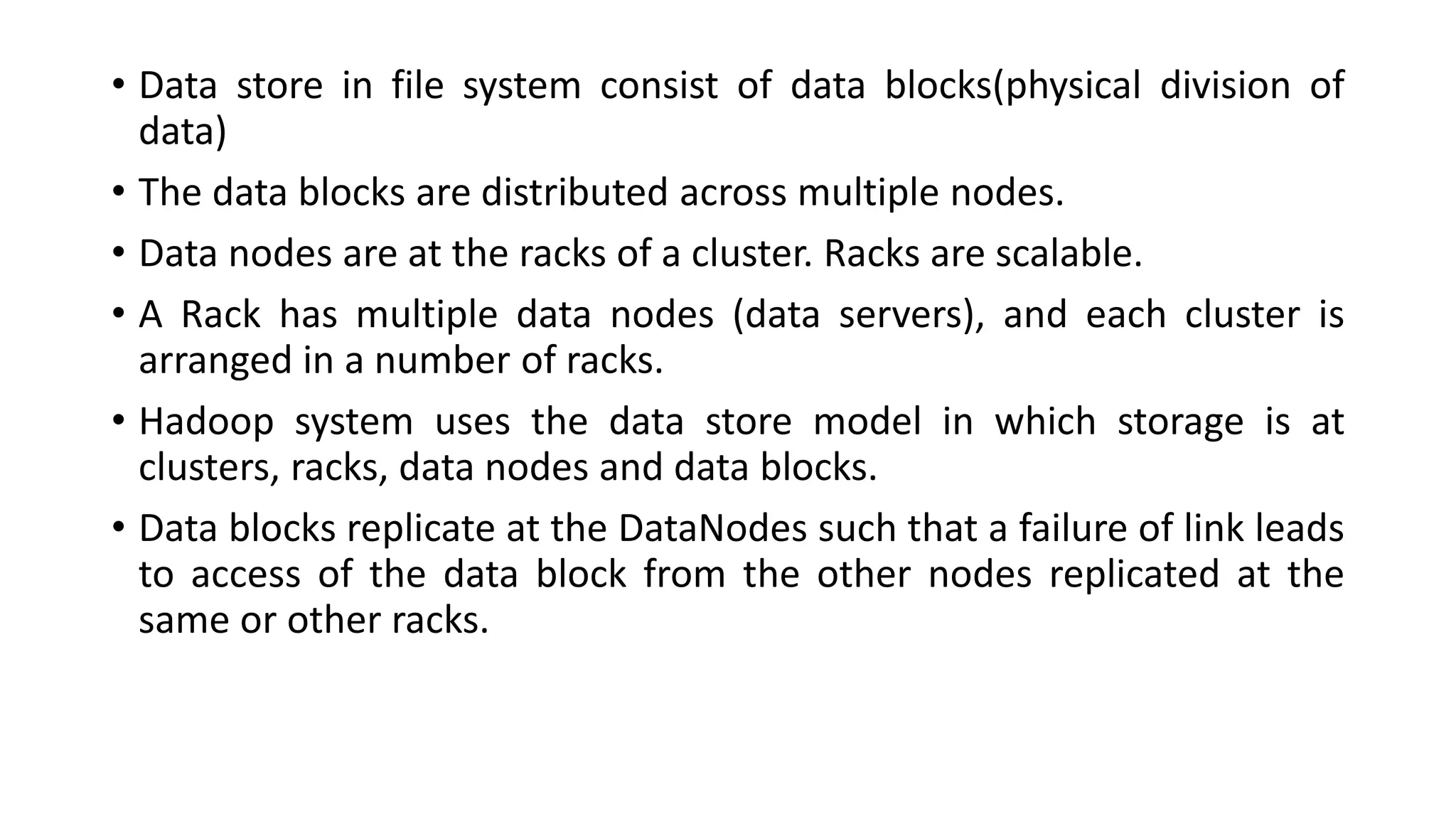

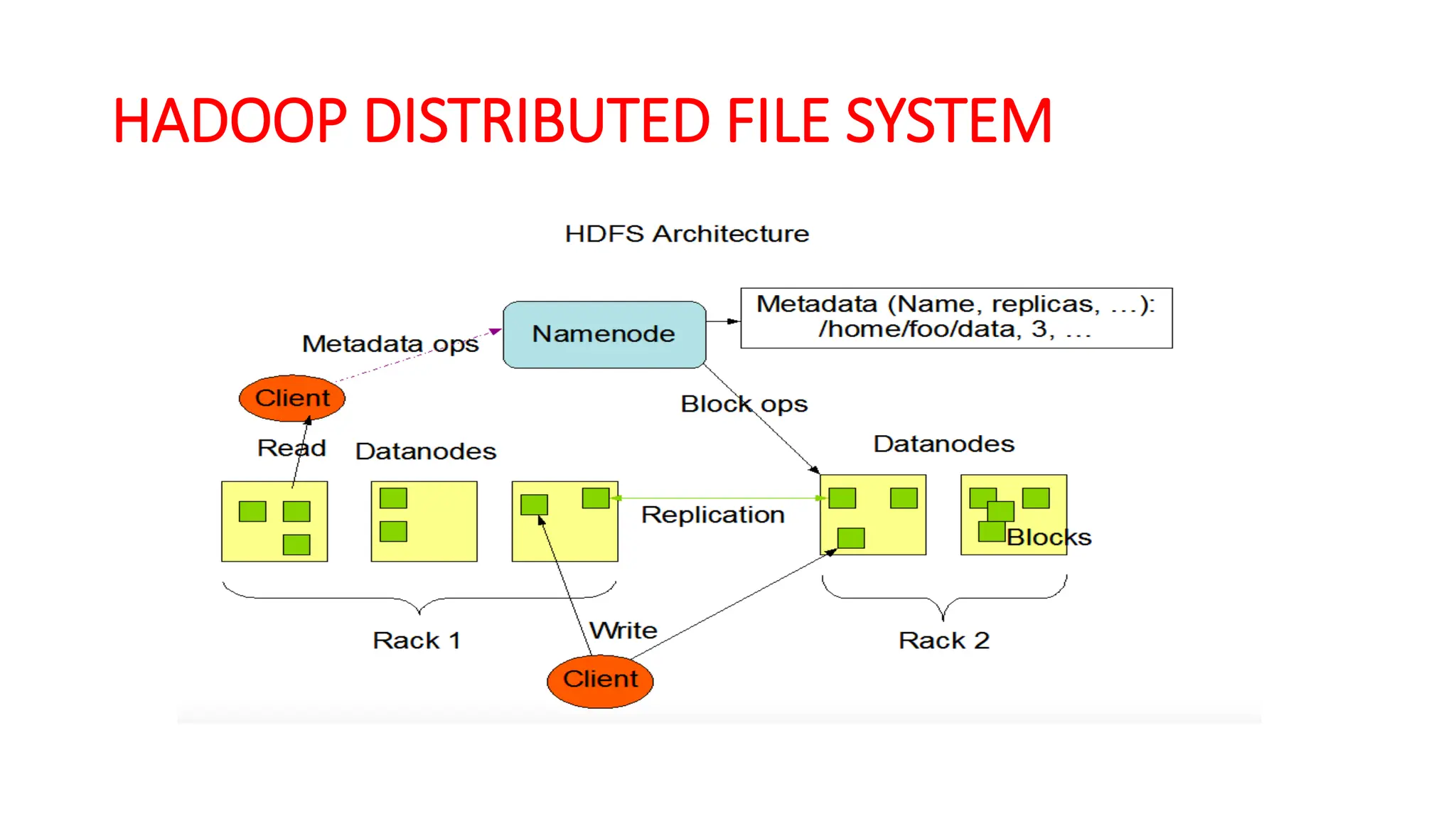

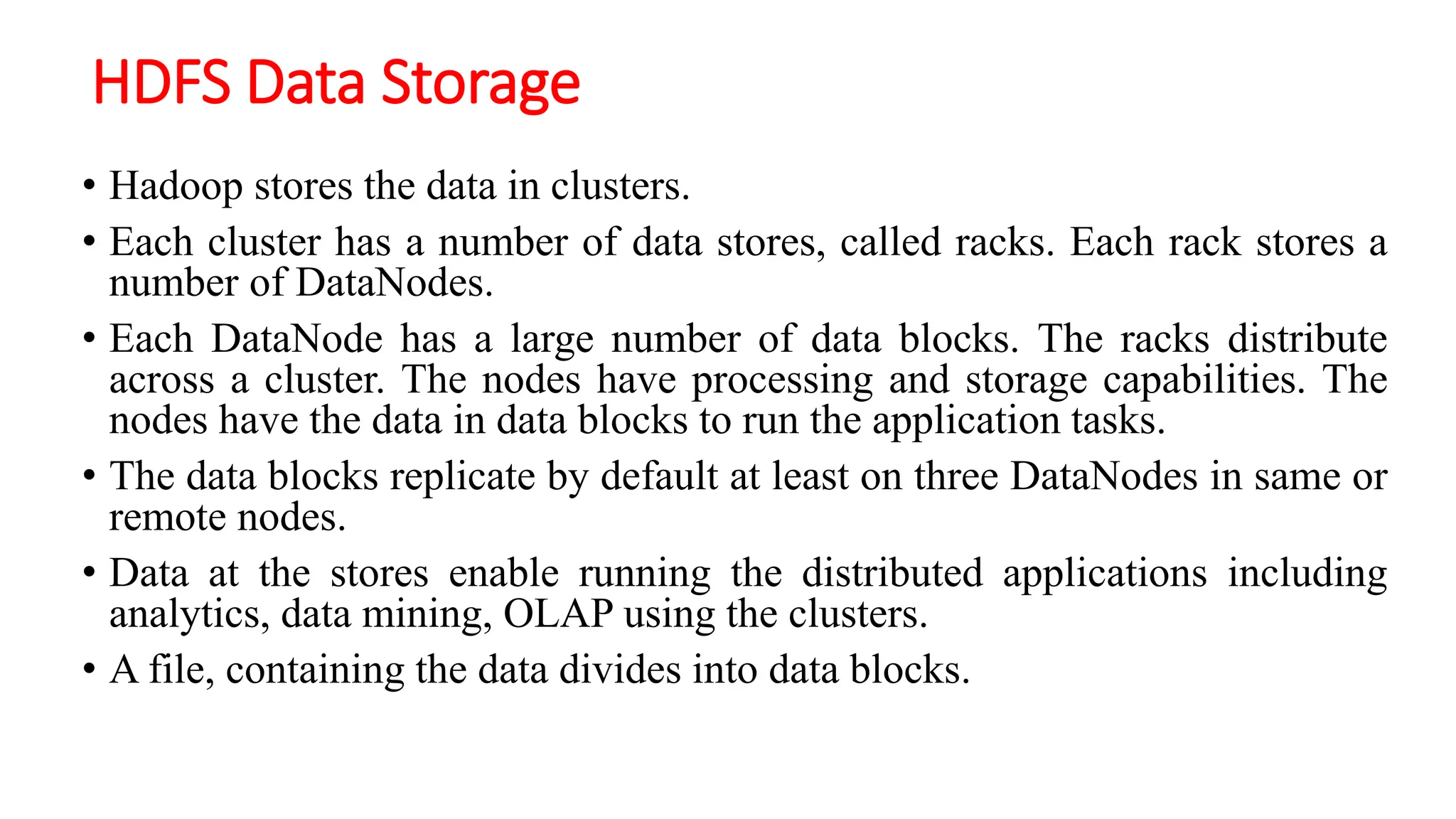

• Data store in file system consist of data blocks(physical division of
data)
• The data blocks are distributed across multiple nodes.

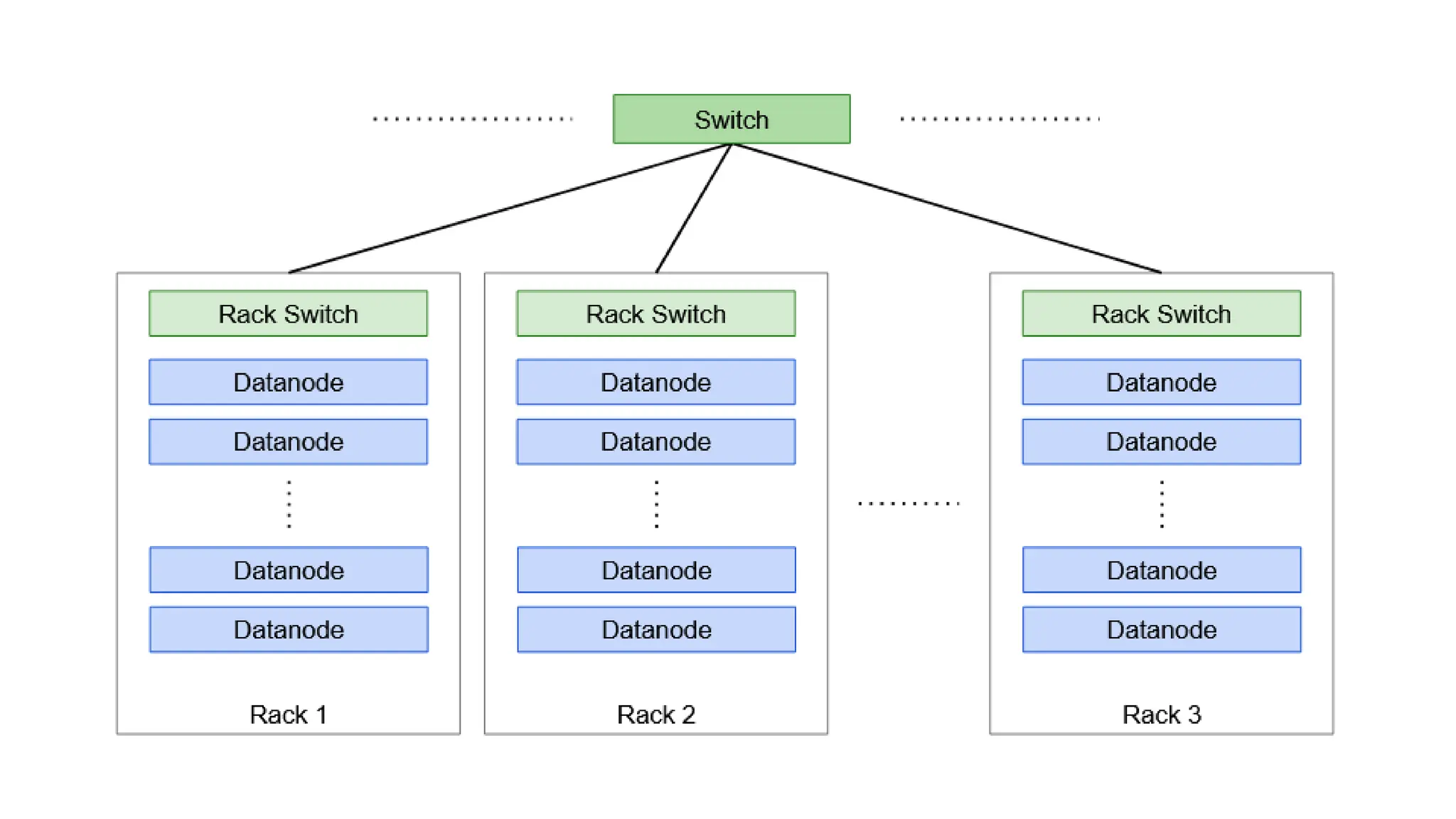

• Data nodes are at the racks of a cluster. Racks are scalable.
• A Rack has multiple data nodes (data servers), and each cluster is
arranged in a number of racks.

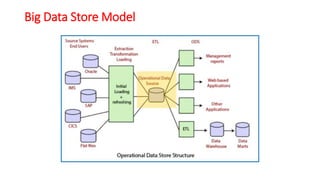

• Hadoop system uses the data store model in which storage is at
clusters, racks, data nodes and data blocks.

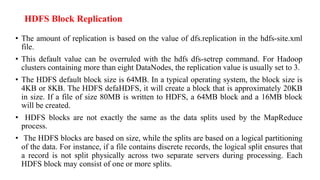

• Data blocks replicate at the DataNodes such that a failure of link leads
to access of the data block from the other nodes replicated at the
same or other racks.

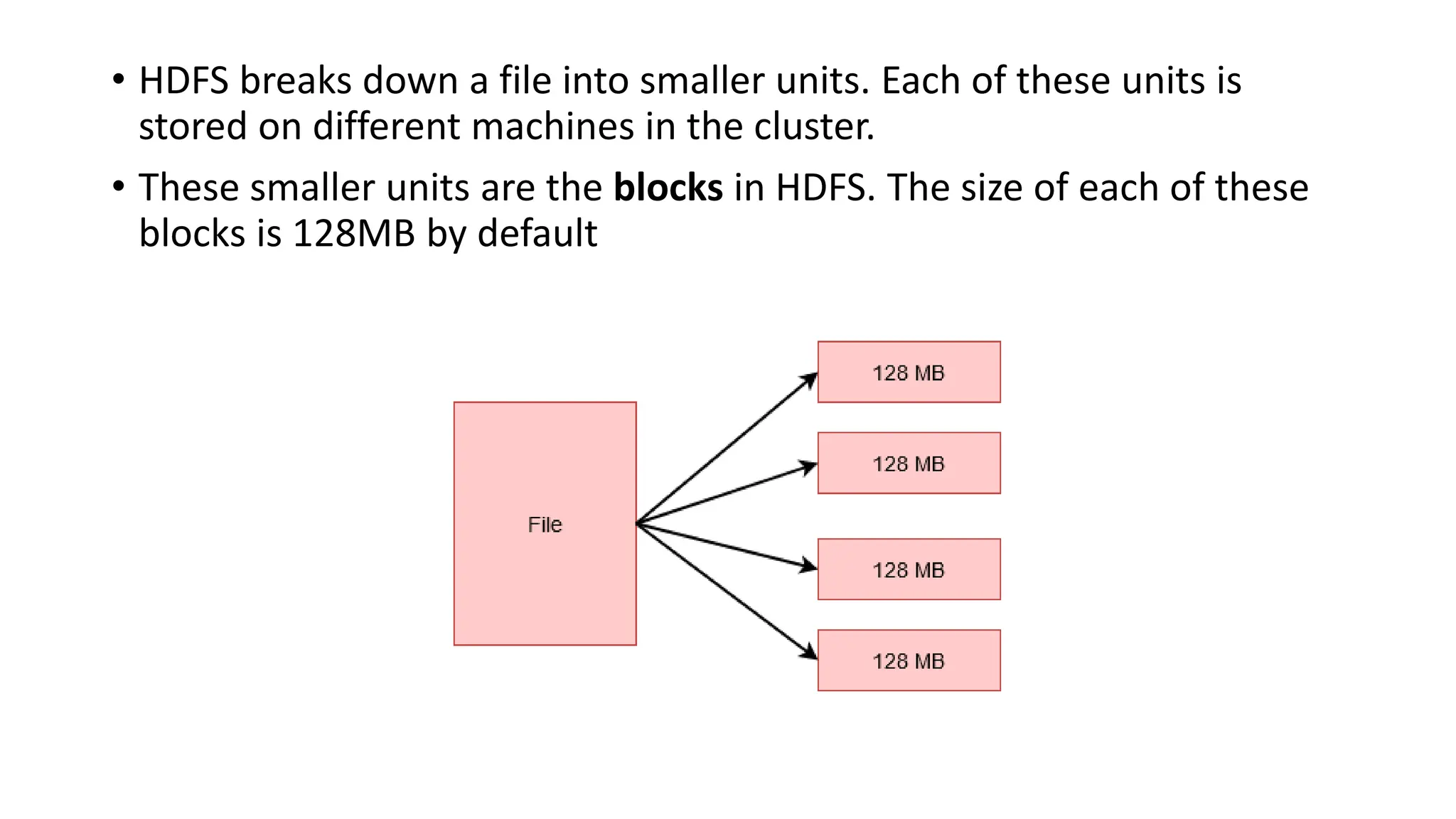

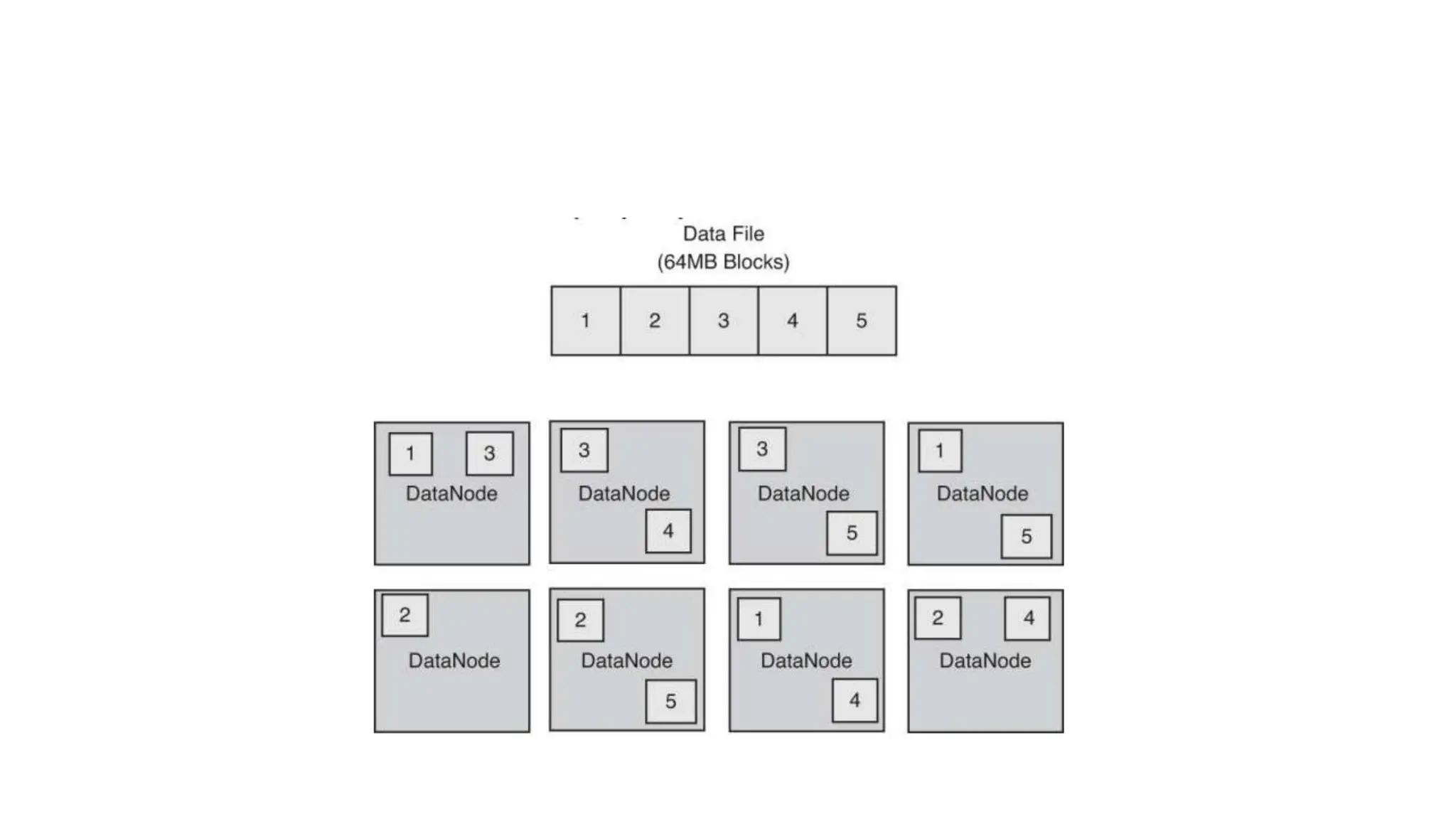

• HDFS breaks down a file into smaller units. Each of these units is
stored on different machines in the cluster.
• These smaller units are the blocks in HDFS. The size of each of these
blocks is 128MB by default

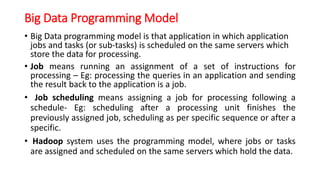

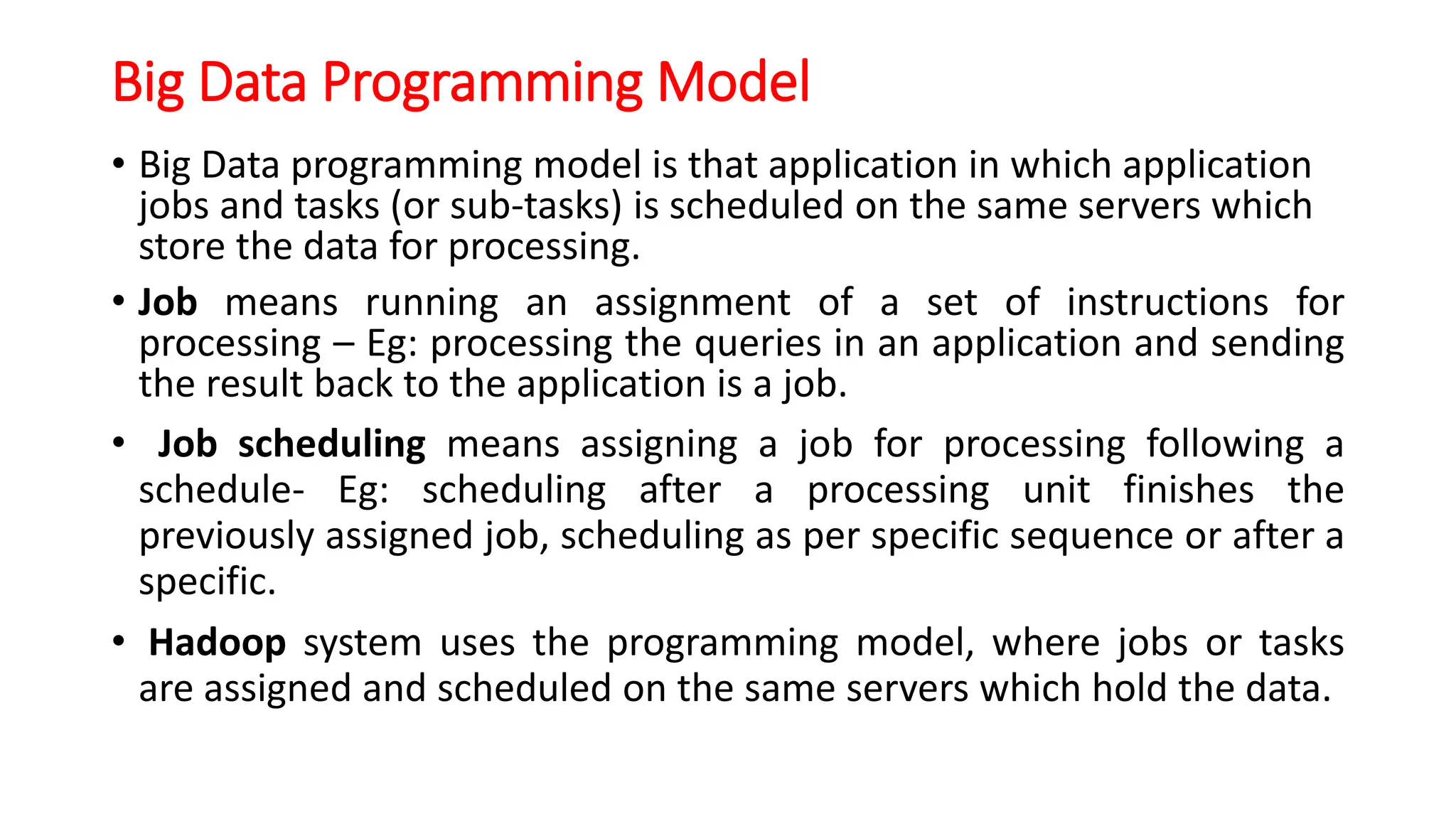

Big Data Programming Model
• Big Data programming model is that application in which application
jobs and tasks (or sub-tasks) is scheduled on the same servers which
store the data for processing.
• Job means running an assignment of a set of instructions for
processing – Eg: processing the queries in an application and sending
the result back to the application is a job.
• Job scheduling means assigning a job for processing following a
schedule- Eg: scheduling after a processing unit finishes the
previously assigned job, scheduling as per specific sequence or after a
specific.
• Hadoop system uses the programming model, where jobs or tasks
are assigned and scheduled on the same servers which hold the data.

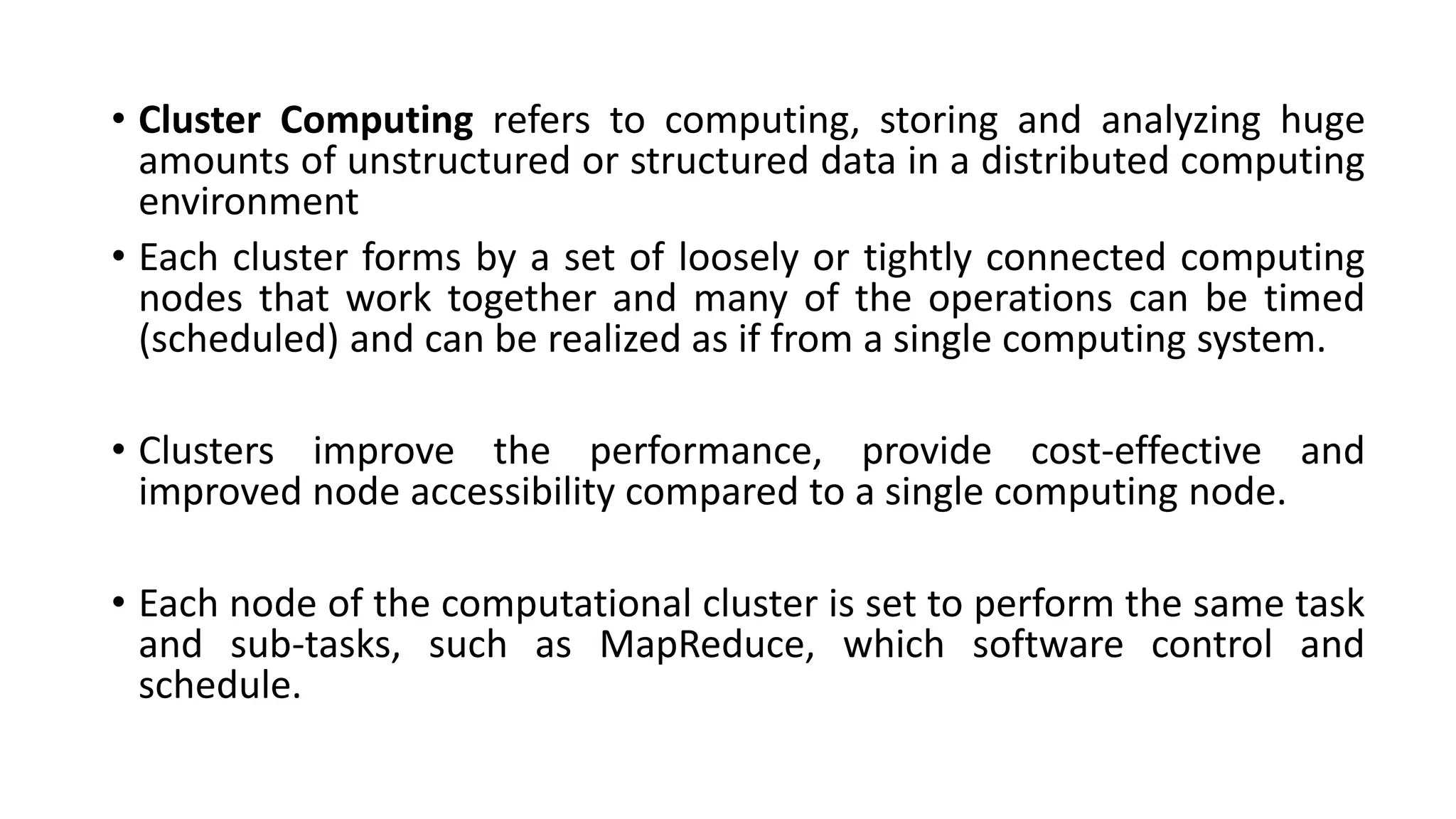

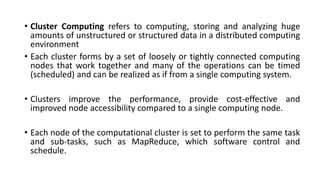

• Cluster Computing refers to computing, storing and analyzing huge
amounts of unstructured or structured data in a distributed computing
environment
• Each cluster forms by a set of loosely or tightly connected computing
nodes that work together and many of the operations can be timed
(scheduled) and can be realized as if from a single computing system.
• Clusters improve the performance, provide cost-effective and
improved node accessibility compared to a single computing node.
• Each node of the computational cluster is set to perform the same task
and sub-tasks, such as MapReduce, which software control and
schedule.

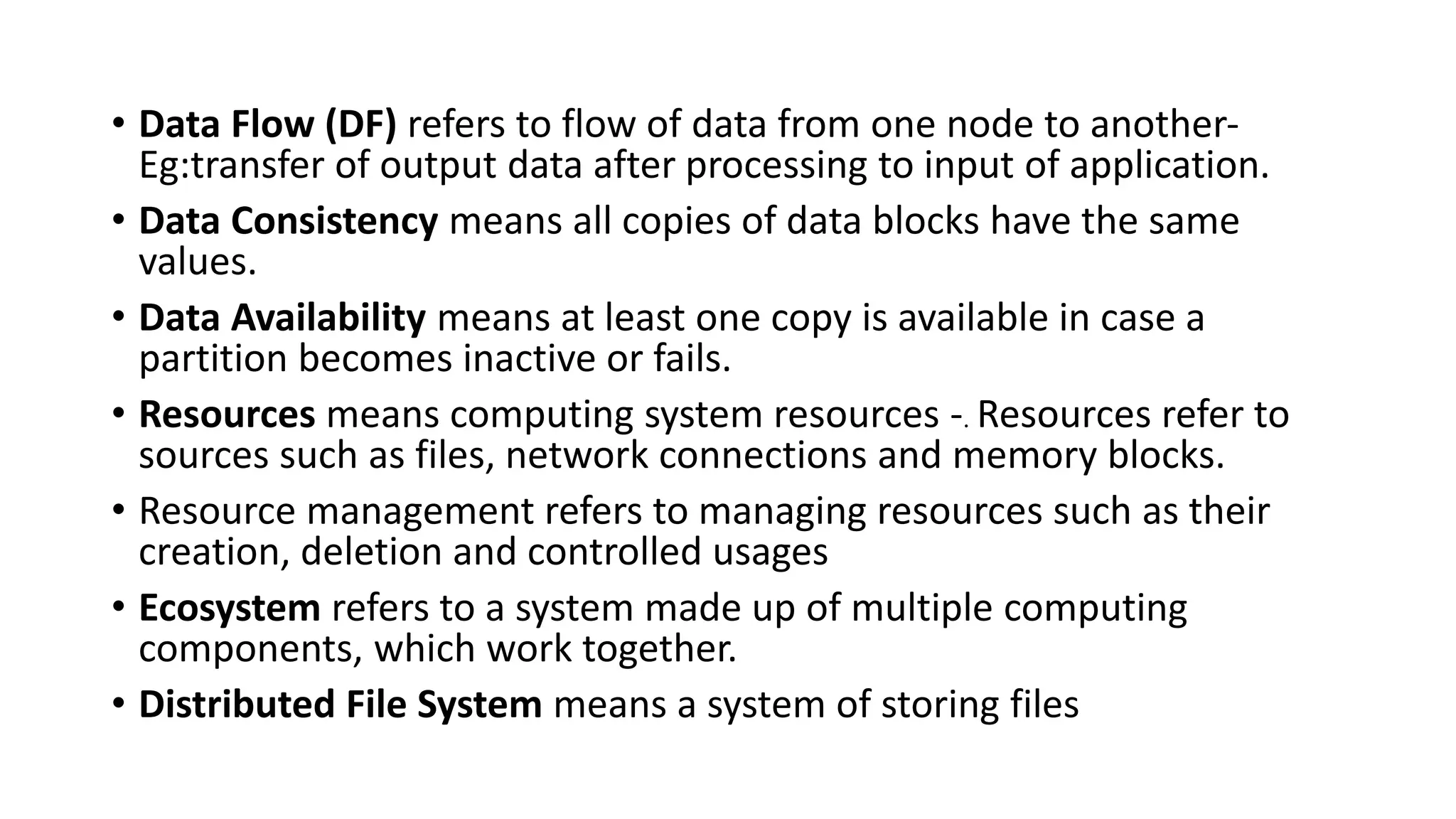

• Data Flow (DF) refers to flow of data from one node to another-
Eg:transfer of output data after processing to input of application.
• Data Consistency means all copies of data blocks have the same
values.
• Data Availability means at least one copy is available in case a
partition becomes inactive or fails.
• Resources means computing system resources -. Resources refer to
sources such as files, network connections and memory blocks.
• Resource management refers to managing resources such as their
creation, deletion and controlled usages
• Ecosystem refers to a system made up of multiple computing
components, which work together.
• Distributed File System means a system of storing files

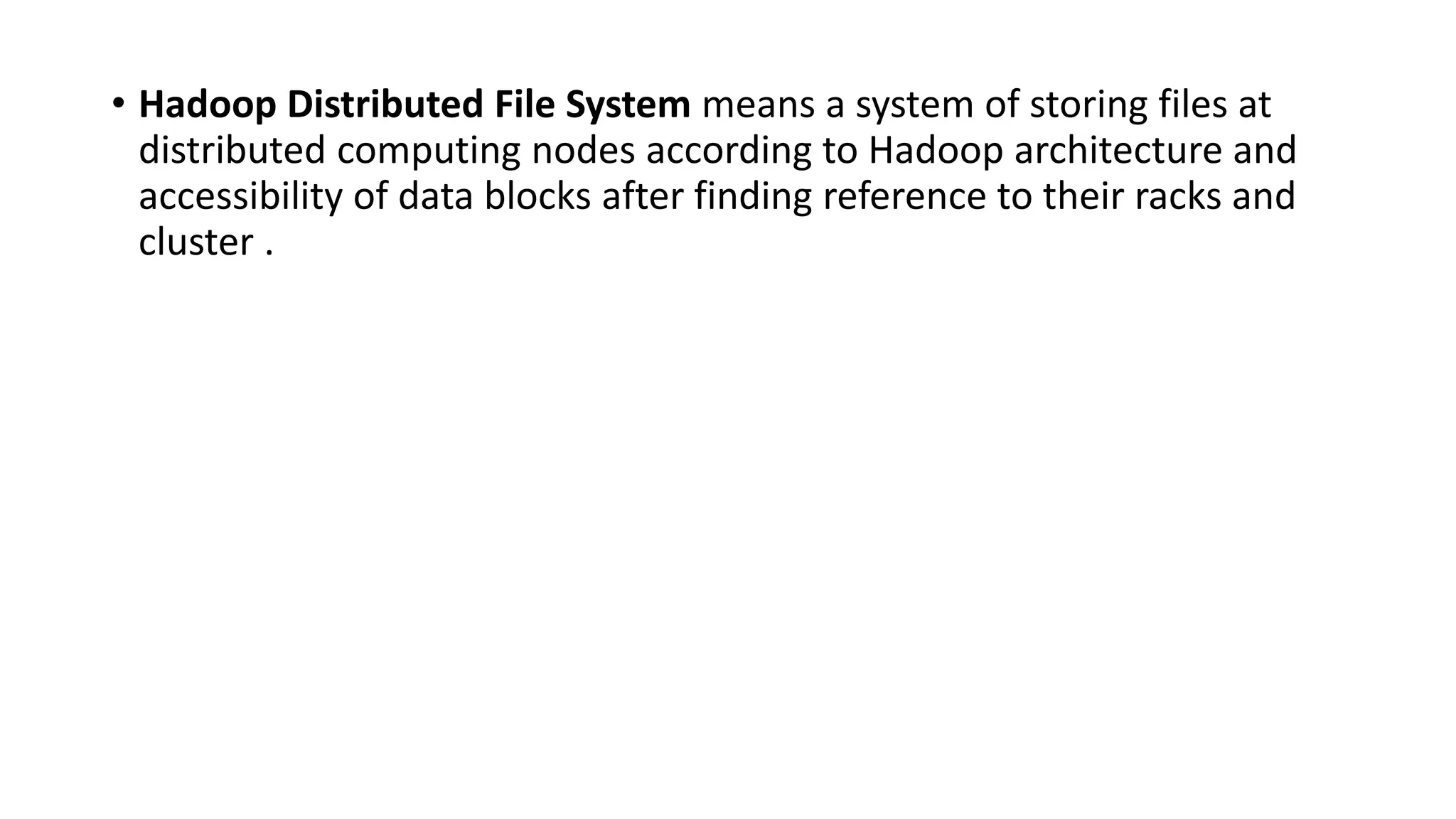

• Hadoop Distributed File System means a system of storing files at
distributed computing nodes according to Hadoop architecture and
accessibility of data blocks after finding reference to their racks and
cluster .

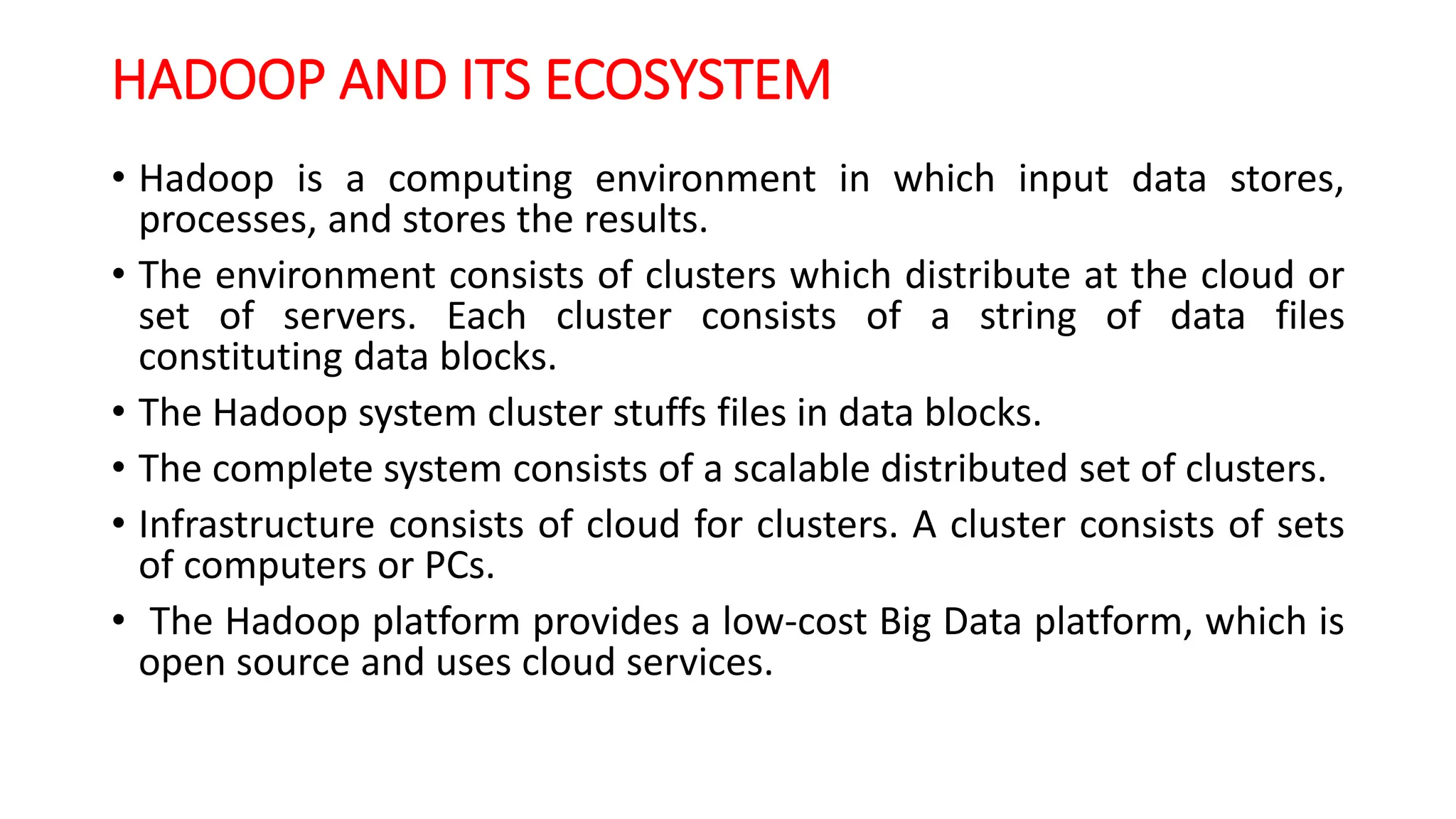

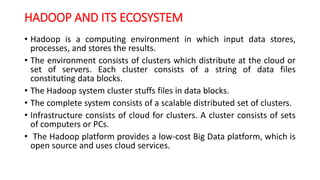

HADOOP AND ITS ECOSYSTEM
• Hadoop is a computing environment in which input data stores,
processes, and stores the results.
• The environment consists of clusters which distribute at the cloud or
set of servers. Each cluster consists of a string of data files
constituting data blocks.
• The Hadoop system cluster stuffs files in data blocks.
• The complete system consists of a scalable distributed set of clusters.
• Infrastructure consists of cloud for clusters. A cluster consists of sets
of computers or PCs.
• The Hadoop platform provides a low-cost Big Data platform, which is
open source and uses cloud services.

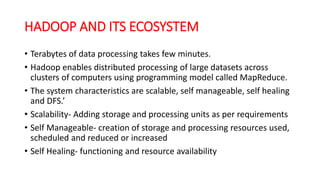

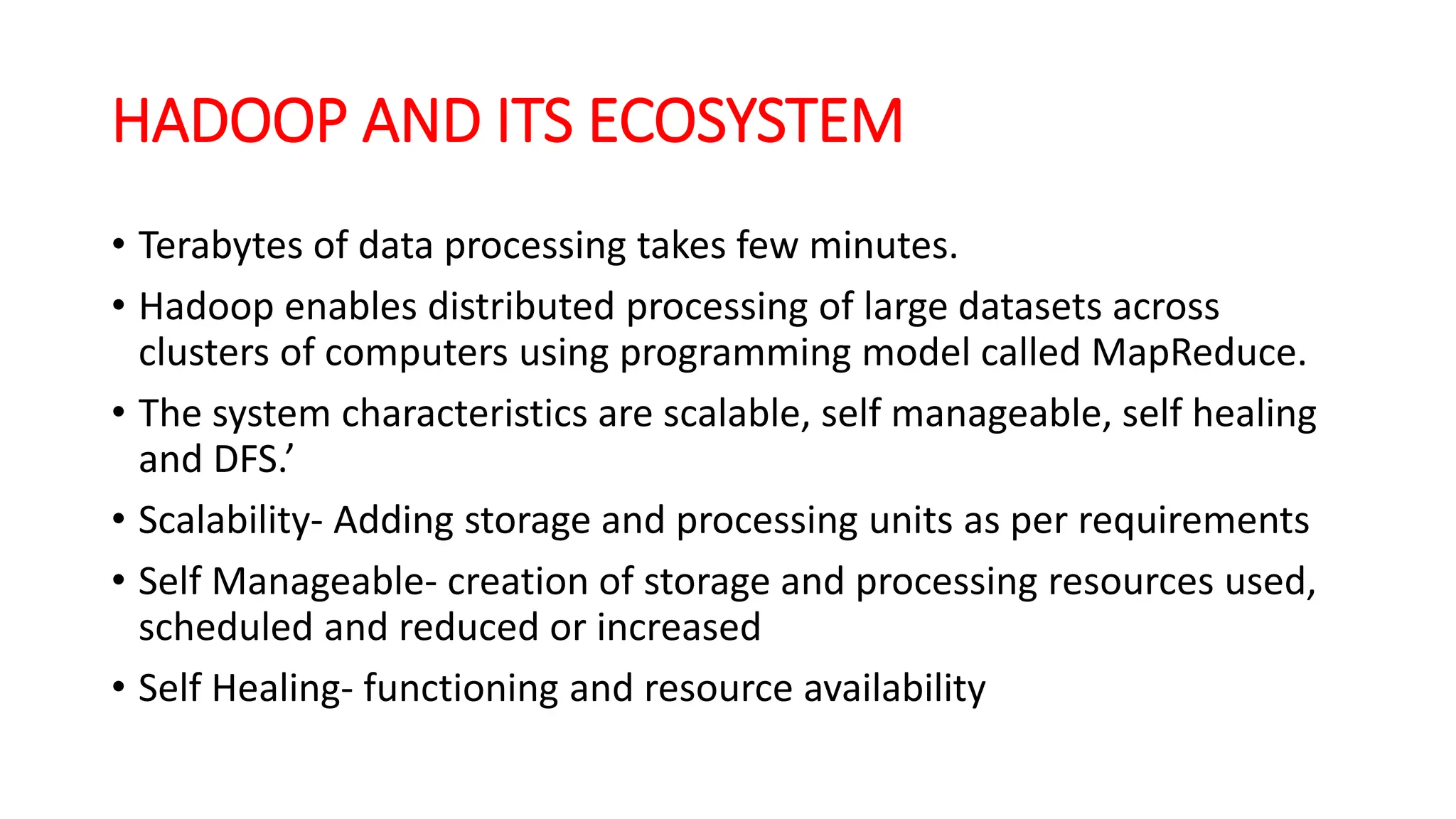

• Terabytes of data processing takes few minutes.
• Hadoop enables distributed processing of large datasets across
clusters of computers using programming model called MapReduce.
• The system characteristics are scalable, self manageable, self healing
and DFS.’
• Scalability- Adding storage and processing units as per requirements
• Self Manageable- creation of storage and processing resources used,
scheduled and reduced or increased
• Self Healing- functioning and resource availability

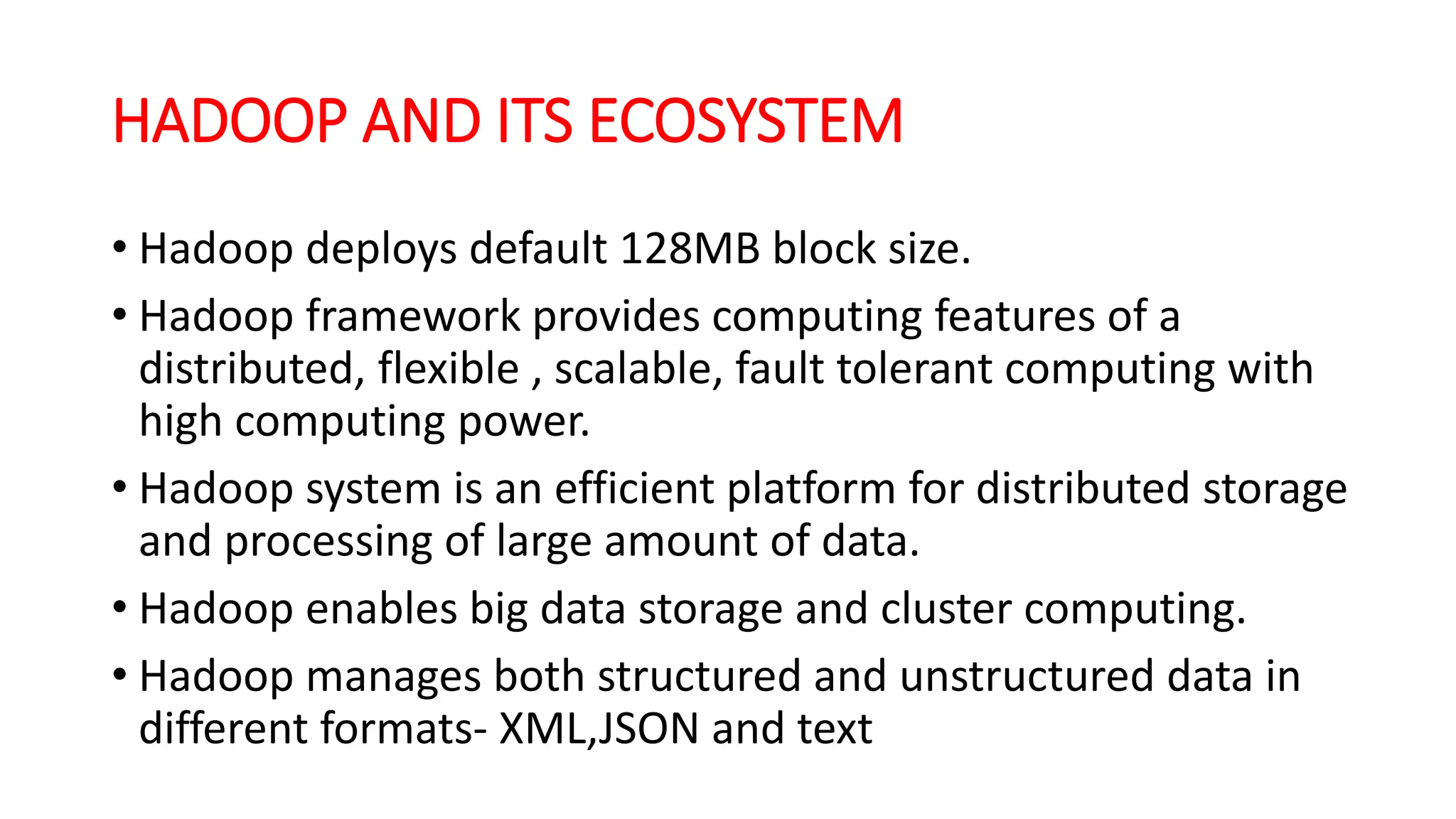

• Hadoop deploys default 128MB block size.
• Hadoop framework provides computing features of a
distributed, flexible , scalable, fault tolerant computing with
high computing power.
• Hadoop system is an efficient platform for distributed storage
and processing of large amount of data.
• Hadoop enables big data storage and cluster computing.
• Hadoop manages both structured and unstructured data in
different formats- XML,JSON and text

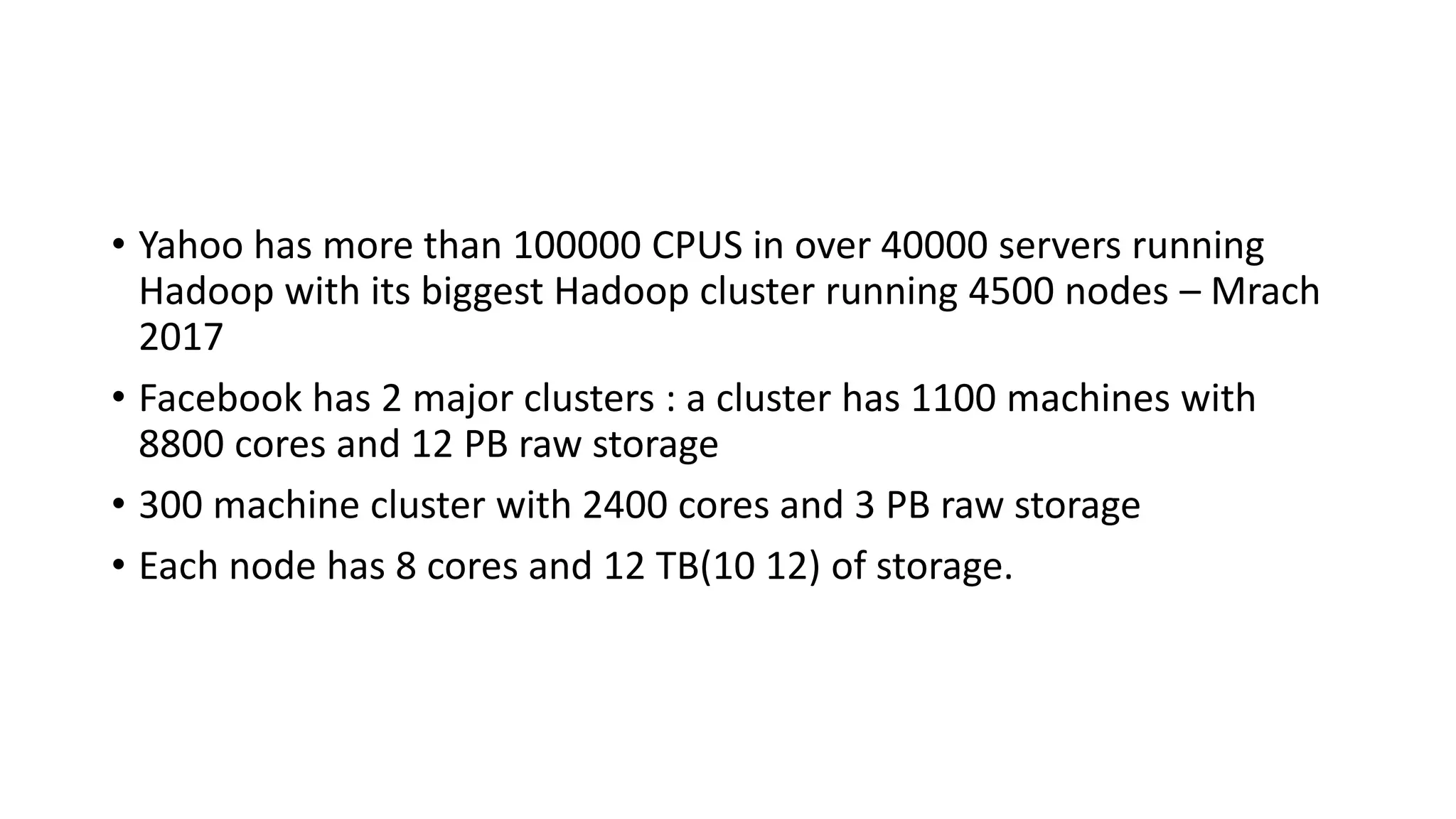

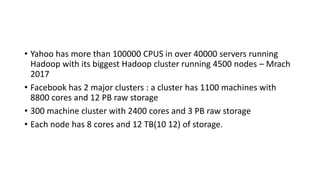

• Yahoo has more than 100000 CPUS in over 40000 servers running
Hadoop with its biggest Hadoop cluster running 4500 nodes – Mrach
2017
• Facebook has 2 major clusters : a cluster has 1100 machines with
8800 cores and 12 PB raw storage
• 300 machine cluster with 2400 cores and 3 PB raw storage
• Each node has 8 cores and 12 TB(10 12) of storage.

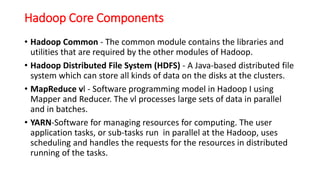

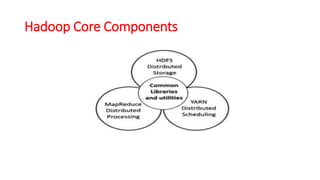

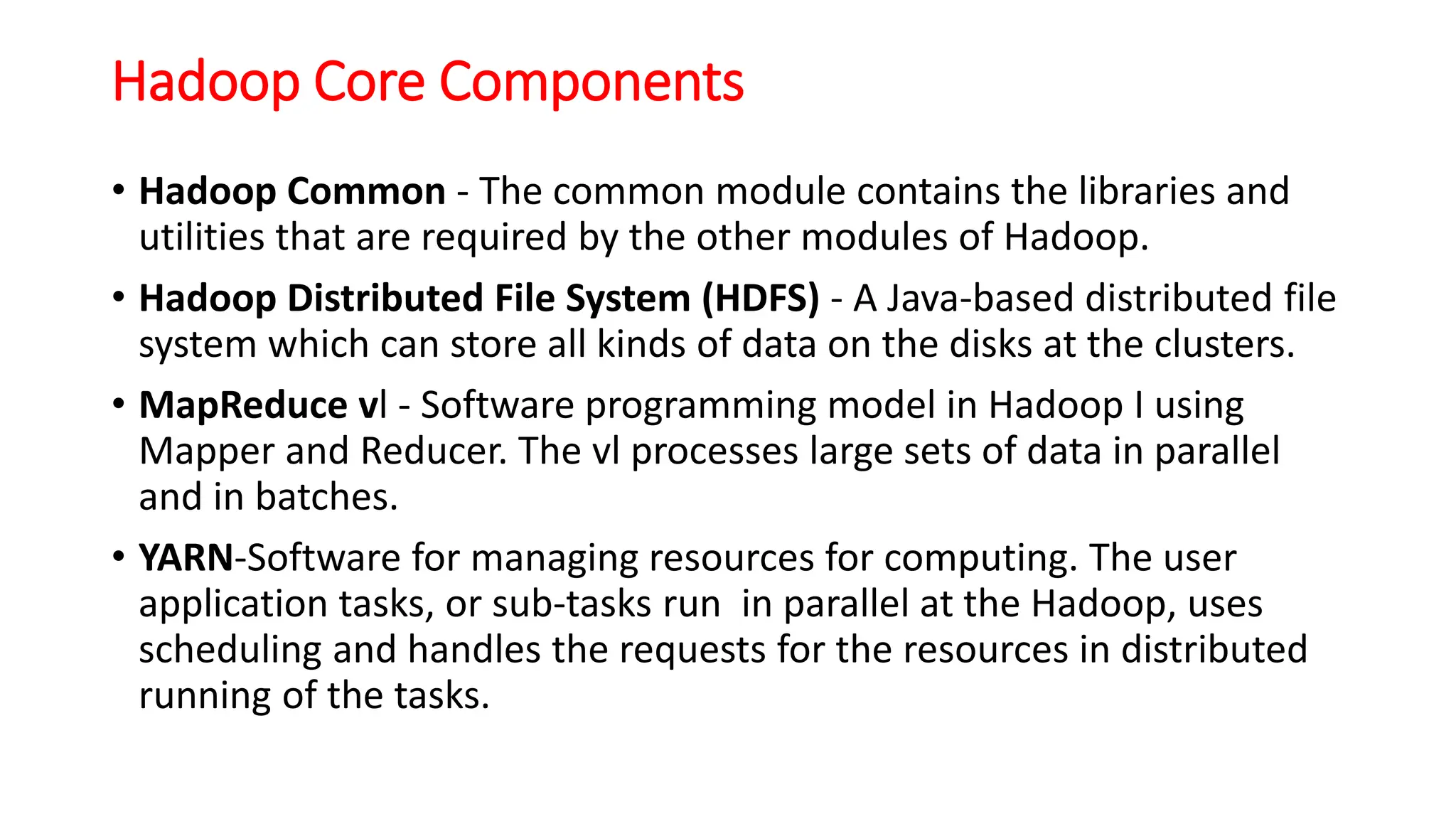

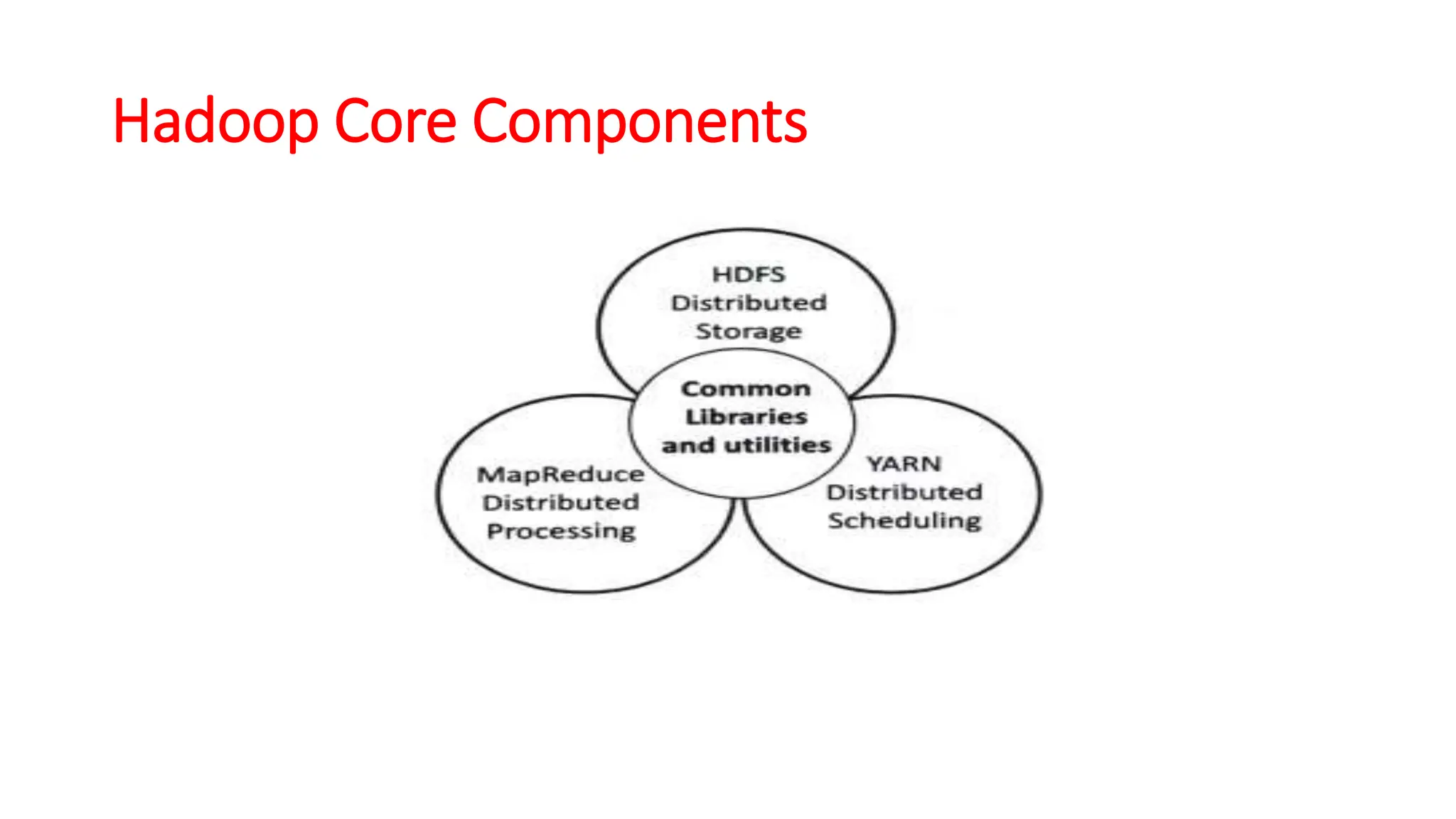

Hadoop Core Components
• Hadoop Common - The common module contains the libraries and
utilities that are required by the other modules of Hadoop.
• Hadoop Distributed File System (HDFS) - A Java-based distributed file
system which can store all kinds of data on the disks at the clusters.
• MapReduce vl - Software programming model in Hadoop I using
Mapper and Reducer. The vl processes large sets of data in parallel
and in batches.

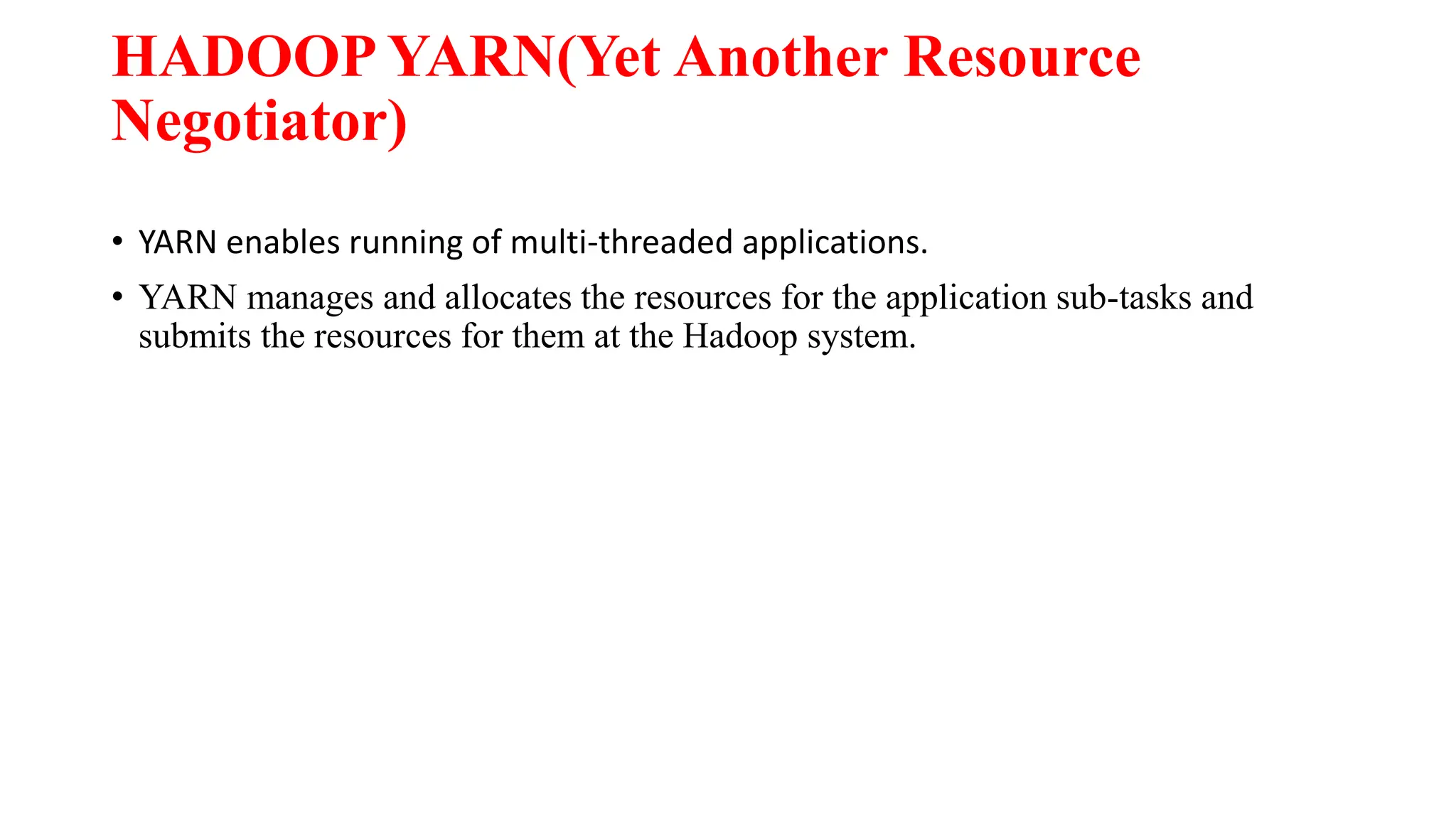

• YARN-Software for managing resources for computing. The user
application tasks, or sub-tasks run in parallel at the Hadoop, uses
scheduling and handles the requests for the resources in distributed
running of the tasks.

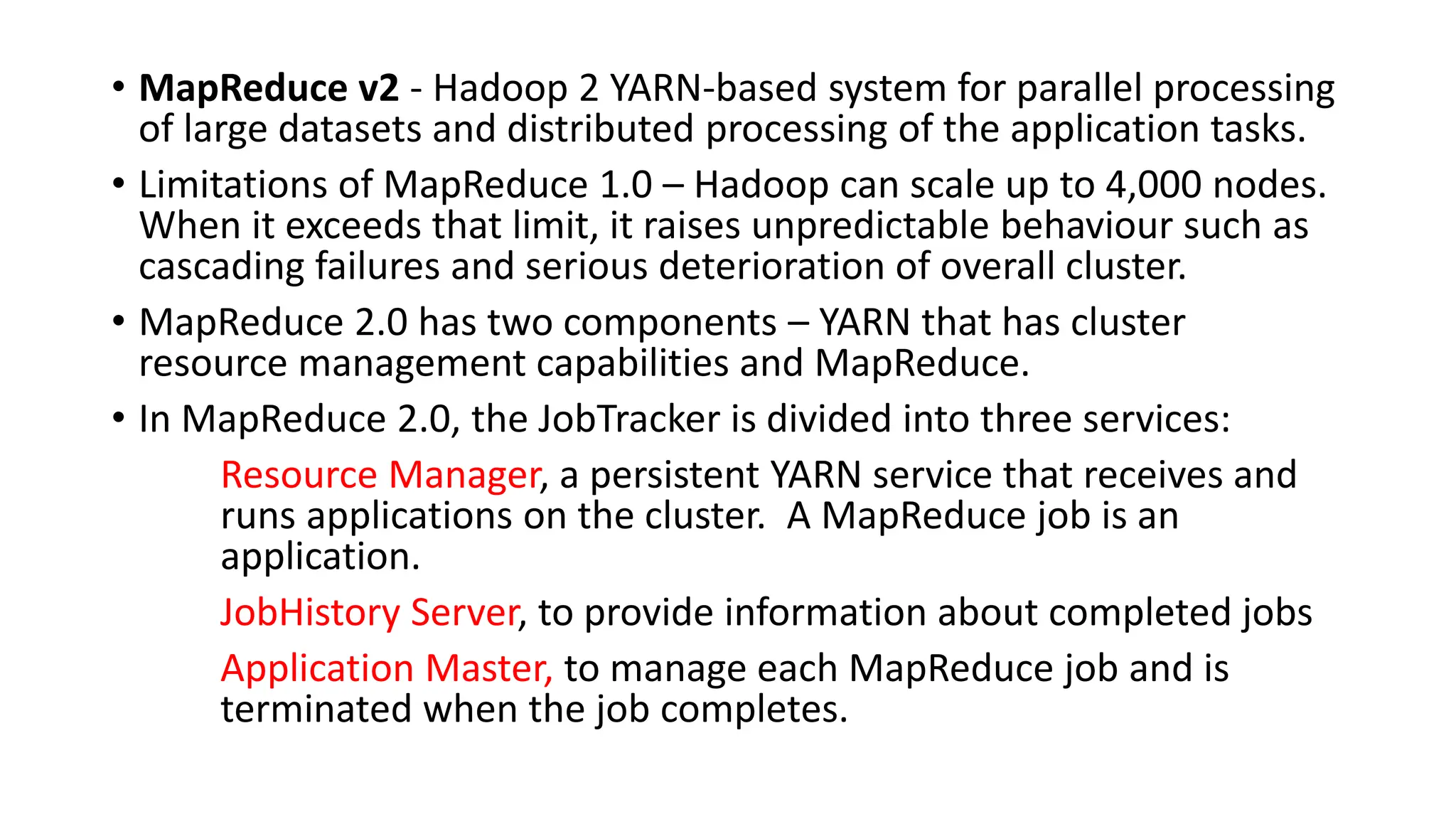

• MapReduce v2 - Hadoop 2 YARN-based system for parallel processing
of large datasets and distributed processing of the application tasks.
• Limitations of MapReduce 1.0 – Hadoop can scale up to 4,000 nodes.
When it exceeds that limit, it raises unpredictable behaviour such as
cascading failures and serious deterioration of overall cluster.

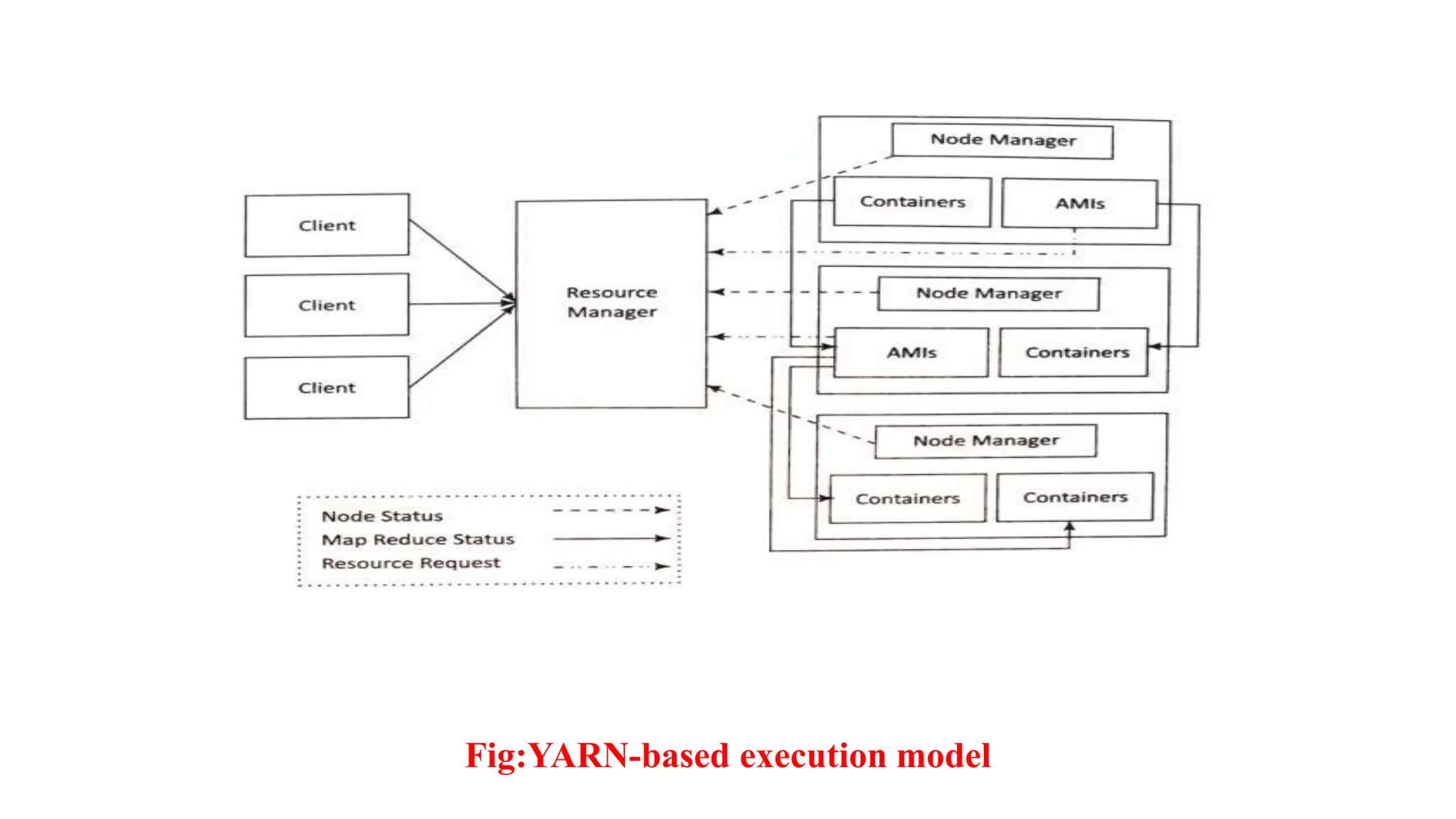

• MapReduce 2.0 has two components – YARN that has cluster
resource management capabilities and MapReduce.
• In MapReduce 2.0, the JobTracker is divided into three services:
Resource Manager, a persistent YARN service that receives and
runs applications on the cluster. A MapReduce job is an
application.
JobHistory Server, to provide information about completed jobs
Application Master, to manage each MapReduce job and is
terminated when the job completes.

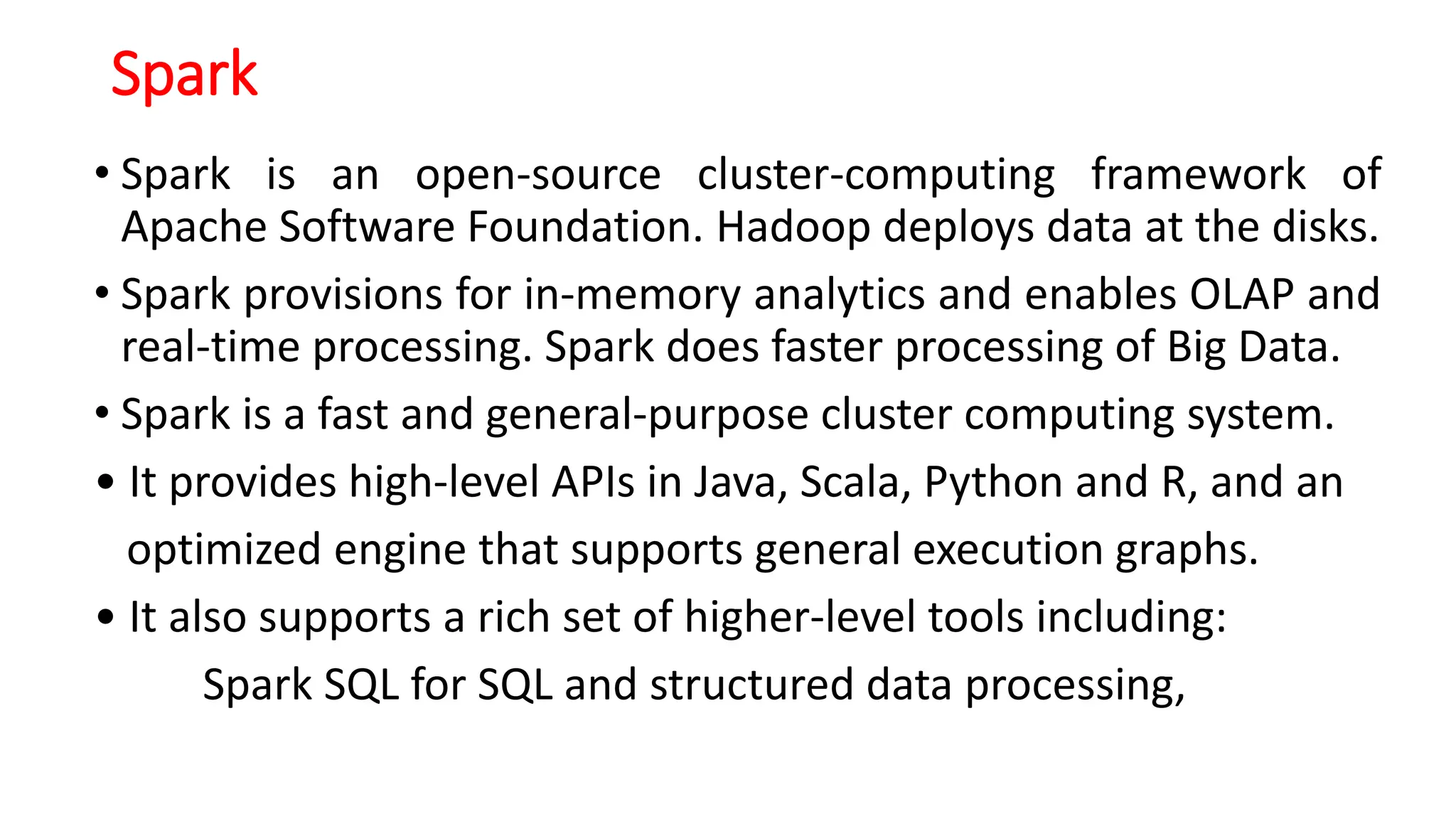

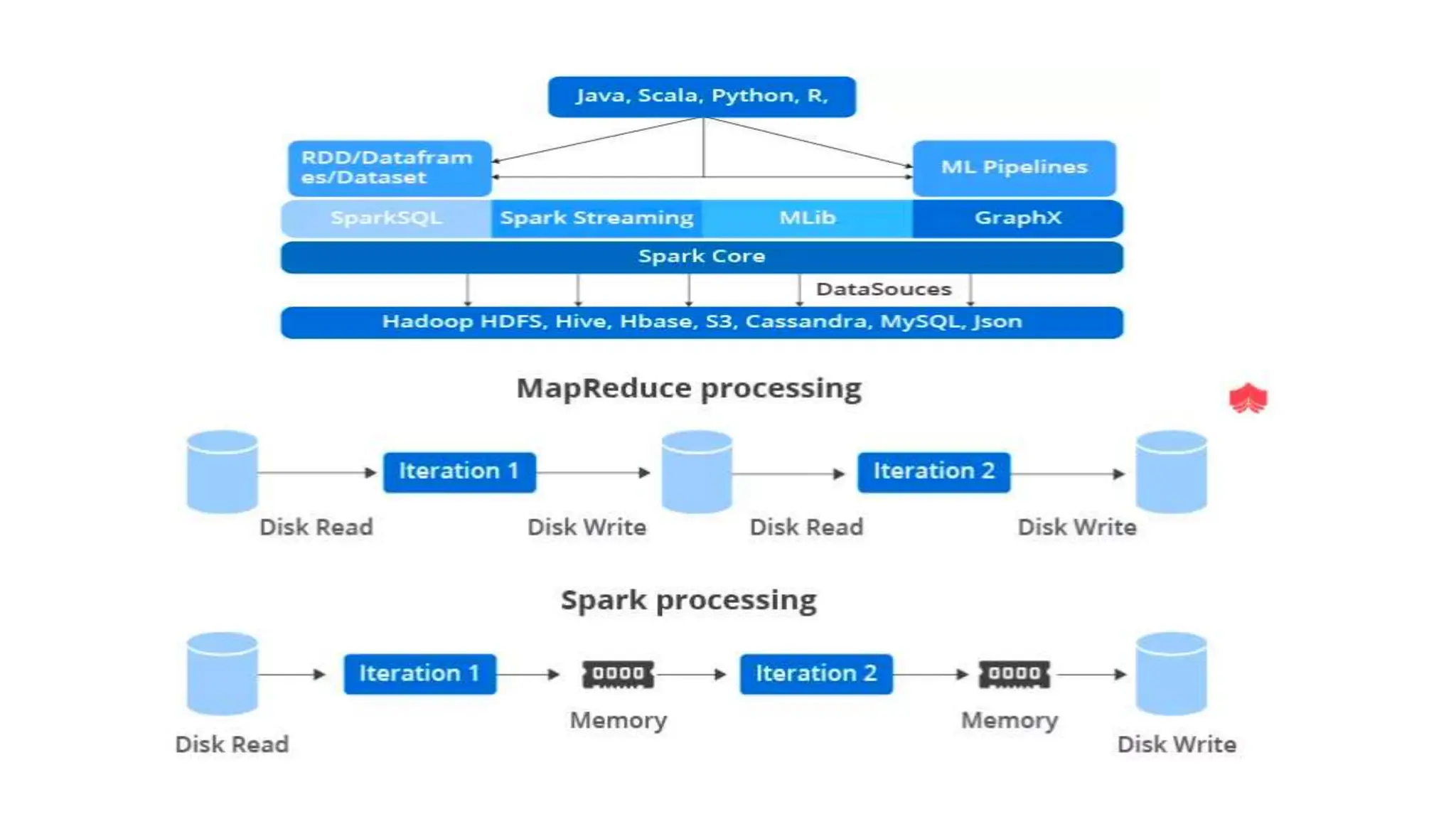

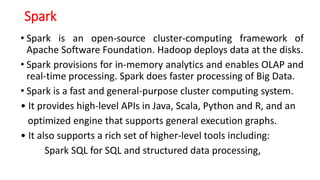

Spark
• Spark is an open-source cluster-computing framework of
Apache Software Foundation. Hadoop deploys data at the disks.
• Spark provisions for in-memory analytics and enables OLAP and
real-time processing. Spark does faster processing of Big Data.
• Spark is a fast and general-purpose cluster computing system.
• It provides high-level APIs in Java, Scala, Python and R, and an
optimized engine that supports general execution graphs.
• It also supports a rich set of higher-level tools including:
Spark SQL for SQL and structured data processing,

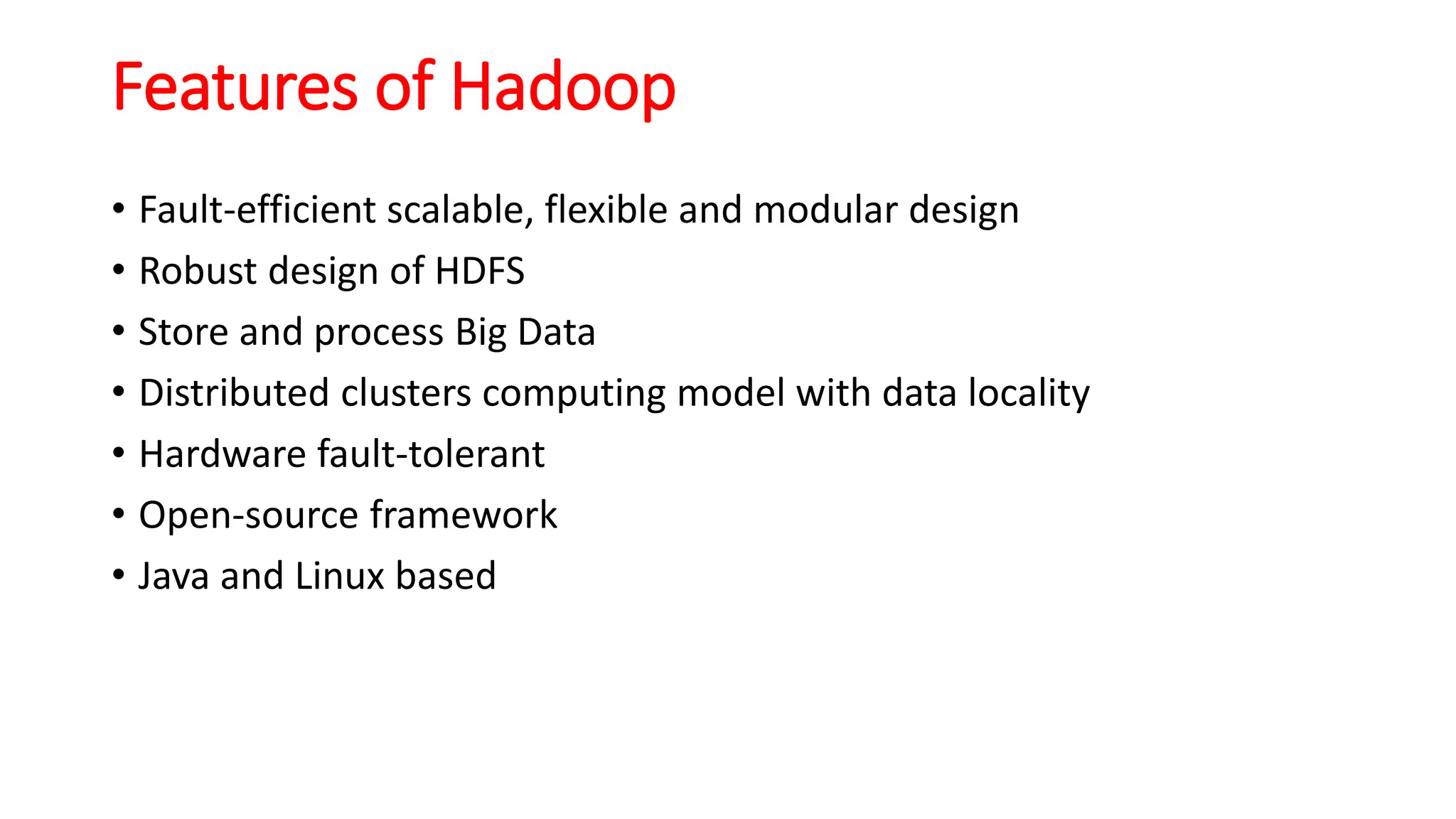

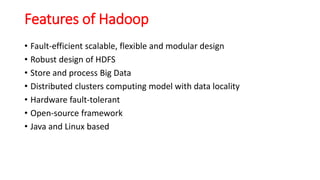

Features of Hadoop
• Fault-efficient scalable, flexible and modular design
• Robust design of HDFS
• Store and process Big Data
• Distributed clusters computing model with data locality
• Hardware fault-tolerant
• Open-source framework
• Java and Linux based

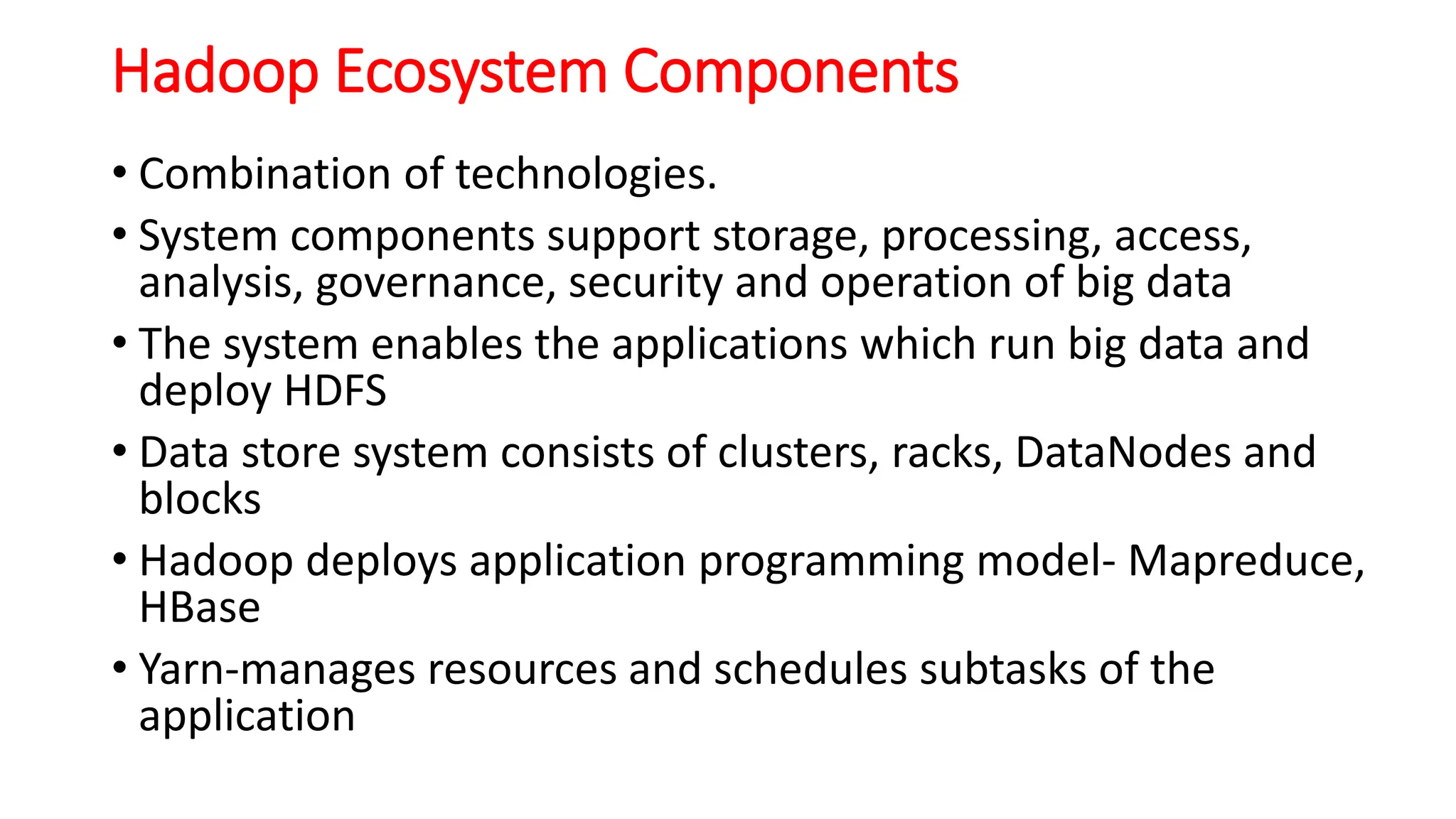

Hadoop Ecosystem Components
• Combination of technologies.
• System components support storage, processing, access,
analysis, governance, security and operation of big data
• The system enables the applications which run big data and
deploy HDFS
• Data store system consists of clusters, racks, DataNodes and
blocks
• Hadoop deploys application programming model- Mapreduce,
HBase
• Yarn-manages resources and schedules subtasks of the
application

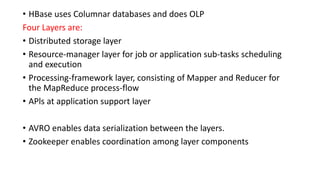

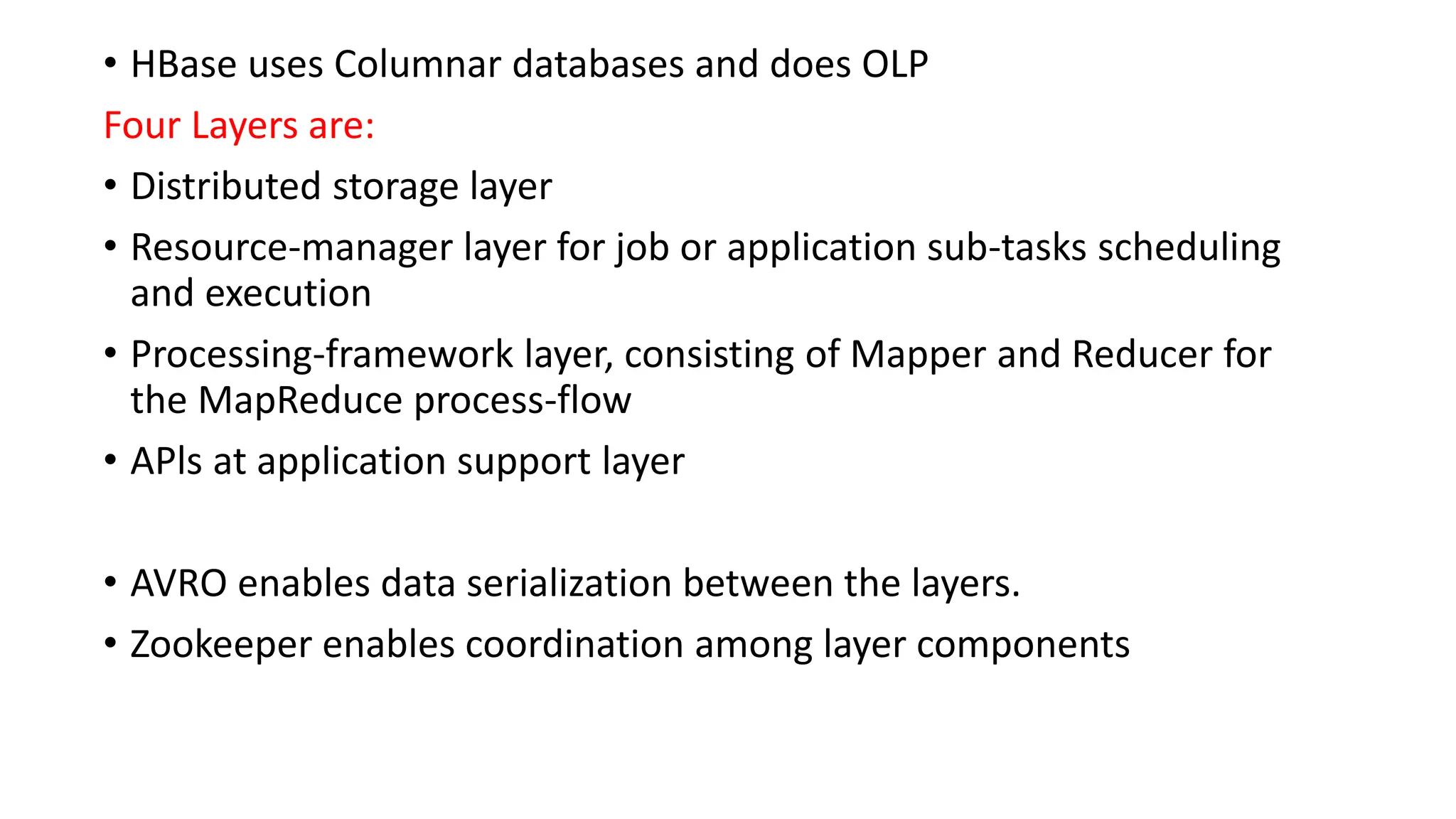

• HBase uses Columnar databases and does OLP

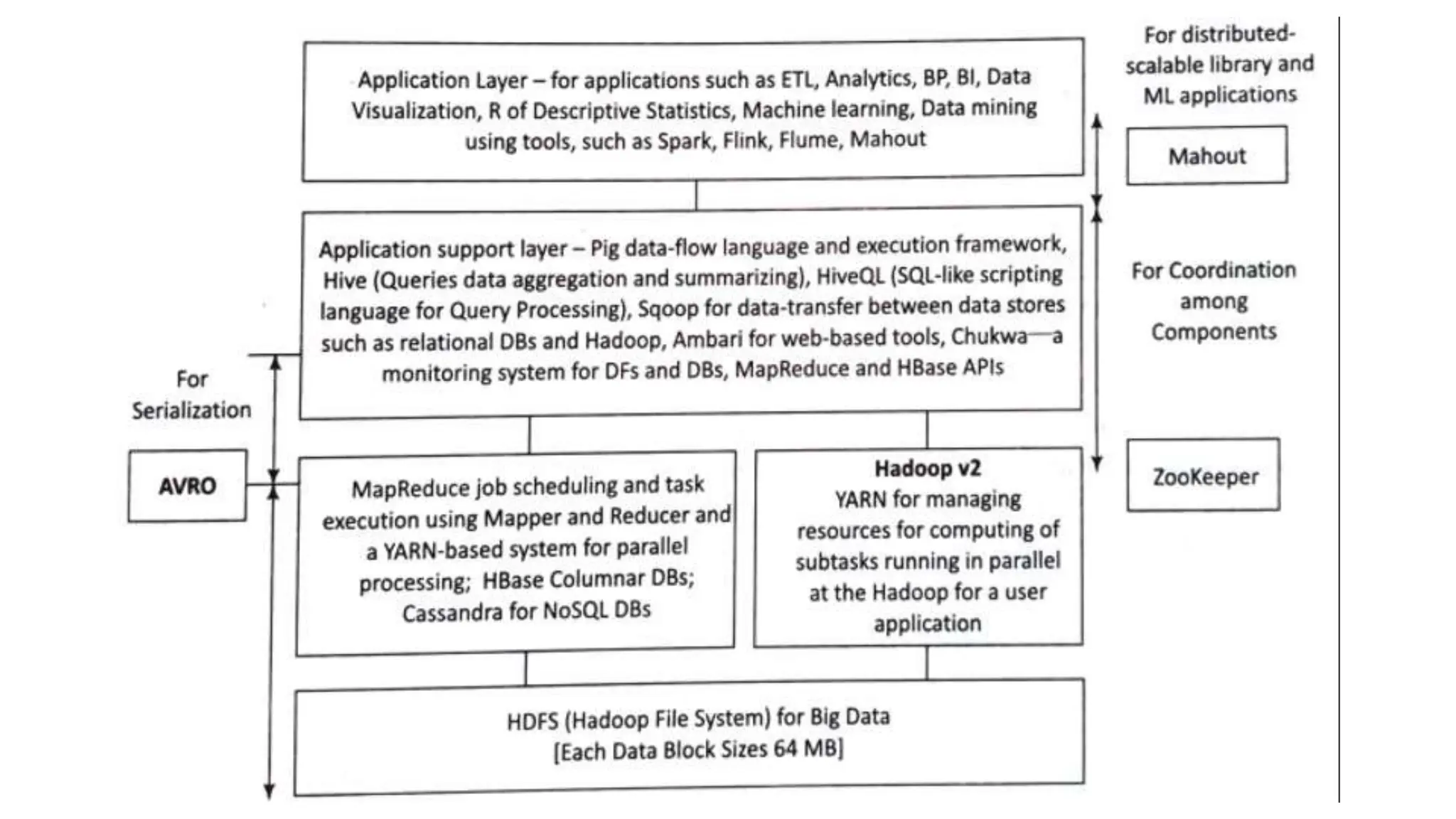

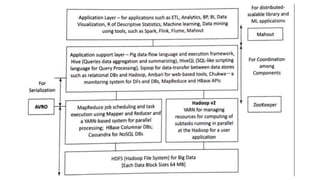

Four Layers are:
• Distributed storage layer
• Resource-manager layer for job or application sub-tasks scheduling
and execution
• Processing-framework layer, consisting of Mapper and Reducer for
the MapReduce process-flow
• APls at application support layer
• AVRO enables data serialization between the layers.

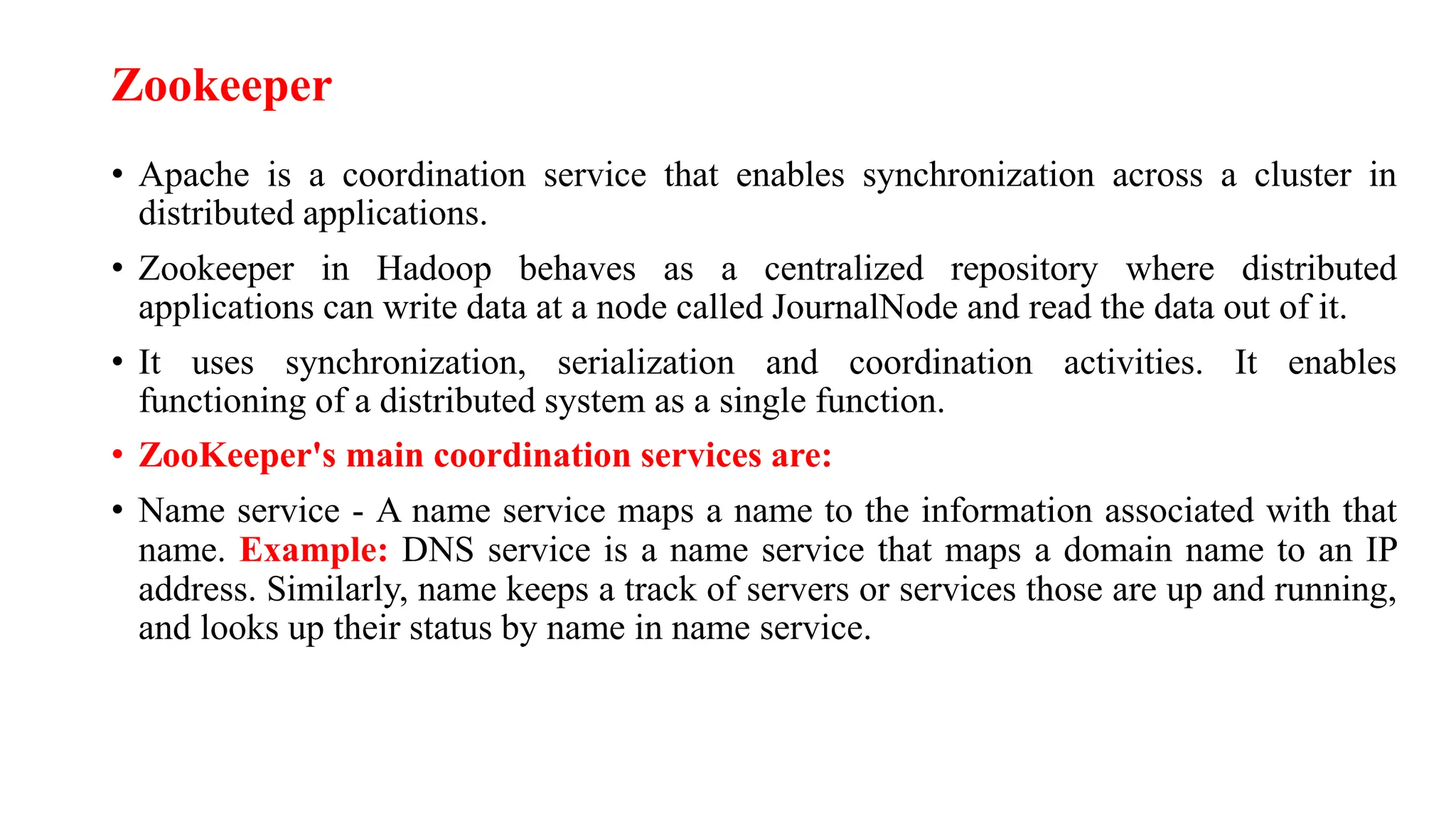

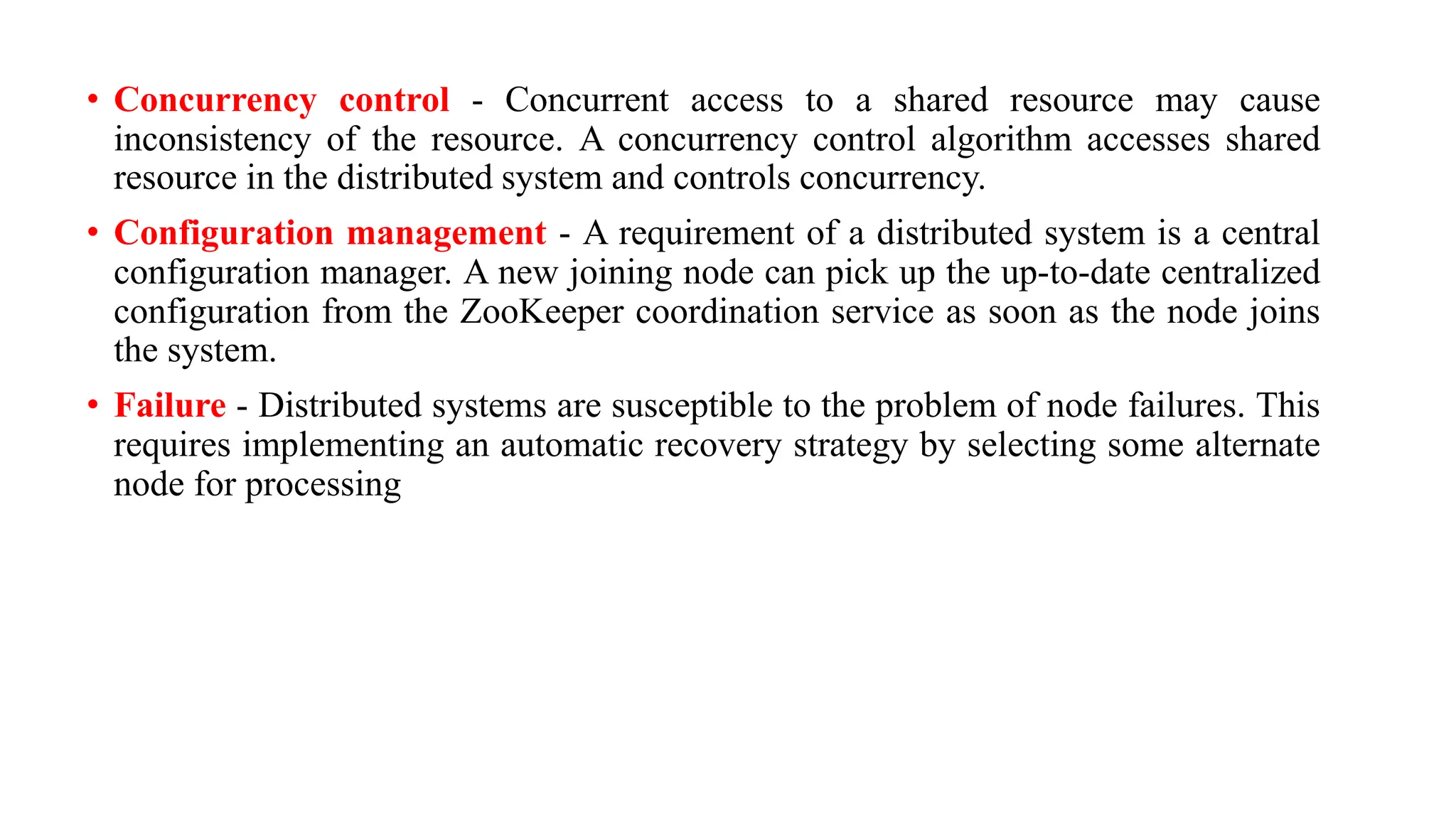

• Zookeeper enables coordination among layer components

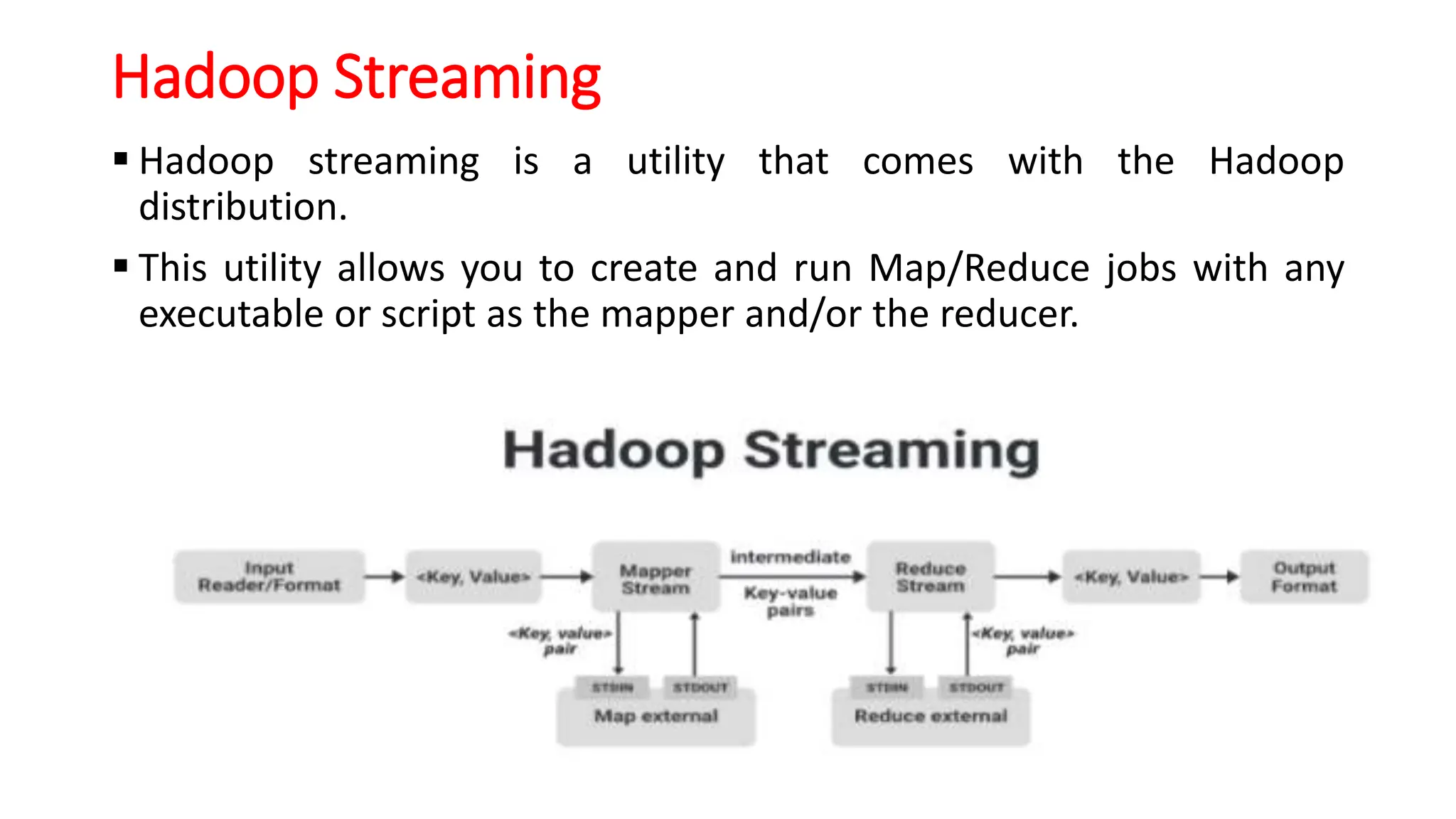

Hadoop Streaming
 Hadoop streaming is a utility that comes with the Hadoop
distribution.
 This utility allows you to create and run Map/Reduce jobs with any
executable or script as the mapper and/or the reducer.

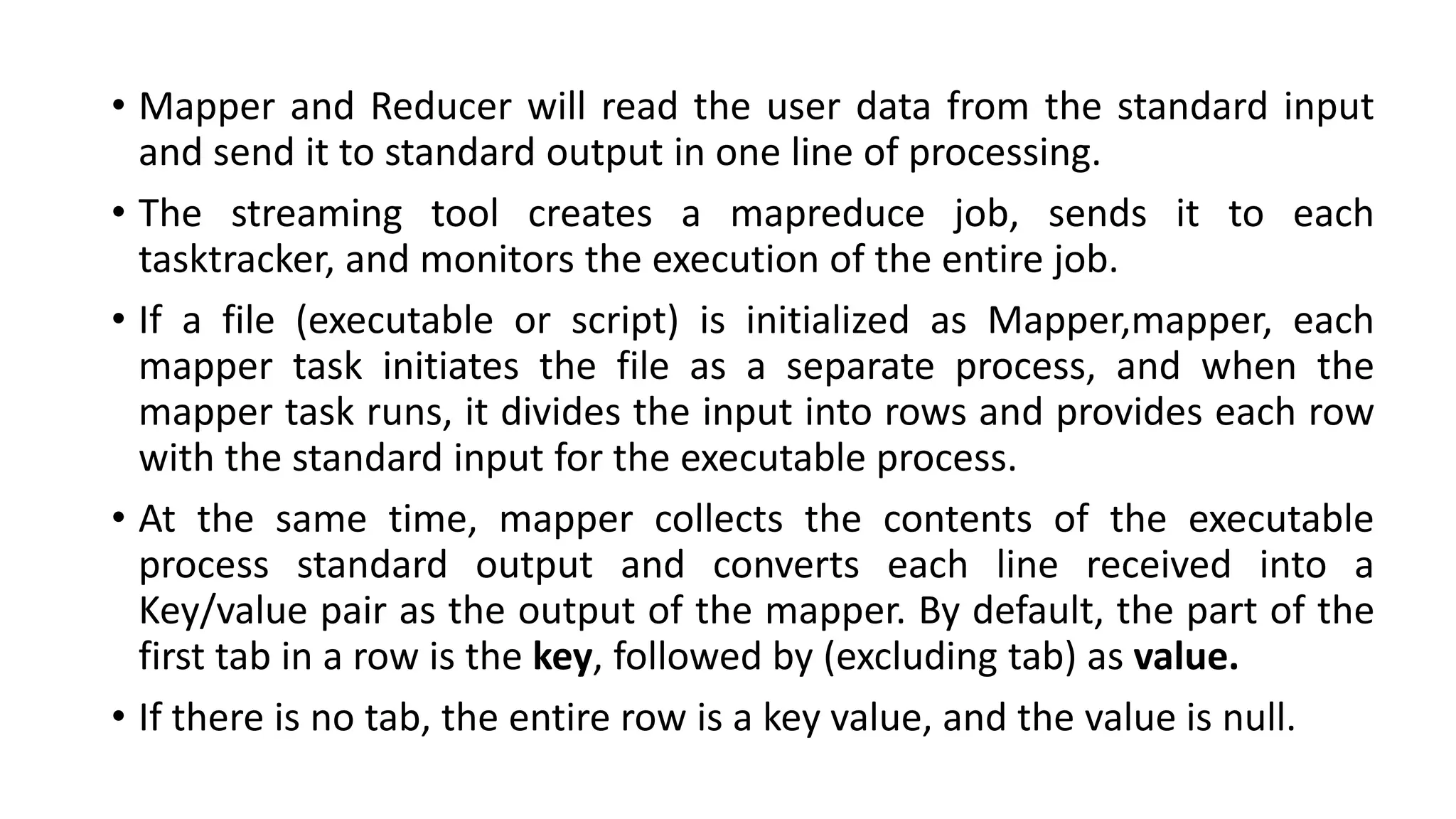

• Mapper and Reducer will read the user data from the standard input
and send it to standard output in one line of processing.
• The streaming tool creates a mapreduce job, sends it to each
tasktracker, and monitors the execution of the entire job.
• If a file (executable or script) is initialized as Mapper,mapper, each
mapper task initiates the file as a separate process, and when the
mapper task runs, it divides the input into rows and provides each row
with the standard input for the executable process.
• At the same time, mapper collects the contents of the executable
process standard output and converts each line received into a
Key/value pair as the output of the mapper. By default, the part of the
first tab in a row is the key, followed by (excluding tab) as value.
• If there is no tab, the entire row is a key value, and the value is null.

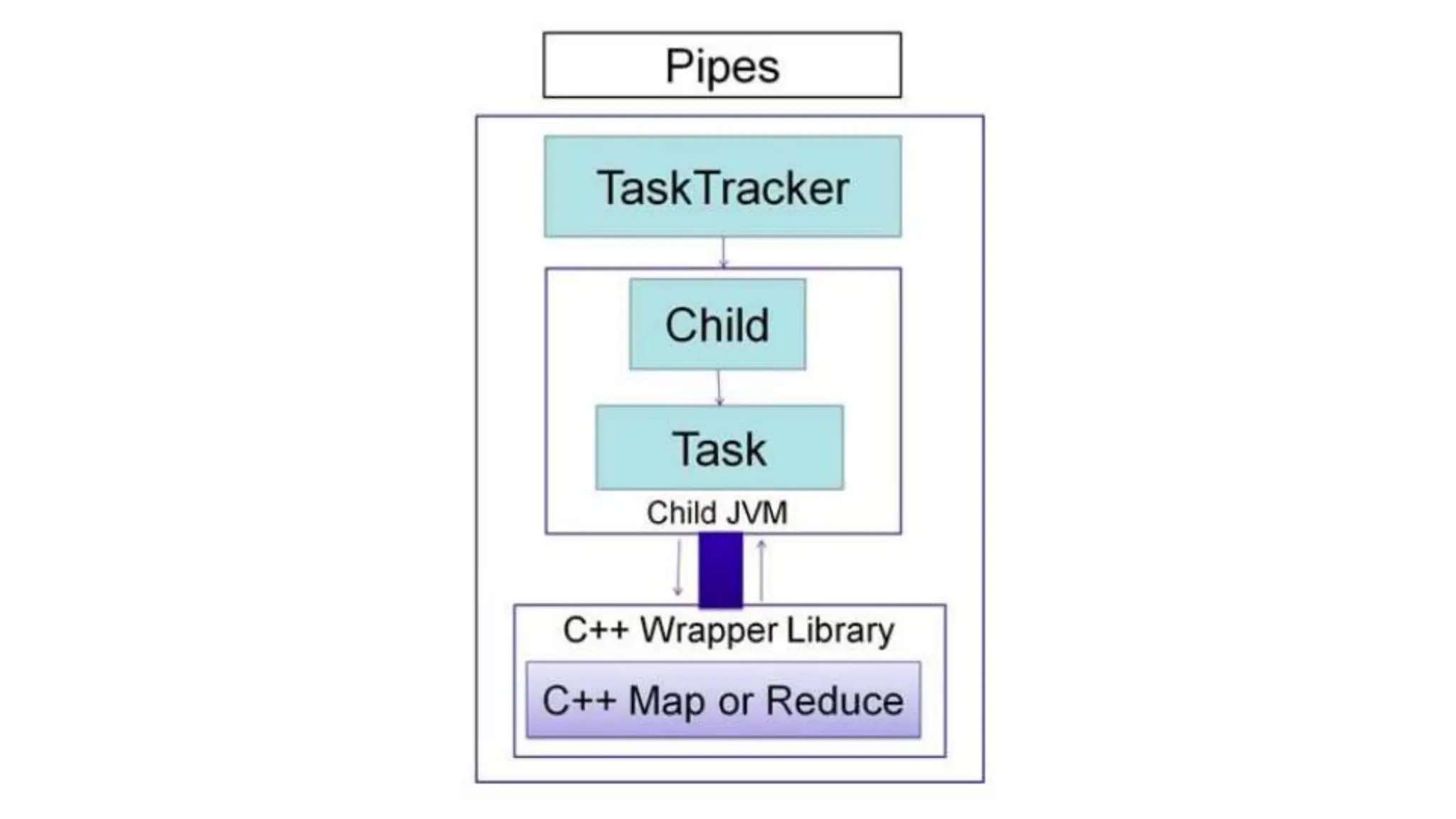

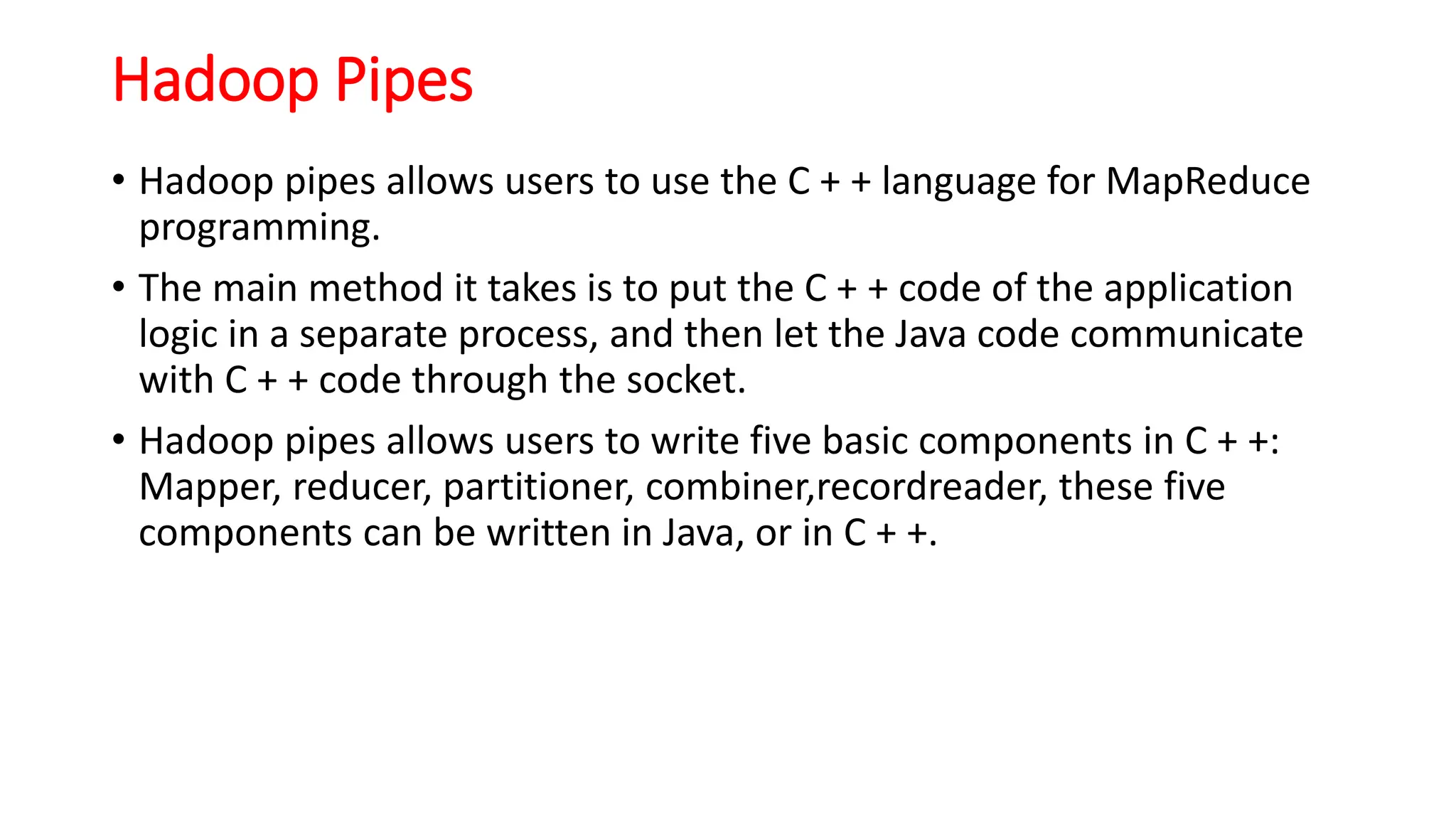

Hadoop Pipes
• Hadoop pipes allows users to use the C + + language for MapReduce
programming.
• The main method it takes is to put the C + + code of the application
logic in a separate process, and then let the Java code communicate
with C + + code through the socket.
• Hadoop pipes allows users to write five basic components in C + +:
Mapper, reducer, partitioner, combiner,recordreader, these five
components can be written in Java, or in C + +.

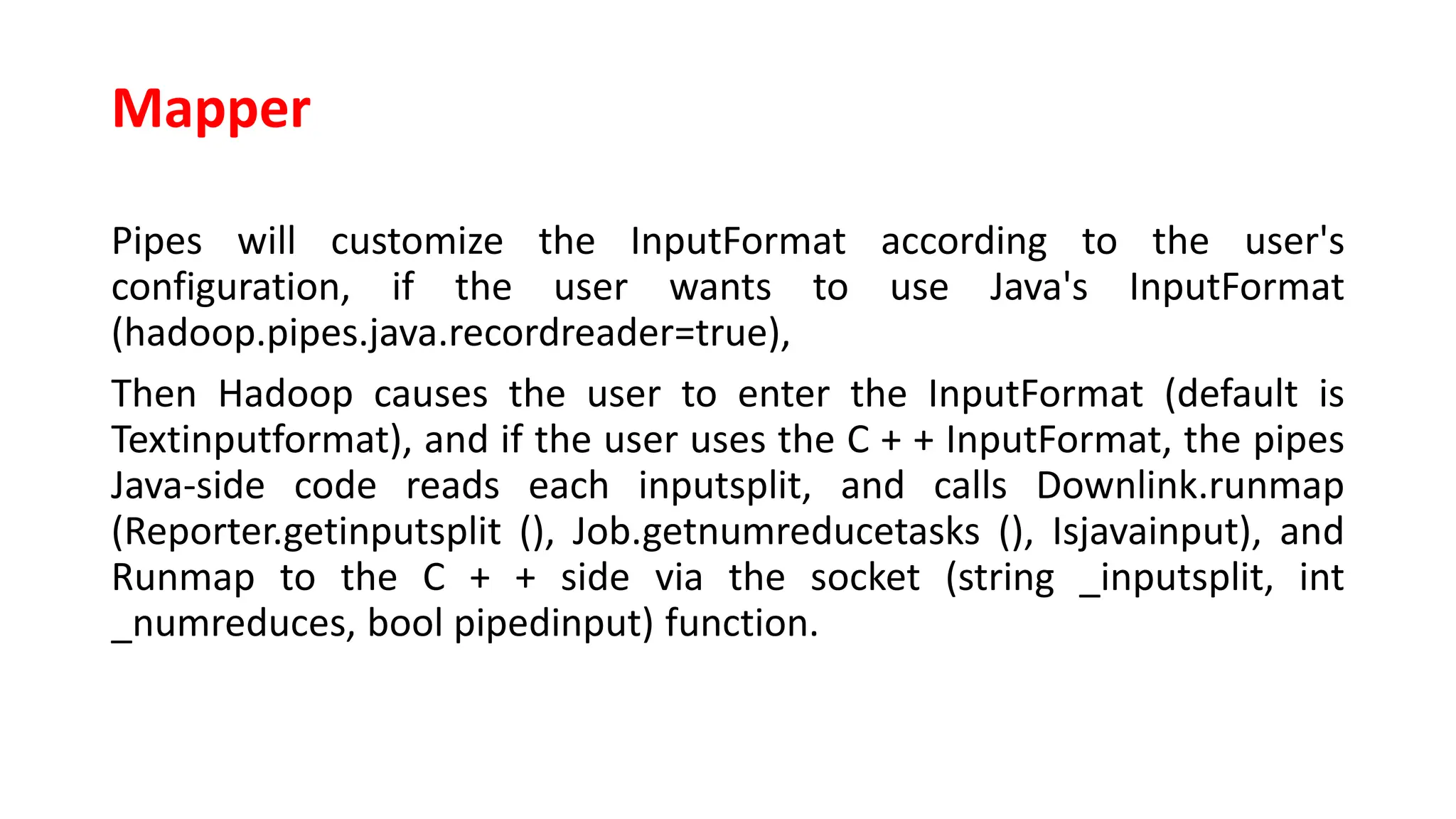

Mapper
Pipes will customize the InputFormat according to the user's
configuration, if the user wants to use Java's InputFormat
(hadoop.pipes.java.recordreader=true),
Then Hadoop causes the user to enter the InputFormat (default is
Textinputformat), and if the user uses the C + + InputFormat, the pipes
Java-side code reads each inputsplit, and calls Downlink.runmap
(Reporter.getinputsplit (), Job.getnumreducetasks (), Isjavainput), and
Runmap to the C + + side via the socket (string _inputsplit, int
_numreduces, bool pipedinput) function.

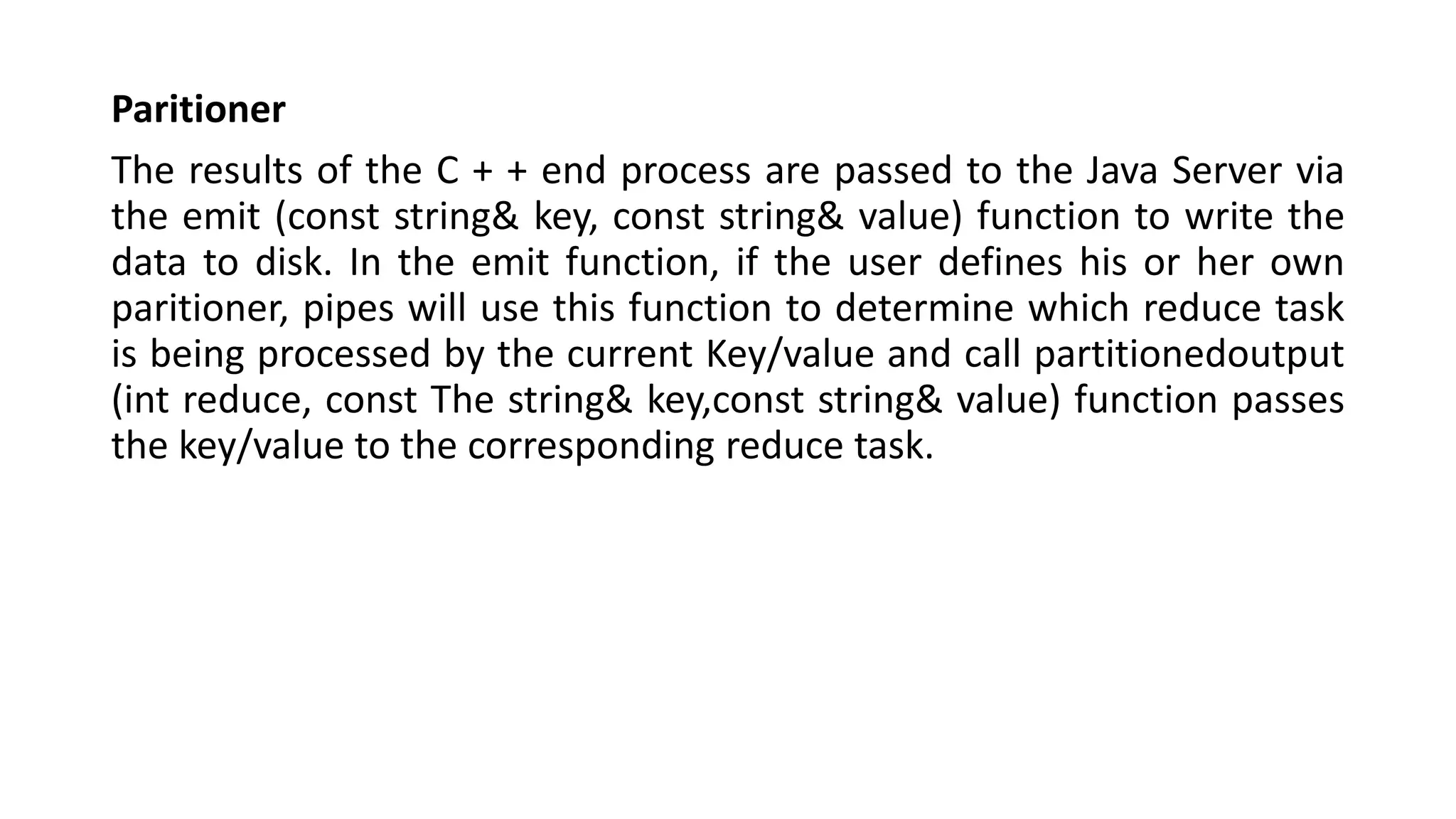

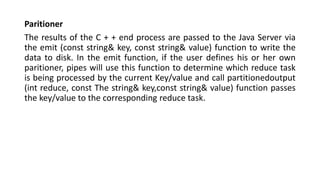

Paritioner
The results of the C + + end process are passed to the Java Server via
the emit (const string& key, const string& value) function to write the
data to disk. In the emit function, if the user defines his or her own
paritioner, pipes will use this function to determine which reduce task
is being processed by the current Key/value and call partitionedoutput
(int reduce, const The string& key,const string& value) function passes
the key/value to the corresponding reduce task.

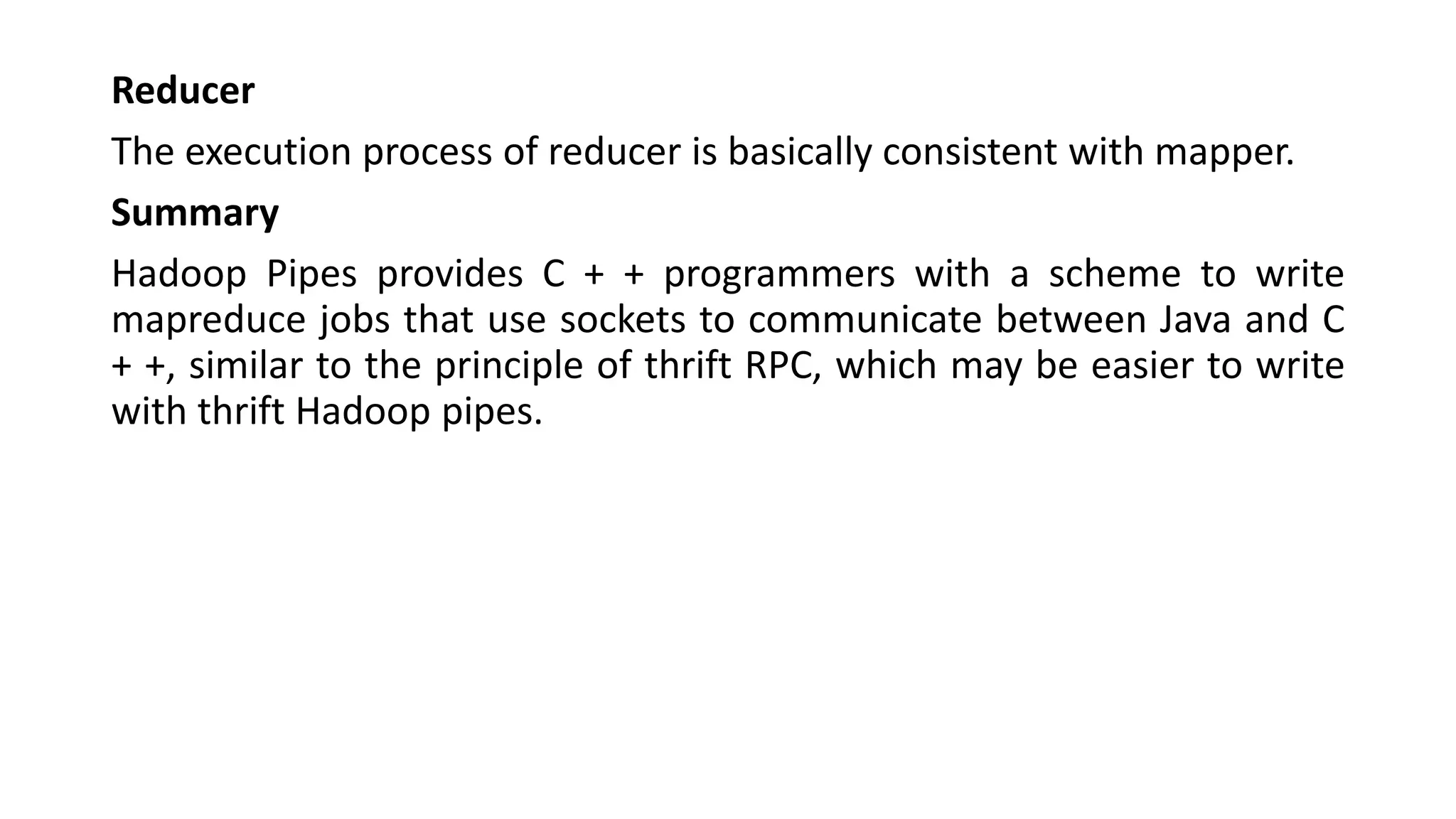

Reducer
The execution process of reducer is basically consistent with mapper.
Summary
Hadoop Pipes provides C + + programmers with a scheme to write
mapreduce jobs that use sockets to communicate between Java and C
+ +, similar to the principle of thrift RPC, which may be easier to write
with thrift Hadoop pipes.

HADOOP DISTRIBUTED FILE SYSTEM

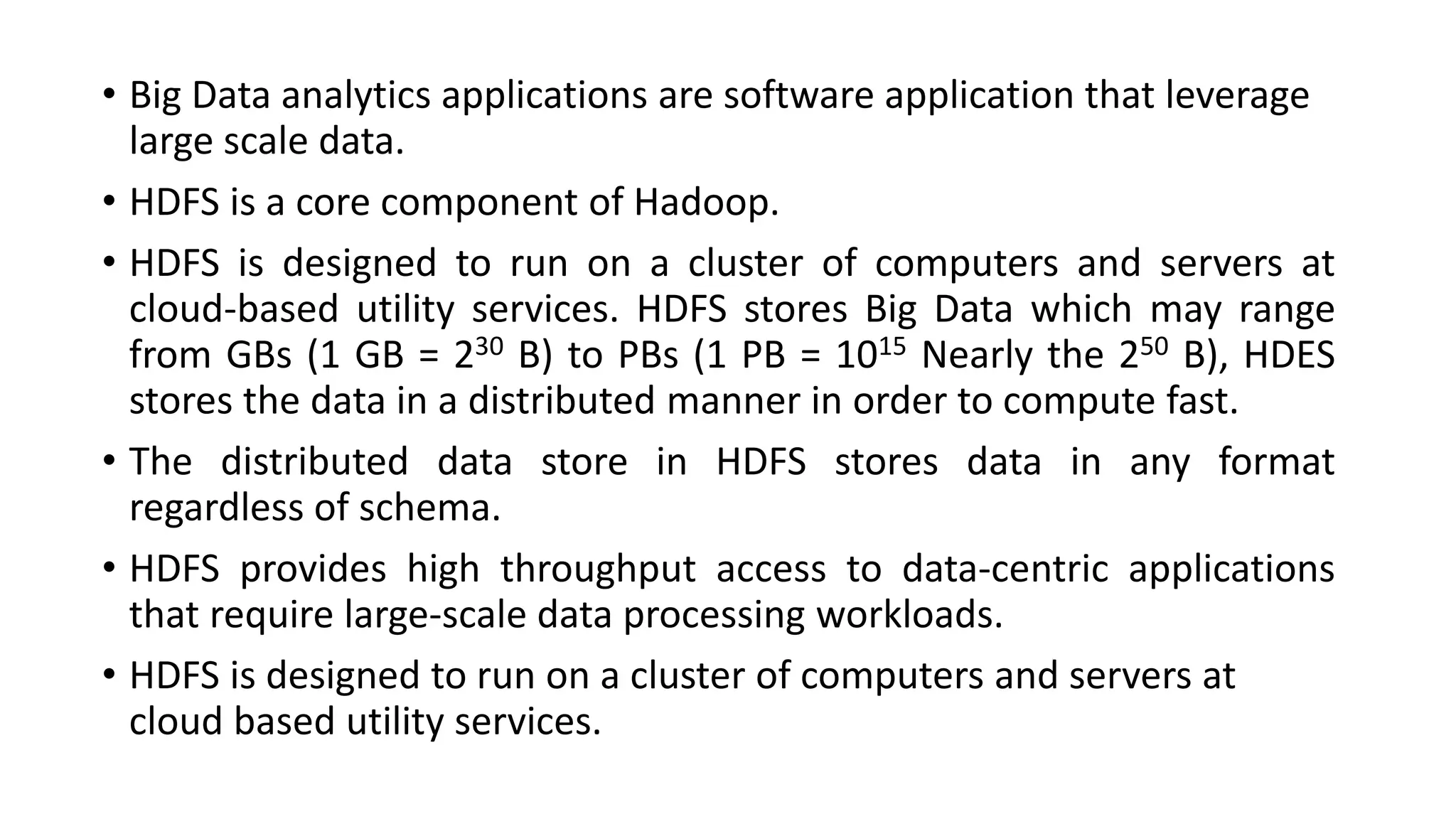

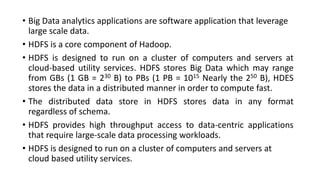

• Big Data analytics applications are software application that leverage
large scale data.
• HDFS is a core component of Hadoop.
• HDFS is designed to run on a cluster of computers and servers at
cloud-based utility services. HDFS stores Big Data which may range
from GBs (1 GB = 230 B) to PBs (1 PB = 1015 Nearly the 250 B), HDES
stores the data in a distributed manner in order to compute fast.
• The distributed data store in HDFS stores data in any format
regardless of schema.
• HDFS provides high throughput access to data-centric applications
that require large-scale data processing workloads.
• HDFS is designed to run on a cluster of computers and servers at
cloud based utility services.

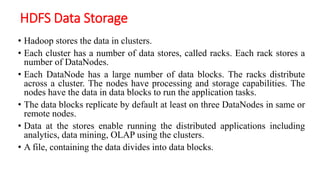

HDFS Data Storage
• Hadoop stores the data in clusters.
• Each cluster has a number of data stores, called racks. Each rack stores a
number of DataNodes.
• Each DataNode has a large number of data blocks. The racks distribute
across a cluster. The nodes have processing and storage capabilities. The
nodes have the data in data blocks to run the application tasks.
• The data blocks replicate by default at least on three DataNodes in same or
remote nodes.
• Data at the stores enable running the distributed applications including
analytics, data mining, OLAP using the clusters.
• A file, containing the data divides into data blocks.

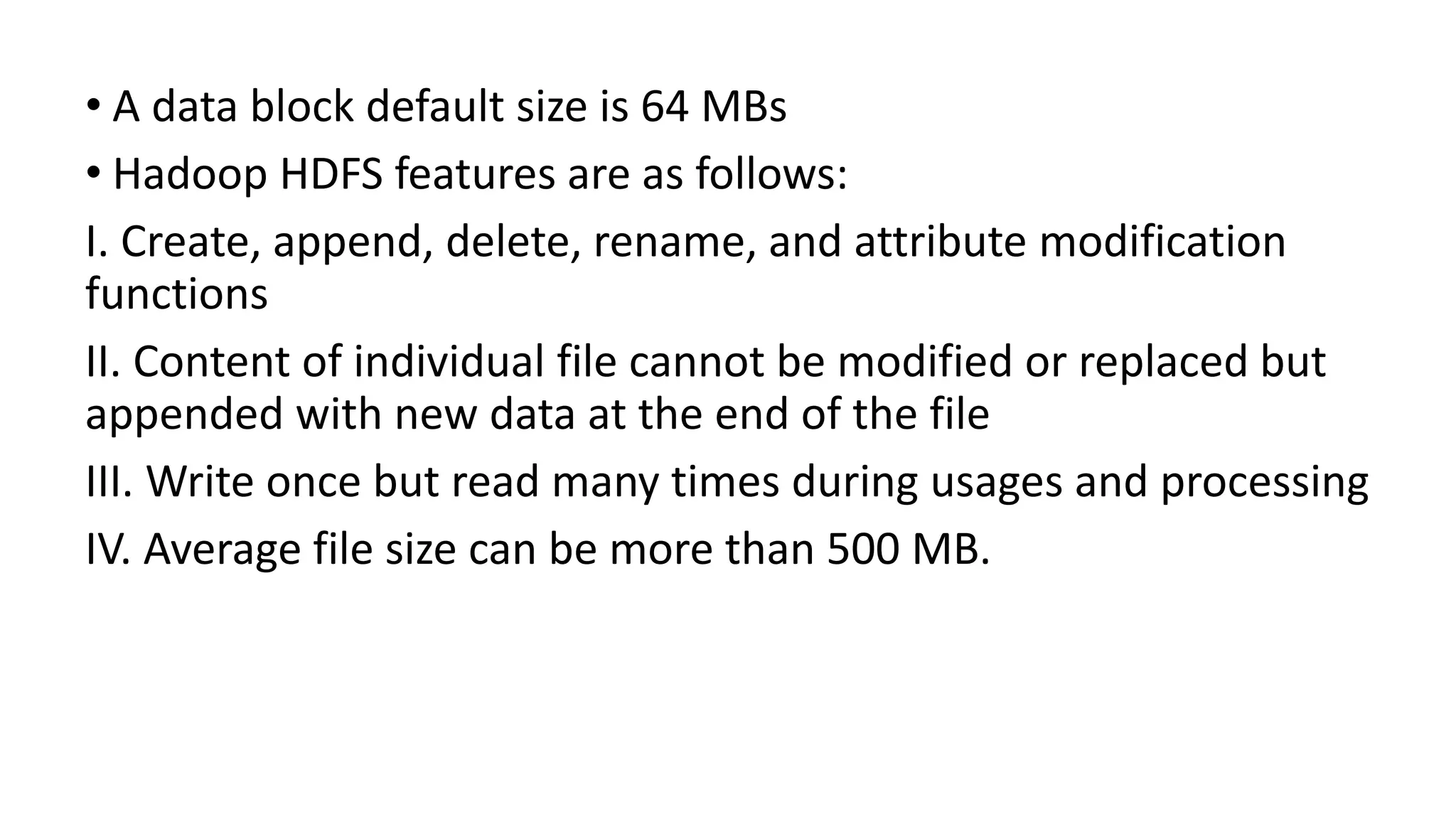

• A data block default size is 64 MBs
• Hadoop HDFS features are as follows:
I. Create, append, delete, rename, and attribute modification
functions
II. Content of individual file cannot be modified or replaced but
appended with new data at the end of the file
III. Write once but read many times during usages and processing
IV. Average file size can be more than 500 MB.

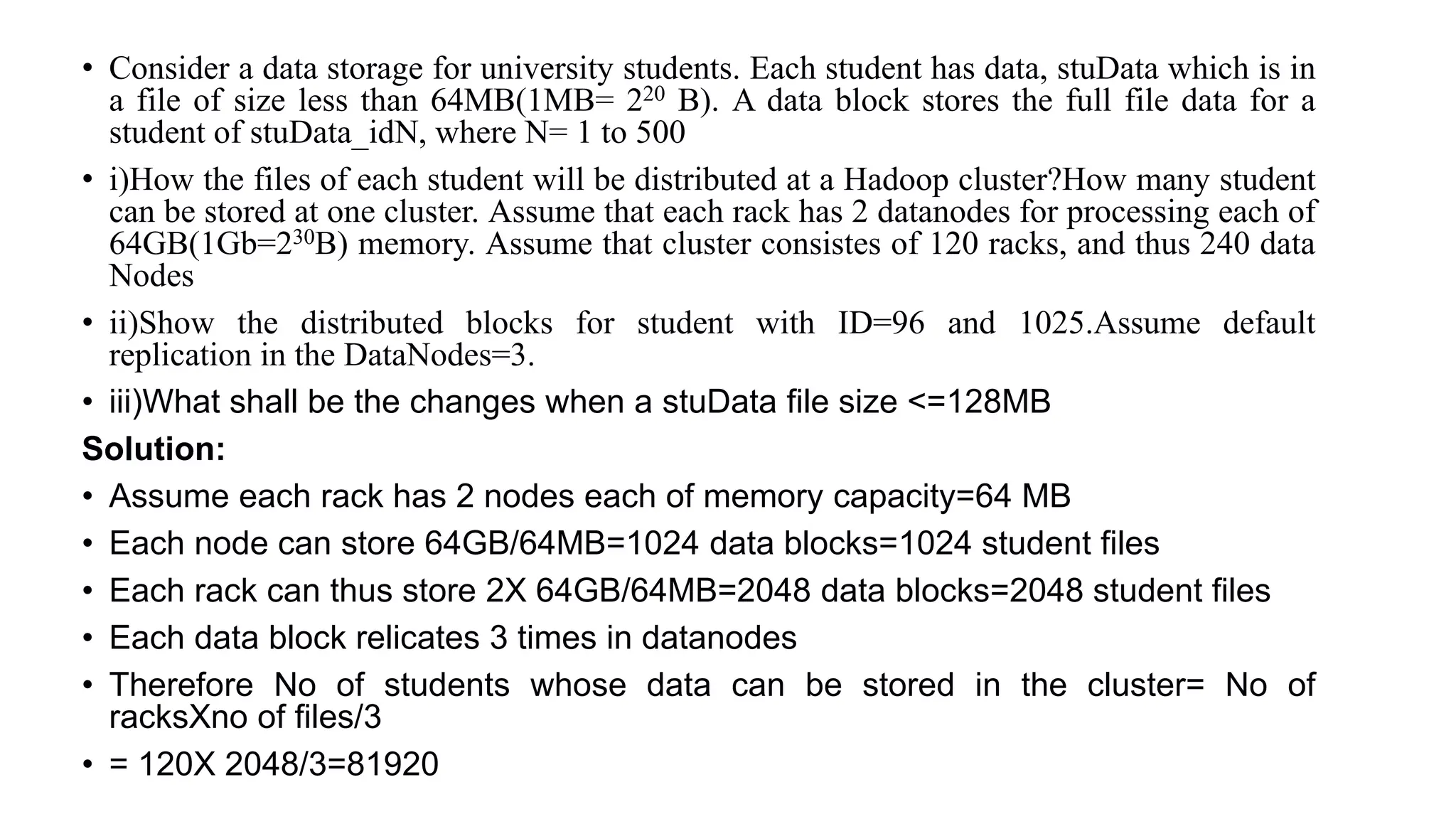

• Consider a data storage for university students. Each student has data, stuData which is in
a file of size less than 64MB(1MB= 220 B). A data block stores the full file data for a
student of stuData_idN, where N= 1 to 500
• i)How the files of each student will be distributed at a Hadoop cluster?How many student
can be stored at one cluster. Assume that each rack has 2 datanodes for processing each of
64GB(1Gb=230B) memory. Assume that cluster consistes of 120 racks, and thus 240 data
Nodes
• ii)Show the distributed blocks for student with ID=96 and 1025.Assume default
replication in the DataNodes=3.
• iii)What shall be the changes when a stuData file size <=128MB
Solution:
• Assume each rack has 2 nodes each of memory capacity=64 MB
• Each node can store 64GB/64MB=1024 data blocks=1024 student files
• Each rack can thus store 2X 64GB/64MB=2048 data blocks=2048 student files
• Each data block relicates 3 times in datanodes
• Therefore No of students whose data can be stored in the cluster= No of
racksXno of files/3
• = 120X 2048/3=81920

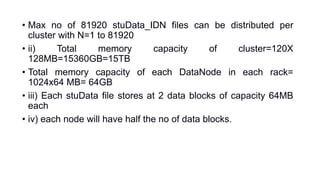

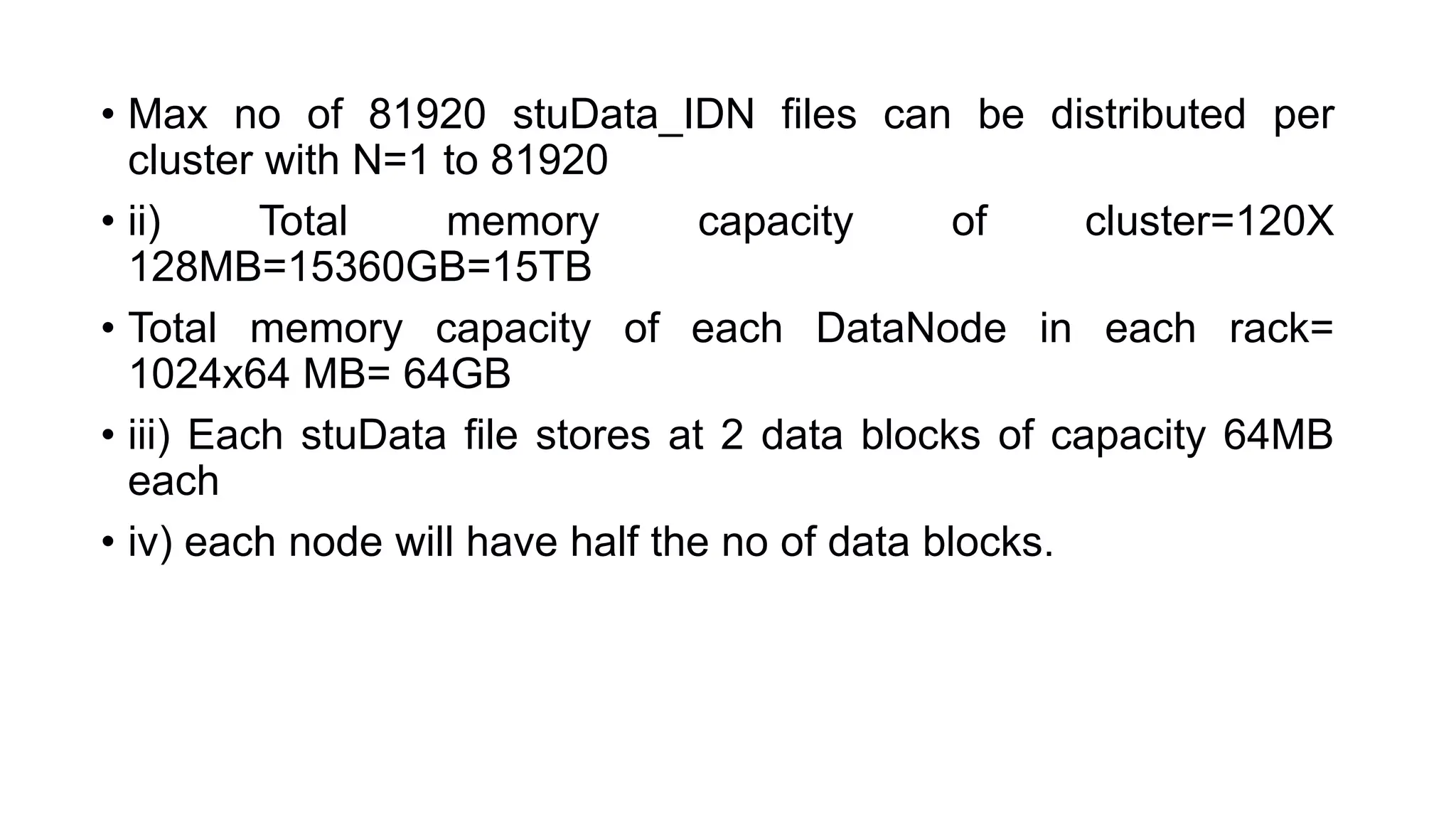

• Max no of 81920 stuData_IDN files can be distributed per
cluster with N=1 to 81920
• ii) Total memory capacity of cluster=120X
128MB=15360GB=15TB
• Total memory capacity of each DataNode in each rack=
1024x64 MB= 64GB
• iii) Each stuData file stores at 2 data blocks of capacity 64MB
each
• iv) each node will have half the no of data blocks.

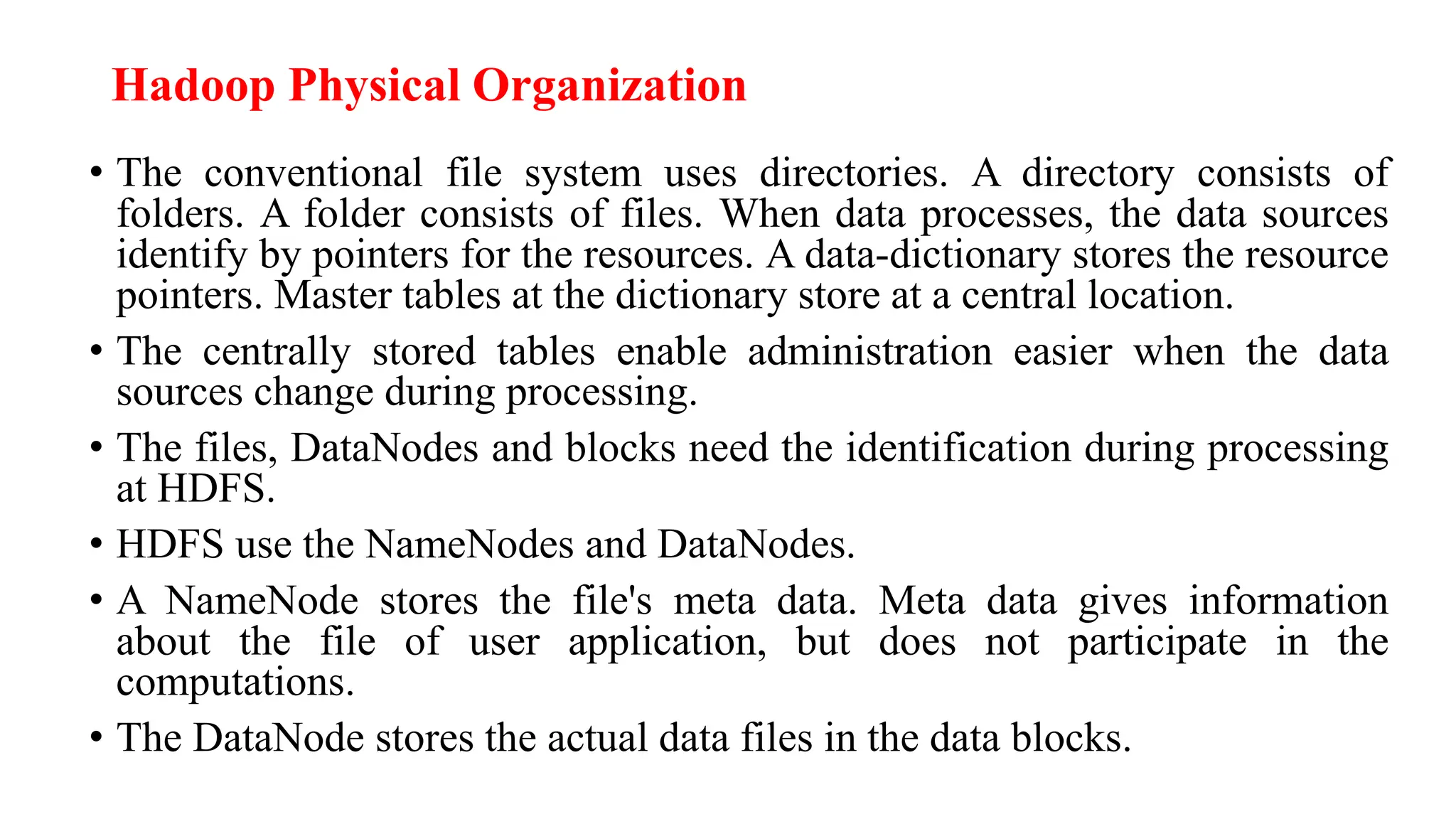

Hadoop Physical Organization
• The conventional file system uses directories. A directory consists of
folders. A folder consists of files. When data processes, the data sources
identify by pointers for the resources. A data-dictionary stores the resource
pointers. Master tables at the dictionary store at a central location.
• The centrally stored tables enable administration easier when the data
sources change during processing.
• The files, DataNodes and blocks need the identification during processing
at HDFS.

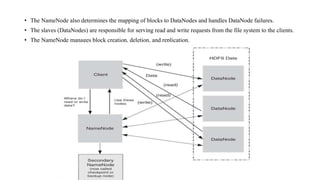

• HDFS use the NameNodes and DataNodes.
• A NameNode stores the file's meta data. Meta data gives information
about the file of user application, but does not participate in the
computations.
• The DataNode stores the actual data files in the data blocks.

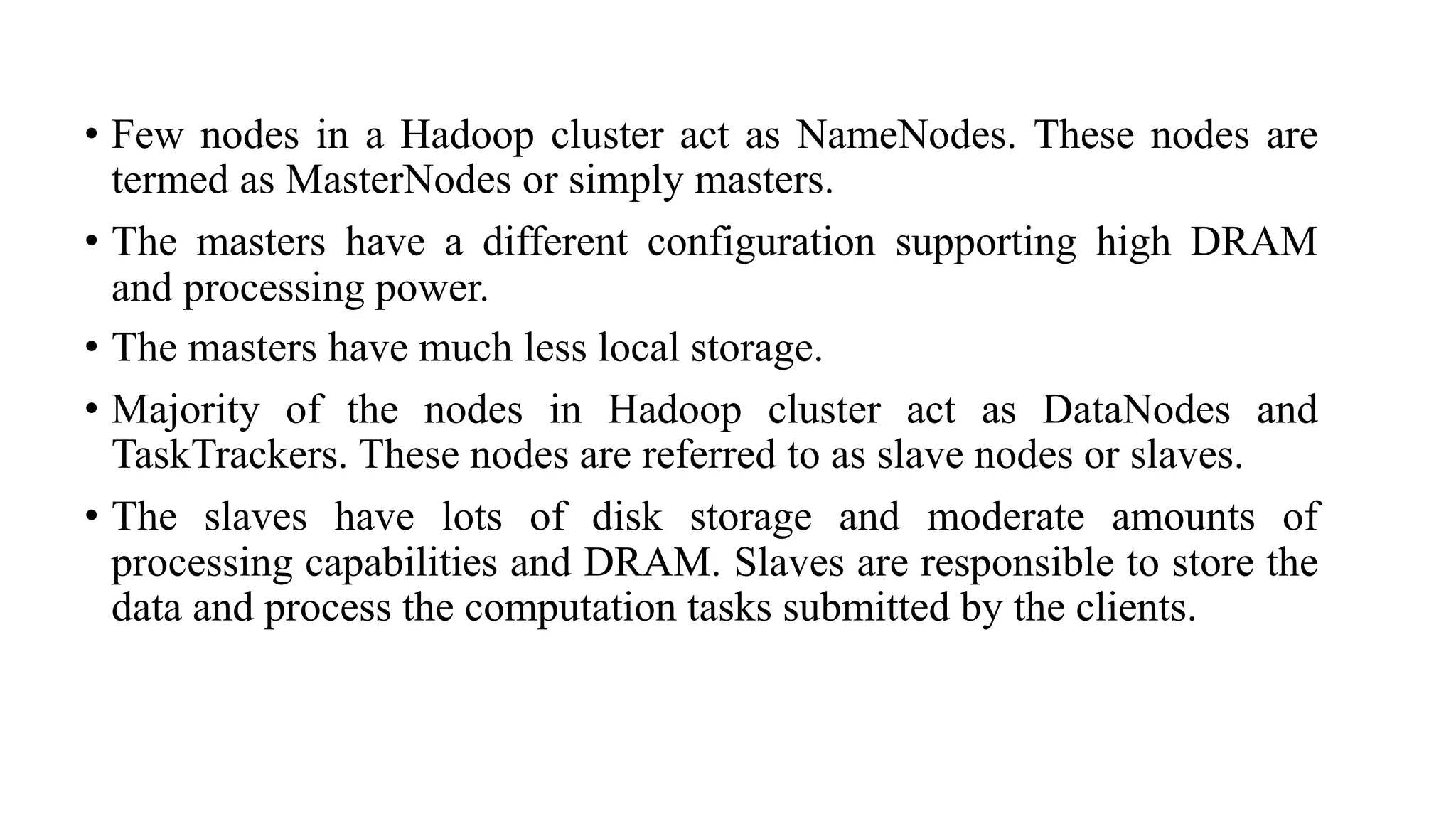

• Few nodes in a Hadoop cluster act as NameNodes. These nodes are
termed as MasterNodes or simply masters.
• The masters have a different configuration supporting high DRAM
and processing power.
• The masters have much less local storage.
• Majority of the nodes in Hadoop cluster act as DataNodes and
TaskTrackers. These nodes are referred to as slave nodes or slaves.
• The slaves have lots of disk storage and moderate amounts of
processing capabilities and DRAM. Slaves are responsible to store the
data and process the computation tasks submitted by the clients.

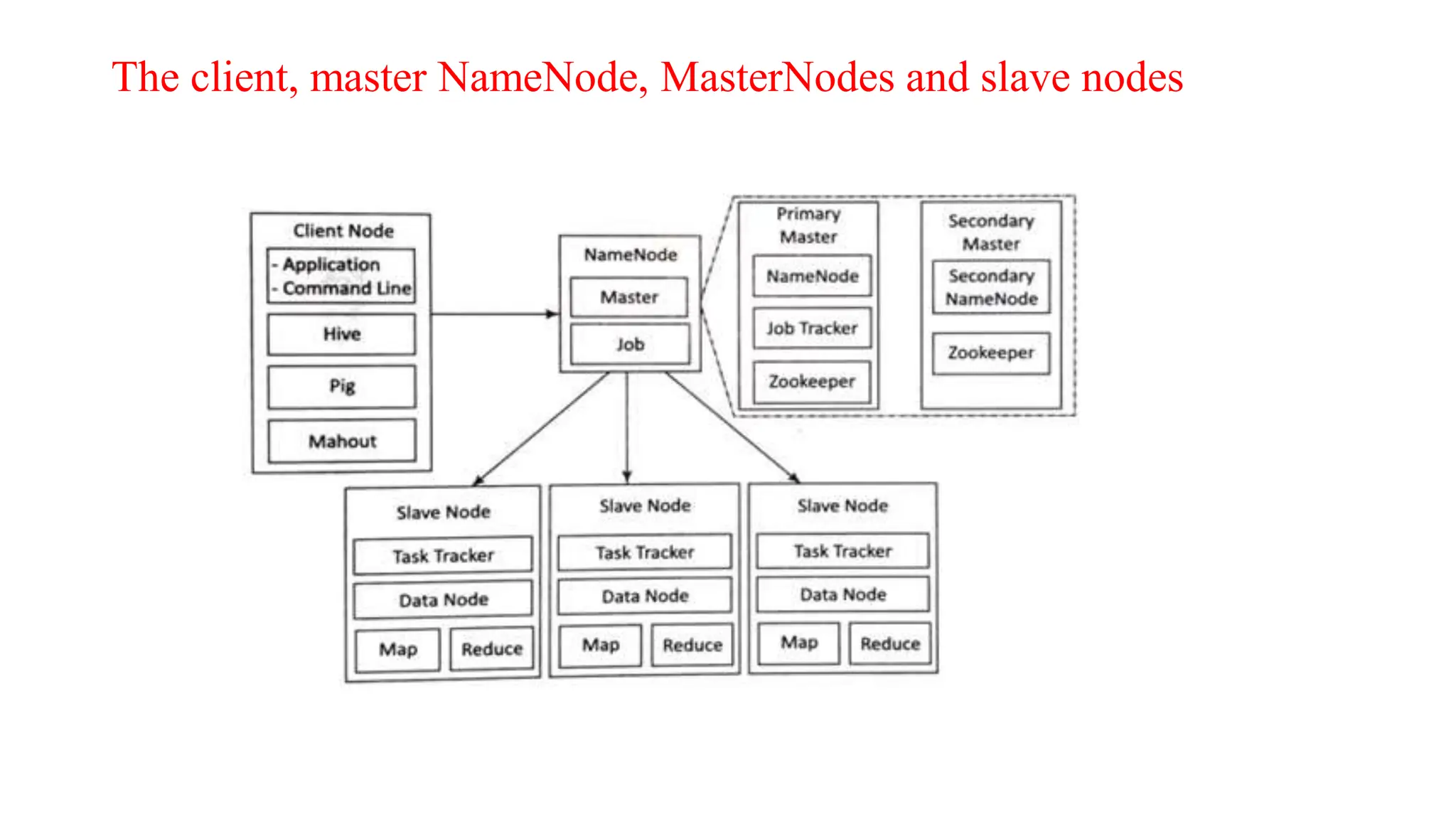

The client, master NameNode, MasterNodes and slave nodes

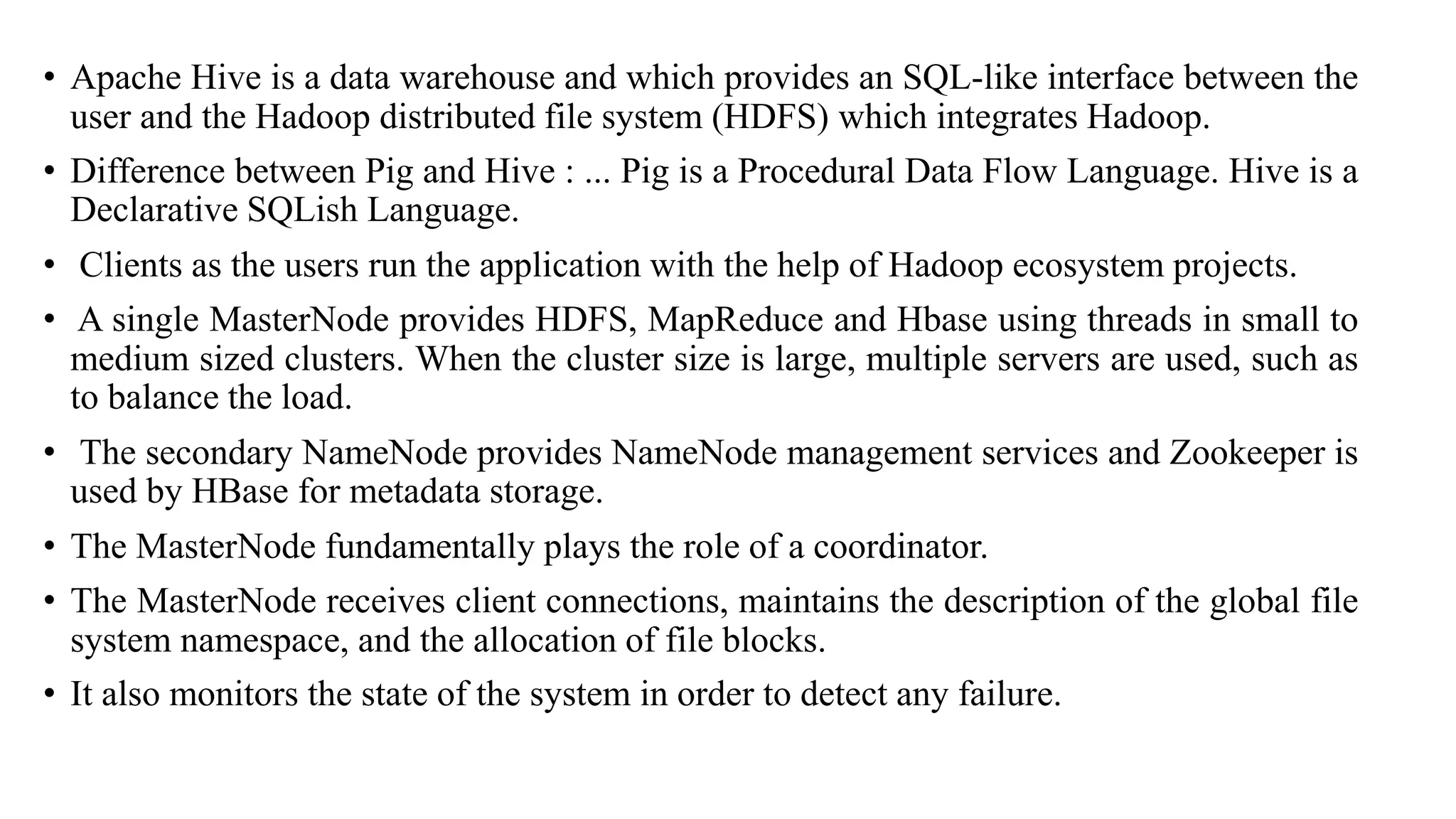

• Apache Hive is a data warehouse and which provides an SQL-like interface between the
user and the Hadoop distributed file system (HDFS) which integrates Hadoop.
• Difference between Pig and Hive : ... Pig is a Procedural Data Flow Language. Hive is a
Declarative SQLish Language.
• Clients as the users run the application with the help of Hadoop ecosystem projects.
• A single MasterNode provides HDFS, MapReduce and Hbase using threads in small to
medium sized clusters. When the cluster size is large, multiple servers are used, such as
to balance the load.
• The secondary NameNode provides NameNode management services and Zookeeper is
used by HBase for metadata storage.
• The MasterNode fundamentally plays the role of a coordinator.
• The MasterNode receives client connections, maintains the description of the global file
system namespace, and the allocation of file blocks.
• It also monitors the state of the system in order to detect any failure.

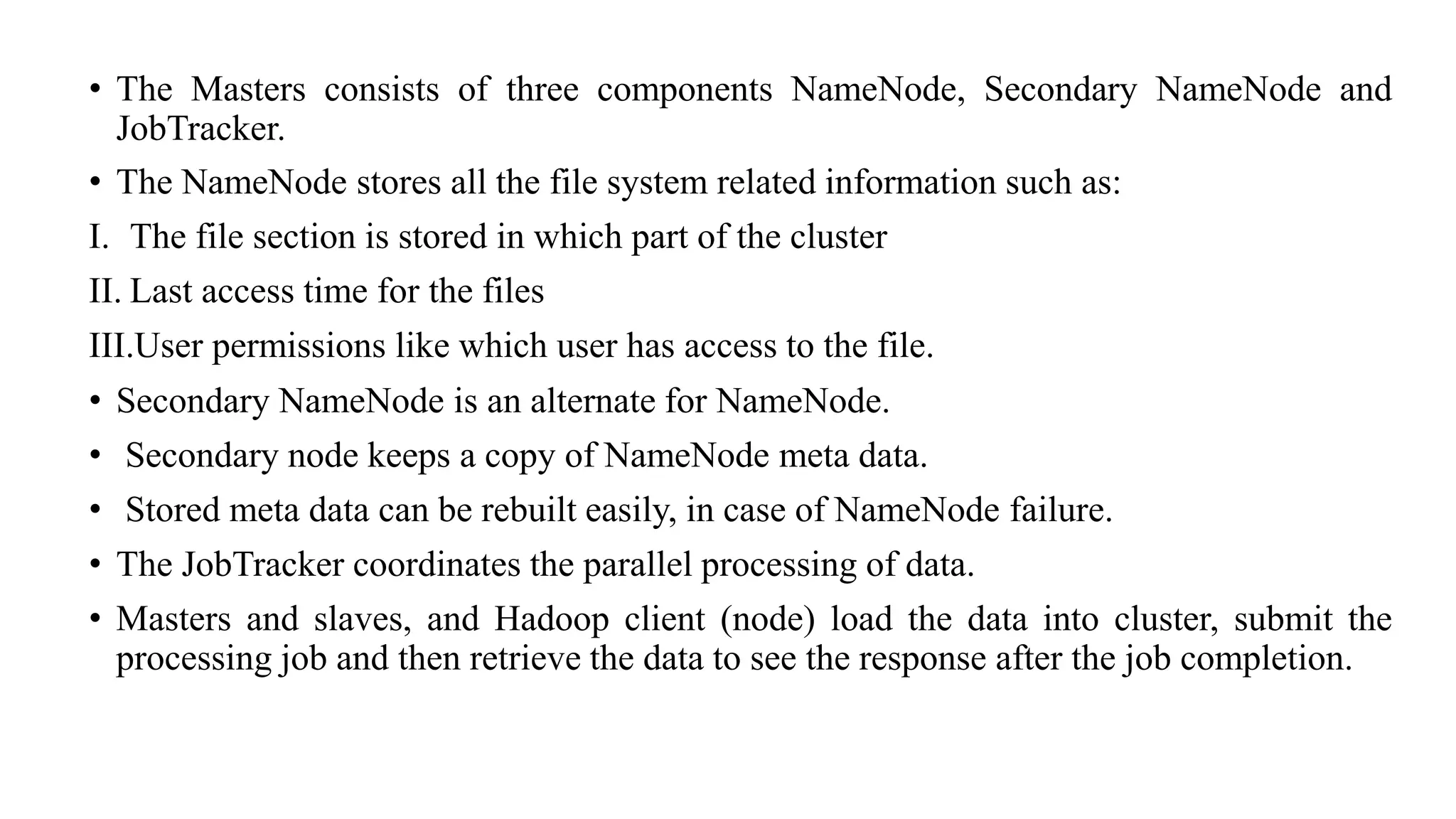

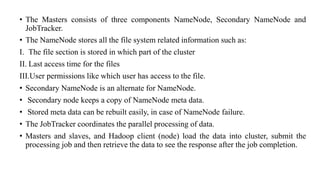

• The Masters consists of three components NameNode, Secondary NameNode and
JobTracker.
• The NameNode stores all the file system related information such as:
I. The file section is stored in which part of the cluster
II. Last access time for the files
III.User permissions like which user has access to the file.
• Secondary NameNode is an alternate for NameNode.
• Secondary node keeps a copy of NameNode meta data.
• Stored meta data can be rebuilt easily, in case of NameNode failure.

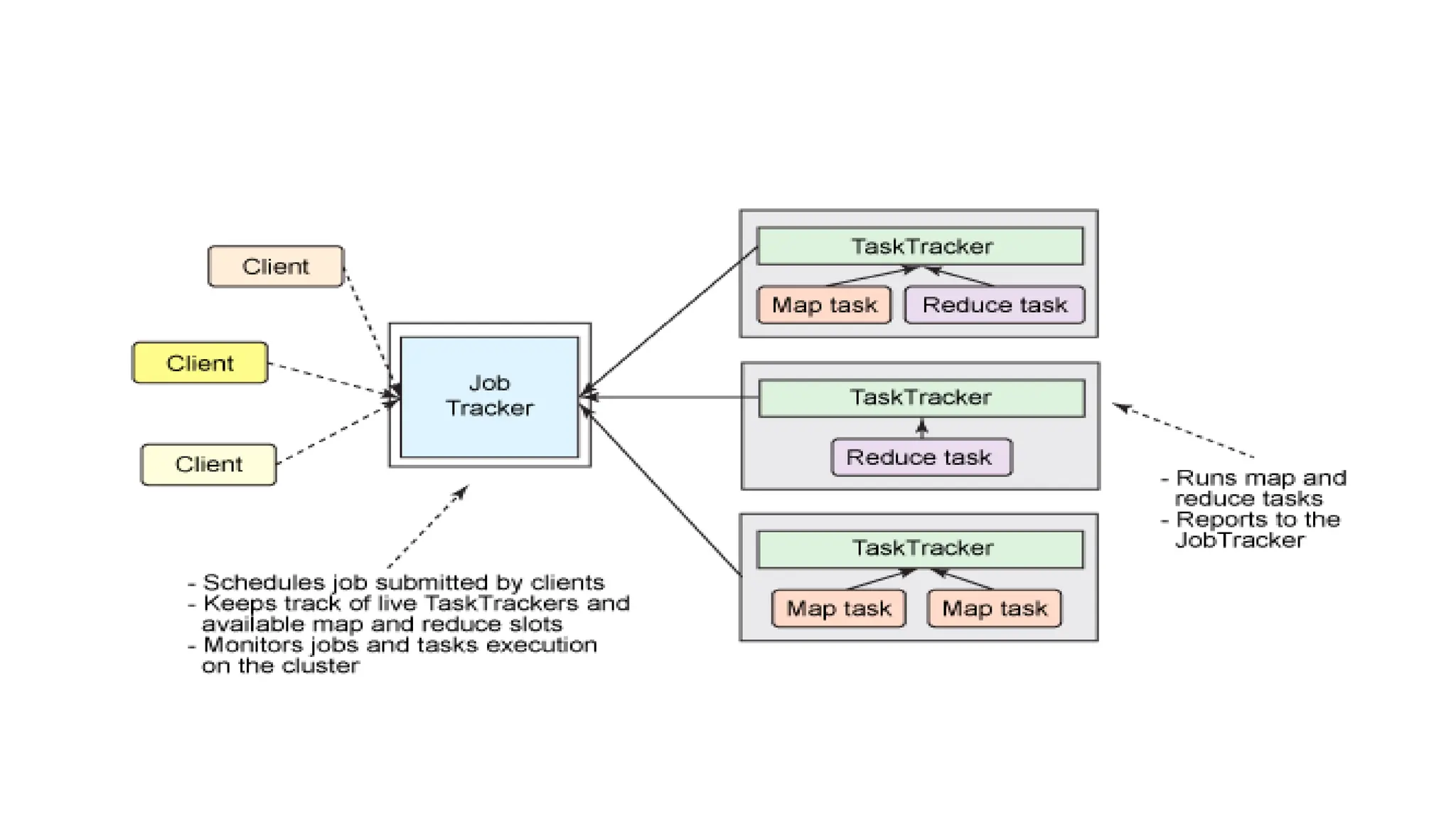

• The JobTracker coordinates the parallel processing of data.
• Masters and slaves, and Hadoop client (node) load the data into cluster, submit the
processing job and then retrieve the data to see the response after the job completion.

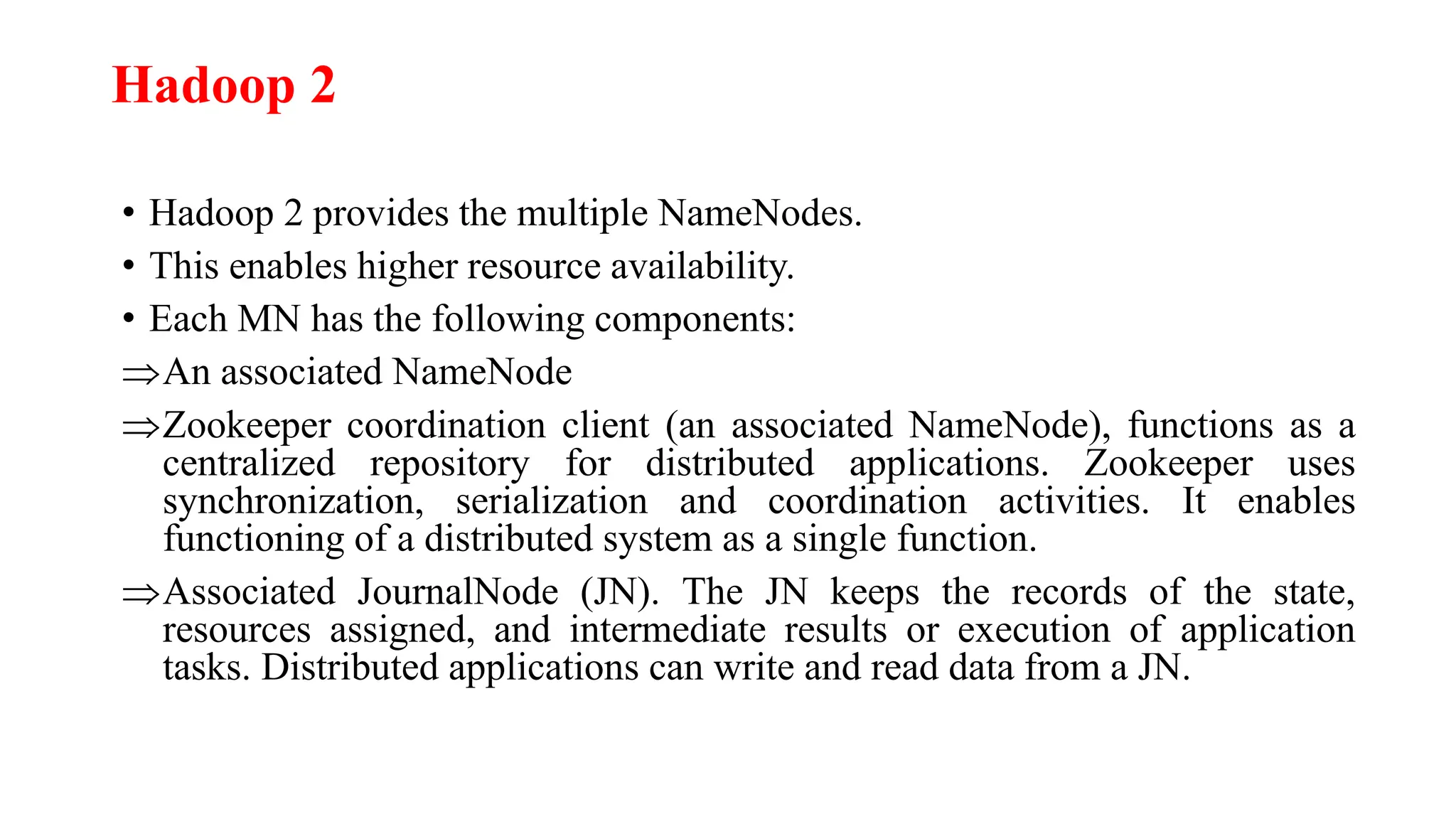

Hadoop 2
• Hadoop 2 provides the multiple NameNodes.
• This enables higher resource availability.
• Each MN has the following components:
An associated NameNode
Zookeeper coordination client (an associated NameNode), functions as a
centralized repository for distributed applications. Zookeeper uses
synchronization, serialization and coordination activities. It enables
functioning of a distributed system as a single function.
Associated JournalNode (JN). The JN keeps the records of the state,
resources assigned, and intermediate results or execution of application
tasks. Distributed applications can write and read data from a JN.

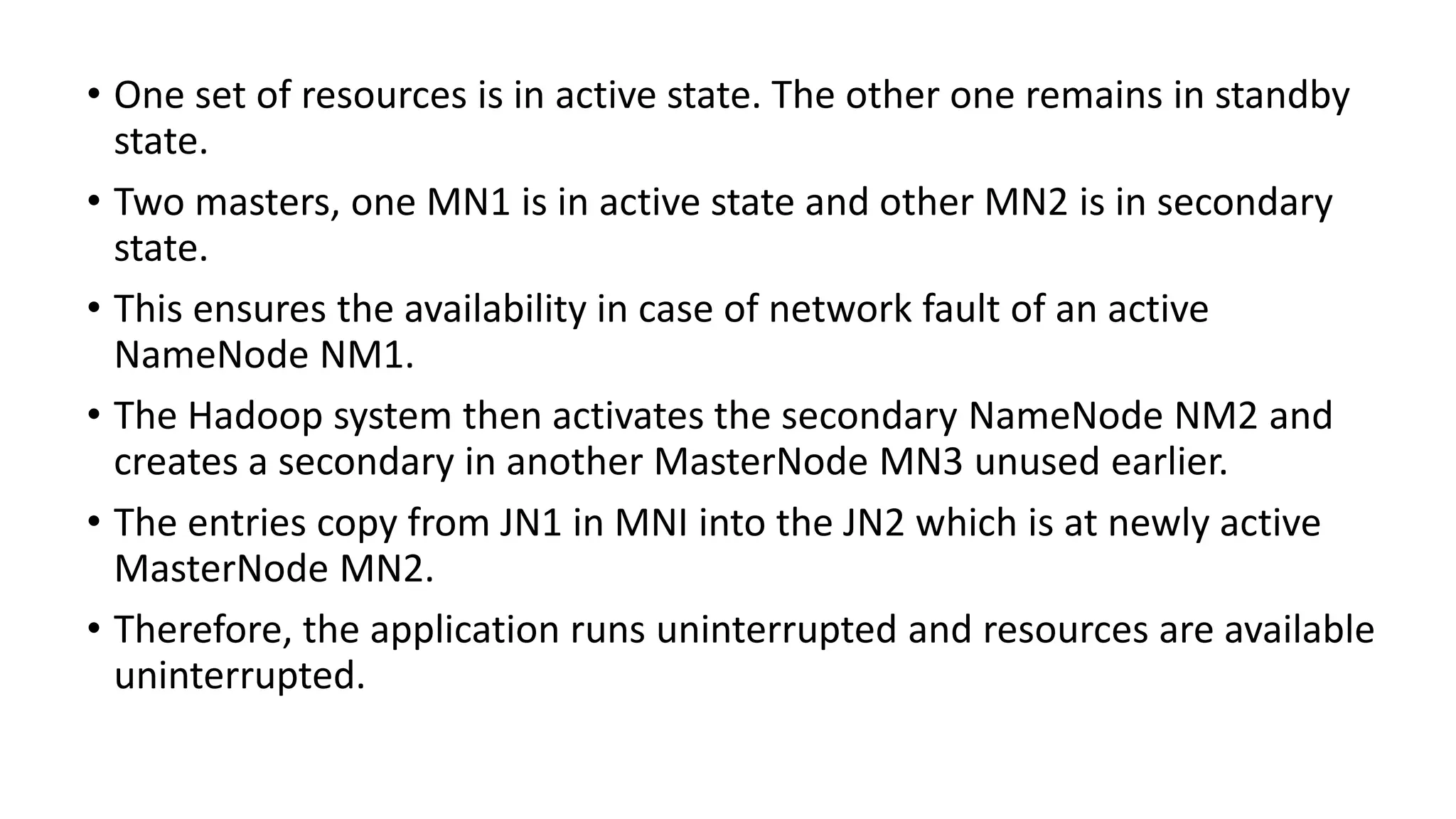

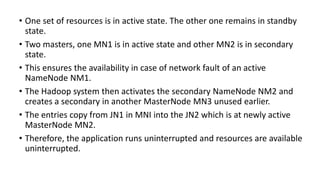

• One set of resources is in active state. The other one remains in standby
state.
• Two masters, one MN1 is in active state and other MN2 is in secondary
state.
• This ensures the availability in case of network fault of an active
NameNode NM1.
• The Hadoop system then activates the secondary NameNode NM2 and
creates a secondary in another MasterNode MN3 unused earlier.
• The entries copy from JN1 in MNI into the JN2 which is at newly active
MasterNode MN2.
• Therefore, the application runs uninterrupted and resources are available
uninterrupted.

HDFS Commands
• The HDFS shell is not compliant with the POSIX.
• Thus, the shell cannot interact Similar to Unix or Linux.
• Commands for interacting with the files in HDFS require /bin/hdfs dfs <args>,
• where args stands for the command arguments.
• All Hadoop commands are invoked by the bin/Hadoop script. Hadoop fsck / -files -blocks.

MapReduce FRAMEWORK AND PROGRAMMING MODEL

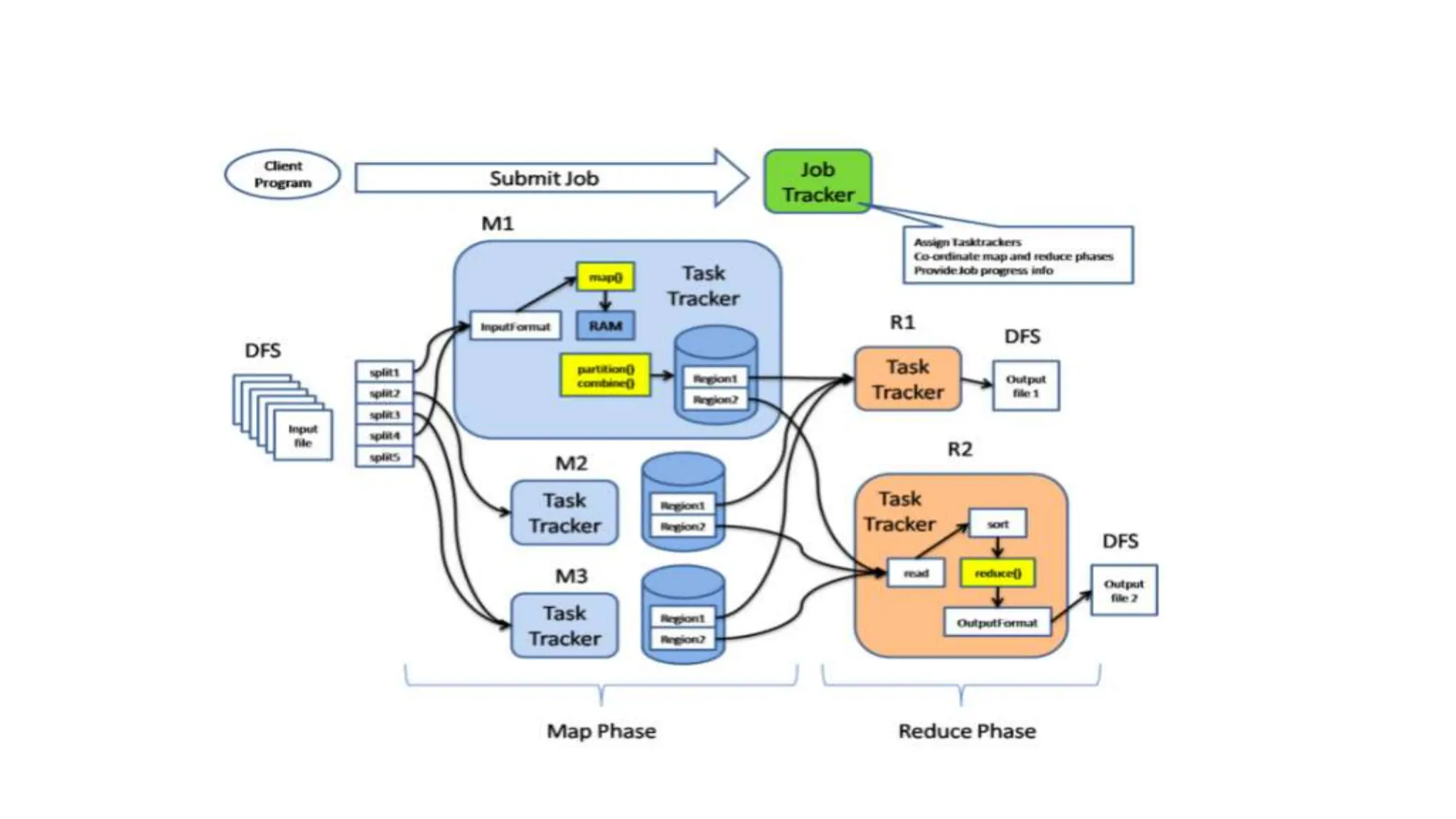

• MapReduce is a programming model for distributed computing.
• Mapper means software for doing the assigned task after organizing the data
blocks imported using the keys.
• A key specifies in a command line of Mapper. The command maps the key to
the data, which an application uses.
• Reducer means software for reducing the mapped data by using the
aggregation, query or user-specified function. The reducer provides a concise
cohesive response for the application.
• Aggregation function means the function that groups the values of multiple
rows together to result a single value of more significant meaning or
measurement.
• For example, function such as count, sum, maximum, minimum, deviation
and standard deviation.

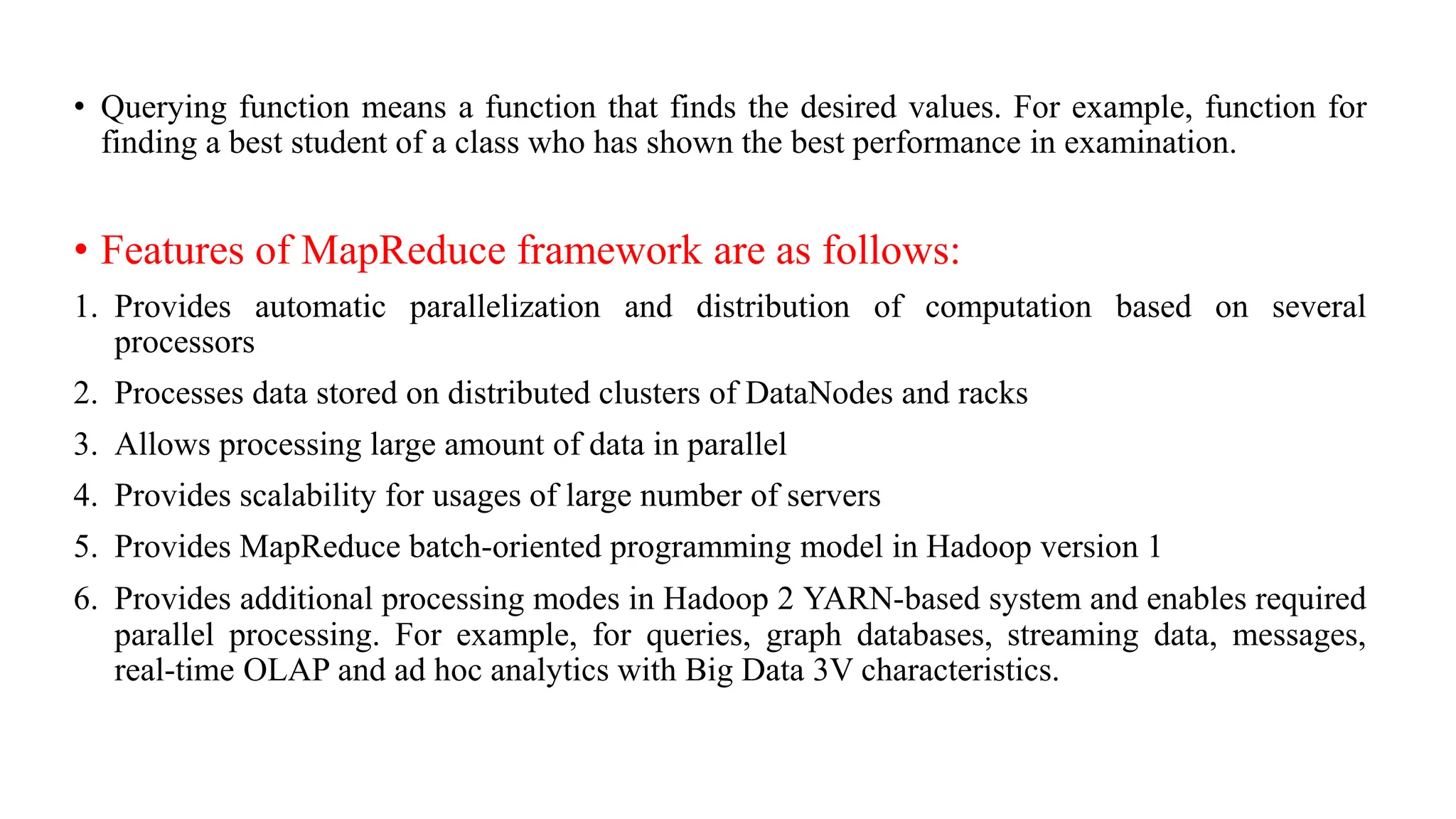

• Querying function means a function that finds the desired values. For example, function for
finding a best student of a class who has shown the best performance in examination.
• Features of MapReduce framework are as follows:
1. Provides automatic parallelization and distribution of computation based on several
processors
2. Processes data stored on distributed clusters of DataNodes and racks
3. Allows processing large amount of data in parallel
4. Provides scalability for usages of large number of servers
5. Provides MapReduce batch-oriented programming model in Hadoop version 1
6. Provides additional processing modes in Hadoop 2 YARN-based system and enables required
parallel processing. For example, for queries, graph databases, streaming data, messages,
real-time OLAP and ad hoc analytics with Big Data 3V characteristics.

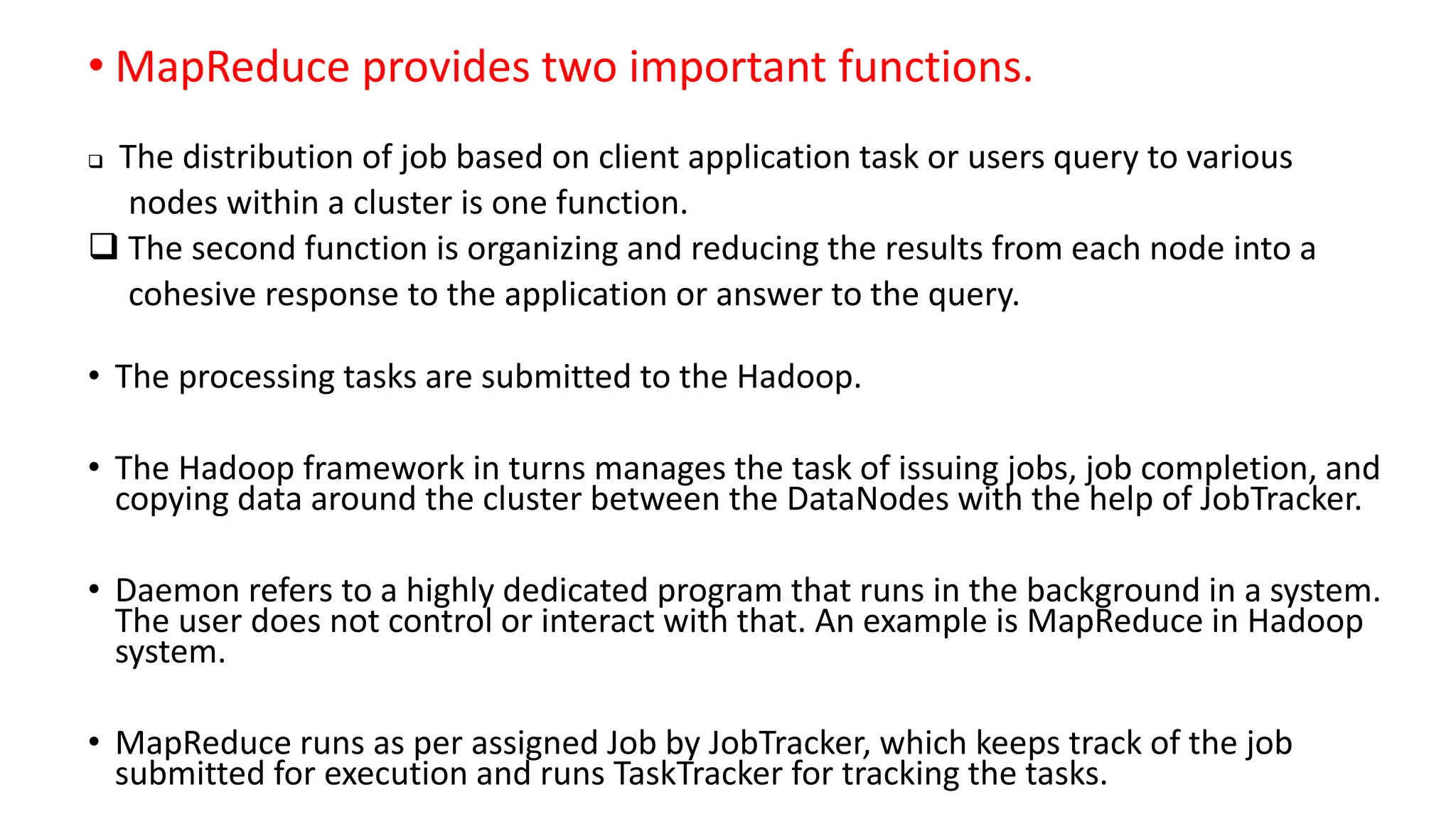

• MapReduce provides two important functions.
 The distribution of job based on client application task or users query to various
nodes within a cluster is one function.
 The second function is organizing and reducing the results from each node into a
cohesive response to the application or answer to the query.
• The processing tasks are submitted to the Hadoop.
• The Hadoop framework in turns manages the task of issuing jobs, job completion, and
copying data around the cluster between the DataNodes with the help of JobTracker.
• Daemon refers to a highly dedicated program that runs in the background in a system.
The user does not control or interact with that. An example is MapReduce in Hadoop
system.
• MapReduce runs as per assigned Job by JobTracker, which keeps track of the job
submitted for execution and runs TaskTracker for tracking the tasks.

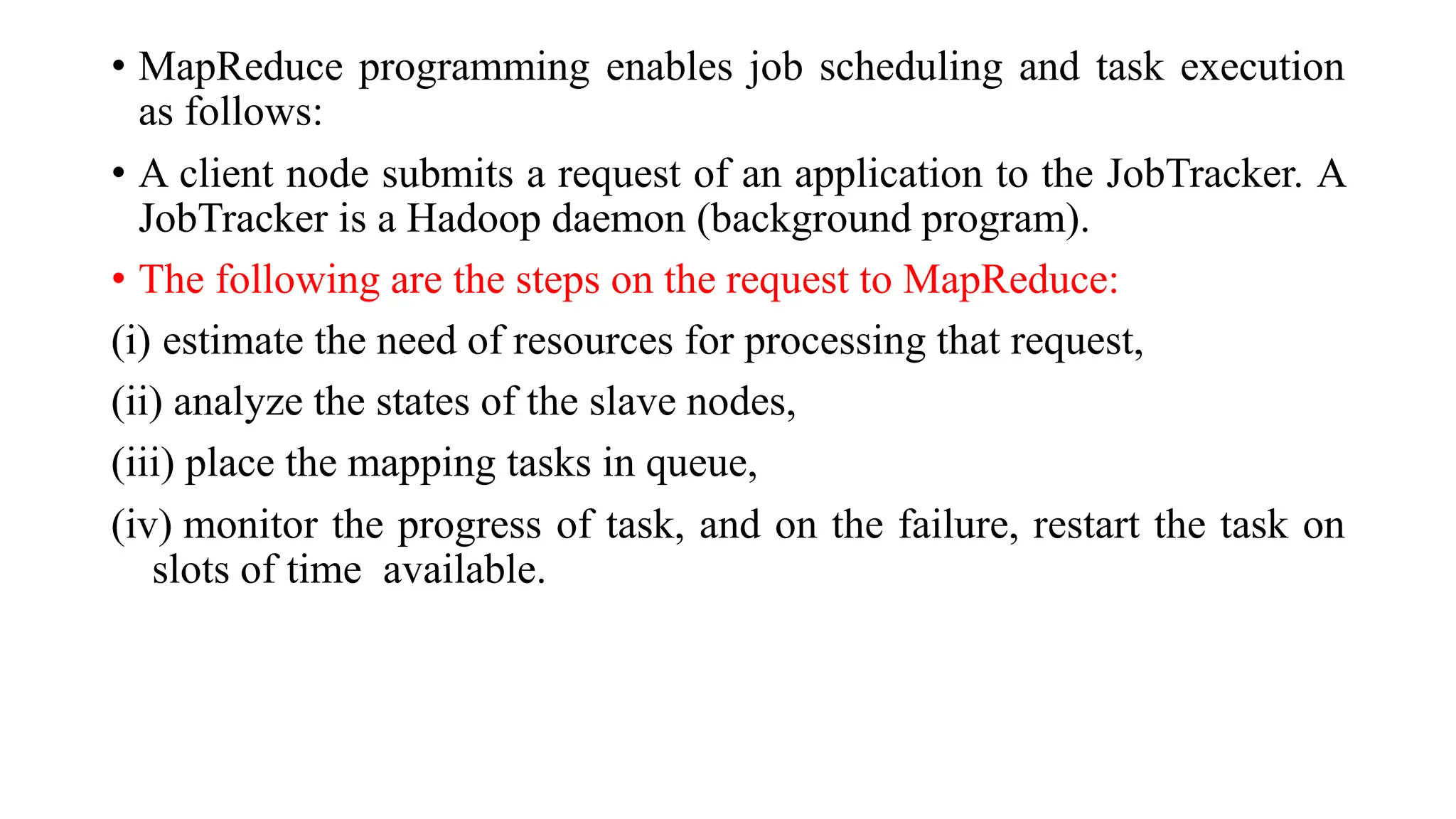

• MapReduce programming enables job scheduling and task execution
as follows:
• A client node submits a request of an application to the JobTracker. A
JobTracker is a Hadoop daemon (background program).
• The following are the steps on the request to MapReduce:
(i) estimate the need of resources for processing that request,
(ii) analyze the states of the slave nodes,
(iii) place the mapping tasks in queue,
(iv) monitor the progress of task, and on the failure, restart the task on
slots of time available.

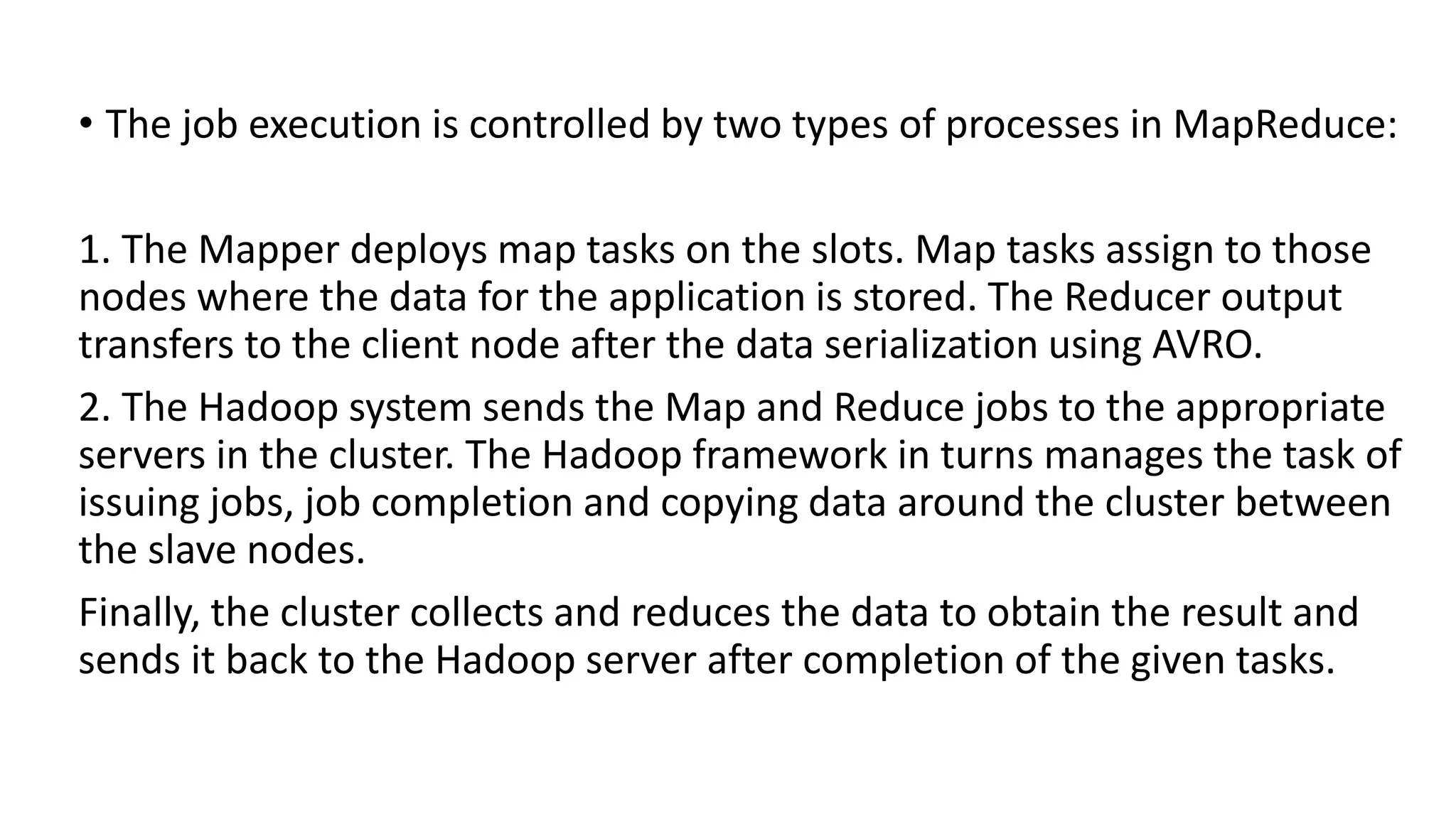

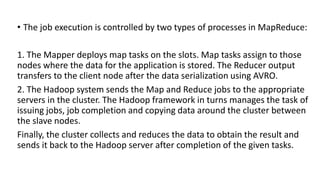

• The job execution is controlled by two types of processes in MapReduce:
1. The Mapper deploys map tasks on the slots. Map tasks assign to those
nodes where the data for the application is stored. The Reducer output
transfers to the client node after the data serialization using AVRO.
2. The Hadoop system sends the Map and Reduce jobs to the appropriate
servers in the cluster. The Hadoop framework in turns manages the task of
issuing jobs, job completion and copying data around the cluster between
the slave nodes.
Finally, the cluster collects and reduces the data to obtain the result and
sends it back to the Hadoop server after completion of the given tasks.

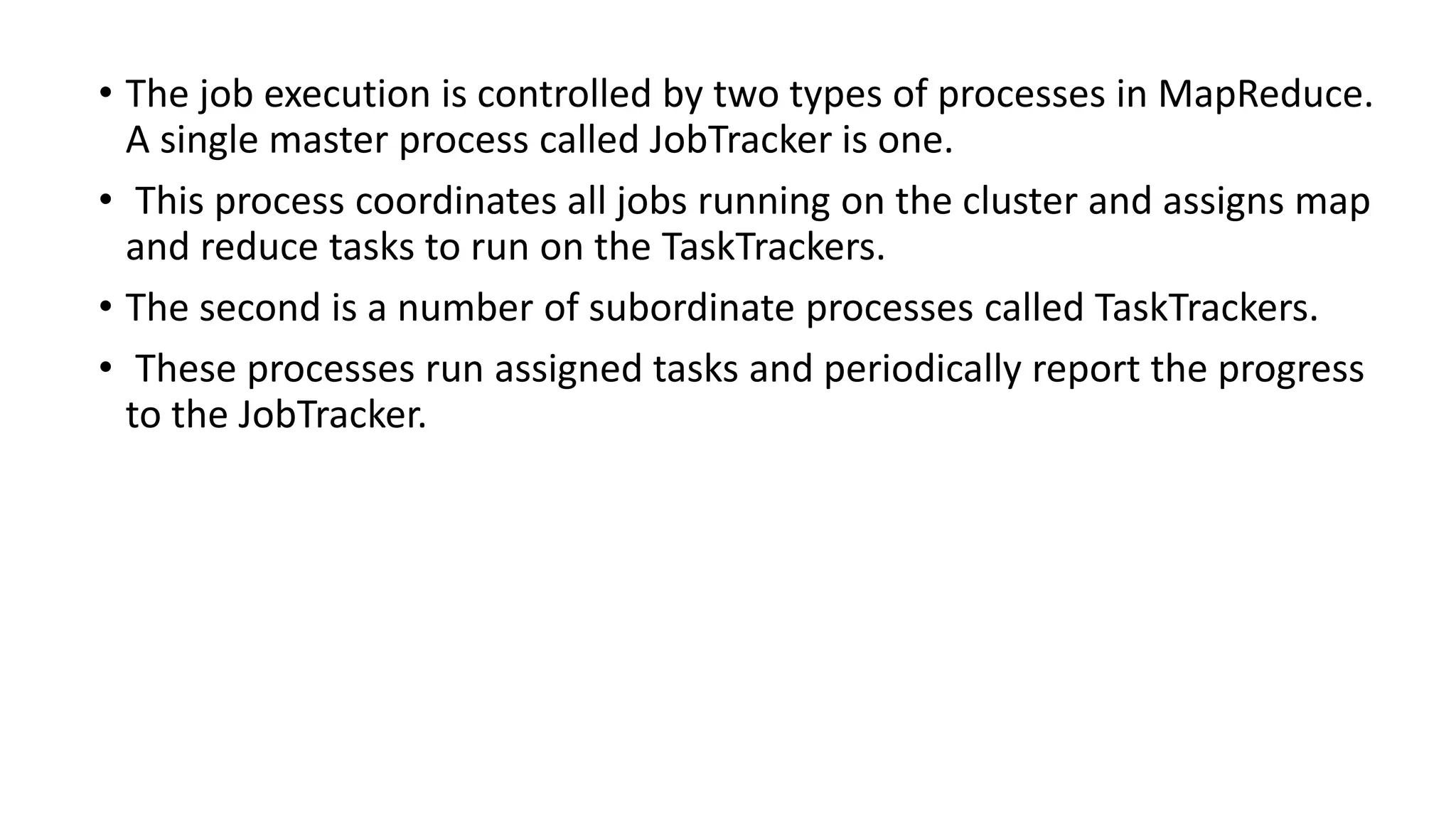

• The job execution is controlled by two types of processes in MapReduce.
A single master process called JobTracker is one.
• This process coordinates all jobs running on the cluster and assigns map
and reduce tasks to run on the TaskTrackers.
• The second is a number of subordinate processes called TaskTrackers.
• These processes run assigned tasks and periodically report the progress
to the JobTracker.

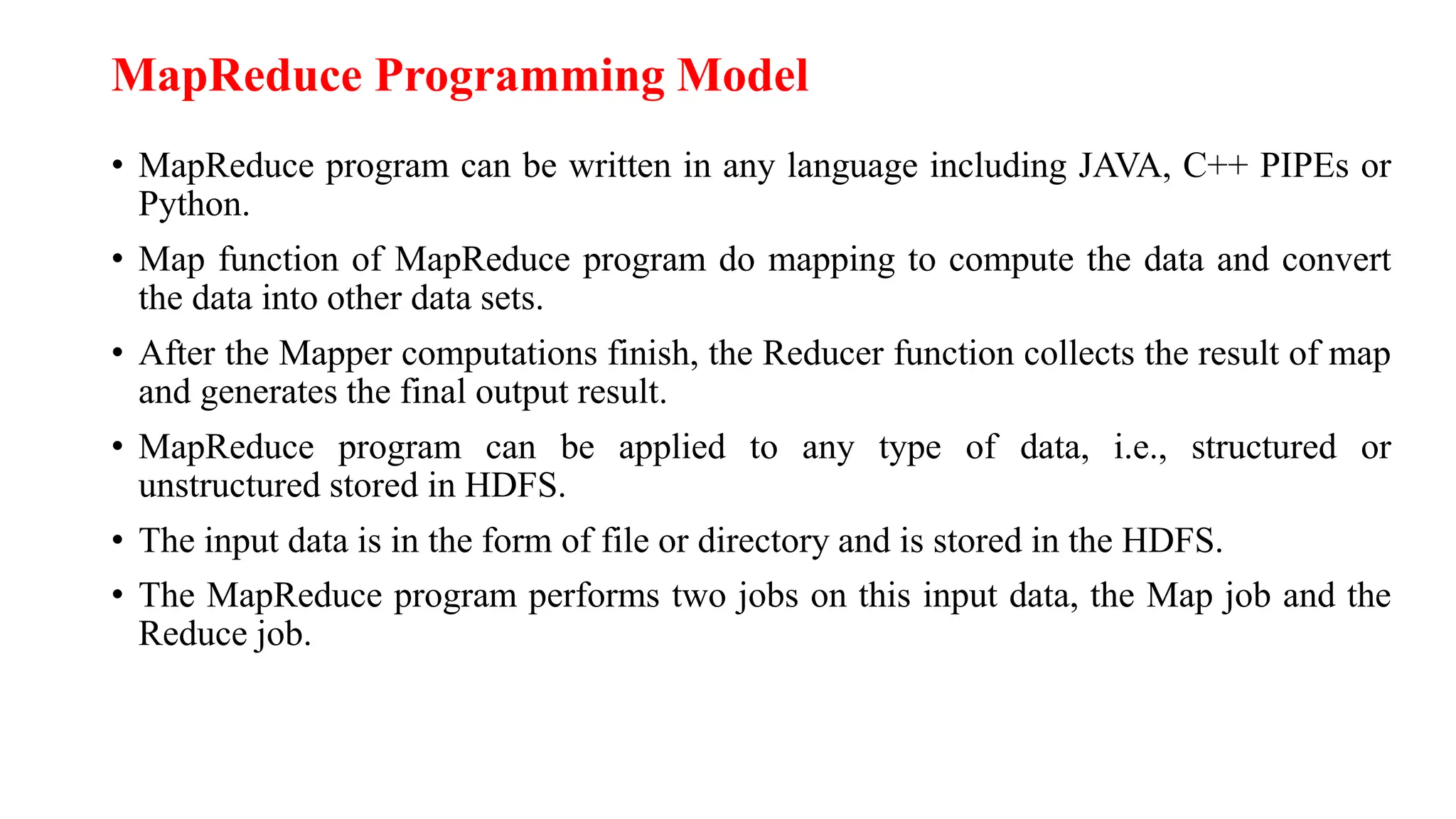

MapReduce Programming Model
• MapReduce program can be written in any language including JAVA, C++ PIPEs or
Python.
• Map function of MapReduce program do mapping to compute the data and convert
the data into other data sets.
• After the Mapper computations finish, the Reducer function collects the result of map
and generates the final output result.
• MapReduce program can be applied to any type of data, i.e., structured or
unstructured stored in HDFS.
• The input data is in the form of file or directory and is stored in the HDFS.
• The MapReduce program performs two jobs on this input data, the Map job and the
Reduce job.

• Map phase and Reduce phase. The map job takes a set of data
and converts it into another set of data.
• The individual elements are broken down into tuples
(key/value pairs) in the resultant set of data.
• The reduce job takes the output from a map as input and
combines the data tuples into a smaller set of tuples.
• Map and reduce jobs run in isolation from one another.
• As the sequence of the name MapReduce implies, the reduce
job is always performed after the map job.
• The MapReduce v2 uses YARN based resource scheduling
which simplifies the software development.

HADOOP YARN(Yet Another Resource Negotiator)
• YARN is a resource management platform which manages
computer resources.
• The platform is responsible for providing the computational
resources, such as CPUs, memory, network I/O which are
needed when an application executes.
• YARN manages the schedules for running of the sub-tasks.
Each sub-task uses the resources in allotted time intervals.
• YARN separates the resource management and processing
components.
• An application consists of a number of tasks. Each task can
consist of a number of sub-tasks (threads), which run in
parallel at the nodes in the cluster.

HADOOP YARN(Yet Another Resource
Negotiator)
• YARN enables running of multi-threaded applications.
• YARN manages and allocates the resources for the application sub-tasks and
submits the resources for them at the Hadoop system.

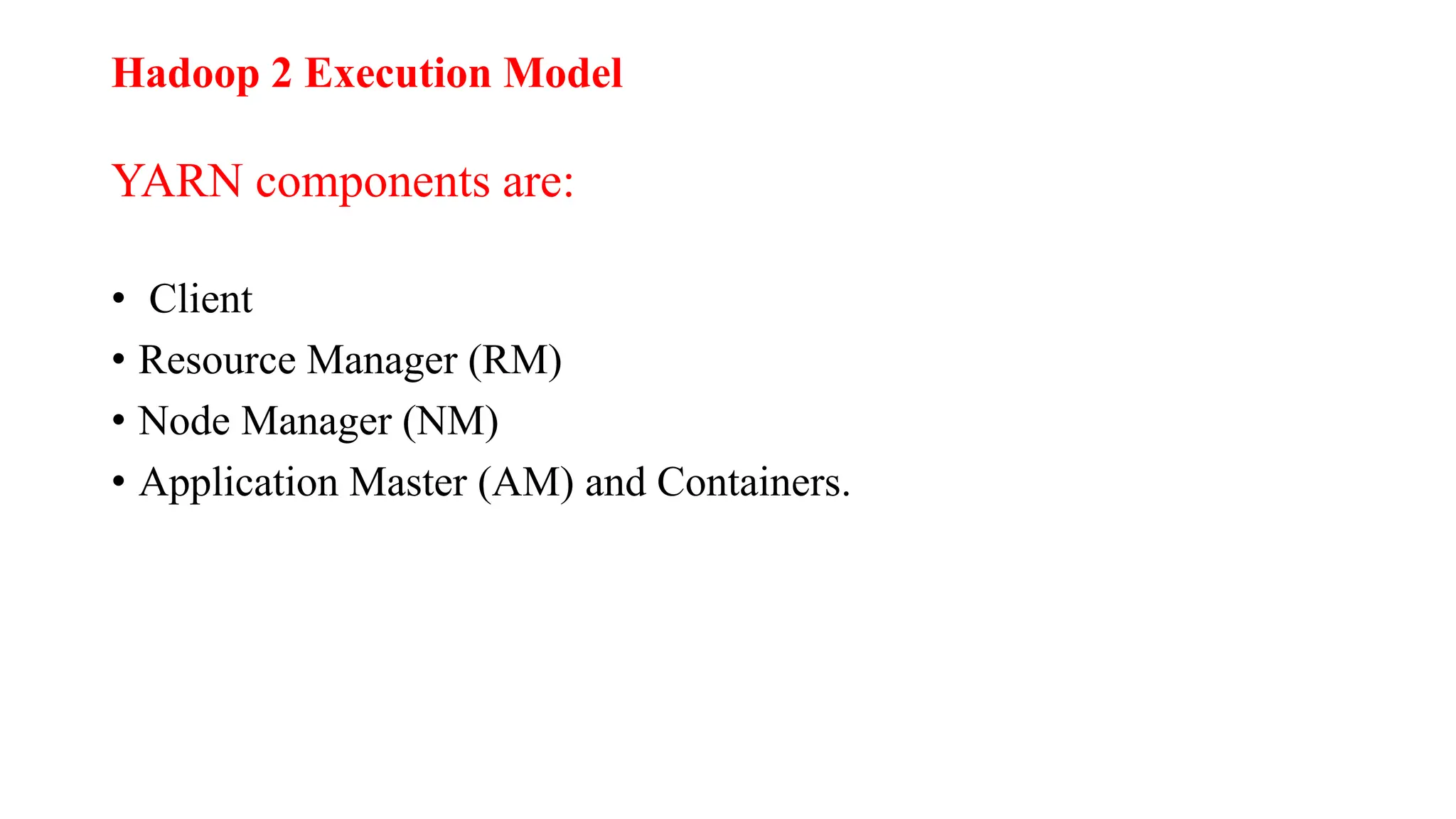

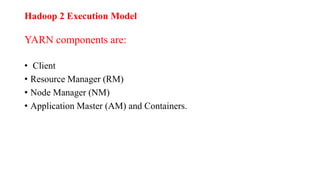

Hadoop 2 Execution Model
YARN components are:
• Client
• Resource Manager (RM)
• Node Manager (NM)
• Application Master (AM) and Containers.

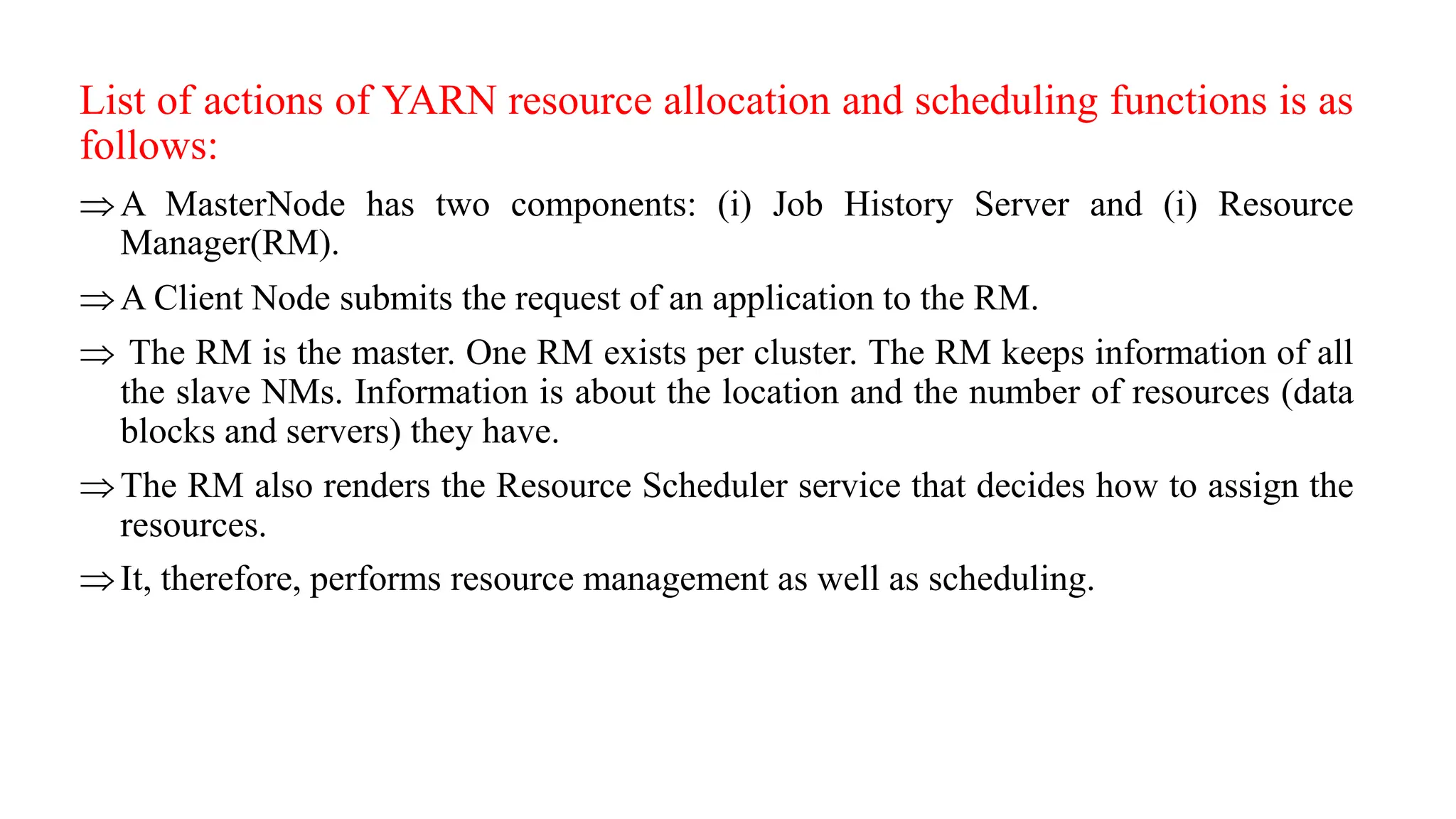

List of actions of YARN resource allocation and scheduling functions is as
follows:
A MasterNode has two components: (i) Job History Server and (i) Resource
Manager(RM).
A Client Node submits the request of an application to the RM.
 The RM is the master. One RM exists per cluster. The RM keeps information of all
the slave NMs. Information is about the location and the number of resources (data
blocks and servers) they have.
The RM also renders the Resource Scheduler service that decides how to assign the
resources.
It, therefore, performs resource management as well as scheduling.

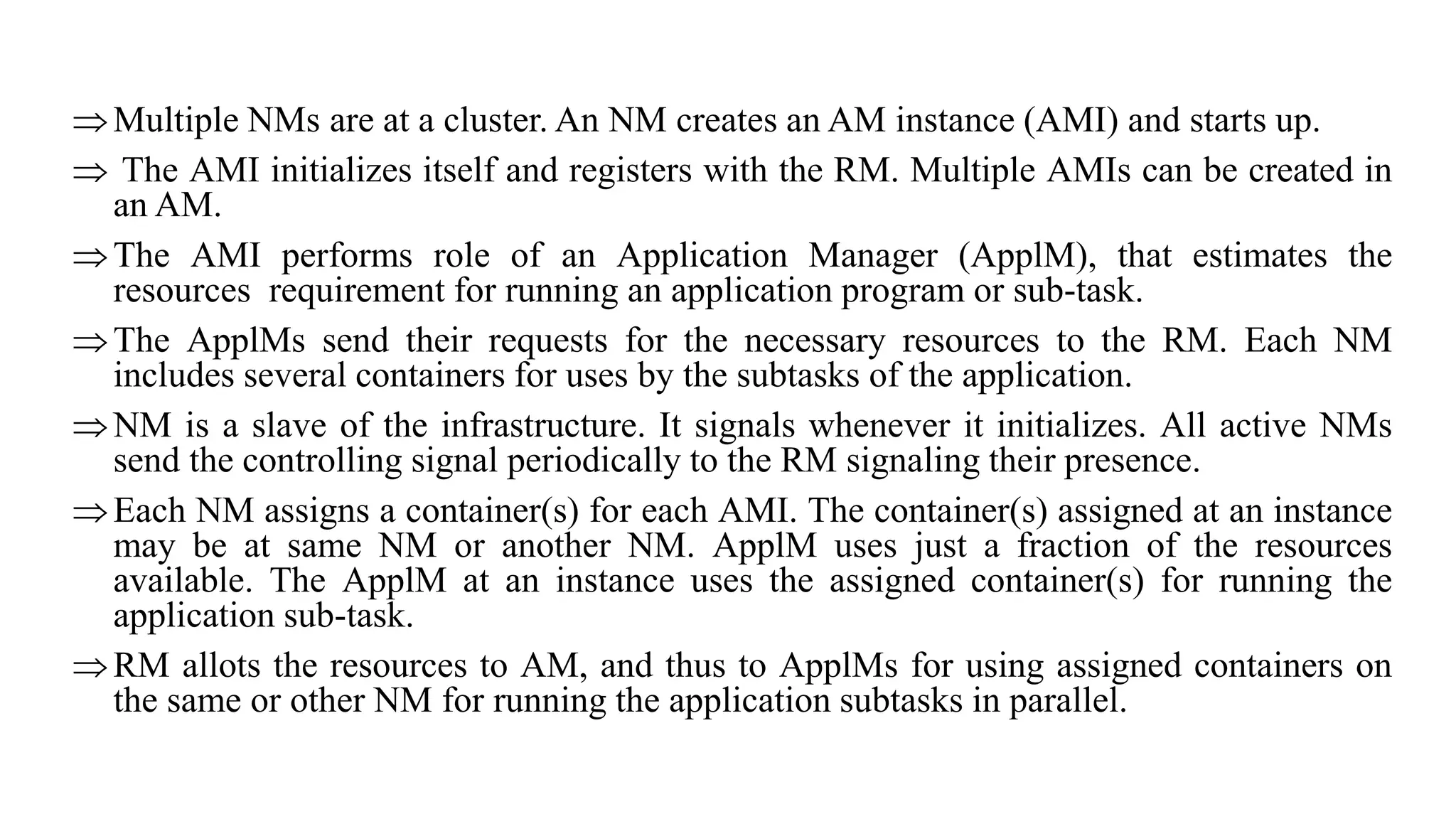

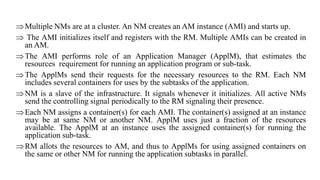

Multiple NMs are at a cluster. An NM creates an AM instance (AMI) and starts up.
 The AMI initializes itself and registers with the RM. Multiple AMIs can be created in
an AM.
The AMI performs role of an Application Manager (ApplM), that estimates the
resources requirement for running an application program or sub-task.
The ApplMs send their requests for the necessary resources to the RM. Each NM
includes several containers for uses by the subtasks of the application.
NM is a slave of the infrastructure. It signals whenever it initializes. All active NMs
send the controlling signal periodically to the RM signaling their presence.
Each NM assigns a container(s) for each AMI. The container(s) assigned at an instance
may be at same NM or another NM. ApplM uses just a fraction of the resources
available. The ApplM at an instance uses the assigned container(s) for running the
application sub-task.
RM allots the resources to AM, and thus to ApplMs for using assigned containers on
the same or other NM for running the application subtasks in parallel.

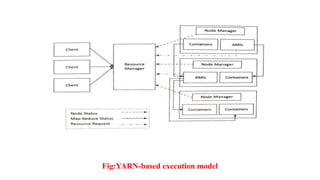

Fig:YARN-based execution model

Hadoop Ecosystem Tools
1.Zookeeper
2.Oozie
3.Sqoop
4.Flume
5.Ambari

Zookeeper
• Apache is a coordination service that enables synchronization across a cluster in
distributed applications.
• Zookeeper in Hadoop behaves as a centralized repository where distributed
applications can write data at a node called JournalNode and read the data out of it.
• It uses synchronization, serialization and coordination activities. It enables
functioning of a distributed system as a single function.
• ZooKeeper's main coordination services are:
• Name service - A name service maps a name to the information associated with that
name. Example: DNS service is a name service that maps a domain name to an IP
address. Similarly, name keeps a track of servers or services those are up and running,
and looks up their status by name in name service.

• Concurrency control - Concurrent access to a shared resource may cause
inconsistency of the resource. A concurrency control algorithm accesses shared
resource in the distributed system and controls concurrency.
• Configuration management - A requirement of a distributed system is a central
configuration manager. A new joining node can pick up the up-to-date centralized
configuration from the ZooKeeper coordination service as soon as the node joins
the system.
• Failure - Distributed systems are susceptible to the problem of node failures. This
requires implementing an automatic recovery strategy by selecting some alternate
node for processing

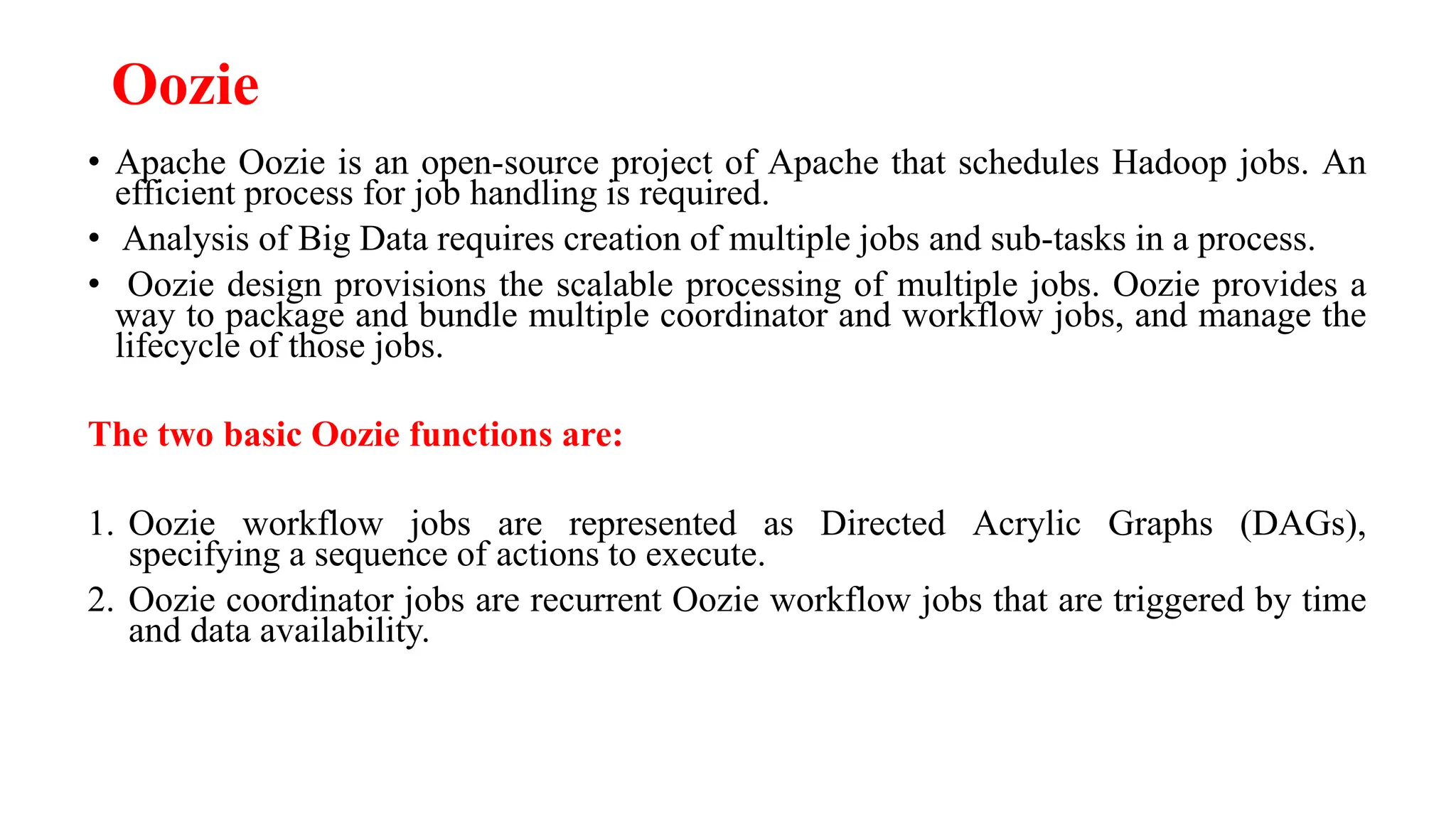

Oozie
• Apache Oozie is an open-source project of Apache that schedules Hadoop jobs. An
efficient process for job handling is required.
• Analysis of Big Data requires creation of multiple jobs and sub-tasks in a process.
• Oozie design provisions the scalable processing of multiple jobs. Oozie provides a
way to package and bundle multiple coordinator and workflow jobs, and manage the
lifecycle of those jobs.
The two basic Oozie functions are:
1. Oozie workflow jobs are represented as Directed Acrylic Graphs (DAGs),
specifying a sequence of actions to execute.
2. Oozie coordinator jobs are recurrent Oozie workflow jobs that are triggered by time
and data availability.

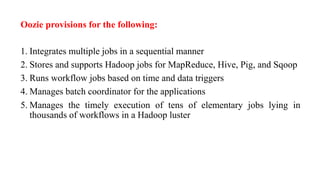

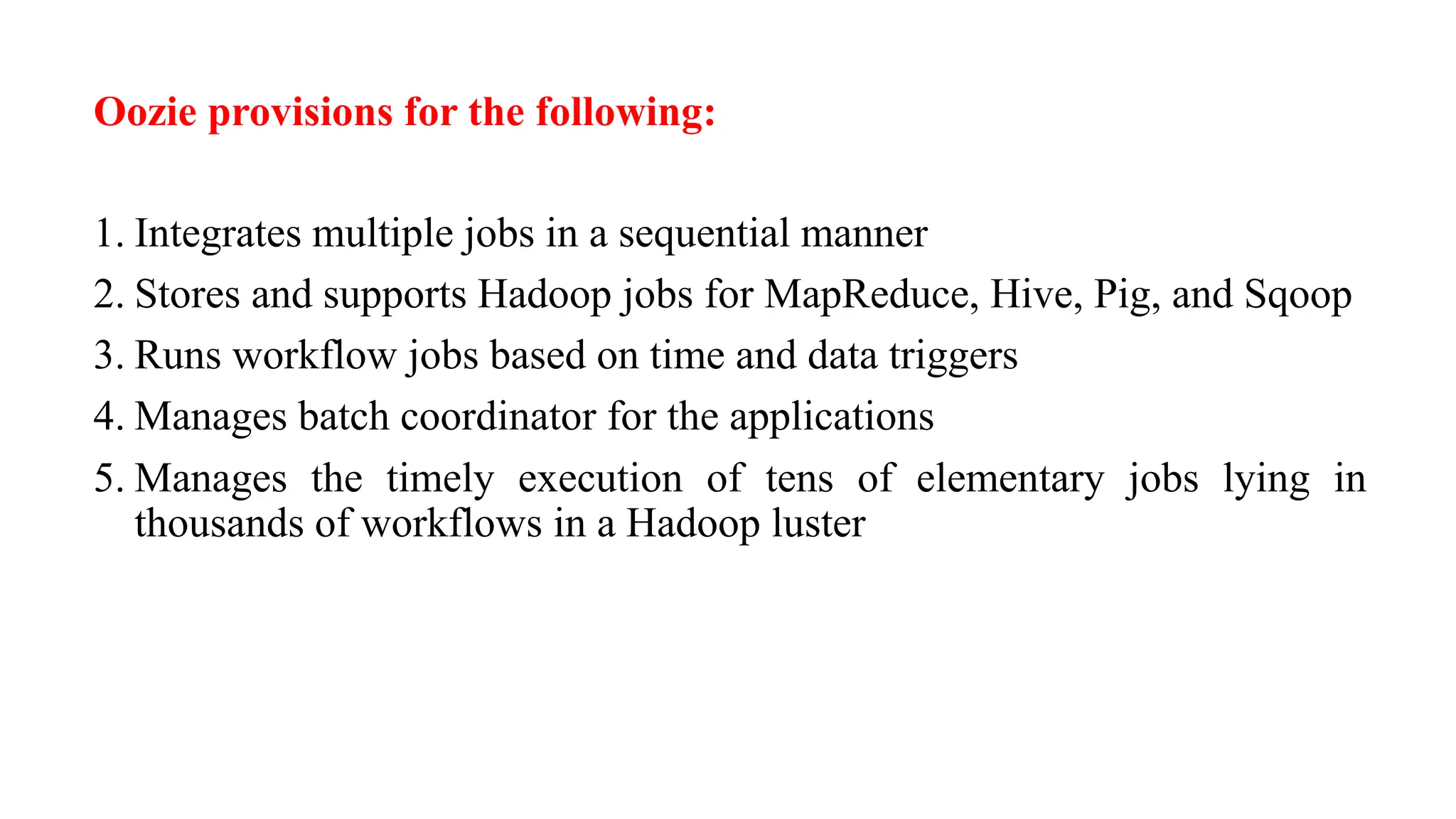

Oozie provisions for the following:
1. Integrates multiple jobs in a sequential manner
2. Stores and supports Hadoop jobs for MapReduce, Hive, Pig, and Sqoop
3. Runs workflow jobs based on time and data triggers
4. Manages batch coordinator for the applications
5. Manages the timely execution of tens of elementary jobs lying in
thousands of workflows in a Hadoop luster

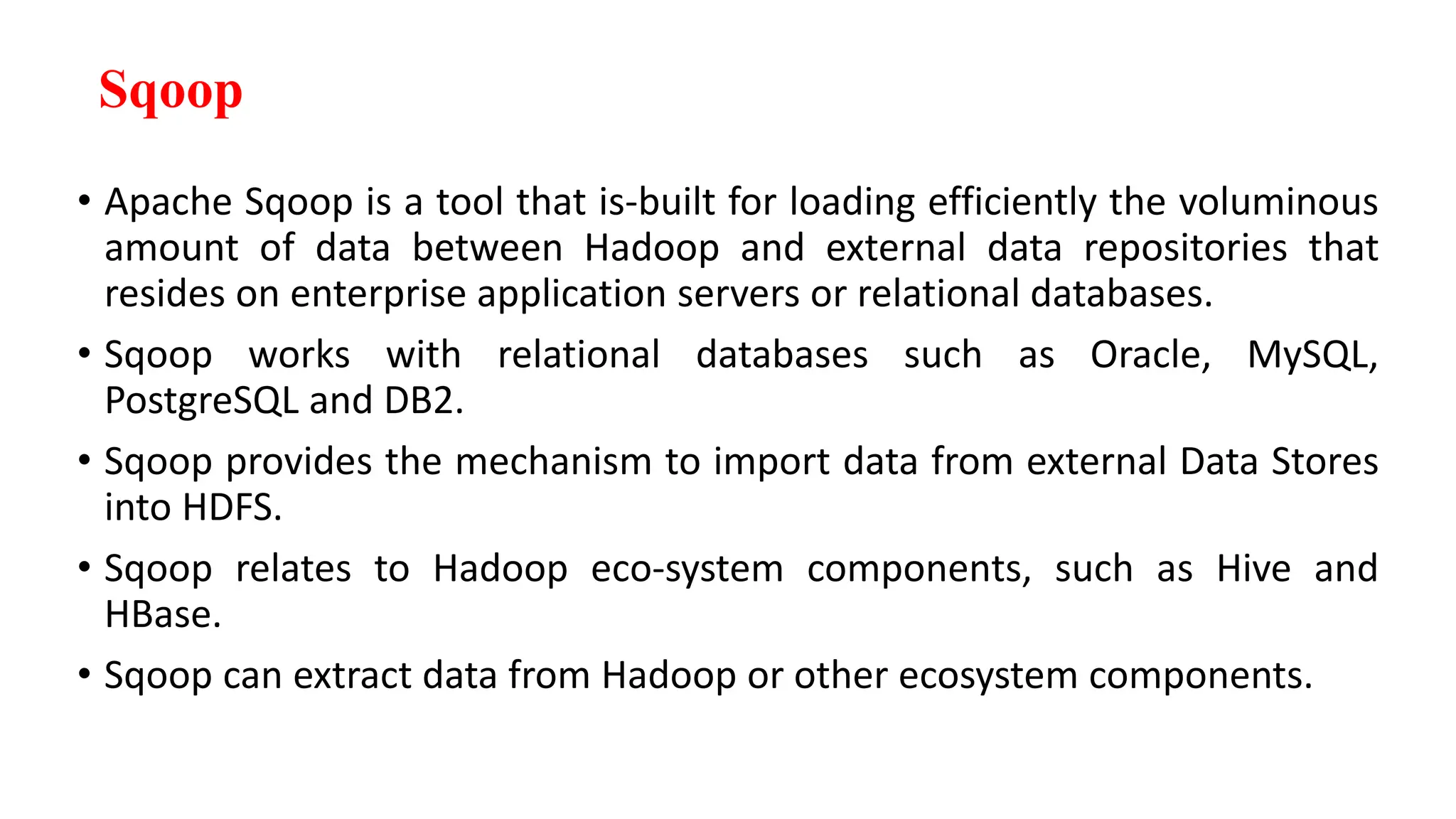

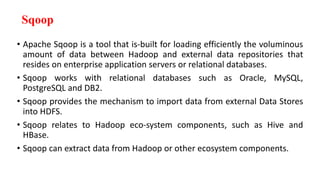

Sqoop
• Apache Sqoop is a tool that is-built for loading efficiently the voluminous
amount of data between Hadoop and external data repositories that
resides on enterprise application servers or relational databases.
• Sqoop works with relational databases such as Oracle, MySQL,
PostgreSQL and DB2.
• Sqoop provides the mechanism to import data from external Data Stores
into HDFS.
• Sqoop relates to Hadoop eco-system components, such as Hive and
HBase.
• Sqoop can extract data from Hadoop or other ecosystem components.

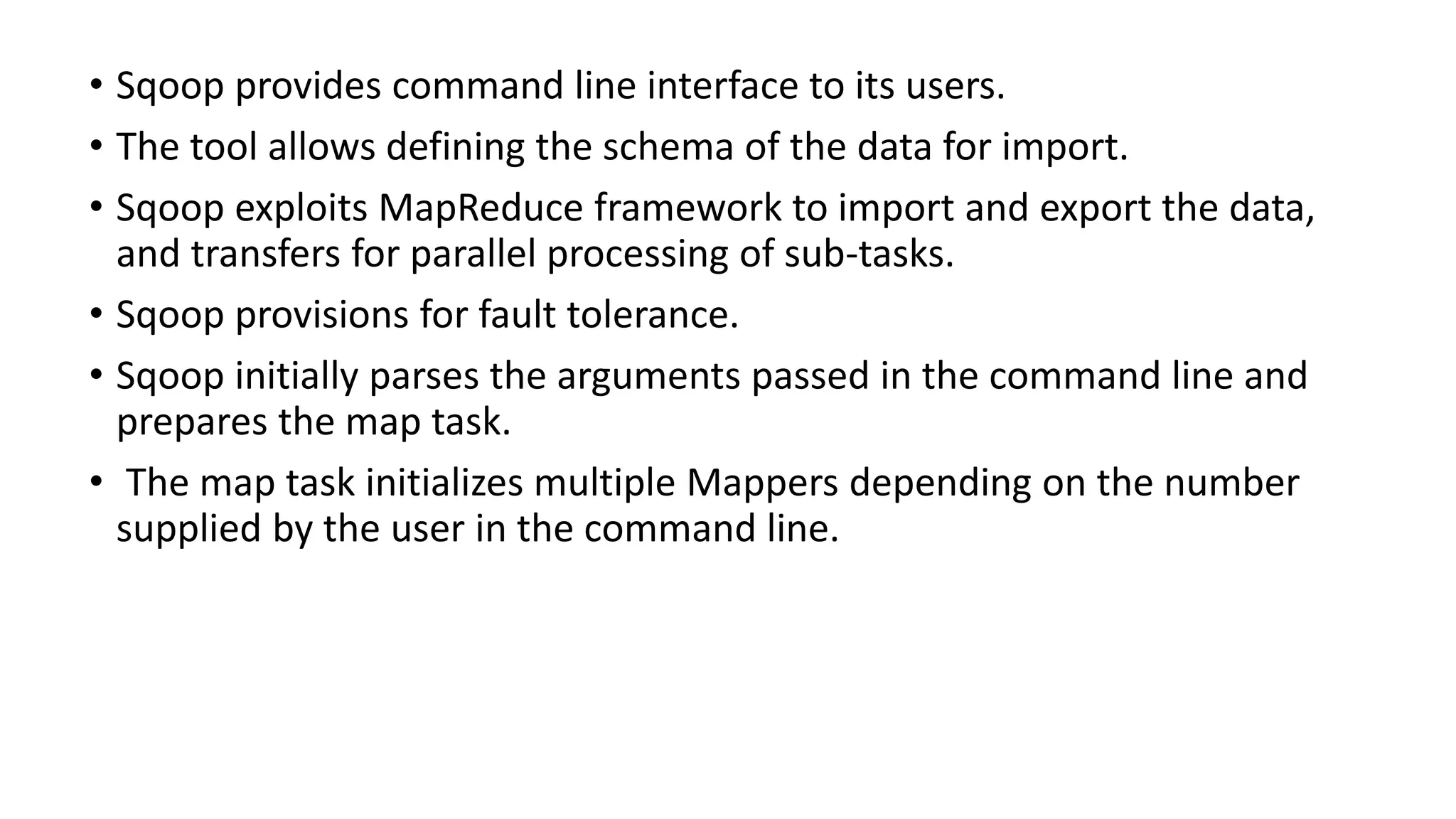

• Sqoop provides command line interface to its users.
• The tool allows defining the schema of the data for import.
• Sqoop exploits MapReduce framework to import and export the data,
and transfers for parallel processing of sub-tasks.
• Sqoop provisions for fault tolerance.
• Sqoop initially parses the arguments passed in the command line and
prepares the map task.
• The map task initializes multiple Mappers depending on the number
supplied by the user in the command line.

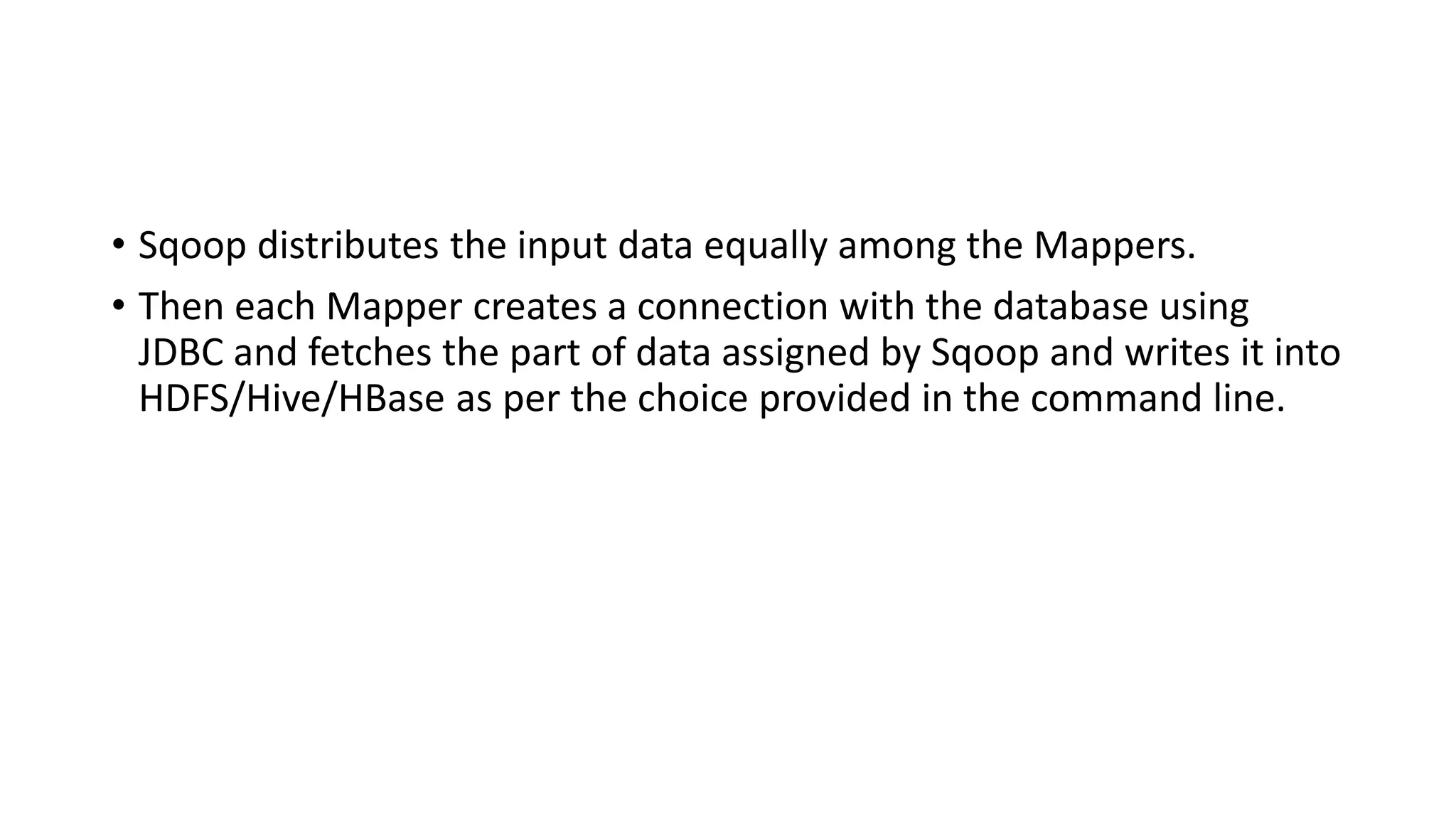

• Sqoop distributes the input data equally among the Mappers.
• Then each Mapper creates a connection with the database using
JDBC and fetches the part of data assigned by Sqoop and writes it into
HDFS/Hive/HBase as per the choice provided in the command line.

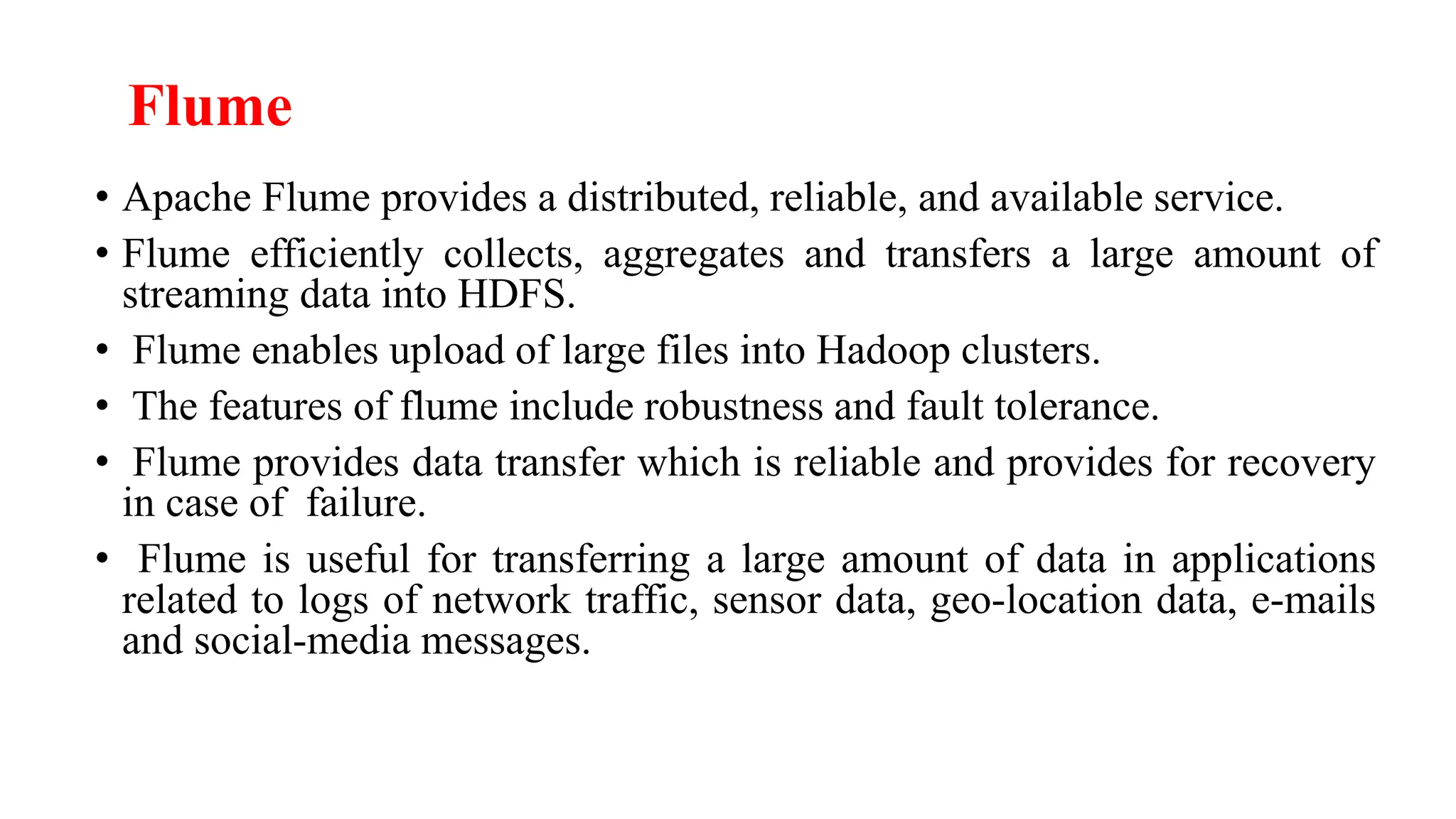

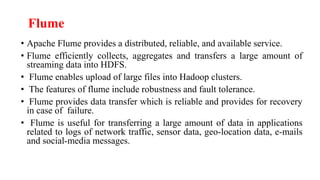

Flume
• Apache Flume provides a distributed, reliable, and available service.
• Flume efficiently collects, aggregates and transfers a large amount of
streaming data into HDFS.
• Flume enables upload of large files into Hadoop clusters.
• The features of flume include robustness and fault tolerance.
• Flume provides data transfer which is reliable and provides for recovery
in case of failure.
• Flume is useful for transferring a large amount of data in applications
related to logs of network traffic, sensor data, geo-location data, e-mails
and social-media messages.

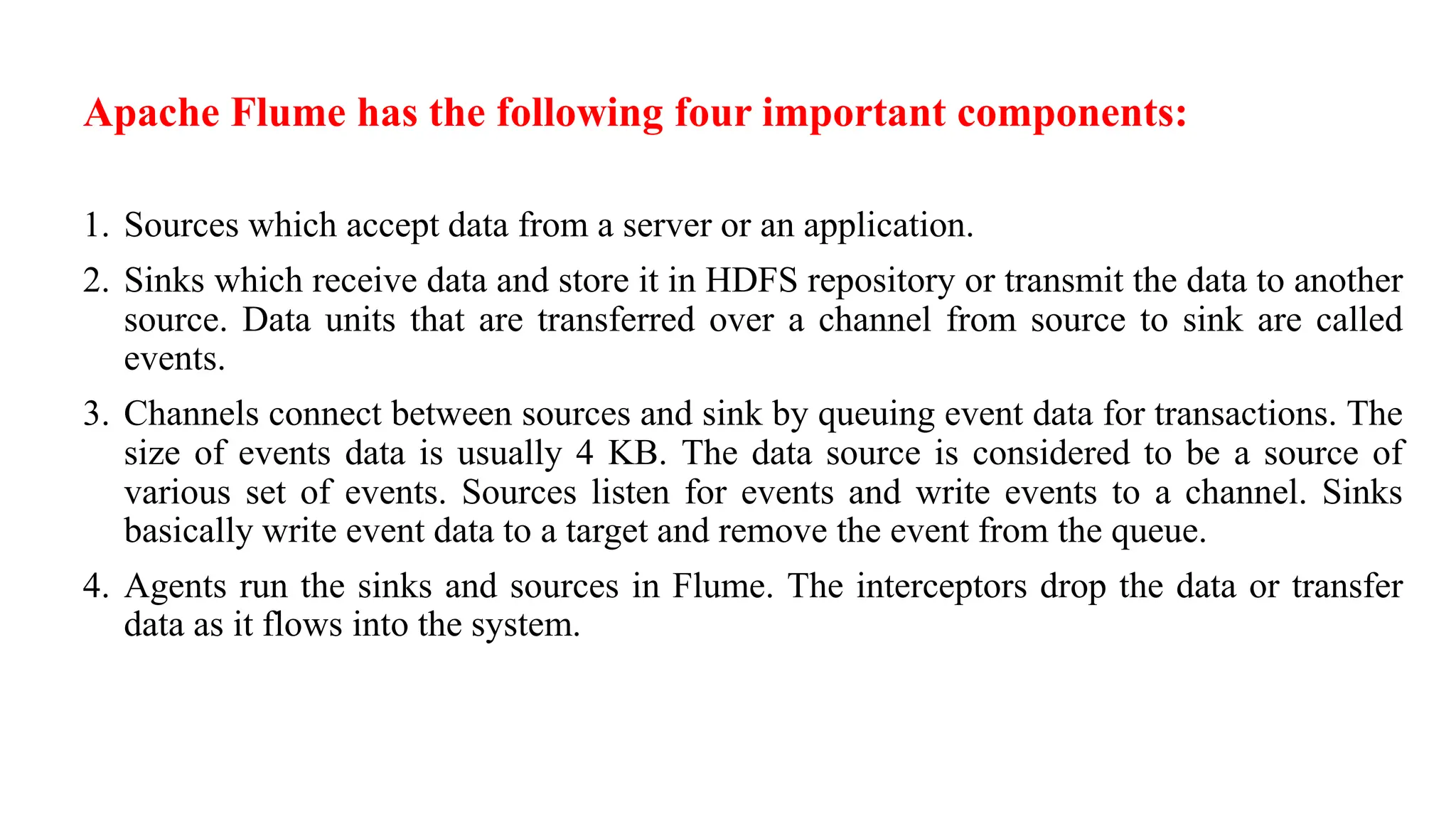

Apache Flume has the following four important components:
1. Sources which accept data from a server or an application.
2. Sinks which receive data and store it in HDFS repository or transmit the data to another
source. Data units that are transferred over a channel from source to sink are called
events.
3. Channels connect between sources and sink by queuing event data for transactions. The
size of events data is usually 4 KB. The data source is considered to be a source of
various set of events. Sources listen for events and write events to a channel. Sinks
basically write event data to a target and remove the event from the queue.
4. Agents run the sinks and sources in Flume. The interceptors drop the data or transfer
data as it flows into the system.

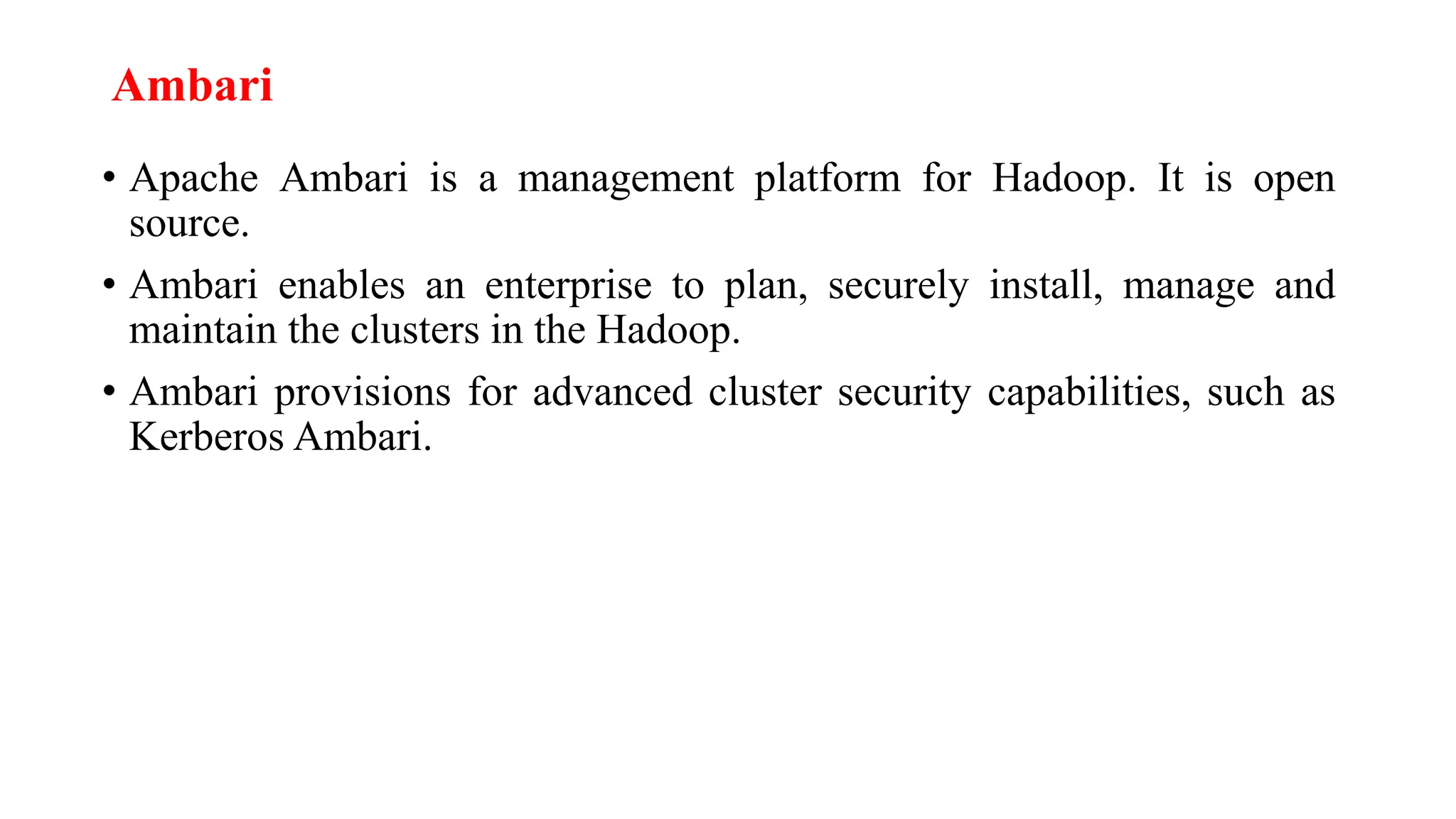

Ambari
• Apache Ambari is a management platform for Hadoop. It is open
source.
• Ambari enables an enterprise to plan, securely install, manage and
maintain the clusters in the Hadoop.
• Ambari provisions for advanced cluster security capabilities, such as
Kerberos Ambari.

Features of Ambari and associated components are as follows:
1. Simplification of installation, configuration and management
2. Enables easy, efficient, repeatable and automated creation of clusters
3. Manages and monitors scalable clustering
4. Provides an intuitive Web User Interface and REST API. The provision
enables automation cluster operations.
5. Visualizes the health of clusters and critical metrics for their operations
6. Enables detection of faulty node links
7. Provides extensibility and customizability.

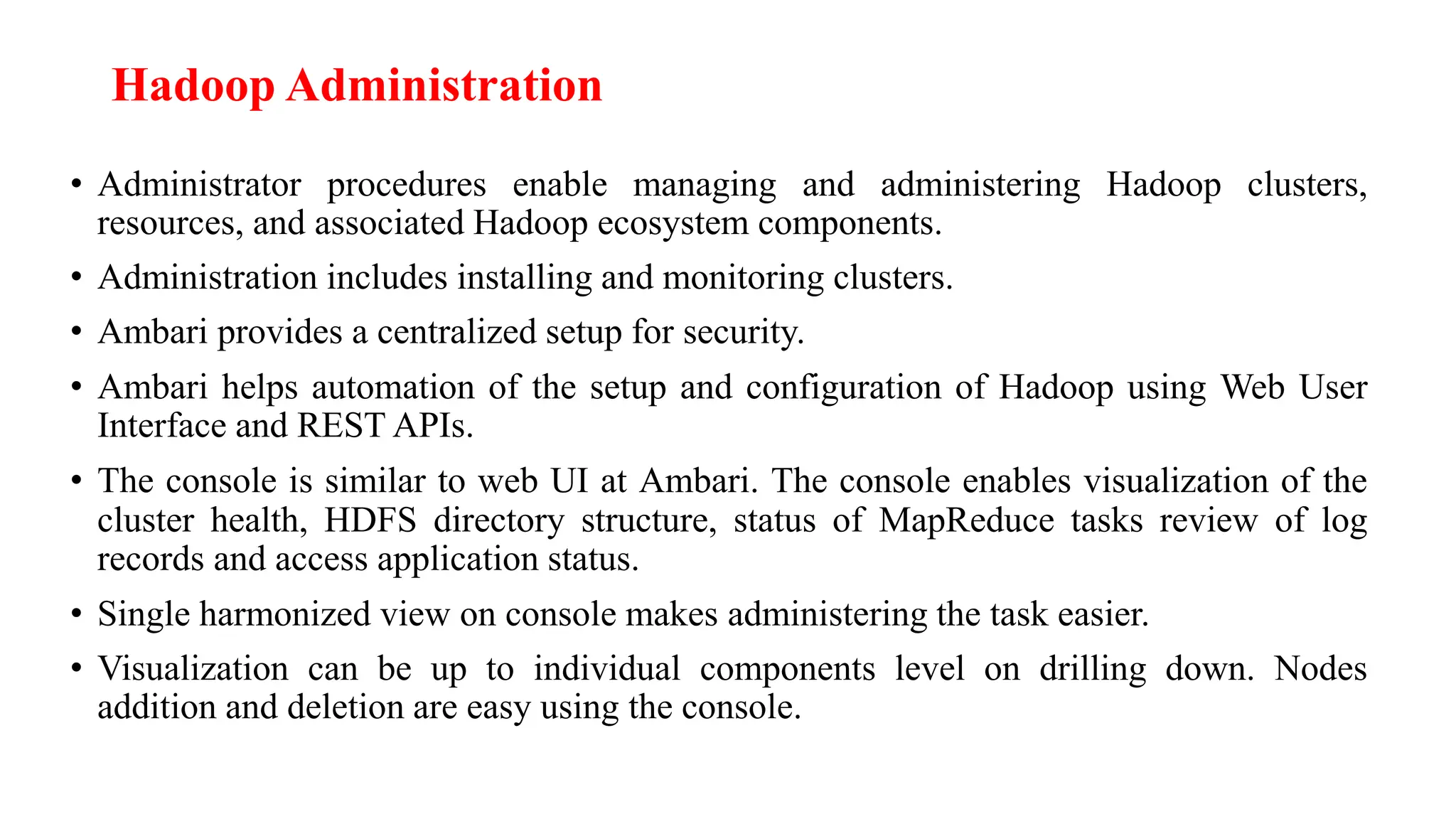

Hadoop Administration
• Administrator procedures enable managing and administering Hadoop clusters,
resources, and associated Hadoop ecosystem components.
• Administration includes installing and monitoring clusters.
• Ambari provides a centralized setup for security.
• Ambari helps automation of the setup and configuration of Hadoop using Web User
Interface and REST APIs.
• The console is similar to web UI at Ambari. The console enables visualization of the
cluster health, HDFS directory structure, status of MapReduce tasks review of log
records and access application status.
• Single harmonized view on console makes administering the task easier.
• Visualization can be up to individual components level on drilling down. Nodes
addition and deletion are easy using the console.

HBase
• HBase is an Hadoop system database. HBase was created for large tables. HBase is
an open-source, distributed, versioned and non-relational (NoSQL) database.
• Features of HBase features are:
1. Uses a partial columnar data schema on top of Hadoop and HDFS.
2. Supports a large table of billions of rows and millions of columns.
3. Provides small amounts of information, called sparse data taken from large data sets
which are storing empty or presently not-required data. For example, yearly sales
data of KitKats from the data of hourly, daily and monthly sales.
4. Supports data compression algorithms.
5. Provisions in-memory column-based data transactions.

• Accesses rows serially and does not provision for random accesses and write into the
rows.
• Provides random, real-time read/write access to Big Data.
• Fault tolerant storage due to automatic failure support between DataNodes servers.
• Similarity with Google BigTable.
HBase is written in Java. It stores data in a large structured table.
HBase provides scalable distributed Big Data Store.
HBase data store as key-value pairs.
HBase system consists of a set of tables. Each table contains rows and columns,
similar to a traditional database.
HBase provides a primary key as in database table.
HBase applies a partial columnar scheme on top of the Hadoop and HDFS.

Hive
• Apache Hive is an open-source data warehouse software. Hive
facilitates reading, writing and managing large datasets which are at
distributed Hadoop files.
• Hive uses SQL
• Hive design provisions for batch processing of large sets of data.
• Hive does not process real time queries and does not update row-based
data tables.
• Hive enables data serialization/deserialization and increase flexibility in
schema design by including a system catalog called Hive Metastore.
• Hive supports different storage types like text files, sequence files, RC
Files, ORC Files and HBase.

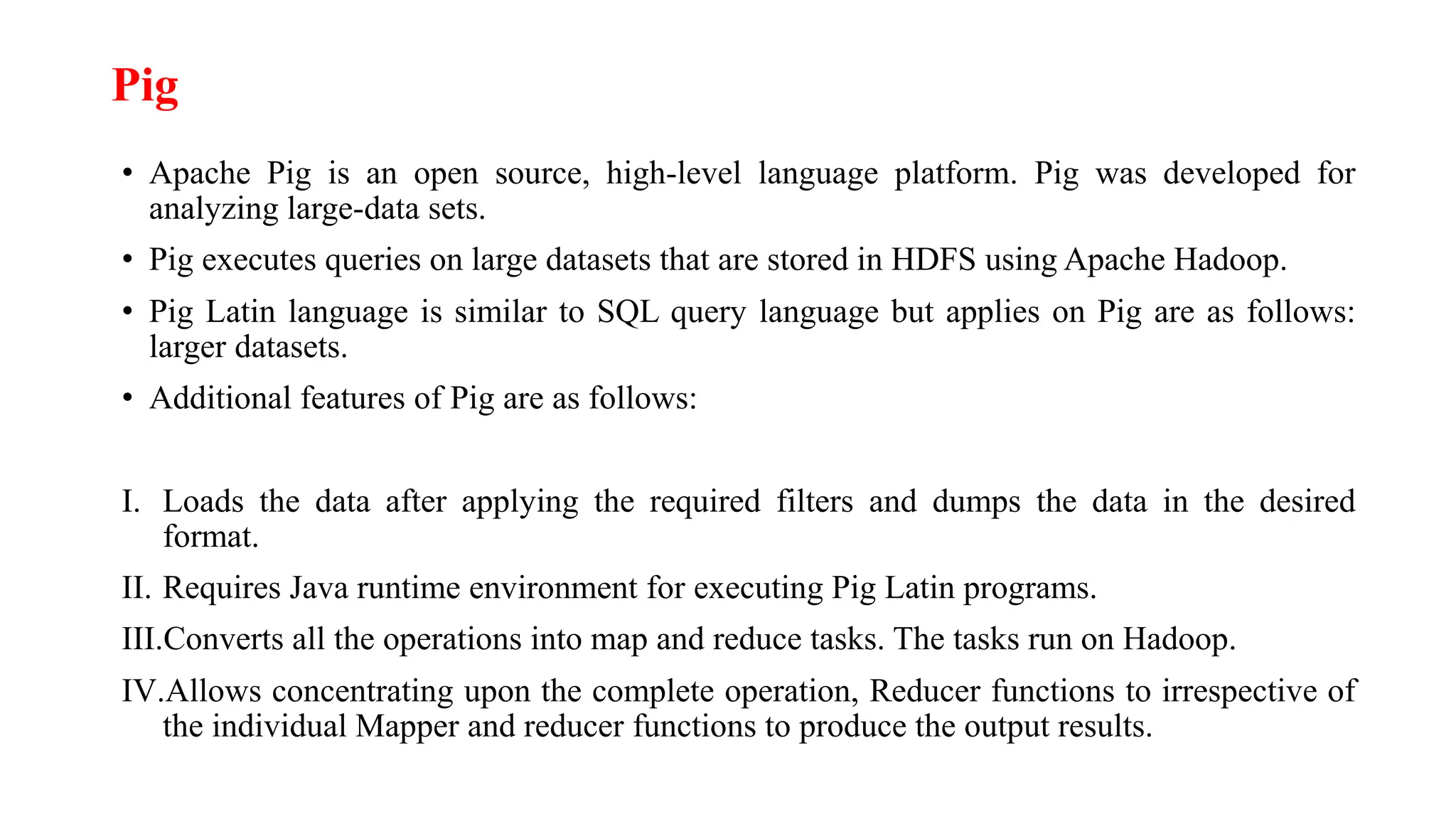

Pig
• Apache Pig is an open source, high-level language platform. Pig was developed for
analyzing large-data sets.
• Pig executes queries on large datasets that are stored in HDFS using Apache Hadoop.
• Pig Latin language is similar to SQL query language but applies on Pig are as follows:
larger datasets.
• Additional features of Pig are as follows:
I. Loads the data after applying the required filters and dumps the data in the desired
format.
II. Requires Java runtime environment for executing Pig Latin programs.
III.Converts all the operations into map and reduce tasks. The tasks run on Hadoop.
IV.Allows concentrating upon the complete operation, Reducer functions to irrespective of
the individual Mapper and reducer functions to produce the output results.

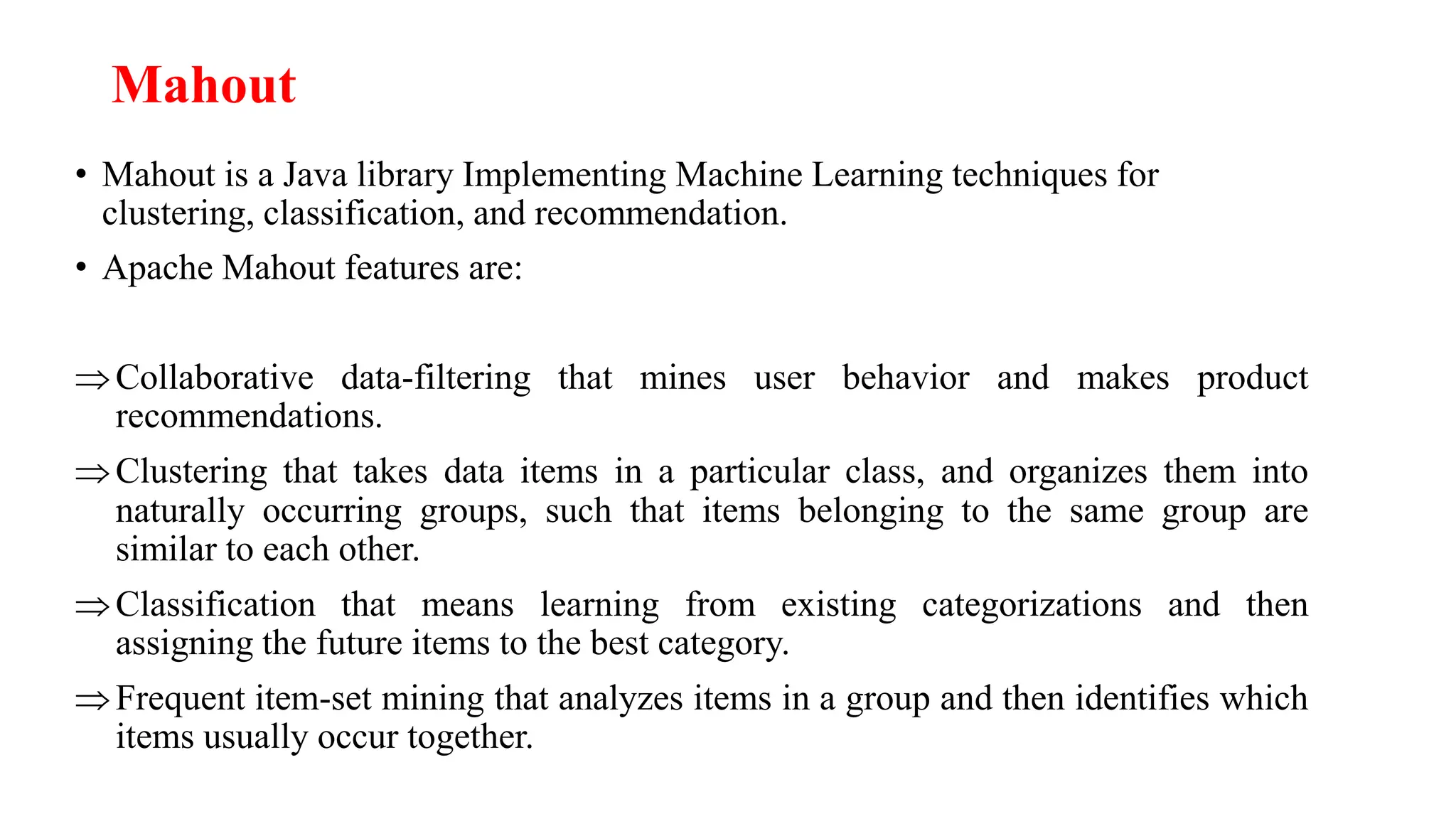

Mahout
• Mahout is a Java library Implementing Machine Learning techniques for
clustering, classification, and recommendation.
• Apache Mahout features are:
Collaborative data-filtering that mines user behavior and makes product
recommendations.
Clustering that takes data items in a particular class, and organizes them into
naturally occurring groups, such that items belonging to the same group are
similar to each other.
Classification that means learning from existing categorizations and then
assigning the future items to the best category.
Frequent item-set mining that analyzes items in a group and then identifies which
items usually occur together.

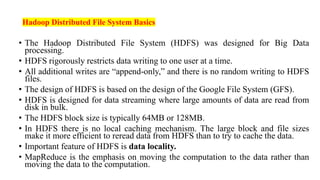

Hadoop Distributed File System Basics
• The Hadoop Distributed File System (HDFS) was designed for Big Data
processing.
• HDFS rigorously restricts data writing to one user at a time.
• All additional writes are “append-only,” and there is no random writing to HDFS
files.
• The design of HDFS is based on the design of the Google File System (GFS).
• HDFS is designed for data streaming where large amounts of data are read from
disk in bulk.
• The HDFS block size is typically 64MB or 128MB.
• In HDFS there is no local caching mechanism. The large block and file sizes
make it more efficient to reread data from HDFS than to try to cache the data.
• Important feature of HDFS is data locality.
• MapReduce is the emphasis on moving the computation to the data rather than
moving the data to the computation.

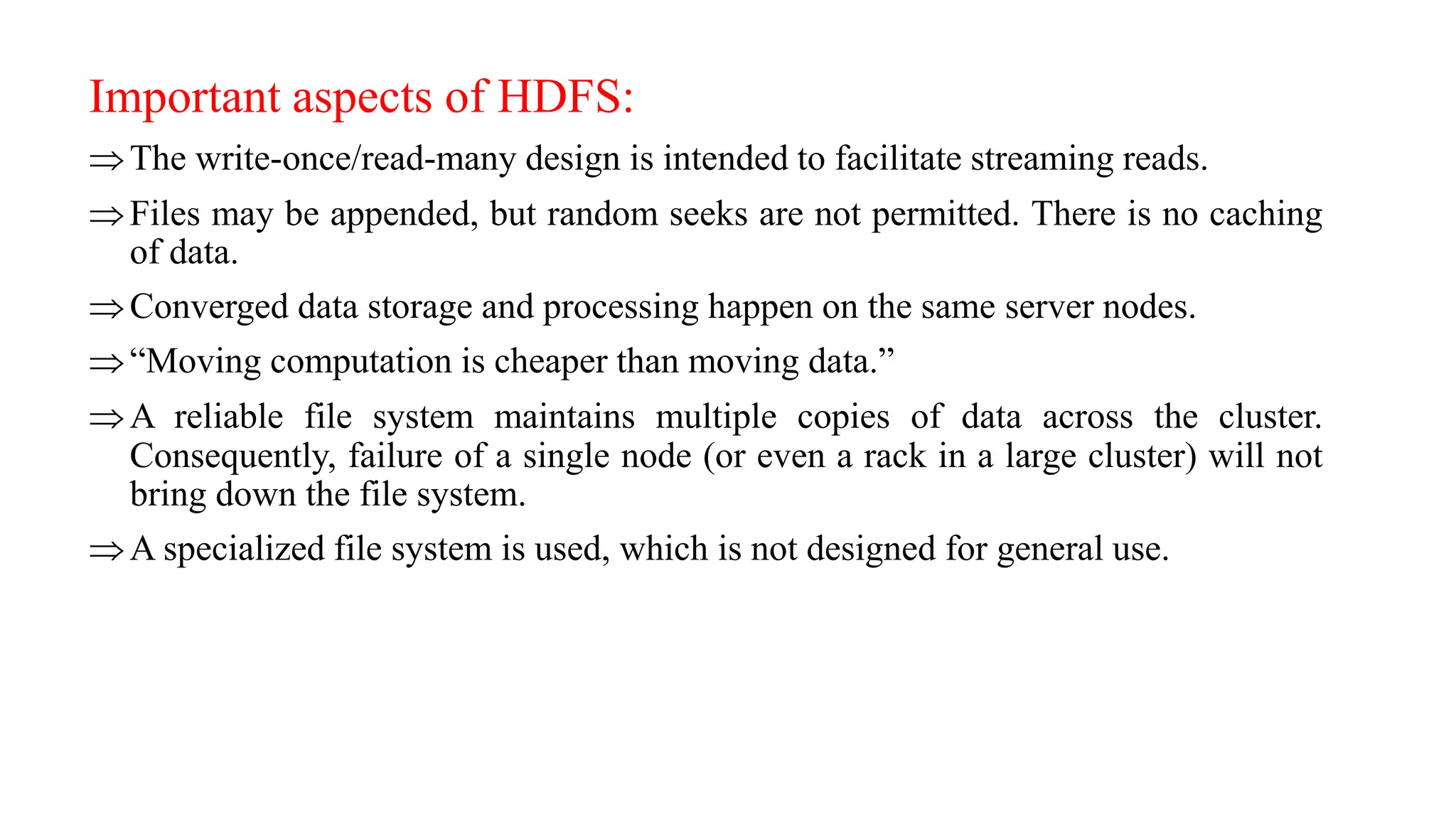

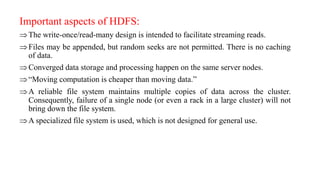

Important aspects of HDFS:
The write-once/read-many design is intended to facilitate streaming reads.
Files may be appended, but random seeks are not permitted. There is no caching
of data.
Converged data storage and processing happen on the same server nodes.
“Moving computation is cheaper than moving data.”
A reliable file system maintains multiple copies of data across the cluster.
Consequently, failure of a single node (or even a rack in a large cluster) will not
bring down the file system.
A specialized file system is used, which is not designed for general use.

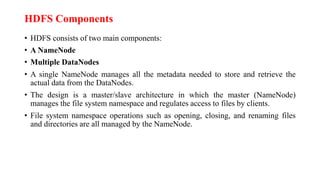

HDFS Components
• HDFS consists of two main components:
• A NameNode
• Multiple DataNodes
• A single NameNode manages all the metadata needed to store and retrieve the
actual data from the DataNodes.
• The design is a master/slave architecture in which the master (NameNode)
manages the file system namespace and regulates access to files by clients.
• File system namespace operations such as opening, closing, and renaming files
and directories are all managed by the NameNode.

• The NameNode also determines the mapping of blocks to DataNodes and handles DataNode failures.
• The slaves (DataNodes) are responsible for serving read and write requests from the file system to the clients.
• The NameNode manages block creation, deletion, and replication.

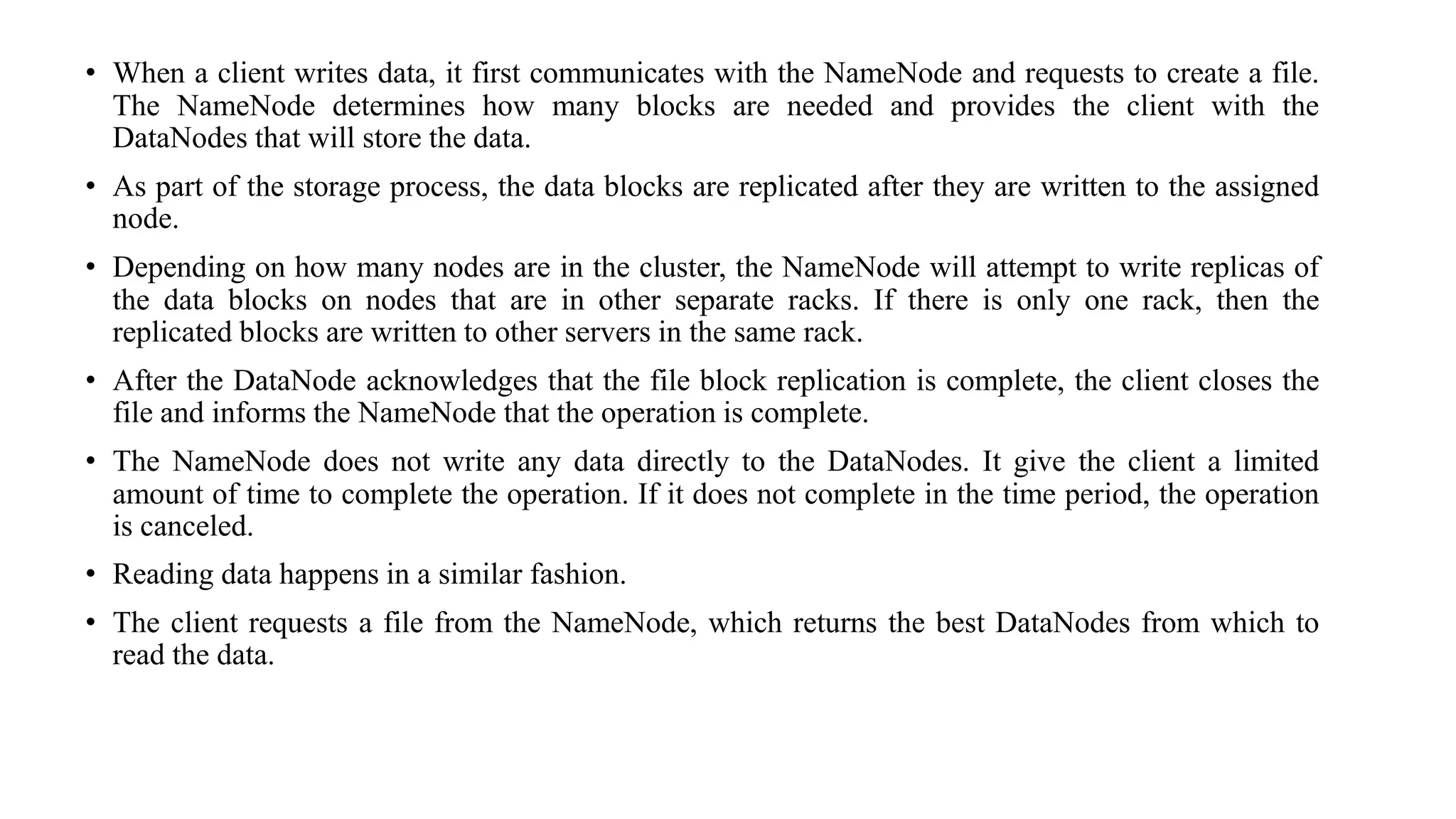

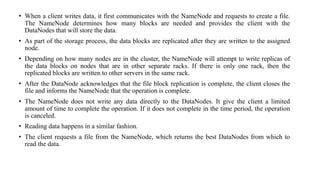

• When a client writes data, it first communicates with the NameNode and requests to create a file.
The NameNode determines how many blocks are needed and provides the client with the
DataNodes that will store the data.
• As part of the storage process, the data blocks are replicated after they are written to the assigned
node.
• Depending on how many nodes are in the cluster, the NameNode will attempt to write replicas of
the data blocks on nodes that are in other separate racks. If there is only one rack, then the
replicated blocks are written to other servers in the same rack.
• After the DataNode acknowledges that the file block replication is complete, the client closes the
file and informs the NameNode that the operation is complete.
• The NameNode does not write any data directly to the DataNodes. It give the client a limited
amount of time to complete the operation. If it does not complete in the time period, the operation
is canceled.
• Reading data happens in a similar fashion.
• The client requests a file from the NameNode, which returns the best DataNodes from which to
read the data.

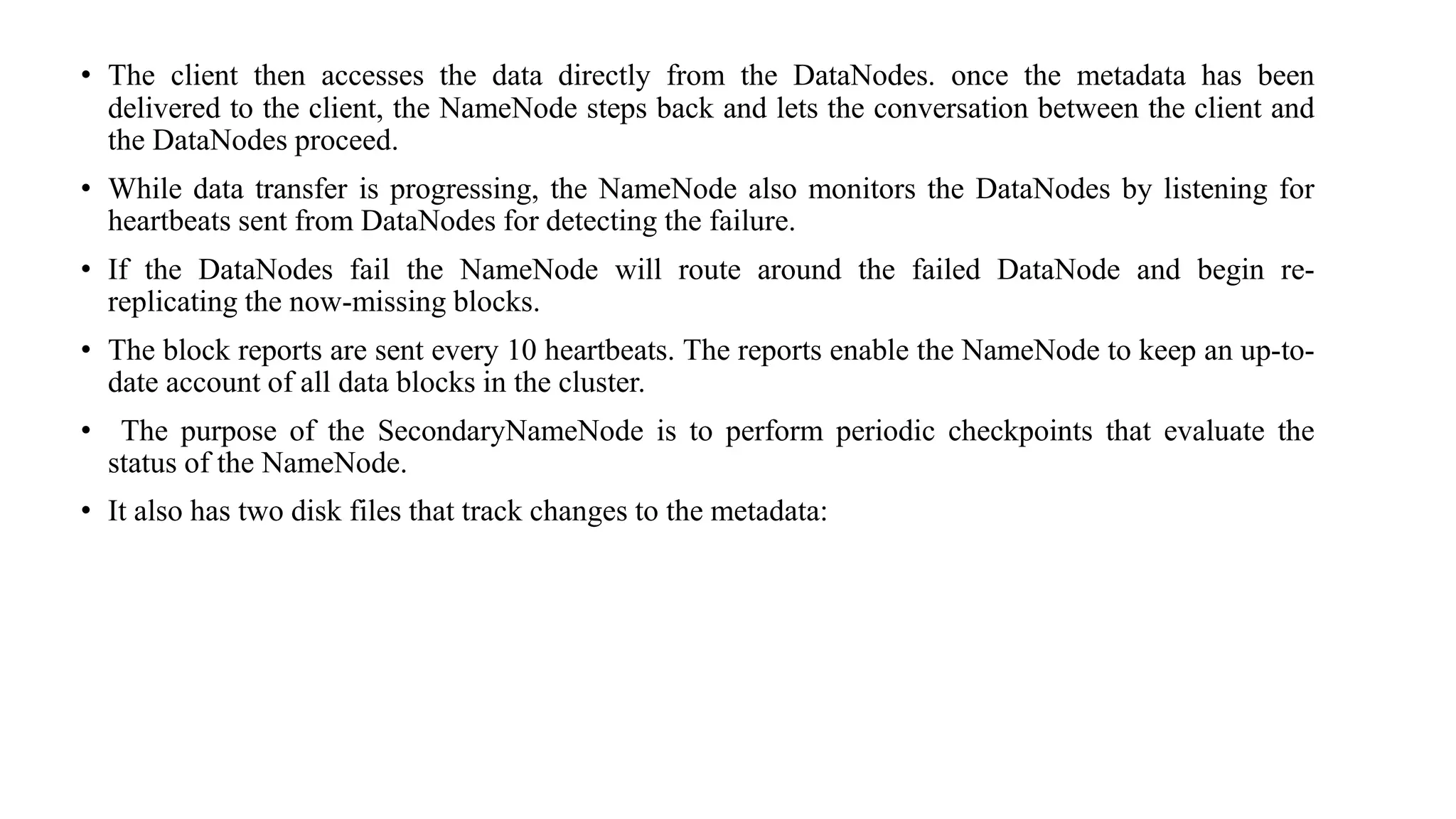

• The client then accesses the data directly from the DataNodes. once the metadata has been
delivered to the client, the NameNode steps back and lets the conversation between the client and
the DataNodes proceed.
• While data transfer is progressing, the NameNode also monitors the DataNodes by listening for
heartbeats sent from DataNodes for detecting the failure.
• If the DataNodes fail the NameNode will route around the failed DataNode and begin re-
replicating the now-missing blocks.
• The block reports are sent every 10 heartbeats. The reports enable the NameNode to keep an up-to-
date account of all data blocks in the cluster.
• The purpose of the SecondaryNameNode is to perform periodic checkpoints that evaluate the
status of the NameNode.
• It also has two disk files that track changes to the metadata:

• An image of the file system state when the NameNode was started.
This file begins with fsimage_* and is used only at startup by the
NameNode.
• A series of modifications done to the file system after starting the
NameNode. These files begin with edit_* and reflect the changes
made after the fsimage_* file was read.
• The location of these files is set by the dfs.namenode.name.dir
property in the hdfs-site.xml file.
• The SecondaryNameNode periodically downloads fsimage and edits
files, joins them into a new fsimage, and uploads the new fsimage file
to the NameNode.

• The various roles in HDFS can be summarized as follows:
HDFS uses a master/slave model designed for large file reading/streaming.
The NameNode is a metadata server or “data traffic cop.”
HDFS provides a single namespace that is managed by the NameNode.
Data is redundantly stored on DataNodes; there is no data on the NameNode.
The SecondaryNameNode performs checkpoints of NameNode file system’s state
but is not a failover node.

HDFS Block Replication
• The amount of replication is based on the value of dfs.replication in the hdfs-site.xml
file.
• This default value can be overruled with the hdfs dfs-setrep command. For Hadoop
clusters containing more than eight DataNodes, the replication value is usually set to 3.
• The HDFS default block size is 64MB. In a typical operating system, the block size is
4KB or 8KB. The HDFS defaHDFS, it will create a block that is approximately 20KB
in size. If a file of size 80MB is written to HDFS, a 64MB block and a 16MB block
will be created.
• HDFS blocks are not exactly the same as the data splits used by the MapReduce
process.
• The HDFS blocks are based on size, while the splits are based on a logical partitioning
of the data. For instance, if a file contains discrete records, the logical split ensures that
a record is not split physically across two separate servers during processing. Each
HDFS block may consist of one or more splits.

HDFS User Commands
• $ hdfs version - The version of HDFS
• $ hdfs dfs -ls / - To list the files in the root HDFS directory
• $ hdfs dfs -ls or $ hdfs dfs -ls /user/hdfs - To list files in your home directory
• $ hdfs dfs -mkdir stuff - To make a directory in HDFS
• $ hdfs dfs -put test stuff - To copy a file from your current local directory into HDFS
• $ hdfs dfs -get stuff/test test-local – To copy Files from HDFS
• $ hdfs dfs -cp stuff/test test.hdfs – To copy Files within HDFS
• $ hdfs dfs -rm test.hdfs – To delete a File within HDFS
• $ hdfs dfs -rm -r -skipTrash stuff – To delete a Directory in HDFS
• $ hdfs dfsadmin -report – To get an HDFS Status Report

MOD-2 presentation on engineering students

MOD-2 presentation on engineering students

More Related Content

Similar to MOD-2 presentation on engineering students

Recently uploaded

MOD-2 presentation on engineering students
