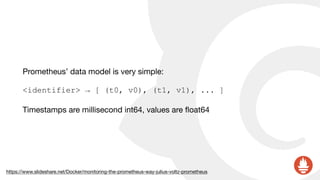

![Prometheus’ data model is very simple:
<identifier> → [ (t0, v0), (t1, v1), ... ]
Timestamps are millisecond int64, values are float64
https://www.slideshare.net/Docker/monitoring-the-prometheus-way-julius-voltz-prometheus](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-7-320.jpg)
![Can select vectors of values…
PromQL: http_requests_total{job=“nginx”, status=~“502”}[1m]
{job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} [30, 31, 32, 34]
{job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“500”} [4, 24, 56, 56]
{job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} [76, 76, 76, 76]
{job=“nginx”, instances=“2.3.4.5:80”, path=“/setting”, status=“500”} [56, 106, 5, 96]
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-10-320.jpg)
![And apply functions…
PromQL: rate(http_requests_total{job=“nginx”, status=~“502”}[1m])
{job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} 0.0666
{job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“500”} 0.866
{job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} 0.0
{job=“nginx”, instances=“2.3.4.5:80”, path=“/settings”, status=“500”} 2.43
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-11-320.jpg)
![And aggregate by a dimension…
PromQL: sum by (path) (rate(http_requests_total{job=“nginx”, status=~“502”}[1m]))
{path=“/home”} 0.0666
{path=“/settings”} 3.3
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-12-320.jpg)
![Do binary operations…
PromQL: sum by (path) (rate(http_requests_total{job=“nginx”, status=~“502”}[1m]))
/
sum by (path) (rate(http_requests_total{job=“nginx”}[1m]))
{path=“/home”} 0.001
{path=“/settings”} 1.0
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-13-320.jpg)
![CPU Utilisation:
1 - avg(rate(node_cpu{mode=“idle"}[1m]))
CPU Saturation:
sum(node_load1)/ sum(node:node_num_cpu:sum)
USE Method](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-22-320.jpg)
![Container CPU usage by “app” label
sum by (namespace, label_name) (
sum(rate(container_cpu_usage_seconds_total[5m])) by (pod
* on (pod_name) group_left(label_name)
label_join(kube_pod_labels, "pod_name", ",", "pod")
)
USE Method](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-24-320.jpg)
![RED Method
Most useful alert I’ve found:
100 * sum by(instance, job) (
rate(rest_client_requests_total{code!~”2..”}[5m])
)
/
sum by(instance, job) (
rate(rest_client_requests_total[5m])
)](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-26-320.jpg)
![??? Method
Alert expressions are invariants that describe a healthy system
kube_deployment_spec_replicas !=
kube_deployment_status_replicas_available
rate(kube_pod_container_status_restarts_total[15m]) > 0](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/85/Monitoring-Kubernetes-with-Prometheus-27-320.jpg)

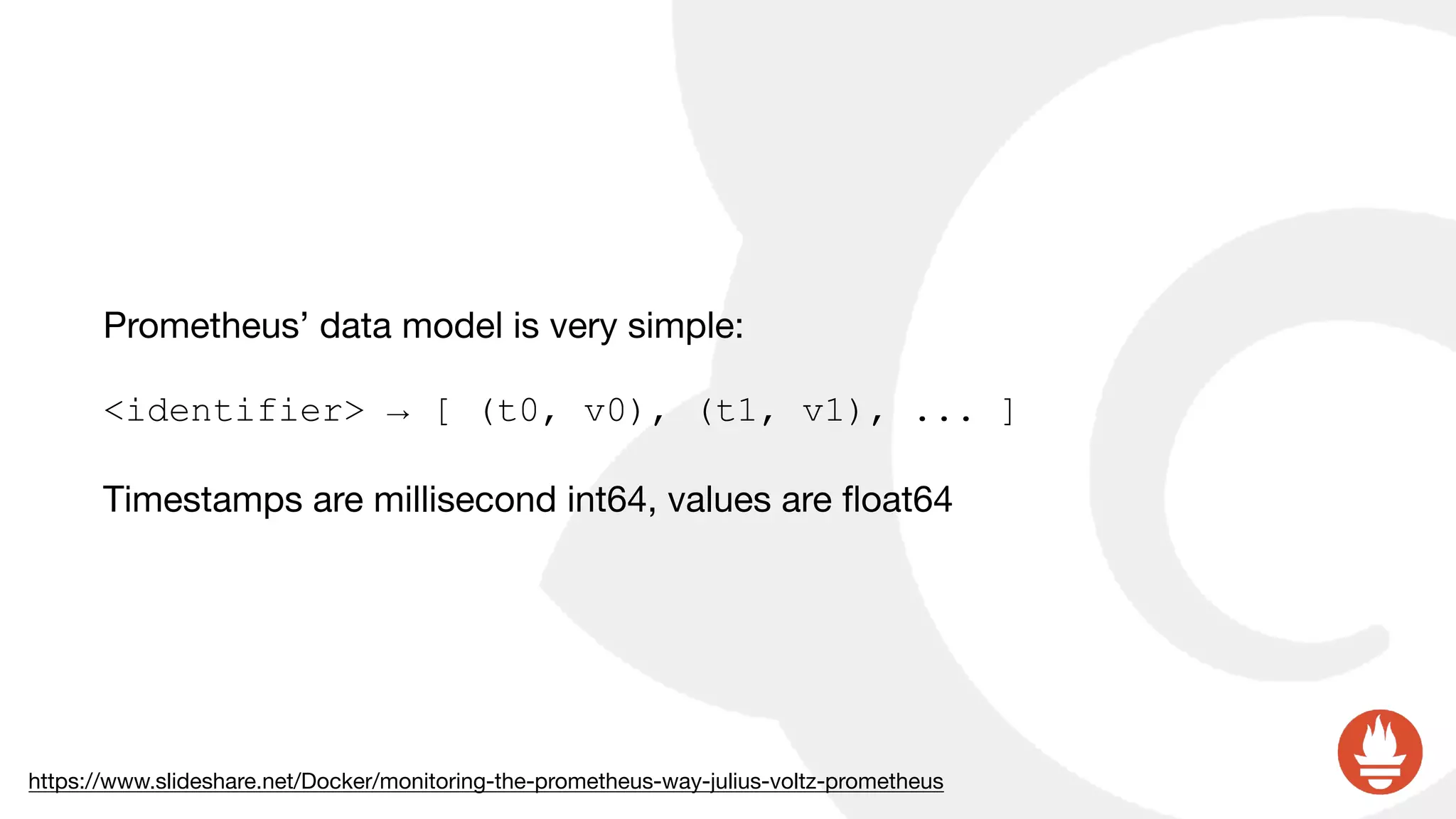

![Prometheus’ data model is very simple:
<identifier> → [ (t0, v0), (t1, v1), ... ]
Timestamps are millisecond int64, values are float64
https://www.slideshare.net/Docker/monitoring-the-prometheus-way-julius-voltz-prometheus](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-7-2048.jpg)

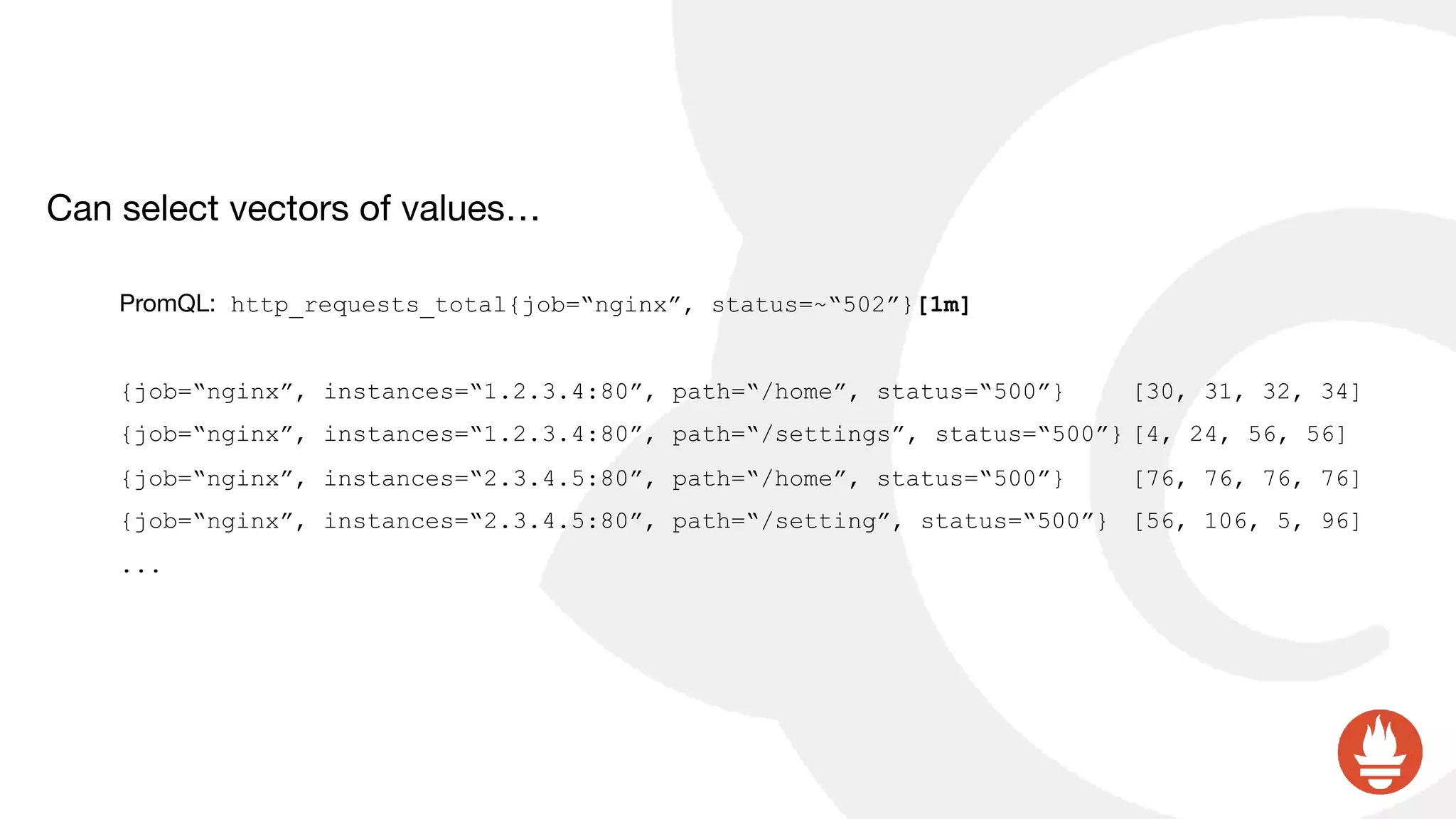

![Can select vectors of values…
PromQL: http_requests_total{job=“nginx”, status=~“502”}[1m]
{job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} [30, 31, 32, 34]
{job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“500”} [4, 24, 56, 56]
{job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} [76, 76, 76, 76]
{job=“nginx”, instances=“2.3.4.5:80”, path=“/setting”, status=“500”} [56, 106, 5, 96]
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-10-2048.jpg)
![And apply functions…
PromQL: rate(http_requests_total{job=“nginx”, status=~“502”}[1m])
{job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} 0.0666
{job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“500”} 0.866
{job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} 0.0
{job=“nginx”, instances=“2.3.4.5:80”, path=“/settings”, status=“500”} 2.43
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-11-2048.jpg)
![And aggregate by a dimension…
PromQL: sum by (path) (rate(http_requests_total{job=“nginx”, status=~“502”}[1m]))
{path=“/home”} 0.0666
{path=“/settings”} 3.3
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-12-2048.jpg)
![Do binary operations…
PromQL: sum by (path) (rate(http_requests_total{job=“nginx”, status=~“502”}[1m]))
/
sum by (path) (rate(http_requests_total{job=“nginx”}[1m]))
{path=“/home”} 0.001
{path=“/settings”} 1.0
...](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-13-2048.jpg)
![CPU Utilisation:
1 - avg(rate(node_cpu{mode=“idle"}[1m]))
CPU Saturation:
sum(node_load1)/ sum(node:node_num_cpu:sum)
USE Method](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-22-2048.jpg)
![Container CPU usage by “app” label
sum by (namespace, label_name) (
sum(rate(container_cpu_usage_seconds_total[5m])) by (pod
* on (pod_name) group_left(label_name)
label_join(kube_pod_labels, "pod_name", ",", "pod")
)
USE Method](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-24-2048.jpg)

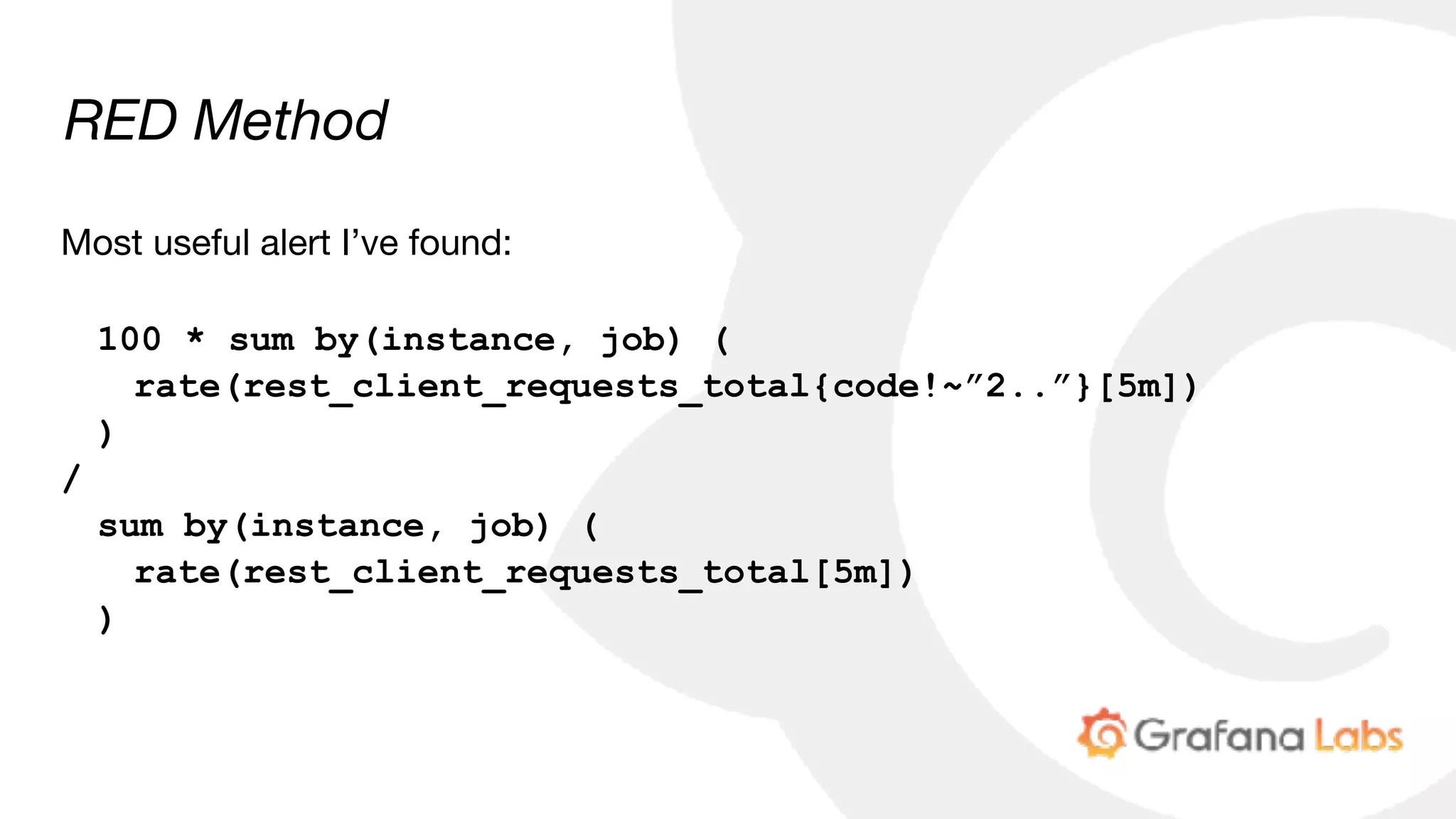

![RED Method
Most useful alert I’ve found:
100 * sum by(instance, job) (
rate(rest_client_requests_total{code!~”2..”}[5m])
)
/
sum by(instance, job) (
rate(rest_client_requests_total[5m])
)](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-26-2048.jpg)

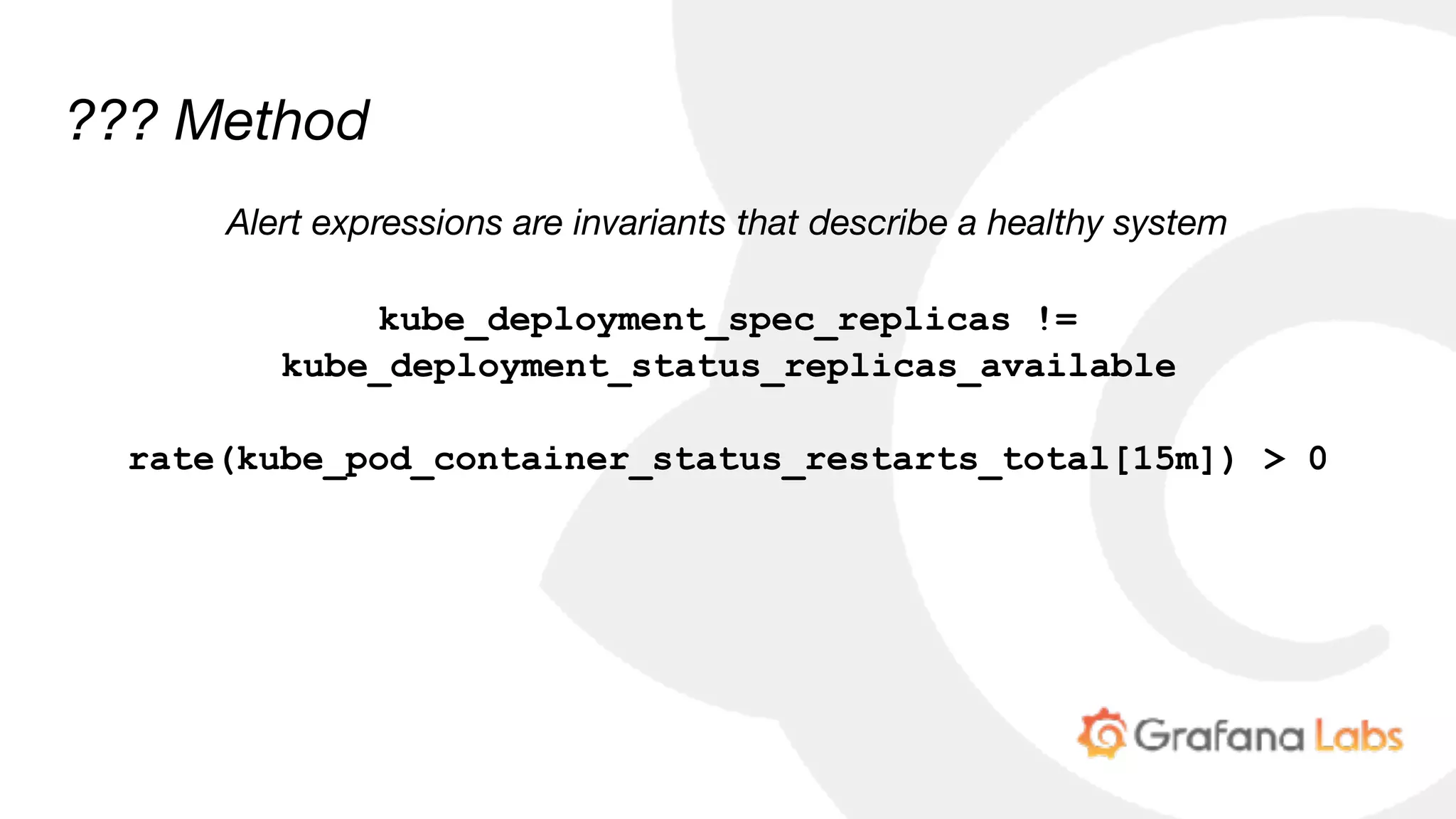

![??? Method
Alert expressions are invariants that describe a healthy system
kube_deployment_spec_replicas !=
kube_deployment_status_replicas_available
rate(kube_pod_container_status_restarts_total[15m]) > 0](https://image.slidesharecdn.com/monitoringkuberneteswithprometheus-180727133520/75/Monitoring-Kubernetes-with-Prometheus-27-2048.jpg)
Uploaded byGrafana Labs
Monitoring Kubernetes with Prometheus
The document discusses monitoring Kubernetes using Prometheus, a powerful monitoring and alerting system originally developed by SoundCloud. It covers key features of Prometheus, its data model, and practical examples of building queries and generating alerts based on various metrics such as CPU utilization and container performance. The document also provides resources and links for setting up Prometheus and integrating it with Kubernetes environments.
More Related Content
Similar to Monitoring Kubernetes with Prometheus
![[PromCon2018] Prometheus Monitoring Mixins: Using Jsonnet to Package Together...](https://cdn.slidesharecdn.com/ss_thumbnails/prometheusmonitoringmixins-180809132927-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Monitoring Kubernetes with Prometheus
- 1. Monitoring Kubernetes with Prometheus TomWilkie, July 2017 ❤
- 2. Tom Wilkie VPProduct, Grafana Labs Previously: Kausal, Weaveworks, Google, Acunu, Xensource Twitter: @tom_wilkie Email: tom@grafana.com
- 3.

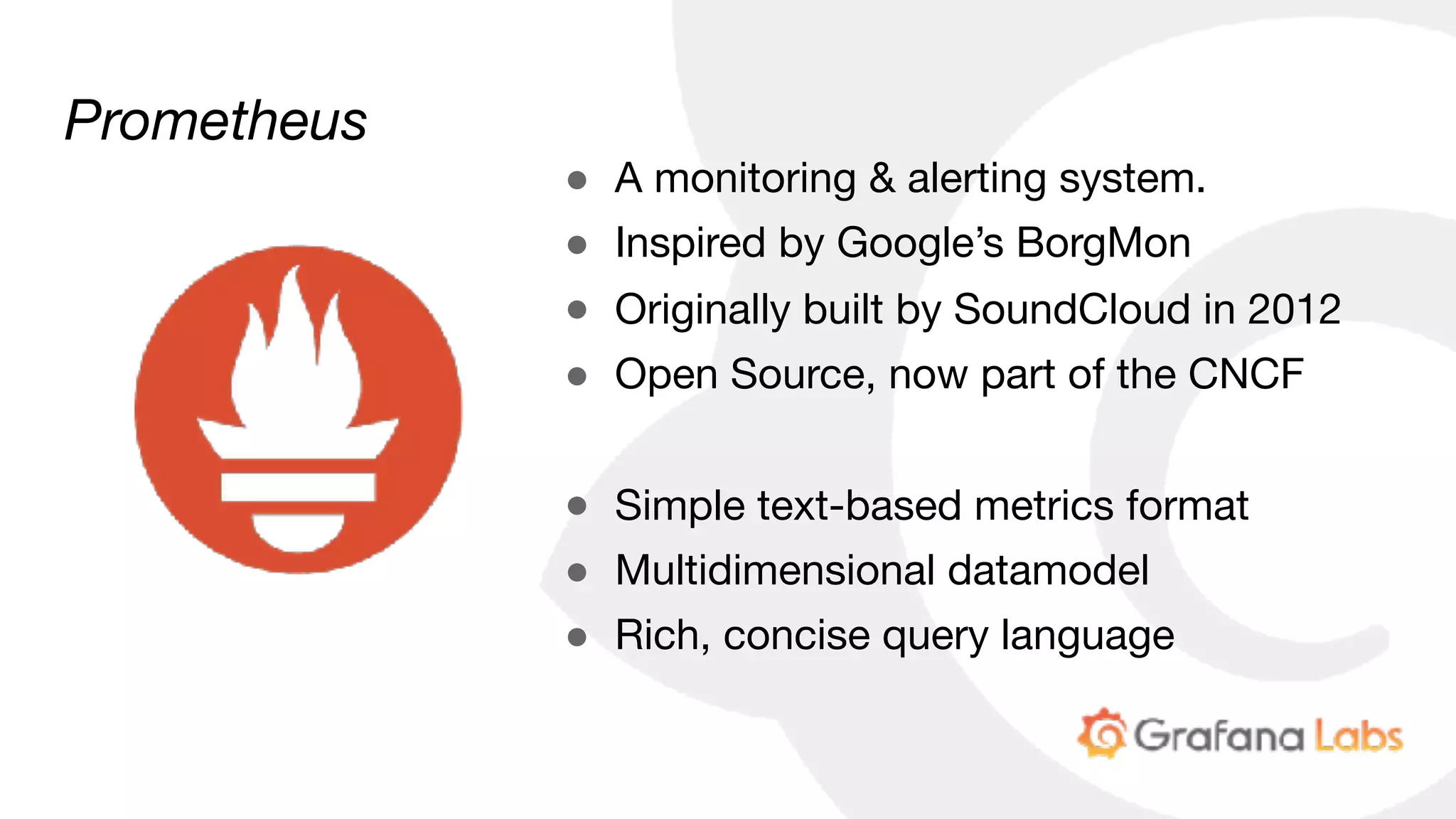

- 4. Prometheus ● A monitoring& alerting system. ● Inspired by Google’s BorgMon ● Originally built by SoundCloud in 2012 ● Open Source, now part of the CNCF ● Simple text-based metrics format ● Multidimensional datamodel ● Rich, concise query language

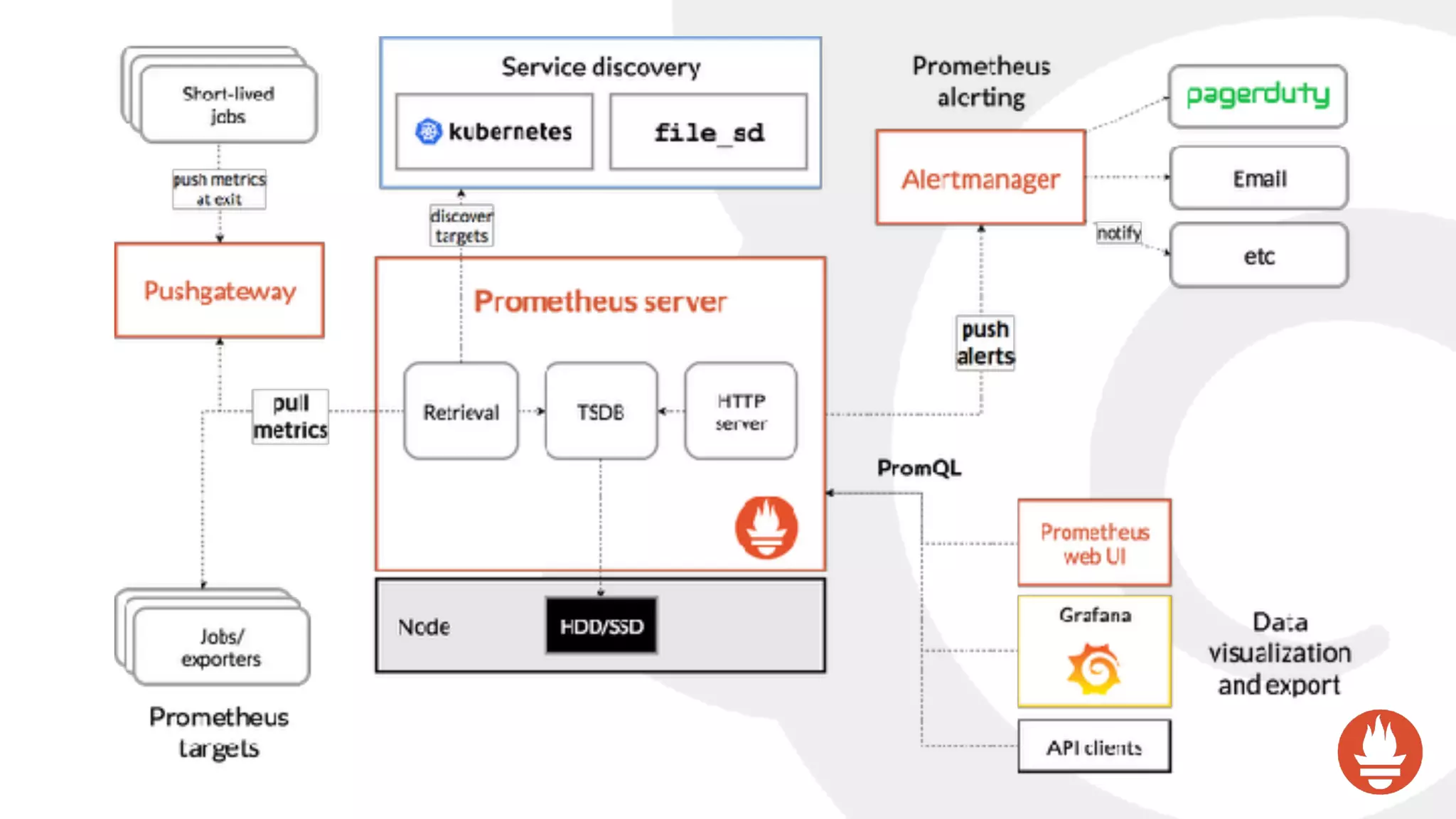

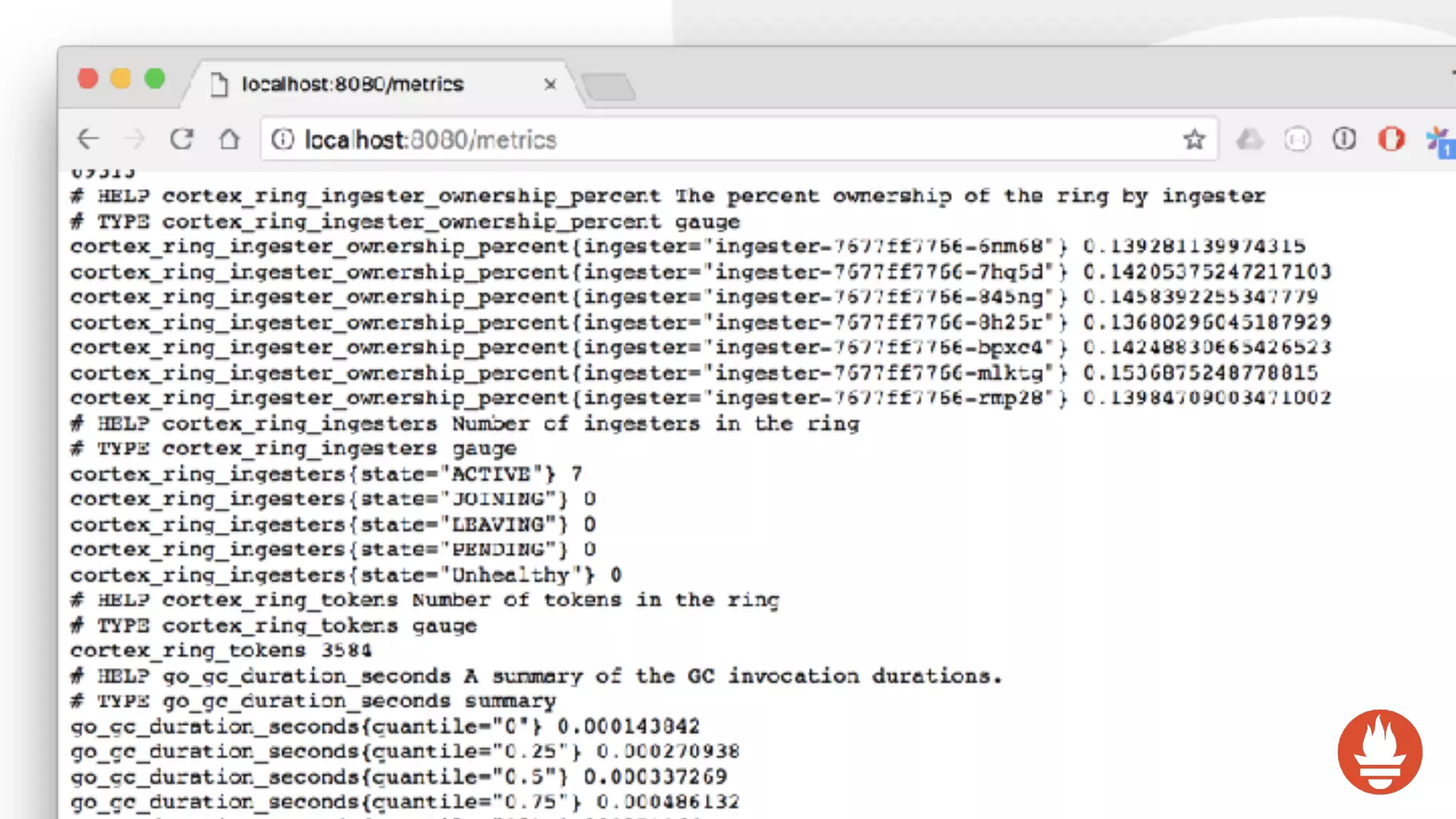

- 7. Prometheus’ data modelis very simple: <identifier> → [ (t0, v0), (t1, v1), ... ] Timestamps are millisecond int64, values are float64 https://www.slideshare.net/Docker/monitoring-the-prometheus-way-julius-voltz-prometheus

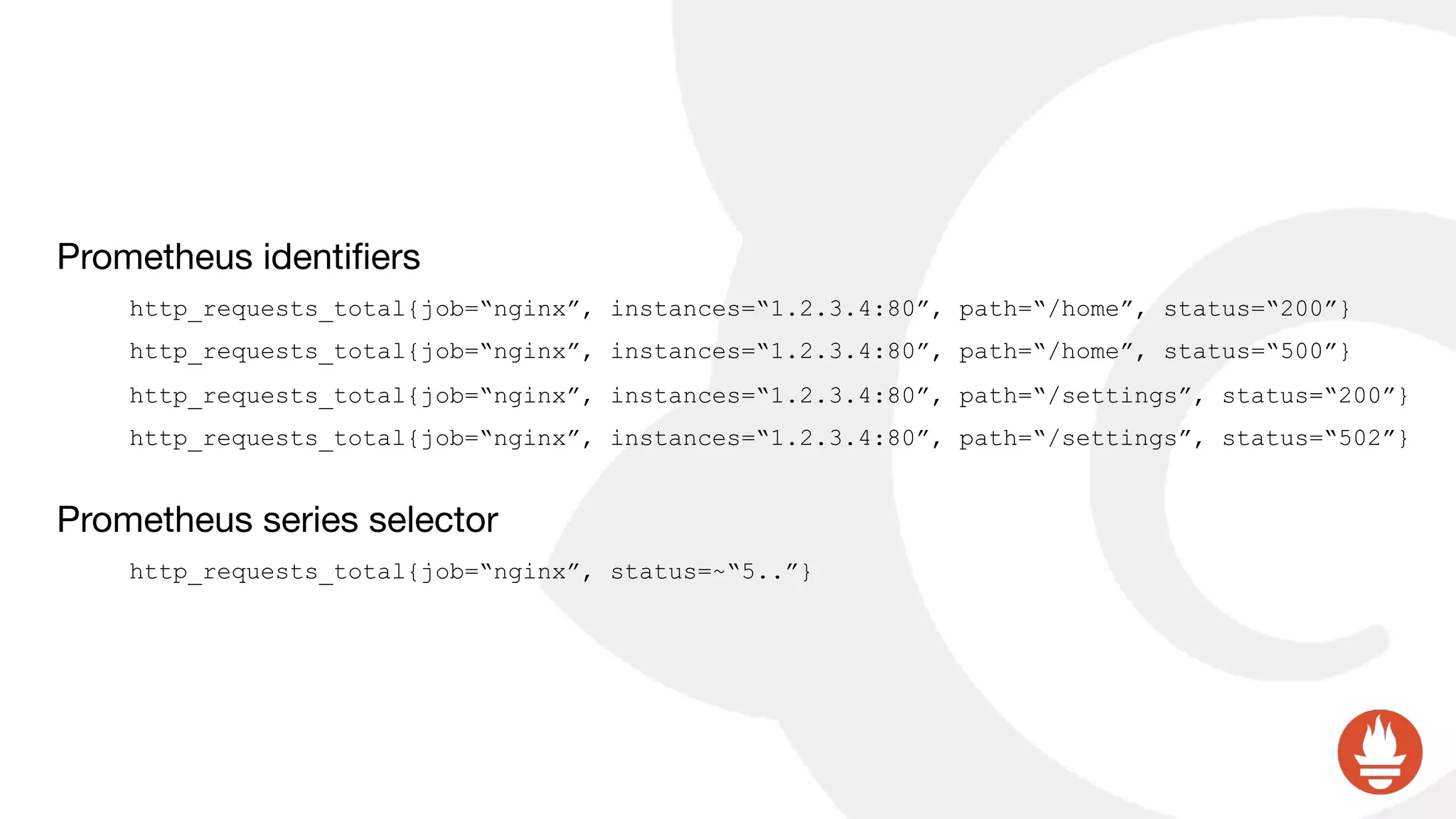

- 8. Prometheus identifiers http_requests_total{job=“nginx”, instances=“1.2.3.4:80”,path=“/home”, status=“200”} http_requests_total{job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} http_requests_total{job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“200”} http_requests_total{job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“502”} Prometheus series selector http_requests_total{job=“nginx”, status=~“5..”}

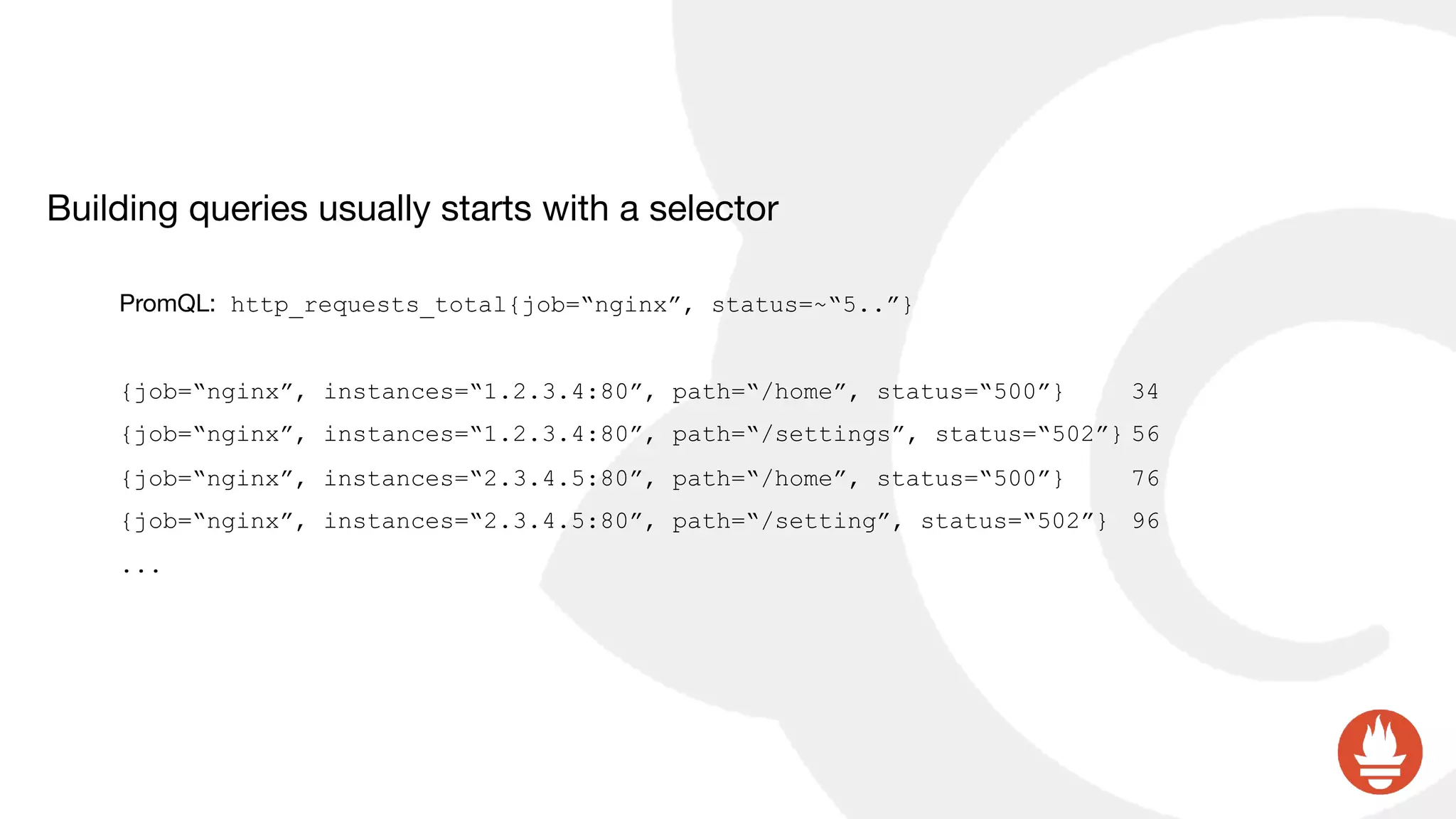

- 9. Building queries usuallystarts with a selector PromQL: http_requests_total{job=“nginx”, status=~“5..”} {job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} 34 {job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“502”} 56 {job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} 76 {job=“nginx”, instances=“2.3.4.5:80”, path=“/setting”, status=“502”} 96 ...
- 10. Can select vectorsof values… PromQL: http_requests_total{job=“nginx”, status=~“502”}[1m] {job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} [30, 31, 32, 34] {job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“500”} [4, 24, 56, 56] {job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} [76, 76, 76, 76] {job=“nginx”, instances=“2.3.4.5:80”, path=“/setting”, status=“500”} [56, 106, 5, 96] ...

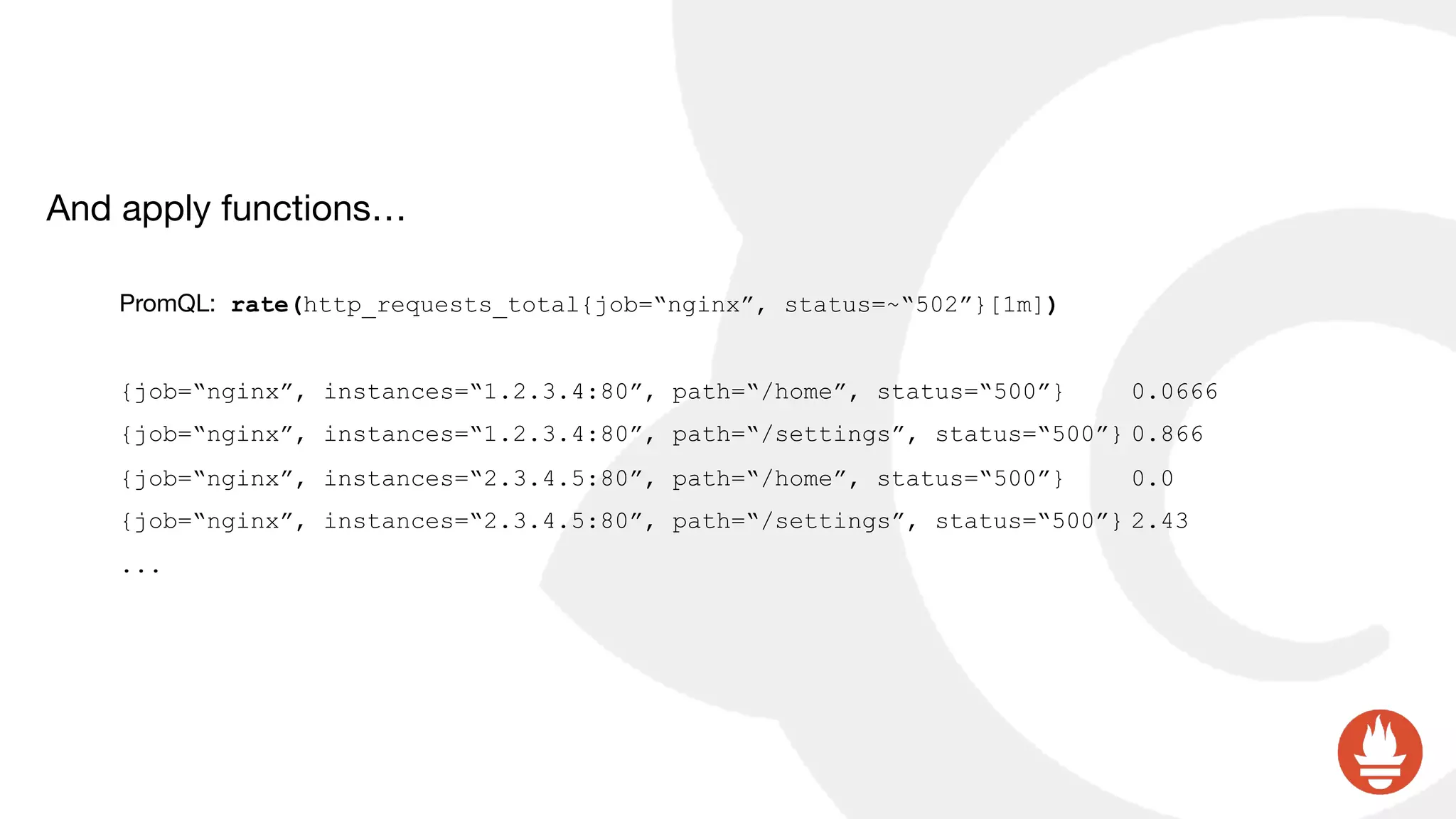

- 11. And apply functions… PromQL:rate(http_requests_total{job=“nginx”, status=~“502”}[1m]) {job=“nginx”, instances=“1.2.3.4:80”, path=“/home”, status=“500”} 0.0666 {job=“nginx”, instances=“1.2.3.4:80”, path=“/settings”, status=“500”} 0.866 {job=“nginx”, instances=“2.3.4.5:80”, path=“/home”, status=“500”} 0.0 {job=“nginx”, instances=“2.3.4.5:80”, path=“/settings”, status=“500”} 2.43 ...

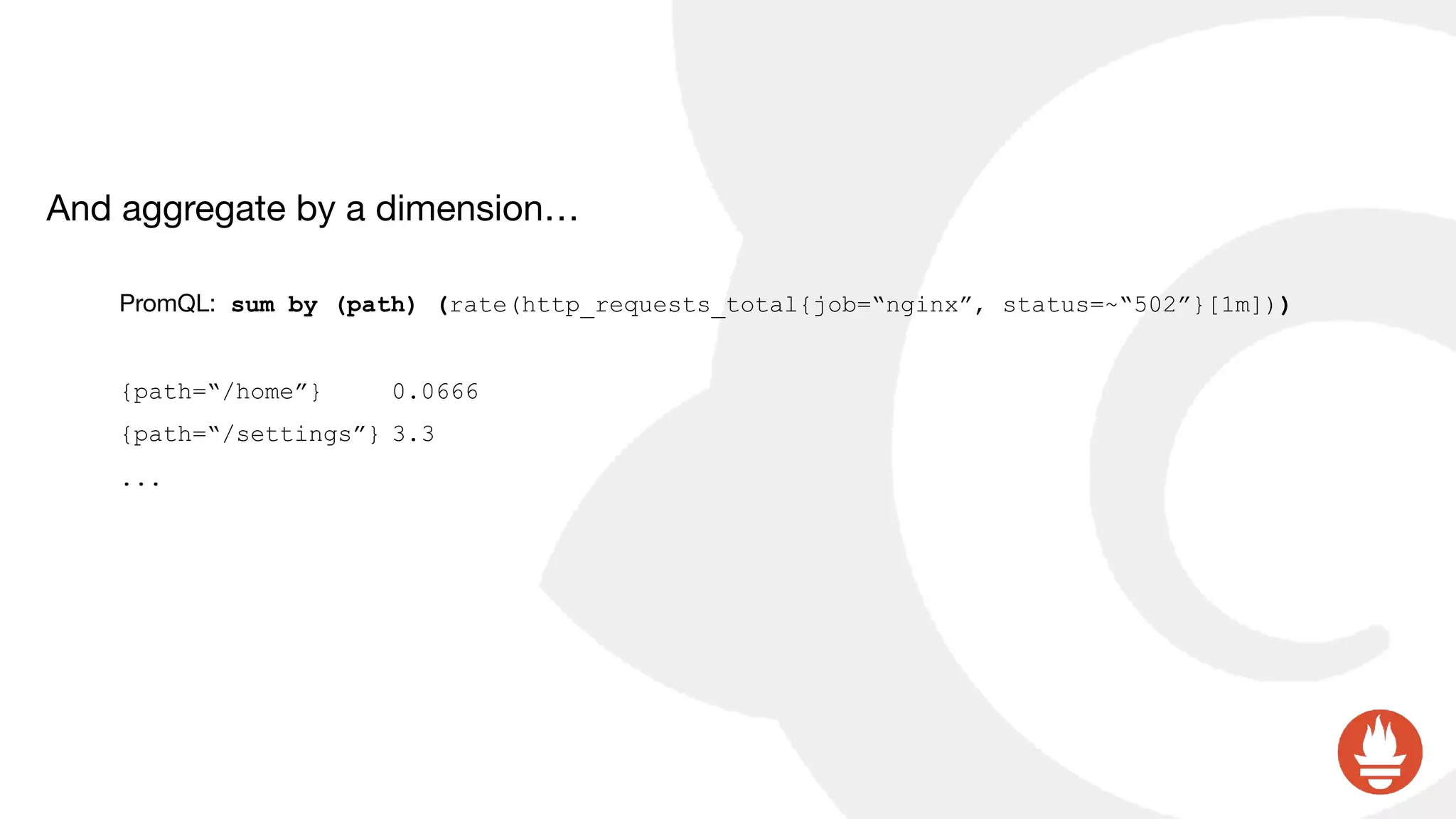

- 12. And aggregate bya dimension… PromQL: sum by (path) (rate(http_requests_total{job=“nginx”, status=~“502”}[1m])) {path=“/home”} 0.0666 {path=“/settings”} 3.3 ...

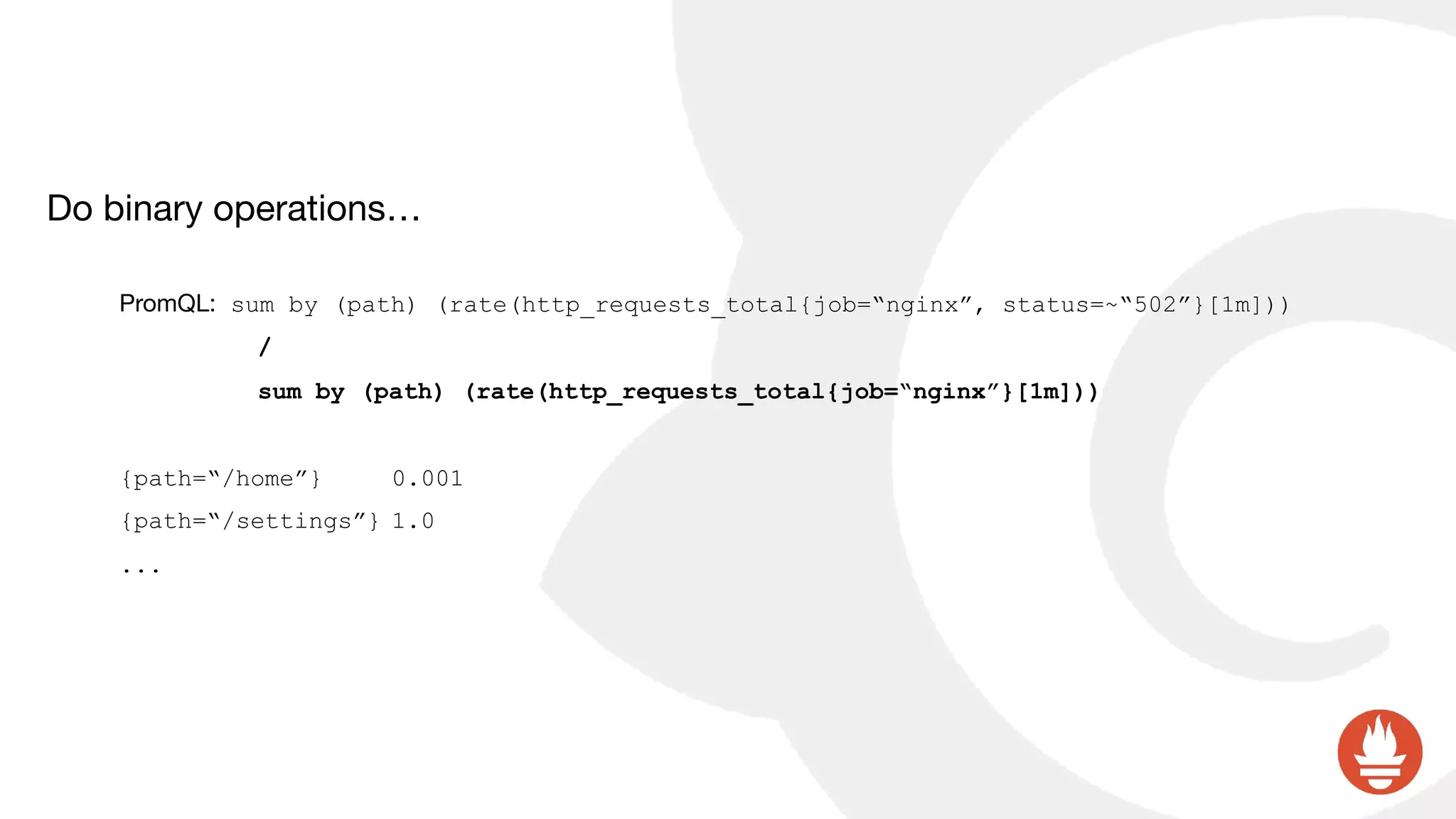

- 13. Do binary operations… PromQL:sum by (path) (rate(http_requests_total{job=“nginx”, status=~“502”}[1m])) / sum by (path) (rate(http_requests_total{job=“nginx”}[1m])) {path=“/home”} 0.001 {path=“/settings”} 1.0 ...

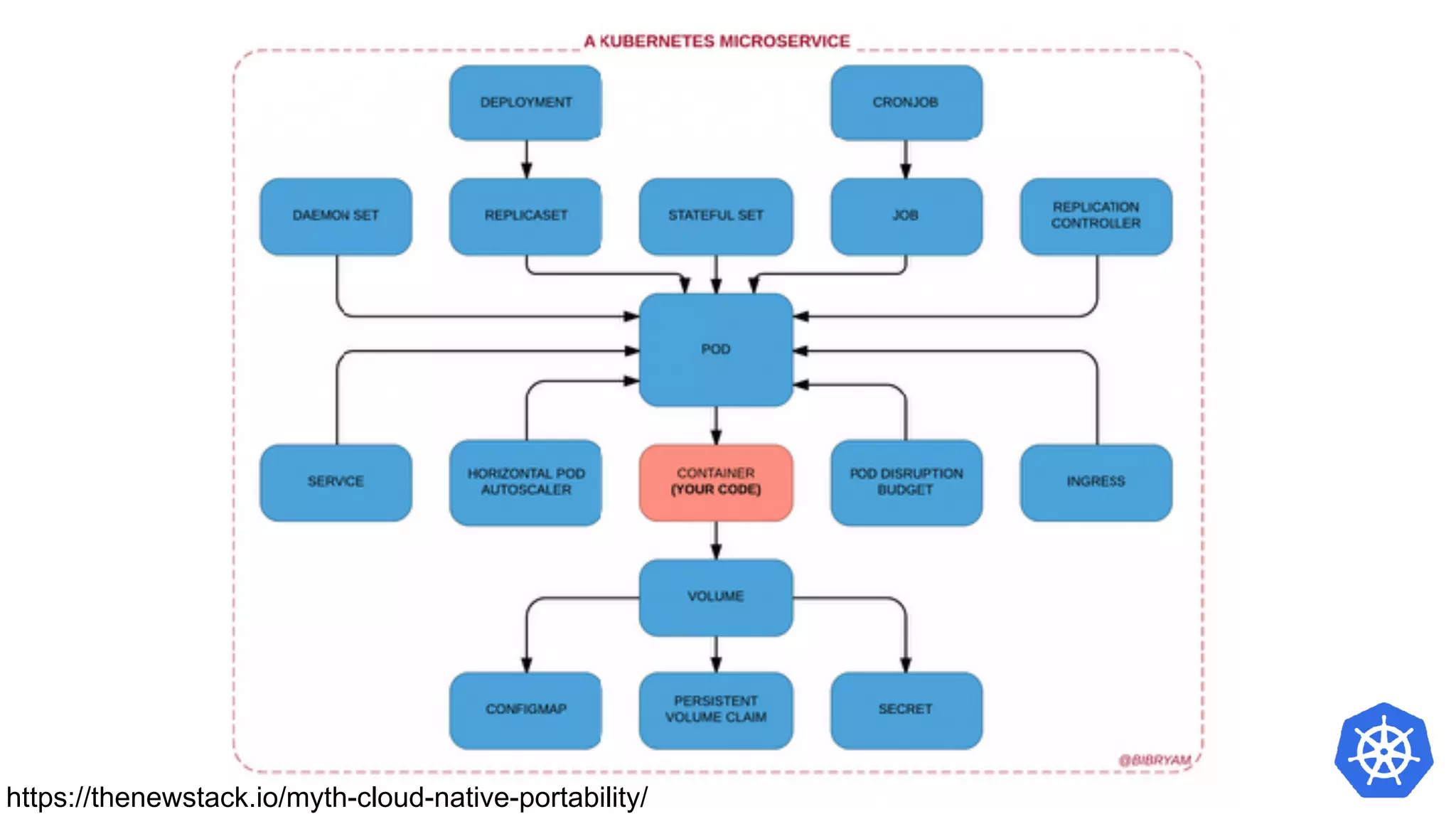

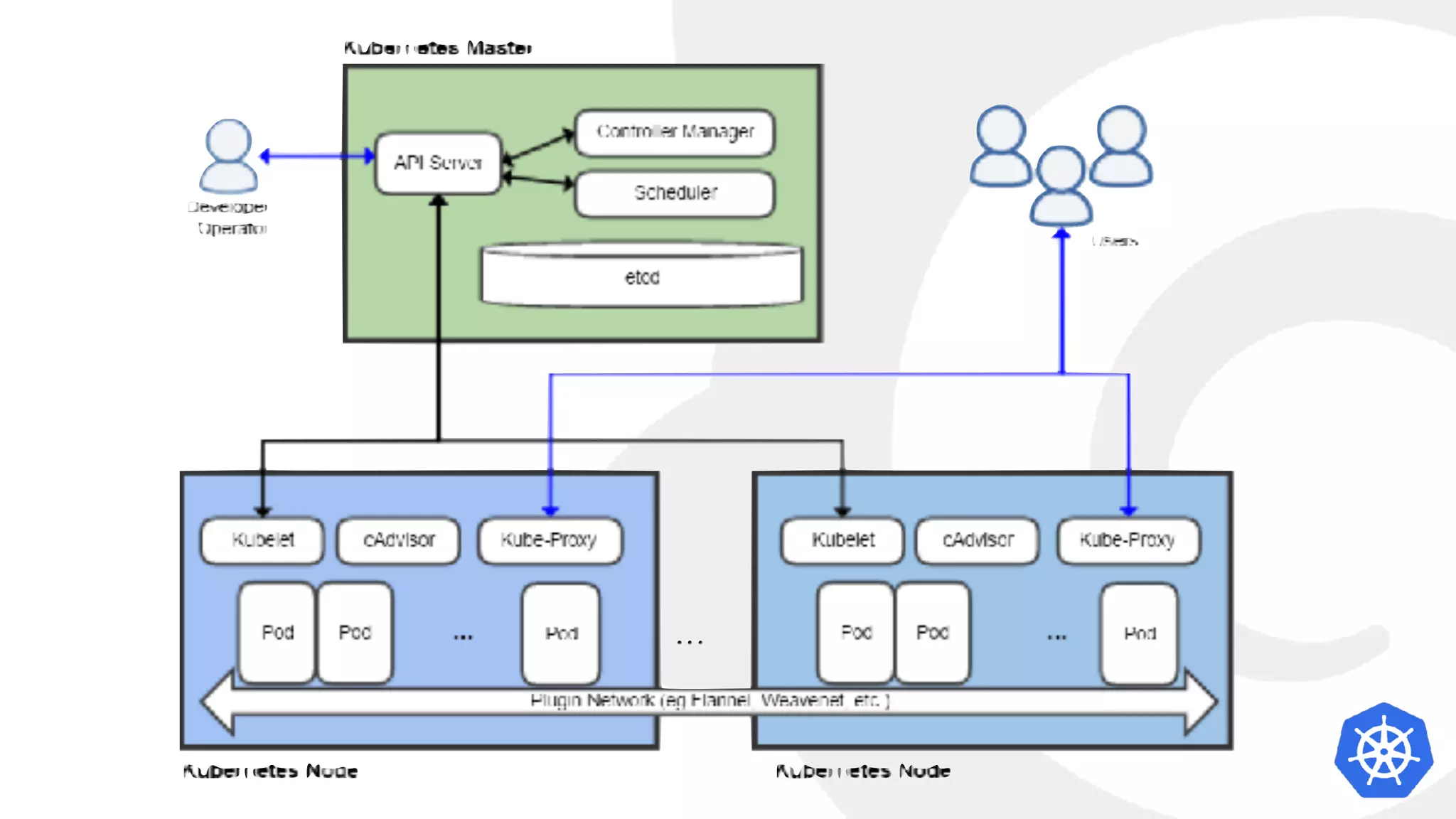

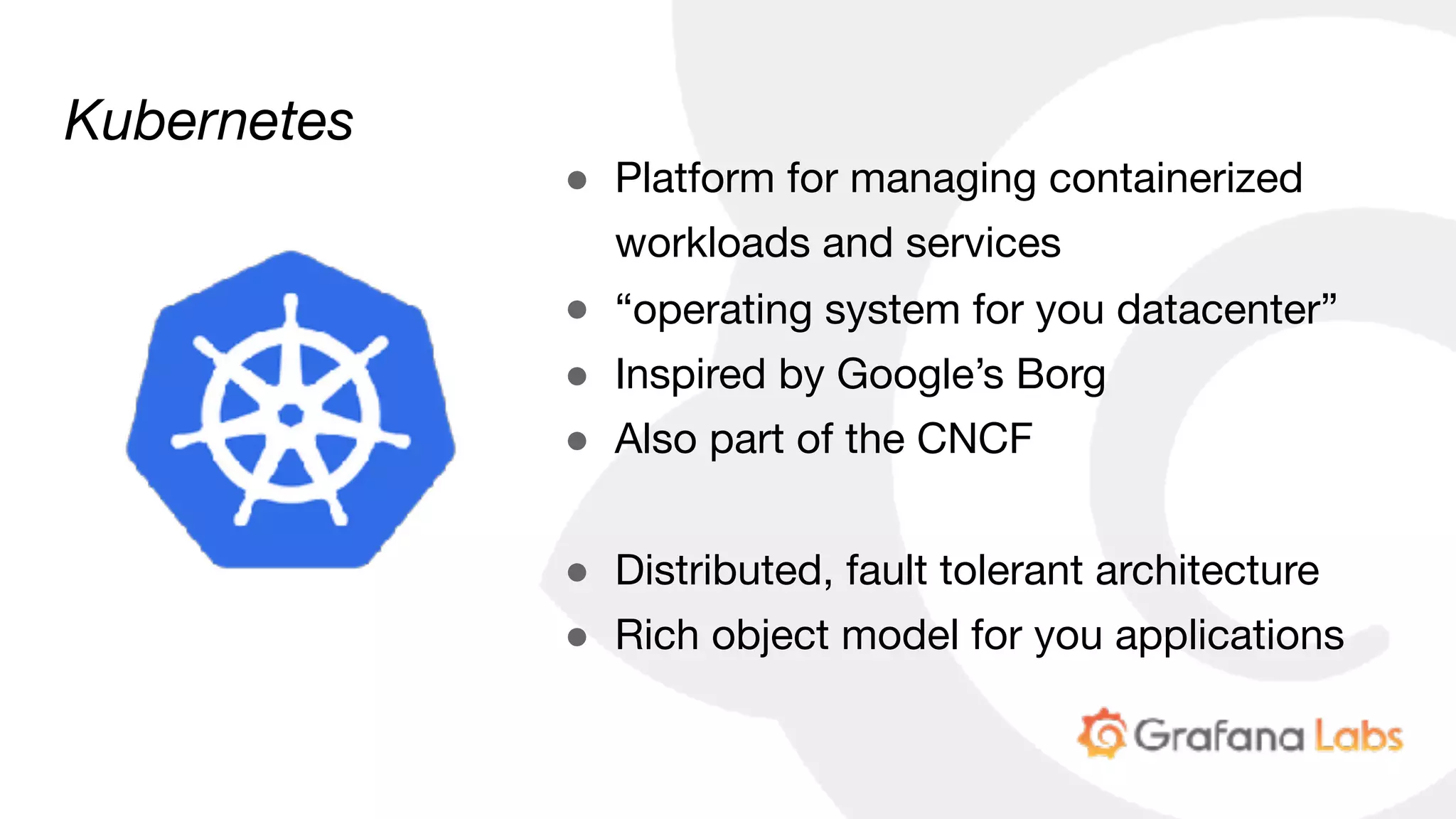

- 14. Kubernetes ● Platform formanaging containerized workloads and services ● “operating system for you datacenter” ● Inspired by Google’s Borg ● Also part of the CNCF ● Distributed, fault tolerant architecture ● Rich object model for you applications
- 16.

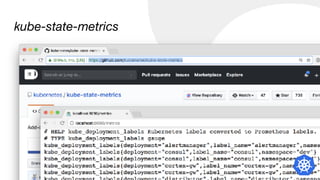

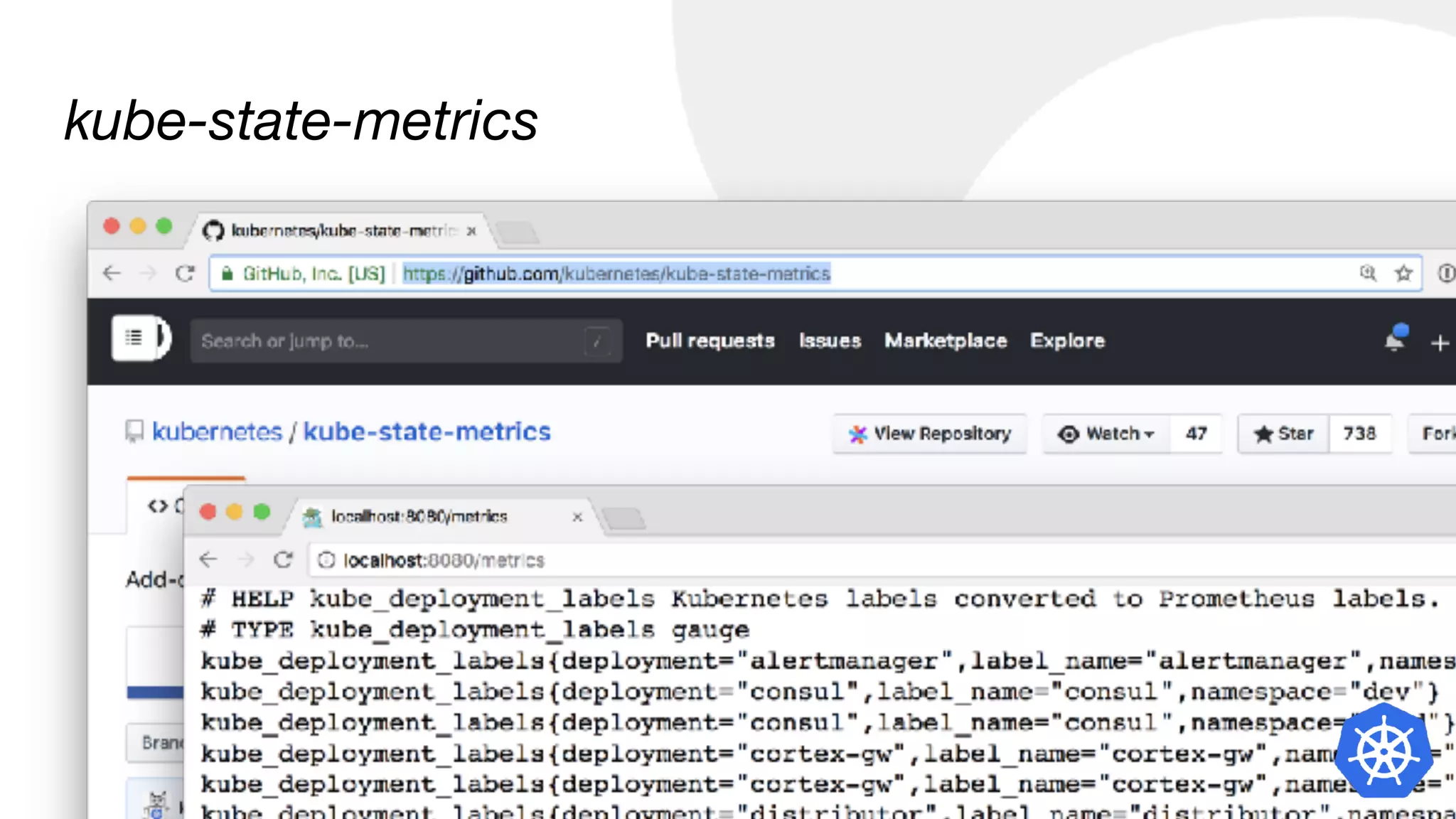

- 17.
- 18.

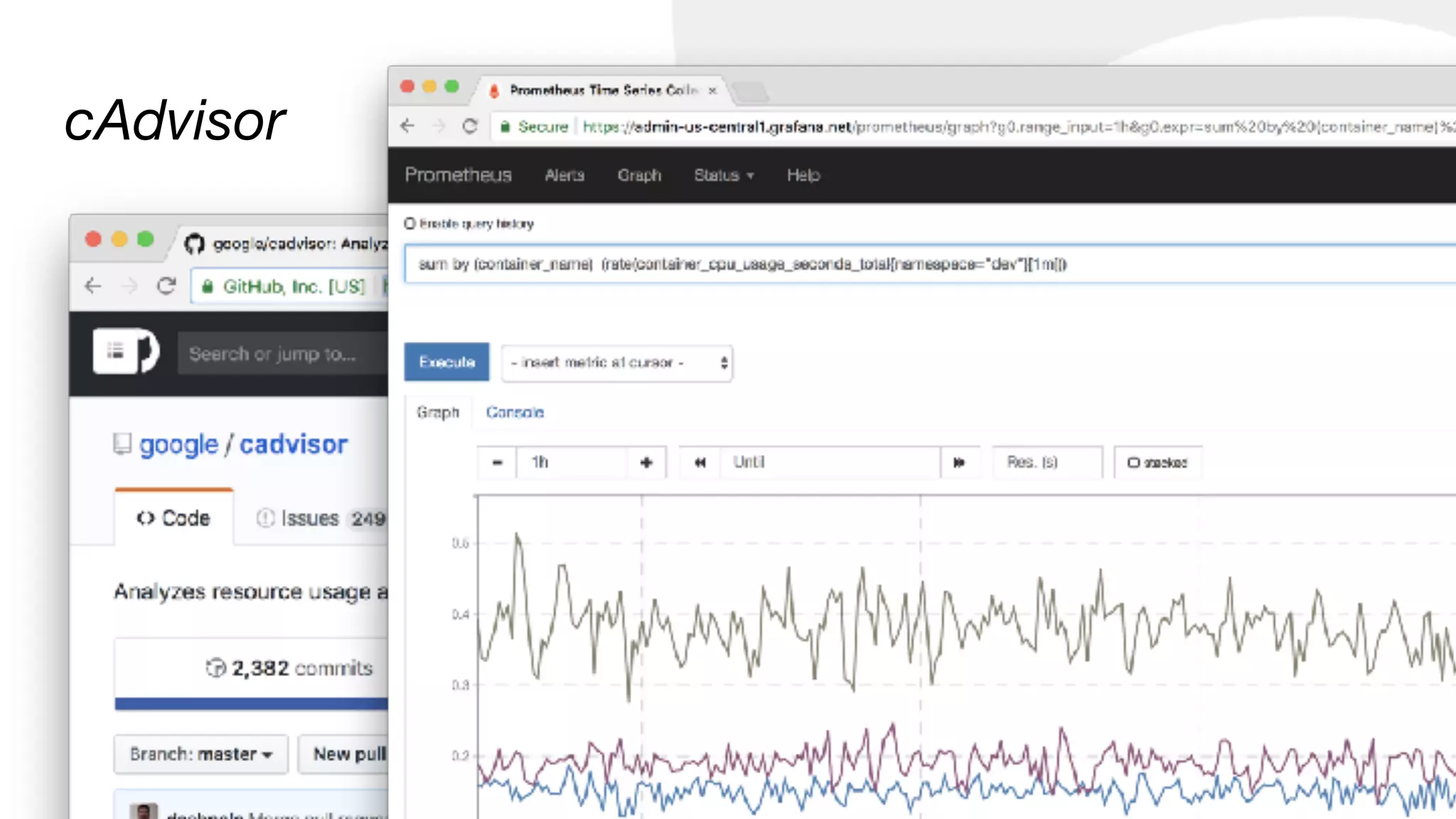

- 19.

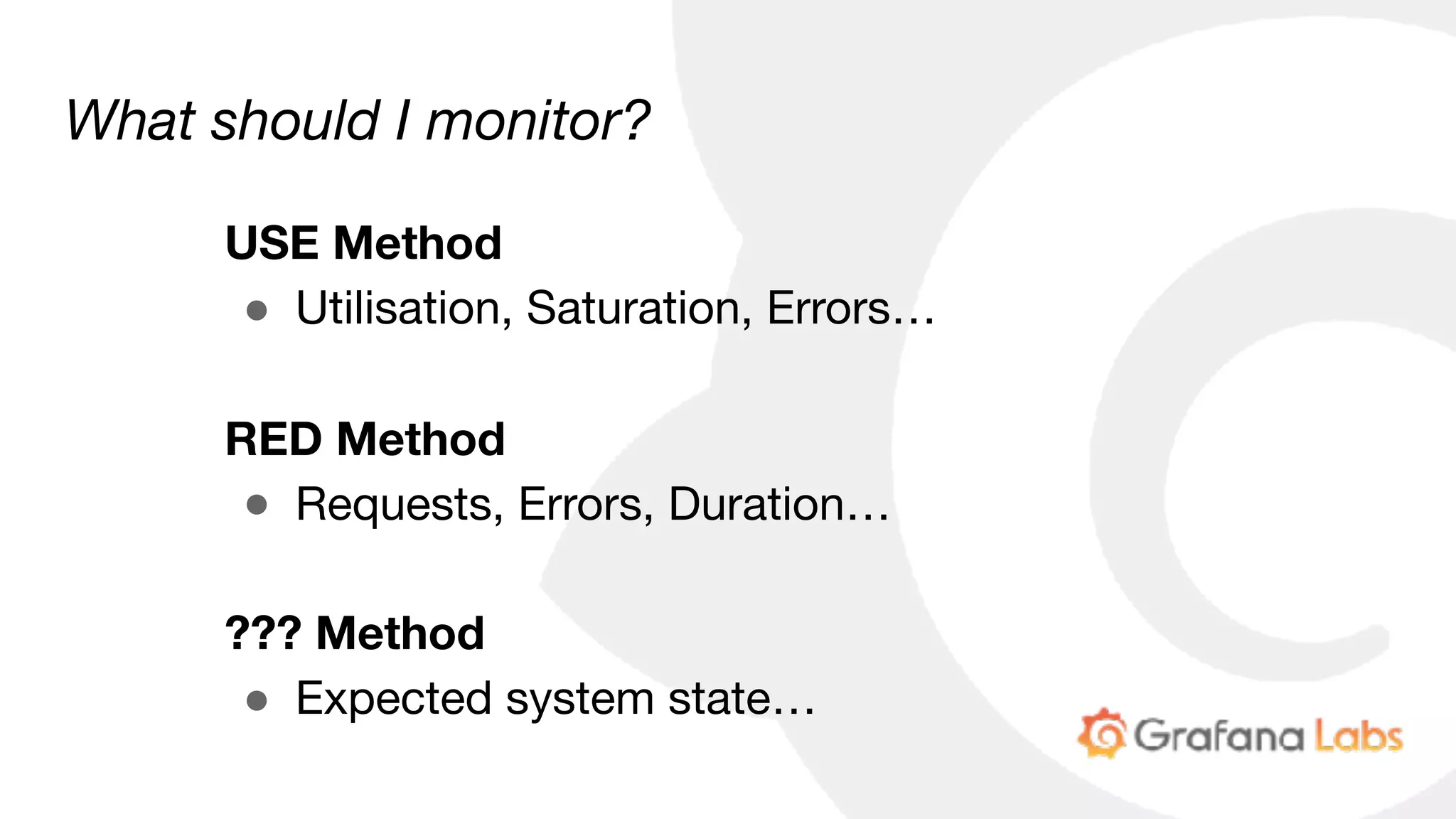

- 20. What should Imonitor? USE Method ● Utilisation, Saturation, Errors… RED Method ● Requests, Errors, Duration… ??? Method ● Expected system state…

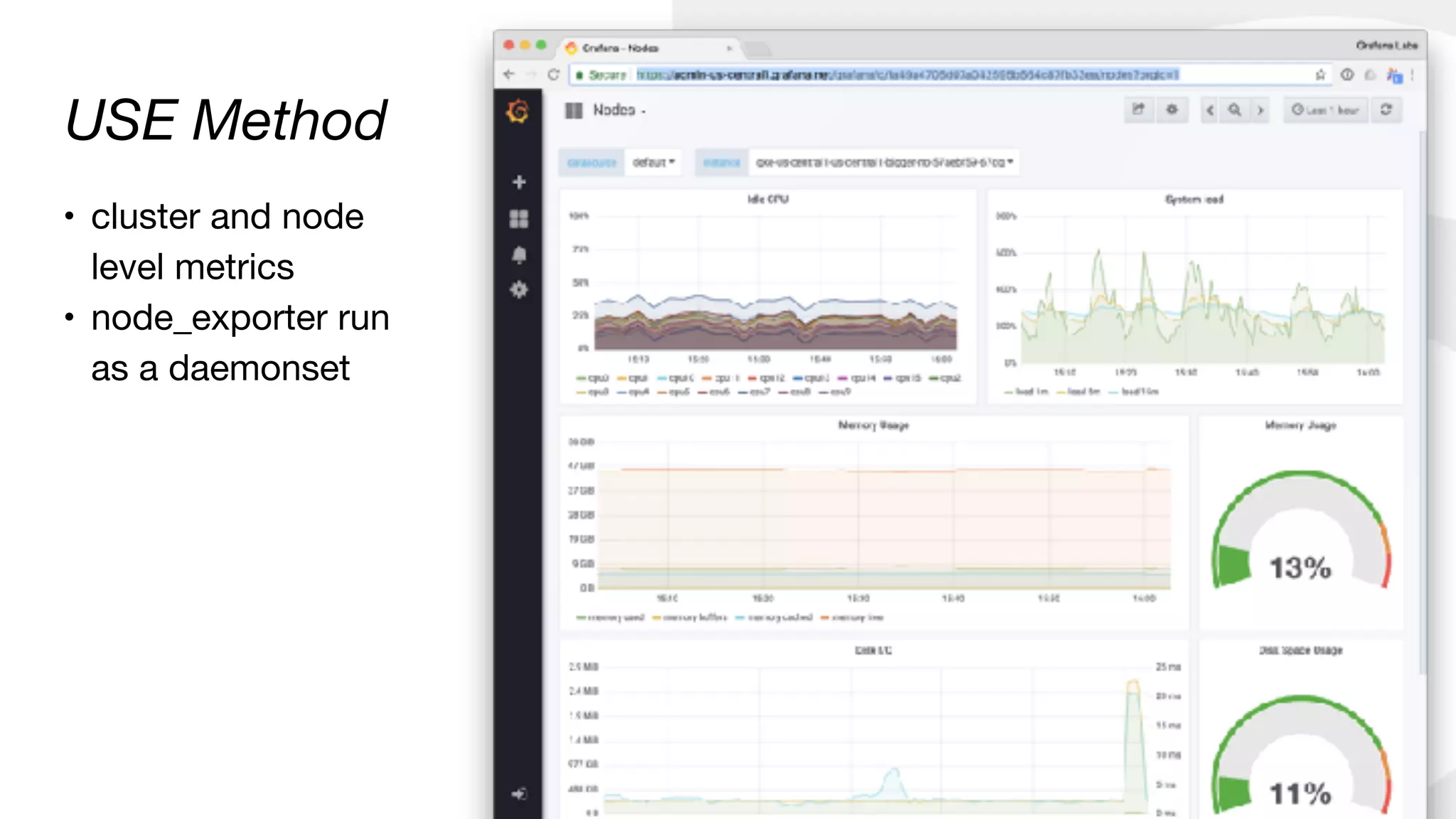

- 21. USE Method • clusterand node level metrics • node_exporter run as a daemonset

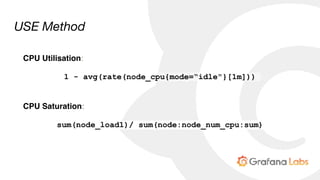

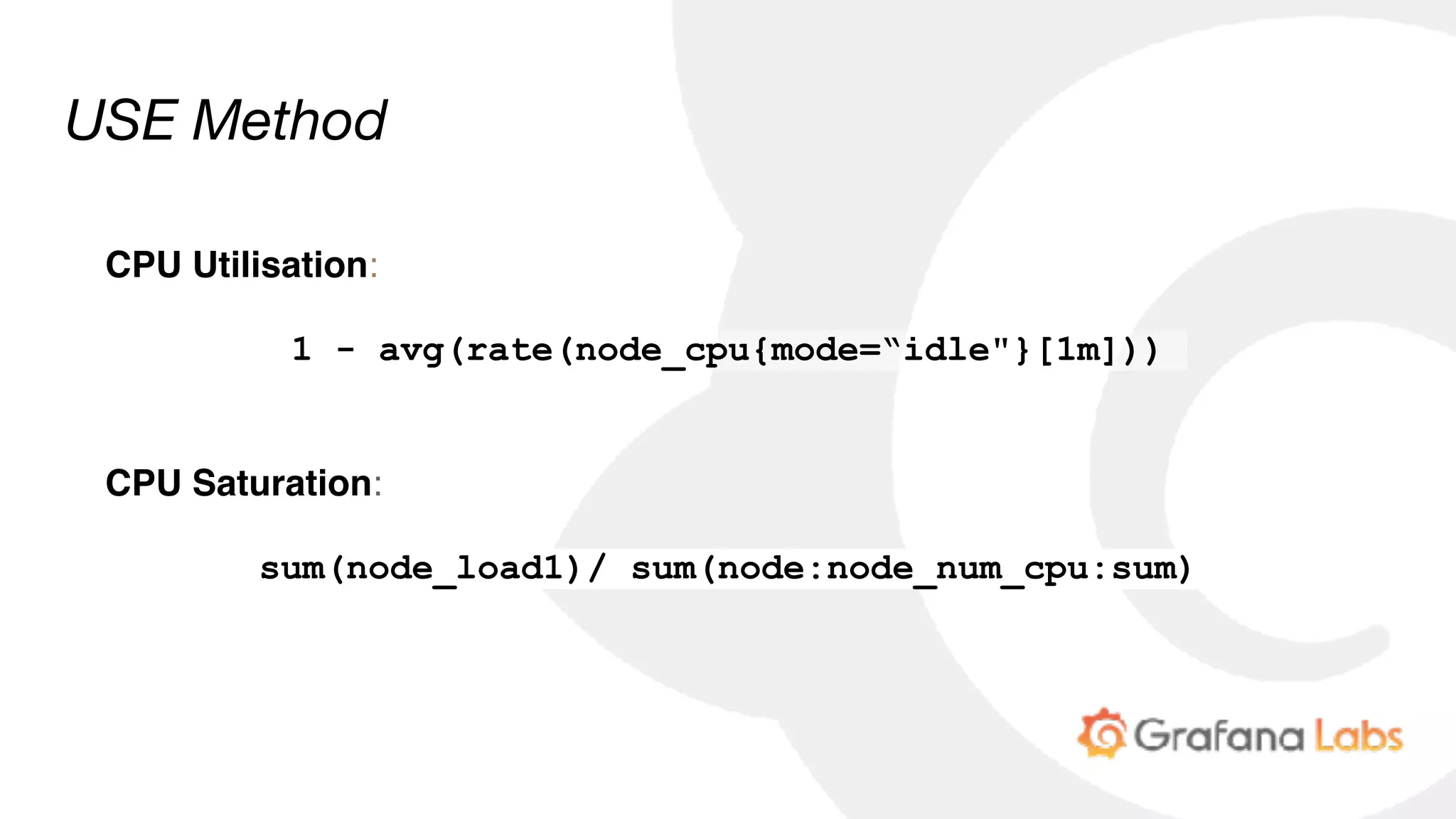

- 22. CPU Utilisation: 1 -avg(rate(node_cpu{mode=“idle"}[1m])) CPU Saturation: sum(node_load1)/ sum(node:node_num_cpu:sum) USE Method

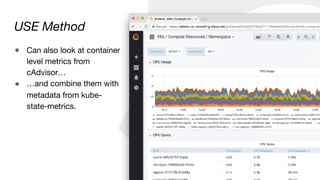

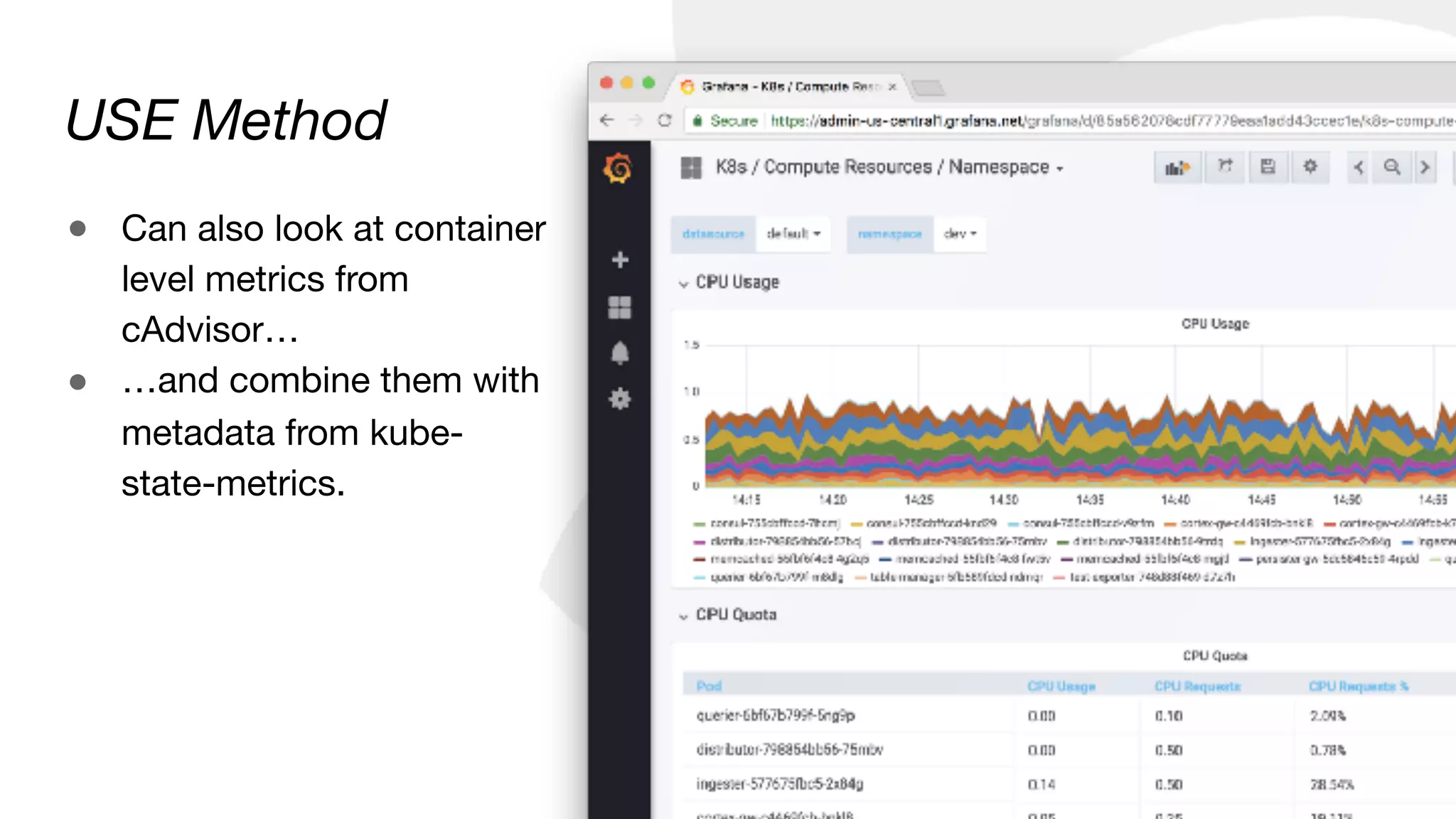

- 23. USE Method ● Canalso look at container level metrics from cAdvisor… ● …and combine them with metadata from kube- state-metrics.

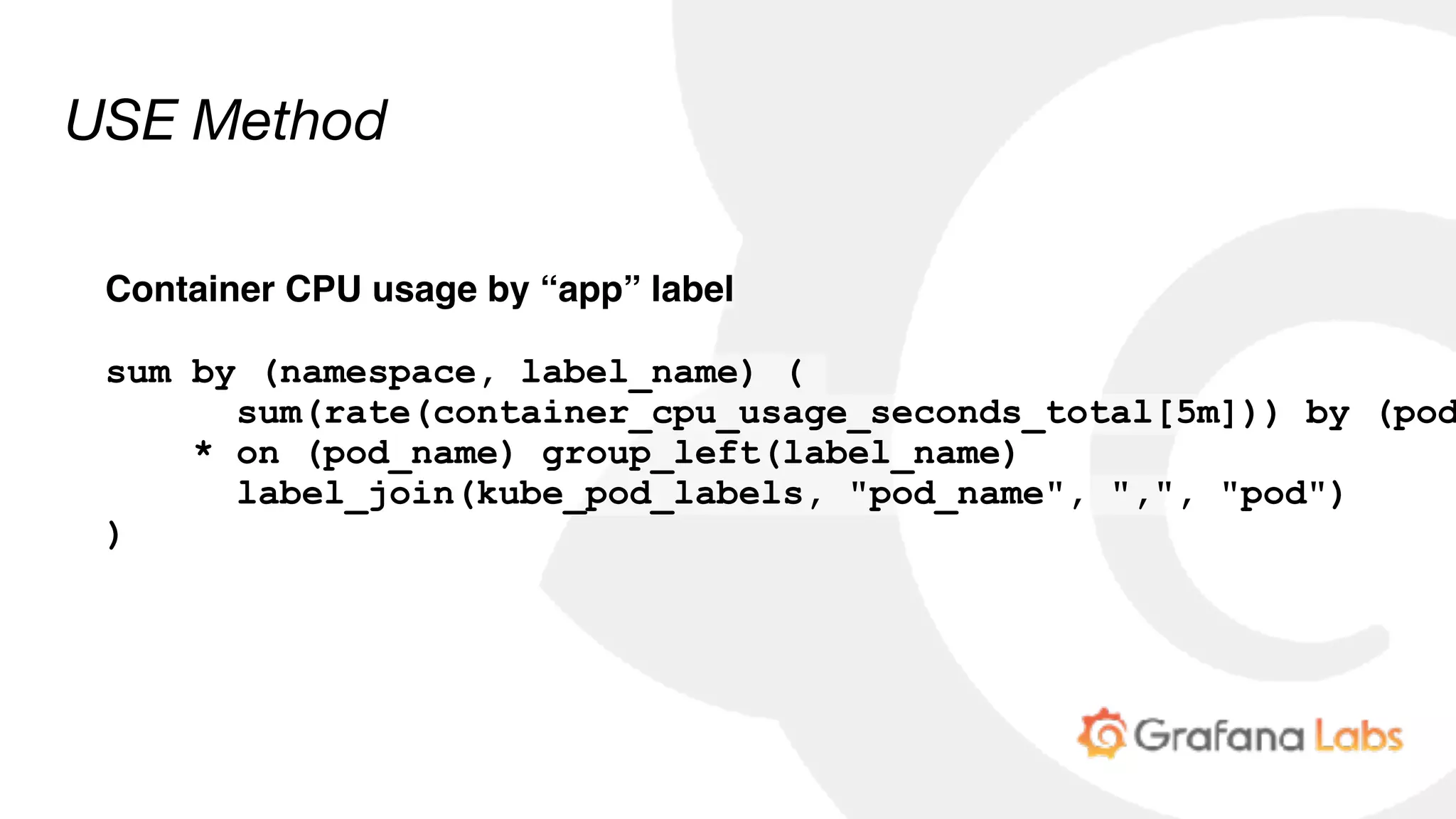

- 24. Container CPU usageby “app” label sum by (namespace, label_name) ( sum(rate(container_cpu_usage_seconds_total[5m])) by (pod * on (pod_name) group_left(label_name) label_join(kube_pod_labels, "pod_name", ",", "pod") ) USE Method

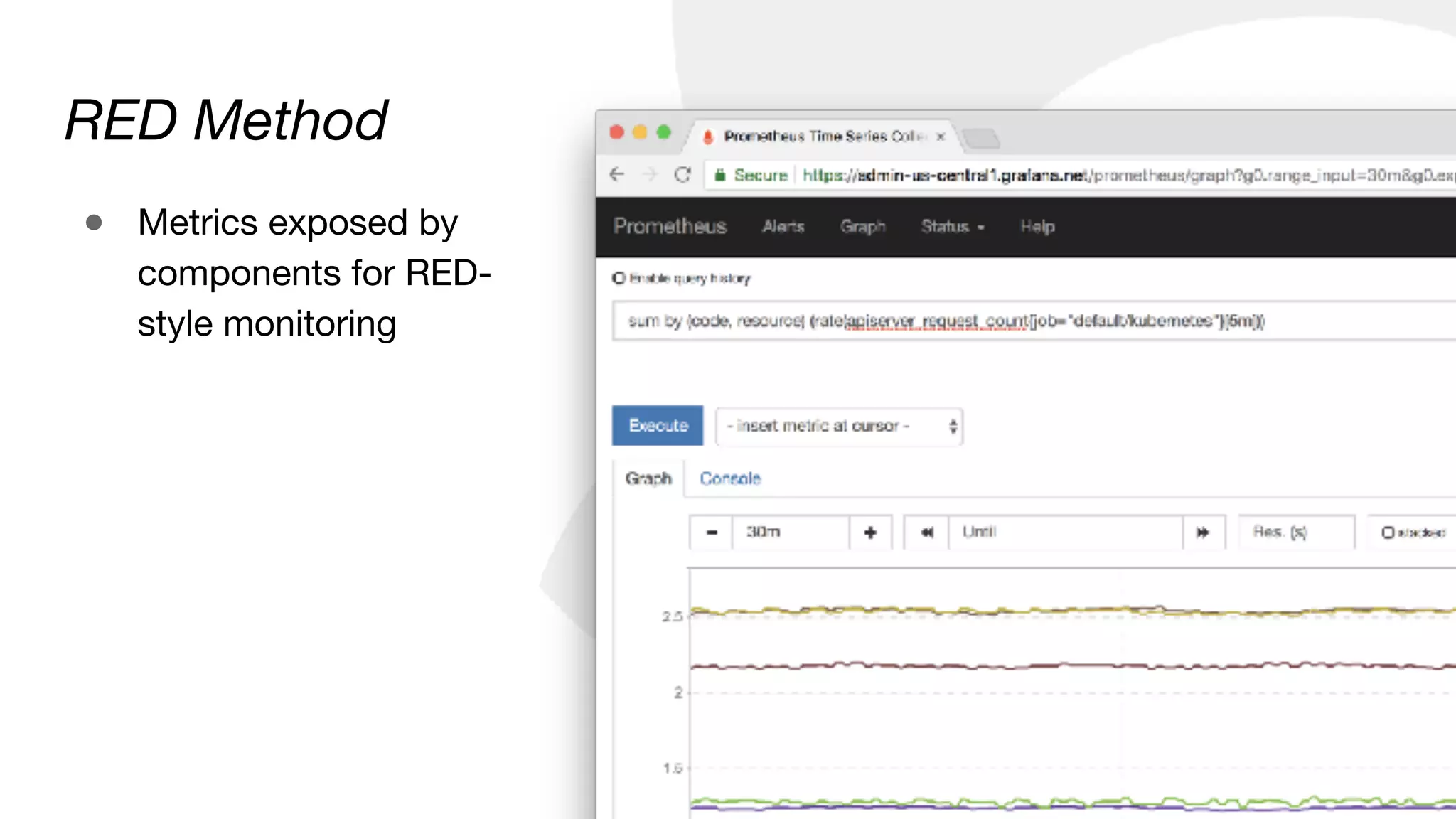

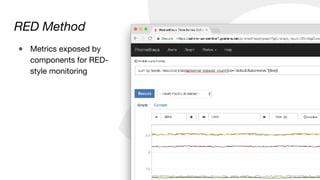

- 25. RED Method ● Metricsexposed by components for RED- style monitoring

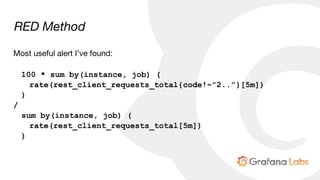

- 26. RED Method Most usefulalert I’ve found: 100 * sum by(instance, job) ( rate(rest_client_requests_total{code!~”2..”}[5m]) ) / sum by(instance, job) ( rate(rest_client_requests_total[5m]) )
- 27. ??? Method Alert expressionsare invariants that describe a healthy system kube_deployment_spec_replicas != kube_deployment_status_replicas_available rate(kube_pod_container_status_restarts_total[15m]) > 0

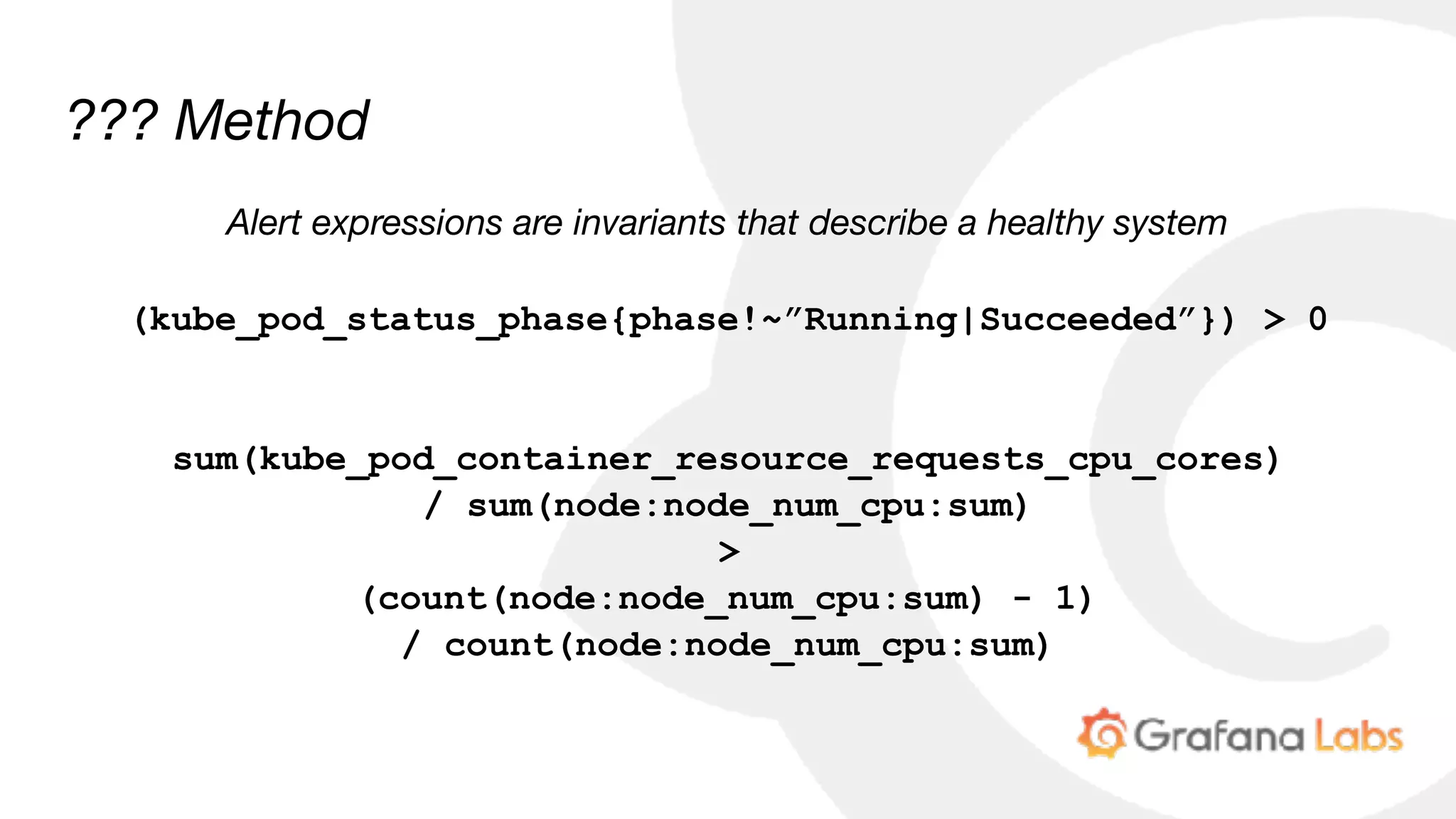

- 28. ??? Method Alert expressionsare invariants that describe a healthy system (kube_pod_status_phase{phase!~”Running|Succeeded”}) > 0 sum(kube_pod_container_resource_requests_cpu_cores) / sum(node:node_num_cpu:sum) > (count(node:node_num_cpu:sum) - 1) / count(node:node_num_cpu:sum)
- 29.

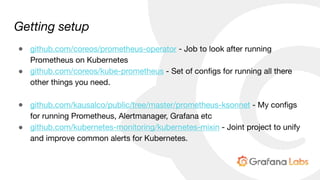

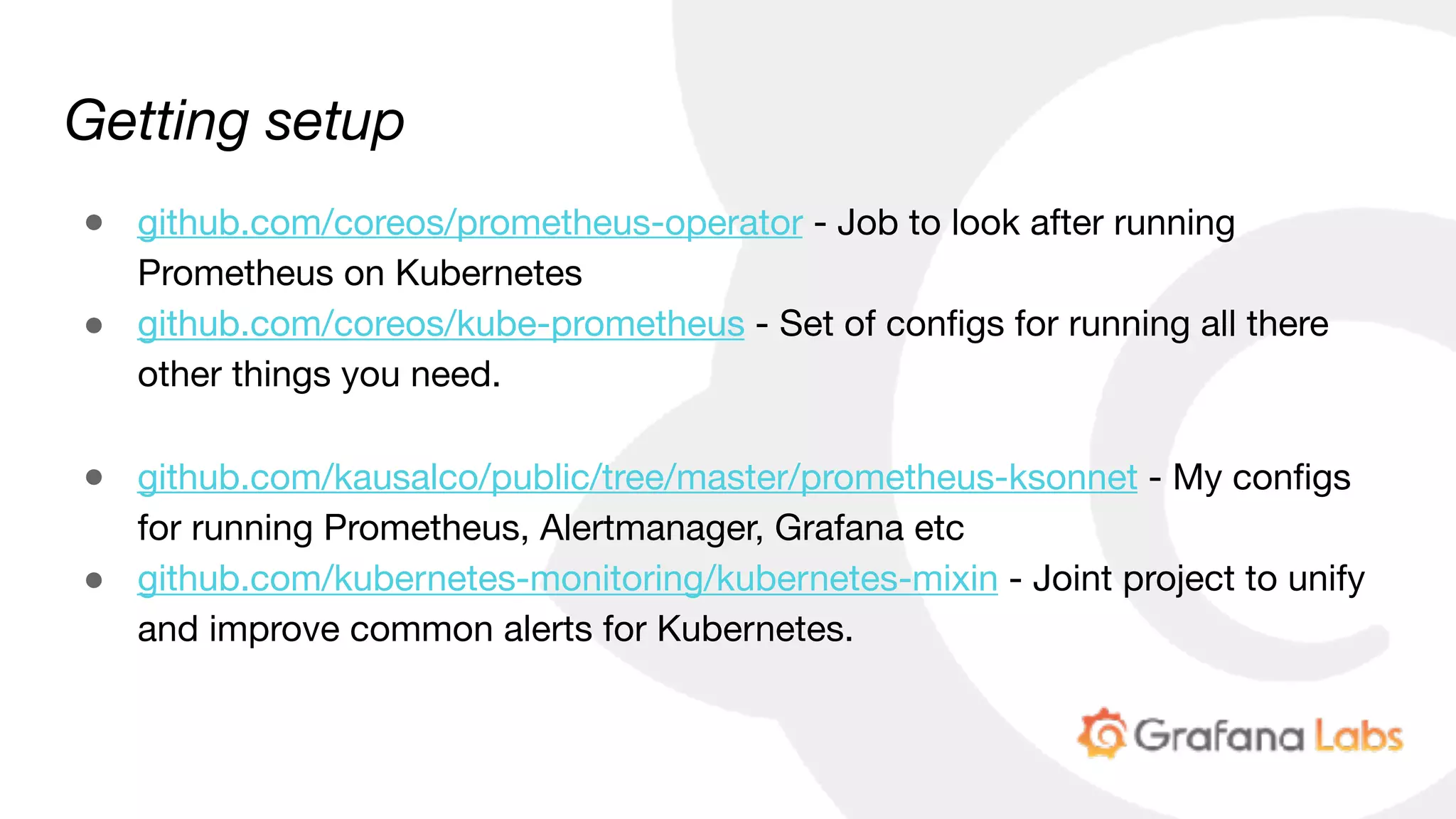

- 30. Getting setup ● github.com/coreos/prometheus-operator- Job to look after running Prometheus on Kubernetes ● github.com/coreos/kube-prometheus - Set of configs for running all there other things you need. ● github.com/kausalco/public/tree/master/prometheus-ksonnet - My configs for running Prometheus, Alertmanager, Grafana etc ● github.com/kubernetes-monitoring/kubernetes-mixin - Joint project to unify and improve common alerts for Kubernetes.
- 31.
