Multithreaded and
Distributed Algorithms
Prof. Shashikant V. Athawale
Assistant Professor | Computer Engineering
Department | AISSMS College of Engineering,
Kennedy Road, Pune , MH, India - 411001

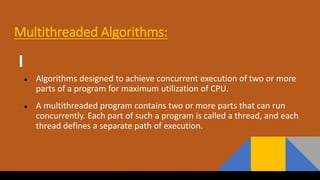

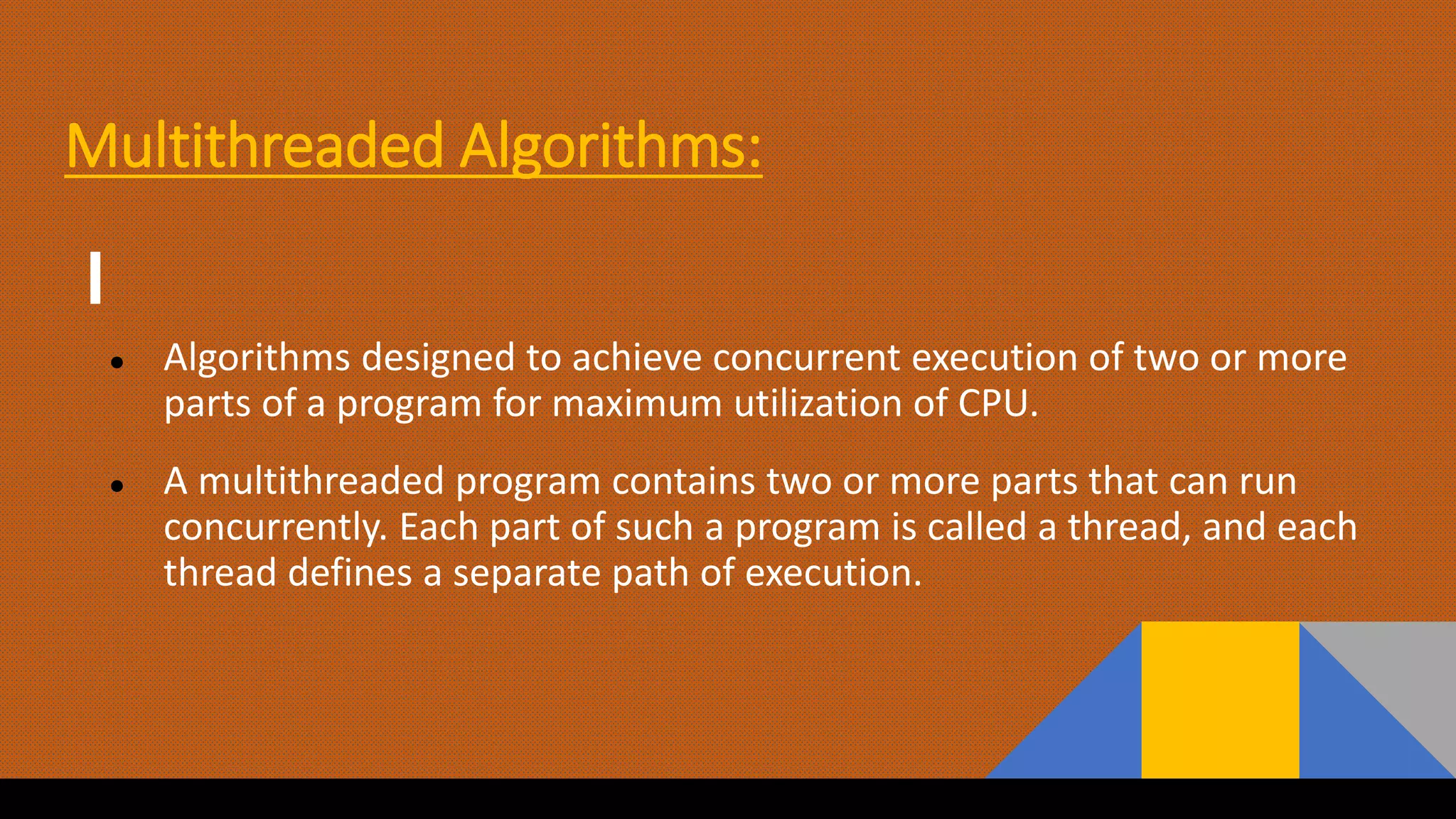

Multithreaded Algorithms:
● Algorithms designed to achieve concurrent execution of two or more
parts of a program for maximum utilization of CPU.
● A multithreaded program contains two or more parts that can run
concurrently. Each part of such a program is called a thread, and each
thread defines a separate path of execution.

Multithreaded Algorithms KeyPoints:
● Communication Models :Shares memory and Distributed memory.
● Types of Threading :Static threading and Dynamic Threading.
● Dynamic Multithreading : Parallel, sync and spawn

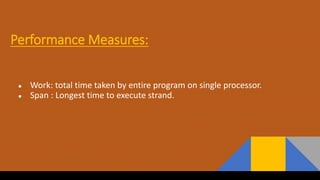

Performance Measures:
● Work: total time taken by entire program on single processor.
● Span : Longest time to execute strand.

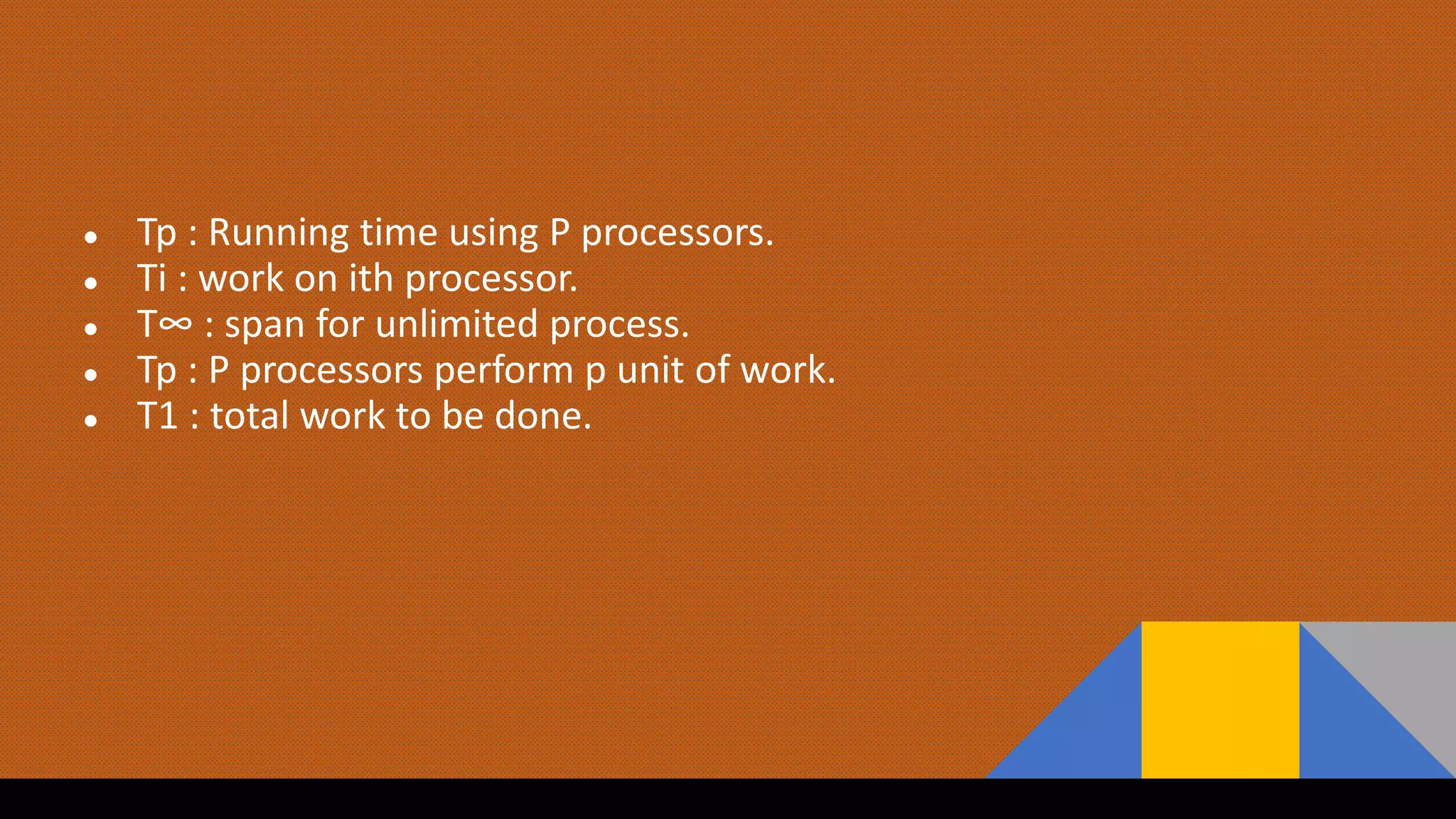

● Tp : Running time using P processors.
● Ti : work on ith processor.
● T∞ : span for unlimited process.
● Tp : P processors perform p unit of work.
● T1 : total work to be done.

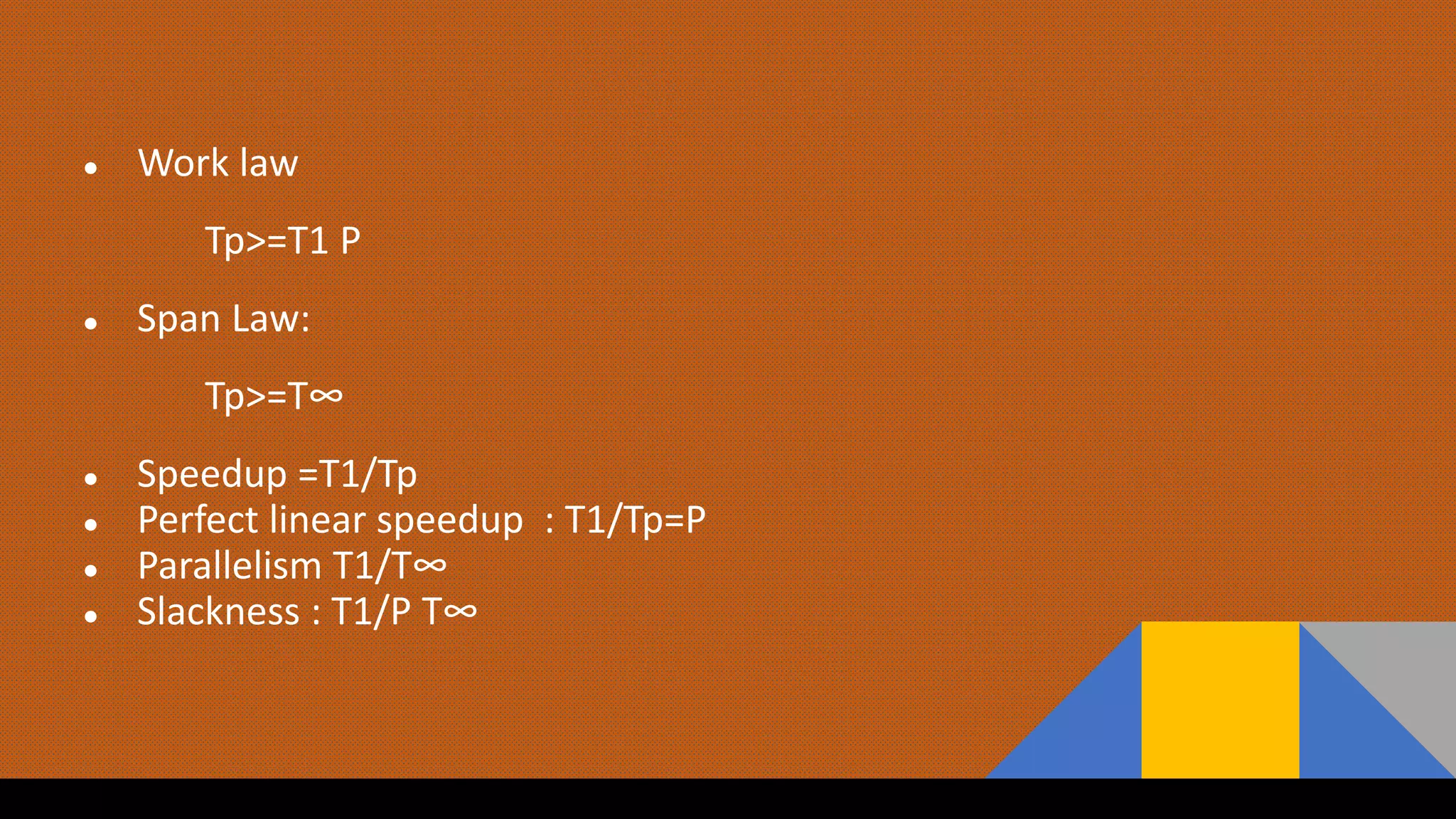

● Work law
Tp>=T1 P
● Span Law:
Tp>=T∞
● Speedup =T1/Tp
● Perfect linear speedup : T1/Tp=P
● Parallelism T1/T∞
● Slackness : T1/P T∞

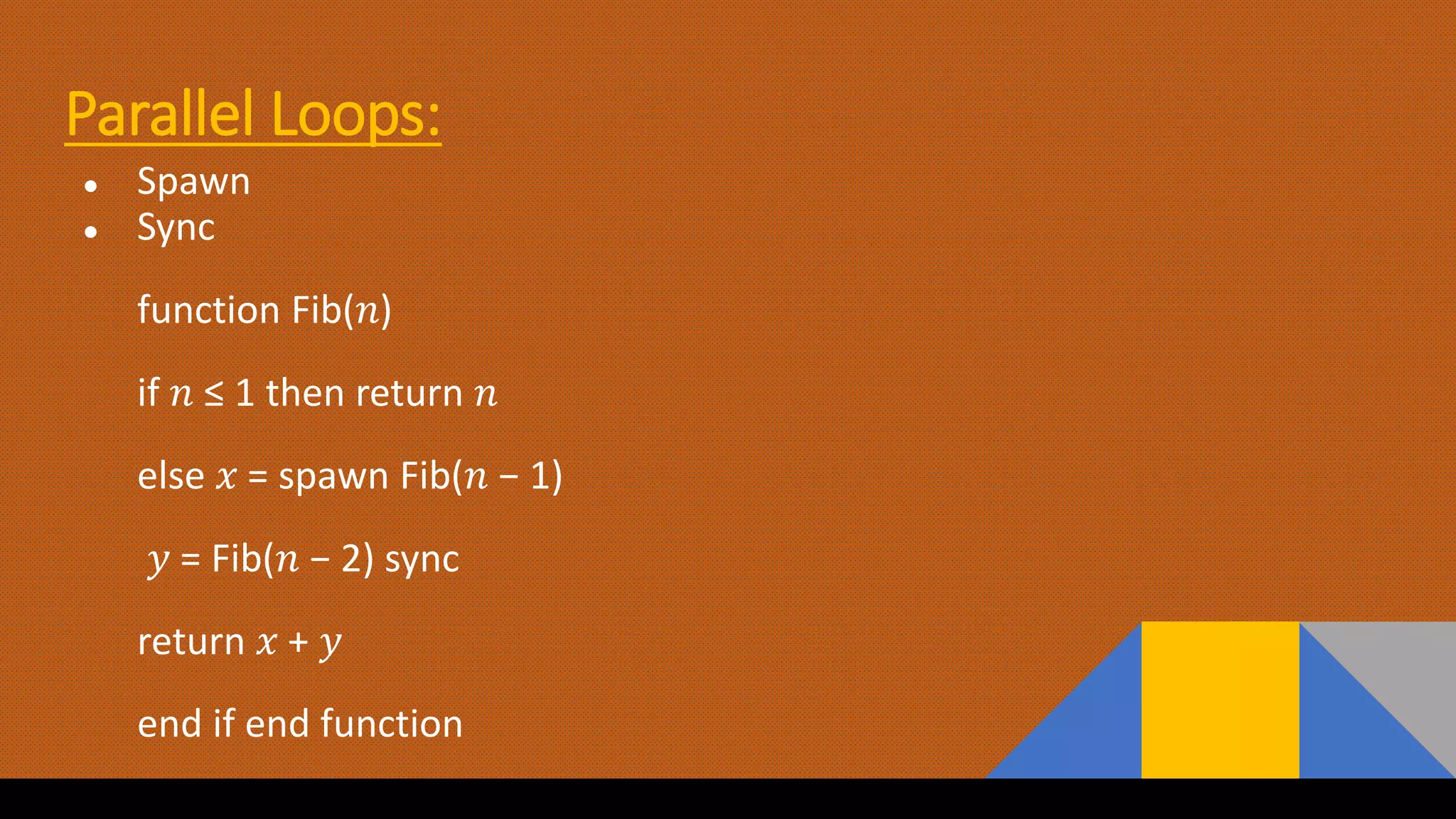

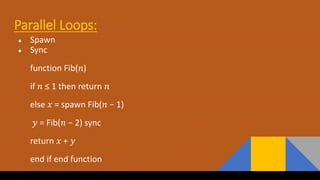

Parallel Loops:
● Spawn
● Sync
function Fib(𝑛)
if 𝑛 ≤ 1 then return 𝑛
else 𝑥 = spawn Fib(𝑛 − 1)
𝑦 = Fib(𝑛 − 2) sync
return 𝑥 + 𝑦
end if end function

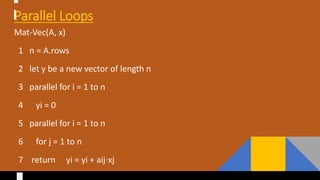

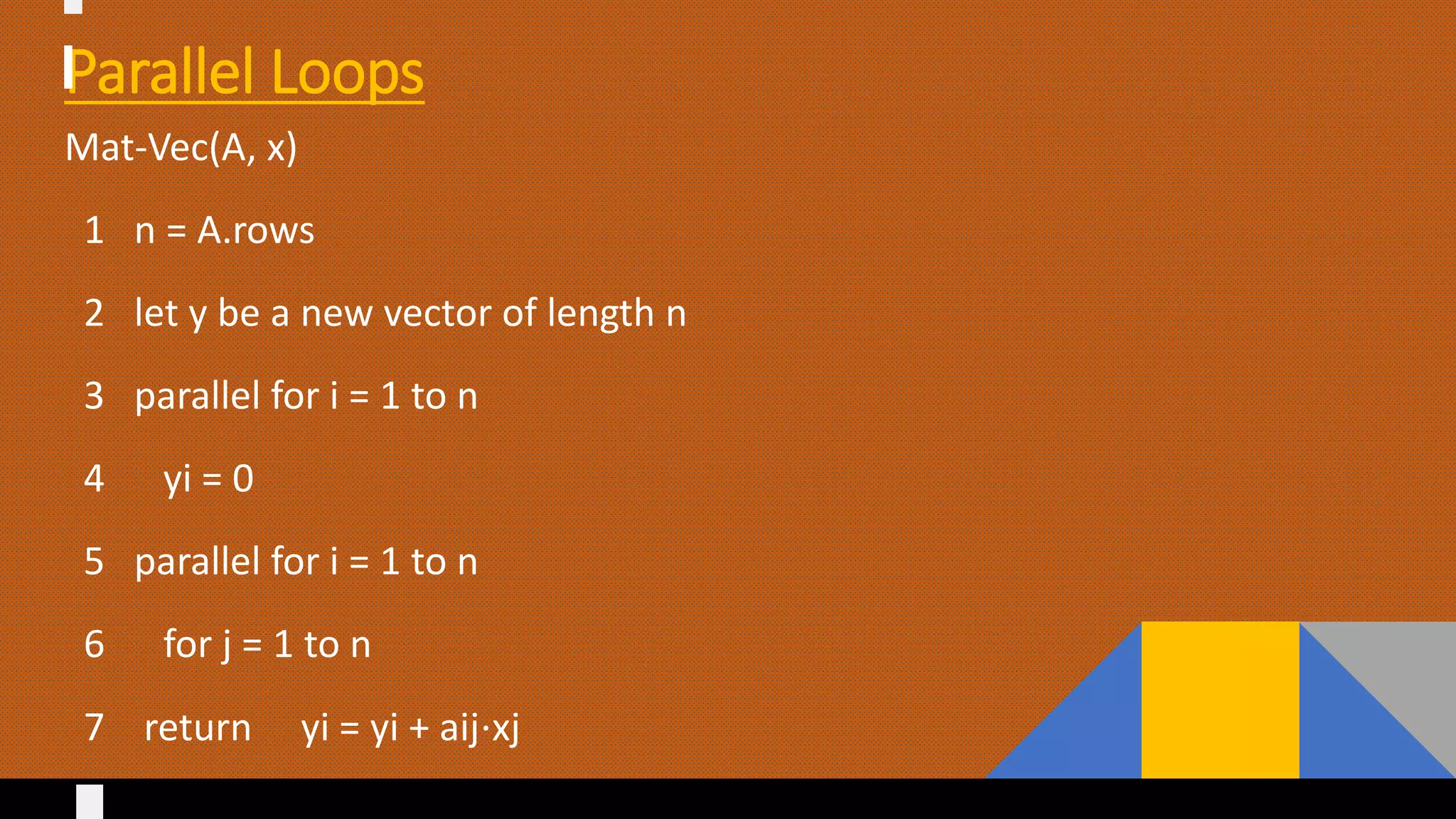

Parallel Loops
Mat-Vec(A, x)
1 n = A.rows
2 let y be a new vector of length n
3 parallel for i = 1 to n
4 yi = 0
6 for j = 1 to n
7 return yi = yi + aij⋅xj

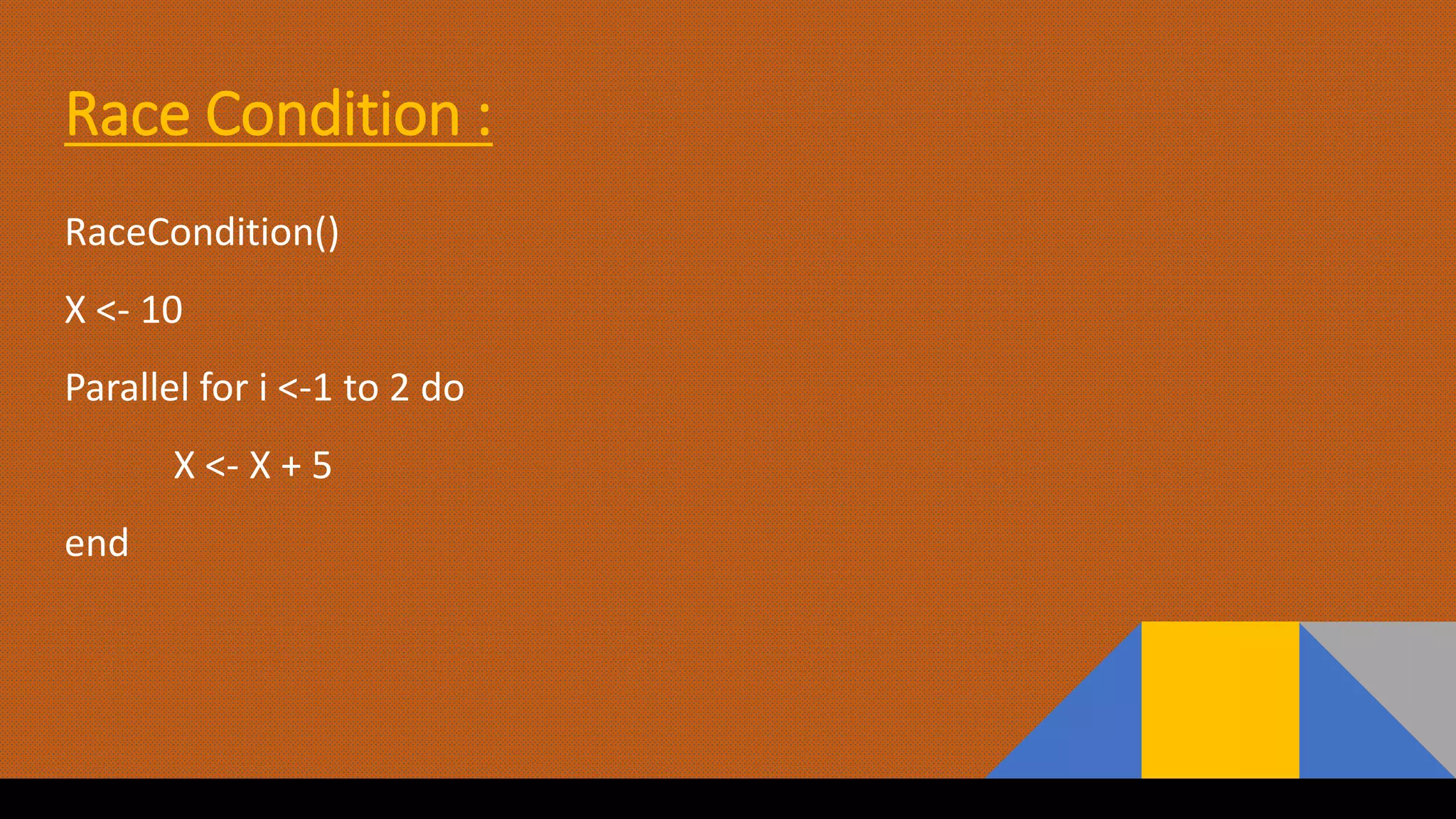

Race Condition :
RaceCondition()
X <- 10
Parallel for i <-1 to 2 do
X <- X + 5
end

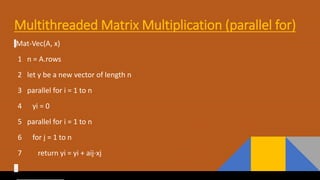

Multithreaded Matrix Multiplication (parallel for)
Mat-Vec(A, x)
1 n = A.rows
2 let y be a new vector of length n
4 yi = 0
6 for j = 1 to n
7 return yi = yi + aij⋅xj

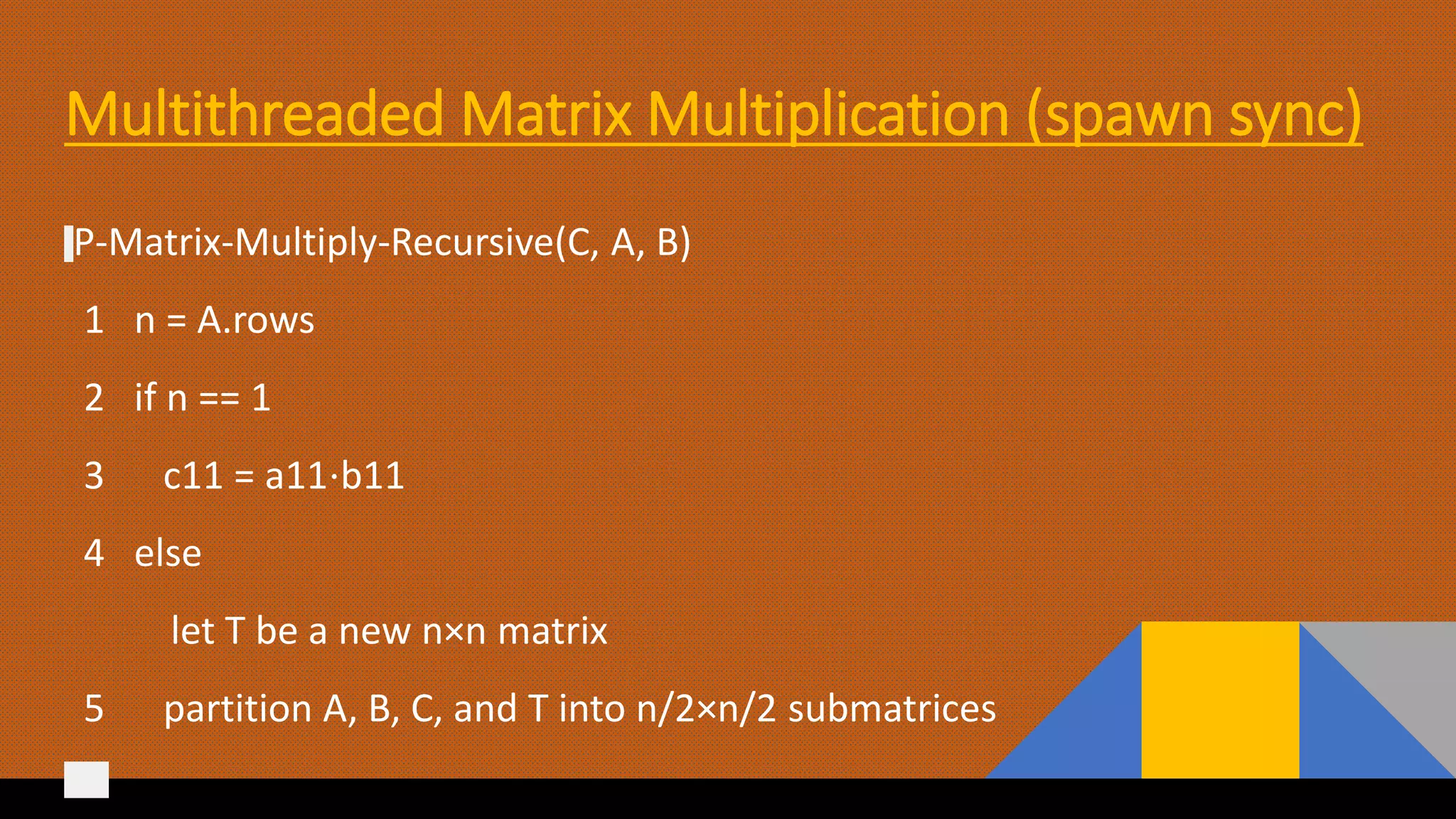

Multithreaded Matrix Multiplication (spawn sync)
P-Matrix-Multiply-Recursive(C, A, B)
1 n = A.rows
2 if n == 1
3 c11 = a11⋅b11
4 else
let T be a new n×n matrix
5 partition A, B, C, and T into n/2×n/2 submatrices

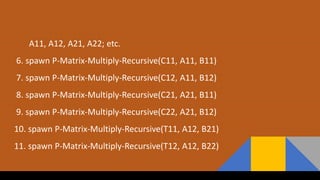

A11, A12, A21, A22; etc.
6. spawn P-Matrix-Multiply-Recursive(C11, A11, B11)
10. spawn P-Matrix-Multiply-Recursive(T11, A12, B21)
11. spawn P-Matrix-Multiply-Recursive(T12, A12, B22)

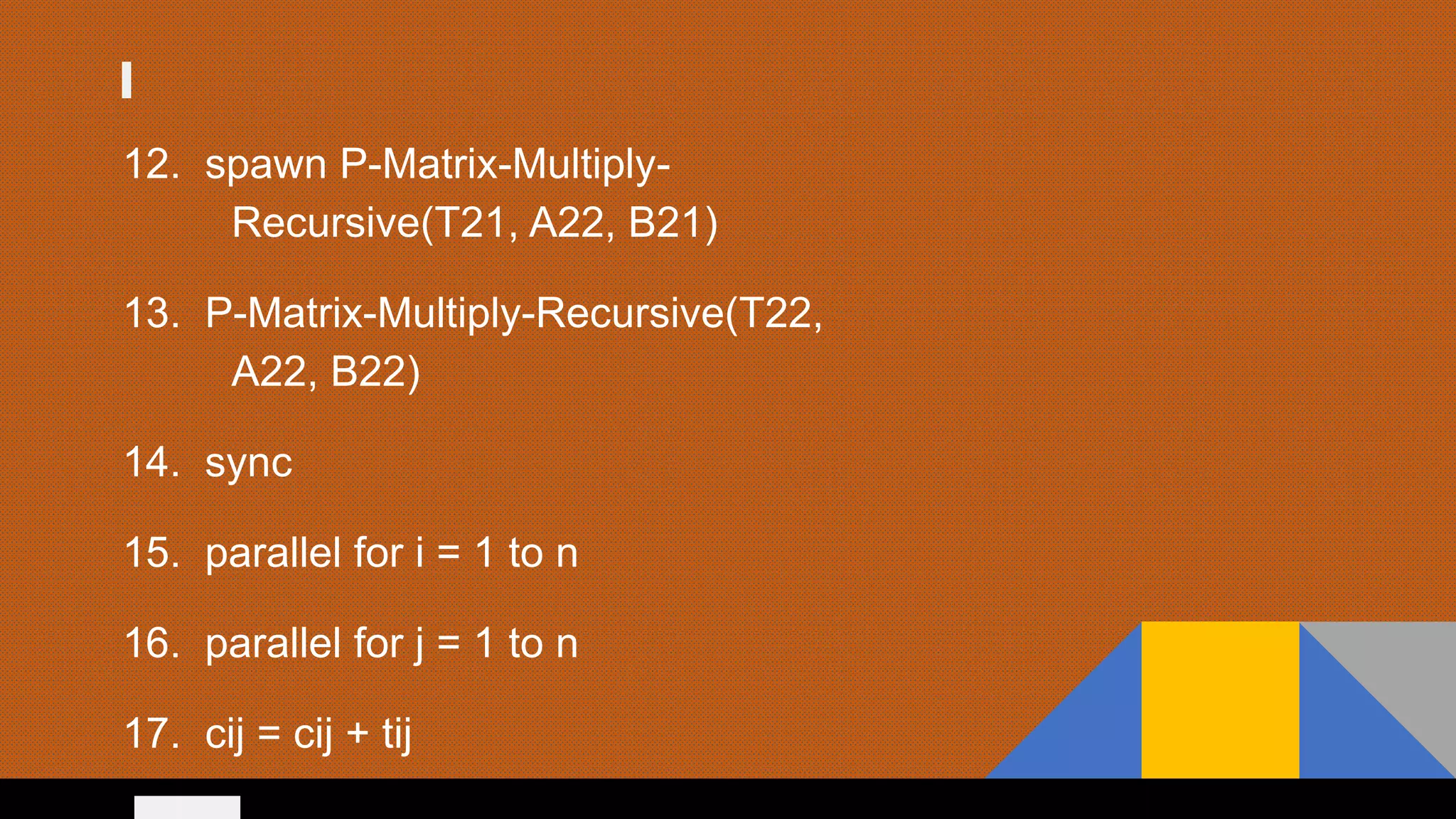

12. spawn P-Matrix-Multiply-
Recursive(T21, A22, B21)
13. P-Matrix-Multiply-Recursive(T22,
A22, B22)
14. sync
15. parallel for i = 1 to n
16. parallel for j = 1 to n
17. cij = cij + tij

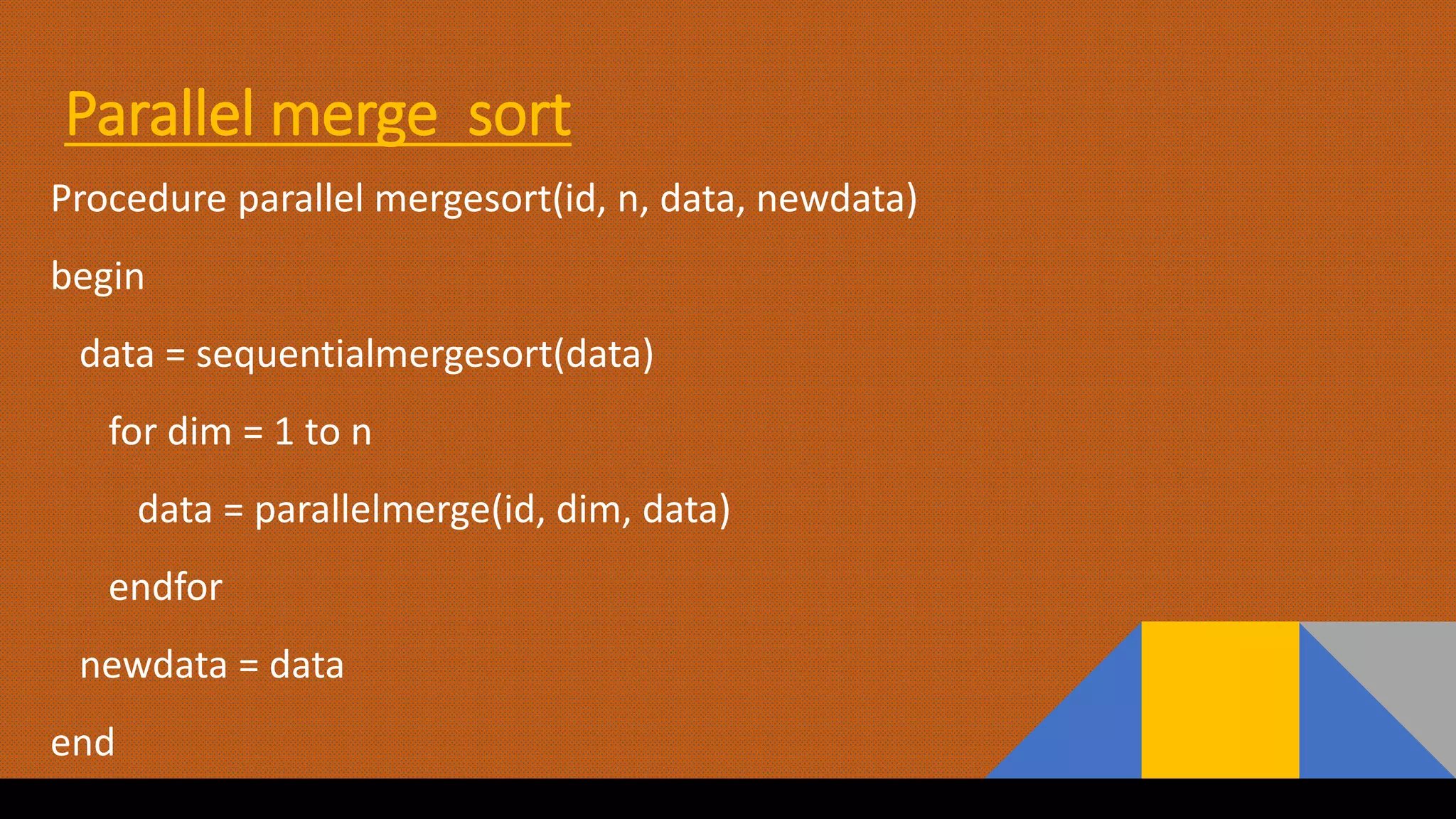

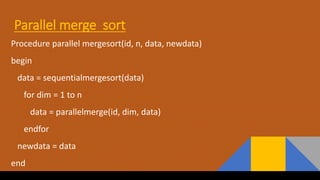

Parallel merge sort
Procedure parallel mergesort(id, n, data, newdata)
begin
data = sequentialmergesort(data)
for dim = 1 to n
data = parallelmerge(id, dim, data)
endfor
newdata = data
end

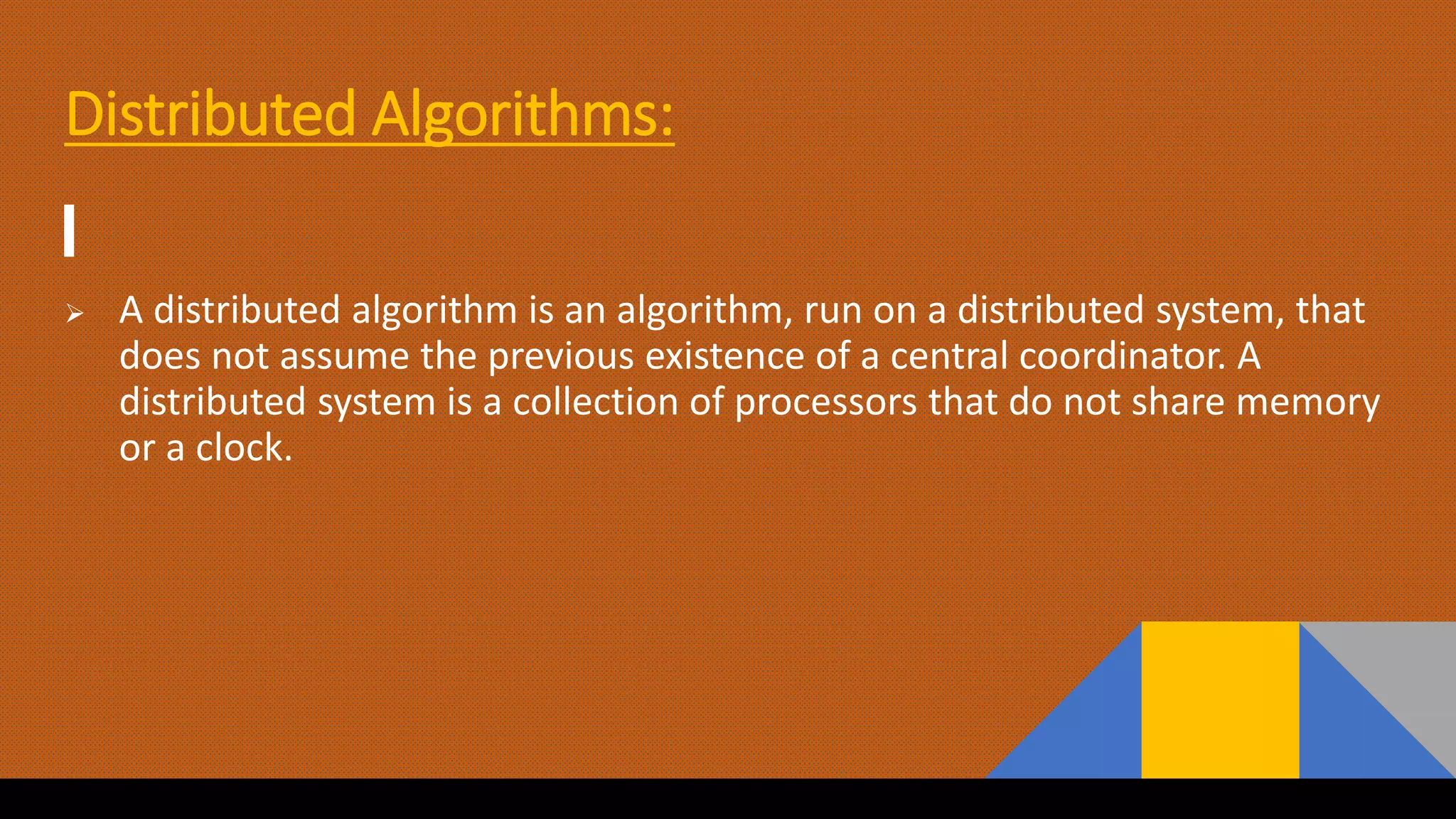

Distributed Algorithms:
 A distributed algorithm is an algorithm, run on a distributed system, that
does not assume the previous existence of a central coordinator. A
distributed system is a collection of processors that do not share memory
or a clock.

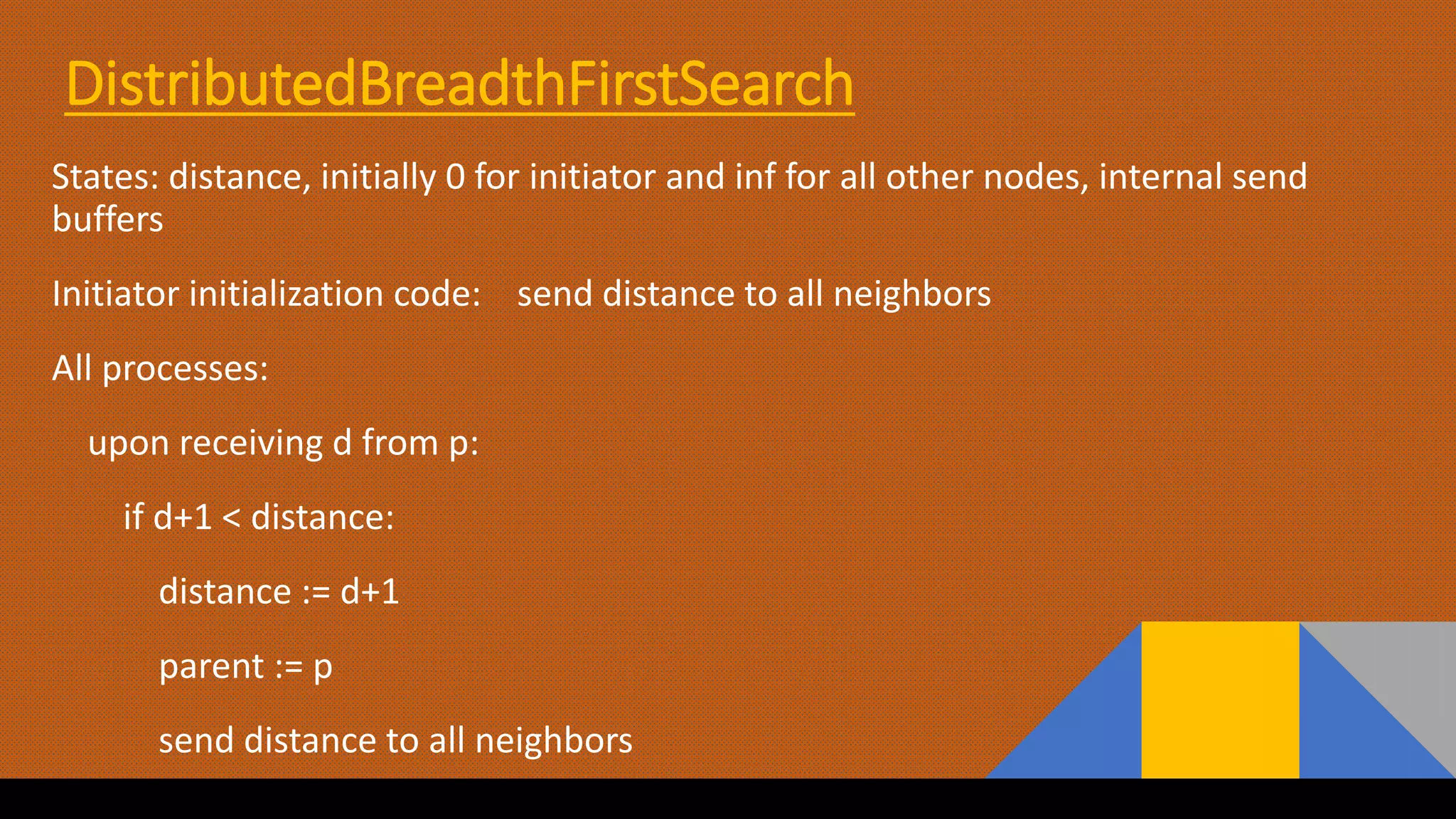

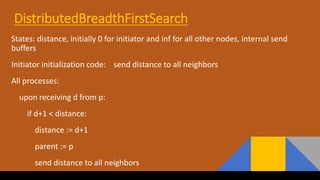

DistributedBreadthFirstSearch
States: distance, initially 0 for initiator and inf for all other nodes, internal send
buffers
Initiator initialization code: send distance to all neighbors
All processes:
upon receiving d from p:
if d+1 < distance:
distance := d+1
parent := p
send distance to all neighbors

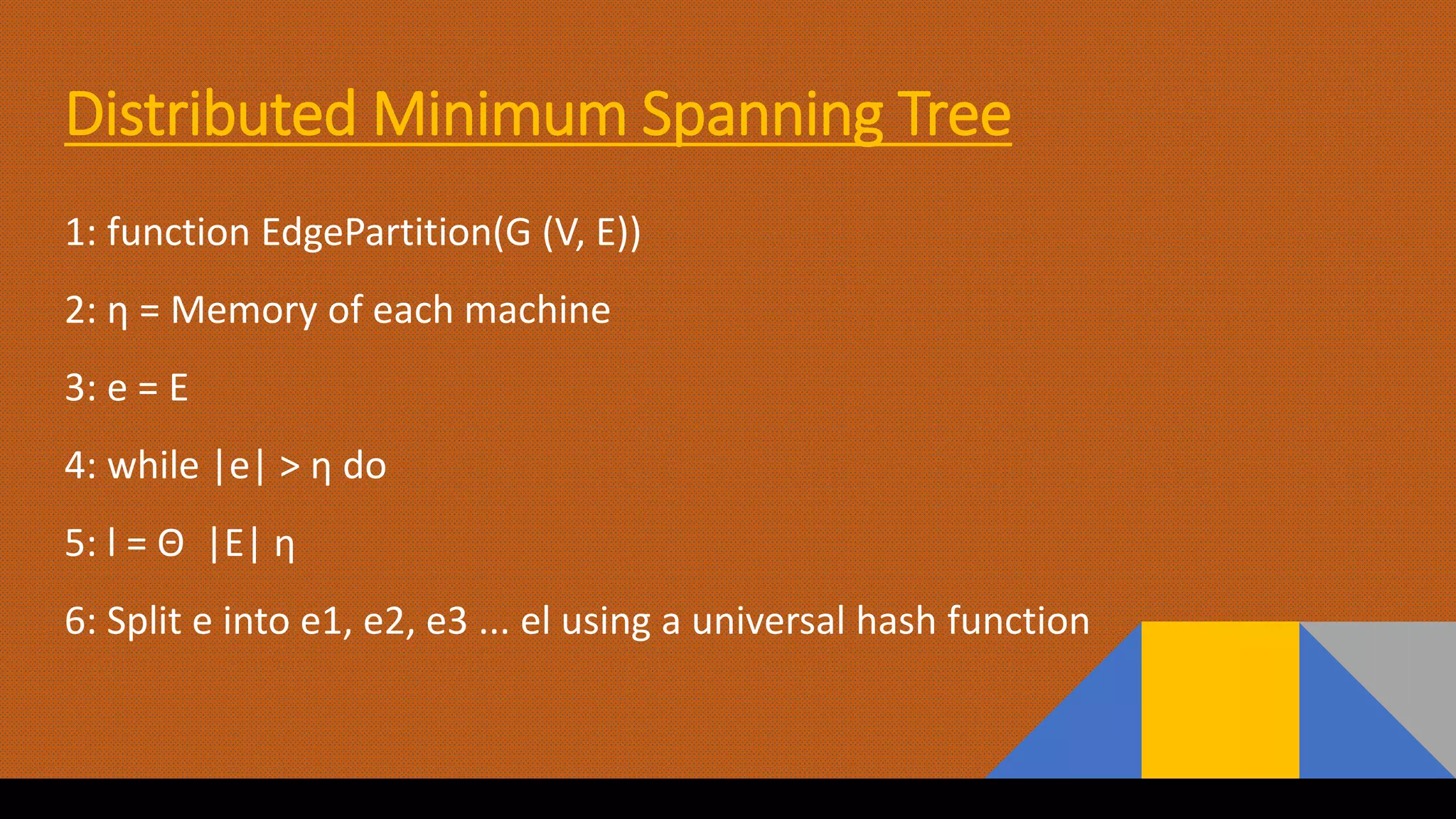

Distributed Minimum Spanning Tree
1: function EdgePartition(G (V, E))
2: η = Memory of each machine
3: e = E
4: while |e| > η do
5: l = Θ |E| η
6: Split e into e1, e2, e3 ... el using a universal hash function

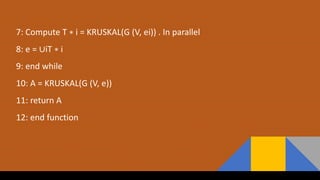

7: Compute T ∗ i = KRUSKAL(G (V, ei)) . In parallel
8: e = ∪iT ∗ i
9: end while
10: A = KRUSKAL(G (V, e))
11: return A
12: end function

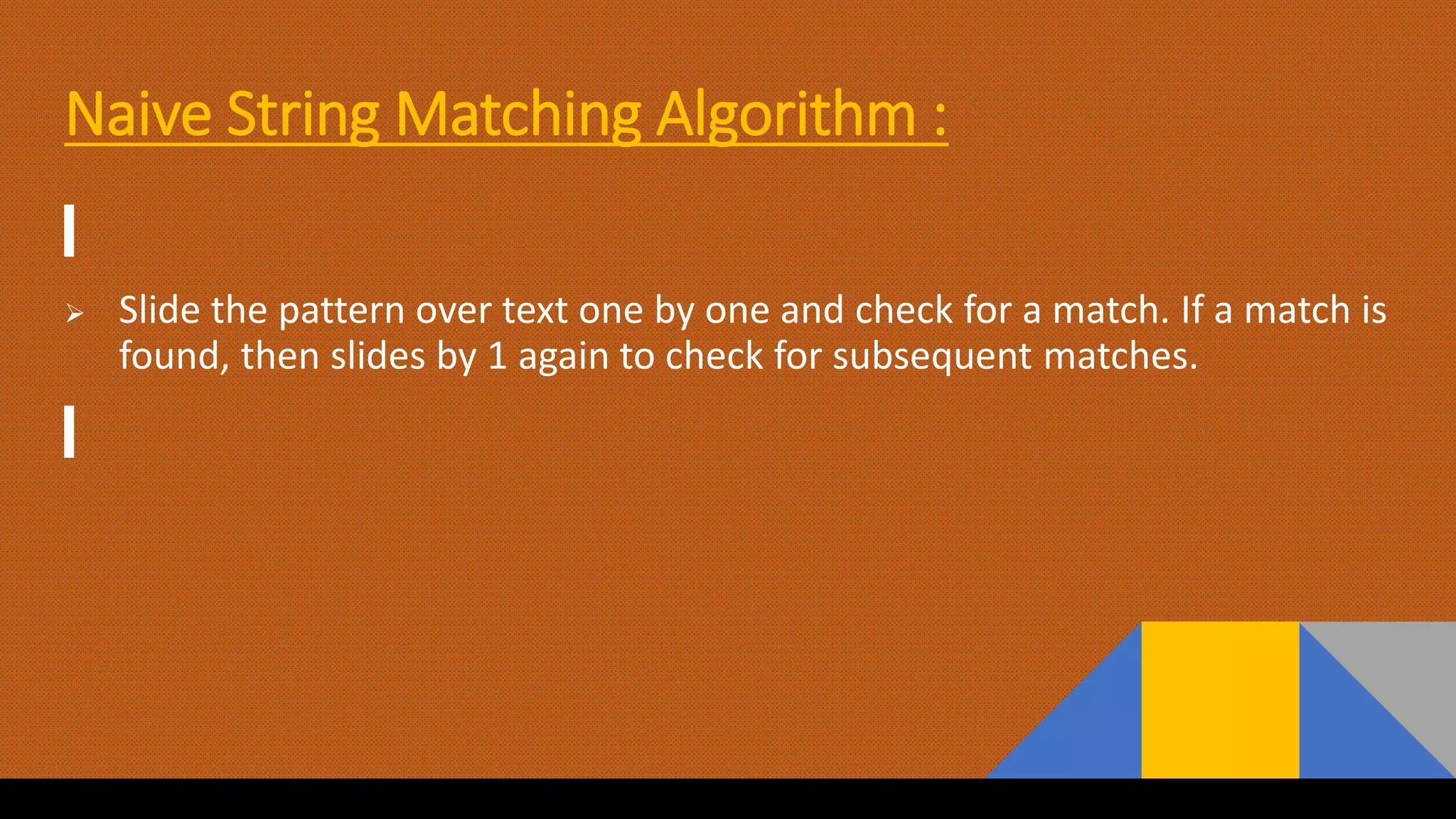

Naive String Matching Algorithm :
 Slide the pattern over text one by one and check for a match. If a match is
found, then slides by 1 again to check for subsequent matches.

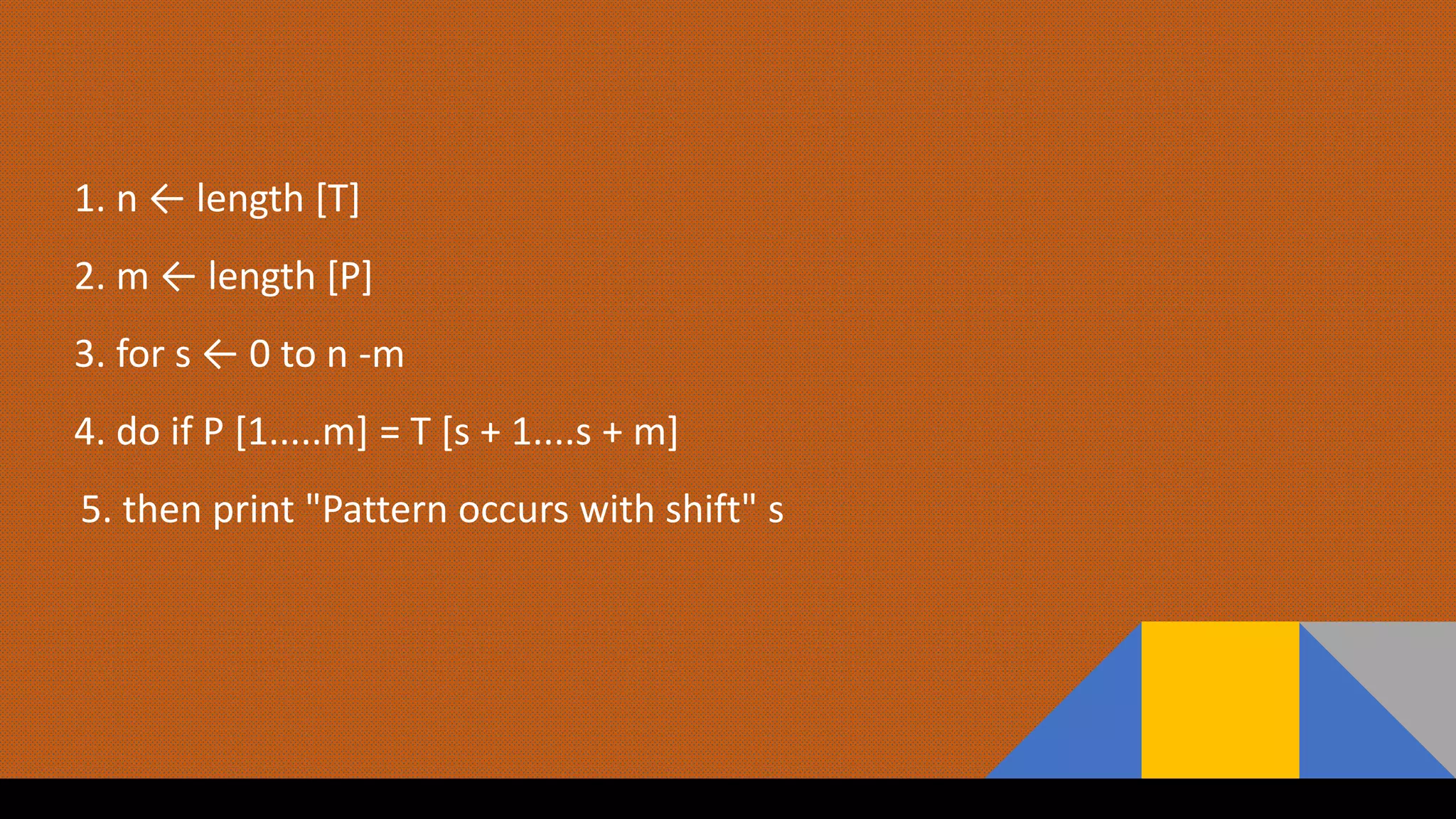

1. n ← length [T]
2. m ← length [P]
3. for s ← 0 to n -m
4. do if P [1.....m] = T [s + 1....s + m]
5. then print "Pattern occurs with shift" s

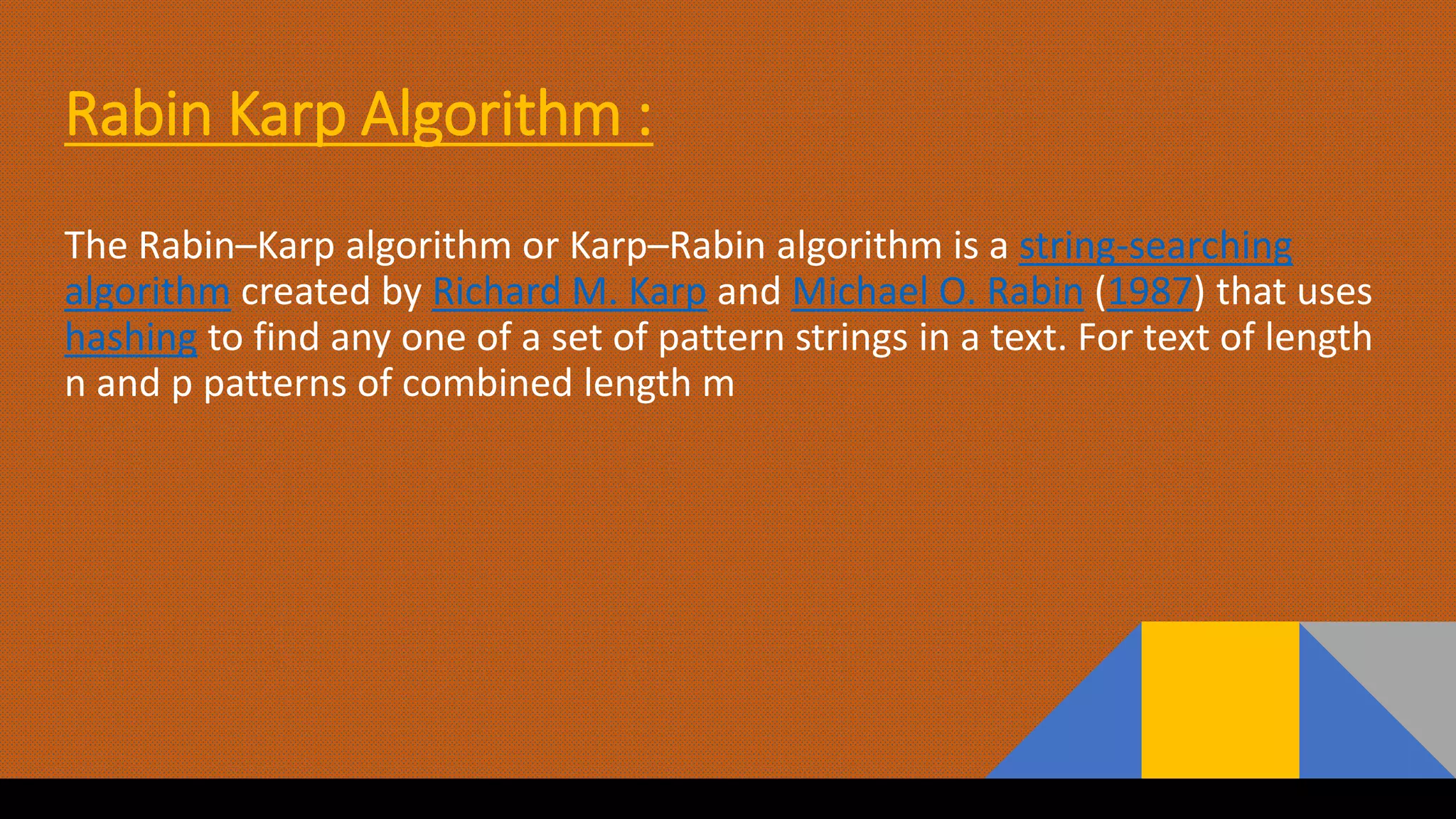

Rabin Karp Algorithm :
The Rabin–Karp algorithm or Karp–Rabin algorithm is a string-searching
algorithm created by Richard M. Karp and Michael O. Rabin (1987) that uses
hashing to find any one of a set of pattern strings in a text. For text of length
n and p patterns of combined length m

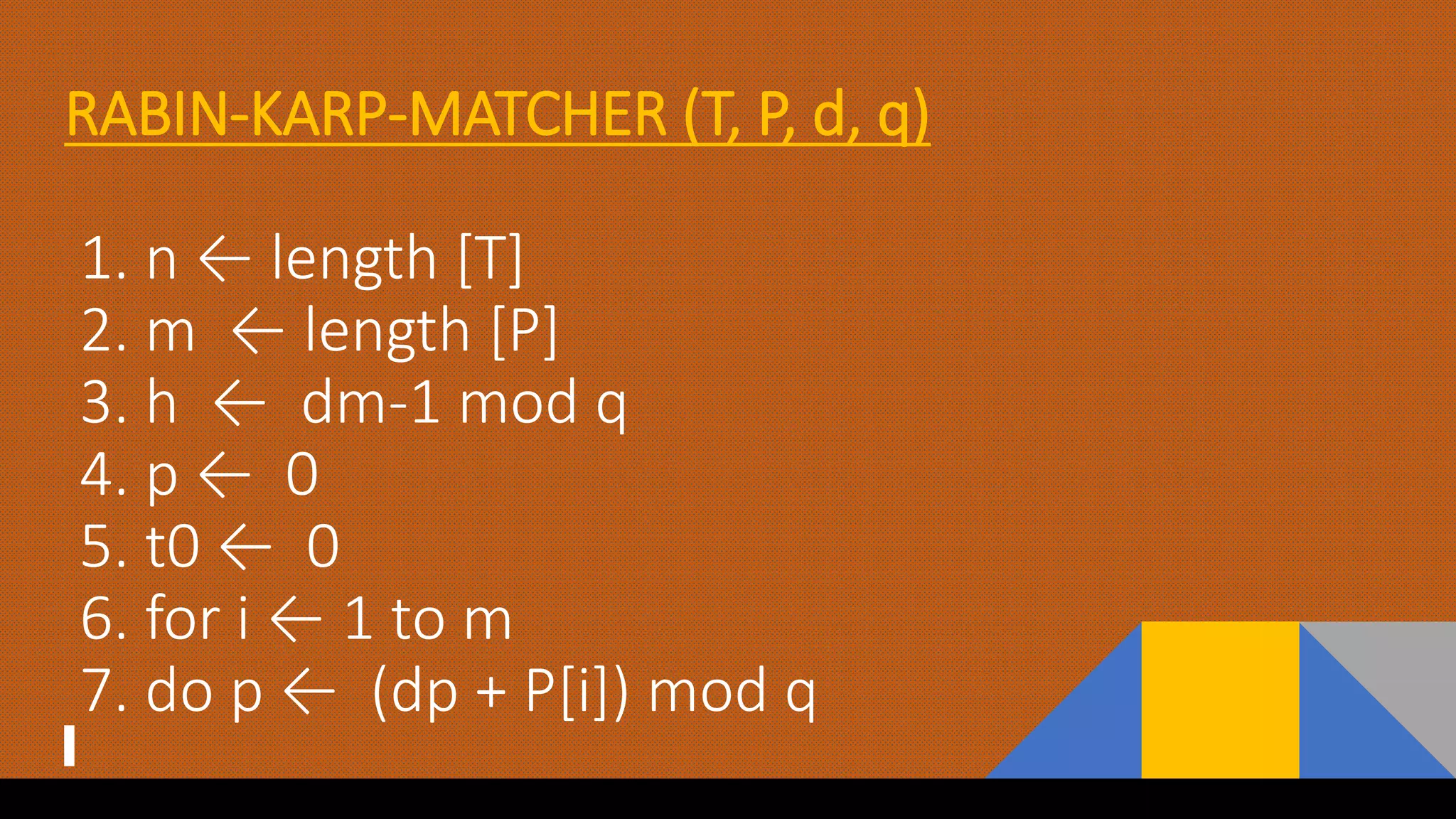

RABIN-KARP-MATCHER (T, P, d, q)
1. n ← length [T]
2. m ← length [P]
3. h ← dm-1 mod q
4. p ← 0
5. t0 ← 0
6. for i ← 1 to m
7. do p ← (dp + P[i]) mod q

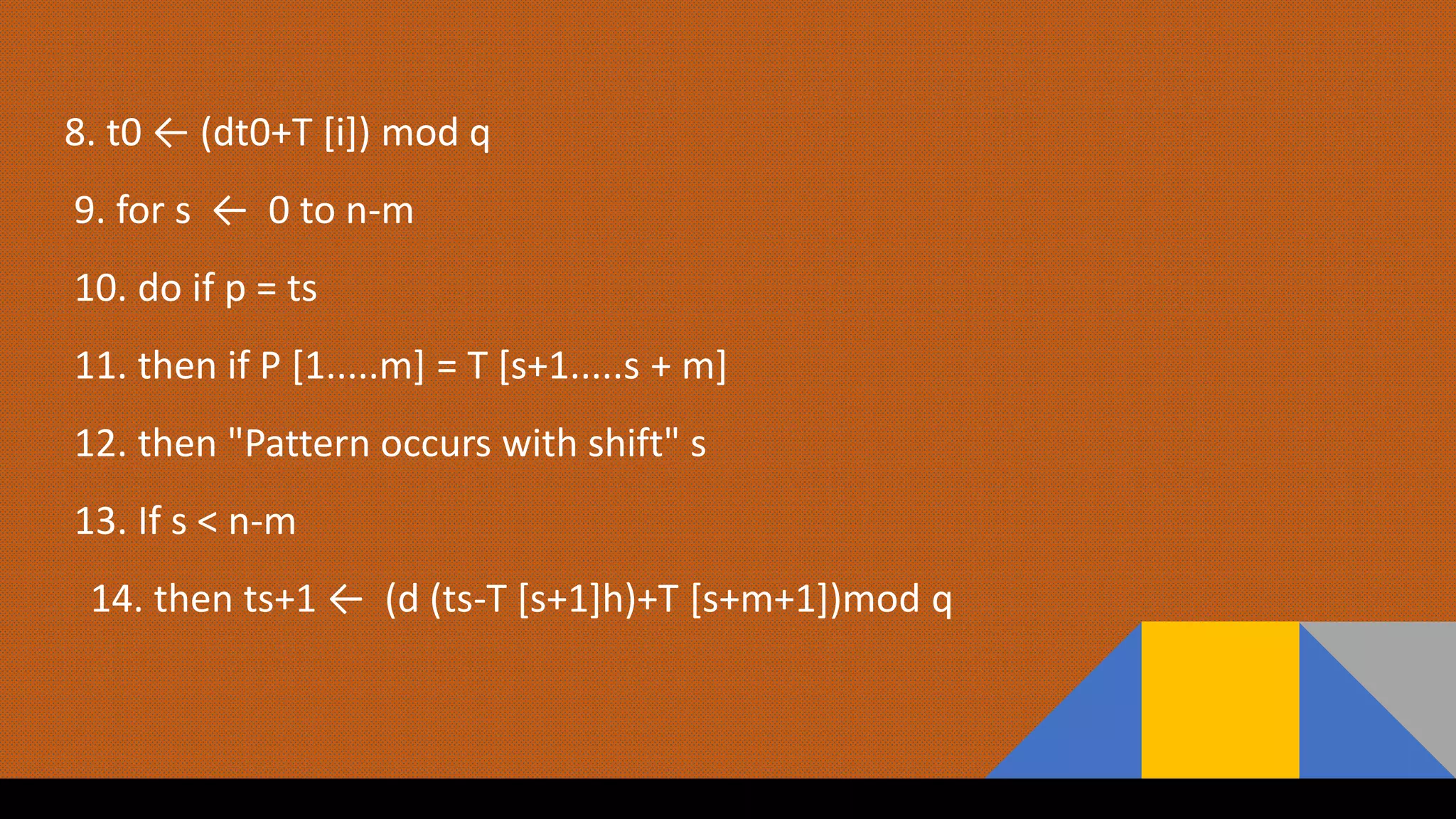

8. t0 ← (dt0+T [i]) mod q
9. for s ← 0 to n-m
10. do if p = ts
11. then if P [1.....m] = T [s+1.....s + m]
12. then "Pattern occurs with shift" s
13. If s < n-m
14. then ts+1 ← (d (ts-T [s+1]h)+T [s+m+1])mod q
