Namespaces and cgroups - the basis of Linux containers

Namespaces and Cgroups –
the basis of Linux Containers
Rami Rosen
http://ramirose.wix.com/ramirosen

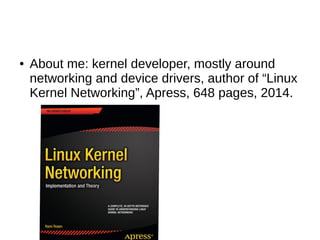

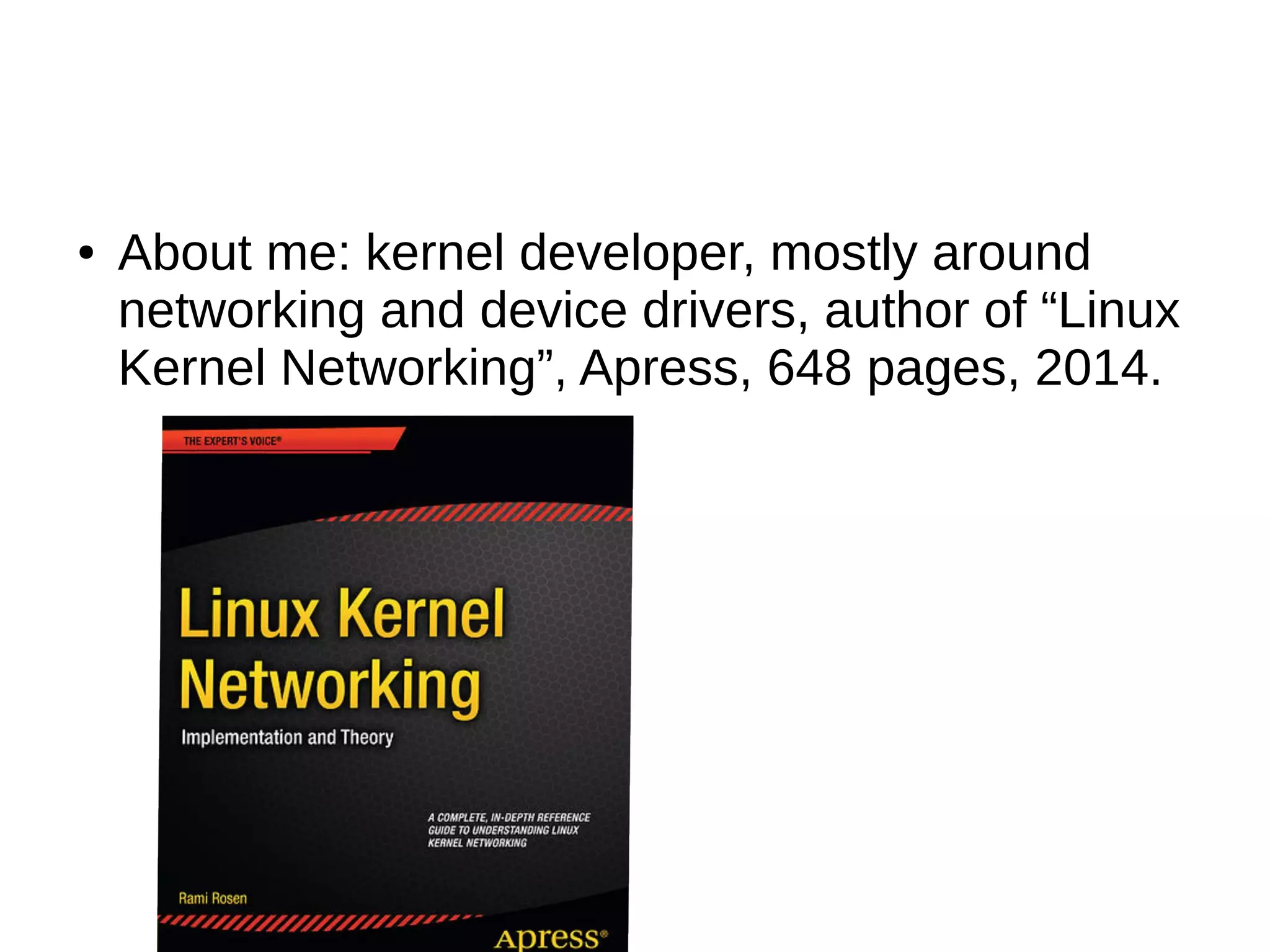

● About me: kernel developer, mostly around
networking and device drivers, author of “Linux
Kernel Networking”, Apress, 648 pages, 2014.

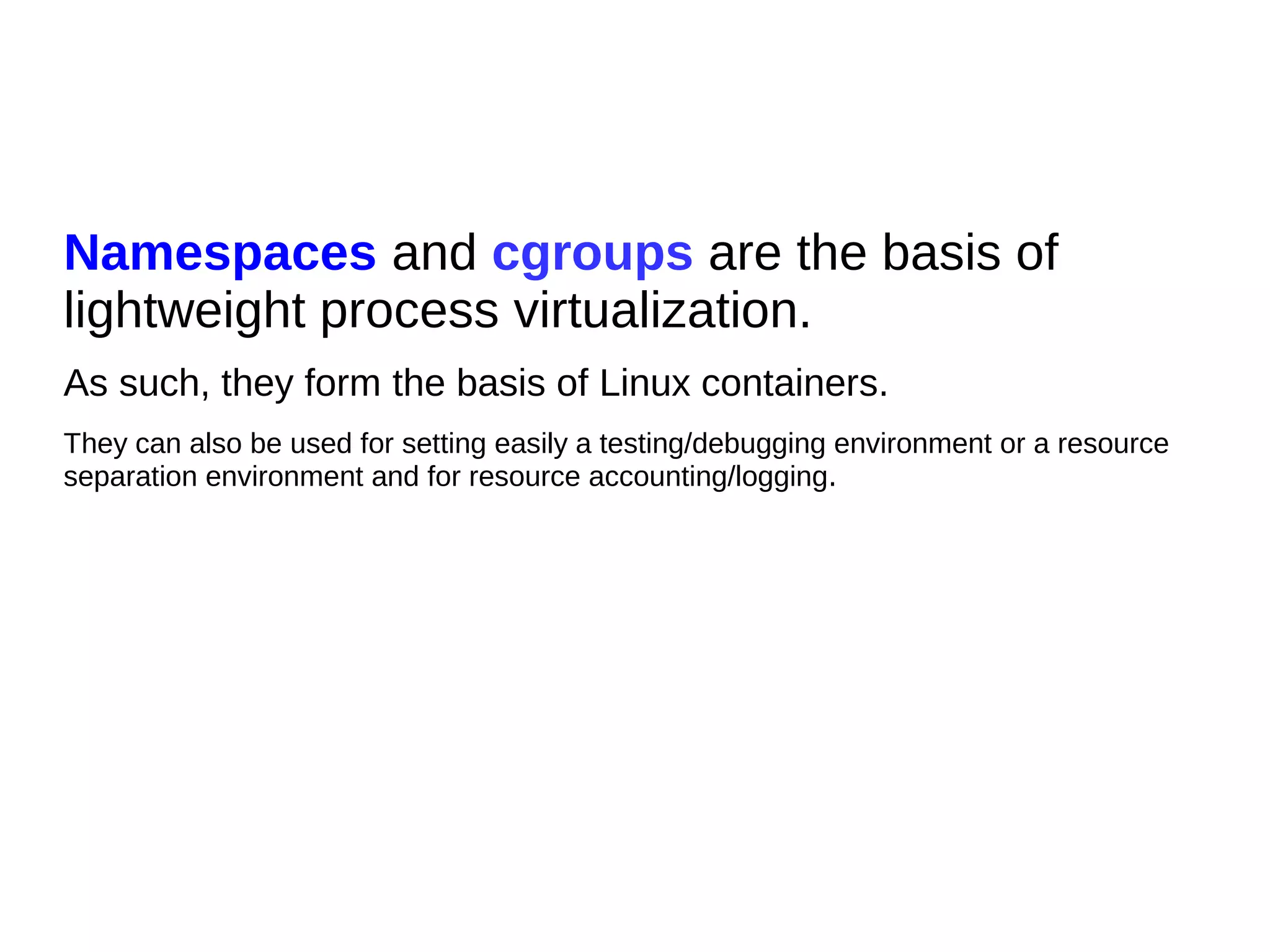

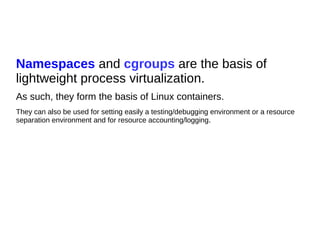

Namespaces and cgroups are the basis of
lightweight process virtualization.
As such, they form the basis of Linux containers.
They can also be used for setting easily a testing/debugging environment or a resource
separation environment and for resource accounting/logging.

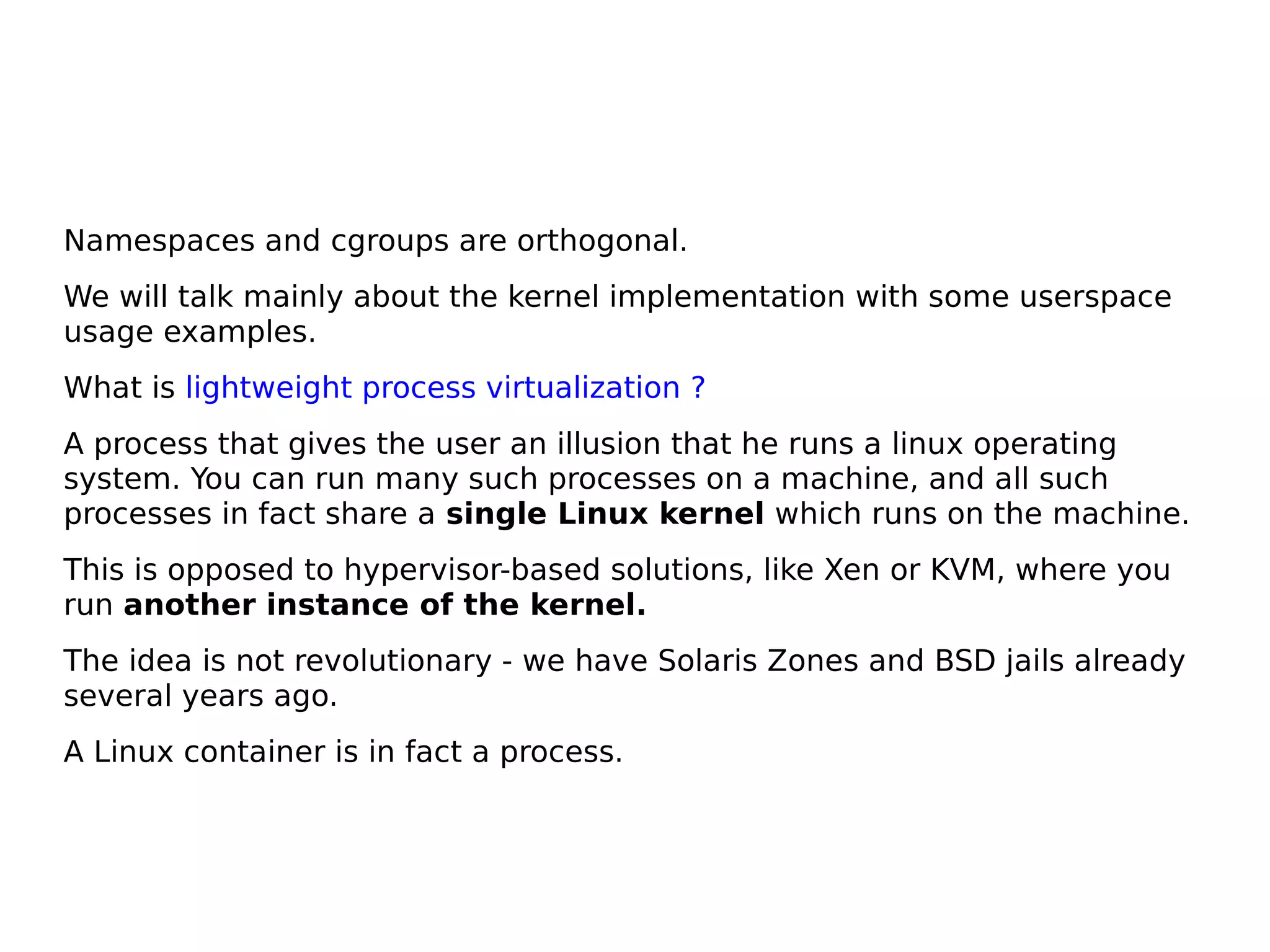

Namespaces and cgroups are orthogonal.
We will talk mainly about the kernel implementation with some userspace
usage examples.
What is lightweight process virtualization ?
A process that gives the user an illusion that he runs a linux operating
system. You can run many such processes on a machine, and all such
processes in fact share a single Linux kernel which runs on the machine.
This is opposed to hypervisor-based solutions, like Xen or KVM, where you
run another instance of the kernel.
The idea is not revolutionary - we have Solaris Zones and BSD jails already
several years ago.
A Linux container is in fact a process.

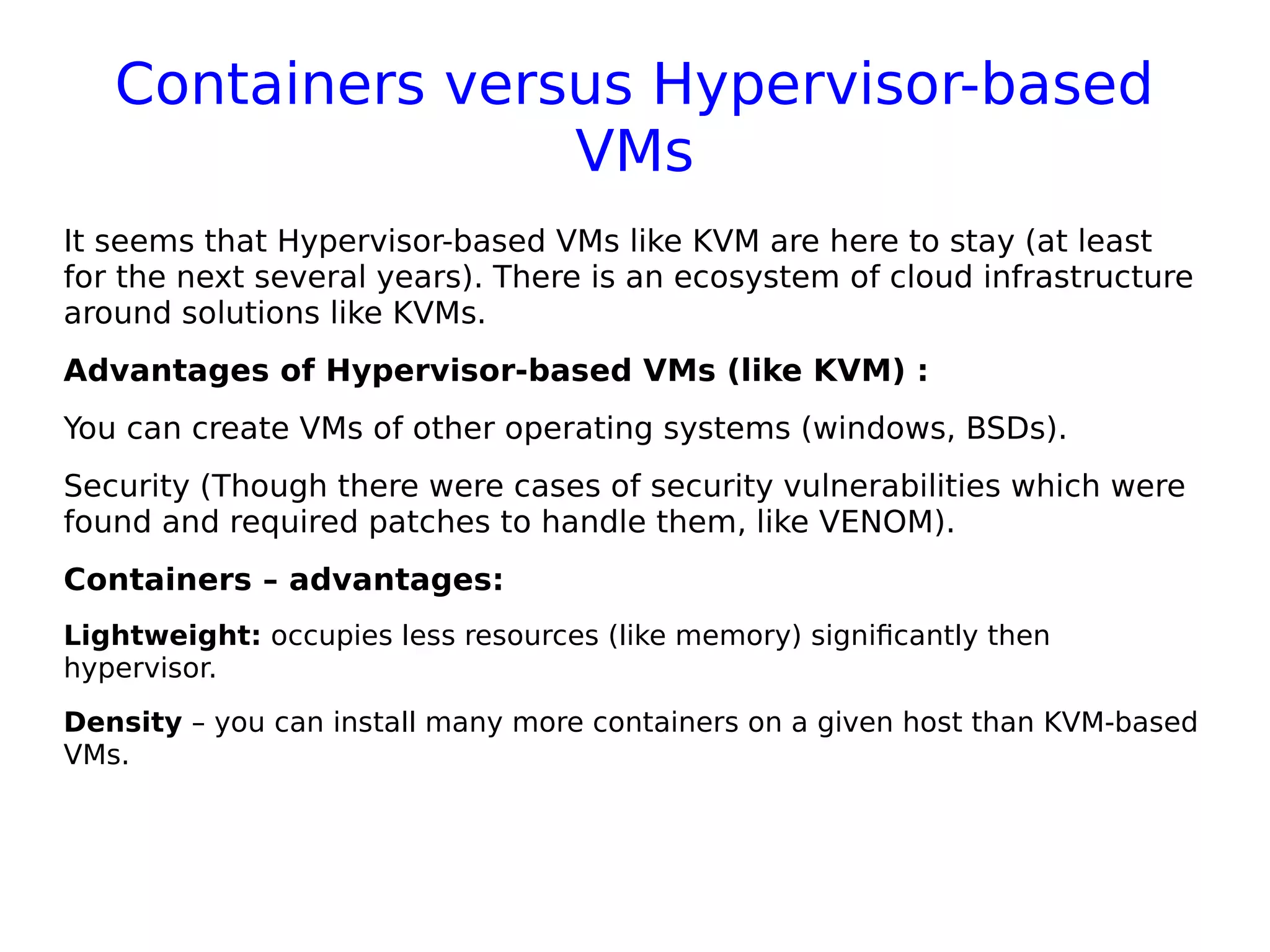

Containers versus Hypervisor-based
VMs
It seems that Hypervisor-based VMs like KVM are here to stay (at least
for the next several years). There is an ecosystem of cloud infrastructure
around solutions like KVMs.
Advantages of Hypervisor-based VMs (like KVM) :
You can create VMs of other operating systems (windows, BSDs).
Security (Though there were cases of security vulnerabilities which were
found and required patches to handle them, like VENOM).
Containers – advantages:
Lightweight: occupies less resources (like memory) significantly then
hypervisor.
Density – you can install many more containers on a given host than KVM-based
VMs.

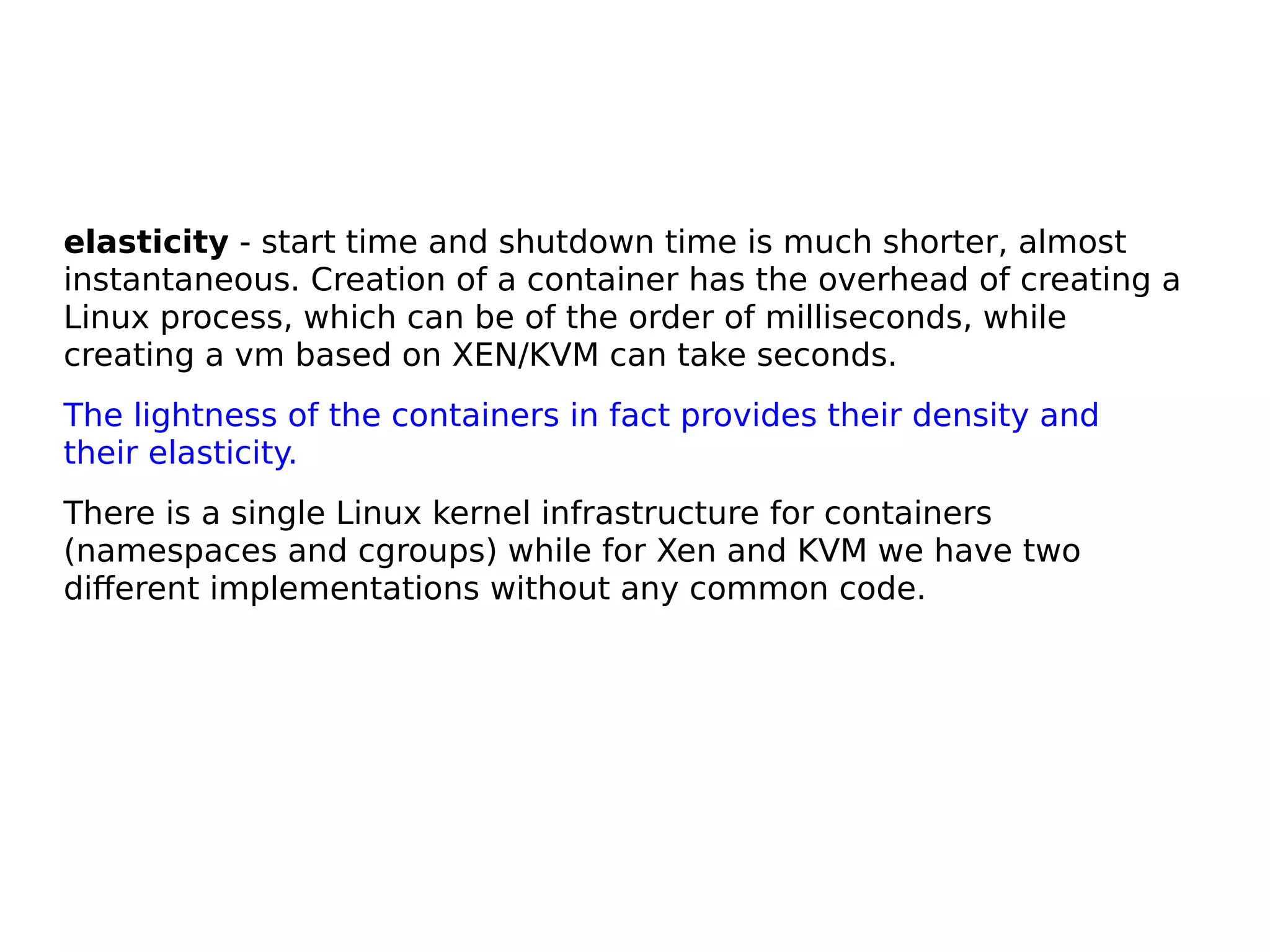

elasticity - start time and shutdown time is much shorter, almost
instantaneous. Creation of a container has the overhead of creating a
Linux process, which can be of the order of milliseconds, while
creating a vm based on XEN/KVM can take seconds.
The lightness of the containers in fact provides their density and
their elasticity.
There is a single Linux kernel infrastructure for containers
(namespaces and cgroups) while for Xen and KVM we have two
different implementations without any common code.

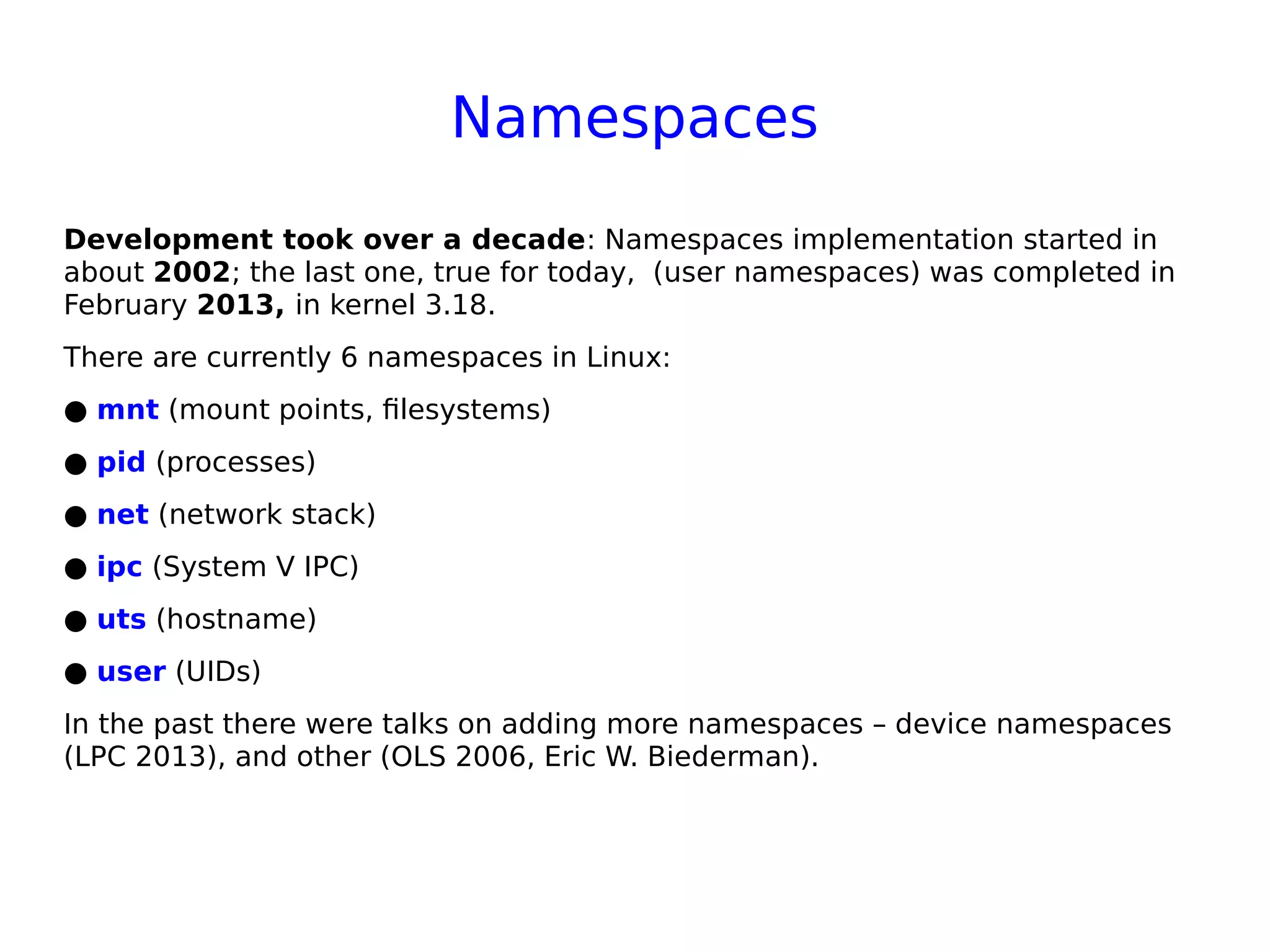

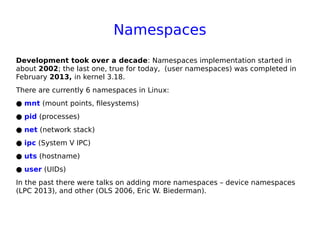

Namespaces
Development took over a decade: Namespaces implementation started in
about 2002; the last one, true for today, (user namespaces) was completed in
February 2013, in kernel 3.18.
There are currently 6 namespaces in Linux:
● mnt (mount points, filesystems)
● pid (processes)
● net (network stack)
● ipc (System V IPC)
● uts (hostname)
● user (UIDs)
In the past there were talks on adding more namespaces – device namespaces
(LPC 2013), and other (OLS 2006, Eric W. Biederman).

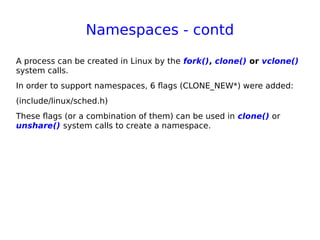

Namespaces - contd
A process can be created in Linux by the fork(), clone() or vclone()
system calls.
In order to support namespaces, 6 flags (CLONE_NEW*) were added:
(include/linux/sched.h)
These flags (or a combination of them) can be used in clone() or
unshare() system calls to create a namespace.

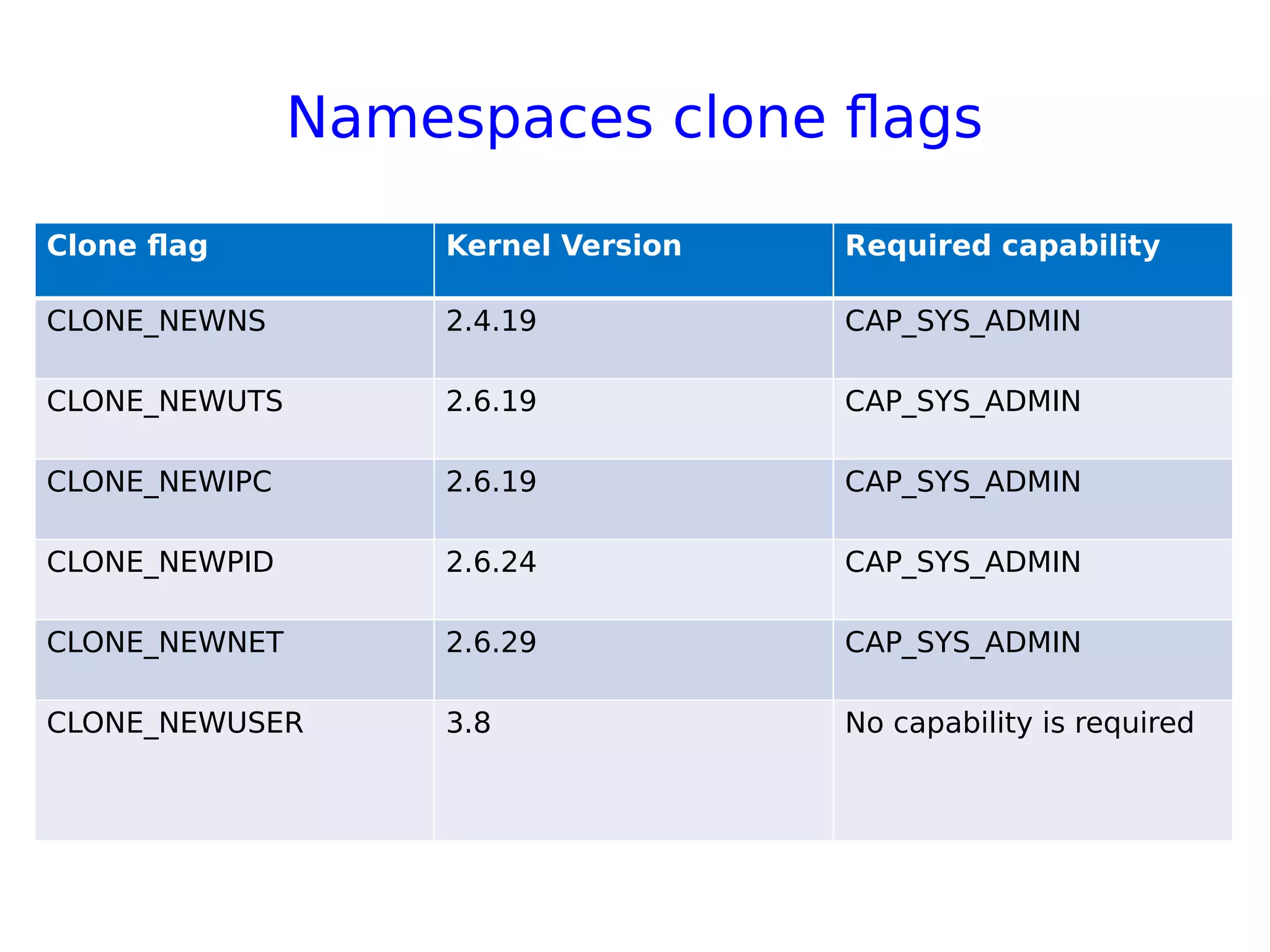

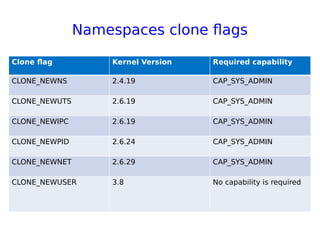

Namespaces clone flags
Clone flag Kernel Version Required capability
CLONE_NEWNS 2.4.19 CAP_SYS_ADMIN
CLONE_NEWUTS 2.6.19 CAP_SYS_ADMIN
CLONE_NEWIPC 2.6.19 CAP_SYS_ADMIN
CLONE_NEWPID 2.6.24 CAP_SYS_ADMIN
CLONE_NEWNET 2.6.29 CAP_SYS_ADMIN
CLONE_NEWUSER 3.8 No capability is required

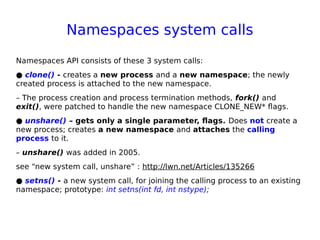

Namespaces system calls
Namespaces API consists of these 3 system calls:
● clone() - creates a new process and a new namespace; the newly
created process is attached to the new namespace.
– The process creation and process termination methods, fork() and
exit(), were patched to handle the new namespace CLONE_NEW* flags.
● unshare() – gets only a single parameter, flags. Does not create a
new process; creates a new namespace and attaches the calling
process to it.
– unshare() was added in 2005.
see “new system call, unshare” : http://lwn.net/Articles/135266
● setns() - a new system call, for joining the calling process to an existing
namespace; prototype: int setns(int fd, int nstype);

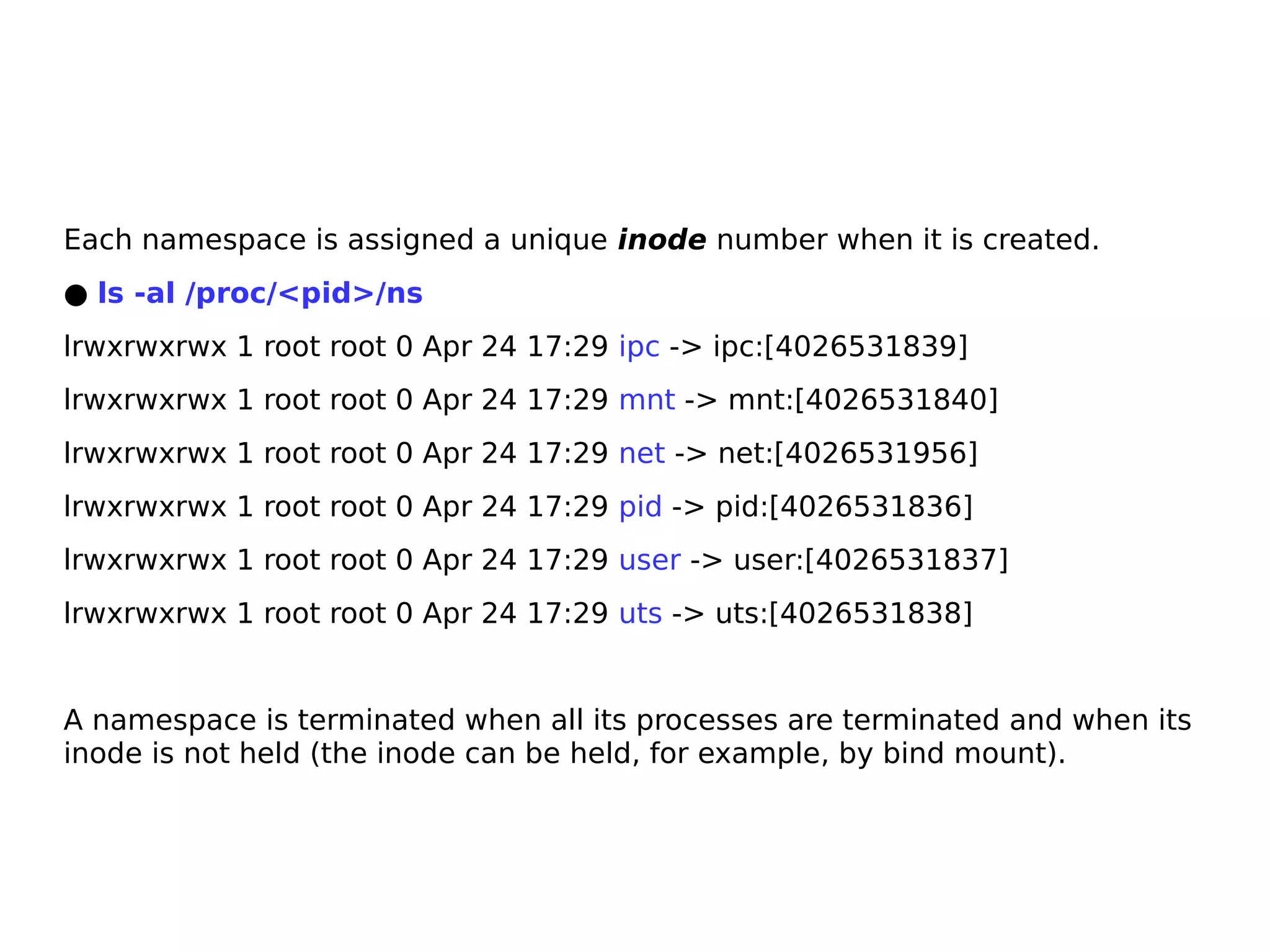

Each namespace is assigned a unique inode number when it is created.
● ls -al /proc/<pid>/ns
lrwxrwxrwx 1 root root 0 Apr 24 17:29 ipc -> ipc:[4026531839]
lrwxrwxrwx 1 root root 0 Apr 24 17:29 mnt -> mnt:[4026531840]
lrwxrwxrwx 1 root root 0 Apr 24 17:29 net -> net:[4026531956]
lrwxrwxrwx 1 root root 0 Apr 24 17:29 pid -> pid:[4026531836]
lrwxrwxrwx 1 root root 0 Apr 24 17:29 user -> user:[4026531837]
lrwxrwxrwx 1 root root 0 Apr 24 17:29 uts -> uts:[4026531838]
A namespace is terminated when all its processes are terminated and when its
inode is not held (the inode can be held, for example, by bind mount).

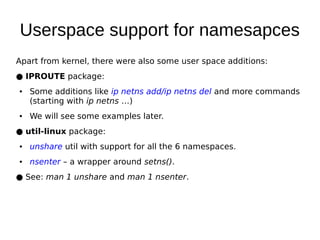

Userspace support for namesapces
Apart from kernel, there were also some user space additions:
● IPROUTE package:
● Some additions like ip netns add/ip netns del and more commands
(starting with ip netns …)
● We will see some examples later.
● util-linux package:
● unshare util with support for all the 6 namespaces.
● nsenter – a wrapper around setns().
● See: man 1 unshare and man 1 nsenter.

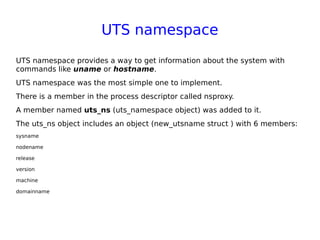

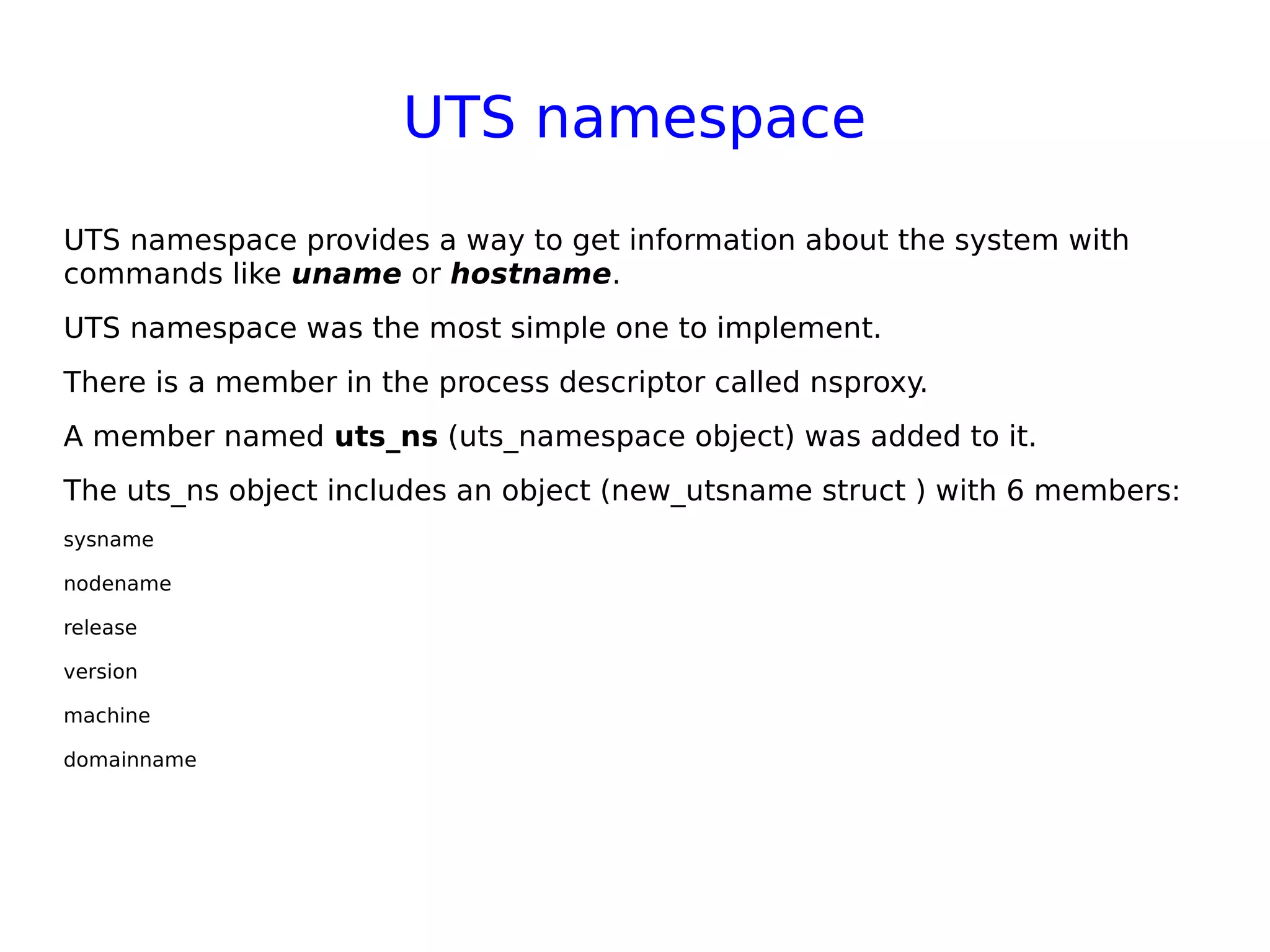

UTS namespace
UTS namespace provides a way to get information about the system with
commands like uname or hostname.
UTS namespace was the most simple one to implement.
There is a member in the process descriptor called nsproxy.
A member named uts_ns (uts_namespace object) was added to it.
The uts_ns object includes an object (new_utsname struct ) with 6 members:
sysname
nodename
release
version
machine
domainname

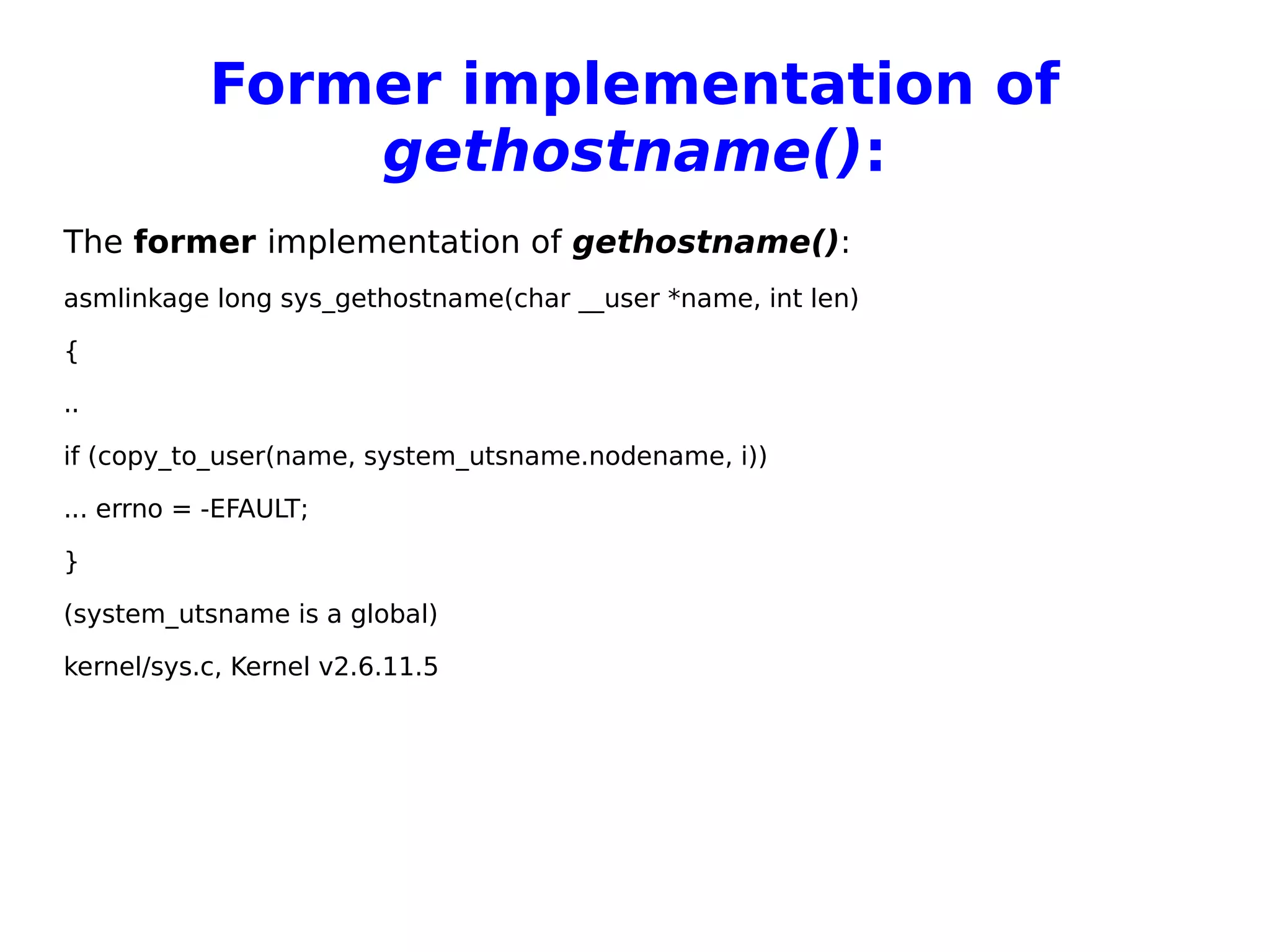

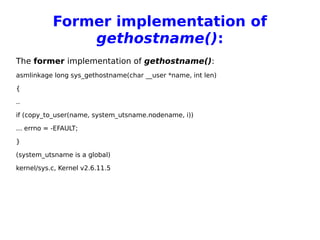

Former implementation of
gethostname():
The former implementation of gethostname():
asmlinkage long sys_gethostname(char __user *name, int len)
{
..
if (copy_to_user(name, system_utsname.nodename, i))
... errno = -EFAULT;
}
(system_utsname is a global)
kernel/sys.c, Kernel v2.6.11.5

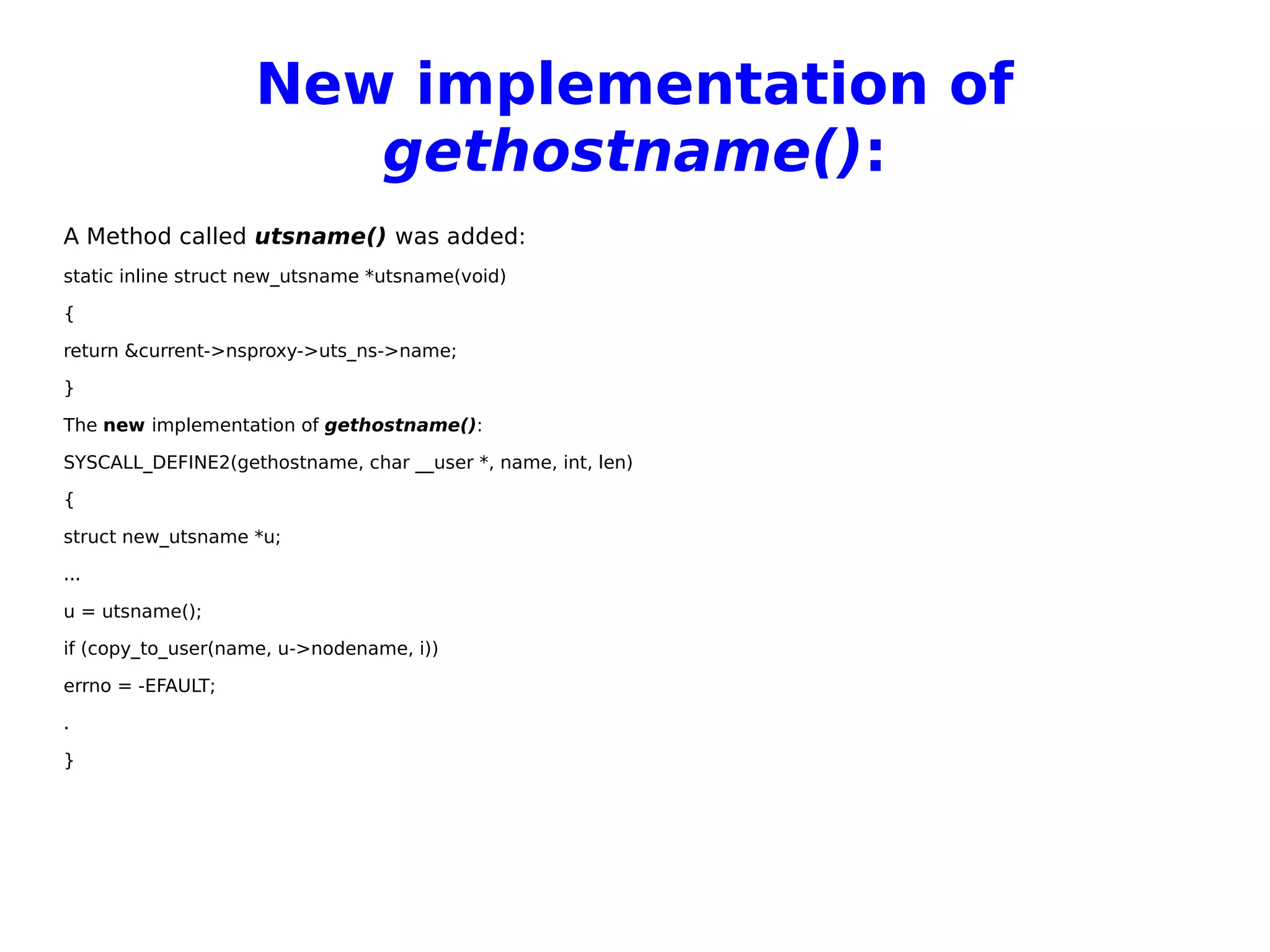

New implementation of
gethostname():
A Method called utsname() was added:
static inline struct new_utsname *utsname(void)
{
return &current->nsproxy->uts_ns->name;
}
The new implementation of gethostname():
SYSCALL_DEFINE2(gethostname, char __user *, name, int, len)
{
struct new_utsname *u;
...
u = utsname();
if (copy_to_user(name, u->nodename, i))
errno = -EFAULT;
.
}

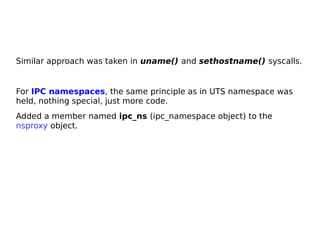

Similar approach was taken in uname() and sethostname() syscalls.
For IPC namespaces, the same principle as in UTS namespace was
held, nothing special, just more code.
Added a member named ipc_ns (ipc_namespace object) to the
nsproxy object.

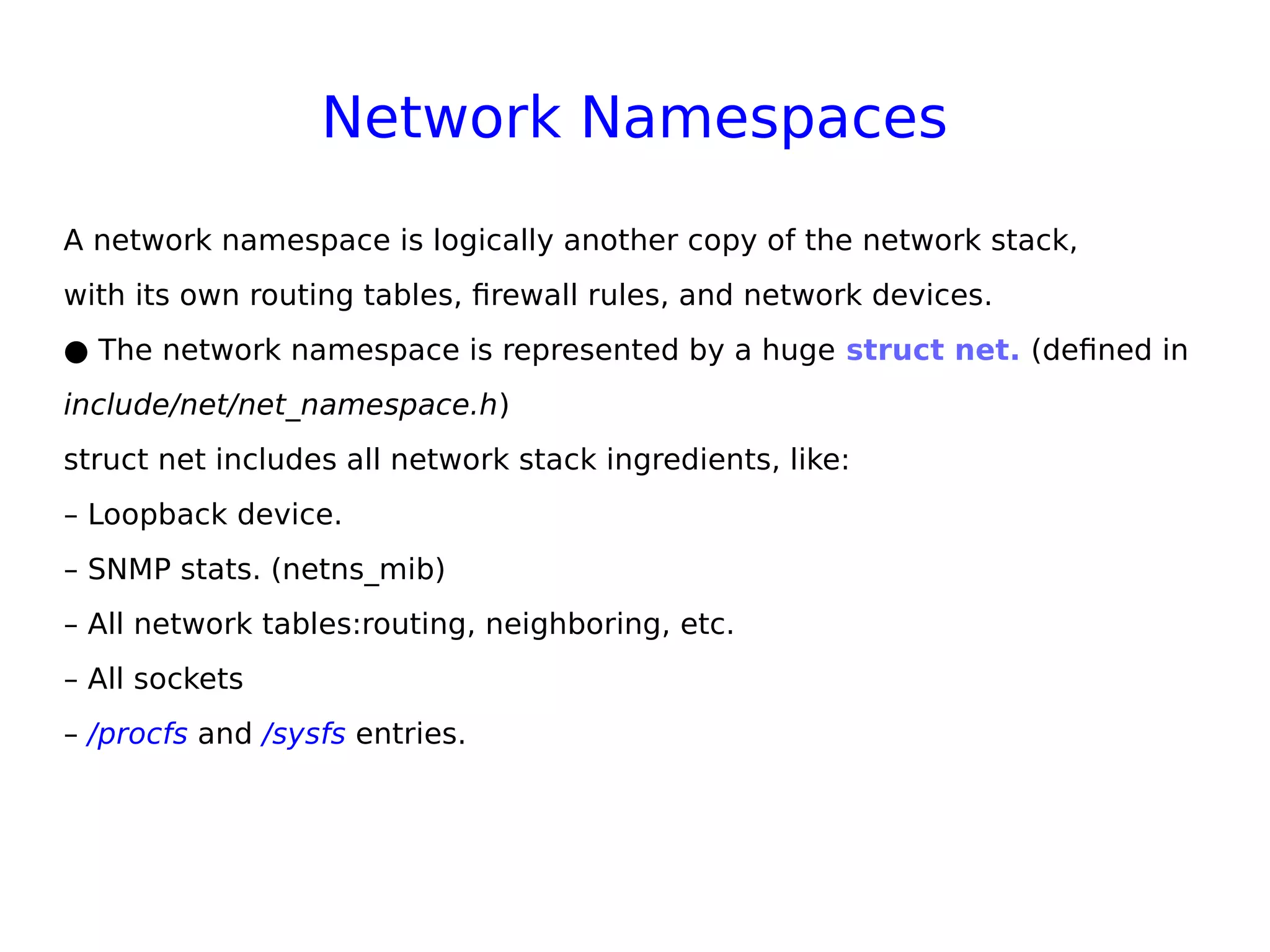

Network Namespaces
A network namespace is logically another copy of the network stack,
with its own routing tables, firewall rules, and network devices.
● The network namespace is represented by a huge struct net. (defined in
include/net/net_namespace.h)
struct net includes all network stack ingredients, like:
– Loopback device.
– SNMP stats. (netns_mib)
– All network tables:routing, neighboring, etc.
– All sockets
– /procfs and /sysfs entries.

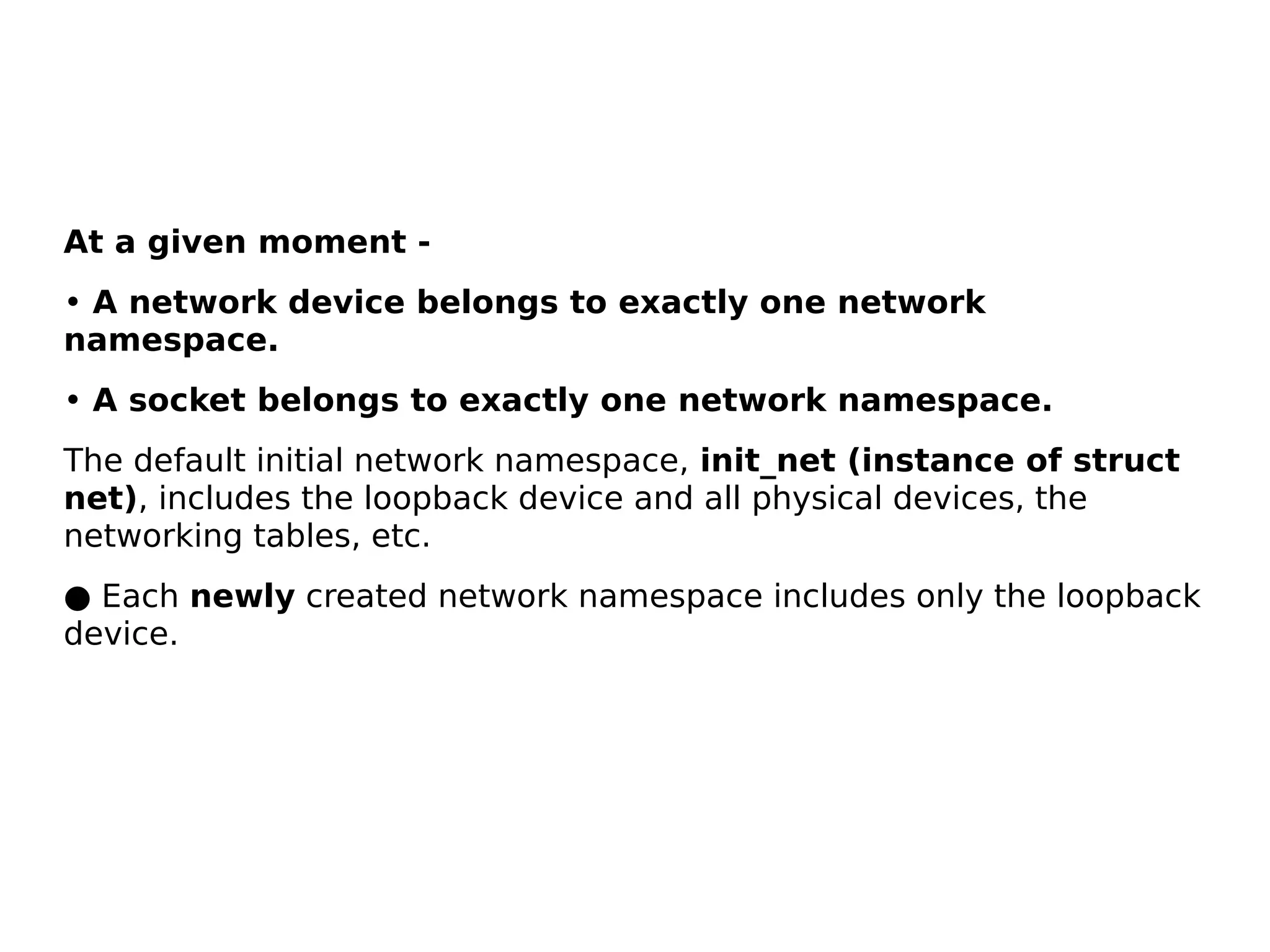

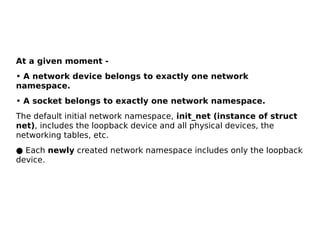

At a given moment -
• A network device belongs to exactly one network
namespace.
• A socket belongs to exactly one network namespace.
The default initial network namespace, init_net (instance of struct
net), includes the loopback device and all physical devices, the
networking tables, etc.
● Each newly created network namespace includes only the loopback
device.

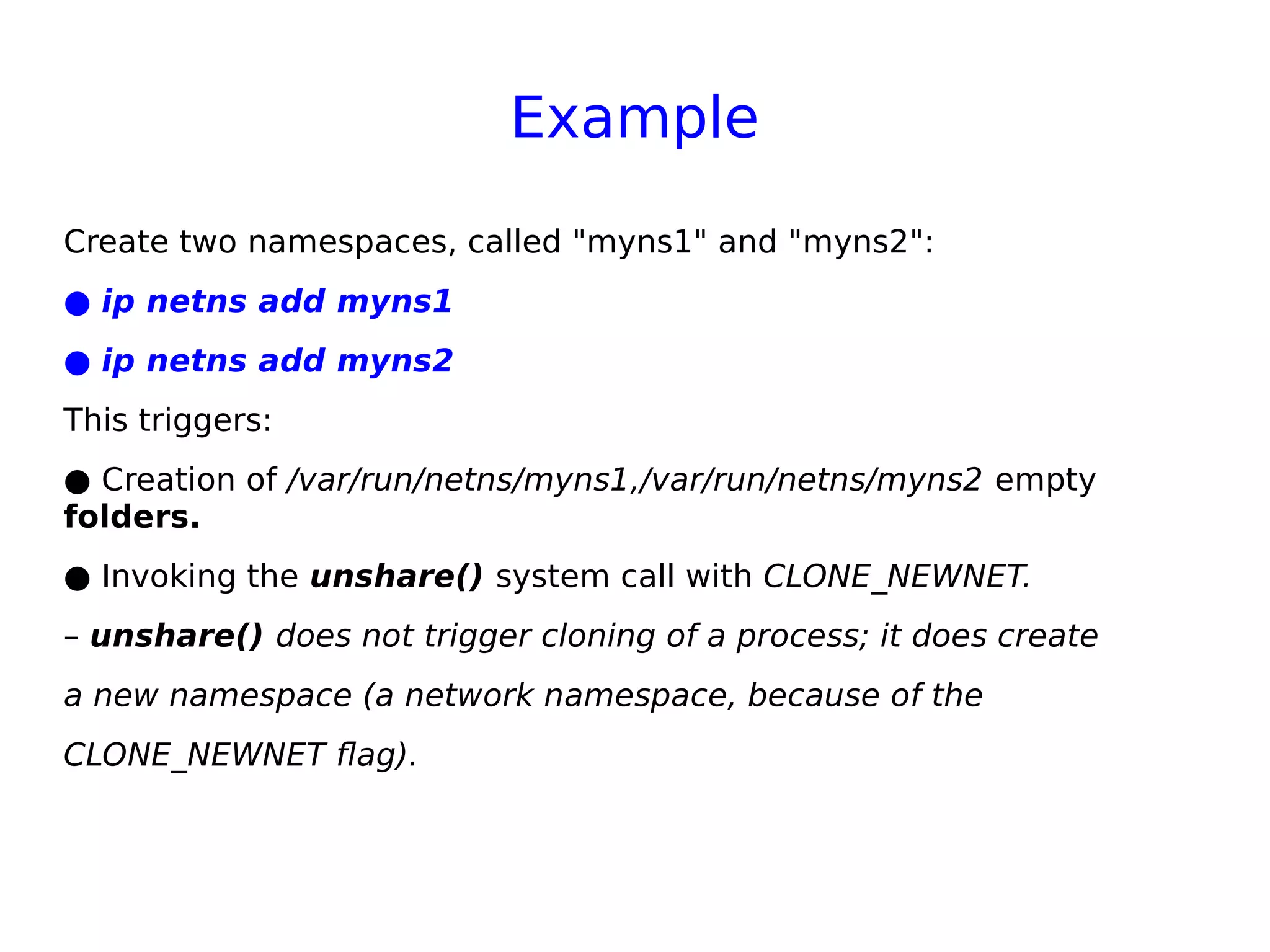

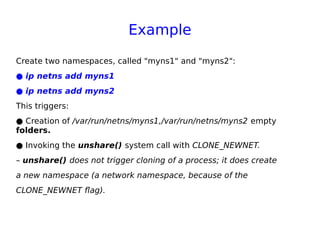

Example
Create two namespaces, called "myns1" and "myns2":
● ip netns add myns1
● ip netns add myns2
This triggers:
● Creation of /var/run/netns/myns1,/var/run/netns/myns2 empty
folders.
● Invoking the unshare() system call with CLONE_NEWNET.
– unshare() does not trigger cloning of a process; it does create
a new namespace (a network namespace, because of the
CLONE_NEWNET flag).

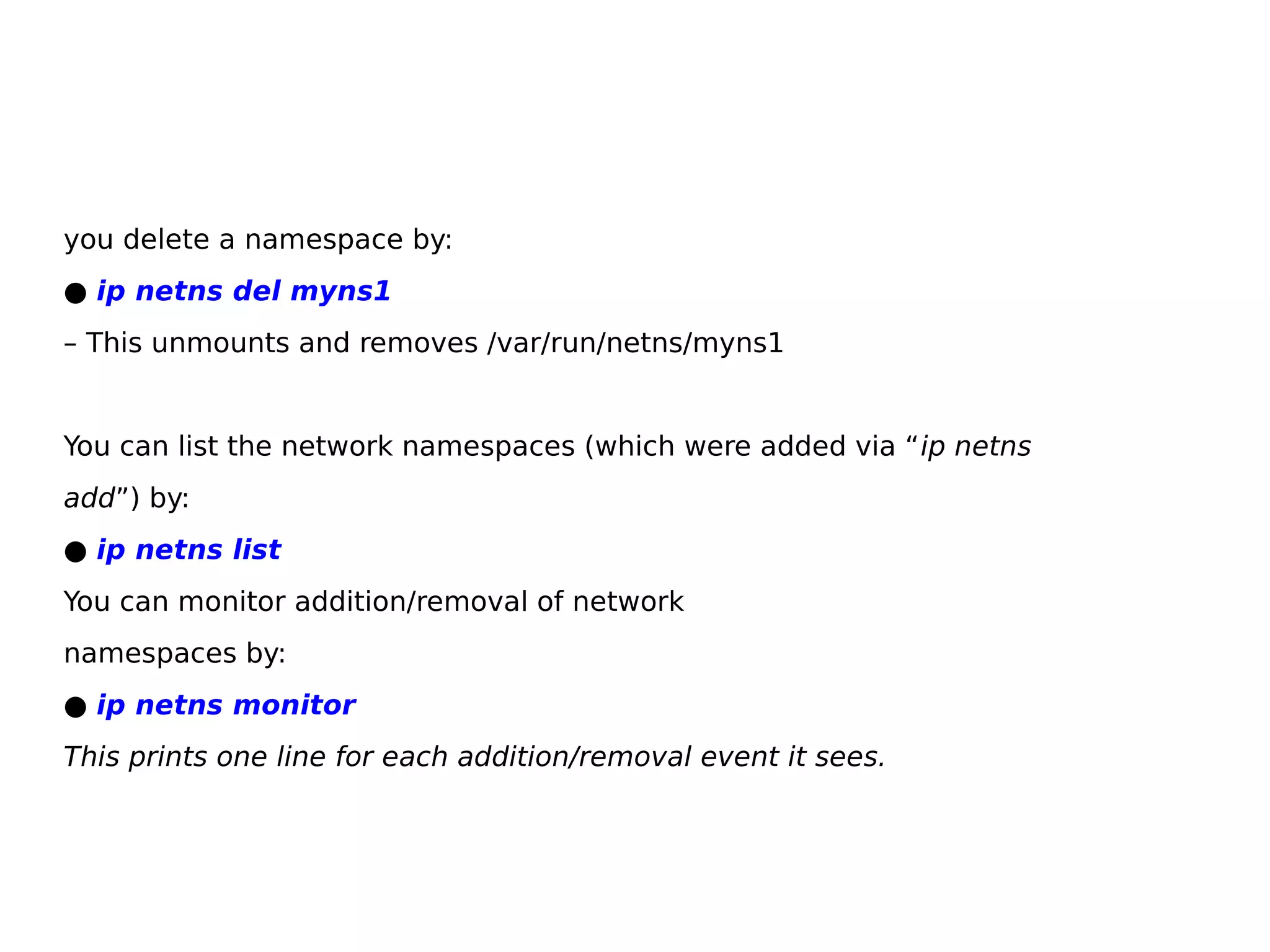

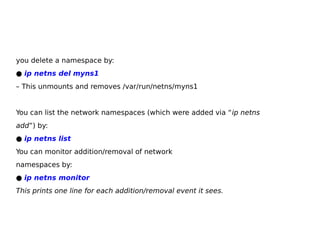

you delete a namespace by:
● ip netns del myns1
– This unmounts and removes /var/run/netns/myns1
You can list the network namespaces (which were added via “ip netns
add”) by:
● ip netns list
You can monitor addition/removal of network
namespaces by:
● ip netns monitor
This prints one line for each addition/removal event it sees.

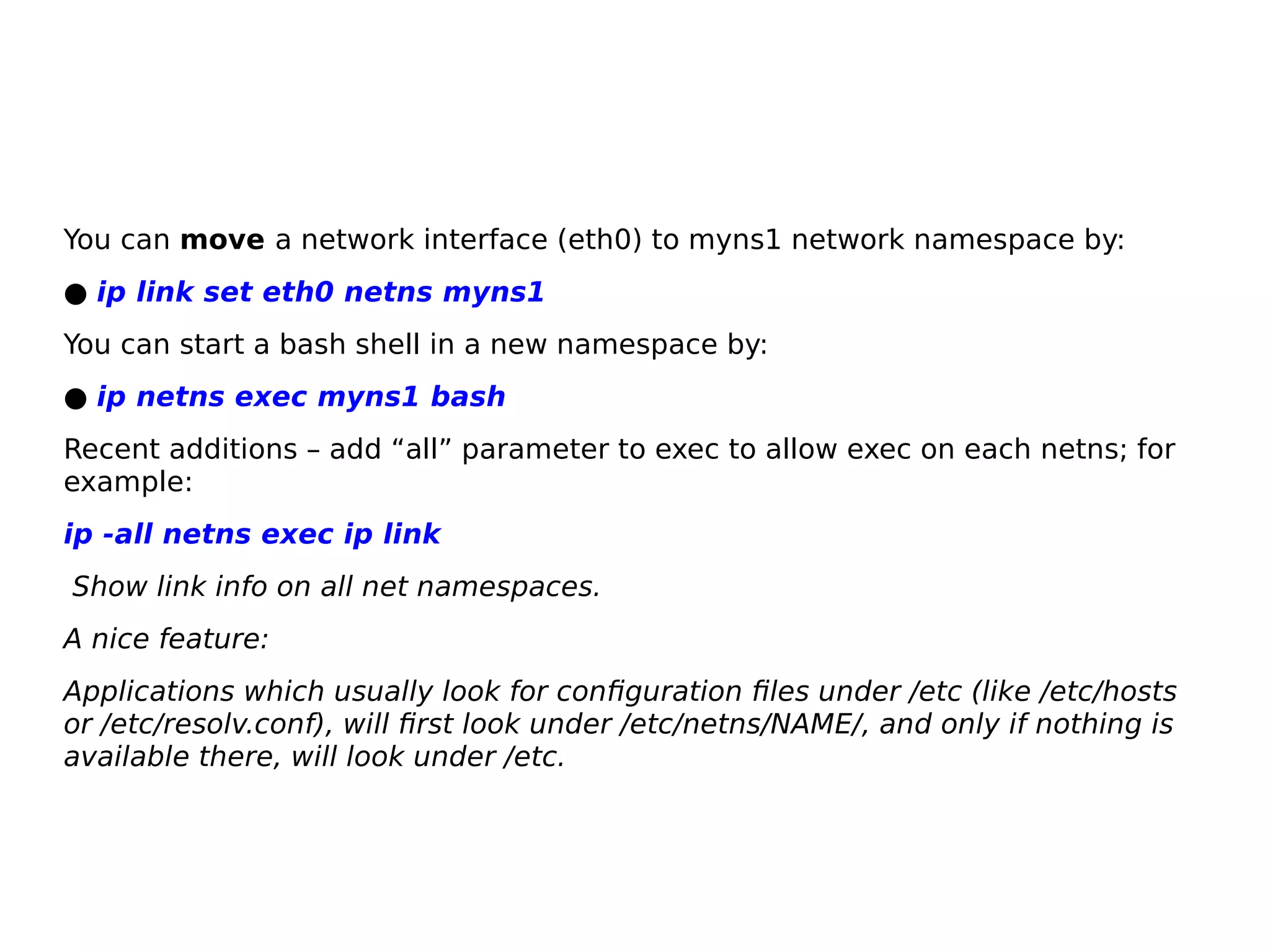

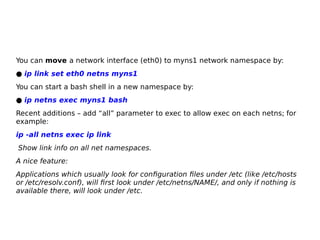

You can move a network interface (eth0) to myns1 network namespace by:
● ip link set eth0 netns myns1
You can start a bash shell in a new namespace by:
● ip netns exec myns1 bash
Recent additions – add “all” parameter to exec to allow exec on each netns; for
example:
ip -all netns exec ip link
Show link info on all net namespaces.
A nice feature:
Applications which usually look for configuration files under /etc (like /etc/hosts
or /etc/resolv.conf), will first look under /etc/netns/NAME/, and only if nothing is
available there, will look under /etc.

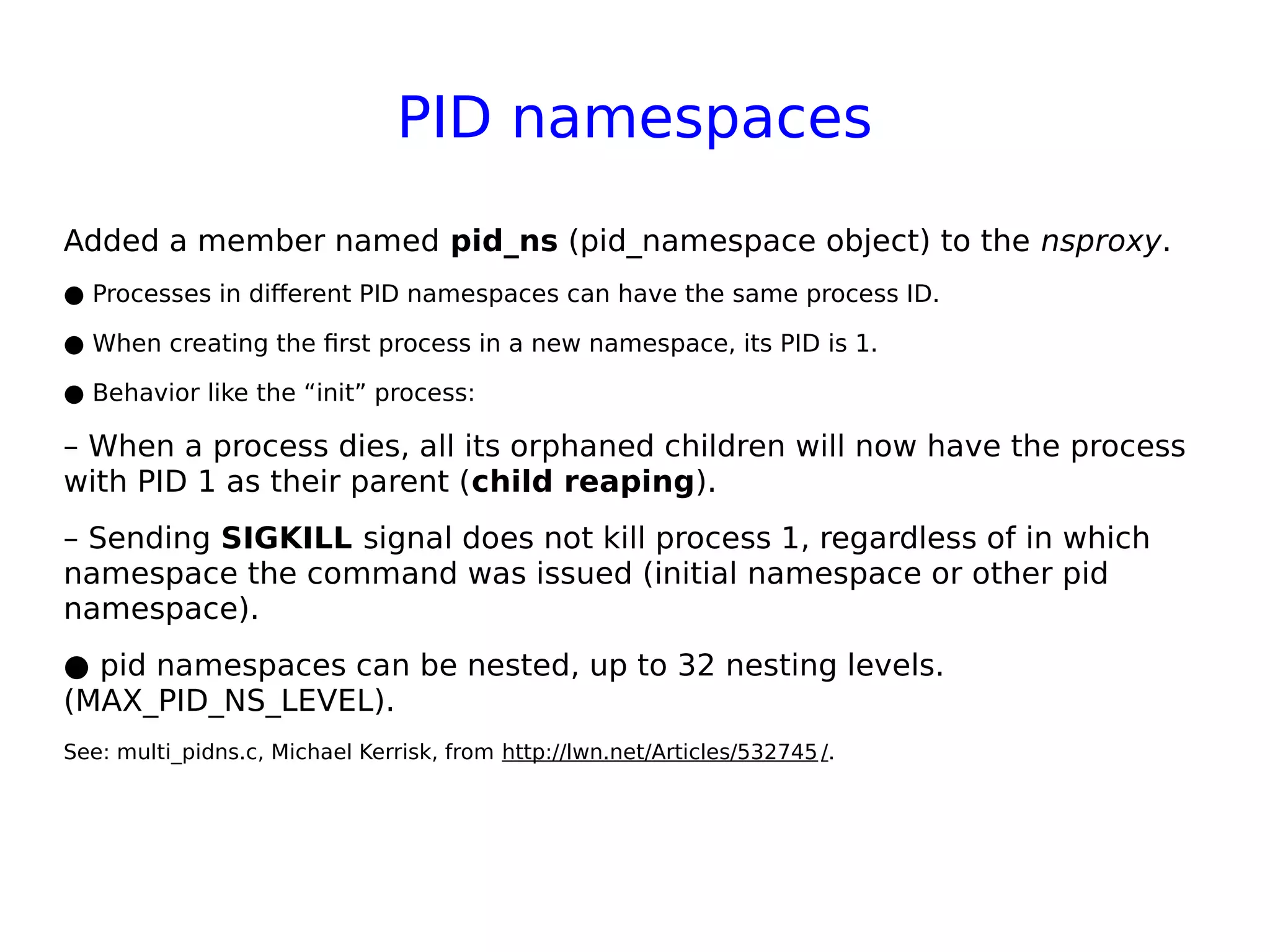

PID namespaces
Added a member named pid_ns (pid_namespace object) to the nsproxy.
● Processes in different PID namespaces can have the same process ID.
● When creating the first process in a new namespace, its PID is 1.
● Behavior like the “init” process:
– When a process dies, all its orphaned children will now have the process
with PID 1 as their parent (child reaping).
– Sending SIGKILL signal does not kill process 1, regardless of in which
namespace the command was issued (initial namespace or other pid
namespace).
● pid namespaces can be nested, up to 32 nesting levels.
(MAX_PID_NS_LEVEL).
See: multi_pidns.c, Michael Kerrisk, from http://lwn.net/Articles/532745 /.

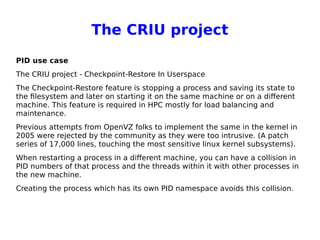

The CRIU project
PID use case
The CRIU project - Checkpoint-Restore In Userspace
The Checkpoint-Restore feature is stopping a process and saving its state to
the filesystem and later on starting it on the same machine or on a different
machine. This feature is required in HPC mostly for load balancing and
maintenance.
Previous attempts from OpenVZ folks to implement the same in the kernel in
2005 were rejected by the community as they were too intrusive. (A patch
series of 17,000 lines, touching the most sensitive linux kernel subsystems).
When restarting a process in a different machine, you can have a collision in
PID numbers of that process and the threads within it with other processes in
the new machine.
Creating the process which has its own PID namespace avoids this collision.

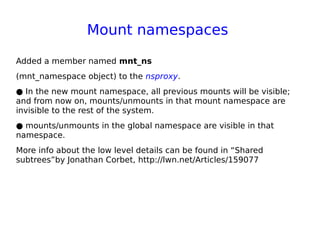

Mount namespaces
Added a member named mnt_ns
(mnt_namespace object) to the nsproxy.
● In the new mount namespace, all previous mounts will be visible;
and from now on, mounts/unmounts in that mount namespace are
invisible to the rest of the system.
● mounts/unmounts in the global namespace are visible in that
namespace.
More info about the low level details can be found in “Shared
subtrees”by Jonathan Corbet, http://lwn.net/Articles/159077

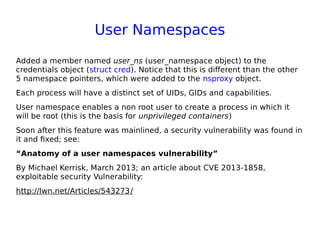

User Namespaces
Added a member named user_ns (user_namespace object) to the
credentials object (struct cred). Notice that this is different than the other
5 namespace pointers, which were added to the nsproxy object.
Each process will have a distinct set of UIDs, GIDs and capabilities.
User namespace enables a non root user to create a process in which it
will be root (this is the basis for unprivileged containers)
Soon after this feature was mainlined, a security vulnerability was found in
it and fixed; see:
“Anatomy of a user namespaces vulnerability”
By Michael Kerrisk, March 2013; an article about CVE 2013-1858,
exploitable security Vulnerability:
http://lwn.net/Articles/543273/

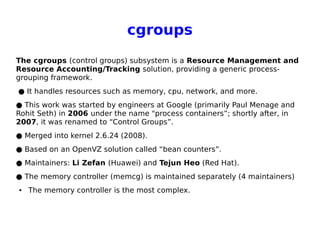

cgroups
The cgroups (control groups) subsystem is a Resource Management and
Resource Accounting/Tracking solution, providing a generic process-
grouping framework.
● It handles resources such as memory, cpu, network, and more.
● This work was started by engineers at Google (primarily Paul Menage and
Rohit Seth) in 2006 under the name "process containers”; shortly after, in
2007, it was renamed to “Control Groups”.
● Merged into kernel 2.6.24 (2008).
● Based on an OpenVZ solution called “bean counters”.
● Maintainers: Li Zefan (Huawei) and Tejun Heo (Red Hat).
● The memory controller (memcg) is maintained separately (4 maintainers)
● The memory controller is the most complex.

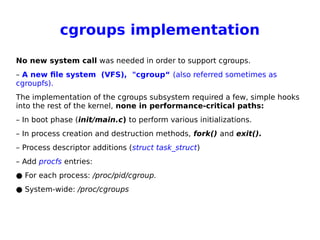

cgroups implementation
No new system call was needed in order to support cgroups.
– A new file system (VFS), "cgroup“ (also referred sometimes as
cgroupfs).
The implementation of the cgroups subsystem required a few, simple hooks
into the rest of the kernel, none in performance-critical paths:
– In boot phase (init/main.c) to perform various initializations.
– In process creation and destruction methods, fork() and exit().
– Process descriptor additions (struct task_struct)
– Add procfs entries:
● For each process: /proc/pid/cgroup.
● System-wide: /proc/cgroups

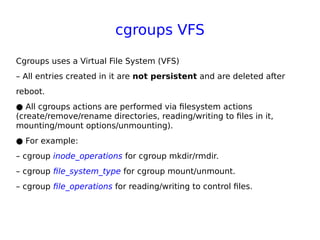

cgroups VFS
Cgroups uses a Virtual File System (VFS)
– All entries created in it are not persistent and are deleted after
reboot.
● All cgroups actions are performed via filesystem actions
(create/remove/rename directories, reading/writing to files in it,
mounting/mount options/unmounting).
● For example:
– cgroup inode_operations for cgroup mkdir/rmdir.
– cgroup file_system_type for cgroup mount/unmount.
– cgroup file_operations for reading/writing to control files.

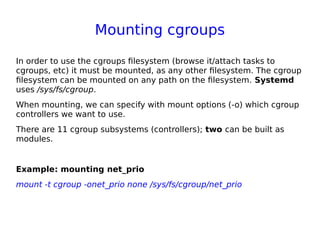

Mounting cgroups
In order to use the cgroups filesystem (browse it/attach tasks to
cgroups, etc) it must be mounted, as any other filesystem. The cgroup
filesystem can be mounted on any path on the filesystem. Systemd
uses /sys/fs/cgroup.
When mounting, we can specify with mount options (-o) which cgroup
controllers we want to use.
There are 11 cgroup subsystems (controllers); two can be built as
modules.
Example: mounting net_prio
mount -t cgroup -onet_prio none /sys/fs/cgroup/net_prio

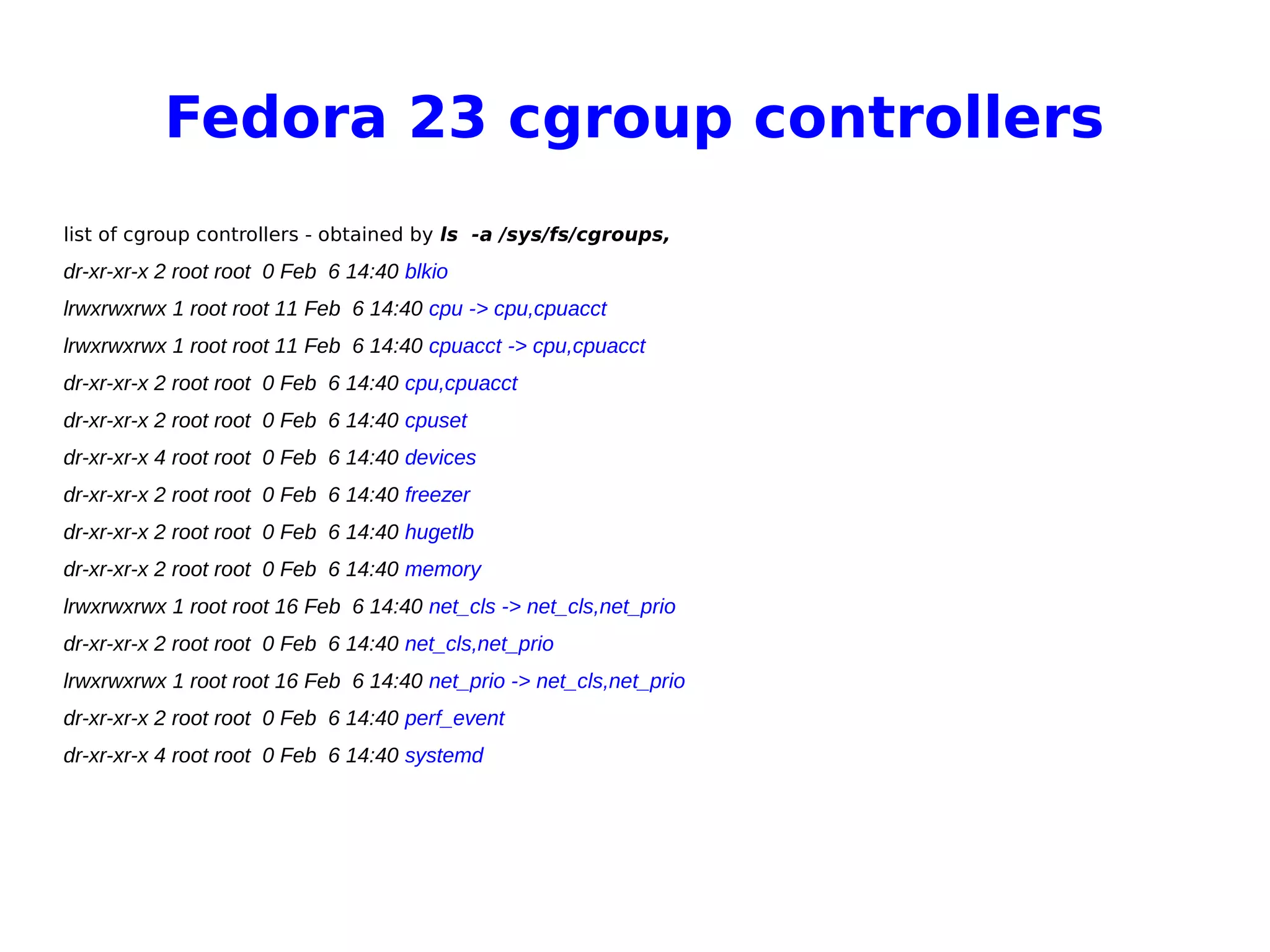

Fedora 23 cgroup controllers
list of cgroup controllers - obtained by ls -a /sys/fs/cgroups,
dr-xr-xr-x 2 root root 0 Feb 6 14:40 blkio
lrwxrwxrwx 1 root root 11 Feb 6 14:40 cpu -> cpu,cpuacct
lrwxrwxrwx 1 root root 11 Feb 6 14:40 cpuacct -> cpu,cpuacct
dr-xr-xr-x 2 root root 0 Feb 6 14:40 cpu,cpuacct
dr-xr-xr-x 2 root root 0 Feb 6 14:40 cpuset
dr-xr-xr-x 4 root root 0 Feb 6 14:40 devices
dr-xr-xr-x 2 root root 0 Feb 6 14:40 freezer
dr-xr-xr-x 2 root root 0 Feb 6 14:40 hugetlb
dr-xr-xr-x 2 root root 0 Feb 6 14:40 memory
lrwxrwxrwx 1 root root 16 Feb 6 14:40 net_cls -> net_cls,net_prio
dr-xr-xr-x 2 root root 0 Feb 6 14:40 net_cls,net_prio
lrwxrwxrwx 1 root root 16 Feb 6 14:40 net_prio -> net_cls,net_prio
dr-xr-xr-x 2 root root 0 Feb 6 14:40 perf_event
dr-xr-xr-x 4 root root 0 Feb 6 14:40 systemd

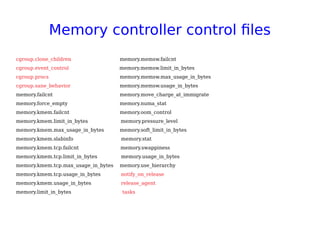

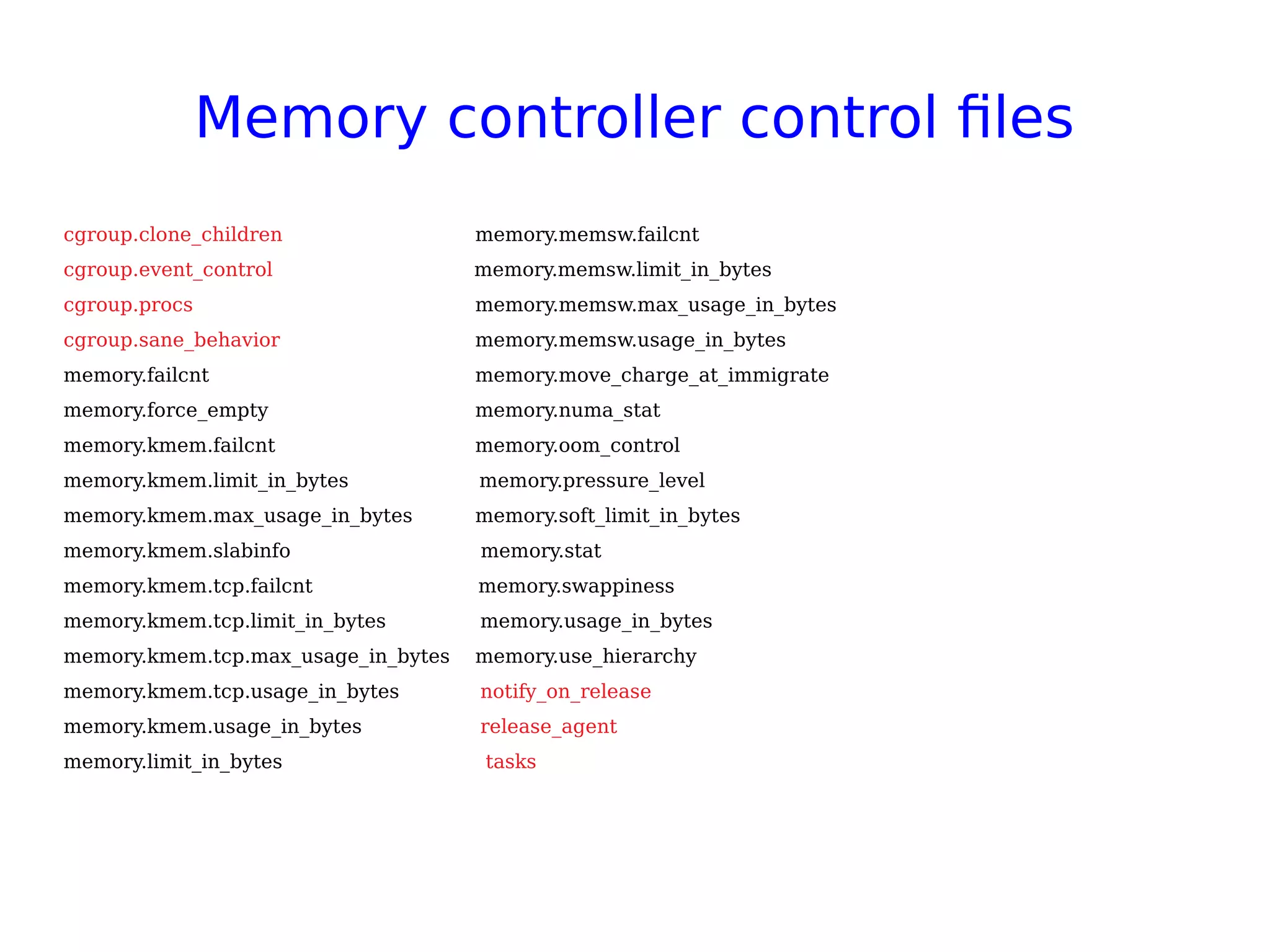

Memory controller control files
cgroup.clone_children memory.memsw.failcnt
cgroup.event_control memory.memsw.limit_in_bytes
cgroup.procs memory.memsw.max_usage_in_bytes
cgroup.sane_behavior memory.memsw.usage_in_bytes
memory.failcnt memory.move_charge_at_immigrate
memory.force_empty memory.numa_stat
memory.kmem.failcnt memory.oom_control
memory.kmem.limit_in_bytes memory.pressure_level
memory.kmem.max_usage_in_bytes memory.soft_limit_in_bytes
memory.kmem.slabinfo memory.stat
memory.kmem.tcp.failcnt memory.swappiness
memory.kmem.tcp.limit_in_bytes memory.usage_in_bytes
memory.kmem.tcp.max_usage_in_bytes memory.use_hierarchy
memory.kmem.tcp.usage_in_bytes notify_on_release
memory.kmem.usage_in_bytes release_agent
memory.limit_in_bytes tasks

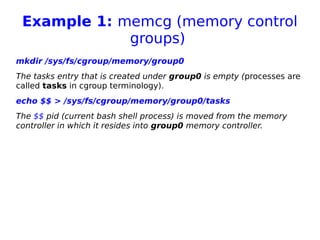

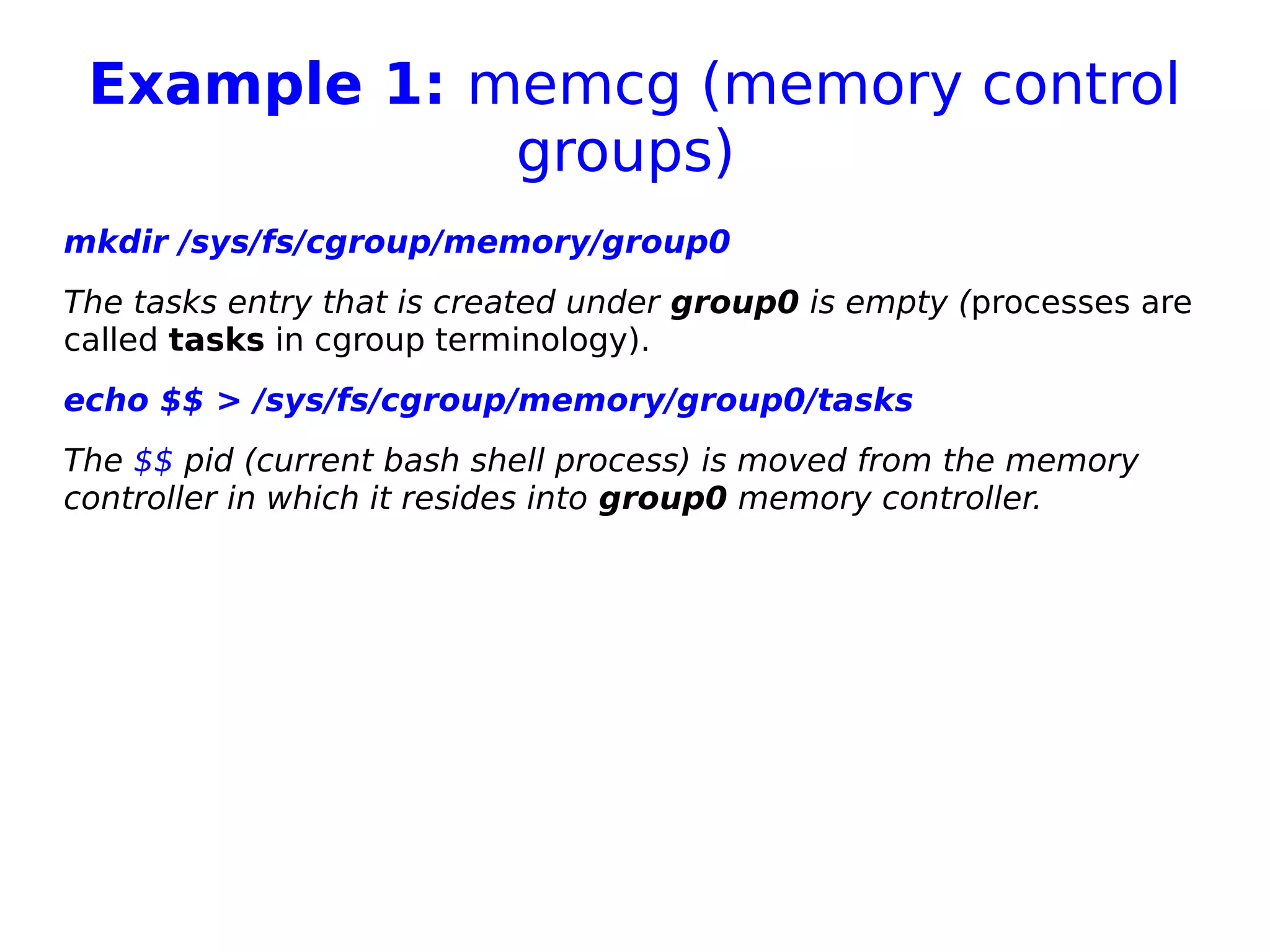

Example 1: memcg (memory control
groups)
mkdir /sys/fs/cgroup/memory/group0
The tasks entry that is created under group0 is empty (processes are
called tasks in cgroup terminology).
echo $$ > /sys/fs/cgroup/memory/group0/tasks
The $$ pid (current bash shell process) is moved from the memory
controller in which it resides into group0 memory controller.

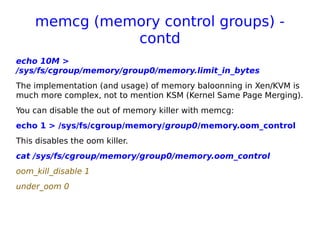

memcg (memory control groups) -
contd
echo 10M >
/sys/fs/cgroup/memory/group0/memory.limit_in_bytes
The implementation (and usage) of memory baloonning in Xen/KVM is
much more complex, not to mention KSM (Kernel Same Page Merging).
You can disable the out of memory killer with memcg:
echo 1 > /sys/fs/cgroup/memory/group0/memory.oom_control
This disables the oom killer.
cat /sys/fs/cgroup/memory/group0/memory.oom_control
oom_kill_disable 1
under_oom 0

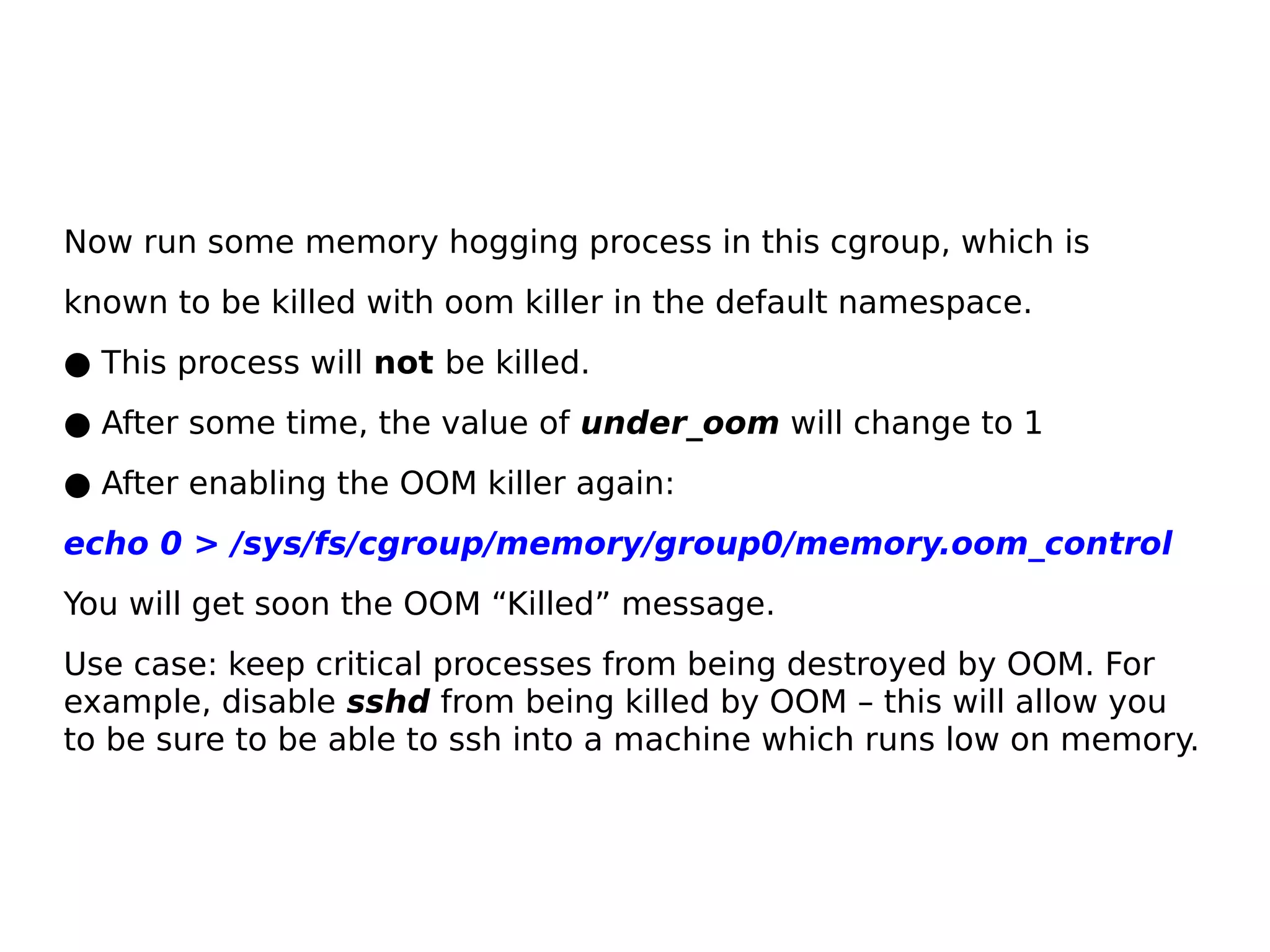

Now run some memory hogging process in this cgroup, which is
known to be killed with oom killer in the default namespace.
● This process will not be killed.
● After some time, the value of under_oom will change to 1
● After enabling the OOM killer again:
echo 0 > /sys/fs/cgroup/memory/group0/memory.oom_control
You will get soon the OOM “Killed” message.
Use case: keep critical processes from being destroyed by OOM. For
example, disable sshd from being killed by OOM – this will allow you
to be sure to be able to ssh into a machine which runs low on memory.

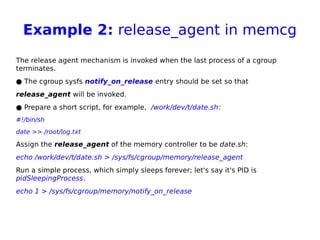

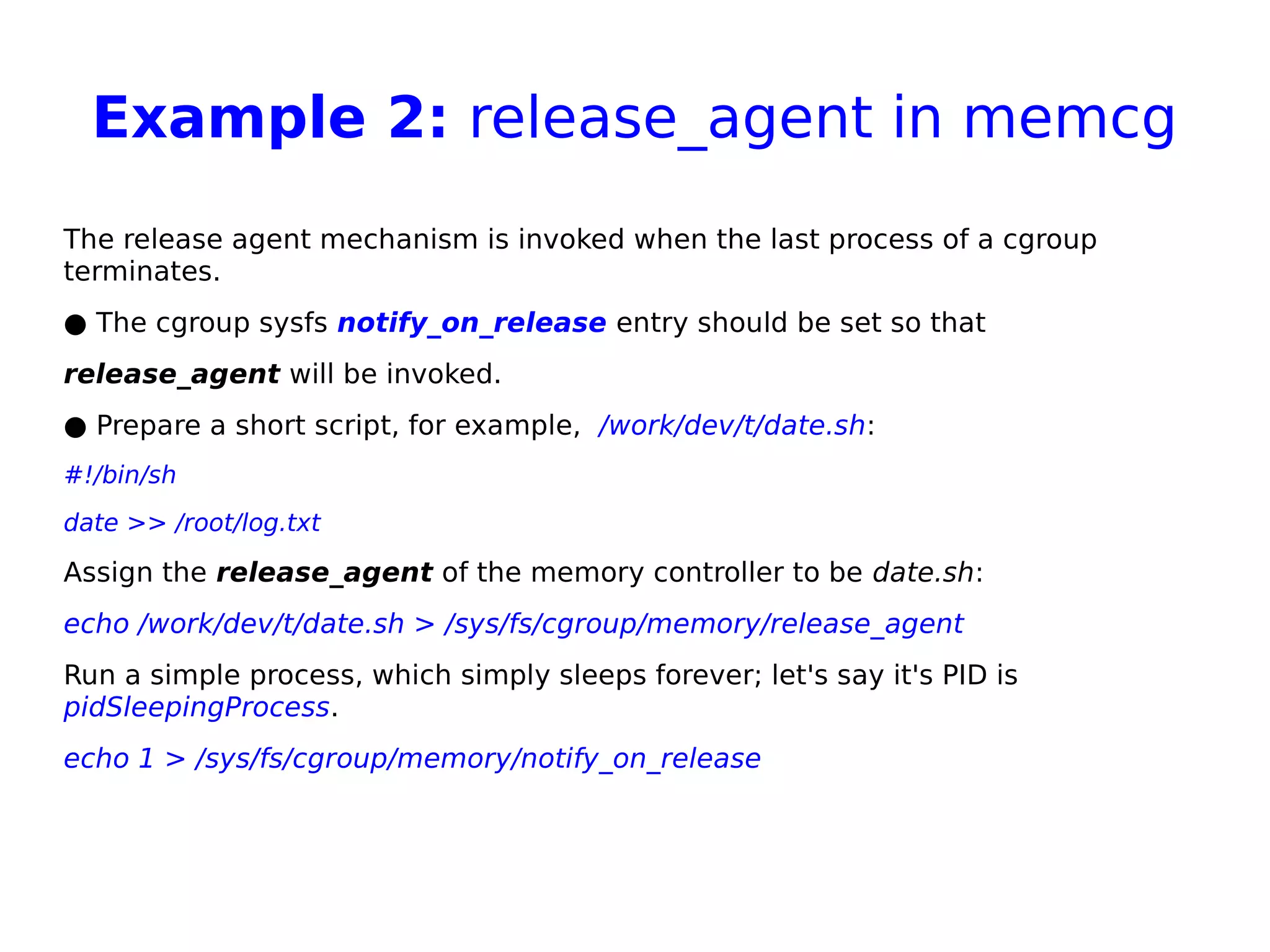

Example 2: release_agent in memcg
The release agent mechanism is invoked when the last process of a cgroup
terminates.
● The cgroup sysfs notify_on_release entry should be set so that
release_agent will be invoked.
● Prepare a short script, for example, /work/dev/t/date.sh:
#!/bin/sh
date >> /root/log.txt
Assign the release_agent of the memory controller to be date.sh:
echo /work/dev/t/date.sh > /sys/fs/cgroup/memory/release_agent
Run a simple process, which simply sleeps forever; let's say it's PID is
pidSleepingProcess.
echo 1 > /sys/fs/cgroup/memory/notify_on_release

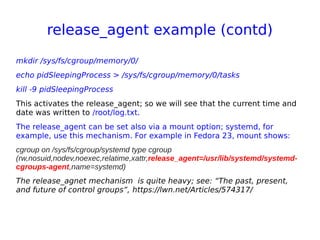

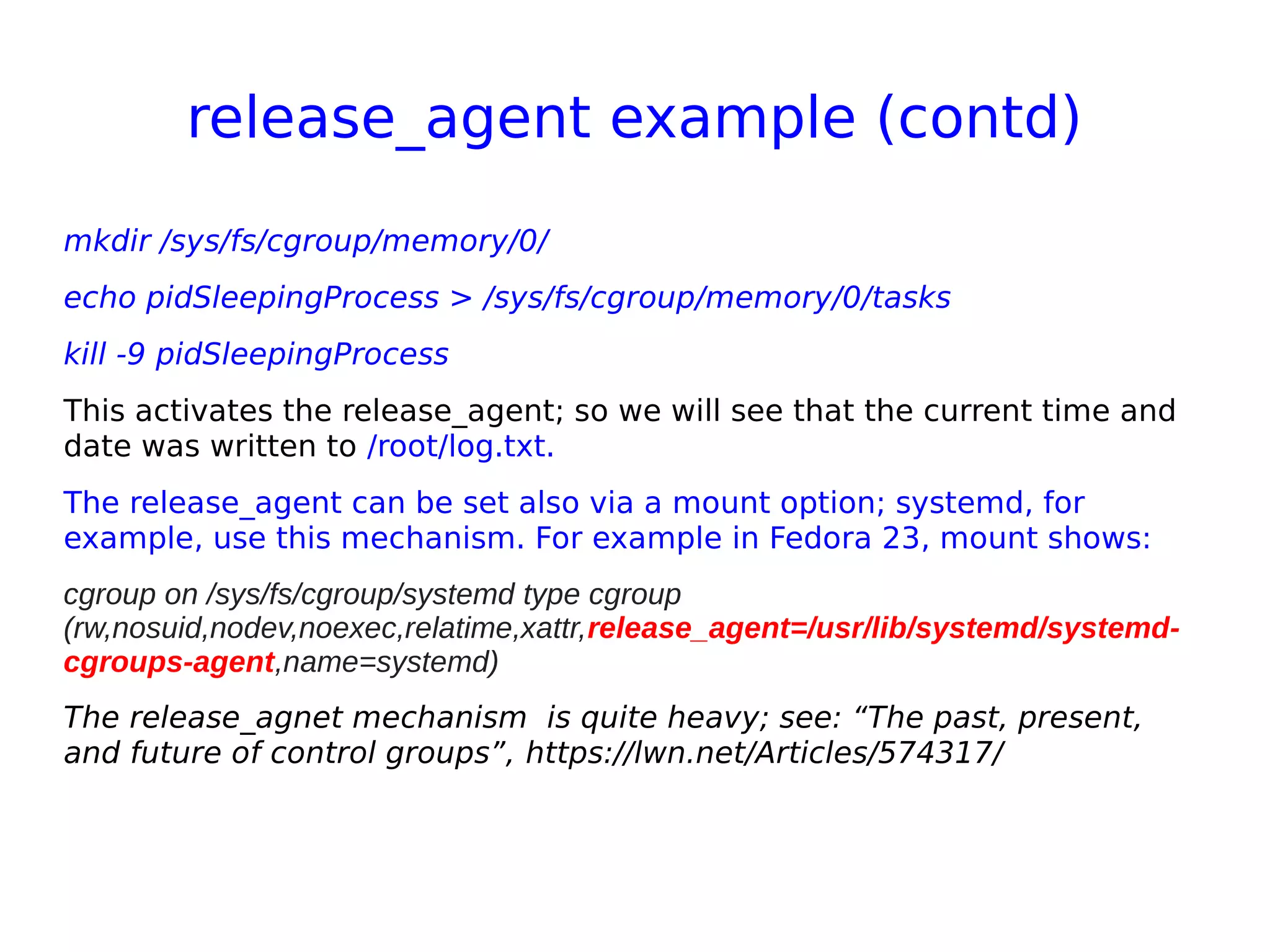

release_agent example (contd)
mkdir /sys/fs/cgroup/memory/0/
echo pidSleepingProcess > /sys/fs/cgroup/memory/0/tasks
kill -9 pidSleepingProcess
This activates the release_agent; so we will see that the current time and
date was written to /root/log.txt.
The release_agent can be set also via a mount option; systemd, for
example, use this mechanism. For example in Fedora 23, mount shows:
cgroup on /sys/fs/cgroup/systemd type cgroup
(rw,nosuid,nodev,noexec,relatime,xattr,release_agent=/usr/lib/systemd/systemd-
cgroups-agent,name=systemd)
The release_agnet mechanism is quite heavy; see: “The past, present,
and future of control groups”, https://lwn.net/Articles/574317/

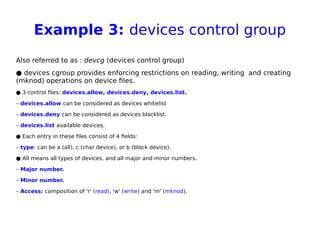

Example 3: devices control group
Also referred to as : devcg (devices control group)
● devices cgroup provides enforcing restrictions on reading, writing and creating
(mknod) operations on device files.
● 3 control files: devices.allow, devices.deny, devices.list.
– devices.allow can be considered as devices whitelist
– devices.deny can be considered as devices blacklist.
– devices.list available devices.
● Each entry in these files consist of 4 fields:
– type: can be a (all), c (char device), or b (block device).
● All means all types of devices, and all major and minor numbers.
– Major number.
– Minor number.
– Access: composition of 'r' (read), 'w' (write) and 'm' (mknod).

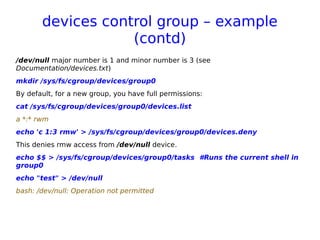

devices control group – example
(contd)
/dev/null major number is 1 and minor number is 3 (see
Documentation/devices.txt)
mkdir /sys/fs/cgroup/devices/group0
By default, for a new group, you have full permissions:
cat /sys/fs/cgroup/devices/group0/devices.list
a *:* rwm
echo 'c 1:3 rmw' > /sys/fs/cgroup/devices/group0/devices.deny
This denies rmw access from /dev/null device.
echo $$ > /sys/fs/cgroup/devices/group0/tasks #Runs the current shell in
group0
echo "test" > /dev/null
bash: /dev/null: Operation not permitted

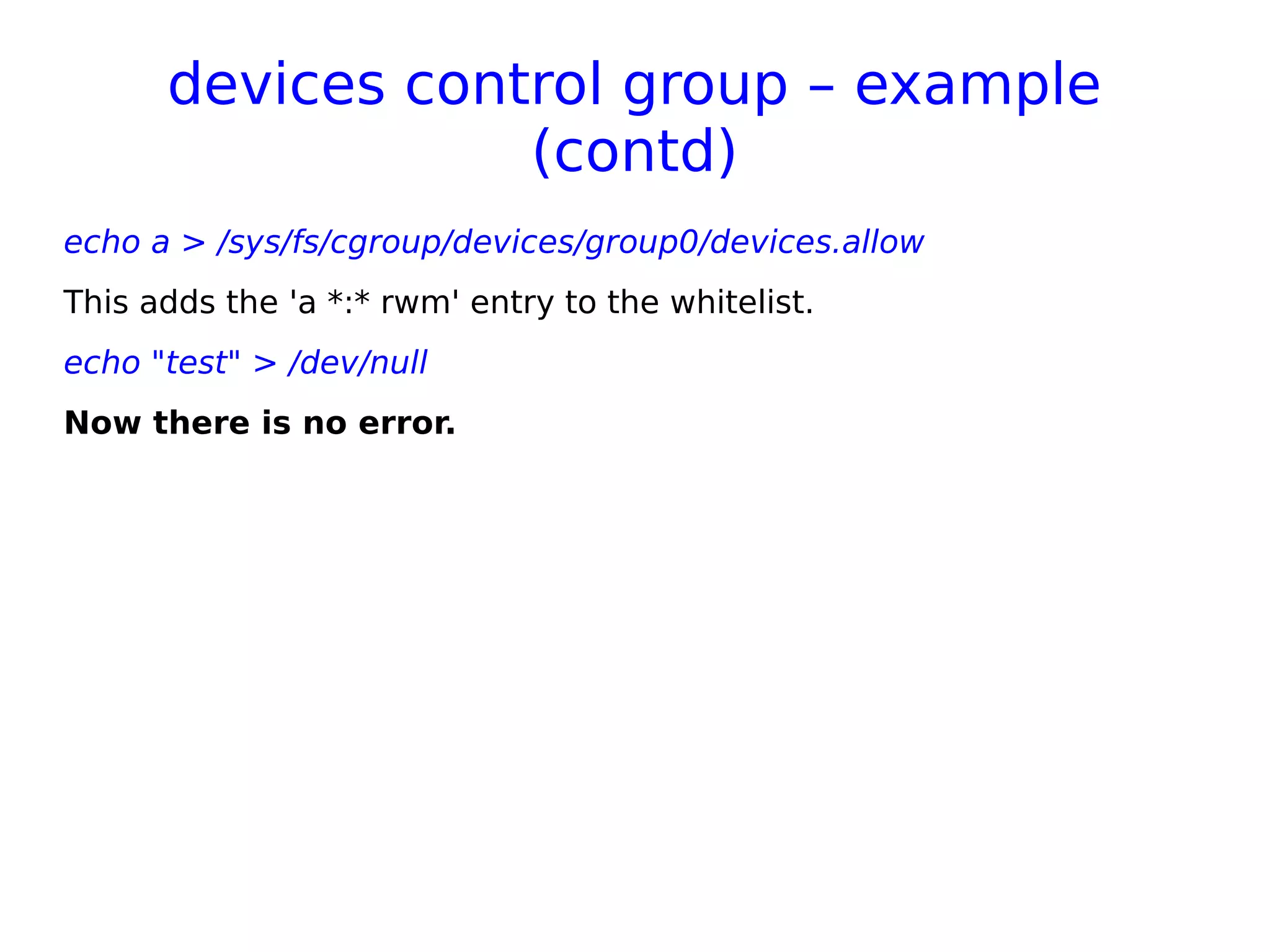

devices control group – example
(contd)
echo a > /sys/fs/cgroup/devices/group0/devices.allow
This adds the 'a *:* rwm' entry to the whitelist.
echo "test" > /dev/null
Now there is no error.

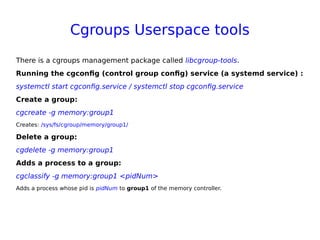

Cgroups Userspace tools
There is a cgroups management package called libcgroup-tools.
Running the cgconfig (control group config) service (a systemd service) :
systemctl start cgconfig.service / systemctl stop cgconfig.service
Create a group:
cgcreate -g memory:group1
Creates: /sys/fs/cgroup/memory/group1/
Delete a group:
cgdelete -g memory:group1
Adds a process to a group:
cgclassify -g memory:group1 <pidNum>
Adds a process whose pid is pidNum to group1 of the memory controller.

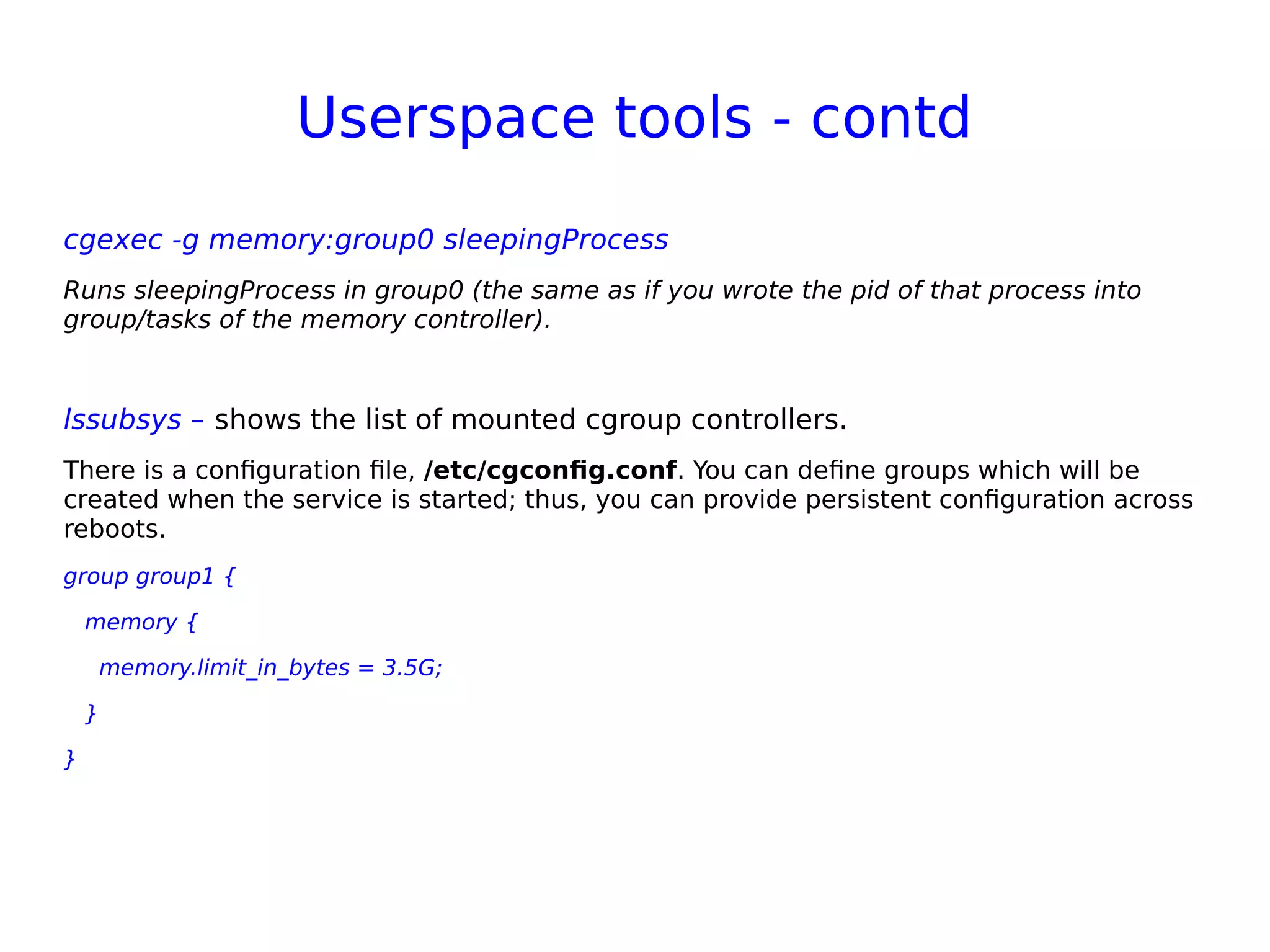

Userspace tools - contd
cgexec -g memory:group0 sleepingProcess
Runs sleepingProcess in group0 (the same as if you wrote the pid of that process into
group/tasks of the memory controller).
lssubsys – shows the list of mounted cgroup controllers.
There is a configuration file, /etc/cgconfig.conf. You can define groups which will be
created when the service is started; thus, you can provide persistent configuration across
reboots.
group group1 {
memory {
memory.limit_in_bytes = 3.5G;
}
}

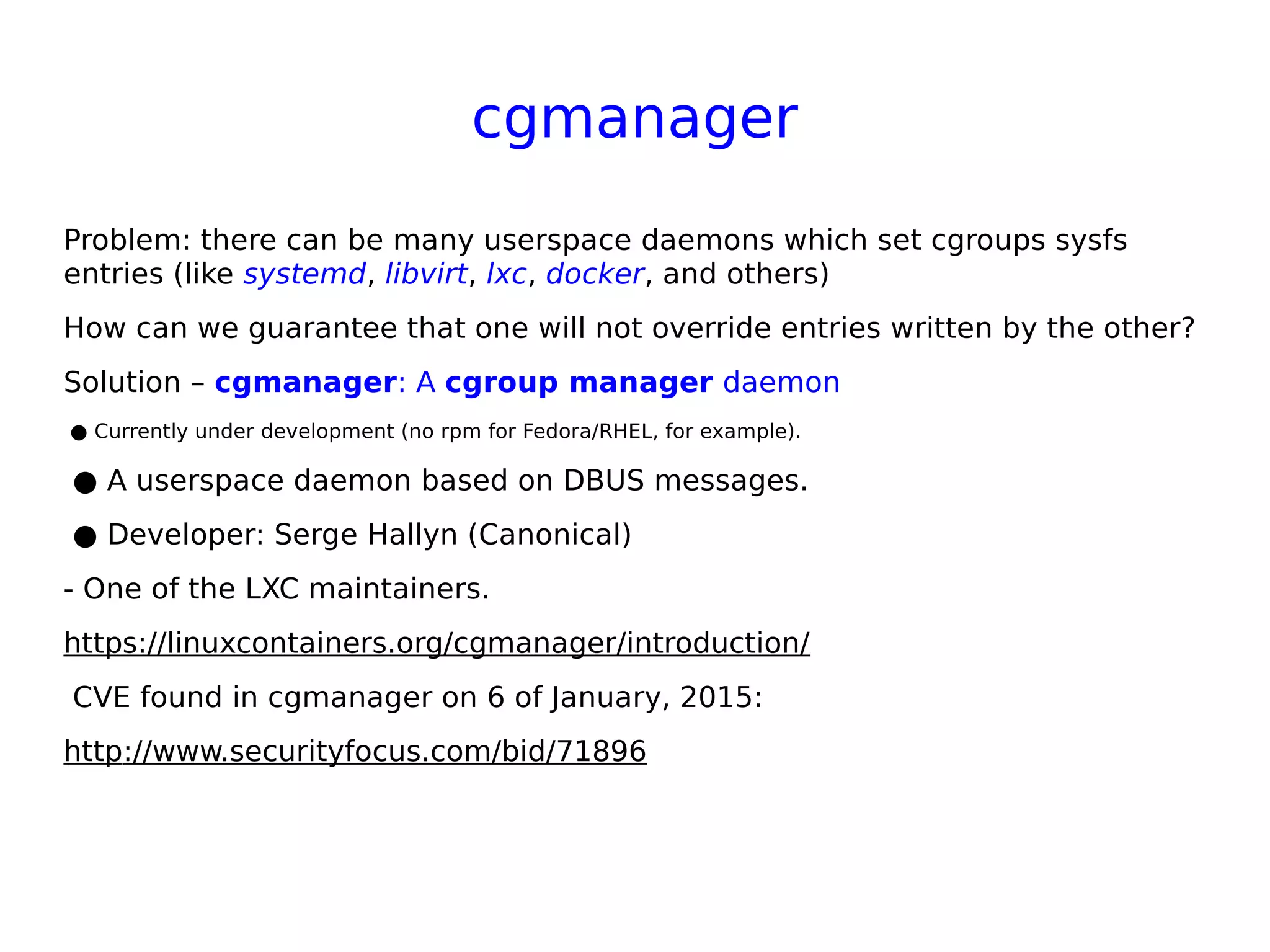

cgmanager
Problem: there can be many userspace daemons which set cgroups sysfs
entries (like systemd, libvirt, lxc, docker, and others)
How can we guarantee that one will not override entries written by the other?
Solution – cgmanager: A cgroup manager daemon
● Currently under development (no rpm for Fedora/RHEL, for example).
● A userspace daemon based on DBUS messages.
● Developer: Serge Hallyn (Canonical)
- One of the LXC maintainers.
https://linuxcontainers.org/cgmanager/introduction/
CVE found in cgmanager on 6 of January, 2015:
http://www.securityfocus.com/bid/71896

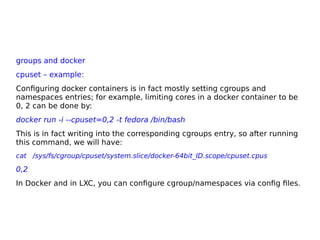

groups and docker
cpuset – example:
Configuring docker containers is in fact mostly setting cgroups and
namespaces entries; for example, limiting cores in a docker container to be
0, 2 can be done by:
docker run -i --cpuset=0,2 -t fedora /bin/bash
This is in fact writing into the corresponding cgroups entry, so after running
this command, we will have:
cat /sys/fs/cgroup/cpuset/system.slice/docker-64bit_ID.scope/cpuset.cpus
0,2
In Docker and in LXC, you can configure cgroup/namespaces via config files.

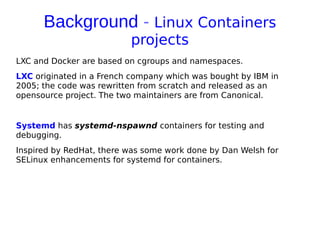

Background - Linux Containers
projects
LXC and Docker are based on cgroups and namespaces.
LXC originated in a French company which was bought by IBM in
2005; the code was rewritten from scratch and released as an
opensource project. The two maintainers are from Canonical.
Systemd has systemd-nspawnd containers for testing and
debugging.
Inspired by RedHat, there was some work done by Dan Welsh for
SELinux enhancements for systemd for containers.

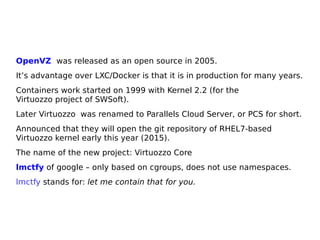

OpenVZ was released as an open source in 2005.
It’s advantage over LXC/Docker is that it is in production for many years.
Containers work started on 1999 with Kernel 2.2 (for the
Virtuozzo project of SWSoft).
Later Virtuozzo was renamed to Parallels Cloud Server, or PCS for short.
Announced that they will open the git repository of RHEL7-based
Virtuozzo kernel early this year (2015).
The name of the new project: Virtuozzo Core
lmctfy of google – only based on cgroups, does not use namespaces.
lmctfy stands for: let me contain that for you.

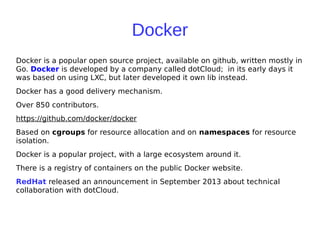

Docker
Docker is a popular open source project, available on github, written mostly in
Go. Docker is developed by a company called dotCloud; in its early days it
was based on using LXC, but later developed it own lib instead.
Docker has a good delivery mechanism.
Over 850 contributors.
https://github.com/docker/docker
Based on cgroups for resource allocation and on namespaces for resource
isolation.
Docker is a popular project, with a large ecosystem around it.
There is a registry of containers on the public Docker website.
RedHat released an announcement in September 2013 about technical
collaboration with dotCloud.

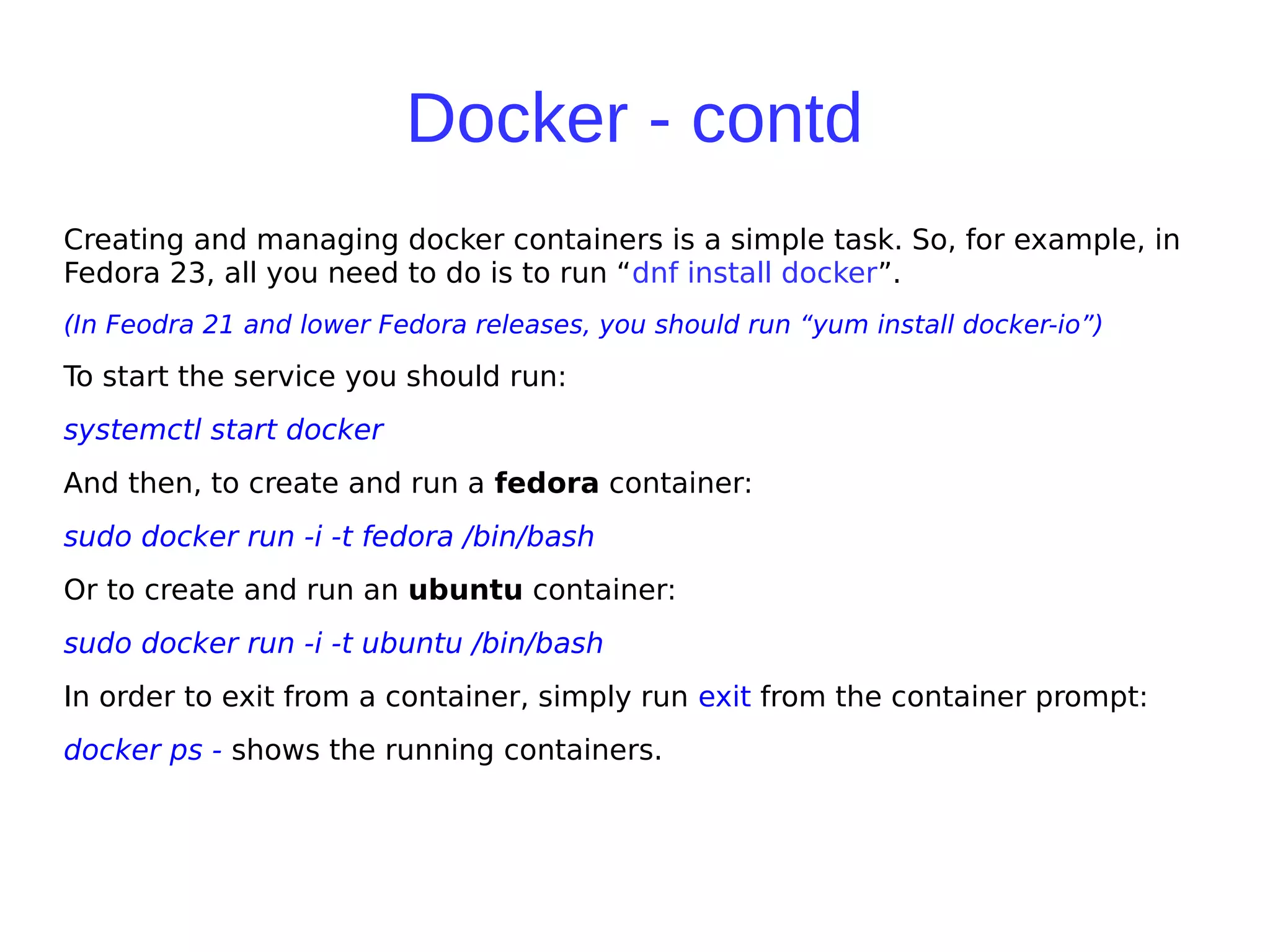

Docker - contd
Creating and managing docker containers is a simple task. So, for example, in
Fedora 23, all you need to do is to run “dnf install docker”.
(In Feodra 21 and lower Fedora releases, you should run “yum install docker-io”)
To start the service you should run:
systemctl start docker
And then, to create and run a fedora container:
sudo docker run -i -t fedora /bin/bash
Or to create and run an ubuntu container:
sudo docker run -i -t ubuntu /bin/bash
In order to exit from a container, simply run exit from the container prompt:
docker ps - shows the running containers.

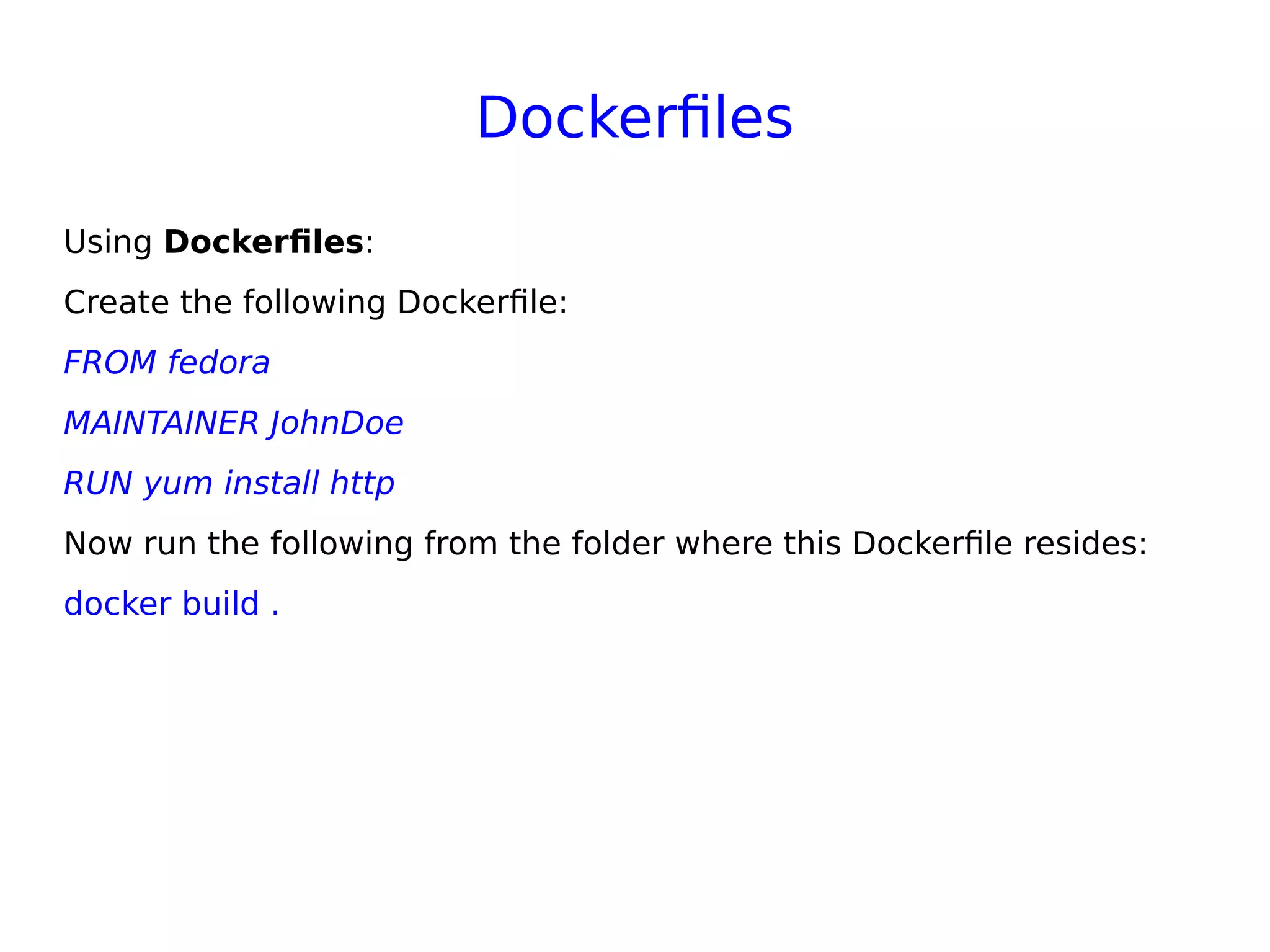

Dockerfiles
Using Dockerfiles:
Create the following Dockerfile:
FROM fedora
MAINTAINER JohnDoe
RUN yum install http
Now run the following from the folder where this Dockerfile resides:
docker build .

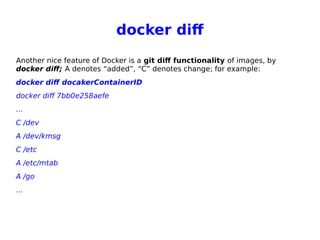

docker dif
Another nice feature of Docker is a git dif functionality of images, by
docker diff; A denotes “added”, “C” denotes change; for example:
docker diff docakerContainerID
docker diff 7bb0e258aefe
…
C /dev
A /dev/kmsg
C /etc
A /etc/mtab
A /go
…

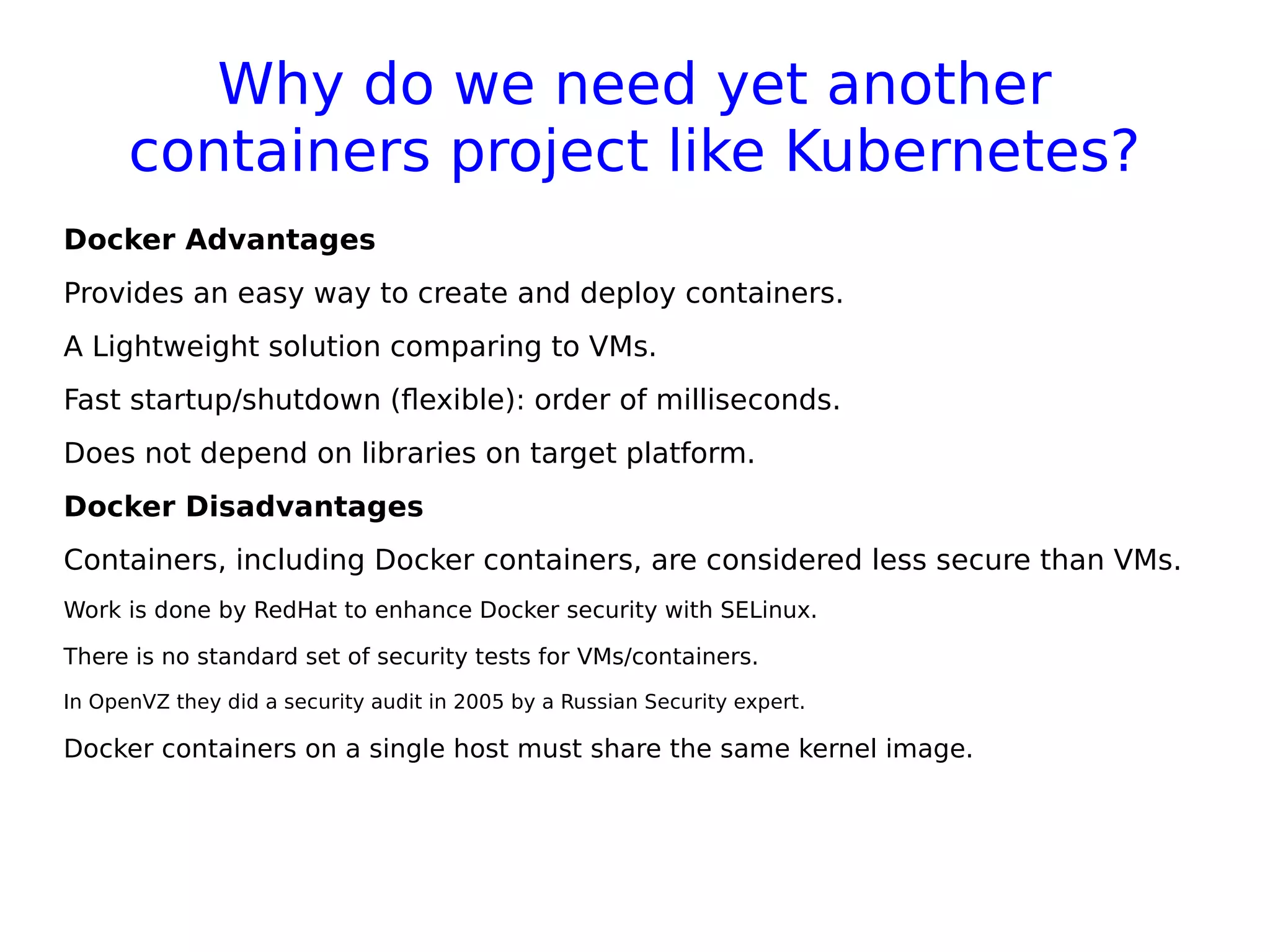

Why do we need yet another
containers project like Kubernetes?
Docker Advantages
Provides an easy way to create and deploy containers.
A Lightweight solution comparing to VMs.
Fast startup/shutdown (flexible): order of milliseconds.
Does not depend on libraries on target platform.
Docker Disadvantages
Containers, including Docker containers, are considered less secure than VMs.
Work is done by RedHat to enhance Docker security with SELinux.
There is no standard set of security tests for VMs/containers.
In OpenVZ they did a security audit in 2005 by a Russian Security expert.
Docker containers on a single host must share the same kernel image.

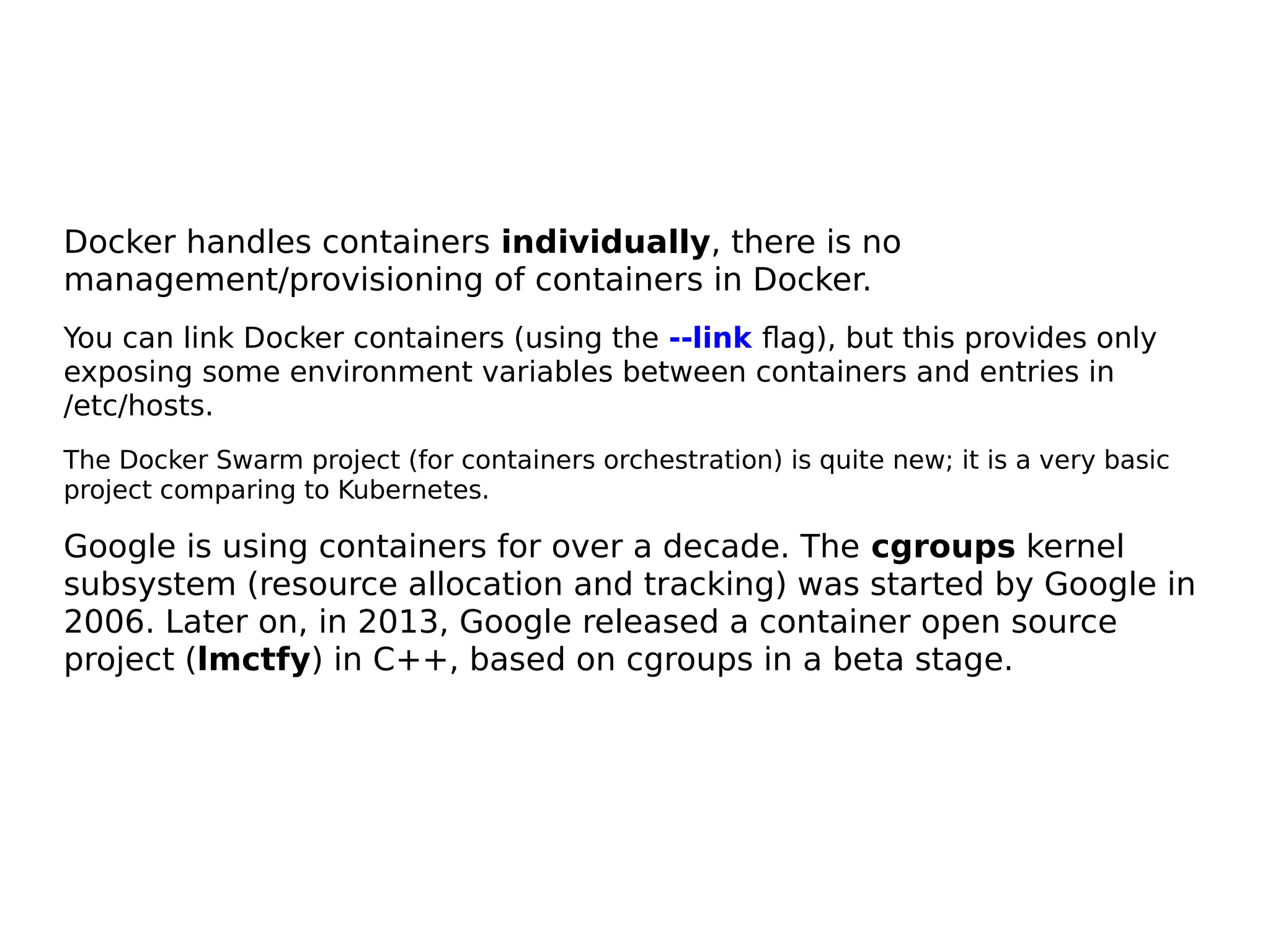

Docker handles containers individually, there is no
management/provisioning of containers in Docker.
You can link Docker containers (using the --link flag), but this provides only
exposing some environment variables between containers and entries in
/etc/hosts.
The Docker Swarm project (for containers orchestration) is quite new; it is a very basic
project comparing to Kubernetes.
Google is using containers for over a decade. The cgroups kernel
subsystem (resource allocation and tracking) was started by Google in
2006. Later on, in 2013, Google released a container open source
project (lmctfy) in C++, based on cgroups in a beta stage.

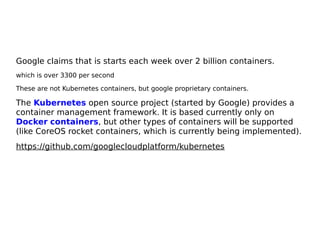

Google claims that is starts each week over 2 billion containers.
which is over 3300 per second
These are not Kubernetes containers, but google proprietary containers.
The Kubernetes open source project (started by Google) provides a
container management framework. It is based currently only on
Docker containers, but other types of containers will be supported
(like CoreOS rocket containers, which is currently being implemented).
https://github.com/googlecloudplatform/kubernetes

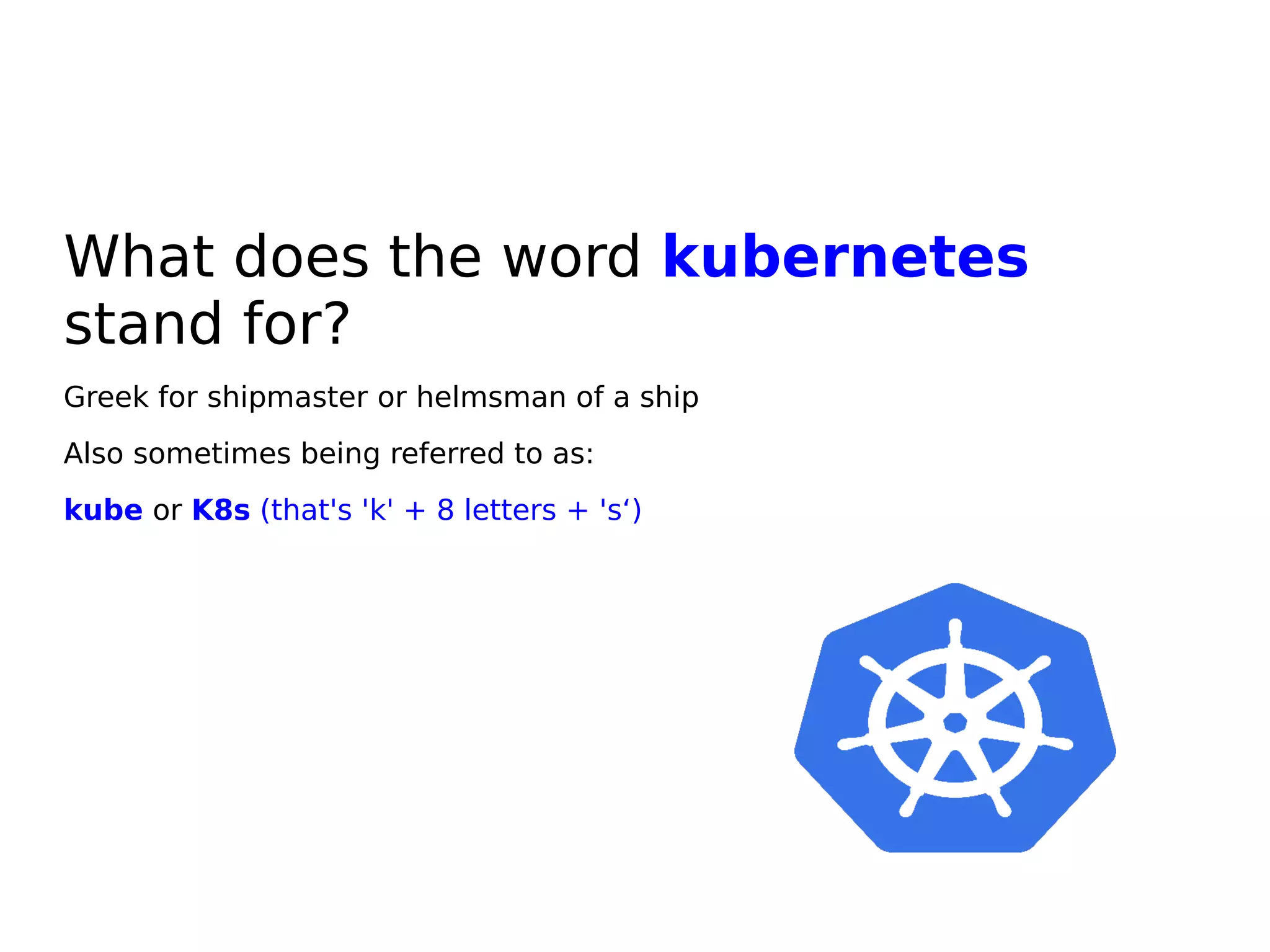

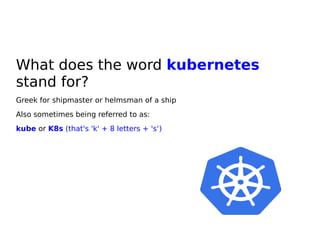

What does the word kubernetes
stand for?
Greek for shipmaster or helmsman of a ship
Also sometimes being referred to as:
kube or K8s (that's 'k' + 8 letters + 's‘)

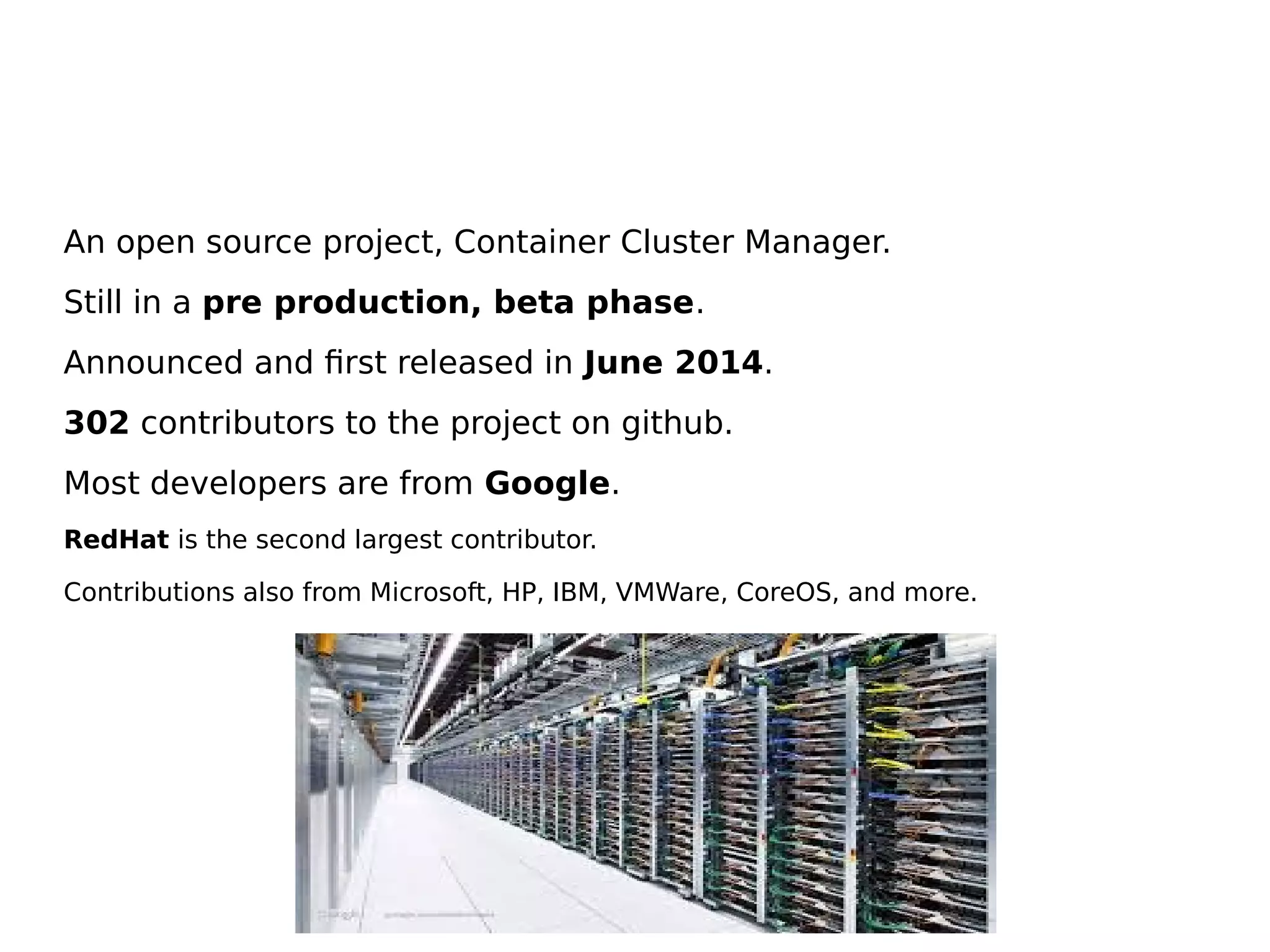

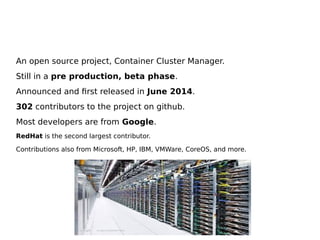

An open source project, Container Cluster Manager.
Still in a pre production, beta phase.
Announced and first released in June 2014.
302 contributors to the project on github.
Most developers are from Google.
RedHat is the second largest contributor.
Contributions also from Microsoft, HP, IBM, VMWare, CoreOS, and more.

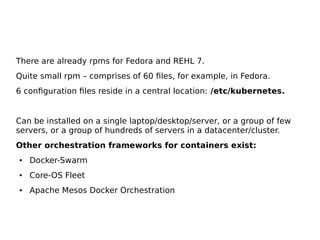

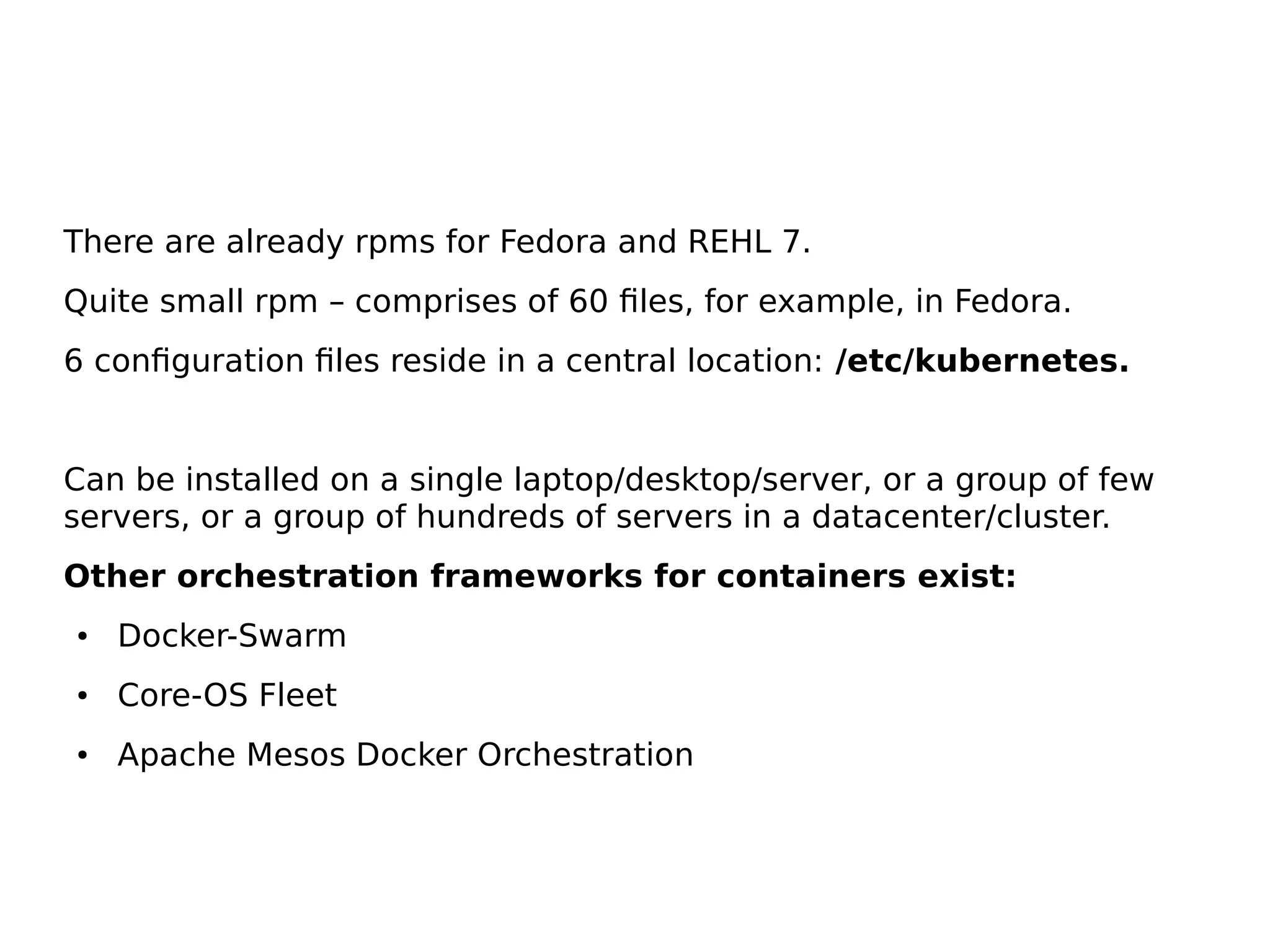

There are already rpms for Fedora and REHL 7.
Quite small rpm – comprises of 60 files, for example, in Fedora.
6 configuration files reside in a central location: /etc/kubernetes.
Can be installed on a single laptop/desktop/server, or a group of few
servers, or a group of hundreds of servers in a datacenter/cluster.
Other orchestration frameworks for containers exist:
● Docker-Swarm
● Core-OS Fleet
● Apache Mesos Docker Orchestration

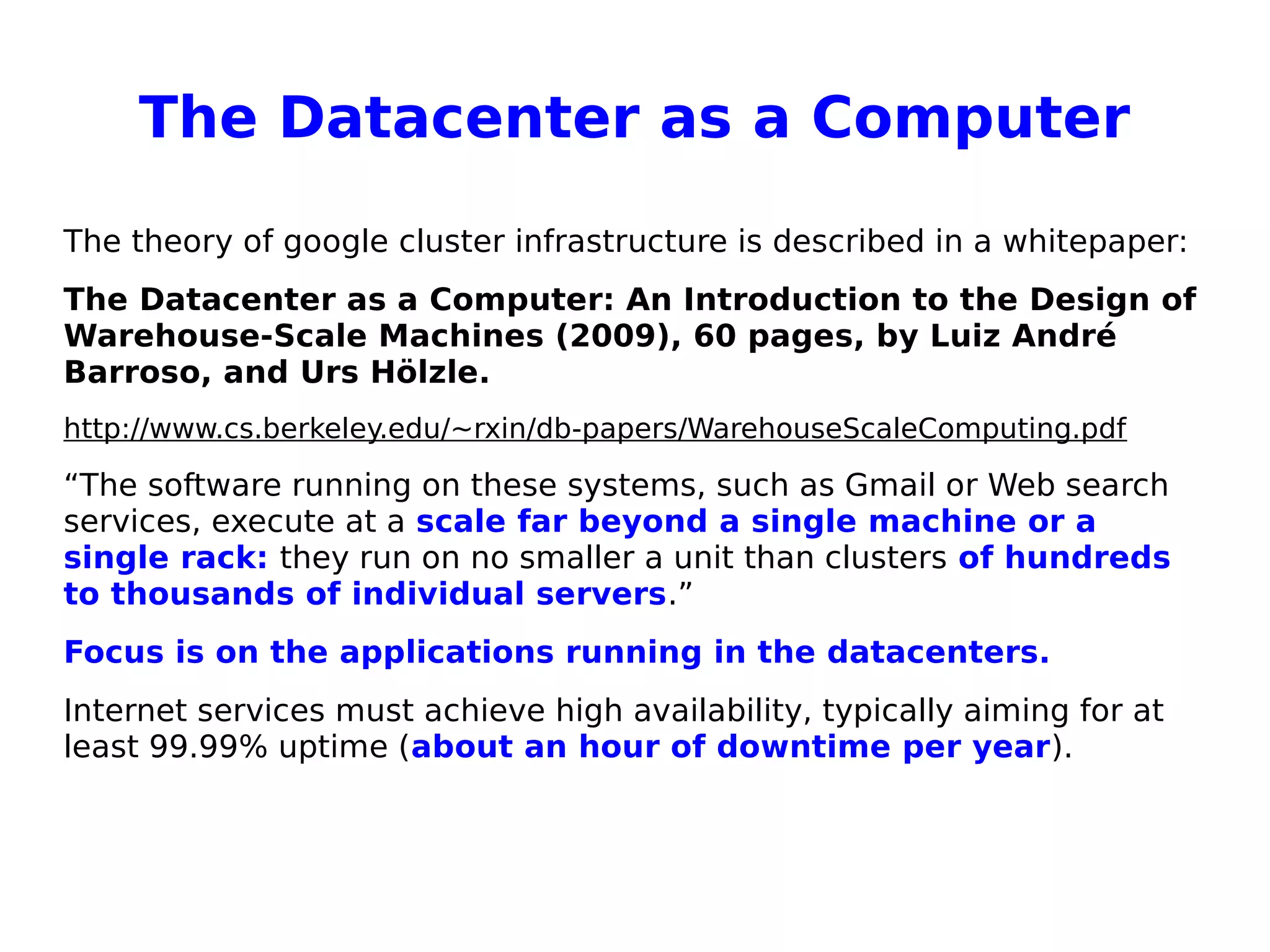

The Datacenter as a Computer
The theory of google cluster infrastructure is described in a whitepaper:
The Datacenter as a Computer: An Introduction to the Design of
Warehouse-Scale Machines (2009), 60 pages, by Luiz André
Barroso, and Urs Hölzle.
http://www.cs.berkeley.edu/~rxin/db-papers/WarehouseScaleComputing.pdf
“The software running on these systems, such as Gmail or Web search
services, execute at a scale far beyond a single machine or a
single rack: they run on no smaller a unit than clusters of hundreds
to thousands of individual servers.”
Focus is on the applications running in the datacenters.
Internet services must achieve high availability, typically aiming for at
least 99.99% uptime (about an hour of downtime per year).

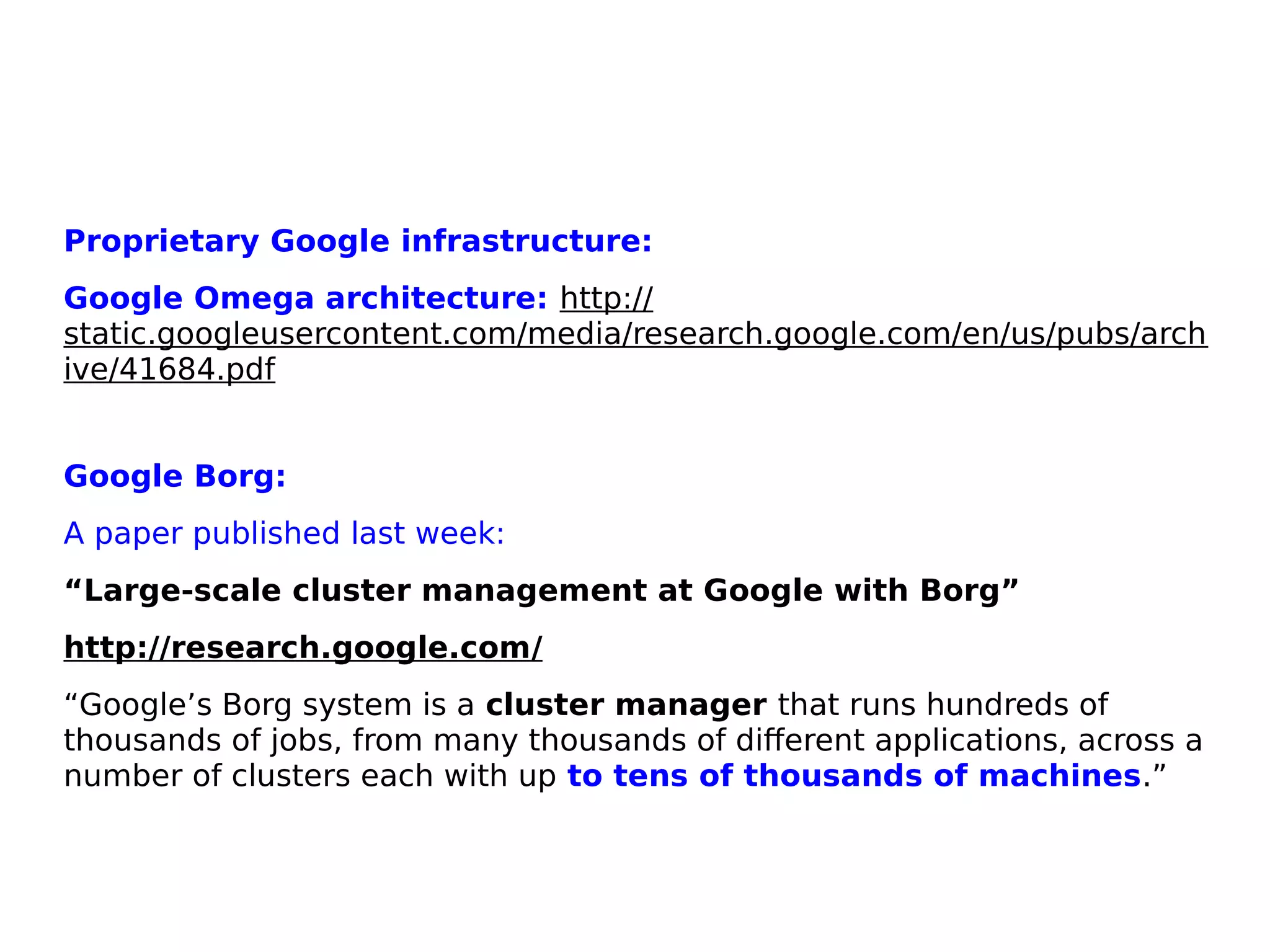

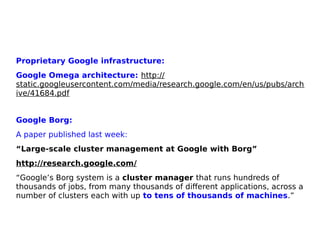

Proprietary Google infrastructure:
Google Omega architecture: http://
static.googleusercontent.com/media/research.google.com/en/us/pubs/arch
ive/41684.pdf
Google Borg:
A paper published last week:
“Large-scale cluster management at Google with Borg”
http://research.google.com/
“Google’s Borg system is a cluster manager that runs hundreds of
thousands of jobs, from many thousands of different applications, across a
number of clusters each with up to tens of thousands of machines.”

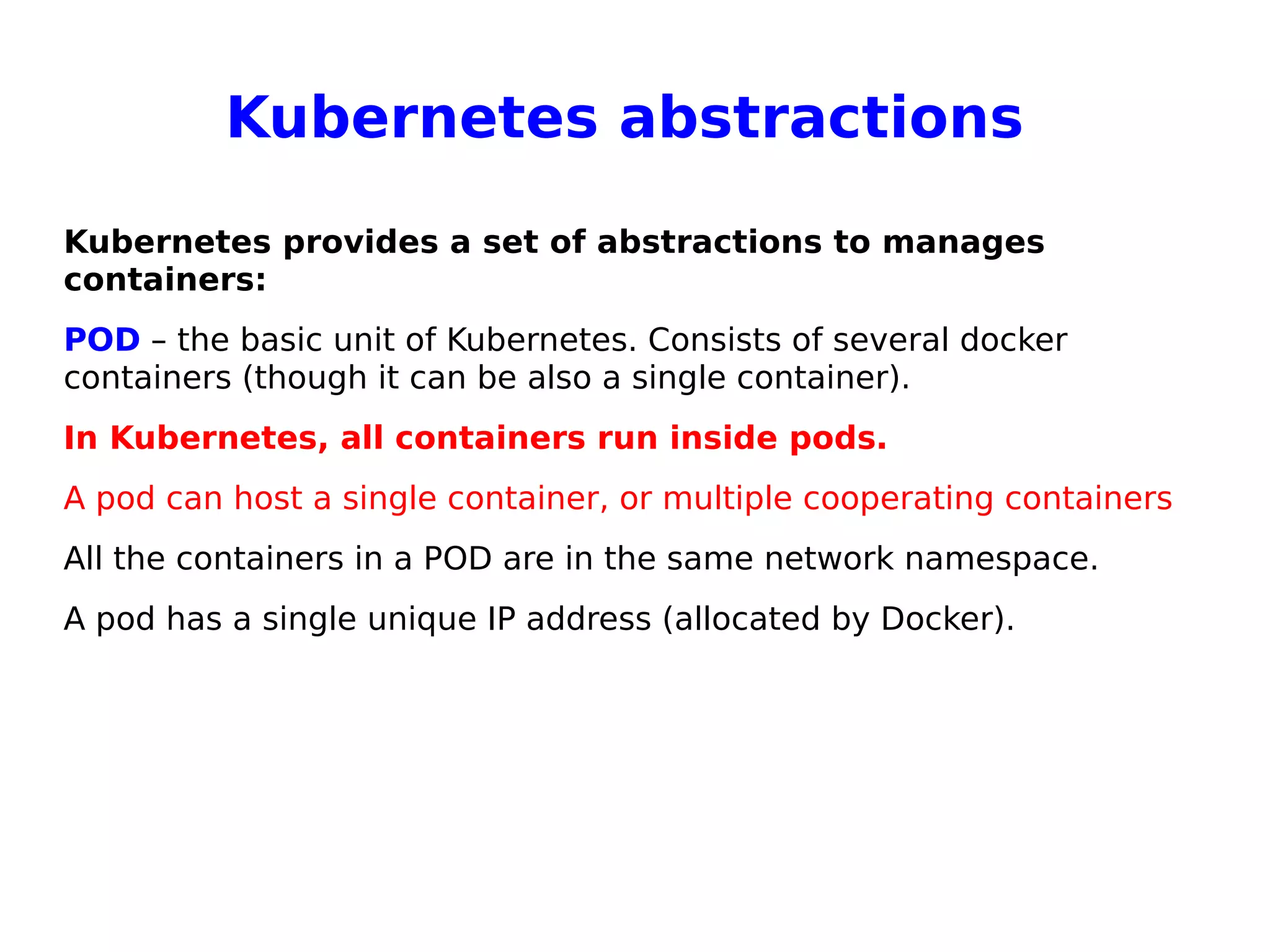

Kubernetes abstractions
Kubernetes provides a set of abstractions to manages
containers:

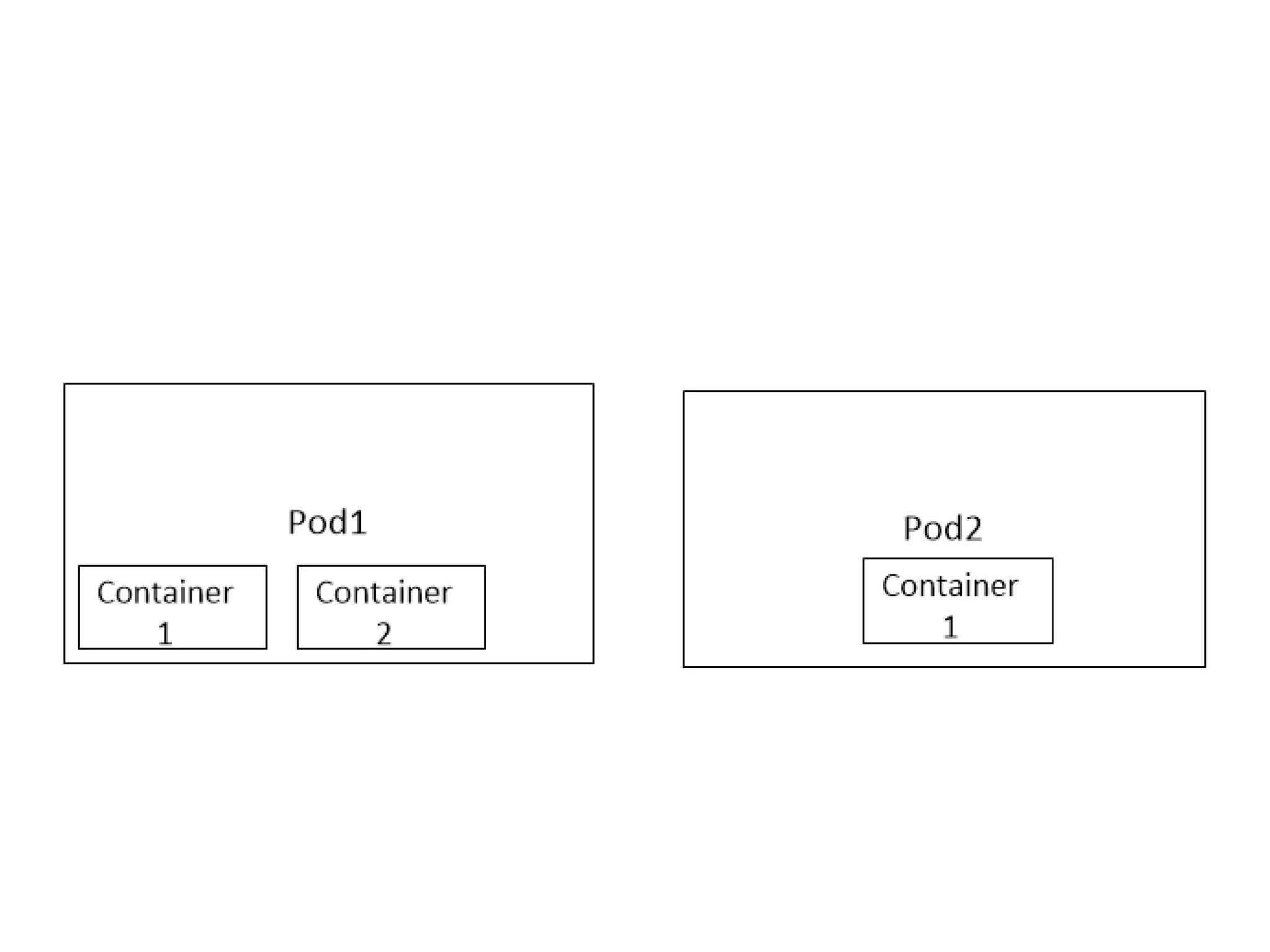

POD – the basic unit of Kubernetes. Consists of several docker
containers (though it can be also a single container).
In Kubernetes, all containers run inside pods.
A pod can host a single container, or multiple cooperating containers
All the containers in a POD are in the same network namespace.
A pod has a single unique IP address (allocated by Docker).

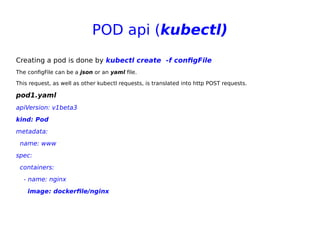

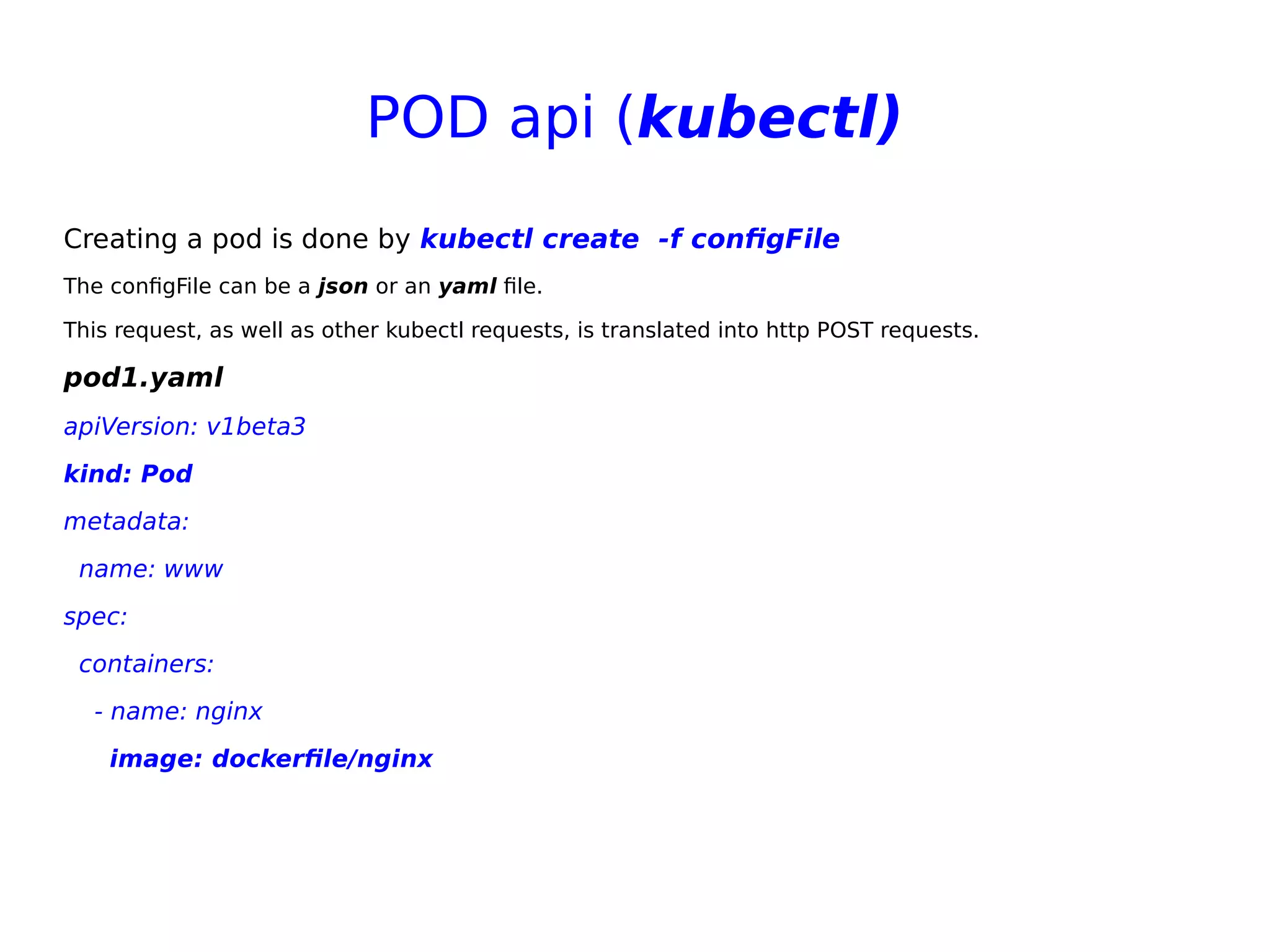

POD api (kubectl)
Creating a pod is done by kubectl create -f configFile
The configFile can be a json or an yaml file.
This request, as well as other kubectl requests, is translated into http POST requests.
pod1.yaml
apiVersion: v1beta3
kind: Pod
metadata:
name: www
spec:
containers:
- name: nginx
image: dockerfile/nginx

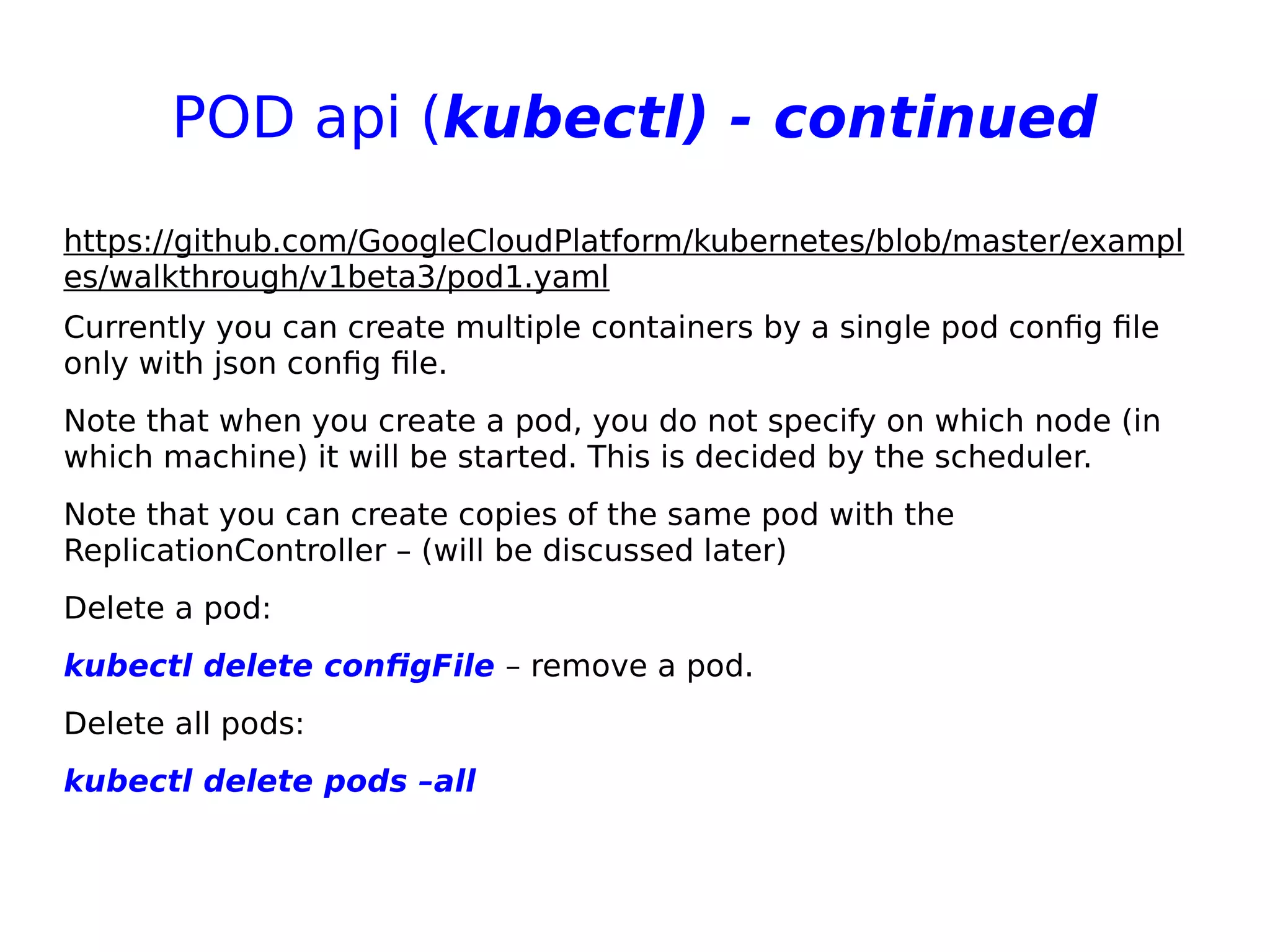

POD api (kubectl) - continued
https://github.com/GoogleCloudPlatform/kubernetes/blob/master/exampl
es/walkthrough/v1beta3/pod1.yaml
Currently you can create multiple containers by a single pod config file
only with json config file.
Note that when you create a pod, you do not specify on which node (in
which machine) it will be started. This is decided by the scheduler.
Note that you can create copies of the same pod with the
ReplicationController – (will be discussed later)
Delete a pod:
kubectl delete configFile – remove a pod.
Delete all pods:
kubectl delete pods –all

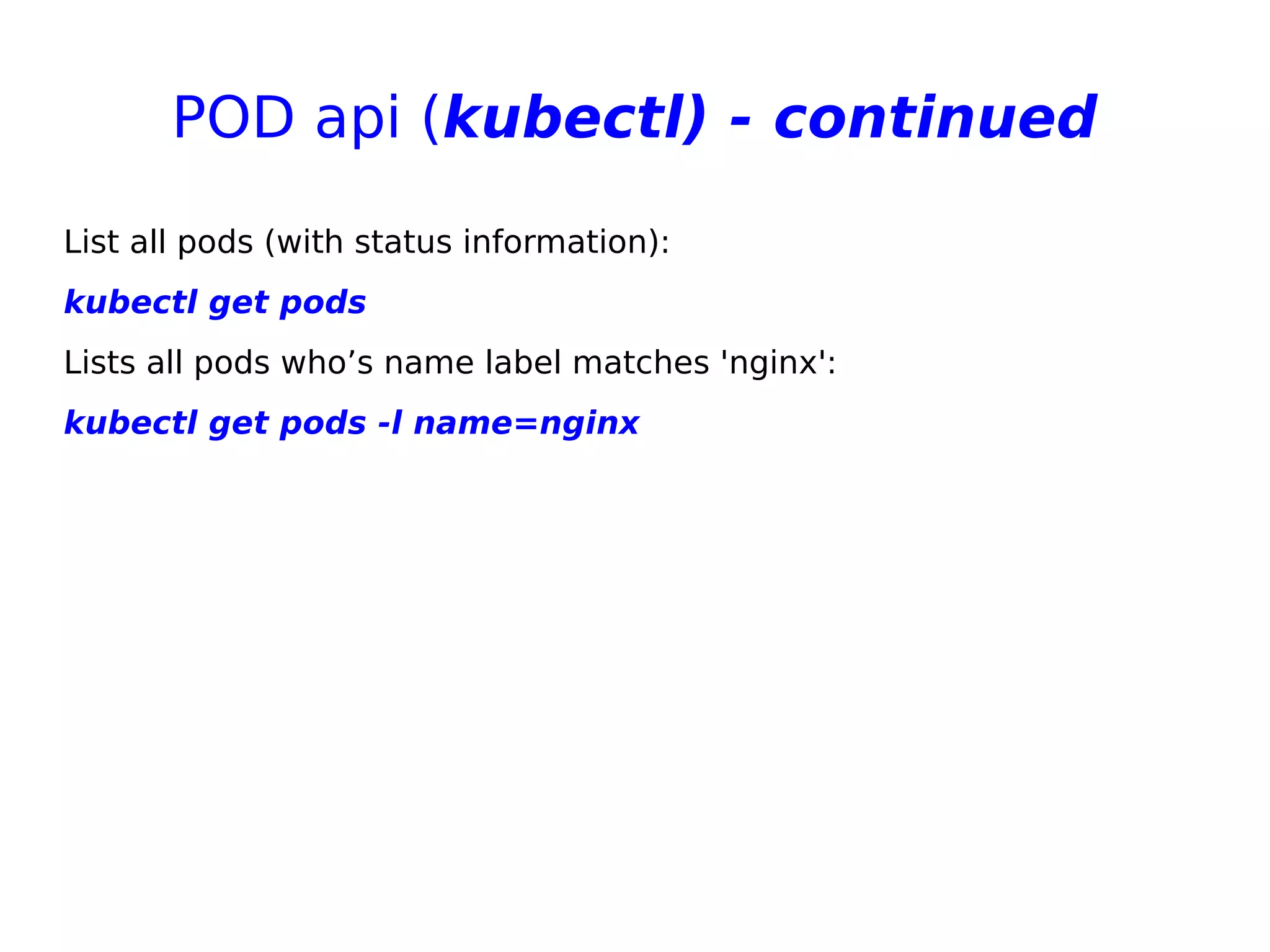

POD api (kubectl) - continued
List all pods (with status information):
kubectl get pods
Lists all pods who’s name label matches 'nginx':
kubectl get pods -l name=nginx

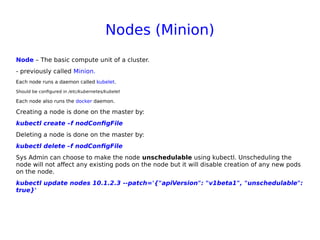

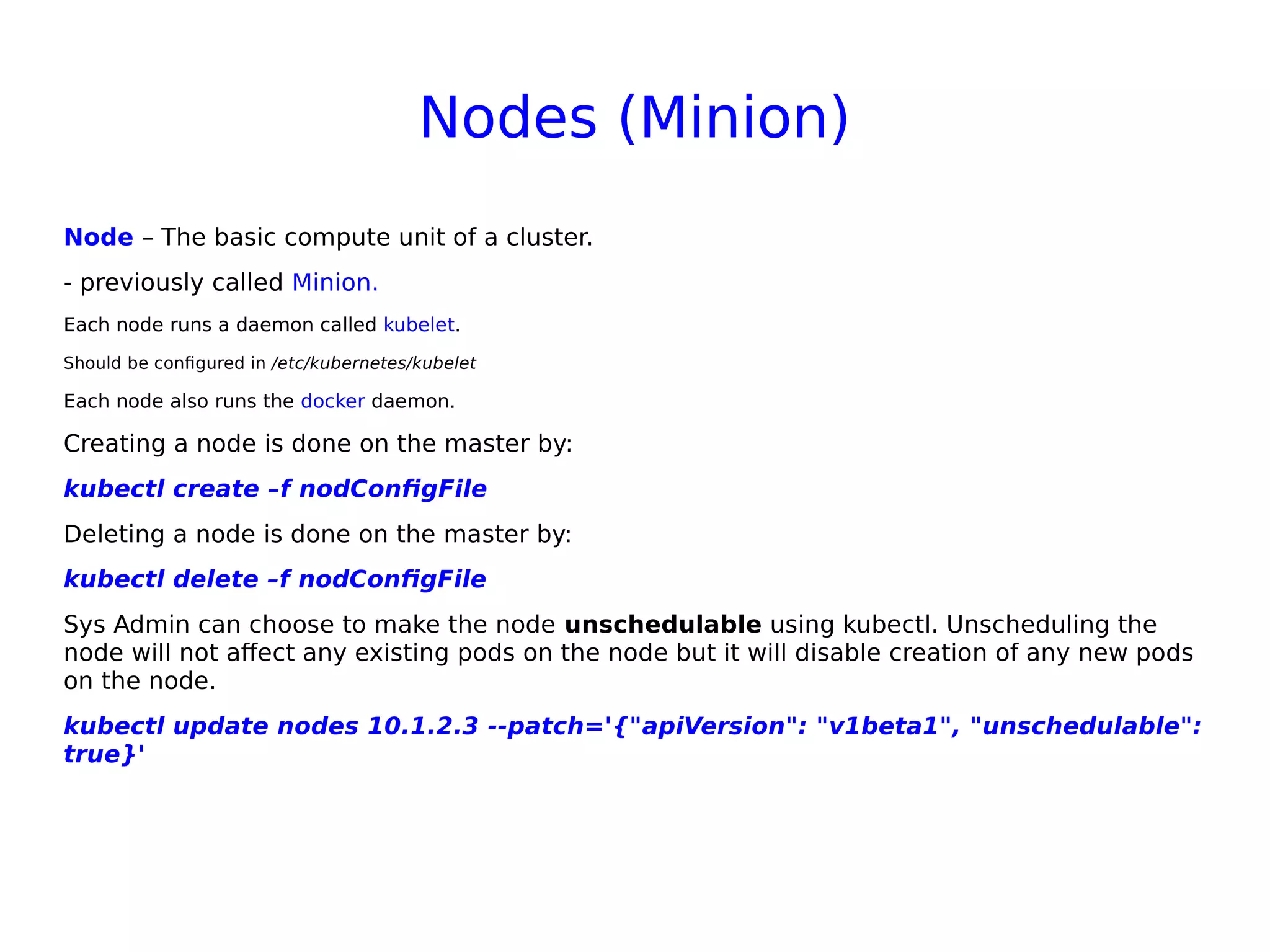

Nodes (Minion)
Node – The basic compute unit of a cluster.
- previously called Minion.
Each node runs a daemon called kubelet.
Should be configured in /etc/kubernetes/kubelet
Each node also runs the docker daemon.
Creating a node is done on the master by:
kubectl create –f nodConfigFile
Deleting a node is done on the master by:
kubectl delete –f nodConfigFile
Sys Admin can choose to make the node unschedulable using kubectl. Unscheduling the
node will not affect any existing pods on the node but it will disable creation of any new pods
on the node.
kubectl update nodes 10.1.2.3 --patch='{"apiVersion": "v1beta1", "unschedulable":
true}'

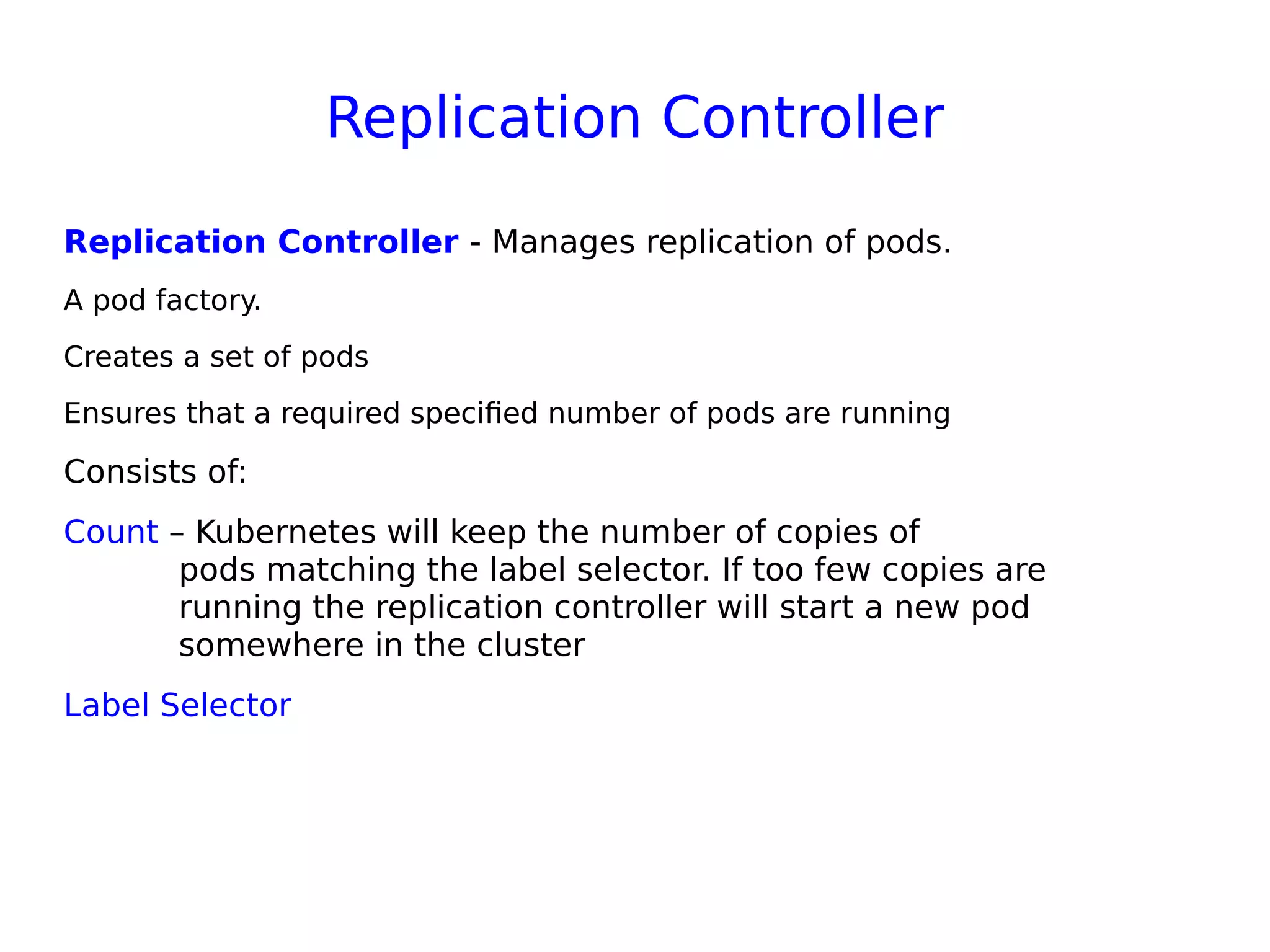

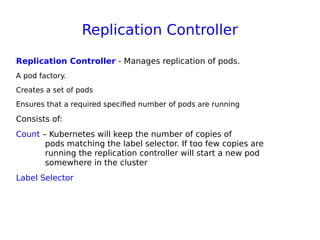

Replication Controller
Replication Controller - Manages replication of pods.
A pod factory.
Creates a set of pods
Ensures that a required specified number of pods are running
Consists of:
Count – Kubernetes will keep the number of copies of
pods matching the label selector. If too few copies are
running the replication controller will start a new pod
somewhere in the cluster
Label Selector

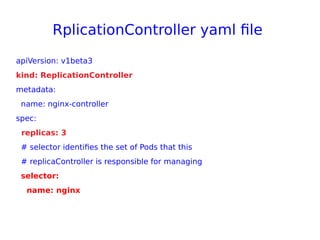

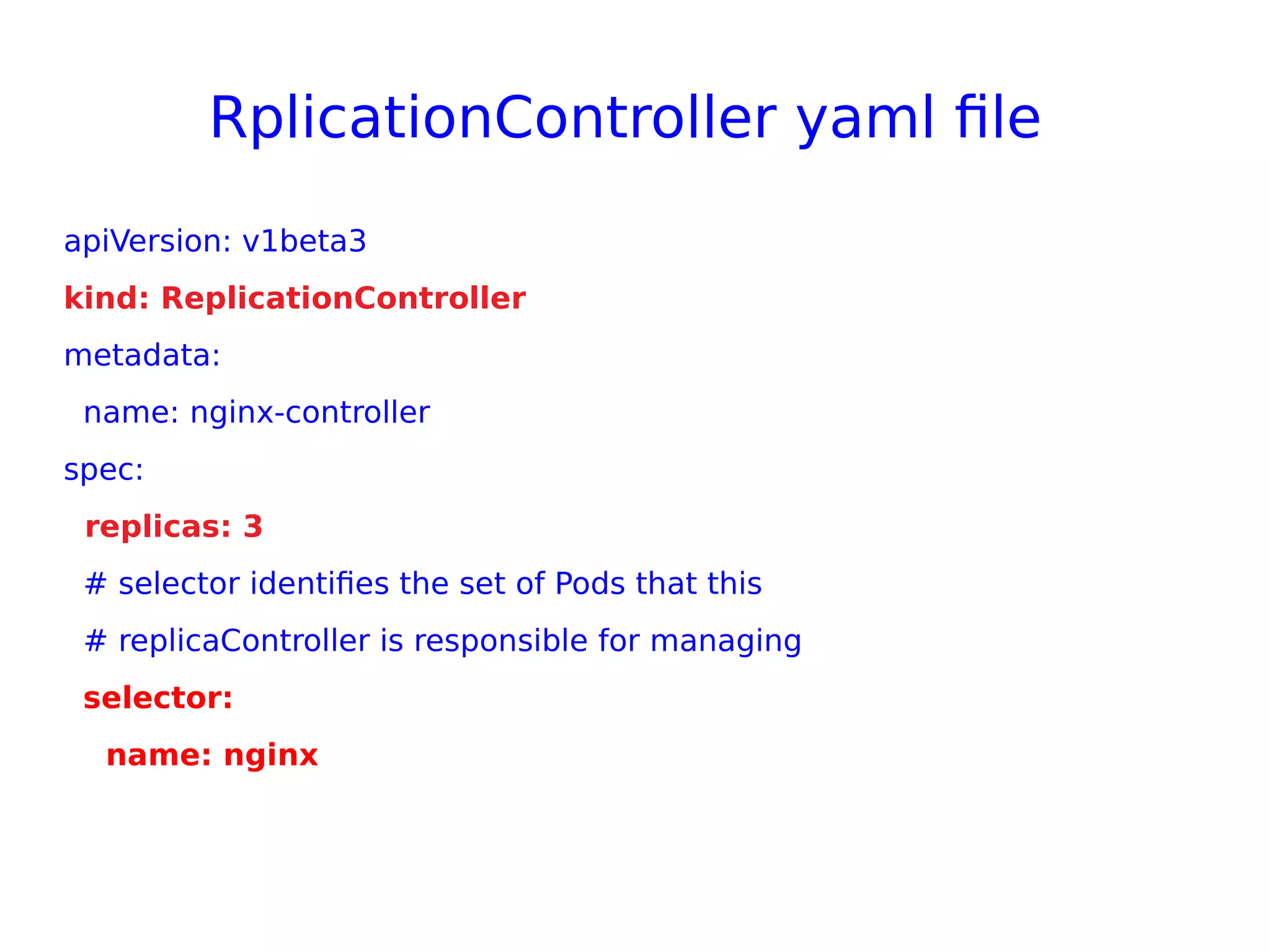

RplicationController yaml file
apiVersion: v1beta3
kind: ReplicationController
metadata:
name: nginx-controller
spec:
replicas: 3
# selector identifies the set of Pods that this
# replicaController is responsible for managing
selector:
name: nginx

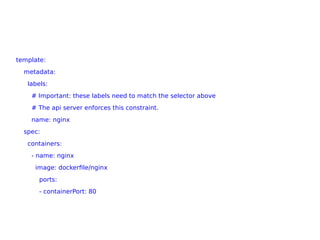

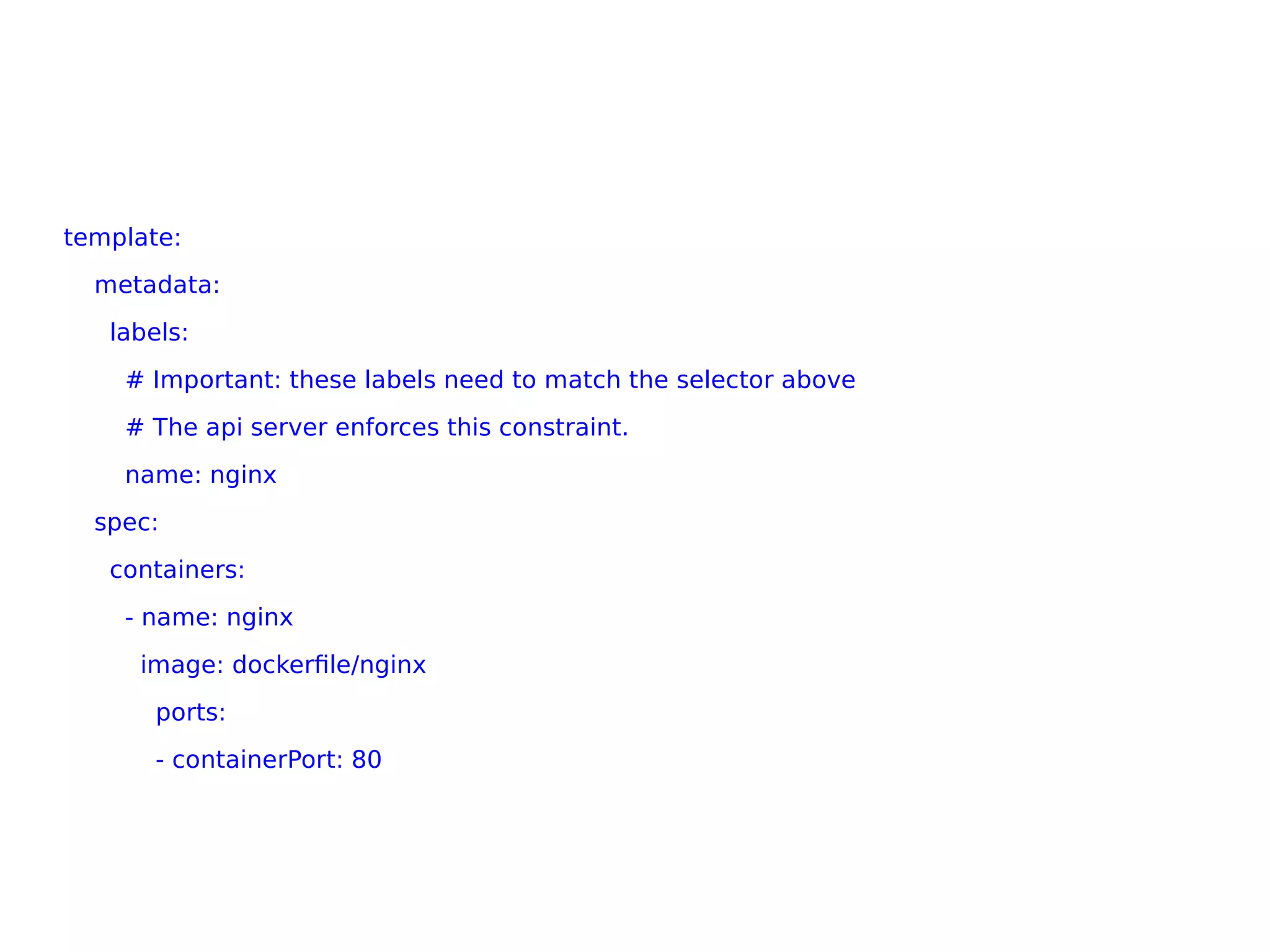

template:
metadata:
labels:
# Important: these labels need to match the selector above
# The api server enforces this constraint.
name: nginx
spec:
containers:
- name: nginx
image: dockerfile/nginx
ports:
- containerPort: 80

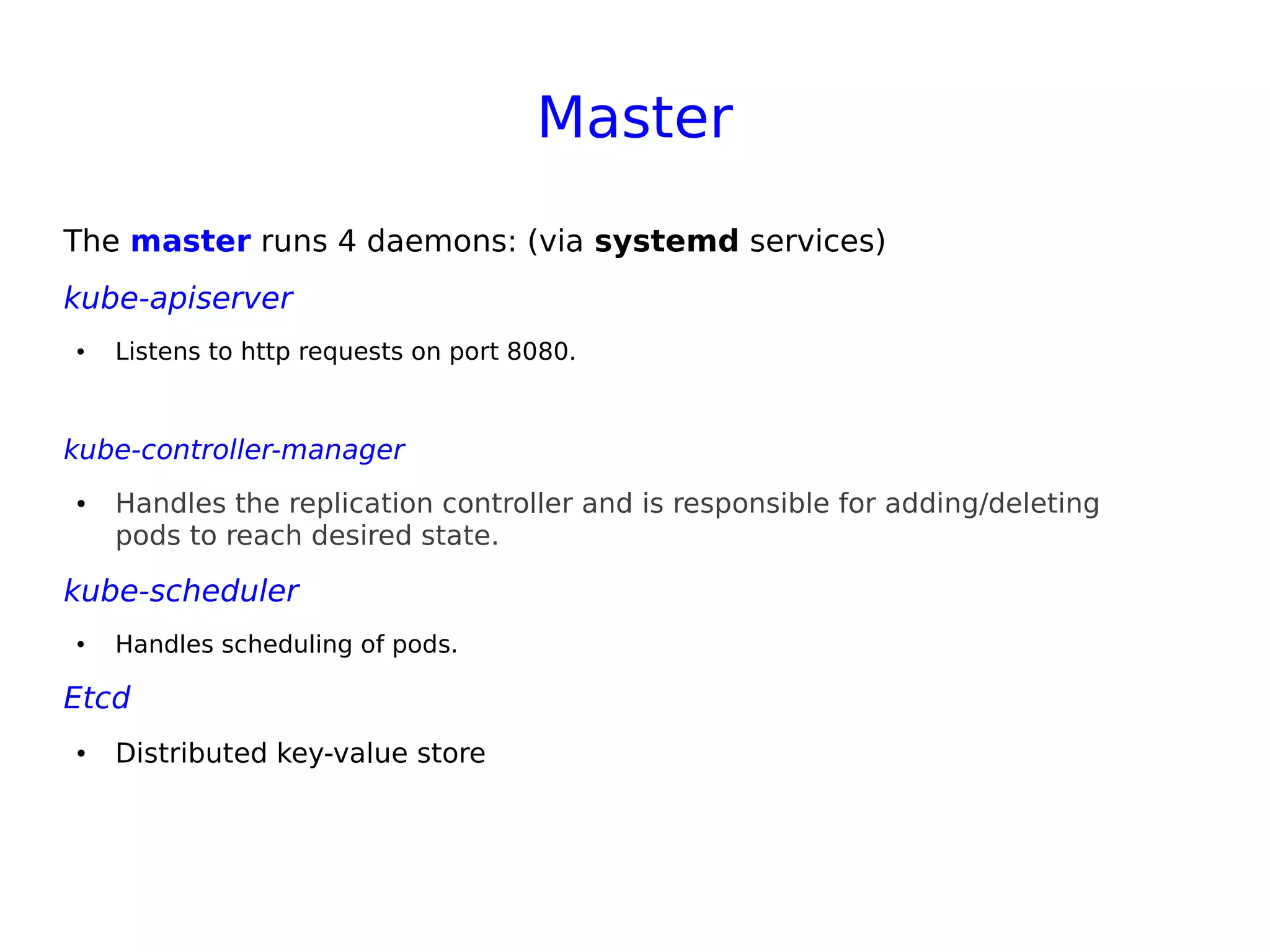

Master
The master runs 4 daemons: (via systemd services)
kube-apiserver
● Listens to http requests on port 8080.
kube-controller-manager
● Handles the replication controller and is responsible for adding/deleting
pods to reach desired state.
kube-scheduler
● Handles scheduling of pods.
Etcd
● Distributed key-value store

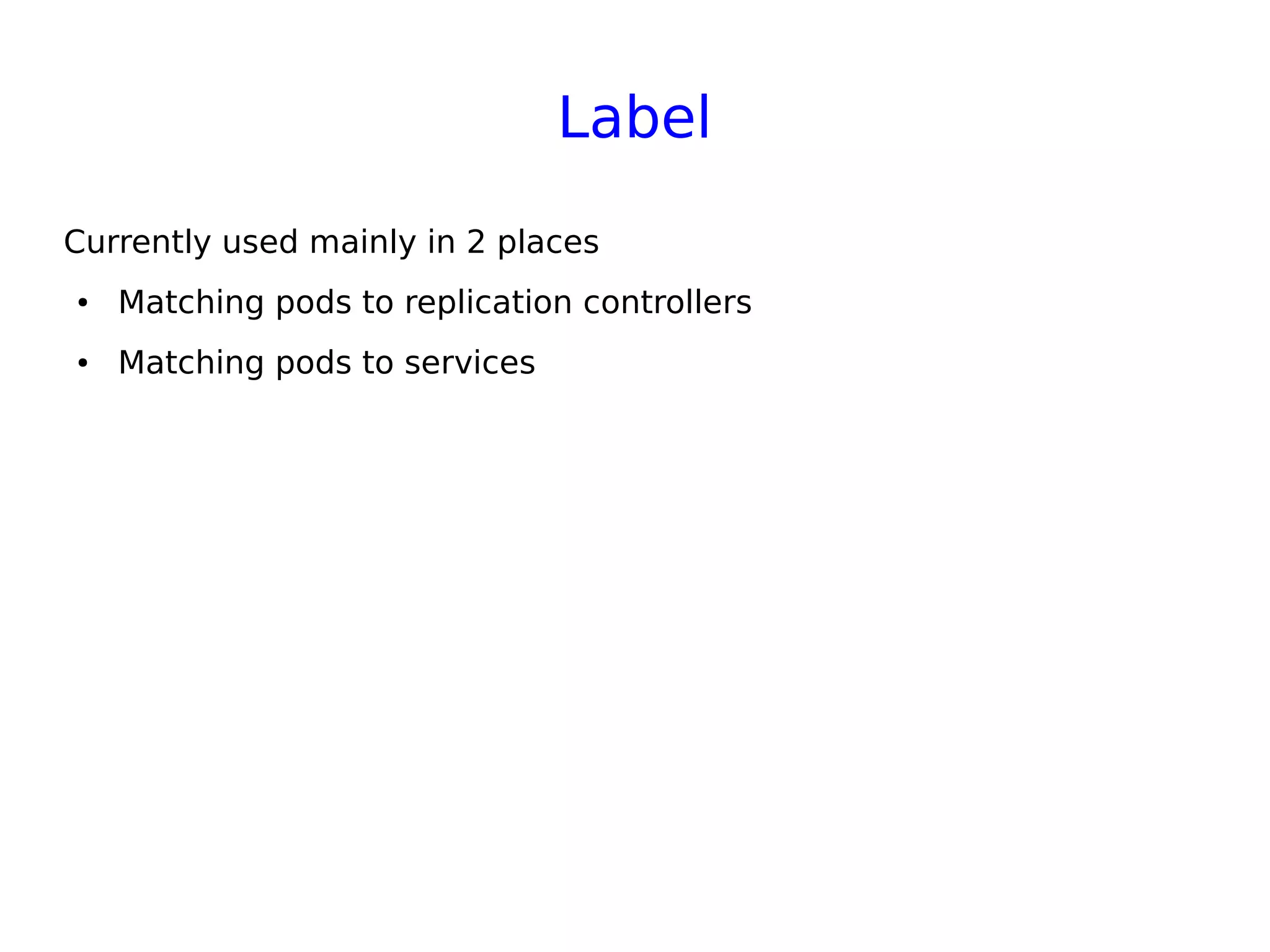

Label
Currently used mainly in 2 places
● Matching pods to replication controllers
● Matching pods to services

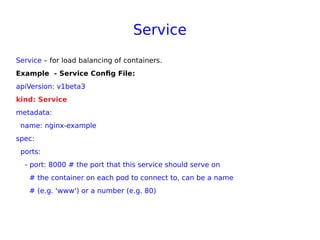

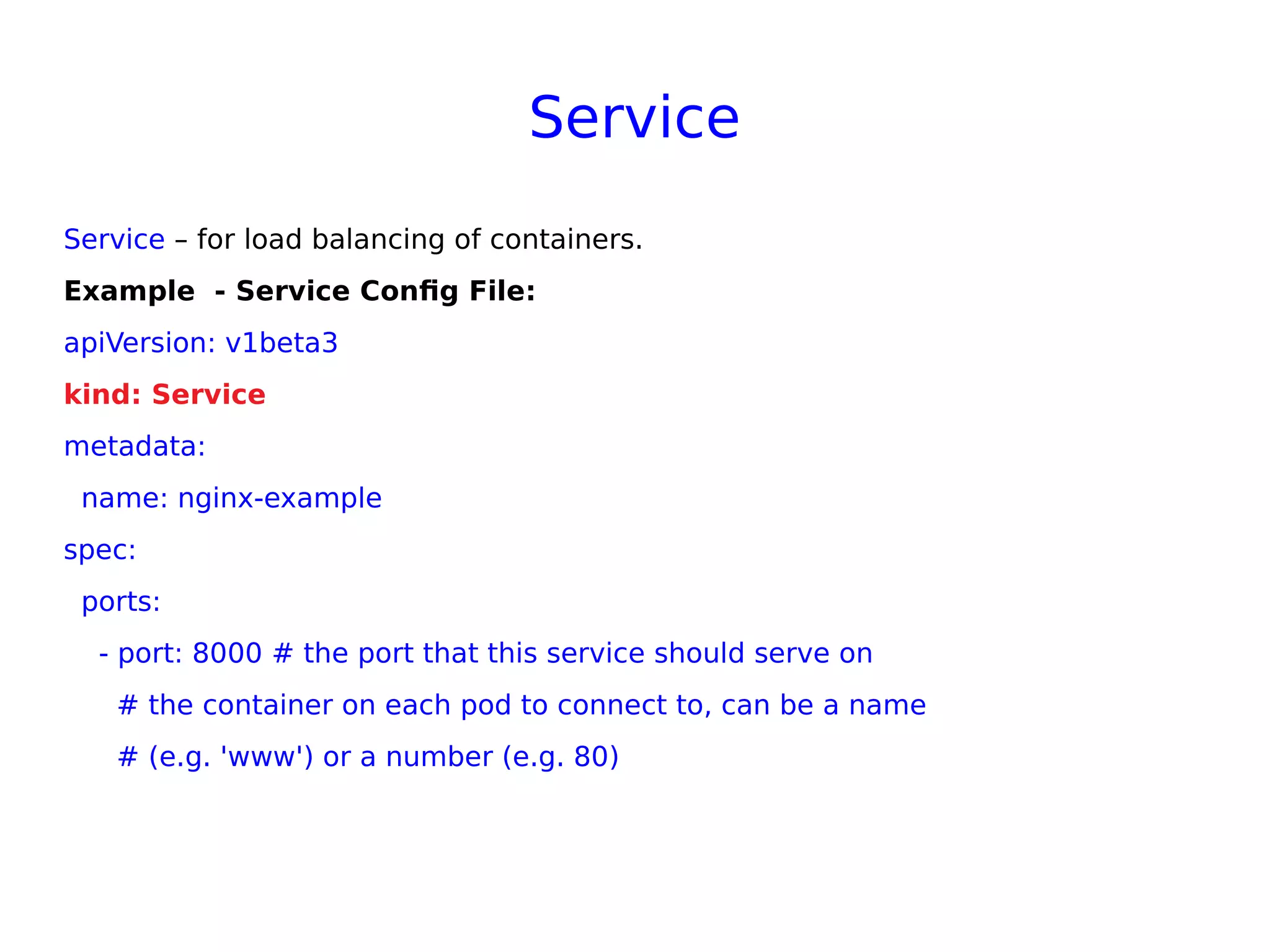

Service
Service – for load balancing of containers.
Example - Service Config File:
apiVersion: v1beta3
kind: Service
metadata:
name: nginx-example
spec:
ports:
- port: 8000 # the port that this service should serve on
# the container on each pod to connect to, can be a name
# (e.g. 'www') or a number (e.g. 80)

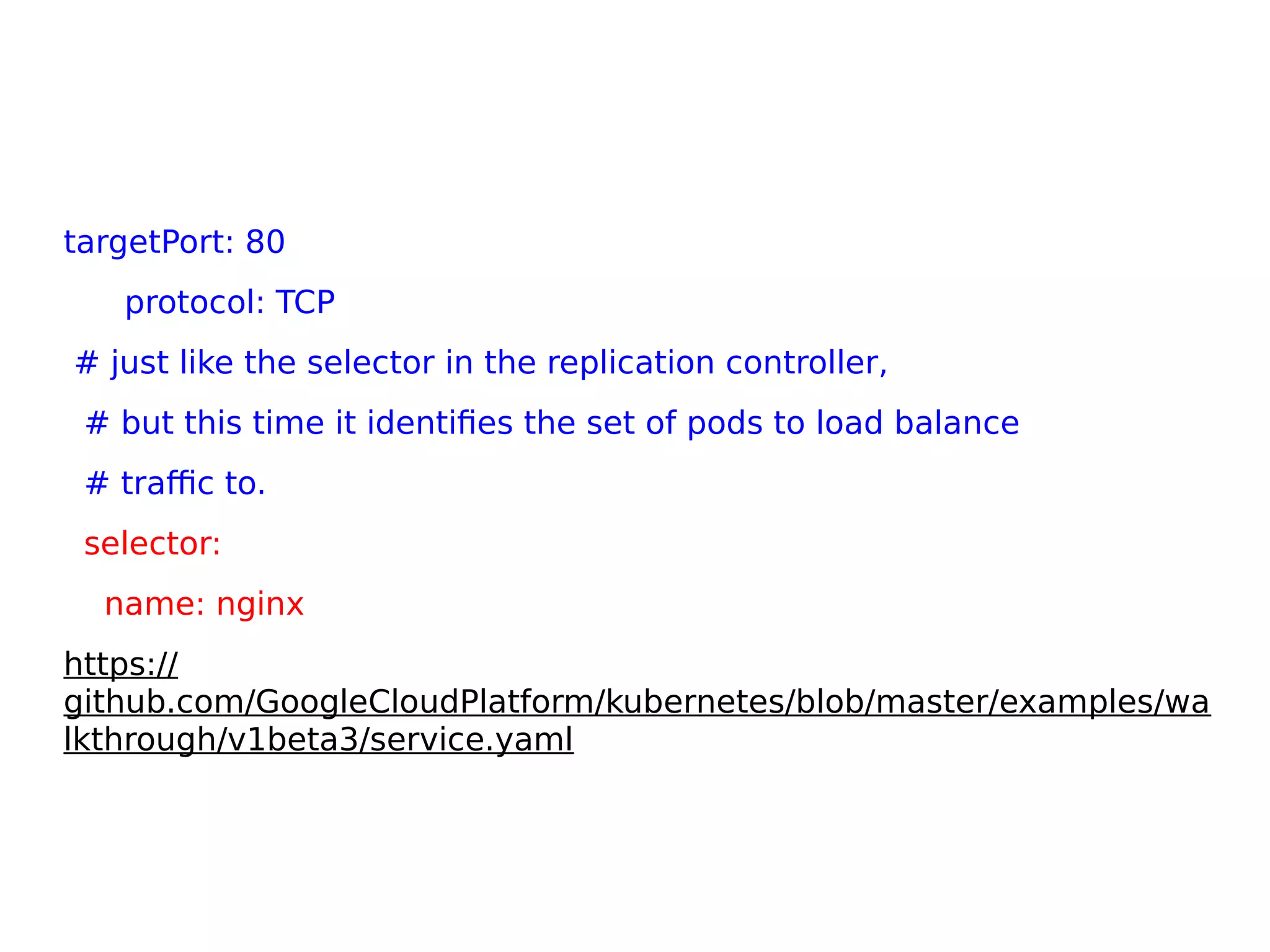

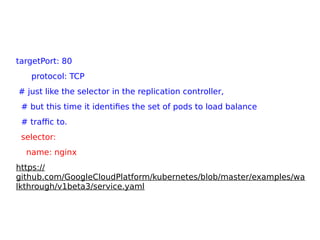

targetPort: 80
protocol: TCP
# just like the selector in the replication controller,
# but this time it identifies the set of pods to load balance
# traffic to.
selector:
name: nginx
https://
github.com/GoogleCloudPlatform/kubernetes/blob/master/examples/wa
lkthrough/v1beta3/service.yaml

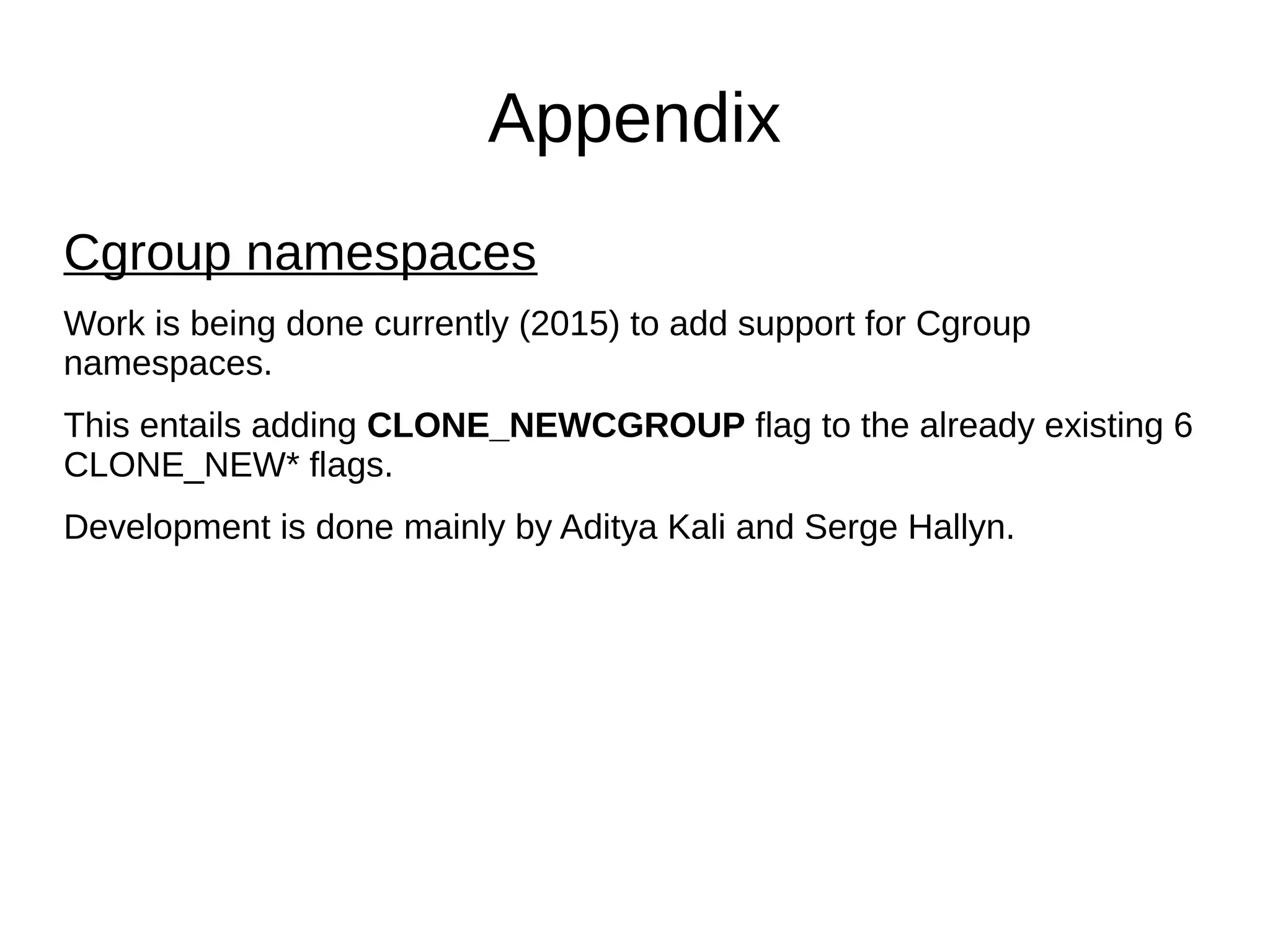

Appendix
Cgroup namespaces
Work is being done currently (2015) to add support for Cgroup
namespaces.
This entails adding CLONE_NEWCGROUP flag to the already existing 6
CLONE_NEW* flags.
Development is done mainly by Aditya Kali and Serge Hallyn.

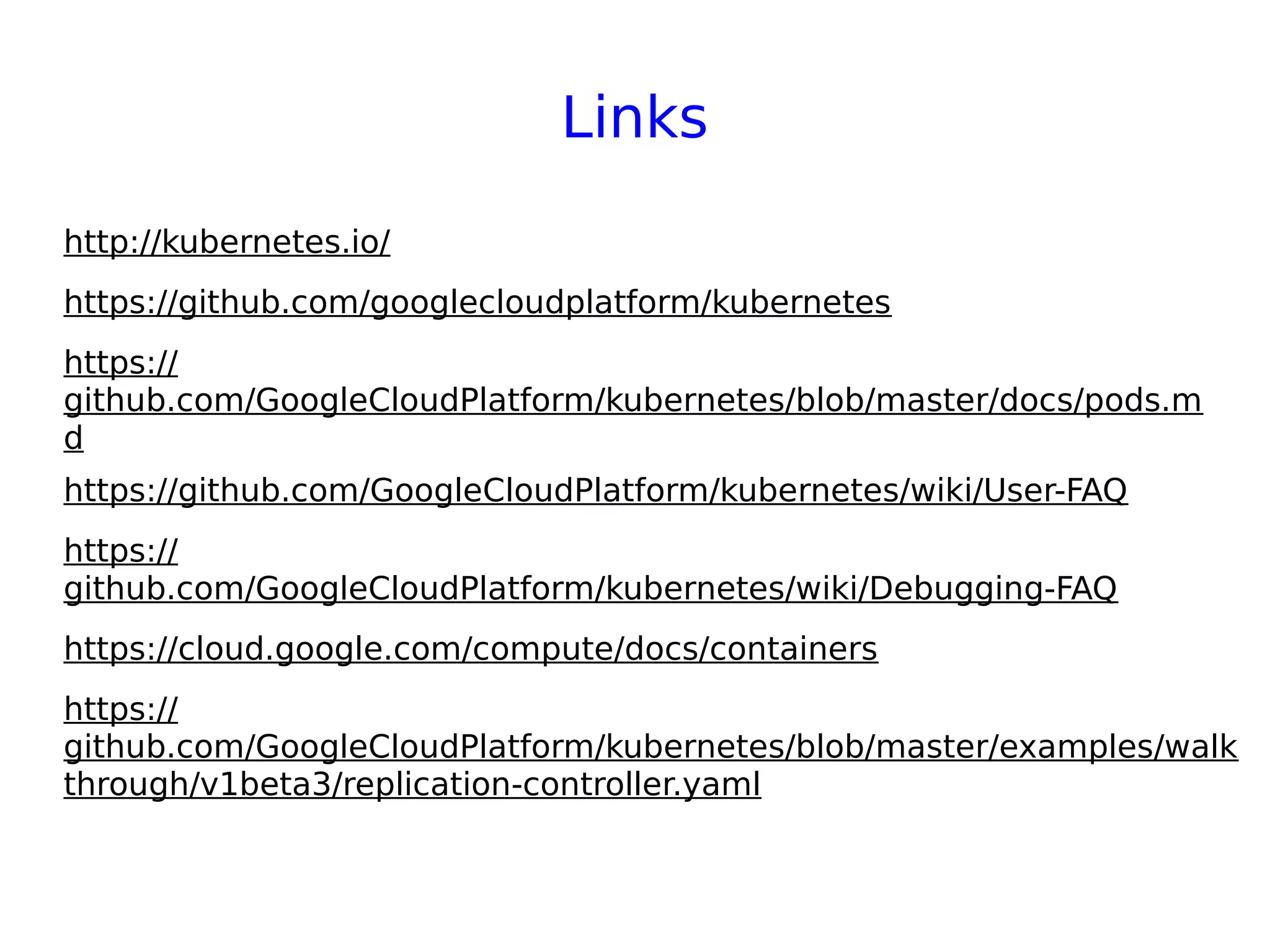

Links
http://kubernetes.io/
https://github.com/googlecloudplatform/kubernetes
https://
github.com/GoogleCloudPlatform/kubernetes/blob/master/docs/pods.m
d
https://github.com/GoogleCloudPlatform/kubernetes/wiki/User-FAQ
https://
github.com/GoogleCloudPlatform/kubernetes/wiki/Debugging-FAQ
https://cloud.google.com/compute/docs/containers
https://
github.com/GoogleCloudPlatform/kubernetes/blob/master/examples/walk
through/v1beta3/replication-controller.yaml

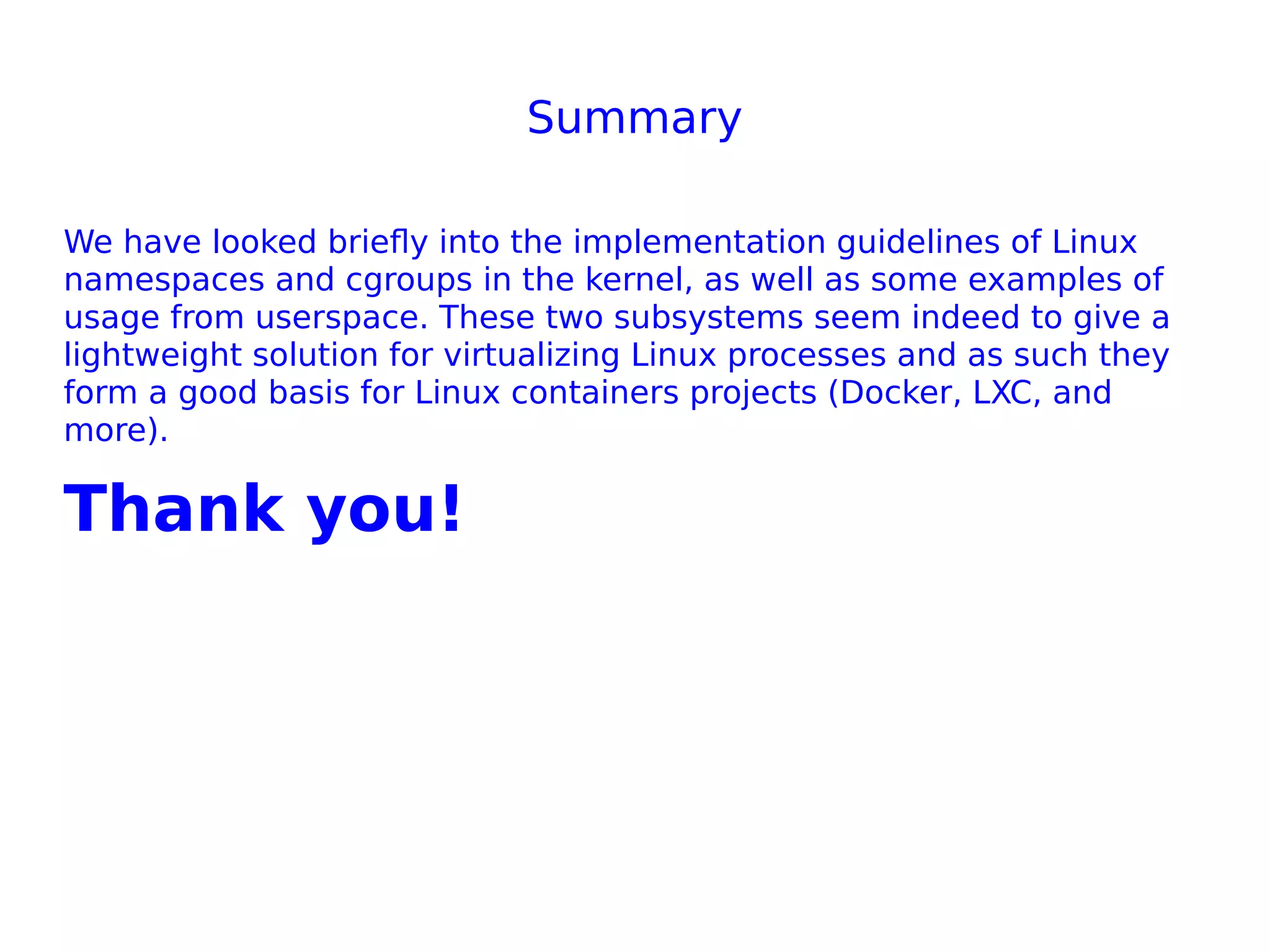

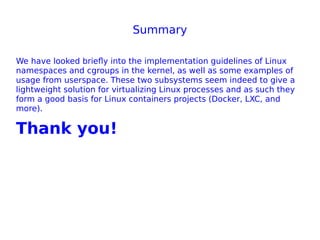

Summary
We have looked briefly into the implementation guidelines of Linux
namespaces and cgroups in the kernel, as well as some examples of
usage from userspace. These two subsystems seem indeed to give a
lightweight solution for virtualizing Linux processes and as such they
form a good basis for Linux containers projects (Docker, LXC, and
more).
Thank you!

Namespaces and cgroups - the basis of Linux containers

More Related Content

What's hot

Similar to Namespaces and cgroups - the basis of Linux containers

More from Kernel TLV

Recently uploaded

Namespaces and cgroups - the basis of Linux containers
