Nginx Internals
Nginx uses an event-driven architecture with a master process that manages worker processes. It handles requests non-blockingly and efficiently using techniques like memory pooling, buffer chaining, and an event-driven model. Key parts of the architecture include phases and handlers for HTTP requests, virtual servers, locations, and filters. Nginx also supports mail proxying and module development.
More Related Content
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Nginx Internals

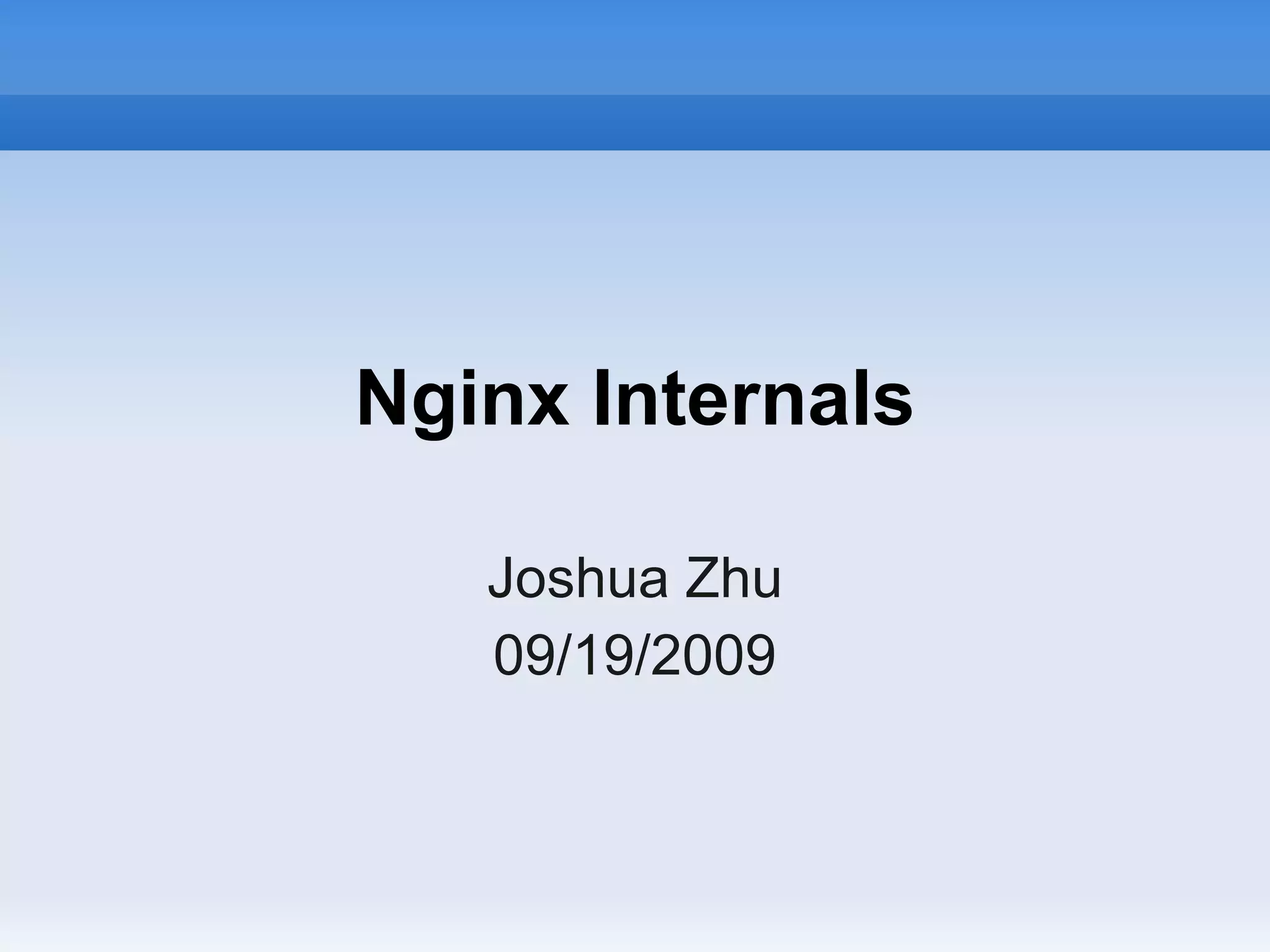

- 1. Nginx Internals Joshua Zhu 09/19/2009

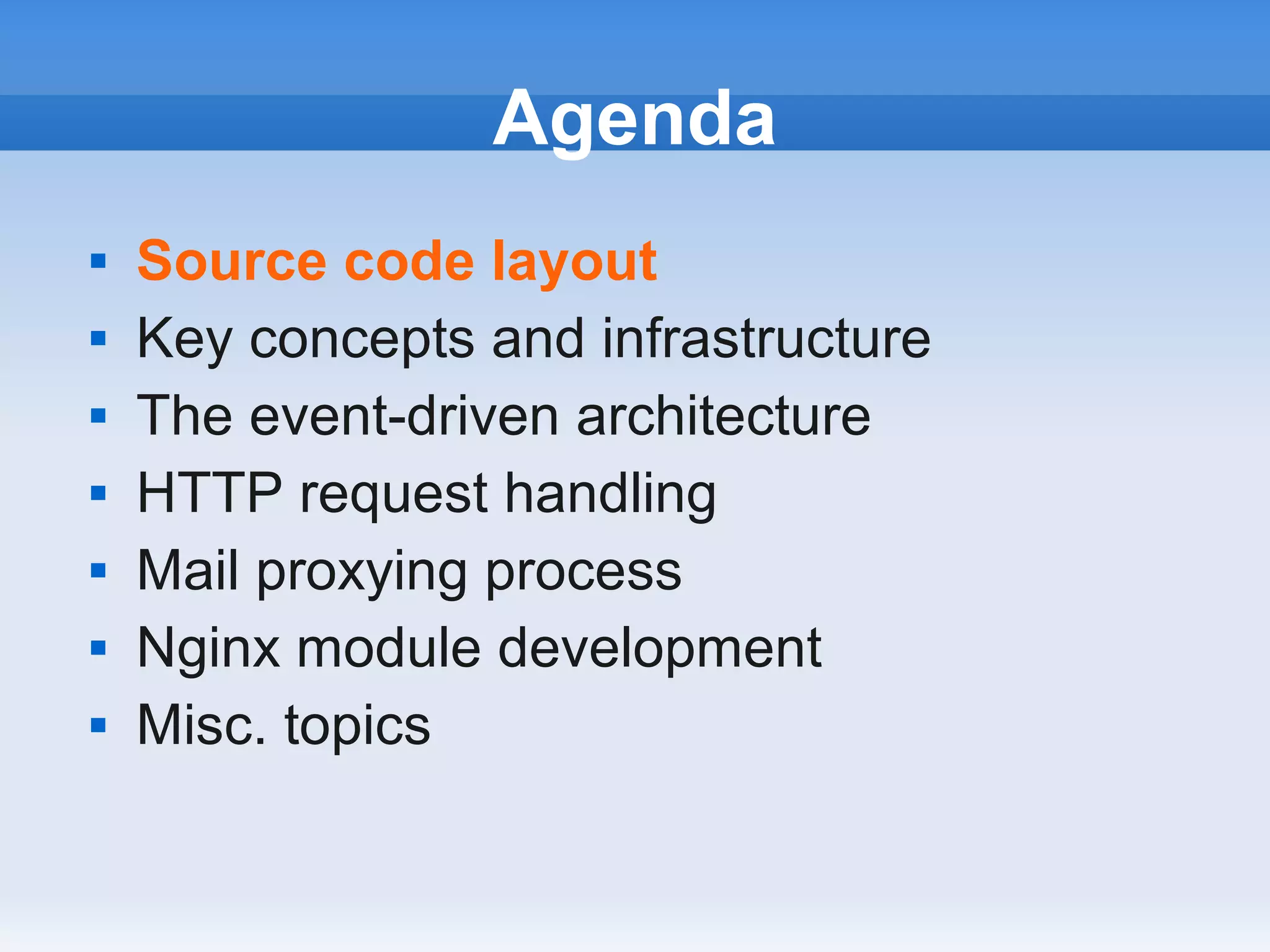

- 2. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

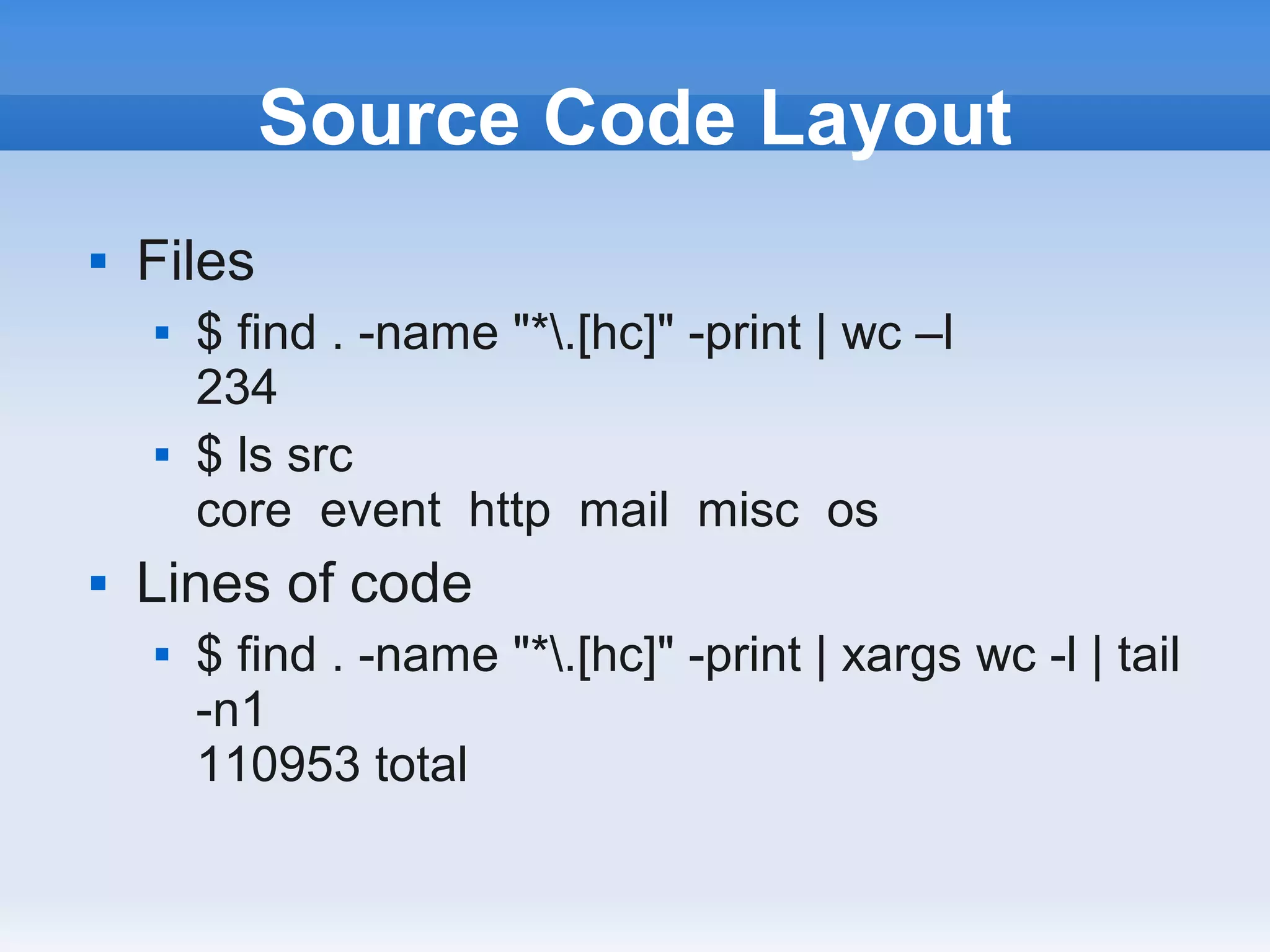

- 3. Source Code Layout Files $ find . -name "*.[hc]" -print | wc –l 234 $ ls src core event http mail misc os Lines of code $ find . -name "*.[hc]" -print | xargs wc -l | tail -n1 110953 total

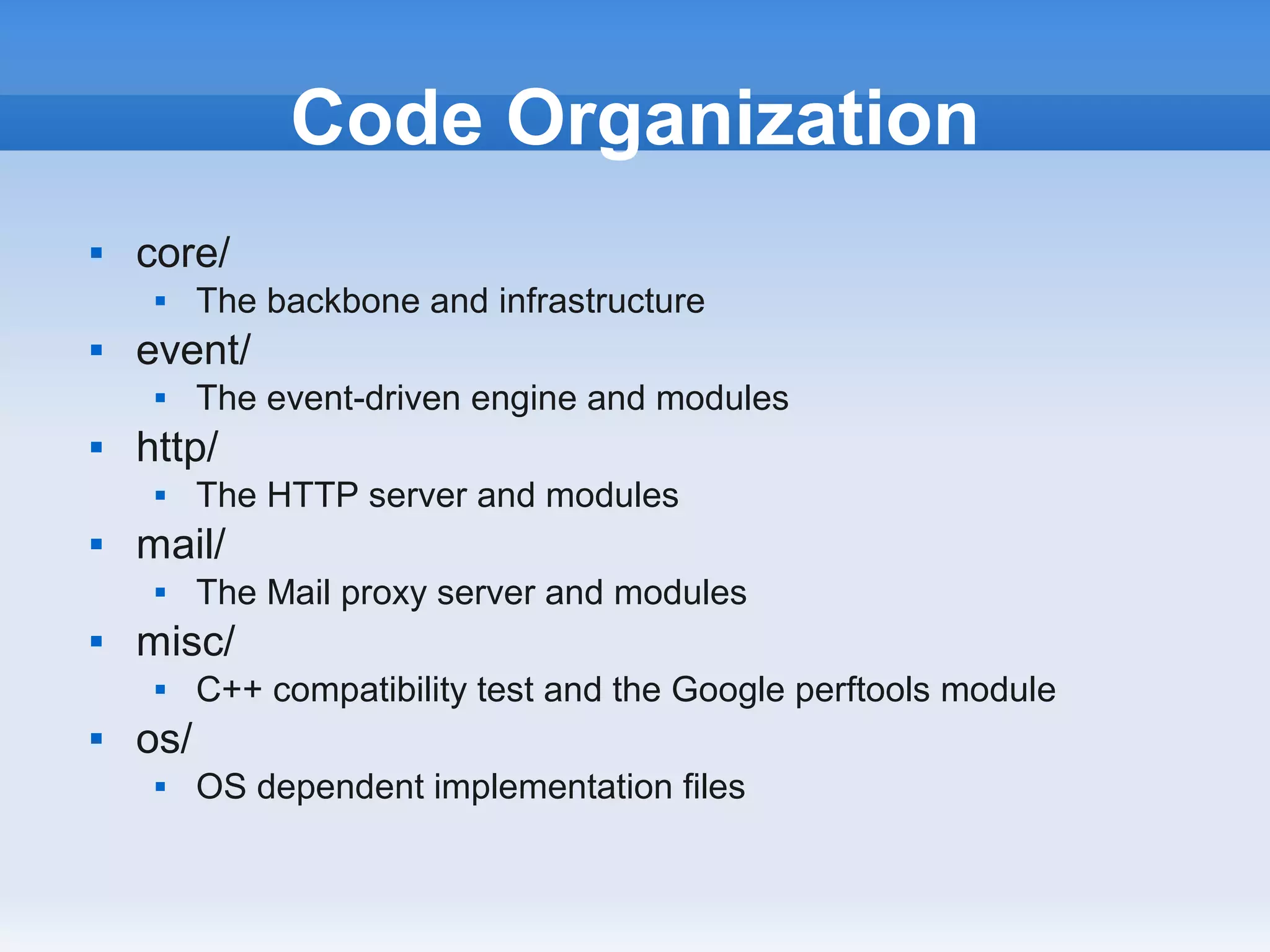

- 4. Code Organization core/ The backbone and infrastructure event/ The event-driven engine and modules http/ The HTTP server and modules mail/ The Mail proxy server and modules misc/ C++ compatibility test and the Google perftools module os/ OS dependent implementation files

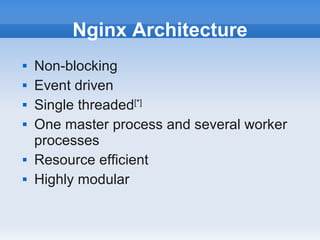

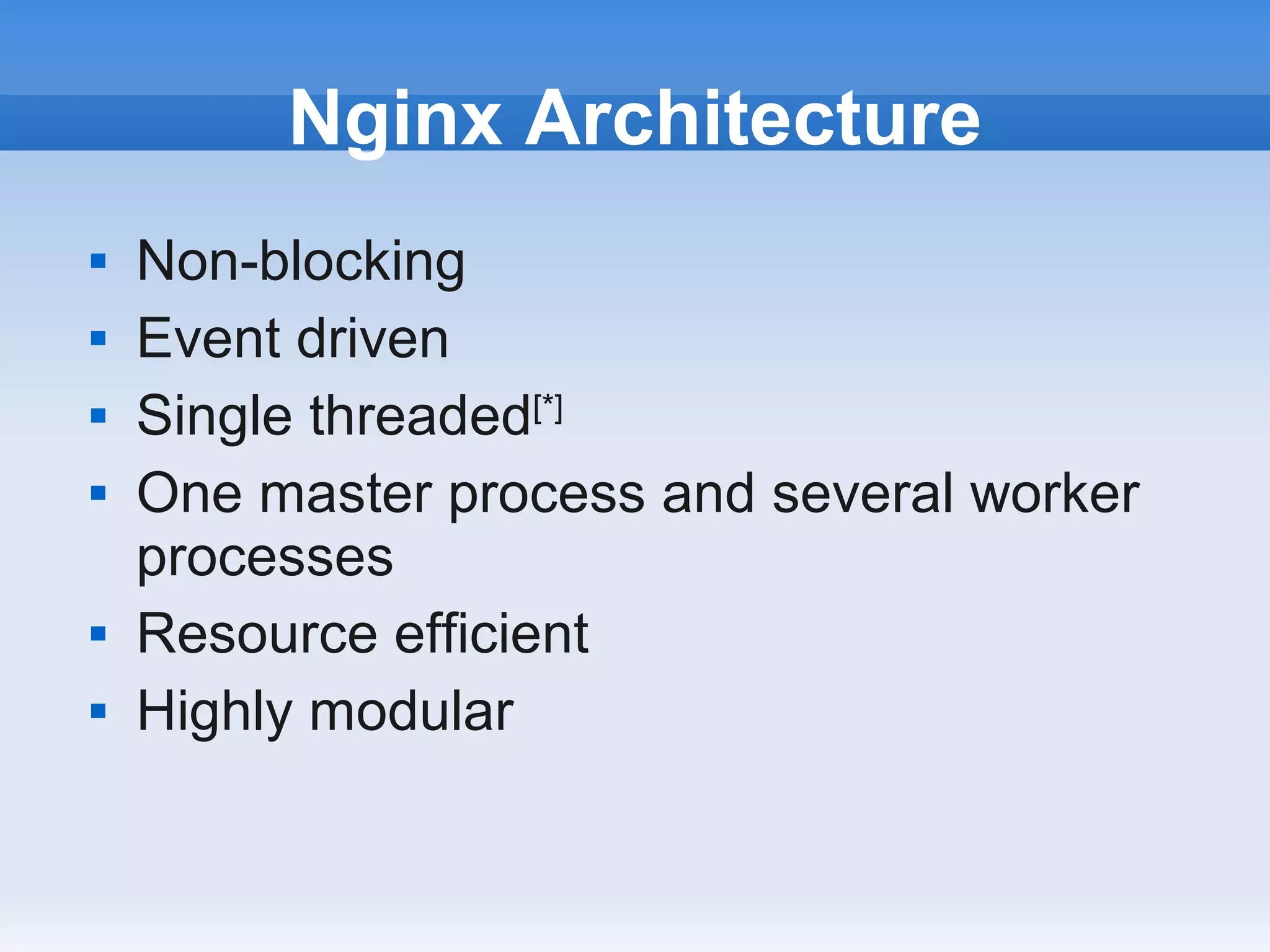

- 5. Nginx Architecture Non-blocking Event driven Single threaded[*] One master process and several worker processes Resource efficient Highly modular
- 6.

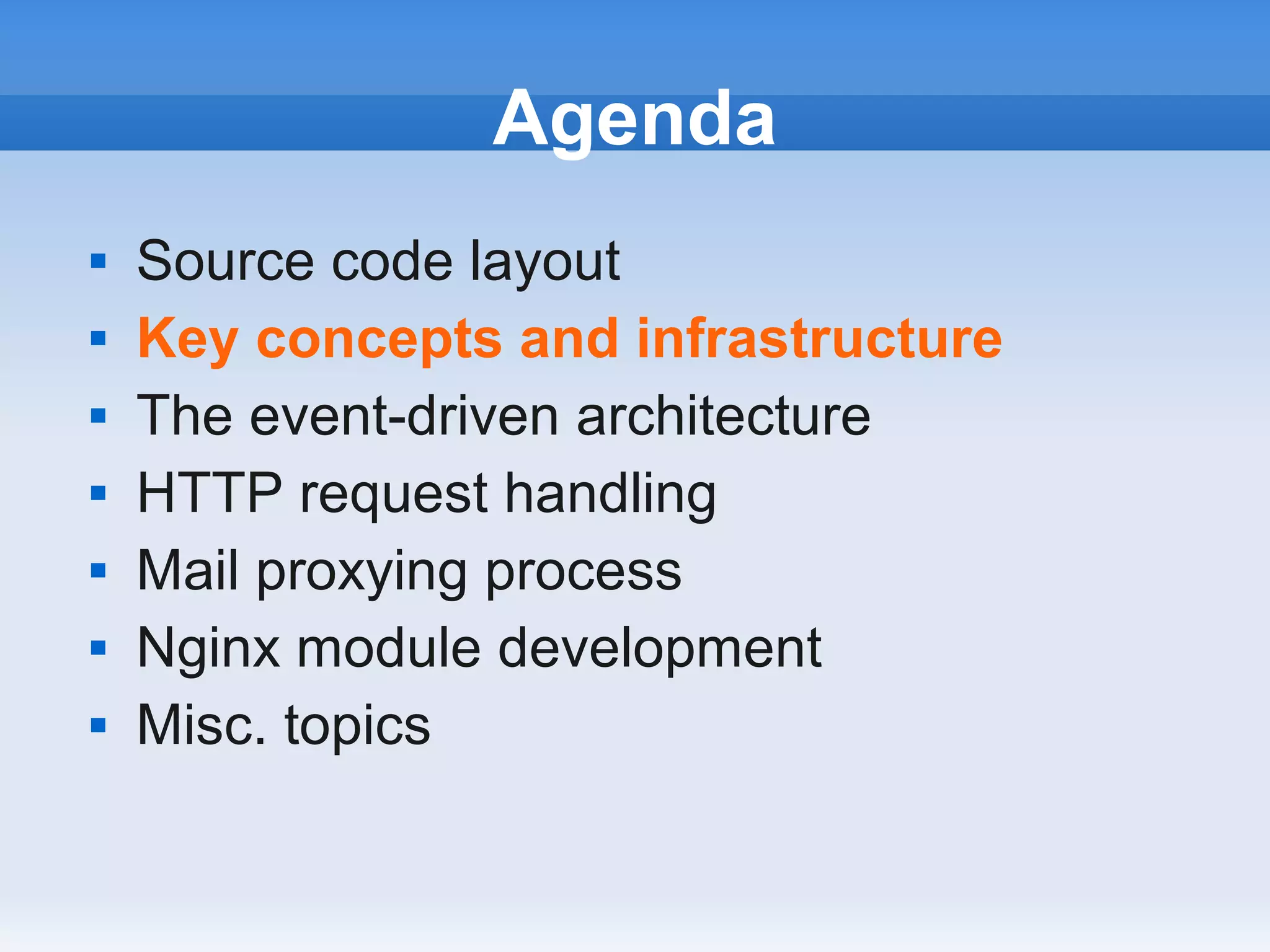

- 7. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

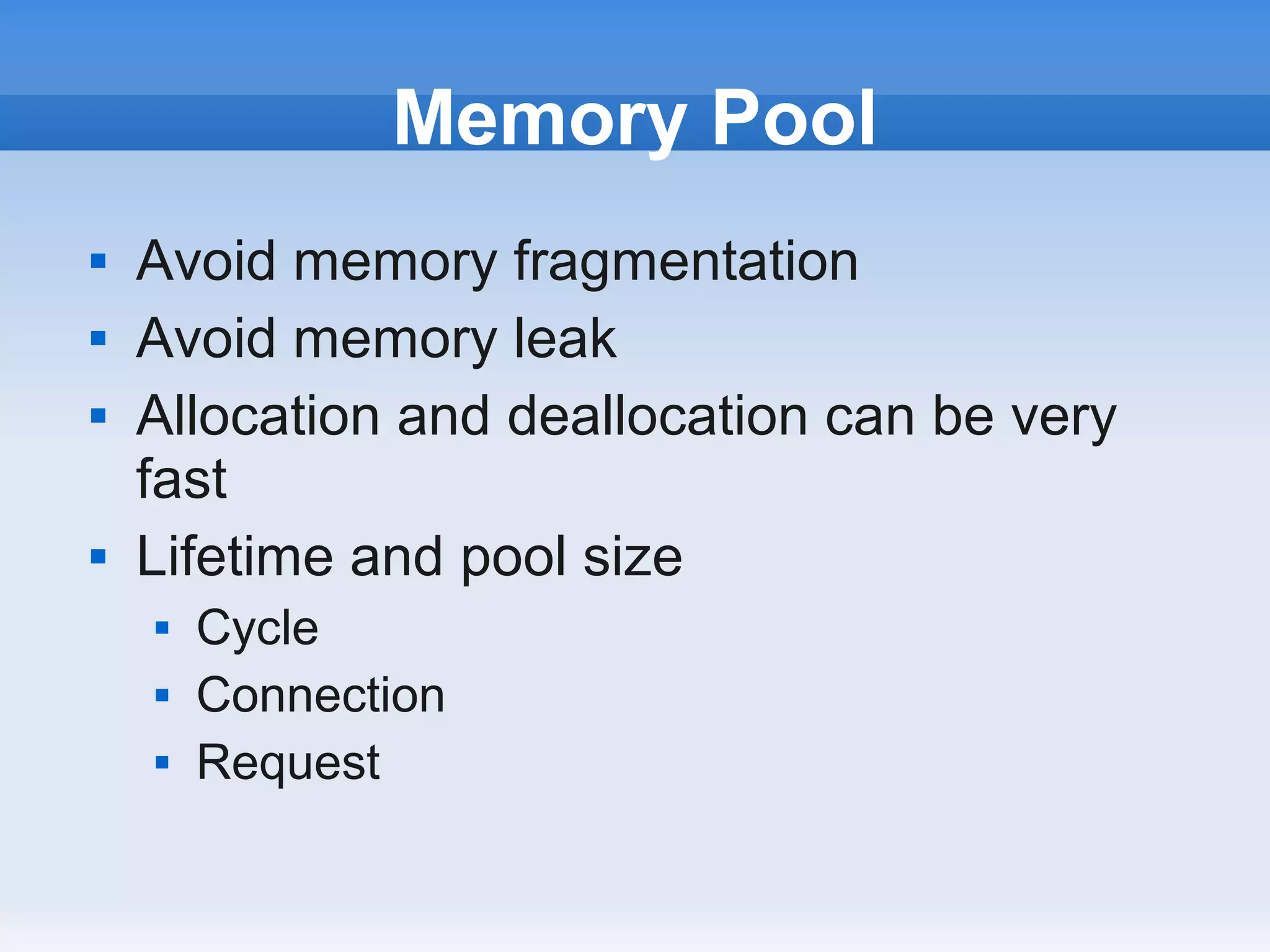

- 8. Memory Pool Avoid memory fragmentation Avoid memory leak Allocation and deallocation can be very fast Lifetime and pool size Cycle Connection Request

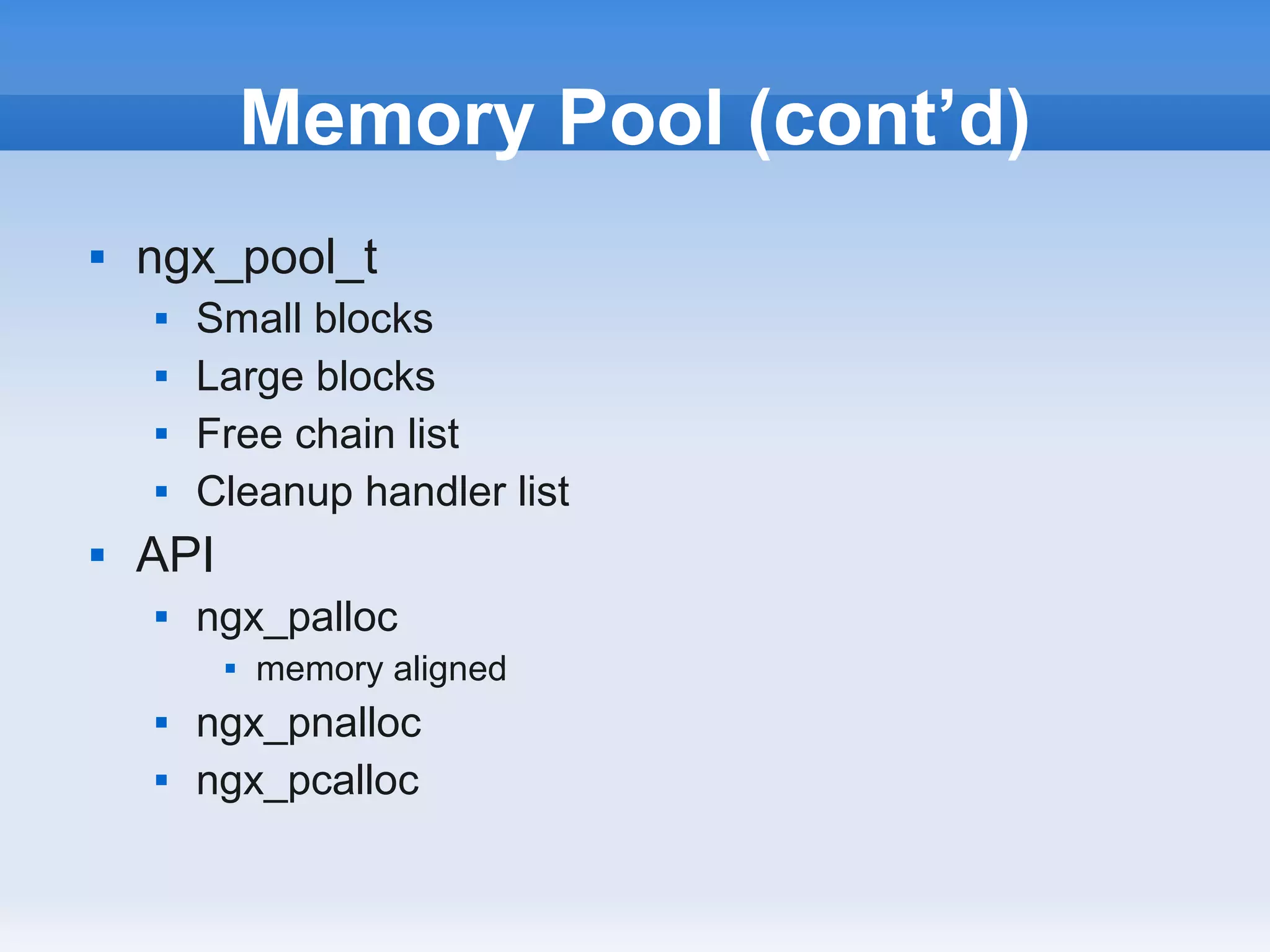

- 9. Memory Pool (cont’d) ngx_pool_t Small blocks Large blocks Free chain list Cleanup handler list API ngx_palloc memory aligned ngx_pnalloc ngx_pcalloc

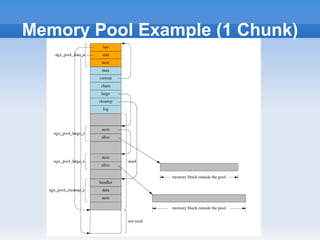

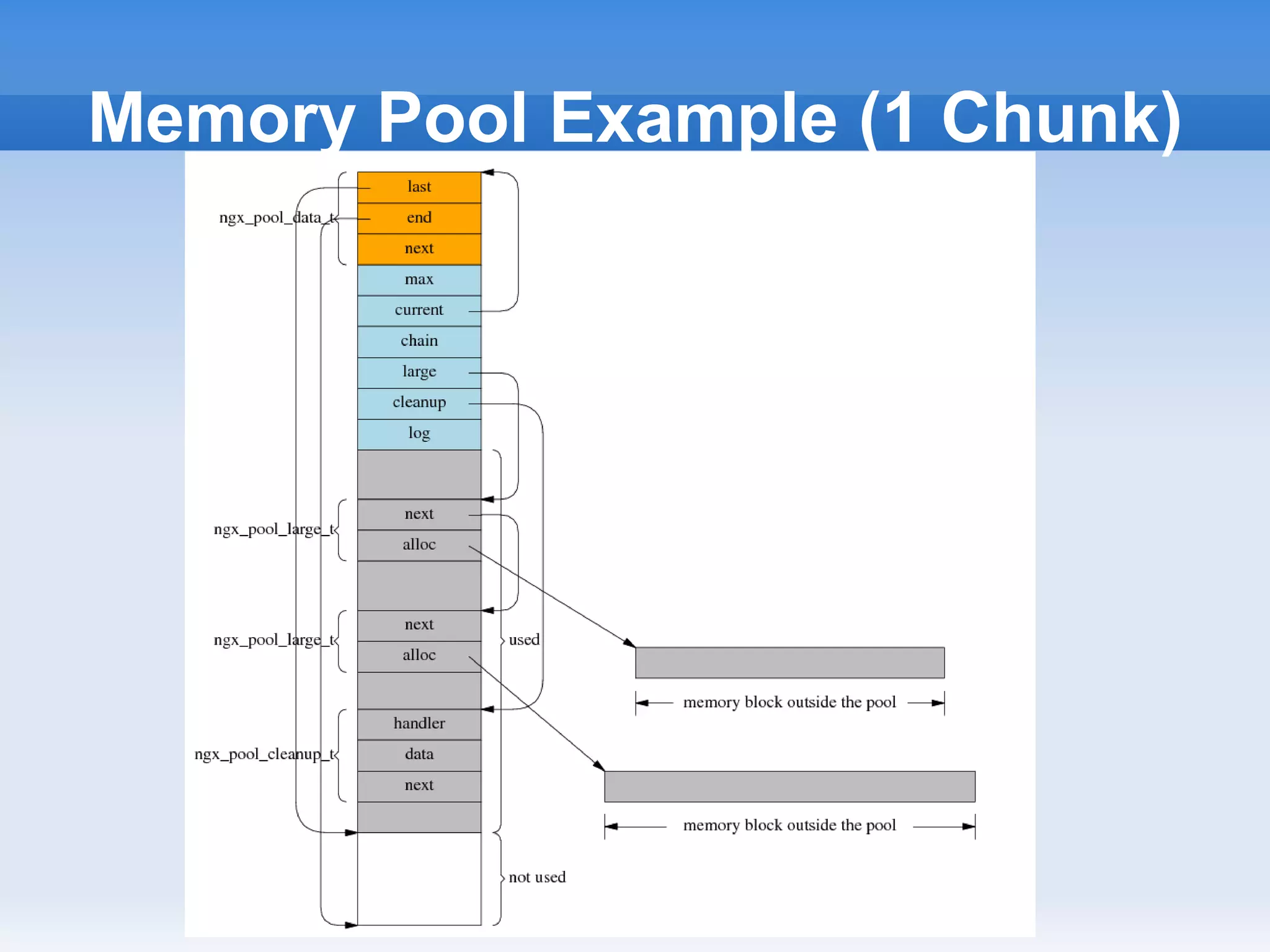

- 10. Memory Pool Example(1 Chunk)

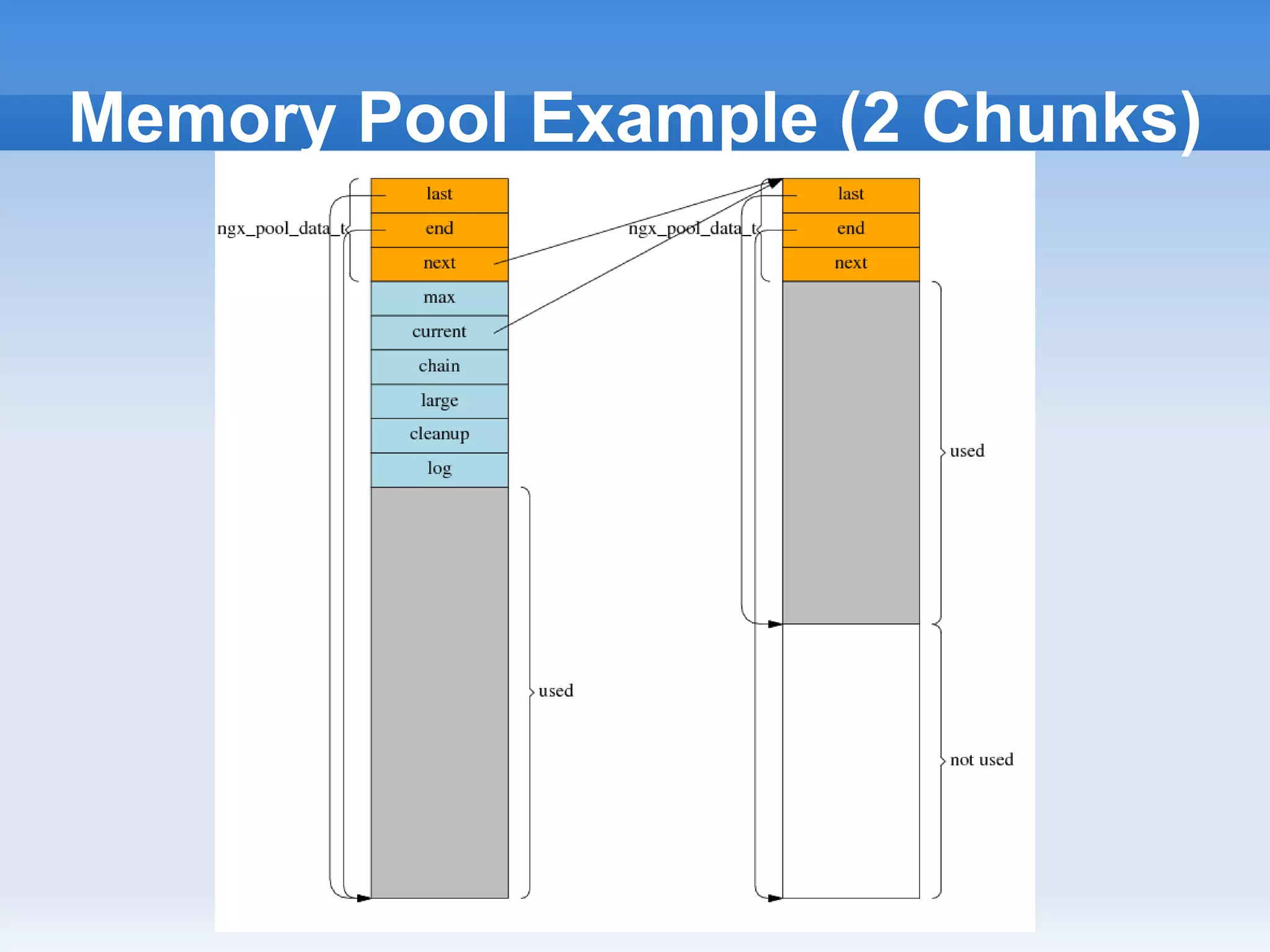

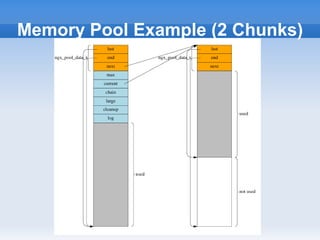

- 11. Memory Pool Example(2 Chunks)

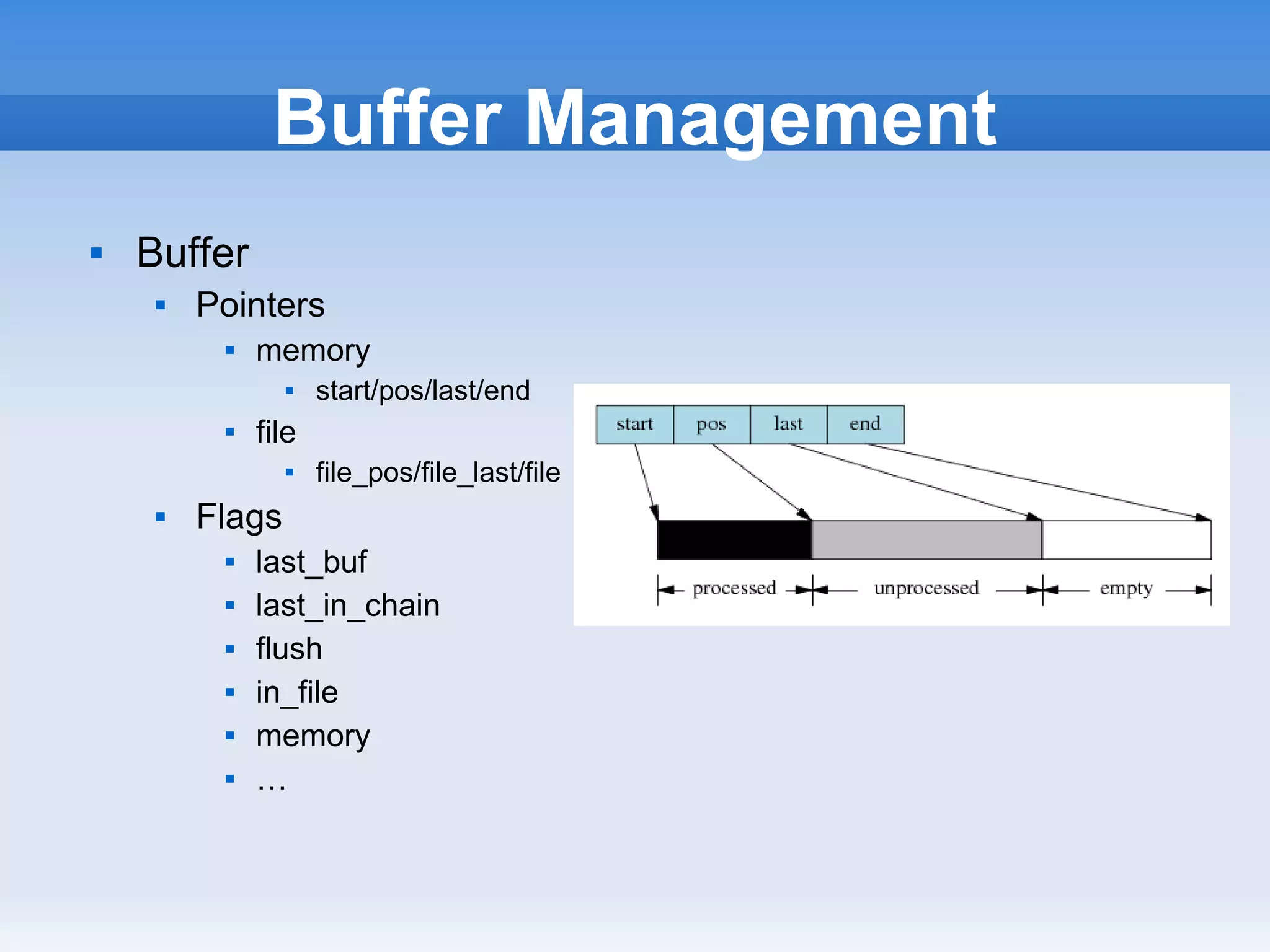

- 12. Buffer Management Buffer Pointers memory start/pos/last/end file file_pos/file_last/file Flags last_buf last_in_chain flush in_file memory …

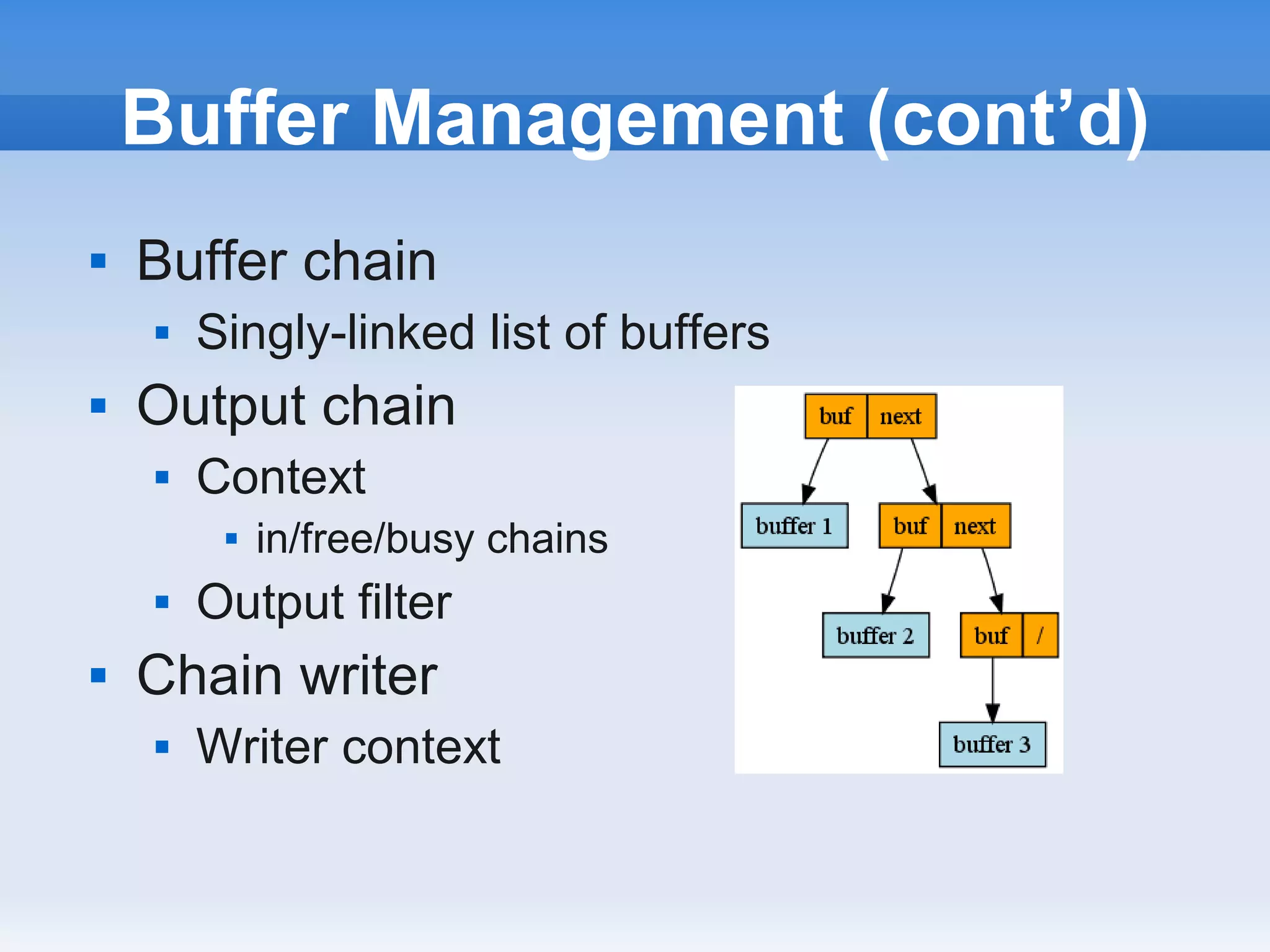

- 13. Buffer Management (cont’d) Buffer chain Singly-linked list of buffers Output chain Context in/free/busy chains Output filter Chain writer Writer context

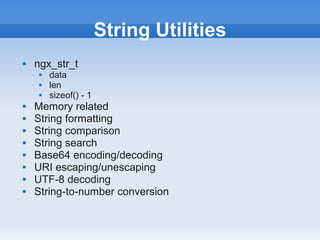

- 14. String Utilities ngx_str_t data len sizeof() - 1 Memory related String formatting String comparison String search Base64 encoding/decoding URI escaping/unescaping UTF-8 decoding String-to-number conversion

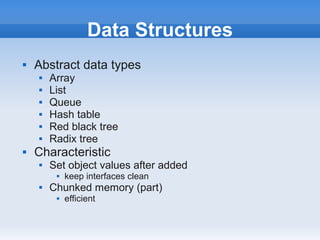

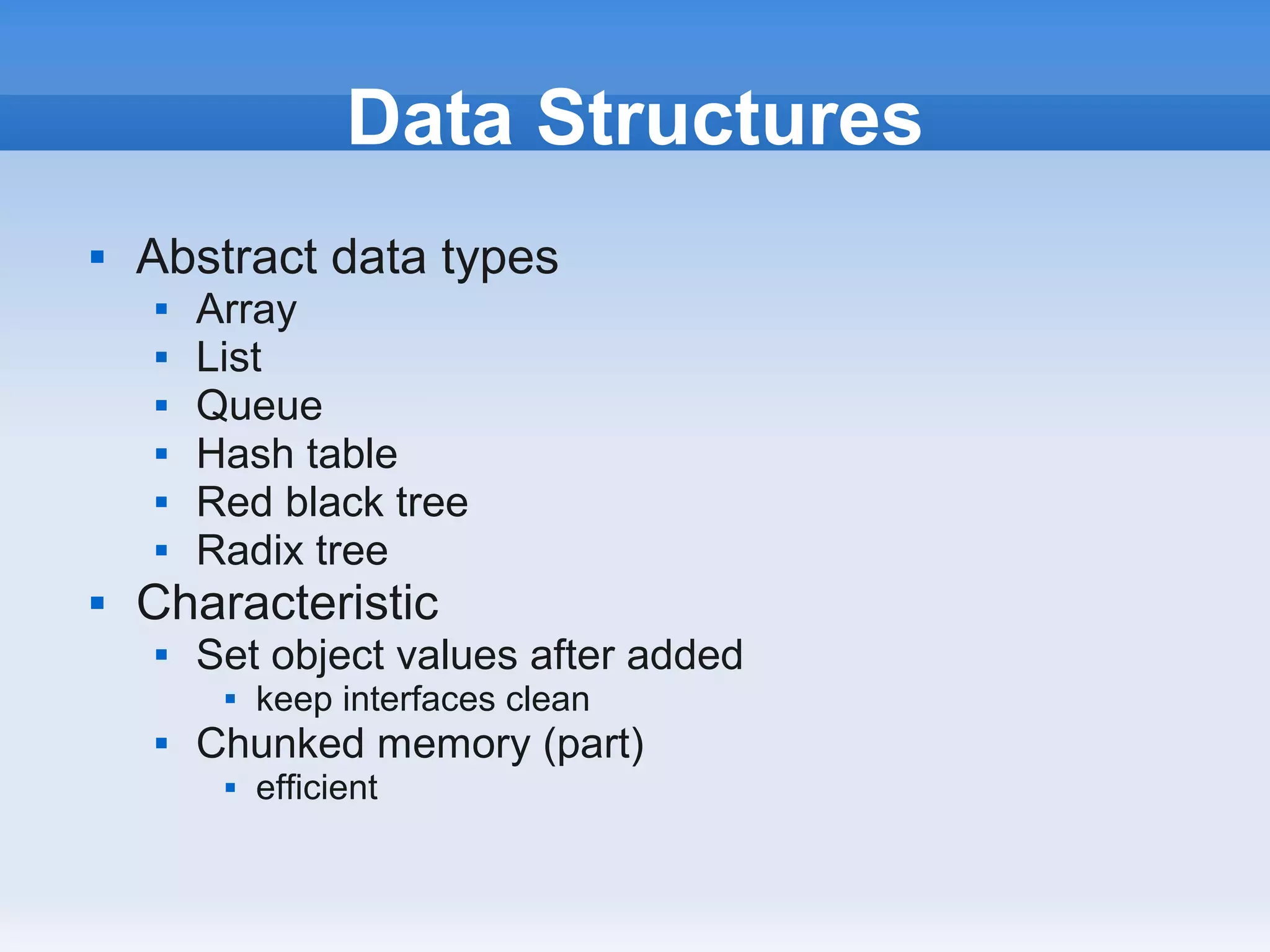

- 15. Data Structures Abstract data types Array List Queue Hash table Red black tree Radix tree Characteristic Set object values after added keep interfaces clean Chunked memory (part) efficient

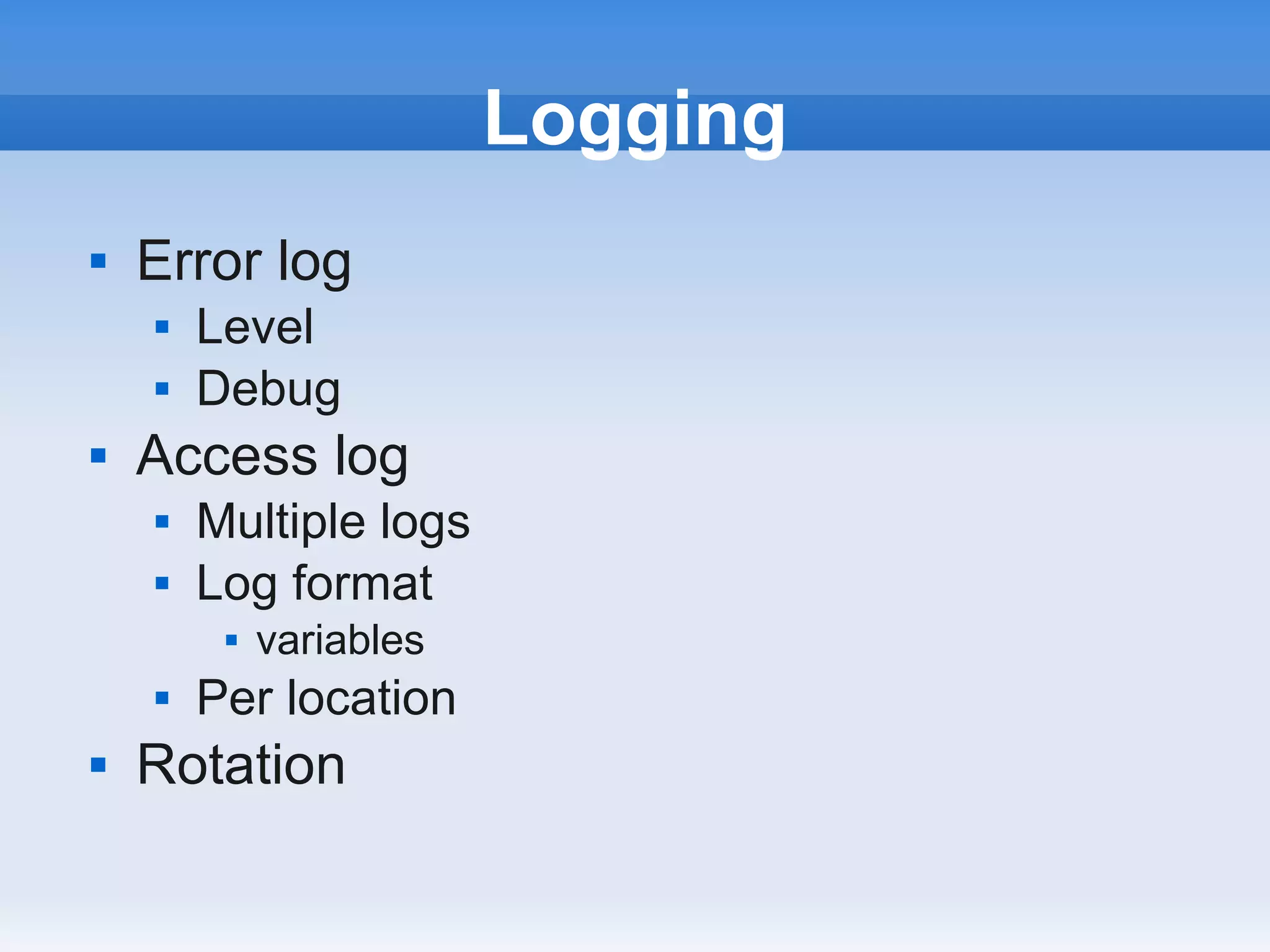

- 16. Logging Error log Level Debug Access log Multiple logs Log format variables Per location Rotation

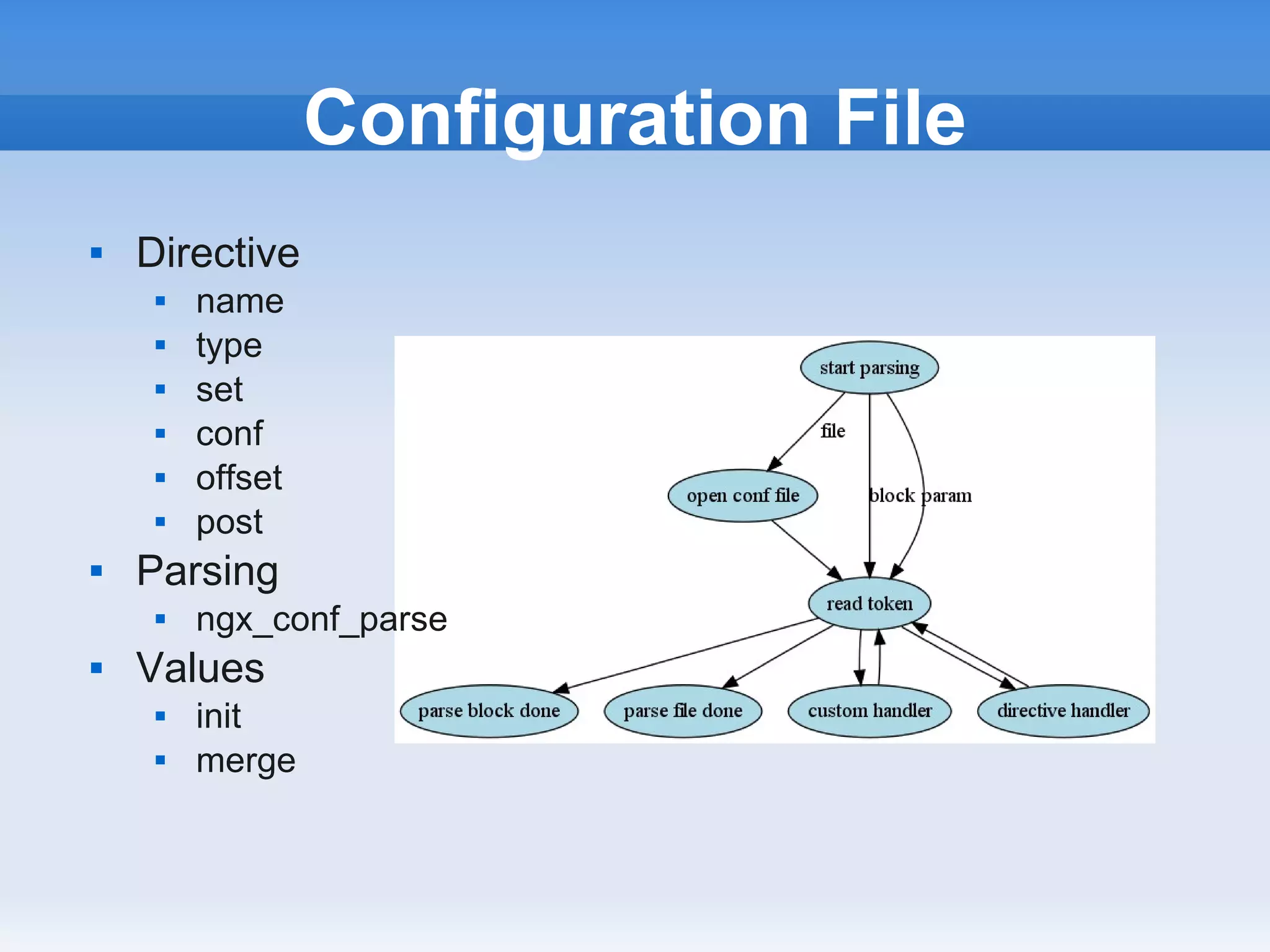

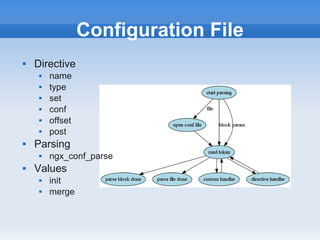

- 17. Configuration File Directive name type set conf offset post Parsing ngx_conf_parse Values init merge

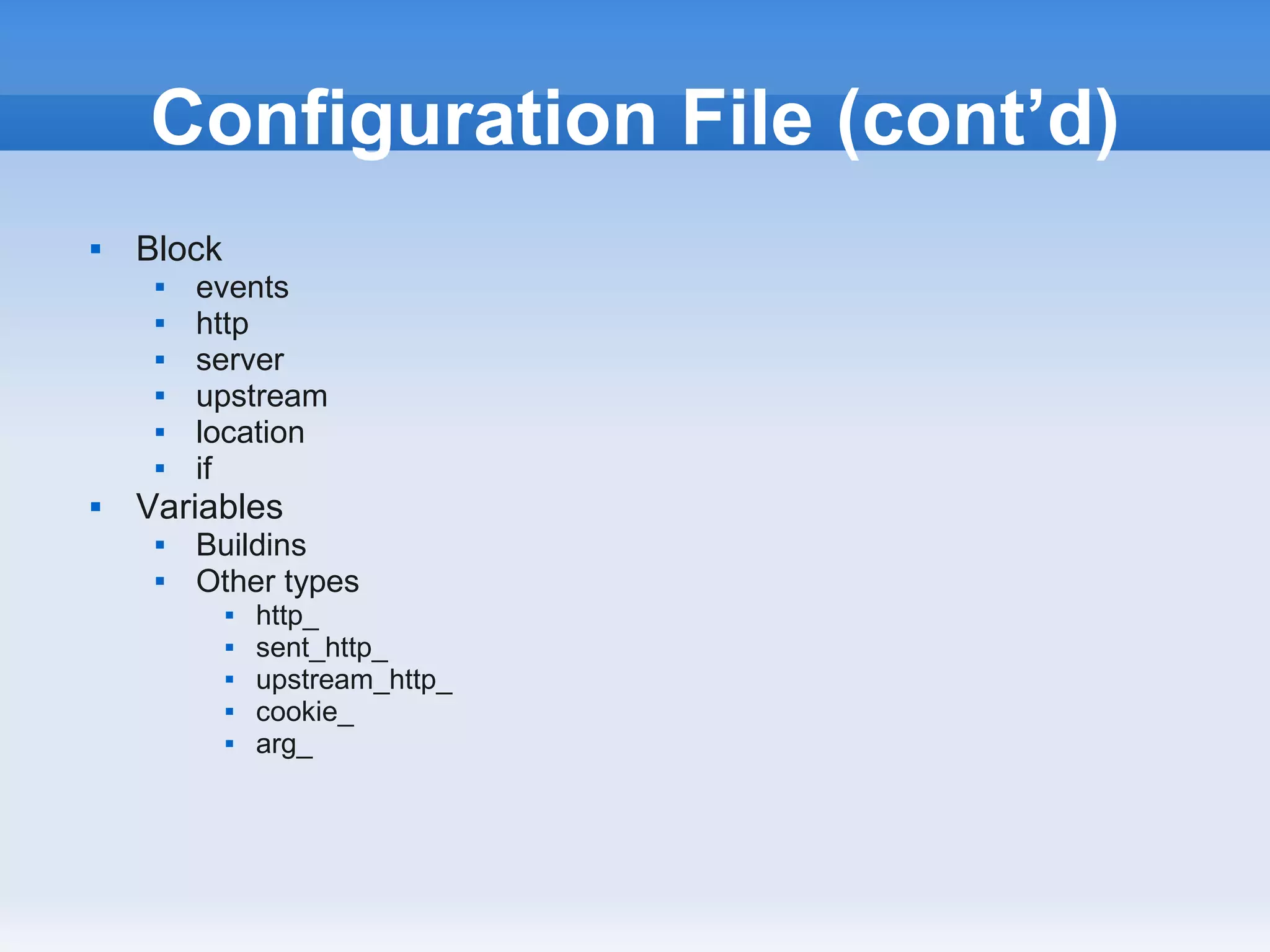

- 18. Configuration File (cont’d) Block events http server upstream location if Variables Buildins Other types http_ sent_http_ upstream_http_ cookie_ arg_

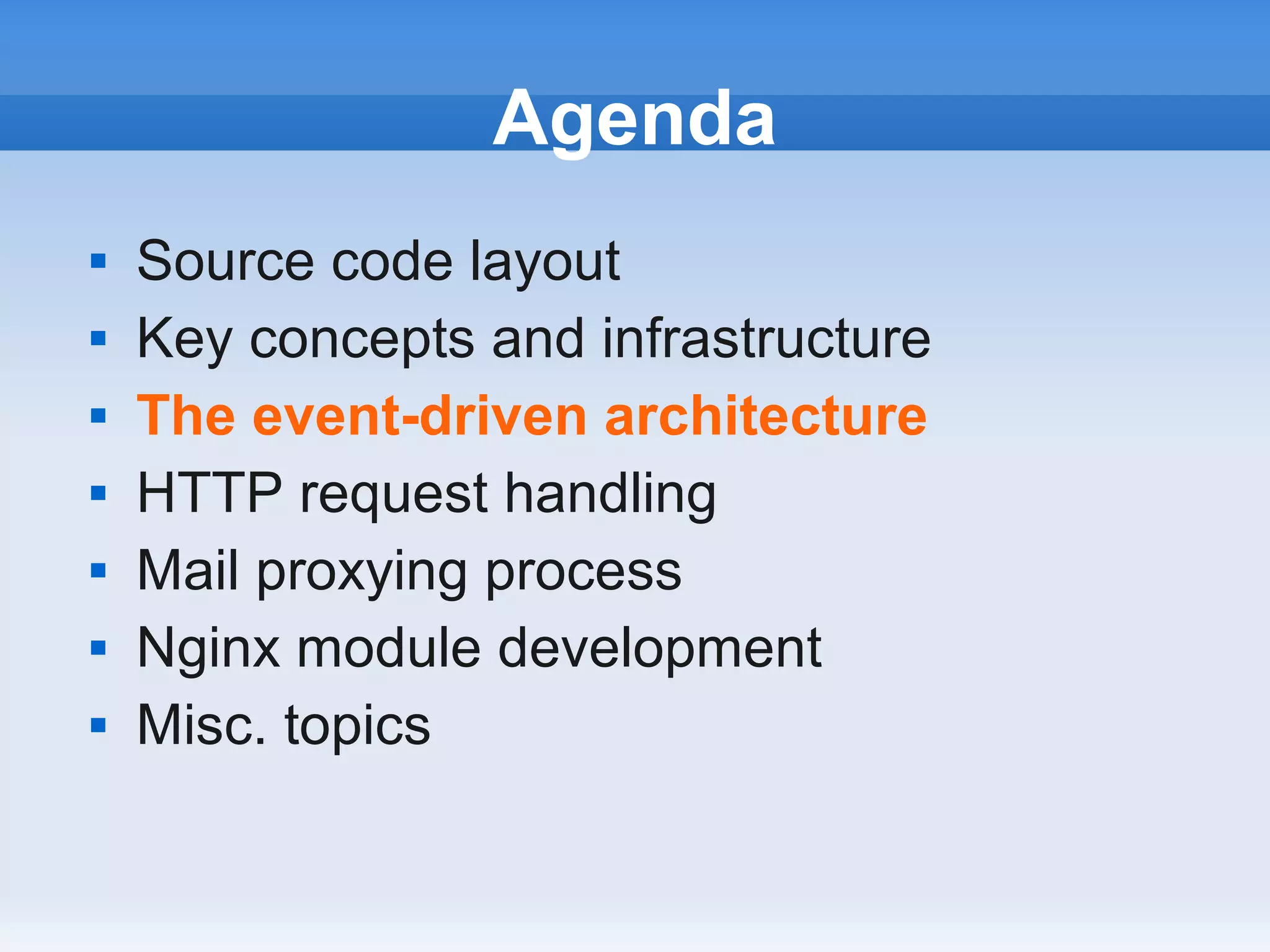

- 19. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

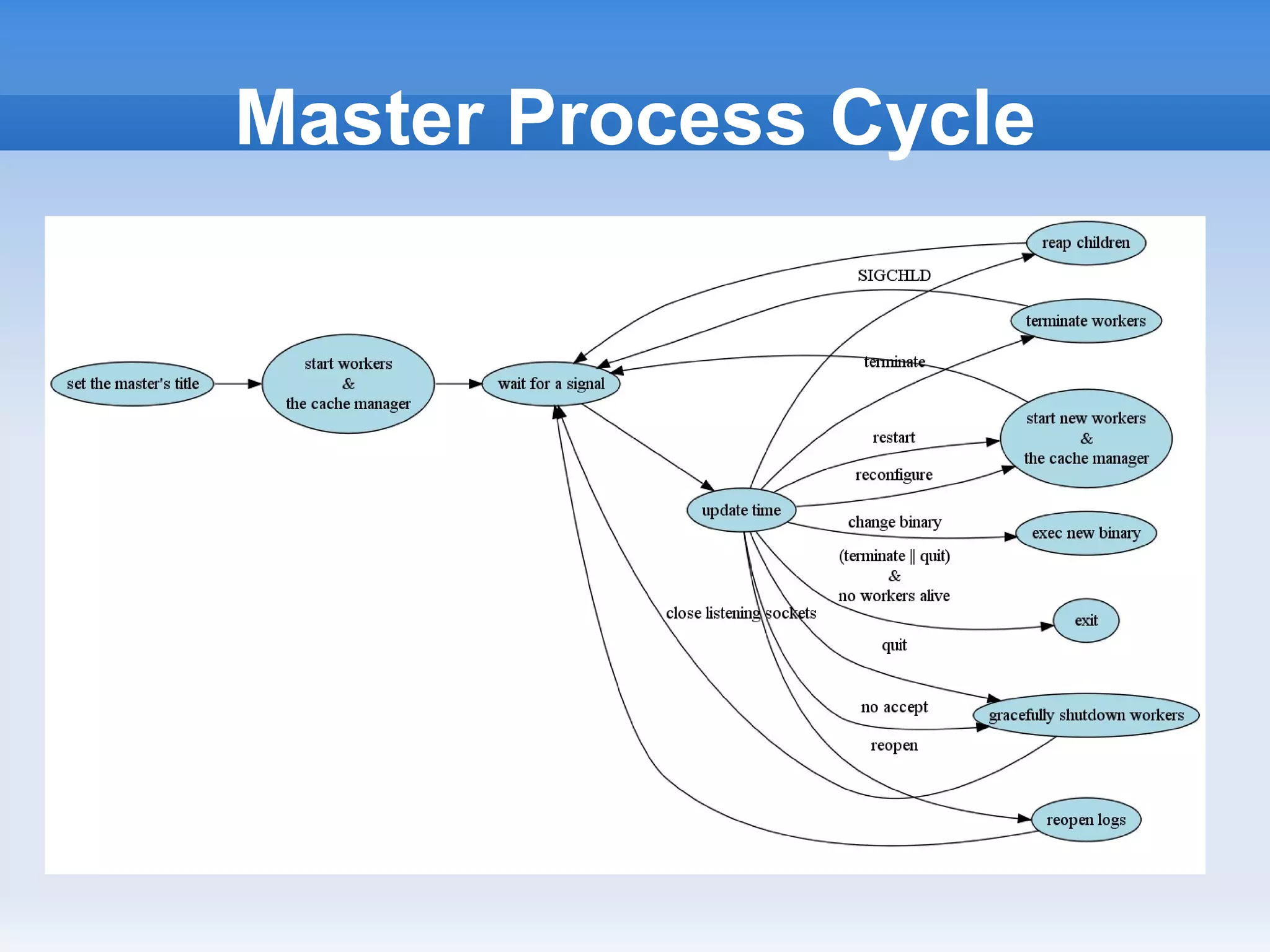

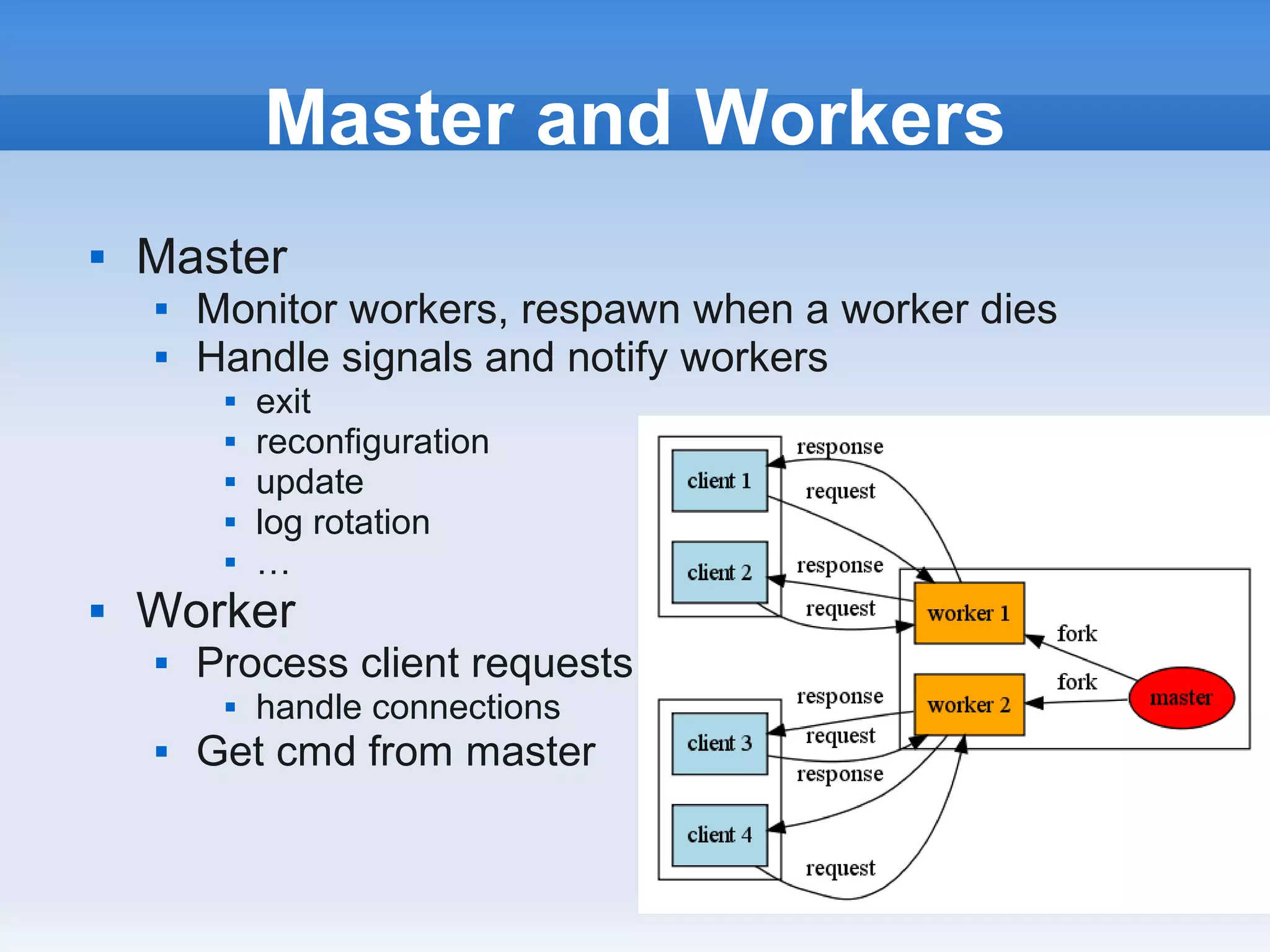

- 20. Master and Workers Master Monitor workers, respawn when a worker dies Handle signals and notify workers exit reconfiguration update log rotation … Worker Process client requests handle connections Get cmd from master
- 21.

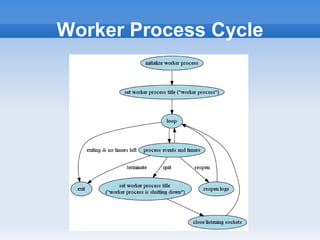

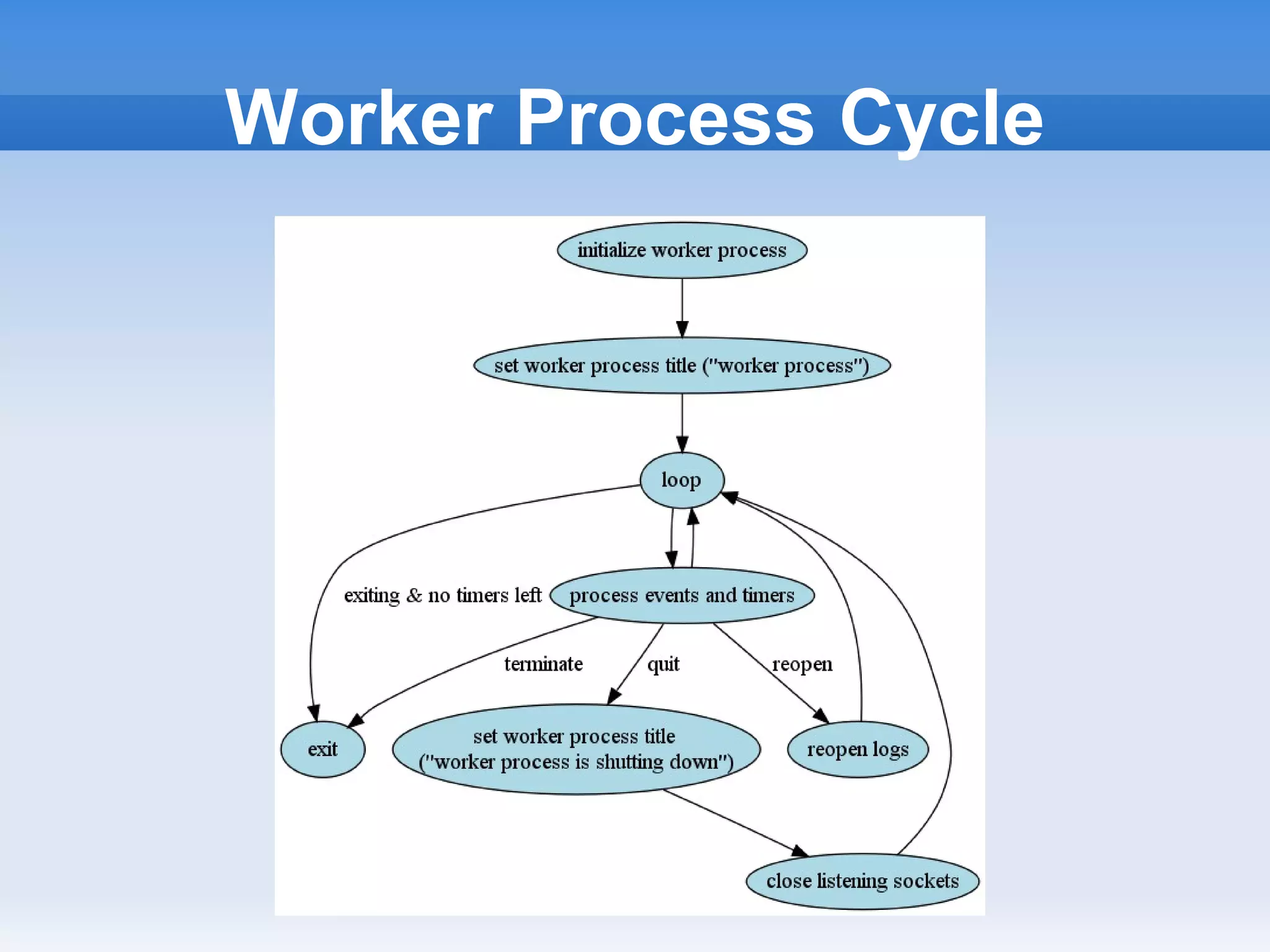

- 22.

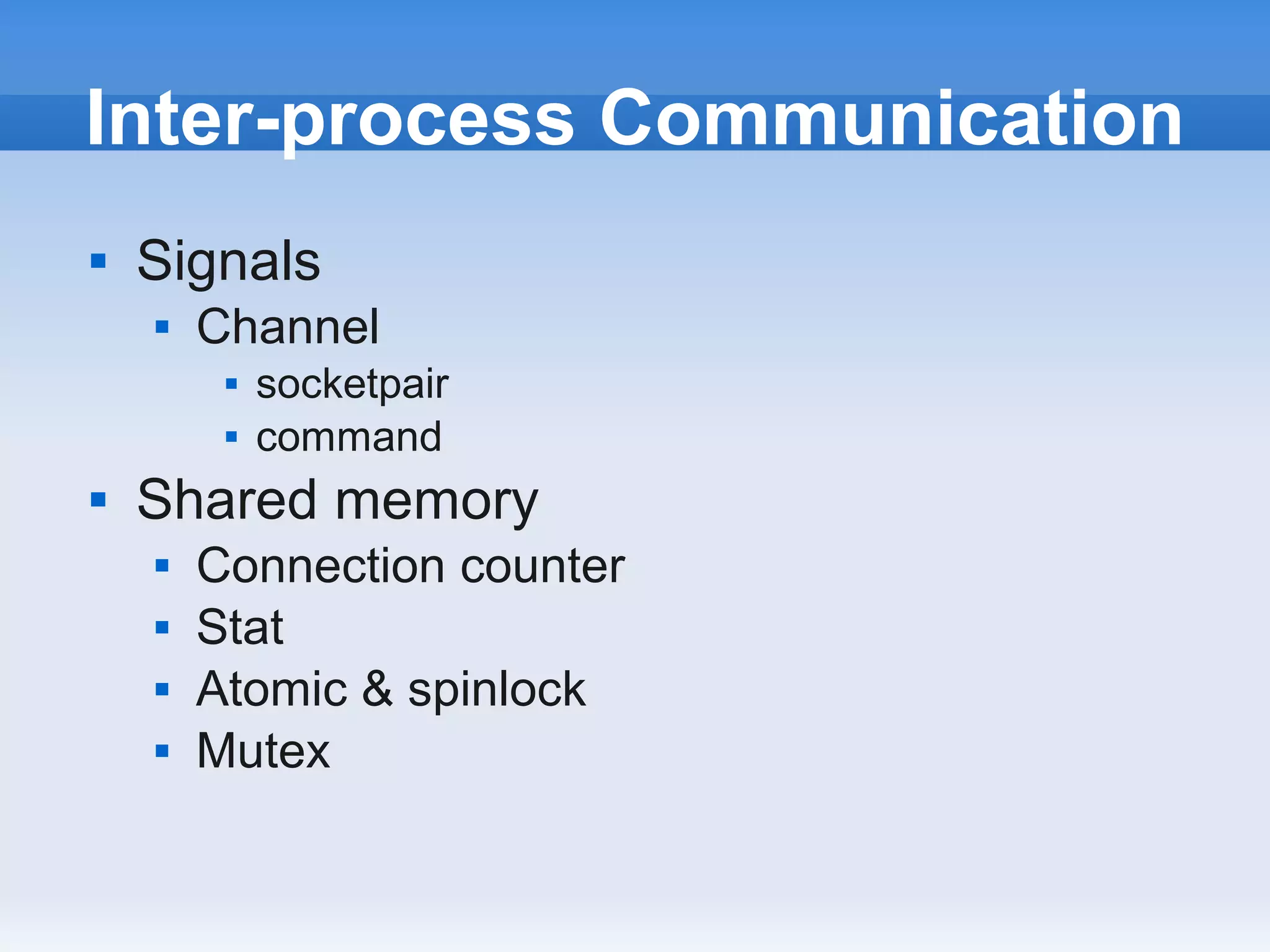

- 23. Inter-process Communication Signals Channel socketpair command Shared memory Connection counter Stat Atomic & spinlock Mutex

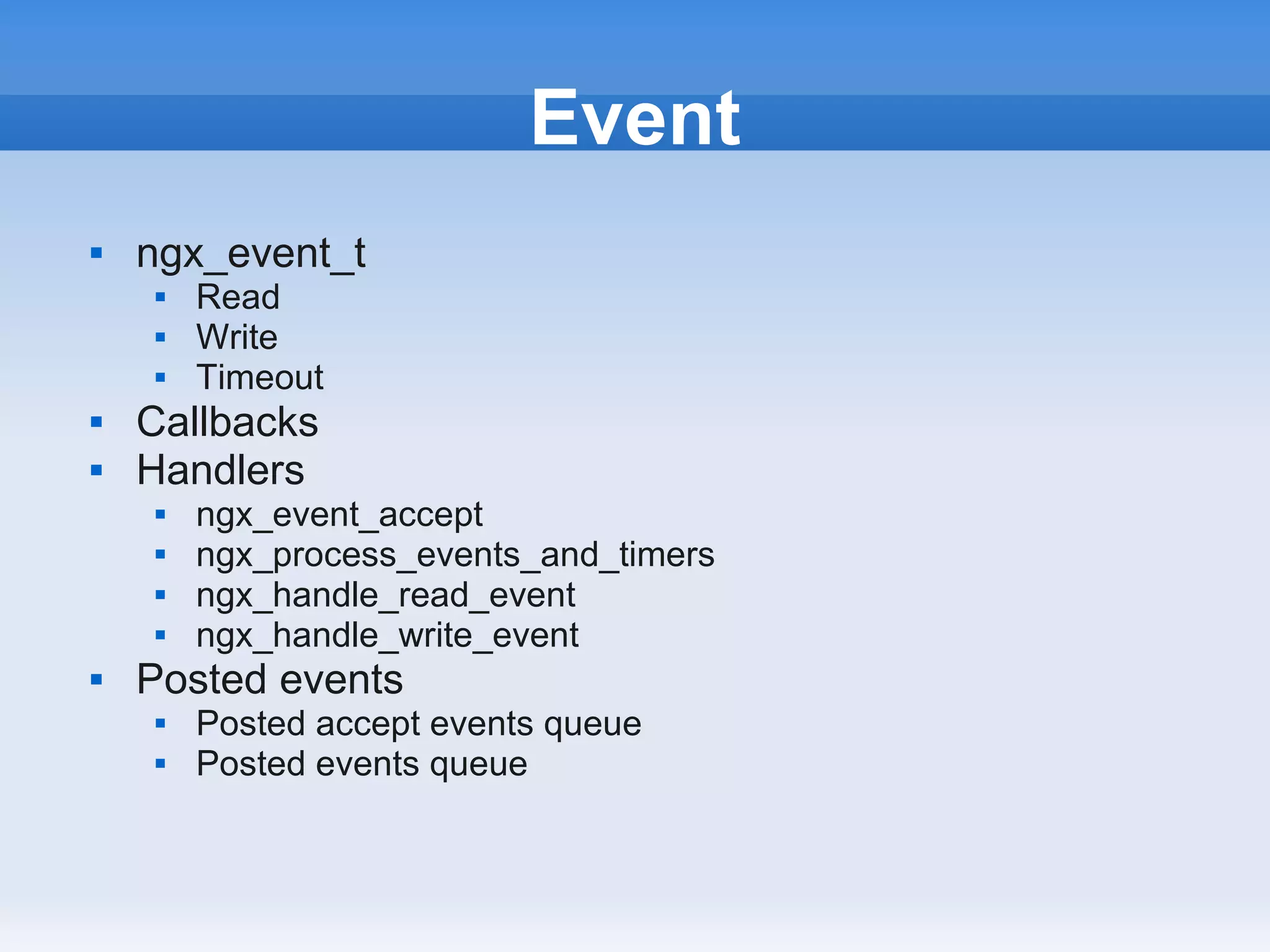

- 24. Event ngx_event_t Read Write Timeout Callbacks Handlers ngx_event_accept ngx_process_events_and_timers ngx_handle_read_event ngx_handle_write_event Posted events Posted accept events queue Posted events queue

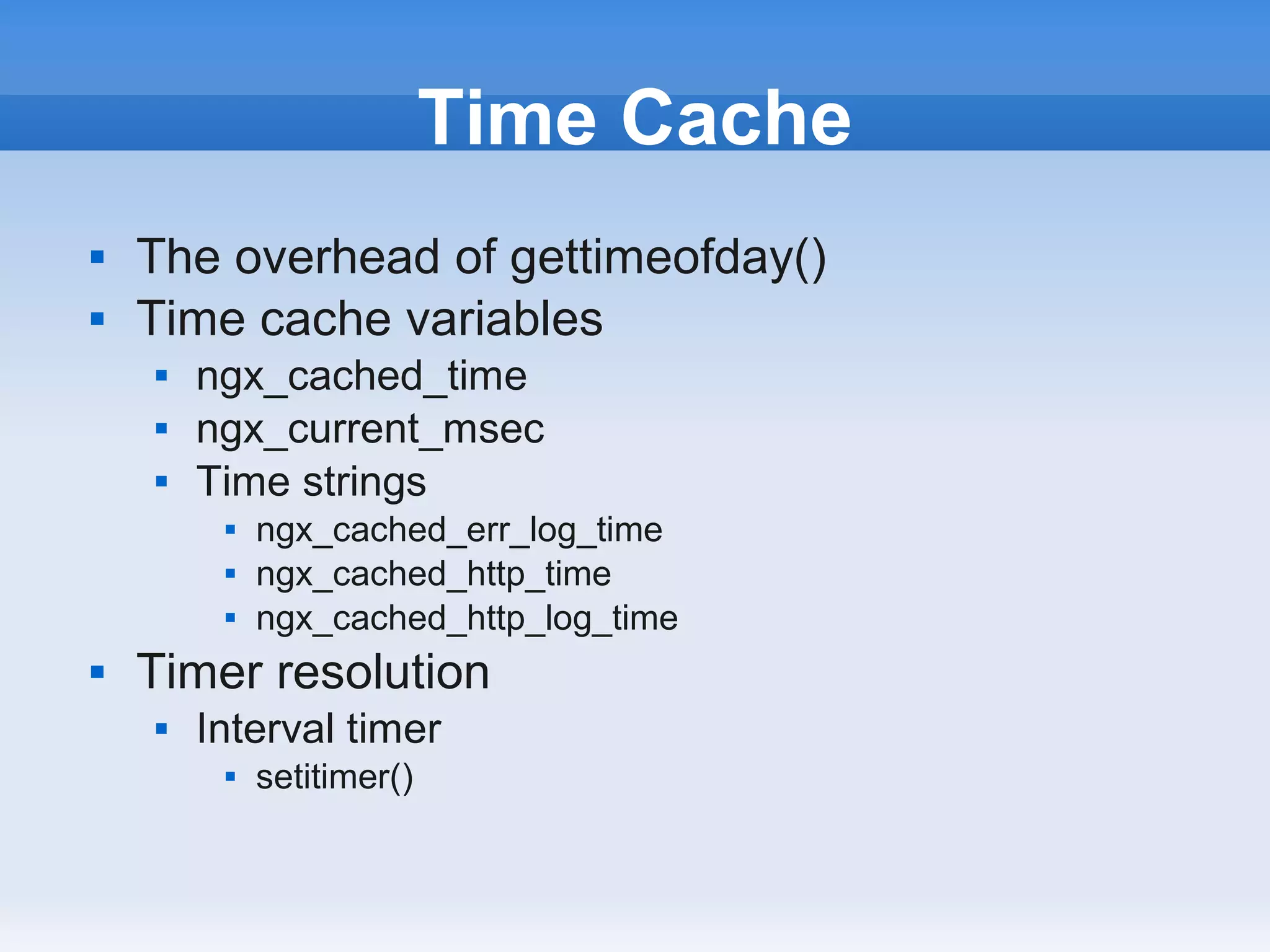

- 25. Time Cache The overhead of gettimeofday() Time cache variables ngx_cached_time ngx_current_msec Time strings ngx_cached_err_log_time ngx_cached_http_time ngx_cached_http_log_time Timer resolution Interval timer setitimer()

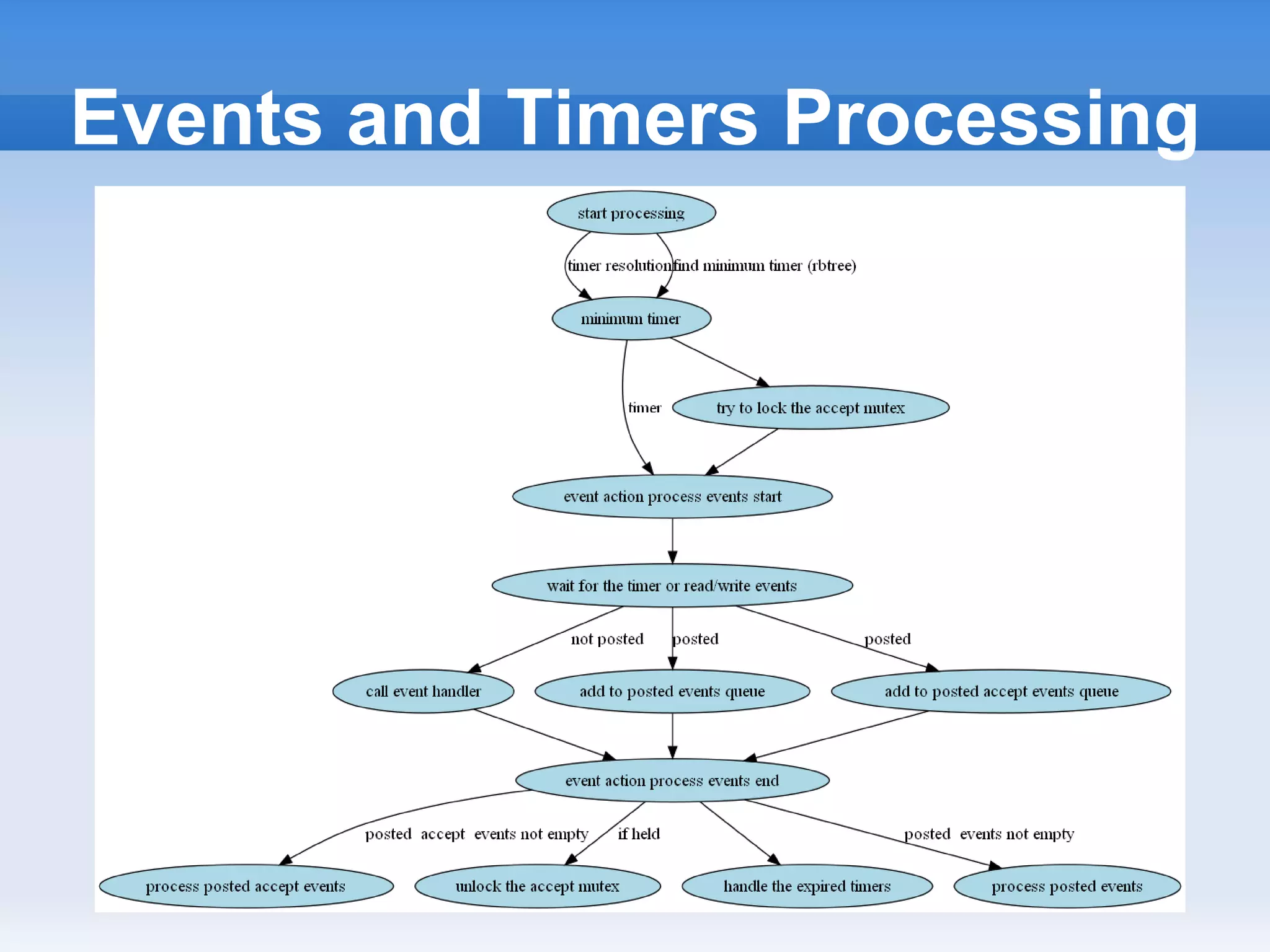

- 26. Events and TimersProcessing

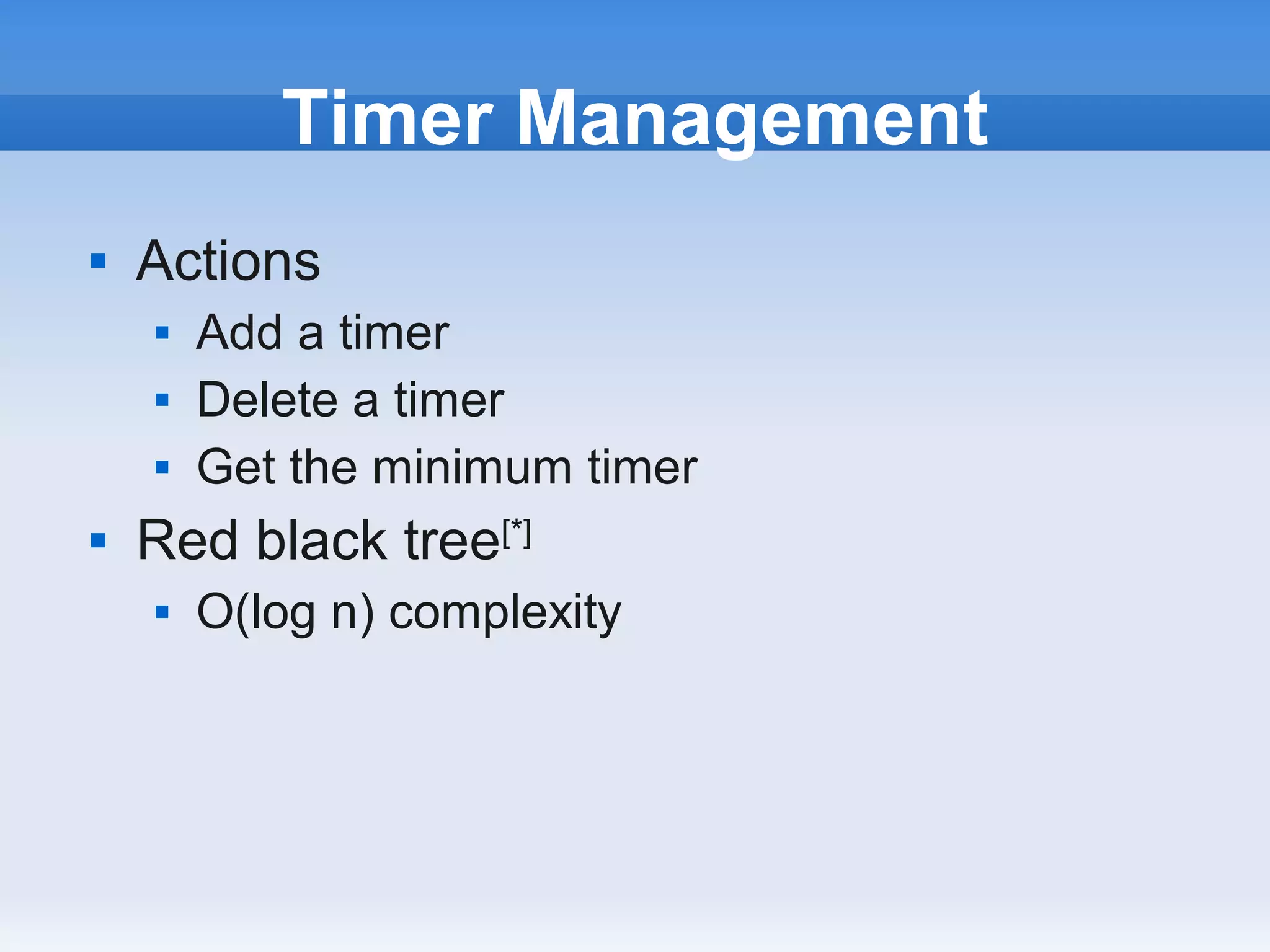

- 27. Timer Management Actions Add a timer Delete a timer Get the minimum timer Red black tree[*] O(log n) complexity

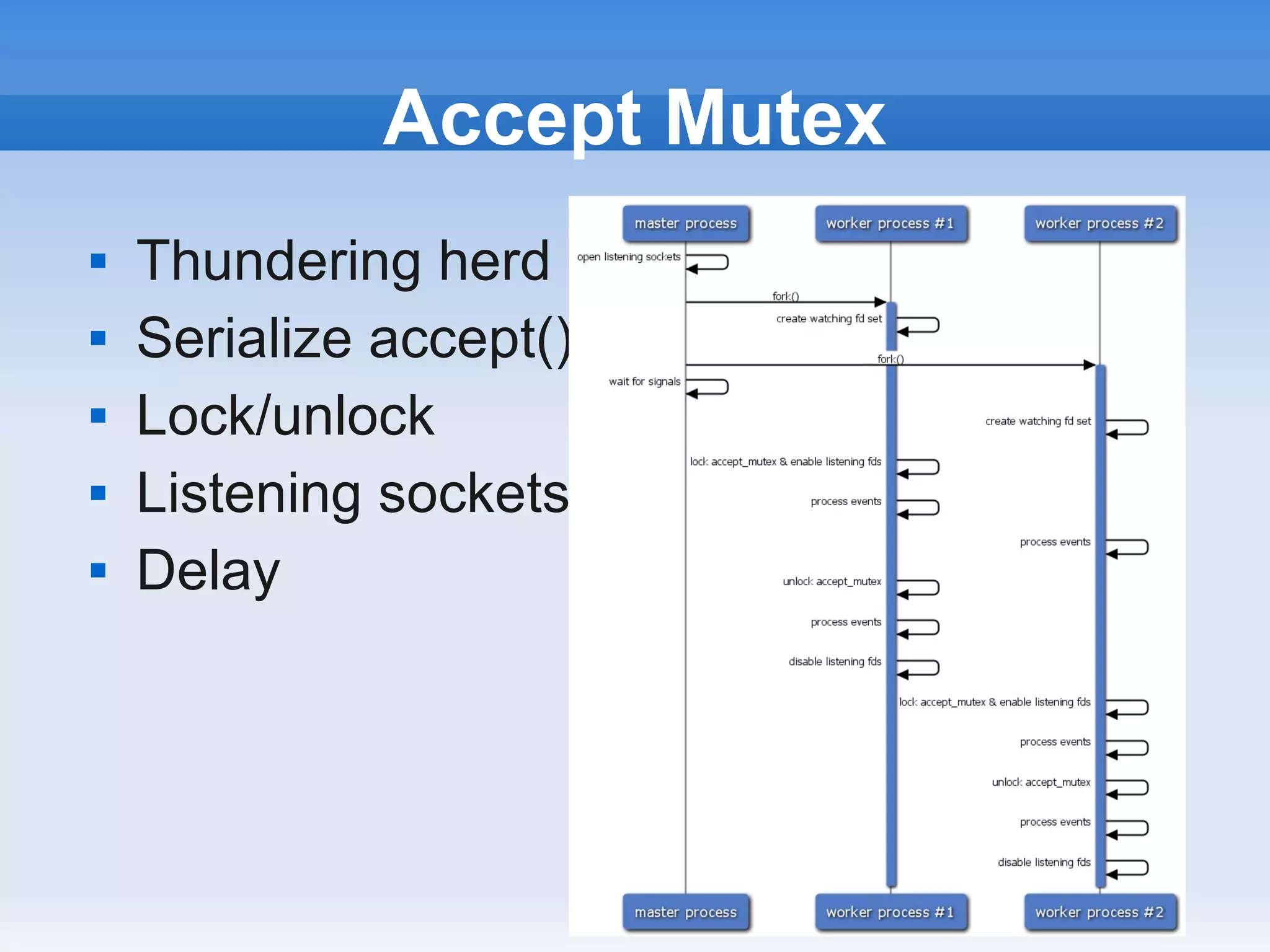

- 28. Accept Mutex Thundering herd Serialize accept() Lock/unlock Listening sockets Delay

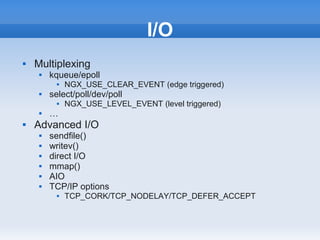

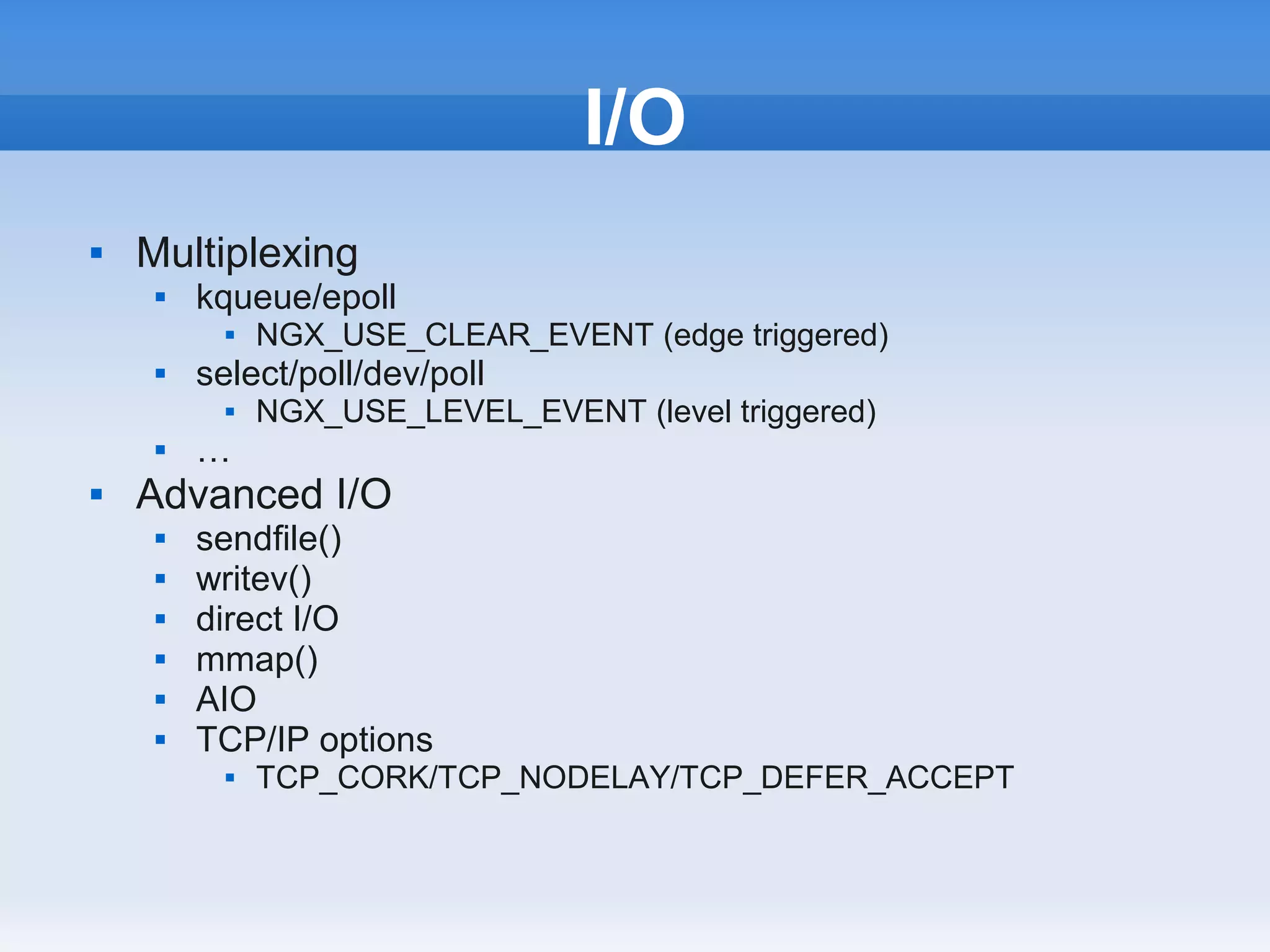

- 29. I/O Multiplexing kqueue/epoll NGX_USE_CLEAR_EVENT (edge triggered) select/poll/dev/poll NGX_USE_LEVEL_EVENT (level triggered) … Advanced I/O sendfile() writev() direct I/O mmap() AIO TCP/IP options TCP_CORK/TCP_NODELAY/TCP_DEFER_ACCEPT
- 30. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

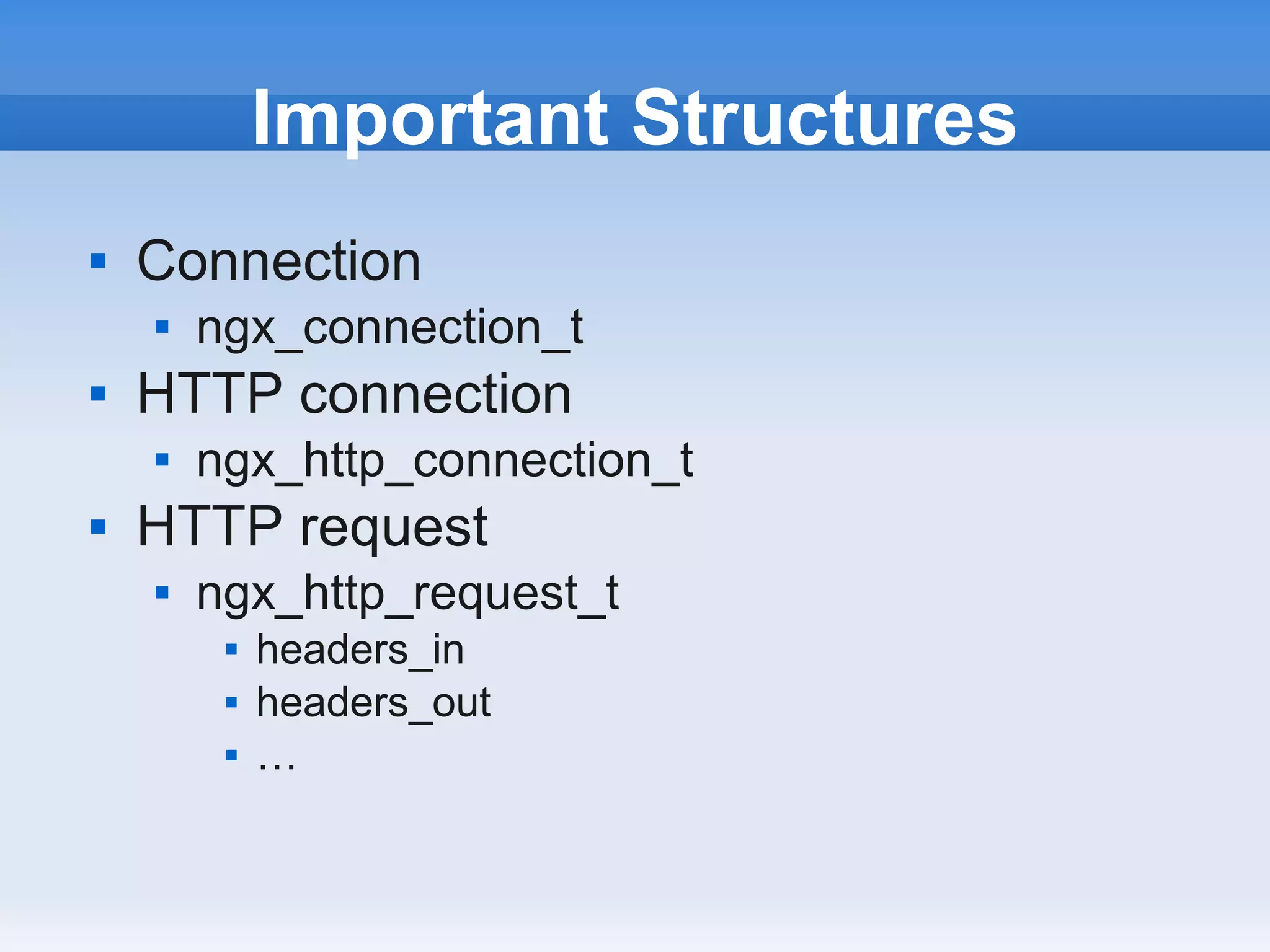

- 31. Important Structures Connection ngx_connection_t HTTP connection ngx_http_connection_t HTTP request ngx_http_request_t headers_in headers_out …

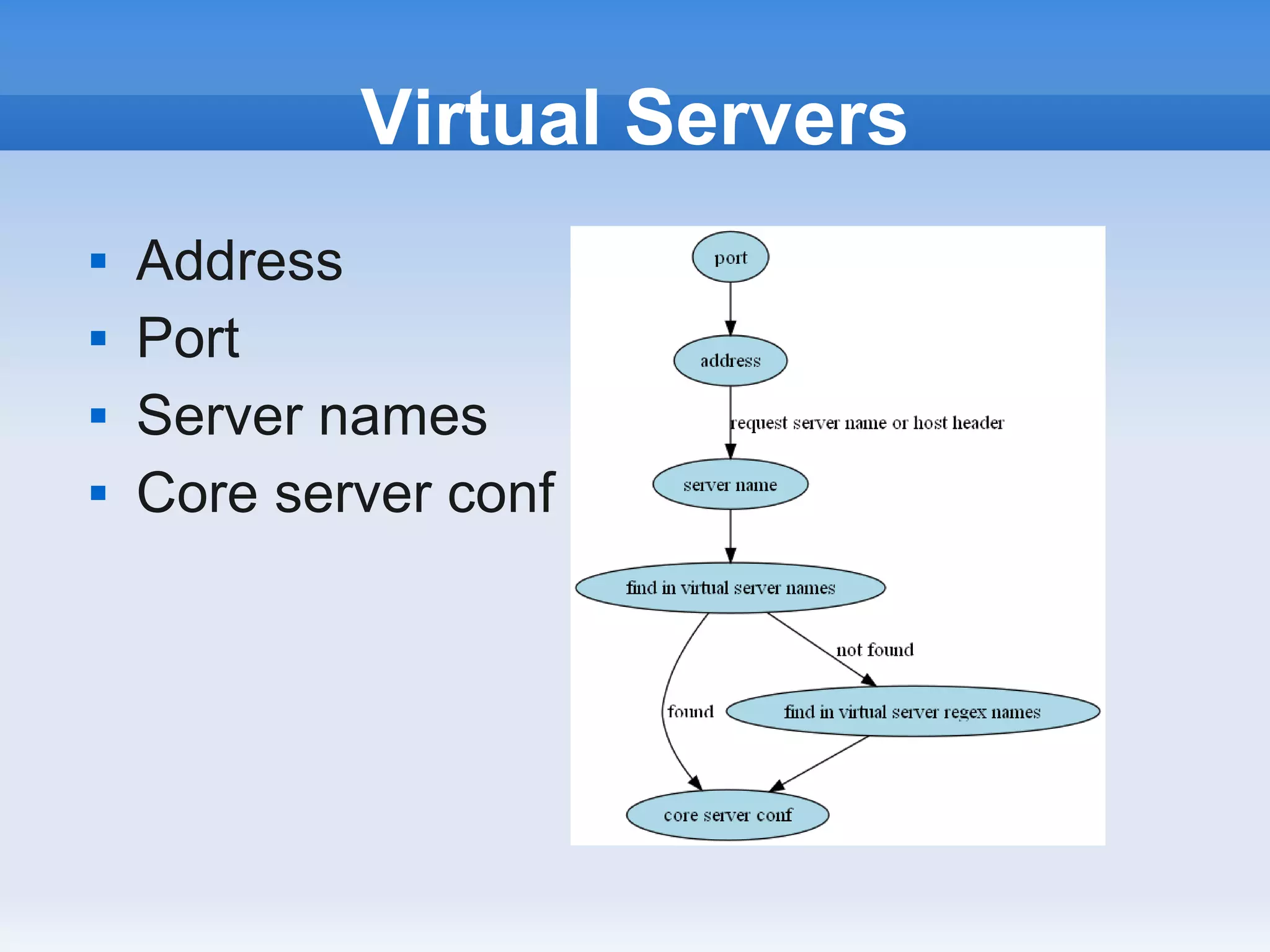

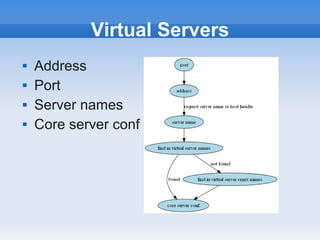

- 32. Virtual Servers Address Port Server names Core server conf

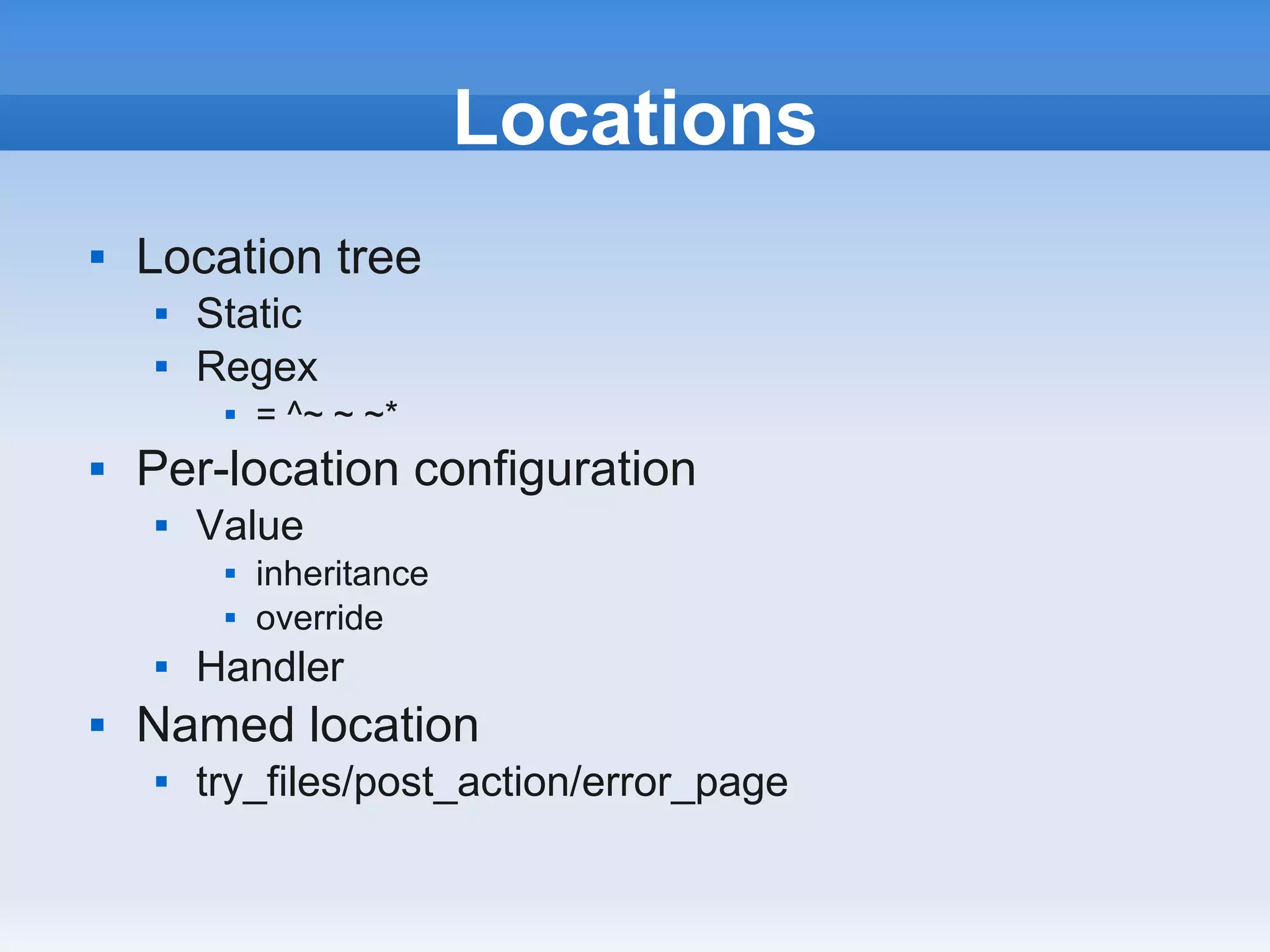

- 33. Locations Location tree Static Regex = ^~ ~ ~* Per-location configuration Value inheritance override Handler Named location try_files/post_action/error_page

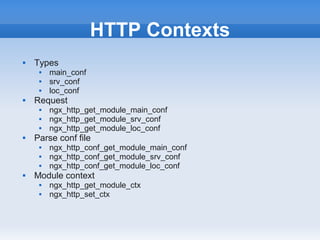

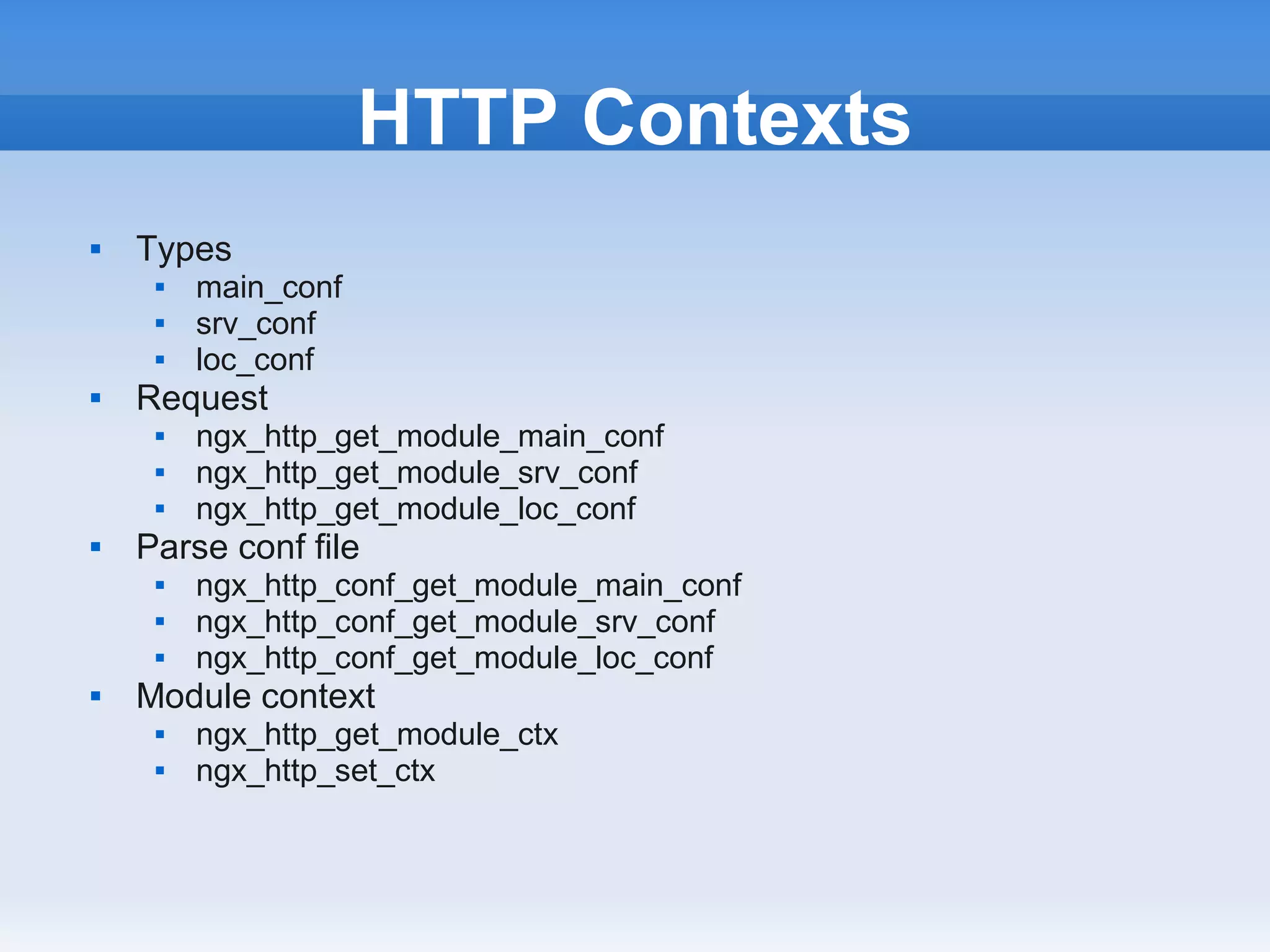

- 34. HTTP Contexts Types main_conf srv_conf loc_conf Request ngx_http_get_module_main_conf ngx_http_get_module_srv_conf ngx_http_get_module_loc_conf Parse conf file ngx_http_conf_get_module_main_conf ngx_http_conf_get_module_srv_conf ngx_http_conf_get_module_loc_conf Module context ngx_http_get_module_ctx ngx_http_set_ctx

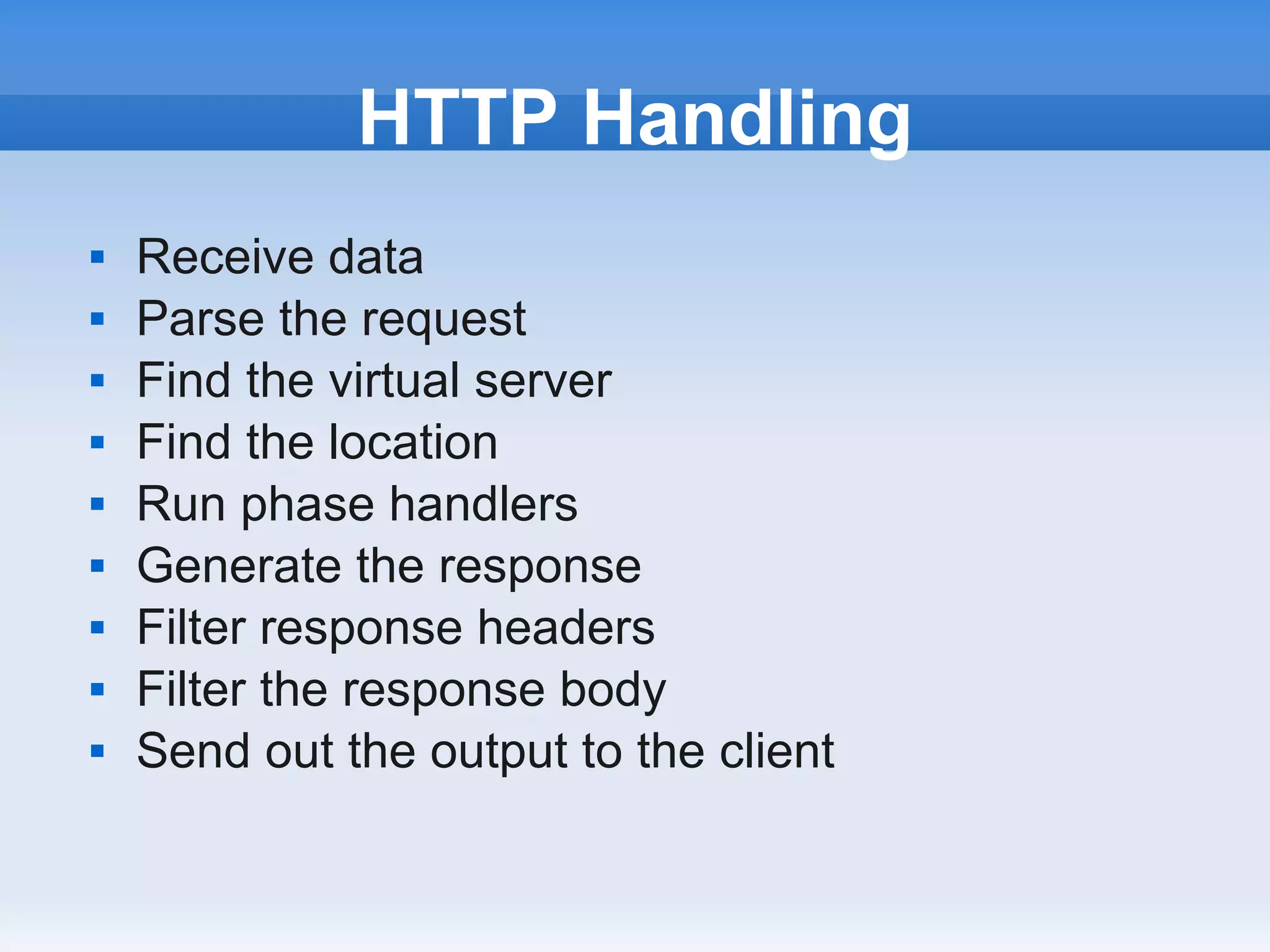

- 35. HTTP Handling Receive data Parse the request Find the virtual server Find the location Run phase handlers Generate the response Filter response headers Filter the response body Send out the output to the client

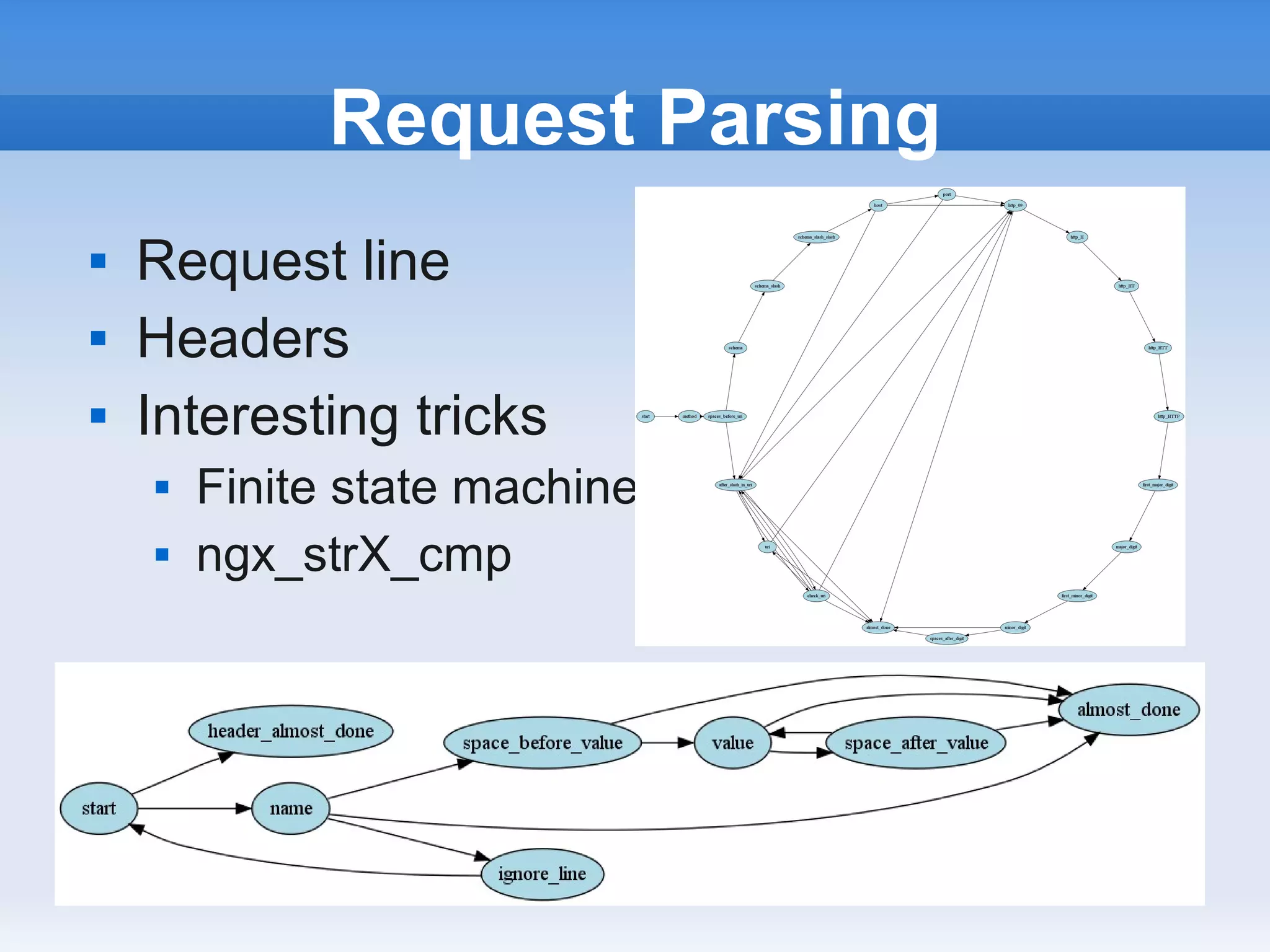

- 36. Request Parsing Request line Headers Interesting tricks Finite state machine ngx_strX_cmp

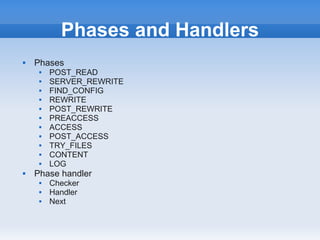

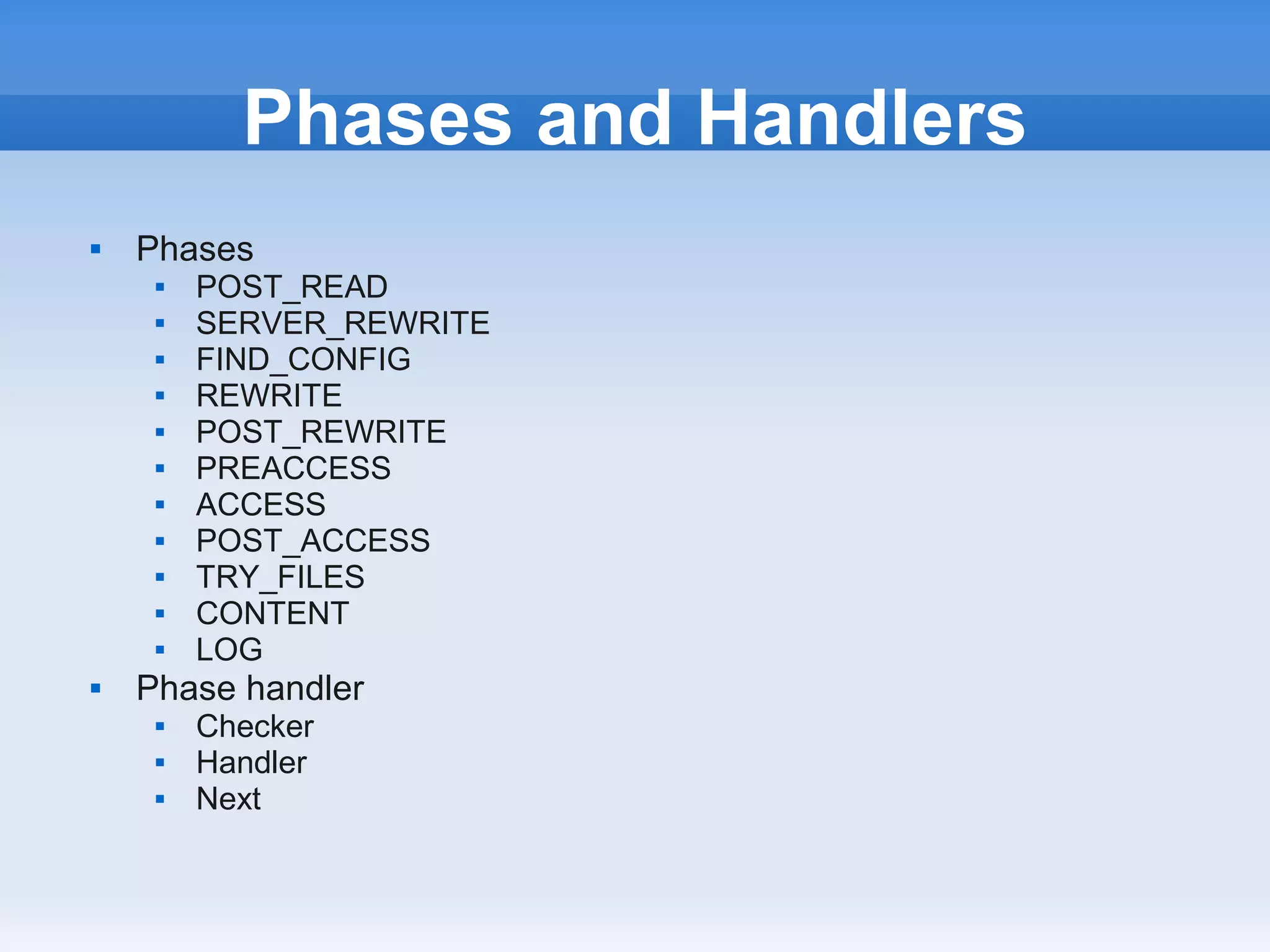

- 37. Phases and Handlers Phases POST_READ SERVER_REWRITE FIND_CONFIG REWRITE POST_REWRITE PREACCESS ACCESS POST_ACCESS TRY_FILES CONTENT LOG Phase handler Checker Handler Next

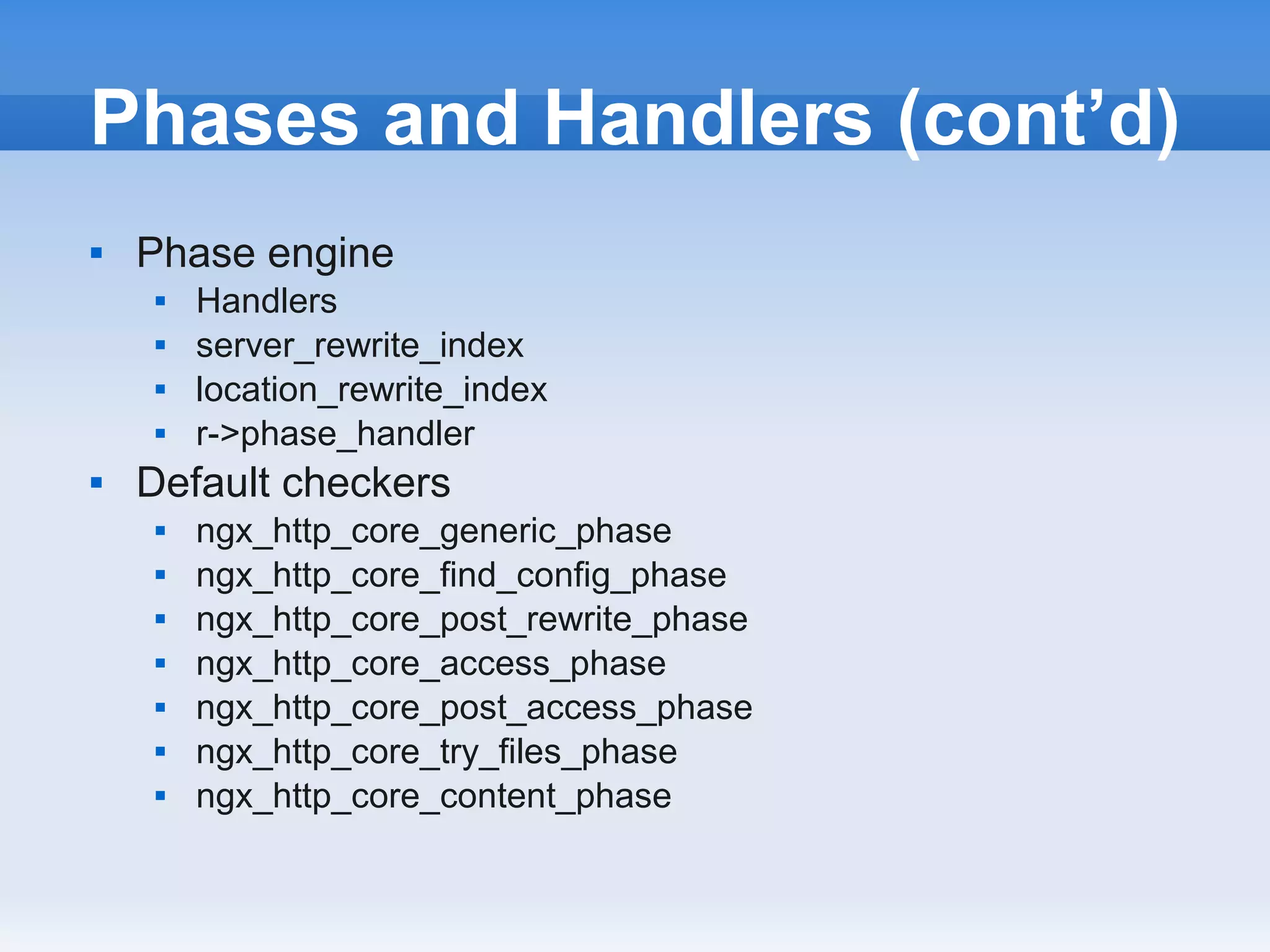

- 38. Phases and Handlers(cont’d) Phase engine Handlers server_rewrite_index location_rewrite_index r->phase_handler Default checkers ngx_http_core_generic_phase ngx_http_core_find_config_phase ngx_http_core_post_rewrite_phase ngx_http_core_access_phase ngx_http_core_post_access_phase ngx_http_core_try_files_phase ngx_http_core_content_phase

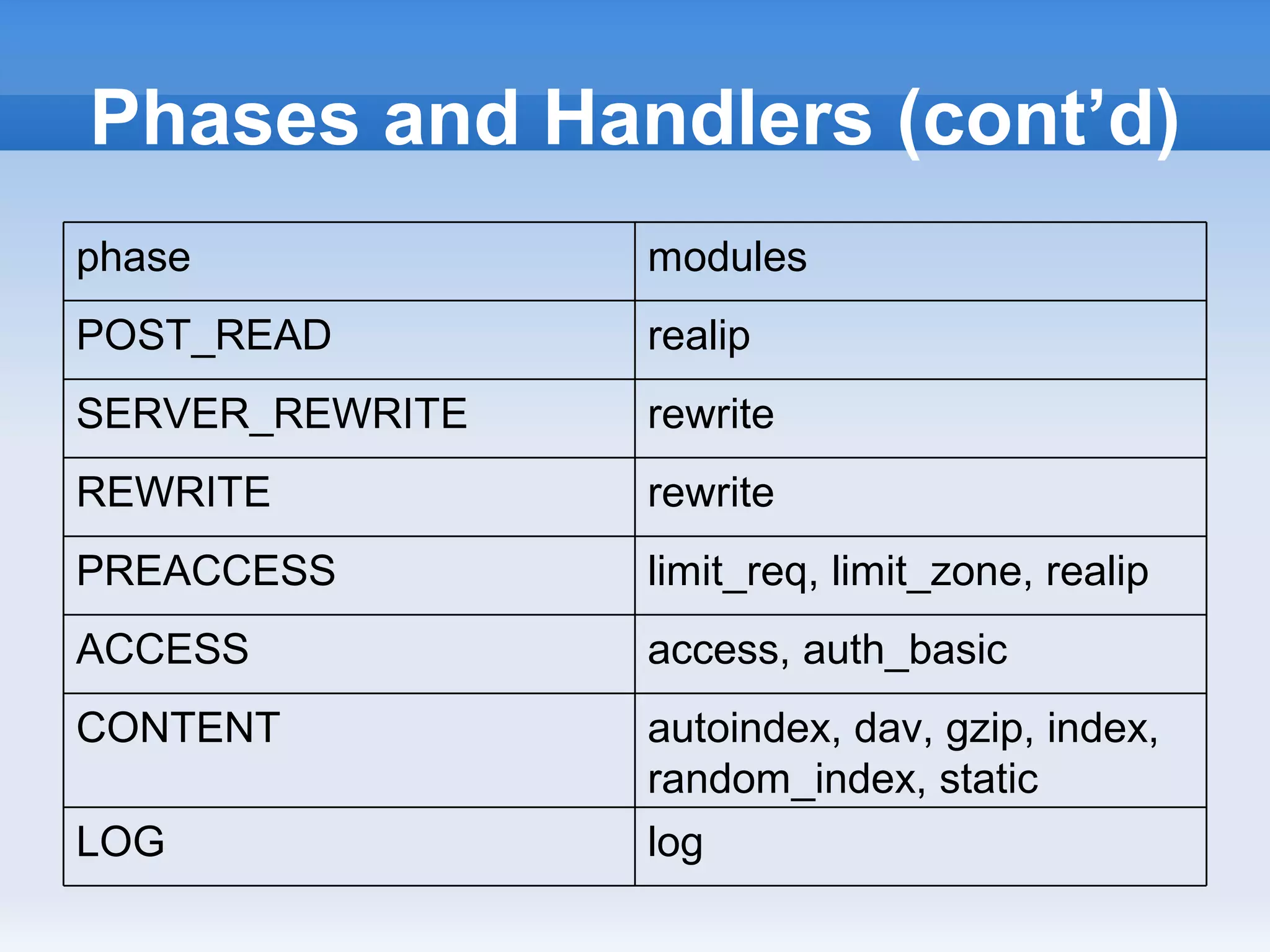

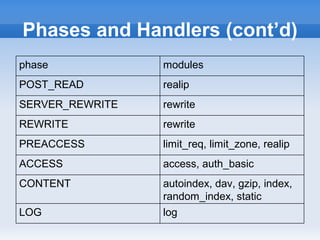

- 39. Phases and Handlers(cont’d) phase modules POST_READ realip SERVER_REWRITE rewrite REWRITE rewrite PREACCESS limit_req, limit_zone, realip ACCESS access, auth_basic CONTENT autoindex, dav, gzip, index, random_index, static LOG log

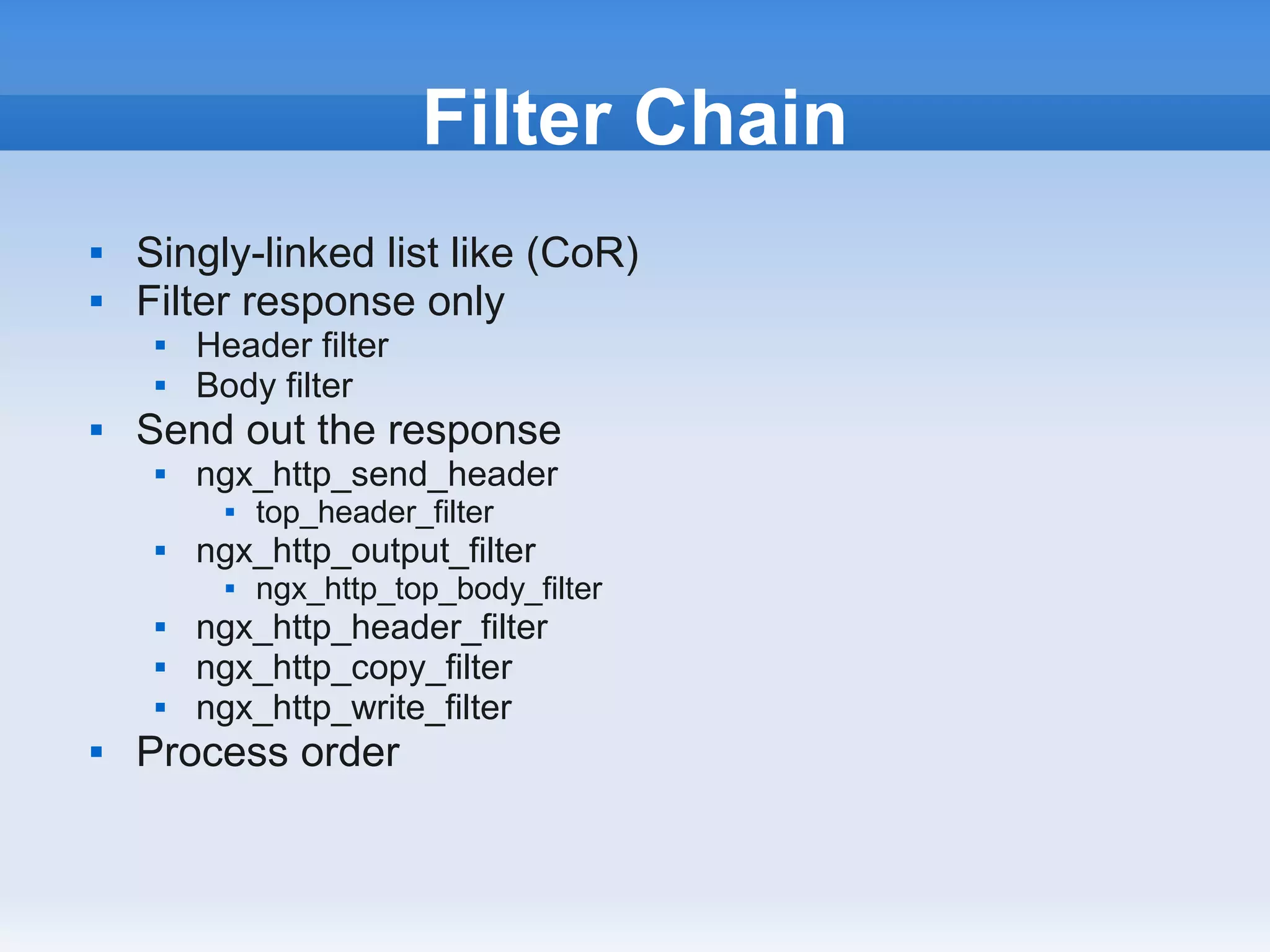

- 40. Filter Chain Singly-linked list like (CoR) Filter response only Header filter Body filter Send out the response ngx_http_send_header top_header_filter ngx_http_output_filter ngx_http_top_body_filter ngx_http_header_filter ngx_http_copy_filter ngx_http_write_filter Process order

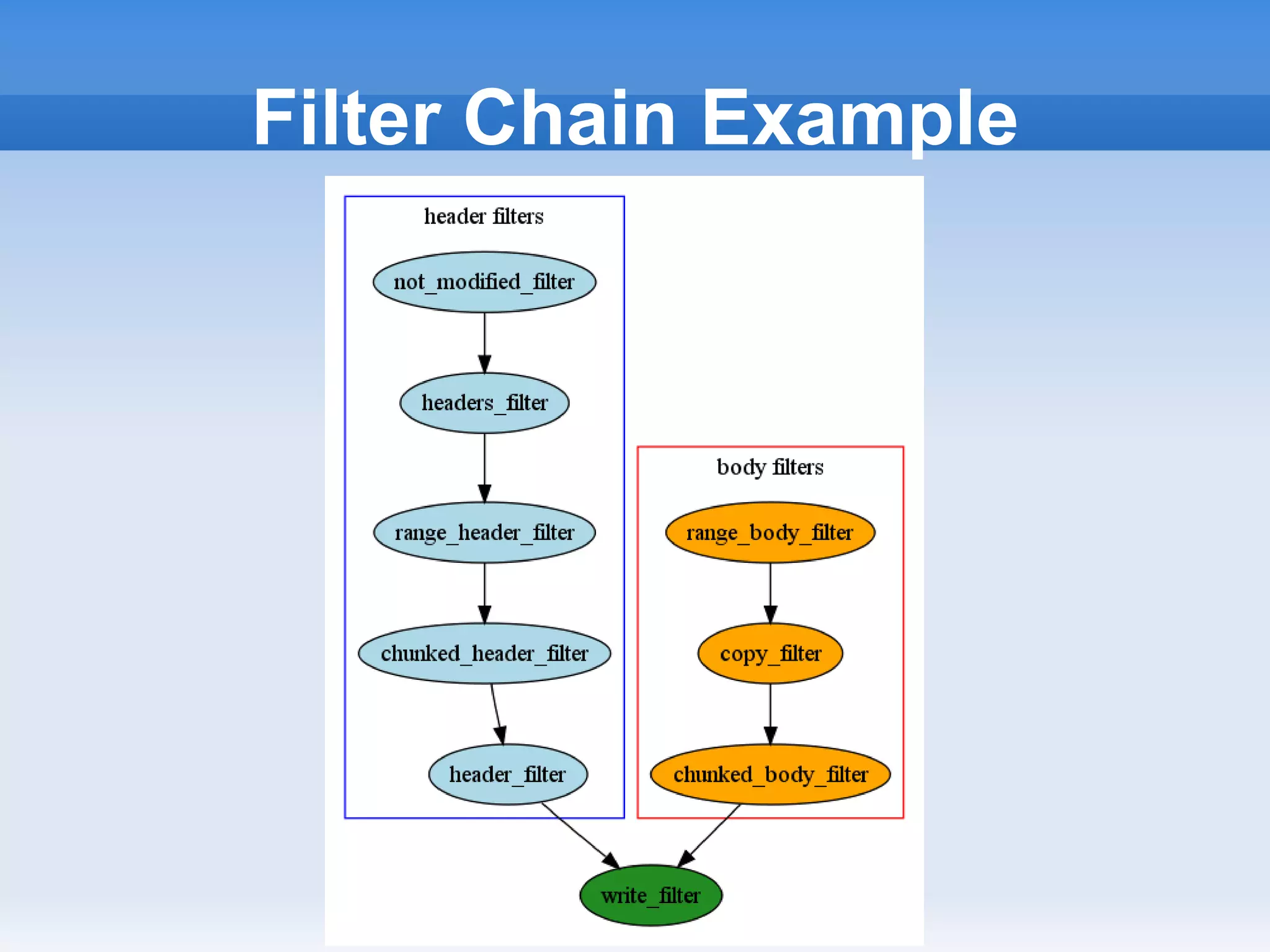

- 41.

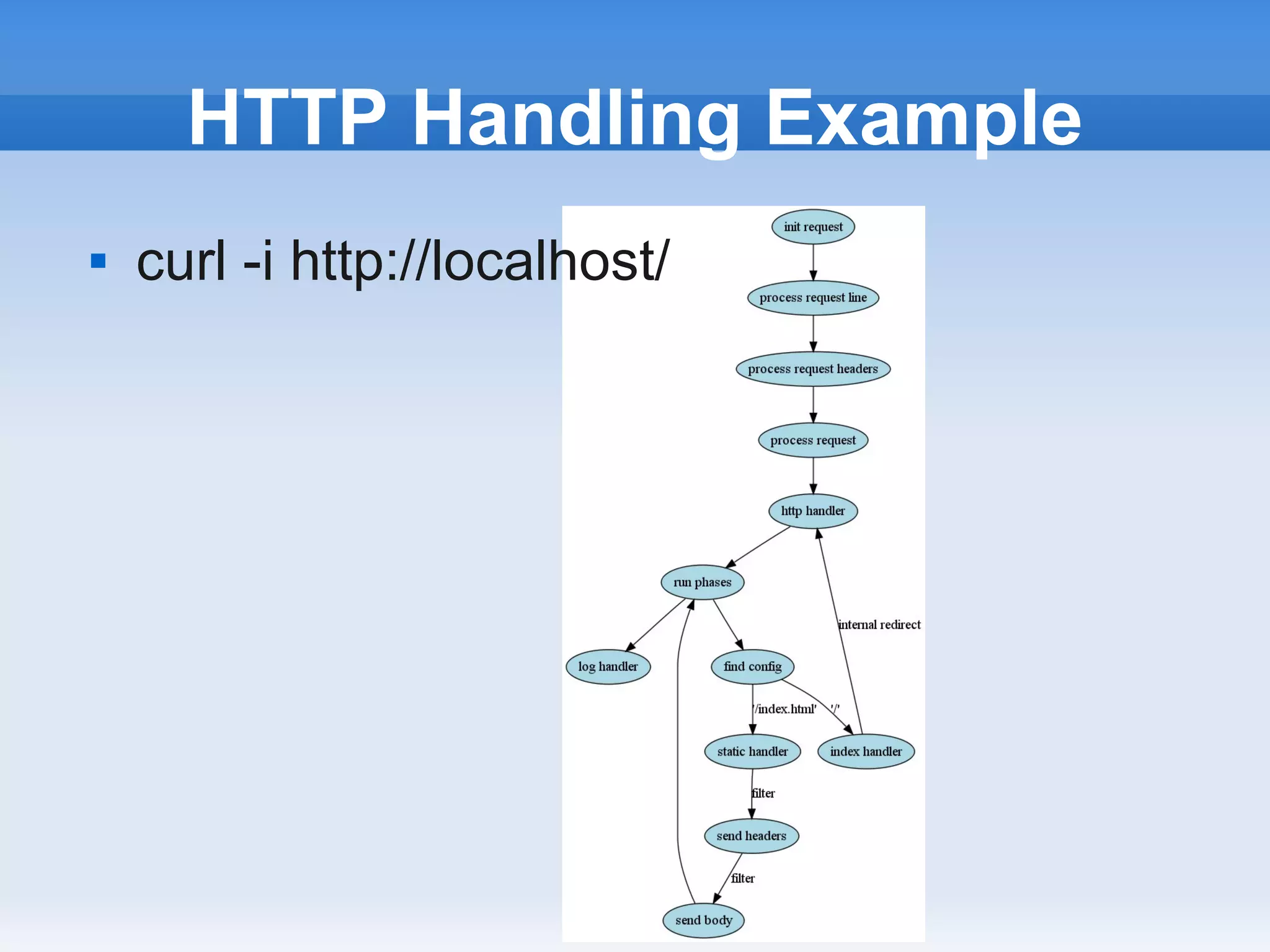

- 42. HTTP Handling Example curl -i http://localhost/

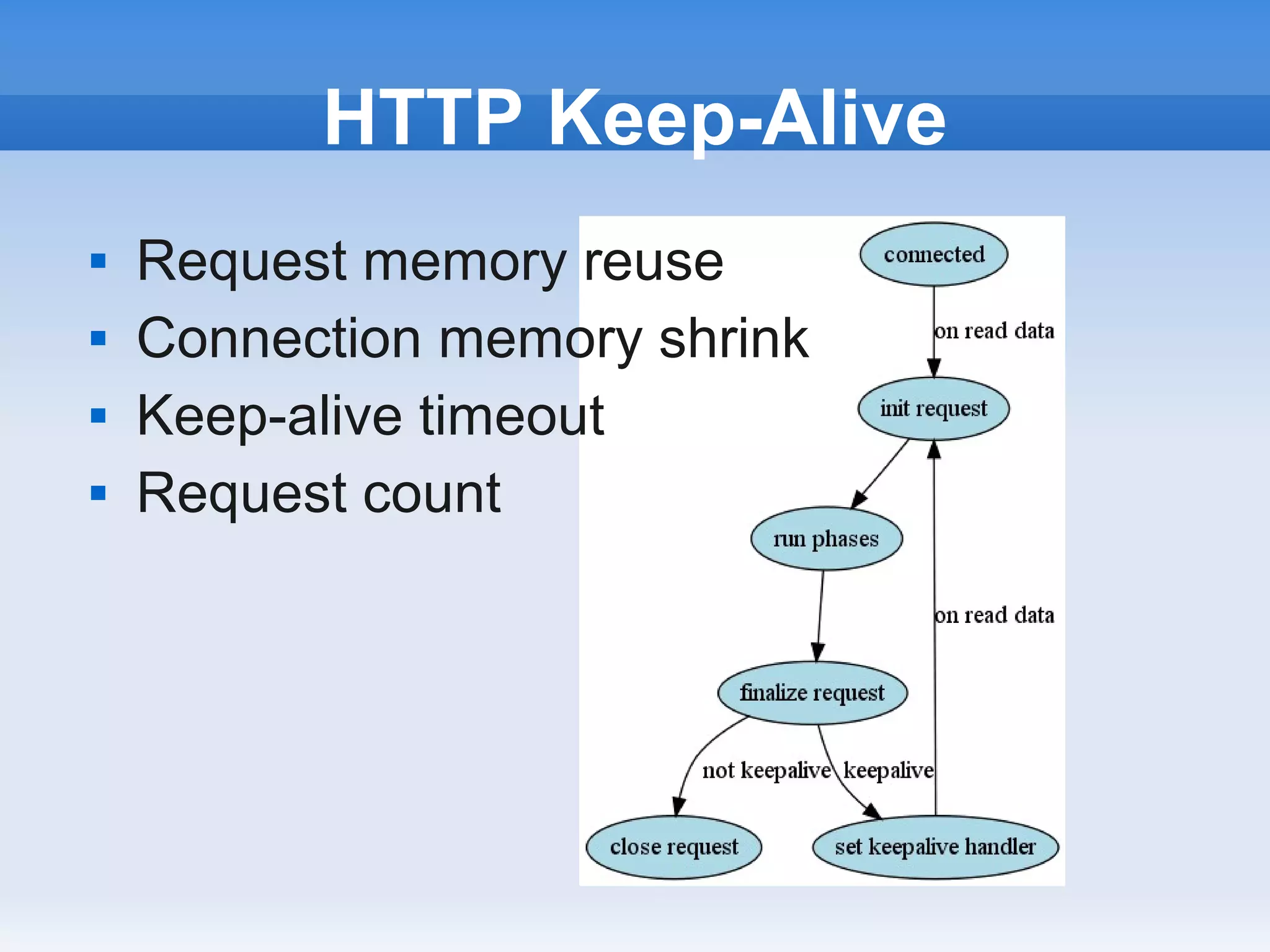

- 43. HTTP Keep-Alive Request memory reuse Connection memory shrink Keep-alive timeout Request count

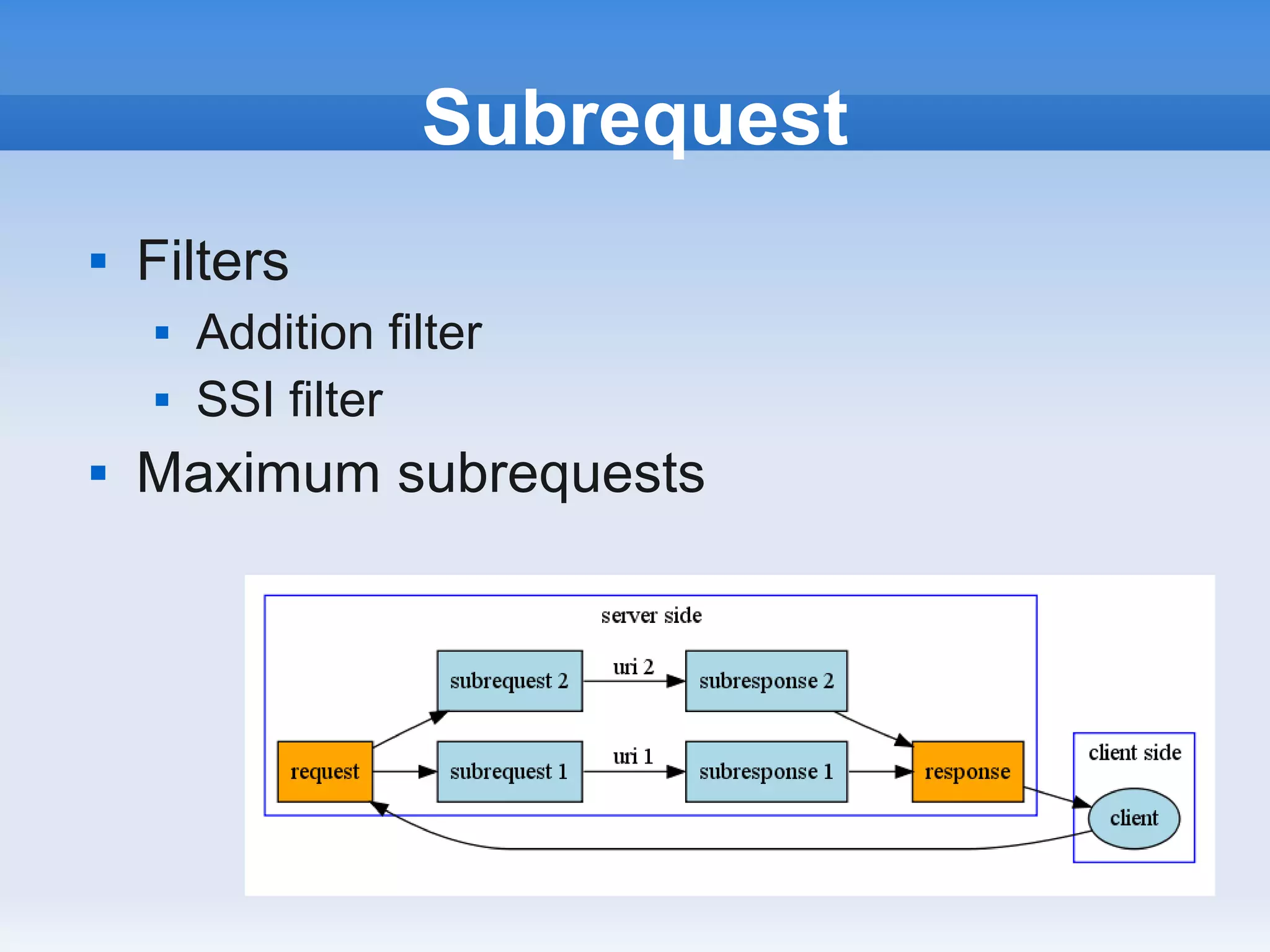

- 44. Subrequest Filters Addition filter SSI filter Maximum subrequests

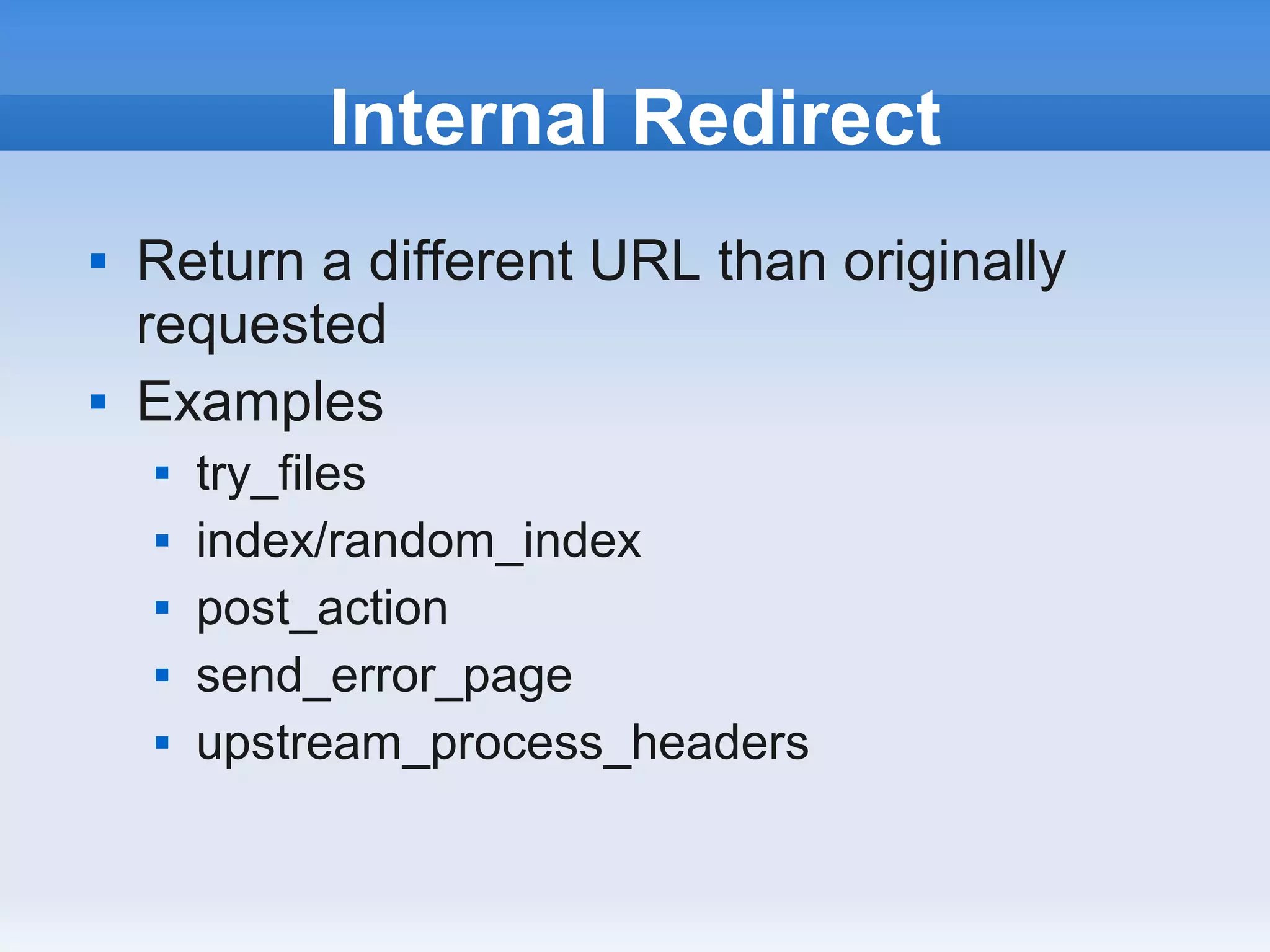

- 45. Internal Redirect Return a different URL than originally requested Examples try_files index/random_index post_action send_error_page upstream_process_headers

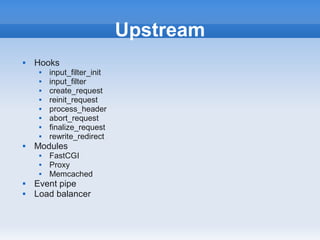

- 46. Upstream Hooks input_filter_init input_filter create_request reinit_request process_header abort_request finalize_request rewrite_redirect Modules FastCGI Proxy Memcached Event pipe Load balancer

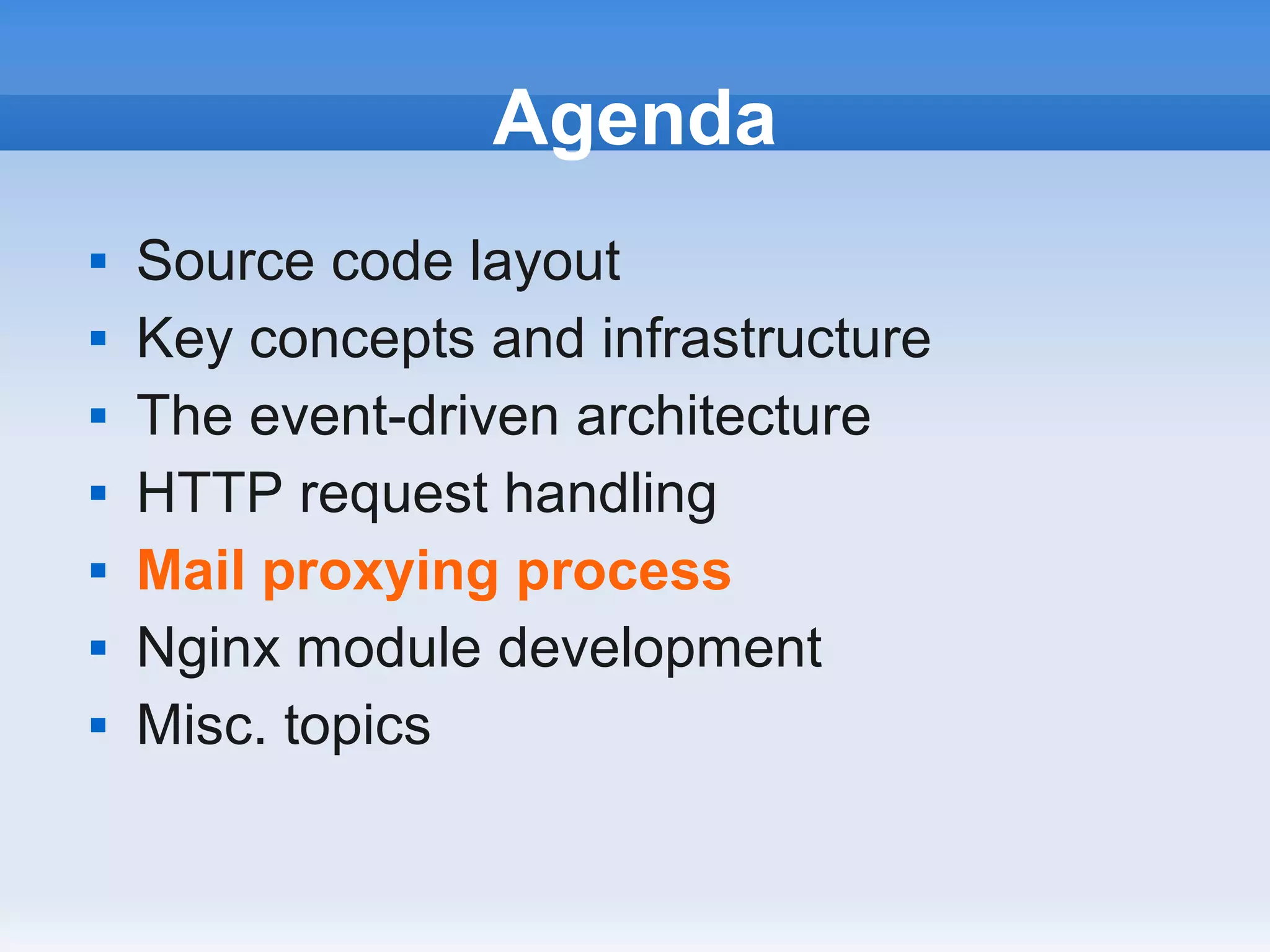

- 47. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

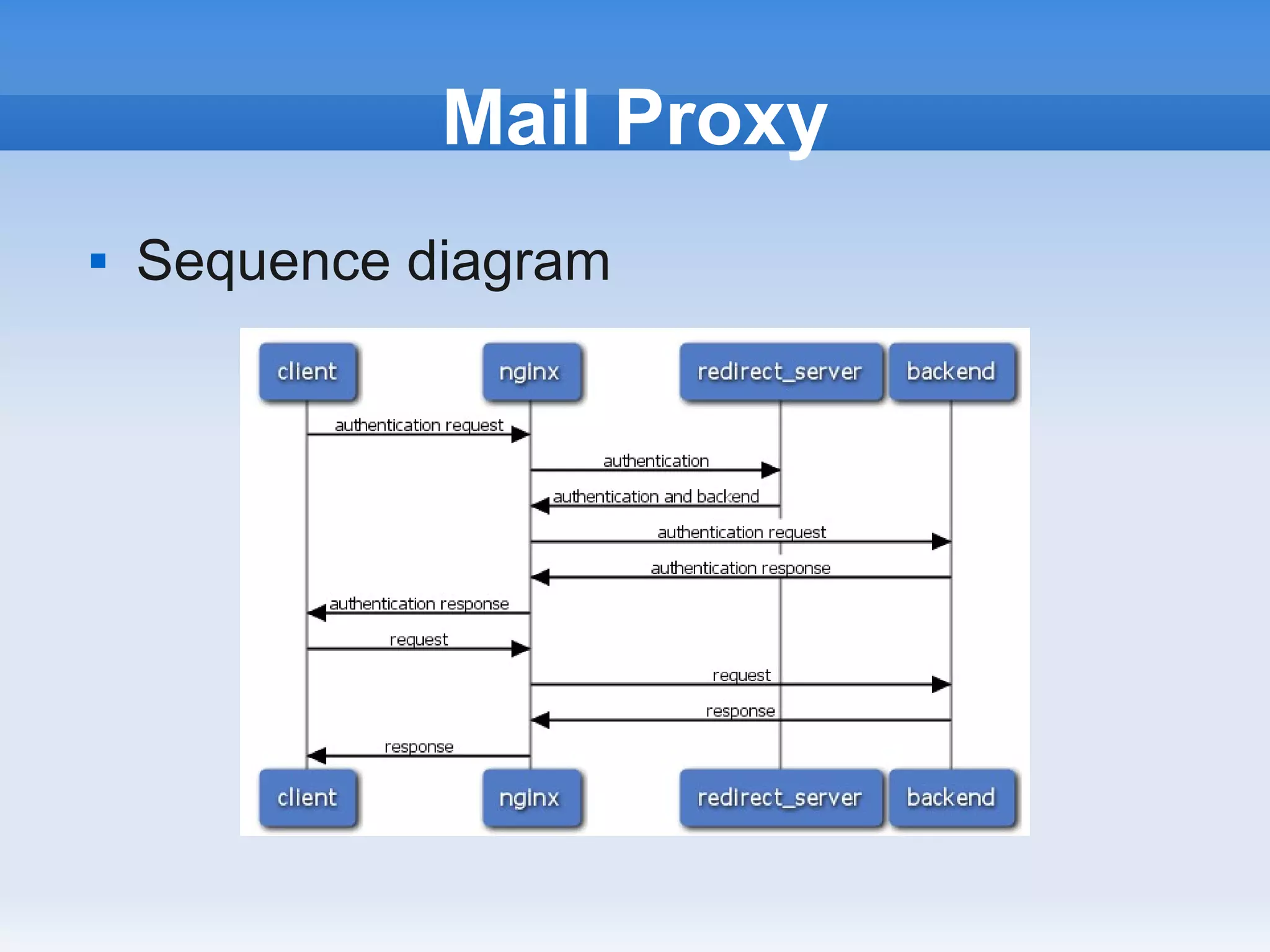

- 48. Mail Proxy Sequence diagram

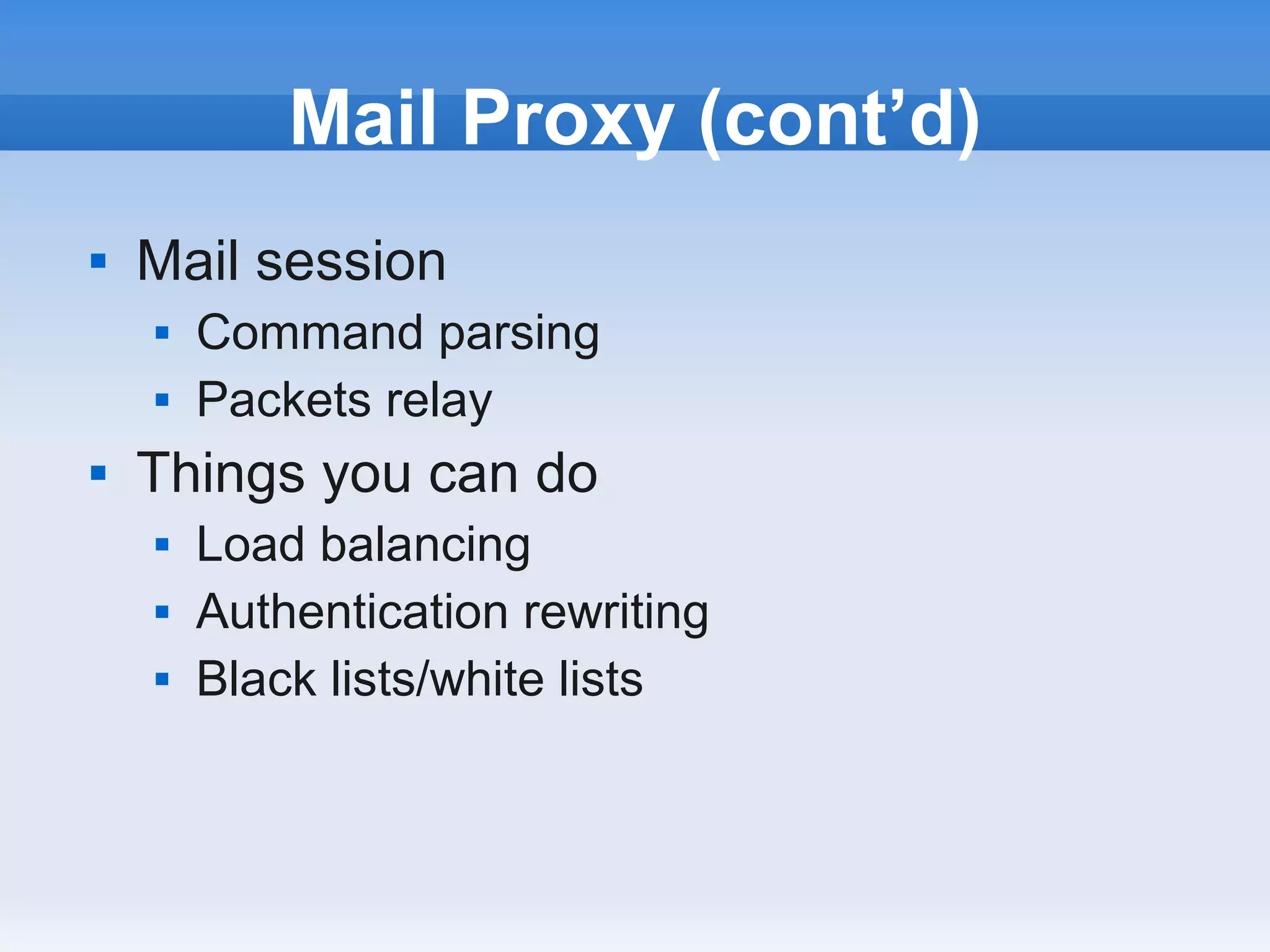

- 49. Mail Proxy (cont’d) Mail session Command parsing Packets relay Things you can do Load balancing Authentication rewriting Black lists/white lists

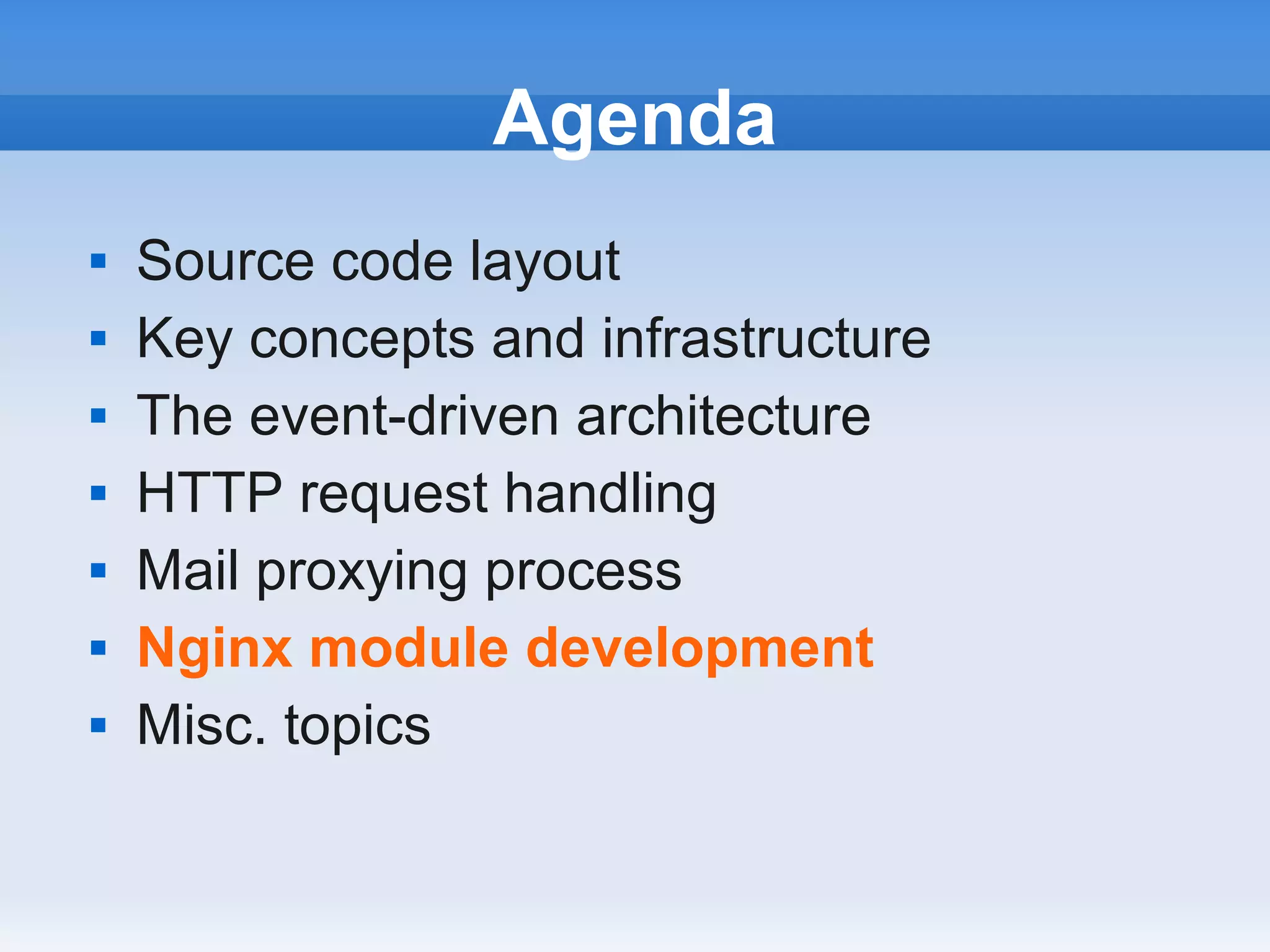

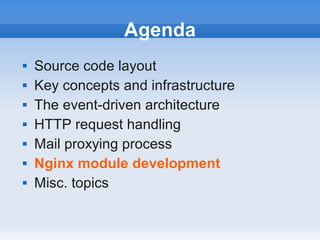

- 50. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

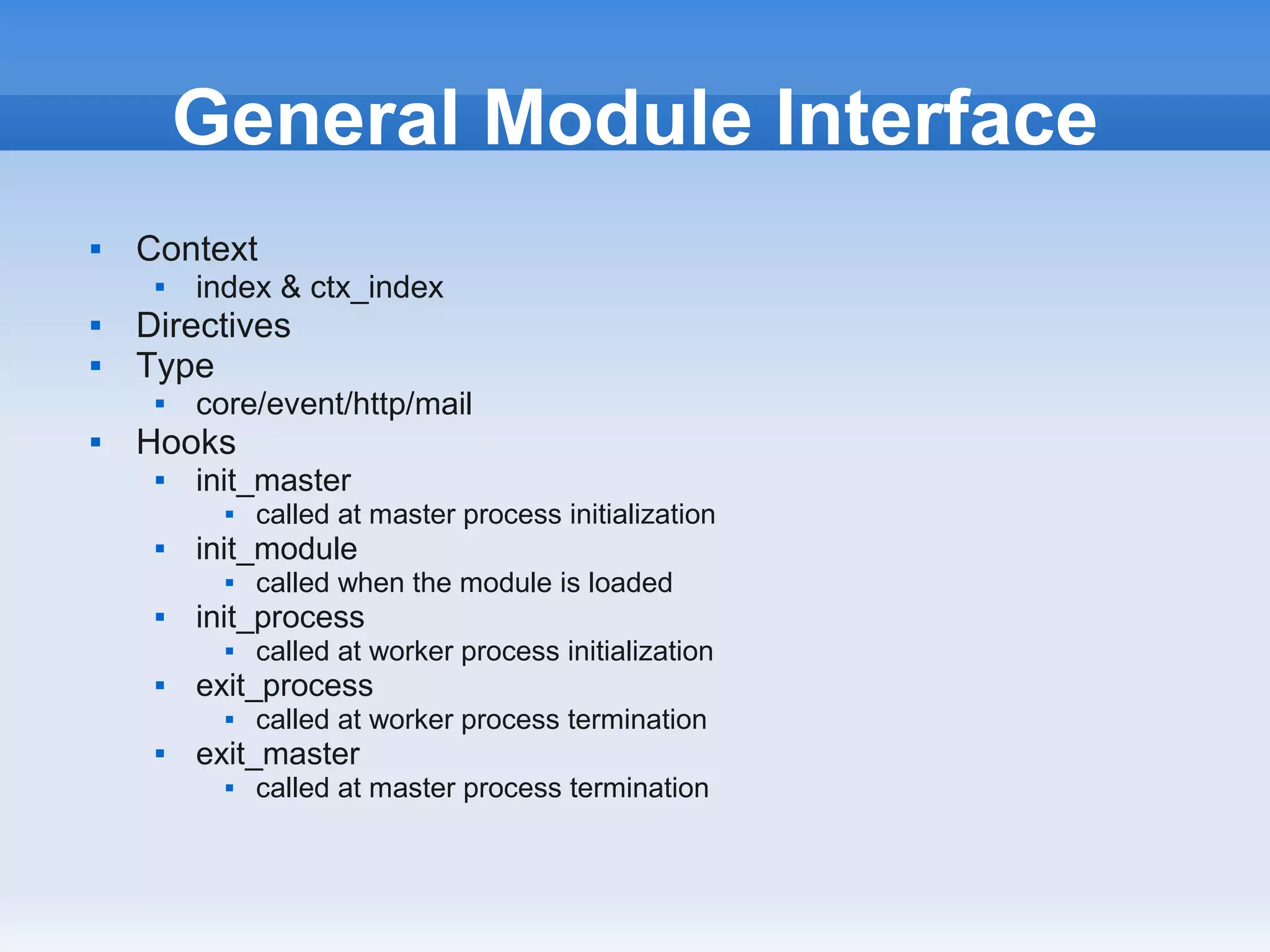

- 51. General Module Interface Context index & ctx_index Directives Type core/event/http/mail Hooks init_master called at master process initialization init_module called when the module is loaded init_process called at worker process initialization exit_process called at worker process termination exit_master called at master process termination

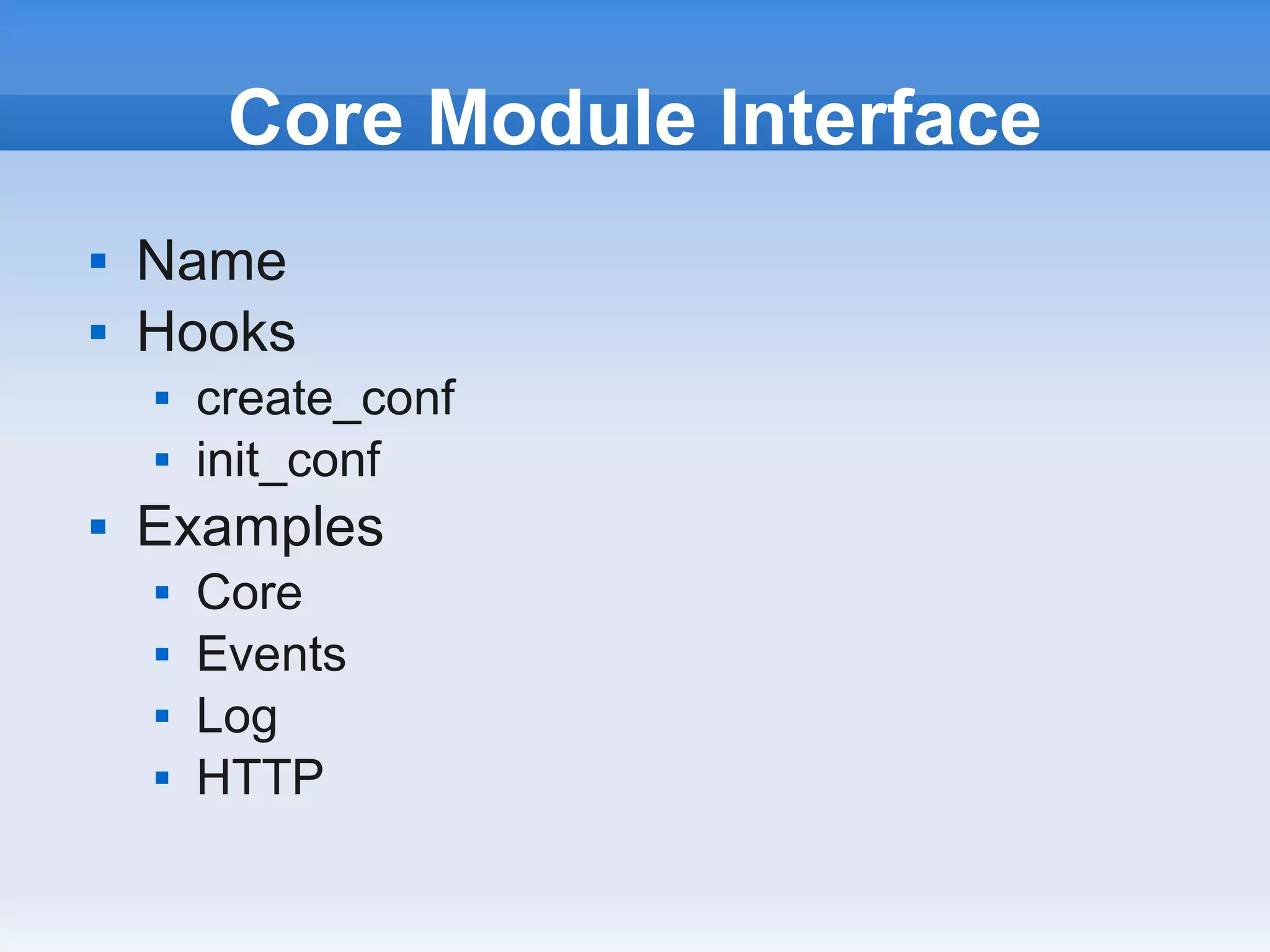

- 52. Core Module Interface Name Hooks create_conf init_conf Examples Core Events Log HTTP

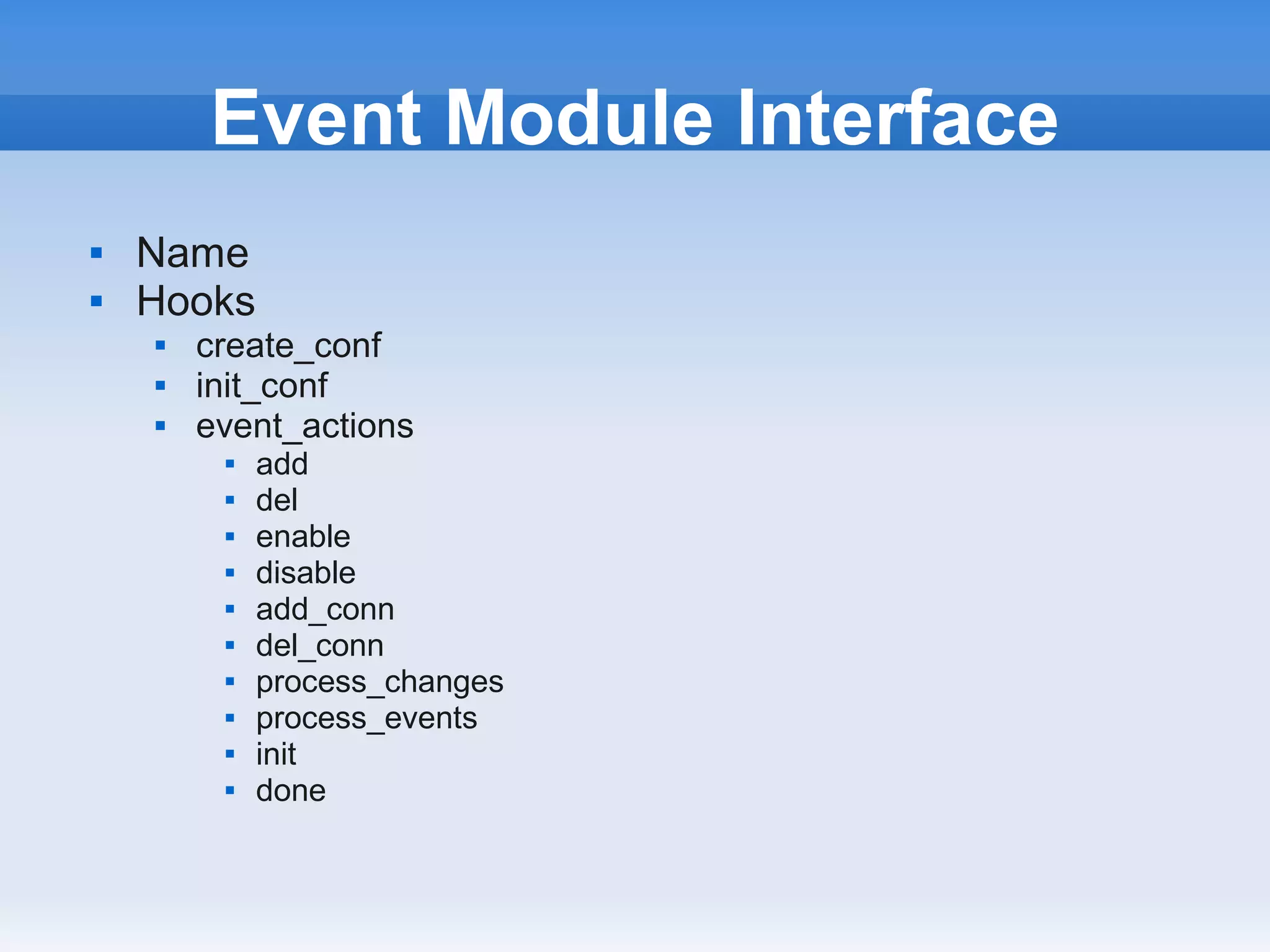

- 53. Event Module Interface Name Hooks create_conf init_conf event_actions add del enable disable add_conn del_conn process_changes process_events init done

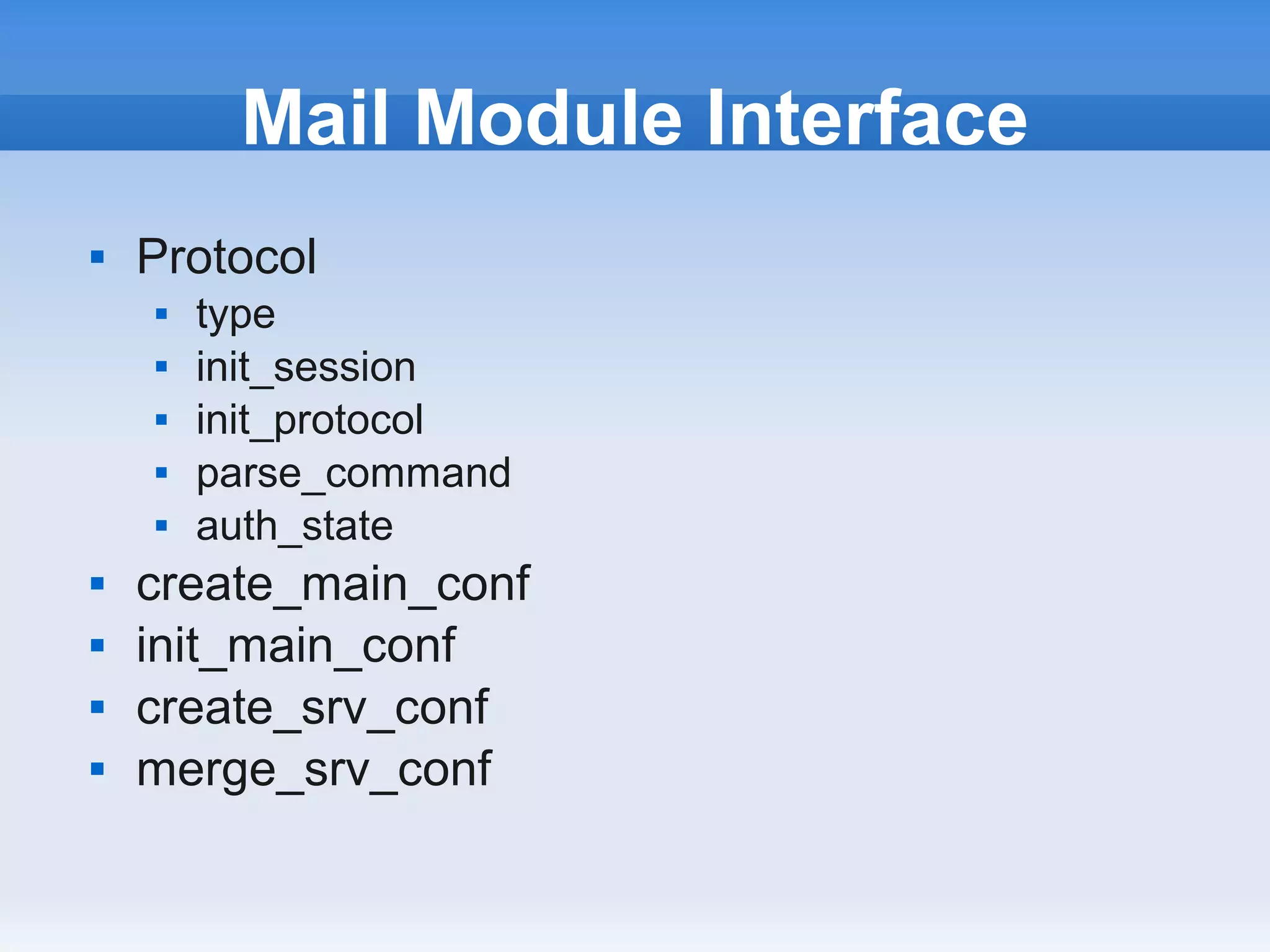

- 54. Mail Module Interface Protocol type init_session init_protocol parse_command auth_state create_main_conf init_main_conf create_srv_conf merge_srv_conf

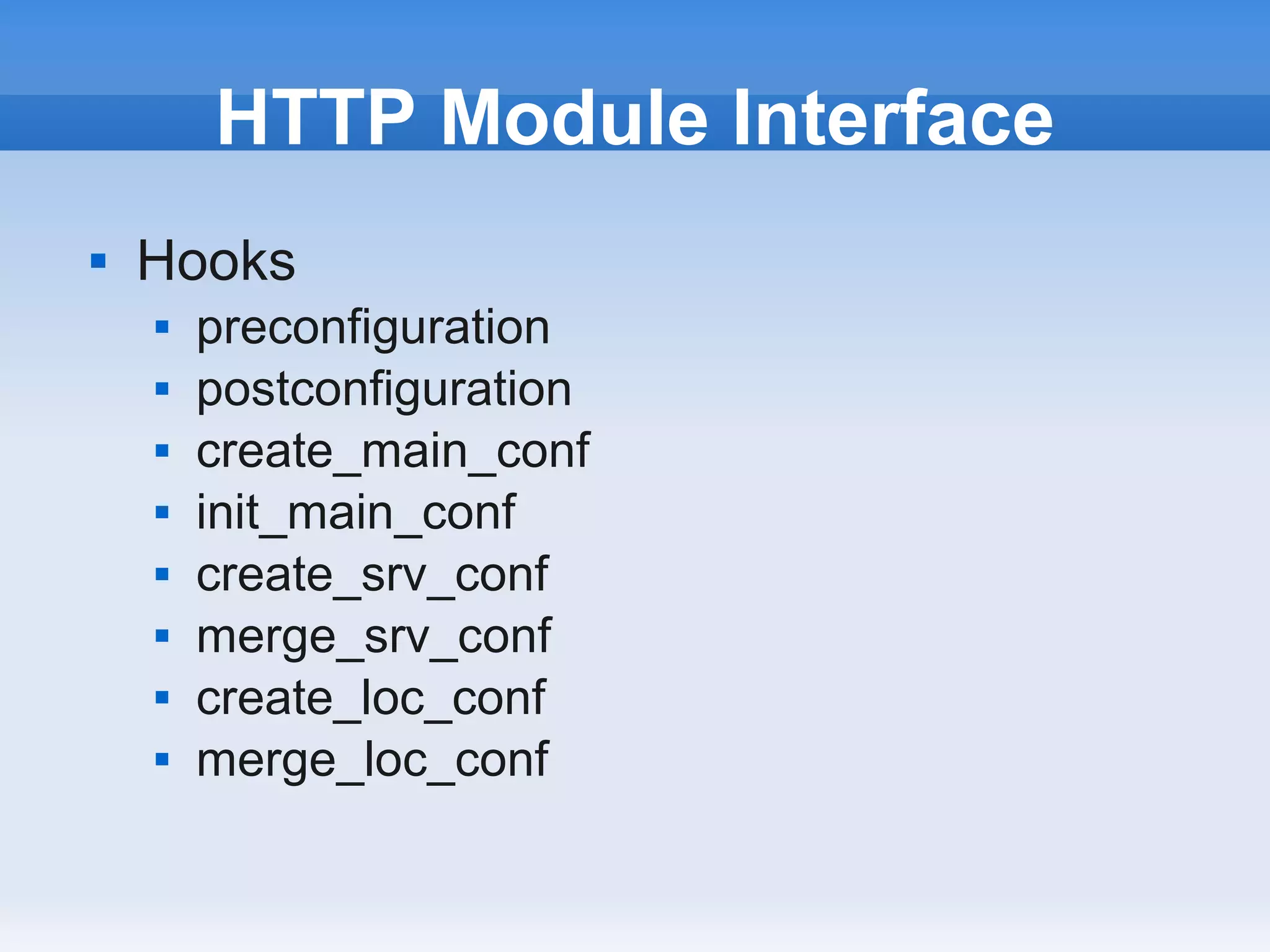

- 55. HTTP Module Interface Hooks preconfiguration postconfiguration create_main_conf init_main_conf create_srv_conf merge_srv_conf create_loc_conf merge_loc_conf

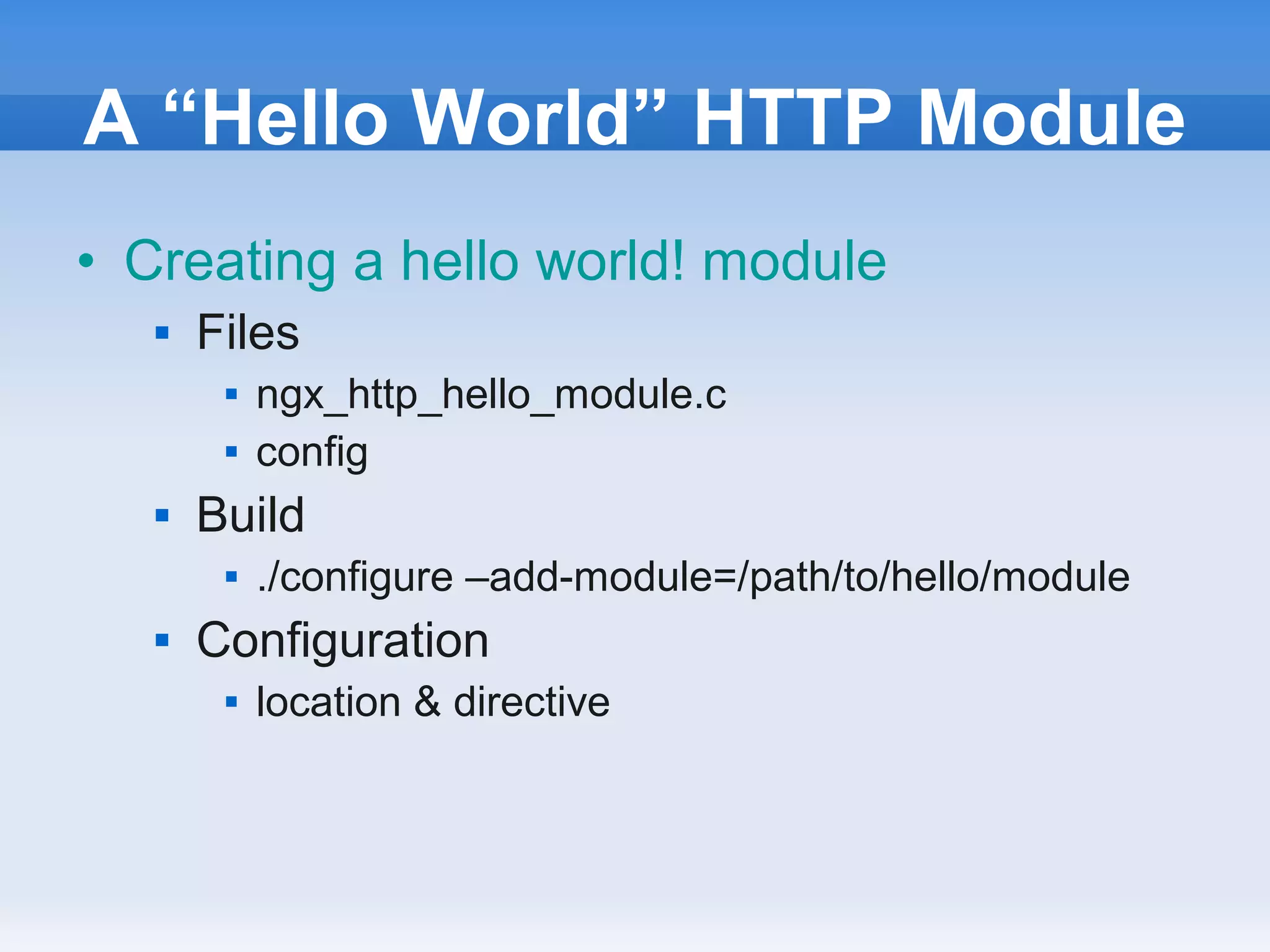

- 56. A “Hello World”HTTP Module • Creating a hello world! module Files ngx_http_hello_module.c config Build ./configure –add-module=/path/to/hello/module Configuration location & directive

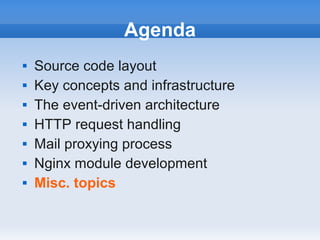

- 57. Agenda Source code layout Key concepts and infrastructure The event-driven architecture HTTP request handling Mail proxying process Nginx module development Misc. topics

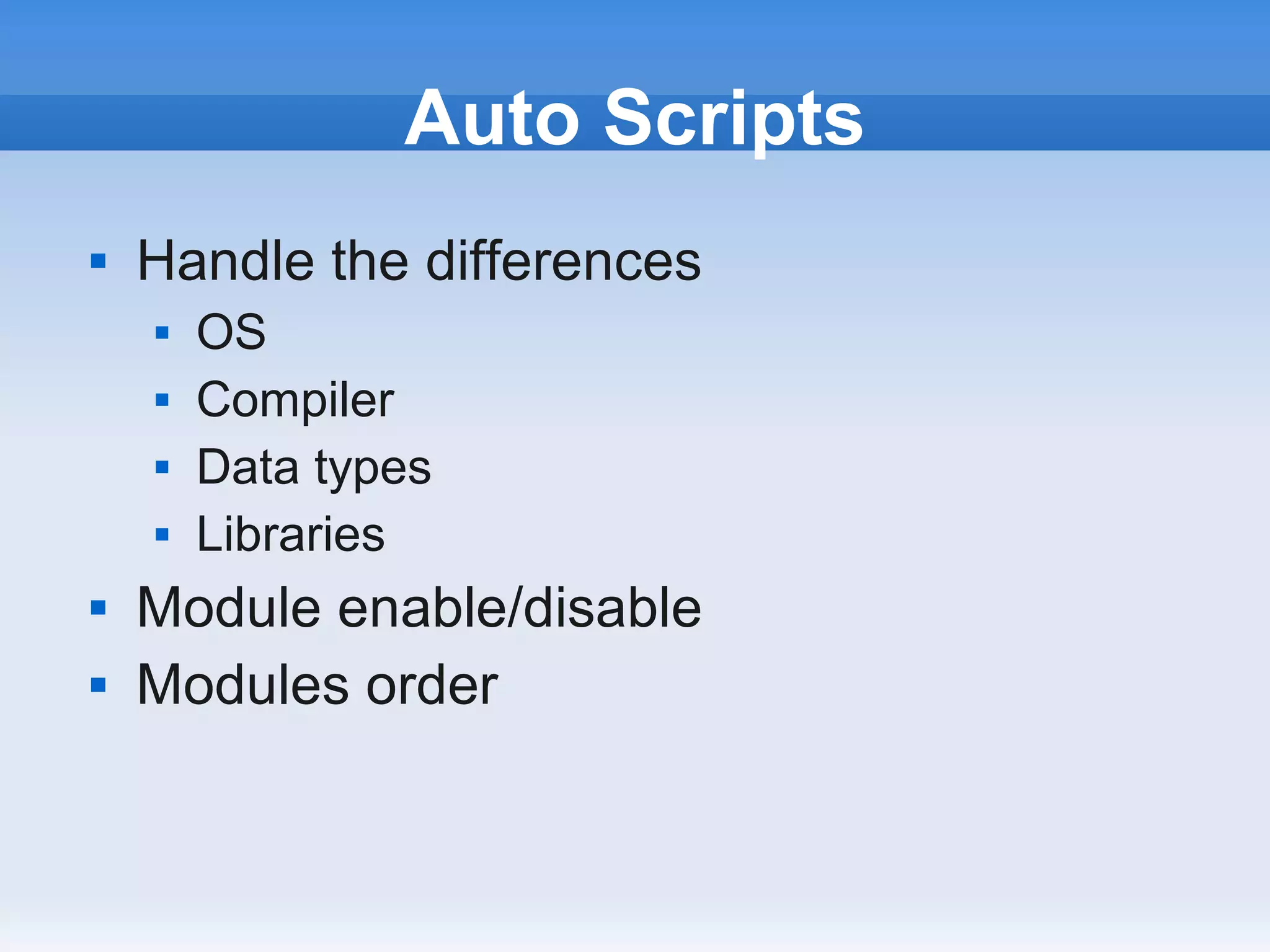

- 58. Auto Scripts Handle the differences OS Compiler Data types Libraries Module enable/disable Modules order

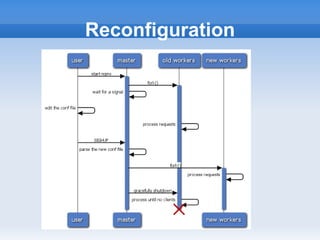

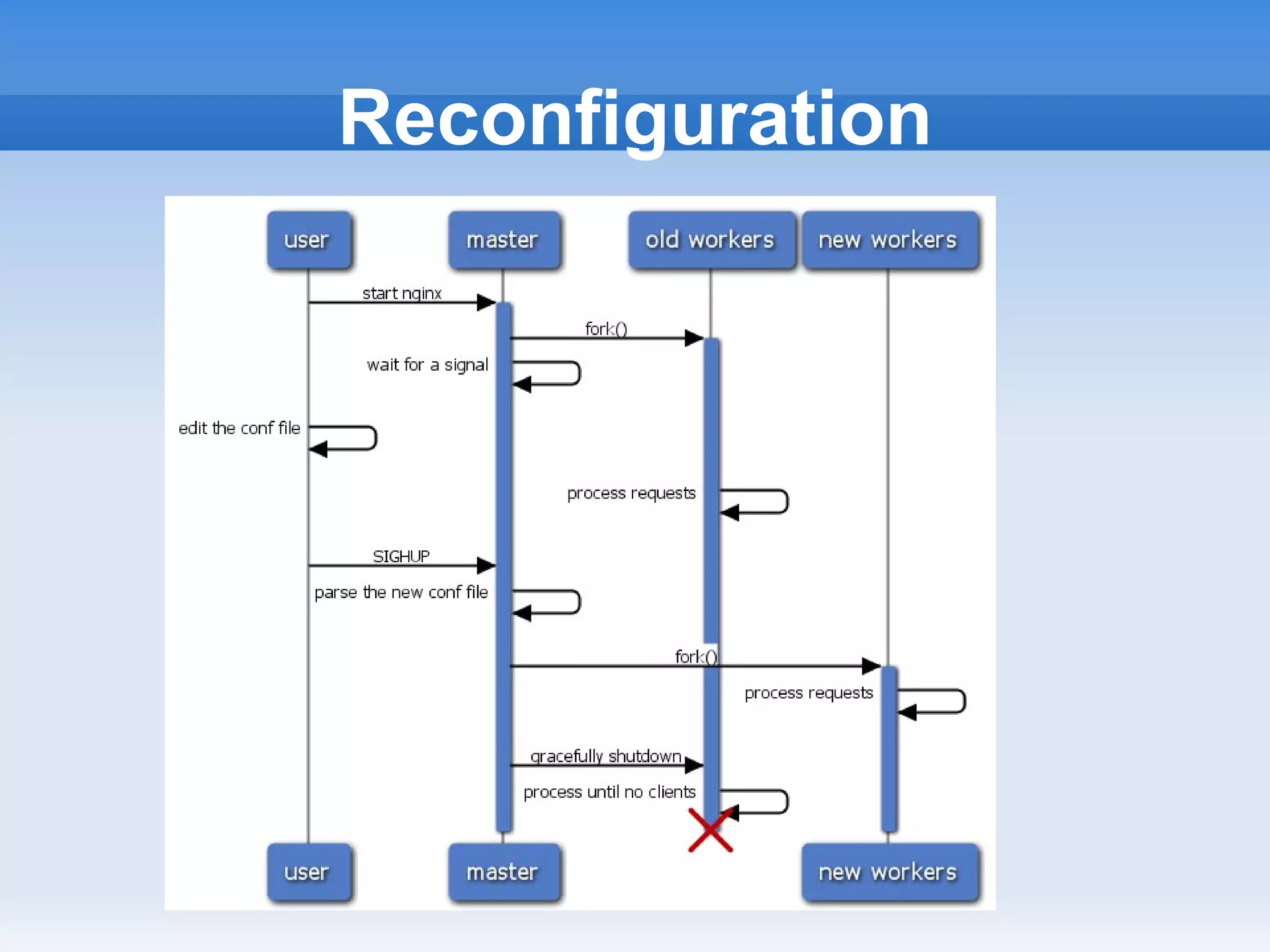

- 59.

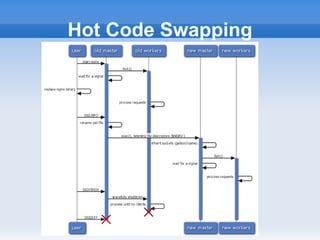

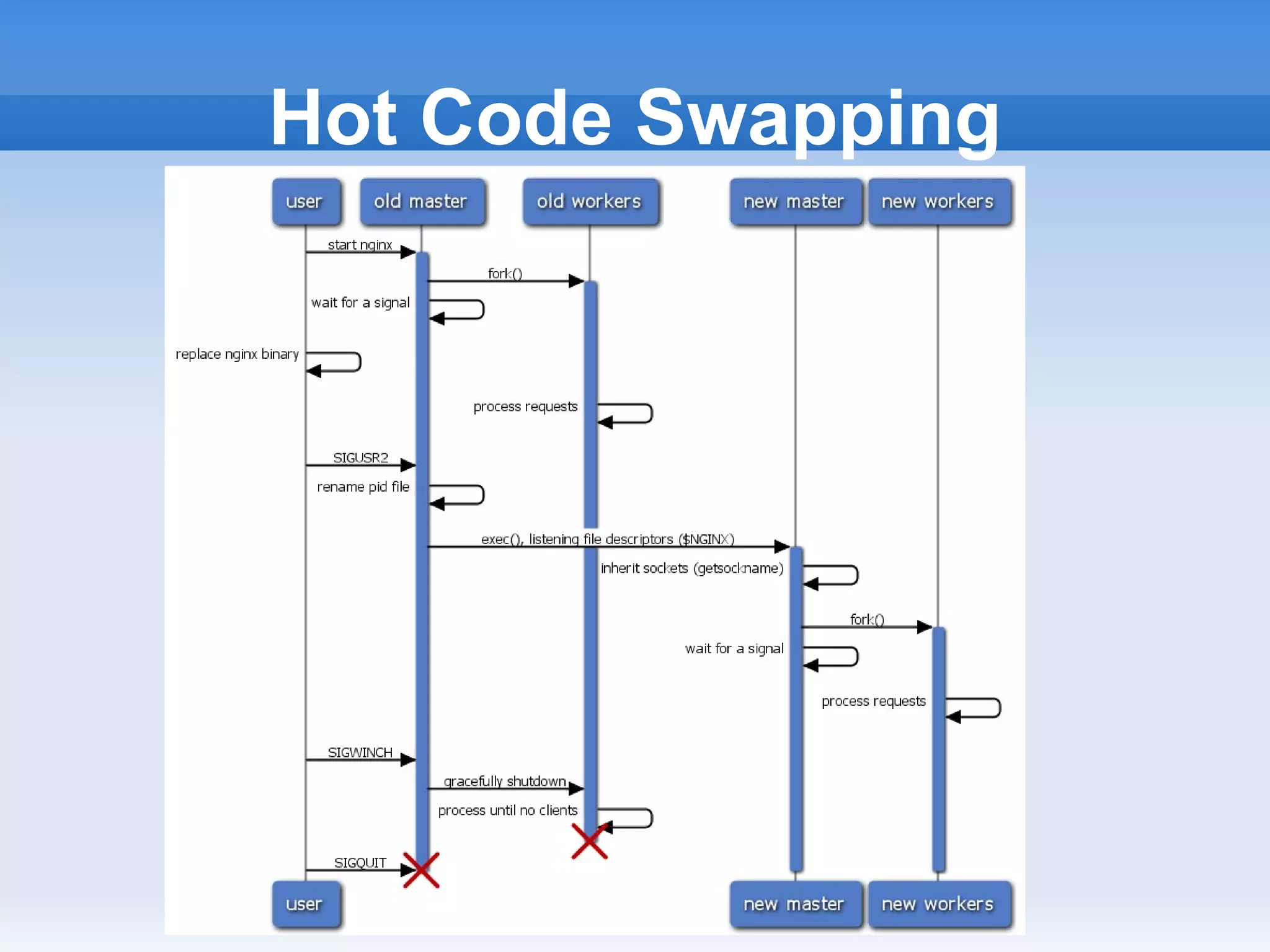

- 60.
- 61. Thank You! My site: http://www.zhuzhaoyuan.com My blog: http://blog.zhuzhaoyuan.com
