NLP Classifier Models & Metrics
The document outlines various NLP classifier models and metrics, including tfidf and word2vec features, feedforward neural networks, CNNs, and Siamese networks, as well as the importance of text preprocessing and quality training data. It discusses model evaluation metrics such as accuracy, precision, recall, ROC, and AUC, emphasizing their relevance in assessing model performance. Additionally, the document touches upon transfer learning, activation functions, and convolutional layers in deep learning for text classification tasks.
More Related Content
Similar to NLP Classifier Models & Metrics
![RTP_AR_Basic_Learners' Workbook_KS2 [FOR REPRODUCTION] (1).pdf](https://cdn.slidesharecdn.com/ss_thumbnails/rtparbasiclearnersworkbookks2forreproduction1-251016024943-e51a16ac-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
NLP Classifier Models & Metrics
- 1. NLP Classifier Models &Metrics Sanghamitra Deb Staff Data Scientist Chegg Inc

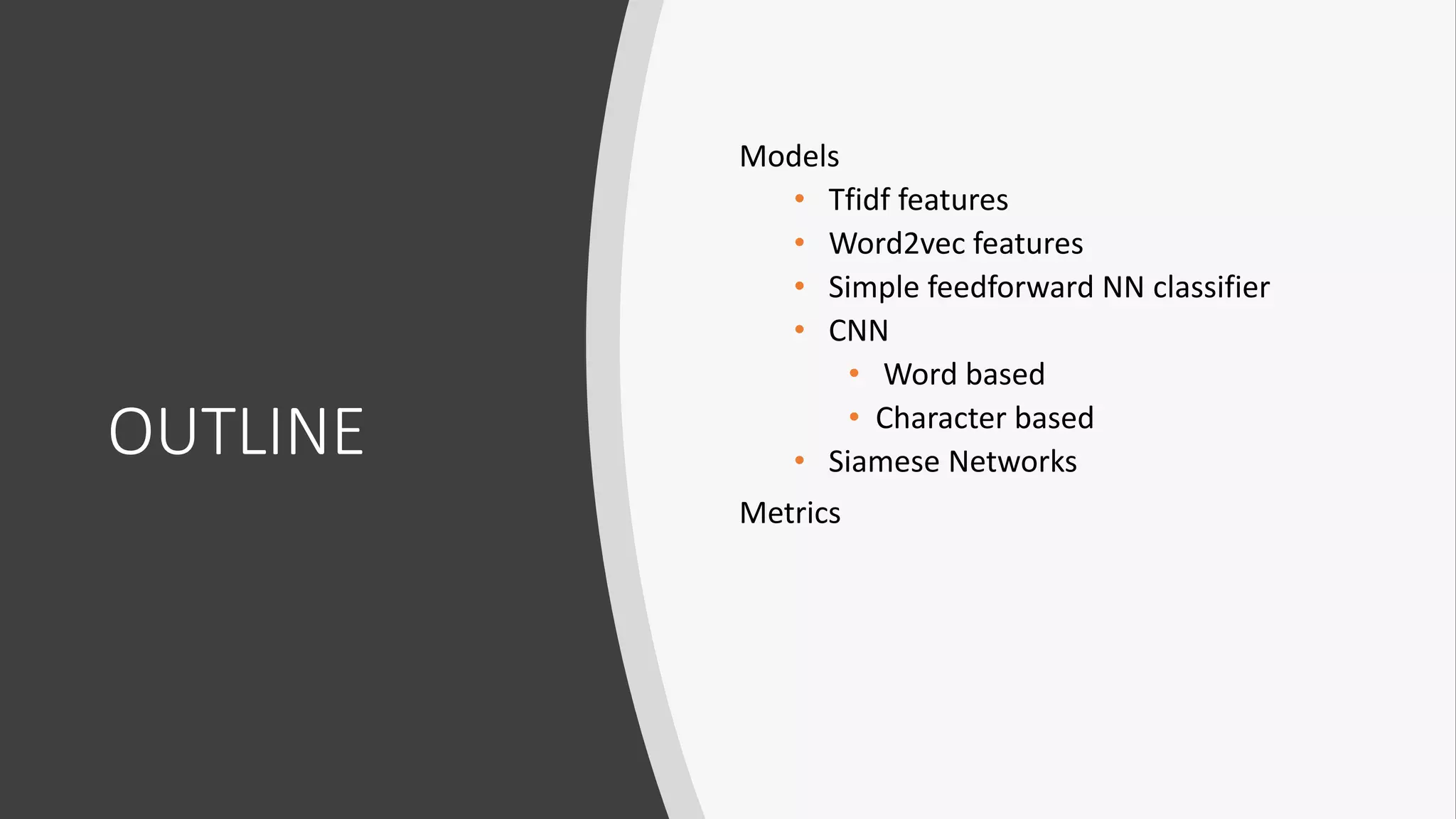

- 2. OUTLINE Models • Tfidf features •Word2vec features • Simple feedforward NN classifier • CNN • Word based • Character based • Siamese Networks Metrics

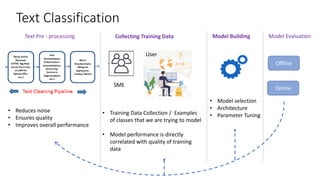

- 3. Text Classification Text Pre- processing Collecting Training Data Model Building Offline SME • Reduces noise • Ensures quality • Improves overall performance • Training Data Collection / Examples of classes that we are trying to model • Model performance is directly correlated with quality of training data • Model selection • Architecture • Parameter Tuning User Online Model Evaluation
- 4. Applicable for textbased classifications • Removing special characters. • Cleaning numbers. • Removing misspellings Peter Norvig’s spell checker. https://norvig.com/spell-correct.html Using Google word2vec vocabulary to identify misspelled words. https://mlwhiz.com/blog/2019/01/17/deeple arning_nlp_preprocess/ • Removing contracted words --- contraction_dict = {"ain't": "is not", "aren't": "are not","can't": "cannot”, …} Preprocessing! --- Project specific

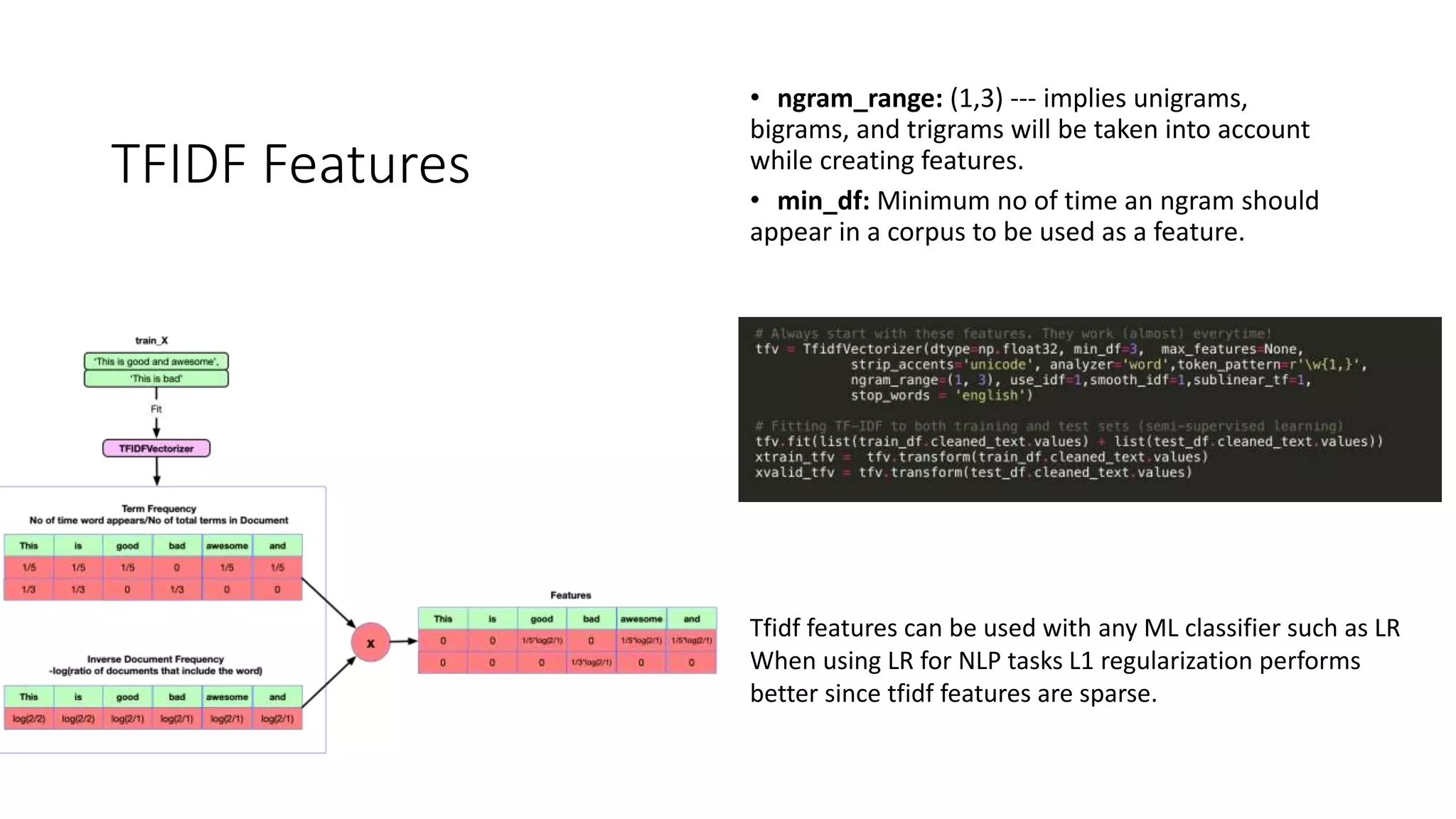

- 5. TFIDF Features • ngram_range:(1,3) --- implies unigrams, bigrams, and trigrams will be taken into account while creating features. • min_df: Minimum no of time an ngram should appear in a corpus to be used as a feature. Tfidf features can be used with any ML classifier such as LR When using LR for NLP tasks L1 regularization performs better since tfidf features are sparse.

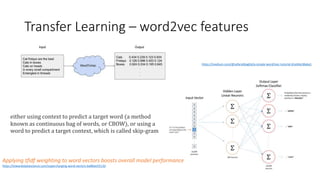

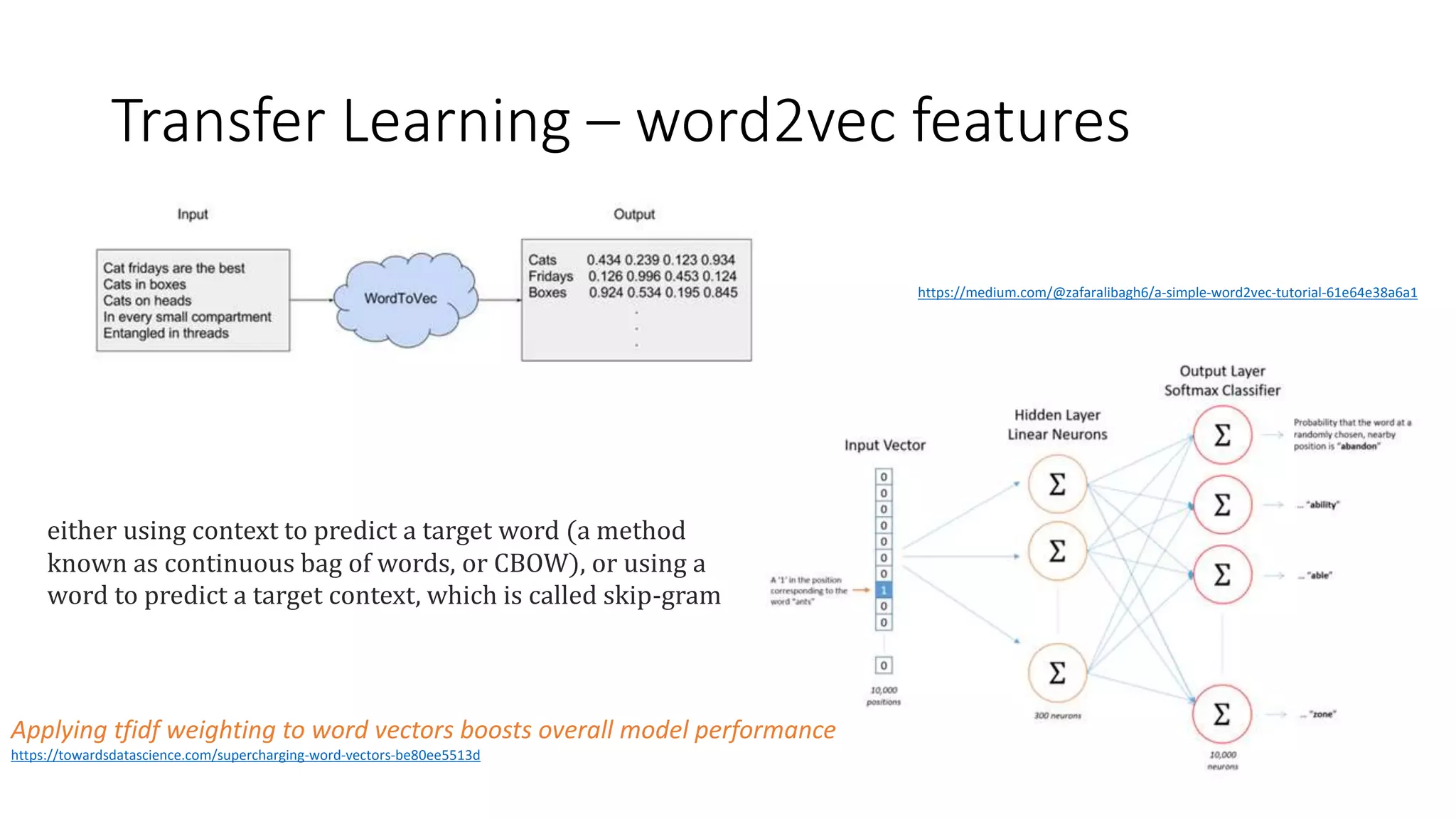

- 6. Transfer Learning –word2vec features either using context to predict a target word (a method known as continuous bag of words, or CBOW), or using a word to predict a target context, which is called skip-gram https://medium.com/@zafaralibagh6/a-simple-word2vec-tutorial-61e64e38a6a1 Applying tfidf weighting to word vectors boosts overall model performance https://towardsdatascience.com/supercharging-word-vectors-be80ee5513d
- 7.
- 8.
- 9.
- 10. Neural Network a1 a2 a3 • Eachnode is a function with input and output vectors • Every network structure is defined by a set of functions
- 11.

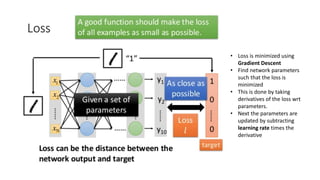

- 12. • Loss isminimized using Gradient Descent • Find network parameters such that the loss is minimized • This is done by taking derivatives of the loss wrt parameters. • Next the parameters are updated by subtracting learning rate times the derivative

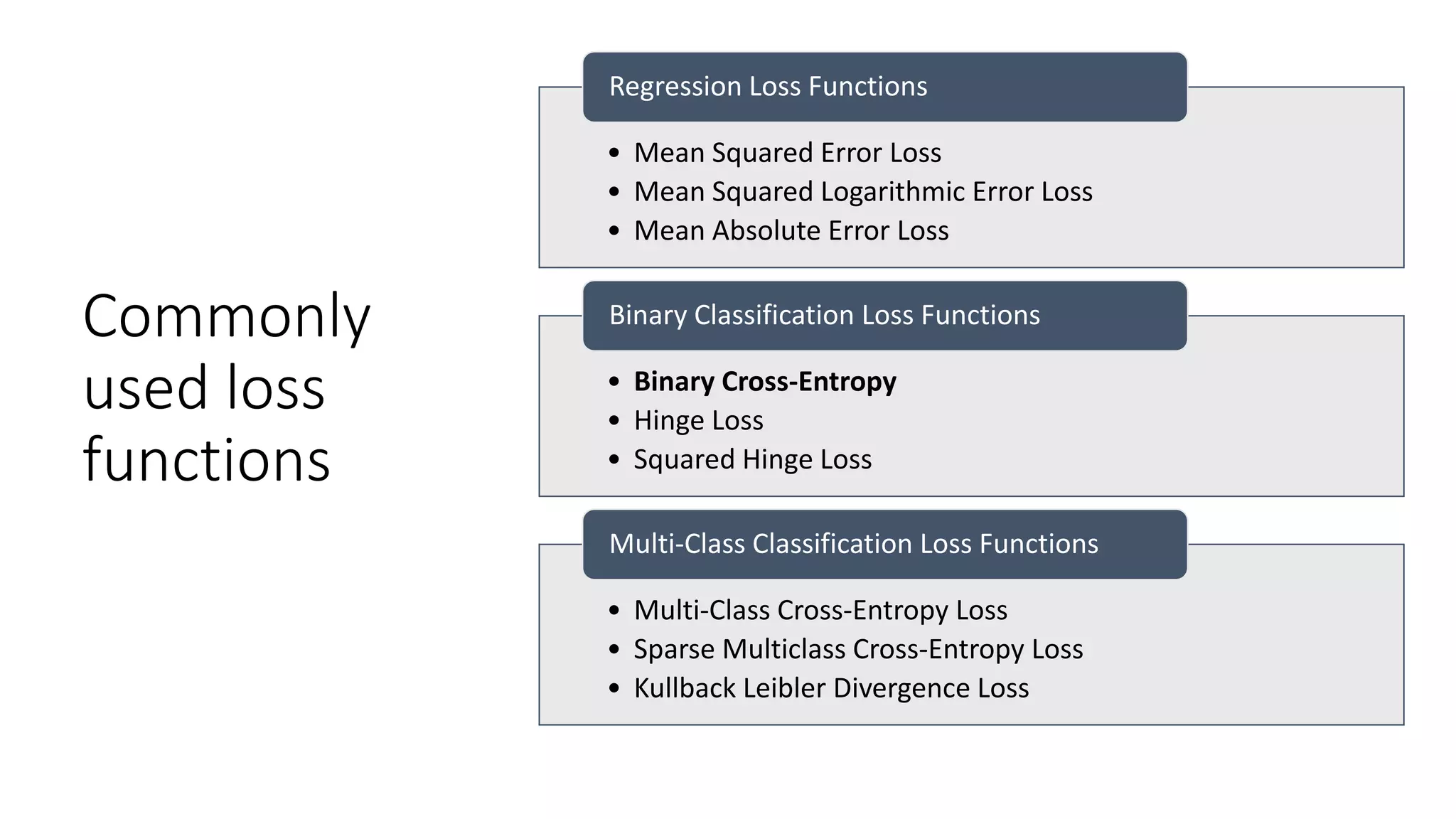

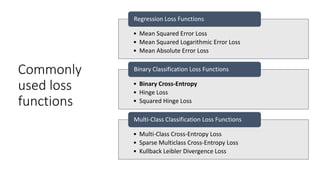

- 13. Commonly used loss functions • MeanSquared Error Loss • Mean Squared Logarithmic Error Loss • Mean Absolute Error Loss Regression Loss Functions • Binary Cross-Entropy • Hinge Loss • Squared Hinge Loss Binary Classification Loss Functions • Multi-Class Cross-Entropy Loss • Sparse Multiclass Cross-Entropy Loss • Kullback Leibler Divergence Loss Multi-Class Classification Loss Functions
- 14.

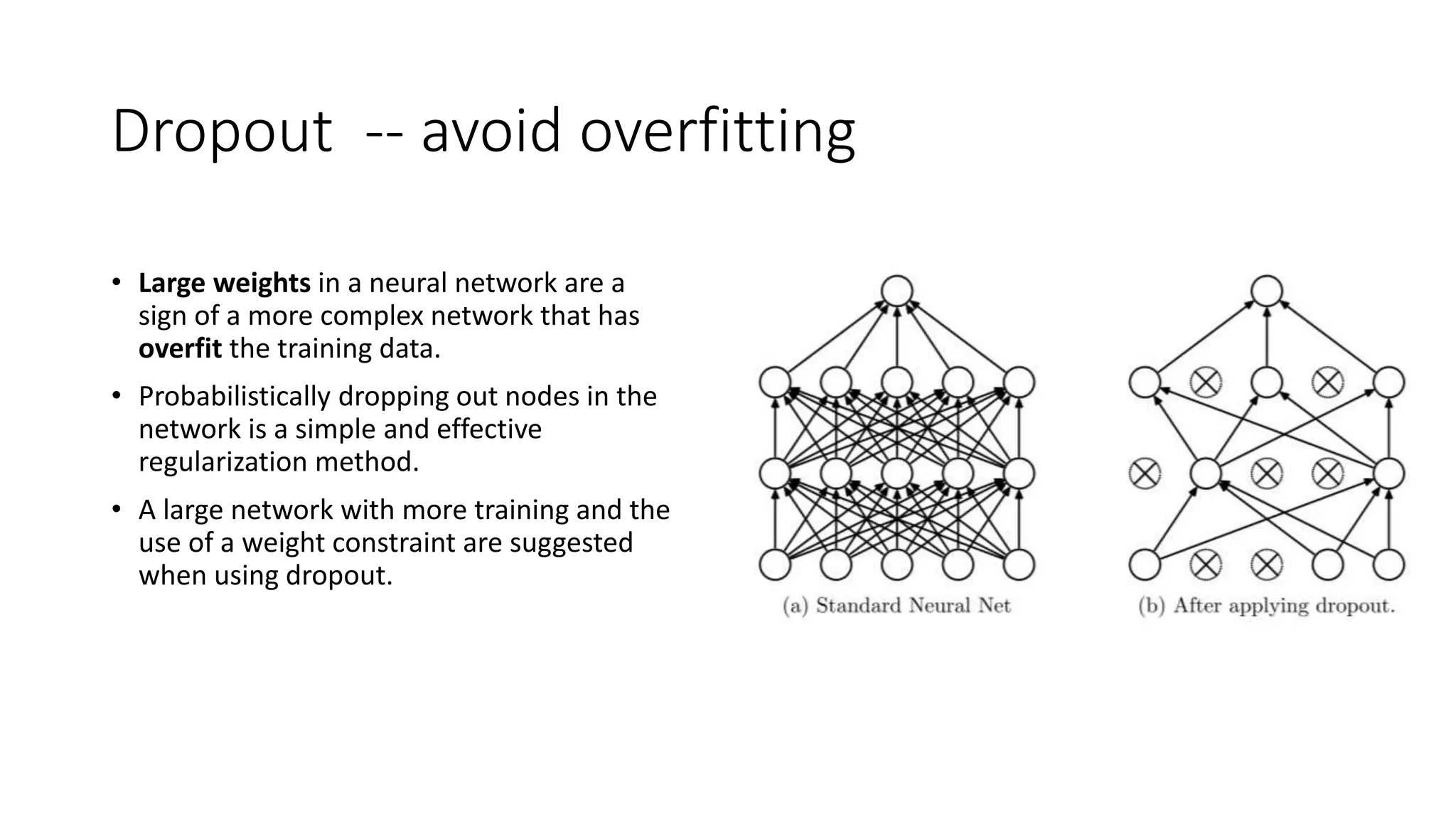

- 15. Dropout -- avoidoverfitting • Large weights in a neural network are a sign of a more complex network that has overfit the training data. • Probabilistically dropping out nodes in the network is a simple and effective regularization method. • A large network with more training and the use of a weight constraint are suggested when using dropout.

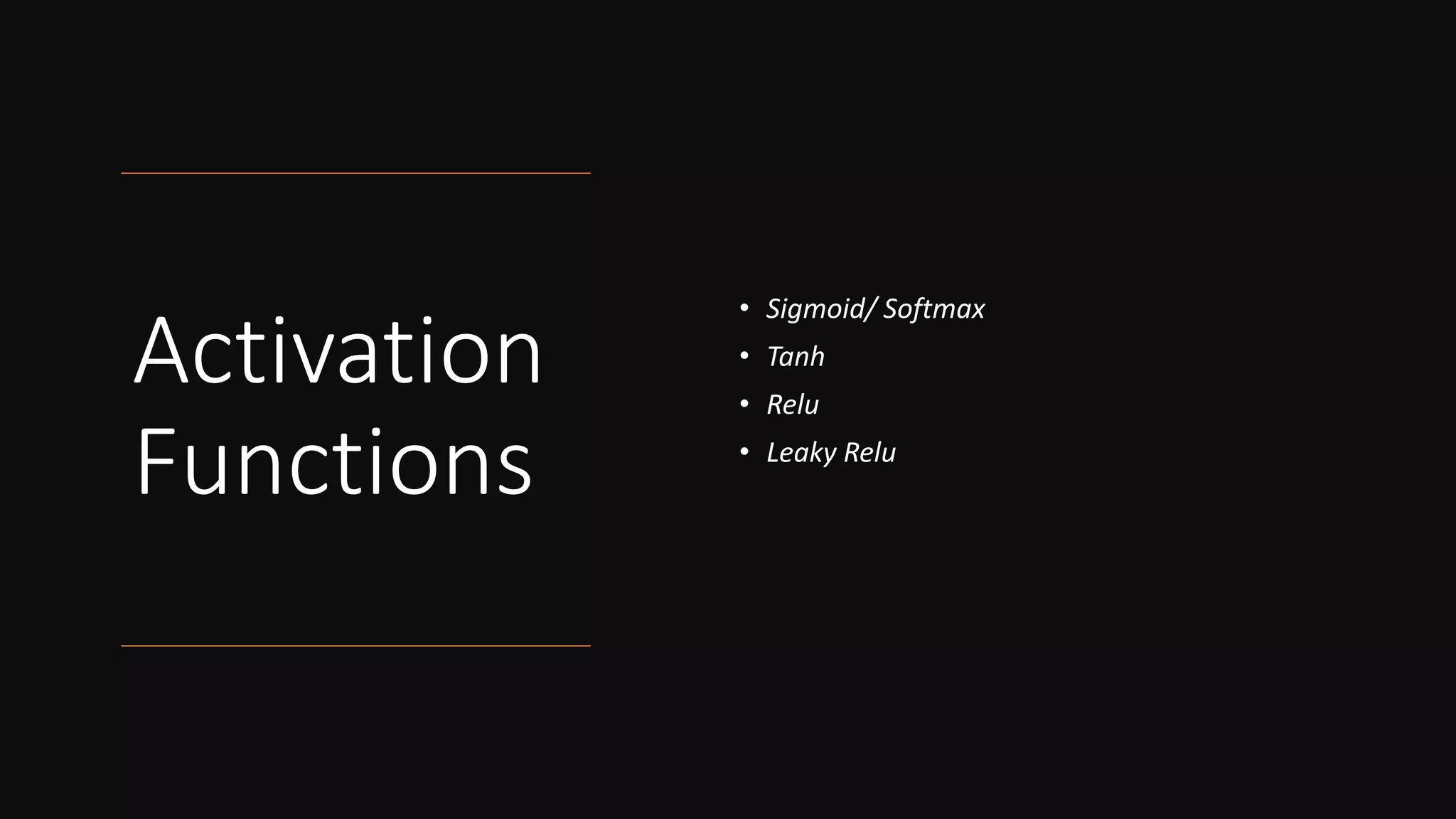

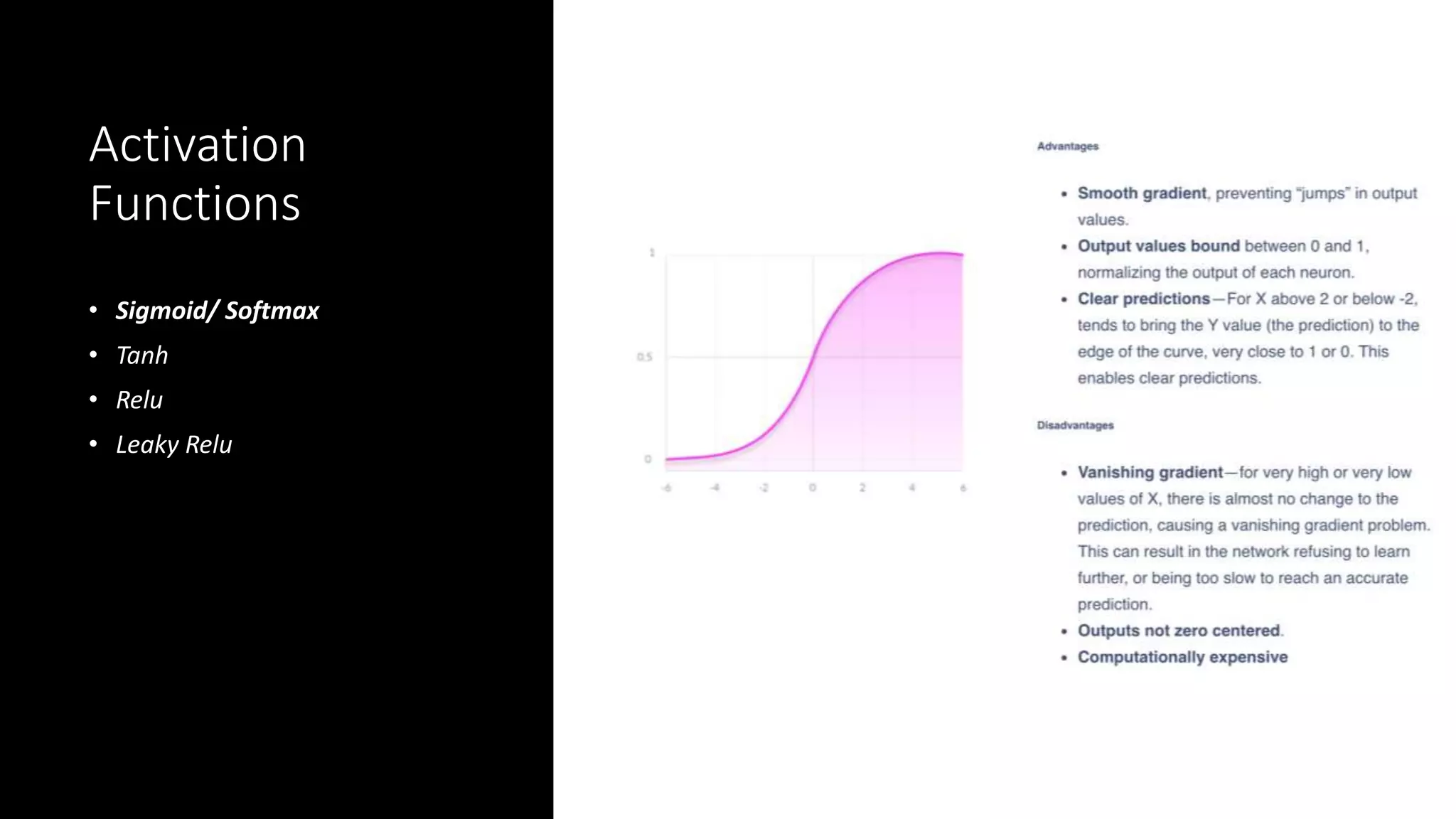

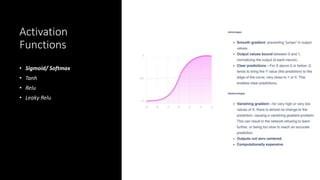

- 16. Activation Functions • Sigmoid/ Softmax •Tanh • Relu • Leaky Relu
- 17. Activation Functions • Sigmoid/ Softmax •Tanh • Relu • Leaky Relu

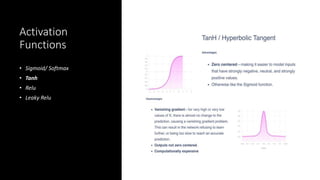

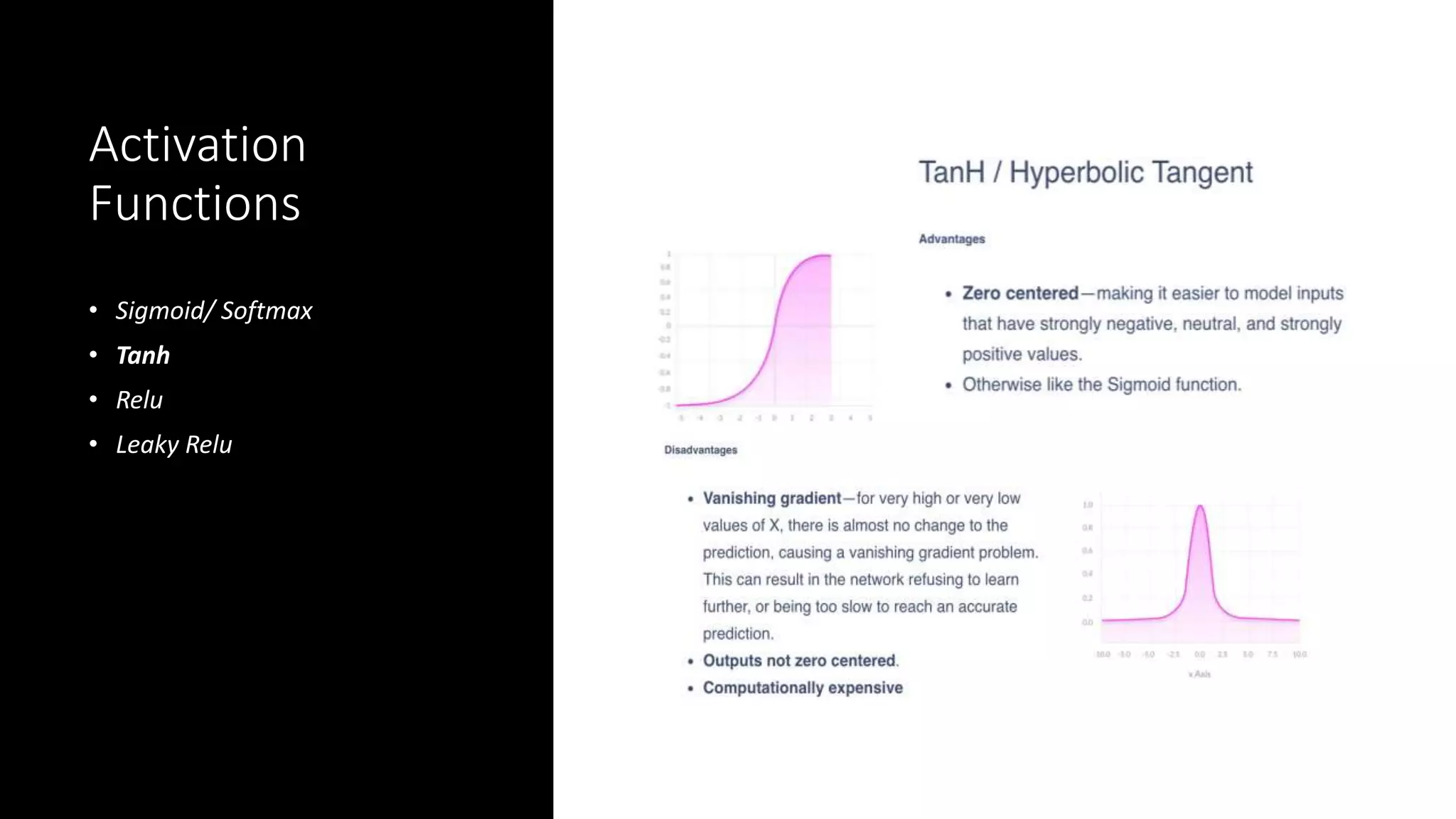

- 18. Activation Functions • Sigmoid/ Softmax •Tanh • Relu • Leaky Relu

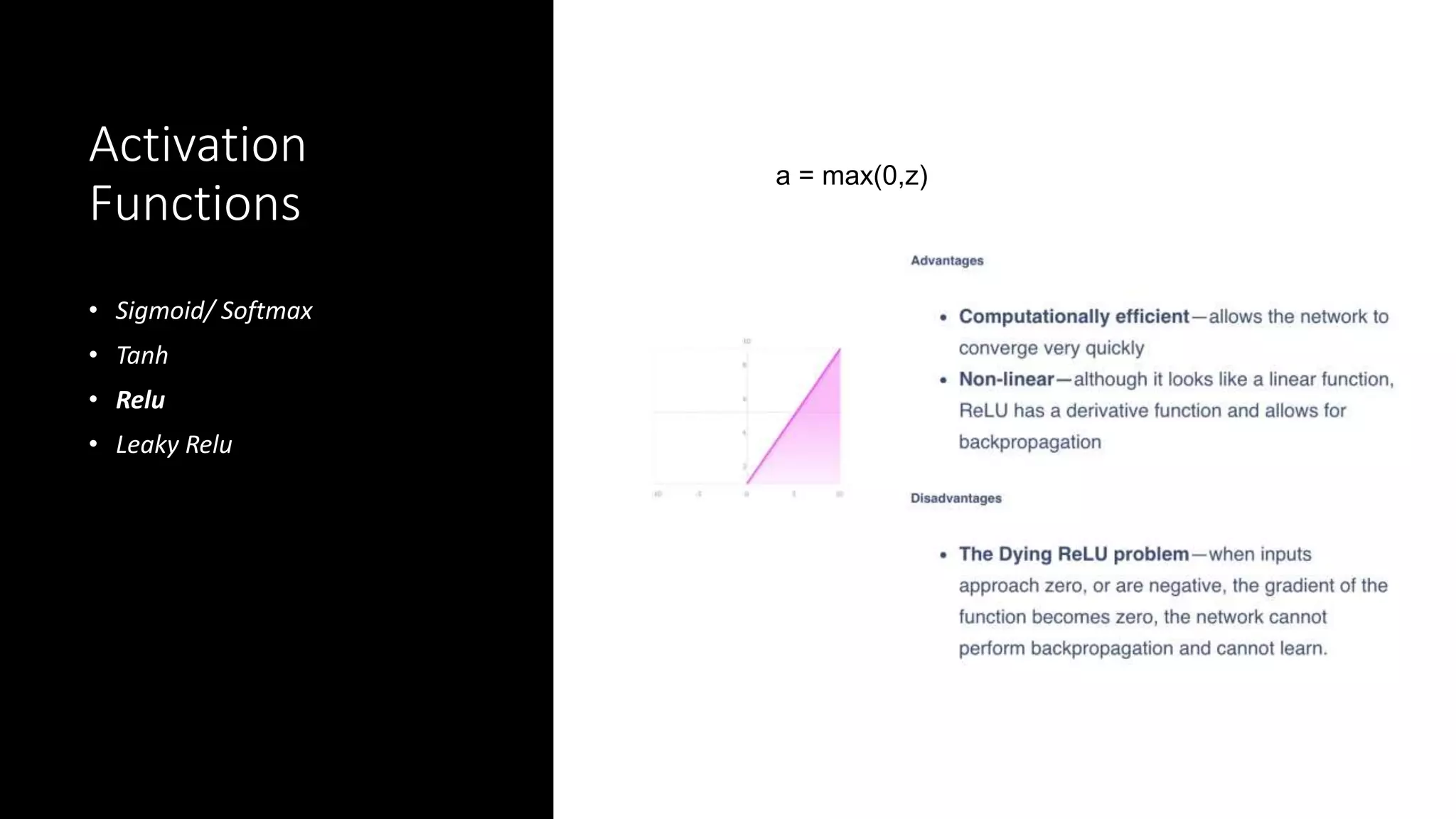

- 19. Activation Functions • Sigmoid/ Softmax •Tanh • Relu • Leaky Relu a = max(0,z)

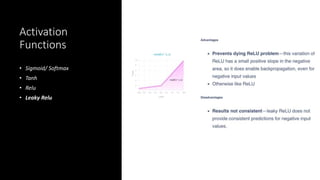

- 20. Activation Functions • Sigmoid/ Softmax •Tanh • Relu • Leaky Relu

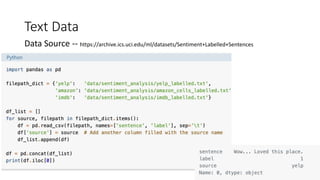

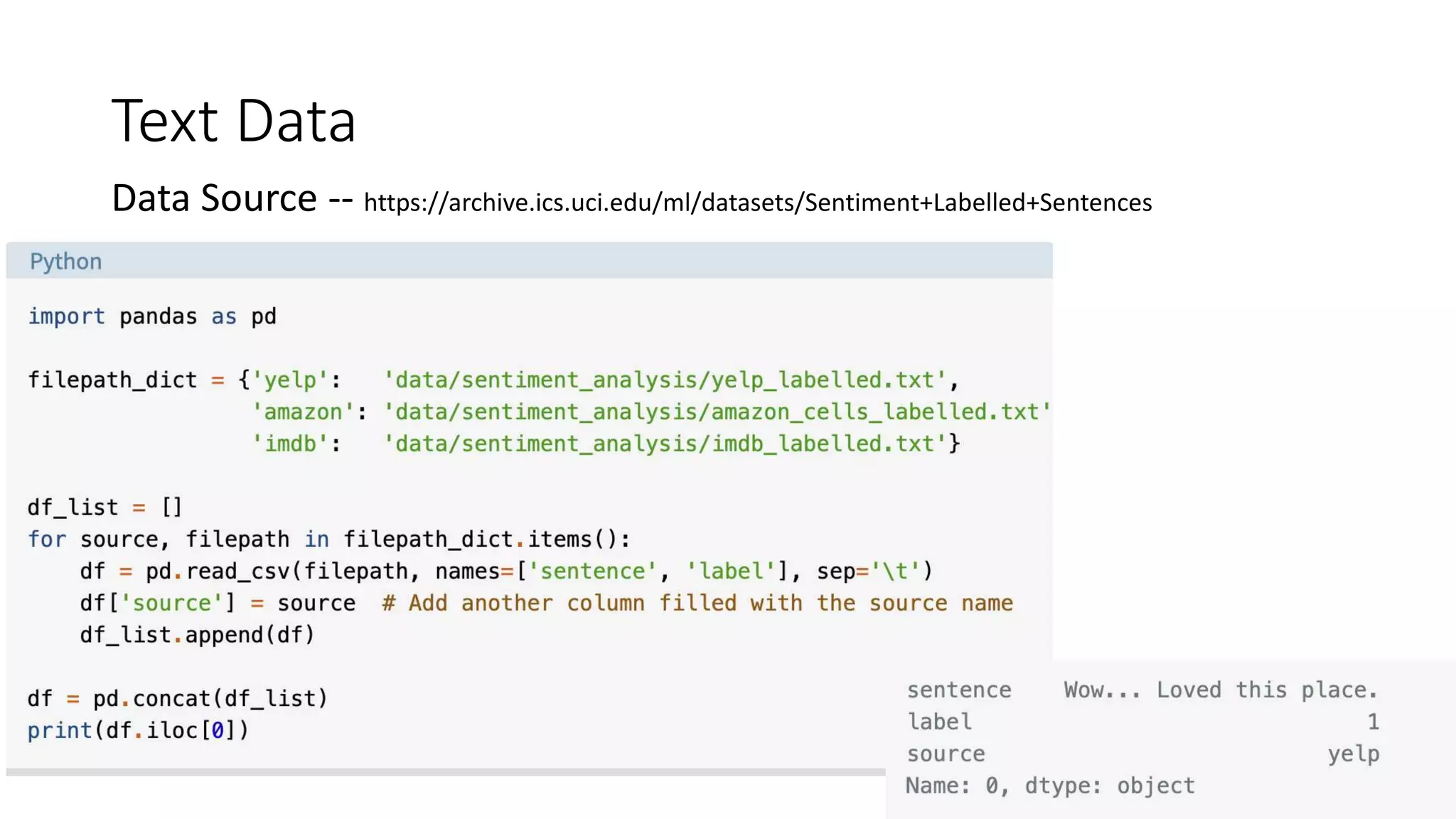

- 21. Text Data Data Source-- https://archive.ics.uci.edu/ml/datasets/Sentiment+Labelled+Sentences

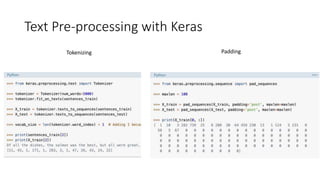

- 22. Text Pre-processing withKeras PaddingTokenizing

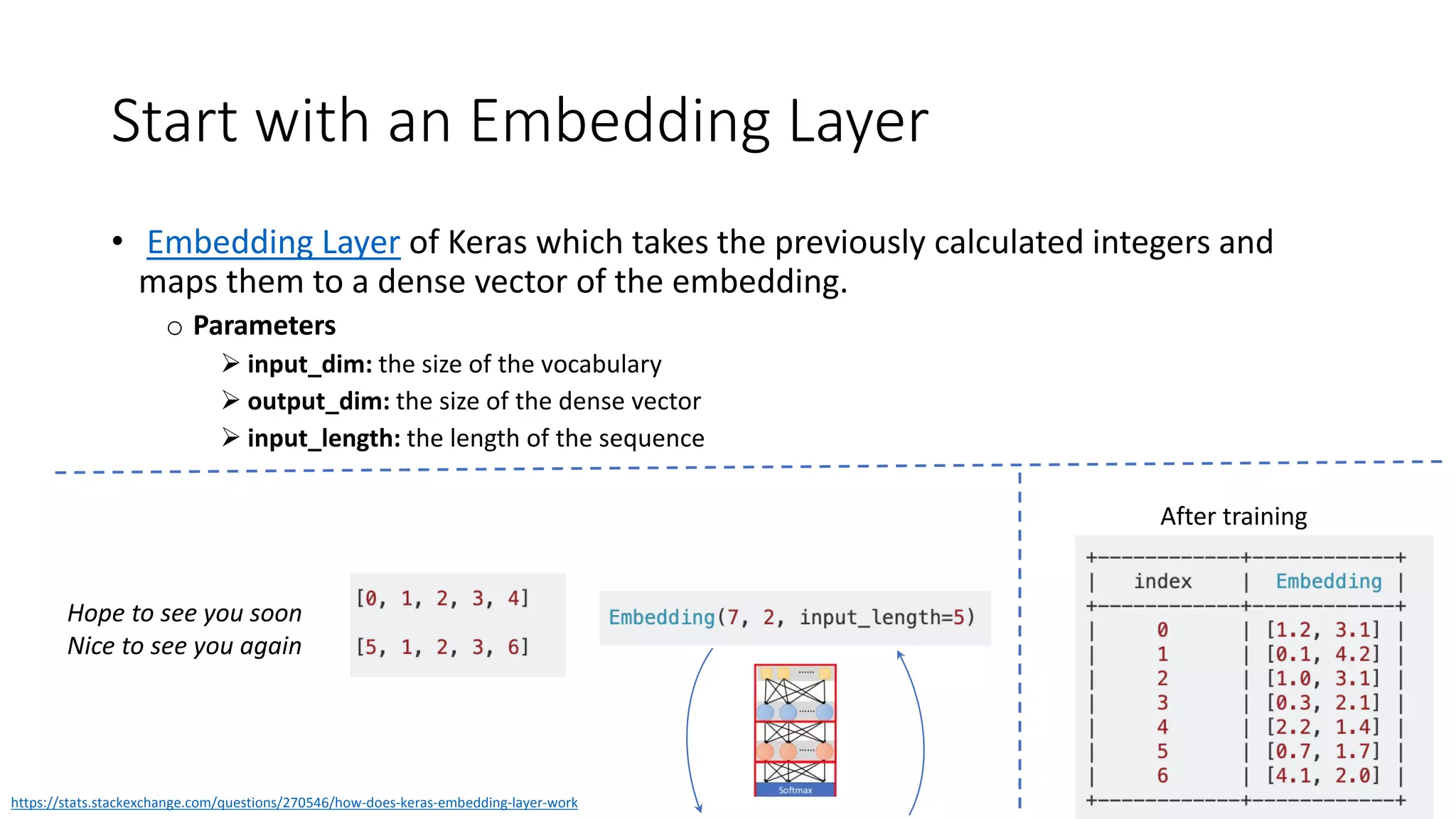

- 23. Start with anEmbedding Layer • Embedding Layer of Keras which takes the previously calculated integers and maps them to a dense vector of the embedding. o Parameters input_dim: the size of the vocabulary output_dim: the size of the dense vector input_length: the length of the sequence Hope to see you soon Nice to see you again After training https://stats.stackexchange.com/questions/270546/how-does-keras-embedding-layer-work

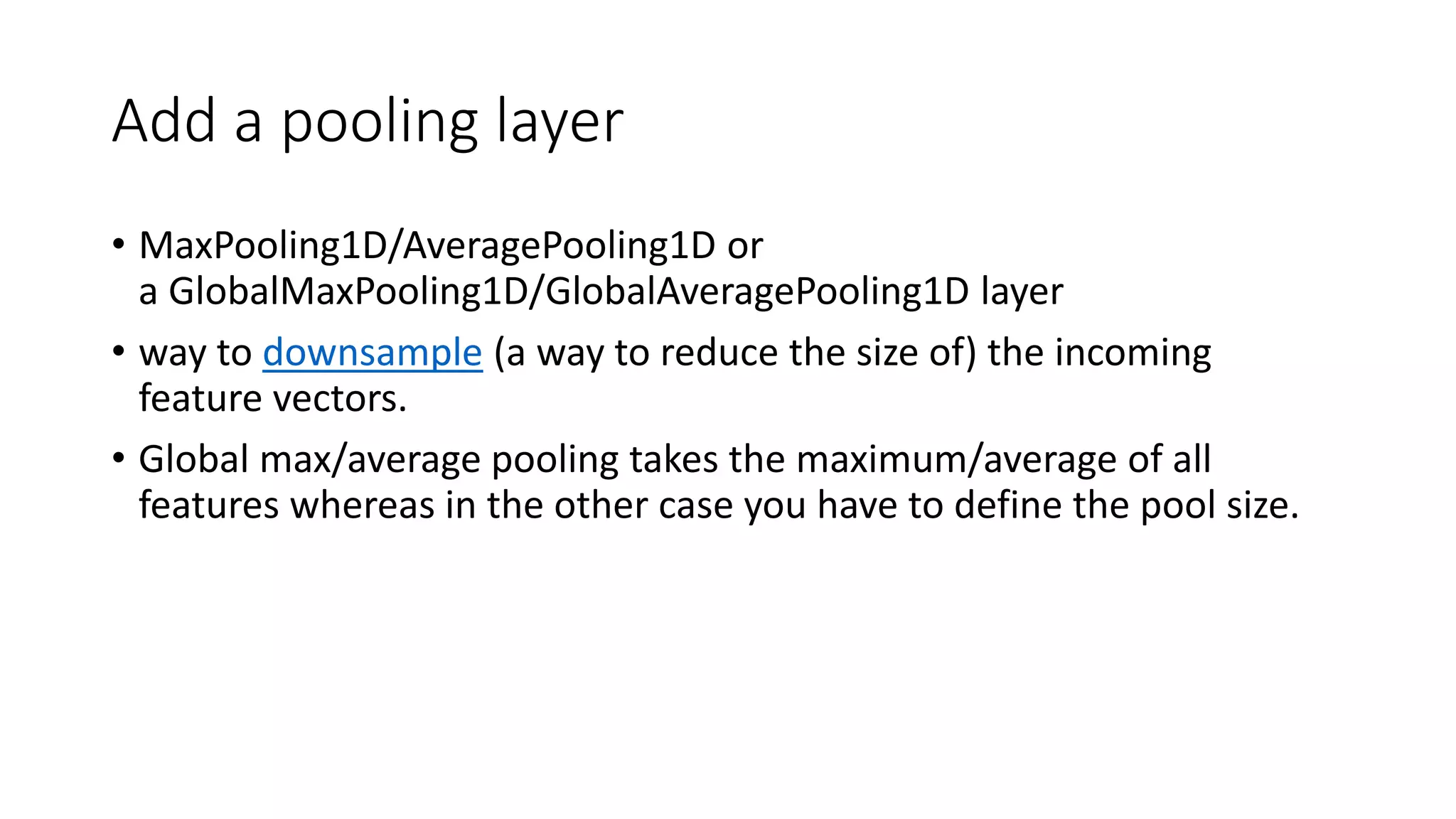

- 24. Add a poolinglayer • MaxPooling1D/AveragePooling1D or a GlobalMaxPooling1D/GlobalAveragePooling1D layer • way to downsample (a way to reduce the size of) the incoming feature vectors. • Global max/average pooling takes the maximum/average of all features whereas in the other case you have to define the pool size.
- 25.

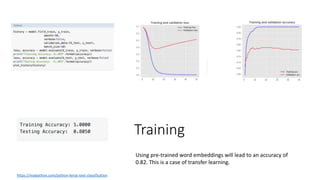

- 26. Training Using pre-trained wordembeddings will lead to an accuracy of 0.82. This is a case of transfer learning. https://realpython.com/python-keras-text-classification

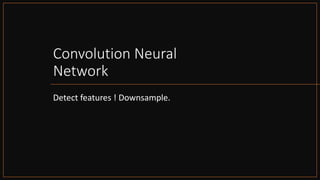

- 27. Convolution Neural Network Detect features! Downsample.

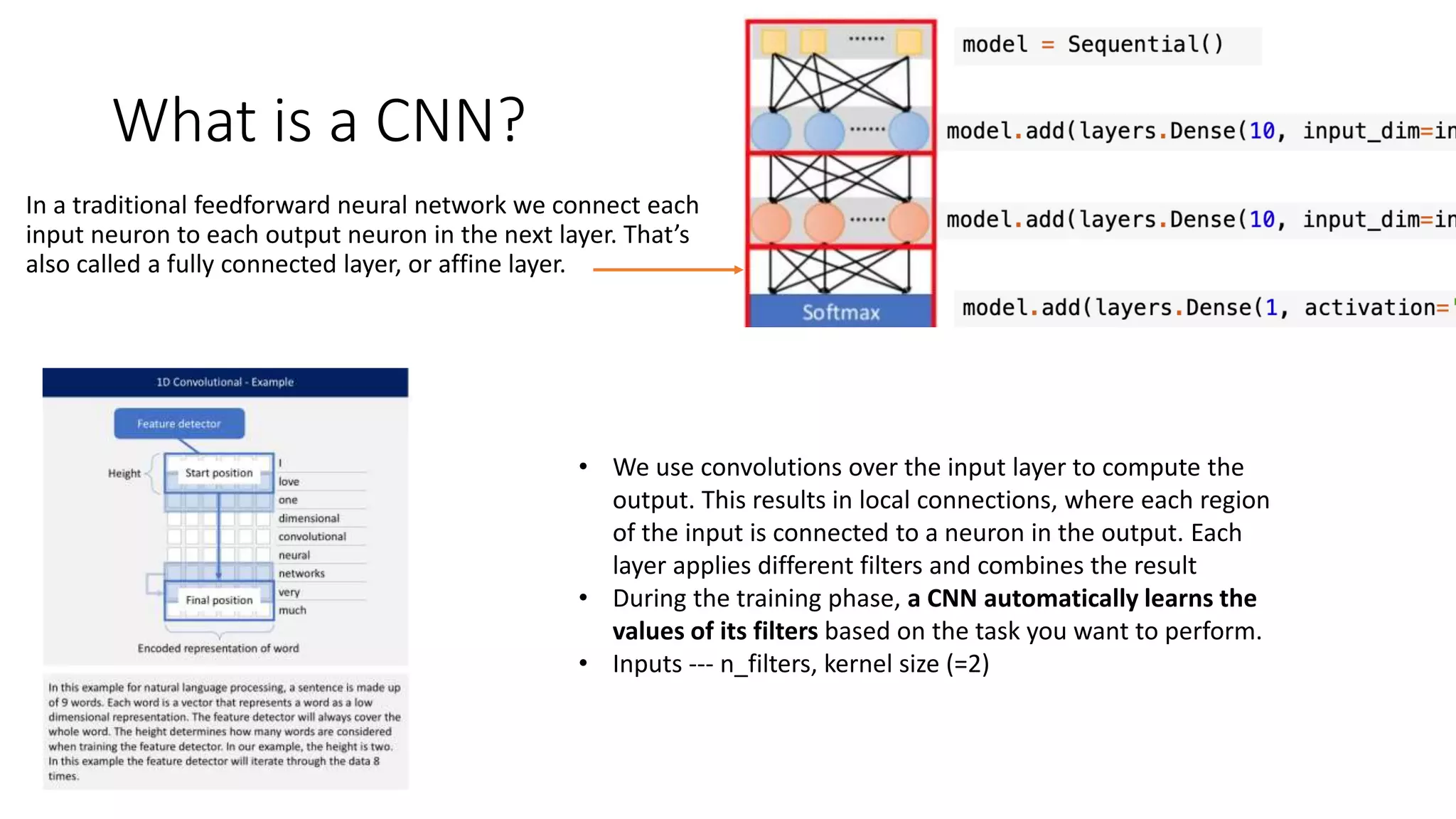

- 28. What is aCNN? In a traditional feedforward neural network we connect each input neuron to each output neuron in the next layer. That’s also called a fully connected layer, or affine layer. • We use convolutions over the input layer to compute the output. This results in local connections, where each region of the input is connected to a neuron in the output. Each layer applies different filters and combines the result • During the training phase, a CNN automatically learns the values of its filters based on the task you want to perform. • Inputs --- n_filters, kernel size (=2)

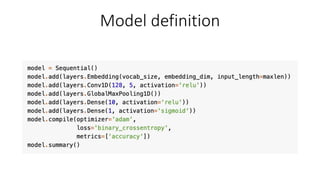

- 29.
- 30.

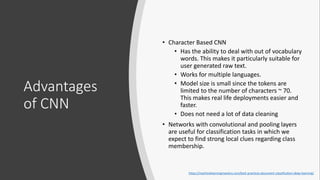

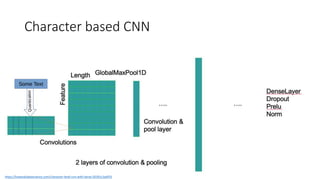

- 31. Advantages of CNN • CharacterBased CNN • Has the ability to deal with out of vocabulary words. This makes it particularly suitable for user generated raw text. • Works for multiple languages. • Model size is small since the tokens are limited to the number of characters ~ 70. This makes real life deployments easier and faster. • Does not need a lot of data cleaning • Networks with convolutional and pooling layers are useful for classification tasks in which we expect to find strong local clues regarding class membership. https://machinelearningmastery.com/best-practices-document-classification-deep-learning/

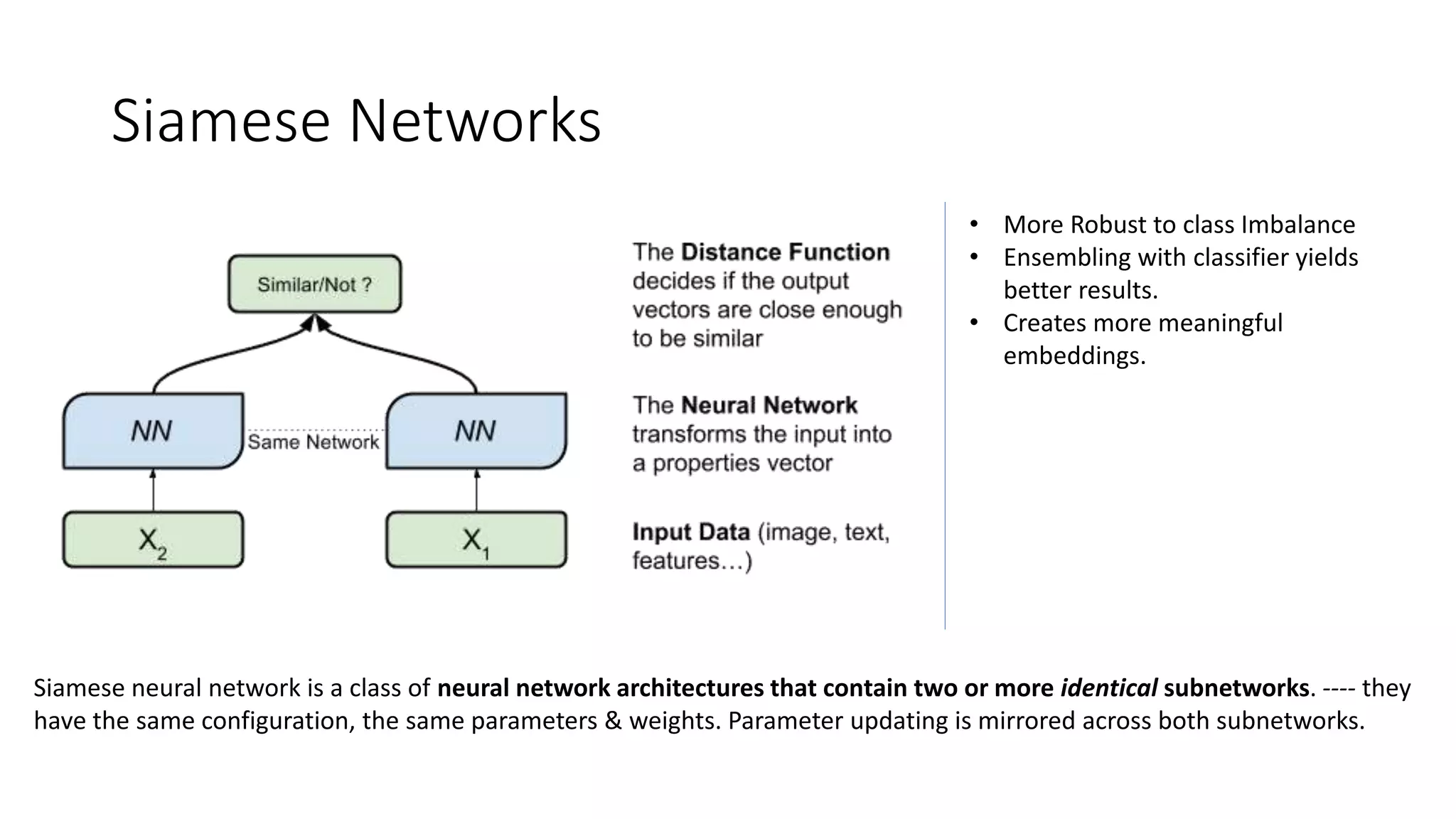

- 32. Siamese Networks Siamese neuralnetwork is a class of neural network architectures that contain two or more identical subnetworks. ---- they have the same configuration, the same parameters & weights. Parameter updating is mirrored across both subnetworks. • More Robust to class Imbalance • Ensembling with classifier yields better results. • Creates more meaningful embeddings.

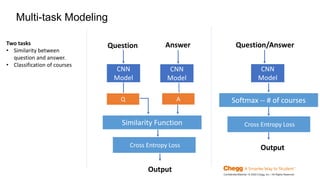

- 33. Confidential Material /© 2020 Chegg, Inc. / All Rights Reserved Multi-task Modeling CNN Model CNN Model Cross Entropy Loss Output Question Q A Answer Similarity Function Question/Answer CNN Model Softmax -- # of courses Cross Entropy Loss Output Two tasks • Similarity between question and answer. • Classification of courses

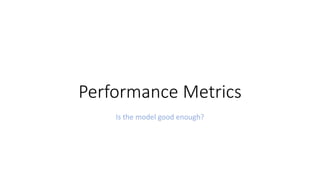

- 34. Performance Metrics Is themodel good enough?

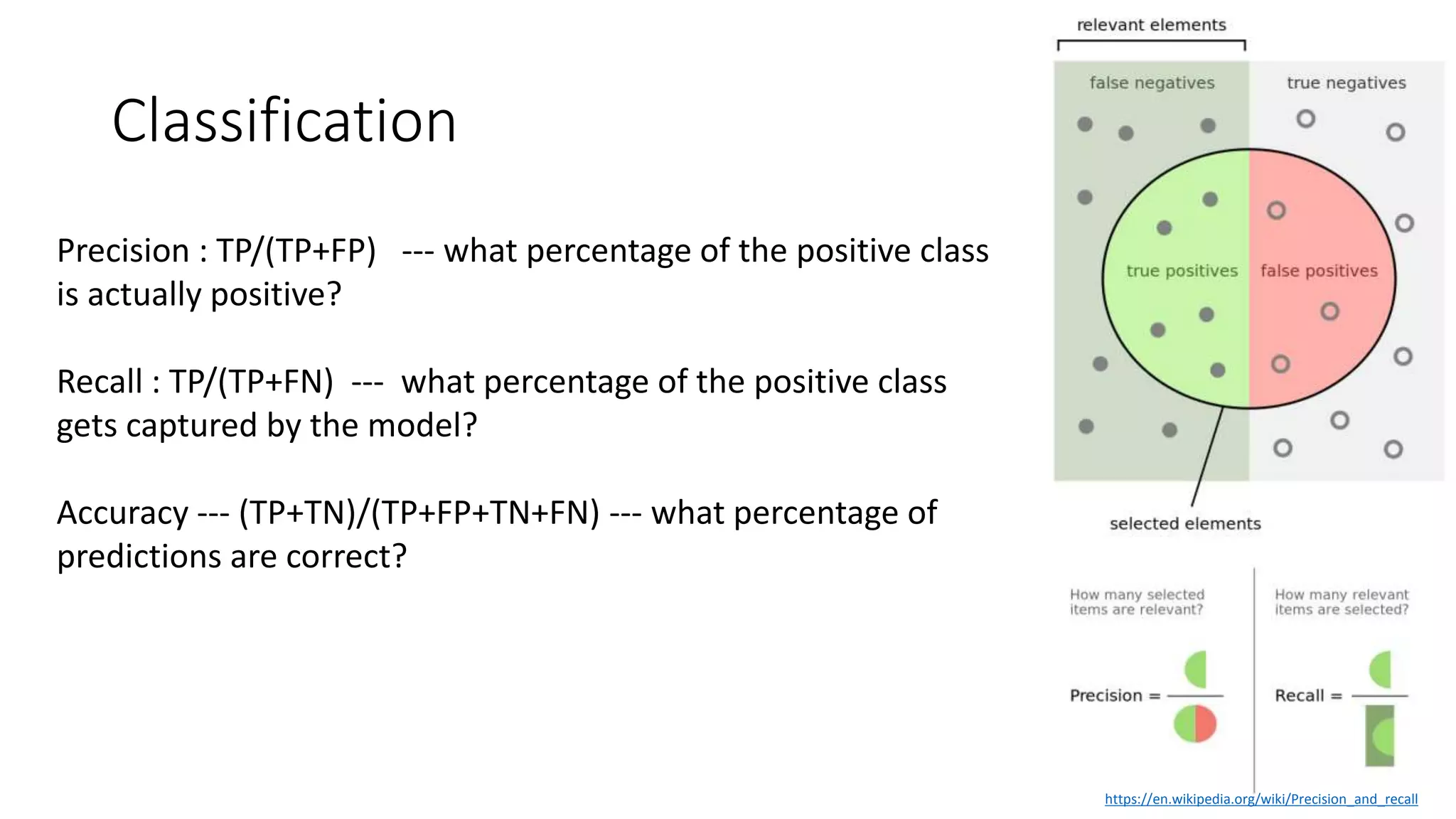

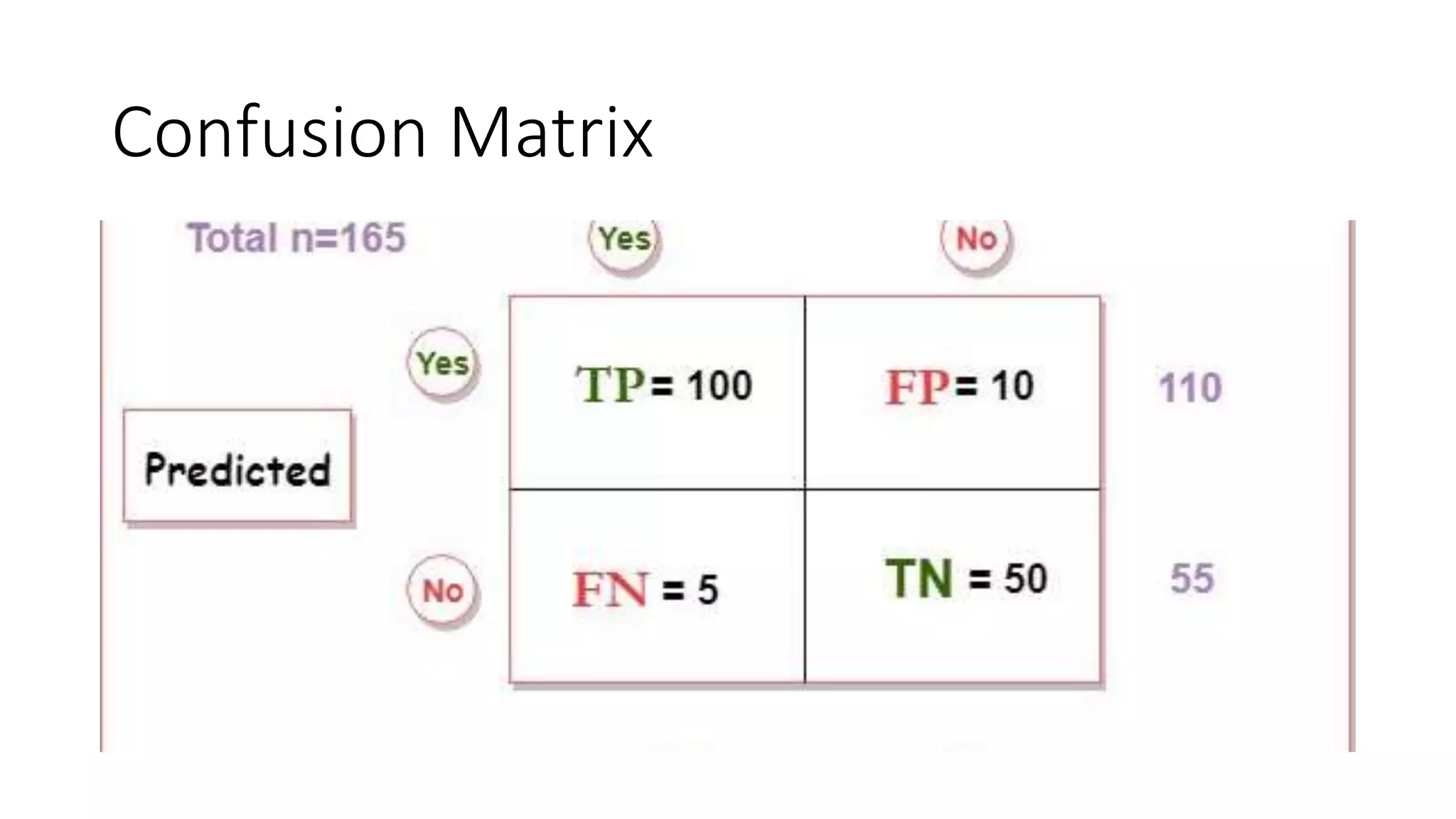

- 35. Classification https://en.wikipedia.org/wiki/Precision_and_recall Precision : TP/(TP+FP)--- what percentage of the positive class is actually positive? Recall : TP/(TP+FN) --- what percentage of the positive class gets captured by the model? Accuracy --- (TP+TN)/(TP+FP+TN+FN) --- what percentage of predictions are correct?

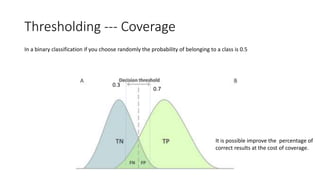

- 36. Thresholding --- Coverage Ina binary classification if you choose randomly the probability of belonging to a class is 0.5 0.3 0.7 It is possible improve the percentage of correct results at the cost of coverage.
- 37.

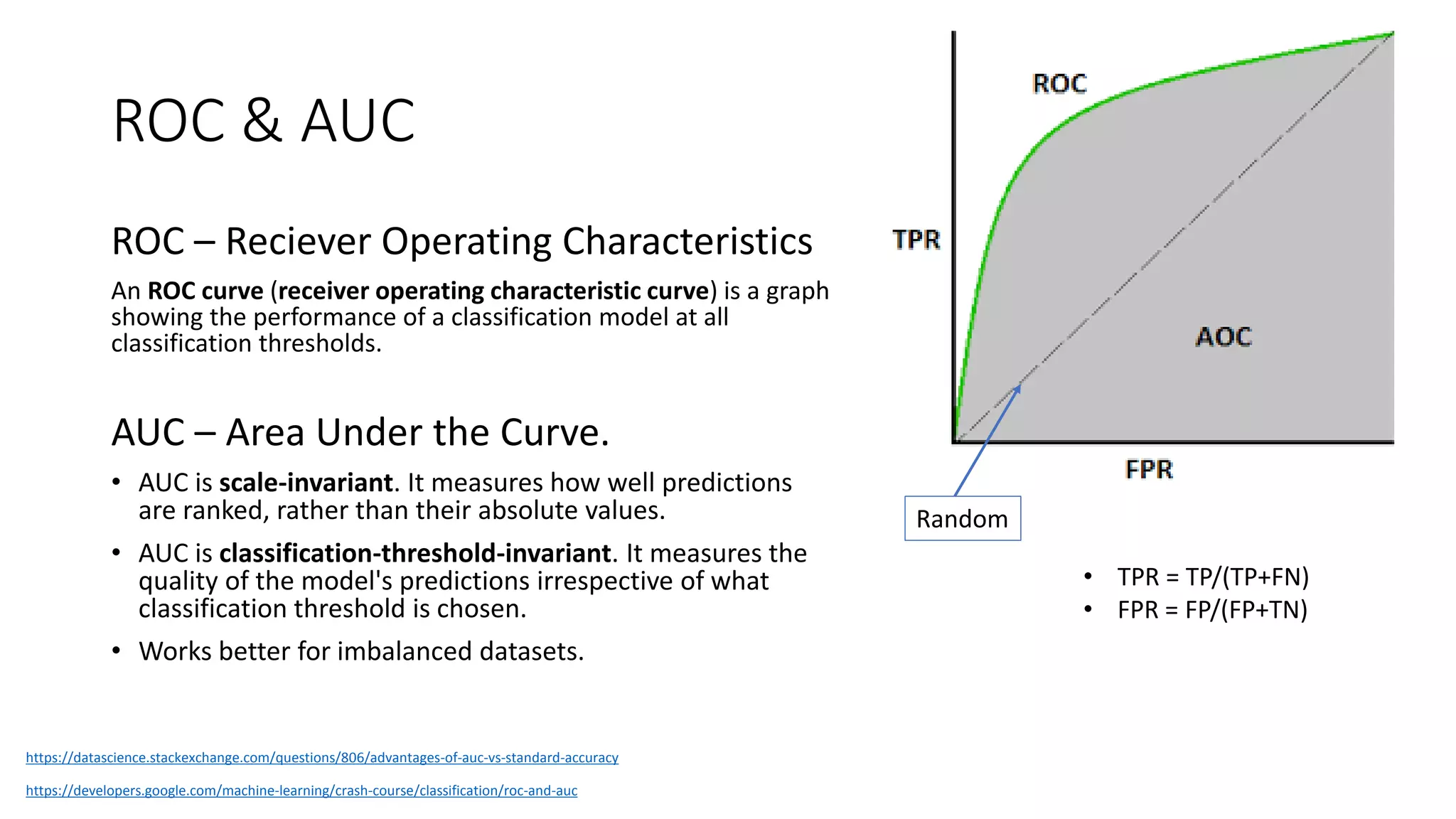

- 38. ROC & AUC ROC– Reciever Operating Characteristics An ROC curve (receiver operating characteristic curve) is a graph showing the performance of a classification model at all classification thresholds. AUC – Area Under the Curve. • AUC is scale-invariant. It measures how well predictions are ranked, rather than their absolute values. • AUC is classification-threshold-invariant. It measures the quality of the model's predictions irrespective of what classification threshold is chosen. • Works better for imbalanced datasets. https://developers.google.com/machine-learning/crash-course/classification/roc-and-auc • TPR = TP/(TP+FN) • FPR = FP/(FP+TN) Random https://datascience.stackexchange.com/questions/806/advantages-of-auc-vs-standard-accuracy

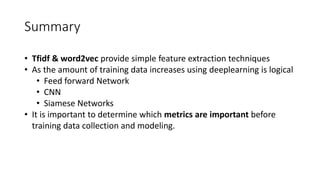

- 39. Summary • Tfidf &word2vec provide simple feature extraction techniques • As the amount of training data increases using deeplearning is logical • Feed forward Network • CNN • Siamese Networks • It is important to determine which metrics are important before training data collection and modeling.
- 40.
- 41. Word Vectors with Context! •In a context free embedding ”crisp” in sentence “The morning air is getting crisp” and “getting burned to a crisp” would have the same vector: f(crisp) • In a context aware model the embedding would be specific to the would be augmented by the context in which it appears. • f(crisp, context) https://www.gocomics.com/frazz/
- 42.
Editor's Notes

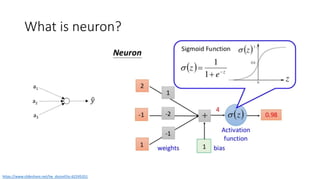

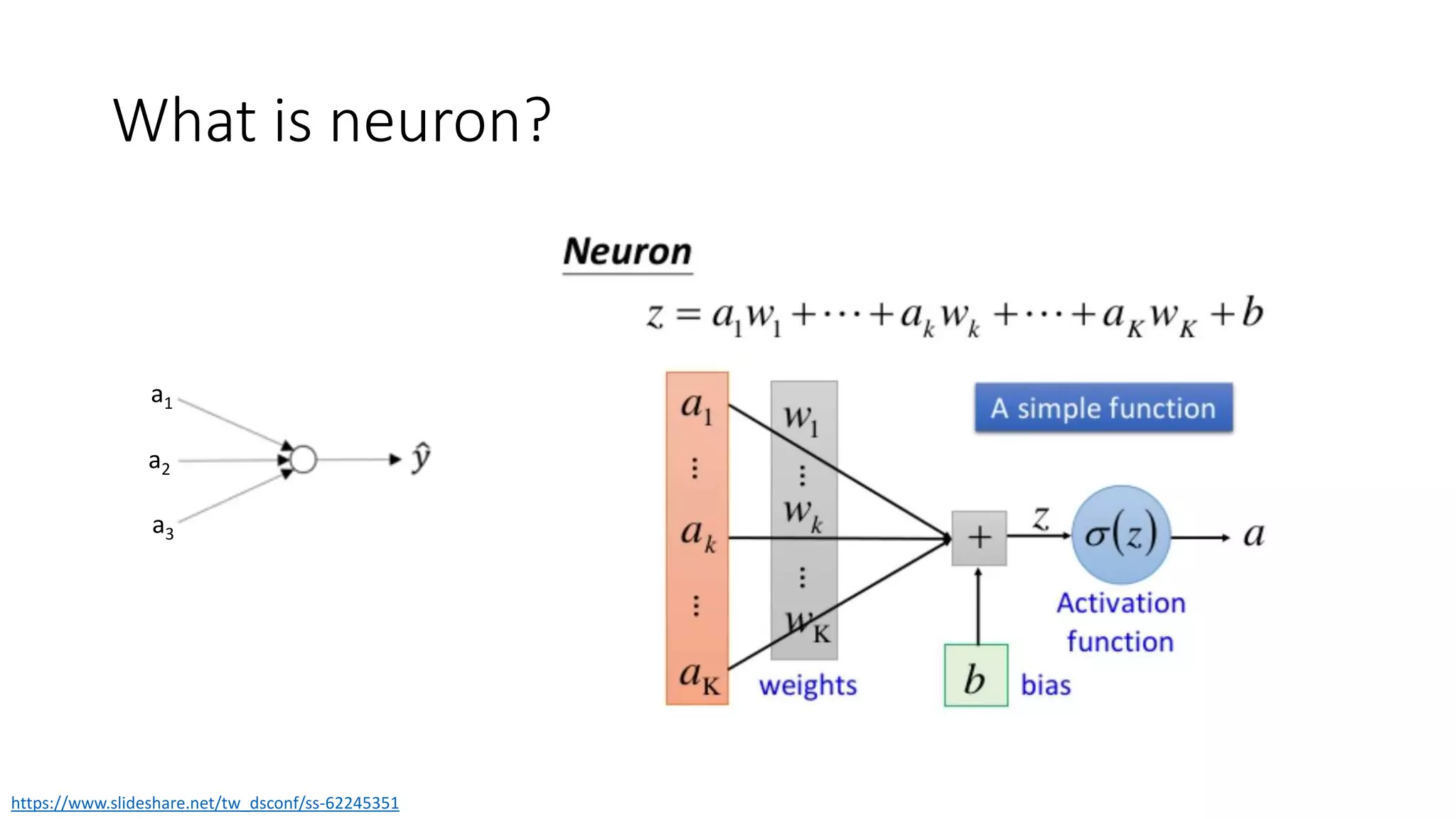

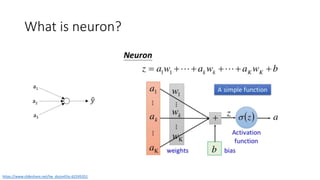

- #9 A single node corresponds to two operations, computation of z which is a linear combination of features (a) and weights (w) and computation of the activation function sigma(z).
- #11 we connect each input neuron to each output neuron in the next layer.

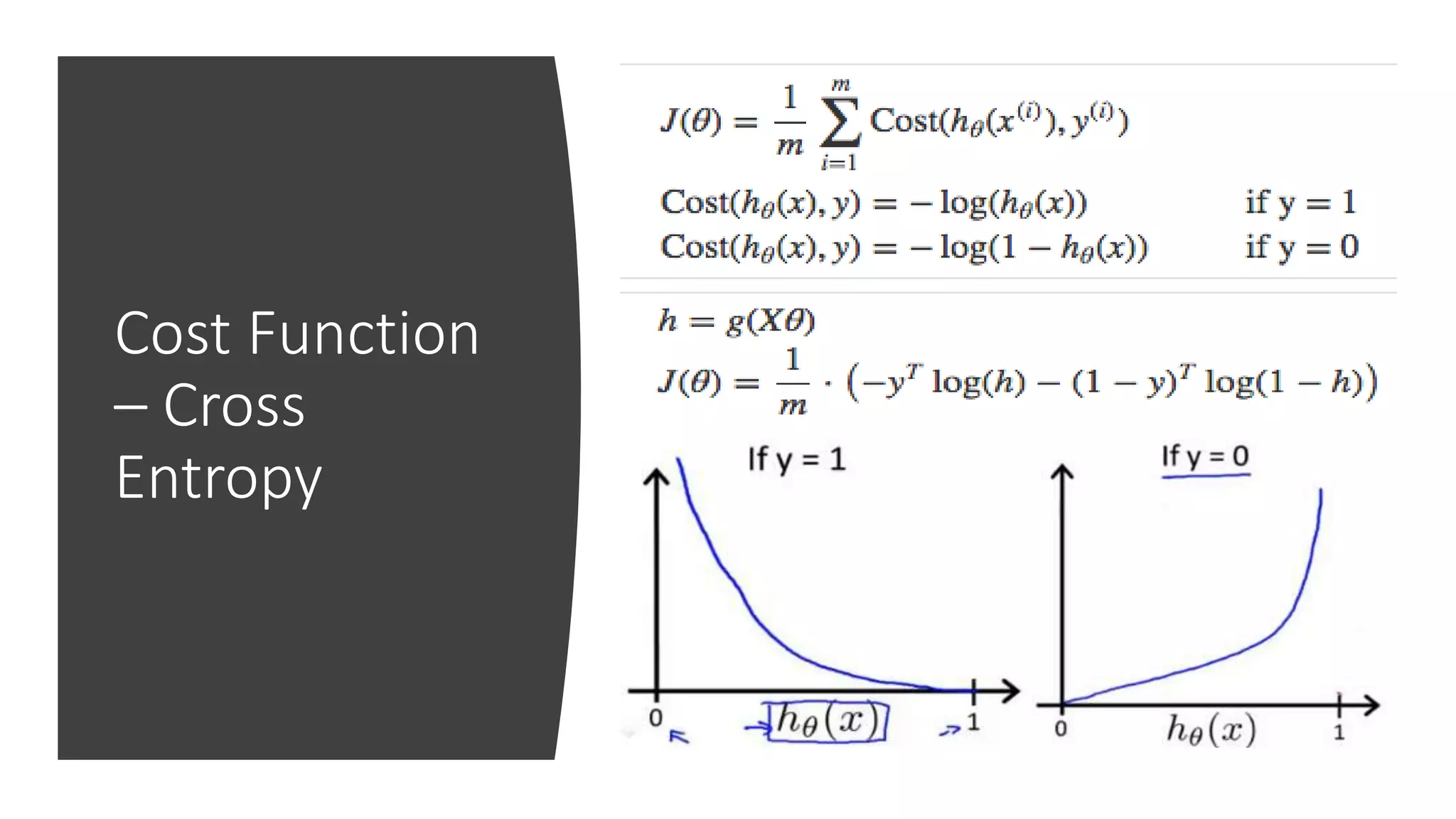

- #15 if y=1 and your predicts 0 you are penalized heavily. Conversely if y=0 and your model 1 the penalization is infinite.
- #17 When you build your neural network, one of the choices you get to make is what activation function to use in the hidden layers, as well as what is the output units of your neural network. So far, we've just been using the sigmoid activation function.
- #18 Sigmoid --- output layer because if y is either 0 or 1, then it makes sense for y hat to be a number, the one to output that's between 0 and 1 rather than between minus 1 and 1
- #19 Sigmoid --- output layer because if y is either 0 or 1, then it makes sense for y hat to be a number, the one to output that's between 0 and 1 rather than between minus 1 and 1
- #20 Sigmoid --- output layer because if y is either 0 or 1, then it makes sense for y hat to be a number, the one to output that's between 0 and 1 rather than between minus 1 and 1
- #21 Sigmoid --- output layer because if y is either 0 or 1, then it makes sense for y hat to be a number, the one to output that's between 0 and 1 rather than between minus 1 and 1
- #23 With CountVectorizer, we had stacked vectors of word counts, and each vector was the same length (the size of the total corpus vocabulary). With Tokenizer, the resulting vectors equal the length of each text, and the numbers don’t denote counts, but rather correspond to the word values from the dictionary tokenizer.word_index.
- #27 Power of generalization --- embeddings are able to share information across similar features. Fewer nodes with zero values.
- #34 We define two different task for optimization. One of them is to match the front of the card with the back of the card. We use the CNN model defined in the previous slide and use the dot product as the similarity function and use a cross entropy loss. For the classification problem we feed the CNN model into a softmax layer to predict the courses. Both tasks are optimized simultaneously.
- #36 In a binary classification if you choose randomly the probability of belonging to a class is 0.5
