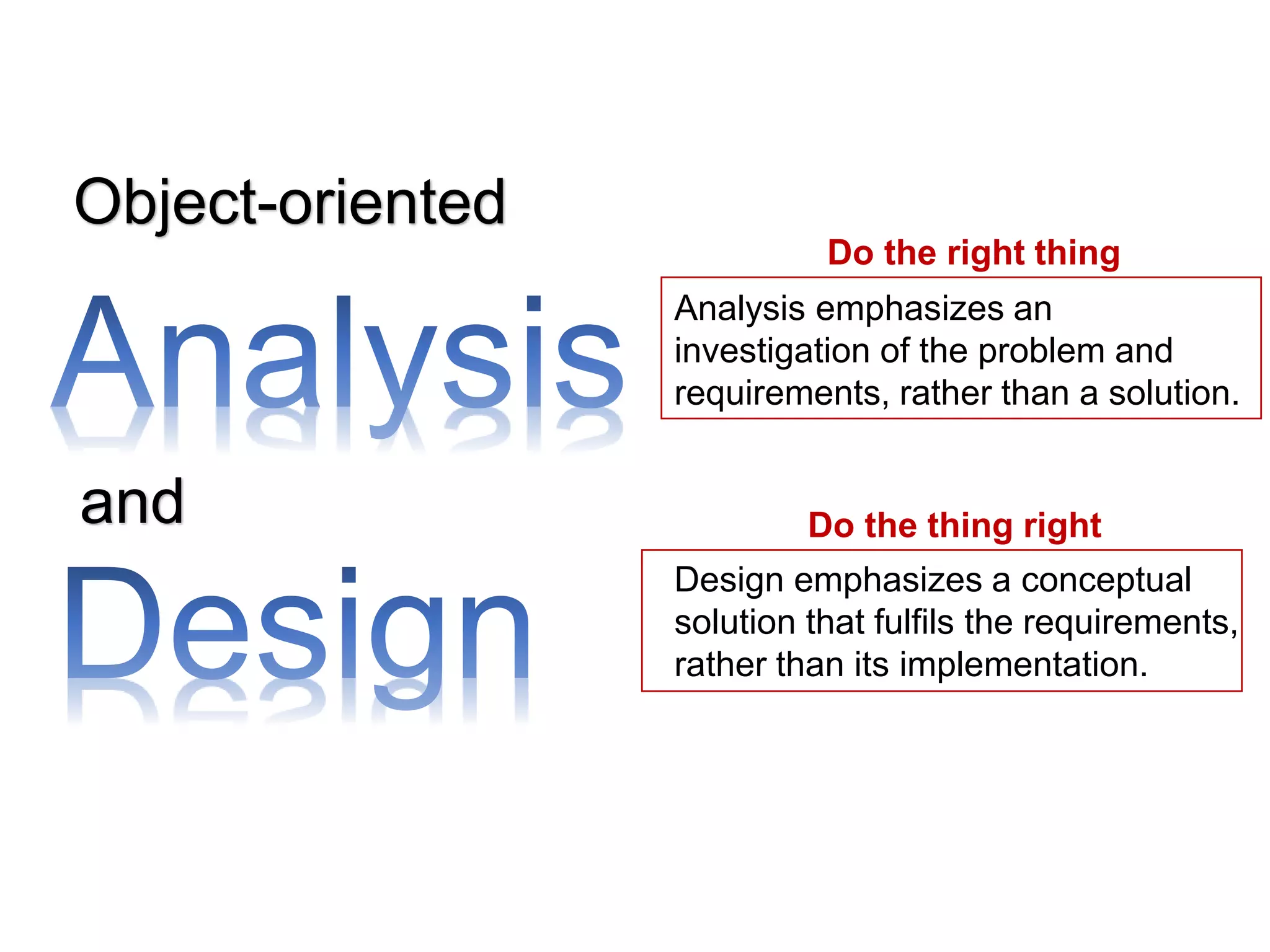

  Object-oriented and Analysis emphasizes an investigationof the problem and requirements, rather than a solution. Design emphasizes a conceptual solution that fulfils the requirements, rather than its implementation. Do the right thing Do the thing right
• 2.

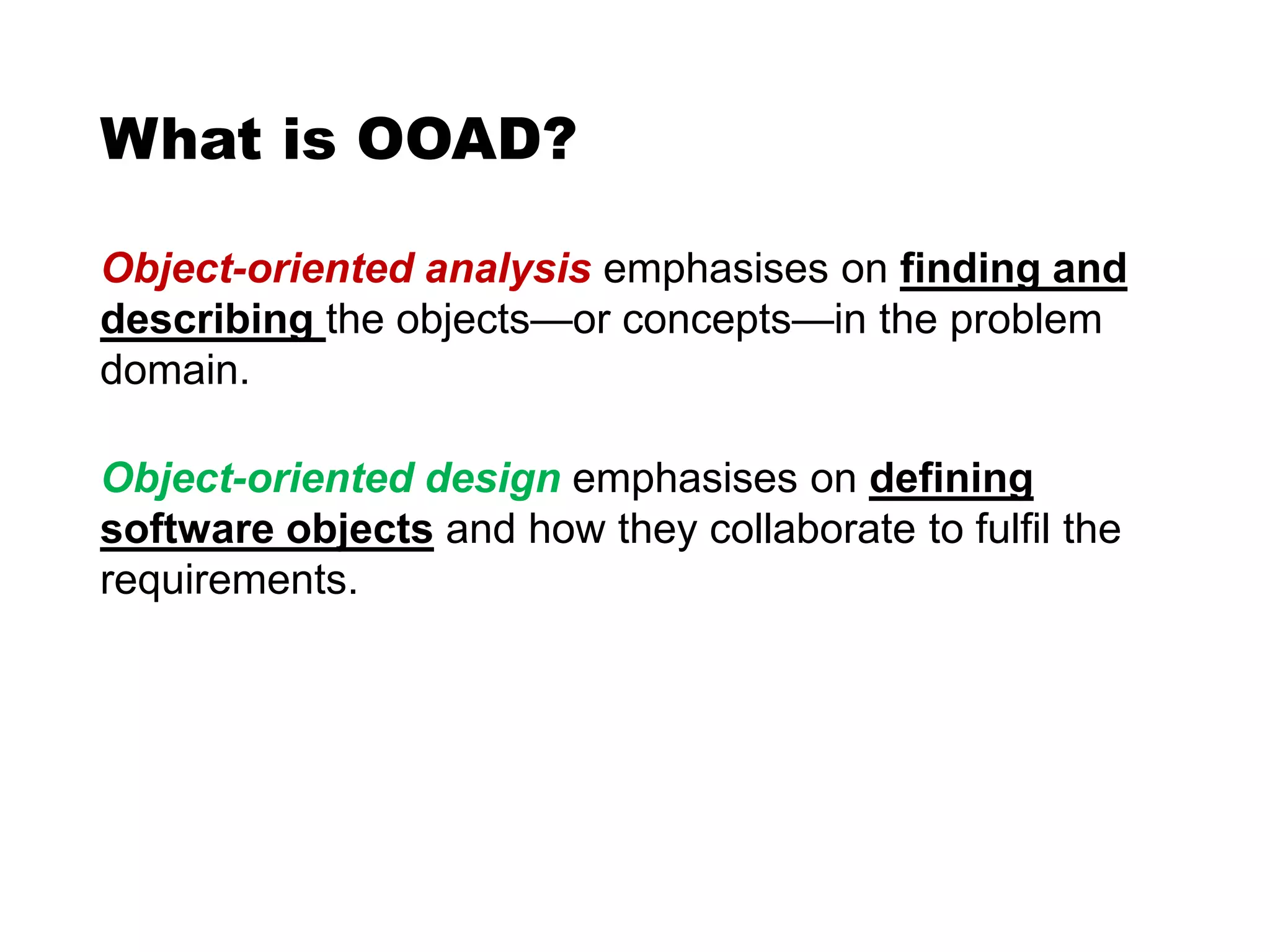

  What is OOAD? Object-orientedanalysis emphasises on finding and describing the objects—or concepts—in the problem domain. Object-oriented design emphasises on defining software objects and how they collaborate to fulfil the requirements.
• 3.

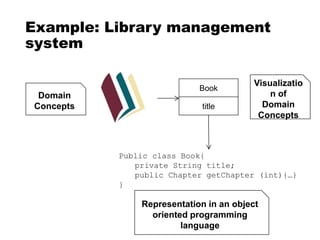

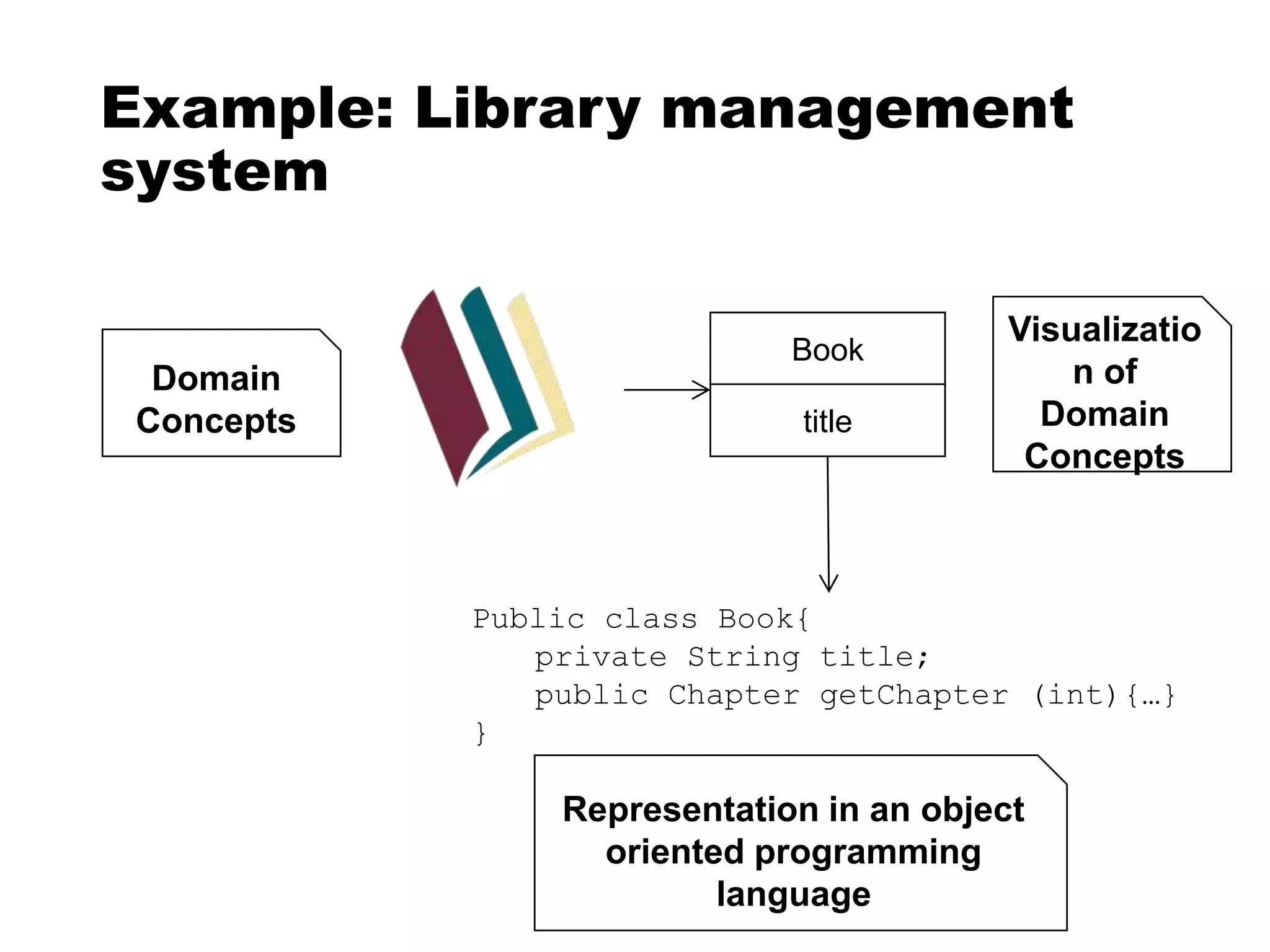

  Example: Library management system Domain Concepts Book title Visualizatio nof Domain Concepts Public class Book{ private String title; public Chapter getChapter (int){…} } Representation in an object oriented programming language
• 4.

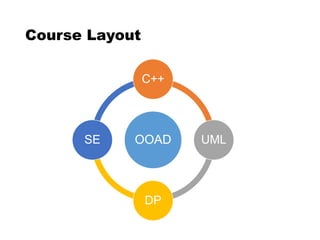

  Course Layout OOAD C++ UML DP SE
• 5.

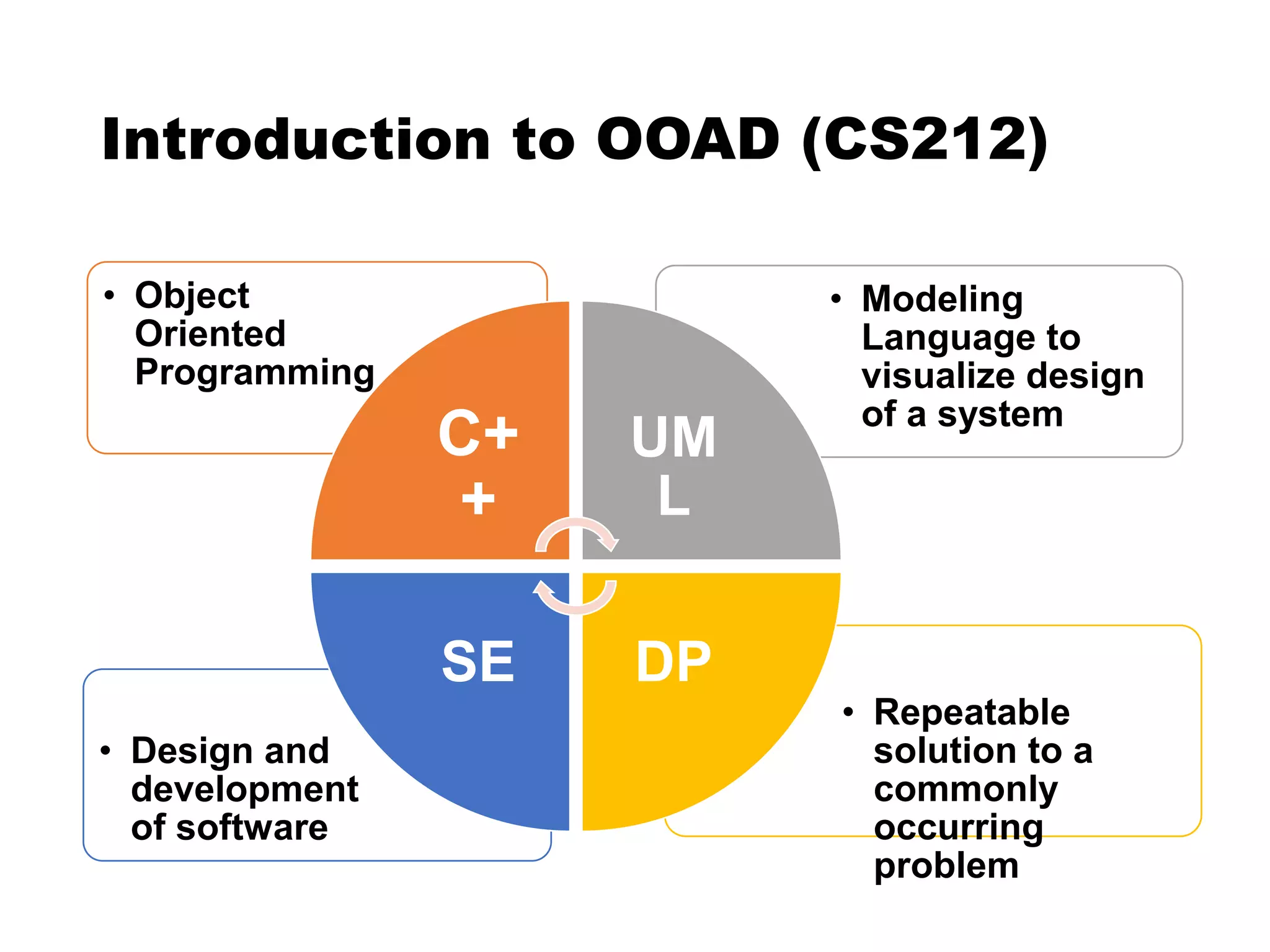

  Introduction to OOAD(CS212) • Repeatable solution to a commonly occurring problem • Design and development of software • Modeling Language to visualize design of a system • Object Oriented Programming C+ + UM L DPSE
• 6.

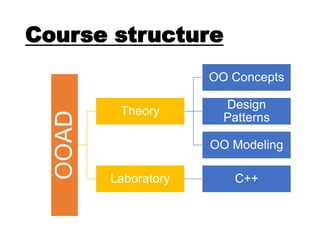

  Course structure OOAD Theory OO Concepts Design Patterns OOModeling Laboratory C++
• 7.

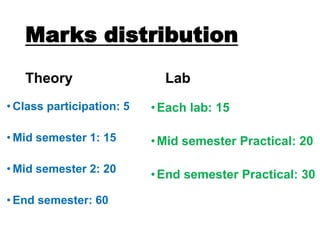

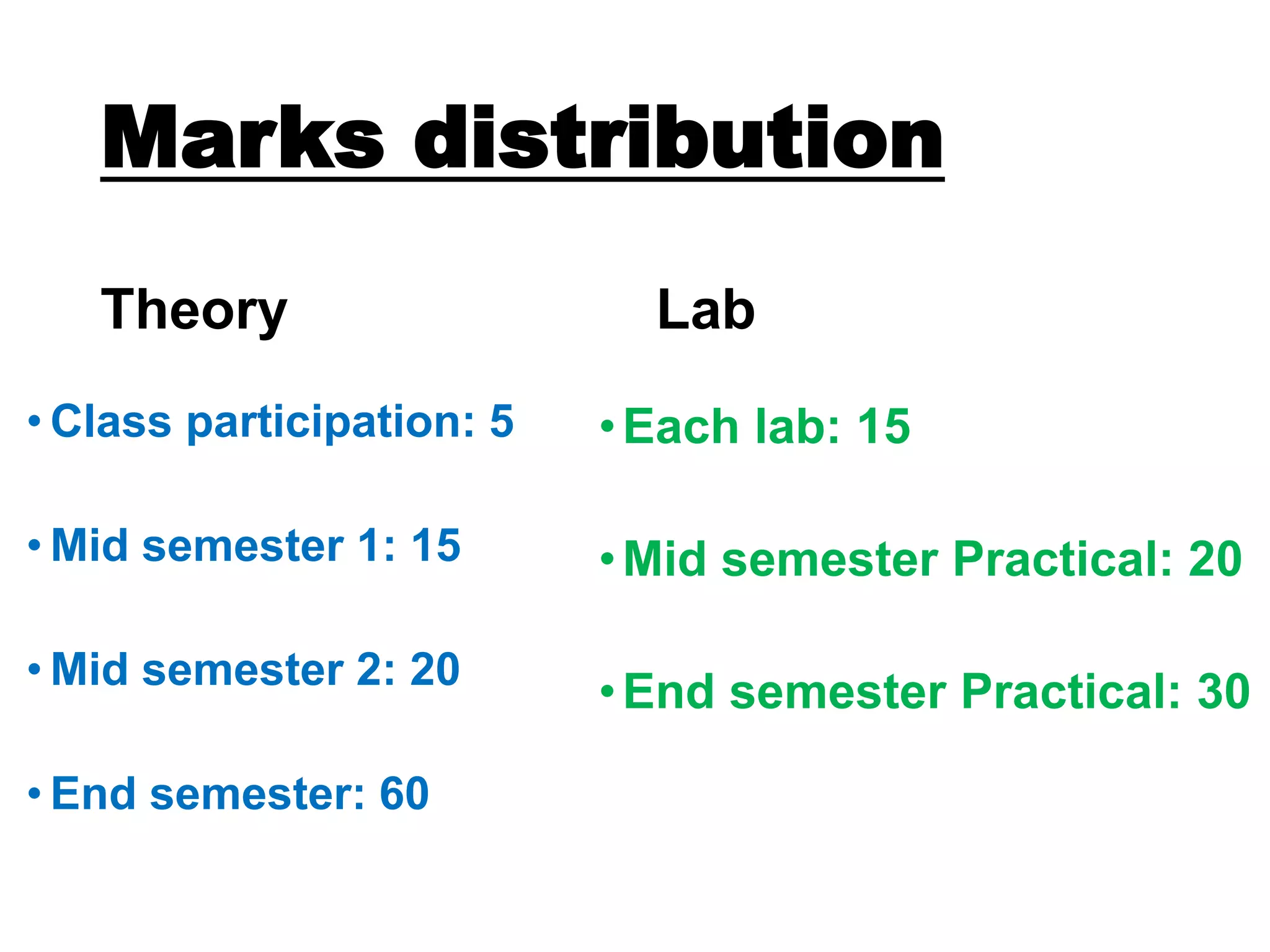

  Marks distribution Theory • Classparticipation: 5 • Mid semester 1: 15 • Mid semester 2: 20 • End semester: 60 Lab •Each lab: 15 •Mid semester Practical: 20 •End semester Practical: 30
• 8.

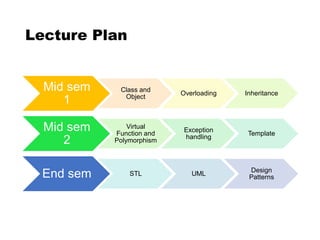

  Lecture Plan Mid sem 1 Classand Object Overloading Inheritance Mid sem 2 Virtual Function and Polymorphism Exception handling Template End sem STL UML Design Patterns
• 9.

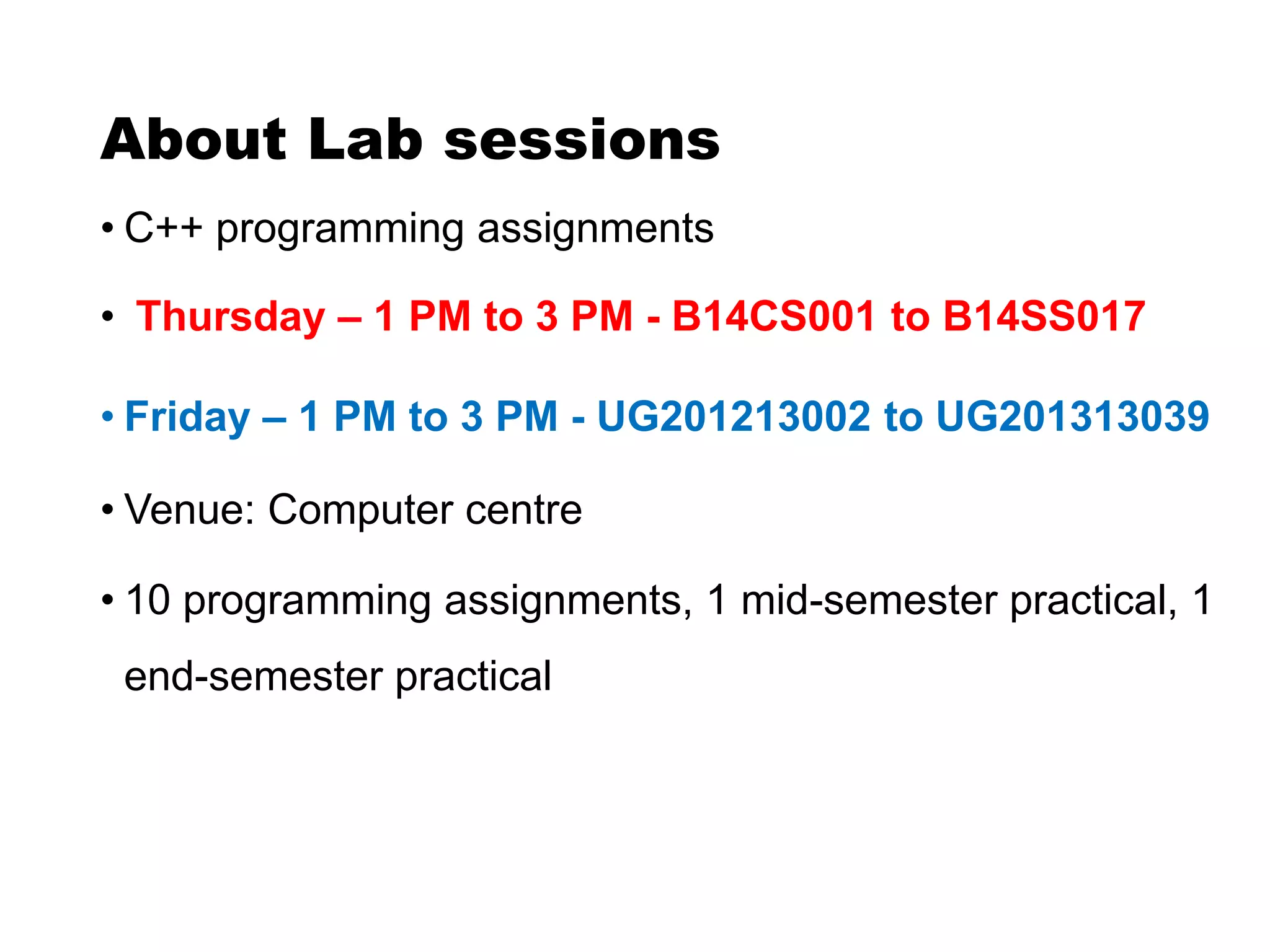

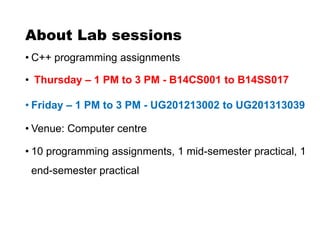

  About Lab sessions •C++ programming assignments • Thursday – 1 PM to 3 PM - B14CS001 to B14SS017 • Friday – 1 PM to 3 PM - UG201213002 to UG201313039 • Venue: Computer centre • 10 programming assignments, 1 mid-semester practical, 1 end-semester practical
• 10.

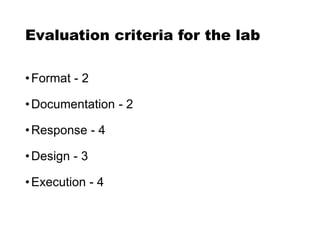

  Evaluation criteria forthe lab •Format - 2 •Documentation - 2 •Response - 4 •Design - 3 •Execution - 4
• 11.

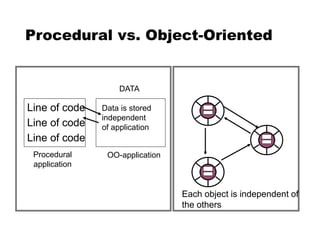

  Procedural vs. Object-Oriented Lineof code Line of code Line of code Data is stored independent of application Each object is independent of the others OO-applicationProcedural application DATA
• 12.

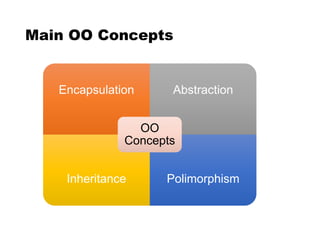

  Main OO Concepts EncapsulationAbstraction Inheritance Polimorphism OO Concepts
• 13.

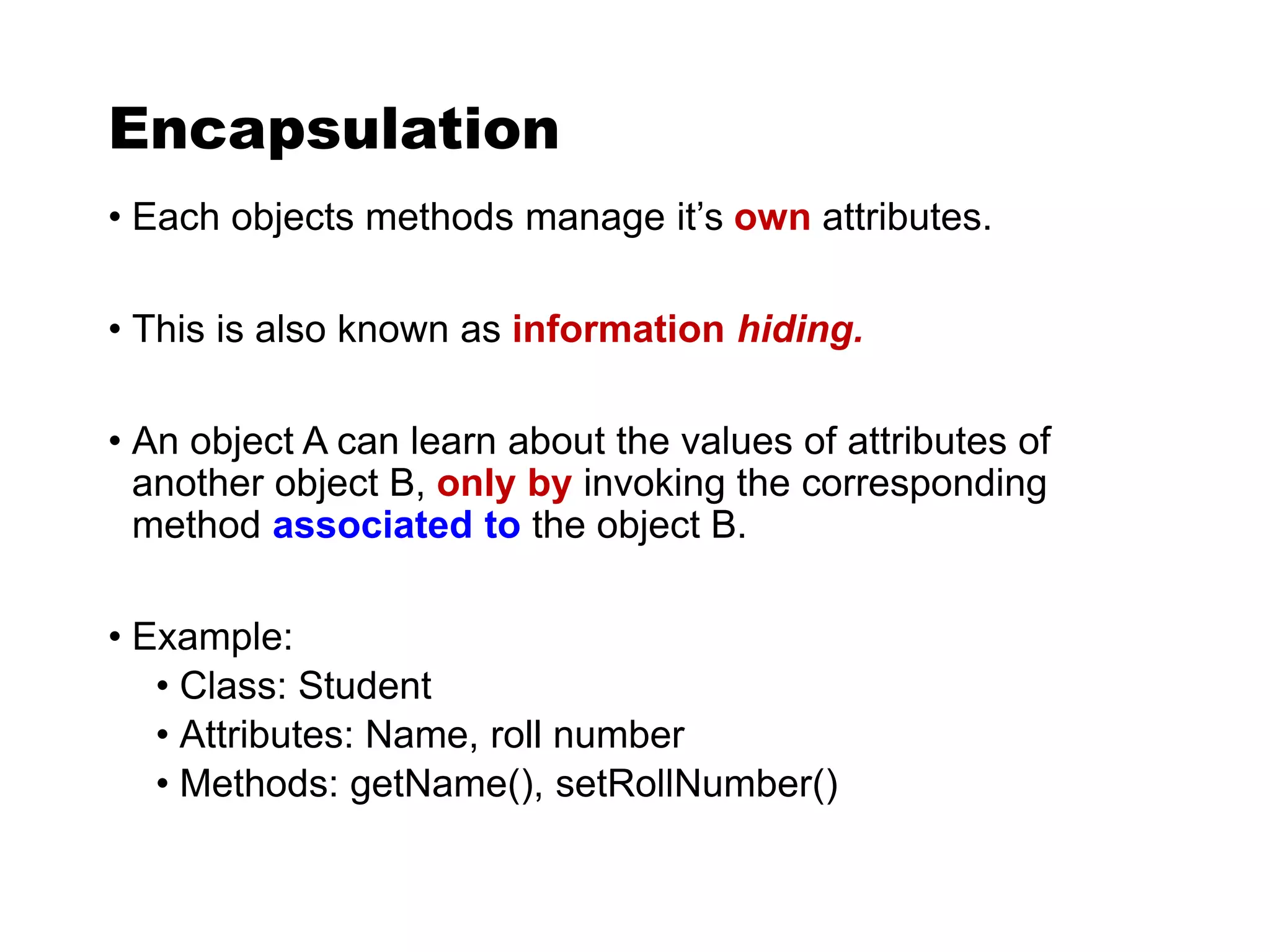

  Encapsulation • Each objectsmethods manage it’s own attributes. • This is also known as information hiding. • An object A can learn about the values of attributes of another object B, only by invoking the corresponding method associated to the object B. • Example: • Class: Student • Attributes: Name, roll number • Methods: getName(), setRollNumber()
• 14.

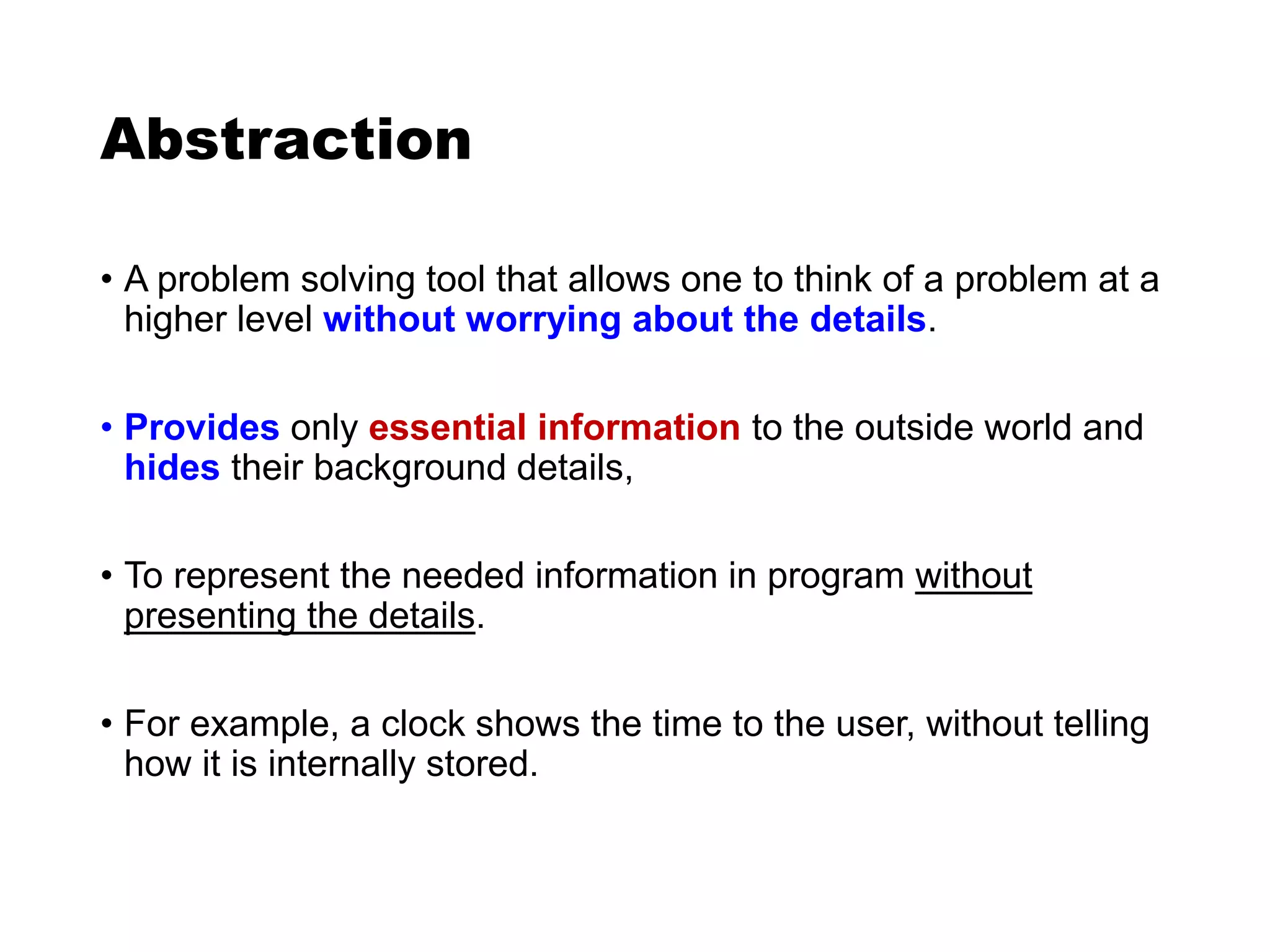

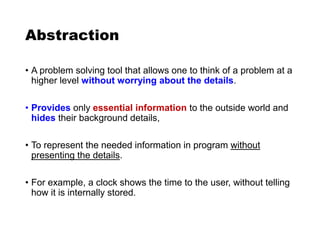

  Abstraction • A problemsolving tool that allows one to think of a problem at a higher level without worrying about the details. • Provides only essential information to the outside world and hides their background details, • To represent the needed information in program without presenting the details. • For example, a clock shows the time to the user, without telling how it is internally stored.
• 15.

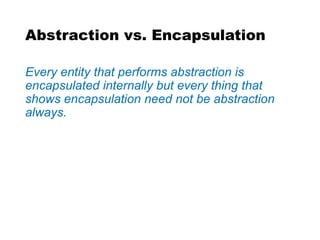

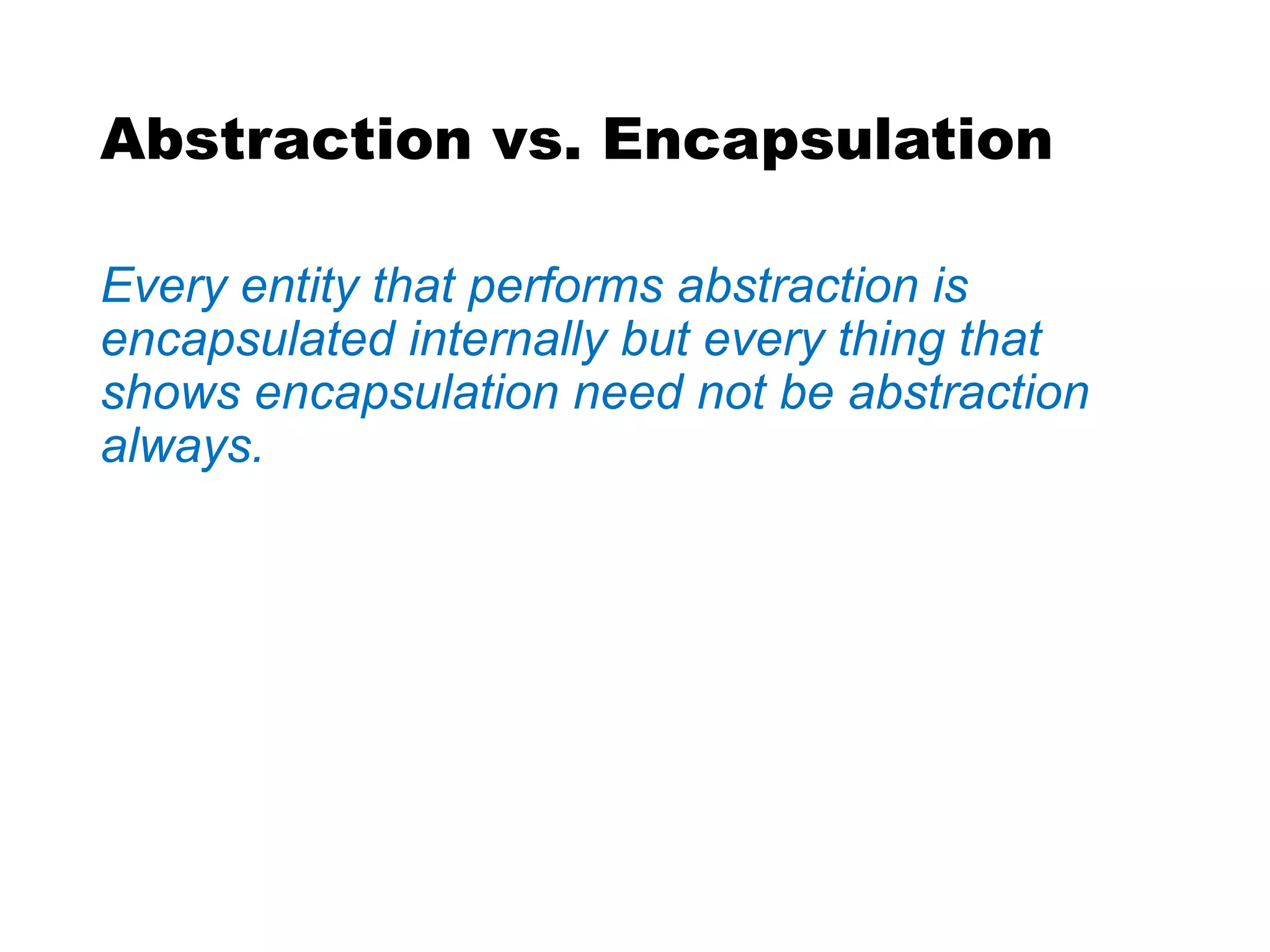

  Abstraction vs. Encapsulation Everyentity that performs abstraction is encapsulated internally but every thing that shows encapsulation need not be abstraction always.
• 16.

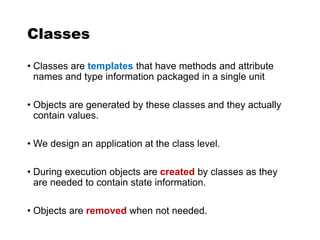

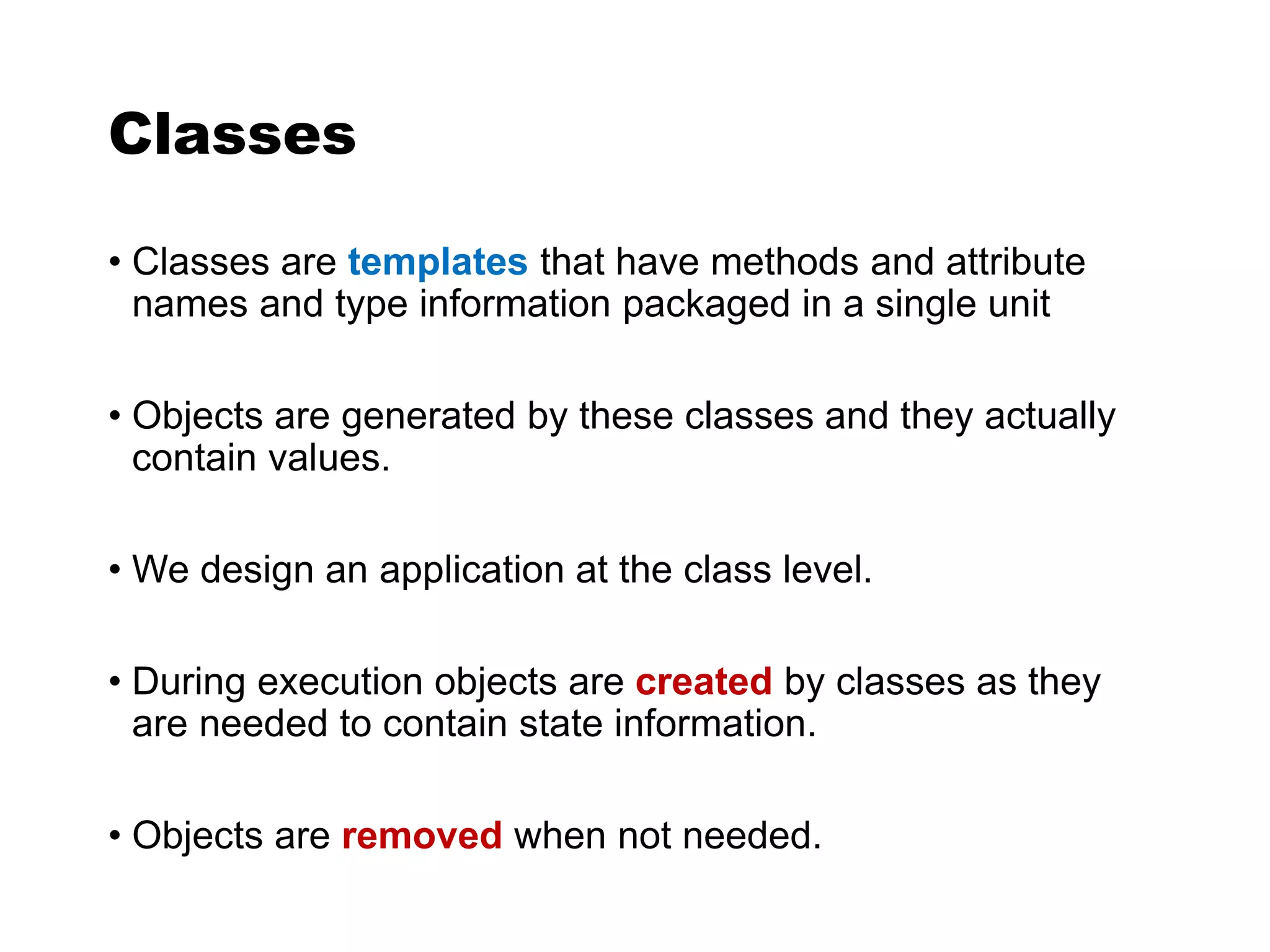

  Classes • Classes aretemplates that have methods and attribute names and type information packaged in a single unit • Objects are generated by these classes and they actually contain values. • We design an application at the class level. • During execution objects are created by classes as they are needed to contain state information. • Objects are removed when not needed.
• 17.

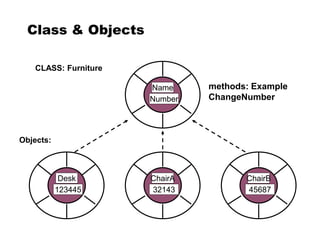

  Class & Objects Name Number CLASS:Furniture methods: Example ChangeNumber Objects: Desk 123445 ChairA 32143 ChairB 45687
• 18.

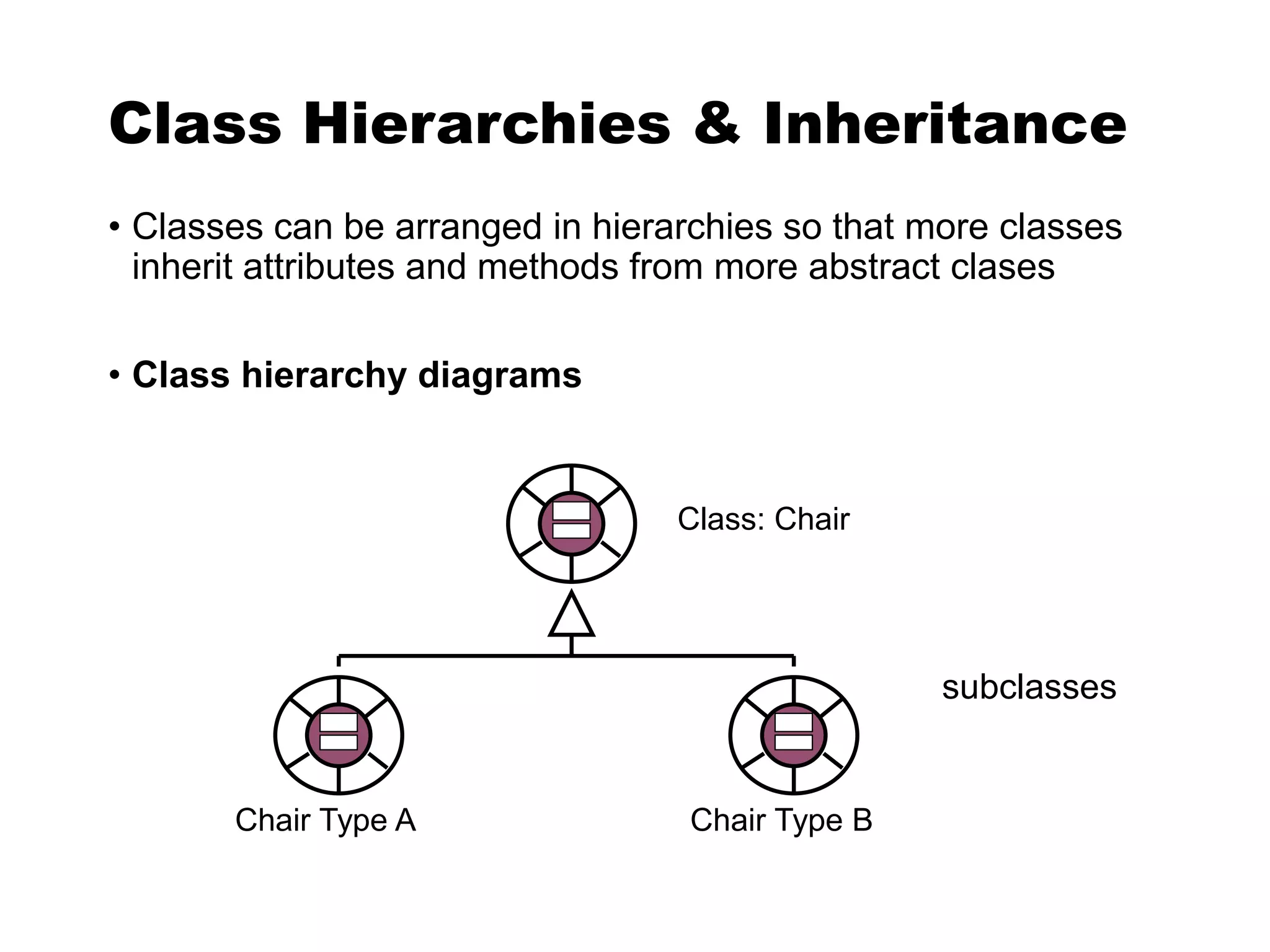

  Class Hierarchies &Inheritance • Classes can be arranged in hierarchies so that more classes inherit attributes and methods from more abstract clases • Class hierarchy diagrams Class: Chair subclasses Chair Type A Chair Type B
• 19.

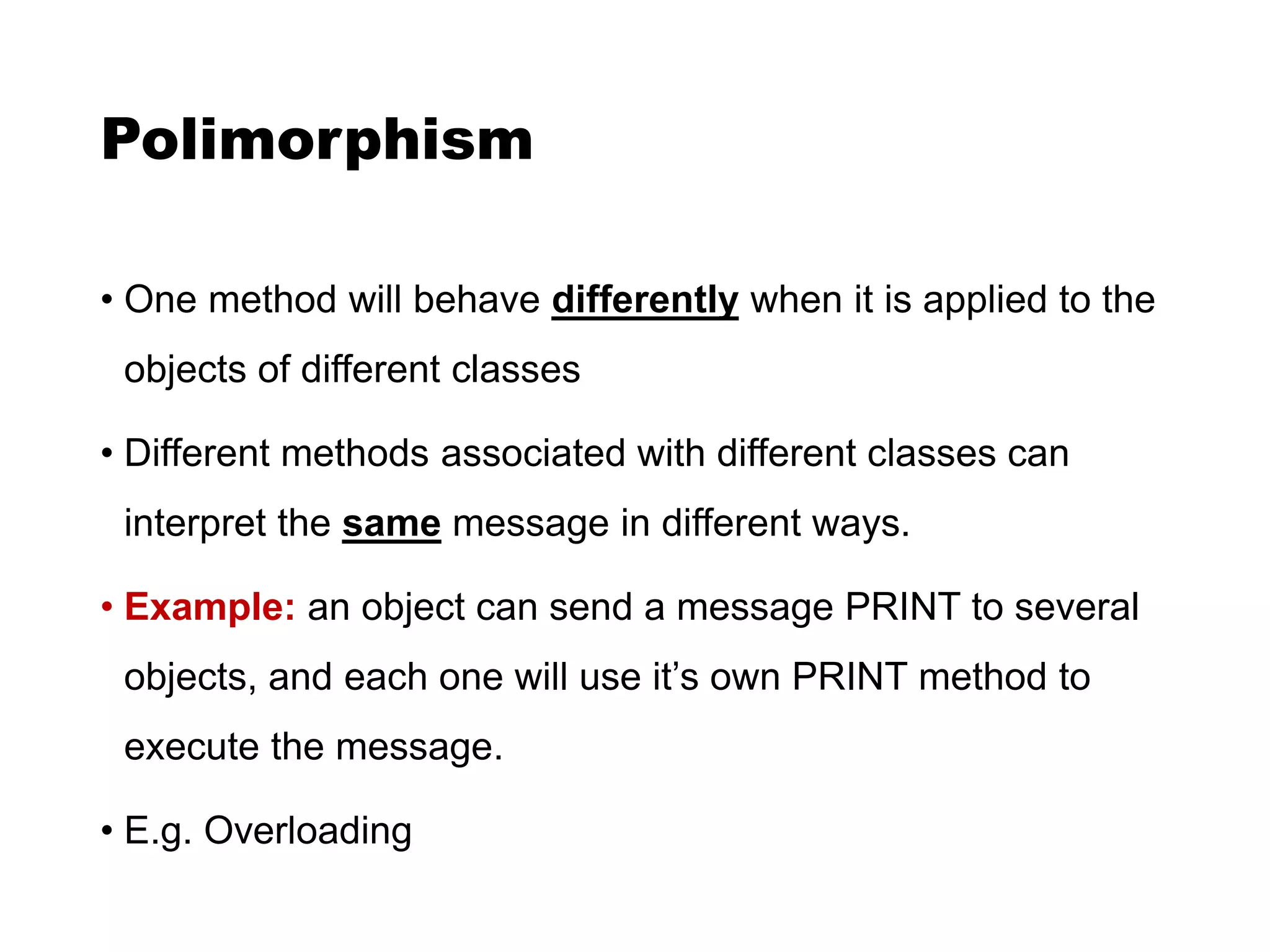

  Polimorphism • One methodwill behave differently when it is applied to the objects of different classes • Different methods associated with different classes can interpret the same message in different ways. • Example: an object can send a message PRINT to several objects, and each one will use it’s own PRINT method to execute the message. • E.g. Overloading
• 20.

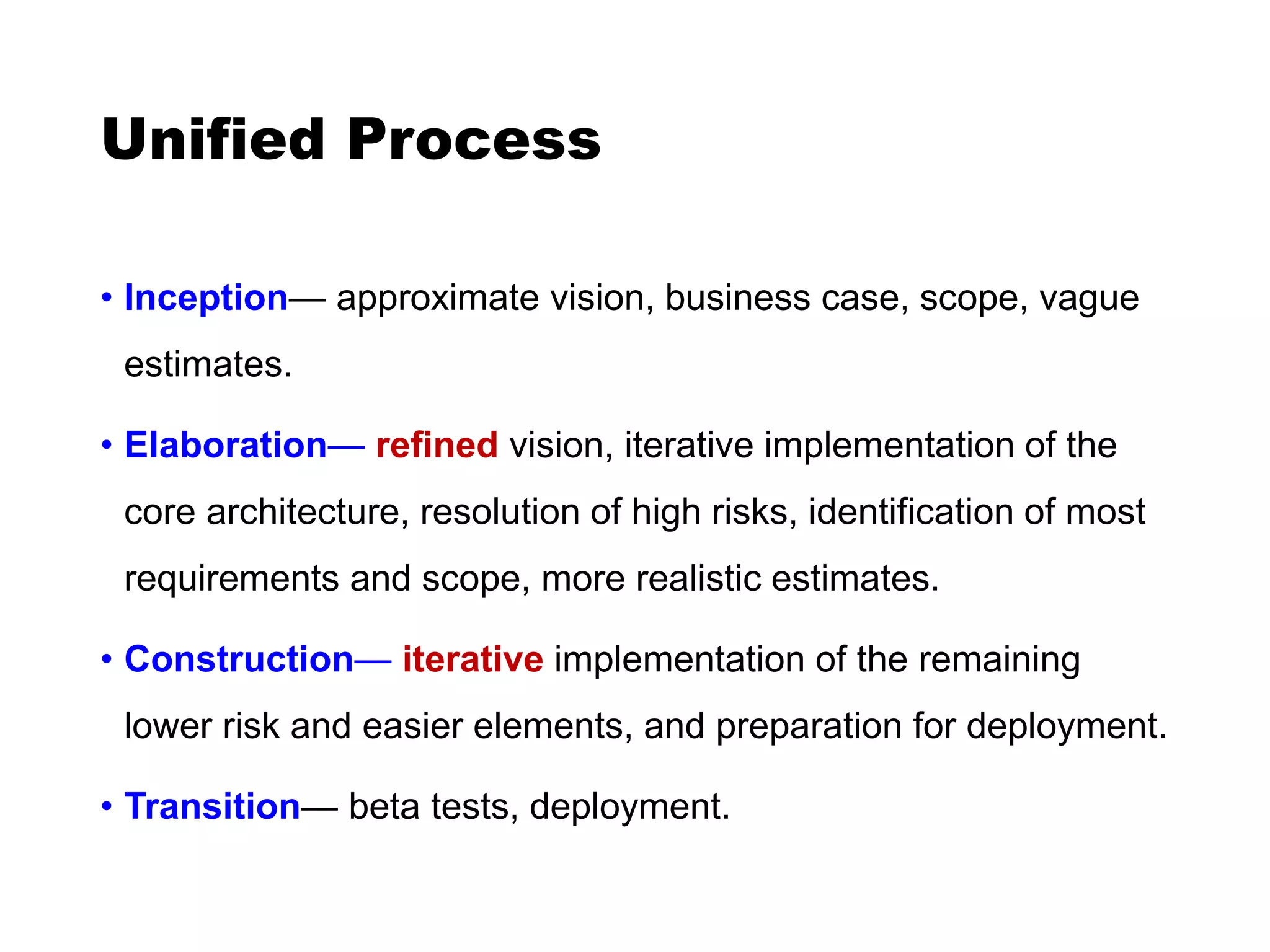

  Unified Process • Inception—approximate vision, business case, scope, vague estimates. • Elaboration— refined vision, iterative implementation of the core architecture, resolution of high risks, identification of most requirements and scope, more realistic estimates. • Construction— iterative implementation of the remaining lower risk and easier elements, and preparation for deployment. • Transition— beta tests, deployment.
• 21.

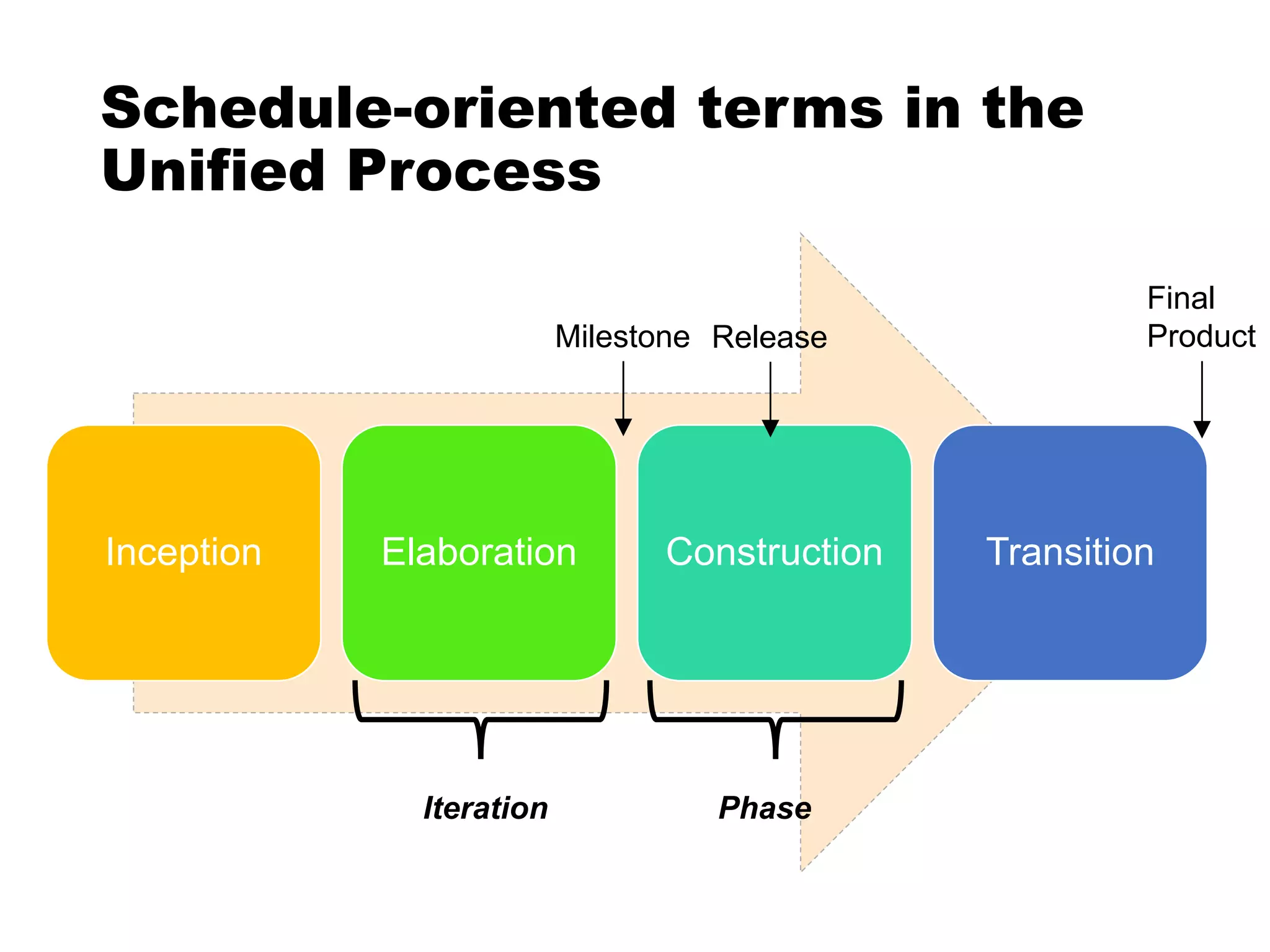

  Schedule-oriented terms inthe Unified Process Inception Elaboration Construction Transition Iteration Phase Milestone Release Final Product
