  ODATA Batch Processing
• 2.

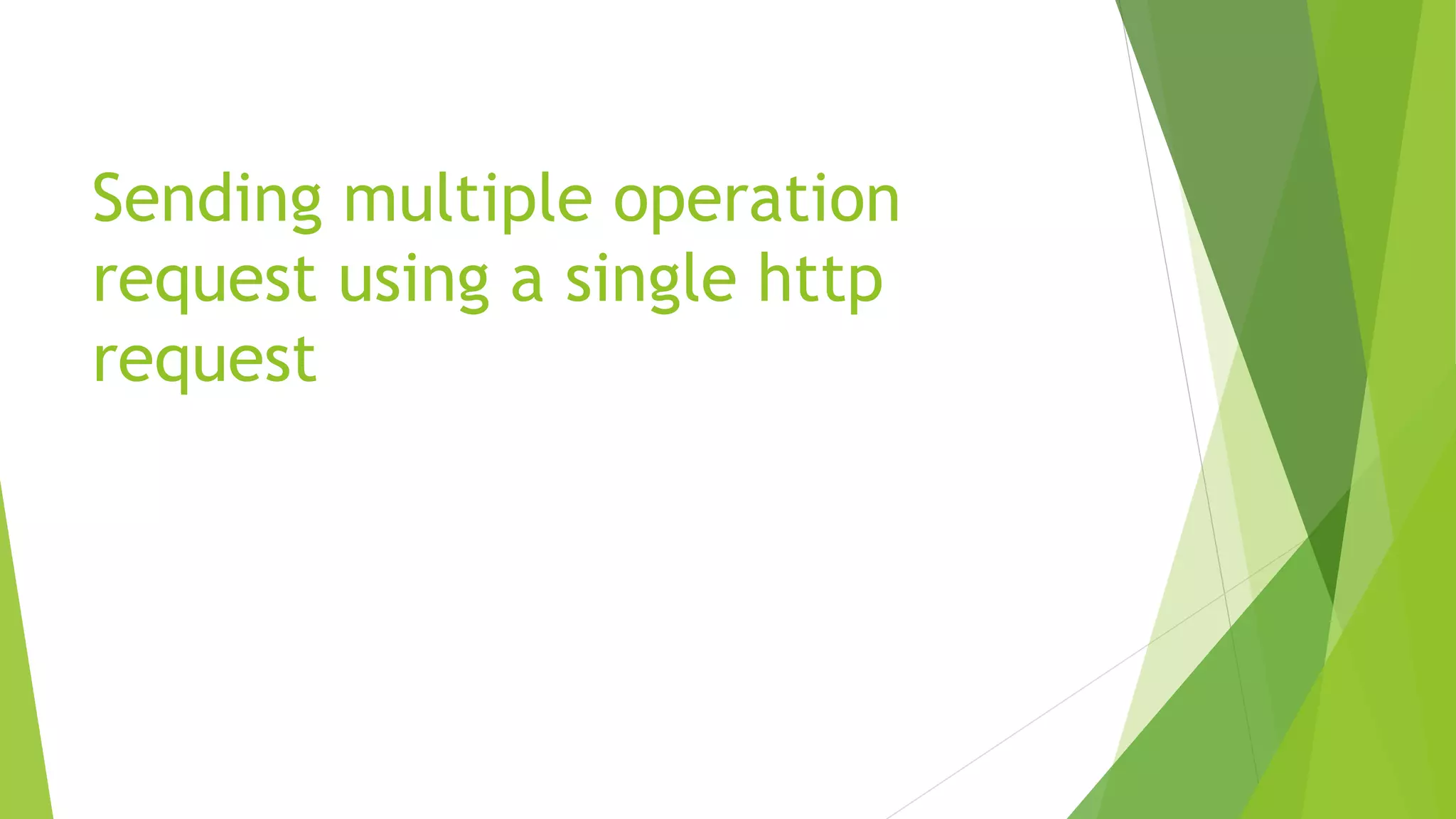

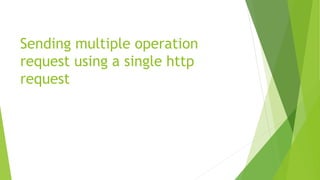

  Sending multiple operation requestusing a single http request
• 3.

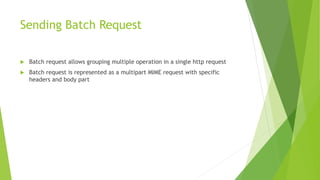

  Sending Batch Request Batch request allows grouping multiple operation in a single http request  Batch request is represented as a multipart MIME request with specific headers and body part
• 4.

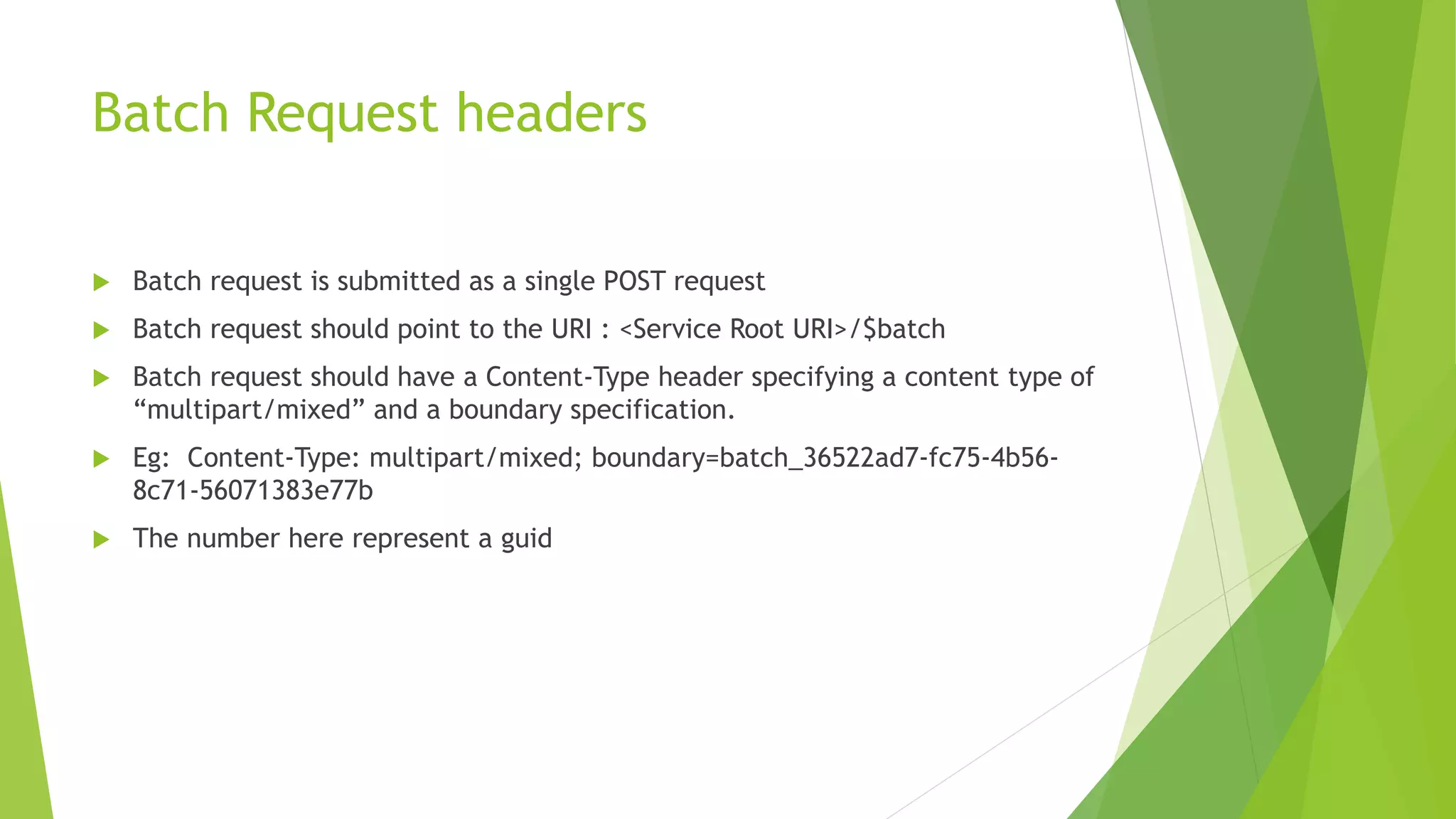

  Batch Request headers Batch request is submitted as a single POST request  Batch request should point to the URI : <Service Root URI>/$batch  Batch request should have a Content-Type header specifying a content type of “multipart/mixed” and a boundary specification.  Eg: Content-Type: multipart/mixed; boundary=batch_36522ad7-fc75-4b56- 8c71-56071383e77b  The number here represent a guid
• 5.

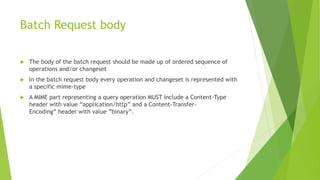

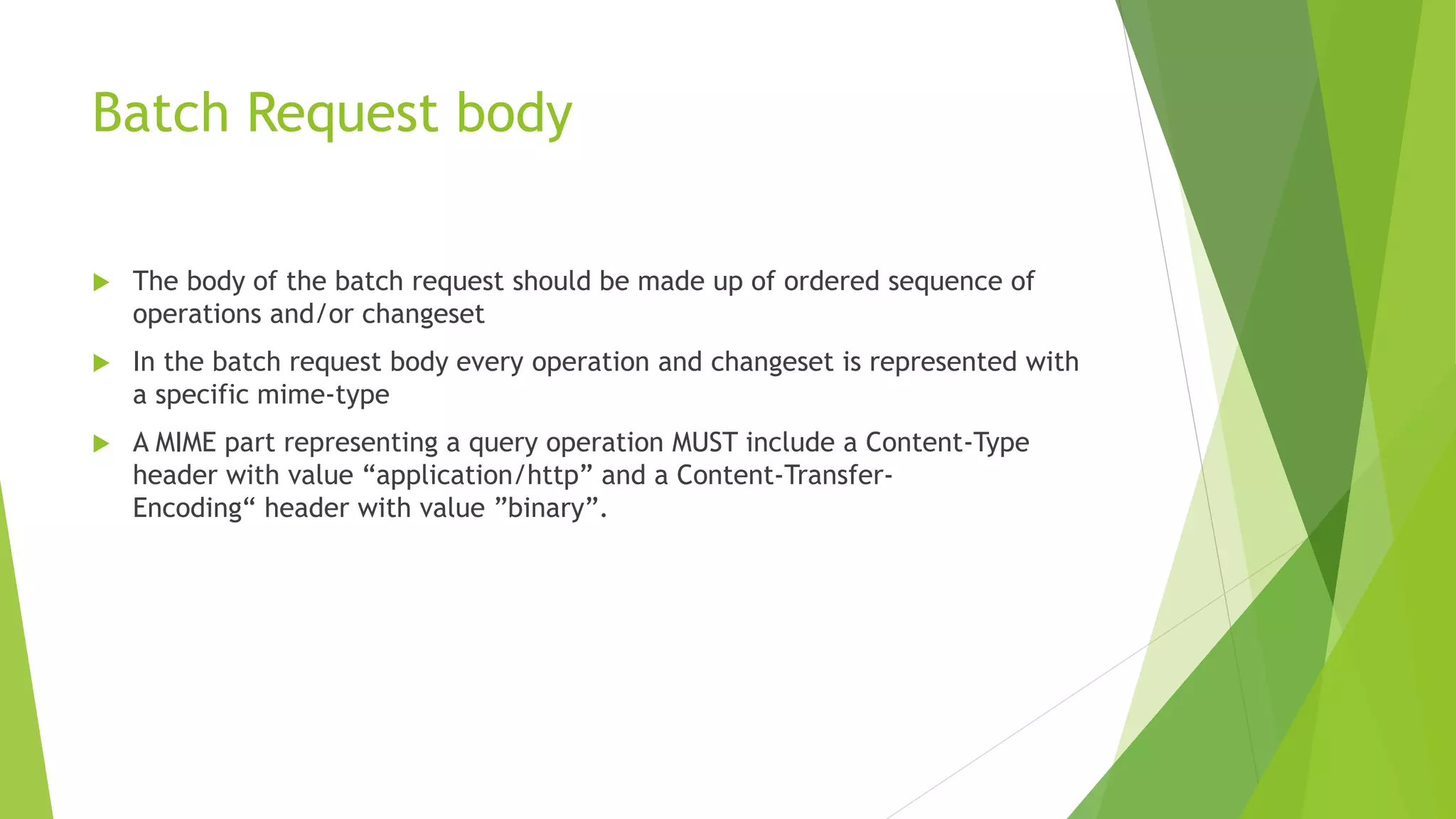

  Batch Request body The body of the batch request should be made up of ordered sequence of operations and/or changeset  In the batch request body every operation and changeset is represented with a specific mime-type  A MIME part representing a query operation MUST include a Content-Type header with value “application/http” and a Content-Transfer- Encoding“ header with value ”binary”.
• 6.

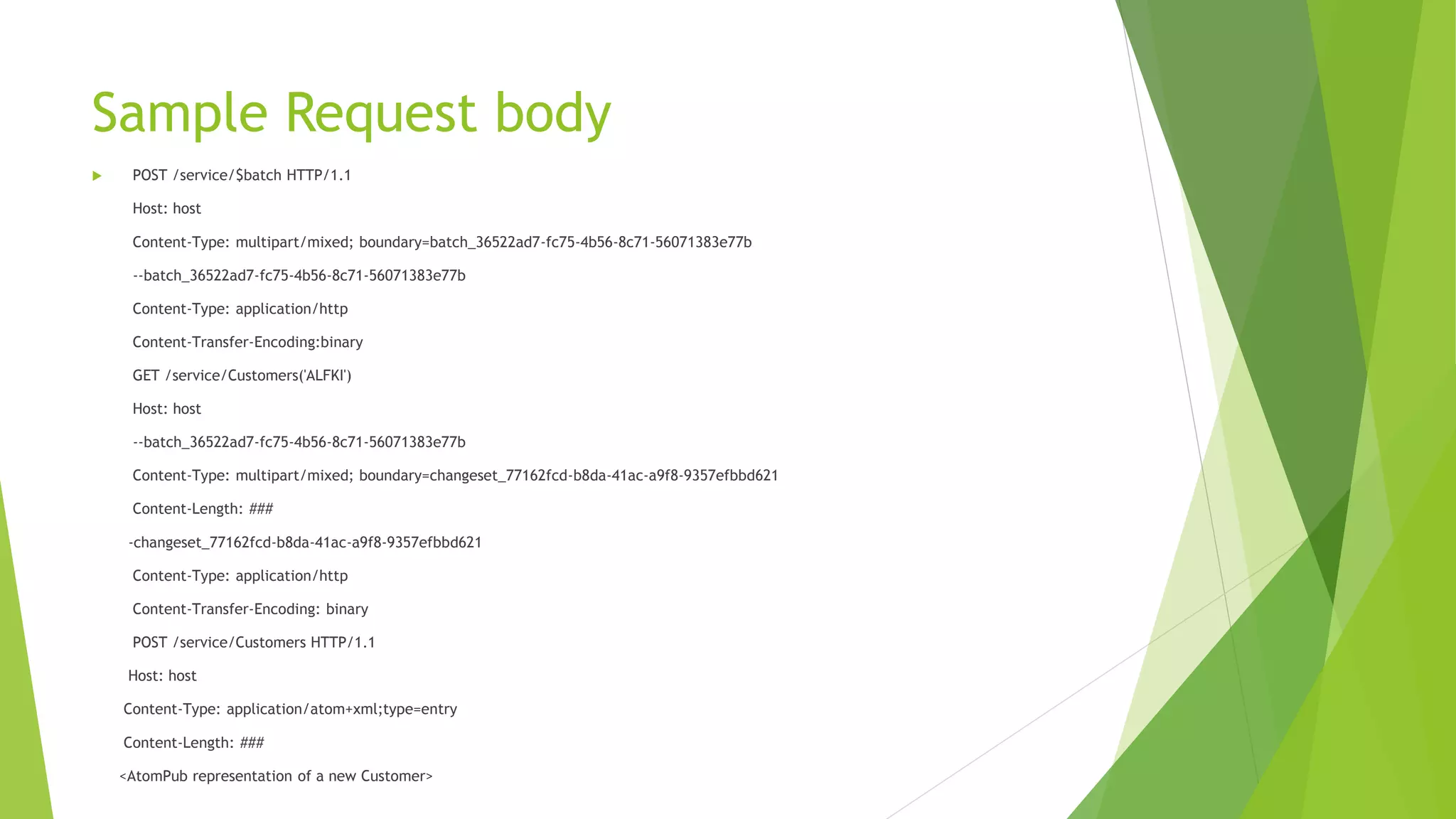

  Sample Request body POST /service/$batch HTTP/1.1 Host: host Content-Type: multipart/mixed; boundary=batch_36522ad7-fc75-4b56-8c71-56071383e77b --batch_36522ad7-fc75-4b56-8c71-56071383e77b Content-Type: application/http Content-Transfer-Encoding:binary GET /service/Customers('ALFKI') Host: host --batch_36522ad7-fc75-4b56-8c71-56071383e77b Content-Type: multipart/mixed; boundary=changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621 Content-Length: ### -changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621 Content-Type: application/http Content-Transfer-Encoding: binary POST /service/Customers HTTP/1.1 Host: host Content-Type: application/atom+xml;type=entry Content-Length: ### <AtomPub representation of a new Customer>
• 7.

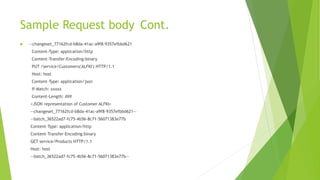

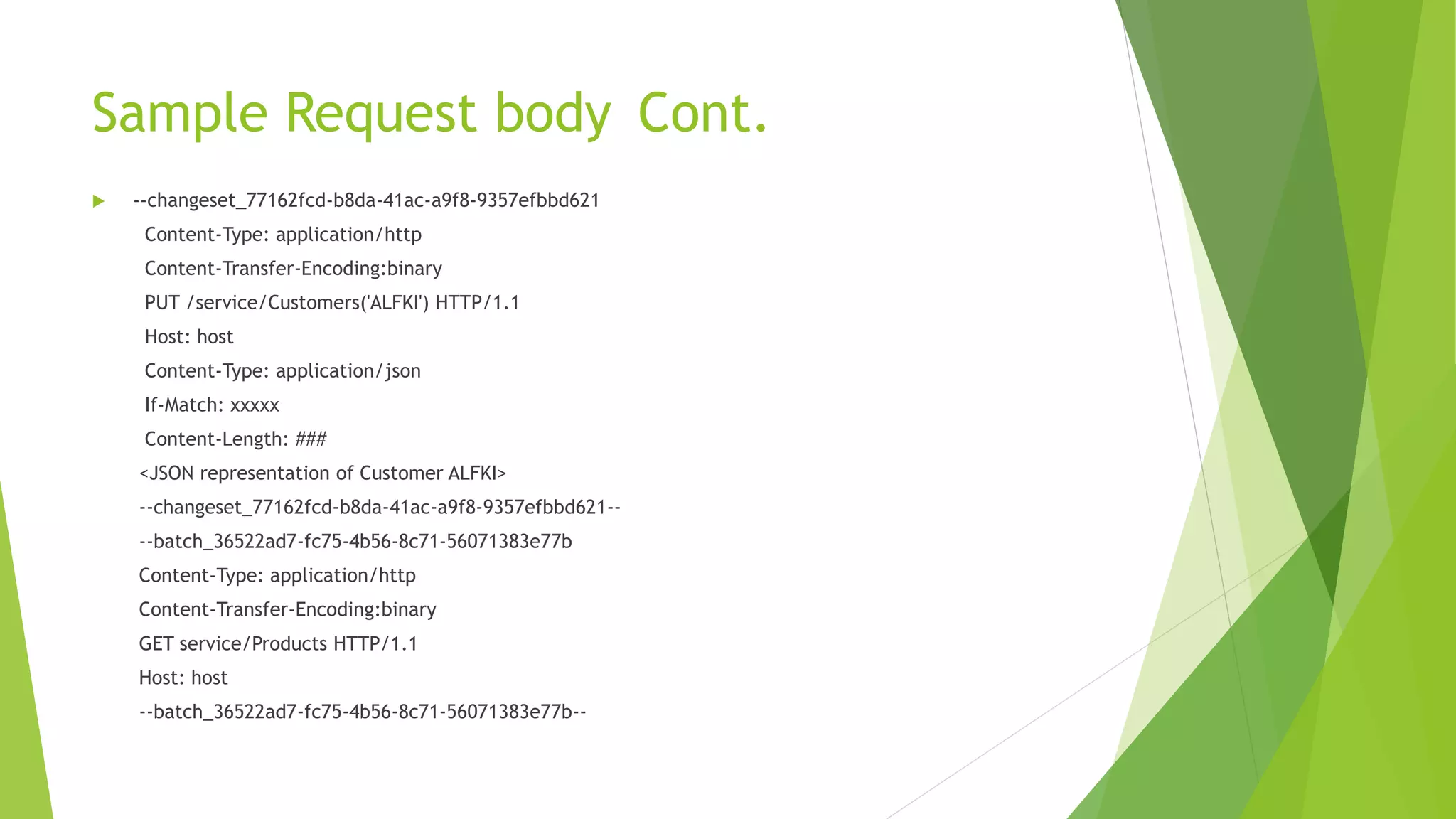

  Sample Request bodyCont.  --changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621 Content-Type: application/http Content-Transfer-Encoding:binary PUT /service/Customers('ALFKI') HTTP/1.1 Host: host Content-Type: application/json If-Match: xxxxx Content-Length: ### <JSON representation of Customer ALFKI> --changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621-- --batch_36522ad7-fc75-4b56-8c71-56071383e77b Content-Type: application/http Content-Transfer-Encoding:binary GET service/Products HTTP/1.1 Host: host --batch_36522ad7-fc75-4b56-8c71-56071383e77b--
• 8.

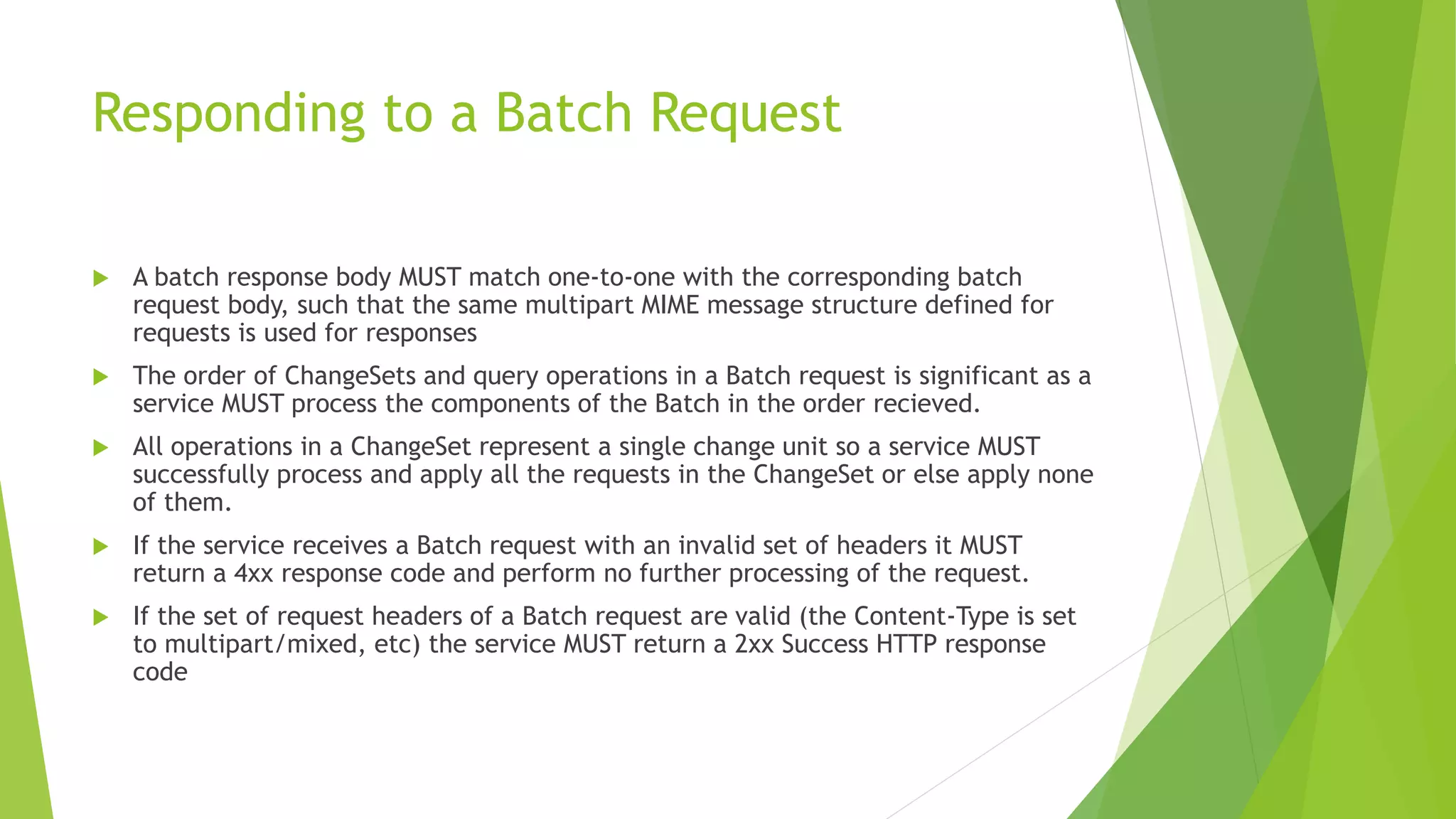

  Responding to aBatch Request  A batch response body MUST match one-to-one with the corresponding batch request body, such that the same multipart MIME message structure defined for requests is used for responses  The order of ChangeSets and query operations in a Batch request is significant as a service MUST process the components of the Batch in the order recieved.  All operations in a ChangeSet represent a single change unit so a service MUST successfully process and apply all the requests in the ChangeSet or else apply none of them.  If the service receives a Batch request with an invalid set of headers it MUST return a 4xx response code and perform no further processing of the request.  If the set of request headers of a Batch request are valid (the Content-Type is set to multipart/mixed, etc) the service MUST return a 2xx Success HTTP response code
• 9.

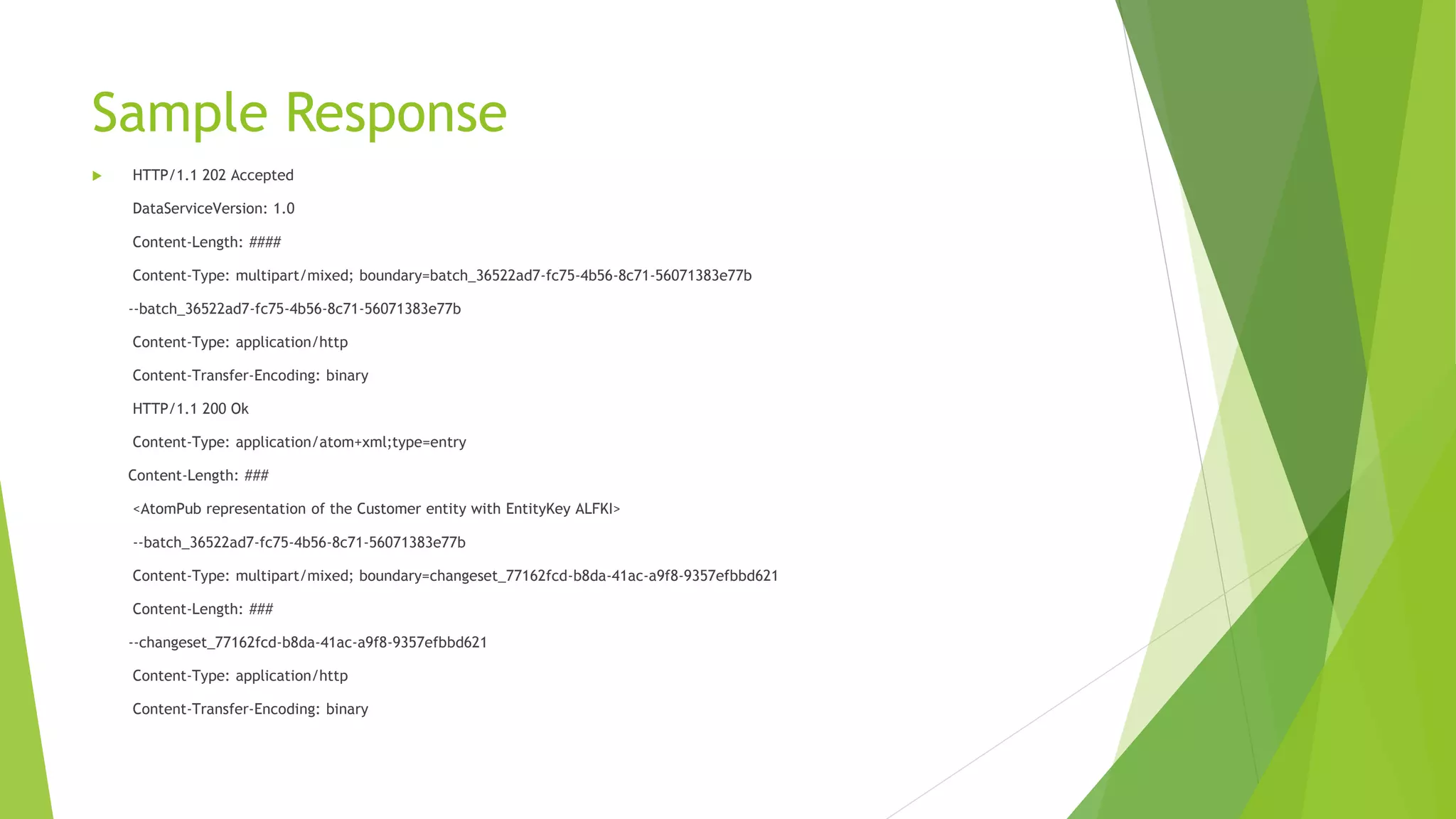

  Sample Response  HTTP/1.1202 Accepted DataServiceVersion: 1.0 Content-Length: #### Content-Type: multipart/mixed; boundary=batch_36522ad7-fc75-4b56-8c71-56071383e77b --batch_36522ad7-fc75-4b56-8c71-56071383e77b Content-Type: application/http Content-Transfer-Encoding: binary HTTP/1.1 200 Ok Content-Type: application/atom+xml;type=entry Content-Length: ### <AtomPub representation of the Customer entity with EntityKey ALFKI> --batch_36522ad7-fc75-4b56-8c71-56071383e77b Content-Type: multipart/mixed; boundary=changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621 Content-Length: ### --changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621 Content-Type: application/http Content-Transfer-Encoding: binary
• 10.

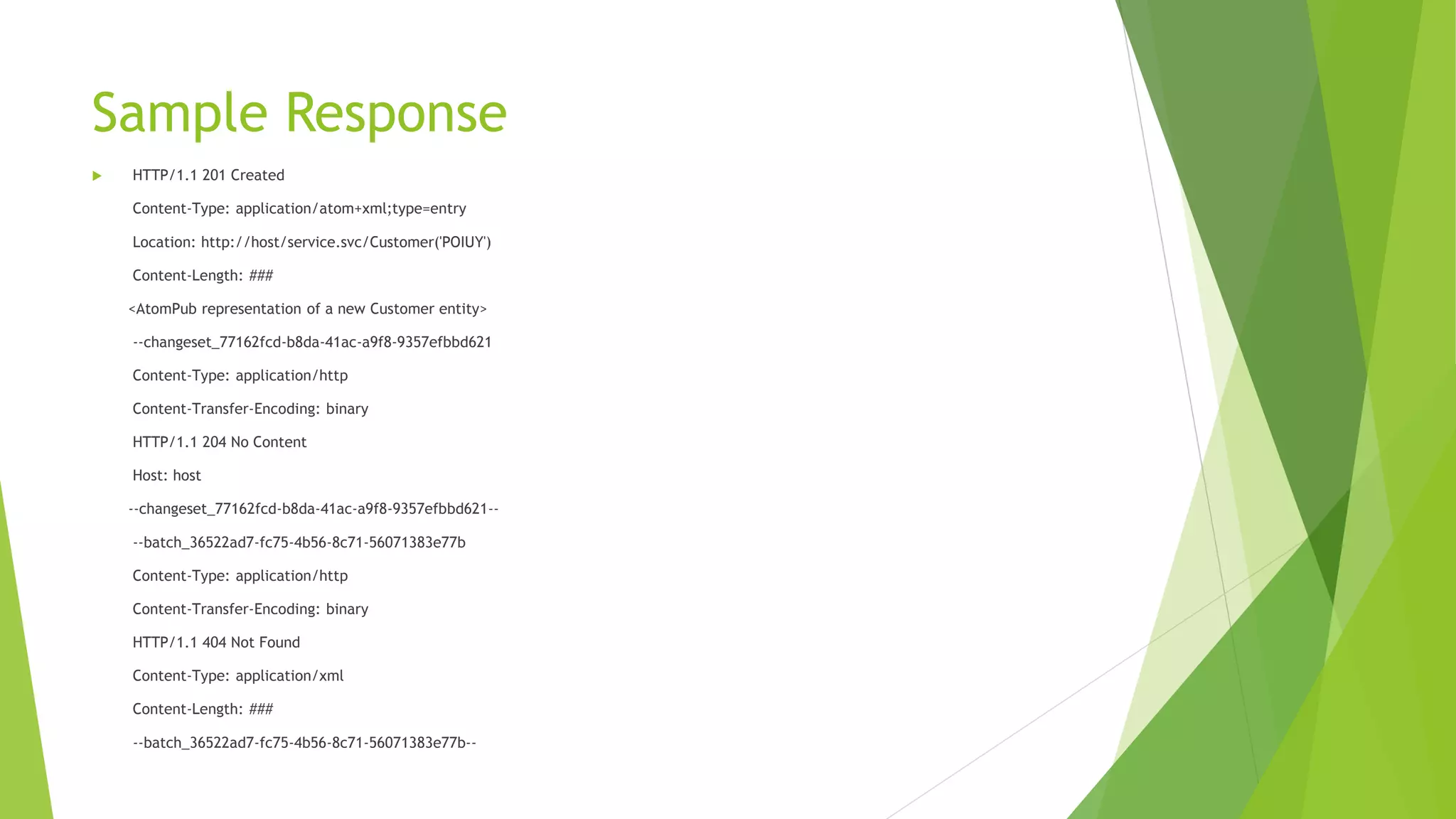

  Sample Response  HTTP/1.1201 Created Content-Type: application/atom+xml;type=entry Location: http://host/service.svc/Customer('POIUY') Content-Length: ### <AtomPub representation of a new Customer entity> --changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621 Content-Type: application/http Content-Transfer-Encoding: binary HTTP/1.1 204 No Content Host: host --changeset_77162fcd-b8da-41ac-a9f8-9357efbbd621-- --batch_36522ad7-fc75-4b56-8c71-56071383e77b Content-Type: application/http Content-Transfer-Encoding: binary HTTP/1.1 404 Not Found Content-Type: application/xml Content-Length: ### --batch_36522ad7-fc75-4b56-8c71-56071383e77b--
• 11.
  Thanks Ashish Agrawal meetashish@gmail.com
