OS-operating systems- ch05 (CPU Scheduling) ...

Chapter 5 discusses CPU scheduling in multi-programming systems, emphasizing its importance for maximizing CPU utilization. Different types of schedulers are explained, including long-term, short-term, and medium-term, along with various scheduling algorithms such as First-Come, First-Served, Shortest Job First, and Round Robin. The chapter concludes with an overview of scheduling criteria such as CPU utilization, throughput, and turnaround time.

Downloaded 41 times

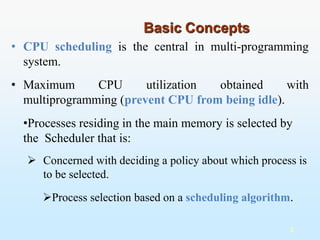

Chapter 5: CPU Scheduling
• CPU scheduling is the central in multi-programming system. 2 • Maximum CPU utilization obtained with multiprogramming (prevent CPU from being idle). •Processes residing in the main memory is selected by the Scheduler that is:  Concerned with deciding a policy about which process is to be selected. Process selection based on a scheduling algorithm. Basic Concepts

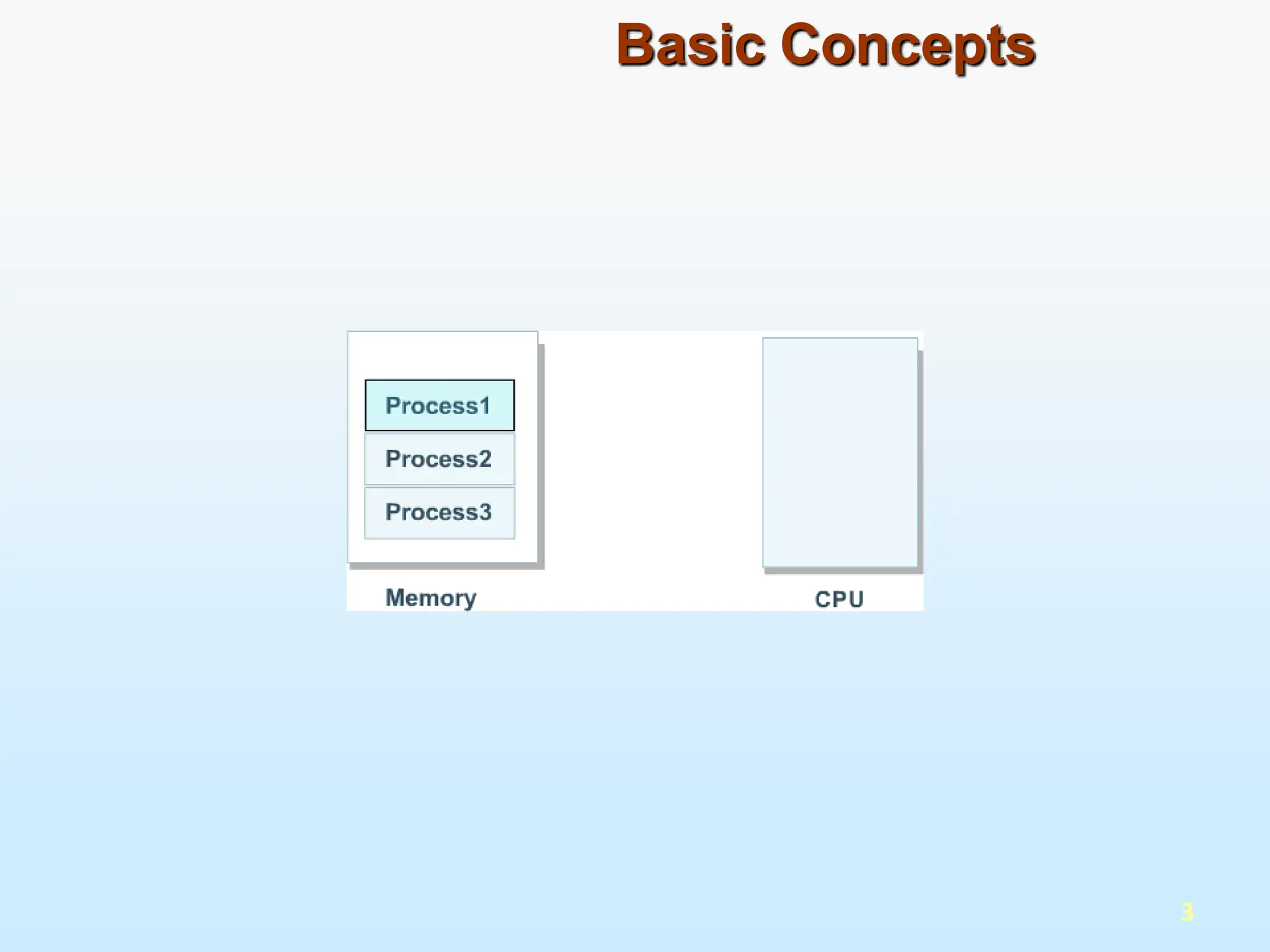

Basic Concepts 3

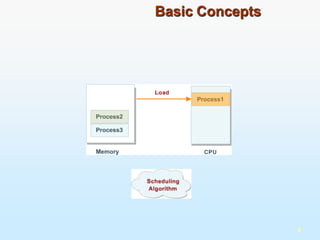

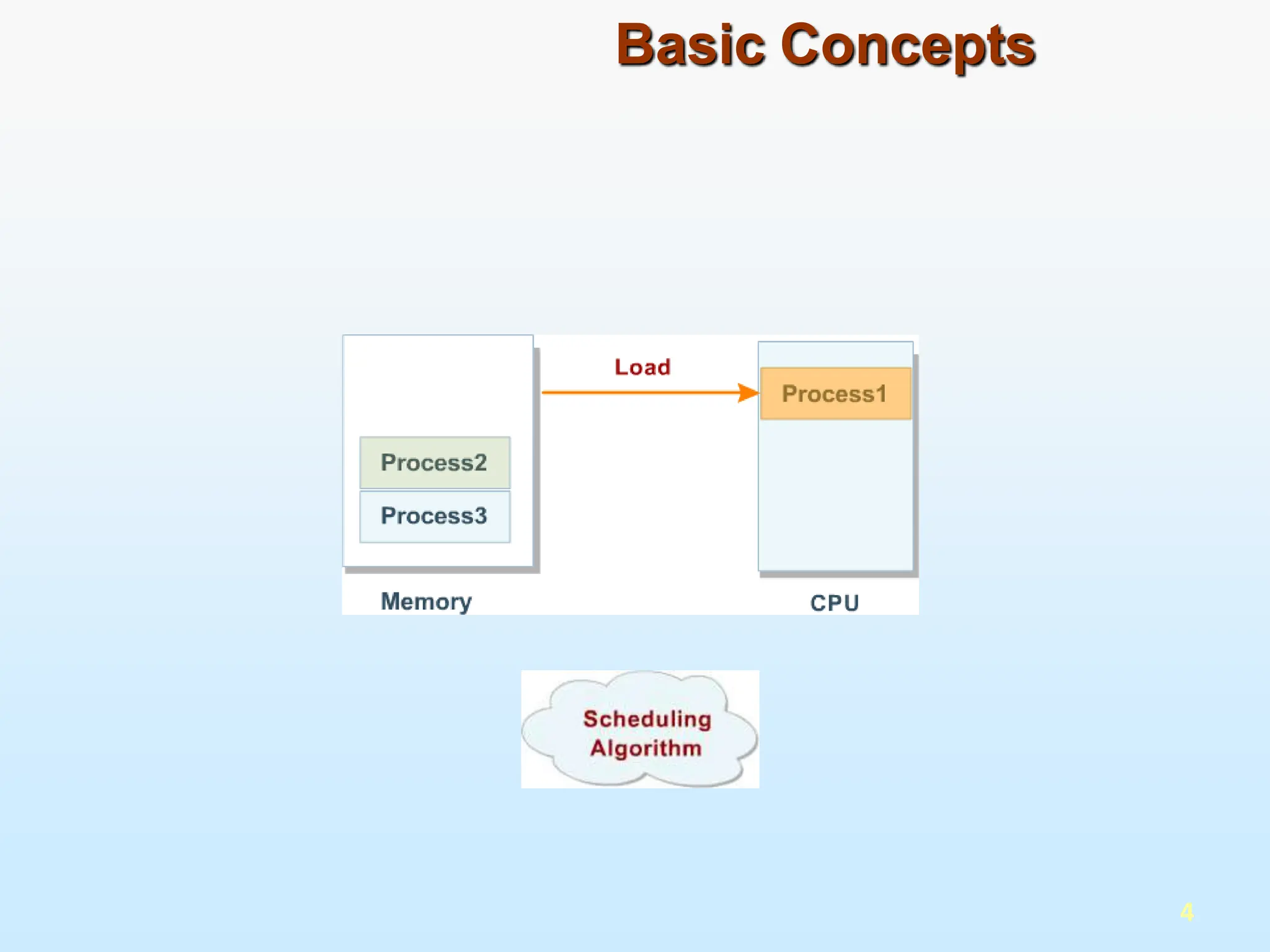

Basic Concepts 4

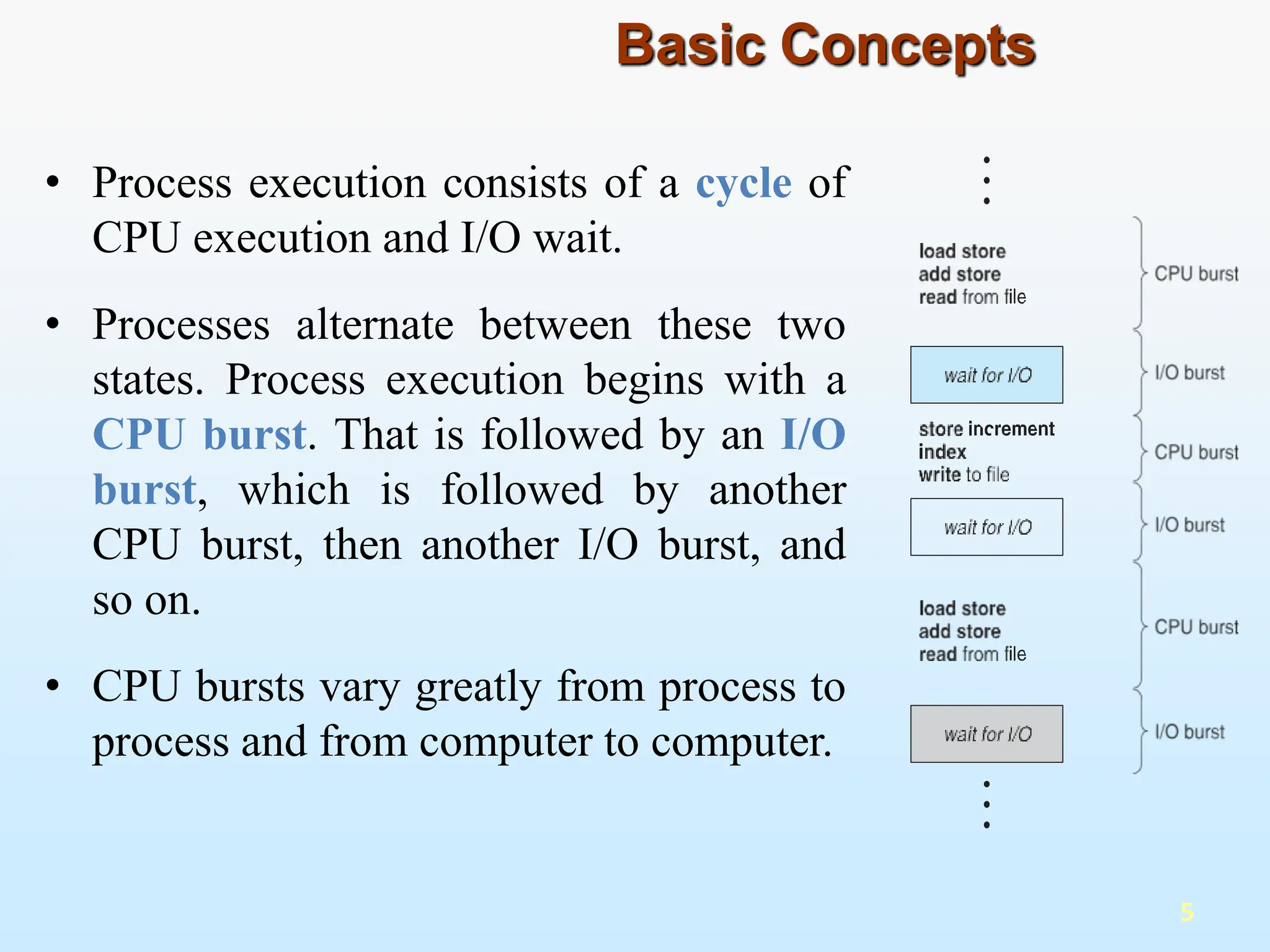

• Process execution consists of a cycle of CPU execution and I/O wait. • Processes alternate between these two states. Process execution begins with a CPU burst. That is followed by an I/O burst, which is followed by another CPU burst, then another I/O burst, and so on. • CPU bursts vary greatly from process to process and from computer to computer. Basic Concepts 5

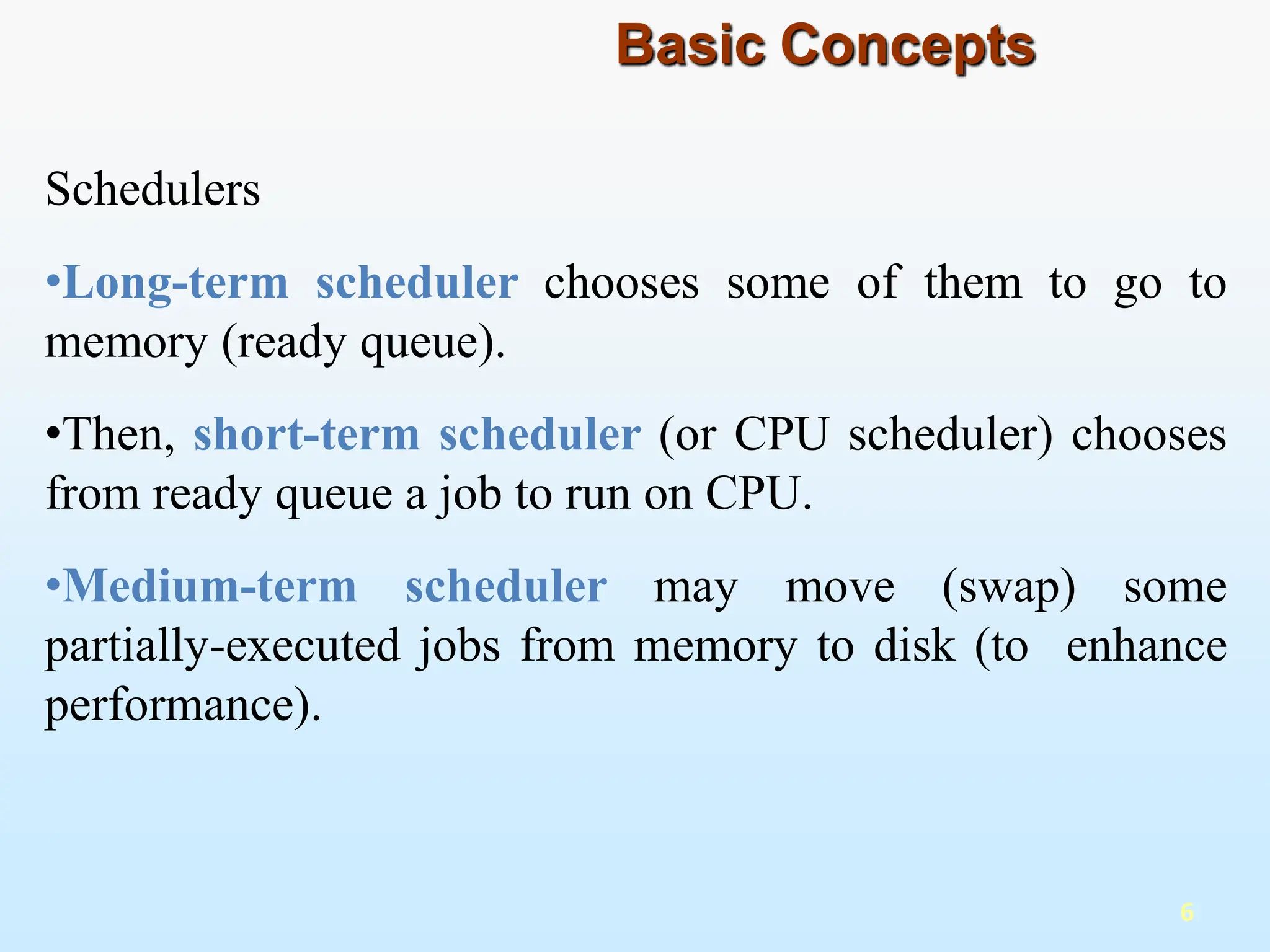

Schedulers •Long-term scheduler chooses some of them to go to memory (ready queue). •Then, short-term scheduler (or CPU scheduler) chooses from ready queue a job to run on CPU. •Medium-term scheduler may move (swap) some partially-executed jobs from memory to disk (to enhance performance). 6 Basic Concepts

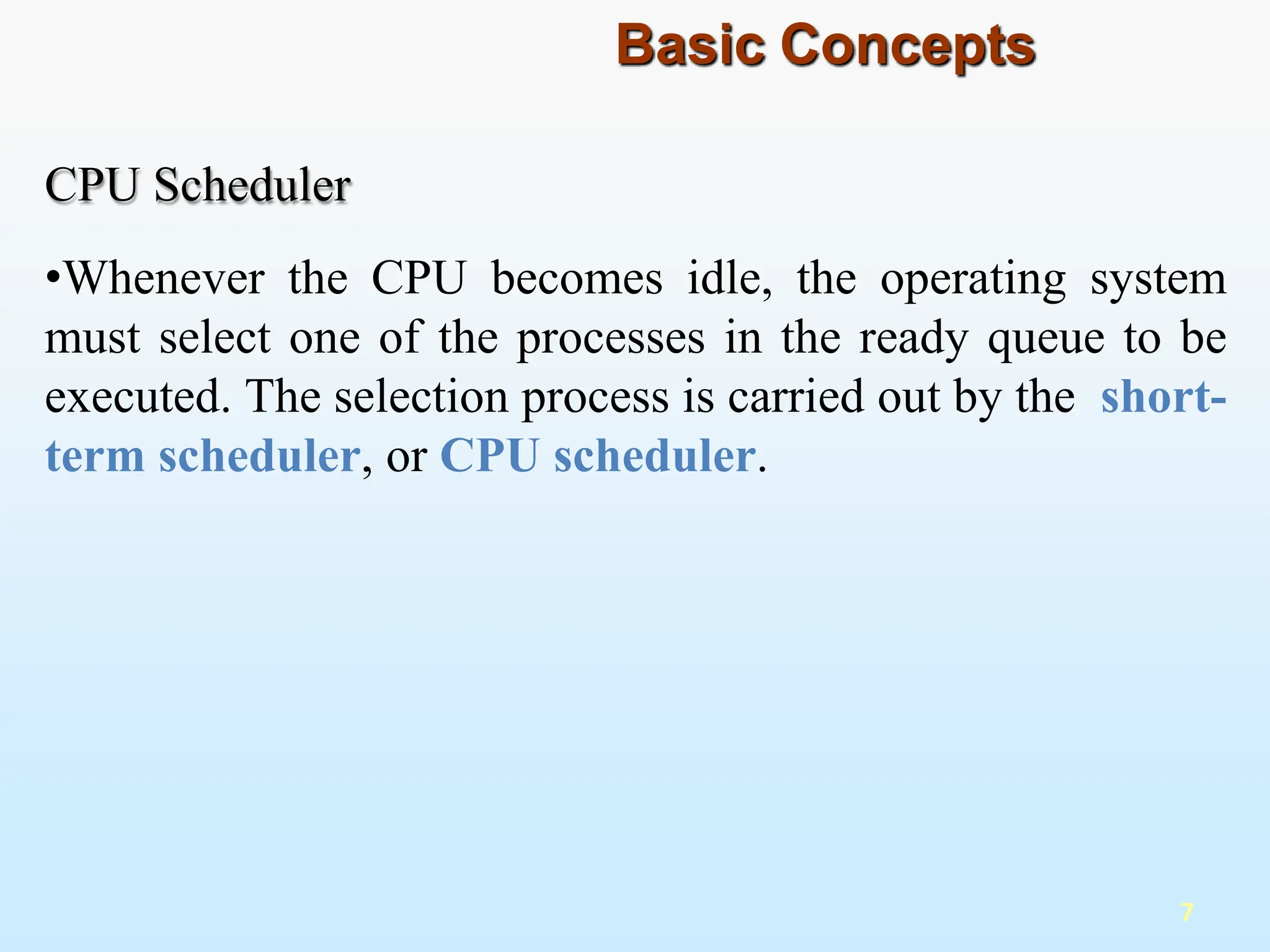

CPU Scheduler •Whenever the CPU becomes idle, the operating system must select one of the processes in the ready queue to be executed. The selection process is carried out by the short- term scheduler, or CPU scheduler. 7 Basic Concepts

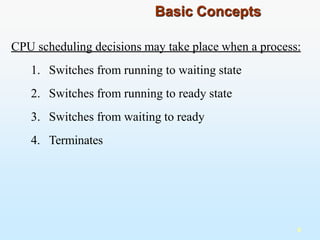

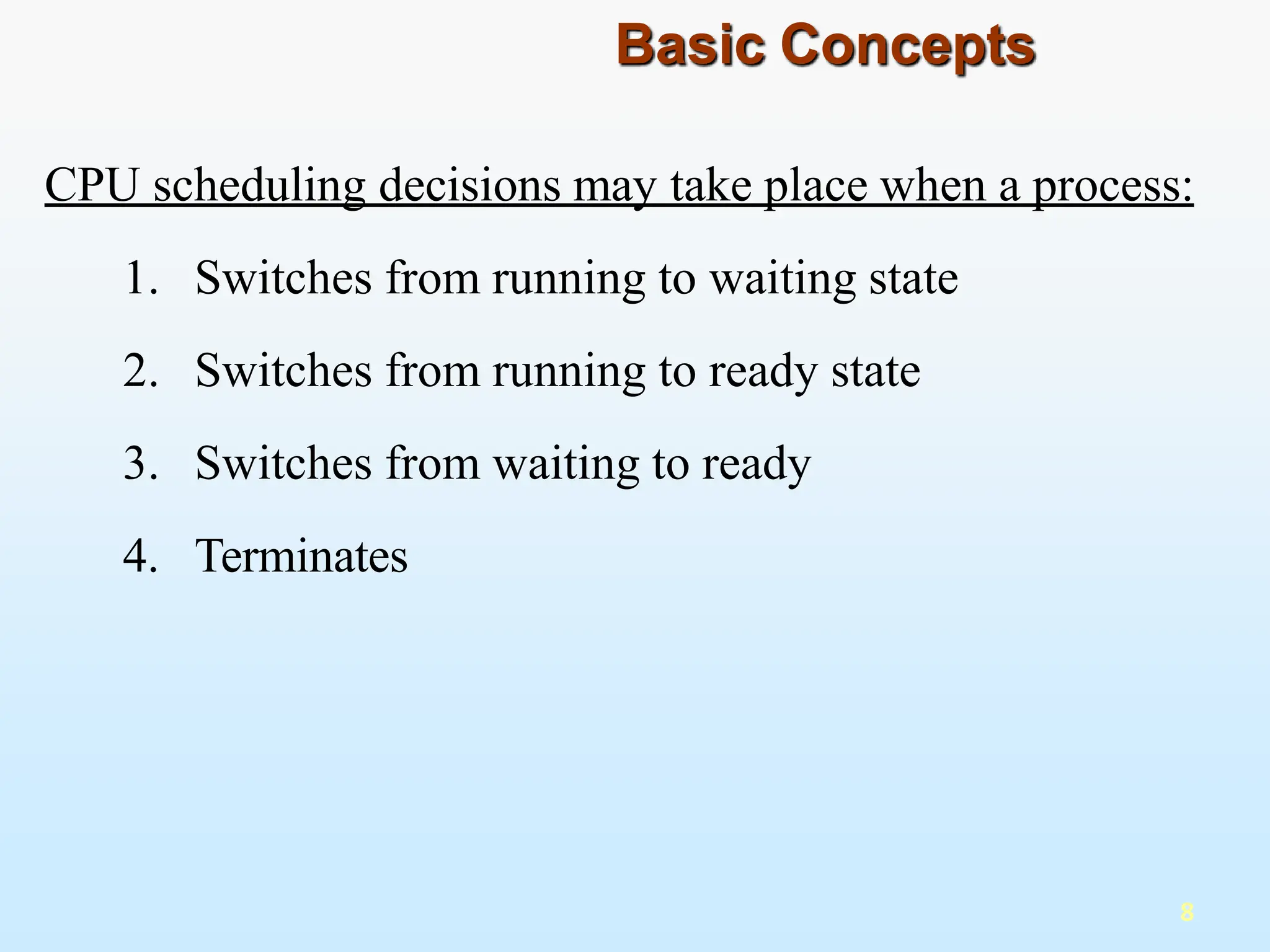

CPU scheduling decisions may take place when a process: 1. Switches from running to waiting state 2. Switches from running to ready state 3. Switches from waiting to ready 4. Terminates 8 Basic Concepts

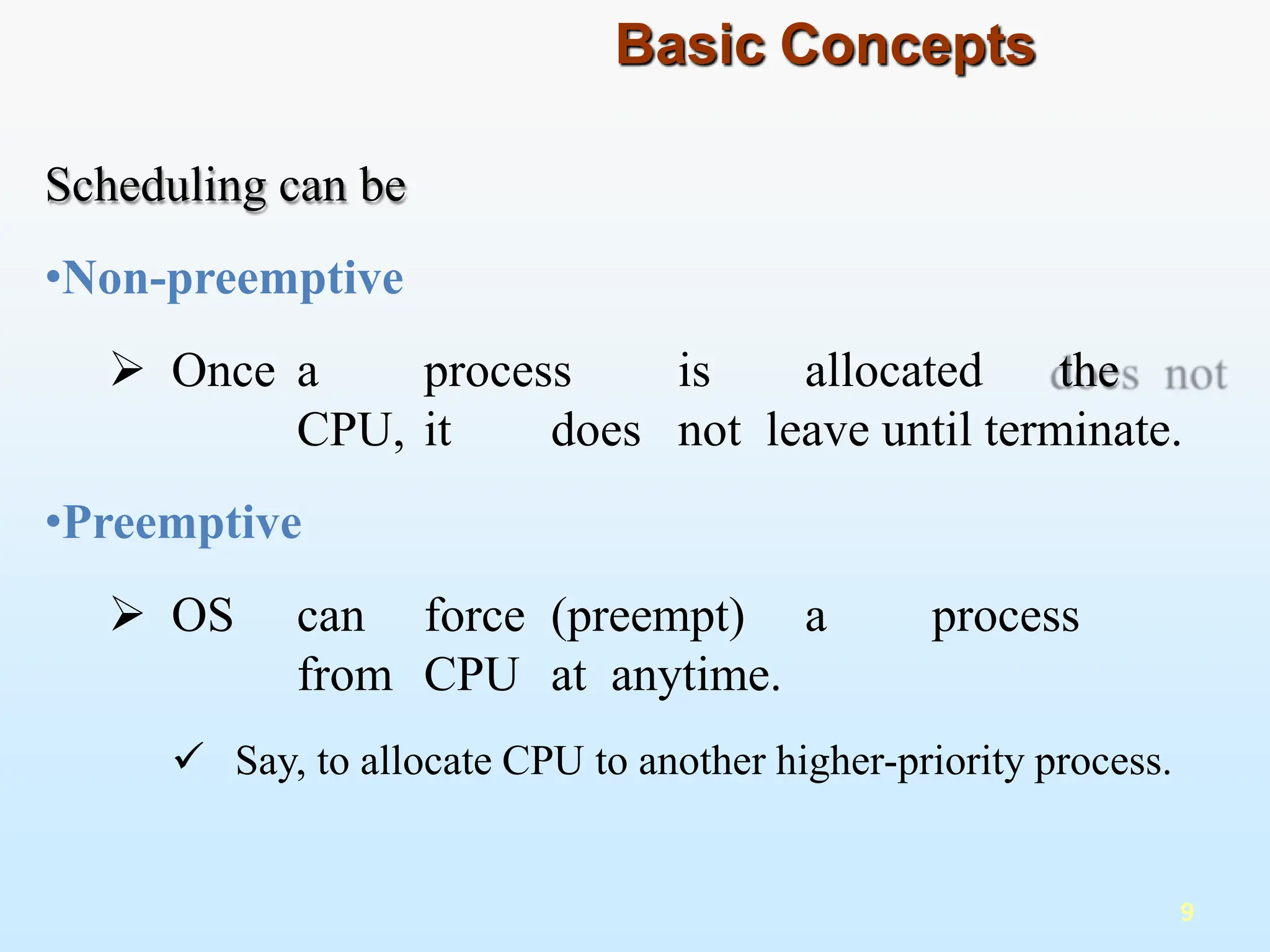

Scheduling can be •Non-preemptive  Once a process is allocated the CPU, it does not leave until terminate. •Preemptive  OS can force (preempt) a process from CPU at anytime.  Say, to allocate CPU to another higher-priority process. 9 Basic Concepts

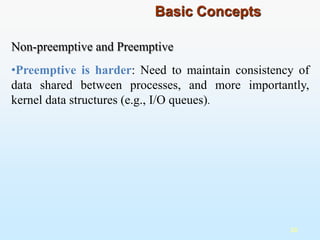

Non-preemptive and Preemptive •Preemptive is harder: Need to maintain consistency of data shared between processes, and more importantly, kernel data structures (e.g., I/O queues). 10 Basic Concepts

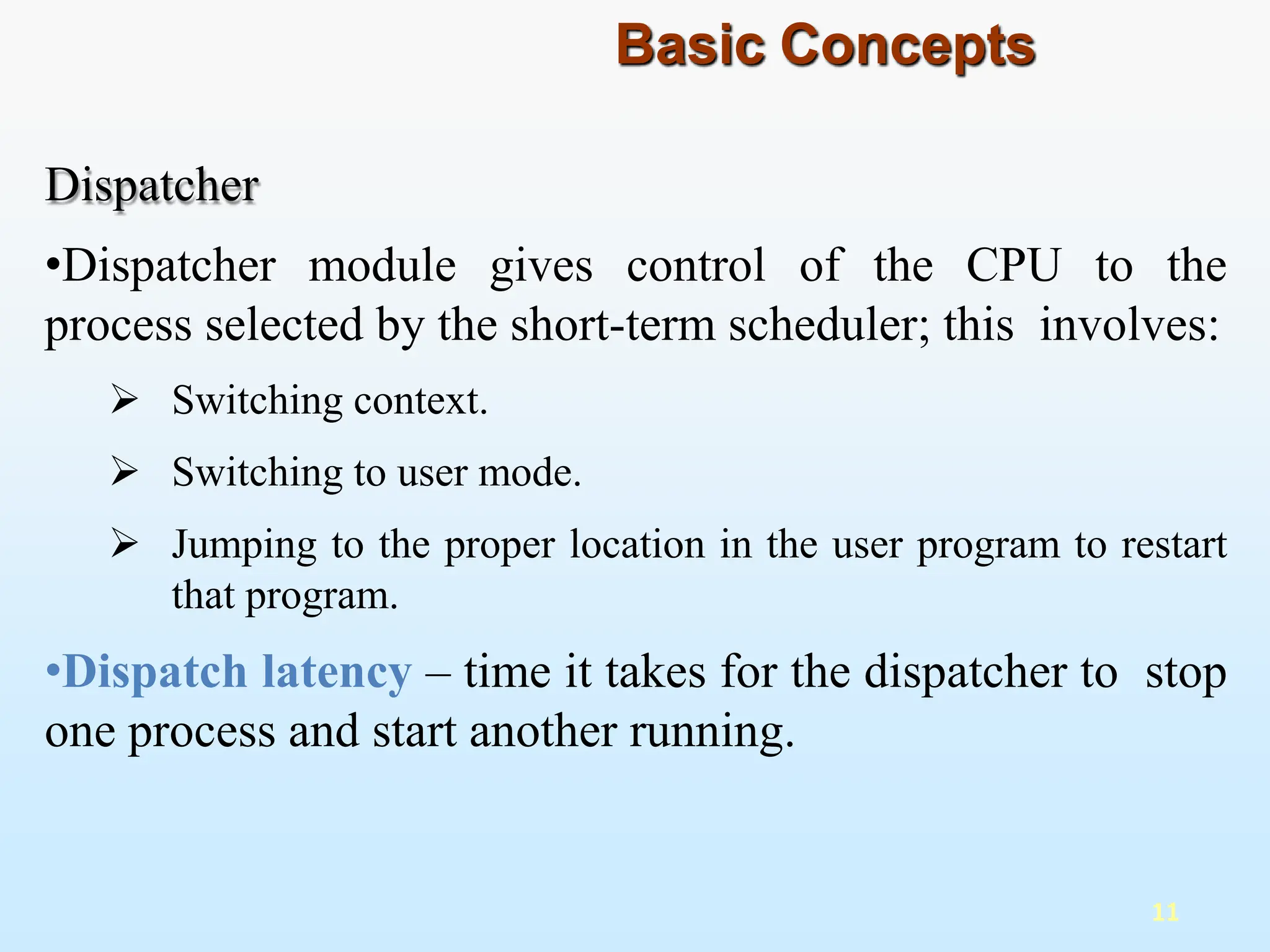

Dispatcher •Dispatcher module gives control of the CPU to the process selected by the short-term scheduler; this involves:  Switching context.  Switching to user mode.  Jumping to the proper location in the user program to restart that program. •Dispatch latency – time it takes for the dispatcher to stop one process and start another running. 11 Basic Concepts

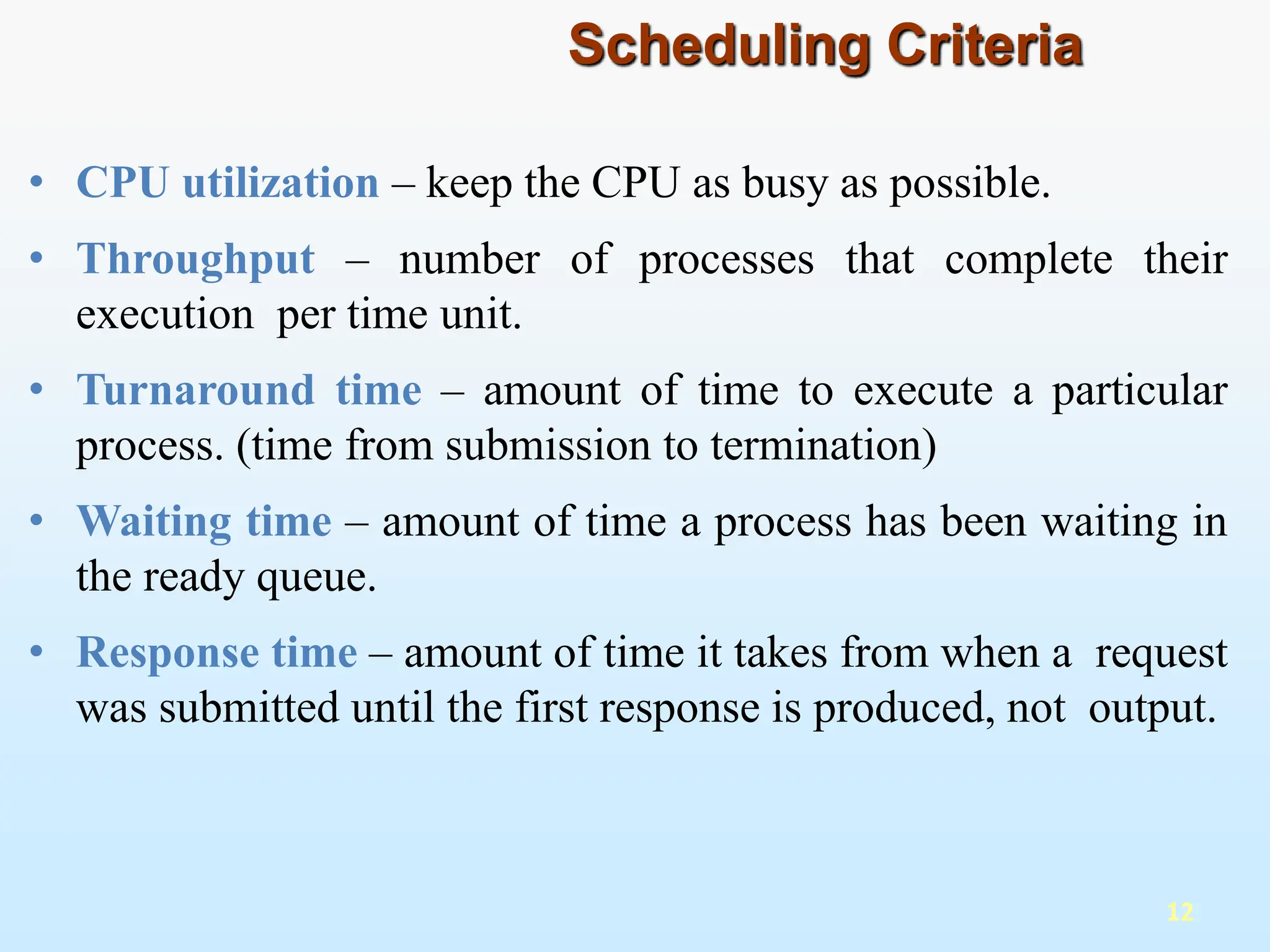

• CPU utilization – keep the CPU as busy as possible. • Throughput – number of processes that complete their execution per time unit. • Turnaround time – amount of time to execute a particular process. (time from submission to termination) • Waiting time – amount of time a process has been waiting in the ready queue. • Response time – amount of time it takes from when a request was submitted until the first response is produced, not output. 12 Scheduling Criteria

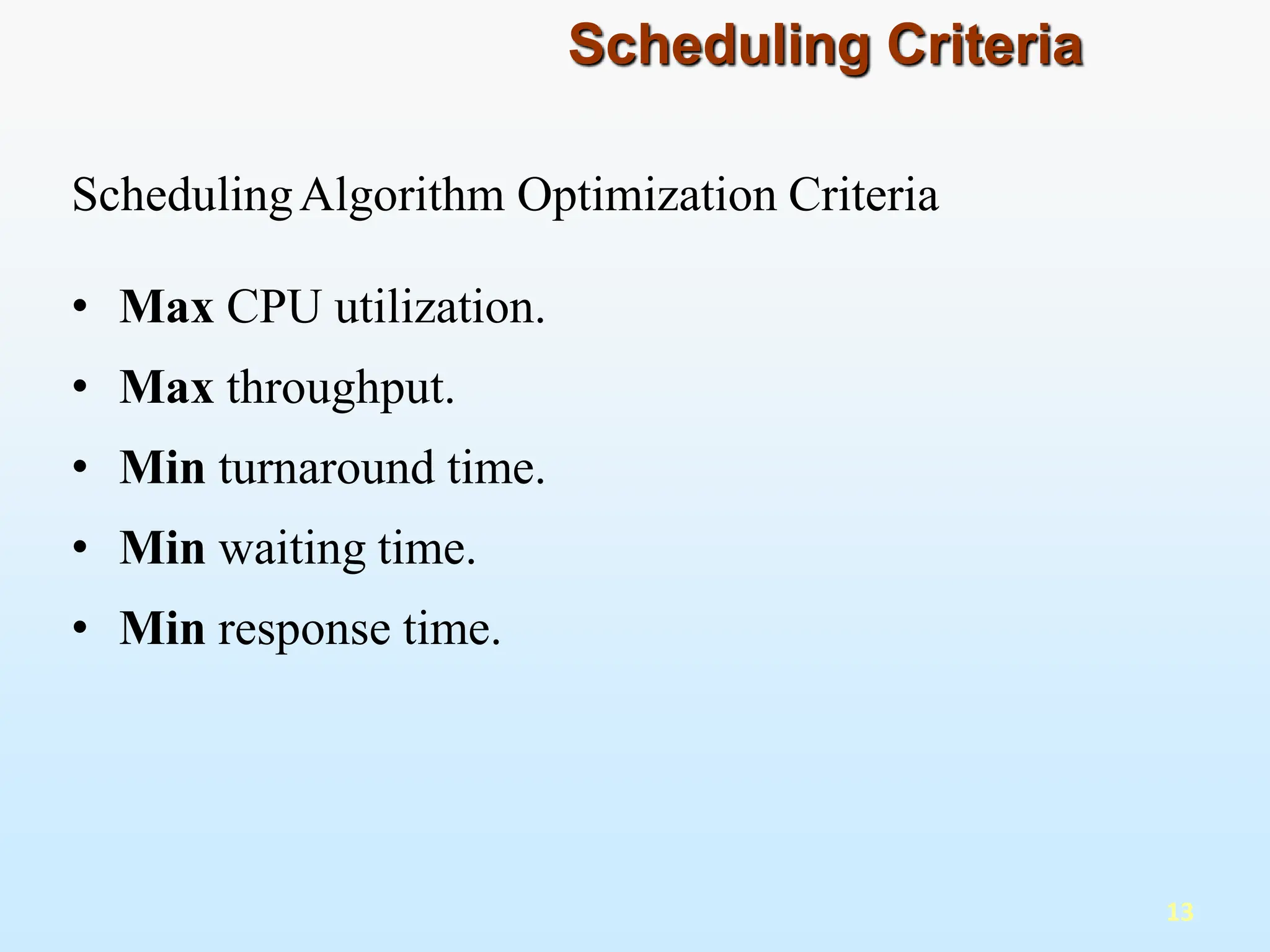

SchedulingAlgorithm Optimization Criteria • Max CPU utilization. • Max throughput. • Min turnaround time. • Min waiting time. • Min response time. 13 Scheduling Criteria

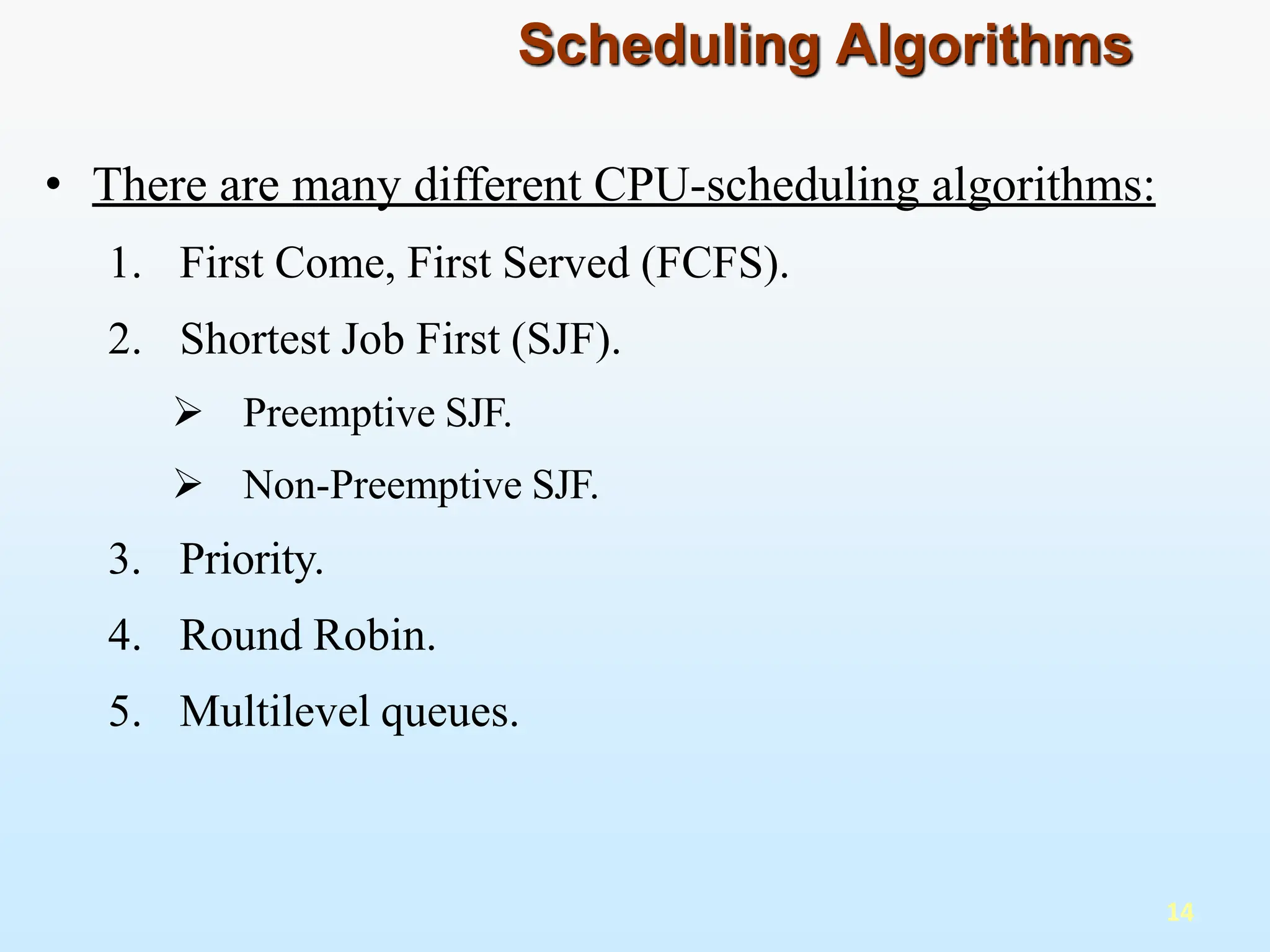

• There are many different CPU-scheduling algorithms: 1. First Come, First Served (FCFS). 2. Shortest Job First (SJF).  Preemptive SJF.  Non-Preemptive SJF. 3. Priority. 4. Round Robin. 5. Multilevel queues. 14 Scheduling Algorithms

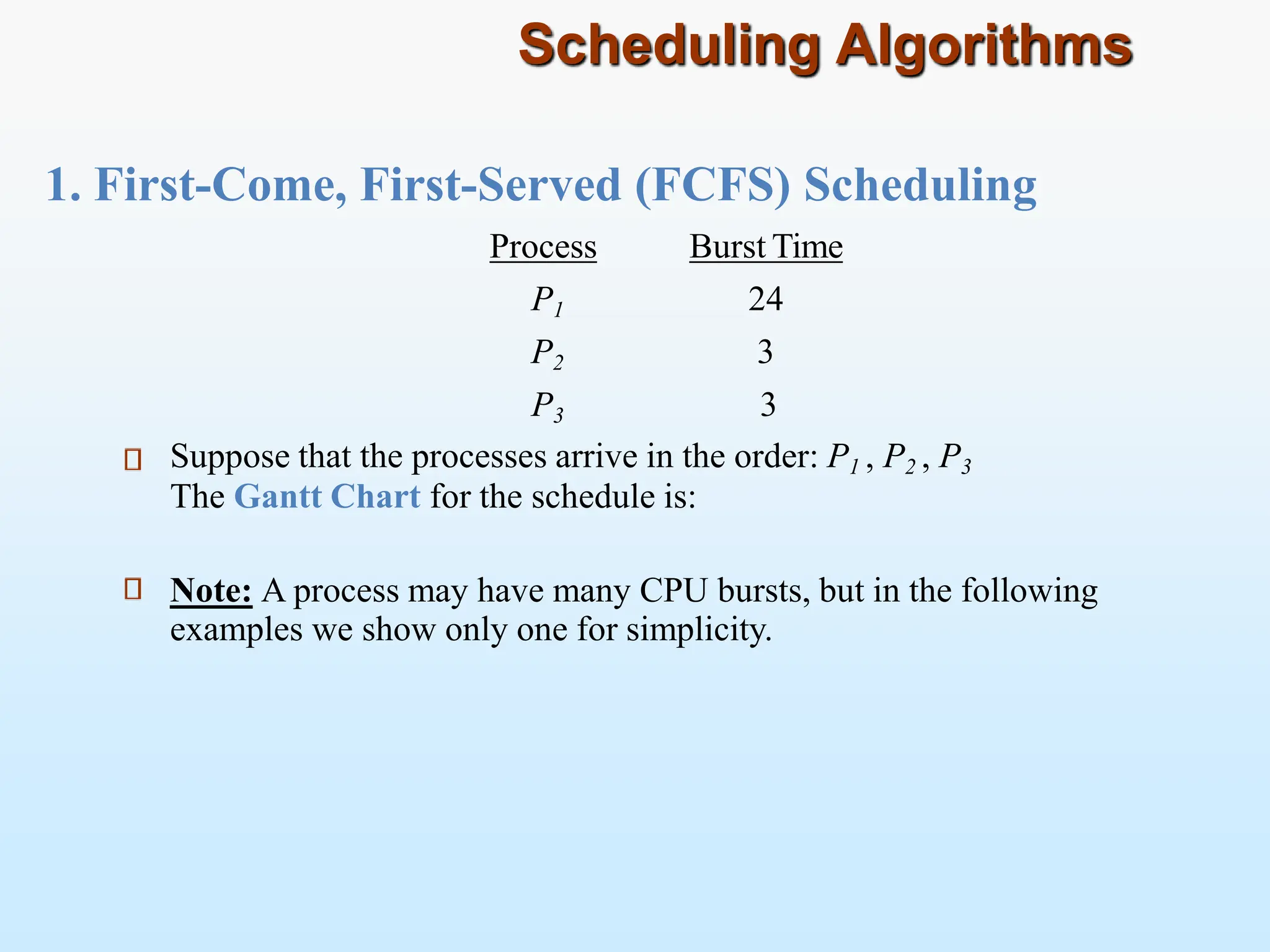

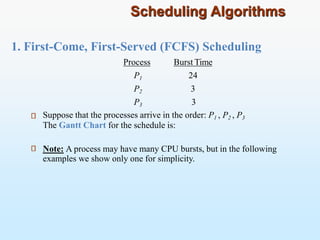

1. First-Come, First-Served (FCFS) Scheduling Scheduling Algorithms Process Burst Time P1 24 P2 3 P3 3 Suppose that the processes arrive in the order: P1 , P2 , P3 The Gantt Chart for the schedule is: Note: A process may have many CPU bursts, but in the following examples we show only one for simplicity.

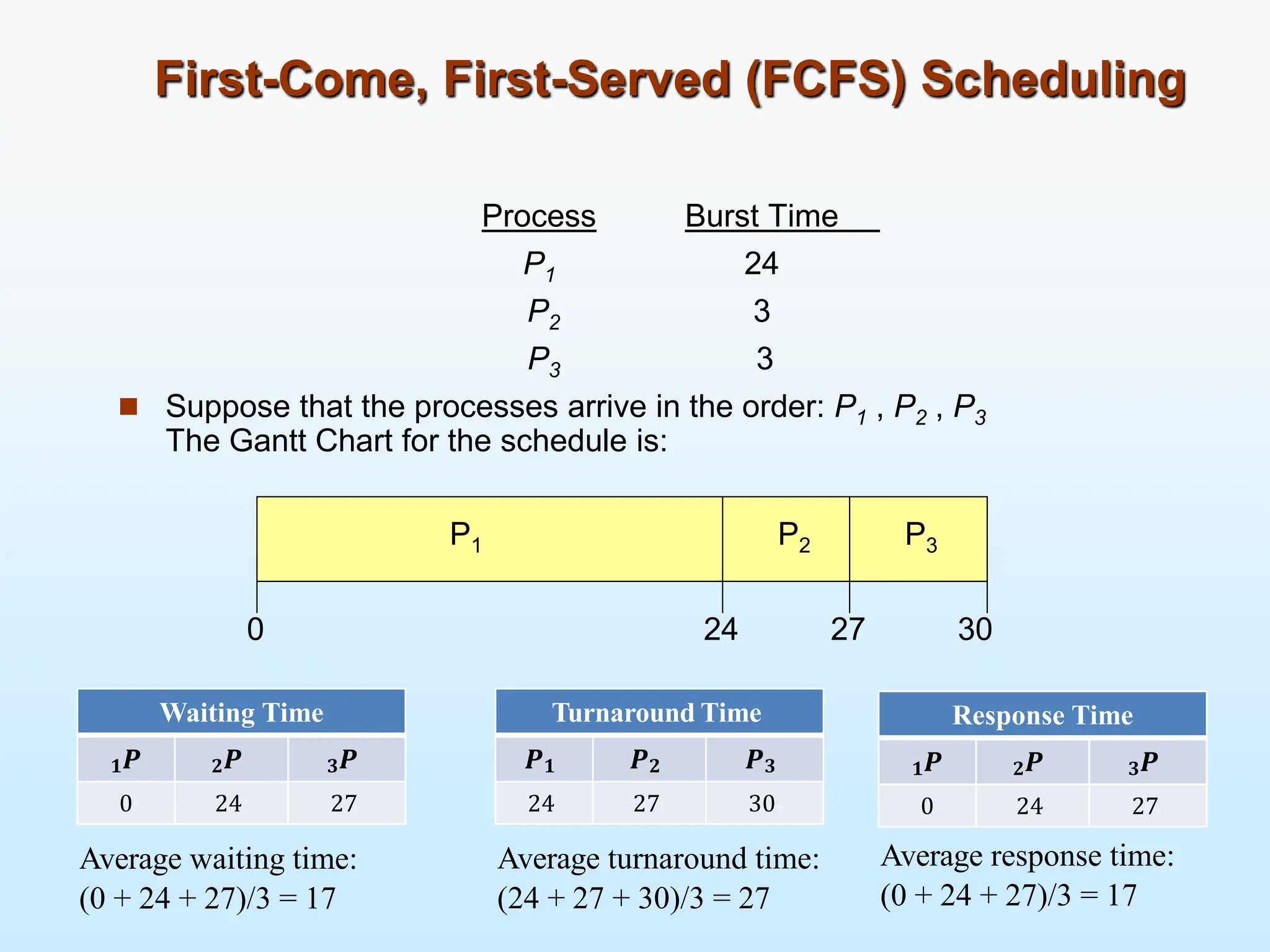

First-Come, First-Served (FCFS) Scheduling Process Burst Time P1 24 P2 3 P3 3  Suppose that the processes arrive in the order: P1 , P2 , P3 The Gantt Chart for the schedule is: P1 P2 P3 24 27 30 0 Waiting Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 0 24 27 Average waiting time: (0 + 24 + 27)/3 = 17 Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 24 27 30 Average turnaround time: (24 + 27 + 30)/3 = 27 Response Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 0 24 27 Average response time: (0 + 24 + 27)/3 = 17

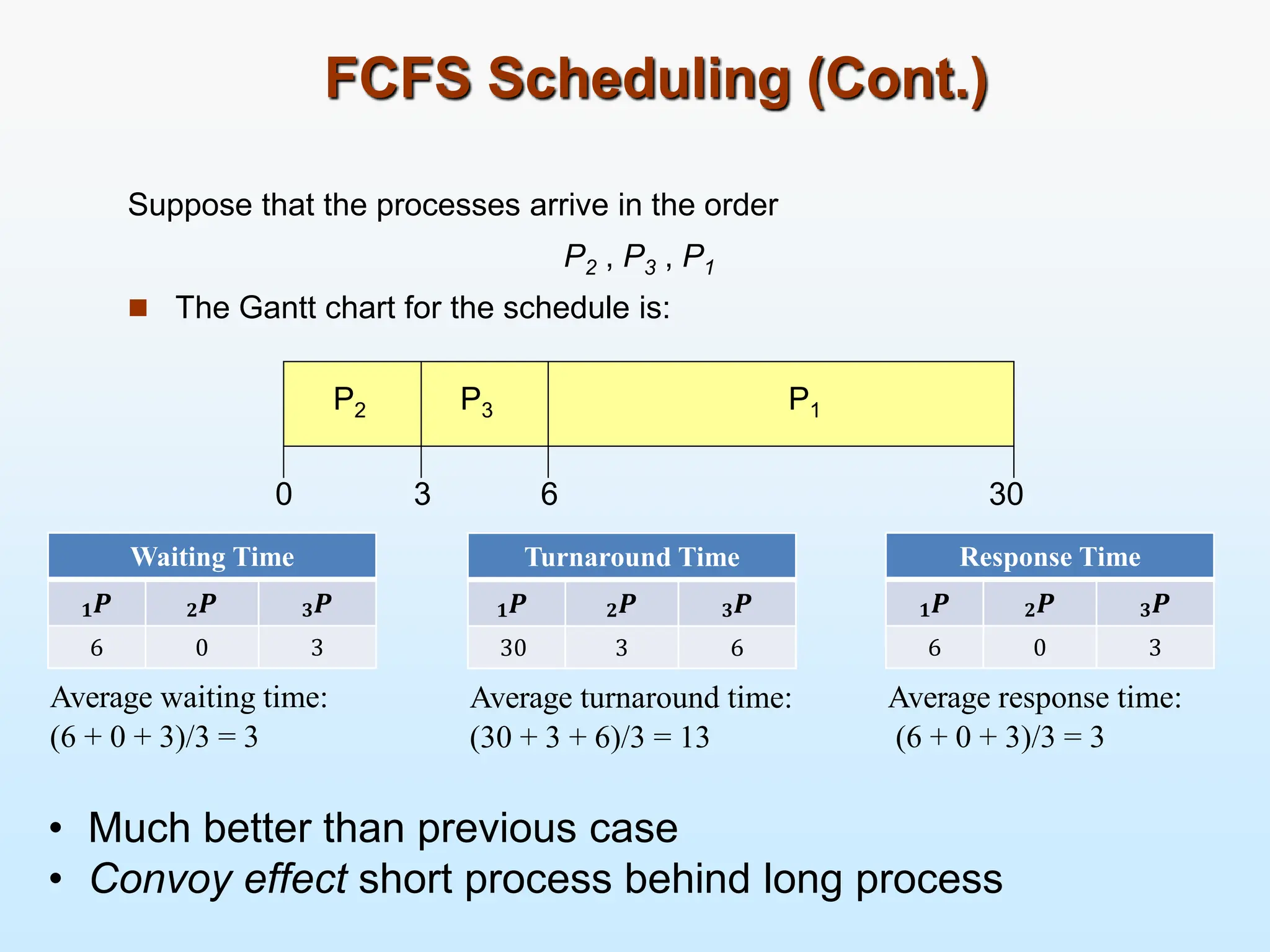

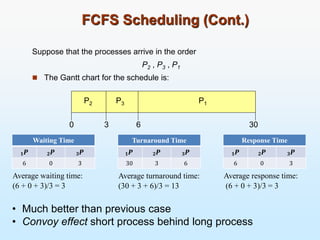

FCFS Scheduling (Cont.) Suppose that the processes arrive in the order P2 , P3 , P1  The Gantt chart for the schedule is: P1 P3 P2 6 3 30 0 Waiting Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 6 0 3 Average waiting time: (6 + 0 + 3)/3 = 3 Turnaround Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 30 3 6 Average turnaround time: (30 + 3 + 6)/3 = 13 Response Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 6 0 3 Average response time: (6 + 0 + 3)/3 = 3 • Much better than previous case • Convoy effect short process behind long process

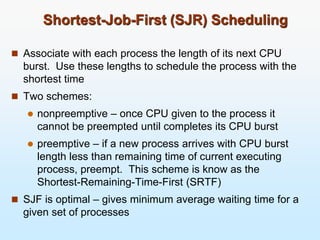

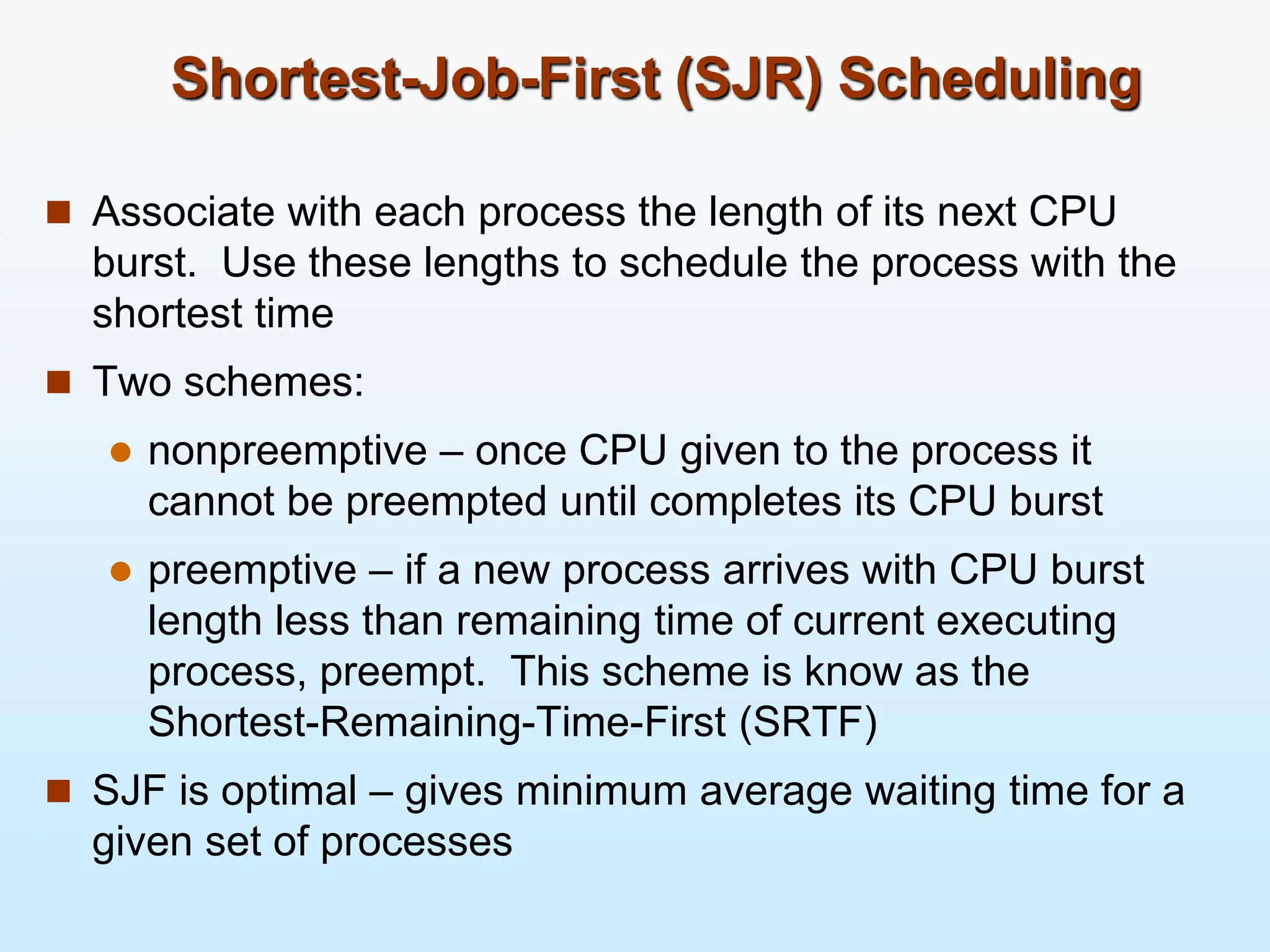

Shortest-Job-First (SJR) Scheduling  Associate with each process the length of its next CPU burst. Use these lengths to schedule the process with the shortest time  Two schemes:  nonpreemptive – once CPU given to the process it cannot be preempted until completes its CPU burst  preemptive – if a new process arrives with CPU burst length less than remaining time of current executing process, preempt. This scheme is know as the Shortest-Remaining-Time-First (SRTF)  SJF is optimal – gives minimum average waiting time for a given set of processes

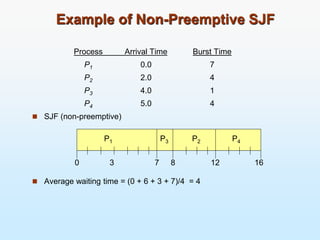

Process Arrival Time Burst Time P1 0.0 7 P2 2.0 4 P3 4.0 1 P4 5.0 4  SJF (non-preemptive)  Average waiting time = (0 + 6 + 3 + 7)/4 = 4 Example of Non-Preemptive SJF P1 P3 P2 7 3 16 0 P4 8 12

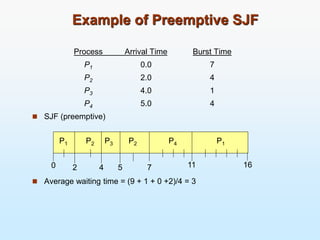

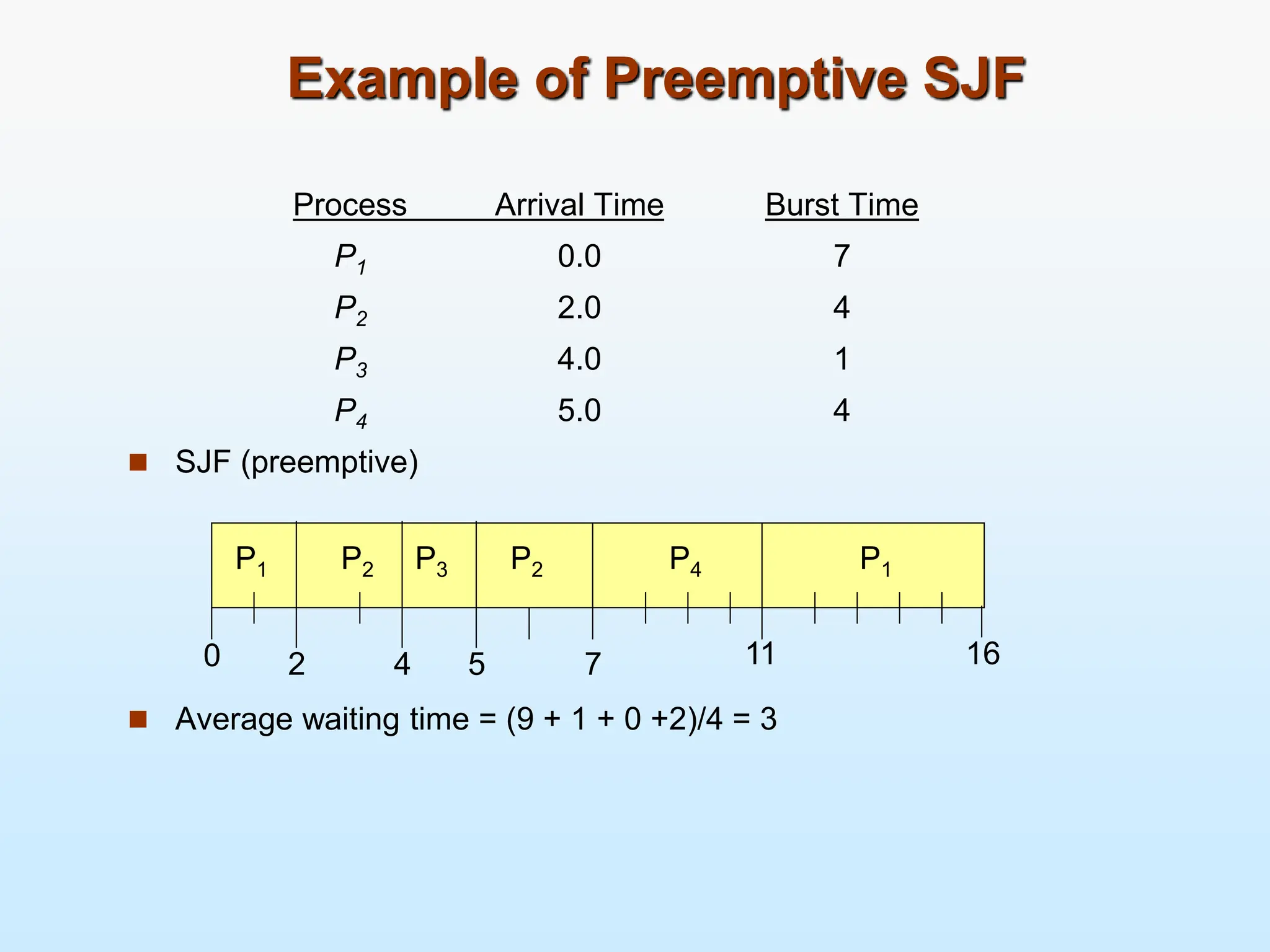

Example of Preemptive SJF Process Arrival Time Burst Time P1 0.0 7 P2 2.0 4 P3 4.0 1 P4 5.0 4  SJF (preemptive)  Average waiting time = (9 + 1 + 0 +2)/4 = 3 P1 P3 P2 4 2 11 0 P4 5 7 P2 P1 16

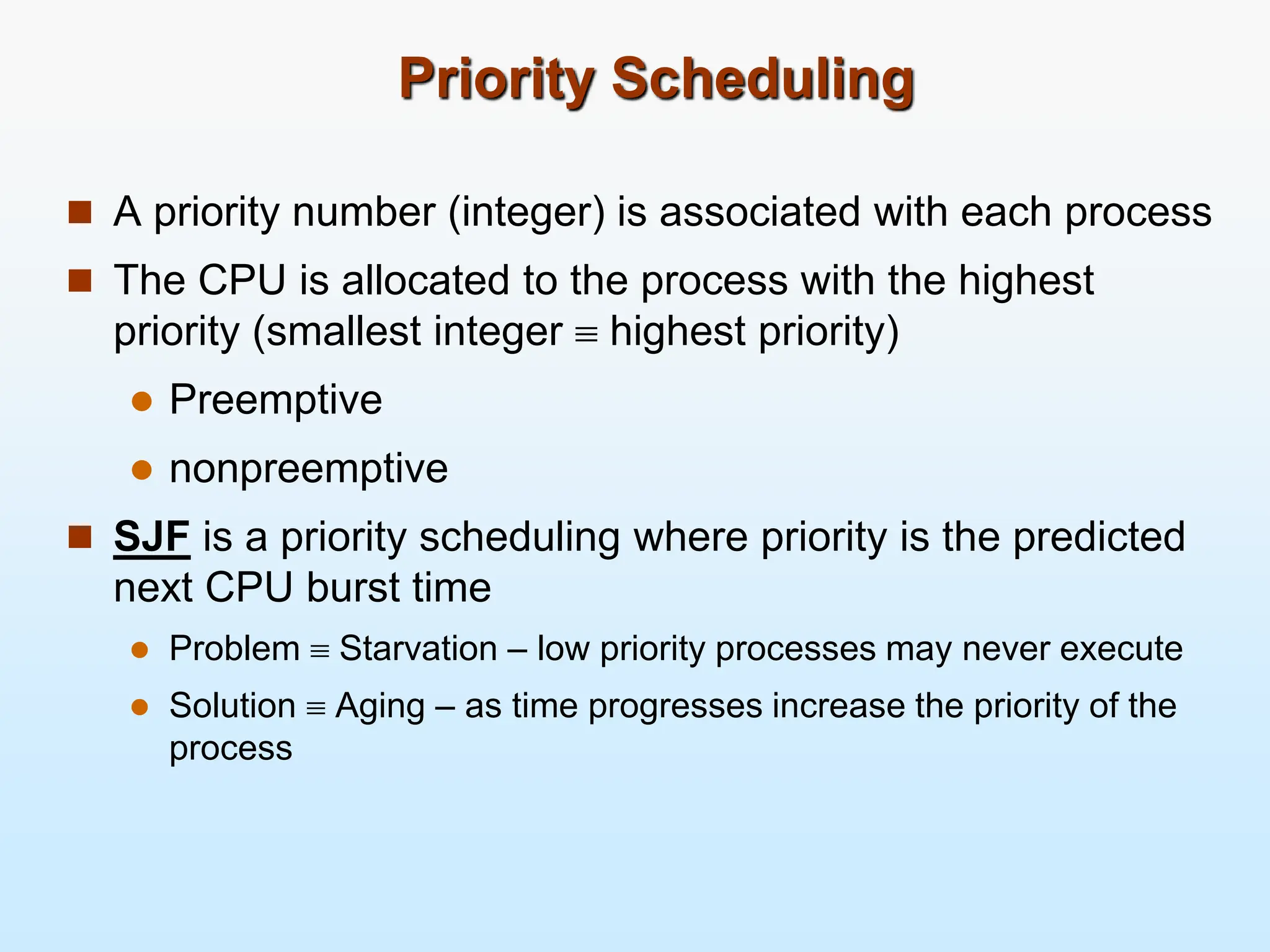

Priority Scheduling  A priority number (integer) is associated with each process  The CPU is allocated to the process with the highest priority (smallest integer  highest priority)  Preemptive  nonpreemptive  SJF is a priority scheduling where priority is the predicted next CPU burst time  Problem  Starvation – low priority processes may never execute  Solution  Aging – as time progresses increase the priority of the process

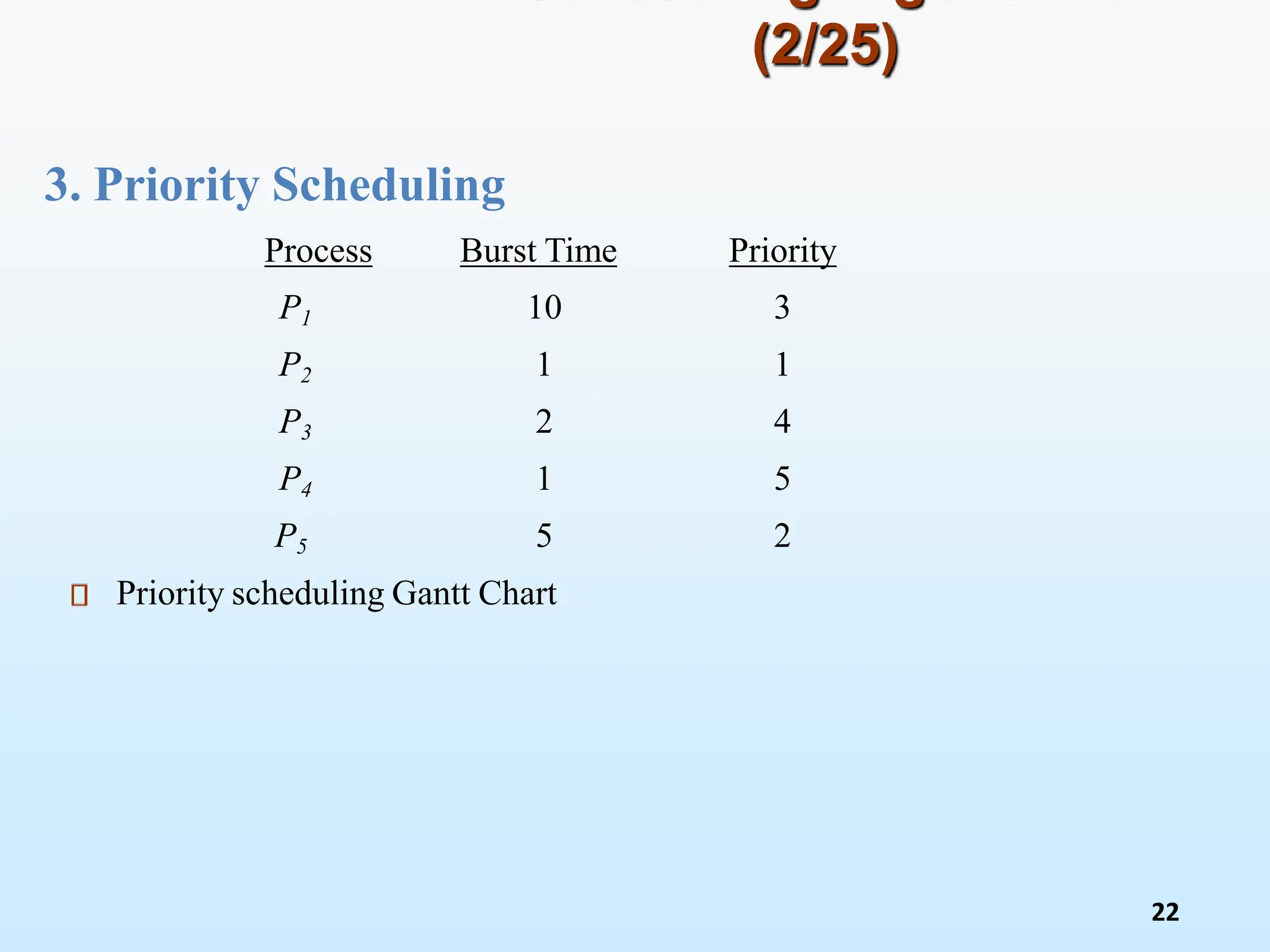

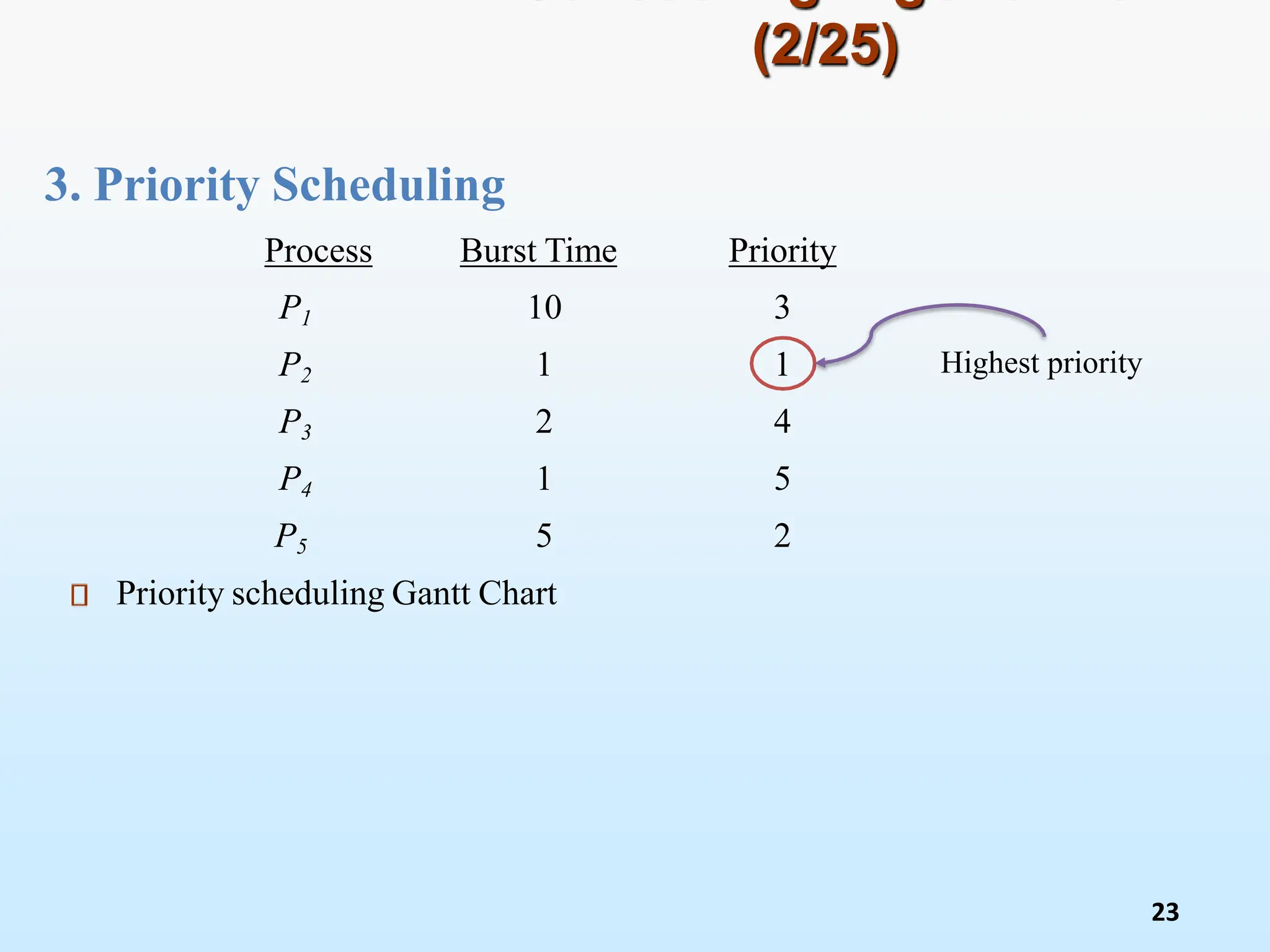

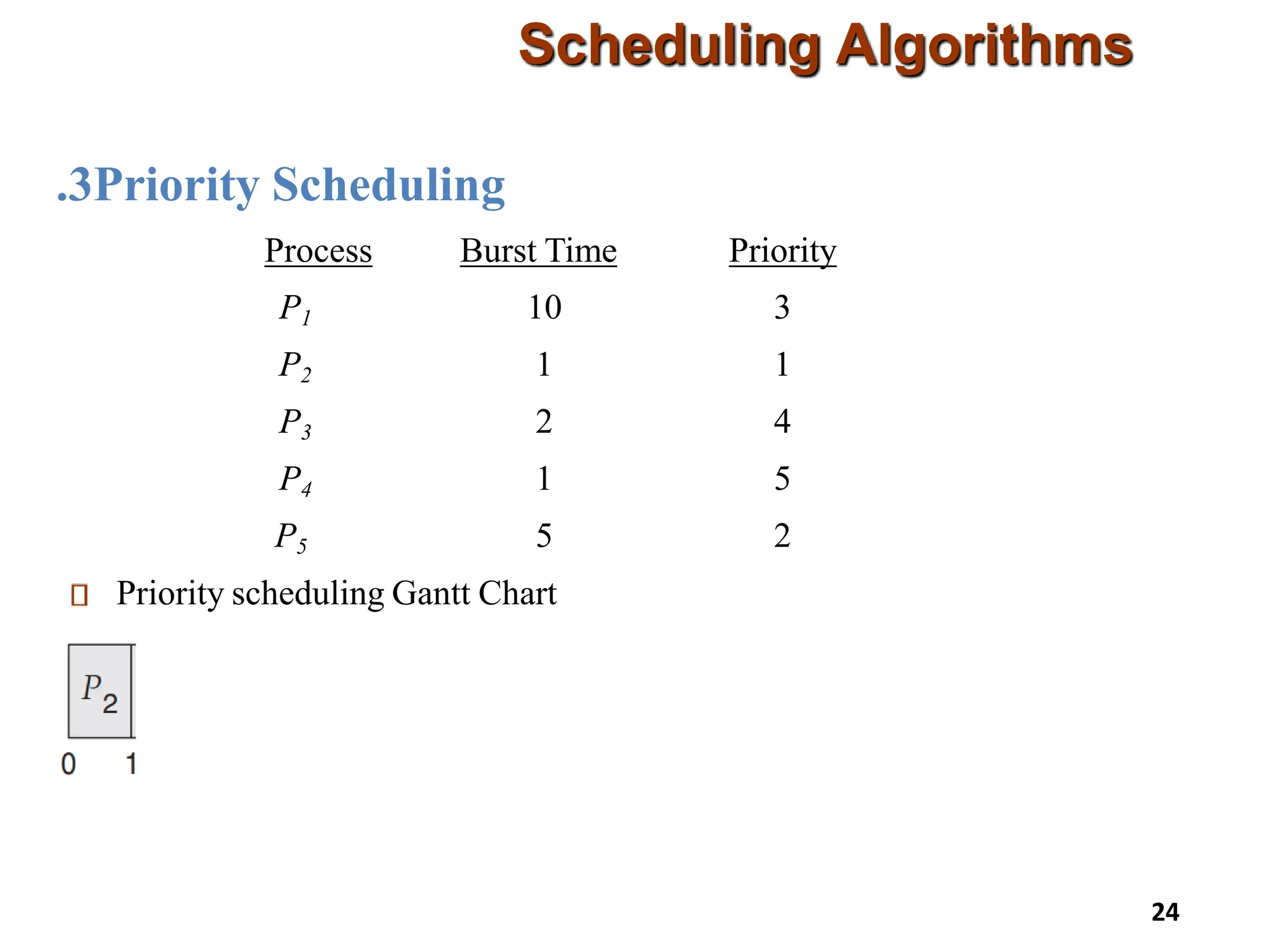

3. Priority Scheduling (2/25) Process Burst Time Priority P1 10 3 P2 1 1 P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart 22
3. Priority Scheduling (2/25) Process Burst Time Priority P1 10 3 P2 1 1 Highest priority P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart 23
3 . Priority Scheduling Scheduling Algorithms Process Burst Time Priority P1 10 3 P2 1 1 P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart 24

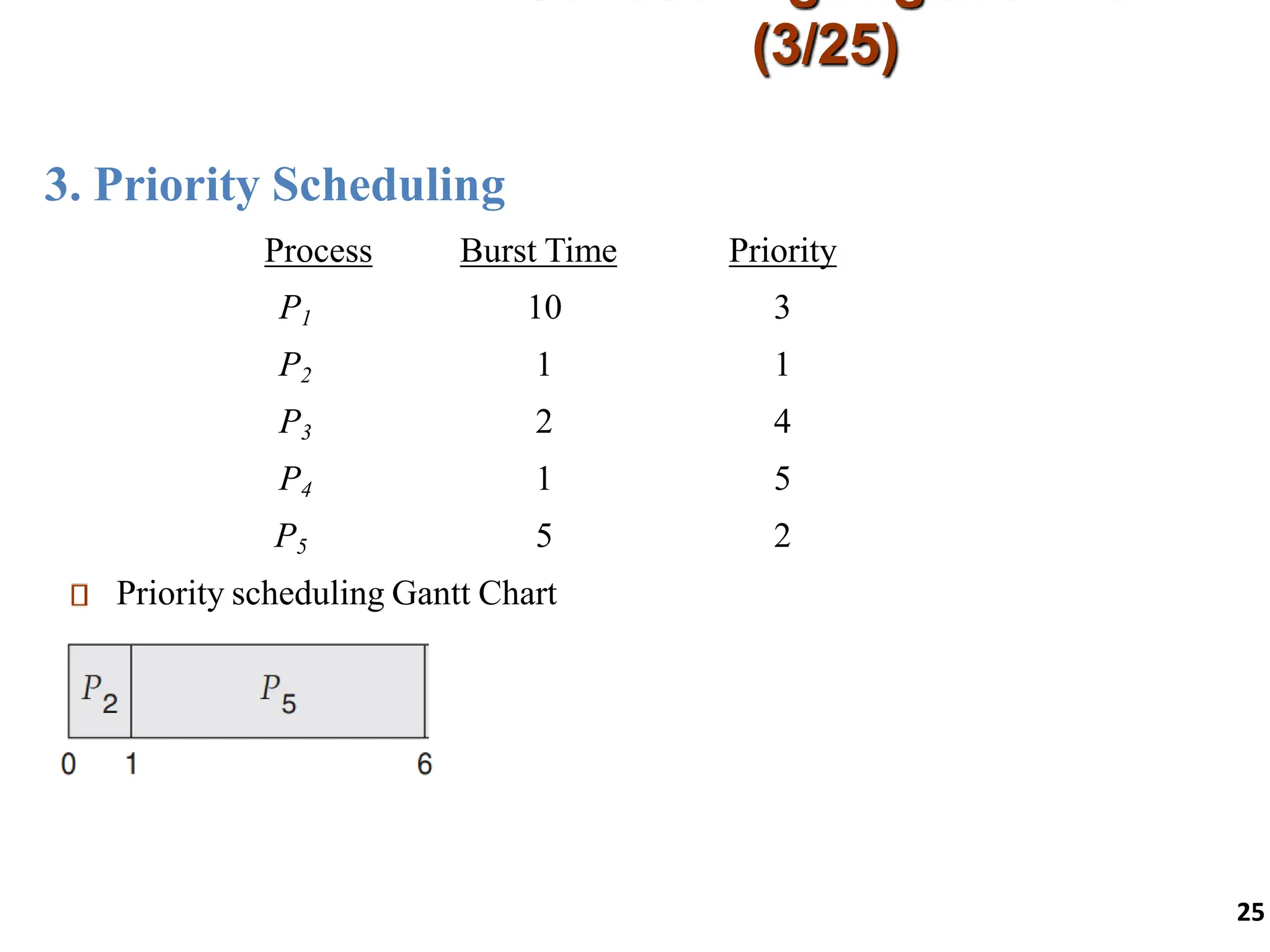

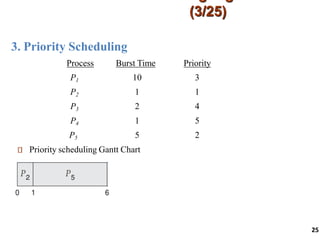

3. Priority Scheduling (3/25) 25 Process Burst Time Priority P1 10 3 P2 1 1 P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart

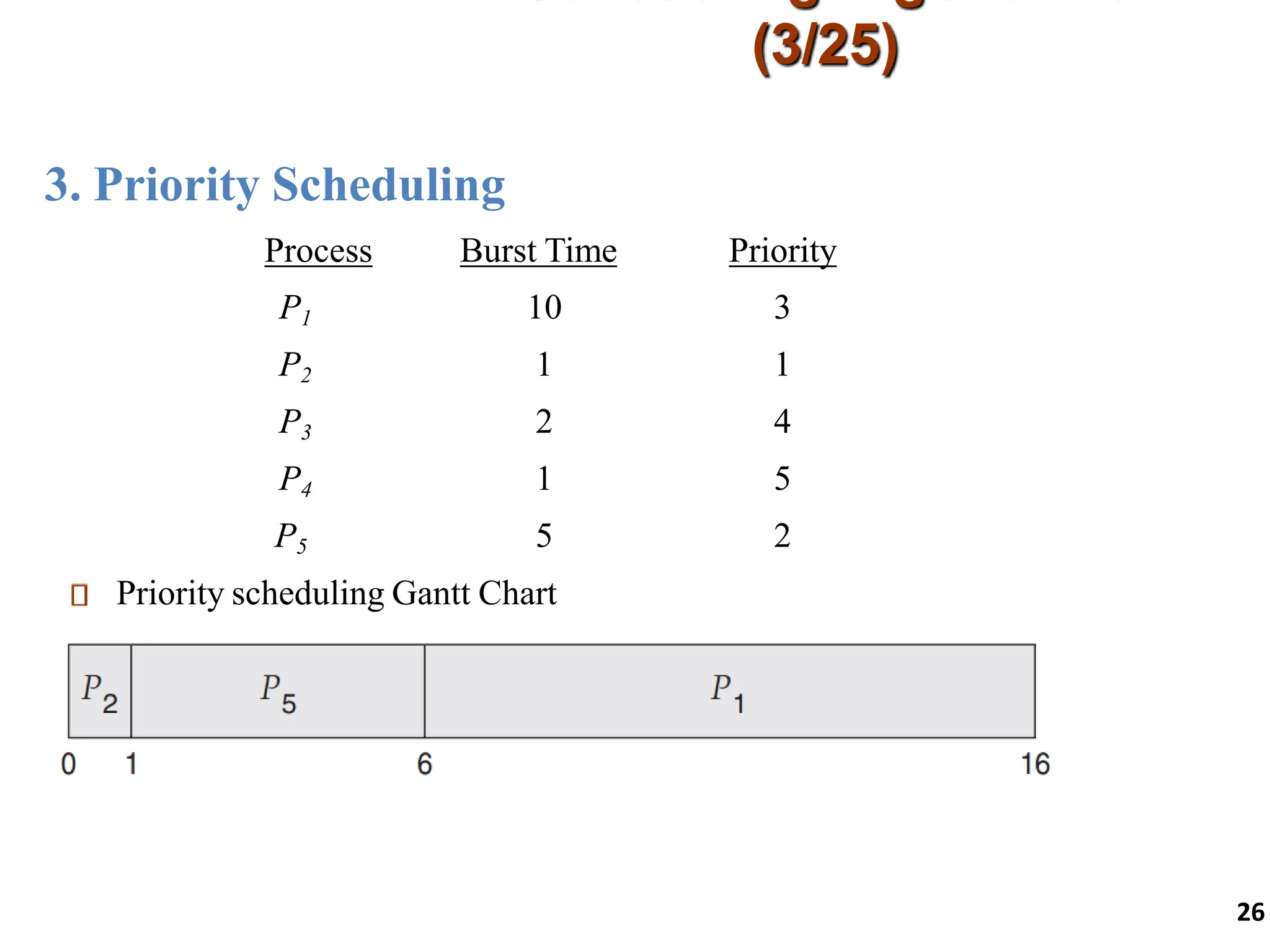

3. Priority Scheduling (3/25) 26 Process Burst Time Priority P1 10 3 P2 1 1 P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart

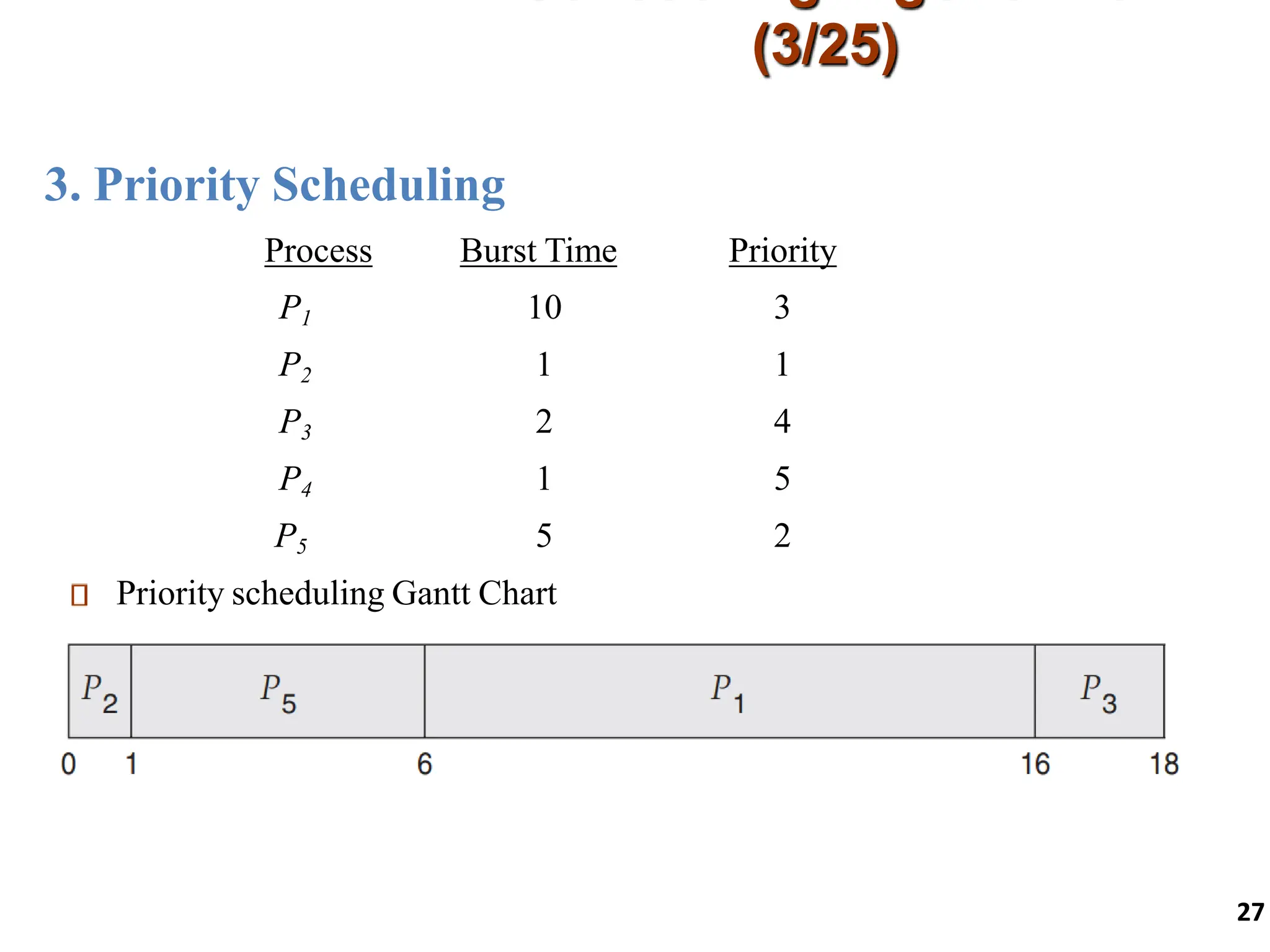

3. Priority Scheduling (3/25) 27 Process Burst Time Priority P1 10 3 P2 1 1 P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart

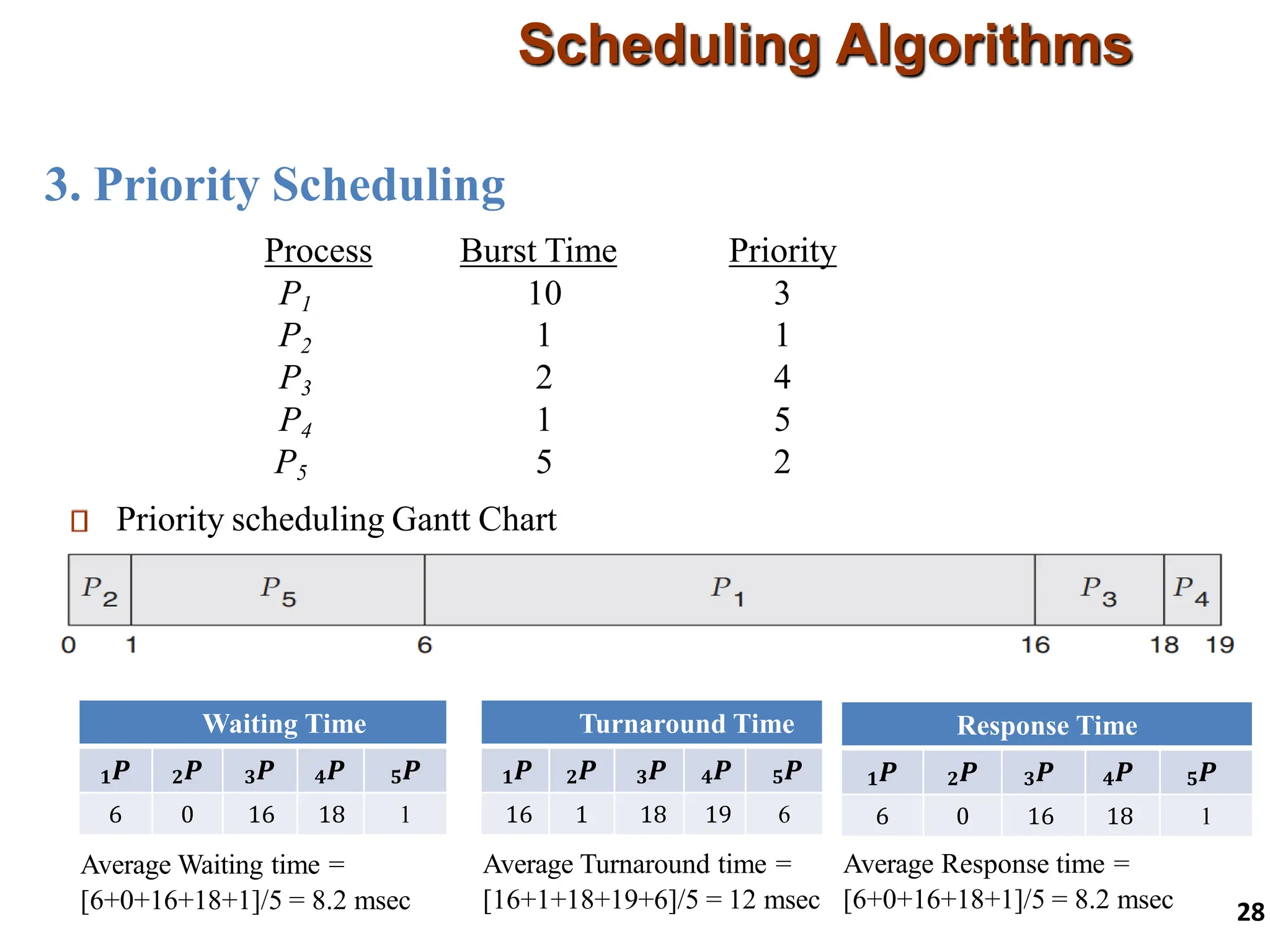

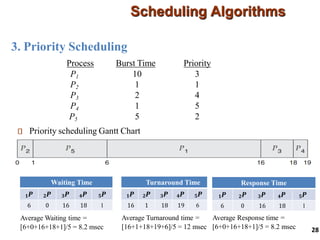

3. Priority Scheduling Scheduling Algorithms 28 Process Burst Time Priority P1 10 3 P2 1 1 P3 2 4 P4 1 5 P5 5 2 Priority scheduling Gantt Chart Waiting Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 𝑷 𝟒 𝑷 𝟓 6 0 16 18 1 Average Waiting time = [6+0+16+18+1]/5 = 8.2 msec Turnaround Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 𝑷 𝟒 𝑷 𝟓 16 1 18 19 6 Average Turnaround time = [16+1+18+19+6]/5 = 12 msec Response Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 𝑷 𝟒 𝑷 𝟓 6 0 16 18 1 Average Response time = [6+0+16+18+1]/5 = 8.2 msec

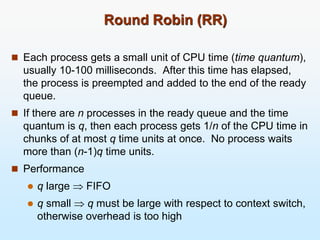

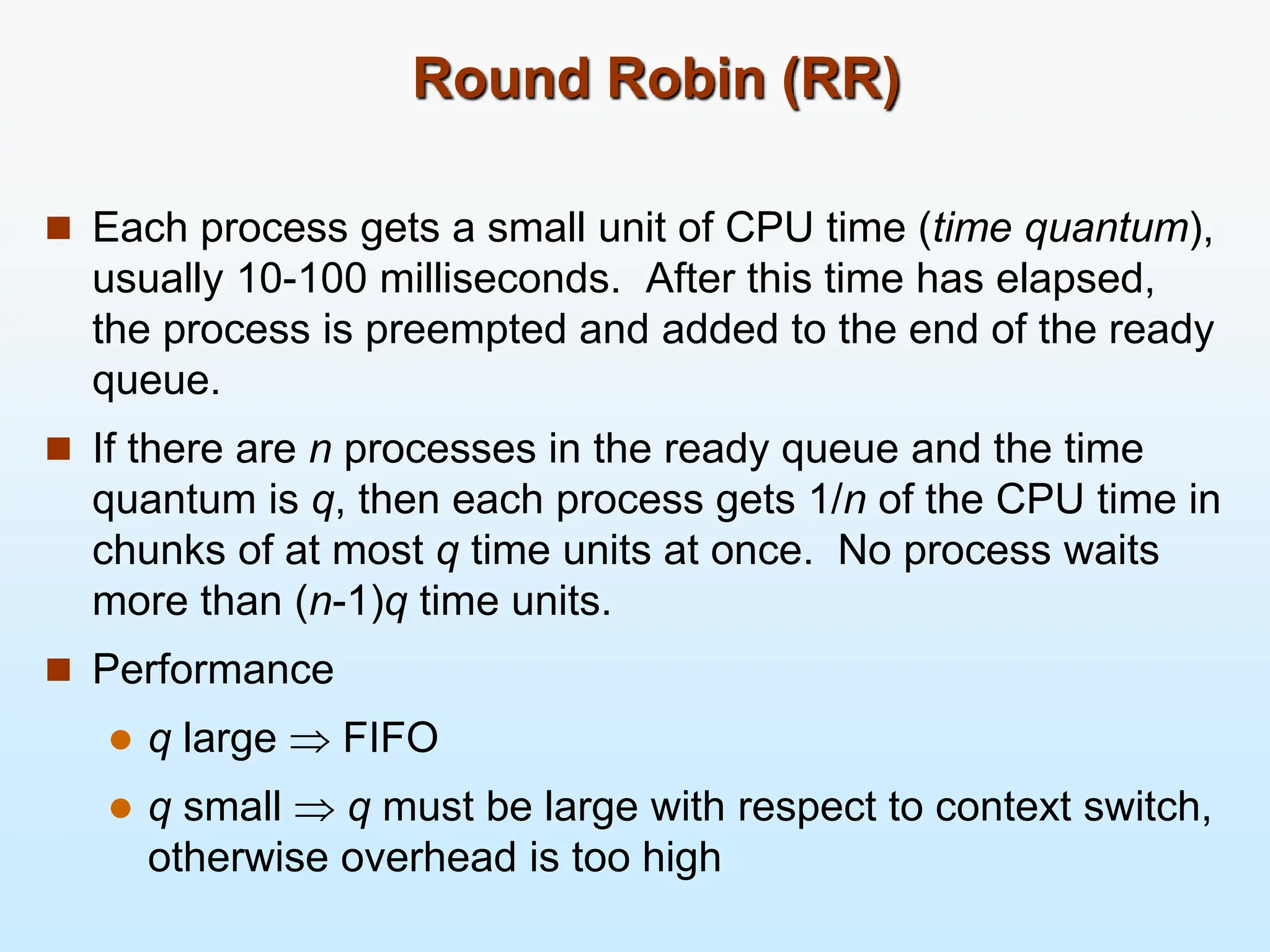

Round Robin (RR)  Each process gets a small unit of CPU time (time quantum), usually 10-100 milliseconds. After this time has elapsed, the process is preempted and added to the end of the ready queue.  If there are n processes in the ready queue and the time quantum is q, then each process gets 1/n of the CPU time in chunks of at most q time units at once. No process waits more than (n-1)q time units.  Performance  q large  FIFO  q small  q must be large with respect to context switch, otherwise overhead is too high

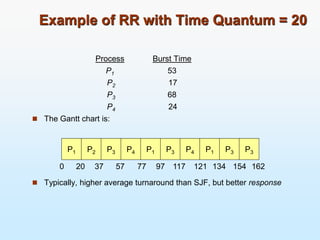

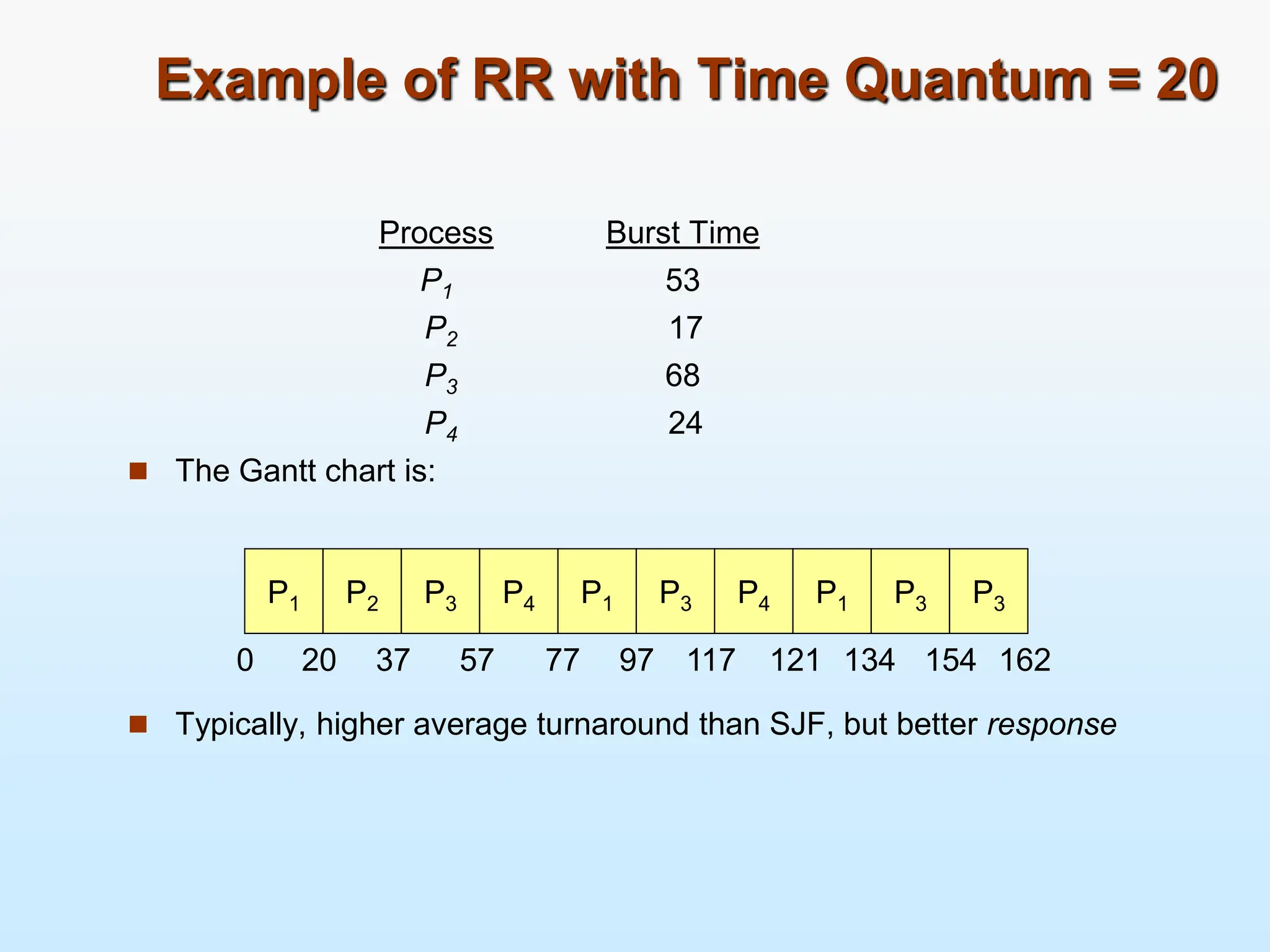

Example of RR with Time Quantum = 20 Process Burst Time P1 53 P2 17 P3 68 P4 24  The Gantt chart is:  Typically, higher average turnaround than SJF, but better response P1 P2 P3 P4 P1 P3 P4 P1 P3 P3 0 20 37 57 77 97 117 121 134 154 162

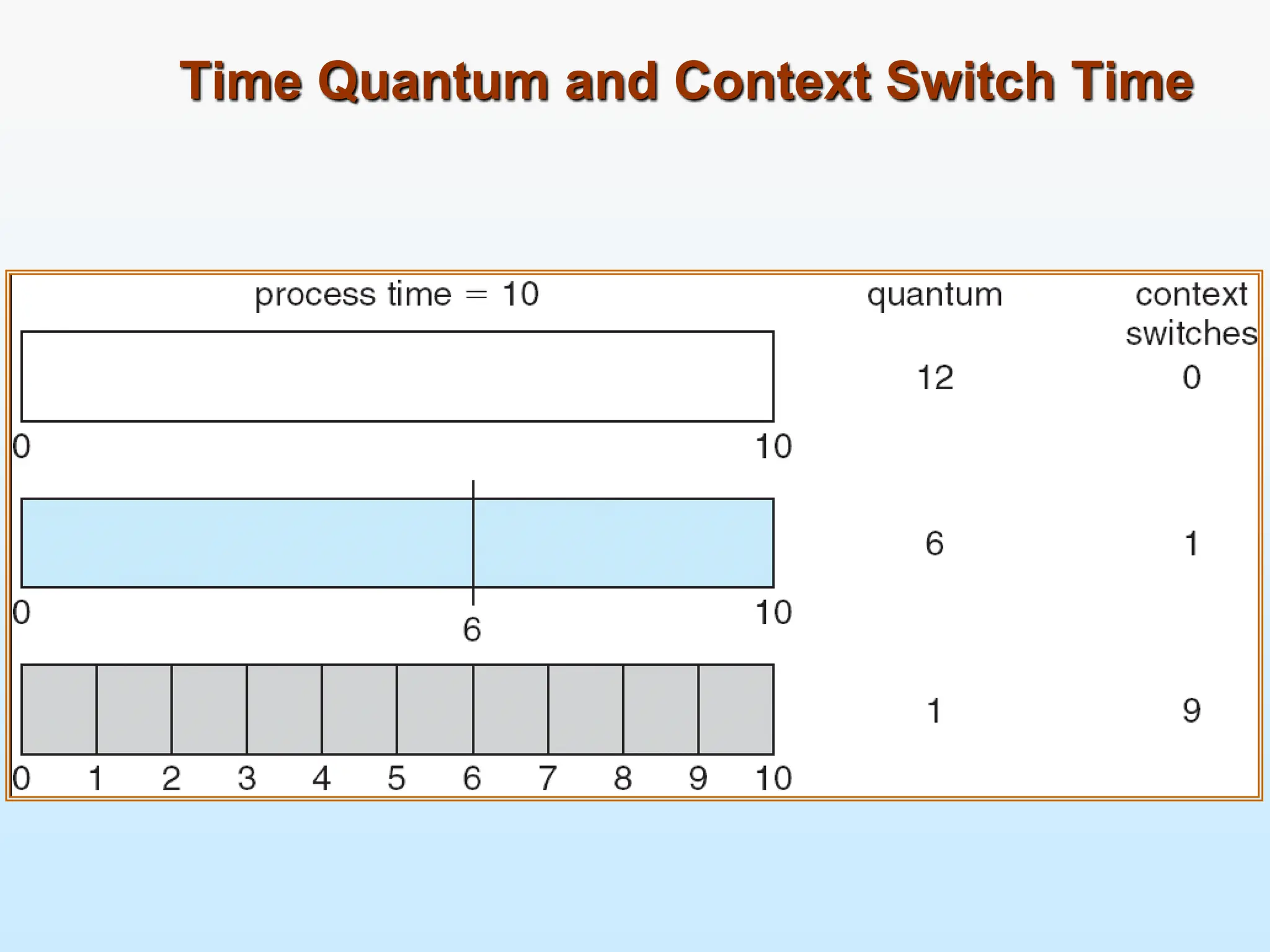

Time Quantum and Context Switch Time

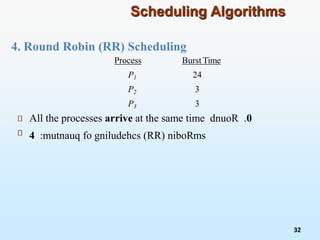

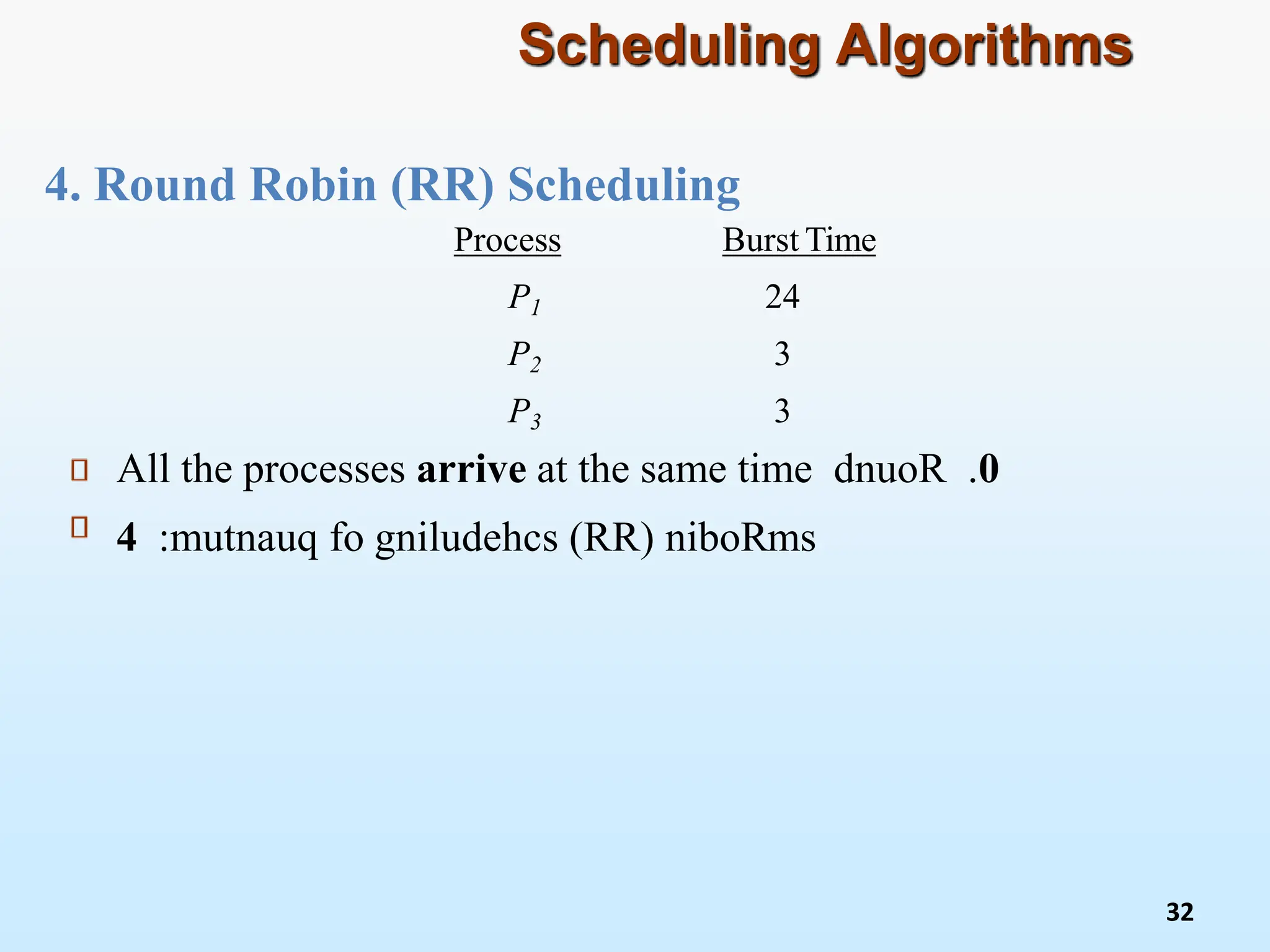

4. Round Robin (RR) Scheduling Scheduling Algorithms Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 dnuoR . :mutnauq fo gniludehcs )RR( niboR 4 ms 32

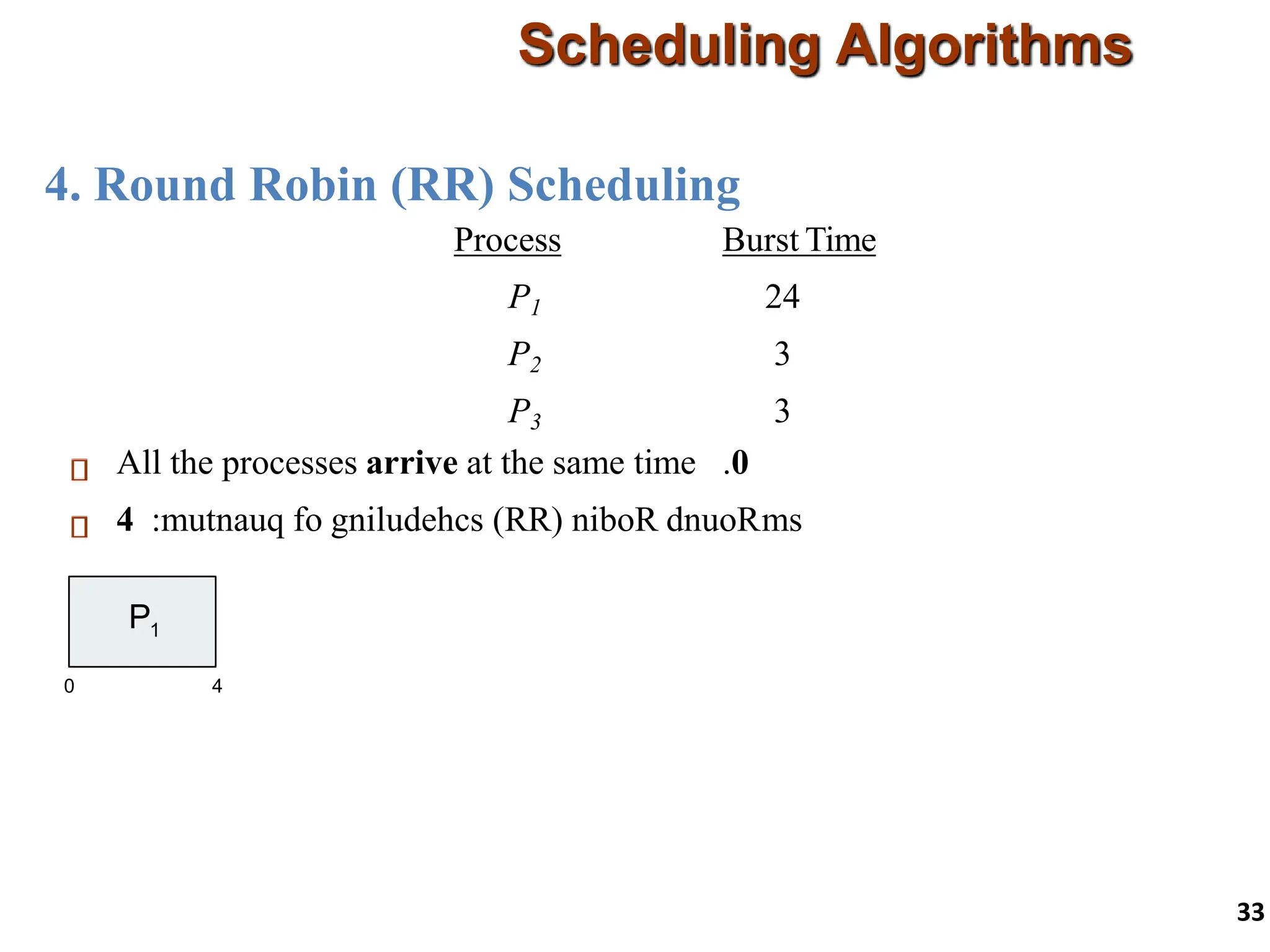

4. Round Robin (RR) Scheduling Scheduling Algorithms 33 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 0 4 7 10 14 18 22 26 30 P2 P3 P1 P1 P1 P1 P1

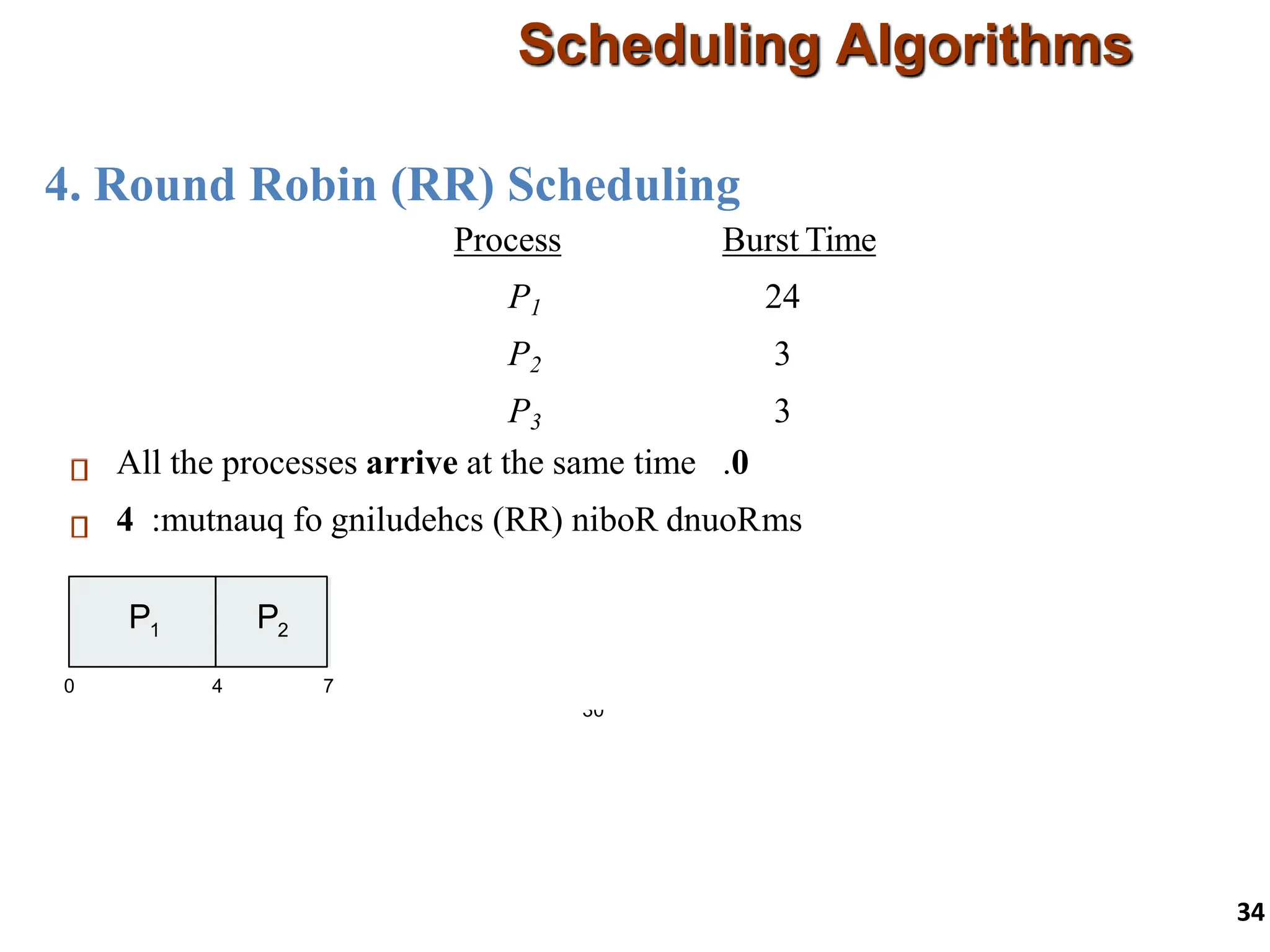

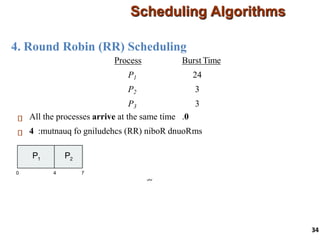

4. Round Robin (RR) Scheduling Scheduling Algorithms 34 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 0 4 7 10 14 18 22 26 30 P2 P3 P1 P1 P1 P1 P1

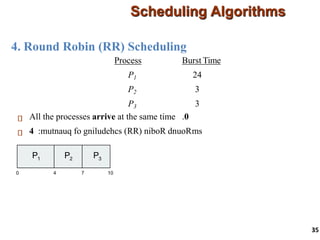

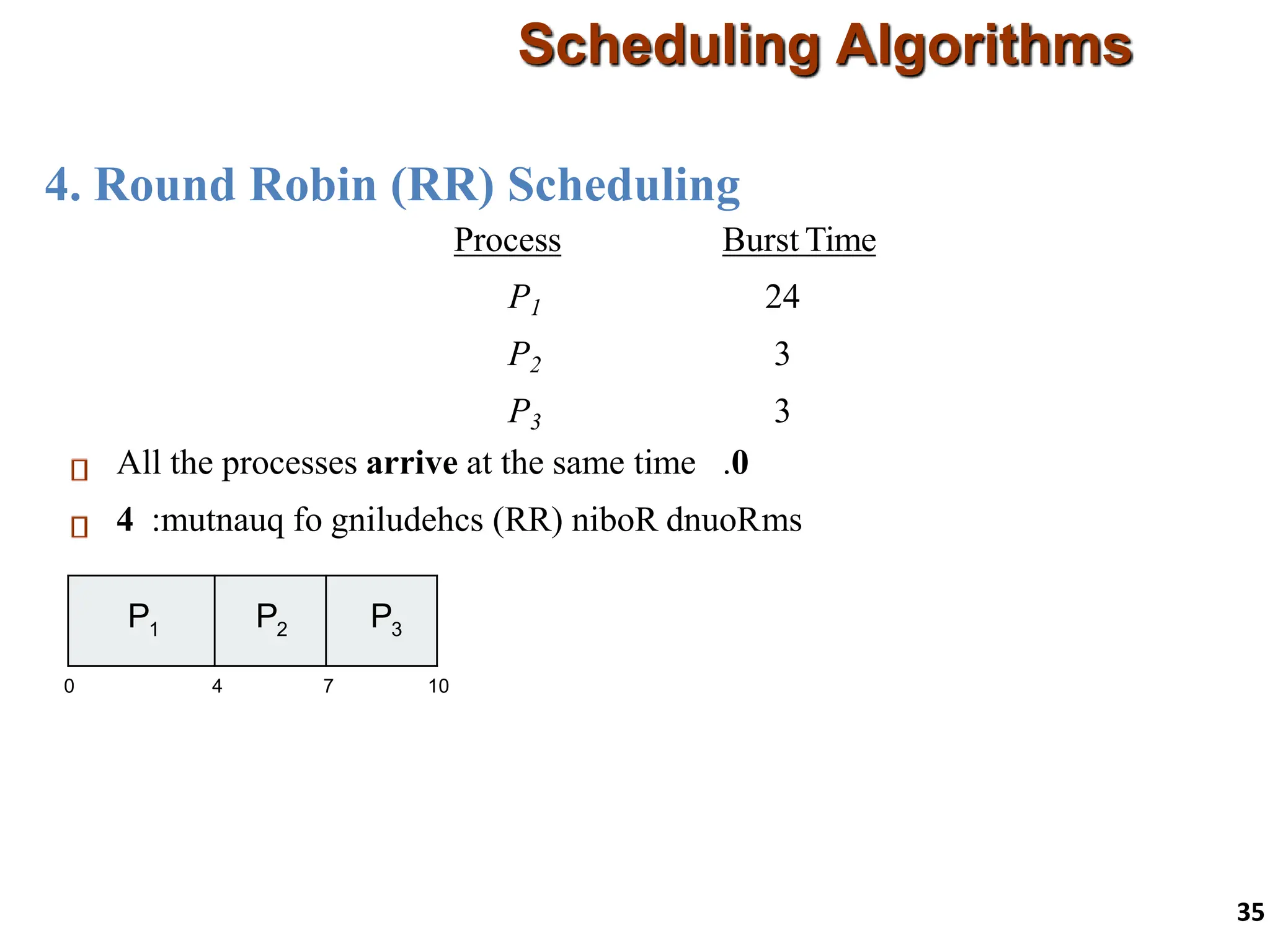

4. Round Robin (RR) Scheduling Scheduling Algorithms 35 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms 0 4 7 10 14 18 22 26 30 P1 P2 P3 P1 P1 P1 P1 P1

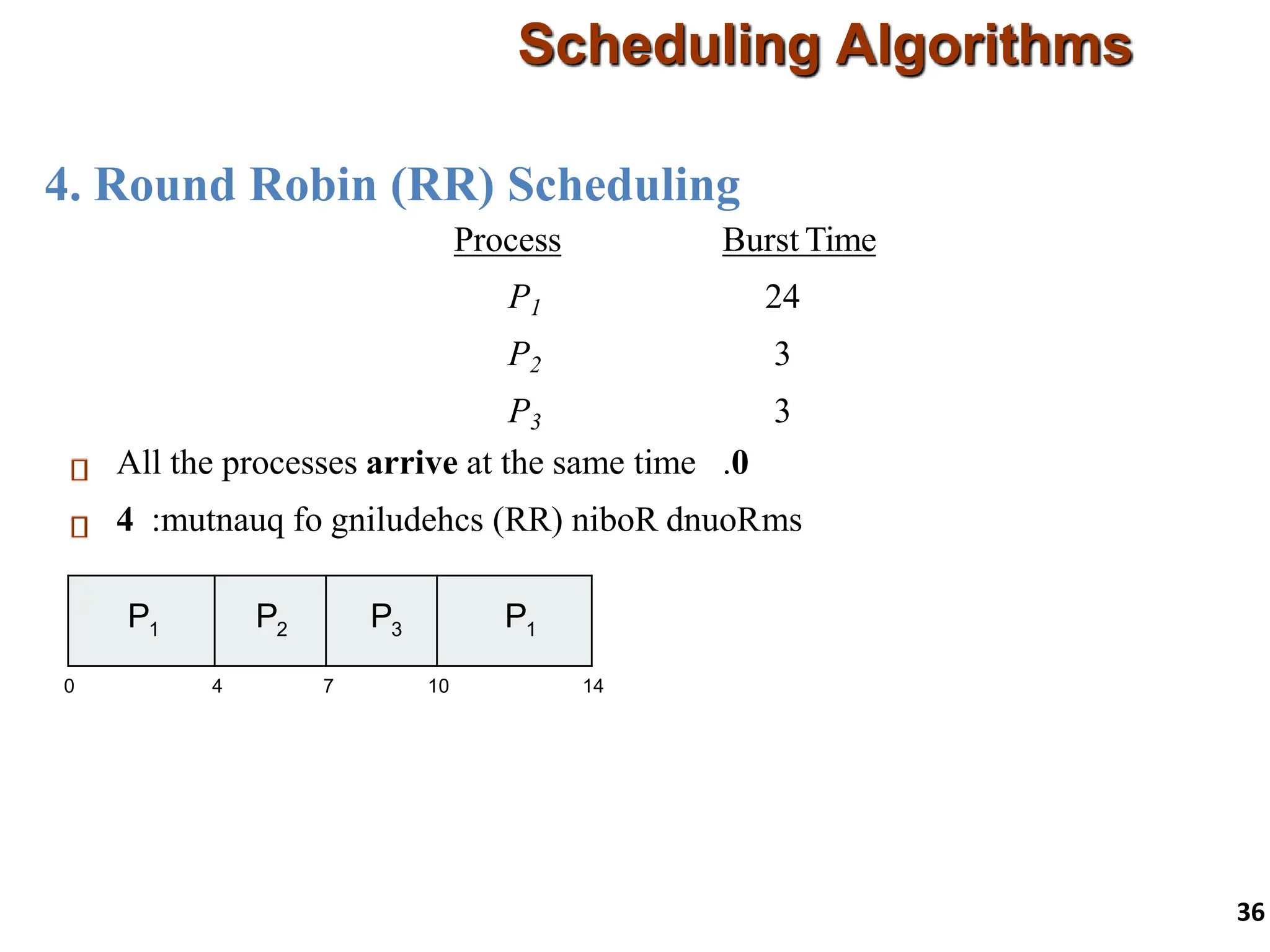

4. Round Robin (RR) Scheduling Scheduling Algorithms 36 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 P2 P3 P1 0 14 18 22 26 30 P1 P1 P1 P1 4 7 10

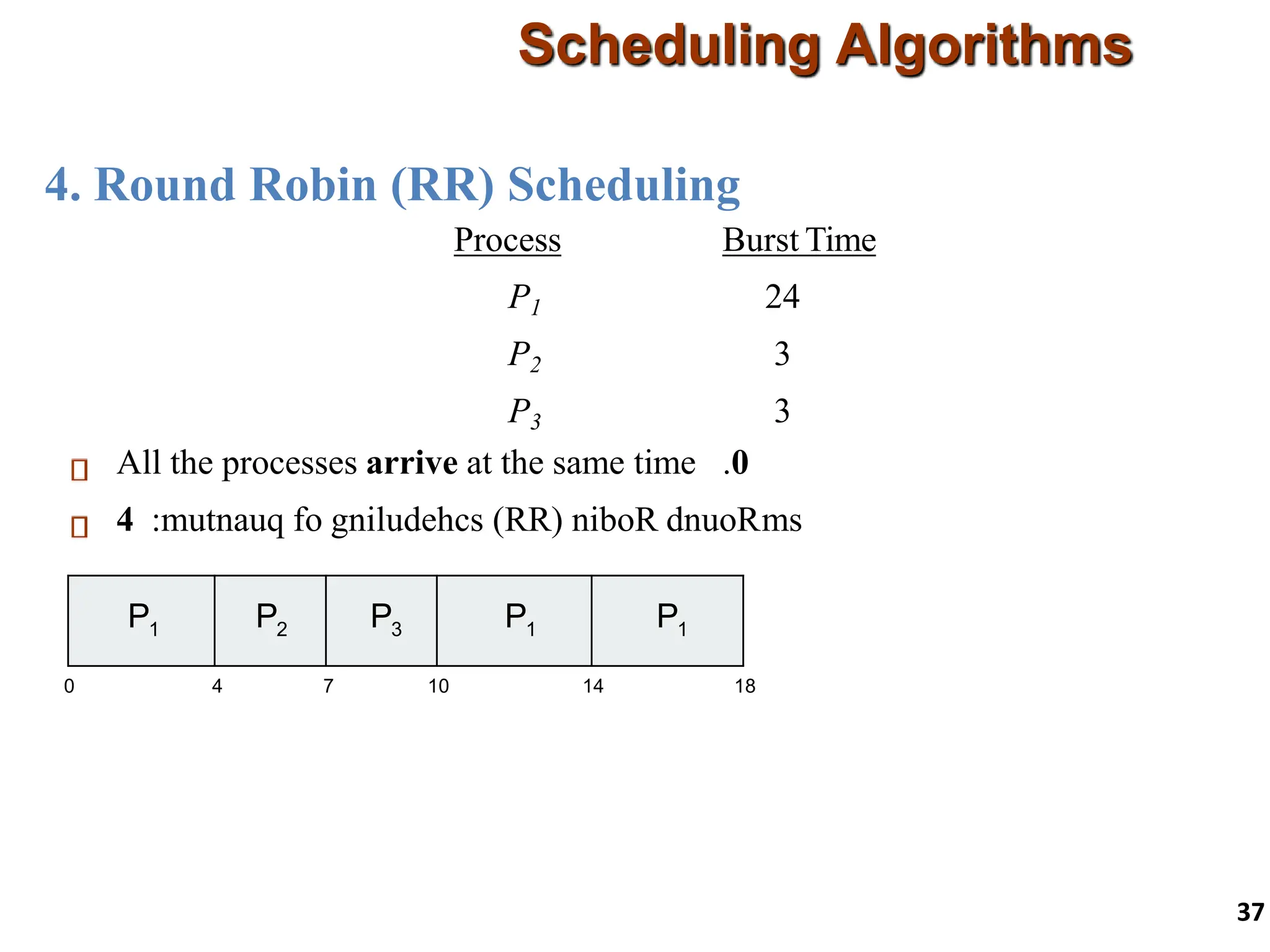

4. Round Robin (RR) Scheduling Scheduling Algorithms 37 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 P2 P3 P1 P1 0 18 22 26 30 P1 P1 P1 14 4 7 10

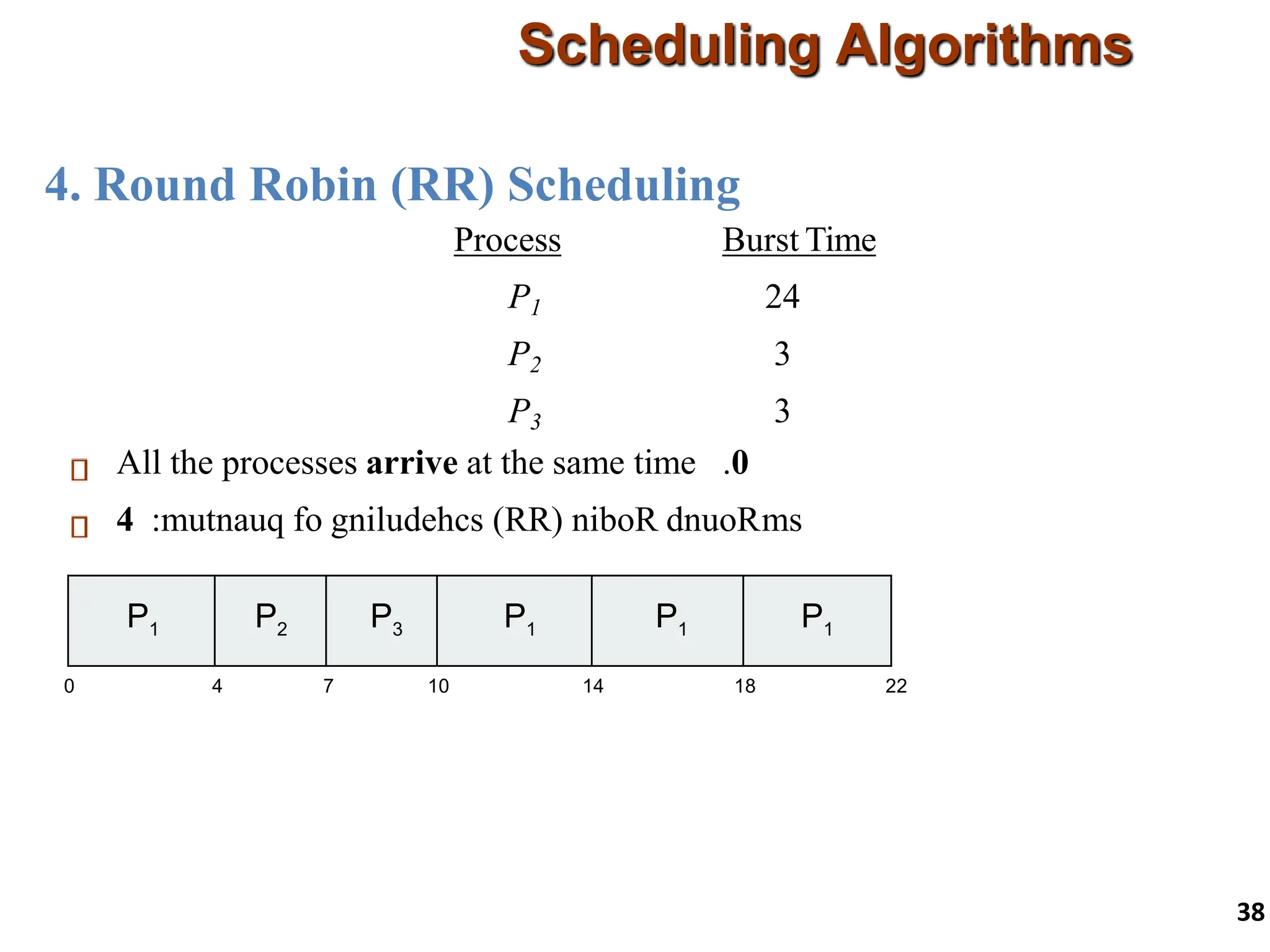

4. Round Robin (RR) Scheduling Scheduling Algorithms 38 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 P1 0 18 26 30 14 4 7 10 22 P1 P2 P3 P1 P1 P1

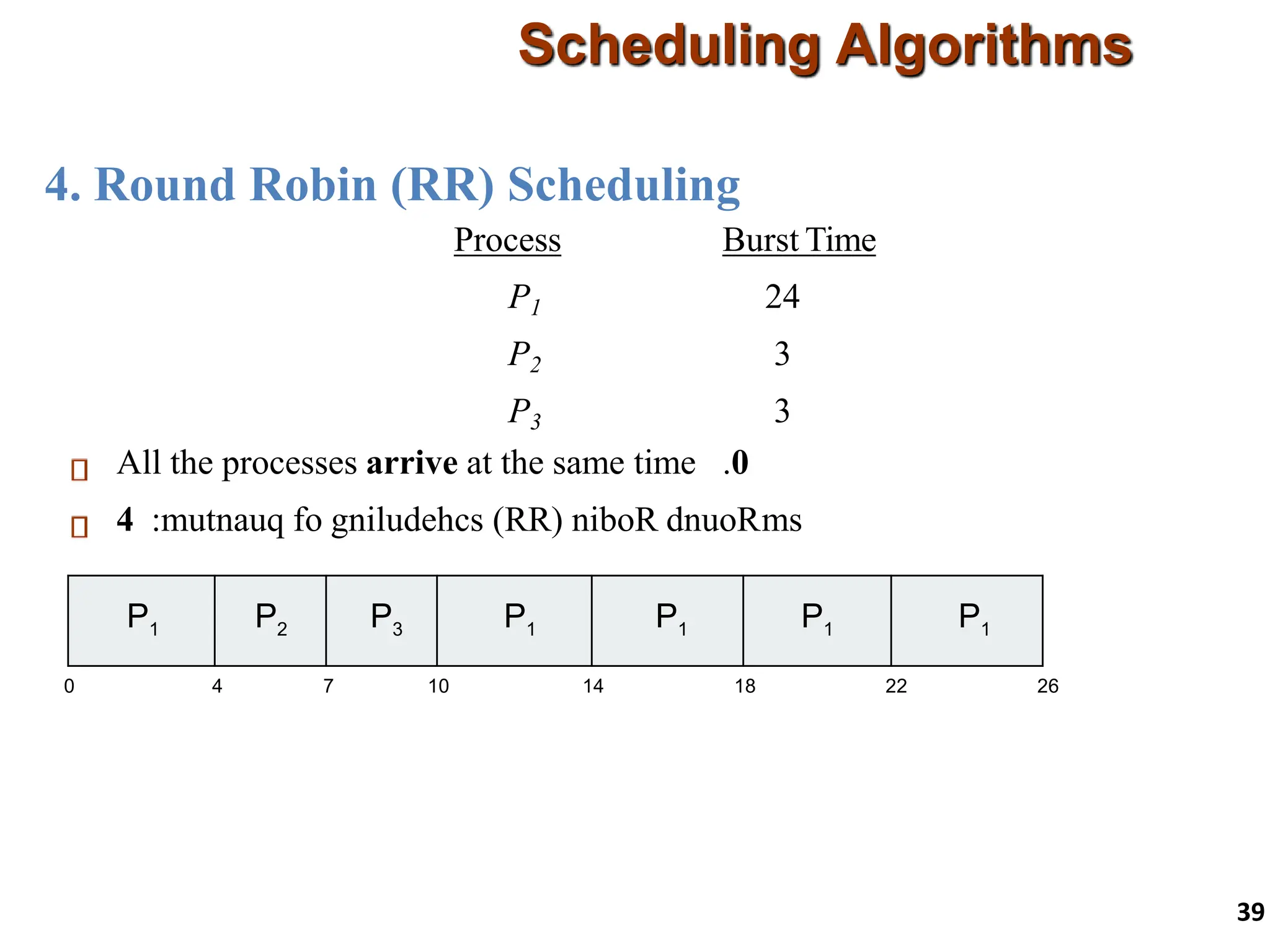

4. Round Robin (RR) Scheduling Scheduling Algorithms 39 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 P2 P3 P1 P1 P1 P1 P1 0 18 30 26 14 4 7 10 22
4. Round Robin (RR) Scheduling Scheduling Algorithms 40 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 . :mutnauq fo gniludehcs )RR( niboR dnuoR 4 ms P1 P2 P3 P1 P1 P1 P1 P1 0 18 30 26 14 4 7 10 22

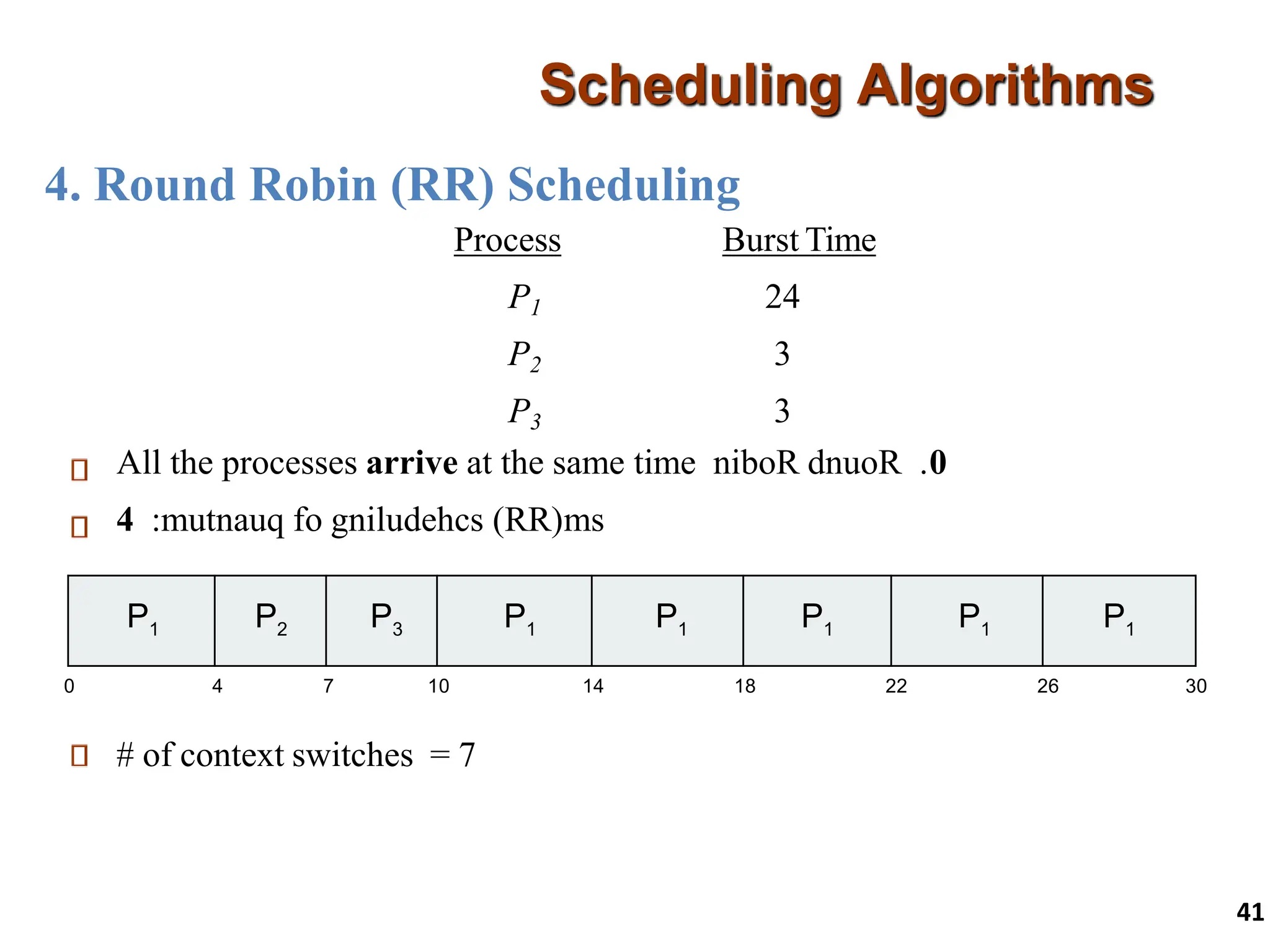

4. Round Robin (RR) Scheduling Scheduling Algorithms 41 Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0 niboR dnuoR . :mutnauq fo gniludehcs )RR( 4 ms 4 7 10 # of context switches = 7 P1 P2 P3 P1 P1 P1 P1 P1 0 18 30 26 14 22

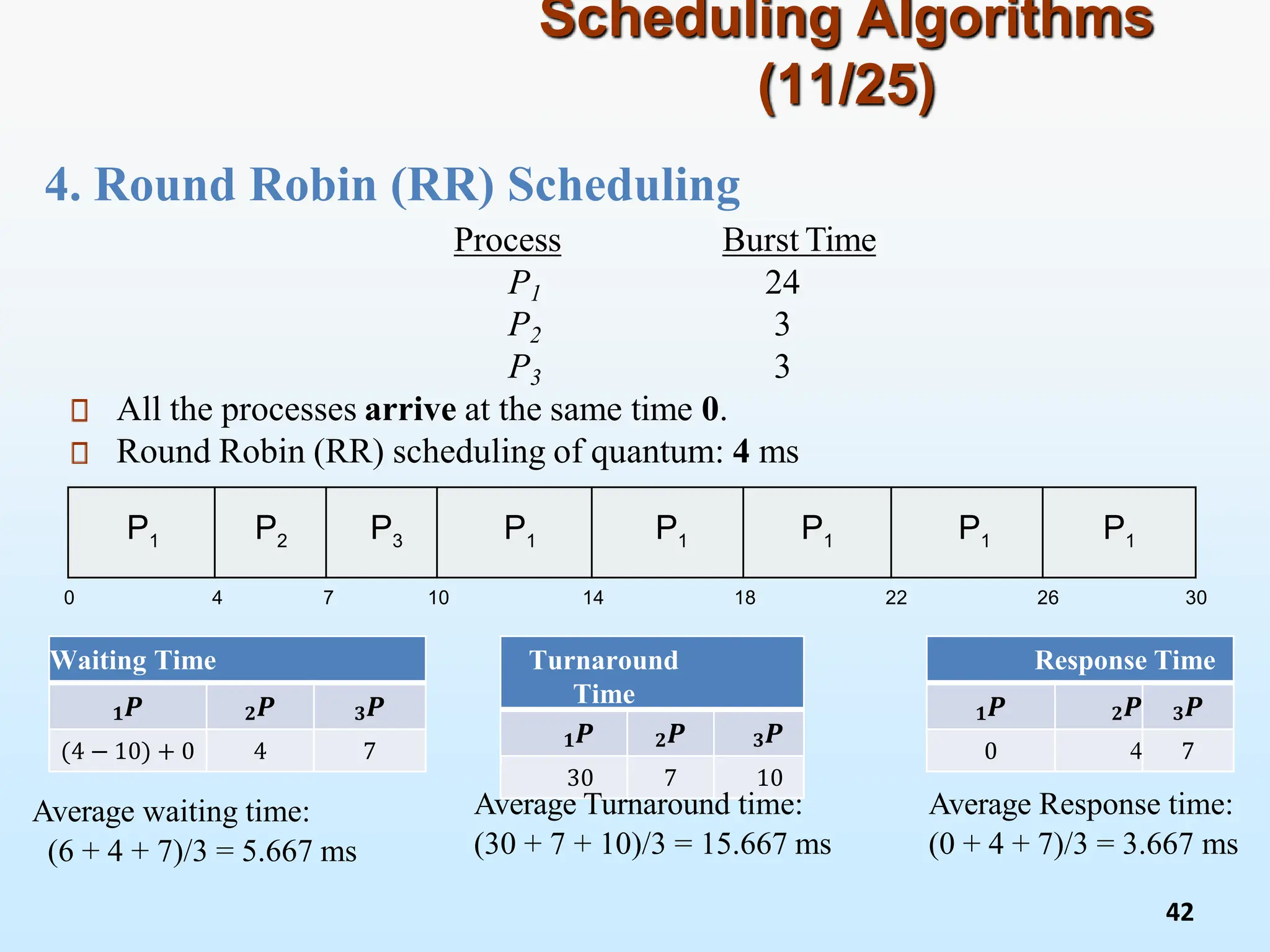

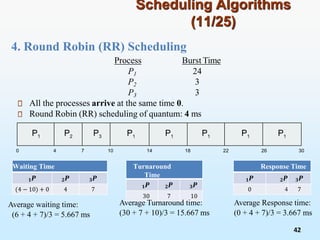

4. Round Robin (RR) Scheduling Scheduling Algorithms (11/25) Process Burst Time P1 24 P2 3 P3 3 All the processes arrive at the same time 0. Round Robin (RR) scheduling of quantum: 4 ms P1 P2 P3 P1 P1 P1 P1 P1 42 0 18 30 26 14 4 7 10 22 Waiting Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 0 ( + 10 − 4 ) 4 7 Average waiting time: (6 + 4 + 7)/3 = 5.667 ms Turnaround Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 30 7 10 Average Turnaround time: (30 + 7 + 10)/3 = 15.667 ms Response Time 𝑷 𝟏 𝑷 𝟐 𝑷 𝟑 0 4 7 Average Response time: (0 + 4 + 7)/3 = 3.667 ms
CHAPTER 5 - PART 2

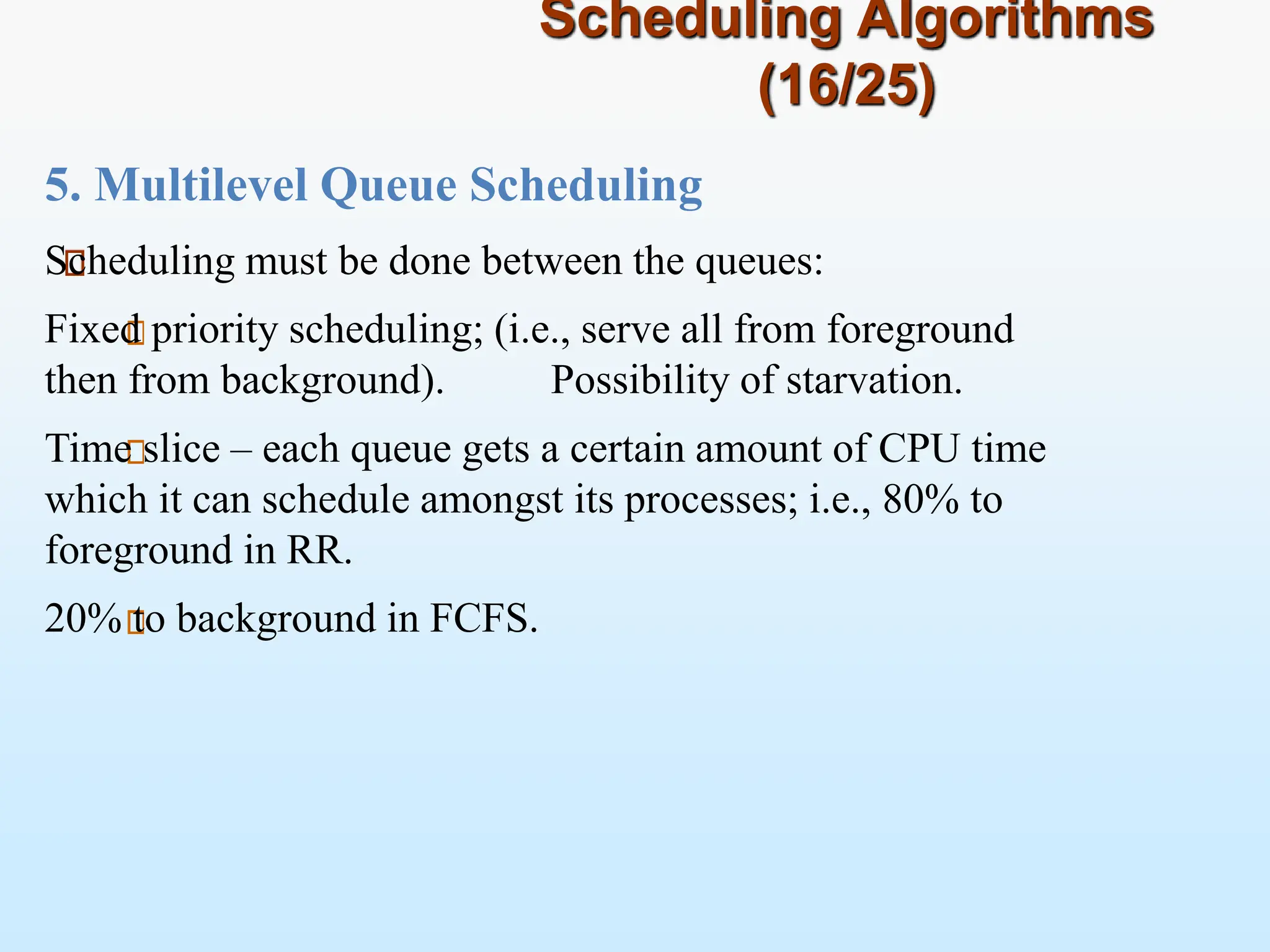

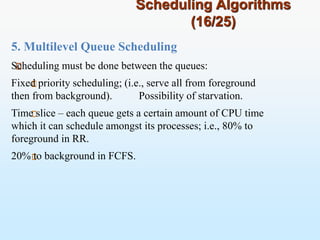

Scheduling Algorithms (16/25) 5. Multilevel Queue Scheduling Scheduling must be done between the queues: Fixed priority scheduling; (i.e., serve all from foreground then from background). Possibility of starvation. Time slice – each queue gets a certain amount of CPU time which it can schedule amongst its processes; i.e., 80% to foreground in RR. 20% to background in FCFS.

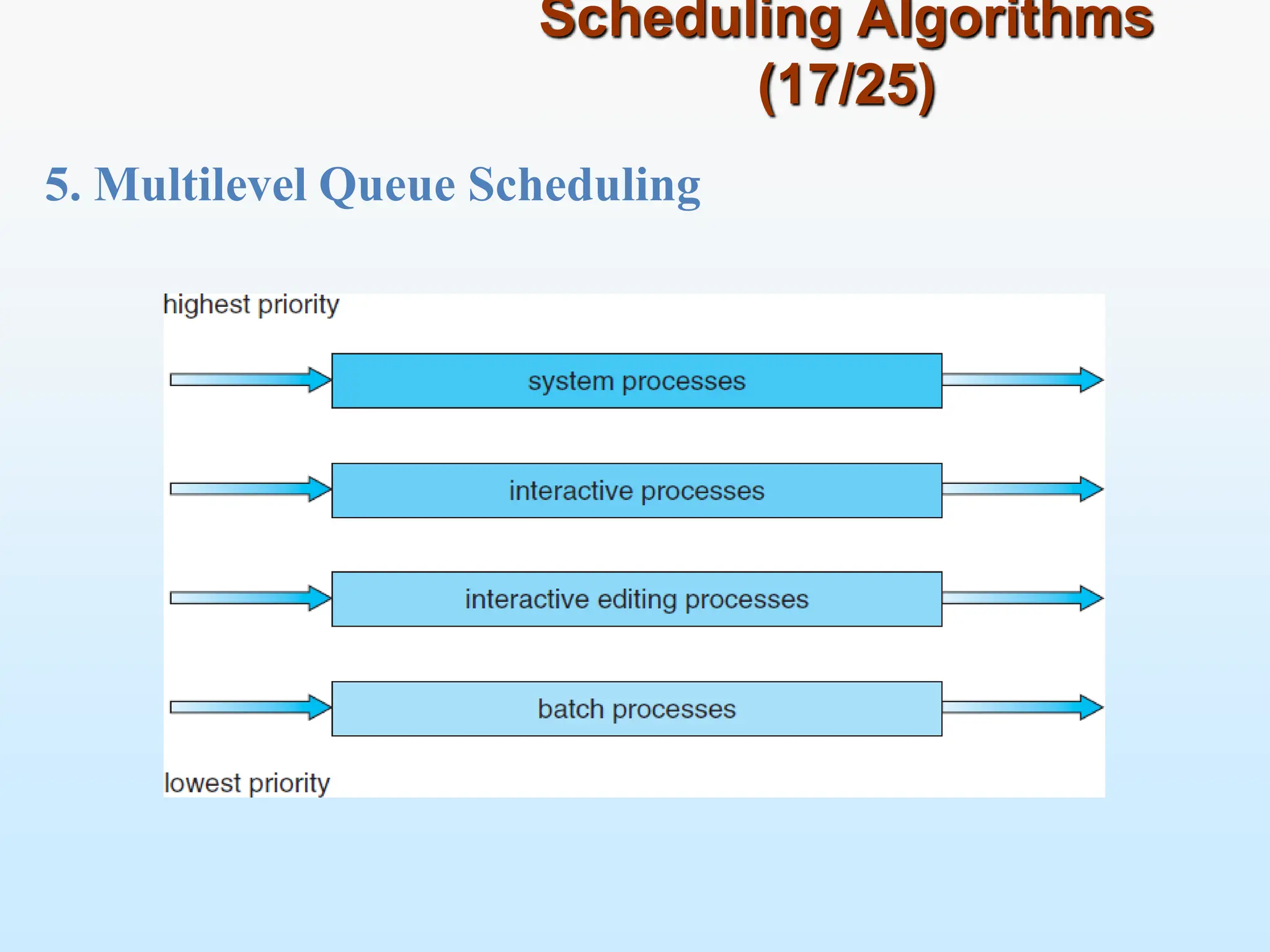

Scheduling Algorithms (17/25) 5. Multilevel Queue Scheduling

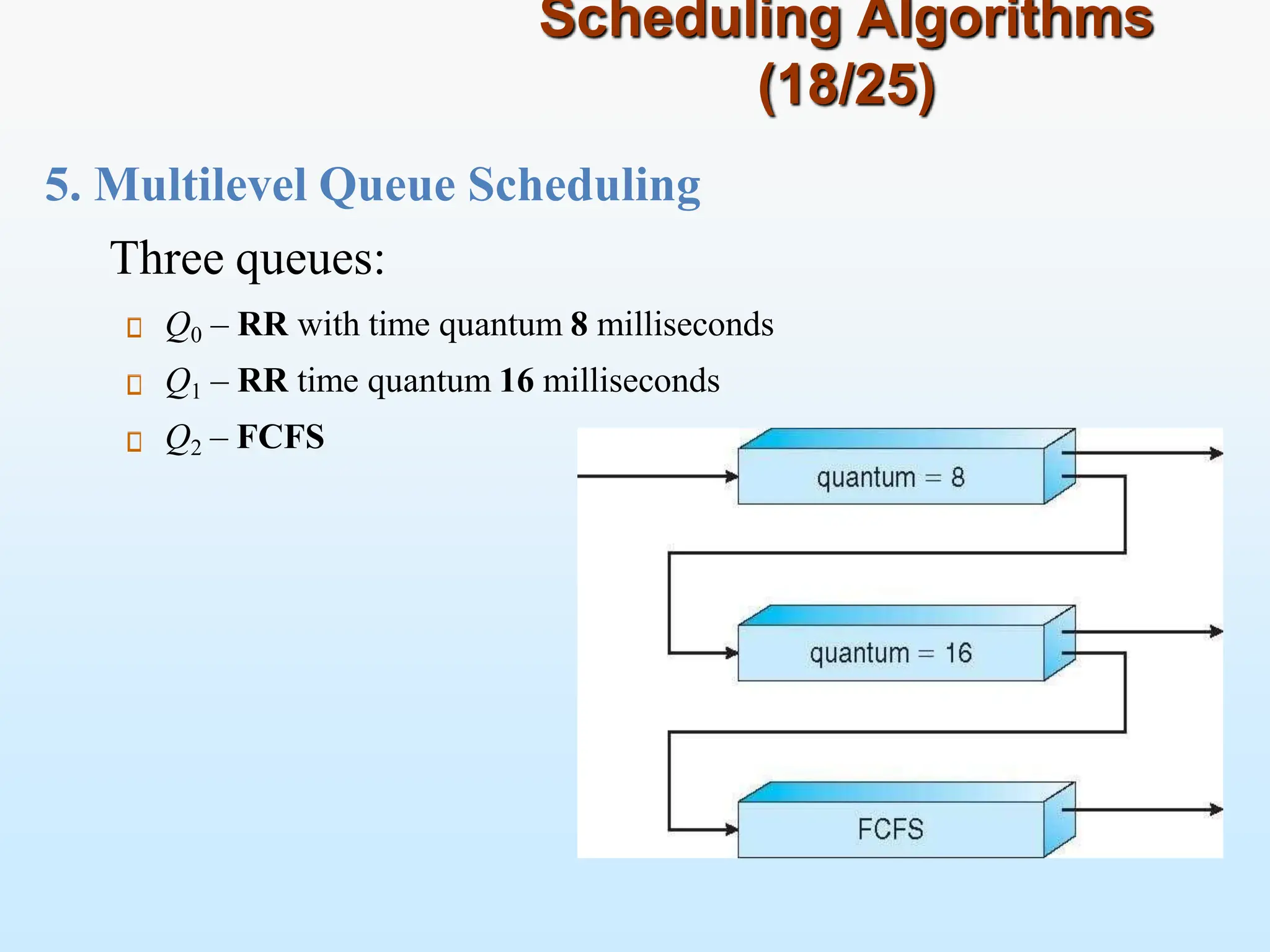

Scheduling Algorithms (18/25) 5. Multilevel Queue Scheduling Three queues: Q0 – RR with time quantum 8 milliseconds Q1 – RR time quantum 16 milliseconds Q2 – FCFS

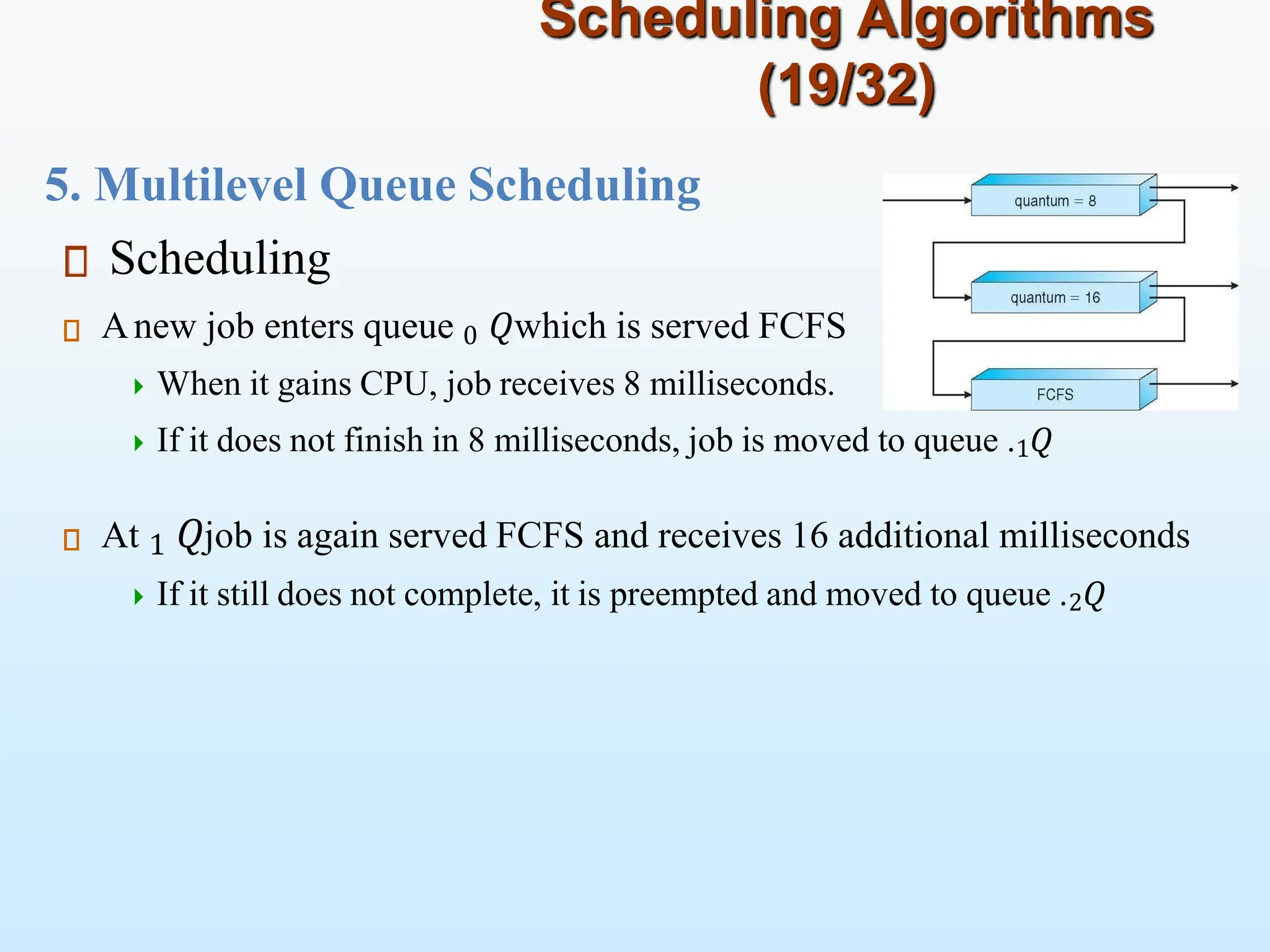

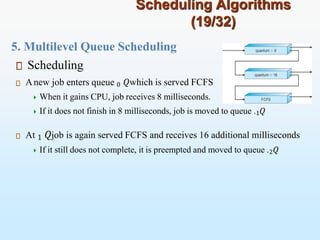

Scheduling Algorithms (19/32) 5. Multilevel Queue Scheduling Scheduling Anew job enters queue 𝑄 0 which is served FCFS  When it gains CPU, job receives 8 milliseconds.  If it does not finish in 8 milliseconds, job is moved to queue 𝑄 1 . At 𝑄 1 job is again served FCFS and receives 16 additional milliseconds  If it still does not complete, it is preempted and moved to queue 𝑄 2 .

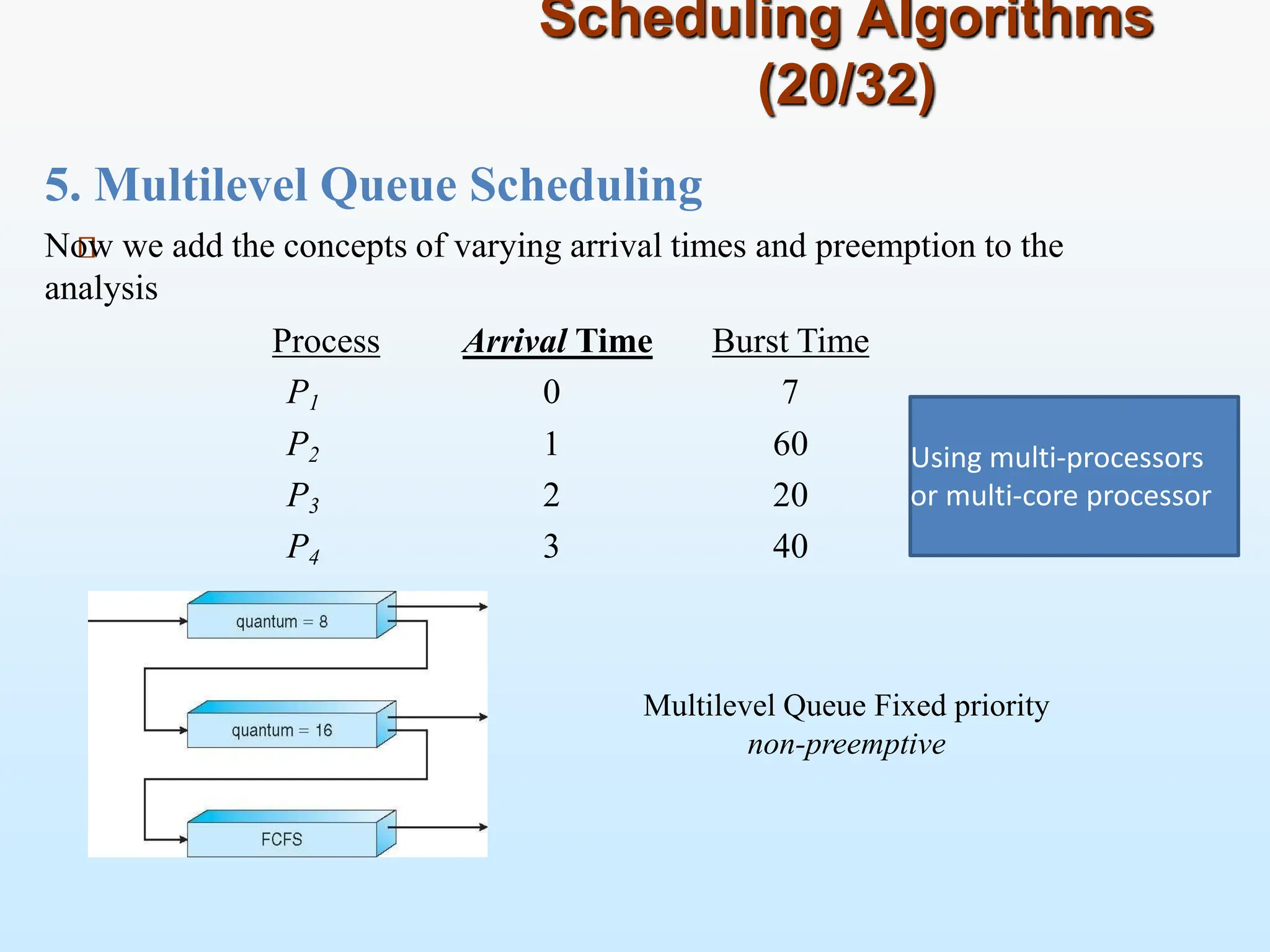

Scheduling Algorithms (20/32) 5. Multilevel Queue Scheduling Now we add the concepts of varying arrival times and preemption to the analysis Process Arrival Time Burst Time P1 0 7 P2 1 60 P3 2 20 P4 3 40 Multilevel Queue Fixed priority non-preemptive Using multi-processors or multi-core processor

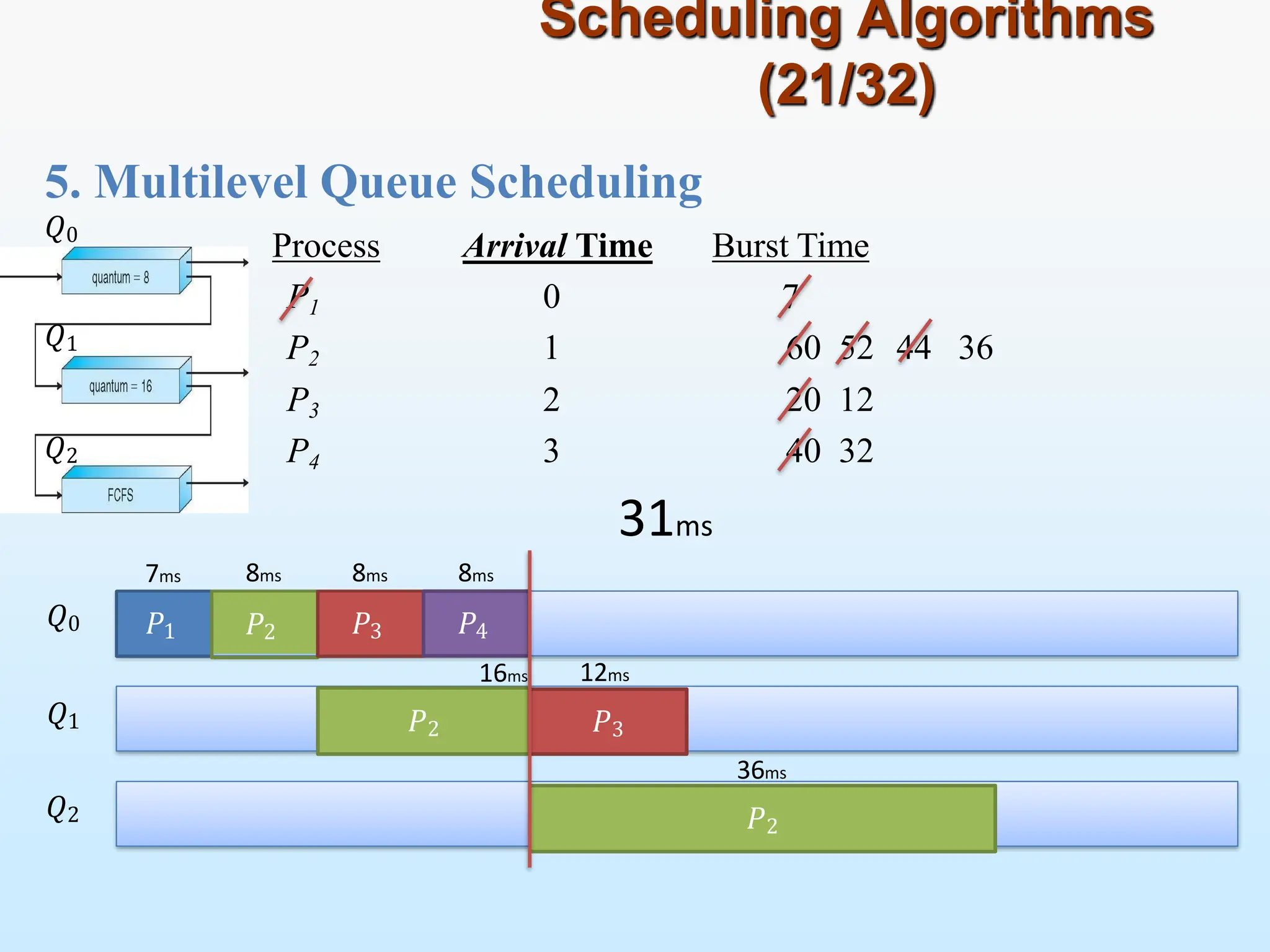

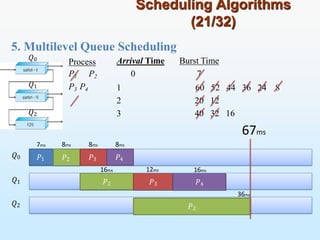

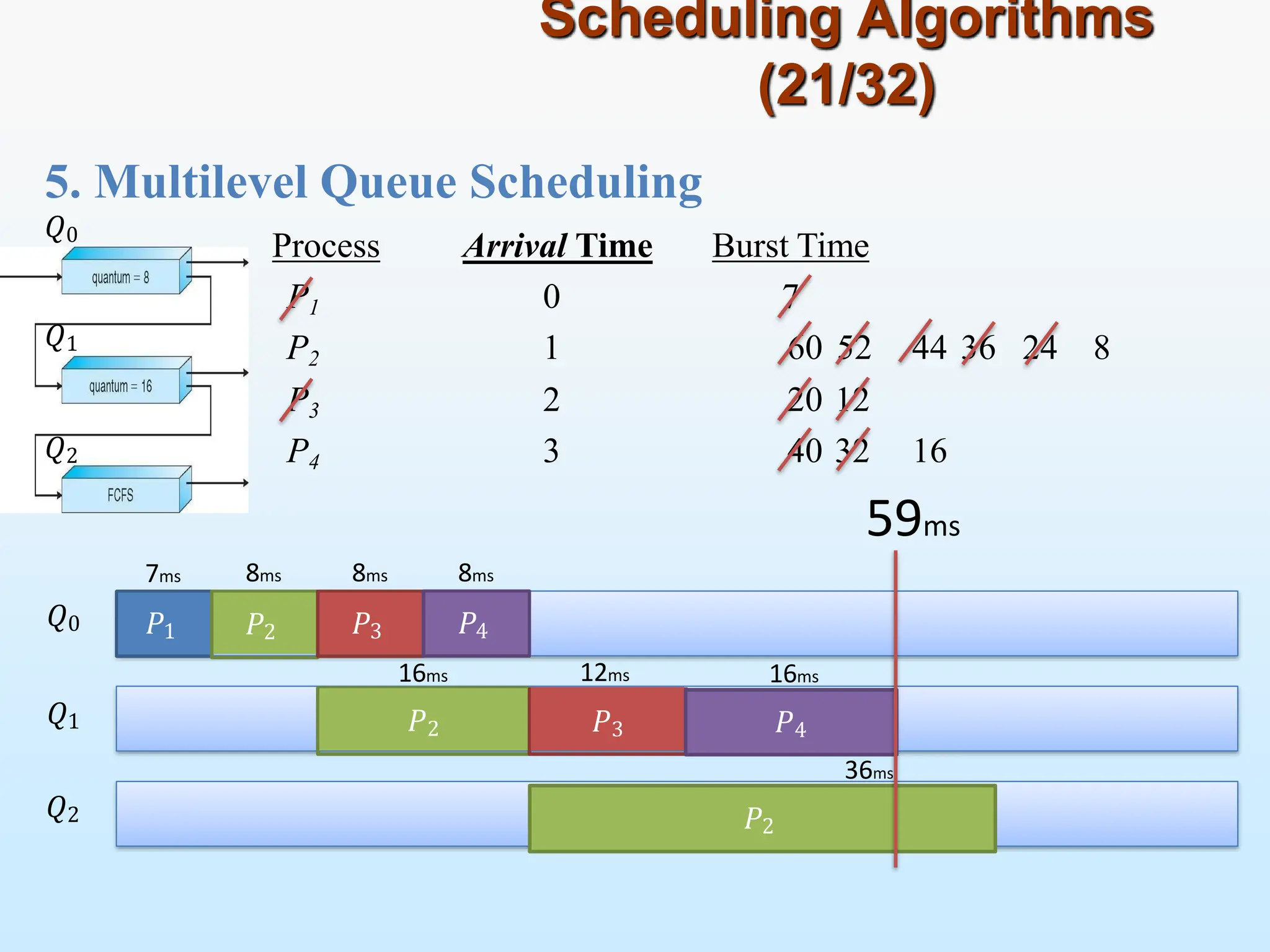

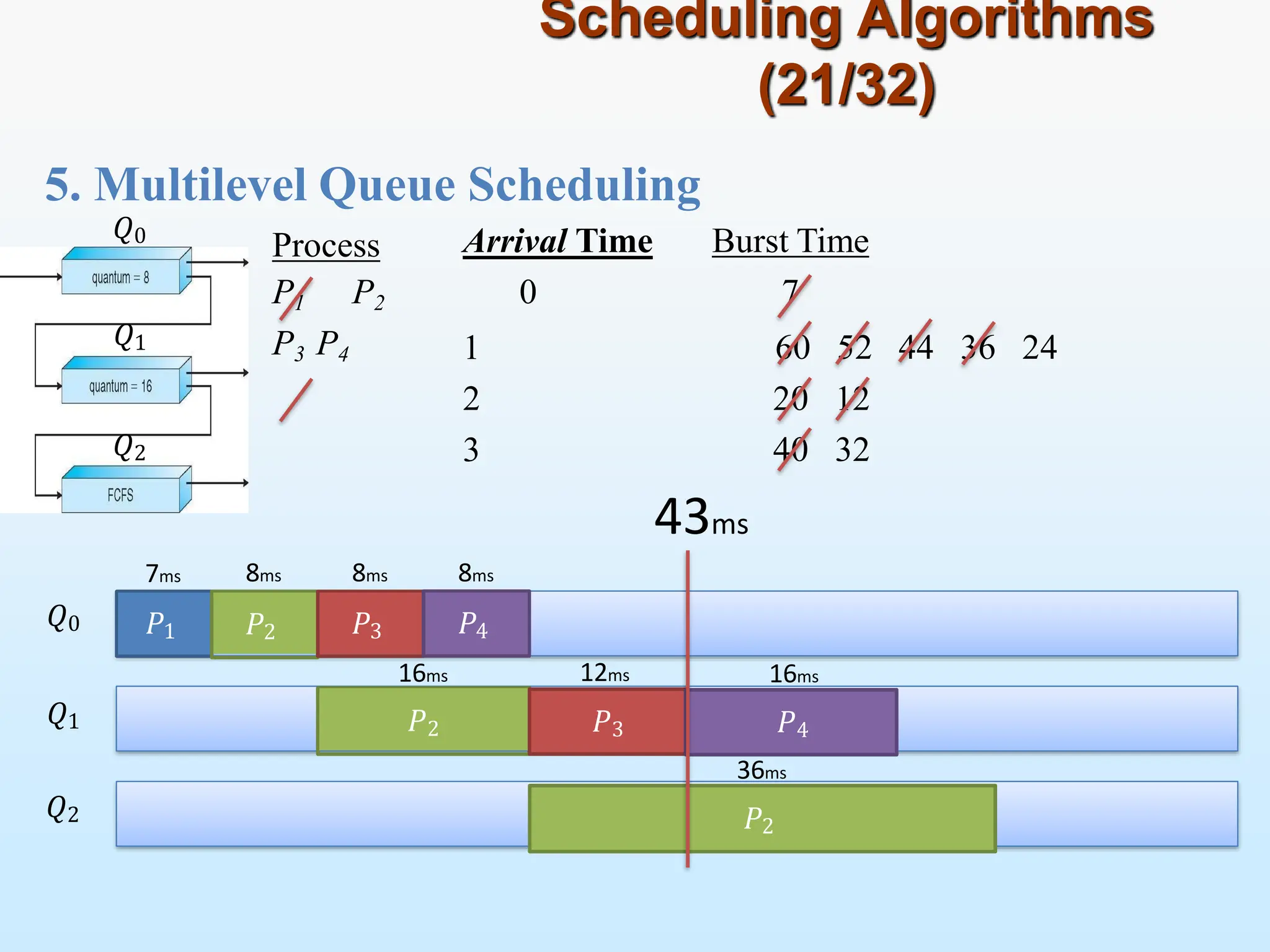

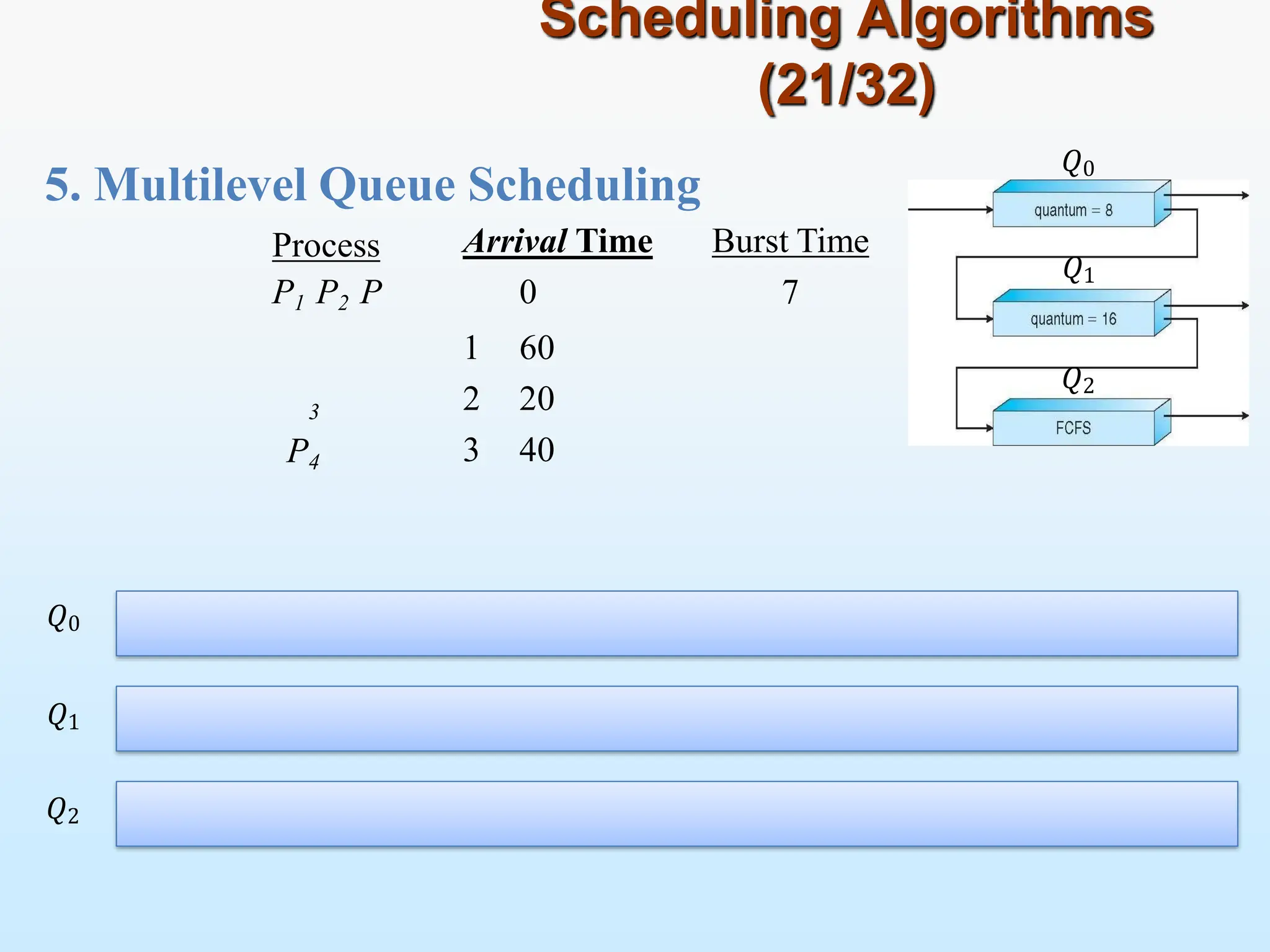

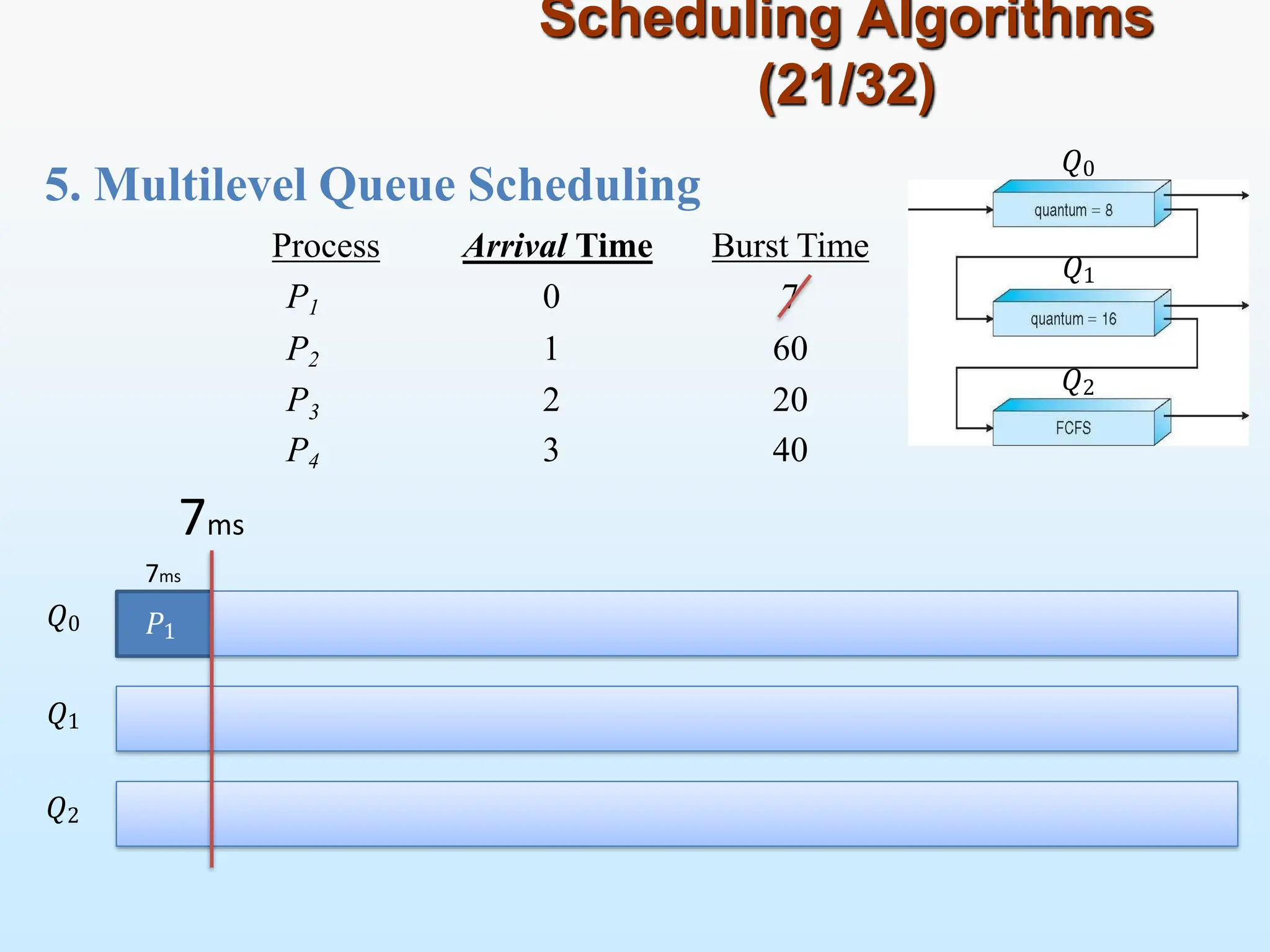

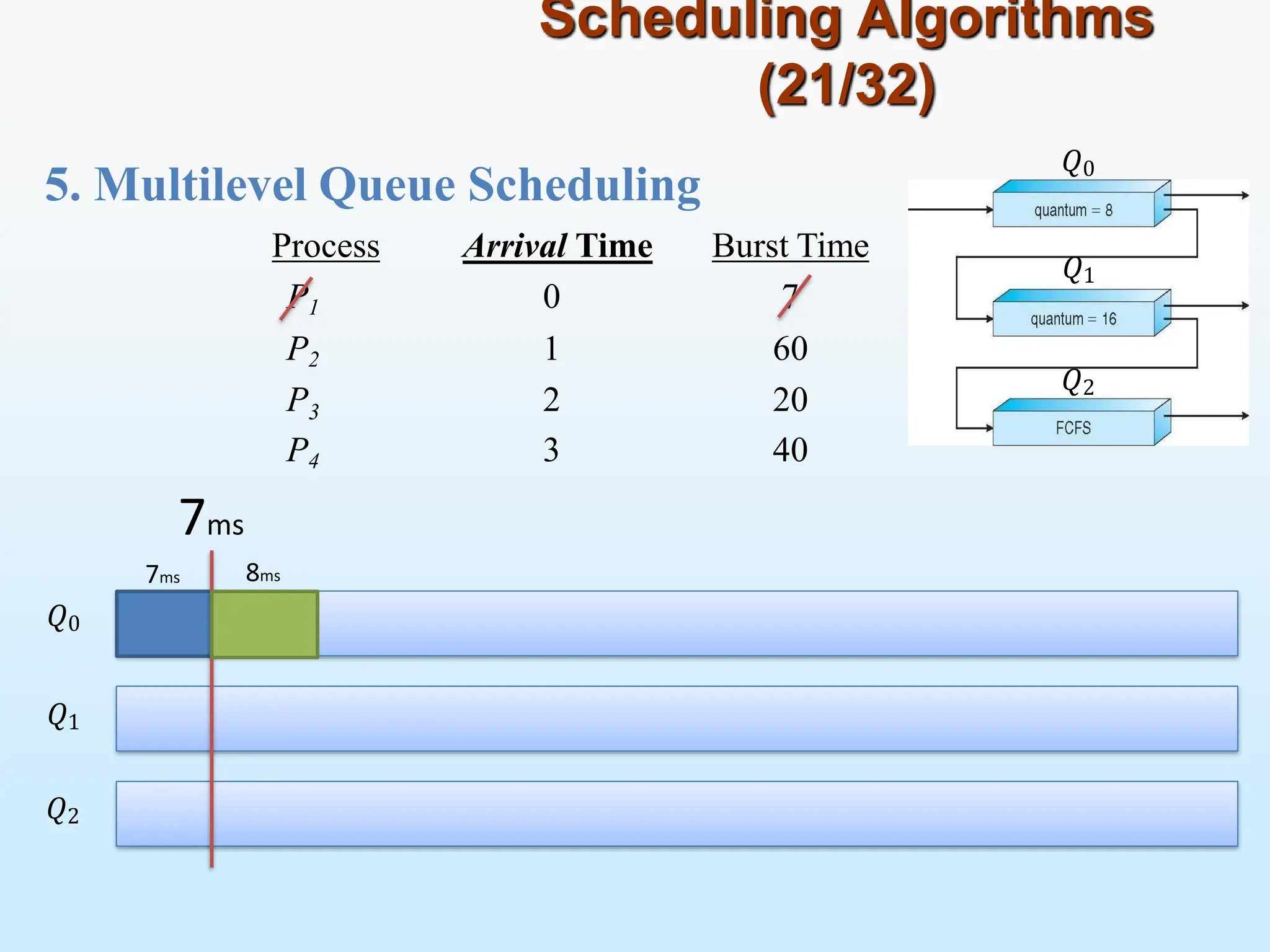

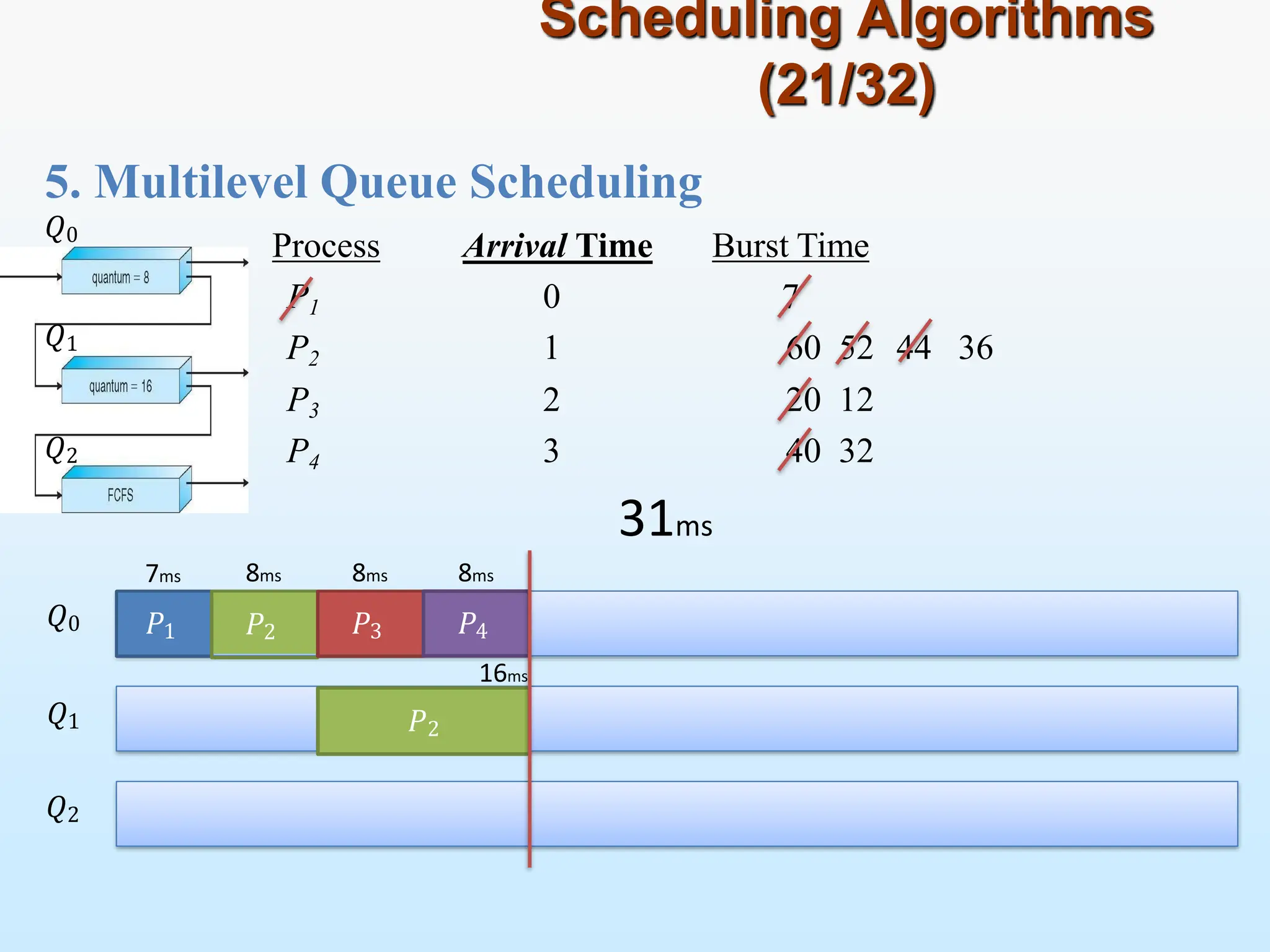

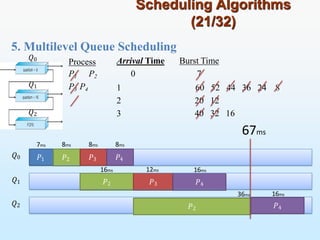

5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P 3 P4 Arrival Time Burst Time 0 7 1 60 2 20 3 40 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2

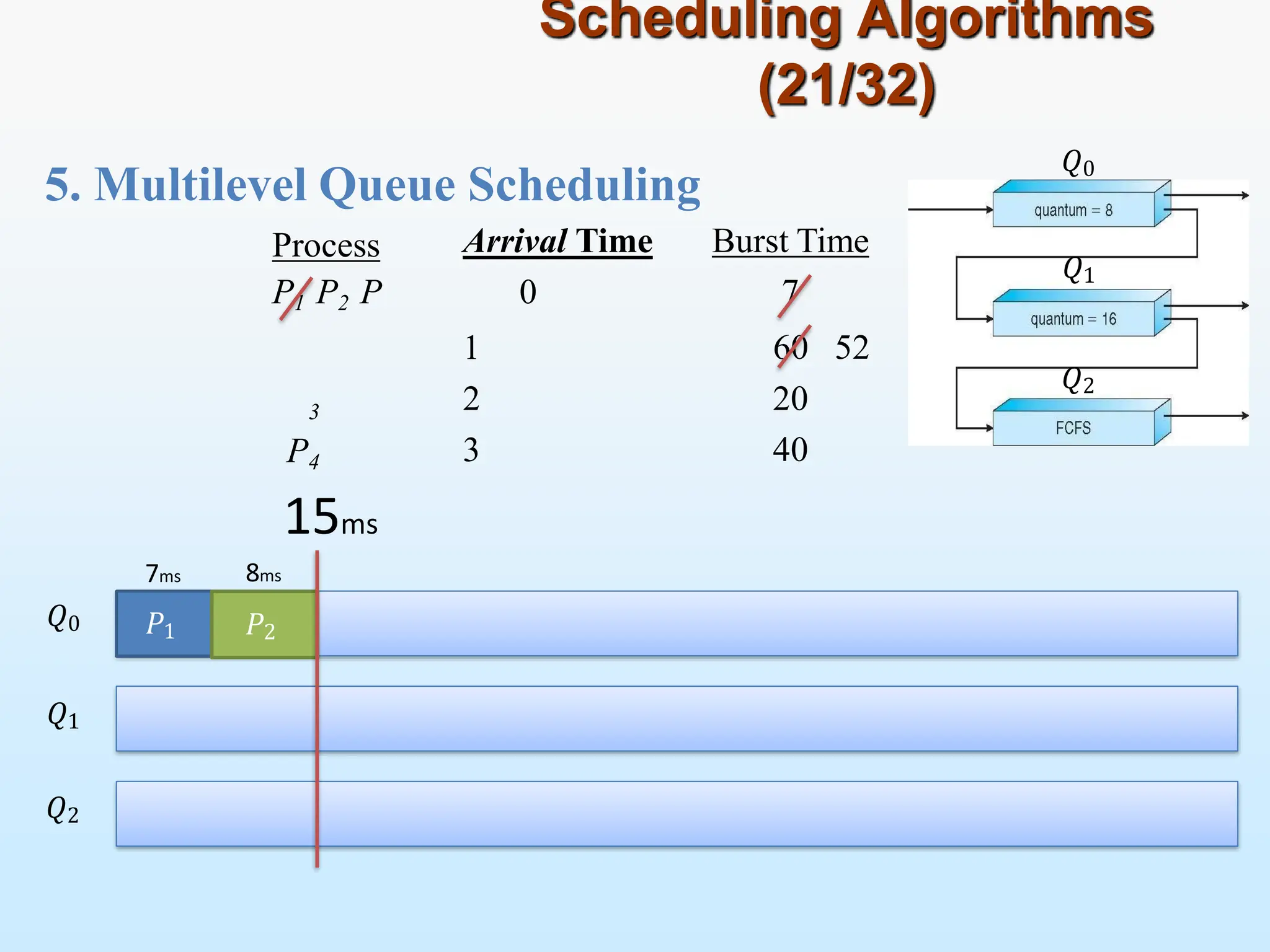

5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) 3 𝑃1 Process Arrival Time Burst Time P1 0 7 P2 1 60 P 2 20 P4 3 40 7ms 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 7ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) 3 Process Arrival Time Burst Time P1 0 7 P2 1 60 P 2 20 P4 3 40 7ms 7ms 8ms 𝑃1 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2

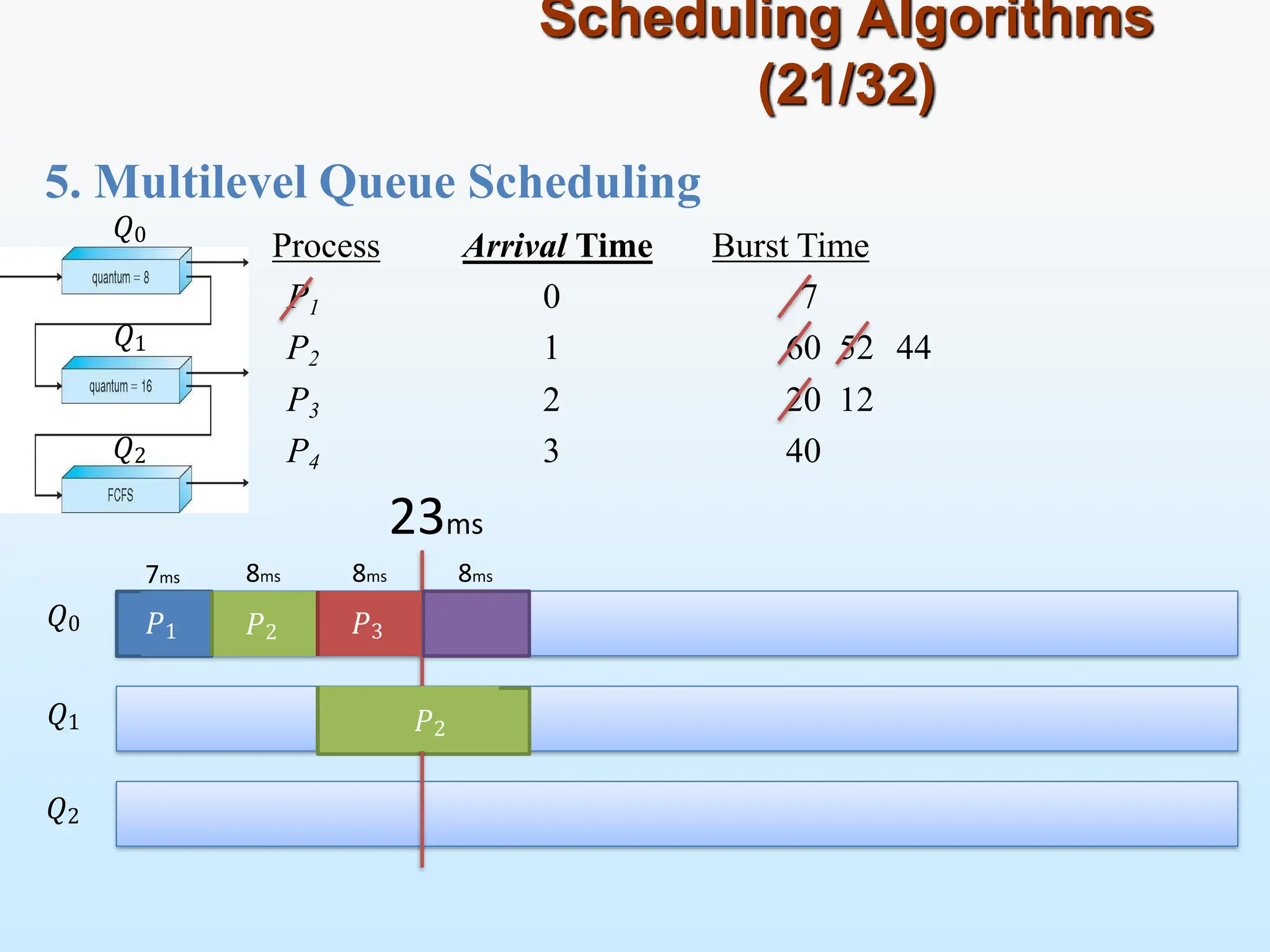

5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P Arrival Time Burst Time 0 7 1 2 3 60 52 20 40 𝑃1 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 3 P4 15ms 7ms 8ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P Arrival Time Burst Time 0 7 1 2 3 60 52 20 40 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 3 P4 15ms 7ms 8ms 8ms

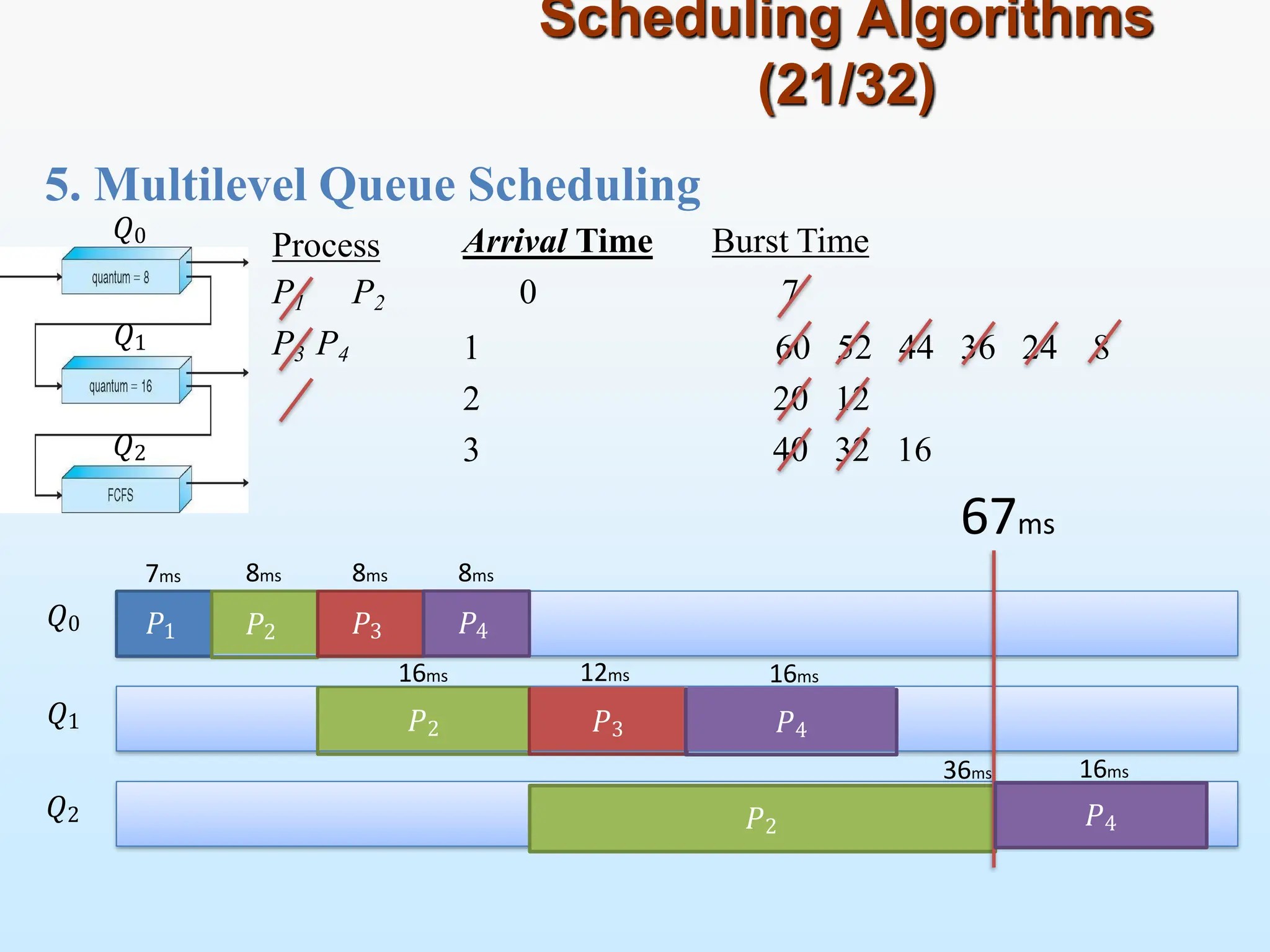

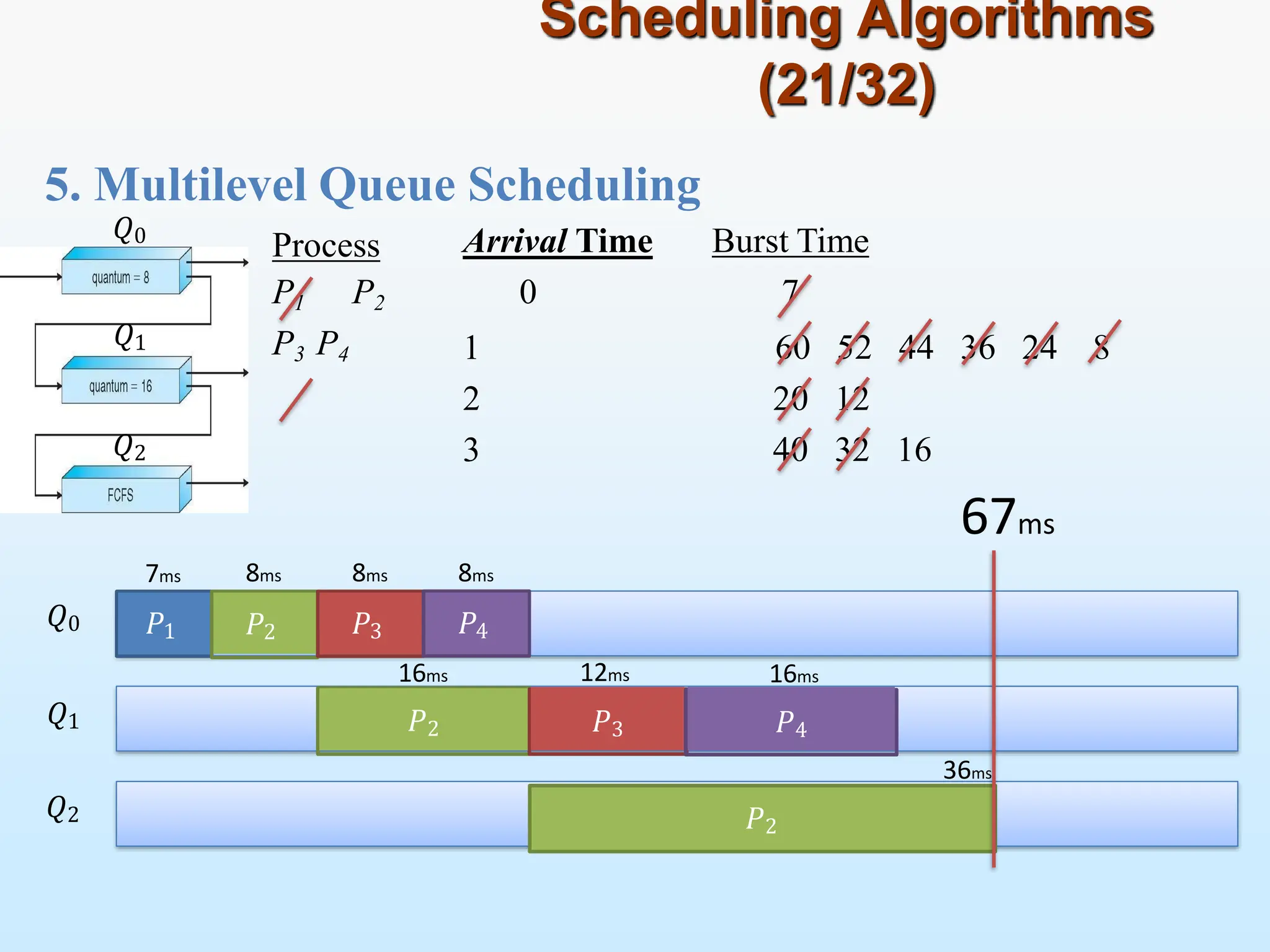

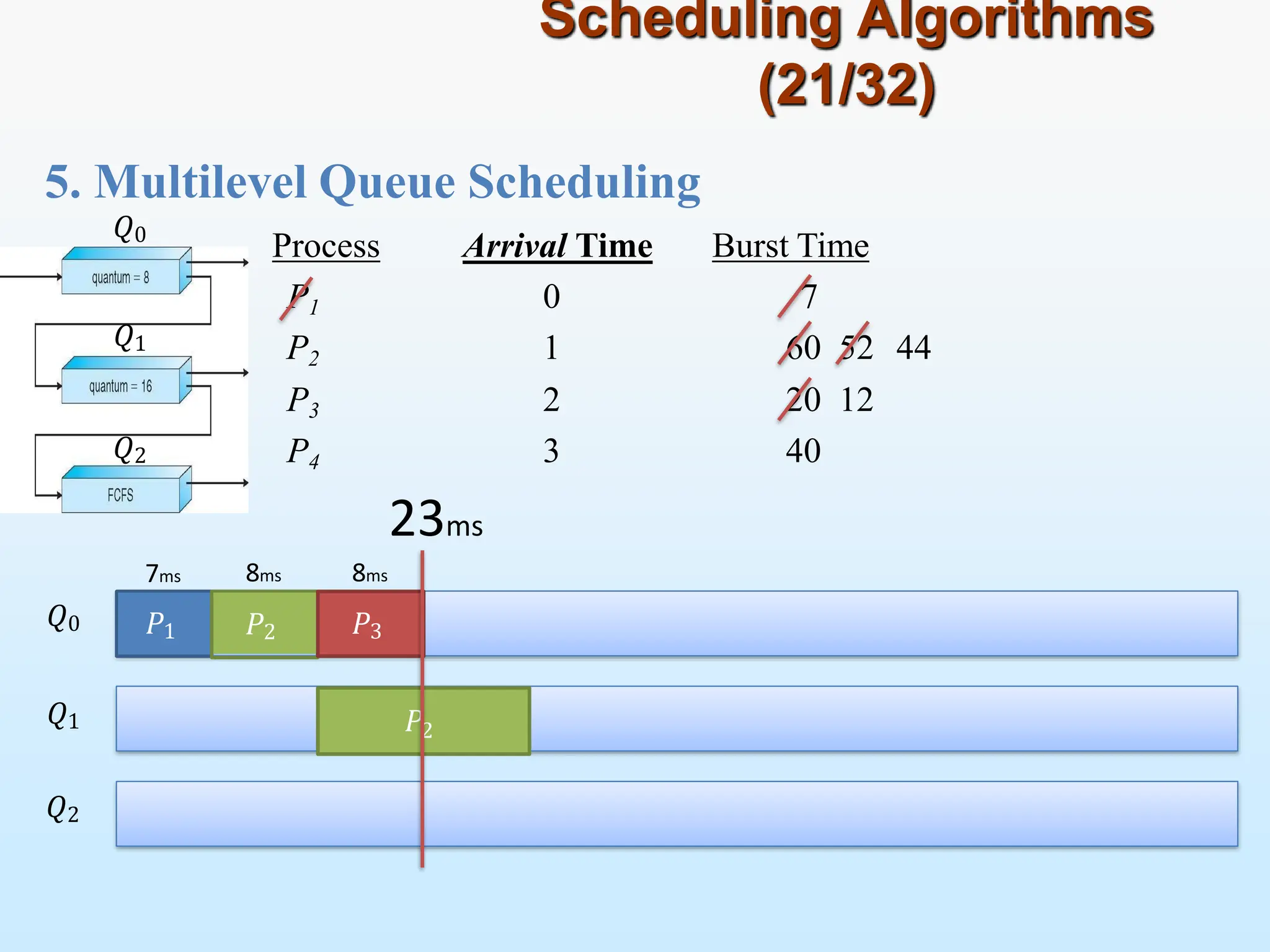

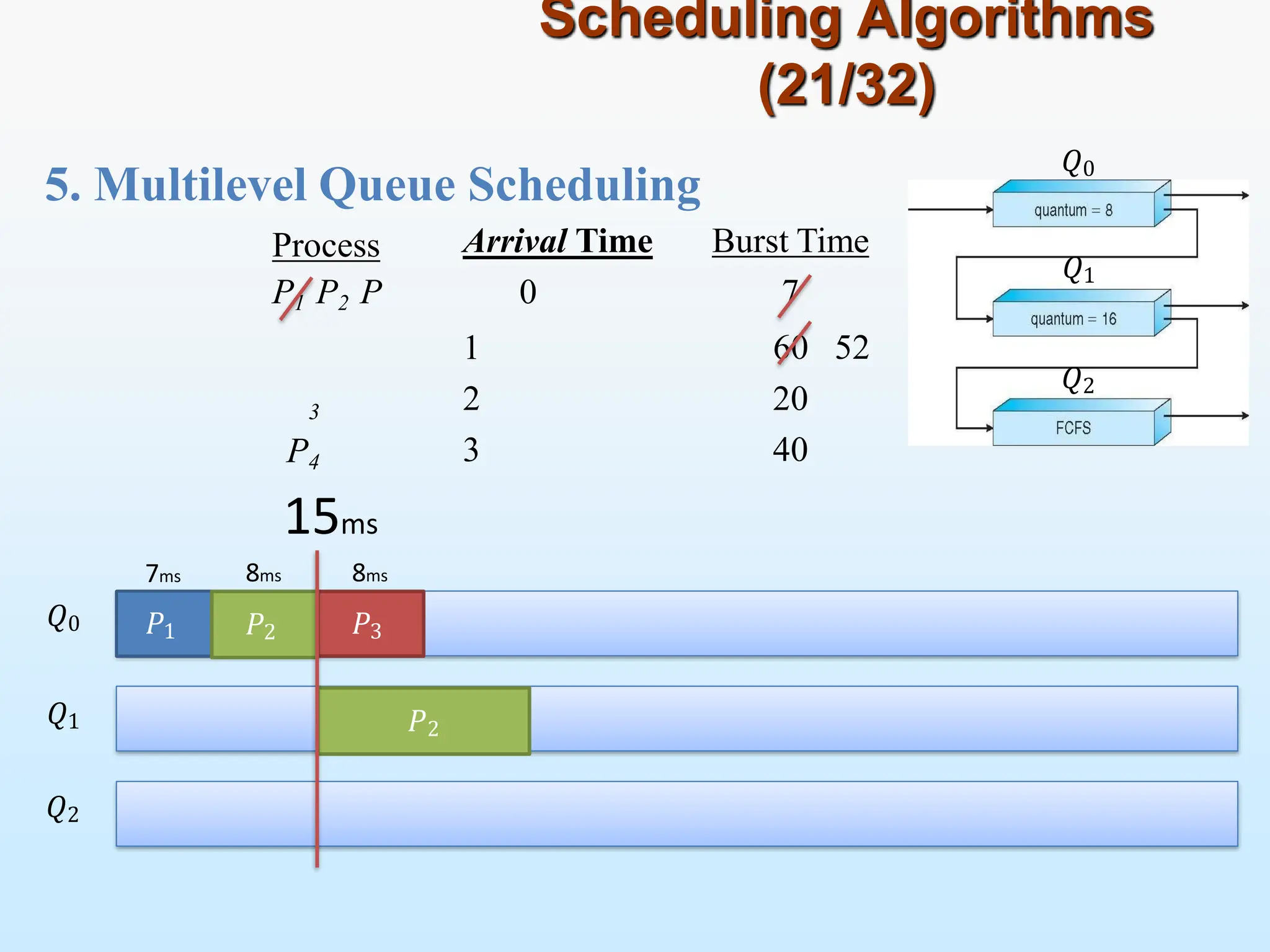

Scheduling Algorithms (21/32) Process Arrival Time Burst Time P1 0 7 P2 1 60 52 44 P3 2 20 12 P4 3 40 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 5. Multilevel Queue Scheduling 𝑄0 𝑄1 𝑄2 23ms 7ms 8ms 8ms
Scheduling Algorithms (21/32) 𝑄0 𝑄1 𝑄2 5. Multilevel Queue Scheduling 𝑄0 𝑄1 𝑄2 Process Arrival Time Burst Time P1 0 7 P2 1 60 52 44 P3 2 20 12 P4 3 40 23ms 7ms 8ms 8ms 8ms 𝑃1 𝑃2 𝑃3 𝑃4 𝑃2
Scheduling Algorithms (21/32) Process Arrival Time Burst Time P1 0 7 P2 1 60 52 44 36 P3 2 20 12 P4 3 40 32 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 5. Multilevel Queue Scheduling 𝑄0 𝑄1 𝑄2 31ms 𝑃4 7ms 8ms 8ms 8ms 16ms
Scheduling Algorithms (21/32) Process Arrival Time Burst Time P1 0 7 P2 1 60 52 44 36 P3 2 20 12 P4 3 40 32 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 5. Multilevel Queue Scheduling 𝑄0 𝑄1 𝑄2 31ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 12ms 36ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 44 36 24 20 12 40 32 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 43ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 12ms 36ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 44 36 24 20 12 40 32 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 43ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 𝑃4 12ms 16ms 36ms
Scheduling Algorithms (21/32) Process Arrival Time Burst Time P1 0 7 P2 1 60 52 44 36 24 8 P3 2 20 12 P4 3 40 32 16 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 5. Multilevel Queue Scheduling 𝑄0 𝑄1 𝑄2 59ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 𝑃4 12ms 16ms 36ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 44 36 24 8 20 12 40 32 16 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 67ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 𝑃4 12ms 16ms 36ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 44 36 24 8 20 12 40 32 16 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 67ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms
5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 44 36 24 8 20 12 40 32 16 𝑃1 𝑃2 𝑃2 𝑃3 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃4 7ms 8ms 8ms 𝑃2 𝑃3 8ms 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms

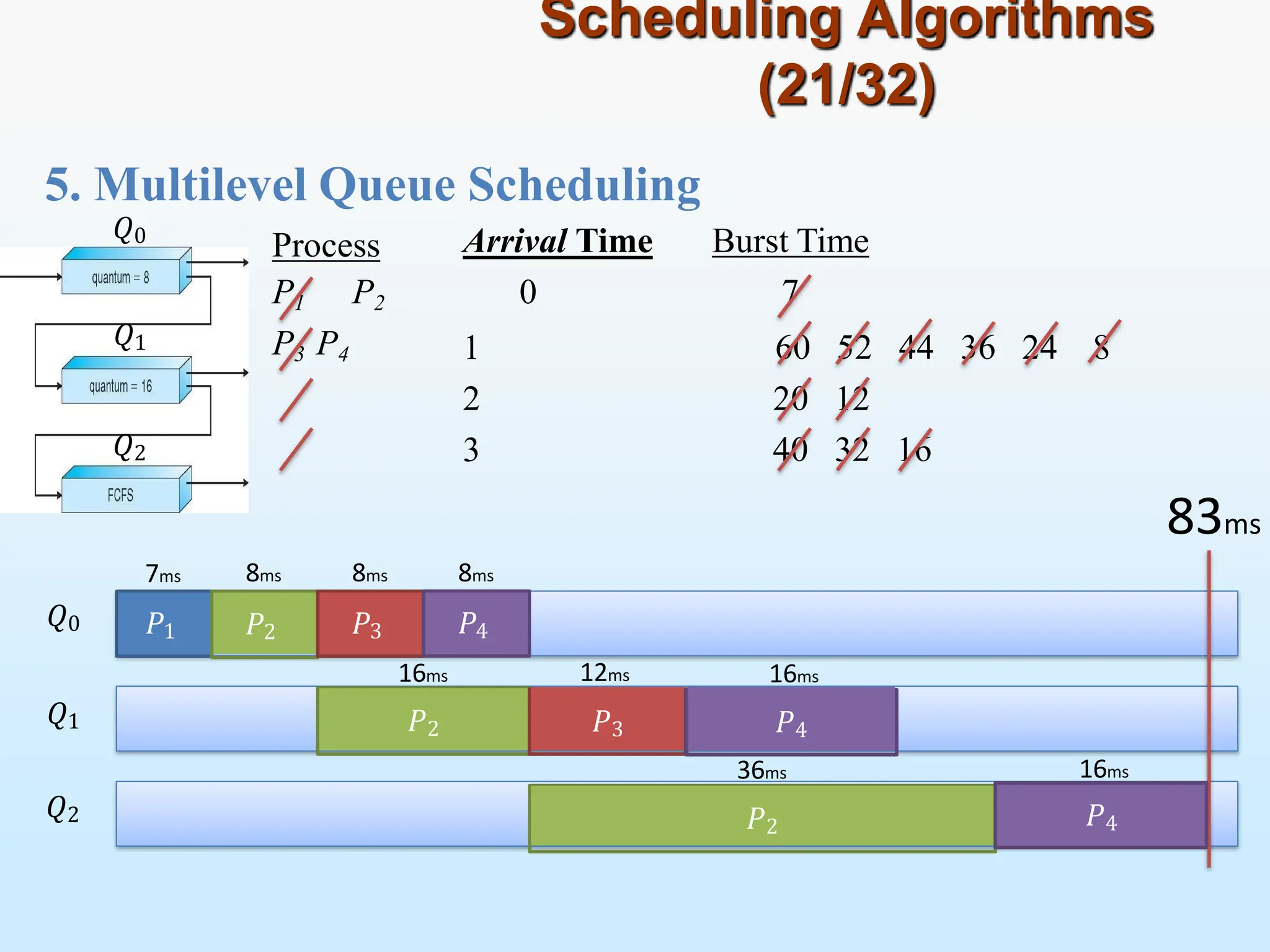

5. Multilevel Queue Scheduling Scheduling Algorithms (21/32) Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 44 36 24 8 20 12 40 32 16 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms

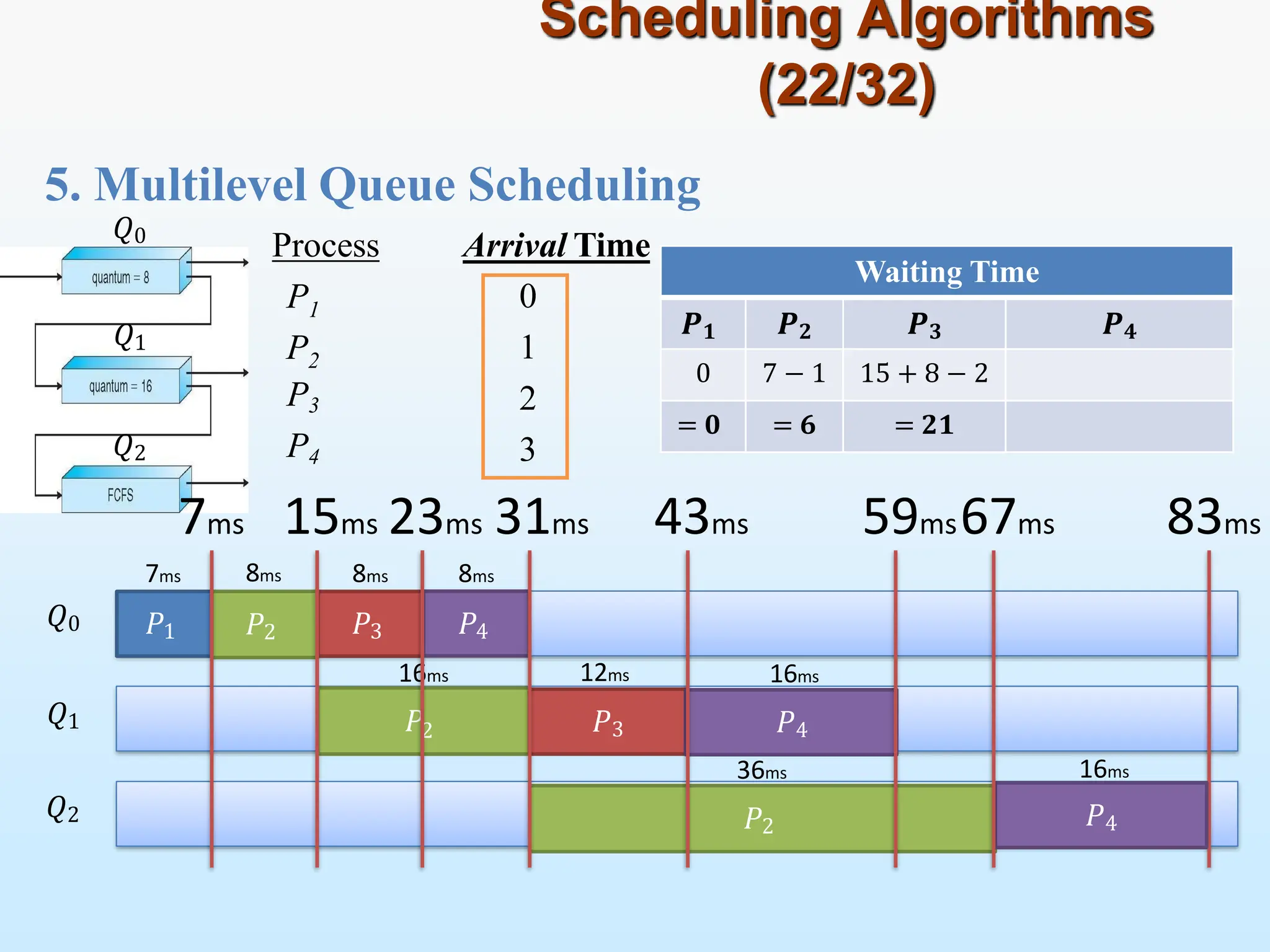

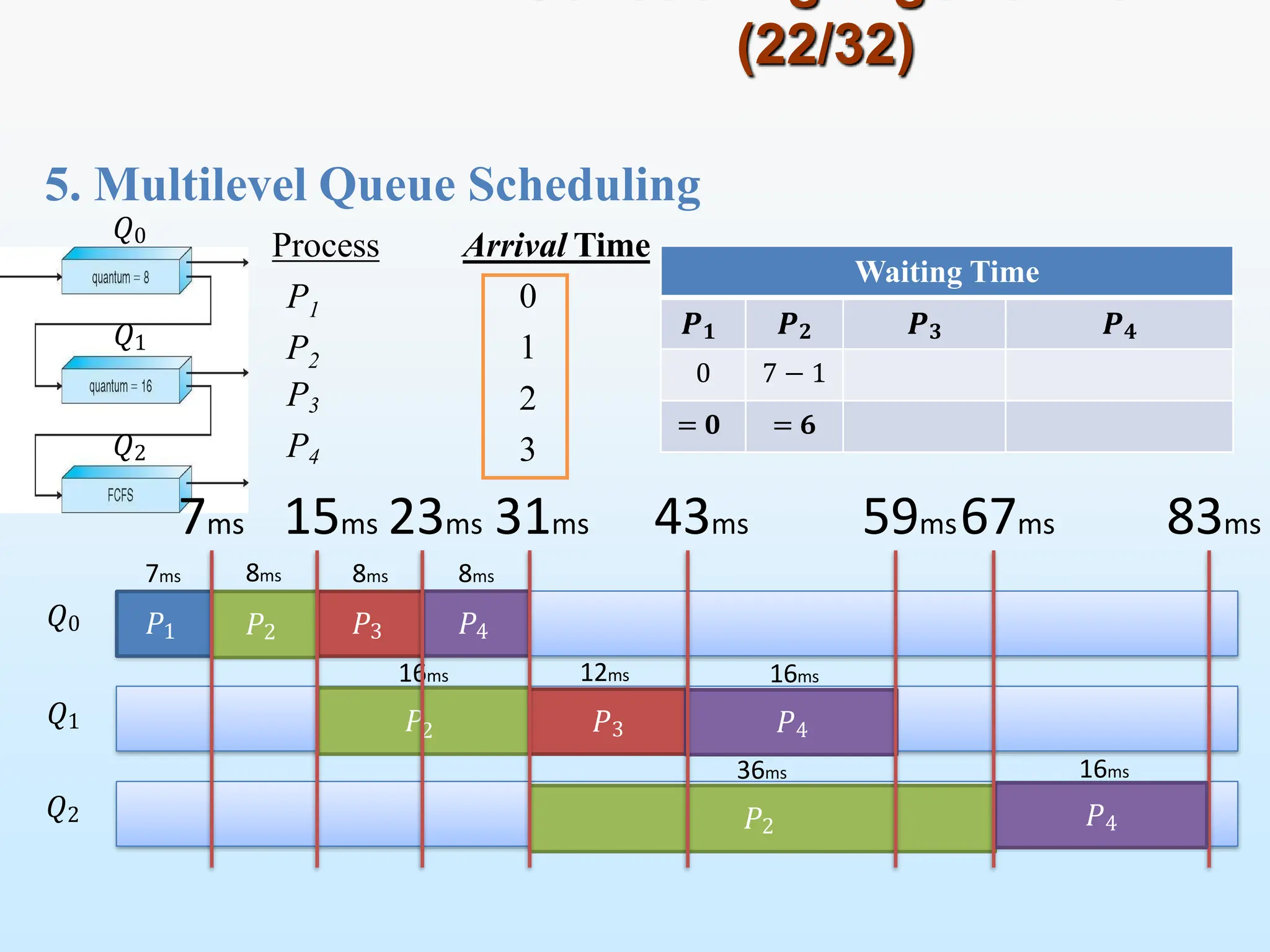

5. Multilevel Queue Scheduling Scheduling Algorithms (22/32) Process Arrival Time P1 P2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Waiting Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒

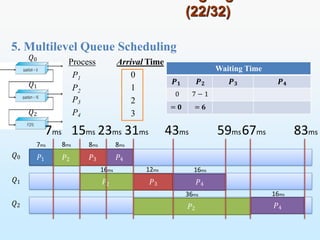

5. Multilevel Queue Scheduling Scheduling Algorithms (22/32) Process Arrival Time P1 P2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Waiting Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 = 𝟎

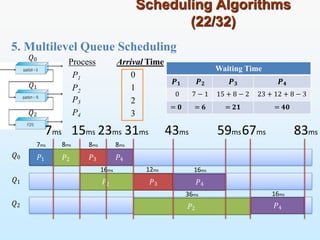

5. Multilevel Queue Scheduling (22/32) Process Arrival Time P1 P2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Waiting Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 7 − 1 = 𝟎 = 𝟔
5. Multilevel Queue Scheduling Scheduling Algorithms (22/32) Process Arrival Time P1 P2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Waiting Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 7 − 1 15 + 8 − 2 = 𝟎 = 𝟔 = 𝟐𝟏
5. Multilevel Queue Scheduling Scheduling Algorithms (22/32) Process Arrival Time P1 P2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Waiting Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 7 − 1 15 + 8 − 2 23 + 12 + 8 − 3 = 𝟎 = 𝟔 = 𝟐𝟏 = 𝟒𝟎

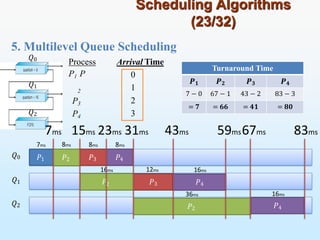

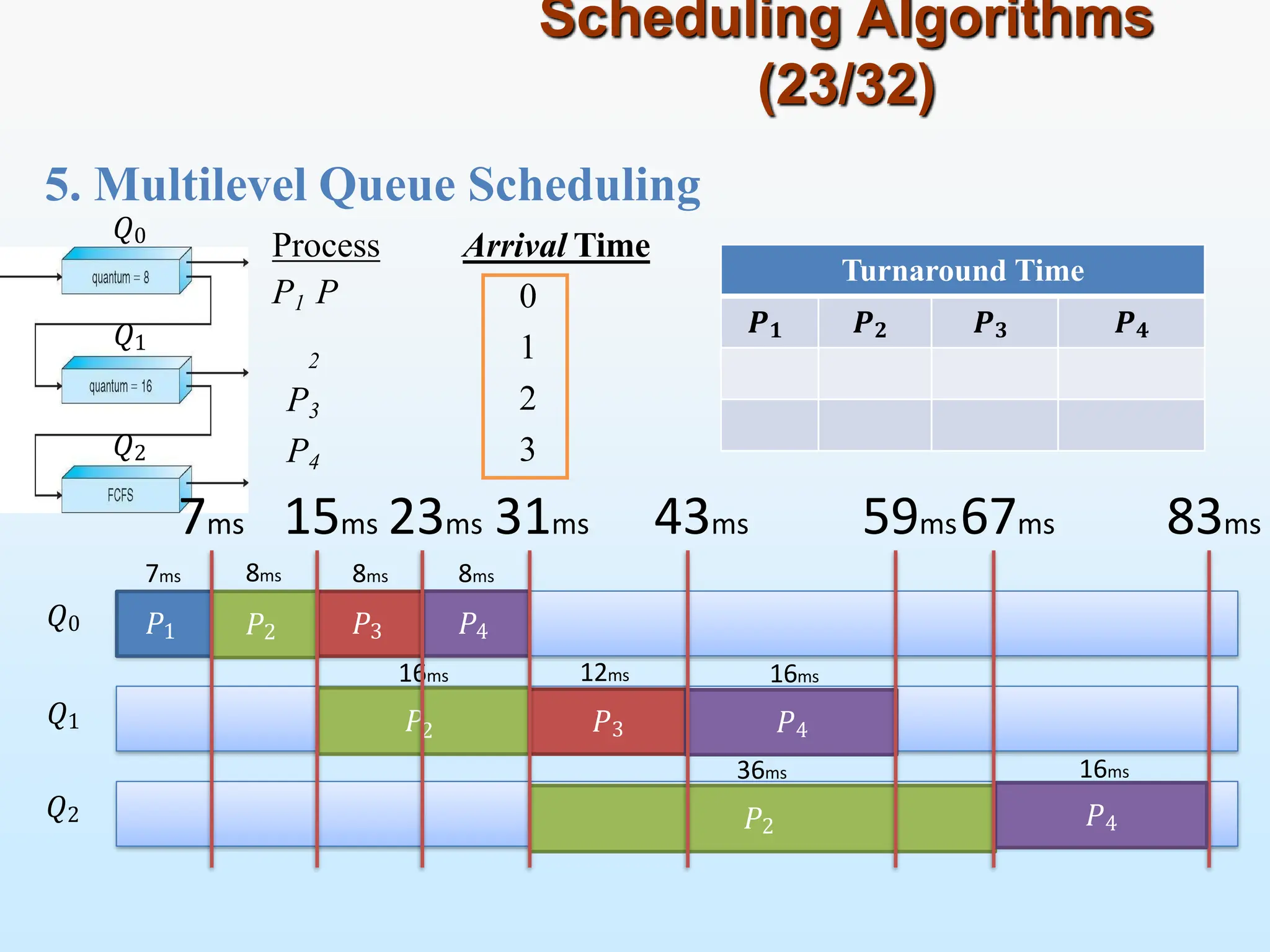

5. Multilevel Queue Scheduling Scheduling Algorithms (23/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒
5. Multilevel Queue Scheduling Scheduling Algorithms (23/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 7 − 0 = 𝟕

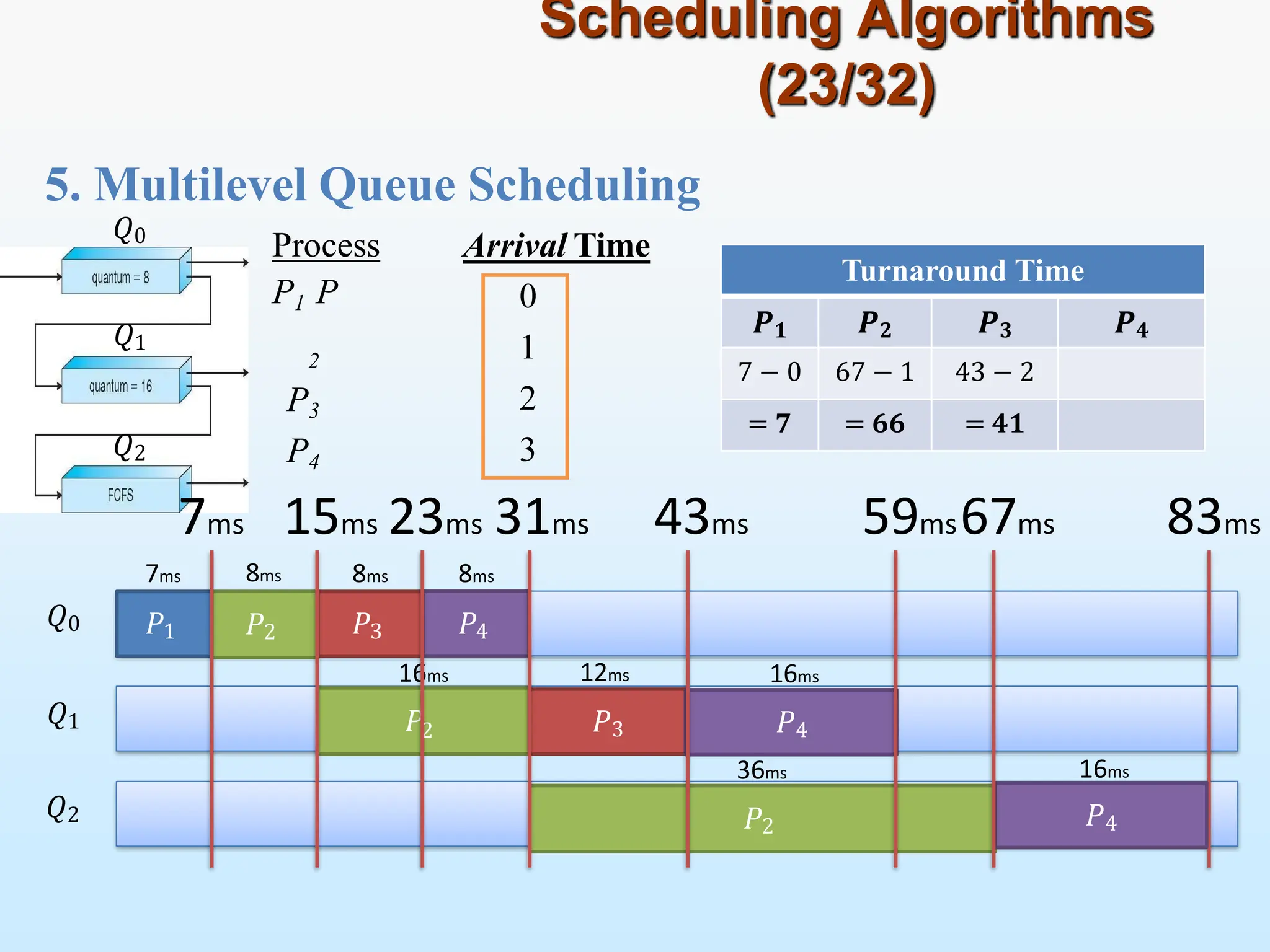

5. Multilevel Queue Scheduling Scheduling Algorithms (23/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 7 − 0 67 − 1 = 𝟕 = 𝟔𝟔
5. Multilevel Queue Scheduling Scheduling Algorithms (23/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 7 − 0 67 − 1 43 − 2 = 𝟕 = 𝟔𝟔 = 𝟒𝟏
5. Multilevel Queue Scheduling Scheduling Algorithms (23/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 7 − 0 67 − 1 43 − 2 83 − 3 = 𝟕 = 𝟔𝟔 = 𝟒𝟏 = 𝟖𝟎

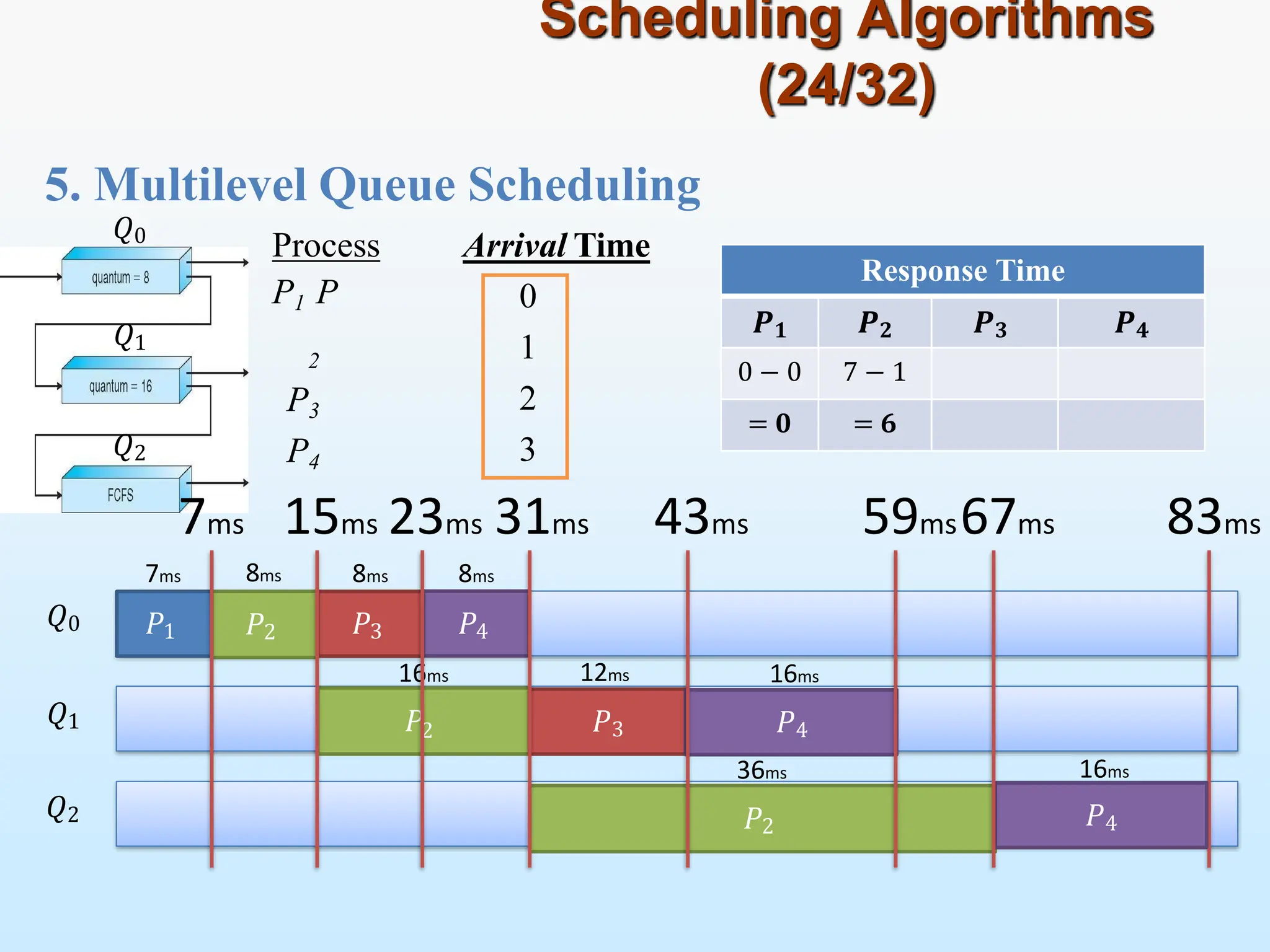

5. Multilevel Queue Scheduling Scheduling Algorithms (24/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Response Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒

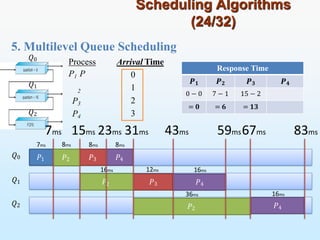

5. Multilevel Queue Scheduling Scheduling Algorithms (24/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Response Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 − 0 = 𝟎
5. Multilevel Queue Scheduling Scheduling Algorithms (24/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Response Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 − 0 7 − 1 = 𝟎 = 𝟔
5. Multilevel Queue Scheduling Scheduling Algorithms (24/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Response Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 − 0 7 − 1 15 − 2 = 𝟎 = 𝟔 = 𝟏𝟑
5. Multilevel Queue Scheduling Scheduling Algorithms (24/32) Process P1 P Arrival Time 2 P3 P4 0 1 2 3 𝑃1 𝑃2 𝑃2 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 83ms 𝑃3 𝑃4 7ms 8ms 𝑃2 𝑃3 16ms 𝑃4 12ms 16ms 36ms 𝑃4 16ms 59ms67ms 43ms 7ms 15ms 23ms 31ms 8ms 8ms Response Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 − 0 7 − 1 15 − 2 23 − 3 = 𝟎 = 𝟔 = 𝟏𝟑 = 𝟐𝟎

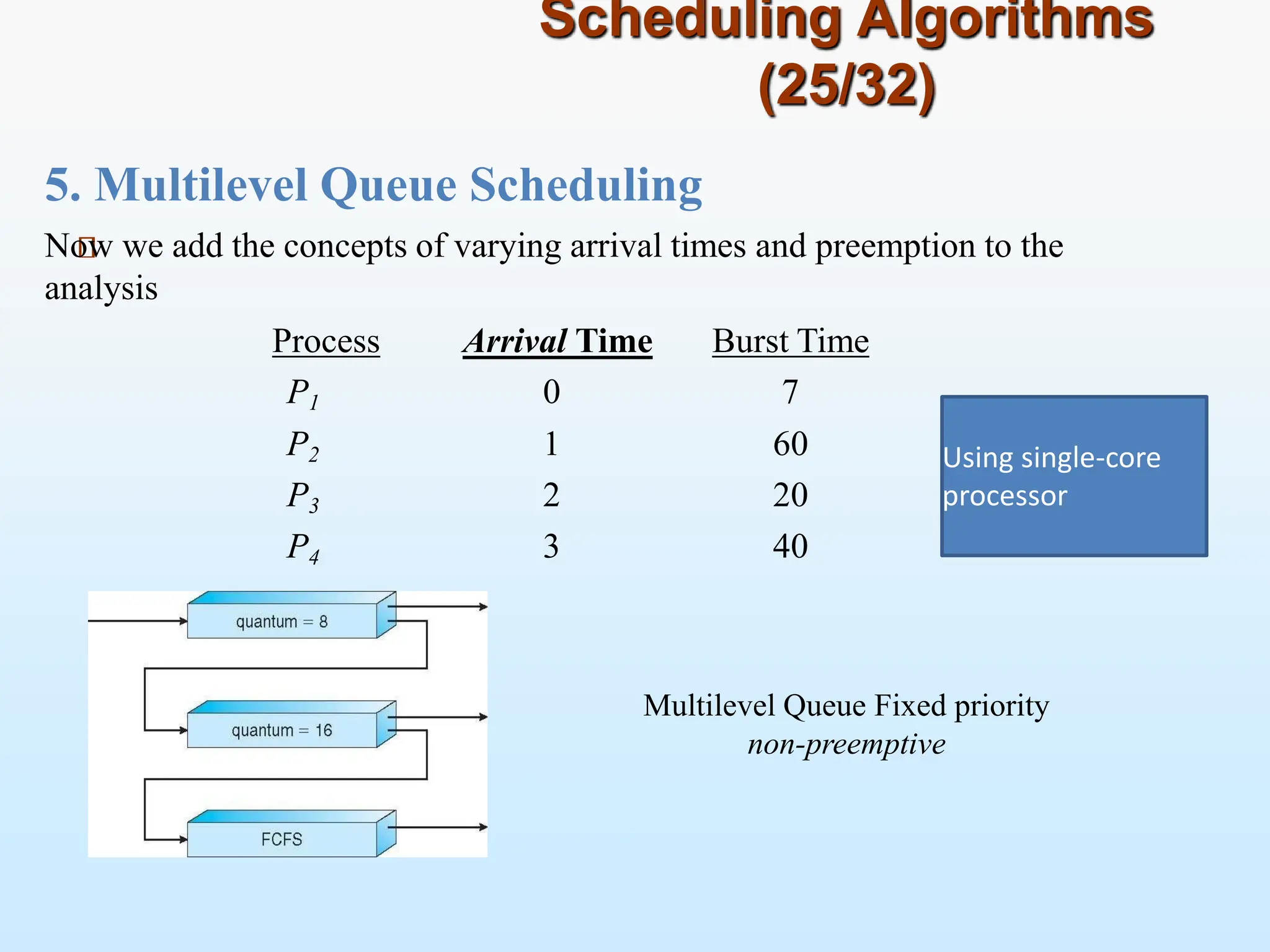

Scheduling Algorithms (25/32) 5. Multilevel Queue Scheduling Now we add the concepts of varying arrival times and preemption to the analysis Process Arrival Time Burst Time P1 0 7 P2 1 60 P3 2 20 P4 3 40 Multilevel Queue Fixed priority non-preemptive Using single-core processor

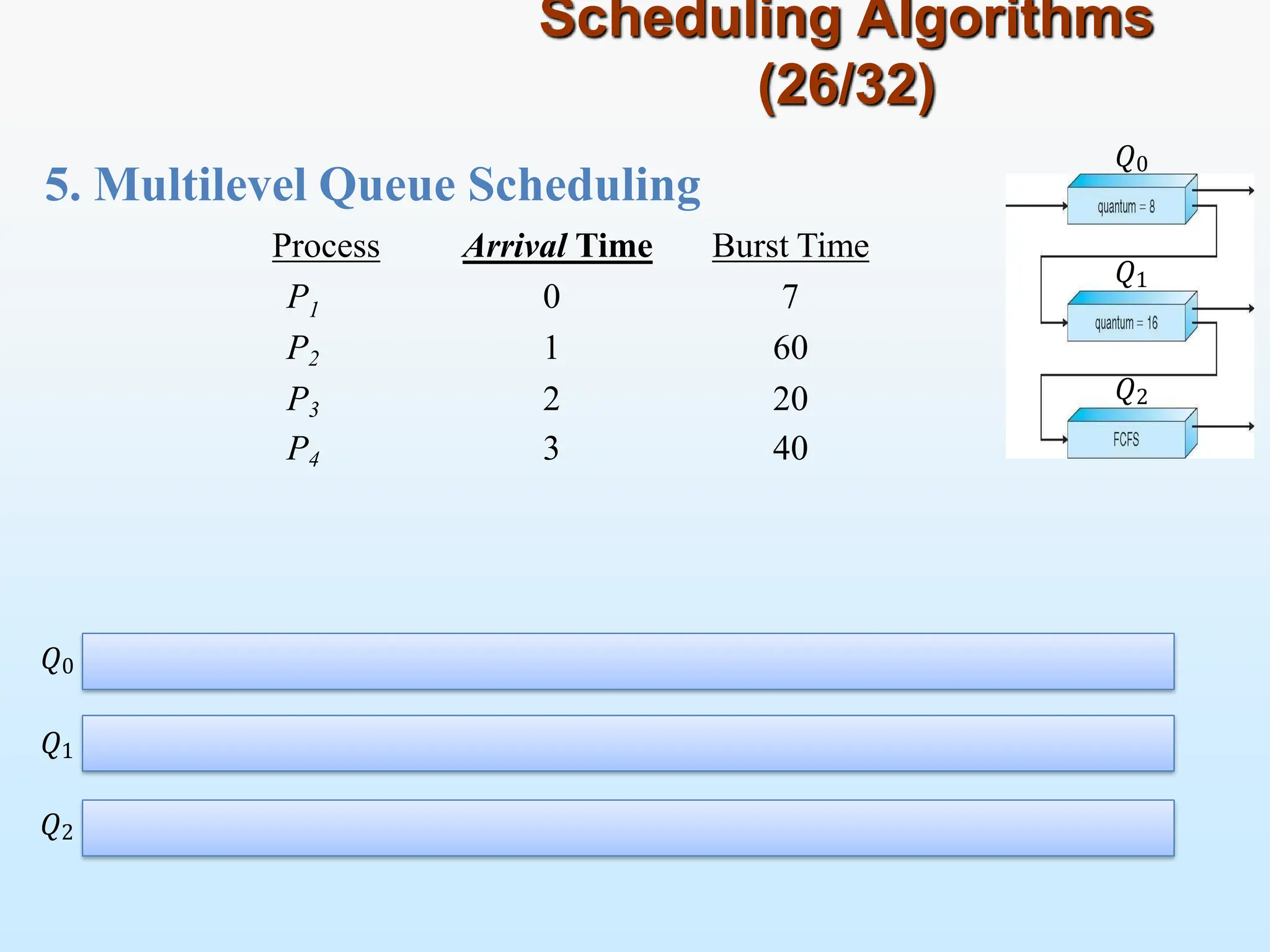

5. Multilevel Queue Scheduling Scheduling Algorithms (26/32) 𝑄0 𝑄1 𝑄2 𝑄0 𝑄1 𝑄2 1 Process Arrival Time Burst Time P 0 7 P2 1 60 P3 2 20 P4 3 40

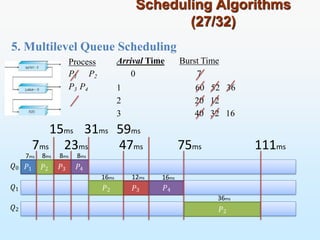

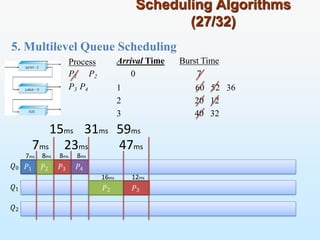

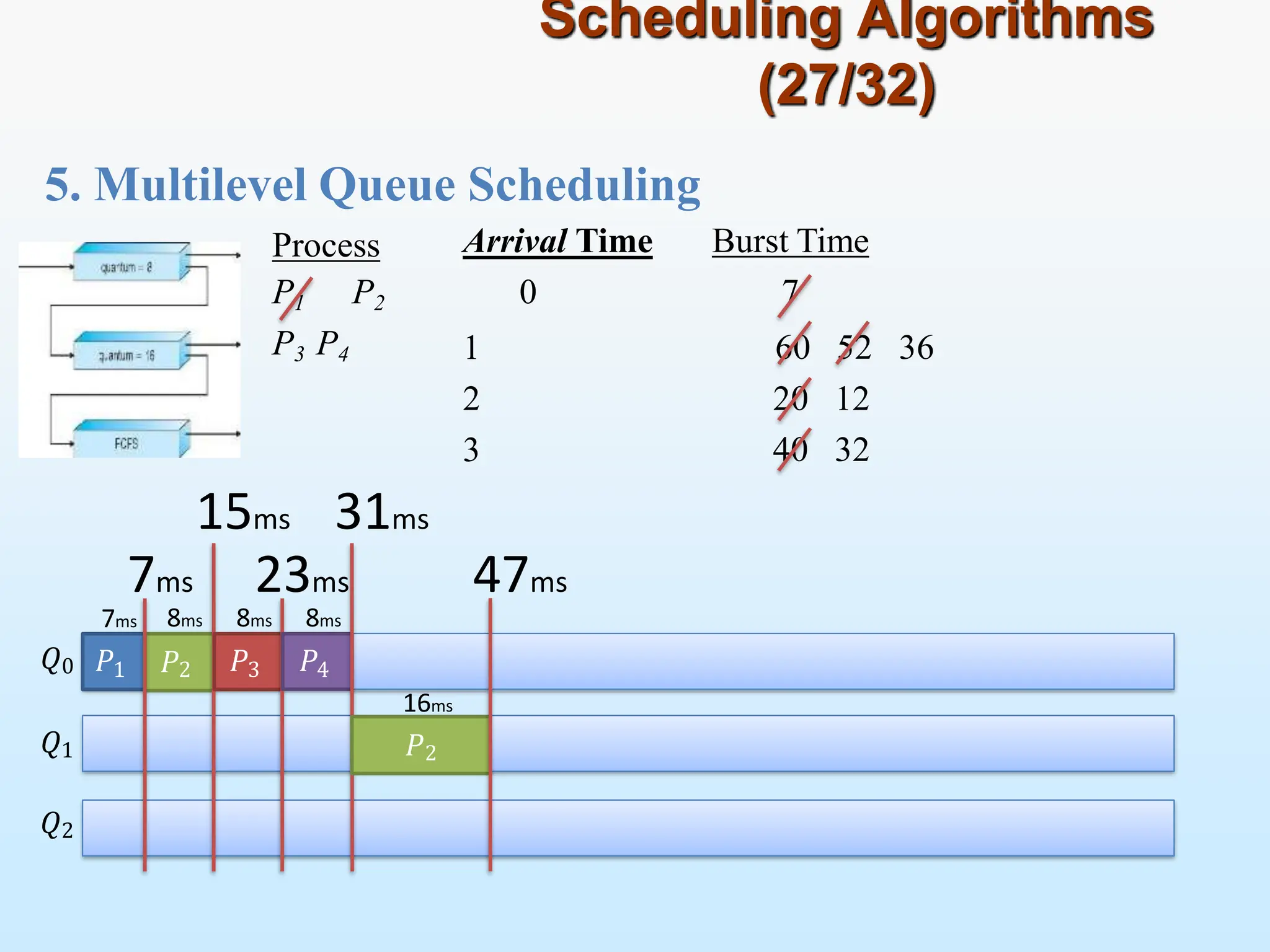

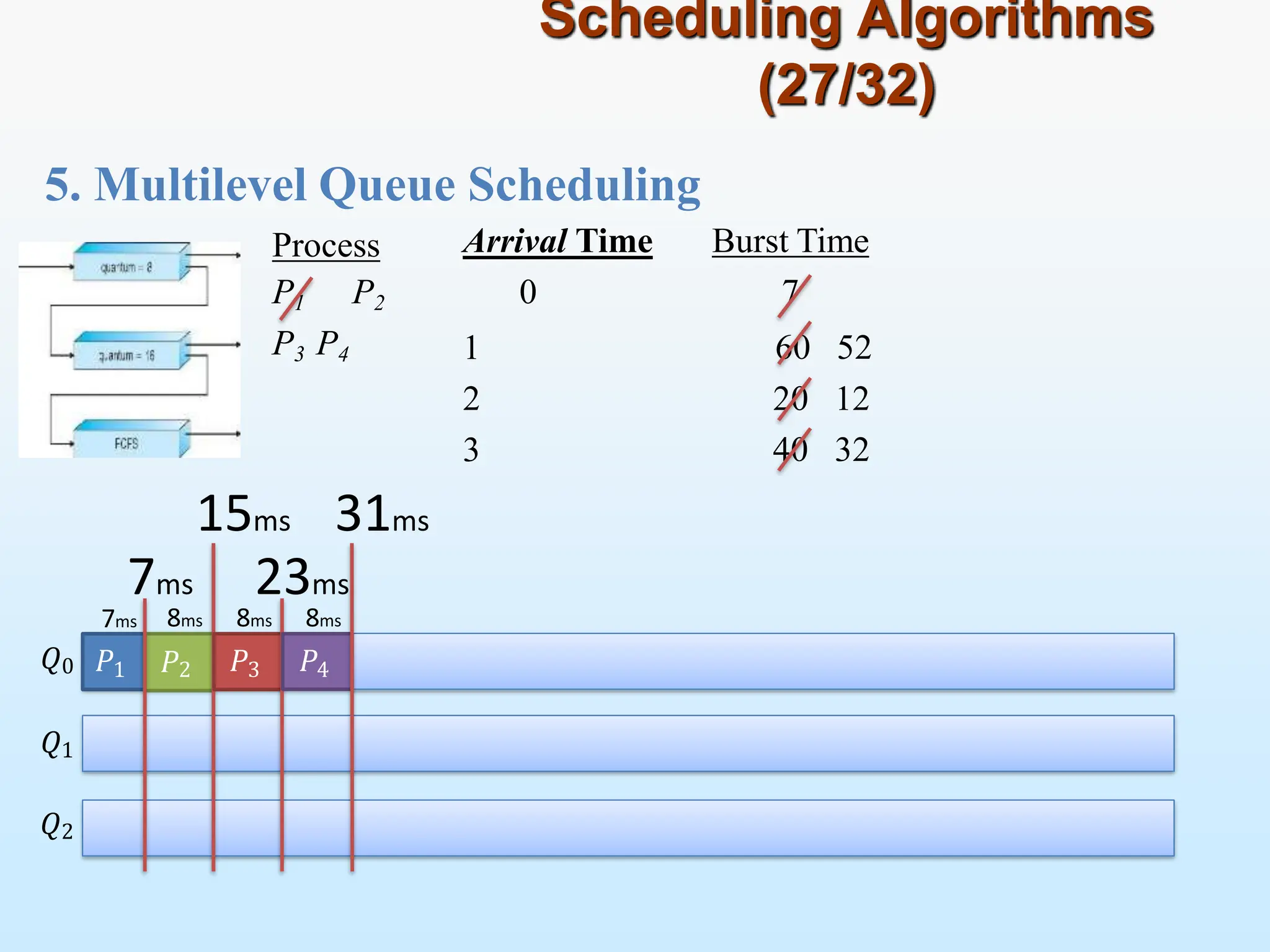

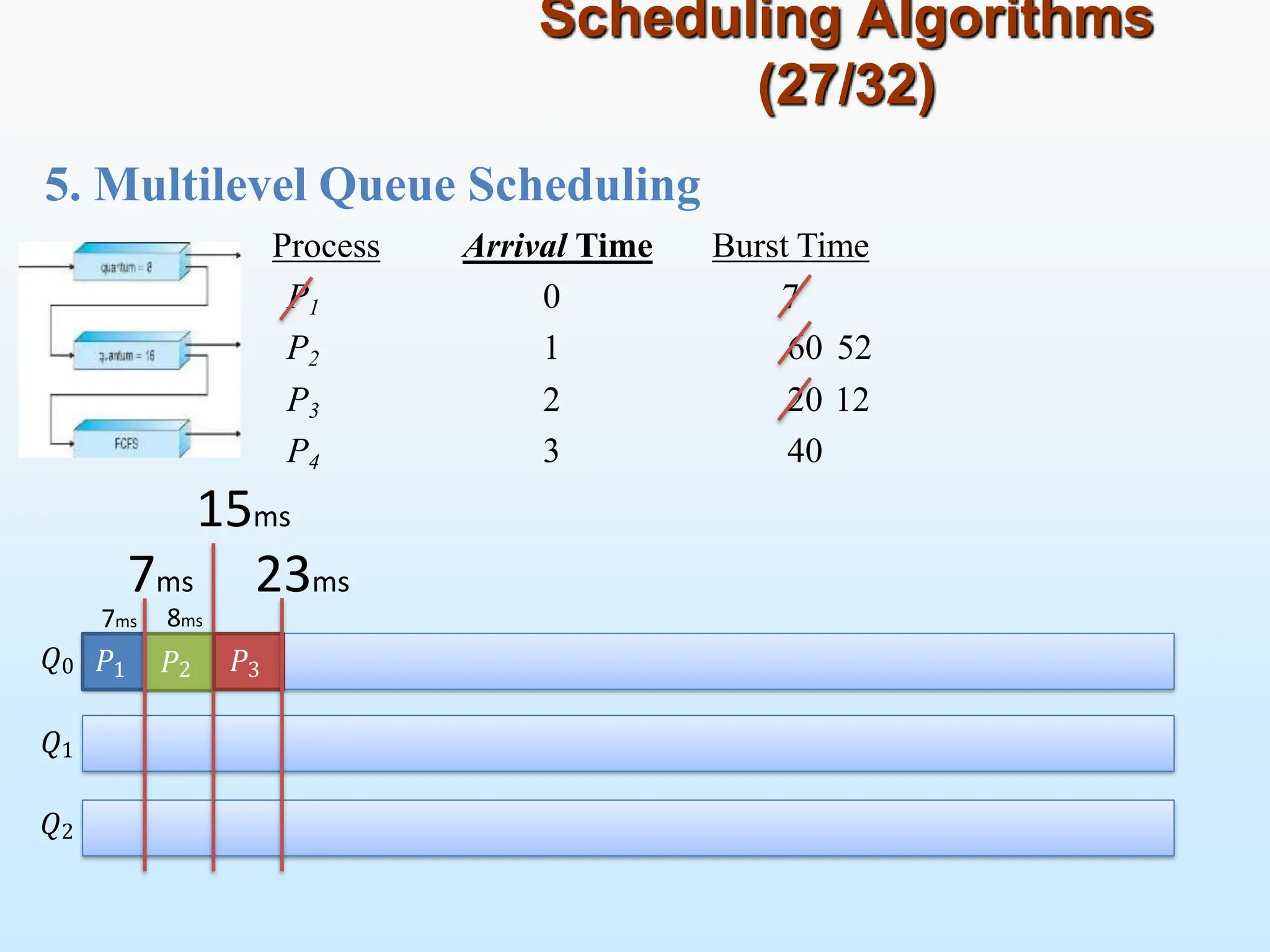

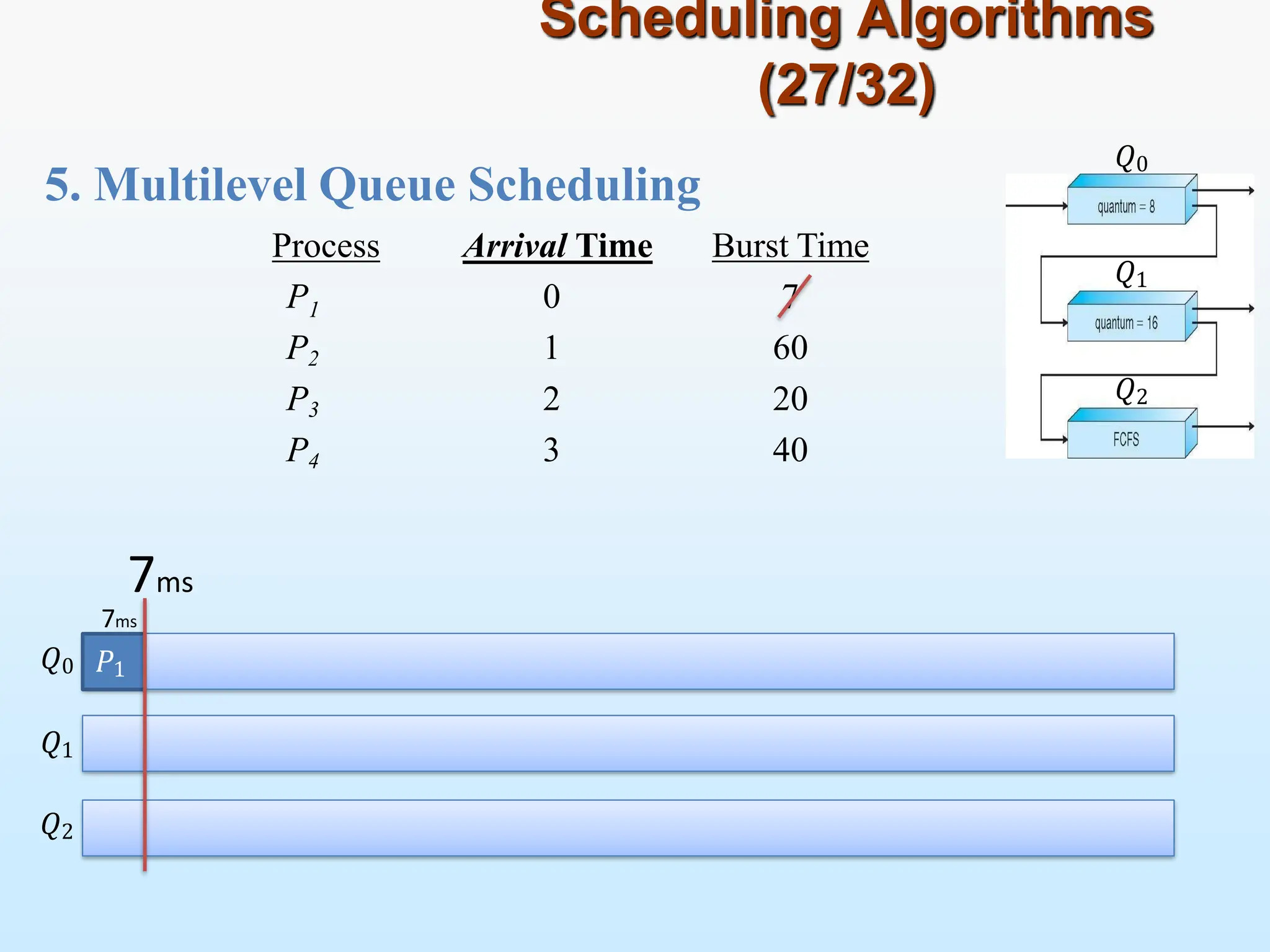

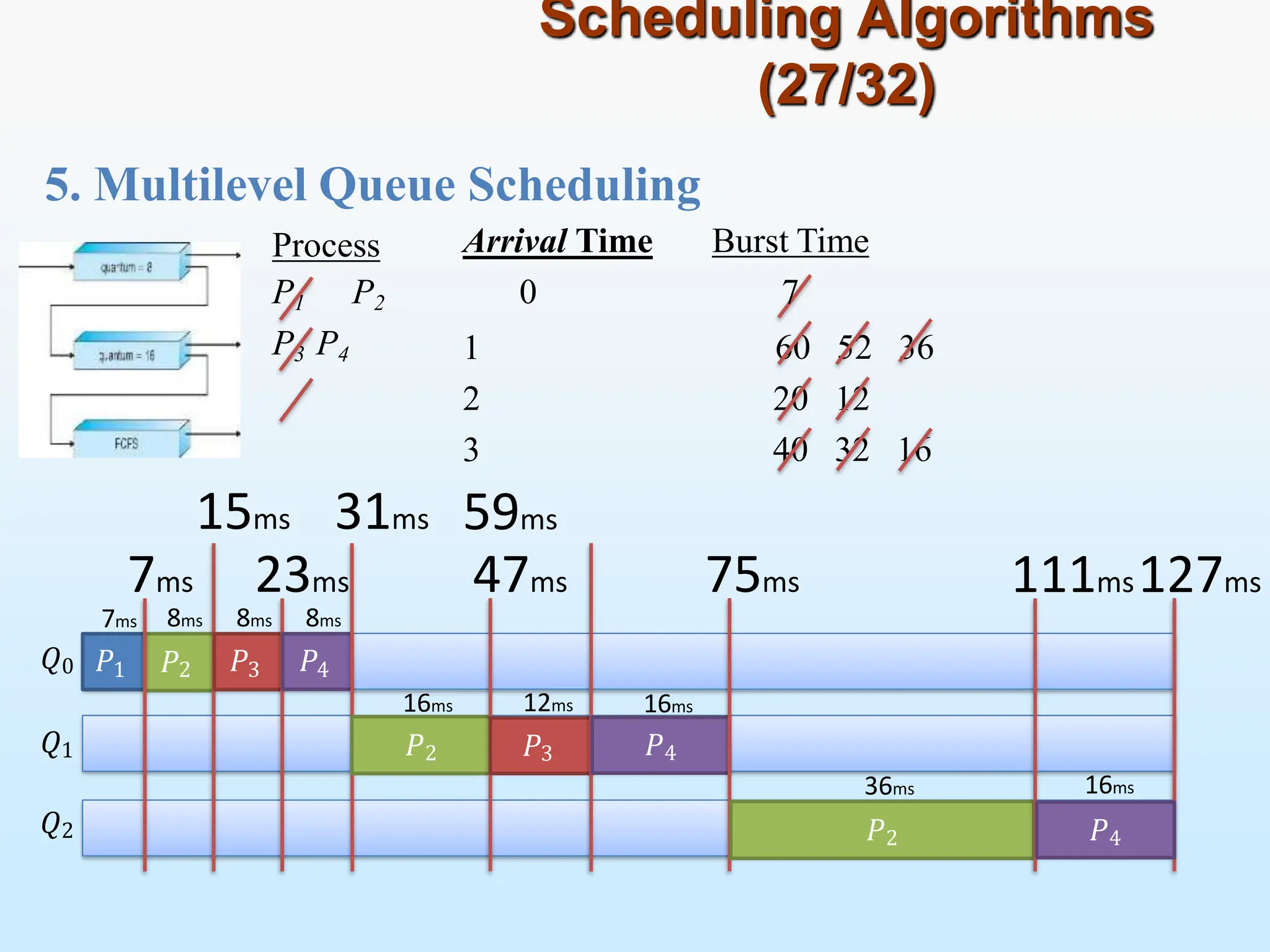

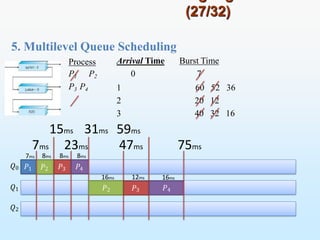

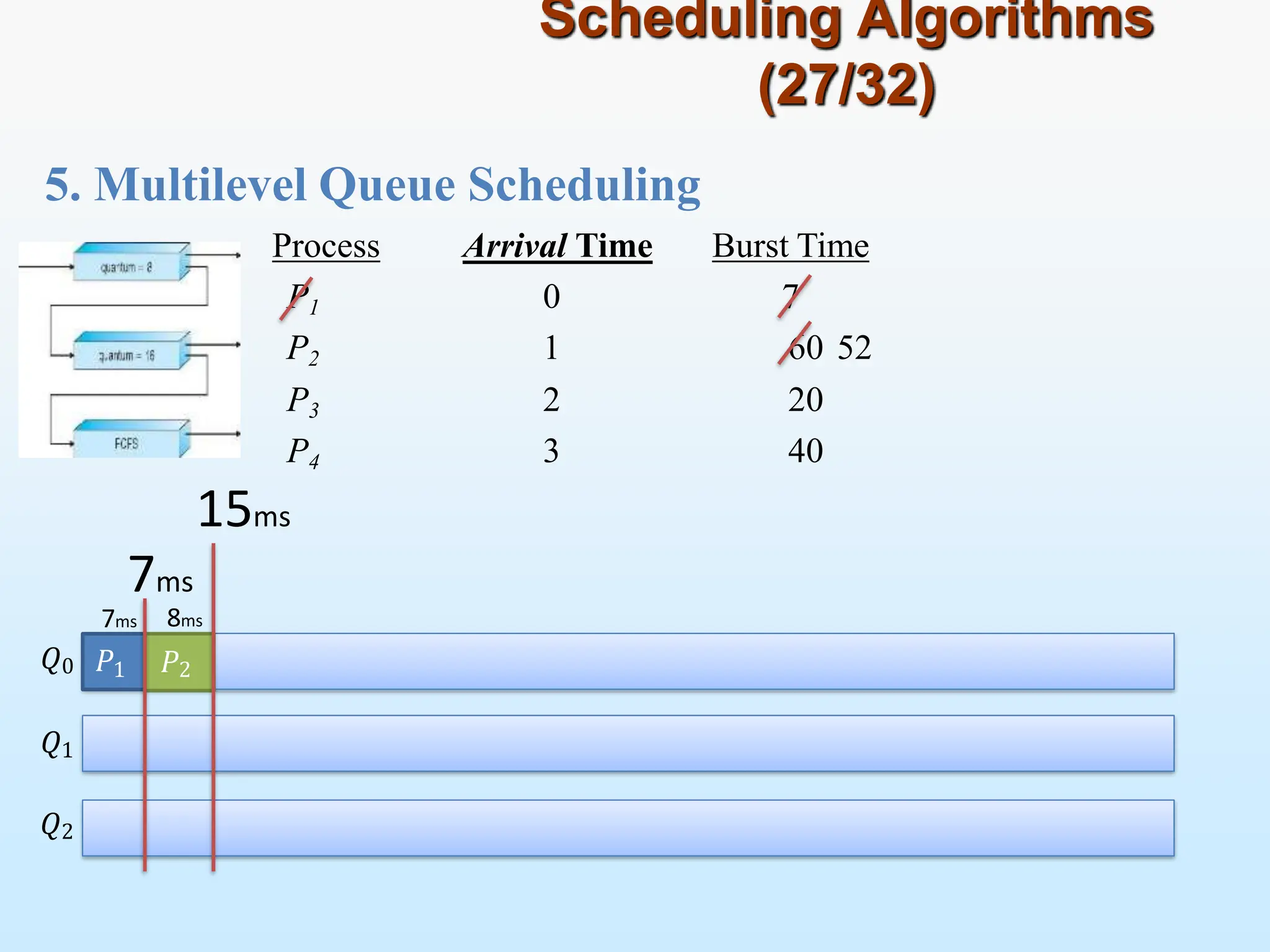

5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 𝑃1 𝑄0 𝑄1 𝑄2 7ms 1 Process Arrival Time Burst Time P 0 7 P2 1 60 P3 2 20 P4 3 40 7ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 𝑃1 𝑄0 𝑄1 𝑄2 7ms 1 Process Arrival Time Burst Time P 0 7 P2 1 60 P3 2 20 P4 3 40 7ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process Arrival Time Burst Time P1 0 7 P2 1 60 52 P3 2 20 P4 3 40 𝑃1 𝑃2 7ms 8ms 15ms 7ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process Arrival Time Burst Time P1 0 7 P2 1 60 52 P3 2 20 12 P4 3 40 7ms 8ms 𝑃1 𝑃2 𝑃3 15ms 7ms 23ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 20 12 40 32 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 23ms 7ms 8ms 8ms 8ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 Arrival Time Burst Time 0 7 1 2 3 60 52 36 20 12 40 32 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms

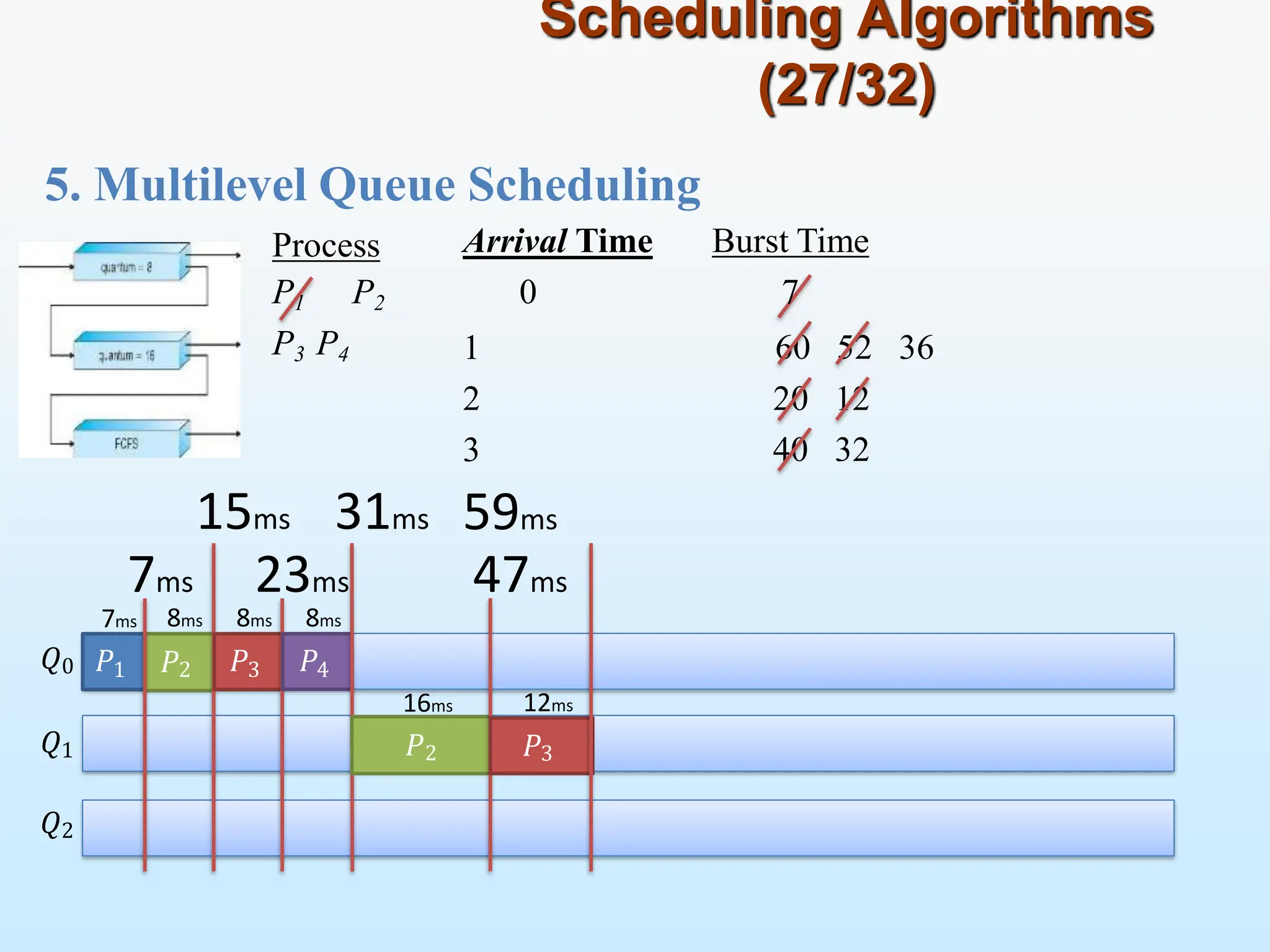

5. Multilevel Queue Scheduling (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 16 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms 𝑃4 16ms 75ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 16 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 16 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms

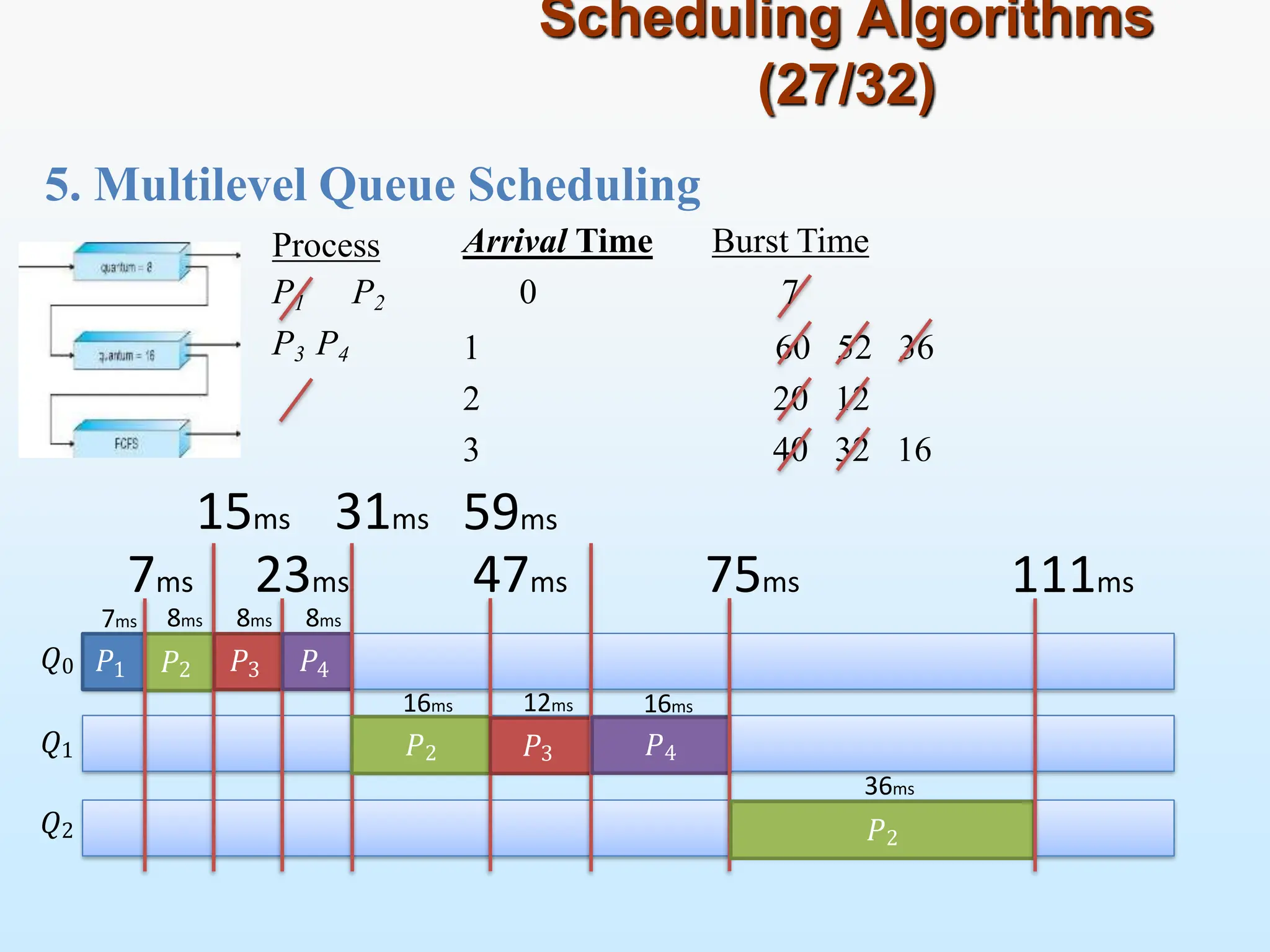

5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 16 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms127ms 𝑃4 16ms
5. Multilevel Queue Scheduling Scheduling Algorithms (27/32) 𝑄0 𝑄1 𝑄2 Process P1 P2 P3 P4 60 52 36 20 12 40 32 16 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 15ms 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms Arrival Time Burst Time 0 7 1 2 3 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms127ms 𝑃4 16ms

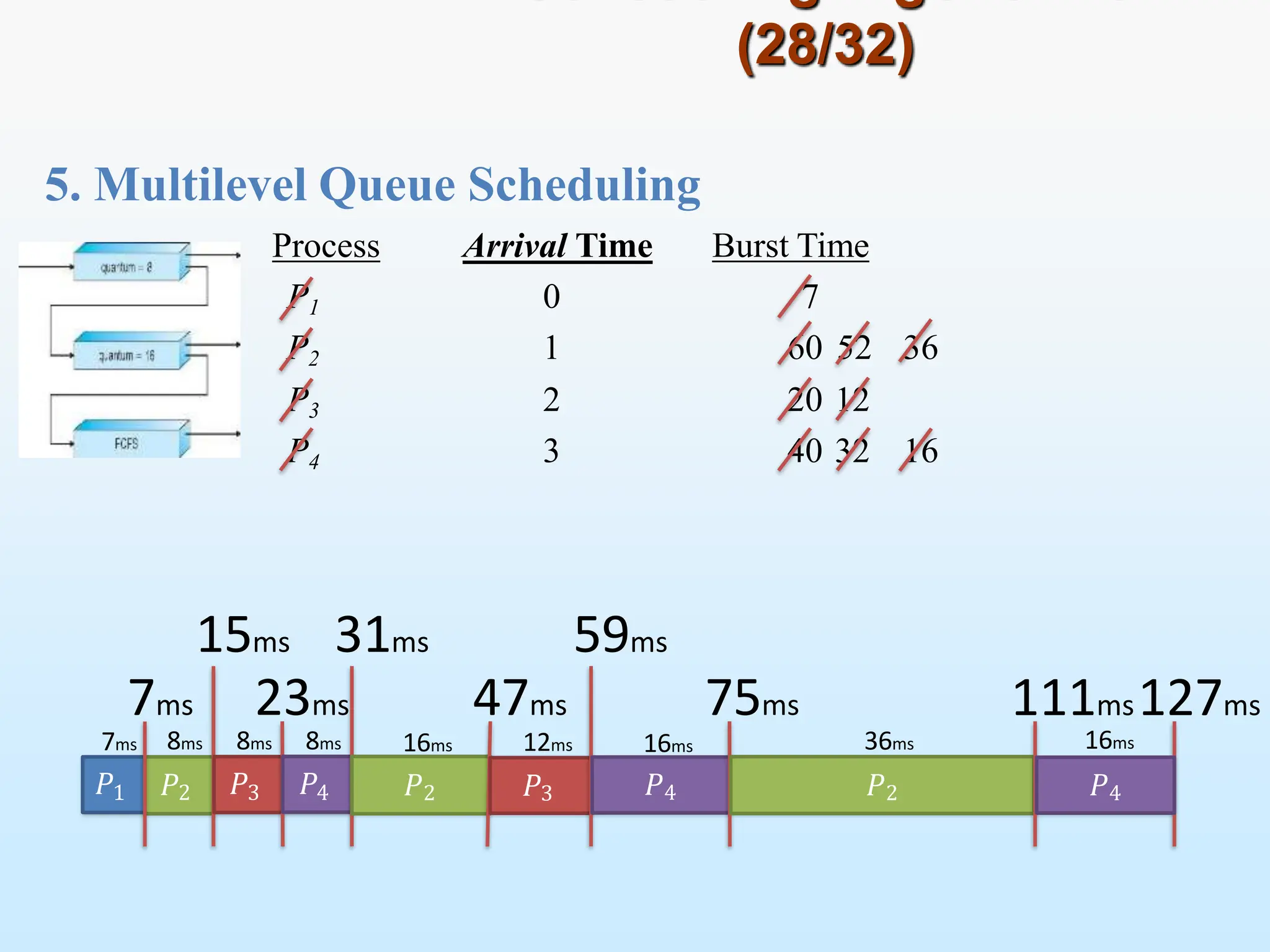

5. Multilevel Queue Scheduling (28/32) Process Arrival Time Burst Time P1 0 7 P2 1 60 52 36 P3 2 20 12 P4 3 40 32 16 15ms 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms127ms 𝑃4 16ms

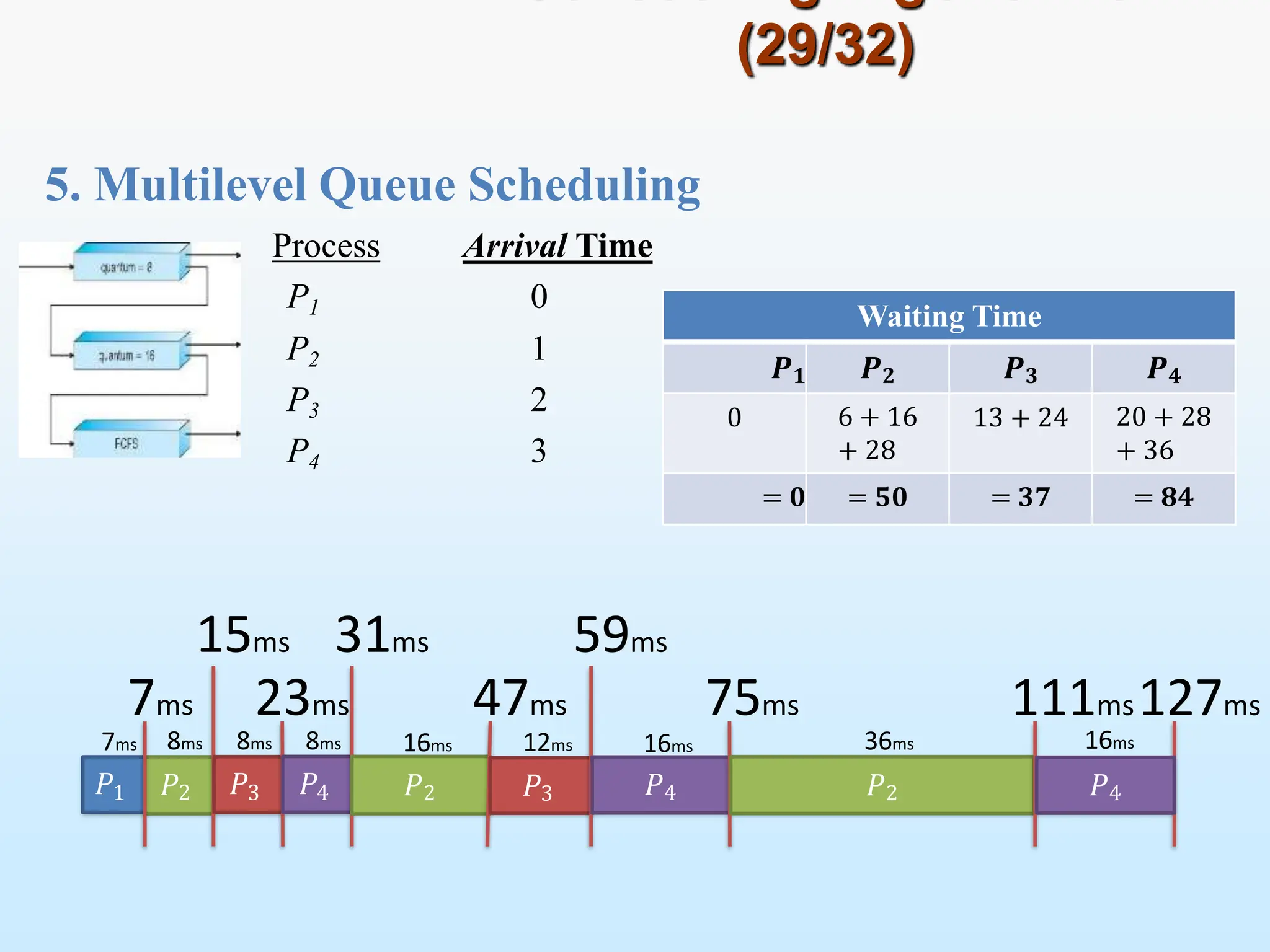

5. Multilevel Queue Scheduling (29/32) Process Arrival Time P1 0 P2 1 P3 2 P4 3 15ms 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms127ms 𝑃4 16ms Waiting Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 6 + 16 + 28 13 + 24 20 + 28 + 36 = 𝟎 = 𝟓𝟎 = 𝟑𝟕 = 𝟖𝟒

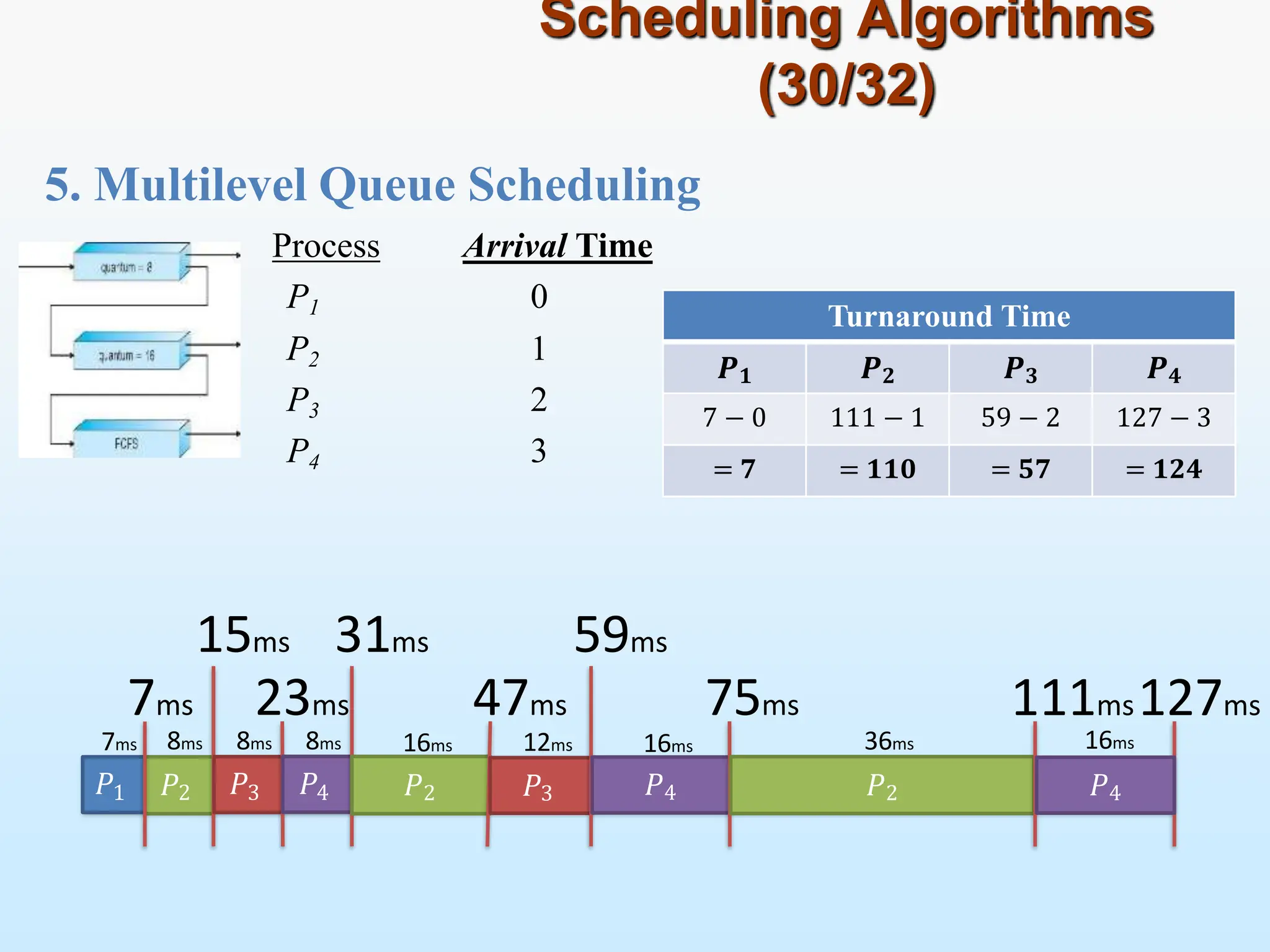

5. Multilevel Queue Scheduling Scheduling Algorithms (30/32) Process Arrival Time P1 0 P2 1 P3 2 P4 3 15ms 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms127ms 𝑃4 16ms Turnaround Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 7 − 0 111 − 1 59 − 2 127 − 3 = 𝟕 = 𝟏𝟏𝟎 = 𝟓𝟕 = 𝟏𝟐𝟒
5. Multilevel Queue Scheduling Scheduling Algorithms (31/32) Process Arrival Time P1 0 P2 1 P3 2 P4 3 15ms 7ms 23ms 𝑃1 𝑃2 𝑃3 𝑃4 31ms 7ms 8ms 8ms 8ms 𝑃2 16ms 47ms 𝑃3 12ms 59ms 𝑃4 16ms 75ms 𝑃2 36ms 111ms127ms 𝑃4 16ms Response Time 𝑷𝟏 𝑷𝟐 𝑷𝟑 𝑷𝟒 0 − 0 7 − 1 15 − 2 23 − 3 = 𝟎 = 𝟔 = 𝟏𝟑 = 𝟐𝟎

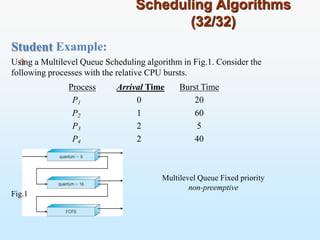

Scheduling Algorithms (32/32) Student Example: Using a Multilevel Queue Scheduling algorithm in Fig.1. Consider the following processes with the relative CPU bursts. Process Arrival Time Burst Time P1 0 20 P2 1 60 P3 2 5 P4 2 40 Multilevel Queue Fixed priority non-preemptive Fig.1

More Related Content

PPT
chapter 1 of Operating system by gagne.ppt
by51b48265a74f87

PPT
OS-ch01-2024.ppt
byDr. Mazin Mohamed alkathiri

PPTX
Operating Systems: Process Scheduling
byDamian T. Gordon

PPSX
CPU Scheduling algorithms
byShanu Kumar

PPTX
Process scheduling
byDeepika Balichwal

DOCX

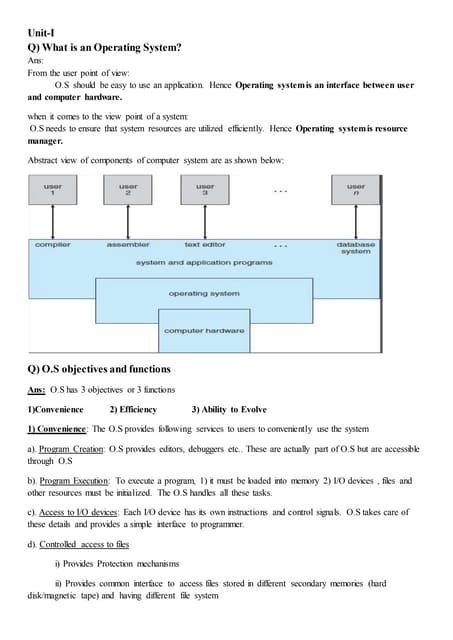

Complete Operating System notes
