Parallel & Concurrent Programming.pptx

Parallel &
Concurrent
Programming
Kotlin
@kotlin | Developed by JetBrains

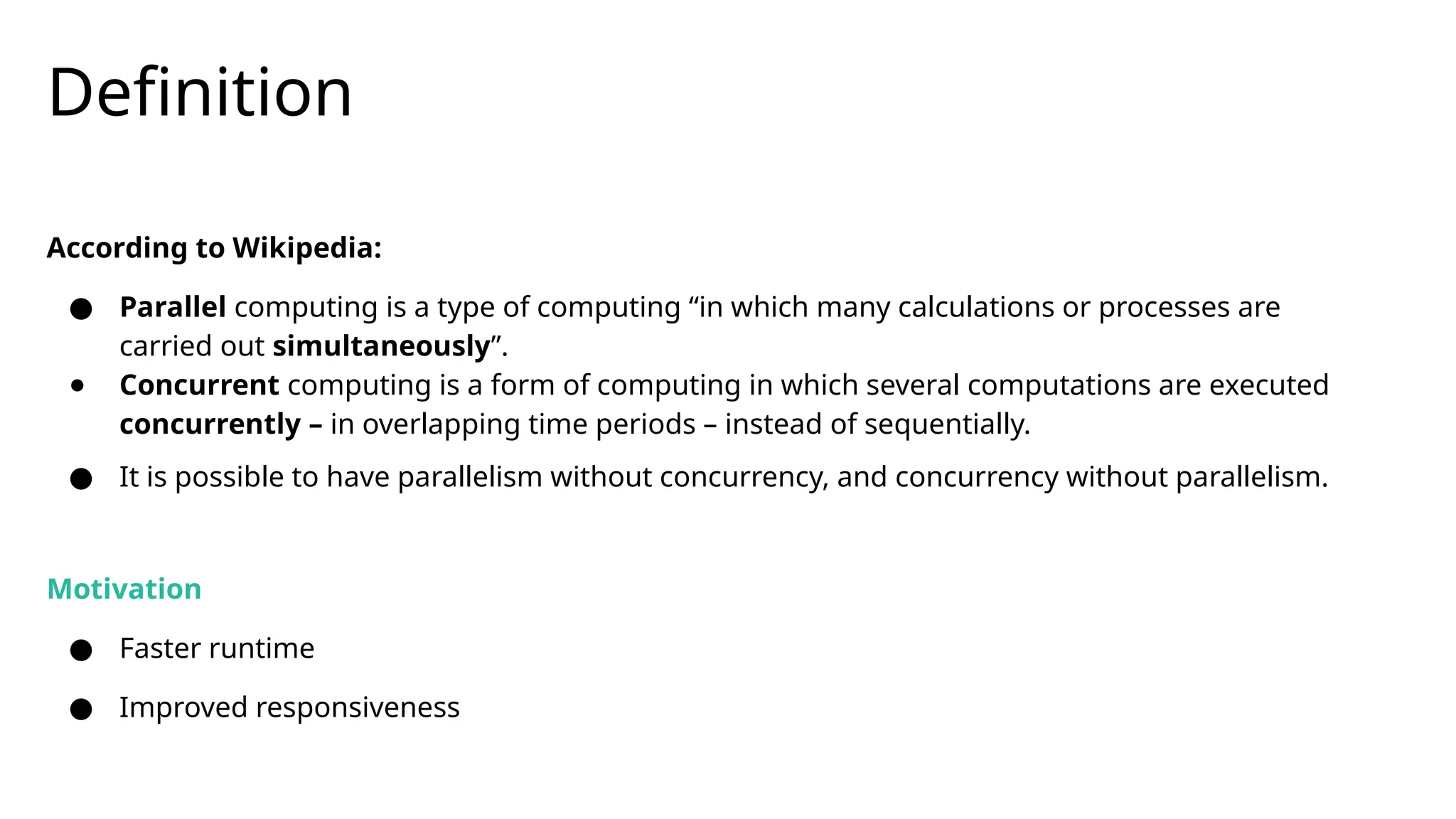

Definition
According to Wikipedia:
● Parallel computing is a type of computing “in which many calculations or processes are
carried out simultaneously”.
● Concurrent computing is a form of computing in which several computations are executed
concurrently – in overlapping time periods – instead of sequentially.
● It is possible to have parallelism without concurrency, and concurrency without parallelism.
Motivation
● Faster runtime
● Improved responsiveness

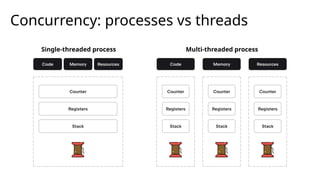

Concurrency: processes vs threads
Single-threaded process Multi-threaded process

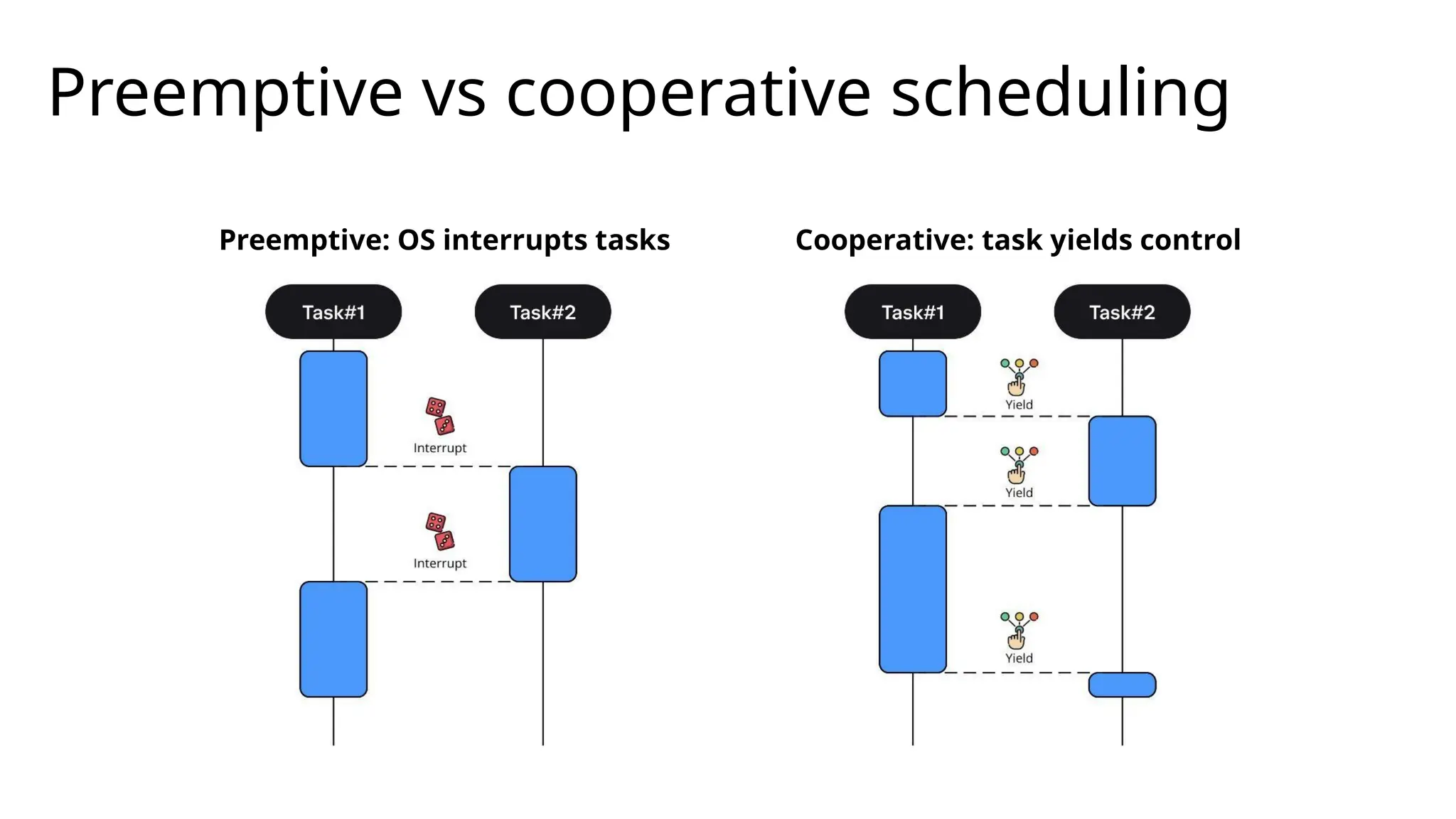

Preemptive vs cooperative scheduling
Preemptive: OS interrupts tasks Cooperative: task yields control

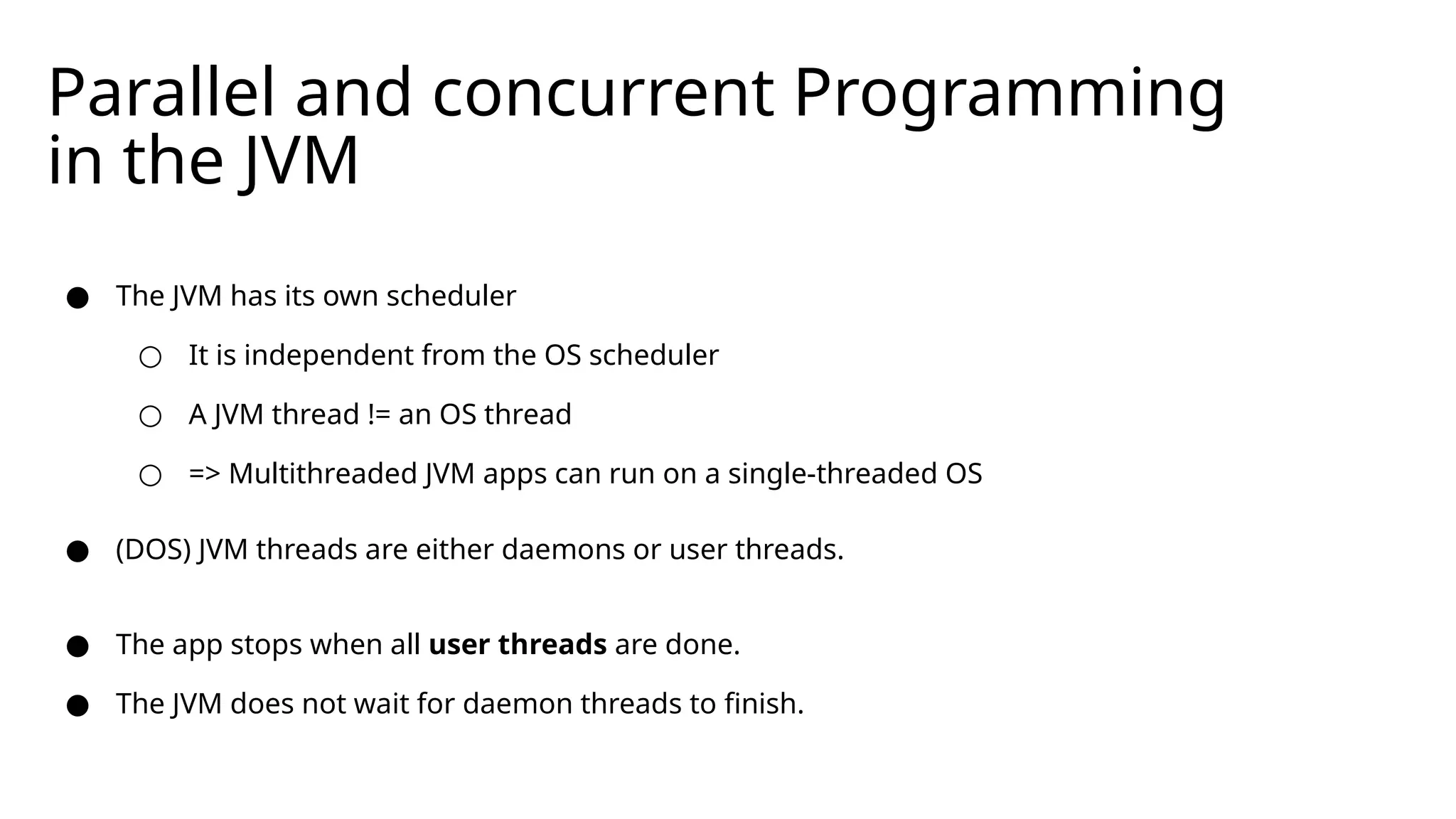

Parallel and concurrent Programming
in the JVM
● The JVM has its own scheduler
○ It is independent from the OS scheduler
○ A JVM thread != an OS thread
○ => Multithreaded JVM apps can run on a single-threaded OS
● (DOS) JVM threads are either daemons or user threads.
● The app stops when all user threads are done.
● The JVM does not wait for daemon threads to finish.

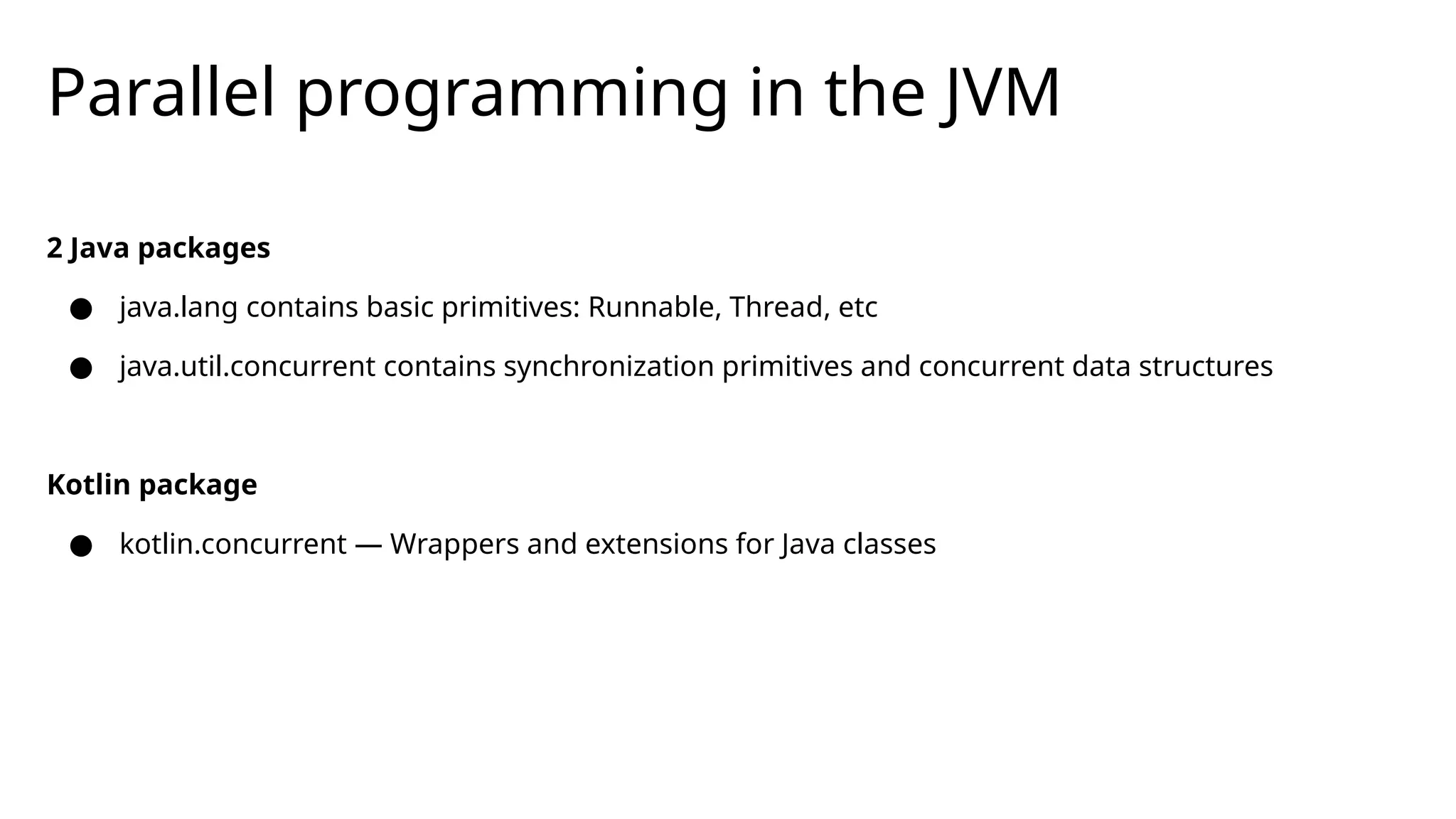

Parallel programming in the JVM
2 Java packages
● java.lang contains basic primitives: Runnable, Thread, etc
● java.util.concurrent contains synchronization primitives and concurrent data structures
Kotlin package
● kotlin.concurrent — Wrappers and extensions for Java classes

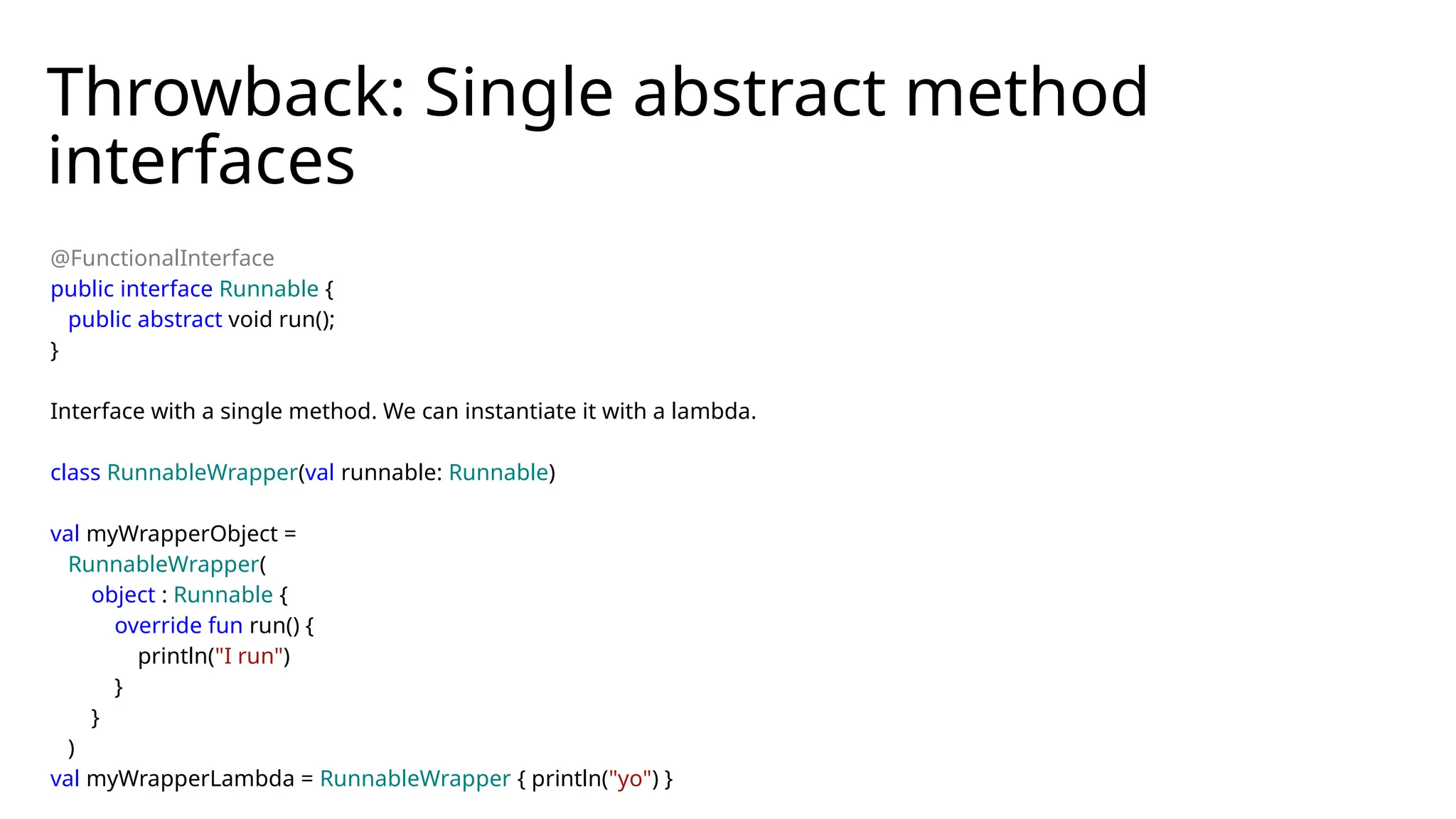

Throwback: Single abstract method
interfaces
@FunctionalInterface
public interface Runnable {
public abstract void run();
}
Interface with a single method. We can instantiate it with a lambda.
class RunnableWrapper(val runnable: Runnable)
val myWrapperObject =
RunnableWrapper(
object : Runnable {
override fun run() {
println("I run")
}
}
)
val myWrapperLambda = RunnableWrapper { println("yo") }

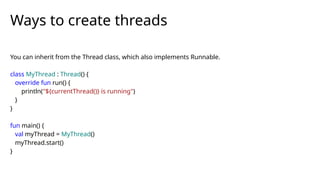

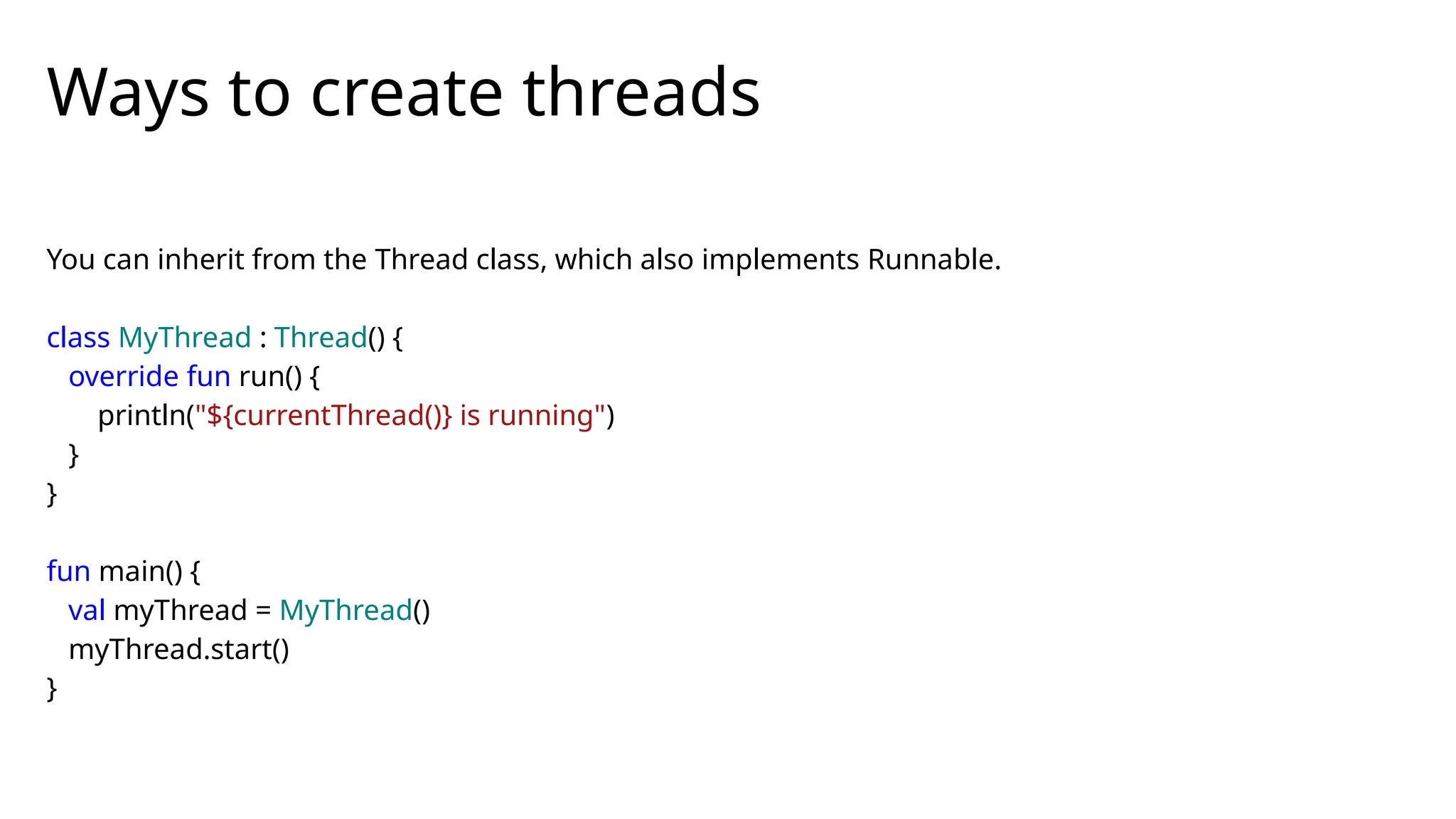

You can inherit from the Thread class, which also implements Runnable.
class MyThread : Thread() {
println("${currentThread()} is running")
}
}
fun main() {
val myThread = MyThread()
myThread.start()
}
Ways to create threads

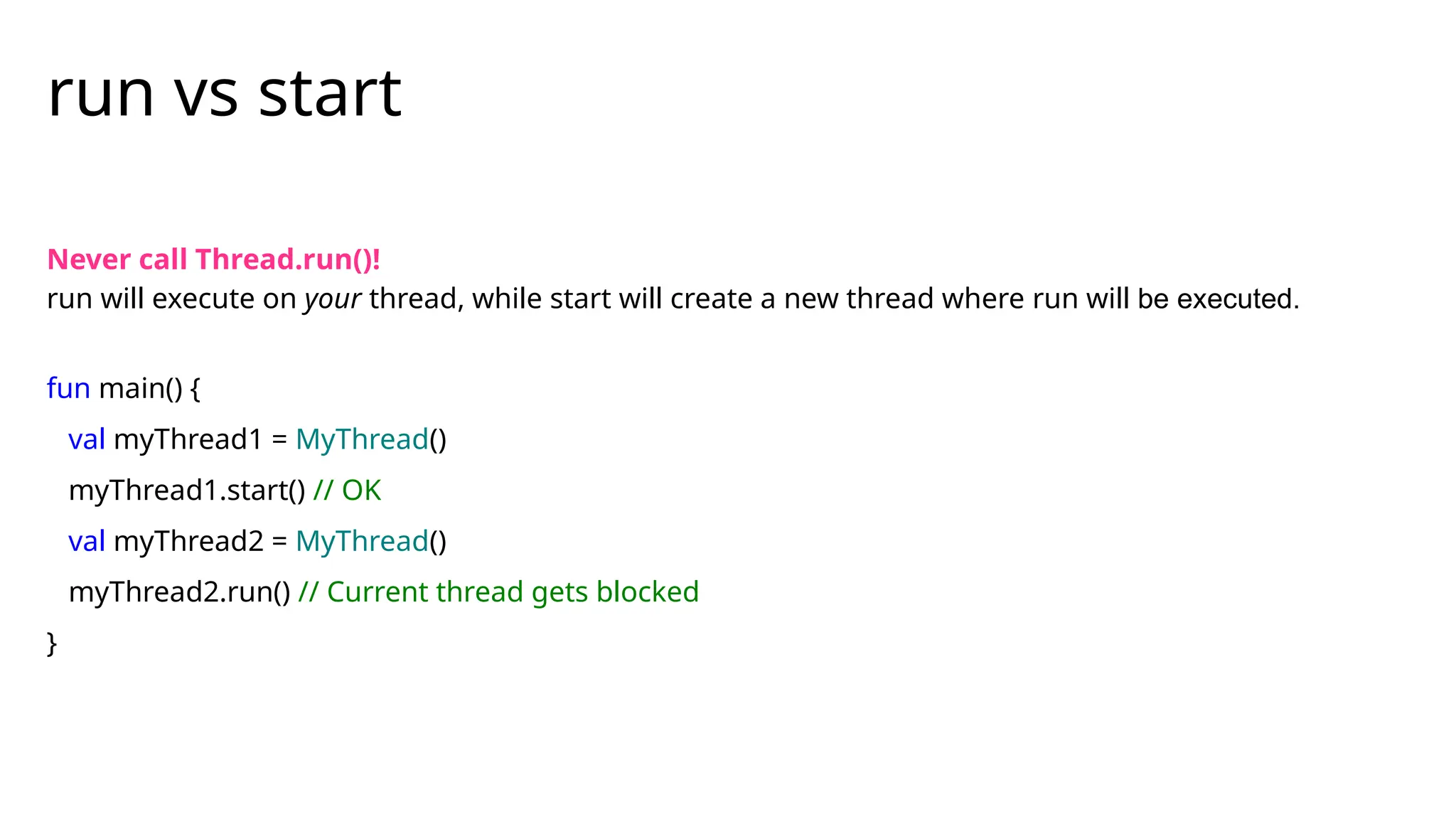

Never call Thread.run()!
run will execute on your thread, while start will create a new thread where run will be executed.
fun main() {
val myThread1 = MyThread()
myThread1.start() // OK
val myThread2 = MyThread()
myThread2.run() // Current thread gets blocked
}
run vs start

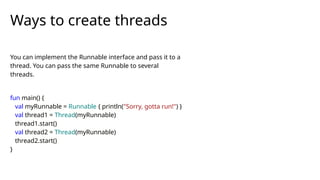

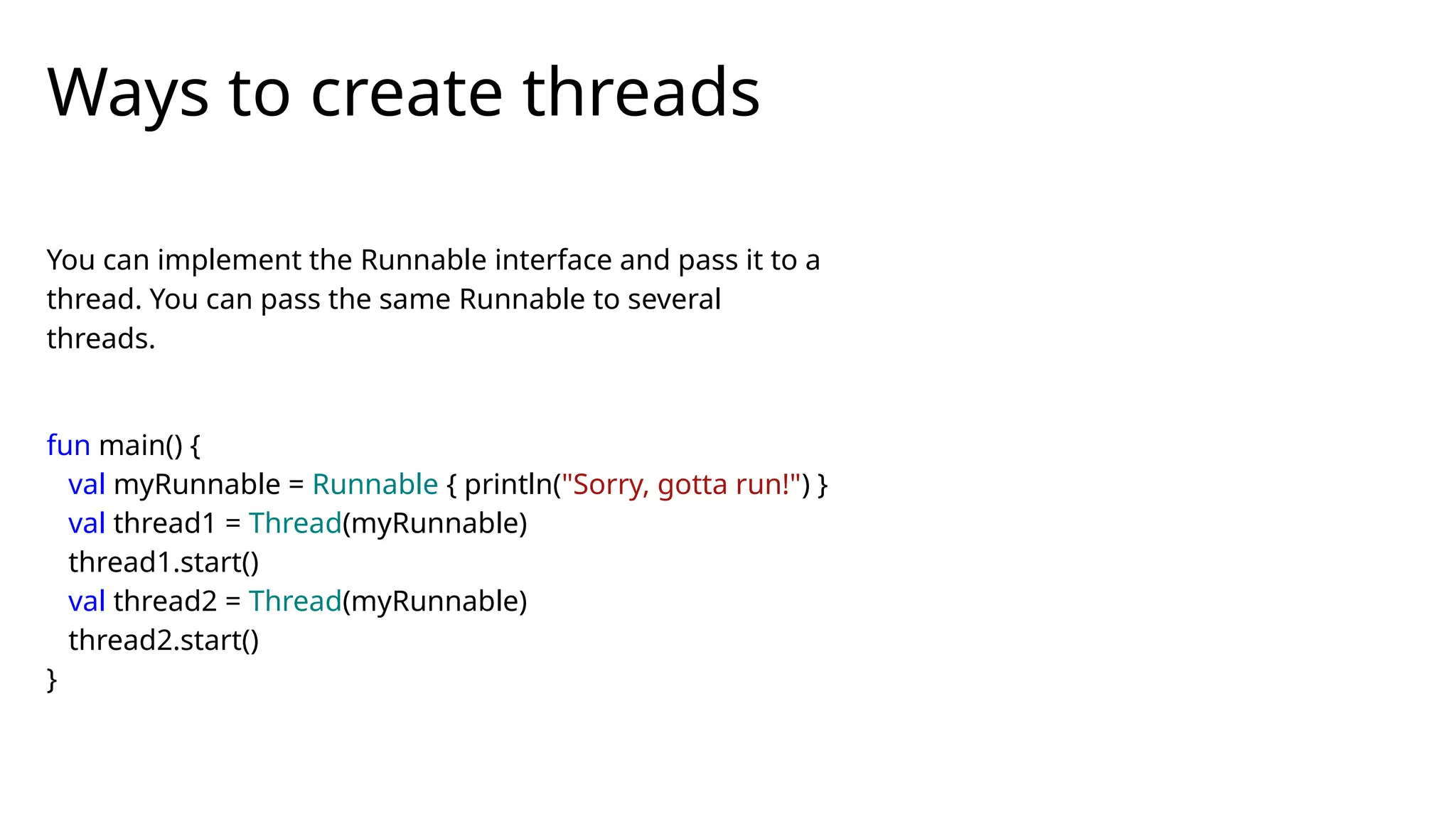

You can implement the Runnable interface and pass it to a
thread. You can pass the same Runnable to several
threads.
fun main() {
val myRunnable = Runnable { println("Sorry, gotta run!") }
val thread1 = Thread(myRunnable)
thread1.start()
val thread2 = Thread(myRunnable)
thread2.start()
}

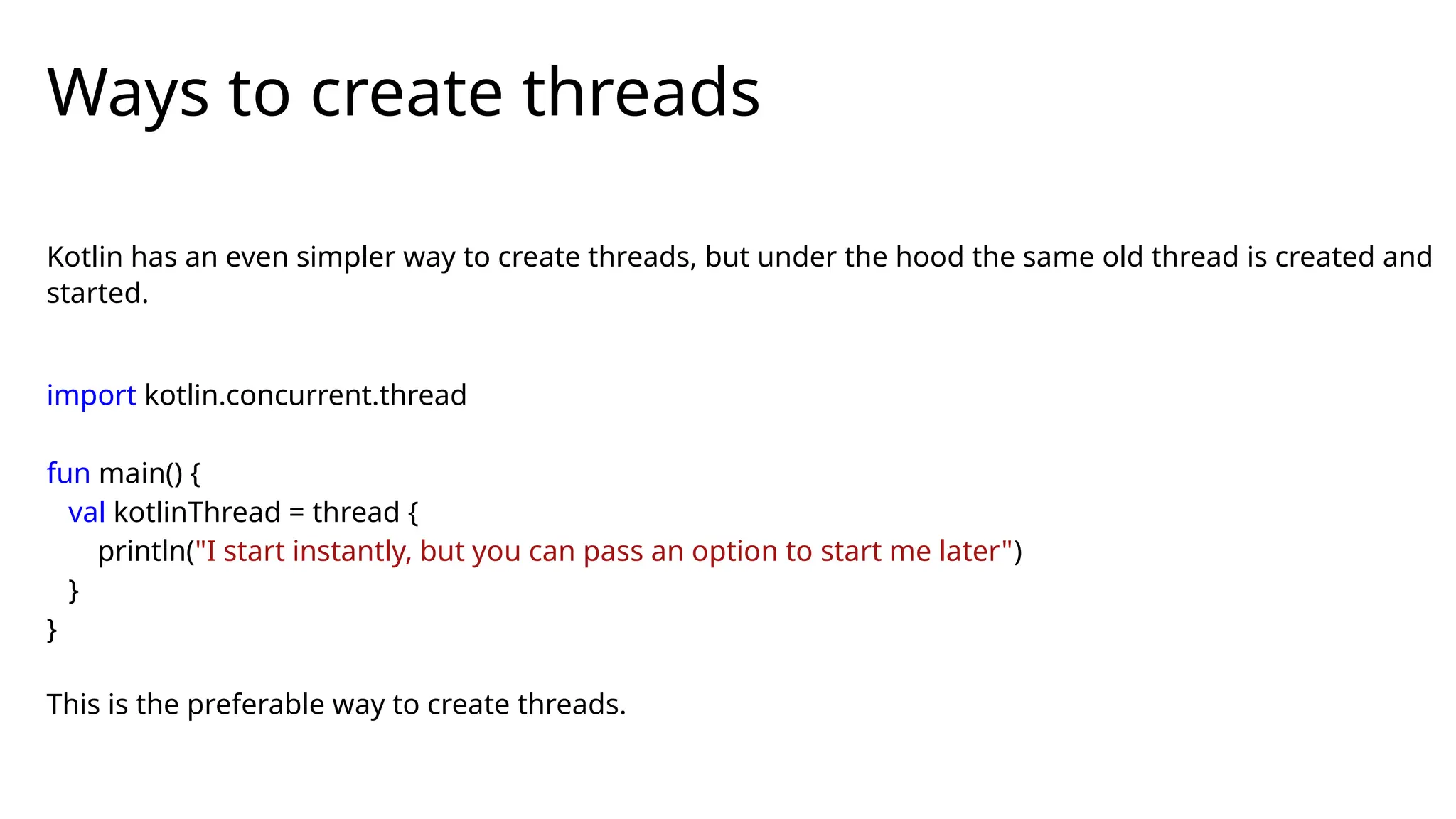

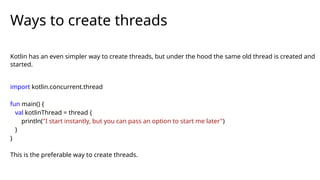

Kotlin has an even simpler way to create threads, but under the hood the same old thread is created and
started.
import kotlin.concurrent.thread
fun main() {
val kotlinThread = thread {
println("I start instantly, but you can pass an option to start me later")
}
}
This is the preferable way to create threads.

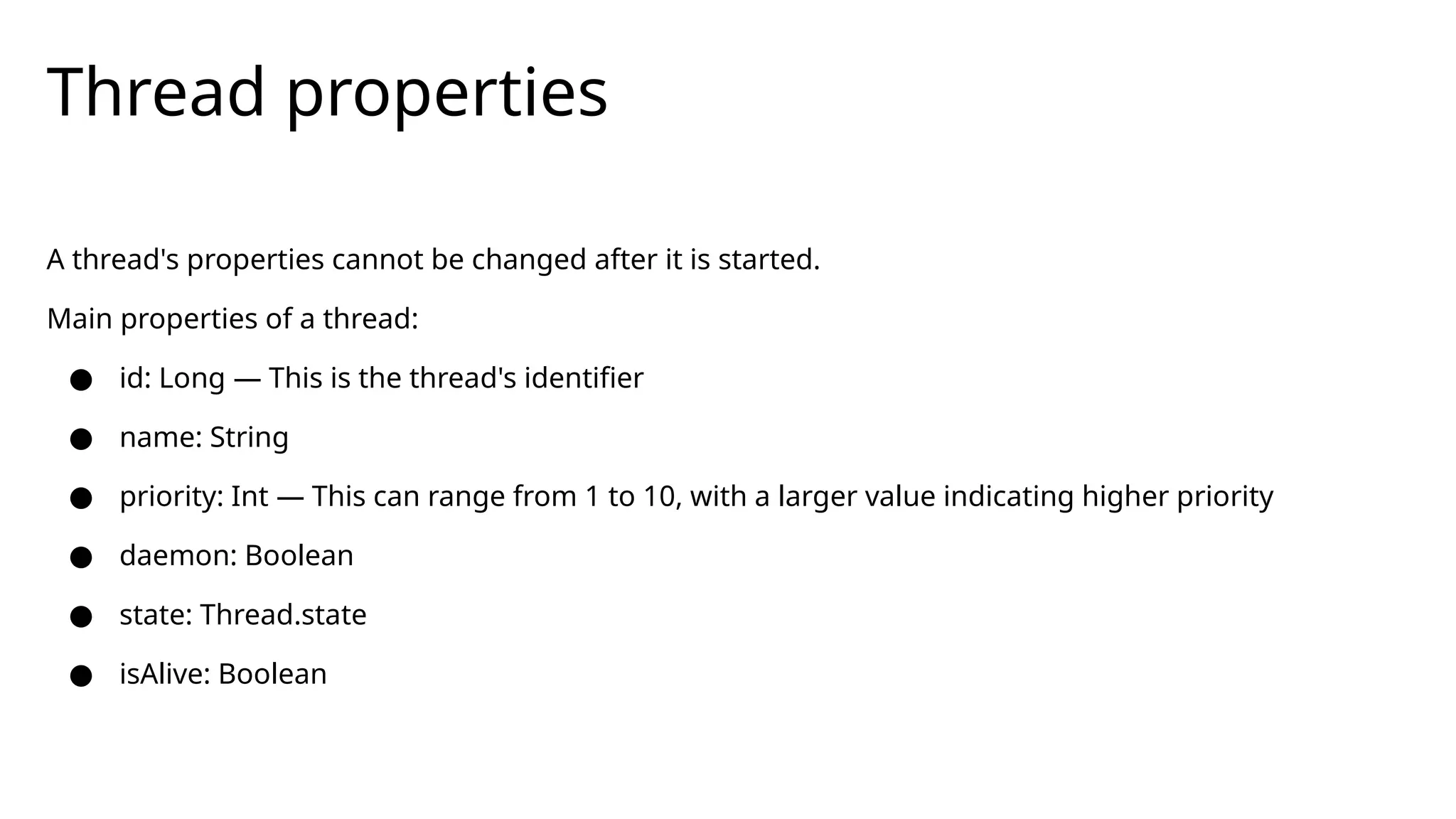

A thread's properties cannot be changed after it is started.
Main properties of a thread:
● id: Long — This is the thread's identifier
● name: String
● priority: Int — This can range from 1 to 10, with a larger value indicating higher priority
● daemon: Boolean
● state: Thread.state
● isAlive: Boolean
Thread properties

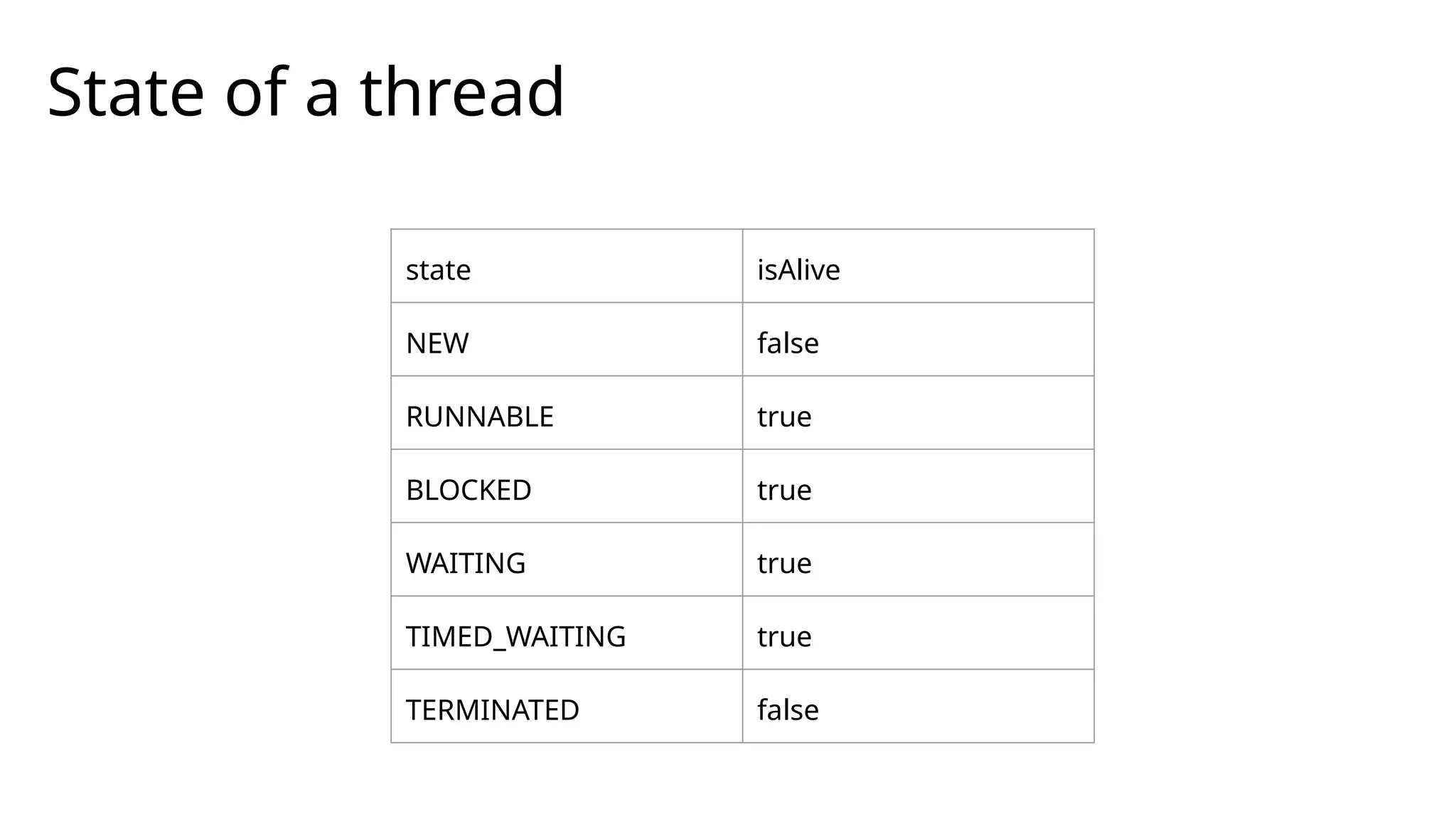

State of a thread
state isAlive
NEW false
RUNNABLE true
BLOCKED true
WAITING true
TIMED_WAITING true
TERMINATED false

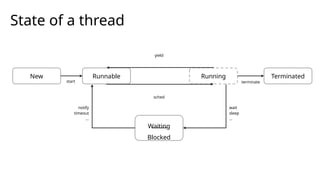

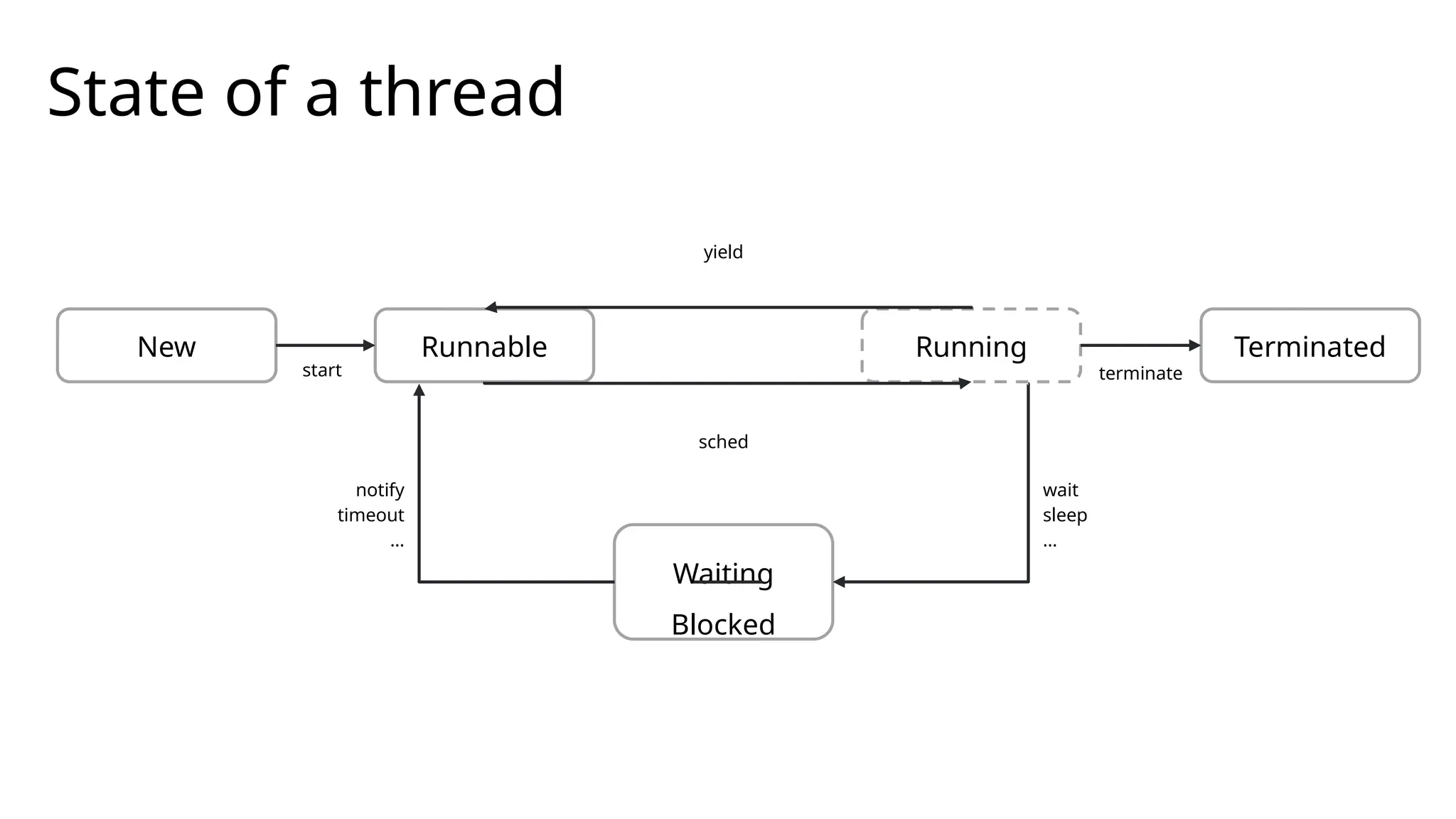

State of a thread
New Runnable
start
Running Terminated
terminate
Waiting
Blocked
wait
sleep
…
yield
sched
notify
timeout
…

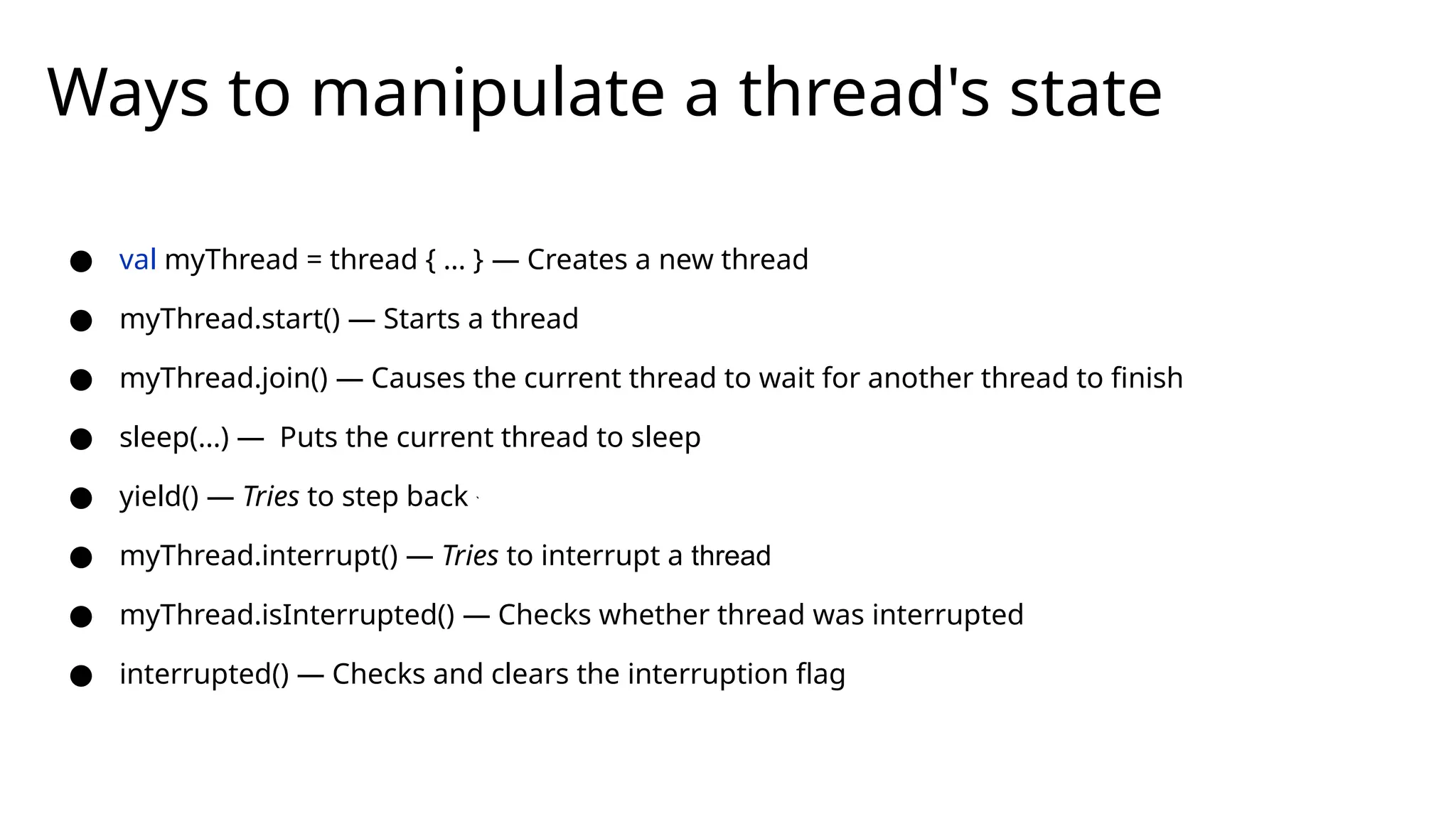

● val myThread = thread { ... } — Creates a new thread
● myThread.start() — Starts a thread
● myThread.join() — Causes the current thread to wait for another thread to finish
● sleep(...) — Puts the current thread to sleep
● yield() — Tries to step back `
● myThread.interrupt() — Tries to interrupt a thread
● myThread.isInterrupted() — Checks whether thread was interrupted
● interrupted() — Checks and clears the interruption flag
Ways to manipulate a thread's state

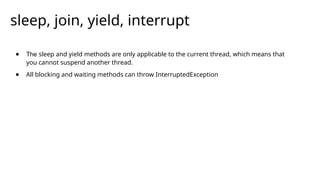

● The sleep and yield methods are only applicable to the current thread, which means that
you cannot suspend another thread.
● All blocking and waiting methods can throw InterruptedException
sleep, join, yield, interrupt

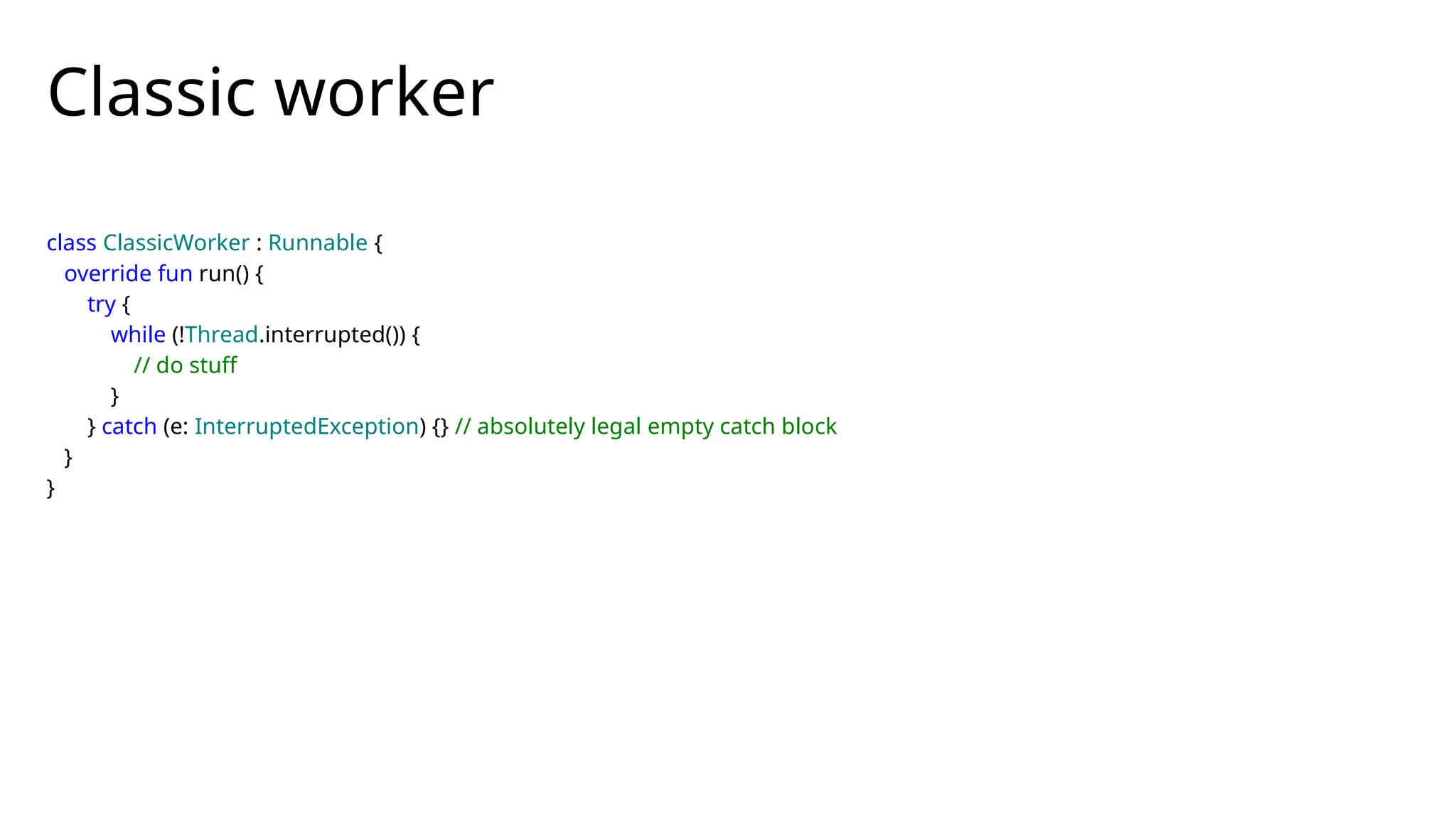

class ClassicWorker : Runnable {
try {
while (!Thread.interrupted()) {
// do stuff
}
} catch (e: InterruptedException) {} // absolutely legal empty catch block
}
}
Classic worker

Parallel threads have access to the same shared memory.
This often leads to problems that cannot arise in a single-threaded environment.
Parallelism and shared memory: Examples
of problematic interleaving
class Counter {
private var c = 0
fun increment() {
c++
}
fun decrement() {
c--
}
fun value(): Int {
return c
}
}
Both operations on c are single, simple statements.
However, even simple statements can be translated into
multiple steps by the virtual machine, and those steps
can be interleaved.

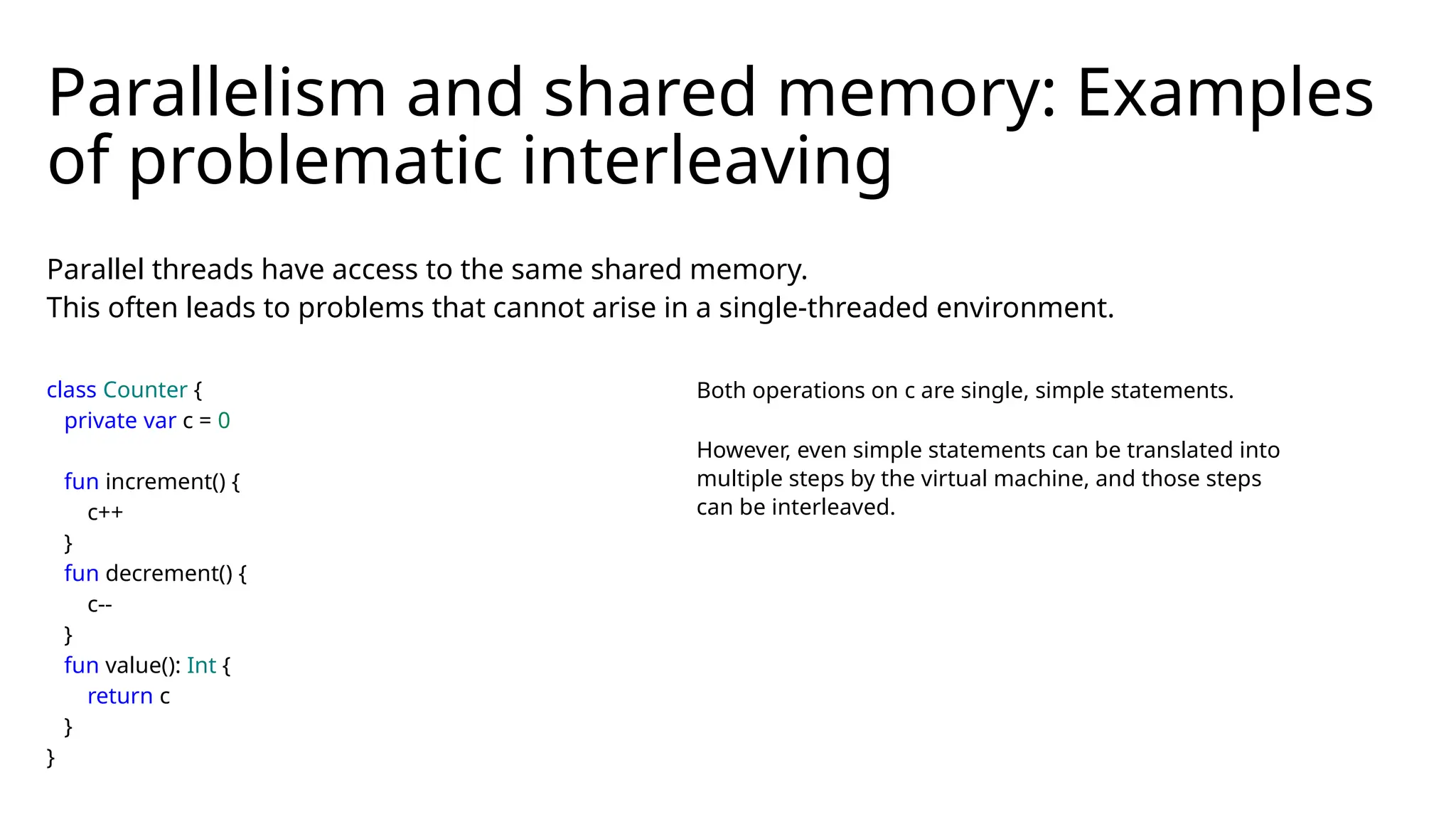

Parallel threads have access to the same shared memory.
This often leads to problems that cannot arise in a single-threaded environment.
Parallelism and shared memory: Examples
of problematic interleaving
class Counter {
private var c = 0
fun increment() {
c++
}
fun decrement() {
c--
}
fun value(): Int {
return c
}
}

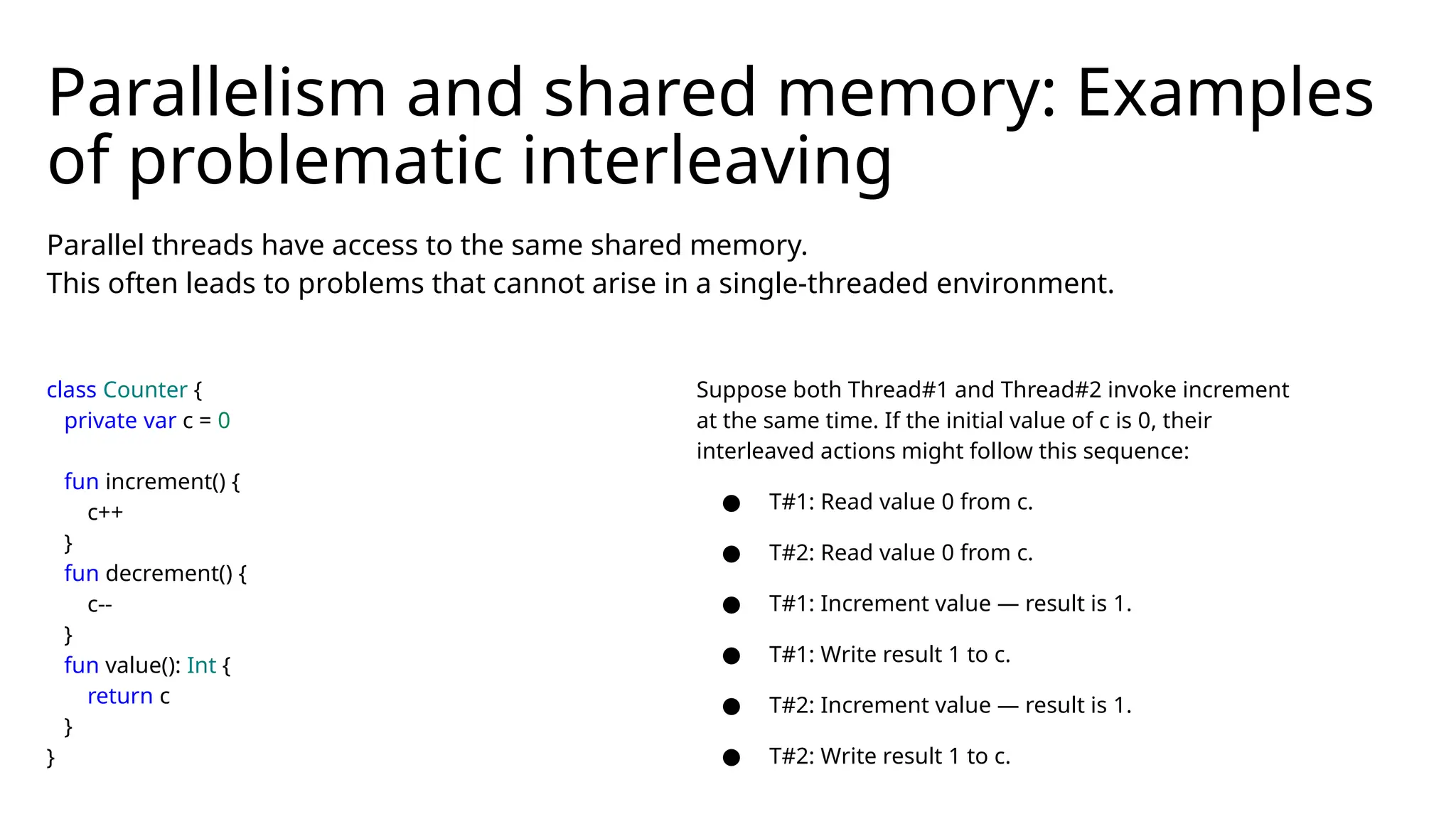

Suppose both Thread#1 and Thread#2 invoke increment
at the same time. If the initial value of c is 0, their
interleaved actions might follow this sequence:
● T#1: Read value 0 from c.
● T#2: Read value 0 from c.
● T#1: Increment value — result is 1.
● T#1: Write result 1 to c.
● T#2: Increment value — result is 1.
● T#2: Write result 1 to c.

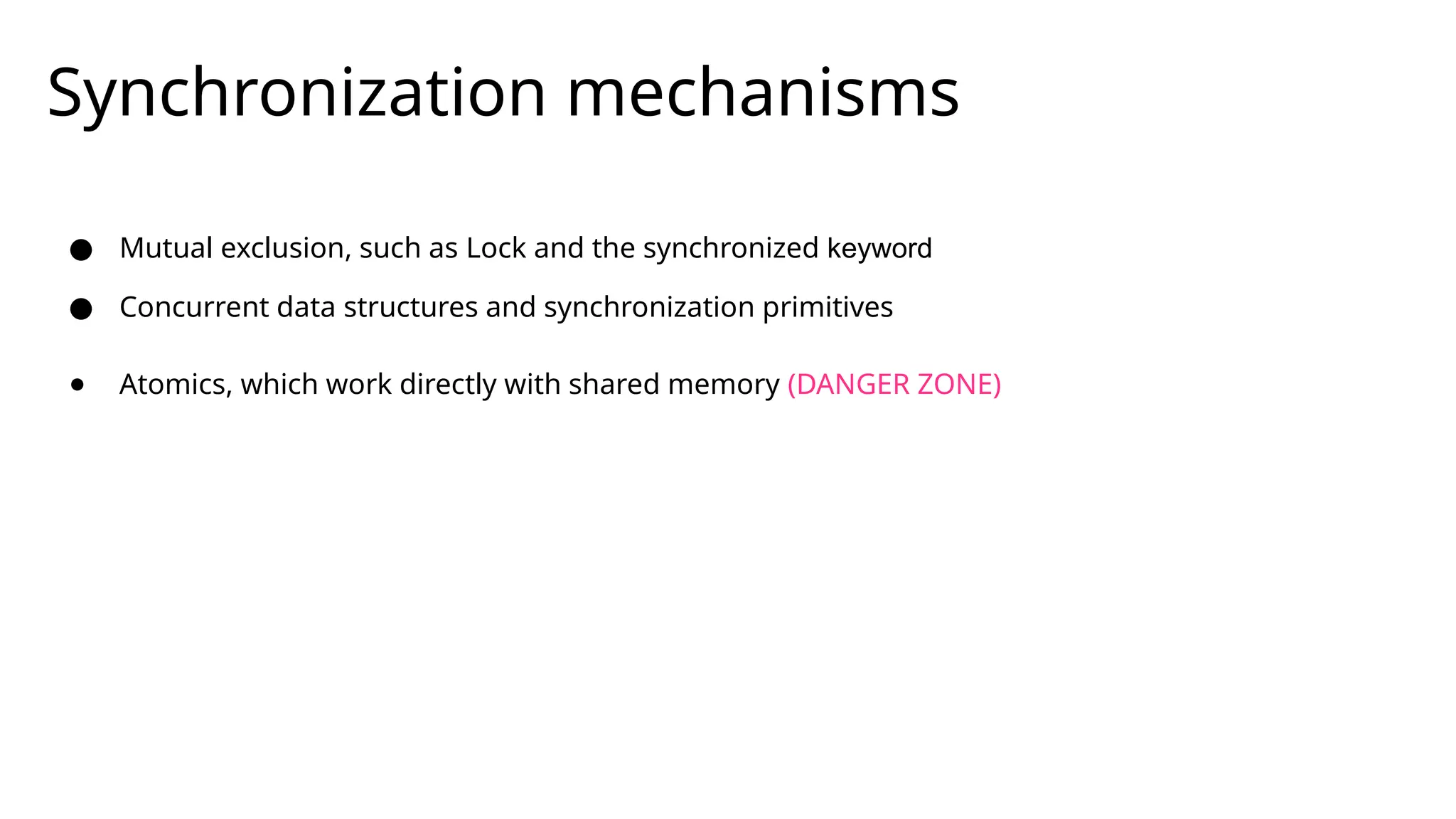

Synchronization mechanisms
● Mutual exclusion, such as Lock and the synchronized keyword
● Concurrent data structures and synchronization primitives
● Atomics, which work directly with shared memory (DANGER ZONE)

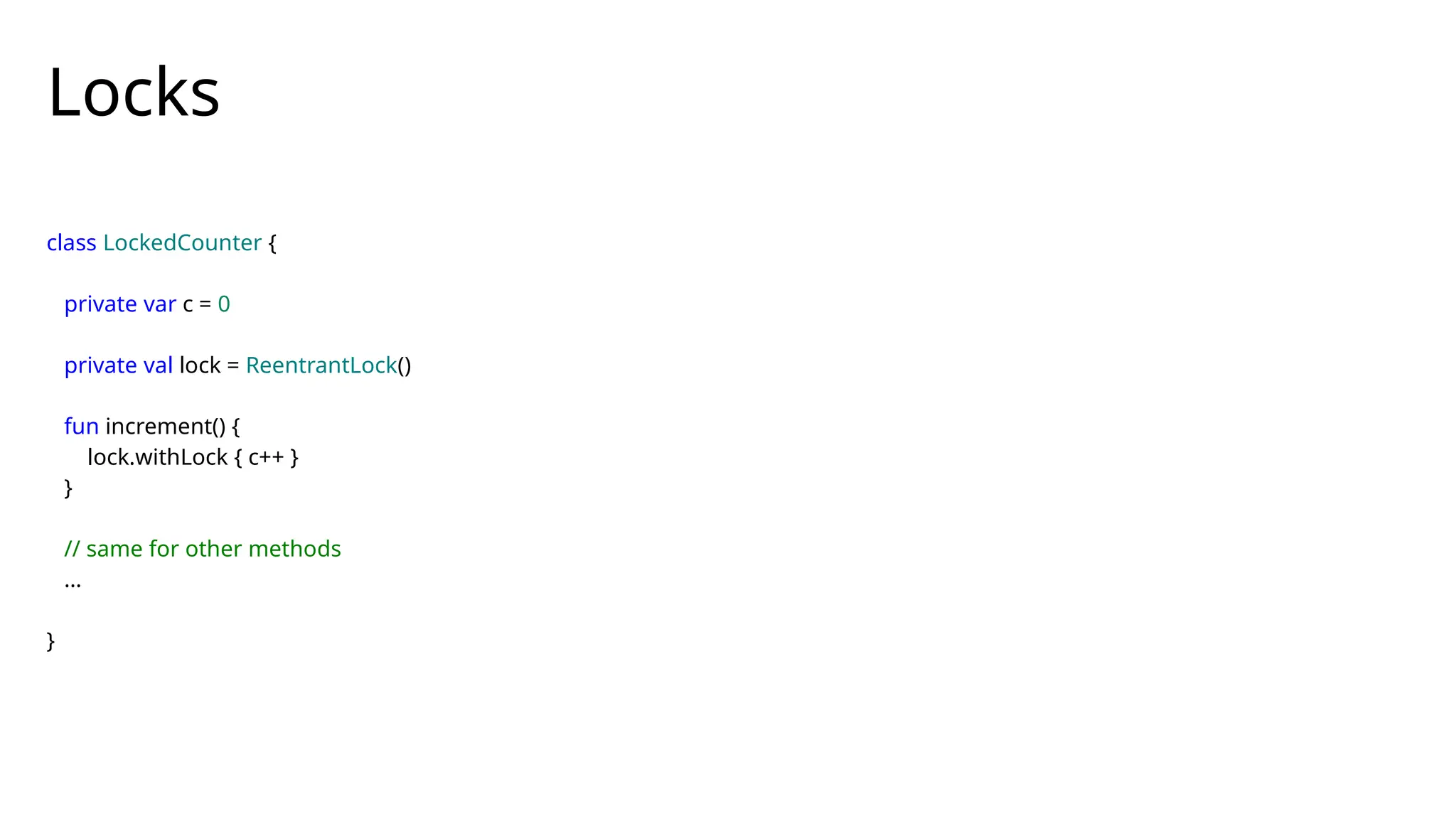

Locks
class LockedCounter {
private var c = 0
private val lock = ReentrantLock()
fun increment() {
lock.withLock { c++ }
}
// same for other methods
…
}

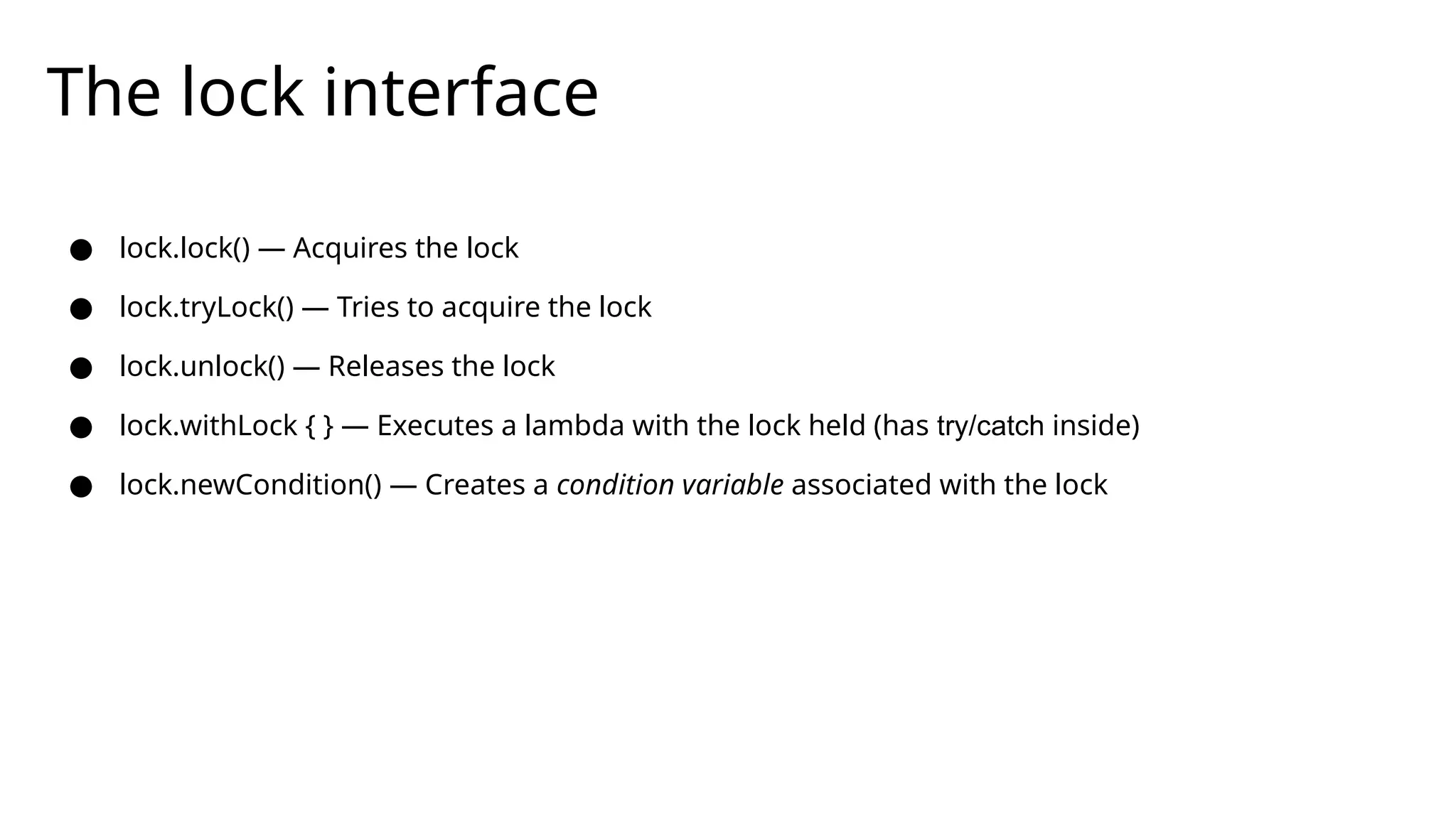

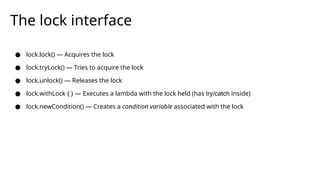

The lock interface
● lock.lock() — Acquires the lock
● lock.tryLock() — Tries to acquire the lock
● lock.unlock() — Releases the lock
● lock.withLock { } — Executes a lambda with the lock held (has try/catch inside)
● lock.newCondition() — Creates a condition variable associated with the lock

class PositiveLockedCounter {
private var c = 0
private val lock = ReentrantLock()
private val condition = lock.newCondition()
fun increment() {
lock.withLock {
c++
condition.signal()
}
}
fun decrement() {
lock.withLock {
while (c == 0) {
condition.await()
}
c--
}
}
fun value(): Int {
return lock.withLock { c }
}
}

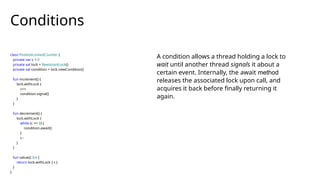

Conditions
A condition allows a thread holding a lock to
wait until another thread signals it about a
certain event. Internally, the await method
releases the associated lock upon call, and
acquires it back before finally returning it
again.

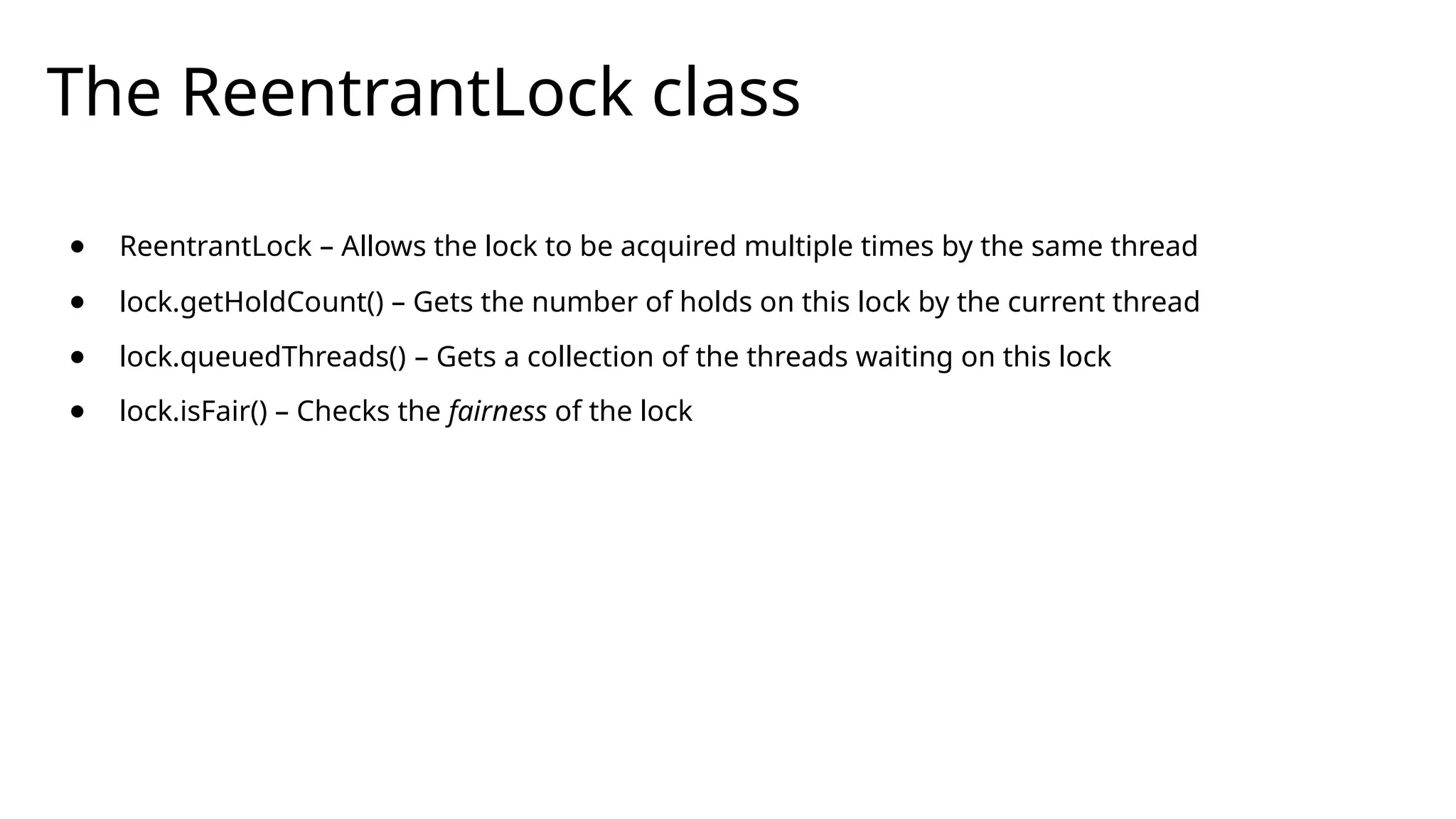

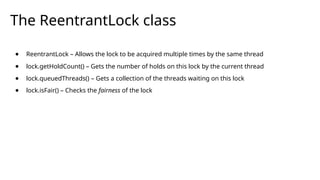

The ReentrantLock class
● ReentrantLock – Allows the lock to be acquired multiple times by the same thread
● lock.getHoldCount() – Gets the number of holds on this lock by the current thread
● lock.queuedThreads() – Gets a collection of the threads waiting on this lock
● lock.isFair() – Checks the fairness of the lock

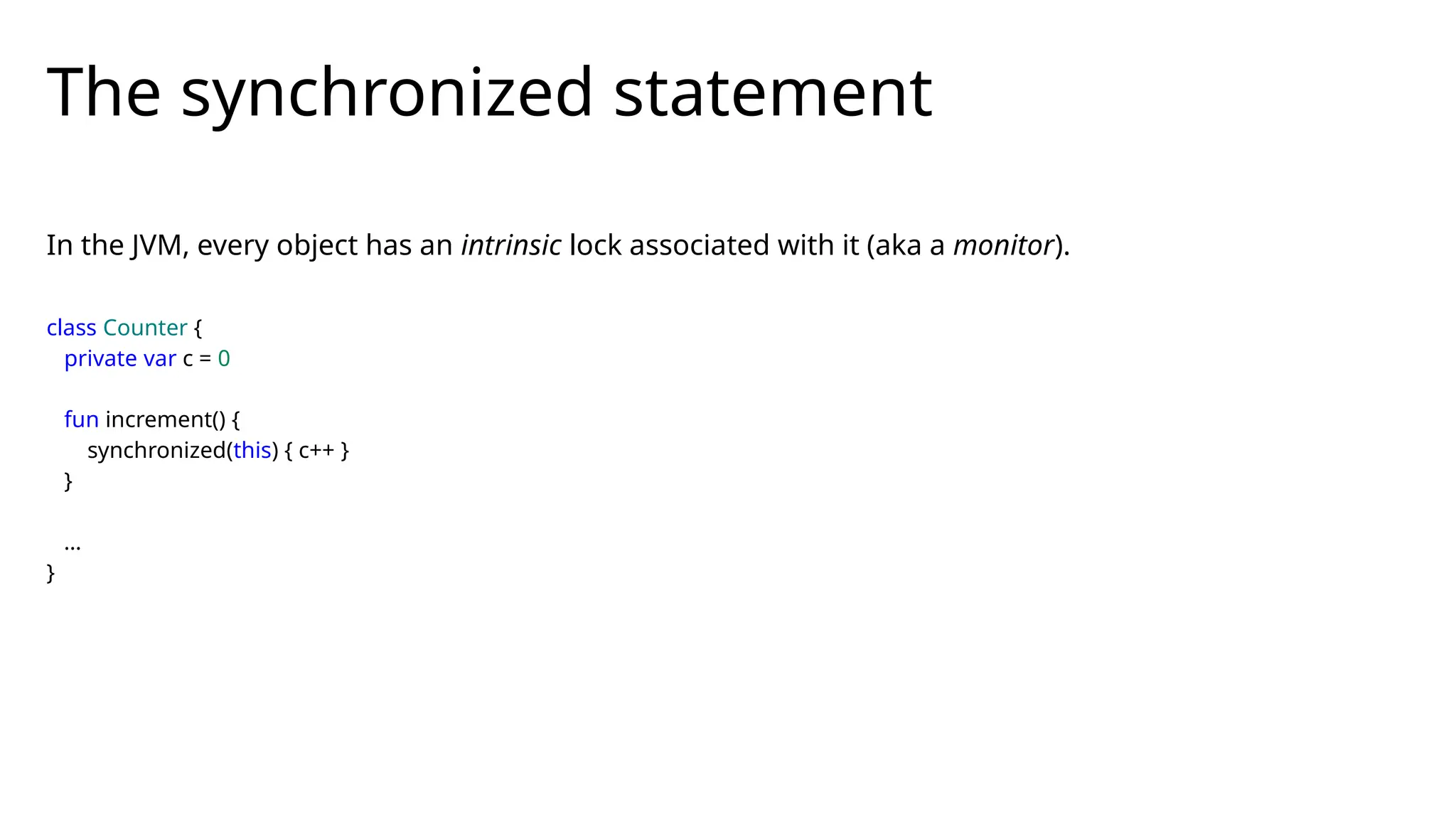

The synchronized statement
class Counter {
private var c = 0
fun increment() {
synchronized(this) { c++ }
}
…
}
In the JVM, every object has an intrinsic lock associated with it (aka a monitor).

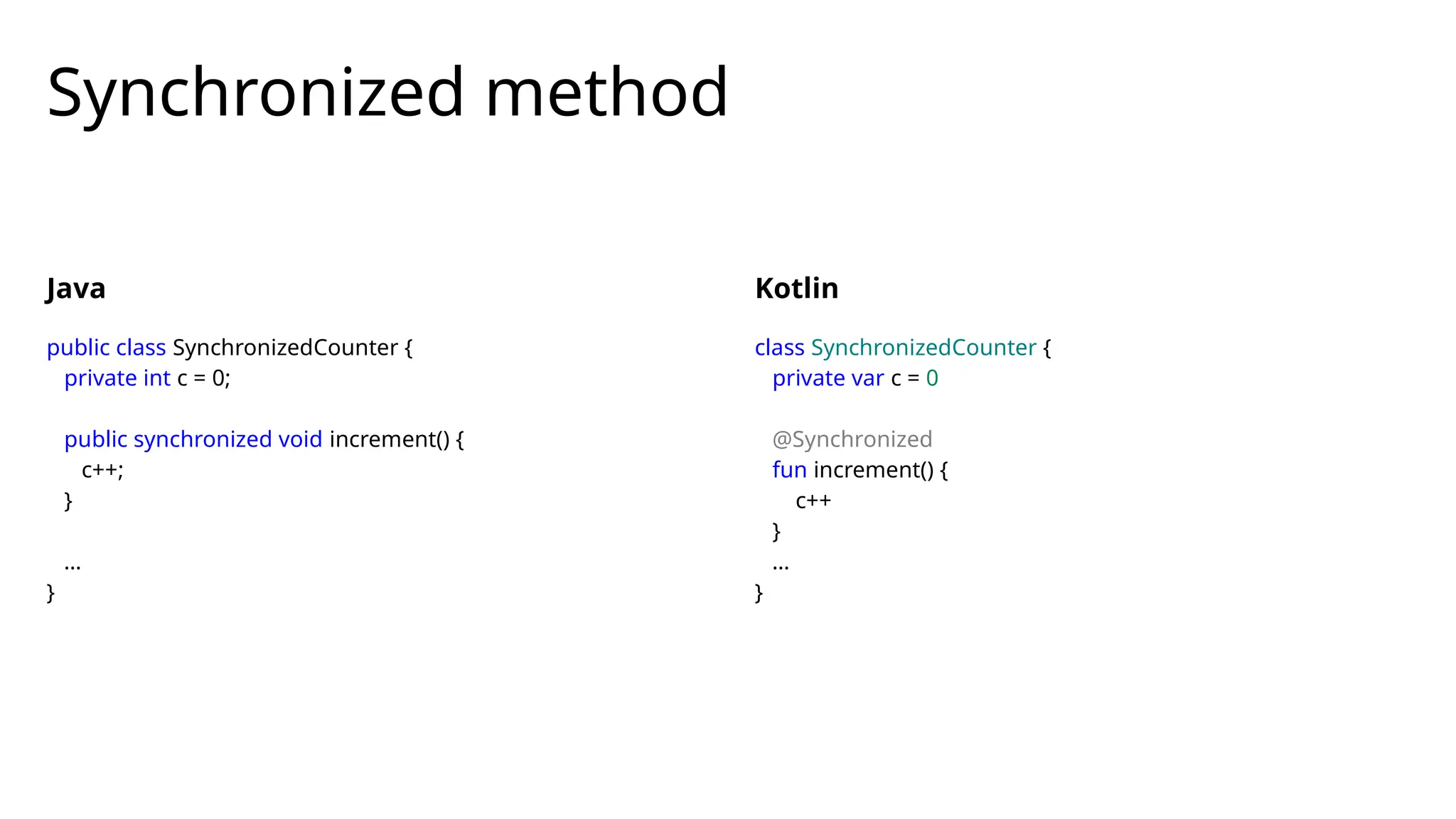

Synchronized method
Java
public class SynchronizedCounter {
private int c = 0;
public synchronized void increment() {
c++;
}
…
}
Kotlin
class SynchronizedCounter {
private var c = 0
@Synchronized
fun increment() {
c++
}
…
}

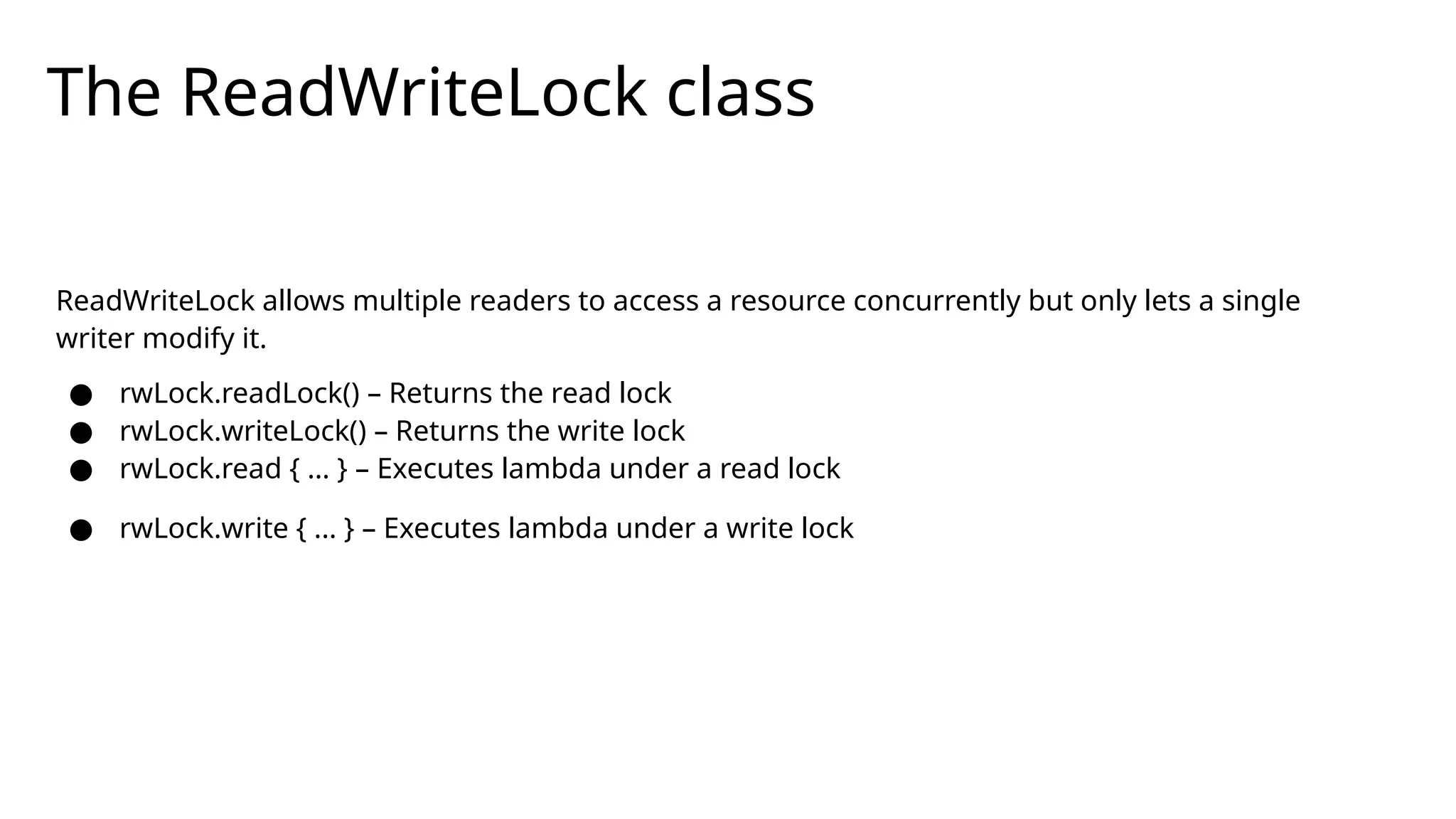

The ReadWriteLock class
ReadWriteLock allows multiple readers to access a resource concurrently but only lets a single
writer modify it.
● rwLock.readLock() – Returns the read lock
● rwLock.writeLock() – Returns the write lock
● rwLock.read { ... } – Executes lambda under a read lock
● rwLock.write { ... } – Executes lambda under a write lock

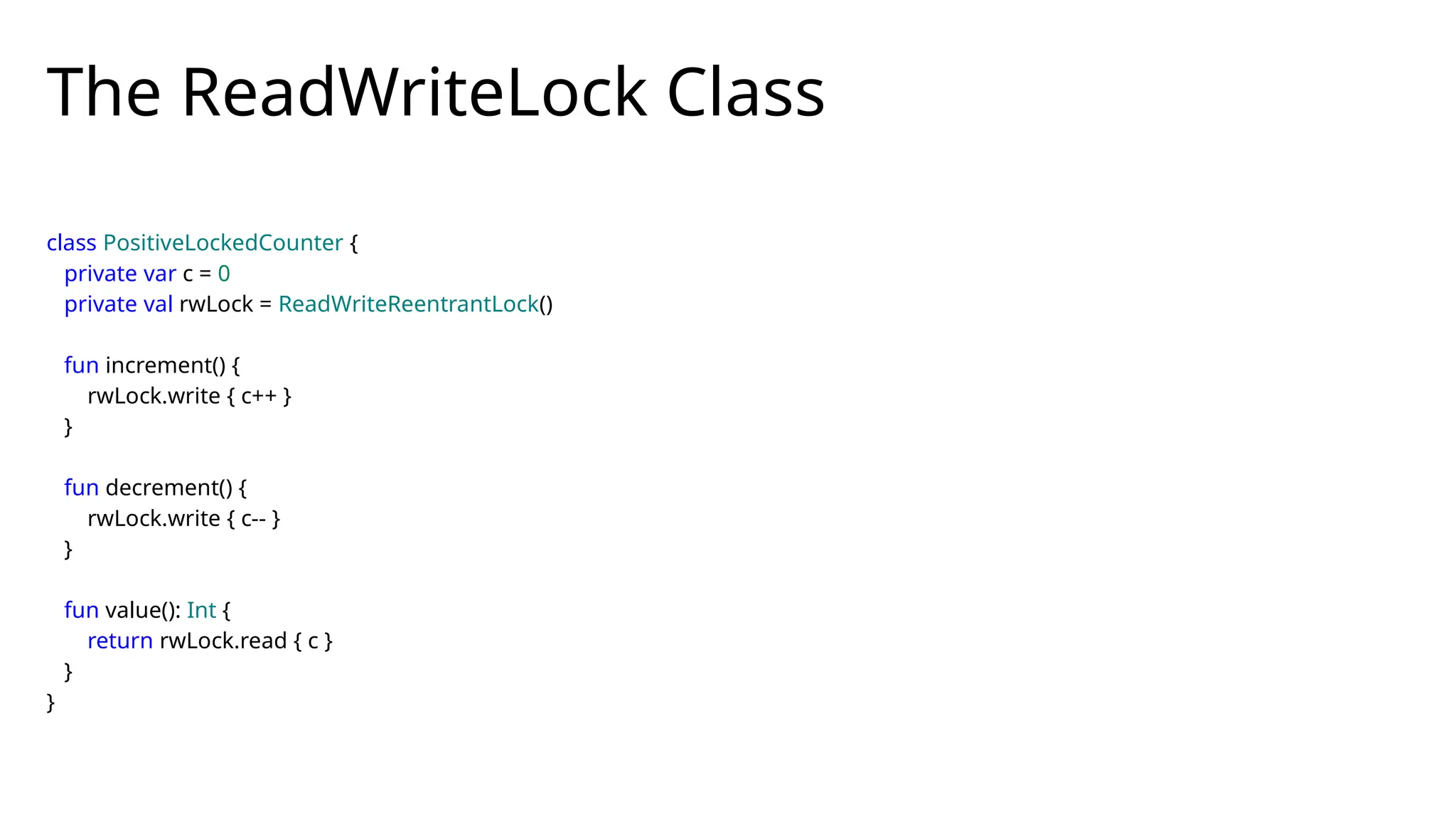

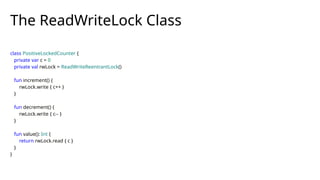

The ReadWriteLock Class
class PositiveLockedCounter {
private var c = 0
private val rwLock = ReadWriteReentrantLock()
fun increment() {
rwLock.write { c++ }
}
fun decrement() {
rwLock.write { c-- }
}
fun value(): Int {
return rwLock.read { c }
}
}

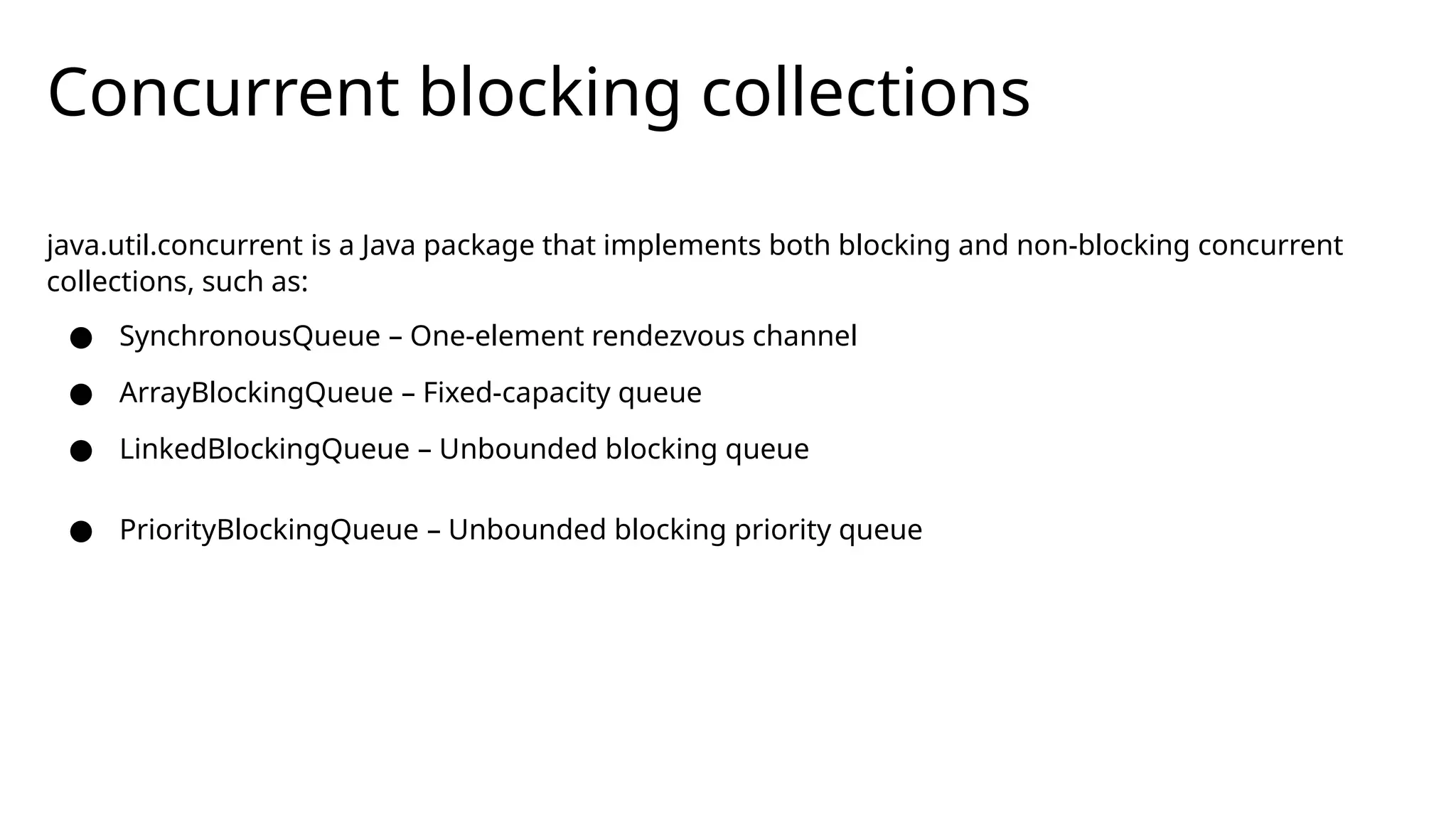

Concurrent blocking collections
java.util.concurrent is a Java package that implements both blocking and non-blocking concurrent
collections, such as:
● SynchronousQueue – One-element rendezvous channel
● ArrayBlockingQueue – Fixed-capacity queue
● LinkedBlockingQueue – Unbounded blocking queue
● PriorityBlockingQueue – Unbounded blocking priority queue

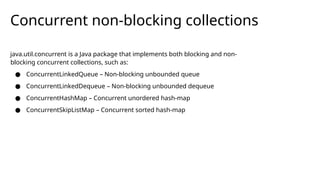

Concurrent non-blocking collections
java.util.concurrent is a Java package that implements both blocking and non-
blocking concurrent collections, such as:
● ConcurrentLinkedQueue – Non-blocking unbounded queue
● ConcurrentLinkedDequeue – Non-blocking unbounded dequeue
● ConcurrentHashMap – Concurrent unordered hash-map
● ConcurrentSkipListMap – Concurrent sorted hash-map

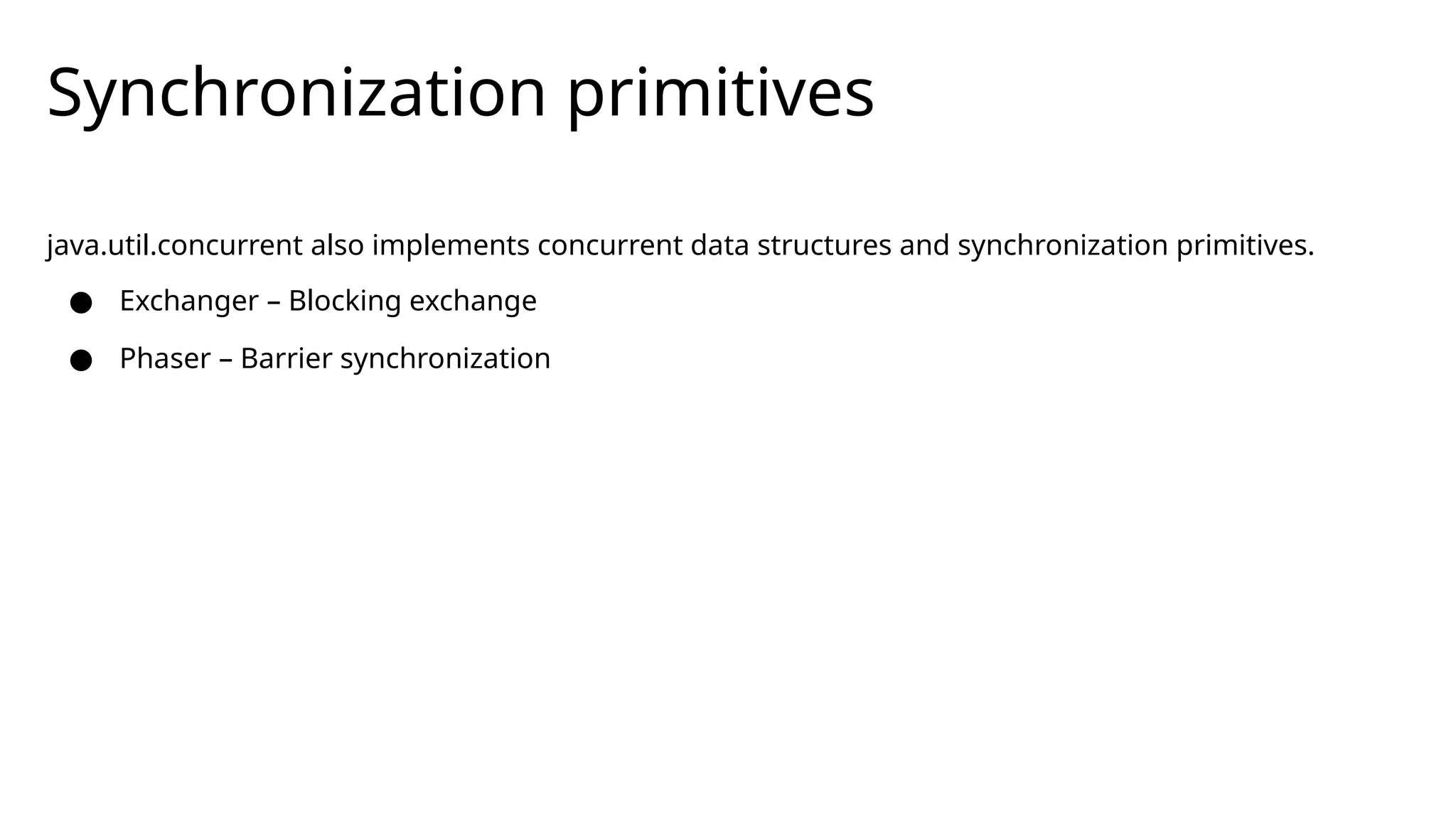

Synchronization primitives
java.util.concurrent also implements concurrent data structures and synchronization primitives.
● Exchanger – Blocking exchange
● Phaser – Barrier synchronization

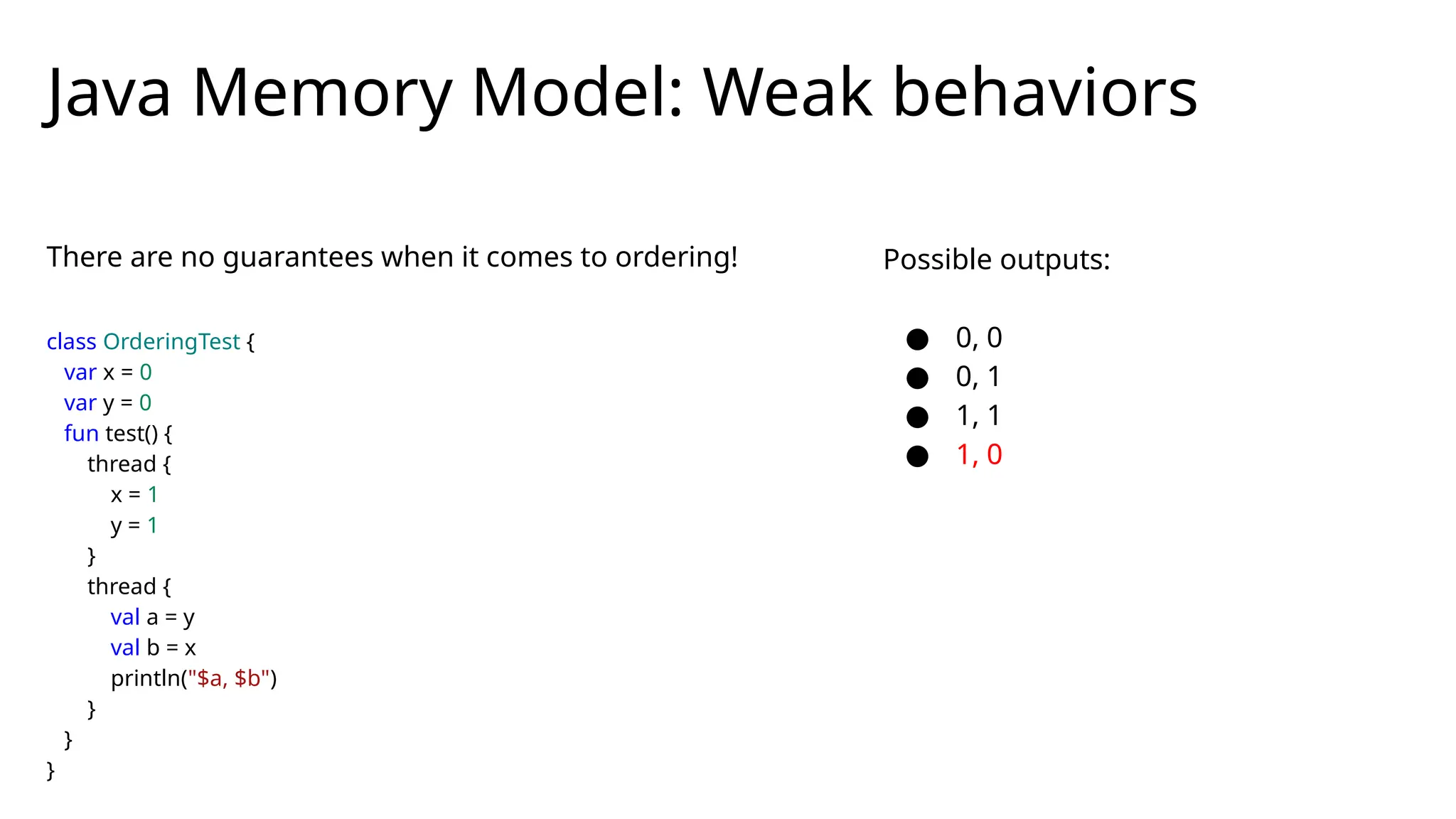

There are no guarantees when it comes to ordering!
class OrderingTest {
var x = 0
var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}
Java Memory Model: Weak behaviors
Possible outputs:
● 0, 0
● 0, 1
● 1, 1
● 1, 0

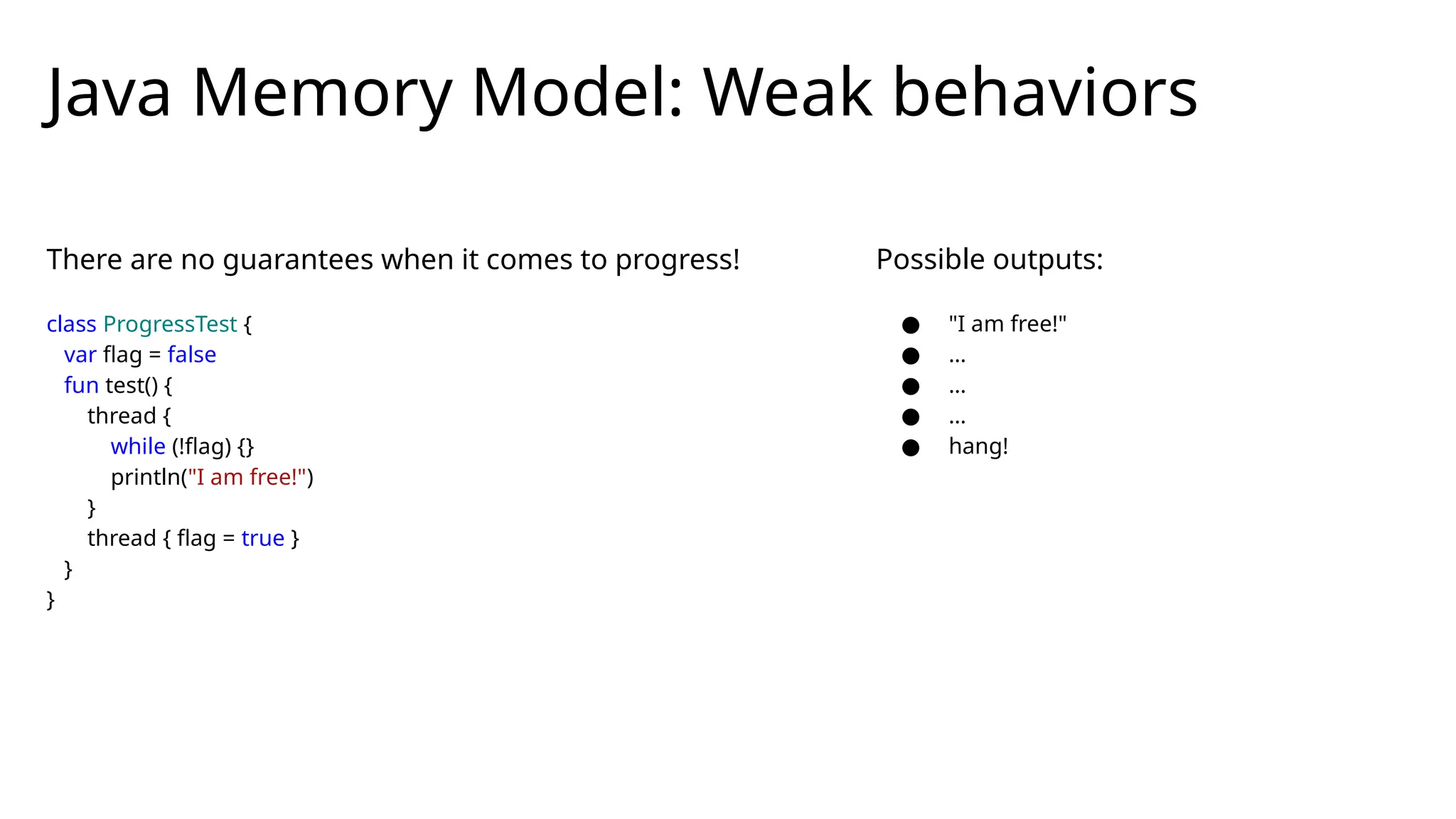

There are no guarantees when it comes to progress!
class ProgressTest {
var flag = false
fun test() {
thread {
while (!flag) {}
println("I am free!")
}
thread { flag = true }
}
}
Possible outputs:
● "I am free!"
● …
● …
● …
● hang!

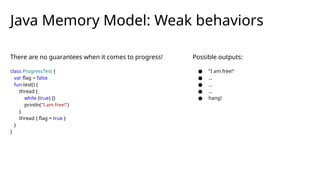

There are no guarantees when it comes to progress!
var flag = false
fun test() {
thread {
while (true) {}
}
}
}
Possible outputs:
● "I am free!"
● …
● …
● …
● hang!

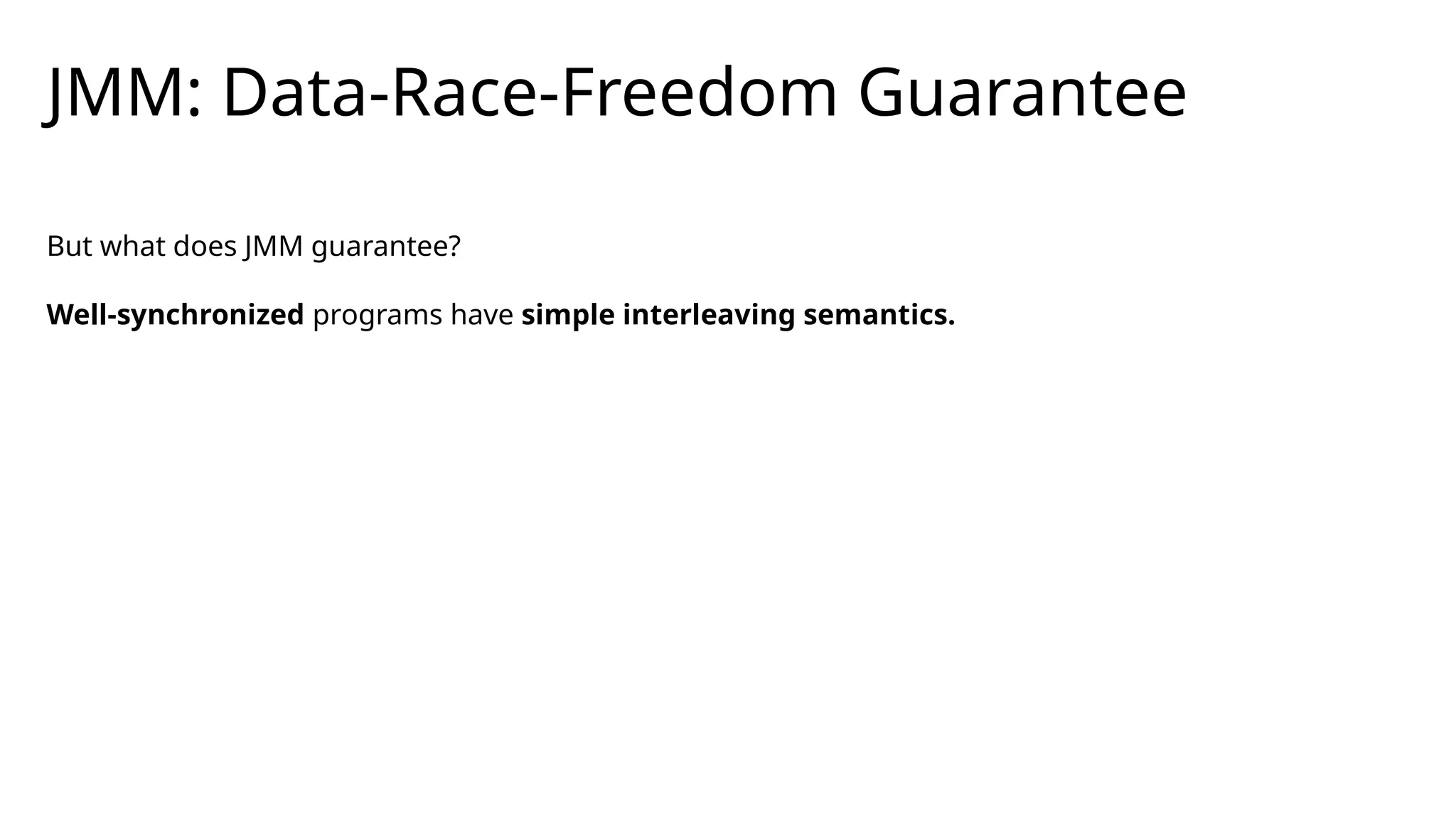

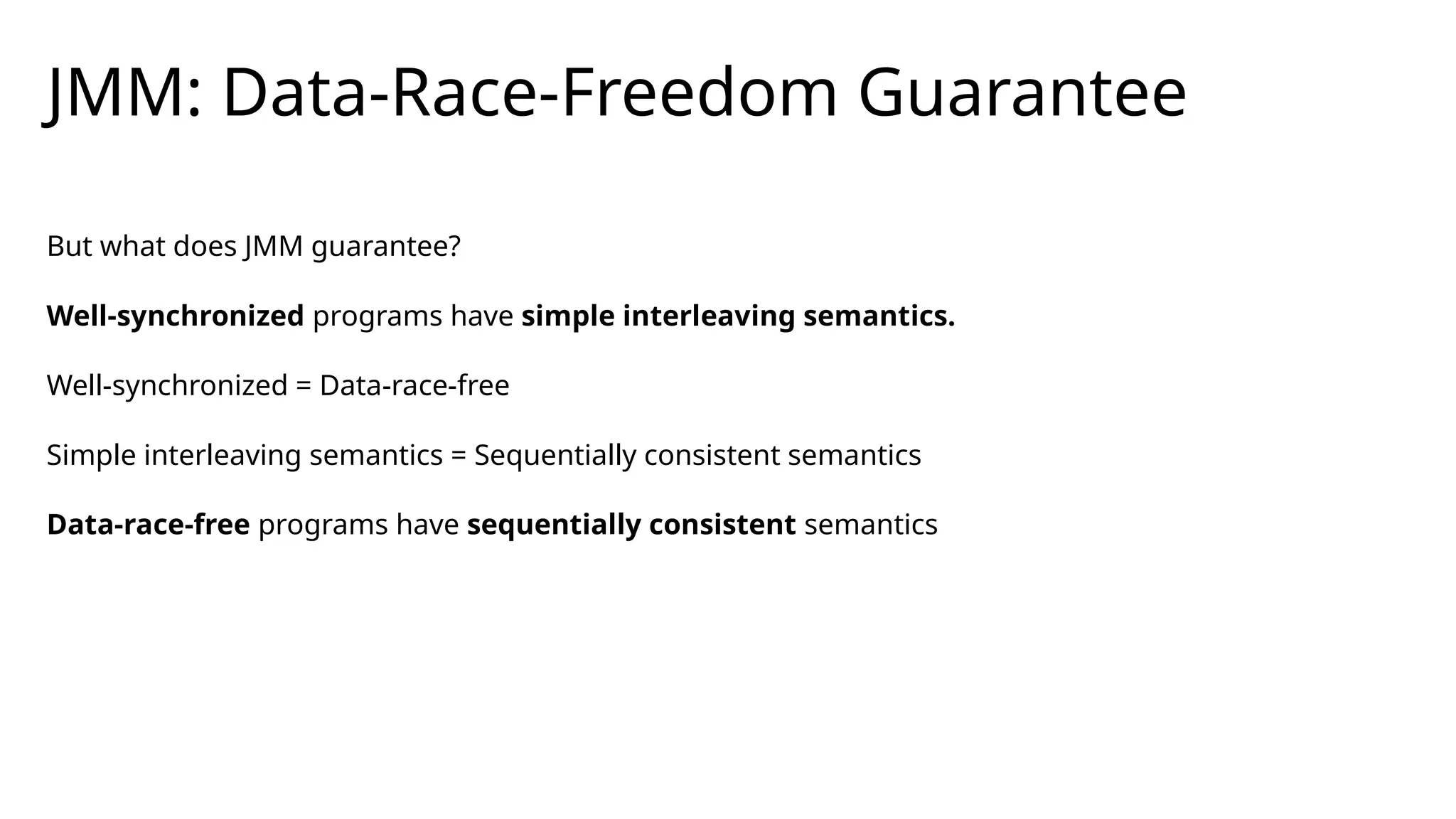

JMM: Data-Race-Freedom Guarantee
But what does JMM guarantee?
Well-synchronized programs have simple interleaving semantics.

JMM: Data-Race-Freedom Guarantee
But what does JMM guarantee?
Well-synchronized programs have simple interleaving semantics.
Well-synchronized = Data-race-free
Simple interleaving semantics = Sequentially consistent semantics
Data-race-free programs have sequentially consistent semantics

Volatile fields can be used to restore sequential consistency.

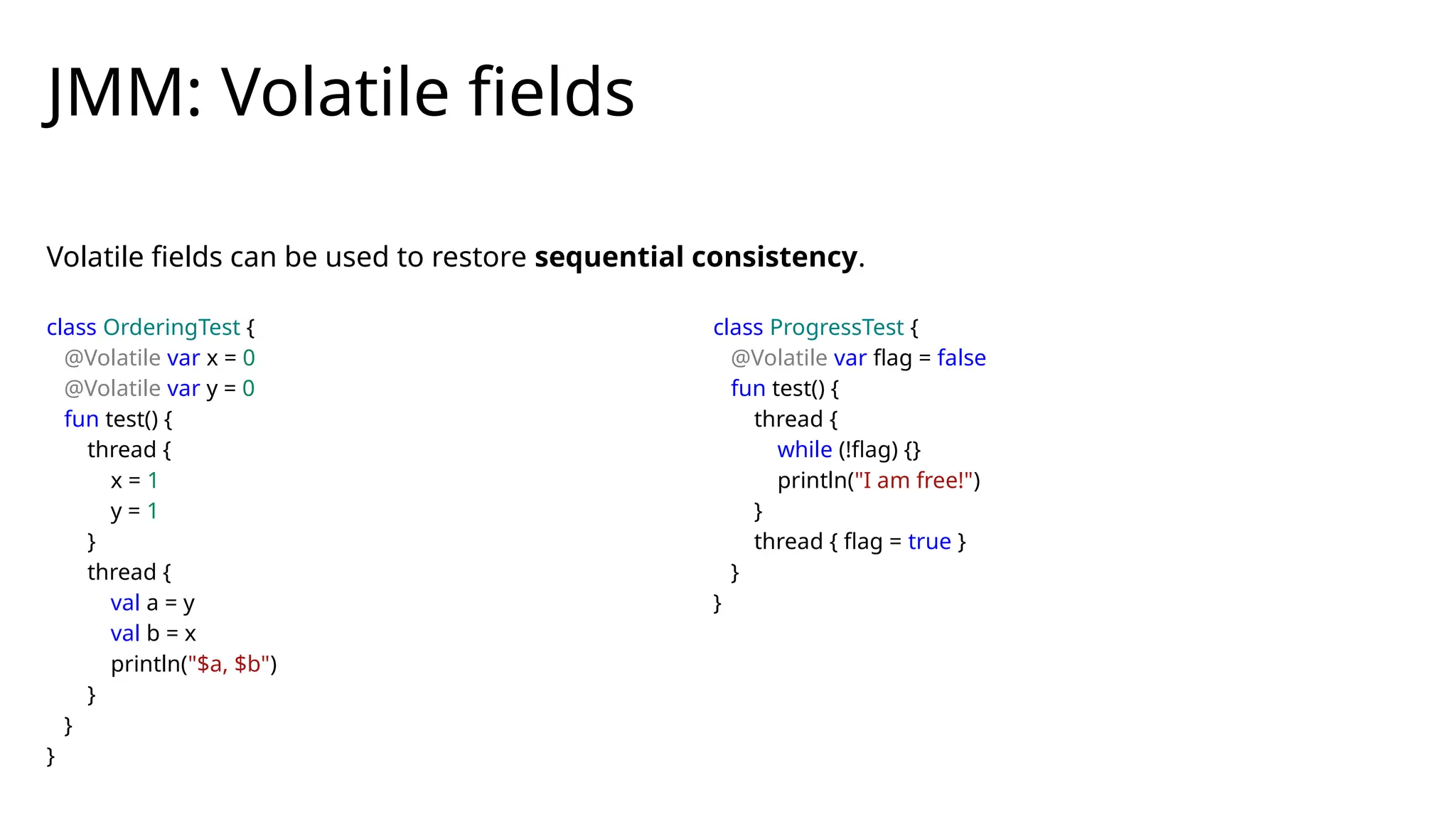

JMM: Volatile fields
@Volatile var x = 0
@Volatile var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}
@Volatile var flag = false
fun test() {
thread {
while (!flag) {}
}
}
}

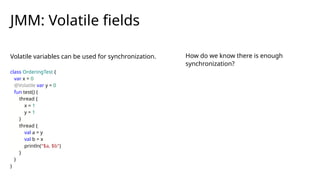

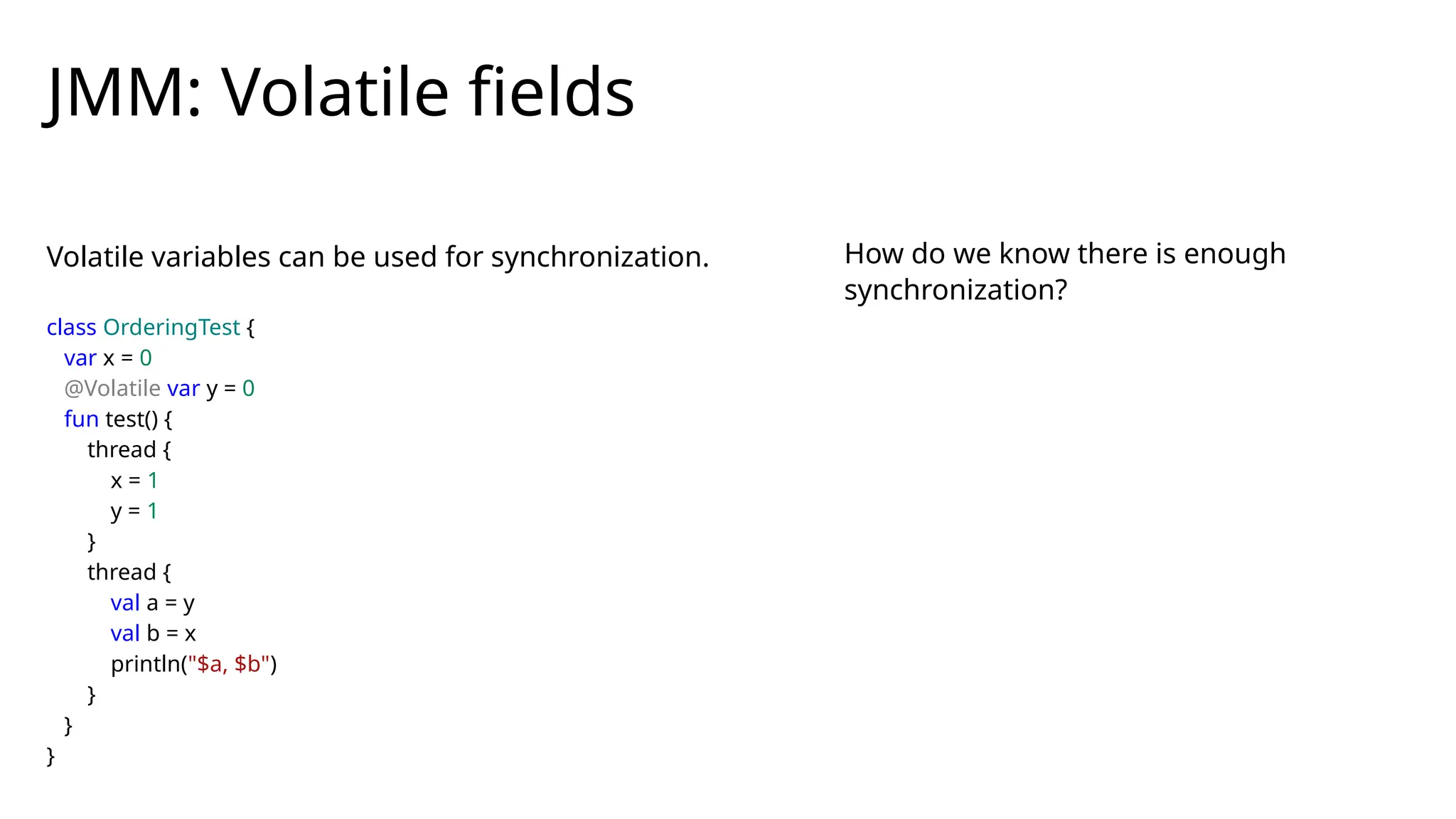

Volatile variables can be used for synchronization.
JMM: Volatile fields
var x = 0
@Volatile var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}
How do we know there is enough
synchronization?

var x = 0
@Volatile var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}

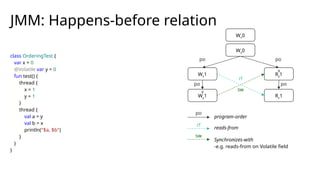

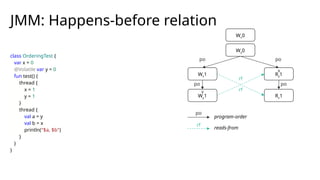

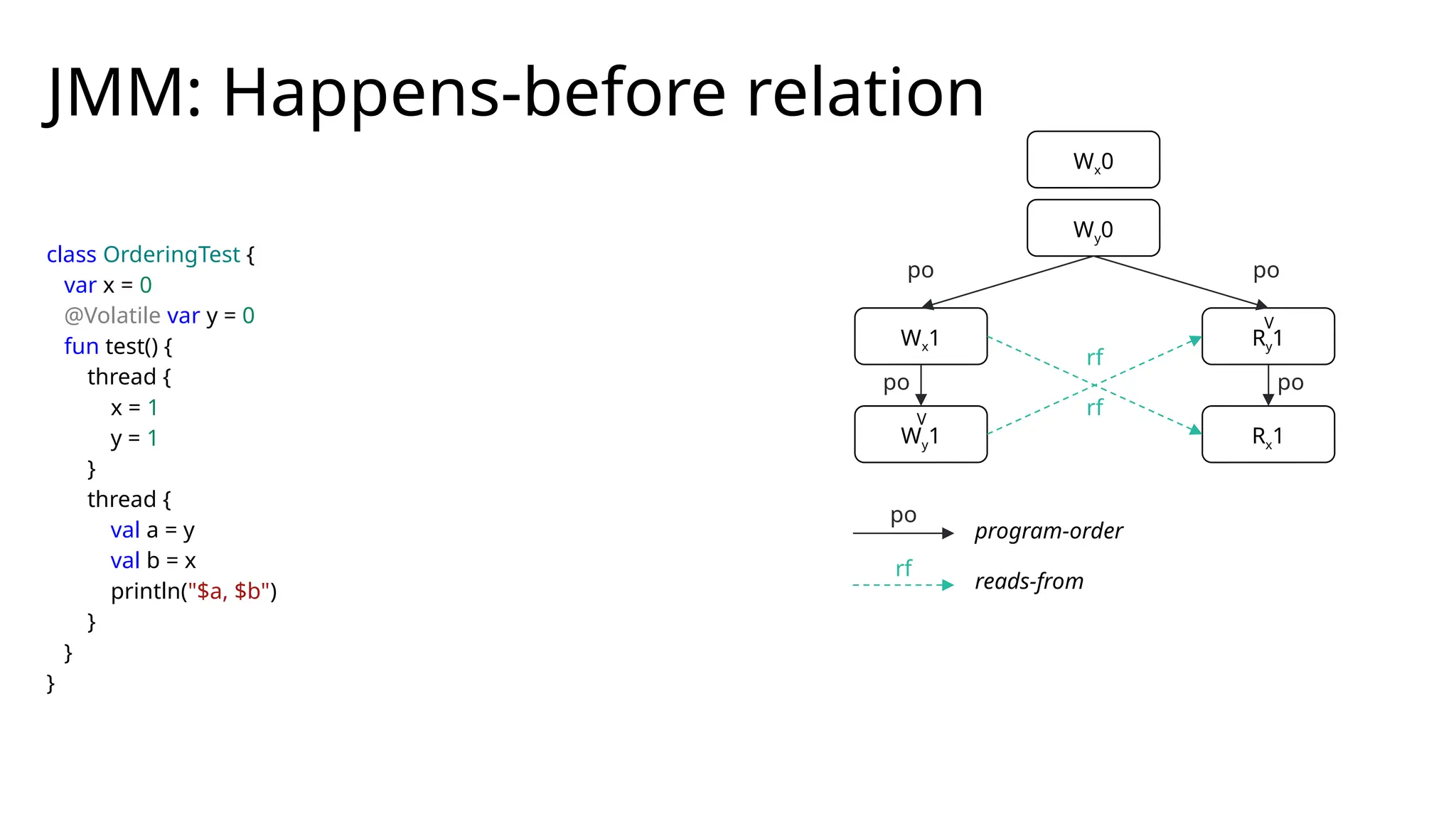

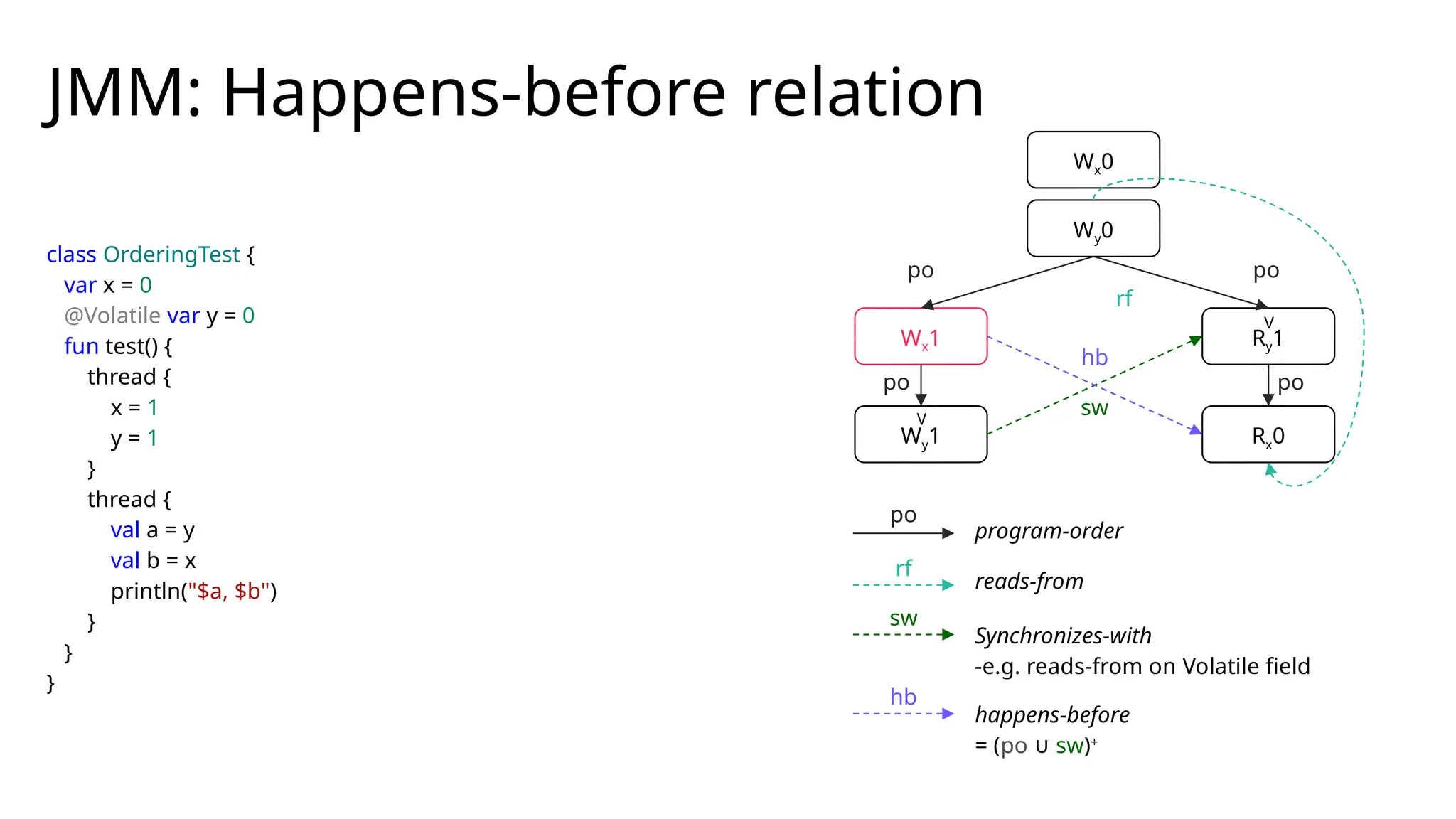

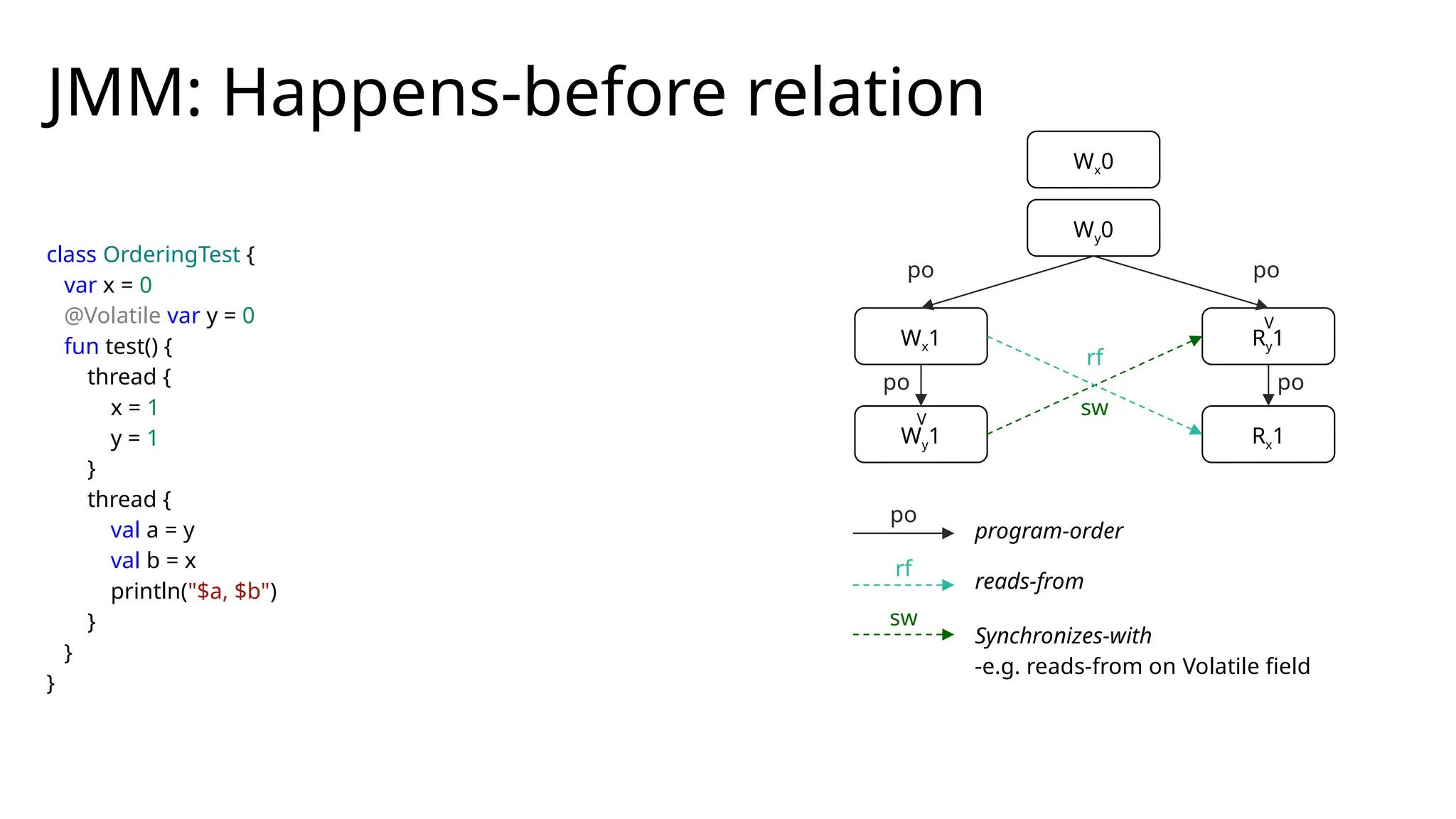

JMM: Happens-before relation
Wx0
Wy0
Wx1 Ry1
Wy1 Rx1
V
V
rf
rf
po
po
po
rf
program-order
reads-from
po
po

var x = 0
@Volatile var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}

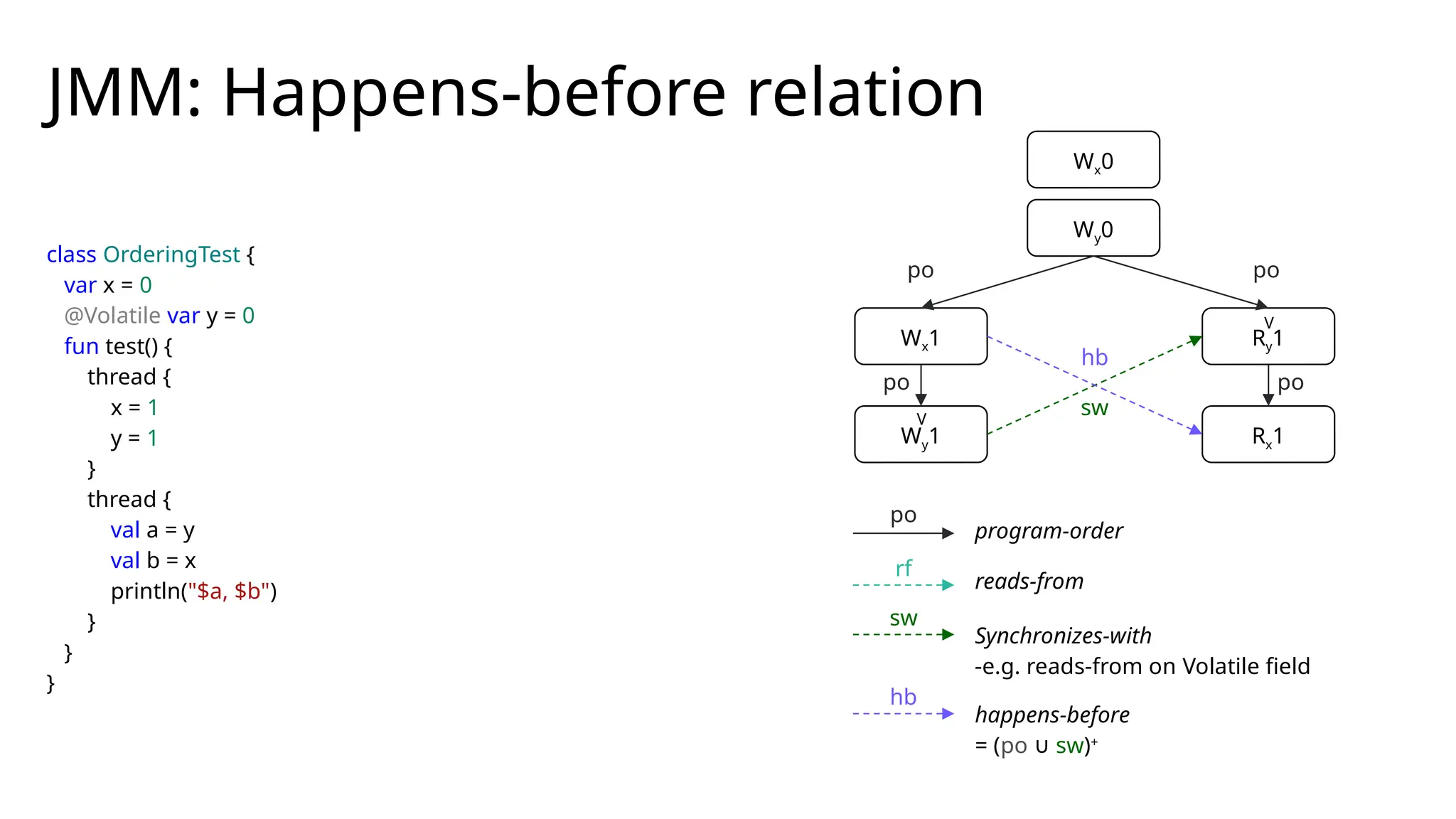

Wx0
Wy0
Wx1 Ry1
Wy1 Rx1
V
V
rf
sw
po
po
po
rf
program-order
reads-from
po
po
sw
Synchronizes-with
-e.g. reads-from on Volatile field

var x = 0
@Volatile var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}
Wx0
Wy0
Wx1 Ry1
Wy1 Rx1
V
V
hb
sw
po
po
po
rf
program-order
reads-from
po
po
sw
Synchronizes-with
hb
happens-before
= (po ∪ sw)+

var x = 0
@Volatile var y = 0
fun test() {
thread {
x = 1
y = 1
}
thread {
val a = y
val b = x
println("$a, $b")
}
}
}
Wx0
Wy0
Wx1 Ry1
Wy1 Rx0
V
V
hb
sw
po
po
po
rf
program-order
reads-from
po
po
sw
Synchronizes-with
hb
happens-before
= (po ∪ sw)+
rf

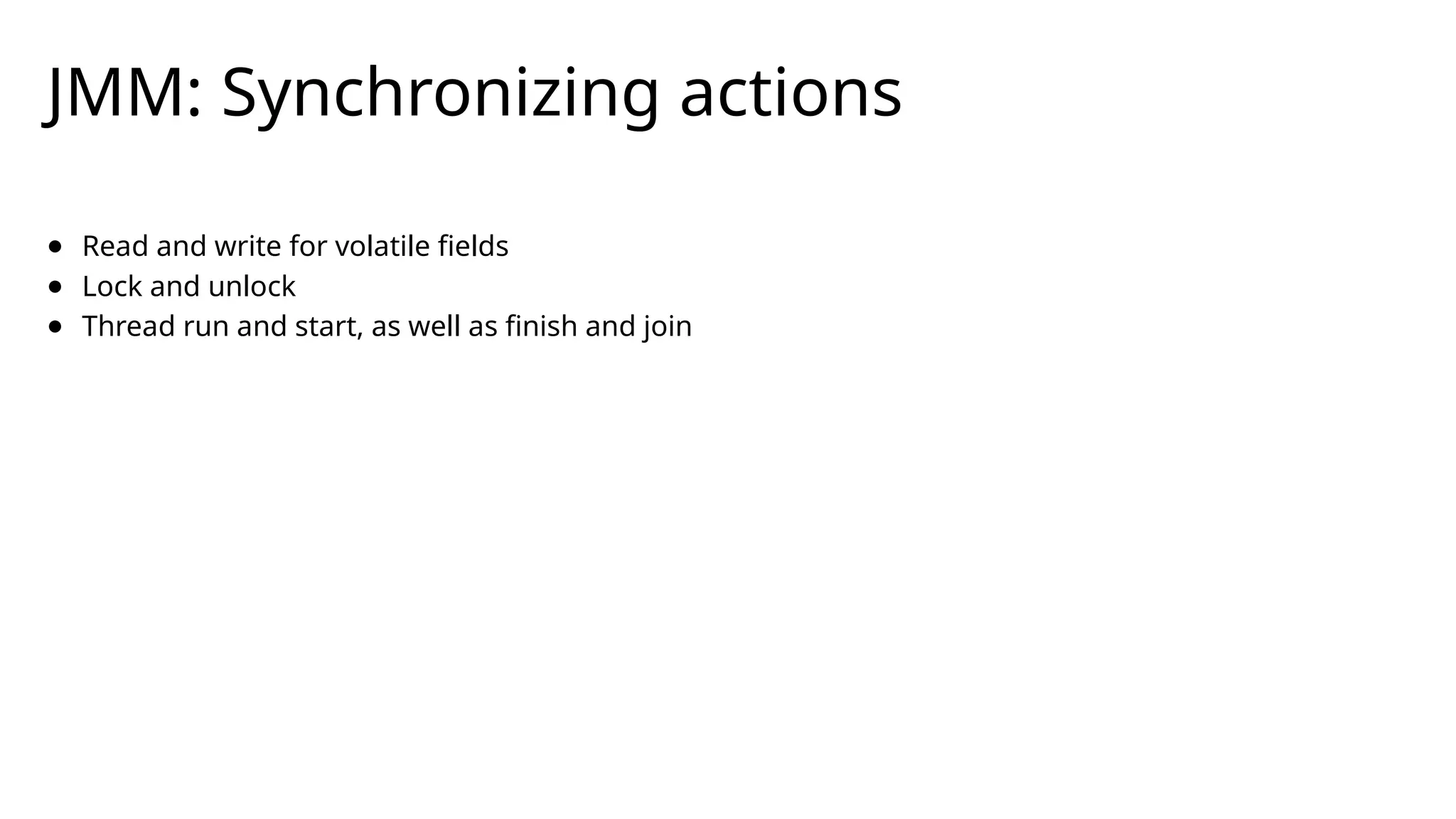

JMM: Synchronizing actions
● Read and write for volatile fields
● Lock and unlock
● Thread run and start, as well as finish and join

JMM: DRF-SC again
Two events form a data race if:
● Both are memory accesses to the same field.
● Both are plain (non-atomic) accesses.
● At least one of them is a write event.
● They are not related by happens before.
Data-race-free programs have sequentially consistent semantics
A program is data-race-free if, for every possible execution of this program, no two events form a
data race.

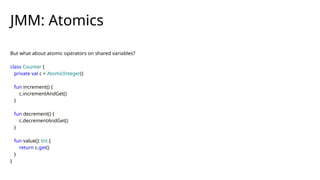

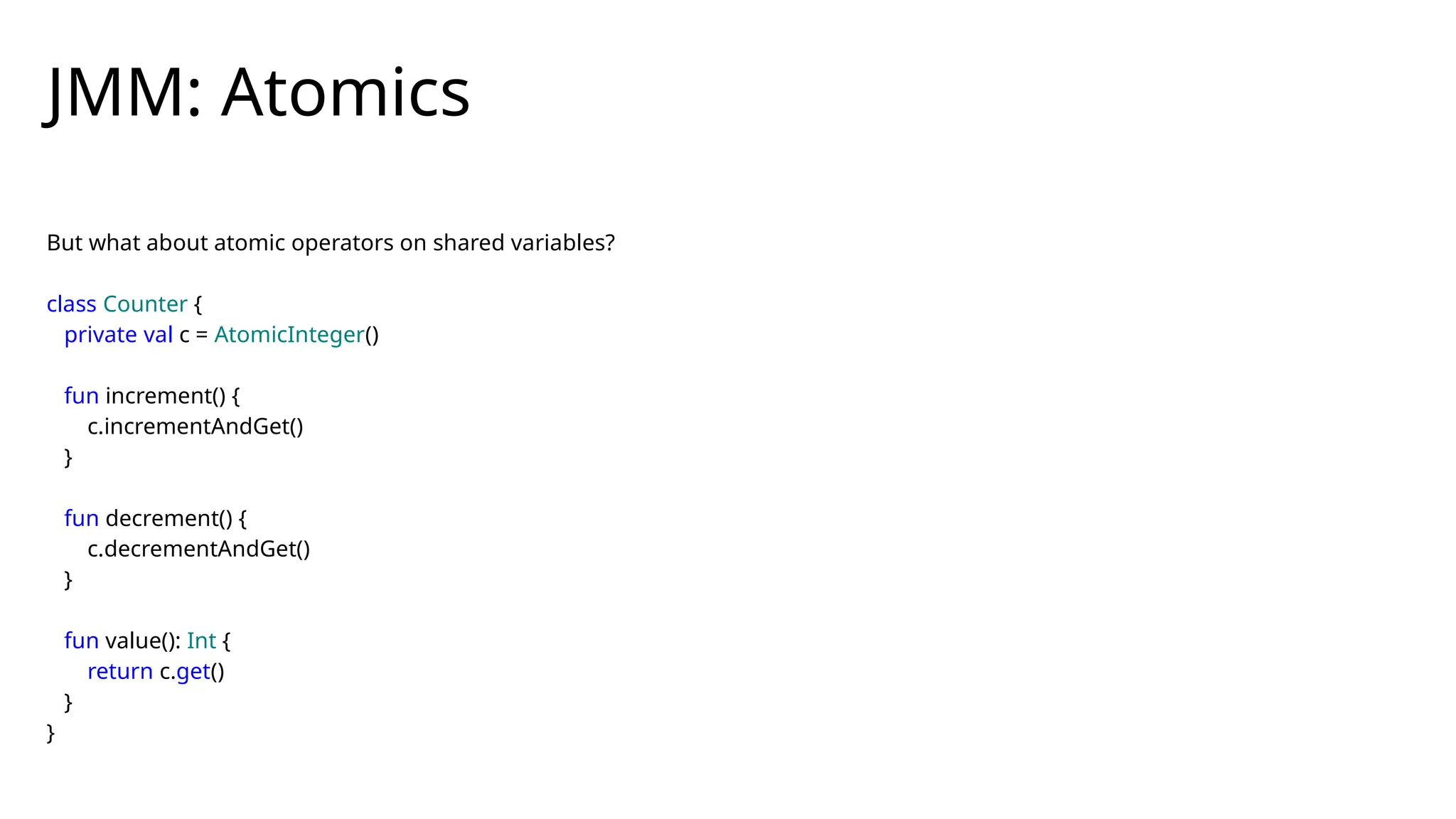

But what about atomic operators on shared variables?
class Counter {
private val c = AtomicInteger()
fun increment() {
c.incrementAndGet()
}
fun decrement() {
c.decrementAndGet()
}
fun value(): Int {
return c.get()
}
}
JMM: Atomics

JMM: Atomics

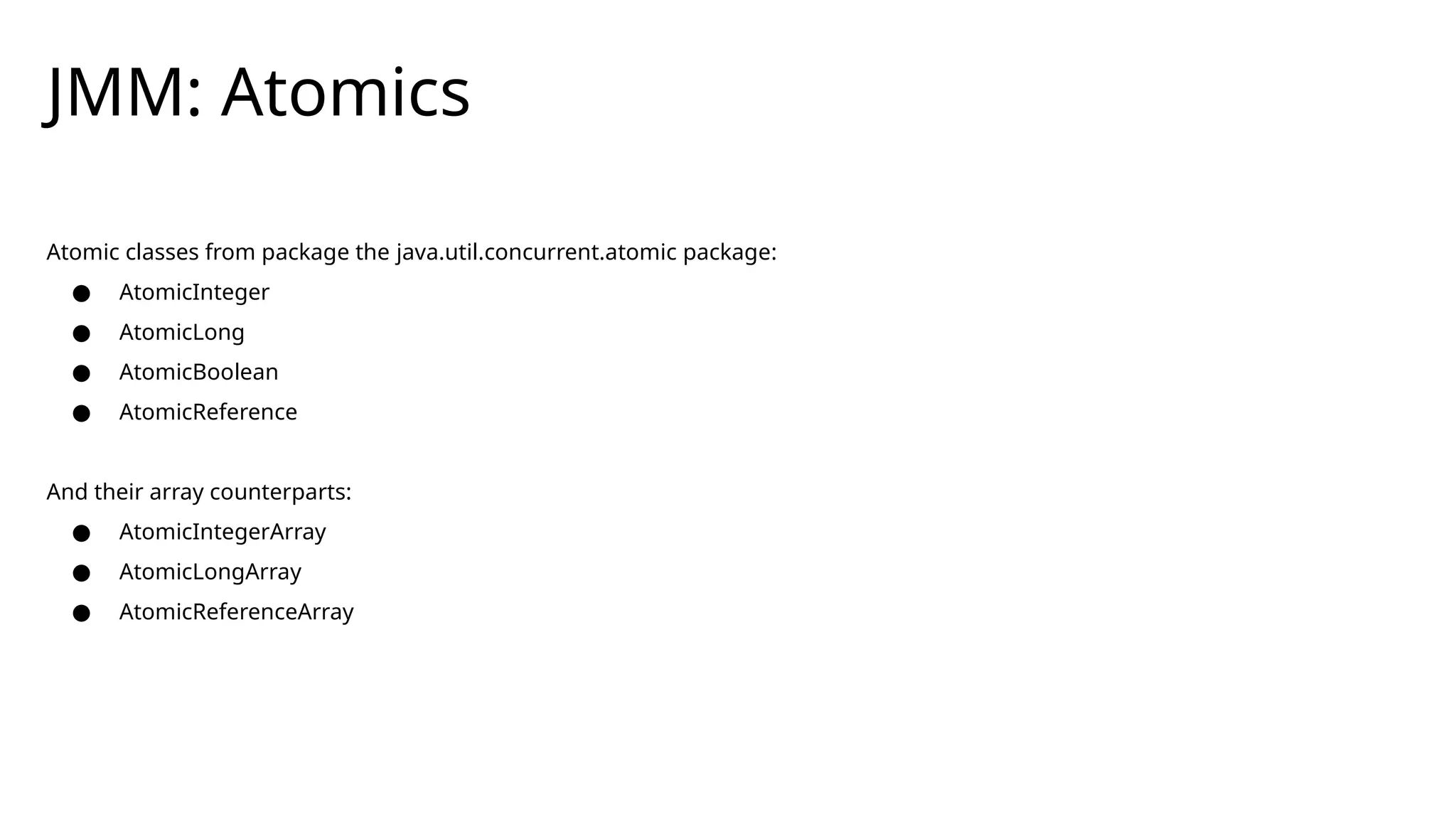

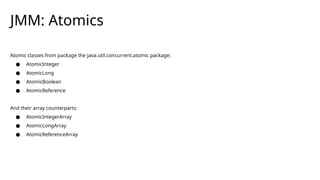

Atomic classes from package the java.util.concurrent.atomic package:
● AtomicInteger
● AtomicLong
● AtomicBoolean
● AtomicReference
And their array counterparts:
● AtomicIntegerArray
● AtomicLongArray
● AtomicReferenceArray

JMM: Atomics

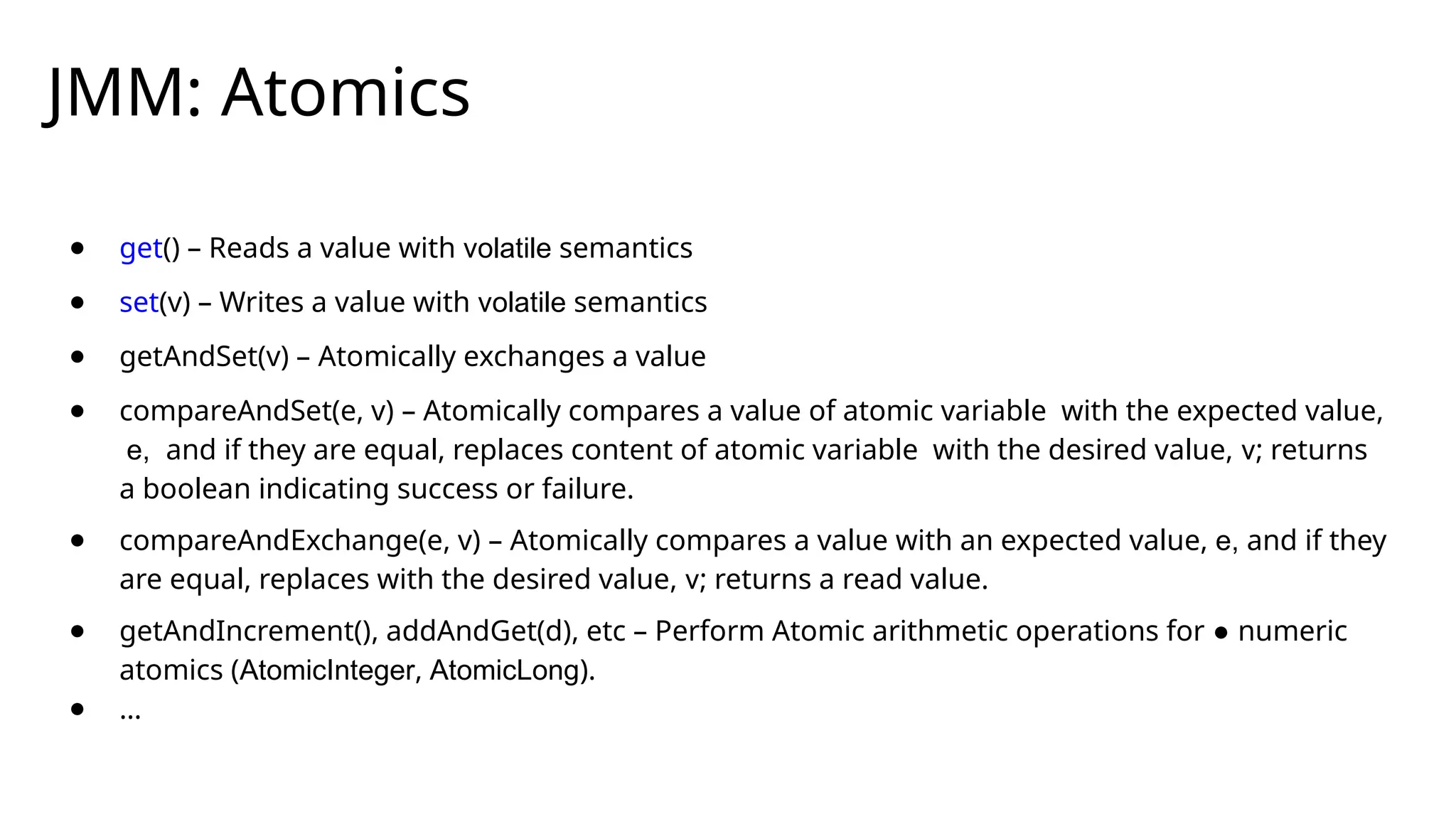

● get() – Reads a value with volatile semantics
● set(v) – Writes a value with volatile semantics
● getAndSet(v) – Atomically exchanges a value
● compareAndSet(e, v) – Atomically compares a value of atomic variable with the expected value,
e, and if they are equal, replaces content of atomic variable with the desired value, v; returns
a boolean indicating success or failure.
● compareAndExchange(e, v) – Atomically compares a value with an expected value, e, and if they
are equal, replaces with the desired value, v; returns a read value.
● getAndIncrement(), addAndGet(d), etc – Perform Atomic arithmetic operations for ● numeric
atomics (AtomicInteger, AtomicLong).
● …

JMM: Atomics

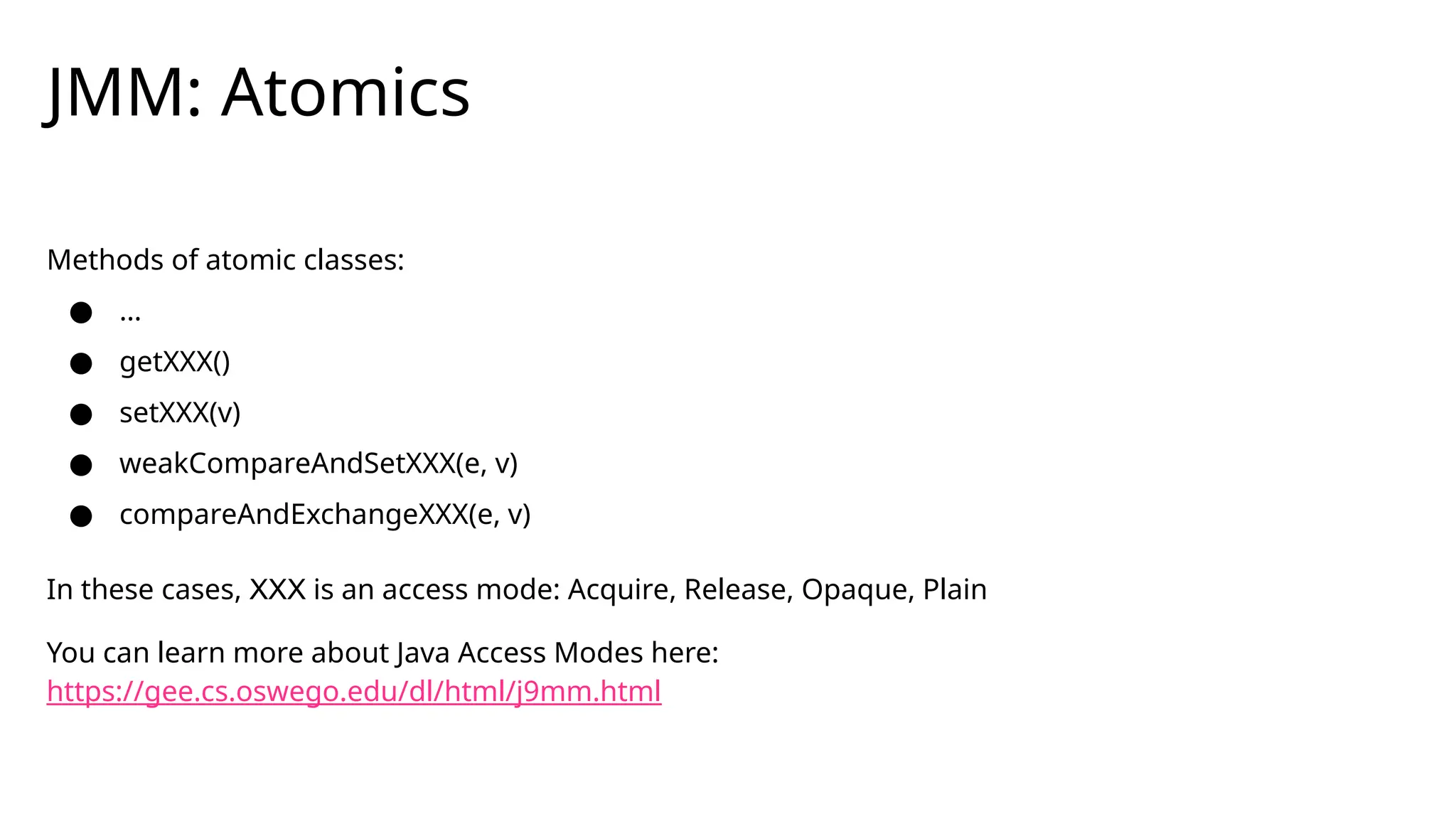

Methods of atomic classes:
● …
● getXXX()
● setXXX(v)
● weakCompareAndSetXXX(e, v)
● compareAndExchangeXXX(e, v)
In these cases, XXX is an access mode: Acquire, Release, Opaque, Plain
You can learn more about Java Access Modes here:
https://gee.cs.oswego.edu/dl/html/j9mm.html

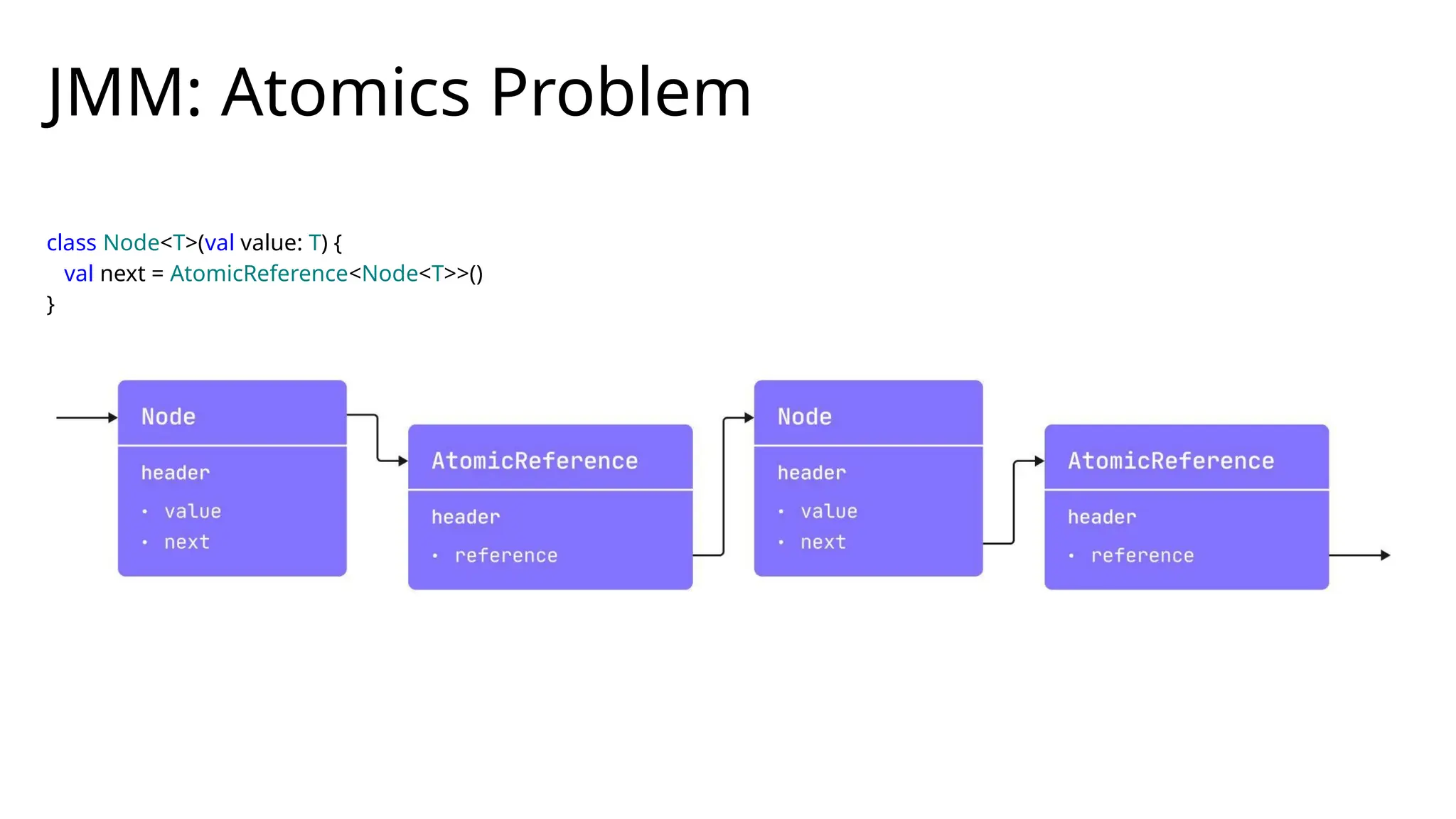

class Node<T>(val value: T) {
val next = AtomicReference<Node<T>>()
}
JMM: Atomics Problem

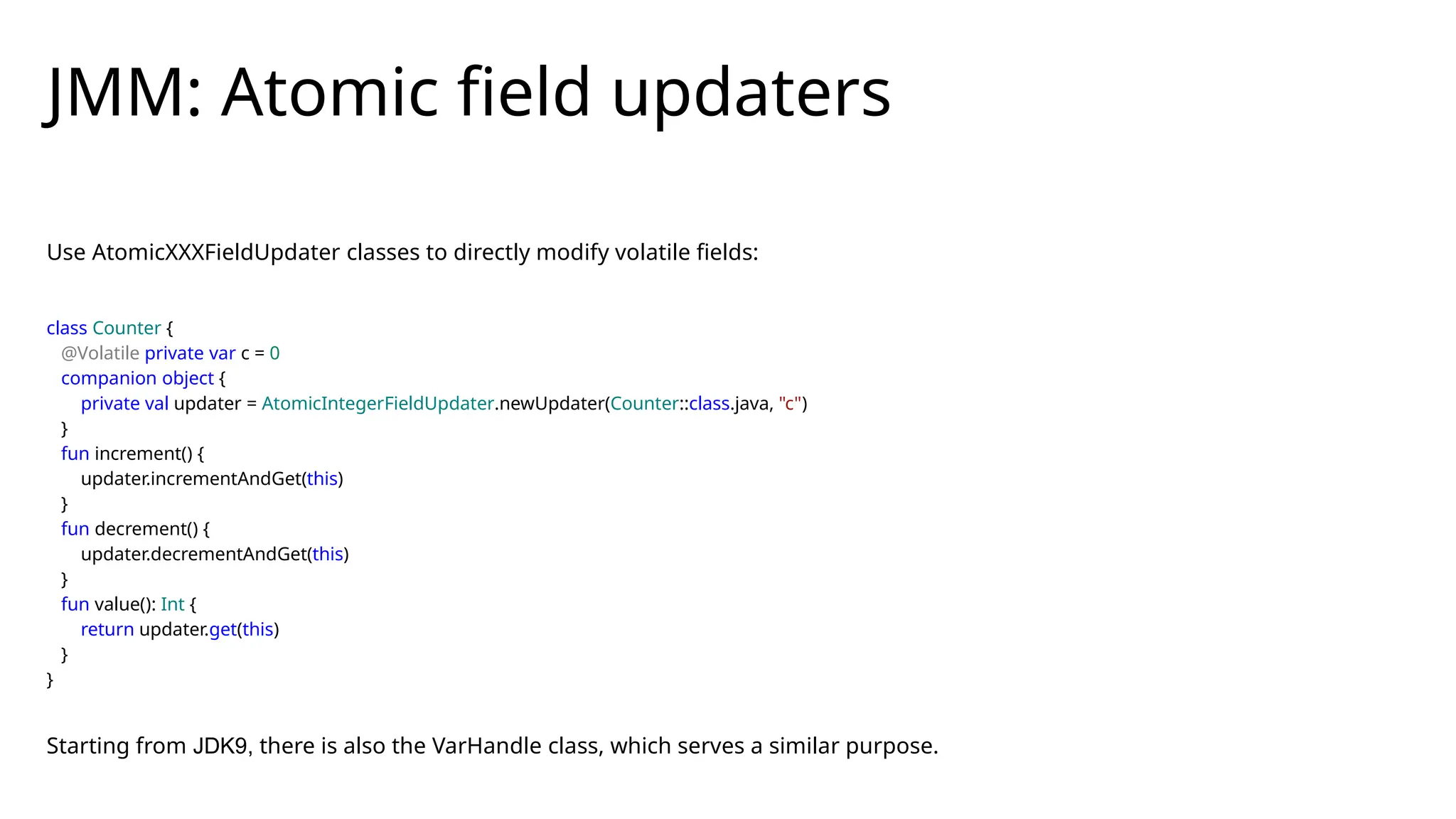

Use AtomicXXXFieldUpdater classes to directly modify volatile fields:
class Counter {
@Volatile private var c = 0
companion object {
private val updater = AtomicIntegerFieldUpdater.newUpdater(Counter::class.java, "c")
}
fun increment() {
updater.incrementAndGet(this)
}
fun decrement() {
updater.decrementAndGet(this)
}
fun value(): Int {
return updater.get(this)
}
}
Starting from JDK9, there is also the VarHandle class, which serves a similar purpose.
JMM: Atomic field updaters

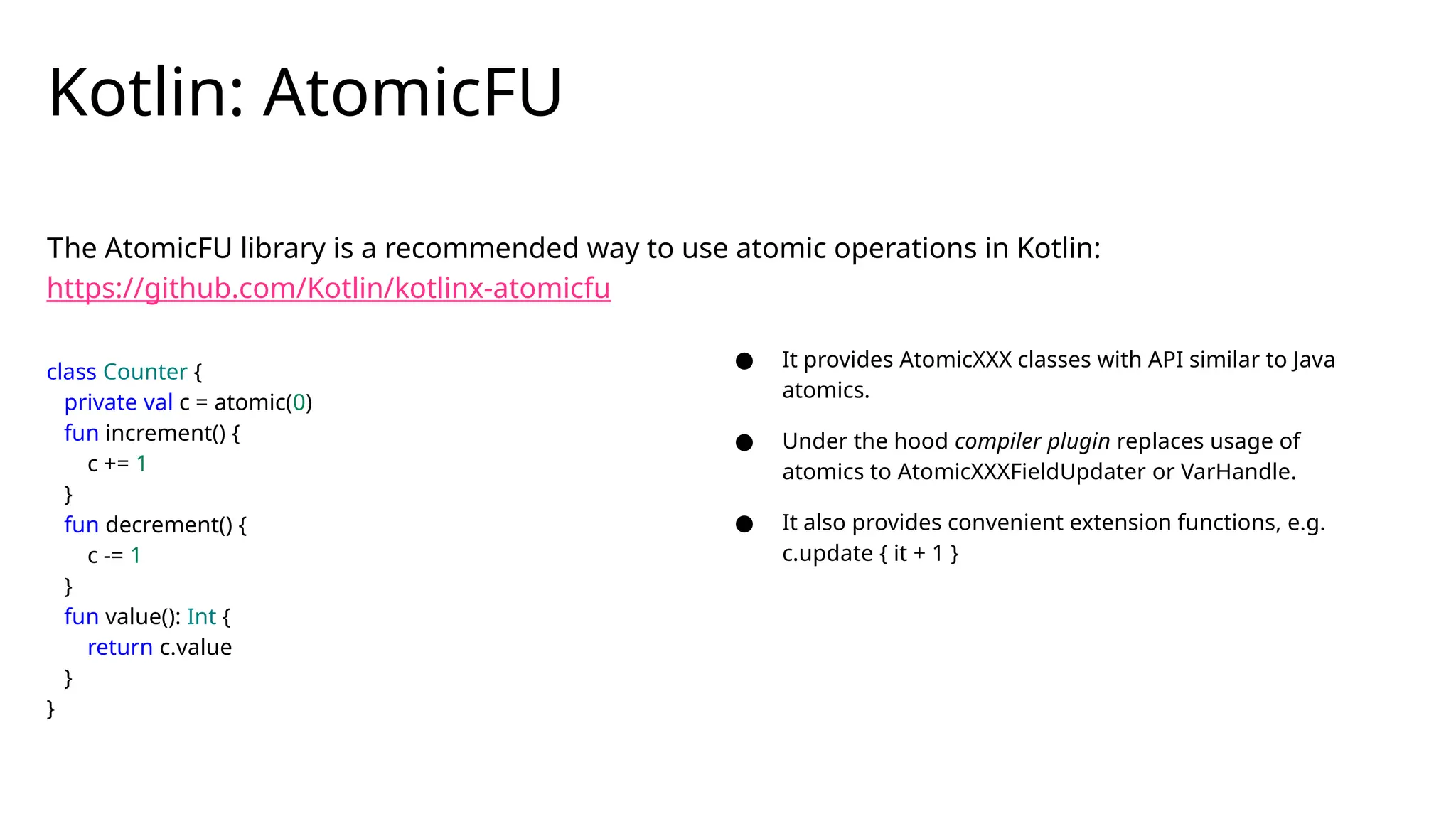

The AtomicFU library is a recommended way to use atomic operations in Kotlin:
https://github.com/Kotlin/kotlinx-atomicfu
Kotlin: AtomicFU
class Counter {
private val c = atomic(0)
fun increment() {
c += 1
}
fun decrement() {
c -= 1
}
fun value(): Int {
return c.value
}
}
● It provides AtomicXXX classes with API similar to Java
atomics.
● Under the hood compiler plugin replaces usage of
atomics to AtomicXXXFieldUpdater or VarHandle.
● It also provides convenient extension functions, e.g.
c.update { it + 1 }

Thanks!
@kotlin | Developed by JetBrains

Parallel & Concurrent Programming.pptx

More Related Content

Similar to Parallel & Concurrent Programming.pptx

Recently uploaded

Parallel & Concurrent Programming.pptx

Editor's Notes
