Plproxy

Plproxy

• 1.
  Pl/proxy The PostgreSQLCompany Command Prompt, Inc. Joshua D. Drake [email_address]

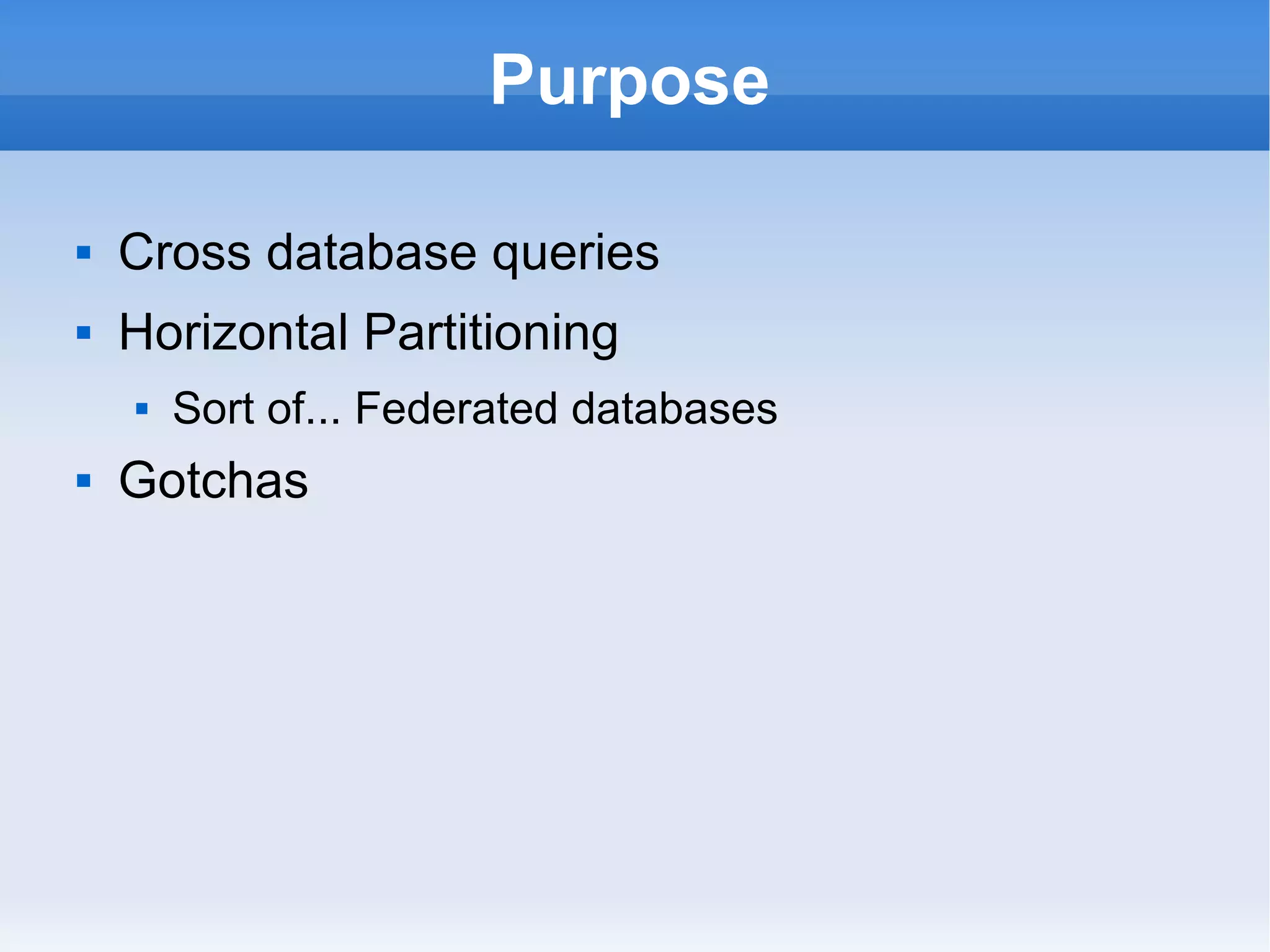

• 2.
  Purpose Cross databasequeries Horizontal Partitioning Sort of... Federated databases Gotchas
• 3.

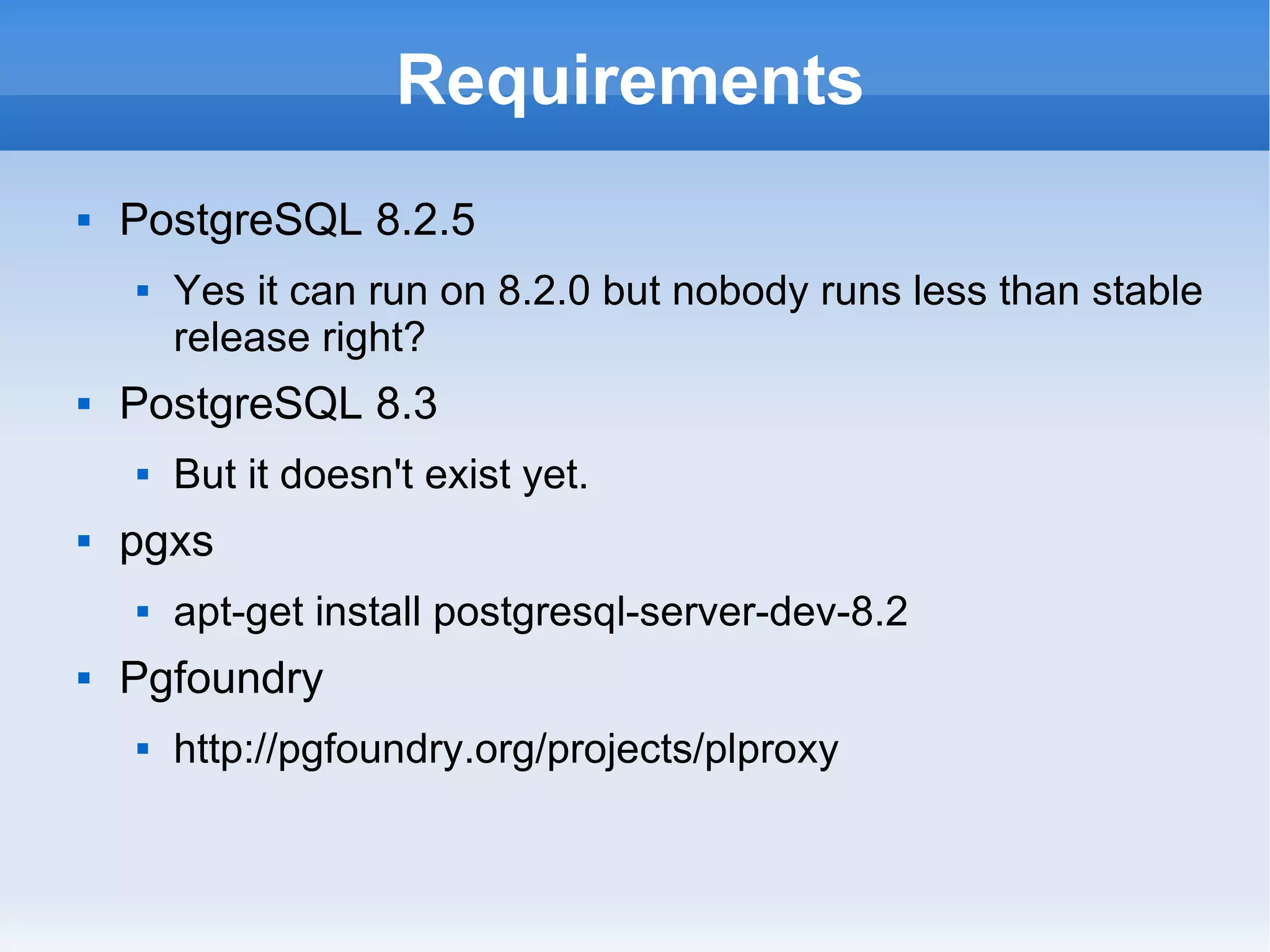

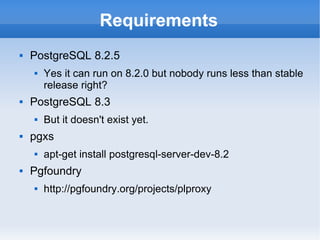

  Requirements PostgreSQL 8.2.5Yes it can run on 8.2.0 but nobody runs less than stable release right? PostgreSQL 8.3 But it doesn't exist yet. pgxs apt-get install postgresql-server-dev-8.2 Pgfoundry http://pgfoundry.org/projects/plproxy
• 4.

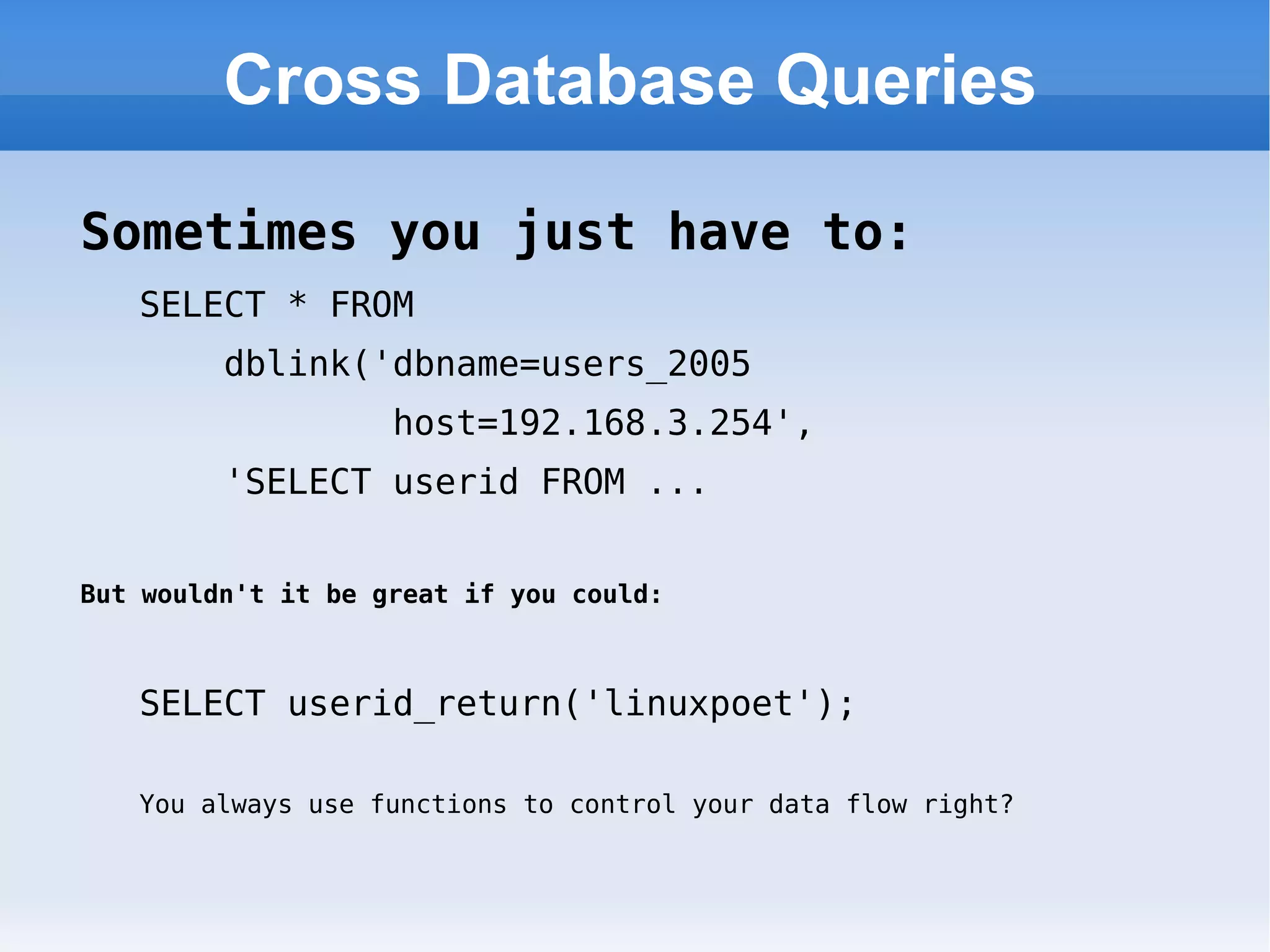

  Cross Database QueriesSometimes you just have to: SELECT * FROM dblink('dbname=users_2005 host=192.168.3.254', 'SELECT userid FROM ... But wouldn't it be great if you could: SELECT userid_return('linuxpoet'); You always use functions to control your data flow right?
• 5.

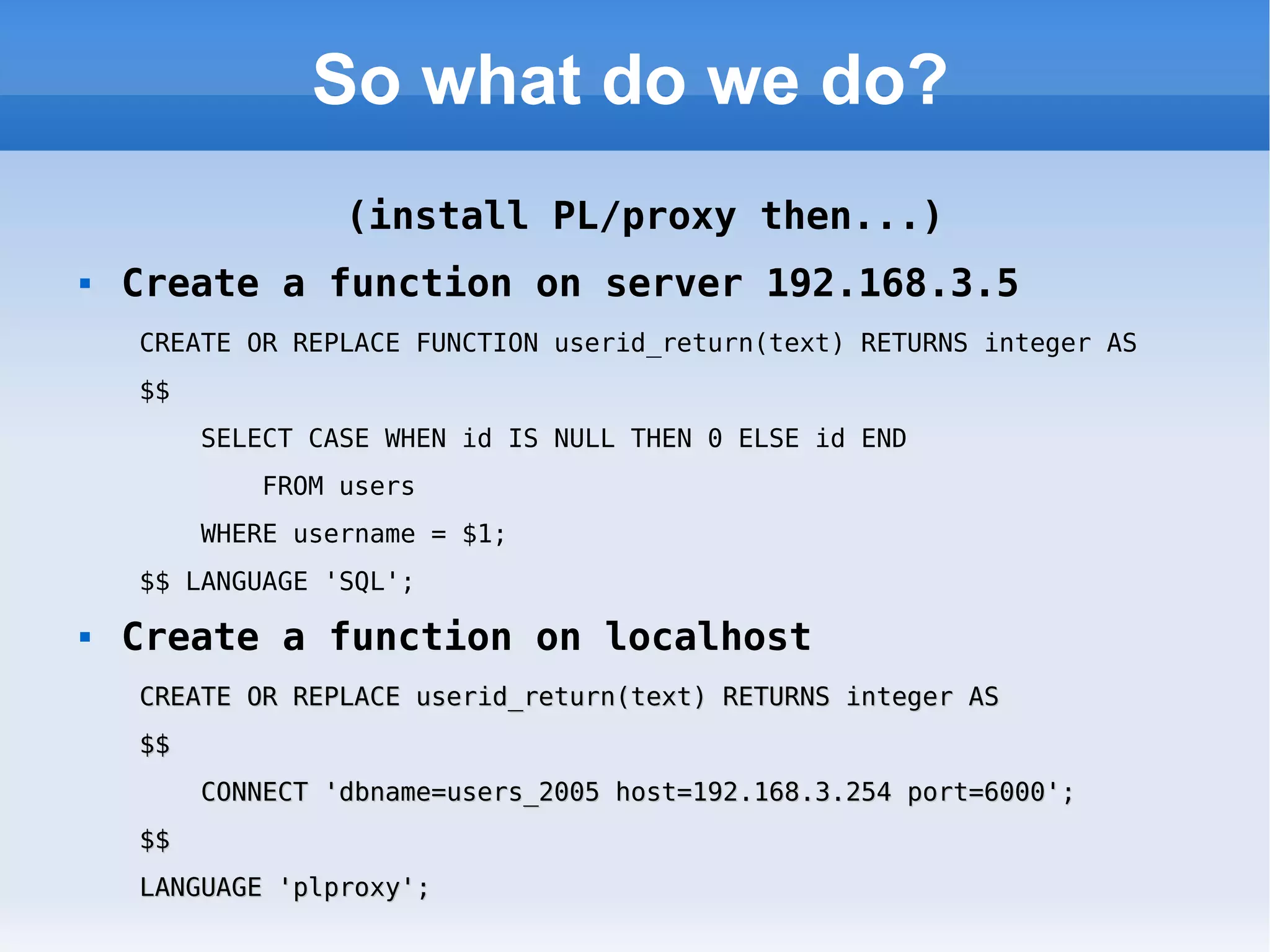

  So what dowe do? (install PL/proxy then...) Create a function on server 192.168.3.5 CREATE OR REPLACE FUNCTION userid_return(text) RETURNS integer AS $$ SELECT CASE WHEN id IS NULL THEN 0 ELSE id END FROM users WHERE username = $1; $$ LANGUAGE 'SQL'; Create a function on localhost CREATE OR REPLACE userid_return(text) RETURNS integer AS $$ CONNECT 'dbname=users_2005 host=192.168.3.254 port=6000'; $$ LANGUAGE 'plproxy';
• 6.

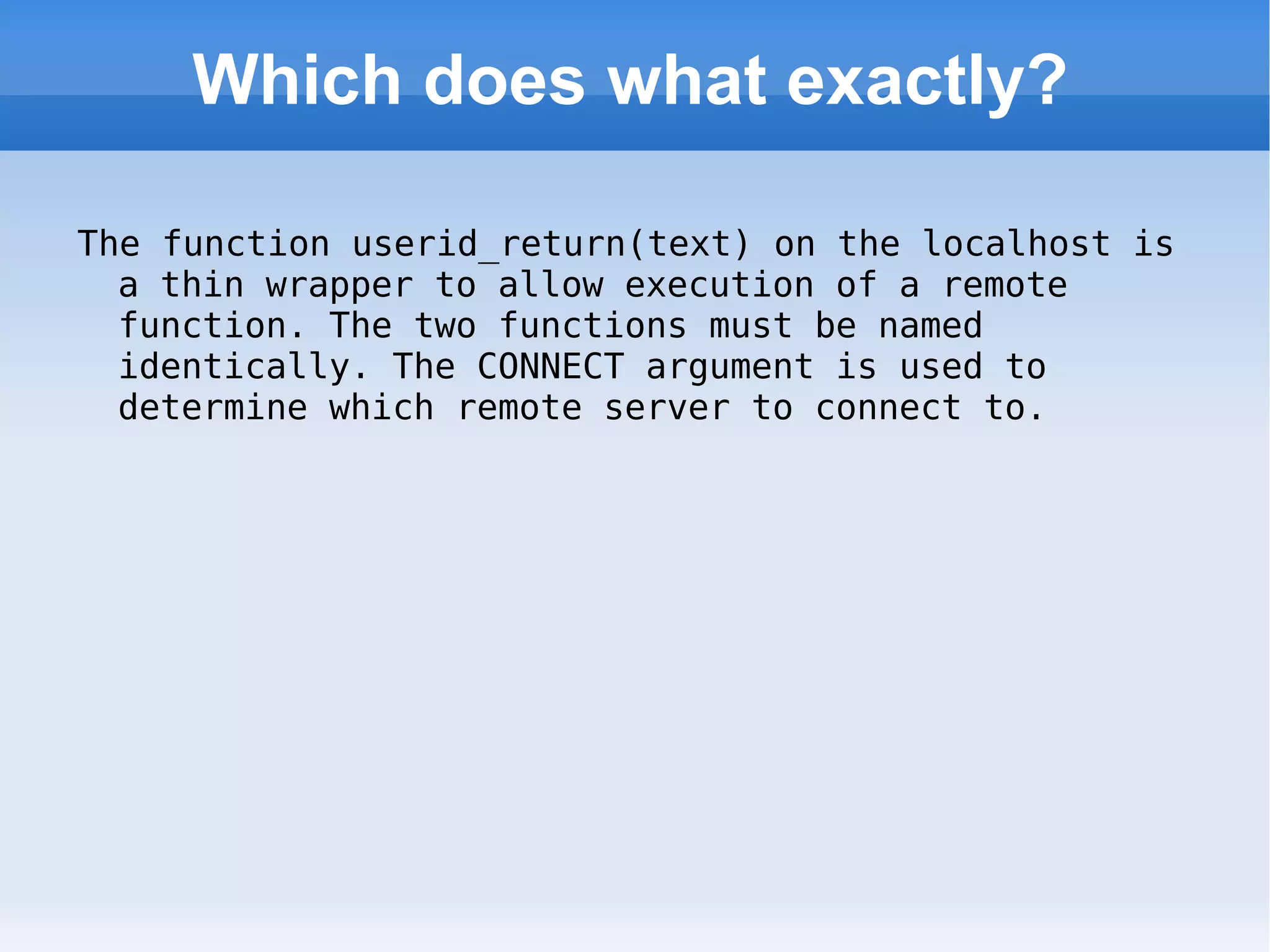

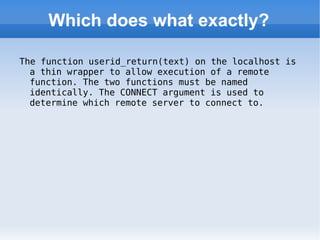

  Which does whatexactly? The function userid_return(text) on the localhost is a thin wrapper to allow execution of a remote function. The two functions must be named identically. The CONNECT argument is used to determine which remote server to connect to.
• 7.

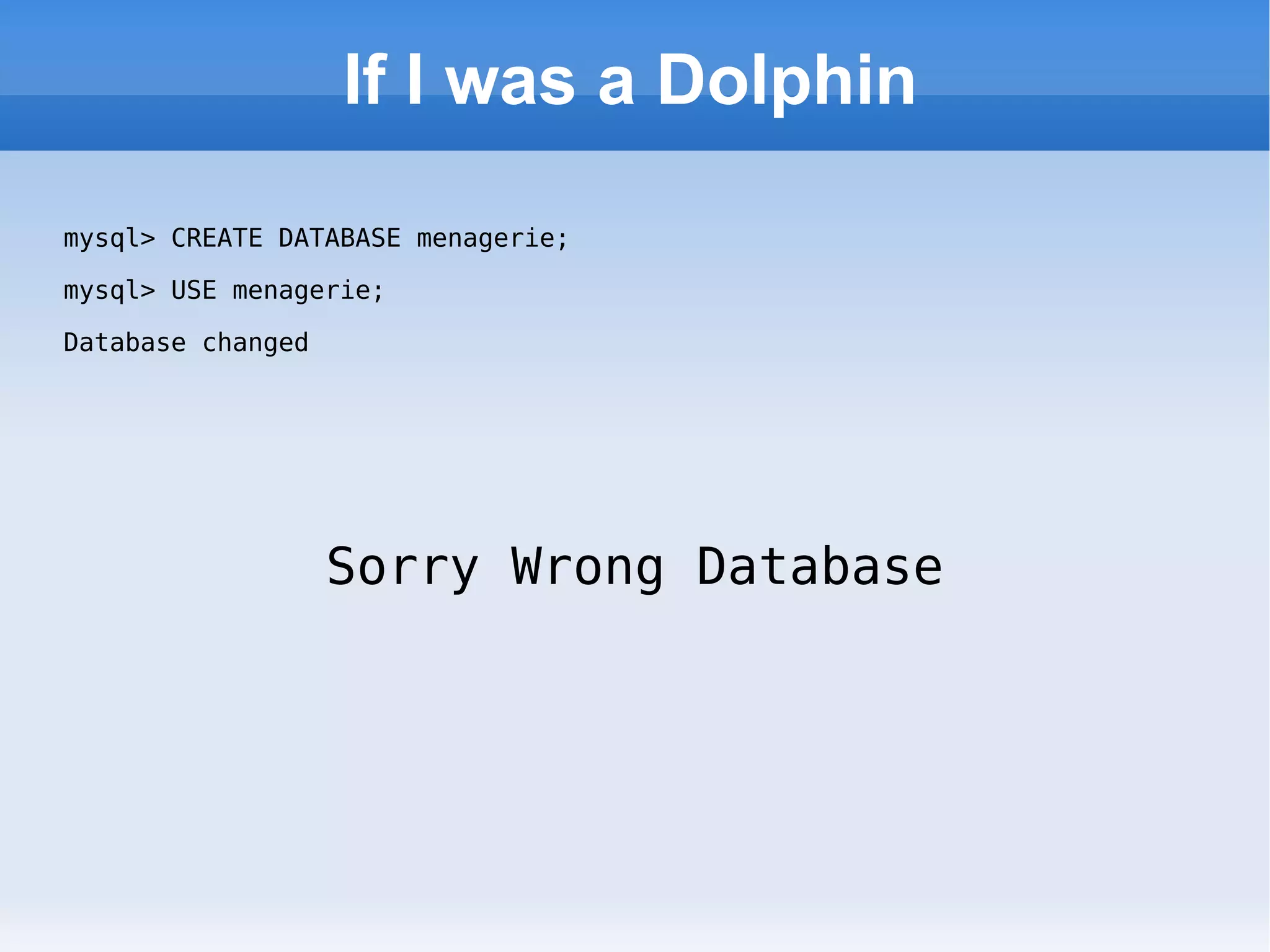

  If I wasa Dolphin mysql> CREATE DATABASE menagerie; mysql> USE menagerie; Database changed Sorry Wrong Database
• 8.

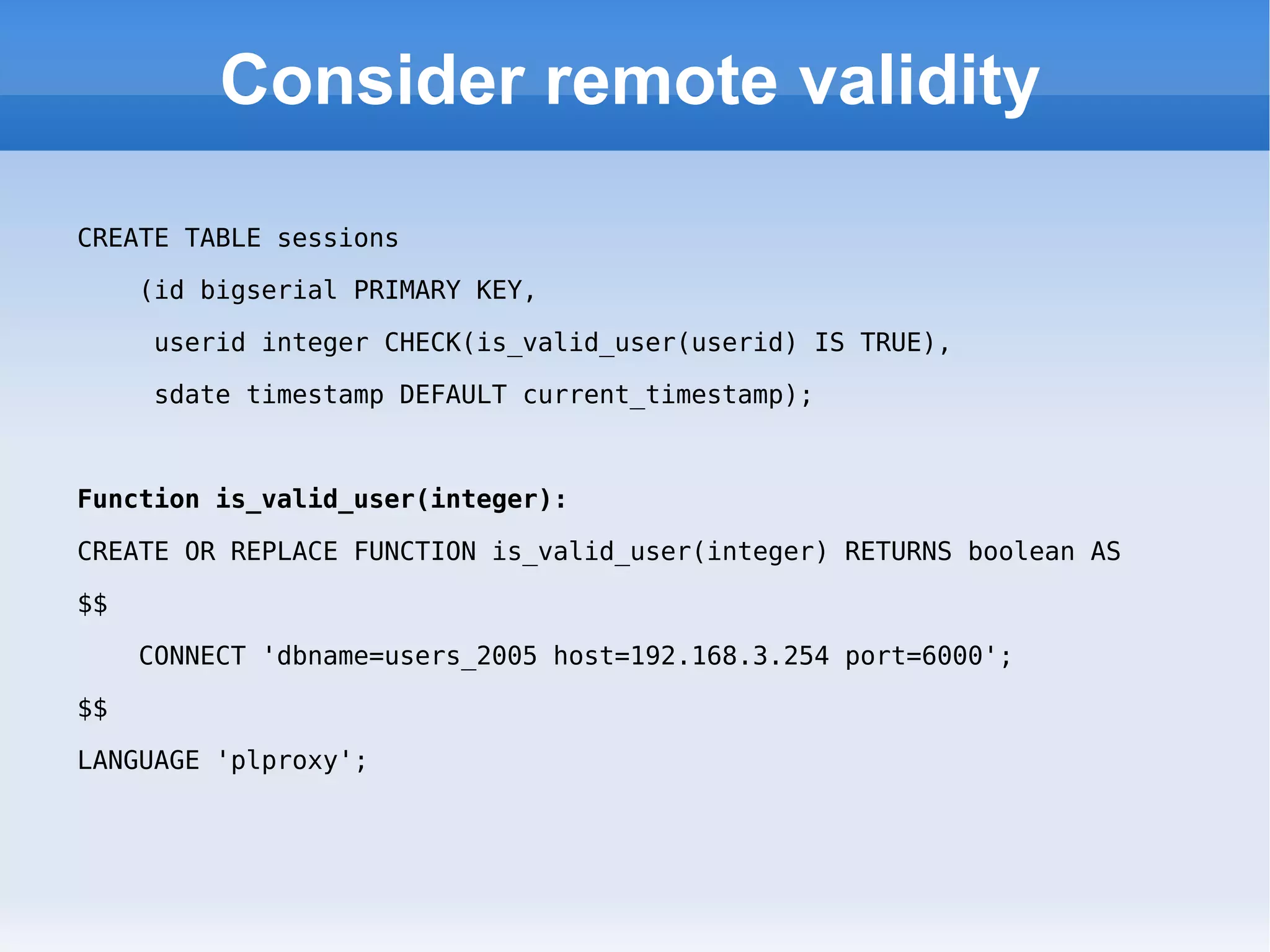

  Consider remote validityCREATE TABLE sessions (id bigserial PRIMARY KEY, userid integer CHECK(is_valid_user(userid) IS TRUE), sdate timestamp DEFAULT current_timestamp); Function is_valid_user(integer): CREATE OR REPLACE FUNCTION is_valid_user(integer) RETURNS boolean AS $$ CONNECT 'dbname=users_2005 host=192.168.3.254 port=6000'; $$ LANGUAGE 'plproxy';

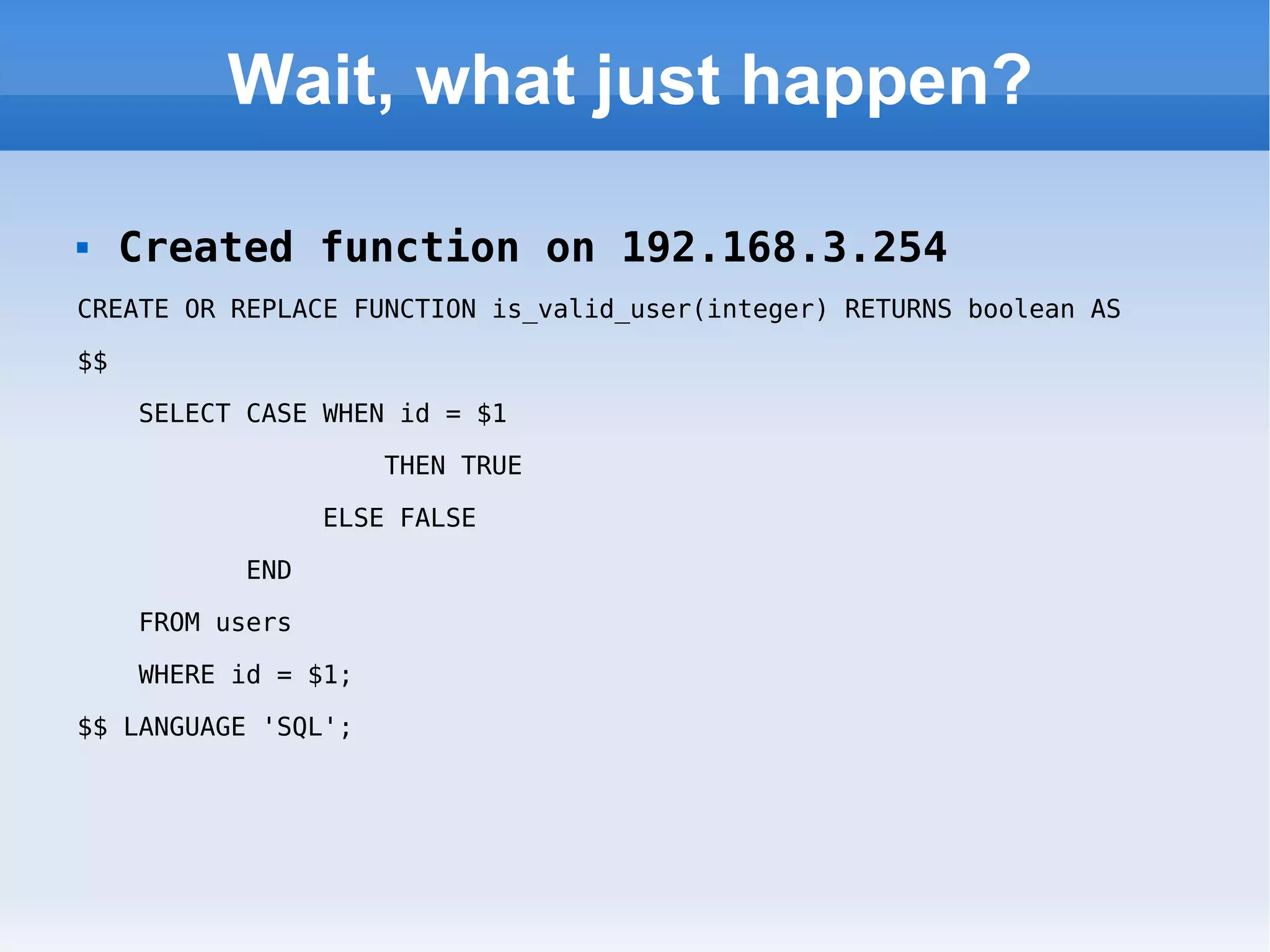

• 9.
  Wait, what justhappen? Created function on 192.168.3.254 CREATE OR REPLACE FUNCTION is_valid_user(integer) RETURNS boolean AS $$ SELECT CASE WHEN id = $1 THEN TRUE ELSE FALSE END FROM users WHERE id = $1; $$ LANGUAGE 'SQL';

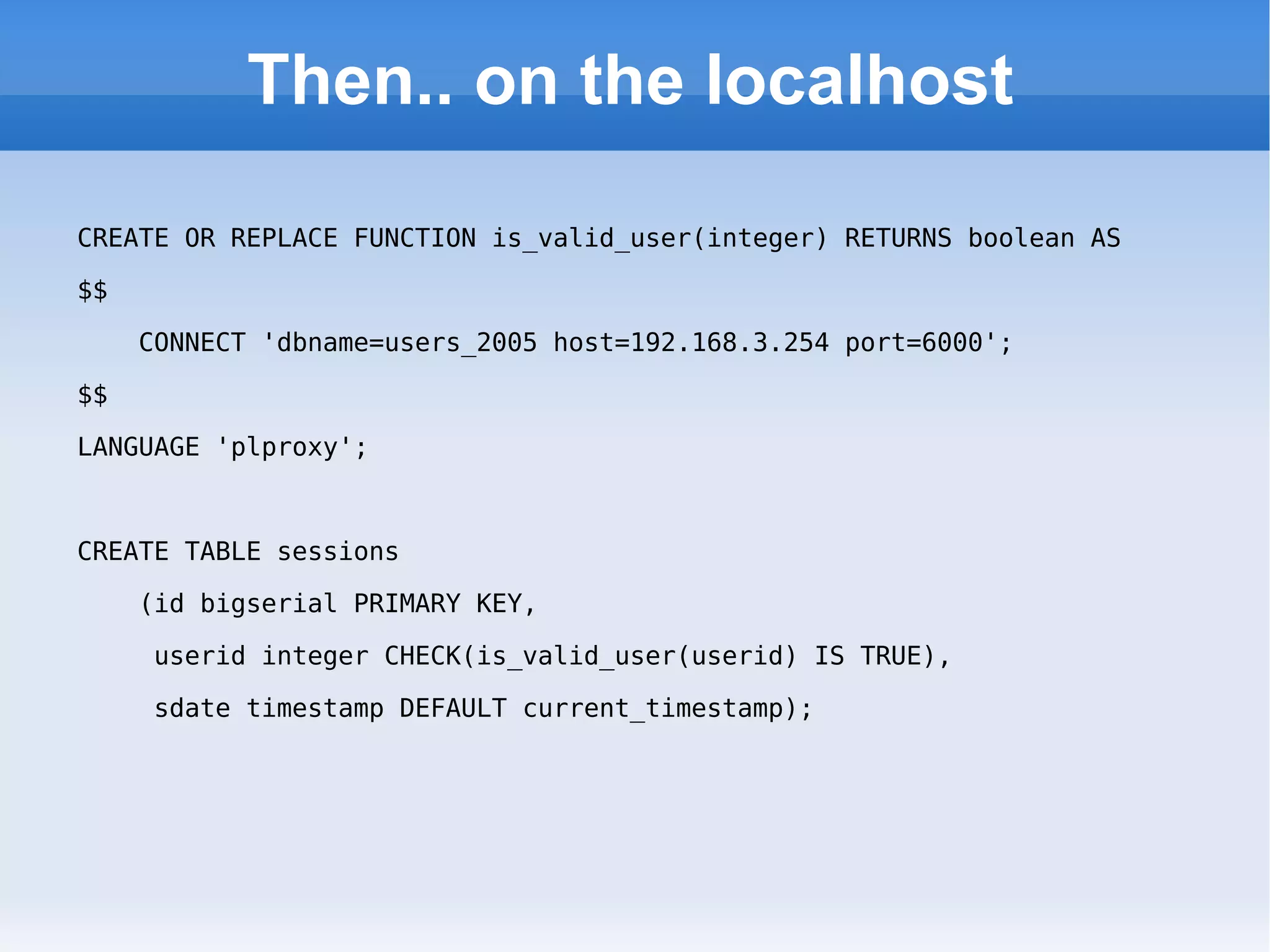

• 10.

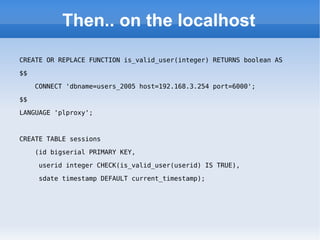

  Then.. on thelocalhost CREATE OR REPLACE FUNCTION is_valid_user(integer) RETURNS boolean AS $$ CONNECT 'dbname=users_2005 host=192.168.3.254 port=6000'; $$ LANGUAGE 'plproxy'; CREATE TABLE sessions (id bigserial PRIMARY KEY, userid integer CHECK(is_valid_user(userid) IS TRUE), sdate timestamp DEFAULT current_timestamp);

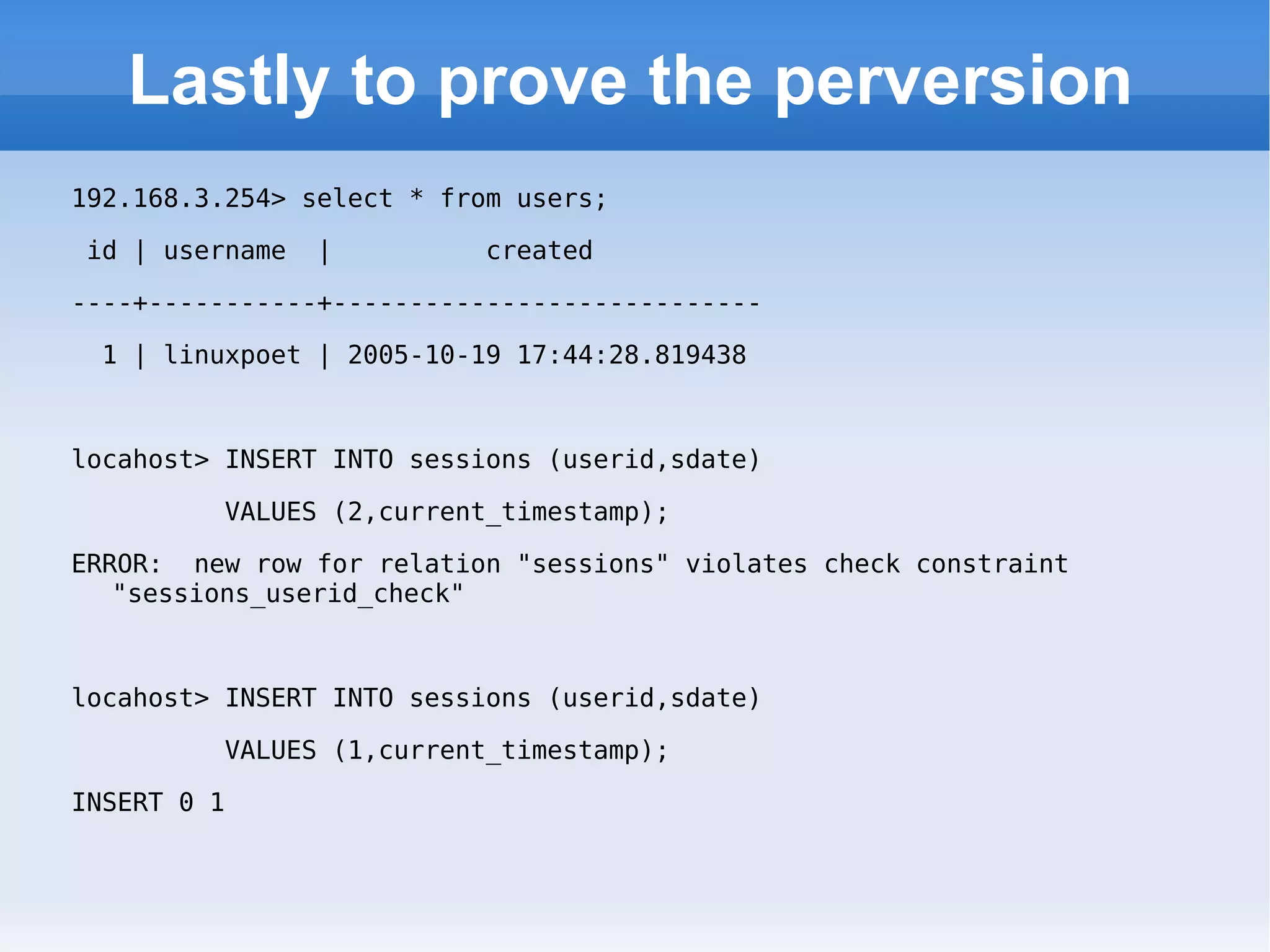

• 11.

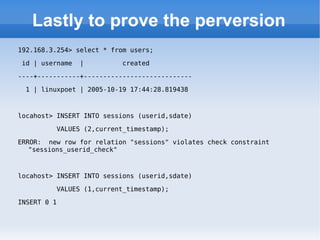

  Lastly to provethe perversion 192.168.3.254> select * from users; id | username | created ----+-----------+---------------------------- 1 | linuxpoet | 2005-10-19 17:44:28.819438 locahost> INSERT INTO sessions (userid,sdate) VALUES (2,current_timestamp); ERROR: new row for relation "sessions" violates check constraint "sessions_userid_check" locahost> INSERT INTO sessions (userid,sdate) VALUES (1,current_timestamp); INSERT 0 1
• 12.

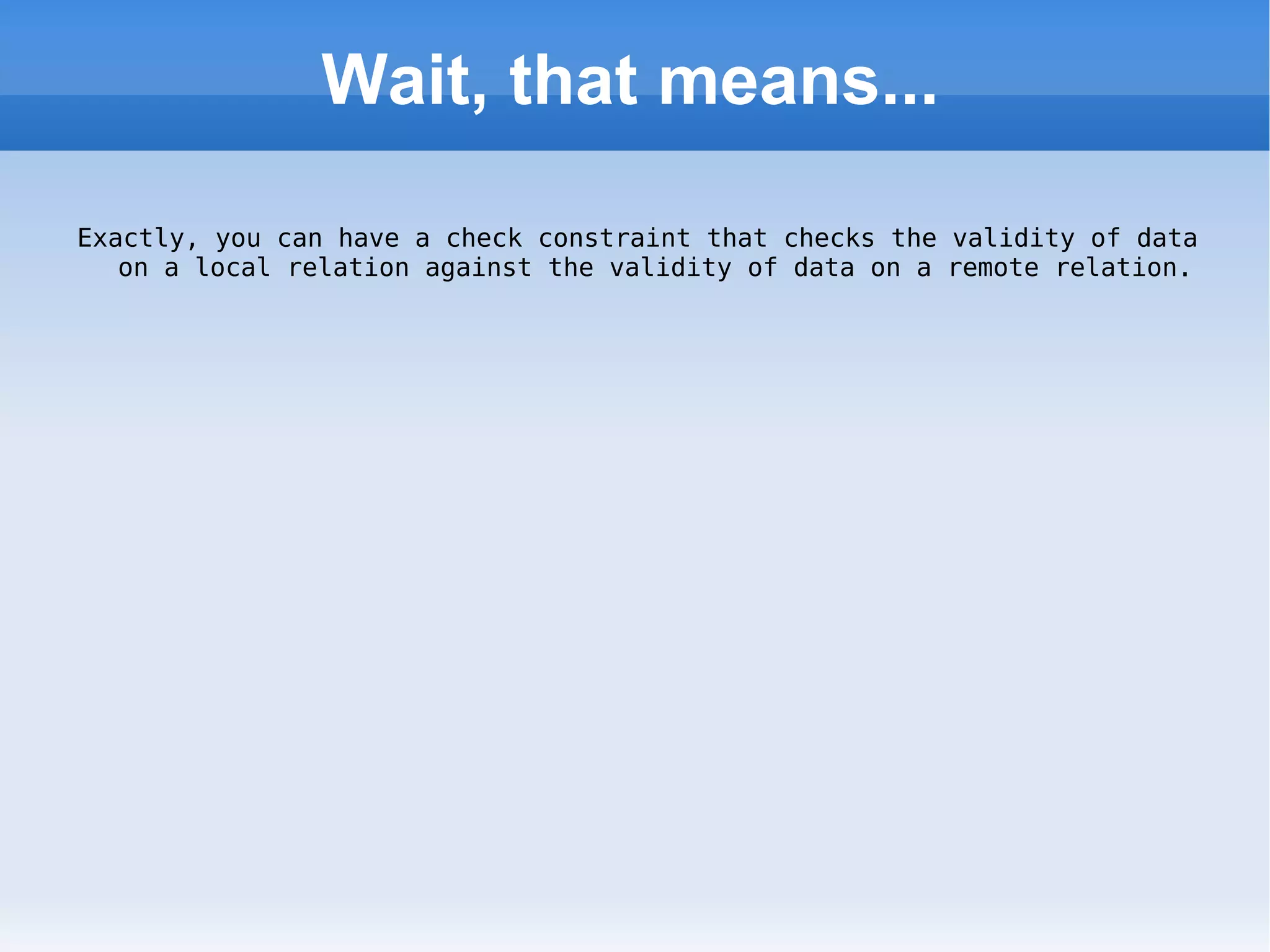

  Wait, that means...Exactly, you can have a check constraint that checks the validity of data on a local relation against the validity of data on a remote relation.
• 13.

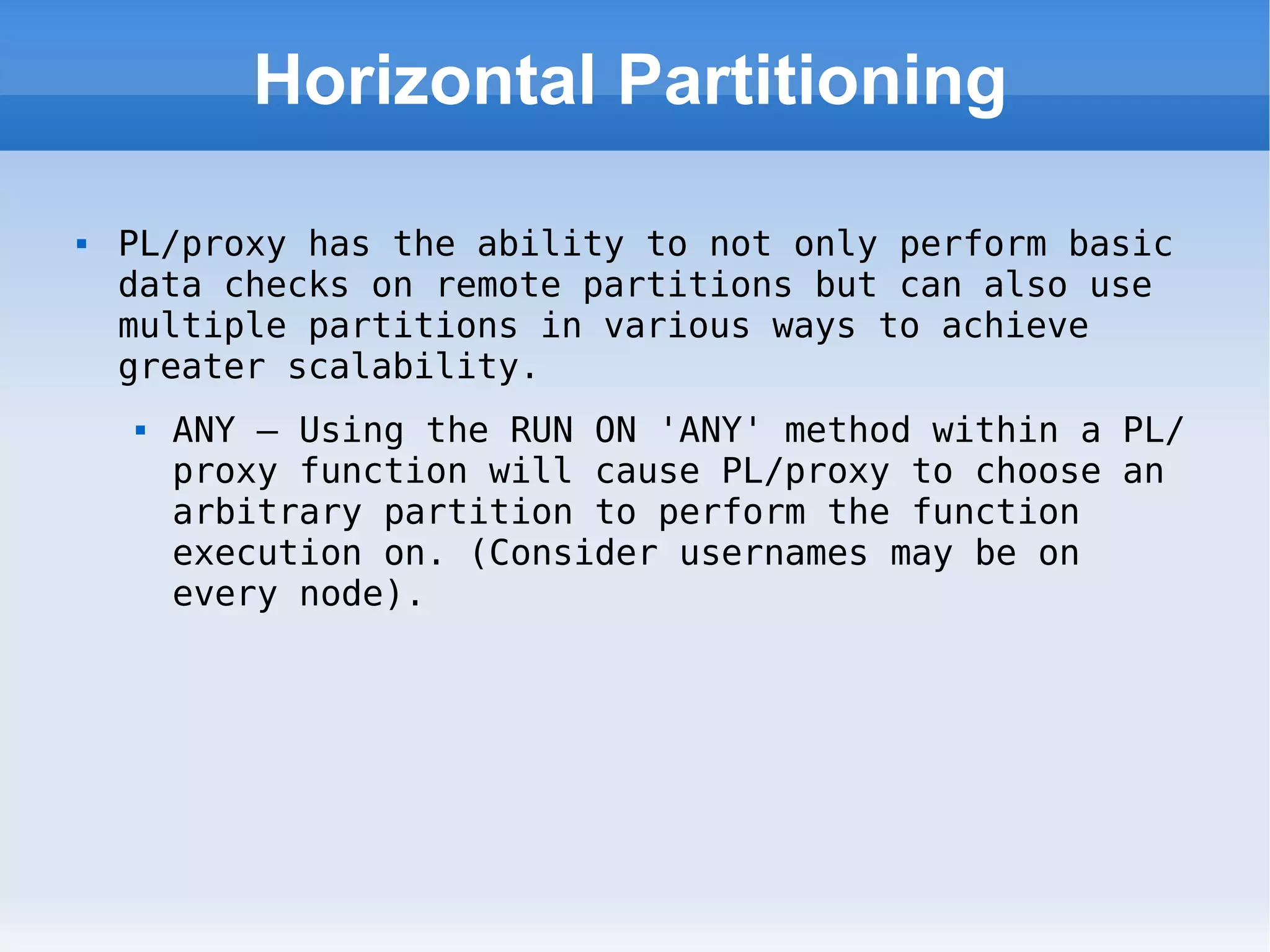

  Horizontal Partitioning PL/proxyhas the ability to not only perform basic data checks on remote partitions but can also use multiple partitions in various ways to achieve greater scalability. ANY – Using the RUN ON 'ANY' method within a PL/proxy function will cause PL/proxy to choose an arbitrary partition to perform the function execution on. (Consider usernames may be on every node).
• 14.

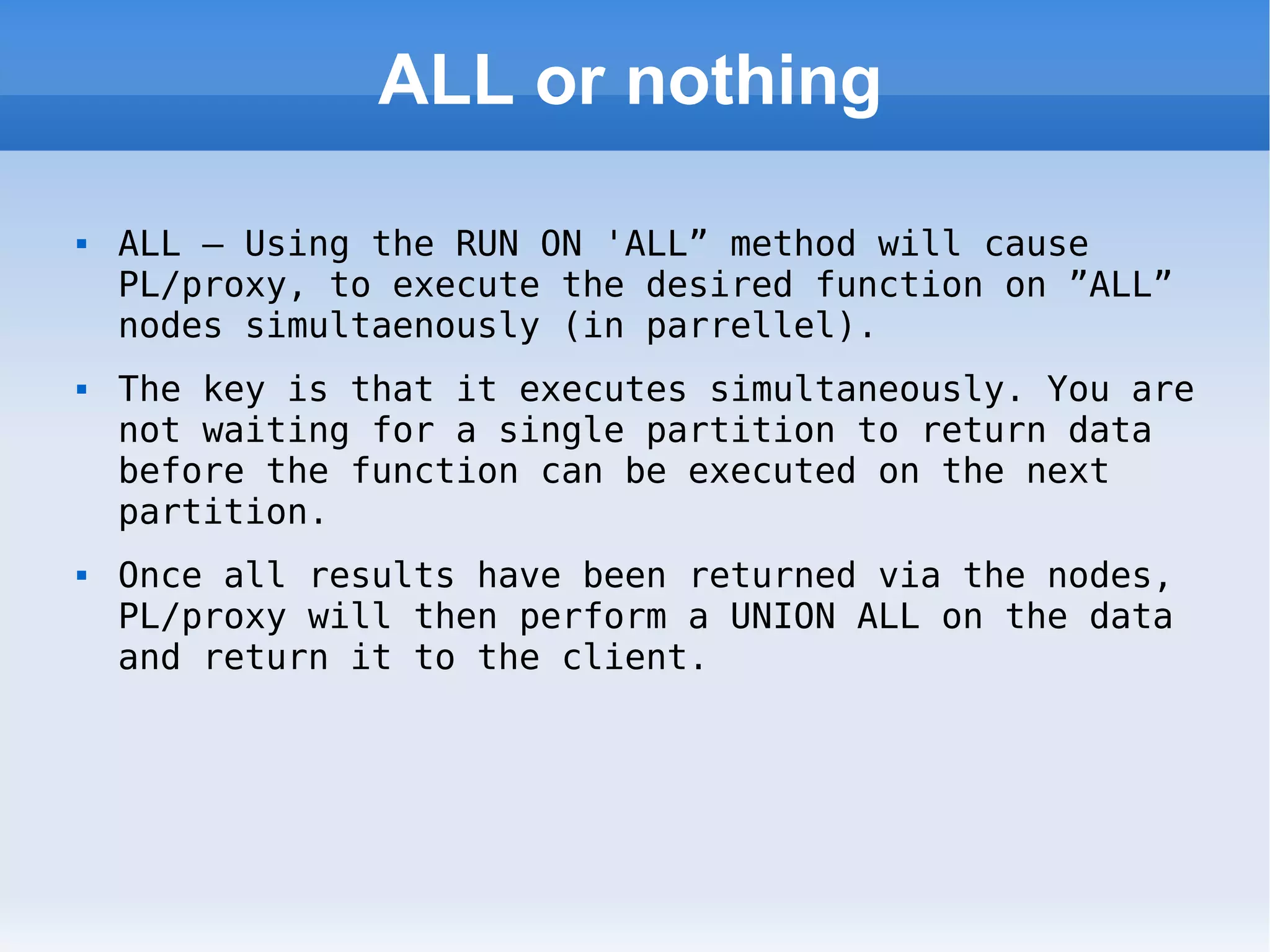

  ALL or nothingALL – Using the RUN ON 'ALL” method will cause PL/proxy, to execute the desired function on ”ALL” nodes simultaenously (in parrellel). The key is that it executes simultaneously. You are not waiting for a single partition to return data before the function can be executed on the next partition. Once all results have been returned via the nodes, PL/proxy will then perform a UNION ALL on the data and return it to the client.
• 15.

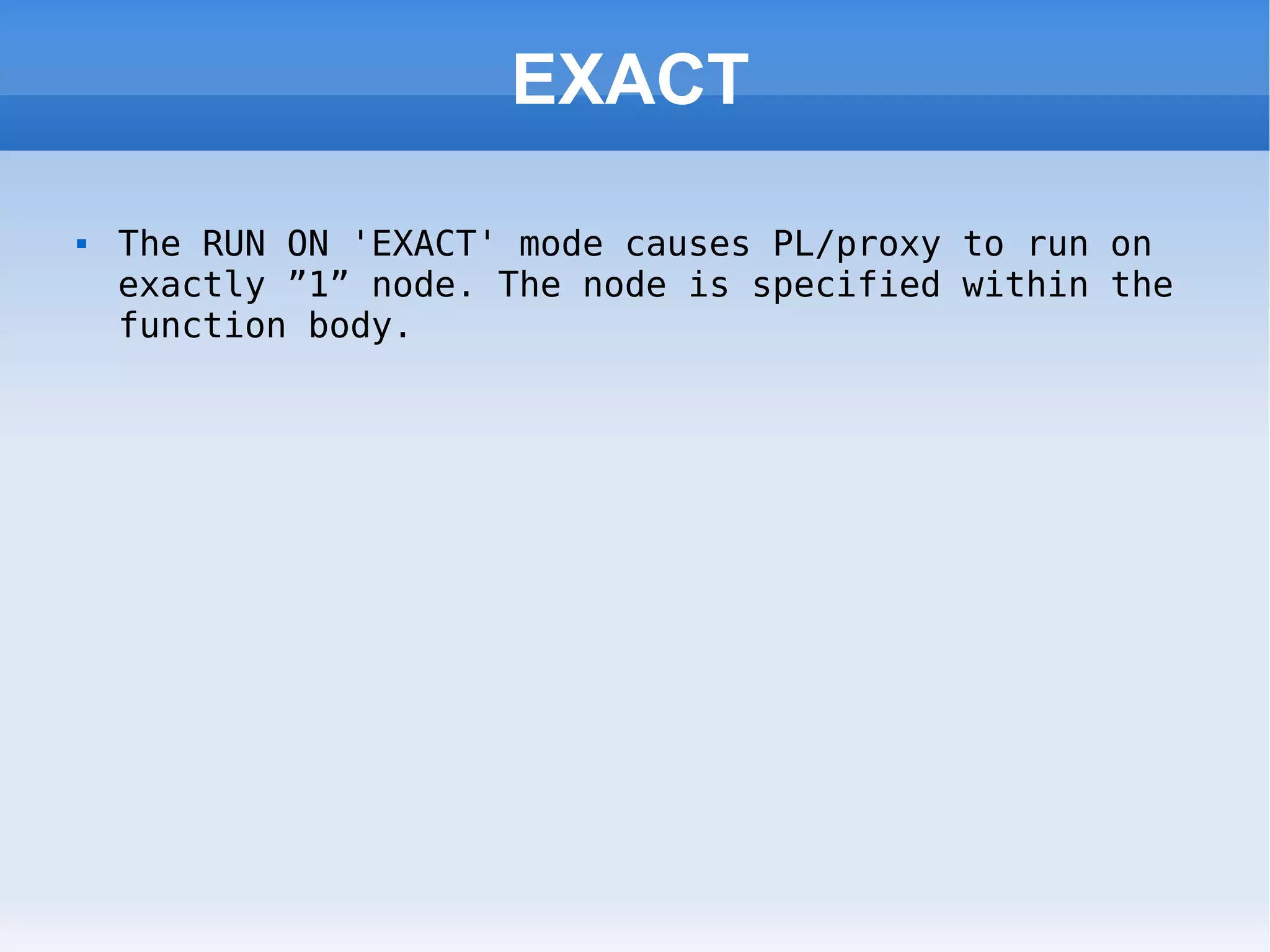

  EXACT The RUNON 'EXACT' mode causes PL/proxy to run on exactly ”1” node. The node is specified within the function body.
• 16.

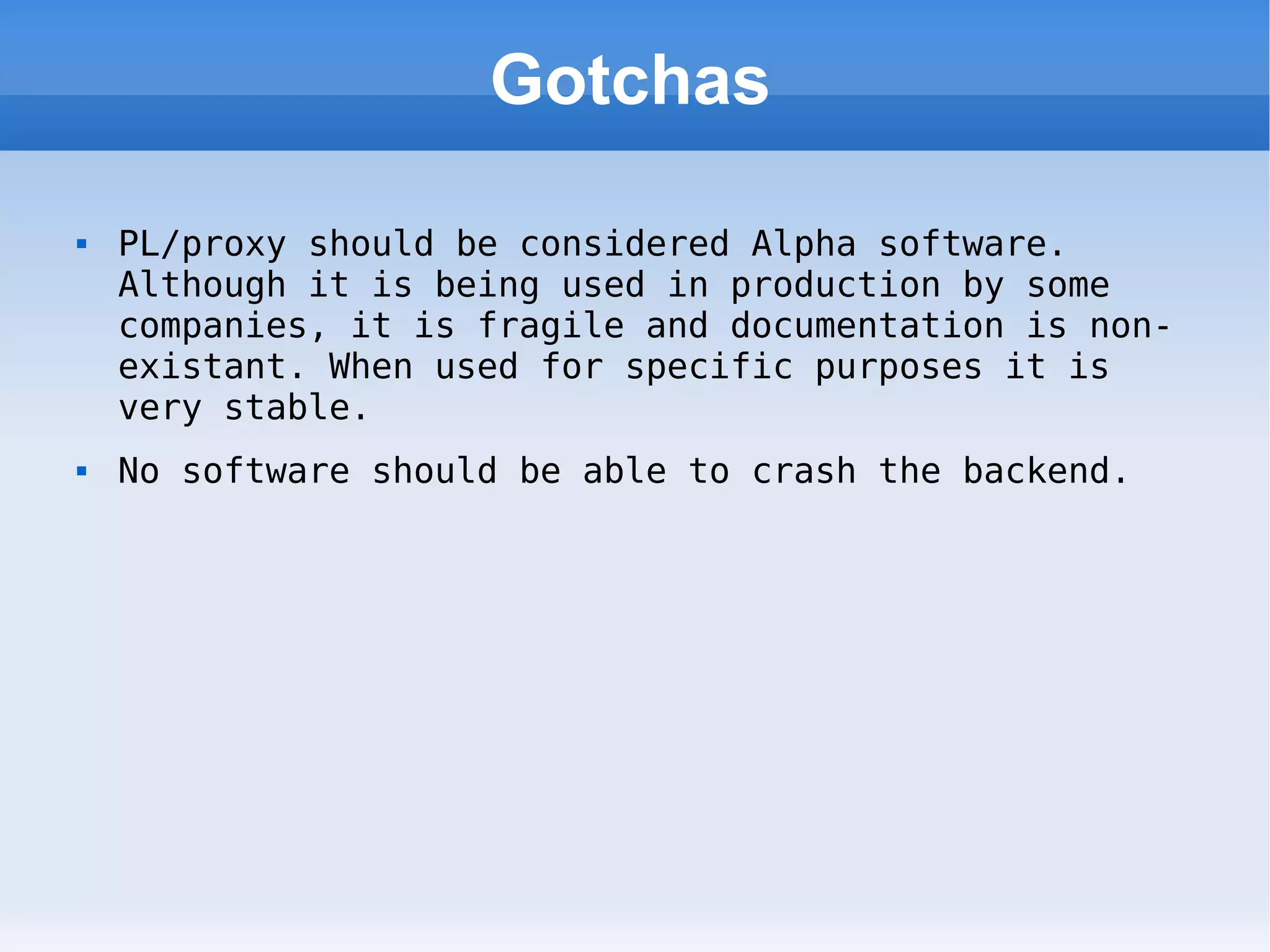

  Gotchas PL/proxy shouldbe considered Alpha software. Although it is being used in production by some companies, it is fragile and documentation is non-existant. When used for specific purposes it is very stable. No software should be able to crash the backend.

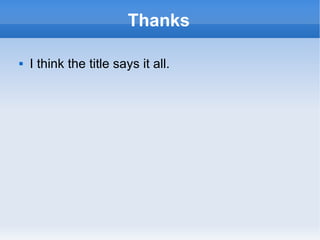

• 17.

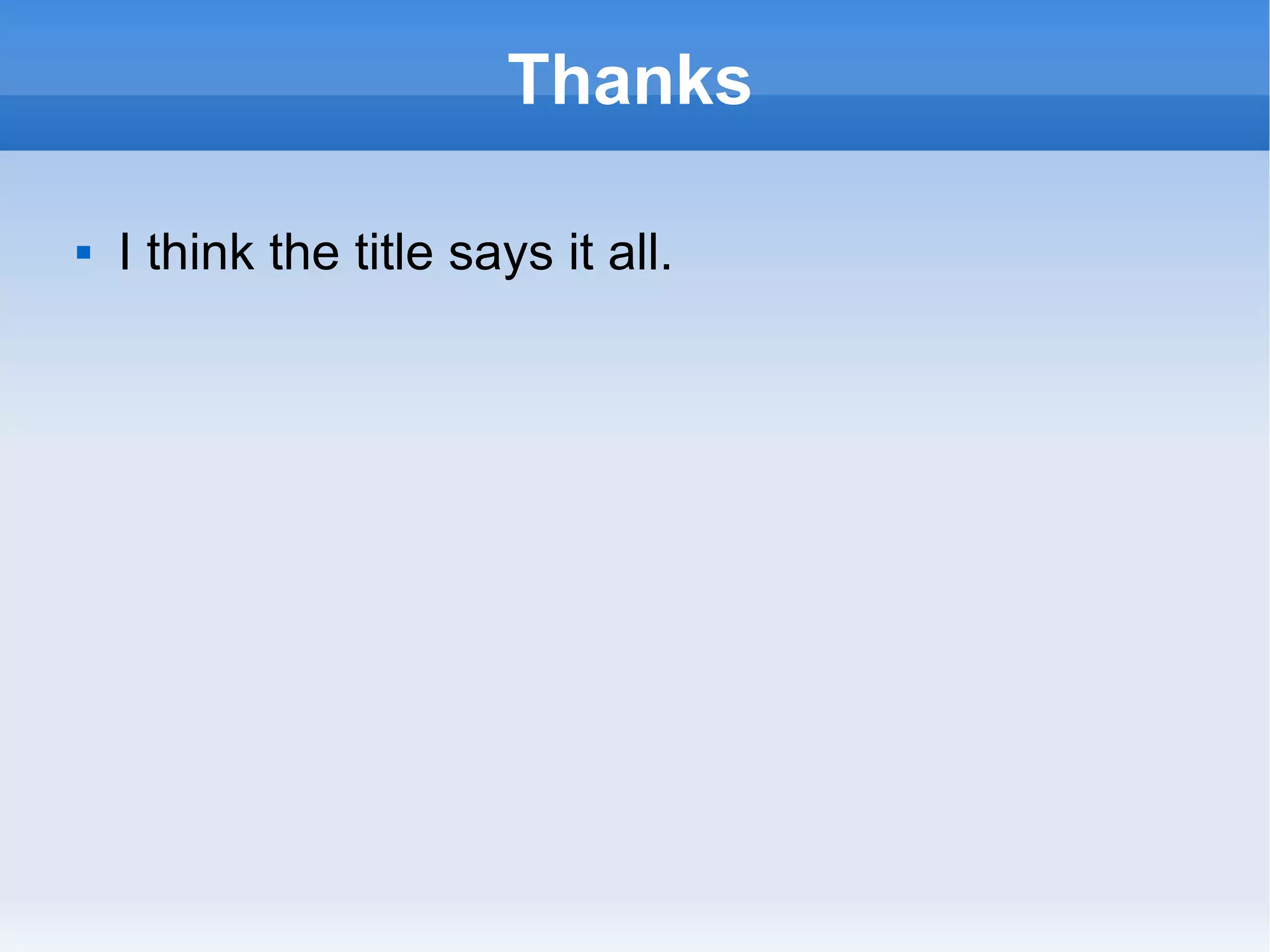

  Thanks I thinkthe title says it all.
