Reactive Extensions

Reactive Extensions

• 1.
  Dmitri Nesteruk dmitri@activemesa.com http://activemesa.com http://spbalt.net Based onmaterials by Scott Weinstein
• 2.

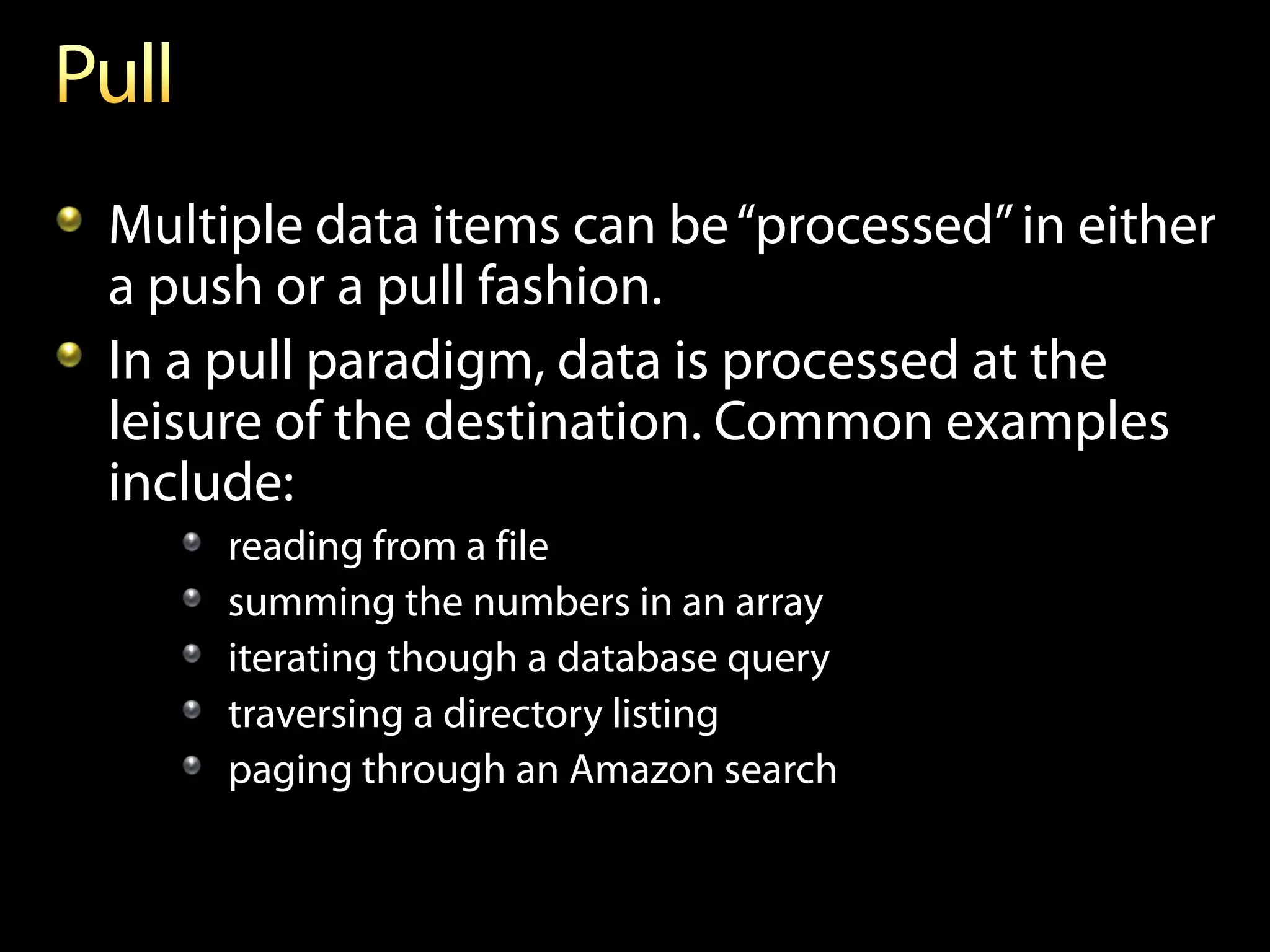

  Multiple data itemscan be “processed” in either a push or a pull fashion. In a pull paradigm, data is processed at the leisure of the destination. Common examples include: reading from a file summing the numbers in an array iterating though a database query traversing a directory listing paging through an Amazon search
• 3.

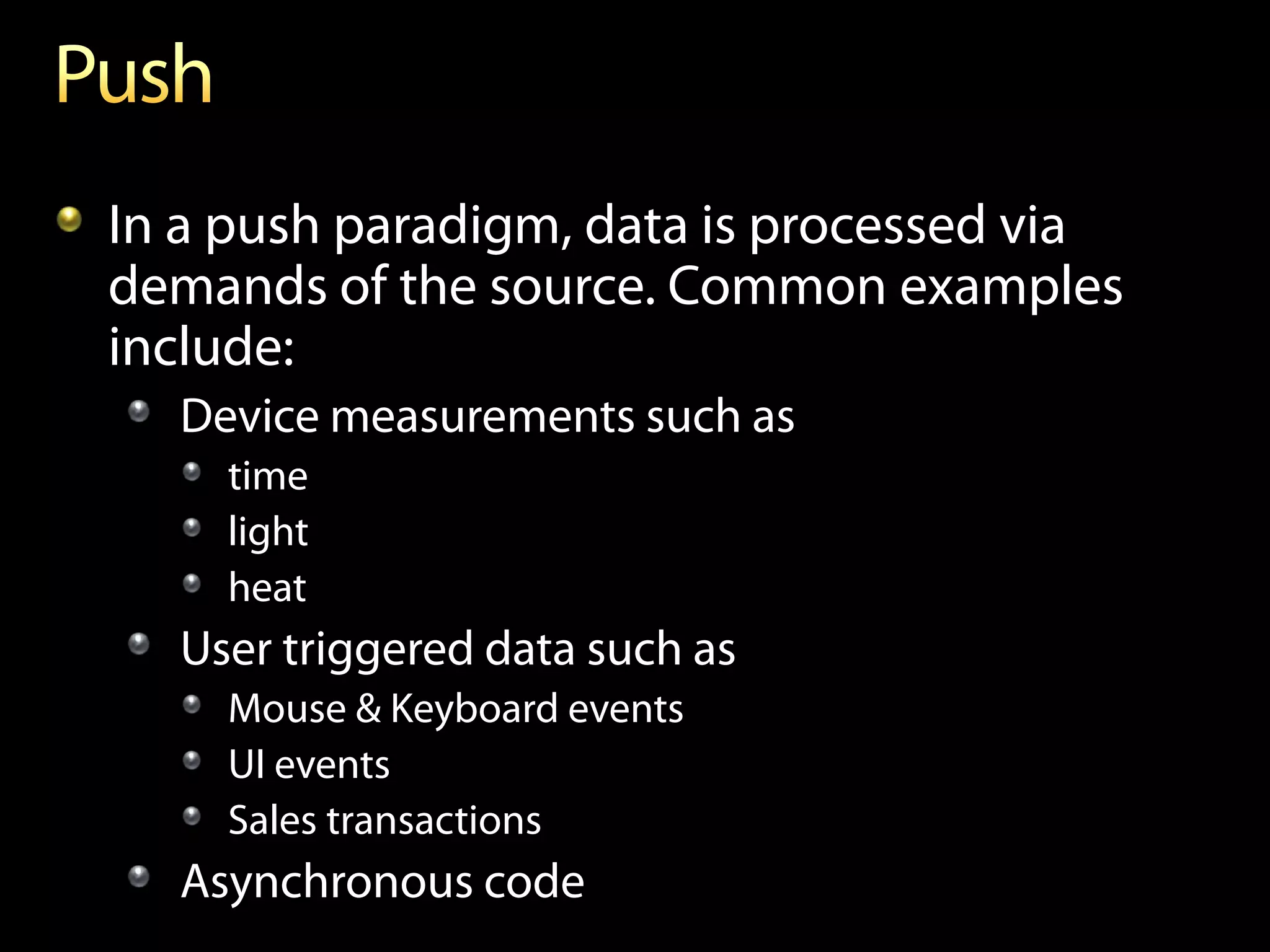

  In a pushparadigm, data is processed via demands of the source. Common examples include: Device measurements such as time light heat User triggered data such as Mouse & Keyboard events UI events Sales transactions Asynchronous code
• 4.

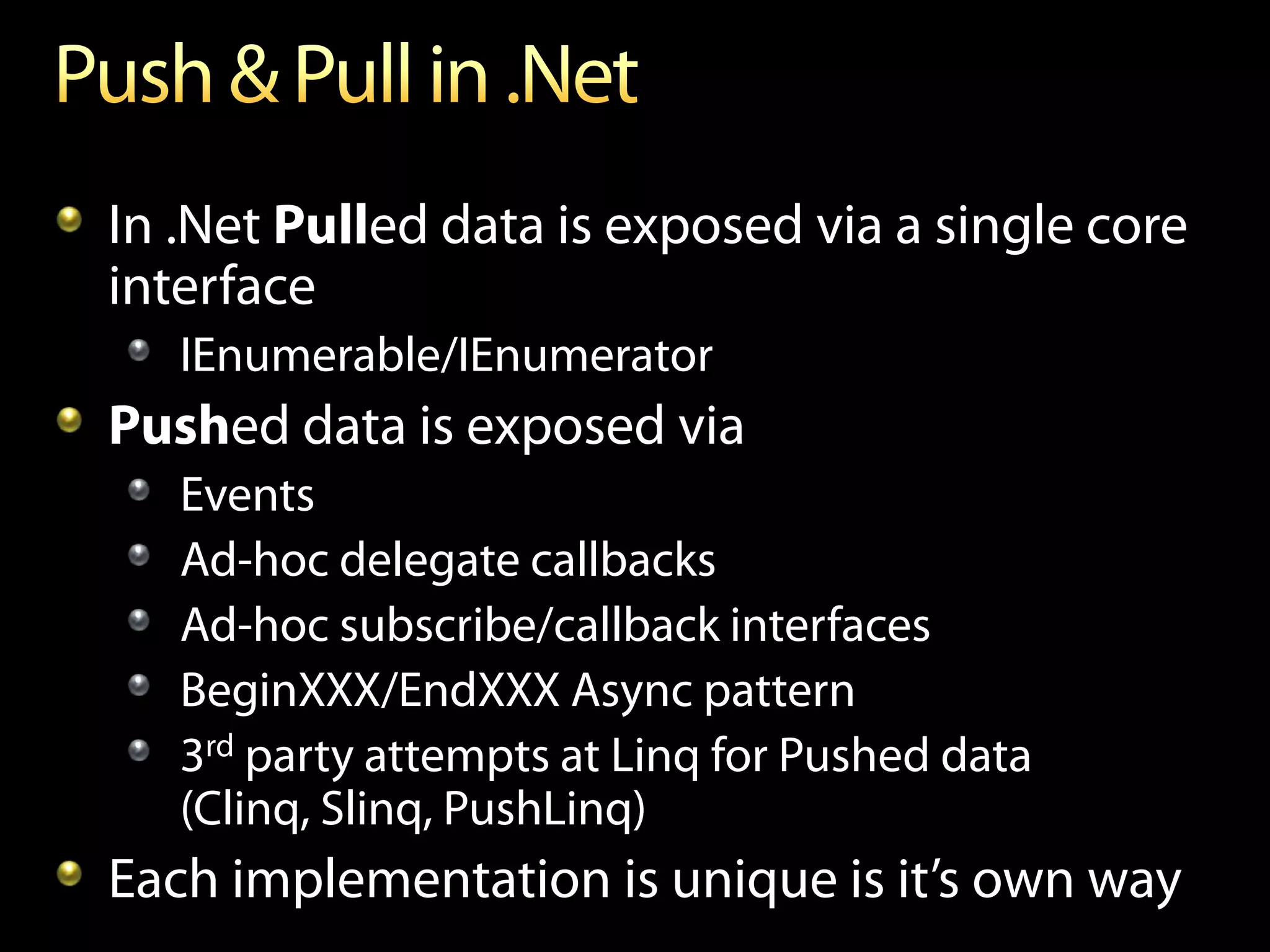

  In .Net Pulleddata is exposed via a single core interface IEnumerable/IEnumerator Pushed data is exposed via Events Ad-hoc delegate callbacks Ad-hoc subscribe/callback interfaces BeginXXX/EndXXX Async pattern 3rd party attempts at Linq for Pushed data (Clinq, Slinq, PushLinq) Each implementation is unique is it’s own way
• 5.

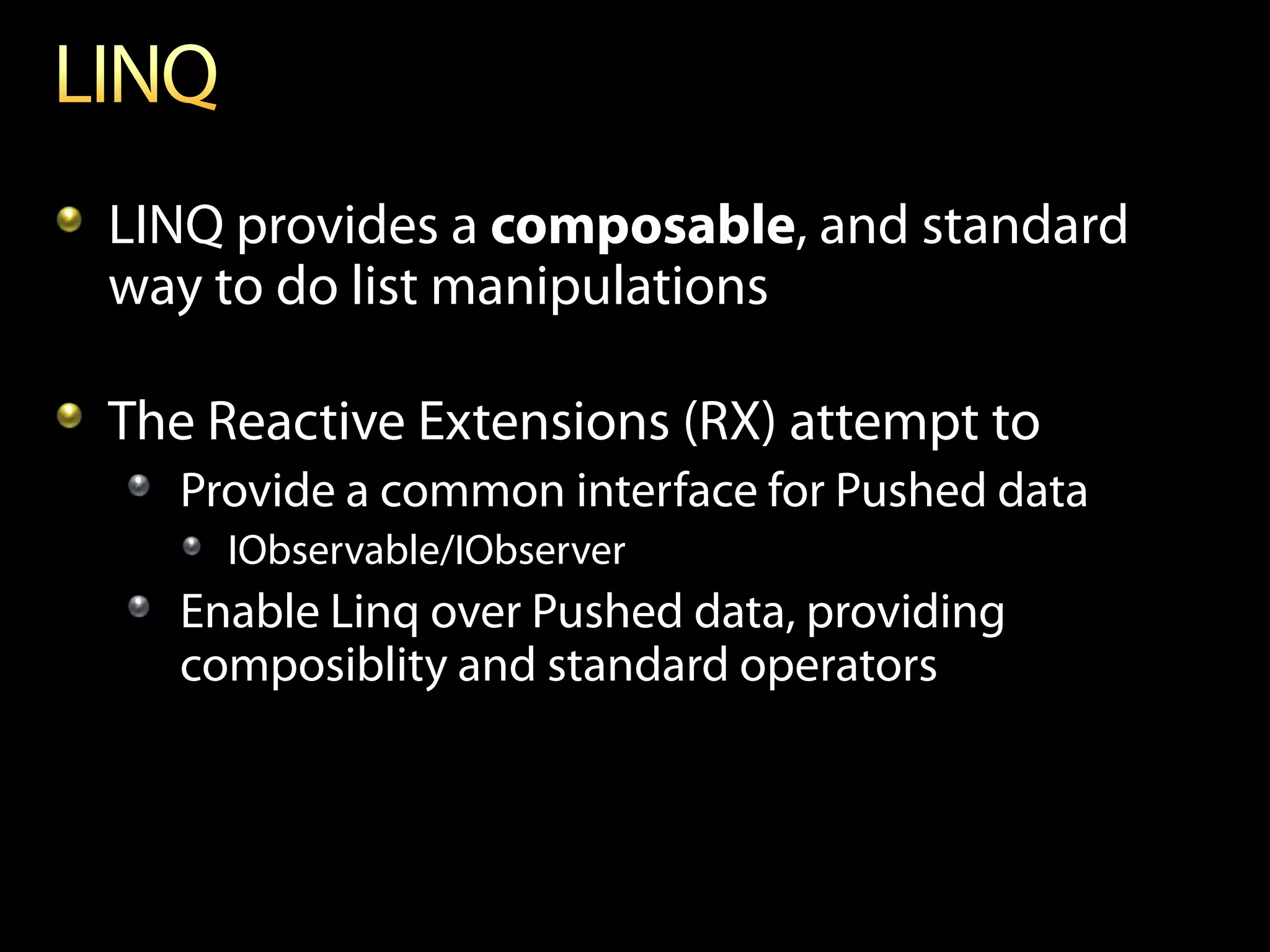

  LINQ provides acomposable, and standard way to do list manipulations The Reactive Extensions (RX) attempt to Provide a common interface for Pushed data IObservable/IObserver Enable Linq over Pushed data, providing composiblity and standard operators
• 6.

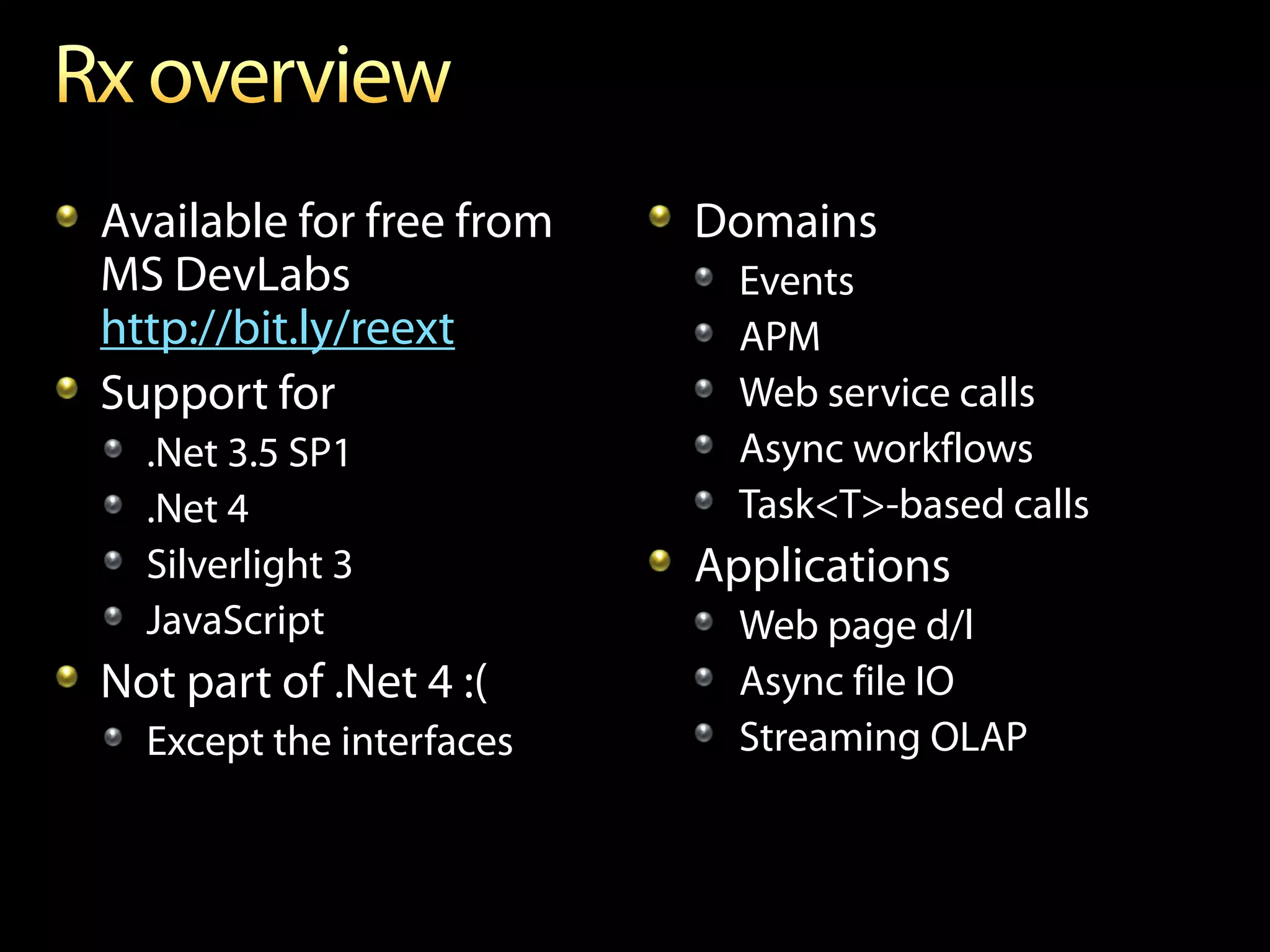

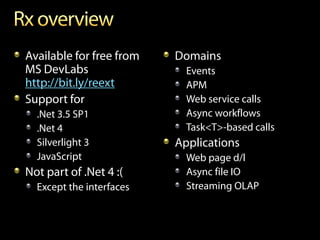

  Available for freefrom Domains MS DevLabs Events http://bit.ly/reext APM Support for Web service calls .Net 3.5 SP1 Async workflows .Net 4 Task<T>-based calls Silverlight 3 Applications JavaScript Web page d/l Not part of .Net 4 :( Async file IO Except the interfaces Streaming OLAP
• 7.

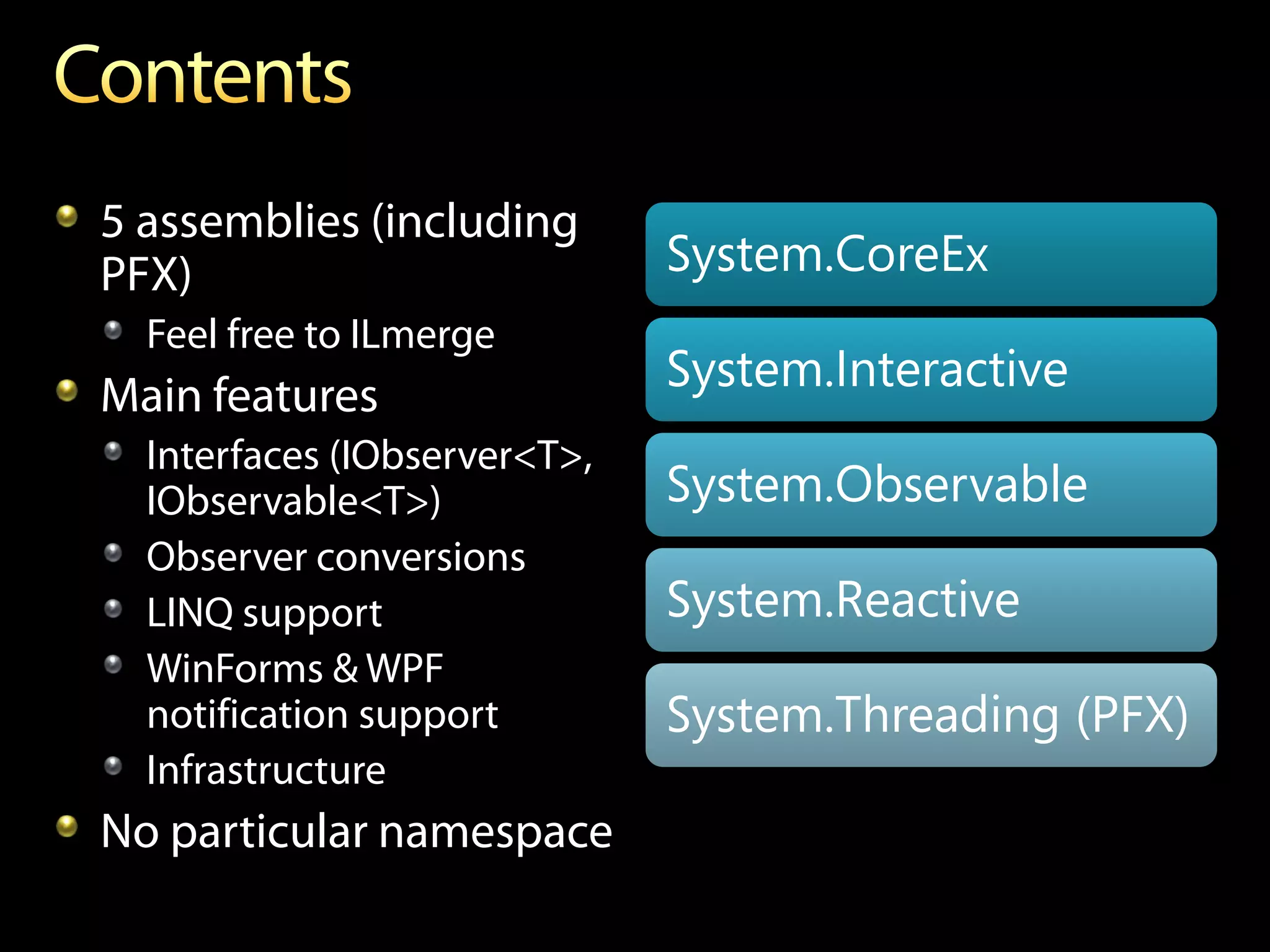

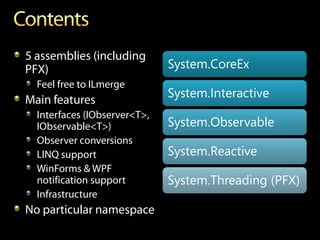

  5 assemblies (including PFX) System.CoreEx Feel free to ILmerge Main features System.Interactive Interfaces (IObserver<T>, IObservable<T>) System.Observable Observer conversions LINQ support System.Reactive WinForms & WPF notification support System.Threading (PFX) Infrastructure No particular namespace
• 8.

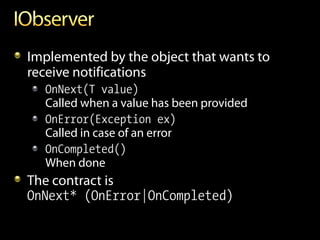

  Implemented by theobject that wants to receive notifications OnNext(T value) Called when a value has been provided OnError(Exception ex) Called in case of an error OnCompleted() When done The contract is OnNext* (OnError|OnCompleted)
• 9.

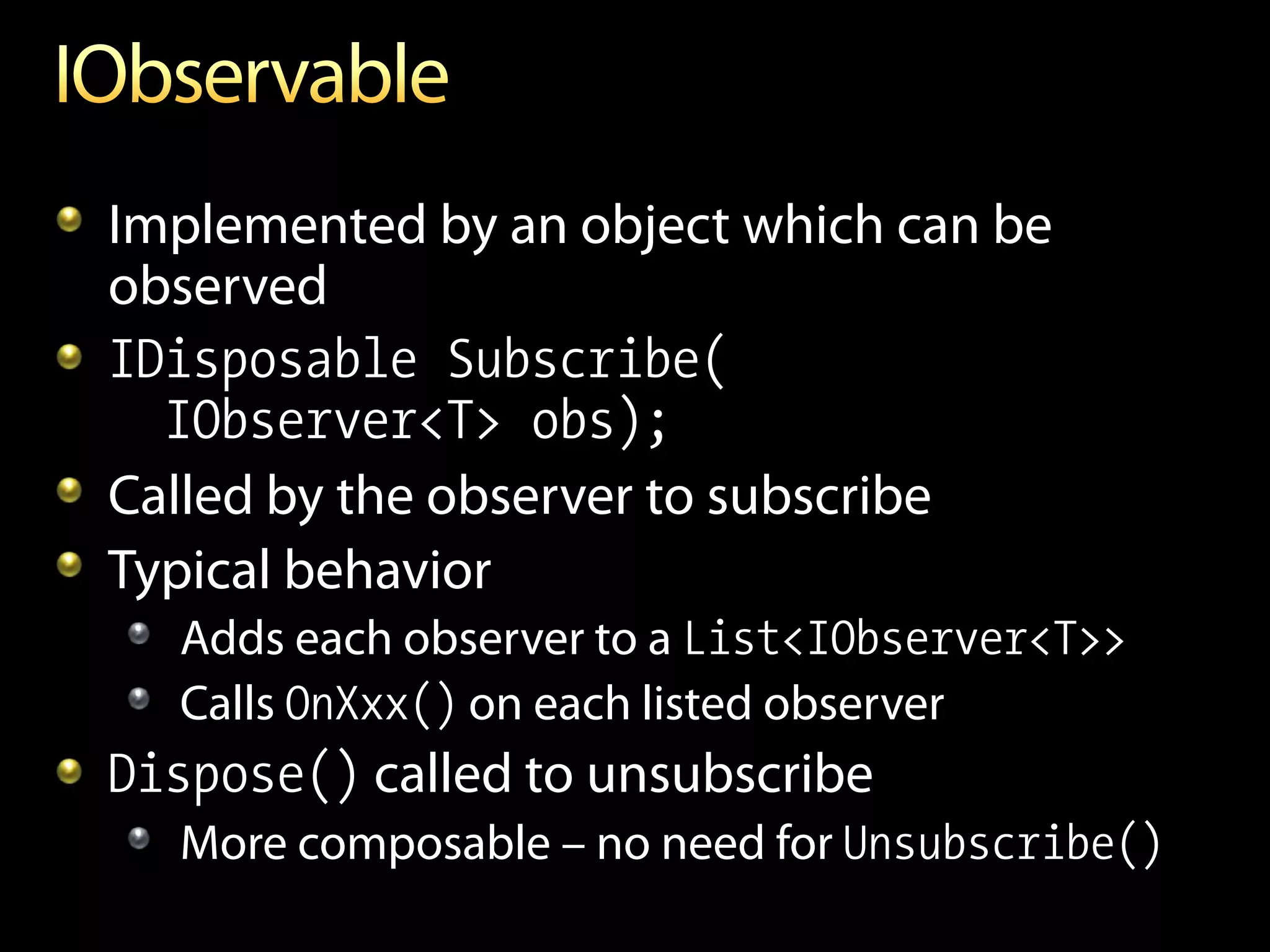

  Implemented by anobject which can be observed IDisposable Subscribe( IObserver<T> obs); Called by the observer to subscribe Typical behavior Adds each observer to a List<IObserver<T>> Calls OnXxx() on each listed observer Dispose() called to unsubscribe More composable – no need for Unsubscribe()

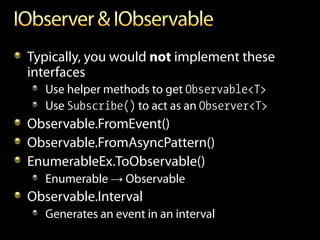

• 10.

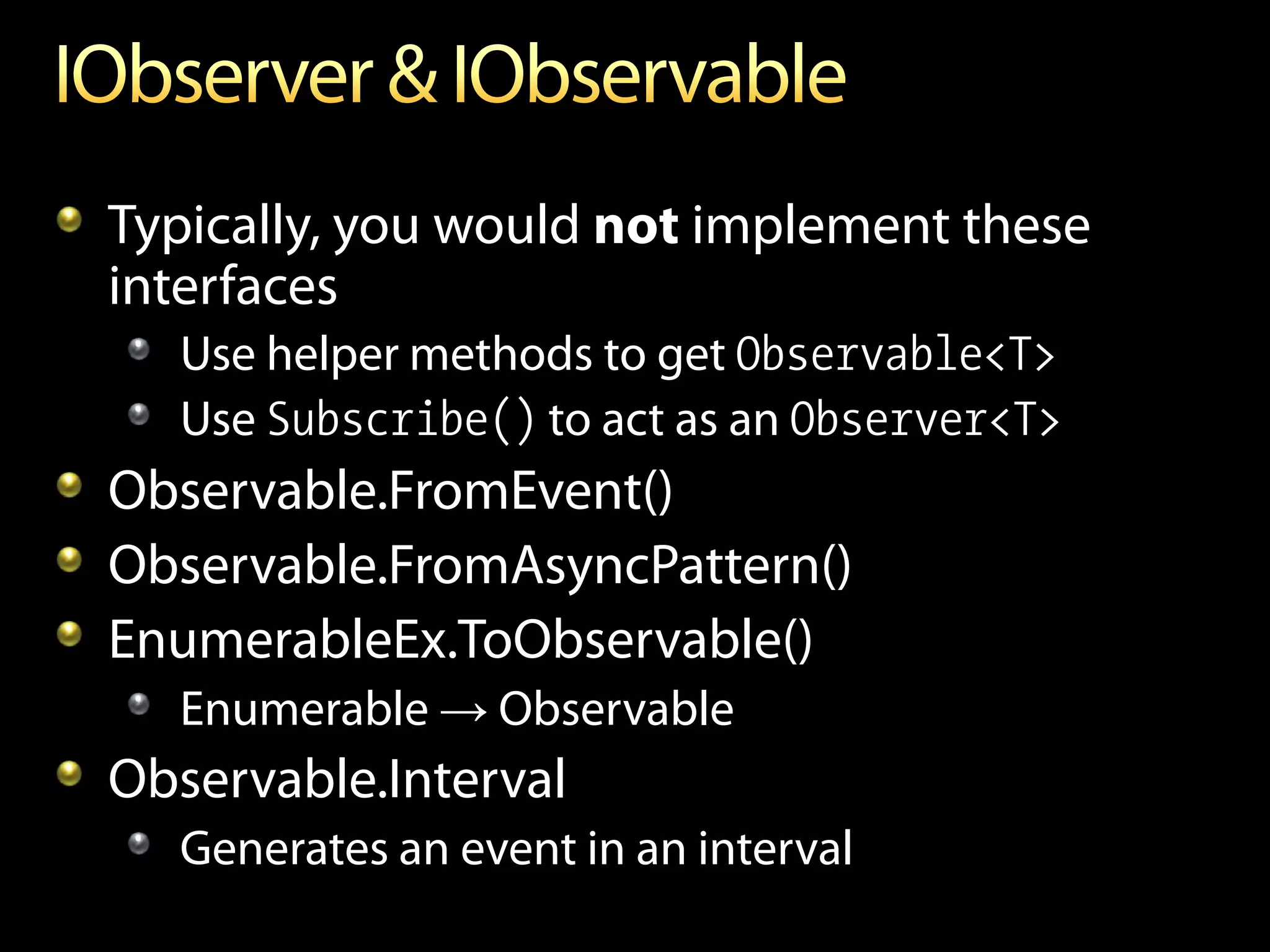

  Typically, you wouldnot implement these interfaces Use helper methods to get Observable<T> Use Subscribe() to act as an Observer<T> Observable.FromEvent() Observable.FromAsyncPattern() EnumerableEx.ToObservable() Enumerable → Observable Observable.Interval Generates an event in an interval

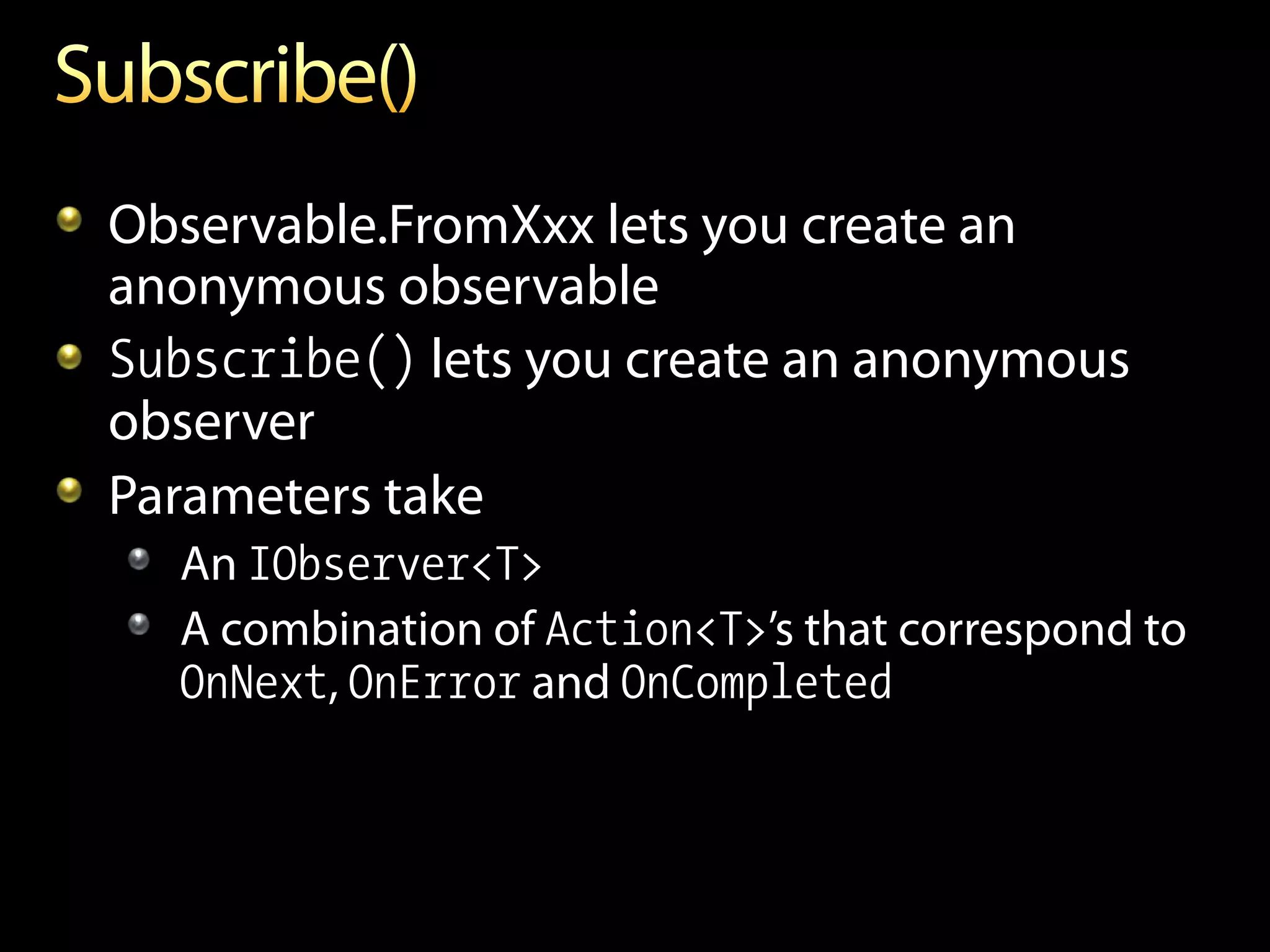

• 11.

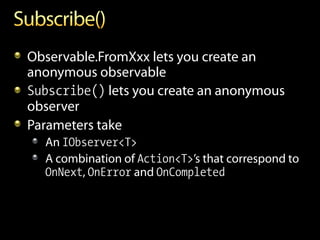

  Observable.FromXxx lets youcreate an anonymous observable Subscribe() lets you create an anonymous observer Parameters take An IObserver<T> A combination of Action<T>’s that correspond to OnNext, OnError and OnCompleted
• 13.

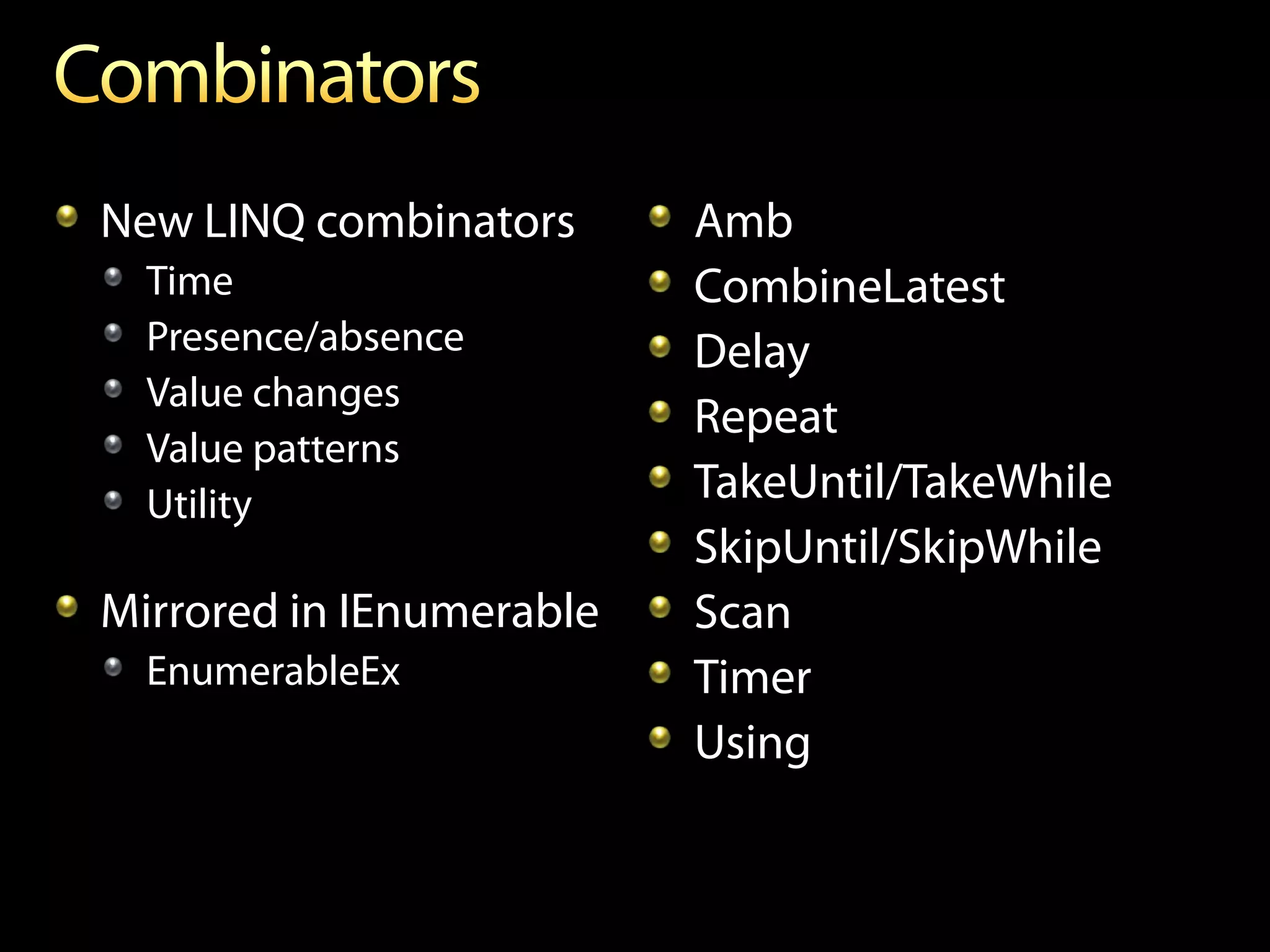

  New LINQ combinators Amb Time CombineLatest Presence/absence Delay Value changes Repeat Value patterns Utility TakeUntil/TakeWhile SkipUntil/SkipWhile Mirrored in IEnumerable Scan EnumerableEx Timer Using

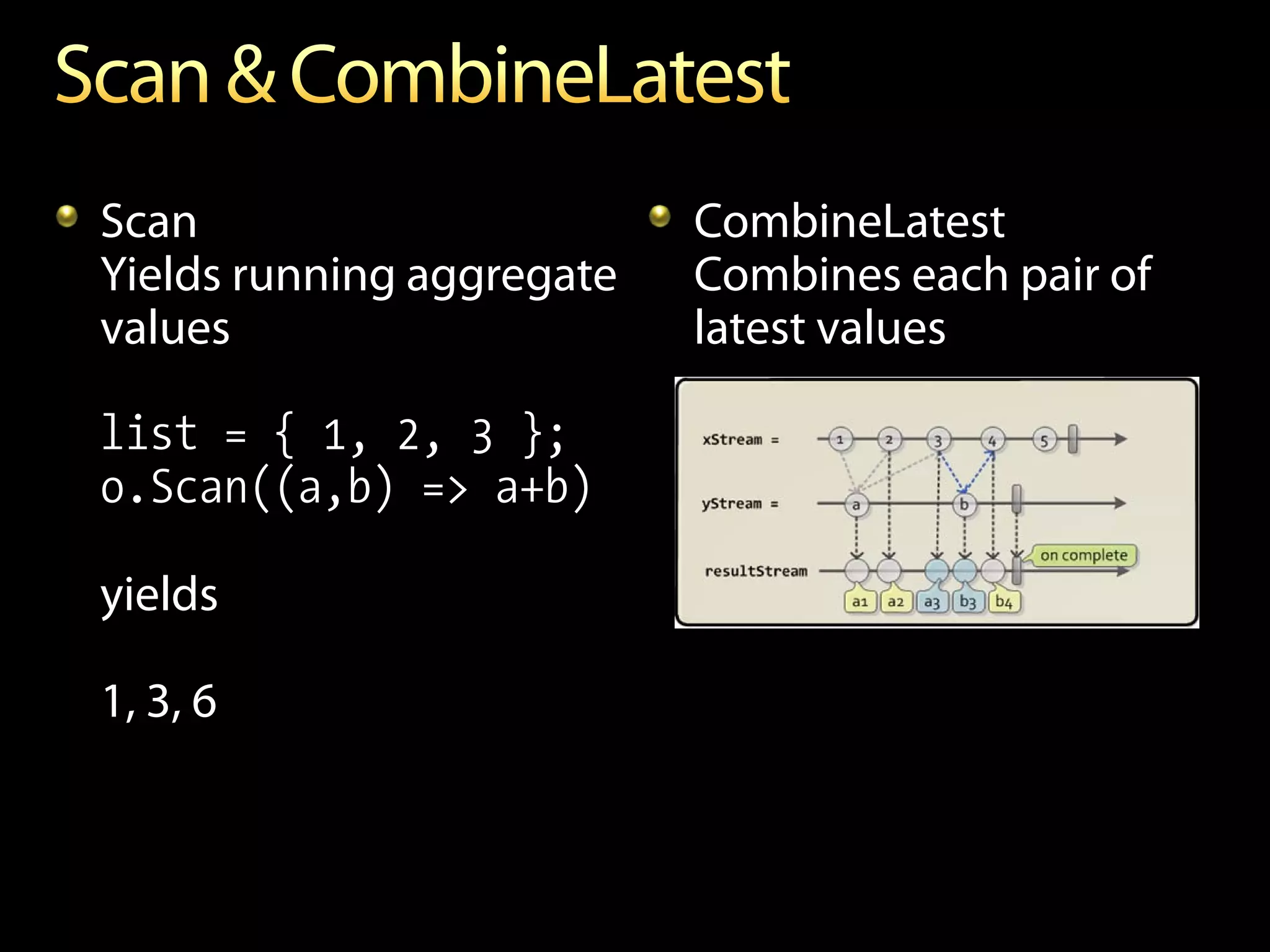

• 14.
  Scan CombineLatest Yields running aggregate Combines each pair of values latest values list = { 1, 2, 3 }; o.Scan((a,b) => a+b) yields 1, 3, 6

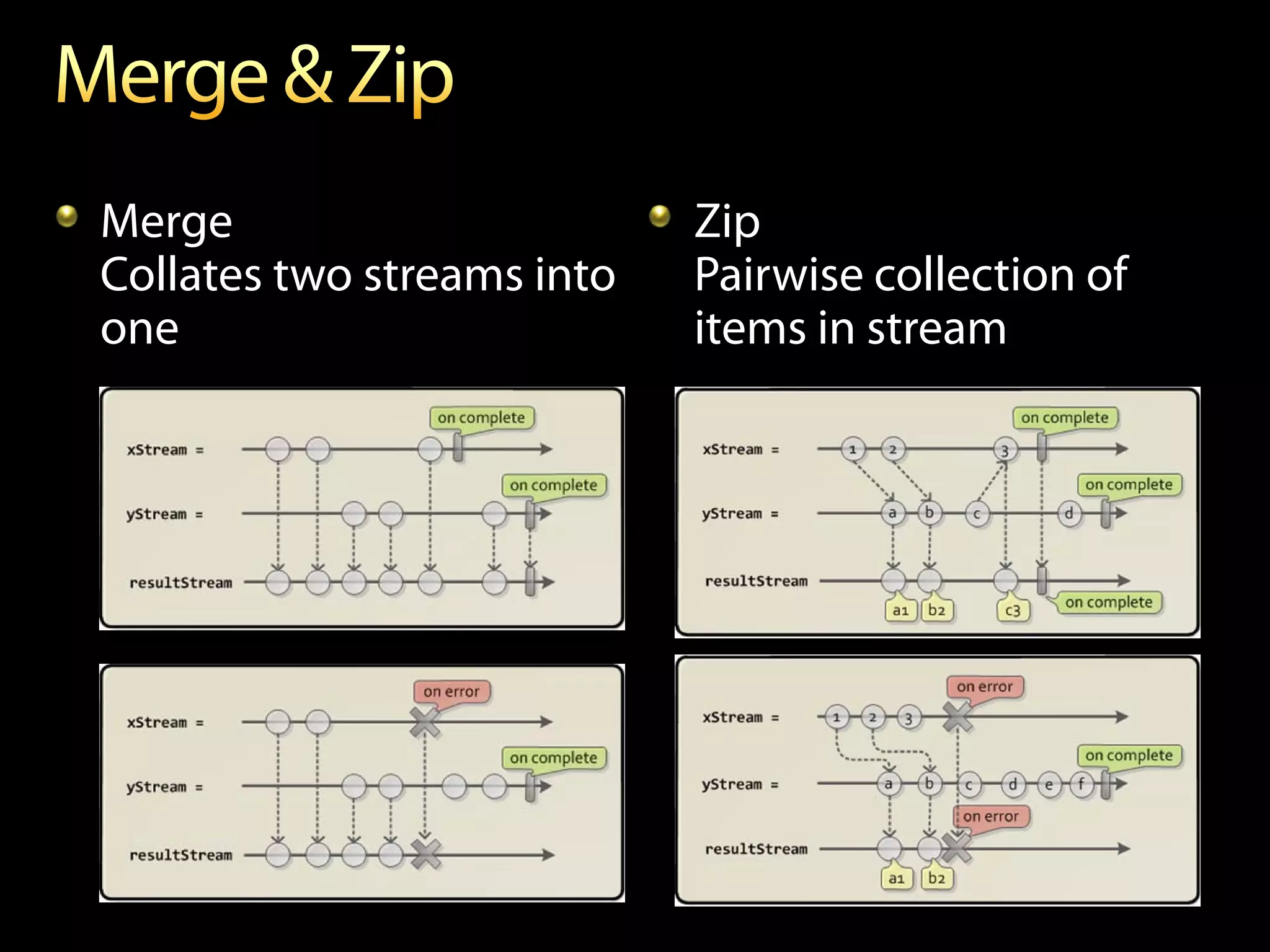

• 15.
  Merge Zip Collates two streams into Pairwise collection of one items in stream
• 17.

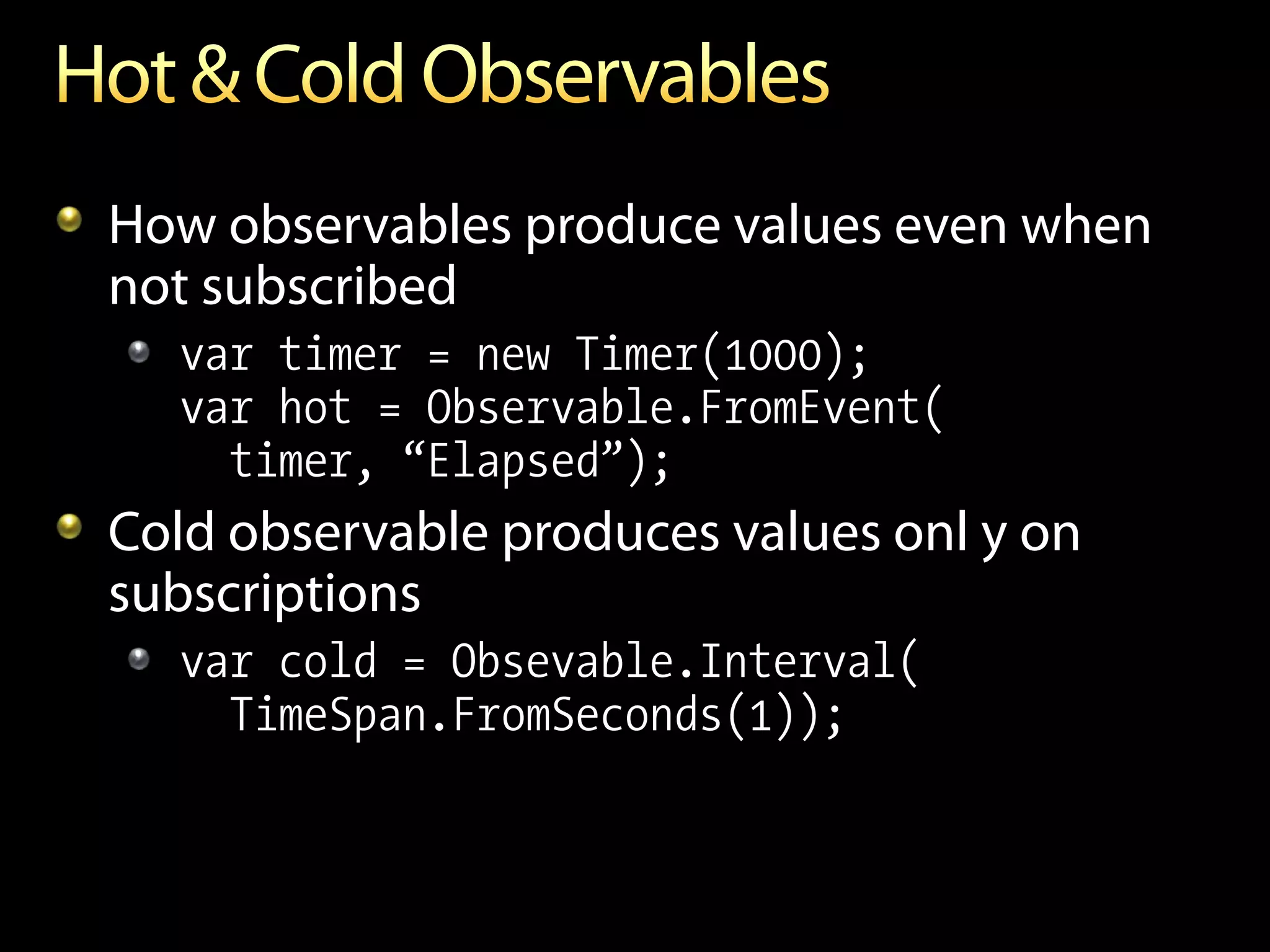

  How observables producevalues even when not subscribed var timer = new Timer(1000); var hot = Observable.FromEvent( timer, “Elapsed”); Cold observable produces values onl y on subscriptions var cold = Obsevable.Interval( TimeSpan.FromSeconds(1));

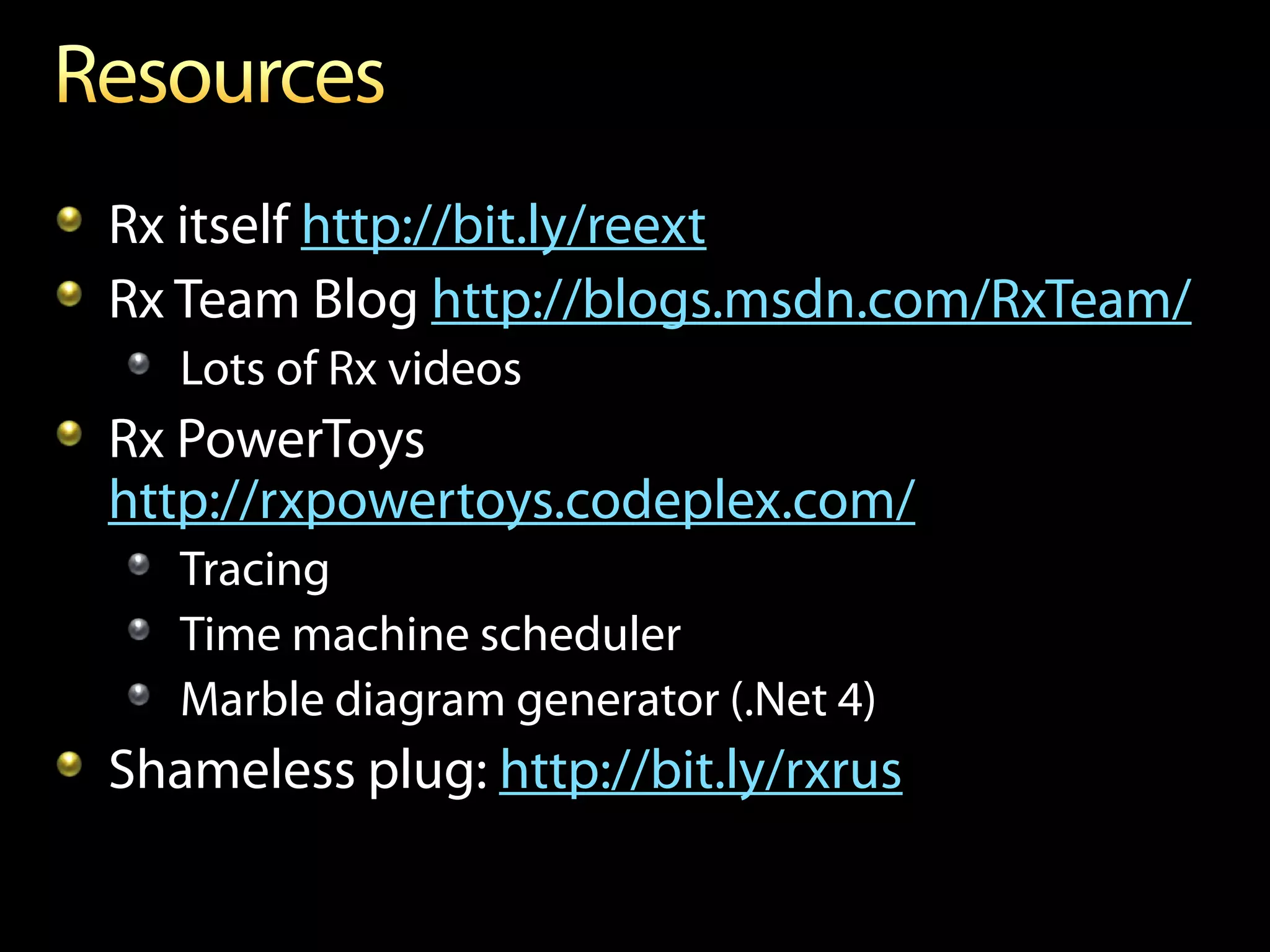

• 18.
  Rx itself http://bit.ly/reext RxTeam Blog http://blogs.msdn.com/RxTeam/ Lots of Rx videos Rx PowerToys http://rxpowertoys.codeplex.com/ Tracing Time machine scheduler Marble diagram generator (.Net 4) Shameless plug: http://bit.ly/rxrus
• 19.
  Questions?
