Introduction to RxJS

Adam Gołąb
Fullstack JS Developer @ Brainhub

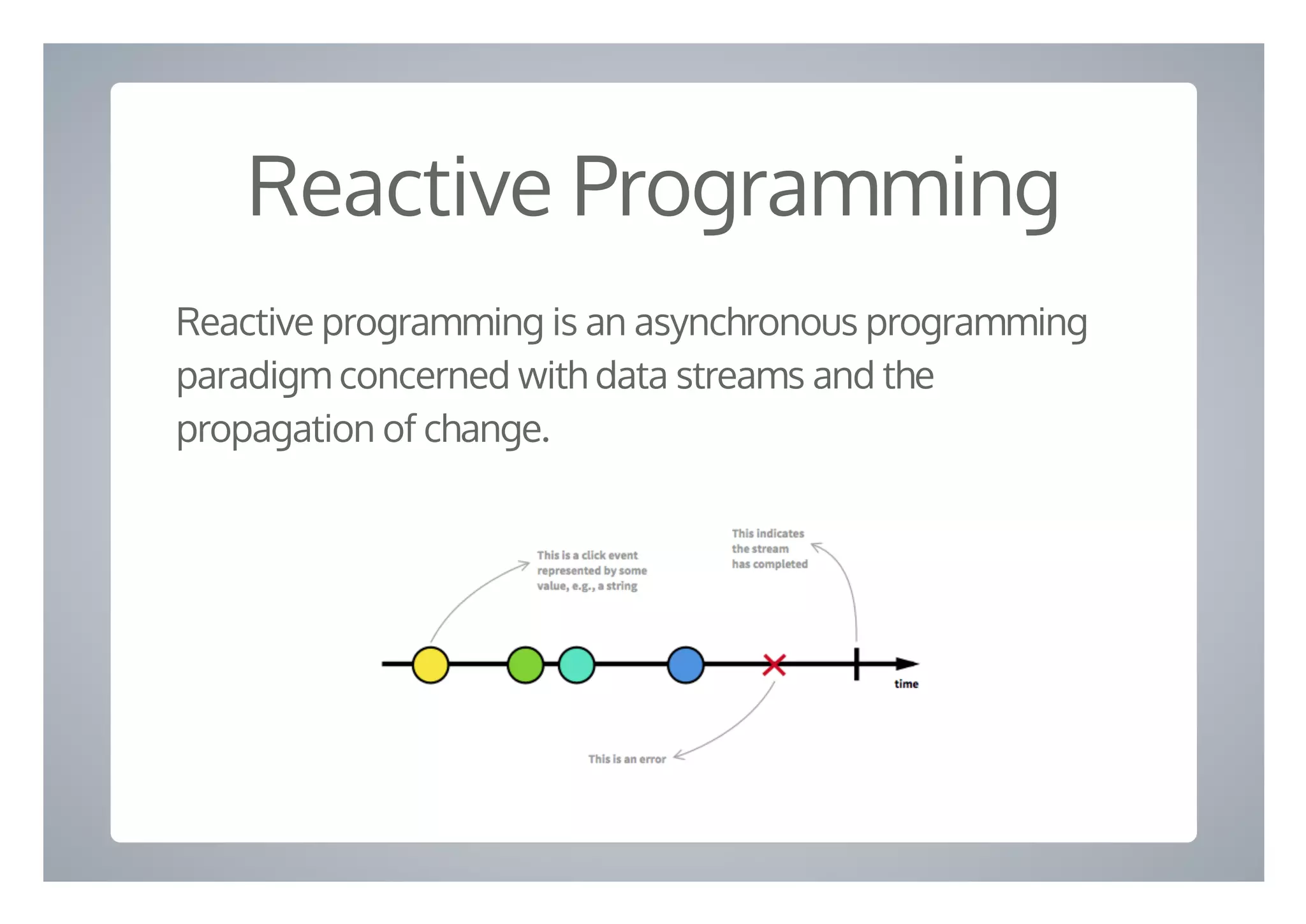

Reactive Programming
Reactive programming is an asynchronous programming
paradigm concerned with data streams and the
propagation of change.

Think of RxJS as Lodash for events.

Developed by Microsoft, in collaboration with a community
of open source developers.
RxJS is a library for composing asynchronous and event-
based programs by using observable sequences. It
provides one core type, the Observable, satellite types
(Observer, Schedulers, Subjects) and operators
inspired by Array#extras (map, filter, reduce,
every, etc) to allow handling asynchronous events as
collections.

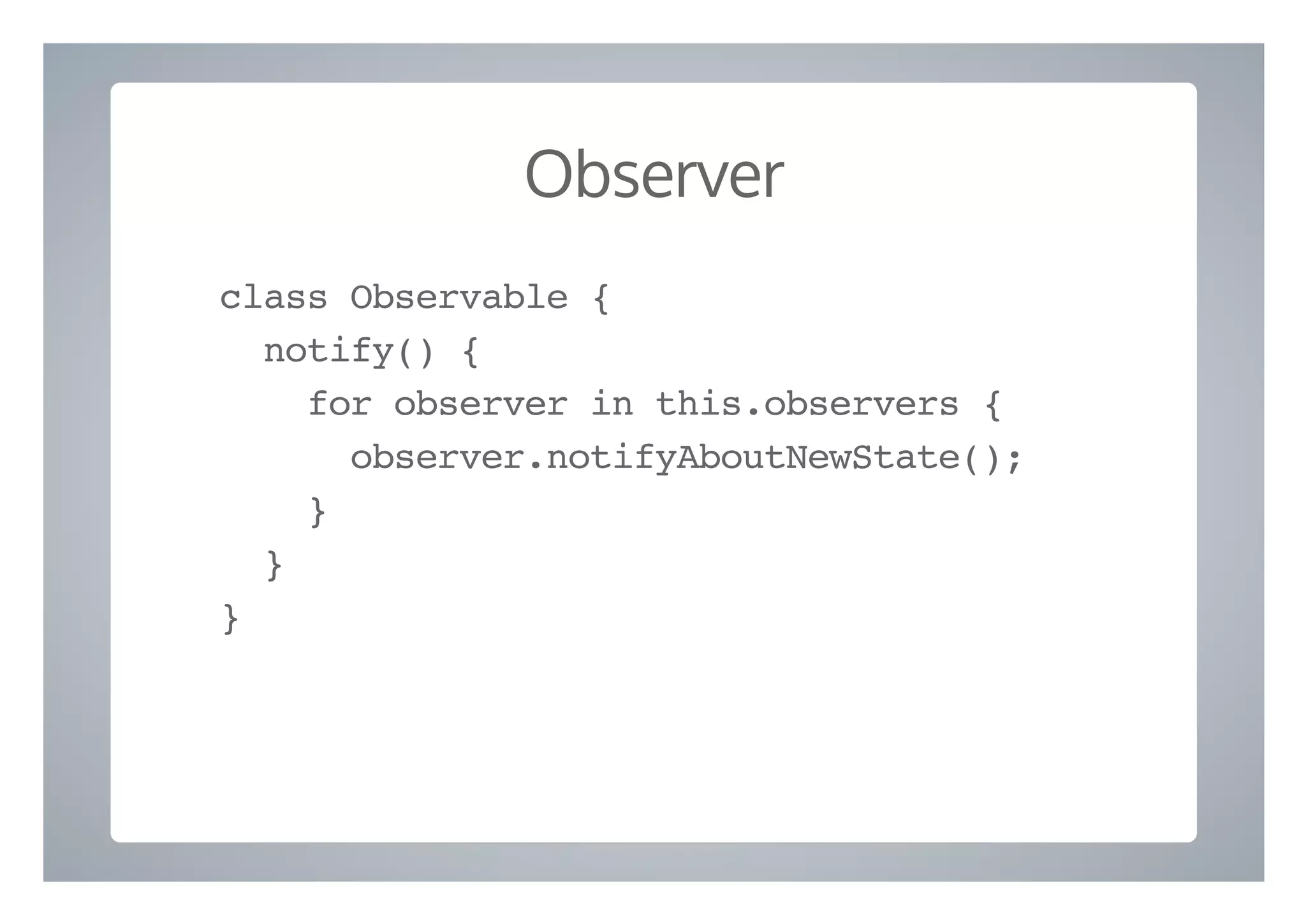

Observer
class Observable {
notify() {
for observer in this.observers {
observer.notifyAboutNewState();
}
}
}

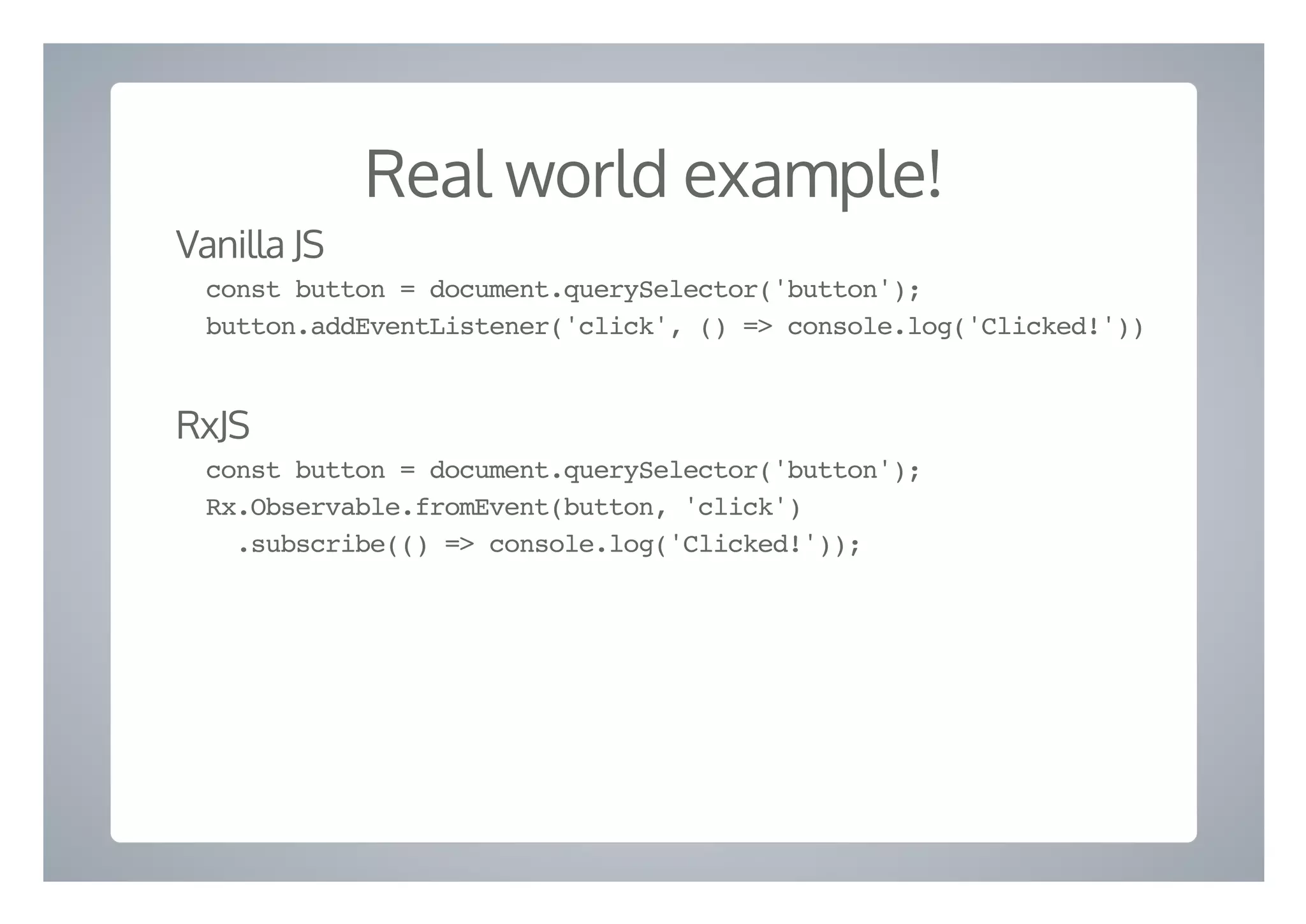

Real world example!
Vanilla JS
const button = document.querySelector('button');
button.addEventListener('click', () => console.log('Clicked!'))
RxJS
Rx.Observable.fromEvent(button, 'click')
.subscribe(() => console.log('Clicked!'));

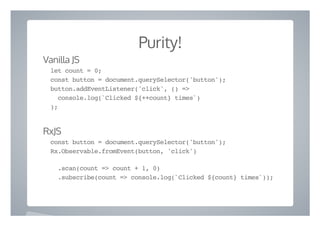

Purity!
Vanilla JS
let count = 0;
button.addEventListener('click', () =>
console.log(`Clicked ${++count} times`)
);
RxJS
Rx.Observable.fromEvent(button, 'click')
.scan(count => count + 1, 0)
.subscribe(count => console.log(`Clicked ${count} times`));

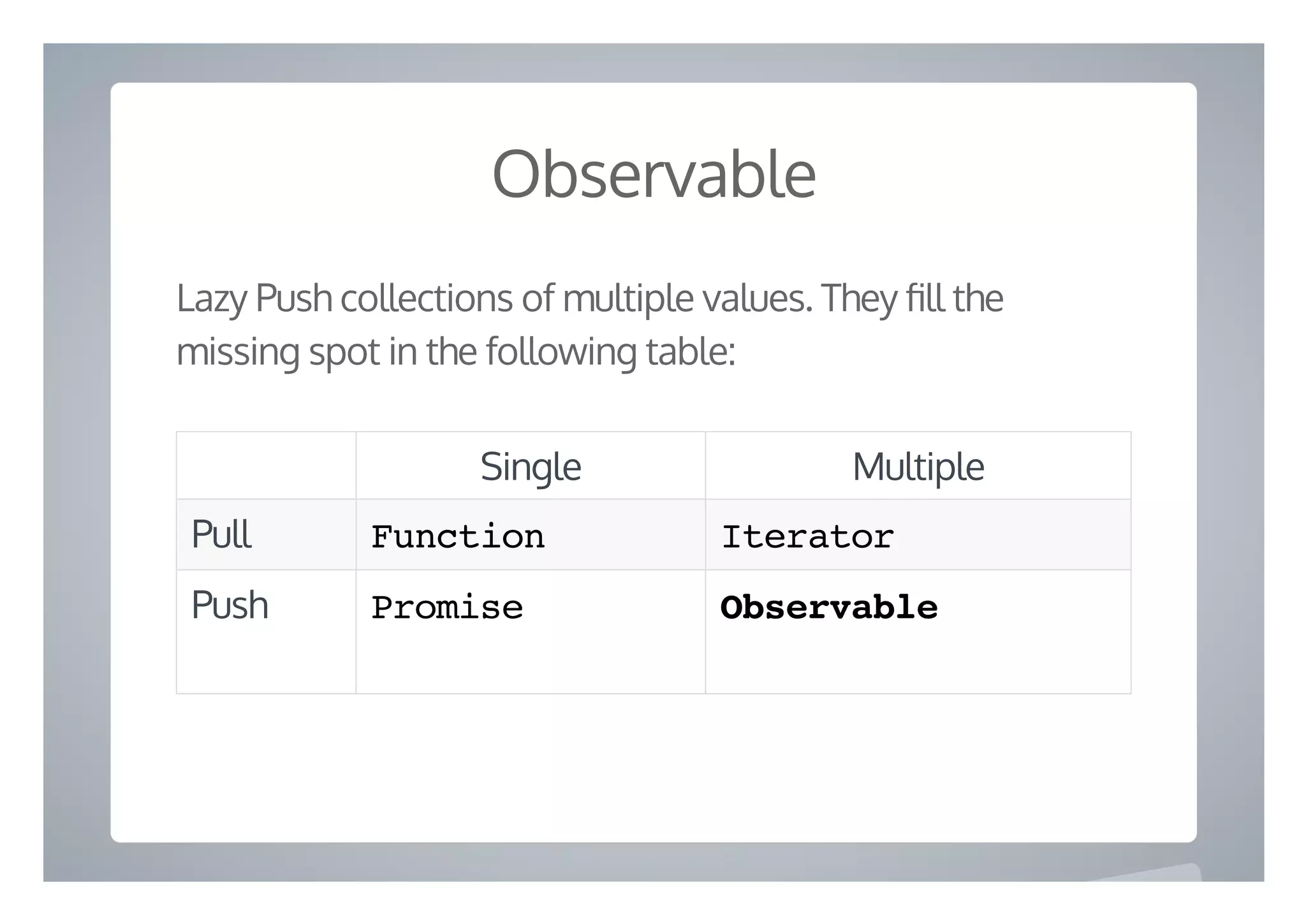

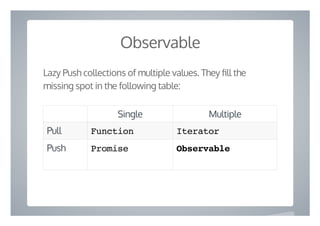

Observable
Lazy Push collections of multiple values. They ll the
missing spot in the following table:
Single Multiple
Pull Function Iterator
Push Promise Observable

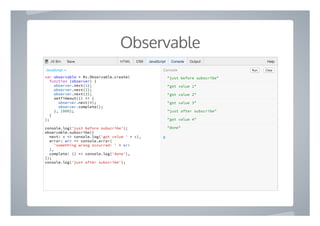

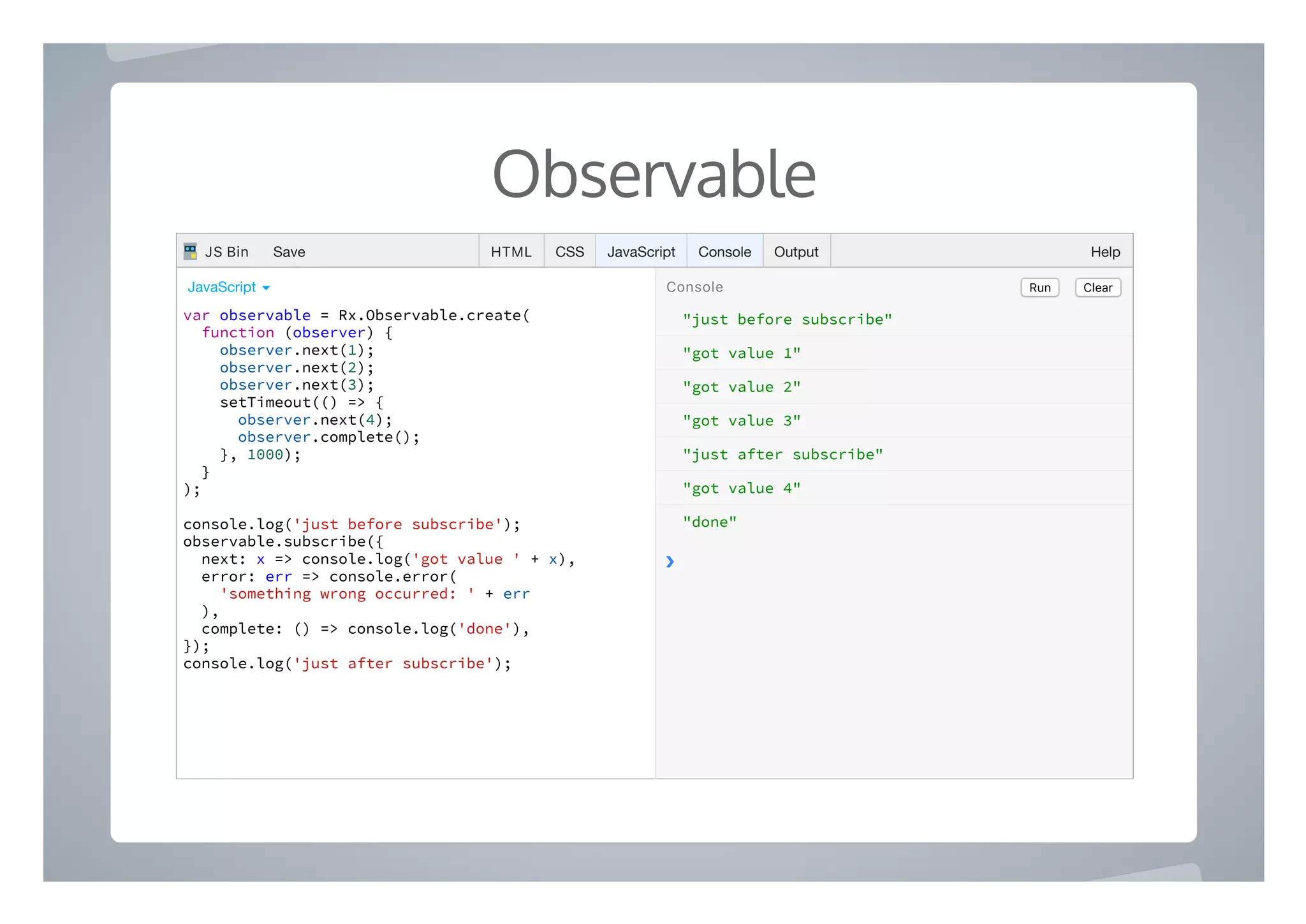

Observable
"just before subscribe"
"got value 1"
"got value 2"
"got value 3"
"just after subscribe"
"got value 4"
"done"
❯
var observable = Rx.Observable.create(
function (observer) {
observer.next(1);
observer.next(2);
observer.next(3);
setTimeout(() => {
observer.next(4);
observer.complete();
}, 1000);
}
);
console.log('just before subscribe');
observable.subscribe({
next: x => console.log('got value ' + x),
error: err => console.error(
'something wrong occurred: ' + err
),
complete: () => console.log('done'),
});
console.log('just after subscribe');
Run ClearConsoleJavaScript ▾
HTML CSS JavaScript Console Output HelpJS Bin Save

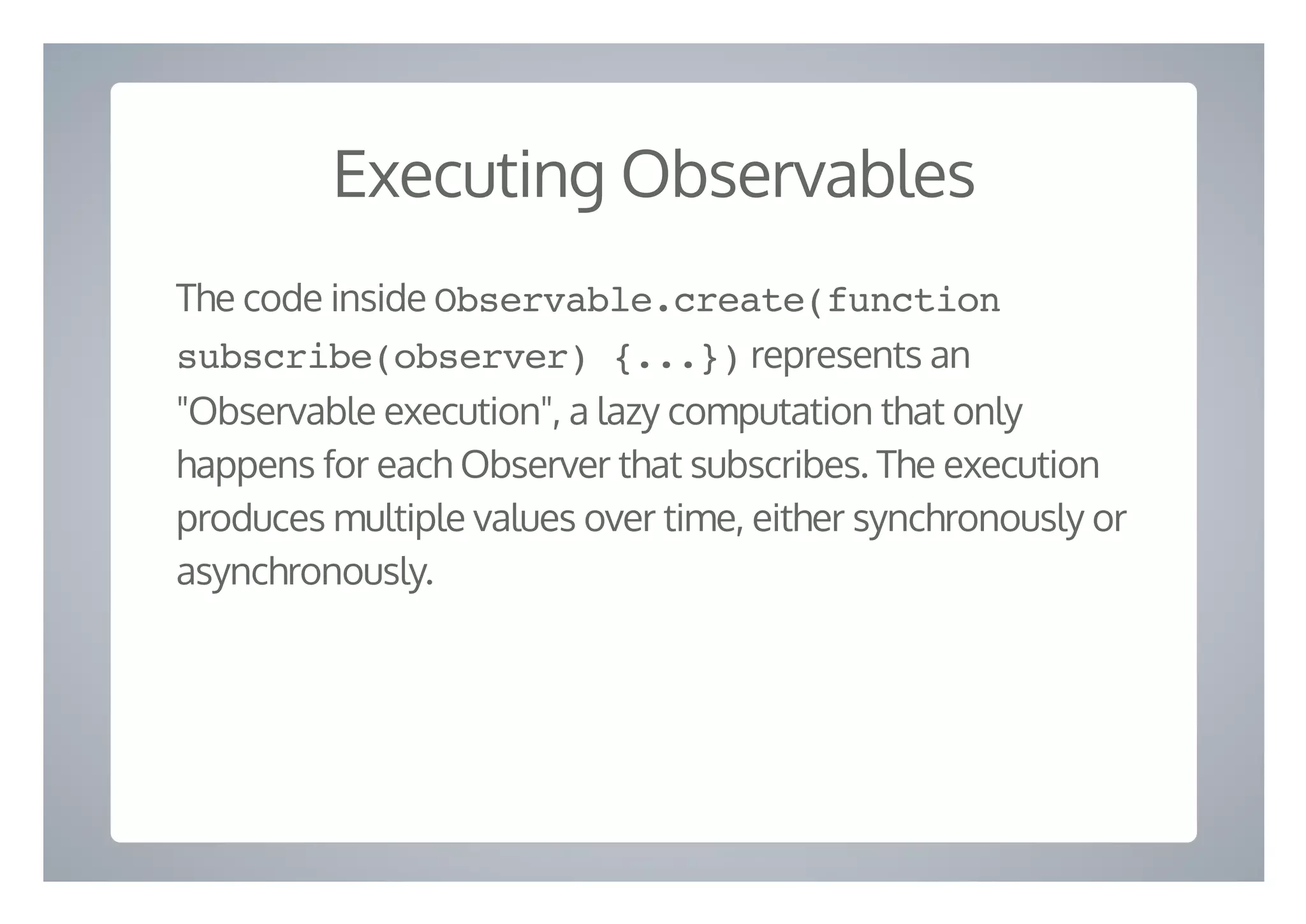

Executing Observables
The code inside Observable.create(function
subscribe(observer) {...}) represents an
"Observable execution", a lazy computation that only
happens for each Observer that subscribes. The execution
produces multiple values over time, either synchronously or
asynchronously.

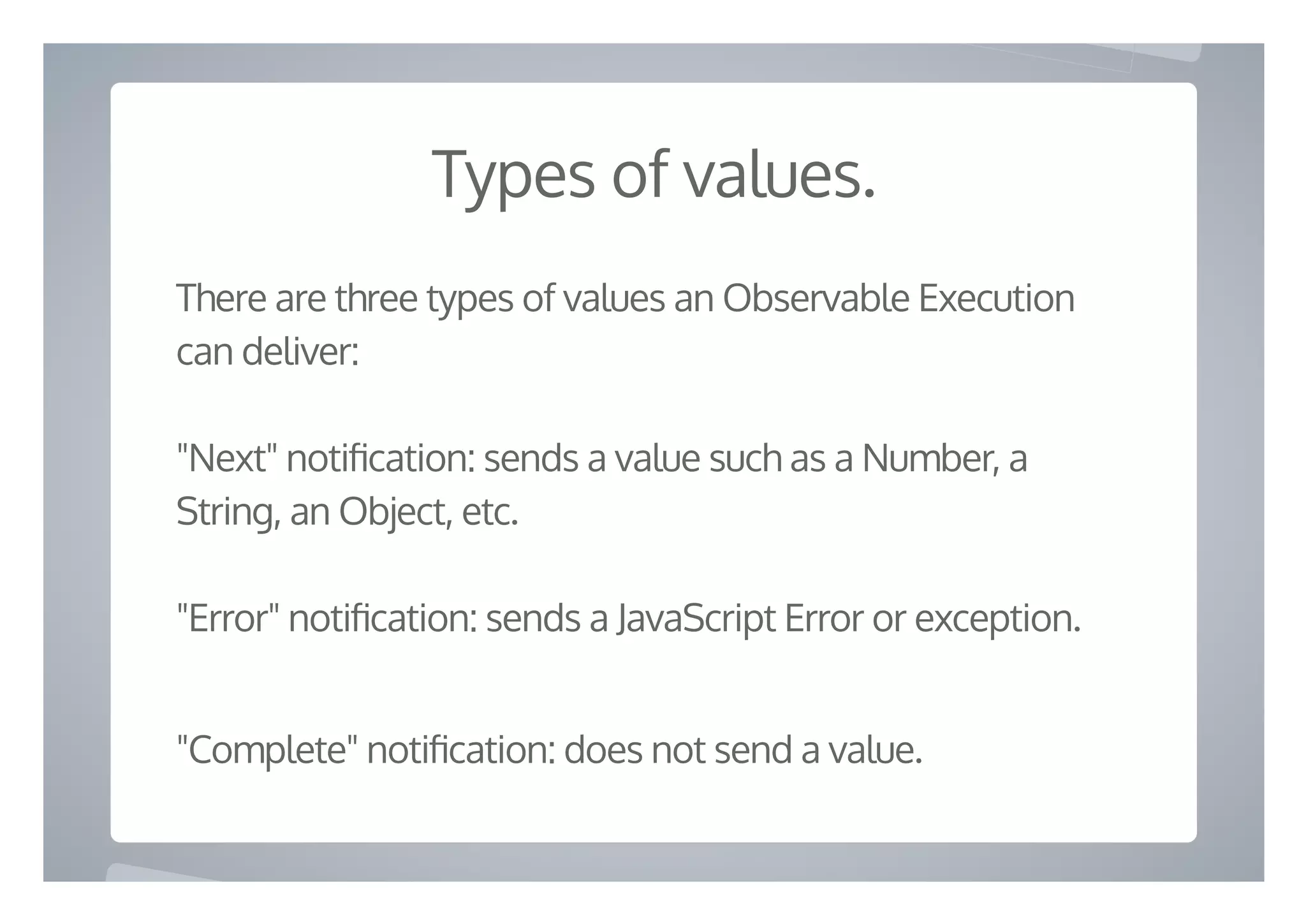

Types of values.
There are three types of values an Observable Execution
can deliver:
"Next" noti cation: sends a value such as a Number, a
String, an Object, etc.
"Error" noti cation: sends a JavaScript Error or exception.
"Complete" noti cation: does not send a value.

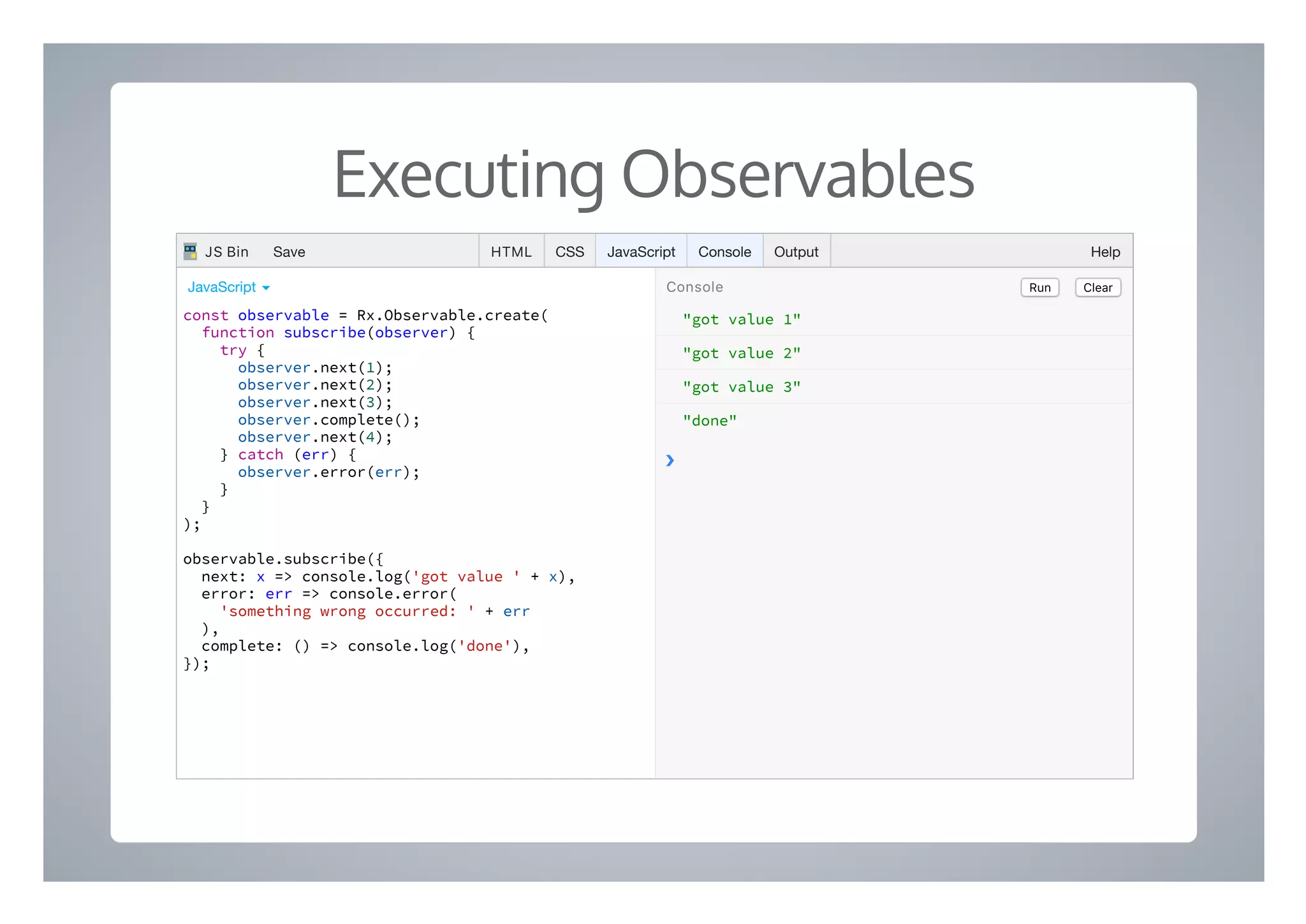

Executing Observables
"got value 1"
"got value 2"
"got value 3"
"done"
❯
const observable = Rx.Observable.create(
function subscribe(observer) {
try {
observer.next(1);
observer.next(2);
observer.next(3);
observer.complete();
observer.next(4);
} catch (err) {
observer.error(err);
}
}
);
observable.subscribe({
next: x => console.log('got value ' + x),
error: err => console.error(
'something wrong occurred: ' + err
),
complete: () => console.log('done'),
});

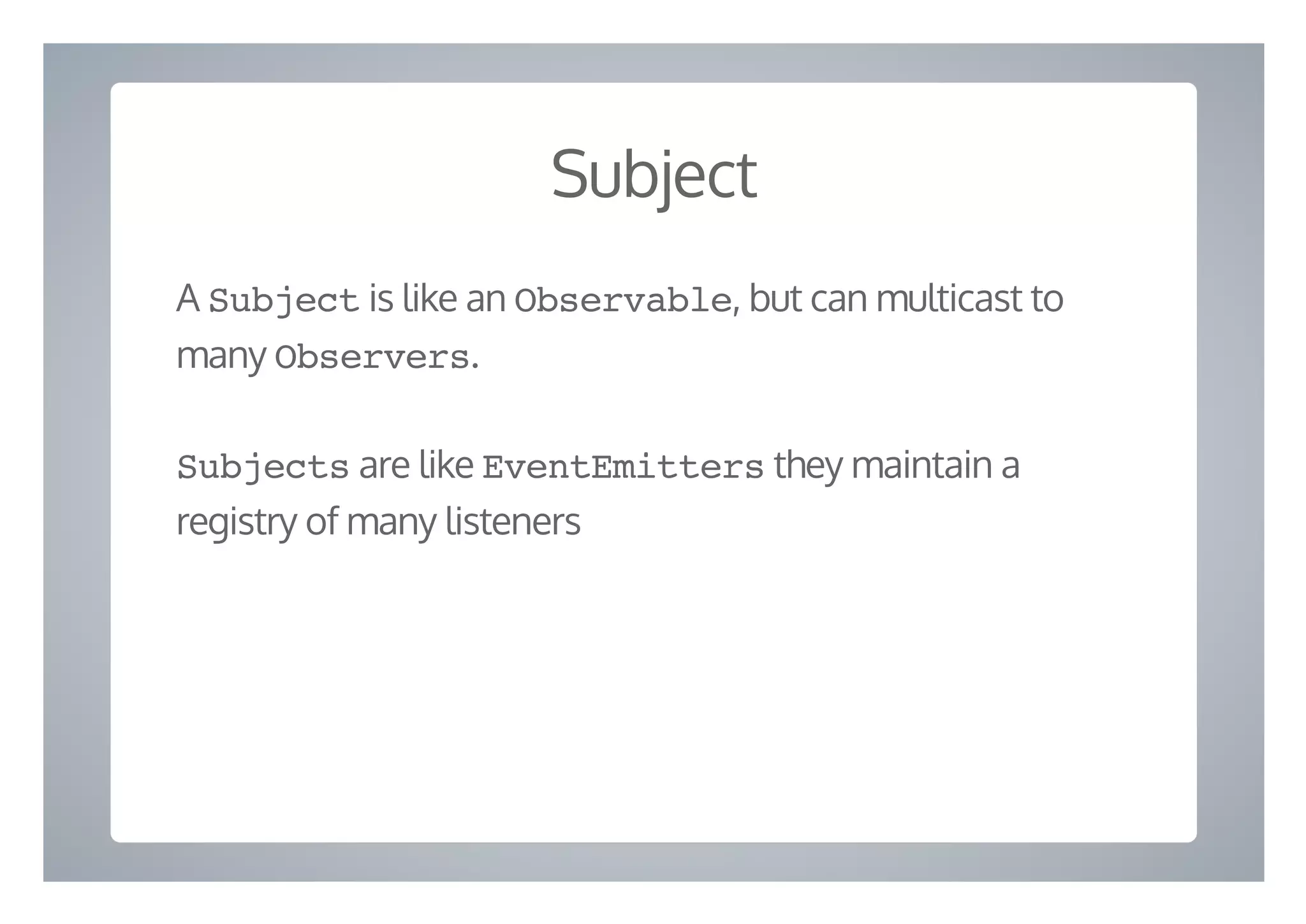

Subject
A Subject is like an Observable, but can multicast to
many Observers.
Subjects are like EventEmitters they maintain a
registry of many listeners

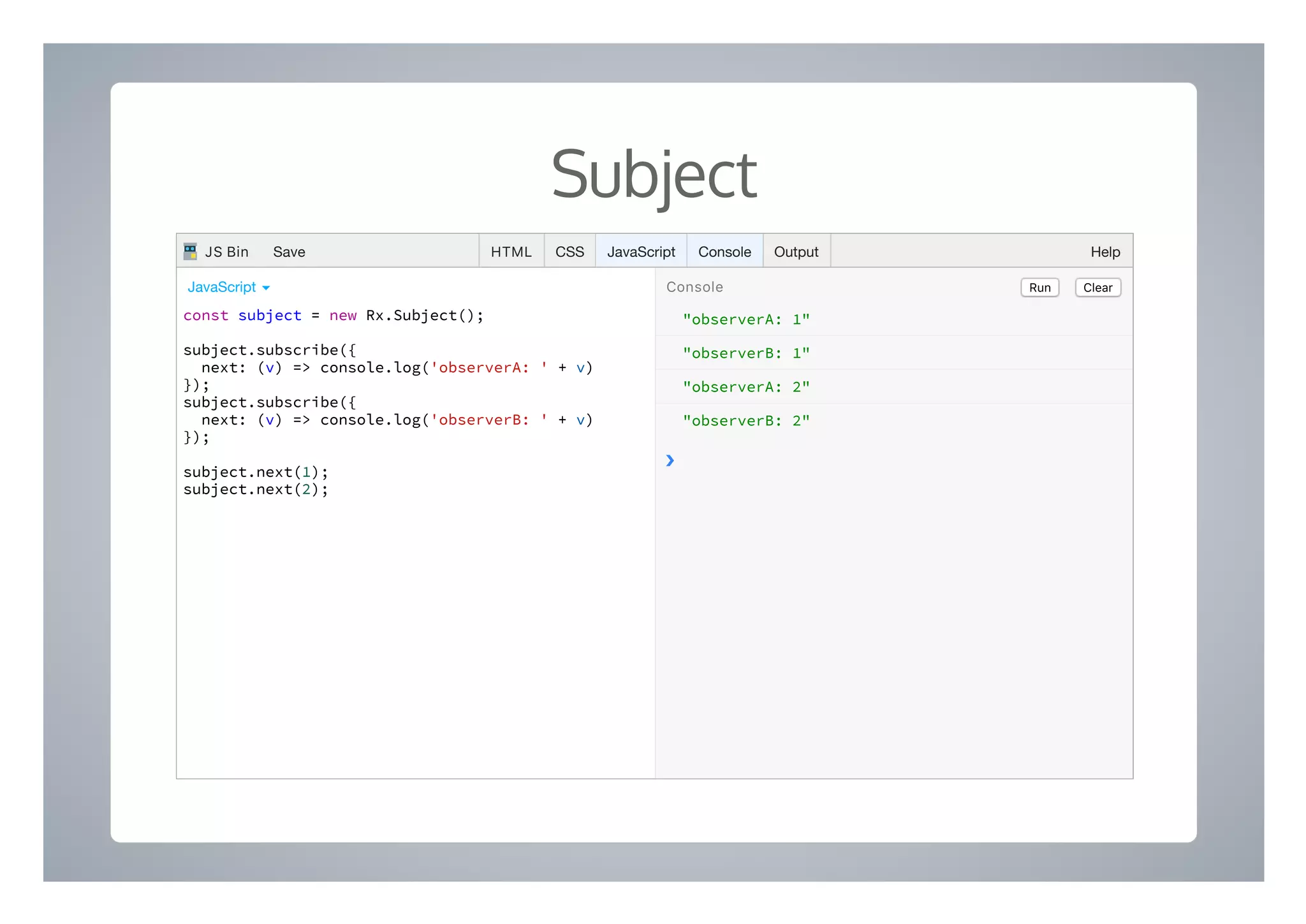

Subject
"observerA: 1"
"observerB: 1"
"observerA: 2"
"observerB: 2"
❯
const subject = new Rx.Subject();
subject.subscribe({
next: (v) => console.log('observerA: ' + v)
});
subject.subscribe({
next: (v) => console.log('observerB: ' + v)
});
subject.next(1);
subject.next(2);

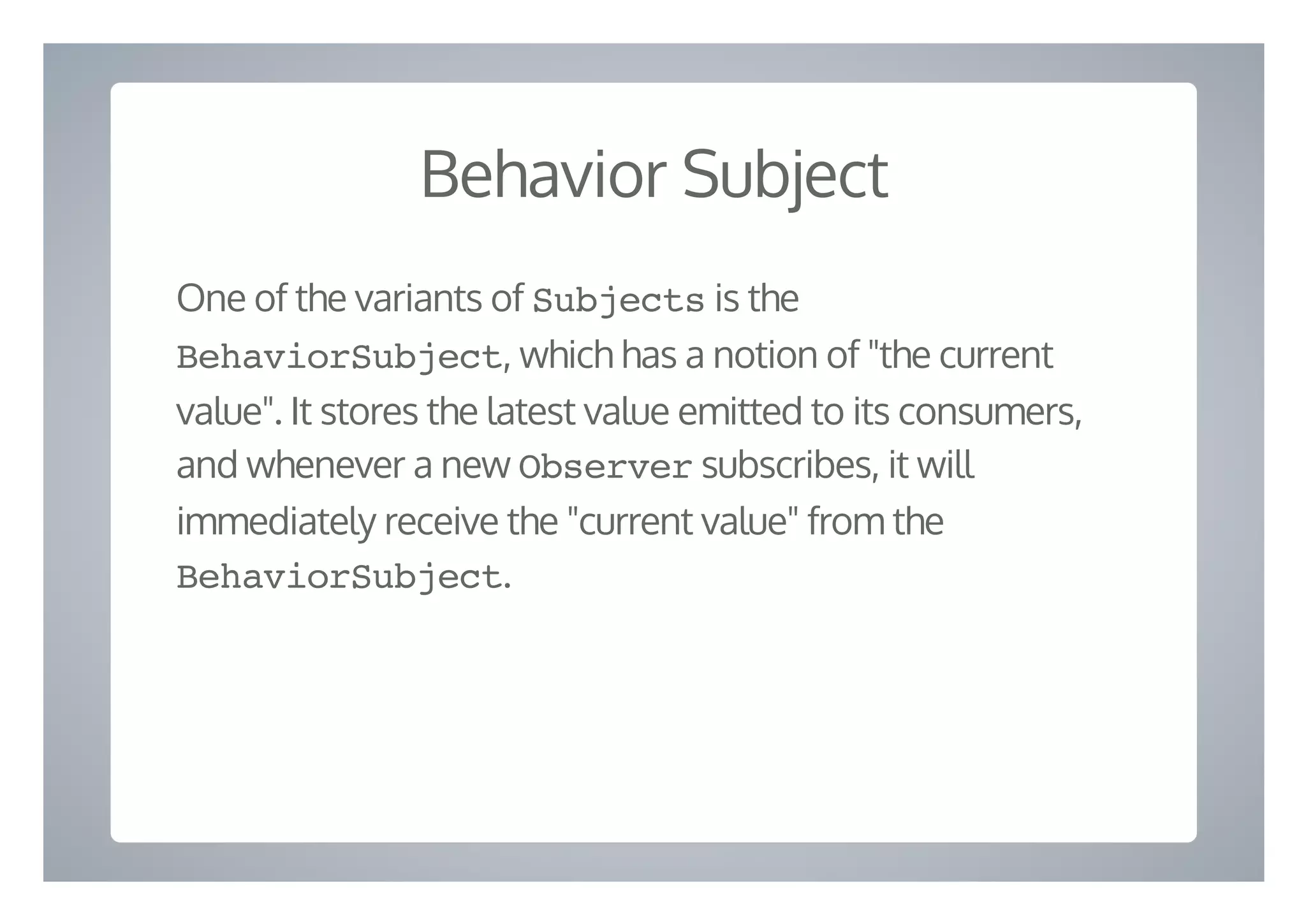

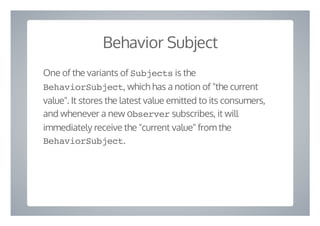

Behavior Subject
One of the variants of Subjects is the
BehaviorSubject, which has a notion of "the current
value". It stores the latest value emitted to its consumers,
and whenever a new Observer subscribes, it will
immediately receive the "current value" from the
BehaviorSubject.

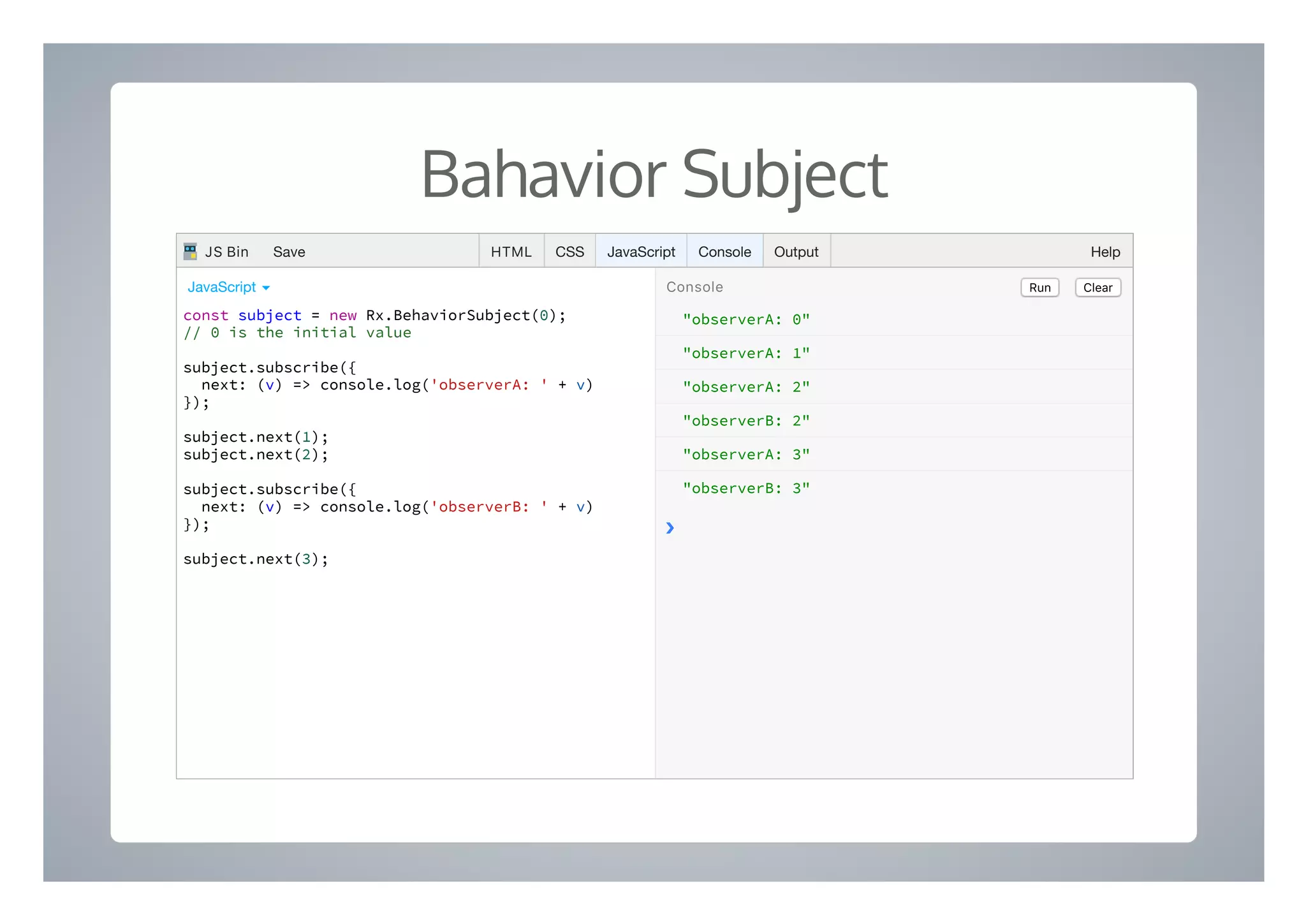

Bahavior Subject
"observerA: 0"
"observerA: 1"
"observerA: 2"
"observerB: 2"
"observerA: 3"
"observerB: 3"
❯
const subject = new Rx.BehaviorSubject(0);
// 0 is the initial value
subject.subscribe({
});
subject.next(1);
subject.next(2);
subject.subscribe({
});
subject.next(3);

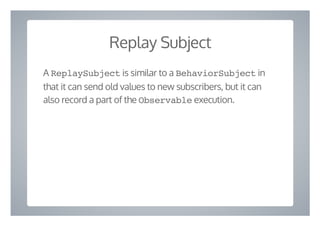

Replay Subject
A ReplaySubject is similar to a BehaviorSubject in
that it can send old values to new subscribers, but it can
also record a part of the Observable execution.

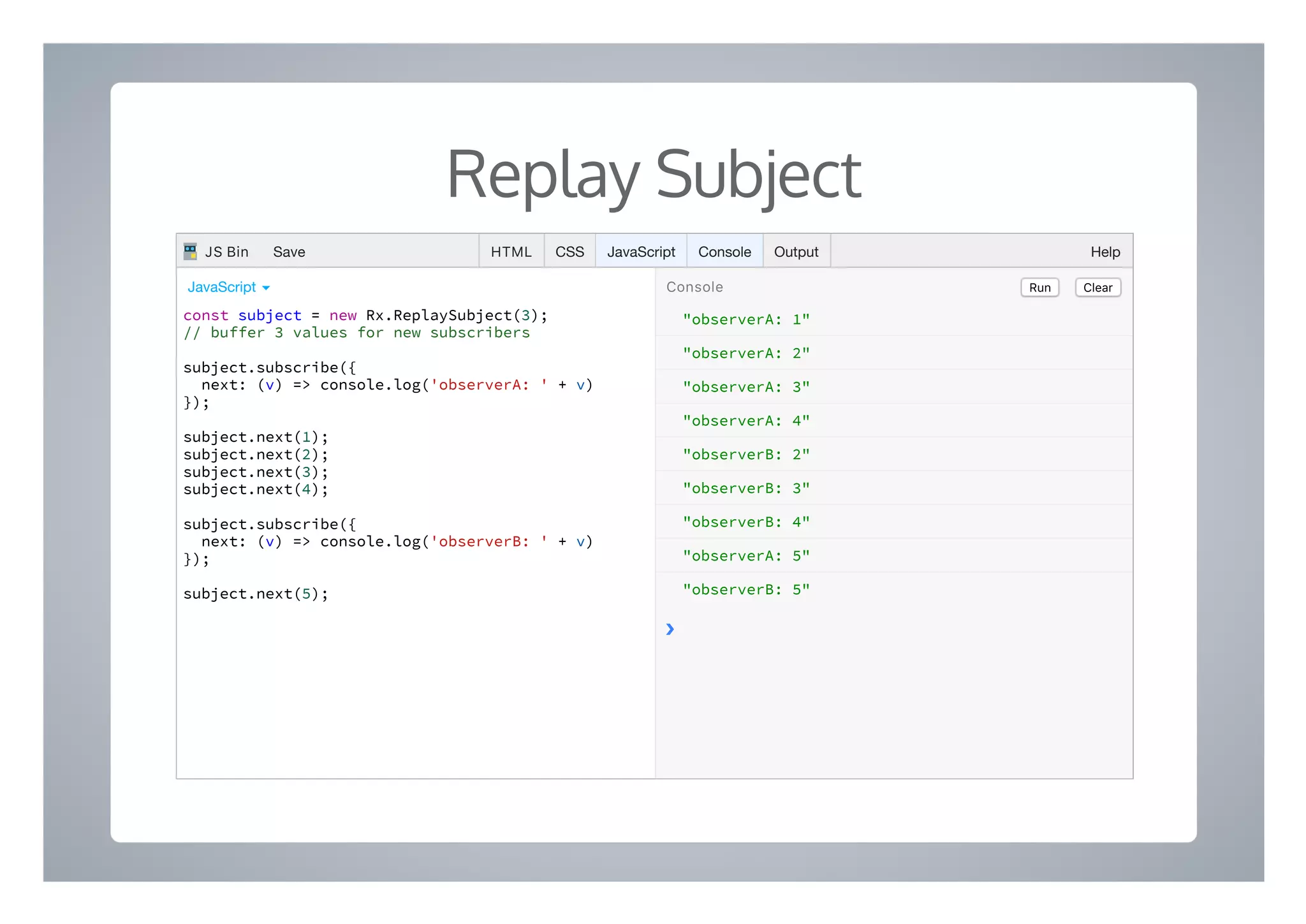

Replay Subject
"observerA: 1"
"observerA: 2"
"observerA: 3"
"observerA: 4"
"observerB: 2"
"observerB: 3"
"observerB: 4"
"observerA: 5"
"observerB: 5"
❯
const subject = new Rx.ReplaySubject(3);
// buffer 3 values for new subscribers
subject.subscribe({
});
subject.next(1);
subject.next(2);
subject.next(3);
subject.next(4);
subject.subscribe({
});
subject.next(5);

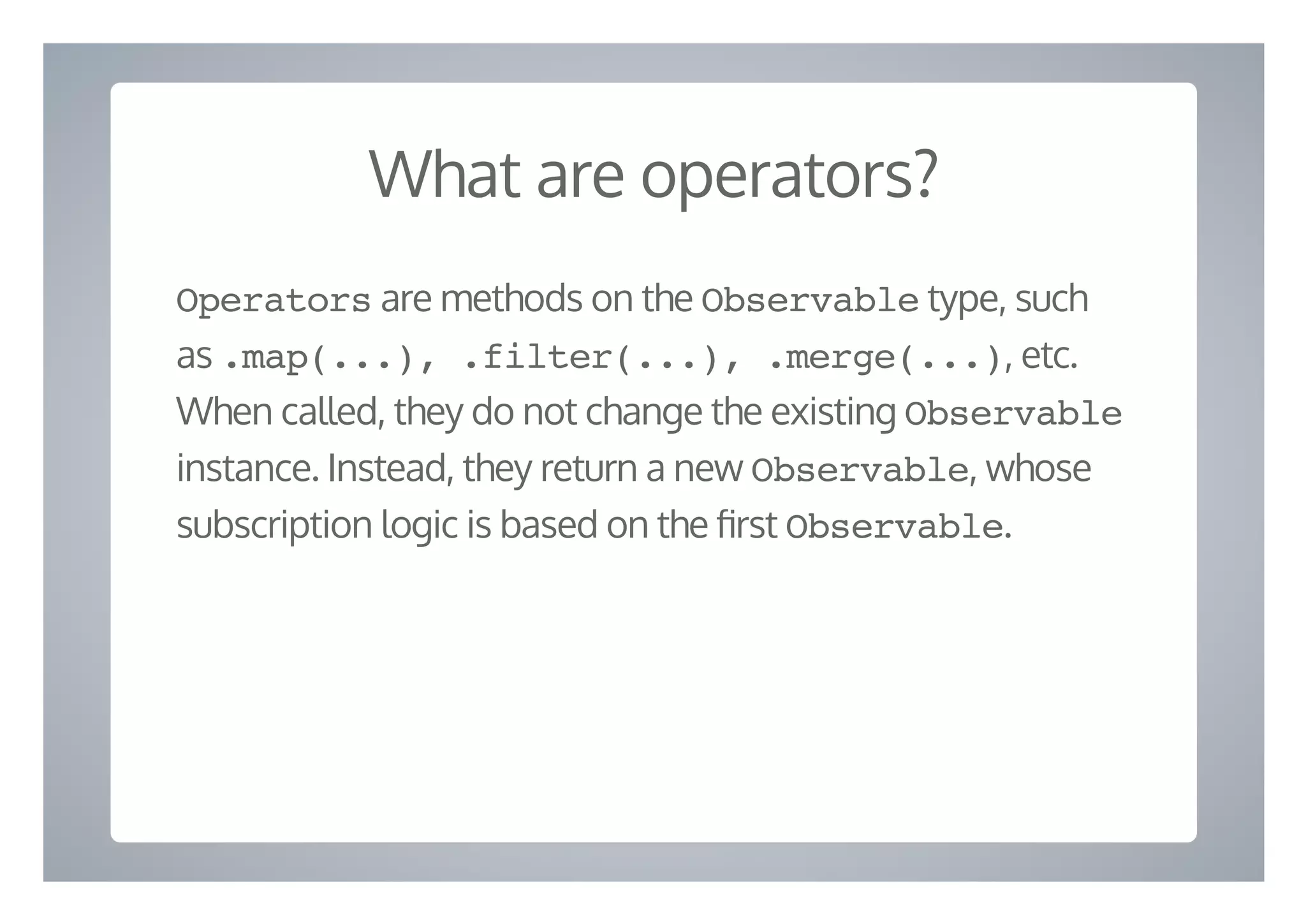

What are operators?
Operators are methods on the Observable type, such
as .map(...), .filter(...), .merge(...), etc.
When called, they do not change the existing Observable
instance. Instead, they return a new Observable, whose
subscription logic is based on the rst Observable.

Operators
10
20
30
40
❯
function multiplyByTen(input) {
const output = Rx.Observable.create(
function subscribe(observer) {
input.subscribe({
next: (v) => observer.next(10 * v),
error: (err) => observer.error(err),
complete: () => observer.complete()
});
}
);
return output;
}
const input = Rx.Observable.from([1, 2, 3, 4]);
const output = multiplyByTen(input);
output.subscribe(x => console.log(x));

Types of Operators
Creation
Transformation
Filtering
Combination
Multicasting
Error Handling
Utility

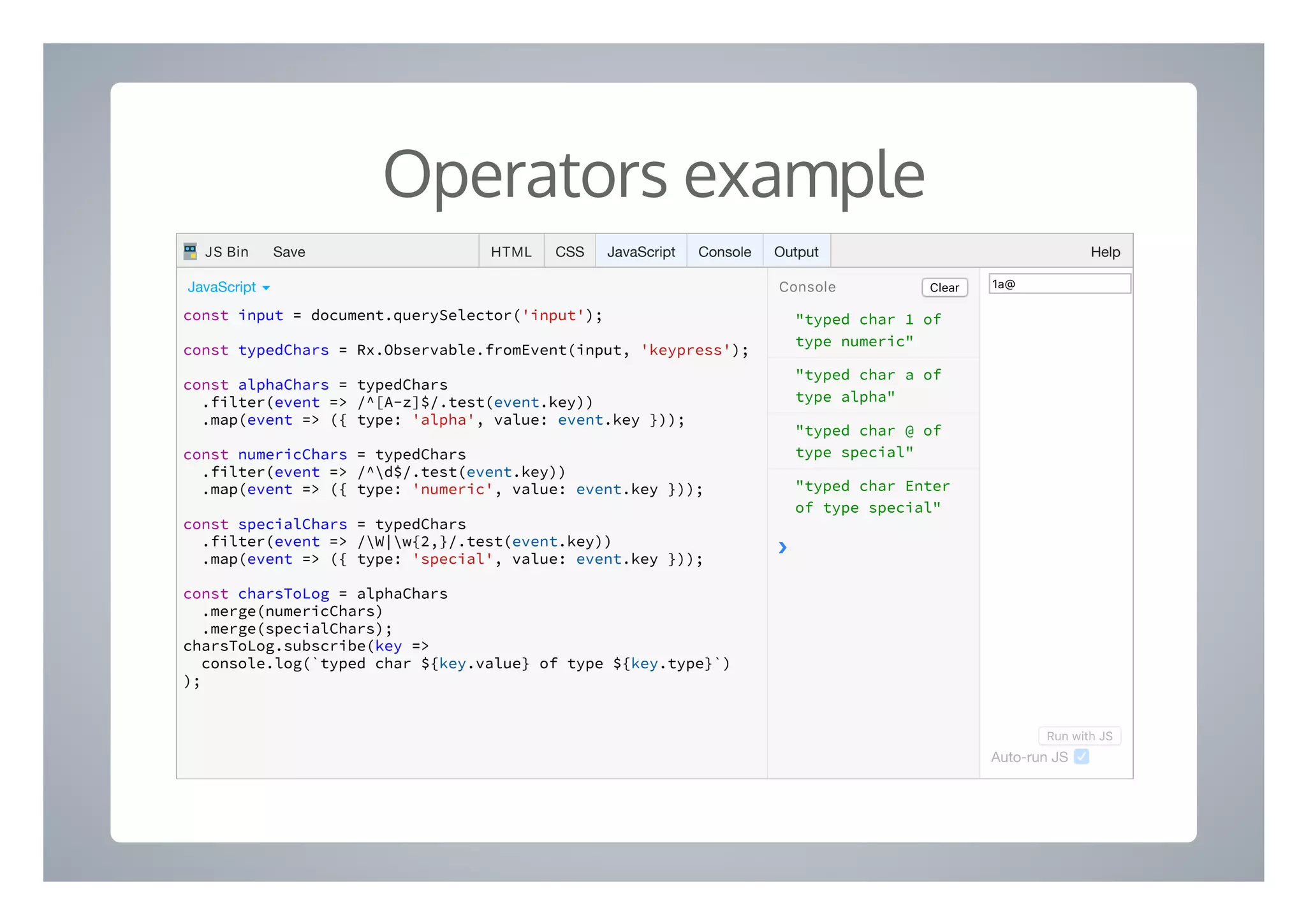

Operators example
"typed char 1 of
type numeric"
"typed char a of
type alpha"
"typed char @ of
type special"
"typed char Enter
of type special"
❯
const input = document.querySelector('input');
const typedChars = Rx.Observable.fromEvent(input, 'keypress');
const alphaChars = typedChars
.filter(event => /^[A-z]$/.test(event.key))
.map(event => ({ type: 'alpha', value: event.key }));
const numericChars = typedChars
.filter(event => /^d$/.test(event.key))
.map(event => ({ type: 'numeric', value: event.key }));
const specialChars = typedChars
.filter(event => /W|w{2,}/.test(event.key))
.map(event => ({ type: 'special', value: event.key }));
const charsToLog = alphaChars
.merge(numericChars)
.merge(specialChars);
charsToLog.subscribe(key =>
console.log(`typed char ${key.value} of type ${key.type}`)
);
ClearConsoleJavaScript ▾ 1a@
Run with JS
Auto-run JS

Useful Resources
http://reactivex.io/rxjs/
http://rxmarbles.com/
http://jaredforsyth.com/rxvision/
