  Reactive Extensions for .NET Previously Linq to Events Eric R Taylor 7/10/2012 1

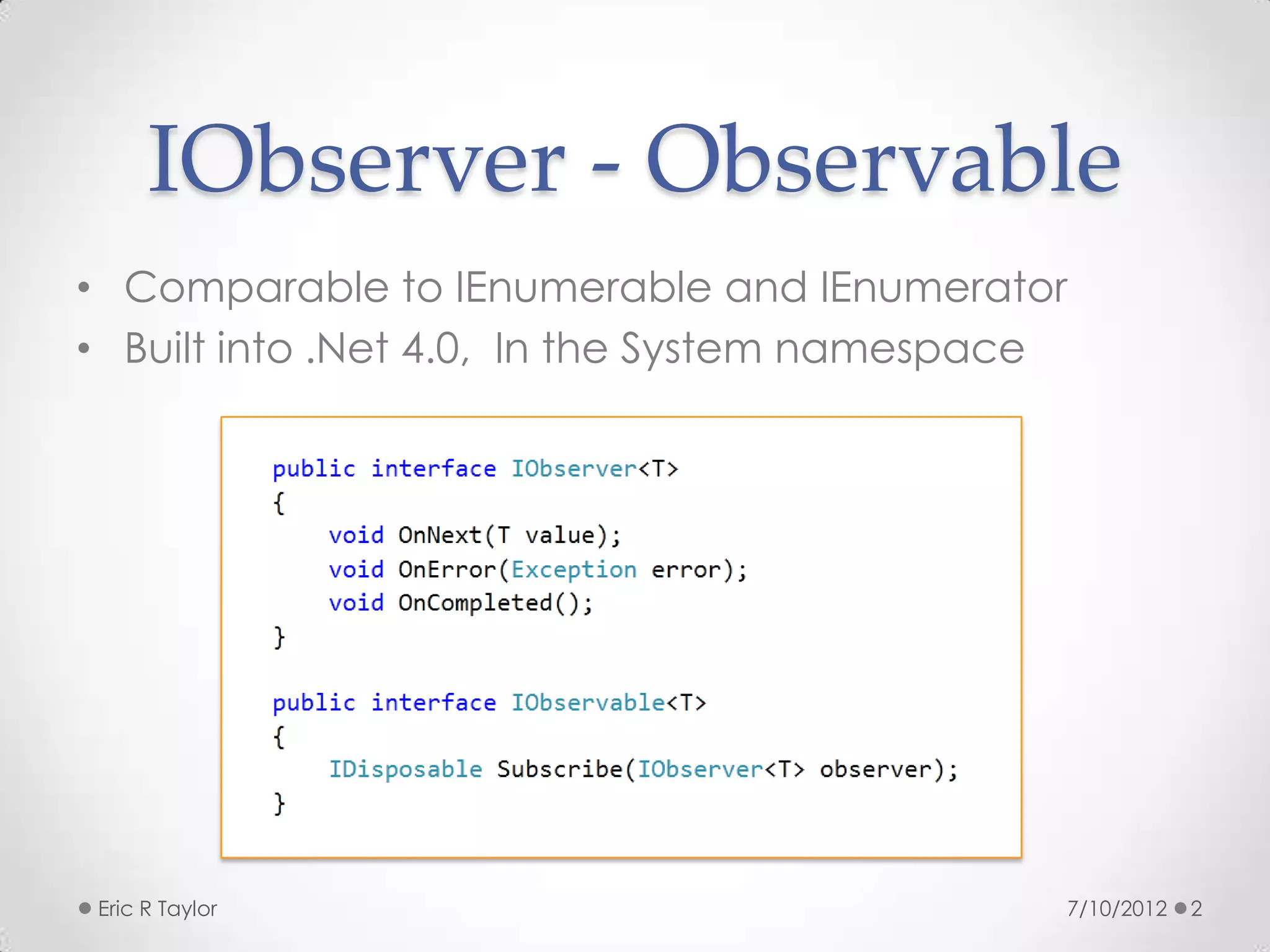

• 2.

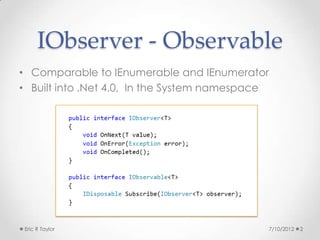

  IObserver - Observable •Comparable to IEnumerable and IEnumerator • Built into .Net 4.0, In the System namespace Eric R Taylor 7/10/2012 2
• 3.

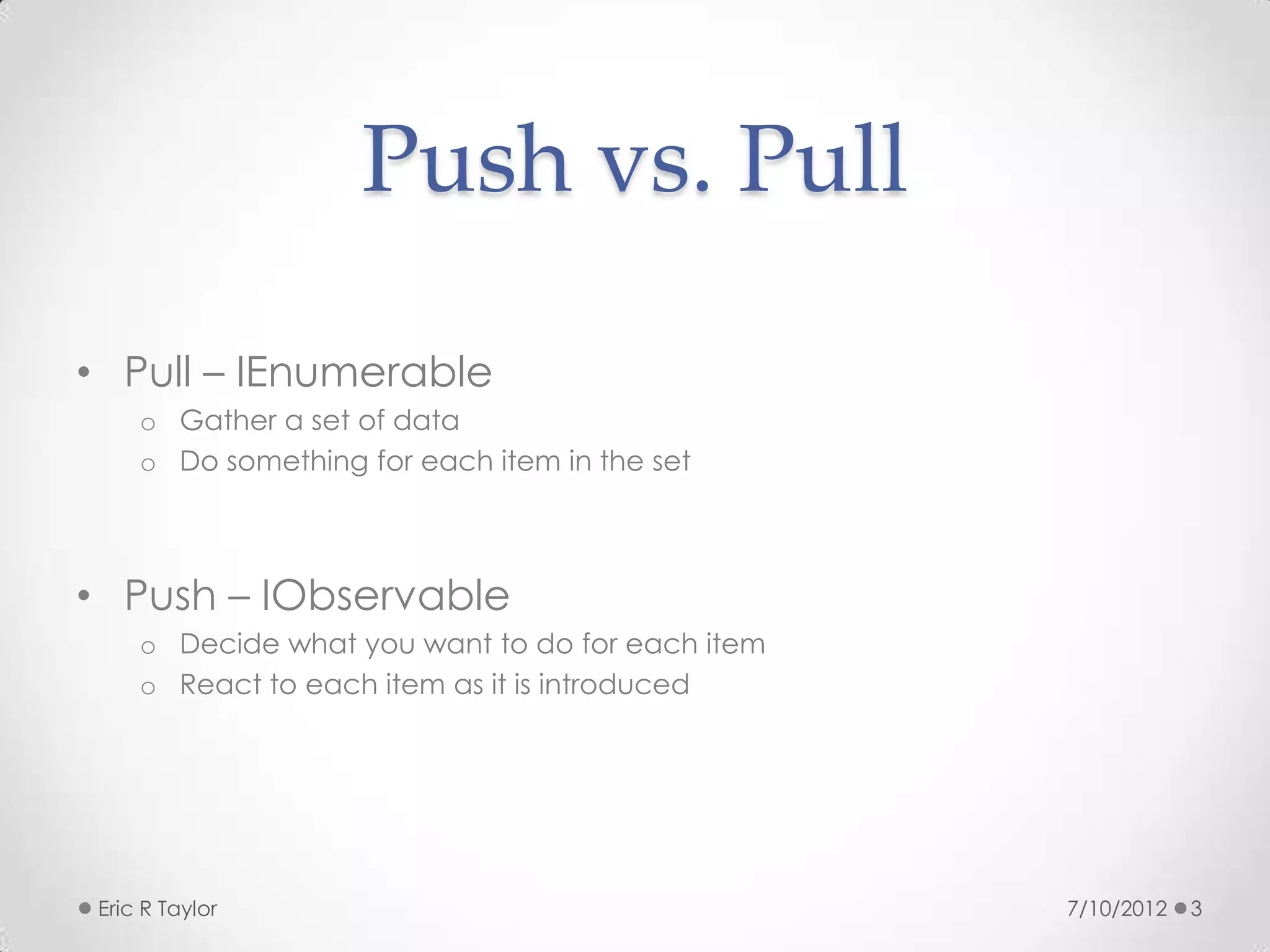

  Push vs. Pull •Pull – IEnumerable o Gather a set of data o Do something for each item in the set • Push – IObservable o Decide what you want to do for each item o React to each item as it is introduced Eric R Taylor 7/10/2012 3
• 4.

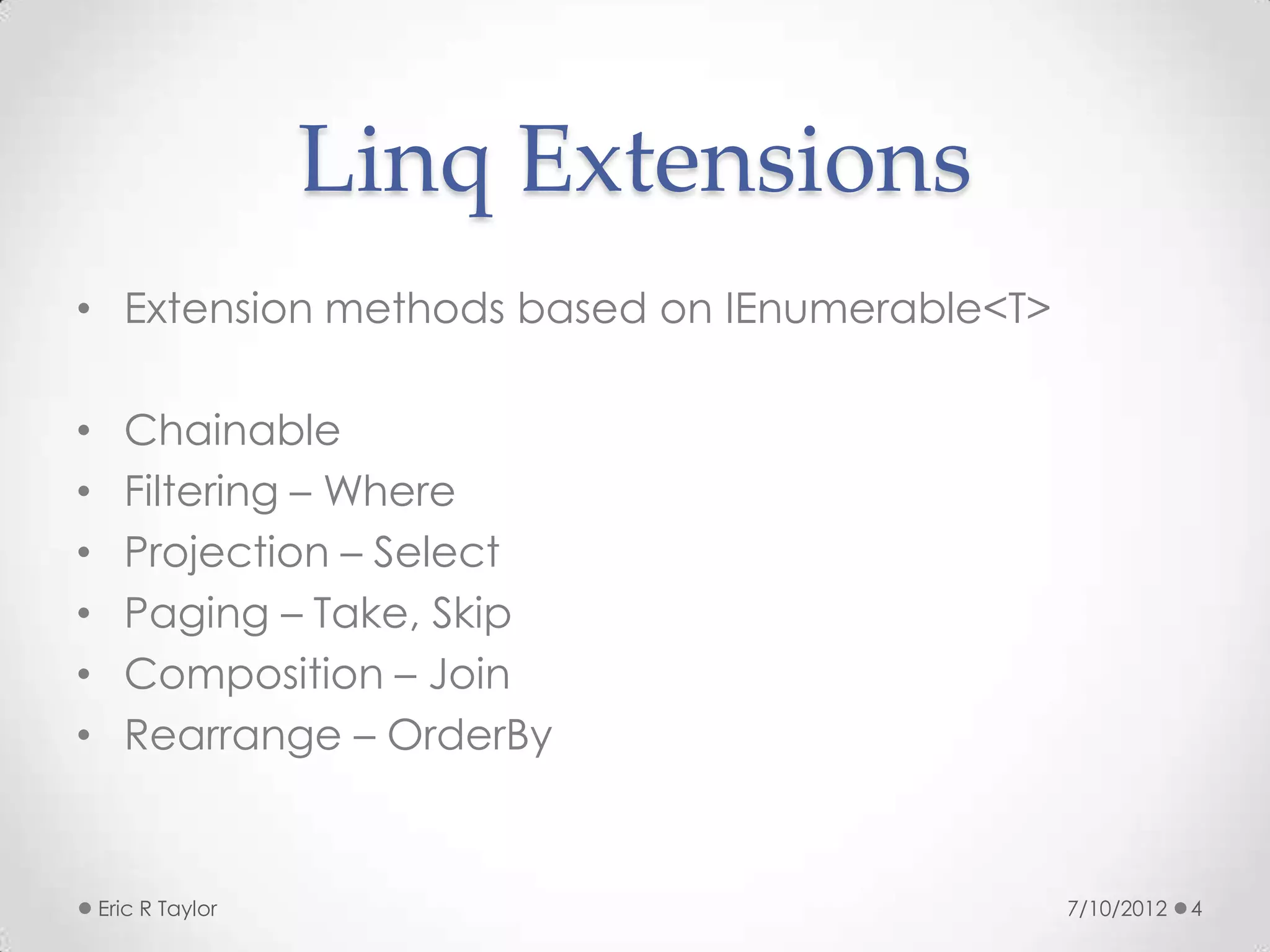

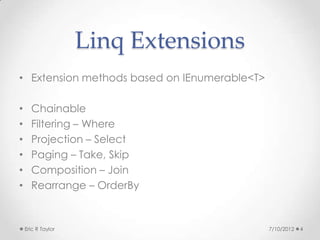

  Linq Extensions • Extensionmethods based on IEnumerable<T> • Chainable • Filtering – Where • Projection – Select • Paging – Take, Skip • Composition – Join • Rearrange – OrderBy Eric R Taylor 7/10/2012 4
• 5.

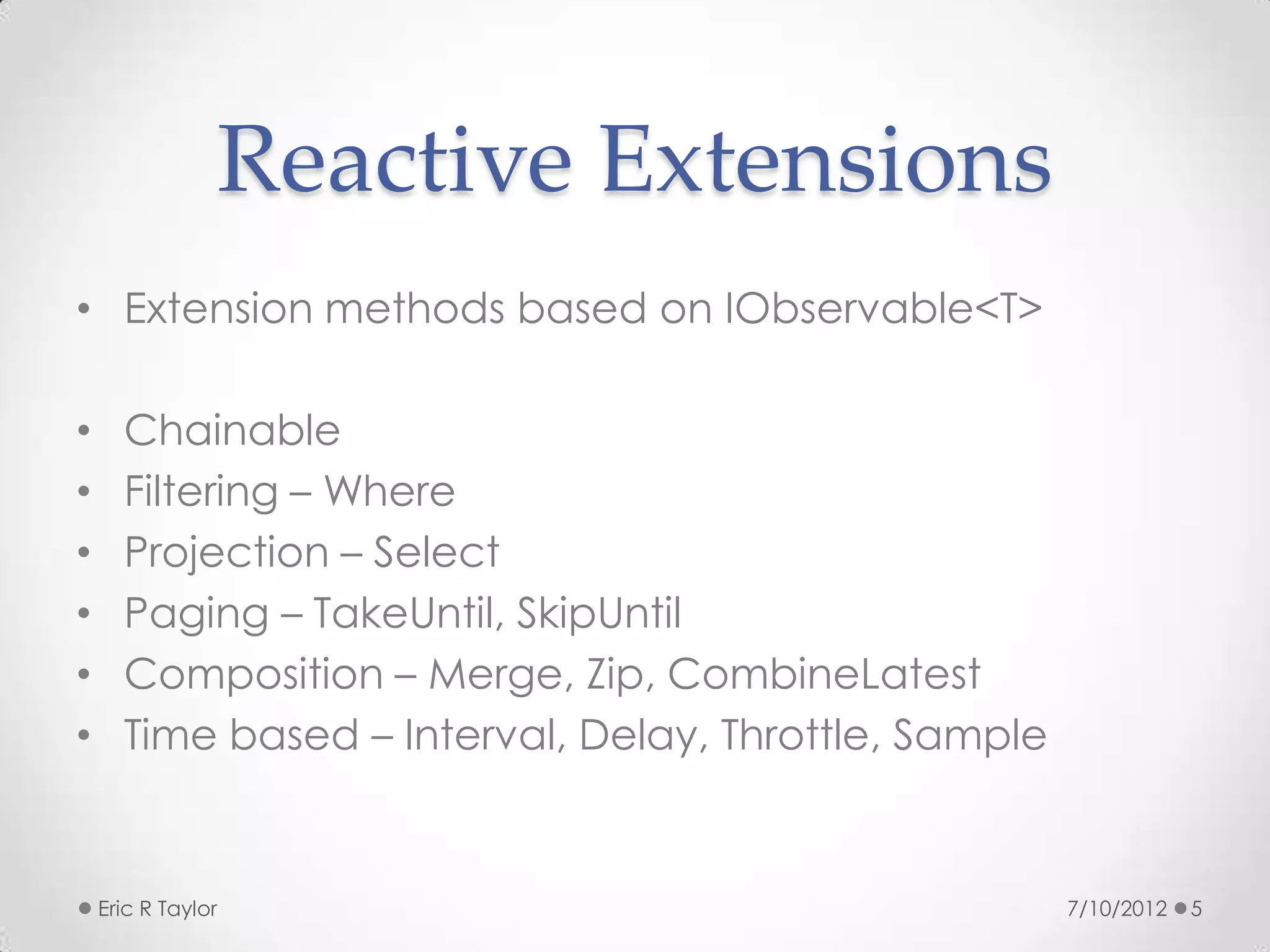

  Reactive Extensions • Extensionmethods based on IObservable<T> • Chainable • Filtering – Where • Projection – Select • Paging – TakeUntil, SkipUntil • Composition – Merge, Zip, CombineLatest • Time based – Interval, Delay, Throttle, Sample Eric R Taylor 7/10/2012 5

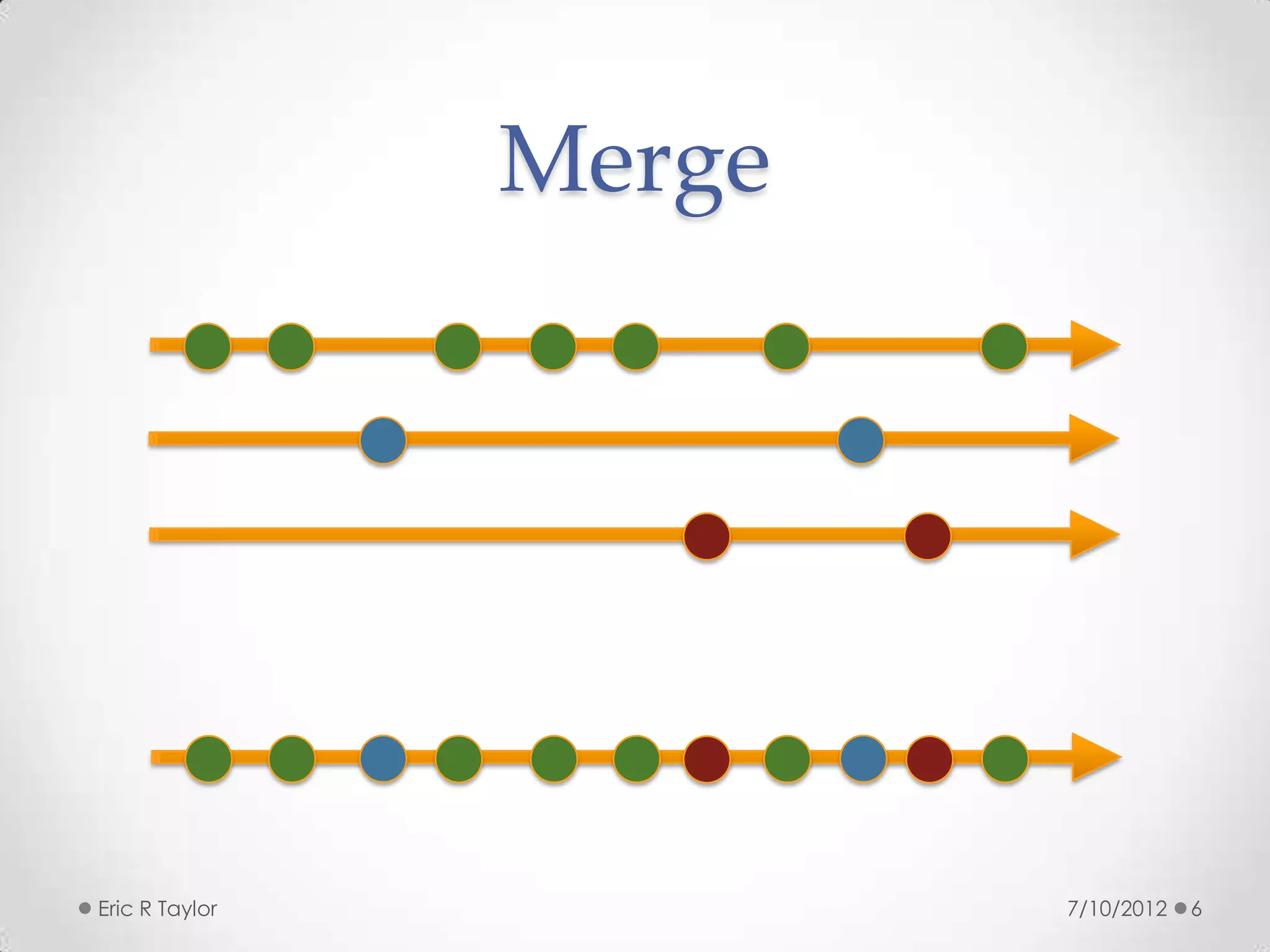

• 6.

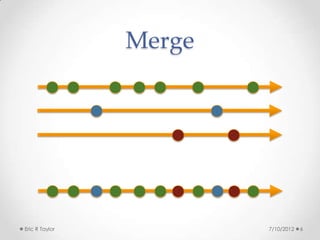

  Merge Eric R Taylor 7/10/2012 6

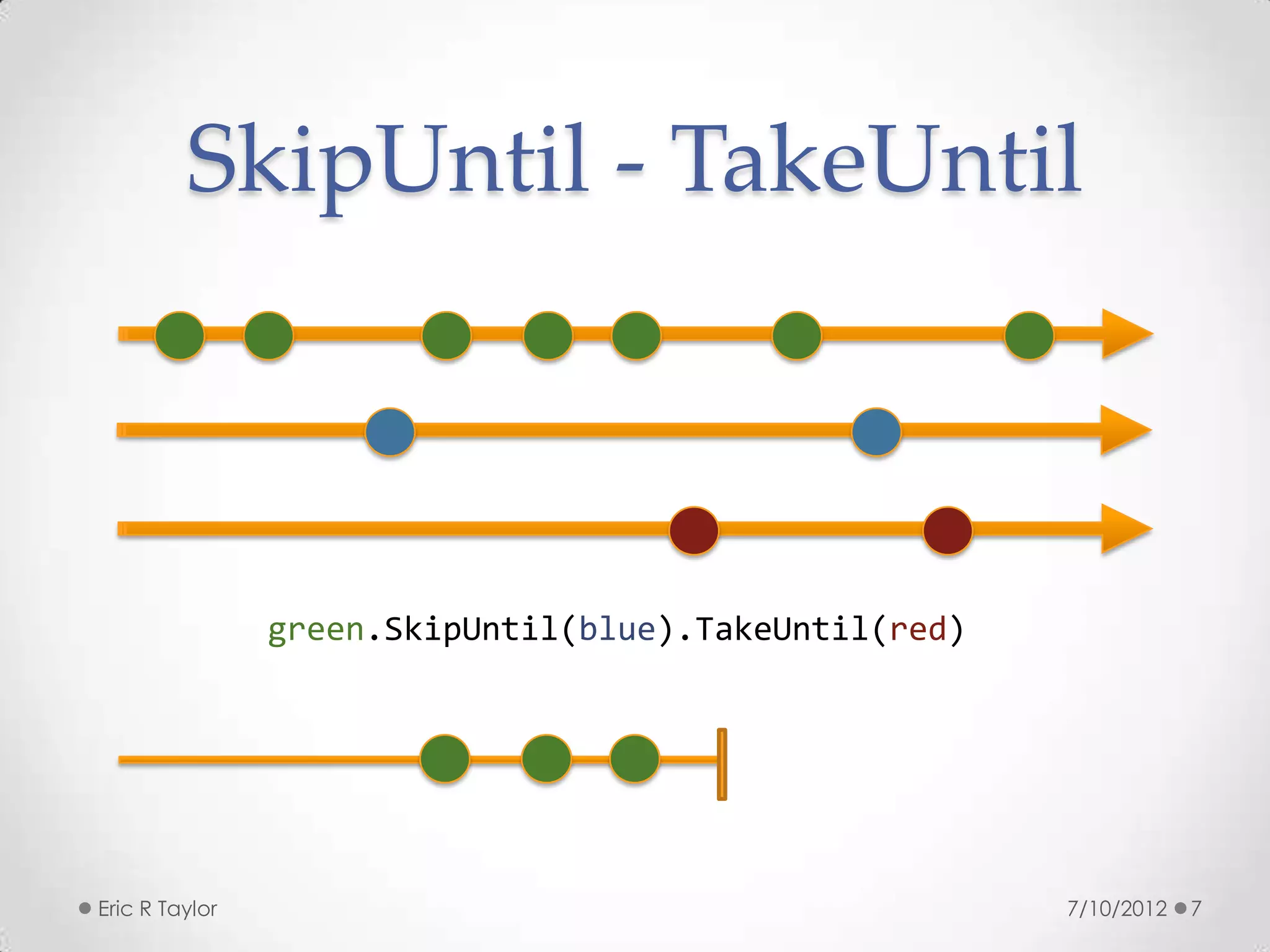

• 7.
  SkipUntil - TakeUntil green.SkipUntil(blue).TakeUntil(red) Eric R Taylor 7/10/2012 7

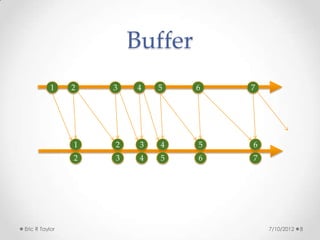

• 8.

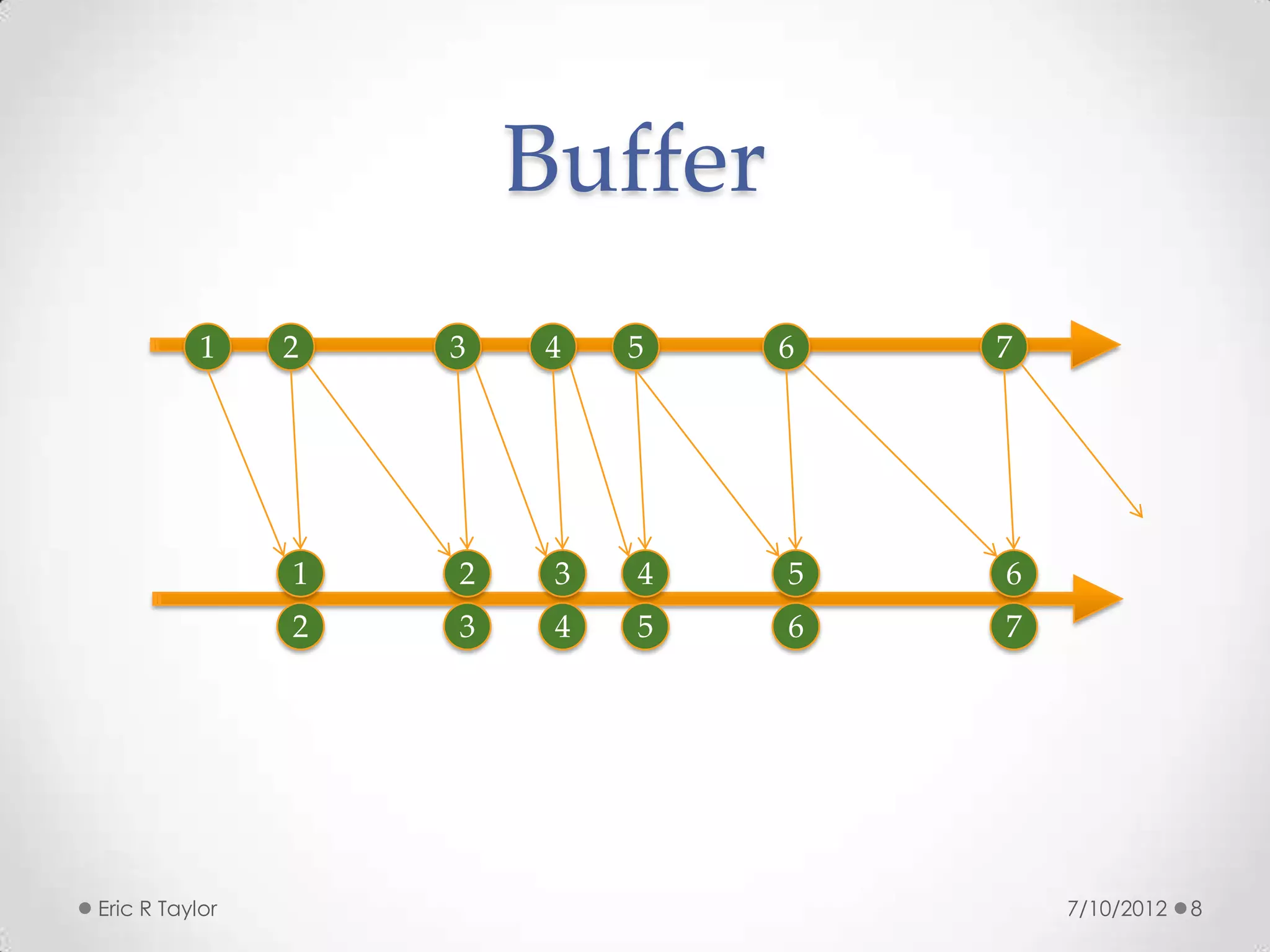

  Buffer 1 2 3 4 5 6 7 1 2 3 4 5 6 2 3 4 5 6 7 Eric R Taylor 7/10/2012 8
• 9.

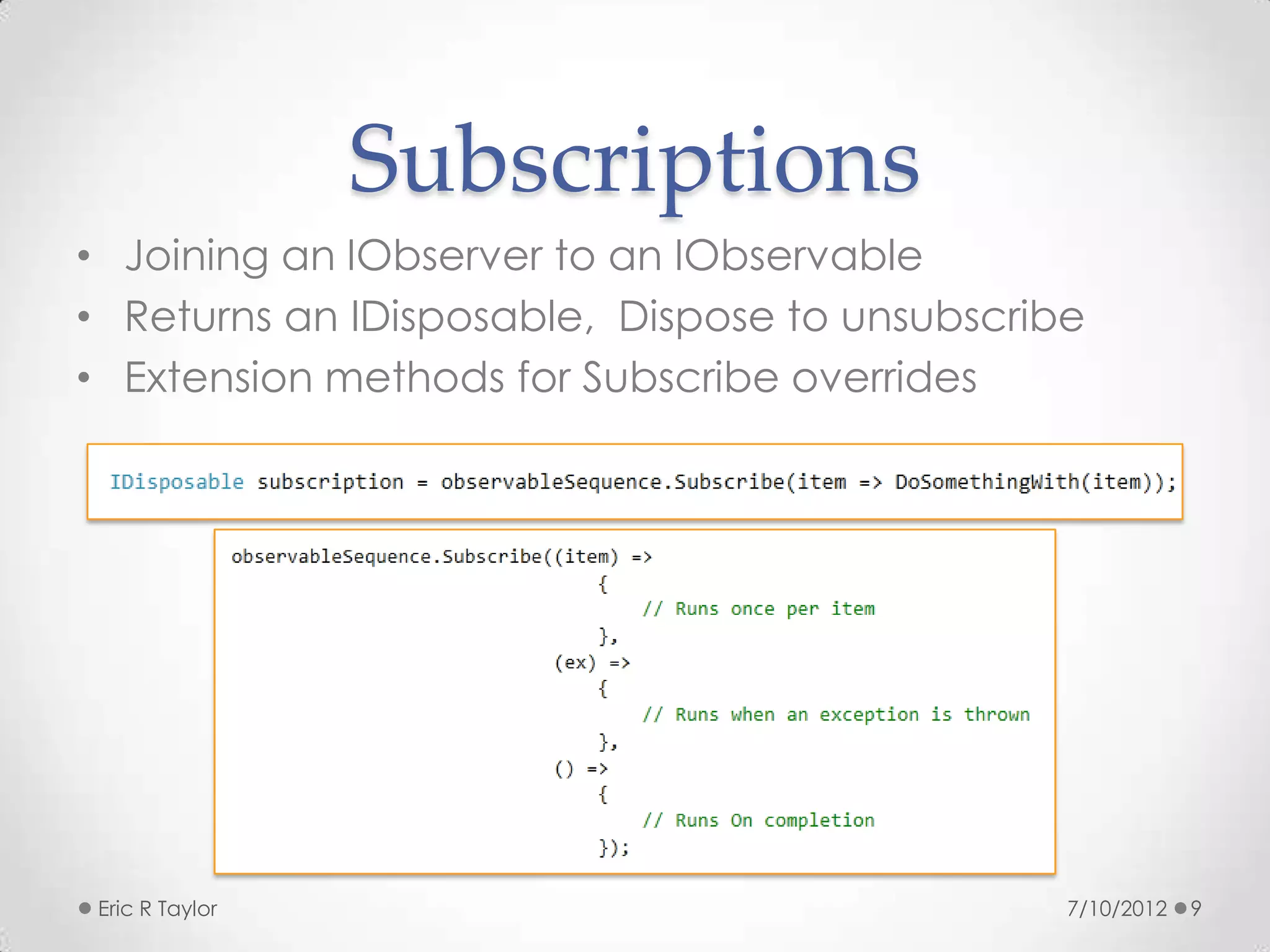

  Subscriptions • Joining anIObserver to an IObservable • Returns an IDisposable, Dispose to unsubscribe • Extension methods for Subscribe overrides Eric R Taylor 7/10/2012 9

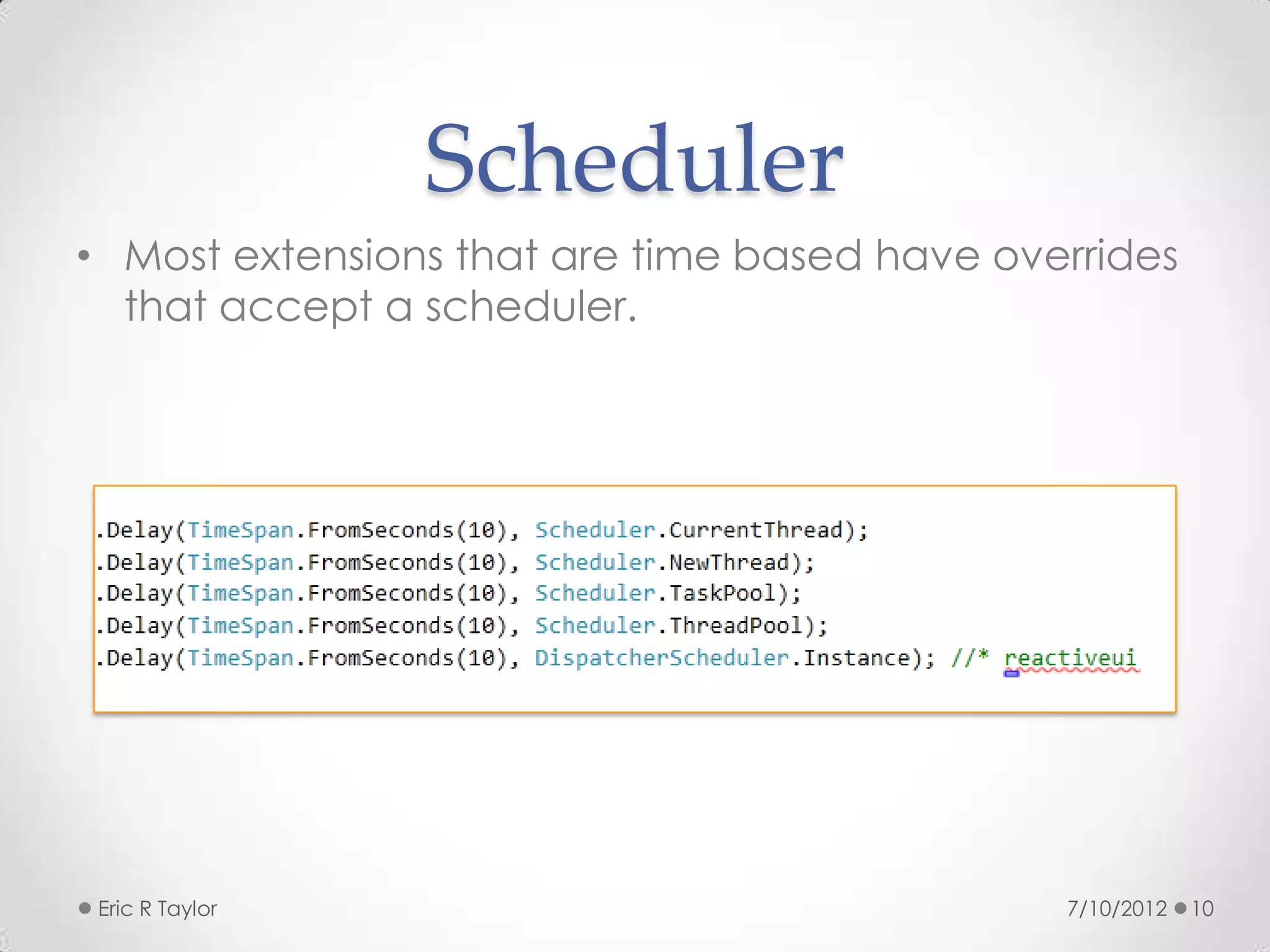

• 10.
  Scheduler • Most extensionsthat are time based have overrides that accept a scheduler. Eric R Taylor 7/10/2012 10
• 11.

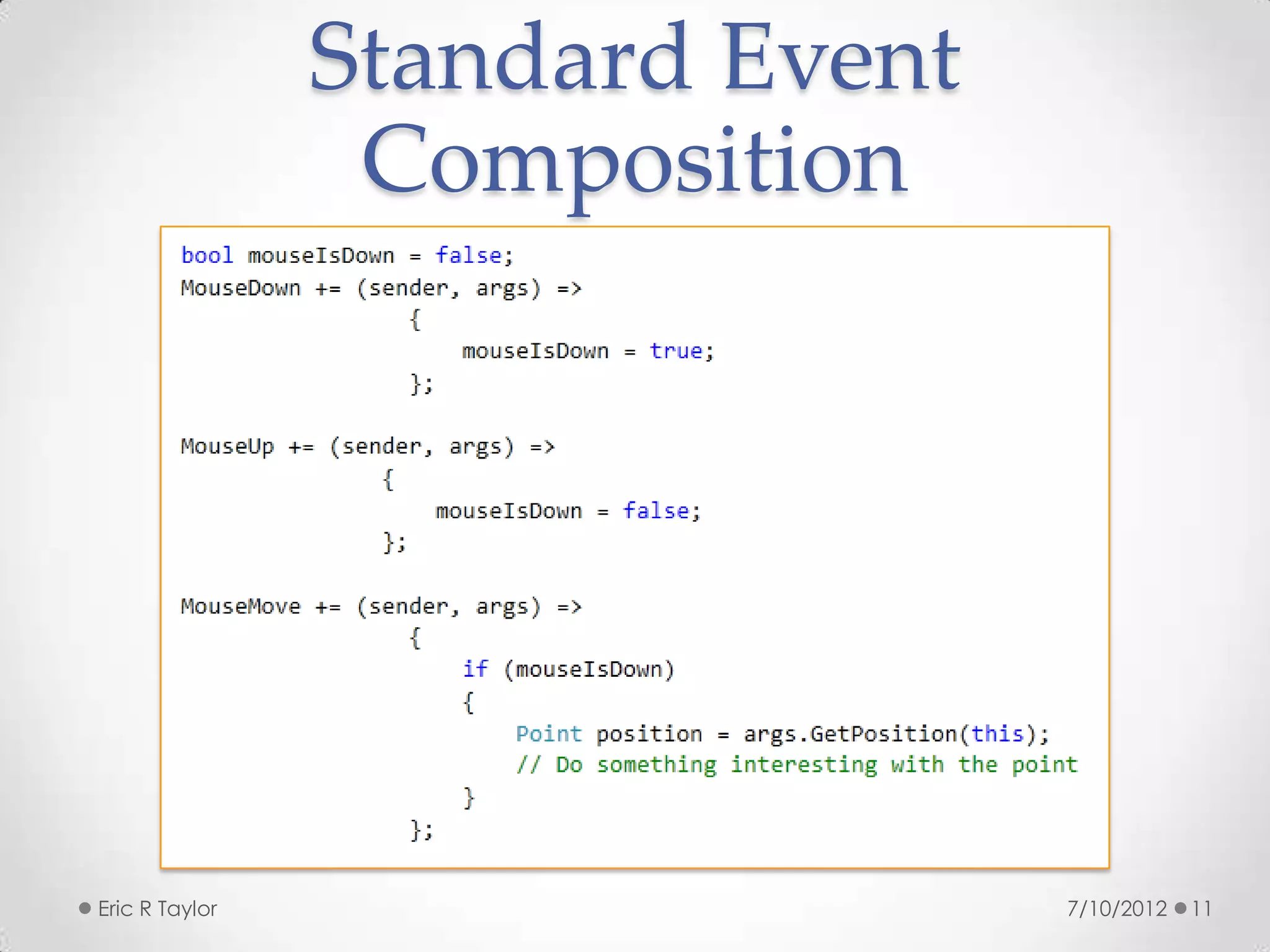

  Standard Event Composition Eric R Taylor 7/10/2012 11
• 12.

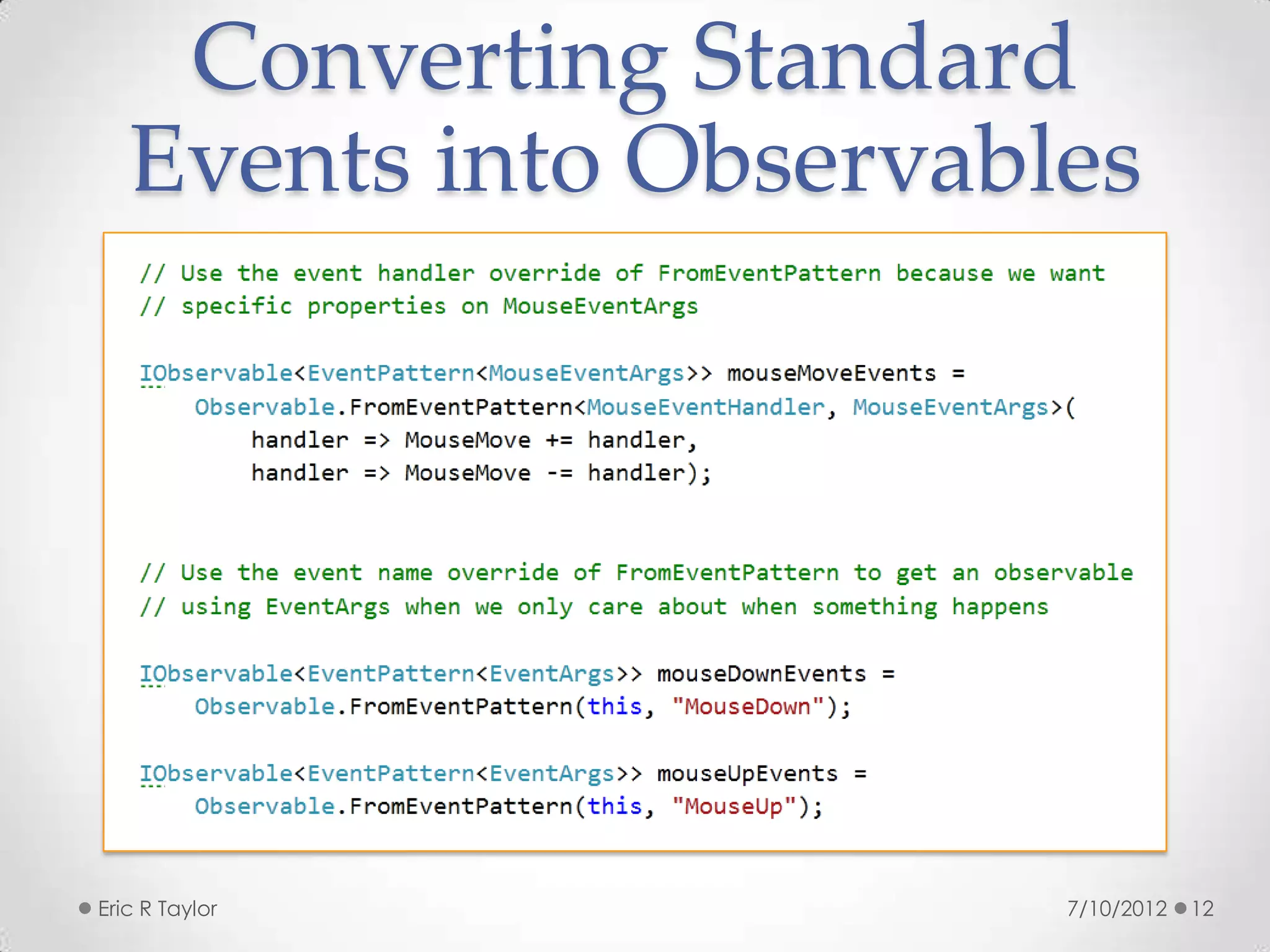

  Converting Standard Events into Observables Eric R Taylor 7/10/2012 12

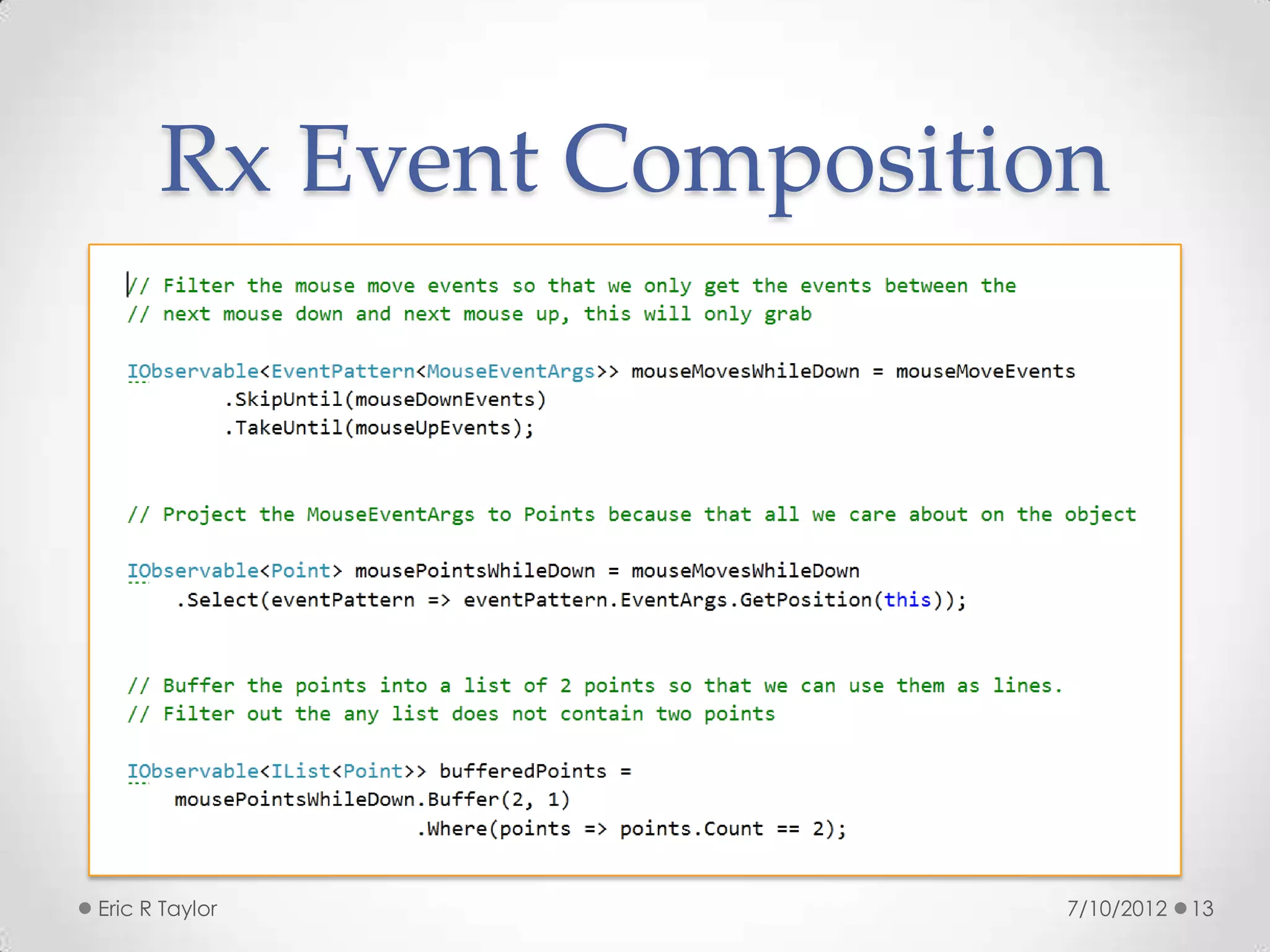

• 13.

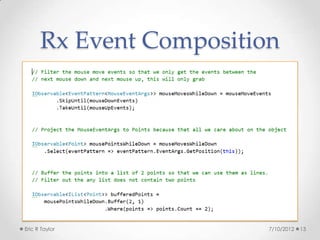

  Rx Event Composition EricR Taylor 7/10/2012 13

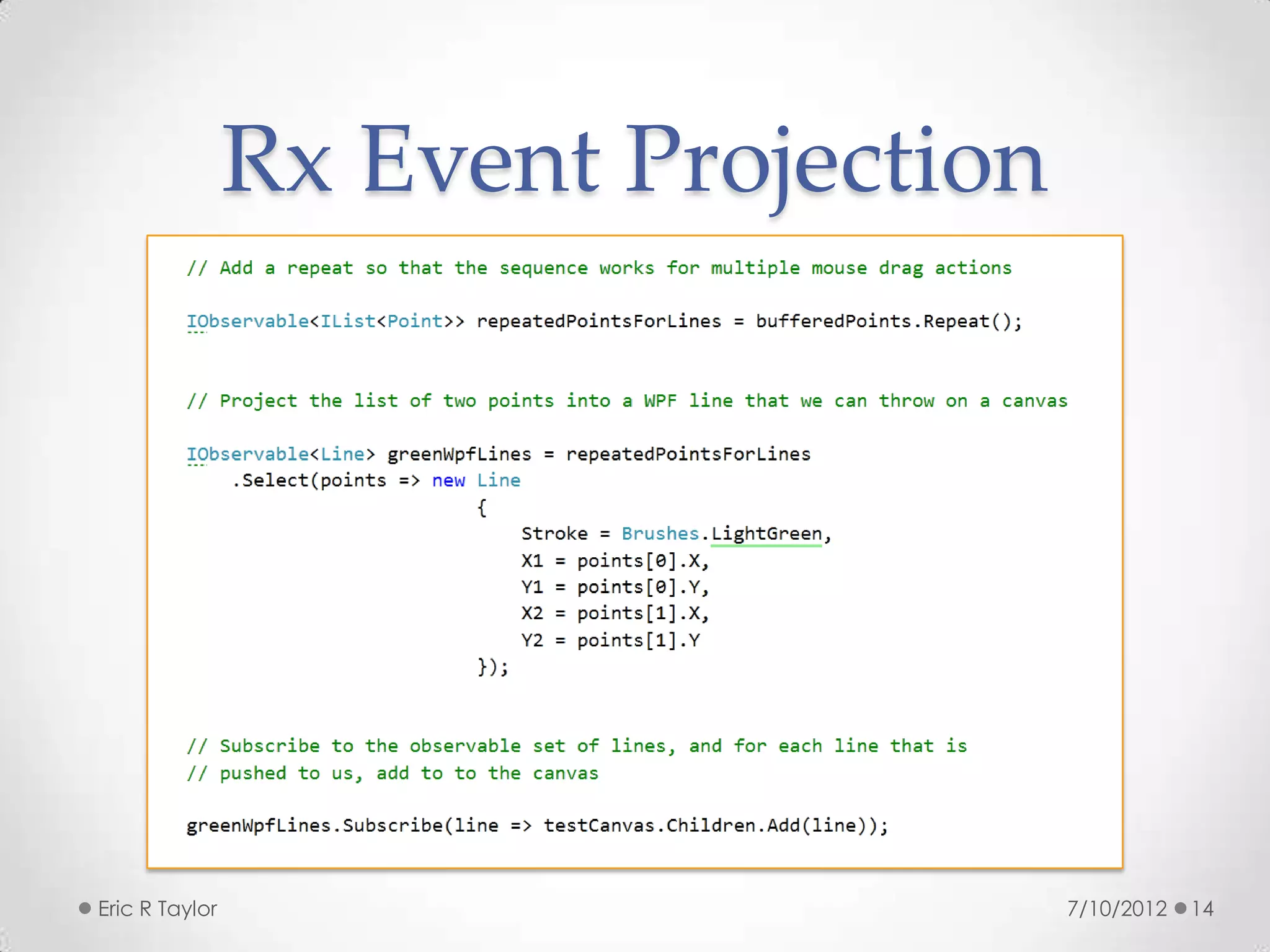

• 14.
  Rx Event Projection EricR Taylor 7/10/2012 14
• 15.

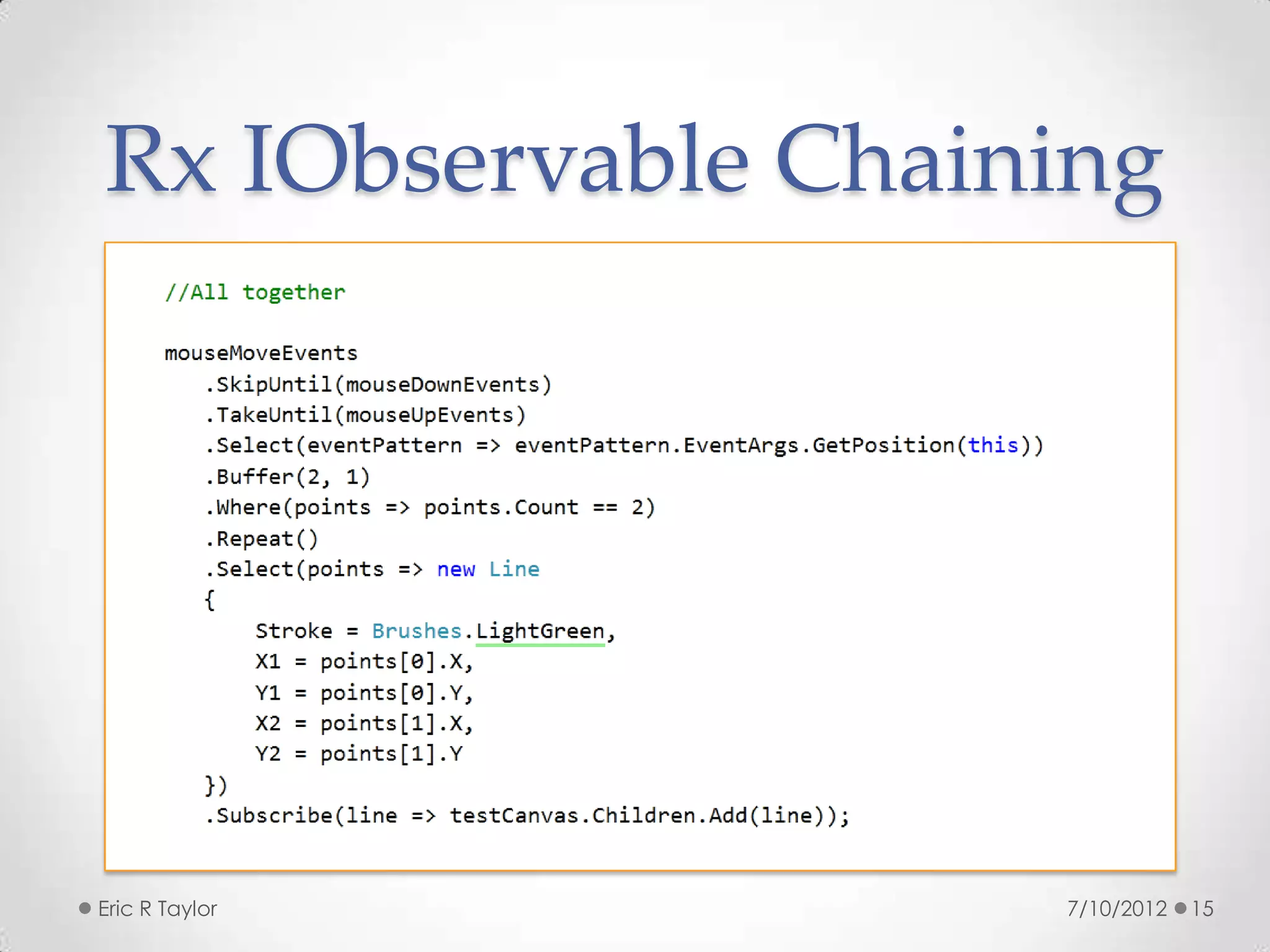

  Rx IObservable Chaining EricR Taylor 7/10/2012 15
• 16.

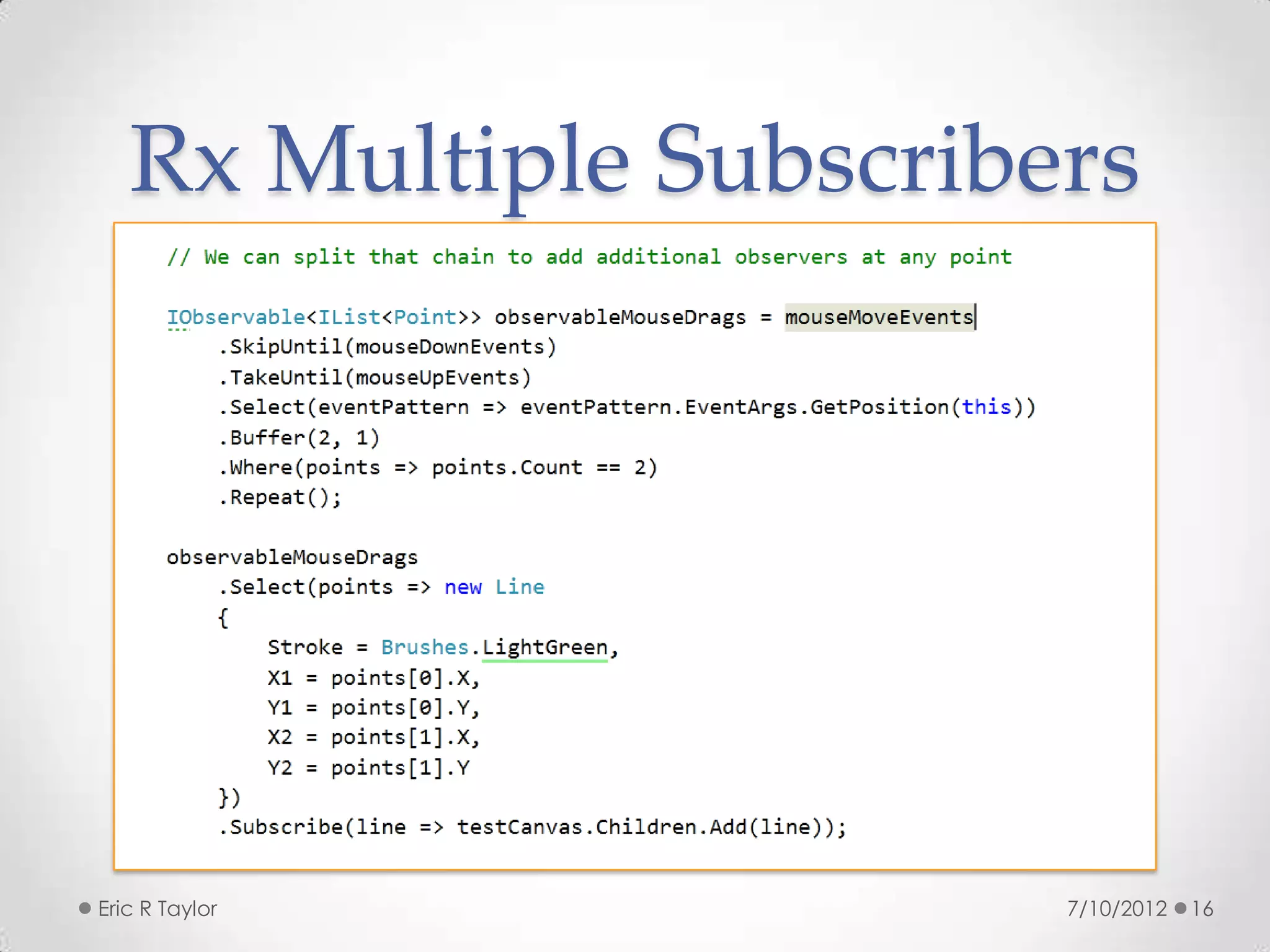

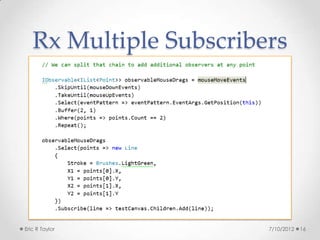

  Rx Multiple Subscribers EricR Taylor 7/10/2012 16
• 17.

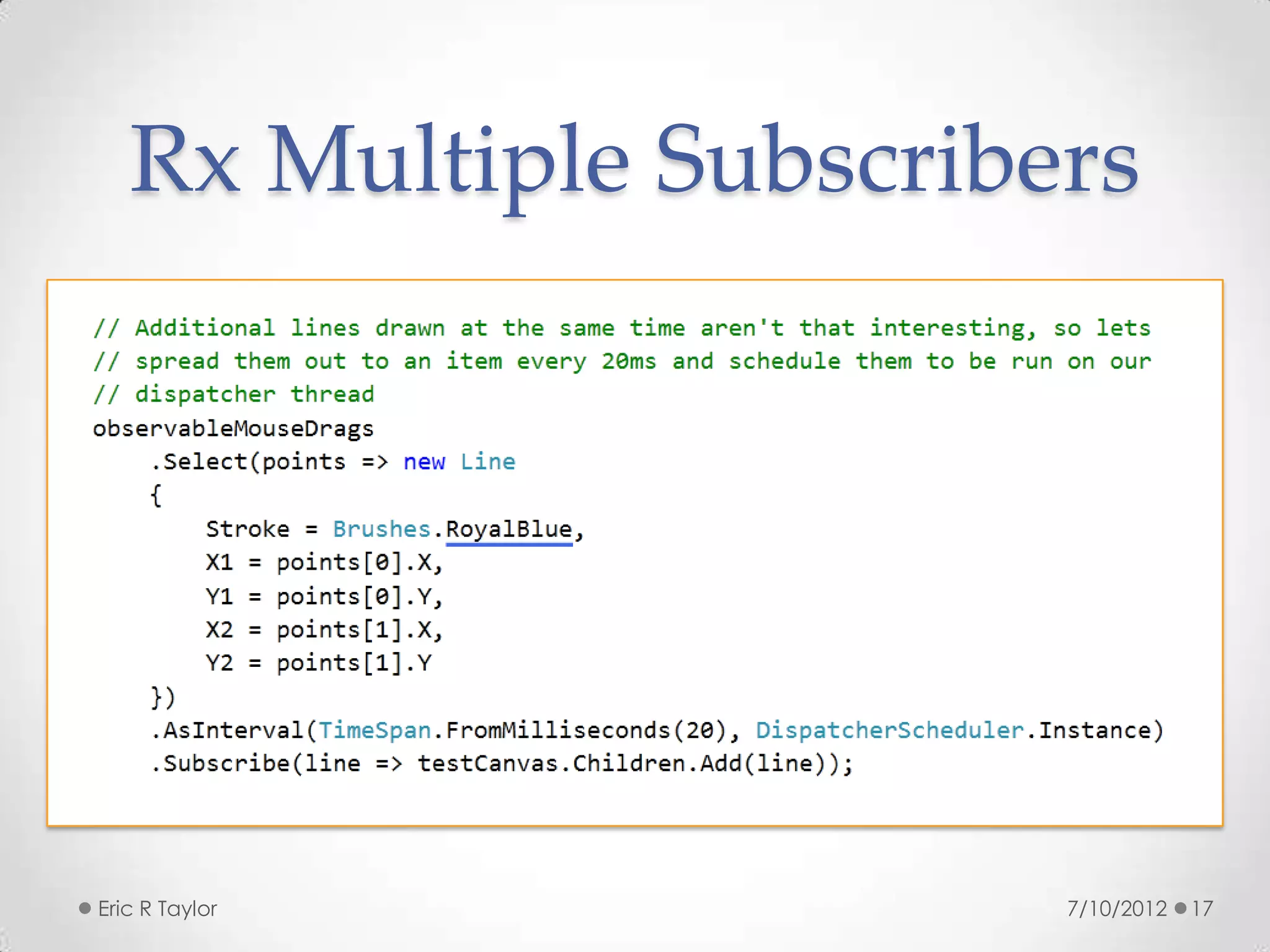

  Rx Multiple Subscribers EricR Taylor 7/10/2012 17
