Design Beautiful REST + JSON APIs

Beautiful REST + JSON APIs

Les Hazlewood @lhazlewood
CTO, Stormpath
stormpath.com

.com
• Identity Management and
Access Control API
• Security for your applications
• User security workflows
• Security best practices
• Developer tools, SDKs, libraries

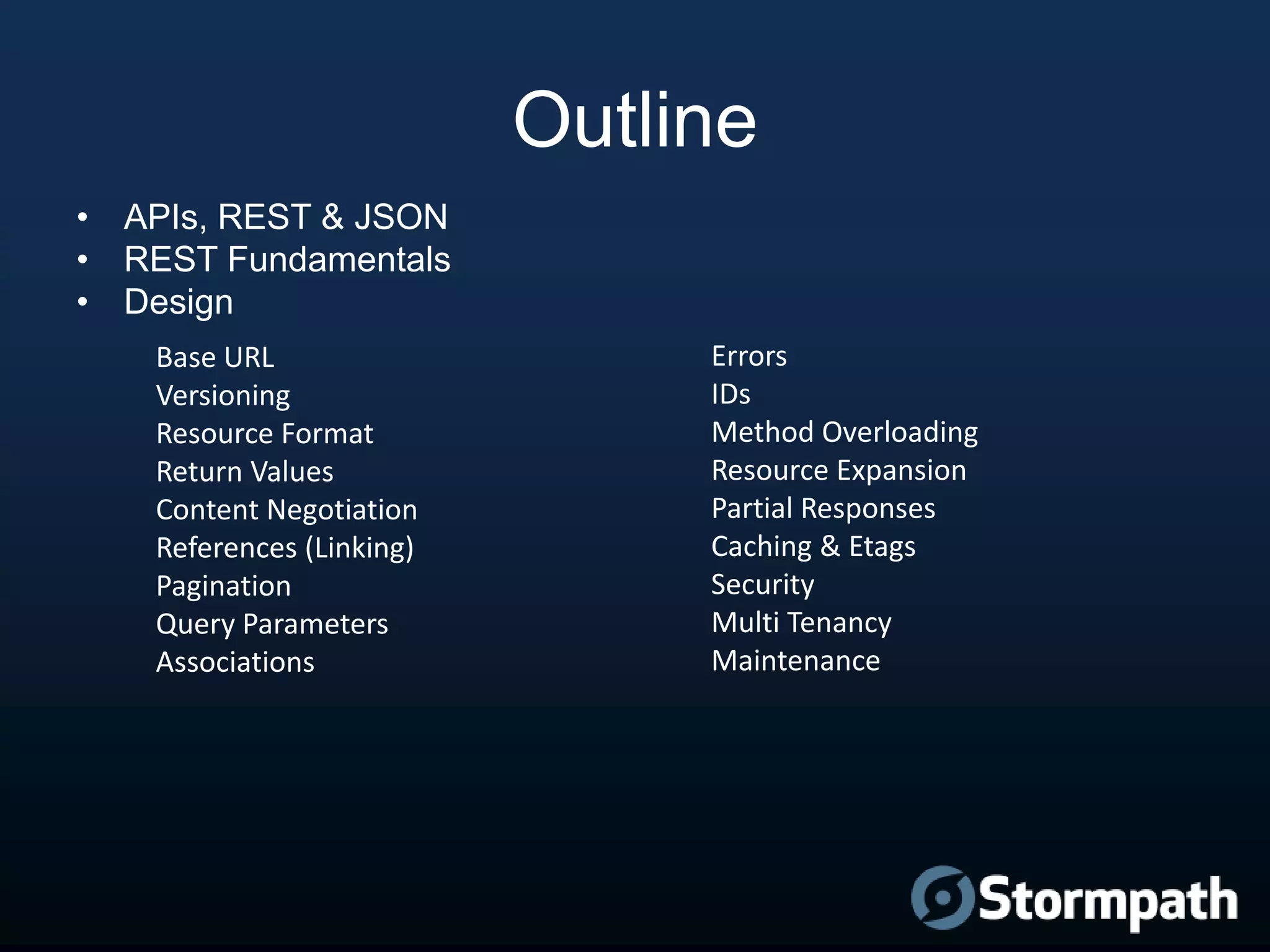

Outline
• APIs, REST & JSON
• REST Fundamentals
• Design
Base URL
Versioning
Resource Format
Return Values
Content Negotiation
References (Linking)
Pagination
Query Parameters
Associations

Errors
IDs
Method Overloading
Resource Expansion
Partial Responses
Caching & Etags
Security
Multi Tenancy
Maintenance

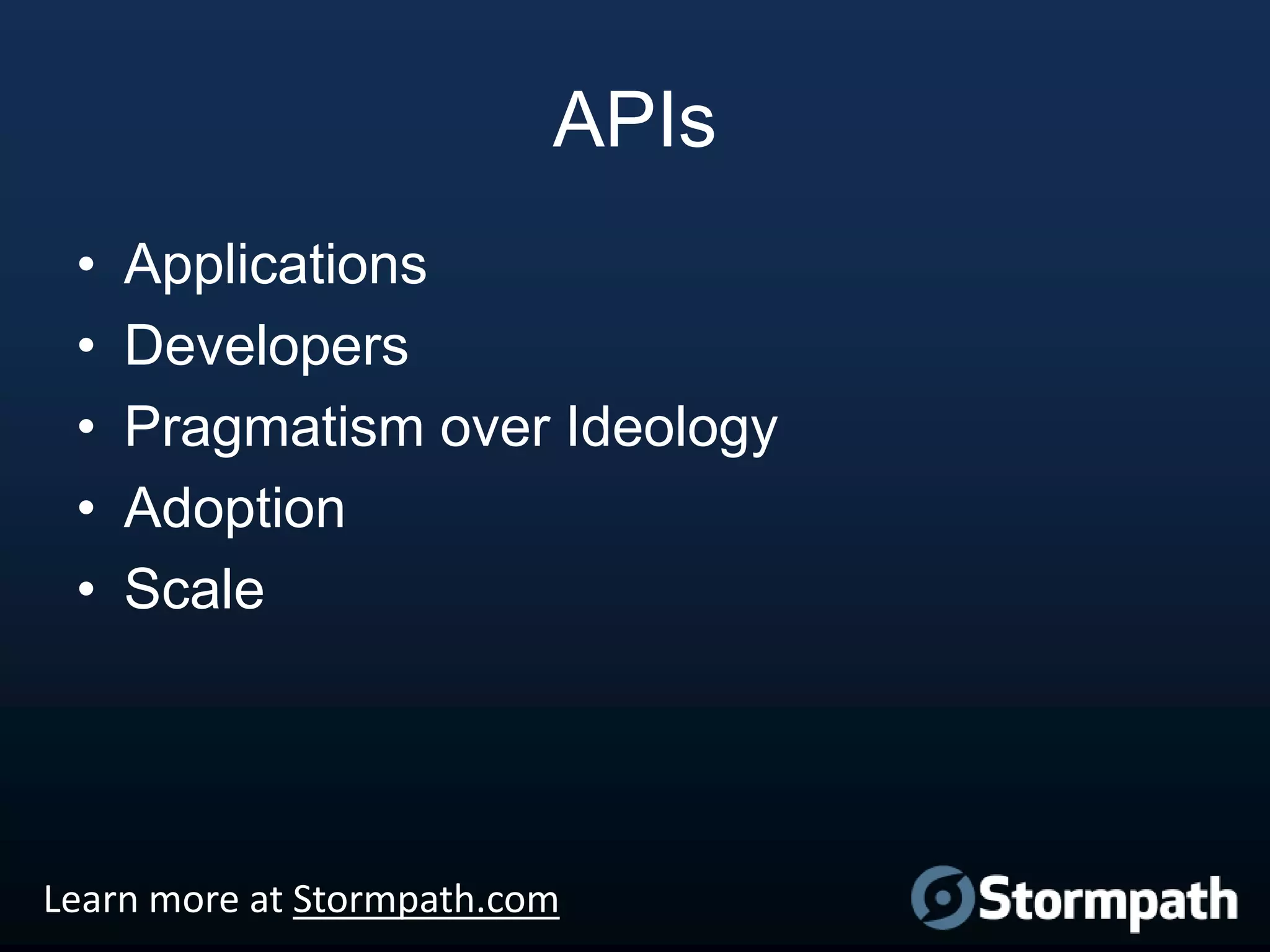

APIs
•
•
•
•
•

Applications
Developers
Pragmatism over Ideology
Adoption
Scale

Learn more at Stormpath.com

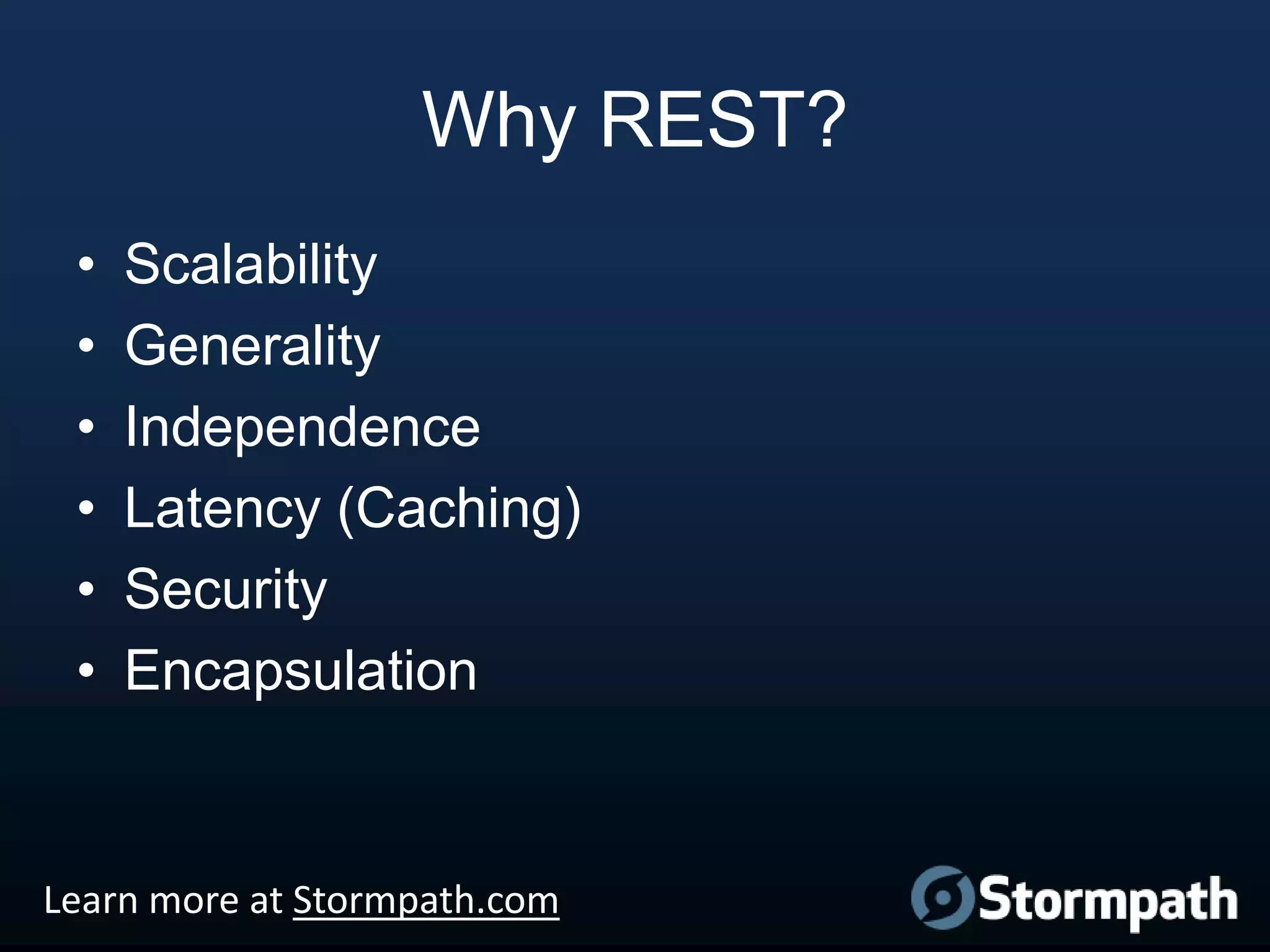

Why REST?
•
•
•
•
•
•

Scalability
Generality
Independence
Latency (Caching)
Security
Encapsulation

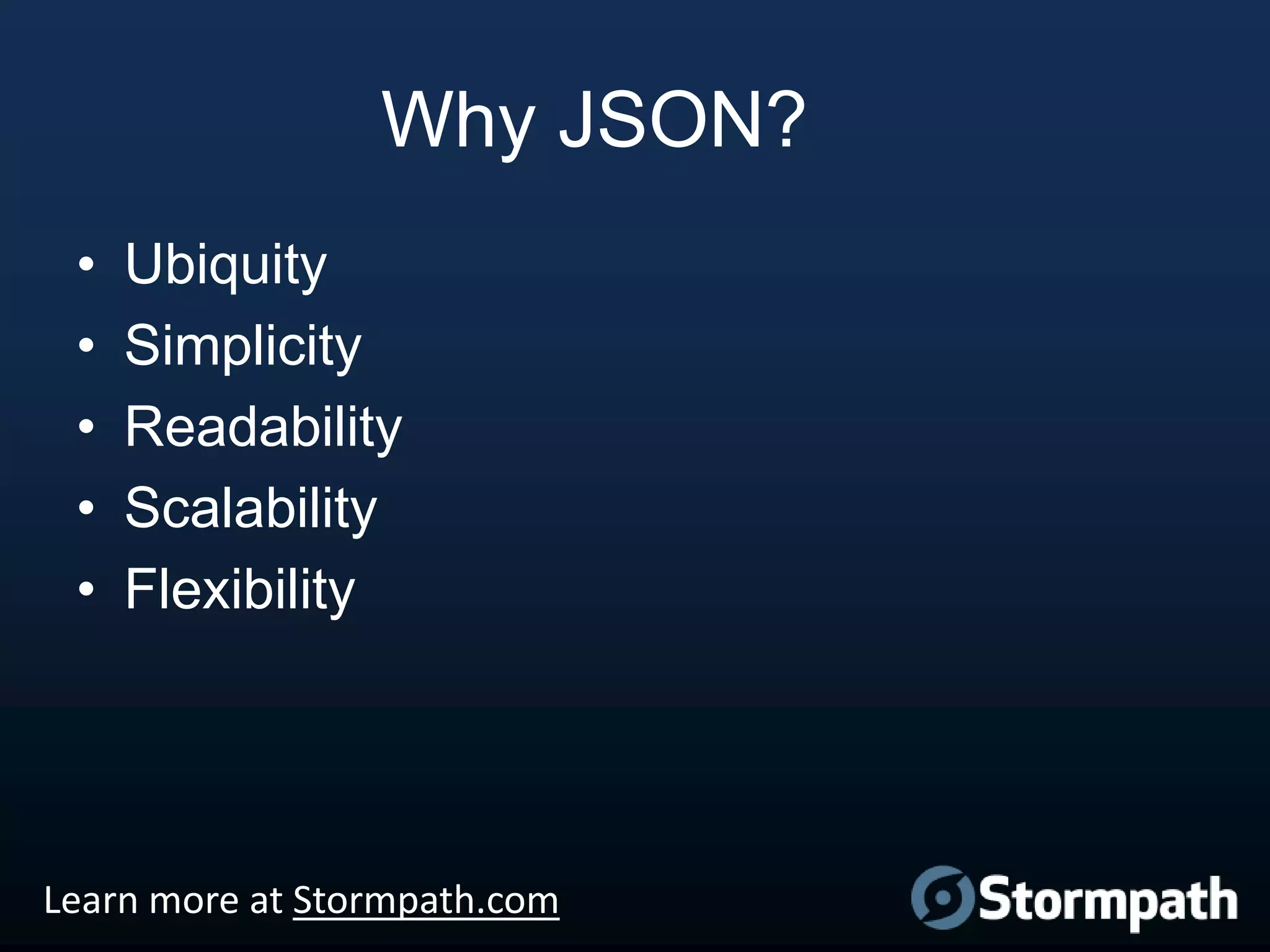

Why JSON?
•
•
•
•
•

Ubiquity
Simplicity
Readability
Scalability
Flexibility

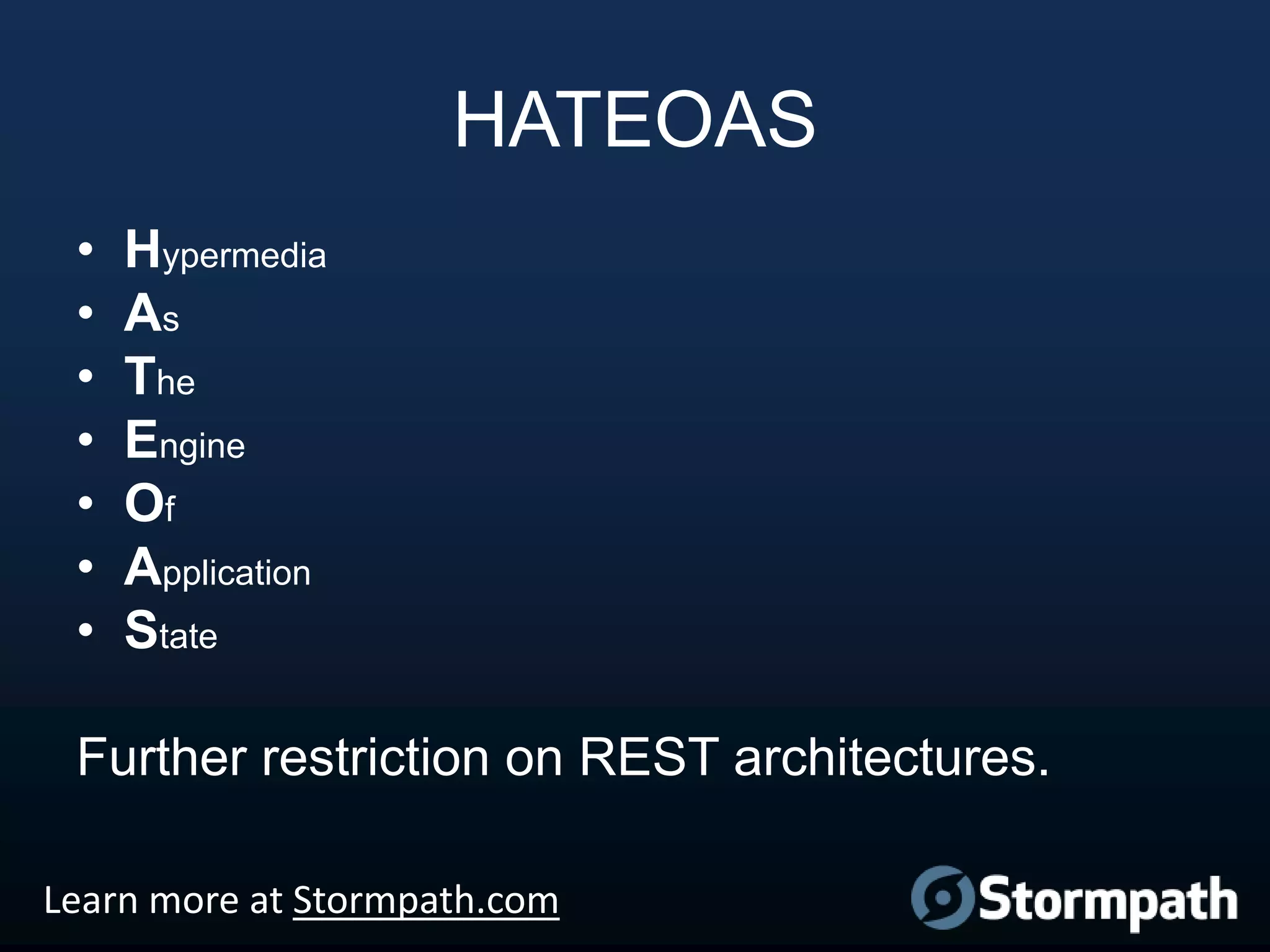

HATEOAS
•
•
•
•
•
•
•

Hypermedia
As
The
Engine
Of
Application
State

Further restriction on REST architectures.

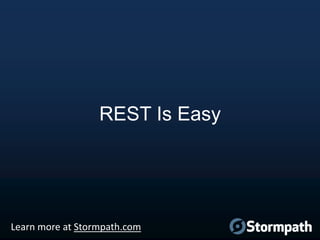

REST Is Easy

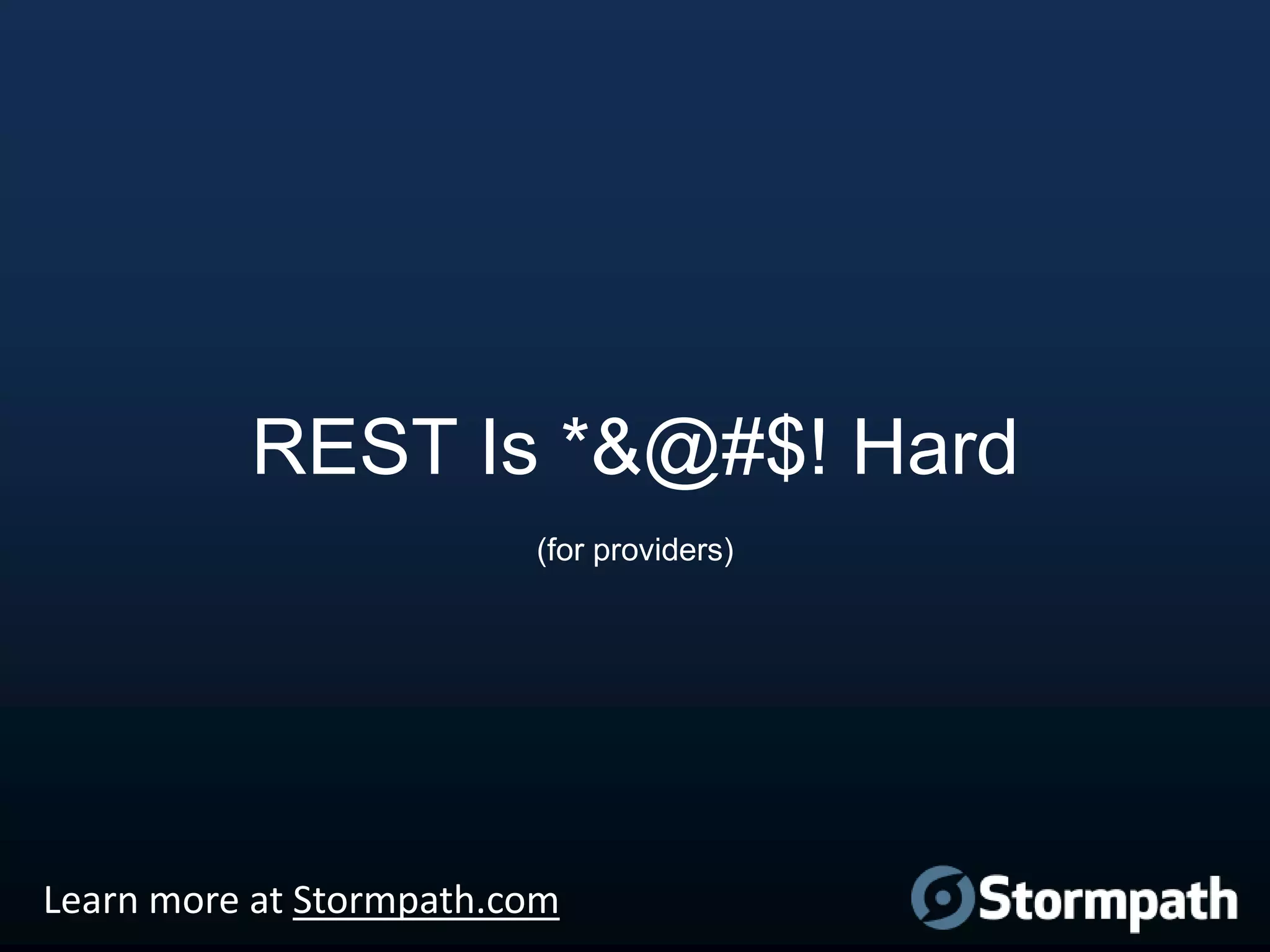

REST Is *&@#$! Hard
(for providers)

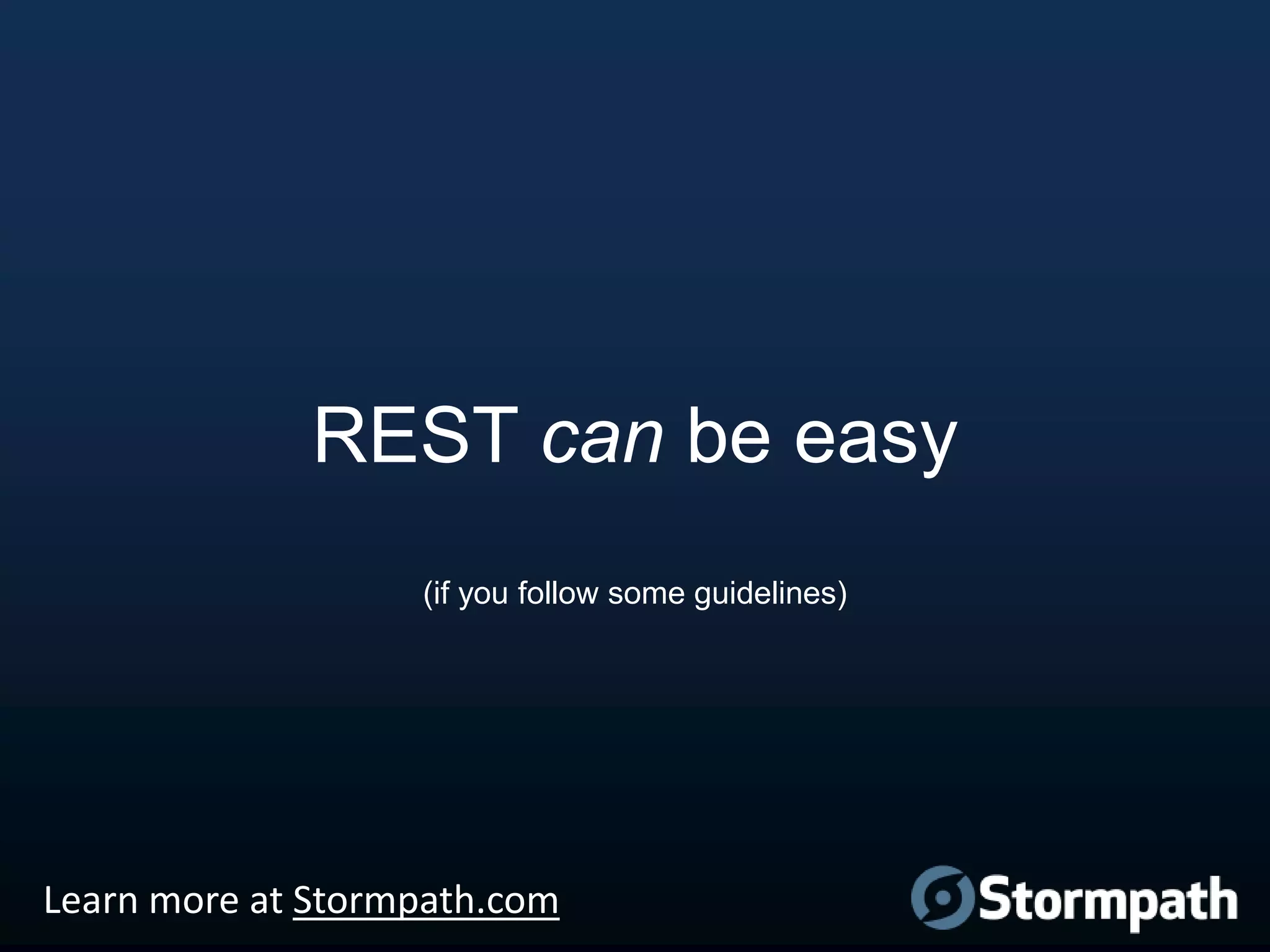

REST can be easy
(if you follow some guidelines)


Example Domain: Stormpath
•
•
•
•
•
•

Applications
Directories
Accounts
Groups
Associations
Workflows

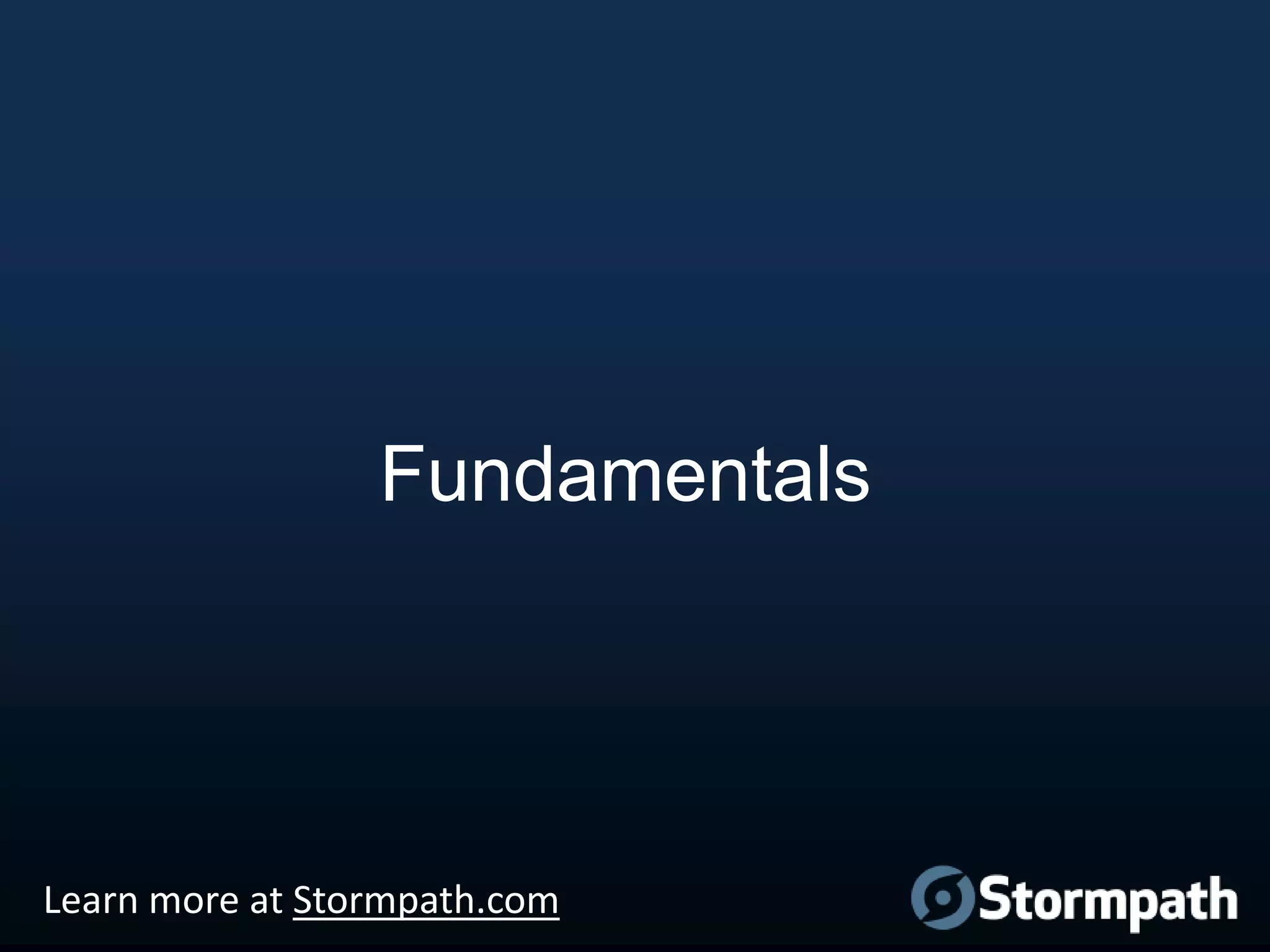

Fundamentals

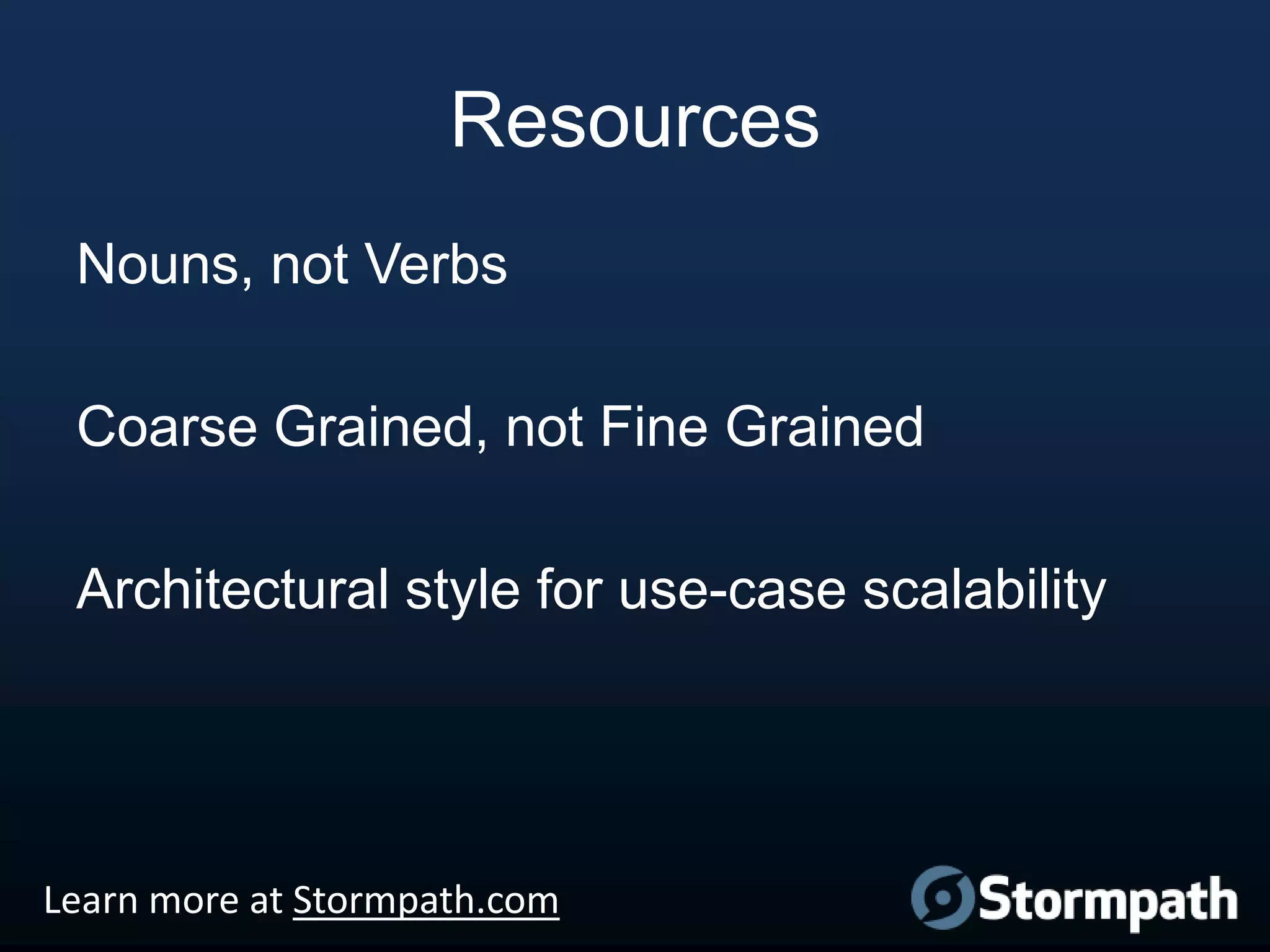

Resources
Nouns, not Verbs
Coarse Grained, not Fine Grained
Architectural style for use-case scalability

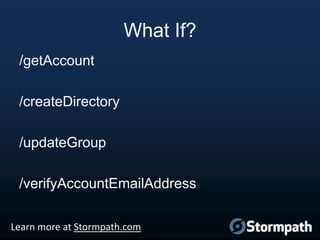

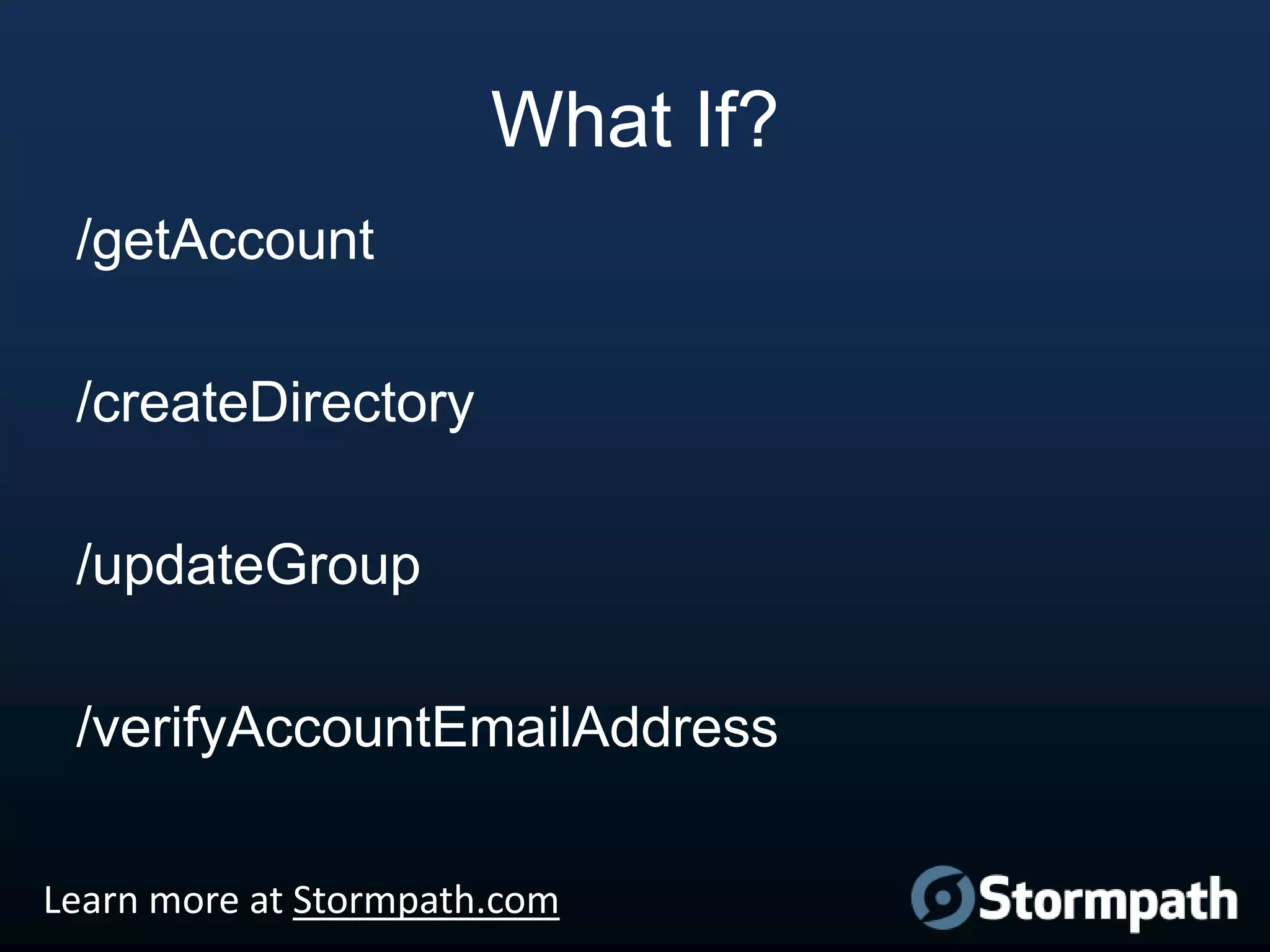

What If?
/getAccount
/createDirectory
/updateGroup
/verifyAccountEmailAddress

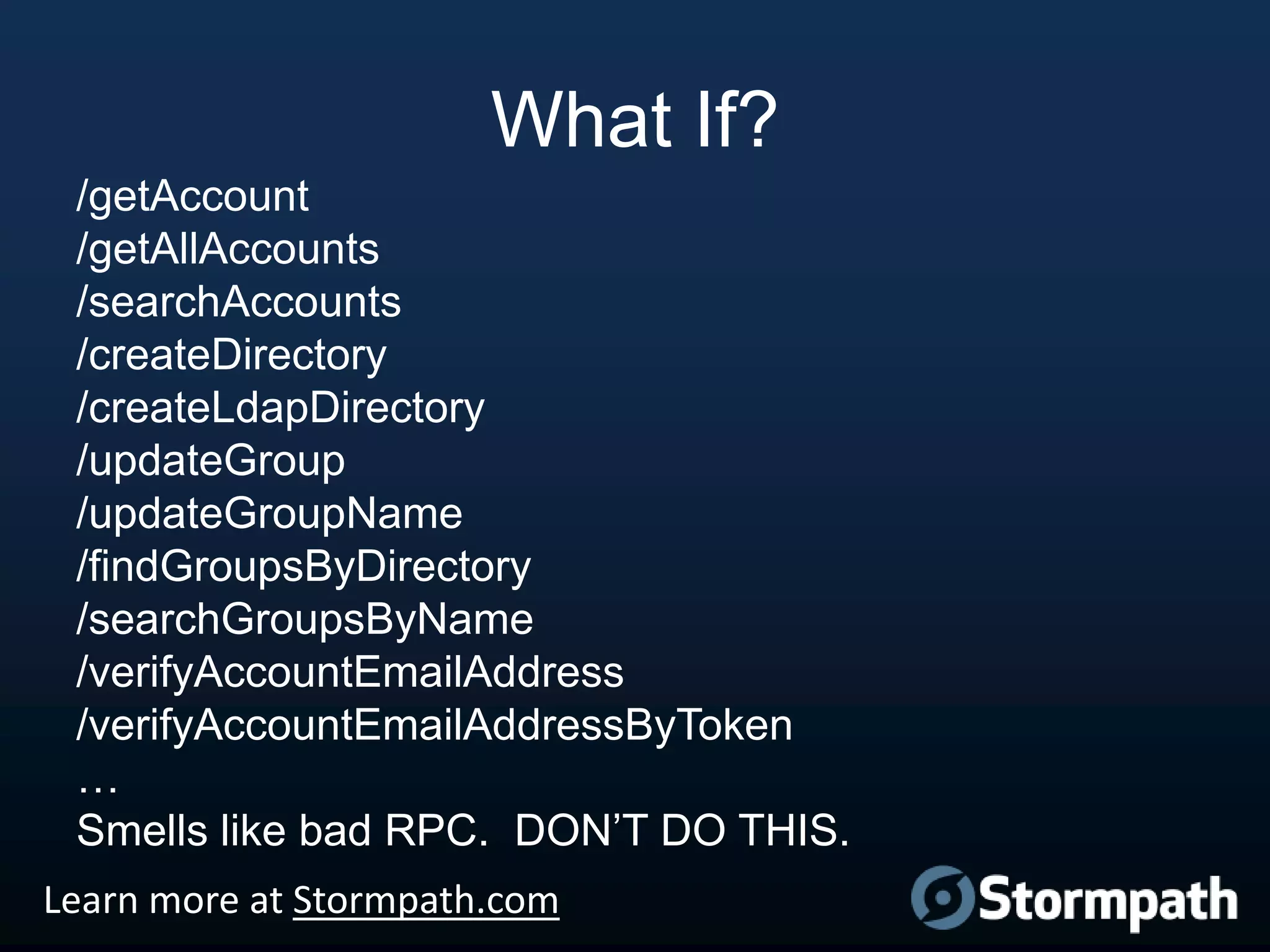

What If?
/getAccount
/getAllAccounts
/searchAccounts
/createDirectory
/createLdapDirectory
/updateGroup
/updateGroupName
/findGroupsByDirectory
/searchGroupsByName
/verifyAccountEmailAddress
/verifyAccountEmailAddressByToken
…
Smells like bad RPC. DON‟T DO THIS.

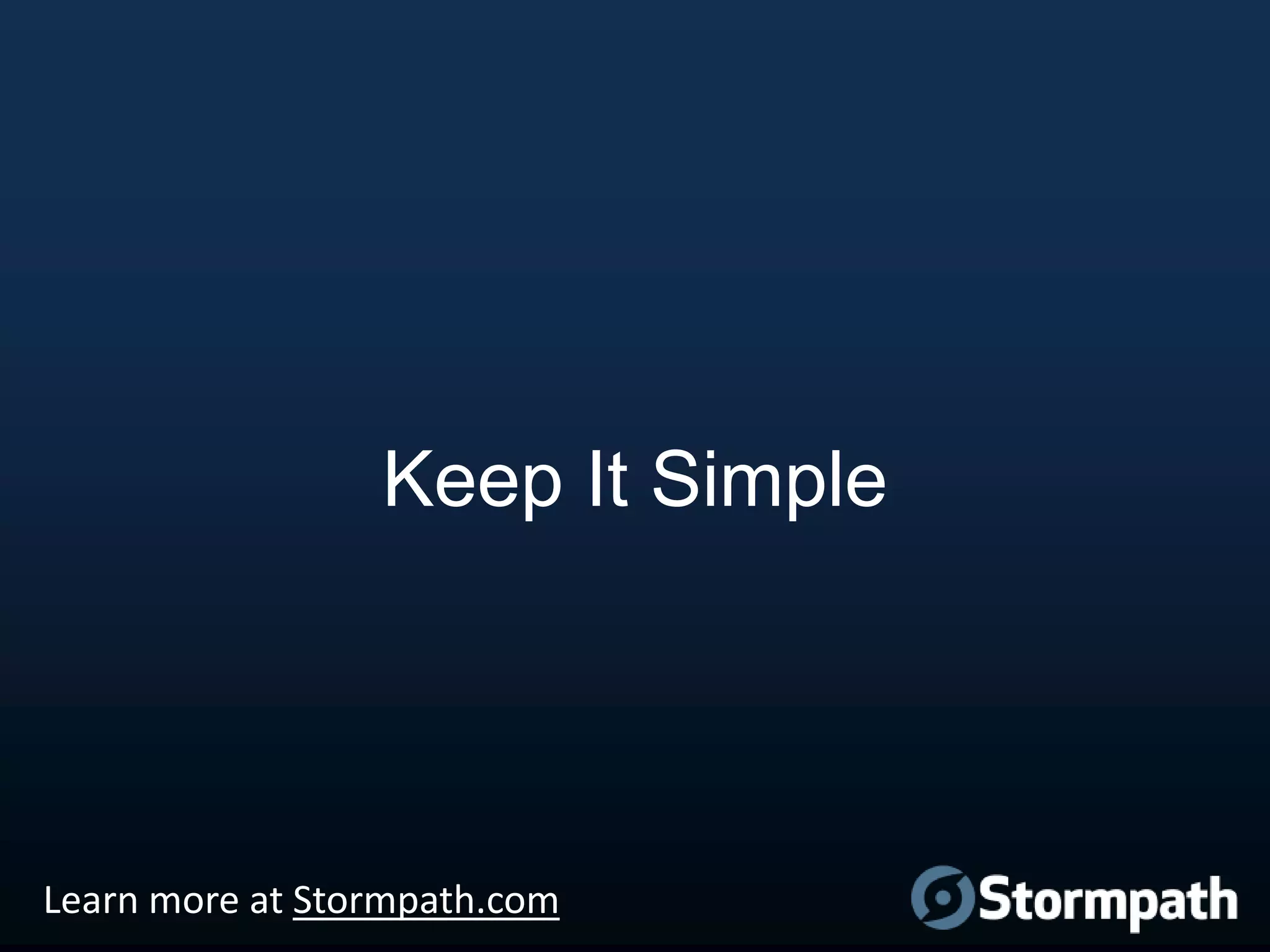

Keep It Simple

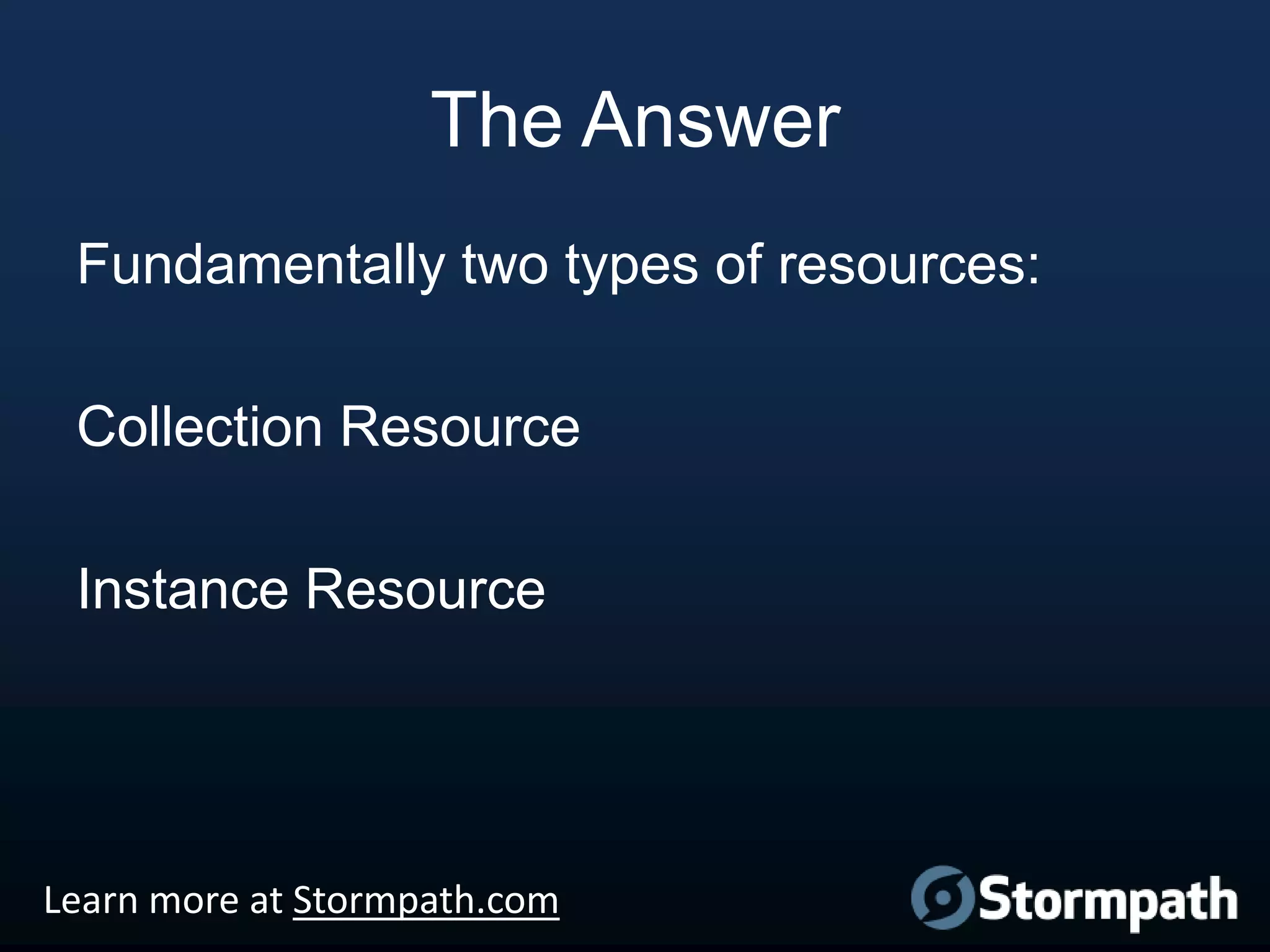

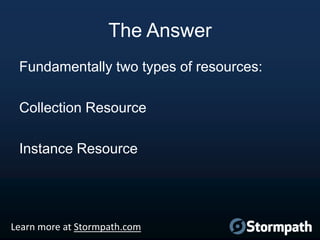

The Answer
Fundamentally two types of resources:
Collection Resource
Instance Resource


Collection Resource

/applications

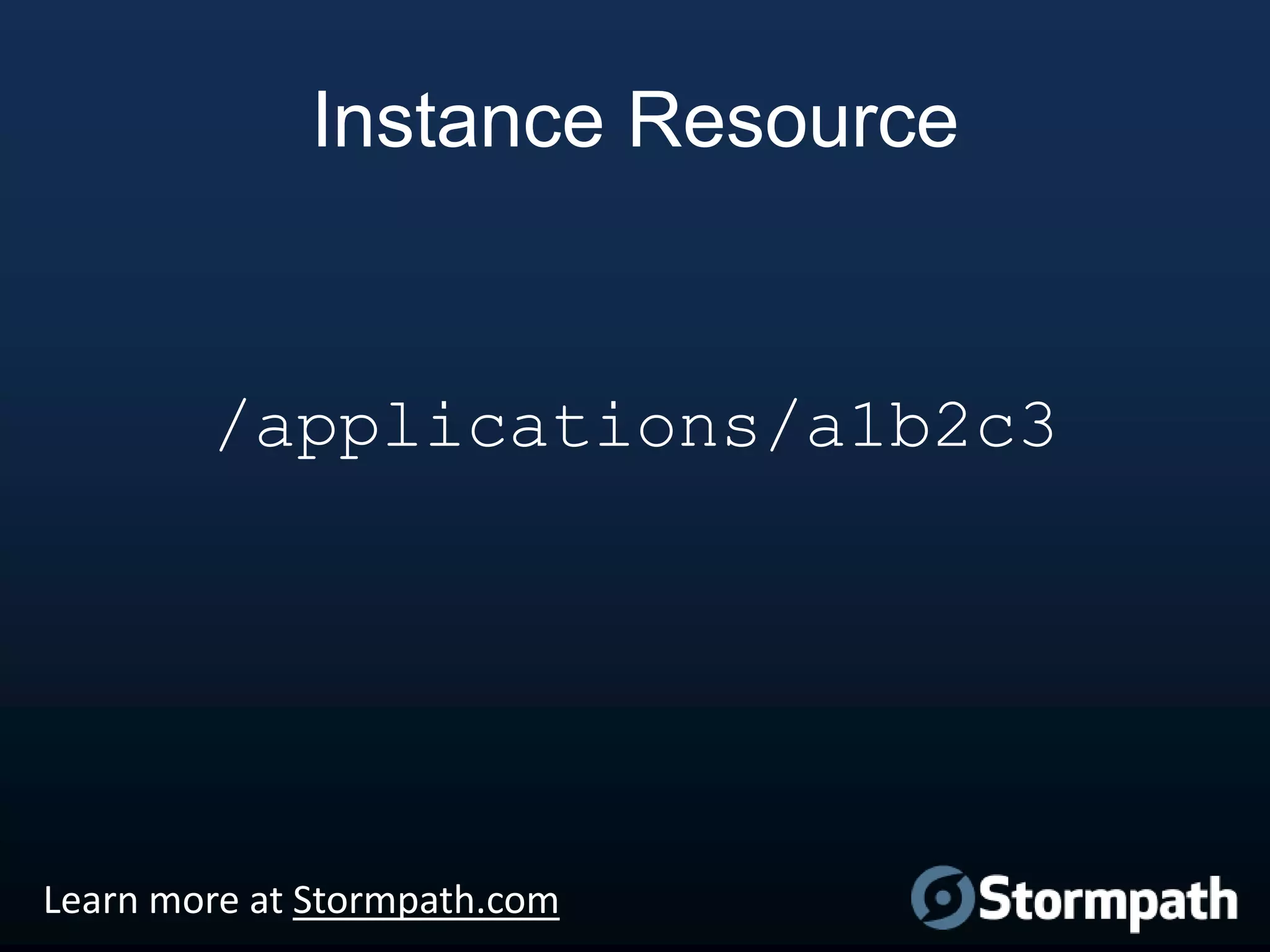

Instance Resource

/applications/a1b2c3

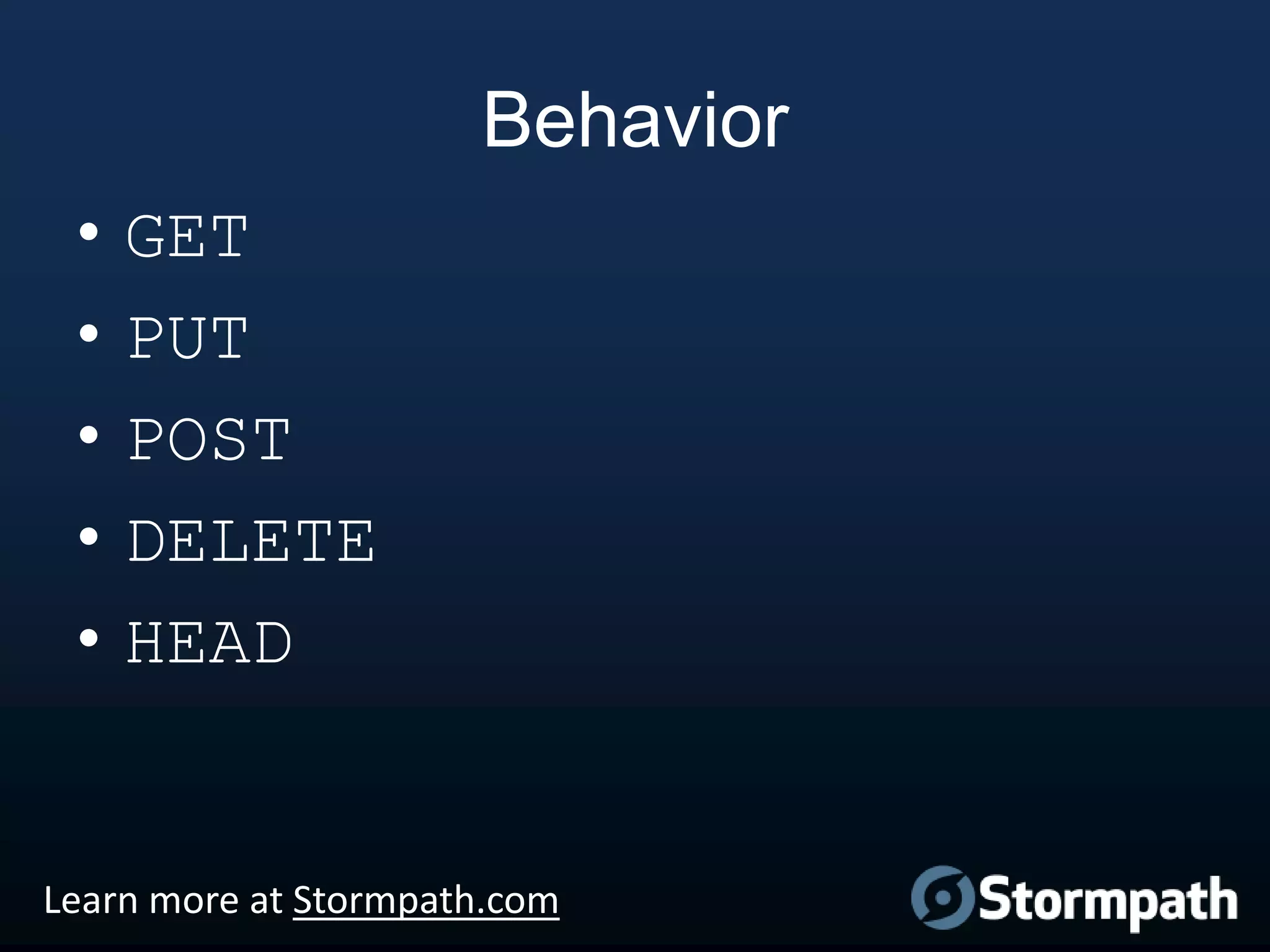

Behavior
•
•
•
•
•

GET
PUT
POST
DELETE
HEAD

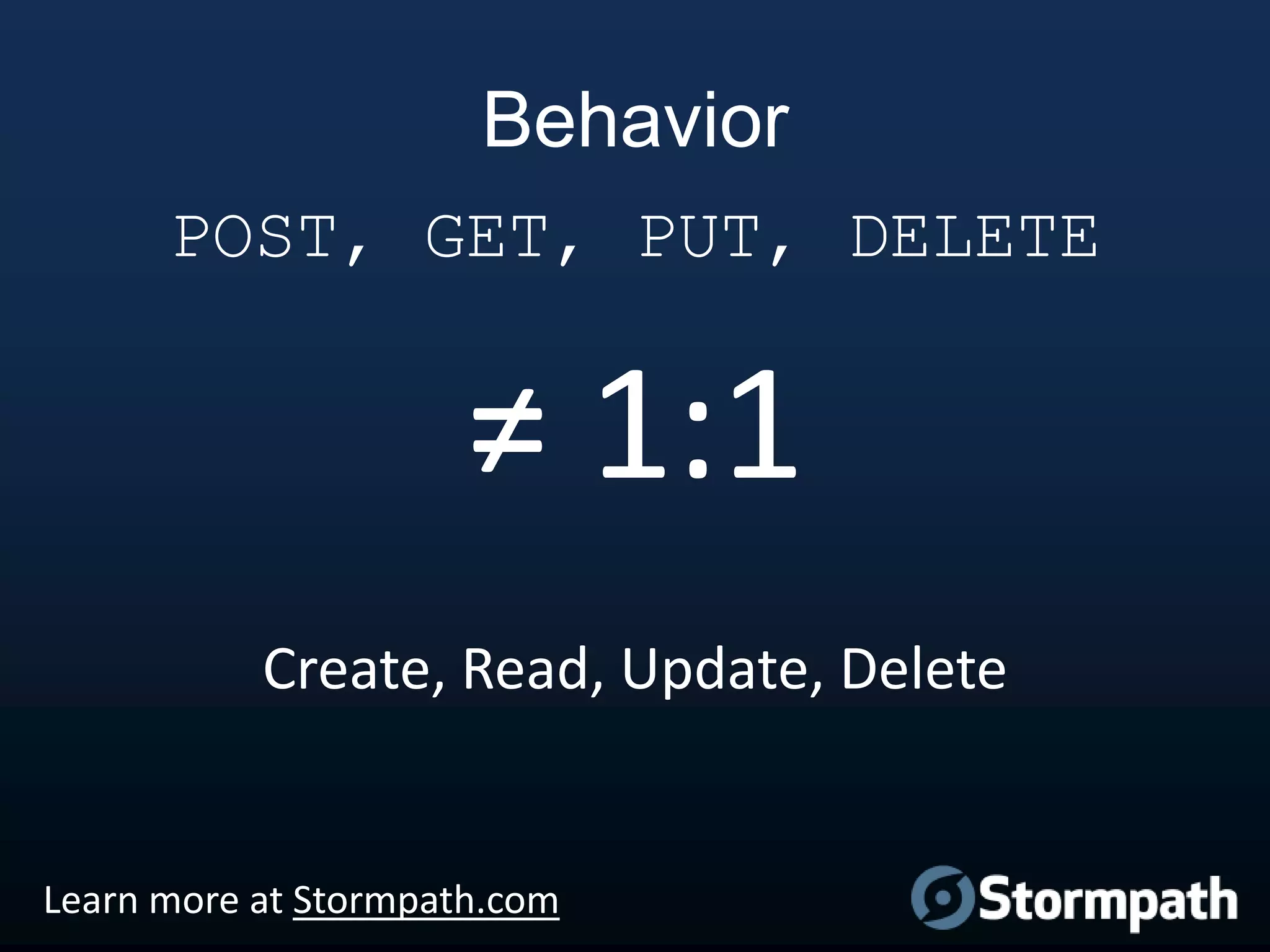

Behavior
POST, GET, PUT, DELETE

≠ 1:1
Create, Read, Update, Delete


Behavior
As you would expect:
GET = Read
DELETE = Delete
HEAD = Headers, no Body

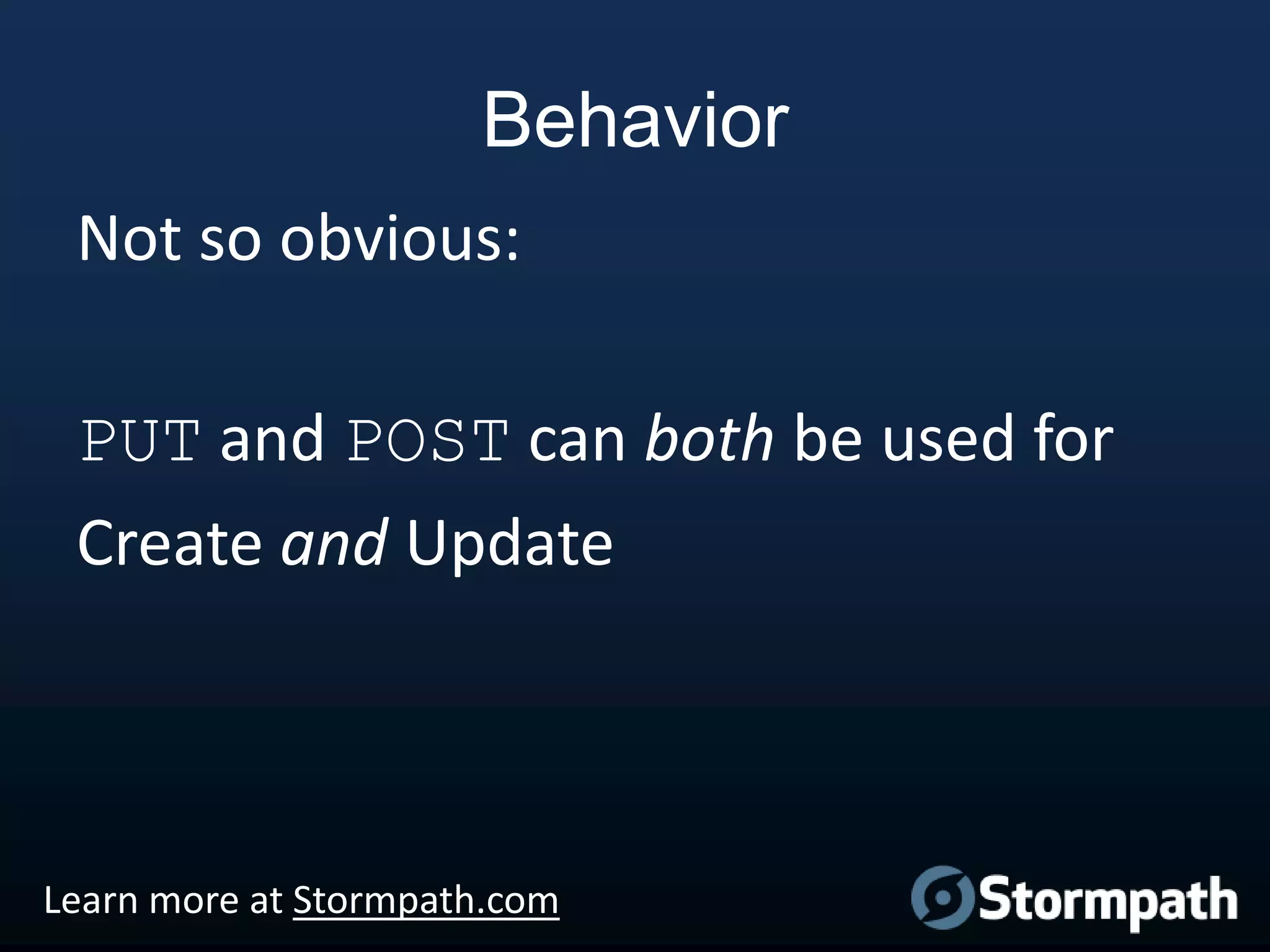

Behavior
Not so obvious:
PUT and POST can both be used for
Create and Update

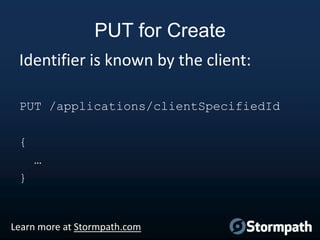

PUT for Create
Identifier is known by the client:
PUT /applications/clientSpecifiedId
{
…

}

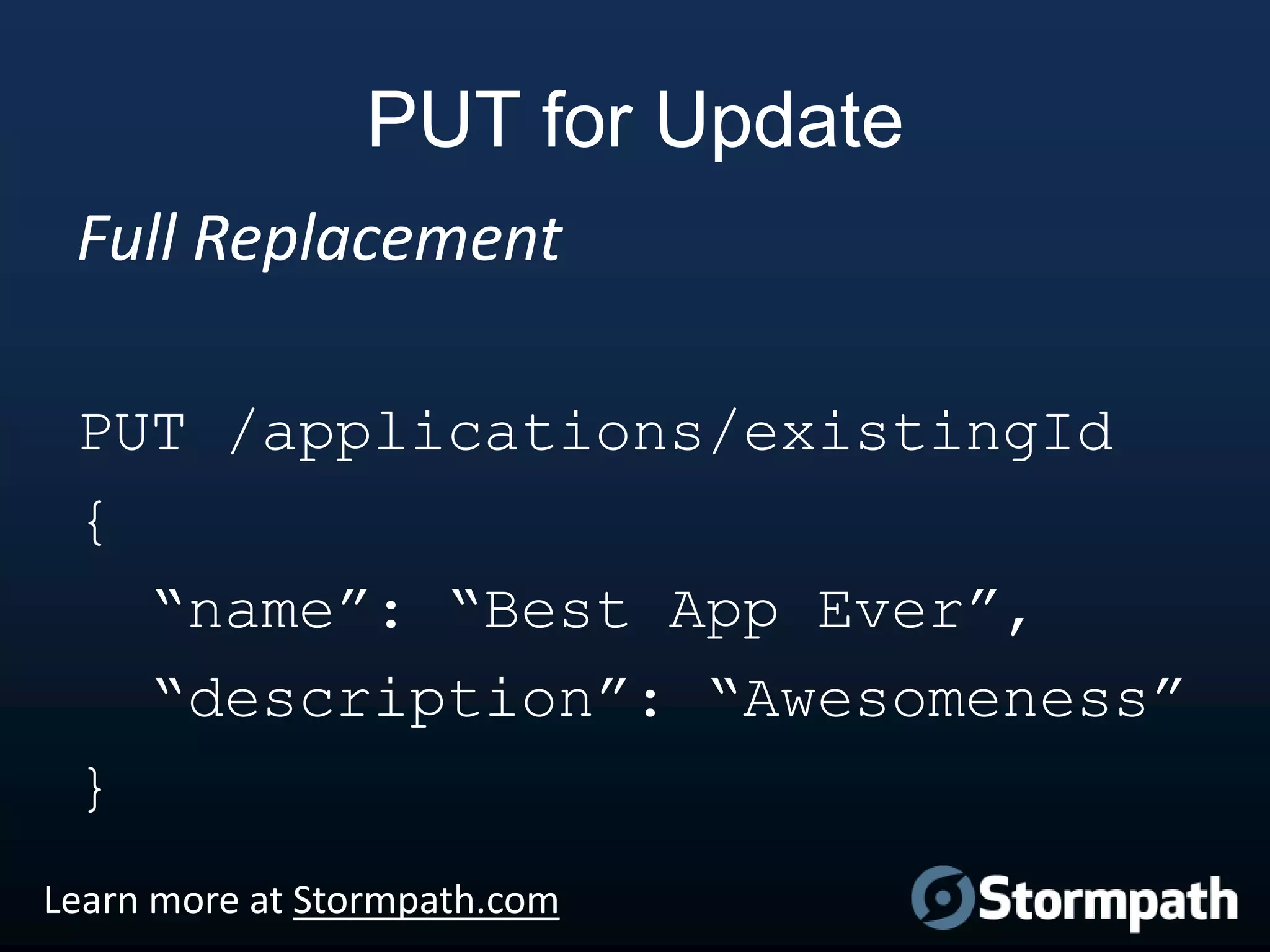

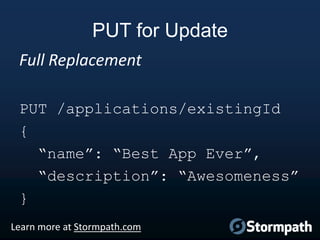

PUT for Update
Full Replacement
PUT /applications/existingId
{
“name”: “Best App Ever”,
“description”: “Awesomeness”
}

PUT

Idempotent

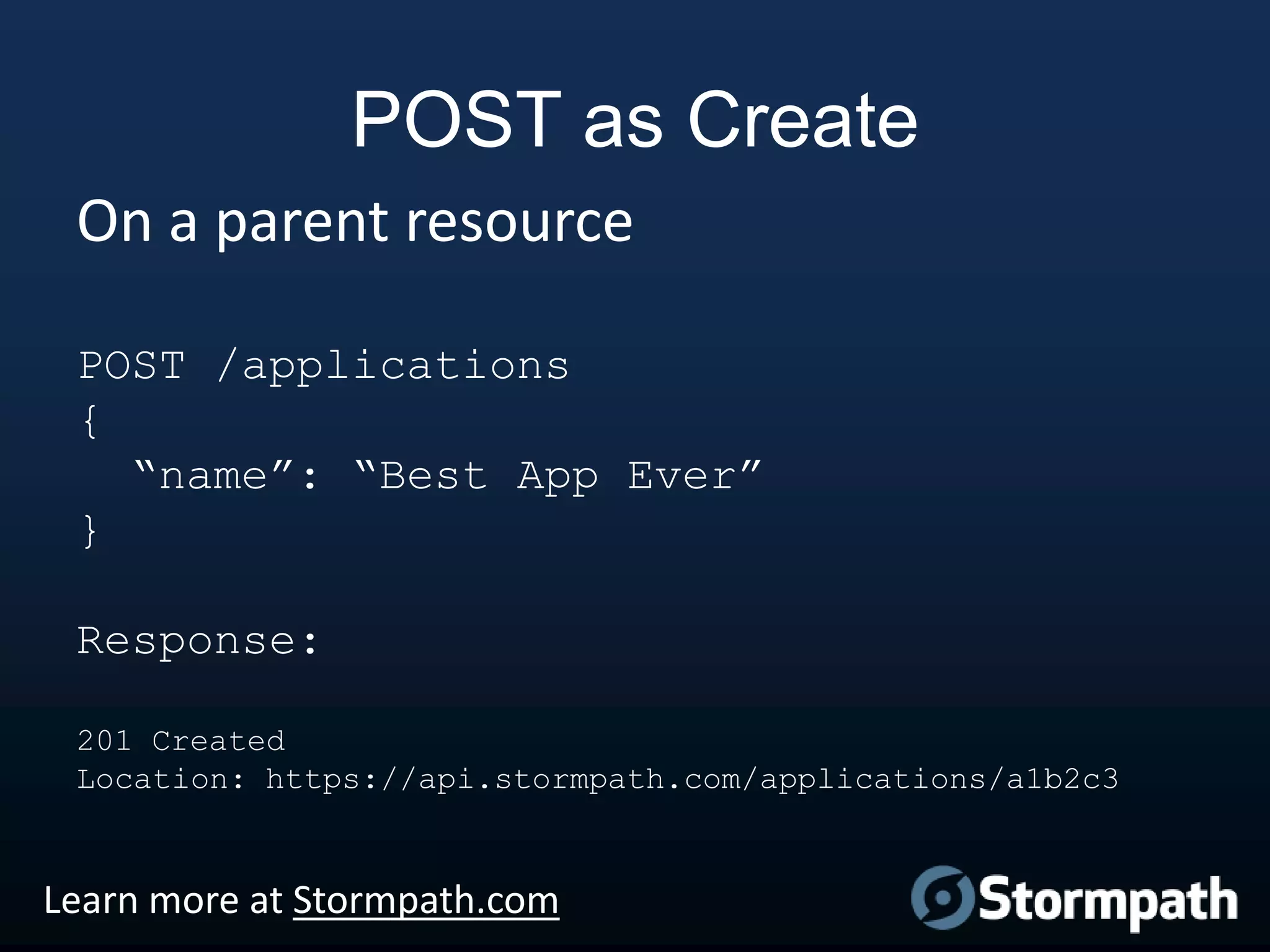

POST as Create
On a parent resource
POST /applications
{
“name”: “Best App Ever”
}
Response:
201 Created
Location: https://api.stormpath.com/applications/a1b2c3

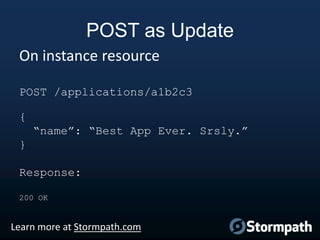

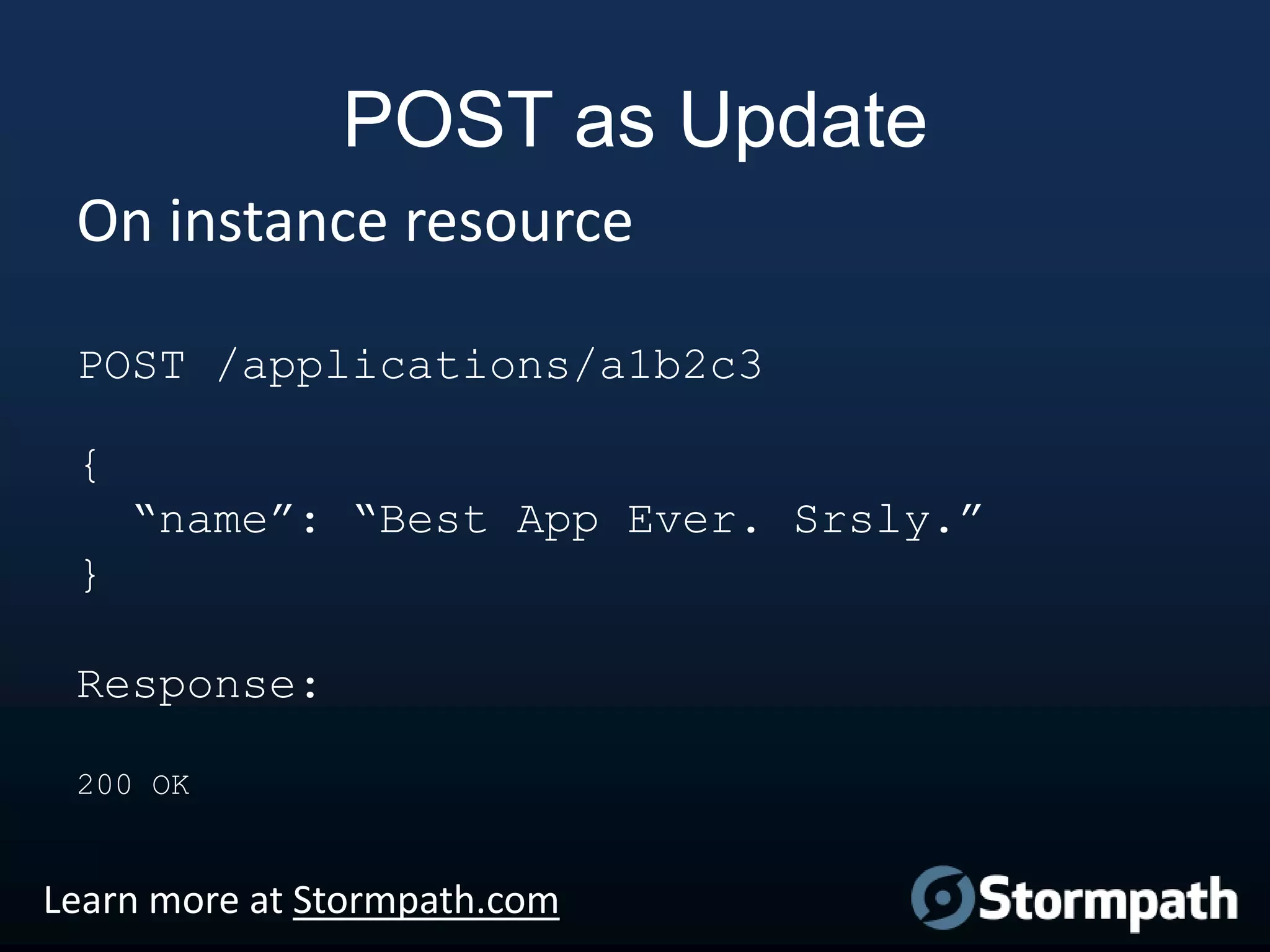

POST as Update
On instance resource
POST /applications/a1b2c3

{
“name”: “Best App Ever. Srsly.”
}

Response:
200 OK

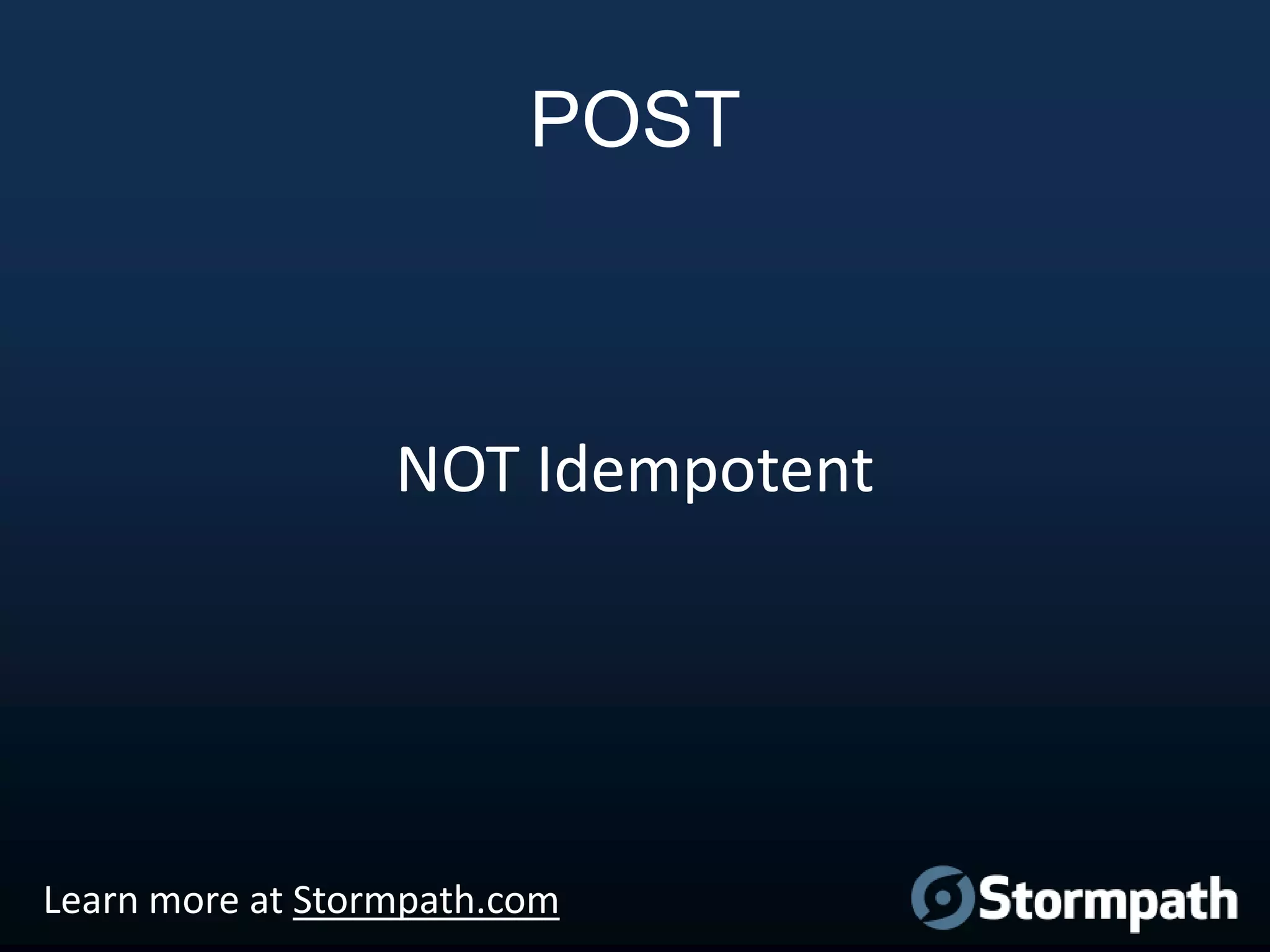

POST

NOT Idempotent

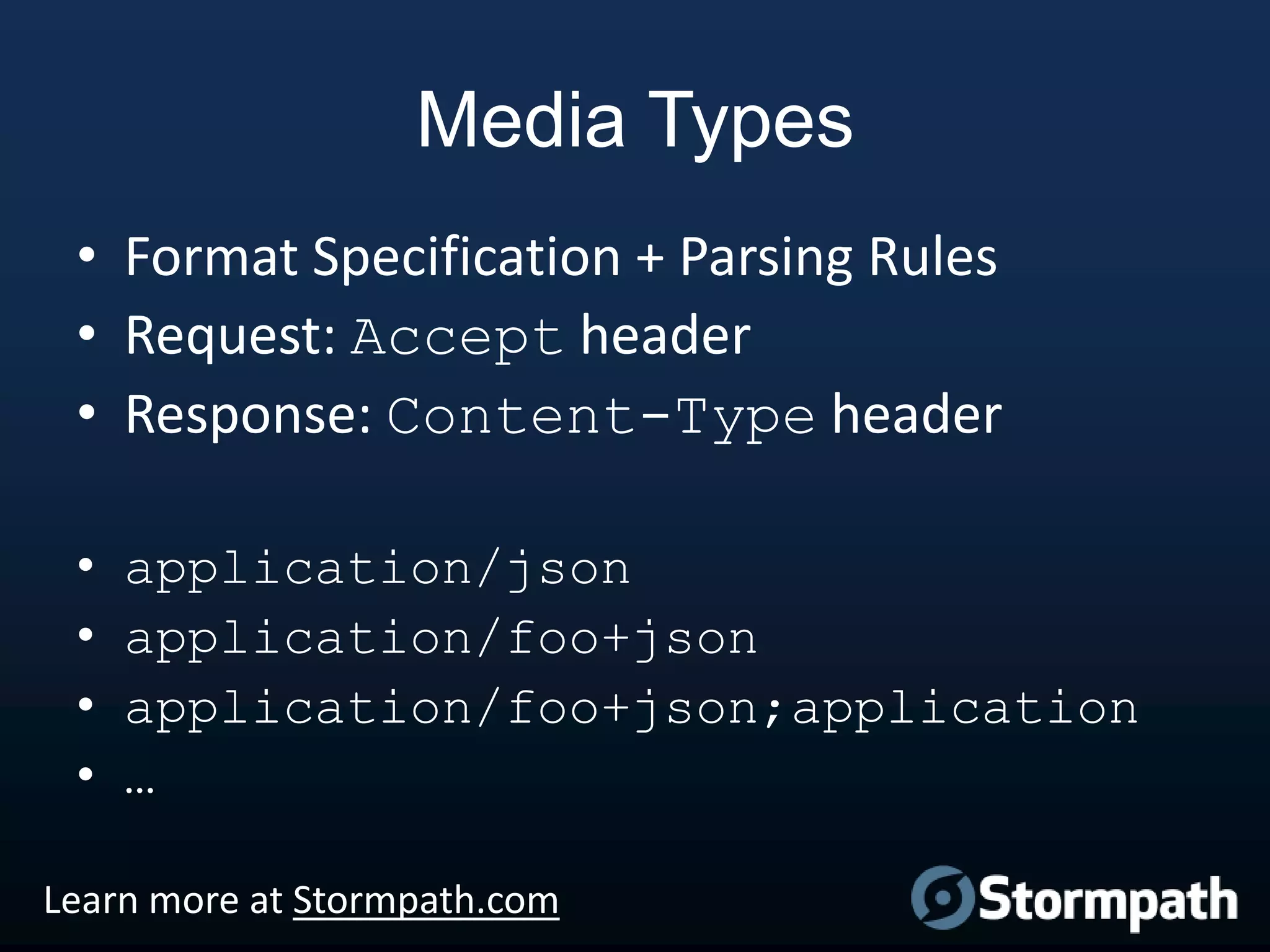

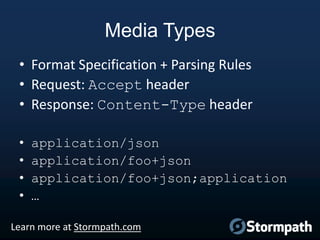

Media Types
• Format Specification + Parsing Rules
• Request: Accept header
• Response: Content-Type header
•
•
•
•

application/json
application/foo+json
application/foo+json;application
…

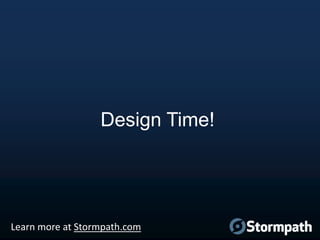

Design Time!


Base URL

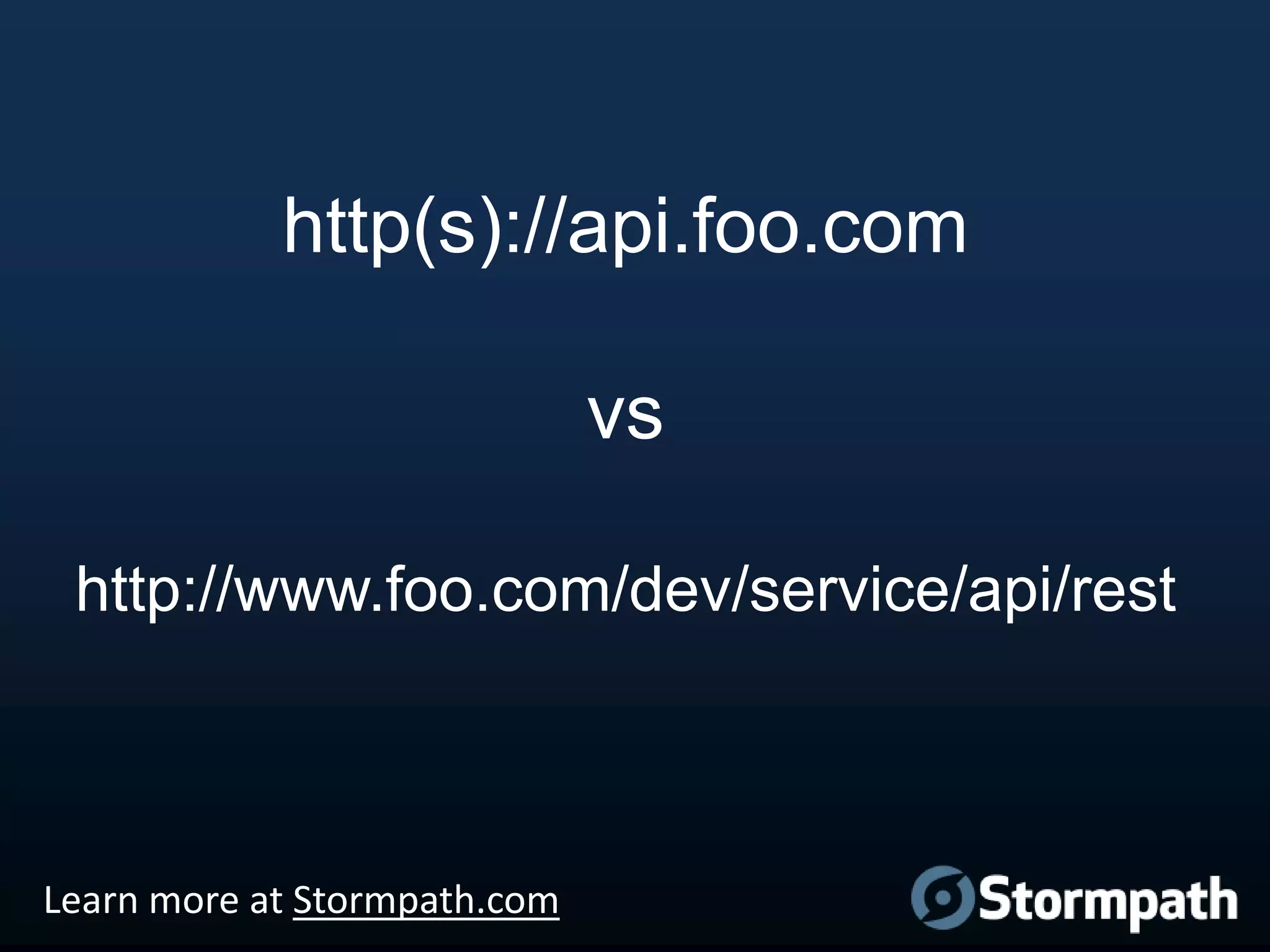

http(s)://api.foo.com
vs
http://www.foo.com/dev/service/api/rest

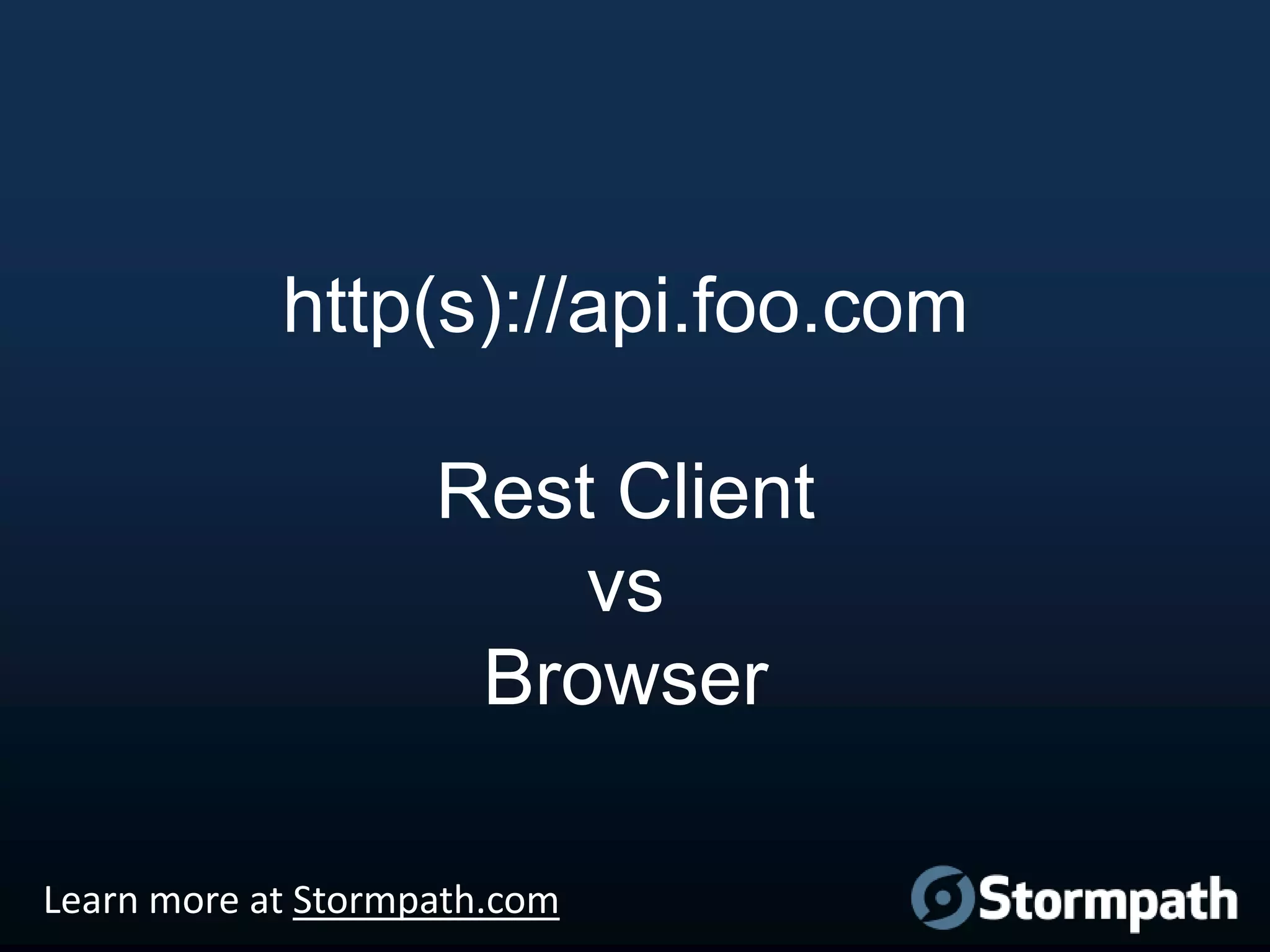

http(s)://api.foo.com
Rest Client
vs
Browser

Versioning

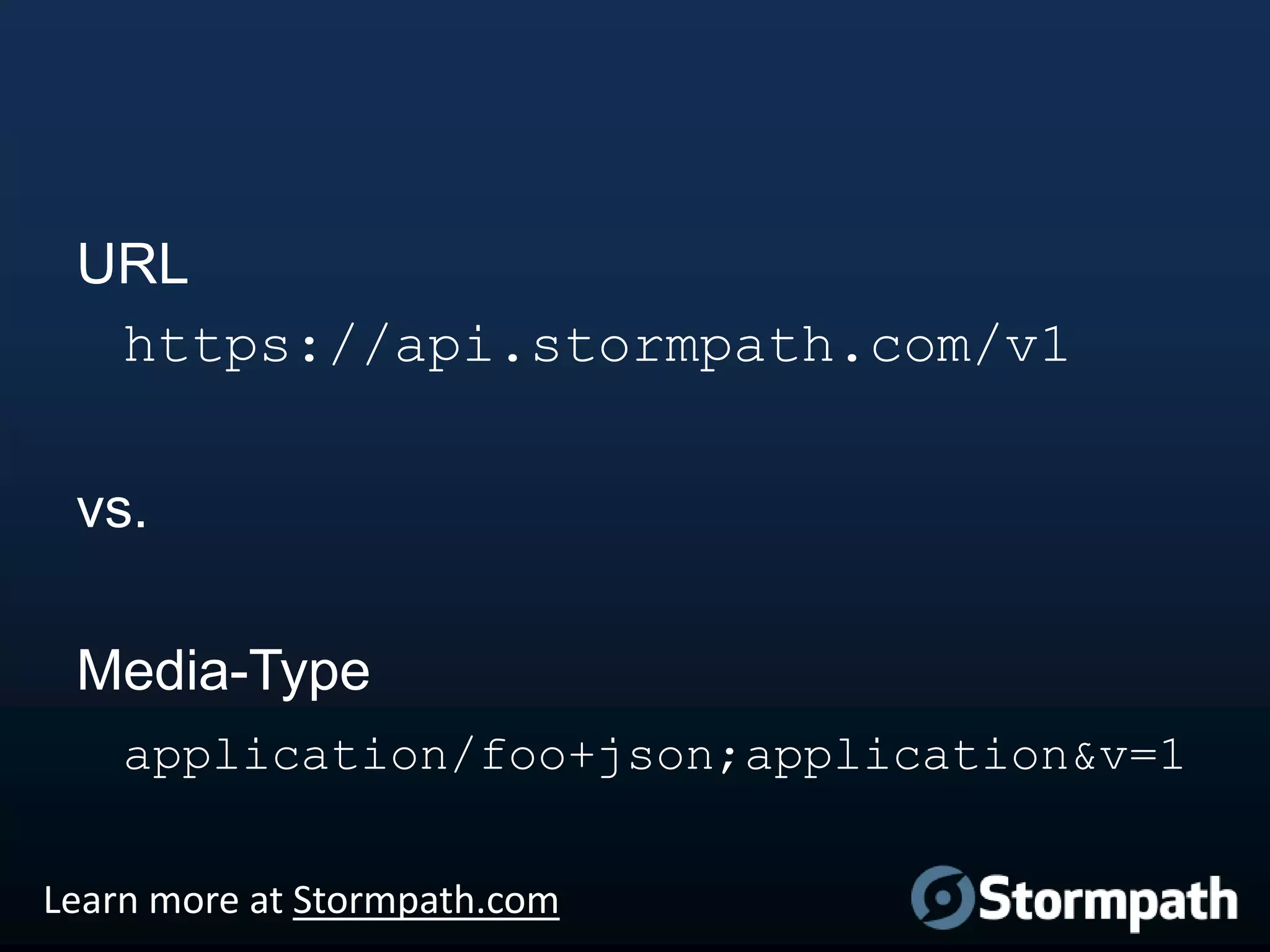

URL
https://api.stormpath.com/v1
vs.
Media-Type
application/foo+json;application&v=1

Resource Format

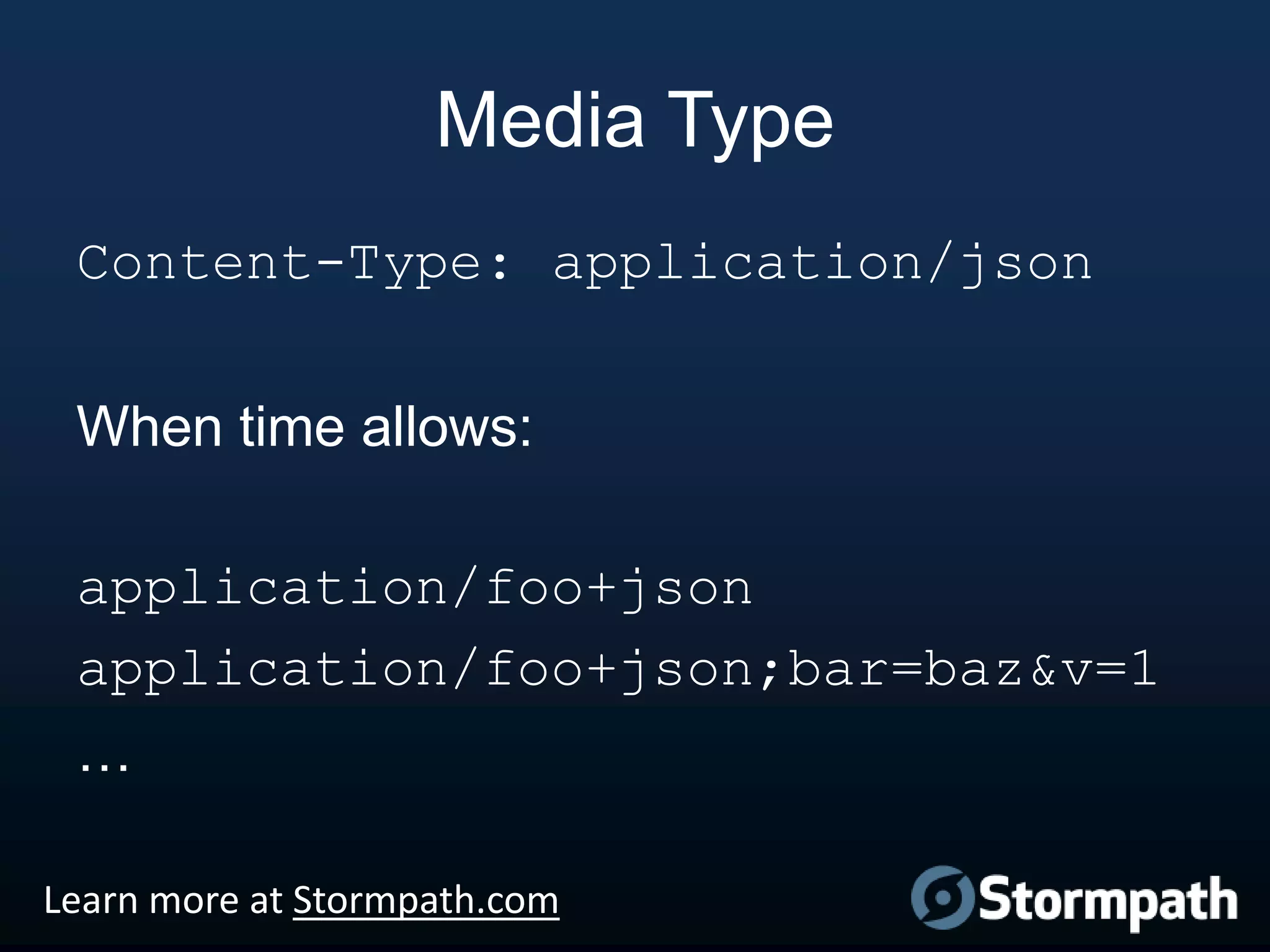

Media Type
Content-Type: application/json
When time allows:
application/foo+json
application/foo+json;bar=baz&v=1

…

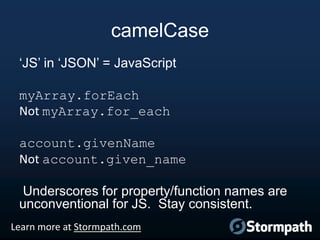

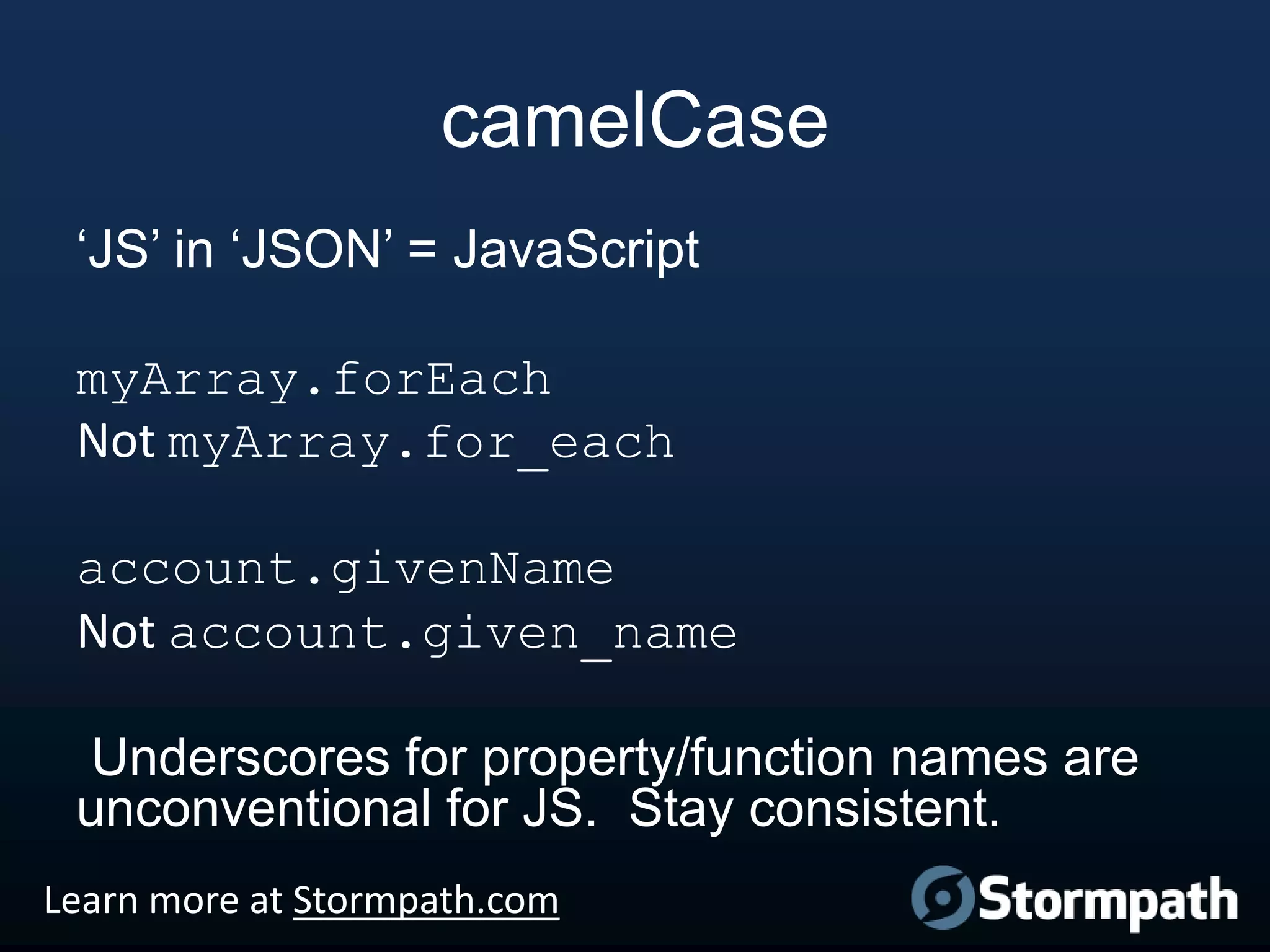

camelCase
„JS‟ in „JSON‟ = JavaScript
myArray.forEach
Not myArray.for_each
account.givenName
Not account.given_name

Underscores for property/function names are
unconventional for JS. Stay consistent.

Date/Time/Timestamp
There‟s already a standard. Use it: ISO 8601
Example:
{
…,
“createdTimestamp”: “2012-07-10T18:02:24.343Z”
}
Use UTC!

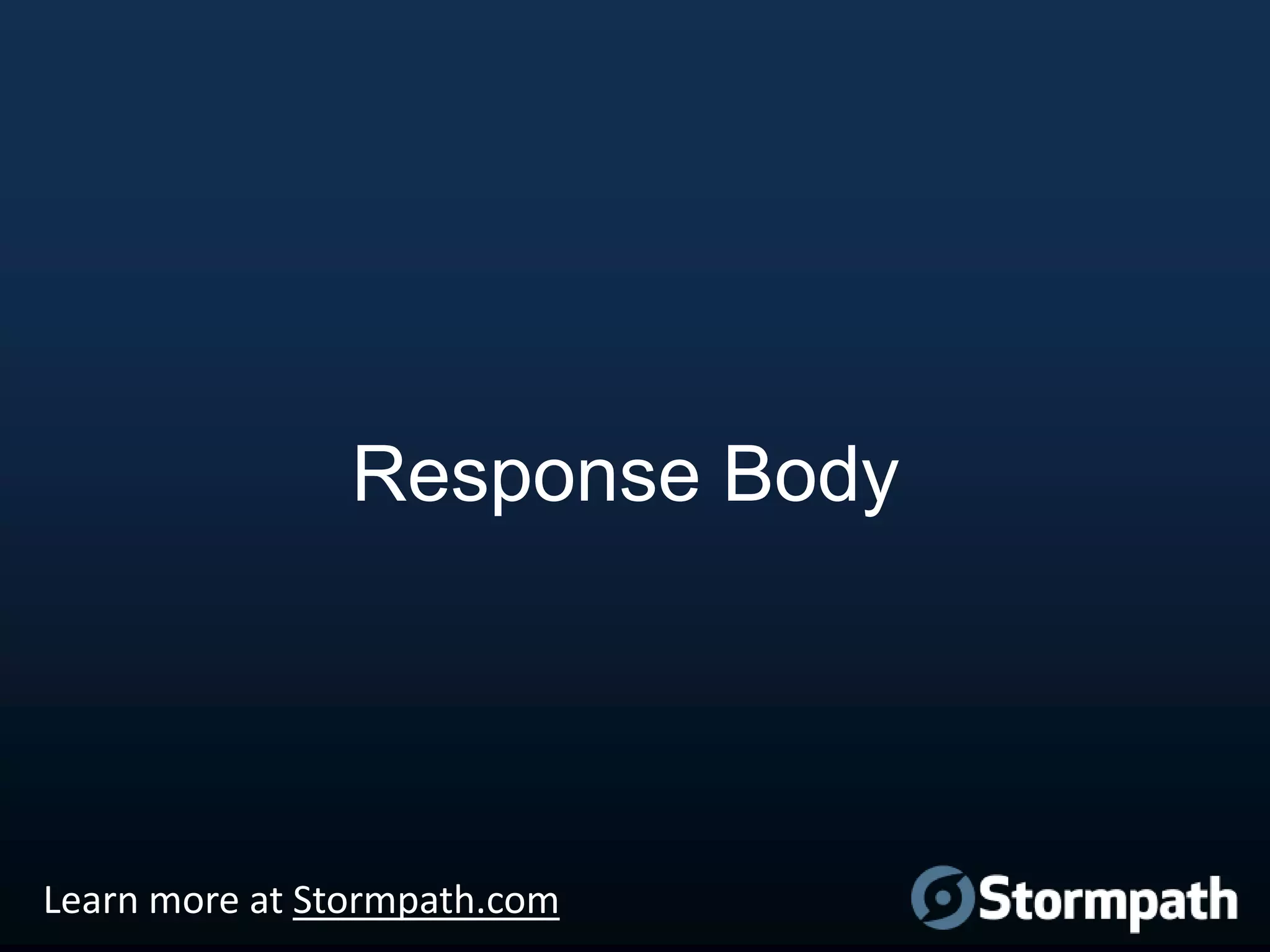

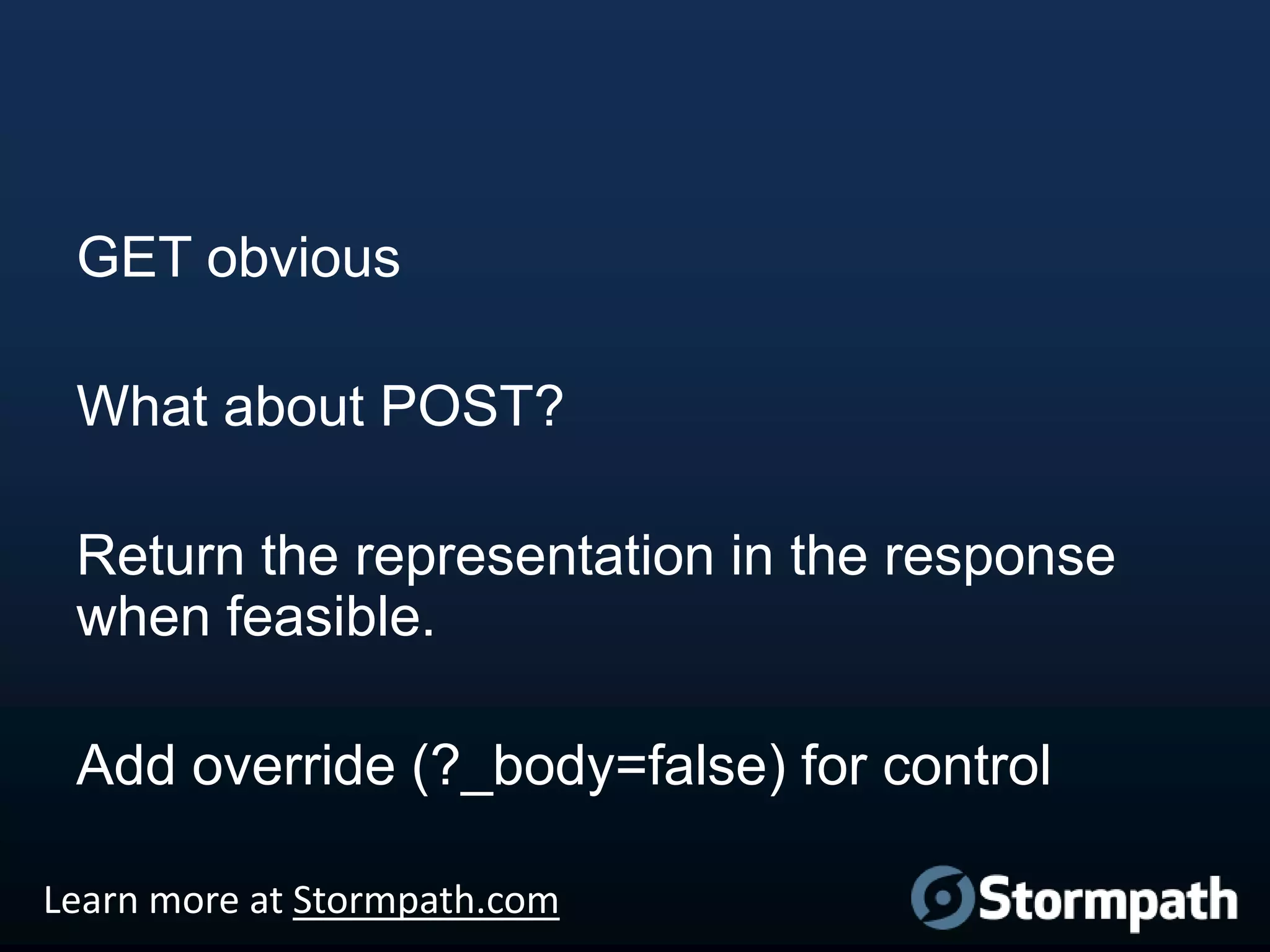

Response Body

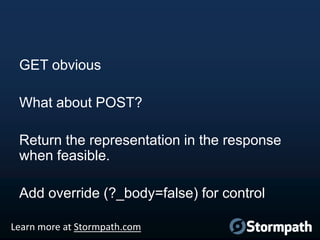

GET obvious
What about POST?

Return the representation in the response
when feasible.
Add override (?_body=false) for control

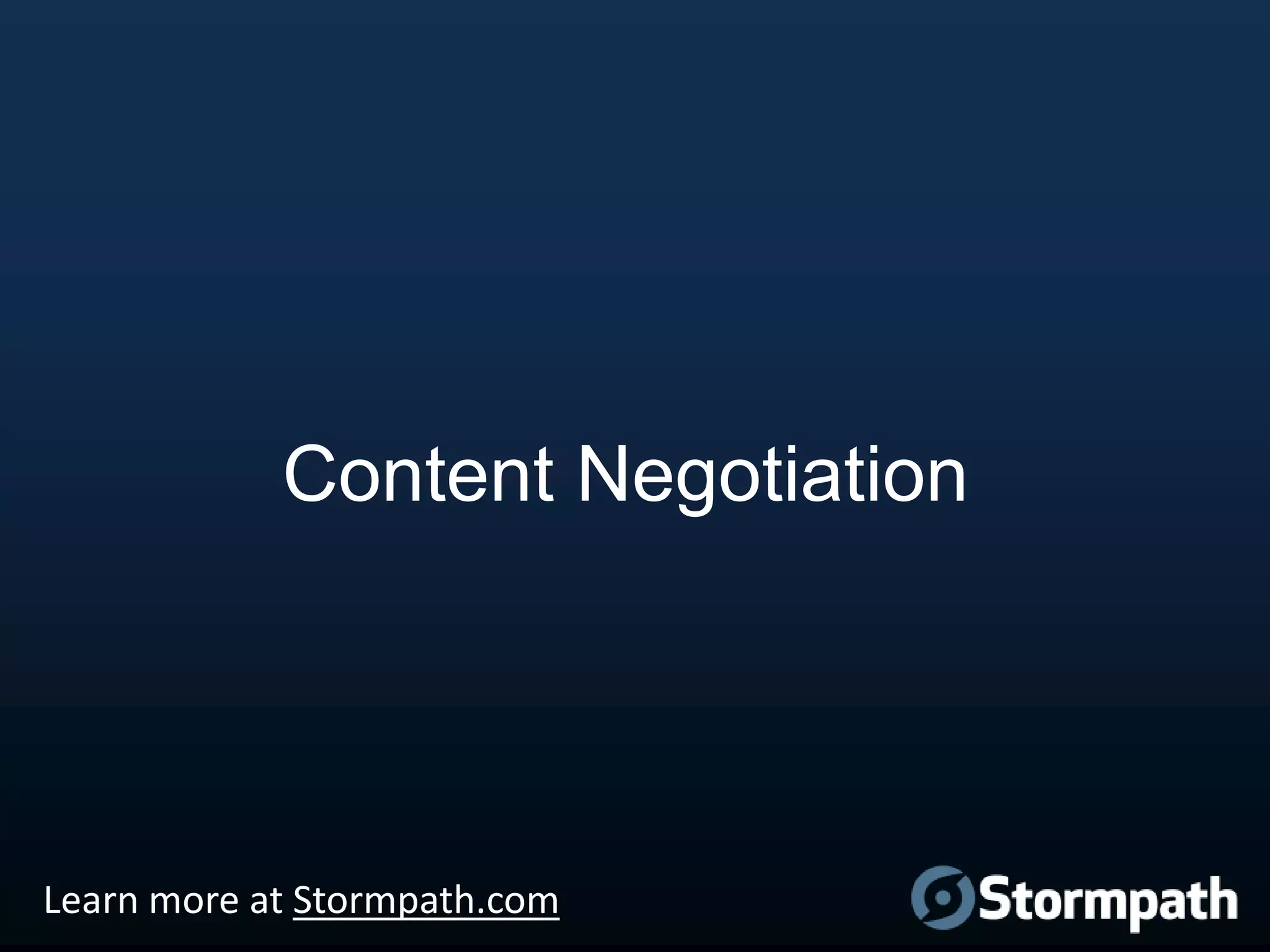

Content Negotiation

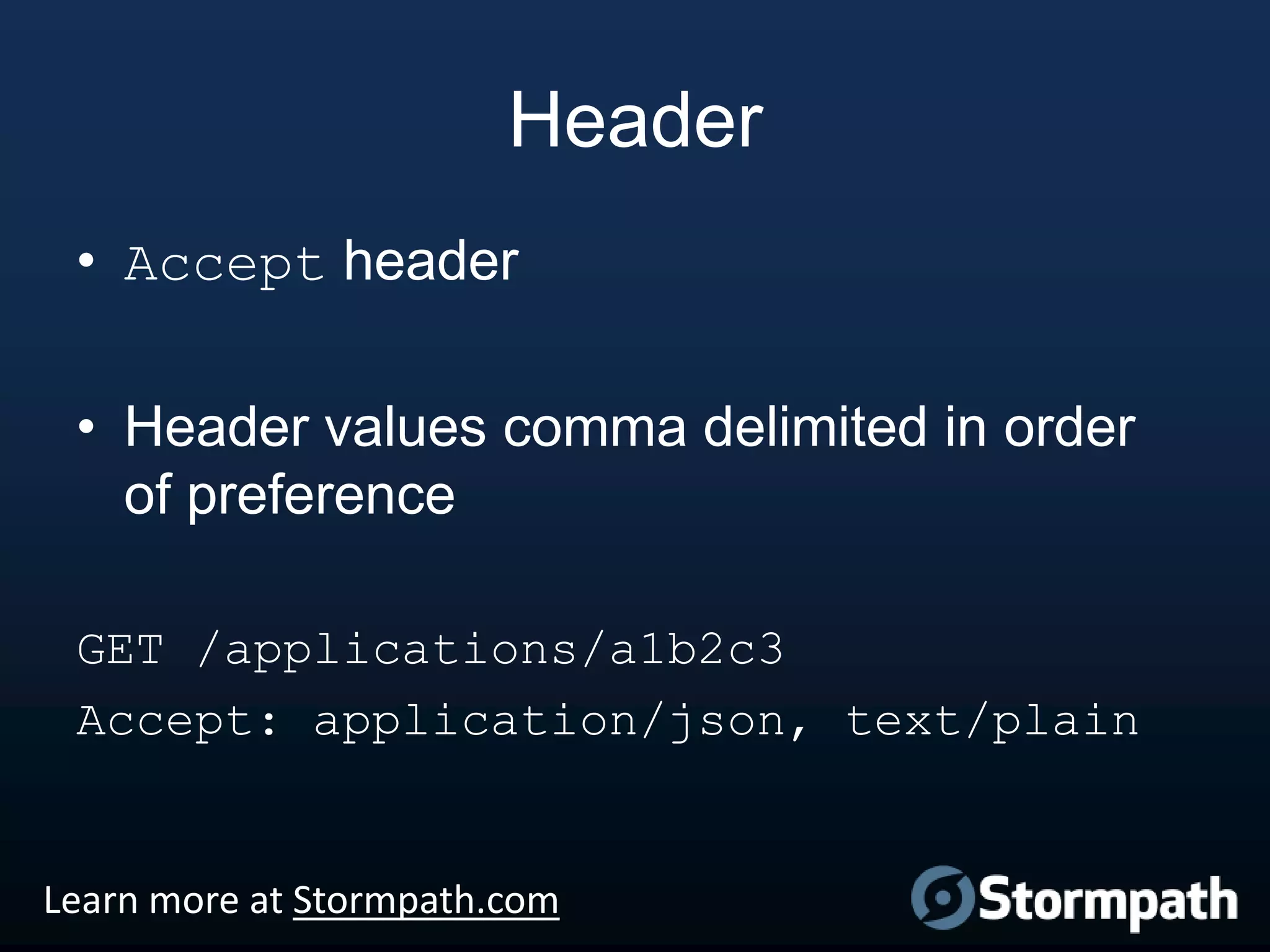

Header
• Accept header
• Header values comma delimited in order
of preference
GET /applications/a1b2c3
Accept: application/json, text/plain

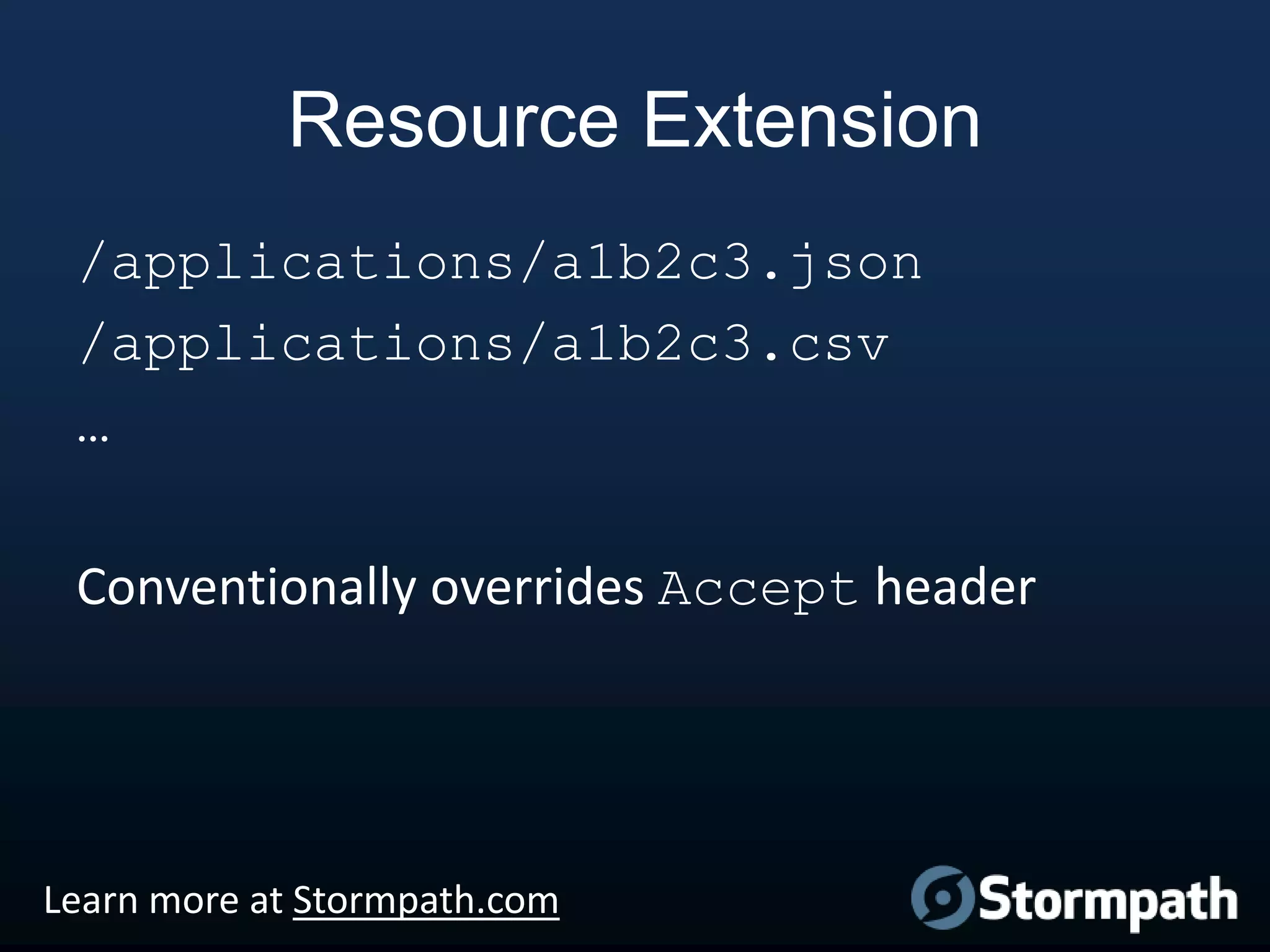

Resource Extension
/applications/a1b2c3.json
/applications/a1b2c3.csv
…
Conventionally overrides Accept header

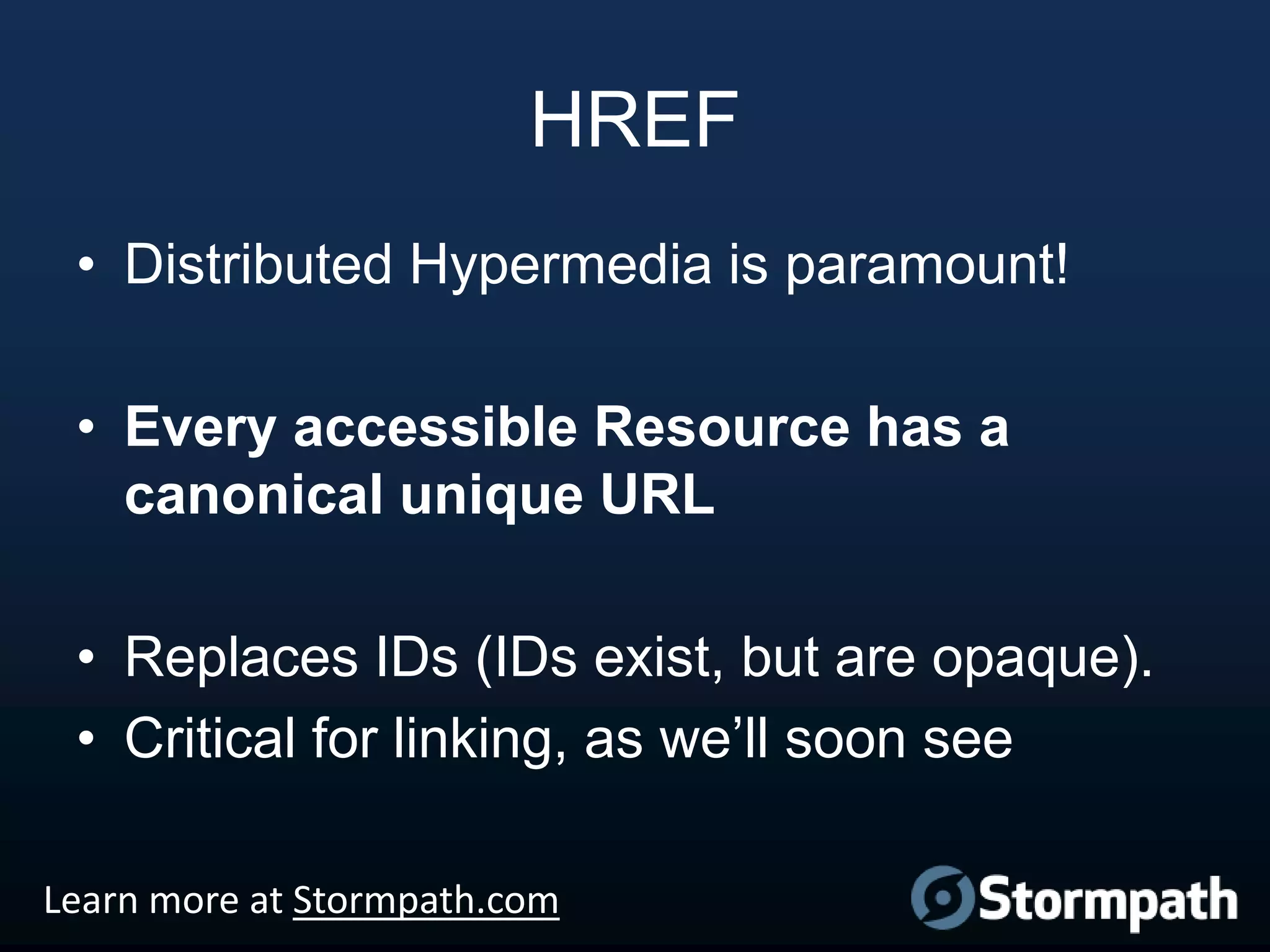

HREF
• Distributed Hypermedia is paramount!
• Every accessible Resource has a
canonical unique URL
• Replaces IDs (IDs exist, but are opaque).
• Critical for linking, as we‟ll soon see

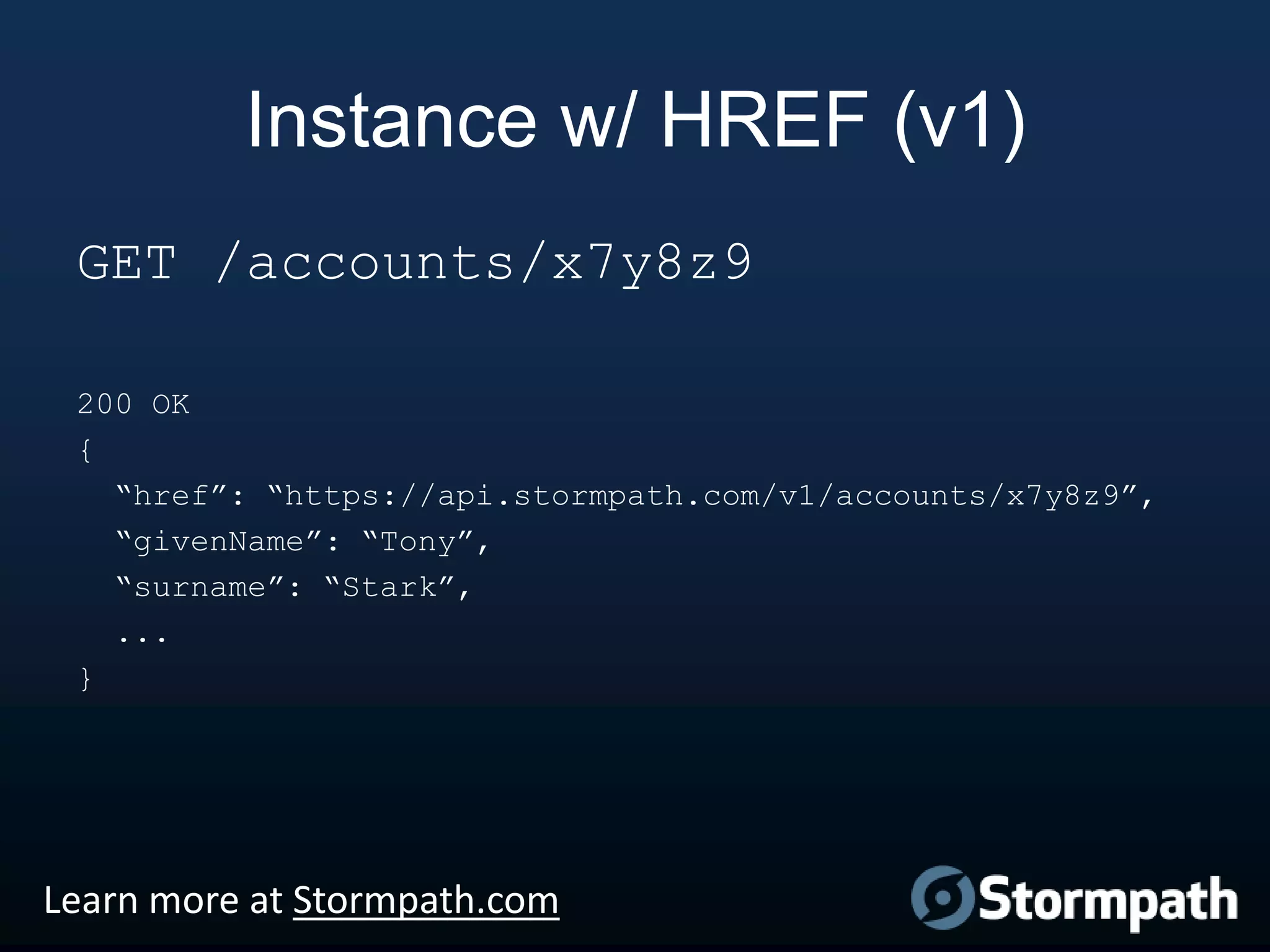

Instance w/ HREF (v1)
GET /accounts/x7y8z9
200 OK
{
“href”: “https://api.stormpath.com/v1/accounts/x7y8z9”,
“givenName”: “Tony”,
“surname”: “Stark”,
...
}

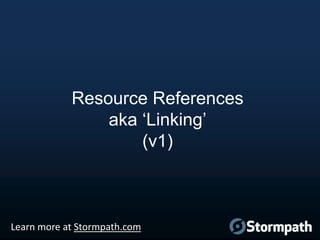

Resource References
aka „Linking‟
(v1)

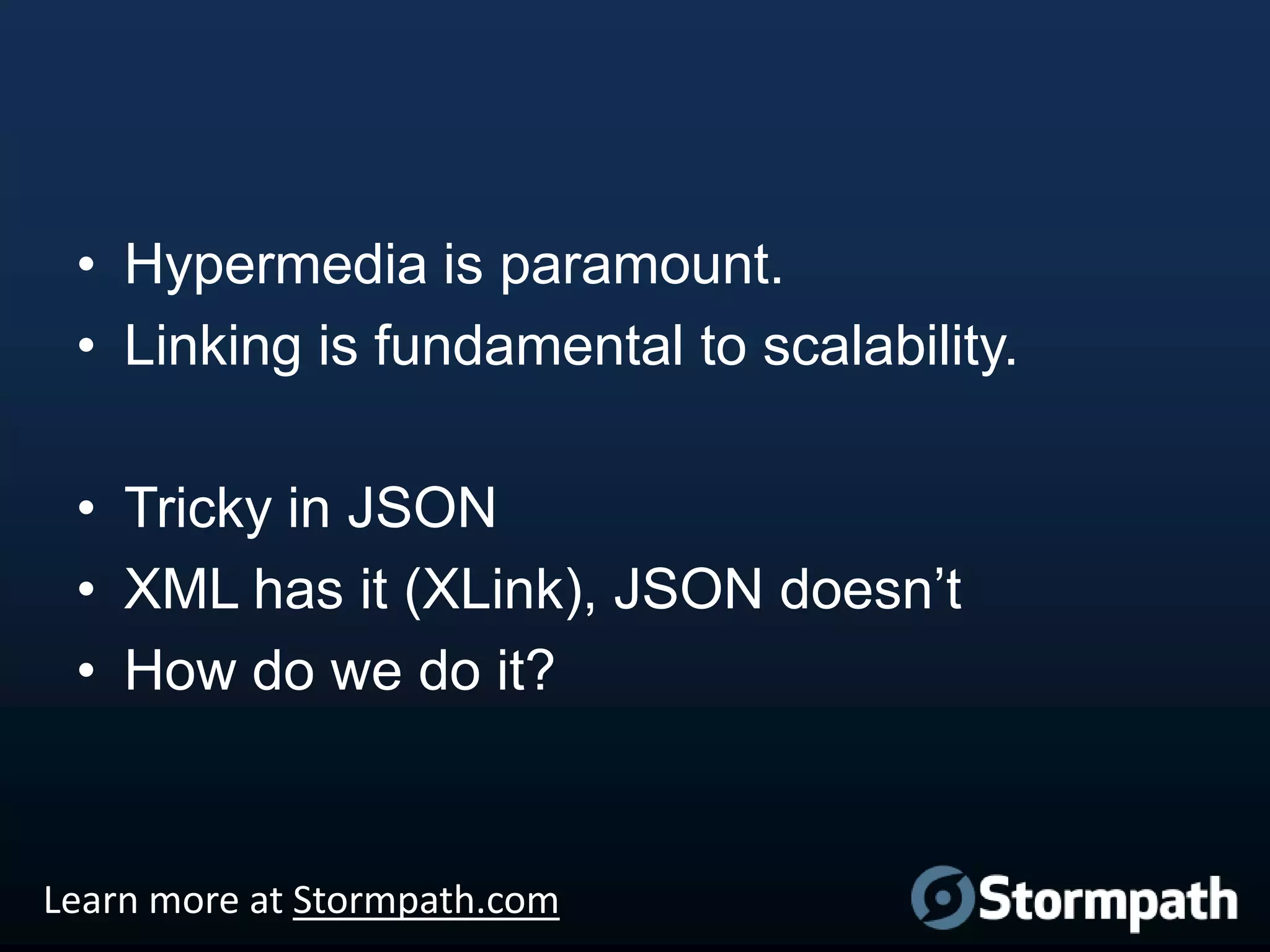

• Hypermedia is paramount.
• Linking is fundamental to scalability.
• Tricky in JSON
• XML has it (XLink), JSON doesn‟t
• How do we do it?

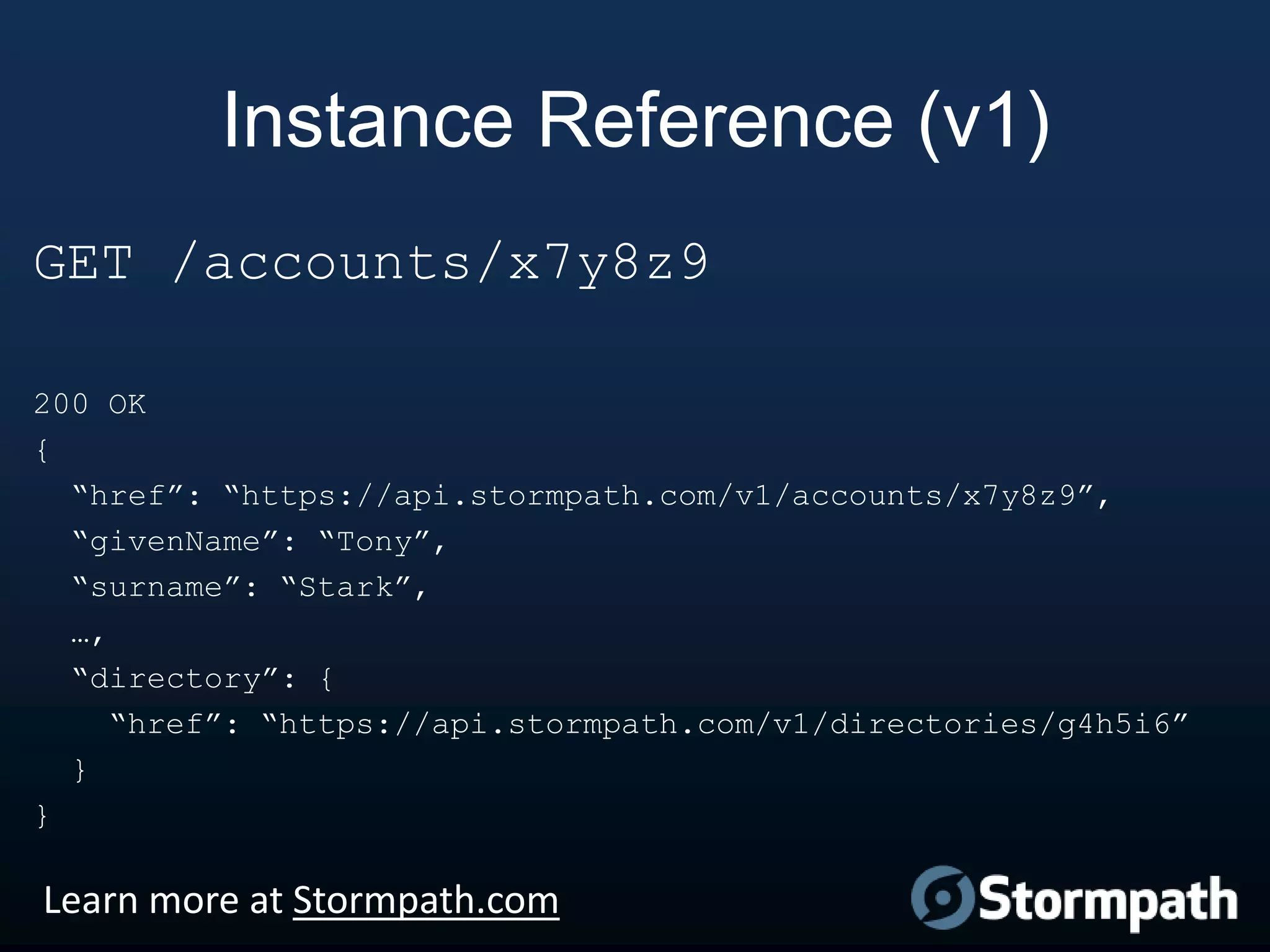

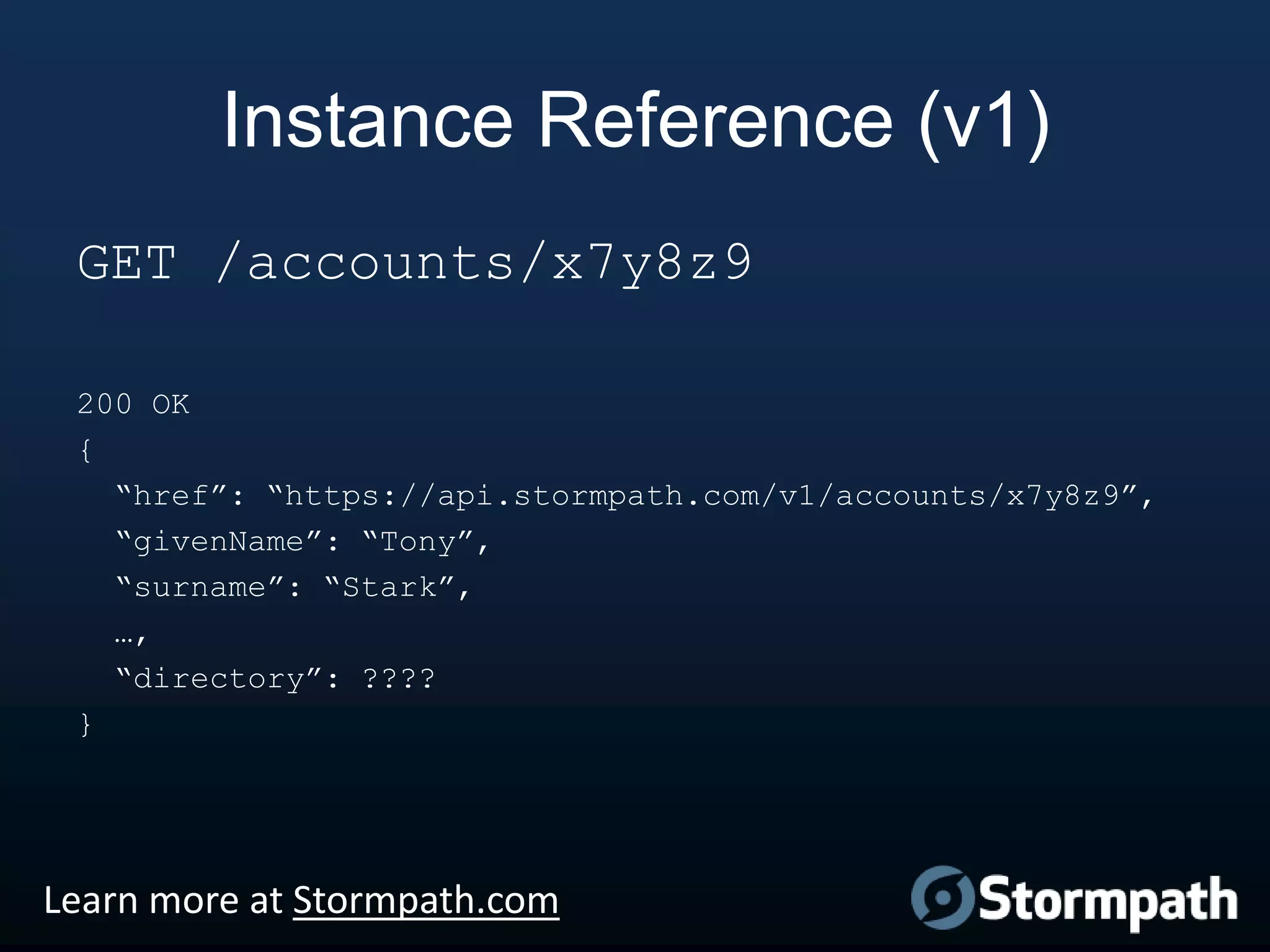

Instance Reference (v1)
200 OK
{
…,
“directory”: ????
}


200 OK
{
…,
“directory”: {
“href”: “https://api.stormpath.com/v1/directories/g4h5i6”
}
}

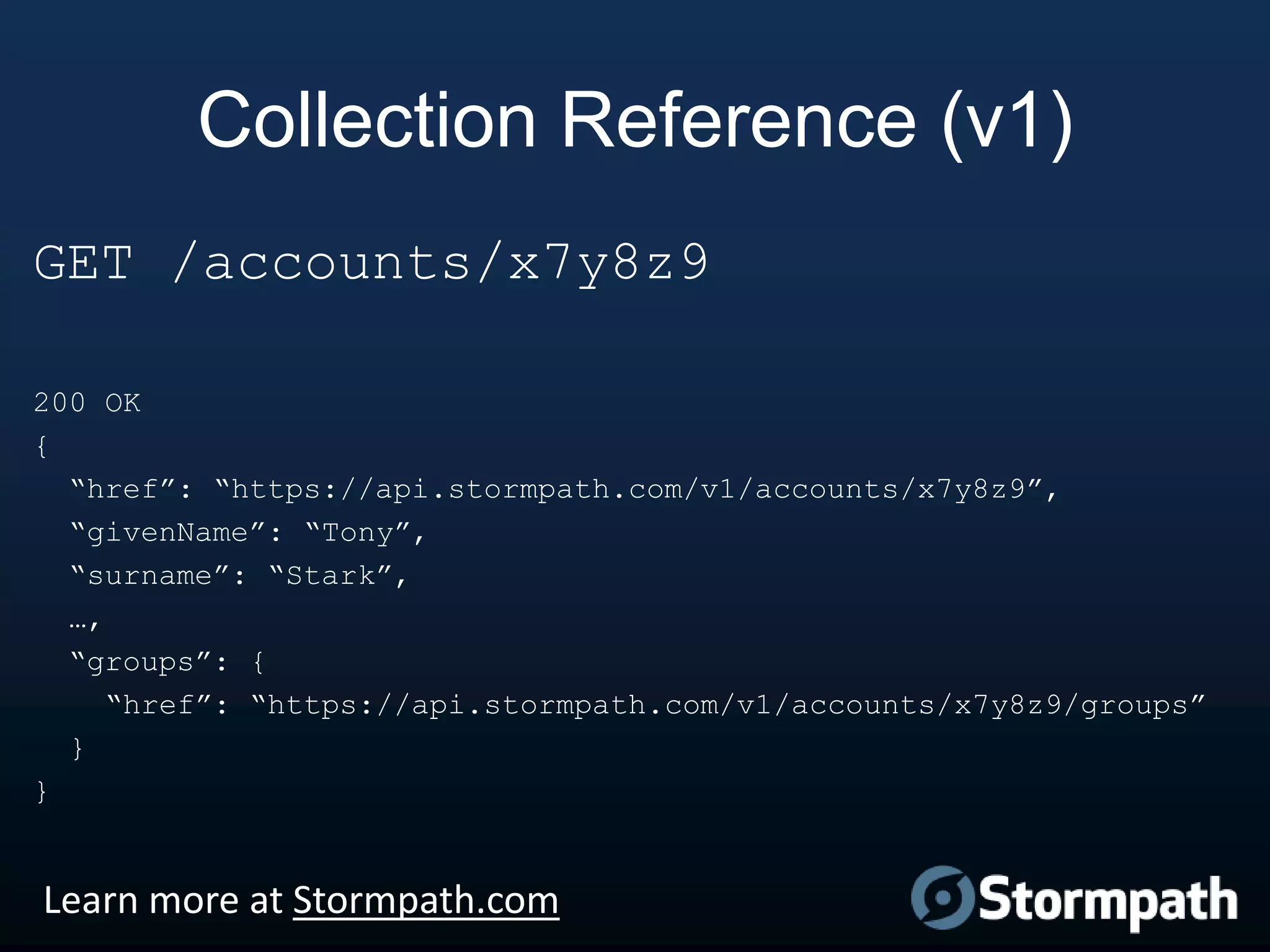

Collection Reference (v1)
200 OK
{
…,
“groups”: {
“href”: “https://api.stormpath.com/v1/accounts/x7y8z9/groups”
}
}

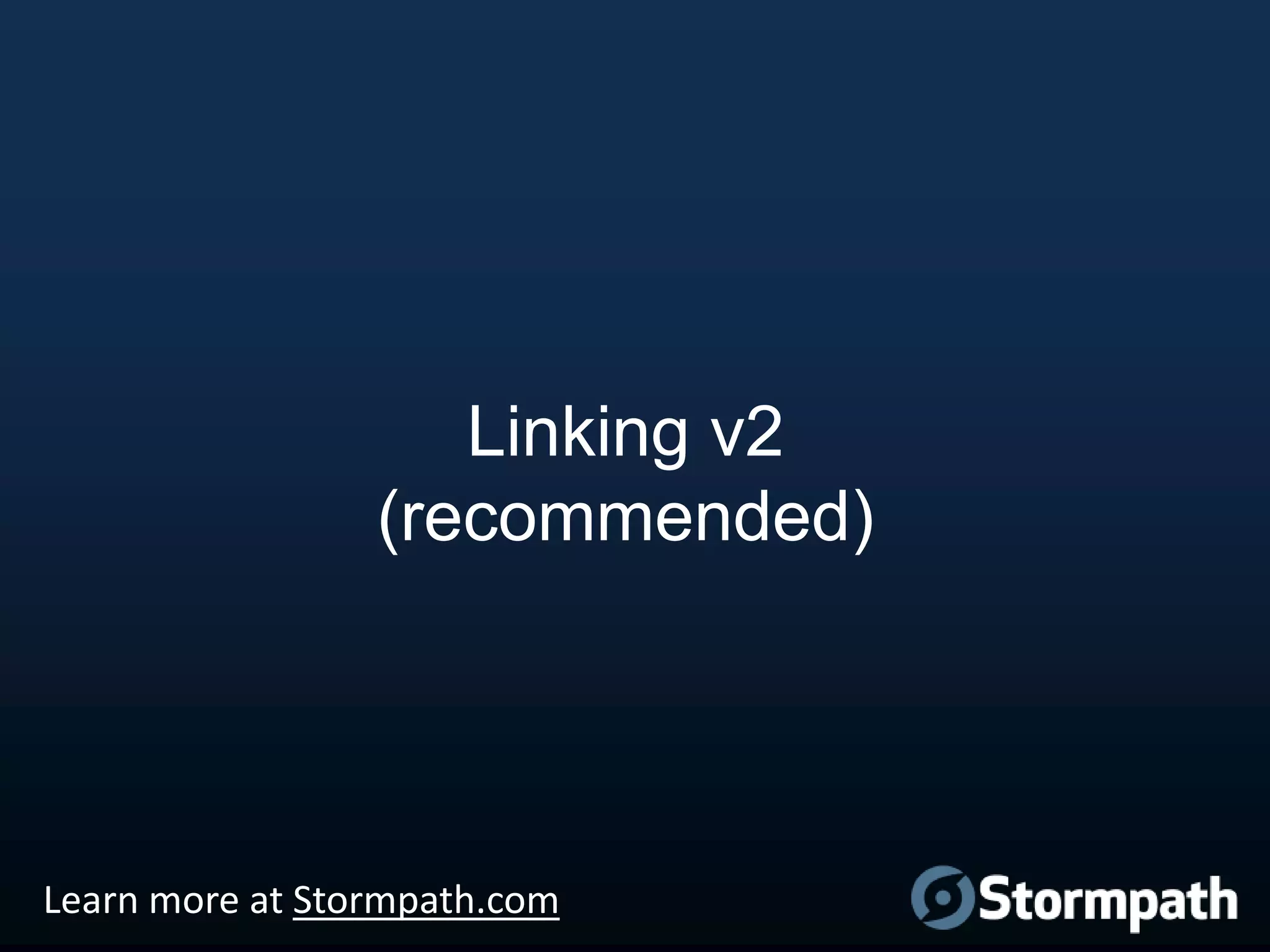

Linking v2
(recommended)

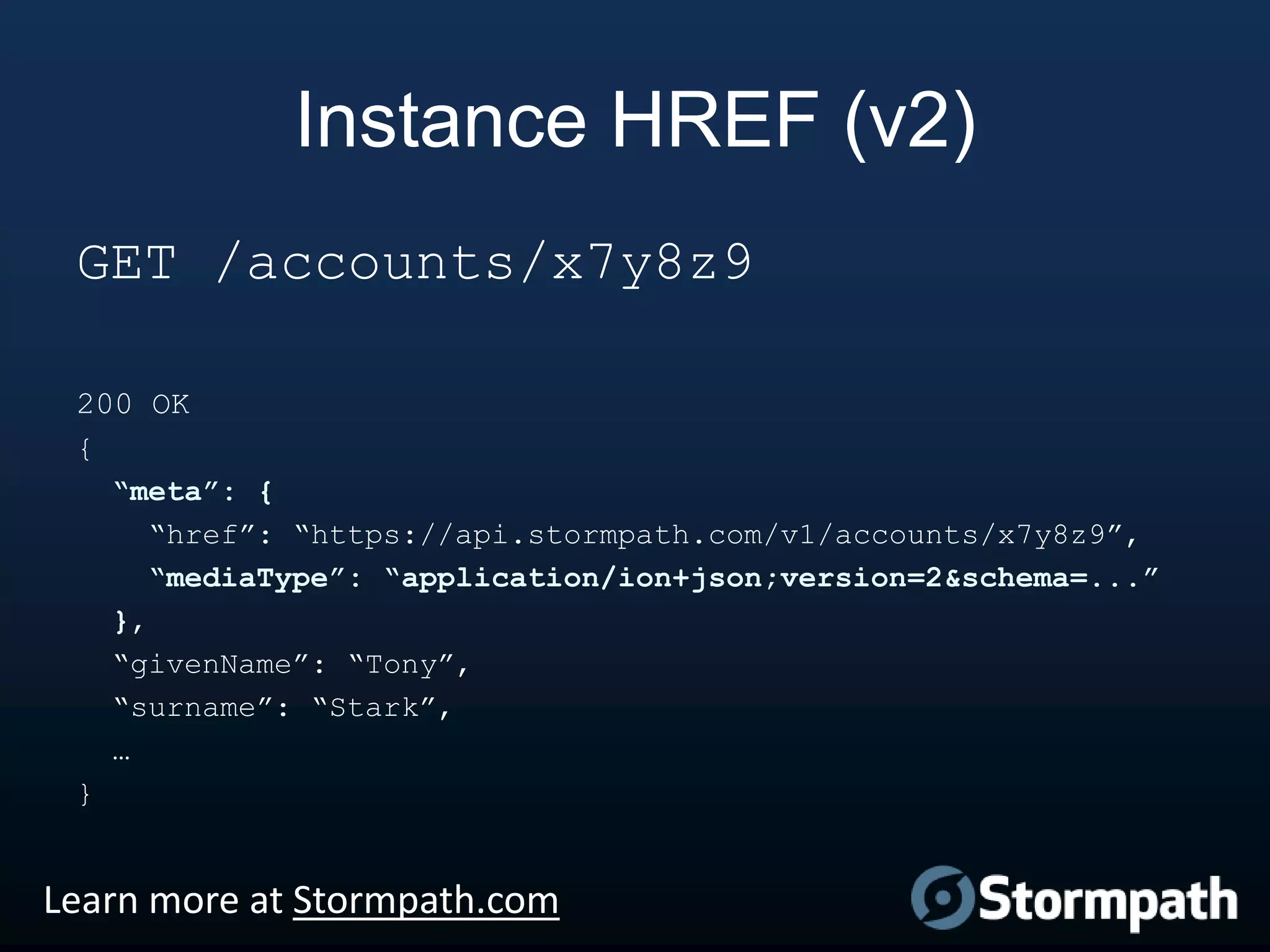

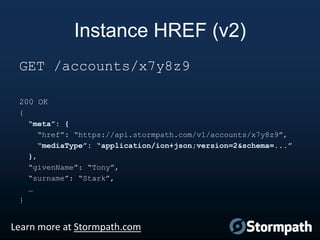

Instance HREF (v2)
200 OK
{
“meta”: {
“mediaType”: “application/ion+json;version=2&schema=...”
},
…
}


200 OK
{
“meta”: { ... },
…,
“directory”: {
“meta”: {
“href”: “https://api.stormpath.com/v1/directories/g4h5i6”
“mediaType”: “application/ion+json;version=2&schema=...”
}
}
}

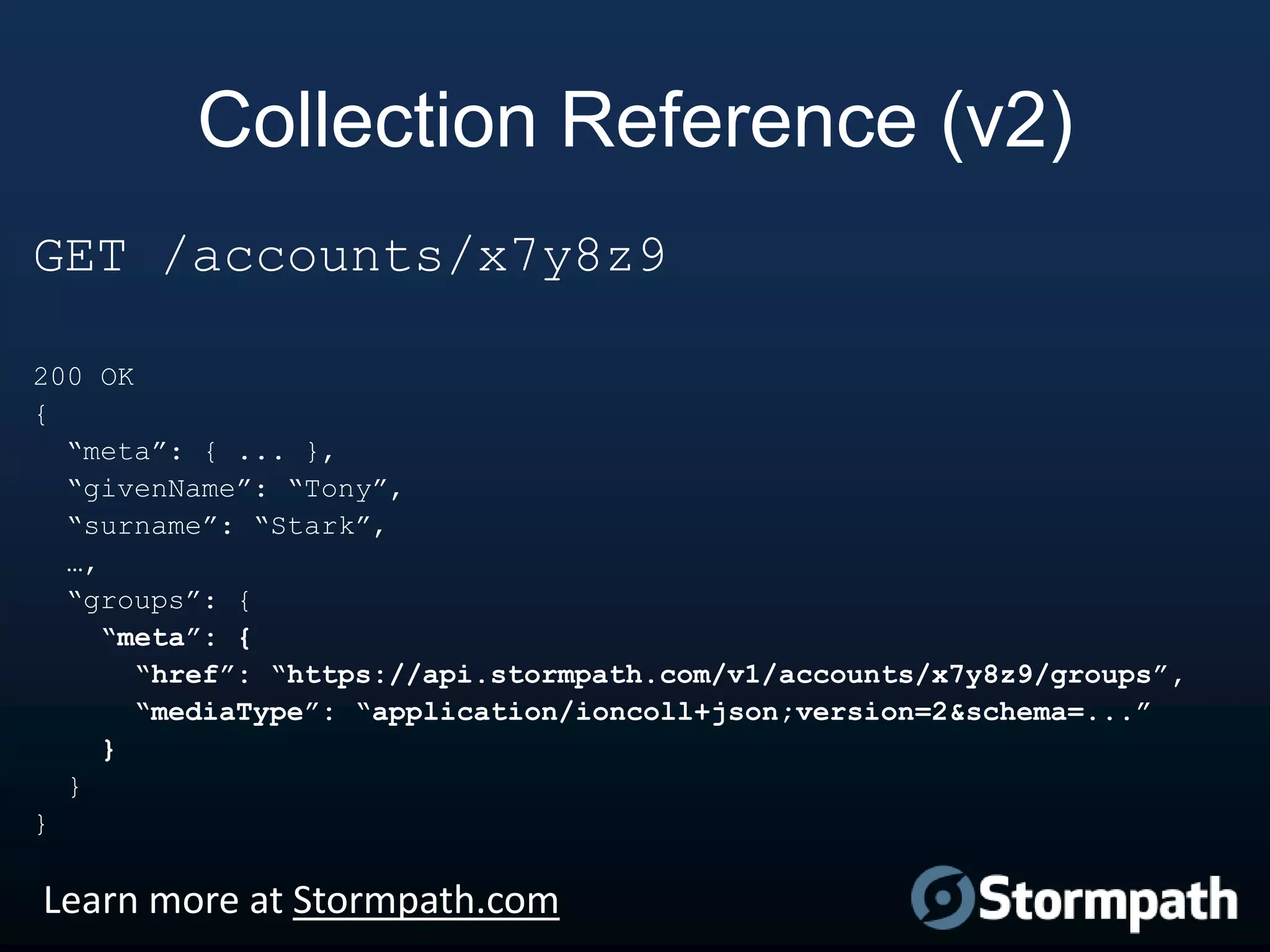

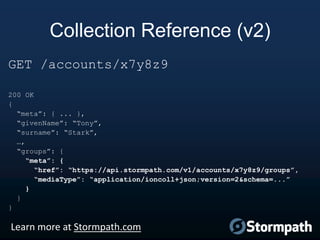

Collection Reference (v2)
200 OK
{
“meta”: { ... },
…,
“groups”: {
“meta”: {
“href”: “https://api.stormpath.com/v1/accounts/x7y8z9/groups”,
“mediaType”: “application/ioncoll+json;version=2&schema=...”
}
}
}

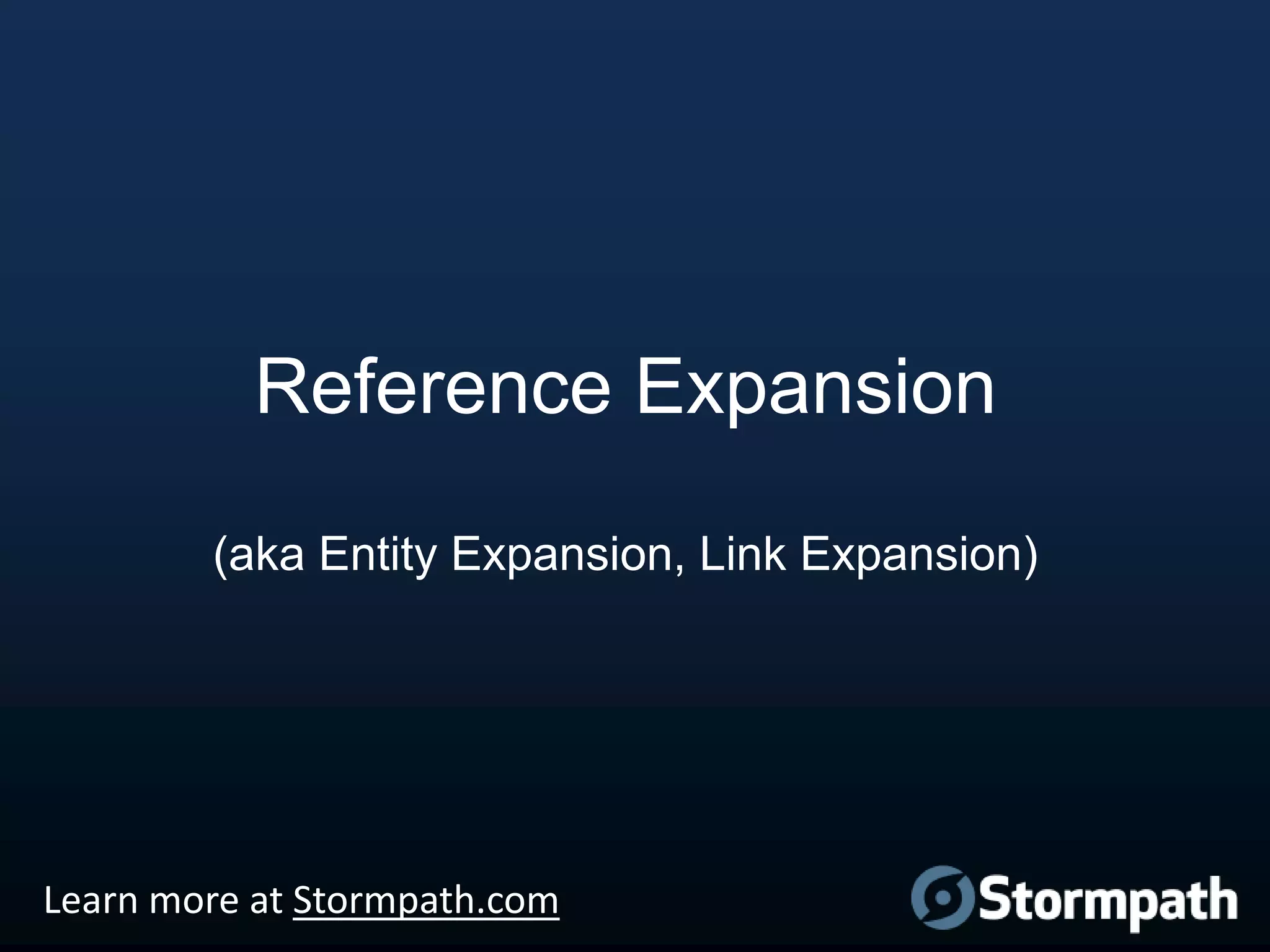

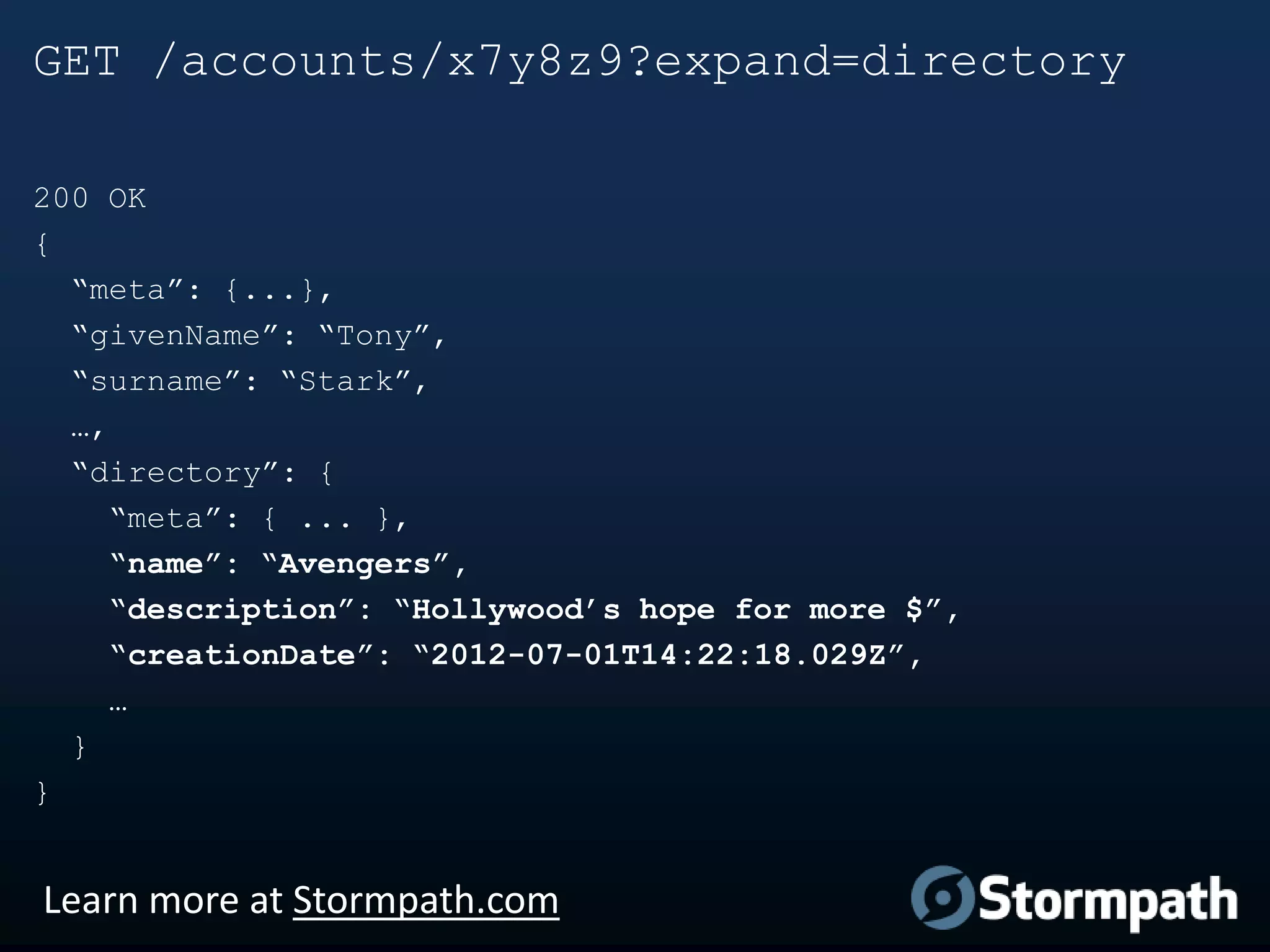

Reference Expansion
(aka Entity Expansion, Link Expansion)

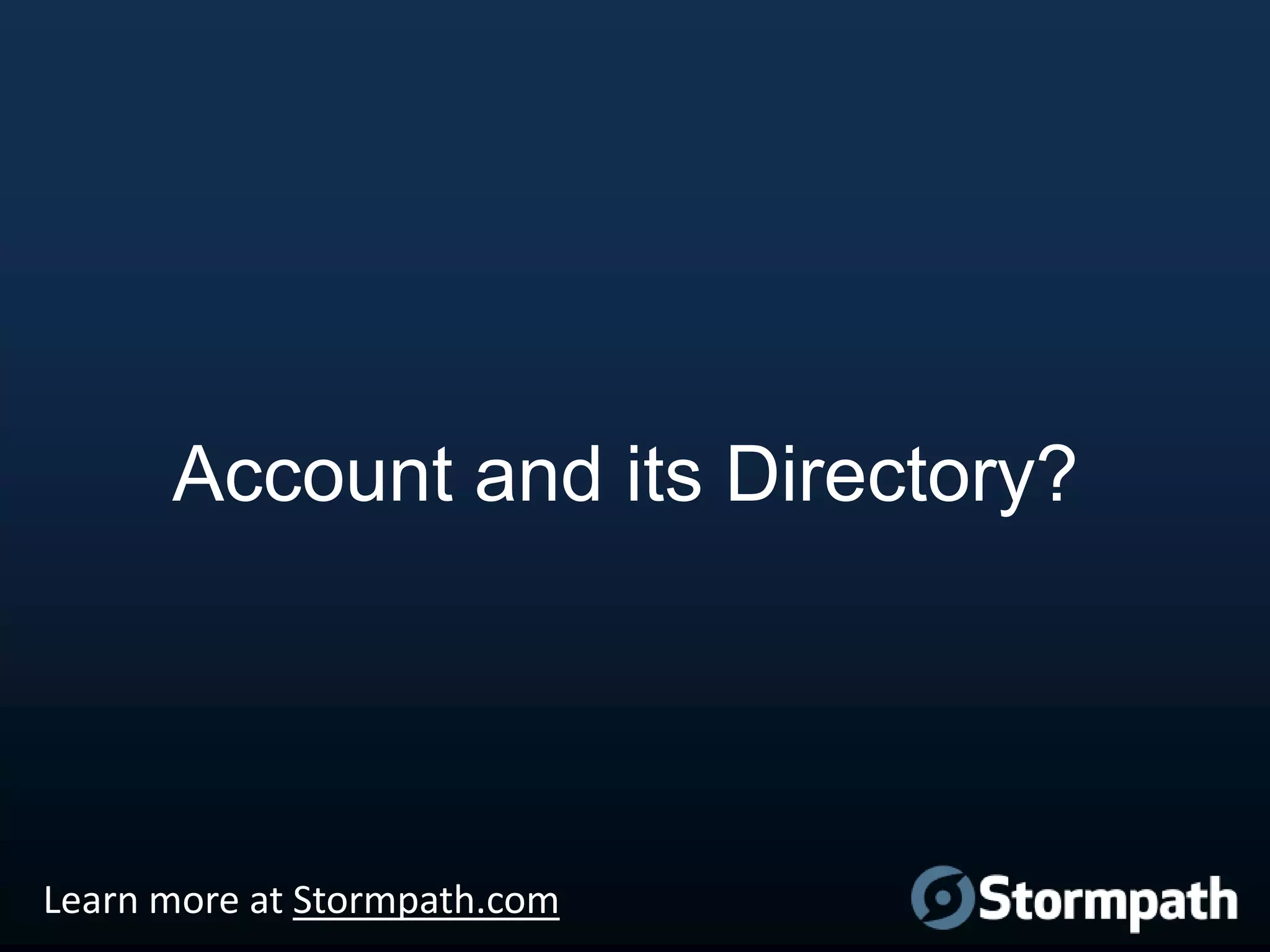

Account and its Directory?

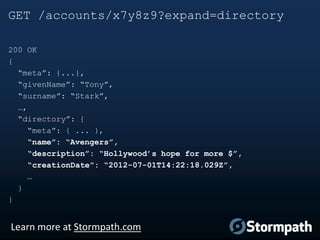

GET /accounts/x7y8z9?expand=directory
200 OK
{
“meta”: {...},
…,
“directory”: {
“meta”: { ... },
“name”: “Avengers”,
“description”: “Hollywood’s hope for more $”,
“creationDate”: “2012-07-01T14:22:18.029Z”,
…
}
}

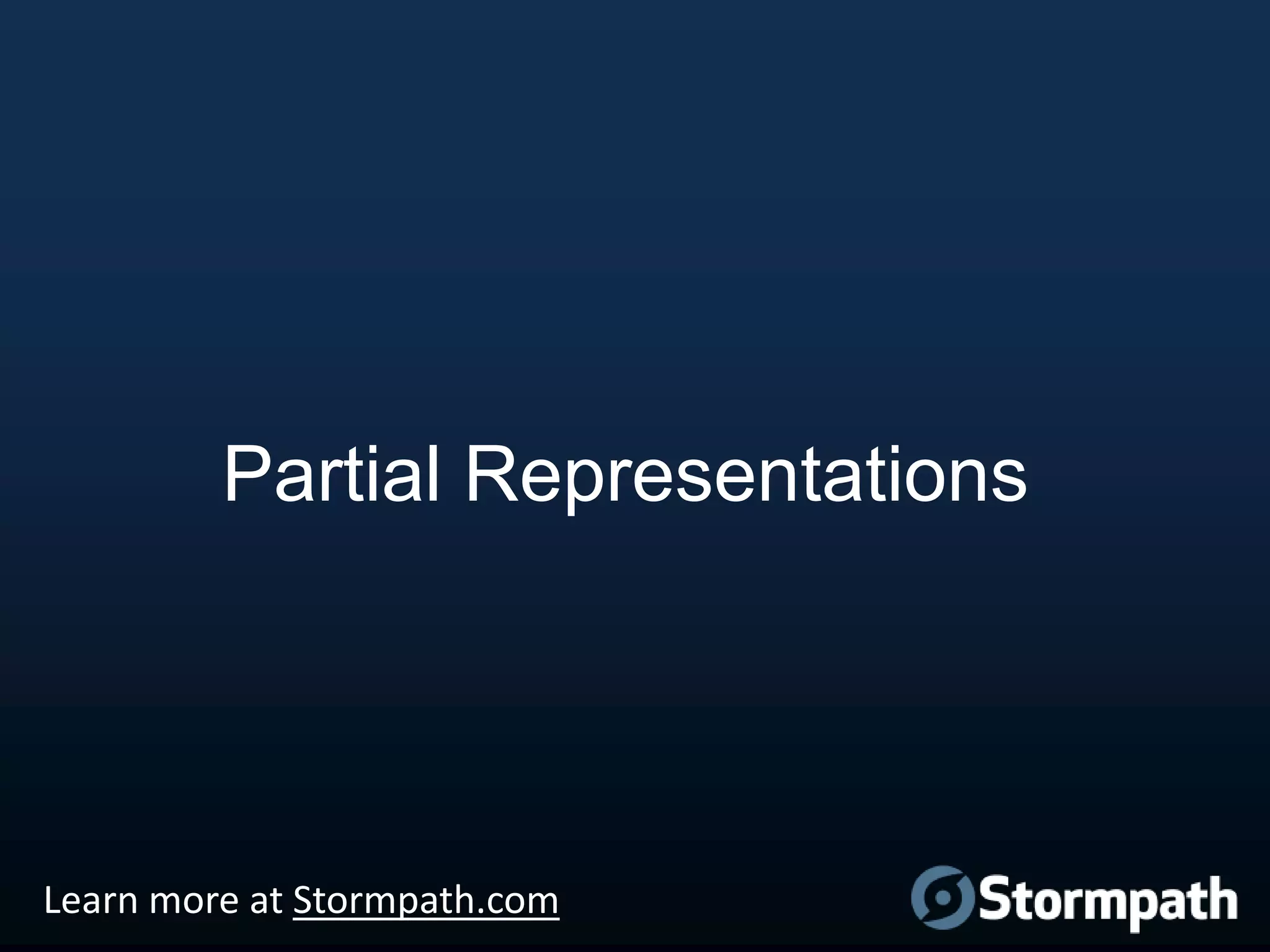

Partial Representations


GET
/accounts/x7y8z9?fields=givenName,surname,
directory(name)

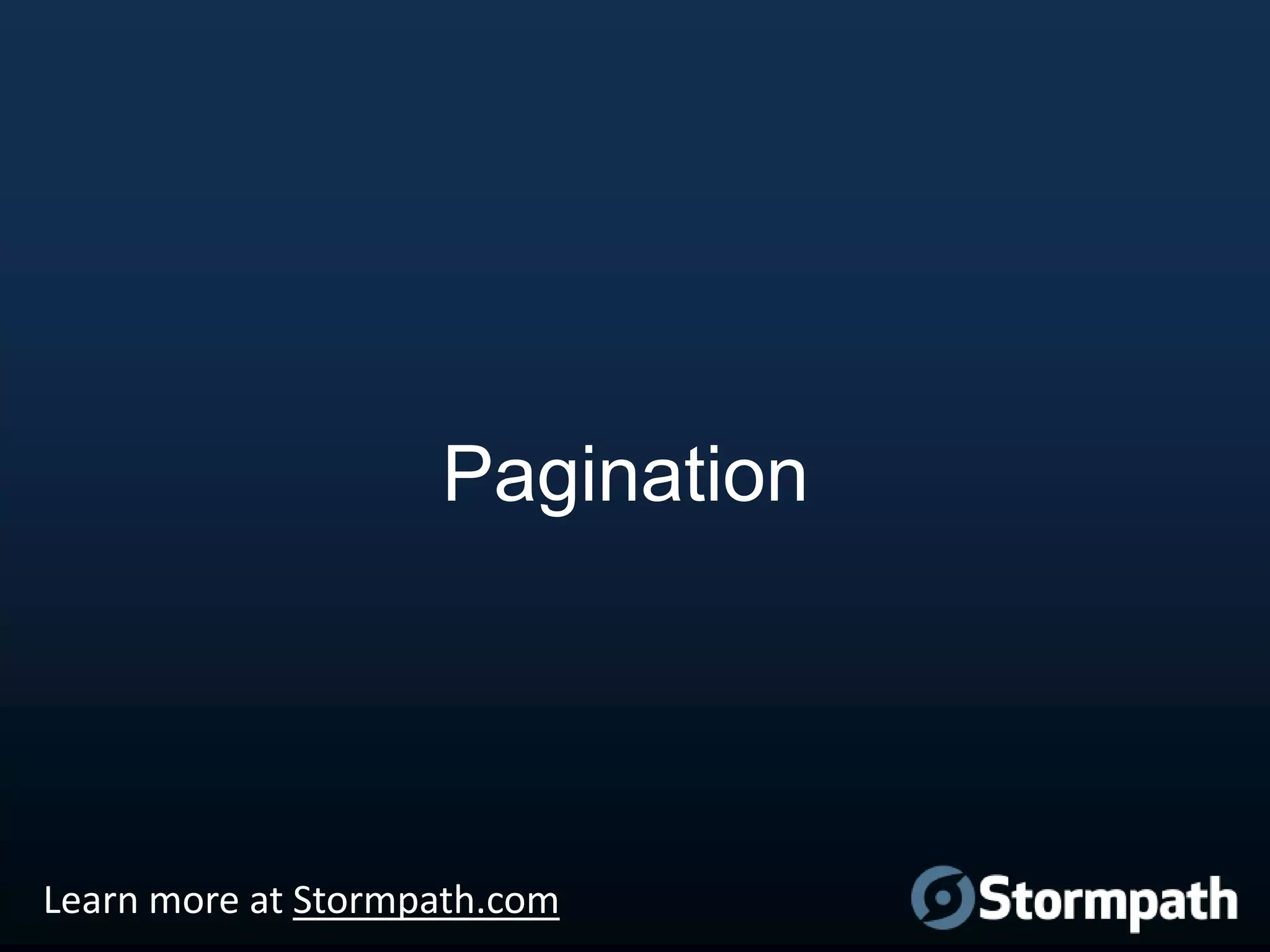

Pagination

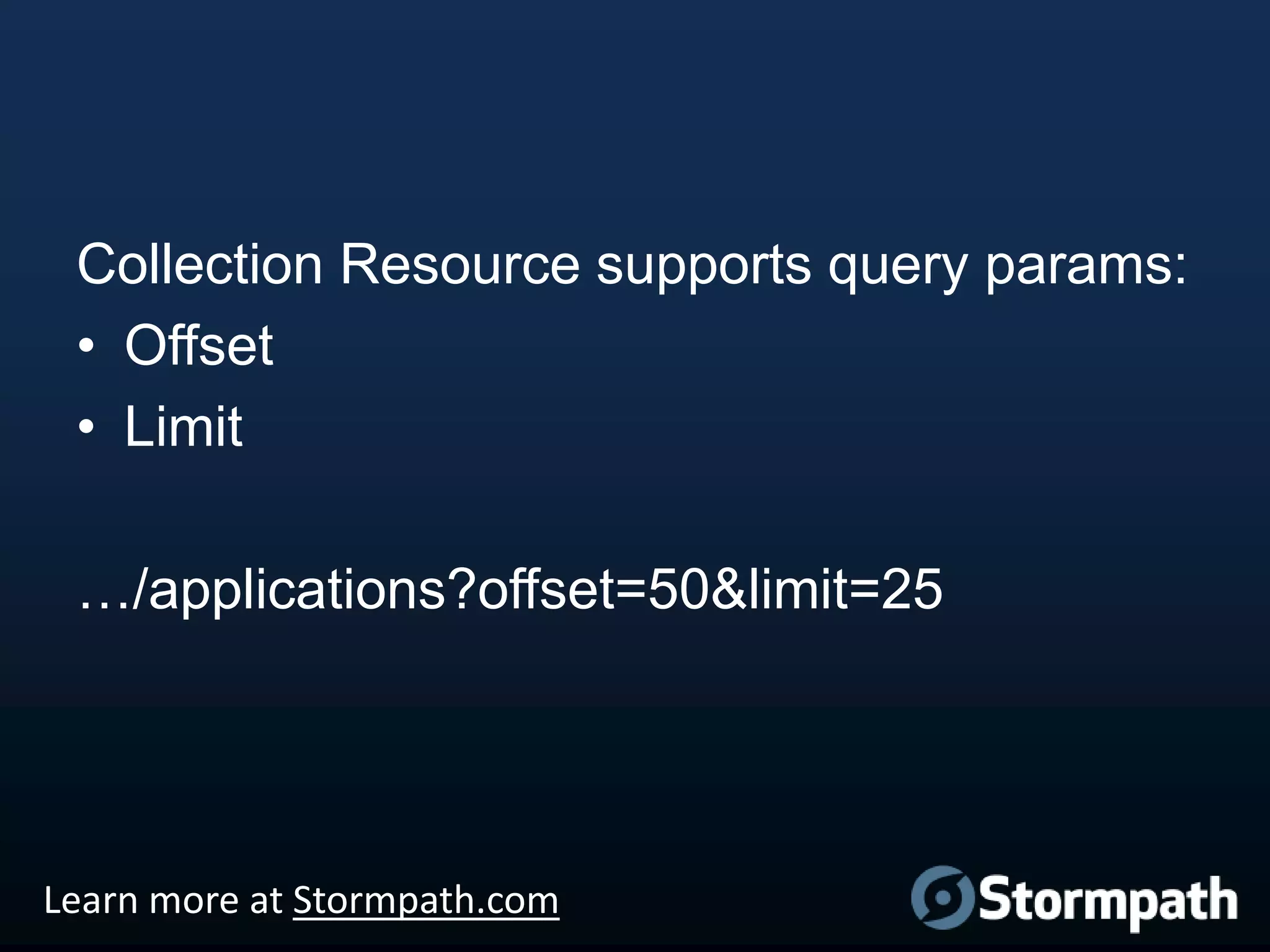

Collection Resource supports query params:
• Offset
• Limit
…/applications?offset=50&limit=25


GET /accounts/x7y8z9/groups
200 OK
{
“meta”: { ... },
“offset”: 0,
“limit”: 25,
“first”: { “meta”:{“href”: “…/accounts/x7y8z9/groups?offset=0”}},
“previous”: null,
“next”: { “meta”:{“href”: “…/accounts/x7y8z9/groups?offset=25”}},
“last”: { “meta”:{“href”: “…”}},
“items”: [
{
“meta”: { “href”: “…”, ...}
},
{
“meta”: { “href”: “…”, ...}
},
…
]
}


Many To Many

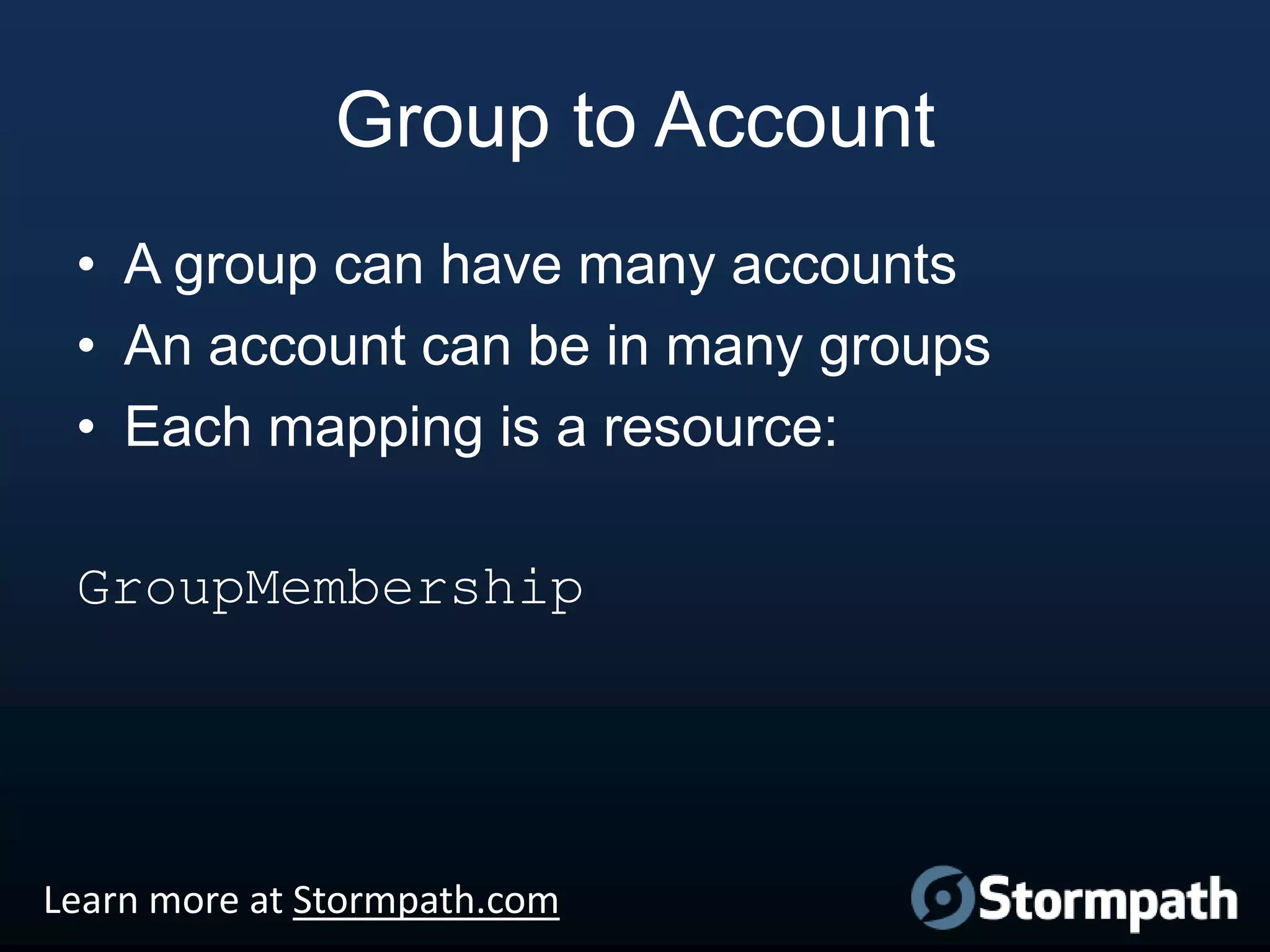

Group to Account
• A group can have many accounts
• An account can be in many groups
• Each mapping is a resource:
GroupMembership

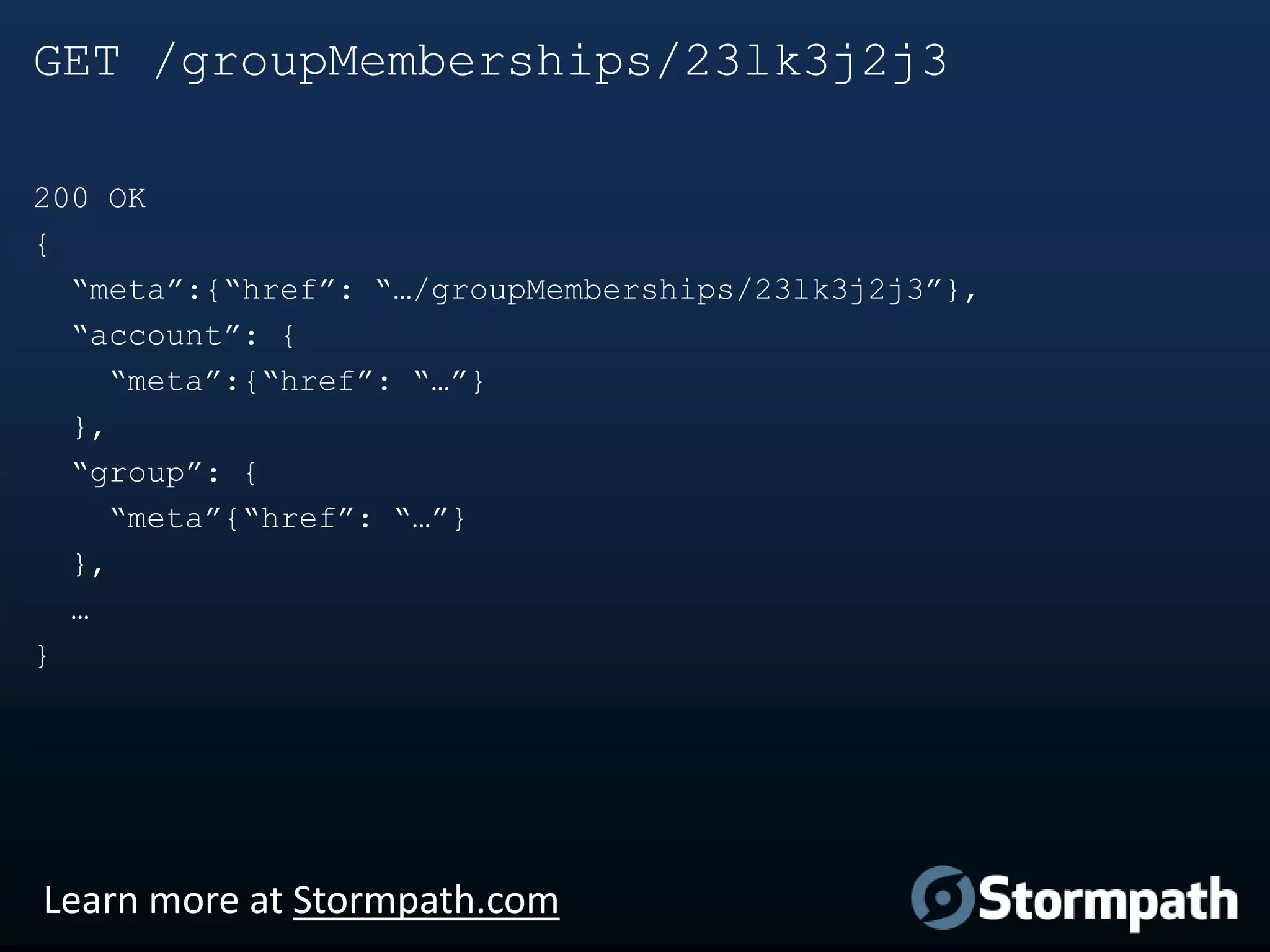

GET /groupMemberships/23lk3j2j3
200 OK
{
“meta”:{“href”: “…/groupMemberships/23lk3j2j3”},
“account”: {
“meta”:{“href”: “…”}
},
“group”: {
“meta”{“href”: “…”}
},
…
}

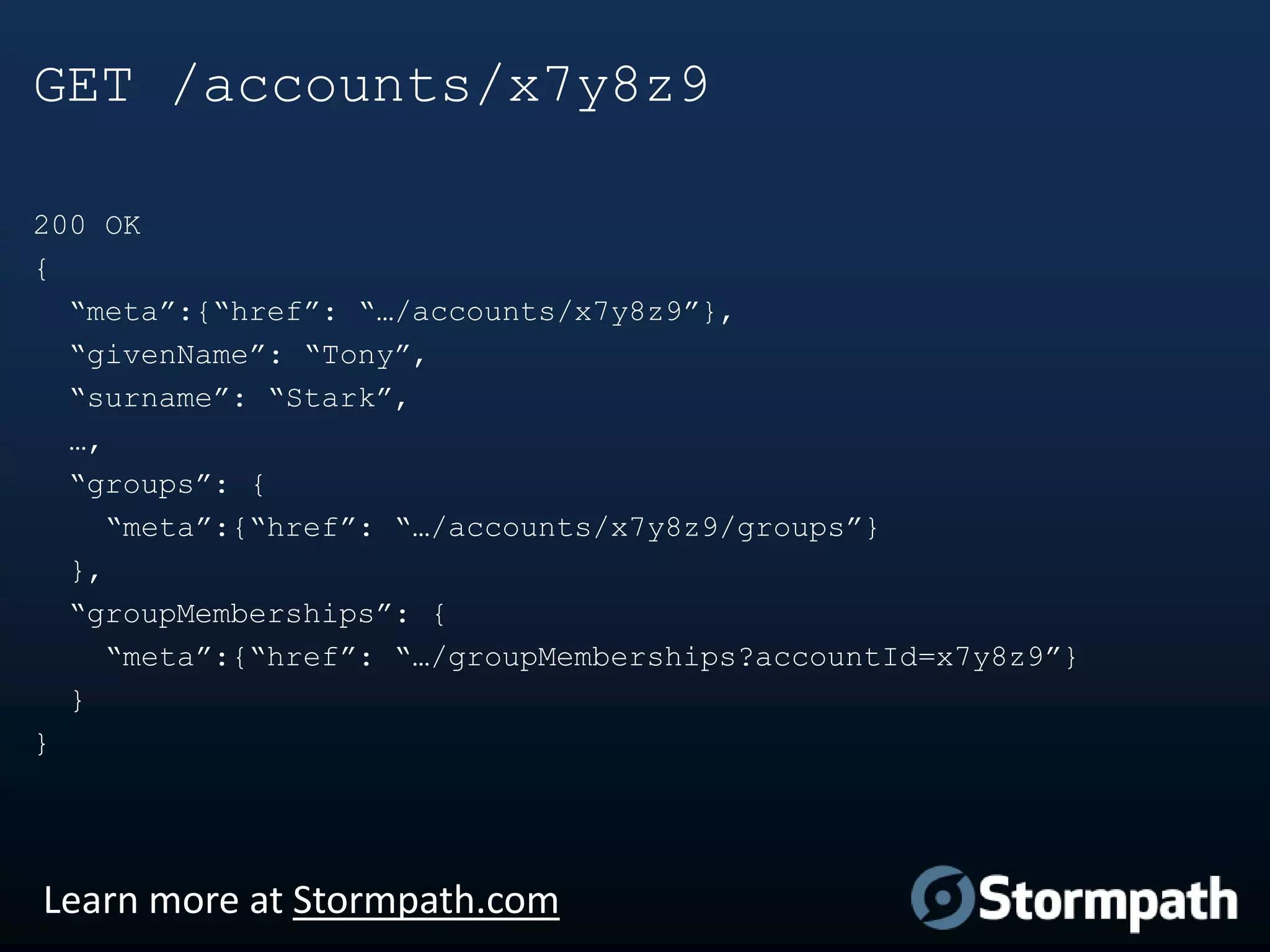

200 OK
{
“meta”:{“href”: “…/accounts/x7y8z9”},
…,
“groups”: {
“meta”:{“href”: “…/accounts/x7y8z9/groups”}
},
“groupMemberships”: {
“meta”:{“href”: “…/groupMemberships?accountId=x7y8z9”}
}
}

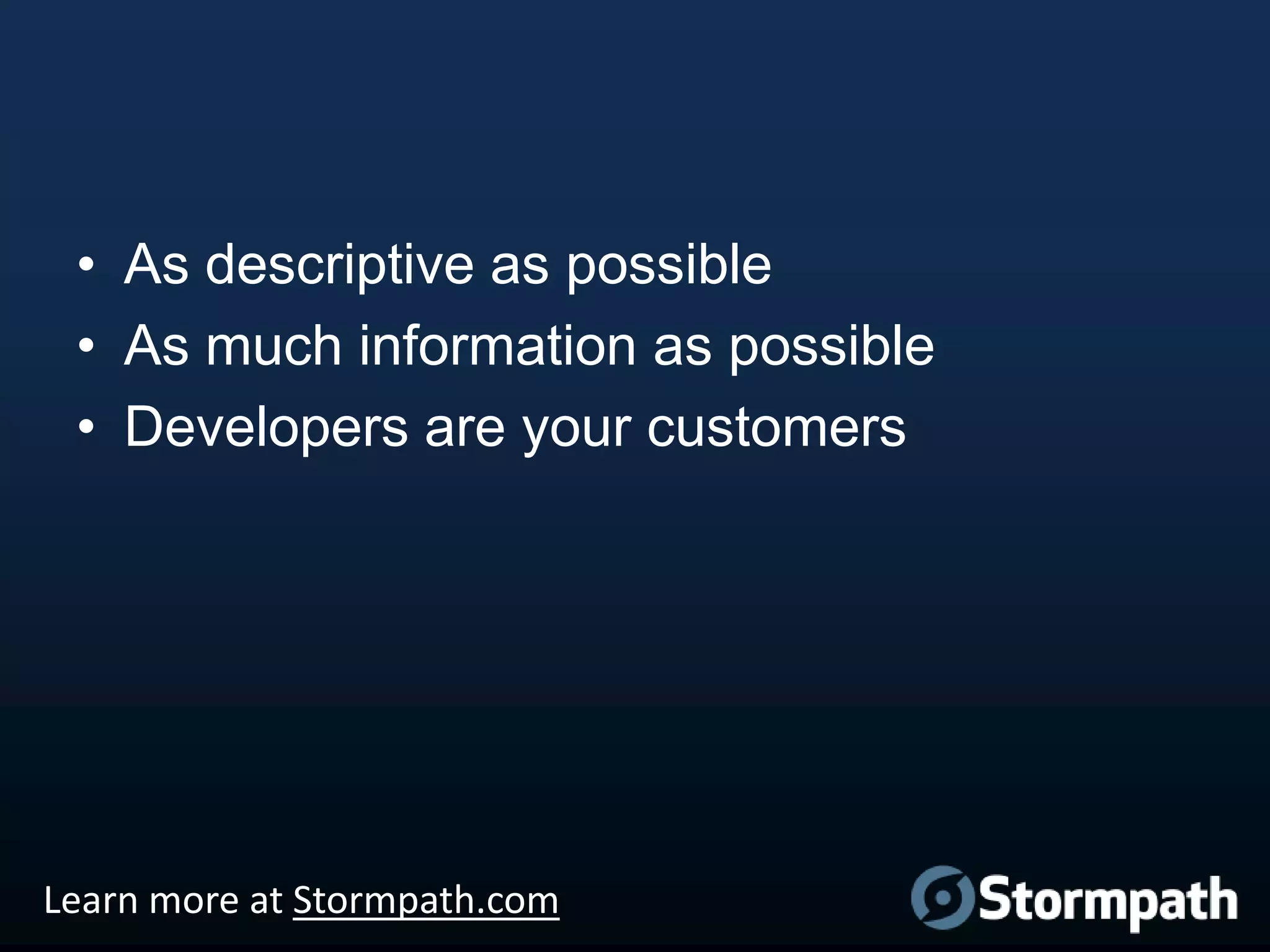

Errors


• As descriptive as possible
• As much information as possible
• Developers are your customers

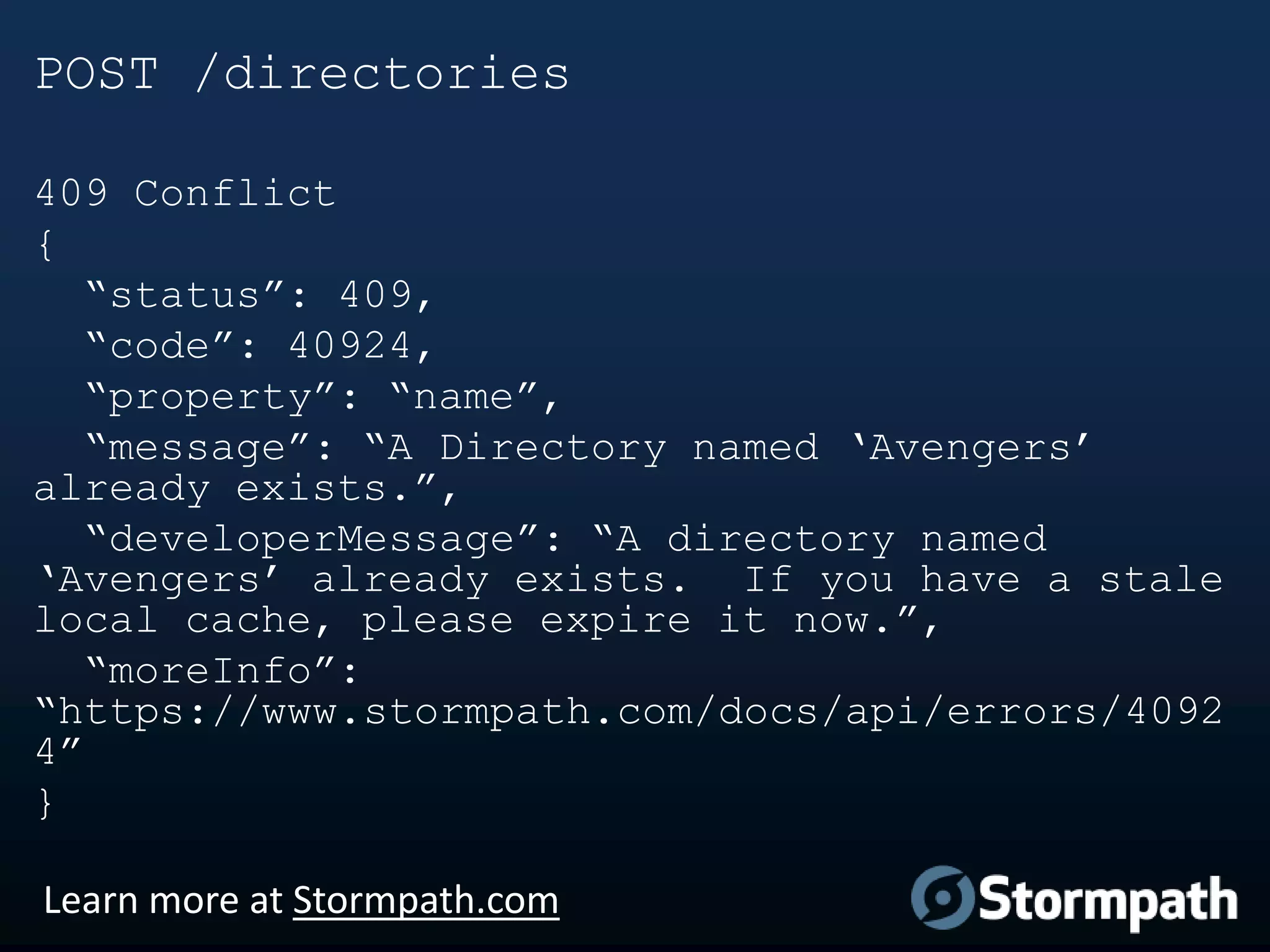

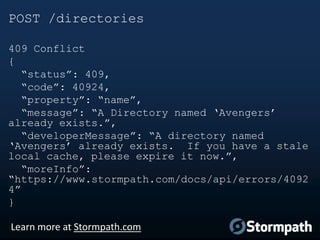

POST /directories
409 Conflict
{
“status”: 409,
“code”: 40924,
“property”: “name”,
“message”: “A Directory named „Avengers‟
already exists.”,
“developerMessage”: “A directory named
„Avengers‟ already exists. If you have a stale
local cache, please expire it now.”,
“moreInfo”:
“https://www.stormpath.com/docs/api/errors/4092
4”
}

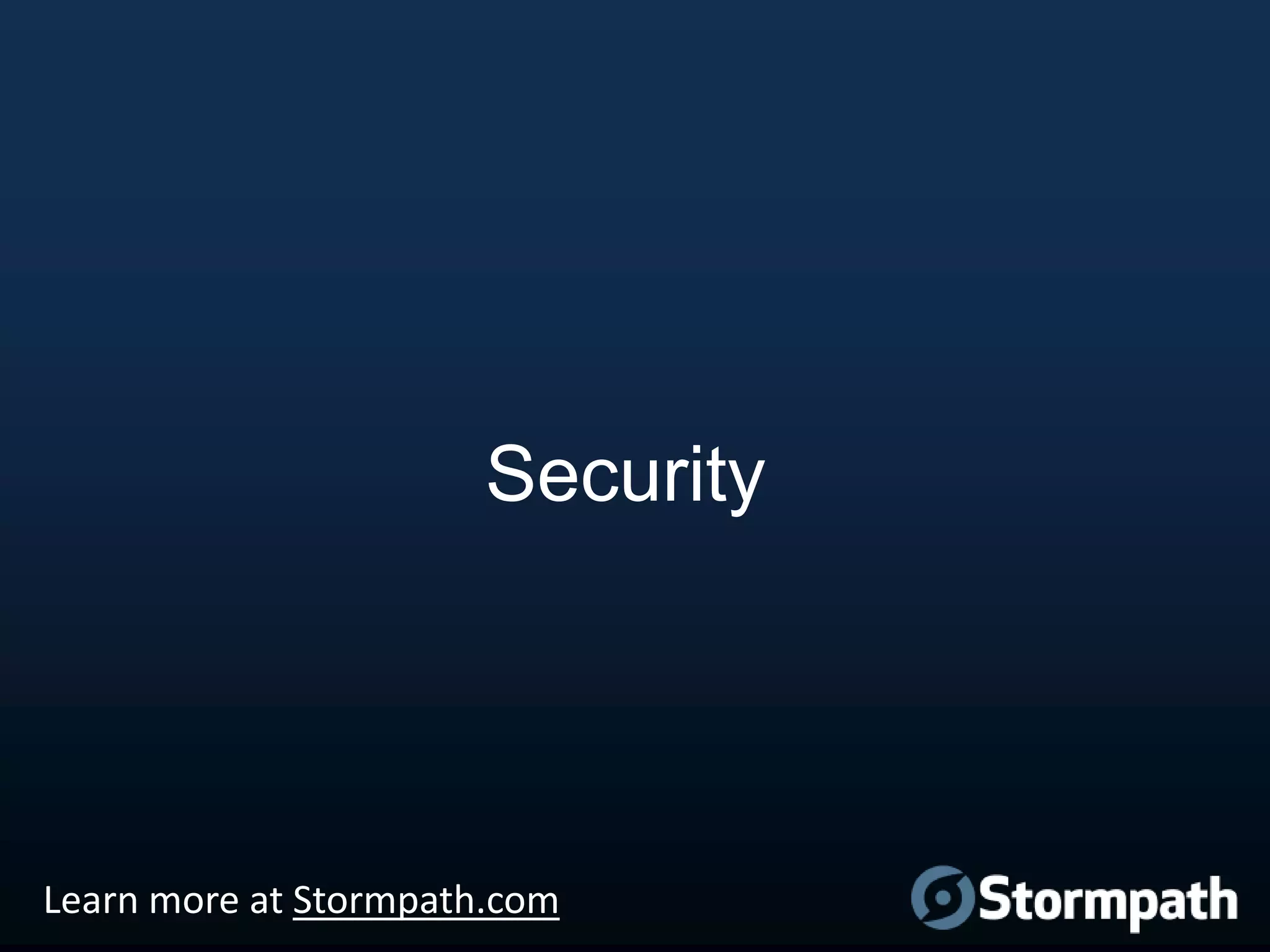

Security

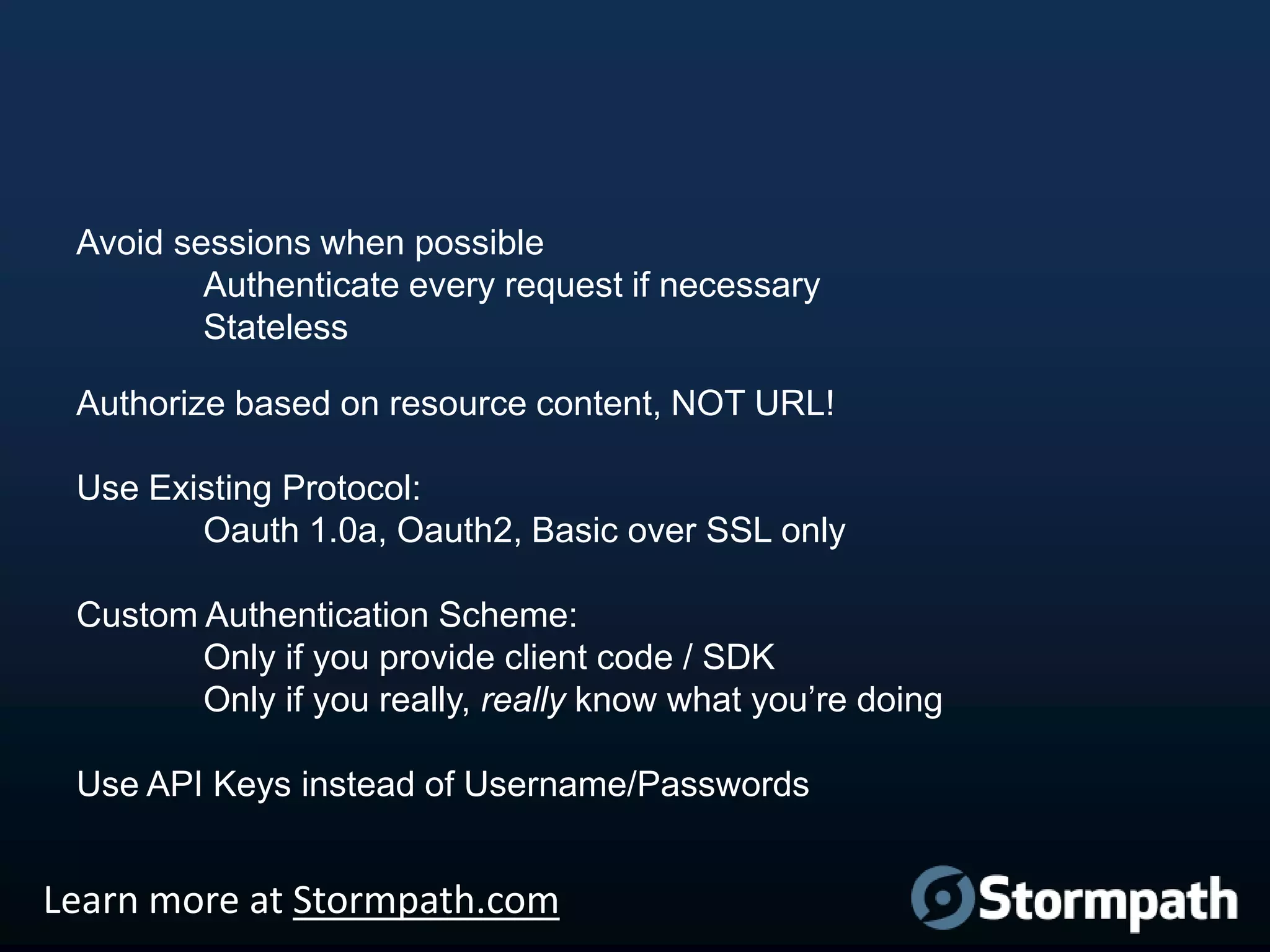

Avoid sessions when possible
Authenticate every request if necessary
Stateless
Authorize based on resource content, NOT URL!
Use Existing Protocol:
Oauth 1.0a, Oauth2, Basic over SSL only
Custom Authentication Scheme:
Only if you provide client code / SDK
Only if you really, really know what you‟re doing
Use API Keys instead of Username/Passwords

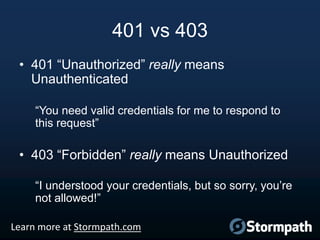

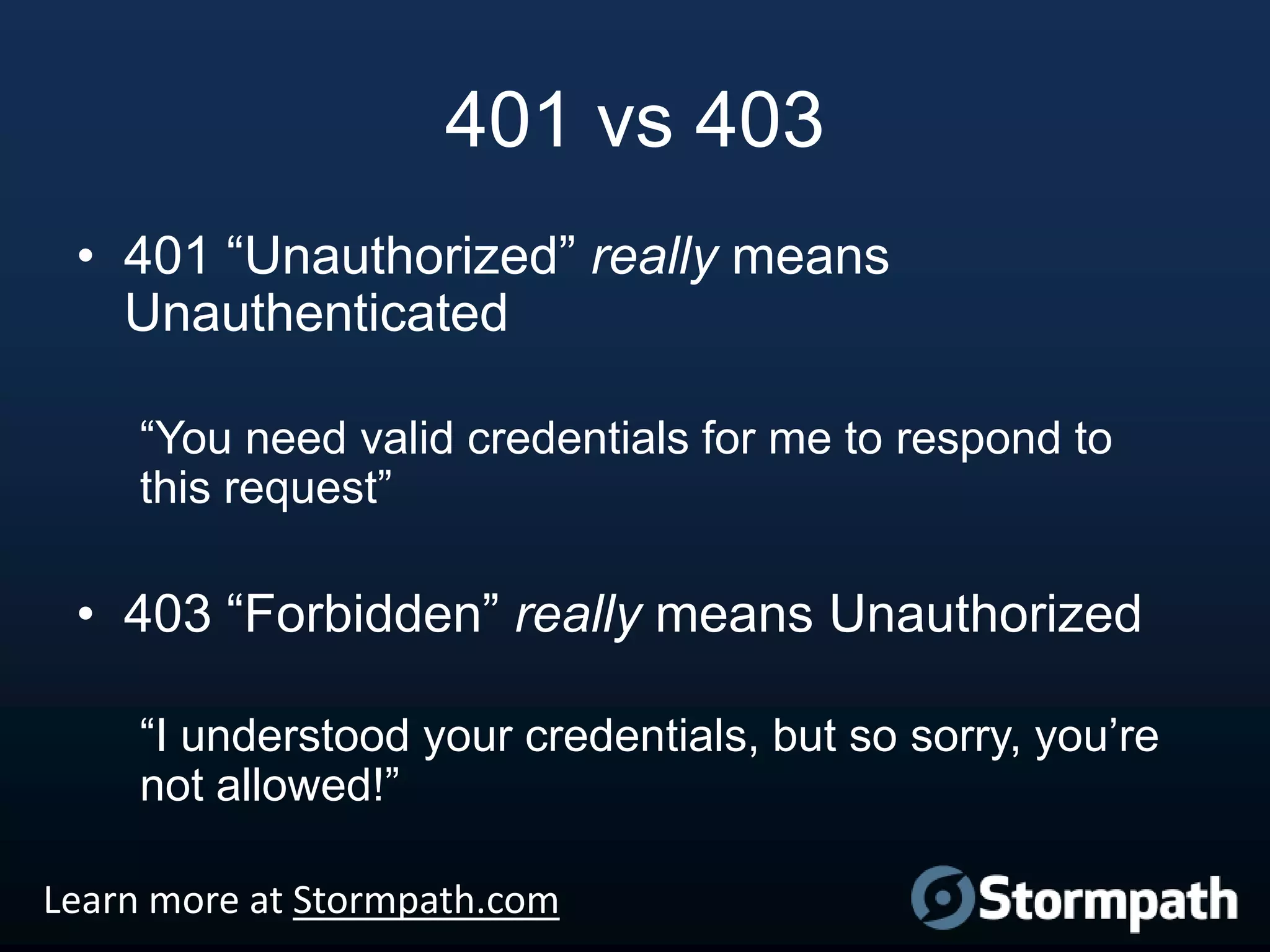

401 vs 403
• 401 “Unauthorized” really means
Unauthenticated
“You need valid credentials for me to respond to
this request”

• 403 “Forbidden” really means Unauthorized
“I understood your credentials, but so sorry, you‟re
not allowed!”

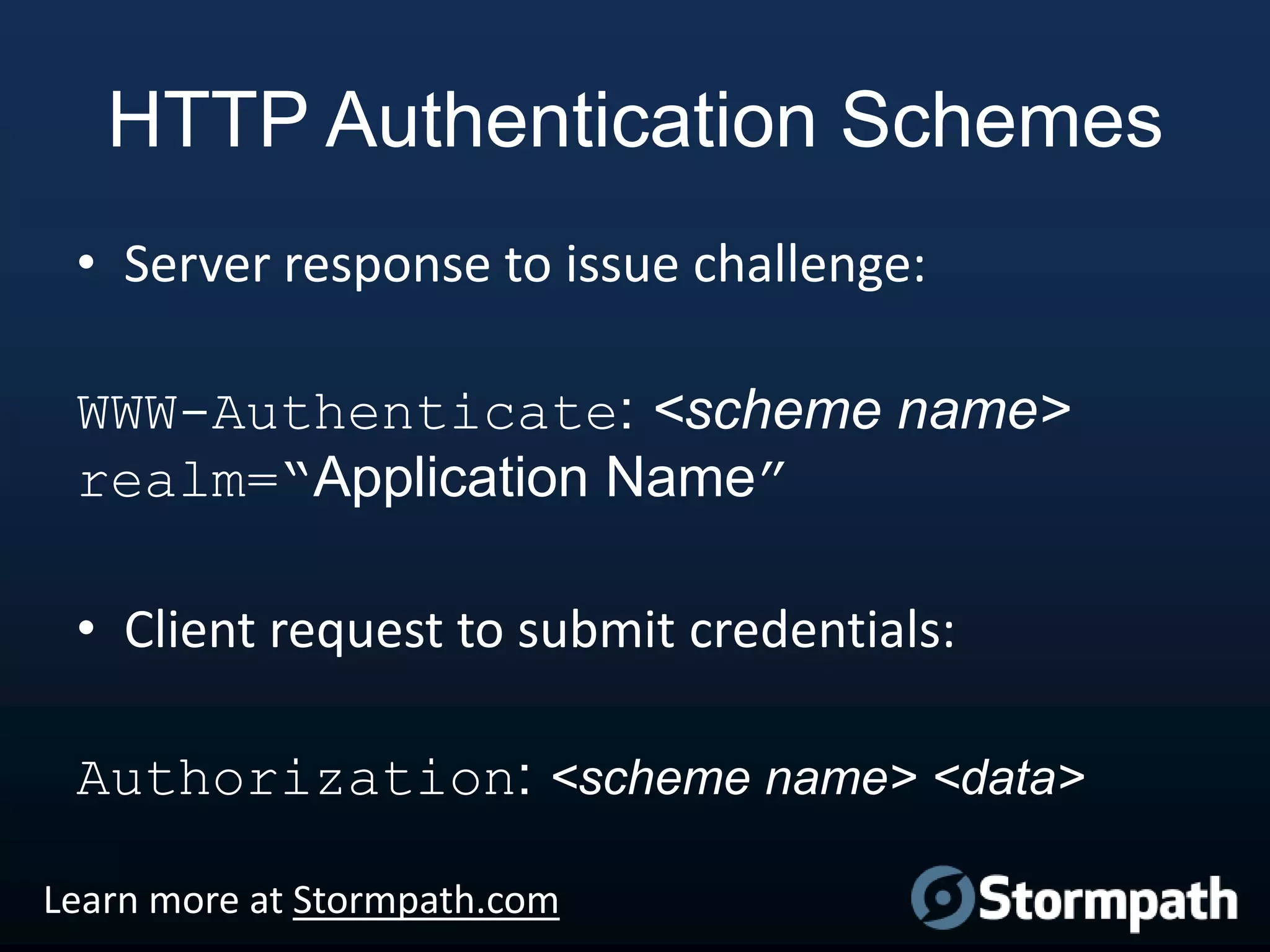

HTTP Authentication Schemes
• Server response to issue challenge:
WWW-Authenticate: <scheme name>
realm=“Application Name”
• Client request to submit credentials:

Authorization: <scheme name> <data>

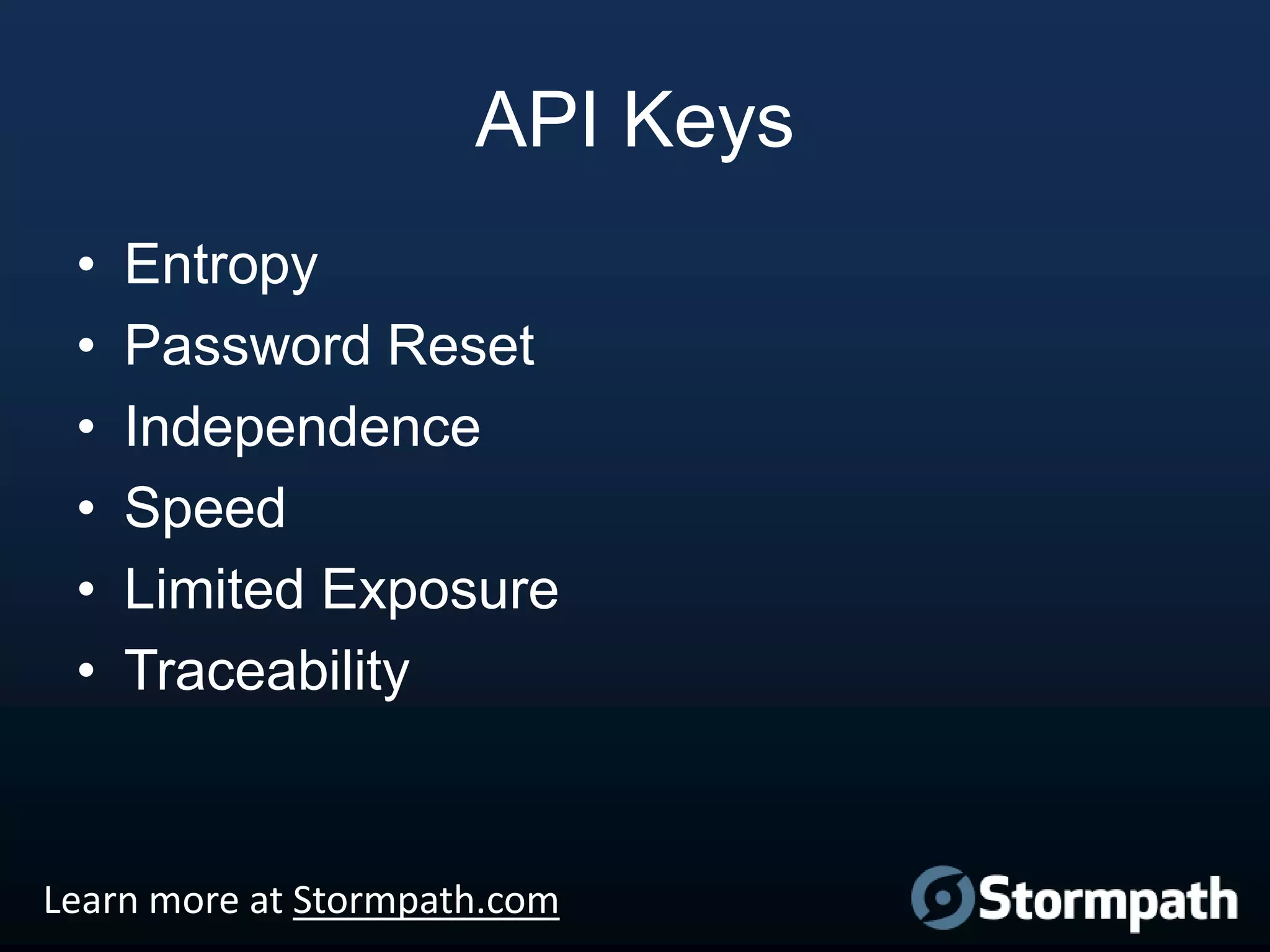

API Keys
•
•
•
•
•
•

Entropy
Password Reset
Independence
Speed
Limited Exposure
Traceability

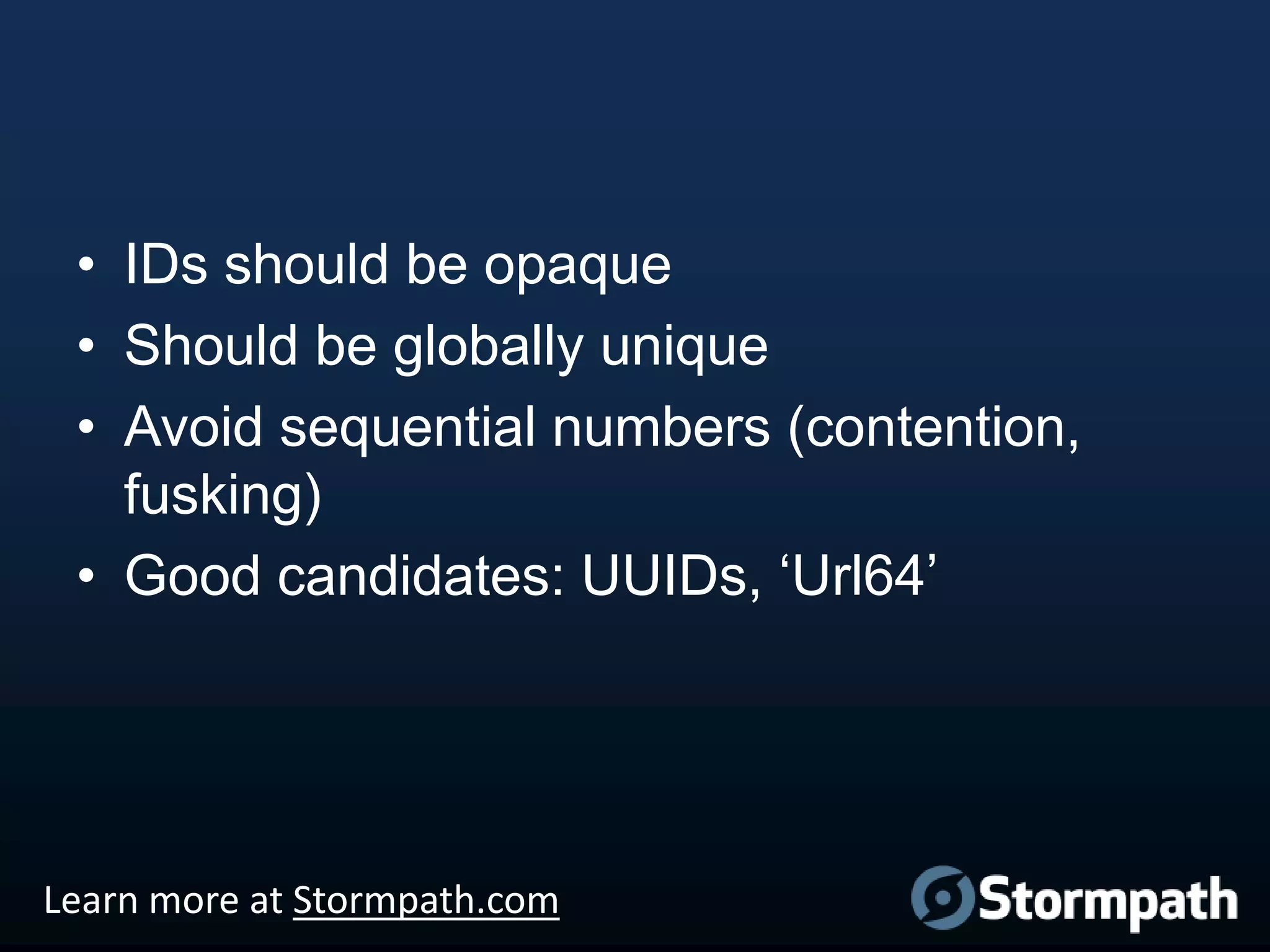

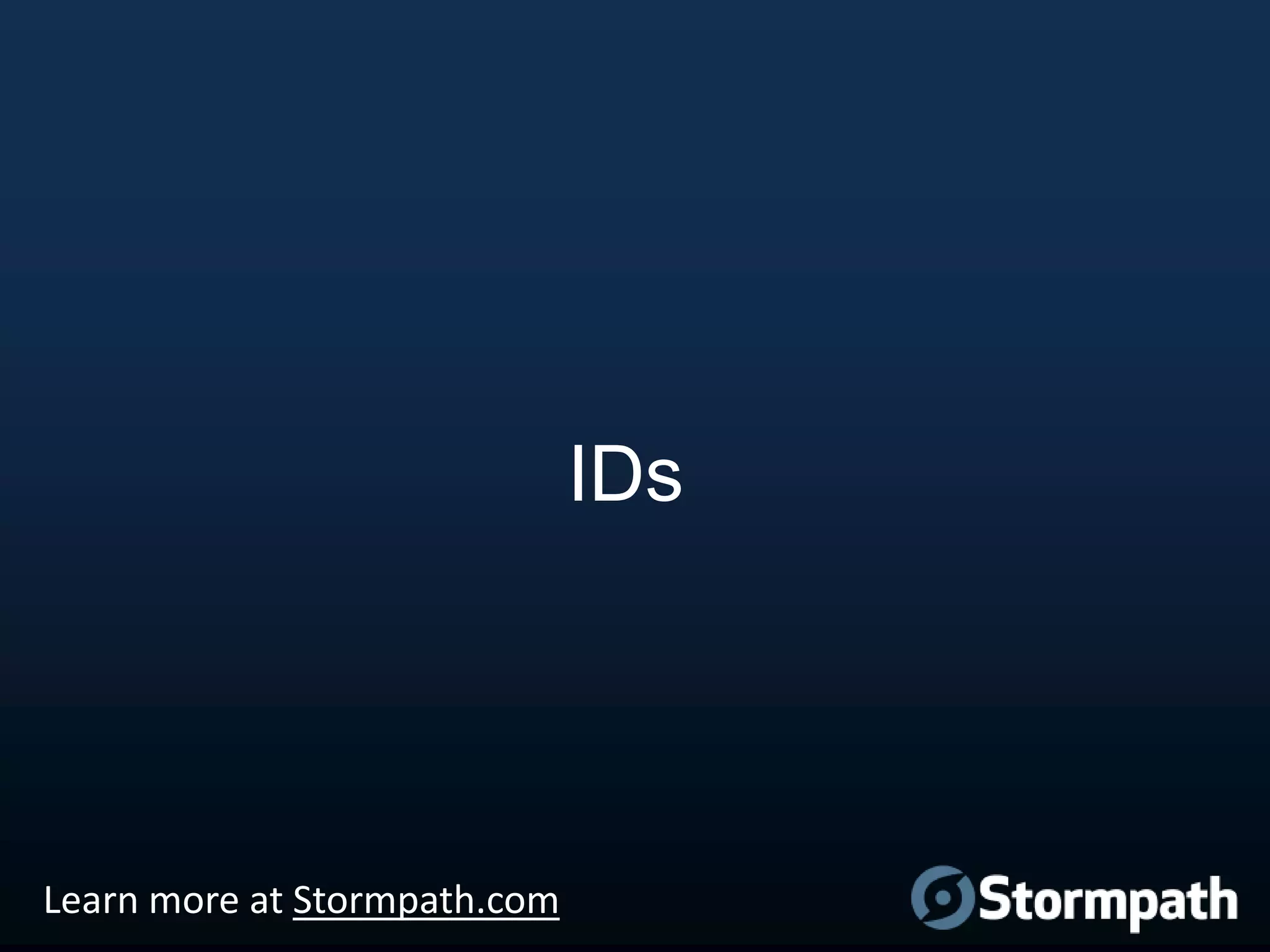

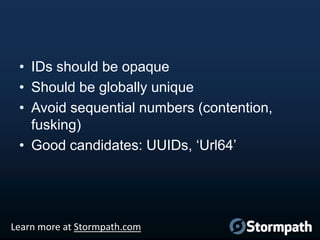

IDs


• IDs should be opaque
• Should be globally unique
• Avoid sequential numbers (contention,
fusking)
• Good candidates: UUIDs, „Url64‟

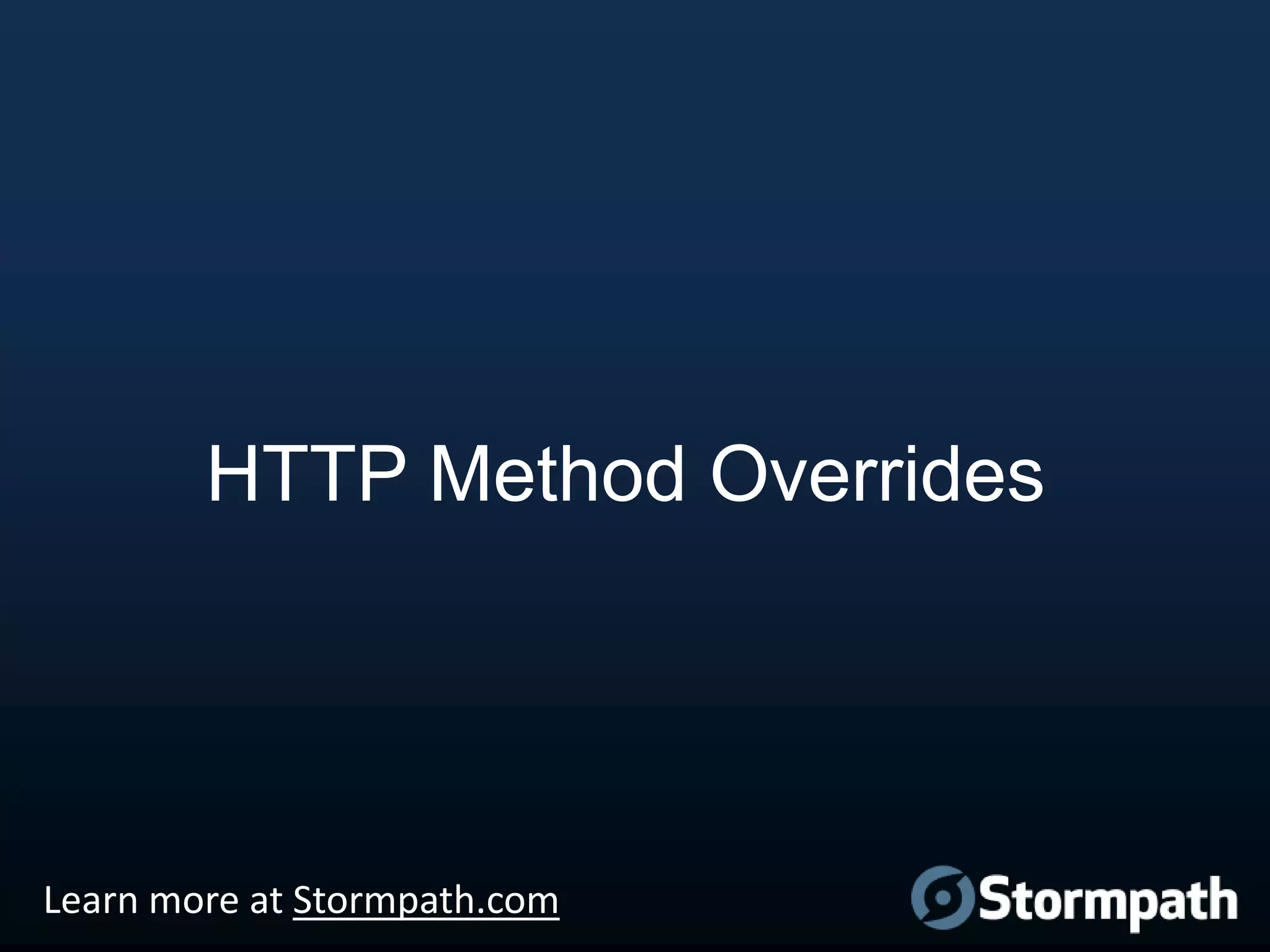

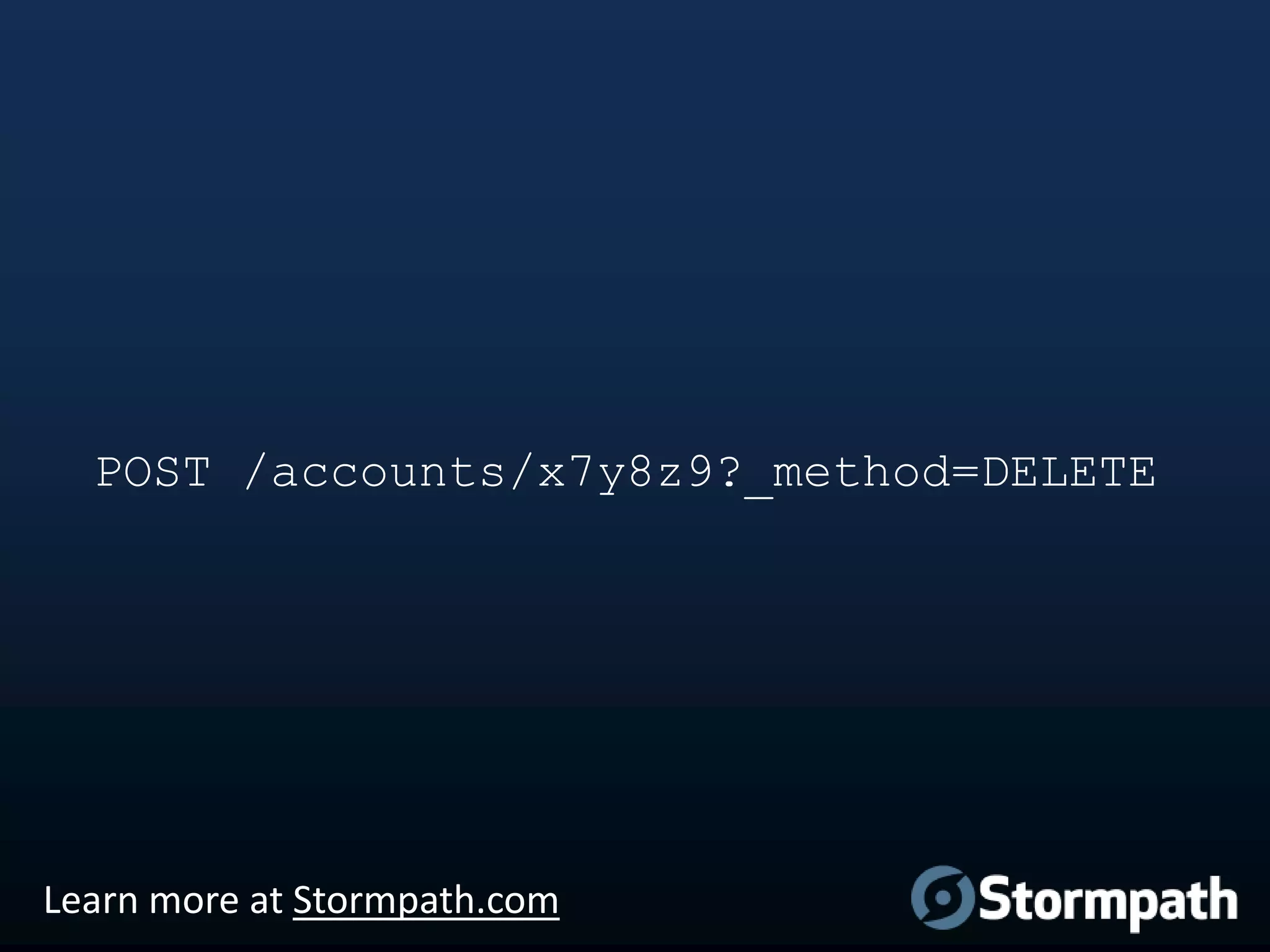

HTTP Method Overrides


POST /accounts/x7y8z9?_method=DELETE

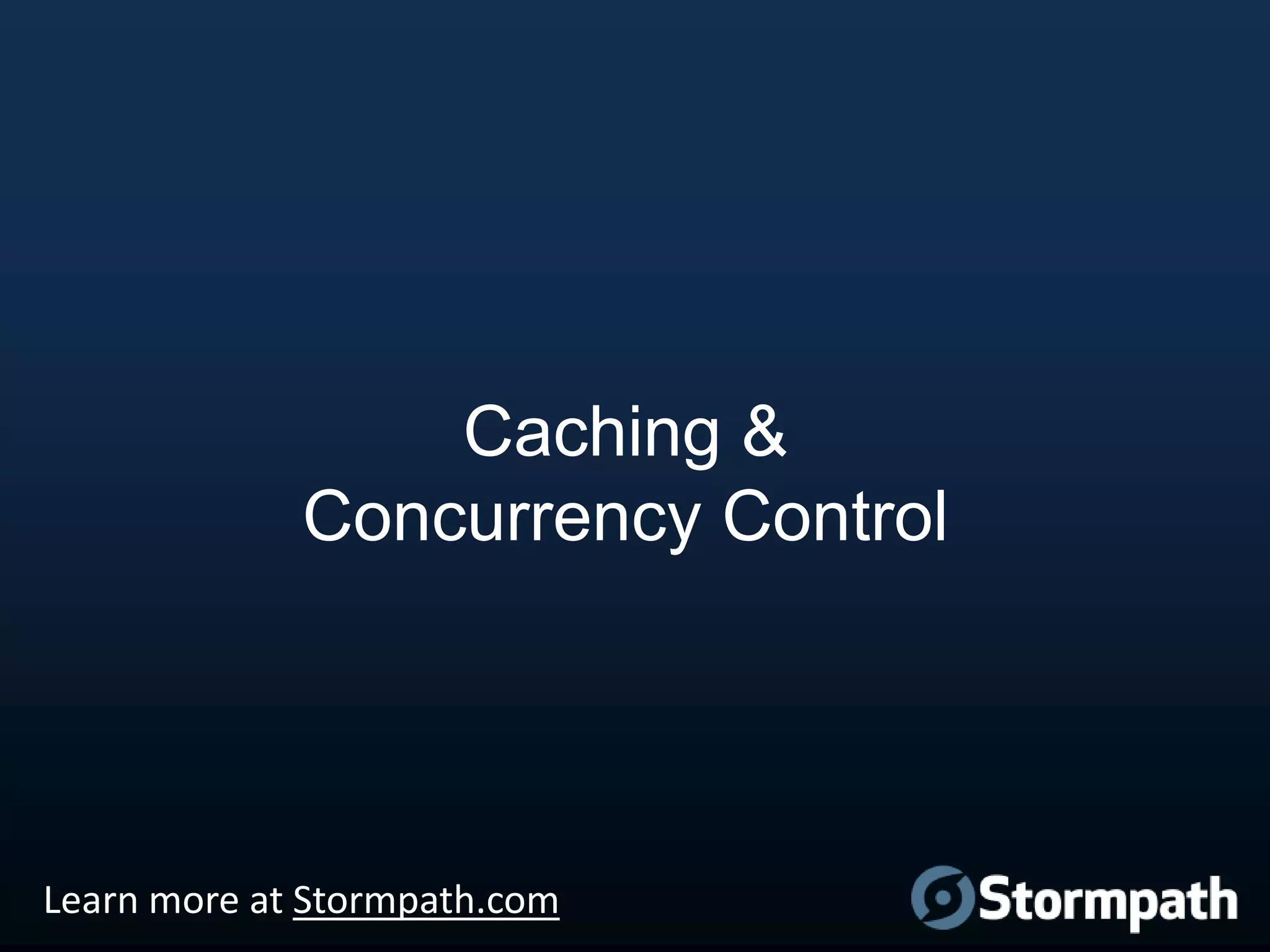

Caching &
Concurrency Control


Server (initial response):
ETag: "686897696a7c876b7e”

Client (later request):
If-None-Match: "686897696a7c876b7e”

Server (later response):
304 Not Modified

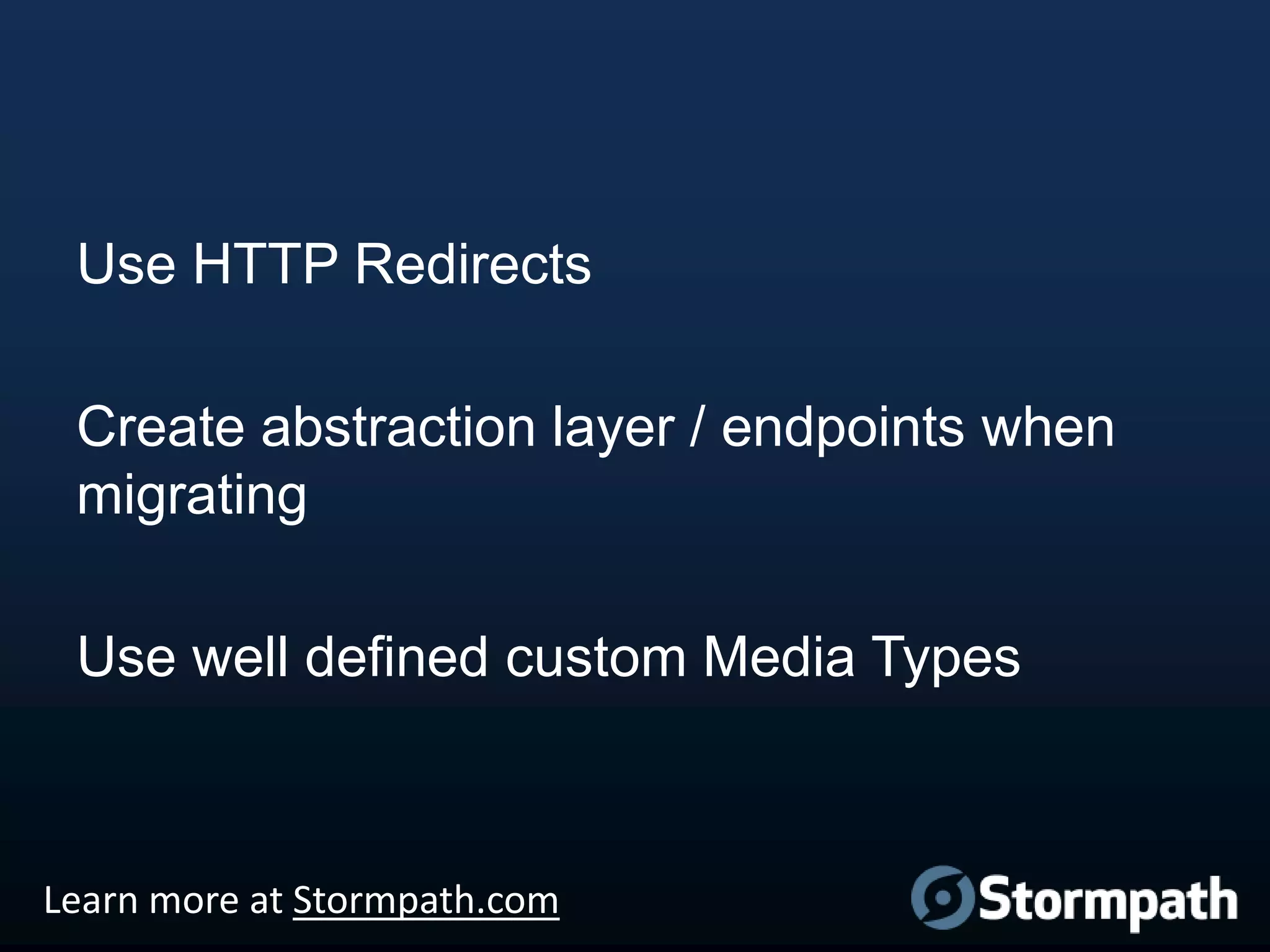

Maintenance


Use HTTP Redirects
Create abstraction layer / endpoints when
migrating
Use well defined custom Media Types


.com
• Free for developers
• Eliminate months of development
• Automatic security best practices

Sign Up Now: Stormpath.com
