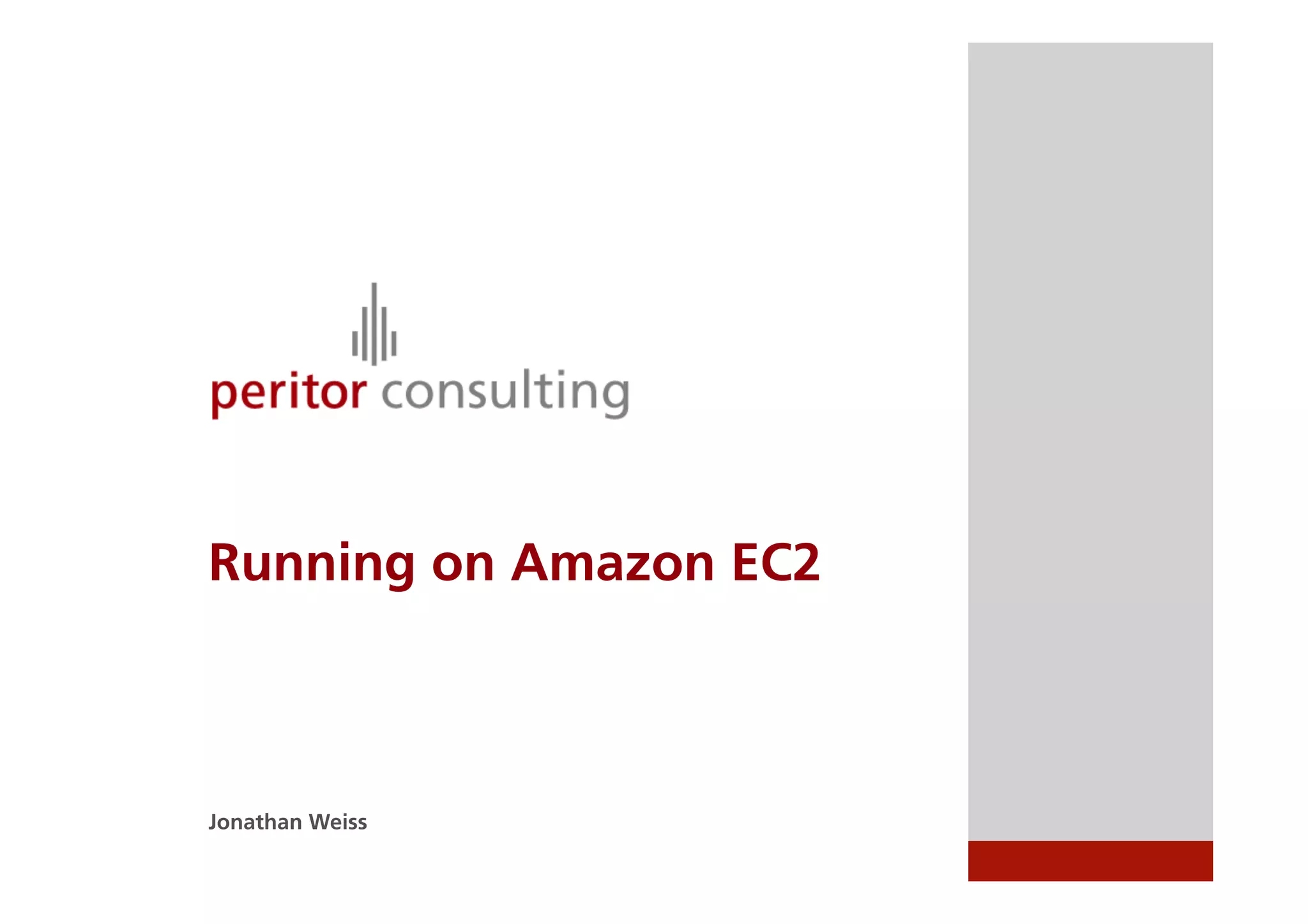

Running on Amazon EC2

Running on Amazon EC2

Jonathan Weiss

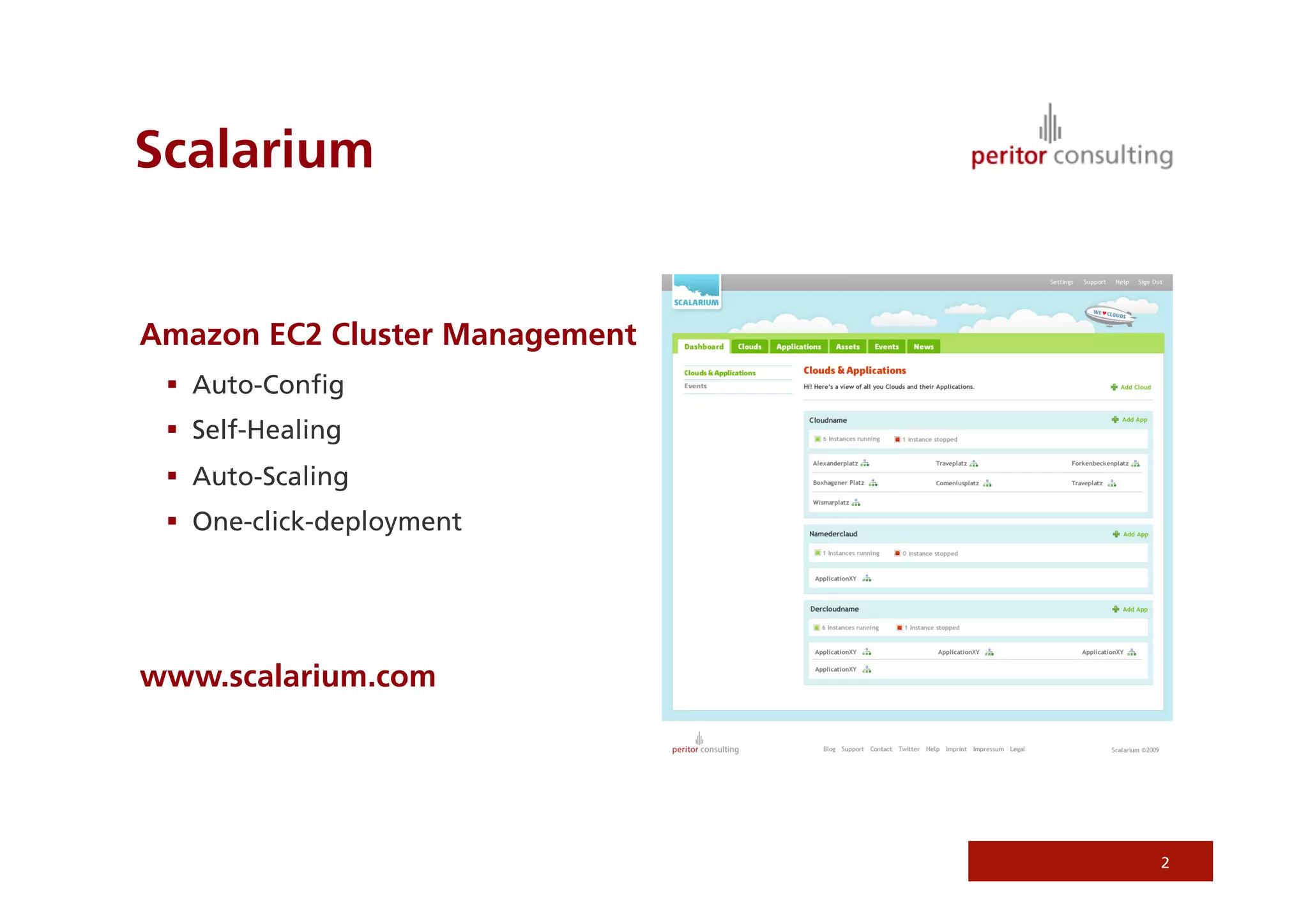

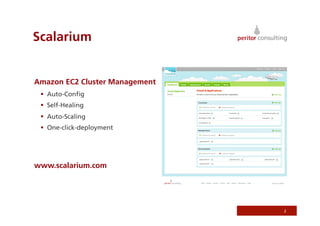

Scalarium

Amazon EC2 Cluster Management
 Auto-Conﬁg
 Self-Healing
 Auto-Scaling
 One-click-deployment

www.scalarium.com

2

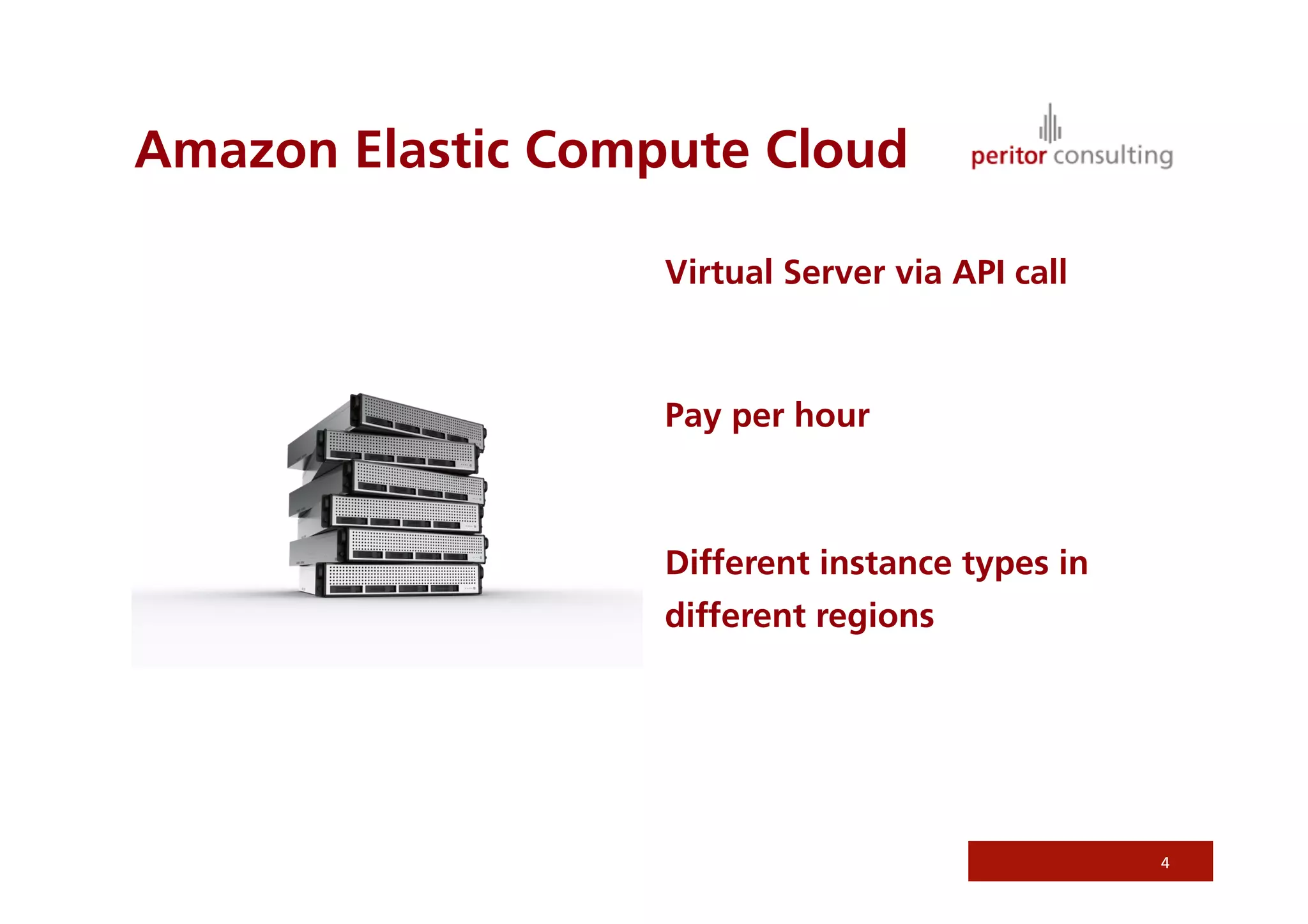

Amazon Elastic Compute Cloud

Virtual Server via API call

Pay per hour

Different instance types in
different regions

4

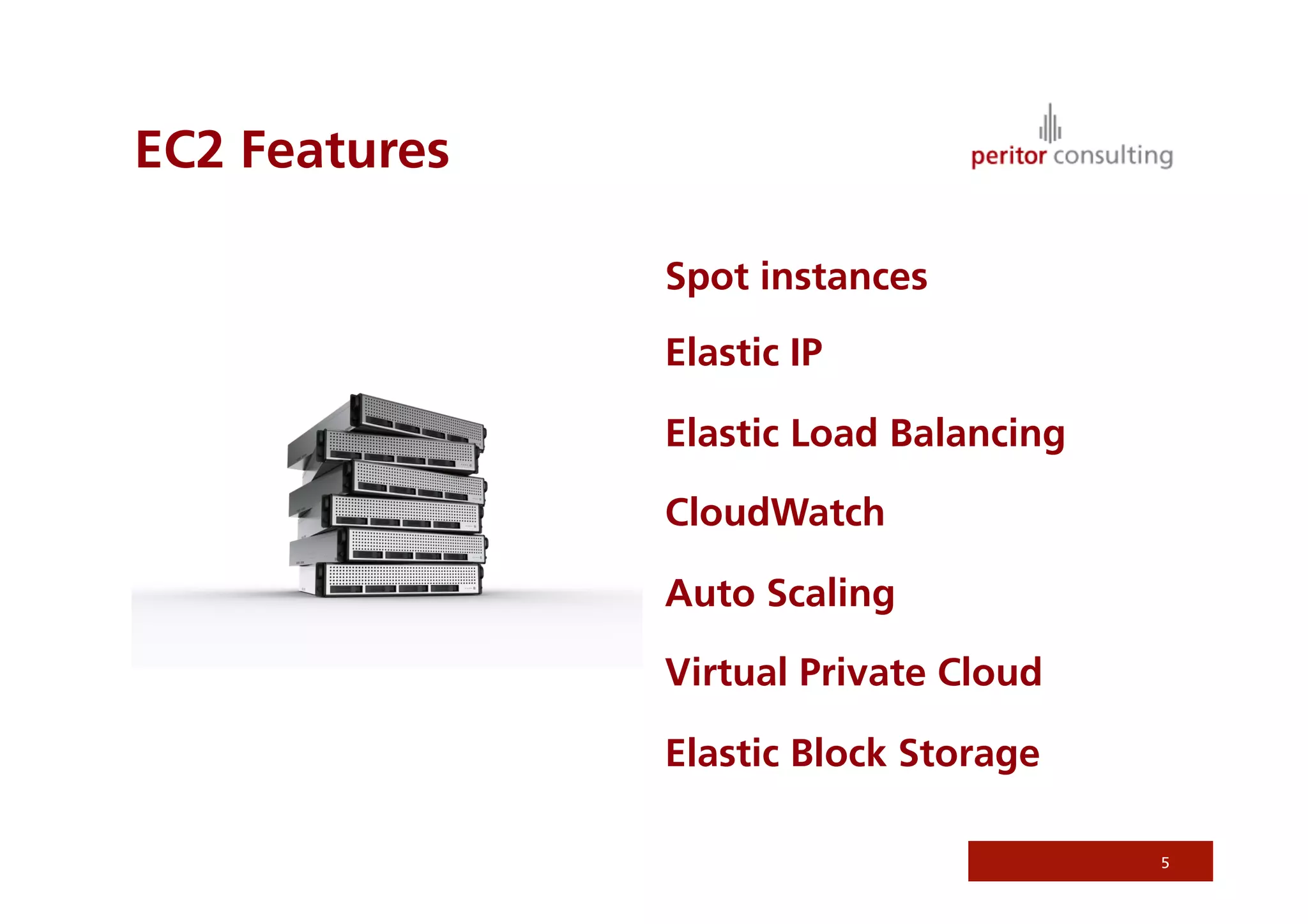

EC2 Features

Spot instances
Elastic IP

Elastic Load Balancing

CloudWatch

Auto Scaling

Virtual Private Cloud

Elastic Block Storage

5

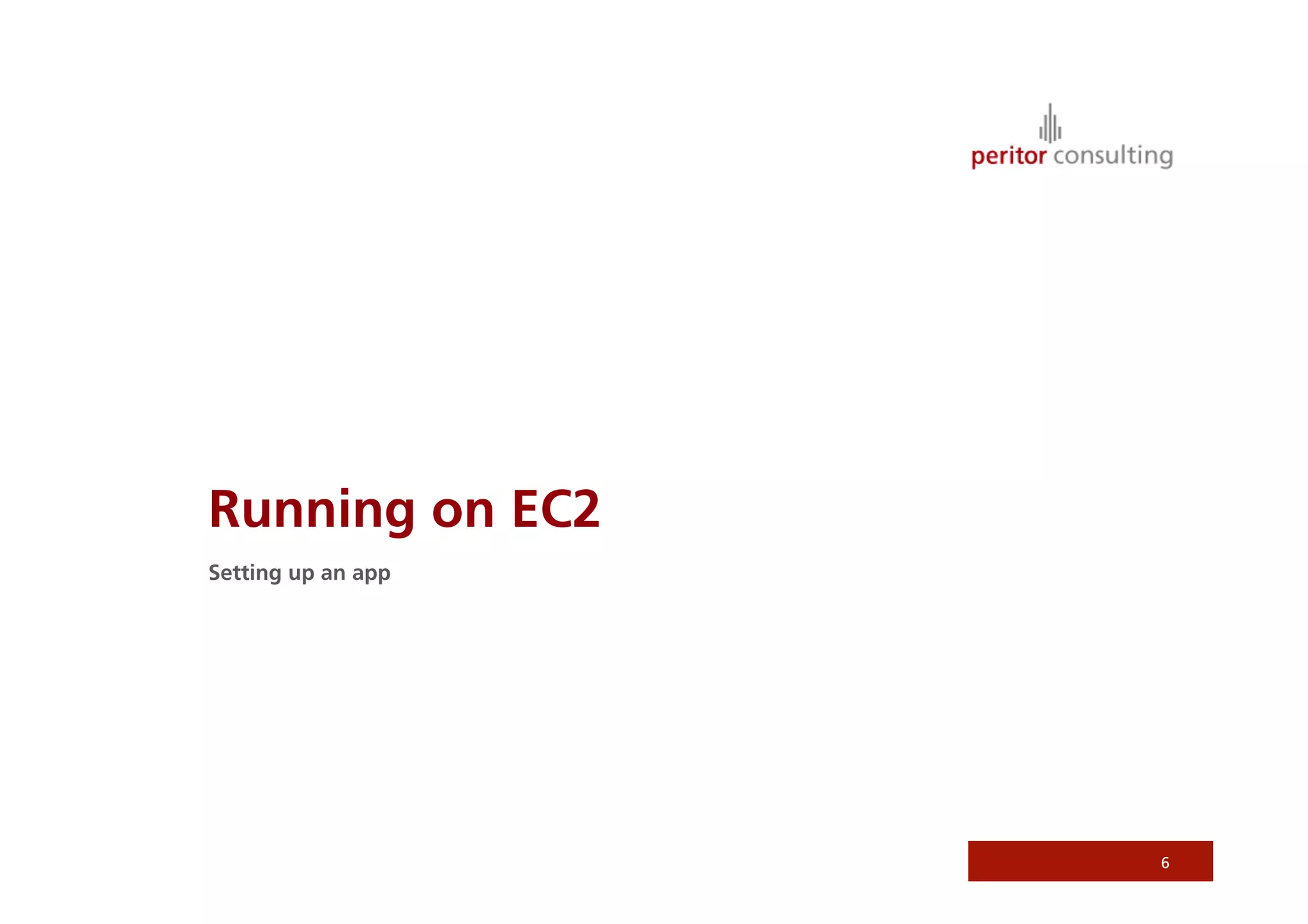

Running on EC2
Setting up an app

6

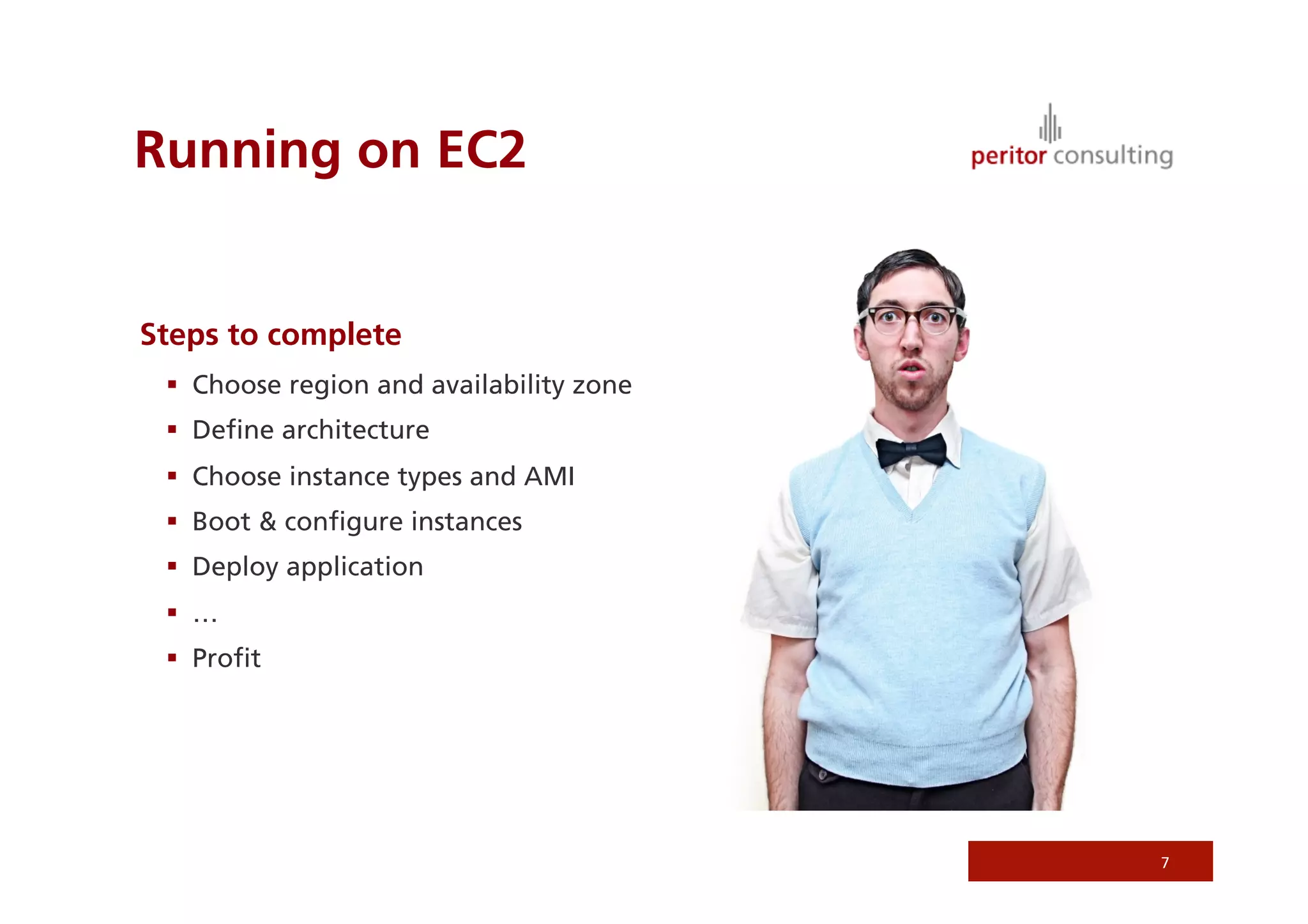

Running on EC2

Steps to complete
 Choose region and availability zone
 Define architecture
 Choose instance types and AMI
 Boot & configure instances
 Deploy application
 …
 Profit

7

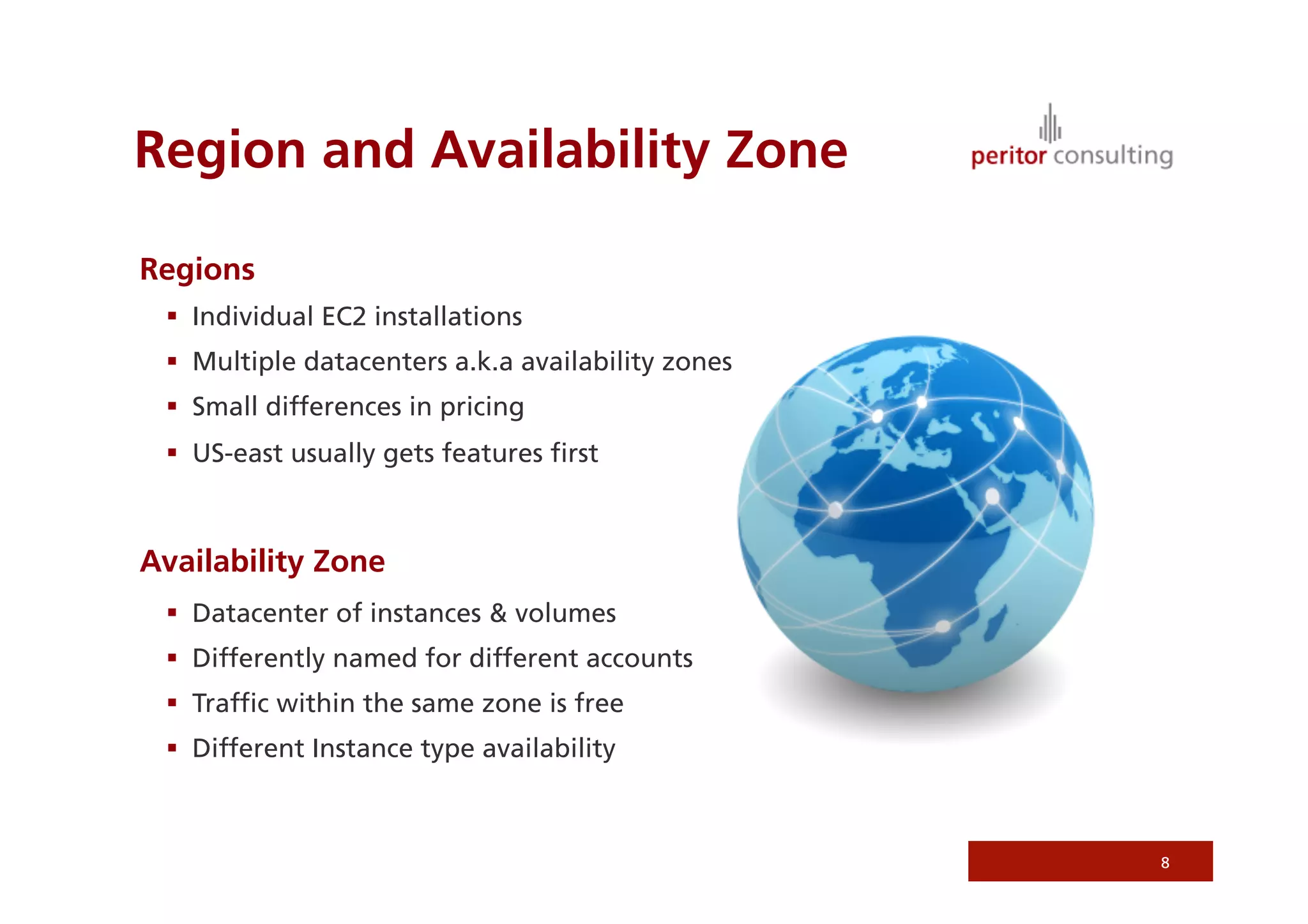

Region and Availability Zone

Regions
 Individual EC2 installations
 Multiple datacenters a.k.a availability zones
 Small differences in pricing
 US-east usually gets features ﬁrst

Availability Zone
 Datacenter of instances & volumes
 Differently named for different accounts
 Trafﬁc within the same zone is free
 Different Instance type availability

8

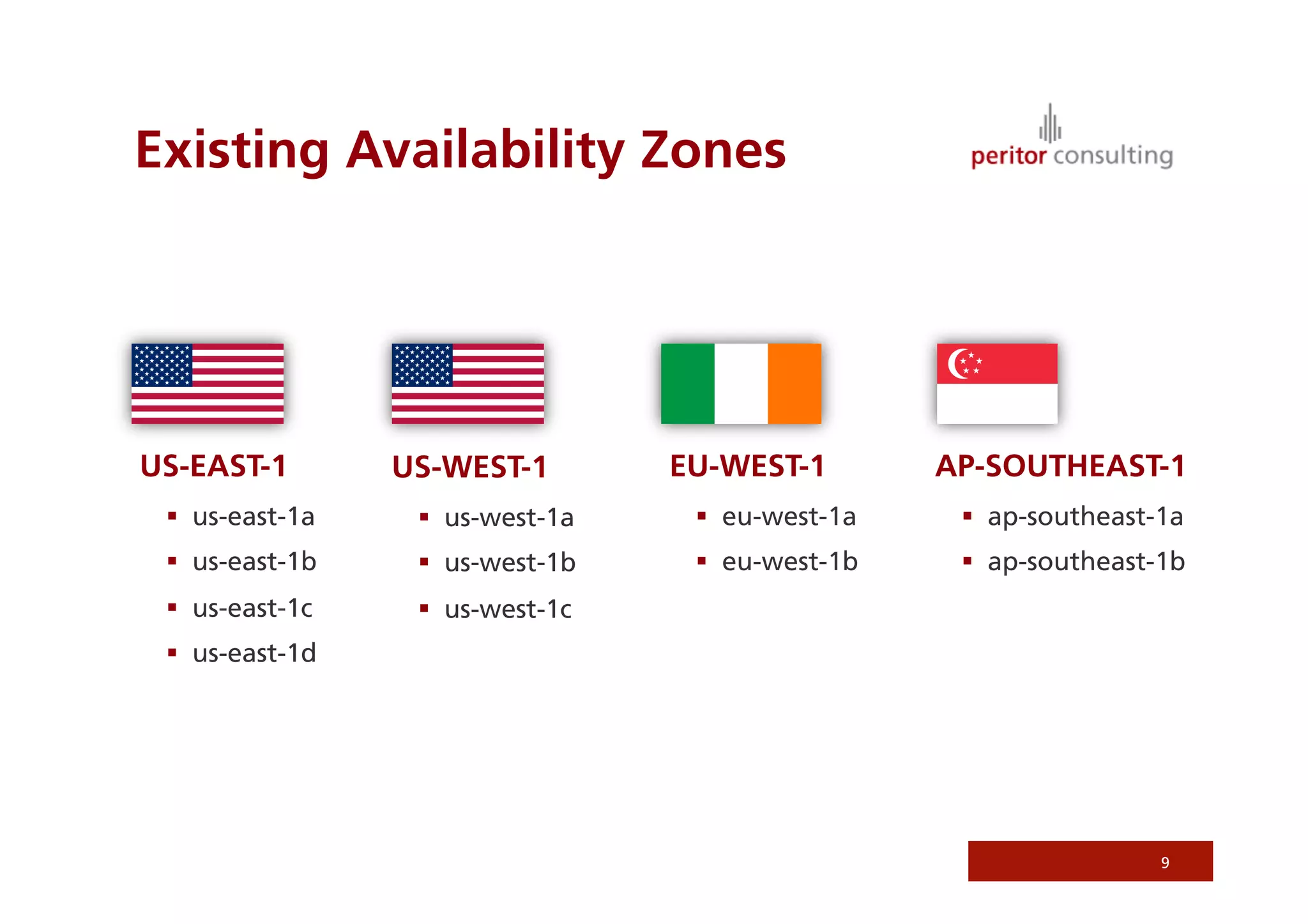

Existing Availability Zones

US-EAST-1 US-WEST-1 EU-WEST-1 AP-SOUTHEAST-1
 us-east-1a  us-west-1a  eu-west-1a  ap-southeast-1a
 us-east-1b  us-west-1b  eu-west-1b  ap-southeast-1b
 us-east-1c  us-west-1c
 us-east-1d

9

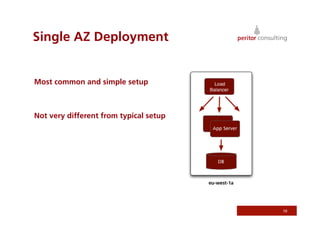

Single AZ Deployment

Most common and simple setup

Not very different from typical setup

10

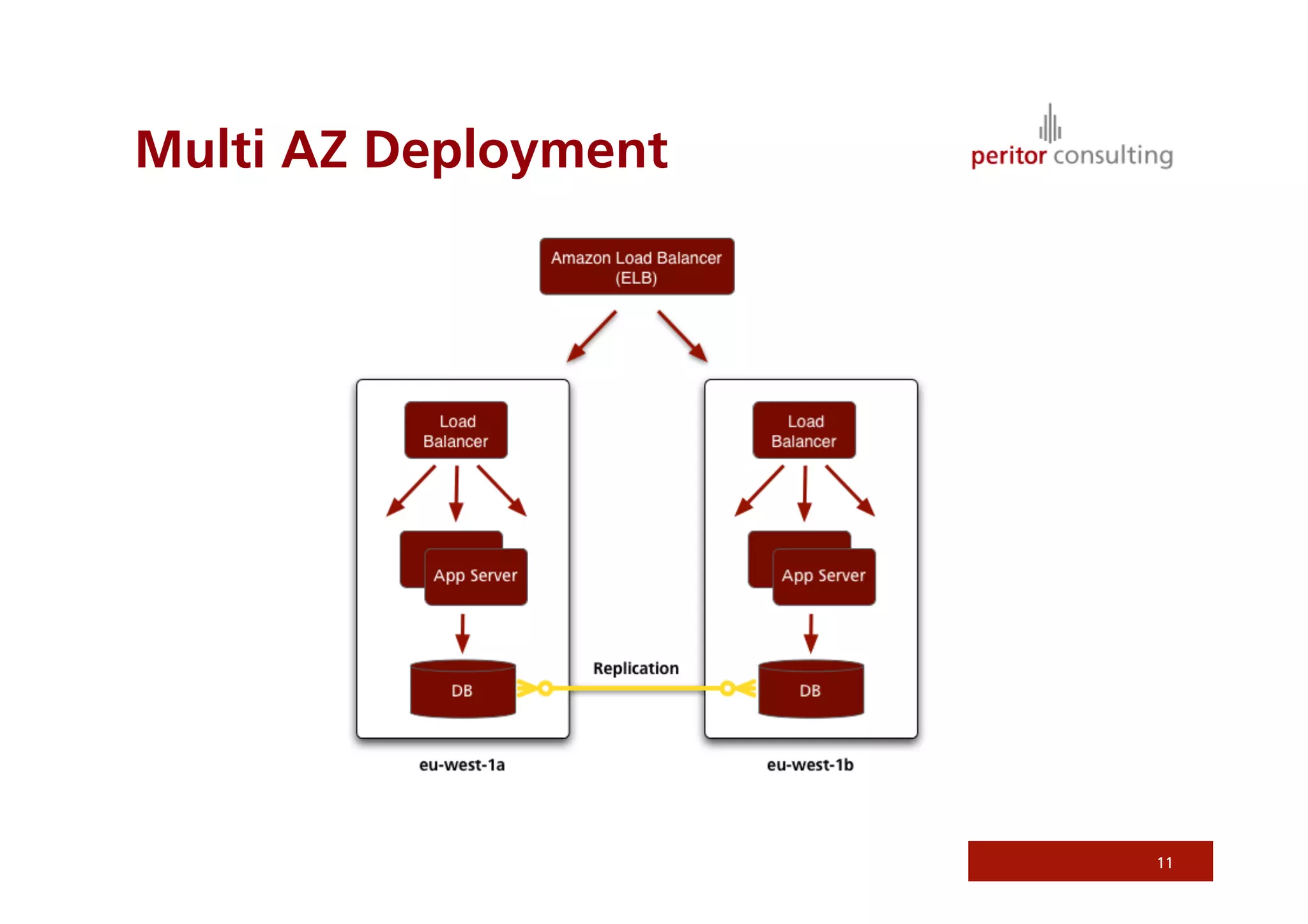

Multi AZ Deployment

11

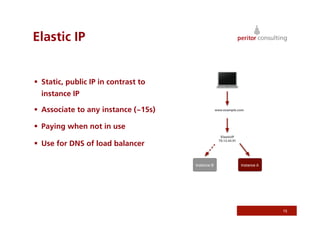

Elastic IP

 Static, public IP in contrast to
instance IP

 Associate to any instance (~15s)

 Paying when not in use

 Use for DNS of load balancer

15

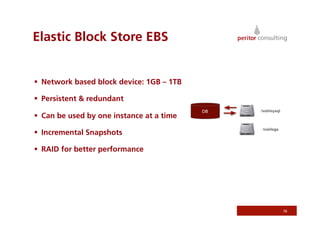

Elastic Block Store EBS

 Network based block device: 1GB – 1TB

 Persistent & redundant

 Can be used by one instance at a time

 Incremental Snapshots

 RAID for better performance

16

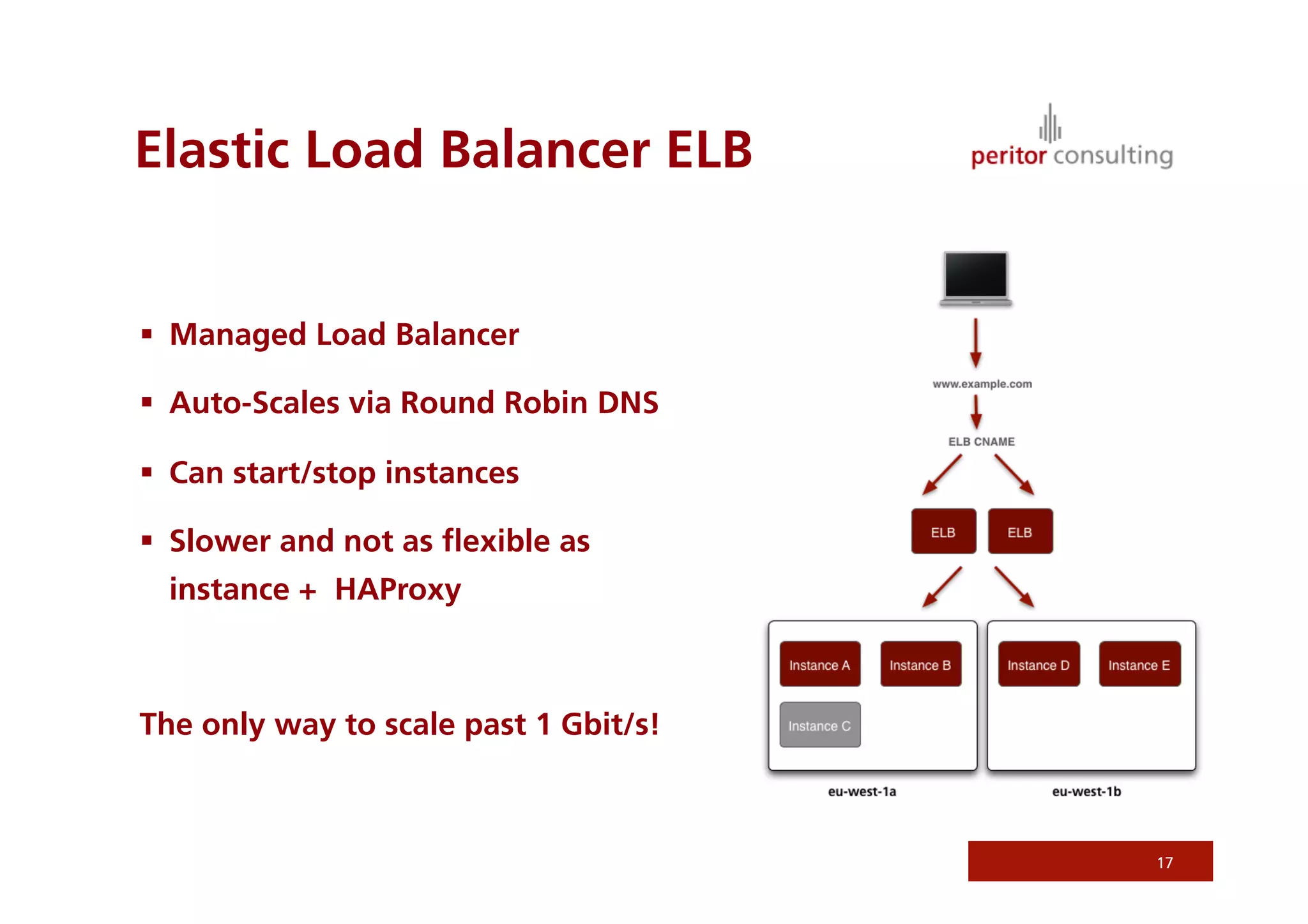

Elastic Load Balancer ELB

 Managed Load Balancer

 Auto-Scales via Round Robin DNS

 Can start/stop instances

 Slower and not as ﬂexible as
instance + HAProxy

The only way to scale past 1 Gbit/s!

17

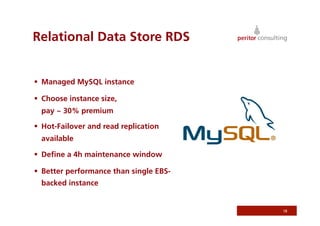

Relational Data Store RDS

 Managed MySQL instance

 Choose instance size,
pay ~ 30% premium

 Hot-Failover and read replication
available

 Deﬁne a 4h maintenance window

 Better performance than single EBS-
backed instance

18

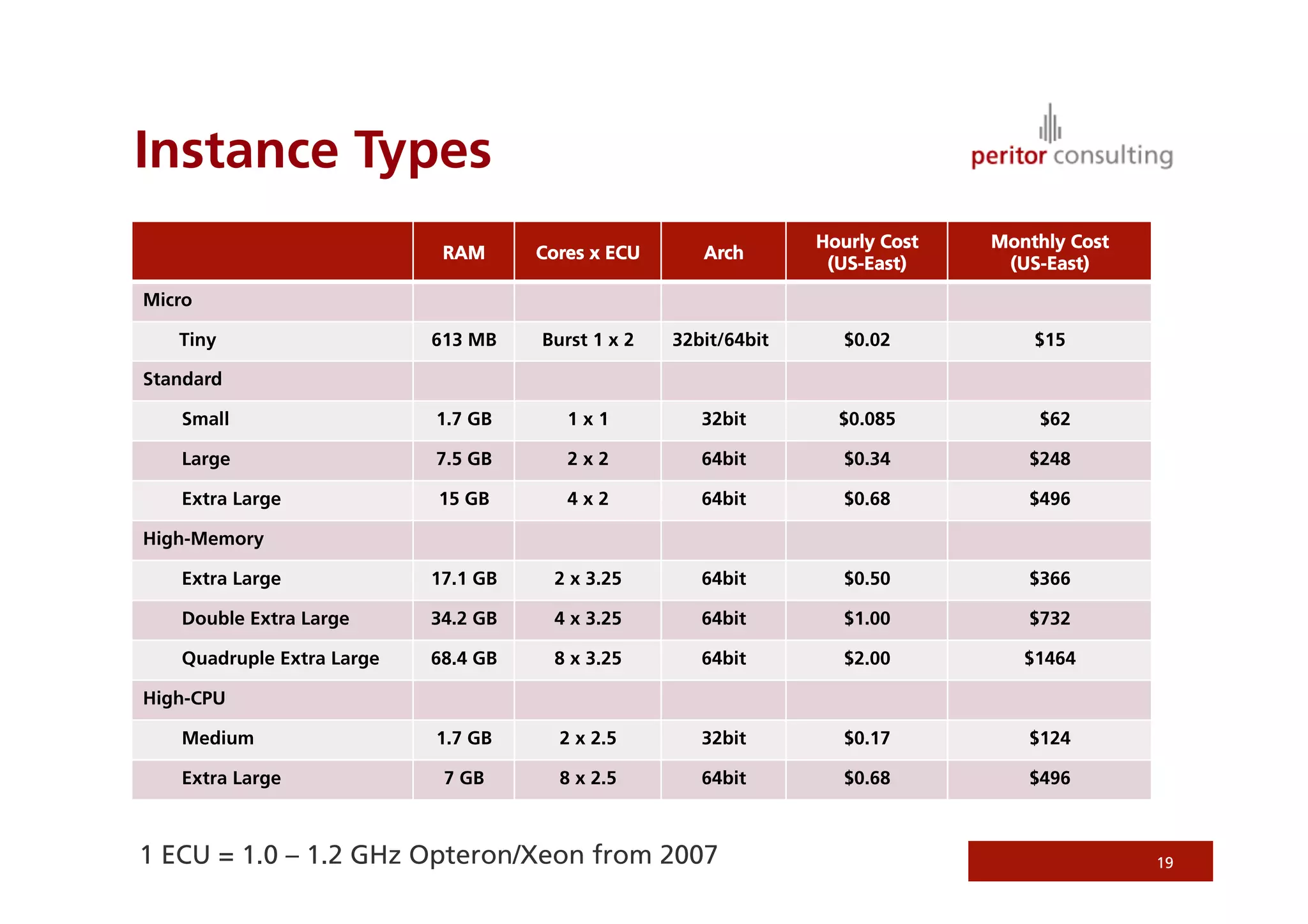

Instance Types
Hourly Cost Monthly Cost
RAM Cores x ECU Arch
(US-East) (US-East)
Micro

Tiny 613 MB Burst 1 x 2 32bit/64bit $0.02 $15

Standard

Small 1.7 GB 1x1 32bit $0.085 $62

Large 7.5 GB 2x2 64bit $0.34 $248

Extra Large 15 GB 4x2 64bit $0.68 $496

High-Memory

Extra Large 17.1 GB 2 x 3.25 64bit $0.50 $366

Double Extra Large 34.2 GB 4 x 3.25 64bit $1.00 $732

Quadruple Extra Large 68.4 GB 8 x 3.25 64bit $2.00 $1464

High-CPU

Medium 1.7 GB 2 x 2.5 32bit $0.17 $124

Extra Large 7 GB 8 x 2.5 64bit $0.68 $496

1 ECU = 1.0 – 1.2 GHz Opteron/Xeon from 2007 19

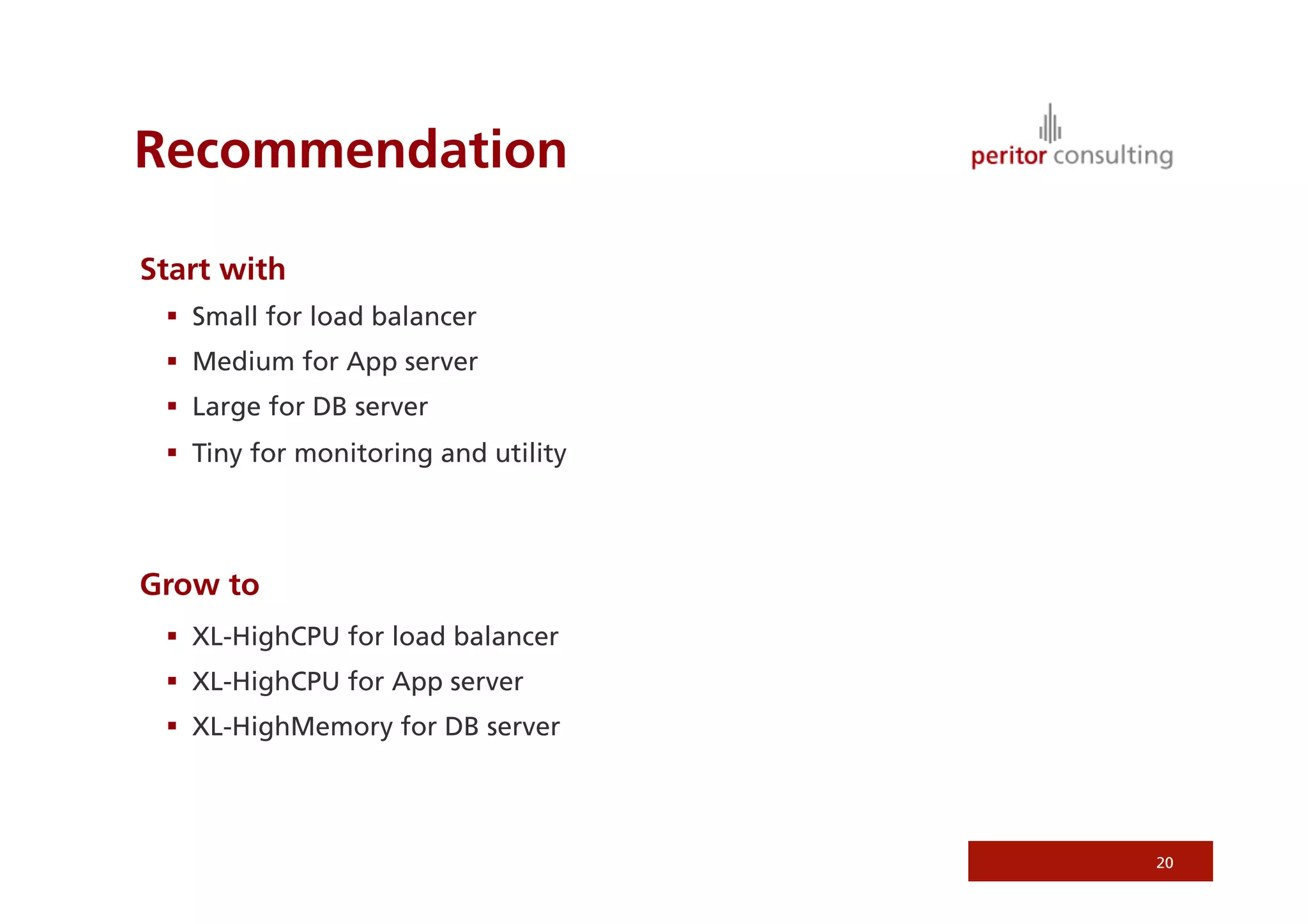

Recommendation

Start with
 Small for load balancer
 Medium for App server
 Large for DB server
 Tiny for monitoring and utility

Grow to
 XL-HighCPU for load balancer
 XL-HighCPU for App server
 XL-HighMemory for DB server

20

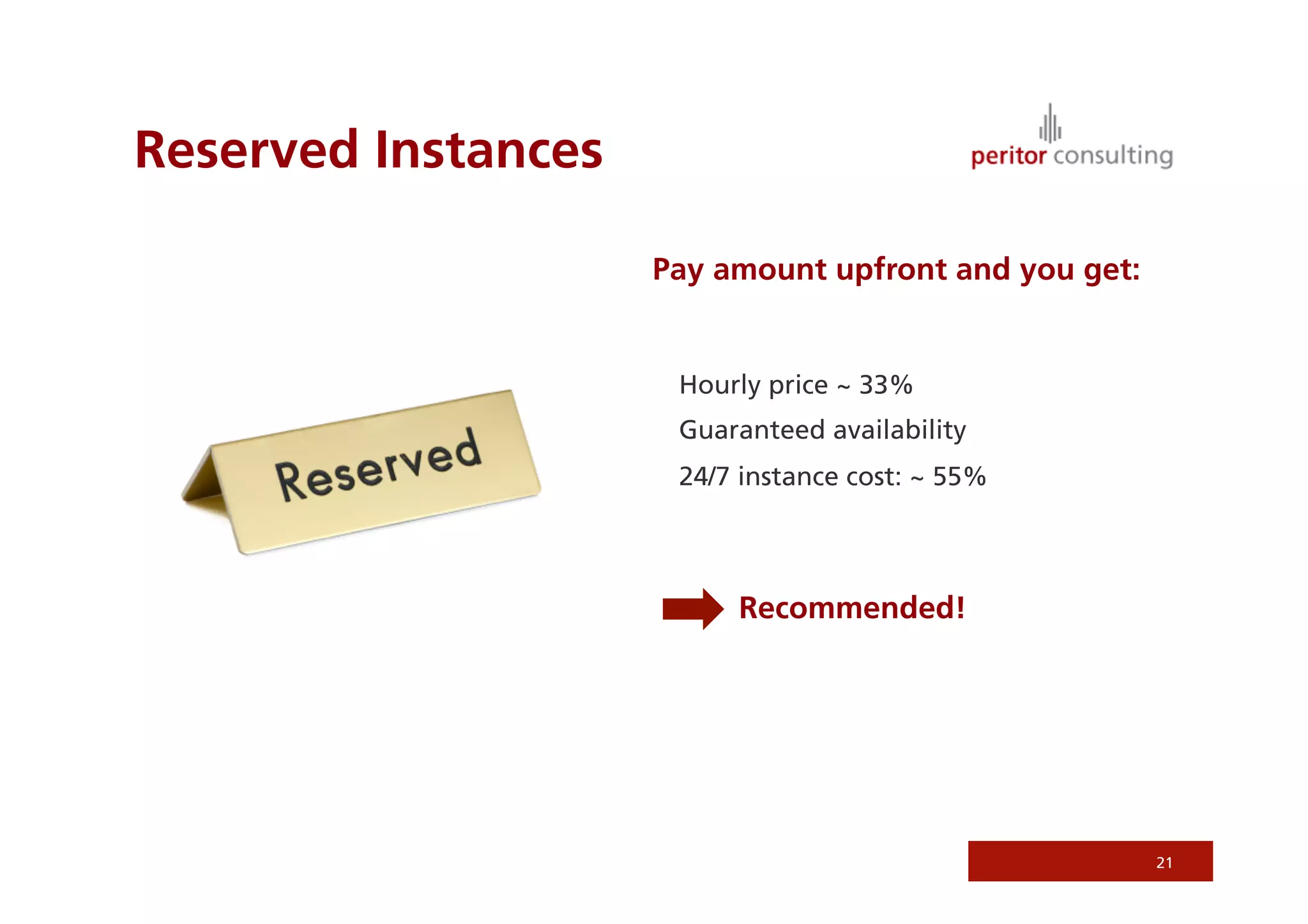

Reserved Instances

Pay amount upfront and you get:

Hourly price ~ 33%
Guaranteed availability
24/7 instance cost: ~ 55%

Recommended!

21

Running on EC2

Steps to complete
 Choose region and availability zone
 Define architecture
 Choose instance types
 Boot & configure instances
 Deploy application
 …
 Profit

22

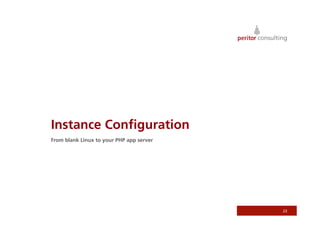

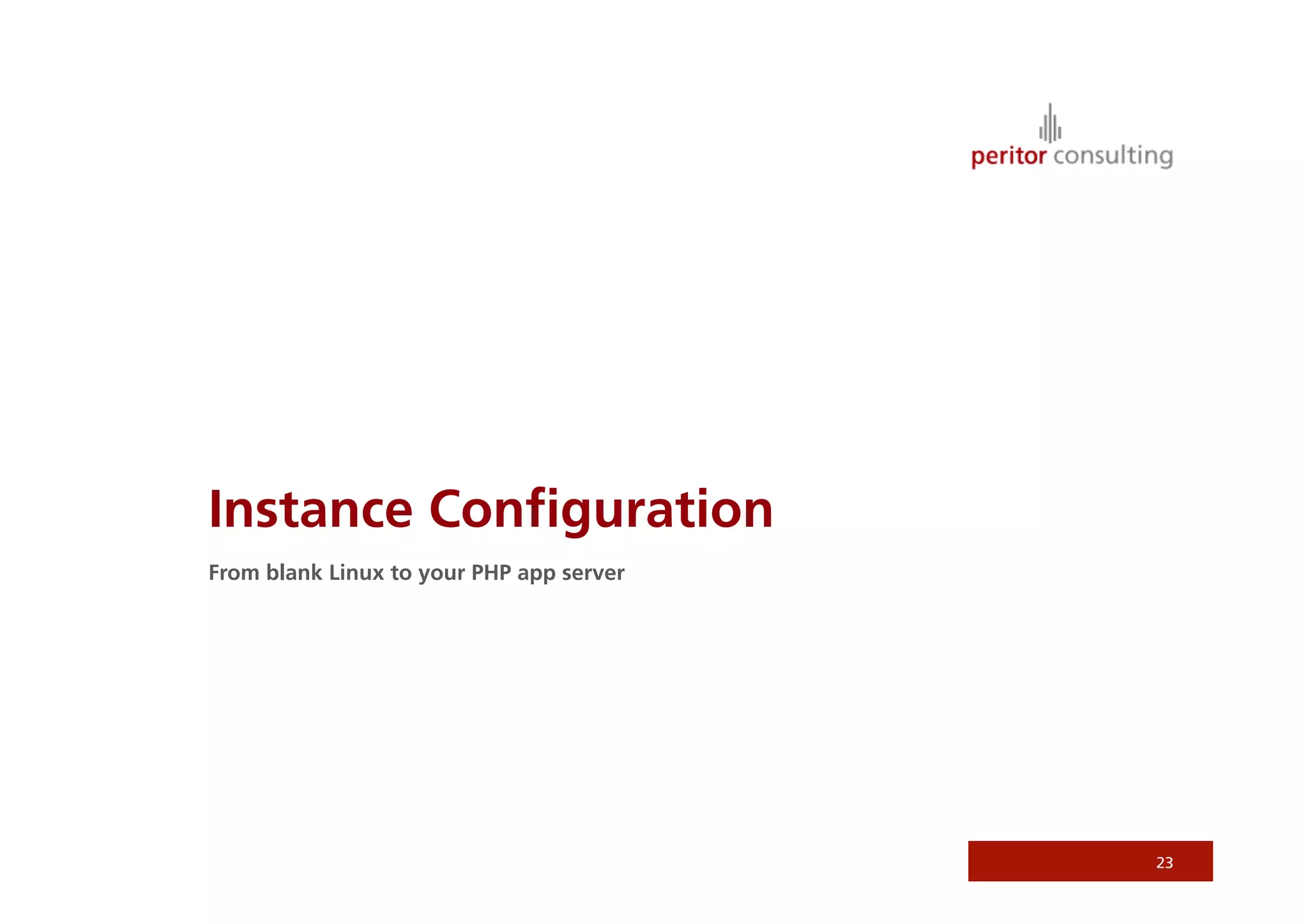

Instance Conﬁguration
From blank Linux to your PHP app server

23

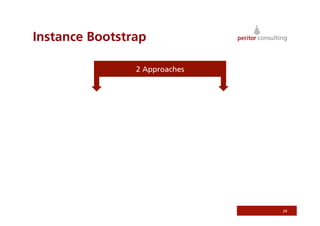

Instance Bootstrap

2 Approaches

24

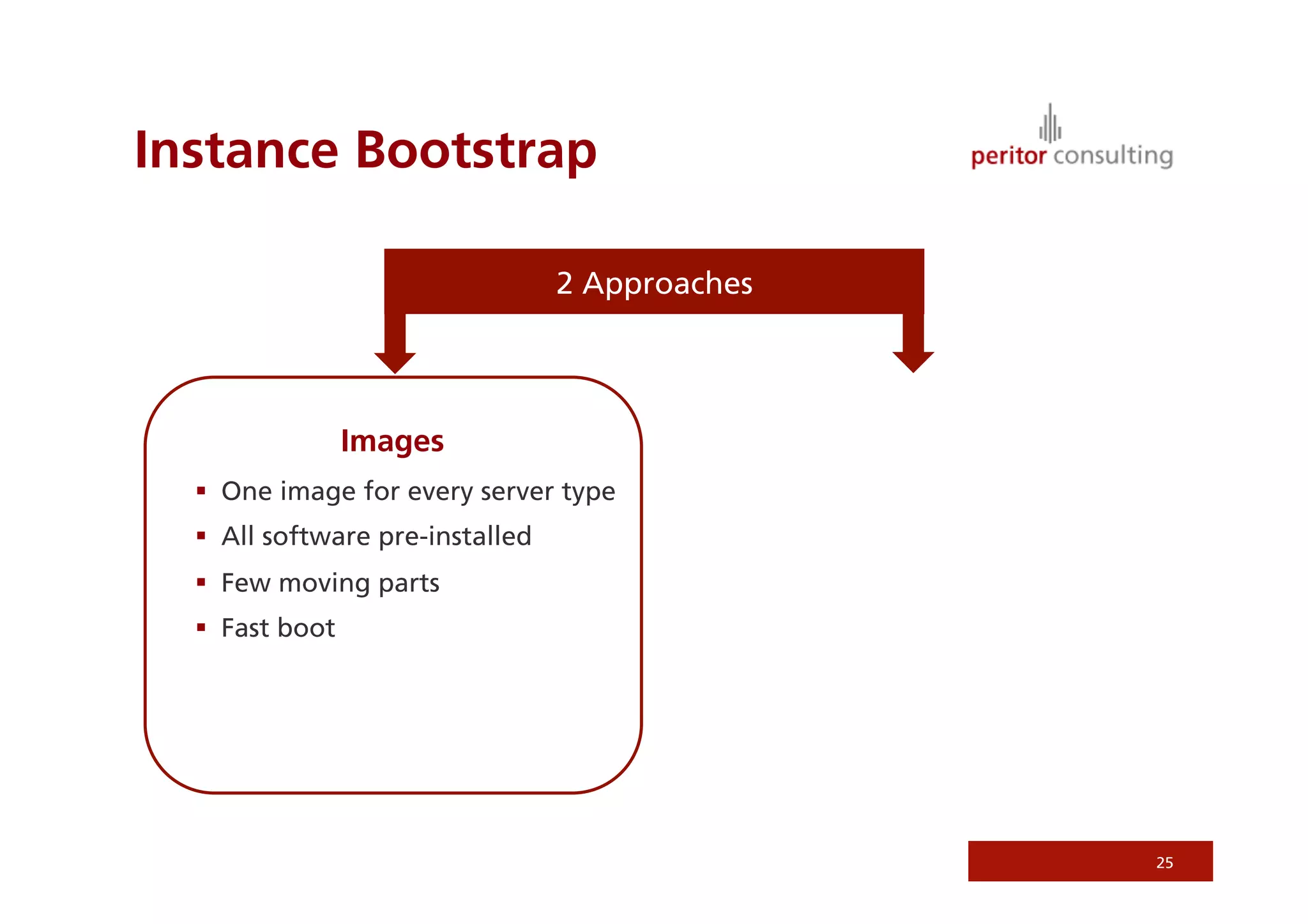

Instance Bootstrap

2 Approaches

Images
 One image for every server type
 All software pre-installed
 Few moving parts
 Fast boot

25

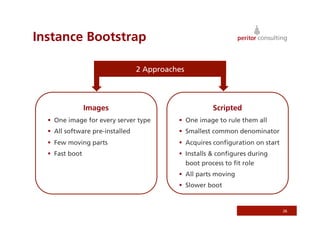

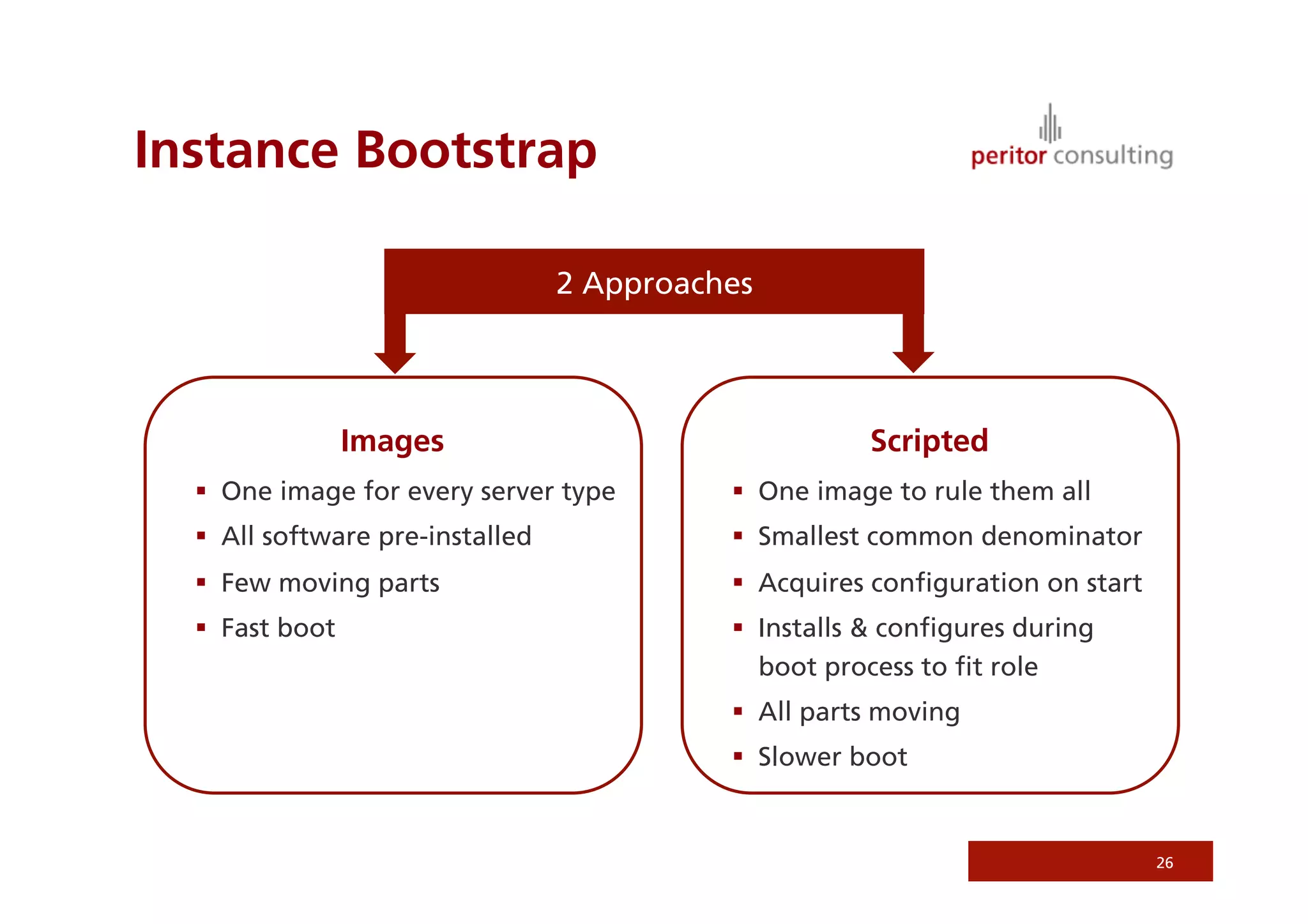

Instance Bootstrap

2 Approaches

Images Scripted
 One image for every server type  One image to rule them all
 All software pre-installed  Smallest common denominator
 Few moving parts  Acquires configuration on start
 Fast boot  Installs & configures during
boot process to fit role
 All parts moving
 Slower boot

26

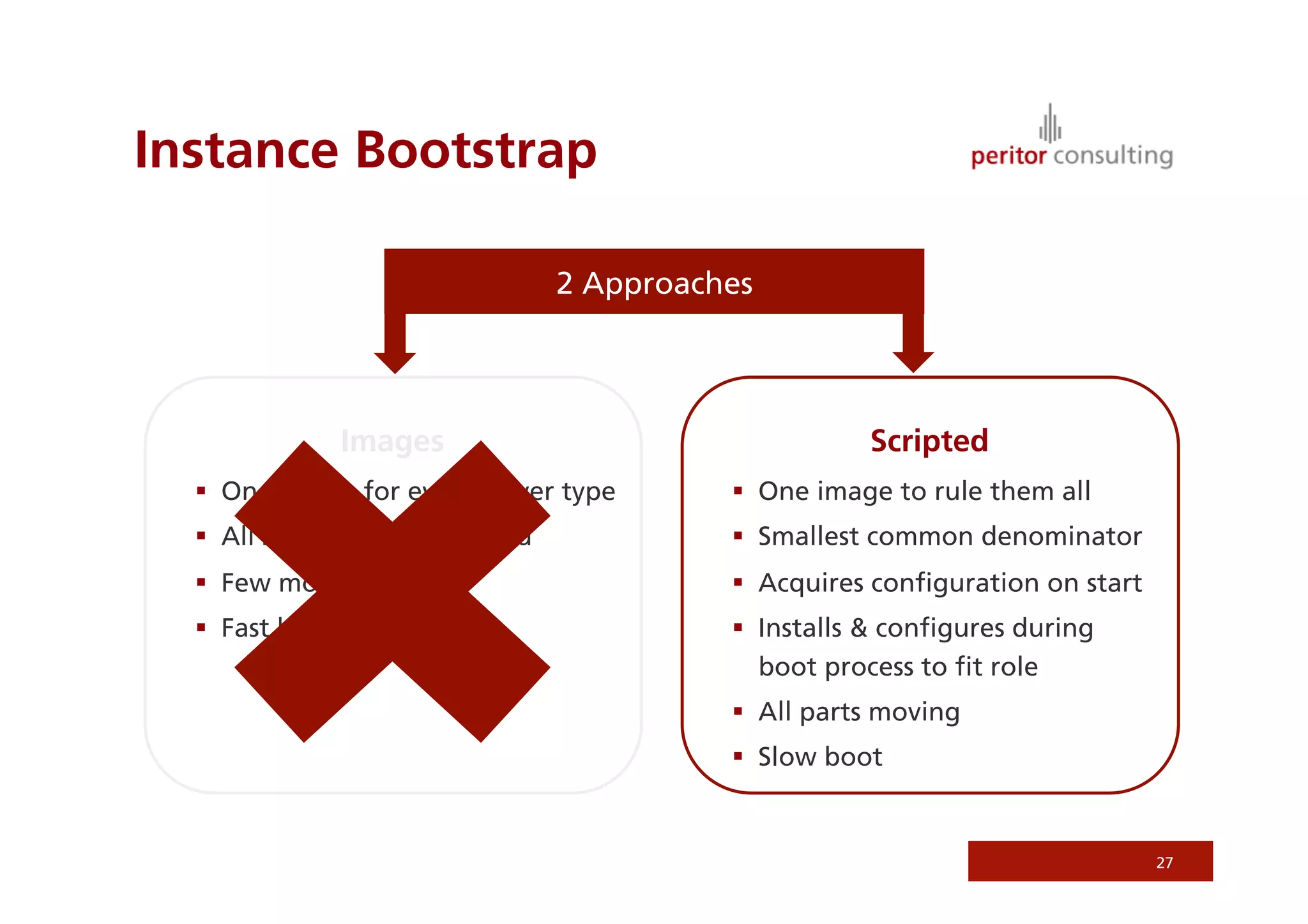

Instance Bootstrap

2 Approaches

Images Scripted
 One image for every server type  One image to rule them all
 All software pre-installed  Smallest common denominator
 Few moving parts  Acquires configuration on start
 Fast boot  Installs & configures during
boot process to fit role
 All parts moving
 Slow boot

27

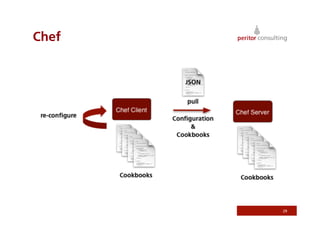

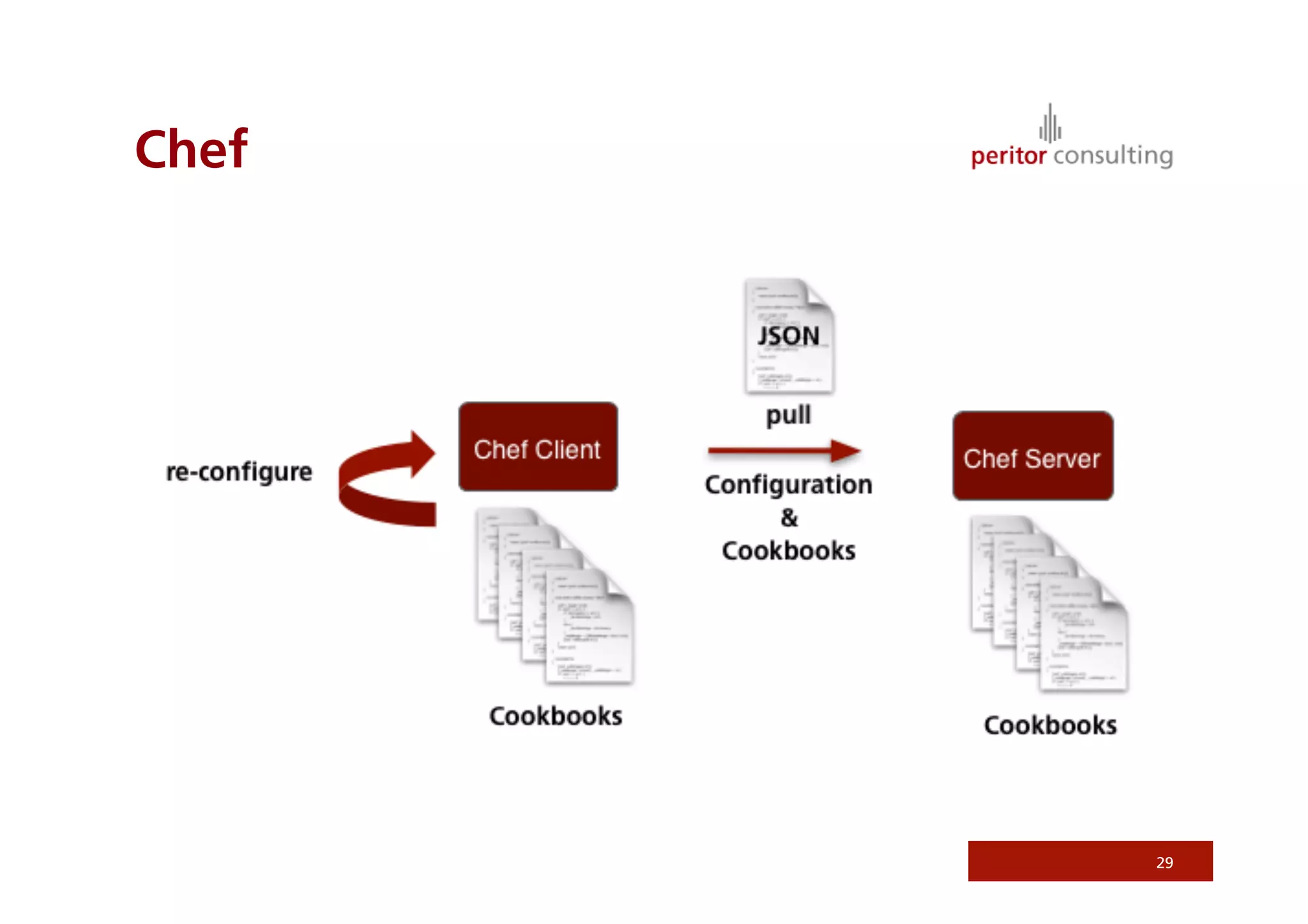

Chef

Open Source Provisioning Tool
 Conﬁgures your servers
 Cookbooks & recipes
 Ruby DSL

28

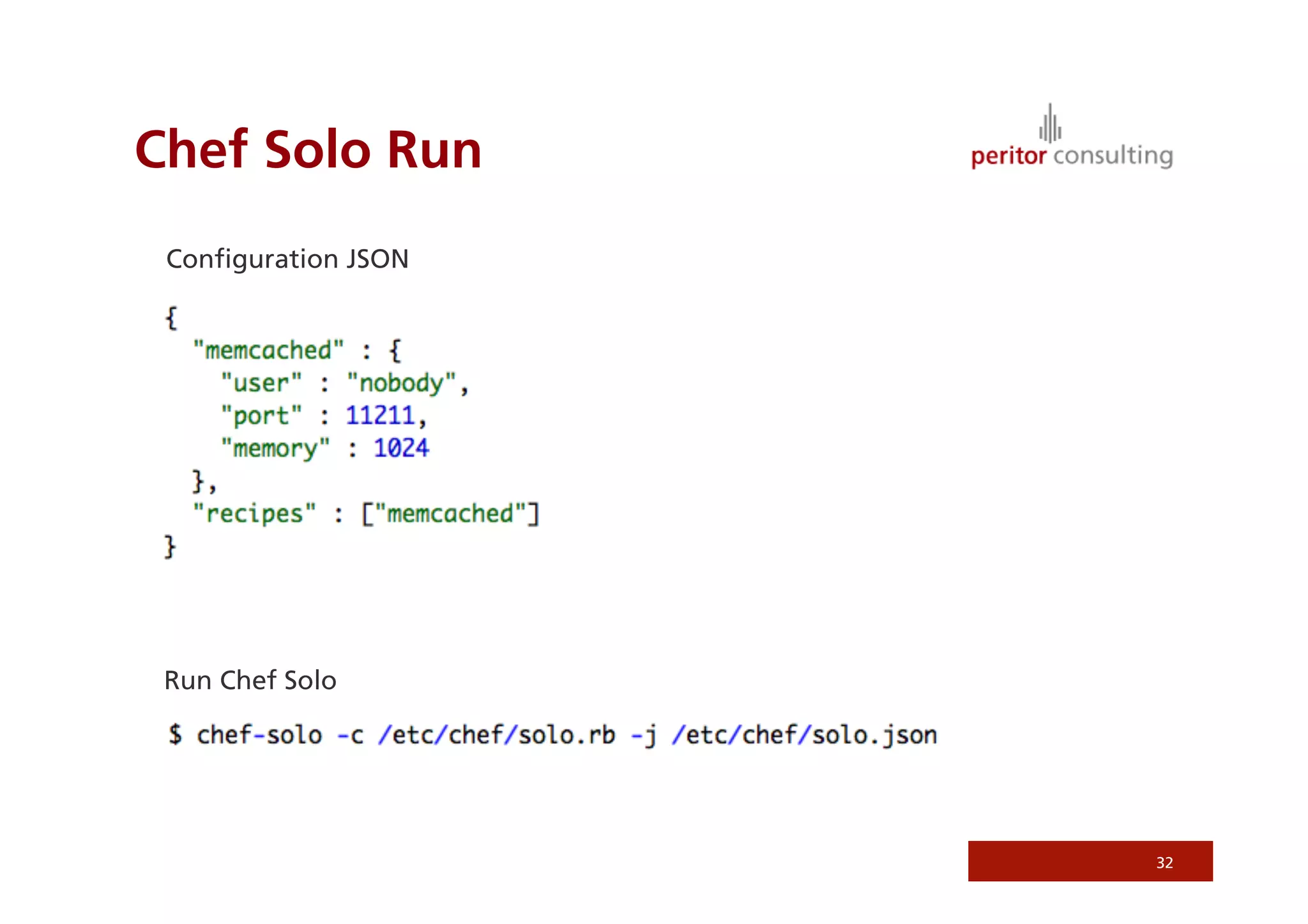

Chef Solo Run
Conﬁguration JSON

Run Chef Solo

32

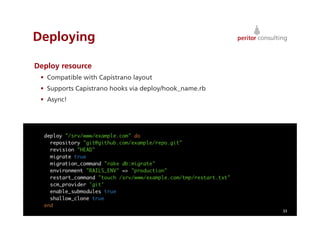

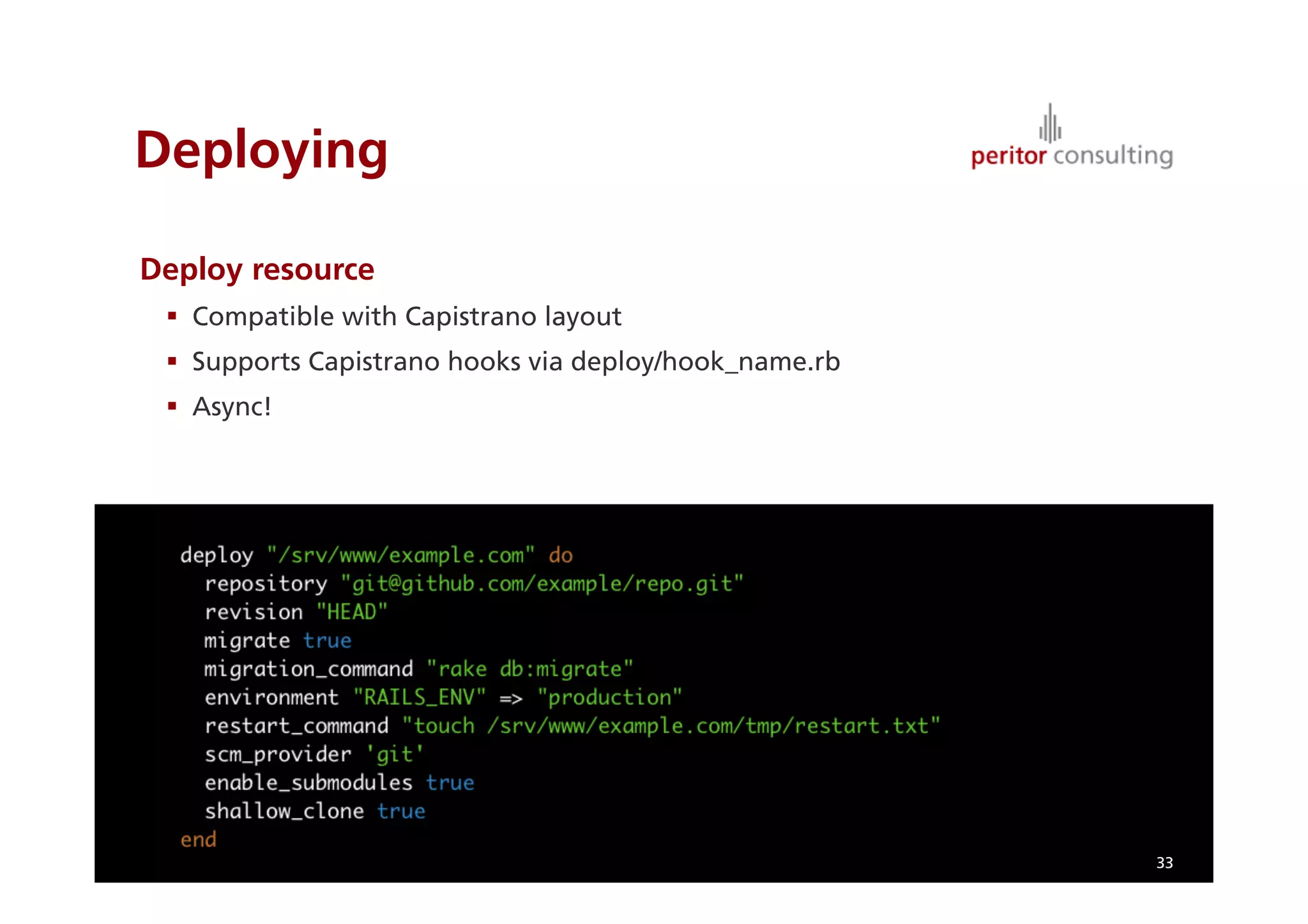

Deploying

Deploy resource
 Compatible with Capistrano layout
 Supports Capistrano hooks via deploy/hook_name.rb
 Async!

33

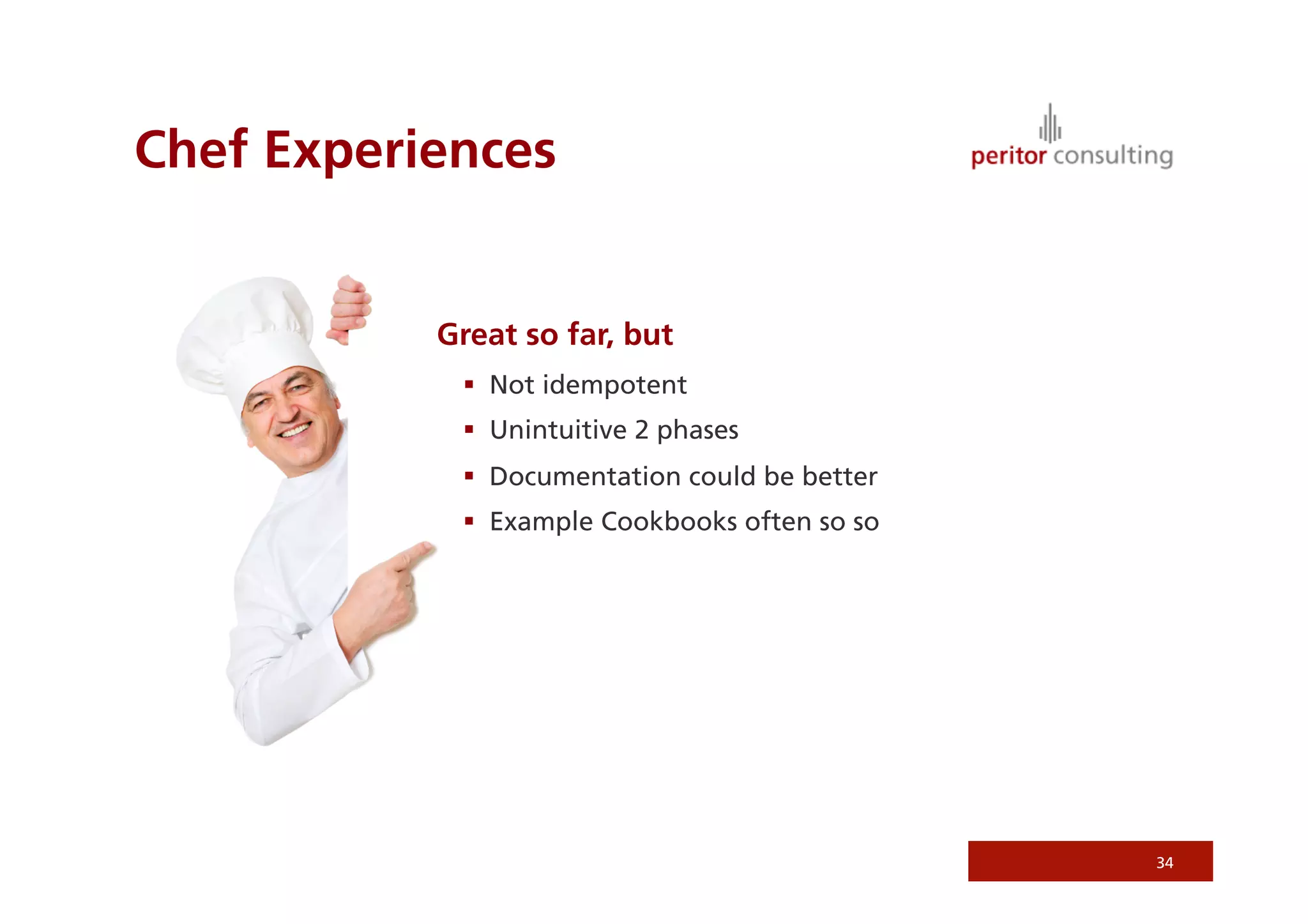

Chef Experiences

Great so far, but
 Not idempotent
 Unintuitive 2 phases
 Documentation could be better
 Example Cookbooks often so so

34

Running on EC2

Steps to complete
 Choose region and availability zone
 Define architecture
 Choose instance types
 Boot & configure instances
 Deploy application
 …
 Profit

35

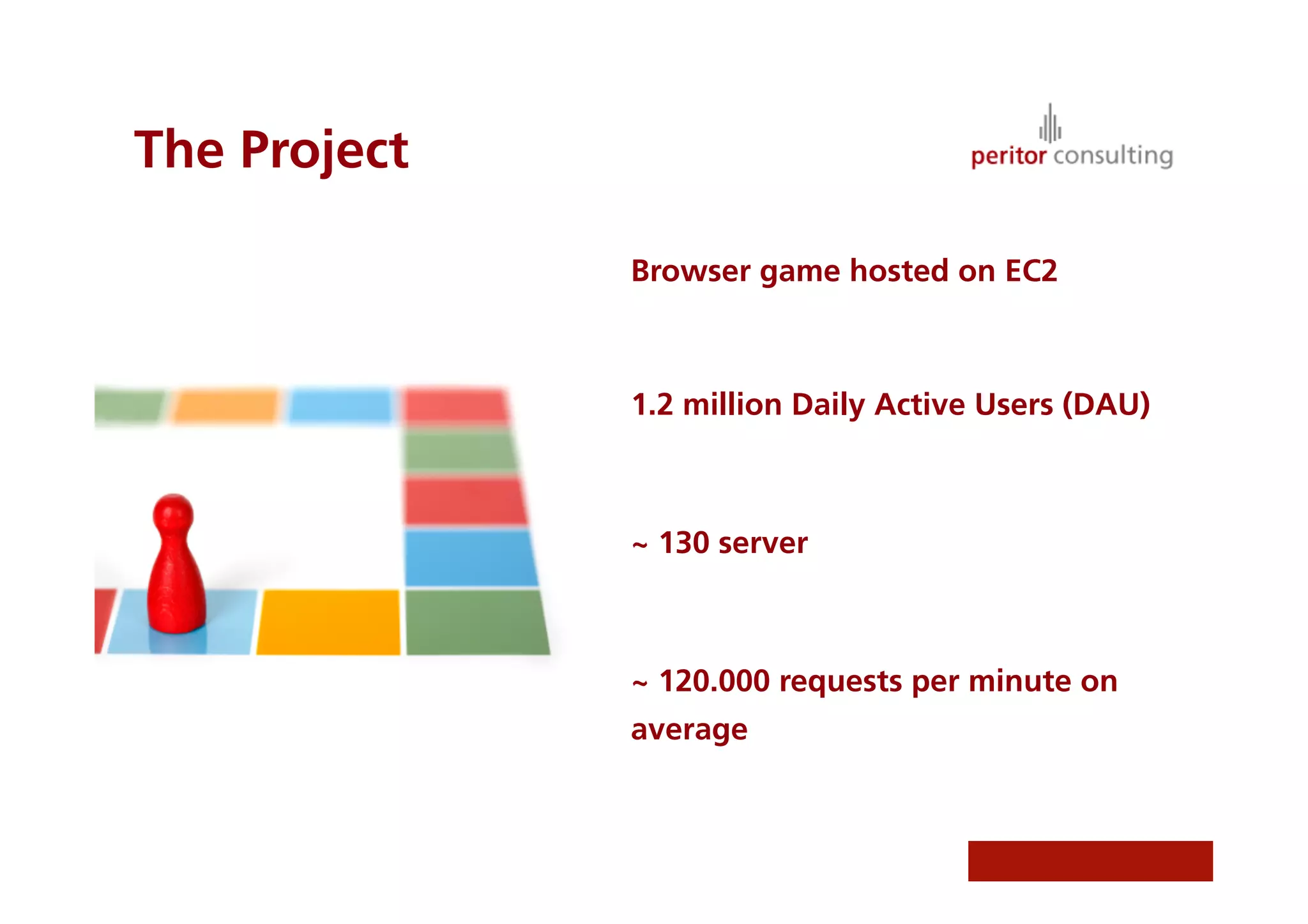

The Project

Browser game hosted on EC2

1.2 million Daily Active Users (DAU)

~ 130 server

~ 120.000 requests per minute on
average

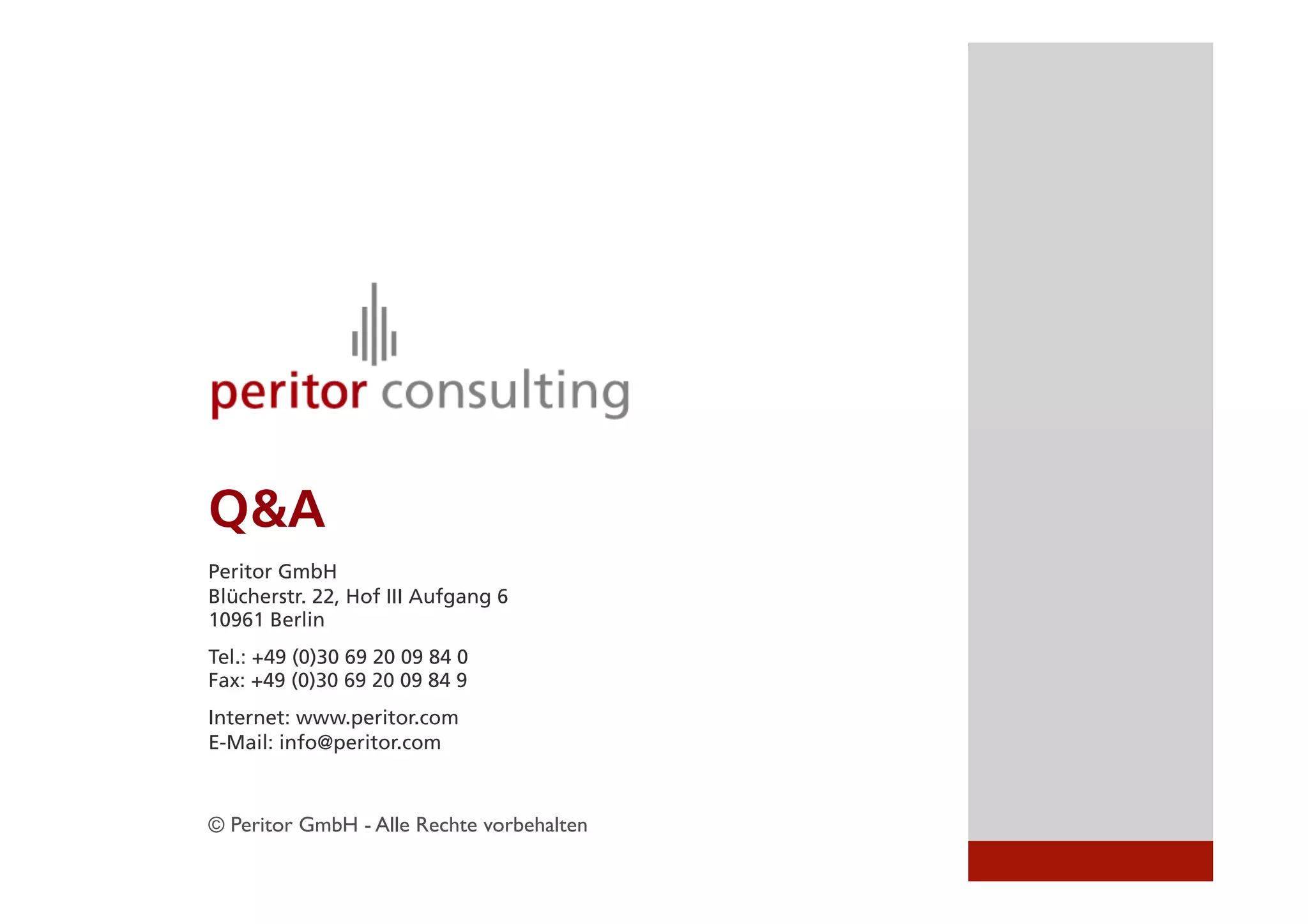

Q&A
Peritor GmbH
Blücherstr. 22, Hof III Aufgang 6
10961 Berlin
Tel.: +49 (0)30 69 20 09 84 0
Fax: +49 (0)30 69 20 09 84 9
Internet: www.peritor.com
E-Mail: info@peritor.com

© Peritor GmbH - Alle Rechte vorbehalten
