Seismic data analysis with u net

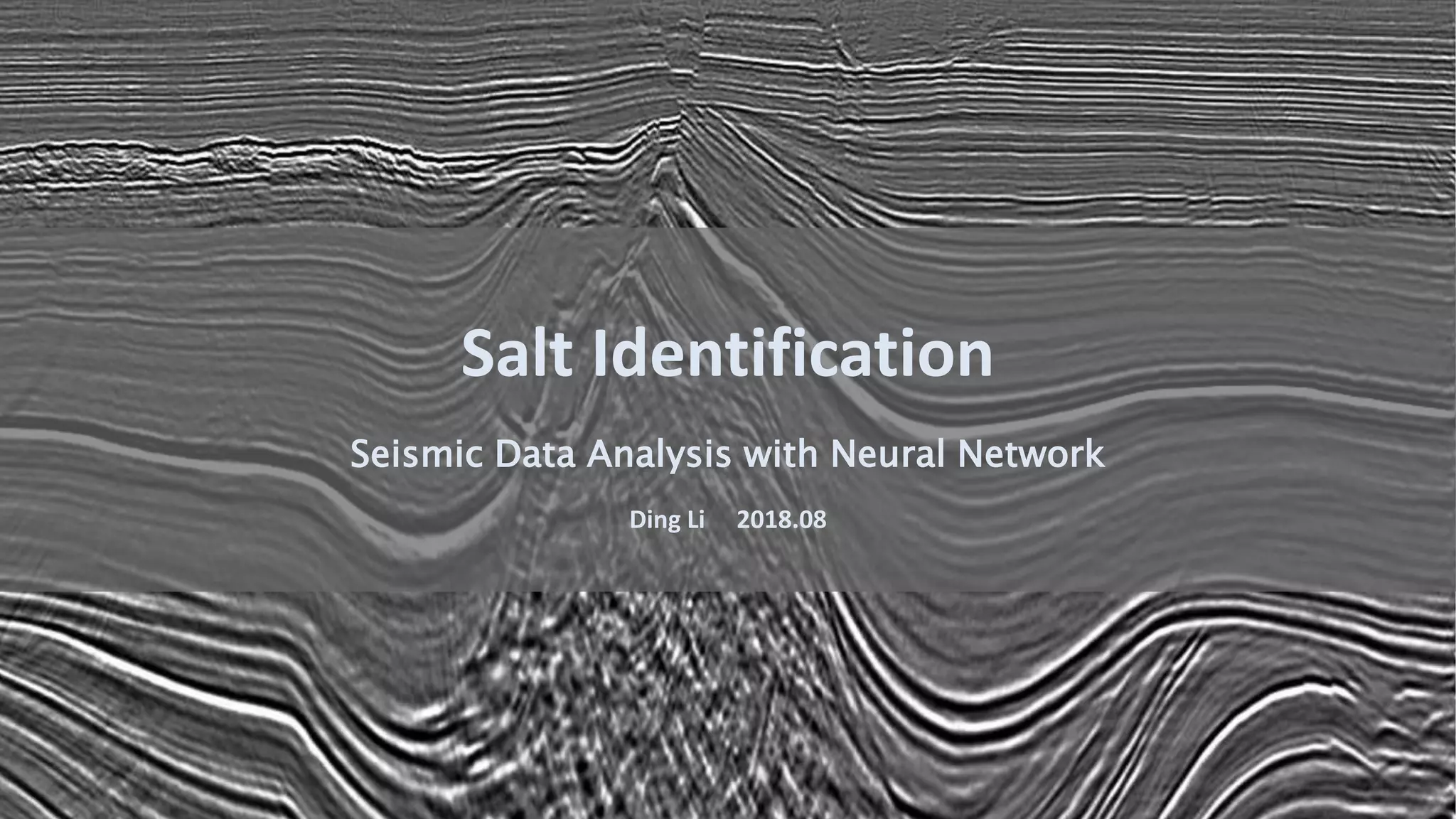

- 1. Salt Identification Seismic DataAnalysis with Neural Network Ding Li 2018.08

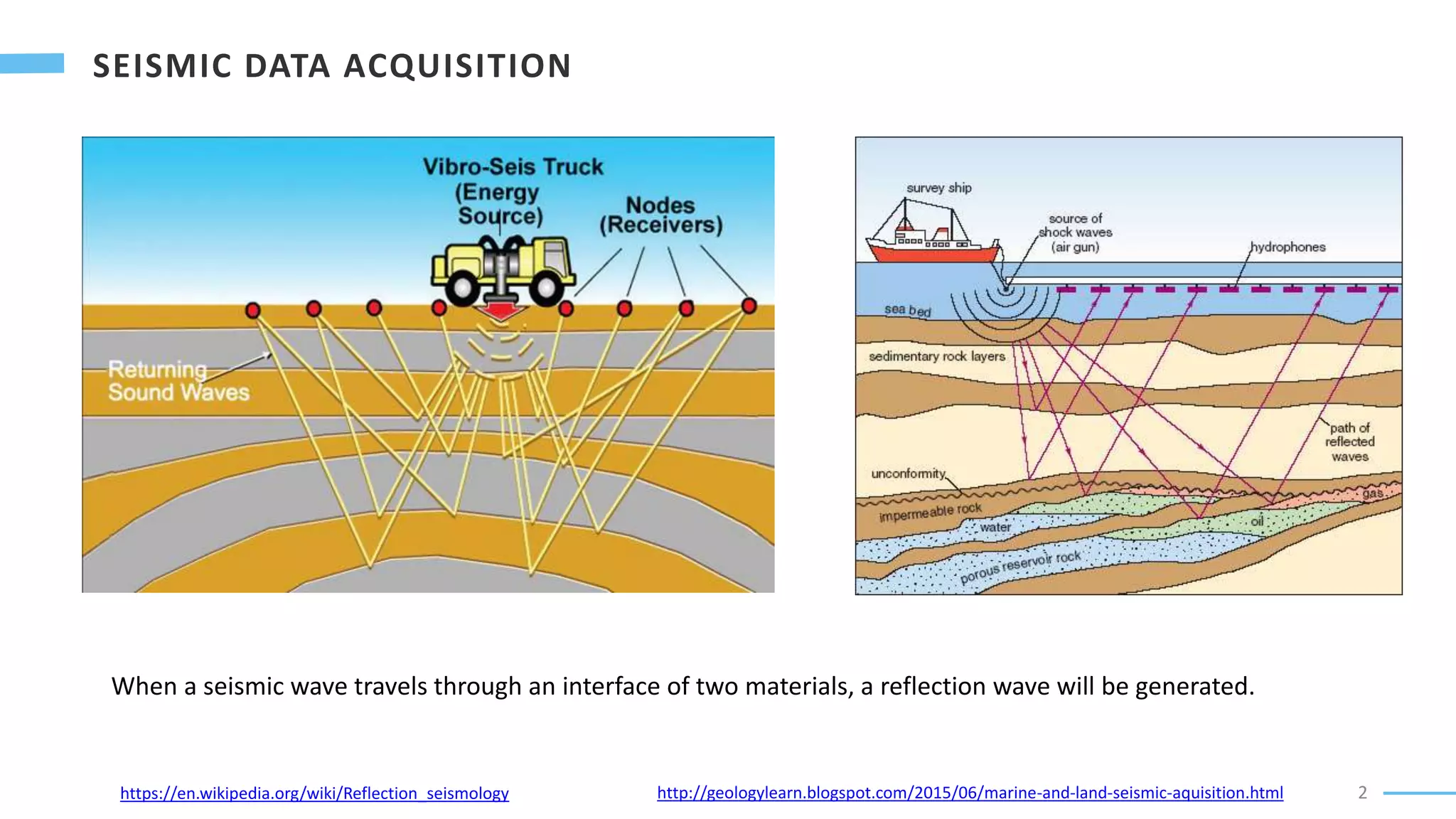

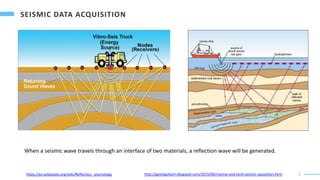

- 2. 2 When a seismicwave travels through an interface of two materials, a reflection wave will be generated. https://en.wikipedia.org/wiki/Reflection_seismology http://geologylearn.blogspot.com/2015/06/marine-and-land-seismic-aquisition.html

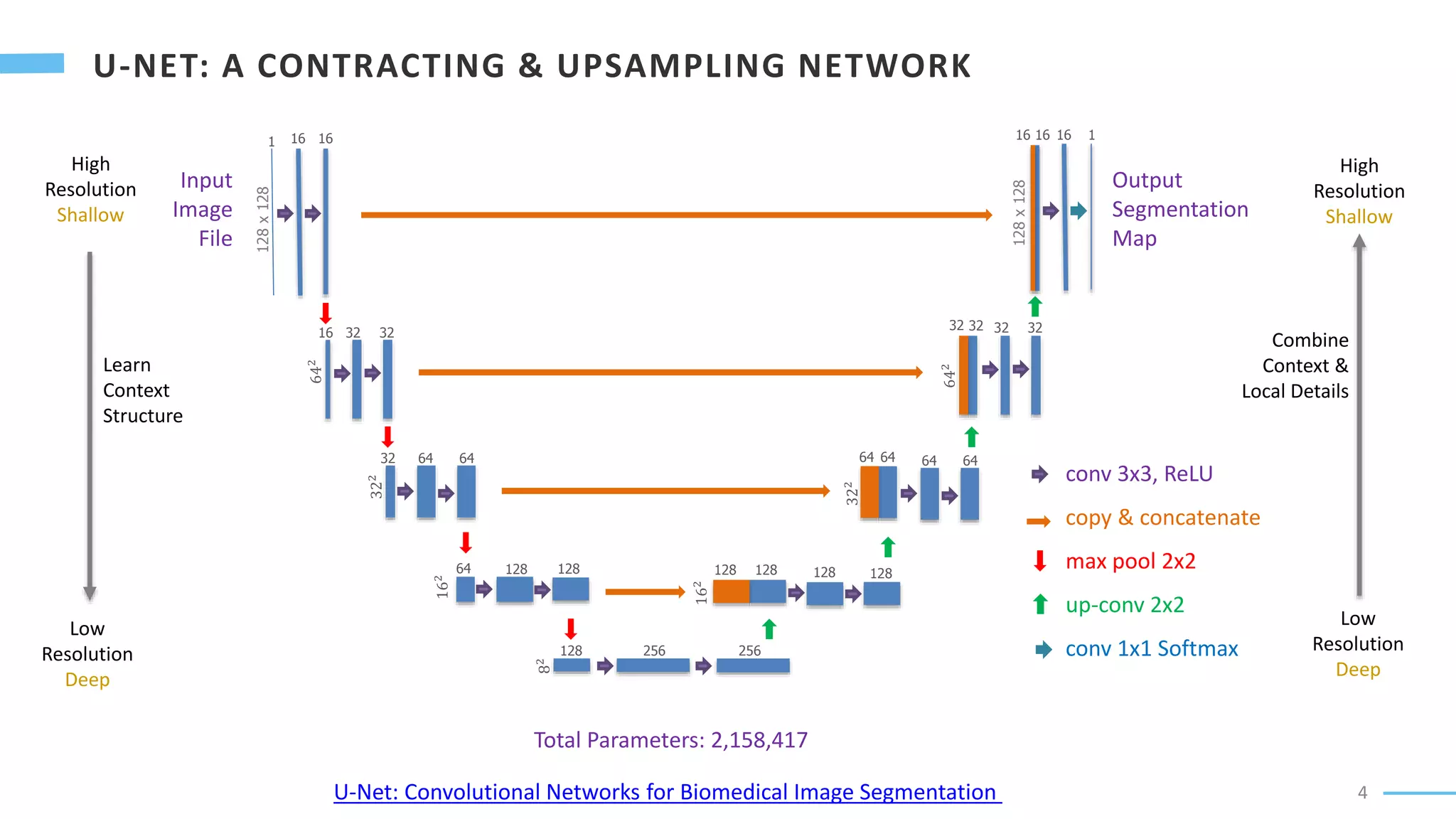

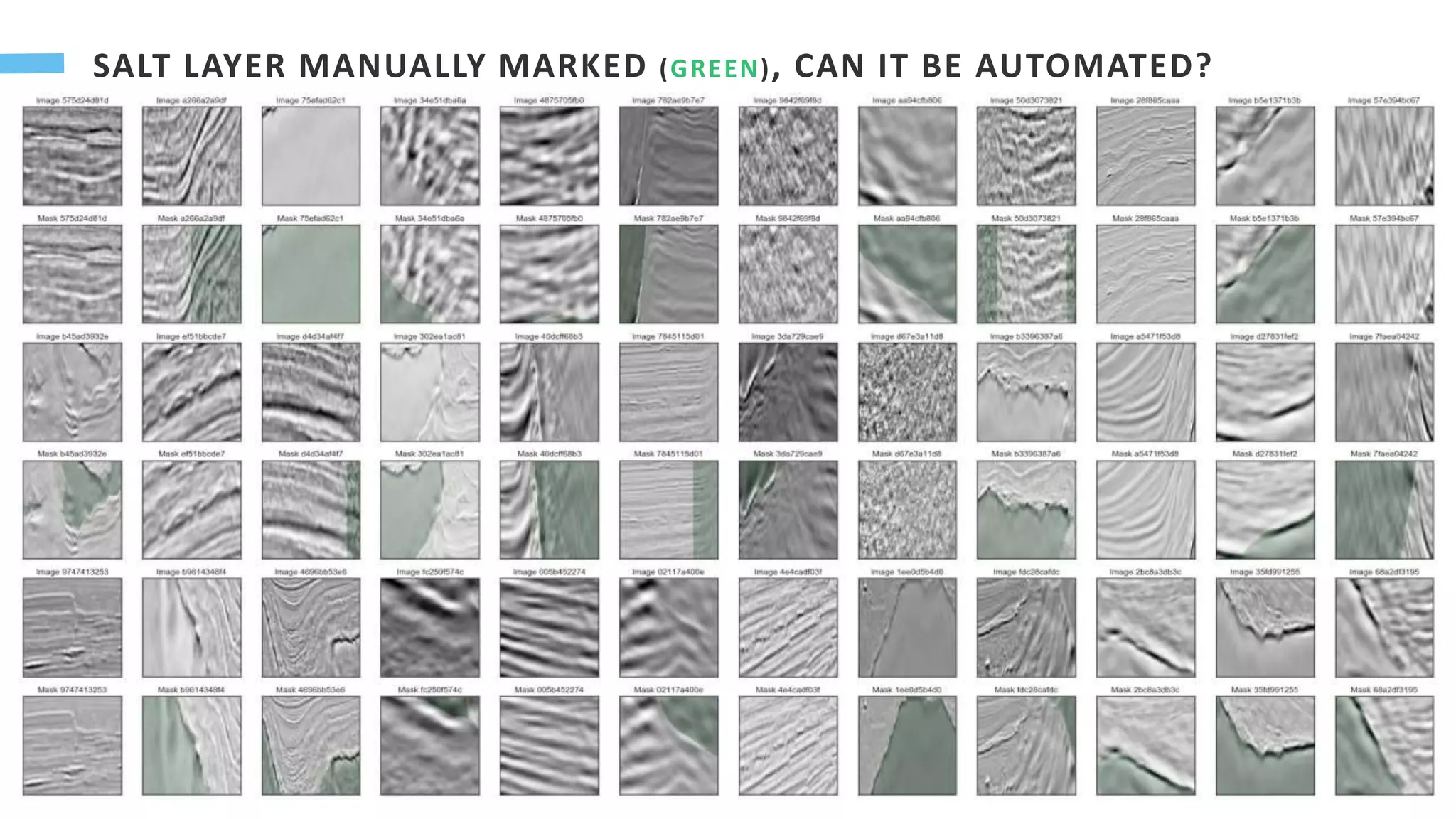

- 4. 4 128 x 128 16 1 16 32 32 16 3264 64 64 128 128 128 256 256 128 128 128 128 64 64 64 64 32 32 32 32 16 16 16 1 128 x 128 Input Image File Output Segmentation Map conv 3x3, ReLU copy & concatenate max pool 2x2 up-conv 2x2 conv 1x1 Softmax Learn Context Structure Combine Context & Local Details High Resolution Shallow Low Resolution Deep High Resolution Shallow Low Resolution Deep U-Net: Convolutional Networks for Biomedical Image Segmentation Total Parameters: 2,158,417

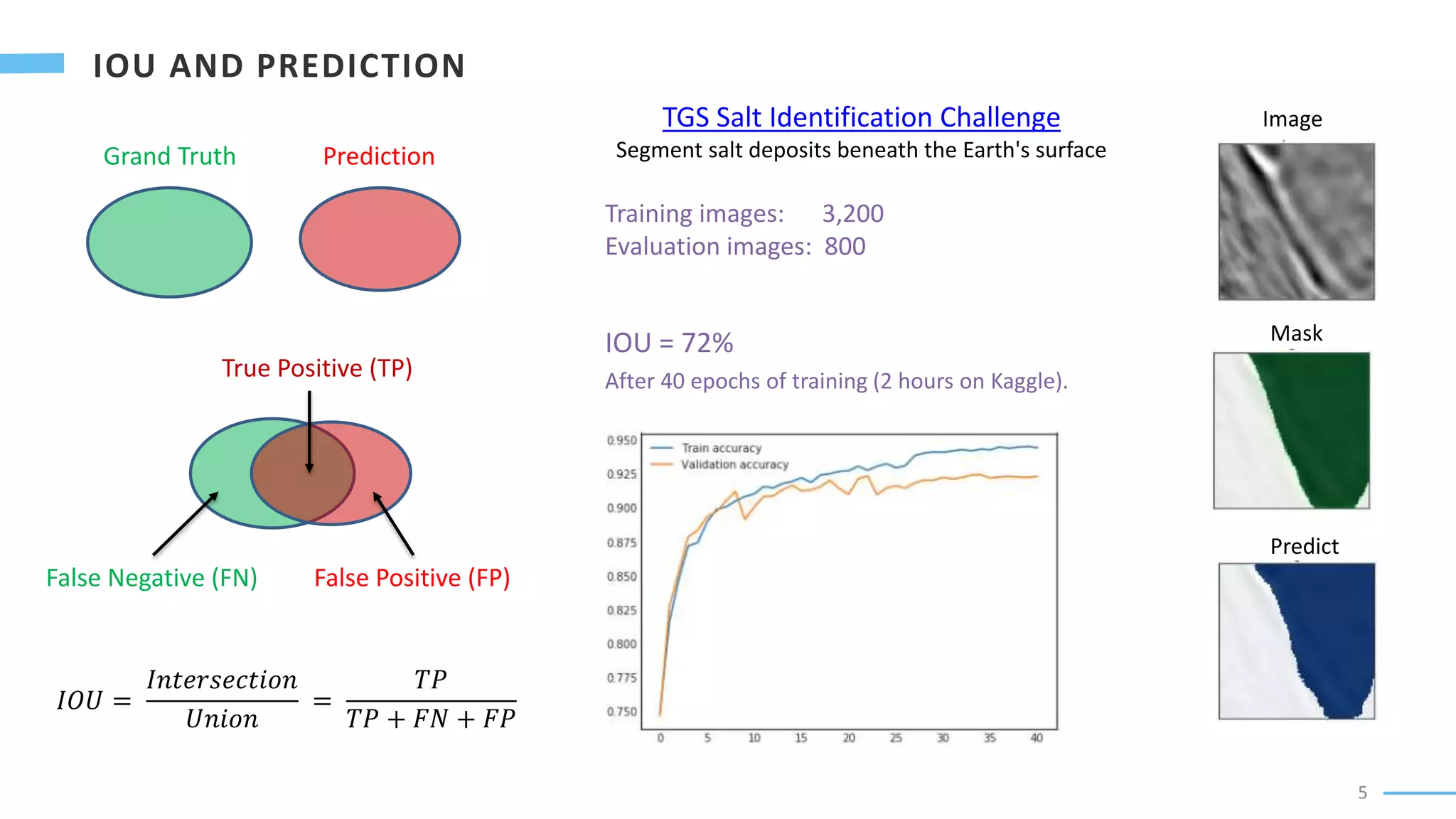

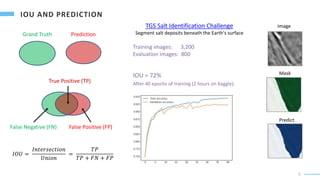

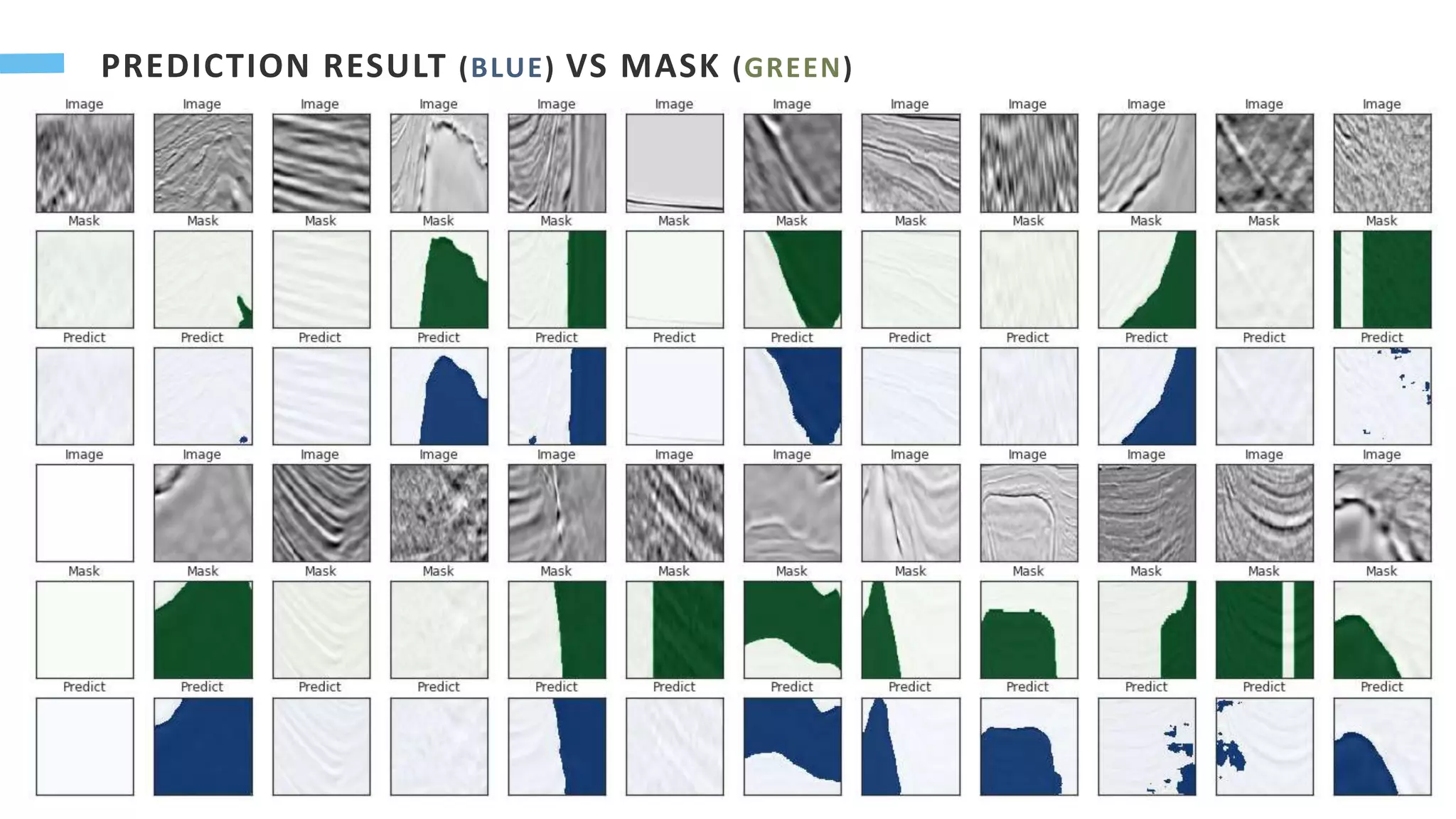

- 5. 5 TGS Salt IdentificationChallenge Segment salt deposits beneath the Earth's surface Training images: 3,200 Evaluation images: 800 IOU = 72% After 40 epochs of training (2 hours on Kaggle). Grand Truth Prediction False Negative (FN) False Positive (FP) True Positive (TP) 𝐼𝑂𝑈 = 𝐼𝑛𝑡𝑒𝑟𝑠𝑒𝑐𝑡𝑖𝑜𝑛 𝑈𝑛𝑖𝑜𝑛 = 𝑇𝑃 𝑇𝑃 + 𝐹𝑁 + 𝐹𝑃 Image Mask Predict

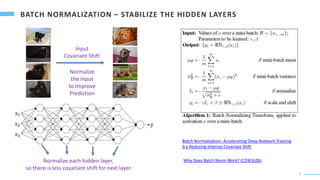

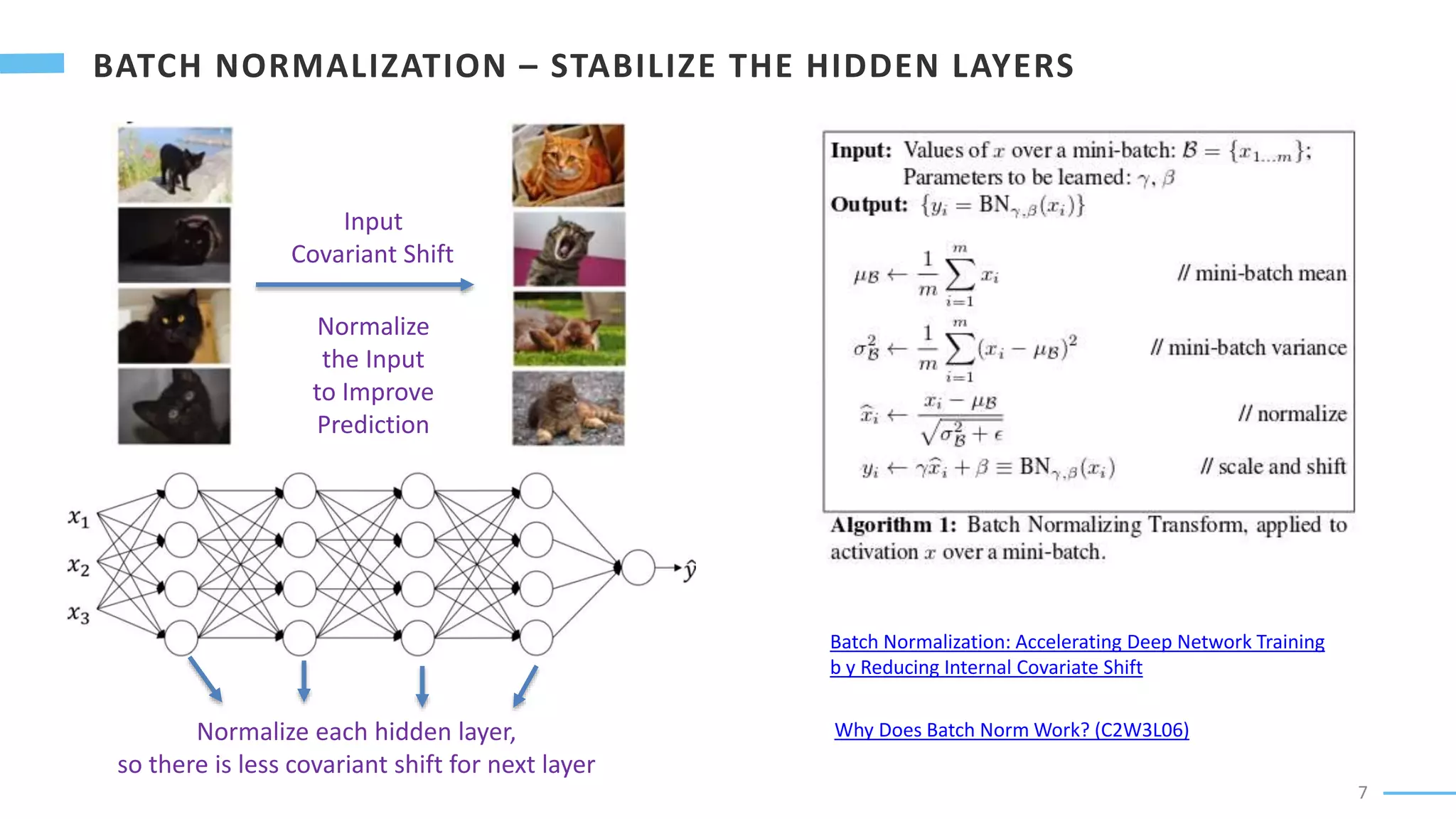

- 7. 7 Why Does BatchNorm Work? (C2W3L06) Batch Normalization: Accelerating Deep Network Training b y Reducing Internal Covariate Shift Input Covariant Shift Normalize the Input to Improve Prediction Normalize each hidden layer, so there is less covariant shift for next layer

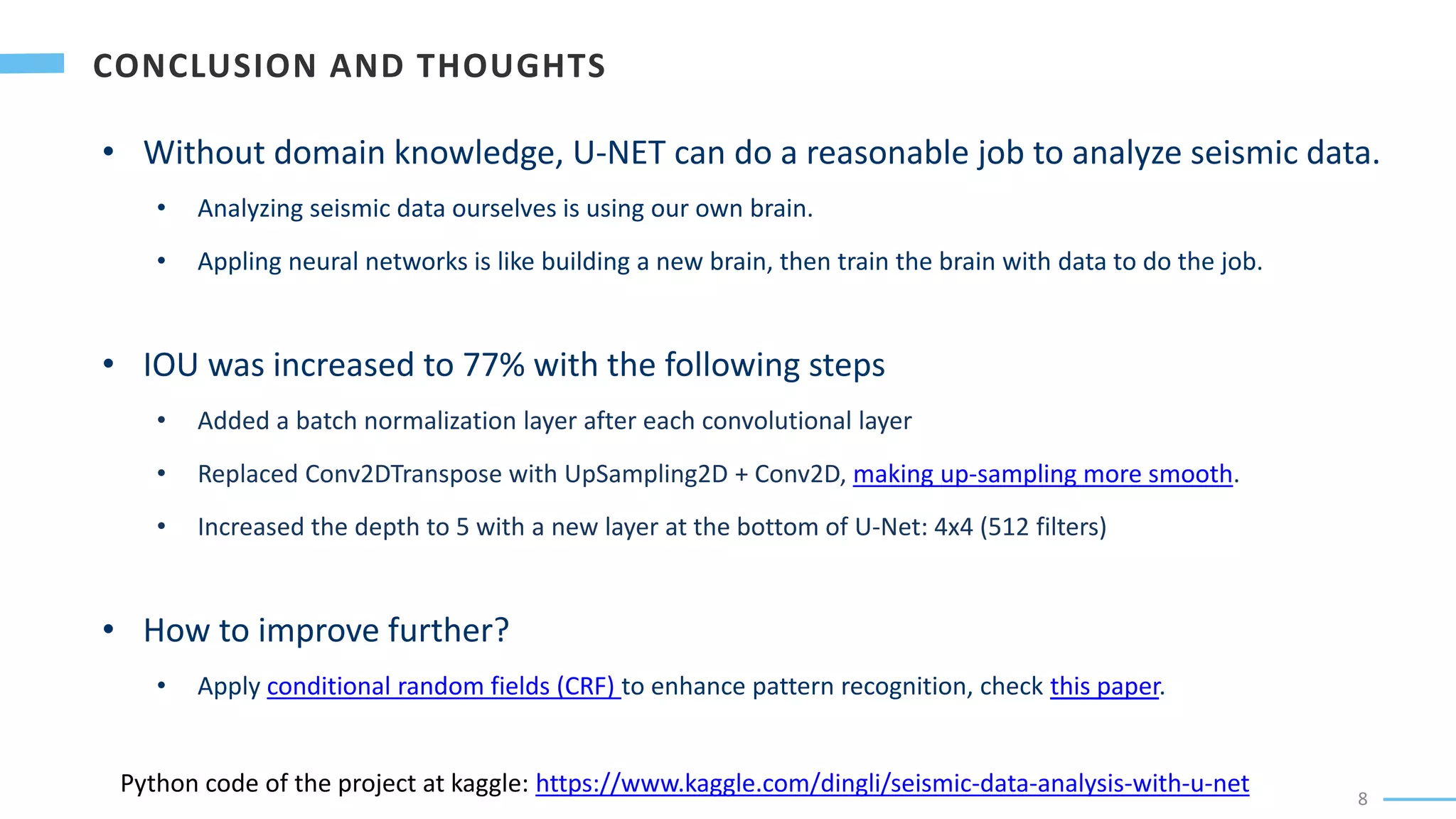

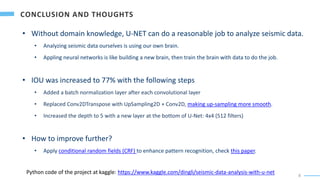

- 8. 8 • Without domainknowledge, U-NET can do a reasonable job to analyze seismic data. • Analyzing seismic data ourselves is using our own brain. • Appling neural networks is like building a new brain, then train the brain with data to do the job. • IOU was increased to 77% with the following steps • Added a batch normalization layer after each convolutional layer • Replaced Conv2DTranspose with UpSampling2D + Conv2D, making up-sampling more smooth. • Increased the depth to 5 with a new layer at the bottom of U-Net: 4x4 (512 filters) • How to improve further? • Apply conditional random fields (CRF) to enhance pattern recognition, check this paper. Python code of the project at kaggle: https://www.kaggle.com/dingli/seismic-data-analysis-with-u-net
