Selenium Open Source Tool
- 1. Selenium Open SourceTool www.seleniumcoe.com

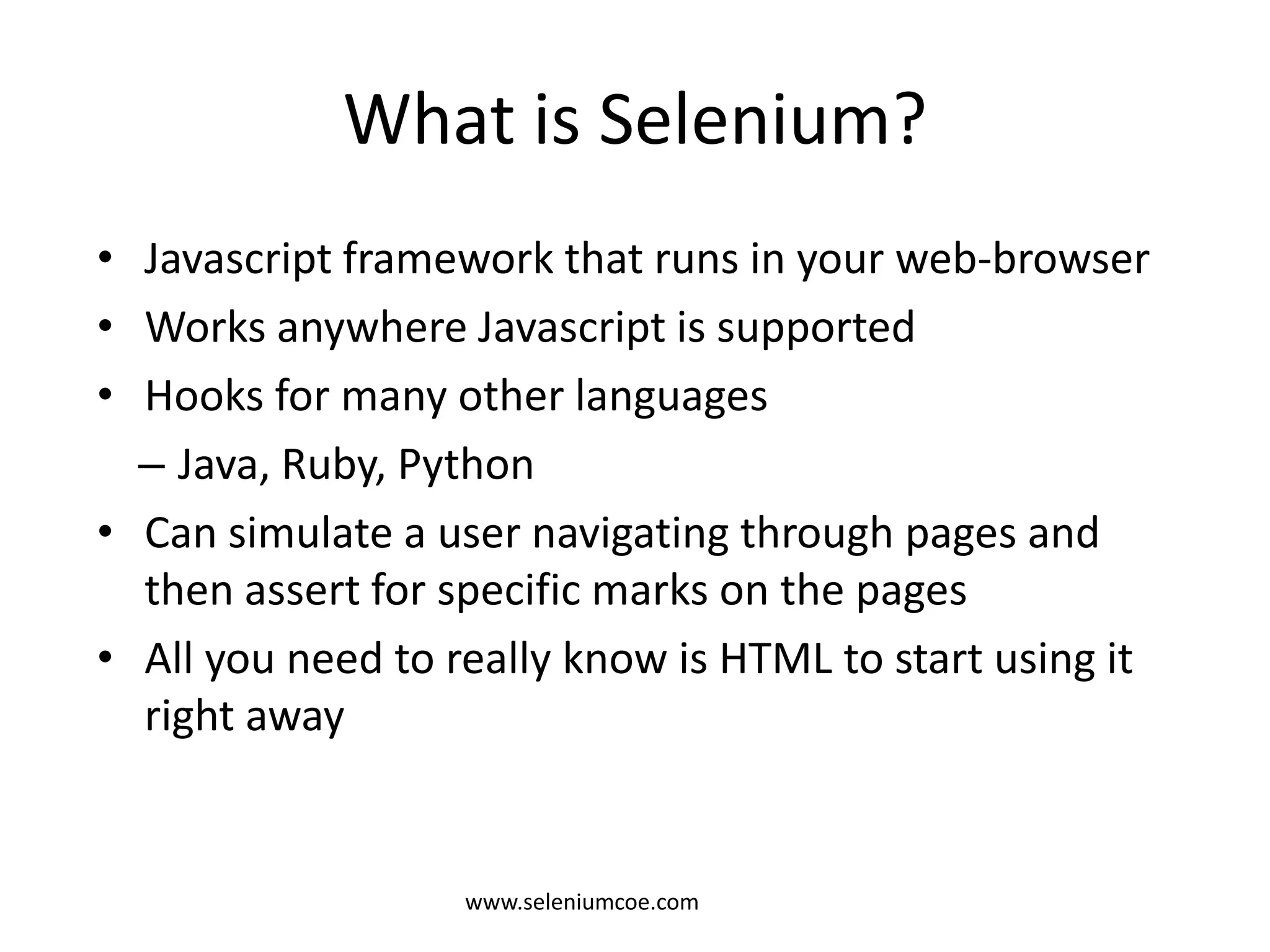

- 2. What is Selenium? •Javascript framework that runs in your web-browser • Works anywhere Javascript is supported • Hooks for many other languages – Java, Ruby, Python • Can simulate a user navigating through pages and then assert for specific marks on the pages • All you need to really know is HTML to start using it right away www.seleniumcoe.com

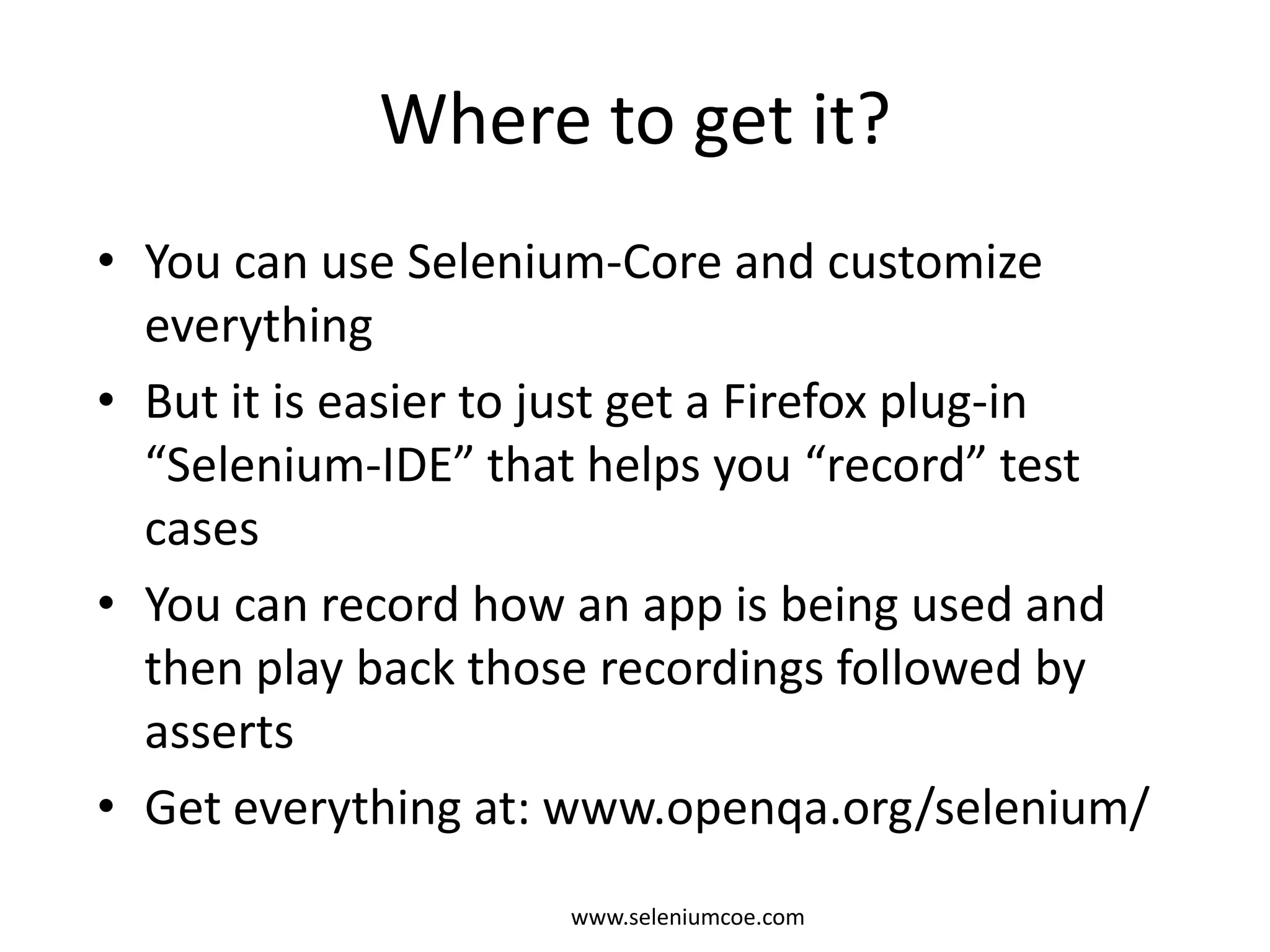

- 3. Where to getit? • You can use Selenium-Core and customize everything • But it is easier to just get a Firefox plug-in “Selenium-IDE” that helps you “record” test cases • You can record how an app is being used and then play back those recordings followed by asserts • Get everything at: www.openqa.org/selenium/ www.seleniumcoe.com

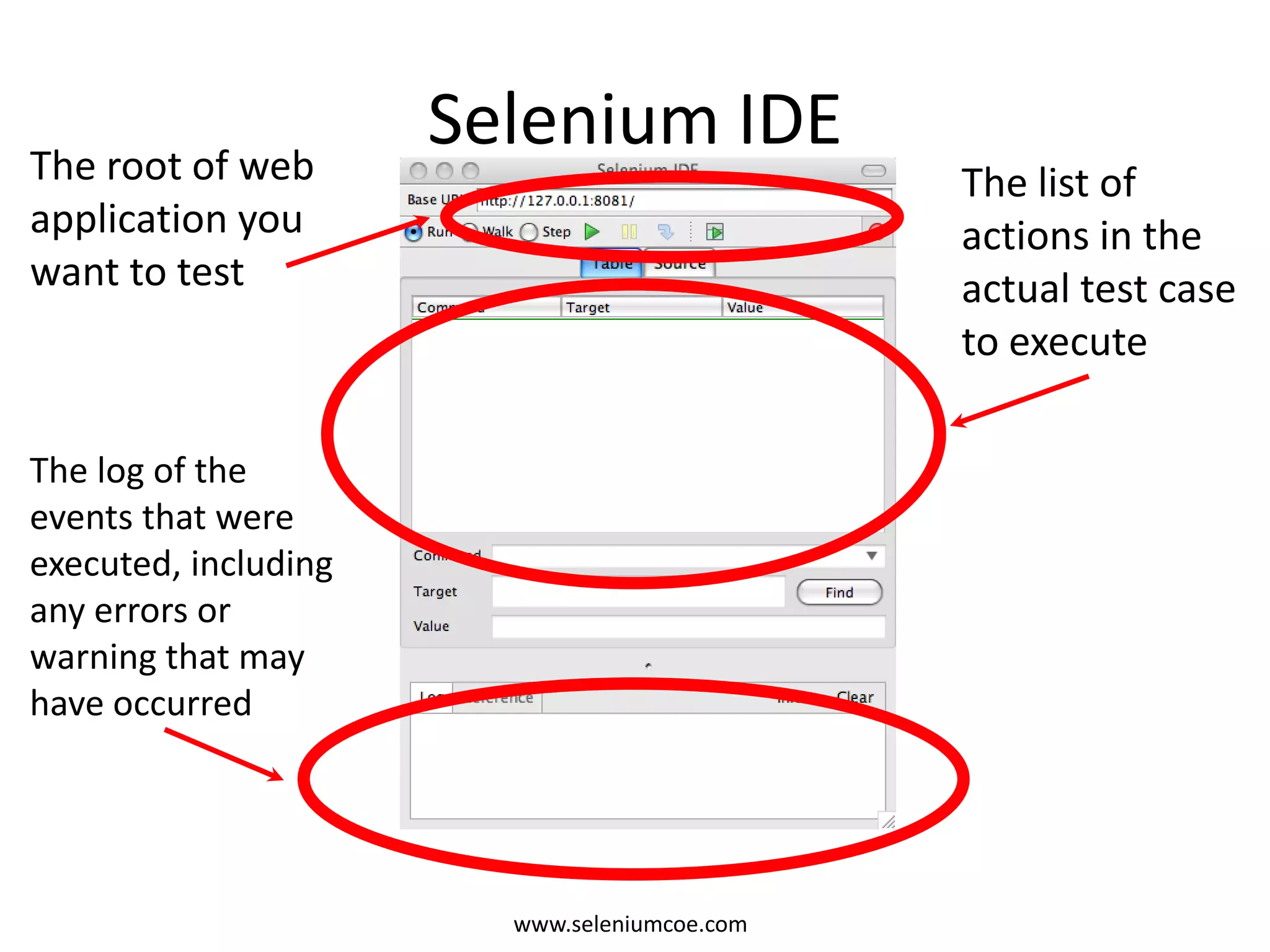

- 4. Selenium IDEThe rootof web application you want to test The list of actions in the actual test case to execute The log of the events that were executed, including any errors or warning that may have occurred www.seleniumcoe.com

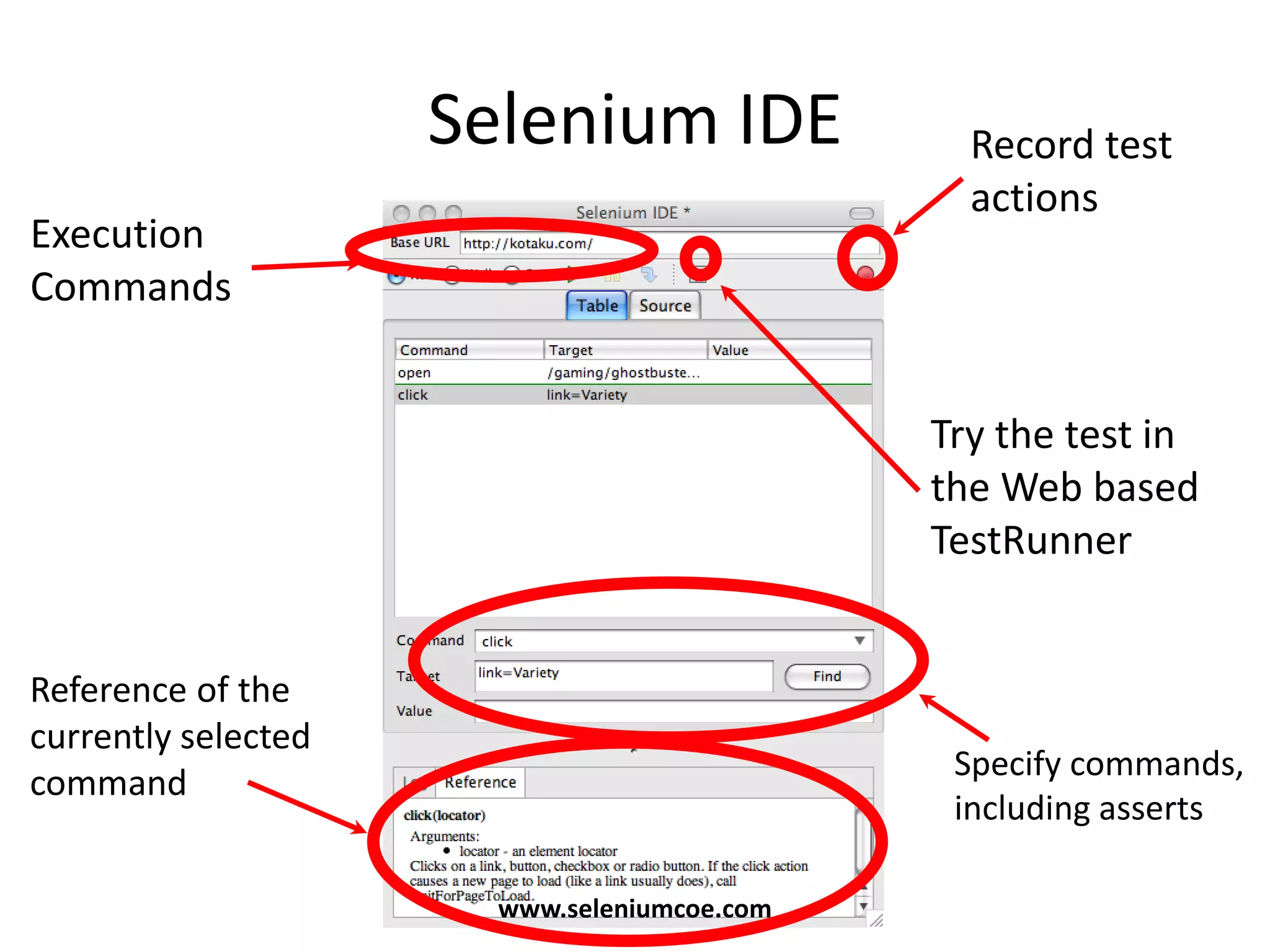

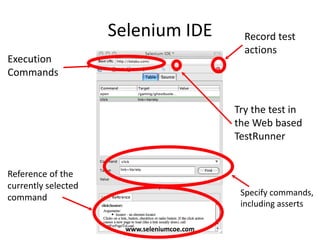

- 5. Selenium IDE Execution Commands Try thetest in the Web based TestRunner Reference of the currently selected command Record test actions Specify commands, including asserts www.seleniumcoe.com

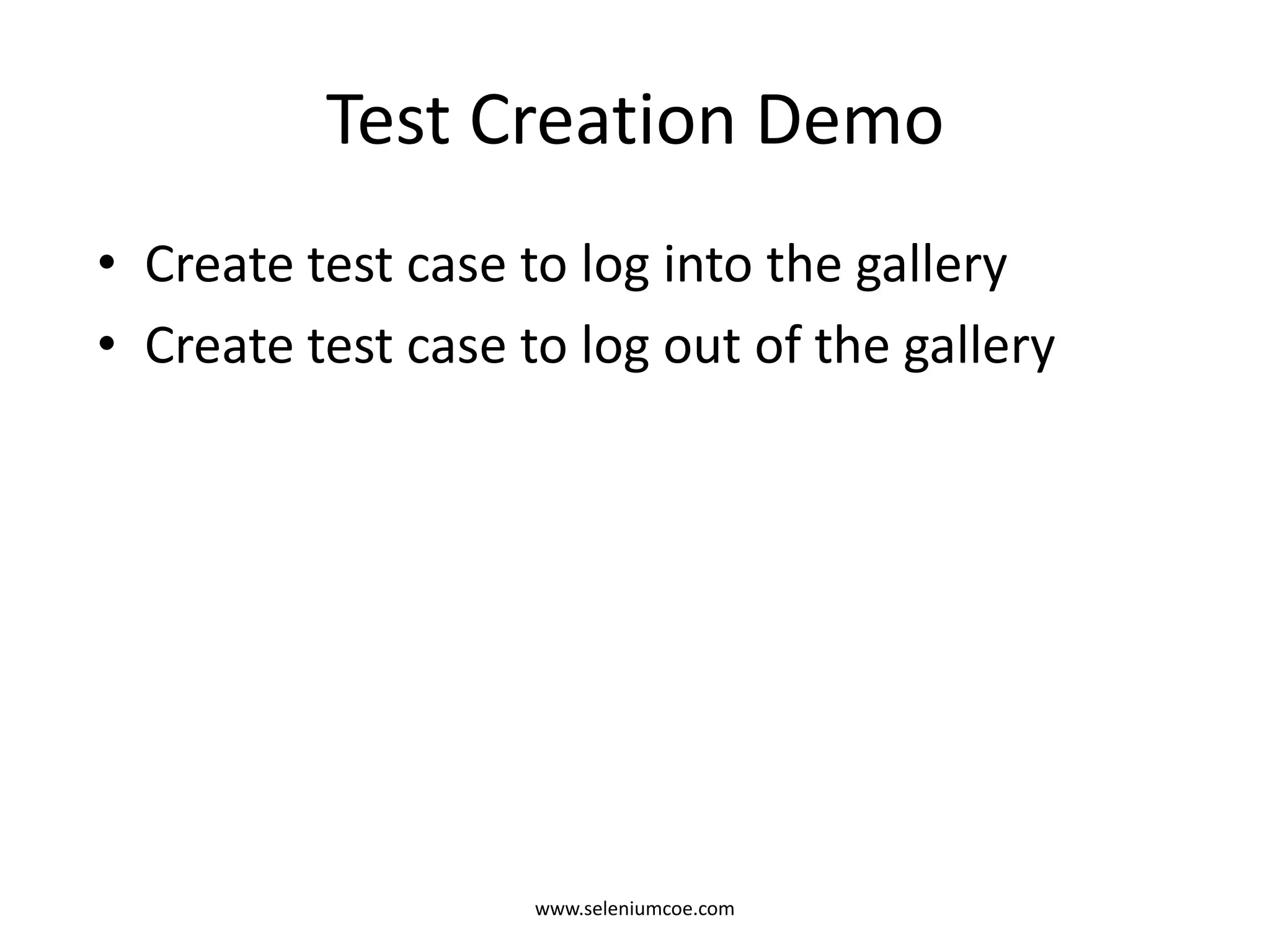

- 6. Test Creation Demo •Create test case to log into the gallery • Create test case to log out of the gallery www.seleniumcoe.com

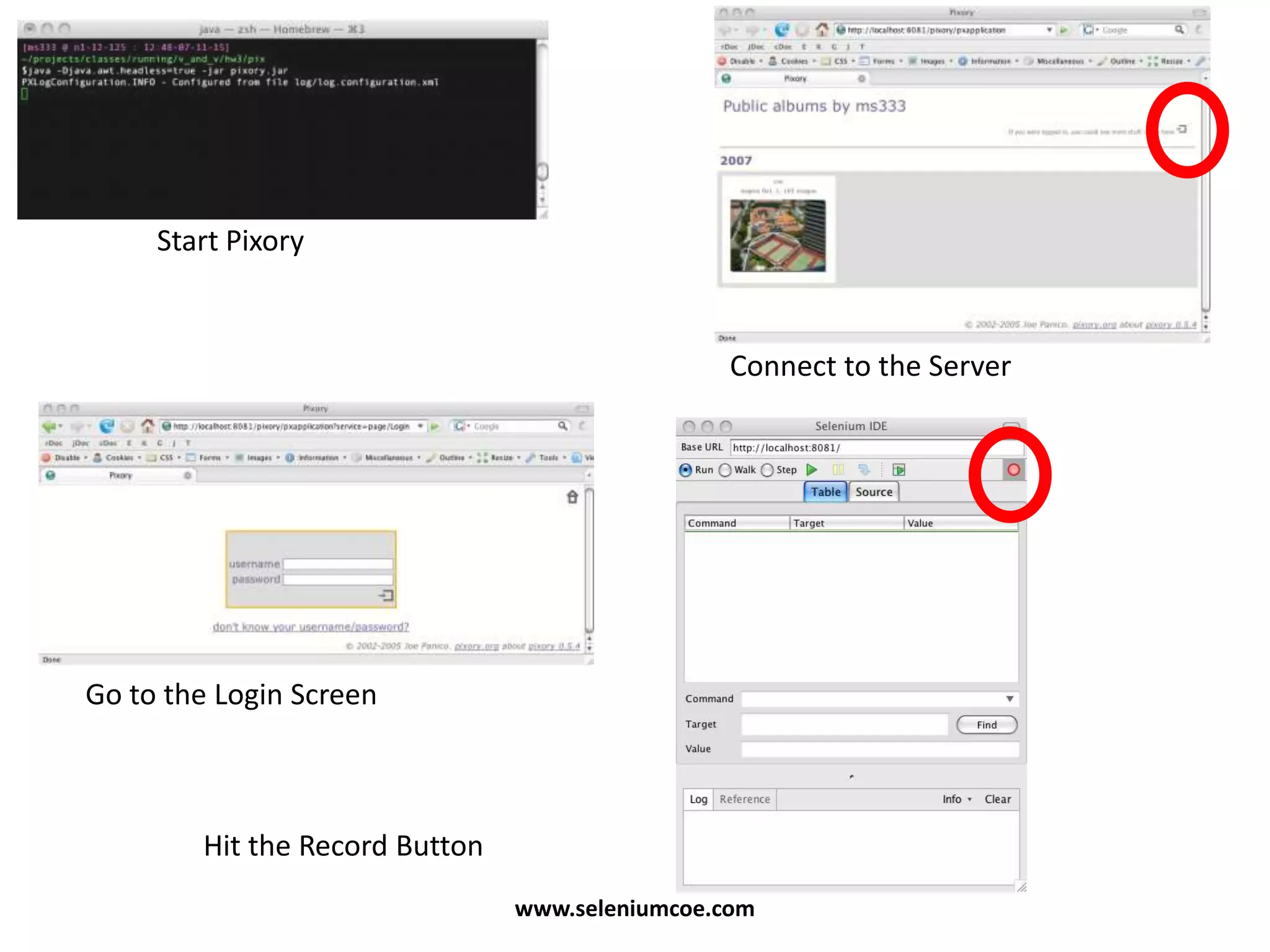

- 7. Start Pixory Connect tothe Server Go to the Login Screen Hit the Record Button www.seleniumcoe.com

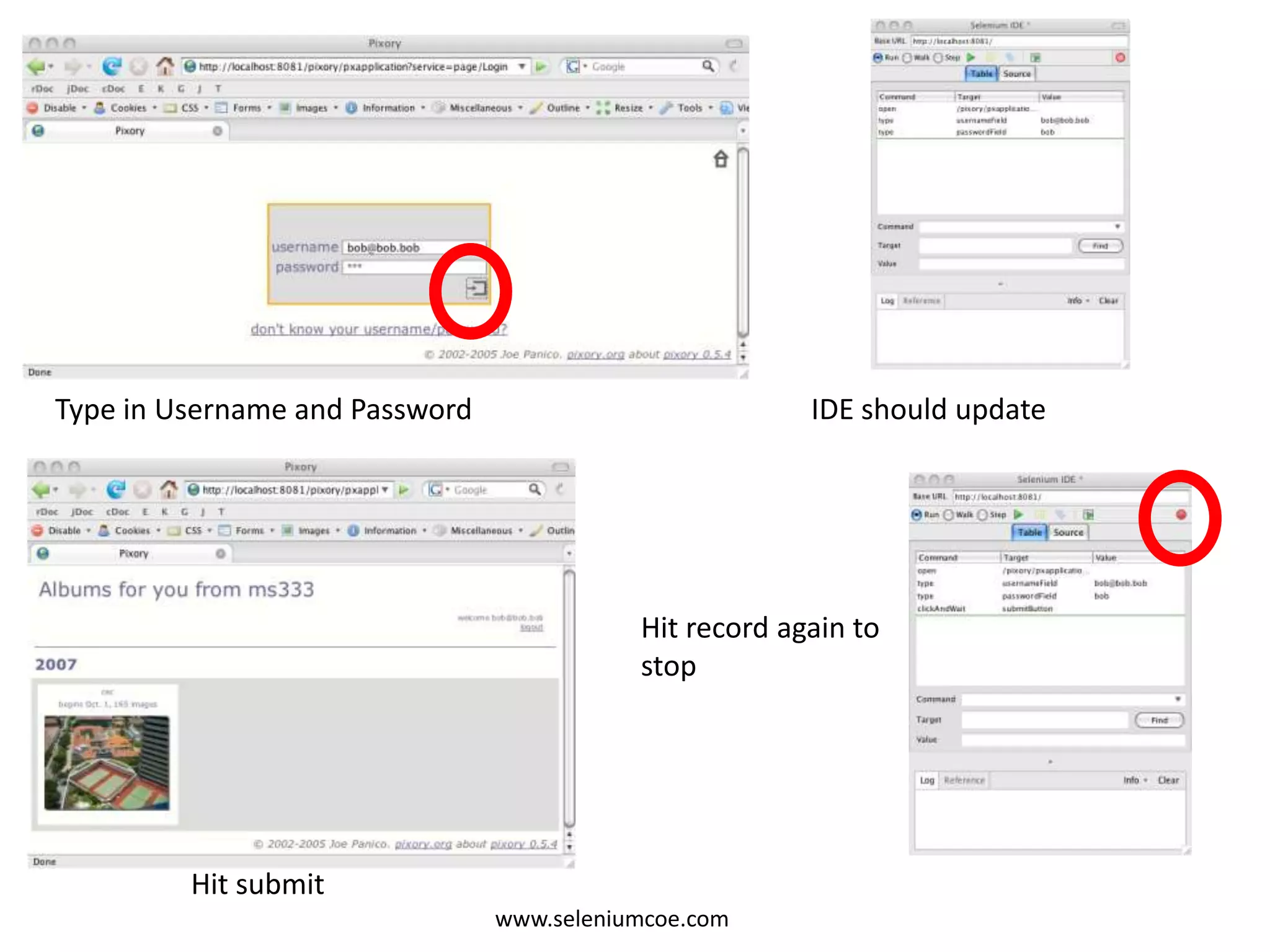

- 8. Type in Usernameand Password IDE should update Hit submit Hit record again to stop www.seleniumcoe.com

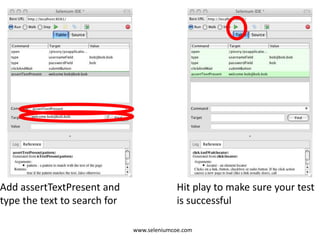

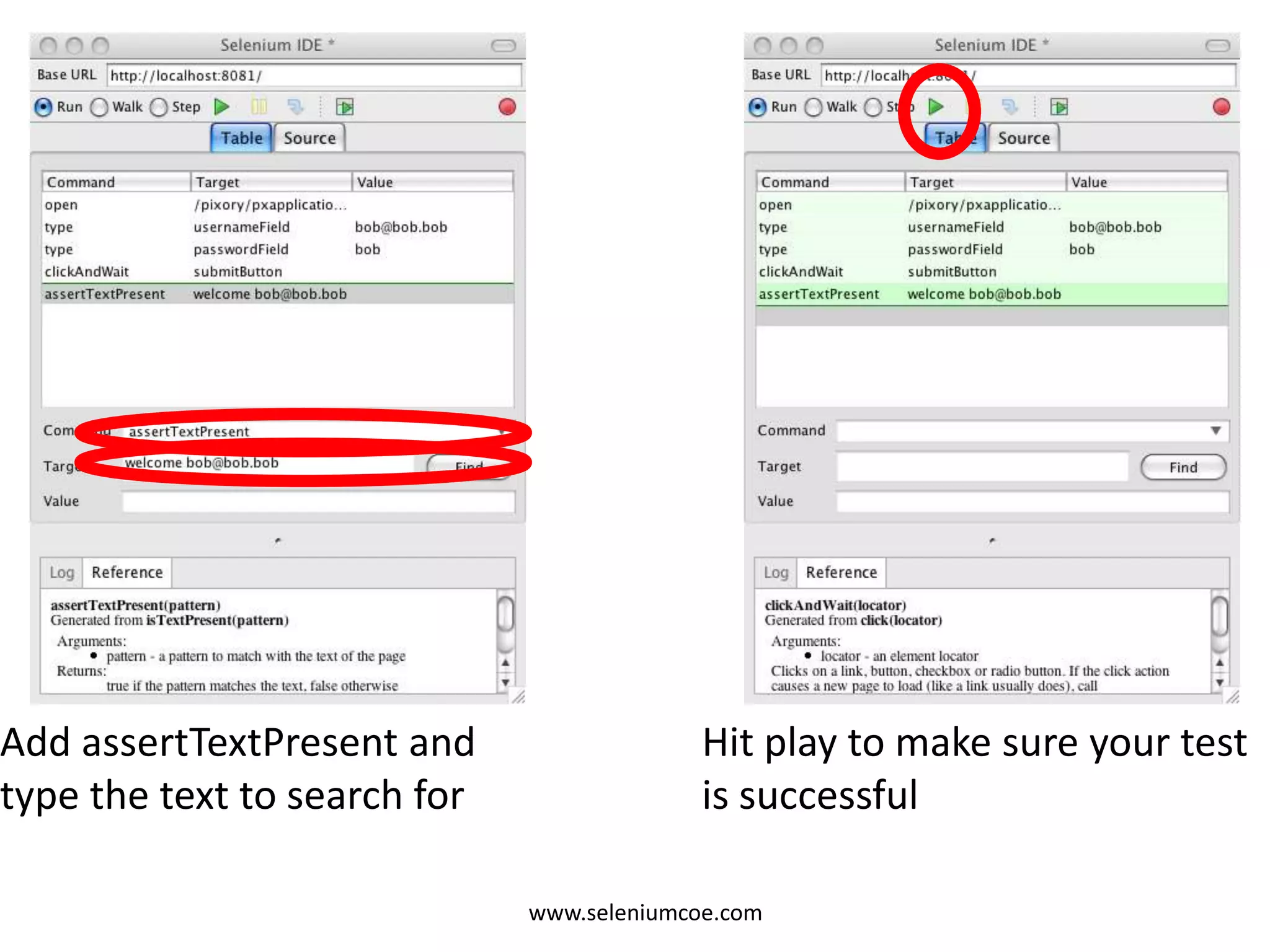

- 9. Add assertTextPresent and typethe text to search for Hit play to make sure your test is successful www.seleniumcoe.com

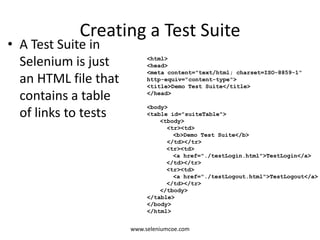

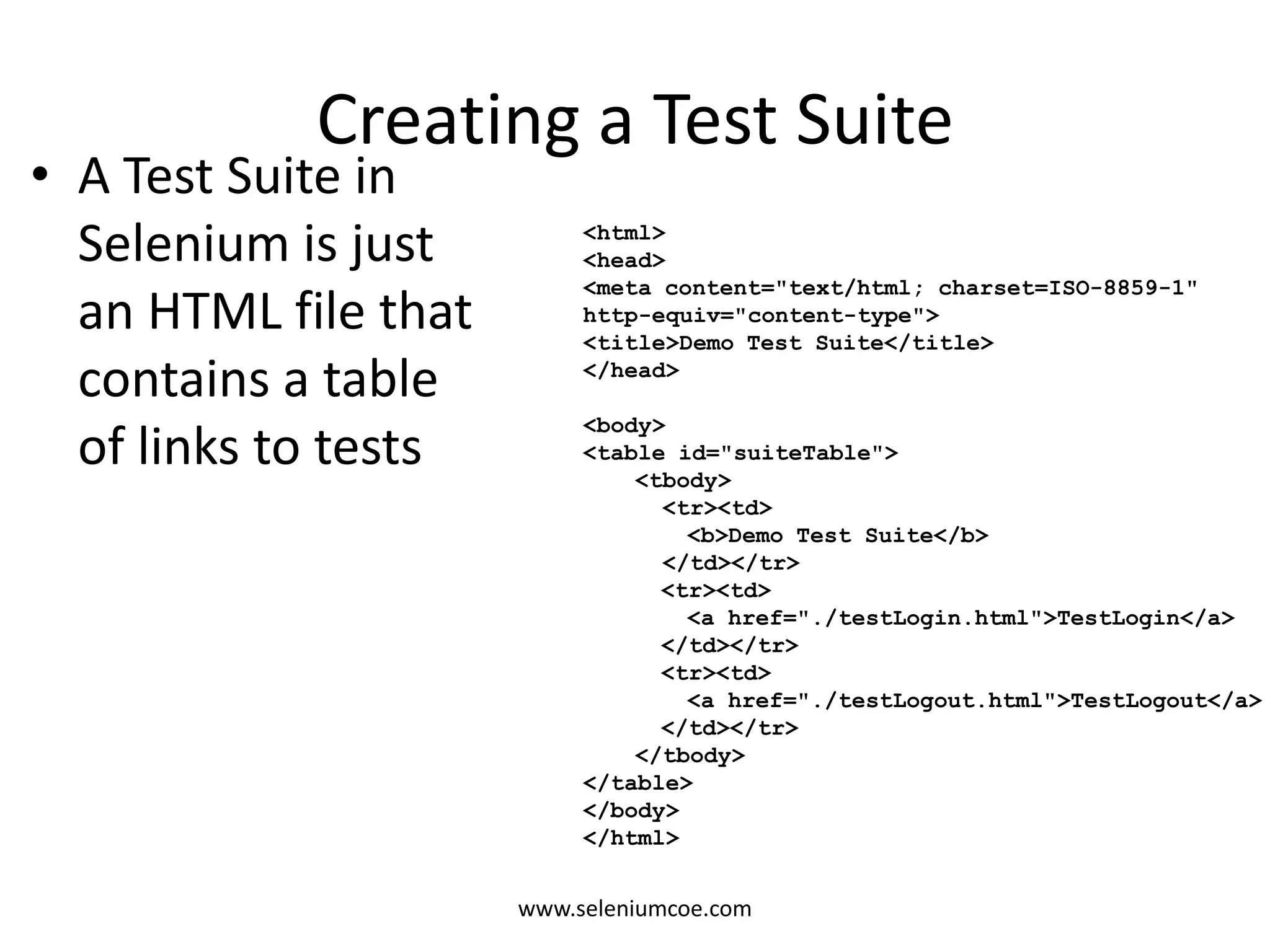

- 10. Creating a TestSuite • A Test Suite in Selenium is just an HTML file that contains a table of links to tests <html> <head> <meta content="text/html; charset=ISO-8859-1" http-equiv="content-type"> <title>Demo Test Suite</title> </head> <body> <table id="suiteTable"> <tbody> <tr><td> <b>Demo Test Suite</b> </td></tr> <tr><td> <a href="./testLogin.html">TestLogin</a> </td></tr> <tr><td> <a href="./testLogout.html">TestLogout</a> </td></tr> </tbody> </table> </body> </html> www.seleniumcoe.com

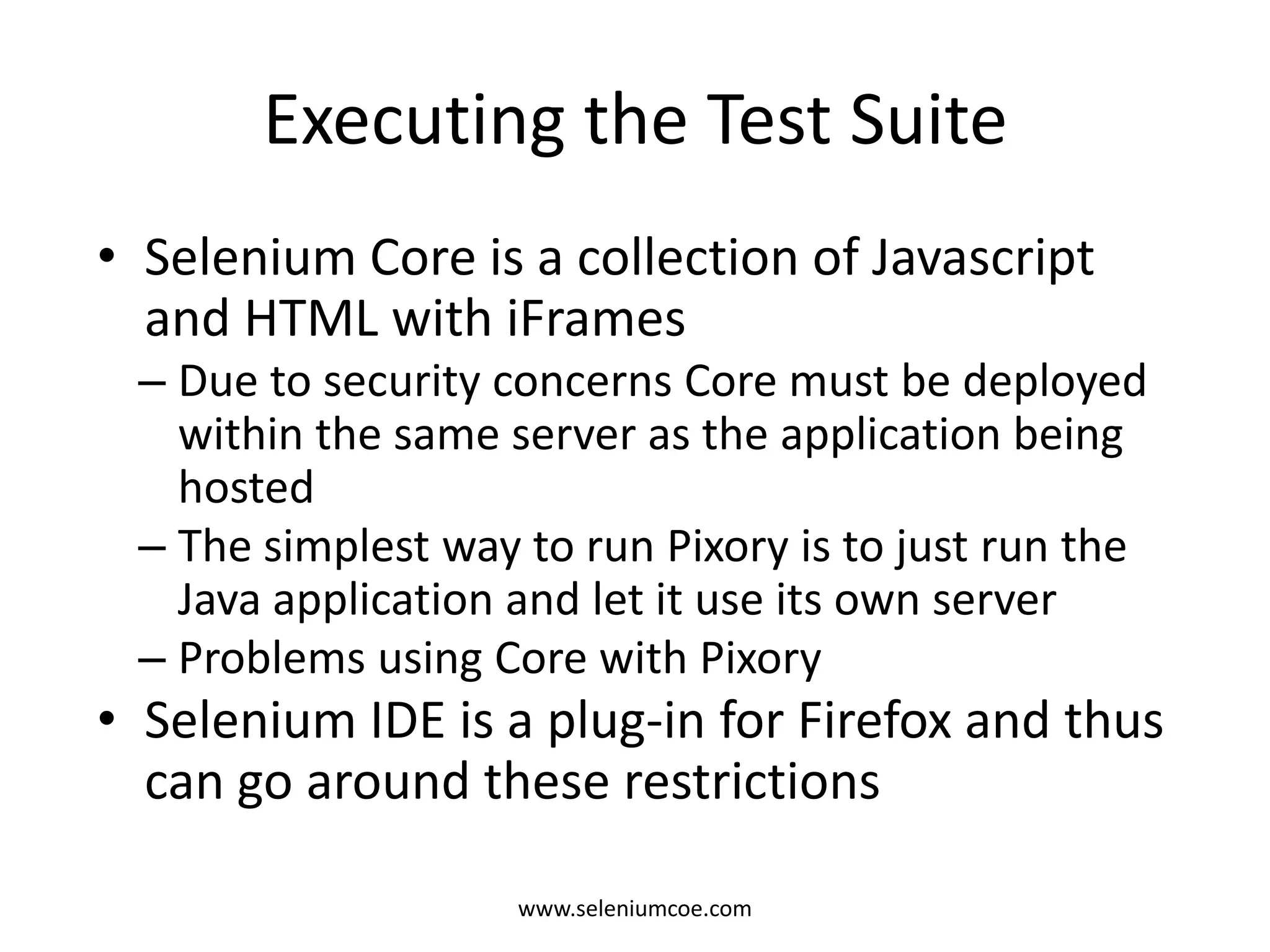

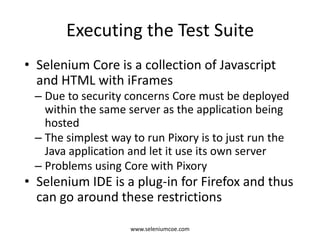

- 11. Executing the TestSuite • Selenium Core is a collection of Javascript and HTML with iFrames – Due to security concerns Core must be deployed within the same server as the application being hosted – The simplest way to run Pixory is to just run the Java application and let it use its own server – Problems using Core with Pixory • Selenium IDE is a plug-in for Firefox and thus can go around these restrictions www.seleniumcoe.com

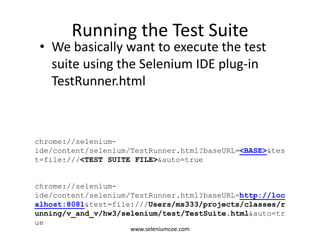

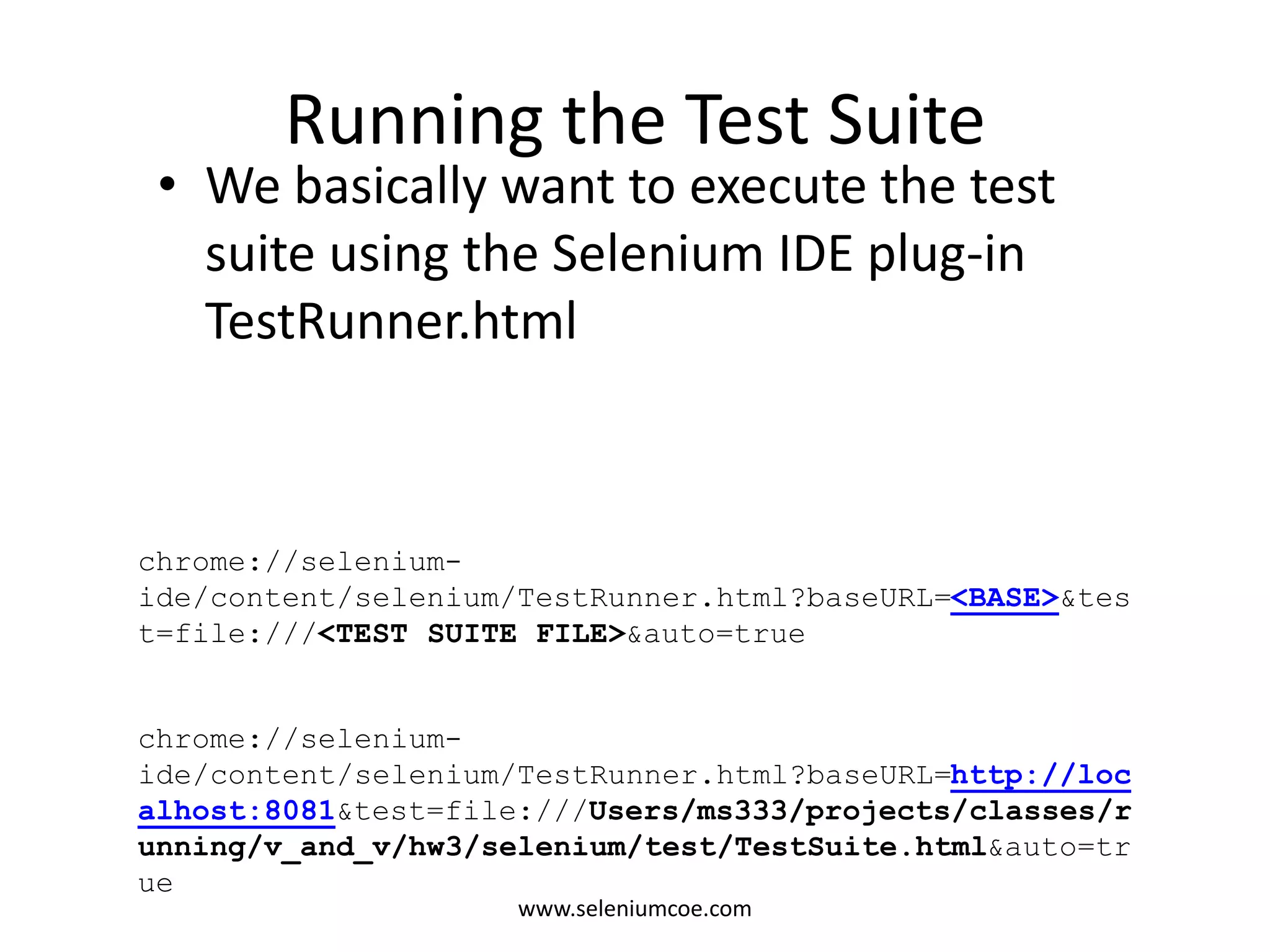

- 12. Running the TestSuite • We basically want to execute the test suite using the Selenium IDE plug-in TestRunner.html chrome://selenium- ide/content/selenium/TestRunner.html?baseURL=<BASE>&tes t=file:///<TEST SUITE FILE>&auto=true chrome://selenium- ide/content/selenium/TestRunner.html?baseURL=http://loc alhost:8081&test=file:///Users/ms333/projects/classes/r unning/v_and_v/hw3/selenium/test/TestSuite.html&auto=tr ue www.seleniumcoe.com
- 13.

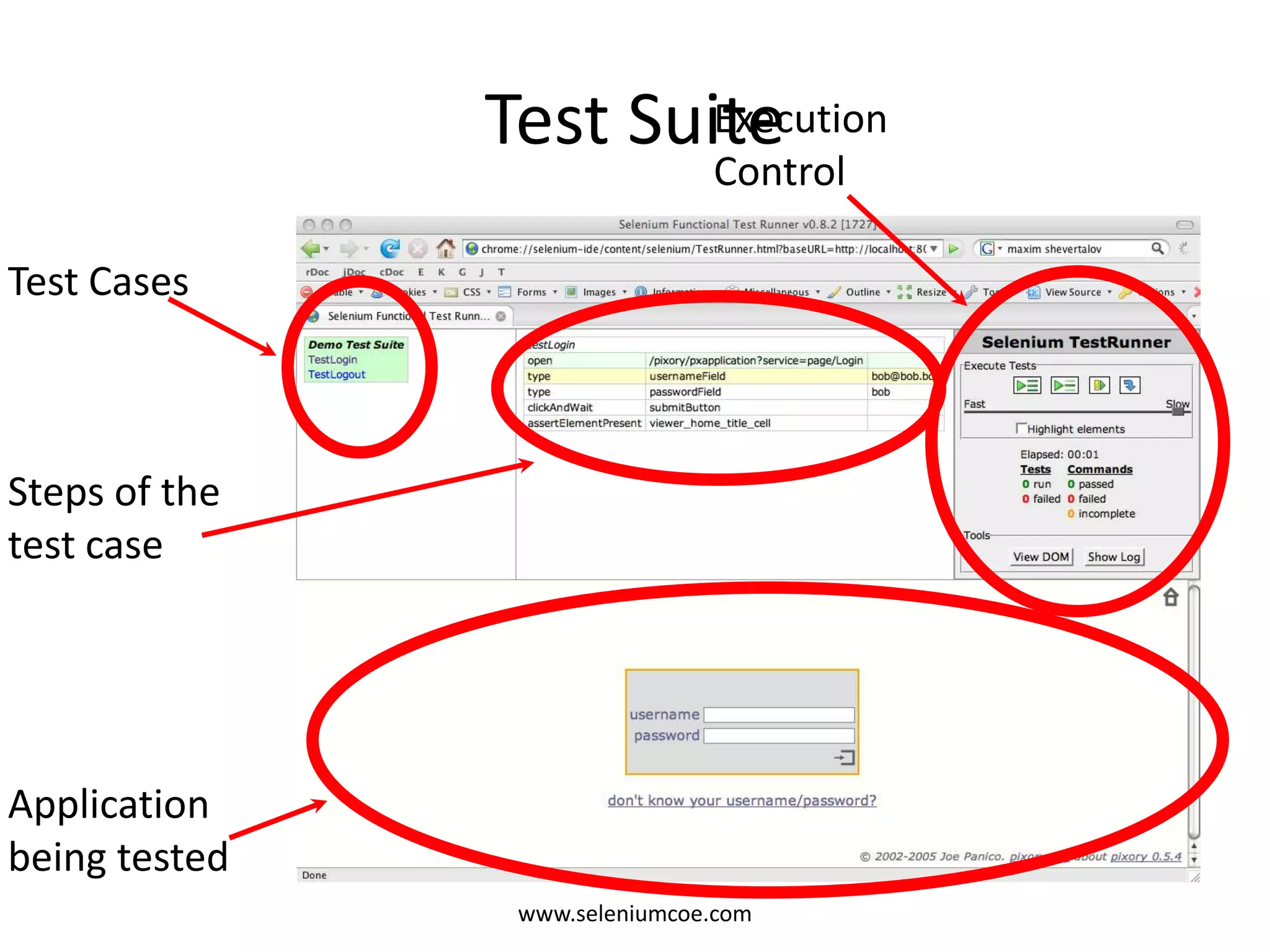

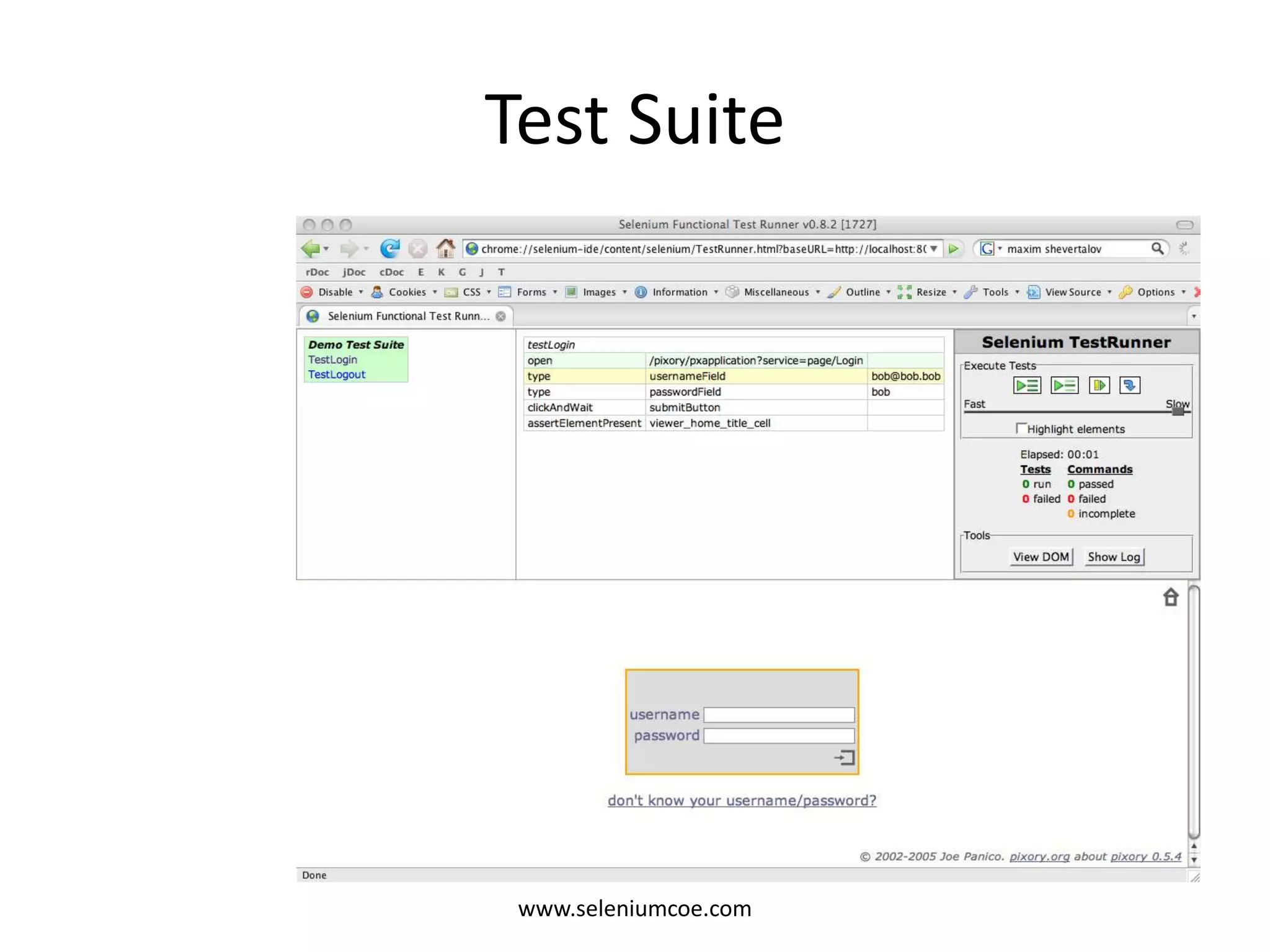

- 14. Test Suite Application being tested TestCases Steps of the test case Execution Control www.seleniumcoe.com

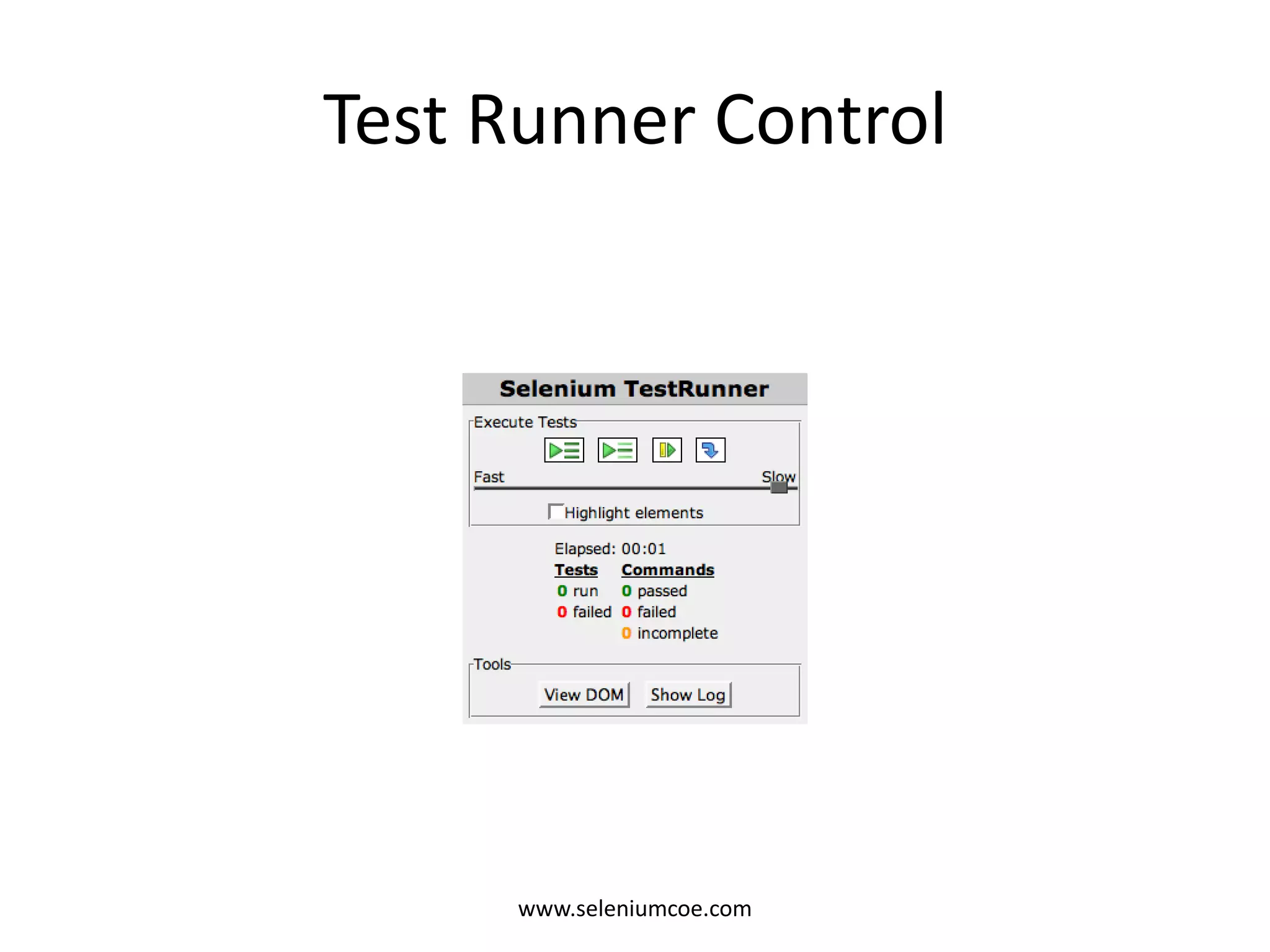

- 15.

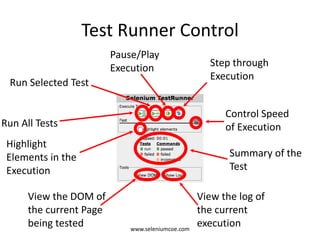

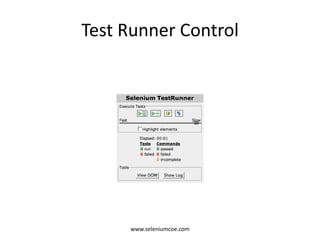

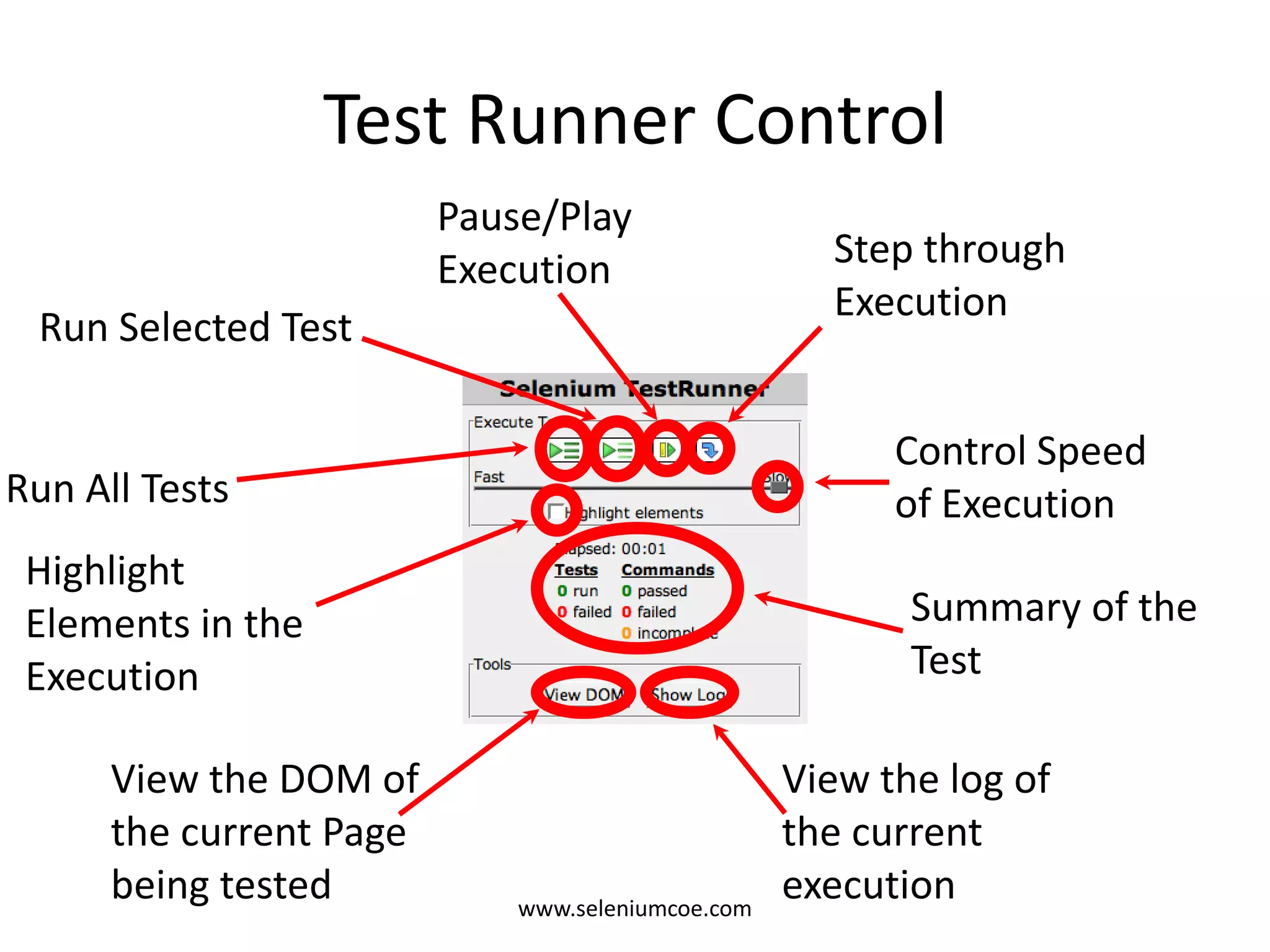

- 16. Test Runner Control RunAll Tests Run Selected Test Pause/Play Execution Step through Execution Control Speed of Execution Highlight Elements in the Execution View the DOM of the current Page being tested Summary of the Test View the log of the current executionwww.seleniumcoe.com

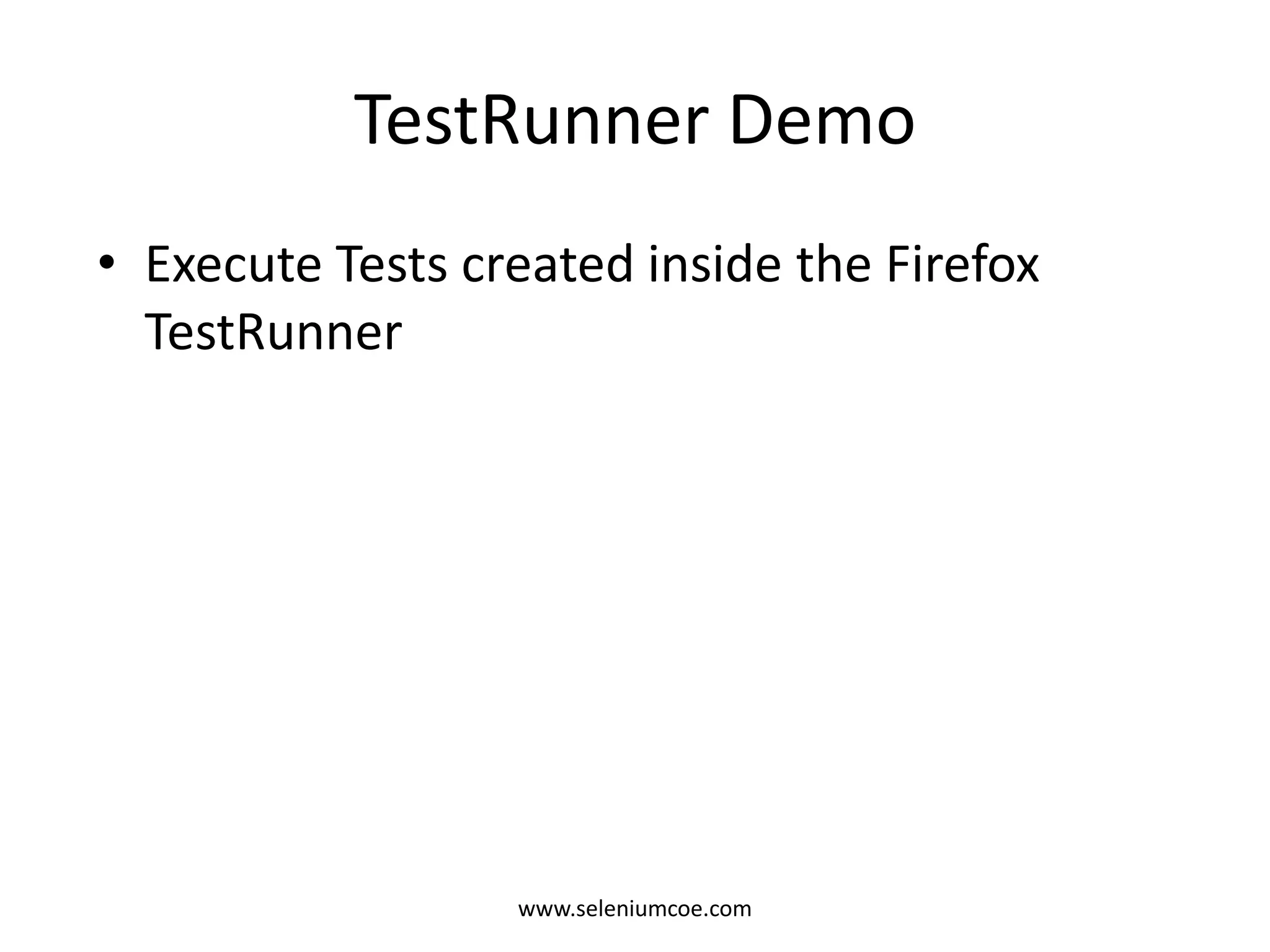

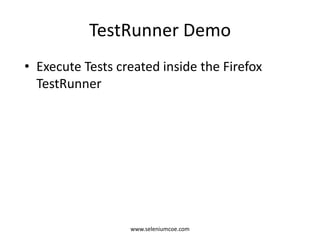

- 17. TestRunner Demo • ExecuteTests created inside the Firefox TestRunner www.seleniumcoe.com
