SOFTWARE TESTING UNIT-4

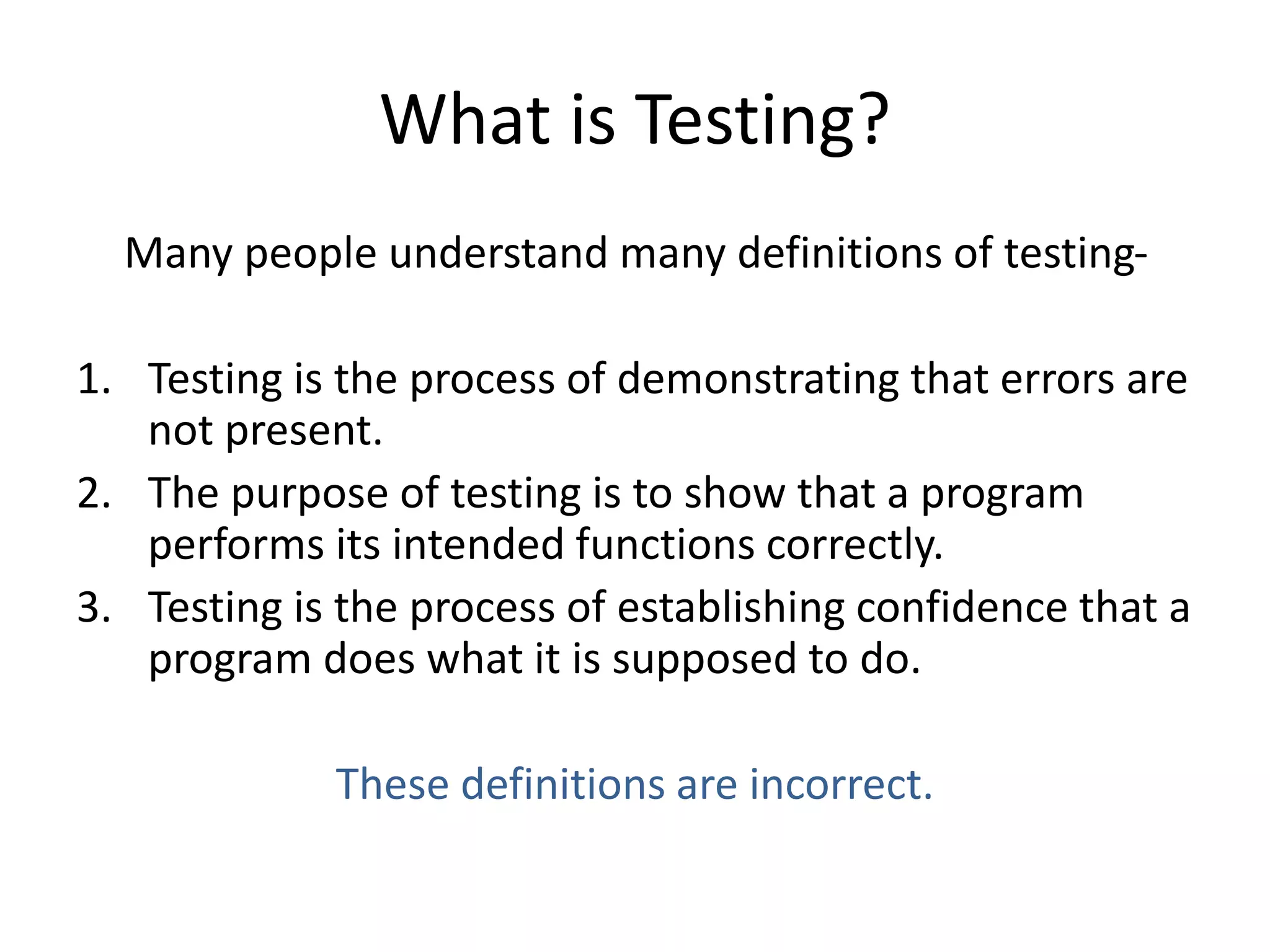

What is Testing?
Many people understand many definitions of testing-
1. Testing is the process of demonstrating that errors are
not present.
2. The purpose of testing is to show that a program
performs its intended functions correctly.
3. Testing is the process of establishing confidence that a
program does what it is supposed to do.
These definitions are incorrect.

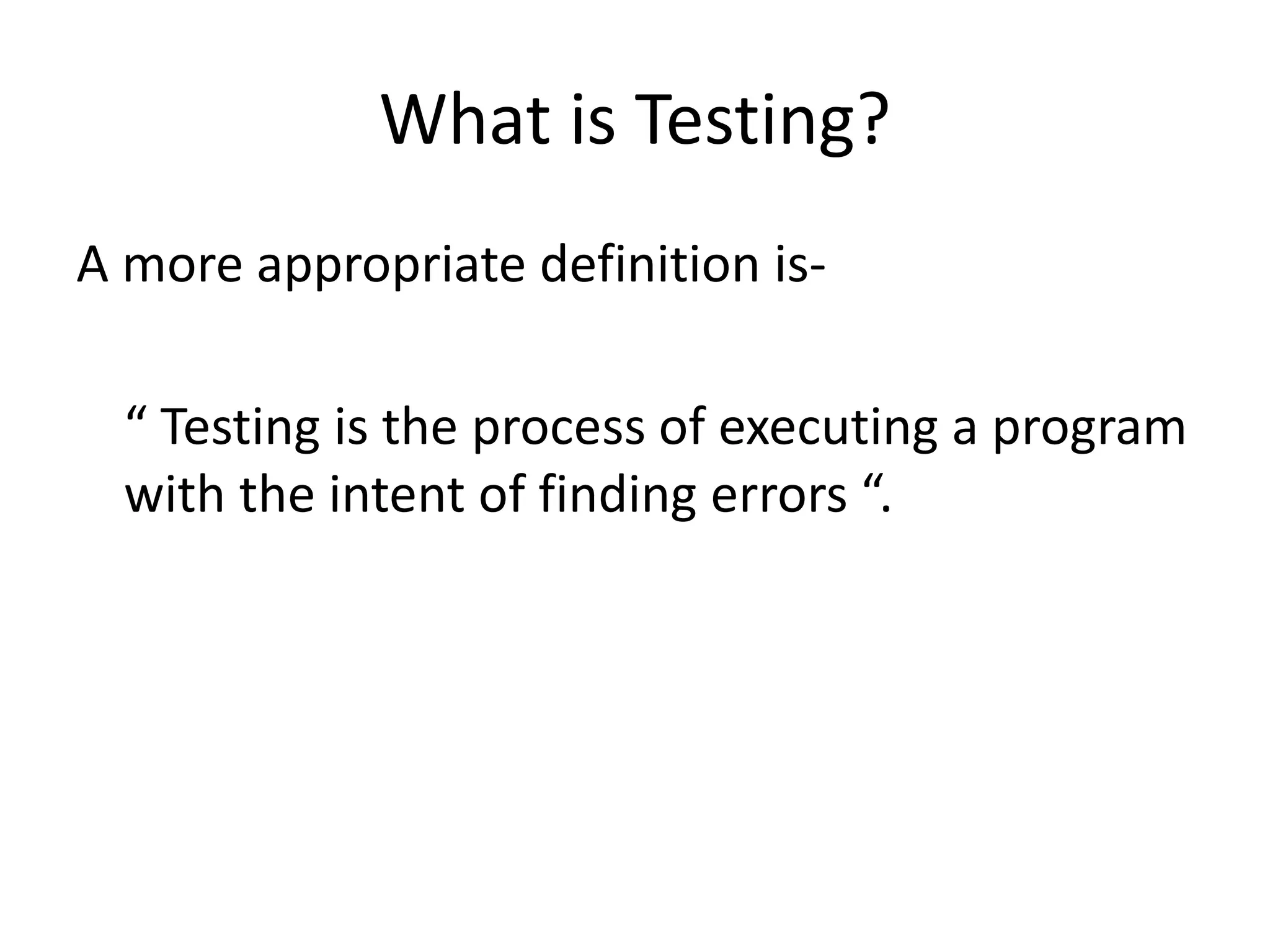

What is Testing?
A more appropriate definition is-
“ Testing is the process of executing a program
with the intent of finding errors “.

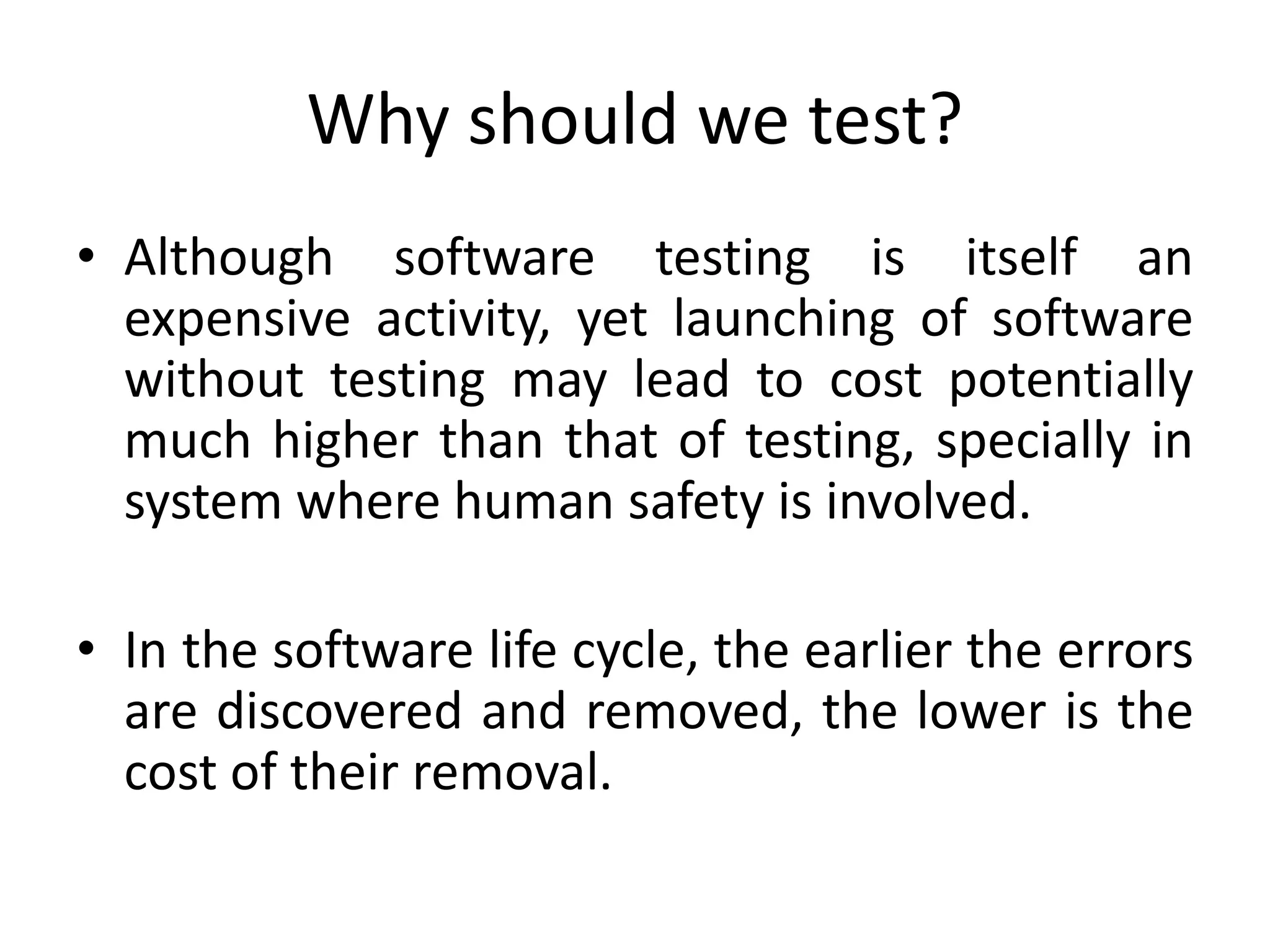

Why should we test?
• Although software testing is itself an
expensive activity, yet launching of software
without testing may lead to cost potentially
much higher than that of testing, specially in
system where human safety is involved.
• In the software life cycle, the earlier the errors
are discovered and removed, the lower is the
cost of their removal.

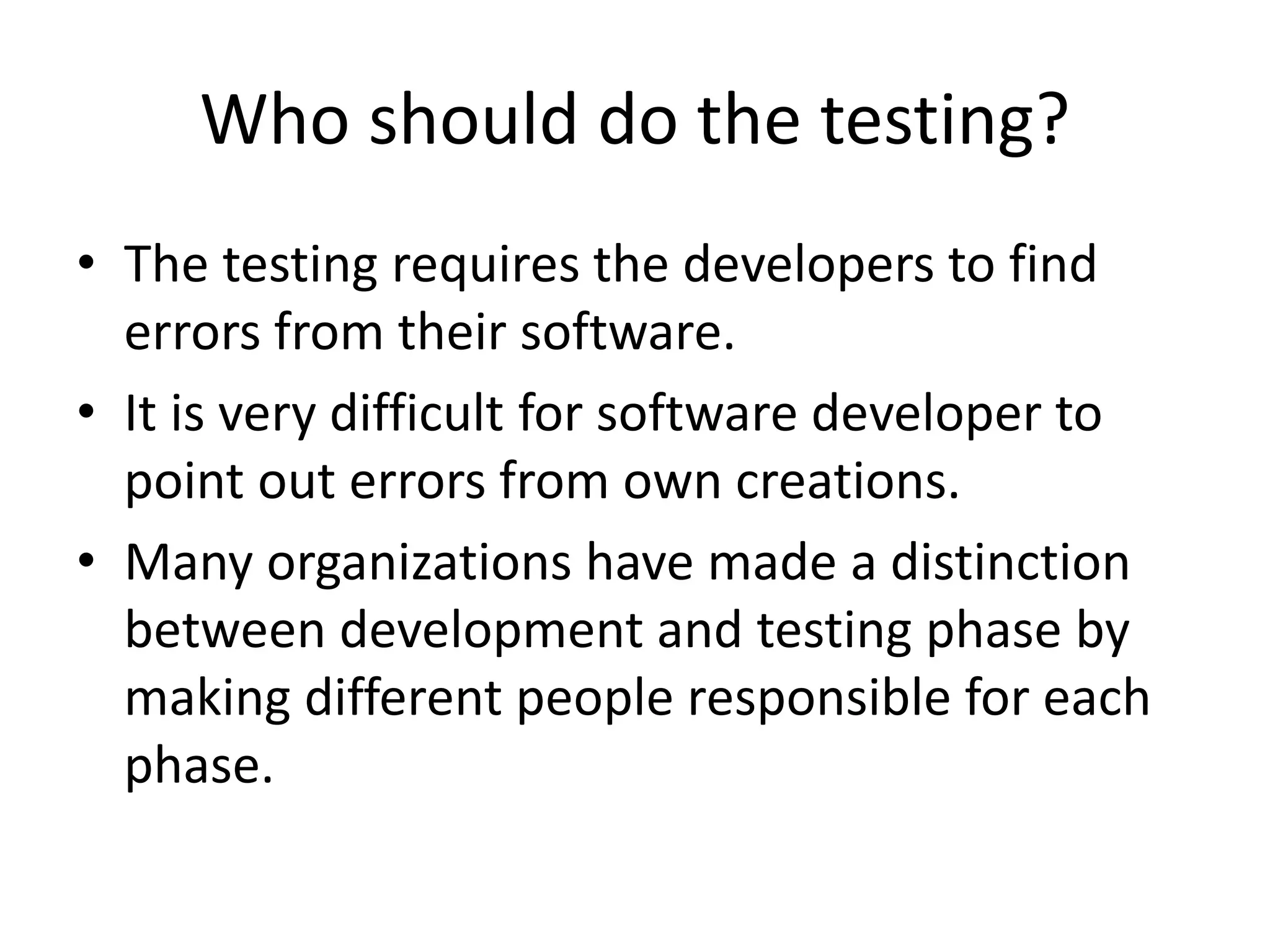

Who should do the testing?
• The testing requires the developers to find
errors from their software.
• It is very difficult for software developer to
point out errors from own creations.
• Many organizations have made a distinction
between development and testing phase by
making different people responsible for each
phase.

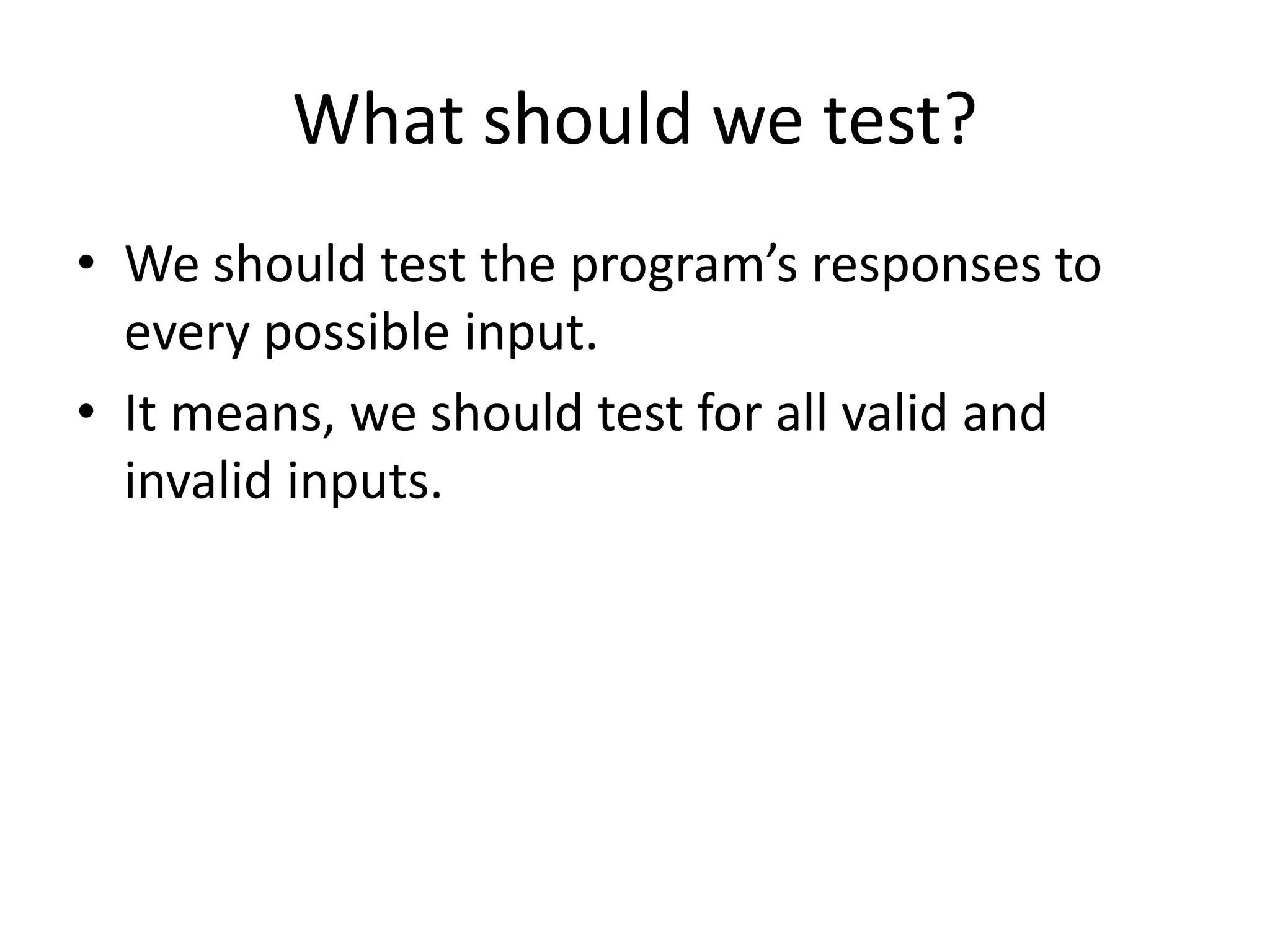

What should we test?
• We should test the program’s responses to
every possible input.
• It means, we should test for all valid and
invalid inputs.

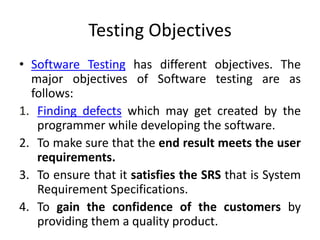

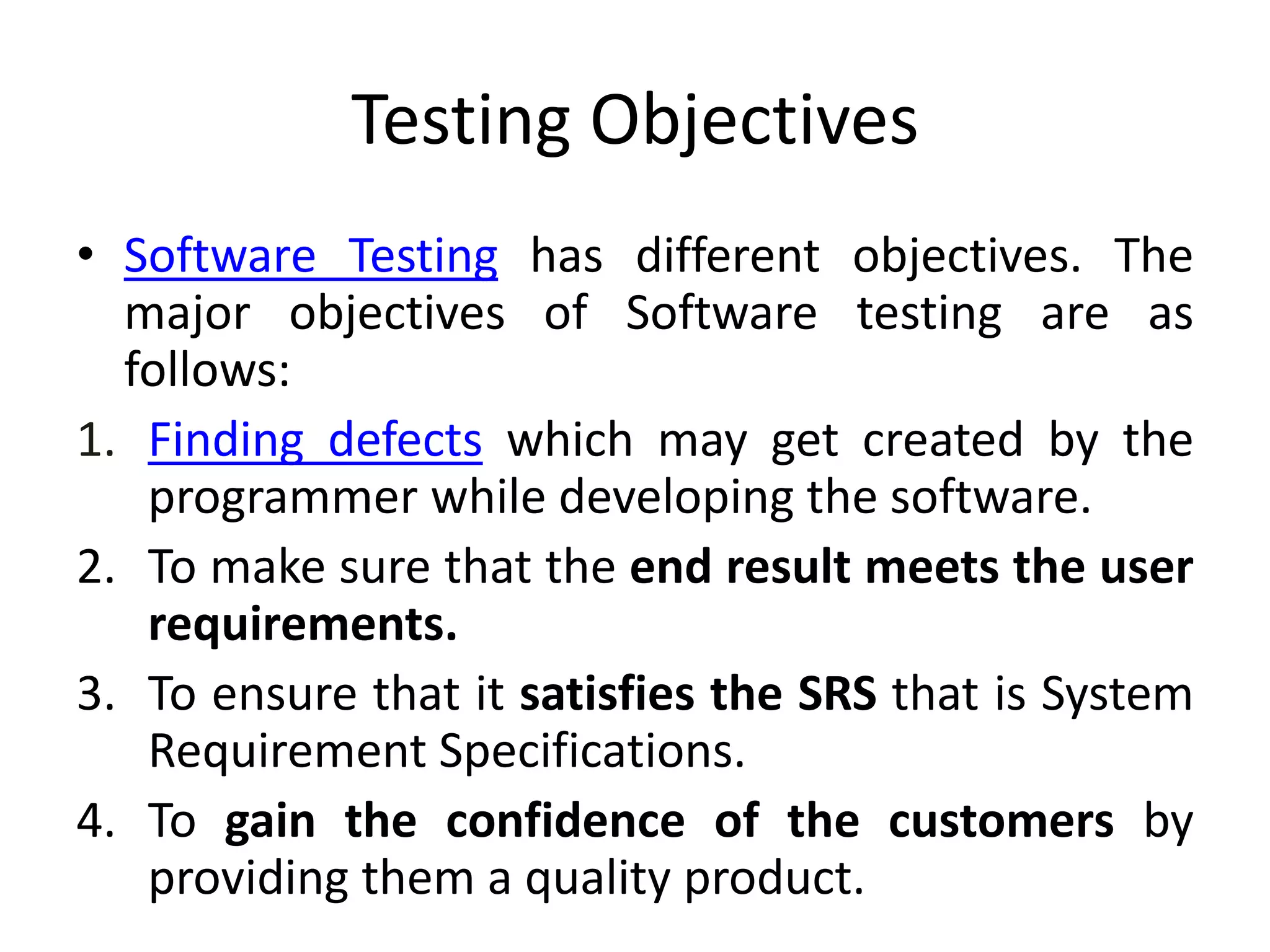

Testing Objectives
• Software Testing has different objectives. The
major objectives of Software testing are as
follows:
1. Finding defects which may get created by the
programmer while developing the software.
2. To make sure that the end result meets the user
requirements.
3. To ensure that it satisfies the SRS that is System
Requirement Specifications.
4. To gain the confidence of the customers by
providing them a quality product.

Principles of Software Testing
1. Testing shows presence of defects.
2. Exhaustive testing is impossible
3. Early testing
4. Defect clustering
5. The Pesticide Paradox
6. Testing is context dependent
7. Absence of errors fallacy.

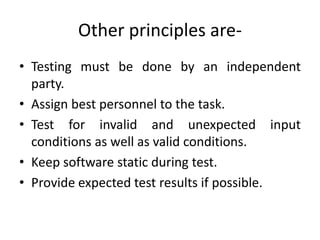

Other principles are-
• Testing must be done by an independent
party.
• Assign best personnel to the task.
• Test for invalid and unexpected input
conditions as well as valid conditions.
• Keep software static during test.
• Provide expected test results if possible.

1. TESTING SHOWS THE PRESENCE OF BUGS
Testing an application can only reveal that one or more defects exist in the application,
however, testing alone cannot prove that the application is error free. Therefore, it is
important to design test cases which find as many defects as possible.
2. EXHAUSTIVE TESTING IS IMPOSSIBLE
Unless the application under test has a very simple logical structure and limited input, it is
not possible to test all possible combinations of data and scenarios. For this reason, risk
and priorities are used to concentrate on the most important aspects to test.
3. EARLY TESTING
The sooner we start the testing activities the better we can utilize the available time. As
soon as the initial products, such the requirement or design documents are available, we
can start testing. It is common for the testing phase to get squeezed at the end of the
development lifecycle, i.e. when development has finished, so by starting testing early, we
can prepare testing for each level of the development lifecycle.
Another important point about early testing is that when defects are found earlier in the
lifecycle, they are much easier and cheaper to fix. It is much cheaper to change an
incorrect requirement than having to change a functionality in a large system that is not
working as requested or as designed!

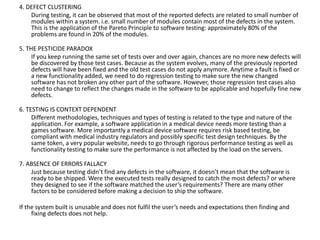

4. DEFECT CLUSTERING
During testing, it can be observed that most of the reported defects are related to small number of
modules within a system. i.e. small number of modules contain most of the defects in the system.
This is the application of the Pareto Principle to software testing: approximately 80% of the
problems are found in 20% of the modules.
5. THE PESTICIDE PARADOX
If you keep running the same set of tests over and over again, chances are no more new defects will
be discovered by those test cases. Because as the system evolves, many of the previously reported
defects will have been fixed and the old test cases do not apply anymore. Anytime a fault is fixed or
a new functionality added, we need to do regression testing to make sure the new changed
software has not broken any other part of the software. However, those regression test cases also
need to change to reflect the changes made in the software to be applicable and hopefully fine new
defects.
6. TESTING IS CONTEXT DEPENDENT
Different methodologies, techniques and types of testing is related to the type and nature of the
application. For example, a software application in a medical device needs more testing than a
games software. More importantly a medical device software requires risk based testing, be
compliant with medical industry regulators and possibly specific test design techniques. By the
same token, a very popular website, needs to go through rigorous performance testing as well as
functionality testing to make sure the performance is not affected by the load on the servers.
7. ABSENCE OF ERRORS FALLACY
Just because testing didn’t find any defects in the software, it doesn’t mean that the software is
ready to be shipped. Were the executed tests really designed to catch the most defects? or where
they designed to see if the software matched the user’s requirements? There are many other
factors to be considered before making a decision to ship the software.
If the system built is unusable and does not fulfil the user’s needs and expectations then finding and
fixing defects does not help.

• Other principles to note are:
– Testing must be done by an independent party.
Testing should not be performed by the person or team that
developed the software since they tend to defend the correctness
of the program.
– Assign best personnel to the task.
Because testing requires high creativity and responsibility only the
best personnel must be assigned to design, implement, and analyze
test cases, test data and test results.
– Test for invalid and unexpected input conditions as well as valid
conditions.
The program should generate correct messages when an invalid test
is encountered and should generate correct results when the test is
valid.
– Keep software static during test.
The program must not be modified during the implementation of
the set of designed test cases.
– Provide expected test results if possible.
A necessary part of test documentation is the specification of
expected results, even if providing such results is impractical

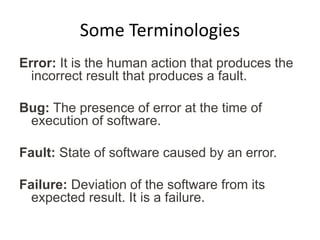

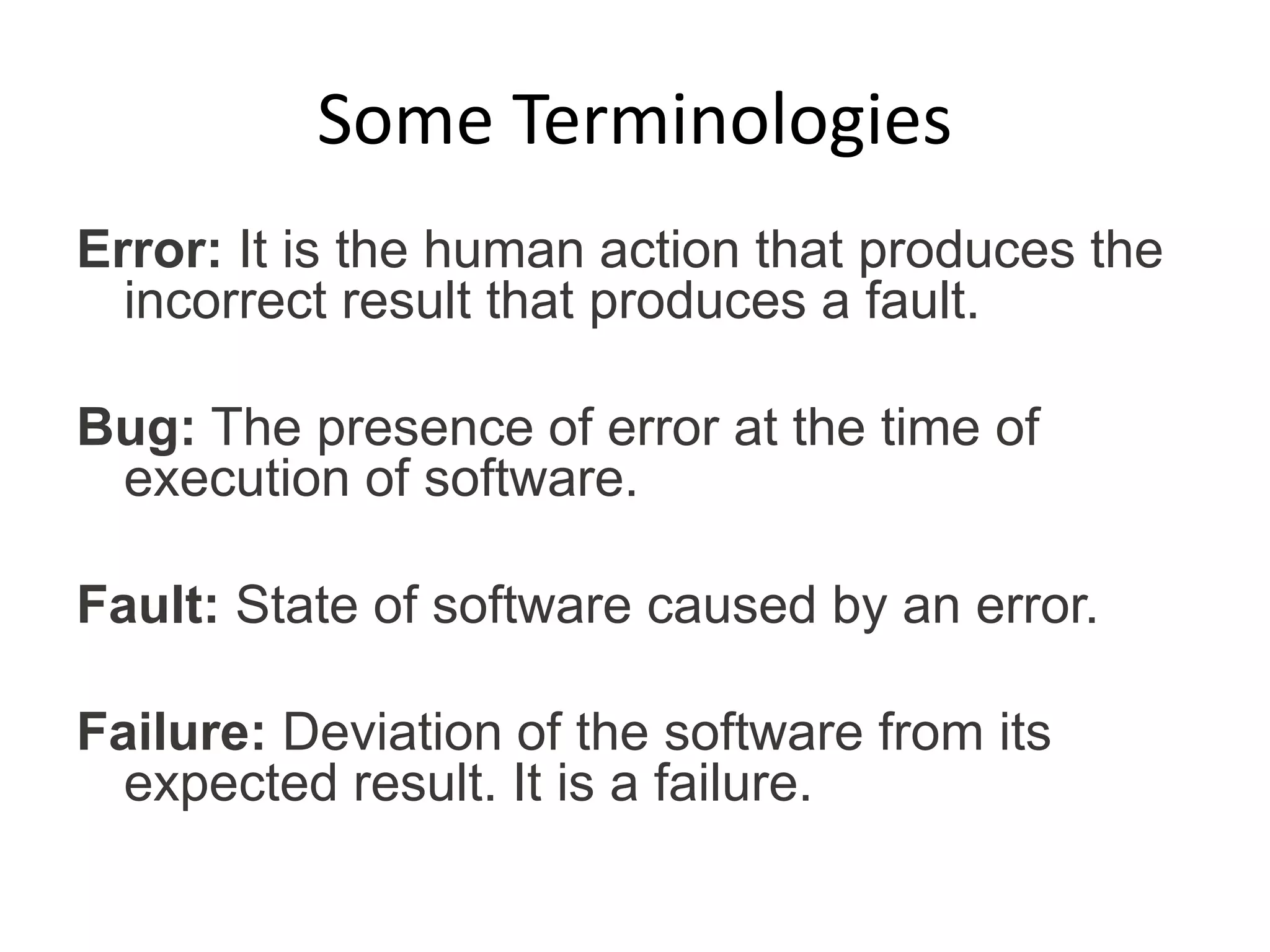

Some Terminologies
Error: It is the human action that produces the
incorrect result that produces a fault.
Bug: The presence of error at the time of
execution of software.
Fault: State of software caused by an error.
Failure: Deviation of the software from its
expected result. It is a failure.

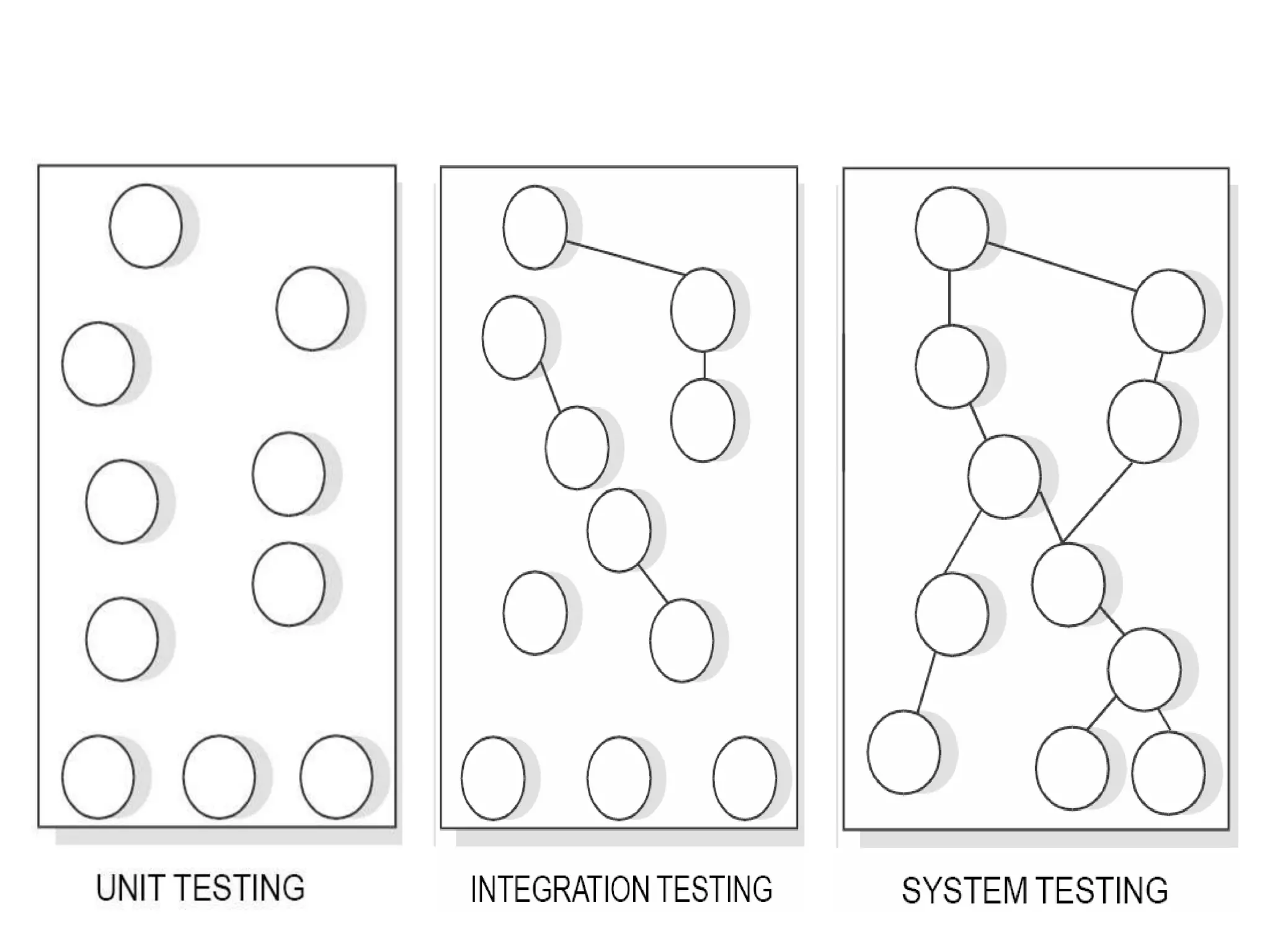

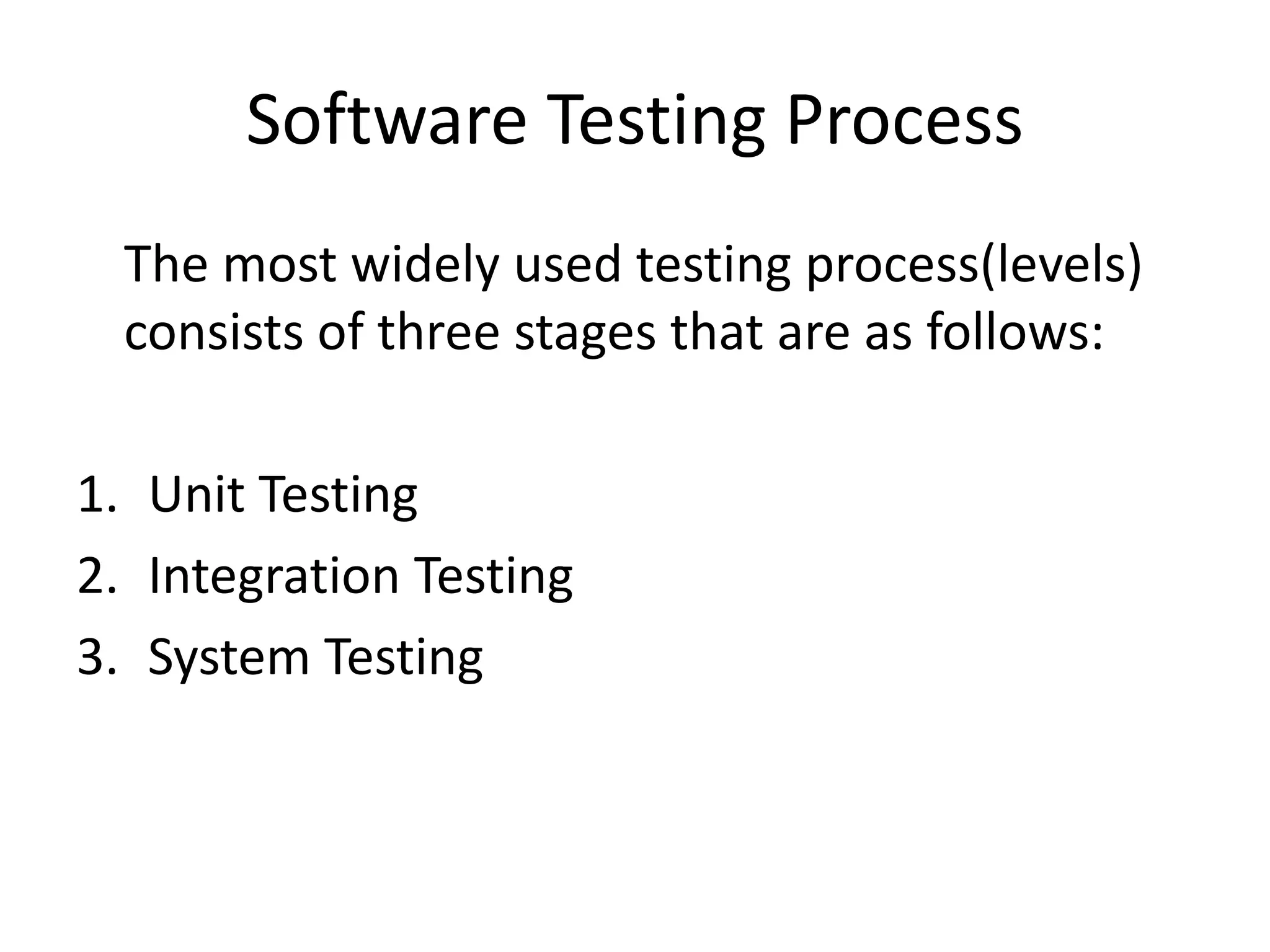

Software Testing Process
The most widely used testing process(levels)
consists of three stages that are as follows:
1. Unit Testing
2. Integration Testing
3. System Testing

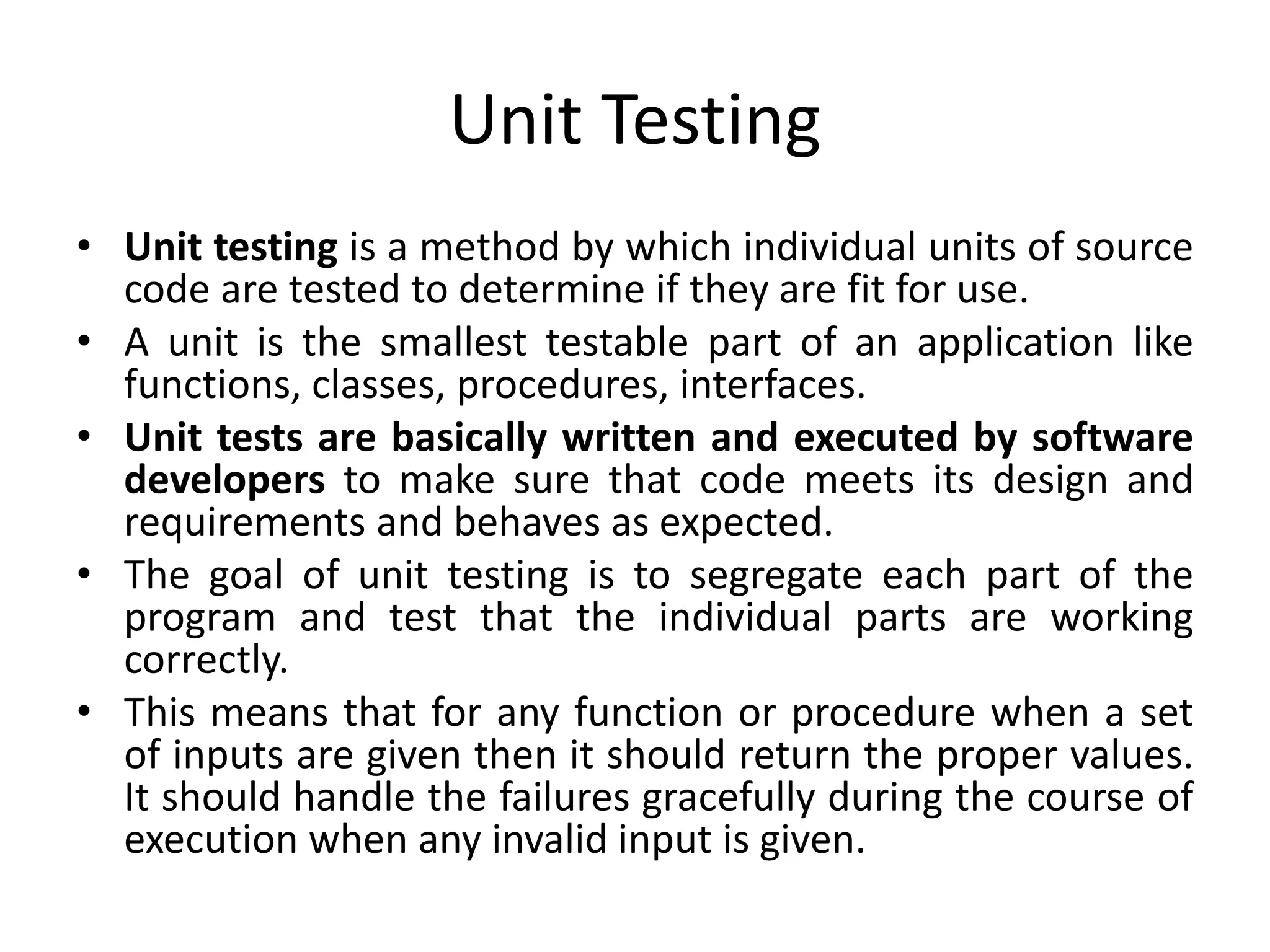

Unit Testing
• Unit testing is a method by which individual units of source
code are tested to determine if they are fit for use.
• A unit is the smallest testable part of an application like
functions, classes, procedures, interfaces.
• Unit tests are basically written and executed by software
developers to make sure that code meets its design and
requirements and behaves as expected.
• The goal of unit testing is to segregate each part of the
program and test that the individual parts are working
correctly.
• This means that for any function or procedure when a set
of inputs are given then it should return the proper values.
It should handle the failures gracefully during the course of
execution when any invalid input is given.

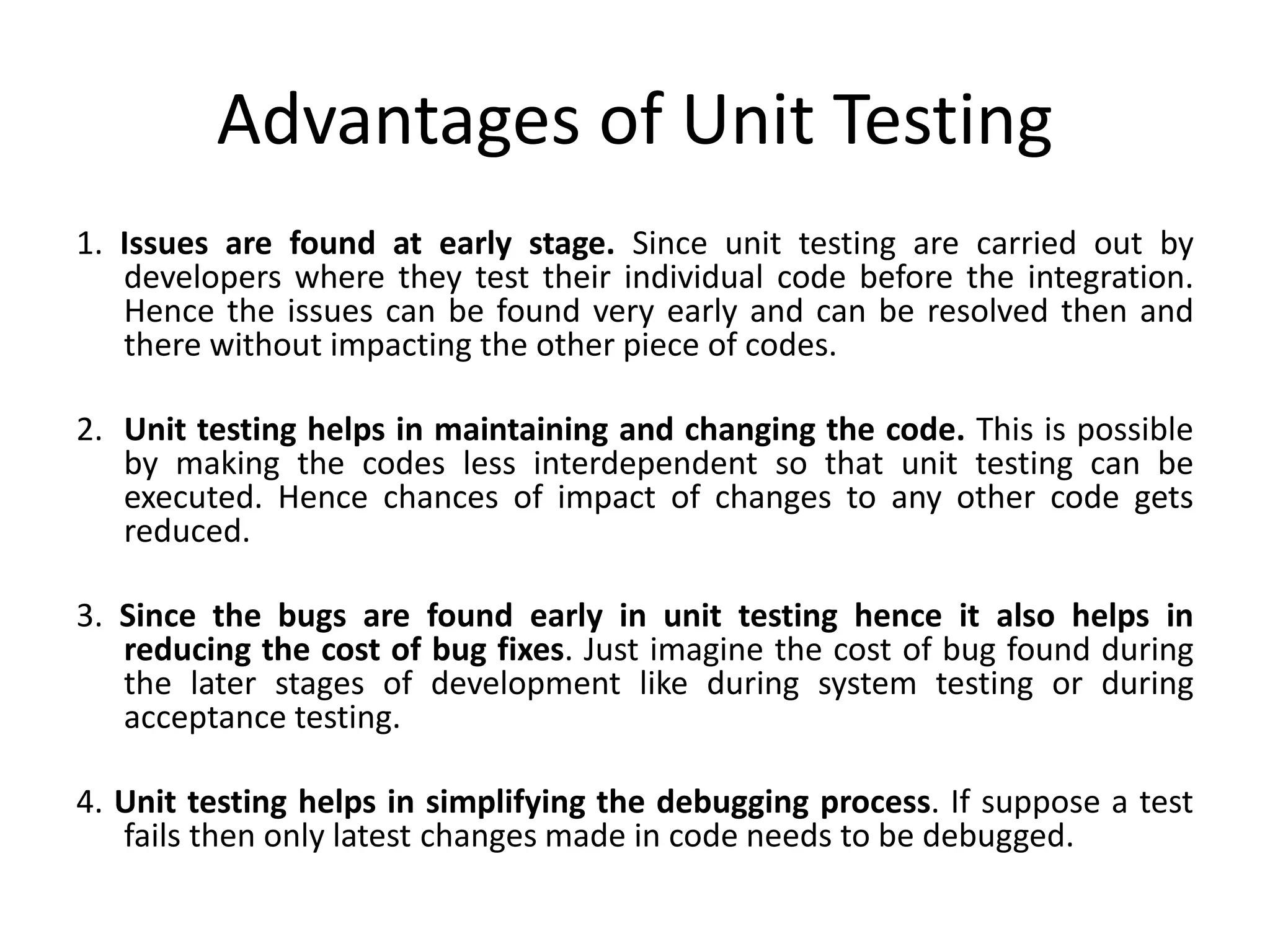

Advantages of Unit Testing
1. Issues are found at early stage. Since unit testing are carried out by
developers where they test their individual code before the integration.
Hence the issues can be found very early and can be resolved then and
there without impacting the other piece of codes.
2. Unit testing helps in maintaining and changing the code. This is possible
by making the codes less interdependent so that unit testing can be
executed. Hence chances of impact of changes to any other code gets
reduced.
3. Since the bugs are found early in unit testing hence it also helps in
reducing the cost of bug fixes. Just imagine the cost of bug found during
the later stages of development like during system testing or during
acceptance testing.
4. Unit testing helps in simplifying the debugging process. If suppose a test
fails then only latest changes made in code needs to be debugged.

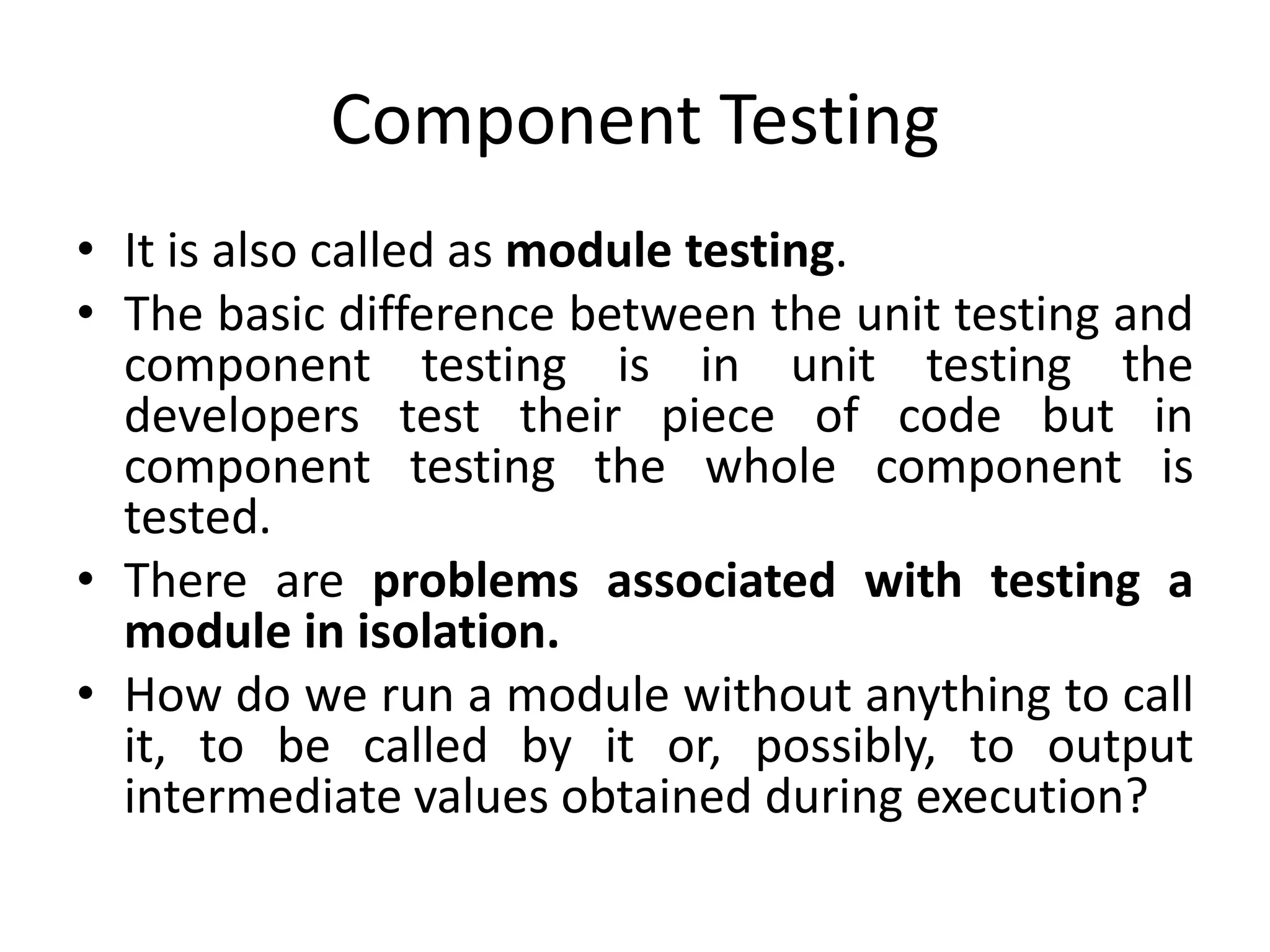

Component Testing
• It is also called as module testing.
• The basic difference between the unit testing and
component testing is in unit testing the
developers test their piece of code but in
component testing the whole component is
tested.
• There are problems associated with testing a
module in isolation.
• How do we run a module without anything to call
it, to be called by it or, possibly, to output
intermediate values obtained during execution?

• One approach is to construct an appropriate
driver routine to call it and, simple stubs to be
called by it, and to insert output statements in it.
• Stubs serve to replace modules that are
subordinate to (called by) the module to be
tested. A stub or dummy subprogram uses the
subordinate module’s interface, may do minimal
data manipulation, prints verification of entry,
and returns.
Stubs and drivers

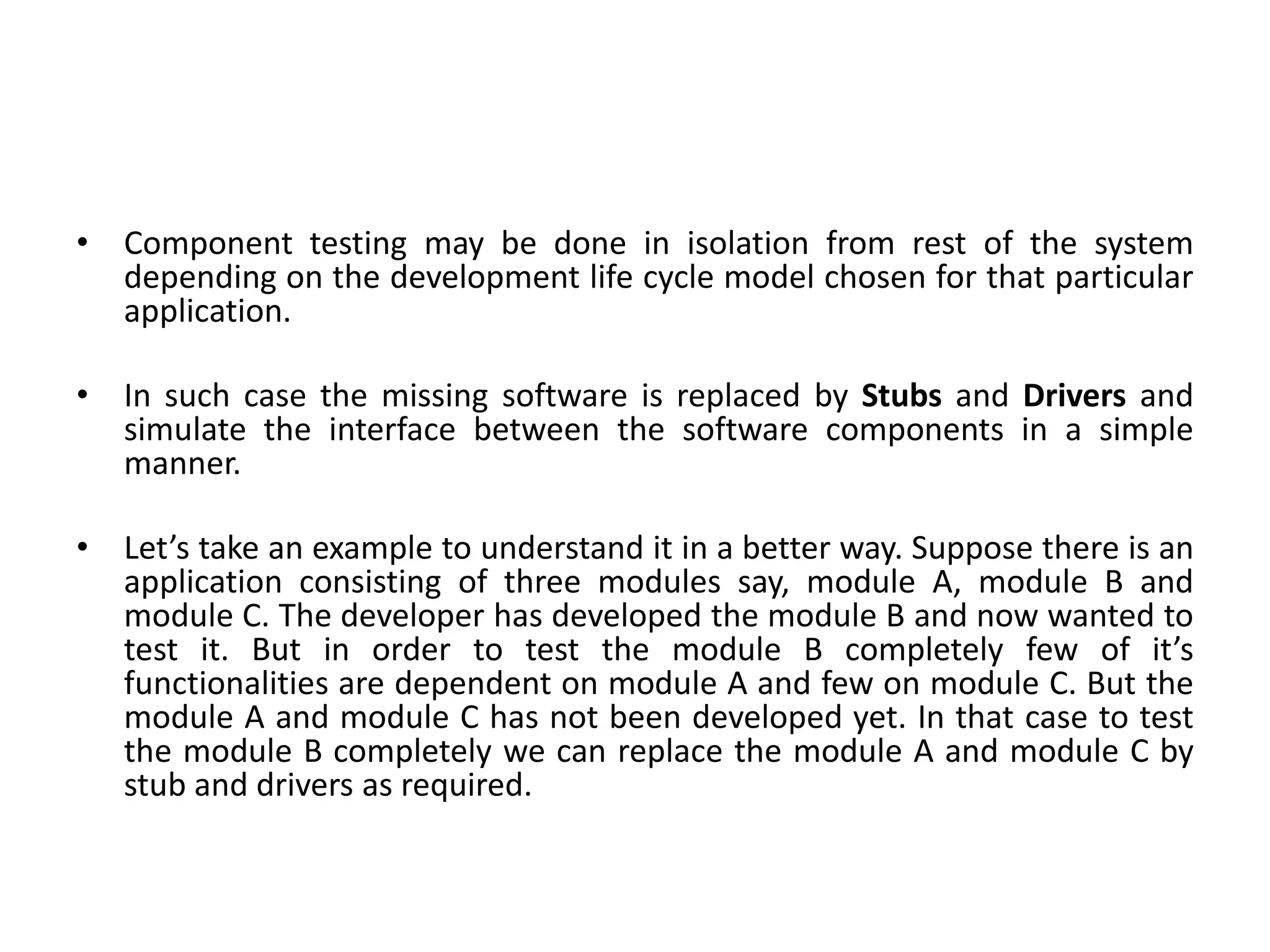

• Component testing may be done in isolation from rest of the system
depending on the development life cycle model chosen for that particular
application.
• In such case the missing software is replaced by Stubs and Drivers and
simulate the interface between the software components in a simple
manner.
• Let’s take an example to understand it in a better way. Suppose there is an
application consisting of three modules say, module A, module B and
module C. The developer has developed the module B and now wanted to
test it. But in order to test the module B completely few of it’s
functionalities are dependent on module A and few on module C. But the
module A and module C has not been developed yet. In that case to test
the module B completely we can replace the module A and module C by
stub and drivers as required.

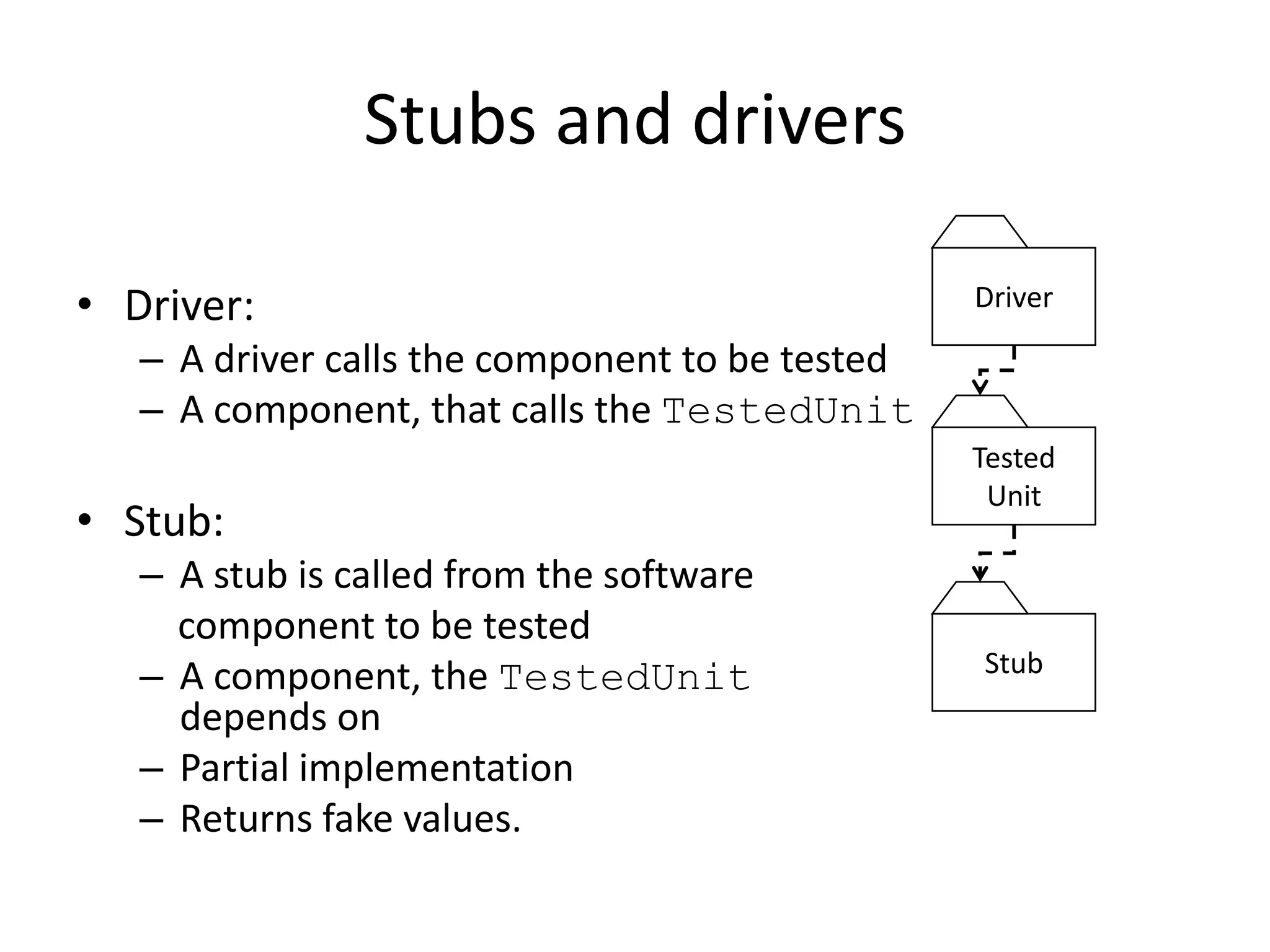

Stubs and drivers
• Driver:
– A driver calls the component to be tested
– A component, that calls the TestedUnit
• Stub:
– A stub is called from the software
component to be tested
– A component, the TestedUnit
depends on
– Partial implementation
– Returns fake values.
Driver
Tested
Unit
Stub

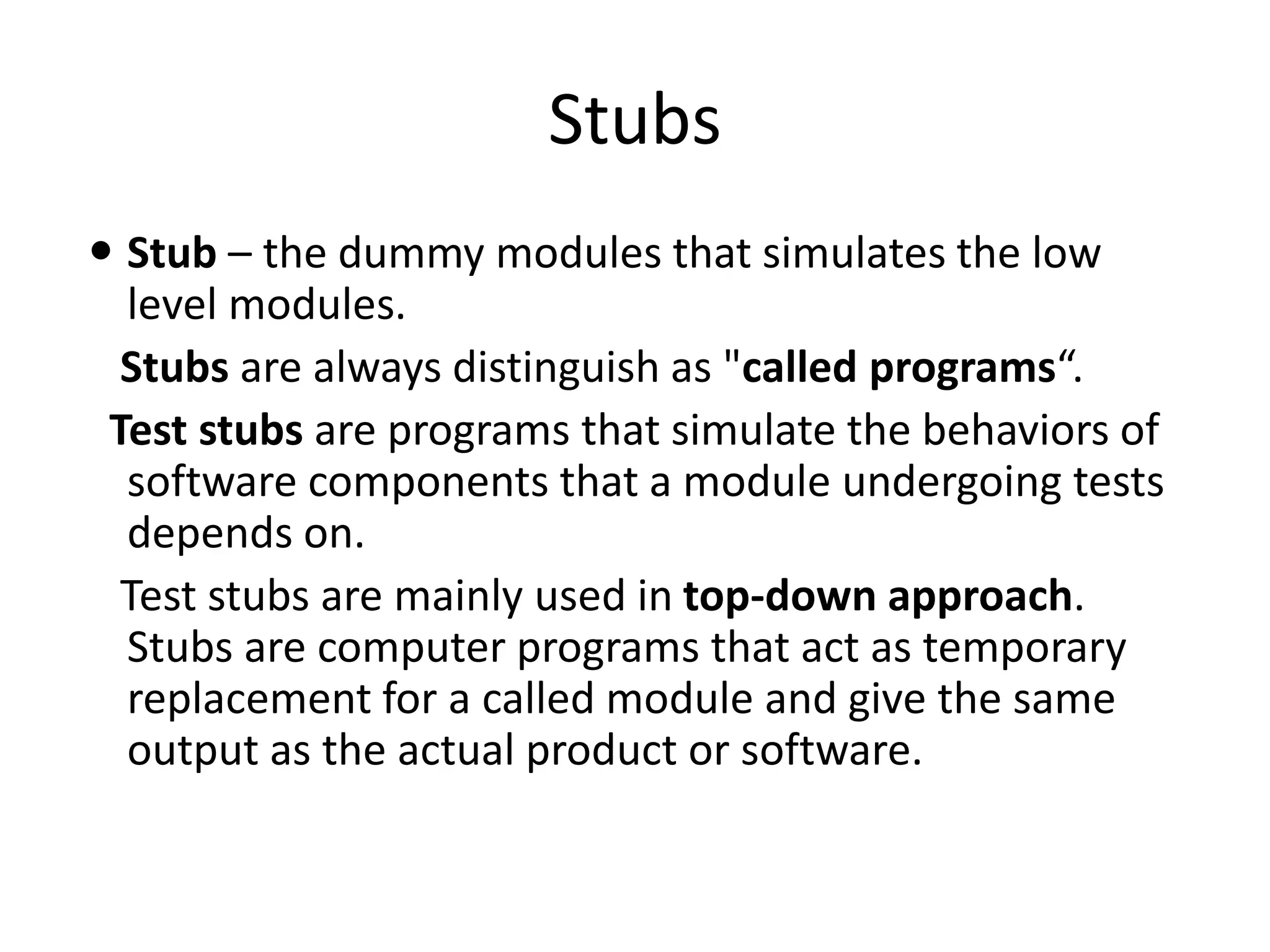

Stubs
 Stub – the dummy modules that simulates the low
level modules.
Stubs are always distinguish as "called programs“.
Test stubs are programs that simulate the behaviors of
software components that a module undergoing tests
depends on.
Test stubs are mainly used in top-down approach.
Stubs are computer programs that act as temporary
replacement for a called module and give the same
output as the actual product or software.

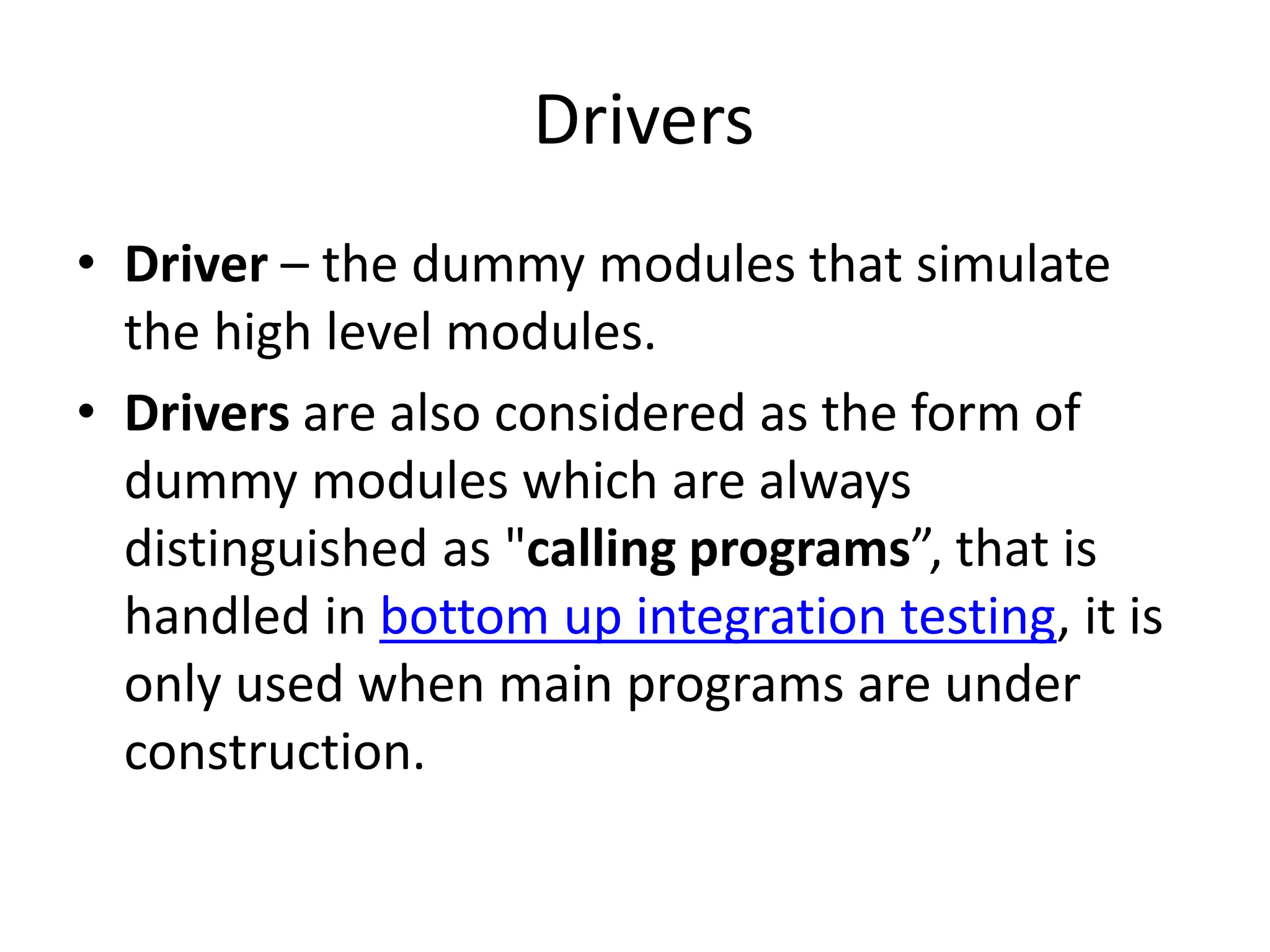

Drivers
• Driver – the dummy modules that simulate
the high level modules.
• Drivers are also considered as the form of
dummy modules which are always
distinguished as "calling programs”, that is
handled in bottom up integration testing, it is
only used when main programs are under
construction.

What Is Integration Testing?
 Integration testing ("I&T") is the phase in
software testing in which individual software
modules are combined and tested as a group.
 It occurs after unit testing and before system
testing.
 Integration testing takes as its input modules that
have been unit tested, groups them in larger
aggregates, applies tests defined in an integration
test plan to those aggregates, and delivers as its
output the integrated system ready for system
testing.

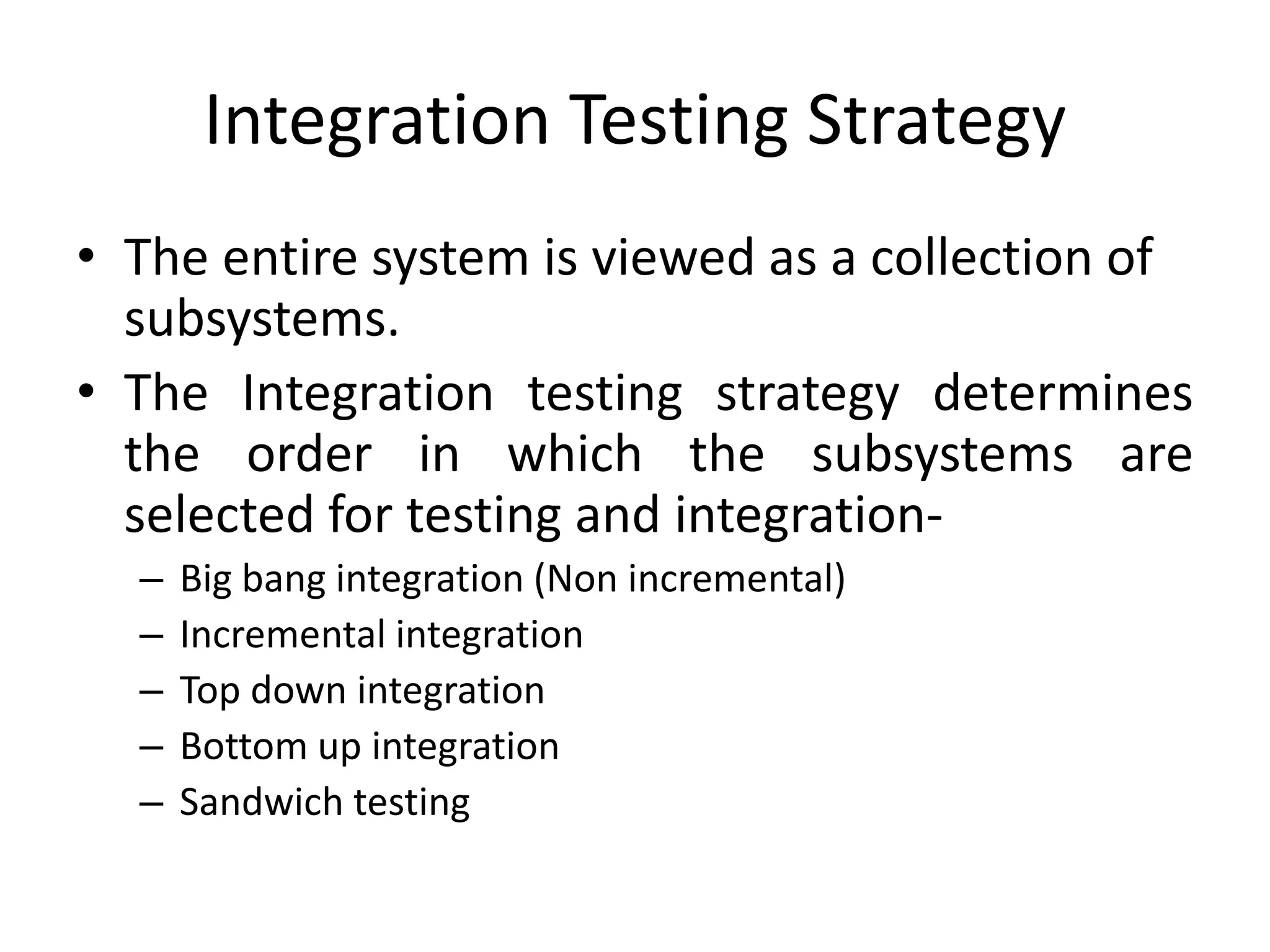

Integration Testing Strategy
• The entire system is viewed as a collection of
subsystems.
• The Integration testing strategy determines
the order in which the subsystems are
selected for testing and integration-
– Big bang integration (Non incremental)
– Incremental integration
– Top down integration
– Bottom up integration
– Sandwich testing

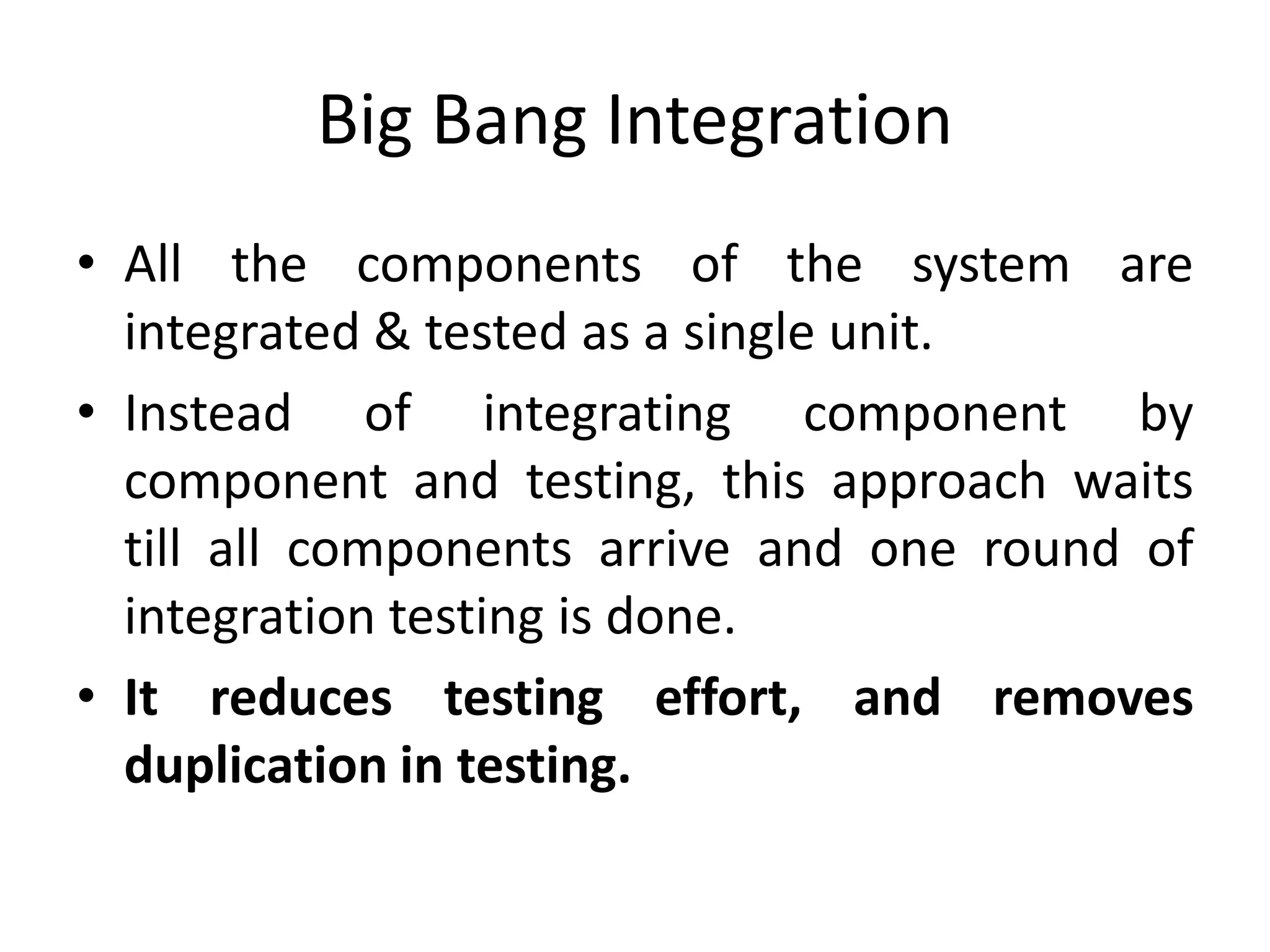

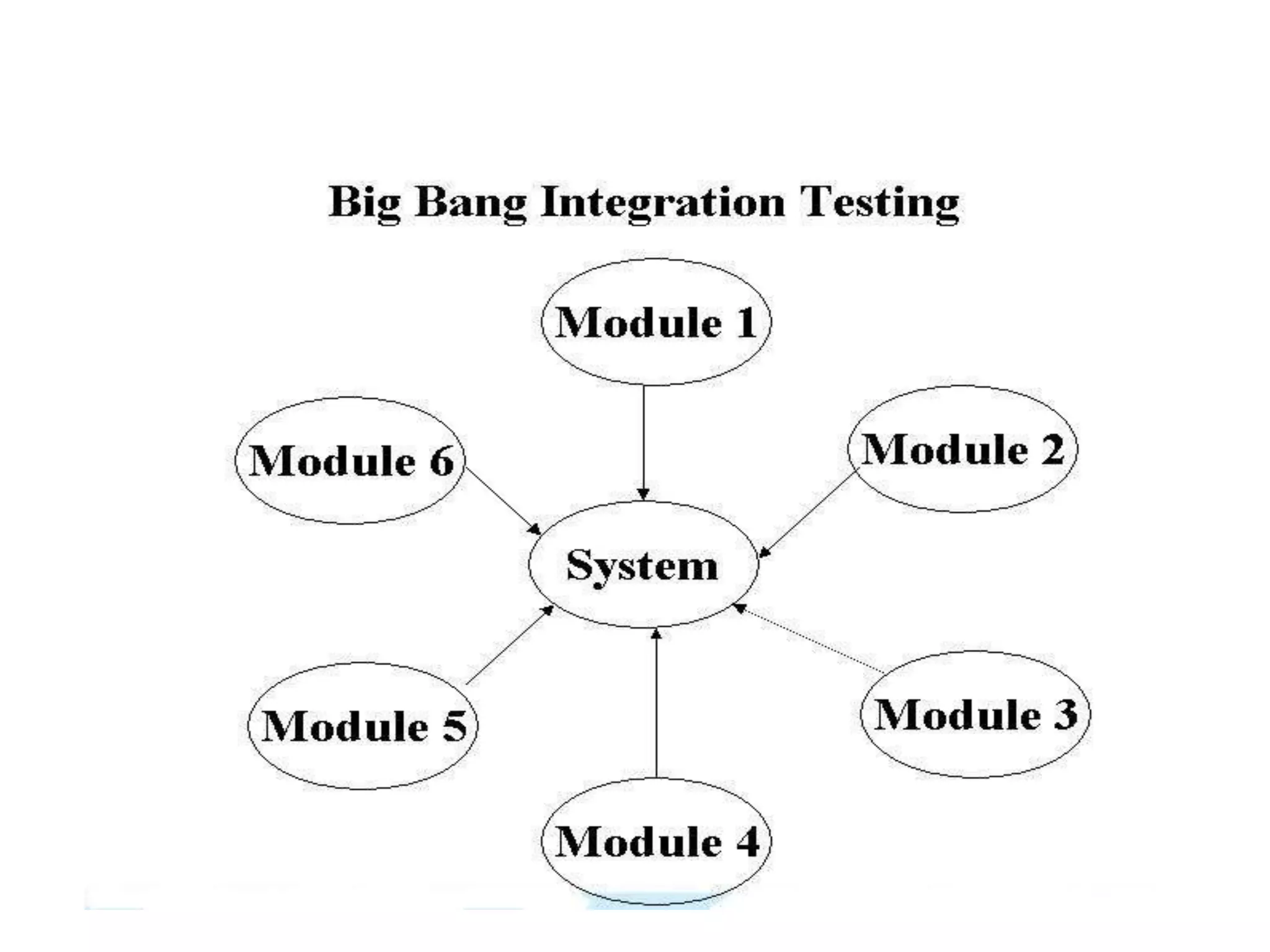

Big Bang Integration
• All the components of the system are
integrated & tested as a single unit.
• Instead of integrating component by
component and testing, this approach waits
till all components arrive and one round of
integration testing is done.
• It reduces testing effort, and removes
duplication in testing.

A
C
E F G
DB

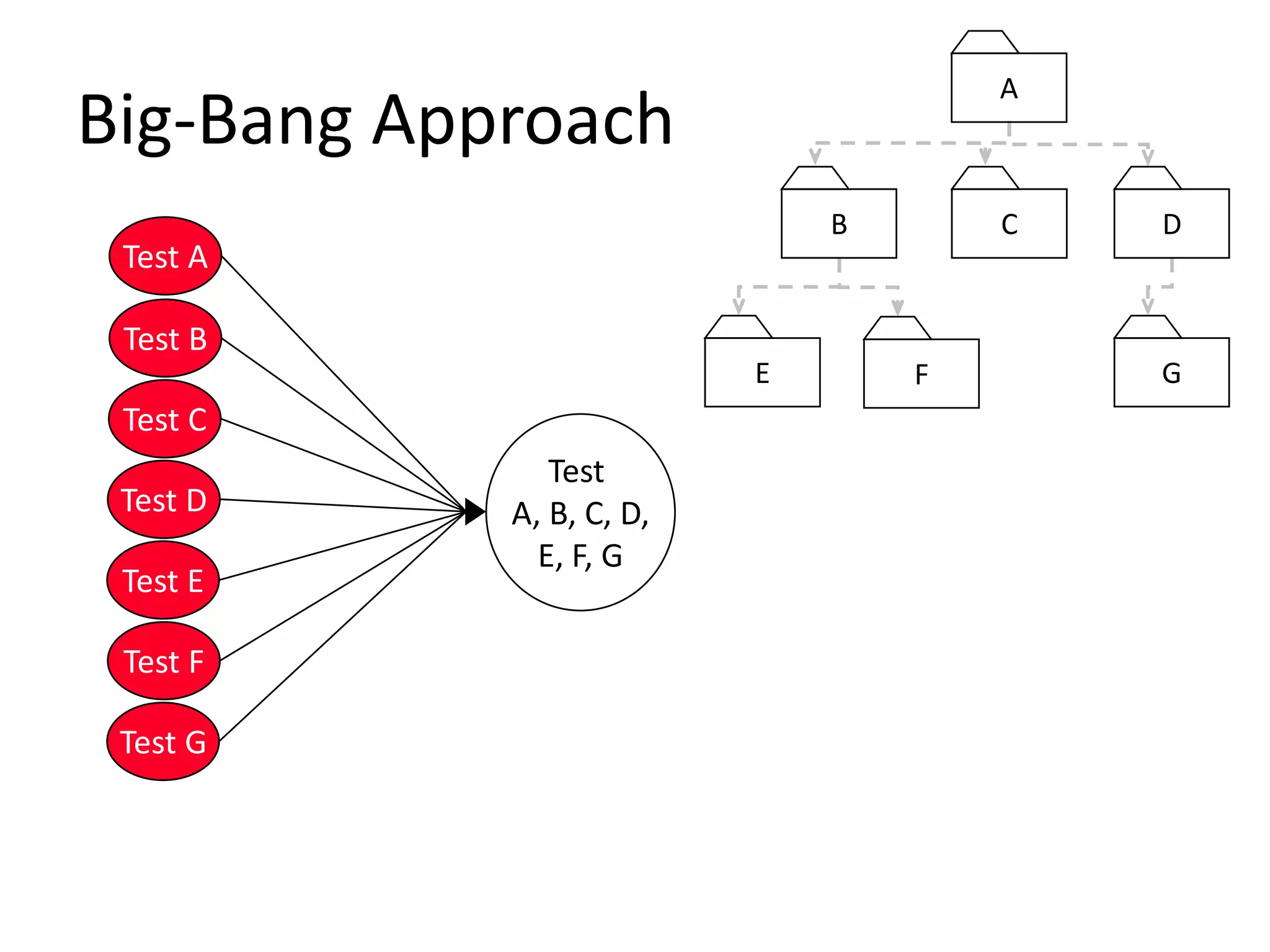

Big-Bang Approach
Test A
Test B
Test G
Test F
Test E
Test C
Test D
Test
A, B, C, D,
E, F, G

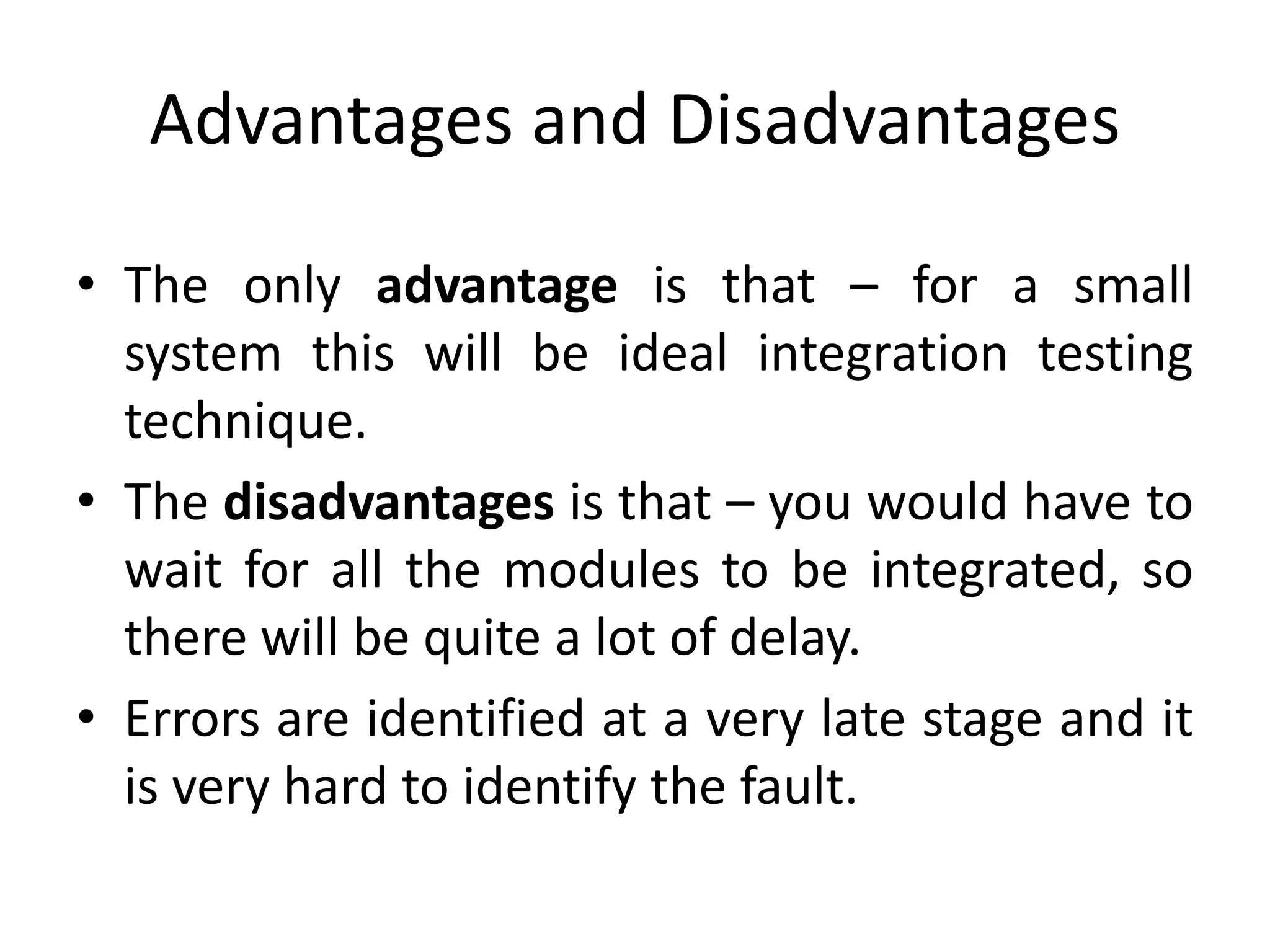

Advantages and Disadvantages
• The only advantage is that – for a small
system this will be ideal integration testing
technique.
• The disadvantages is that – you would have to
wait for all the modules to be integrated, so
there will be quite a lot of delay.
• Errors are identified at a very late stage and it
is very hard to identify the fault.

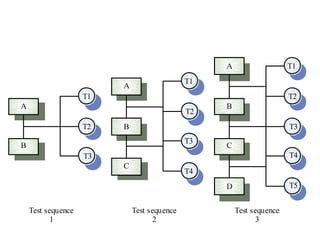

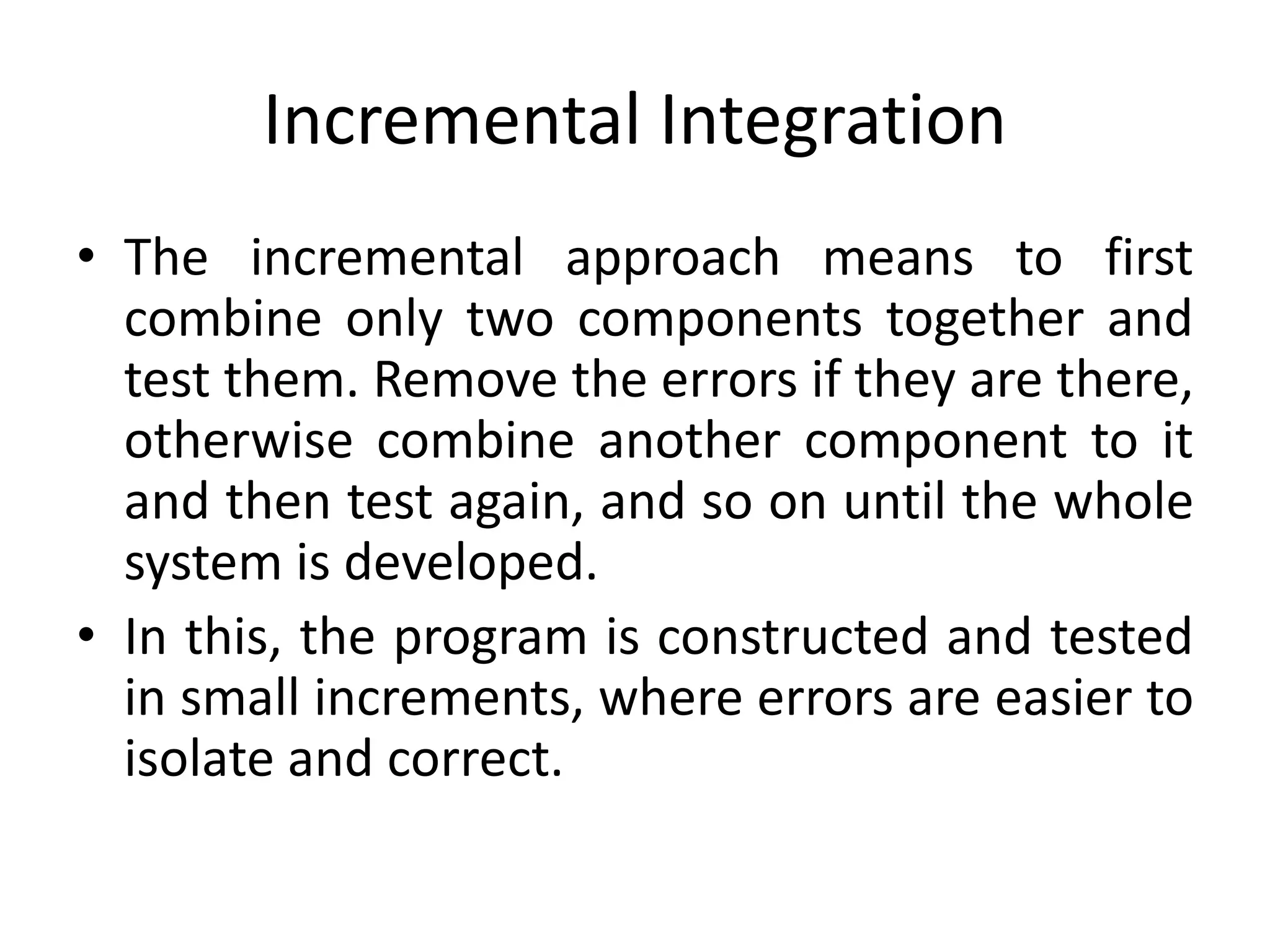

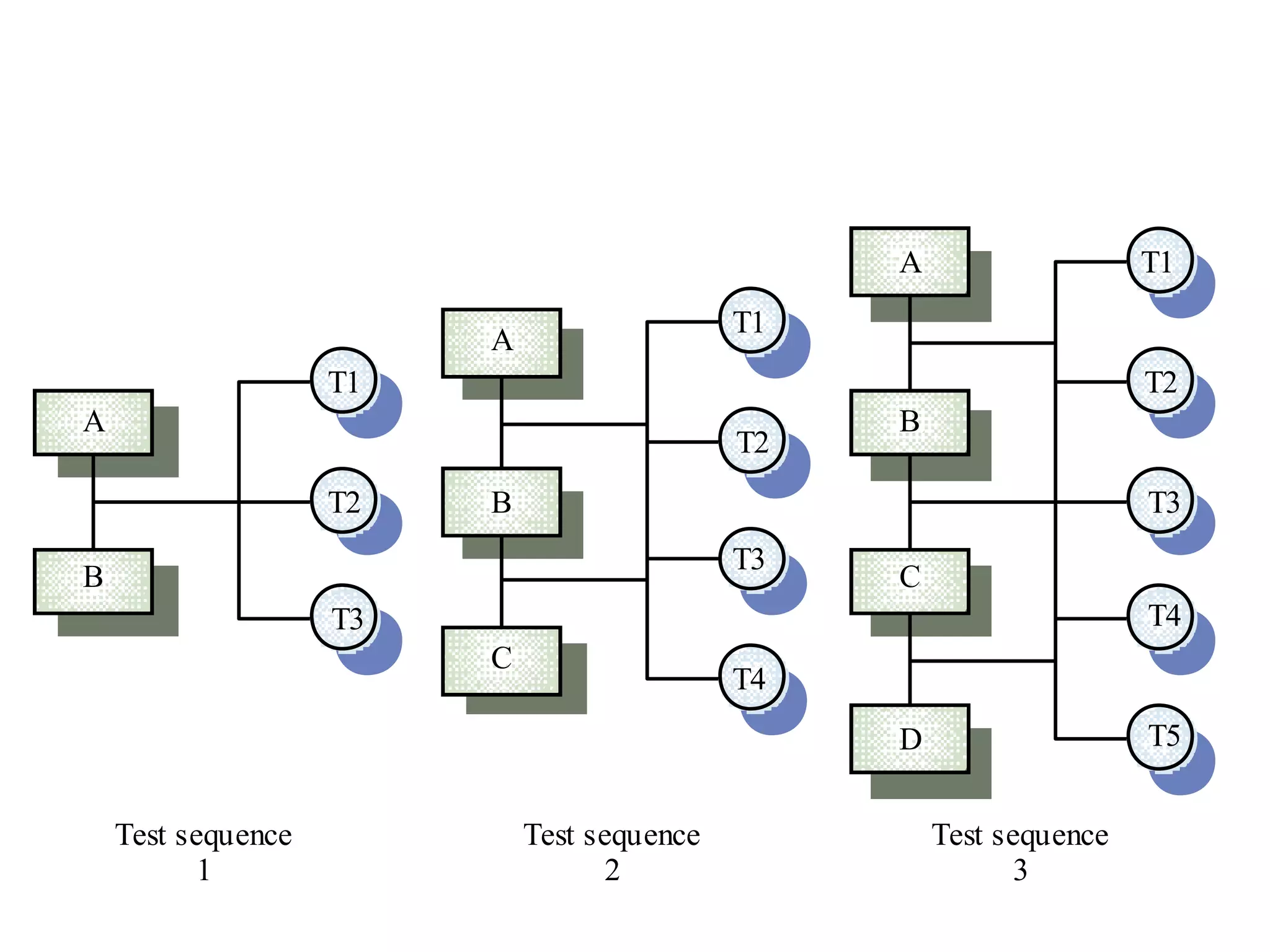

Incremental Integration
• The incremental approach means to first
combine only two components together and
test them. Remove the errors if they are there,
otherwise combine another component to it
and then test again, and so on until the whole
system is developed.
• In this, the program is constructed and tested
in small increments, where errors are easier to
isolate and correct.

T3
T2
T1
T4
T5
A
B
C
D
T2
T1
T3
T4
A
B
C
T1
T2
T3
A
B
Test sequence
1
Test sequence
2
Test sequence
3

Top-down Testing Strategy
• Test the top layer or the controlling
subsystem first
• Then combine all the subsystems that are
called by the tested subsystems and test the
resulting collection of subsystems
• Do this until all subsystems are incorporated
into the test
• Stubs are needed to do the testing.

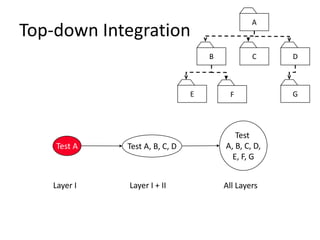

Top-down Integration
Test
A, B, C, D,
E, F, G
All LayersLayer I + II
Test A, B, C, D
Layer I
Test A
A
E F
B C D
G

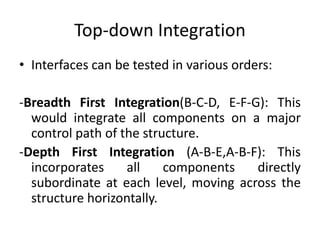

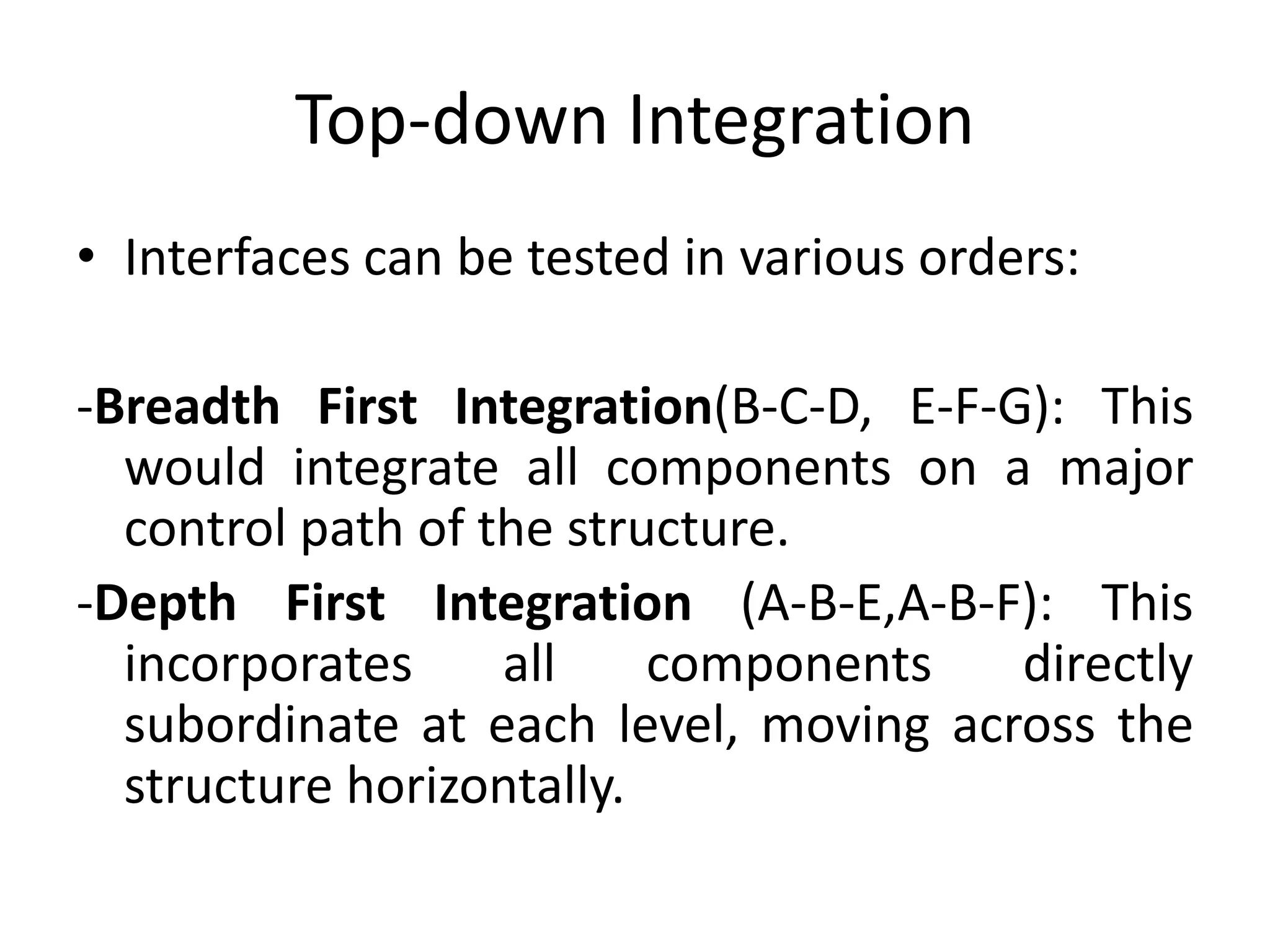

Top-down Integration
• Interfaces can be tested in various orders:
-Breadth First Integration(B-C-D, E-F-G): This
would integrate all components on a major
control path of the structure.
-Depth First Integration (A-B-E,A-B-F): This
incorporates all components directly
subordinate at each level, moving across the
structure horizontally.

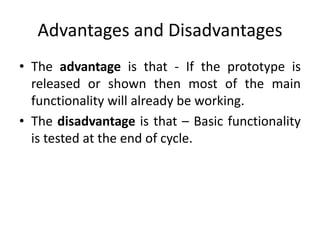

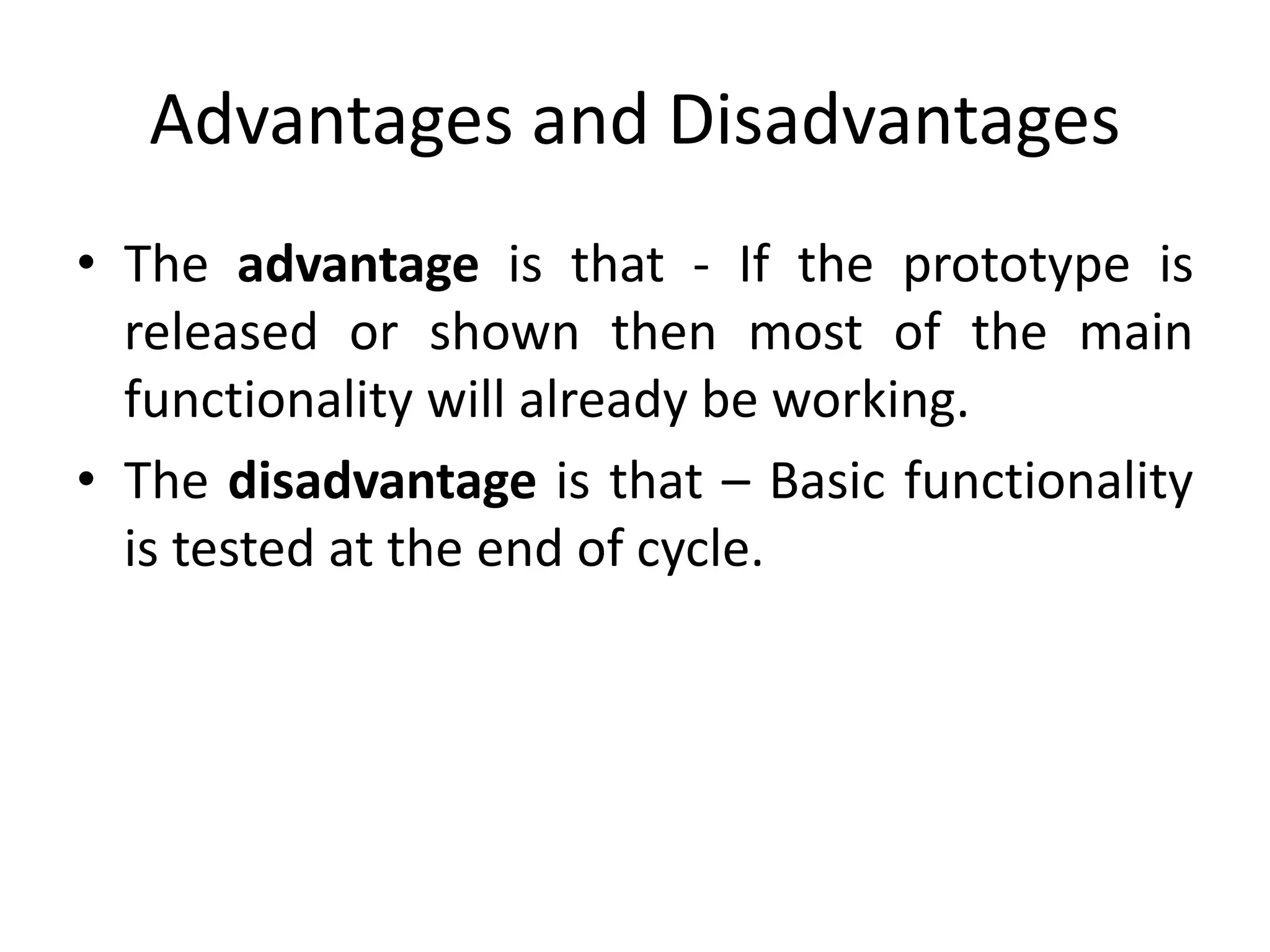

• The advantage is that - If the prototype is
released or shown then most of the main
functionality will already be working.
• The disadvantage is that – Basic functionality
is tested at the end of cycle.

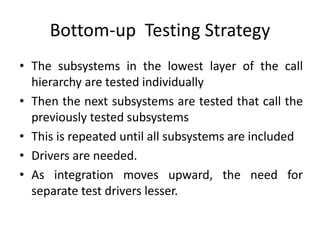

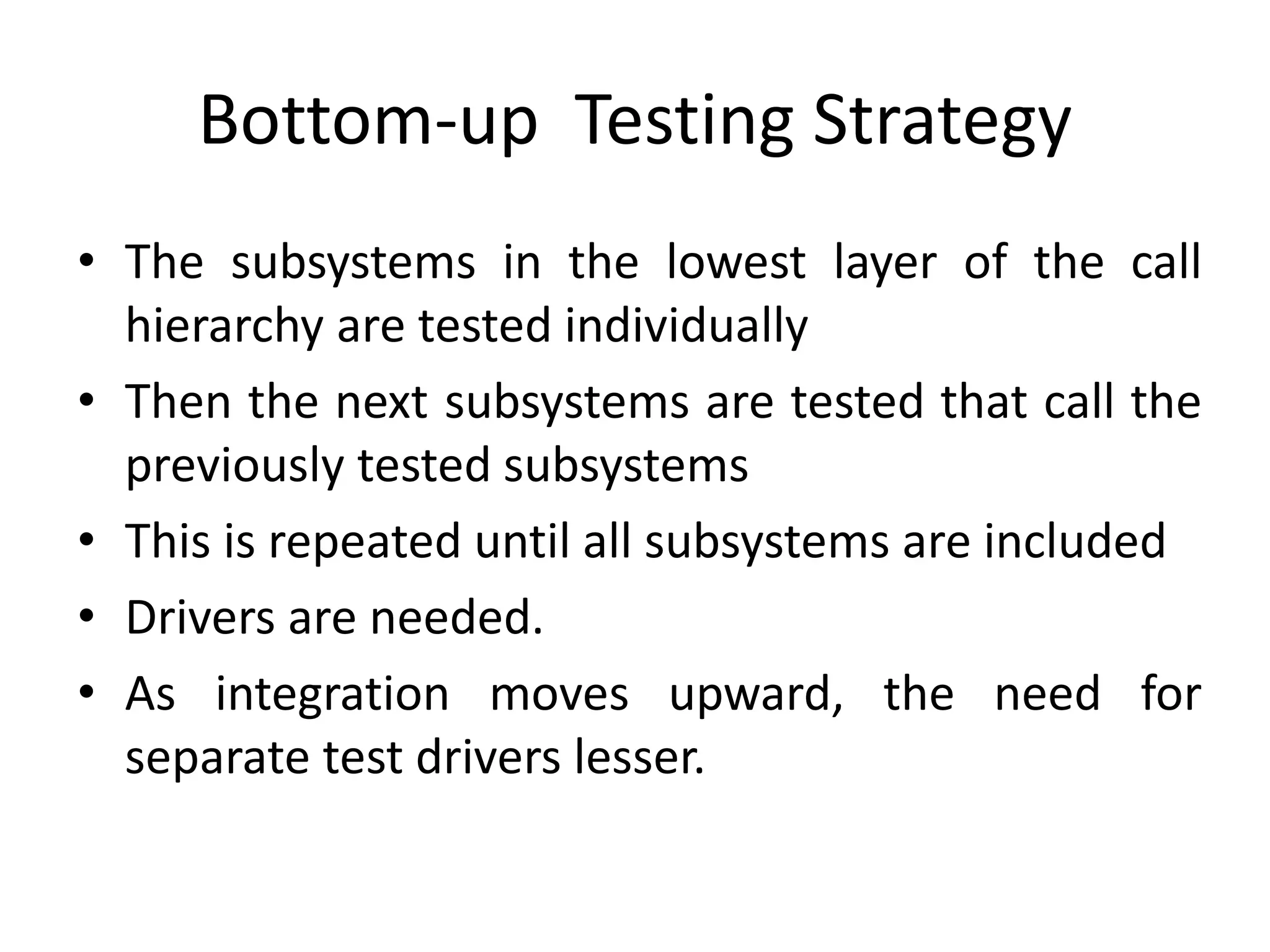

Bottom-up Testing Strategy
• The subsystems in the lowest layer of the call
hierarchy are tested individually
• Then the next subsystems are tested that call the
previously tested subsystems
• This is repeated until all subsystems are included
• Drivers are needed.
• As integration moves upward, the need for
separate test drivers lesser.

A
C
E F G
DB

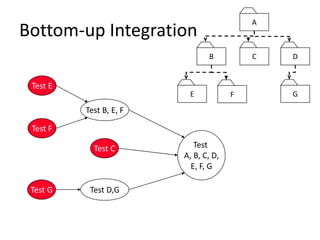

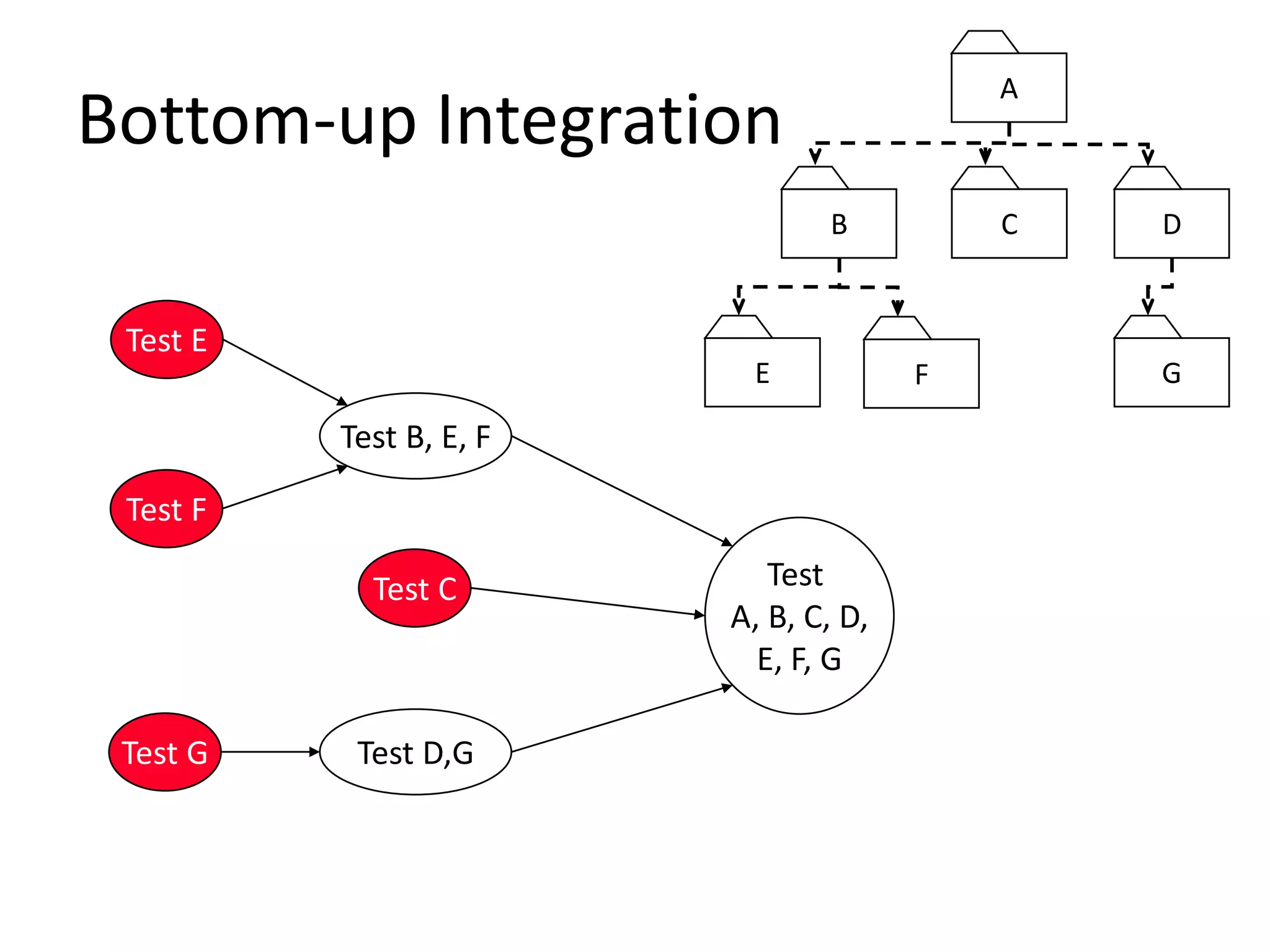

Bottom-up Integration
A
Test
A, B, C, D,
E, F, G
E
Test E
F
Test F
B
Test B, E, F
C
Test C
D
Test D,G
G
Test G

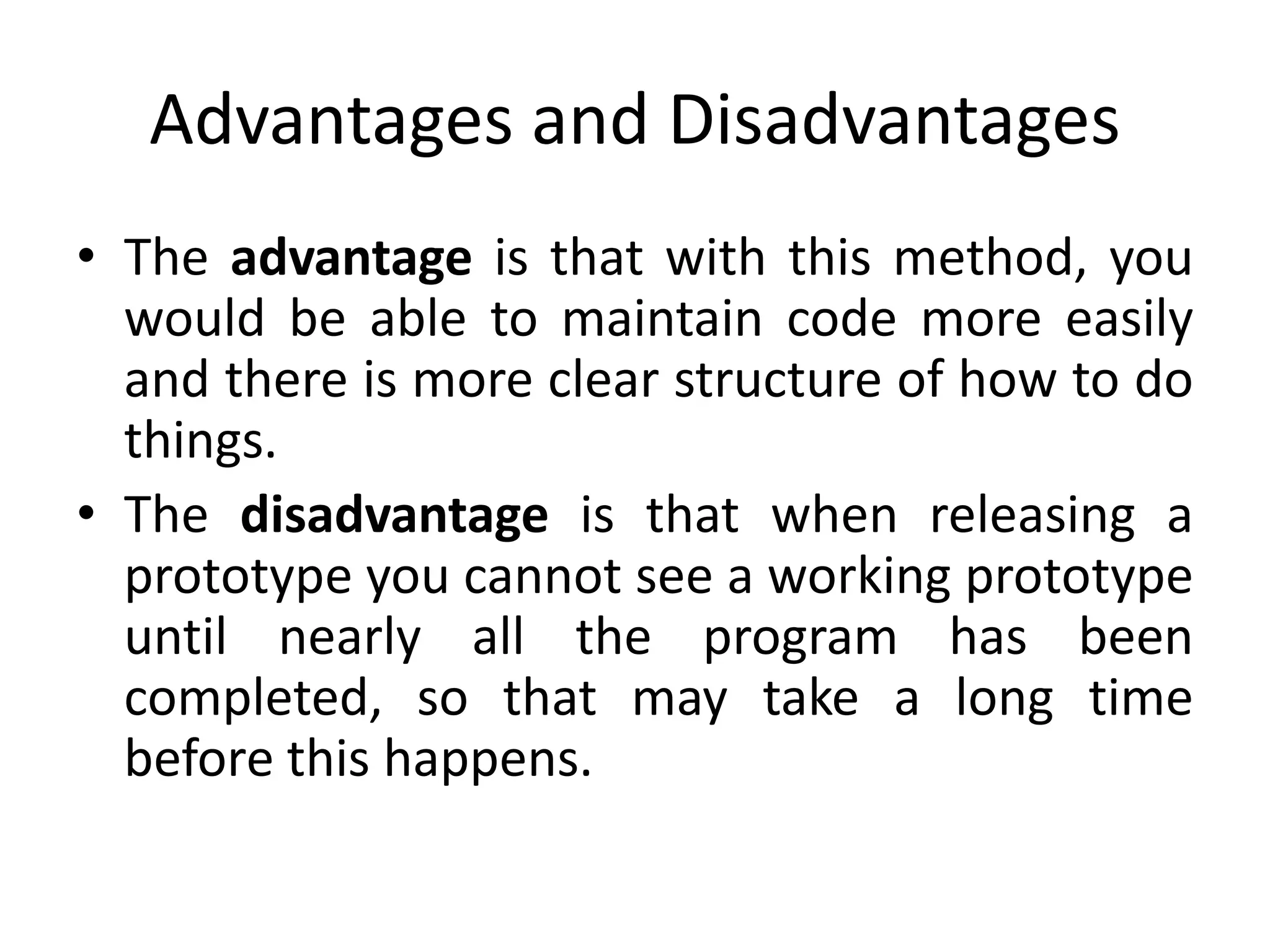

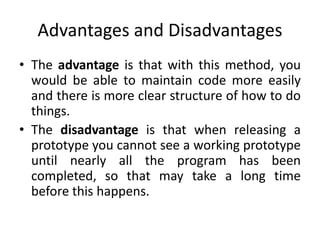

• The advantage is that with this method, you
would be able to maintain code more easily
and there is more clear structure of how to do
things.
• The disadvantage is that when releasing a
prototype you cannot see a working prototype
until nearly all the program has been
completed, so that may take a long time
before this happens.

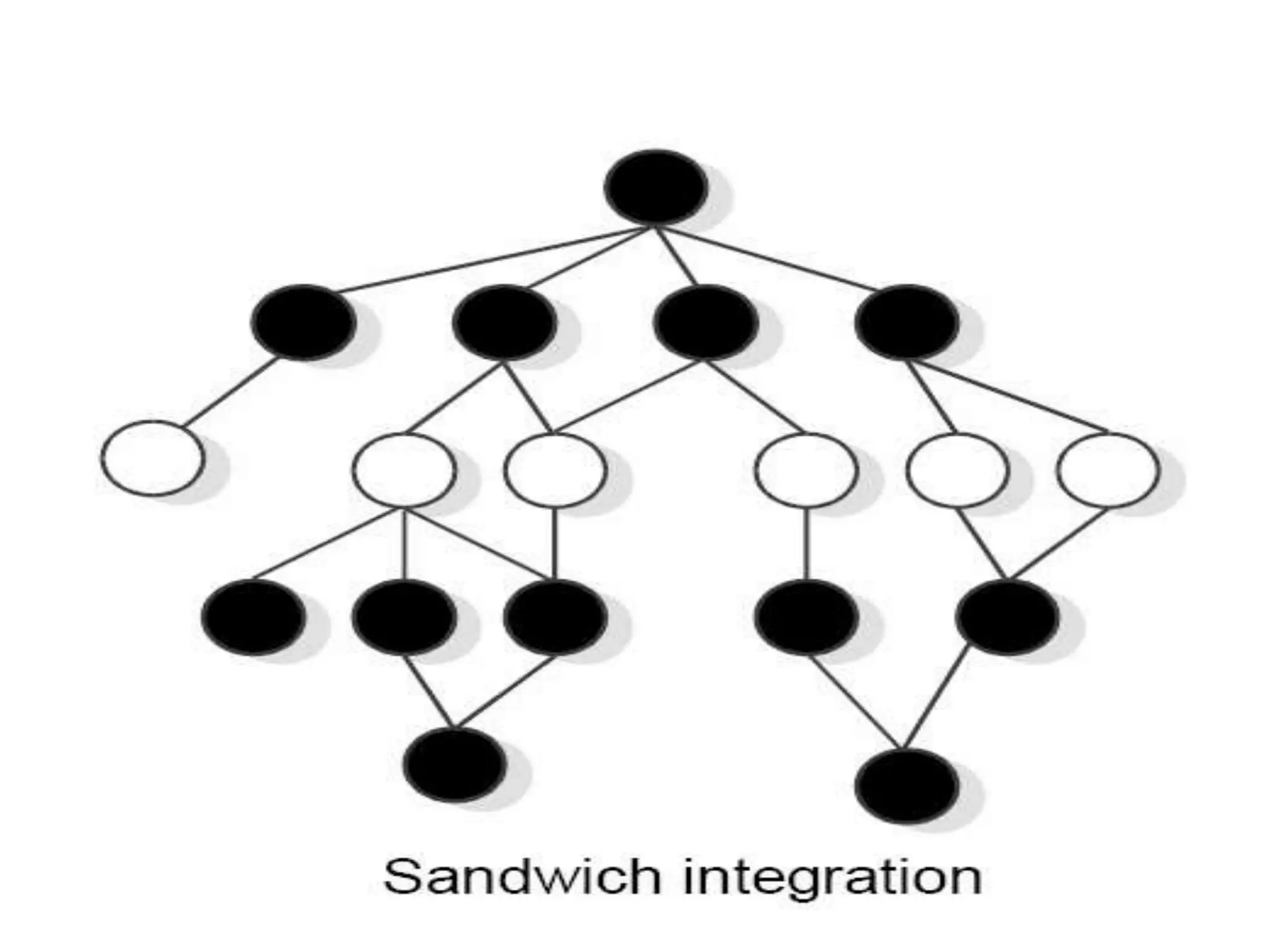

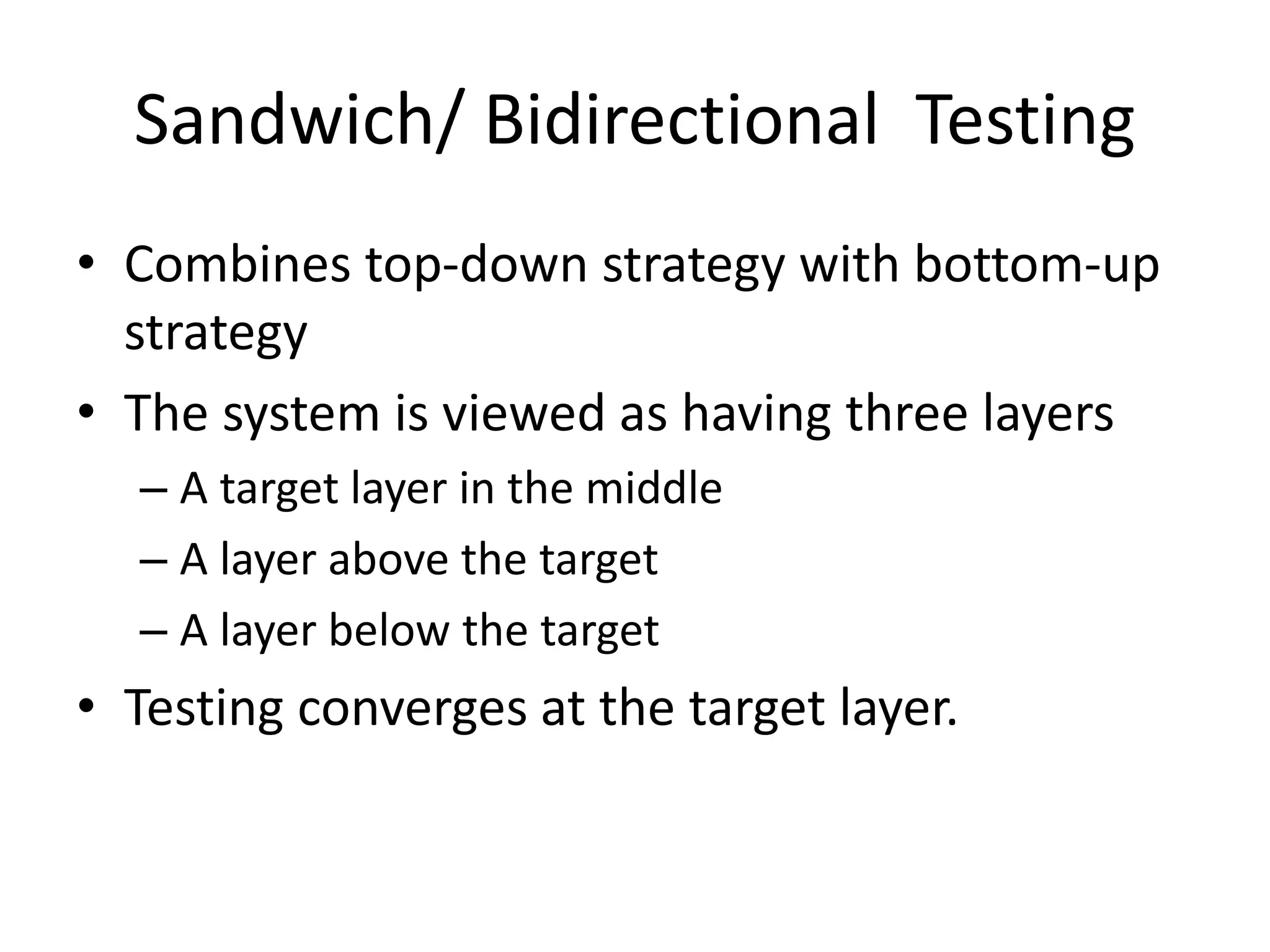

Sandwich/ Bidirectional Testing
• Combines top-down strategy with bottom-up
strategy
• The system is viewed as having three layers
– A target layer in the middle
– A layer above the target
– A layer below the target
• Testing converges at the target layer.

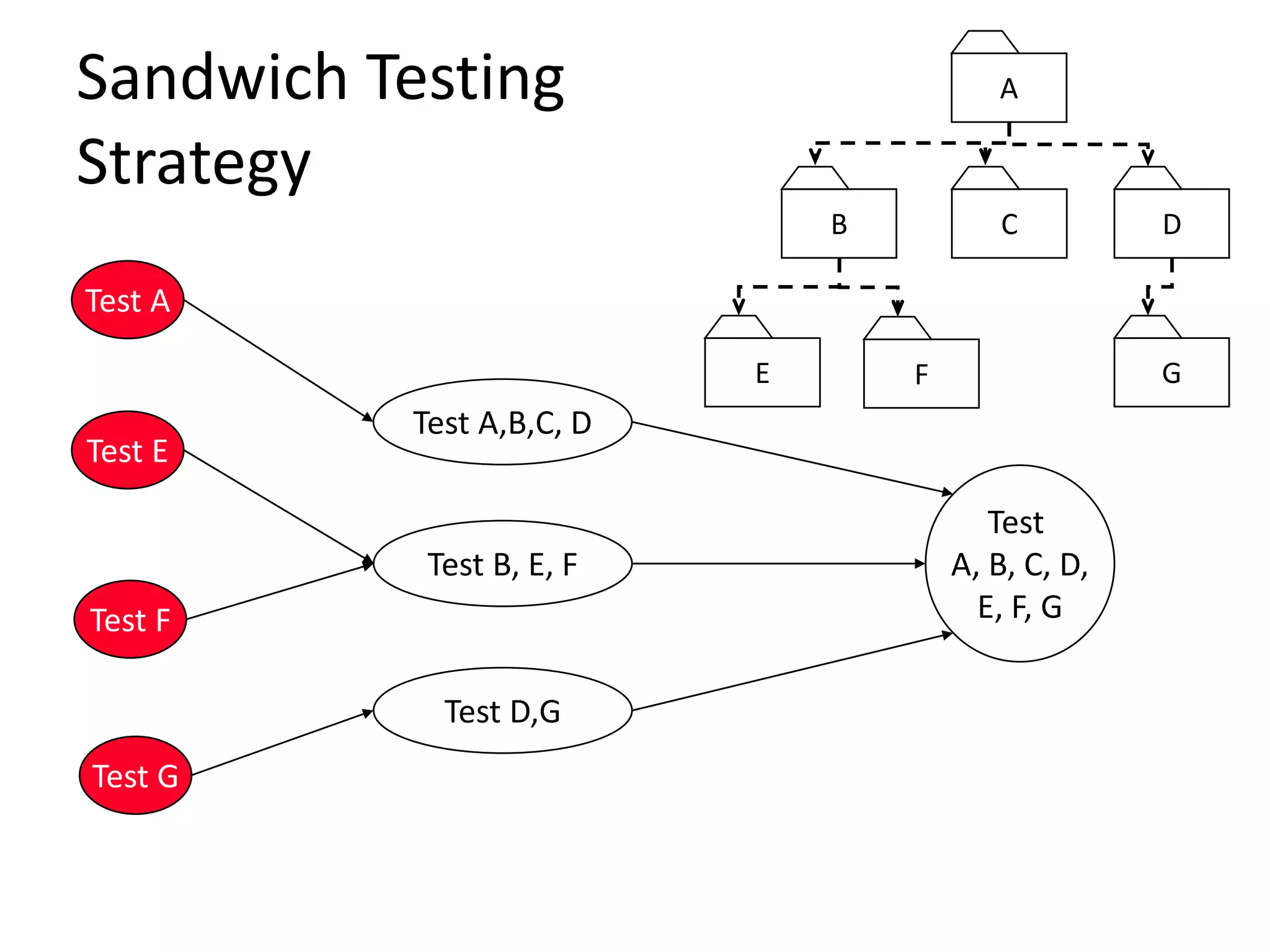

Sandwich Testing
Strategy
Test
A, B, C, D,
E, F, G
Test B, E, F
Test D,G
Test A
Test E
Test F
Test G
Test A,B,C, D
A
E F
B C D
G

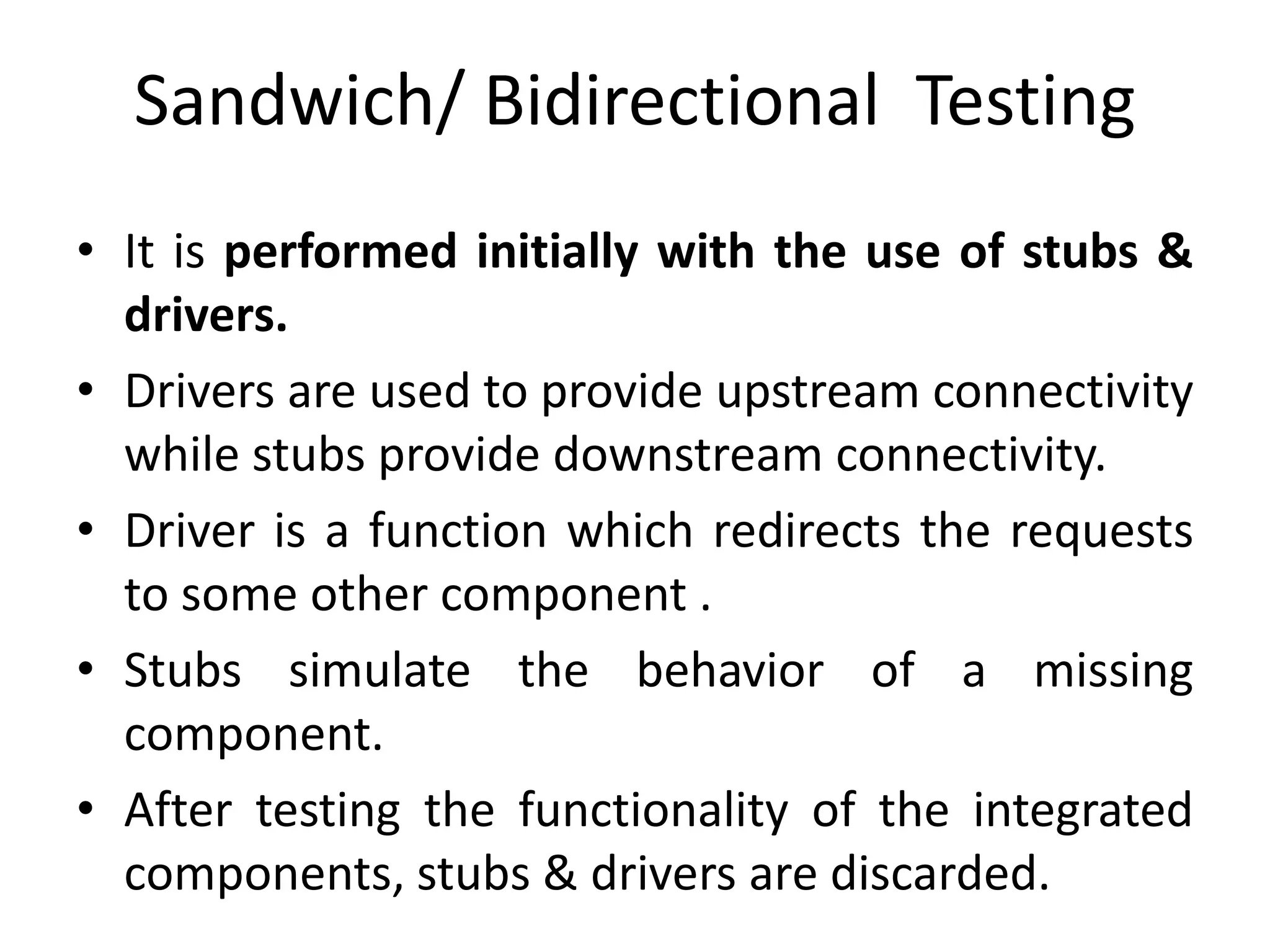

Sandwich/ Bidirectional Testing
• It is performed initially with the use of stubs &
drivers.
• Drivers are used to provide upstream connectivity
while stubs provide downstream connectivity.
• Driver is a function which redirects the requests
to some other component .
• Stubs simulate the behavior of a missing
component.
• After testing the functionality of the integrated
components, stubs & drivers are discarded.

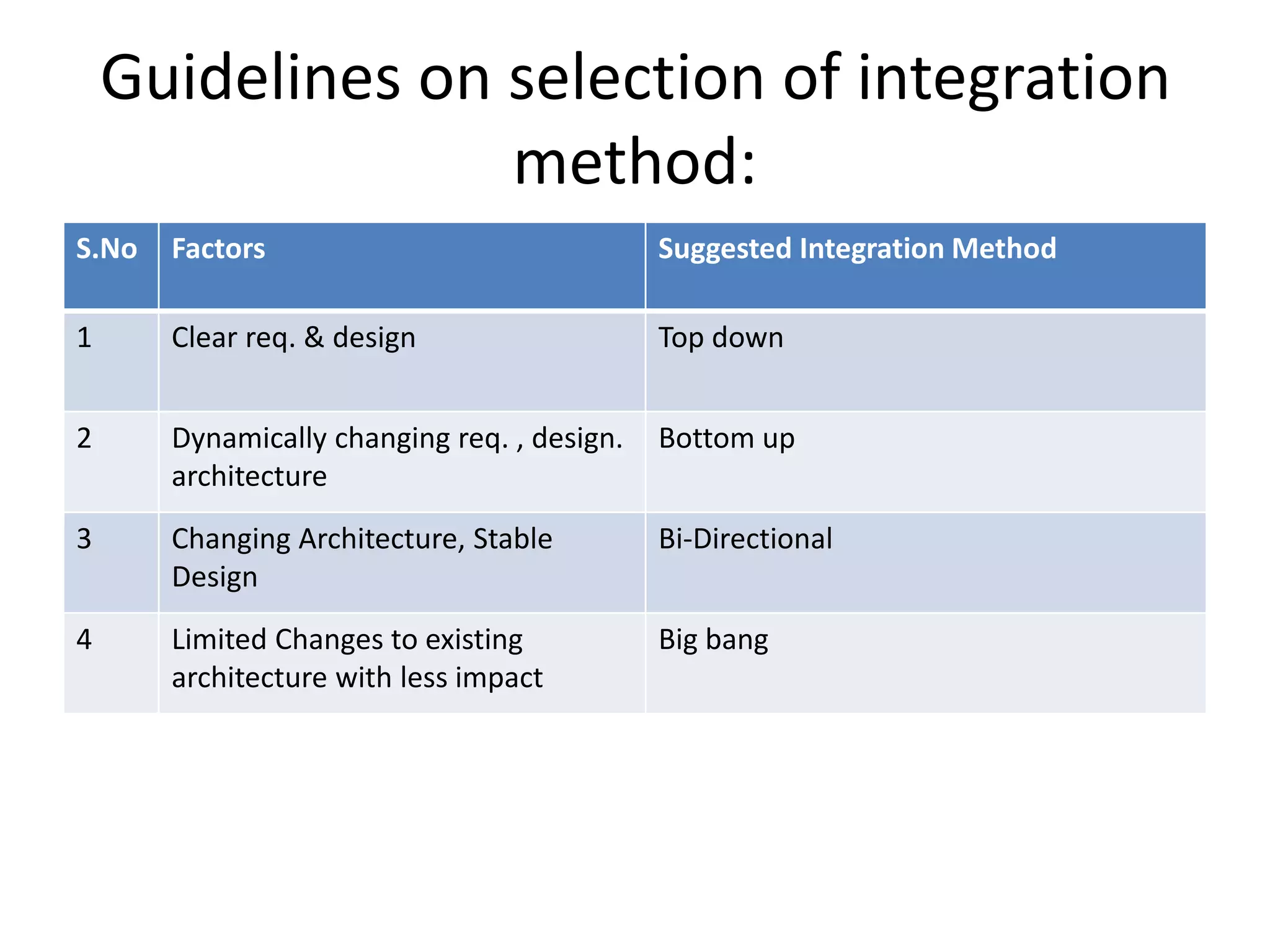

Guidelines on selection of integration
method:
S.No Factors Suggested Integration Method
1 Clear req. & design Top down
2 Dynamically changing req. , design.
architecture
Bottom up
3 Changing Architecture, Stable
Design
Bi-Directional
4 Limited Changes to existing
architecture with less impact
Big bang

System Testing
• System testing is most often the final test to
verify that the system to be delivered meets
the specification and its purpose.
• It tests both functional & non-functional
aspects of the product.
• It is started once unit testing , component
testing & integration testing are completed.
• System testing is carried out by specialists
testers or independent testers

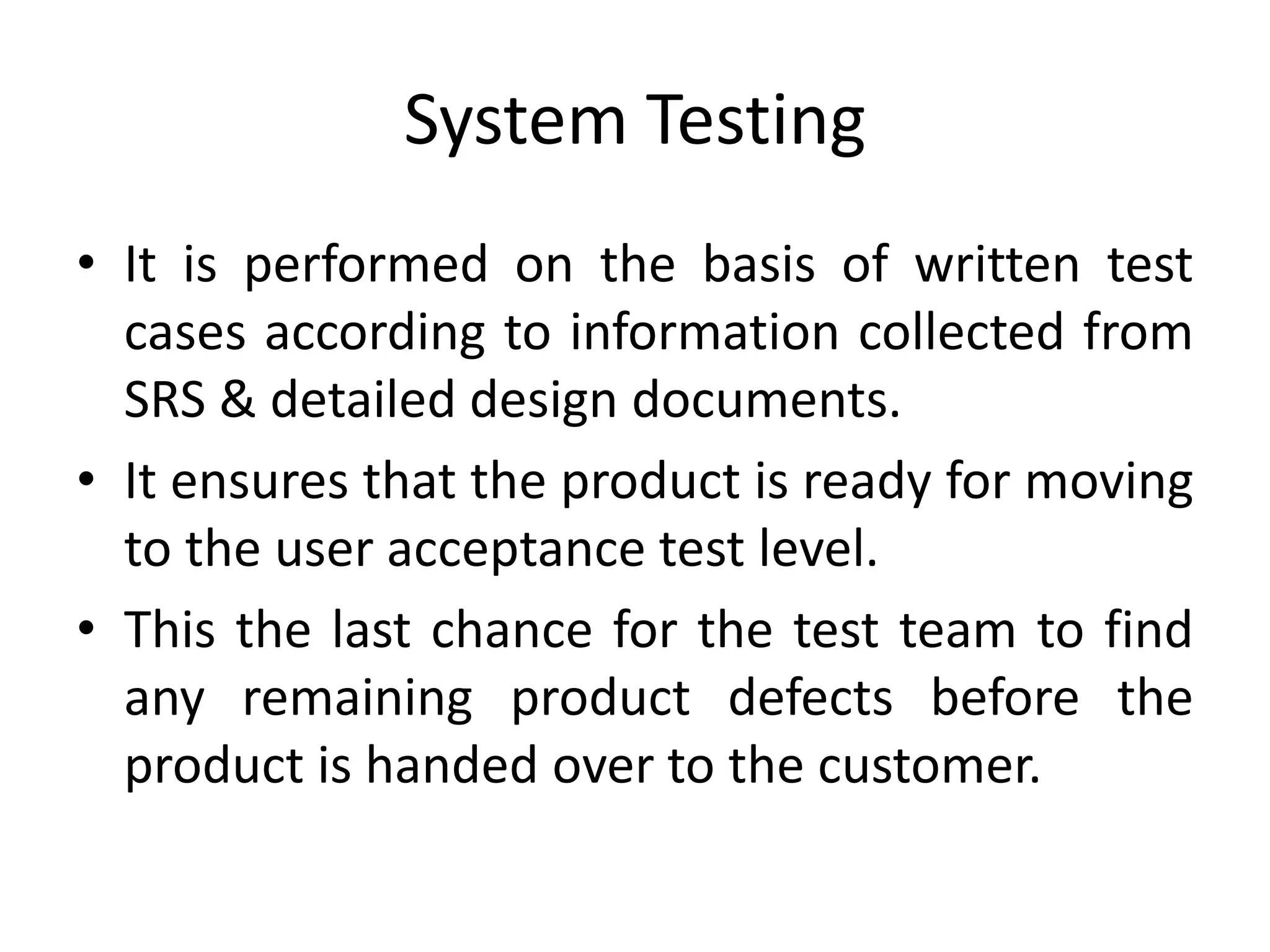

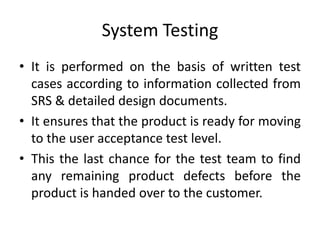

System Testing
• It is performed on the basis of written test
cases according to information collected from
SRS & detailed design documents.
• It ensures that the product is ready for moving
to the user acceptance test level.
• This the last chance for the test team to find
any remaining product defects before the
product is handed over to the customer.

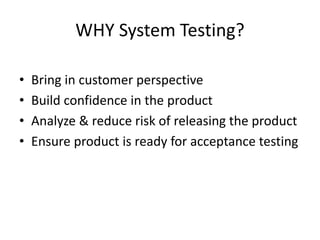

WHY System Testing?
• Bring in customer perspective
• Build confidence in the product
• Analyze & reduce risk of releasing the product
• Ensure product is ready for acceptance testing

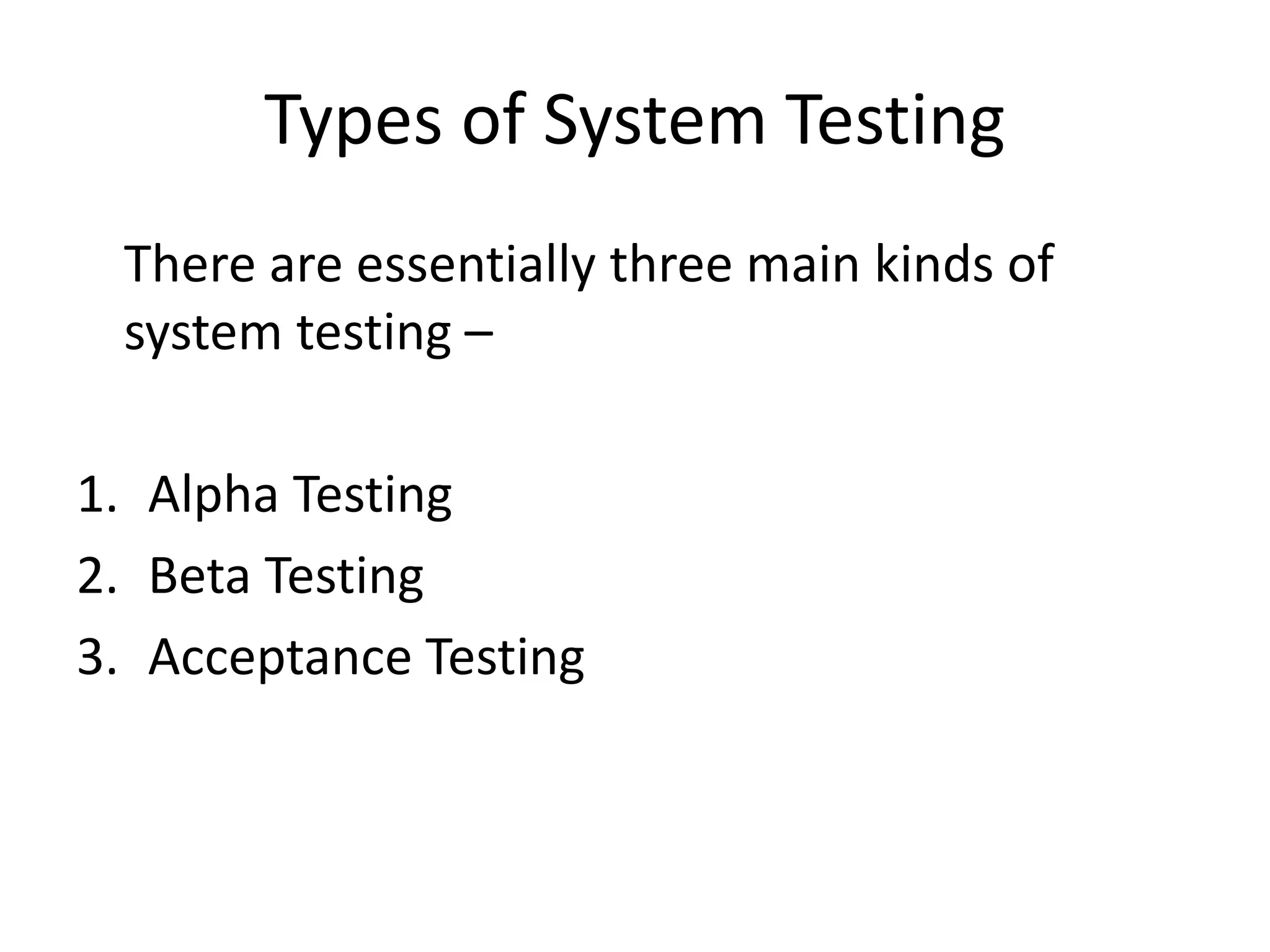

Types of System Testing
There are essentially three main kinds of
system testing –
1. Alpha Testing
2. Beta Testing
3. Acceptance Testing

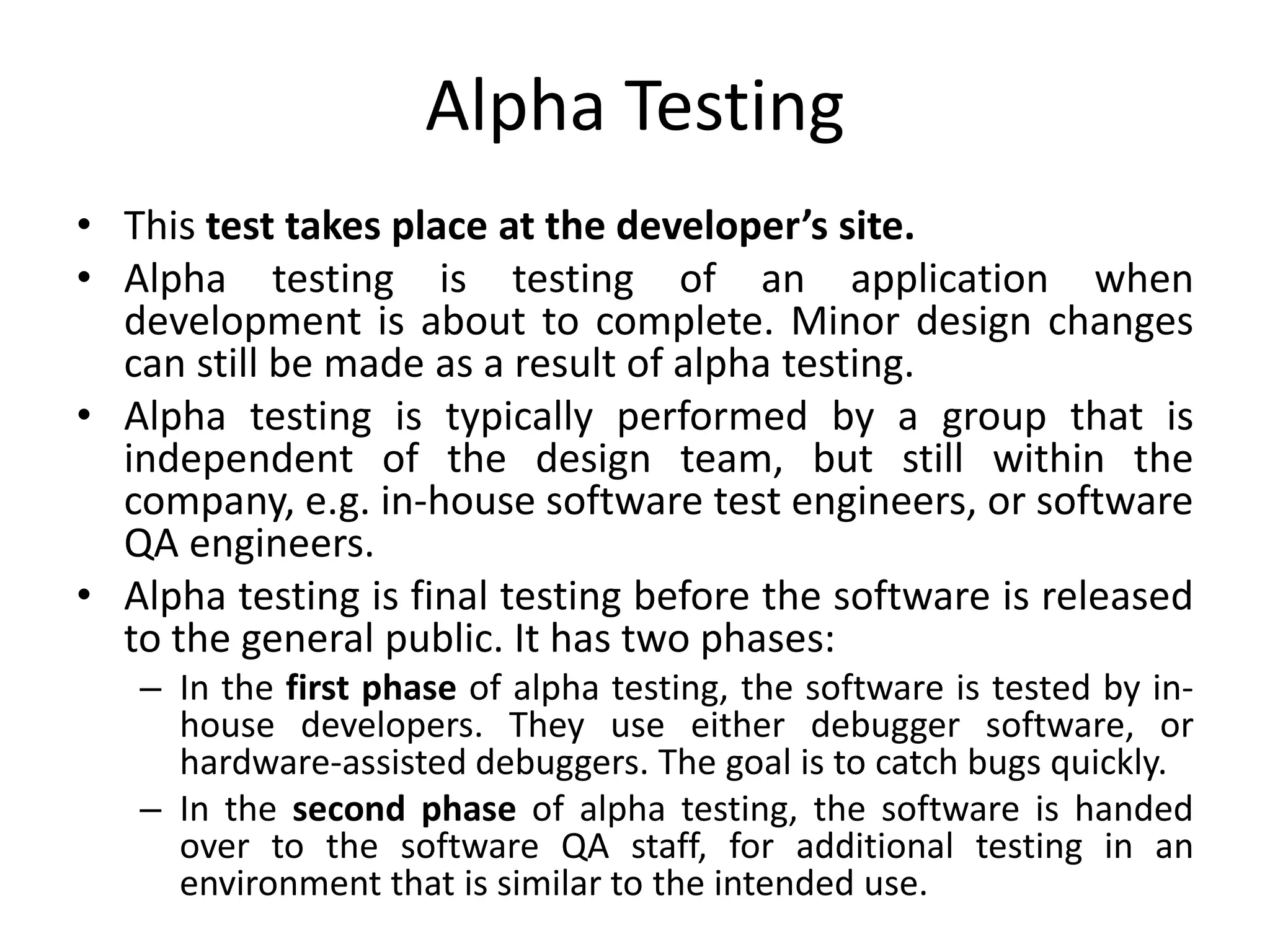

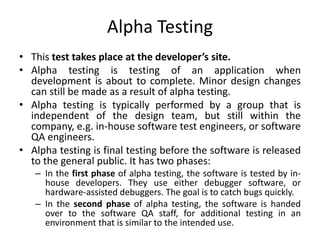

Alpha Testing
• This test takes place at the developer’s site.
• Alpha testing is testing of an application when
development is about to complete. Minor design changes
can still be made as a result of alpha testing.
• Alpha testing is typically performed by a group that is
independent of the design team, but still within the
company, e.g. in-house software test engineers, or software
QA engineers.
• Alpha testing is final testing before the software is released
to the general public. It has two phases:
– In the first phase of alpha testing, the software is tested by in-
house developers. They use either debugger software, or
hardware-assisted debuggers. The goal is to catch bugs quickly.
– In the second phase of alpha testing, the software is handed
over to the software QA staff, for additional testing in an
environment that is similar to the intended use.

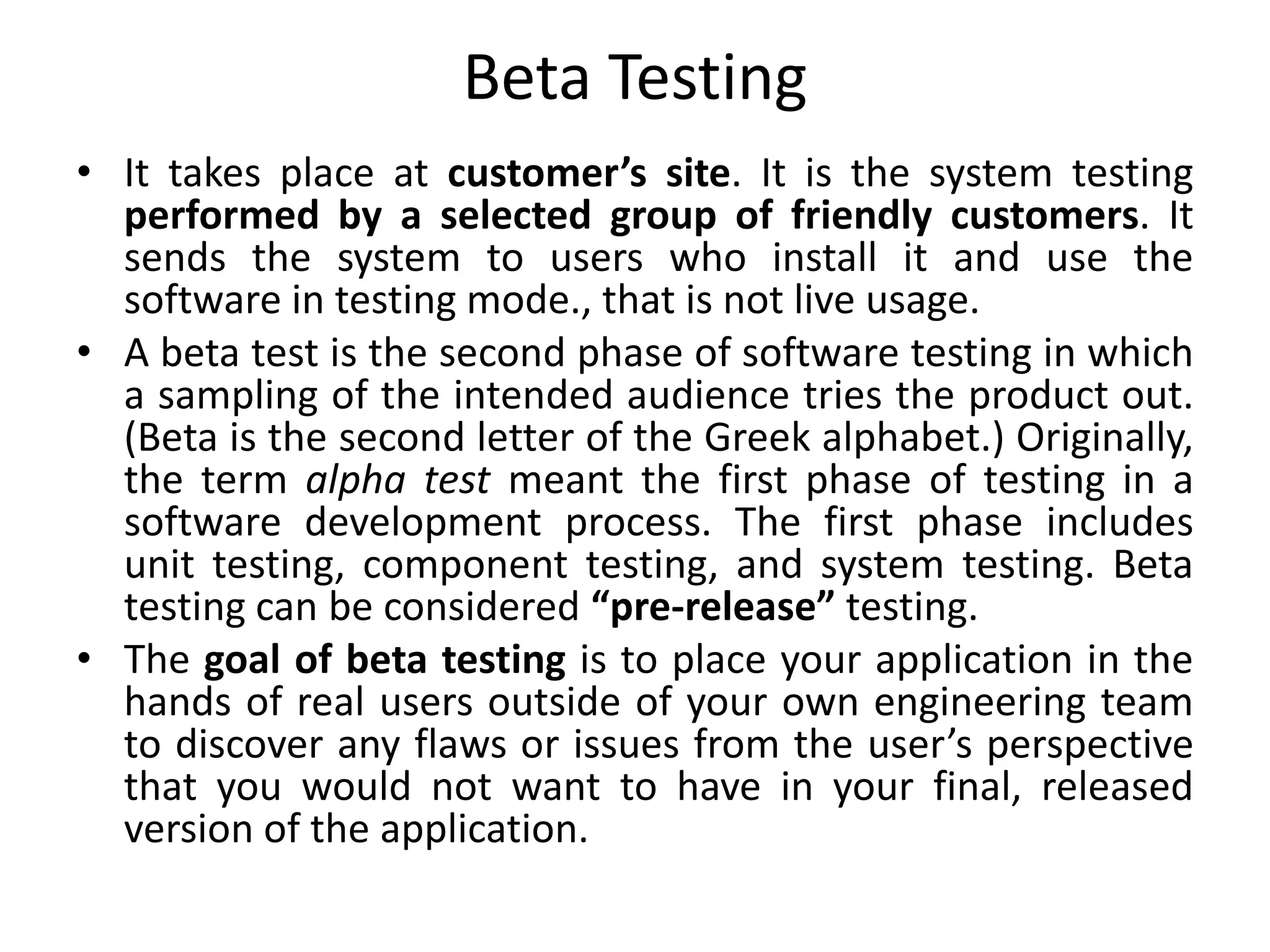

Beta Testing
• It takes place at customer’s site. It is the system testing
performed by a selected group of friendly customers. It
sends the system to users who install it and use the
software in testing mode., that is not live usage.
• A beta test is the second phase of software testing in which
a sampling of the intended audience tries the product out.
(Beta is the second letter of the Greek alphabet.) Originally,
the term alpha test meant the first phase of testing in a
software development process. The first phase includes
unit testing, component testing, and system testing. Beta
testing can be considered “pre-release” testing.
• The goal of beta testing is to place your application in the
hands of real users outside of your own engineering team
to discover any flaws or issues from the user’s perspective
that you would not want to have in your final, released
version of the application.

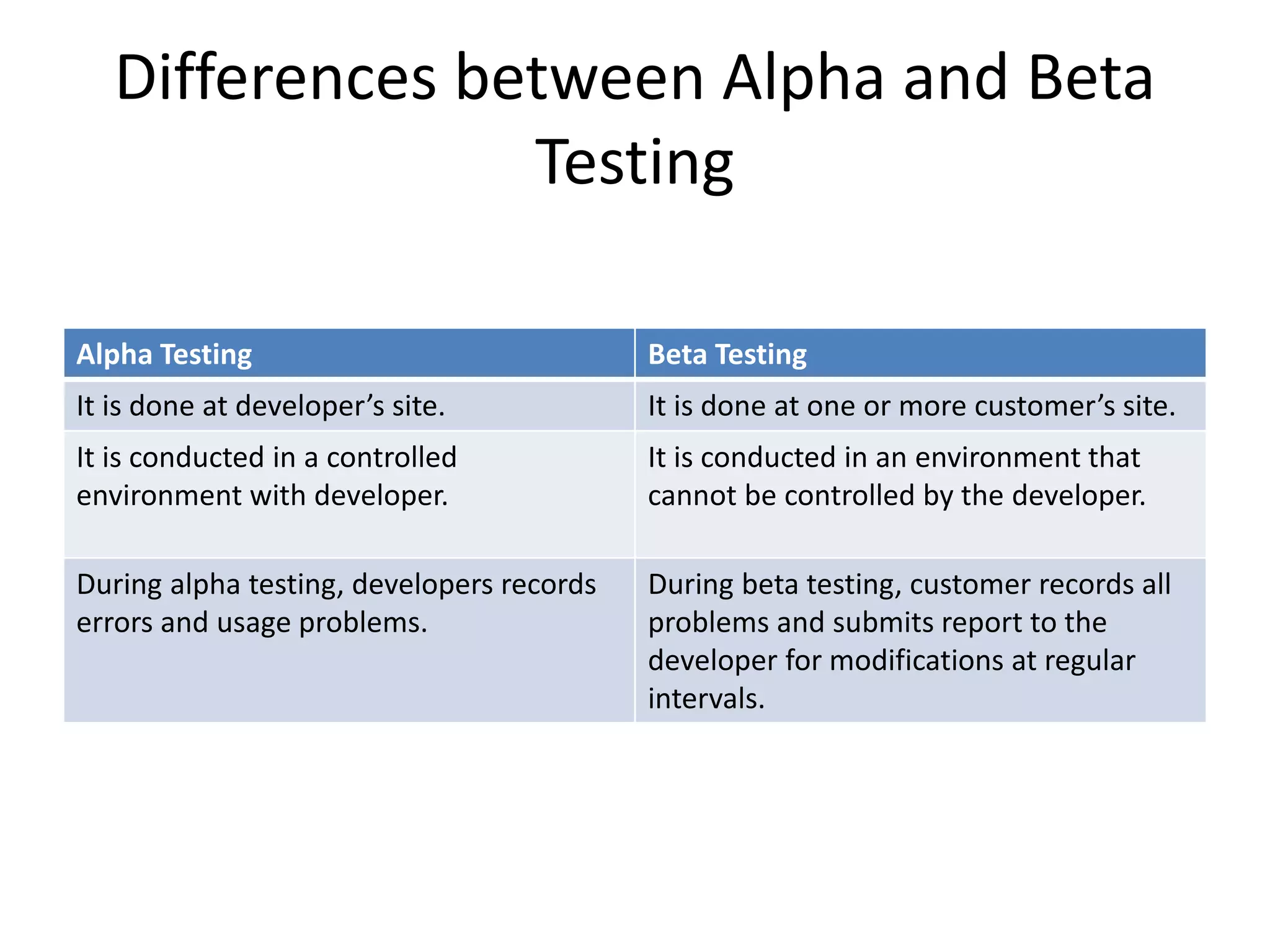

Differences between Alpha and Beta
Testing
Alpha Testing Beta Testing
It is done at developer’s site. It is done at one or more customer’s site.
It is conducted in a controlled
environment with developer.
It is conducted in an environment that
cannot be controlled by the developer.
During alpha testing, developers records
errors and usage problems.
During beta testing, customer records all
problems and submits report to the
developer for modifications at regular
intervals.

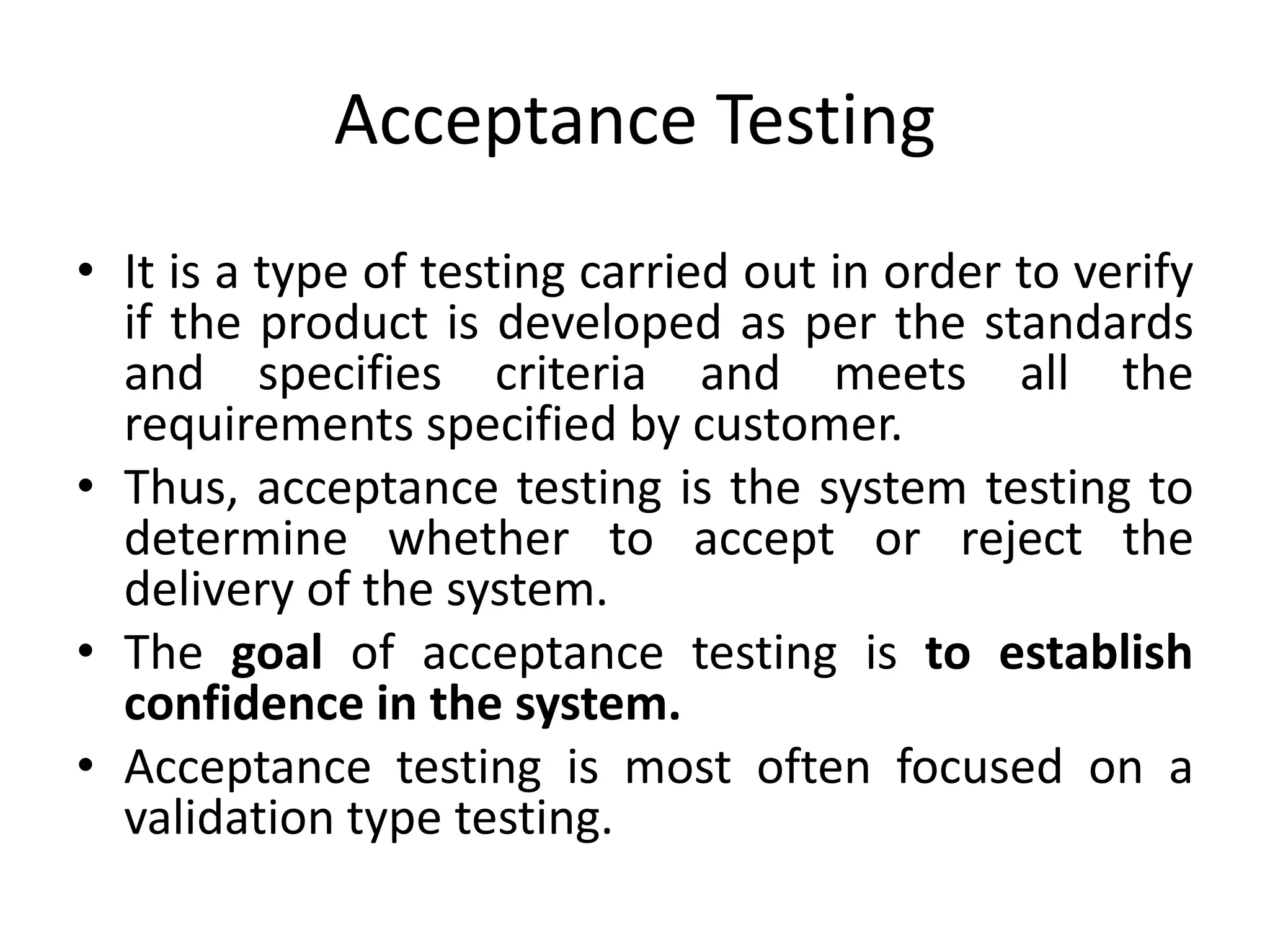

Acceptance Testing
• It is a type of testing carried out in order to verify
if the product is developed as per the standards
and specifies criteria and meets all the
requirements specified by customer.
• Thus, acceptance testing is the system testing to
determine whether to accept or reject the
delivery of the system.
• The goal of acceptance testing is to establish
confidence in the system.
• Acceptance testing is most often focused on a
validation type testing.

Regression Testing
• It is a type of testing carried out to ensure that
changes made in the fixes are not impacting
the previously working functionality.
• The main aim of regression testing is to make
sure that changed component is not impacting
the unchanged part of the component.
• It means re-testing an application after its
code has been modified to verify that it still
functions correctly.

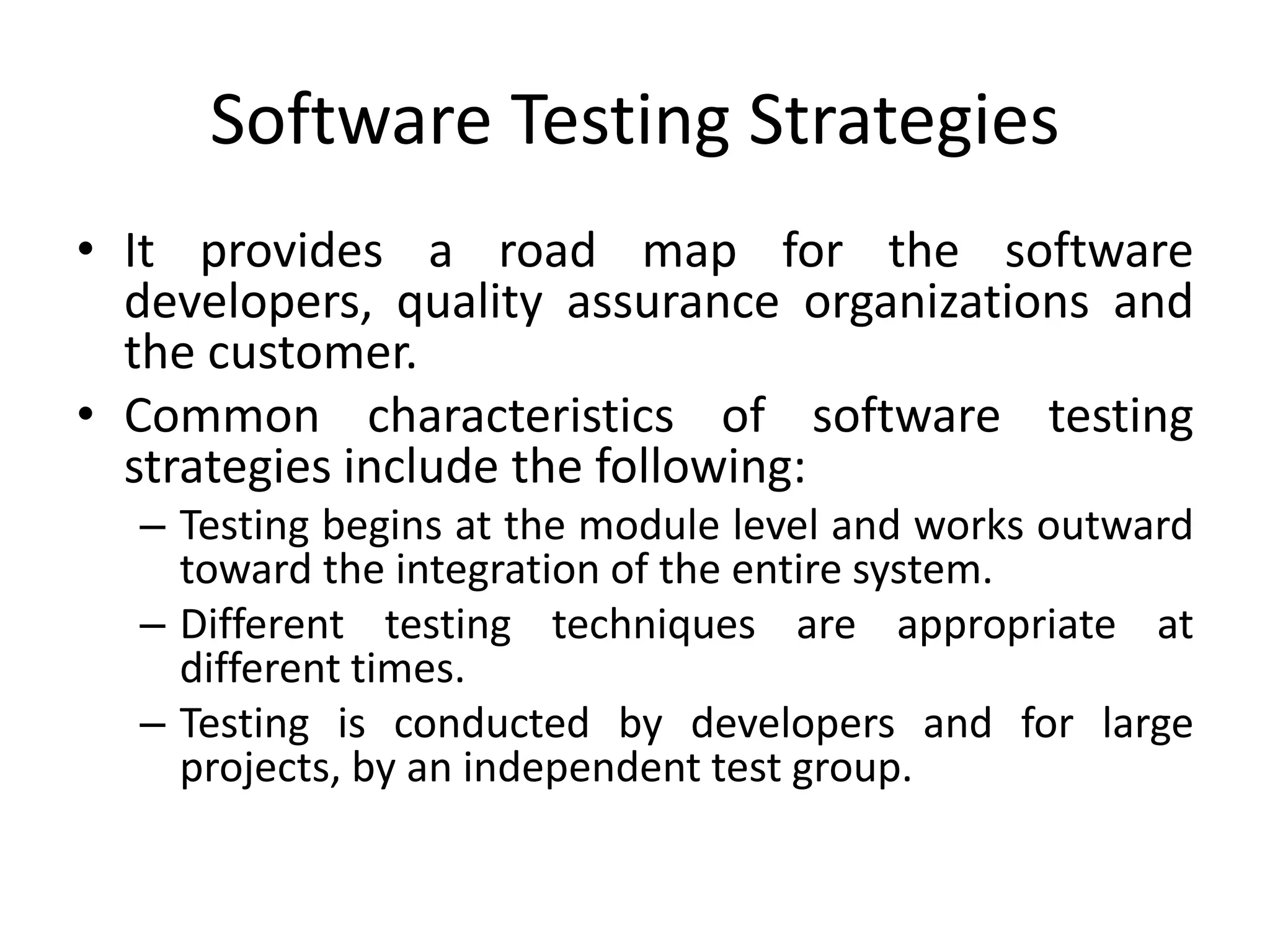

Software Testing Strategies
• It provides a road map for the software
developers, quality assurance organizations and
the customer.
• Common characteristics of software testing
strategies include the following:
– Testing begins at the module level and works outward
toward the integration of the entire system.
– Different testing techniques are appropriate at
different times.
– Testing is conducted by developers and for large
projects, by an independent test group.

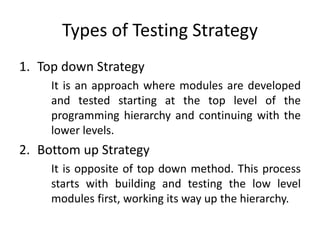

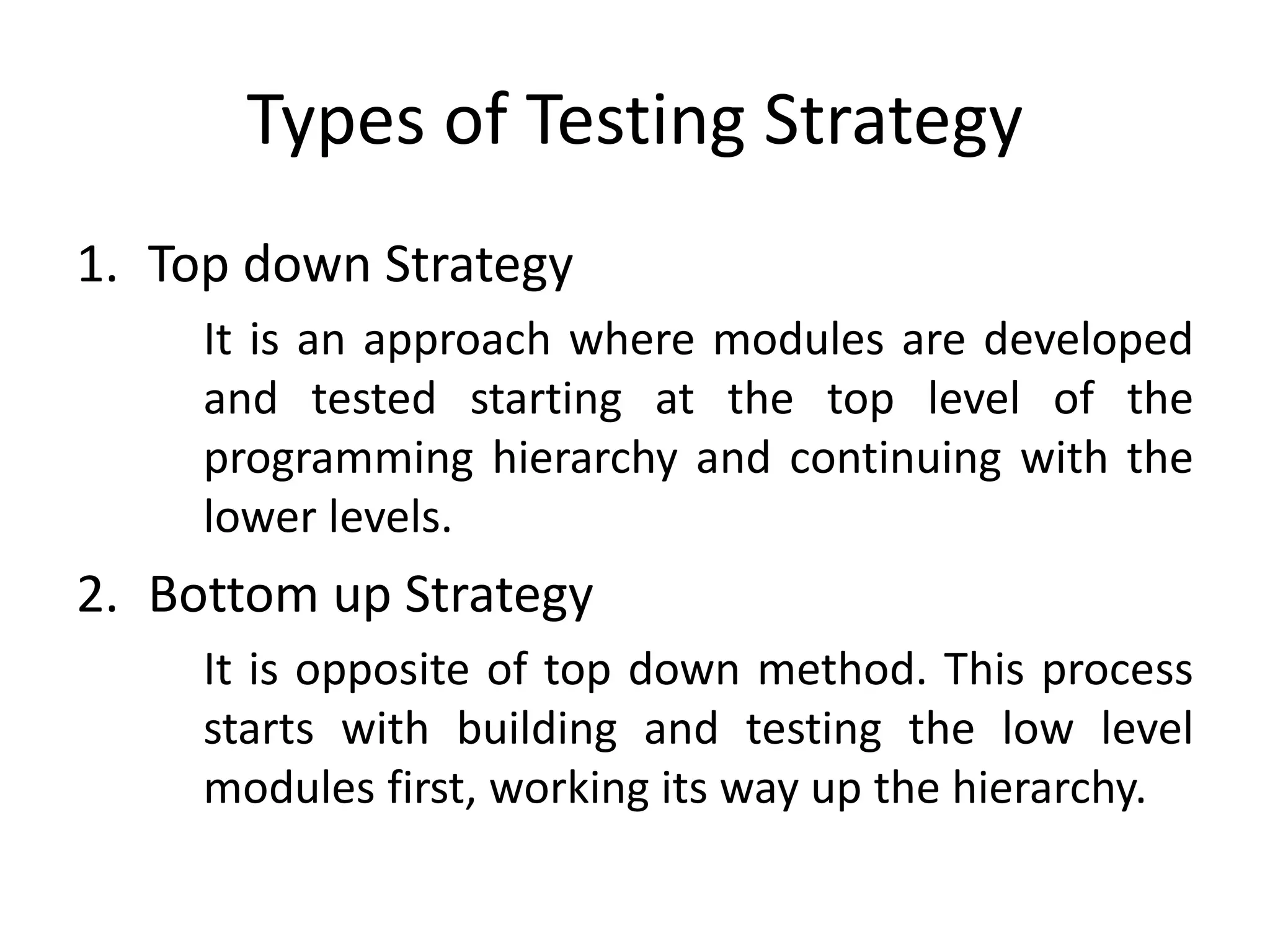

Types of Testing Strategy
1. Top down Strategy
It is an approach where modules are developed
and tested starting at the top level of the
programming hierarchy and continuing with the
lower levels.
2. Bottom up Strategy
It is opposite of top down method. This process
starts with building and testing the low level
modules first, working its way up the hierarchy.

White Box testing
• White Box testing is based on the inner workings
of an application and revolves around internal
testing. The term "whitebox" was used because
of the see-through box concept. The clear box or
whitebox name symbolizes the ability to see
through the software's outer shell (or "box") into
its inner workings.
• One of the basic goal of white box testing is to
verify a working flow for an application.

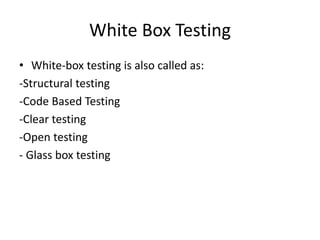

White Box Testing
• White-box testing is also called as:
-Structural testing
-Code Based Testing
-Clear testing
-Open testing
- Glass box testing

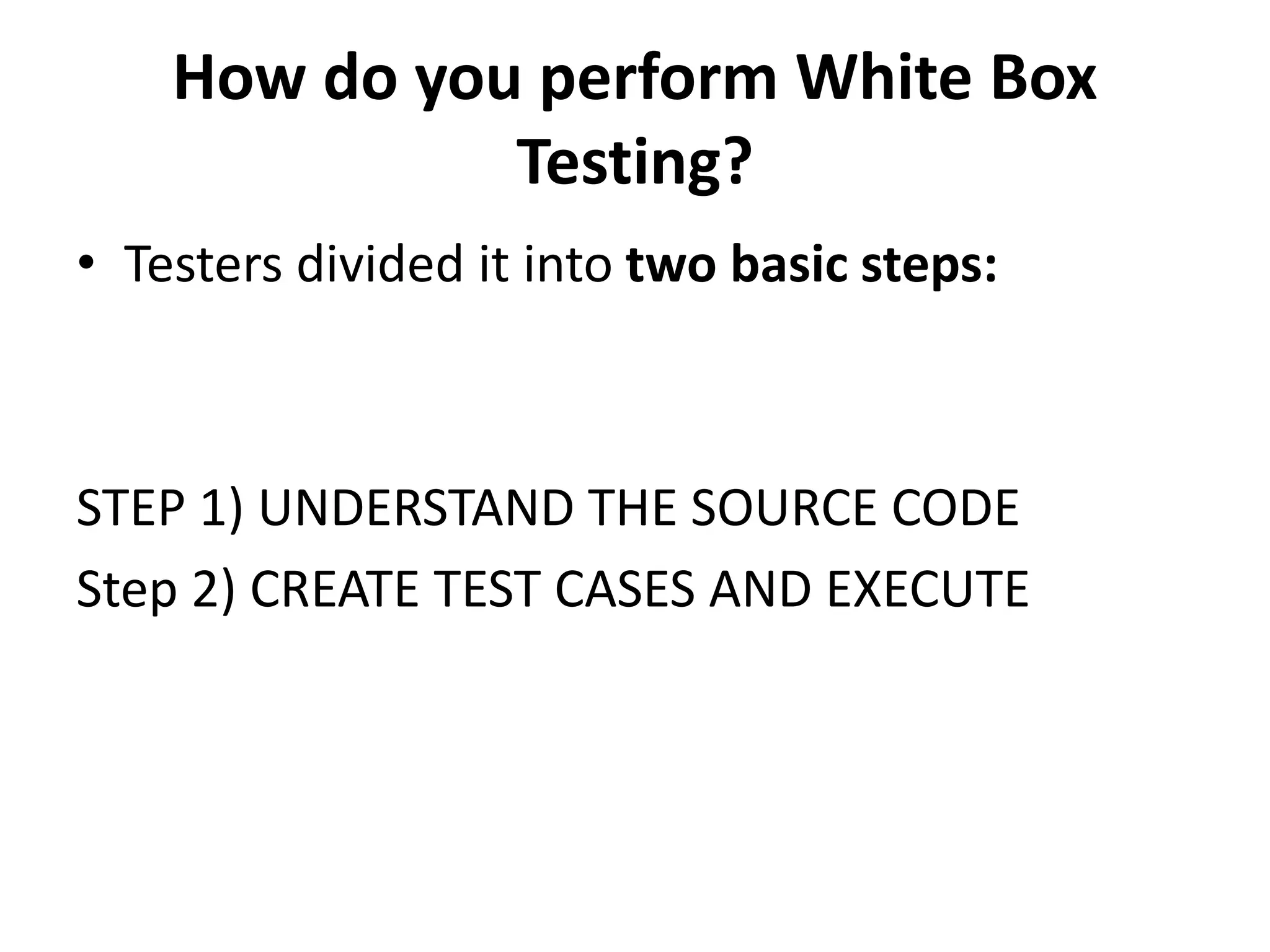

How do you perform White Box
Testing?
• Testers divided it into two basic steps:
STEP 1) UNDERSTAND THE SOURCE CODE
Step 2) CREATE TEST CASES AND EXECUTE

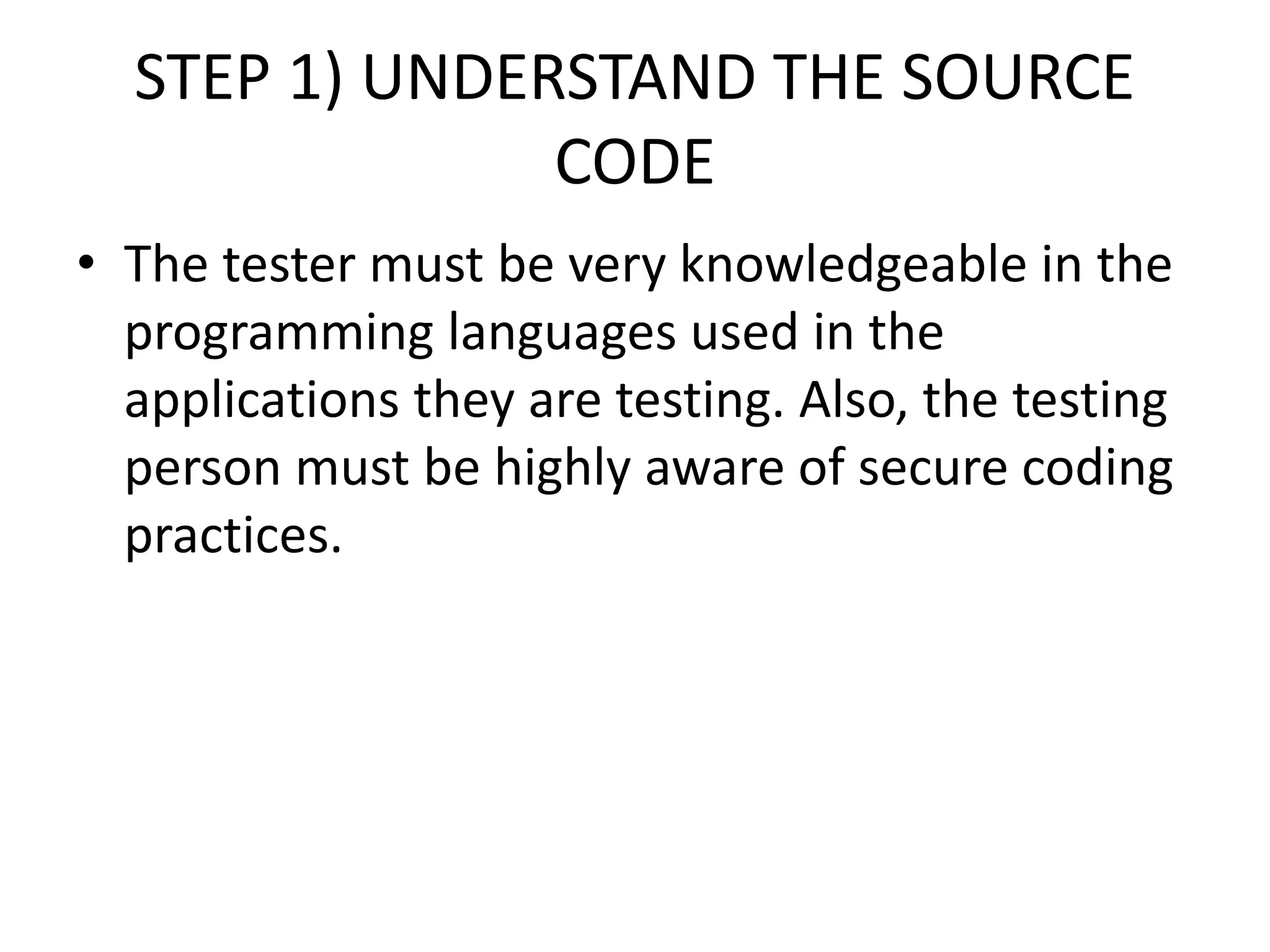

STEP 1) UNDERSTAND THE SOURCE
CODE
• The tester must be very knowledgeable in the
programming languages used in the
applications they are testing. Also, the testing
person must be highly aware of secure coding
practices.

Step 2) CREATE TEST CASES AND
EXECUTE
• Writing more code to test the application's
source code. The tester will develop little tests
for each process or series of processes in the
application.

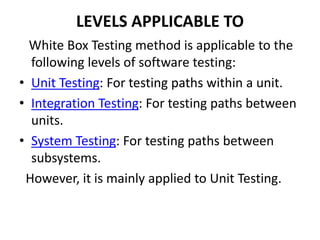

LEVELS APPLICABLE TO
White Box Testing method is applicable to the
following levels of software testing:
• Unit Testing: For testing paths within a unit.
• Integration Testing: For testing paths between
units.
• System Testing: For testing paths between
subsystems.
However, it is mainly applied to Unit Testing.

What do you verify in White Box
Testing ?
• Basically verify the security holes in the code.
• Verify the broken or incomplete paths in the code.
• Verify the flow of structure mention in the
specification document
• Verify the Expected outputs
• Verify the all conditional loops in the code to check
the complete functionality of the application.
• Verify the line by line or Section by Section in the
code.

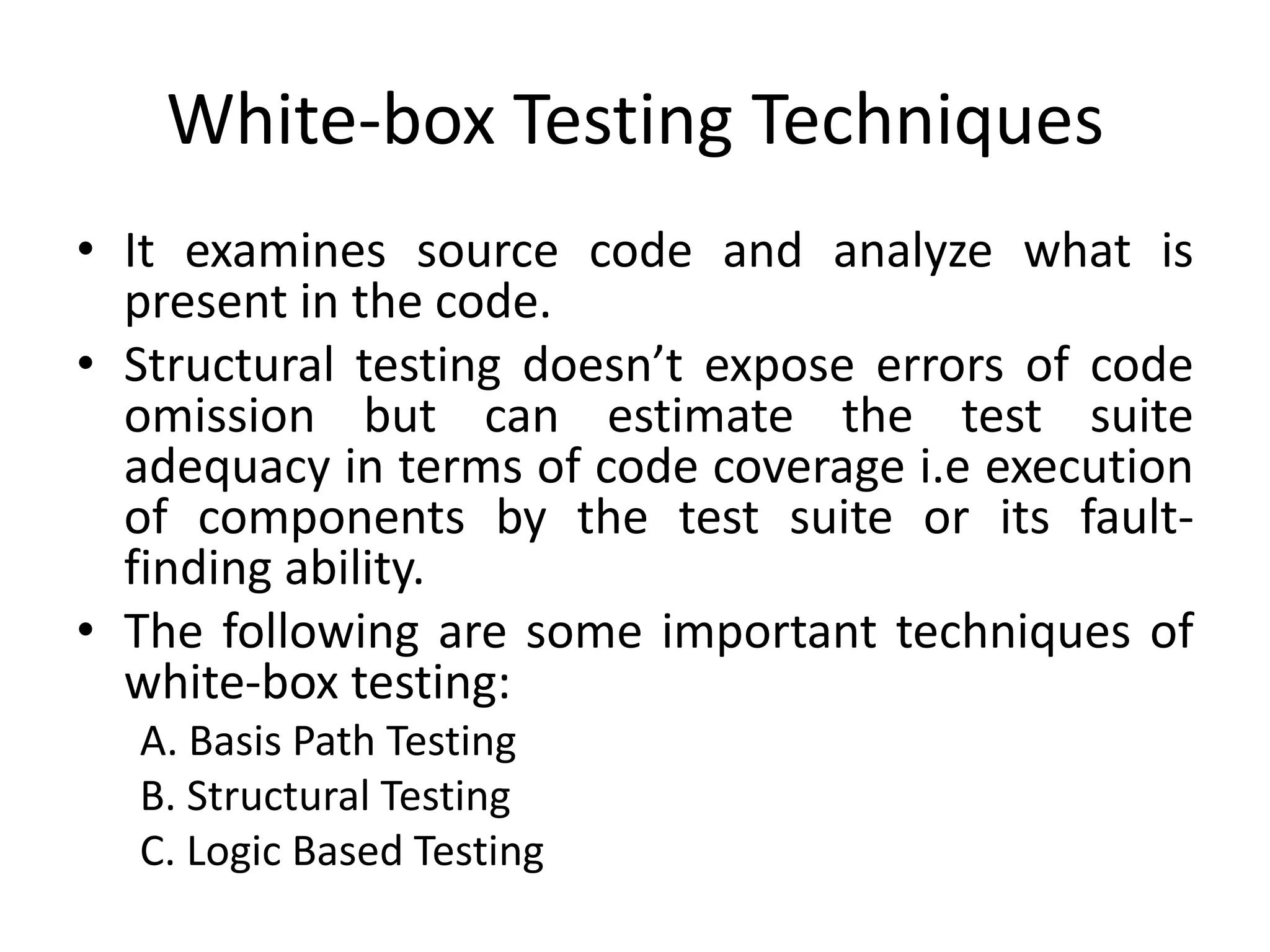

White-box Testing Techniques
• It examines source code and analyze what is
present in the code.
• Structural testing doesn’t expose errors of code
omission but can estimate the test suite
adequacy in terms of code coverage i.e execution
of components by the test suite or its fault-
finding ability.
• The following are some important techniques of
white-box testing:
A. Basis Path Testing
B. Structural Testing
C. Logic Based Testing

A. Basis Path Testing
• It allows the design and definition of a basis
set of execution paths. The test cases created
from the basis path allow the program to be
executed in such a way as to examine each
possible path through the program by
executing each statement at least once.

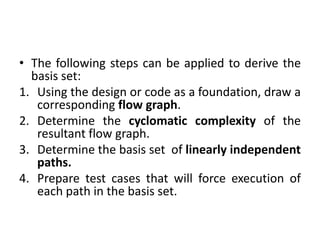

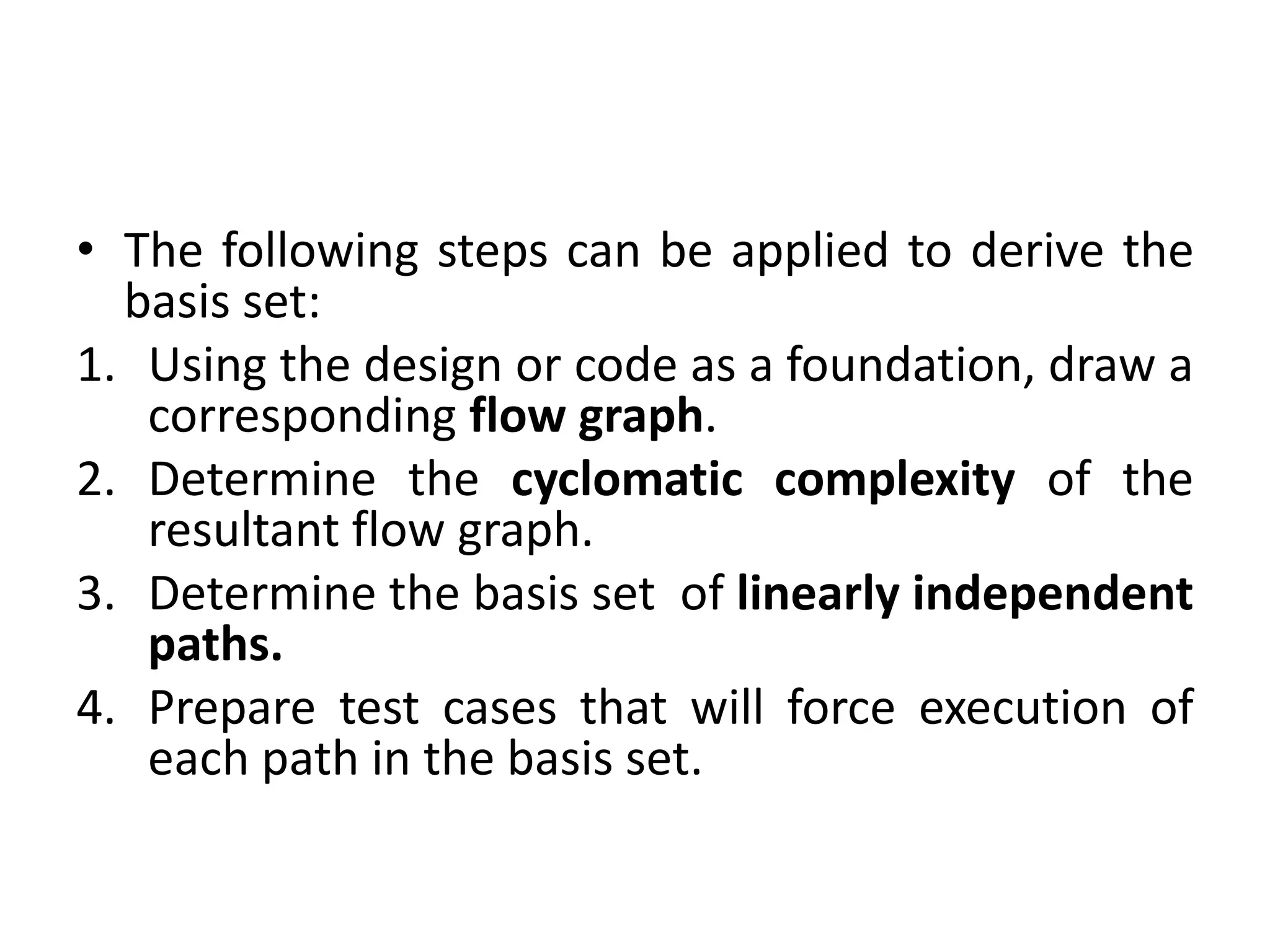

• The following steps can be applied to derive the
basis set:
1. Using the design or code as a foundation, draw a
corresponding flow graph.
2. Determine the cyclomatic complexity of the
resultant flow graph.
3. Determine the basis set of linearly independent
paths.
4. Prepare test cases that will force execution of
each path in the basis set.

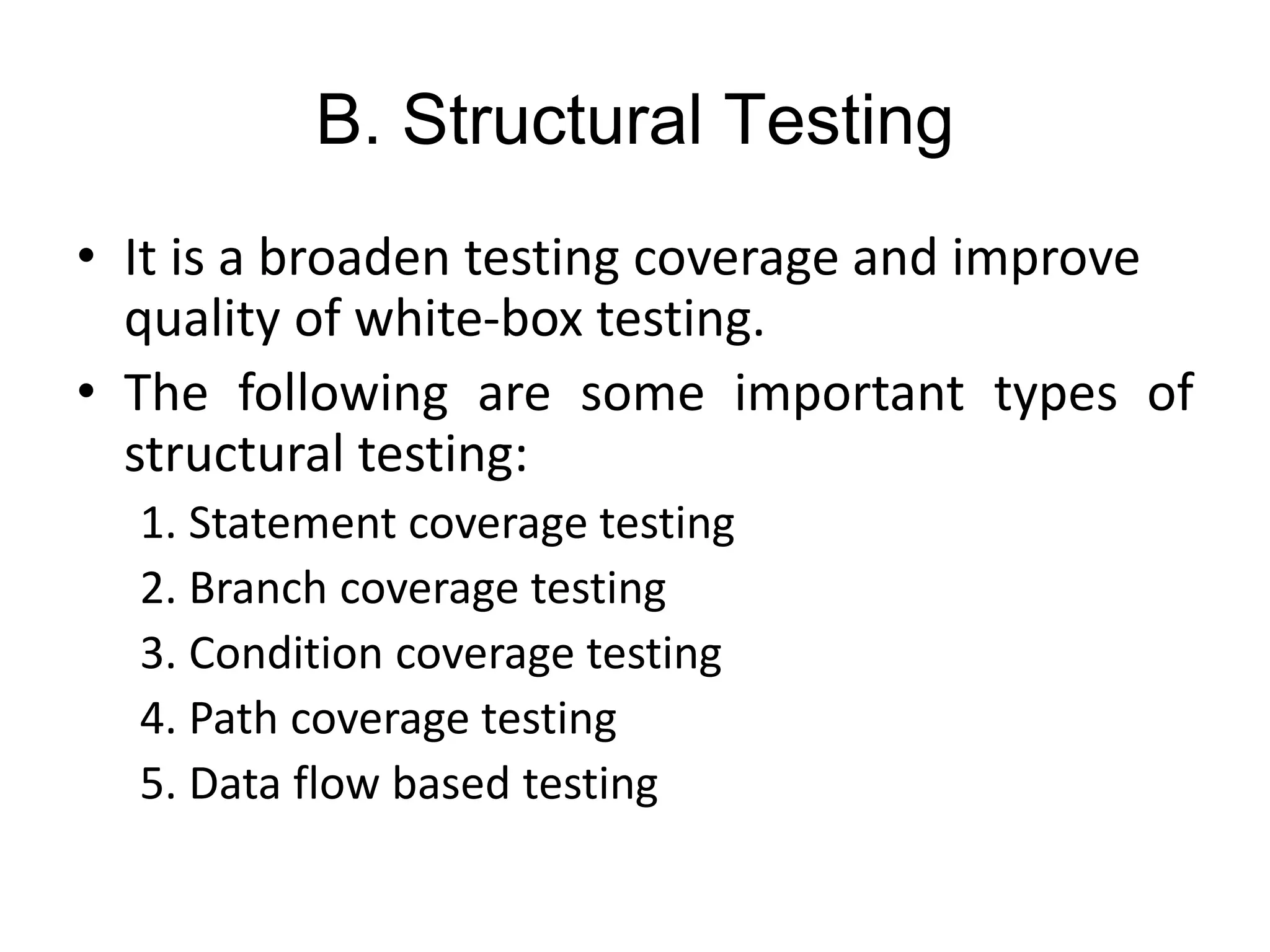

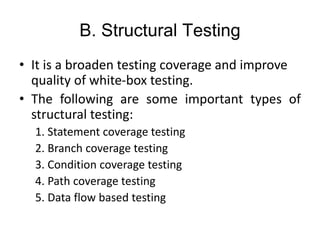

B. Structural Testing
• It is a broaden testing coverage and improve
quality of white-box testing.
• The following are some important types of
structural testing:
1. Statement coverage testing
2. Branch coverage testing
3. Condition coverage testing
4. Path coverage testing
5. Data flow based testing

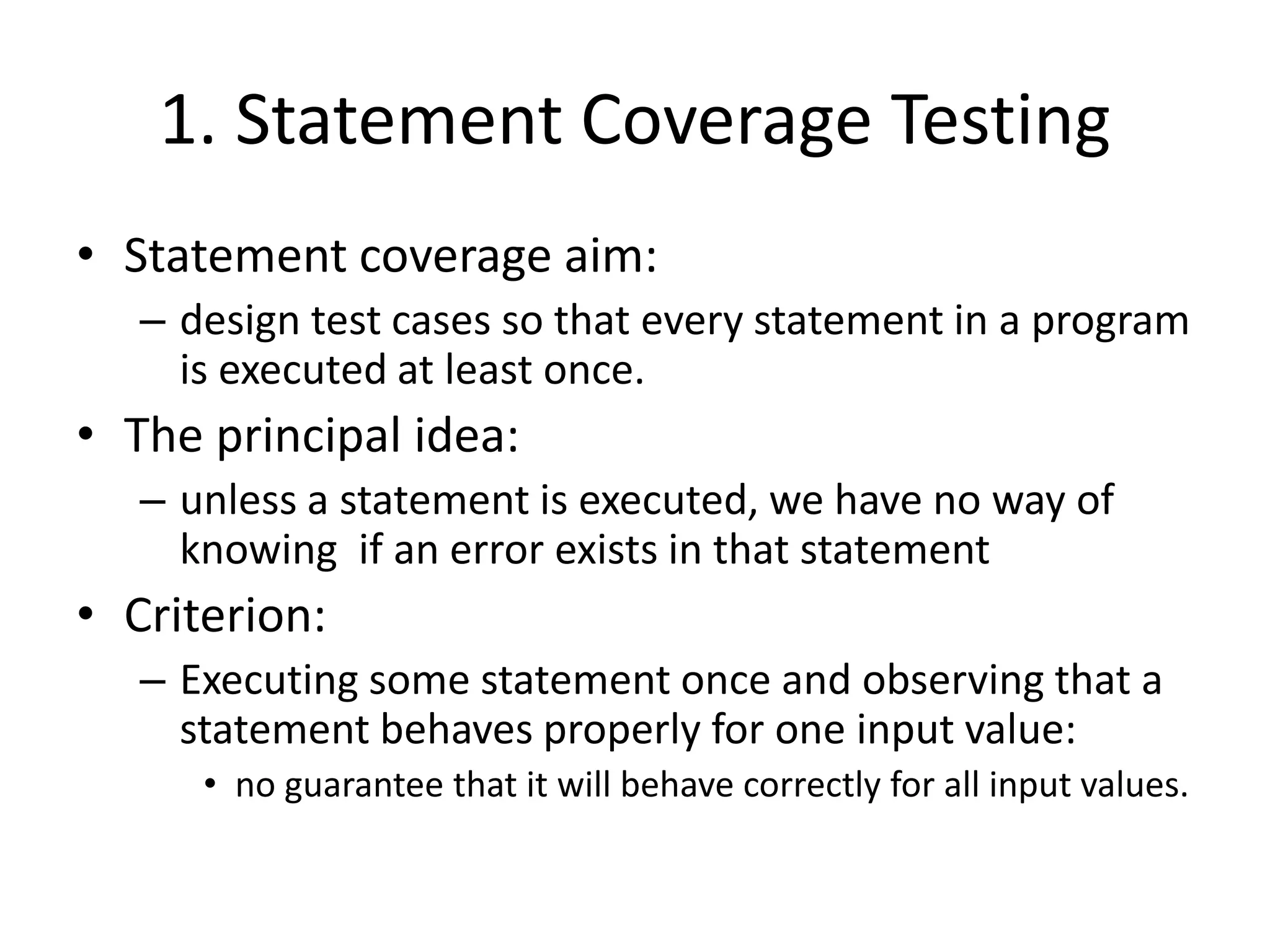

1. Statement Coverage Testing
• Statement coverage aim:
– design test cases so that every statement in a program
is executed at least once.
• The principal idea:
– unless a statement is executed, we have no way of
knowing if an error exists in that statement
• Criterion:
– Executing some statement once and observing that a
statement behaves properly for one input value:
• no guarantee that it will behave correctly for all input values.

2. Branch coverage testing
• Test cases are designed such that:
– different branch conditions is given true and false
values in turn.
• Branch testing guarantees statement
coverage:
– a stronger testing compared to the statement
coverage-based testing.

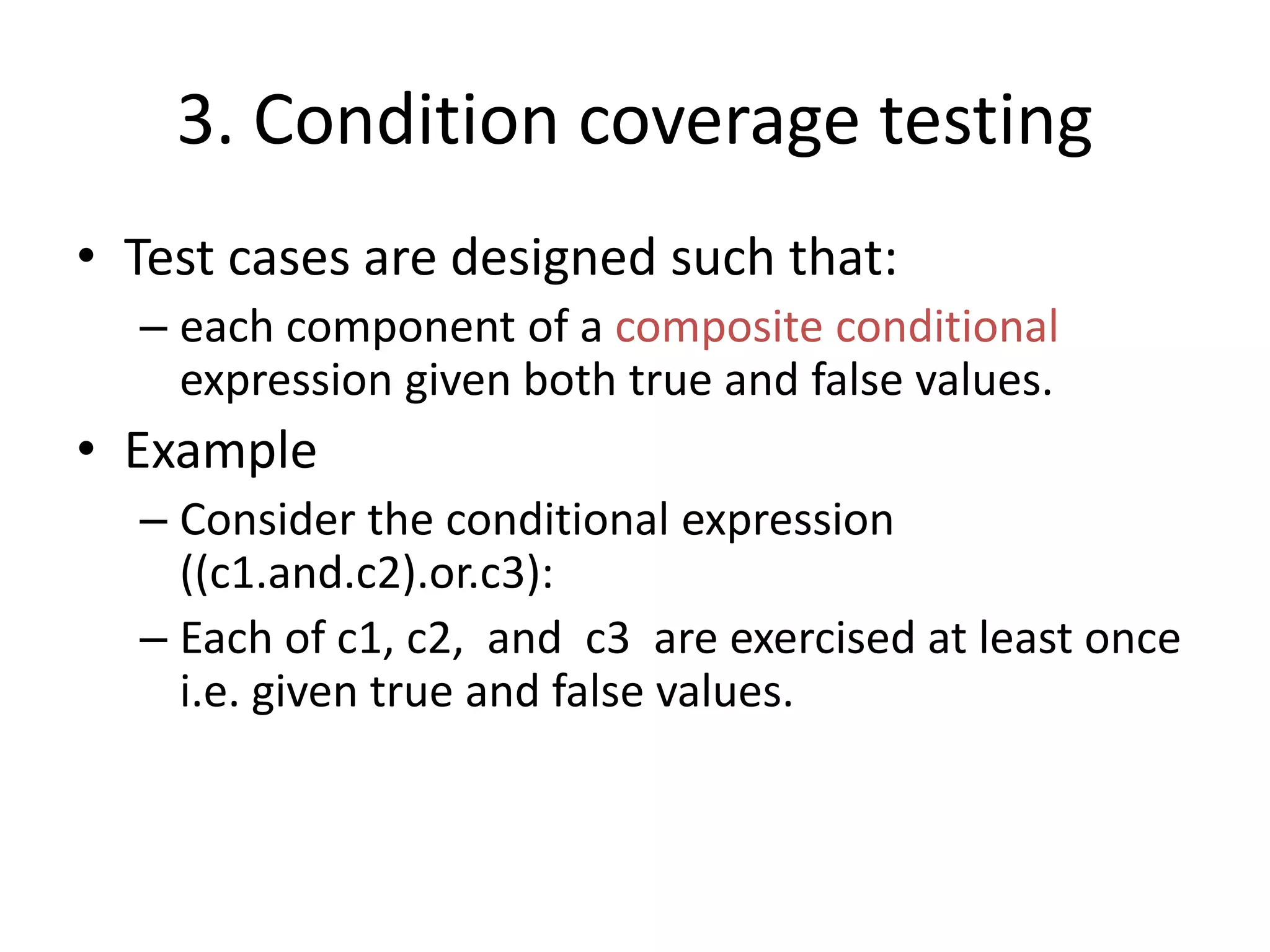

3. Condition coverage testing
• Test cases are designed such that:
– each component of a composite conditional
expression given both true and false values.
• Example
– Consider the conditional expression
((c1.and.c2).or.c3):
– Each of c1, c2, and c3 are exercised at least once
i.e. given true and false values.

4. Path coverage testing
• In path coverage, we write test cases to
ensure that each and every path has been
traversed at least once. One way to better
understand path coverage:
– Draw a flow graph to indicate corresponding logic
in the program.
– Calculate individual paths in the flow graph.
– Run the program in all possible ways to cover
every statement.

How to calculate Statement Coverage,
Branch Coverage & Path Coverage?
• Draw the flow in the following way:
– Nodes represent entries , exists, decisions, and
each statement of code.
– Edges represent non-branching and links between
nodes.

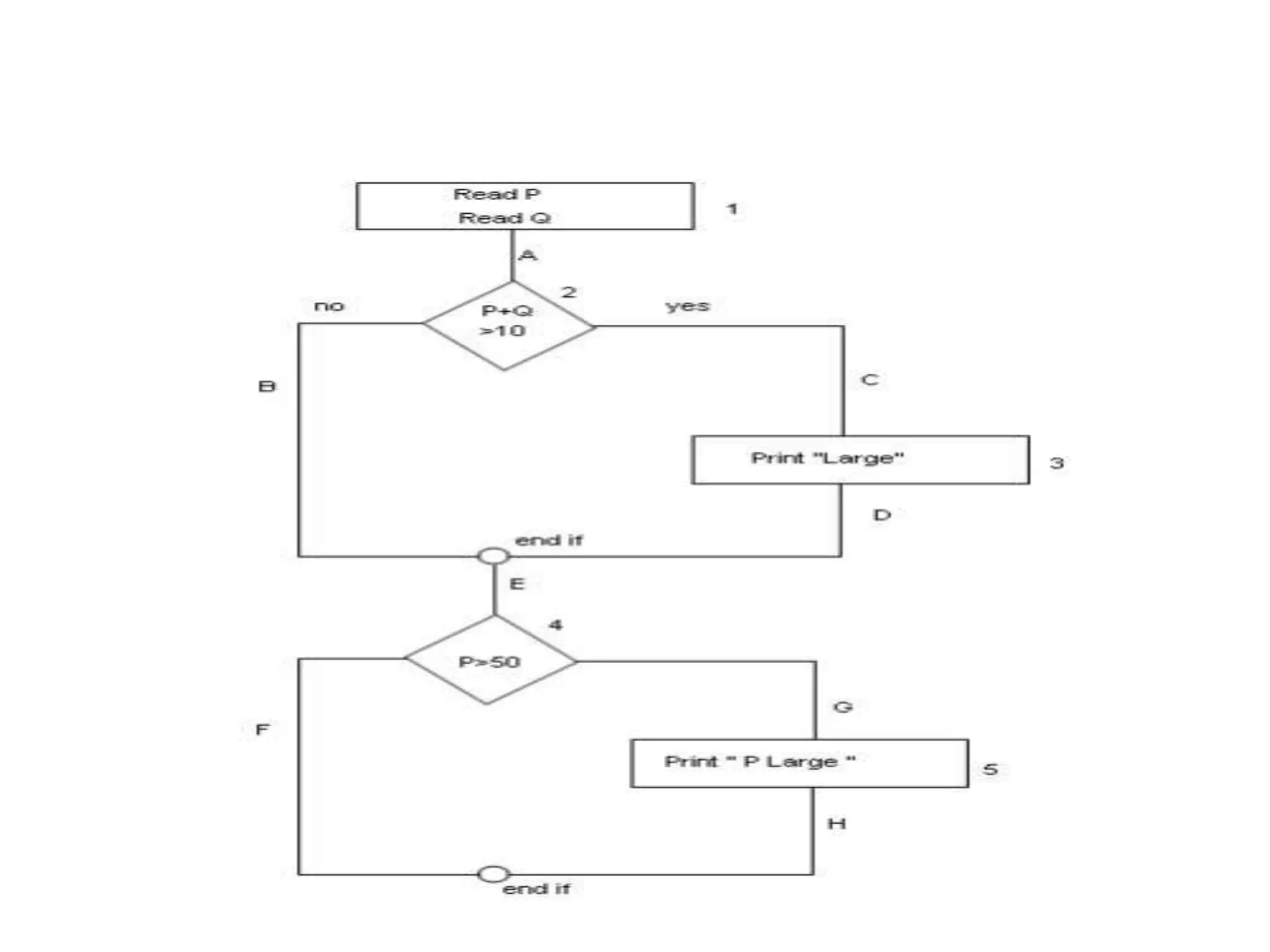

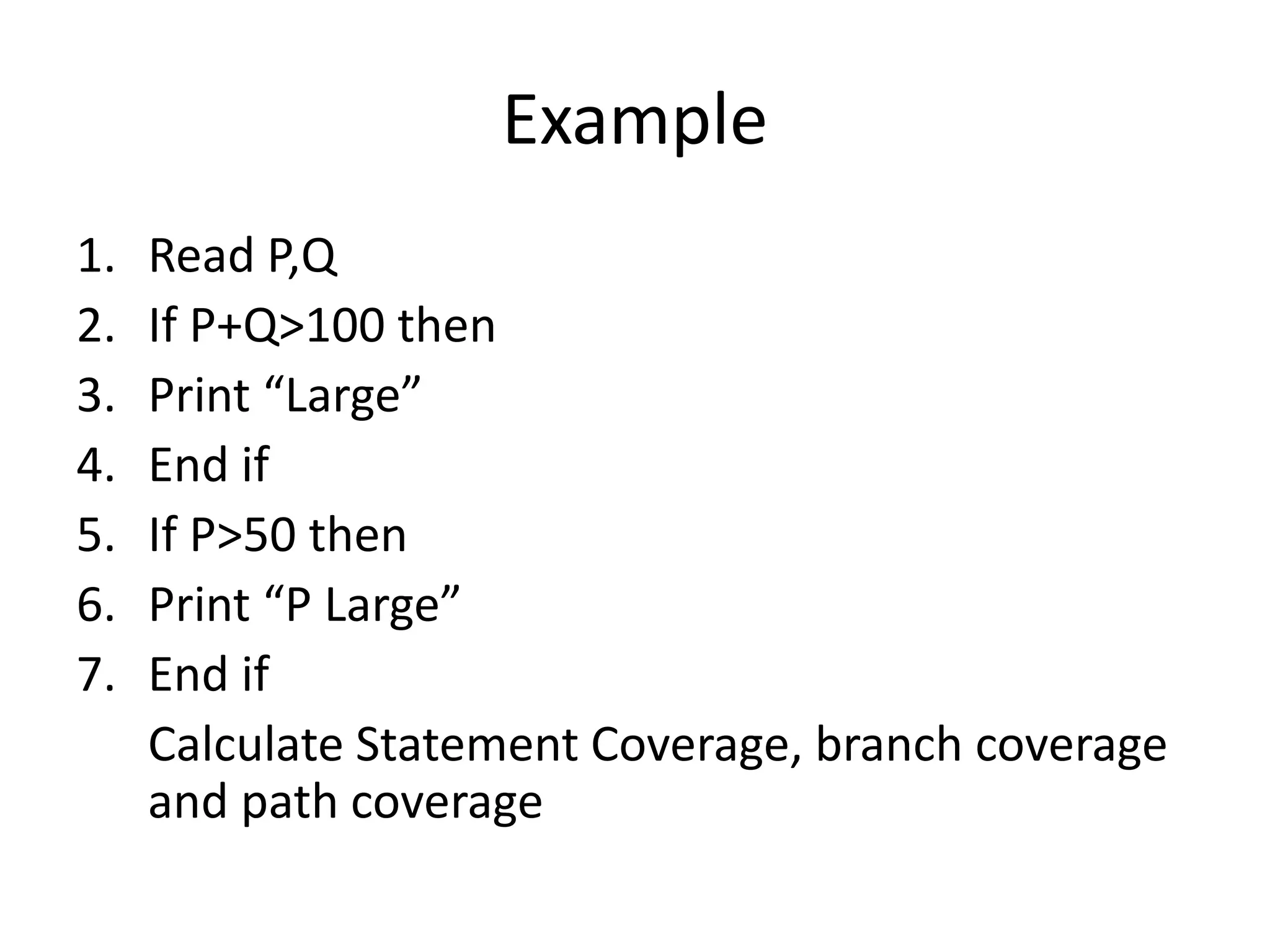

Example
1. Read P,Q
2. If P+Q>100 then
3. Print “Large”
4. End if
5. If P>50 then
6. Print “P Large”
7. End if
Calculate Statement Coverage, branch coverage
and path coverage

Statement Coverage (SC):
To calculate Statement Coverage, find out the shortest number of paths following
which all the nodes will be covered. Here by traversing through path 1A-2C-3D-E-4G-5H all
the nodes are covered. So by traveling through only one path all the nodes 12345 are covered,
so the Statement coverage in this case is 1.
Branch Coverage (BC):
To calculate Branch Coverage, find out the minimum number of paths which will ensure covering of all the edges. In
this case there is no single path which will ensure coverage of all the edges at one go. By following paths 1A-2C-
3D-E-4G-5H, maximum numbers of edges (A, C, D, E, G and H) are covered but edges B and F are left. To covers
these edges we follow 1A-2B-E-4F. By the combining the above two paths we can ensure of traveling through all
the paths. Hence Branch Coverage is 2. The aim is to cover all possible true/false decisions.
Path Coverage (PC):
Path Coverage ensures covering of all the paths from start to end. Every distinct path through the code is executed
atleast once.
All possible paths are-
1A-2B-E-4F
1A-2B-E-4G-5H
1A-2C-3D-E-4G-5H
1A-2C-3D-E-4F
So path coverage is 4.
Thus for the above example SC=1, BC=2 and PC=4.

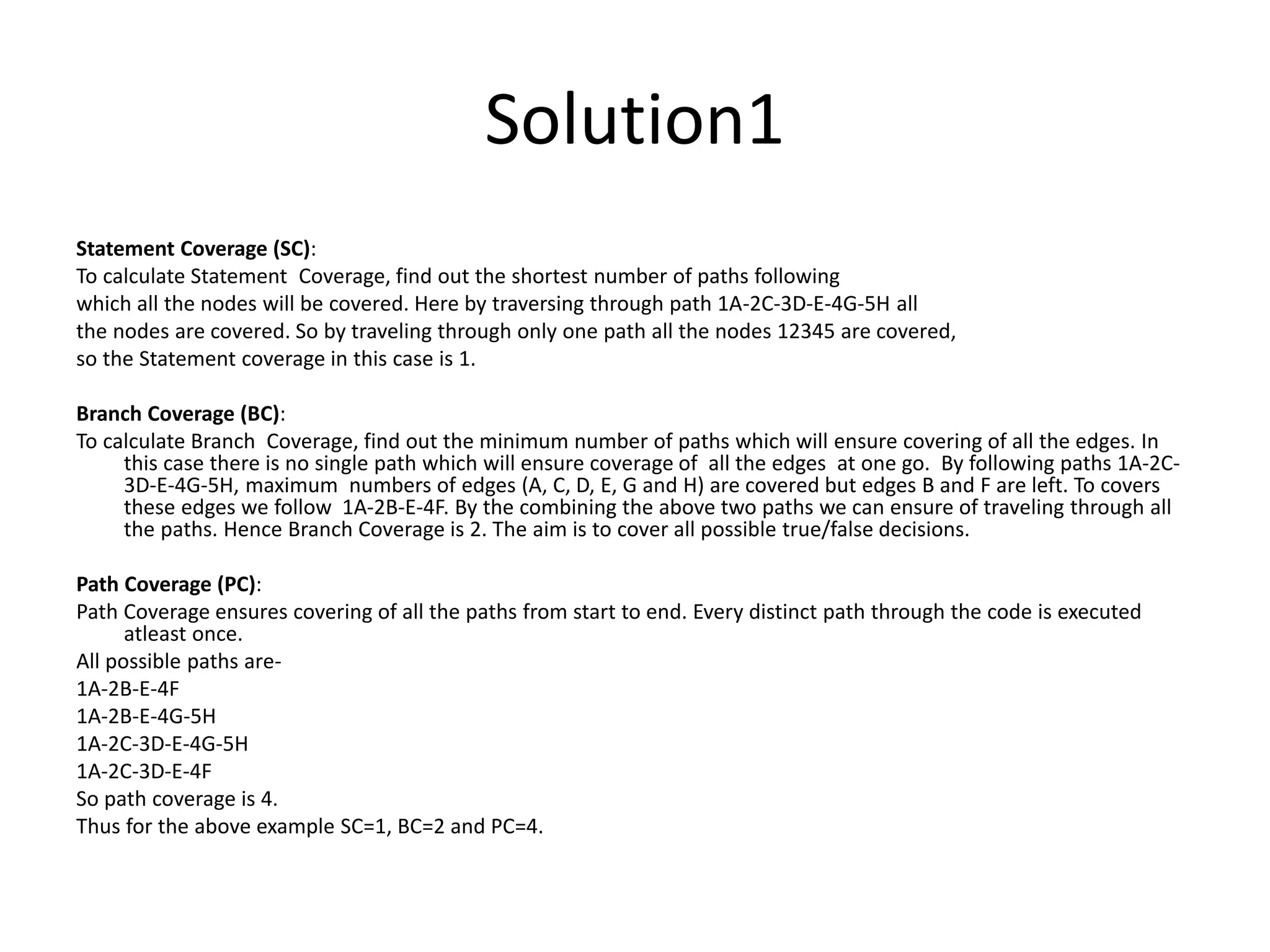

Solution1

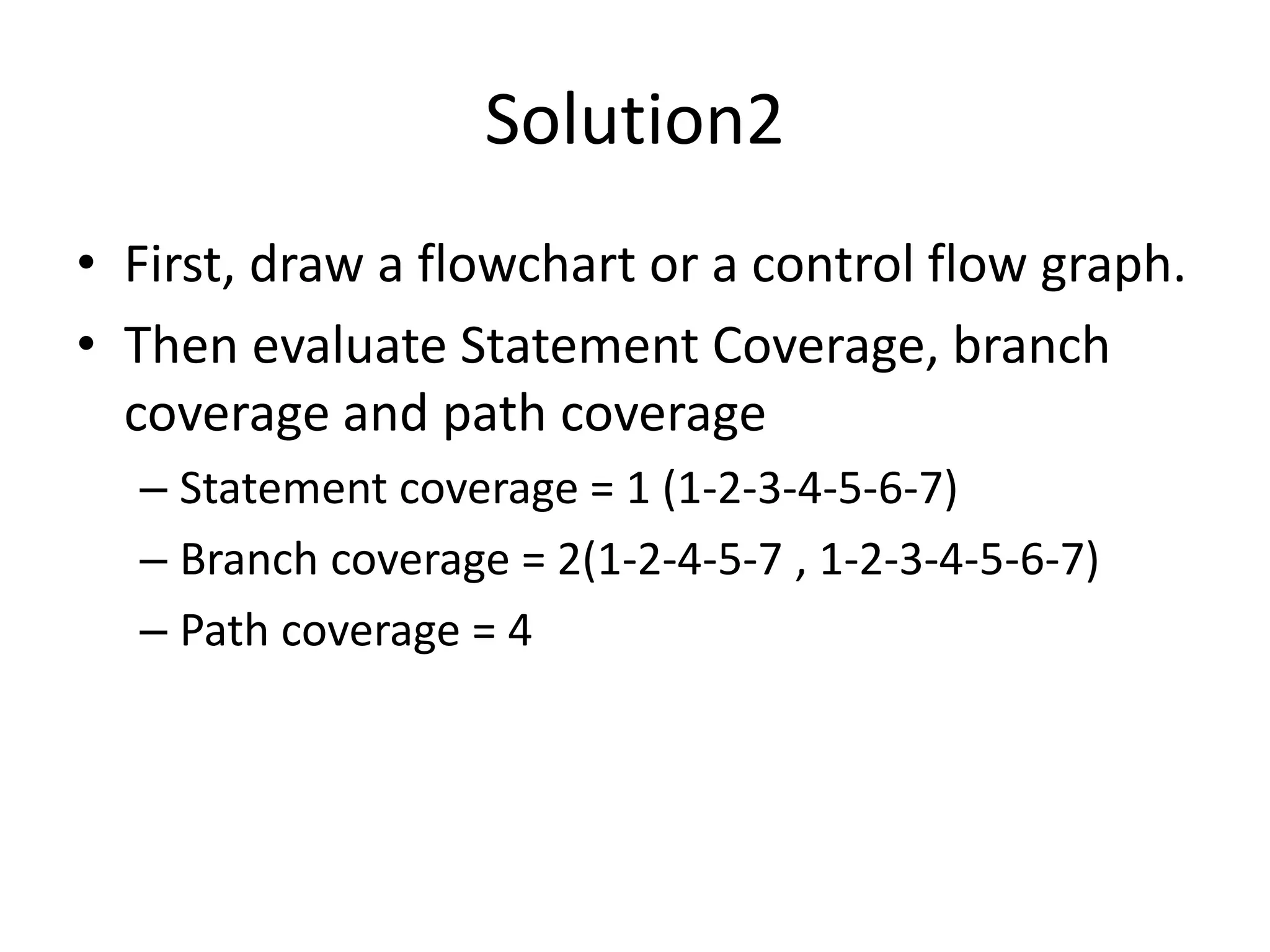

Solution2

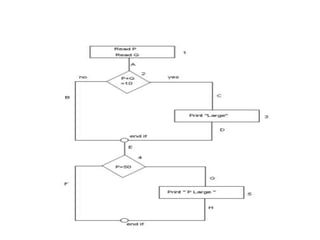

• First, draw a flowchart or a control flow graph.
• Then evaluate Statement Coverage, branch
coverage and path coverage
– Statement coverage = 1 (1-2-3-4-5-6-7)
– Branch coverage = 2(1-2-4-5-7 , 1-2-3-4-5-6-7)
– Path coverage = 4

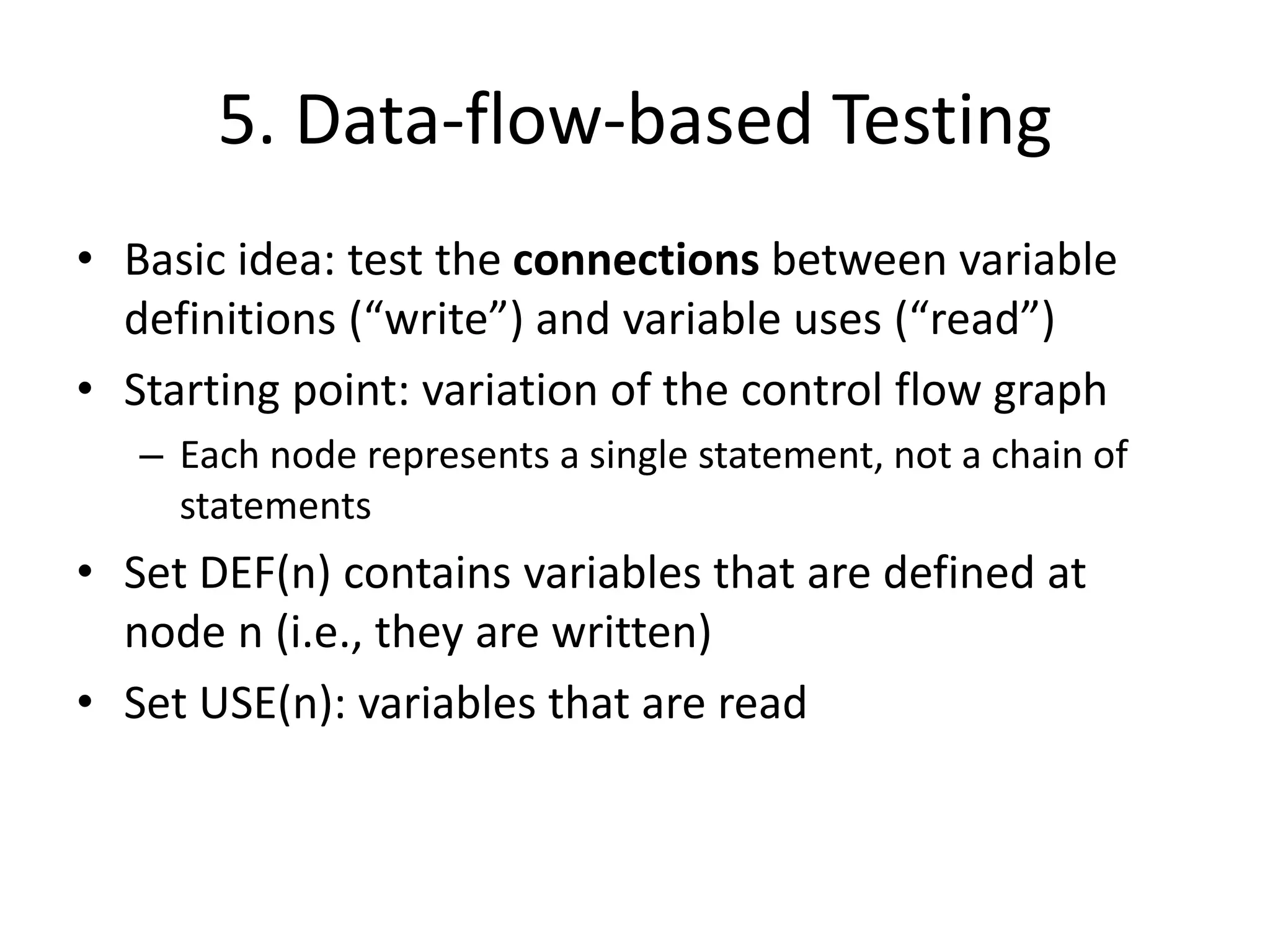

5. Data-flow-based Testing
• Basic idea: test the connections between variable
definitions (“write”) and variable uses (“read”)
• Starting point: variation of the control flow graph
– Each node represents a single statement, not a chain of
statements
• Set DEF(n) contains variables that are defined at
node n (i.e., they are written)
• Set USE(n): variables that are read

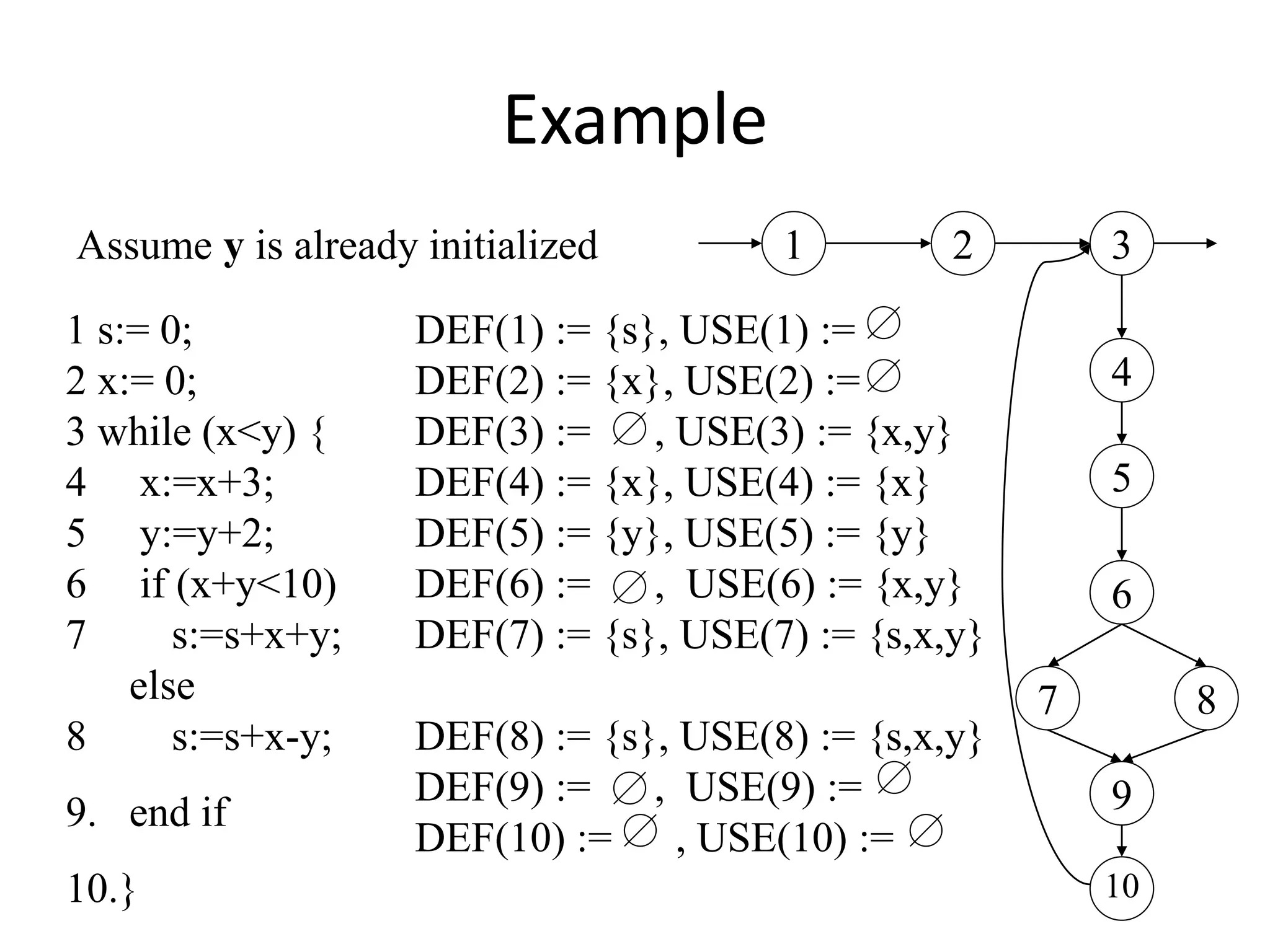

Example
Assume y is already initialized
1 s:= 0;
2 x:= 0;
3 while (x<y) {
4 x:=x+3;
5 y:=y+2;
6 if (x+y<10)
7 s:=s+x+y;
else
8 s:=s+x-y;
9. end if
10.}
DEF(1) := {s}, USE(1) :=
DEF(2) := {x}, USE(2) :=
DEF(3) := , USE(3) := {x,y}
DEF(4) := {x}, USE(4) := {x}
DEF(5) := {y}, USE(5) := {y}
DEF(6) := , USE(6) := {x,y}
DEF(7) := {s}, USE(7) := {s,x,y}
DEF(8) := {s}, USE(8) := {s,x,y}
DEF(9) := , USE(9) :=
DEF(10) := , USE(10) :=
1 2 3
4
5
6
7 8
9
10

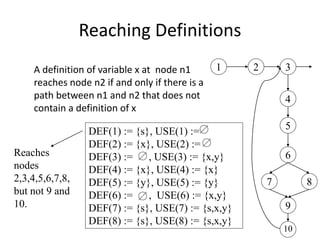

Reaching Definitions
A definition of variable x at node n1
reaches node n2 if and only if there is a
path between n1 and n2 that does not
contain a definition of x
DEF(1) := {s}, USE(1) :=
DEF(2) := {x}, USE(2) :=
DEF(3) := , USE(3) := {x,y}
DEF(4) := {x}, USE(4) := {x}
DEF(5) := {y}, USE(5) := {y}
DEF(6) := , USE(6) := {x,y}
DEF(7) := {s}, USE(7) := {s,x,y}
DEF(8) := {s}, USE(8) := {s,x,y}
1 2 3
4
5
6
7 8
9
10
Reaches
nodes
2,3,4,5,6,7,8,
but not 9 and
10.

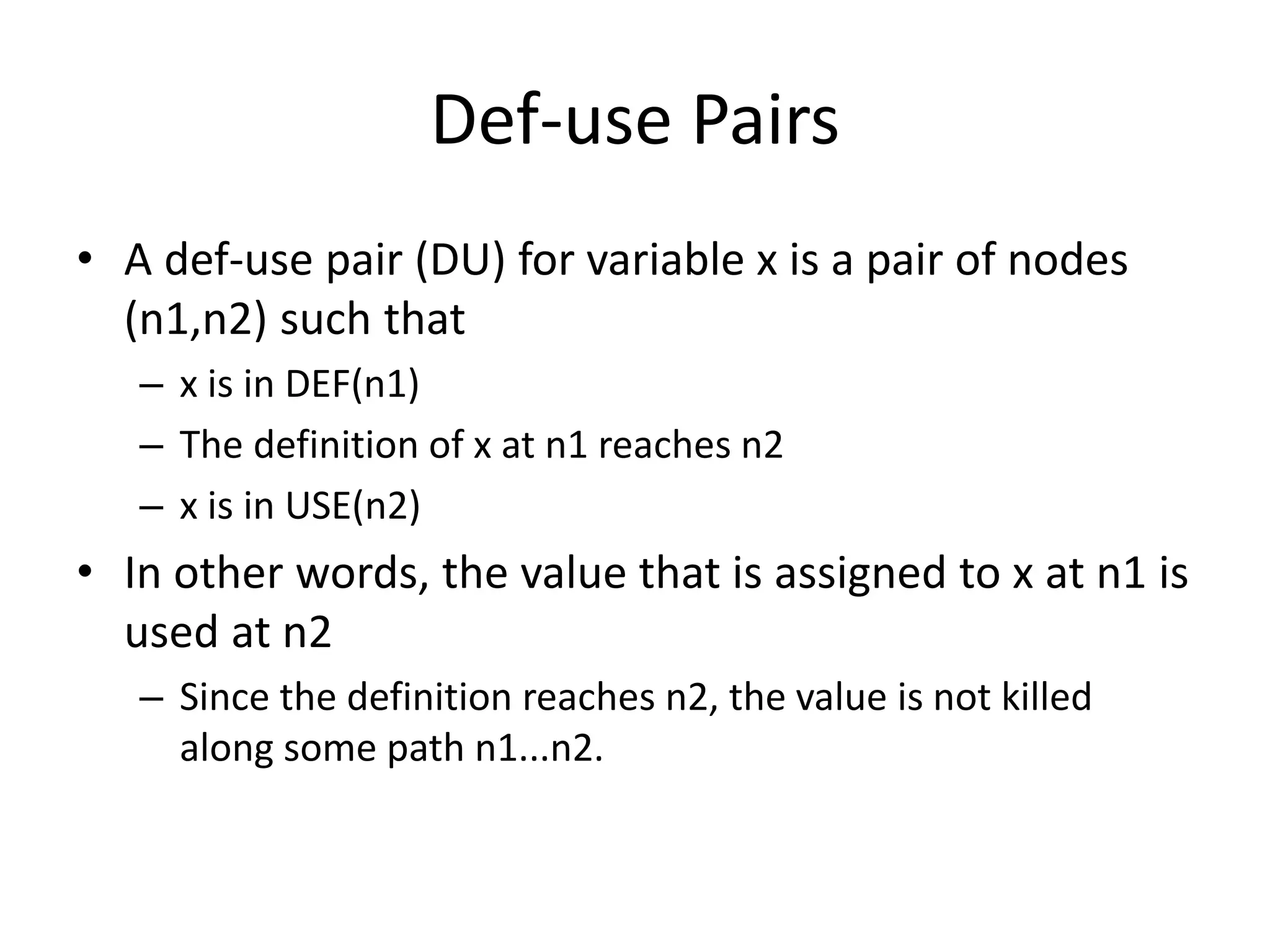

Def-use Pairs
• A def-use pair (DU) for variable x is a pair of nodes
(n1,n2) such that
– x is in DEF(n1)
– The definition of x at n1 reaches n2
– x is in USE(n2)
• In other words, the value that is assigned to x at n1 is
used at n2
– Since the definition reaches n2, the value is not killed
along some path n1...n2.

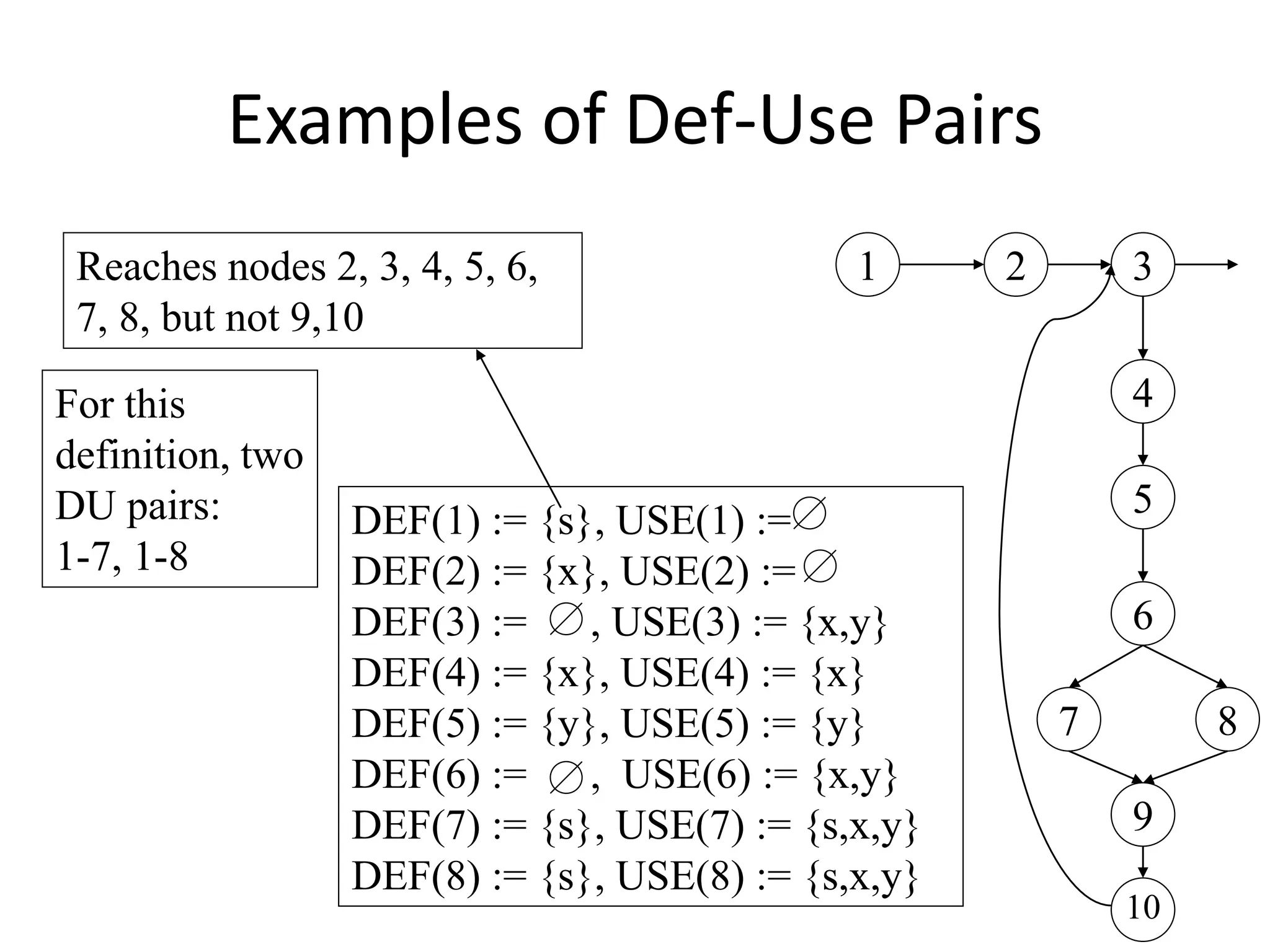

Examples of Def-Use Pairs
DEF(1) := {s}, USE(1) :=
DEF(2) := {x}, USE(2) :=
DEF(3) := , USE(3) := {x,y}
DEF(4) := {x}, USE(4) := {x}
DEF(5) := {y}, USE(5) := {y}
DEF(6) := , USE(6) := {x,y}
DEF(7) := {s}, USE(7) := {s,x,y}
DEF(8) := {s}, USE(8) := {s,x,y}
1 2 3
4
5
6
7 8
9
10
Reaches nodes 2, 3, 4, 5, 6,
7, 8, but not 9,10
For this
definition, two
DU pairs:
1-7, 1-8

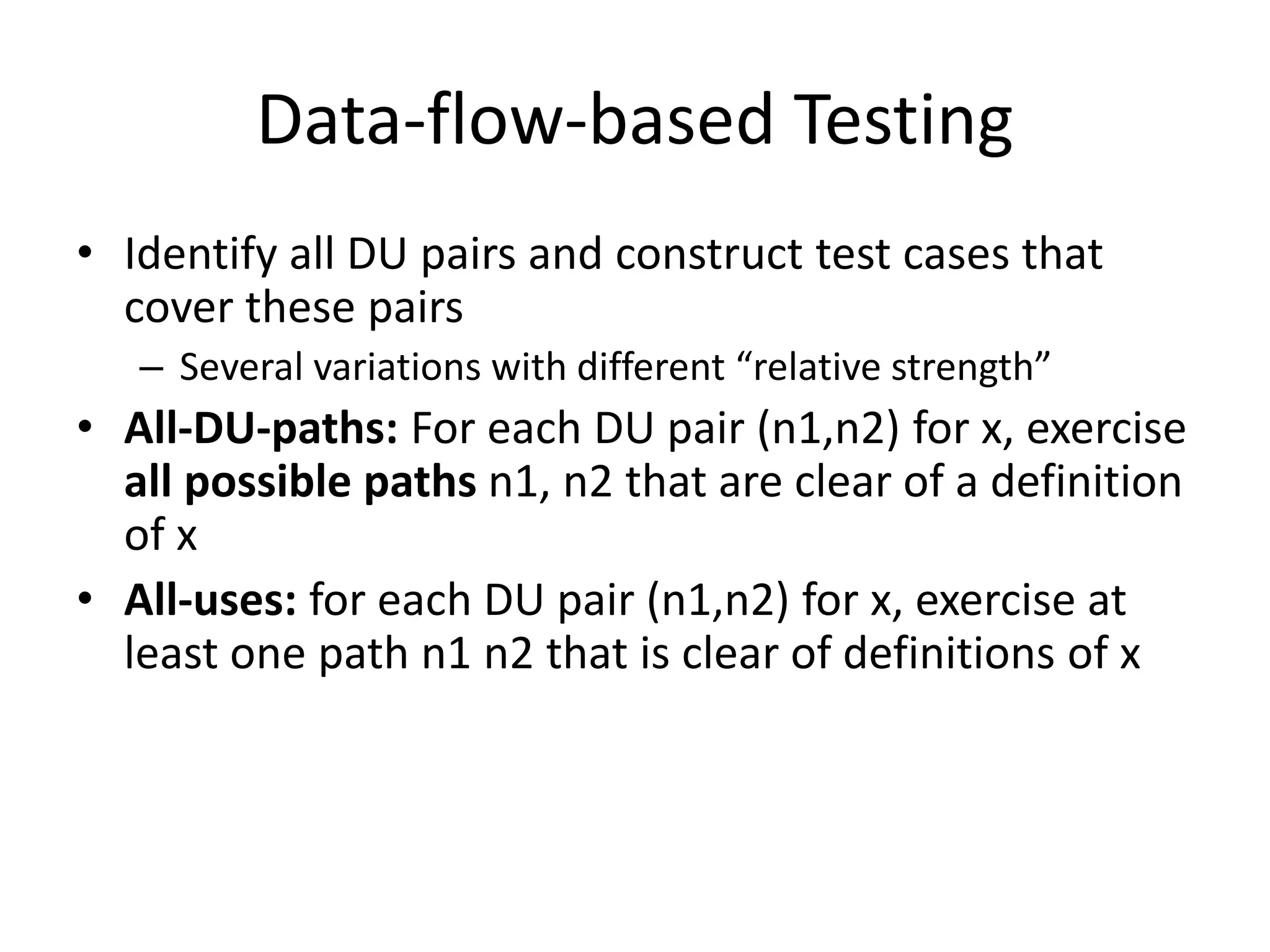

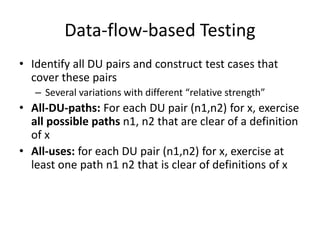

Data-flow-based Testing
• Identify all DU pairs and construct test cases that
cover these pairs
– Several variations with different “relative strength”
• All-DU-paths: For each DU pair (n1,n2) for x, exercise
all possible paths n1, n2 that are clear of a definition
of x
• All-uses: for each DU pair (n1,n2) for x, exercise at
least one path n1 n2 that is clear of definitions of x

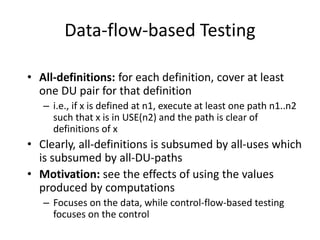

Data-flow-based Testing
• All-definitions: for each definition, cover at least
one DU pair for that definition
– i.e., if x is defined at n1, execute at least one path n1..n2
such that x is in USE(n2) and the path is clear of
definitions of x
• Clearly, all-definitions is subsumed by all-uses which
is subsumed by all-DU-paths
• Motivation: see the effects of using the values
produced by computations
– Focuses on the data, while control-flow-based testing
focuses on the control

C. Logic Based Testing
• It is used when the input domain and resulting
processing are amenable to a decision table
representation.
• The following steps are applied:
– List all actions that can be associated with a specific
algorithm.
– List all conditions
– Associate specific conditions with specific actions
eliminating impossible combination of conditions.
– Define rules by indicating what action occurs for a set
of conditions.

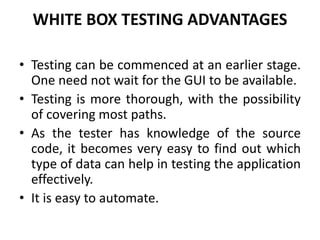

WHITE BOX TESTING ADVANTAGES
• Testing can be commenced at an earlier stage.
One need not wait for the GUI to be available.
• Testing is more thorough, with the possibility
of covering most paths.
• As the tester has knowledge of the source
code, it becomes very easy to find out which
type of data can help in testing the application
effectively.
• It is easy to automate.

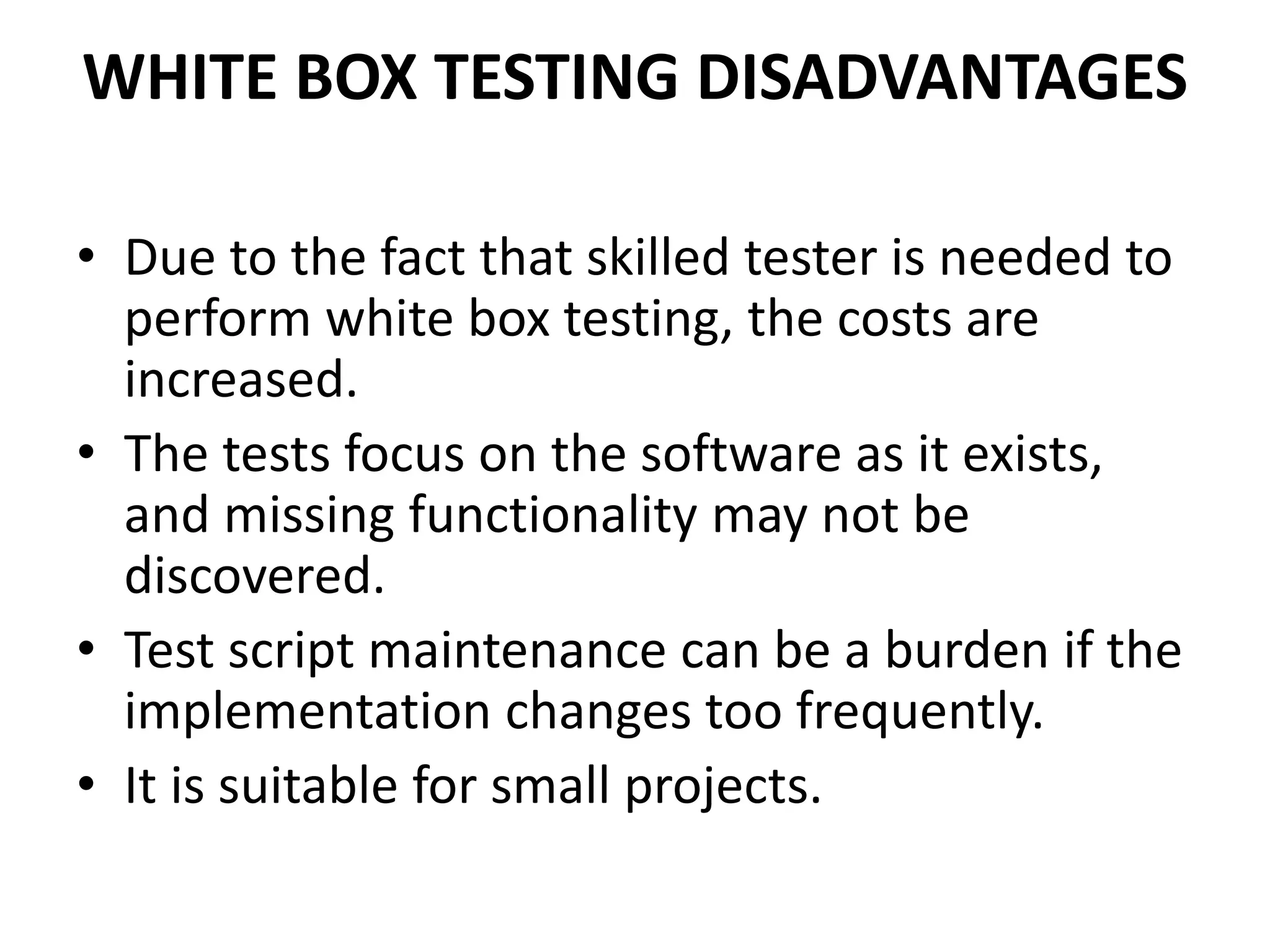

WHITE BOX TESTING DISADVANTAGES
• Due to the fact that skilled tester is needed to
perform white box testing, the costs are
increased.
• The tests focus on the software as it exists,
and missing functionality may not be
discovered.
• Test script maintenance can be a burden if the
implementation changes too frequently.
• It is suitable for small projects.

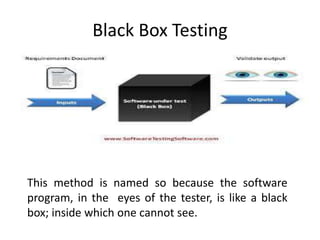

Black Box Testing
This method is named so because the software
program, in the eyes of the tester, is like a black
box; inside which one cannot see.

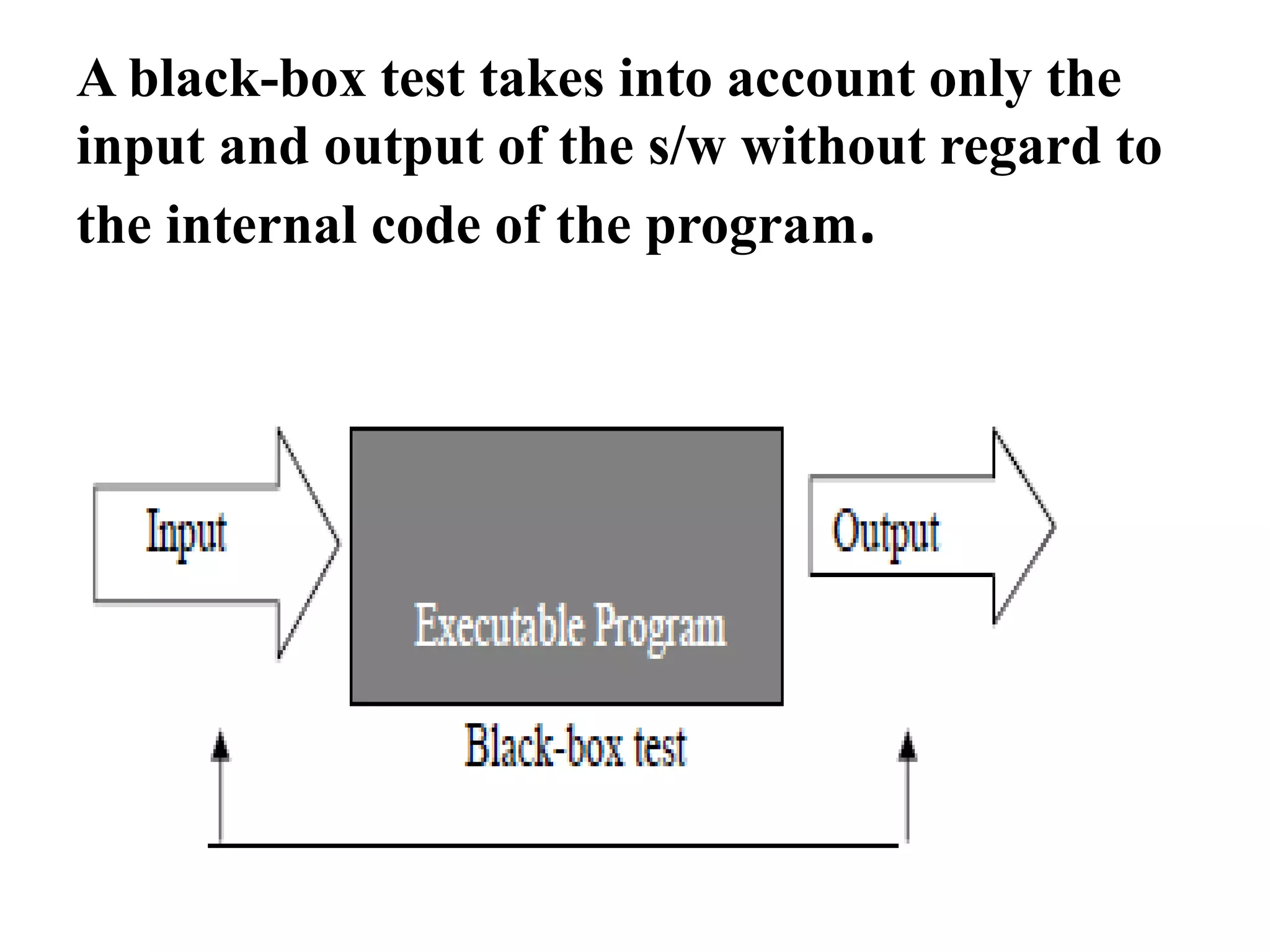

A black-box test takes into account only the
input and output of the s/w without regard to
the internal code of the program.

BLACK BOX TESTING
• Also called functional testing and behavioral
testing.
• It focuses on determining whether or not a
program does what it is supposed to do based on
its functional requirements.
• It attempts to find errors in the external behavior
of the code in the following categories :
(1) incorrect or missing functionality;
(2) Interface errors;
(3) Errors in data structures used by interfaces;
(4) Behavior or performance errors;
(5) initialization and termination errors.

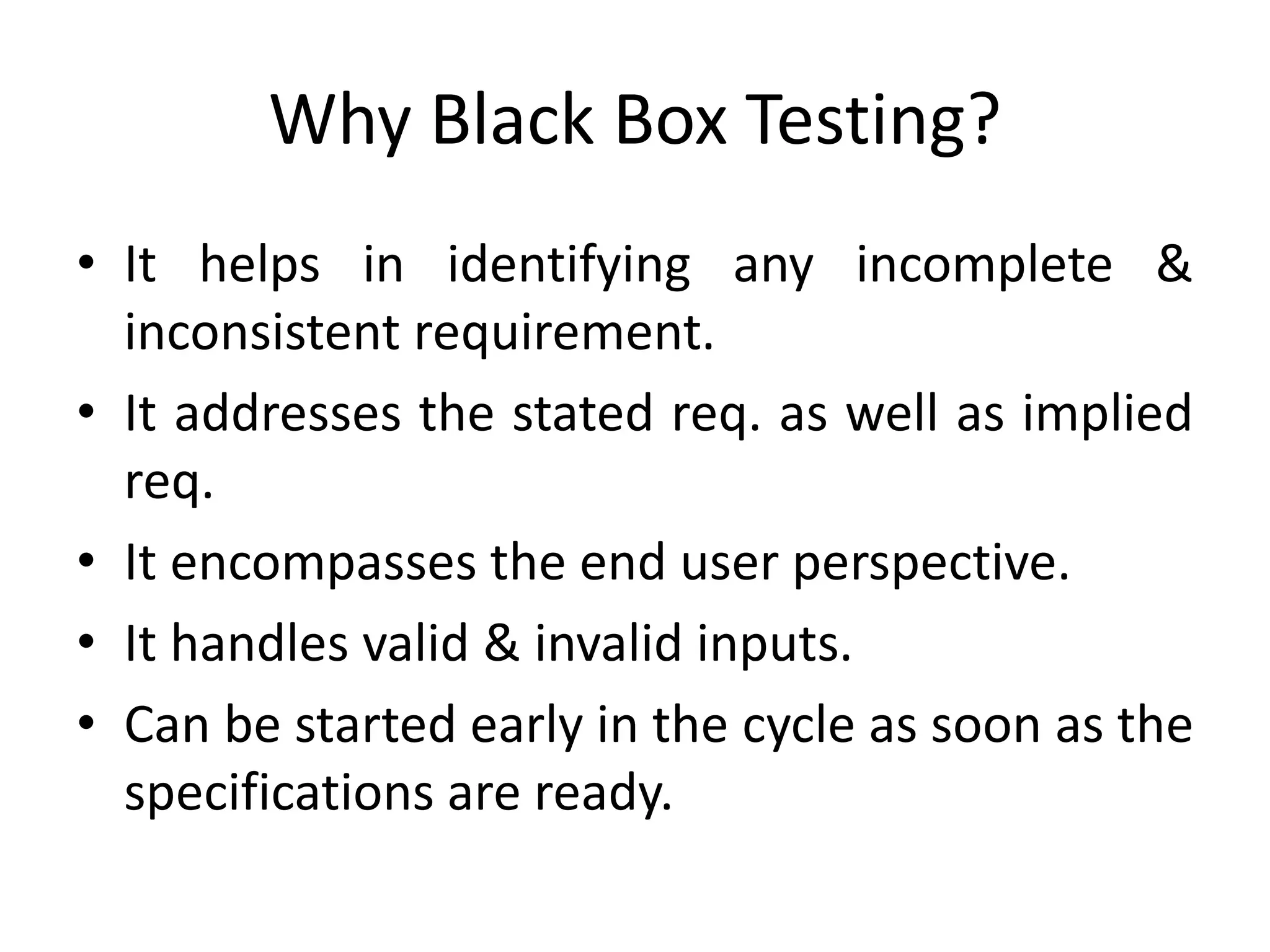

Why Black Box Testing?
• It helps in identifying any incomplete &
inconsistent requirement.
• It addresses the stated req. as well as implied
req.
• It encompasses the end user perspective.
• It handles valid & invalid inputs.
• Can be started early in the cycle as soon as the
specifications are ready.

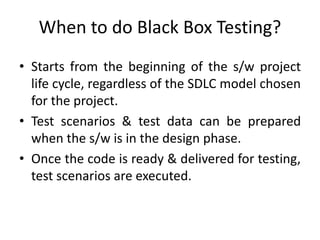

When to do Black Box Testing?
• Starts from the beginning of the s/w project
life cycle, regardless of the SDLC model chosen
for the project.
• Test scenarios & test data can be prepared
when the s/w is in the design phase.
• Once the code is ready & delivered for testing,
test scenarios are executed.

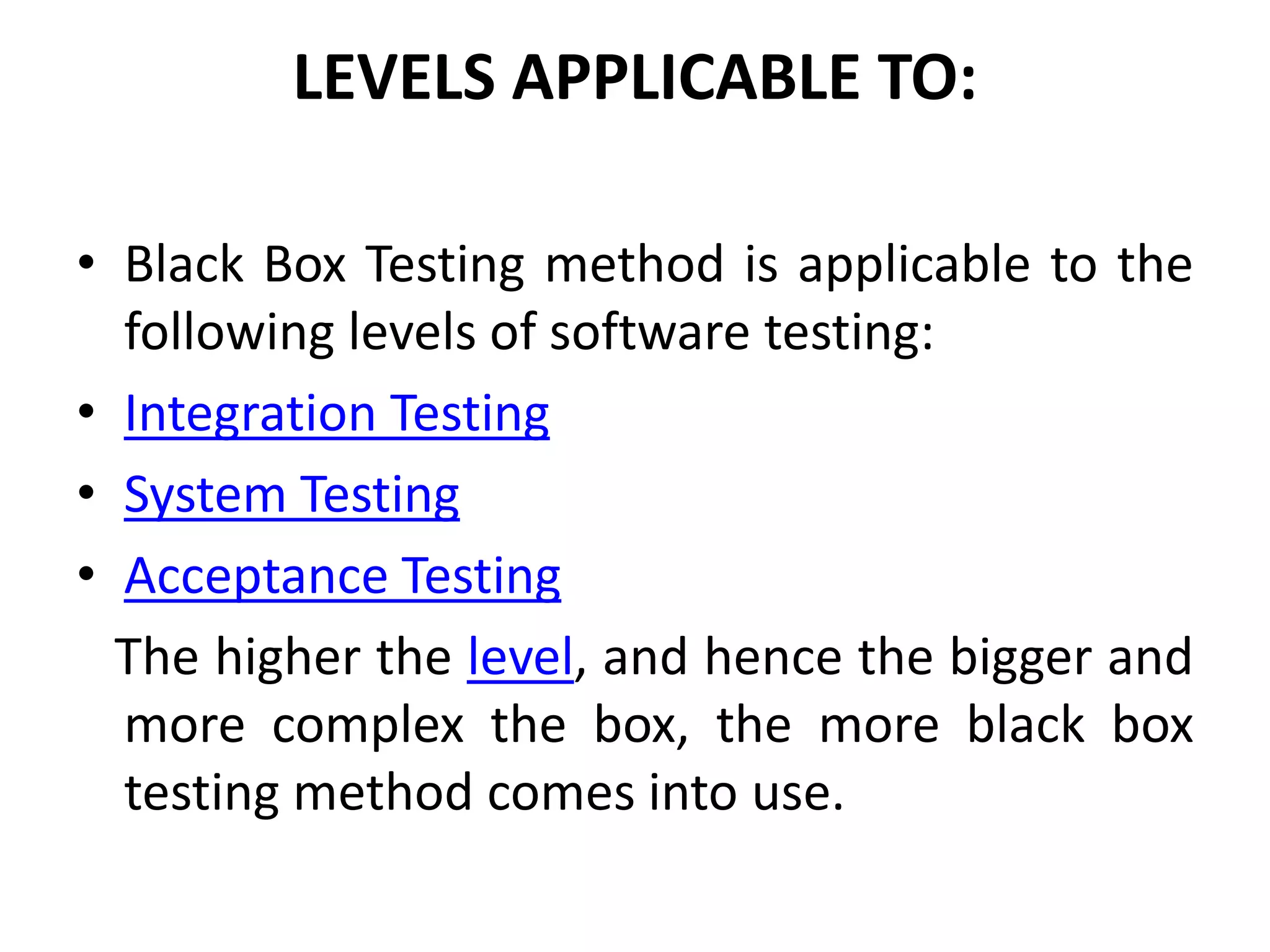

LEVELS APPLICABLE TO:
• Black Box Testing method is applicable to the
following levels of software testing:
• Integration Testing
• System Testing
• Acceptance Testing
The higher the level, and hence the bigger and
more complex the box, the more black box
testing method comes into use.

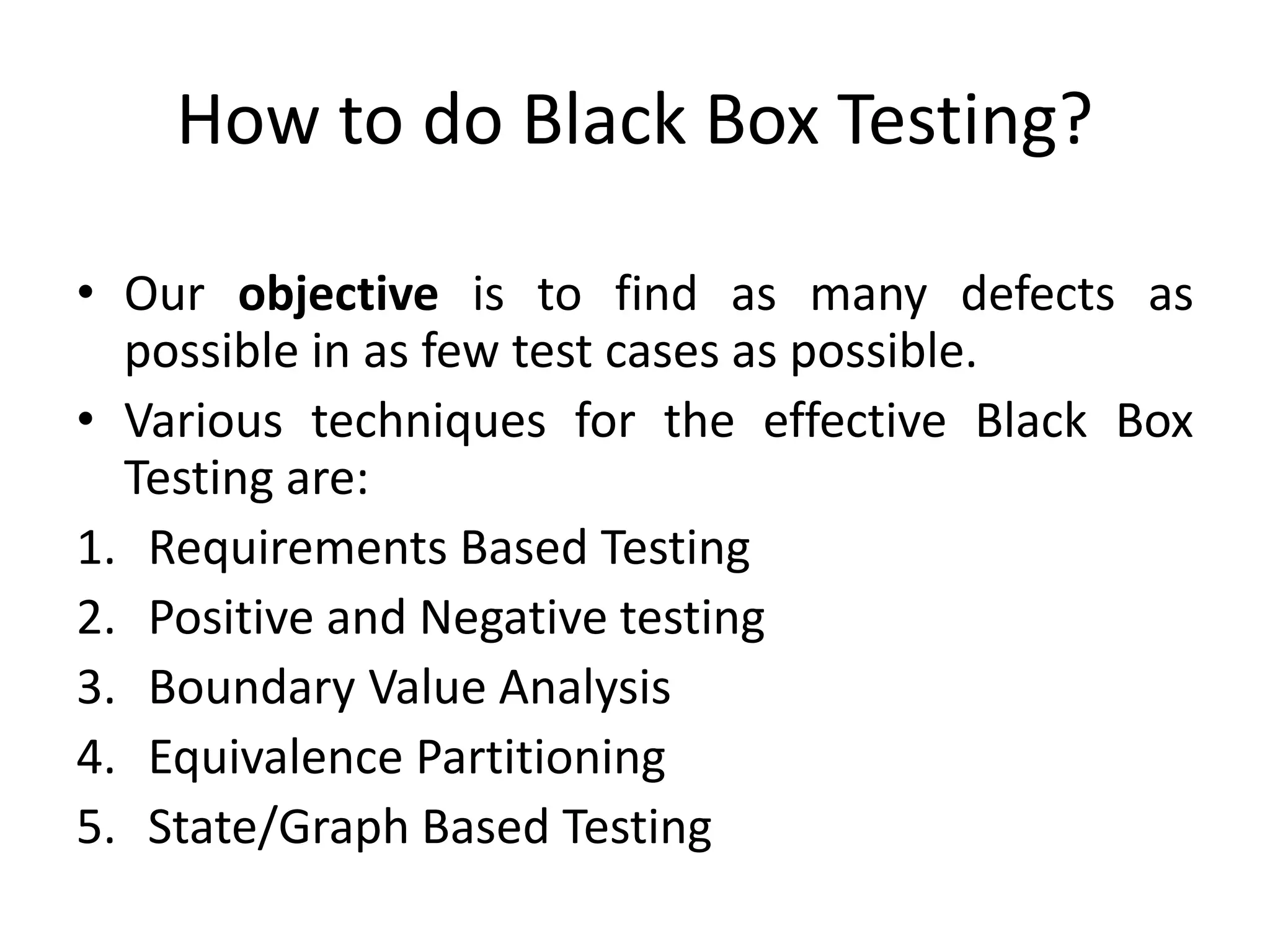

How to do Black Box Testing?
• Our objective is to find as many defects as
possible in as few test cases as possible.
• Various techniques for the effective Black Box
Testing are:
1. Requirements Based Testing
2. Positive and Negative testing
3. Boundary Value Analysis
4. Equivalence Partitioning
5. State/Graph Based Testing

1.Requirements Based Testing
• We begin by looking at each customer
requirement, to make sure that every single
requirement has been tested at least once.
• The first test case we’d write for any given
requirement is the most-used success path for
that requirement. By success path, we mean that
we want to execute some desirable functionality
(something the customer wants to work) without
any error conditions.
• Thus, it deals with validating the req. given in the
SRS of the s/w system.

• Explicit req. are stated & documented as part
of the SRS. Whereas Implicit or Implied req.
are not documented but assumed to be
incorporated in the system.
• The Precondition for req. testing is a detailed
review of the SRS to ensure that the req. are
consistent, complete, correct & testable and
making the testing more effective.
• Requirements are tracked by a Requirements
Traceability Matrix(RTM).

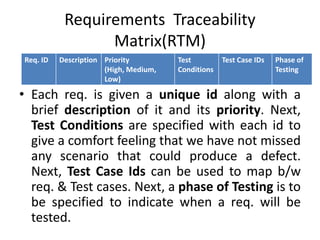

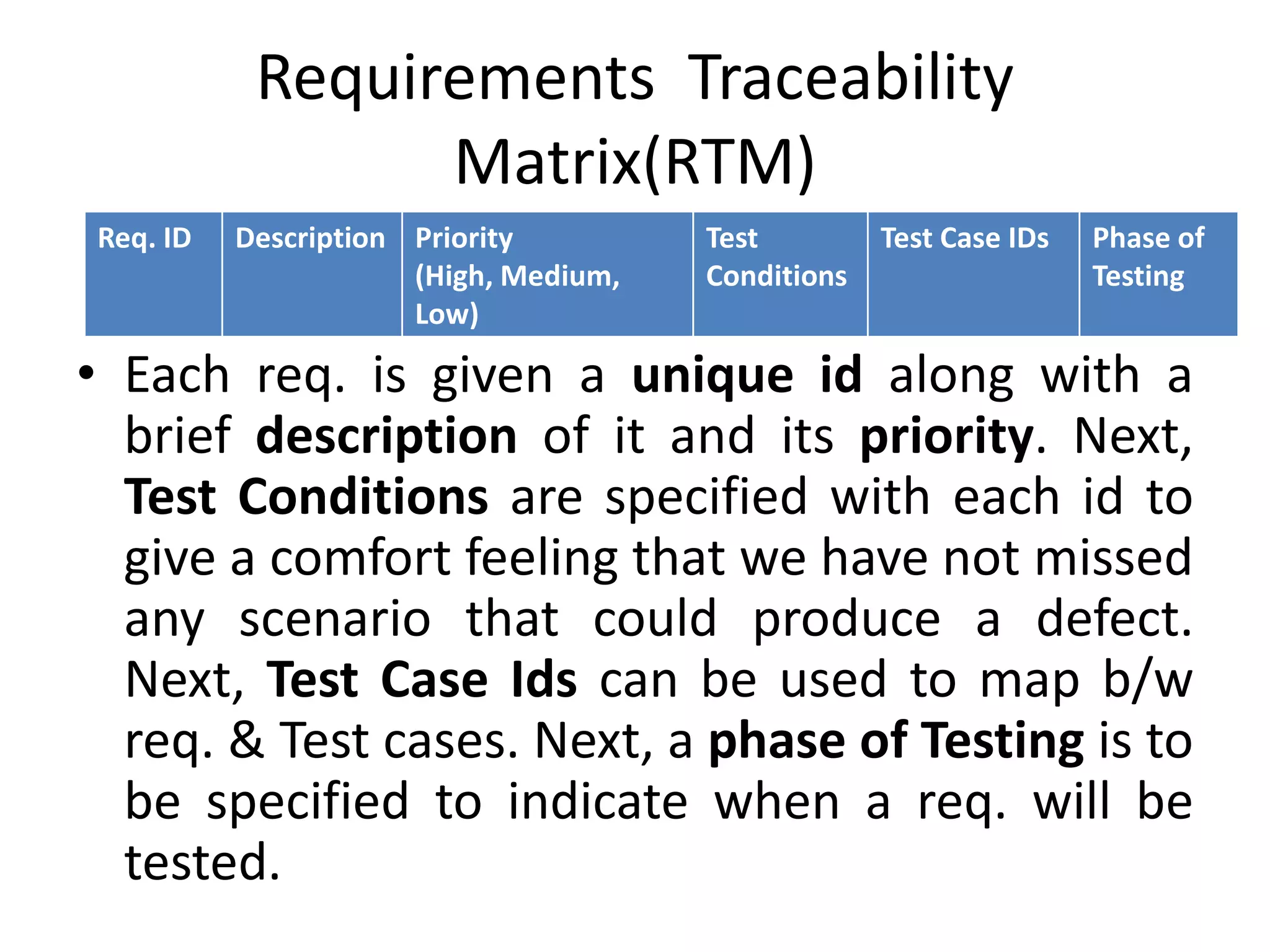

Requirements Traceability
Matrix(RTM)
• Each req. is given a unique id along with a
brief description of it and its priority. Next,
Test Conditions are specified with each id to
give a comfort feeling that we have not missed
any scenario that could produce a defect.
Next, Test Case Ids can be used to map b/w
req. & Test cases. Next, a phase of Testing is to
be specified to indicate when a req. will be
tested.
Req. ID Description Priority
(High, Medium,
Low)
Test
Conditions
Test Case IDs Phase of
Testing

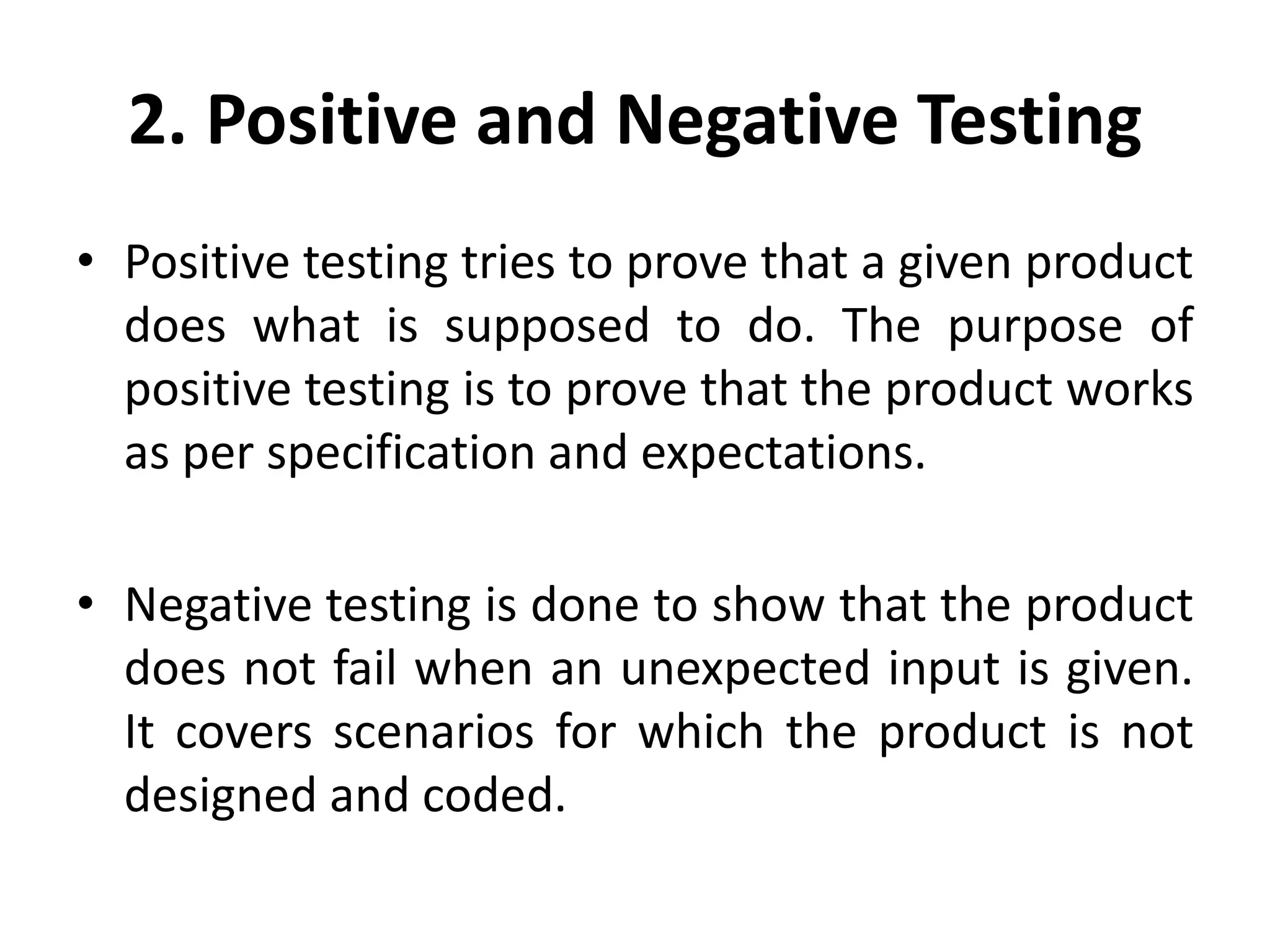

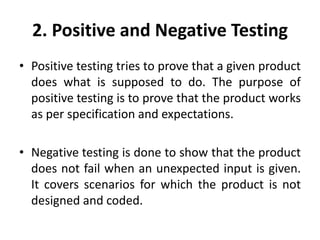

2. Positive and Negative Testing
• Positive testing tries to prove that a given product
does what is supposed to do. The purpose of
positive testing is to prove that the product works
as per specification and expectations.
• Negative testing is done to show that the product
does not fail when an unexpected input is given.
It covers scenarios for which the product is not
designed and coded.

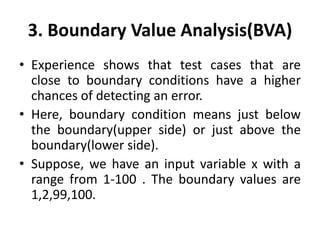

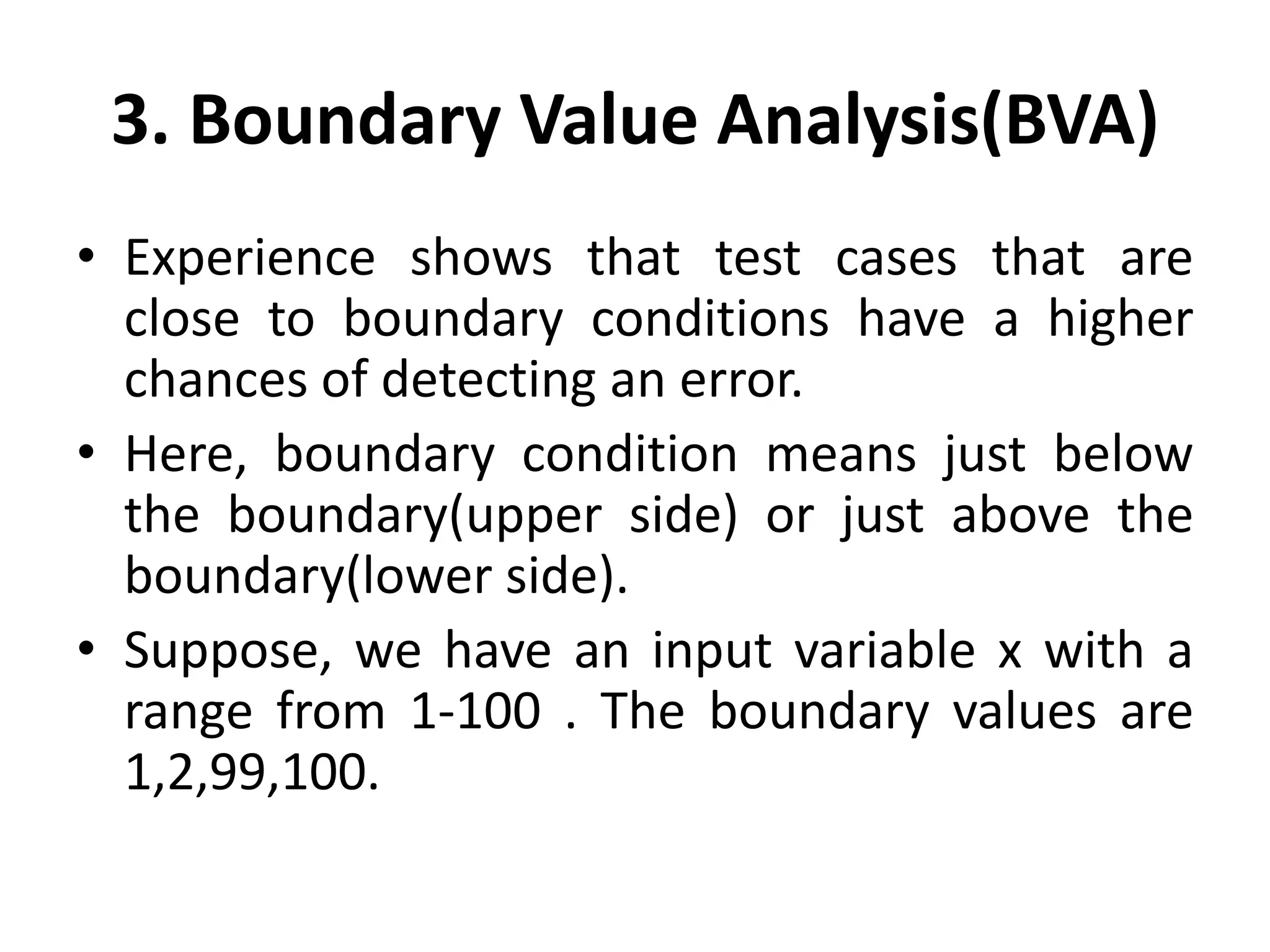

3. Boundary Value Analysis(BVA)
• Experience shows that test cases that are
close to boundary conditions have a higher
chances of detecting an error.
• Here, boundary condition means just below
the boundary(upper side) or just above the
boundary(lower side).
• Suppose, we have an input variable x with a
range from 1-100 . The boundary values are
1,2,99,100.

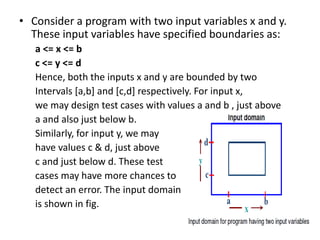

• Consider a program with two input variables x and y.
These input variables have specified boundaries as:
a <= x <= b
c <= y <= d
Hence, both the inputs x and y are bounded by two
Intervals [a,b] and [c,d] respectively. For input x,
we may design test cases with values a and b , just above
a and also just below b.
Similarly, for input y, we may
have values c & d, just above
c and just below d. These test
cases may have more chances to
detect an error. The input domain
is shown in fig.

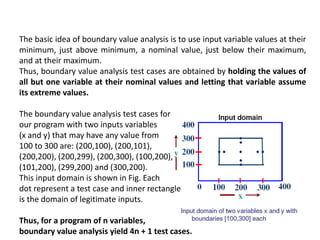

The basic idea of boundary value analysis is to use input variable values at their
minimum, just above minimum, a nominal value, just below their maximum,
and at their maximum.
Thus, boundary value analysis test cases are obtained by holding the values of
all but one variable at their nominal values and letting that variable assume
its extreme values.
The boundary value analysis test cases for
our program with two inputs variables
(x and y) that may have any value from
100 to 300 are: (200,100), (200,101),
(200,200), (200,299), (200,300), (100,200),
(101,200), (299,200) and (300,200).
This input domain is shown in Fig. Each
dot represent a test case and inner rectangle
is the domain of legitimate inputs.
Thus, for a program of n variables,
boundary value analysis yield 4n + 1 test cases.

4.Equivalence Partitioning
• The set of input values that generate one
single expected output is called a partition.
• When the behavior of the s/w is the same for
a set of values, then the set is termed as an
equivalence class or a partition.
• Since all the values produce equal & same
output, they are termed as equivalence
partition.

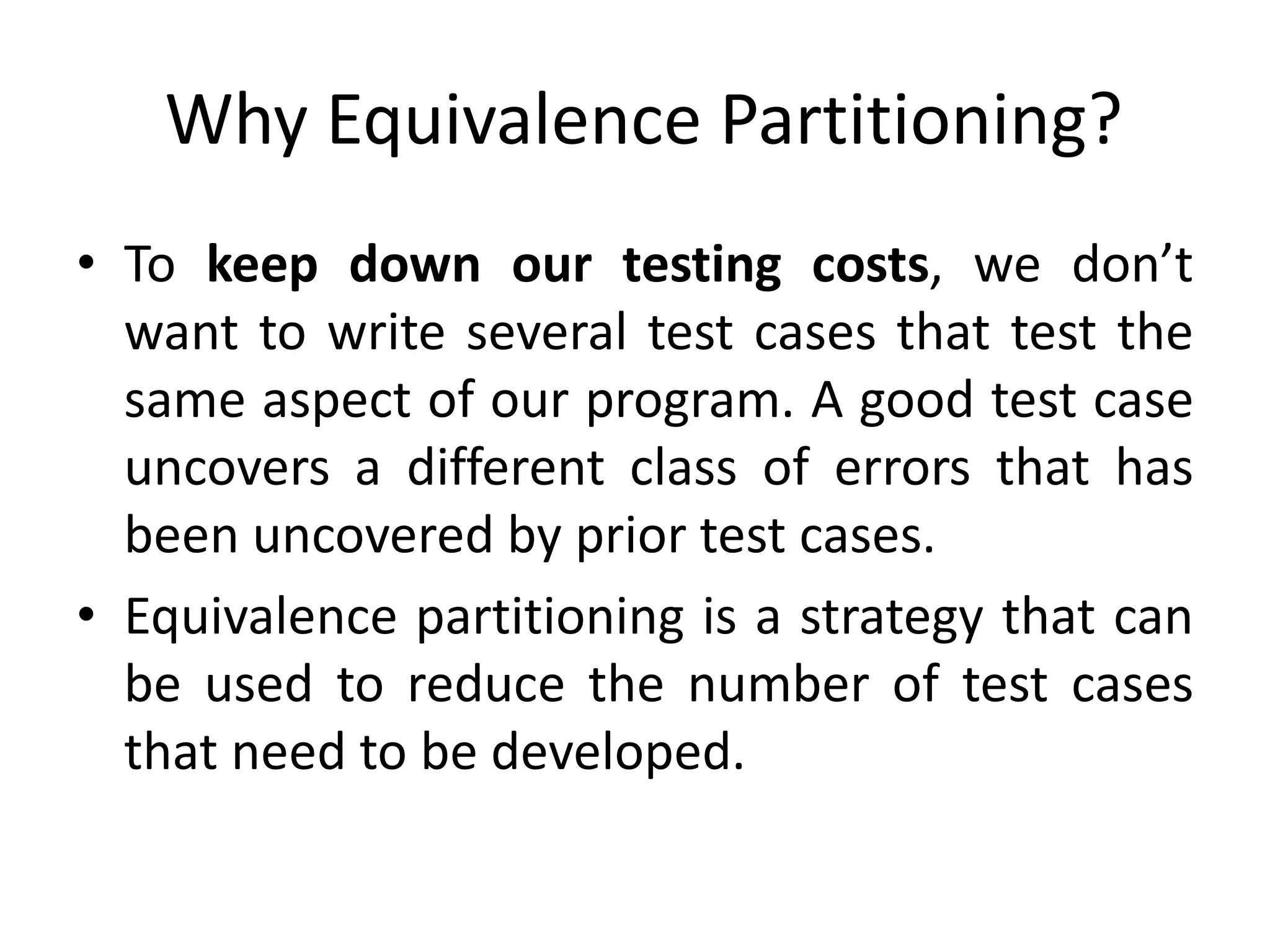

Why Equivalence Partitioning?
• To keep down our testing costs, we don’t
want to write several test cases that test the
same aspect of our program. A good test case
uncovers a different class of errors that has
been uncovered by prior test cases.
• Equivalence partitioning is a strategy that can
be used to reduce the number of test cases
that need to be developed.

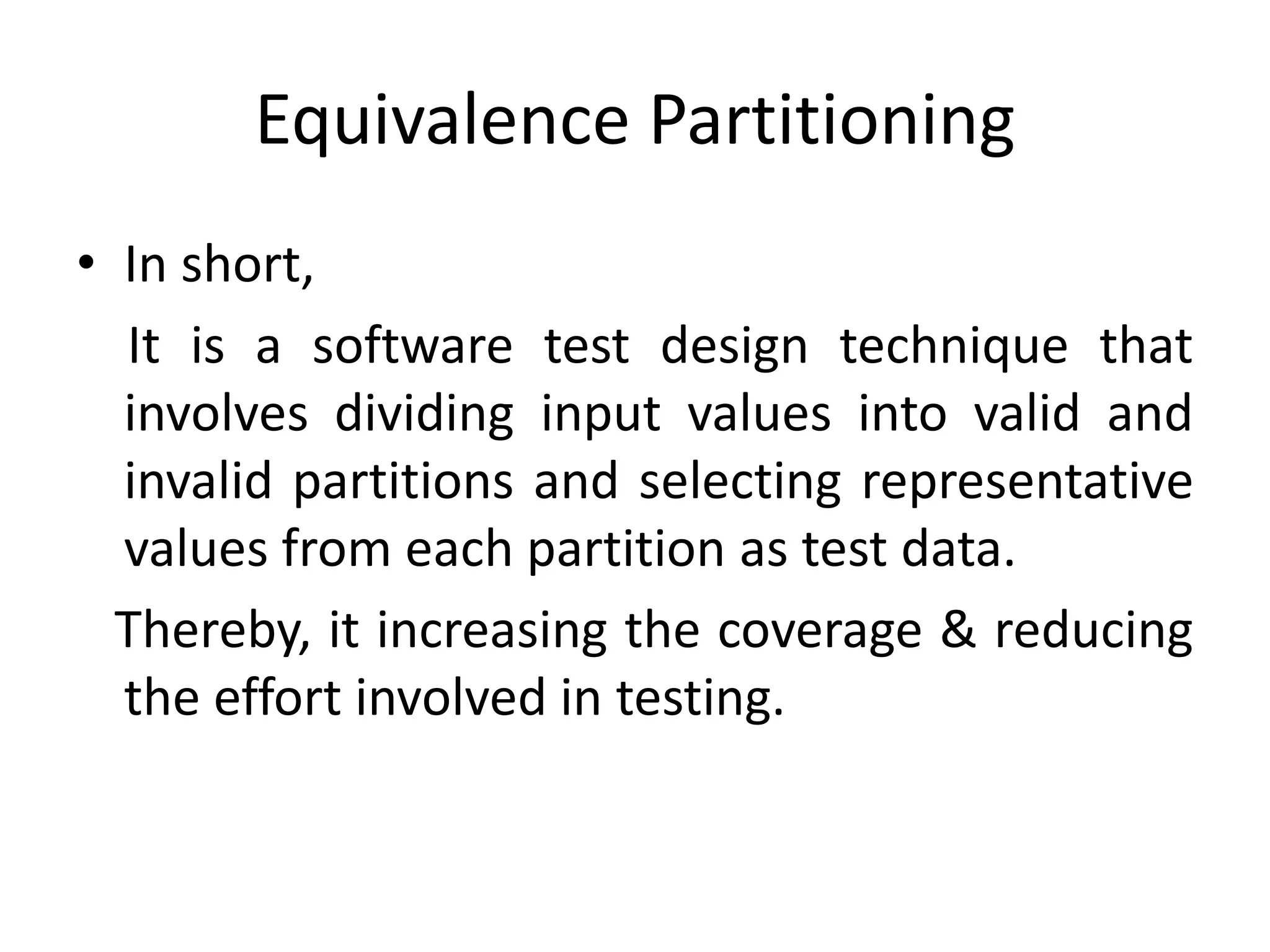

Equivalence Partitioning
• In short,
It is a software test design technique that
involves dividing input values into valid and
invalid partitions and selecting representative
values from each partition as test data.
Thereby, it increasing the coverage & reducing
the effort involved in testing.

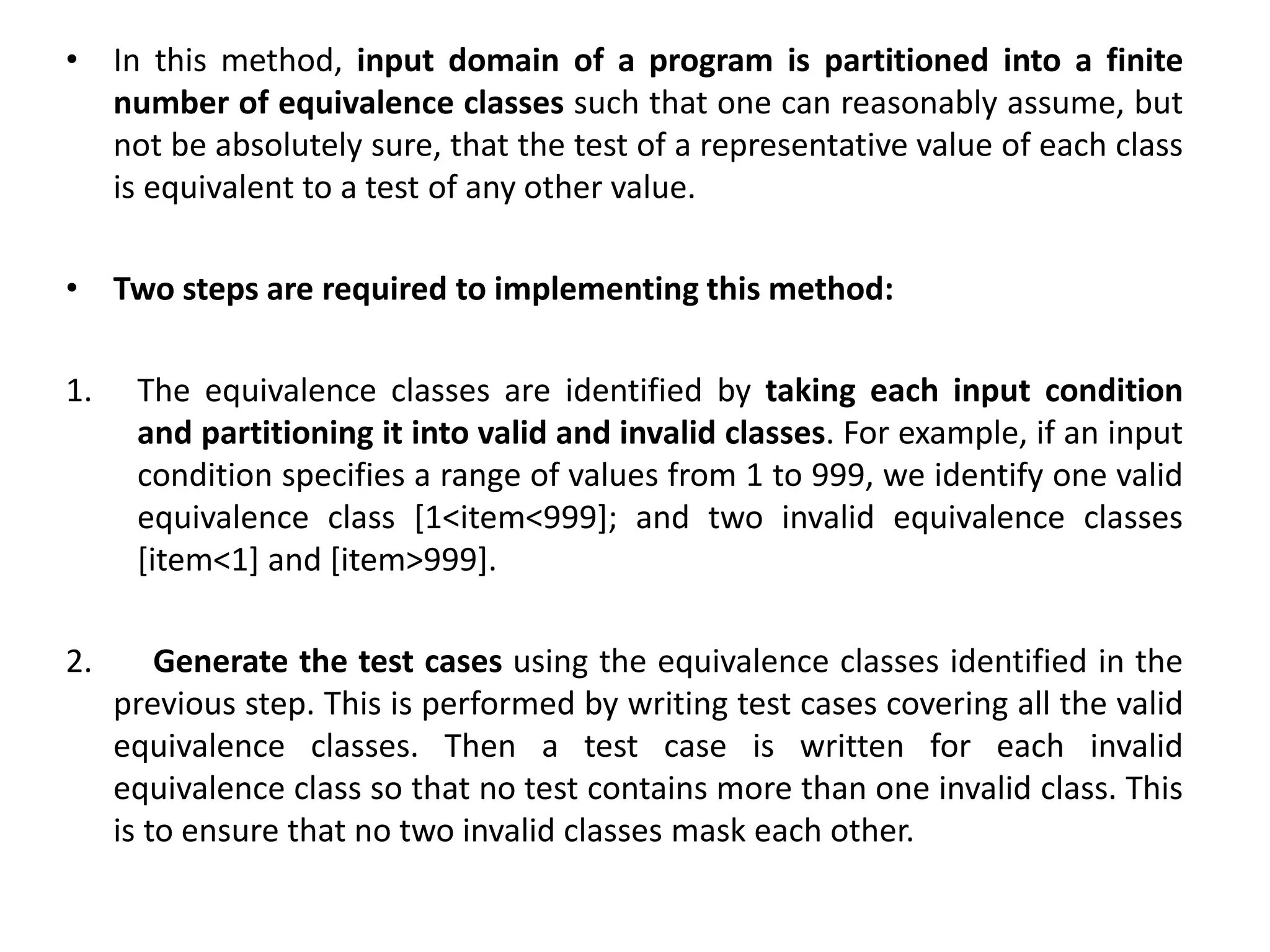

• In this method, input domain of a program is partitioned into a finite
number of equivalence classes such that one can reasonably assume, but
not be absolutely sure, that the test of a representative value of each class
is equivalent to a test of any other value.
• Two steps are required to implementing this method:
1. The equivalence classes are identified by taking each input condition
and partitioning it into valid and invalid classes. For example, if an input
condition specifies a range of values from 1 to 999, we identify one valid
equivalence class [1<item<999]; and two invalid equivalence classes
[item<1] and [item>999].
2. Generate the test cases using the equivalence classes identified in the
previous step. This is performed by writing test cases covering all the valid
equivalence classes. Then a test case is written for each invalid
equivalence class so that no test contains more than one invalid class. This
is to ensure that no two invalid classes mask each other.

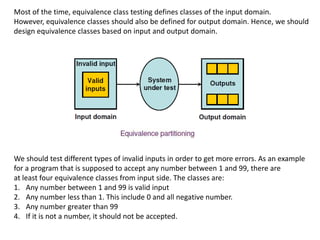

Most of the time, equivalence class testing defines classes of the input domain.
However, equivalence classes should also be defined for output domain. Hence, we should
design equivalence classes based on input and output domain.
We should test different types of invalid inputs in order to get more errors. As an example
for a program that is supposed to accept any number between 1 and 99, there are
at least four equivalence classes from input side. The classes are:
1. Any number between 1 and 99 is valid input
2. Any number less than 1. This include 0 and all negative number.
3. Any number greater than 99
4. If it is not a number, it should not be accepted.

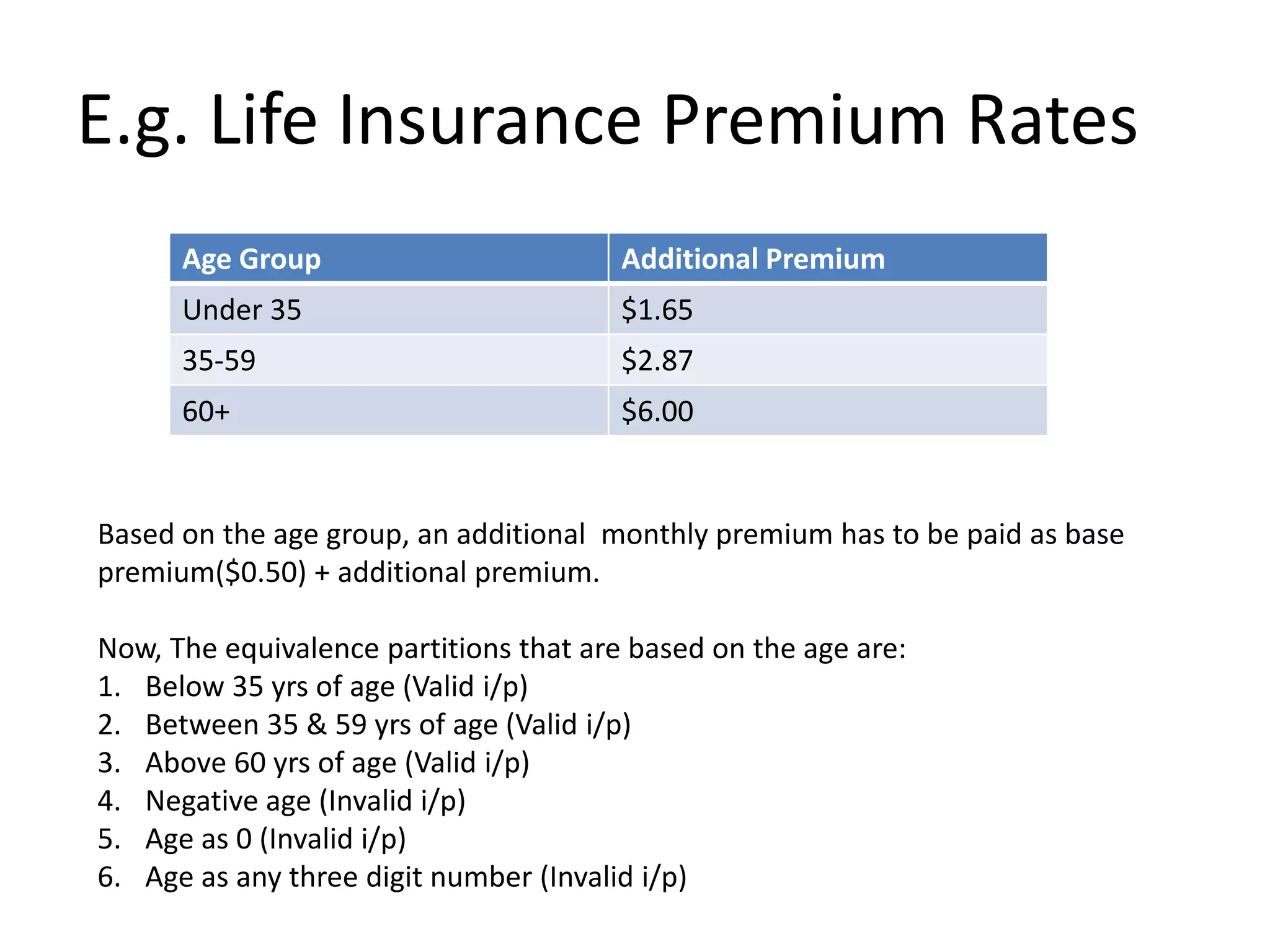

E.g. Life Insurance Premium Rates
Age Group Additional Premium
Under 35 $1.65
35-59 $2.87
60+ $6.00
Based on the age group, an additional monthly premium has to be paid as base
premium($0.50) + additional premium.
Now, The equivalence partitions that are based on the age are:
1. Below 35 yrs of age (Valid i/p)
2. Between 35 & 59 yrs of age (Valid i/p)
3. Above 60 yrs of age (Valid i/p)
4. Negative age (Invalid i/p)
5. Age as 0 (Invalid i/p)
6. Age as any three digit number (Invalid i/p)

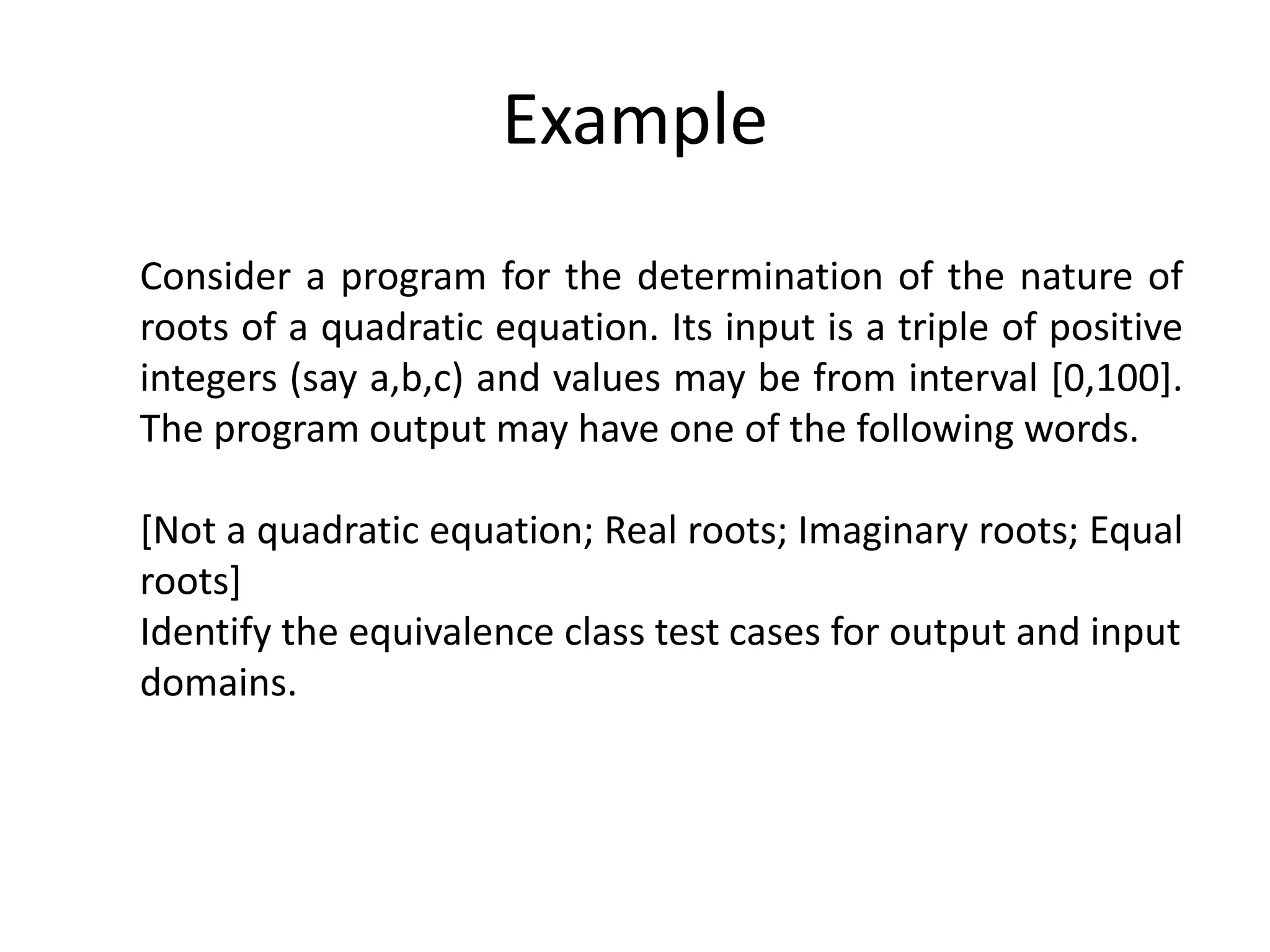

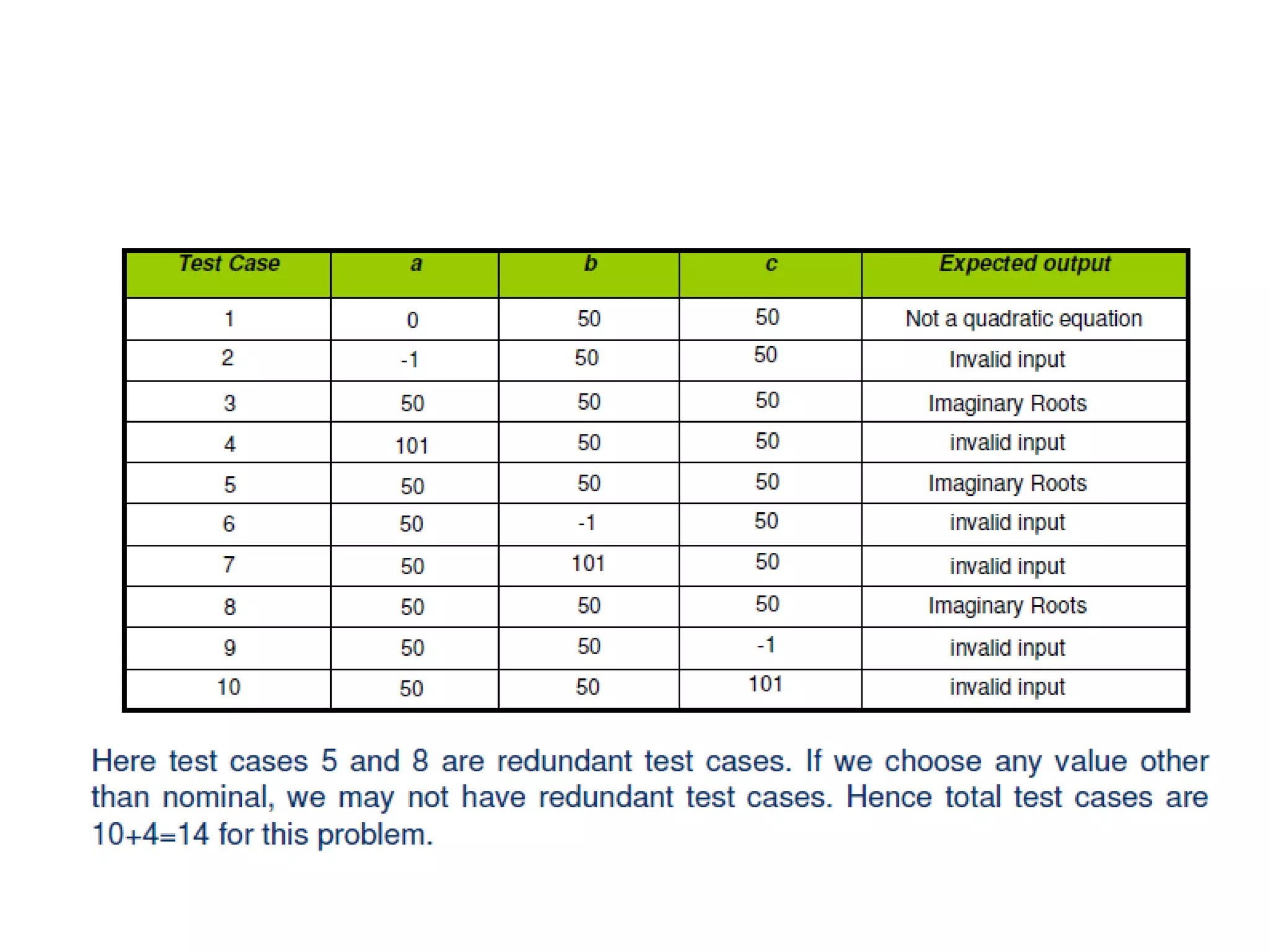

Example

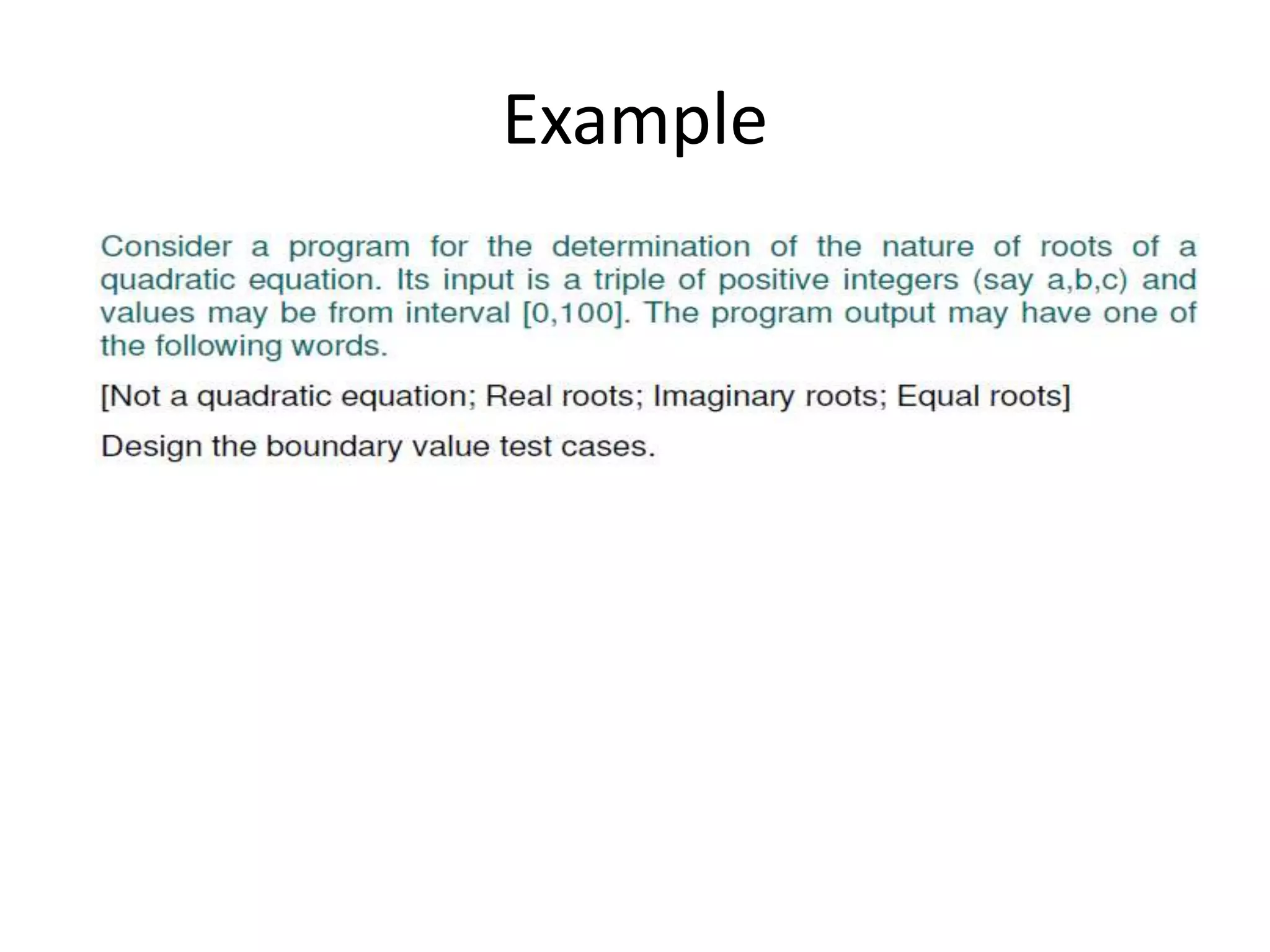

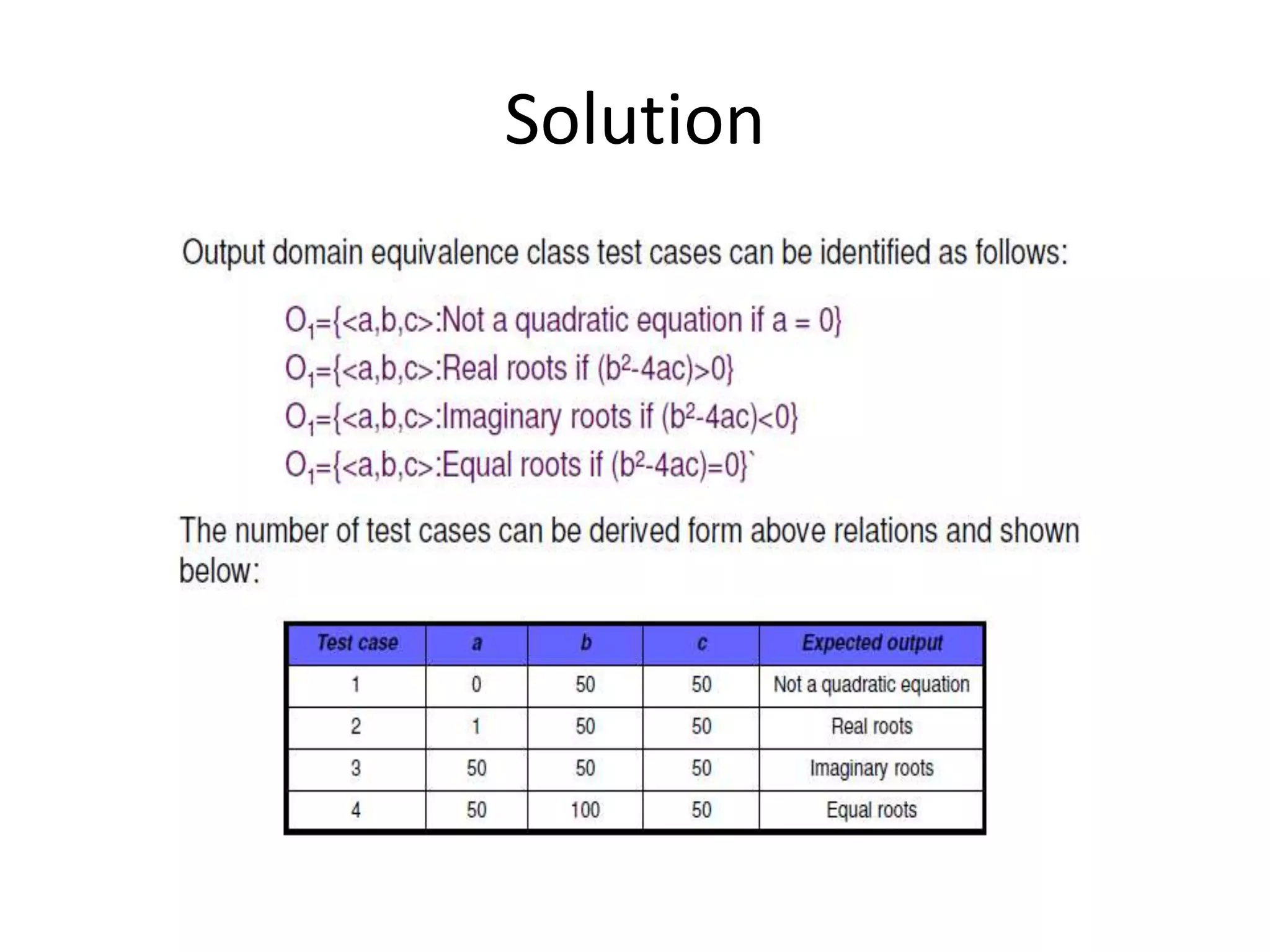

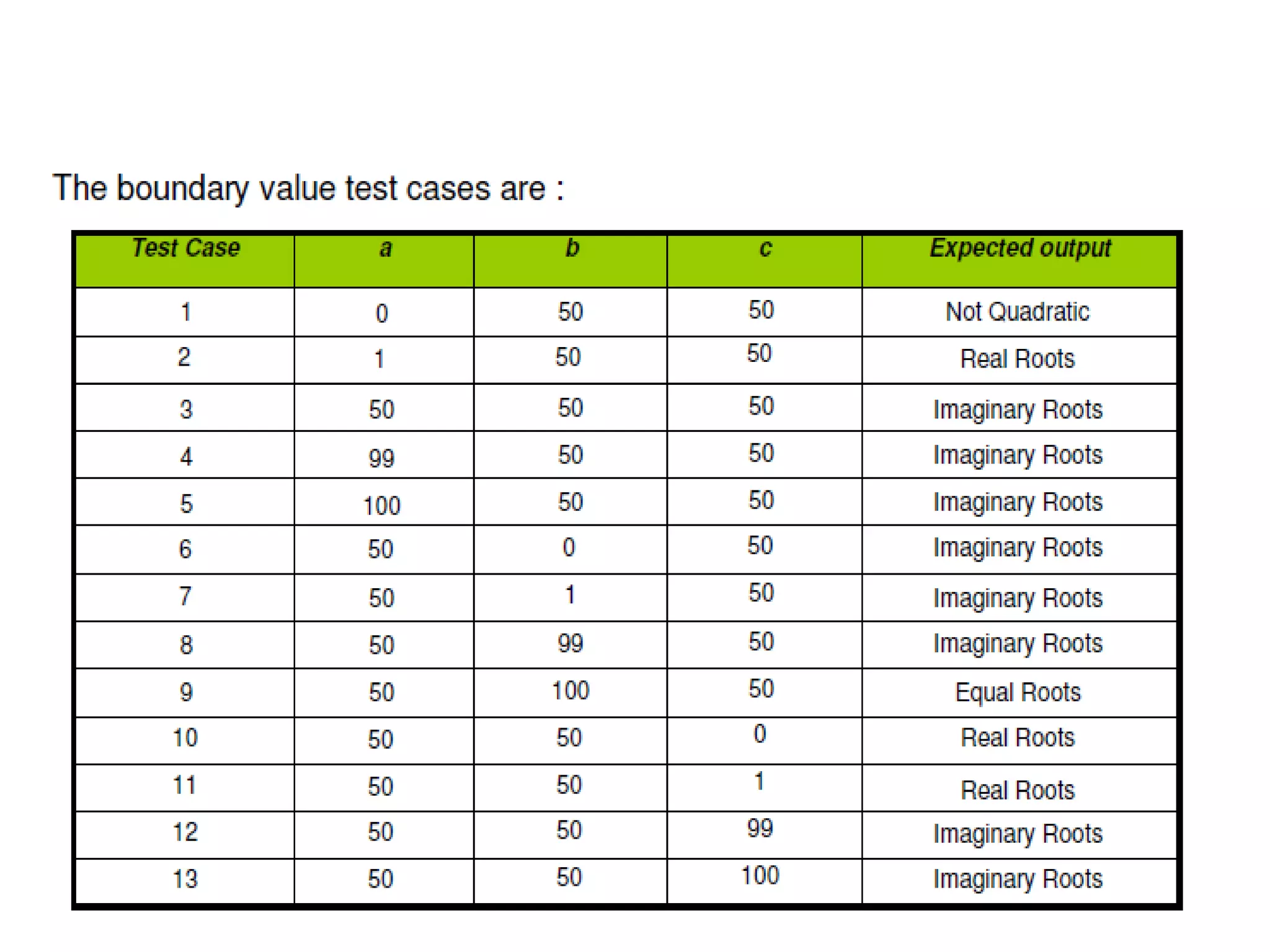

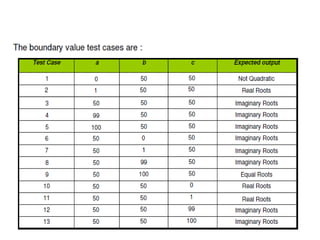

Consider a program for the determination of the nature of
roots of a quadratic equation. Its input is a triple of positive
integers (say a,b,c) and values may be from interval [0,100].
The program output may have one of the following words.
[Not a quadratic equation; Real roots; Imaginary roots; Equal
roots]

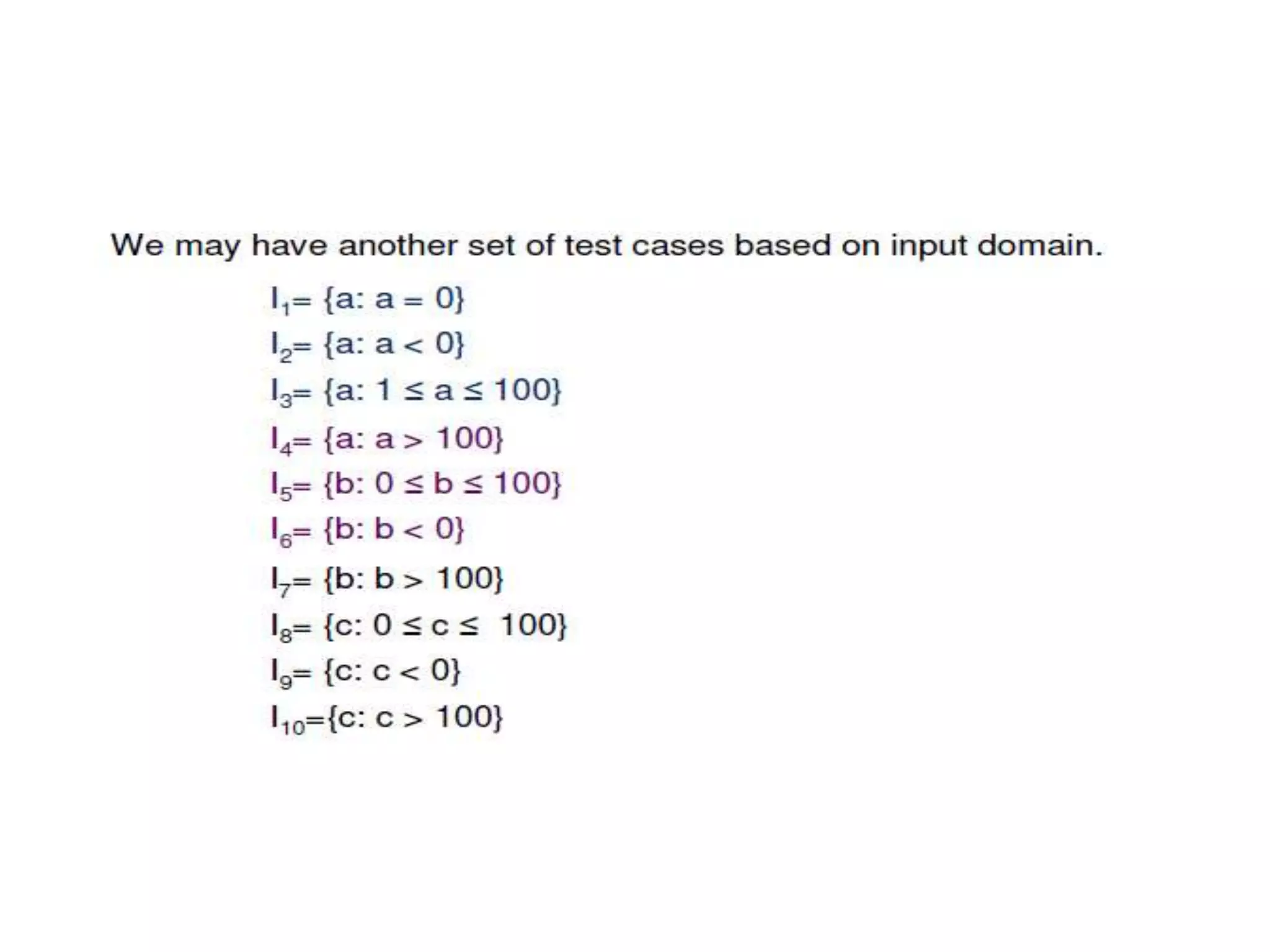

Identify the equivalence class test cases for output and input
domains.

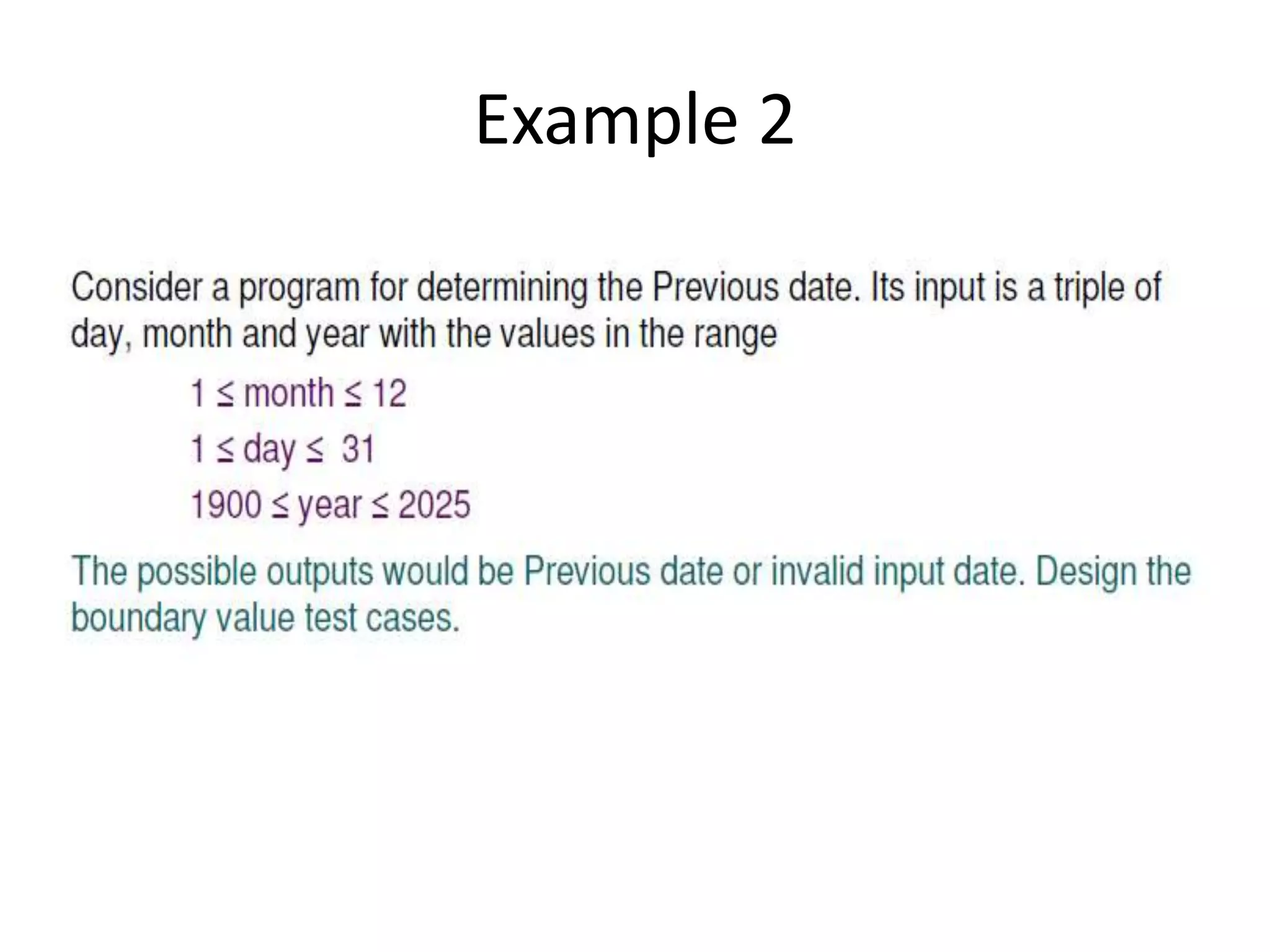

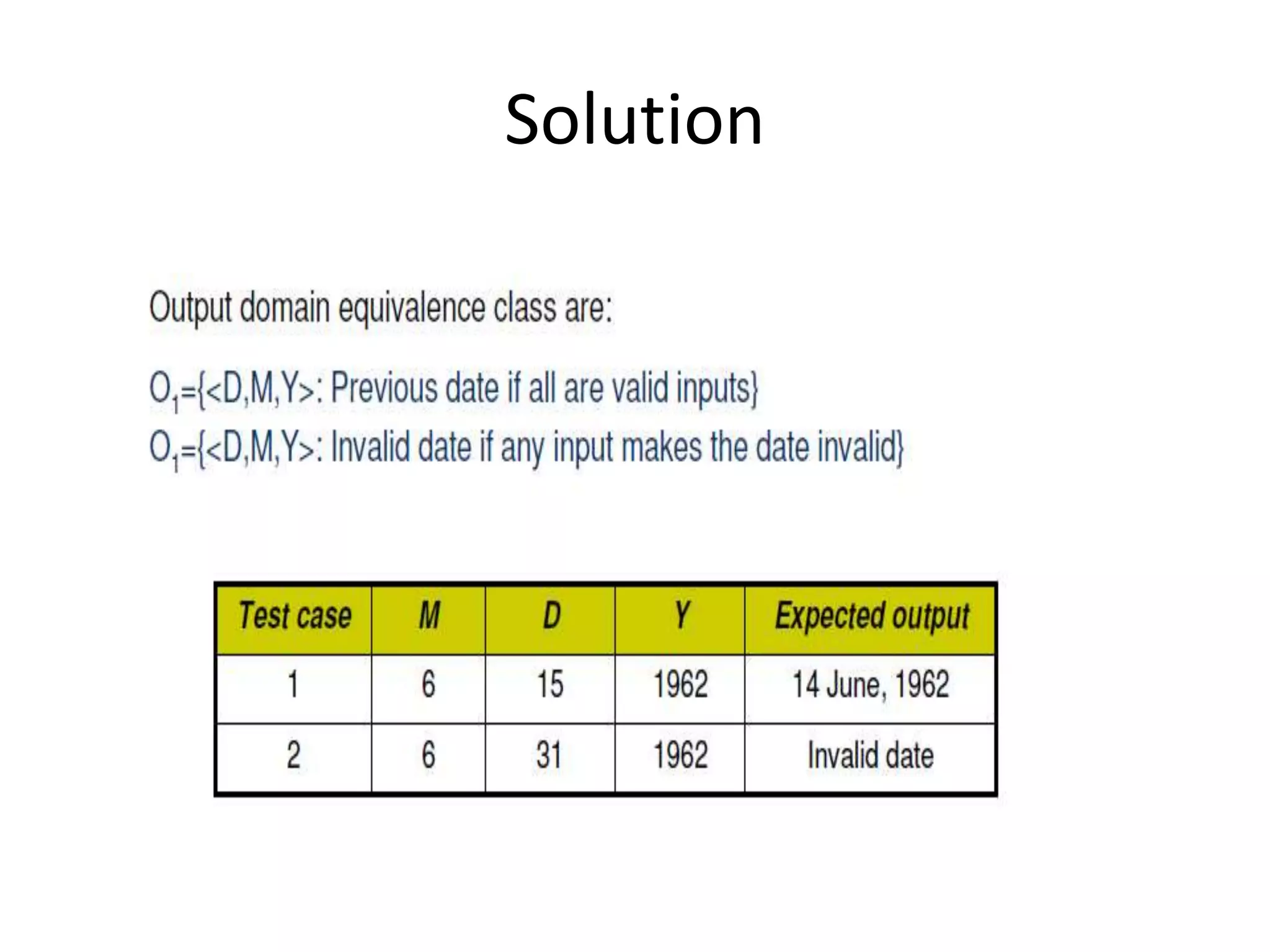

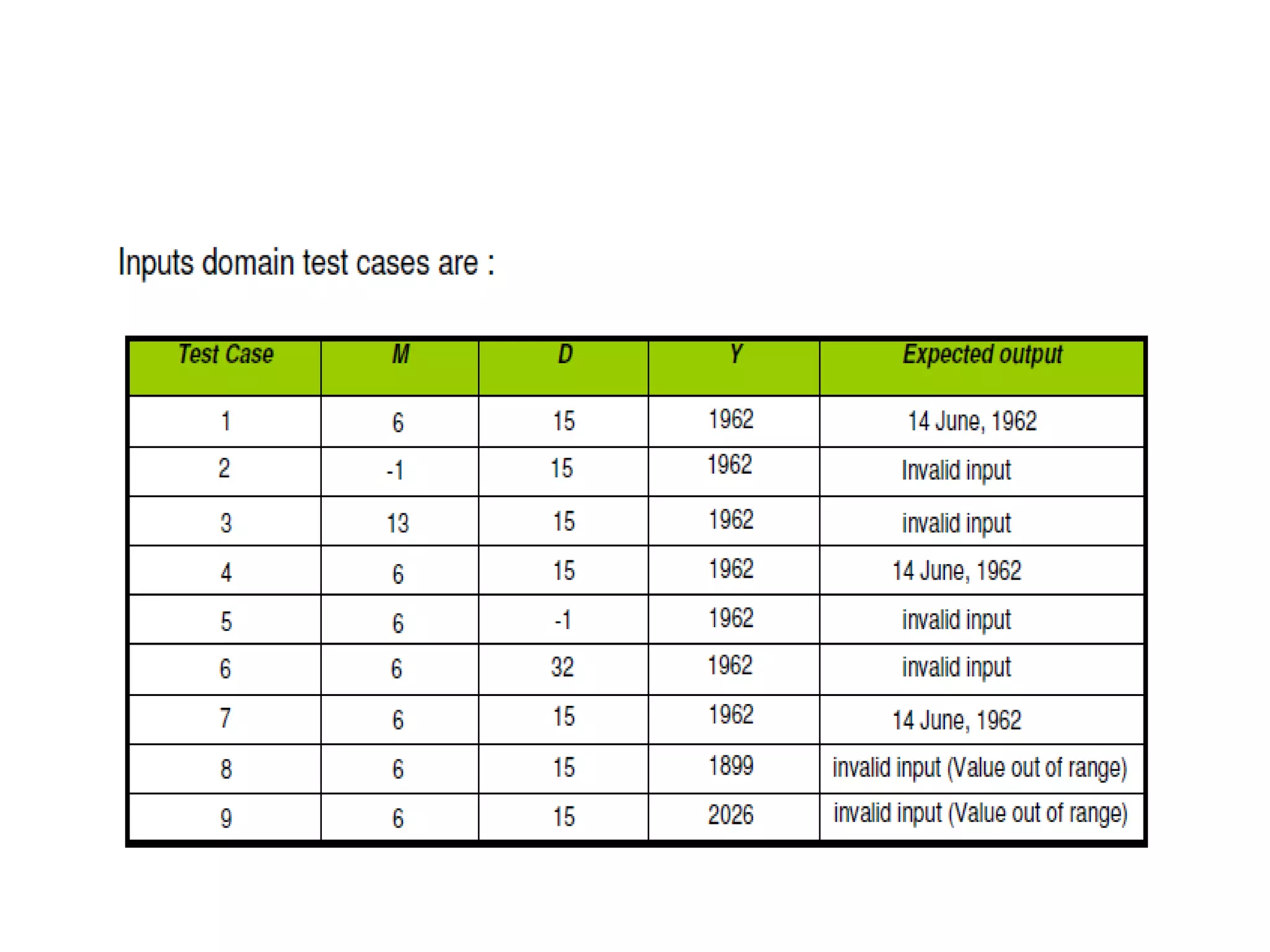

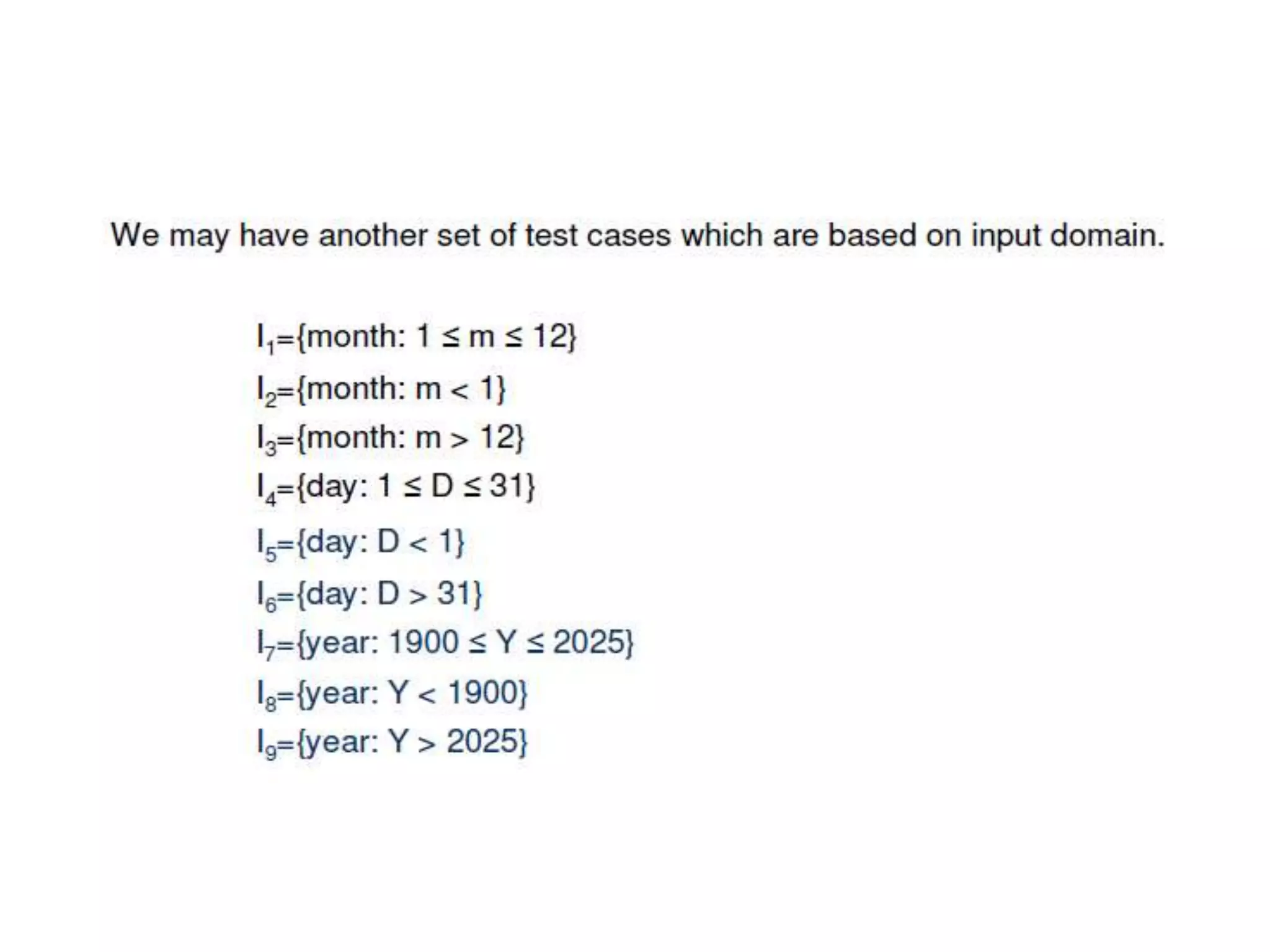

Example

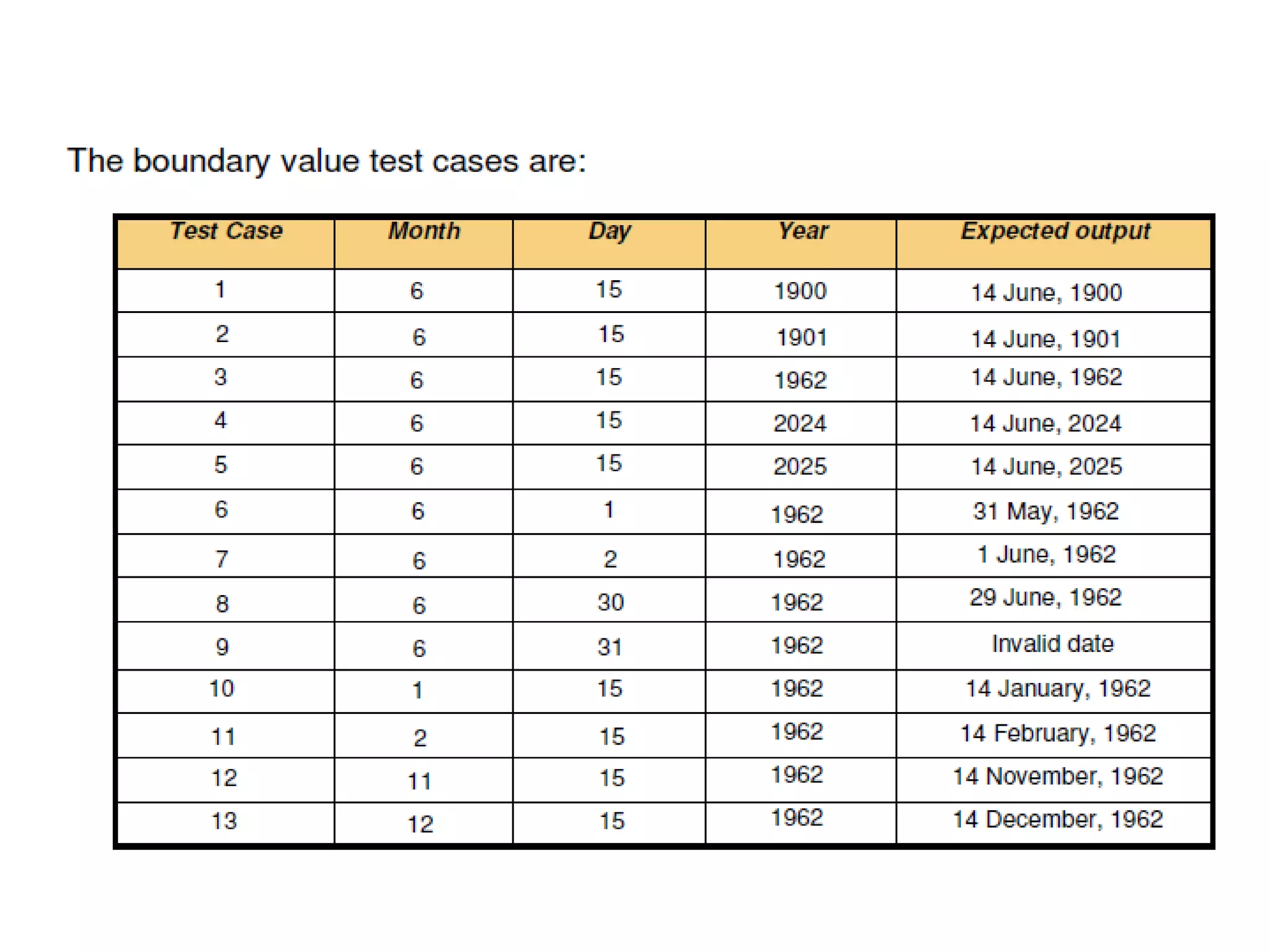

Consider a program for determining the Previous date. Its
input is a triple of day, month and year with the values in the
range
1 <= month <= 12
1 <= day <= 31
1900 <= year <= 2025
The possible outputs would be Previous date or invalid input
date.
Identify the equivalence class test cases for output & input
domains.

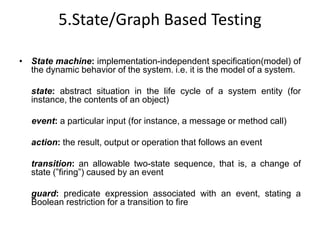

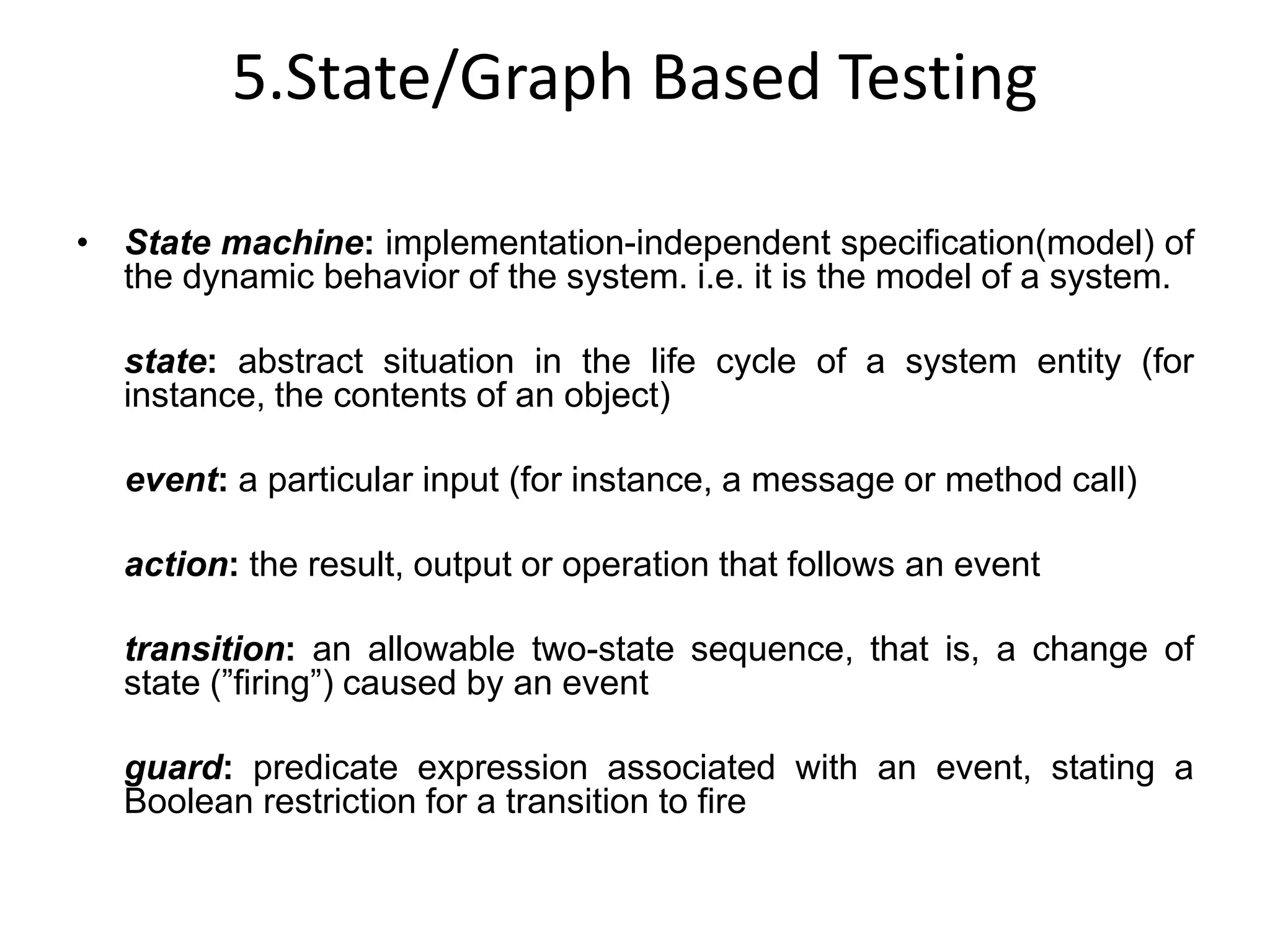

5.State/Graph Based Testing
• State machine: implementation-independent specification(model) of
the dynamic behavior of the system. i.e. it is the model of a system.
state: abstract situation in the life cycle of a system entity (for
instance, the contents of an object)
event: a particular input (for instance, a message or method call)
action: the result, output or operation that follows an event
transition: an allowable two-state sequence, that is, a change of
state (”firing”) caused by an event
guard: predicate expression associated with an event, stating a
Boolean restriction for a transition to fire

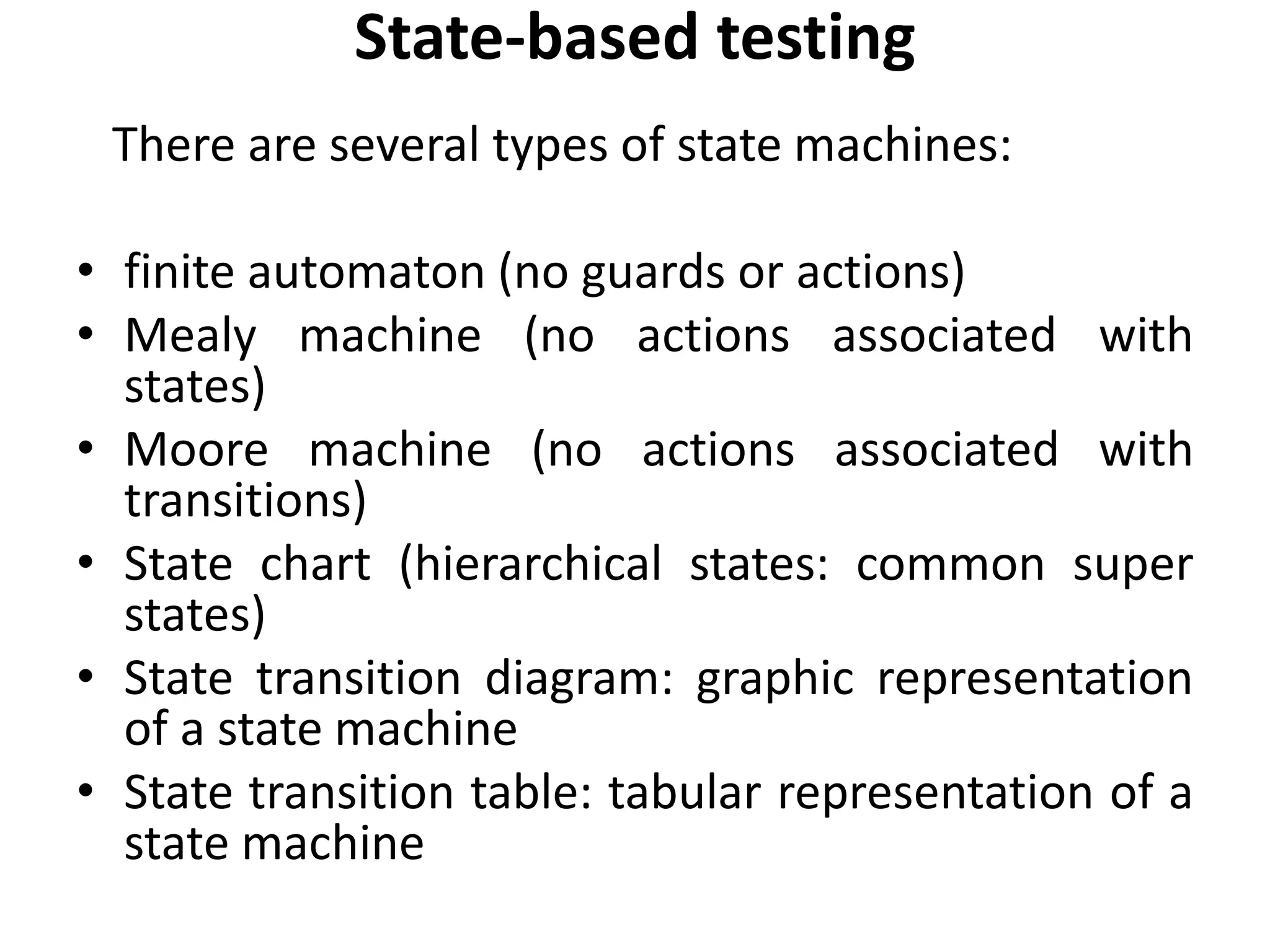

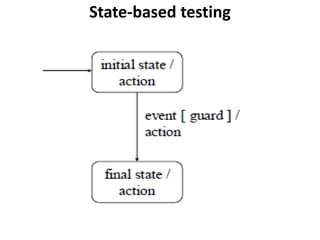

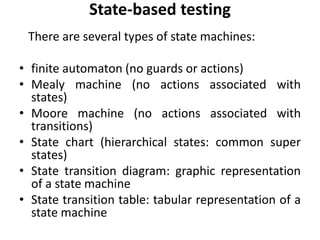

State-based testing
There are several types of state machines:
• finite automaton (no guards or actions)
• Mealy machine (no actions associated with
states)
• Moore machine (no actions associated with
transitions)
• State chart (hierarchical states: common super
states)
• State transition diagram: graphic representation
of a state machine
• State transition table: tabular representation of a
state machine

BLACK BOX TESTING ADVANTAGES
• Tester requires no knowledge of
implementation and programming language
used.
• Reveals any ambiguities and inconsistencies in
the functional specifications.
• Efficient when used on large systems.
• Tests are done from user’s point of view.
• Test cases can be designed as soon as the
specifications are complete.

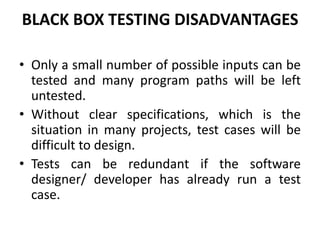

BLACK BOX TESTING DISADVANTAGES
• Only a small number of possible inputs can be
tested and many program paths will be left
untested.
• Without clear specifications, which is the
situation in many projects, test cases will be
difficult to design.
• Tests can be redundant if the software
designer/ developer has already run a test
case.

Comparison Between Black-box and
White-box Testing
Criteria Black Box Testing White Box Testing
Definition
Black Box Testing is a software
testing method in which the
internal structure/ design/
implementation of the item being
tested is NOT known to the tester
White Box Testing is a software
testing method in which the
internal structure/ design/
implementation of the item being
tested is known to the tester.
Levels Applicable To
Mainly applicable to higher levels of
testing: Acceptance Testing
System Testing
Mainly applicable to lower levels
of testing: Unit Testing
Integration Testing
Scope It is suitable for large projects It is suitable for small projects.
Programming Knowledge Not Required Required
Implementation
Knowledge
Not Required Required
Basis for Test Cases Requirement Specifications Detail Design
Time
This is the least time consuming
and exhaustive
The most exhaustive and time
consuming testing.

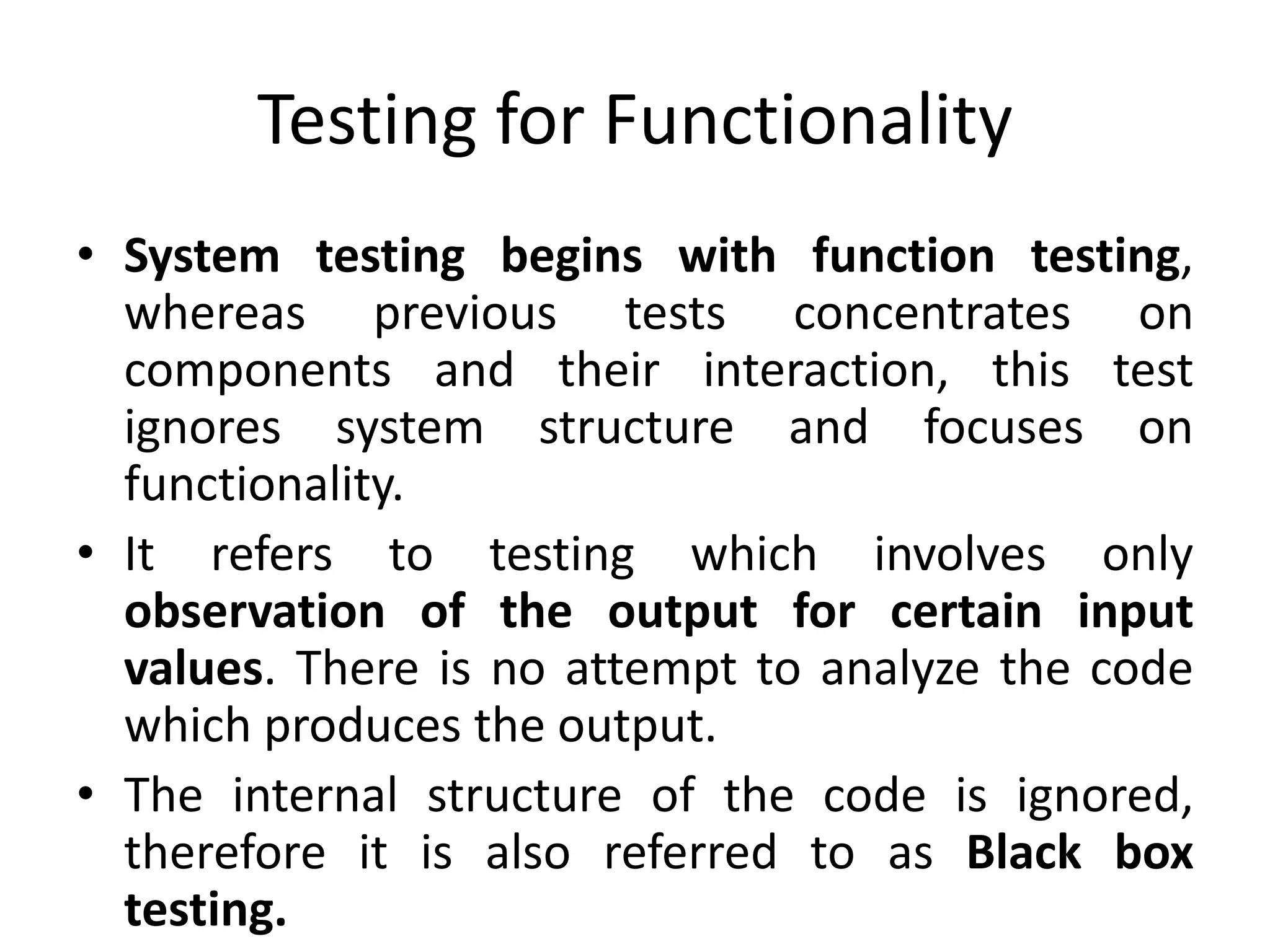

Testing for Functionality
• System testing begins with function testing,
whereas previous tests concentrates on
components and their interaction, this test
ignores system structure and focuses on
functionality.
• It refers to testing which involves only
observation of the output for certain input
values. There is no attempt to analyze the code
which produces the output.
• The internal structure of the code is ignored,
therefore it is also referred to as Black box
testing.

• The guidelines for function testing should :
– Have a high probability of detecting a fault.
– Use a test team independent of the designers and
programmers.
– Know the expected actions and outputs.
– Test both valid and invalid input.
– Never modify the system just to make testing
easier.

• It typically involves five steps:
– The identification of functions that the software is
expected to perform.
– The creation of input data based on the function’s
specifications.
– The determination of output based on the function’s
specifications.
– The execution of the test case.
– The comparison of actual and expected output.
• It is performed in a carefully controlled situation. It can
be started even before the entire system is constructed
because only one function is tested at a time. It
compares the system’s actual performance with its
requirements so the test cases for function testing are
developed from the requirements document.

Performance Testing
• Functional testing addresses the functional
requirements, whereas performance testing
addresses the non-functional requirements.
• It is measured against the performance
objectives set by the customer as expressed in
the non-functional requirements.
• It is performed to determine how fast some
aspect of a system perform under a particular
workload.

Performance Testing
• The focus of Performance testing is checking a
software program's -
• Speed - Determines whether the application
responds quickly
• Scalability - Determines maximum user load
the software application can handle.
• Stability - Determines if the application is
stable under varying loads

• As it involves hardware as well as software, hardware
engineers may be part of the test team.
• Different types of performance testing are as follows:
– Load testing - checks the application's ability to perform under
anticipated user loads. The objective is to identify performance
bottlenecks before the software application goes live.
– Stress testing - involves testing an application under extreme
workloads to see how it handles high traffic or data
processing. The objective is to identify breaking point of an
application.
– Endurance testing - is done to make sure the software can
handle the expected load over a long period of time.
– Volume testing - Under Volume Testing large no. of data is
populated in database and the overall software system's
behavior is monitored. The objective is to check software
application's performance under varying database volumes.

Test Data Suit Preparation
• A test case is a document that describes an input,
action or event & its expected result, in order to
determine whether the software or a part of software
is working correctly or not.
• IEEE defines test case as “a set of input values,
execution preconditions, expected results and
execution post conditions developed for a particular
objective or test condition, such as to exercise a
particular program path or to verify compliance with
a specific requirement.”
• Incomplete & incorrect test cases lead to incorrect and
erroneous test outputs. To avoid this, exhaustive
testing must be performed, which is not possible.
• So, a test case that give satisfactory results is selected.

• Following categories of test data are usually
designed in a test data suit:
– No data
– Valid data set
– Invalid data set
– Illegal data format
– Boundary condition data set
In this way, creating separate data sets for each test
condition will ensure complete test coverage.

Static Testing
• Static testing is a form of software testing where the software is not executed;
this is in contrast to dynamic testing. It is generally not detailed testing, but
checks mainly for the sanity of the code, algorithm, or document. It is primarily
checking of the code and/or manually reviewing the code or document to find
errors. This type of testing can be used by the developer who wrote the code, in
isolation. Code reviews, inspections and Software walkthroughs are also used.
• From the black box testing point of view, static testing involves
reviewing requirements and specifications. This is the verification portion
of Verification and Validation.
• Even static testing can be automated. A static testing test suite consists of
programs to be analyzed by an interpreter or a compiler that asserts the
programs syntactic validity.
• Bugs discovered at this stage of development are less expensive to fix than later
in the development cycle.
• The people involved in static testing are application developers and testers.

Static Testing
• Done by Humans or sometimes with the help
of specialized tools
• Here People find out whether:
- Code works acc. to functional req.
- Code written in accordance with design
- Code for any functionality has been missed
out
- Code handle errors properly

Advantages of Static Testing
• Sometimes Humans can find errors that
computers cannot.
• A human evaluation can compare code against
specification & design, also can ensure that it
does what is intended to do.
• A human evaluation can detect problems along
with the root cause.
• Computer resources can be saved.
• Helps in minimizing delay in identification of the
problem and thus lesser is the cost of fixing it.

Difference between static and dynamic
testing
STATIC TESTING DYNAMIC TESTING
Testing done without executing the
program
Testing done by executing the
program
This testing does verification process This testing does validation process
It is about prevention of defects. It is about finding & fixing the defects
It can be performed before
compilation.
It can be performed after
compilation.
Cost of finding defects and fixing is
less.
Cost of finding defects and fixing is
high.
Requires loads of meetings. Comparatively requires lesser
meetings.

Static Testing Strategies
 Static testing means that the analysis of the
program is performed without executing
them.
 The various static testing strategies are:-
1. Formal Technical Reviews (Peer reviews)
2. Walkthrough
3. Code inspection
4. Compliance with design standards.

Formal Technical Reviews (Peer
Reviews)
• Review is “a process of meeting during which artifacts
of software products are examined by project
stakeholders, user representatives, or other interested
parties for feedback or approval”.
• It can be on technical specifications, design, source
code, user documentation, support and maintenance
documentation , test plans, test specifications,
standards, or any other type specific to the product.
• It can be conducted at any stage of SDLC.
• Purpose of conducting review is to minimize the defect
ratio as early as possible in SDLC.
• Informal reviews are walkthroughs & formal are
inspection.

• A software technical review is a form of peer review in
which a team of qualified personnel examines the
suitability of the s/w product for its intended use &
identifies discrepancies from specifications &
standards.
• The objectives of FTR are:
i. To uncover errors in function, logic or implementation
for any representation of the software.
ii. To verify that the software under review meets its
requirements.
iii. To achieve software that is developed in a uniform
manner.
iv. To make projects more manageable.
v. To ensure that the software has been represented
according to predefines standards.

• FTR is conducted as a meeting and will be
successful only if it is properly planned,
controlled and attended.
• The Review meeting
Each review meeting should abide by the following
constraints:
i. Between 3 & 5 people should be involved in the
review.
ii. Advance preparation should occur but should
require no more than 2hrs of work for each person.
iii. The duration of the review meeting should be less
than two hours.

• Before the review:
– The producer who developed the work product, informs project
leader that work product is complete & review is required.
– Project leader contacts a review leader who generates copies of work
product, & distribute it to other reviewers.
– Evaluates product for readiness
– Establishes agenda for review meeting.
During the review:
- producer introduces agenda & work product.
- Producer gives a walkthrough of the work product, reading the
material while reviewers raise issues.
- Recorder notes valid problems or errors discovered.
- At the end of review, all attendees of the FTR must decide whether to:
- Accept the product without further modification
- Reject the product due to severe error. (once corrected, another review will be
performed)
- Accept the product provisionally(minor errors have been encountered & must
be corrected, but no additional review will be required)
All FTR attendees complete a sign-off, indicating their participation in
the review, and their concurrence with the review team findings.

• During the FTR, a reviewer (the recorder) actively
records all issues that have been raised. These
are summarized at the end of the review meeting
and a reviewed issues list is prepared.
• A review summary report answers three
questions:
– What was reviewed?
– Who reviewed it?
– What were the findings & conclusions.
• The review issue list serves two purpose:
– To identify problem areas within the product, and
– To serve as an action item checklist that guides the
producer as corrections are made.
An issue list is attached to the summary report.

• Review guidelines must be established in advance,
distributed to all reviewers, agreed upon & then
followed. The following represents a minimum set of
guidelines:
– Review the product, not the producer.
– Set an agenda & maintain it.
– Enunciate problem areas, but don’t attempt to solve every
problem noted.
– Take written notes.
– Limit the no. of participants & insist upon advance
preparation.
– Develop a checklist for each product that is likely to be
reviewed.
– Allocate resources & schedule time for FTR’s.
– Conduct meaningful training for all reviewers.
– Review your early reviews.

Walk Through
• Method of conducting informal group/individual review is called
walkthrough.
• In this, the participants ask questions & make comments about possible
errors, violation of development standards & other problems or may
suggest improvement on the article.
• It can be preplanned or can be conducted at need basis . Generally people
working on the work product are involve din the walkthrough process.
• The purpose of walkthrough is to:
– Find problems
– Discuss alternative solution
Focusing on demonstrating how work product meets all requirements, IEEE
recommends three specialist roles in a walkthrough:
1. Leader
2. Recorder
3. Author

Walkthrough Process
Author describes the artifact to be reviewed to reviewers during the
meeting. Reviewers present comments, possible defects and improvement
suggestions to the author. Recorder records all defects & suggestion
during walkthrough meeting. Based on reviewer comments, author
performs any necessary rework of the work product , if required. Leader
normally monitors overall walkthrough meeting activities as per the
defined company process & responsibilities for conducting the reviews.
Generally, the leader performs monitoring activities, commitment against
action items etc.
During the walkthrough session, problems are not resolved. Rather, the
goal is to discover & make note of problem areas. The problems are
resolved by the reviewer, once the walkthrough session is over. A follow-
up meeting or follow-up memo should be used which will inform the
reviewers of the actions taken. The review may work with one or more
reviewers to solve problems but it is the reviewer's responsibility to
ensure that the problems noted during the walkthrough are solved.

Advantages of Walkthrough
• By involving team members in the walkthrough process, project
team communication is improved.
• It is an excellent education medium for new team members.
• If the bugs are found in the earlier part of the life cycle of a product,
they are cheaper and easier to fix.
• When someone other than the author looks at the design or code,
they are likely to find the mistakes which the author might have
overlooked.
• It gives an opportunity to other team members to learn from
someone else’s code.
• When the software product is explained to an audience, the author
gets an opportunity to review his own program.
• When conducted in a proper manner, they save time and improve
quality of the software product.

Limitations of Walkthrough
• The limitation of walkthrough is that –
they take time. Not only the person who is
actively involved on the project, but also other
people have to devote their precious time for
walkthrough.

Code Inspection
• It is a formal group review designed to identify
problems as close to their point of origin as
possible.
• It is used to improve the quality of product
and to improve productivity.

Objectives of Inspection Process
• Find problems at the earliest possible point in the s/w
development process.
• Verify that the work product meets its requirements.
• Ensure that the work product has been presented
according to predefined standards.
• Provide data on product quality and process
effectiveness.
• Builds technical knowledge & skills among team
members by reviewing the output of other people.
• Increases the effectiveness of software testing.

IEEE recommends following roles:
1. Inspection Leader
2. Recorder
3. Reader
4. Author
5. Inspector

Inspection Process
• Following are the various phases of inspection
process:
– Planning
– Overview
– Preparation
– Examination meeting
– Rework and followup

Advantages of code inspection
1. Lists all potential design flows that can make
s/w code less maintainable and costly to
develop
2. Indicates all defects that otherwise are
difficult to fix during normal operational
testing & usage.
3. A detailed error feedback is provided to
individual programmers. It makes easier for
them to make changes in the code.

Compliance with Design and Coding
Standards
• Though at initial stages it seems like a burden to follow
standard, its advantages become visible once the
software grows to few thousand lines spanning few
hundred files.
• Some of the advantages are:
– Programmer feels comfortable with the code written by
others, as it is similar to what he himself would have
written.
– Person joining the group at later stage can pickup the code
easily. (once he is familiar with the standards)
– If care is taken to define the standard in such a way that it
avoids problematic idioms, then silly mistakes can be
avoided.

• The problem with having standard is that it takes
time to get acquainted with it. If care is not taken
during this transition period, then the resulting
code will be a mix of standard and programmer’s
natural style. This can be avoided by having
regular code review sessions.
• Good s/w development organizations usually
develop their own coding standards & guidelines
depending on what best suits their organization
& the type of products they develop.

• The following are some representative coding
guidelines recommended by many s/w
development organizations.
– Do not use a coding style that is too difficult to
understand.
– Avoid obscure side effects.
– Do not use an identifier for multiple purposes.
– The code should be well documented.
– The length of any function should not exceed 10
source lines.
– Do not use goto statements.

SOFTWARE TESTING UNIT-4

More Related Content

What's hot

Viewers also liked

Similar to SOFTWARE TESTING UNIT-4

More from Mohammad Faizan

Recently uploaded

SOFTWARE TESTING UNIT-4
