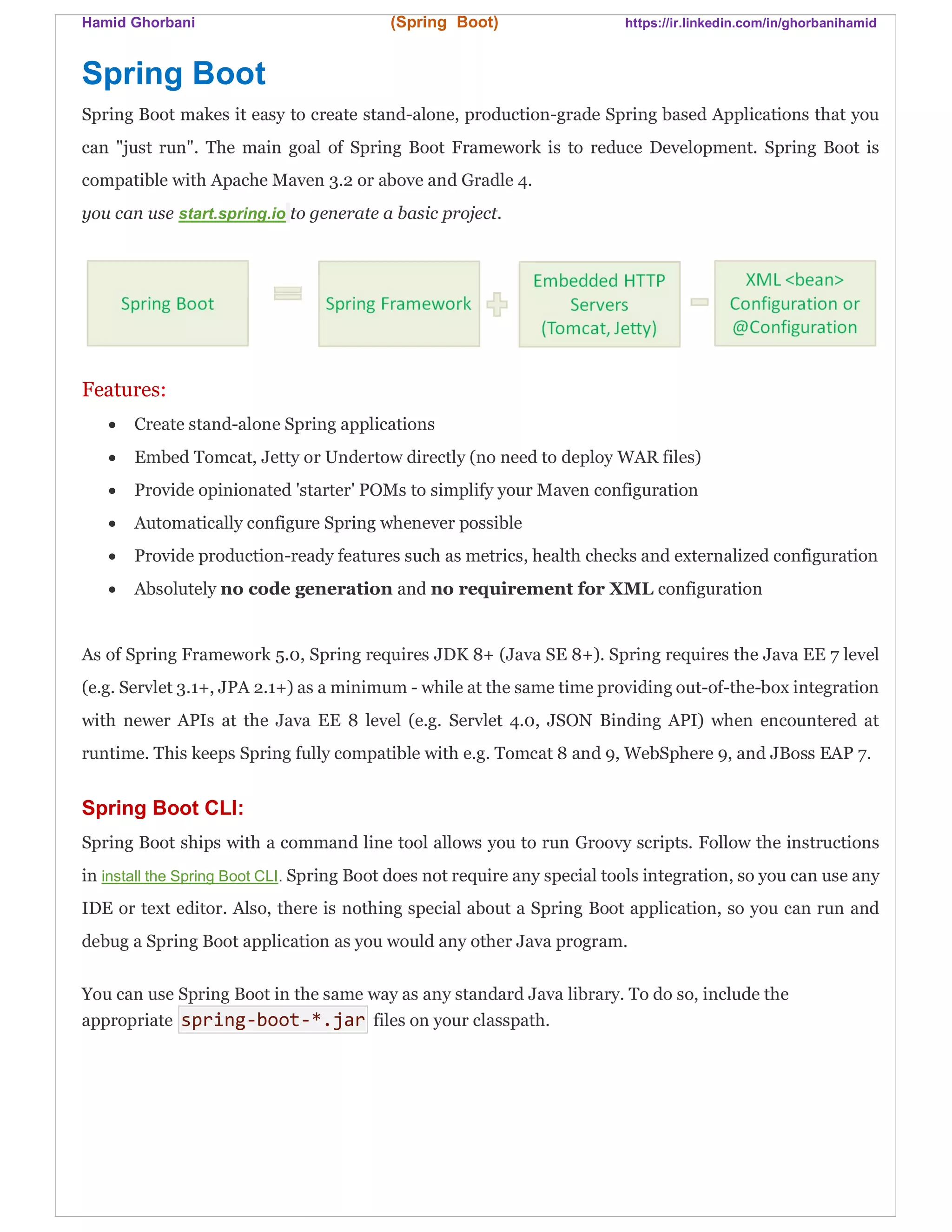

Spring Boot
Spring Boot makes it easy to create stand-alone, production-grade Spring based Applications that you
can "just run". The main goal of Spring Boot Framework is to reduce Development. Spring Boot is
compatible with Apache Maven 3.2 or above and Gradle 4.
you can use start.spring.io to generate a basic project.
Features:
 Create stand-alone Spring applications
 Embed Tomcat, Jetty or Undertow directly (no need to deploy WAR files)
 Provide opinionated 'starter' POMs to simplify your Maven configuration
 Automatically configure Spring whenever possible
 Provide production-ready features such as metrics, health checks and externalized configuration
 Absolutely no code generation and no requirement for XML configuration
As of Spring Framework 5.0, Spring requires JDK 8+ (Java SE 8+). Spring requires the Java EE 7 level
(e.g. Servlet 3.1+, JPA 2.1+) as a minimum - while at the same time providing out-of-the-box integration
with newer APIs at the Java EE 8 level (e.g. Servlet 4.0, JSON Binding API) when encountered at
runtime. This keeps Spring fully compatible with e.g. Tomcat 8 and 9, WebSphere 9, and JBoss EAP 7.
Spring Boot CLI:
Spring Boot ships with a command line tool allows you to run Groovy scripts. Follow the instructions
in install the Spring Boot CLI. Spring Boot does not require any special tools integration, so you can use any
IDE or text editor. Also, there is nothing special about a Spring Boot application, so you can run and
debug a Spring Boot application as you would any other Java program.
You can use Spring Boot in the same way as any standard Java library. To do so, include the
appropriate spring-boot-*.jar files on your classpath.

Developing Spring Boot web application:
For developing a spring boot web application do the following steps:

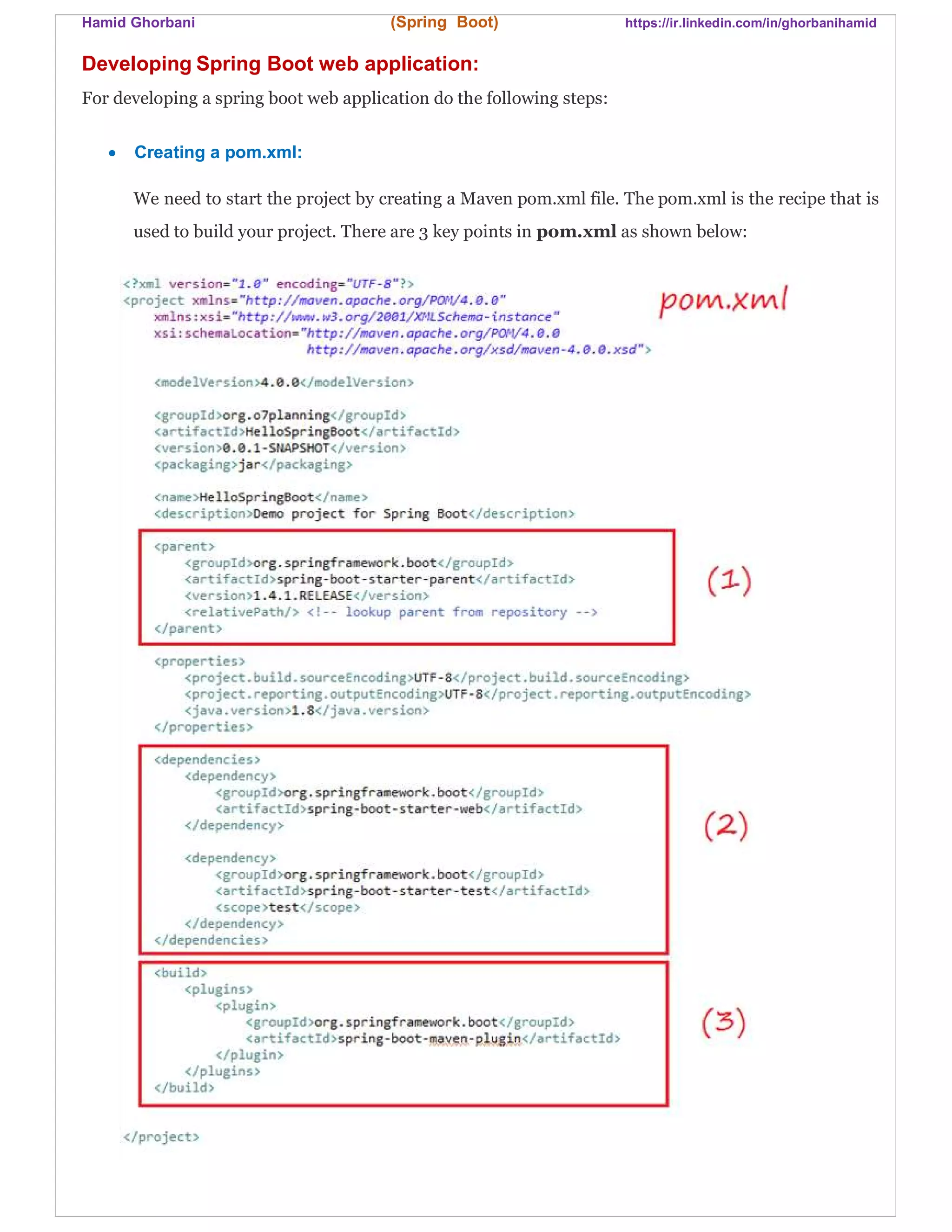

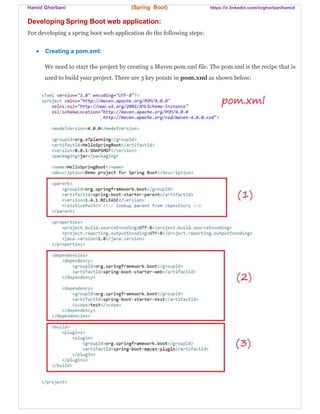

 Creating a pom.xml:
We need to start the project by creating a Maven pom.xml file. The pom.xml is the recipe that is
used to build your project. There are 3 key points in pom.xml as shown below:

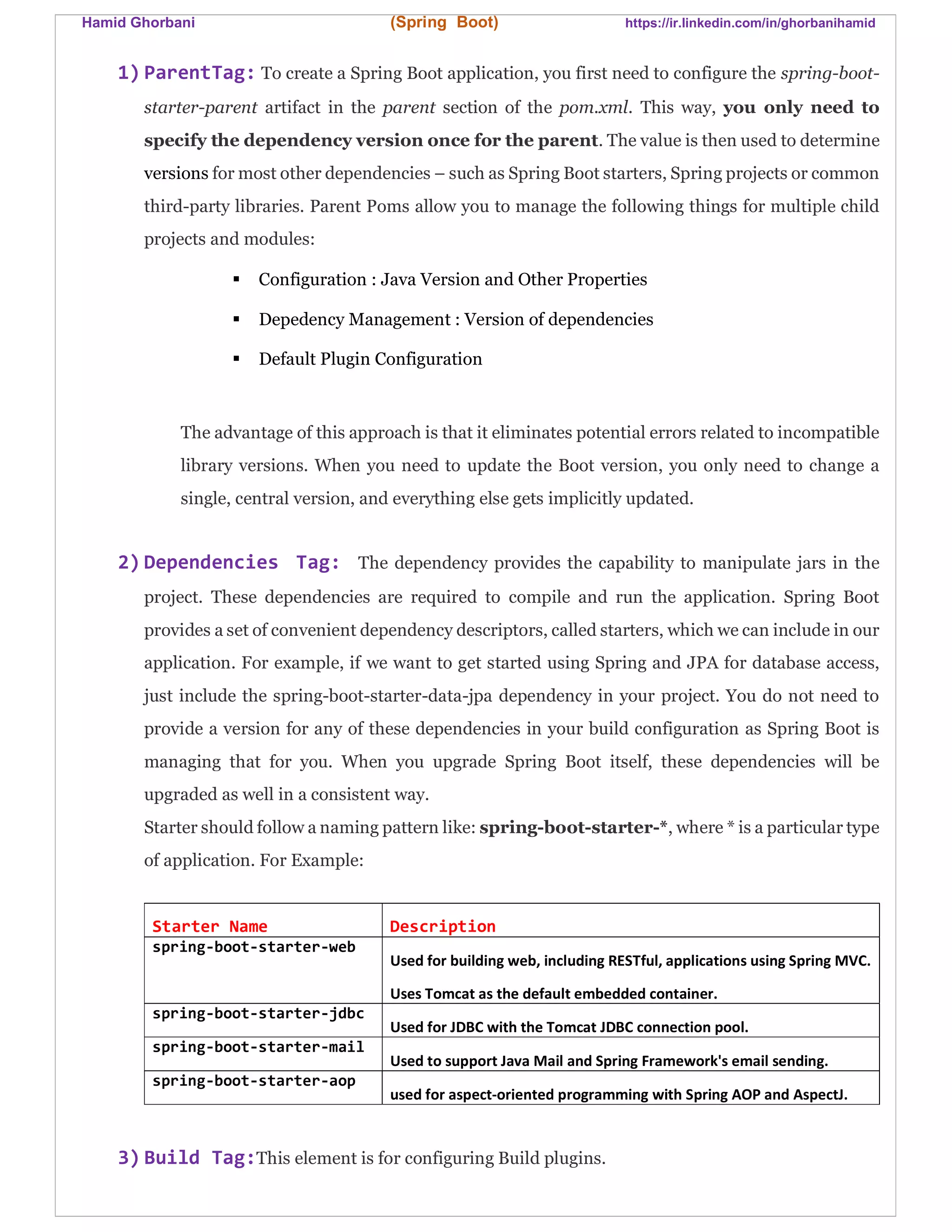

1) ParentTag: To create a Spring Boot application, you first need to configure the spring-boot-
starter-parent artifact in the parent section of the pom.xml. This way, you only need to
specify the dependency version once for the parent. The value is then used to determine
versions for most other dependencies – such as Spring Boot starters, Spring projects or common
third-party libraries. Parent Poms allow you to manage the following things for multiple child
projects and modules:
 Configuration : Java Version and Other Properties
 Depedency Management : Version of dependencies
 Default Plugin Configuration
The advantage of this approach is that it eliminates potential errors related to incompatible
library versions. When you need to update the Boot version, you only need to change a
single, central version, and everything else gets implicitly updated.
2) Dependencies Tag: The dependency provides the capability to manipulate jars in the
project. These dependencies are required to compile and run the application. Spring Boot
provides a set of convenient dependency descriptors, called starters, which we can include in our
application. For example, if we want to get started using Spring and JPA for database access,
just include the spring-boot-starter-data-jpa dependency in your project. You do not need to
provide a version for any of these dependencies in your build configuration as Spring Boot is
managing that for you. When you upgrade Spring Boot itself, these dependencies will be
upgraded as well in a consistent way.
Starter should follow a naming pattern like: spring-boot-starter-*, where * is a particular type
of application. For Example:
Starter Name Description
spring-boot-starter-web
Used for building web, including RESTful, applications using Spring MVC.
Uses Tomcat as the default embedded container.
spring-boot-starter-jdbc
Used for JDBC with the Tomcat JDBC connection pool.
spring-boot-starter-mail
Used to support Java Mail and Spring Framework's email sending.
spring-boot-starter-aop
used for aspect-oriented programming with Spring AOP and AspectJ.
3) Build Tag:This element is for configuring Build plugins.

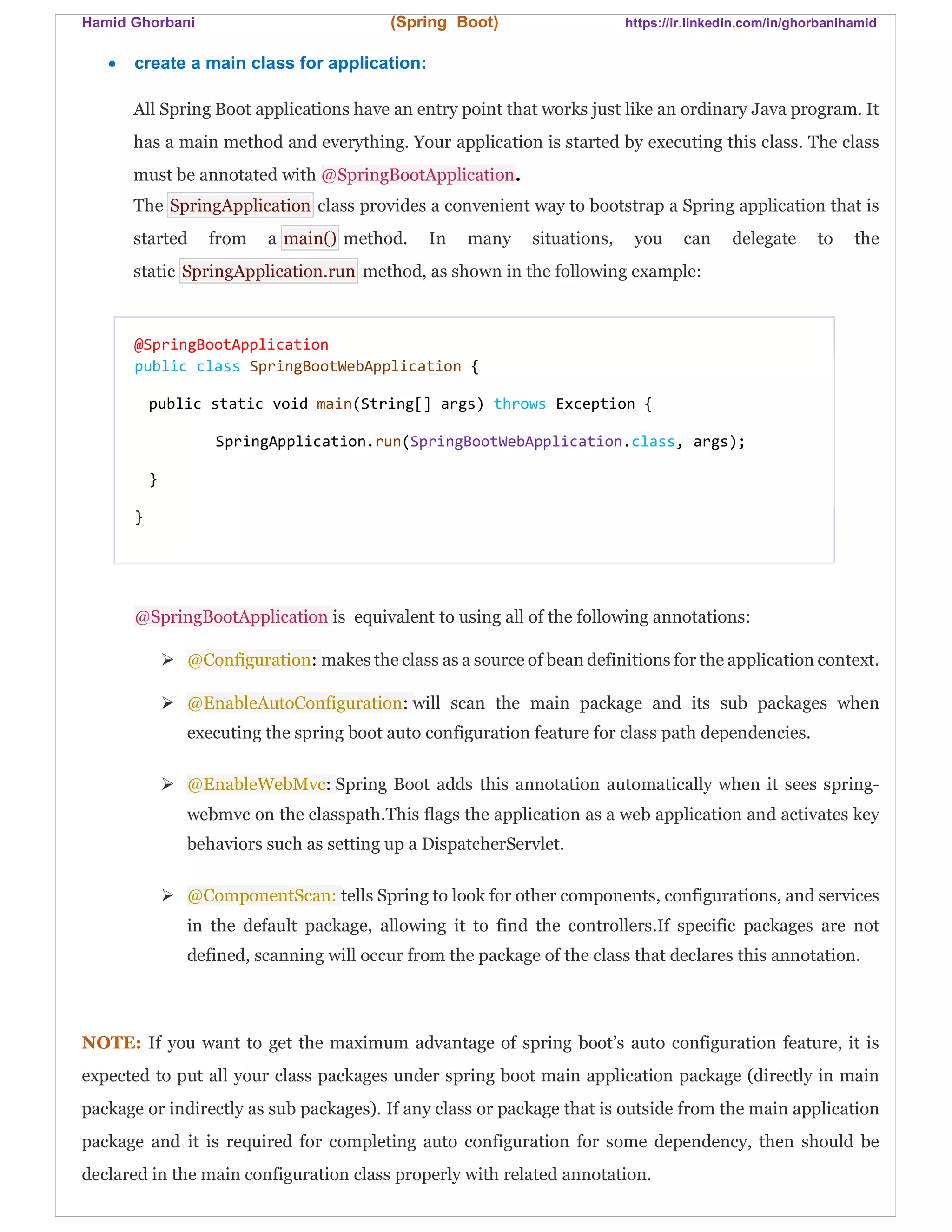

 create a main class for application:
All Spring Boot applications have an entry point that works just like an ordinary Java program. It
has a main method and everything. Your application is started by executing this class. The class
must be annotated with @SpringBootApplication.
The SpringApplication class provides a convenient way to bootstrap a Spring application that is
started from a main() method. In many situations, you can delegate to the
static SpringApplication.run method, as shown in the following example:
@SpringBootApplication
public class SpringBootWebApplication {
public static void main(String[] args) throws Exception {
SpringApplication.run(SpringBootWebApplication.class, args);
}
}
@SpringBootApplication is equivalent to using all of the following annotations:
 @Configuration: makes the class as a source of bean definitions for the application context.
 @EnableAutoConfiguration: will scan the main package and its sub packages when
executing the spring boot auto configuration feature for class path dependencies.
 @EnableWebMvc: Spring Boot adds this annotation automatically when it sees spring-
webmvc on the classpath.This flags the application as a web application and activates key
behaviors such as setting up a DispatcherServlet.
 @ComponentScan: tells Spring to look for other components, configurations, and services
in the default package, allowing it to find the controllers.If specific packages are not
defined, scanning will occur from the package of the class that declares this annotation.
NOTE: If you want to get the maximum advantage of spring boot’s auto configuration feature, it is
expected to put all your class packages under spring boot main application package (directly in main
package or indirectly as sub packages). If any class or package that is outside from the main application
package and it is required for completing auto configuration for some dependency, then should be
declared in the main configuration class properly with related annotation.

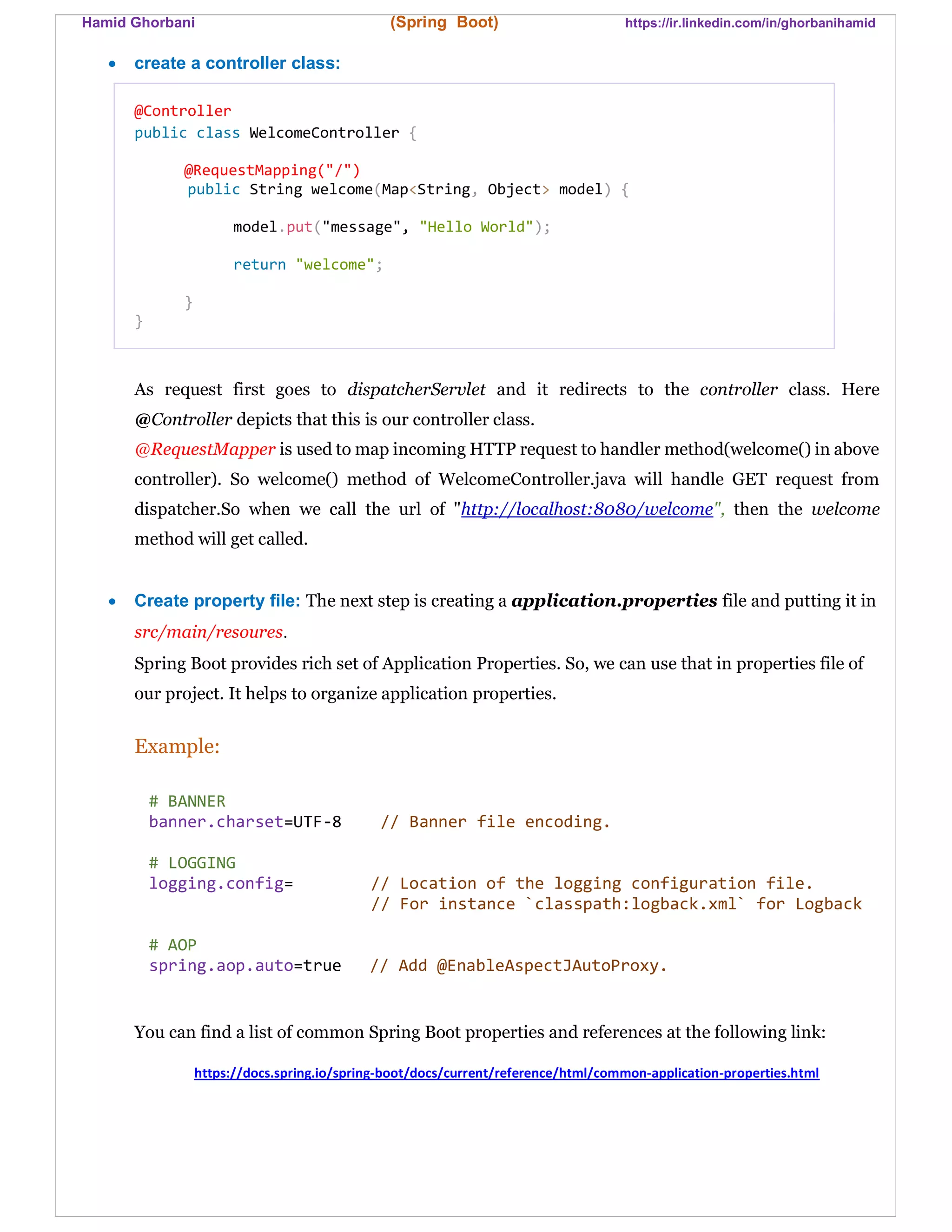

 create a controller class:
@Controller
public class WelcomeController {
@RequestMapping("/")
public String welcome(Map<String, Object> model) {
model.put("message", "Hello World");
return "welcome";
}
}
As request first goes to dispatcherServlet and it redirects to the controller class. Here
@Controller depicts that this is our controller class.
@RequestMapper is used to map incoming HTTP request to handler method(welcome() in above
controller). So welcome() method of WelcomeController.java will handle GET request from
dispatcher.So when we call the url of "http://localhost:8080/welcome", then the welcome
method will get called.
 Create property file: The next step is creating a application.properties file and putting it in
src/main/resoures.
Spring Boot provides rich set of Application Properties. So, we can use that in properties file of
our project. It helps to organize application properties.
Example:
# BANNER
banner.charset=UTF-8 // Banner file encoding.
# LOGGING
logging.config= // Location of the logging configuration file.
// For instance `classpath:logback.xml` for Logback
# AOP
spring.aop.auto=true // Add @EnableAspectJAutoProxy.
You can find a list of common Spring Boot properties and references at the following link:
https://docs.spring.io/spring-boot/docs/current/reference/html/common-application-properties.html

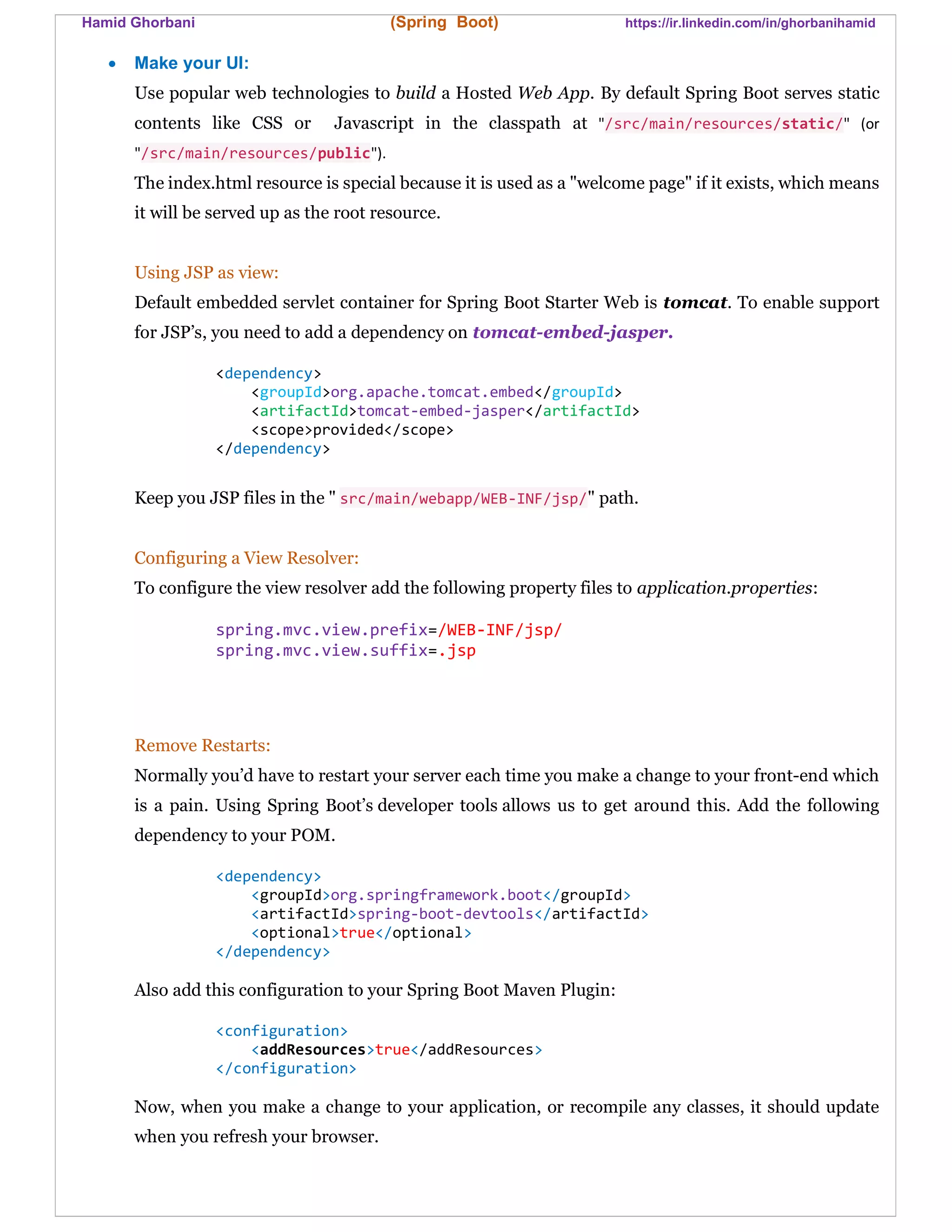

 Make your UI:
Use popular web technologies to build a Hosted Web App. By default Spring Boot serves static
contents like CSS or Javascript in the classpath at "/src/main/resources/static/" (or
"/src/main/resources/public").
The index.html resource is special because it is used as a "welcome page" if it exists, which means
it will be served up as the root resource.
Using JSP as view:
Default embedded servlet container for Spring Boot Starter Web is tomcat. To enable support
for JSP’s, you need to add a dependency on tomcat-embed-jasper.
<dependency>
<groupId>org.apache.tomcat.embed</groupId>
<artifactId>tomcat-embed-jasper</artifactId>
<scope>provided</scope>
</dependency>
Keep you JSP files in the " src/main/webapp/WEB-INF/jsp/" path.
Configuring a View Resolver:
To configure the view resolver add the following property files to application.properties:
spring.mvc.view.prefix=/WEB-INF/jsp/
spring.mvc.view.suffix=.jsp
Remove Restarts:
Normally you’d have to restart your server each time you make a change to your front-end which
is a pain. Using Spring Boot’s developer tools allows us to get around this. Add the following
dependency to your POM.
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<optional>true</optional>
</dependency>
Also add this configuration to your Spring Boot Maven Plugin:
<configuration>
<addResources>true</addResources>
</configuration>
Now, when you make a change to your application, or recompile any classes, it should update
when you refresh your browser.

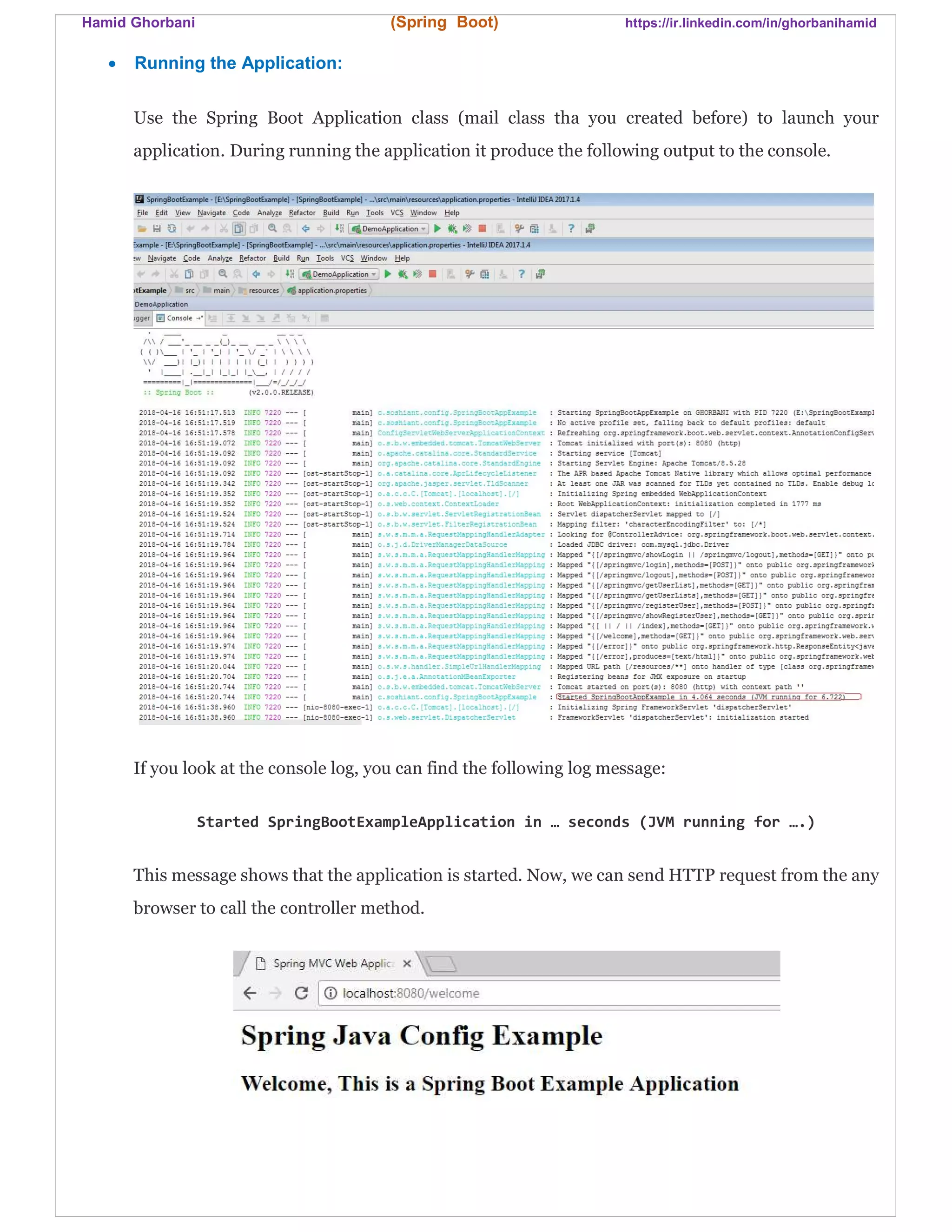

 Running the Application:
Use the Spring Boot Application class (mail class tha you created before) to launch your
application. During running the application it produce the following output to the console.
If you look at the console log, you can find the following log message:
Started SpringBootExampleApplication in … seconds (JVM running for ….)
This message shows that the application is started. Now, we can send HTTP request from the any
browser to call the controller method.

Spring Boot Data:
The Spring Framework consists of a collection of projects, and one of these projects is Spring Data.
Spring Data provides extensive support for working with SQL databases, from direct JDBC access using
JdbcTemplate to complete JPA technologies. JPA is the Java Persistence API, which is Java's standard
API for object-relational mapping. JPA is only an specification, Hibernate is one of the most well-
known and most used implementations of JPA, but there are others, such as EclipseLink JPA.
Configuring DataSource in Spring:
In Spring Boot, dataSource configuration can be done in two ways:
 using standard Spring Boot properties file
 using Java @Configuration class
Using properties file:
To configure the data source using a properties file, we have to set properties prefixed with
spring.datasource. Spring Boot will automatically configure a data source based on those
properties:
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/
TestDatabase?createDatabaseIfNotExist=true
sring.datasource.username=yourUserName
spring.datasource.password=yourPassword
Using Java Configuration class:
The Java configuration looks the same as it does in a standard Spring project:
@Configuration
@PropertySource(value = { "classpath:application.properties" })
public class DataSourceConfig {
@Autowired
private Environment env;
@Bean
public DataSource dataSource() {
DriverManagerDataSource dataSource = new DriverManagerDataSource();
dataSource.setDriverClassName(
env.getRequiredProperty("jdbc.driverClassName"));
dataSource.setUsername(env.getRequiredProperty("jdbc.username"));
dataSource.setPassword(env.getRequiredProperty("jdbc.password"));
dataSource.setUrl(env.getRequiredProperty("jdbc.url"));
return dataSource;
}

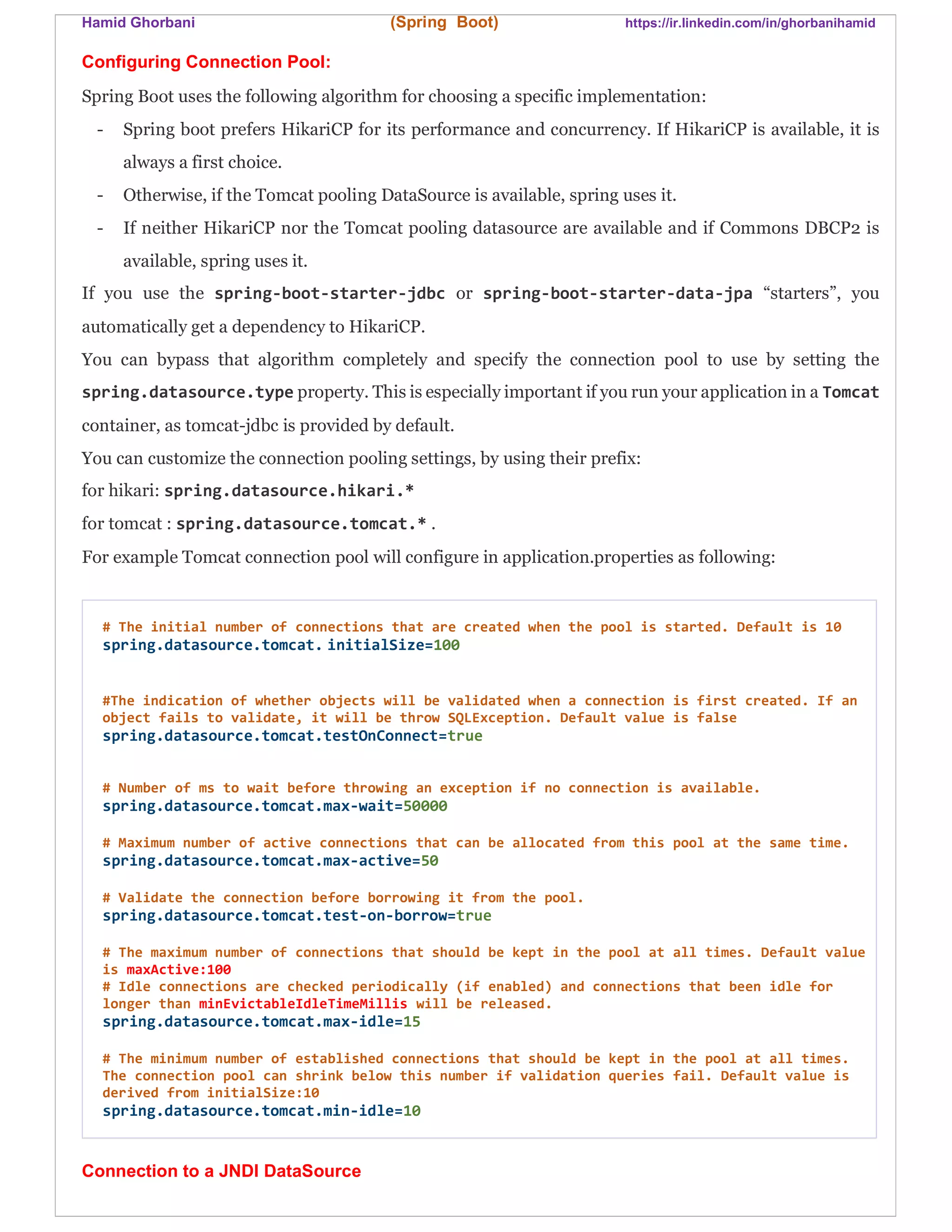

Configuring Connection Pool:
Spring Boot uses the following algorithm for choosing a specific implementation:
- Spring boot prefers HikariCP for its performance and concurrency. If HikariCP is available, it is
always a first choice.
- Otherwise, if the Tomcat pooling DataSource is available, spring uses it.
- If neither HikariCP nor the Tomcat pooling datasource are available and if Commons DBCP2 is
available, spring uses it.
If you use the spring-boot-starter-jdbc or spring-boot-starter-data-jpa “starters”, you
automatically get a dependency to HikariCP.
You can bypass that algorithm completely and specify the connection pool to use by setting the
spring.datasource.type property. This is especially important if you run your application in a Tomcat
container, as tomcat-jdbc is provided by default.
You can customize the connection pooling settings, by using their prefix:
for hikari: spring.datasource.hikari.*
for tomcat : spring.datasource.tomcat.* .
For example Tomcat connection pool will configure in application.properties as following:
# The initial number of connections that are created when the pool is started. Default is 10
spring.datasource.tomcat. initialSize=100
#The indication of whether objects will be validated when a connection is first created. If an
object fails to validate, it will be throw SQLException. Default value is false
spring.datasource.tomcat.testOnConnect=true
# Number of ms to wait before throwing an exception if no connection is available.
spring.datasource.tomcat.max-wait=50000
# Maximum number of active connections that can be allocated from this pool at the same time.
spring.datasource.tomcat.max-active=50
# Validate the connection before borrowing it from the pool.
spring.datasource.tomcat.test-on-borrow=true
# The maximum number of connections that should be kept in the pool at all times. Default value
is maxActive:100
# Idle connections are checked periodically (if enabled) and connections that been idle for
longer than minEvictableIdleTimeMillis will be released.
spring.datasource.tomcat.max-idle=15
# The minimum number of established connections that should be kept in the pool at all times.
The connection pool can shrink below this number if validation queries fail. Default value is
derived from initialSize:10
spring.datasource.tomcat.min-idle=10
Connection to a JNDI DataSource

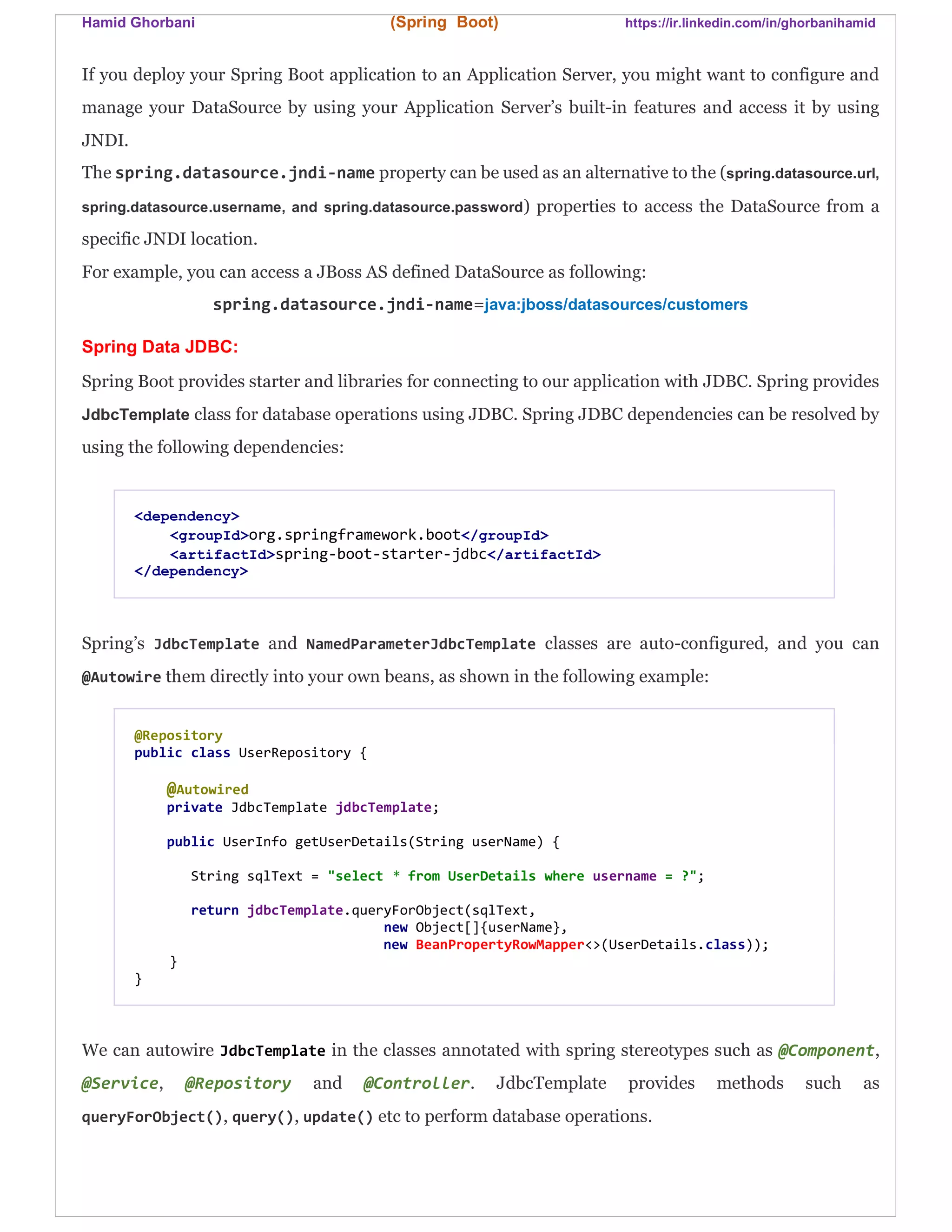

If you deploy your Spring Boot application to an Application Server, you might want to configure and
manage your DataSource by using your Application Server’s built-in features and access it by using
JNDI.
The spring.datasource.jndi-name property can be used as an alternative to the (spring.datasource.url,
spring.datasource.username, and spring.datasource.password) properties to access the DataSource from a
specific JNDI location.
For example, you can access a JBoss AS defined DataSource as following:
spring.datasource.jndi-name=java:jboss/datasources/customers
Spring Data JDBC:
Spring Boot provides starter and libraries for connecting to our application with JDBC. Spring provides
JdbcTemplate class for database operations using JDBC. Spring JDBC dependencies can be resolved by
using the following dependencies:
<dependency>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
Spring’s JdbcTemplate and NamedParameterJdbcTemplate classes are auto-configured, and you can
@Autowire them directly into your own beans, as shown in the following example:
@Repository
public class UserRepository {
@Autowired
private JdbcTemplate jdbcTemplate;
public UserInfo getUserDetails(String userName) {
String sqlText = "select * from UserDetails where username = ?";
return jdbcTemplate.queryForObject(sqlText,
new Object[]{userName},
new BeanPropertyRowMapper<>(UserDetails.class));
}
}
We can autowire JdbcTemplate in the classes annotated with spring stereotypes such as @Component,
@Service, @Repository and @Controller. JdbcTemplate provides methods such as
queryForObject(), query(), update() etc to perform database operations.

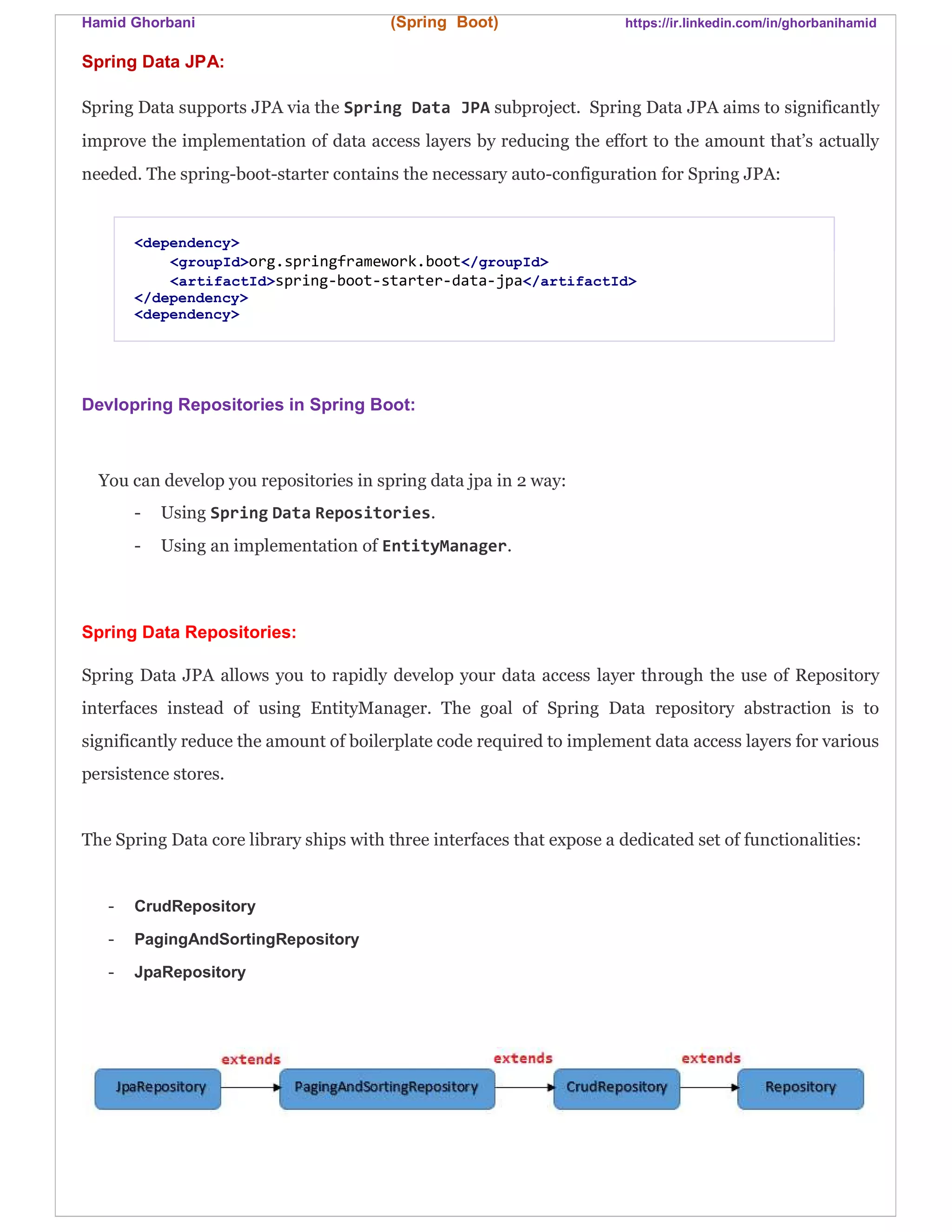

Spring Data JPA:
Spring Data supports JPA via the Spring Data JPA subproject. Spring Data JPA aims to significantly
improve the implementation of data access layers by reducing the effort to the amount that’s actually
needed. The spring-boot-starter contains the necessary auto-configuration for Spring JPA:
<dependency>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
Devlopring Repositories in Spring Boot:
You can develop you repositories in spring data jpa in 2 way:
- Using Spring Data Repositories.
- Using an implementation of EntityManager.
Spring Data Repositories:
Spring Data JPA allows you to rapidly develop your data access layer through the use of Repository
interfaces instead of using EntityManager. The goal of Spring Data repository abstraction is to
significantly reduce the amount of boilerplate code required to implement data access layers for various
persistence stores.
The Spring Data core library ships with three interfaces that expose a dedicated set of functionalities:
- CrudRepository
- PagingAndSortingRepository
- JpaRepository

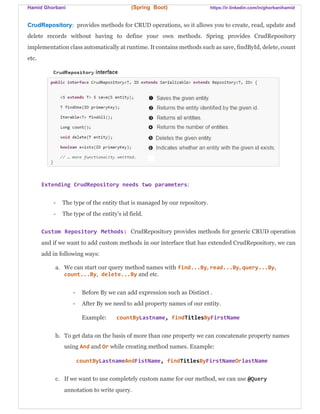

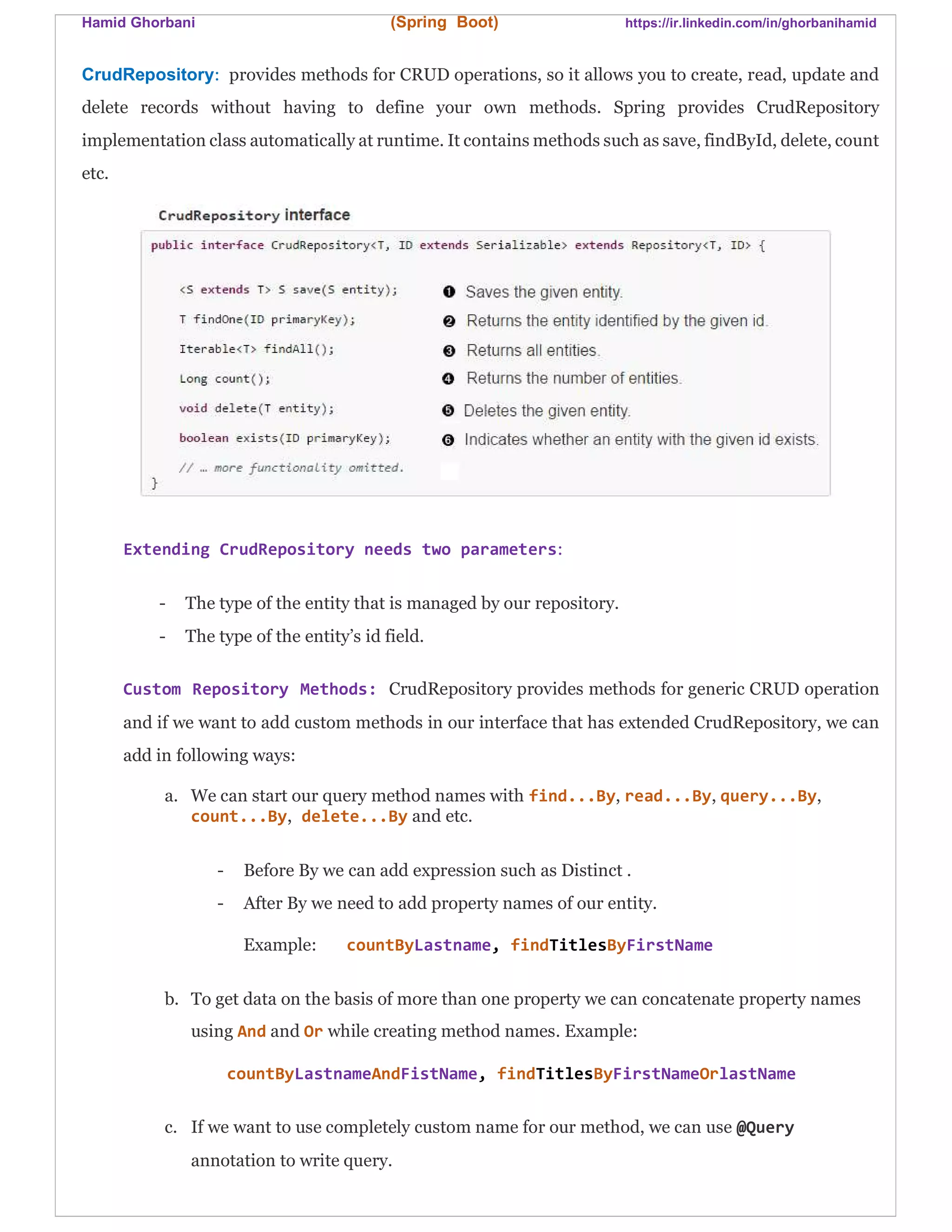

CrudRepository: provides methods for CRUD operations, so it allows you to create, read, update and
delete records without having to define your own methods. Spring provides CrudRepository
implementation class automatically at runtime. It contains methods such as save, findById, delete, count
etc.
Extending CrudRepository needs two parameters:
- The type of the entity that is managed by our repository.
- The type of the entity’s id field.
Custom Repository Methods: CrudRepository provides methods for generic CRUD operation
and if we want to add custom methods in our interface that has extended CrudRepository, we can
add in following ways:
a. We can start our query method names with find...By, read...By, query...By,
count...By, delete...By and etc.
- Before By we can add expression such as Distinct .
- After By we need to add property names of our entity.
Example: countByLastname, findTitlesByFirstName
b. To get data on the basis of more than one property we can concatenate property names
using And and Or while creating method names. Example:
countByLastnameAndFistName, findTitlesByFirstNameOrlastName
c. If we want to use completely custom name for our method, we can use @Query
annotation to write query.

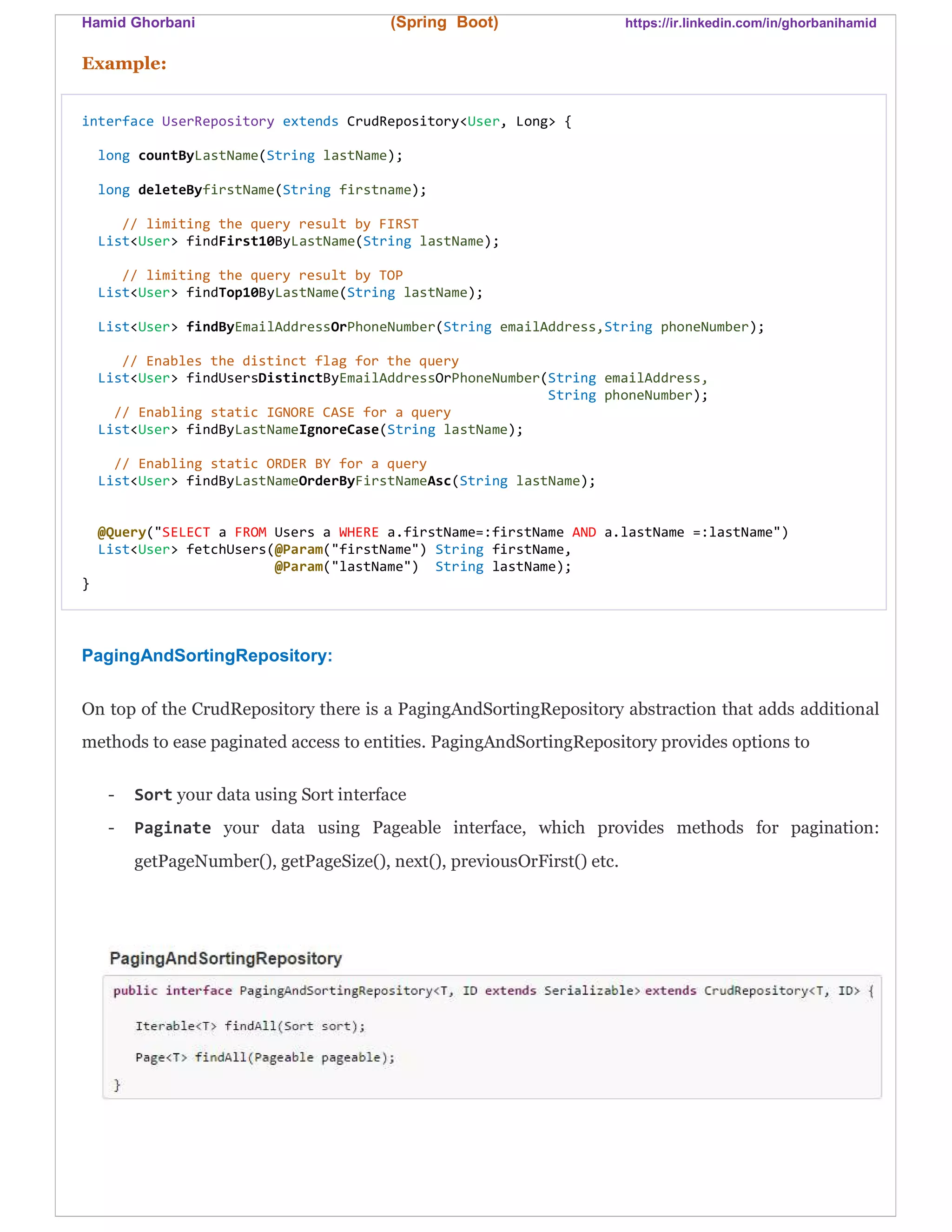

Example:
interface UserRepository extends CrudRepository<User, Long> {
long countByLastName(String lastName);
long deleteByfirstName(String firstname);
// limiting the query result by FIRST
List<User> findFirst10ByLastName(String lastName);
// limiting the query result by TOP
List<User> findTop10ByLastName(String lastName);
List<User> findByEmailAddressOrPhoneNumber(String emailAddress,String phoneNumber);
// Enables the distinct flag for the query
List<User> findUsersDistinctByEmailAddressOrPhoneNumber(String emailAddress,
String phoneNumber);
// Enabling static IGNORE CASE for a query
List<User> findByLastNameIgnoreCase(String lastName);
// Enabling static ORDER BY for a query
List<User> findByLastNameOrderByFirstNameAsc(String lastName);
@Query("SELECT a FROM Users a WHERE a.firstName=:firstName AND a.lastName =:lastName")
List<User> fetchUsers(@Param("firstName") String firstName,
@Param("lastName") String lastName);
}
PagingAndSortingRepository:
On top of the CrudRepository there is a PagingAndSortingRepository abstraction that adds additional
methods to ease paginated access to entities. PagingAndSortingRepository provides options to
- Sort your data using Sort interface
- Paginate your data using Pageable interface, which provides methods for pagination:
getPageNumber(), getPageSize(), next(), previousOrFirst() etc.

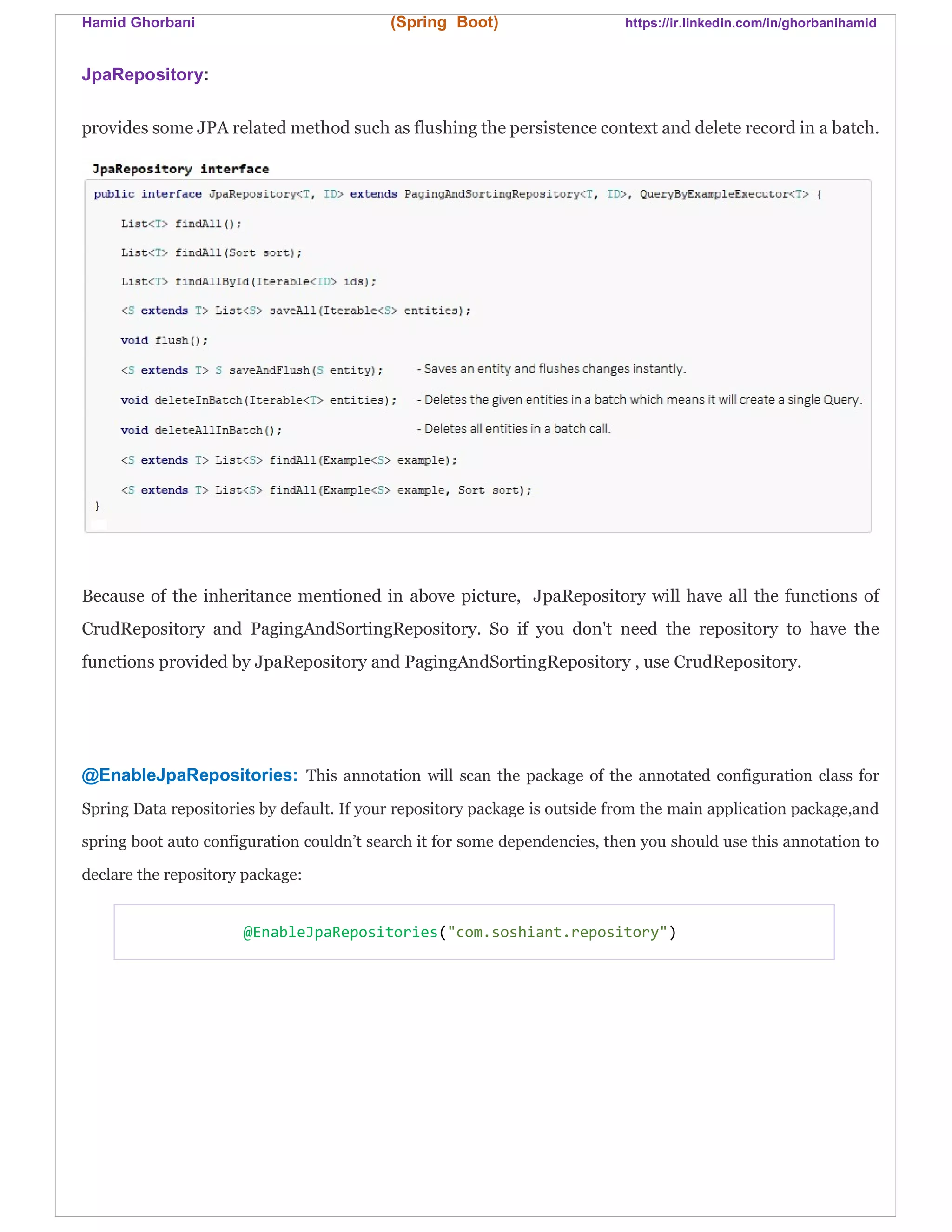

JpaRepository:
provides some JPA related method such as flushing the persistence context and delete record in a batch.
Because of the inheritance mentioned in above picture, JpaRepository will have all the functions of
CrudRepository and PagingAndSortingRepository. So if you don't need the repository to have the
functions provided by JpaRepository and PagingAndSortingRepository , use CrudRepository.
@EnableJpaRepositories: This annotation will scan the package of the annotated configuration class for
Spring Data repositories by default. If your repository package is outside from the main application package,and
spring boot auto configuration couldn’t search it for some dependencies, then you should use this annotation to
declare the repository package:
@EnableJpaRepositories("com.soshiant.repository")

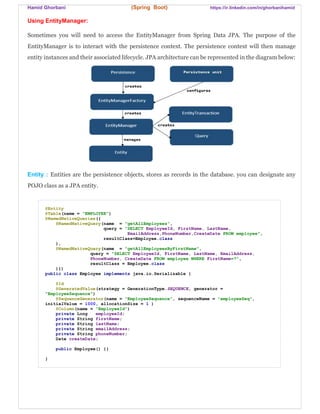

Using EntityManager:
Sometimes you will need to access the EntityManager from Spring Data JPA. The purpose of the
EntityManager is to interact with the persistence context. The persistence context will then manage
entity instances and their associated lifecycle. JPA architecture can be represented in the diagram below:
Entity : Entities are the persistence objects, stores as records in the database. you can designate any
POJO class as a JPA entity.
@Entity
@Table(name = "EMPLOYEE")
@NamedNativeQueries({
@NamedNativeQuery(name = "getAllEmployees",
query = "SELECT EmployeeId, FirstName, LastName,
EmailAddress,PhoneNumber,CreateDate FROM employee",
resultClass=Employee.class
),
@NamedNativeQuery(name = "getAllEmployeesByFirstName",
query = "SELECT EmployeeId, FirstName, LastName, EmailAddress,
PhoneNumber, CreateDate FROM employee WHERE FirstName=?",
resultClass = Employee.class
)})
public class Employee implements java.io.Serializable {
@Id
@GeneratedValue(strategy = GenerationType.SEQUENCE, generator =
"EmployeeSequence")
@SequenceGenerator(name = "EmployeeSequence", sequenceName = "employeeSeq",
initialValue = 1000, allocationSize = 1 )
@Column(name = "EmployeeId")
private Long employeeId;
private String firstName;
private String lastName;
private String emailAddress;
private String phoneNumber;
Date createDate;
public Employee() {}
}

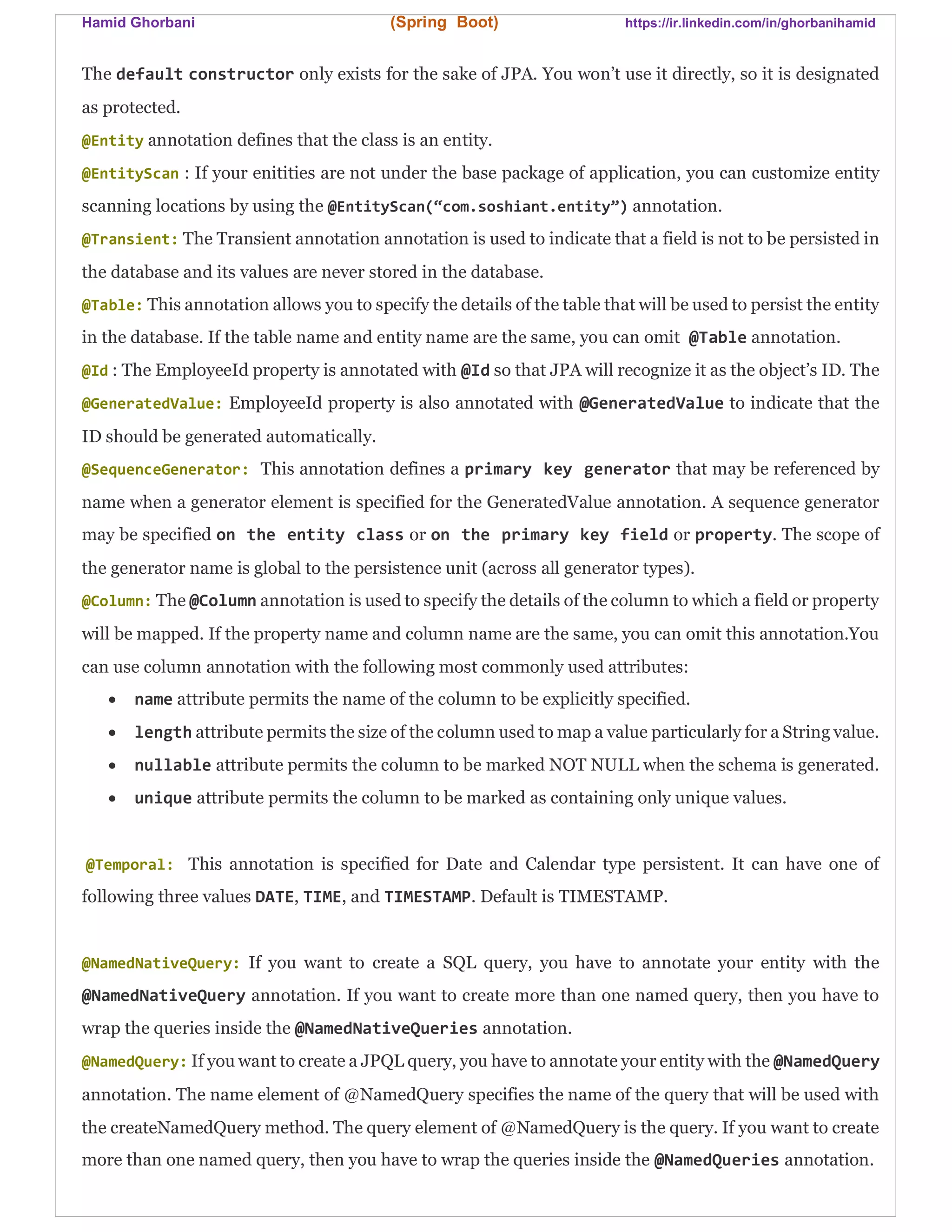

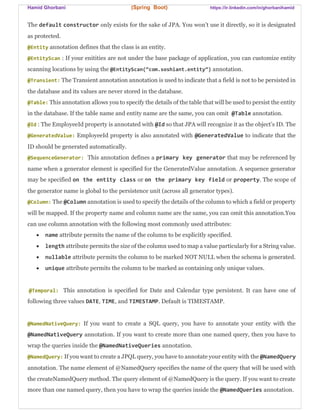

The default constructor only exists for the sake of JPA. You won’t use it directly, so it is designated
as protected.
@Entity annotation defines that the class is an entity.
@EntityScan : If your enitities are not under the base package of application, you can customize entity
scanning locations by using the @EntityScan(“com.soshiant.entity”) annotation.
@Transient: The Transient annotation annotation is used to indicate that a field is not to be persisted in
the database and its values are never stored in the database.
@Table: This annotation allows you to specify the details of the table that will be used to persist the entity
in the database. If the table name and entity name are the same, you can omit @Table annotation.
@Id : The EmployeeId property is annotated with @Id so that JPA will recognize it as the object’s ID. The
@GeneratedValue: EmployeeId property is also annotated with @GeneratedValue to indicate that the
ID should be generated automatically.
@SequenceGenerator: This annotation defines a primary key generator that may be referenced by
name when a generator element is specified for the GeneratedValue annotation. A sequence generator
may be specified on the entity class or on the primary key field or property. The scope of
the generator name is global to the persistence unit (across all generator types).
@Column: The @Column annotation is used to specify the details of the column to which a field or property
will be mapped. If the property name and column name are the same, you can omit this annotation.You
can use column annotation with the following most commonly used attributes:
 name attribute permits the name of the column to be explicitly specified.
 length attribute permits the size of the column used to map a value particularly for a String value.
 nullable attribute permits the column to be marked NOT NULL when the schema is generated.
 unique attribute permits the column to be marked as containing only unique values.
@Temporal: This annotation is specified for Date and Calendar type persistent. It can have one of
following three values DATE, TIME, and TIMESTAMP. Default is TIMESTAMP.
@NamedNativeQuery: If you want to create a SQL query, you have to annotate your entity with the
@NamedNativeQuery annotation. If you want to create more than one named query, then you have to
wrap the queries inside the @NamedNativeQueries annotation.
@NamedQuery: If you want to create a JPQL query, you have to annotate your entity with the @NamedQuery
annotation. The name element of @NamedQuery specifies the name of the query that will be used with
the createNamedQuery method. The query element of @NamedQuery is the query. If you want to create
more than one named query, then you have to wrap the queries inside the @NamedQueries annotation.

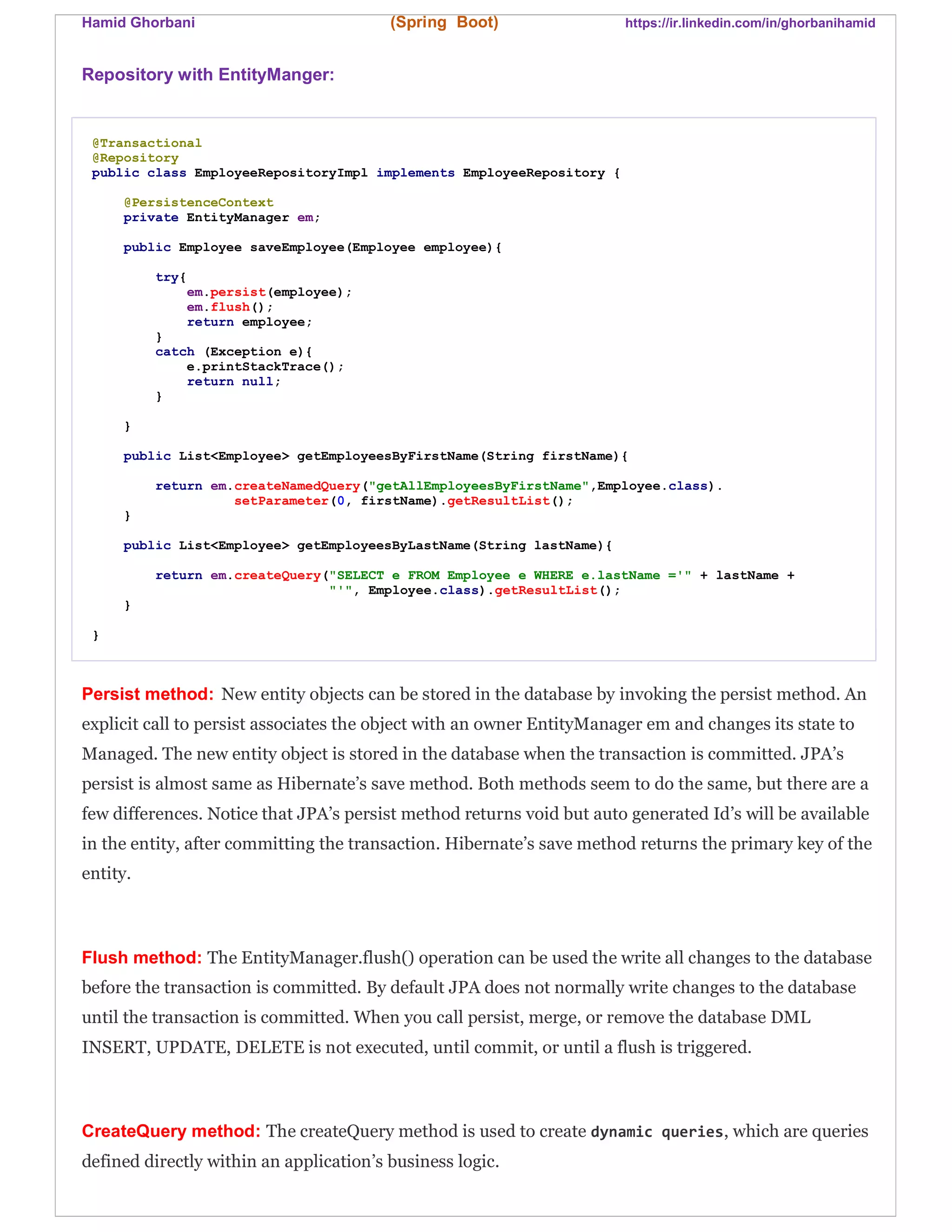

Repository with EntityManger:
@Transactional
@Repository
public class EmployeeRepositoryImpl implements EmployeeRepository {
@PersistenceContext
private EntityManager em;
public Employee saveEmployee(Employee employee){
try{
em.persist(employee);
em.flush();
return employee;
}
catch (Exception e){
e.printStackTrace();
return null;
}
}
public List<Employee> getEmployeesByFirstName(String firstName){
return em.createNamedQuery("getAllEmployeesByFirstName",Employee.class).
setParameter(0, firstName).getResultList();
}
public List<Employee> getEmployeesByLastName(String lastName){
return em.createQuery("SELECT e FROM Employee e WHERE e.lastName ='" + lastName +
"'", Employee.class).getResultList();
}
}
Persist method: New entity objects can be stored in the database by invoking the persist method. An
explicit call to persist associates the object with an owner EntityManager em and changes its state to
Managed. The new entity object is stored in the database when the transaction is committed. JPA’s
persist is almost same as Hibernate’s save method. Both methods seem to do the same, but there are a
few differences. Notice that JPA’s persist method returns void but auto generated Id’s will be available
in the entity, after committing the transaction. Hibernate’s save method returns the primary key of the
entity.
Flush method: The EntityManager.flush() operation can be used the write all changes to the database
before the transaction is committed. By default JPA does not normally write changes to the database
until the transaction is committed. When you call persist, merge, or remove the database DML
INSERT, UPDATE, DELETE is not executed, until commit, or until a flush is triggered.
CreateQuery method: The createQuery method is used to create dynamic queries, which are queries
defined directly within an application’s business logic.

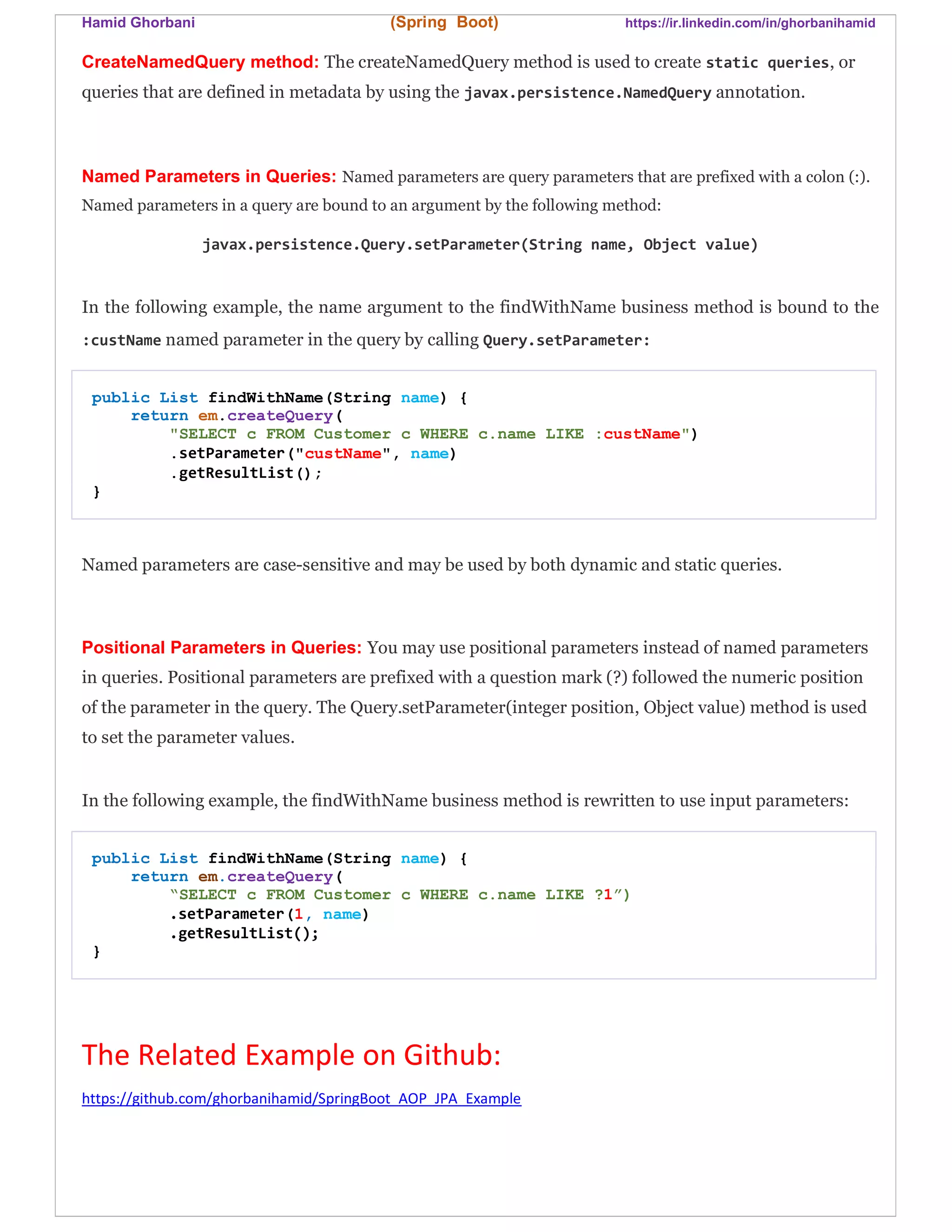

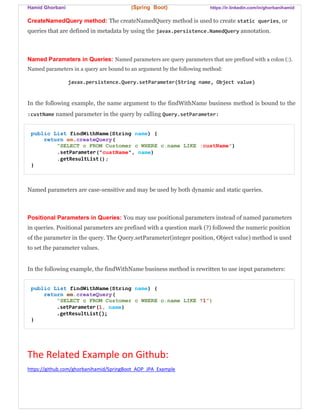

CreateNamedQuery method: The createNamedQuery method is used to create static queries, or
queries that are defined in metadata by using the javax.persistence.NamedQuery annotation.
Named Parameters in Queries: Named parameters are query parameters that are prefixed with a colon (:).
Named parameters in a query are bound to an argument by the following method:
javax.persistence.Query.setParameter(String name, Object value)
In the following example, the name argument to the findWithName business method is bound to the
:custName named parameter in the query by calling Query.setParameter:
public List findWithName(String name) {
return em.createQuery(
"SELECT c FROM Customer c WHERE c.name LIKE :custName")
.setParameter("custName", name)
.getResultList();
}
Named parameters are case-sensitive and may be used by both dynamic and static queries.
Positional Parameters in Queries: You may use positional parameters instead of named parameters
in queries. Positional parameters are prefixed with a question mark (?) followed the numeric position
of the parameter in the query. The Query.setParameter(integer position, Object value) method is used
to set the parameter values.
In the following example, the findWithName business method is rewritten to use input parameters:
public List findWithName(String name) {
return em.createQuery(
“SELECT c FROM Customer c WHERE c.name LIKE ?1”)
.setParameter(1, name)
.getResultList();
}
The Related Example on Github:
https://github.com/ghorbanihamid/SpringBoot_AOP_JPA_Example

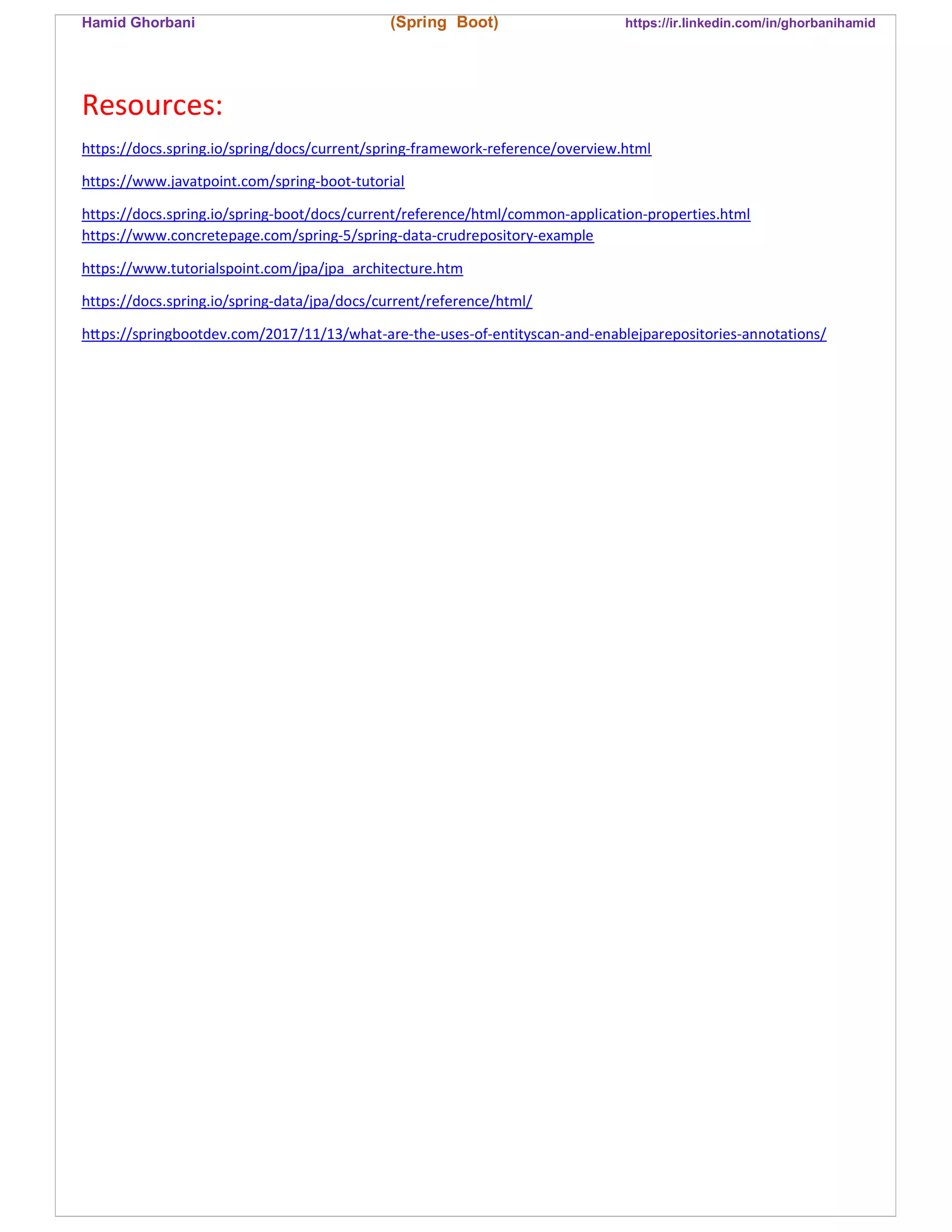

Resources:
https://docs.spring.io/spring/docs/current/spring-framework-reference/overview.html
https://www.javatpoint.com/spring-boot-tutorial
https://docs.spring.io/spring-boot/docs/current/reference/html/common-application-properties.html
https://www.concretepage.com/spring-5/spring-data-crudrepository-example
https://www.tutorialspoint.com/jpa/jpa_architecture.htm
https://docs.spring.io/spring-data/jpa/docs/current/reference/html/
h ps://springbootdev.com/2017/11/13/what-are-the-uses-of-entityscan-and-enablejparepositories-annotations/

Spring boot jpa

More Related Content

What's hot

Similar to Spring boot jpa

More from Hamid Ghorbani

Recently uploaded

In this document

Spring boot jpa
