Spring - Part 1 - IoC, Di and Beans

Java Spring Training
Spring – Inversion of Control, Dependency Injection
and Bean definitions

Classification: Restricted

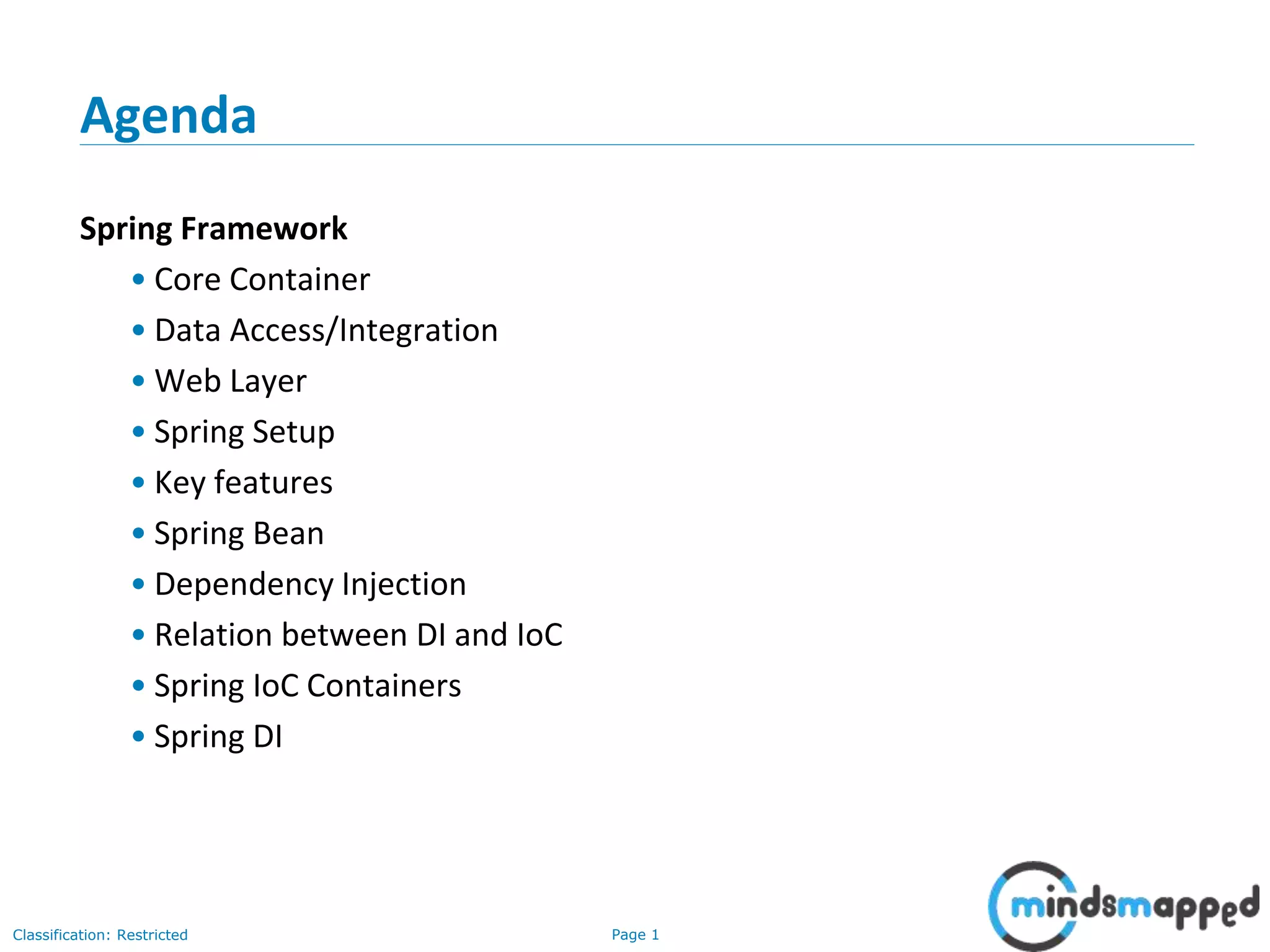

Agenda
Spring Framework
• Core Container
• Data Access/Integration
• Web Layer
• Spring Setup
• Key features
• Spring Bean
• Dependency Injection
• Relation between DI and IoC
• Spring IoC Containers
• Spring DI

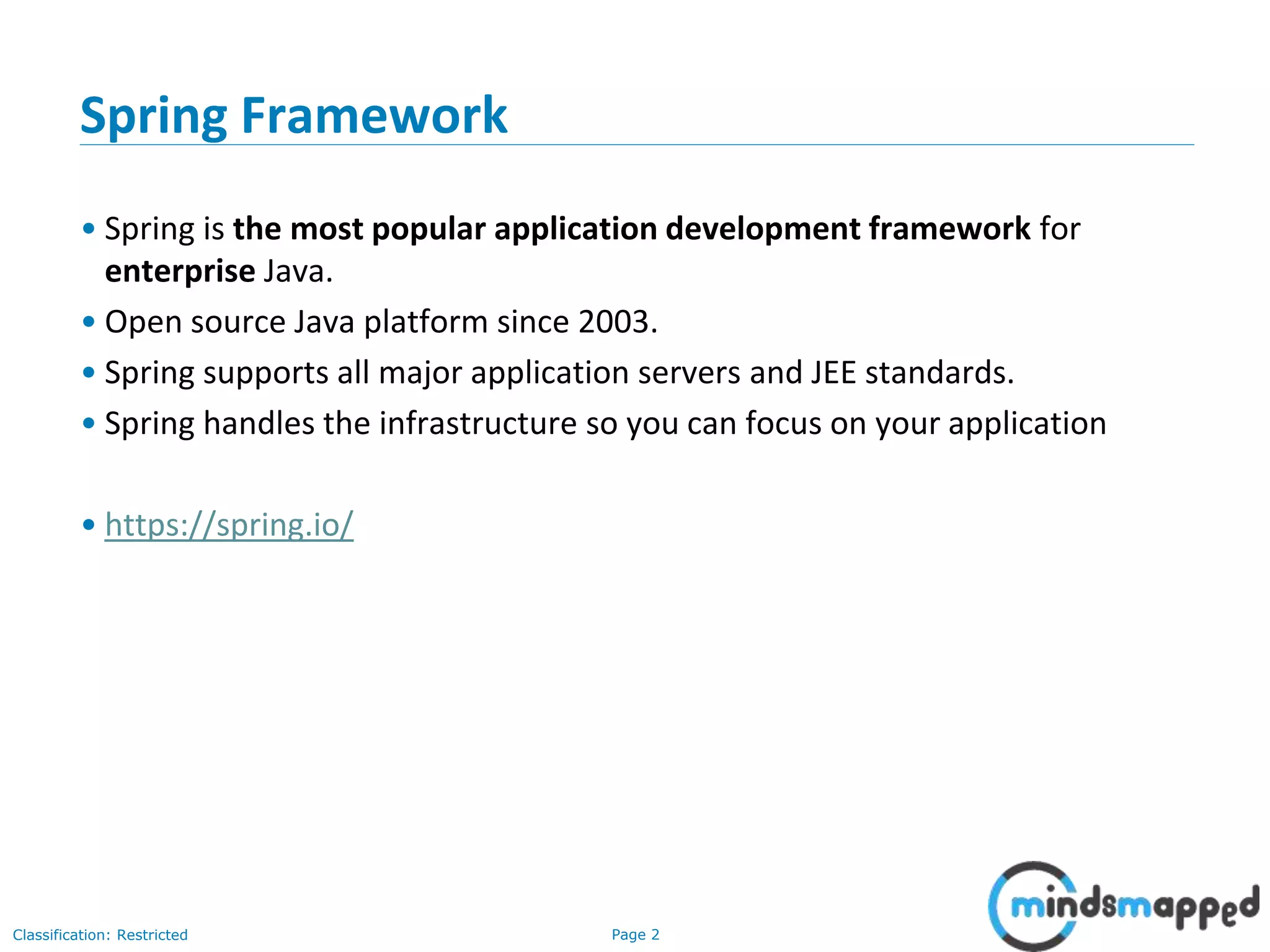

Spring Framework
• Spring is the most popular application development framework for
enterprise Java.
• Open source Java platform since 2003.
• Spring supports all major application servers and JEE standards.
• Spring handles the infrastructure so you can focus on your application
• https://spring.io/

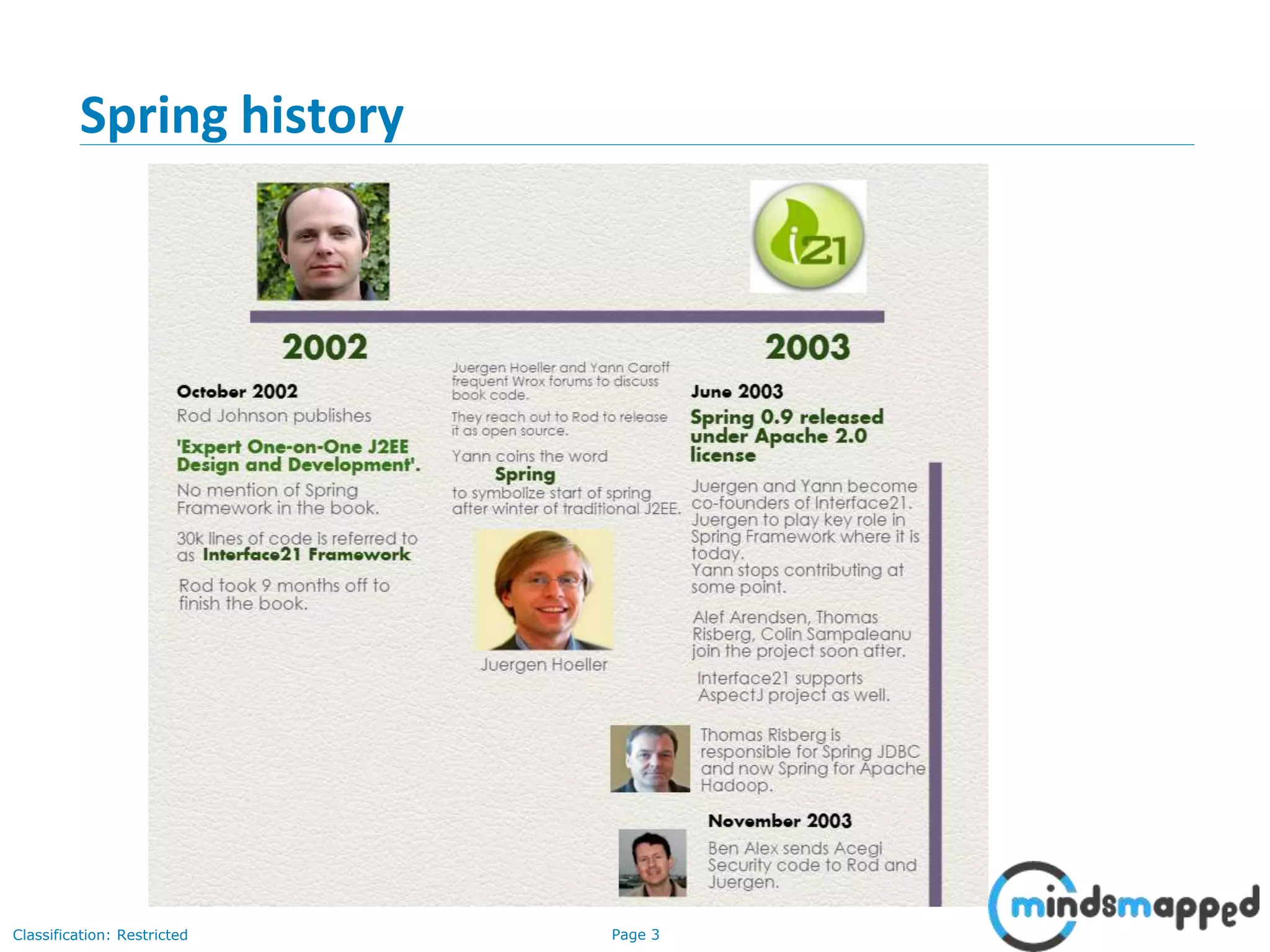

Spring history

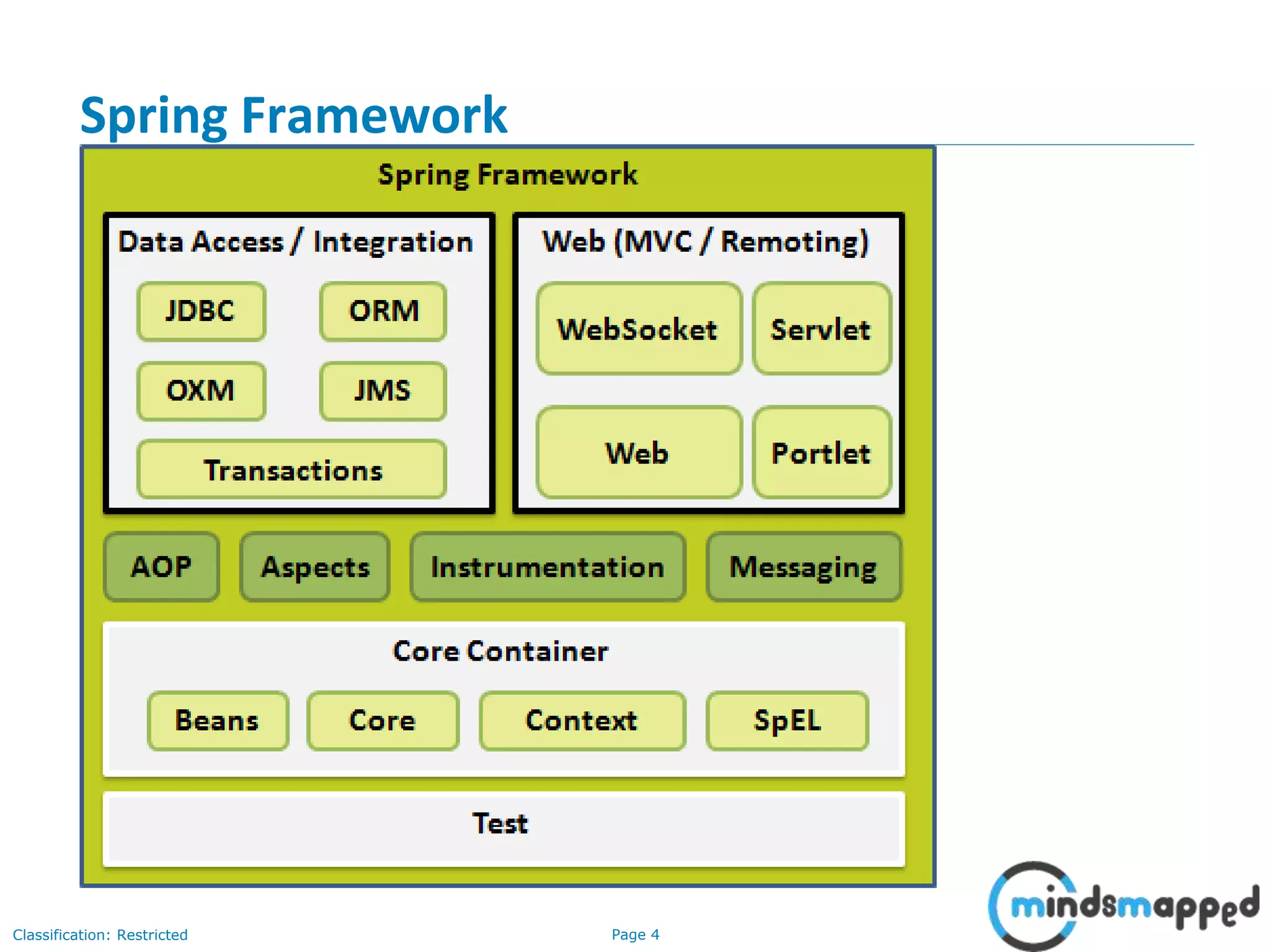

Spring Framework

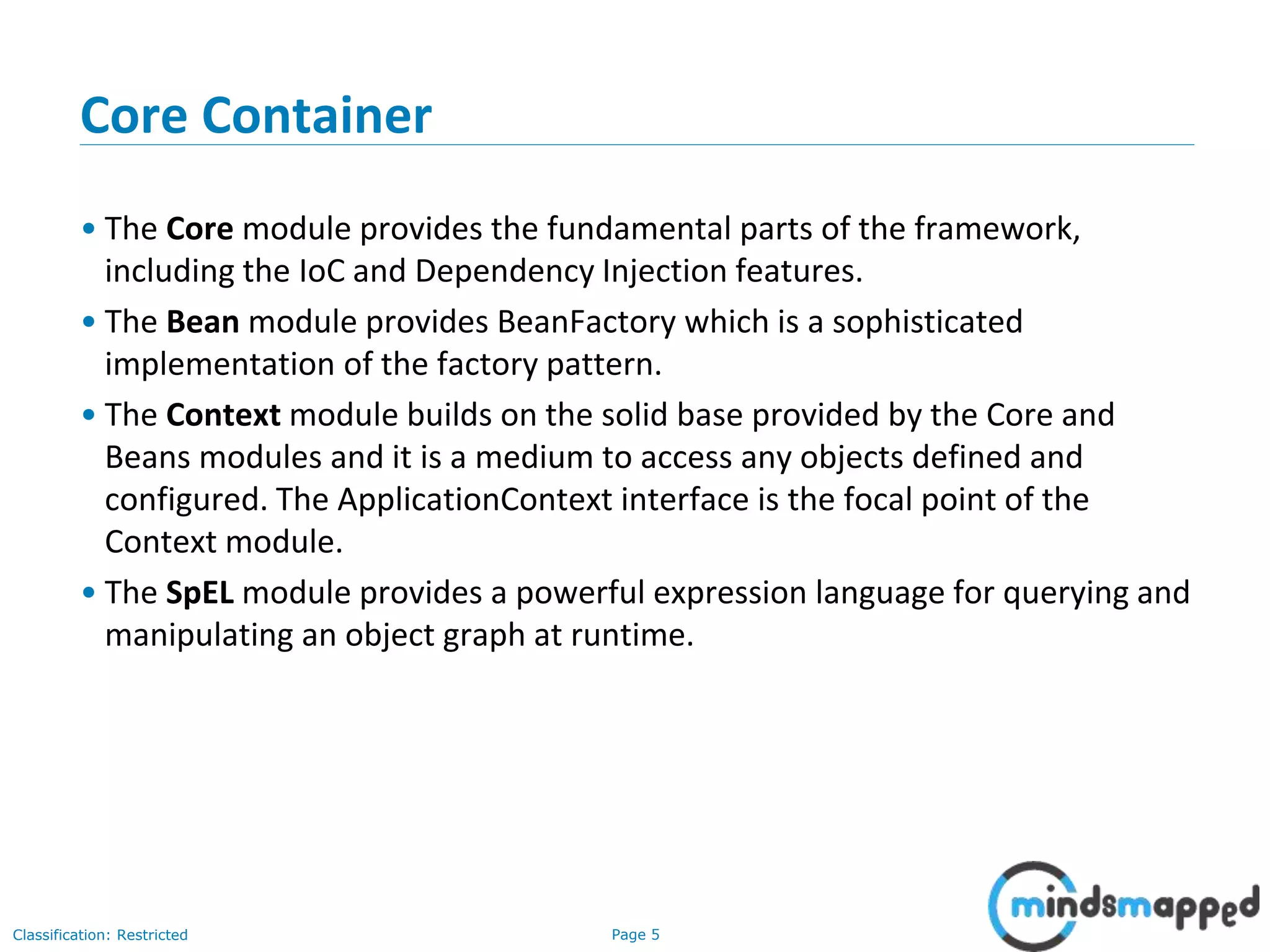

Core Container
• The Core module provides the fundamental parts of the framework,
including the IoC and Dependency Injection features.
• The Bean module provides BeanFactory which is a sophisticated
implementation of the factory pattern.
• The Context module builds on the solid base provided by the Core and
Beans modules and it is a medium to access any objects defined and
configured. The ApplicationContext interface is the focal point of the
Context module.
• The SpEL module provides a powerful expression language for querying and
manipulating an object graph at runtime.

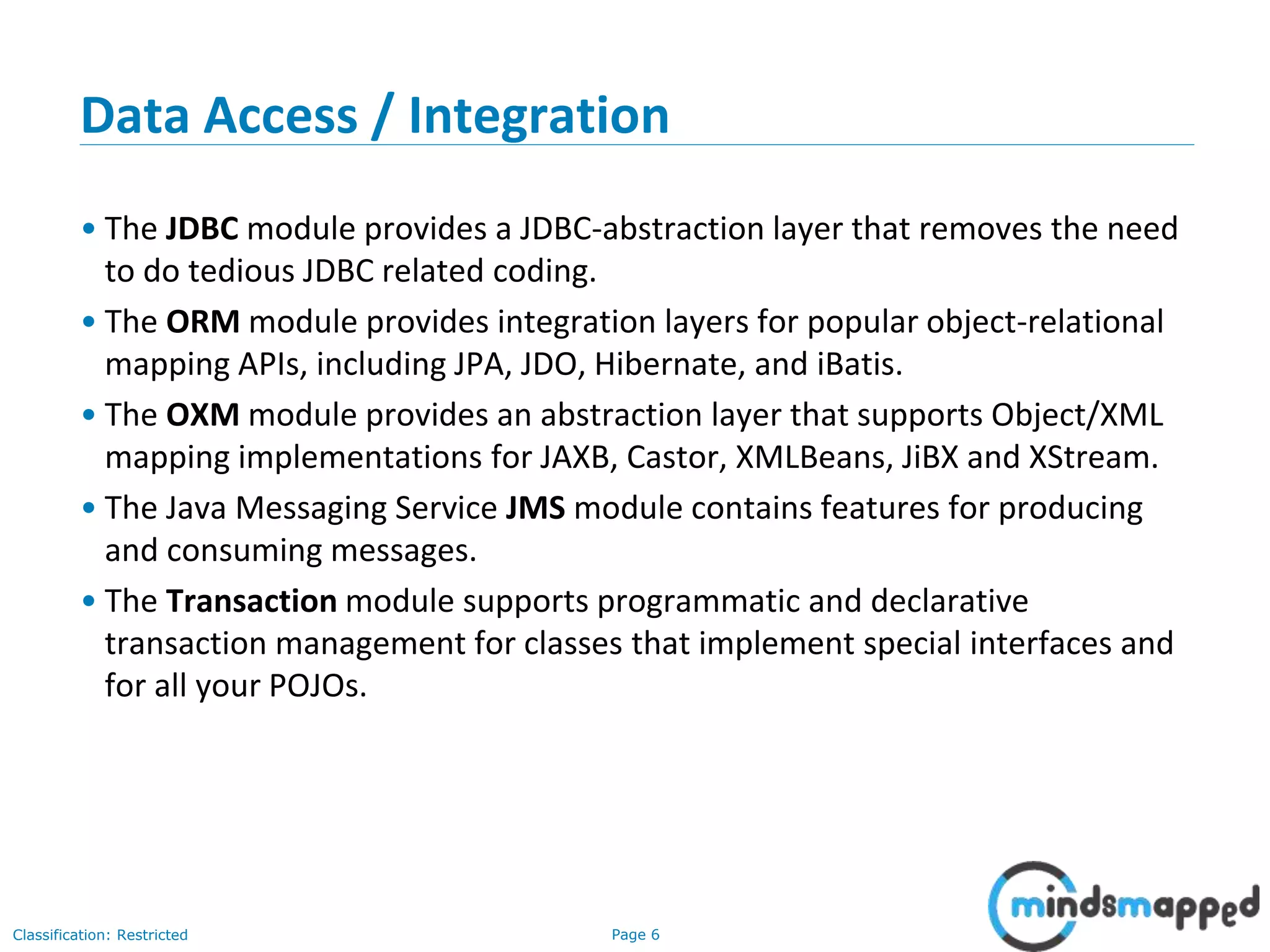

Data Access / Integration
• The JDBC module provides a JDBC-abstraction layer that removes the need
to do tedious JDBC related coding.
• The ORM module provides integration layers for popular object-relational
mapping APIs, including JPA, JDO, Hibernate, and iBatis.
• The OXM module provides an abstraction layer that supports Object/XML
mapping implementations for JAXB, Castor, XMLBeans, JiBX and XStream.
• The Java Messaging Service JMS module contains features for producing
and consuming messages.
• The Transaction module supports programmatic and declarative
transaction management for classes that implement special interfaces and
for all your POJOs.

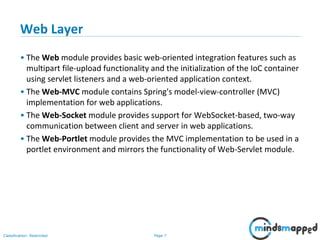

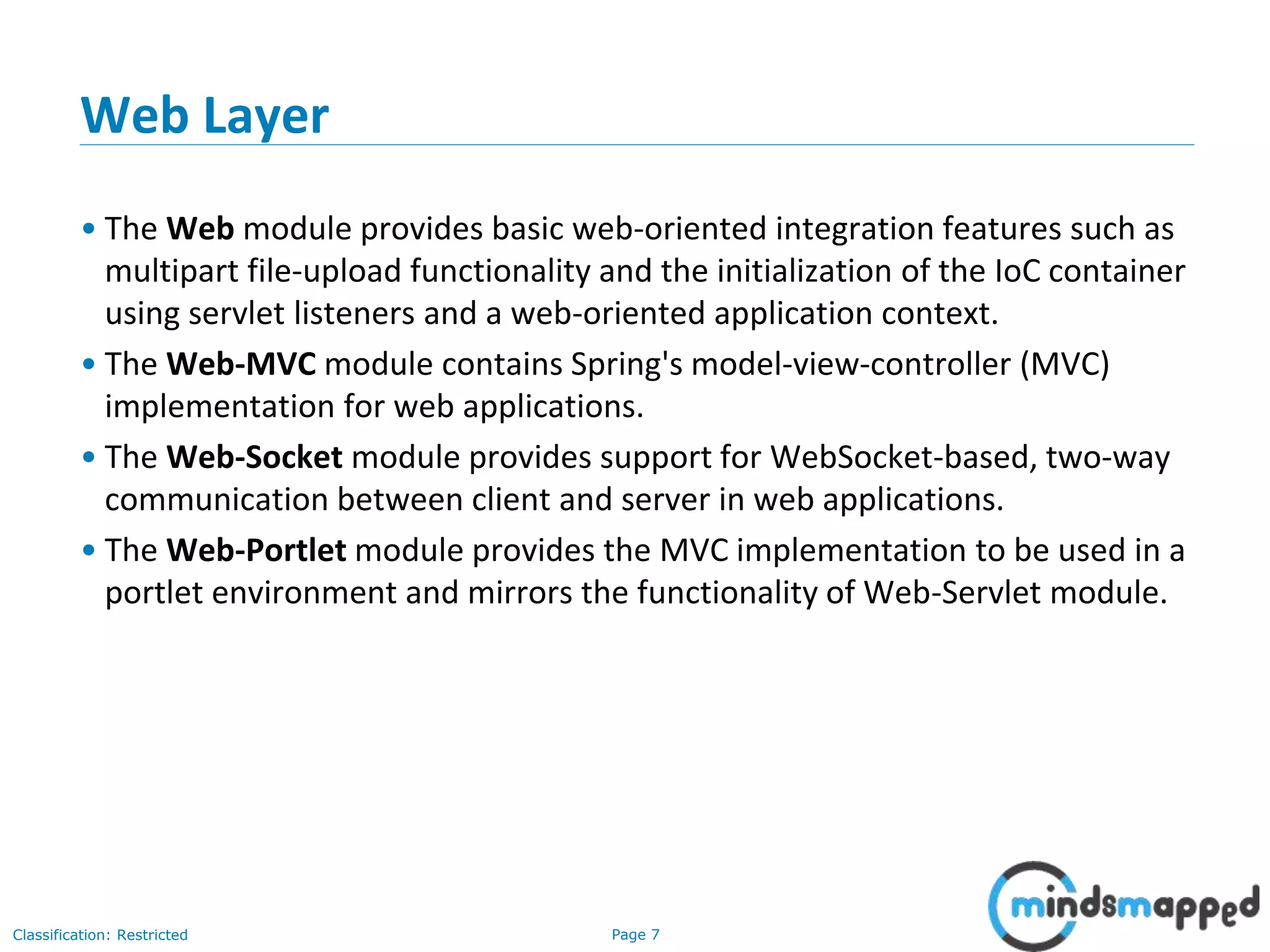

Web Layer
• The Web module provides basic web-oriented integration features such as
multipart file-upload functionality and the initialization of the IoC container
using servlet listeners and a web-oriented application context.
• The Web-MVC module contains Spring's model-view-controller (MVC)
implementation for web applications.
• The Web-Socket module provides support for WebSocket-based, two-way
communication between client and server in web applications.
• The Web-Portlet module provides the MVC implementation to be used in a
portlet environment and mirrors the functionality of Web-Servlet module.

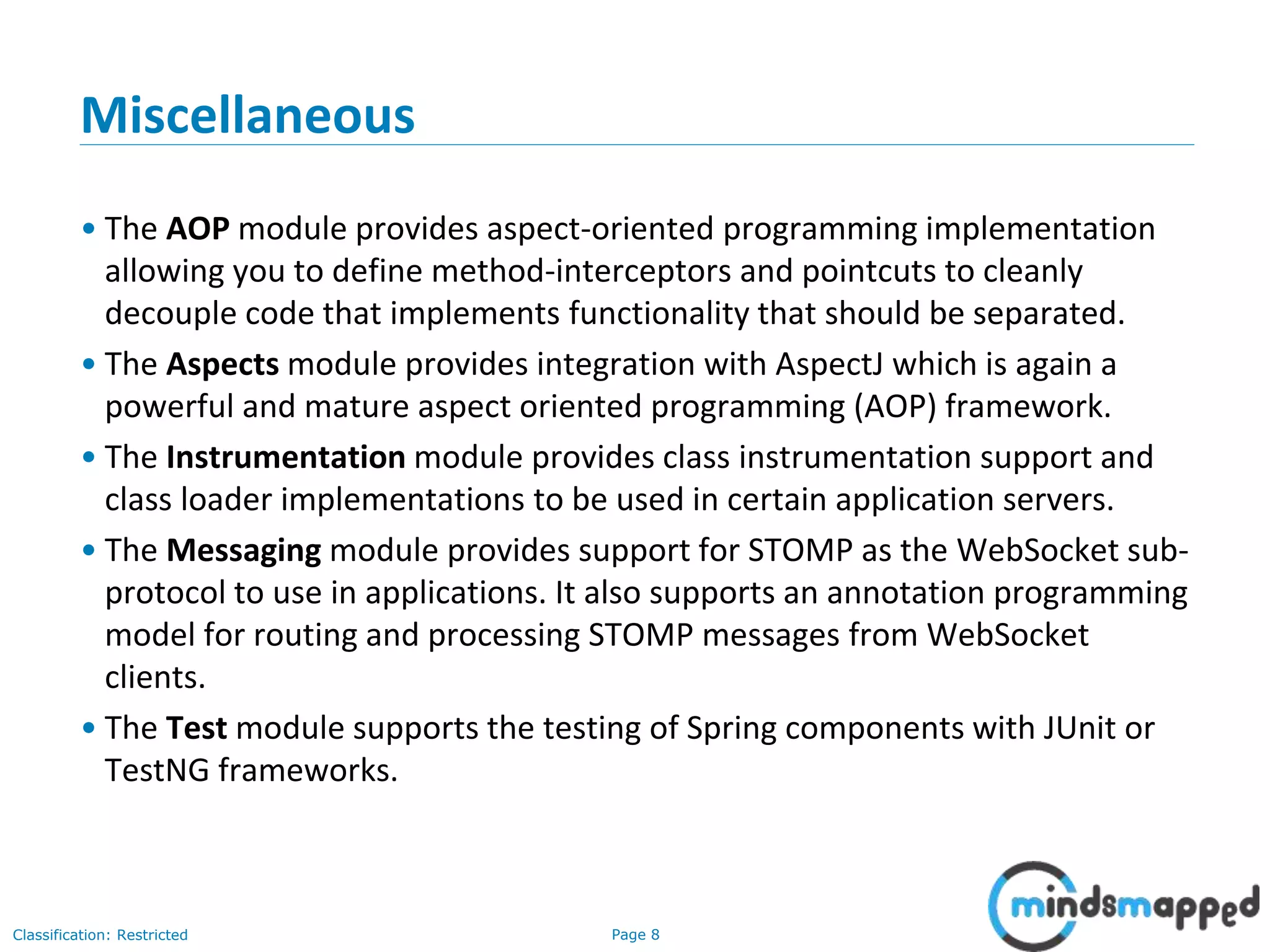

Miscellaneous
• The AOP module provides aspect-oriented programming implementation
allowing you to define method-interceptors and pointcuts to cleanly
decouple code that implements functionality that should be separated.
• The Aspects module provides integration with AspectJ which is again a
powerful and mature aspect oriented programming (AOP) framework.
• The Instrumentation module provides class instrumentation support and
class loader implementations to be used in certain application servers.
• The Messaging module provides support for STOMP as the WebSocket sub-
protocol to use in applications. It also supports an annotation programming
model for routing and processing STOMP messages from WebSocket
clients.
• The Test module supports the testing of Spring components with JUnit or
TestNG frameworks.

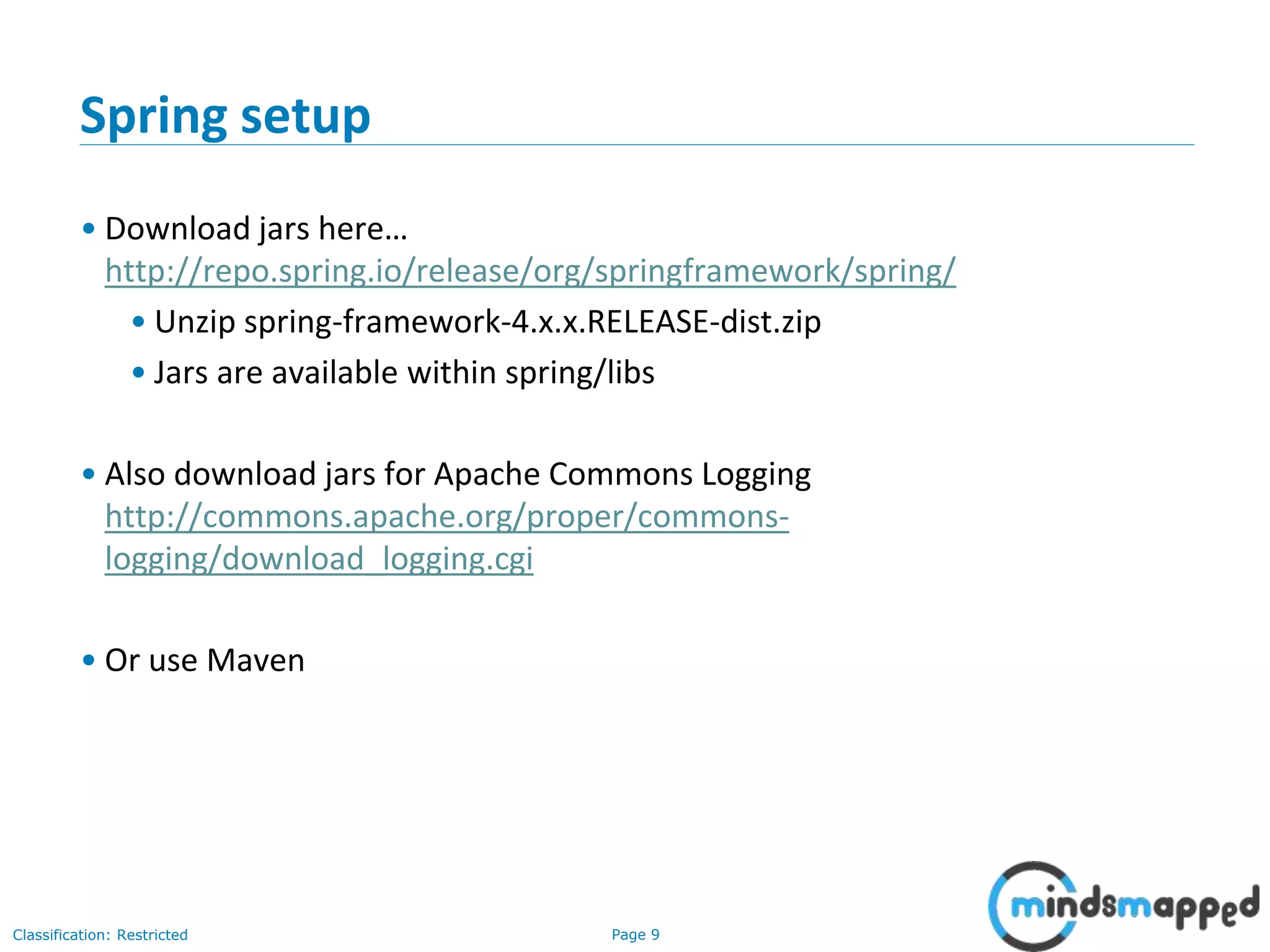

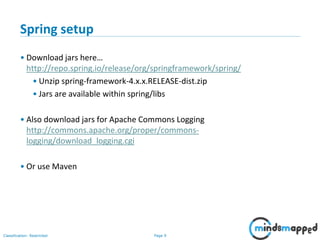

Spring setup
• Download jars here…
http://repo.spring.io/release/org/springframework/spring/
• Unzip spring-framework-4.x.x.RELEASE-dist.zip
• Jars are available within spring/libs
• Also download jars for Apache Commons Logging
http://commons.apache.org/proper/commons-
logging/download_logging.cgi
• Or use Maven

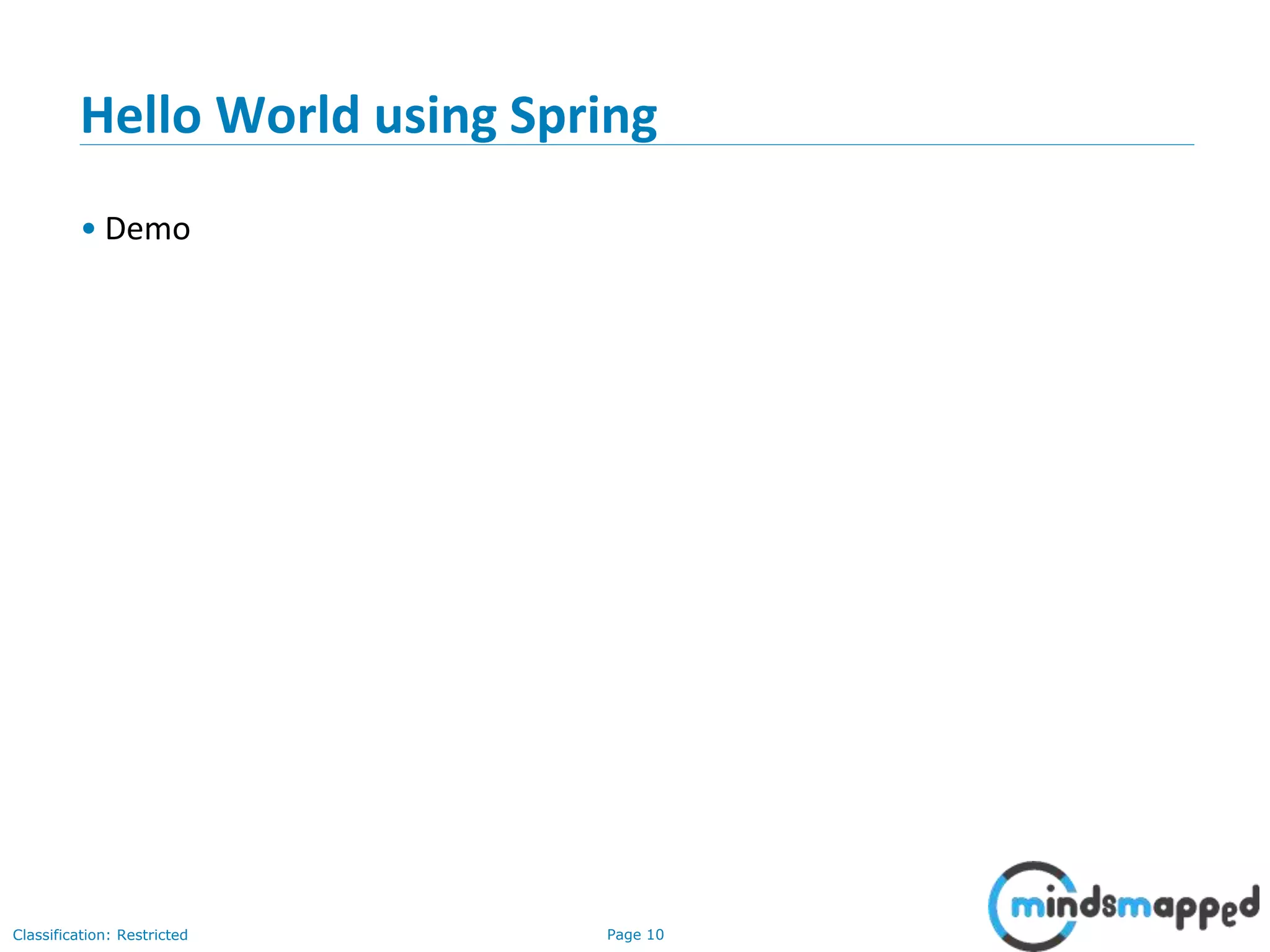

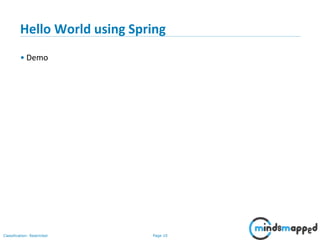

Hello World using Spring
• Demo

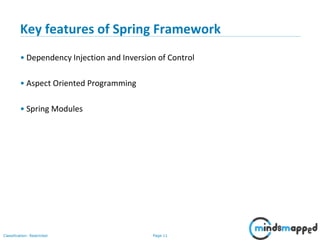

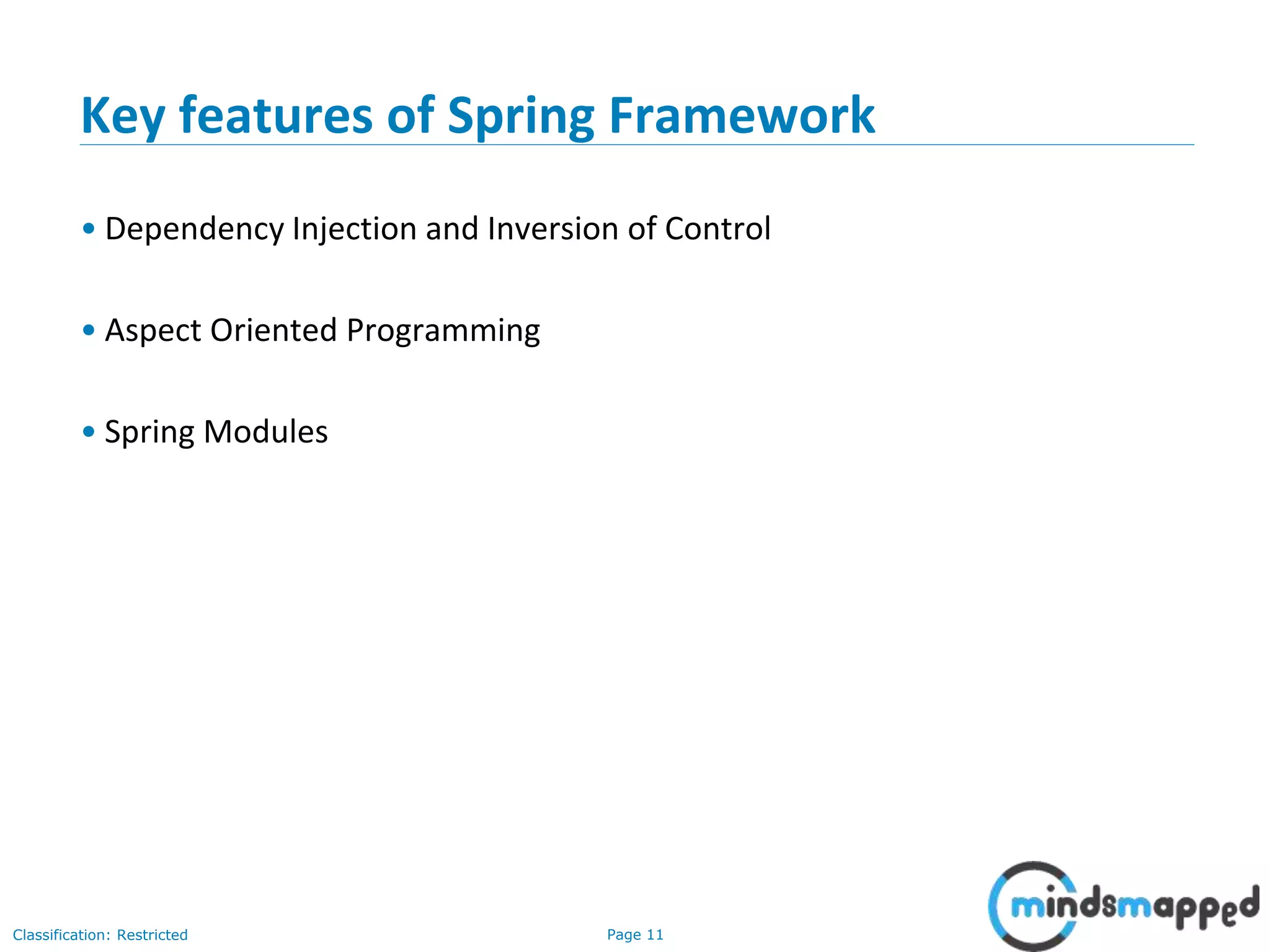

Key features of Spring Framework
• Dependency Injection and Inversion of Control
• Aspect Oriented Programming
• Spring Modules

Bean

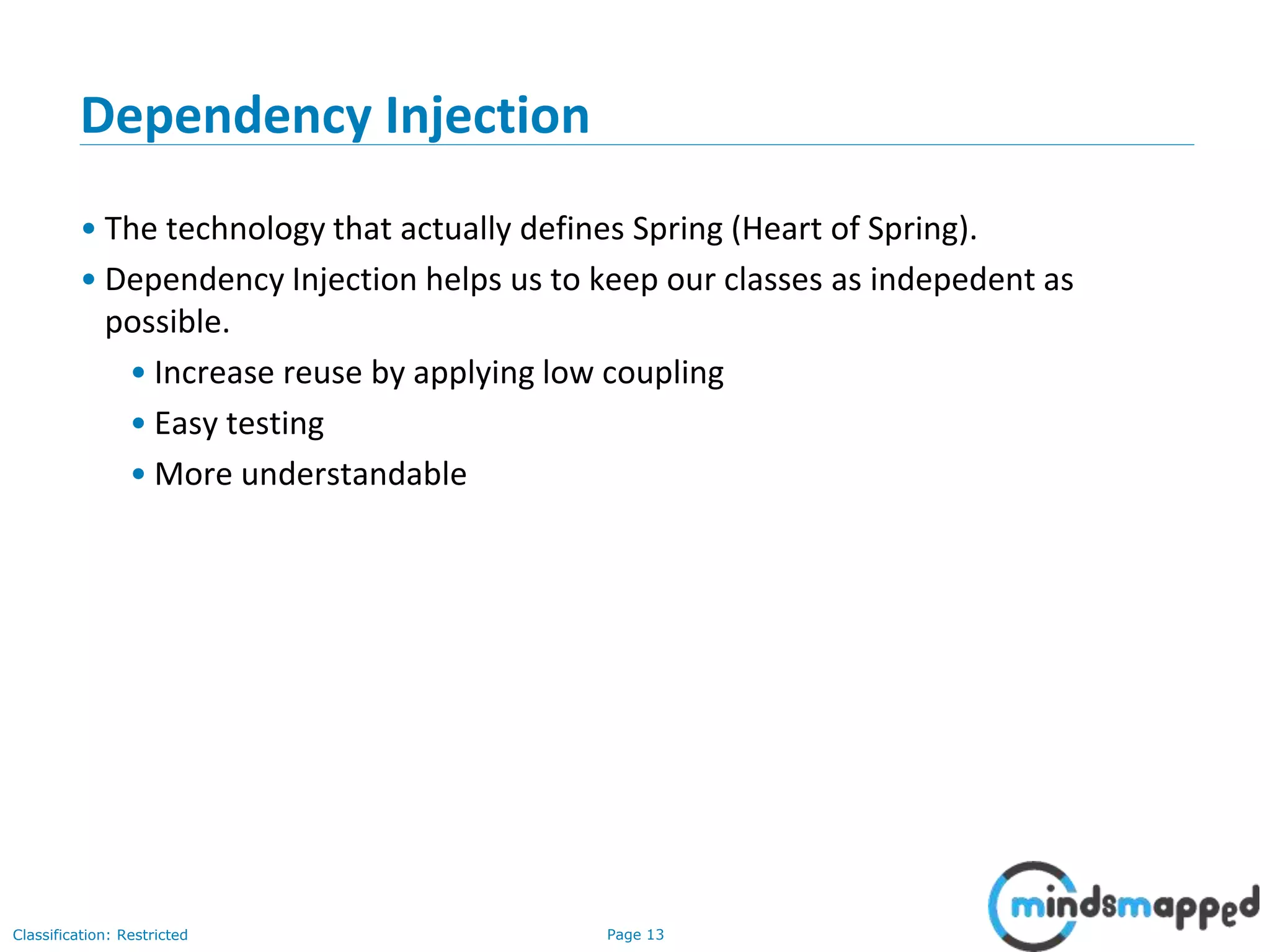

Dependency Injection
• The technology that actually defines Spring (Heart of Spring).
• Dependency Injection helps us to keep our classes as indepedent as
possible.
• Increase reuse by applying low coupling
• Easy testing
• More understandable

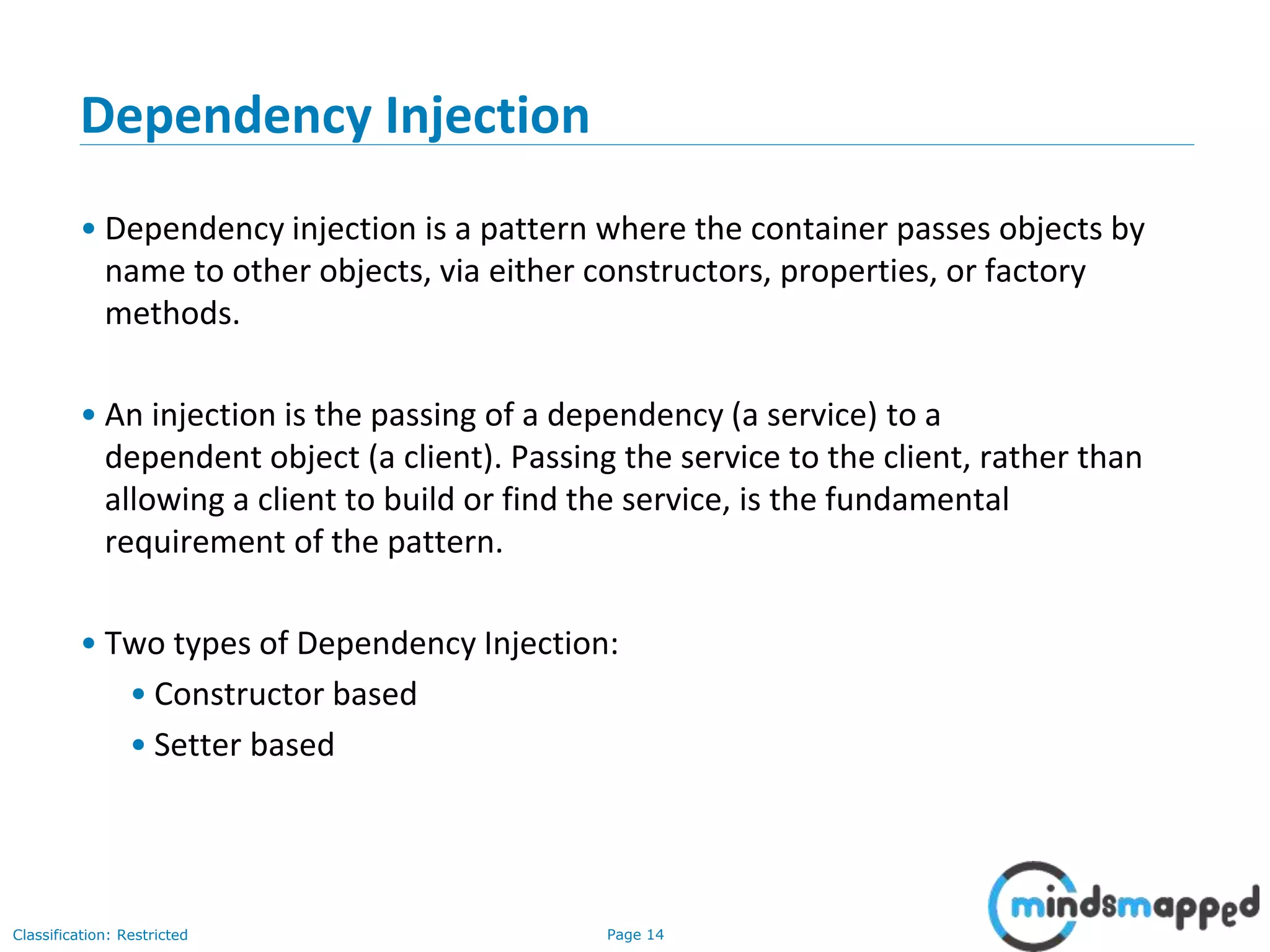

Dependency Injection
• Dependency injection is a pattern where the container passes objects by
name to other objects, via either constructors, properties, or factory
methods.
• An injection is the passing of a dependency (a service) to a
dependent object (a client). Passing the service to the client, rather than
allowing a client to build or find the service, is the fundamental
requirement of the pattern.
• Two types of Dependency Injection:
• Constructor based
• Setter based

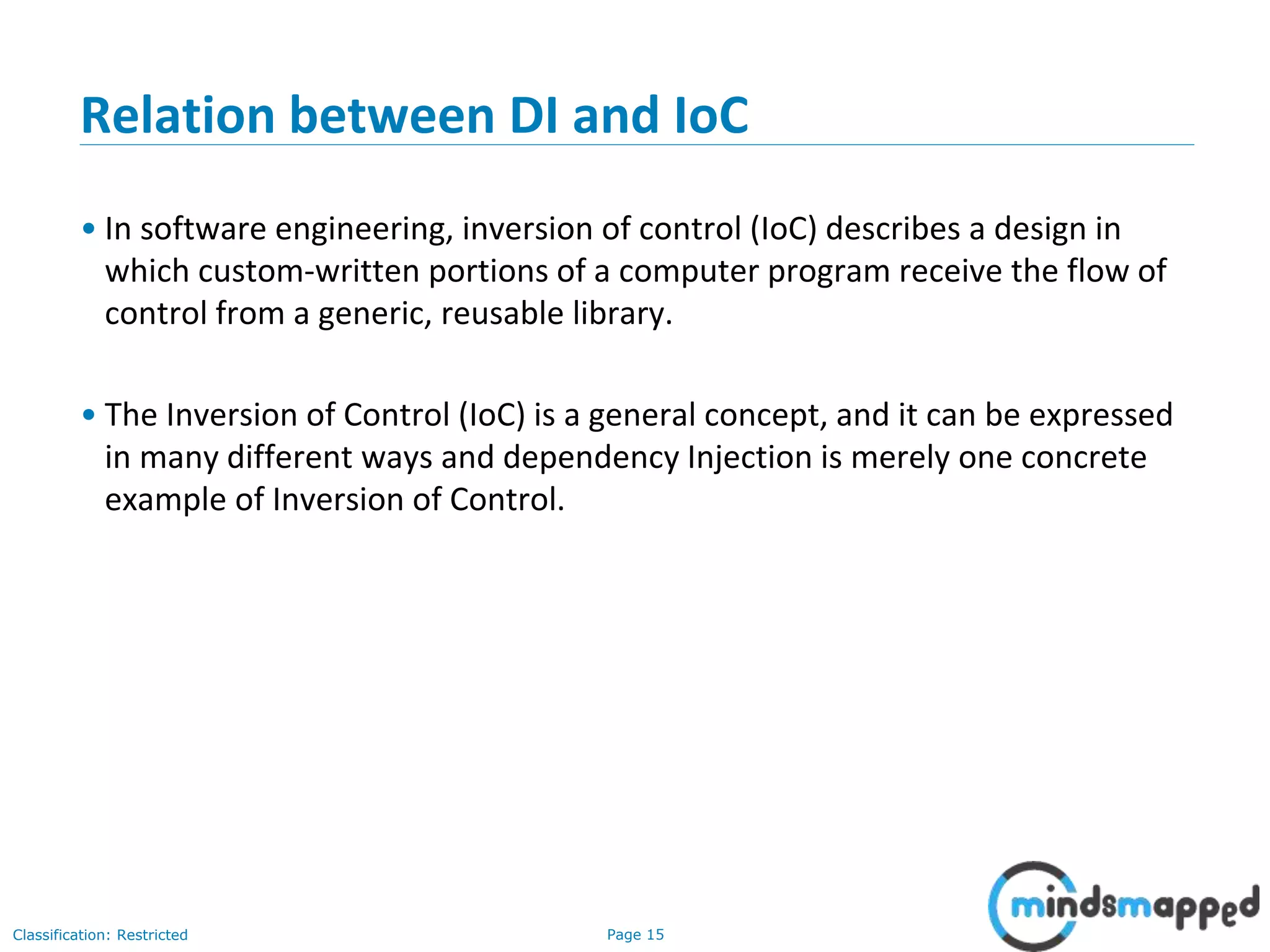

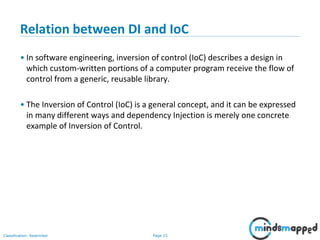

Relation between DI and IoC
• In software engineering, inversion of control (IoC) describes a design in
which custom-written portions of a computer program receive the flow of
control from a generic, reusable library.
• The Inversion of Control (IoC) is a general concept, and it can be expressed
in many different ways and dependency Injection is merely one concrete
example of Inversion of Control.

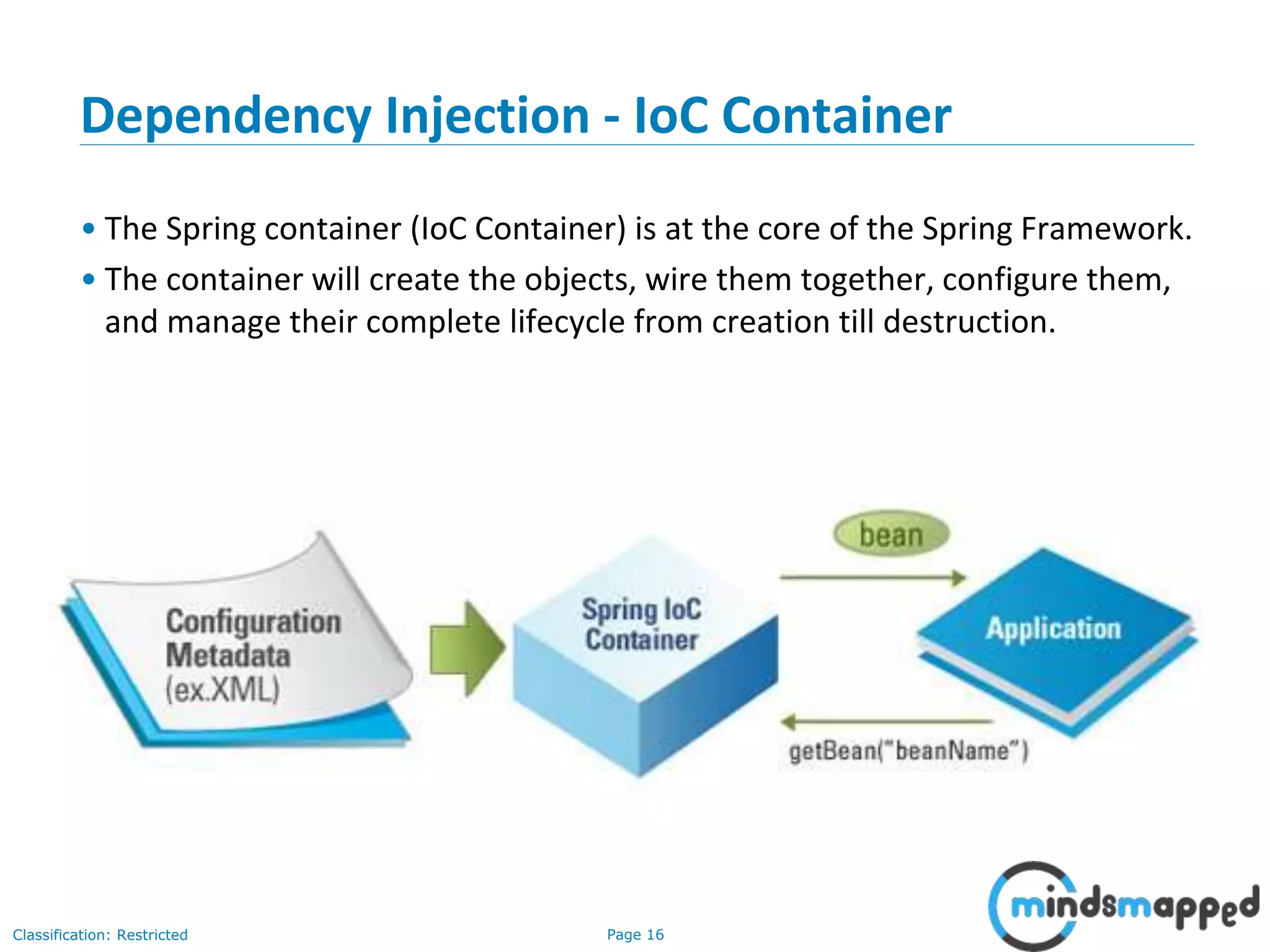

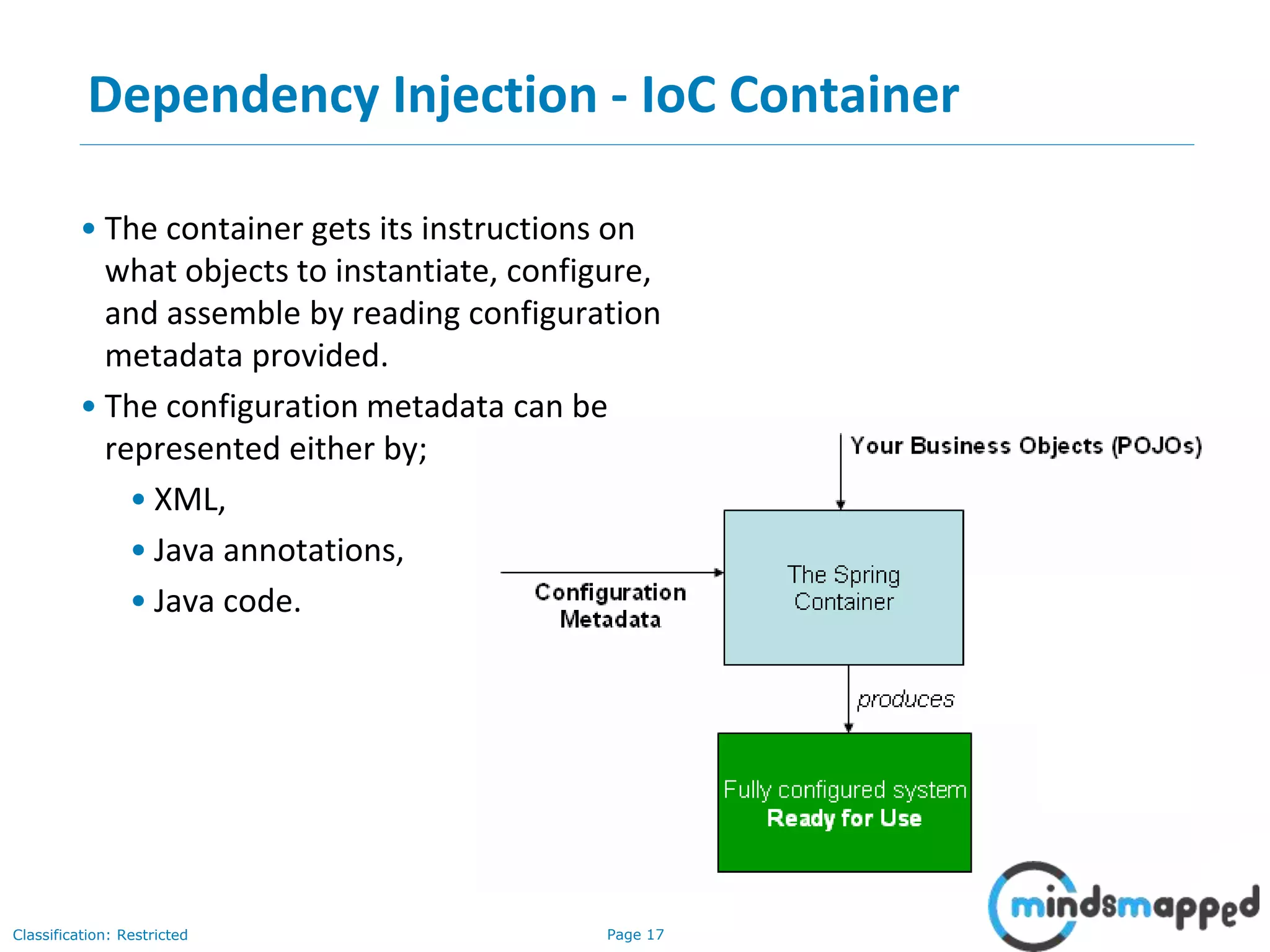

Dependency Injection - IoC Container
• The Spring container (IoC Container) is at the core of the Spring Framework.
• The container will create the objects, wire them together, configure them,
and manage their complete lifecycle from creation till destruction.
16

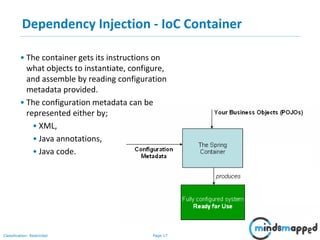

• The container gets its instructions on
what objects to instantiate, configure,
and assemble by reading configuration
metadata provided.
• The configuration metadata can be
represented either by;
• XML,
• Java annotations,
• Java code.
Dependency Injection - IoC Container

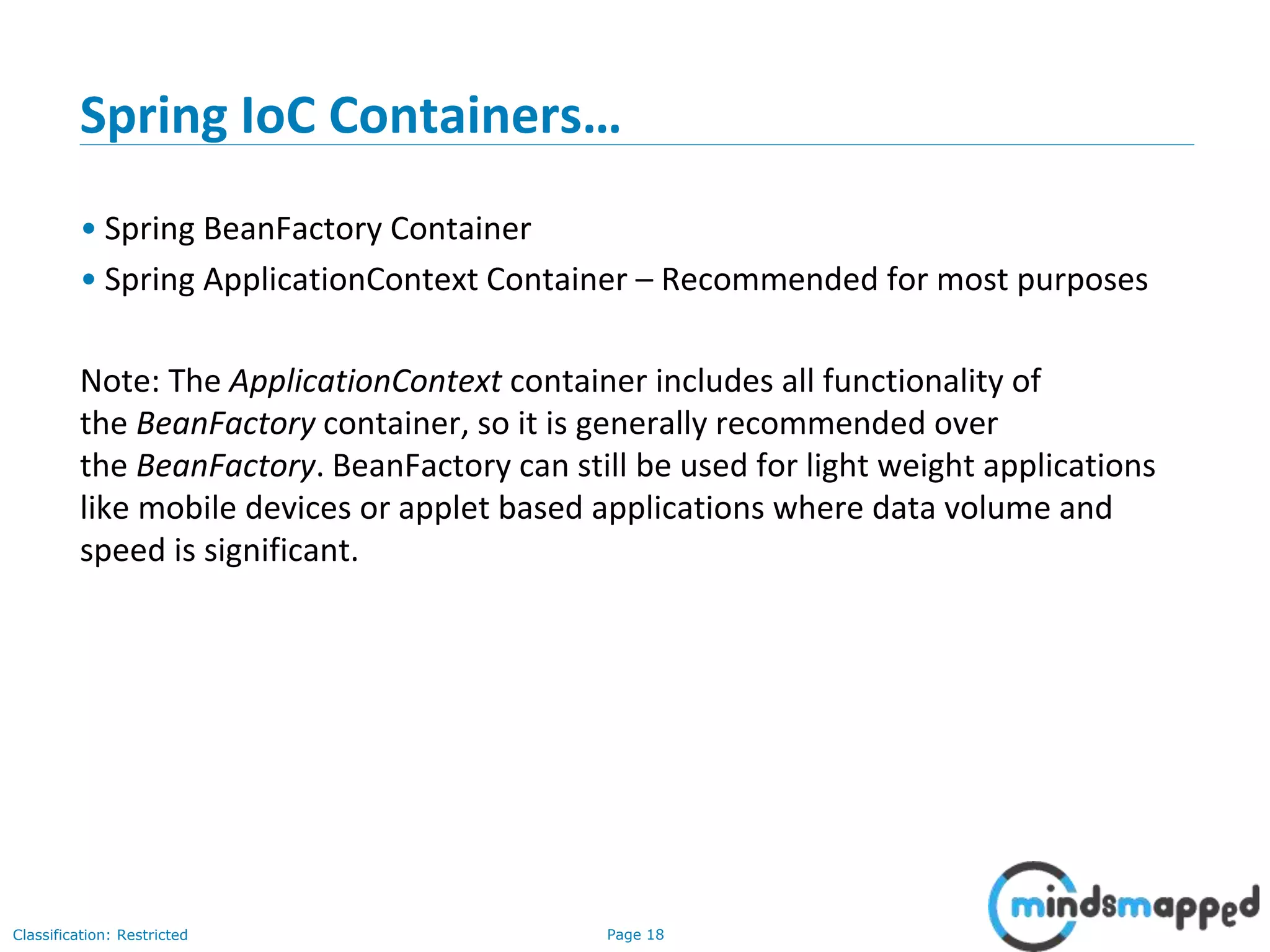

Spring IoC Containers…
• Spring BeanFactory Container
• Spring ApplicationContext Container – Recommended for most purposes
Note: The ApplicationContext container includes all functionality of
the BeanFactory container, so it is generally recommended over
the BeanFactory. BeanFactory can still be used for light weight applications
like mobile devices or applet based applications where data volume and
speed is significant.

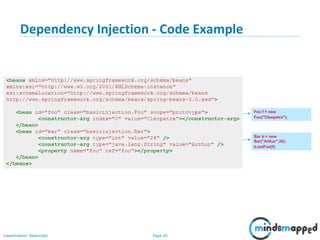

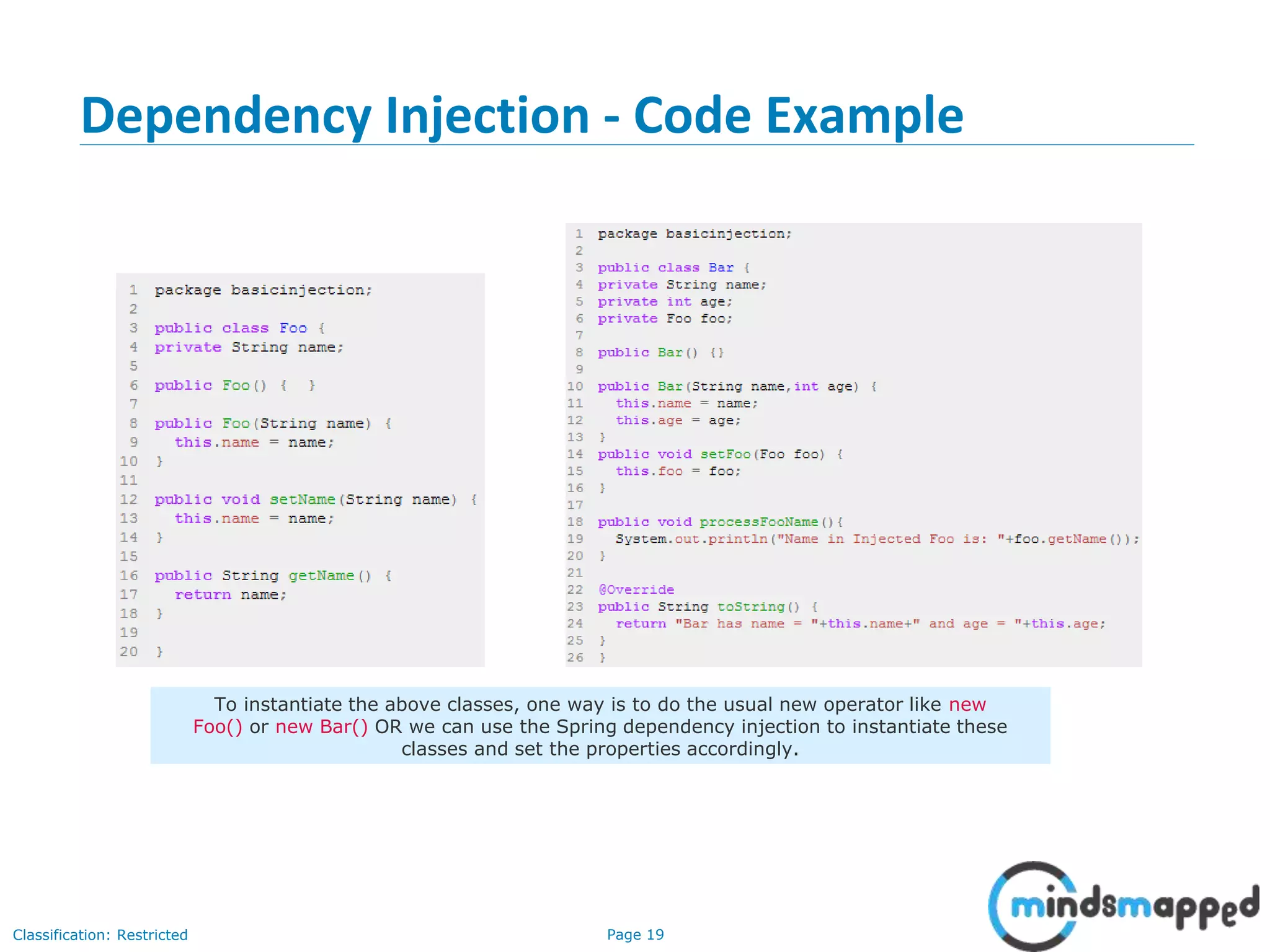

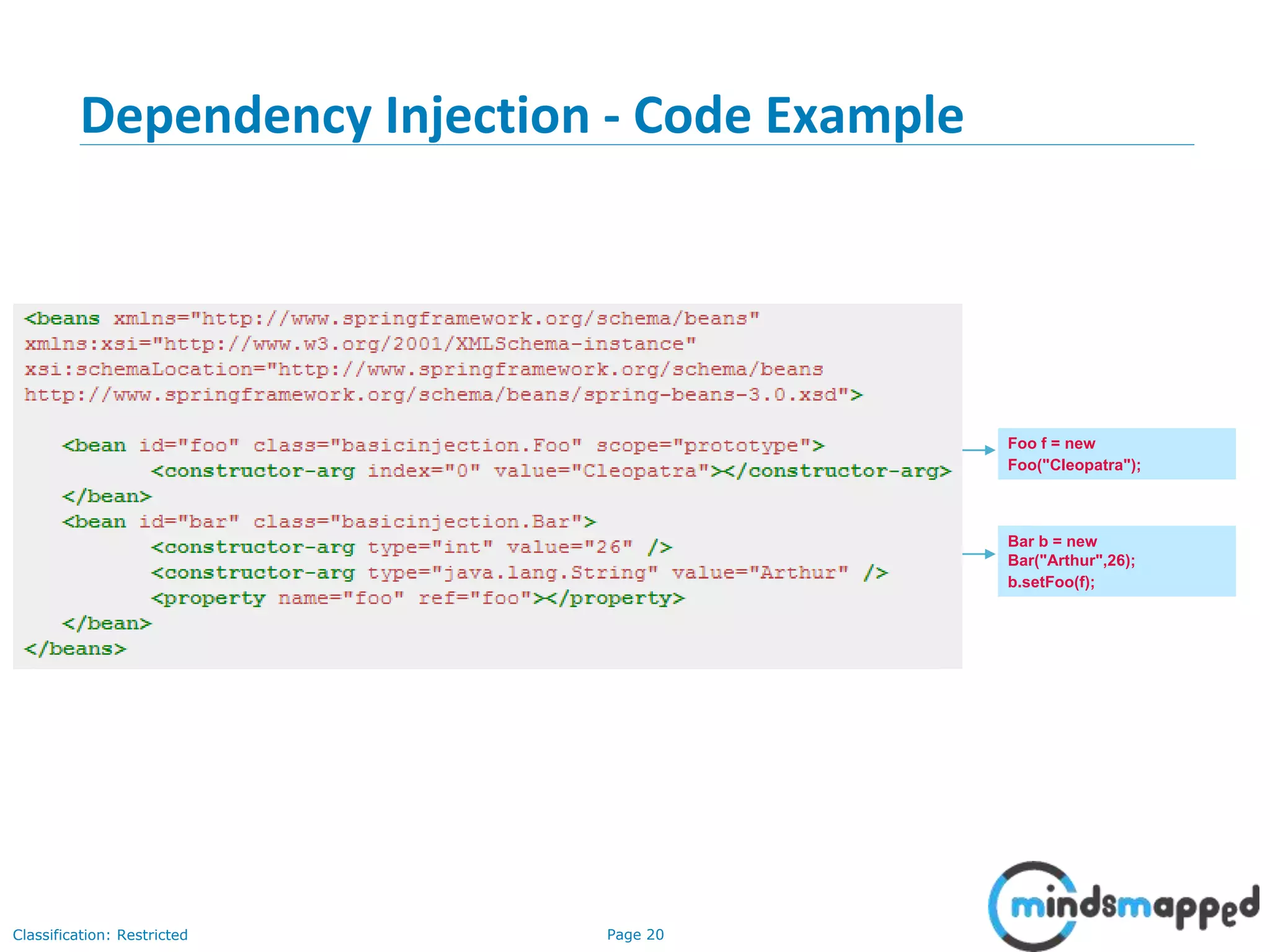

Dependency Injection - Code Example
19
To instantiate the above classes, one way is to do the usual new operator like new
Foo() or new Bar() OR we can use the Spring dependency injection to instantiate these
classes and set the properties accordingly.

20
Foo f = new
Foo("Cleopatra");
Bar b = new
Bar("Arthur",26);
b.setFoo(f);

21
Spring's ClassPathXmlApplicationContext is the commonly used object that
hold the information of all the beans that it instantiates.

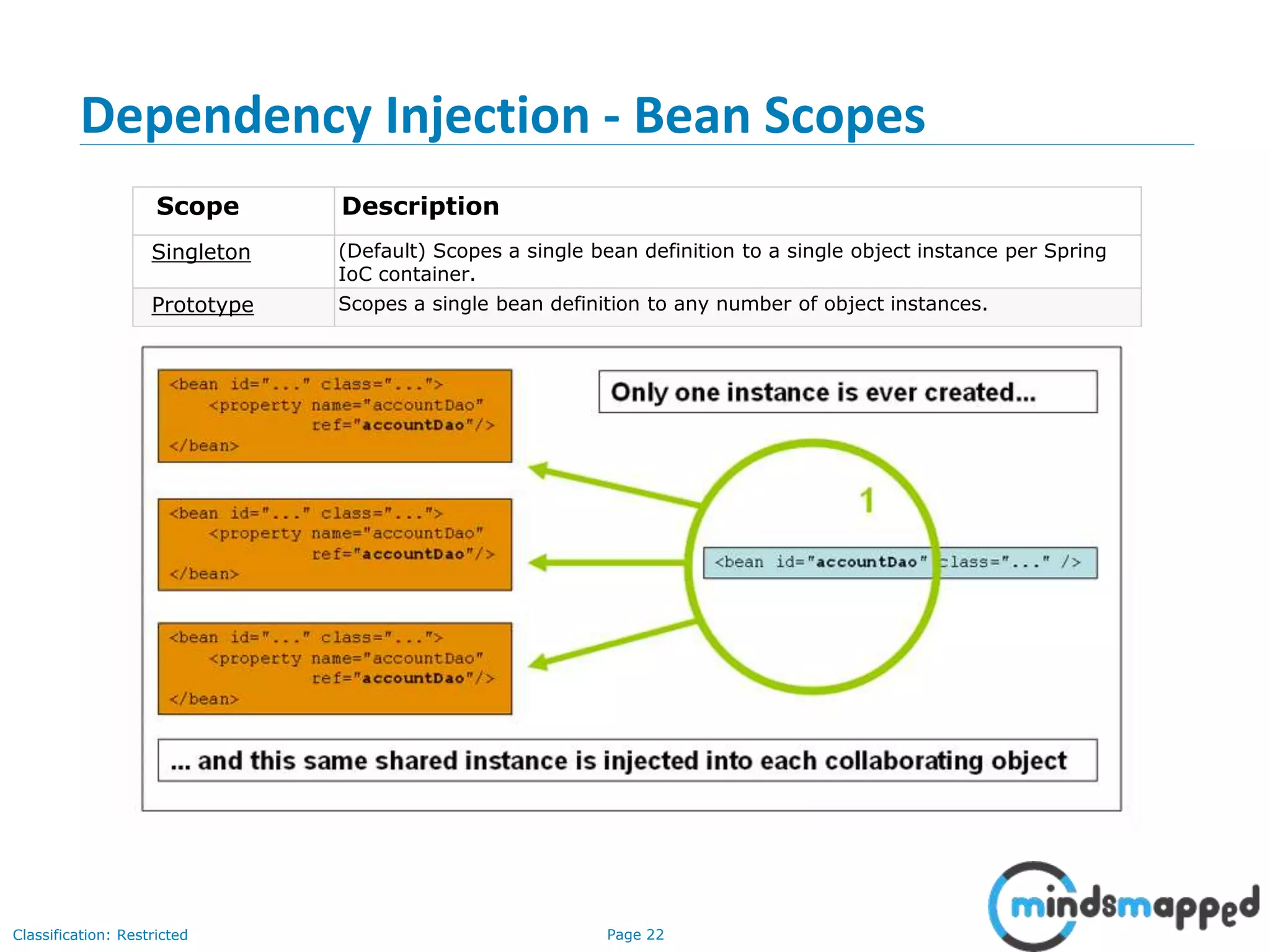

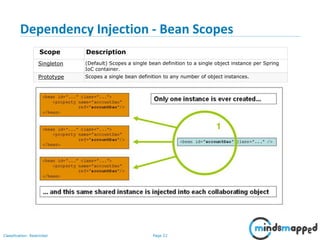

Dependency Injection - Bean Scopes
22
Scope Description
Singleton (Default) Scopes a single bean definition to a single object instance per Spring
IoC container.
Prototype Scopes a single bean definition to any number of object instances.

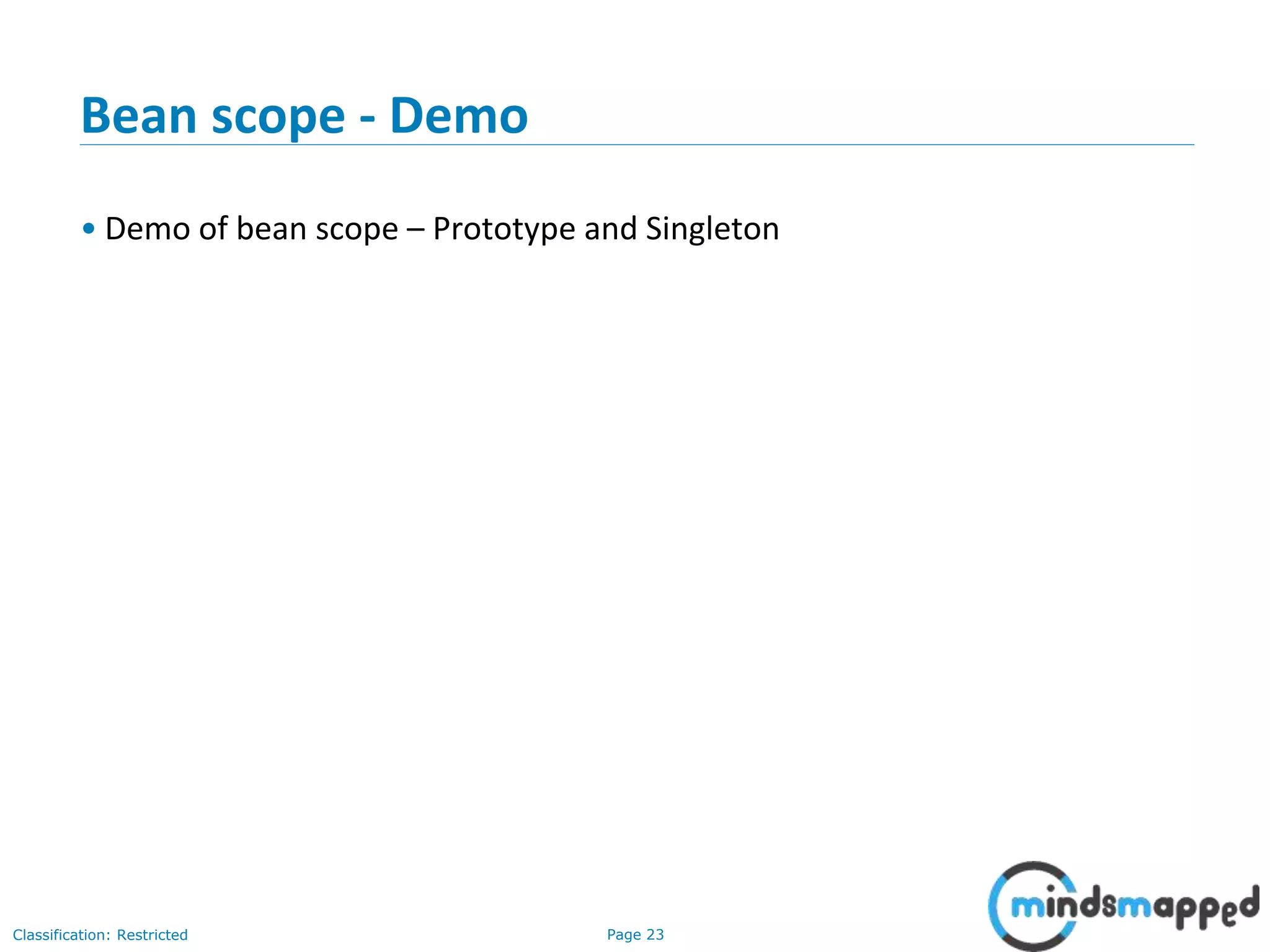

Bean scope - Demo
• Demo of bean scope – Prototype and Singleton

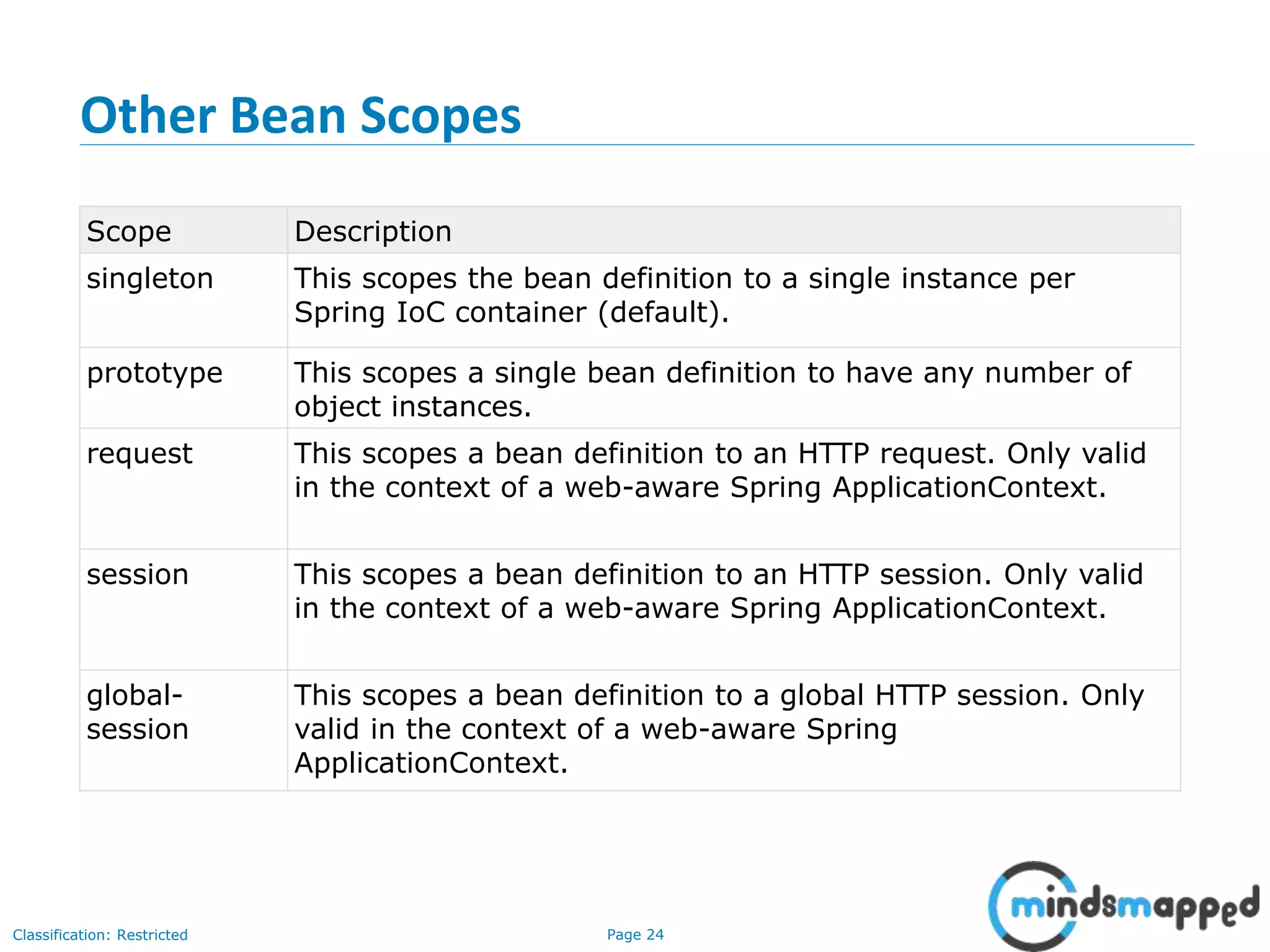

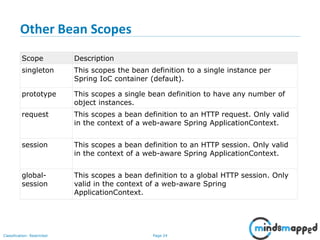

Other Bean Scopes
Scope Description
singleton This scopes the bean definition to a single instance per
Spring IoC container (default).
prototype This scopes a single bean definition to have any number of
object instances.
request This scopes a bean definition to an HTTP request. Only valid
in the context of a web-aware Spring ApplicationContext.
session This scopes a bean definition to an HTTP session. Only valid
in the context of a web-aware Spring ApplicationContext.
global-
session
This scopes a bean definition to a global HTTP session. Only
valid in the context of a web-aware Spring
ApplicationContext.

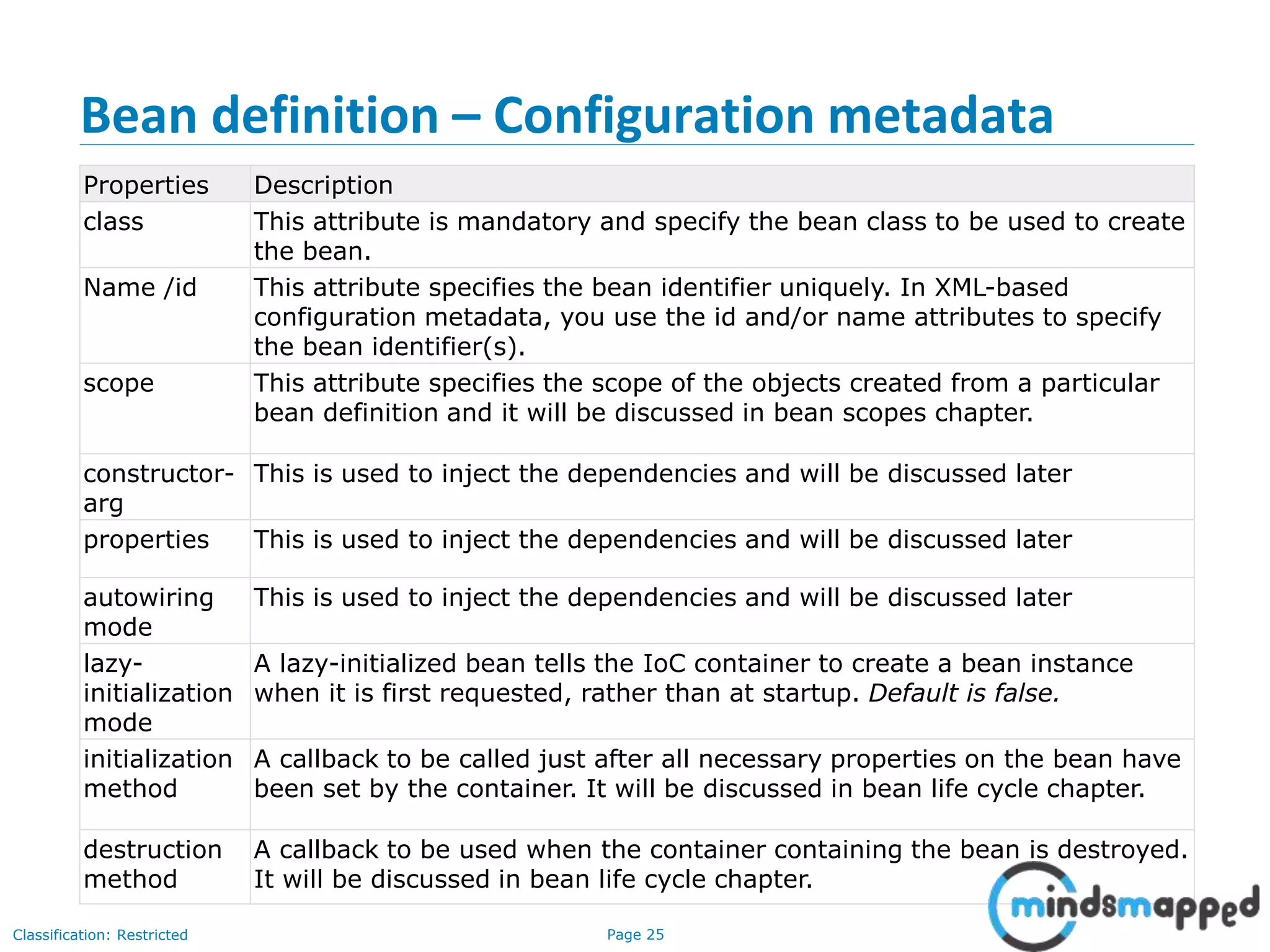

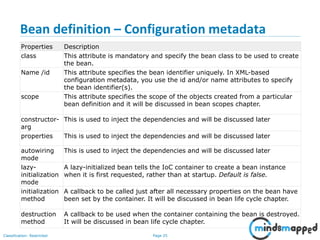

Bean definition – Configuration metadata
Properties Description
class This attribute is mandatory and specify the bean class to be used to create
the bean.
Name /id This attribute specifies the bean identifier uniquely. In XML-based
configuration metadata, you use the id and/or name attributes to specify
the bean identifier(s).
scope This attribute specifies the scope of the objects created from a particular
bean definition and it will be discussed in bean scopes chapter.
constructor-
arg
This is used to inject the dependencies and will be discussed later
properties This is used to inject the dependencies and will be discussed later
autowiring
mode
This is used to inject the dependencies and will be discussed later
lazy-
initialization
mode
A lazy-initialized bean tells the IoC container to create a bean instance
when it is first requested, rather than at startup. Default is false.
initialization
method
A callback to be called just after all necessary properties on the bean have
been set by the container. It will be discussed in bean life cycle chapter.
destruction
method
A callback to be used when the container containing the bean is destroyed.
It will be discussed in bean life cycle chapter.

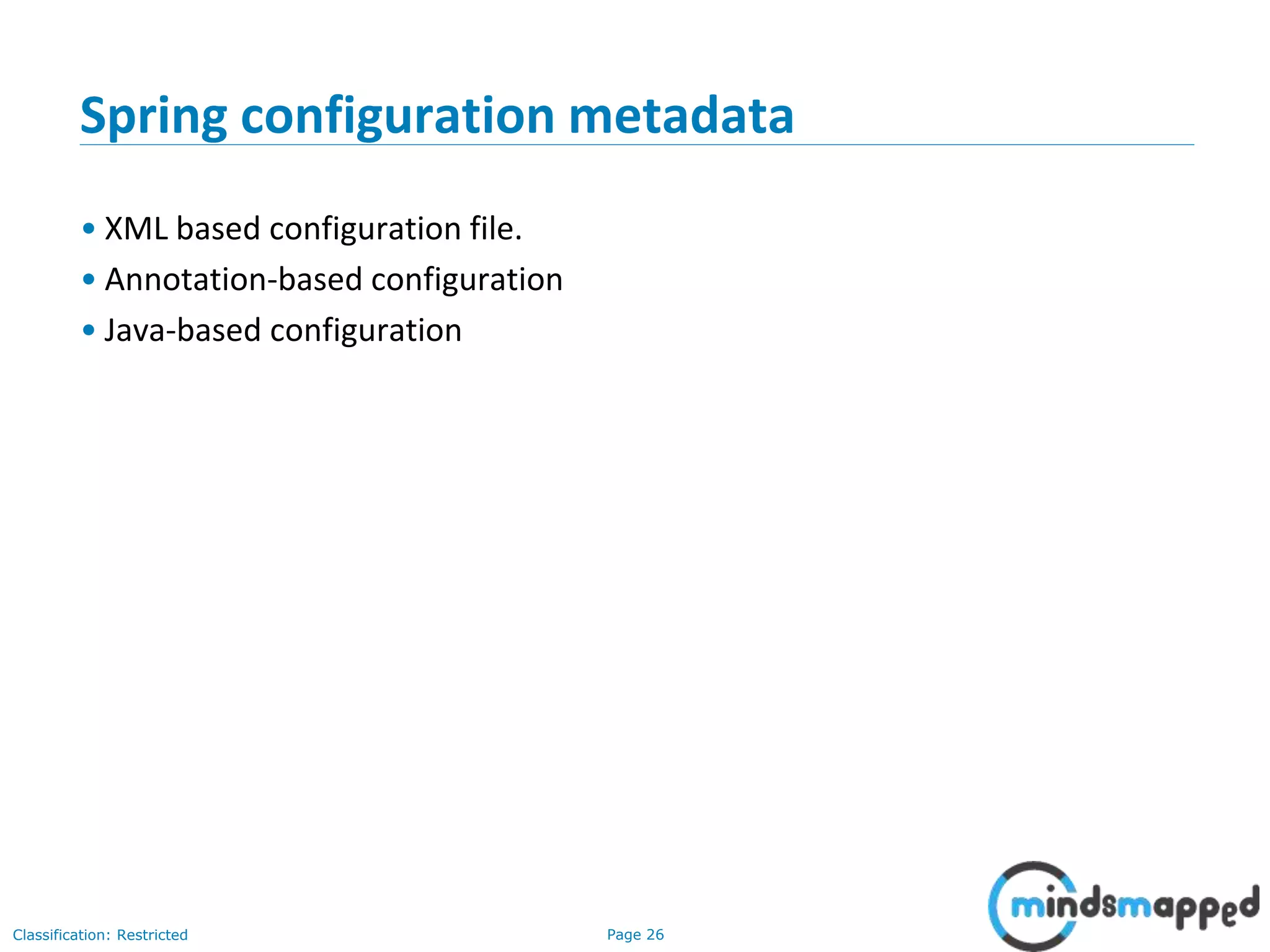

Spring configuration metadata
• XML based configuration file.
• Annotation-based configuration
• Java-based configuration

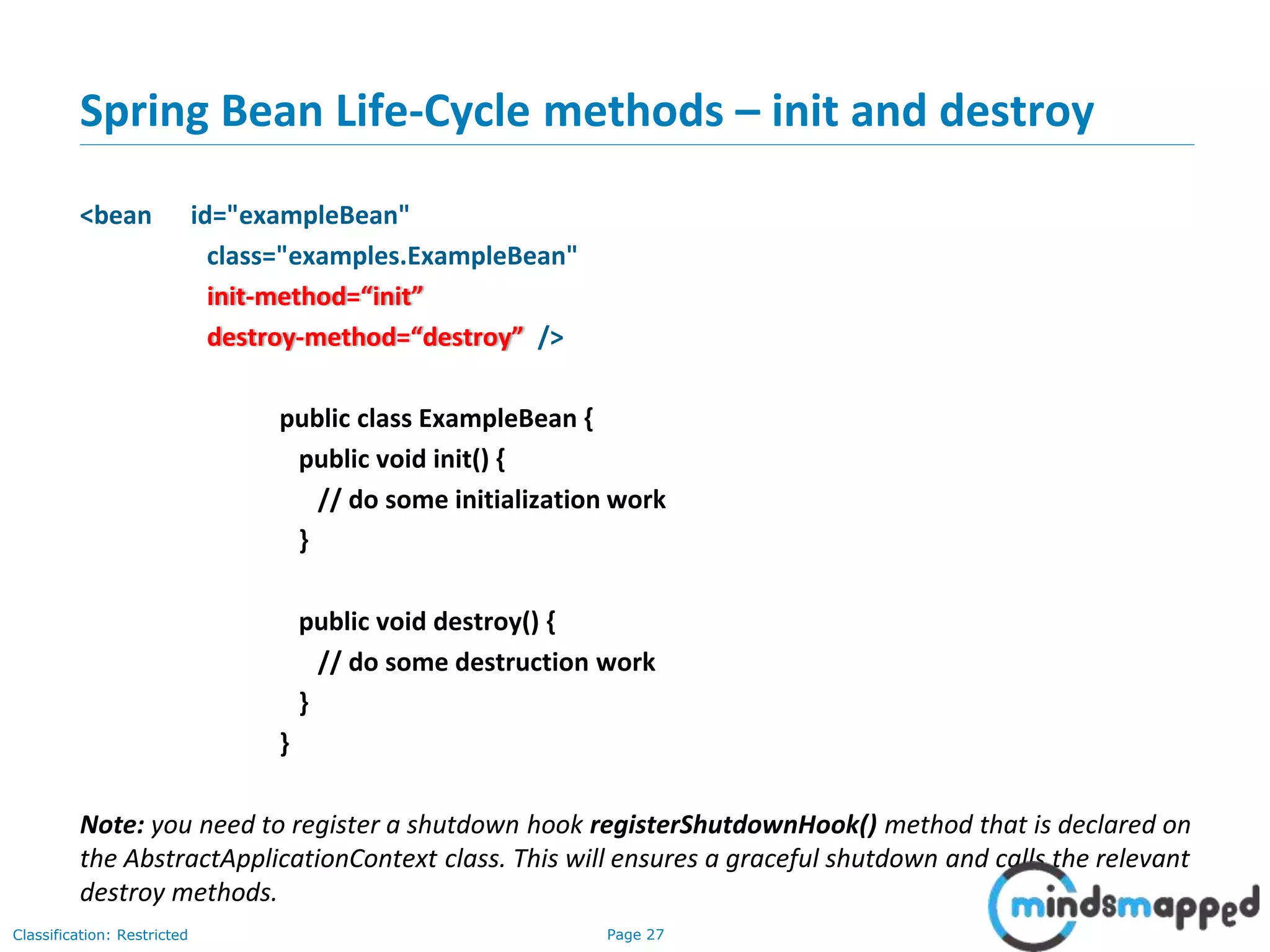

Spring Bean Life-Cycle methods – init and destroy
<bean id="exampleBean"
class="examples.ExampleBean"
init-method=“init”
destroy-method=“destroy” />
public class ExampleBean {
public void init() {
// do some initialization work
}
public void destroy() {
// do some destruction work
}
}
Note: you need to register a shutdown hook registerShutdownHook() method that is declared on
the AbstractApplicationContext class. This will ensures a graceful shutdown and calls the relevant
destroy methods.

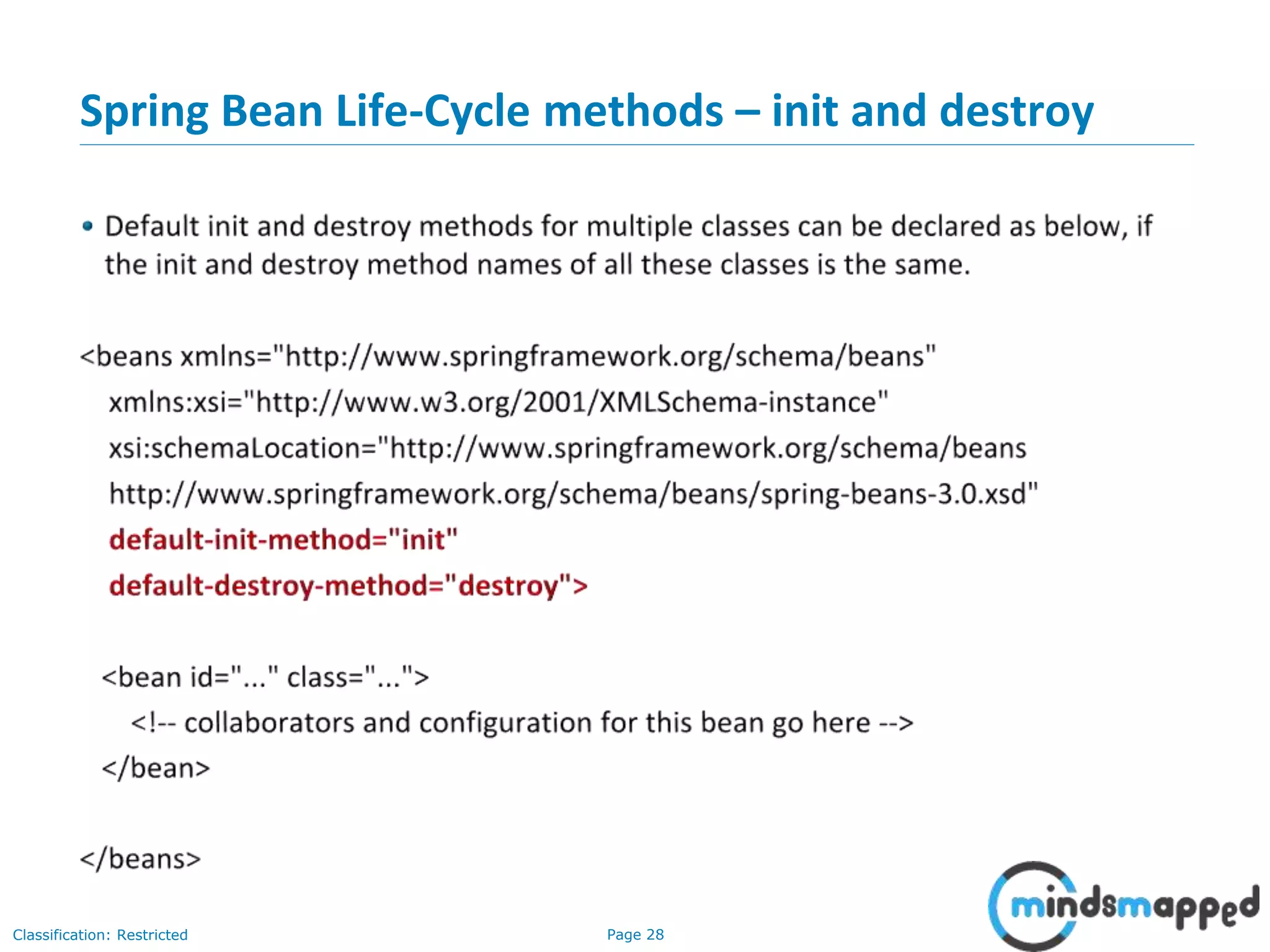

Spring Bean Life-Cycle methods – init and destroy

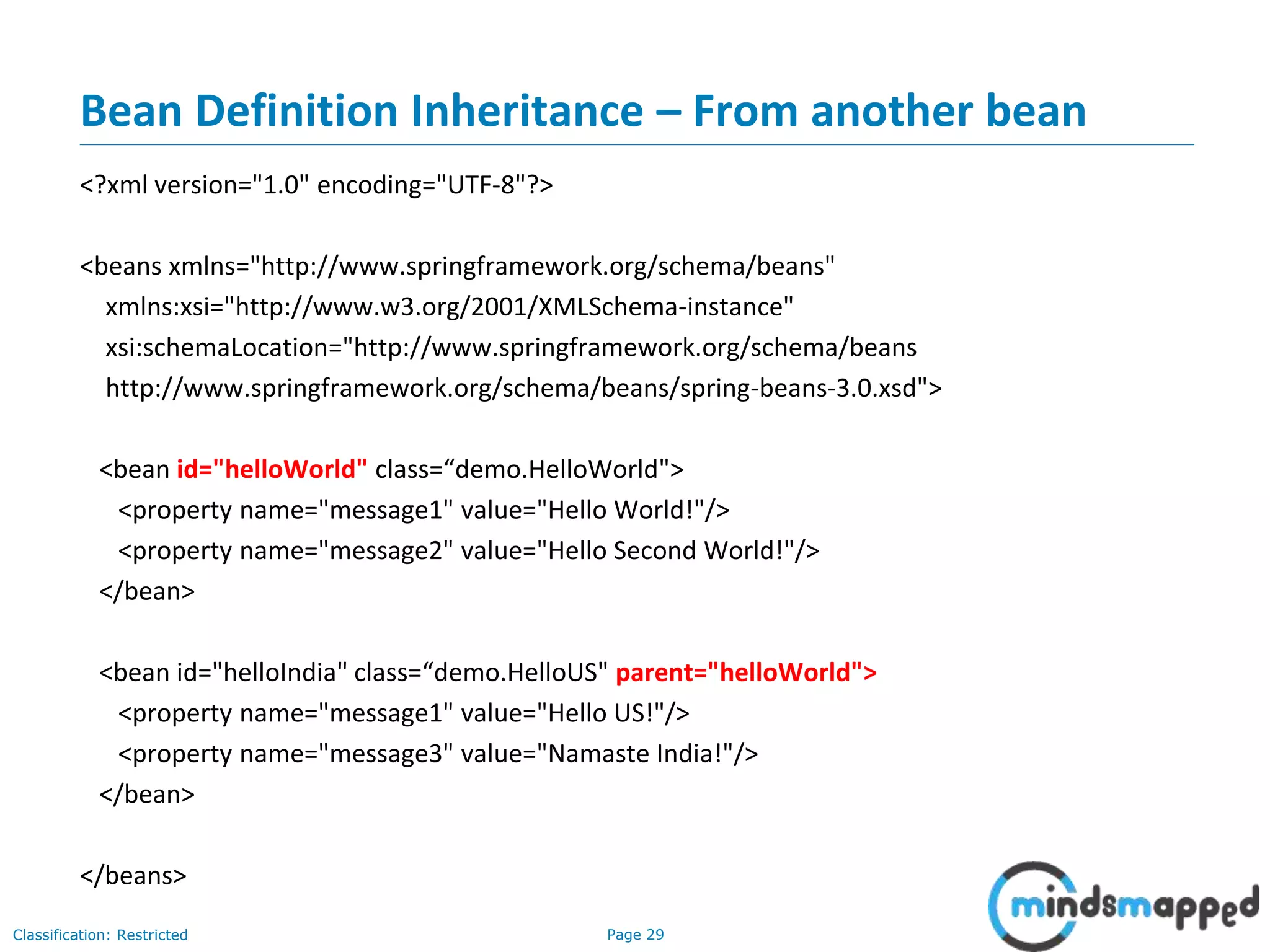

Bean Definition Inheritance – From another bean
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<bean id="helloWorld" class=“demo.HelloWorld">
<property name="message1" value="Hello World!"/>
<property name="message2" value="Hello Second World!"/>
</bean>
<bean id="helloIndia" class=“demo.HelloUS" parent="helloWorld">
<property name="message1" value="Hello US!"/>
<property name="message3" value="Namaste India!"/>
</bean>
</beans>

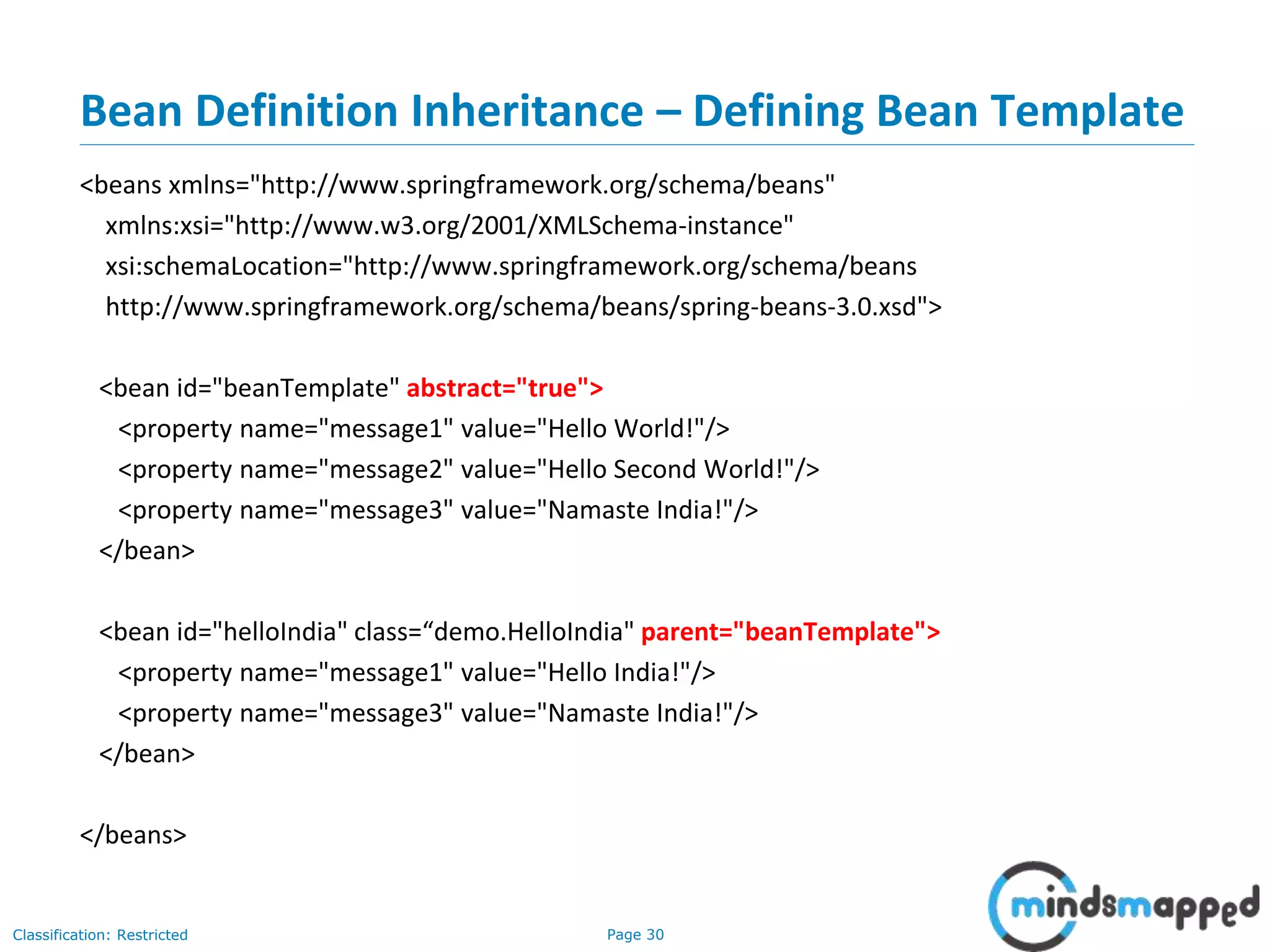

Bean Definition Inheritance – Defining Bean Template
<bean id="beanTemplate" abstract="true">
<property name="message1" value="Hello World!"/>
<property name="message2" value="Hello Second World!"/>
</bean>
<bean id="helloIndia" class=“demo.HelloIndia" parent="beanTemplate">
<property name="message1" value="Hello India!"/>
</bean>
</beans>

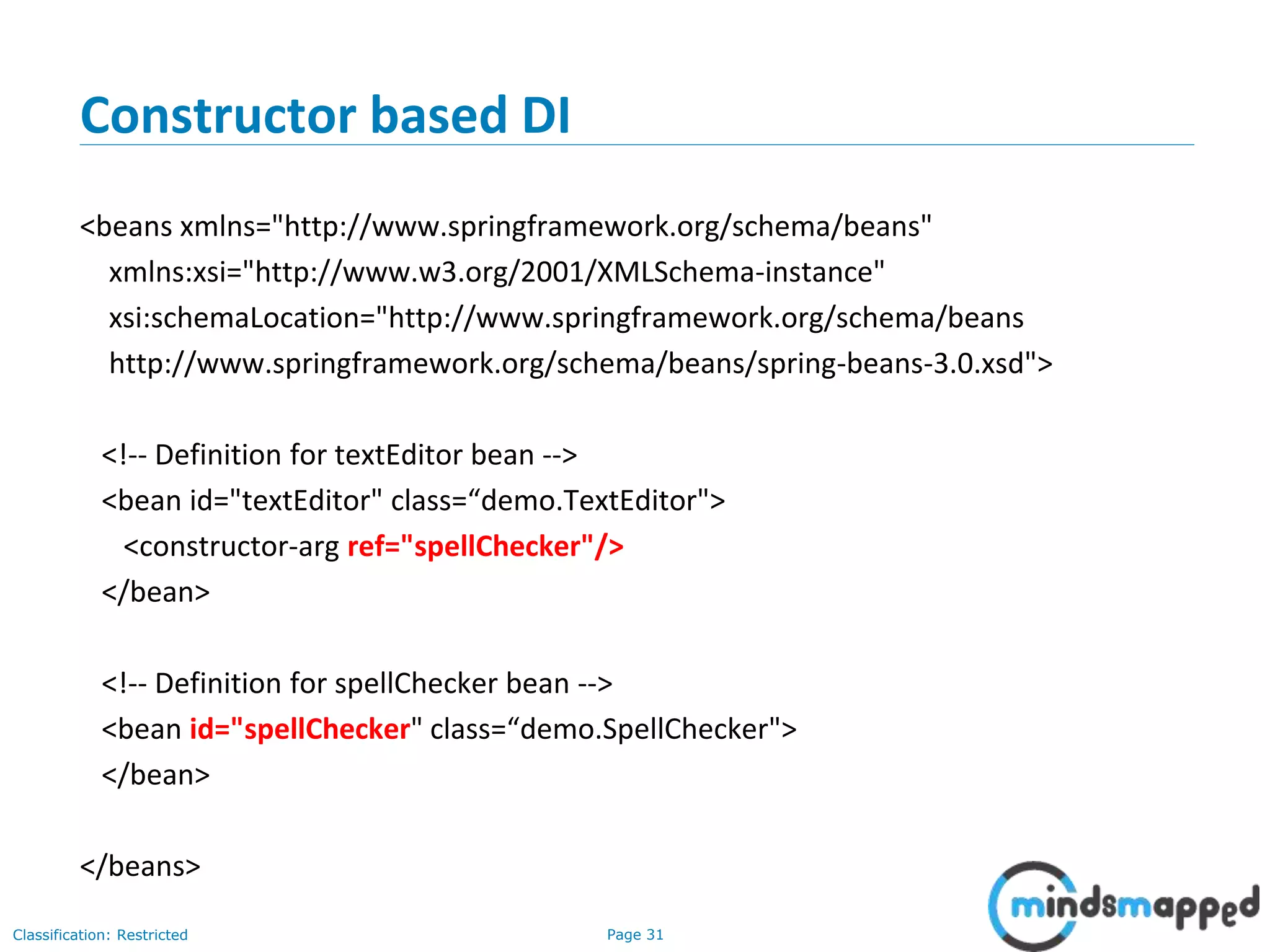

Constructor based DI

<bean id="textEditor" class=“demo.TextEditor">
<constructor-arg ref="spellChecker"/>
</bean>

<bean id="spellChecker" class=“demo.SpellChecker">
</bean>
</beans>

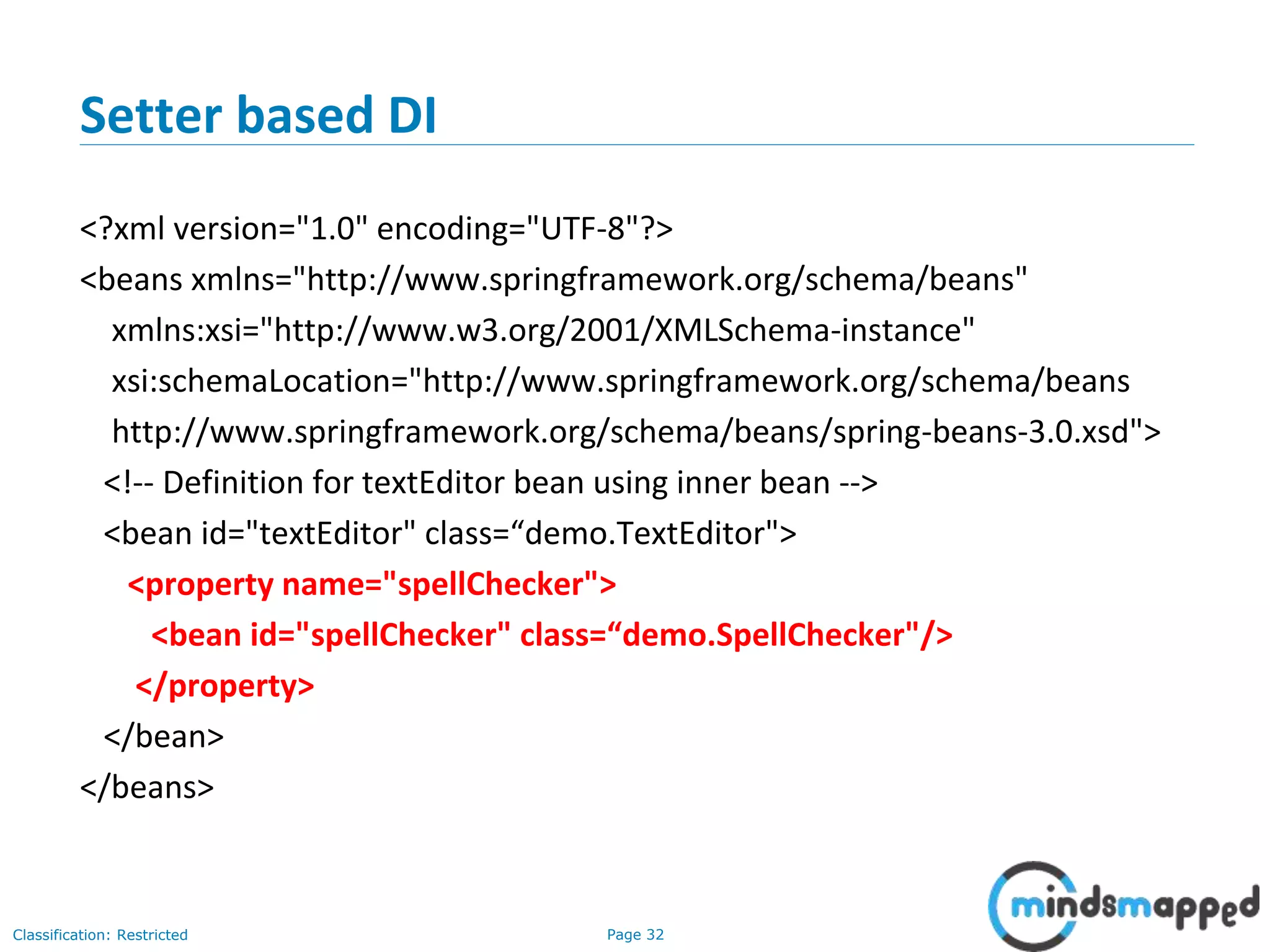

Setter based DI
<?xml version="1.0" encoding="UTF-8"?>

<bean id="textEditor" class=“demo.TextEditor">
<property name="spellChecker">
<bean id="spellChecker" class=“demo.SpellChecker"/>
</property>
</bean>
</beans>

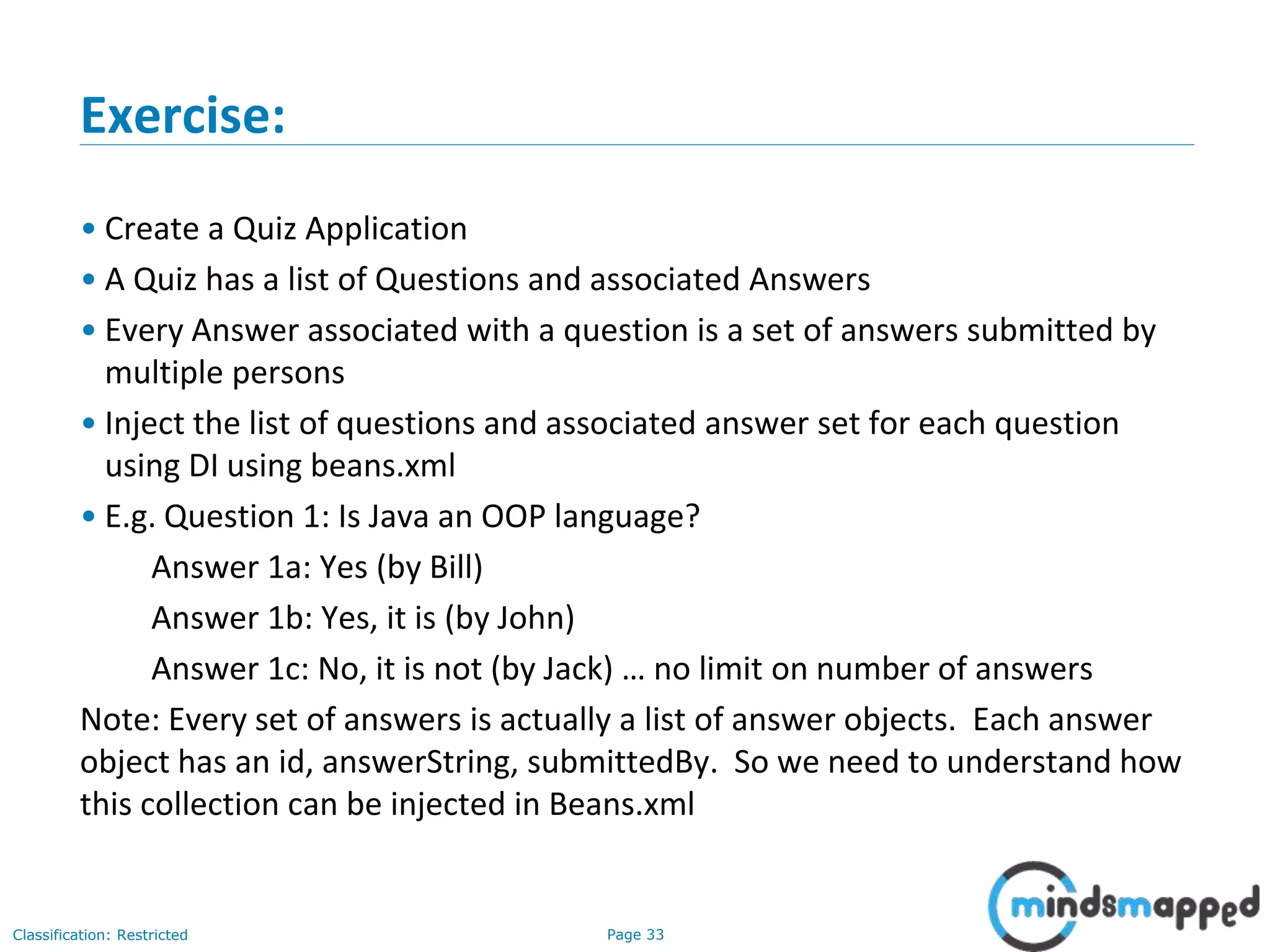

Exercise:
• Create a Quiz Application
• A Quiz has a list of Questions and associated Answers
• Every Answer associated with a question is a set of answers submitted by
multiple persons
• Inject the list of questions and associated answer set for each question
using DI using beans.xml
• E.g. Question 1: Is Java an OOP language?
Answer 1a: Yes (by Bill)
Answer 1b: Yes, it is (by John)
Answer 1c: No, it is not (by Jack) … no limit on number of answers
Note: Every set of answers is actually a list of answer objects. Each answer
object has an id, answerString, submittedBy. So we need to understand how
this collection can be injected in Beans.xml

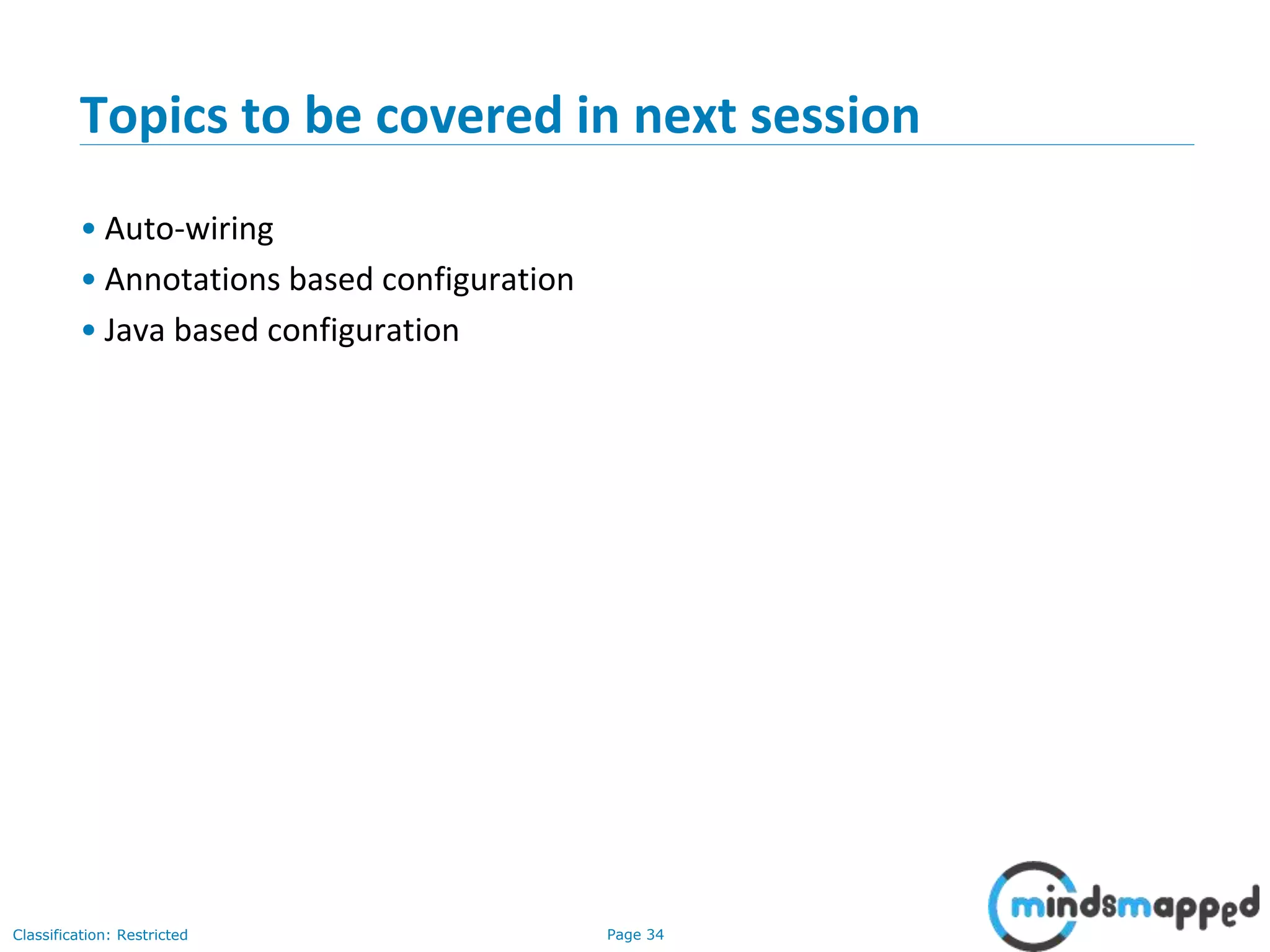

Topics to be covered in next session
• Auto-wiring
• Annotations based configuration
• Java based configuration

Thank you!

Spring - Part 1 - IoC, Di and Beans

More Related Content

What's hot

Similar to Spring - Part 1 - IoC, Di and Beans

More from Hitesh-Java

Recently uploaded

Spring - Part 1 - IoC, Di and Beans
